Wall Panel Measuring Guide
APPLICATION: □ Indoor □ Outdoor
MOUNTING TO: □ Concrete Block □ Fence (chain or wood) □ Brick □ Concrete □ Sheet Rock □ Metal Frame
HOW ARE THEY MOUNTING: □ Z-Brackets □ U-Channels □ Direct to Wall - 1” Lip
PANEL BACKING: □ 7/16” OSB (indoor) □ 3/4” Exterior Grade Plywood (outdoor) □ 5/8” Advantech (outdoor)
FOAM: □ 2” Poly Foam (in/outdoor) □ 4” Poly Foam
2” Bonded Foam (indoor) □ 3” Poly Foam
VINYL COVERING: □ 14 oz. Fire Retardant □ 18 oz. Coated
VINYL COLOR:
GRAPHICS: □ Yes □ No Details: CUT-OUTS: □ Yes □ No Details:
MEASUREMENTS WERE TAKEN FROM: □ Floor
Top of Baseboard Height of Baseboard
Tips on Cut-Outs...
• Indicate whether measurements are from floor or base board for cut-outs.
• Include measurements to bottom and top of cut-outs.
• Include measurements from edge of wall for both sides of cut-outs.
2” THICK HIGH
VELCRO & LOOP (2” WIDE) SEWN TO VINYL
Mounting Systems
Z-Bracket
Z-Bracket
WALL SURFACE “U” CHANNEL 1” NAILING LIP
3/4" #12 PHILLIPS HEADSCREWS VINYL
Nailing Lip
Nailing Lip
1” NAILING MARGIN (VINYL WRAPPED)
VINYL
7/16” OSB
2” THICK HIGH IMPACT FOAM
7/16” OSB
2” THICK HIGH IMPACT FOAM
Z-Bracket
Z-Brackets provide an easy option for mounting panels to walls. They are optimal for both outdoor or indoor mounting and allow the panels to easily slide into place for quick mounting and unmounting. This is a great option if you are planning on taking your panels down after the season and putting them back up next year. This will prevent damage and maintain the life span of the panels.
“U” Channel
Nailing Lip
Each panel will have a 1 inch nailing lip on top and bottom. This method will require 4-drill holes. 2 at the top and 2 at the bottom of each pad, used to attach to the wall. This is a more permanent solution. The panels can be taken down by removing screws holding them in place. This will result in leaving drill holes in the panels nailing lips.
WALL SURFACE
VINYL
7/16” OSB
2” THICK HIGH IMPACT FOAM
WALL SURFACE
“U” Channel
“U” Channel Hook and Loop
and Loop
7/16” OSB VINYL
2” THICK HIGH IMPACT FOAM
1” NAILING LIP
“U” CHANNEL
”U” Channel
“U” Channel is another option. It requires mounting hardware that will stay in place on the wall. The panels can drop in from the top and this allows for easy mounting of the pads. It is recommended to use a 1 inch nailing lip at the top of the pad for added stability.
3/4" #12 PHILLIPS HEADSCREWS VINYL
7/16” OSB
2” THICK HIGH IMPACT FOAM
2” VELCRO & LOOP SEWN TO BACK OF WALL PAD AT TOP AND ATTACHED TO THE TOP OF THE WALL. (BOTTOM OPTIONAL)
2” THICK HIGH IMPACT FOAM
VELCRO & LOOP (2” WIDE) SEWN TO VINYL
Hook and Loop
The Hook and Loop method is only for indoor applications. Hook and Loop is sewn onto the removable non-wood backed pad. The opposing hook and loop piece will be attached to the wall for easily installation and movement. Hook and loop fasteners, consist of two components: two lineal fabric strips which are attached to the opposing surfaces to be fastened.
1” NAILING MARGIN (VINYL WRAPPED)
7/16” OSB
2” THICK HIGH IMPACT FOAM
WALL SURFACE
WALL SURFACE
Z-Bracket
VINYL
WALL SURFACE
VINYL
WALL SURFACE
Hook
Nailing Lip
INDOOR NON-WOODBACK USE ONLY

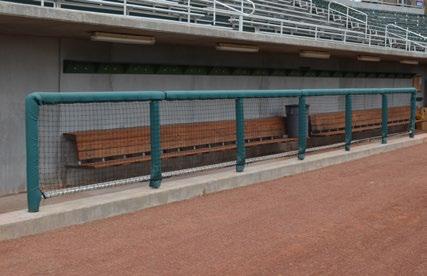

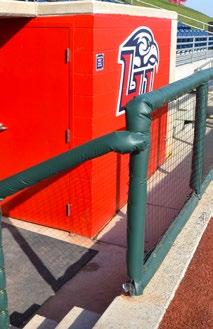

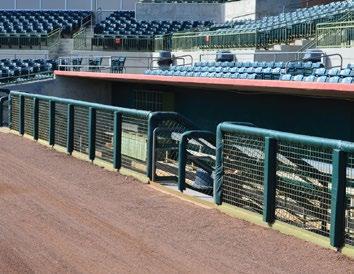

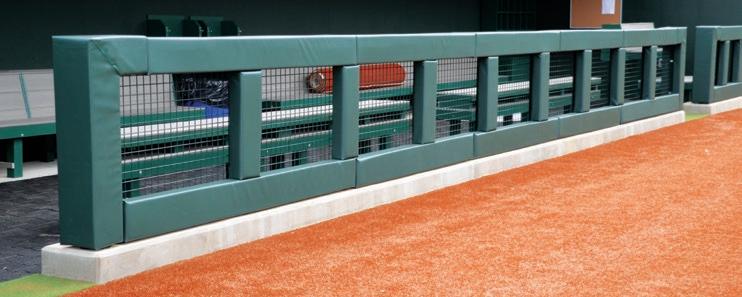

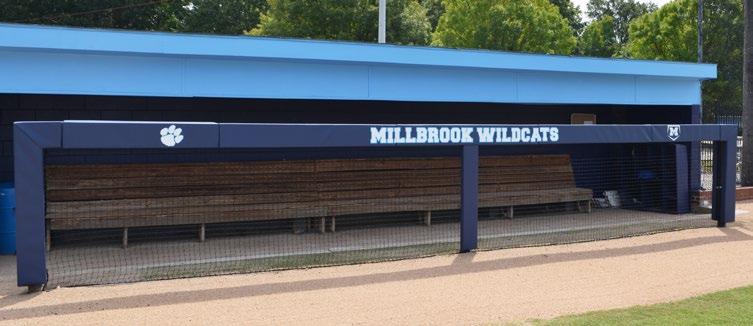

Rail Pads-RPG
Protect your athletes from the hard, sharp edges of rails and other obstructions with rail padding. Padding gives your facility a finished look and added safety. We provide padding for fences, rails, and poles. We also offer custom manufacturing to meet your facility’s unique needs. Padding is available in 18 colors andstandard and custom
sizes. Logos and text options are a great way to upgrade your venue, advertise, and promote your school and sponsors. Vertical Post Pads and Square Rail Pads are ideal for art work. We offer multiple installation methods including pipe strap and “C” clamp, grommet flaps and hook and loop for easy installation.

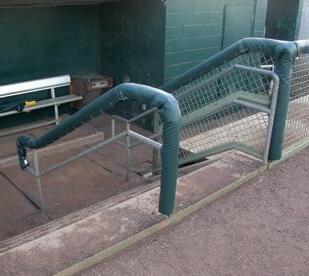

Rail Pad w/ Grommets - RPG
Rail pads are grommeted down the sides, used for ease of installation on round railing. Closed cell foam is used to ensure durability. Rail pads are available in 4’, 6’, 8’, 10’ sections. Custom sizing is available upon request. Standard pads fit 1-1/2” to 2-1/2” diameter rails.

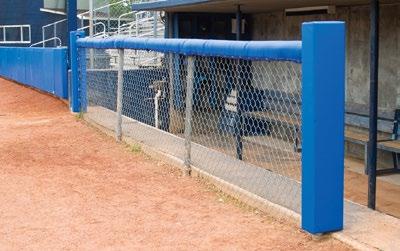

Vertical Post Pad - RPGV
Covers made with grommets. Standard pads fit 1-1/2” to 2-1/2” diameter rails. Vertical Post Pads are manufactured to your specific needs and sizes. Vertical post pads feature a rectangular design for upright posts. A cleaner look for areas with joining pipes. They are covered in 18 oz coated vinyl.
RPG184..............48”Grommeted
RPG186.............72” Grommeted
RPG188.............96” Grommeted
MODEL #
RPG1810..............120” Grommeted
RPGSO.................Special Size
RPGVSO.....Vertical Pad Special Size
Rail Pads-RPSW

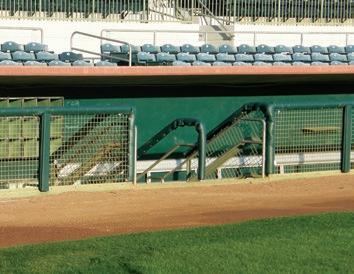

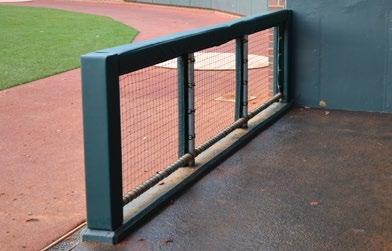

Square Rail Pad - RPSW
2” Poly foam is used to ensure durability. Square rail pads are available in 4’ to 8’ sections. Custom sizing is available upon request. Pads are mounted with mending plates & c-clamps. Measurments are taken from the inside of the pads. Inside dimensions of 4” front x 3” top x 3” back make outside dimensions of 8-3/4” front x 10-1/2” top x 6-3/4” back.

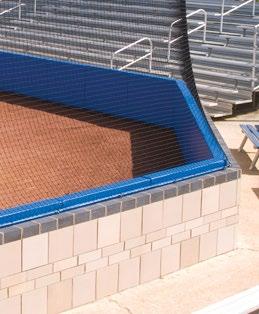

Permanent Corner Covers - PCAP
Wood backed P-CAPS made with grommets. Sealed on 3 sides with the 4th side attached to the the rail. Standard pads fit 2” to 3” rails. P-CAP Pads are manufactured to your specific needs and sizes. They are covered in 18 oz coated vinyl. Caps can be designed to extend over rail top to accomodate for finials.

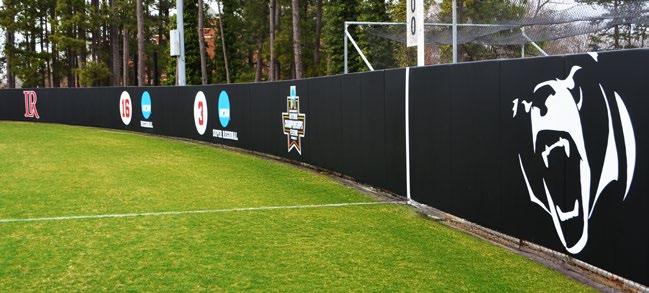

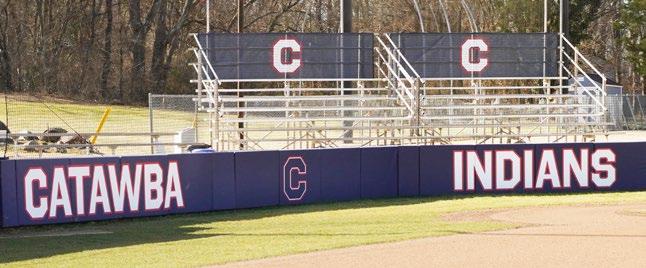

Catawba College Softball Salisbury, NC
Lenoir-Rhyne University Softball Hickory, NC

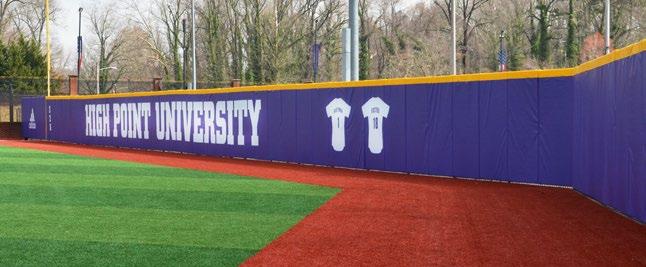

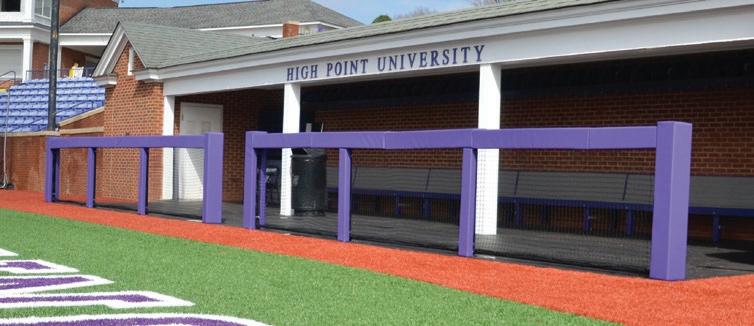

High Point University - Baseball High Point, NC

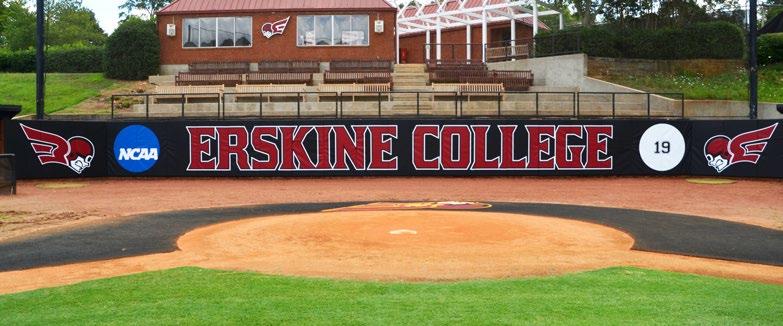

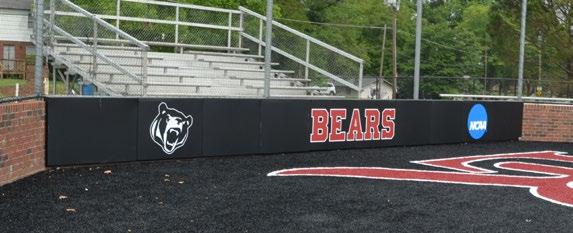

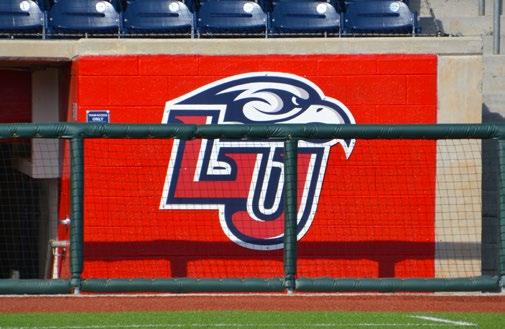

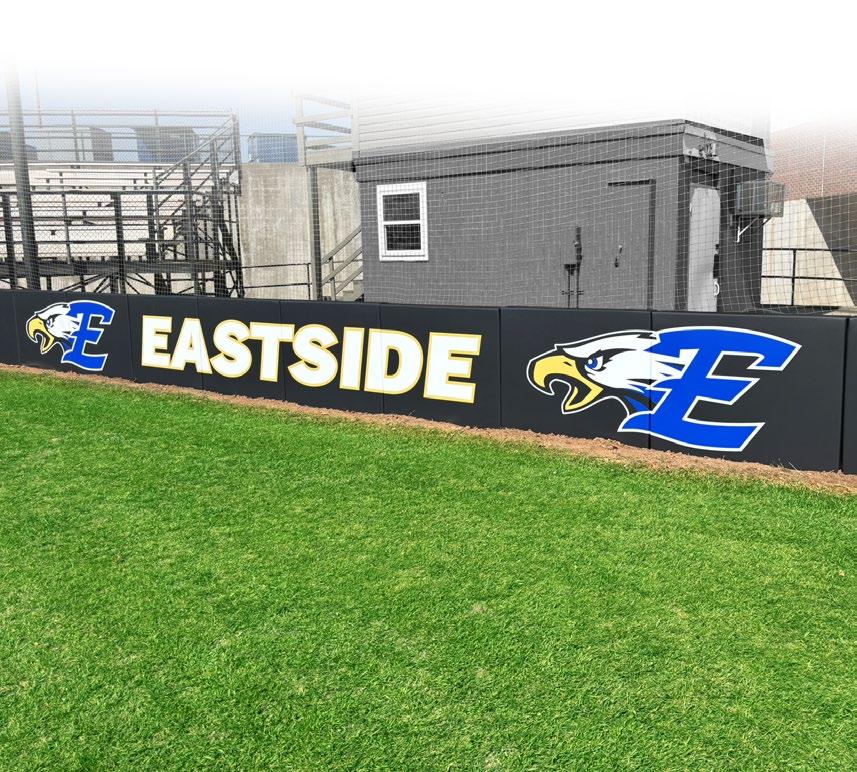

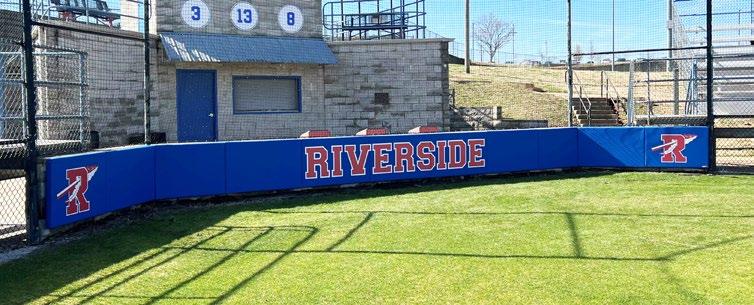

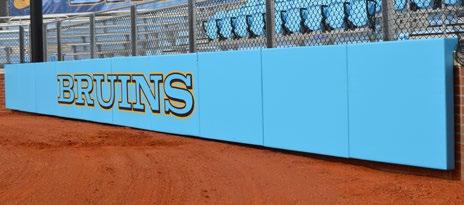

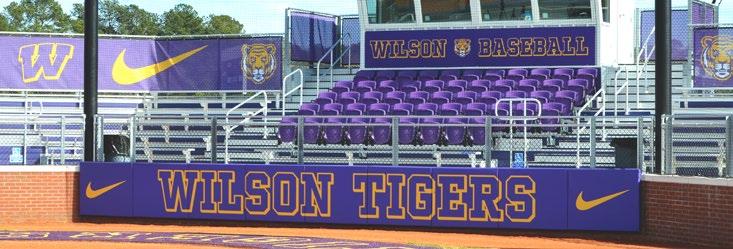

Backstop Pads
BACKSTOP PADDING IN 4 STYLES
WPS wood backed padding
PSMS wood backed with “L” shaped top
EWM non-wood back / grommets
BSP non-wood back / grommets / 2’ wide folding sections / 2” or 3” thick foam
• 18 oz. vinyl with 15 color choices
• Vent holes at bottom of all pads
• Custom sizes available in WPS, PSMS, and EWM series padding
According to NCAA, 3” backstop padding is always required. It should be a minimum distance of 25 feet and a maximum distance of 30 feet from home plate. It is recommended that the backstop be vertical and not extend over the playing field. When the backstop is wood, cement, or brick, it is strongly recommended that it be padded from dugout to dugout no higher than 1 foot off the ground and extending to the top of the wood, cement, brick or 6 feet from the ground, whichever is shorter.
Backstop Pads
• 2” Polyfoam
• 3” Polyfoam
Foam Options Size Options
• Backstop padding is available in 3 foot and 4 foot heights.
• Custom width options are available depending on the specific needs of the job.
Mounting Options
Various mounting options are available to give your padding the best fit to your existing structure. See pages 4-5 for diagrams.
Options include:
• Nailing lips
• Z-Brackets
• U-Channel
• Plastic Wall Brackets
(WPBKT)

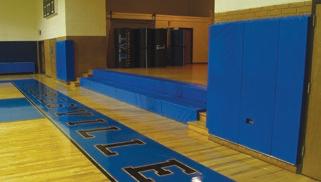

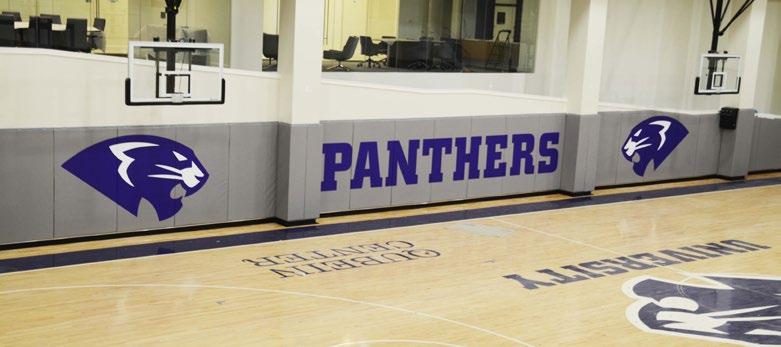

Indoor Applications
Vinyl Options
• 14 oz. laminated, fire retardant vinyl
• 18 oz. coated vinyl
• 18 oz. coated, fire retardant vinyl
Mounting Options
Various mounting options are available to give your padding the best fit to your existing structure. See pages 4-5 for diagrams. Options include:
• Nailing lips
• Z-Brackets
• U-Channel
Foam Options
• 2” Polyfoam
• 3” Polyfoam
• 4” Polyfoam
• All Foam available in 6lb. bonded foam or 100lb. fire retardant polyfoam
Size Options
• We offer pads in various heights to fit your stadium padding needs. Fisher does not recommend exceeding a pad height over 8’.
• Our standard pad with is either 2’ or 4’.
• Custom width options are available depending on the specific needs of the job.
Cutout Options
Cutout
Model #: CO1
Cutout for permanent padding
Woodbacked
Cutout
Model #: CO2
Cutout
Model #: COI46
Cutout for permanent padding
Woodbacked
Built In House Installed On-Site
Cutout for removable padding Non-Woodbacked

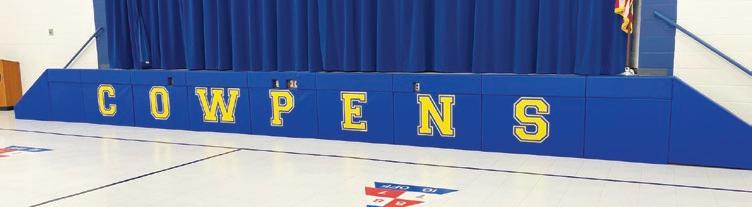

Stage Padding
Removable Stage Mats
• Mounts with hook and loop Velcro®
• 2” and 3” thick Polyfoam available
• Cutouts available upon request
• Available in 14 or 18 oz. vinyl
• Custom artwork and lettering available
• Padding custom built to fit your exact size specifications
Permanently Mounted Stage Mats
• 7/16 inch OSB (Oriented Strand Backing) for strength
• All panels are safety finished (no exposed staples, raw edges or sharp corners)
• 1 inch Mounting lip on top and bottom
• Cutouts available
• Each stage pad is one piece “L” shaped mat
2” and 3” thick Polyfoam options are available

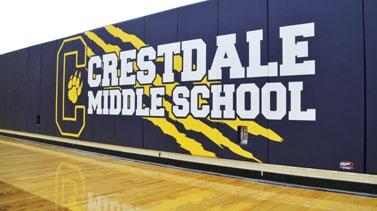

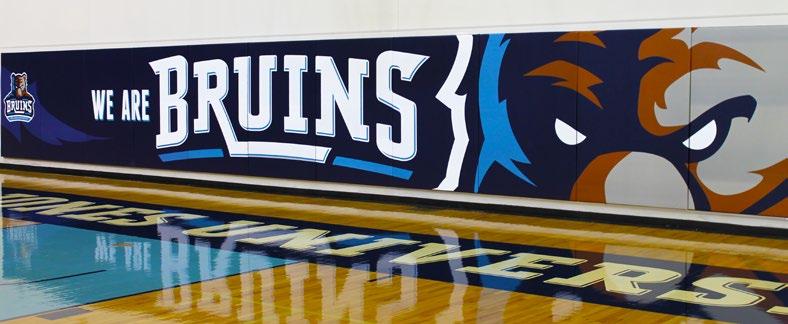

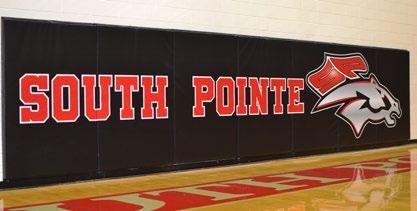

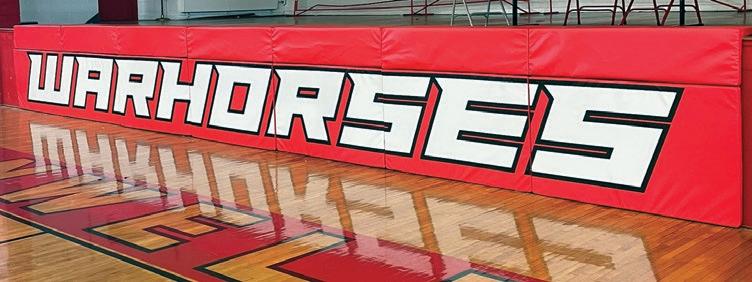

Custom Printed Pads
We Can Bring Your Brand to Life!
Wall Panel Protective Covers
We highly recommend these covers for the protection of your digital and screen printed artwork. They mount directly above your wall panels and can be easily removed and re-mounted.
