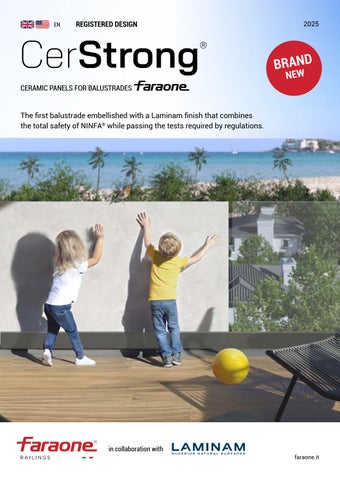

REGISTERED DESIGN

CERAMIC PANELS FOR BALUSTRADES

2026

ST THE FIR C CERAMI RADE, BALUST SAFE

The ﬁrst balustrade embellished with a Laminam ﬁnish that combines the total safety of NINFA® while passing the tests required by regulations.

in collaboration with

faraone.it

REGISTERED DESIGN

FOR NINFA

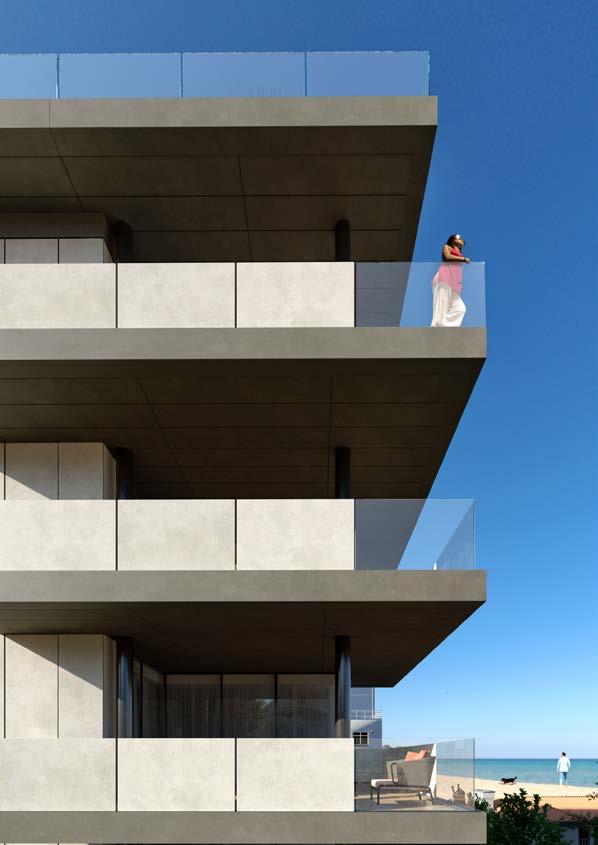

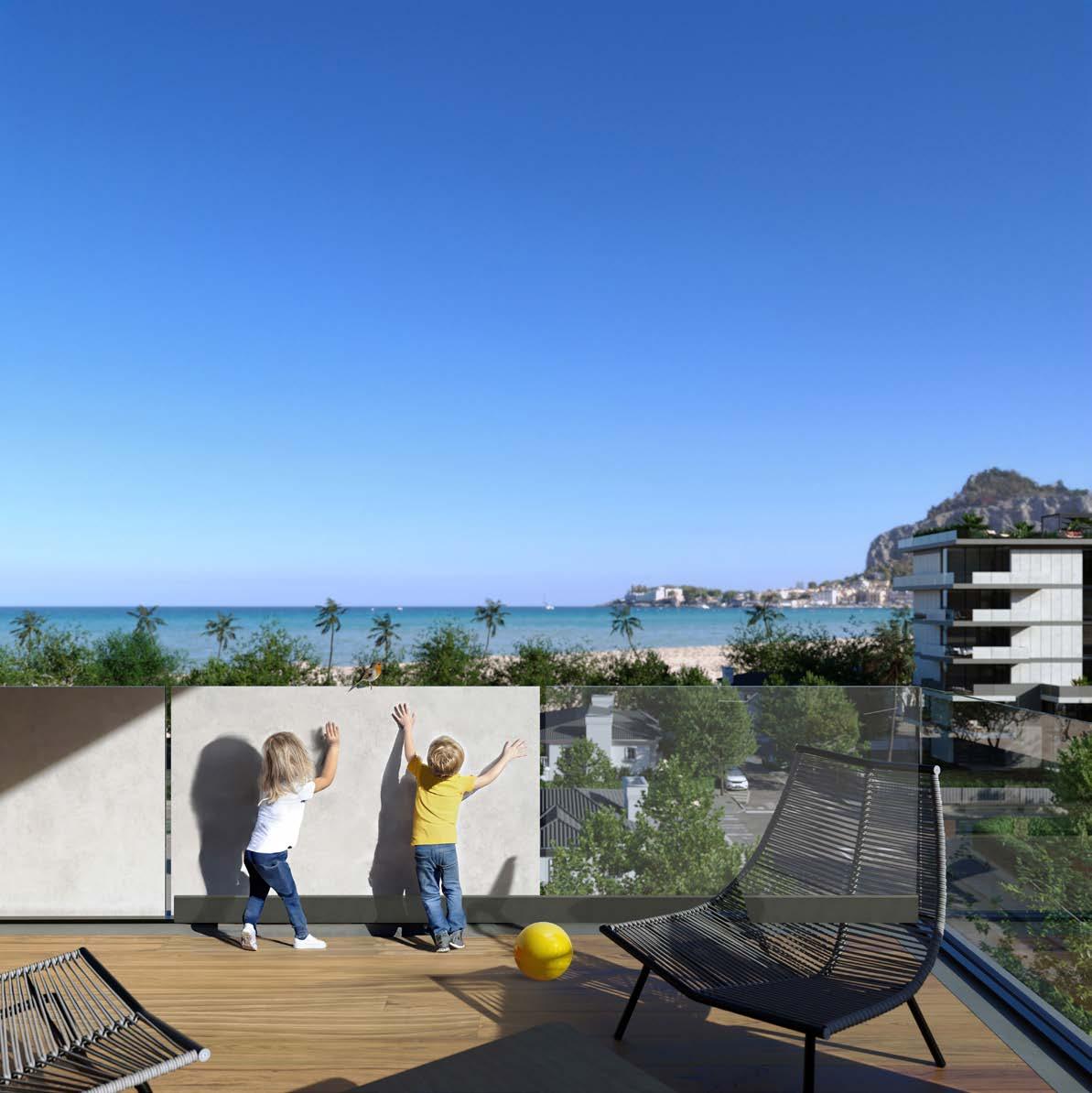

Ninfa 176 internal low wall with Cerstrong triple slab panel with antracite effect and bianco calce finish. Residential balcony.

faraone.it

CerStrong® FOR NINFA®

REGISTERED DESIGN

FOR NINFA

A TRUSTED PARTNER FOR YOUR PROJECT The first Faraone balustrade with patented and certified Laminam ceramic

faraone.it

THE STRENGTH OF NINFA AND THE ELEGANCE OF LAMINAM FINISHES

Give your project character in full safety

CerStrong

NINFA

The innovative NINFA® balustrade line with CerStrong® combines Faraone's glass balustrade systems with Laminam's surface technology, allowing great design freedom with products that meet the highest standards of quality and safety.

The ceramic slab combines with safety glass for a new technology.

TECHNICAL SPECIFICATIONS:

- CerStrong® triple slab thickness: approx. 25 mm (1”) - CerStrong® double slab thickness: approx. 19 mm (0.75”)

PATENTED AND CERTIFIED SYSTEM Tested at 450 kg/m Tested at 302 lb/ft

The images and drawings in this catalogue are purely illustrative. Please contact us directly for any technical information.

CerStrong® FOR NINFA®

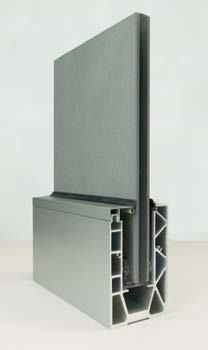

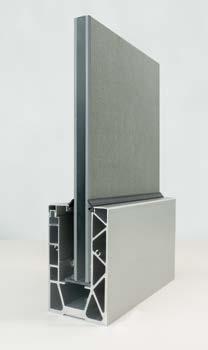

TRIPLE SLAB BALUSTRADE (Laminam slab+Glass+Laminam slab)

Safety glass Laminam slab

Triple slab laboratory test •

Laminated tempered glass with EVA + Double slab Laminam

MODEL

Ninfa 6

Ninfa 176

Ninfa 186

faraone.it

PANEL SIZE

THICKNESS

CATEGORY

1000x h.1200 mm

Laminam 5 + 0.8 Eva + 12 TEMP + 0.8 Eva + Laminam 5

1000x h.1300 mm

Laminam 5 + 0.8 Eva + 12 TEMP + 0.8 Eva + Laminam 5

1000x h.1300 mm

Laminam 5 + 0.8 Eva + 12 TEMP + 0.8 Eva + Laminam 5

(39,37″× h. 47,24″)

(39,37″ × H 51,18″)

Laminam 0,20″ + 0,03″ Eva + 0,47″ TEMP + 0,03″ Eva + Laminam 0,20″

DOUBLE SLAB BALUSTRADE (Glass+Laminam slab)

Safety glass Laminam slab

Double slab laboratory test •

Laminated tempered glass with EVA + Laminam slab

MODEL Ninfa 106

Ninfa 116

Ninfa 176

Ninfa 186

PANEL SIZE 1000X h.1200 mm (39,37″× h. 47,24″)

1000X h.1200 mm (39,37″× h. 47,24″)

THICKNESS Laminam 5 + 0.8 Eva + 12 TEMP

Laminam 0,20″ + 0,03″ Eva + 0,47″ TEMP

Laminam 5 + 0.8 Eva + 12 TEMP

Laminam 0,20″ + 0,03″ Eva + 0,47″ TEMP

Laminam 5 + 0.8 Eva + 12 TEMP

Laminam 0,20″ + 0,03″ Eva + 0,47″ TEMP

Laminam 5 + 0.8 Eva + 12 TEMP

Laminam 0,20″ + 0,03″ Eva + 0,47″ TEMP

CATEGORY C2

CerStrong® FOR NINFA®

1. T RIPLE SLAB SOLUTIONS

View from the outside. Example: effetto pietra grey

faraone.it

View from the inside. Example: effetto pietra grey

with CerStrong® inside

outside

Laminam panel

Glass panel

136

(5.35”)

Ninfa 6 System

(3.38”)

AVAILABLE MODELS

CerStrong® FOR NINFA®

2. D OUBLE SLAB SOLUTIONS

View from the outside. Example: white lime effect

View from the inside. Example: black effect 9005 opaque (base finish).

View from the outside. Example: white statuary veined effect

View from the inside. Example: pearl white effect 1013 opaque (on request).

(For surcharge, information on the price list) faraone.it

with CerStrong® inside

outside

Laminam panel

Glass panel

111

(4.37”)

Ninfa 6 System

(2.91”)

AVAILABLE MODELS

CerStrong® FOR NINFA®

NINFA

OVER 1,600,000 METRES INSTALLED SINCE 2009 TO DATE

RAILINGS

Tests in compliance with regulations

Cut-to-size option

We calculate and test the strength capabilities of Ninfa balustrades according to current regulatory standards.

Send us the drawings of the profiles to be cut and we will execute them with our specially equipped and configured machines for large profiles, guaranteeing both cutting precision and quality.

Assembly speed

Design service

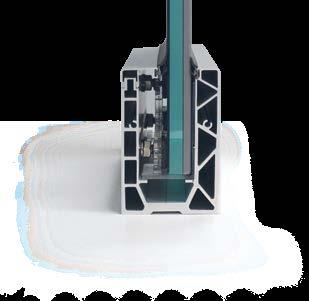

Glass height up to 1300 mm

Customised colours

Glass inside

Shipping

Our experts can design the profiles for processing and also the glass data sheets, offering you a complete package.

Mounting and plumbing the glass is even quicker and easier.

Look at the performance tables of each product to find out what heights you can achieve with the various balustrades. More than 100 test cycles on the entire NINFA 6-series.

adjustment

from

Adjustment and alignment of the glass is only done from the inside of the balustrade.

We work with dedicated transporters who load materials directly from our warehouses, ensuring a safe and careful transfer to your company.

System for private crowded places

Technical-commercial consulting

and

The NINFA CERSTRONG® range of balustrades is a new technology of the highest performance, also ideal for crowded public places.

faraone.it

Colours already available from stock or in short order by choosing from various anodised or RAL finishes. In this way, the balustrade can be combined with the window frames and integrated into the building.

We have qualified personnel with years of technical and commercial experience who can assist you in solving your problem, from a simple request for a technical drawing to a static check of a particular special fixing to be used.

CERAMICS

ONE SURFACE, MANY PROPERTIES

Easy cleaning and maintenance

Suitable for both indoor and outdoor use

Resistant to bending

Heat-resistant

UV-resistant

Frost-resistant

Stain-resistant

Resistant to thermal shock

Dimensional stability

Moisture resistant

Scratch-resistant and abrasion-resistant

Eco-compatibility recyclability

Quick and easy surface cleaning with warm water and neutral detergents. Laminam has a high flexural strength.

The Laminam surface remains unaltered when exposed to UV light, retaining its original appearance throughout the life of the product. Laminam withstands prolonged contact with major stubborn stains without permanent changes in colour or gloss. Laminam does not undergo significant dimensional changes as it has a low coefficient of thermal expansion.

Its properties remain unaltered even after intensive use and frequent cleaning.

Exposure to weathering does not damage or alter surfaces.

The ceramic surface does not contain any organic matter, so it withstands high temperatures without surface alteration. The ceramic surface withstands temperature drops and the presence of ice.

Laminam panels resist thermal shock in both indoor and outdoor environments.

Long-term exposure to moisture does not damage the Laminam ceramic surface.

and

A natural ceramic, it yields no elements to the environment and can be easily milled and recycled.

Resistant to fungi and mould

Laminam ceramics do not allow the growth of mould, bacteria and fungi.

CerStrong® FOR NINFA®

ALUMINIUM: COLOURS AVAILABLE ®

RAILINGS

Customised profile colours. In addition to the basic finishes, it is possible to choose from more than 2000 RAL colours on request. Complete your design with accessories: aluminium handrails and LEDs for a unique effect.

PROFILE FINISHES: ANODISED BASE

SILVER ANODISED 20 microns

PROFILE FINISHES: RAL AND SPECIAL COATINGS BASE

ON REQUEST

WHITE RAL 9010 MATT

2000 RAL COLOURS

BLACK RAL 9005 MATT

Illustrative representation of the available finishes.

faraone.it

CERAMICS: COLOUR RANGE Customise the glass balustrade panels with a selection of ceramic finishes. Bespoke project work.

CERAMIC FINISHES FOR INTERNAL AND EXTERNAL PANELS (SIZE: W 1600 × H 1300)

CALCE BIANCO Laminam

NOIR DESIRE Laminam

CALCE GRIGIO Laminam

CALCE ANTRACITE Laminam

CALCE NERO Laminam

CALACATTA ORO VENATO Laminam

FOKOS SALE Laminam

FOKOS TERRA Laminam

CALACATTA BLACK Laminam

BIANCO STATUARIO VENATO Laminam

FOKOS GRAFITE Laminam

PIETRA GREY Laminam

Discover all the other finishes available on request

Illustrative representation of the available finishes.

CerStrong® FOR NINFA®

LAMINAM SURFACES: QUALITY AND SUSTAINABILITY Sustainable design

Sustainability is at the heart of Laminam's corporate vision, which integrates research and innovation with economic, social and environmental responsibility. Through state-of-the-art technologies and the use of natural raw materials, Laminam creates design solutions where beauty and sustainability coexist. Every stage of the process, from product to supply chain relations, is geared towards minimising environmental impact.

Solar energy and sustainable systems

The commitment to more sustainable production is embodied in the expansion of the photovoltaic park in Fiorano (Mo), which provides solar energy for the three electric ovens, unique in the ceramic industry. Laminam continuously invests in technologies to reduce emissions, using regenerable activated carbon and innovative abatement systems, ensuring a reduced environmental impact.

Sustainability in the supply chain

Laminam has achieved ISO 20400 certification for sustainable procurement, working with suppliers to reduce the carbon footprint and promote respect for human rights, labour standards and environmental protection. This holistic approach ensures that sustainability is integrated into every aspect of the business.

Innovation in production processes

Among the key objectives is the reduction of energy used in production, with the development of low melting mixtures that allow firing at lower temperatures, improving energy efficiency. Laminam adopts a circular economy model, aiming to reduce waste and safeguard biodiversity.

Environmental certifications

The company has obtained various environmental and product certifications that attest to its commitment to high standards of quality and sustainability, offering products that look to the future with responsibility.

faraone.it

LEED Certificates

Laminam is a member of the Green Building Council Italy, an association aimed at promoting the reduction of the negative impact of buildings and constructions on the environment. It is in this context that the LEED and BREEAM certifications, international schemes aimed at assessing the sustainability of buildings during their entire life cycle, become relevant. Both schemes are based on the awarding of credits in relation to compliance with specific environmental characteristics, such as building materials with a high level of eco-sustainability. Laminam panels used in construction are certified in accordance with ISO 14021 to contain at least 20 to 40 per cent pre-consumer recycled material (i.e. reused industrial waste) and to have a high Solar Reflectance Index (SRI), thus contributing to LEED and BREEAM certification credits.

20% to 60% recycled product

Laminam's activities have always been guided by a commitment to responsibility that means listening and continuous dialogue with stakeholders, reduction of environmental impact through the use of innovative technologies, continuous research into sustainable products from natural raw materials to their complete recyclability. There are many activities that the company has planned with a strategy that looks ahead to 2030: research, investments, certifications, initiatives in favour of employees and the local area.

CerStrong® FOR NINFA®

faraone.it

FOR NINFA

CERSTRONG FINISHES USED IN THIS PROJECT

CALCE BIANCO Laminam

CALCE ANTRACITE Laminam

CerStrong® FOR NINFA®

faraone.it

TECHNICAL SOLUTION ADOPTED FOR THIS PROJECT

with CerStrong®

SLOPE

scale:1:2

16 13A 1

7A 5 4

1: Laminam 5 slab (anthracite and lime white) 3: Reinforced concrete 4: Slope layer as per standard UNI 8178-2 (2019) 5: ‘Helasta Polyester ‘waterproofing layer (Index S.P.A.) single or double layer 7A: Underfloor glue type: "Flexbond" (Index S.p.A.) (or similar) 9A: Certified vinylester resin

12: Sealant Type 'Sigilcol' (Index S.P.A.) (or similar) 13A: Vertical, invisible water drain hole on Ninfa profile 14: Threaded rod M12 16: Purlastic flashing type liquid waterproofing panel (Index S.p.A.) 18: Aluminium 'cladding' profile as coverage and sealing between floor and Ninfa profile

CerStrong® FOR NINFA®

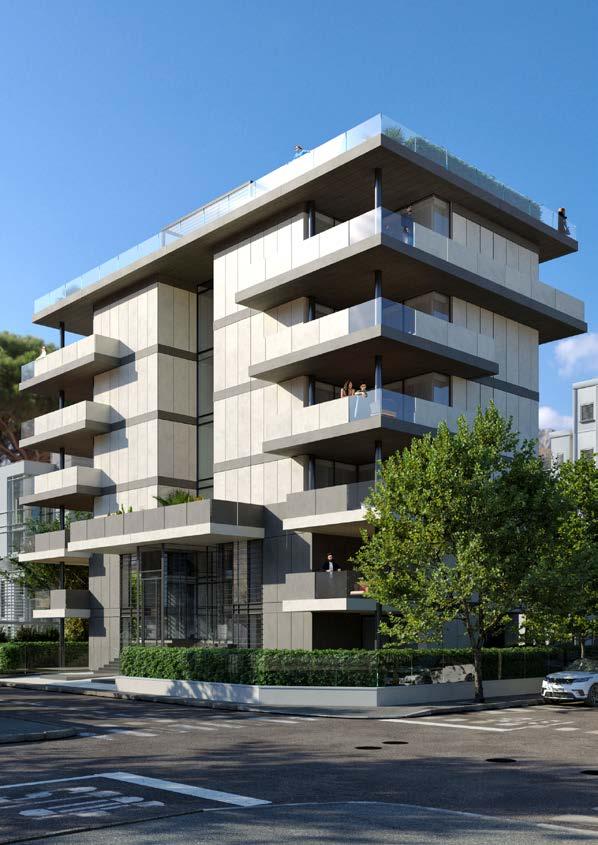

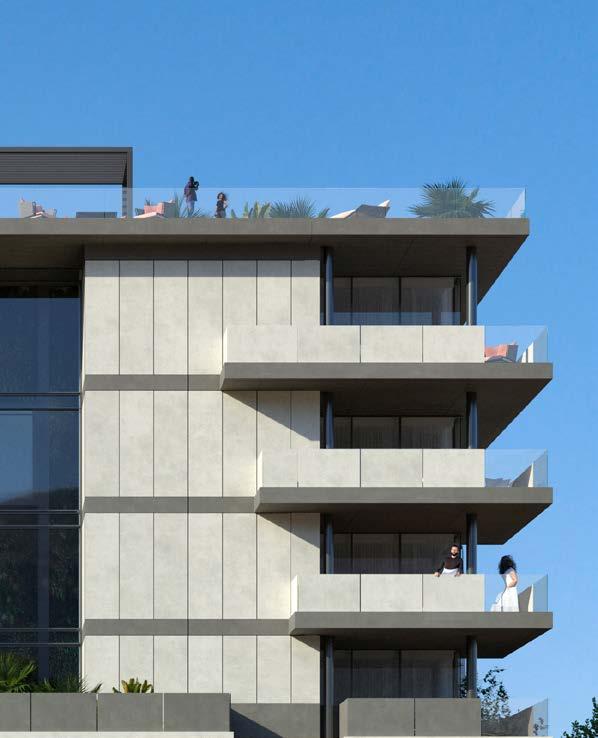

Combine CerStrong panels with glass balustrades to create unique and distinctive facades, enhancing the building’s aesthetic and lending it a strong personality.

faraone.it

CUSTOMER CARE Our experience is at your service. We guide you in choosing the best solution for your needs. EXPERT GUIDE Managing a project through all its phases can be challenging. That is why we provide comprehensive support, from technical consultation through to after-sales service.

INSTALLATION We carefully select the experts who carry out the installation of our products to ensure our quality standards. During this phase, tests are carried out on site to ensure that the installation has been performed in a competent manner and that everything is safe.

How you can contact us: email: faraone@faraone.it Tel: +39 0861 784200 web: faraone.it

Request information through our website

CerStrong® FOR NINFA®

TECHNICAL SPECIFICATIONS "Double slab CerStrong panel and profile 3/C) Ninfa 176 profile with dimensions 2. FEATURES OF THE 'CerStrong - Triple type NINFA Series 6, (or similar)" 80mm x 173mm (3.14”x 6.81”) + CerStrong slab' PANEL: panel up to a height of 1200mm (47,24″), Panel consisting of tempered glass - layered 1. MATERIALS AND COMPONENTS: resistant to class C2 (137 lb/ft). Suitable for with two LAMINAM panels (external-internal ‑ Balustrades (Balustrades - Railings), made mounting on the inner side of a reinforced sides), for a total thickness of ~25 mm (1″). of extruded aluminium alloy 6063 T66 concrete base. Description of Laminam: laminated profiles, Anodised in accordance with the 3/D) Ninfa profile 186 with dimensions 80 porcelain obtained by wet milling of clayey Qualanod mark or Painted with polyester mm x 173 mm (3.14”x 6.81”) + CerStrong raw materials, granitic and metamorphic powder in accordance with the Qualicoat panel up to a height of 1200 mm (47,24″), rocks with a feldspathic component and mark. The profiles are only positioned at resistant to class C2 (137 lb/ft). Suitable for ceramic pigments. the base of the balustrade. The profile Fascia-mounted laying on the face of the Compacted by special sintering moulding at must be suitable to accommodate a ~19 floor beam. 1200° with hybrid firing . mm (0,75″) thick infill panel. The internal geometry of the profiles is specially The Designer or the Works Manager 3. INSTALLATION POSITIONS and PROFILE engineered to provide both the rigidity reserve the right to request the strength TYPE: (WM choice) in the event of static load test and the test of the balustrade directly on site in flexibility required to absorb accidental accordance with UNI 11678-2017, to check 3/A) Ninfa 6 profile with dimensions 86mm impacts. its compliance and also the validity of the x 136mm (3.38”x 5.35”) + CerStrong panel ‑ The accessories: the CerStrong panel fixing of the balustrade in place. up to a height of 1200mm (47,24″), resistant mounted with adjustable and suitable to class C3 (206 lb/ft). Suitable for Topaccessories for plumbing the panels and "CerStrong- Triple slab panel and profile mounted installation. clamping them. type NINFA series 6, (or similar)" ‑ Test certificates: the balustrade must 3/B) Ninfa profile 176 with dimensions 80 be laboratory tested in accordance with 1. MATERIALS AND COMPONENTS: mm x 173 mm (3.14”x 6.81”) + CerStrong UNI 11678-2017 and in compliance with ‑ Balustrades (Balustrades - Railings), made panel up to a height of 1300 mm, resistant to the purpose, i.e. for Class C2 (137 lb/ft) of extruded aluminium alloy 6063 T66 class C2. Suitable for mounting on the inner (residential or similar) or Class C3 (206 lb/ft). profiles, Anodised in accordance with the side of a reinforced concrete base. Qualanod mark or Painted with polyester 2. FEATURES OF THE 'CerStrong - Double powder in accordance with the Qualicoat 3/C) Ninfa 186 profile with dimensions mark. The profiles are only positioned at 80mm x 173mm (3.14”x 6.81”) + CerStrong slab' PANEL: Panel consisting of tempered -laminated the base of the balustrade. The profile panel up to a height of 1300mm, resistant to glass with an outer panel of LAMINAM, for a must be suitable for an infill panel class C2. Suitable for laying on the face of of ~25 mm (1″) thickness. The internal the floor beam. total thickness of ~19 mm (0,75″). Description of Laminam: laminated geometry of the profiles is specially porcelain obtained by wet milling of clayey engineered to provide both the stiffness The Designer or the Works Manager raw materials, granitic and metamorphic in the case of static load test and the reserve the right to request the strength rocks with a feldspathic component and flexibility to absorb accidental impacts in test of the balustrade directly on site in ceramic pigments. accordance with Uni 11678-2017. accordance with UNI 11678-2017, to check Compacted by special sintering moulding at ‑ The accessories: the CerStrong panel its compliance and also the validity of the 1200° with hybrid firing . mounted with adjustable and suitable fixing of the balustrade in place. accessories for plumbing the panels and 3 INSTALLATION POSITIONS and PROFILE clamping them. TYPE (WM choice) ‑ Test certificates: the balustrade must be 3/A) Model NINFA 106 profile size of 74x111 laboratory tested in accordance with UNI mm (2.91”x 4.37”) + CerStrong panel up 11678-2017 and in compliance with the to a height of 1200mm (47,24″), resistant purpose, i.e. for Class C2 (137 lb/ft) (residential to class C2 (137 lb/ft). Suitable for Top- or similar) or Class C3 (206 lb/ft) (spaces mounted installation. susceptible to crowding) in accordance with MD 2018. 3/B) Ninfa 116 profile with dimensions 122 mm x 114 mm (4.80”x 4.48”) + CerStrong panel up to a height of 1200 mm, resistant to class C2 (137 lb/ft). Suitable for Edgemounted balustrade flush with the outer face of the wall.
