ASSEMBLY INSTRUCTIONS

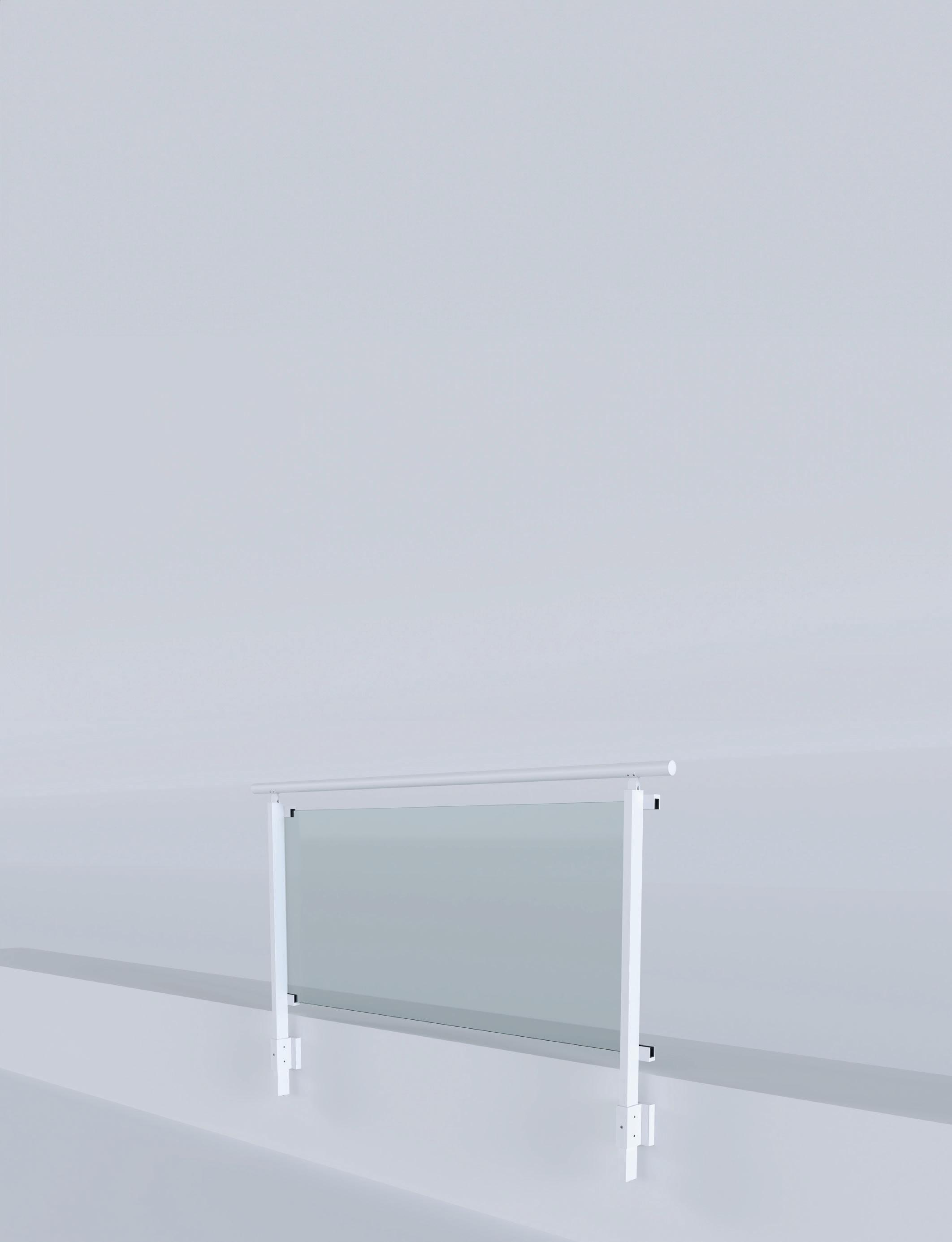

Maior EVO Vision C5 model (with round gauge)
Watch the assembly video
25mm (0.98")
Drill the holes in the floor using the 14 mm (0.55") drill bit.
Apply a certified chemical resin. Fill the hole to about half its depth. It is recommended to use the gun with dispenser.
Insert the M12X140 threaded rods into the holes, leaving the necessary 25 mm (0.98") projection for the profile shim and the M12 nuts. If the base levelling shim is present, increase the projection of the M12X140 rod by 5 mm (0.19"), (thus 30 mm -1.18"-in total).
Insert the posts into the base.
Adjust the position of the posts by acting on the adjusters and using a spirit level. (The post can be adjusted in both directions, both from the front and sideways). Insert the base claddings.
After determining the vertical position of the post, drill the post with a 5.5 mm (0.21") drill bit, using the base as a jig. Screw the three-lobed screw into the hole to secure the post and prevent it from slipping.
Temporarily remove part of the upper handle.
Before inserting the glass, loosen the lower handle slightly to facilitate the entry of the pane. Insert the glass. Tighten the previously loosened handle.
Reassemble part of the previously disassembled upper handle.
Insert the handrail.
Proceed to fasten the handrail using the relevant screws.
Proceed and complete assembly by inserting the handrail caps.
