ASSEMBLY INSTRUCTIONS

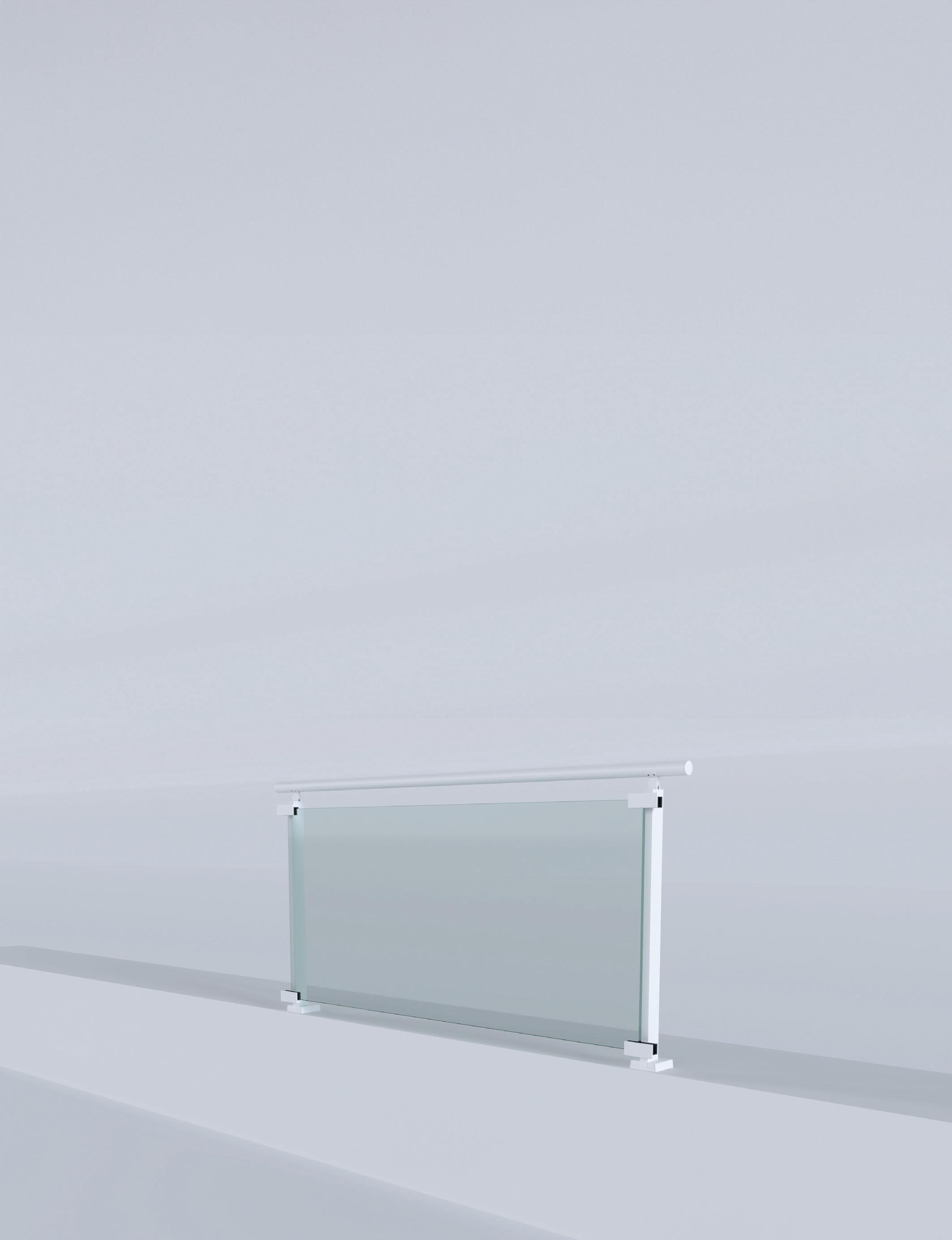

Maior EVO Vision A5 model (with round gauge)
Watch the assembly video
Drill the holes in the floor using the 14 mm (0.55") drill bit.
Apply a certified chemical resin. Fill the hole to about half its depth. It is recommended to use the gun with dispenser.
Insert the M12X140 threaded rods into the holes, leaving the necessary 25 mm (0.98") projection for the profile shim and the M12 nuts. If the base levelling shim is present, increase the projection of the M12X140 rod by 5 mm (0.19"), (thus 30 mm -1.18"-in total).
Position the posts after removing the base covers using the dedicated tool.
Adjust the position of the posts by acting on the adjusters and using a spirit level.
emporarily remove part of the upper handle.
Before inserting the glass, loosen the lower handle slightly to facilitate the entry of the pane. Insert the glass. Tighten the previously loosened handle.
Reassemble part of the upper handle so that it applies pressure to the glass.
Insert the handrail.
Proceed to fasten the handrail using the relevant screws.
Proceed and complete assembly by inserting the handrail caps.
