ASSEMBLY INSTRUCTIONS

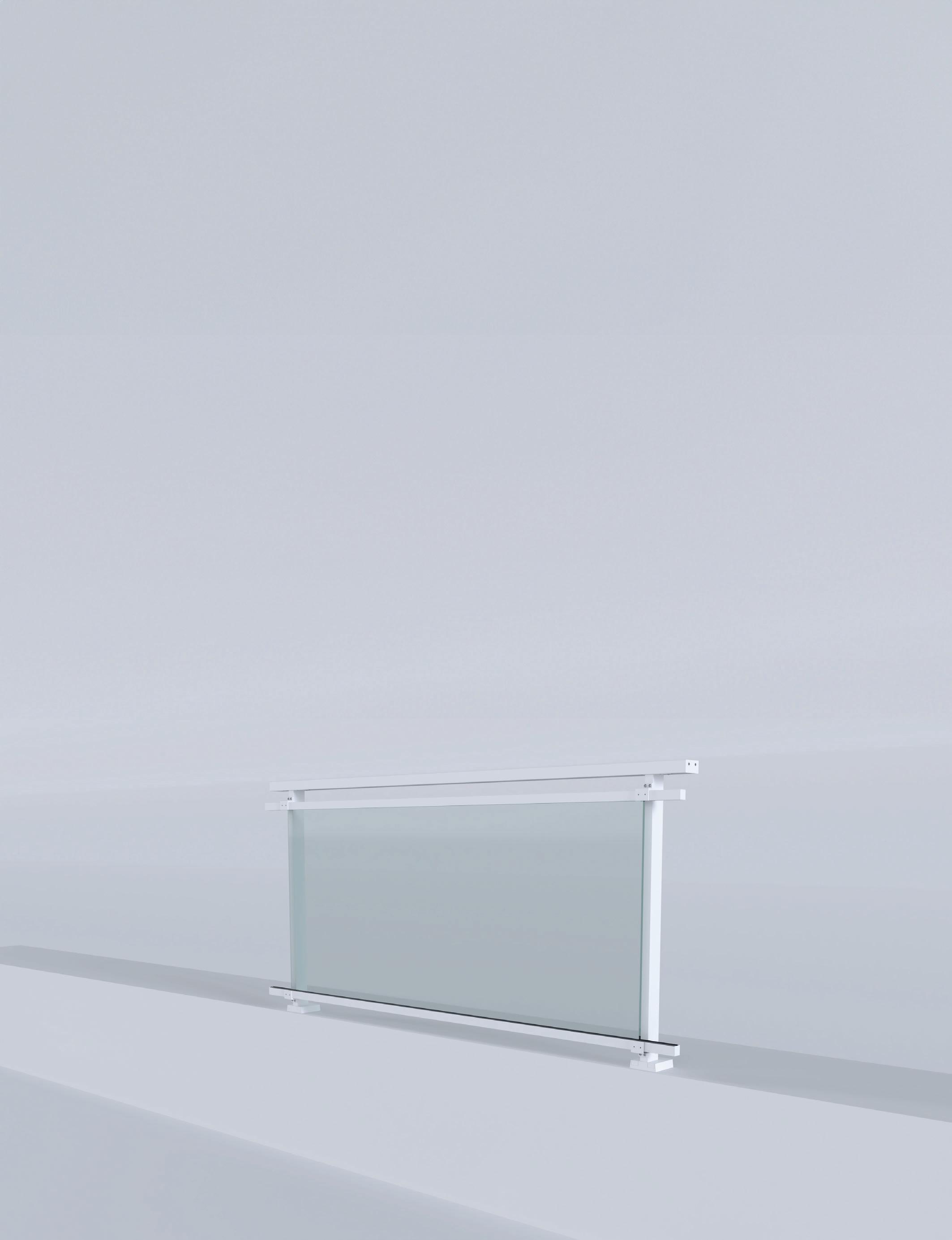

Maior EVO Plus A model (with rectangular gauge)
Watch the assembly video
Drill the holes in the floor using the 14 mm (0.55") drill bit.
Apply a certified chemical resin. Fill the hole to about half its depth. It is recommended to use the gun with dispenser.
Insert the M12X140 threaded rods into the holes, leaving the necessary 25 mm (0.98") projection for the profile shim and the M12 nuts. If the base levelling shim is present, increase the projection of the M12X140 rod by 5 mm (0.19"), (thus 30 mm -1.18"in total).
Adjust the position of the posts by acting on the adjusters and using a spirit level. Insert the base claddings. Insert glass support profile.
*In the case of the last post, insert the end cap of the glass support profile before inserting the glass.
Temporarily remove part of the upper handle.
Insert the glass in the lower profile, resting it on the plugs.
Glue the sponge to the profile (upper Ushape). Place the previously disassembled handle on top of the upper U-shaped profile and press down until the fixing holes are re-centred. Refit the handle on the post.
Insert the handrail.
Proceed to fasten the handrail using the relevant screws.
Insert the compression seal into the lower profile so that the glass is locked.
Proceed and complete assembly by inserting the handrail caps.
