MODULAR HOUSES

Eurovent® is a long time experience in designing, manufacturing and distributing products dedicated to the insulation and ventilation of pitched roofs and facades in traditional, timber-frame, CLT, prefabricated and modular constructions.

In our offer you can find more than 350 products include roof membranes, house wraps, vapour barrier membranes and foils, adhesive tapes and other roof accessories.

Our products also include products for horizontal and vertical insulation of foundations.

Quality and Technology

PRODUCTS for modular houses

+ House wraps

+ Roof membranes

+ Active vapour insulation membranes

+ Vapour barrier foils

+ Sealing tapes & adhesives

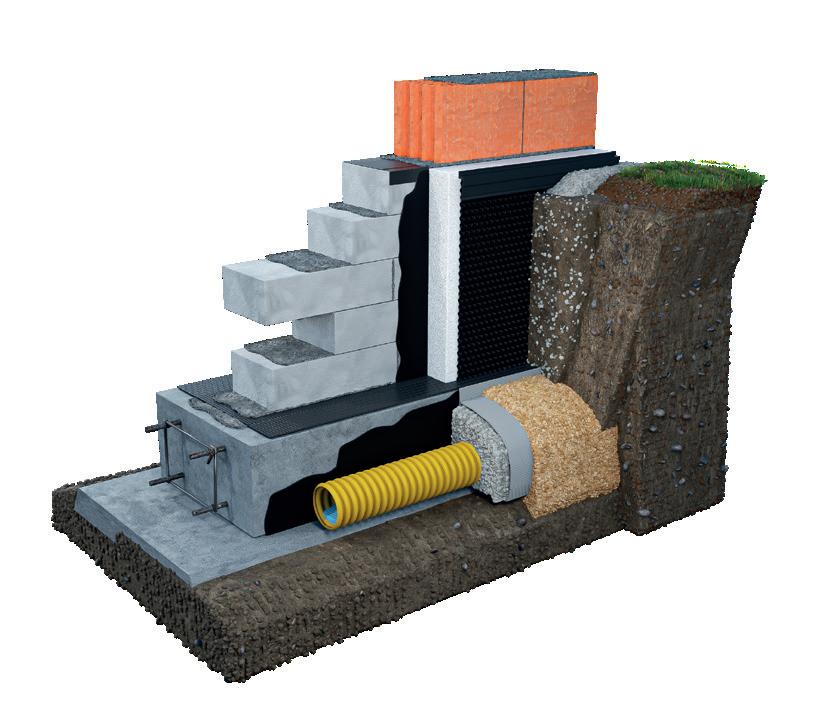

+ Foundation foils & accessories

HOUSE WRAPS

solution for modular houses

Wind barrier membranes are used for the protec tion of facades against wind, rain and moisture. They are applied in the case of facade insulation systems in timber-frame, CLT, prefabricated and modular construction as well as in case of log houses too.

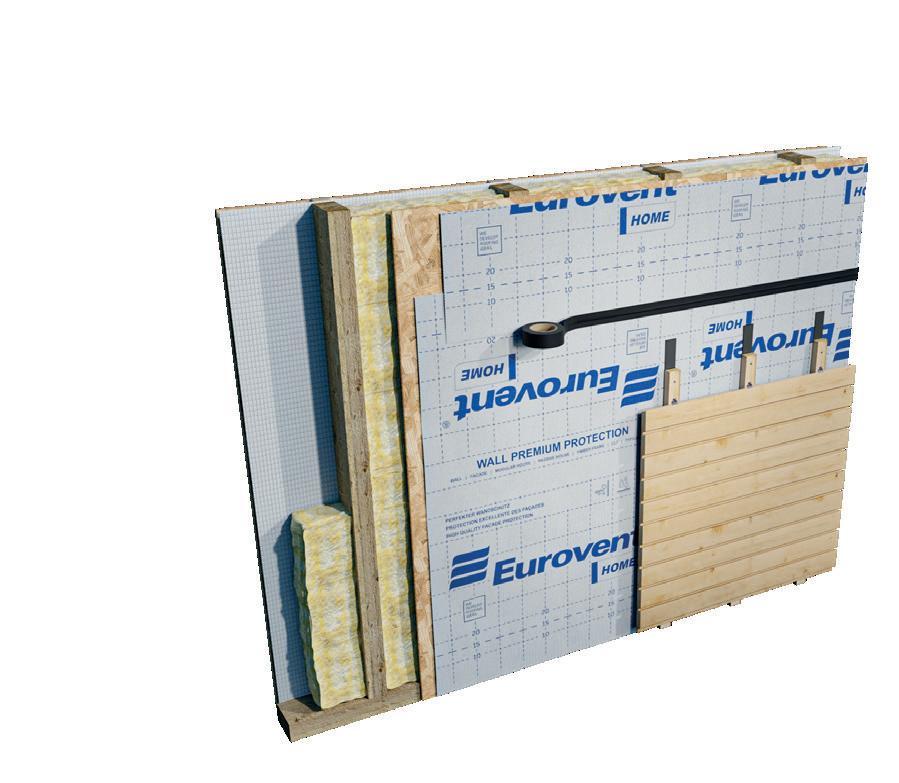

› Application of Eurovent® 1 Eurovent® HOME 2 Eurovent® PUR 3 Eurovent® CLIMA X 4 Eurovent® UNO COLD UV 5 Thermal insulation 6 Construction 7 OSB board 8 Facade

1 2 8 3 4 5 6 7

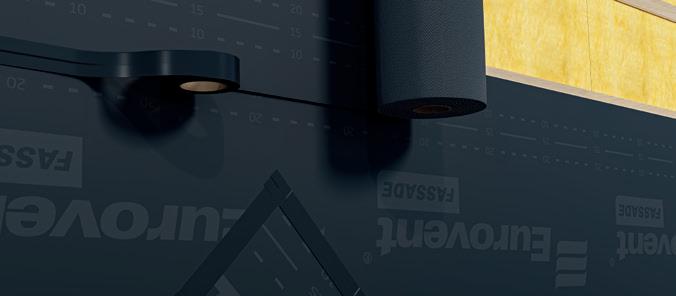

HOME FASSADE

• Three-layer vapour-permeable, water proof wind barrier.

• Protects facade constructions against wind, rain and moisture.

• Used as a housewrap for insulation of facade systems in prefabricated buildings, timber frame wall, recommended for modular houses.

• Available in the SYSTEM SK2.

HOME PRO

• Three layer airtight, water vapour highly permeable premium housewrap and roofing underlay.

• Used as the underlay on the slope roof and as the housewrap on the facade, in the timber, brick, concrete and prefabricated construction, timber framing, CLT, passive houses and full sheathing.

• Available in the SYSTEM SK2.

• Two-layer, airtight, watertight, highly vapour-permeable membrane.

• Protects facade constructions against wind, rain and moisture.

• Extremely UV resistant

• Flammability class - B-s1, d0.

• Designed for open-joint cladding systems.

• Available in the SYSTEM SK2.

• Available also without prints*.

ca. 135 g/m2 ca. 0,02 m 1,5 m x 50 rm 3,0 m x 50 rm* 50 rolls

ca. 80 g/m2 ca. 0,02 m 1,5 m x 50 rm 3,0 m x 50 rm 70 rolls ca. 210 g/m2 ca. 0,02 m 1,5 m x 50 rm 40 rolls

Wall & roof membrane UV resistance housewrap

Fire classB s1, d0 EN-13501-1

House wrap

• One-layer.

• Windproof, watertight highly vapour-permeable.

• Resistant to UV radiation.

• Protects facade constructions against wind, rain and moisture.

• Recommended for the timber frame, prefabricated and modular constructions.

• Available in SYSTEM SK2.

ca. 100 g/m2 ca. 0,02 m 1,5 m x 50 rm 3,0 m x 50 rm 50 rolls

WALL PROTECT

›

PROTECT 3 1 Eurovent® WALL PROTECT 3 4 Eurovent® UNO COLD UV 2 Eurovent® PUR 5 Thermal insulation 3 Eurovent® DB 6 Facade 1 5 6 3 2 4

House wrap

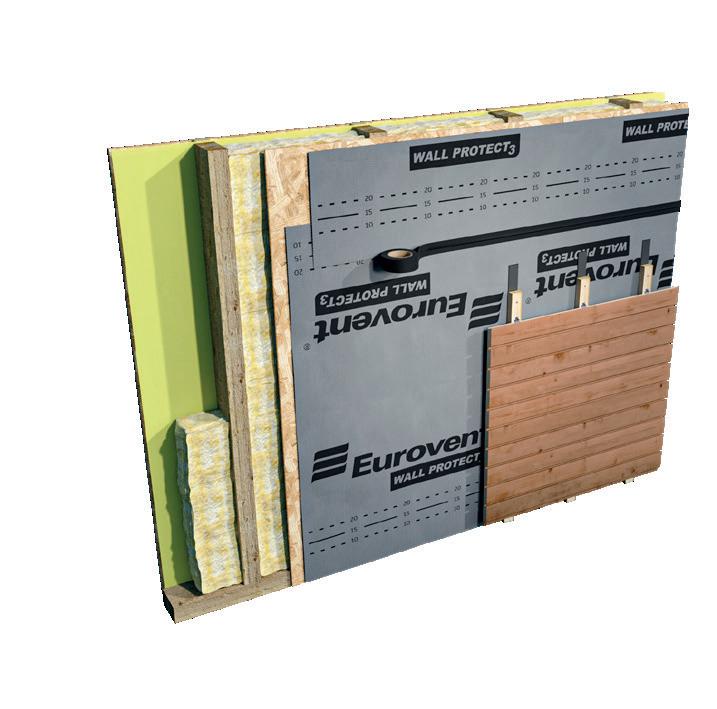

Application of Eurovent® WALL

WALL PROTECT 3

• Three-layer.

• Windproof, watertight highly vapour-permeable.

• Resistant to UV radiation.

• Protects facade constructions against wind, rain and moisture.

• Recommended for the timber frame, prefabricated and modular constructions.

• Available in SYSTEM SK2.

ca. 90 g/m2 ca. 0,02 m 1,5 m x 50 rm 3,0 m x 50 rm 50

rolls

House wrap

ROOF MEMBRANES

solution for modular houses

Highly vapour-permeable airtight roof membranes are used as an insulating layer for ceramic, concrete roof tiles steel roof tiles, flat sheet metals, slates and shingles.

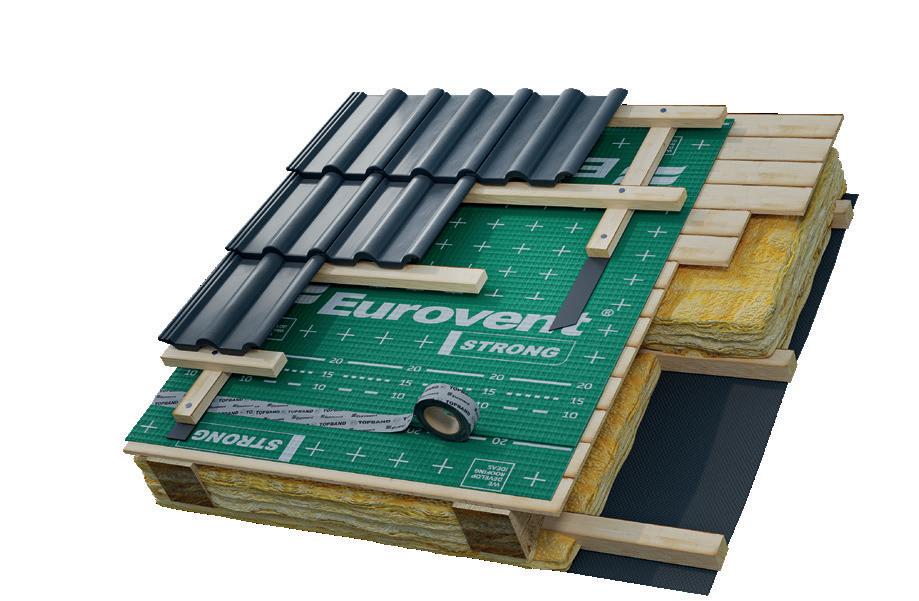

› Application of Eurovent® STRONG

1 Eurovent® STRONG

2 Eurovent® PUR

3 Eurovent® AKTIV 3

4 Eurovent® TOPBAND

5 Thermal insulation

6 Roof cover

7 Sarking

1 2 7 3 4 5 6

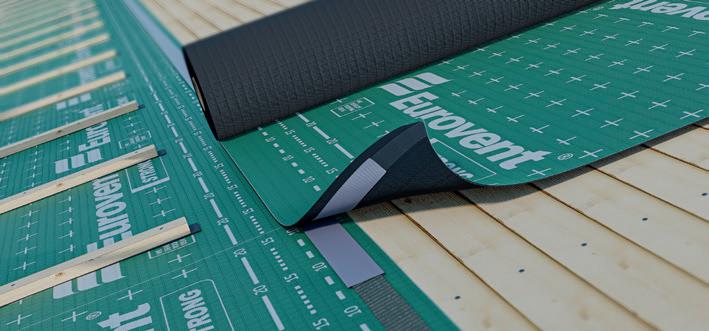

SYSTEM SK2 membrane with two self-adhesive tapes.

The SK2 system is an innovative system of joining the laps by the use of two self-adhesive tapes. The SK2 system enables easier installation as well as guarantees proper overlaps adhesion. Effective membranes joining is possible only in case of using two overlapping tapes, which join membranes durably in all atmospheric conditions.

STRONG

Reinforced roof membrane

• Four-layer, highly vapour-permeable airtight roof membrane

• Available in three different colours.

• Reinforced with PE mesh.

• Extremly resistant to tearing.

• Used for insulated and ventilated pitched roofs, also with full sarking as well as for timber frame and modular houses.

• Available in the SYSTEM SK2.

+ Adhesion possible at all atmospheric conditions.

+ Effective roof insulation.

+ Improved protection against wind and moisture.

+ Thermal energy saving.

ca. 160 g/m2 ca. 0,02 m 1,5 m x 50 rm 40 rolls

RED GREEN BLACK

Three layers. Highly vapour-permeable. Resistant to tearing. Available in three different colours. Used for insulated and ventilated pitched roofs. Also for full boarding Recommended for timber frame, CLT, prefabricated and modular constructions.

• Available in the SYSTEM SK2.

SUPER ca. 170 g/m2 ca. 0,02 m 1,5 m x 50 rm 40 rolls

RED GREEN BLACK

›

1 Eurovent® SUPER 4 Roof

2 Eurovent® PUR 5 Thermal

3 Eurovent®

1 2 5 3 6 4

Roof membrane

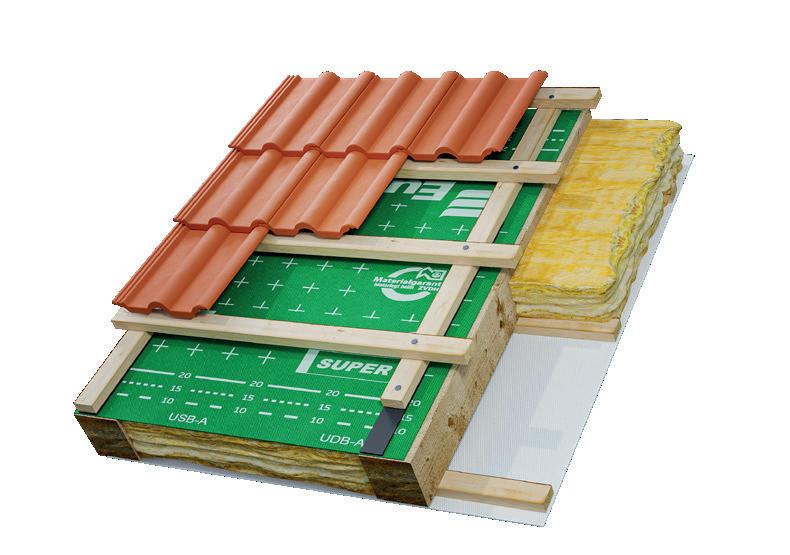

Application of Eurovent® SUPER

cover

insulation

CLIMA

Rafter

SUPER SA

• Three layers.

• Highly vapour-permeable.

• Available in two different colours.

• SYSTEM SA - self-adhesive membrane.

• Used as a roof underlay and house wrap provides a high-performance watertight and airtight barrier.

• Recommended for CLT, prefabricated and modular constructions.

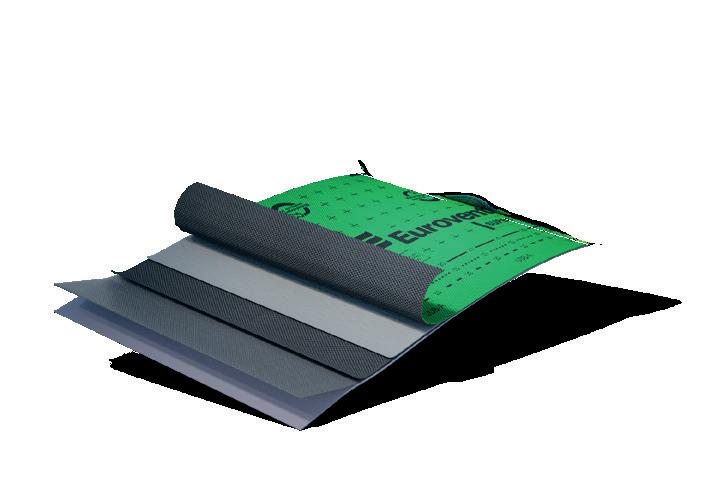

SYSTEM SA membrane with self adhering layer

The SA system is a self-adhering glue coating applied on the entire membrane surface. The membrane is specifically designed for self-adhering to a prepared substrate and provides a high-performance watertight and airtight barrier

+ High wind and moisture protection.

+ Perfect adhesion to walls and big surfaces, fast and easy installation.

+ Tear resistant.

1 PP non-woven fabric

2 Functional film

3 Acrylic adhesive layer

4 Protective layer

ca. 230 g/m2 ca. 270 g/m2 ca. 0,17 m ca. 0,19 m 1,5 m x 30 rm 40 rolls

Self adhesive membrane GREEN BLACK

1 1 2 3 4

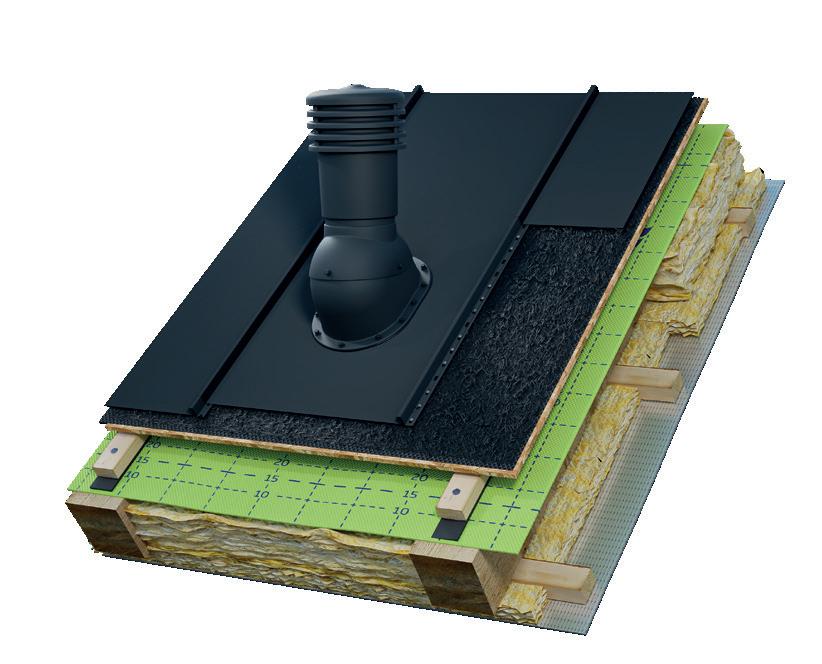

METALLIC

• Three-layer roof membrane with separation mat, 8 mm high.

• Highly vapour-permeable.

• Drains condensate

• Designed to use under metal coverings in pitched roofs and facade systems.

• Reduces noise to about 25 dB.

• Available in the SYSTEMIE SK.

ca. 450 g/m2 ca. 0,02 m 1,5 m x 25 rm 8 rolls

5 3 1 6 4 2

Roof membrane with separation mat

› Application of Eurovent® METALLIC

1 Eurovent® METALLIC

Thermal insulation 2 Eurovent® AKTIV

Rafter

Sarking

Roof cover

›

VAPOUR INSULATION

solution for modular houses

Active membranes and foils are used as a vapour barrier layer for roofs and walls in case of residential, commercial construction as well as specialized, innovative architectural projects.

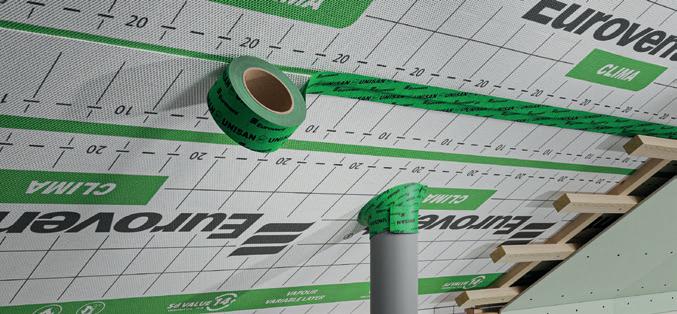

Application of Eurovent® 1 Eurovent® CLIMA X 2 Eurovent® UNISAN 3 Eurovent® SEAL 4 Eurovent® HOME 5 Thermal insulation 6 Construction 7 OSB board

1 2 7 3 4 5 6 8

8 Plasterboard

• Two-layer active vapour control membrane.

• Resistant to tearing.

• Prevents vapour condensation.

• For pitched roofs and wall constructions in prefabricated buildings, timber frame, CLT, recommended for modular houses.

• Available in the SYSTEM SK2.

CLIMA X AKTIV

• Three layer active vapour control membrane, reinforced with PE mesh.

• Highly resistant to tearing.

• Prevents vapour condensation.

• For pitched roofs and wall constructions in prefabricated buildings, timber frame, CLT, recommended for modular houses.

• Available in the SYSTEM SK2.

• Two-layer active vapour control membrane.

• Prevents vapour condensation.

• For pitched roofs and wall constructions in prefabricated buildings, timber frame, CLT, recommended for modular houses.

• Available in the SYSTEM SK2.

ca. 115 g/m2 ca. 10 m ca. 2-16 m 1,5 m x 50 rm 50 rolls ca. 90 g/m2 ca. 8 m ca. 2-16 m 1,5 m x 50 rm 50 rolls

Active vapour control reinforced membrane Active vapour control membrane CLIMA ca. 85 g/m2 ca. 10 m ca. 2-16 m 1,5 m x 50 rm 3,0 m x 50 rm 50 rolls

Active vapour control membrane

• Vapour barrier foil.

• Made of one layer of polyethylene.

• Prevents vapour condensation.

• Used as an isolation in wall, roof and ceiling constructions.

• Suitable for use as acoustic insulation for floor finishing works.

DB ca. 0,20 mm ca. 50 m 2,0 m x 50 rm 80 rolls

1 2 5 3 4

Vapour barrier foil › Application of Eurovent® DB 1 Eurovent® DB 3 Thermal insulation 5 Plasterboard

YELLOW BLUE

2 Eurovent® DUO 4 Rafter

STANDARD ALU

Metalized vapour barrier foil

• Three layer vapour barrier foil reinforced with PE mesh.

• Its metallized surface reflects heat rays.

• Prevents vapour condensation.

• Used as a vapour barrier in roofs, walls and ceilings in timber frame, prefabricated and modular buildings.

ca. 90 g/m2 ca. 150 g/m2 ca. 180 g/m2 ca. 150 m 1,5 m x 50 rm 50 rolls

1 Eurovent® STANDARD ALU 3 Thermal insulation 5 Plasterboard 2 Eurovent® ALUFIX 4 Rafter 1 2 5 3 4

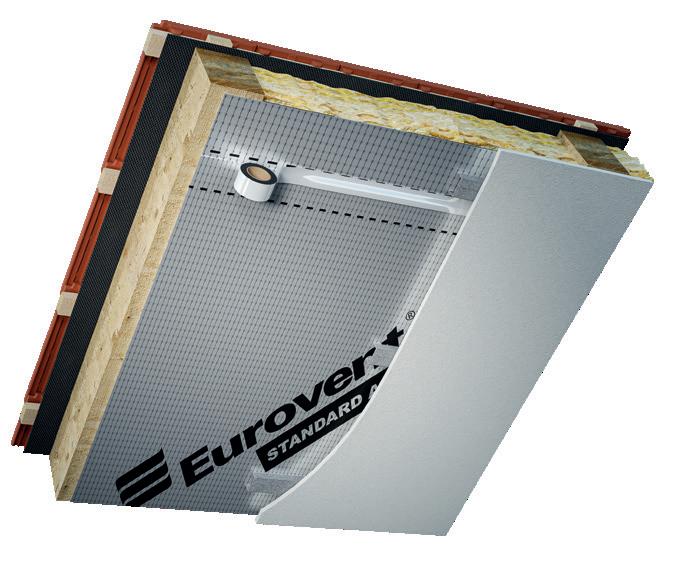

› Application of Eurovent® STANDARD ALU

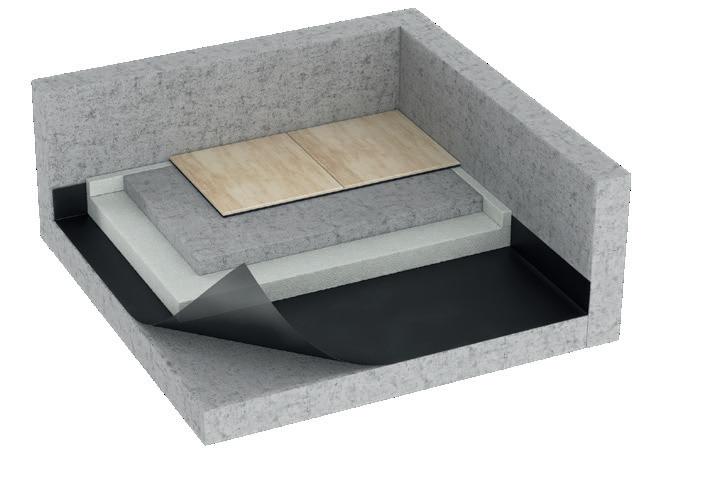

• Hydro-insulation foil.

• Made of one layer of polyethylene LDPE.

• Durable and resistant to weather conditions such as snow, rain, dust, etc.

• Used as a hydro-insulation layer for floors, concrete floors and as an initial terrace isolation.

0,20

4,0

5,0

BAU ca.

mm ca.

m x 25 rm

m x

rolls

1 2 3 4

Building foil › Application of Eurovent® BAU

1 Eurovent® BAU Screed 2 Thermal insulation Floor

Heat insulating foil

• Metallized thermal insulation foil

• Reflects heat rays.

• Vapour barrier.

• Dedicated to installation under underfloor heating.

• It is suitable as an insulating layer under and behind heating elements.

ca. 110 g/m2 ca. 70 m 1,0 m x 50 rm 120 rolls

ALUFLOOR

1 2 3 5 4 6

1 Eurovent® ALUFLOOR 3 Thermal insulation 5 Floor 2 Eurovent® BAU 4 Screed 6 Underfloor heating

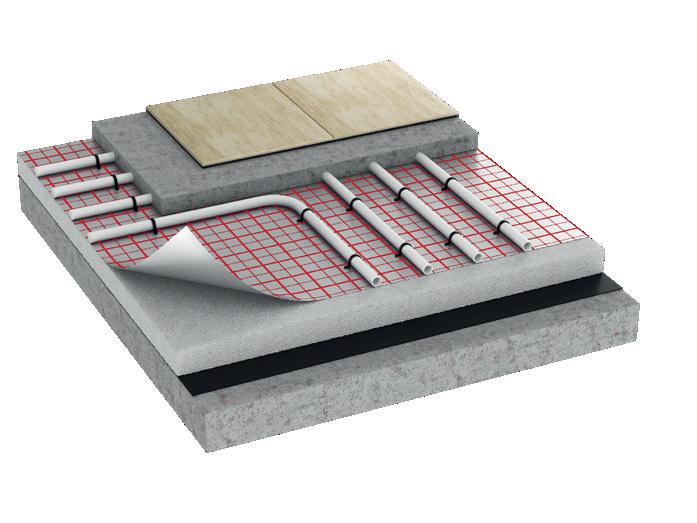

› Application of Eurovent® ALUFLOOR

SEALING TAPES

solution for modular houses

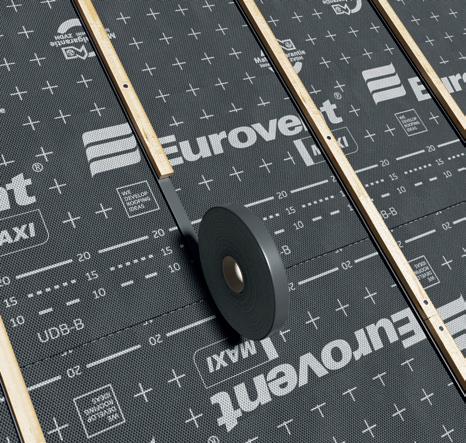

Self-adhesive tapes for sealing and repairing membranes and foils as well as other building materials based on plastics, too.

Application of Eurovent® tapes

› 1 Eurovent® UNO COLD UV 2 Eurovent® FASSADE 3 Eurovent® UNISAN 4 Eurovent® CLIMA 5 PVC pipe 6 Plasterboard 7 Eurovent® HYDRAL 8 Thermal insulation 9 OSB board

1 1 2 3 3 6 9 10 9 7 7 7 5 3 4 8

10 Wall

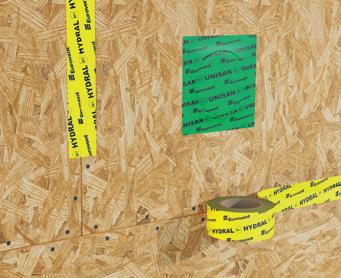

• Universal, single-sided tape made of PE mesh, reinforced with polyester fiber and special acrylic dispersion adhesive.

• Used in construction, for bonding and repairing vapour-barrier foils as well as roofing membranes, for fixing installation damages.

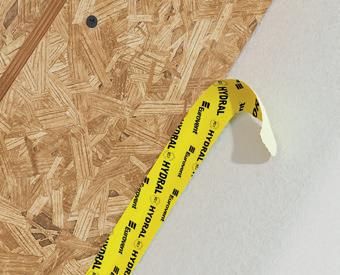

HYDRAL UNO COLD UV

• Single-sided assembly tape made of waterproof paper and a special glue based on acrylic dispersion, solvent – free and chlorine – free.

• Used for sealing joints of wood-based materials and plaster boards.

• As well as for gluing and repairing foils and vapour-barrier membranes.

• Single-sided, tape made of PE mesh, reinforced with polyester fiber and special acrylic dispersion adhesive, additionally UV-stabilised.

• Used for sealing and repairing foils and membranes, also for insulation of technical passage and various plastic materials.

• Dedicated to sealing in areas exposed to UV radiation and low temperatures.

Assembly sealing tape Cold & UV resistant sealing tape

UNISAN

4108/11 4108/11 50 mm x 25 rm - 10°C 12 rolls 720 rolls 60 mm x 40 rm > 5°C 10 rolls 600 rolls 60 mm x 25 rm 120 mm x 25 rm > 5°C 10 rolls 4 rolls 600 rolls 240 rolls

Universal, reinforced sealing tape

UNO PUR

• Universal single sided tape made of PE foil reinforced with polyester film and a special adhesive based on acrylic dispersion.

• Used for the bonding and repair of foils and membranes and bonding them to wood or metal elements

• One-sided sealing tape, made of polyethylene foam with closed cells structure and coated on one side with adhesive based on acrylic dispersion

• Recommended for sealing and isolation of roof and building constructions.

Reinforced sealing tape

4108/11 50 mm x 25 rm > 5°C 12 rolls 720 rolls 40 mm x 25 rm > 5°C 24 rolls 288 rolls

Sealing tape

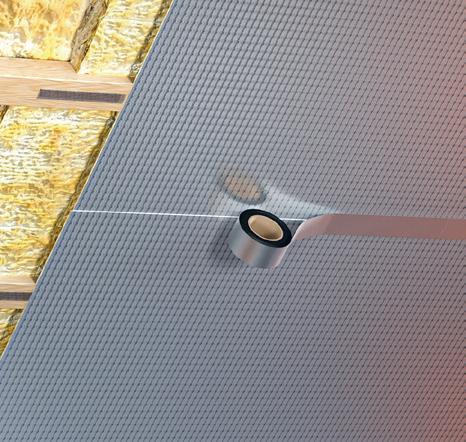

• Single-sided metallized tape made of PE foil and special adhesive based on acrylic dispersion..

• Used for sealing and repairing foils and vapour-barrier membranes on the basis of aluminum and metallized surfaces.

SEAL

• Self-adhesive sealing collar made of high quality polypropylene with acrylic adhesive and EPDM flashing.

• Sealing collar used for solar connections and different pipe systems, e.g. for sealing heating, sewage, ventilation pipes that drain rainwater, etc.

General purpose adhesive

• Strongly adhesive, solvent-free and odourless general purpose adhesive

• Ideal for sealing vapor insulation membranes and foils inside buildings.

• Strongly resistant to aging.

• Flexible and stretchable, susceptible to building movements - dilatation sealing.

• Suitable for plastering.

Sealing colar

ALUFIX

R3 40-55 mm 230 x 230 mm 10 pcs. 50 mm x 25 rm 75 mm x 25 rm > 5°C 36 rolls 24 rolls 2592 rolls 2304 rolls

One sided, metallized sealing tape

MULTI

4108/11 310 ml - 10°C 20 pcs.

CERTIFICATE & TEST of Eurovent® products

CE mark

DIN 4108/7

EMICODE®

CE marking is a certification mark that indicates conformity with health, safety, and environmental protection standards for products sold within the European Economic Area (EEA)

The CE marking is the manufacturer’s declaration that the product meets the requirements of the applicable EC directives.

This is a standard that defines the airtightness of a building material or part of a building, which means that air does not pass through the element or to a imited extent. These materials prevent the ventilation of the structure and ensure the tightness of the connection.

It is a system of quality control and classification of building materials according to the level of emission of dangerous substances. Materials classified as „very low emission” have the GEV EMOCODE® EC1 PLUS label, which offers the highest level of safety for healthy indoor air.

Information on indoor air emission levels of volatile substances, with a risk of toxicity by inhalation, on a class scale ranging from A+ (very low emissions) to C (high emissions).

ÉMISSIONS DANS L’AIR INTÉRIEUR

www.eurovent.de EurosystemPolskaSp. o.o.Sp.K. Wiejska 46-055Przywory,Poland TECHNICAL DATA SHEET Expanding tape made flexible polyurethane foam soaked with modifiedacrylic.FlammabilityclassB2.Sealingclass 300hPa. Eurovent COMPRE 300 CHARACTERISTICS NORM CLASSIFICATION Foambase Polyurethaneflexiblefoam Basis impregnation Specialflame-resistantacrylate Jointpermeabilitycoefficient(a-value),air-tightness DIN m [h·m·(daPa)n] Drivingrainresistance 1027 DIN18542BG2 Temperature-changeresistance DIN BG2 -20°C + Compatibilitywithotherbuildingmaterials 18542 Requirementsfulfilled Constructionmaterialclass/reaction 4102-1 B2(normalflammability) ABP-No.P-NDS04-1045 Watervapourpermeability,SD-value EN 12572 0,5 Storage packagingyear,dryandoriginal 20°C Advantages: Highflexibility Wind-barrierAvailablein widerangeofsizes Thisproductmeetswiththeguidelinesforthecriteria use listed reverse. Thecompanyisordinarymember theGEV. OM100 March29,2019 valid untilMarch 29,2024 Licence Number: 10226/01.01.14 Fortheproduct EUROVENT UNO COLD UV Duetoapplicationdate March28,2019 With reference to the classification accordance withthedirectives stipulated in 10 theGEVtrademarkconstitution on behalf of the GEV for the above mentioned produc as per section the GEV trademark constitution is awarded the licence for the use of the GEV trademark

WINDOW TAPES

solution for modular houses

Sealing window tapes for the installation of windows, doors, blinds and gates in the so-called “warm assembly” technique

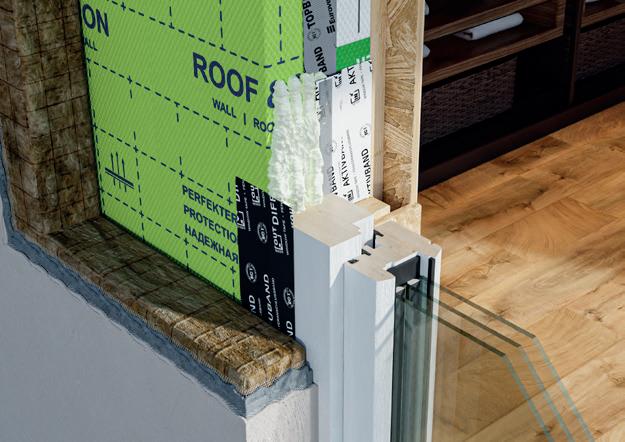

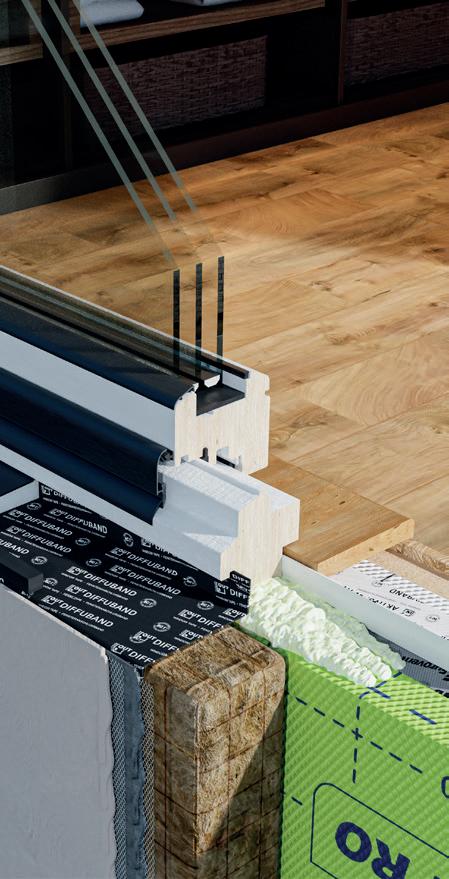

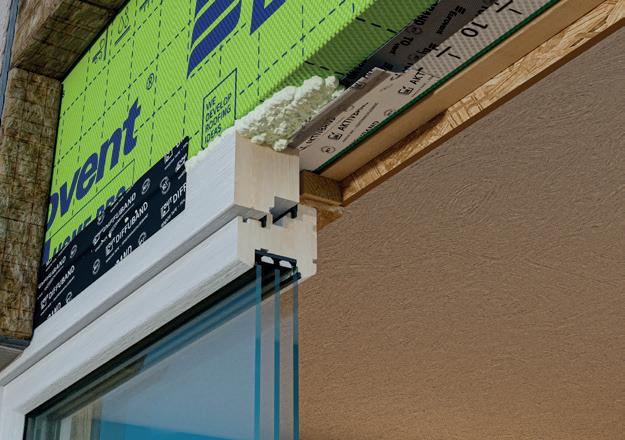

› Application of Eurovent® window tapes

1 Eurovent® DIFFUBAND SK

2 Eurovent® AKTIVBAND SK2

3 Eurovent® HOME PRO

4 Montage foam

5 Window

1 3 3 2 1 4 4 5 5 2

AKTIVBAND SK2

DIFFUBAND SK2

tape - outside

• Interior vapour-barrier window tape suitable for the insulation of window mounting holes, blinds and doors in the so called “Warm Installation” technology.

• Made from special non woven fabric with vapour-barrier film, coated on one side with adhesive layer.

• Additional adhesive stripe (SK2)

• Exterior vapour-permeable window tape suitable for the insulation of window mounting holes, blinds and doors in the so called “Warm Installation” technology.

• Made from special non woven fabric, coated with adhesive layer.

• Additional adhesive stripe (SK2)

Window

3 4 5 1 2 100 mm x 25 rm 150 mm x 25 rm > 5°C 6 rolls 1 roll 288 rolls 240 rolls 100 mm x 25 rm 150 mm x 25 rm > 5°C 6 rolls 1 roll 288 rolls 240 rolls

Window tape - inside

VENTILATION SYSTEM

solution for modular houses

ventilation chimneys and accessories designed for ventilating residential and commercial buildings.

To meet the requirements and needs of modern and energy-efficient construction, a ventilation system was developed that complies with the latest standards, including PN-83/B-03430/Az3.

Roof

› Application of Eurovent® VENTOS X Eurovent® VENTOS X Eurovent® METALLIC Eurovent® HOME PRO Eurovent® PUR Eurovent® STANDARD ALU Thermal insulation Roof cover OSB board/ sarking Rafter

9 7 8

• Connection diameter 150 mm.

• Anti-condensation system.

• The design supports ventilation using wind energy.

• Ensures a proper chimney draught.

• According to PN-83/B-03430.

• Wide range of base plates adjusted to many different roof coverings.

VENTOS X FLAT FLEXOS X

• Supports ventilation of the roof slope

• Provides temperature regulation under the roof covering.

• Allows ventilation of the roof slope in places where ventilation space is discontinued e.g. by chimney or roof window

• Wide range of base plates adjusted to many different roof coverings.

• Flexible connection of the roof chimney to the ventilation system in the building.

• Recommended for difficult connections.

• Equipped with a ring to improve connection with the ventilation chimney.

• Wide range of diameters..

• Certified by PZH (National Institute of Hygiene), with hygienic certificate.

Roof vent Flexible connection

VENTOS X

fi 150 mm RAL:

1 set 36 sets fi 150 mm RAL:

9005;

7024 1 set 36 sets 150/125/120/100/80 mm 60 cm 8 pcs. Certified by ITB. 19

Ventilation chimney

8004; 3009; 8017; 6020; 8019; 9005; 7021; 7024

8004; 3009; 8017; 6020; 8019;

7021;

FOUNDATION FOILS

solution for modular houses

Extruded insulating foils for damp-proof vertical insulation and the horizontal one in case of foundations, residential and industrial buildings.

› Application of Eurovent® MAUER PVC

1 Eurovent® MAUER PVC 2 Eurovent® GEO 8 3 Eurovent® GEO LINE 4 Drainage pipe 5 Wall 6 Ground

1 7 1 6 8 4 3 2 5

7 Foundation wall

Foundation

MAUER PVC GEO LINE

High quality horizontal insulation foil for foundations made of PVC with a special dimples to provide anti-slip properties and ensure that product perfectly bonds with mortar.

• Flexibility allows for high adhesion and resistance to substrate deformations while stable strength parameters guarantee that the insulation remains tight.

• Studded foundation foil made of high density polyethylene (HDPE) characterized by diagonal dimple pattern.

• Resistant to compression, ensures proper ventilation and protects against penetration of ground water and moisture, forms a layer of thermal and acoustic insulation

• Resistant to acids, alkalis, solvents, fungi and damage caused by plant.

• Special finishing profile designed for installation of foundation foils. The shape of the profile ensures perfect adherence of the foundation foil upper edge to the insulated surface.

• Manufactured from a special plastic, extremely resistant to aging.

0,25 m; 0,30 m; 0,40 m; 0,50 m; 0,60 m; 1,0 m x 30 rm 0,25 m – 80 rolls 0,30; 0,40 m – 60 rolls 0,50; 0,60 m – 40 rolls 1,0 m – 20 rolls 0,5 m; 1,0 m; 1,5m; 2,0 m; 2,5 m x 20 rm 0,5 m – 60 rolls 1,0 m – 30 rolls other – 15 rolls

GEO 8

Foundation foil Foundation accessories

2 rm 25 pcs. 3750 pcs.

Foundation foil

www.eurovent.de

All the information has been advertised in good faith, on the basis of our best knowledge, research and a whole range of experiences. The information does not constitute any sales proposal within the meaning of Civil Code. We reserve the right of possible technical changes as well as certain mistakes and errors in the print. The reprint edition, also in the form of extracts, only with the Eurosystem Polska Sp. z o.o. Sp. K consent.

Druk: Eurovent® Modular Houses 04/2022 A5:ENsample book

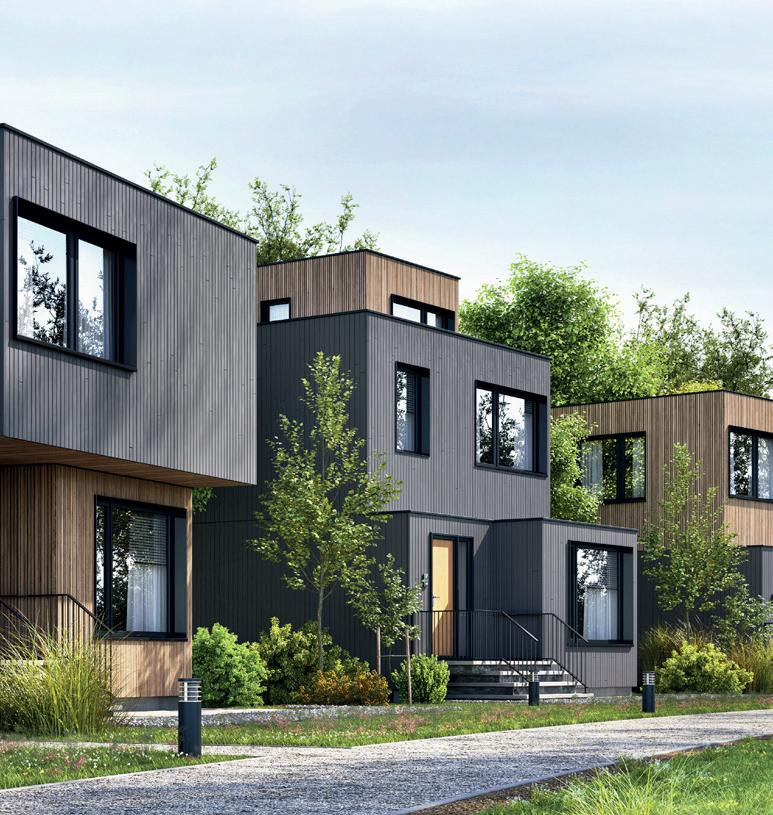

MODULAR HOUSES material samples

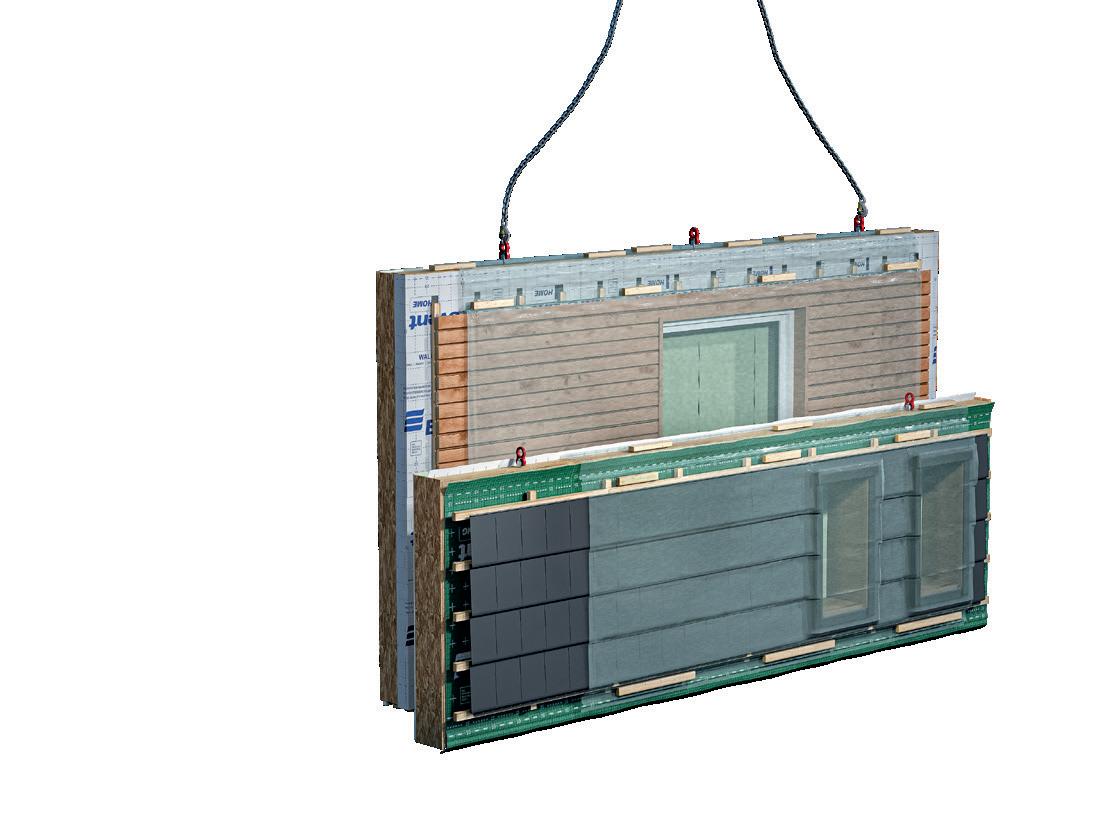

Selected materials dedicated to timber frame, CLT, prefabricated and modular construction.

+ House wraps

+ Roof membranes

+ Active vapour insulation membranes

+ Vapour barrier foils

+ Sealing tapes & adhesives

+ Foundation foils

Pozycjonowanie naklejki na membranach.

Układ wg kolejności produktów w katalogu

HOME House wrap

Pozycjonowanie naklejki na taśmach strona 1

UNISAN

Universal sealing tape

HYDRAL

Assembly sealing tape

UNO COLD UV

Cold & UV resistant sealing tape

dodatkowa folia do zasłąnięcia kleju multi

MULTI

General purpose adhesive

Pozycjonowanie naklejki na taśmach strona 2

Sealing tape UNO Sealing tape

Metallized sealing tape

ALUFIX

PUR

Pozycjonowanie naklejki na taśmach strona 3

AKTIVBAND SK2

Window tape - inside

DIFFUBAND SK2

Window tape - outside

Pozycjonowanie naklejki na folii fundamentowej

- tak samo jak na membranach

MAUER

foundation

PVC

foil
