Eurovent® is a long time experience in designing, manufacturing and distributing products dedicated to the insulation and ventilation of pitched roofs and facades in traditional, timber-frame, CLT, prefabricated and modular constructions.

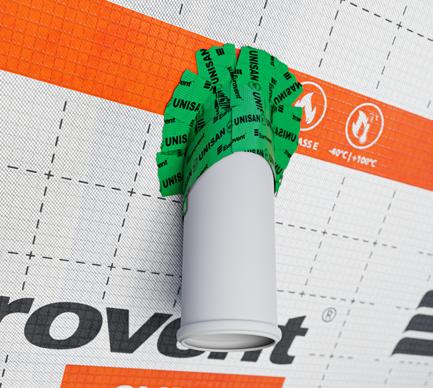

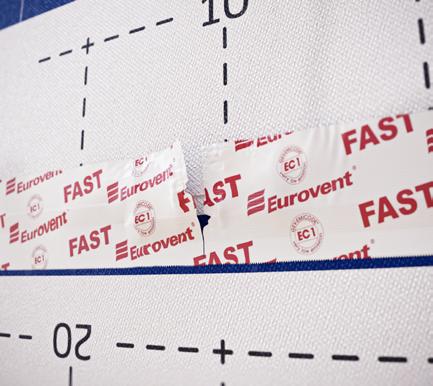

The product range includes over 350 items such as highly vapour-permeable roof membranes, wind barrier membranes, vapour control membranes, insulation foils, adhesive tapes, and roofing accessories.
A complete solution for effective ventilation of residential and utility buildings, designed to meet the demands of modern, energy-efficient construction.

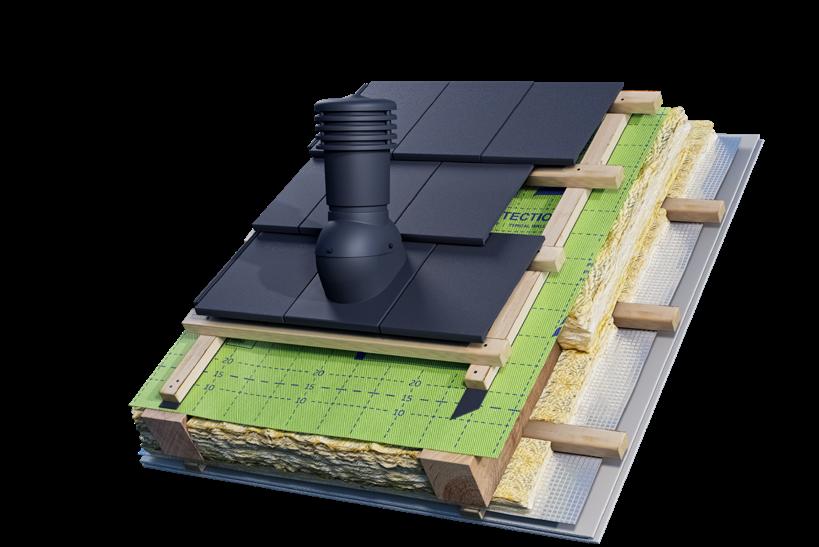

› Application of Eurovent® VENTOS X Base PLUS T – Flat concrete tile
1

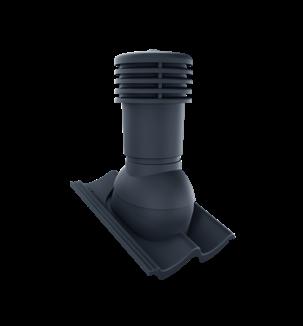

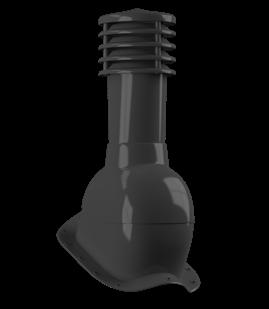

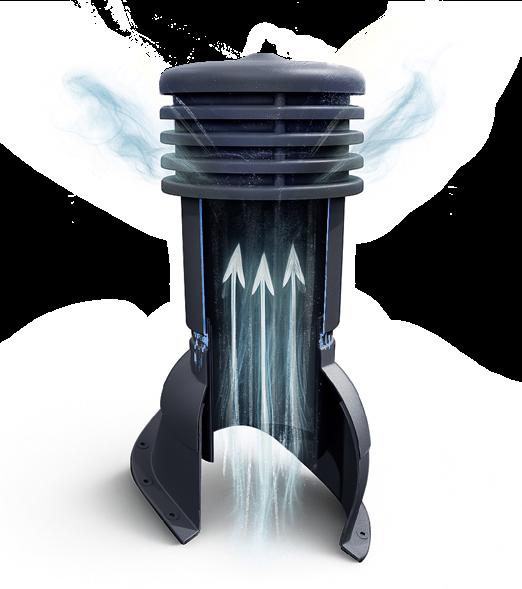

Every detail of the Eurovent® VENTOS X roof vent has been designed for maximum efficiency and durability.

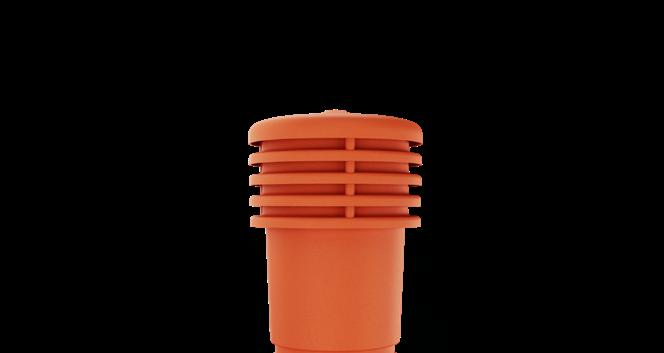

1 Top cap – The aerodynamic ring-shaped profile (Ø 210 mm) utilizes wind energy to support draft, increasing ventilation performance.
2 Connection – Ø 150 mm connection complies with PN-83/B-03430/Az3 standard, ensuring compatibility with both gravity and mechanical ventilation systems.
3 Anti-condensation system – Equipped with drainage holes that discharge condensate directly onto the roof surface, minimizing the risk of moisture buildup inside the duct.
4 Airflow – Internal diameter of Ø 170 mm ensures increased airflow and high ventilation efficiency.
5 Surface – Dirt-repellent texture reduces contamination accumulation. Wide range of RAL colours matching the most popular roof finishes.
6 Adjustment – The vent allows angle adjustment in the range of 5° to 45° for alignment with the roof pitch.
The Eurovent® VENTOS X roof vent has undergone a comprehensive technical assessment in terms of durability, strength, and functionality.
The evaluation was carried out by independent, accredited research institutions, including the Łukasiewicz Research Network – Institute of Polymer Materials and Dyes Engineering, and the Department of Thermal Engineering and Ventilation at the Cracow University of Technology.
Additionally, the product received a positive technical performance assessment from the Building Research Institute (ITB), confirming its compliance with the requirements of modern construction standards and the PN-83/B-03430/Az3 standard.
› Airflow performance of Eurovent® VENTOS X The chart shows a comparison of airflow through a roof vent with a diameter of Ø150 mm and Ø125 mm.*
*The information provided is given in good faith, based on our best knowledge, research, and experience.
According to the latest guidelines, the minimum diameter of ventilation ducts for rooms such as bathrooms, kitchens, or toilets should not be less than 150 mm.
The Eurovent® VENTOS X roof vent provides efficient and safe ventilation, even in buildings with enhanced energy performance. Thanks to its 150 mm connection diameter, it ensures smooth and stable airflow without the risk of blockages or draft fluctuations. It does not require additional insulation and effectively prevents condensation, moisture buildup inside the duct, and the development of mould or fungi, common issues associated with smaller-diameter roof vents.
Proper, efficient functioning ventilation.
Ineffective or poorly functioning ventilation.
ø150 mm
No additional insulation required.
Efficient building ventilation.
Prevents mould and fungi growth.
No risk of condensation inside the duct.
For use in gravity ventilation systems.
Can be used as a vent for sanitary and sewage risers.
ø125 mm
Requires additional insulation
Low airflow efficiency.
High risk of mould and fungi development.
High risk of condensation inside the duct.
Suitable only for venting sewage and sanitary risers.
An overview of roof coverings matched with dedicated bases for the Eurovent® VENTOS X and Eurovent® VENTOS X ROTO roof vents, as well as the Eurovent® VENTOS X FLAT low-profile roof air vent.
B Bałtycka
C CELTYCKA
F FINKENBERGER
G GOTEBORG
K KAPSTADT
M MECKLENBURGER
› Colour palette used in roof vent models dedicated to concrete roof tiles.

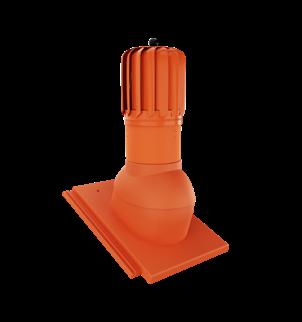

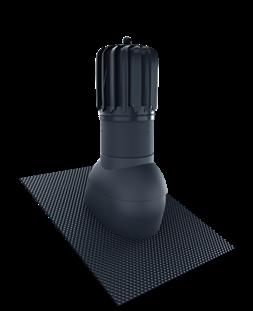

• Roof vent with an internal diameter of Ø170 mm and a connection diameter of Ø150 mm.
• Equipped with an anti-condensation system, no insulation required.
• Dedicated to flat roof tiles.

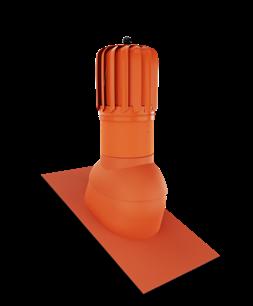

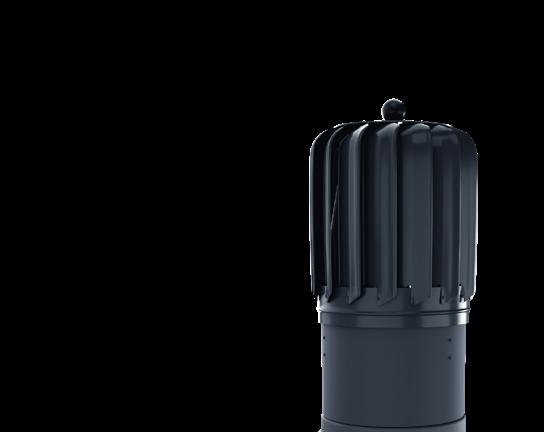

• An integrated turbine enhances proper chimney draft.

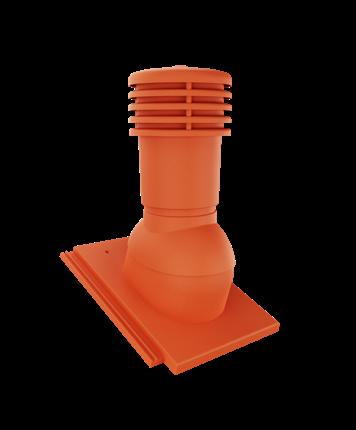

• Roof vent with an internal diameter of Ø170 mm and a connection diameter of Ø150 mm.
• Dedicated to flat roof tiles.

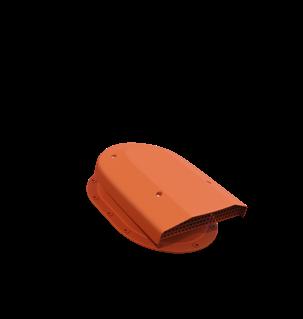

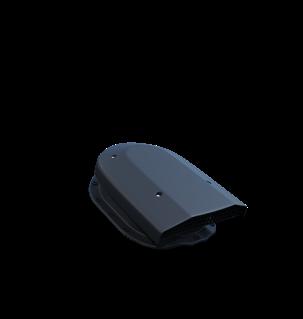

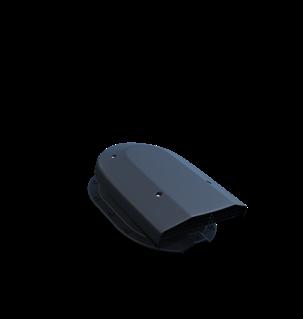

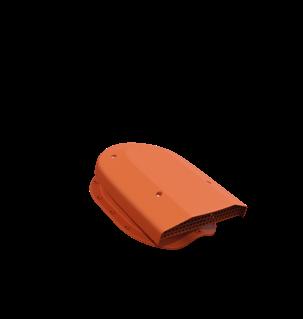

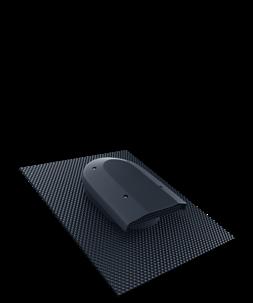

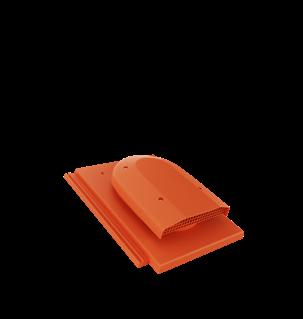

• Low-profile roof air vent.
• Provides effective air circulation beneath the roof covering and supports proper roof ventilation.
• Dedicated to flat roof tiles.
• Roof vent with an internal diameter of Ø170 mm and a connection diameter of Ø150 mm.
• Equipped with an anti-condensation system, no insulation required.
• Dedicated to “S”-type concrete roof tiles.
• An integrated turbine enhances proper chimney draft.
• Roof vent with an internal diameter of Ø170 mm and a connection diameter of Ø150 mm.
• Dedicated to “S”-type concrete roof tiles.

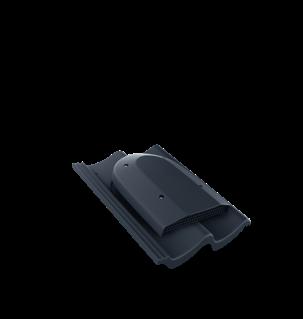

• Low-profile roof air vent.
• Provides effective air circulation beneath the roof covering and supports proper roof ventilation.
mm Wall red; Brown; Chestnut; Graphite; Black
• Dedicated to “S”-type concrete roof tiles. A: 400 mm
• Roof vent with an internal diameter of Ø170 mm and a connection diameter of Ø150 mm.
• Equipped with an anti-condensation system, no insulation required.
• Dedicated to Roman-type concrete roof tiles.
• An integrated turbine enhances proper chimney draft.
• Roof vent with an internal diameter of Ø170 mm and a connection diameter of Ø150 mm.
• Dedicated to Roman-type concrete roof tiles.
• Low-profile roof air vent.
• Provides effective air circulation beneath the roof covering and supports proper roof ventilation.
• Dedicated to Roman-type concrete roof tiles.
C
• Roof vent with an internal diameter of Ø170 mm and a connection diameter of Ø150 mm.
• Equipped with an anti-condensation system, no insulation required.
• Dedicated to Celtic-type concrete roof tiles.
• An integrated turbine enhances proper chimney draft.
• Roof vent with an internal diameter of Ø170 mm and a connection diameter of Ø150 mm.
• Dedicated to Celtic-type concrete roof tiles.
• Low-profile roof air vent.
• Provides effective air circulation beneath the roof covering and supports proper roof ventilation.
• Dedicated to Celtic-type concrete roof tiles.
An overview of roof coverings matched with dedicated bases for the Eurovent® VENTOS X and Eurovent® VENTOS X ROTO roof vents, as well as the Eurovent® VENTOS X FLAT low-profile roof air vent. Metal roof tile name
A ADA
BLACHY MINDA N25
ADAMANTE RUUKKI R28
AGA BLACHCENTRUM N25
AGA LIMBLACH W35
AGAT POLSTAL W35
AKCENT FINCO-STAL N25
AKORD FINCO-STAL N25
ALFA PREMIUM / ALFA PLUS BLACHPROFIL 2 N25
ALFA 2.0 BLACHPROFIL 2 N25
ALLANO BRATEX T18
AMALFI PLUS BLACHDOM PLUS F22
AQUA BLOK-BUD/BLOKBLACH/FINNOYA W35
ARAD OPTIMA / ARAD PREMIUM PRUSZYŃSKI R28 + additional butyl stripe
ARIA BUDMAT W35
ARMANO DACHY ŁUCZAJ F22
ASTRA POLONICA F22
ATENA NOWAX N25
AURORA BRATEX F22
B BANGA
BARCELONA
BAVARIA
ROZBUD N25
DACHY ŁUCZAJ W35
BLACHPROFIL 2 G18
BELLA STALHART W35
BELLA SARA BUDMAT N25
BESKID / BESKID PLUS BLACHDOM PLUS B26 + additional butyl stripe
BETA
BLACHPROFIL 2 N25
BETA POLSTAL W35
BIEBRZA ATESTPOL N25
BINGO
BLIZZARD
BOLERO
BLACHODACH N25
SOLID STEEL /BLACHOTRAPEZ F22
BLACHDACH B26 + additional butyl stripe
BONA / BONA PLUS / BONA LONG BLACHDOM PLUS N25
BONITA / BONITA PLUS DOM-BLACH N25
BRAVO
BRYLANT
BURSZTYN
C CAMESA
BLACHODACH N25
BLACHY PIOTRKOWICZ N25
WŁASTAL N25
M-BLACH N25
CARO+ / CARO POLSTAL N25
CENTRO BRATEX B26 + additional butyl stripe
CESAR
FINISH PROFILES W35
CLARO HANBUD M11
CLASSIC WŁASTAL N25
COMO BUDMAT M11 + additional butyl stripe
D DAKOTA
BLACHSTAL N25
DANA GÓRHUT N25
DECORREY
DEKADA / DEKADA LUX
RUUKKI N25
BLACH–POL R28 + additional butyl stripe
D DIAMENT ECO PLUS
BLACHOTRAPEZ N25
DIANA NOWAX W35
DOMINUM PANEL
DONA / DONA ECO
BLACHY MIDA M11
GLINMET/WISTAL N25
DUNA ZEPART W35
DUO REGAMET M11
ECO BLACHPROFIL 2 N25
E ECO NICOL MAX SYSTEM N25
ECO OLIVIA MAX SYSTEM W35
ECOMAX BUDMAX-METAL N25
EGERIA DACHPOL G18
ELEGANT BORGA N25
ELEKTRA REGAMET N25
ELIOS POLONICA W35
ELITA BLACHSTAL W35
EMI UNBLACH N25
EMMA EXTATRAPEZ M11
ENIGMA BLACHOTRAPEZ W35 + additional butyl stripe
ESKA BLACH-POL N25
ESTIMA BLACHOTRAPEZ Bitu O
EURO BLACHPROFIL 2 N25
EUROPA FLORIAN CENTRUM W35
EVELINE
BLACHY WADOWSKI N25
F FALA WAT W35
FAMILIA STAHLBERG F22
FERRERA BUDMAT W35
FINEZJA
FINISH / FINISH MAX
FINISHDAK
FLORIAN CENTRUM G18
FINISH PROFILES N25
FINISH PROFILES N25
Metal roof tile name
FINLANDIA
FINLANDIA DE LUX
FINN
FINNERA
FIŃSKA
BLACH-POL F22
BLACH-POL F22
BLACHPROFIL 2 T18
RUUKKI F22
METALEX MIKOŁAJOWICE W35
FIORD PRUSZYŃSKI T18
FLAMENCO
FLEX
FLORINA
FORTE PANEL
FORTE CLASSIC
BLACHODACH F22
PLANNJA F22
FLORIAN CENTRUM N25
FINCO STAL R28
FINCO STAL R28
FRANIA SYMETRIC MATPOL G18
FRIGGE
FUTURA
G GALLA
RUUKKI M11
DACHPOL M11
GLINMET/WISTAL W35
GALLA WAT R28
GAMMA 25 mm
GAMMA 35 mm
BLACHPROFIL 2 F22
BLACHPROFIL 2 F22
GARDA BUDMAT BITU O + additional butyl stripe
GERMAN
GERMANIA
GERMANIA SIMETRIC
GLORIA
GRANDE
GRANIT
BLACHOTRAPEZ F22
BLACHOTRAPEZ G18 + additional butyl stripe
BLACHOTRAPEZ G18 + additional butyl stripe
REGAMET N25
STAHLBERG F22
FINCO-STAL BITU O
GRYF PRUSZYŃSKI F22
H HALNY
ARCELOR MITTAL (ARMAT) N25
HEKTOR WŁASTAL N25
HELIOS / HELIOS PLUS TRANSTAL N25
HERA BRATEX N25
HERKULES BLACHSTAL F22
HESTIA BRATEX N25
HONORATA SOLAN W35
HORIZON BRATEX T18 + additional butyl stripe / M11
HORYZONT BALEXMETAL N25
HUSARIA BLACH-POL G18
I IDA FLORIAN CENTRUM N25
IMPERIA PLUS BLACHDOM PLUS N25
IRIS DACHPOL N25
J JANOSIK
JOHN STEEL
BLACHOTRAPEZ BITU O
FINISH PROFILES R28
JOKER BLACH-DOM N25
JOWISZ DACH-STYL W35
JULA MATPOL N25
K KAJA+ / KAJA ROLBUD N25
KARA UNIBLACH W35
KARAMZYN TRANSTAL F22
KARPATIA DACH-STYL F22
KIARA TRANSBLACH W35
KING
KING MAX
FINISH PROFILES N25
FINISH PROFILES N25
KINGSTILE FINISH PROFILES N25
KING BLACHSTAL N25
Metal
K KING PLUS
KINGA
KINGA / KINGA PLUS
KINGAS
KINGAS ECO / KINGAS PLUS
KLARA
KLAUDIA
KOBRA
KORONA PLUS
BLACHSTAL N25
STALHART N25
FLORIAN CENTRUM N25
BLACHOTRAPEZ N25
BLACHOTRAPEZ N25
FLORIAN CENTRUM W35
LIMBLACH N25
FLORIAN CENTRUM N25
BLACHDOM PLUS N25
KORRA TRANSBLACH N25
KRISLINE
BLACHY WADOWSKI W35
KRON PRUSZYŃSKI W35
KURPIANKA
KWADRA
L LARGO PANEL
LARGO CLASSIC
KURPDACH N25
FINCO STAL BITU O
FINCO STAL F22
FINCO STAL F22
LENA WAT G18
LENA MAX WAT G18
LENA ZEPART W35
LIBRA METALMIX N25
LIDIA
LIMA
FLORIAN CENTRUM F22
BLACHDOM PLUS T18 + additional butyl stripe
LIWIA REGAMET M11 or T18
LOARA PRUSZYŃSKI F22
LPAL LINDAB N25
LUNA DISPOL N25
LUNA POLONICA N25
M M35 SOLAN
N25
MAGNAT BUDMAX-METAL N25
MAJA FLORIAN CENTRUM R28
MAJOR WAT N25
MALTA HANBUD F22
MARII LIMBLACH G18
MARY STEEL FINISH PROFILES F22
MARY STEEL L FINISH PROFILES F22
MAXIMA REGAMET F22
MAZOWSZANKA KURPDACH W35
MEGA LINDAB W35
MERIDA POL-STAL M11
MERKURY DACH-STYL N25
METIS DACHPOL N25
METRUM FINCO-STAL F22
MILO/MILO PLUS TRANSTAL W35
MODENA STAHLBERG N25
MODERNO HANBUD F22
MODULAR RUUKKI T18
MODUŁOWA ROZBUD F22
MODUS PRUSZYŃSKI R28
MONA/MONA DUO REGAMET F22
MONTERREY TS 39 RUUKKI N25
MONTERREY TS 34 FEB FORMA RUUKKI N25
MONZA GLINMET/WISTAL W35
MURANO BUDMAT M11
FINCO STAL BITU O NAREW ATESTPOL W35
NATURA BLOK-BUD N25
Metal roof tile name
N NATURA
NATURA
Metal
BLOKBLACH
N25
FINNOYA N25
NICOL MAX SYSTEM N25
NINBO
NORA
MARKOSTEEL R28
BIAL-MET N25
NORD HANBUD W35 + additional butyl stripe
NORDA INTER-MAX N25
NORDICA+ BLACHY MINDA F22
NORDICA PANEL
BLACHY MINDA F22
NOVA ROZBUD W35
NOVATIK PREMIUM
O
OLGA
OLIMPIA
NOVATIK BITU O + additional butyl stripe
BLACHY PIOTRKOWICZ N25
REGAMET W35
OLIVIA MAX SYSTEM W35
OMEGA
ONYX
BLACHPROFIL 2 W35
BLACHY ZIEMIŃSKI F22
OPTIMA ARAD PRUSZYŃSKI R28
OPUS BLACHODACH BITU O + additional butyl stripe
P PANORAMA
BALEXMETAL F22
PETRA DUO REGAMET G18
PAULA DOM-BLACH W35
PERFECTA STAHLBERG N25
PERŁA WŁASTAL N25
PERŁA
BLACHDOM PLUS W35
PERŁA PLUS BLACHDOM PLUS W35
PIANO CLASSIC
PIANO PREMIUM
PIANO PANEL ESTETICA
FINCO-STAL R28
FINCO-STAL R28
FINCO-STAL R28
P PIANO PANEL STANDARD
FINCO-STAL R28
PLATINO / PLATINO ECO BRATEX N25 + additional butyl stripe
PLATINIUM
ŁUCZAJ N25
PODLASIE BIALMET W35
POLA POLSTAL F22
POLARIS METALMAX BITU O
POLONIA KURPDACH G18
PRESTIGE STAHLBERG F22
PRIMA
BLACH-POL N25 + additional butyl stripe
PROXIMA METALMIX N25 + additional butyl stripe
Q QUATTRO
QUATTRO SYMMETRICA
R REGENT / REGENT GRAND
BLACHSTAL G18
BLACHSTAL G18
PLANNJA N25
REGLE PRUSZYŃSKI BITU O
REN PRUSZYŃSKI R28
REVERS METALEX MIKOŁAJOWICE N25 + additional butyl stripe
RIKI VICOR N25
ROMA REGAMET R28
ROZALIA FLORIAN CENTRUM R28
RUBIN PLUS PRUSZYŃSKI N25 + additional butyl stripe
RZYMSKA
DACH-METAL W35
S SARA BUDMAT N25
SATURN
DACH-STYL N25
SAVANNA BRATEX BITU O
SCALA
BLACH–POL F22 + additional butyl stripe
SCANDIA METALEX MIKOŁAJOWICE W35
SCANDIC LINE PLANNJA N25
SCANDIC MODULAR
Metal roof tile name
SCANDINAVIA
SEGMENT
SIMELINE
SIÓDEMKA
PLANNJA N25
Metal roof tile manufacturer Base plate model
BRATEX F22
TRANSBLACH N25
BLACHY WADOWSKI G18
DACHPOL WŁOSZCZOWA F22
SMART PLANNJA N25
SOLO
SOLIS
SOLIS
SOLIS
SONATA
SPECJAL
SPEKTRUM
STIGMA 2.0
STANDARD
STELLA
STRATO
SYMETRIA
BLACHODACH BITU O + additional butyl stripe
BLOK-BUD F22
BLOKBLACH F22
FINNOYA F22
BLACHODACH W35
BLACHY PIOTRKOWICZ N25
BALEXMETAL N25
BLACHPROFIL2 F22
ŁUCZAJ N25
DISPOL N25
MARKOSTEEL B26
BLACH-POL F22
SYMETRIA NOWAX G18
SYMETRIA DE LUX
SZAFIR
SZKOCKA
T TAMARA
TAKT
TALIA
TANGO
TEMIDA
TESSA
THUNDER
BLACH-POL F22
PRUSZYŃSKI N25
BLACH-POL M11
FLORIAN CENTRUM F22
FINCO-STAL N25
BLACHOTRAPEZ N25 + additional butyl stripe
FINCO-STAL W35
GLINMET / WISTAL G18
FLORIAN CENTRUM T18 + additional butyl stripe / M11
SOLID STEEL / BLACHOTRAPEZ BITU O + butyl stripe / BITU UNI
Metal roof tile name
Metal roof tile manufacturer
Base plate model
T TIGRA PRUSZYŃSKI M11 + additional butyl stripe
TOM STEEL FINISH PROFILES M11 + additional butyl stripe
TOPAZ WŁASTAL W35
TOPLINEL(LPAN) LINDAB N25
TREND BLACHOTRAPEZ BITU O + additional butyl stripe
TUR PRUSZYŃSKI F22
TWIST BLACHODACH N25 + additional butyl stripe
TWISTER BLACHODACH N25
TYSENIA BLACHOTRAPEZ BITU O
V VENESSA/VANESSA SIMETRIC DOM-BLACH G18
VEGA FINCO-STAL N25
VEGA METALMIX W35
VELA INTER-MAX G18
VELLO BRATEX N25
VENA HANBUD N25 + additional butyl stripe
VENECJA BUDMAT F22
VERA UNIBLACH N25
VIKA VICOR N25
VIKTORIA REGAMET N25
VIVALDI ARECO SWEDEN N25
W WESTA INTER-MAX W35
WIKTORIA METALEX MIKOŁAJOWICE N25
X XARA ZEPART N25
Z ZEFIR BUDMAT N25
ZET BLACHPROFIL 2 F22
ZUZIA MATPOL W35
› Colour palette used for models designed for metal roof tiles.
* On order
• Roof vent with an internal diameter of Ø170 mm and a connection diameter of Ø150 mm.
• Equipped with an anti-condensation system, no insulation required.
• Dedicated to metal roof tiles with N25 profiling.
• An integrated turbine enhances proper chimney draft.
• Roof vent with an internal diameter of Ø170 mm and a connection diameter of Ø150 mm.
• Dedicated to metal roof tiles with N25 profiling.
• Low-profile roof air vent.
• Provides effective air circulation beneath the roof covering and supports proper roof ventilation.
• Dedicated to metal roof tiles with N25 profiling.
A: 325 mm
B: 245 mm
H: 33 mm
1 set
8004; 3009; 8017; 8019; 6020; 7024; 7021; 9005
36 sets
A: 325 mm
B: 245 mm H: 33 mm
8004; 8017; 8019; 7024; 7021; 9005 1 set 36 sets
A: 325 mm
B: 245 mm H: 33 mm
8004; 3009; 8017; 8019; 6020; 7024; 7021; 9005 1 set
140 sets
• Roof vent with an internal diameter of Ø170 mm and a connection diameter of Ø150 mm.
• Equipped with an anti-condensation system, no insulation required.
• Dedicated to metal roof tiles with F22 profiling.
• An integrated turbine enhances proper chimney draft.
• Roof vent with an internal diameter of Ø170 mm and a connection diameter of Ø150 mm.
• Dedicated to metal roof tiles with F22 profiling.
• Low-profile roof air vent.
• Provides effective air circulation beneath the roof covering and supports proper roof ventilation.
• Dedicated to metal roof tiles with F22 profiling.
A: 325 mm
B: 245 mm
H: 25 mm
1 set
8004; 3009; 8017; 8019; 6020; 7024; 7021; 9005
36 sets
A: 325 mm
B: 245 mm
H: 25 mm
1 set
8004; 8017; 8019; 7024; 7021; 9005
36 sets
A: 325 mm
B: 245 mm H: 25 mm
1 set
8004; 3009; 8017; 8019; 6020; 7024; 7021; 9005
140 sets
• Roof vent with an internal diameter of Ø170 mm and a connection diameter of Ø150 mm.
• Equipped with an anti-condensation system, no insulation required.
• Dedicated to metal roof tiles with W35 profiling.
• An integrated turbine enhances proper chimney draft.
• Roof vent with an internal diameter of Ø170 mm and a connection diameter of Ø150 mm.
• Dedicated to metal roof tiles with W35 profiling.
• Low-profile roof air vent.
• Provides effective air circulation beneath the roof covering and supports proper roof ventilation.
• Dedicated to metal roof tiles with W35 profiling.
A: 325 mm
B: 245 mm
H: 35 mm
1 set
8004; 3009; 8017; 8019; 6020; 7024; 7021; 9005
36 sets
A: 325 mm
B: 245 mm H: 35 mm
8004; 8017; 8019; 7024; 7021; 9005 1 set 36 sets
A: 325 mm
B: 245 mm H: 35 mm
8004; 3009; 8017; 8019; 6020; 7024; 7021; 9005 1 set 140 sets
• Roof vent with an internal diameter of Ø170 mm and a connection diameter of Ø150 mm.
• Equipped with an anti-condensation system, no insulation required.
• Dedicated to metal roof tiles with G18 profiling.
• An integrated turbine enhances proper chimney draft.
• Roof vent with an internal diameter of Ø170 mm and a connection diameter of Ø150 mm.
• Dedicated to metal roof tiles with G18 profiling.
• Low-profile roof air vent.
• Provides effective air circulation beneath the roof covering and supports proper roof ventilation.
• Dedicated to metal roof tiles with G18 profiling.
A: 325 mm
B: 245 mm
H: 20 mm
1 set
8004; 3009; 8017; 8019; 6020; 7024; 7021; 9005
36 sets
A: 325 mm
B: 245 mm
H: 20 mm
1 set
8004; 8017; 8019; 7024; 7021; 9005
36 sets
A: 325 mm
B: 245 mm H: 20 mm
1 set
8004; 3009; 8017; 8019; 6020; 7024; 7021; 9005
140 sets
• Roof vent with an internal diameter of Ø170 mm and a connection diameter of Ø150 mm.
• Equipped with an anti-condensation system, no insulation required.
• Dedicated to metal roof tiles with R28 profiling.
• An integrated turbine enhances proper chimney draft.
• Roof vent with an internal diameter of Ø170 mm and a connection diameter of Ø150 mm.
• Dedicated to metal roof tiles with R28 profiling.
• Low-profile roof air vent.
• Provides effective air circulation beneath the roof covering and supports proper roof ventilation.
• Dedicated to metal roof tiles with R28 profiling.
A: 325 mm
B: 244 mm
H: 25 mm
1 set
8004; 3009; 8017; 8019; 6020; 7024; 7021; 9005
36 sets
A: 325 mm
B: 244 mm H: 25 mm
8004; 8017; 8019; 7024; 7021; 9005 1 set 36 sets
A: 325 mm
B: 244 mm H: 25 mm
8004; 3009; 8017; 8019; 6020; 7024; 7021; 9005 1 set 140 sets
• Roof vent with an internal diameter of Ø170 mm and a connection diameter of Ø150 mm.
• Equipped with an anti-condensation system, no insulation required.
• Dedicated to metal roof tiles with B26 profiling.
• An integrated turbine enhances proper chimney draft.
• Roof vent with an internal diameter of Ø170 mm and a connection diameter of Ø150 mm.
• Dedicated to metal roof tiles with B26 profiling.
• Low-profile roof air vent.
• Provides effective air circulation beneath the roof covering and supports proper roof ventilation.
• Dedicated to metal roof tiles with B26 profiling.
A: 325 mm
B: 243 mm
H: 37 mm
1 set
8004; 3009; 8017; 8019; 6020; 7024; 7021; 9005
36 sets
A: 325 mm
B: 243 mm
H: 37 mm
8004; 8017; 8019; 7024; 7021; 9005
1 set 36 sets
A: 325 mm
B: 243 mm H: 37 mm
8004; 3009; 8017; 8019; 6020; 7024; 7021; 9005 1 set
140 sets
• Roof vent with an internal diameter of Ø170 mm and a connection diameter of Ø150 mm.
• Equipped with an anti-condensation system, no insulation required.
• Dedicated to metal roof tiles with M11 profiling.
• An integrated turbine enhances proper chimney draft.
• Roof vent with an internal diameter of Ø170 mm and a connection diameter of Ø150 mm.
• Dedicated to metal roof tiles with M11 profiling.
• Low-profile roof air vent.
• Provides effective air circulation beneath the roof covering and supports proper roof ventilation.
• Dedicated to metal roof tiles with M11 profiling.
A: 325 mm
B: 245 mm
H: 15 mm
1 set
8004; 3009; 8017; 8019; 6020; 7024; 7021; 9005
36 sets
A: 325 mm
B: 245 mm H: 15 mm
8004; 8017; 8019; 7024; 7021; 9005 1 set 36 sets
A: 325 mm
B: 245 mm H: 15 mm
8004; 3009; 8017; 8019; 6020; 7024; 7021; 9005 1 set
140 sets
• Roof vent with an internal diameter of Ø170 mm and a connection diameter of Ø150 mm.
• Equipped with an anti-condensation system, no insulation required.
• Designed for flat roof coverings.
• An integrated turbine enhances proper chimney draft.
• Roof vent with an internal diameter of Ø170 mm and a connection diameter of Ø150 mm.
• Designed for flat roof coverings.
• Low-profile roof air vent.
• Provides effective air circulation beneath the roof covering and supports proper roof ventilation.
• Designed for flat roof coverings.
A: 325 mm
B: 245 mm
8004; 3009; 8017; 8019; 6020; 7024; 7021; 9005
A: 325 mm
B: 245 mm
8004; 8017; 8019; 7024; 7021; 9005
A: 325 mm B: 245 mm
8004; 3009; 8017; 8019; 6020; 7024; 7021; 9005
An overview of roof coverings matched with dedicated bases for the Eurovent® VENTOS X and Eurovent® VENTOS X ROTO roof vents, as well as the Eurovent® VENTOS X FLAT low-profile roof air vent.
Trapezoidal sheet metal manufacturer
A AQUAPLAST
Trapezoidal sheet metal name
F FINISCH
E FC
H HANBUD
E
P PRUSZYŃSKI
PLUS
Base plate model
• Roof vent with an internal diameter of Ø170 mm and a connection diameter of Ø150 mm.
• Equipped with an anti-condensation system, no insulation required.
• Dedicated to trapezoidal sheets with T18 profiling.
• An integrated turbine enhances proper chimney draft.
• Roof vent with an internal diameter of Ø170 mm and a connection diameter of Ø150 mm.
• Dedicated to trapezoidal sheets with T18 profiling.
• Low-profile roof air vent.
• Provides effective air circulation beneath the roof covering and supports proper roof ventilation.
• Dedicated to trapezoidal sheets with T18 profiling.
A: 325 mm
B: 242 mm
H: 19 mm
1 set
8004; 3009; 8017; 8019; 6020; 7024; 7021; 9005
36 sets
A: 325 mm
B: 242 mm H: 19 mm
1 set
8004; 8017; 8019; 7024; 7021; 9005
36 sets
A: 325 mm
B: 242 mm H: 19 mm
1 set
8004; 3009; 8017; 8019; 6020; 7024; 7021; 9005
140 sets
The universal mounting kit designed for installing the Eurovent® VENTOS X roof vent on metal sheet coverings –particularly trapezoidal sheets with high or low profiling.
› Application of Eurovent® VENTOS X BITU UNI ALU base – trapezoidal metal sheet
1 Eurovent® VENTOS X BITU UNI ALU
• Roof vent with an internal diameter of Ø170 mm and a connection diameter of Ø150 mm.
• Equipped with an anti-condensation system, no insulation required.
• Universal EPDM base.
• An integrated turbine enhances proper chimney draft.
• Roof vent with an internal diameter of Ø170 mm and a connection diameter of Ø150 mm.
• Universal EPDM base.
• Low-profile roof air vent.
• Provides effective air circulation beneath the roof covering and supports proper roof ventilation.
• Universal EPDM base.
• Roof vent with an internal diameter of Ø170 mm and a connection diameter of Ø150 mm.
• Equipped with an anti-condensation system, no insulation required.
• Universal ALU base.
• An integrated turbine enhances proper chimney draft.
• Roof vent with an internal diameter of Ø170 mm and a connection diameter of Ø150 mm.
• Universal ALU base.
• Low-profile roof air vent.
• Provides effective air circulation beneath the roof covering and supports proper roof ventilation.
• Universal ALU base.
400 mm
8004; 8017; 8019; 7024; 9005
8004; 8017; 8019; 7024; 9005
8004; 8017; 8019; 7024; 9005
For the Eurovent® VENTOS X venting chimney, a comprehensive set of support materials has been prepared to ensure correct selection and installation.
Installation instructions – Practical guidance supporting the proper installation of the venting chimney on the roof.
Installation recommendations – Detailed information and reference charts facilitating the correct selection of the appropriate base variant according to the specific type of roof covering.
ONLINE ASSEMBLY GUIDE
Scan QR code with your phone
Accessories in this group expand the building’s ventilation system with ducts, connectors, and adapters fully compatible with Eurovent® VENTOS X roof vents.
› Application of Eurovent® FLEXOS X Ventilation system
1 Eurovent® FLEXOS X

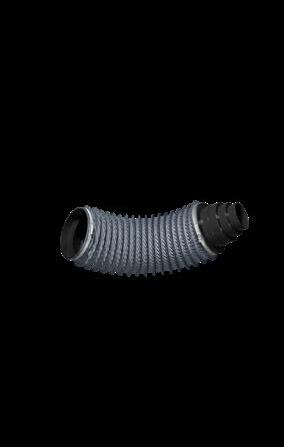

• Flexible duct for connecting Eurovent® VENTOS X roof vents to the building’s ventilation system.
• Flexible length range and tilt angle, recommended for demanding connections.
• Diameter range: 150–80 mm.

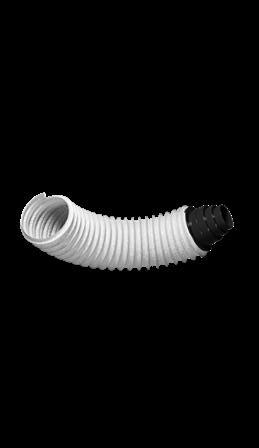

• Flexible duct for connecting Eurovent® VENTOS X roof vents to the building’s ventilation system.
• Integrated with Eurovent® RING X.
• Flexible length range and tilt angle, recommended for demanding connections.
• Diameter range: 150–80 mm.
• Flexible duct for routing the ventilation channel.
• Also suitable for connecting Eurovent® VENTOS X to the building’s ventilation system.
• Flexible length range and tilt angle, recommended for demanding connections.
ventilation duct reducer
• Reducer made of plastic.
• Enables quick and tight connection of Eurovent® FLEX X or the Eurovent® VENTOS X roof vent to ducts with smaller diameters Ø110 mm or Ø125 mm.
ventilation duct connector
• Connector made of plastic.
• Enables quick and tight extension of Eurovent® FLEX X or connection with Eurovent® FLEXOS X or Eurovent® FLEXOS X PLUS ducts.
sealing collar
• EPDM sealing collar used for insulating the passage of ventilation ducts through the roof cover.
• A wide range of diameters allows for universal application across various types of ventilation ducts.
liner less adhesive tape
• Ideal for sealing ventilation duct joints and for connecting ducts to the Eurovent® VENTOS X.
• Liner-free – faster application.
• Zero waste.
• Serrated edge – easy tearing without tools.
uniwersalna taśma klejąca
• It is ideal for bonding and repairing highly vapor-permeable roof membranes and VCL’s
• Recommended for sealing service penetrations through building envelopes.
B: 245 mm C: 180 mm
D: 155 mm H: 33 mm
B: 245 mm C: 180 mm
D: 143 mm H: 25 mm
B: 245 mm C: 181 mm D: 142 mm H: 35 mm
B: 245 mm C: 181 mm D: 155 mm H: 20 mm
B: 244 mm C: 182 mm
D: 80 mm F: 140 mm H: 25 mm B26
B: 243 mm C: 178 mm
D: 152 mm H: 37 mm
B: 245 mm C: 179 mm
D: 40 mm H: 15 mm
B: 245 mm C: 180 mm
B: 242 mm C: 177 mm
D: 32 mm F: 76 mm H: 19 mm BITU UNI EPDM
UNI ALU
B: 300 mm C: 180 mm
B: 400 mm C:180 mm
