Eurovent® is a long time experience in designing, manufacturing and distributing products dedicated to the insulation and ventilation of pitched roofs and facades in traditional, timber-frame, CLT, prefabricated and modular constructions.
The product range includes over 350 items such as highly vapour-permeable roof membranes, wind barrier membranes, vapour control membranes, insulation foils, adhesive tapes, and roofing accessories.
The portfolio is complemented by solutions for horizontal and vertical damp-proof insulation in both residential and industrial construction.
78 – Ridge

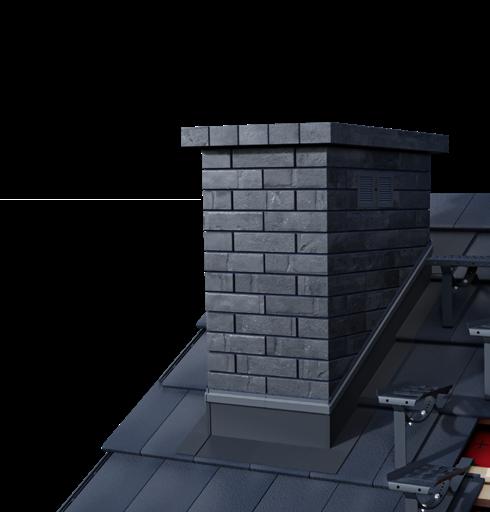

86 – Chimney

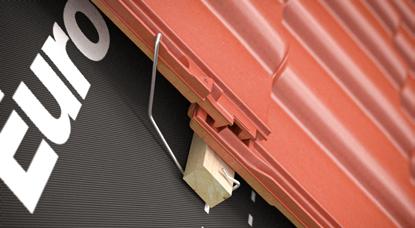

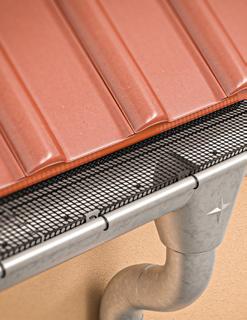

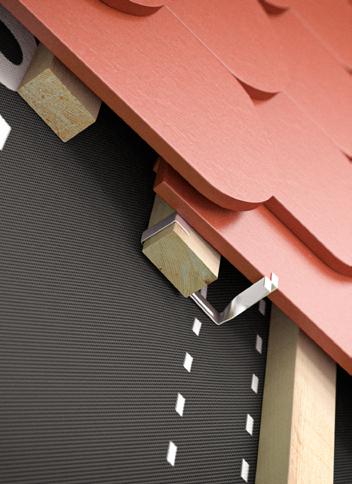

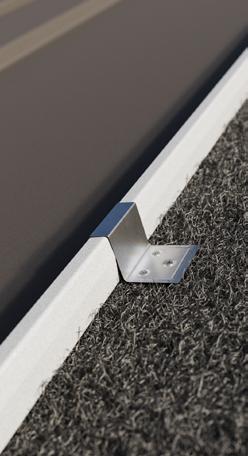

92 – Roof tile clips 101 – Eaves

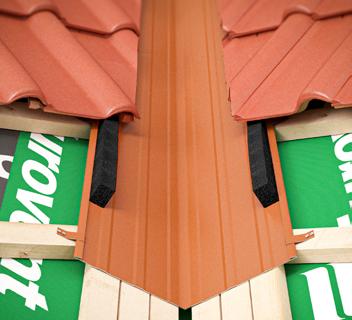

104 – Valley

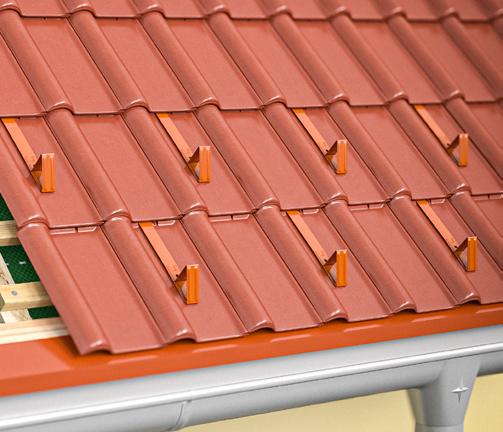

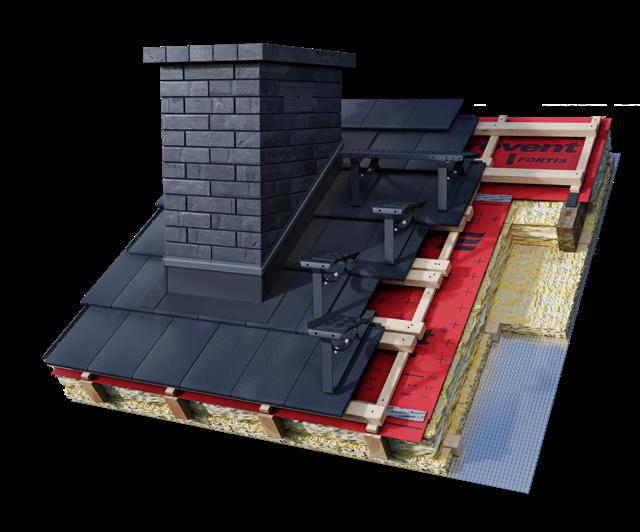

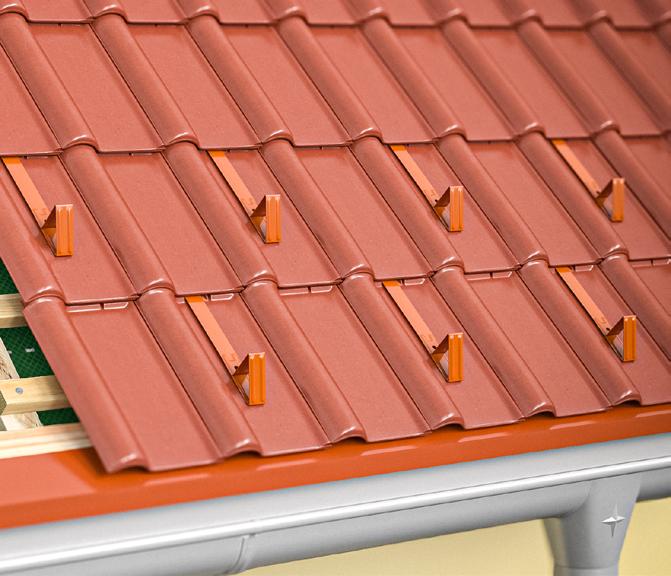

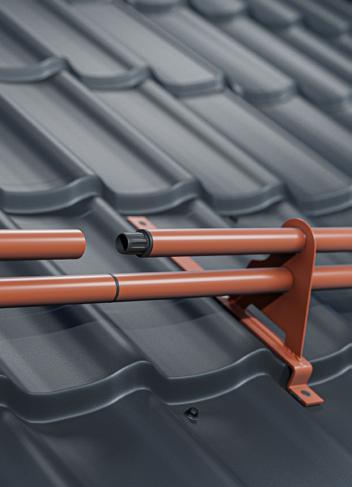

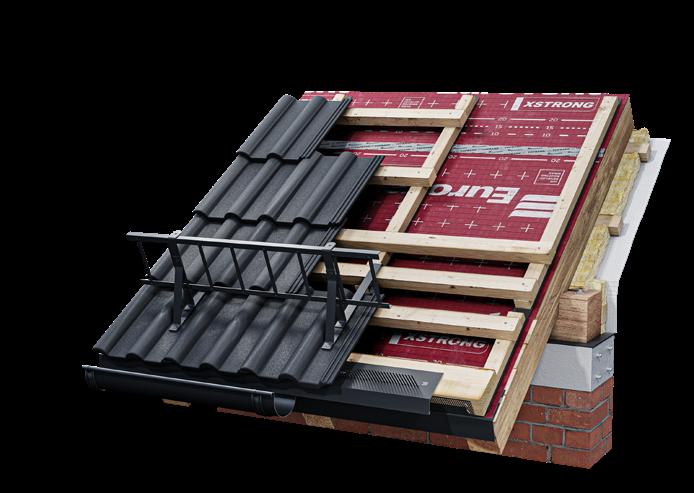

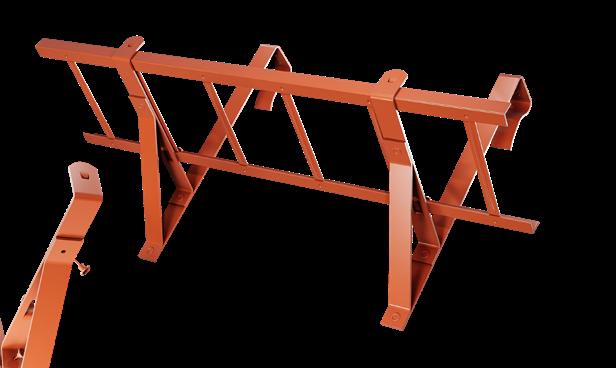

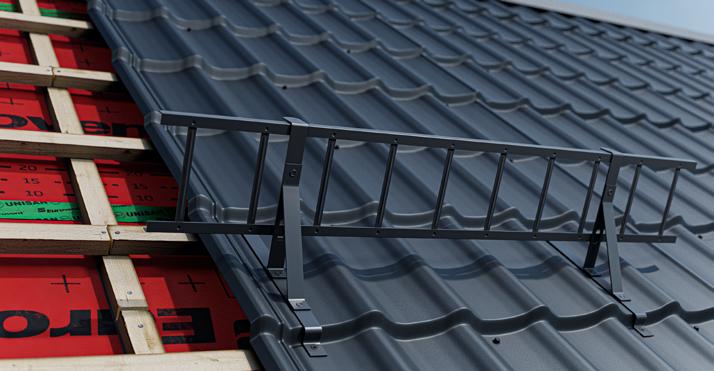

– Snow protection

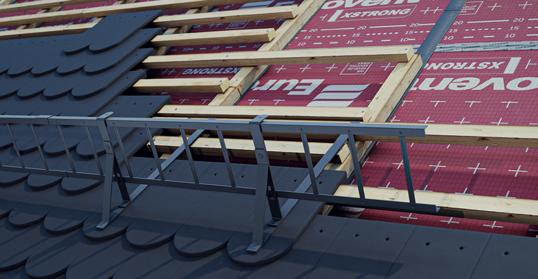

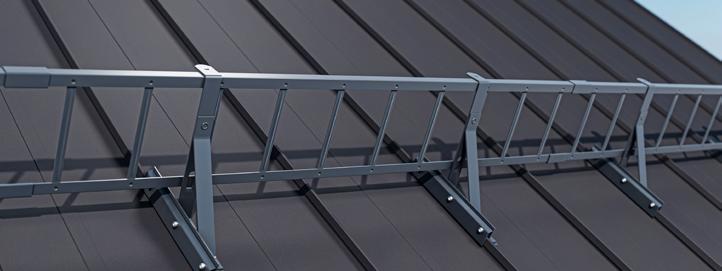

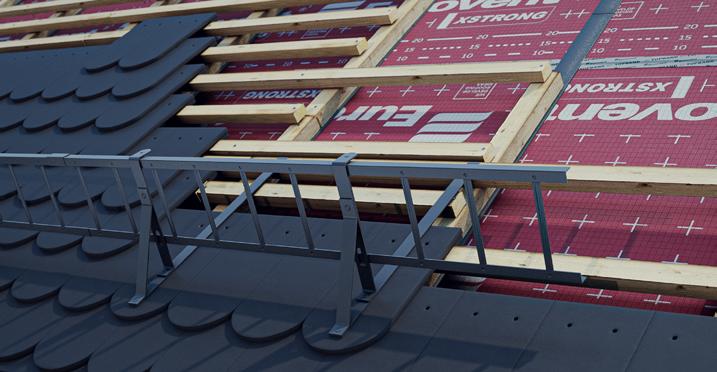

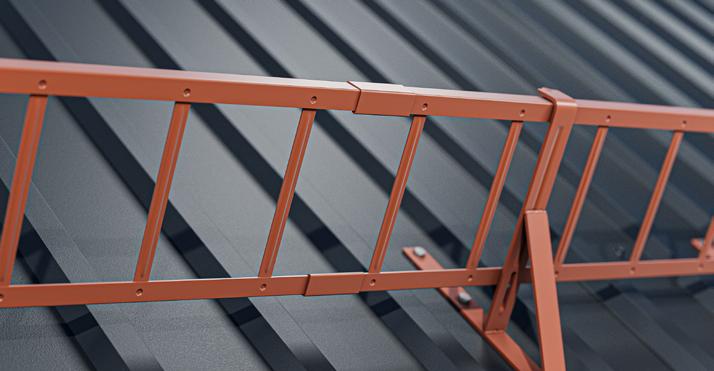

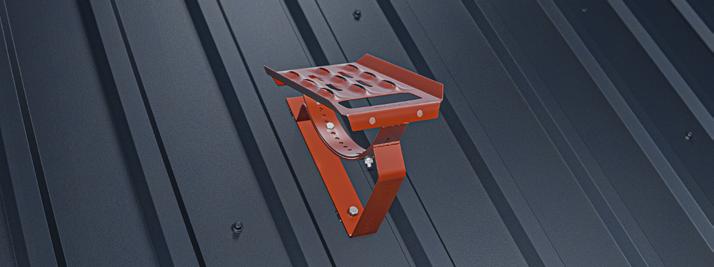

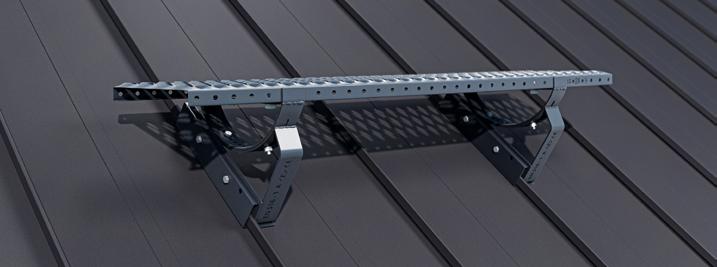

– Roofing safety
VENTING SYSTEM

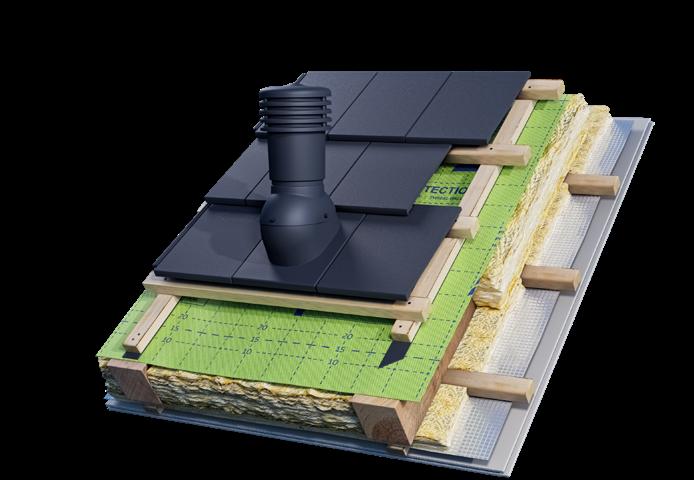

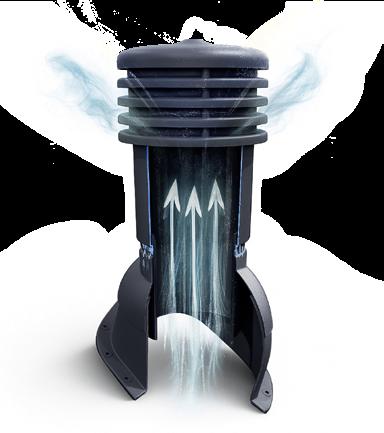

156 – Venting system – VENTOS X
162 – VENTOS X – Concrete roof tile
167 – VENTOS X – Metal roof tile
181 – VENTOS X UNI – Universal base plate
184 – VENTOS X – Trapezoidal sheet metal
186 – Accessories and protection

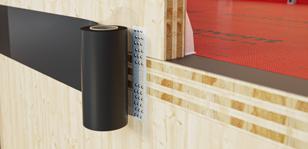

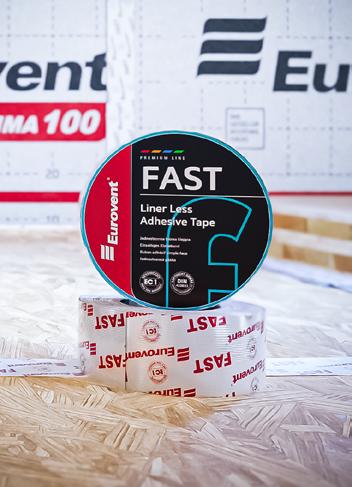

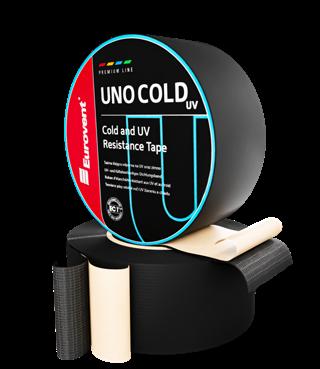

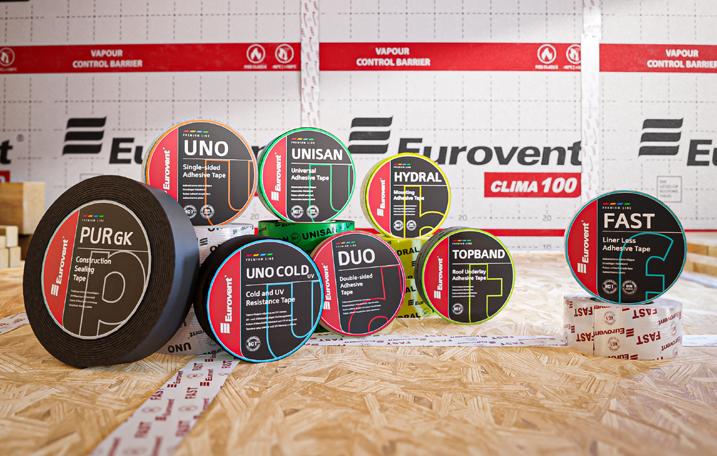

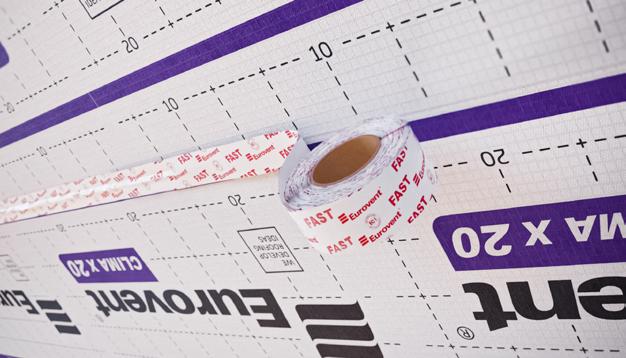

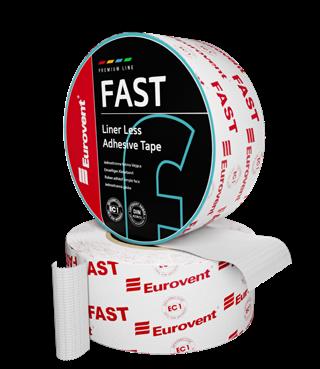

ADHESIVE TAPES AND SEALANTS

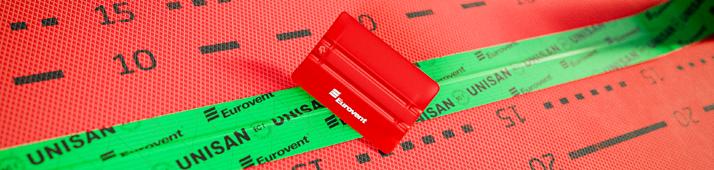

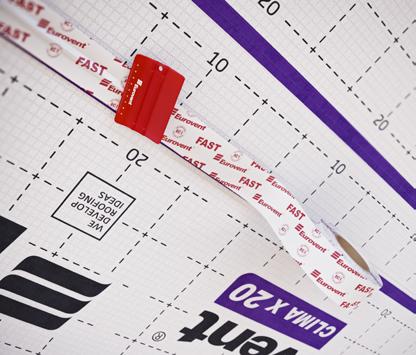

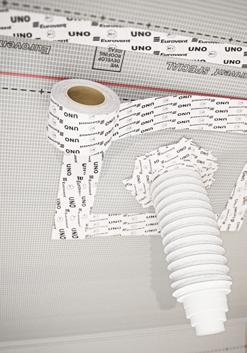

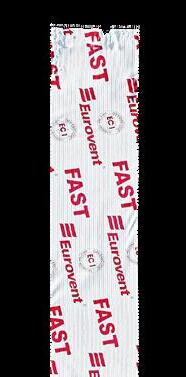

198 – Adhesive tape system

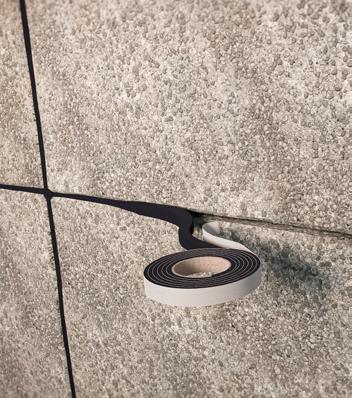

216 – Expanding tapes
218 – Sealing collars
221 – Sealing compounds

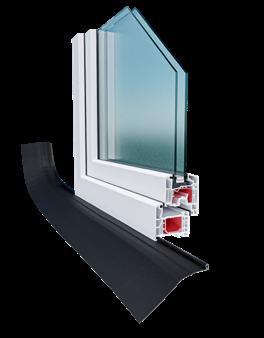

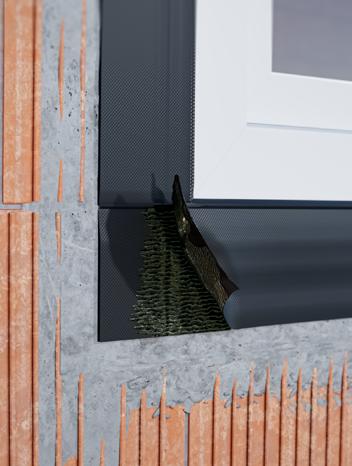

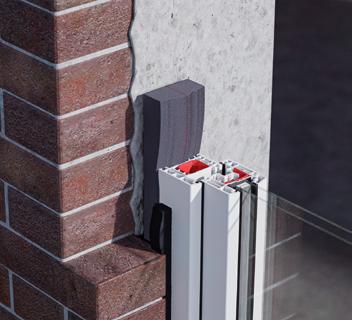

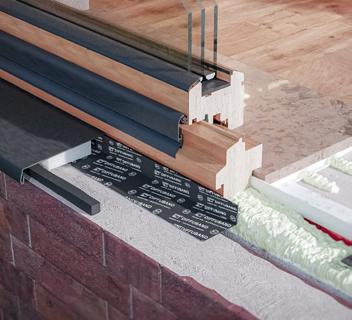

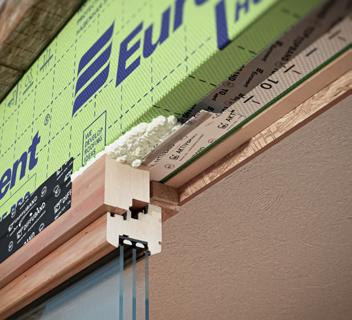

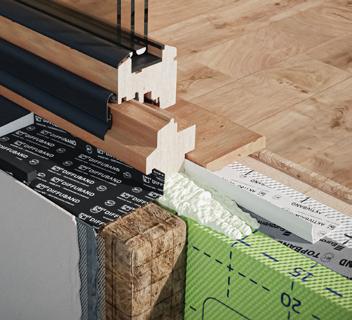

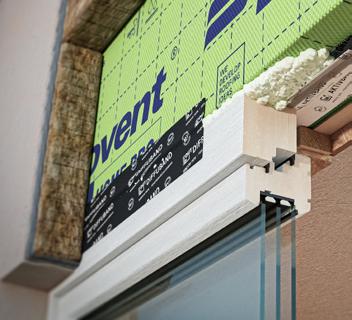

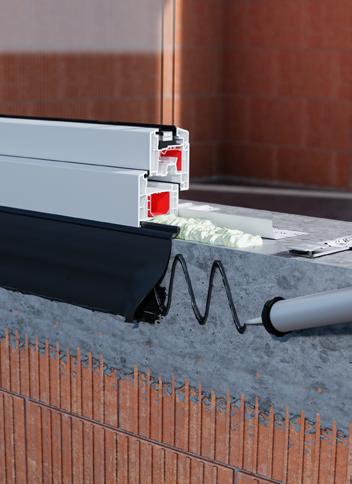

224 – Window tapes
227 – EPDM sealing tapes

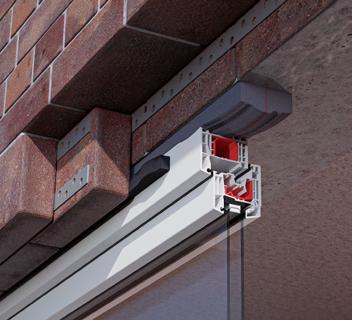

230 – Expanding window tapes

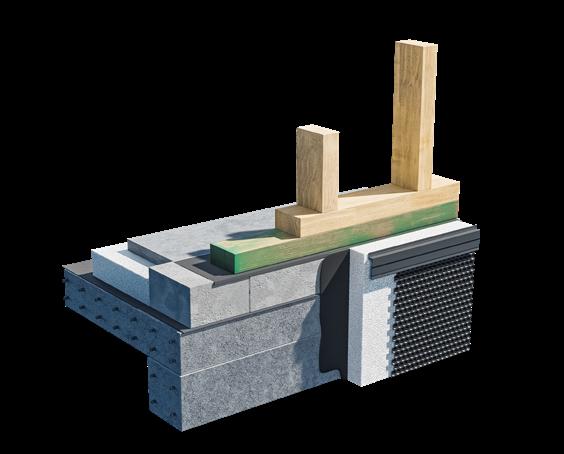

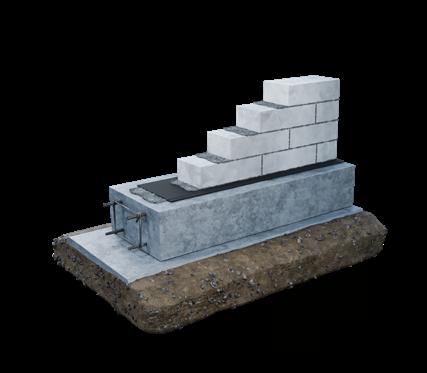

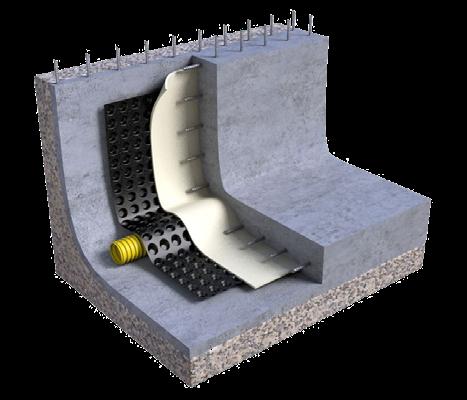

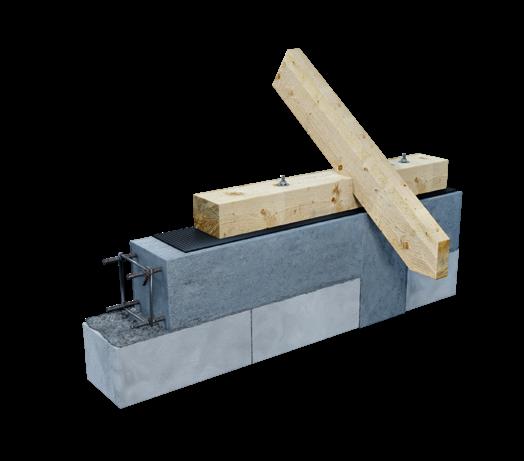

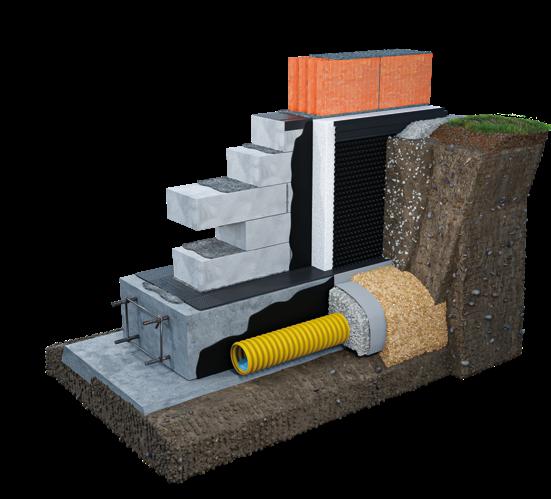

243 – Horizontal damp-proofing
EUROVENT WORLDWIDE
Eurovent® products have gained the trust of customers in more than 48 markets, from the countries of the European Union and across Europe, through the Middle East, Asia, to both Americas and North Africa. Thanks to a constantly expanding distribution network, our insulation systems reach roofs, walls and facades of buildings all over the world.
› Eurovent® world map
Headquarters – Poland
Sales partners
EUROVENT TECHNOLOGY
Both the continuous development of construction technologies and the increasing diversity of applications for high vapour-permeable membranes create the need to use multiple advanced production technologies. We would like to introduce them to you in more detail.
Eurovent® roof membranes are characterised by high durability and resistance to atmospheric factors. The high-quality polypropylene nonwoven fabrics we use feature a high-density and uniform distribution of ultra-fine fibres, which results in excellent mechanical performance – a key requirement in roofing applications.
THERMOBONDING

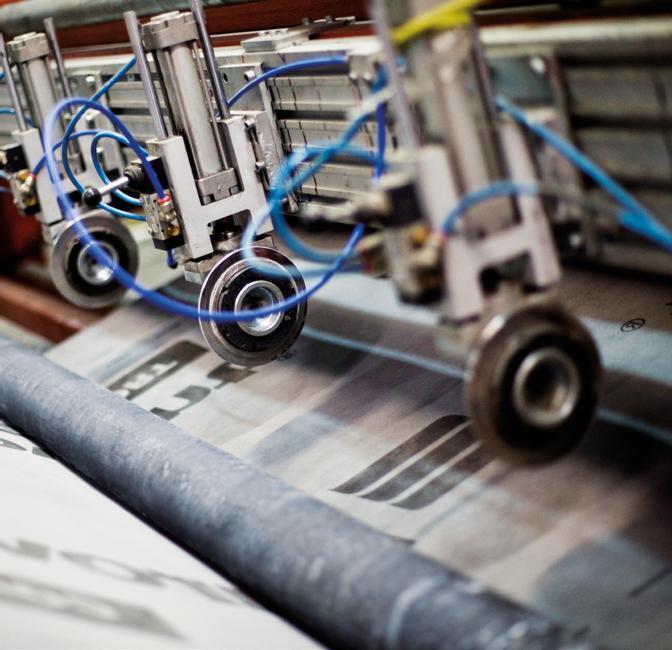

Thermal lamination technology – one of the oldest but also one of the best methods used in the production of three-layer roof membranes made from uniform raw materials.
Thermobonding consists of thermally bonding multiple plastic layers that form the laminate using high temperature and the pressure of lamination rollers. This technology uses no additional substances other than high temperature, making the resulting laminates very strong and durable. Most importantly, due to the high temperature used in the production process, the materials are to some extent heat-treated, which increases their resistance to extreme temperatures occurring in the roof and attic zone.
› Composition of membranes in Thermobonding technology
1 Polypropylene nonwoven [PP]
2 Microporous functional film
3 Polypropylene nonwoven [PP]
HOTMELT
Membranes manufactured using Thermobonding technology:
Eurovent® BASIC
Eurovent® CLASSIC
Eurovent® HOME PRO
Eurovent® MAXI
Eurovent® MAXI PLUS
Eurovent® SUPER
Eurovent® FORTIS
Eurovent® COMFORT
Eurovent® WALL PROTECT 3
Eurovent® AKTIV 3
Hotmelt bonding technology, less common in construction, but indispensable for producing products with different chemical compositions and varying properties.
It consists of bonding laminate layers using melted hot glue, which is evenly applied to the individual layers and then pressed by lamination rollers. This method is most often used in the production of four-layer roof membranes, where polypropylene nonwovens, a functional film, and a reinforcing polyethylene mesh are combined to provide mechanical strength.
› Composition of membranes in Hotmelt technology
1 Polypropylene nonwoven [PP]
2 Microporous functional film
3 Reinforcement mesh [PE]
4 Polypropylene nonwoven [PP]
Membranes manufactured using Hotmelt technology:
Eurovent® STRONG
Eurovent® VSTRONG
Eurovent® VSTRONG PLUS
Eurovent® XSTRONG
Eurovent® CLIMA X
Eurovent® CLIMA X20
COATING
Coating technologies have been widely used in construction for many years and are continuously being improved.
One variation is FOAM COATING – it consists in applying a layer of polyacrylic or polyurethane foam to a nonwoven fabric, followed by thermal processing. The resulting coating forms a structure with open pores, which allows vapour permeability while maintaining water resistance. This method is primarily used in the production of pitched roof membranes.
Another method is EXTRUSION COATING – it involves applying a polymer layer (e.g. PE, PP) in a molten state onto a nonwoven fabric or another polymer layer. This allows for strong bonding and the creation of multilayer membranes, including reinforced versions.
Coating technologies make it possible to manufacture a wide range of products: reinforced foils, vapour-permeable and vapour barrier membranes, metalised foils, and UV-resistant housewraps.
› Composition of membranes in Foam Coating technology Three-layer products
1 Polyurethane [PU]
2 Polyester nonwoven [PES]
Membranes manufactured using Foam Coating technology:
Eurovent® MAGNUM
Eurovent® FASSADE X
› Composition of membranes in Extrusion Coating technology
Two-layer products
1 Polyacrylic
2 Polypropylene nonwoven [PP]
› Composition of membranes in Extrusion Coating technology
Three-layer products
1 Polypropylene nonwoven [PP]
2 Monolithic functional film
3 Polypropylene nonwoven [PP]
› Composition of reinforced foils in Extrusion Coating technology
Three-layer products
1 Metalised polyethylene film [PE]
2 Reinforcement mesh [PP]
3 Polyethylene film [PE]
Membranes manufactured using Extrusion Coating technology:

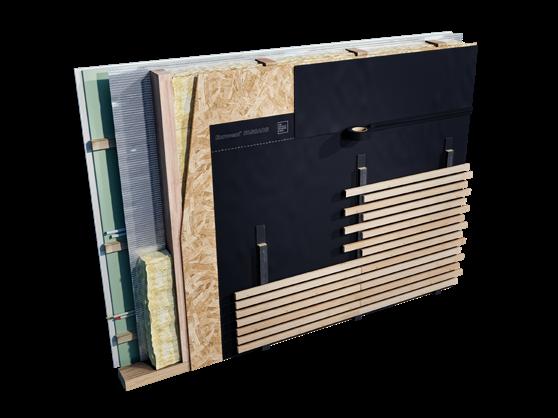

Eurovent® FASSADE
Eurovent® STRATOS
Eurovent® CLIMA
Eurovent® CLIMA 18
Eurovent® CLIMA 100
Membranes manufactured using Extrusion Coating technology:

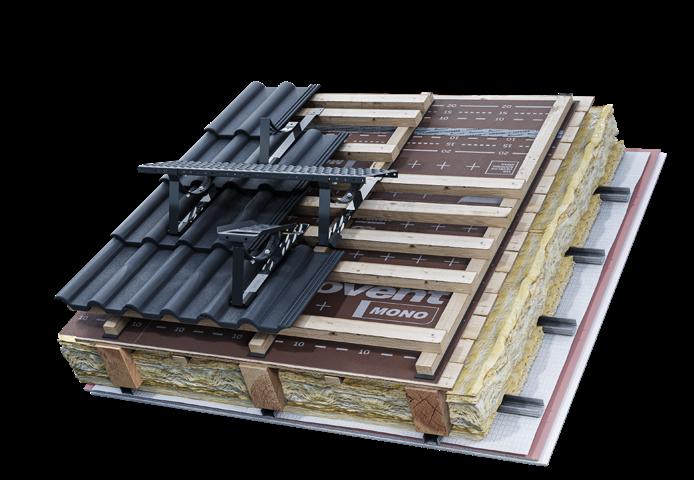

Eurovent® MONO
Foils manufactured using Extrusion Coating technology:
Eurovent® STANDARD ALU
Eurovent® STANDARD
Eurovent® SPECIAL
Eurovent® STANDARD N
Eurovent® SPECIAL N
ENVIRONMENTAL DECLARATION
Eurovent® products are covered by the Environmental Product Declaration (EPD), No. ITB 579/2023, which confirms their compliance with the principles of sustainable construction.
The environmental declaration for Eurovent® products was independently verified by ITB – Building Research Institute, in accordance with ISO 14025, ISO 21930 and EN 15804 standards, which form the basis for ITB PCR-A.
This document provides information on the actual environmental impact of a given product – from the stage of raw material extraction, through the production process, to use and disposal.
The EPD includes, among others: energy consumption, greenhouse gas emissions, as well as the durability and life cycle of the product. Thanks to such declarations, investors, architects and contractors gain transparency and can consciously choose solutions that support environmental sustainability.
Eurovent® product groups covered by the EPD declaration:
Vapour permeable roof membranes
Vapour barriers and VCL Housewraps
CERTIFICATES
Eurovent® products hold numerous approvals and certificates confirming their quality, performance properties, and compliance with industry standards.
Tests carried out by independent research institutes confirm the high quality and reliability of Eurovent® products under various operating conditions. These certificates guarantee that the products meet strict requirements regarding durability, fire resistance, air tightness, and safety for human health and the environment.
EMICODE®
This is a system for the control and classification of materials based on the level of hazardous substance emissions. Materials classified as “very low emission” are marked with the GEV EMICODE® EC1 PLUS label, which ensures the highest level of safety for healthy indoor air.
Eurovent® product groups covered by the EMICODE® EC1 PLUS certificate:
Vapour permeable roof membranes
Vapour barriers and VCL
Housewraps
Adhesive tapes
ÉMISSIONS DANS L’AIR INTÉRIEUR A+
A VOC (volatile organic compounds) emission classification system. It tests building materials and other products used indoors. The classification assesses the level of emissions 28 days after the product is applied. Class A+ indicates a very low level of emissions, meaning the product is safe for indoor air quality.
Eurovent® product groups covered by the ÉMISSIONS DANS L’AIR INTÉRIEUR A+ certificate:
Vapour permeable roof membranes
Vapour barriers and VCL
Housewraps
Adhesive tapes
5000 h UV Test
A test that evaluates the resistance of materials to ultraviolet (UV) radiation, simulating long-term exposure to sunlight. The material is subjected to UV radiation for 5000 hours under controlled conditions, which corresponds to many years of actual sun exposure in outdoor environments.
The test assesses how the material responds to UV exposure, which is crucial for construction products used outdoors, such as wind barrier membranes. It examines colour changes, structural integrity, and mechanical durability.
Products covered by the test:
Eurovent® STRATOS
Eurovent® FASSADE
Eurovent® FASSADE X
Eurovent® FASSADE PLUS
Fire classification
The fire classification B-s1, d0 is based on the European standard EN 13501-1.
It means that the material is of limited combustibility (B), produces very little smoke (s1), and does not form flaming droplets (d0). Fire classification confirms how the product reacts to fire. It is desired wherever a high level of fire safety is required.
Products covered by the B-s1, d0 classification:
Eurovent® STRATOS
Eurovent® FASSADE
Eurovent® FASSADE X
Eurovent® FASSADE PLUS
QB Écrans Souples de Sous-Toiture
This certificate, issued by CSTB (Centre Scientifique et Technique du Bâtiment) –a renowned French institute – involves rigorous testing and evaluation to ensure that products meet the highest applicable construction standards.
The certificate confirms that the roof membrane meets the highest quality and safety standards. Parameters assessed include water resistance, mechanical strength, water vapour permeability, and UV durability.
Products covered by the QB certificate:

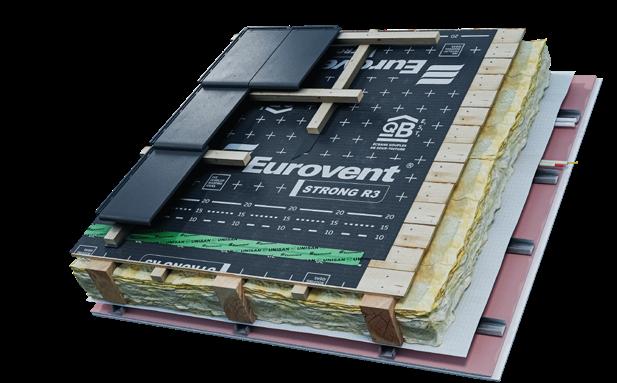

Eurovent® MAXI R2
Eurovent® STRONG R3

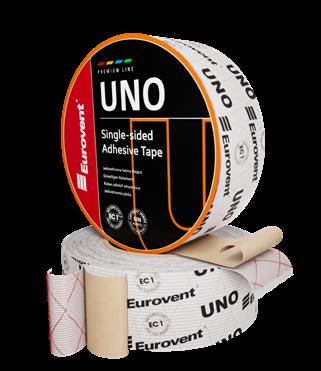

Eurovent® UNO
Eurovent® DUO
Eurovent® UNISAN

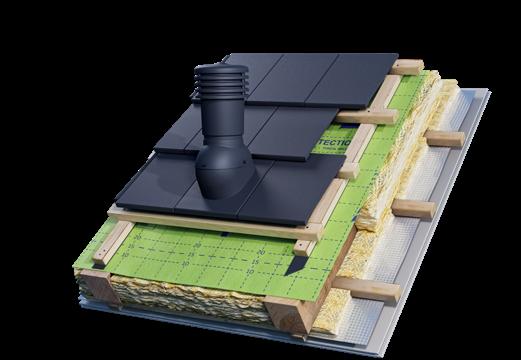

Materialgarantie – ZVDH
The ZVDH certificate refers to the requirements and standards defined by the Central Association of the German Roofing Trade. It is awarded to roofing materials that meet the highest quality and technical standards required by the German roofing industry. This certificate guarantees high quality and compliance with the strict standards of the trade.
Products covered by the ZVDH certificate:
Eurovent® MAXI PLUS
Eurovent® SUPER
Blower door test
A test used to assess the energy efficiency of a building, particularly in terms of heat loss and airtightness. It identifies areas of air leakage, such as around windows, doors, attics, and walls. This helps to evaluate the effectiveness of thermal insulation and ventilation systems. It is crucial for energy-efficient, passive, and low-energy buildings.
Products covered by the test:
Eurovent® STRONG
Eurovent® HOME PRO
Eurovent® WALL PROTECT 3
Eurovent® CLIMA X
Eurovent® UNISAN
Eurovent® UNO
Eurovent® AKTIVBAND SK2
Eurovent® DIFFUBAND SK2
PASSIVE HOUSE INSTITUTE
This certificate confirms that the given product meets the strict requirements regarding energy efficiency, insulation, and airtightness, which are essential for achieving the Passive House standard. It guarantees the highest quality and energy performance of products used in passive house construction.
Products covered by the PASSIVE HOUSE INSTITUTE certificate:
Eurovent® CLIMA X
Eurovent® UNISAN

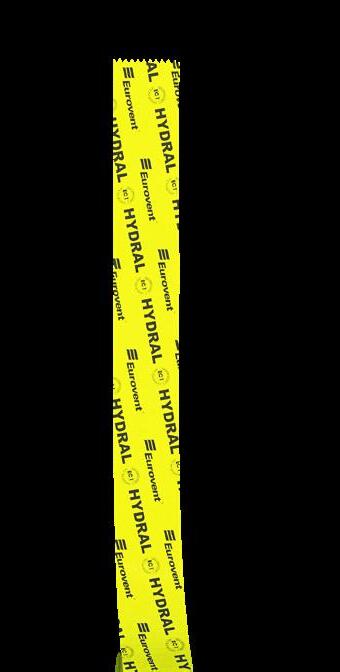

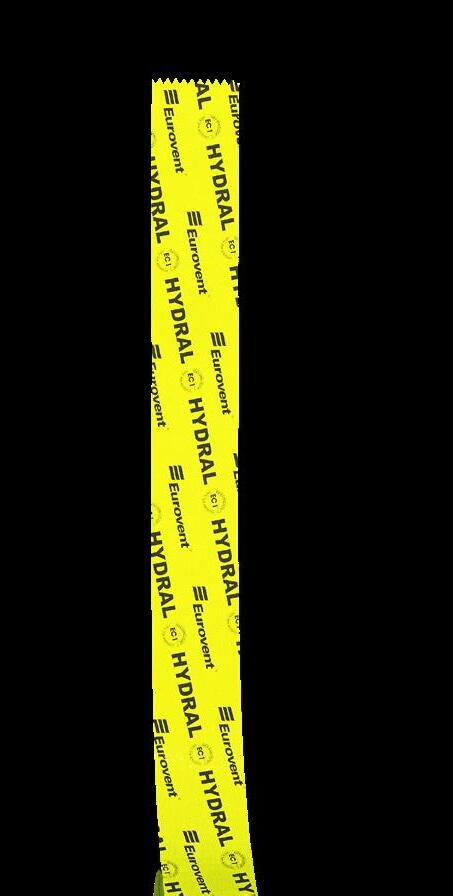

Eurovent® HYDRAL
Eurovent® MULTI
Eurovent® MULTI TUBE
Hygienic Certificate – PZH
The PZH certificate is issued by one of the oldest and most renowned institutions in Poland – the National Institute of Public Health. It is recognised as a guarantee of high quality and product safety.
Product covered by the certificate:

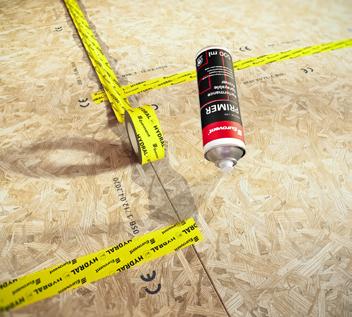

Eurovent® PRIMER
CE – Conformité Européenne
The CE mark confirms that the product meets the requirements of EU directives and regulations related to health protection, safety, and environmental protection. It is a mandatory marking within the European Economic Area.
All Eurovent® products comply with EU requirements and directives – they carry the CE marking.

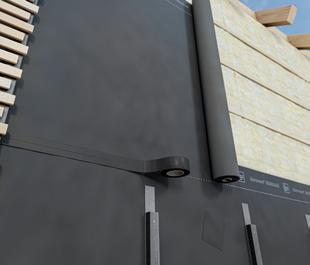

MEMBRANES AND FOILS

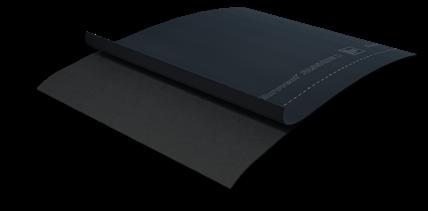

Highly vapour-permeable roof membranes and vapour-permeable roof foils designed for use in pitched roofs under roofing made of ceramic or concrete tiles, metal roof tiles, trapezoidal sheets, standing seam metal sheets, as well as wooden shingles, bitumen shingles, or natural slate coverings.

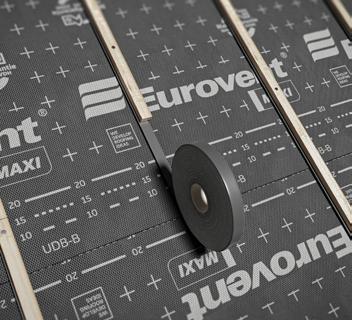

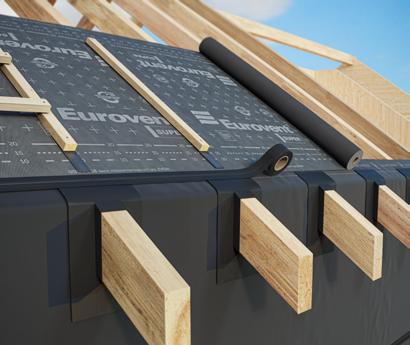

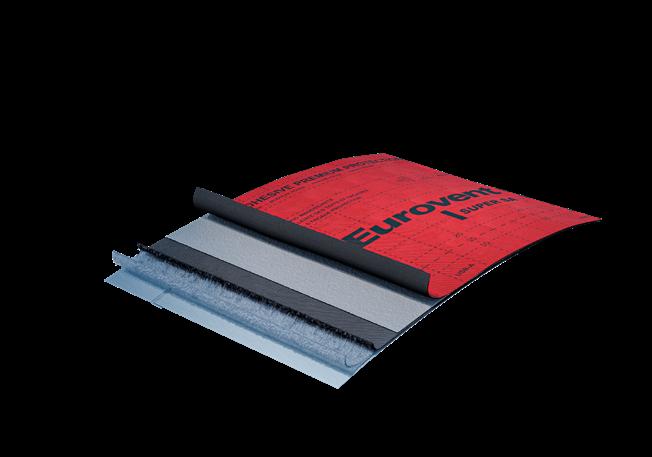

SYSTEM SK2
Double integrated adhesive strip system.

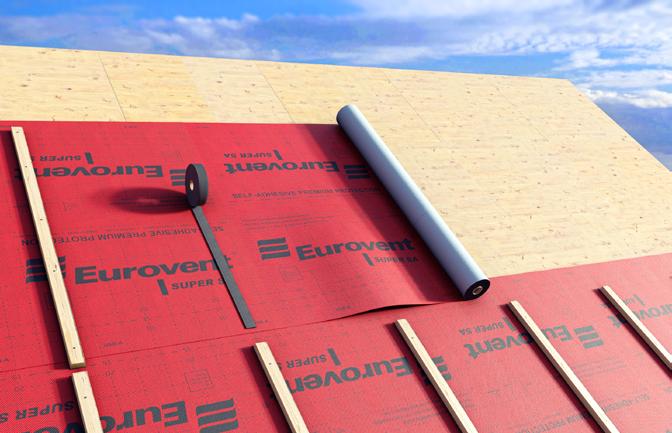

Eurovent® SYSTEM SK2 is an innovative system for sealing membrane overlaps using two integrated self-adhesive strips. It speeds up installation and guarantees proper bonding of membrane overlaps.
Effective membrane bonding is only possible with the use of two overlapping adhesive strips, which permanently seal the membranes under all weather conditions, including high humidity, rain, wind, low temperatures, and even heavily soiled membrane surfaces.
Eurovent® SYSTEM SK2 prevents wind uplift of the membrane, insulation dampness, and heat loss caused by the cooling of thermal insulation by cold air.
› Advantages of using Eurovent® membranes with the SYSTEM SK2:
Reliable sealing of overlaps, even in difficult conditions
Prevents cooling and dampening of thermal insulation
› SYSTEM SK2 – clear benefits:
High protection against wind uplift
Time-saving, reduced material waste. Reduced thermal energy loss
Incorrectly installed membrane overlap, without sealed joints.
Heat loss caused by the cooling of thermal insulation by cold air.

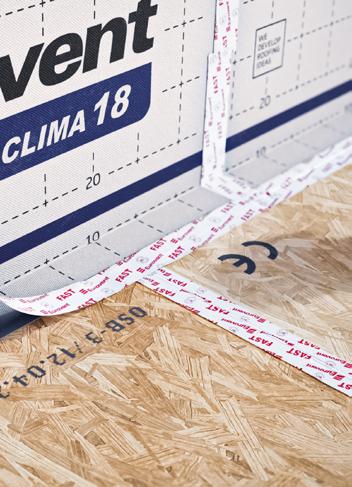

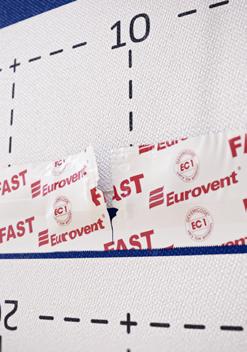

Membrane overlap sealed with the SYSTEM SK2 or Eurovent® adhesive tapes.
Reliable overlap sealing, high protection against wind uplift and moisture.
DOUBLE STRIP, DOUBLE RELIABILITY
The SYSTEM SK2 has been implemented in all Eurovent® membranes.
Thanks to the use of two parallel self-adhesive strips, creating a tight 15 cm overlap is quick, precise, and accurate.
› Products Available in the SYSTEM SK2.:
Vapour-permeable roof membranes: BASIC CLASSIC HOME PRO MAXI
MAXI PLUS SUPER FORTIS STRATOS RFLEX
COMFORT STRONG VSTRONG
VSTRONG PLUS XSTRONG MONO MAGNUM BITUMI SYNTEX

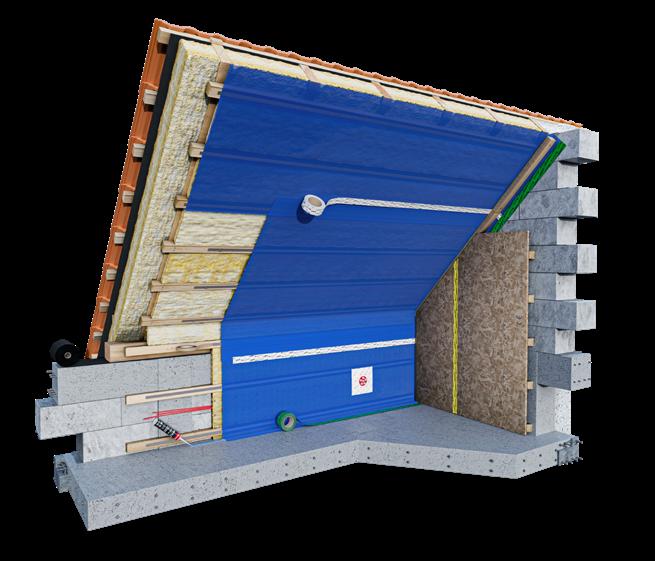

› Application of Eurovent® SYSTEM SK2

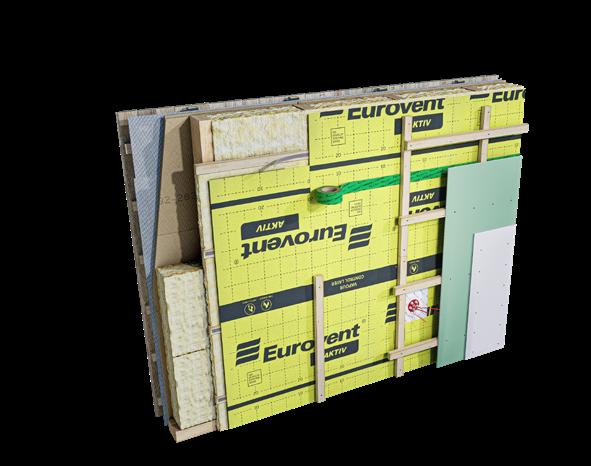

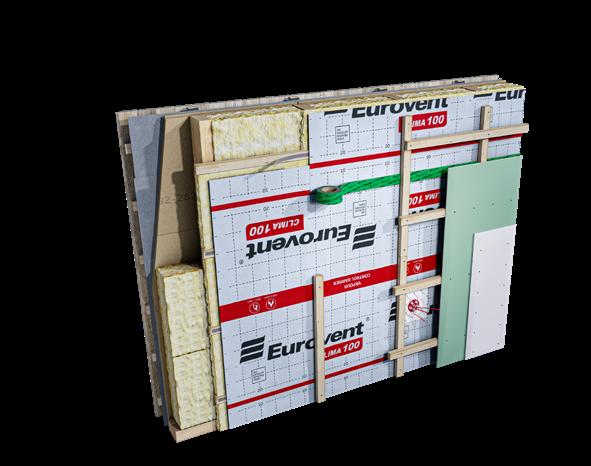

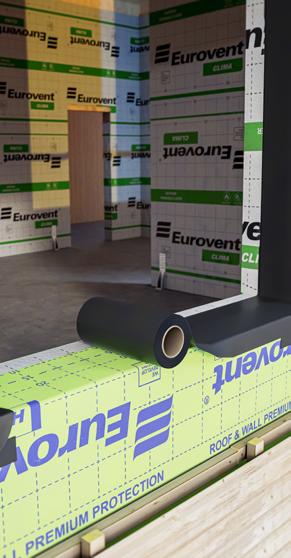

Vapour barriers and VCL:
CLIMA 2
CLIMA
AKTIV
AKTIV 3

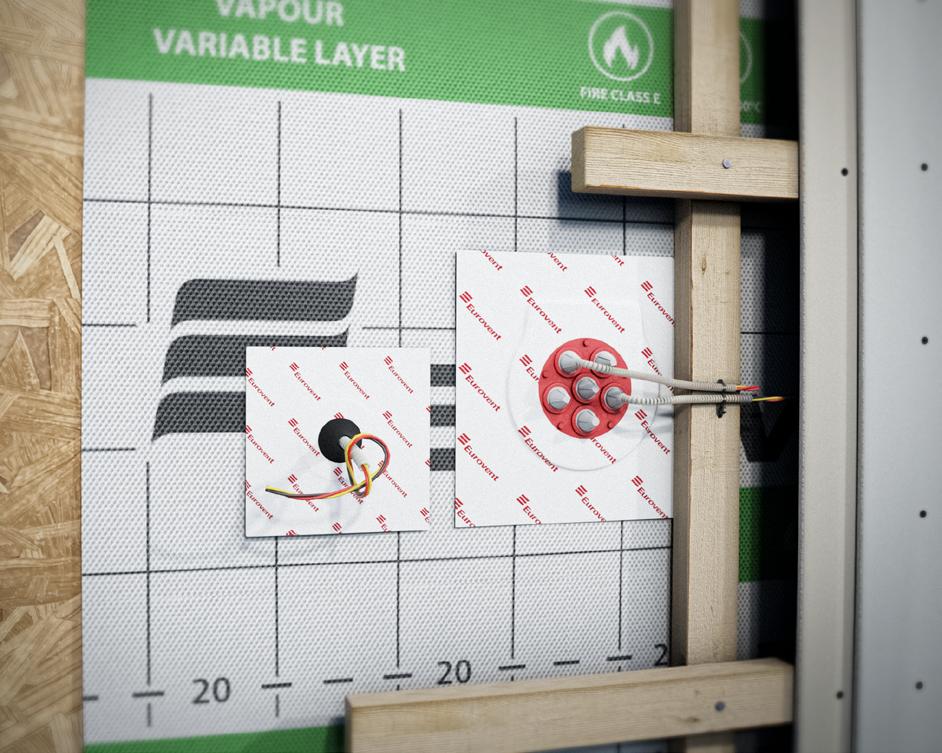

CLIMA X
CLIMA 18
CLIMA X20

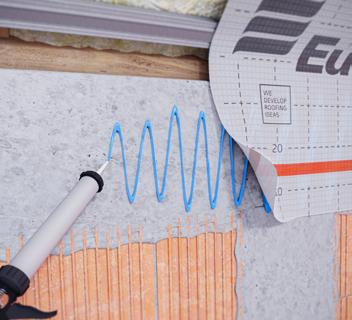

AKTIV ALU
CLIMA 100
AKTIV X 100

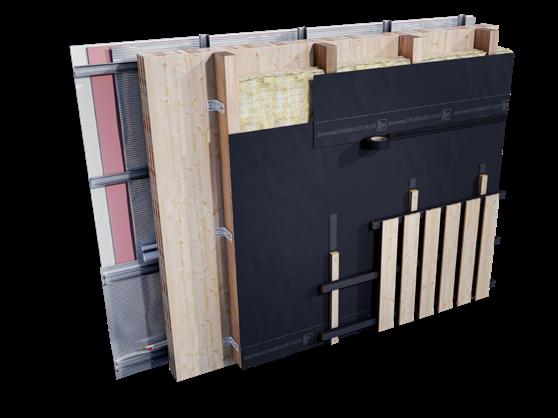

Housewraps:
HOME
WALL PROTECT
WALL PROTECT 3
HOME PRO FASSADE
FASSADE X FASSADE PLUS
Sealing of overlaps in high vapour-permeable roof membrane and housewrap

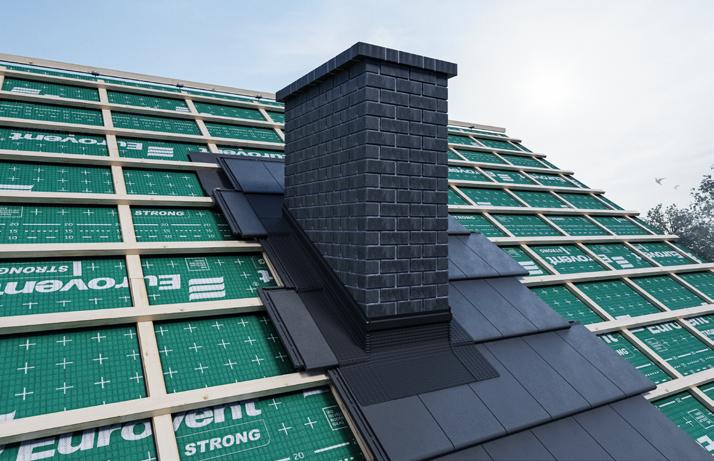

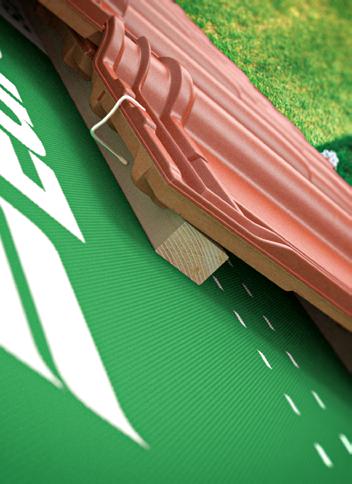

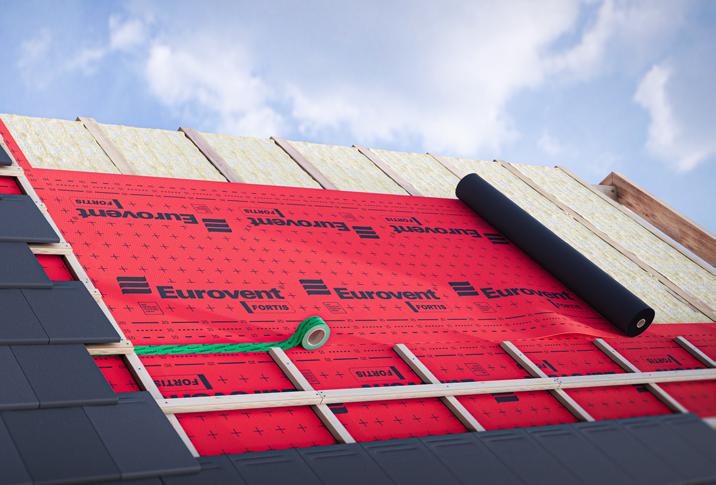

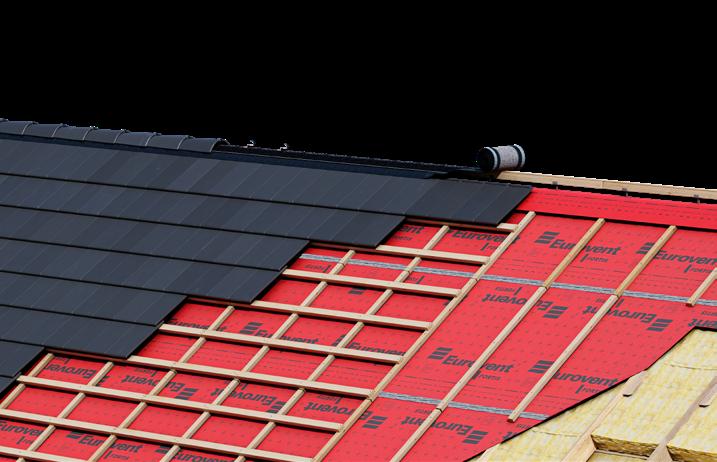

VAPOUR-PERMEABLE ROOF MEMBRANES
A wide range of highly vapour-permeable roof membranes, including threeand four-layer solutions with microporous or monolithic functional films.
They are used in pitched roofs, both with and without full sarking, covered with ceramic or concrete tiles, metal roof tiles, standing seam metal sheets, bitumen shingles, or natural slate.
The range is complemented by vapour-permeable roof foils.

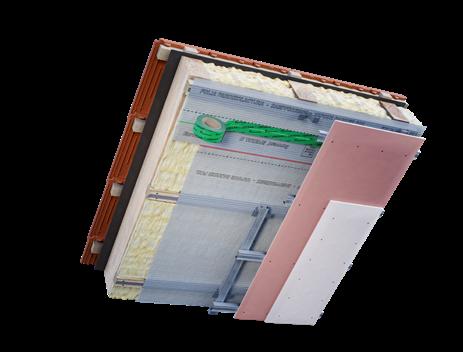

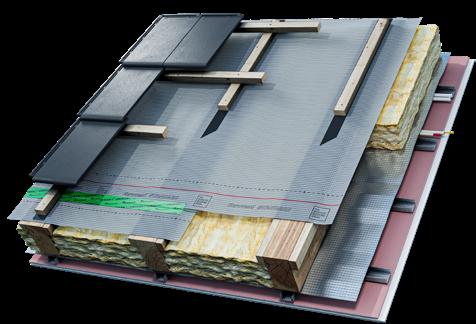

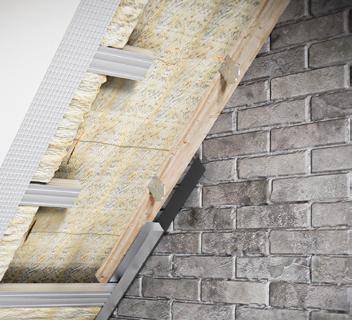

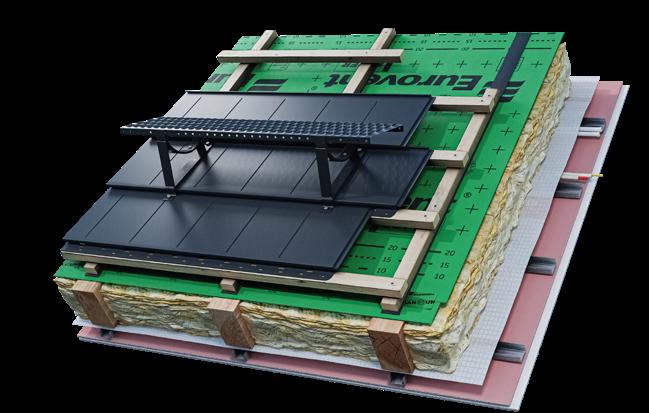

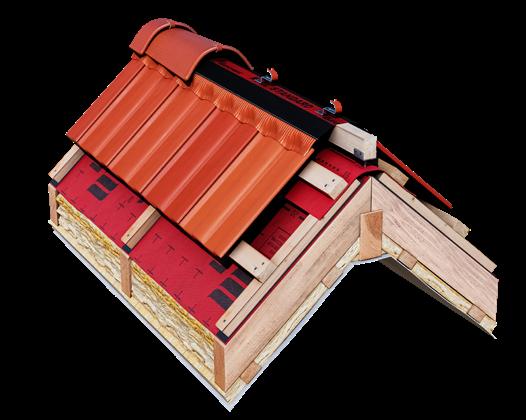

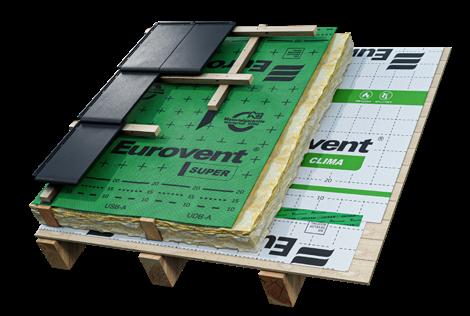

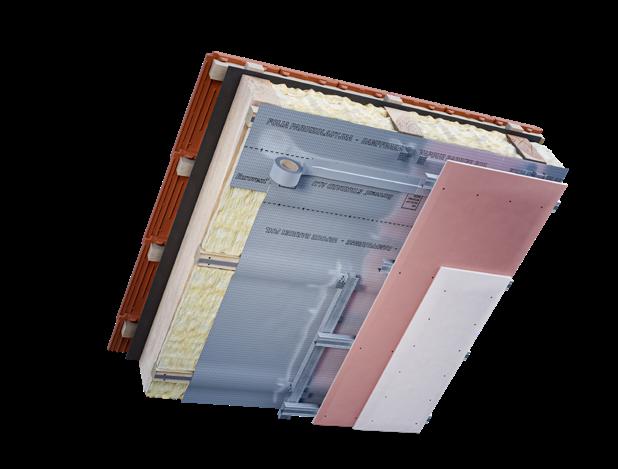

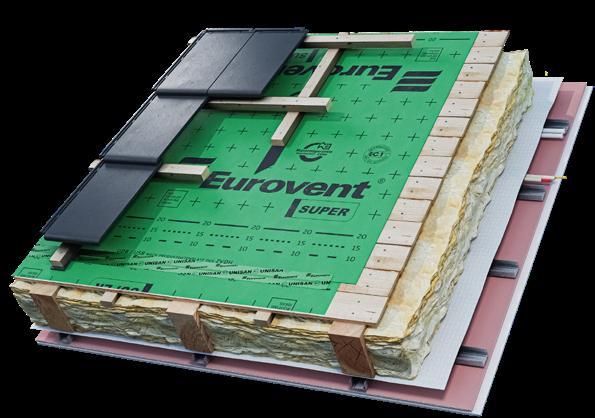

› Application of Eurovent® SUPER Insulation of a pitched roof with full sarking
1 Eurovent® SUPER
2 Eurovent® UNISAN
3 Eurovent® PUR
4 Sarking
5 Thermal insulation
6 Eurovent® CLIMA X
7 Plasterboard
8 Rafter
9 Roof cover

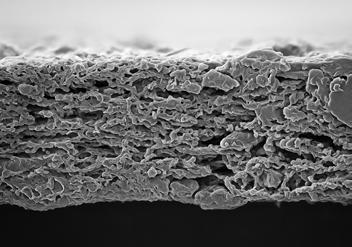

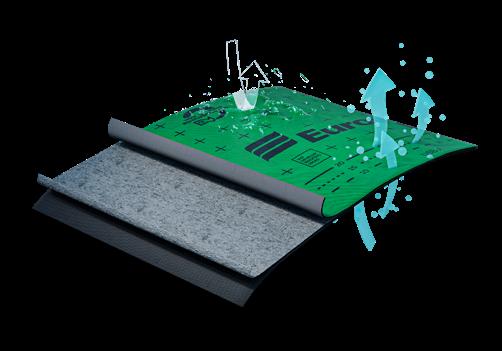

MICROPOROUS FUNCTIONAL FILM
The heart of roof membranes is a microporous functional film – an extremely thin layer made of a stretched blend of polymer and CaCO3 chalk, in which more than 1 billion micropores per cm² are formed during the extrusion process.
These micropores ensure the product’s high waterproofness and vapour permeability based on capillary action. Water vapour molecules are able to pass through the micropores of the functional film to the outside.

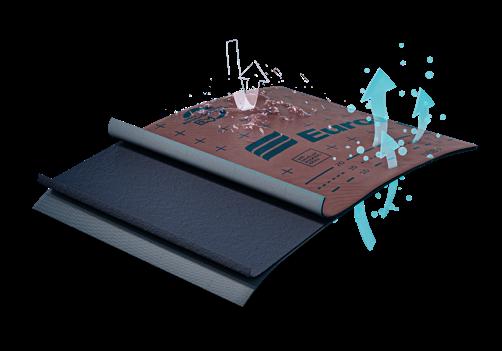

› Composition of membranes with microporous functional film
Three-layer products
1 Polypropylene nonwoven [PP]
2 Microporous functional film
3 Polypropylene nonwoven [PP]
4 Vapour permeability – Diffusion

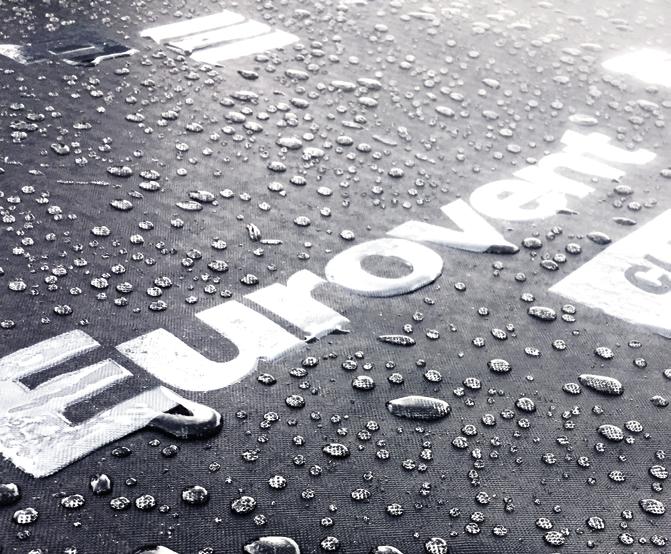

5 Waterproofness
Diffusion through micropores
Micropores
Water vapour molecules
BASIC
• Used for insulated and ventilated sloping roofs.
• Designed exclusively for roofs without full sarking.
• Available in the SYSTEM SK2.

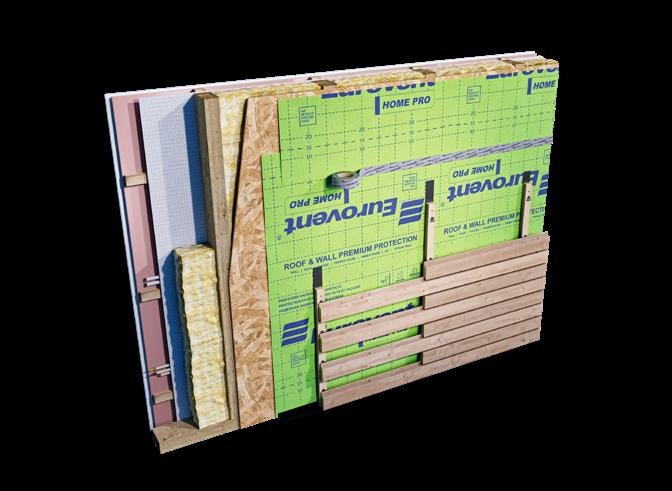

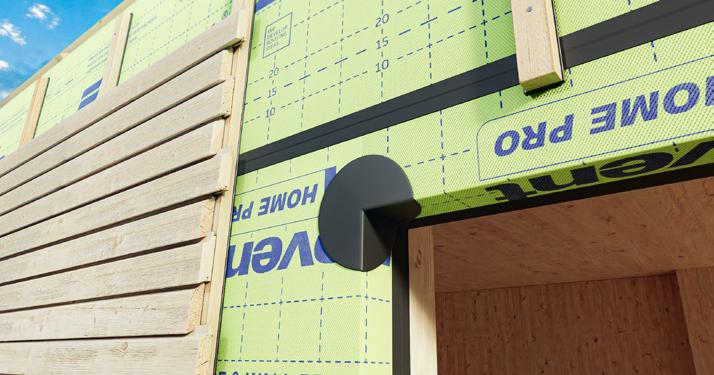

HOME PRO
• Recommended for timber-frame, CLT, modular, prefabricated, and passive constructions.
• Used for the insulation of closed joint facades and insulated, ventilated pitched roofs.
• Also suitable for roof with full sarking.
• Available in the SYSTEM SK2.
CLASSIC
• Used for insulated and ventilated sloping roofs.
• It can also be used on roofs with full sarking and as a wind barrier in closed joint facade systems.
• Available in the SYSTEM SK2.
• Increased tear resistance for improved comfort and work efficiency.
• Used for insulated and ventilated sloping roofs.
• Also suitable for roofs with full sarking.
• Available in the SYSTEM SK2.
MAXI PLUS
• Certified with the ZVDH Material Guarantee.
• Used for insulated and ventilated sloping roofs.
• Also suitable for roofs with full sarking.
• Available in the SYSTEM SK2.

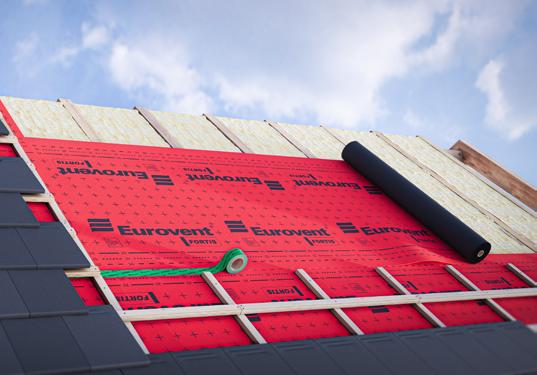

FORTIS
• Recommended for timber-frame, CLT, prefabricated, and passive buildings.
• Used for insulated and ventilated sloping roofs.
• Also suitable for roofs with full sarking.
• Available in the SYSTEM SK2.
• Certified with the ZVDH Material Guarantee.
• Used for insulated and ventilated sloping roofs.
• Also suitable for roofs with full sarking.
• Highly tear-resistant.
• Available in the SYSTEM SK2.

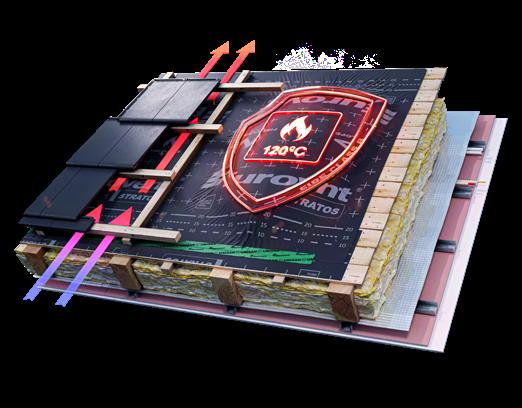

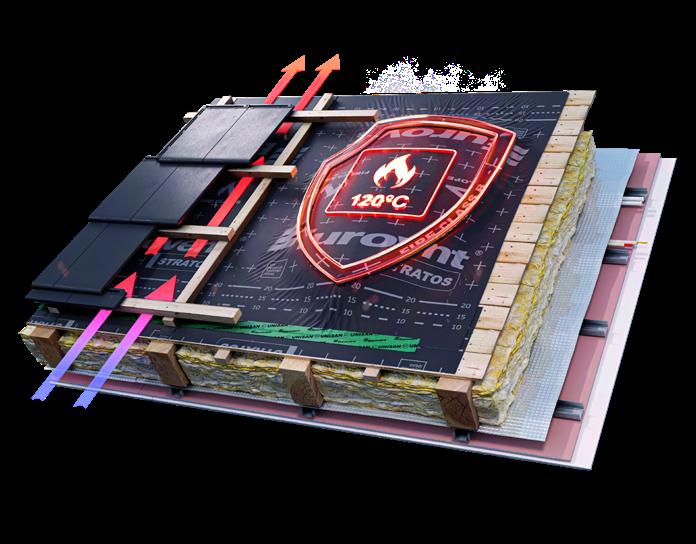

STRATOS
• Fire classification B-s1, d0.
• High UV resistance – test 5000h.
• Suitable for insulated and ventilated pitched roofs, including those with a low roof pitch and full sarking.
• Available in the SYSTEM SK2.
BLACK RED GREEN
RFLEX
reflective roof membrane
• Reflective – reflects thermal radiation.
• Used for insulated and ventilated sloping roofs.
• Also suitable for roofs with full sarking.
• Available in the SYSTEM SK2.
COMFORT
roof membrane
• Highly tear-resistant – ensures work comfort and efficiency.
• Used for insulated and ventilated sloping roofs.
• Also suitable for roofs with full sarking.
• Available in the SYSTEM SK2.

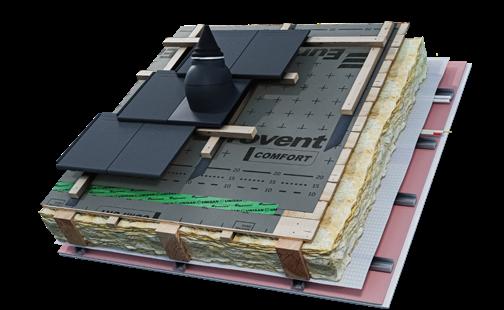

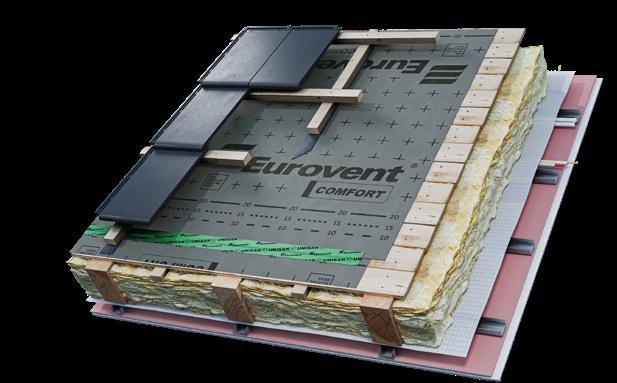

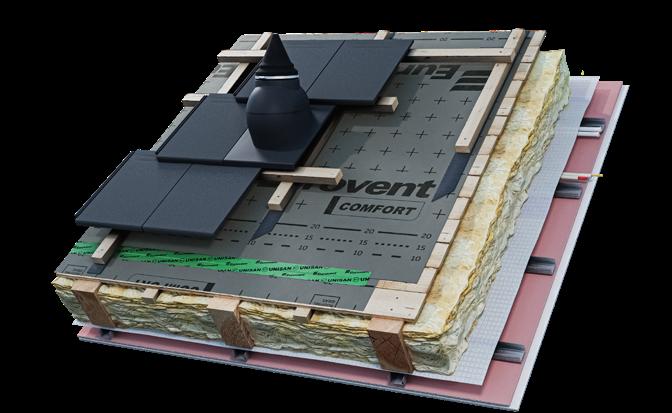

› Application of Eurovent® COMFORT Insulation of a pitched roof with full sarking
1 Eurovent® COMFORT
2 Eurovent® UNISAN
3 Eurovent® PUR
4 Sarking
5 Thermal insulation
6 Eurovent® CLIMA X20
7 Plasterboard
8 Roof cover
VAPOUR PERMEABILITY – WDD
Vapour permeability is the ability of a building envelope to allow water vapour to pass through it from the inside of the building to the outside.
This parameter is expressed in [g/m²/24h] – it indicates the number of grams of water vapour that can pass through 1 m² of a given building envelope (in this case, a roof membrane or foil) within 24 hours.
Sufficiently high vapour permeability prevents excessive moisture accumulation in the roof structure and protects it from gradual degradation, which may lead to a decline in its performance or even structural failure.
Moreover, high vapour permeability allows for the elimination of the ventilation gap between the membrane and the thermal insulation. It also helps to prevent excessive cooling of the insulation layer, which contributes to reducing energy costs for heating the building.
› Important terms:
• The unit of WDD is [g/m²/24h].
• Characteristic: relative value.
• Vapour permeability value depends on air temperature, humidity, and atmospheric pressure.
› Classification of vapour-permeable membranes and foils based on Sd-value:
Low vapour-permeable membranes and foils
Vapour-permeable membranes and foils
High vapour-permeable membranes and foils
› Classification of vapour-permeable membranes and foils based on WDD value:
4-LAYER VAPOUR-PERMEABLE
ROOF
MEMBRANES
Eurovent® STRONG FAMILY – extreme durability
Highly vapour-permeable, reinforced roof membranes made of two layers of polypropylene nonwoven fabric, a microporous functional film, and a reinforcing PE mesh layer.
Thanks to the integrated PE mesh, STRONG FAMILY membranes offer exceptional tear resistance.
They are designed for use as an underlay in insulated and ventilated pitched roofs, including those with full sarking. Perfectly suited for use under ceramic or concrete tiles, metal roof tiles, standing seam metal sheets, natural slate, and bitumen shingles.
› Composition of STRONG FAMILY membranes
Four-layer membranes
1 Polypropylene nonwoven [PP]
2 Reinforcing mesh [PE]
3 Microporous functional film
4 Polypropylene nonwoven [PP]

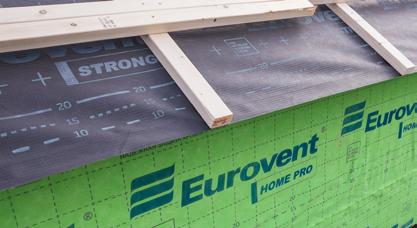

STRONG
reinforced roof membrane
• Four-layer membrane reinforced with PE mesh.
• Tear-resistant.
• Available in three different colours.
• Used for insulated and ventilated sloping roofs.
• Also suitable for roofs with full sarking.
• Available in the SYSTEM SK2.
VSTRONG
reinforced roof membrane
• Four-layer membrane reinforced with PE mesh
• Highly tear-resistant – ensures work comfort and efficiency.
• Used for insulated and ventilated sloping roofs.
• Also suitable for roofs with full sarking.
• Available in the SYSTEM SK2.
› Application of Eurovent® STRONG R3 Insulation of a pitched roof with full sarking
1 Eurovent® STRONG R3
2 Eurovent® UNISAN
3 Eurovent® PUR
4 Sarking
5 Thermal insulation
6 Eurovent® CLIMA X
7 Plasterboard
8 Roof cover
VSTRONG PLUS
reinforced roof membrane
• Four-layer membrane reinforced with PE mesh.
• Extremely tear-resistant.
• Compared to Eurovent® VSTRONG, it features a reinforced mesh structure
• Used for insulated and ventilated sloping roofs.
• Also suitable for roofs with full sarking.
• Available in the SYSTEM SK2.
XSTRONG
reinforced roof membrane
• Four-layer membrane reinforced with PE mesh.
• Unprecedented extreme tear resistance.
• Used for insulated and ventilated sloping roofs.
• Also suitable for roofs with full sarking.
• Available in the SYSTEM SK2.

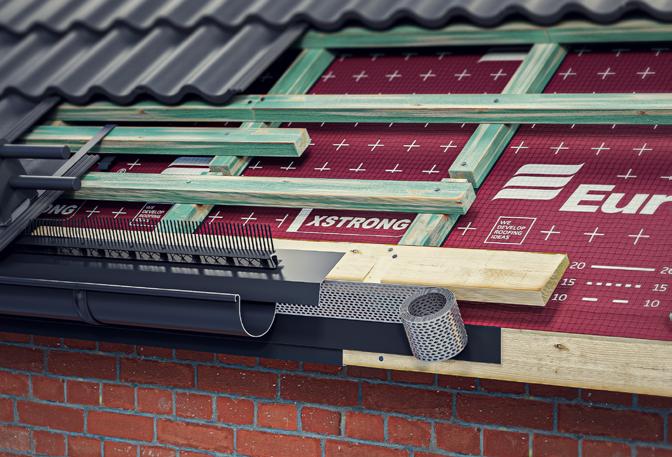

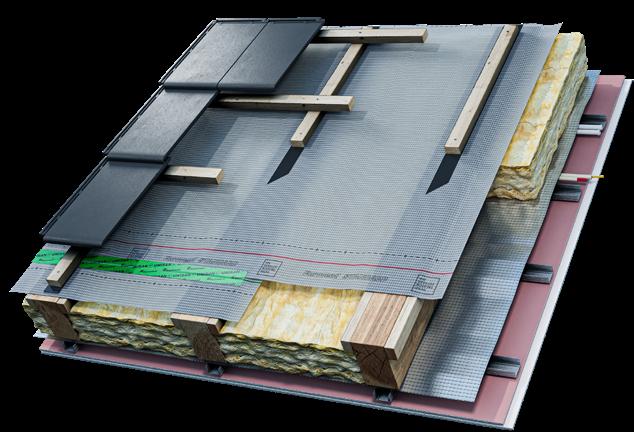

› Application of Eurovent® XSTRONG Insulation of a pitched roof with full sarking
1 Eurovent® XSTRONG
2 Eurovent® UNISAN
3 Eurovent® PUR
4 Eurovent® CLIMA X
5 Plasterboard
6 Thermal insulation
7 Sarking
8 Roof cover
UV RESISTANCE
It is the resistance of the material to ultraviolet (UV) radiation. This is one of the key factors that determine the durability of a roof membrane, due to the use of polymers in its production, which are sensitive to UV radiation.
UV stabilising additives reduce the negative impact of radiation on the material. However, prolonged exposure without a roof covering, that is, continuous UV exposure, significantly weakens the material and may reduce the service life of the product. The absence of stabilising additives can lead to physical degradation and a faster decline in the technical properties of the roof membrane.
UV exposure on roof membranes can be divided into two types: direct, which affects the membrane during installation on the roof, and indirect, which occurs, for example, when UV radiation enters the attic through roof windows, hatches, or gaps in the load-bearing structure of the roof covering.
Depending on the duration and intensity of UV exposure, the final roof covering should be installed immediately or no later than 4 weeks after the roof membrane has been applied. Thanks to the UV-resistant additives used in production, this period does not significantly affect the performance of the membrane.
Within 12 weeks of installing the roof membrane, indirect UV exposure should be limited by fully covering the membrane with thermal insulation or by darkening the attic space. Otherwise, incoming UV radiation will negatively affect the properties of the membrane and lead to changes in its structure.
› Important terms:
• Lower UV exposure contributes to a longer-lasting roof membrane.
• To eliminate exposure to harmful UV radiation, the final roof covering should be installed immediately or no later than 4 weeks after the roof membrane has been applied.
• Within 12 weeks of installing the roof membrane, the attic should be darkened or thermal insulation should be installed to reduce the impact of indirect UV radiation on the membrane.

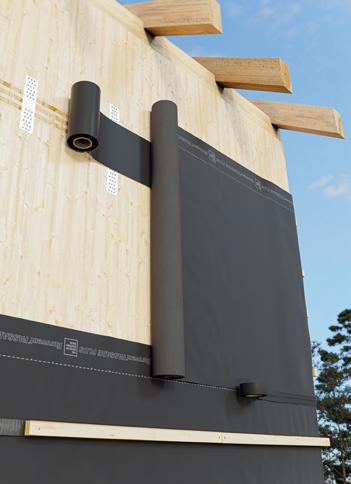

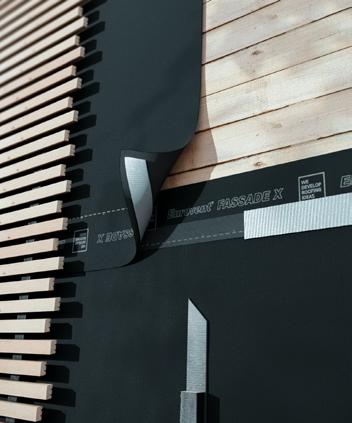

SELF-ADHESIVE MEMBRANE
Effective sealing of walls, ceilings, and roofs using the Eurovent® SUPER SA self-adhesive membrane.
This is a three-layer, highly vapour-permeable membrane with a full-surface acrylic adhesive layer. Designed to bond directly to prepared substrates, it offers exceptional protection against wind, rain, and moisture.
It is intended for use as an underlay membrane in pitched roofs and façade systems of timber-frame, CLT, and other prefabricated structures. It can be installed both vertically and horizontally, without creasing – ensuring airtight building envelopes.
Adheres perfectly to substrates based on:
Wood based:
• Timber
• Rigid wood-based panels (CLT / OSB / MDF)
Gypsum boards:
• Soft fibreboards*
• Fibre-gypsum boards
• Gypsum plasterboards
Concrete/cement:
• Fibre-cement boards
• Concrete, cement, plaster*
Others:
• Bituminous joints*
• Perimeter insulation*
• Metal / Rigid plastic
* Used with Eurovent® PRIMER, the membrane can also be applied on concrete, plaster, and fibre-cement boards.
SUPER SA
self-adhesive membrane
• SYSTEM SA - coated with acrylic adhesive over its entire surface.
• Fire classification: C-s1, d0.
• Protects large areas against wind, rain, and moisture.
• Recommended for prefabricated, CLT, and modular buildings.
› Advantages of using Eurovent® SUPER SA self-adhesive membranes for insulation and protection of walls, ceilings, and pitched roofs
Excellent adhesion to walls and large surfaces.
Special adhesive formula ensures high vapour permeability.
Waterproof – Class W1.
› Composition of Eurovent® SUPER SA self-adhesive membrane
1 PP nonwoven
2 Microporous functional film
3 PP nonwoven
4 Acrylic adhesive
5 Protective liner
High protection against wind and moisture.
Saves time and thermal energy.
Enhanced resistance to UV radiation.

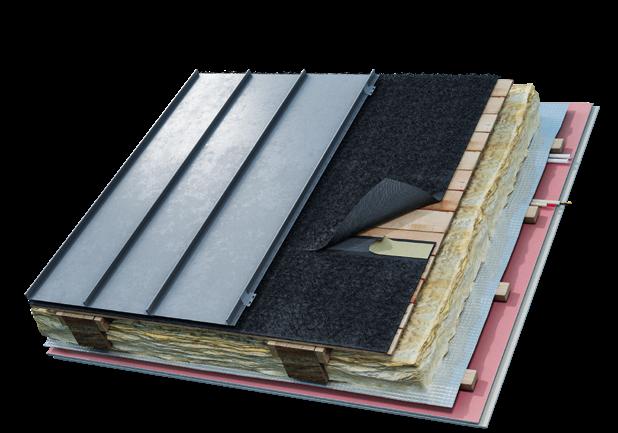

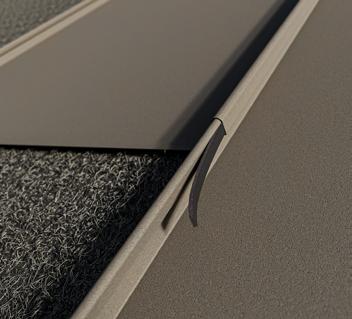

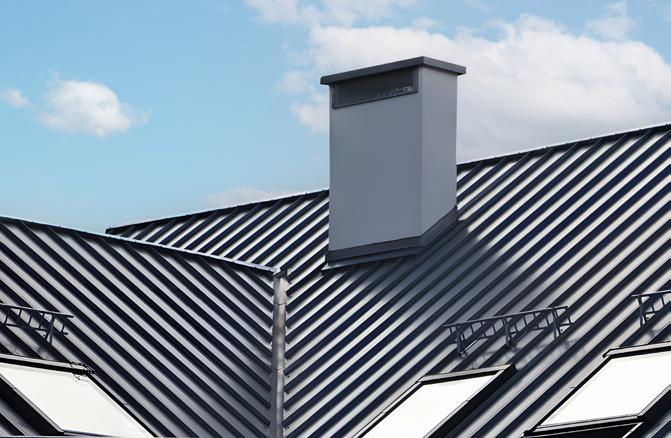

MEMBRANES FOR STANDING SEAM METAL ROOFS

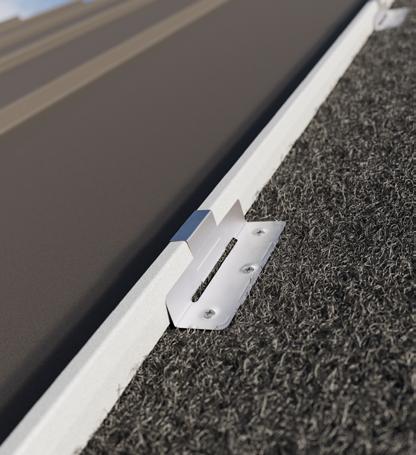

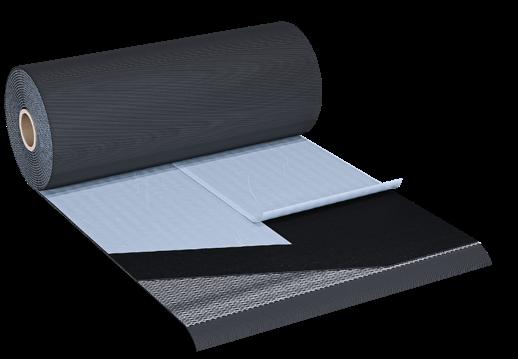

Eurovent® METALLIC roof membranes integrated with an 8 mm three-dimensional separation mesh – Eurovent® MATT.
These are highly vapour-permeable, three-layer, watertight roof membranes made of two layers of polypropylene nonwoven fabric and a microporous functional film, integrated with a separation mesh.
The mesh acts as a separation layer between the membrane and the standing seam metal cladding. It provides a ventilation space, facilitates condensate drainage, and improves acoustic insulation.
Recommended for insulated and ventilated pitched roofs with full sarking covered with standing seam sheet metal, as well as for facades, where it serves as a ventilating and separating layer beneath metal cladding.

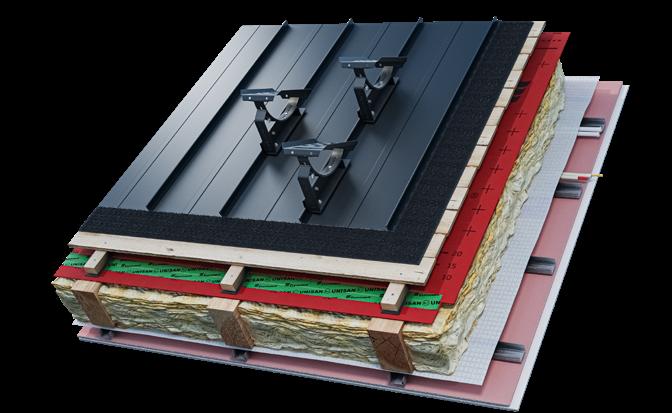

› Application of Eurovent® METALLIC Insulation of a pitched roof with full sarking
1 Eurovent® METALLIC
2 Sarking
3 Thermal insulation
4 Eurovent® STANDARD ALU
5 Plasterboard
6 Eurovent® HAFTRA
7 Roof cover
METALLIC
• Used under metal cladding in combination with a highly vapour-permeable membrane.
• 8 mm mesh – provides acoustic insulation, separation and drainage layer.
• Ensures ventilation and separation layer.
• Used for insulation of sarked pitched roofs and facades under standing seam metal cladding.
• Provides acoustic insulation and facilitates condensate drainage.
• Ensures ventilation and separation layer.
• Available with self-adhesive tape – SYSTEM SK
› Application of Eurovent® MATT Insulation of a pitched roof with full sarking
1 Eurovent® MATT
2 Eurovent® HAFTRA
3 Eurovent® UNISAN
4 Eurovent® SUPER
5 Sarking
6 Thermal insulation
7 Eurovent® CLIMA X20
8 Plasterboard
9 Roof cover
WATERTIGHTNESS
Watertightness is the ability of a material to resist water pressure acting on its surface. This is one of the key parameters defining the performance of a roof membrane. It is achieved through a special functional film placed in the middle layer of the membrane – the most important component.
Watertightness plays a crucial role both during the construction of the roof and throughout the building’s lifetime, as it protects the insulation and internal structure from the harmful effects of water – especially in autumn and spring, when large amounts of condensed water vapour tend to accumulate under the roof covering and drip onto the membrane surface.
n case of any roof damage, watertightness provides temporary protection of the thermal insulation and roof structure against moisture ingress. It is vital that the membrane maintains a high level of water resistance despite the effects of ageing.
According to the DIN standard, a roof membrane is considered watertight if it withstands at least 1.5 m of water column [H2O].
This is why it is recommended for the initial watertightness value to exceed 2–3 m H2O, to ensure durability and compensate for the natural ageing process. Even in conditions of long-term ageing, a 50% drop in watertightness would still keep the membrane within the DIN-compliant performance range.
› Important terms:
• The unit is metres [m] H2O
• DIN waterproofing standard – minimum 1.5 m H2O
TEMPERATURE RESISTANCE
This refers to a material’s ability to withstand extreme temperatures. On a roof, this includes high summer heat and sub-zero winter conditions.
In ventilated pitched roofs, the temperature under the roof covering typically does not exceed 80 °C. For this reason, the DIN standard defines the test range for roof membranes from –40 °C to +80 °C.
Eurovent® roof membranes are tested in a wider temperature range – up to +120 °C. Roof membranes made of polypropylene remain stable from –40 °C up to +100 °C, and high-performance membranes maintain their properties even at +120 °C in short-term conditions, with no significant changes observed in material behaviour.
The softening point of polypropylene is above 120 °C, while its melting point is ≥ 160 °C.
When it comes to temperature resistance, the key factor is a properly functioning roof ventilation system, which must be continuous from the eaves to the ridge. If the ventilation is installed correctly, the service life and thermal durability of the membrane are significantly improved over time.
› Important terms:
• Eurovent® membranes are tested in a wider range from –40 °C up to +120 °C.
• Ventilation in pitched roofs must be properly installed and unobstructed from eaves to ridge.
MONOLITHIC FUNCTIONAL FILM
In contrast to microporous films, a monolithic functional film has a uniform, non-porous structure.
It is a single layer of material with consistent density and evenly distributed properties throughout its volume. Vapour permeability is achieved through a chemical interaction with water molecules – the polymer becomes a breathable layer that enables vapour transmission.
› Composition of membranes with monolithic functional film Three-layer products
1 Polypropylene nonwoven [PP]
2 Monolithic functional film
3 Polypropylene nonwoven [PP]
4 Vapour permeability – diffusiona
5 Watertightness
Polymer chain Diffusion through soft polymer segments
Water vapour molecules
Monolithic functional film Side view – zoom 2,000 ×
MONO
monolithic roof membrane
• Monolithic functional film.
• Used for insulated and ventilated sloping roofs.
• Also suitable for sarking and low-pitched roofs.
• Highly tear-resistant.
• Available in the SYSTEM SK2.
MAGNUM
anticondensation roof membrane
• Monolithic functional film.
• Anticondensation and waterproof.
• Used for insulated and ventilated sloping roofs.
• Also suitable for sarking and low-pitched roofs.
• Available in the SYSTEM SK2.
› Application of Eurovent® MONO Insulation of a pitched roof with full sarking
Specifically designed for use under bitumen shingles, wooden shingles, or natural slate coverings in ventilated, pitched roofs with full sarking.
These membranes are distinguished by their exceptional watertightness, high tear resistance, and enhanced UV resistance.

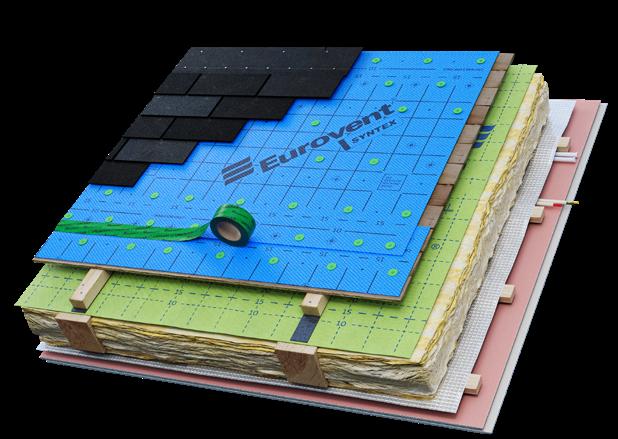

› Application of Eurovent® SYNTEX
Insulation of an insulated and ventilated pitched roof with full sarking
1 Eurovent® SYNTEX
2 Eurovent® UNISAN
3 Sarking
4 Eurovent® HOME PRO
5 Eurovent® PUR
6 Thermal insulation
7 Eurovent® STANDARD ALU
8 Plasterboard
9 Rafter
10 Roof cover
BITUMI
bitumen roof membrane
• Used for the insulation of pitched roofs covered with bitumen shingles, wooden shingles, or natural slate.
• Highly tear-resistant .
• UV-resistant.
• Available in the SYSTEM SK2.
SYNTEX
synthetic roof membrane
• Used for the insulation of pitched roofs covered with bitumen shingles, wooden shingles, or natural slate.
• Extremely tear-resistant.
• Exceptional resistance to UV radiation.
• Available in the SYSTEM SK2.
› Application of Eurovent® SYNTEX Insulation of a pitched roof
1 Eurovent® SYNTEX
2 Eurovent® UNISAN
3 Sarking
4 Rafter
5 Roof cover
VAPOUR-PERMEABLE ROOF FOILS
Low vapour-permeable roof foils are used as an underlay layer in ventilated, non-sarked pitched roofs — both insulated and non-insulated.
When used in insulated roofs, it is essential to maintain a ventilation gap of at least 5 cm between the foil and the thermal insulation — which means the foil must not come into direct contact with the insulation layer.
Thanks to the integrated PE reinforcing mesh, Eurovent® low vapour-permeable roof foils offer exceptionally high tear resistance and durability against mechanical damage.
Among the range of roof foils, Eurovent® ANTICON stands out by offering additional protection against condensation. It is recommended for roof renovations or thermal upgrades from the outside, especially when access to the attic is difficult or impossible.
› Application of Eurovent® STANDARD Insulation of a non-sarked pitched roof
1 Eurovent®
2
3
STANDARD
vapour-permeable roof foil
• Used for insulated and ventilated sloping roofs.
• Designed for non-sarked pitched roofs.
• Requires a ventilation gap – direct contact with insulation is not allowed.
• Reinforced – highly tear-resistant.
SILVER
vapour-permeable roof foil
• Used for insulated and ventilated sloping roofs.
• Designed for non-sarked pitched roofs.
• Requires a ventilation gap – direct contact with insulation is not allowed.
• Tear-resistant.
SPECIAL
vapour-permeable roof foil
• Used for insulated and ventilated sloping roofs.
• Designed for non-sarked pitched roofs.
• Requires a ventilation gap – direct contact with insulation is not allowed.
• Reinforced – highly tear-resistant.
ANTICON
anticondensation roof foil
• Prevents water vapour condensation.
• Recommended for renovation works.
• Also suitable for insulating attics, ceilings, and walls in traditional, prefabricated, and timber-frame constructions.

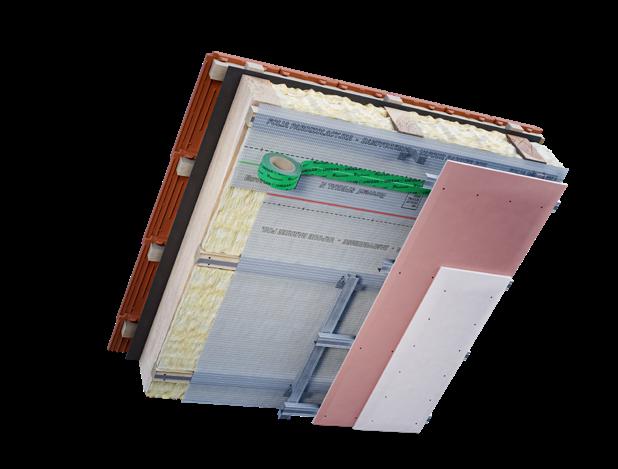

VAPOUR BARRIERS AND VCL
Vapour control layers for attics, ceilings, and walls –designed for residential, commercial, and specialised architectural applications.
VAPOUR BARRIERS AND VCL
A wide range of certified vapour control layers and vapour barriers – extremely airtight, from low Sd value active membranes to very high Sd value vapour barriers, including reflective and fire-retardant options.
Designed for residential and industrial construction in traditional, masonry, timber-based and timber-frame, CLT, prefabricated, passive, and modular building technologies.
Eurovent® vapour control membranes serve as an effective vapour barrier layer in roof, ceiling, and wall assemblies, helping to control and regulate moisture levels inside the building.
Additionally, membranes from the Eurovent® CLIMA and AKTIV series can also be installed from the exterior side of pitched roofs – both with and without sarking. This solution is particularly useful in renovation and thermal modernisation projects where access to the attic interior is limited or impossible.

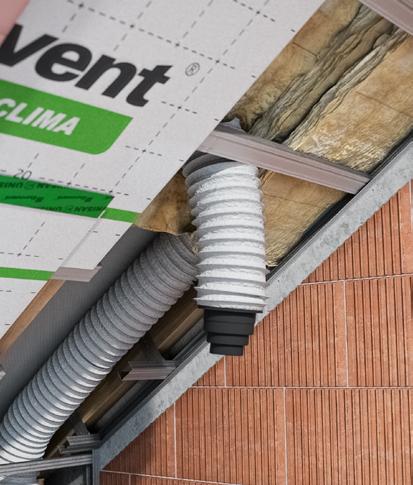

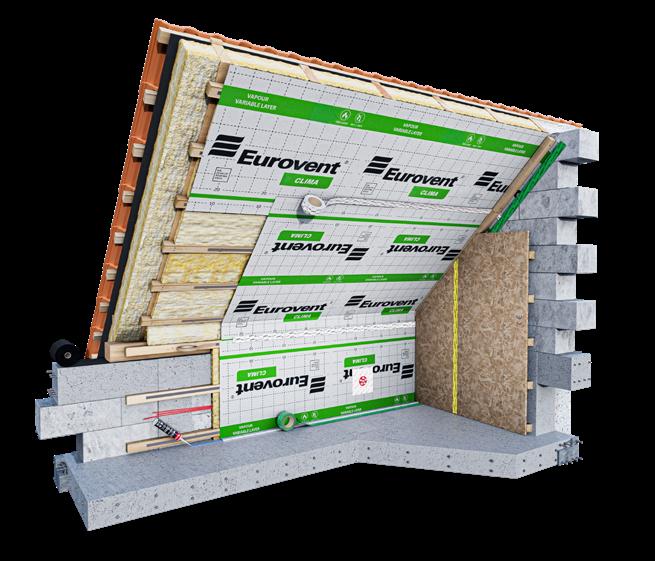

› Application of Eurovent® CLIMA Inverted roof
1 Eurovent® CLIMA
2 Eurovent® UNISAN
3 Eurovent® PUR
4 Eurovent® SUPER
5 Sarking
6 Thermal insulation
7 Rafter
8 Additional Rafter
9 Batten | Counter-batten
10 Roof cover
› Application of Eurovent® CLIMA 18 Renovation of sarked roof, inverted roof
1 Eurovent® CLIMA 18
2 Eurovent® PUR
3 Eurovent® SUPER
4 Sarking
5 Thermal insulation
6 Rafter
7 Old sarking/ Attic
VAPOUR DIFFUSION RESISTANCE
The Sd value (vapour diffusion resistance) defines the equivalent air layer thickness (in metres) that offers the same resistance to water vapour diffusion as the tested material.
The lower the Sd value, the more vapour-permeable the material is; the higher the value, the greater the resistance to vapour. For example, Sd = 40 m means the material provides the same resistance to vapour diffusion as 40 metres of air.
The Sd value is absolute, meaning it is not influenced by external factors such as temperature, air pressure, or humidity.
This makes it possible to clearly determine whether the product functions as a vapour-permeable layer or a vapour control layer.
› Important terms:
• The Sd unit is expressed in metres [m].
• Characteristic: absolute value – independent of external conditions.
CLASSIFICATION OF VCL
Eurovent® vapour control products are classified according to their Sd value (vapour diffusion resistance), which allows for precise selection based on the specific requirements of roof and wall assemblies.
Active Vapour Control Layers
Sd ≥ 4 m
CLIMA 2
Sd ≥ 8 m
CLIMA
AKTIV
AKTIV 3
CLIMA X
Vapour Control Layers
Vapour Barriers
Vapour-tight Barriers
Sd ≥ 18 m
CLIMA 18
CLIMA X20
Sd ≥ 40 m
STANDARD N
SPECIAL N SILVER N AKTIV ALU
ANTICON
DB
Sd ≥ 100 m
CLIMA 100
DS BLAU
STANDARD ALU AKTIV X 100
COMPOSITION OF VAPOUR CONTROL LAYERS
The Eurovent® vapour control membrane line includes two structural types: two-layer membranes and reinforced three-layer membranes, characterised by increased tear resistance.
Eurovent® active vapour control layers are characterised by a vapour diffusion resistance (Sd value) ranging from 4 m to 10 m.
They feature a special functional film that prevents uncontrolled water vapour transmission while allowing controlled diffusion – small amounts of vapour are able to migrate, enabling the drying of the structure and preventing condensation. This unique property defines the membrane as “active” vapour control.
Active vapour control layers protect against vapour from the interior, preventing condensation and ensuring a healthy indoor climate.
This group includes the reinforced vapour control membrane Eurovent® CLIMA X, certified by the Passive House Institute, which ensures the highest quality and energy efficiency for passive construction.

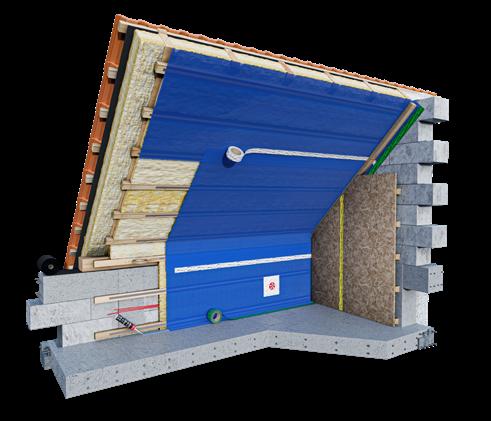

› Application of Eurovent® CLIMA Vapour control layer in attic insulation
1
2
6
CLIMA 2
active vapour control layer
• Sd value approx. 4 m.
• Active vapour control functional film.
• Prevents water vapour condensation.
• Used for attic and wall insulation in timber-frame, modular, prefabricated, and passive constructions.
active vapour control layer
• Sd value approx. 8 m.
• Active vapour control functional film.
• Prevents water vapour condensation.
• Used for insulating attics, ceilings and walls in traditional, prefabricated and timber-frame constructions.
› Application of Eurovent® AKTIV Vapour control layer in timber-frame wall
1 Eurovent® AKTIV
2 Eurovent® UNISAN
3 Eurovent® DUO
4 Eurovent® MULTI SEAL
5 Construction
Plasterboard
7 Thermal insulation 8 Wood-based board
Housewrap
Cladding
CLIMA
• Sd value approx. 10 m.
• Active vapour control functional film.
• Prevents water vapour condensation.
• Used for attic and wall insulation in timber-frame, modular, prefabricated, and passive constructions.
CLIMA X
reinforced active vapour control layer
• Sd value approx. 10 m.
• Certified by the Passive House Institute
• Three-layer, reinforced.
• Used for attic, ceilings and wall insulation in traditional, timber-frame, modular, prefabricated and passive constructions.
AKTIV 3
active vapour control layer
• Sd value approx. 10 m.
• Low VOC emissions.
• Prevents water vapour condensation.
• Used for insulating attics, ceilings and walls in traditional, prefabricated and timber-frame constructions.
VAPOUR CONTROL LAYERS
Vapour control layers in this group have an Sd value ranging from 18 m to 20 m.
They act as a barrier preventing water vapour from penetrating from the interior of the building toward the attic, ceiling, or walls.
Ensures excellent protection for thermal insulation against water vapour condensation, still enabling water vapour controlled migration preventing moisture problems.
› Application of Eurovent® CLIMA 18 Vapour control layer in attic insulation
1 Eurovent® CLIMA 18
2 Eurovent® UNISAN
3 Eurovent® DUO
4 Construction
5 Plasterboard
6 Thermal insulation
7 Roof membrane
8 Roof cover
CLIMA 18
vapour control layer
• Sd value approx. 18 m.
• Prevents water vapour condensation.
• Low VOC emissions.
• Used for attic and wall insulation in timber-frame, modular, prefabricated, and passive constructions
CLIMA X20
reinforced vapour control layer
• Sd value approx. 20 m.
• Three-layer, reinforced.
• Low VOC emissions.
• Used for attic, ceilings and wall insulation in traditional, timber-frame, modular, prefabricated and passive constructions.
g/m2
› Application of Eurovent® CLIMA X20 Attic vapour control – overlap sealing
1 Eurovent® CLIMA X20
2 Eurovent® FAST
VAPOUR BARRIERS
This group of Eurovent® vapour barriers features high Sd values ranging from 40 m to 75 m.
They act as a barrier against the penetration of water vapour from the interior of the building into the attic, ceilings, or walls. They effectively prevent vapour migration from the interior into the thermal insulation layer, providing excellent protection against moisture and condensation.
The group is further supplemented with films widely used in construction. Eurovent® BAU – used as an insulation layer under floor slabs and screeds, also serving as a protective layer for thermal and acoustic insulation.
Eurovent® ALUFLOOR – a reflective specialist foil used in underfloor heating system applications.
› Application of Eurovent® SILVER N Vapour control layer in attic insulation
1 Eurovent® SILVER N
STANDARD N
vapour barier foil
• Sd value approx. 40 m.
• Reinforced – highly tear-resistant.
• Prevents water vapour condensation.
• Used for attic, ceiling, and wall insulation in traditional, prefabricated, and timber-frame construction.
SPECIAL N
vapour barier foil
• Sd value approx. 40 m.
• Reinforced – highly tear-resistant.
• Prevents water vapour condensation.
• Used for attic, ceiling, and wall insulation in traditional, prefabricated, and timber-frame construction.
SILVER N
vapour barier foil
• Sd value approx. 40 m.
• Prevents water vapour condensation.
• High tear resistance.
• Used for attic, ceiling, and wall insulation in traditional, prefabricated, and timber-frame construction.
ANTICON
anticondensation foil
• Sd value approx. 40 m.
• Recommended for renovation works.
• Prevents water vapour condensation.
• Used for attic, ceiling, and wall insulation in traditional, prefabricated, and timber-frame construction.
AKTIV ALU
reflective vapour barrier
• Sd value approx. 40 m.
• Reflective – reflects thermal radiation.
• Used for attic, ceiling, and wall insulation in traditional, prefabricated, and timber-frame construction.
vapour barier foil
• Sd value approx. 50 m.
• High tear resistance.
• Prevents water vapour condensation.
• Used for attic and wall structure vapour control, as well as acoustic protection under floor finishes.
ca. 110 g/m2 ca. 40 m 1,5 m x 50 rm 50 rolls
› Application of Eurovent® SPECIAL N Vapour control layer in attic insulation
1 Eurovent® SPECIAL N
2 Eurovent® UNISAN
3 Eurovent® DUO
• Used as an insulation layer under floors, screeds, and concrete slabs.
• Also used as a protective layer for thermal and acoustic insulation in construction.
• Effective as a temporary protective foil during construction works.
ca. 0,20 mm
ca. 0,30 mm ca. 0,50 mm ca. 50 m 4,0 m x 25 rm 5,0 m x 20 rm 6,0 m x 33 rm

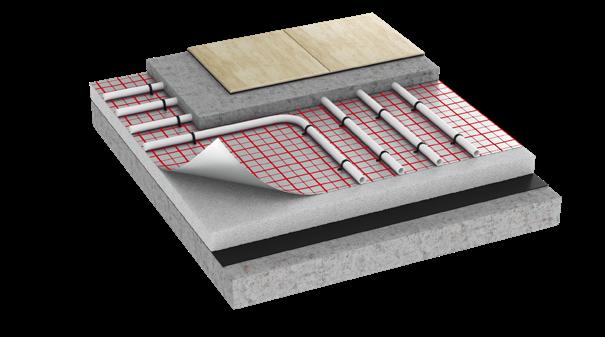

› Application of Eurovent® ALUFIX Underfloor heating insulation
1 Eurovent® ALUFIX
Eurovent® BAU
ALUFLOR
foil for underfloor heating systems
• Sd value approx. 70 m.
• Reflective – reflects thermal radiation.
• Used as an insulation layer under floor heating systems, also as a screen beneath and behind heating elements.
CONDENSATION OF WATER VAPOUR
This phenomenon occurs when water vapour present in the air condenses and settles on surfaces as liquid water. Air contains a certain amount of humidity, and when environmental conditions change – for example, when the temperature drops or humidity increases – condensation occurs, resulting in the formation of water droplets. In building envelopes, the key factor is the location of the dew point – the point at which the temperature, air humidity, and pressure allow vapour to condense.
The simplest way to shift the dew point outside the building envelope is to maintain a consistently high temperature on the interior side (inside the building or attic) and to prevent excessive humidity by ensuring effective ventilation adjusted to the level of indoor moisture. This is especially important in closed buildings where finishing work involving wet processes (e.g., screeds, plasters) is still in progress.
Seasons like autumn, winter, and spring naturally reduce the indoor air temperature, increasing the risk of condensation. In extreme cases, it may be necessary not only to raise the indoor temperature but also to intensify ventilation by opening windows and doors, which generates significant heating costs.
For this reason, it is recommended to carry out interior finishing work in closed buildings during warmer months, when higher ambient temperatures naturally reduce condensation risks. In such conditions, opening windows and doors boosts ventilation, gradually evaporating moisture from plasters and screeds without the need for artificial heating.
In addition to these considerations, proper selection and installation of waterproofing and ventilation materials in the roof and attic areas are essential. Ensuring the airtightness and ventilation of the roof structure is crucial to maintain effective performance and avoid condensation-related problems.
This can be achieved using roof membranes and foils, ventilation and ridge protection elements, eaves accessories, and a variety of specialised sealing tapes for each of these areas.
› Important terms:
• Avoid wet construction work in buildings during winter.
• Ensure correct ventilation, especially in renovated or adapted areas.
VAPOUR-TIGHT BARRIERS
Vapour-tight membranes and foils with a water vapour diffusion resistance (Sd) of ≥ 100 m.
They serve as a barrier against the transfer of water vapour from the interior of the building towards the attic, ceiling, or walls.
Their exceptionally high vapour resistance makes them ideal for areas with a high risk of condensation, where full moisture protection is required.
One of the key products in this group is the Eurovent® AKTIV X 100 synthetic vapour control membrane, designed specifically for roof renovations carried out from the outside, where access to the attic interior is limited or entirely restricted.
› Application of Eurovent® DS BLAU Vapour control layer in attic insulation
1 Eurovent® DS BLAU
2 Eurovent® UNO
3 Eurovent® DUO
4 Eurovent® UNISAN
5 Eurovent® MULTI
6 Eurovent®
7 Eurovent®
8
CLIMA 100
vapour-tight membrane
• Wysoka Sd value approx. 100 m.
• Prevents water vapour condensation.
• Very low VOC emissions.
• Used for attic, ceiling, and wall insulation in traditional, prefabricated, and timber-frame construction.
DS BLAU
vapour-tight foil
• Sd value approx. 100 m.
• High tear resistance.
• Prevents water vapour condensation.
• Very low VOC emissions.
• Used for attic, ceiling, and wall insulation.
› Application of Eurovent® CLIMA 100 Vapour control layer in timber-frame wall
1 Eurovent® CLIMA
AKTIV X 100
renovation vapour-tight membrane
• Sd value approx. 100 m.
• Extremely tear-resistant.
• Highly UV-resistant.
• Designed for use in renovation projects, especially in inverted roof systems.
STANDARD ALU
reflective vapour-tight foil
• Sd value approx. 150 m.
• Reflective – reflects thermal radiation.
• Used for attic, ceiling, and wall insulation in traditional, prefabricated, and timber-frame construction.
ca. 170 g/m2 ca. 100 m 1,5 m x 50 rm 50 rolls
› Application of Eurovent® STANDARD ALU Vapour control layer in attic insulation
1 Eurovent® STANDARD ALU
2 Eurovent® ALUFIX
3 Eurovent® DUO
4 Construction
5 Plasterboard
6 Thermal insulation
7 Roof membrane
8 Roof cover
ca. 90 g/m2 ca. 110 g/m2 ca. 130 g/m2
ATTIC RENOVATION – AKTIV X 100
Eurovent® AKTIV X 100 – designed for attic modernisation.
A four-layer, synthetic vapour-tight membrane with a very high Sd value of ≥ 100 m. Eurovent® AKTIV X 100 effectively protects thermal insulation and roof structure against moisture, offering exceptional tear resistance and increased UV durability –up to 6 months.
It is specifically designed for pitched roofs undergoing renovation or thermal modernisation from the outside, when access to the attic interior is difficult or completely restricted.

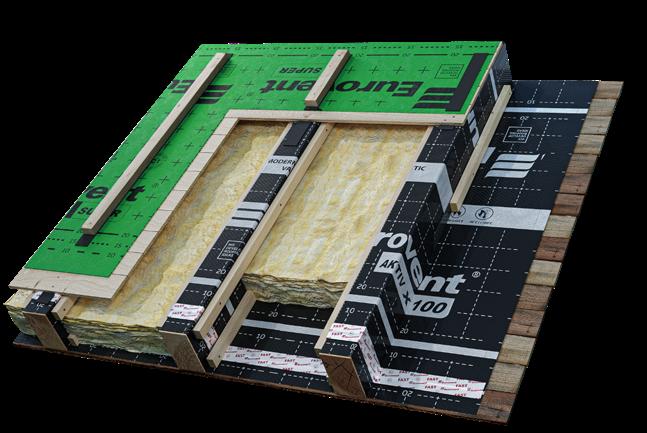

› Application of Eurovent® AKTIV X 100
Thermal modernisation of a pitched roof
1 Eurovent® AKTIV X 100
2 Eurovent® FAST
3 Eurovent® SUPER
4 Eurovent® PUR
5 Old sarking
6 Rafter
7 Thermal insulation
8 Sarking
HOUSEWRAPS
Housewraps also called wind barrier membranes are designed to protect facades against wind, rain, and moisture. They are used as insulation in facade systems, metal claddings, timber-frame constructions, and log houses.
HOUSEWRAPS
Eurovent® high vapour-permeable wind barrier membranes – also known as housewraps – are primarily used in ventilated facade systems. Their main function is to protect the thermal insulation layer against uncontrolled airflow, rainwater, and moisture, while still allowing water vapour to escape from the inside.
› Application of Eurovent® HOME Ventilated facade – closed cladding system
1 Eurovent® HOME
2 Eurovent® UNO COLD UV
3 Eurovent® PUR
4 Eurovent® CLIMA X
5 Plasterboard
6 Thermal insulation
7 Wood-based board
8 Closed facade – cladding
VENTILATED FACADES – CLOSED CLADDING
Closed joint cladding facade systems are among the most commonly used solutions in timber-frame, prefabricated, and modular construction.
In these types of wall assemblies, the facade cladding fully covers the housewrap, protecting it from UV exposure. Eurovent® housewraps used in such systems offer reliable protection against wind, rain, and moisture, while maintaining high vapour permeability.
They are perfectly suited for use behind various types of cladding such as siding, timber, stone, composite panels, ceramics, or metal – ensuring a long-lasting, airtight, and moisture-protected wall structure.

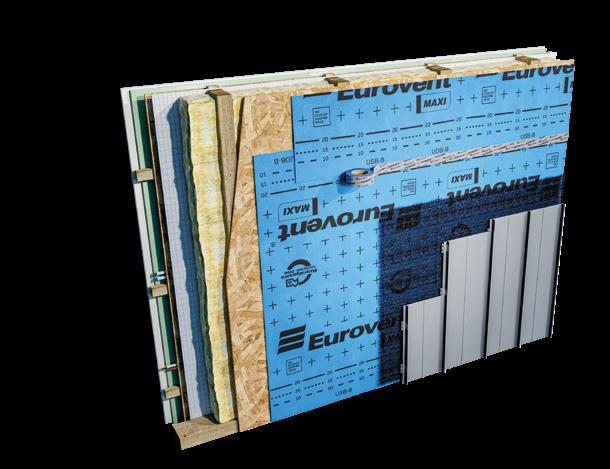

› Application of Eurovent® HOME PRO Ventilated facade – closed cladding system
1 Eurovent® HOME PRO
2 Eurovent® TOPBAND
3 Eurovent® PUR
4 Eurovent® CLIMA X
5 Plasterboard
6 Thermal insulation
7 Wood-based board
8 Closed facade
• Used as a housewrap in ventilated facade systems with closed cladding.
• Protects the building against wind, rain, and moisture.
• Recommended for timber-frame buildings, suitable for modular construction.
WALL PROTECT
• Used as a housewrap in ventilated facade systems with closed cladding.
• Protects the building against wind and moisture.
• Recommended for timber-frame constructions, log houses, and industrial halls.
WALL PROTECT 3
• Used as a housewrap in ventilated facade systems with closed cladding.
• Protects the building against wind, rain, and moisture.
• Suitable for timber-frame buildings, also for modular, and prefabricated constructions.
HOME PRO
• Used as a housewrap in ventilated facade systems with closed cladding.
• Protects the building against wind, rain, and moisture.
• Recommended for timber-frame, CLT, modular, prefabricated, and passive constructions.
PASSIVE HOUSE

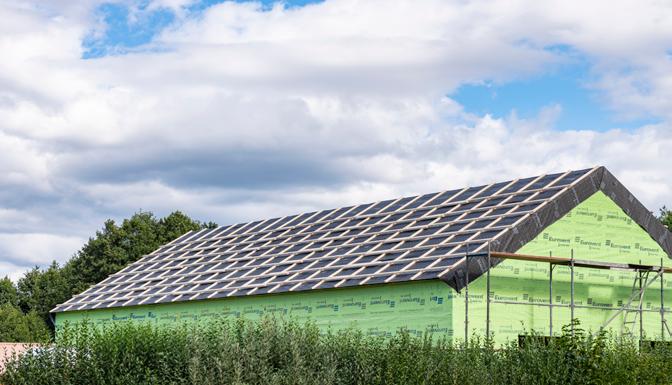

Kaplityny, Poland | Eurovent® HOME PRO
A passive house was built in Kaplityny using the complete Eurovent® system.
The wall structure was protected with the Eurovent® HOME PRO SK2 wind barrier membrane, which, thanks to its two integrated adhesive strips, allows for fast and airtight installation of overlaps.
On the roof slope, the four-layer, highly vapour-permeable membrane Eurovent® STRONG was applied. It features exceptional mechanical resistance, which is especially valued in prefabricated roof constructions.
On the interior side, the Eurovent® CLIMA X reinforced active vapour control layer was used. It is certified by the Passive House Institute, confirming its effectiveness for energy-efficient and passive house applications.
A positive result in the Blower Door Test confirmed the building’s high air tightness and compliance with energy-efficient construction standards.
FACADE WITH STANDING SEAM
METAL CLADDING
Facades finished with standing seam metal cladding require special protection against moisture and condensation, especially when the cladding is installed directly onto a solid surface such as sarking.
In such applications, it is recommended to use a separation mat or a housewrap integrated with a separation mesh that creates a buffer layer between the metal and the wall assembly.
Eurovent® METALLIC – a highly vapour-permeable housewrap combined with an 8 mm separation mesh. It forms a separation layer that allows efficient drainage of condensation, ensures continuous ventilation, and dampens noise caused by facade movements – especially during wind or rainfall.
Eurovent® MATT – an 8 mm three-dimensional separation mat that can be combined with any Eurovent® membrane to create an independent drainage, ventilation, and separation layer.
Using these solutions effectively protects closed metal facade systems against moisture accumulation, condensation, corrosion, and noise, as well as thermal stress – significantly increasing the durability and reliability of standing seam metal cladding systems.
› Application of Eurovent® METALLIC Ventilated facade – standing seam metal cladding
1 Eurovent® METALLIC
2 Sarking
3 Thermal insulation
4 Eurovent® DS BLAU
5 Plasterboard
6 Eurovent® HAFTRA
7 Metal cladding
METALLIC
• Used under standing seam metal cladding in combination with a housewrap.
• 8 mm mesh – provides acoustic insulation, separation and drainage layer.
• Ensures ventilation and separation layer.
• Used as a housewrap in ventilated facade systems with closed metal cladding.
• Provides acoustic insulation and facilitates condensate drainage.
• Ensures ventilation and separation layer.
• Available with self-adhesive tape – SYSTEM SK
› Application of Eurovent® MATT
Ventilated facade – standing seam metal cladding
1 Eurovent® MATT
2 Eurovent® MAXI
3 Eurovent® TOPBAND
4 Eurovent® CLIMA X
5 Wood-based board
6 Thermal insulation
7 Plasterboard
8 Eurovent® HAFTRA
9 Metal cladding
VENTILATED FACADES – OPEN JOINT CLADDING
In ventilated façades with open joints, the housewrap remains partially exposed and is subject to UV radiation penetrating through the outer cladding.
This requires the use of products with enhanced resistance to UV radiation and a high fire-resistance classification. Eurovent® FASSADE; Eurovent® FASSADE X and Eurovent® FASSADE PLUS were specifically designed for such conditions, passed 5,000-hour UV aging tests and provide a fire classification of B-s1, d0.
Eurovent® FASSADE and Eurovent® FASSADE X – for facades with joint widths up to 3 cm and up to 30% of the membrane surface exposed.
Eurovent® FASSADE PLUS – for facades with joint widths up to 5 cm and up to 40% of the membrane surface exposed.
› Open-joint facade assembly
1 Eurovent® FASSADE, Eurovent® FASSADE X
2 Eurovent® FASSADE PLUS
3 Eurovent® vapour control layer
4 Construction
5 Thermal insulation
6 Plasterboard
7 Open joint cladding
FASSADE
UV-resistant housewrap
• Used as a housewrap for insulating ventilated facade systems with open joints cladding.
• Protects the building against wind, rain, and moisture.
• Fire classification B-s1, d0.
• High UV resistance – test 5000h.
FASSADE X
UV-resistant housewrap
• Used as a housewrap for insulating ventilated facade systems with open joints cladding.
• Wysoka odporność na rozdarcie
• Fire classification B-s1, d0.
• High UV resistance – test 5000h.
› Application of Eurovent® FASSADE Ventilated facade – open joint cladding system
1 Eurovent® FASSADE
2 Eurovent® UNO COLD UV
3 Eurovent® PUR
4 Eurovent® STANDARD ALU
5 Plasterboard
6 Thermal insulation
7 Wood-based
8 Open joint cladding
FASSADE PLUS
UV-resistant housewrap
• Used as a housewrap for insulating ventilated facade systems with open joints cladding.
• Extreme tear resistance.
• Fire classification B-s1, d0.
• High UV resistance – test 5000h.
ca. 270 g/m2 ca. 0,02 m 1,5 m x 50 rm 40 rolls
› Application of Eurovent® FASSADE PLUS Ventilated facade – open joint cladding system
1 Eurovent® FASSADE PLUS
2 Eurovent® UNO COLD UV
3 Eurovent® PUR
4 Eurovent® STANDARD ALU
5 Plasterboard
6 Thermal insulation
7 CLT wall
8 Construction 9 Open joint cladding
REACTION TO FIRE
Harmonised European fire safety standards form a unified set of regulations accepted across all EU member states. This enables the free circulation of construction products tested under the same standards, without the need for separate national testing.
Reaction to fire
If a fire finds enough combustible materials, it can rapidly spread across the affected area. Therefore, it is crucial to use materials with limited flammability on key interior surfaces such as ceilings and walls.
The use of flame-retardant materials significantly slows down fire spread and reduces the product’s contribution to the fire.
The European Standard EN 13501-1 defines the fire performance classification criteria for construction products, evaluating their behaviour in terms of flame spread, contribution to fire, smoke production, and flaming droplet formation.
Declaration of Performance
The “DoP” is the key document usually required by local authorities to confirm that a construction product meets the necessary fire performance criteria.
Eurovent® Product Classification
Eurovent® products with enhanced fire performance are marked with specific icons to easily identify their reaction-to-fire class:
› Classification of Eurovent® products according to fire rating:
Vapour-permeable roof membranes
Fire classification B-s1,d0
Eurovent® STRATOS
Housewraps
Fire classification B-s1,d0
Eurovent® FASSADE
Eurovent® FASSADE X
Eurovent® FASSADE PLUS
Self-adhesive membranes
Fire classification C-s1,d0
Eurovent® SUPER SA
Expanding tapes
Fire classification B1
Eurovent® COMPRE
Eurovent® COMPRE 3W
Eurovent® COMPRE X
Eurovent® COMPRE FALZ
FIRE CLASSIFICATION
Fire classification of construction materials according to the European standard EN 13501-1.
The table provides an overview of the applicable criteria such as flame spread, contribution to fire, smoke production, and formation of flaming droplets.
Classification according to EN 13501-1
Additional classification
s1, d0
s1, d1
s1, d2
s2, d0
s2, d2
s3, d0
s3, d2 d2
Not applicable
Smoke production s3 and flaming droplets d2 No smoke emission s1 and no flaming droplets d0
Smoke emissions class:
s1 – little or no smoke emission.
s2 – moderate smoke emission.
s3 – high smoke emission.
Smoke emission class s2 /s3, no flaming droplets d0 Flaming droplets d1 /d2, smoke emission s1
Formation of flaming droplets:
d0 – no flaming droplets within 600 seconds.
d1 – flaming droplets within 600 seconds, burning no longer than 10 seconds.
d2 – does not meet d0 or d1 classification.
Fire Reaction Classification Standards Across Different Systems:
System
European Union EN 13501-1 A2–s1 d0; B–s1 d0
Switzerland Fire Protection Regulations 1976 VI q.3 – non-combustible, low smoke emission USA ASTM E 84-97 a
ROOF ACCESSORIES
A complete system of roofing accessories – proven solutions for key roof areas such as ridge, eaves, chimney, and valley. The range also includes snow guard systems, roofing safety components, venting systems, as well as a wide selection of adhesive tapes, sealants, and fixings.
RIDGE
A system of ridge tapes and accessories designed for proper sealing and finishing of horizontal and sloped roof ridges.
Ridge tapes and accessories ensure correct ridge finishing and effective ventilation of the upper section of the roof slope. They protect the roof structure from winddriven snow, rain, and moisture, as well as from external contaminants such as leaves, dust, insects, and other debris.
› Application of Eurovent® ROLL O Kalenica pozioma w dachu skośnym
1 Eurovent® ROLL O
2 Eurovent® UNI GRIP
3 Eurovent® CANTILEVER L
4 Eurovent® FORTIS
5 Eurovent® CLIMA
6 Thermal insulation
7 Rafter
8 Tile
9 Ridge tile
10 Batten, counter-batten
11 Ridge batten
RIDGE TAPE
Eurovent® ROLL STANDARD ridge tape – for horizontal and pitched ridges.
Eurovent® ROLL STANDARD is a bestselling ridge tape, trusted by roofers for years thanks to its reliability, durability, and ease of installation. It offers a functional and long-lasting solution for finishing both horizontal and pitched roof ridges. Its specially designed structure effectively protects the roof surface against wind-driven snow, rain, and debris while providing continuous ventilation in the ridge area.
› Composition of Eurovent® ROLL STANDARD ridge tapes
1 Technical PP fabric
2 Wrapped aluminium edge
3 Wide butyl adhesive – 20 mm
4 Double weave
5 Strong acrylic adhesive
6 Technical threads
› Advantages of Eurovent® ridge tapes for horizontal and sloped ridge finishing
Provides effective ridge area ventilation of the roof surface. Butyl adhesive ensures long-lasting adhesion to various roof coverings.
Offers high protection against wind, rain, snow, and airborne debris.
4 mm wave – precise fit to roof covering thanks to high-profile wave.
ROLL STANDARD
ridge tape
• Ridge tape manufactured from profiled aluminium, technical fabric, and two strips of butyl adhesive.
• Provides ridge ventilation and protects the roof surface against moisture and dust.
ROLL ECCO
ridge tape
• Ridge tape manufactured from profiled aluminium sheet, PE nonwoven fabric, and two strips of butyl adhesive.
• Provides ridge ventilation and protects the roof surface against moisture and dust.
ROLL GEO
ridge tape
• Ridge tape manufactured from profiled aluminium sheet, single-layer geotextile, and two strips of butyl adhesive.
• Provides ridge ventilation and protects the roof surface against moisture and dust.
ROLL SUPER
ridge tape
• Ridge tape manufactured from profiled aluminium sheet, double-layer nonwoven fabric, and two strips of butyl adhesive.
• Provides ridge ventilation and protects the roof surface against moisture and dust.
ROLL METAL
ridge tape
• Ridge tape manufactured from profiled, partially perforated aluminium sheet and two strips of butyl adhesive.
• Provides ridge ventilation and protects the roof surface against moisture and dust.
ROLL METAL NEW
ridge tape
• Ridge tape manufactured from profiled, perforated aluminium sheet and two strips of butyl adhesive.
• Provides ridge ventilation and protects the roof surface against moisture and dust.
ROLL O
ridge tape
• Ridge tape manufactured from profiled aluminium sheet, polypropylene nonwoven fabric, and two strips of butyl adhesive.
• Provides ridge ventilation and protects the roof surface against moisture and dust.
› RAL colour palette used in Eurovent® ridge tapes.
Cherry RAL 3011
Brown RAL 8017
Black RAL 9005
Chestnut RAL 8015
Brown RAL 8019
Wall red RAL 8004
Anthracite RAL 7021
CREATON GRIP
ridge tile grip
• Ridge tile clip made of polyester-coated aluminium sheet.
• Ensures fast and reliable installation of Creaton ridge tiles to ridge battens.
• Mounted with screws.
470/24 50 pcs. 10 000 pcs. 8004; 8017; 7021; 9005
SATTEL GRIP
ridge tile grip
• Ridge tile clip made of polyester-coated aluminium sheet.
• Ensures fast and reliable installation of Rupp, Sattel, and Konisch ridge tiles to ridge battens.
• Mounted with screws.
470/45 50 pcs. 9
RÖBEN GRIP
ridge tile grip
• Ridge tile clip made of polyester-coated aluminium sheet.
• Ensures fast and reliable installation of Röben ridge tiles to ridge battens.
• Mounted with screws.
pcs. 8004; 8017; 8019; 7016; 7021; 9005 470/163
pcs. 10 000 pcs. 8004; 8017; 7021; 9005
TONDACH GRIP
ridge tile grip
• Ridge tile clip made of polyester-coated aluminium sheet.
• Ensures fast and reliable installation of Tondach ridge tiles to ridge battens.
• Mounted with screws.
UNI GRIP
ridge tile grip
• Universal ridge tile clip made of polyester-coated aluminium sheet.
• Ensures fast and reliable installation of ridge tiles to ridge or hip battens.
• Mounted with screws.
› RAL colour palette used for Eurovent® ridge tile grips.
470/53 50 pcs. 10 000 pcs. 8004; 3009; 8017; 7021
› Application of Eurovent® UNI GRIP Horizontal ridge in a pitched roof
1 Eurovent® UNI GRIP
2 Eurovent® ROLL STANDARD
3 Eurovent® CANTILEVER G
4 Eurovent® FORTIS
5 Eurovent® CLIMA
6 Thermal insulation
7 Rafter
8 Tile
9 Ridge tile
Chestnut RAL 3009
Brown RAL 8017
Black RAL 9005
Brown RAL 8019
Wall red RAL 8004
Anthracite RAL 7016
Anthracite RAL 7021

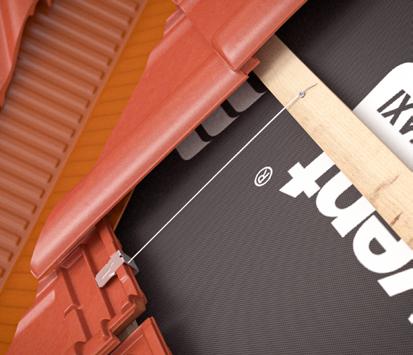

CANTILEVER G
ridge batten bracket
• Ridge batten bracket consists of a steel grip and a nail.
• Used on pitched roofs for the installation and levelling of the ridge batten.
CANTILEVER N
ridge batten bracket
• Ridge batten bracket consists of a steel grip and a threaded screw-in nail.
• Used on pitched roofs for the installation and levelling of the ridge batten.
• Easy height adjustment.
CANTILEVER B
ridge batten bracket
• Ridge batten bracket consists of steel grip and two support stalks.
• Used on pitched roofs for the installation and levelling of the ridge batten.
CANTILEVER L
ridge batten bracket
• Ridge batten bracket consists of an adjustable steel grip and two support stalks.
• Used on pitched roofs for the installation and levelling of the ridge batten.
• Easy height adjustment.
AIR FLEX S
ridge ventilating element
• Ridge ventilating element made of plastic.
• Equipped with ventilation openings and a brush that adapts to the roof tile profile.
• Ensures ventilation and protects the roof ridge area against moisture and dust.
BITUVENT
ridge ventilating element
• Ridge ventilating element made of plastic, designed for pitched roofs with a slope of up to 30°.
• Designed for use with bitumen shingle roofing.
• Provides ventilation and protects the ridge area of the roof against moisture and dust.
DECK
ridge finishing element
• Ridge end cap made of plastic.
• Universal finishing element that covers and protects the end of the ridge or ridge tile.
• Equipped with evenly distributed holes to ensure effective ventilation.
› RAL colour palette used in Eurovent® ridge accessories.
Chestnut RAL 8015
Black RAL 9005
Brown RAL 8019
Wall red RAL 8004
Anthracite RAL 7021

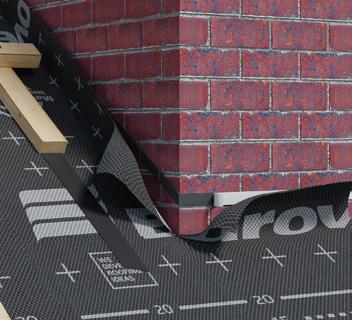

CHIMNEY
Chimney flashing tapes and accessories are designed to provide durable and aesthetic sealing in critical roof areas around chimneys, dormers, roof windows, wall-to-roof junctions, and firewalls.
They ensure durable waterproofing of critical roof areas, effectively protecting against the ingress of water, snow, and moisture.
› Application of Eurovent® FLEX EPDM Q Chimney flashing
They are composed of a high-quality aluminium reinforcement mesh, a flexible EPDM surface layer, and a highly adhesive butyl layer protected by a split silicone liner. These tapes offer excellent flexibility and ease of shaping, making them ideal for chimney flashing, dormers, roof windows, and various wall-to-roof connections.
The Eurovent® FLEX EPDM Q version features a pre-profiled transverse pattern that significantly accelerates shaping and simplifies application.
› Composition of Eurovent® FLEX EPDM flashing tapes
1 Flexible EPDM
2 Easy-to-form aluminium mesh
3 Strongly adhesive butyl layer
4 Split liner for easy application
› Advantages of using Eurovent® FLEX EPDM chimney flashing tapes for flashing around chimneys, dormers, and roof windows
Excellent adhesion to wall surfaces and roofing materials
Special butyl adhesive formula ensures secure and durable bonding
High resistance to weather conditions, UV radiation, and ageing
Outstanding flexibility and ease of shaping
FLEX EPDM
chimney flashing tape
• Chimney flashing tape made of high-quality flexible aluminium mesh, EPDM layer, and butyl adhesive.
• Used for finishing works around roofs, chimneys, bay and roof windows.
FLEX EPDM Q
chimney flashing tape
• Chimney flashing tape made of a threedimensionally profiled EPDM layer, high-quality flexible aluminium mesh, and butyl adhesive.
• Used for finishing works around roofs, chimneys, bay and roof windows.
FLEX ULTRA Q
chimney flashing tape
• Chimney flashing tape with transverse profiling, made of two layers of thermoplastic material reinforced with stretchable aluminium mesh and butyl adhesive.
• Used for finishing works around roofs, chimneys, bay and roof windows.
FLEX 3D
chimney flashing tape
• Chimney flashing tape made of profiled aluminium sheet with a three-dimensional pattern and butyl adhesive.
• Used for finishing works around roofs, chimneys, bay and roof windows.
300 mm x 5 rm 1 roll 144 rolls 8004; 3011; 8015; 8017; 8019; 7021; 9005
FLEX 4D
chimney flashing tape
• Chimney flashing tape made of profiled aluminium sheet with a four-dimensional pattern and butyl adhesive.
• Used for finishing works around roofs, chimneys, bay and roof windows.
300 mm x 5 rm 1 roll 144 rolls 8004; 3011; 8015; 8017; 8019; 7021; 9005
FLEX STANDARD
chimney flashing tape
• Chimney flashing tape made of transversely profiled aluminium sheet and butyl adhesive
• Used for finishing works around roofs, chimneys, bay and roof windows.
FLEX FLAT PB
chimney flashing tape
• Chimney flashing tape made of flat 0.4 mm lead sheet and butyl adhesive.
• Used for finishing works around roofs, chimneys, bay and roof windows.
300 mm x 5 rm 1 roll 60 rolls 8004; 8012; 8017; 8019; 7021; 9005
FLEX SUPER PB
chimney flashing tape
• Chimney flashing tape made of transversely profiled 0.4 mm lead sheet and butyl adhesive.
• Used for finishing works around roofs, chimneys, bay and roof windows.
FLEX STANDARD PB
chimney flashing tape
• Chimney flashing tape made of transversely profiled 0.2 mm lead sheet and butyl adhesive.
• Used for finishing works around roofs, chimneys, bay and roof windows.
FLEX LINE
chimney strip
• Chimney strip made of aluminum sheet.
• Used to ensures proper sealing of the critical spots around chimney and aesthetic finishing of the roof works.
FLEX CORNER
profiled finishing strip
• Chimney strip made of polyvinyl chloride.
• Used as a finishing strip for the corners of the chimney and facades covered with natural slate.
• It provides an aesthetic finish to the chimney.
80 mm x 2 m 20 pcs. 2000 pcs. 8004; 8017; 8019; 7021; 9005
› RAL colour palette used in Eurovent® chimney flashing tapes. Brown RAL 8017
13,6 mm x 2,0 m 10 pcs. 800 pcs. 8004; 8019; 9005
Chestnut
Wall
Chestnut
Tile clips for ceramic and concrete roof tiles ensure durable and reliable fixing of the roof covering.
They allow for stable placement of roof tiles, protecting them from being lifted by strong wind gusts. The use of clips significantly increases the roof’s resistance to wind suction forces, thereby extending the durability and reliability of the entire roof structure. They are indispensable in critical roof areas such as valleys, ridges, eaves, chimneys, and roof edges.
› Application of Eurovent® Tile fixing by roof tile clips
WIND ZONES IN POLAND
According to the PN-EN 1991-1-4 standard, the territory of Poland is divided into three wind zones that determine the intensity of wind impact on buildings.
Although the standard defines load values, it does not clearly specify the fastening rules for roof coverings such as roof tiles in relation to suction and lateral wind forces.
2
3
Wind load zones in Poland *schematic map
In roofing practice, the roof surface is divided into three installation areas, depending on the tile’s location on the roof and the building’s position within a given wind zone:
Central roof area:
1 Wind zone 1 - clip every 4 tiles
2 Wind zone 2 - clip every 3 tiles
3 Wind zone 3 - clip every 2 tiles
Intermediate area:
1 2 Wind zones 1 i 2 - clip every 3 tiles
3 Wind zone 3 - clip every 2 tiles
Edge / perimeter area:
1 2 Strefy wiatrowe 1 i 2 - clip every 2 dachówki
3 Wind zone 3 - każda Tile
Additional recommendations:
It is considered good practice to fasten each roof tile in critical roof areas such as:
Eaves and ridge zones; Roof edges; Areas around chimneys and roof windows; Roof valleys.
If the roof pitch is more than 55°, it is recommended to secure every roof tile with a clip – regardless of the wind zone, building location, or tile position on the roof surface.
CLIP NORD-2
tile clip
• Roof tile clip is made of hook-profiled steel wire on one side and tipped with a rectangular plate made of galvanized steel tape.
• Fixed by nailing its sharp tip directly into the roof structure, then fastening the plate to the side edge of the roof tile.
CLIP NORD-3
• Roof tile clip made of hook-profiled steel wire on one side and finished with a half-round plate made of galvanized steel strip.
• Fixed by nailing its sharp tip directly into the roof structure, then fastening the plate to the side edge of the roof tile.
CLIP J
tile clip for ceramic tiles
• Roof tile clip made of J-shaped galvanized steel wire for ceramic roof tile installation.
• Fixed by hooking one end to the side lock – or to both the side and top locks – and the other end to the batten.
CLIP J2
tile clip for ceramic tiles
• Roof tile clip made of J-shaped galvanized steel wire for ceramic roof tile installation.
• Fixed by hooking its ends to the side locks of two adjacent roof tiles.
CLIP U
• Roof tile clip made of U-shaped profiled galvanized steel wire.
• Fixed by nailing its sharp end directly into the roof structure and hooking the other end onto the edge of the roof tile.
CLIP BIBER
roof tile clip for ceramic tiles
• Roof tile clip made of galvanized steel strip for fastening beaver-tail ceramic roof tiles.
• Fixed by hooking one end to the batten and the other end to the side edge of the roof tile.
CLIP DC-6
universal roof tile clip
• Universal roof tile clip made of galvanized steel wire for ceramic roof tile installation.
• Fixed by hooking one end to the side lock, or to both the side and top locks.
CLIP DC-9
• Roof tile clip made of hook-shaped steel wire with a rectangular metal plate at the end.
• Fixed by nailing the pointed end into the roof structure, then hooking the plate onto the side edge of the roof tile.
CLIP C
roof tile clip for cut roof tiles
• Roof tile clip made of a C-shaped metal bracket and a long steel wire.
• Fixed by attaching the metal bracket to the edge of the cut roof tile and fastening the steel wire to a nail in the roof structure.
STANDING SEAM CLIPS
Standing seam clips are fastening elements used for installing roof and facade coverings made of flat sheet metal finished with standing seams.
They provide durable, stable, and secure attachment of metal sheets to the substrate, protecting the structure against wind suction forces and snow loads. Proper selection and placement of clips are crucial for the reliability and long service life of the entire roof surface.
Two basic types of standing seam clips are defined:
Fixed clip – prevents any movement of the metal sheet relative to the substrate. It creates a so-called fixed fastening zone, usually located near the ridge or eaves, where complete immobilization of the covering is required.
Sliding clip – designed to allow limited movement along the length of the sheet, compensating for dimensional changes resulting from thermal expansion of the material. It is used in so-called sliding zones, typically in the central part of the roof surface, preventing the sheet from warping or deforming due to temperature variations.
› Application of Eurovent® Standing seam clips
Fixing of standing seam metal sheets
FIXED CLIP
standing seam clip
• Fixed standing seam clip made of 0,4 mm thick stainless steel.
• Used for installing flat metal sheets finished with a standing seam.
• Sliding standing seam clip made of 0,4 mm thick stainless steel sheet.
• Used for installing flat metal sheets finished with a standing seam.
• Allows limited movement of the roofing caused by stress and thermal expansion.
mm;
*Size available on request.
ASSEMBLY OF STANDING SEAM CLIPS
Depending on the roof slope and technical requirements, two types of installation zones are used: fixed and sliding, arranged along the entire length of the roof covering.
Proper selection of clip types and their placement is crucial for the durability and reliability of the roofing, especially in relation to wind suction forces and snow loads. Correctly positioned clips ensure stable fastening of the metal sheets and eliminate the risk of damage caused by the thermal movement of the material.
Fixed zones – A strip 1–3 m wide where fixed clips are used. This zone provides permanent fastening of the roof covering.
Sliding zones – A strip where sliding clips are used, depending on the roof slope. This zone allows limited movement of the roof covering caused by the material’s thermal expansion.
› Placement of standing seam clips
Roof slope up to 3°
› Placement of standing seam clips
Roof slope from 3° to 10°
› Placement of standing seam clips Roof slope from 10° to 30°
› Placement of standing seam clips Roof slope above 30°
EAVES
Ventilation and protection elements designed for proper construction and finishing of the eaves area in pitched roofs, as well as for securing ventilation inlets within the roof and facade.
These products play a key role in the correct operation of a ventilated roof, they allow free air circulation, which prevents water vapour condensation, lowers the temperature beneath the roof covering, and significantly extends the service life of the roof structure. In addition, they effectively protect the roof space from birds, rodents, insects, wind-blown leaves, and debris that may block the ventilation channels.
Ensuring effective air intake in the eaves area and free air exhaust at the ridge is fundamental to the durability and reliability of the entire roof system.
› Application of Eurovent® EAVES PLANK Eaves protection
1 Eurovent® EAVES PLANK
2 Eurovent® COMB VENTI
3 Eurovent® EAVES GRATE ALU
4 Eurovent® XSTRONG
5 Batten, counter batten
6 Eaves board
7 Gutter system
COMB X COMB VENTI
• Eaves comb made of high-quality plastic.
• Used in pitched roofs as a ventilation element in the eaves area.
• Prevents penetration of birds, insects, rodents, and wind-driven leaves.
• Eaves comb with ventilating grate made of high-quality plastic.
• Used in pitched roofs as a ventilation element in the eaves area.
• Prevents penetration of birds, insects, rodents, and wind-driven leaves.
EAVES PLANK GRATE VENTI
• Ventilating eaves grate made of high-quality plastic.
• Used in pitched roofs as a ventilation element in the eaves area.
• Prevents penetration of birds, insects, rodents, and wind-driven leaves.
• Over-gutter plank made of aluminum sheet coated with polyester paint, additionally protected with a polyethylene film removed during installation.
• Reinforces and protects the eaves area, directing rainwater into the gutter system.
EAVES GRATE EAVES GRATE ALU
• Eaves grate available in two material versions: PP or PVC.
• Protects the eaves area and other ventilation inlets in the building façade against birds, insects, rodents, and wind-driven leaves.
• Eaves grate made entirely of aluminum.
• Protects the eaves area and other ventilation inlets in the building façade against birds, insects, rodents, and wind-driven leaves.
EAVES GRATE ALU RAL
• Eaves grate made of aluminum with a dual-color RAL coating: 7016/8017 and 8004/9005.
• Protects the eaves area and other ventilation inlets in the building façade against birds, insects, rodents, and wind-driven leaves.
› RAL colour palette used in the Eurovent® eaves system.
Brown RAL 8017
Black RAL 9005
Brown RAL 8019
Wall red RAL 8004
Anthracite RAL 7021 Anthracite
7016
ROOF VALLEY
The roof valley, where two roof slopes meet, is one of the most water-exposed areas on a pitched roof – and therefore requires particular attention during flashing.
Proper valley flashing not only ensures waterproofing but also contributes to the durability and visual appeal of the entire roof surface. The use of appropriate valley tapes, metal sheets, and sealants enables effective drainage into the guttering system while protecting the roof structure from leaks and moisture.
› Application of Eurovent® VALLEY L Valley flashing installation
VALLEY Q
roof valley
• Transversely profiled roof valley coated with polyester paint.
• Used as a flashing element between two neighbouring roof slopes.
• Ensures proper water drainage from the roof area.
VALLEY CLIP
roof valley clip
• Roof valley clip made of aluminum sheet and coated with polyester paint.
• Used as a mounting element of the roof valley to the roof structure.
• Ensures precise installation of the valley without a need to drill additional openings.
VALLEY L
roof valley
• Roof valley longitudinally profiled, coated with polyester paint.
• Used as a flashing element between two neighbouring roof slopes.
• Ensures proper water drainage from the roof area.
WEDGE
sealing foam
• Valley wedge made of polyurethane foam with a self-adhesive layer.
• Used for sealing in the place where the roof valley is connected to the roof slope.
• Perfectly adjusts to the shape of the covering.
WEDGE 4
sealing foam
• Polyurethane foam wedge with self-adhesive layer.
• Used for sealing the connection between the roof valley and the roof slope.
• Perfectly adapts to the shape of the roofing.
WEDGE X
sealing foam
• Polyurethane foam wedge with self-adhesive layer.
• Used for sealing the connection between the roof valley and the roof slope.
• Perfectly adapts to the shape of the roofing.
› RAL colour palette used in the Eurovent® roof valley system.
8015
Chestnut RAL
Black RAL 9005
Brown RAL 8017
Brown RAL 8019
Wall red RAL 8004
Anthracite RAL 7021
SNOW PROTECTION
The Eurovent® snow protection system prevents excessive snow from sliding down roof slopes, ensuring safety for building users and protecting roof elements from damage.
Eurovent® solutions include the SNOWSTOPPER snow guard grate system, the TUBE snow guard pipe system, and the BLOCK snow guard log system. They are complemented by snow splitters also known as SNOWSTOP.
All components are made of high-quality steel, protected with an anti-corrosion coating and powder-coated in RAL colours. This guarantees durability and reliability even under severe weather conditions. Each system has been designed to enable easy and secure installation on various types of roof coverings and to meet the requirements of local snow load zones in accordance with EN 1991-1-3.
› Application of Eurovent® SNOWSTOPPER SET WEST DB-DC
Installation of snow protection system on concrete roof tiles
1 Eurovent® SNOWSTOPPER
2 Eurovent® FIX WEST DB-DC
3 Eurovent® XSTRONG
4 Eurovent® TOPBAND
5 Additional batten
6 Batten
7 Counter-batten
8 Eurovent® COMB X
9 Eurovent® EAVES PLANK
SNOW GUARD GRATE SYSTEM
An effective protection system preventing uncontrolled snow slides from the roof surface, safeguarding gutters, façades, and pedestrians around the building.
The system consists of a snow guard grate, mounting brackets, and connectors designed to fit various types of roof coverings with slopes ranging from 15° to 60°.
TOX joining technology.
All connections between individual components are made using TOX technology, an advanced cold-joining method widely used in the automotive industry. This technology ensures strong, durable, and visually clean joints that exceed the quality of traditional welding, eliminating the risk of damaging the protective coating.
ONLINE ASSEMBLY GUIDE
Scan QR code with your phone
SNOWSTOPPER
snowstopping grate
• Snow guard grate made of galvanized steel.
• Provides protection against large amounts of snow sliding down from the roof.
• Joined using TOX technology.
• Double corrosion protection.
CLIP
snowstopping grate connector
• Connector for snow guard grates made of galvanized steel.
• Enables connecting multiple snow guard grates in a row.
• Double corrosion protection.
1,0 m; 2,0 m; 3,0 m 8004; 3009; 3004; 8017; 8019; 7016; 9005 2 pcs. 60 mm 8004; 3009; 3004; 8017; 8019; 7016; 9005 6 pcs.
› Application of Eurovent® CLIP Connection of snowstopping grates
FIX UNI
snow guard grate bracket
• Universal bracket suitable for roof slopes from 15° to 60°.
• Recommended for flat coverings such as bitumen shingles or trapezoidal metal sheets.
• Joined using TOX technology.
• Double corrosion protection.
A: 270 mm
FIX DB-DC
snow guard grate bracket
• Ssuitable for concrete and ceramic roof coverings with slopes from 15° to 60°.
• Used for panel metal roof coverings with a 35/370 mm module, such as Metro SHAKE II, Pruszyński REGLE, Novatik PREMIUM, Novatik HARNAŚ, and Blachotrapez JANOSIK.
› RAL colour palette used in the Eurovent® SNOWSTOPPER SET snow guard barrier sets.
Brown RAL 8017
Black RAL 9005
Brown RAL 8019
Cherry RAL 3004
Wall red RAL 8004
Graphite RAL 7024
Anthracite RAL 7016
Chestnut RAL 3009
SNOW GUARD TUBE SYSTEM
The Eurovent® TUBE system is an alternative solution to traditional snow guard grate systems, offering a modern aesthetic that complements contemporary architecture.
It provides high efficiency in retaining snow sliding from the roof slope, protecting gutters, eaves, and elements located directly under the edge of the roof.
The Eurovent® TUBE system consists of snow guard pipes, mounting brackets dedicated to specific roof coverings, connectors, and end caps, allowing it to be adapted to various types of roof coverings on slopes ranging from 15° to 60°.
› Application of Eurovent® TUBE SET SLATE
Snow guard pipes system installation on slate roofing
1 Eurovent® TUBE
2 Eurovent® FIX TUBE SET SLATE
3 Eurovent® MONO
4 Eurovent® TOPBAND
5 Additional batten
6 Batten
7 Counter-batten
Scan QR code with your phone
TUBE
snow guard pipe
• Snow guard pipe made of galvanized steel.
• Provides protection against large amounts of snow sliding down from the roof.
› RAL colour palette used in Eurovent® TUBE snow guard pipe system.
Brown
Brown
Chestnut
Wall
SNOW GUARD SYSTEM – METAL ROOF TILES
An overview of roofing types matched with dedicated brackets for the Eurovent® SNOWSTOPPER SET snow guard system and pipe brackets for the Eurovent® TUBE SET system.
This table allows for precise selection of the dedicated bracket matched to a specific type of metal roof tile available on the market.
- Length of the metal roof tile profiling module. H - Height of the metal roof tile profiling.
SNOW GUARD SYSTEM
– ROOF TILES
An overview of roofing types matched with dedicated brackets for the Eurovent® SNOWSTOPPER SET snow guard system and pipe brackets for the Eurovent® TUBE SET system.
This table allows for precise selection of the dedicated bracket matched to a specific type of concrete or ceramic roof tile available on the market.
C Celtycka Braas 420 mm
F Figaro 11 Tondach 470 mm
G Granat 13V Braas 428 mm
H Holenderka 11 Tondach 470 mm
K Karpiówka Koramic 380 mm
Karpiówka Nelskamp 380 mm
Karpiówka Tondach 380 mm
M Marsylka 11 Koramic 433 mm
Monza plus Röben 464 mm
N Nibra F10 Nelskamp 487 mm
Nibra F7 Nelskamp 573 mm
Nibra G10 Nelskamp 487 mm
TUBE dB-DC SHORT
DB-DC FIX TUBE DB-DC SHORT
DB-DC FIX TUBE DB-DC LONG
BIBER FIX TUBE BIBER
BIBER FIX TUBE BIBER
BIBER FIX T UBE BIBER
DB-DC FIX TUBE DB-DC SHORT
DB-DC FIX T UBE DB-DC LONG
DB-DC FIX TUBE DB-DC LONG
DB-DC FIX TUBE DB-DC LONG
DB-DC FIX TUBE DB-DC LONG
Nibra R10 Nelskamp 297 mm FIX DB-DC FIX TUBE DB-DC SHORT
O Opal Braas 380 mm FIX BIBER FIX T UBE BIBER
P Piemont Röben 472 mm FIX DB-DC FIX TUBE DB-DC LONG
Płaska OREA 9 Koramic 470 mm FIX DB-DC FIX TUBBE DB-DC LONG
R Renesansowa ALEGRA 9 Koramic 477 mm FIX DB-DC FIX TUBE DB-DC LONG
Reńska COSMO 11 Koramic 458 mm FIX DB-DC FIX TUBE DB-DC LONG
Romańska AERLOX Braas 420 mm FIX DB-DC FIX T UBE DB-DC SHORT
Rubin 9 V Braas 472 mm FIX DB-DC FIX T UBE DB-DC LONG
Rubin 13 v Braas 436 mm FIX DB-DC FIX TUBE DB-DC SHORT
S Stodo 11 Tondach 470 mm FIX DB-DC FIX TUBE DB-DC LONG
T Teviva Braas 420 mm FIX DB-DC FIX TUBE DB-DC SHORT
Topas 11 V Braas 445 mm FIX DB-DC FIX T UBE DB-DC LONG
Topas 13 V Braas 431 mm FIX DB-DC FIX TUBE DB-DC SHORT
Turmalin Braas 470 mm FIX DB-DC FIX TUBE DB-DC LONG
SNOW GUARD LOG SYSTEM
Eurovent® BLOCK brackets allow for the installation of wooden snow guard logs onto the roof slope.
Made of high-quality galvanized steel with a powder-coated finish, they provide durable support for wooden elements of the system, ensuring their secure and stable mounting on the roof surface.
› Application of Eurovent® BLOCK DB-DC LONG Snow guard log installation
1 Snow guard log Ø 120 mm
2 Eurovent® BLOCK DB-DC LONG
3 Eurovent® SUPER
4 Eurovent® TOPBAND
5 Additional batten
6 Batten
7 Counter-batten
8 Eurovent® KRATKA VENTI Eurovent® PAS OKAPU
Scan QR code with your phone
BLOCK UNI
log snow guard bracket
• Universal bracket designed for roof slopes from 15° to 60°.
• Recommended for flat coverings made of bitumen shingles or trapezoidal sheets.
• Allows for the installation of a snow guard log with a maximum diameter of Ø 120 mm.
BLOCK METAL 350/25
log snow guard bracket
• Suitable for metal roof tiles with a profile height of 25 mm, and a module length of 350 mm.
• Mounted through the roof covering and fixed to the roof batten.
• Allows for the installation of a snow guard log with a maximum diameter of Ø 120 mm.
Building owners are obligated to ensure the safety of building users and bystanders by protecting them from sliding snow falling from roof slopes.
The presented map highlights the snow load zones applicable in Poland, as defined by the PN-EN 1991-1-3 standard. Similar zones are established for other regions of the EU according to EN 1991-1-3. This standard precisely defines the guidelines and the required number of snow guard elements to be installed on roof slopes.
Strefy śniegowe w Polsce:
Snow Load Zones in Poland *schematic map
INSTALLATION GUIDELINES FOR SNOW GUARD SYSTEMS
Spacing of snow guard brackets:
The density of snow guard brackets should comply with the standards defined by snow load zones. In zones 1, 2, and 3 – spacing every 60 cm. In zones 4, 5, and at altitudes above 1000 m a.s.l. – spacing every 40 cm.
Spacing of snow guard brackets for individual snow load zones:
Spacing every 60 cm
Spacing every 40 cm
Maximum bracket spacing: 80 cm – allowed only if the distance to the ridge does not exceed 3 m on a roof slope with 40° inclination.
For roof slopes longer than 6.5 m, it is recommended to install two rows of snow guard grates or snow guard pipes.
For slopes over 8 m in length and an inclination of more than 40°, it is recommended to install two rows of Eurovent® SNOWSTOP snow breakers above the snow guard grates or pipes.
Snow guard barrier width 2 m – Metal roof tile
The table provides the recommended number of brackets for installing snow guard barriers on metal roof tile coverings, depending on the roof pitch and the rafter length.
Snow Guard Protection – 3 m Barrier Width – Metal Roof Tiles
The table below provides the recommended number of brackets used to mount snow guard barriers on metal roof tile coverings, depending on the roof pitch and rafter length.
Snow Guard
Protection
– 2 m Barrier Width – Tile Roofing
The table below provides the recommended number of brackets used for installing snow guard barriers on tile roofing, depending on the roof pitch and rafter length.
*The final decision regarding the scope of snow guard protection and the number of brackets should be made by the site manager or an authorised person, taking into account the design documentation and the snow load zone classification.
SNOW SPLITTERS – SNOWSTOP
Snow splitter designed to break up large amounts of snow sliding down the roof slope towards the eaves.
Made of galvanized steel and coated with polyester paint in RAL colours. Available in several models adapted to different types of roofing materials.
Highly recommended for installation above snow guard grates or pipes on roof slopes longer than 8 m and with a pitch greater than 40°.
› Application of Eurovent® SNOWSTOP
Snow guard protection in the eaves area
1 Eurovent® SNOWSTOP
Eurovent® EAVES PLANK
SNOWSTOP UNI
snow splitter
• Used for flat roof coverings.
• Available in SHORT and LONG versions.
• Double corrosion protection.
8004; 8012; 8017; 7016; 9005
SNOWSTOP DB
snow splitter
• Used for concrete roof tile coverings such as Braas, IBF, Euronit, Jopek – BEAVER-TILE, Nelskamp, Koramic, Creaton Viva, Rupp Topas.
• Double corrosion protection.
8004; 8012; 8015; 8014; 8019; 7016; 9005
SNOWSTOP DC-1
snow splitter
• Used for ceramic roof tile coverings such as Tondach Hranice 11, Creaton MZ23, Koramic 32, Röben Monza Plus, Rupp Tarmaute.
• Double corrosion protection.
8004; 8012; 8017; 7016; 9005
SNOWSTOP DC-2
snow splitter
• Used for ceramic roof tile coverings such as Röben Fleming; Creaton Harmonia; Creaton Sirius; Nelskamp Nibra f10U.
• Available in SHORT and LONG versions.
• Double corrosion protection.
8004; 8012; 8017; 7016; 9005
SNOWSTOP DC-3
snow splitter
• Used for ceramic roof tile coverings such as Tondach Francuska 12, Tondach Falcovka, Tondach Marsylka 12, Rupp Rubin, Creaton Domino, Creaton Ratio Neu, Creaton Piatta, Braas Armer 12V, Koramic Alegra 89, Bogen Innovo 12.
8004; 8012; 8017; 7016; 9005
SNOWSTOP DC-4
snow splitter
• Used for ceramic roof tile coverings such as Tondach Francuska 14, Tondach Marsylka 14; Tondach Csárdás; Braas Granat 13v; Koramic Marsylka E20.
• Double corrosion protection.
8004; 8012; 8017; 7016; 9005
SNOWSTOP METAL
snow splitter
• Used for metal roof tile coverings.
• Mounted through the roof covering.
• Double corrosion protection.
8004; 8012; 8017; 7016; 9005
SNOWSTOP DC-5
snow splitter
• Used for ceramic roof tile coverings such as Tondach Romańska L15, Creaton Futura.
• Double corrosion protection.
8012; 8017; 7016; 9005
SNOWSTOP DC-6
snow splitter
• Used for ceramic roof tile coverings such as Tondach POLKA, Tondach Jircanka.
• Double corrosion protection.
8004; 8012; 8017; 7016; 9005
SNOWSTOP DC-7
snow splitter
• Used for ceramic roof tile coverings such as Creaton Premion.
• Double corrosion protection.
8004; 8012; 8017; 7016; 9005
SNOWSTOP DC-8
snow splitter
• Used for ceramic roof tile coverings such as Creaton Harmonica.
• Double corrosion protection.
SNOWSTOP DC-9
snow splitter
• Used for ceramic roof tile coverings such as Creaton Balance.
• Double corrosion protection.
8004; 8012; 8017; 7016; 9005
8012; 8017; 7016; 9005
› RAL colour palette used for Eurovent® SNOWSTOP snow splitters.
Wall red RAL 8004
Chestnut RAL 8012
Brown RAL 8015
Brown RAL 8014
Brown RAL 8017
Brown RAL 8019
Anthracite RAL 7016
Black RAL 9005
INSTALLATION GUIDELINES – SNOWSTOP
Snow splitters can serve as an alternative snow protection solution to traditional snow guard grates, pipes, or log systems.
To ensure their effectiveness, it is recommended that they are distributed across the entire roof slope. Their layout and quantity should be determined based on the roof pitch and the snow load zone where the building is located.
The table below specifies the exact number of snow guards required per square metre of roof surface, depending on the slope angle and the snow load acting on the roof.
Recommended number of snow splitters Eurovent® SNOWSTOP per 1 m² of roof surface (pcs/m²):
ROOF SAFETY SYSTEM
The roof safety system is a set of components installed on pitched roofs to ensure safe movement across the roof surface, in accordance with EN 516-1A.
Eurovent® PLATFORM chimney walkways combined with Eurovent® STEP chimney steps, mounted using Eurovent® SUPPORT brackets and GRIP cradles, allow for the creation of roof traffic routes on pitched roofs with slopes from 15° to 60°.
They ensure safe and easy access to chimneys and other technical devices requiring inspection and regular maintenance. All components are made of high-quality galvanized steel and powder-coated in accordance with the RAL colour palette.
› Application of Eurovent® PLATFORM SET; Eurovent® STEP SET Pitched roof safety system
1 Eurovent® PLATFORM SET
2 Eurovent® STEP SET
3 Eurovent® SUPPORT DB-DC WEST EPDM
4 Batten
5 Additional batten
6 Eurovent® MONO
7 Eurovent® TOPBAND
8 Thermal insulation 9
PLATFORM
chimney walkway
• Chimney walkway made of galvanized steel.
• Features anti-slip embossing.
• Enables safe movement across pitched roofs.
• Installed using the Eurovent® GRIP cradle and Eurovent® SUPPORT bracket.
STEP
chimney step
• Chimney step made of galvanised steel.
• Features anti-slip embossing for increased safety and a hand grip for easier access to the roof slope.
An overview of roofing types matched with dedicated brackets for the Eurovent® SUPPORT, Eurovent® STEP SET, and Eurovent® PLATFORM SET systems.
This table allows for precise selection of the dedicated bracket suited to a specific type of metal roof tile available on the market.
A - Length of the metal roof tile profile module. H - Height of the metal roof tile profile.
J Janosik Blachotrapez
K Kinga Florian
Kinga Florian
Kingas Blachotrapez
Kingas Blachotrapez
Kingas 15 Blachotrapez
Kingas 15 Blachotrapez
Kingas Eco Plus Blachotrapez
Klara Florian
Korona Plus Blachdom Plus
Korona Plus Blachdom Plus
L Lidia Max Florian
Loara Pruszyński
M Maja Max Florian
Monterrey Feb Forma Ruukki
Murano Budmat
O Optima Arad Pruszyński
P Perła Plus Blachdom Plus
Perła Plus Blachdom Plus
Platino Bratex
R Rialto Budmat
Rozalia Max Florian
Róża Florian
Róża Florian
Rubin Plus Pruszyński
Rubin Plus Pruszyński
S Sofia Florian
Sofia Florian
Szafir Pruszyński
Szafir Pruszyński
T Talia Blachotrapez
Tamara Max Florian
Twister Blachodach
V Vello Bratex
Venecja Budmat
SUPPORT METAL 35/380
SUPPORT METAL 350/20
SUPPORT METAL 400/20
350/20
350/20
350/35
350/20
SUPPORT METAL 400/20
350/30
ROOF SAFETY SYSTEM
– ROOF TILES
An overview of roof coverings matched with dedicated brackets for Eurovent® SUPPORT, Eurovent® STEP SET, and Eurovent® PLATFORM SET.
This table enables precise selection of the appropriate roof safety bracket for a specific type of concrete or ceramic roof tile available on the market.
Roof tile name
Roof tile manufacturer Roof tile length
C Celtycka Braas 420 mm
F Figaro 11 Tondach 470 mm
G Granat 13V Braas 428 mm
H Holenderka 11 Tondach 470 mm
K Karpiówka Koramic 380 mm
Karpiówka Nelskamp 380 mm
Karpiówka Tondach 380 mm
M Marsylka 11 Koramic 433 mm
Cantilever Eurovent® SUPPORT
SUPPORT DB-DC SHORT
SUPPORT DB-DC LONG
SUPPORT DB-DC SHORT
SUPPORT DB-DC LONG
SUPPORT BIBER WEST
SUPPORT BIBER WEST
SUPPORT BIBER WEST
SUPPORT DB-DC SHORT Monza plus Röben 464 mm
N Nibra F10 Nelskamp 487 mm
Nibra F7 Nelskamp 573 mm
Nibra G10 Nelskamp 487 mm
Nibra R10 Nelskamp 297 mm
O Opal Braas 380 mm
P Piemont Röben 472 mm
Płaska OREA 9 Koramic 470 mm
R Renesansowa ALEGRA 9 Koramic 477 mm
Reńska COSMO 11 Koramic 458 mm
Romańska AERLOX Braas 420 mm
Rubin 9 V Braas 472 mm
Rubin 13 v Braas 436 mm
S Stodo 11 Tondach 470 mm
T Teviva
Braas 420 mm
Topas 11 V Braas 445 mm
Topas 13 V Braas 431 mm
Turmalin Braas 470 mm
SUPPORT DB-DC LONG
SUPPORT DB-DC LONG
SUPPORT DB-DC LONG
SUPPORT DB-DC LONG
SUPPORT DB-DC SHORT
SUPPORT BIBER WEST
SUPPORT DB-DC LONG
SUPPORT DB-DC LONG
SUPPORT DB-DC LONG
SUPPORT DB-DC LONG
SUPPORT DB-DC SHORT
SUPPORT DB-DC LONG
SUPPORT DB-DC SHORT
SUPPORT DB-DC LONG
SUPPORT DB-DC SHORT
SUPPORT DB-DC LONG
SUPPORT DB-DC SHORT
SUPPORT DB-DC LONG
SUPPORT METAL
Mounting diagram for Eurovent® SUPPORT METAL roof safety brackets.
The type of metal roof tile determines the appropriate installation method. Eurovent® SUPPORT METAL brackets are dedicated for traditional sheet metal tile systems.
› Traditional metal roof tile standard installation
1 Eurovent® SUPPORT METAL
2 Bracket mounting screws
3 Traditional metal roof tile
4 Batten | Counter-batten
5 Roof membrane
6 Thermal insulation
7 Vapour Conrtrol Layer – VCL
› Matching Eurovent® SUPPORT METAL models for
Scan QR code with your phone
SUPPORT METAL DECRA
Mounting diagram for Eurovent® SUPPORT METAL DECRA roof safety brackets.
The type of metal roof tile determines the appropriate installation method. Eurovent® SUPPORT METAL DECRA brackets are dedicated for modular, panel-type metal roof tiles.
› Modular, panel metal roof tile DECRA-type installation
› Matching Eurovent® SUPPORT METAL DECRA models for installation on modular, panel-format metal roof tiles
• Eurovent® SUPPORT METAL 20/350 • Eurovent® SUPPORT METAL 30/350
VENTILATION AND PROTECTION
Modern Eurovent® roof vents are designed to meet the demands of contemporary construction. The system is complemented by flexible ducts and accessories that enable the creation of a complete building ventilation system.
VENTOS X VENTILATION SYSTEM
A complete solution for effective ventilation of residential and utility buildings, designed to meet the demands of modern, energy-efficient construction.
Eurovent® VENTOS X is a roof vent with a 170 mm ventilation cross-section and a 150 mm connection diameter. Its specially shaped head utilizes wind energy to support chimney draft, ensuring increased ventilation efficiency and stable airflow. The large diameter eliminates the need for additional duct insulation. An integrated anti-condensation system effectively protects the installation against moisture.
Compliant with the PN-83/B-03430/Az3 standard, the Eurovent® VENTOS X can be used as a roof exhaust in both gravity and mechanical ventilation systems – wherever efficient air exchange and moisture control are essential.
› Application of Eurovent® VENTOS X Base PLUS T – Flat concrete tile
1 Eurovent® VENTOS X PLUS T
2 Eurovent® PUR
3 Eurovent® HOME PRO
4 Thermal insulation
5 Eurovent® STANDARD ALU
6 Plasterboard 7 Rafter
8 Roof cover
Scan QR code with your phone
DETAIL OF VENTOS X
Every detail of the Eurovent® VENTOS X roof vent has been designed for maximum efficiency and durability.
1 Top cap – The aerodynamic ring-shaped profile (Ø 210 mm) utilizes wind energy to support draft, increasing ventilation performance.
2 Connection – Ø 150 mm connection complies with PN-83/B-03430/Az3 standard, ensuring compatibility with both gravity and mechanical ventilation systems.
3 Anti-condensation system – Equipped with drainage holes that discharge condensate directly onto the roof surface, minimizing the risk of moisture buildup inside the duct.
4 Airflow – Internal diameter of Ø 170 mm ensures increased airflow and high ventilation efficiency.
5 Surface – Dirt-repellent texture reduces contamination accumulation. Wide range of RAL colours matching the most popular roof finishes.
6 Adjustment – The vent allows angle adjustment in the range of 5° to 45° for alignment with the roof pitch
7 Base plate – Airtight roof penetrations adapted to the most common types of roofing.
TECHNICAL ASSESSMENT
The Eurovent® VENTOS X roof vent has undergone a comprehensive technical assessment in terms of durability, strength, and functionality.
The evaluation was carried out by independent, accredited research institutions, including the Łukasiewicz Research Network – Institute of Polymer Materials and Dyes Engineering, and the Department of Thermal Engineering and Ventilation at the Cracow University of Technology.
Additionally, the product received a positive technical performance assessment from the Building Research Institute (ITB), confirming its compliance with the requirements of modern construction standards and the PN-83/B-03430/Az3 standard.
› Airflow performance of Eurovent® VENTOS X The chart shows a comparison of airflow through a roof vent with a diameter of Ø150 mm and Ø125 mm.*
1 Eurovent® VENTOS X – Ø150 mm
2 Other roof vent Ø125 mm
Airflow [m3/h]
VENTOS X – A REAL ADVANTAGE
According to the latest guidelines, the minimum diameter of ventilation ducts for rooms such as bathrooms, kitchens, or toilets should not be less than 150 mm.
The Eurovent® VENTOS X roof vent provides efficient and safe ventilation, even in buildings with enhanced energy performance. Thanks to its 150 mm connection diameter, it ensures smooth and stable airflow without the risk of blockages or draft fluctuations.
It does not require additional insulation and effectively prevents condensation, moisture buildup inside the duct, and the development of mould or fungi, common issues associated with smaller-diameter roof vents.
VENTOS X
ø150 mm
No additional insulation required.
Efficient building ventilation in compliance with standards.
Prevents mould and fungi growth.
No risk of condensation inside the duct.
For use in gravity ventilation systems.
Can be used as a vent for sanitary and sewage risers.
OTHER ROOF VENT
ø125 mm
Requires additional insulation
Low airflow efficiency.
High risk of mould and fungi development.
High risk of condensation inside the duct.
Suitable only for venting sewage and sanitary risers.
VENTILATION IN BUILDINGS
Proper ventilation in houses and apartments ensures a comfortable indoor climate and high air quality.
It protects against mould growth and moisture-related damage. A well-functioning ventilation system effectively removes carbon monoxide and carbon dioxide, excess humidity, kitchen odours, tobacco smoke, and chemical pollutants. As a result, it reduces the risk of health issues such as headaches, respiratory irritation, decreased concentration, and allergic reactions.
An efficient ventilation system provides continuous air exchange without causing drafts, while also supporting effective heat energy management within the building.
Modern ventilation solutions allow for precise airflow control, reducing heat loss and significantly improving the building’s energy efficiency—particularly important in low-energy and passive house construction.
Ineffective or poorly functioning ventilation leads to the accumulation of harmful substances in indoor air, which negatively affects the health of occupants and the technical condition of the building.
In poorly ventilated spaces, pollutants such as excess moisture, carbon dioxide and carbon monoxide, volatile organic compounds (VOCs), dust, allergens, and tobacco smoke accumulate. Their presence can cause discomfort, headaches, respiratory irritation, and reduced concentration. Over time, these pollutants may exacerbate allergy symptoms, and some have carcinogenic properties.
Excess humidity resulting from ineffective ventilation promotes moisture buildup in building partitions, deteriorates the insulation properties of materials, and leads to condensation of water vapor, creating ideal conditions for the growth of mould and fungi.
Fresh, oxygenated air free from unpleasant odours and pollutants.
Adjustable ventilation intensity, energy savings, and noise reduction.
No drafts or heat loss, proper air circulation.
Well-being, improved focus, and healthy indoor air quality.
Excessive amounts of water vapour, carbon dioxide, and other gases generated inside the building.
Formation of mould and fungi, accumulation of allergens and viruses.
Increased air humidity – excessive condensation of water vapour.
Chronic fatigue, lack of concentration, and illnesses.
TYPES OF VENTILATION
There are several fundamental ventilation systems used in construction:
Natural (Gravity) Ventilation
The simplest and most economical air exchange system used in residential buildings. It operates on the principle of natural draft – used air is removed from rooms due to the pressure difference between the indoor space and the top of the ventilation duct. Fresh air enters through window and door frame leaks or through special air inlets. This system does not allow regulation of ventilation intensity and is fully dependent on weather conditions (external temperature and wind strength).
1 Exhaust 2 Gaps
A solution that combines gravity ventilation with mechanical ventilation. Under normal conditions, the system operates passively – just like standard gravity ventilation. When weather conditions are unfavorable or when there’s a higher demand for air exchange, mechanical support is activated to boost airflow. Hybrid ventilation allows for partial control of air exchange intensity, offering better comfort and efficiency at a lower operating cost than full mechanical ventilation.
1 Exhaust 2 Supply 3 Gaps
Mechanical Ventilation with Heat Recovery
An advanced supply and exhaust ventilation system equipped with a heat exchanger (recuperator) that recovers energy from the exhaust air. This solution ensures a constant supply of fresh, filtered air and significantly reduces heat loss. The system allows full control over air parameters – temperature, humidity, and cleanliness. Heat recovery ventilation is primarily used in airtight, modern energy-efficient and passive buildings.
1 Exhaust 2 Supply – intake air
VENTOS X – CONCRETE ROOF TILES
An overview of roof coverings matched with dedicated bases for the Eurovent® VENTOS X and Eurovent® VENTOS X ROTO roof vents, as well as the Eurovent® VENTOS X FLAT low-profile roof air vent.
This table presents the compatibility of base models with selected concrete roof tiles available on the market. It enables the precise selection of the appropriate Eurovent® VENTOS X ventilation system model for a specific type of roof covering.
Roof tile name
Roof tile manufacturer
Base plate model
A AARHUS IBF PLUS T ALPEN DACHSTEIN BRAMAC PLUS R
B Bałtycka BRAAS PLUS S
C CELTYCKA BRAAS PLUS C
E ESÓWKA S NELSKAMP PLUS S
F FINKENBERGER NELSKAMP PLUS R
G GOTEBORG CREATON PLUS S
K KAPSTADT CREATON PLUS T
M MECKLENBURGER BENDERS PLUS R
P PALEMA BENDERS PLUS C PLANUM NELSKAMP PLUS T
PODWÓJNA RZYMSKA PRODACH PLUS R PODWÓJNA S PRODACH PLUS S PODWÓJNA S IBF PLUS S
R ROMAŃSKA BRAAS PLUS R
S SIGMA NELSKAMP PLUS C
T TEGALIT BRAAS PLUS T TEVIVA BRAAS PLUS T
› Colour palette used in roof vent models dedicated to concrete roof tiles.
Brown Chestnut Wall red Grafit Black
VENTOS X PLUS T
roof vent – flat roof tile
• Roof vent with an internal airflow diameter of Ø170 mm and a connection diameter of Ø150 mm.
• Equipped with an anti-condensation system, no insulation required.
• Dedicated to flat roof tiles – PLUS T.
• List of compatible roof coverings available on page 162 or online via the QR code.
red; Brown; Chestnut; Grafit; Black
VENTOS X ROTO PLUS T
rotary roof vent – flat roof tile
• Roof vent with an internal airflow diameter of Ø170 mm and a connection diameter of Ø150 mm.
• An integrated turbine enhances proper chimney draft.
• Dedicated to flat roof tiles – PLUS T.
• List of compatible roof coverings available on page 162 or online via the QR code.
1 set 24 sets Ø150
red; Brown; Grafit; Black
1 set 24 sets
VENTOS X FLAT PLUS T
low-profile roof air vent – flat roof tile
• Low-profile roof air vent.
• Provides effective air circulation beneath the roof covering and supports proper roof ventilation.
• Dedicated to flat roof tiles – PLUS T.
• List of compatible roof coverings available on page 162 or online via the QR code.
red; Brown; Chestnut; Grafit; Black
1 set 24 sets
VENTOS X PLUS S
roof vent – concrete roof tile
• Roof vent with an internal airflow diameter of Ø170 mm and a connection diameter of Ø150 mm.
• Equipped with an anti-condensation system, no insulation required.
• Dedicated to “S”-type concrete roof tiles.
• List of compatible roof coverings available on page 162 or online via the QR code.
mm
red; Brown; Chestnut; Black
VENTOS X ROTO PLUS S
rotary roof vent – concrete roof tile
• Roof vent with an internal airflow diameter of Ø170 mm and a connection diameter of Ø150 mm.
• An integrated turbine enhances proper chimney draft.
• Dedicated to “S”-type concrete roof tiles.
• List of compatible roof coverings available on page 162 or online via the QR code.
VENTOS X FLAT PLUS S
low-profile roof air vent – concrete roof tile
• Low-profile roof air vent.
• Provides effective air circulation beneath the roof covering and supports proper roof ventilation.
• Dedicated to “S”-type concrete roof tiles.
• List of compatible roof coverings available on page 162 or online via the QR code.
VENTOS X PLUS R
roof vent – concrete roof tile
• Roof vent with an internal airflow diameter of Ø170 mm and a connection diameter of Ø150 mm.
• Equipped with an anti-condensation system, no insulation required.
• Dedicated to Roman-type concrete roof tiles.
• List of compatible roof coverings available on page 162 or online via the QR code.
mm
326 mm
red; Brown; Chestnut; Grafit; Black
VENTOS X ROTO PLUS R
rotary roof vent – concrete roof tile
• Roof vent with an internal airflow diameter of Ø170 mm and a connection diameter of Ø150 mm.
• An integrated turbine enhances proper chimney draft.
• Dedicated to Roman-type concrete roof tiles.
• List of compatible roof coverings available on page 162 or online via the QR code.
red; Brown; Grafit; Black
VENTOS X FLAT PLUS R
low-profile roof air vent – concrete roof tile Ø150 mm
• Low-profile roof air vent.
• Provides effective air circulation beneath the roof covering and supports proper roof ventilation.
• Dedicated to Roman-type concrete roof tiles.
• List of compatible roof coverings available on page 162 or online via the QR code.
VENTOS X PLUS C
roof vent – concrete roof tile
• Roof vent with an internal airflow diameter of Ø170 mm and a connection diameter of Ø150 mm.
• Equipped with an anti-condensation system, no insulation required.
• Dedicated to Celtic-type concrete roof tiles.
• List of compatible roof coverings available on page 162 or online via the QR code.
VENTOS X ROTO PLUS C
rotary roof vent – concrete roof tile
• Roof vent with an internal airflow diameter of Ø170 mm and a connection diameter of Ø150 mm.
• An integrated turbine enhances proper chimney draft.
• Dedicated to Celtic-type concrete roof tiles.
• List of compatible roof coverings available on page 162 or online via the QR code.
VENTOS X FLAT PLUS C
low-profile roof air vent – concrete roof tile
• Low-profile roof air vent.
• Provides effective air circulation beneath the roof covering and supports proper roof ventilation.
• Dedicated to Celtic-type concrete roof tiles.
• List of compatible roof coverings available on page 162 or online via the QR code.
VENTOS X – METAL ROOF TILES
Overview of roofing types matched with dedicated bases for Eurovent® VENTOS X, Eurovent® VENTOS X ROTO, and the Eurovent® VENTOS X FLAT low-profile roof air vent.
The table shows the compatibility of base models with selected metal roof tiles available on the market. This enables precise selection of the appropriate Eurovent® VENTOS X ventilation system model for a specific type of roof covering.
RUBIN PLUS PRUSZYŃSKI N25 + additional butyl stripe RZYMSKA
S SARA
SATURN
DACH-METAL W35
BUDMAT N25
DACH-STYL N25
SAVANNA BRATEX BITU O
SCALA
BLACH-POL F22 + additional butyl stripe
SCANDIA METALEX MIKOŁAJOWICE W35
SCANDIC LINE PLANNJA N25
SCANDIC MODULAR PLANNJA N25
SCANDINAVIA BRATEX F22
SEGMENT TRANSBLACH N25
SIMELINE
BLACHY WADOWSKI G18
SIÓDEMKA DACHPOL WŁOSZCZOWA F22
SMART PLANNJA N25
SOLO
SOLIS
SOLIS
BLACHODACH BITU O + additional butyl stripe
BLOK-BUD F22
BLOKBLACH F22
SOLIS FINNOYA F22
SONATA
SPECJAL
SPEKTRUM
STIGMA 2.0
STANDARD
BLACHODACH W35
BLACHY PIOTRKOWICZ N25
BALEXMETAL N25
BLACHPROFIL2 F22
ŁUCZAJ N25
STELLA DISPOL N25
STRATO MARKOSTEEL B26
SYMETRIA
BLACH-POL F22
SYMETRIA NOWAX G18
SYMETRIA DE LUX
SZAFIR
SZKOCKA
BLACH-POL F22
PRUSZYŃSKI N25
BLACH-POL M11
T TAMARA
TAKT
TALIA
TANGO
TEMIDA
TESSA
THUNDER
TIGRA
TOM STEEL
FLORIAN CENTRUM
F22
FINCO-STAL N25
BLACHOTRAPEZ N25 + additional butyl stripe
FINCO-STAL W35
GLINMET / WISTAL G18
FLORIAN CENTRUM T18 + additional butyl stripe or M11
SOLID STEEL / BLACHOTRAPEZ BITU O + additional butyl stripe or BITU UNI
PRUSZYŃSKI M11 + additional butyl stripe
FINISH PROFILES M11 + additional butyl stripe
TOPAZ WŁASTAL W35
TOPLINEL(LPAN) LINDAB N25
TREND
BLACHOTRAPEZ BITU O + additional butyl stripe
TUR PRUSZYŃSKI F22
TWIST
TWISTER
TYSENIA
V VENESSA/VANESSA SIMETRIC
BLACHODACH N25 + additional butyl stripe
BLACHODACH N25
BLACHOTRAPEZ BITU O
DOM-BLACH G18
VEGA FINCO-STAL N25
VEGA METALMIX W35
VELA INTER-MAX G18
VELLO BRATEX N25
VENA HANBUD N25 + additional butyl stripe
VENECJA BUDMAT F22
VERA UNIBLACH N25
VIKA VICOR N25
VIKTORIA REGAMET N25
VIVALDI ARECO SWEDEN N25
W WESTA
INTER-MAX W35 WIKTORIA METALEX MIKOŁAJOWICE N25
X XARA ZEPART N25
Z ZEFIR
ZET
BUDMAT N25
BLACHPROFIL 2 F22
ZUZIA MATPOL W35
› Colour palette used for models designed for metal roof tiles.
Chestnut RAL 3009 Anthracite
Wall red RAL 8004
Graphite
Brown
Brown
VENTOS X N25
roof vent – metal roof tile
• Roof vent with an internal airflow diameter of Ø170 mm and a connection diameter of Ø150 mm.
• Equipped with an anti-condensation system, no insulation required.
• Dedicated to metal roof tiles with N25 profiling.
• List of compatible roofing types available on pages 167–172 or online via QR code.
Ø150 mm
325 mm
245 mm
33 mm
8004; 3009; 8017; 8019; 6020; 7024; 7021; 9005
1 set 36 sets
VENTOS X ROTO N25
rotary roof vent – metal roof tile
• Roof vent with an internal airflow diameter of Ø170 mm and a connection diameter of Ø150 mm.
• An integrated turbine enhances proper chimney draft.
• Dedicated to metal roof tiles with N25 profiling.
• List of compatible roofing types available on pages 167–172 or online via QR code.
Ø150 mm
A: 325 mm
B: 245 mm H: 33 mm
8004; 8017; 8019; 7024; 7021; 9005
1 set 36 sets
VENTOS X FLAT N25
low-profile roof air vent – metal roof tile
• Low-profile roof air vent.
• Provides effective air circulation beneath the roof covering and supports proper roof ventilation.
• Dedicated to metal roof tiles with N25 profiling.
• List of compatible roofing types available on pages 167–172 or online via QR code.
A: 325 mm
B: 245 mm H: 33 mm
8004; 3009; 8017; 8019; 6020; 7024; 7021; 9005
1 set 140 sets
VENTOS X F22
roof vent – metal roof tile
• Roof vent with an internal airflow diameter of Ø170 mm and a connection diameter of Ø150 mm.
• Equipped with an anti-condensation system, no insulation required.
• Dedicated to metal roof tiles with F22 profiling.
• List of compatible roofing types available on pages 167–172 or online via QR code.
8004; 3009; 8017; 8019; 6020; 7024; 7021; 9005
VENTOS X ROTO F22
rotary roof vent – metal roof tile
• Roof vent with an internal airflow diameter of Ø170 mm and a connection diameter of Ø150 mm.
• An integrated turbine enhances proper chimney draft.
• Dedicated to metal roof tiles with F22 profiling.
• List of compatible roofing types available on pages 167–172 or online via QR code.
8004; 8017; 8019; 7024; 7021; 9005
VENTOS X FLAT F22
low-profile roof air vent – metal roof tile
• Low-profile roof air vent.
• Provides effective air circulation beneath the roof covering and supports proper roof ventilation.
• Dedicated to metal roof tiles with F22 profiling.
• List of compatible roofing types available on pages 167–172 or online via QR code.
8004; 3009; 8017; 8019; 6020; 7024; 7021; 9005
VENTOS X W35
roof vent – metal roof tile
• Roof vent with an internal airflow diameter of Ø170 mm and a connection diameter of Ø150 mm.
• Equipped with an anti-condensation system, no insulation required.
• Dedicated to metal roof tiles with W35 profiling.
• List of compatible roofing types available on pages 167–172 or online via QR code.
Ø150 mm
325 mm
245 mm
35 mm
8004; 3009; 8017; 8019; 6020; 7024; 7021; 9005
1 set 36 sets
VENTOS X ROTO W35
rotary roof vent – metal roof tile
• Roof vent with an internal airflow diameter of Ø170 mm and a connection diameter of Ø150 mm.
• An integrated turbine enhances proper chimney draft.
• Dedicated to metal roof tiles with W35 profiling.
• List of compatible roofing types available on pages 167–172 or online via QR code.
Ø150 mm
A: 325 mm
B: 245 mm H: 35 mm
8004; 8017; 8019; 7024; 7021; 9005
1 set 36 sets
VENTOS X FLAT W35
low-profile roof air vent – metal roof tile
• Low-profile roof air vent.
• Provides effective air circulation beneath the roof covering and supports proper roof ventilation.
• Dedicated to metal roof tiles with W35 profiling.
• List of compatible roofing types available on pages 167–172 or online via QR code.
A: 325 mm
B: 245 mm H: 35 mm
8004; 3009; 8017; 8019; 6020; 7024; 7021; 9005
1 set 140 sets
VENTOS X G18
roof vent – metal roof tile
• Roof vent with an internal airflow diameter of Ø170 mm and a connection diameter of Ø150 mm.
• Equipped with an anti-condensation system, no insulation required.
• Dedicated to metal roof tiles with G18 profiling.
• List of compatible roofing types available on pages 167–172 or online via QR code.
8004; 3009; 8017; 8019; 6020; 7024; 7021; 9005
VENTOS X ROTO G18
rotary roof vent – metal roof tile
• Roof vent with an internal airflow diameter of Ø170 mm and a connection diameter of Ø150 mm.
• An integrated turbine enhances proper chimney draft.
• Dedicated to metal roof tiles with G18 profiling.
• List of compatible roofing types available on pages 167–172 or online via QR code.
1 set 36 sets Ø150 mm
8004; 8017; 8019; 7024; 7021; 9005
VENTOS X FLAT G18
low-profile roof air vent – metal roof tile
• Low-profile roof air vent.
• Provides effective air circulation beneath the roof covering and supports proper roof ventilation.
• Dedicated to metal roof tiles with G18 profiling.
• List of compatible roofing types available on pages 167–172 or online via QR code.
8004; 3009; 8017; 8019; 6020; 7024; 7021; 9005 1 set
VENTOS X R28
roof vent – metal roof tile
• Roof vent with an internal airflow diameter of Ø170 mm and a connection diameter of Ø150 mm.
• Equipped with an anti-condensation system, no insulation required.
• Dedicated to metal roof tiles with R28 profiling.
• List of compatible roofing types available on pages 167–172 or online via QR code.
8004; 3009; 8017; 8019; 6020; 7024; 7021; 9005
1 set 36 sets
VENTOS X ROTO R28
rotary roof vent – metal roof tile
• Roof vent with an internal airflow diameter of Ø170 mm and a connection diameter of Ø150 mm.
• An integrated turbine enhances proper chimney draft.
• Dedicated to metal roof tiles with R28 profiling.
• List of compatible roofing types available on pages 167–172 or online via QR code.
Ø150 mm
A: 325 mm B: 244 mm H: 25 mm
8004; 8017; 8019; 7024; 7021; 9005
1 set 36 sets
VENTOS X FLAT R28
low-profile roof air vent – metal roof tile
• Low-profile roof air vent.
• Provides effective air circulation beneath the roof covering and supports proper roof ventilation.
• Dedicated to metal roof tiles with R28 profiling.
• List of compatible roofing types available on pages 167–172 or online via QR code.
A: 325 mm B: 244 mm H: 25 mm
8004; 3009; 8017; 8019; 6020; 7024; 7021; 9005
1 set 140 sets
VENTOS X B26
roof vent – metal roof tile
• Roof vent with an internal airflow diameter of Ø170 mm and a connection diameter of Ø150 mm.
• Equipped with an anti-condensation system, no insulation required.
• Dedicated to metal roof tiles with B26 profiling.
• List of compatible roofing types available on pages 167–172 or online via QR code.
8004; 3009; 8017; 8019; 6020; 7024; 7021; 9005 1 set
VENTOS X ROTO B26
rotary roof vent – metal roof tile
• Roof vent with an internal airflow diameter of Ø170 mm and a connection diameter of Ø150 mm.
• An integrated turbine enhances proper chimney draft.
• Dedicated to metal roof tiles with B26 profiling.
• List of compatible roofing types available on pages 167–172 or online via QR code.
8004; 8017; 8019; 7024; 7021; 9005
VENTOS X FLAT B26
low-profile roof air vent – metal roof tile
• Low-profile roof air vent.
• Provides effective air circulation beneath the roof covering and supports proper roof ventilation.
• Dedicated to metal roof tiles with B26 profiling.
• List of compatible roofing types available on pages 167–172 or online via QR code.
8004; 3009; 8017; 8019; 6020; 7024; 7021; 9005
VENTOS X M11
roof vent – metal roof tile
• Roof vent with an internal airflow diameter of Ø170 mm and a connection diameter of Ø150 mm.
• Equipped with an anti-condensation system, no insulation required.
• Dedicated to metal roof tiles with M11 profiling.
• List of compatible roofing types available on pages 167–172 or online via QR code.
Ø150 mm
325 mm
245 mm
15 mm
8004; 3009; 8017; 8019; 6020; 7024; 7021; 9005
1 set 36 sets
VENTOS X ROTO M11
rotary roof vent – metal roof tile
• Roof vent with an internal airflow diameter of Ø170 mm and a connection diameter of Ø150 mm.
• An integrated turbine enhances proper chimney draft.
• Dedicated to metal roof tiles with M11 profiling.
• List of compatible roofing types available on pages 167–172 or online via QR code.
Ø150 mm
A: 325 mm
B: 245 mm
H: 15 mm
8004; 8017; 8019; 7024; 7021; 9005
1 set 36 sets
VENTOS X FLAT M11
low-profile roof air vent – metal roof tile
• Low-profile roof air vent.
• Provides effective air circulation beneath the roof covering and supports proper roof ventilation.
• Dedicated to metal roof tiles with M11 profiling.
• List of compatible roofing types available on pages 167–172 or online via QR code.
A: 325 mm
B: 245 mm
H: 15 mm
8004; 3009; 8017; 8019; 6020; 7024; 7021; 9005
1 set 140 sets
VENTOS X BITU O
roof vent – pokrycia płaskie
• Roof vent with an internal airflow diameter of Ø170 mm and a connection diameter of Ø150 mm.
• Equipped with an anti-condensation system, no insulation required.
• Designed for flat roof coverings.
• List of compatible roofing types available on pages 167–172 or online via QR code.
8004; 3009; 8017; 8019; 6020; 7024; 7021; 9005
1 set
VENTOS X ROTO BITU O
rotary roof vent – pokrycia płaskie
• Roof vent with an internal airflow diameter of Ø170 mm and a connection diameter of Ø150 mm.
• An integrated turbine enhances proper chimney draft.
• Designed for flat roof coverings.
• List of compatible roofing types available on pages 167–172 or online via QR code.
36 sets Ø150 mm
8004; 8017; 8019; 7024; 7021; 9005
VENTOS X FLAT BITU O
low-profile roof air vent – pokrycia płaskie
• Low-profile roof air vent.
• Provides effective air circulation beneath the roof covering and supports proper roof ventilation.
• Designed for flat roof coverings.
• List of compatible roofing types available on pages 167–172 or online via QR code.
8004; 3009; 8017; 8019; 6020; 7024; 7021; 9005
1 set
140 sets
VENTOS X UNI
UNIVERSAL BASE PLATE
The universal mounting kit designed for installing the Eurovent® VENTOS X roof vent on metal sheet coverings – particularly trapezoidal sheets with high or low profiling.
This solution has been developed to ensure maximum sealing and adaptability to various sheet profiles. The universal, flexible BITU UNI flashing collar is available in two versions:
BITU UNI ALU – made of aluminum sheet profiled in a three-dimensional pattern, with a thick layer of butyl adhesive.
BITU UNI EPDM – made of high-quality EPDM layer reinforced with aluminum mesh and a thick layer of butyl adhesive.
Both collar versions provide high sealing performance and easy adjustment to various roof surface shapes – including high-profile trapezoidal sheets. This solution guarantees a durable and reliable connection with the building’s ventilation system.
› Application of Eurovent® VENTOS X BITU UNI ALU base – trapezoidal metal sheet
1 Eurovent® VENTOS X BITU UNI ALU
2 Eurovent® PUR
3 Eurovent® HOME PRO
4 Thermal insulation
5 Eurovent® STANDARD ALU
6 Rafter
7 Roof cover
VENTOS X BITU UNI EPDM
roof vent – universal base
• Roof vent with an internal airflow diameter of Ø170 mm and a connection diameter of Ø150 mm.
• Equipped with an anti-condensation system, no insulation required.
• Universal EPDM base 300 mm × 550 mm.
• Dedicated for high- and low-profile trapezoidal sheet metal roofing.
8004; 8017; 7024; 9005
VENTOS X ROTO BITU UNI EPDM
rotary roof vent – universal base
• Roof vent with an internal airflow diameter of Ø170 mm and a connection diameter of Ø150 mm.
• An integrated turbine enhances proper chimney draft.
• Universal EPDM base 300 mm × 550 mm.
• Dedicated for high- and low-profile trapezoidal sheet metal roofing.
8004; 8017; 7024; 9005
VENTOS X FLAT BITU UNI EPDM
low-profile roof air vent – universal base
• Low-profile roof air vent.
• Provides effective air circulation beneath the roof covering and supports proper roof ventilation.
• Universal EPDM base 300 mm × 550 mm.
• Dedicated for high- and low-profile trapezoidal sheet metal roofing.
8017; 7024; 9005
VENTOS X BITU UNI ALU
roof vent – universal base
• Roof vent with an internal airflow diameter of Ø170 mm and a connection diameter of Ø150 mm.
• Equipped with an anti-condensation system, no insulation required.
• Universal ALU base 400 mm × 550 mm.
• Dedicated for high- and low-profile trapezoidal sheet metal roofing.
8004; 8017; 8019; 7024; 9005
set 36 sets
VENTOS X ROTO BITU UNI ALU
rotary roof vent – universal base
• Roof vent with an internal airflow diameter of Ø170 mm and a connection diameter of Ø150 mm.
• An integrated turbine enhances proper chimney draft.
• Universal ALU base 400 mm × 550 mm.
• Dedicated for high- and low-profile trapezoidal sheet metal roofing.
Ø150 mm
mm
8004; 8017; 8019; 7024; 9005 1 set 36 sets
VENTOS X FLAT BITU UNI ALU
low-profile roof air vent – universal base
• Low-profile roof air vent.
• Provides effective air circulation beneath the roof covering and supports proper roof ventilation.
• Universal ALU base 400 mm × 550 mm.
• Dedicated for high- and low-profile trapezoidal sheet metal roofing.
8004; 8017; 8019; 7024; 9005
VENTOS X – TRAPEZOIDAL SHEET
An overview of roofing types matched with dedicated bases for Eurovent® VENTOS X, Eurovent® VENTOS X ROTO roof vents, and the Eurovent® VENTOS X FLAT low-profile air vent.
The table presents compatibility of base models with selected trapezoidal sheet metal roof types available on the market, enabling precise selection of the appropriate Eurovent® VENTOS X ventilation system for a specific roofing profile.
› Colour palette used in roof vent models dedicated to trapezoidal sheet metal.
Chestnut RAL 3009
Anthracite RAL 7021
Wall red RAL 8004
Graphite RAL 7024
Brown RAL 8017
Black RAL 9005
Brown RAL 8019
Green RAL 6020
VENTOS X T18
roof vent – trapezoidal sheet metal roofing
• Roof vent with an internal airflow diameter of Ø170 mm and a connection diameter of Ø150 mm.
• Equipped with an anti-condensation system, no insulation required.
• Dedicated to trapezoidal sheets with T18 profiling.
• List of compatible roofing types available on page 184 or online via QR code.
Ø150 mm
A: 325 mm
B: 242 mm
H: 19 mm
8004; 3009; 8017; 8019; 6020; 7024; 7021; 9005
1 set 36 sets
VENTOS X ROTO T18
rotary roof vent – trapezoidal sheet metal roofing
• Roof vent with an internal airflow diameter of Ø170 mm and a connection diameter of Ø150 mm.
• An integrated turbine enhances proper chimney draft.
• Dedicated to trapezoidal sheets with T18 profiling.
• List of compatible roofing types available on page 184 or online via QR code.
Ø150 mm
A: 325 mm
B: 242 mm
H: 19 mm
8004; 8017; 8019; 7024; 7021; 9005
1 set 36 sets
VENTOS X FLAT T18
low-profile roof air vent – trapezoidal sheet metal roofing
• Low-profile roof air vent.
• Provides effective air circulation beneath the roof covering and supports proper roof ventilation.
• Dedicated to trapezoidal sheets with T18 profiling.
• List of compatible roofing types available on page 184 or online via QR code.
A: 325 mm
B: 242 mm
H: 19 mm
8004; 3009; 8017; 8019; 6020; 7024; 7021; 9005
1 set 140 sets
ACCESSORIES AND PROTECTION
A set of complementary components supporting the full functionality of the roofing system, designed to enhance ventilation performance, durability, and overall safety around the entire roof surface.
Accessories in this group expand the building’s ventilation system with ducts, connectors, and adapters fully compatible with Eurovent® VENTOS X roof vents.
The offer is completed by Eurovent® SATTOS X roof penetrations for antenna masts, allowing for safe and aesthetic mast installations through the roof slope.
Additionally, gutter guards and bird spikes effectively protect the roof from debris and nesting, helping to maintain cleanliness and visual appeal around the entire roof.
› Application of Eurovent® Accessories
Flexible length range and tilt angle, recommended for demanding connections.
• Diameter range: 150–80 mm.
roof vents to the building’s ventilation system.
• Integrated with Eurovent® RING X.
• Flexible length range and tilt angle, recommended for demanding connections.
• Diameter range: 150–80 mm.
FLEX X
ventilation duct
• Flexible duct for routing the ventilation channel inside the building.
• Also suitable for connecting Eurovent® VENTOS X to the building’s ventilation system.
• Flexible length range and tilt angle, recommended for demanding connections.
Ø 150 x Ø 125/120/100/80 mm 600 mm 8 pcs.
RING X
ventilation duct reducer
• Reducer made of plastic.
• Enables quick and tight connection of Eurovent® FLEX X or the Eurovent® VENTOS X roof vent to ducts with smaller diameters Ø110 mm or Ø125 mm.
CLIP X
ventilation duct connector
• Connector made of plastic.
• Enables quick and tight extension of Eurovent® FLEX X or connection with Eurovent® FLEXOS X or Eurovent® FLEXOS X PLUS ducts.
SEAL EPDM
sealing collar
• EPDM sealing collar used for insulating the passage of ventilation ducts through the roof cover.
• A wide range of diameters allows for universal application across various types of ventilation ducts.
Ø 150 x Ø 150 mm White 1 pcs. Ø 75 – Ø 160 mm 1 pcs.
GUTTER PROTECT
gutter protection
• Protective plastic grid designed to shield gutters from falling leaves and other debris.
• Side hooks enable quick and easy installation.
ANTIBIRD DUO
anti-bird spikes
• Protective element made of a polycarbonate base and flexible stainless steel spikes.
• Used to protect roofs, façades, cornices, window sills, and other building elements exposed to bird perching and nesting.
SATTOS X
Antenna adapter
• Antenna flashing.
• Made of plastic with a rubber grommet cap.
• Designed for mounting antennas with mast diameters from 15 to 90 mm on pitched roofs with slopes from 5° to 45°.
• A list of compatible roof coverings is available on page 162 for concrete roof tiles and pages 167 – 172 for metal roof tiles.
8004; 3009; 8017; 8019; 6020; 7024; 7021; 9005
› Application of Eurovent® SATTOS X Base PLUS T – Flat concrete tile
1 Eurovent® SATTOS X PLUS T
2 Eurovent® PUR
3 Eurovent® COMFORT
4 Eurovent® UNISAN
5 Sarking
6 Thermal insulation
7 Eurovent® CLIMA X20
N25; F22; W35; G18; R28; B26; M11; T18; BITU O; BITU UNI; PLUS: T; R; S; C; 1 set
SATTOS X – BASE PLATES
SATTOS X PLUS T
SATTOS X BITU UNI EPDM
SATTOS X BITU UNI ALU
SATTOS X N25
SATTOS X F22
SATTOS X G18
SATTOS X M11
SATTOS X R28
SATTOS X W35
SATTOS X T18
SATTOS X B26
SATTOS X BITU O
SATTOS X PLUS R
SATTOS X PLUS C
SATTOS X PLUS S
ADHESIVE TAPES AND SEALANTS
The system of adhesive tapes, sealants, and collars ensures durable and airtight connections in critical areas of the building – from the roof area, through the attic and façade, to window joinery and utility penetrations. It includes adhesive, expanding, and window tapes, sealing compounds, and installation collars that meet the highest standards of modern construction.
Nonwoven fabric
Paper
Polyethylene, polypropylene
Rigid PVC
Aluminized Surfaces
Wood-based boards
Timber
Lacquered/ sanded wood
Brick, concrete, plaster
Plasterboard, Fibre-gypsum boards, PIR
Polystyrene, Polyurethane
Metal, Glass, Aluminium
Classification by substrate type:
Recommended application
Conditional application** Recommended use of Eurovent® PRIMER with a clean, dust-free surface. Not recommended application
ALUFIX BUTYL PUR TOPBAND DUO FIXBIT AKTIVBAND DIFFUBAND
APPLICATION OF ADHESIVE TAPES
The table presents a breakdown by area of application.
The indicated areas of use serve as a recommendation. The user should always verify the suitability of the product in accordance with good construction practice.
Application
Indoor use
Outdoor use
Overlap sealing of roof membranes
Roof membrane repair
Overlap sealing of windproof membranes
Windproof membrane repair
Overlap sealing of vapor barriers
Vapor barrier repair
Nail sealing
Service penetrations
Application temperature above +5°C
Application temperature below +5°C
Uneven substrate
Joint and expansion gap sealing
Window installation “3-layer insulation”
Thermal and acoustic insulation
Moisture protection insulation
UNO UNISAN FAST UNO COLD UV HYDRAL
Classification by area of application.
Recommended application
Not recommended application
Always use the dedicated squeegee for each application.
Using the squeegee ensures the full performance of Eurovent® tapes
CLIMATE ZONES
PASSIVE HOUSE INSTITUTE
Passive construction is the future of modern architecture.
PHI certification confirms that Eurovent® system products – CLIMA X, UNISAN, HYDRAL, and MULTI – meet the rigorous requirements for components used in passive buildings, based on the Passive House Institute’s climate zone classification – one system, all climate zones.
Eurovent® system solutions provide high airtightness, effective water vapor control, and long-lasting joint durability, ensuring stable performance of building envelopes in low-energy and passive constructions.
ADHESIVE TAPES AND SEALANTS
Wide range of certified and tested Eurovent® adhesive tapes.
Ideal for sealing, lap joint bonding, transition insulation, or repairing roofing membranes, windproof membranes, vapor barriers, and other building materials.
The system is complemented by window tapes, expanding tapes, sealants, and adhesives designed for versatile applications in construction.
› Eurovent® adhesive tape system
ORIGINAL LABEL LINE
A guarantee of authenticity, quality, and functionality
A label is more than just visual appeal – it’s a tool that builds trust in the brand from the very first contact with the product. It serves as a clear source of information, enabling users to instantly identify the tape type, application, and key performance parameters.
Designed for maximum readability, the label features a QR code that provides digital access to detailed product data. With just one scan, users are directed to a dedicated product page containing technical specifications, certifications, approvals, and usage guidelines.
The label also acts as a mark of authenticity – a guarantee that the product comes from official Eurovent® distribution, is manufactured to the highest standards, and has passed rigorous quality control.
› Eurovent® adhesive tape system
1 Eurovent®
UNISAN – UNIVERSAL AND RELIABLE
A universal single-sided adhesive tape made of PE film reinforced with polyester mesh, coated with a specialized, highly adhesive dispersion acrylic glue.
Widely used in construction – ideal for bonding and repairing plastic-based materials, as well as joining them with wood, metal components, gypsum boards, stone, and other smooth or porous surfaces. Available in multiple widths, including variants with a split-release liner for easier and faster application.
Tested and certified by the Passive House Institute, it achieved phA class certification as an integral component of the Eurovent® CLIMA X vapor barrier system. Distinguished by ultra-low emissions of hazardous substances and volatile organic compounds (VOCs), as confirmed by A+ and GEV EMICODE® EC1 PLUS certifications.
Eurovent® UNISAN is also part of the QB certification granted by CSTB (Centre Scientifique et Technique du Bâtiment) as a dedicated adhesive tape for highly vapor-permeable membranes Eurovent® STRONG R3 and Eurovent® MAXI R2.
› Application of Eurovent® UNISAN Izolacja szczelin i przejść
1 Eurovent® UNISAN
2 Eurovent® CLIMA
3 OSB board
4 PCV pipe
UNISAN 60
universal adhesive tape
• It is ideal for bonding and repairing highly vapor-permeable roof membranes and VCL’s.
• Especially recommended for bonding overlaps of vapor control layers and foils.
UNISAN 60 30/30
universal adhesive tape
• It is ideal for bonding and repairing highly vapor-permeable roof membranes and VCL’s
• Recommended for sealing service penetrations through building envelopes.
• Split-release liner for easier and faster application.
UNISAN 100 50/50
universal adhesive tape
• Effective for bonding plastics with wood and metal elements.
• Recommended for sealing joints, gaps, and edge or corner connections.
• Split-release liner for easier and faster application.
UNISAN 150 75/75
universal adhesive tape
• Wide system tape – up to 150 mm.
• Especially recommended for sealing joints and gaps in prefabricated, modular, and timber-frame buildings.
• Split-release liner for easier and faster application.
HYDRAL
montage adhesive tape
• Made of water-resistant paper and acrylic dispersion-based adhesive.
• Certified by the Passive House Institute.
• Used for sealing gaps and joints between wood-based materials, plasterboard, and fibre-gypsum boards.
DUO
double-sided adhesive tape
• Constructed from a polyester mesh embedded in acrylic dispersion adhesive.
• Offers strong adhesive strength.
• Indispensable for mounting vapour barriers on wooden battens or plasterboard framing.
• Certified component under the QB certification.
› Application of Eurovent® HYDRAL OSB board joining
1 Eurovent® HYDRAL
2 Eurovent® CLIMA X
3 OSB board
› Application of Eurovent® DUO Vapour barrier membrane installation
1 Eurovent® DUO
2 Eurovent® CLIMA X
3 Construction
4 Thermal insulation
PUR
sealing tape
• Made of closed-cell polyethylene foam and coated with acrylic dispersion adhesive.
• Levels out surface irregularities and seals penetrations.
• Recommended for sealing and insulating roof and facade counter-battens.
PUR GK
sealing and acoustic tape
• Made of closed-cell polyethylene foam and coated with acrylic dispersion adhesive.
• Levels out surface irregularities and seals penetrations.
• Recommended for sealing under gypsum board and fibre-gypsum board framing profiles.
› Application of Eurovent® PUR Counter-batten insulation
1 Eurovent® PUR
2 Eurovent® MAXI
3 Counter-batten
› Application of Eurovent® PUR GK Acoustic insulation for plasterboard framing
1 Eurovent® DUO
2 Eurovent® STANDARD N
3 Construction
4 Thermal insulation
UNO – AIRTIGHT HERO IN THE ATTIC
Single-sided adhesive tape made of durable PE film reinforced with polyester mesh, coated with an acrylic dispersion adhesive.
Designed for joining and repairing vapour barrier films and membranes, as well as for sealing service penetrations, joints, and minor installation damages. It provides strong adhesion to a wide range of building materials – both smooth and porous, conforms well to curved surface
Tested by the German GEV association, Eurovent® UNO has been awarded the GEV EMICODE® EC1 PLUS certificate, confirming the lowest emission levels of hazardous substances and volatile organic compounds (VOC).
Eurovent® UNO is also part of the QB system certification issued by the Centre Scientifique et Technique du Bâtiment (CSTB), recognised as a system tape when combined with Eurovent® STRONG R3 and Eurovent® MAXI R2 for roof and attic applications.
› Application of Eurovent® UNO Penetration sealing in the attic
1 Eurovent® UNO
2 Eurovent® AKTIV
3 Eurovent® SPECIAL N
4 Eurovent® VISTA DUO
5 Eurovent® FLEXOS X
UNO 50
single-sided adhesive tape
• Used for joining and repairing vapour control bariers and VCL’s.
• Perfectly adheres to and seals curved surfaces – allows for finishing hard to reach areas.
UNO 100 50/50
single-sided adhesive tape
• Used for joining and repairing vapour control bariers and VCL’s.
• Recommended for sealing service penetrations through building envelopes.
• Split-release liner for easier and faster application.
SQUEEGEE
Using the dedicated Eurovent® Squeegee ensures the full performance of the tape’s adhesive strength.
Applying tape with the help of a squeegee ensures secure bonding and proper pressure on the surface, especially in corners and hard to reach areas.
1 Fast and easy tape application. 3 Elimination of air bubbles.
2 Reliable bonding. 4 Easier corner detailing.
ALUFIX
metalized adhesive tape
• Made of PE film coated with aluminum and an acrylic dispersion-based adhesive.
• Reflects thermal radiation.
• Used for joining and repairing metallized foils and membranes, as well as aluminum building components.
TOPBAND
roof membrane adhesive tape
• Made of polypropylene nonwoven fabric and acrylic dispersion-based adhesive
• Used for joining and repairing roof membranes and housewraps.
• Maintains the vapour permeability of the roof membrane at the connection point.
› Application of Eurovent® ALUFIX Overlap sealing of vapour barrier foil
1 Eurovent® ALUFIX
2 Eurovent® STANDARD ALU
› Application of Eurovent® TOPBAND Overlap sealing of roof membrane
1 Eurovent® TOPBAND
2 Eurovent® SUPER
3 Eurovent® PUR
4 Counter-batten
BUTYL
double-sided butyl tape
• Double-sided butyl-based tape.
• Provides a strong and durable bond, ensuring excellent joint sealing.
• Recommended for sealing critical connections, including rough or uneven surfaces.
BUTYL PRO
double-sided butyl tape
• Double-sided, wide butyl-based tape.
• Provides a strong and durable bond, ensuring excellent joint sealing.
• Recommended for sealing critical connections, including rough or uneven surfaces.
› Application of Eurovent® BUTYL Chimney flashing and sealing
1 Eurovent® BUTYL
2 Eurovent® MAXI
3 Eurovent® PUR
4 Chimney
› Application of Eurovent® BUTYL PRO Overlap sealing of foundation foil
1 Eurovent® BUTYL PRO
2 Eurovent® GEO 8
UNO COLD UV – ONE TAPE. EVERY SEASON
Single-sided adhesive tape made of a flexible LDPE carrier reinforced with fiber mesh and coated with a high-performance acrylic dispersion-based adhesive.
Designed for applications requiring enhanced resistance to weather conditions, especially in areas exposed to UV radiation and low temperatures.
Eurovent® UNO COLD UV maintains strong adhesive properties even at –10°C, making it an ideal solution for autumn-winter installations or use in colder climate zones. It also features long-term UV resistance (up to 12 months), making it suitable for applications with extended exposure to sunlight.
Eurovent® UNO COLD U is used for sealing and joining housewrap overlaps, service penetrations, and localized repairs. It is especially recommended for facade systems with open joints, particularly in combination with Eurovent® FASSADE and Eurovent® FASSADE X housewraps.
Tested by the German GEV association, confirming ultra-low emissions of hazardous substances and volatile organic compounds (VOCs), as certified by GEV EMICODE® EC1 PLUS and A+.
› Application of Eurovent® UNO COLD UV Overlap sealing of housewrap
1 Eurovent® UNO COLD UV
2 Eurovent® HOME PRO
3 Eurovent® FASSADE
4 Eurovent® PUR
UNO COLD UV 50
cold- and uv-resistant adhesive tape
• Effective for joining and repairing housewrap membranes, also suitable for sealing penetrations and fixing installation damages.
• Resistant to low temperatures.
• UV-resistant.
UNO COLD UV 100 50/50
cold- and uv-resistant adhesive tape
• Recommended for sealing joints, gaps, repairs, and edge or corner detailing on facade and roof areas.
• Ideal for areas with increased exposure to UV radiation and cold conditions.
• Split-release liner for easier application.
UNO COLD UV 60
cold- and uv-resistant adhesive tape
• Suitable for joining and repairing housewrap and roof membranes.
• Ideal for use with Eurovent® FASSADE in open-joint facade systems.
• Resistant to low temperatures.
• UV-resistant.
UNO COLD UV 150 75/75
cold- and uv-resistant adhesive tape
• Effective for sealing wide joints, connections, and gaps in prefabricated, modular, and timber frame buildings.
• Ideal for areas with increased exposure to UV radiation and cold conditions.
• Split-release liner for easier application.
*Product available on request.
UNO COLD UV 300 150/150
cold- and uv-resistant adhesive tape
• Recommended for sealing large surfaces, joints, and gaps in prefabricated buildings, including roof, ceiling, and wall areas.
• Ideal for areas with increased exposure to UV radiation and cold conditions.
• Split-release liner for easier and faster application.
*Product available on request.
› Application of Eurovent® UNO COLD UV Joint and penetration sealing
1 Eurovent® UNO COLD UV 3 Eurovent® CLIMA 5 Eurovent® FASSADE 7 Eurovent® SUPER SA
2 Eurovent® HOME PRO 4 Eurovent® SUPER 6 Eurovent® PUR
FIXBIT – REPAIR TAPE
Single-sided bitumen sealing and repair tape.
Eurovent® FIXBIT is a repair tape made of an aluminum top layer and a self-adhesive bitumen compound protected by a silicone release liner.
It is designed for quick and long-lasting sealing of roof details and for performing urgent or routine repairs on pitched and flat roofs, as well as in wall and facade areas.
Thanks to its high adhesion and flexibility, it is ideal for sealing and repairing roofing flashings, connections around chimneys, roof windows, skylights, parapets, roof valleys, and service penetrations.
Its key advantages are strong bonding performance and full resistance to water and UV radiation. It creates an effective, durable protective barrier, regardless of the substrate type, bonding well with metal, concrete, brick, and most plastics.
Available in various widths from 50 mm to 300 mm. The color palette follows RAL standards, allowing for aesthetically consistent integration with the roof covering.
› Application of Eurovent® FIXBIT Repair in the eaves area
1 Eurovent® FIXBIT
2 Tile
3 Gutter system
4 Eurovent®
FIXBIT
50 bitumen repair tape
• Designed for efficient bonding and sealing of roofing details.
• Recommended for precise repair work within the roof area.
• High adhesive strength, forms a durable bond with metal, concrete, brick, and plastics.
FIXBIT
75 bitumen repair tape
• Designed for efficient bonding and sealing of roofing details.
• Recommended for precise repair work within the roof area.
• High adhesive strength, forms a durable bond with metal, concrete, brick, and plastics.
FIXBIT 100 bitumen repair tape
• Designed for efficient bonding and sealing of roofing details.
• Recommended for use around roof, skylights, and roof windows.
• Ideal for emergency repairs within the roof and facade area.
FIXBIT
150 bitumen repair tape
• Designed for efficient bonding and sealing of roofing details.
• Recommended for use on roof areas around chimneys, firewalls, and roof windows.
• Ideal for emergency repairs within the roof and facade area.
FIXBIT 200
bitumen repair tape
• Designed for efficient bonding and sealing of roofing details.
• Recommended for use on roof areas around chimneys, firewalls, and roof windows.
• Ideal for emergency repairs within the roof and facade area.
› Colour palette used for Eurovent® FIXBIT bitumen repair tapes.
FIXBIT 300
bitumen repair tape
• Designed for efficient bonding and sealing of roofing details.
• Recommended for sealing large surfaces around chimneys, fire walls, and roof windows.
• Ideal for emergency repairs within the roof and facade area.
Wall red RAL 8004
Cherry RAL 3004
Anthracite RAL 7016
RAL 8017
7016; Aluminum
8017; 3004; 7016; Aluminum
FAST – SPEED MEETS RELIABILITY
Single-sided adhesive tape without a liner for fast application.
Made of PE film reinforced with polyester mesh and coated with a strong acrylic dispersion-based adhesive. Designed for quick and convenient use, it is ideal for bonding and repairing roof membranes, vapour control films, housewraps, and other plastic-based construction materials.
Its key advantage is the absence of a paper liner, which eliminates installation waste and significantly speeds up work. The serrated edge allows for easy and precise tearing without the need for scissors or a knife – even when wearing work gloves.
Perfectly suited for energy-efficient construction. Compliant with DIN 4108/11 standards for airtight building envelopes and certified by the German GEV association with the GEV EMICODE® EC1 label for low VOC emissions.
› Application of Eurovent® FAST Sealing overlaps of vapour control layer – VCL
1 Eurovent® FAST
2 Eurovent® CLIMA 18
3 Eurovent® CLIMA X20
4 Eurovent® SQUEEGEE
FAST
liner less adhesive tape
• Ideal for joining and repairing highly vapourpermeable membranes and vapour barriers.
Expanding tapes in this class offer the highest sealing performance. Their construction ensures full resistance to prolonged UV exposure, precipitation, and temperature fluctuations, eliminating the need for additional covering after installation.
They are used for waterproof and windproof sealing in prefabricated concrete, metal, and timber components, as well as in clinker, metal, and wooden façades. Perfect for sealing joints, expansion gaps, and exterior connections, they provide durable protection against water and air infiltration.
Tapes in this class are also suitable for sealing gaps around window and door joinery, including structures with reveals – wherever long-lasting, ageing-resistant, and weatherproof sealing is required.
› BGR – 600 hPa Sealing Class – Specialist Tapes
High-performance tapes for the most demanding applications. These tapes deliver top durability and sealing capability, ideal for areas exposed to water, wind, and moisture.
Especially recommended for sealing gaps around window joinery. Eurovent® COMPRE 3W tapes provide triple-layer sealing for windows or doors, eliminating the need for mounting foam.
Expanding tapes in the BG1 class:
Eurovent® COMPRE
Eurovent® COMPRE FALZ
Eurovent® COMPRE X
Expanding tapes in the BGR class:
Eurovent® COMPRE 3W
COMPRE FALZ
expanding tape 600 hpA class
• Expanding tape made of flexible polyurethane foam impregnated with modified acrylic
• Fire class B1 – flame retardant.
• Sealing class: 600 hPa (BG1)
• UV- and weather-resistant.
• Provides protection against moisture, wind, rain, cold, and also offers acoustic insulation.
• Designed for sealing joints and gaps.
• Recommended for sealing connections of flat sheet metal finished with standing seam.
COMPRE X
expanding tape 600 hpA class
• Expanding tape made of flexible polyurethane foam impregnated with modified acrylic.
• Fire class B1 – flame retardant.
• Sealing class: 600 hPa (BG1).
• UV- and weather-resistant.
• Provides protection against moisture, wind, rain, cold, and also offers acoustic insulation.
• Designed for sealing joints and gaps in building and roof structures, especially in ridge, valley, and roof window areas.
SEALING COLLARS
Self-adhesive collars designed for quick and durable creation of airtight service penetrations.
They are used for sealing penetrations such as cable bundles, plumbing pipes, heating lines, ventilation ducts, and solar system conduits passing through building envelopes – such as roofs, walls, attics, or ceilings.
The acrylic dispersion-based adhesive layer ensures a tight seal around roofing membranes, housewraps, or vapour control layers. The flexible EPDM grommet adapts to the shape of the penetrated pipe or cable, minimizing the risk of air leaks and heat loss.
› Application of Eurovent® MINI SEAL, Eurovent MULTI SEAL
Cable penetration sealing
1 Eurovent® MINI SEAL 4 Plasterboard construction
2 Eurovent® MULTI SEAL 5 OSB board
3 Eurovent® CLIMA 6 Plasterboard
MINI SEAL
sealing collar
• Cable penetration collar.
• Ensures an airtight and secure routing of cables through building envelopes.
• Recommended for use in timber frame, modular, and prefabricated construction.
SEAL
sealing collar
• Pipe penetration collar.
• Ensures an airtight and secure routing of cables through building envelopes.
• Recommended for use in timber frame, modular, and prefabricated construction.
Ø
Ø
MULTI SEAL
sealing collar
• Six-channel collar for pipes or cables.
• Ensures an airtight and secure routing of cables through building envelopes.
• Recommended for use in timber frame, modular, and prefabricated construction..
R1: Ø 15-22 mm
R2: Ø 25-32 mm
R3: Ø 40-55 mm
R4: Ø 50-72 mm
R5: Ø72-90 mm
R6: 100-110 mm
R7: 100-125 mm
R8: 125-140 mm
CORNER PRO IN
• Made of SEBS with high mechanical stability.
• UV-resistant.
• Waterproof – seals critical internal corners within the building structure.
• Recommended for use in timber-frame, prefabricated, and modular construction.
CORNER PRO OUT
• Made of SEBS with high mechanical stability.
• UV-resistant.
• Waterproof – designed to seal critical outer corners within the building structure.
• Recommended for use in timber-frame, prefabricated, and modular construction.
› Application of Eurovent® CORNER PRO OUT Window opening corner insulation
SEALING COMPOUNDS
Sealing compounds, adhesives, and primers – reliable additions to the Eurovent® adhesive tape system.
They are intended for bonding expansion joints, sealing overlaps of vapour barrier films and roof membranes, as well as for permanently joining various building materials including plastics, EPDM, wood, metal, and concrete.
They ensure effective installation even in demanding conditions such as low temperatures, high humidity, or uneven, porous surfaces. Thanks to a carefully developed formula, they provide long-term airtightness and effective moisture protection in critical connection areas.
• Solvent-free, general-purpose compound with high aging resistance.
• Ideal for bonding vapour control layers - VCL’s and expansion joints.
• Highly flexible and stretchable.
• Certified by the Passive House Institute.
MULTI TUBE
sealing compound
• Wersja masy uszczelniającej w tubie, polecana do prac na dużych powierzchniach.
• Ideal for bonding vapour control layers - VCL’s and expansion joints.
• Accommodates structural movement, suitable for plastering and painting.
320 g -10°C up to 40°C 20 pcs. 1200 pcs.
› Application of Eurovent® MULTI Wall-to-membrane connection
1 Eurovent® MULTI
2 Eurovent® CLIMA X
3 Counter-batten
4 Wall
5 Thermal insulation
620 g -10°C up to 40°C 20 pcs. 720 pcs.
› Application of Eurovent® MULTI TUBE Knee wall–to–membrane connection
1 Eurovent® MULTI TUBE
2 Eurovent® CLIMA X
3 Wall
PRIMER
spray-on primer
• High-performance spray primer.
• Significantly enhances the adhesion of Eurovent® adhesive tapes.
• Ideal for porous and highly absorbent surfaces.
• Certified by the National Institute of Public Health (PZH).
EPDM FIX
sealing compound
• lexible rubber-based adhesive (styrene-butadiene) in paste form, packed in a tube.
• Ideal for bonding EPDM tapes and sealing joints and expansion gaps on roofs and facades.
• Offers high mechanical strength and excellent ageing resistance.
› Aplikacja Eurovent® PRIMER Adhesion enhancement for adhesive tapes
1 Eurovent® PRIMER 4 OSB board
2 Eurovent® HYDRAL 5 Wood-based board
3 Eurovent® UNISAN
WINDOW TAPES
Reliable sealing of window joinery based on the three-layer installation method.
Eurovent® window tapes are dedicated solutions for the installation of windows, doors, shutters, and garage gates in accordance with the principles of warm installation – the three-layer sealing method.
They provide an effective insulating barrier between the frame and the building structure, protecting the connection against moisture, uncontrolled air leakage, and heat loss.
The system is complemented by a wide range of expanding tapes and EPDM tapes, allowing the sealing solution to be adjusted to the specific technical conditions of the building envelope.
› Application of Eurovent® AKTIVBAND SK2
Two-layer wall – side connection
1 Eurovent® AKTIVBAND SK
2 Eurovent® DIFFUBAND SK
3 Eurovent® HOME PRO
4 Eurovent® TOPBAND
5 Montage foam
6 Window
7 Thermal insulation
AKTIVBAND SK
internal window tape
• Vapour barrier tape, fully coated with adhesive across its width.
• Designed for sealing joints around windows, shutters, and doors in airtight, three-layer installation systems.
AKTIVBAND SK2
internal window tape
• Vapour barrier tape, fully coated with adhesive across its width.
• Equipped with an additional adhesive strip – SK2
• Designed for sealing joints around windows, shutters, and doors in airtight, three-layer installation systems.
› Application of Eurovent® AKTIVBAND SK
Two-layer wall – bottom connection
1 Eurovent® AKTIVBAND SK
2 Eurovent® DIFFUBAND SK
3 Eurovent® HOME PRO
4 Montage foam
5 Window
› Application of Eurovent® AKTIVBAND SK2 Two-layer wall – top connection
1 Eurovent® AKTIVBAND SK2
2 Eurovent® DIFFUBAND SK
3 Eurovent® HOME PRO
4 Montage foam 5 Window
DIFFUBAND SK
external window tape
• Vapour-permeable, windproof tape coated with adhesive over its entire width.
• Designed for sealing joints around windows, shutters, and doors in airtight, three-layer installation systems.
DIFFUBAND SK2
external window tape
• Vapour-permeable, windproof tape coated with adhesive over its entire width.
• Equipped with an additional adhesive strip – SK2
• Designed for sealing joints around windows, shutters, and doors in airtight, three-layer installation systems.
› Application of Eurovent® DIFFUBAND SK Three-layer wall – bottom connection
1 Eurovent® DIFFUBAND SK
2 Eurovent® AKTIVBAND SK
3 Eurovent® COMPRE 600
4 Montage foam
5 Window
› Application of Eurovent® DIFFUBAND SK Two-layer wall – top connection
1 Eurovent® DIFFUBAND SK
2 Eurovent® AKTIVBAND SK2
3 Montage foam
4 Window
EPDM PRO
external sealing tape
• Made of synthetic rubber with a surface texture that enhances adhesion.
• Used for sealing joints between doors, windows, sills, facades, and the building structure.
EPDM PRO FIX BUTYL
external sealing tape
• Made of synthetic rubber with a surface texture that enhances adhesion.
• Equipped with a 15 mm butyl strip.
• Used for sealing joints between doors, windows, sills, facades, and the building structure.
EPDM PRO SK
external sealing tape
• Made of synthetic rubber with a surface texture that enhances adhesion.
• Equipped with acrylic adhesive across the entire width.
• Used for sealing joints between doors, windows, sills, facades, and the building structure.
EPDM PRO CLIP
external sealing tape
• Made of synthetic rubber with a surface texture that enhances adhesion.
• Used for moisture protection of facade and window/door frame connections.
• Prevents external moisture from penetrating the structure and enables drainage of condensation and rainwater in connection areas.
• Integrated with a gasket compatible with the most popular window and door frame systems on the market.
*Product available on request.
› Application of Eurovent® EPDM PRO CLIP Sealing of the Window-to-Wall connection
1 Eurovent® EPDM PRO CLIP
2 Eurovent® EPDM FIX
3 Eurovent® AKTIVBAND SK
4 Wall 5 Window 6 Montage foam
SEAL MODELS – EPDM PRO CLIP
External sealing tape Eurovent® EPDM PRO CLIP, integrated with EPDM gasket clips tailored to the most popular window systems on the market.
ESK-20
Clip for a 2.8 mm groove, compatible with Gealan window systems.
ESK-30
Clip for a 3 mm groove, compatible with Aluprof.
ESK-40
Clip for a 4 mm groove, compatible with Schüco.
ESK-46
Clip for a 4.6 mm groove, compatible with Yawal and Procular (Ponzio).
ESK-50
Clip for a 5 mm groove, compatible with Aluprof, Wicona, and Reynaers.
ESK-57
Clip for a 5.7 mm groove, compatible with Aluprof.
ESK-60
Clip for a 6 mm groove, compatible with Aluron and Schüco.
ESK-70
Clip for a 7 mm groove, compatible with Schüco.
ESK-90
Clip for a 9 mm groove, compatible with Yawal and Blyweert.
ESK-100
Clip for a 10 mm groove, compatible with Aliplast, Reynaers, and Schüco.
ESK-120
Clip for a 12 mm groove, compatible with Blyweert.
ESK-140
Clip for a 14 mm groove, compatible with Aliplast, Yawal, Aluprof, and Reynaers.
COMPRE
expanding tape 600 hpA class
• Expanding tape made of flexible polyurethane foam impregnated with modified acrylic.
• Fire class B1 – flame retardant
• Sealing class: 600 hPa (BG1).
• High resistance to weather conditions.
• Designed for the installation of windows, doors, and garage doors.
• Particularly recommended for insulating windows with reveals.
• Also suitable for technical sealing and filling joints in roof and facade areas.
• Provides protection against moisture, wind, rain, cold, and also offers acoustic insulation.
sizes available upon request. › Application of Eurovent® COMPRE Gap and joint insulation
COMPRE 3W
expanding window tape 600 hpA class
• Multi-functional expanding window tape made of flexible polyurethane foam impregnated with synthetic resin.
• Fire class B1 – flame retardant
• Sealing class 600 hPa (BG1/BGR)
• High resistance to weather conditions
• Replaces traditional PU foams and window tapes in window and door installation.
• Provides three-layer sealing with a single product.
• Effectively fills installation gaps, eliminates thermal bridges, and improves the energy efficiency of the connection.
*Custom sizes available upon request.
› Application of Eurovent® COMPRE 3W Single-layer wall, reveal
1 Eurovent® COMPRE 3W
2 Eurovent® DIFFUBAND SK
3 Eurovent® COMPRE
4 Window
INSTALLATION DIAGRAMS FOR WINDOW JOINERY
The Eurovent® window tape system is a comprehensive solution for three-layer window installation.
Proper installation of windows, doors, and garage gates requires systems that ensure airtightness and minimize the risk of thermal bridging.
Eurovent® window tapes are designed for modern, energy-efficient, and passive construction, including retrofit projects. These tapes enable the creation of a durable, three-layer sealing system at the window connection:
1 Exterior layer – protects against precipitation and wind.
2 Middle layer – provides thermal and acoustic insulation.
3 Interior layer – functions as an active vapour control layer.
› Benefits of the Eurovent® 3-layer installation system for windows, garage doors, and door frame sealing.
Improved thermal insulation performance.
Elimination of fungal growth
Acoustic insulation.
Protection against wind and moisture.
Thermal bridge elimination.
Time and energy savings.
› Single-layer wall
Installation using window tapes
1 Eurovent® AKTIVBAND SK2
2 Montage foam lub Eurovent® COMPRE
3 Eurovent® COMPRE
4 Wall
5 Window reveal
6 Plaster
7 Window
› Double-layer wall
Installation using window tapes
1 Eurovent® AKTIVBAND SK2
2 Montage foam lub Eurovent® COMPRE
3 Eurovent® DIFFUBAND SK2
4 Eurovent® COMPRE
5 Wall
6 Thermal insulation
7 Plaster, facade
8 Window
› Timber frame wall
Installation using expanding tapes
1 Eurovent® COMPRE
2 Eurovent® AKTIVBAND SK
3 Timber frame construction
4 Thermal insulation
5 Facade
6 Plasterboard
7 Window
› Multi-layer wall
Installation using expanding tapes
1 Eurovent® COMPRE 3W
2 Eurovent® COMPRE
3 Thermal insulation
4 Plaster
5 Clinker brick 6 Window
Wall
FOUNDATION INSULATION
Insulating foils designed for both vertical and horizontal damp-proof protection of foundations, foundation footing, walls, and wall plates in residential and industrial buildings. They protect against capillary moisture rise from the ground, ensuring the durability and structural safety of the building.
FOUNDATION FOILS
Foundation foils serve as the first line of protection for buildings against capillary moisture rise and groundwater infiltration.
These are specialized materials designed for both vertical and horizontal waterproofing of foundations, footings, walls, terraces, floors, walkways, and green roofs.
Their primary function is to provide durable protection of the structure against dampness, directly contributing to the safety and longevity of the entire building.
The Eurovent® product range includes a wide selection of insulation solutions – from dimpled foundation foils, through horizontal waterproofing foils, to complementary separation and filtration layers such as geotextiles and drainage mats. These products are suitable for both residential and industrial construction, as well as for green zones, gardening applications, terraces, and green roofs.
› Application of Eurovent® MAUER HDPE Vertical foundation foil insulation
1 Eurovent® GEOLINE
2 Eurovent® GEO 8
3 Eurovent® GEO TEX
GEO 8
studded foundation foil
• Made of high-density polyethylene (HDPE) with a diagonal studded pattern.
• Provides ventilation and protects against groundwater and moisture.
• Provides thermal and acoustic insulation.
• Resistant to solvents, bacteria, fungi, acids, alkalis, and plant roots.
GEO 8 V
studded foundation foil
• Made of high-density polyethylene (HDPE) with a diagonal studded pattern.
• Provides ventilation and protects against groundwater and moisture.
• Provides thermal and acoustic insulation.
• Resistant to solvents, bacteria, fungi, acids, alkalis, and plant roots.
Studded foundation foils
Eurovent® GEO 8 and Eurovent® GEO 8 V
Designed for vertical damp-proofing of foundation walls.
They provide an effective protective barrier against groundwater, moisture, and plant roots. The studded structure also ensures drainage and ventilation, helping to remove excess moisture and equalize hydrostatic pressure.
They are also well-suited for horizontal insulation on terraces and balconies, protecting structural layers against moisture, mechanical damage, and capillary water rise.
GEO 20
studded drainage foundation foil
• Made of high-density polyethylene (HDPE) with a parallel stud pattern.
• Provides ventilation and protects against groundwater and moisture.
• Provides thermal and acoustic insulation.
• Resistant to solvents, acids, alkalis, bacteria, fungi, and plant roots.
GEO 20 GARDEN
studded drainage and retention foil
• Made of high-density polyethylene (HDPE) with a parallel stud pattern.
• Features perforated studs that allow water retention and drainage of excess moisture.
• Resistant to solvents, acids, alkalis, bacteria, fungi, and plant roots.
Studded drainage foundation foil
Eurovent® GEO 20
Designed for vertical and horizontal waterproofing, especially in deep foundation structures.
It is used in underground garages, tunnels, foundations in flood-prone areas, and wherever there is a risk of groundwater infiltration. It can be installed with a slope, between the foundation slab and the screed, to support water drainage.
Also suitable for use directly between a layer of shotcrete and the structural concrete wall, especially in places where there is no space for traditional formwork.
Studded drainage and retention foil
Eurovent® GEO 20 GARDEN
Designed for horizontal waterproofing in green roof systems and usable terraces.
Installed with studs facing upward, it creates a drainage layer that efficiently channels away excess water during heavy rainfall. The high studs serve as retention reservoirs, storing water needed to irrigate the vegetation layer. This supports plant growth and helps stabilize moisture conditions in rooftop gardens.
The foil is resistant to compression and aggressive agents such as acids, alkalis, solvents, as well as bacteria, fungi, and root penetration.
› Application of Eurovent® GEO 20 Moisture protection
1 Eurovent® GEO 20
2 Separation layer
3 Drainage pipe
4 Reinforcement
5 Concrete
6 Substrate
› Application of Eurovent® GEO 20 GARDEN Drainage and water-retention insulation
1 Eurovent® GEO 20 GARDEN
2 Eurovent® GEO TEX
3 Soil
4 Plants
5 XPS insulation
6 Substrate
GEO GARDEN DUO
studded drainage and water-retention foil
• Made of high-density polyethylene (HDPE) with a parallel stud pattern.
• Integrated with filtration nonwoven fabric (PP).
• Perforated studs collect and drain excess water.
• Resistant to solvents, acids, alkalis, bacteria, fungi, and plant roots.
GEO MATT
separation and drainage mat
• Made of extruded single polypropylene fibres
• Used as a separation, stabilization, and drainage layer.
• Three-dimensional structure reinforces and stabilizes soil – ideal for embankments and slopes, effectively preventing soil erosion
HDPE: ca. 1 Kg/m2 PE: ca. 100 g/m2 20 mm -40°C up to +80°C ca. 180 kN/m2 2,0 m x 10 rm 5 rolls
Studded drainage and water-retention foil
Eurovent® GEO GARDEN DUO
Combines drainage, retention, and filtration functions, making it a comprehensive solution for green roofs.
Used as a horizontal insulation layer in inverted roof systems and rooftop gardens, it ensures efficient removal of excess rainwater during heavy downpours. At the same time, the high studs serve as retention reservoirs, storing water essential for plant growth.
The integrated filtration nonwoven layer prevents soil particles from entering the studded space, ensuring long-term efficiency of the drainage system.
1,40 m x 25 rm 10 rolls
Separation and Drainage Mat
Eurovent® GEO MATT
Designed for geotechnical, road construction, and land drainage applications.
The mat functions as a separation, stabilization, and drainage layer, recommended for use in embankment construction, slope reinforcement, and securing drainage ditches.
Thanks to its three-dimensional structure, it can be filled with loose material up to 80–90%, significantly enhancing its soil reinforcement capacity, ground stabilization, and erosion prevention performance.
GEOTEX
geotextile
• Made of thermally bonded continuous fibres, stabilized.
• Used as a filtering layer.
• Separates substrate layers, stabilizes the ground.
• Protects adjacent materials from mechanical damage.
Geotextile
Eurovent® GEOTEX
Designed for filtration, separation, and protection applications in civil engineering and landscaping.
Effectively separates soil layers, stabilizes the substrate, and protects adjacent materials from mechanical damage.
Ensures long-term filtration by allowing water to pass through while retaining solid particles.
Ideal for use in the construction of parking areas, walkways, sports fields, and cycling paths, as well as in drainage systems. Also used in green areas, for example, to protect and irrigate vegetation along roads and for filtration near water reservoirs and riverbanks.
› Application of Eurovent® GEO GARDEN DUO Drainage and water-retention insulation
1 Eurovent® GEO GARDEN DUO 4 Plants, Soil 2 Waterproofing
› Application of Eurovent® GEOTEX Substrate separation
1 Eurovent® GEOTEX 4 Paving blocks, Walkway
2 Sand and gravel backfill 5 Substrate
3 Sand
› Application of Eurovent® GEO MATT Embankment stabilization and drainage 1 Eurovent® GEO MATT
Topsoil 3 Plants
4 Soil, Ground
GEO LINE
finishing profile
• Mounting end profile for foundation foil installation.
• Profiled shape ensures precise and secure adhesion of the foundation foil to the insulated surface.
• Resistant to aging processes.
GEO BUTYL
GEO NAIL
fastering nails
• Hardened steel nails dedicated for fixing foundation foils with 8 mm stud height.
• Equipped with a special plastic washer that seals the nail penetration point.
sealing tape 2 m 25 pcs. 10 000 pcs.
double-sided butyl tape
• Double-sided butyl-based tape.
• Bonds foundation foil overlaps strongly and permanently.
• Recommended for sealing critical joints, even on rough surfaces.
3,5 mm x 45 mm 100 pcs. 120 000 pcs.
GEO BAND
• Flexible sealing tape made of thermoplastic elastomer (TPE) and polyester fabric.
• Designed for sealing construction expansion joints and joints in walls and floors.
Horizontal foundation foils are designed to create durable waterproofing insulation that protects both basement and non-basement buildings against capillary moisture rise from the ground.
They are used as a waterproofing layer in walls and foundation footings, under loadbearing walls, wall plates, and partition walls. They offer a modern alternative to traditional bituminous felts, ensuring greater durability and easier installation.
These foils are resistant to moisture, ageing, and decay. A special surface with subtle anti-slip embossing ensures optimal adhesion to mortar, improving bonding and structural stability. Thanks to their flexibility, they adhere well to the substrate, compensating for minor surface irregularities and deformations.
› Application of Eurovent® MAUER HDPE
Horizontal foundation insulation
1 Eurovent® MAUER HDPE
2 Eurovent® GEO LINE
3 Eurovent® GEO
5
6
MAUER PVC V
horizontal foundation insulation
• Horizontal foundation foil made of PVC.
• Resistant to ageing, decay, and moisture.
• Flexible – bonds well with mortar, compensates for substrate deformation.
• Ensures long-term durability.
MAUER HDPE
horizontal foundation insulation
• Horizontal foundation foil made of HDPE.
• Resistant to ageing, decay, and moisture.
• Bonds well with mortar.
• Resistant to substrate deformation.
• Ensures long-term durability.
ca. 1 mm (±10%);
300 mm x 30 rm
400 mm x 30 rm
500 mm x 30 rm 600 mm x 30 rm
ca. 1 mm (±30%) 250 mm x 30 rm
mm x 30 rm
› Application of Eurovent® MAUER HDPE Horizontal foundation insulation – timber frame wall
1 Eurovent® MAUER HDPE
2 Sill plate
3 Timber frame wall
4 Eurovent® GEO LINE
5 Eurovent® GEO 8
6 Thermal insulation
7 Bituminous insulation
8 Foundation footing
9 Eurovent® BAU
MAUER LDPE
horizontal foundation insulation
• Horizontal foundation foil made of LDPE.
• Resistant to ageing, decay, and moisture.
• Highly flexible – bonds well with mortar.
• Resistant to substrate deformation.
• Ensures long-term durability.
› Application of Eurovent® MAUER LDPE Horizontal foundation insulation – foundation 1 Eurovent® MAUER LDPE
Foundation wall
Foundation
Concrete
Native soil
› Application of Eurovent® MAUER PVC V Horizontal foundation insulation – wall plate
1 Eurovent® MAUER PVC V
Wall plate
Ring beam
Wall
Rafter
ICONOGRAPHY
Legend of icons used in the catalogue.
Each icon represents a key parameter, feature, or functional property of Eurovent® products.
› Vapour-permeable membranes
› Housewraps
› Vapour barriers and VCL’s
› Roof accessories
› Ventilation and protection
› Tapes and sealants
› Foundation insulation
EUROVENT ONLINE
Visit www.eurovent 24.com
The eurovent 24.com website combines clarity, fast performance, and intuitive navigation with an extensive base of technical knowledge.
Here you’ll find an optimized product offer, practical installation guidelines, detailed FAQs, and tools that help you select the right roofing solutions.
Scan QR code with your phone eurovent 24.com
All information has been provided in good faith, based on our best knowledge, research, and experience. This content does not constitute a commercial offer within the meaning of the Civil Code. We reserve the right to make technical changes as well as to correct any potential printing errors or omissions. Reproduction, in whole or in part, is permitted only with the consent of Eurosystem Polska Sp. z o.o. Sp. K.
