INFORMATION NOTES
Fhiaba is constantly researching new ways to improve the features and the design of their products, therefore models are often upgraded and reviewed and this may result in aesthetic and technical changes in respect of what indicated in the pages hereafter. While we endeavour to keep the documentation constantly updated we recommend to always refer to the specific technical documentation for every design and installation requirement.
The suggested retail prices here indicated include GST.
Guarantee: in compliance with Australian Warranty Law, Fhiaba offer a base guarantee of 2 years on their domestic appliances starting from the purchase date shown on the invoice or other purchase proof document. Refer to the warranty certificate which comes together with the appliance and is available online. The data relating to power and energy consumption are based on laboratory statistics and may vary in function of the conditions of use and installation environment of every single appliance.
FHIABA'S SOLUTIONS
COLOUR OPTIONS
FRIDGES, FREEZER AND WINE CELLARS
PRODUCT CODE
INTEGRATED SERIES
INTEGRATED SERIES ACCESSORIES

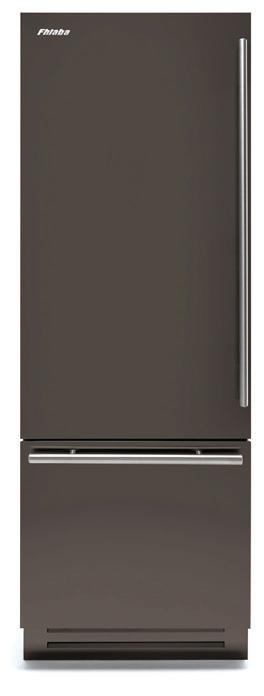

CLASSIC SERIES
CLASSIC SERIES SINGLE LOWER GRILLS
CLASSIC SERIES ACCESSORIES

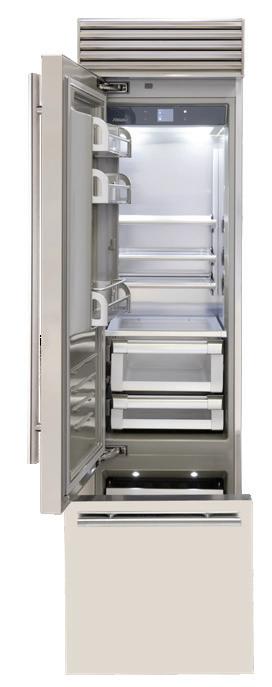

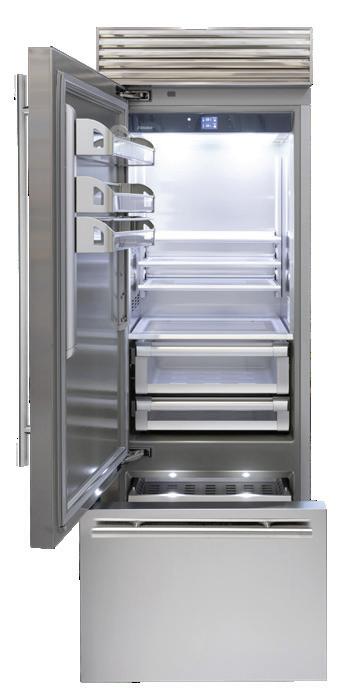

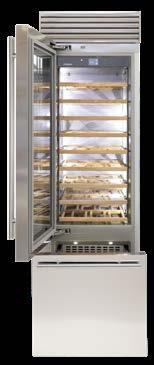

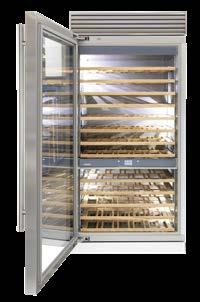

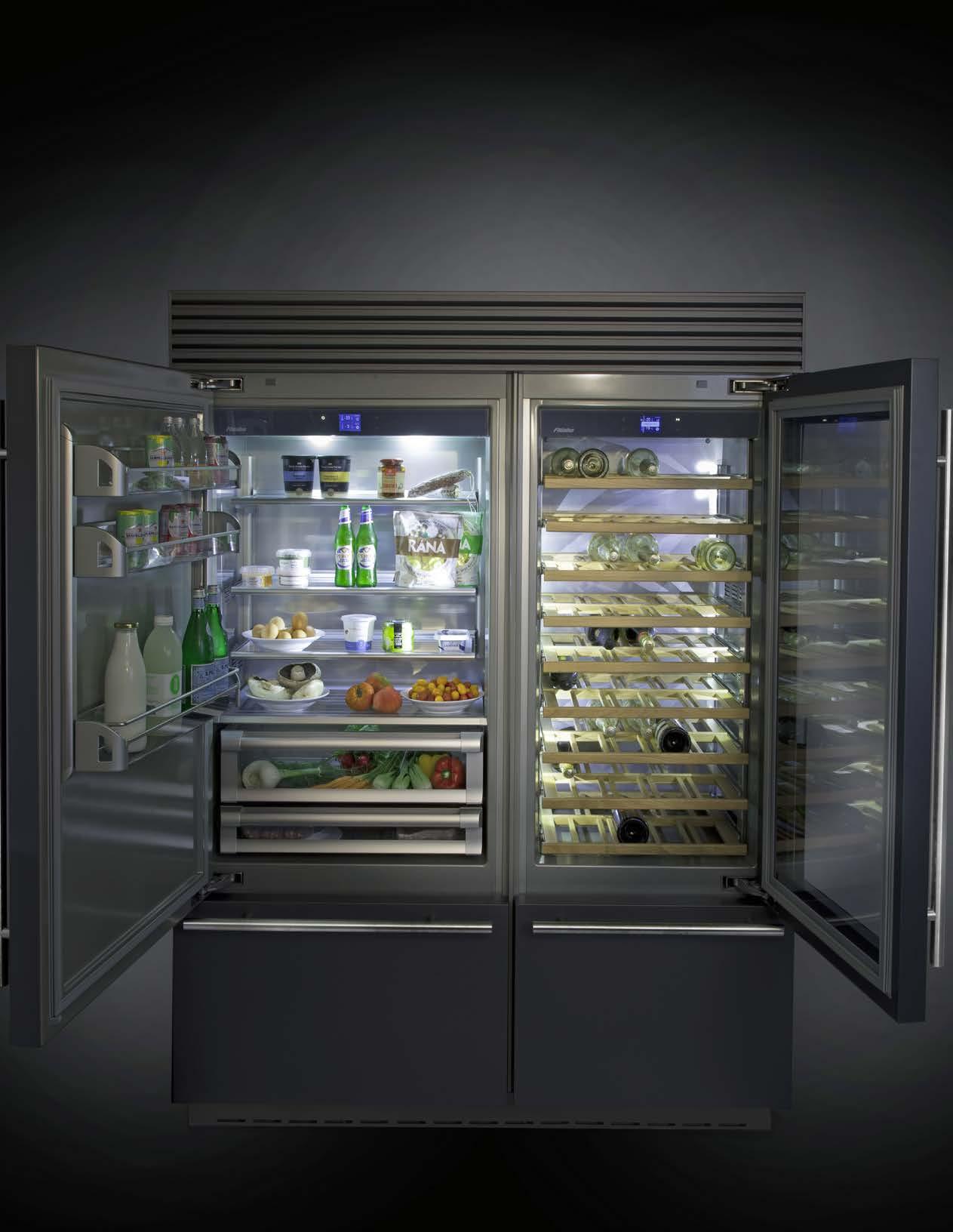

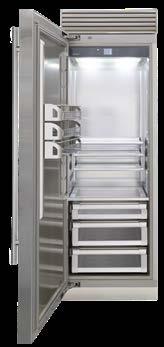

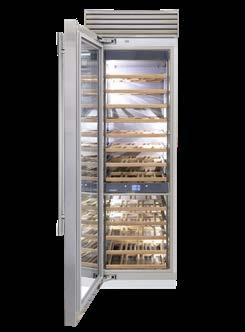

X-PRO SERIES
X-PRO SERIES SINGLE UPPER & LOWER GRILLS
X-PRO SERIES ACCESSORIES
ACCESSORIES
PERSONALISING YOUR FHIABA

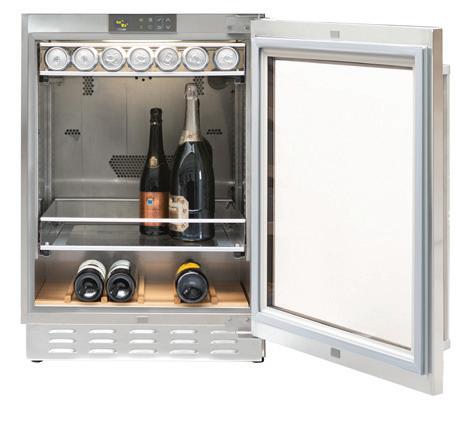

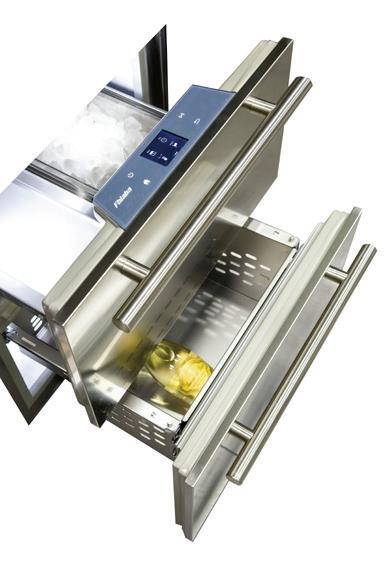

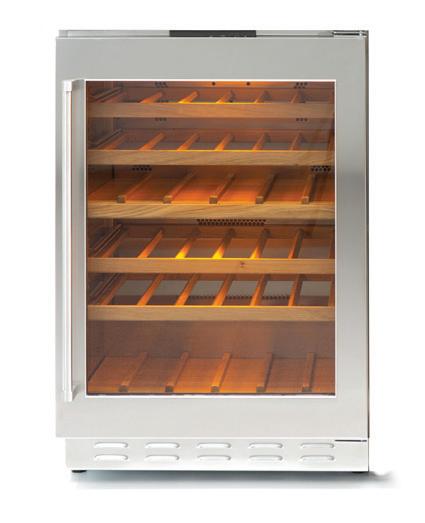

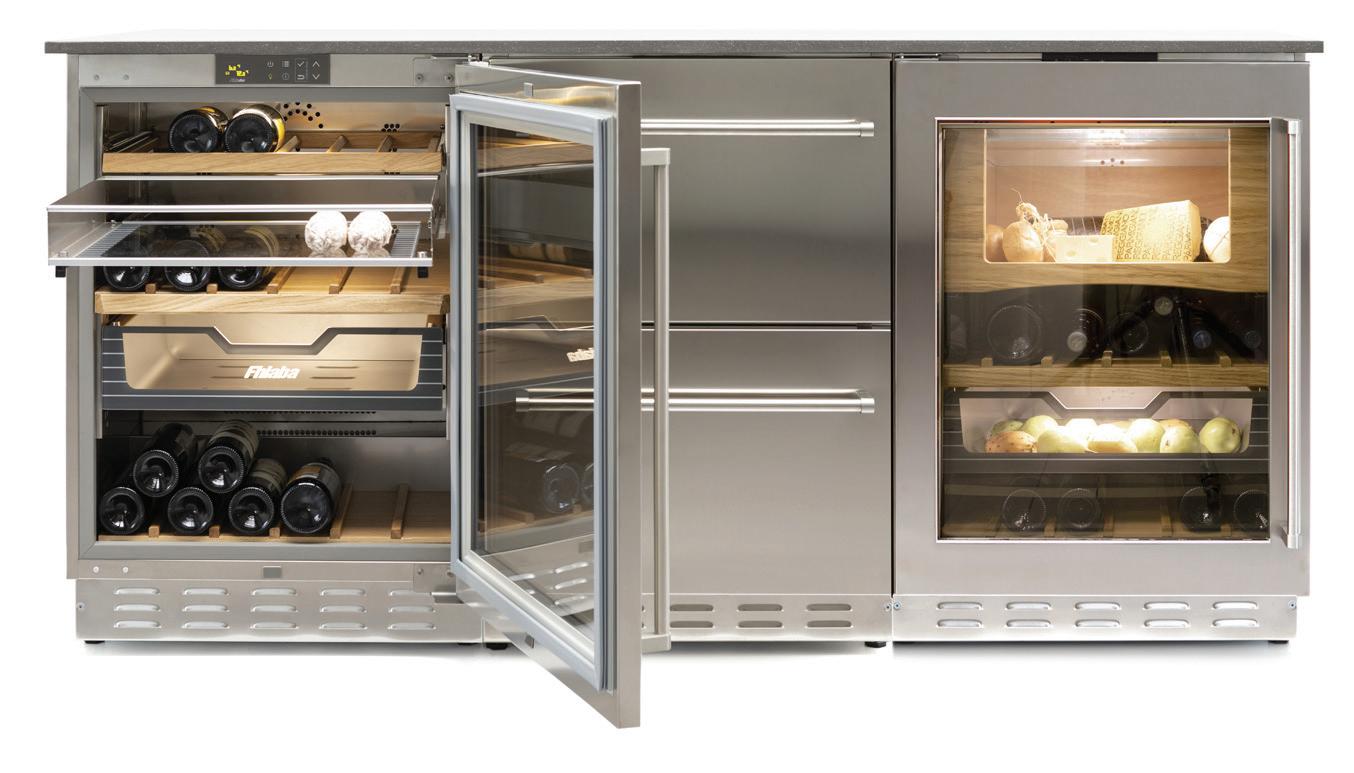

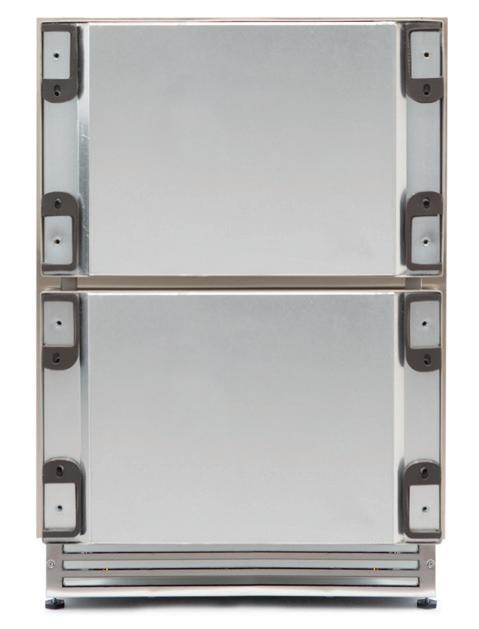

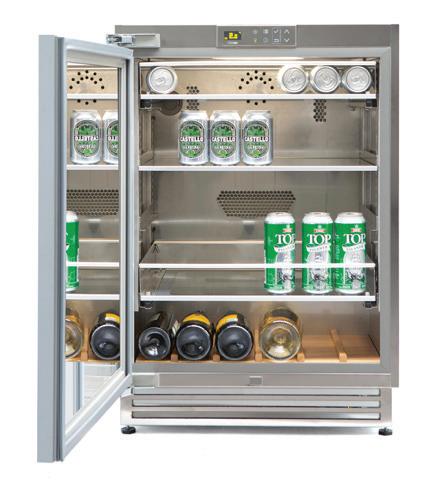

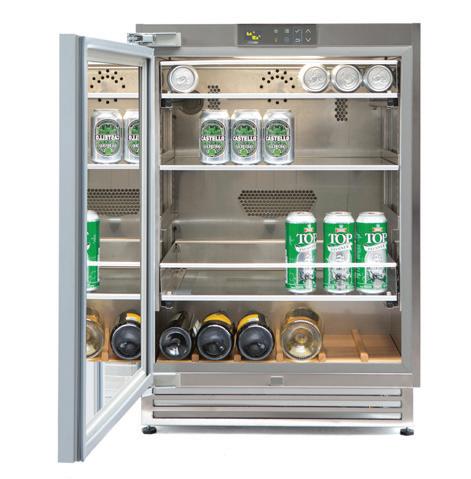

UNDERCOUNTER - INDOOR

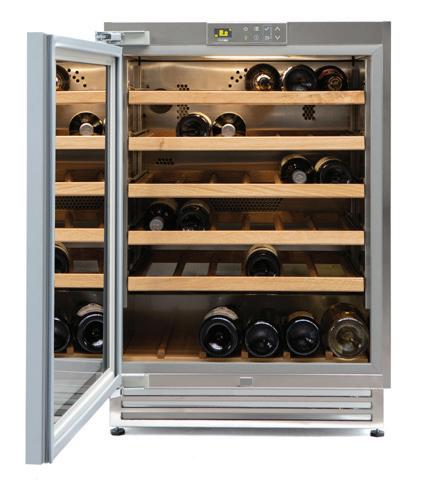

UNDERCOUNTER - OUTDOOR
ACCESSORIES
FHIABA'S SOLUTIONS
FRIDGES | FREEZERS | WINE CELLARS
micro climates

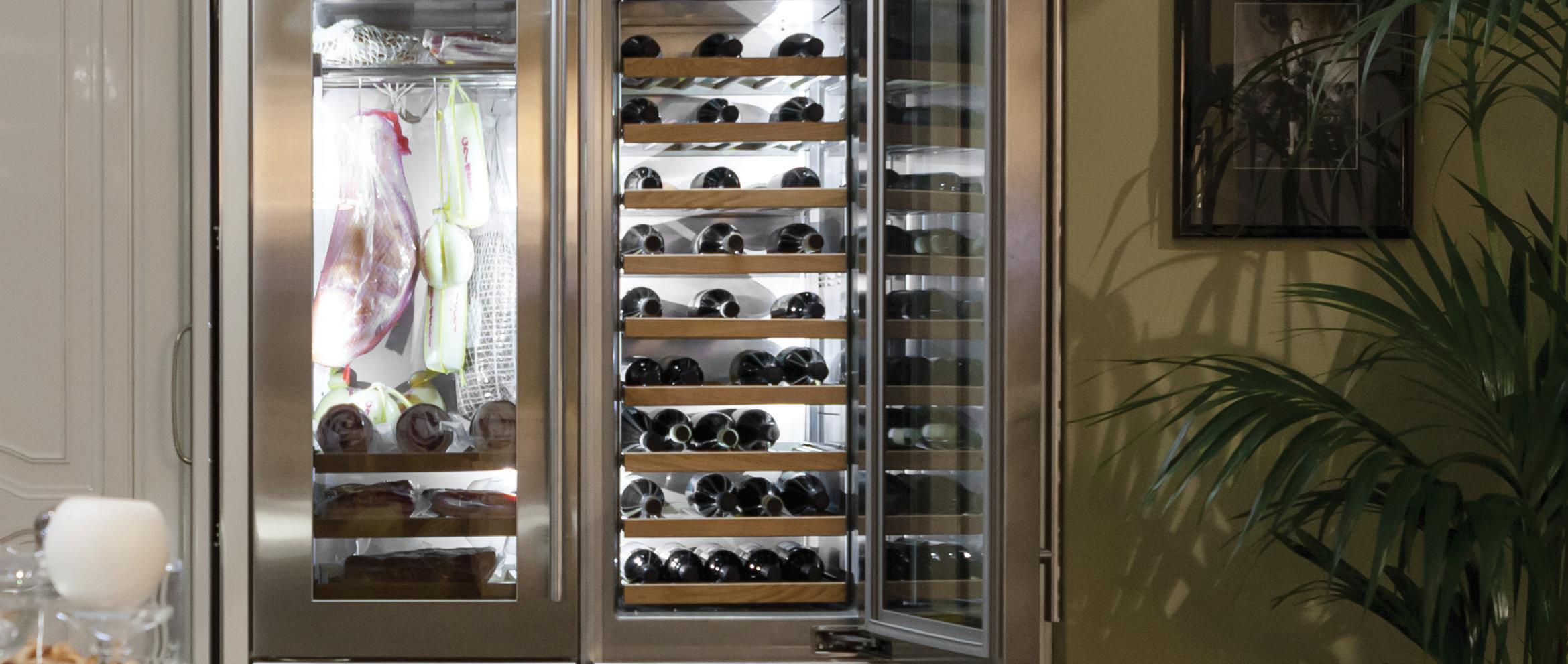

*or a prosciutteria/cheese cabinet

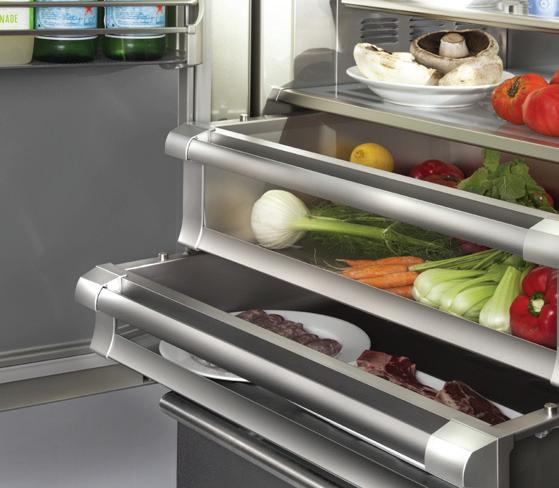

Our patented TriModeTM drawers can be set to three different micro climates: freezer, fresco or fridge.

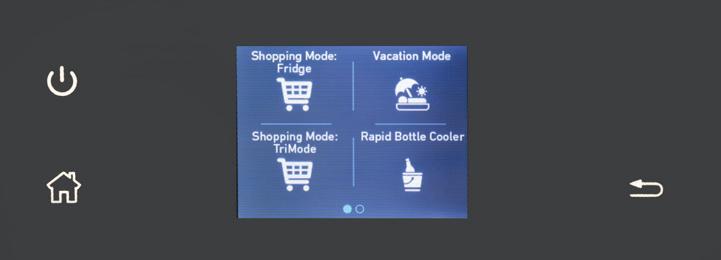

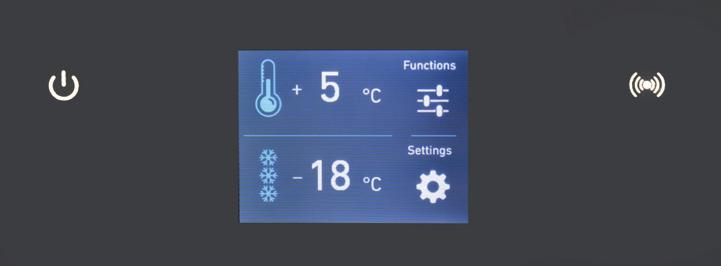

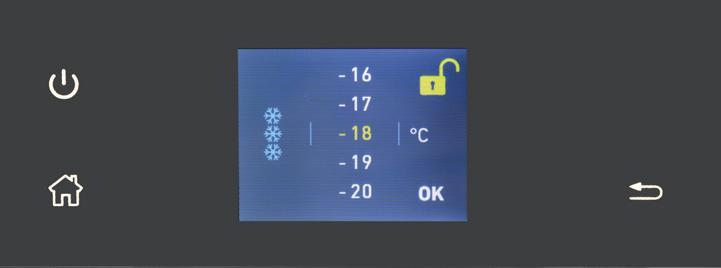

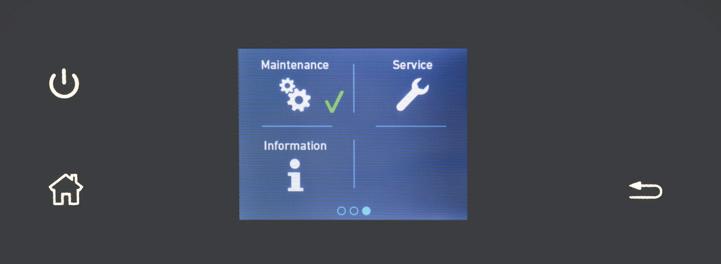

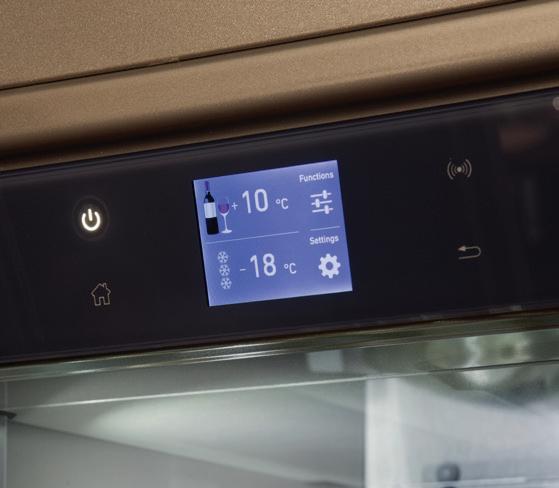

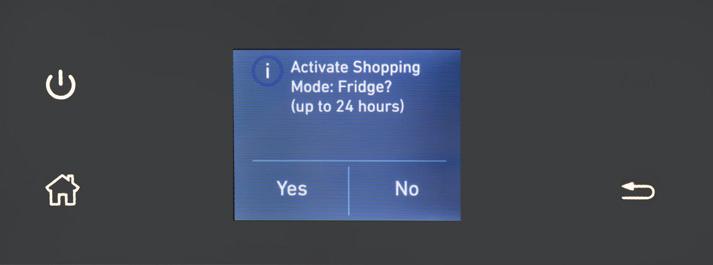

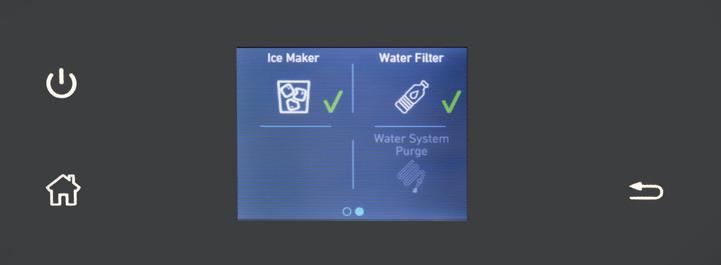

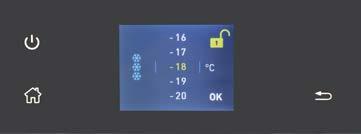

TFT Display Control Panel
THE FOUR DIMENSIONS OF QUALITY
Exclusive Fhiaba technology makes it possible to combine the four “key variables” of refrigeration, to create and maintain perfectly balanced climates. Temperature
Humidity
Ventilation
Time
Accurate temperatures
Thanks to the numerous built-in sensors, the indicated temperature is always accurate.
TriPro Refrigeration TM
The triple cooling system ensures each ingredient and dish gets the right microclimate.
Uniform ProVentTM Ventilation
The ProVentTM system uniformly distributes cold air to all parts of the fridge.
Humidity control
Our wine cellars offer three different humidity level settings: low, medium and high.
Fhiaba is the only company in the world today with technology capable of managing three independent climate zones, for unrivalled, high-quality food storage. Fhiaba systems also feature lateral refrigeration, thereby allowing for maximum use of the full depth of the inner compartments
COLOUR OPTIONS
Code
Description
M1D FRONT PANELS - PEARL WHITE
M1H

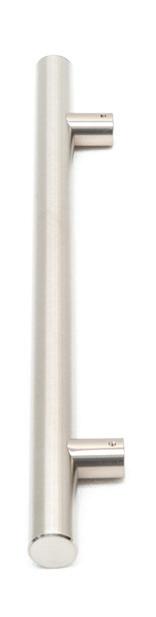

VERTICAL HANDLE &/OR HORIZONTAL HANDLE - PEARL WHITE
M2D FRONT PANELS - PEARL SILVER
M2H
VERTICAL HANDLE &/OR HORIZONTAL HANDLE - PEARL SILVER
M3D FRONT PANELS - GOLD
M3H
VERTICAL HANDLE &/OR HORIZONTAL HANDLE - GOLD
M4D FRONT PANELS - SATIN STEEL
M4H
VERTICAL HANDLE &/OR HORIZONTAL HANDLE - SATIN STEEL
M5D FRONT PANELS - TITANIUM
M5H
VERTICAL HANDLE &/OR HORIZONTAL HANDLE - TITANIUM
M6D FRONT PANELS - COPPER
M6H
VERTICAL HANDLE &/OR HORIZONTAL HANDLE - COPPER
FRIDGES | FREEZERS | WINE CELLARS

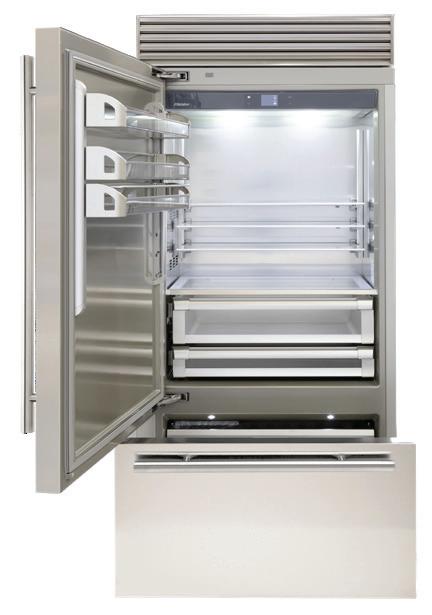

0T MODELS
One door, one bottom drawer, two separate temperatures
D = door
BD = bottom drawer
M = separate micro climates
Standard equipment fridge and freezer. Wine cellar standard equipment
MADE IN ITALY
• Stainless steel body AISI304 satin scotch bright
• Interior in AISI 304 stainless steel
• TriPro: the triple refrigeration system ensures the right microclimate for each food.
• Provent: guarantees a homogeneous distribution of cold air and favours the deep use of the internal compartments.
• Optiview: 11 fridge Led light spots and 14 Wine cellar Led light spots

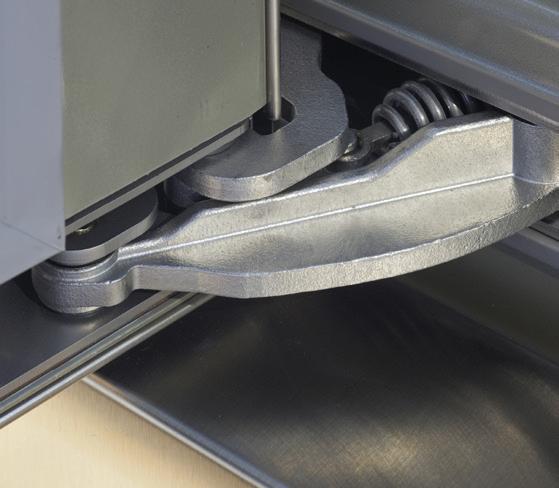

• Equilance: the variable fulcrum hinge allows the perfect flush installation and the total extraction of the internal drawers.
• Sabbath mode
• Total No Frost
• Soft closing hinge and doors
• Antibacterial interiors

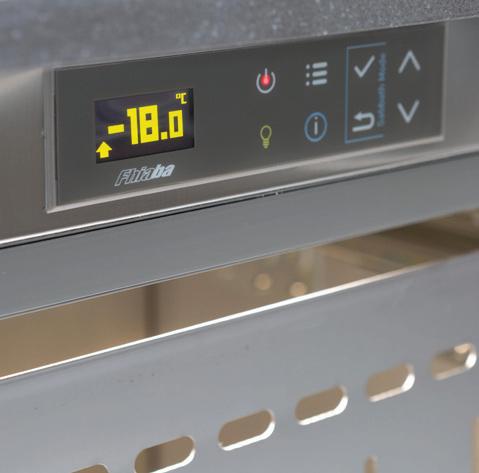

• Digital temperature display for both upper and lower temperature zone
• Acoustic and visual signal
• Front and rear adjustable feet up to 25mm in height
• Low vibration compressor
2 INDEPENDENT CLIMATIC COMPARTMENTS
+ LOW TEMP ZONE
• Refrigerator compartment temperature range : from + 2 ° C to + 8 ° C
• Low Temp zone
• Trimode compartment temperature range : from -22°C a + 8°C

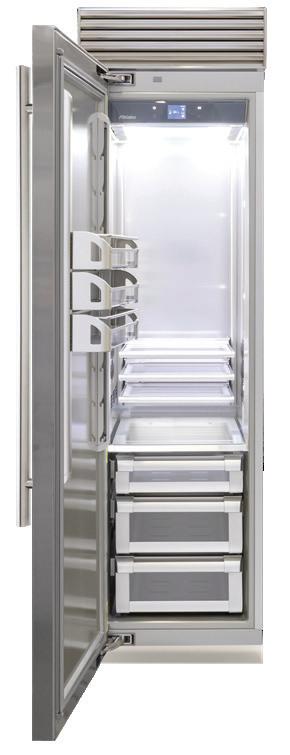

REFRIGERATOR COMPARTMENT
• User interface adjustable temperature from -2 ° C to + 8 ° C
• 3 tempered glass shelves with aluminium profiles
• 3 door bins fully adjustable in height
• EvenliftTM: unique "infinity sliding system" that allows to reposition the internal glass shelves without removing and emptying them, thanks to a rack and pinion patented system
• 6 LED light points illuminate the fridge from the ceiling
• 3 LED lights illuminate the fridge from the side

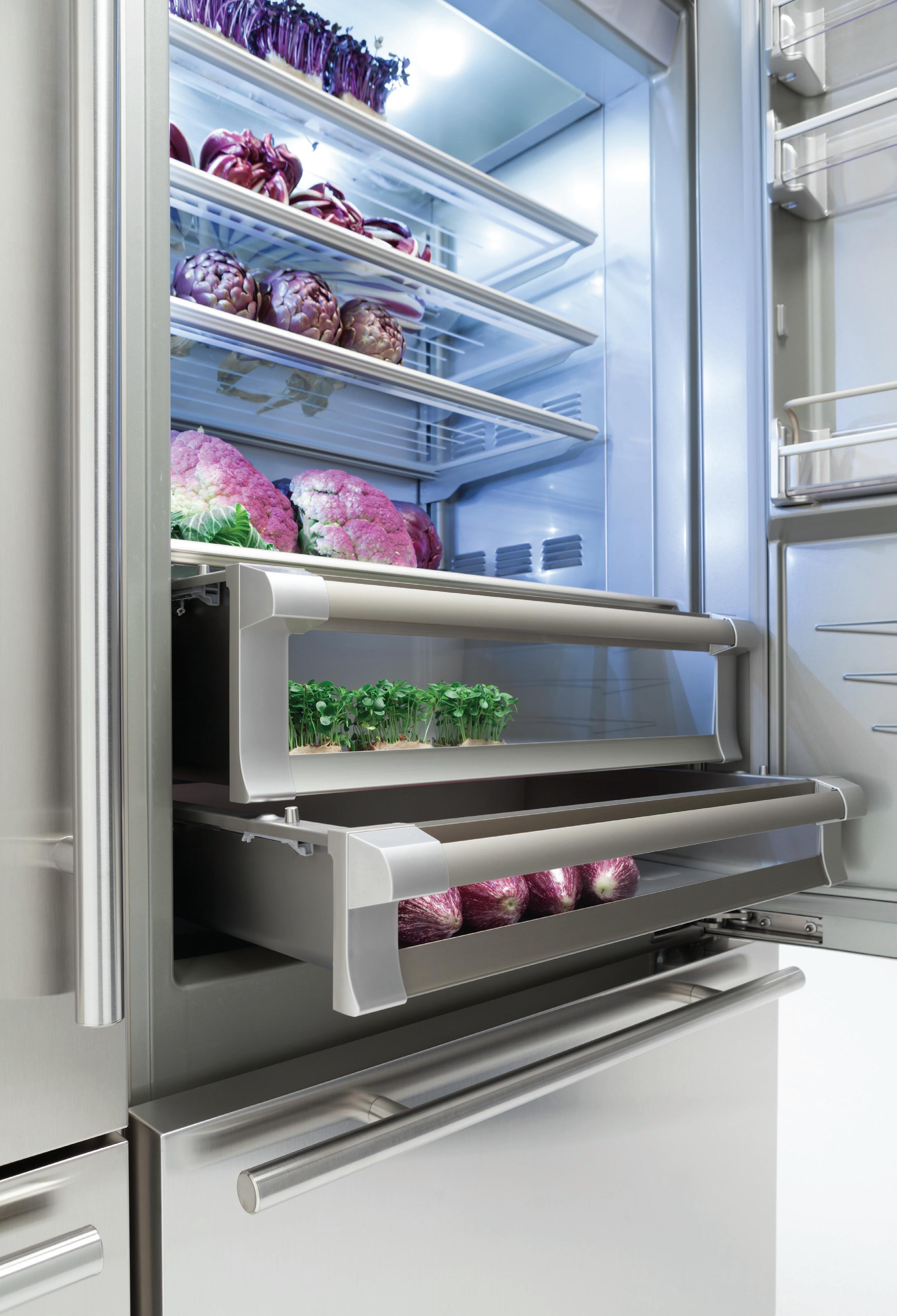

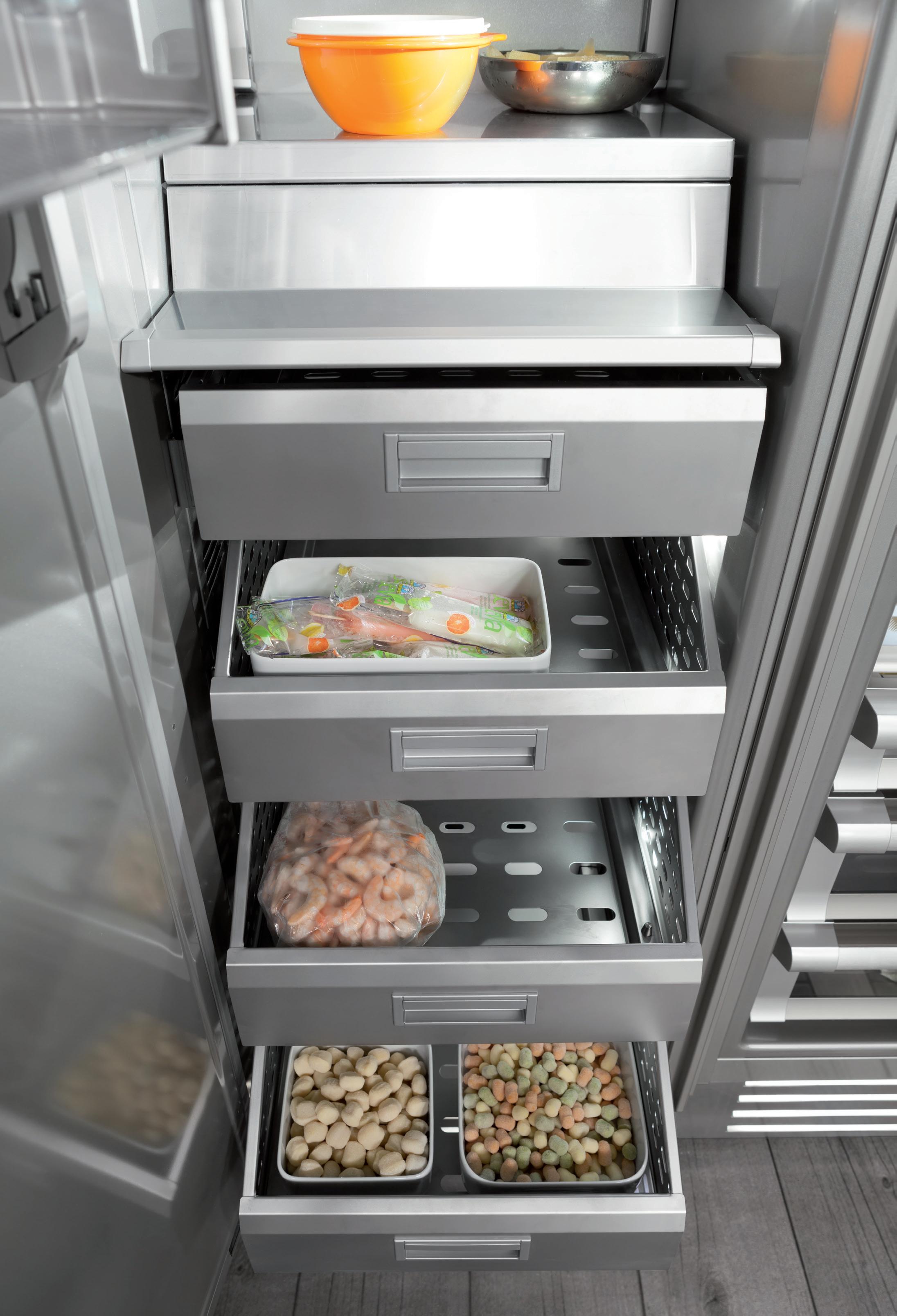

LOW TEMP ZONE
• Low temperature zone, in average 2 degrees lower than the refrigerator compartment temperature

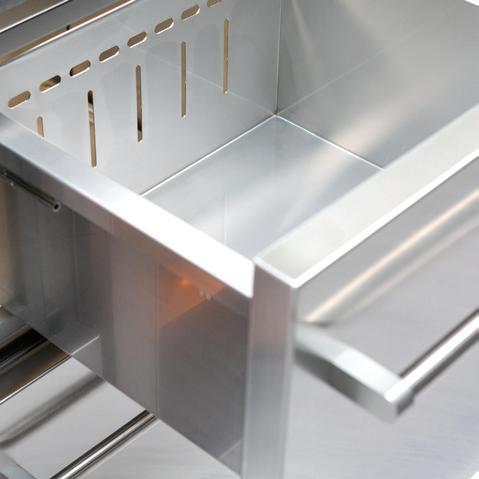

• 2 Low Temp drawers with antibacterial sandblasted stainless steel interior
• Full extraction drawers with soft closing runners
• Drawers with rounded corners to promote maximum hygiene and with 6mm tempered glass
• Ideal for storing meat, fish and vegetables

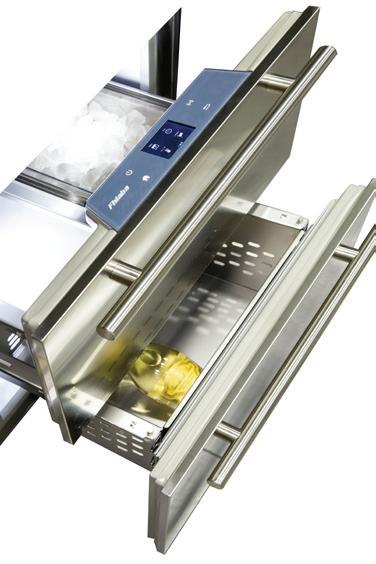

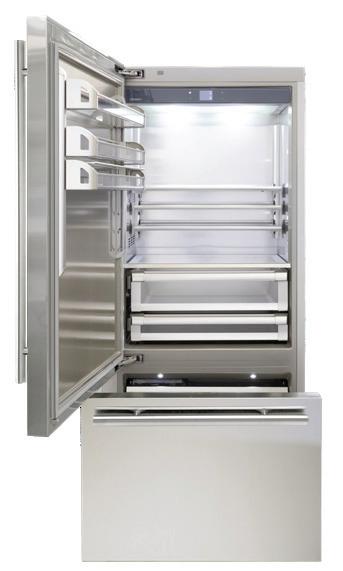

TRIMODE BOTTOM DRAWER
• User interface adjustable temperature from -22°C a + 8°C
• The patented Trimode drawer can operate in 3 different micro climates: freezer, Fresco and refrigerator.
• Full extraction drawers with soft closing runners
• 2 LED light points illuminate the drawers from the ceiling

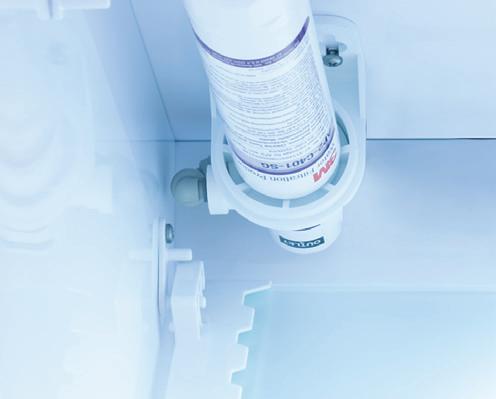

• Ice maker container housing (optional)

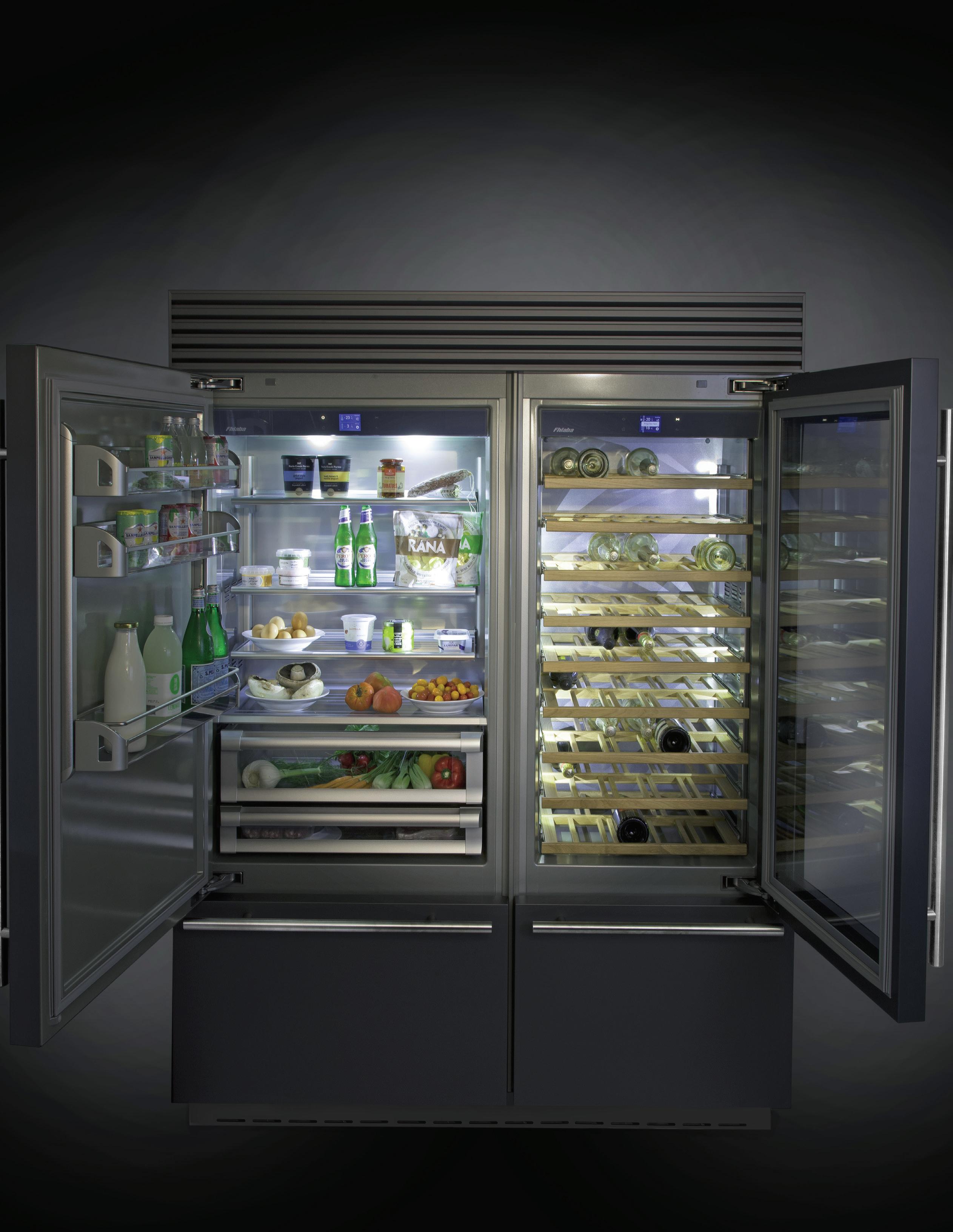

2 INDEPENDENT CLIMATIC COMPARTMENTS
• Wine cellar compartment: from + 4 ° C to + 18 ° C
• Bottom drawer with Trimode function: from -22 ° C to + 8 ° C

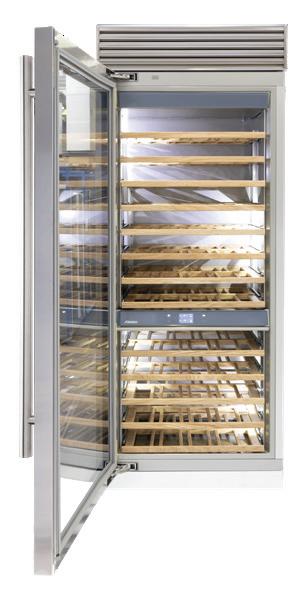

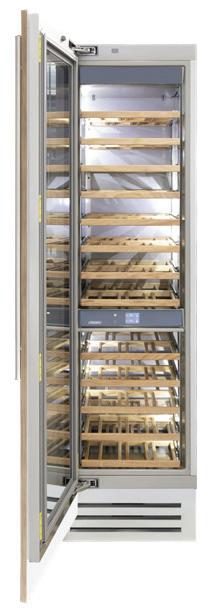

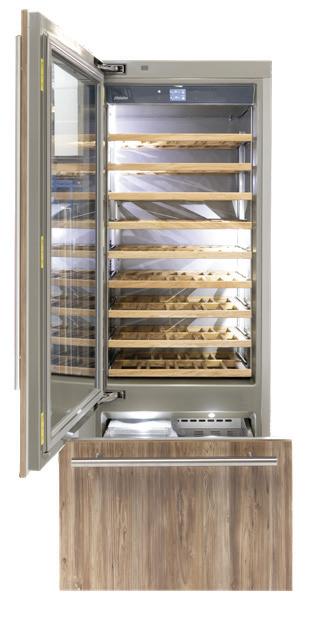

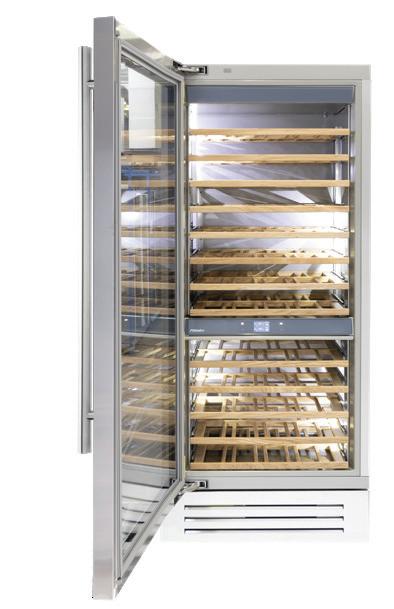

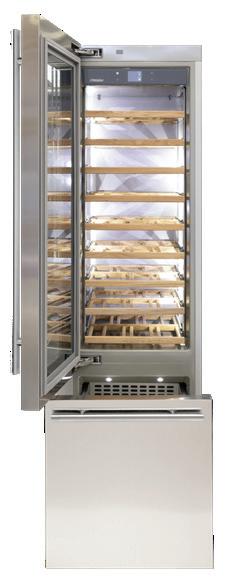

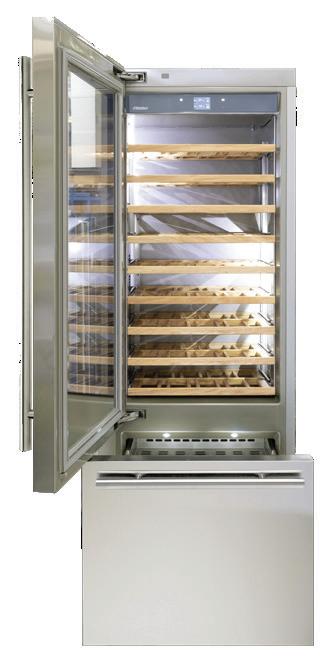

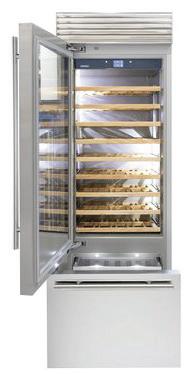

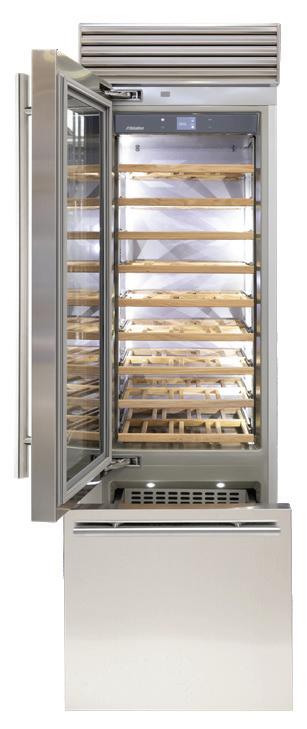

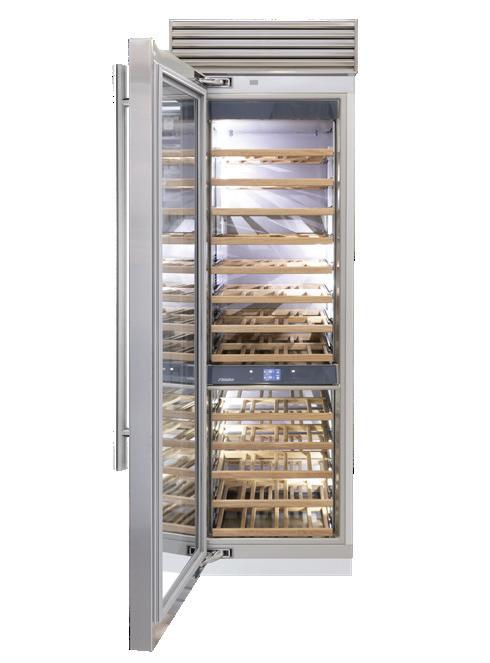

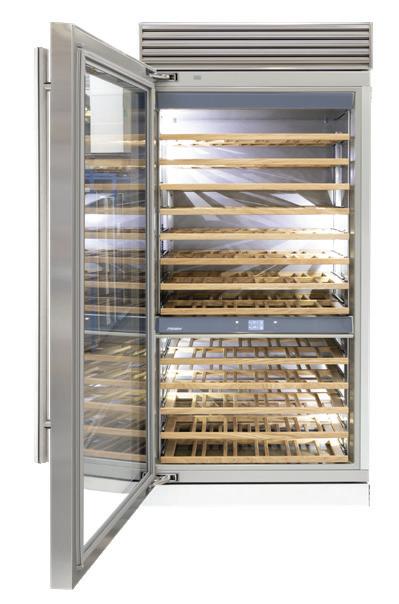

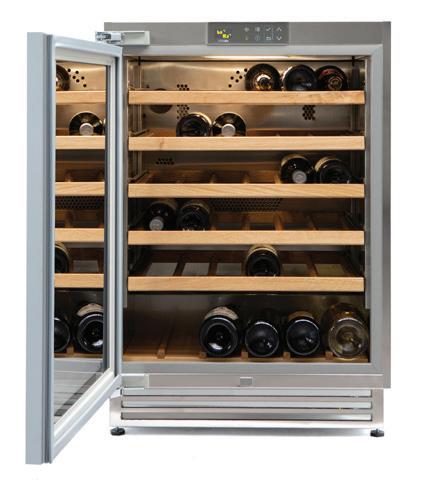

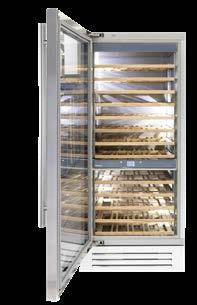

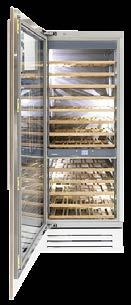

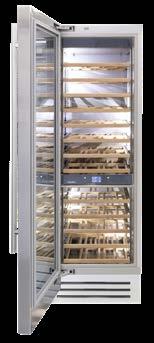

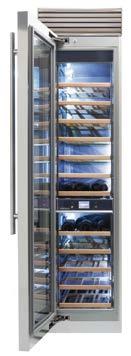

WINE CELLAR COMPARTMENT
• Three-layer glass door
• Wine cellar compartment: 9 wine shelves in natural oak wood:
• Shelf capacity 599: 6 bottles / 750ml, , fits burgundy and bordeaux bottles
• Shelf capacity 749: 8 bottles / 750ml, , fits burgundy and bordeaux bottles
• Humidity control
• Anti vibration system
• Full extraction wine shelves with soft closing runners
• 12 LED lights illuminate the fridge from the side
TRIMODE BOTTOM DRAWER
• User interface adjustable temperature from -22°C a + 8°C
• The patented Trimode drawer can operate in 3 different micro climates: freezer, Fresco and refrigerator.
• Full extraction drawers with soft closing runners
• 2 LED light points illuminate the drawers from the ceiling
1D | 1BD | 2M
PRODUCT CODES DEFINED
example :
digit # 1-> model series
XS = X-Pro (top compressors, stainless steel front)
KS = Classic (bottom compressors, stainless steel front)
S = Integrated (bottom compressors, flush or built-in)
digit # 2 > width
899 = 90 cm
749 = 75 cm
599 = 60 cm
digit # 3 > model configuration
0T = One door, one bottom drawer, two separate temperatures
0F = One door. Fridge and Freezer one temperature. Wine cellar two separate temperatures.
digit # 4/5 > function and door style
ST = Fridge/Trimode, Solid door
WT = Wine Cellar/Trimode
R = Fridge column
Z = Freezer column
W = Wine Cellar column
digit # 6 > hinge positioning
3 = Hinge on the left
6 = Hinge on the right
digit # 7 > model options
To indicate a unit equipped with Ice Maker -> add “i” (not available on wine cellars, 599 fridges and 0F fridge models)
Titanium colour door and handle
Right hinge add "6" at the end of the code free
Left hinge add "3" at the end of the code free
PRODUCT CODES DEFINED
example :
749 0F S
digit # 1-> model series
R 3 -
XS = X-Pro (top compressors, stainless steel front)
KS = Classic (bottom compressors, stainless steel front)
S = Integrated (bottom compressors, flush or built-in)
digit # 2 > width
899 = 90 cm
749 = 75 cm
599 = 60 cm
digit # 3 > model configuration
0T = One door, one bottom drawer, two separate temperatures
0F = One door. Fridge and Freezer one temperature. Wine cellar two separate temperatures.
digit # 4/5 > function and door style
ST = Fridge/Trimode, Solid door
WT = Wine Cellar/Trimode
R = Fridge column
Z = Freezer column
W = Wine Cellar column
digit # 6 > hinge positioning
3 = Hinge on the left
6 = Hinge on the right

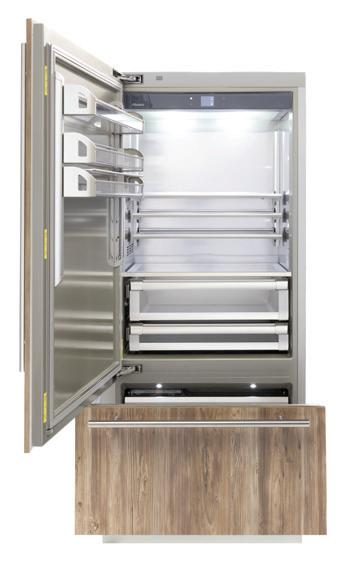

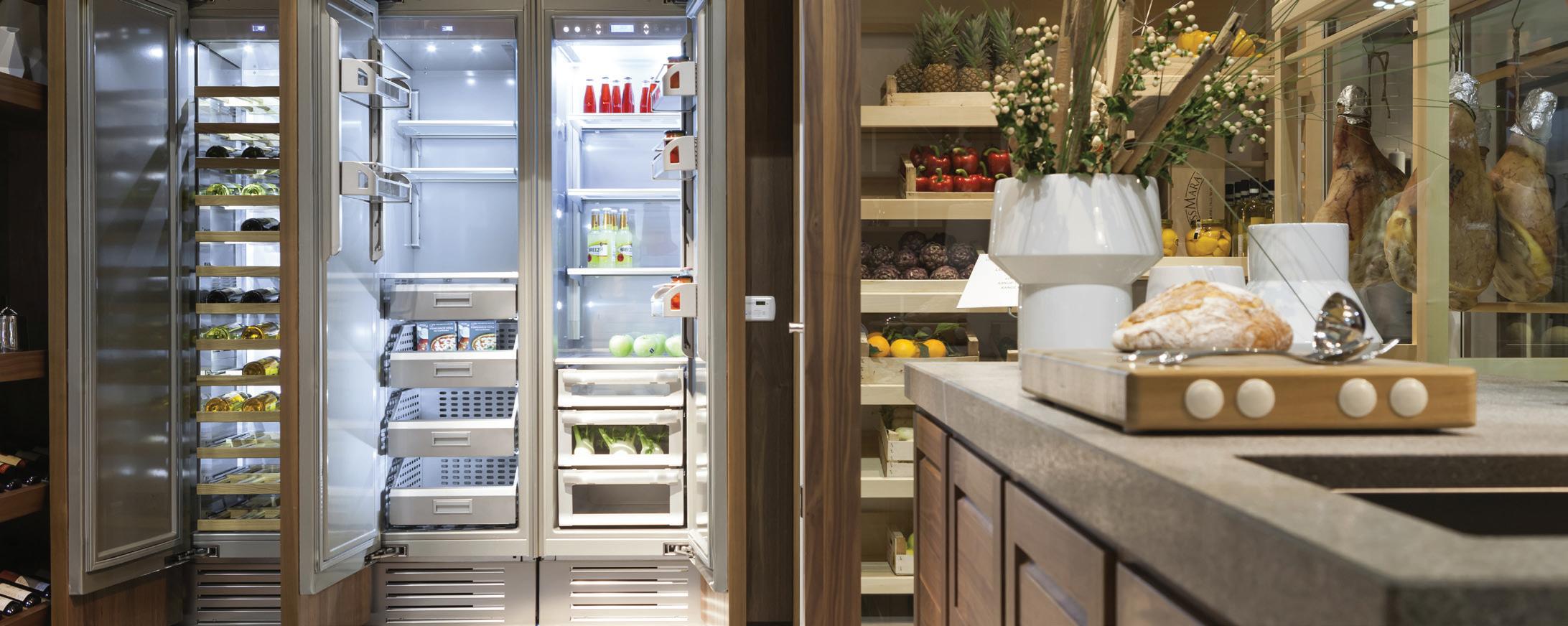

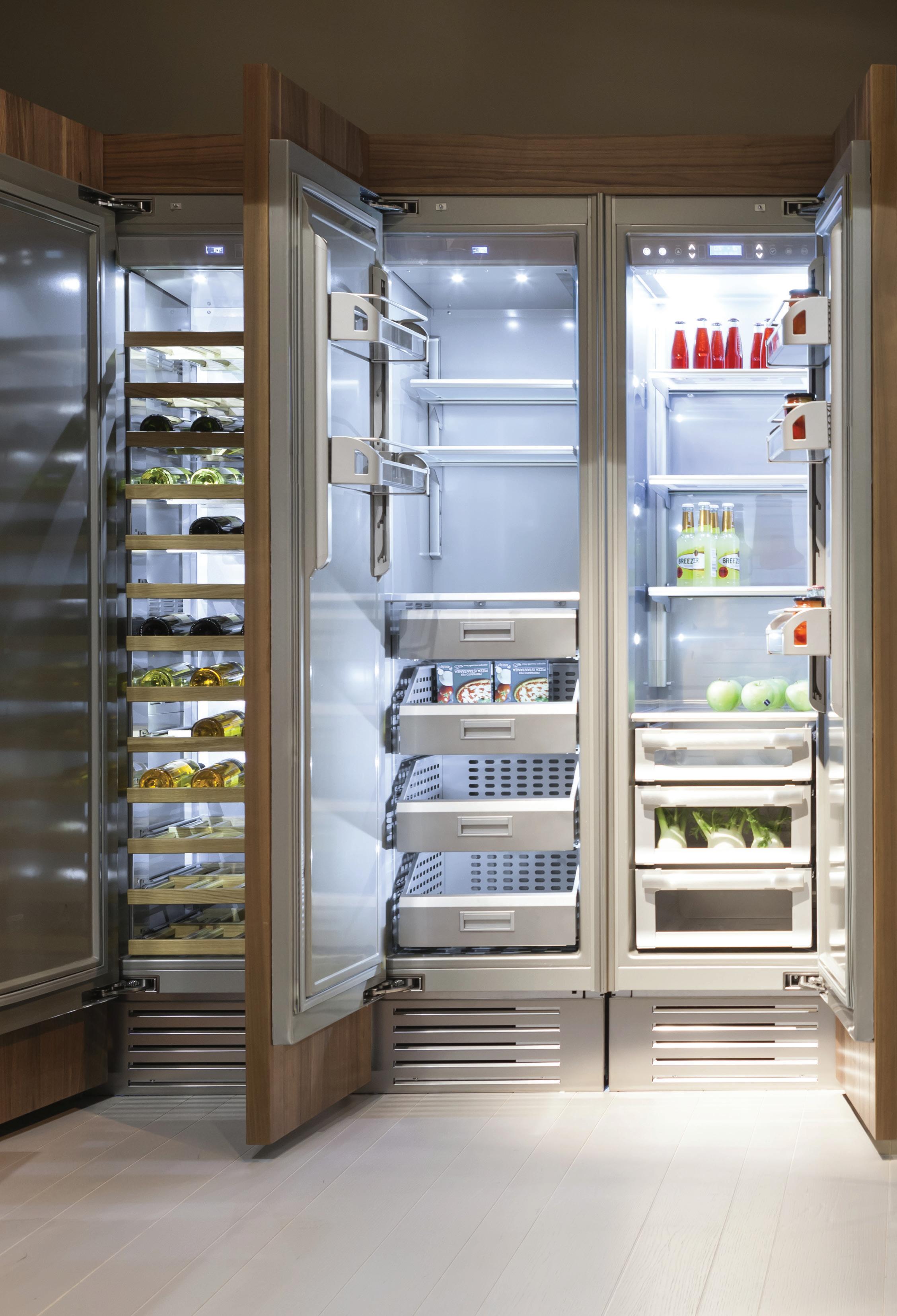

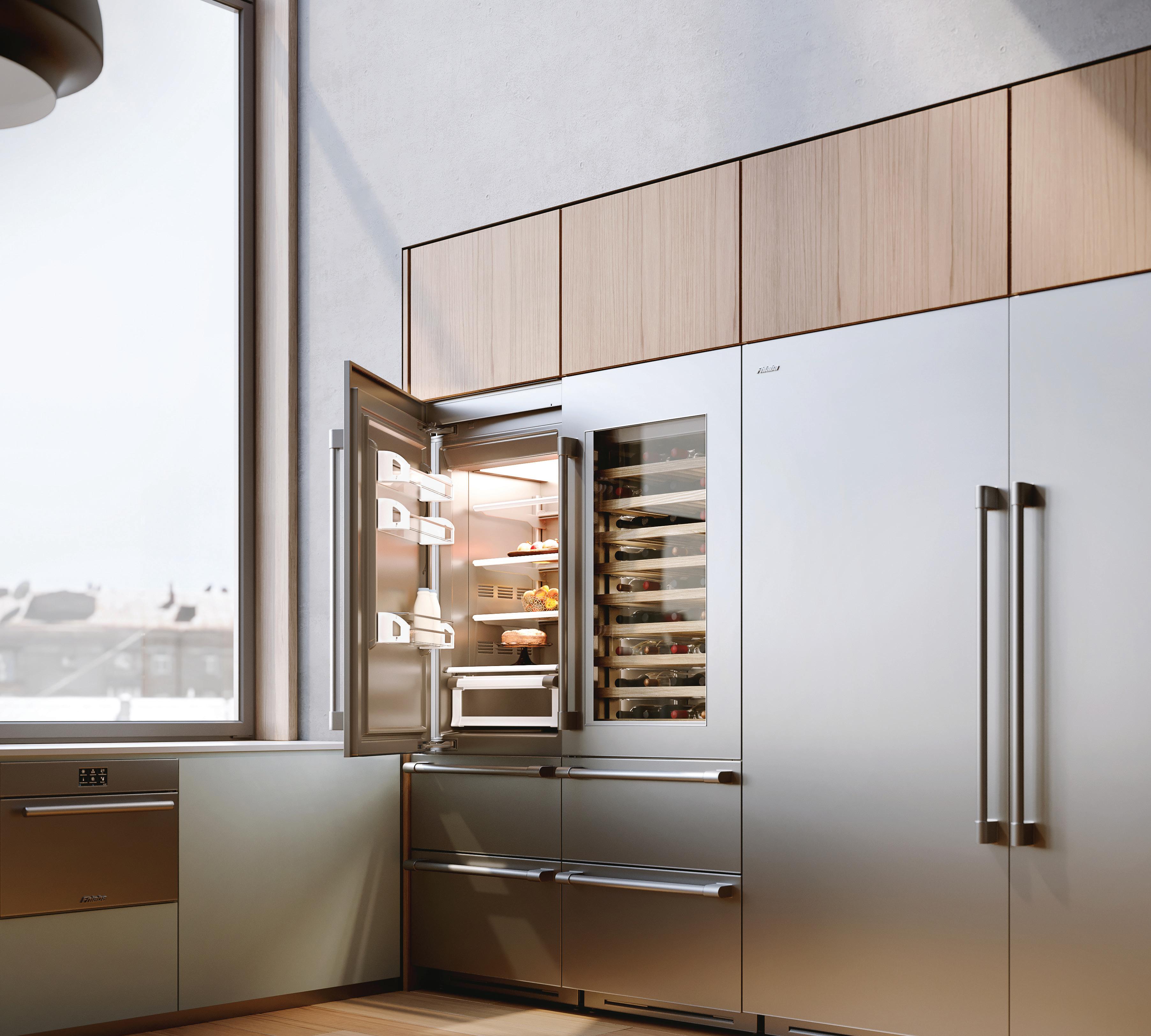

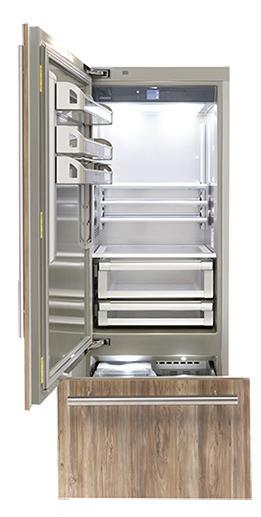

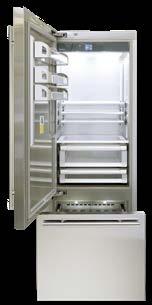

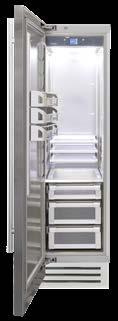

INTEGRATED
Fridge & Tri-mode

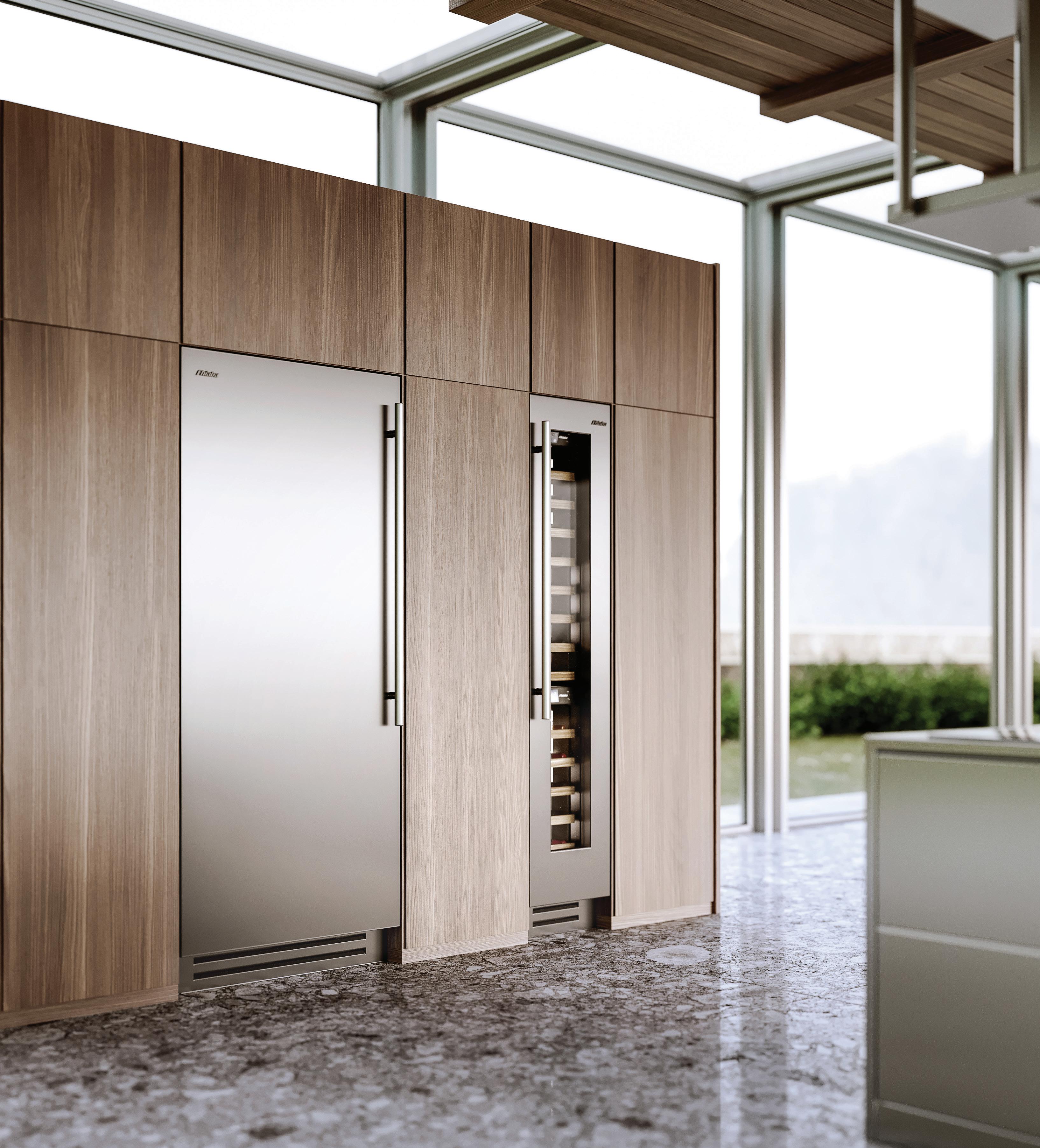

Silent and invisible, the Integrated Series by Fhiaba disappear into any kitchen design only to reappear when called upon with its luxury interior and outstanding preservation qualities
S8990TST3iA
S8990TST6iA
Available with Left (3) or Right (6) hand hinge position
S7490TST3iA
S7490TST6iA
Available with Left (3) or Right (6) hand hinge position

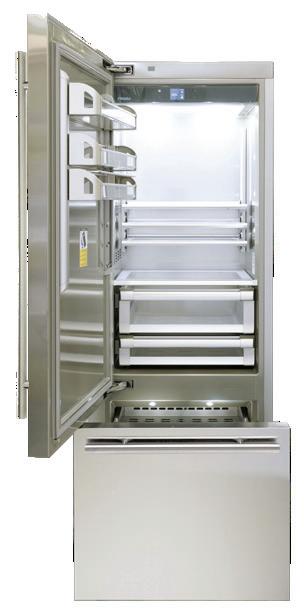

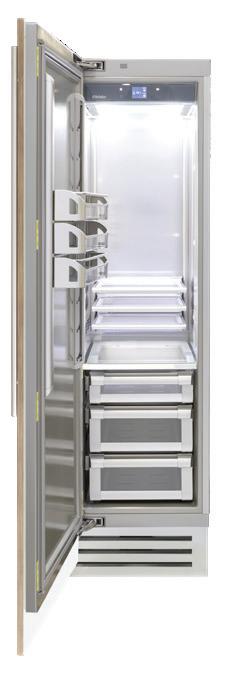

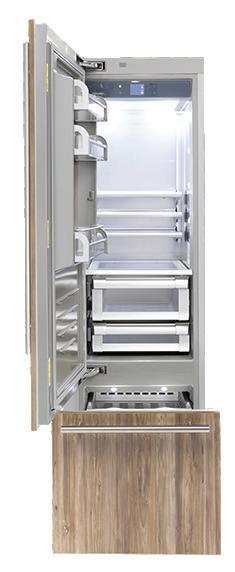

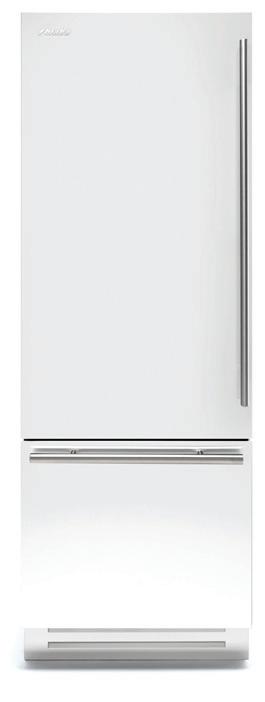

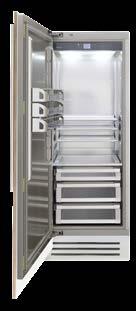

Fully Integrated Series Refrigerator & Trimode with
SEE PAGE 13
S5990TST3A
S5990TST6A
Available with Left (3) or Right (6) hand hinge position
INTEGRATED

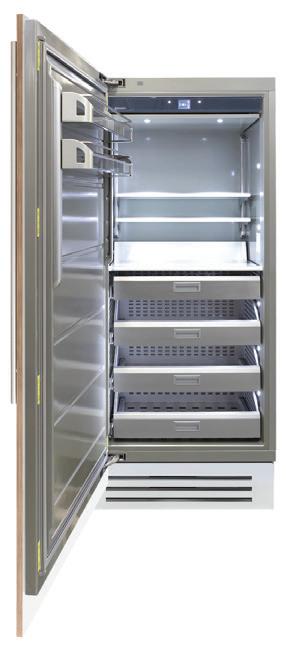

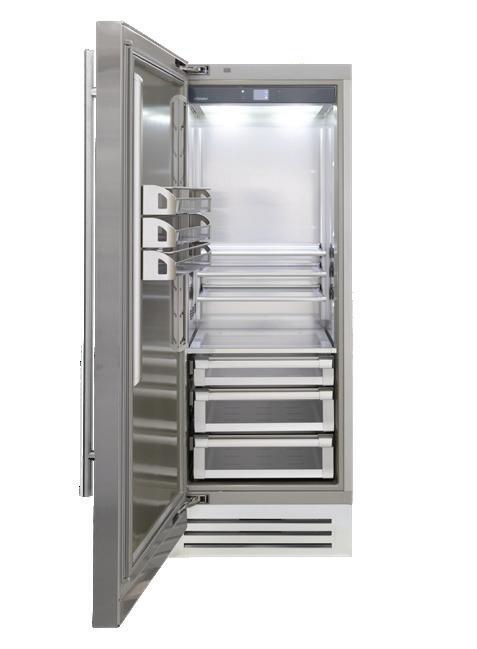

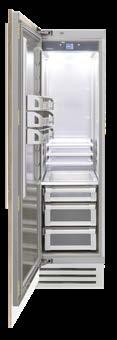

S8990FR3A
S8990FR6A
Available with Left (3) or Right (6) hand hinge position 90cm Fully Integrated Series Column Refrigerator
S7490FR3A
S7490FR6A
Available with Left (3) or Right (6) hand hinge position
SEE PAGE 13
S5990FR3A
S5990FR6A
Available with Left (3) or Right (6) hand hinge position

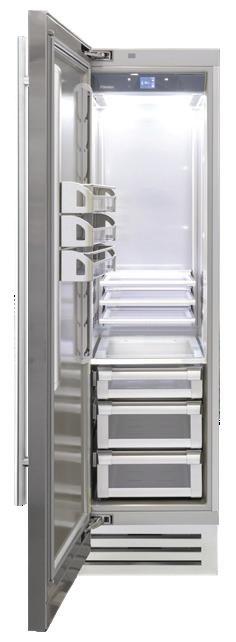

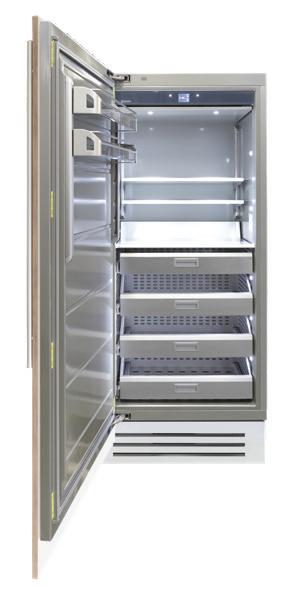

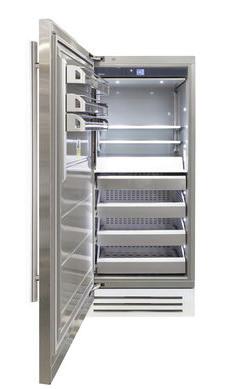

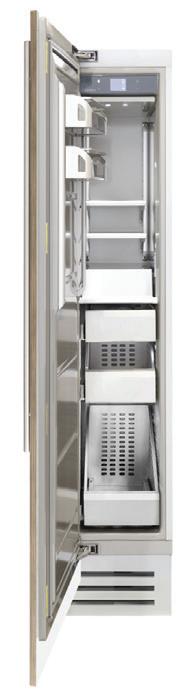

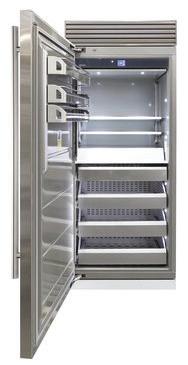

Fully Integrated Series Column Refrigerator
SEE PAGE 13
INTEGRATED

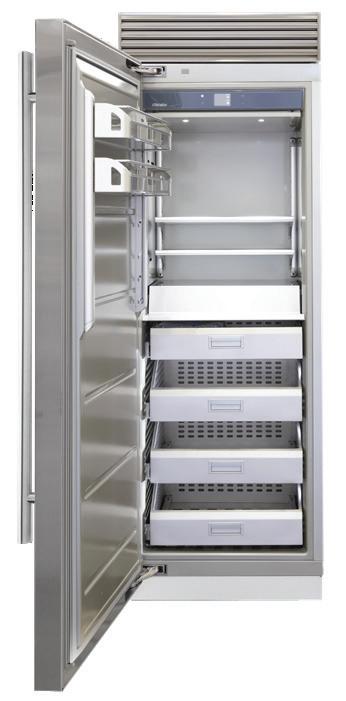

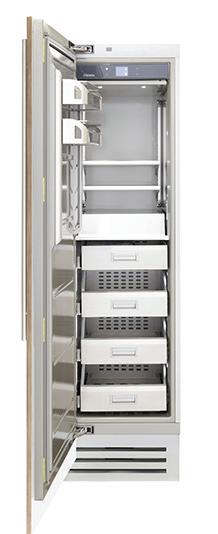

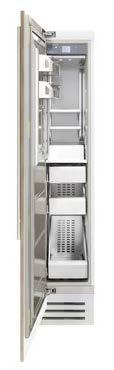

S8990FZ3IA
S8990FZ6IA
Available with Left (3) or Right (6) hand hinge position
90cm Fully Integrated Series Column Refrigerator ACCESSORIES SEE PAGE 13
S7490FZ3iA
S7490FZ6iA
Available with Left (3) or Right (6) hand hinge position

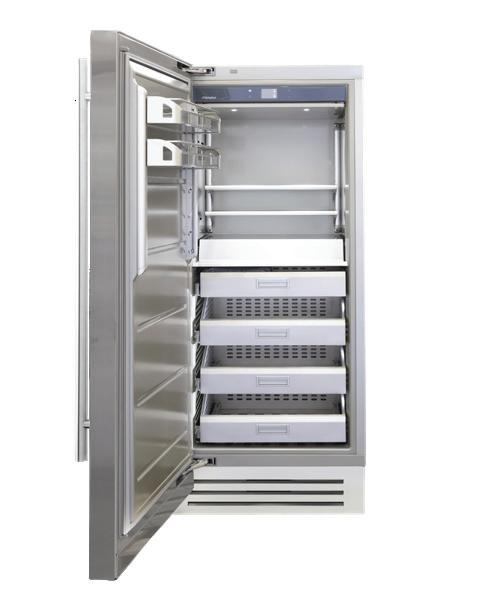

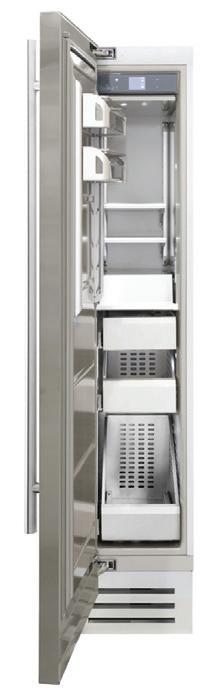

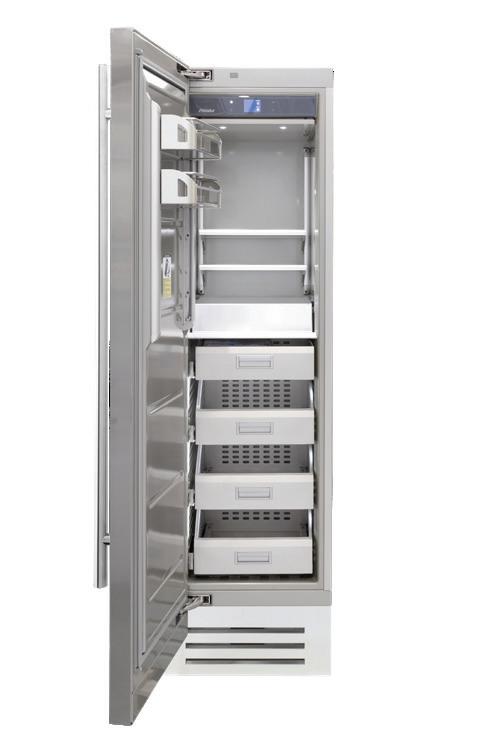

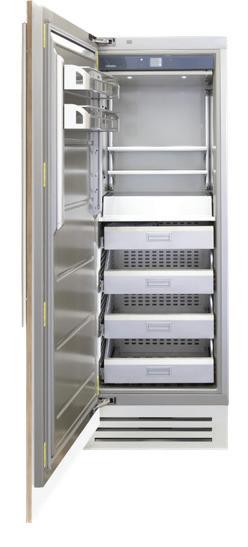

Fully Integrated Series Column Freezer
SEE PAGE 13
S5990FZ3iA
S5990FZ6iA
Available with Left (3) or Right (6) hand hinge position 60cm Fully Integrated Series Column Freezer
S4990FZ3IA
S4990FZ6IA
Available with Left (3) or Right (6) hand hinge position
SEE PAGE 13
Classic Series Column Freezer With Ice Maker

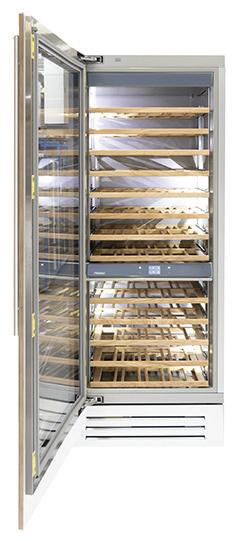

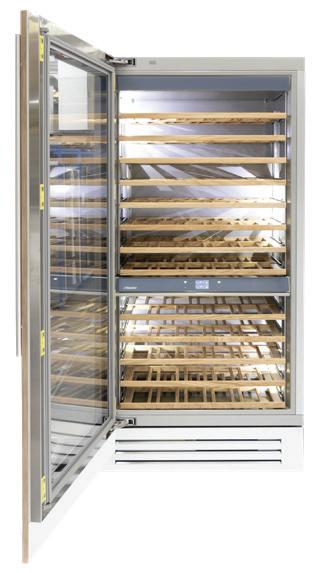

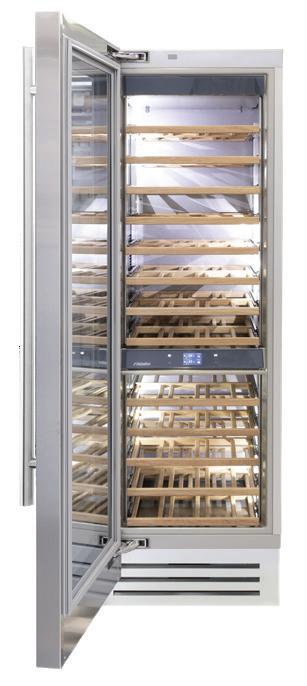

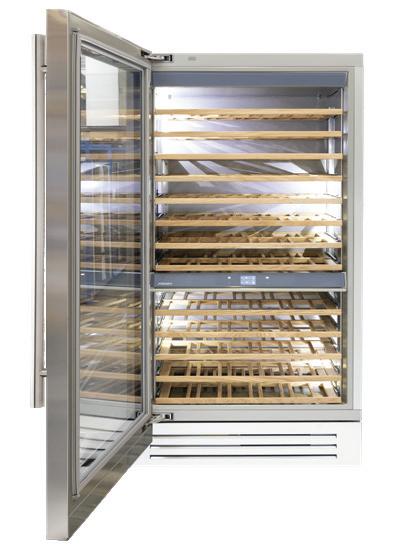

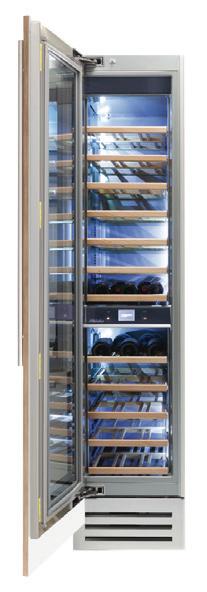

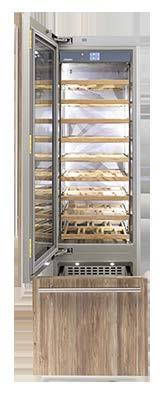

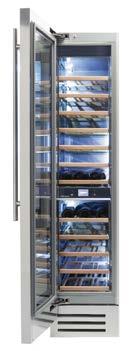

S8990FW3A
S8990FW6A
Available with Left (3) or Right (6) hand hinge position
S7490FW3A
S7490FW6A Available with Left (3) or Right (6) hand hinge position
S5990FW3A
S5990FW6A
with Left (3) or Right (6) hand hinge position
S4490FW3A
S4490FW6A
Available with Left (3) or Right (6) hand hinge position

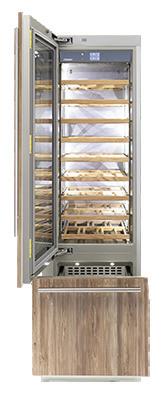

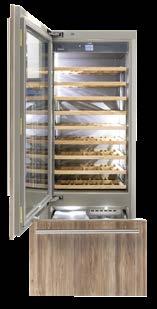

S7490TWT3A
S7490TWT6A Available with Left (3) or Right (6) hand hinge position
S5990TWT3A
S5990TWT6A
ACCESSORIES & JOINING KITS

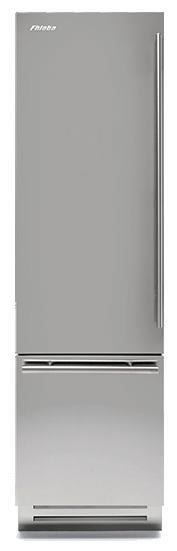

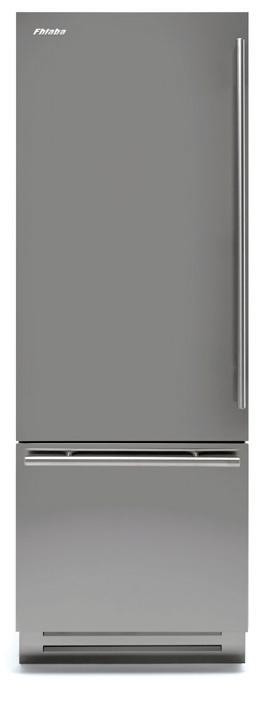

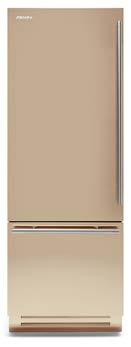

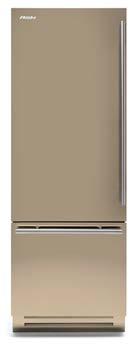

CLASSIC
Fridge & Tri-mode
Fhiaba’s innovative solutions have been transformed into a smooth, sleek design featuring fresh aesthetics and tubular stainless steel handles with a brushed satin finish. This is the ideal solution to complete your kitchen design, offering professional refrigeration and a wine preservation system.

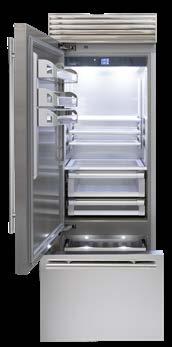

KS8990TST3iA
KS8990TST6iA
Available with Left (3) or Right (6) hand hinge position
90cm Classic Series Refrigerator & Trimode with ice maker

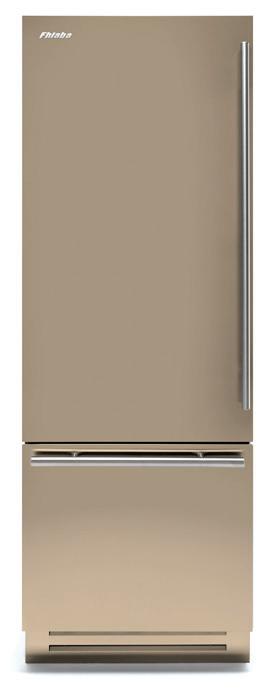

Available in 6 colours and optional matching door handles
M1 - Pearl White
M2 - Pearl Silver
M3 - Gold
M4 - Satin Steel
M5 - Titanium

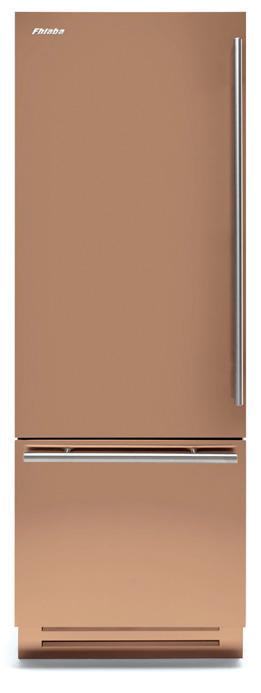

M6 - Copper
SINGLE GRILL OPTIONS & ACCESSORIES SEE PAGE 21-24
KS7490TST3iA
KS7490TST6iA
Available with Left (3) or Right (6) hand hinge position
75cm Classic Series Refrigerator & Trimode with ice maker Available in 6 colours and optional matching door handles
M1 - Pearl White
M2 - Pearl Silver
M3 - Gold
M4 - Satin Steel
M5 - Titanium
M6 - Copper
SINGLE GRILL OPTIONS & ACCESSORIES SEE PAGE 21-24
KS5990TST3A
KS5990TST6A
Available with Left (3) or Right (6) hand hinge position

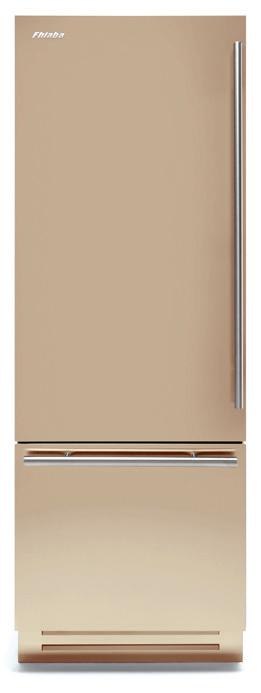

60cm Classic Series Refrigerator & Trimode
Available in 6 colours and optional matching door handles
M1 - Pearl White
M2 - Pearl Silver
M3 - Gold
M4 - Satin Steel
M5 - Titanium
M6 - Copper
SINGLE
$24,606
$24,606 $23,868 $24,606 $23,868 $24,606 $23,868 $24,606

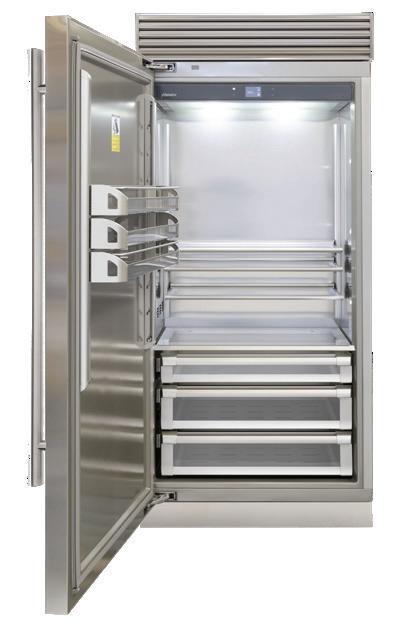

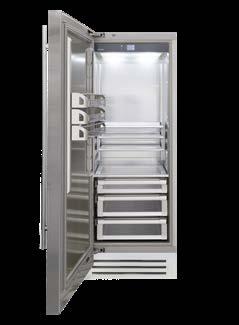

KS8990FR3A
KS8990FR6A
Available with Left (3) or Right (6) hand hinge position
90cm Classic Series Column Refrigerator
Available in 6 colours and optional matching door handles
M1 - Pearl White
M2 - Pearl Silver
M3 - Gold
M4 - Satin Steel
M5 - Titanium
M6 - Copper SINGLE GRILL OPTIONS & ACCESSORIES SEE
KS7490FR3A
KS7490FR6A
Available with Left (3) or Right (6) hand hinge position
75cm Classic Series Column Refrigerator
Available in 6 colours and optional matching door handles
M1 - Pearl White
M2 - Pearl Silver
M3 - Gold
M4 - Satin
M5 - Titanium
Available with Left (3) or Right (6) hand hinge position
60cm Classic Series Column Refrigerator
Available in 6 colours and optional matching door handles
M1 - Pearl White
M2 - Pearl Silver
M3 - Gold
M4 - Satin Steel
M5 - Titanium
M6 - Copper
SINGLE GRILL OPTIONS & ACCESSORIES SEE PAGE 21-24
$19,858 $20,277 $19,858 $20,277 $19,858 $20,277 $19,858 $20,277

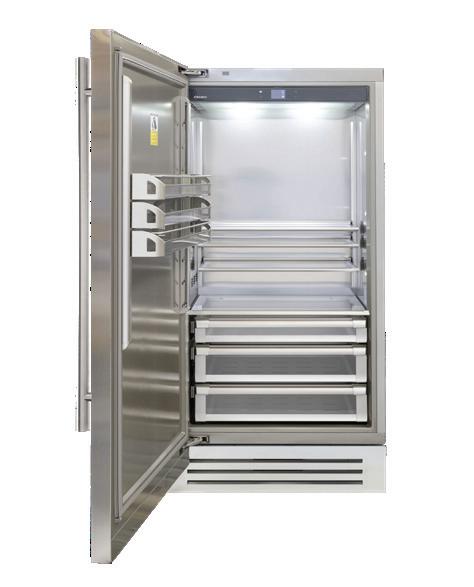

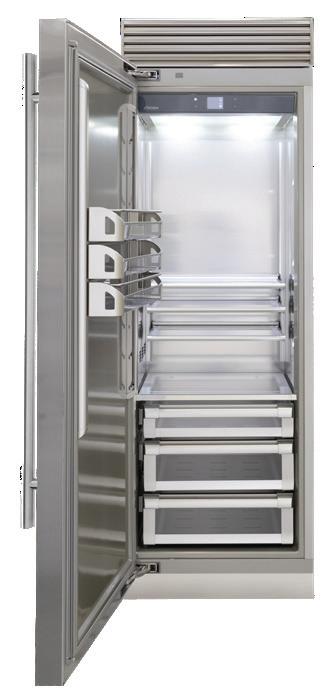

Column Fridge

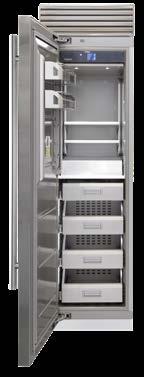

KS8990FZ3IA
KS8990FZ6IA
Available with Left (3) or Right (6) hand hinge position
90cm Classic Series Column Freezer with ice maker
Available in 6 colours and optional matching door handles
M1 - Pearl White
M2 - Pearl Silver
M3 - Gold
M4 - Satin Steel
M5 - Titanium M6 - Copper
KS7490FZ3iA
KS7490FZ6iA
Available with Left (3) or Right (6) hand hinge position
75cm Classic Series Column Freezer with ice maker Available in 6 colours and optional matching door handles
M1 - Pearl White
M2 - Pearl Silver
M3 - Gold
M4 - Satin Steel
M5 - Titanium
M6 - Copper
SINGLE GRILL OPTIONS & ACCESSORIES SEE PAGE 21-24
KS5990FZ3iA
KS5990FZ6iA
Available with Left (3) or Right (6) hand hinge position
60cm Classic Series Column Freezer with ice maker
Available in 6 colours and optional matching door handles
M1 - Pearl White
M2 - Pearl Silver
M3 - Gold
M4 - Satin Steel
M5 - Titanium
M6 - Copper
SINGLE GRILL
$22,337 $21,918 $22,337 $21,918 $22,337 $21,918 $22,337 $21,918 $22,337 $21,918 $22,337
KS4490FZ3IA
KS4490FZ6IA
Available with Left (3) or Right (6) hand hinge position
45cm Classic Series Column Freezer with ice maker
Available in 6 colours and optional matching door handles
M1 - Pearl White
M2 - Pearl Silver
M3 - Gold
M4 - Satin Steel
M5 - Titanium
M6 - Copper
ACCESSORIES SEE PAGE 21
KS8990FW3A
KS8990FW6A
Available with Left (3) or Right (6) hand hinge position

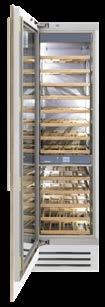

90cm Classic Series Column Wine Cellar
Available in 6 colours and optional matching door handles
M1 - Pearl White
M2 - Pearl Silver
M3 - Gold
M4 - Satin Steel
M5 - Titanium
M6 - Copper
ACCESSORIES SEE PAGE 21
KS7490FW3A
KS7490FW6A
Available with Left (3) or Right (6) hand hinge position
75cm Classic Series Column Wine Cellar
Available in 6 colours and optional matching door handles
M1 - Pearl White
M2 - Pearl Silver
M3 - Gold
M4 - Satin Steel
M5 - Titanium
M6 - Copper ACCESSORIES SEE PAGE 21
$24,018 $24,437
Column Wine Cellar
KS5990FW3A
KS5990FW6A
Available with Left (3) or Right (6) hand hinge position
60cm Classic Series Column Wine Cellar Available in 6 colours and optional matching door handles
M1 - Pearl White
M2 - Pearl Silver M3 - Gold
M4 - Satin Steel M5 - Titanium
- Copper
KS4490FW3A
KS4490FW6A
Available with Left (3) or Right (6) hand hinge position
45cm Classic Series Column Wine Cellar
Available in 6 colours and optional matching door handles
M1 - Pearl White
M2 - Pearl Silver
M3 - Gold
M4 - Satin Steel
M5 - Titanium
M6 - Copper
SINGLE GRILL OPTIONS & ACCESSORIES SEE PAGE 21-24
$22,387 $21,968 $22,387 $21,968 $22,387
KS7490TWT3A
KS7490TWT6A
KS5990TWT3A
M1 -
$22,818 $23,556 $22,818 $23,556 $22,818 $23,556
CLASSIC
Single Lower Grills
The Classic series, characterised by the lower ventilation grille and tubular stainless steel handles, is designed for those who prefer a more minimalistic look. This series reflects the finest technological features distinctive to all models in the Fhiaba range. Code
GK120
K Classic series 120cm bottom grill vent for KS599 + KS599 OR KS449 + KS749 Products (All Colours)
Available in 6 colours
M1 - Pearl White
M2 - Pearl Silver
M3 - Gold
M4 - Satin Steel
M5 - Titanium
M6 - Copper
$1,299 $1,299 $1,299 $1,299 $1,299 $1,299
GK135
K Classic series 135cm bottom grill vent for KS599 + KS749 OR KS899 + KS449 Products (All Colours)
Available in 6 colours
M1 - Pearl White
M2 - Pearl Silver
M3 - Gold
M4 - Satin Steel
M5 - Titanium
M6 - Copper
$1,349 $1,349 $1,349 $1,349 $1,349
GK150
K Classic series 150cm bottom grill vent for KS749 + KS749 OR KS899 + KS599 Products (All Colours)
Available in 6 colours
M1 - Pearl White
M2 - Pearl Silver
M3 - Gold
M4 - Satin Steel
M5 - Titanium
M6 - Copper
$1,449 $1,449
GK165
K Classic series 165cm bottom grill vent for KS749 + KS899 OR KS599+ KS599 + KS449 Products (All Colours)
Available in 6 colours
M1 - Pearl White
M2 - Pearl Silver
M3 - Gold
M4 - Satin Steel
M5 - Titanium
M6 - Copper
GK180
K Classic series 180cm bottom grill vent for KS449 + KS599 + KS749 OR KS899 + KS899 Products (All Colours)
Available in 6 colours
M1 - Pearl White
M2 - Pearl Silver
M3 - Gold
M4 - Satin Steel
M5 - Titanium
M6 - Copper
GK210
K Classic series 150cm bottom grill vent for KS449 + KS749 + KS899 OR KS749 + KS749 + KS599 Products (All Colours)
Available in 6 colours
M1 - Pearl White
M2 - Pearl Silver
M3 - Gold
M4 - Satin Steel
M5 - Titanium
M6 - Copper
$1,449 $1,449 $1,449 $1,449 $1,449 $1,449
GK225
K Classic series 150cm bottom grill vent for KS449 + KS899 + KS899 OR KS599 + KS749 + KS899 Products (All Colours)
Available in 6 colours
M1 - Pearl White
M2 - Pearl Silver
M3 - Gold
M4 - Satin Steel
M5 - Titanium
M6 - Copper
$1,499 $1,499 $1,499 $1,499 $1,499 $1,499 $1,499
ACCESSORIES & JOINING KITS
X-PRO
Fridge & Tri-mode
The X-Pro series, characterised by the upper ventilation grille and tubular stainless steel handles, is designed for those who prefer a professional look. This series reflects the finest technological features distinctive to all models in the Fhiaba range.
XS8990TST3iA
XS8990TST6iA
Available with Left (3) or Right (6) hand hinge position

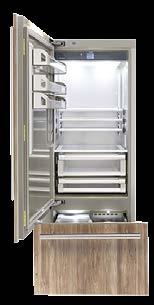

90cm X-Pro Series Refrigerator & Trimode
Available in 6 colours and optional matching door handles
M1 - Pearl White
M2 - Pearl Silver
M3 - Gold
M4 - Satin Steel
M5 - Titanium
M6 - Copper
SINGLE GRILL OPTIONS & ACCESSORIES SEE PAGE 33-37
XS7490TST3iA
XS7490TST6iA
Available with Left (3) or Right (6) hand hinge position
75cm X-Pro Series Refrigerator & Trimode
Available in 6 colours and optional
M1 - Pearl White
M2 - Pearl Silver
M3 - Gold
M4 - Satin
M5 - Titanium M6 - Copper
SINGLE GRILL OPTIONS & ACCESSORIES SEE PAGE 33-37
XS5990TST3A
XS5990TST6A
Available with Left (3) or Right (6) hand hinge position
60cm X-Pro Series Refrigerator & Trimode
Available in 6 colours and optional matching door handles
M1 - Pearl White
M2 - Pearl Silver
M3 - Gold
M4 - Satin Steel
M5 - Titanium
M6 - Copper
SINGLE GRILL OPTIONS & ACCESSORIES SEE PAGE 33-37
$26,118 $26,616 $26,118 $26,616 $26,118 $26,616 $26,118 $26,616 $26,118 $26,616
XS8990FR3A XS8990FR6A
Available with Left (3) or Right (6) hand hinge position
90cm X-Pro Series Column Refrigerator
Available in 6 colours and optional matching door handles
M1 - Pearl White
M2 - Pearl Silver
M3 - Gold
M4 - Satin Steel
M5 - Titanium M6 - Copper SINGLE GRILL OPTIONS & ACCESSORIES SEE
KS7490FR3A KS7490FR6A
Available with Left (3) or Right (6) hand hinge position
75cm X-Pro Series Column Refrigerator
Available in 6 colours and optional matching door handles
M1 - Pearl White
M2 - Pearl Silver
M3 - Gold
M4 - Satin Steel
-
- Copper
SINGLE GRILL OPTIONS & ACCESSORIES SEE PAGE 33-37
XS5990FR3A XS5990FR6A
Available with Left (3) or Right (6) hand hinge position
60cm X-Pro Series Column Refrigerator
Available in 6 colours and optional matching door handles
M1 - Pearl White
M2 - Pearl Silver
M3 - Gold
M4 - Satin Steel
M5 - Titanium M6 - Copper
GRILL
$24,867 $24,568 $24,867 $24,568 $24,867
Column Fridge
XS8990FZ3IA
XS8990FZ6IA
Available with Left (3) or Right (6) hand hinge position
90cm X-Pro Series Column Freezer With Ice Maker
in 6 colours and optional matching door handles
M1 - Pearl White
M2 - Pearl Silver M3 - Gold
M4 - Satin Steel M5 - Titanium
- Copper
XS7490FZ3iA
XS7490FZ6iA
Available with Left (3) or Right (6) hand hinge position
75cm X-Pro Series Column Freezer With Ice Maker
in 6 colours and optional matching door handles
M1 - Pearl White
M2 - Pearl Silver
M3 - Gold
M4 - Satin Steel
M5 - Titanium
M6 - Copper
SINGLE GRILL OPTIONS & ACCESSORIES SEE PAGE 33-37
XS5990FZ3iA
XS5990FZ6iA
Available with Left (3) or Right (6) hand hinge position
60cm X-Pro Series Column Freezer With Ice Maker
Available in 6 colours and optional matching door handles
M1 - Pearl White
M2 - Pearl Silver
M3 - Gold
M4 - Satin Steel
M5 - Titanium
M6 - Copper
SINGLE GRILL
$24,817 $24,518 $24,817 $24,518 $24,817 $24,518 $24,817
XS4490FZ3IA XS4490FZ6IA
Available with Left (3) or Right (6) hand hinge position
45cm X-Pro Series Column Freezer With Ice Maker Available in 6 colours and optional matching door handles
M1 - Pearl White
M2 - Pearl Silver M3 - Gold
M4 - Satin Steel M5 - Titanium M6 - Copper
XS8990FW3A XS8990FW6A
Available with Left (3) or Right (6) hand hinge position
90cm X-Pro Series Column Wine Cellar
Available in 6 colours and optional matching door handles
M1 - Pearl White
M2 - Pearl Silver
M3 - Gold
M4 - Satin Steel
M5 - Titanium
M6 - Copper
SINGLE GRILL OPTIONS & ACCESSORIES SEE PAGE 33-37
XS7490FW3A XS7490FW6A
Available with Left (3) or Right (6) hand hinge position
75cm X-Pro Series Column Wine Cellar
Available in 6 colours and optional matching door handles
M1 - Pearl White
M2 - Pearl Silver
M3 - Gold
M4 - Satin Steel
M5 - Titanium
M6 - Copper
SINGLE GRILL
$26,568 $26,867 $26,568 $26,867 $26,568 $26,867 $26,568 $26,867 $26,568 $26,867
XS5990FW3A XS5990FW6A
Available with Left (3) or Right (6) hand hinge position
60cm X-Pro Series Column Wine Cellar
M1 - Pearl White
M2 - Pearl Silver M3 - Gold
M4 - Satin Steel M5 - Titanium
- Copper
XS4490FW3A XS4490FW6A
Available with Left (3) or Right (6) hand hinge position
45cm X-Pro Series Column Wine Cellar
Available in 6 colours and optional matching door handles
M1 - Pearl White
M2 - Pearl Silver
M3 - Gold
M4 - Satin Steel
M5 - Titanium
M6 - Copper
SINGLE GRILL OPTIONS & ACCESSORIES SEE PAGE 33-37
$25,717 $25,418 $25,717 $25,418 $25,717 $25,418 $25,717 $25,418 $25,717
Wine Cellar with Beverage drawer
XS7490TWT3A XS7490TWT6A
XS5990TWT3A
$25,216 $24,718 $25,216
Single Upper & Lower Grills
The X-Pro series, characterised by the upper ventilation grille and tubular stainless steel handles, is designed for those who prefer a professional look. This series reflects the finest technological features distinctive to all models in the Fhiaba range.
X-Pro, 105cm Top Grill Vent with lower grill For XS449 + XS599 Products (All Colours)
Available in 6 colours
M1 - Pearl White
M2 - Pearl Silver
M3 - Gold
M4 - Satin Steel
M5 - Titanium
M6 - Copper
$1,499 $1,499 $1,499
X-Pro, 120cm Top Grill Vent with lower grill For XS599 + XS599 OR XS449 + XS749 Products (All Colours)
Available in 6 colours
M1 - Pearl White
M2 - Pearl Silver
M3 - Gold
M4 - Satin Steel
M5 - Titanium
M6 - Copper
$1,599 $1,599 $1,599 $1,599
X-Pro, 135cm Top Grill Vent with lower grill For XS599 + XS749 OR XS899 + XS449 Products (All Colours)
Available in 6 colours
M1 - Pearl White
M2 - Pearl Silver
M3 - Gold
M4 - Satin Steel
M5 - Titanium
M6 - Copper
$1,699 $1,699 $1,699 $1,699 $1,699
Single Upper & Lower Grills
XPRO150TOP
X-Pro, 150cm Top Grill Vent with lower grill For XS749 + XS749 OR XS899 + XS599 Products (All Colours)
Available in 6 colours
M1 - Pearl White
M2 - Pearl Silver
M3 - Gold
M4 - Satin Steel
M5 - Titanium M6 - Copper
$1,799 $1,799 $1,799 $1,799 $1,799 $1,799
XPRO165TOP
X-Pro, 165cm Top Grill Vent with lower grill For XS749 + XS899 OR XS599+ XS599 + XS449 Products (All Colours)
Available in 6 colours
M1 - Pearl White
M2 - Pearl Silver
M3 - Gold
M4 - Satin Steel
M5 - Titanium
M6 - Copper
$1,899 $1,899 $1,899 $1,899 $1,899 $1,899
XPRO180TOP
X-Pro, 180cm Top Grill Vent with lower grill For XS449 + XS599 + XS749 OR XS899 + XS899 Products (All Colours)
Available in 6 colours
M1 - Pearl White
M2 - Pearl Silver
M3 - Gold
M4 - Satin Steel
M5 - Titanium
M6 - Copper
$1,999 $1,999 $1,999 $1,999
X-Pro, 195cm Top Grill Vent with lower grill For XS599 + XS599 + XS749 OR XS449 + XS599 + XS899 Products (All Colours)
Available in 6 colours
M1 - Pearl White
M2 - Pearl Silver
M3 - Gold
M4 - Satin Steel
M5 - Titanium M6 - Copper
X-Pro, 210cm Top Grill Vent with lower grill For XS449 + XS749 + XS899 OR XS749 + XS749 + XS599 Products (All Colours)
Available in 6 colours
M1 - Pearl White
M2 - Pearl Silver
M3 - Gold
M4 - Satin Steel
M5 - Titanium
M6 - Copper
$2,099 $2,099 $2,099 XPRO210TOP
X-Pro, 225cm Top Grill Vent with lower grill For XS449 + XS899 + XS899 OR XS599 + XS749 + XS899 Products (All Colours)
Available in 6 colours
M1 - Pearl White
M2 - Pearl Silver
M3 - Gold
M4 - Satin Steel
M5 - Titanium
M6 - Copper
$2,199 $2,199 $2,199 $2,199
$2,299 $2,299 $2,299 $2,299 Single Upper & Lower Grills
Single Upper & Lower Grills
XPRO255TOP
X-Pro, 240cm Top Grill Vent with lower grill For XS899 + XS899 + XS599 OR XS749 +XS749 + XS899 Products (All Colours)
Available in 6 colours
M1 - Pearl White
M2 - Pearl Silver
M3 - Gold
M4 - Satin Steel
M5 - Titanium M6 - Copper
$2,399 $2,399 $2,399
X-Pro, 255cm Top Grill Vent with lower grill For XS749 + XS899 + XS899 Products (All Colours)
Available in 6 colours
M1 - Pearl White
M2 - Pearl Silver
M3 - Gold
M4 - Satin Steel
M5 - Titanium
M6 - Copper
$2,499 $2,499 $2,499 $2,499
ACCESSORIES & JOINING KITS
NBK60 PICTURED
ACCESSORIES
Stainless steel portal for freestanding installation
ESS00009090F
ACCESSORIES
Cleaning and hygiene
Stainless steel sides panels
The sides will be pre-installed in the factory and are not removable. At the end of the zip code add 3 to the left and 6 for the right hinge.
For the installation of 2 or more units, indicate the model and where you want to apply the stainless steel sides.
PERSONALISING YOUR FHIABA
Fhiaba offers a series of solutions to customise the refrigerator and make it a unique and tailor-made product.
1. Top compressor model (series: X-Pro) and bottom compressors (series: Classic & Integrated)
2. Fully integrated, integrated and freestanding models
3. All the models available in 3 width: 60 / 75 / 90 cm
4. Independent climatic zones for unrivalled high-quality food conservation:
0T: 2 separate temperatures + low temp zone.
0F: 1 separate temperature + + low temp zone for fridges.
0F: 2 separate temperatures for wine cellars.
5. 3 lines: X-Pro, Classic & Integrated
6. Door opening: right or left hinge
7. With or Without Ice Maker
8. Pair of stainless steel sides for free installation
9. Glass door
10. Single grill and single plinth kit X-Pro Series
11. Customised stainless steel door front up to 8 cm
12. Built - in Kit
13. Stainless steel cladding for customer's doors
14. Custom RAL color (check availability)
15. Painting of stainless steel doors and panels, sides and handles as per colour sample (check availability)
16. Patented separate "EvenliftTM" shelves. Standard on 1T models.
17. Door front panel for Integrated Series without handle
18. Possibility of installing customer handles on the Integrated Series
19. Fhiaba tubular handles diameter 30 mm
20. Fhiaba tubular handles diameter 18 mm
21. Stainless steel panels with holes for Fhiaba handles
22. Elegant central connecting kit
23. Extra anti-tipping for insertion in structures with depth up to 80 cm
24. Anti-condensation kit: Monferlene panel for side-by-side installation of two or more top compressors units (not required for models with compressors at the bottom)
25. Alternative energy kits: photovoltaic, geothermal, etc.
26. Support for tilting bottles
27. Wine accessories Kit:
• Bottle holder
• Wine kit
• Cheese set Kit
• Set of knives
• Prosciutteria Kit
28. Remote connection to monitor via cloud software; Fhiaba will be able to detect sensor end-of-life or other issues and the consumer will be notified in case of power outage, open doors and more.
29. Water dispenser
UNDERCOUNTER PREMIUM INDOOR
Beverage Fridge & Wine Cellar
UCB602TP
Supplied with Right Hand Hinge.
Left Hand Hinge is available upon request
UCB601TP
Supplied with Right Hand Hinge.
Left Hand Hinge is available upon request
ACCESSORIES SEE PAGE 48
UCW602TP
Supplied with Right Hand Hinge.
Left Hand Hinge is available upon request
ACCESSORIES SEE PAGE 48
$8,539
ACCESSORIES SEE PAGE 48
UCW601TP
Supplied with Right Hand Hinge.
Left Hand Hinge is
ACCESSORIES SEE PAGE 48
UNDERCOUNTER PREMIUM INDOOR

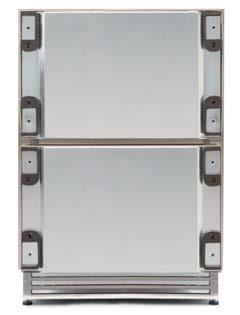

Tri-Mode Drawer
UC2D90P
90cm, fully integrated, premium indoor under-counter Tri-Mode fridge/freezer/fresco drawers, LED lights, full extension drawers, 175L, single temperature, -22°-8°C
ACCESSORIES SEE PAGE 48
UC2D75P
75cm, fully integrated, premium indoor under-counter Tri-Mode fridge/freezer/fresco drawers, LED lights, full extension drawers, 141L, single temperature, -22°-8°C
ACCESSORIES SEE PAGE 48
UC2D60P
60cm, fully integrated, premium indoor under-counter Tri-Mode fridge/freezer/fresco drawers, LED lights, full extension drawers, 107L, single temperature, -22°-8°C
ACCESSORIES SEE PAGE 48
UNDERCOUNTER GRAN MASESTRO INDOOR
Wine Cellar & Tri-Mode Drawer
UCW602TGM
Supplied with Right Hand Hinge.
Left Hand Hinge is available upon request
UCW601TGM
Supplied with Right Hand Hinge.
Left Hand Hinge is available upon request

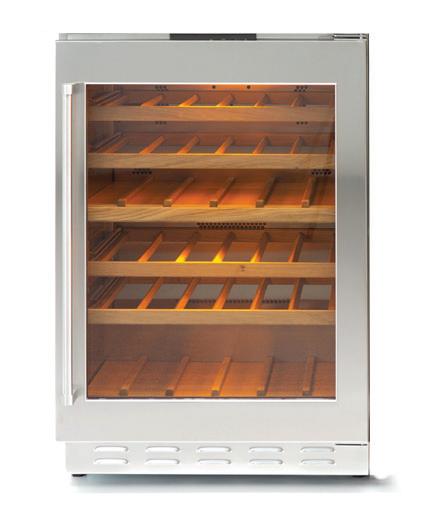

60cm, fully integrated, gran maestro indoor under-counter 41 bottle wine cellar, TFT display, dual zone, 4°-18°C
ACCESSORIES SEE PAGE 48
UC2D90GM
60cm, fully integrated, gran maestro indoor under-counter 36 bottle wine cellar, TFT display, single zone, 4°-18°C
ACCESSORIES SEE PAGE 48
90cm, fully integrated, gran maestro indoor under-counter Tri-Mode fridge/freezer/fresco drawers, TFT display, LED lights, full extension drawers, 175L, single temperature, -22°-8°C
ACCESSORIES SEE PAGE 48
90cm, fully integrated, gran maestro indoor under-counter Tri-Mode fridge/freezer/fresco drawers, TFT display, LED lights, full extension drawers, 175L, single temperature, -22°-8°C, ice maker
ACCESSORIES SEE PAGE 48
UNDERCOUNTER GRAN MASESTRO INDOOR
Tri-Mode Drawer
* Stainless Steel door panel and handle not included Image not available
UC2D75GM
75cm, fully integrated, gran maestro indoor under-counter Tri-Mode fridge/freezer/fresco drawers, TFT display, LED lights, full extension drawers, 141L, single temperature, -22°-8°C
ACCESSORIES SEE PAGE 48
UC2D75GMI
75cm, fully integrated, gran maestro indoor under-counter Tri-Mode fridge/freezer/fresco drawers, TFT display, LED lights, full extension drawers, 141L, single temperature, -22°-8°C, ice maker
ACCESSORIES SEE PAGE 48
$13,169
UC2D60GM
60cm, fully integrated, gran maestro indoor under-counter Tri-Mode fridge/freezer/fresco drawers, TFT display, LED lights, full extension drawers, 107L, single temperature, -22°-8°C
ACCESSORIES SEE PAGE 48
$11,599
UNDERCOUNTER PREMIUM OUTDOOR
Beverage Fridge & Wine Cellar
UCB602TPO
Supplied with Right Hand Hinge.
Left Hand Hinge is available upon request
UCB601TPO
Supplied with Right Hand Hinge.
Left Hand Hinge is available upon request
60cm, premium outdoor undercounter beverage fridge, dual zone, 2°-8°C, stainless steel door, Ø18mm Tubular handle
ACCESSORIES SEE PAGE 48
UCW602TPO
Supplied with Right Hand Hinge.
Left Hand Hinge is available upon request
60cm, premium outdoor undercounter beverage fridge, single zone, 2°-8°C, stainless steel door, Ø18mm Tubular handle
ACCESSORIES SEE PAGE 48
UCW601TPO
Supplied with Right Hand Hinge.
Left Hand Hinge is available upon request
60cm, premium outdoor undercounter 41 bottle wine cellar, dual zone, 4°18°C, stainless steel door, Ø18mm Tubular handle
ACCESSORIES SEE PAGE 48
60cm, premium indoor undercounter 36 bottle wine cellar, single zone, 4°18°C, stainless steel door, Ø18mm Tubular handle
ACCESSORIES SEE PAGE 48
$8,129
UNDERCOUNTER PREMIUM OUTDOOR
Tri-Mode Drawer
UC2D90PO
90cm, premium outdoor undercounter Tri-Mode fridge/freezer/fresco drawers, LED lights, full extension drawers, 175L, single temperature, -22°-8°C, stainless steel door panels, Ø18mm Tubular handle
ACCESSORIES SEE PAGE 48
UC2D75PO
75cm, premium outdoor undercounter Tri-Mode fridge/freezer/fresco drawers, LED lights, full extension drawers, 141L, single temperature, -22°-8°C, stainless steel door panels, Ø18mm Tubular handle
ACCESSORIES SEE PAGE 48
UC2D60PO
60cm, premium outdoor undercounter Tri-Mode fridge/freezer/fresco drawers, LED lights, full extension drawers, 107L, single temperature, -22°-8°C, stainless steel door panels, Ø18mm Tubular handle
ACCESSORIES SEE PAGE 48
ACCESSORIES
H08
H05
NCTSUC
NBGDUC
Tubular handle, Ø30mm, 794 mm long, to suit UC2D90 tri-mode drawer
Tubular handle, Ø30mm, 644 mm long, to suit UC2D75 tri-mode drawer
Tubular handle, Ø30mm, 494 mm long, to suit UC2D60 tri-mode drawer, UCW wine cellars & UCB beverage fridges
Large cheese drawer to suit indoor & outdoor UCW wine cellars & UCB beverage fridges, 28.8L capacity
Small cheese drawer to suit indoor & outdoor UCW wine cellars & UCB beverage fridges, 16.3L capacity
Full extraction drawer with sandblasted stain- less steel interior, soft closing runners and with 6mm tempered glass (capacity 20,2 L. )
NBGSFUC 6mm tempered glass shelf with aluminium edges that can be positioned within the side racks of the UCW wine cellars & UCB beverage fridge
NBGSUC Removable 6mm tempered glass shelf with side barriers that can be positioned within the side racks of the UCW wine cellars & UCB beverage fridge
NCSGBUC
Large cigar drawer to suit indoor & outdoor UCW wine cellars & UCB beverage fridges, 28.8L capacity
NCSGSUC Small cigar drawer to suit indoor & outdoor UCW wine cellars & UCB beverage fridges, 16.3L capacity
Prociutteria kit to suit indoor & outdoor UCW wine cellars & UCB beverage fridges, 28.8L capacity
NWSFUC 3/4 length fixed natural oak wooden bottle support installed on the bottom of the appliance to suit indoor & outdoor UCW wine cellars & UCB beverage fridges, 28.8L capacity
NWSGUC
Natural oak wooden wine shelf to suit indoor & outdoor UCW wine cellars & UCB beverage fridges, 28.8L capacity
VISIT OUR VIRTUAL SHOWROOM
FOLLOW US ON:
https://www.instagram.com/fhiaba_au/
Australia National Telephone Number 1300 694 583 For showroom opening times, visit our website
NSW & ACT (Head Office)
48-50 Moore Street Leichhardt
DISCLAIMER
2r/131 Church St, Hawthorn
fhiaba.com.au
Eurolinx & Worldwide appliances pty Ltd, is continually seeking ways to improve the design specifications, aesthetics and production techniques of its products. As a result alterations to our products and designs take place continually. Whilst every effort is made to produce information and literature that is up to date, this brochure should not be regarded as an infallible guide to the current specifications, nor does it constitute an offer for the sale of any particular product. Product dimensions indicated in our literature is indicative only. Actual product only should be used to define dimension cut outs. Distributors, and retailers are not agents of Eurolinx or Worldwide appliances and are not authorised to
