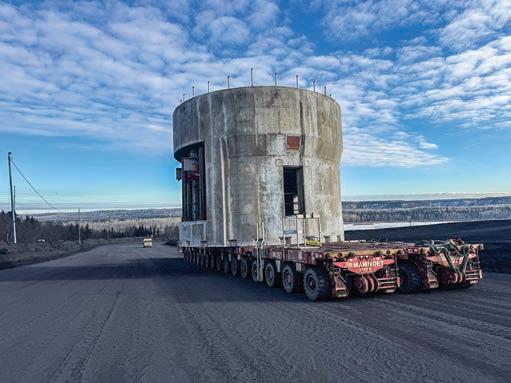

Reach meets refining

One of the world’s largest cranes and seven years of planning enable a critical oil sands turnaround in Alberta

Pine Ridge Lisco Edwards..............................................A18

Rokbak............................................................................B5

Ontario makes progress with One Project, One Process

Opening a new mine in Ontario has historically meant an uphill and lengthy battle for anyone looking to tap into the province’s resources.

Ontario’s fragmented permitting system previously translated to delays of up to 15 years to approve a single mine. These delays negatively impact potential investment, hinder job creation and reduce access to critical minerals like nickel, lithium and cobalt.

ese delays have become obvious in the province’s Ring of Fire, which is one of the most valuable untapped mineral regions in the world. Despite its potential, mining has yet to start despite nearly two decades passing since the discovery of high-grade nickel, copper and platinum.

Last October, the provincial government announced its plan to help unlock the

potential of Ontario’s mining sector, through the launch of the new One Project, One Process (1P1P) framework, which includes the Ring of Fire.

The 1P1P framework designates projects for management by a dedicated Mine Authorization and Permitting Delivery team, led by the Ministry of Energy and Mines acting as a single point of contact to coordinate all necessary provincial approvals.

The new process is expected to reduce government review times by at least 50 per cent. By expediting the process, Ontario hopes to attract more investment to boost the mining sector.

“Our new One Project, One Process framework ends the era of unacceptable delays. We are delivering a dedicated service that cuts government review times in half, giving

operators and investors the con dence they need to hire, and helps us unlock the full economic potential of our province’s world-class resource sector,” said Stephen Lecce, Ontario’s Minister of Energy and Mines.

In February, Lecce announced Kinross Gold Corporation’s Great Bear Project, near Red Lake, as the rst gold mine to fall under the 1P1P framework.

The project represents a more than $5 billion capital investment and is expected to create 900 jobs during its operational life, with peak employment reaching 1,100 workers.

“For Kinross, this designation facilitates a more integrated and streamlined path forward as we advance the permitting of this world-class mine towards commercial production in consultation with Indigen -

ous communities,” said J. Paul Rollinson, CEO of Kinross Gold.

For industry, 1P1P o ers a clear line of sight. For communities, it can deliver employment and economic spin-o quickly.

For the province, replacing duplication with discipline, and delays with direction will hopefully equal a new enthusiasm for investment.

Creative Director/Creative

Ryan Chuhaniuk ryan@equipmentjournal.com 905-719-5444

National

Mona Fahmi mona@equipmentjournal.com 416-435-0510

Circulation Manager Lisa Bath

lisa@equipmentjournal.com 416-660-0262

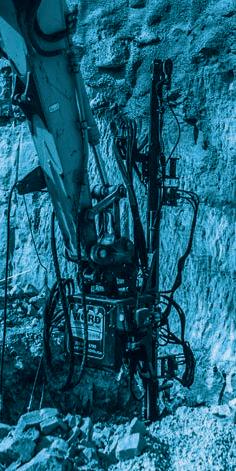

Word Rock Drills............................................................B15 AUCTIONS

AllStar Auctions ...............................................................A1

Jardine Auctioneers .........................................................B7

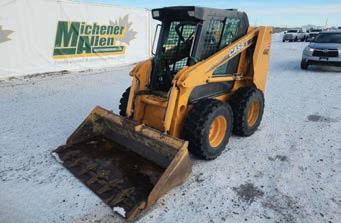

Michener Allen Auctioneering .........................................A17

North Toronto Auctions ..............................................A1,B11

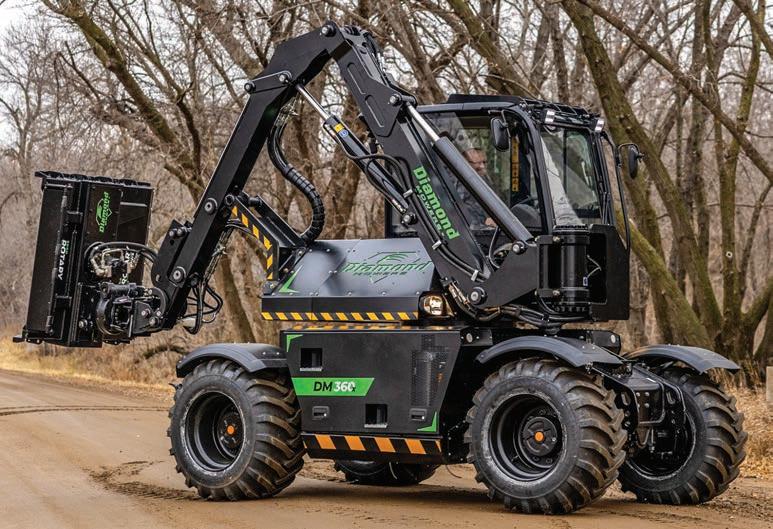

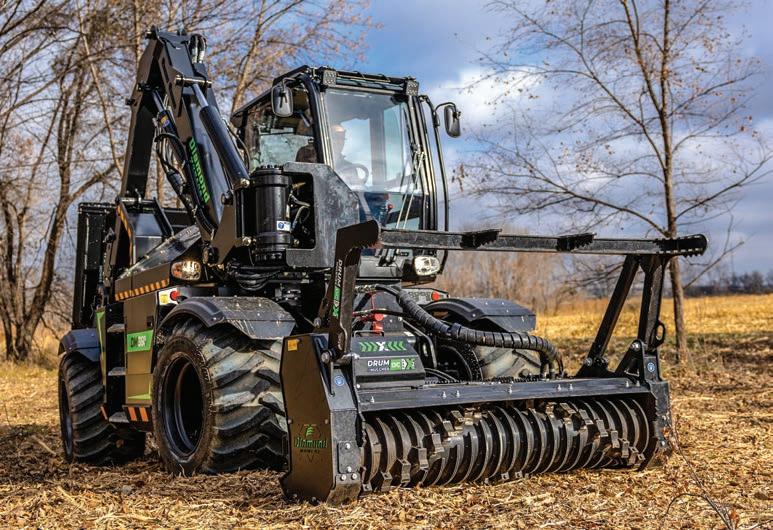

Diamond Mowers has developed its first municipal maintenance machine

Diamond Mowers is expanding beyond attachments with the introduction of the DM360 and DM360X municipal maintenance machines.

Diamond Mowers, based in Sioux Falls, South Dakota, started in 2000 in the roadside mowing space and has grown to become a manufacturer of equipment used in a broad variety of mowing and mulching applications.

Now, the company is expanding its product o ering with the introduction of its rst dedicated carrier. From boom mowing to snow re -

moval, the DM360 is an all-season municipal work platform that increases asset utilization through a wide range of available tools.

Diamond Mowers CEO Wayne Baumberger said the DM360 was created using Voice of Customer (VOC) research.

“We heard from our customers, and took that voice of the customer, and coupled that with our years of industry experience to create this true multi-function machine,” Baumberger said.

“We looked at a number of

di erent things during the design process. We tried to make sure all these things were built in up front, in this platform. The DM360 is really built for the people who run it.”

e most common request from its customer base was to design a machine that’s versatile, productive and safe.

“ e DM360 delivers all this and more with best-inclass performance. So, it's more than just a roadside mowing vehicle. It is a true multipurpose machine capable of tackling your most

challenging environments,” Baumberger said.

Fully rotational cab and boom

e 11-tonne machine is powered by a 109-hp JCB EcoMAX 4.4L engine. The DM360 features 360-degree visibility and a fully rotational cab and boom. Mounting the cab with the boom aligns the operator with the task at hand.

“One of the key attributes here is we have this true 360-degree performance. So, the cab and the boom arm rotate together, and they can spin all the way

around,” Baumberger said.

“If you're mowing on the right-hand side of the road, you can quickly switch to mowing the left-hand side of the road.”

The DM360 can be equipped with a 7.6-metre or 9.1-metre boom and includes a Q-Connect system and hydraulic quick coupler. e upper hydraulics deliver 117 litres per minute of ow.

DM360X

e 11.7 tonne DM360X adds a 155-litre-per-minute high ow circuit on the lower frame as well as a lift arm

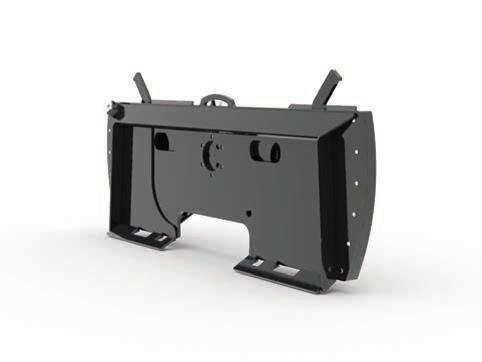

with a universal plate adapter and a skid steer coupler. “ e D360X expands the abilities to use this product even further,” Baumberger said.

For safety, both versions are equipped with Level II FOPs cab guard and 127-mm polycarbonate protection on the front and right side. A rooftop strobe light is standard and beltline LED lights are available as an option. The machine's 2.5 metre travel width ensures stability. The wheeled machine also features a maximum 40 km per hour travel speed.

CRUSHING SCREENING WASHING

ConExpo announces its Next Level Awards finalists

ConExpo-Con/Agg has announced its 20 nalists for its highly anticipated Next Level Awards.

e awards showcase cutting-edge innovations and groundbreaking advancements that shape the future of construction and heavy equipment.

e nalists were selected by a panel of expert judges out of a competitive and diverse field of industry leaders and trailblazing newcomers, and represent the next generation of equipment, technology, sustainability and e ciency in the sector.

e awards are split into the Technology and Equipment categories with judges selecting 10 nominees for each section.

More than 230 submis -

sions were considered for the following 20 spots.

Equipment nalists

Bergkamp: e Bergkamp Journeyman is a mobile mix plant designed for Cold Central Plant Recycling (CCPR) to produce ambient asphalt mixes using virgin or recycled asphalt pavement (RAP).

First Green Industries:

e Rockeat is an electric remote-control cab-free loader. e machine delivers operator safety and operational capability as well as environmental responsibility.

Flexco: e FXC Steel Cord Belt Fastening System from Flexco can be installed immediately when faced with significant belt damage or when pulling a belt onto the conveyor system.

Husco: Husco’s GenSteer system represents a breakthrough in fail-functional steer-by-wire, delivering redundancy without replication through simple, elegant architecture.

Instagrid: Instagrid GO is a portable power supply built for the most demanding construction and industrial tools. It delivers pure sine wave power with 3.6kW continuous and 18kW peak in a rugged 21-kg unit.

Moog Construction: e Adaptive Electrification Management System (AEMS) by Moog Construction simplies motion control and power management for electric vehicles. It’s a modular solution that integrates key components to reduce complexity and cost, o ering easy updates via a common software platform.

OTH Pioneer Rigging:

The quick-release Ludwig Hook is a wireless, radio-controlled lifting hook designed to keep crews safe by eliminating the need for ladders or lift platforms. With the push of a remote, loads can be released from ground level in under two seconds, reducing risk during high or hard-to-reach lifts.

Stellar Industries:

The Stellar Hybrid Power Source is a rst-of-its-kind power system that delivers clean, quiet hydraulic power without relying on the chassis engine. Built on automotive-grade lithium-ion technology, the HPS provides 100% emission-free, low-voltage energy to power cranes, compressors, stabilizers and tools.

Vanair Manufacturing:

The EPEQ EPRO20 Power Skid is a patent-pending, battery-powered air compressor system that delivers 20 CFM at up to 150 psi with zero emissions and minimal noise. e skidmounted system drops into any pickup truck, UTV, van or trailer without installation, wiring or permanent vehicle modi cations.

Yanmar Compact Equipment: e Yanmar ViO35-7 builds on the proven durability and reliability of the ViO35-6A that operators trust on demanding jobsites. At its core is an advanced three pump hydraulic system that delivers smooth, high power multi-function performance, allowing operators to maintain faster cycle times without sacri cing control.

Technology nalists

vibration frequency and continuously adjusts to deliver the appropriate compaction e ort when and where needed on the asphalt mat.

Gefran: TWIIST is a next-generation multi-variable position sensor engineered for mobile equipment operating in harsh environments. It integrates innovative sensing technologies into a single compact and contactless solution, enabling robust measurement and enhanced system intelligence.

Gravis Robotics: The Gravis Rack transforms conventional earthmoving machines into intelligent robots by adding 3D sensing, cameras and onboard computer across a wide range of equipment brands and sizes. In the cab, the system acts as a copilot.

Bentley Systems: Synchro is a 4D solution for visually planning, scheduling and tracking construction projects. It enables teams to simulate plans and progress, explore what-if scenarios, and detect issues early to make more informed decisions.

ITI: ITI’s VR crane simulator helps organizations build crane operator skills faster, safer and at scale. e innovative platform delivers highly realistic crane simulations that replicate real-world control responses, load behaviour and jobsite conditions.

Bobcat Company: Bobcat Jobsite Companion is the first AI-enabled solution in the compact equipment industry, enabling the machine to adapt to operators. With Jobsite Companion operators keep their hands on the controls by using voice-activated automation to manage more than 50 machine functions.

Bomag: Bomag’s remote-control technology puts full control of a single drum roller in the operator’s hands, at a safe distance. With the ip of a switch, operators move seamlessly from in-cab driving to precise remote operation of all key functions.

Dynapac: The intelligent SEISMIC asphalt system uses sensors and software to automatically determine optimal

Komatsu: S mart Quarry Autonomous combines Komatsu’s proven quarry equipment expertise with Pronto’s advanced autonomous haulage technology to deliver a scalable, a ordable path to autonomy.

Moasure: Moasure 2 PRO is a motion-based measuring tool that measures and draws at the same time, designed to capture area, volume, slope and elevation data for general construction, paving and site preparation work.

Samsara: The Samsara Asset Tag combines a rugged, discreet design with Samsara’s network and industrial-grade Bluetooth. e Asset Tag helps prevent asset theft and loss–especially for small, high-risk equipment–while reducing downtime.

NEW!

Next Gen Crawler Excavators

Booth W42500, West Hall

March 3-7, 2026

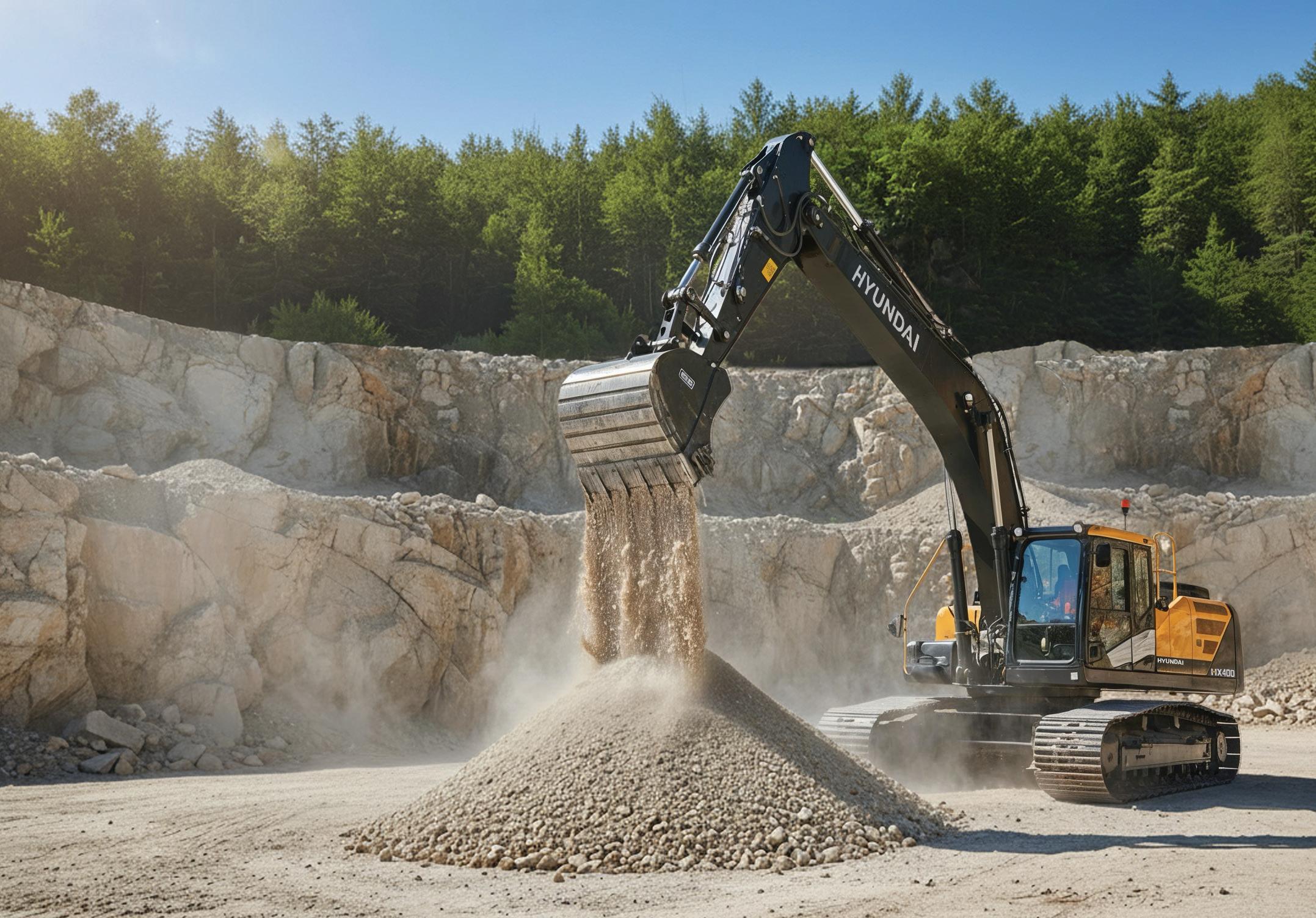

Powered by Hyundai engines, these new Next Generation HX excavators deliver 22% higher power output than previous versions. This performance is matched by a significant reduction in operating costs, offering up to 9% improved fuel efficiency. Let’s put smarter productivity to work. Talk with a Hyundai dealer near you about performance gains and fuel savings.

Hyundai Canada Dealers

Alberta Chinook Equipment chinookequipment.ca

Nova Scotia

Hurricane Industrial Equipment hurricanelift.com

Quebec Agribiti agritibirh.com

EMSCO Heavy Equipment emsco.ca

Ontario

Mazergroup mazergroup.ca Get Bigger Payoffs with Hyundai Next Generation HX Excavators

British Columbia

Handlers Equipment Ltd. handlersequipment.com

Manitoba

Mazergroup mazergroup.ca

New Brunswick

A.L.P.A. Equipment alpaequipment.com

Newfoundland and Labrador

Reefer Repair Services kenworthnl.com

A.M.B. Lift Inc. amblift.com

Bob Mark New Holland bobmark.ca

CIMI Inc. excavatrice.com

Equipements Marquis equipementsnordmax.com

Hood Logging Equipment Canada hoodequipmentcanada.com

RTI Equipment Solutions rtigroup.ca

Cimi Inc. excavatrice.com

Hydromec Inc. hydromec.ca

Nordmax, Inc. equipementsnordmax.com

Saskatchewan

EMSCO Heavy Equipment emsco.ca

Here’s how Deere’s farm machines helped advance autonomous roadbuilding

John Deere’s agricultural machinery helped plant the seed to develop autonomous road paving.

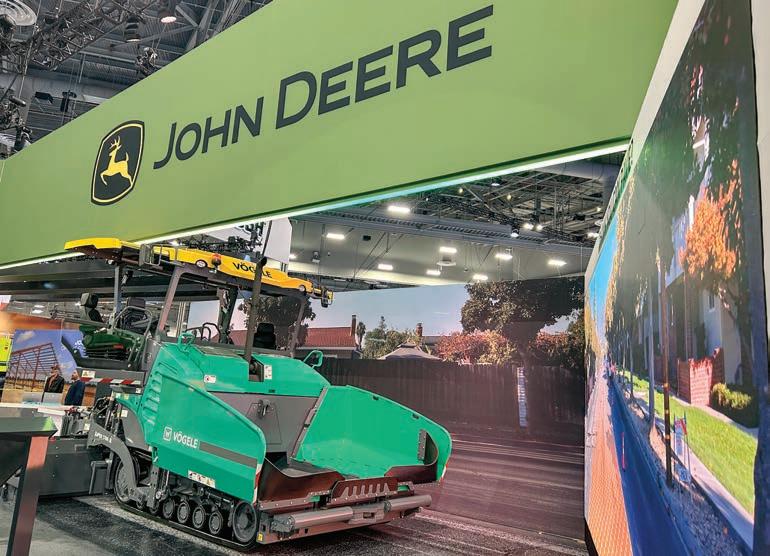

At this year’s Consumer Electronics Show (CES), Wirtgen showcased an autonomous paver, which is made possible thanks to Deere’s tech stack.

“One of the biggest bene ts of the Wirtgen Group becoming part of John Deere back in 2017 was our ability to take advantage of a lot of the precision technology that already exists in the organization,” said Matthew Graves, Director of Marketing for the Wirtgen Group. Wirtgen’s autonomous paver was displayed alongside a John Deere self-driving combine harvester.

Autonomous farming shares many technological requirements with an autonomous paver. Both machine categories require GPS positioning that is precise enough to navigate a predetermined path and apply consumables, like a pesticide.

“With road construction, you have a consumable, which is hot asphalt. Using that technology, you can better predict how much asphalt you're going to need.” Graves said. “You have a better understanding of what your consumables are going to be. You also can put them down more precisely, so that you have less waste.”

In roadbuilding, however, an

operator is still required onboard the machine to ensure safety.

“You have the travelling public going on around you and everything else, so it can't be fully autonomous,” Graves said. “It's kind of like not having autonomous cars yet. You still have to have a driver that touches the wheel every now and again.”

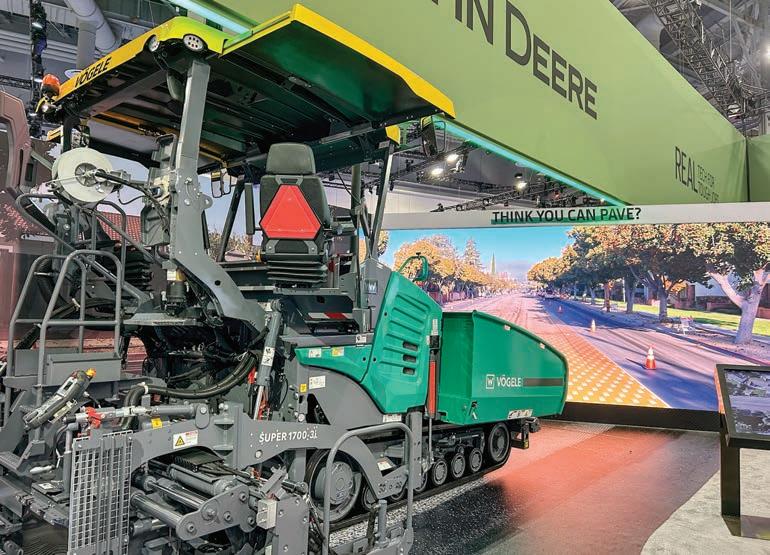

Vögele’s Dash 5 pavers can automate numerous control functions to help users increase work safety and boost e ciency.

AutoTrac automatic steering and width control system includes the Edge Control stringline follower, the fixed screed width, the new Edge Detection edge follower and

Steering Control automatic steering system.

Using various sensors and physical references, users can automatically control width and direction.

Vögele’s latest introduction, Smart Pave, represents the next level of automation. e integrated system controls the paving width, position and direction of the paver fully automatically using virtual references.

Smart Pave uses veri ed installation geometries that have been stored in the digital platform, the John Deere Operations Center.

e StarFire-Dual Antenna System determines the exact position

of the paver, ensuring highly accurate control.

e autonomous tech was tested and proven in Europe. e system is now available for the North American market.

“We have several contractors that are now running it,” Graves said. e autonomous paver at CES marked the Wirtgen Group’s third appearance at technology show. All three of the company’s displays have highlighted its advancements in automating roadbuilding.

“It's really kind of neat, because all these innovations that are bringing us forward are a direct result of the feedback that we're getting from our customers,” Graves said.

$38,000

long arm, hyd. X-Change, aux. hyd., 20” tooth bkt, stk# B100-909

$35,000

2012 BOBCAT S175, SMU hrs: 4164, 46 hp, H71 comfort pkg, Bob-Tach coupler, sound reduction, dlx panel, stk# B100-1069

$42,000 2014 BOBCAT S510, SMU hrs: 1410, 55 hp, aux. hyd., manual coupler, stk#

2020 BOBCAT T550, joystick controls, manual coupler, 68” bkt, standard track & flow, stk# B100-1023

2015 BOBCAT S450, aux. hyd., Aperture tires, standard Bobcat hand/ft controls, stk# B100-896 $25,000

Cat’s new 824-hp mining shovel boosts annual output

Caterpillar has equipped its new 140-tonne 6015 hydraulic mining shovel with signi cant design enhancements to increase uptime, operating efficiency and improve durability.

e result is a higher annual shovel output, and the new exible shovel design delivers low cost-per-ton operation.

“We’ve given the new 6015 class-leading tool carrying capacity and heavy-duty undercarriage protection to deliver reliable and productive operation in the most demanding conditions,” said Ryan Mitchell, Hydraulic Mining Shovel Product Value Stream Manager for Caterpillar. “With its 14.6-tonne bucket payload, the shovel provides proven pass match e ciency with Cat 773, 775 and 777 haul trucks operating in the 55 to 90-tonne-class range. It delivers exible and productive loading e ciency across a full spectrum of applications, including mining, quarry and aggregate, heavy construction and industrial.”

e shovel’s 824-hp Cat C27 engine delivers class-leading power and features a new maintenance-free, non-selective-catalytic-reduction aftertreatment solution that does not require diesel ex-

haust uid (DEF) to meet Tier 4 Final and Stage V emissions standards.

Highly productive

Instead of delivering a xed amount of oil at high idle, the shovel’s new generation pilot pump configuration offers variable, on-demand hydraulic oil flow based on control lever movements. In periods of simultaneous machine movements, the pump increases ow, and when joysticks are returned to neutral, oil ow decreases. e feature lowers system heat generation, reduces component wear and improves fuel e ciency by a minimum of 5.5 per cent.

A new Cat Proportional Priority Pressure Compensating (PPPC) hydraulic system increases operator e ciency by varying hydraulic ow directly proportional to joystick movements for smooth, predictable operation.

Caterpillar’s four-pump system dedicates three pumps to implement and travel and one pump to swing. Pressure and flow compensation deliver only as much ow as needed. When ow is required by more than one function, automatic flow proportioning delivers precise multifunction operation.

Boom-lowering oat valves provide faster movements by using gravity, rather than hydraulic pumps, to lower the boom and increase efficiency, which allows the pumps to support other functions simultaneously. Improving energy e ciency while generating less heat, the 6015’s closed-loop swing system feeds captured swing motion kinetic energy back to the system during deceleration, providing more power to drive the main and auxiliary pumps.

More uptime

A new heavy-duty undercarriage protection package features long-life components and frame to increase machine uptime. Heavy-duty idlers and rollers plus improvements to track pads, track tensioning and wear volume add to increased undercarriage durability and reliability.

The 6015’s new bucket linkage autolube system eliminates the need for manual lubrication. For smooth operation and increased durability, the new slew bearing incorporates a triple roller design. A capacity increase for the new grease tank provides 500-hour service intervals.

Built to Be the Best

Service and safety

Improved hose routing on the 6015 mining shovel increases durability compared to previous designs, and hoses can be quickly built to length by the Cat dealer, elevating machine uptime. e design shares parts with other Cat hydraulic shovels to reduce inventory levels for customers with multiple machines.

The new shovel connects to standard Cat MineStar Solutions with new Product Link Elite through either a cellular or satellite connection, and MineStar Health offers expanded condition monitoring and reporting to eet operations.

Cat Electronic Technician (ET) enables service technicians to e ectively diagnose and execute engine maintenance and monitor new pilot pump system pressure. Its design affords easier access to the engine compartment, superstructure components and ground-level service station for safer and more streamlined serviceability. Wide, anti-slip walkways with limited elevation changes, minimized trip hazards and an optional powered 45-degree stairway improve access, egress and movement about the shovel safely.

We don’t just stand on the shoulders of giants – we are the giants. Kubota has made the top selling compact excavator in the world for over a decade, and the KX040-5 is the next step in our pursuit of excavation perfection. Boasting advanced features, superior comfort elements and excellent performance capabilities, this excavator is built to do more than “good enough”. It’s built to be the best.

JOB DONE RIGHT.

HYDRAULIC ROTARY BROOM

60" - 96" Widths

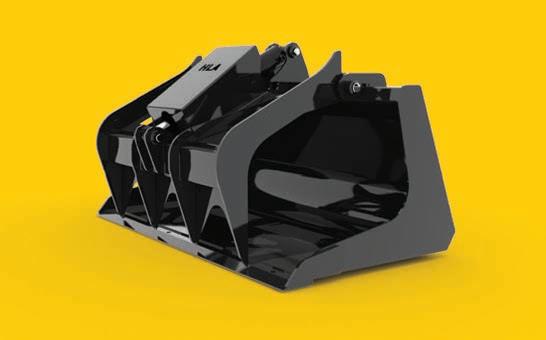

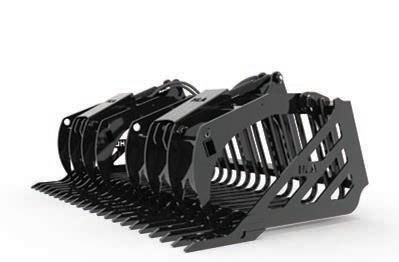

REGULAR DUTY STONE FORK & GRAPPLE

Opens up to 70"

CONCRETE HOPPER BUCKET

4-IN-1 BUCKET

66" - 84" Widths

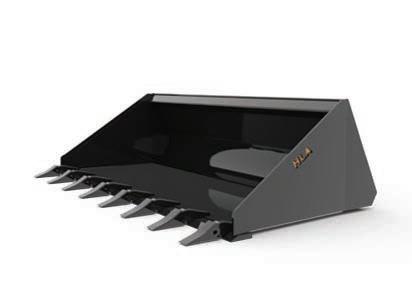

EXTREME DUTY LOW PROFILE SKIDSTEER BUCKET

72" - 108" Widths

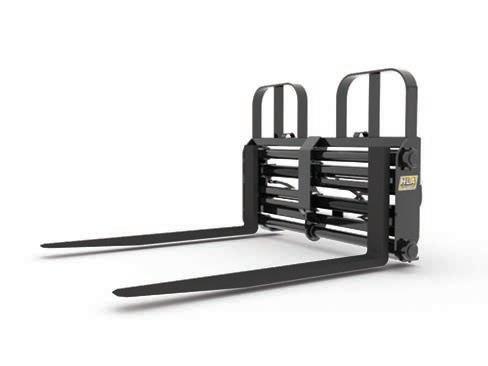

Hauls up to 15 cu. ft. POWER TINE PALLET FORK

60" - 96" Tine Lengths

Astec Industries has started to roll out its new A-series line of jaw crushers with the debut of the A50 model.

e A50 is the beginning of a new era for Astec, one that will see a full lineup of A-series jaw crushers introduced over the coming months and years.

Drawing on the proven legacy of Pioneer, Telsmith and Osborn jaw crushers, the A50 is an evolution of decades of engineering, designed for high performance in demanding primary applications.

The A50 delivers on durability, performance and includes many new features for safer operation and maintenance.

e A-Series jaw crusher will be on display in the Astec booth at ConExpo/Con-Agg 2026.

“The A50 jaw crusher is a true representation of what we can achieve through our OneASTEC NPD strategy. By bringing together the best engineering expertise and proven designs from across our legacy brands, we’ve cre-

ated a machine that represents both our legacy and establishes a new benchmark in future jaw crusher design,” said Stephen Whyte, Vice President of Product Management.

“ e A50 sets a new standard in crushing performance and is the start of an exciting new chapter in crushing technology.”

e A50 is equipped with a keyed and bolted frame to eliminate high-stress welded joints for enhanced structural integrity and long-term durability.

As well, solid side plates remove weak points and cutouts in mainframe side plates, boosting reliability and adding strength where required.

To prevent material

bridging and to strengthen high-stress zones for better performance under heavy loads, the A50 is built with a cast swing jaw with angled wear plates.

Longer liners with improved nip angle maximize material grip, reduces wear and increases crushing efficiency, while interchangeable xed and swing liners extend wear part life, simplify maintenance and lower operating costs.

Hydraulic and mechanical options eliminate heavy wedges and side plate cutouts for fast, safe adjustments and quick resets after an uncrushable event. Furthermore, the crusher is equipped with heavy-duty flywheels for reduced horsepower requirements and class-leading stroke for higher capacity. Rubber mounts isolate crushing forces, reduce stress on chassis frames and mounting structures.

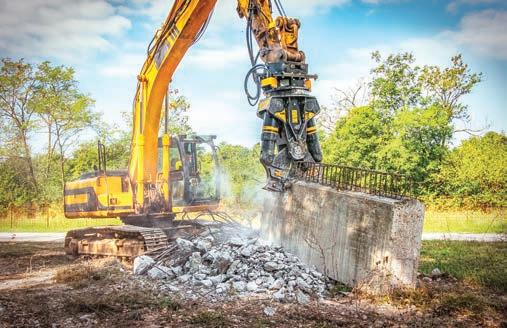

grinders — a representative from every major MB line. e manufacturer is also promising appearances from well-known in uencers from the construction community. In the Silver lot, the compact lineup will be working as if it were squeezed into a tight jobsite, because that’s exactly where these machines shine. Visitors will get a full demo and a full showroom, side by side.

MB Crusher is teaming up once again with Hyundai to bring live demonstrations to life.

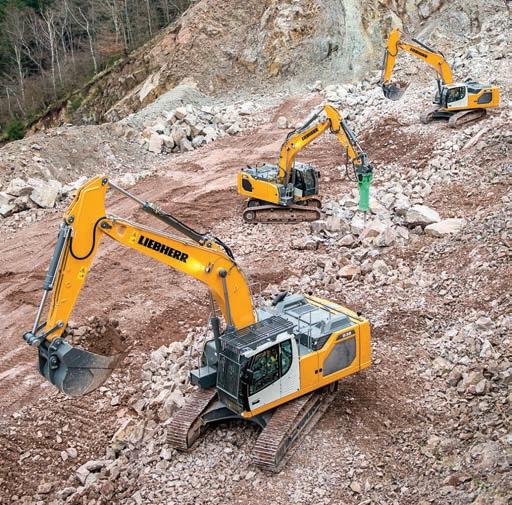

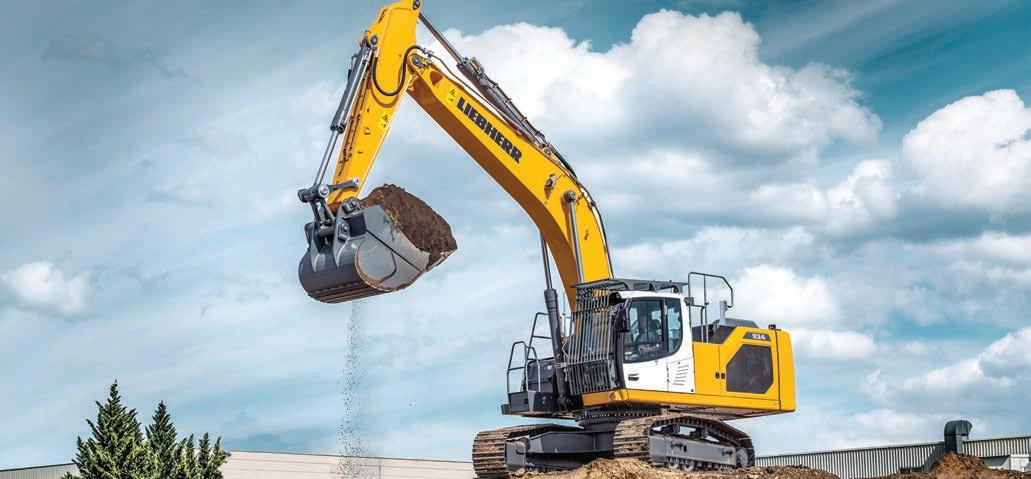

Liebherr is enhancing its Generation 8 crawler excavators with new settings and assistance systems.

Available for the R 922 to R 945 G8 crawler excavators, the developments aim to better meet the market requirements when it comes to performance, energy eciency and ease of use.

e Liebherr Generation 8 crawler excavators for earthmoving were introduced to the global market in 2019. ey have a futuristic design and a redesigned architecture to improve convenience, safety, ergonomics and performance.

From the R 922 to the R 945, the Generation 8 range combines outstanding performance with reduced fuel consumption, supported by a comfortable operator environment and simplified, safe maintenance access.

LPE Mode

Via LPE Mode (Liebherr Power E ciency), Liebherr is taking an important step towards energy management for its crawler excavators. e system, which is now integrated as standard on R 922 to R 945 G8 models, continuously optimizes the hydraulics and the diesel engine and reduces fuel consumption by up to 10 per cent – without compromising productivity.

LPE Mode a temporary performance boost for key movements, ensuring fast, precise and efficient work suited to every job site. LPE Mode is easy to activate and storable in the operator’s preferred settings.

DEF pump

The Gen 8 machines are equipped with a new diesel exhaust uid lling pump to improve safety, convenience and ergonomics.

e system is unique to the market and enables direct lling from the ground, and eliminates any risk of overowing, contamination and corrosion. e operator is no longer required to climb onto

or o the upper carriage. e procedure is fast and e ortless and saves valuable time.

New tech

e Gen 8 excavators are also available with several new technology features.

The Leica 2D control system is now available as standard. Fully integrated into the main display, it provides an intuitive interface with clear, colour coded visuals for levelling and earthmoving tasks. e system is precise within about 2 cm and o ers exible conguration to suit any project.

The 2D guidance system is also expandable, enabling 3D ready options from Leica, including passive 3D or semi automated 3D functions for even greater accuracy on demanding jobs.

The result is higher productivity, enhanced safety and exceptional ease of use through a streamlined, operator friendly interface.

With the bucket filling assistant (BFA), Liebherr is automating bucket filling to optimize excavation cycles. A simple joystick command triggers the completely automated process that guarantees fast, precise and consistent bucket filling. Available as a full factory installed feature or via software update, the BFA system includes an anti-stall function that prevents bucket blockage, delivering maximum productivity, reduced operating costs and outstanding ease of use. To enable operators to get to know the assistance system, Liebherr o ers 500 hours complimentary BFA use.

e weighing device is also integrated directly into the main display for the Generation 8 crawler excavator as standard. This system measures with a precision of about 2 per cent in real time during the entire loading cycle. anks to automated data recording via Liebherr Connect (depending on the licence) users benefit

from optimum tracking and complete traceability. is innovation is available from the factory site or via a software update and guarantees optimum HGV loading, reduces the risk of overloading, and avoids potential nes. To test this system, Liebherr o ers 500 hours of free use.

With the Skyview 360° assistance system, Liebherr places safety at the forefront of every job site.

is innovative system uses four heated, high resolution wide-angle cameras to deliver a complete all round view, ensuring even blind spots remain visible in cold weather.

Operators can select from six individual views or opt for a computer generated 360-degree bird’s eye view, displayed on an adjustable additional screen. Available from the factory site or as a retro t solution, Skyview 360° guarantees early obstacle de-

tection, even in tight working environments.

Compatible with all Liebherr G8 excavators, the system includes cameras, a computer unit, displays and accessories designed for straightforward installation and seamless replacement of existing systems.

Legacy celebration planned for Art Van Camp

Family, friends and colleagues are invited to join a special Legacy Celebration in honour of Art Van Camp — a leader, mentor and visionary whose life's work made a transformative impact on the heavy equipment industry.

e celebration will be held on April 30th from noon to 5 p.m. at:

Sticking to a solution

By Josh Swank, Chief Growth O cer, Philippi-Hagenbuch

We all know what it feels like to be put in a sticky situation. Most of us easily relate to scenarios with too many moving parts, unexpected or unforeseen challenges and an increase in pressure to still complete all the tasks with unrivalled e ciency. For construction operations, a sticky situation — literally — is carryback. Operations face more pressure than ever before to increase e ciency to meet rising demand across the globe. Carryback works against that goal by reducing payload in the haul truck as residual material is left sticking to the sides and bottom of the truck, decreasing hauling capacity for subsequent loads.

Custom haul truck solutions offer an effective solution for carryback while

also addressing other operational ine ciencies.

Carryback obstacle

Carryback creates a variety of problems when overlooked. As material sticks to the sides and beds of haul trucks, piling up load after load, operations su er from decreased e ciency in two ways. First, each trip sees a reduced payload as the truck hauls the same material back and forth on every pass, reducing the overall capacity. Operations can accumulate up to 10 tons or more of material carryback a day. In some cases, this means 10 per cent of each load is lost. When considered for just one load, this may seem small. But when operations look at the big picture, this 10 per cent can quickly add up and result in more haul-

ing, an increase in fuel costs, additional wear and tear on equipment and ultimately, a decrease in pro t.

Second, when the cost of the carryback becomes too great, the operation must shut the haul truck down to manually remove the builtup material, once again hampering productivity. When this occurs, it requires operations to divert an excavator as well as a handful of crew members to shovel the raw material out of the truck — a dangerous and tedious process that can take at least 20 minutes several times a day, which equate to lost truckloads of payload. For maximum e ciency, every minute matters, and the ones that are lost can quickly turn into an expensive problem.

Viable options exist to eliminate carryback. Two

HA RDING EQUIPMENT INC.

haul truck solutions that address carryback are load ejectors and rear eject bodies. When weighing the options, one consideration is whether carryback is the primary issue an operation wants to address or if they are looking to improve e ciency in other ways. Whether choosing load ejectors or rear ejects, it’s important that the solution is not a one-size- ts-all approach, but rather one that considers the full picture and is tailored to the operation to achieve better productivity, safety and pro ts in the long run.

Load ejectors

Load ejectors installed in existing haul truck bodies provide an effective solution for tackling carryback. Specifically engineered to address the problem of sticky

material such as fly ash or clay dirt clinging to certain areas of an articulated or rigid frame truck’s body, load ejectors feature tailor-made designs to precisely fit an operation’s make and model of truck with a keen focus on the main areas prone to buildup.

Material buildup typically begins at the front slope to oor transition of the body and then creeps down the oor, up the front slope and up on the body sides as time progresses. Load ejectors clear out the material before it can build up on the sides. e design of each load ejector consists of a series of overlapping, jointed plate lattices — comparable to mini-blinds in a window — that attach to the top of the front slope plate and drape down the truck body oor. When the body raises to dump material, the load ejector plates slide down and out of the body, hanging vertically on chains, to remove the sticky material.

e ejector hangs away from the oor, so the process can be compared to picking up a kitchen rug and shaking it out. The carryback material falls off the load ejector through gravity and motion as the truck bed raises. As the truck body lowers, the load ejector plates automatically fall back to their default position and lay atop the body floor of the truck, allowing the full capacity for the next load.

A road contractor in Texas was introduced to the idea of the load ejector and the efficiency it offers at ConExpo 2020, prompting the contractor to test the load ejectors in a couple of haul trucks. Before using a load ejector, the contractor had long dealt with the challenge of handling and hauling dirt and clay to and from jobsites — sticky, and almost unmanageable when the weather became hot and humid. is

signi cantly a ected productivity and time management. e contractor was so impressed with the e ciency of the load ejectors that they invested in more than 50 load ejectors to cover the operation’s entire eet over the following year. Load ejectors are now a standard on all haul trucks at this operation. Operations boost hauling capacity even more by pairing load ejectors with a tailgate. While sometimes viewed as a simple piece of equipment, a tailgate provides a better loading target and additional capacity by closing off the back of the truck. is allows operators to ll haul trucks up to their full rated capacity — typically 10 to 15 per cent more than the amount lled without a tailgate.

Rear ejects

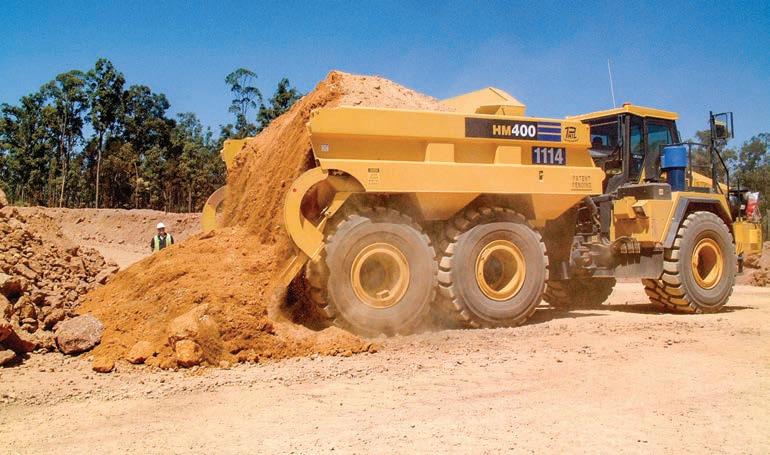

Rear ejects take the efficiency challenge to the next level. A load ejector can be compared to a Phillips-head screwdriver. It accomplishes one function — reducing carryback — extremely well and e ciency improves by using one rather than trying to accomplish the task without the proper tools. A rear eject would be more like a Swiss Army Knife. Not only does it address carryback, since it includes a Phillips-head screwdriver, but it also includes other tools, making it a custom solution to improve hauling capacity, increase safety and stability for o -highway operations, and drive overall operational versatility. Rear eject bodies are engineered to fit a specific chassis and replace the standard end-dump truck body. A rear eject features an ejector blade that pushes material toward the rear of the truck while the tailgate mechanically lowers down,

completely ejecting material and virtually eliminating carryback. e truck no longer relies on the force of gravity for dumping, but rather the blade pushes the material out, completely cleaning the body and eliminating the potential for carryback.

Rear ejects also enable trucks to haul their full rated capacity and they improve efficiency in other areas. Operations with traditional end-dump bodies waste time by stopping to raise the

truck bed, dumping material and waiting for the body to completely lower back down before driving away.

Conversely, rear eject bodies dump material while the haul truck continues to drive, as the ejector blade retracts while driving away from the dump site. ey also allow trucks to dump on unstable and uneven terrain, including slopes, safely and without worry of overhead clearance.

Although the cost of a rear eject is higher, the initial

cost is quickly o set by the time savings and additional capabilities the design o ers.

The best t Load ejectors and rear eject bodies help operations out of sticky situations. Whether addressing carryback alone or improving haul truck eciency in other ways, as well, operations can rest assured that there are custom solutions to help them improve operational e ciency in their haul truck eet.

Hitek Equipment is introducing a new Pavijet at ConExpo

At ConExpo, Hitek Equipment will demonstrate several options for turning a compact loader into a paver.

Hitek is the North American distributor for Italian manufacturer Malavasi G (MG), which created the Pavijet series of hydraulic paving machines.

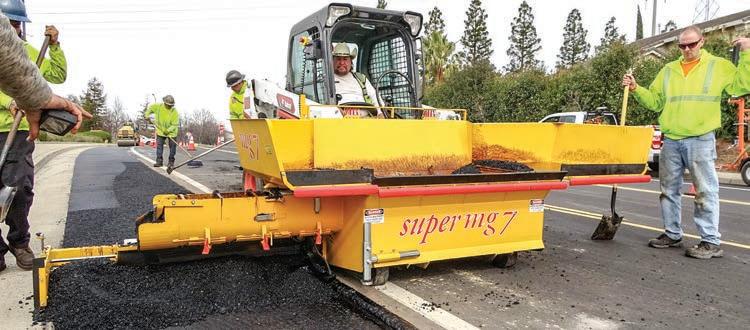

At the show, Hitek will showcase the Pavijet MG7 super and the new Pavijet MG7E with an electrically heated screed.

e Pavijet MG7 Super is a hydraulic paving machine that is compatible with any compact loader with at least 20 hp and requires 60 litres per minute of hydraulic ow. All functions are hydraulic, including the auger, screed lift, screed extension and hopper opening.

“The MG7 Super is a well-rounded paver,” said Tyler Wiese Sales Consultant at Hitek Equipment.

The remote controlled MG7 can pave widths between 30 cm and 2 metres, and heights up to 25 cm.

e paver is auger fed and all aggregate goes inside the hopper that features a 2 cubic metre capacity. Weighing 830-kg, the Pavijet can pave up to 18 metres per minute.

“ is allows you to breeze through any job,” Wiese said.

“ is also allows for you to dump trucks directly into it while paving. Now we cannot push with trucks, but it makes it easy for trucks to come up to it and dump inside of it.”

The MG7 has a propane-heated and vibrating

screen which is also retractable to help avoid obstacles.

e new Pavijet MG7E will feature a screed that uses a generator for heat rather than propane.

“By using a hydraulic power generator that runs off of the skid steer itself, you're going to be able to power your entire system rather than having to use propane,” Wiese said.

‘ e nice part about this is it comes with the same quality product design, and it is made for paving material at a rapid pace.”

e Pavijets at ConExpo will include an updated control panel and remote control.

“It is going to have updated ergonomics, and it's going to make ease of use a little bit better,” Wiese said.

ConExpo to attempt to set new Guinness World Record for high-vis vests

ConExpo organizers are attempting to add a lot more shimmer to Las Vegas.

e trade show will make a Guinness World Record attempt for the most people wearing high-visibility vests.

The attempt, scheduled for March 3, aims to shatter the existing record of 2,499 participants and shine a spotlight on the important role the industry plays in shaping communities and infrastructure across the continent.

“This record attempt is more than a number — it’s a celebration of the advances, hard work, innovation and dedication of everyone in the construction industry,” said Dana Wuestho , Show

Director of ConExpo-Con/ Agg.

“We want to honour those who build our cities, roads, railways, airports, stadiums and monuments and highlight how their e orts touch every aspect of society. is record is particularly important to us as safety is and always will be of utmost priority for the industry and the people who make this work possible.”

Trade show organizers will host the record attempt as part of ConExpo-Con/ Agg’s opening ceremony by gathering thousands of attendees clad in vibrant orange construction safety vests to demonstrate the unity and collective impact

of the construction sector — whose companies and workers influence transportation, resource mining, sports venues, civic and cultural monuments and countless other facets of daily life.

ConExpo participants in the Guinness World Record breaking attempt will receive commemorative safety vests and be recognized for their role in this historic gathering.

“We are excited to host this extraordinary moment as the construction community comes together to celebrate its innovation, sustainability advances, workforce investments and set a new world record in

the heart of Las Vegas,” said Michael Empric, O cial Adjudicator at Guinness World Records.

Bobcat combines power and portability with new generator

Bobcat Company is introducing the PG1140 portable generator, which delivers enhanced output, simplied logistics and advanced load management in a single portable power generator package.

e portable generator is powered by dual Cummins X15 engines. Featuring the latest performance technology, the PG1140 operates without exhaust gas recircu-

lation (EGR). This design eliminates the need for a minimum load and ensures reliable performance even in temperatures as low as -25 C.

“ e Bobcat PG1140 integrates two PG570 portable generators into a single, 48foot trailer, combining power output while significantly reducing transport and setup costs,” said Bobby Ranker, Product Specialist II at Bobcat Company.

“It’s designed to withstand rigorous applications while ensuring reliability, operator well-being and productivity at every stage.”

With more than 4,900 litres of onboard fuel and 350 litres of diesel exhaust uid (DEF), the PG1140 o ers more than 27 hours of runtime at 75 per cent load. is extended capacity minimizes refuelling needs and maximizes operational uptime.

An oversized alternator ensures stable power output and supports applications with high motor starting demands.

e trailer’s high clearance and modular safety railings with ladder improve site mobility and operator protection.

As well, ground-accessible switchgear and controls simplify operation, while the trailer also accommodates

ConExpo, held every three years, takes place March 3 to 7 at the Las Vegas Convention Center and attracts

nearly 140,000 attendees and more than 2,000 exhibitors from around the globe.

power distribution equipment such as cabling and spider boxes behind the switchgear to streamline logistics.

The portable generator

delivers 912 kW at 60 Hz frequency and features a link board panel for exible voltage con guration as well as power access for block heaters and battery chargers.

CAT

ConExpo will serve as Terex lifting brands’ first public trade show since its acquisition by Raimondi Cranes.

CEO, Raimondi Cranes.

Raimondi completed the acquisition of Terex tower crane, self-erecting crane and rough terrain crane businesses as well as the United States-based service infrastructure in November.

“For the rst time, we are presenting ourselves as a unied group, now featuring the high-performing Terex Rough Terrain range, a product line that brings a whole new dimension to our portfolio.

Our participation at ConExpo marks a step forward in Raimondi’s long-term growth trajectory and underscores our ongoing commitment to the U.S. market expansion,” said Luigi Maggioni, Group

A highlight of the group’s showcase will be the rough terrain crane range. Designed to operate across challenging jobsite conditions with excellent ground clearance and up to four steering modes, the rough terrain models combine lifting capacities with advanced mobility.

In addition to the rough terrain lineup, visitors will have the opportunity to learn more about the latest developments within the tower cranes portfolio.

“We look forward to welcoming clients, visitors and sector stakeholders, at our exhibit during this pivotal time for Raimondi,” Maggioni said.

This includes upcoming launches of new flat-tops and luffing jib cranes en -

gineered in response to the increasing market demand for higher lifting capacities and enhanced operational e ciency models.

With the recent establishment of Raimondi North America, the group is positioned to offer a stronger, more localized support network; further reinforcing its intent to serve North America with greater responsiveness and proximity.

“Being closer to our customers is a strategic priority,” said Andreas Ernst, President, Raimondi North America.

“Our presence on the ground allows us to respond faster, support more effectively and build long-term partnership based on trust, technical expertise, and service continuity.”

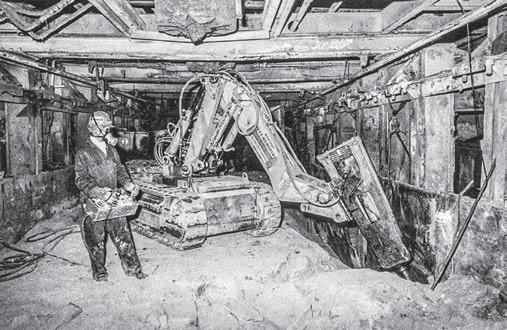

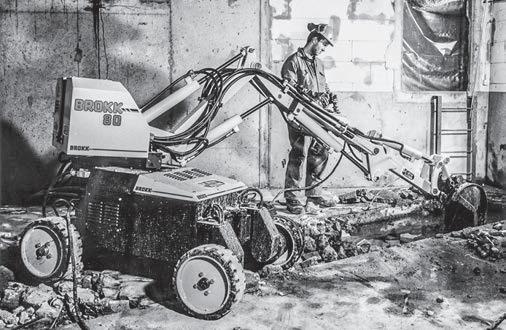

Brokk robots celebrate 50 years in demolition

Brokk was founded 50 years ago as a solution to a problem faced by a small but innovative team of contractors.

Brokk’s journey began in northern Sweden, inside a smelter furnace at Rönnskärsverken. Faced with dangerous manual demolition tasks, brothers Lars and Per-Martin Holmgren created a new solution: a remotely operated machine capable of doing the job with greater safety and e ciency. eir rst prototype did far more than solve a local challenge, it laid the foundation for a new industry.

“It was truly see-a-need, fill-a-need. They’re entrepreneurial guys that saw this is something that is needed and they made it. It's quite remarkable,” said Lars Lindgren, President of Brokk North America.

The demolition robotics

company celebrated the 50th anniversary since the Holmgren brothers (now retired) made the rst model during World of Concrete in January.

"Brokk was born from necessity, to protect workers and improve productivity in some of the toughest industrial settings," said Martin Krupicka, CEO of Brokk Group. "Fifty years later, that driving purpose remains unchanged. While our technology has evolved dramatically, our commitment to solving real-world challenges for our customers is as strong as ever."

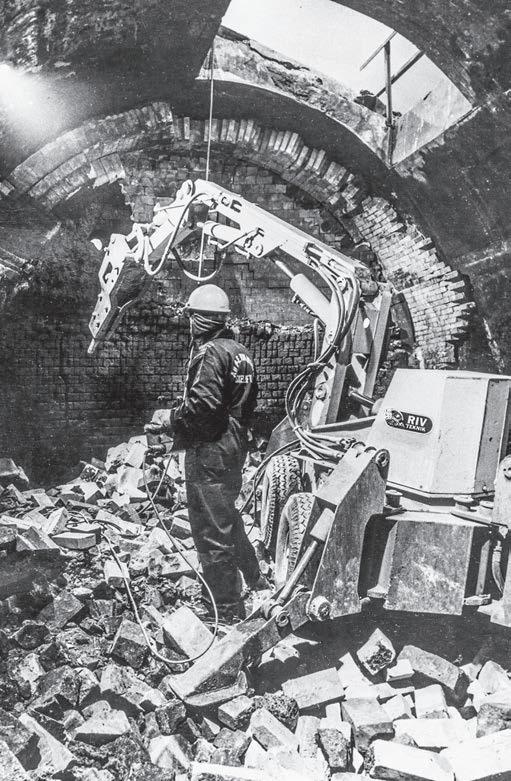

e rst machine was constructed using an old mining machine, adding a three-piece arm system and converting it to an electric power supply.

Following the success of their invention for their own contracting business, the rst Brokk robotic demolition

machine became commercially available in 1981. Like the original, the commercially available Brokk 250 was electric, remote controlled and featured a three-piece arm system.

“That was the genesis of the three-piece arm system,” Lindgren said. “It gives you a very compact machine, but long reach.”

From that first machine to today’s advanced fleet of14-models operating around the globe, Brokk has remained true to its mission to protect workers, increase efficiency and engineer equipment built for demanding environments.

Today, Brokk has sold more than 15,000 robots worldwide, which operate in industries including construction, cement and metal processing, nuclear decommissioning, tunnelling and mining. e

company continues to develop specialized machines and attachments designed to meet the evolving needs of complex and high-risk workplaces.

Lindgren joined the company two years after it started at 17-years-old as a mechanic.

On the advice of one of his teachers, he applied and was quickly hired by one of the Holmgren brothers.

“It's like pure luck. I mean, that's just serendipity all the way,” he said.

Now, 48 years after he started his career with Brokk, Lindgren said he could have never imagined the company would evolve into a global manufacturer.

“We were basically making maybe 12 to 15 a year the rst few years and now it's like 600,” Lindgren said.

“It's been a long, strange trip.”

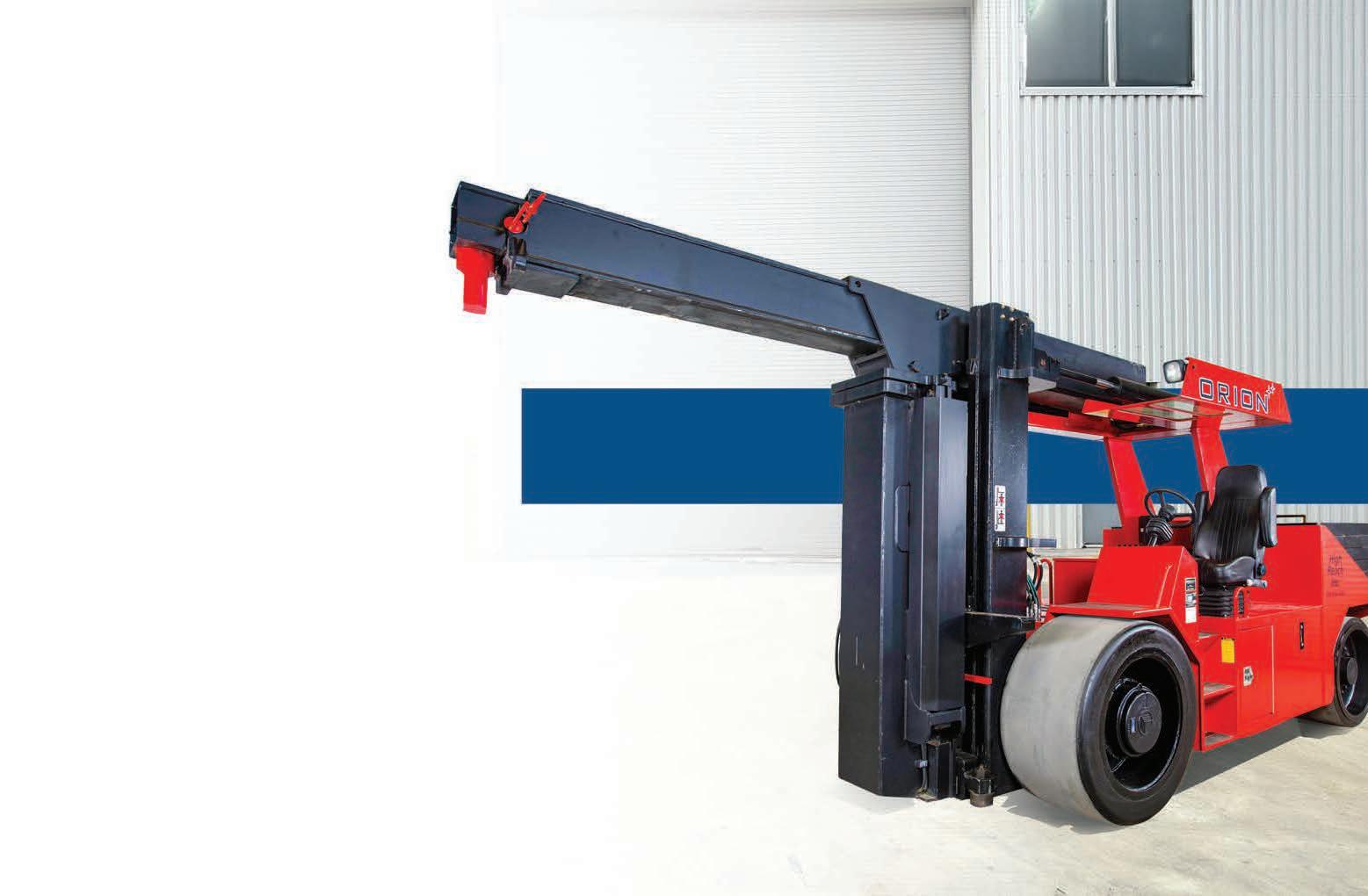

FUTURE OF

LIFTING

The ORION line of high-capacity forklift trucks is designed for superior performance and reliability. Engineered with advanced technology, ORION machines o er maximum e iciency and productivity, making them ideal for a wide range of applications. Whether you need powerful lifting capabilities or precise maneuverability, ORION has the right solution for your needs.

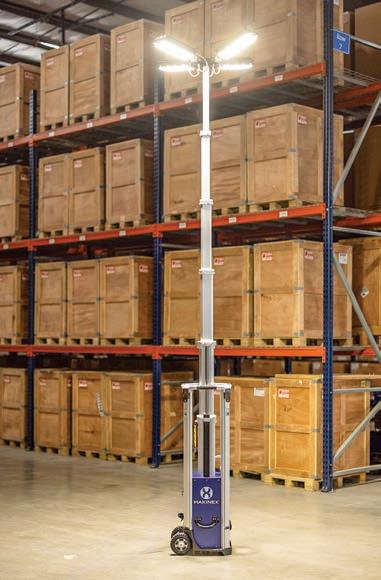

The Makinex Sierra light tower enables one-person deployment

e Makinex electric Sierra light tower (PLT-800-US) is a compact, high-performance LED lighting solution designed for rapid, one-person deployment.

Standing at 5 metres tall when fully extended, the Sierra light tower delivers up to 112,000 lumens, e ectively illuminating areas up to a half-acre, or 2,200 square metres.

“ e lumens are probably the main advantage. We're like four or ve times more than others” said Product

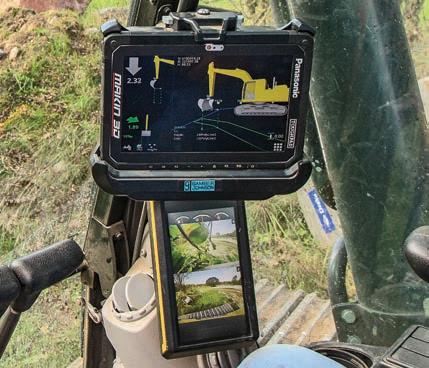

• Complete 2D-3D systems for EXCAVATORS , DOZERS, CTL and COMPACTORS

• Optional swing boom configuration and software choices, add to or upgrade anytime

• Customized start up packages - pay only for what you need

• Unlimited projects and surfaces in Makin’ Cloud

• Training and unlimited system resources

• Serving all of Canada

• Over 6000 systems operating globally

• 2 year warranty

Manager Michael Chen.

Weighing only 49 kg and featuring a transport height of 1.2 metres, the Sierra is easy to transport.

“You can put in the back of a pickup truck” Chen said.

The Sierra features four fully rotational, 360-degree light heads for versatile lighting con gurations, while the electric mast ensures quick and e ortless elevation.

“This light tower is ideal for indoors, outdoors, even underground tunnel work,” said Brandy Carmona, Product Manager, Makinex North America.

Engineered for durability, the Sierra operates silently and is built to withstand winds up to 108 km per hour and temperatures as low as -30 C, making it ideal for construction sites; emergency and disaster response; roadwork and tra c control; and mining and industrial applications.

“All of our products are plug-and-play, ready to go,” Carmona said. “If they ever do need service, we are known for providing red-carpet, white-glove customer care.”

“Having the mast adjustment with the fully rotational lights allows you to light in any direction. You don't have to have the mast or the tower all the way up; you can adjust it as needed.”

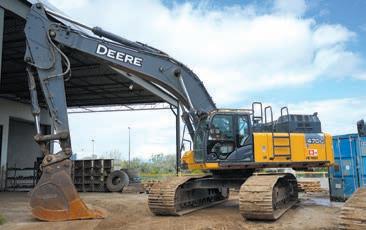

Deere moves excavator factory from Japan to North Carolina

John Deere is opening a new factory in North Carolina that will assume production of future generation excavators previously produced in Japan.

e Kernersville campus will produce the only excavator designed, developed and manufactured in the United States, according to Deere.

Alongside the excavator factory in Kernersville, North Carolina, Deere announced a new distribution centre near Hebron, Indiana. Both facilities are set to open in the next year.

In a speech in Clive, Iowa, on Jan. 28, President Donald Trump announced the two new American John Deere facilities.

"Our investment in these new facilities underscores John Deere's dedication to strengthening the backbone of American industry and supporting local economies,” said John May, Chairman and Chief Executive O cer of John Deere.

“We believe in building America, and these projects represent our intent to continue driving innovation and job creation in the United States."

Deere recently broke ground on the Indiana distribution centre that is strategically located to enhance its supply chain capabilities nationwide. e facility will be designed to streamline operations and ensure timely delivery of equipment and parts.

e Indiana project is anticipated to generate about 150 jobs.

“This new facility is an investment in customer expectations around world class product support

through parts availability for our US based ag, turf, construction, forestry, mining and turf customers,” said Denver Caldwell, Vice President, Aftermarket and Customer Support. "Indiana's strong workforce and central location make it an ideal choice for expansion.”

John Deere will continue to maintain its primary North American Parts Distribution Center in Milan, Illinois, which has been in operation since 1973 and employs about 1,200 people.

e new $70 million factory in Kernersville, North Carolina, will bolster John Deere's manufacturing capabilities, leveraging advanced technologies to produce excavators for the construction market.

The facility will employ more than 150 people and will help meet equipment demand and strengthen Deere’s commitment to United States manufacturing innovation.

"We are excited to bring this new facility to our Kernersville campus and to be part of the region’s thriving manufacturing community," said Ryan Campbell, President Worldwide Construction and Forestry and Power Systems.

“Our focus will be on delivering excellence, creating jobs and advancing the legacy of John Deere in American manufacturing.” e two new facilities are part of Deere’s commitment to invest $20 billion in United States manufacturing over the next 10 years.

“It is a testament to our con dence in the future of U.S. manufacturing and our unwavering commitment to innovation, quality, and economic growth,” May said.

Skyjack to highlight new electric and hybrid machines at ConExpo

Skyjack will exhibit the latest electric additions to its scissor lift and articulating boom range at ConExpo in March.

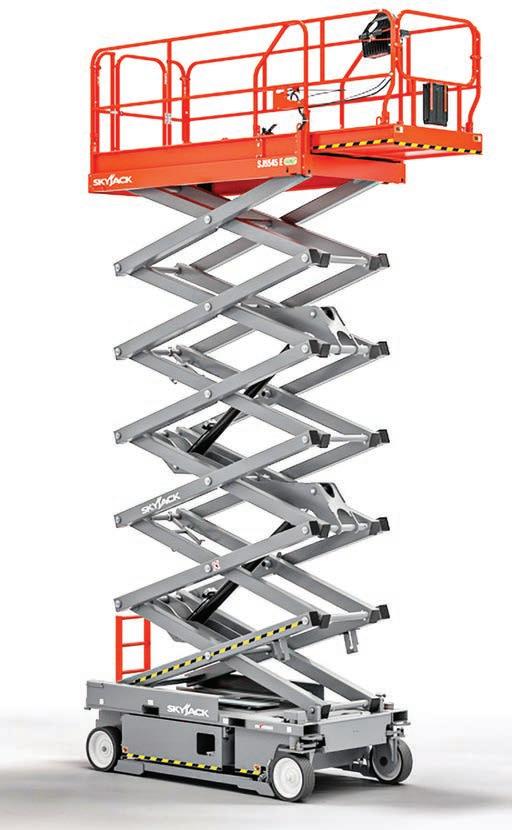

The new Skyjack machines on display include the SJ5545 E electric drive scissor lift as well as the new SJ45 AJE+ and SJ60 AJHE+ hybrid-electric and battery-electric rough terrain articulating booms.

“We look forward to engaging with customers and showing exactly how Skyjack’s quality engineered units can benefit rental companies and operators,” said Charlie Patterson, Skyjack’s President. “Skyjack’s new scissor lifts and articulating booms are an ideal choice for a wide range of indoor and outdoor construction, maintenance and industrial applications and are designed to meet true jobsite performance expectations.”

e new SJ5545 E electric drive scissor lift represents the highest working height scissor in Skyjack’s range of slab scissors and includes innovative design features, high platform capacities and a clean, quiet, sustainable rental solution.

With a working height of 15.55 metres and a load capacity of 349.2 kg, the E-Drive lift boasts responsive control and manoeuvrability.

e scissor stack design of the SJ5545 E features fully welded cross-bracing that increases rigidity and improves operator comfort at height. is scissor is drivable at full height, offers a two-person wind-rating at 6.7 metres, provides the largest working areas in its class with a robust, all-steel, anti-slip platform.

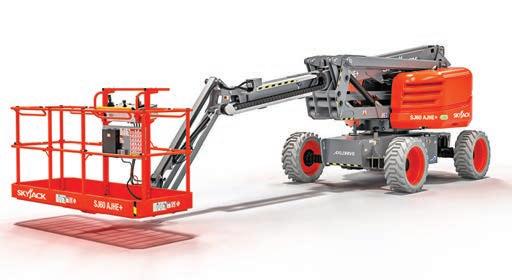

The SJ45 AJE+ and SJ60 AJHE+ represent Skyjack’s new hybrid-electric and battery-electric rough terrain articulating boom range that is now available in the North American market.

Skyjack designed the machines to navigate rough terrain conditions and deliver performance in emission restricted sensitive indoor worksites.

e new booms have been developed to maintain the features and performance found in diesel machines. The range has common specifications, parts, capacities, reach and dimensions across all-electric, hybrid-electric and diesel

options, allowing rental companies to choose preferred power within a single machine.

e SJ1056 TH telehandler, SJ3219 E scissor lift and SJ3219 micro scissor lift will also be on display at the Skyjack booth.

“Visitors to Skyjack’s booth at ConExpo can also get rst-hand experience with a number of manufacturer-approved Accessoryzers

that have been designed to add functionality and convenience. We will also be showcasing fantastic options like perimeter lights, the ECOtray and turf tires,” said Corey Connolly, Skyjack’s Head of Product Management. “Whether it’s helping you get materials to the work site, protecting equipment and operators or enhancing productivity, Skyjack has the right accessory for the job.”

Mammoet recently deployed one of the world’s largest cranes to help a Canadian energy provider in Alberta’s oil sands replace its original eight coke drums at its Base Plant site in Fort McMurray.

e project extends the life of the original upgrader by 30 years. e site upgraders use thermal and chemical processes, including coking and hydrotreating, to convert bitumen into synthetic crude oil.

Coke drums gather the petroleum coke that is separated from the feedstock during the

re ning process.

Weighing 270 tonnes each, the drums are 7.9 metres in diameter and 29.8 metres high.

Moving them into place required one of the largest cranes in the world.

Through early involvement, Mammoet was able to advise on the right crane for the job and, when one of the new components was heavier than estimated, they fabricated specialized rigging for the lift.

The team also helped fast-track the schedule by shortening the time between

two of the biggest lifts of the project – helping enable oil producer to quickly resume operations.

The right tools for the job Mammoet was brought in during the planning stages to conduct a feasibility analysis, assess equipment needs to remove the old drums and get the new ones delivered to the site and installed.

“In terms of the importance of the project and getting everything done within a specific timeline, this turnaround was completed safely, ahead of budget and schedule,” said Kurt Reid, Sales Manager at Mammoet.

“With the daily cost being signi cant, it was essential that planning happened years in advance.”

Mammoet was involved with the project for more than seven years prior to execution, discussing the timing of lifts and movements.

Its engineers undertook an entire crane review, assessing every suitable model in Mammoet’s eet to select the right equipment for the jobs.

The biggest consideration wasn’t weight, but reach.

e engineering team rst considered using a crawler crane placed beside an upgrader wall, but the option wasn’t feasible because it interfered with ongoing operations and maintenance work in the area.

The PTC210DS Instead, Mammoet’s PTC210DS ring crane was selected.

e PTC 210 DS is an upgrade to the 3,200-tonne class PTC 200 DS, enabling heavier lifts at longer boom lengths. Strengthening of the main boom and additional counterweight facilitates its load moment upgrade. It can perform a wider range of lifts compared to the smaller the PTC 150 DS, as its maximum load moment is 40 per cent higher. is allows the crane to undertake more site-wide lifting activity from a single location, which eliminates relocation downtime.

It has the capacity to lift the heaviest component, a six-drum derrick weighing

more than 1,200 tonnes. As well, its reach capacity could be assembled further away to not disrupt other on-site work.

As the PTC had to be erected inside the coke pit, civil work was needed to strengthen the ground beneath it. Around 200 piles were driven into the ground to build a solid foundation.

Prior to project execution, the new components were delivered to site. ey were transported from their fabricator in Edmonton to Fort McMurray using prime movers on Alberta roads, and Self-Propelled Modular Transporters (SPMTs) on site. is process started a year and a half before the project area would shut down for execution.

“Our plan was to have everything the company needed — equipment, materials and components — on site by December 2024 so that on May 1st when the plant was shut down, the turnaround could begin without interruption,” said Niek de Winter, Corporate Account Manager at Mammoet.

“ e crane was assembled, the coke drums and derricks were on site, everything was there months ahead of time.

is allowed us to eliminate delays mid-project.”

On site, two sets of SPMTs and crews (each running a day and night shift) allowed things to move forward continuously and the PTC crane to be constantly fed.

The old derricks, a two drum and six drum, were lifted first, followed by the eight coke drums and nally

their concrete foundation sections.

e old components were placed onto SPMTs and driven to a nearby laydown area for decommissioning. For the installation of the new components, the process then happened in reverse.

The fourth deck derrick supermodules — named for their mammoth size — were transported to the facility in smaller modular sections and then moved and assembled on site.

The base of these supermodules made up the operating deck of the coke drums and were assembled via SPMT from the smaller modules. e derricks were erected with Mammoet crawler cranes.

Due to a weight increase of the largest derrick supermodule, the project team at Mammoet had to maximize use of the PTC210 to deliver the needed lifting capacity. It was recon gured with a double masthead kit, and specialized rigging was also fabricated.

Accelerated schedule

Thanks to detailed planning, specialized equipment and approach, production at the site could continue right up until the day before the shutdown. From factory to foundation, Mammoet safely and e ciently managed its components on site ahead of the turnaround.

“As soon as we are called on, we are ready to perform the next lift,” Reid said.

“When you have a client that is planning their multiweek event right down to 15-minute intervals, time is of the essence.”

M ARCH 3-7 TH LAS VEGAS, NV

5-YEAR/

5,000 HOUR

Full Machine Warranty

5-YEAR/

10,000 HOUR

Machine Structure Warranty

• Increased lift capacity and superior drawbar pull, providing enhanced traction and pulling power on any terrain.

• Its wider undercarriage ensures a more stable and confident operation, making strenuous lifting and digging jobs feel e ortless.

• The Yanmar 4TN107FHT-4SSH1 Tier 4 Final engine pushes the boundaries of performance and e ciency, delivering significant improvements in several key areas. Operators can expect a boost in horsepower, fuel economy, torque, and faster cycle times.

NORTHERN ALBERTA

Equipment Sales & Service Ltd.

Edmonton (780) 440-4010

essltd.com

SOUTHERN ALBERTA

JT Equipment (587) 832-0772 or 1-888-214-5038 jtequip.ca

BRITISH COLUMBIA

Inland Truck & Equipment

Campbell River, BC 250-287-8878

Castlegar, BC 250-365-2807

Cranbrook, BC 250-426-6205

Fort St. John, BC 250-785-6105

Kamloops, BC 250-374-4406

Langley, BC 604-607-8555

Nanaimo, BC 250-758-5288

Penticton, BC 250-492-3939

Prince George, BC 250-562-8171

Quesnel, BC 250-992-7256

Terrace, BC 250-635-5122

Vernon, BC 250-545-4424

Williams Lake, BC 250-392-7101

inland-group.ca

ONTARIO

Itec 2000

Rosslyn (888) 574-8530

Thunder Bay (888) 574-8530 Timmins (705) 267-0223 itec2000.com

McDowell B Equipment Ltd.

Sudbury (705) 566-8190

Barrie (416) 770-7706 bmcdowell.com

Stratton Equipment Sales & Service

Stratton (807) 483-7777 strattonequipment.com

Terapro Rental

Vars (613) 443-3300

Stittsville (613) 836-0654 terapro.ca

Top Lift Enterprises Inc.

Stoney Creek (905) 662-4137

Bolton (905) 857-5200 toplift.com

• O ce with a view: 10” HD LCD colour monitor, 4 selectable work modes (SP, Power, Eco & Lift), ROPS and FOPSLevel 1 certified.

• 270° Waves 3-camera system, Dual-Band Remotecare® GPS Telematics, custom flow balance, custom attachment settings.

• Precision Grade Ready: puts operators in the driver’s seat for faster, more accurate work!

QUEBEC

Équipement JYL Inc.

Chicoutimi (418) 698-6656 equipementjyl.com

Micanic

St-Aug-D-Desm (418) 878-2241 micanic.com

Terapro Location

Val d’Or (819) 825-4299 Plaisance (819) 718-0945 terapro.ca

Top Lift Enterprises Inc.

St-Laurent (514) 335-2953 Sherbrooke (819) 612-5438 toplift.com

YUKON TERRITORY

Inland Truck & Equipment

Whitehorse, YT 867-668-2127 inland-group.ca

Building It Right the First Time with Bobcat

For nearly a decade, Simcoe County contractor Daniel Fox, owner of FoxCon Contracting Inc., has built a reputation for doing things differently and doing them right.

Specializing in luxury outdoor spaces, the company delivers large-scale armour stone retaining walls, waterfront landscapes and high-end property transformations across Simcoe County, Muskoka, Owen Sound and Windsor. From day one, the mission has been simple: no shortcuts.

“I saw too many corners being cut early in my career,” he said. “I knew I could do better and treat every property like my own.”

That mindset led him to operate independently, ensuring full control over quality. The company has completed high-profile waterfront projects around Lake Simcoe and work connected to broker Peggy Hill in and around the Barrie area. Drone-shot installations featuring nearly $500,000 in armour stone showcase the scale and craftsmanship FoxCon delivers.

“Our work speaks for itself, but relationships build the business,” he said.

Equipped for Precision Precision starts with equipment, exclusively Bobcat machines.

An operator since his youth, Fox has always preferred Bobcat. “The power and comfort

BARRIE

Bobcat of Barrie

705-726-2228 oakenequipment.ca

GREY BRUCE

Bobcat of Grey Bruce 519-372-9100 bobcatoftc.com

PARRY SOUND

Bobcat of Parry Sound Ltd. 705-342-1717 bobcatofparrysound.com

TORONTO WEST

Bobcat of Toronto 416-679-4172 oakenequipment.ca

BRANTFORD

Bobcat of Brantford 519-752-7900 bobcatofbrantford.com

HAMILTON

Bobcat of Hamilton 905-643-3177 bobcatofhamilton.com

PETERBOROUGH

Bobcat of Peterborough 705-748-9119 bobcatofpeterborough.com

THUNDER BAY

Equipment World Inc. 807-623-9561 bobcat-tbay.com

are unmatched. Sticking with Bobcat was non-negotiable. “Bobcat is always thinking ahead. So, you might as well stick with the brand that’s thinking ahead. Instead of staying stagnant, because it’s not a stagnant world anymore. Everything’s changing. Big time.”

Today, the fleet includes a Bobcat E55 compact excavator, a Bobcat T66 compact track loader with 96” dozer blade for large armour stone installations and lot clearing, a Bobcat E20 compact excavator, Bobcat’s new MT120 mini track loader for tight-access work, and a Bobcat ZT3000 zero-turn mower that cuts down his property in a ¼ of the time.

“With the versatility we have, there isn’t a job we can’t handle. I’ve worked on backyard projects where we have less than 4’ of width access, all the way up to picking up 6000lb logs with my Bobcat T66 compact track loader to knocking down 100’ trees with my Bobcat E55 compact excavator.”

Family and Business

The Bobcat connection runs deeper than brand loyalty. His brother, Jake Evans, a sales specialist at Bobcat of Barrie/Oaken Equipment, supports the company’s equipment needs.

“It’s great to have my brother in the business, but our relationship doesn’t change the level of professionalism,” Fox said. “I was a Bobcat customer long before Jake joined the team,

CASSELMAN

Bobcat of Ottawa Valley 613-764-2033 bobcatov.com

KITCHENER

Bobcat of Tri-Cities Ltd. 1-866-214-3939 bobcatoftc.com

STRATFORD

Bobcat of Stratford 519-393-6040 bobcatofstratford.ca

SAULT STE. MARIE

Bobcat of Sault Ste. Marie 705-949-7379 bobcat-ssm.com

CORNWALL

Bobcat of Ottawa Valley

613-932-2034 bobcatov.com

LONDON

Bobcat of London 519-455-4900 bobcatoflondon.ca

STRATTON

Stratton Equipment 807-483-5505 strattonequipment.com

WINDSOR

Bobcat of Windsor 519-737-0120 oakenequipment.ca

and I continue to work with them because of the service and support. I’ve heard from others in the industry that he treats them the same way, responsive, honest and dependable.”

“They understand that downtime costs money, and they’ve always kept us running.”

A Perfectionist’s Approach

In winter, the team shifts to select stone projects and interior renovations. Self-taught and detail-driven, Fox believes in understanding not just how to build, but why.

“If you’re going to build it, build it right the first time.”

Nearly 10 years in, FoxCon continues to grow through trust, relationships and uncompromising quality.

“We’re not here to rush jobs. We’re here to build something that lasts.”

COURTICE

Bobcat of Durham East Ltd.

905-404-9990 bobcatofdurhameast.com

MUSKOKA

Bobcat of Muskoka 249-390-7000 oakenequipment.ca

SUDBURY

McDowell B Equipment Ltd. 705-566-8190 bmcdowell.com

WYOMING

Advantage Farm Equipment Ltd. 519-845-3346 advantage-equip.com

FRANKFORD John’s Equipment 613-398-6522 johnsequipmentsales.com

OTTAWA

Bobcat of Ottawa Valley 613-831-5166 bobcatov.com

TORONTO EAST

Bobcat of Toronto 416-679-4171 oakenequipment.ca

Ready to work.

The right machine, when you need it.

A smarter way to access equipment

- Fast Availability - Ready-to-rent fleet deployed in priority markets

- Flexible Rental Models - Short-, mid-, and long-term solutions

- Lower Financial Risk - Preserve capital and cash flow

- Try-Before-You-Buy - Rent today, buy later if it fits

- Service-Backed Uptime - Maintained by Nors-trained technicians

Rental backed by the same standards, people, and service you trust from Nors.

RENTAL

Smarter jobsites start now

Real-time insights, strong partnerships and strategic rentals will define success in 2026

By Doug Dougherty, CEO Cooper Equipment Rentals

Today’s jobsites are operating under a new kind of pressure. Rising equipment costs, short timelines, lean crews and steep competition have become the norm. Tight margins leave little room for error. One misstep, like choosing the wrong machine, carrying idle equipment or lacking visibility into utilization, can quickly erode pro tability.

The good news is contractors are not facing these challenges empty-handed. e tools to manage jobsites are more powerful and accessible than ever before.

Real-time telematics, connected equipment and better rental o erings are changing how eets are managed day to day. Used e ectively, these solutions give teams the visibility they need to make smarter, faster decisions when it matters most.

Even with all the right tech, the year ahead will not be without its hurdles. At the same time, there’s also a growing momentum building across the construction and equipment sectors.

Delayed investments are coming back online, largescale infrastructures and nation-building projects are gaining traction. Contractors will need to scale quickly as project requirements evolve.

But success will not hinge on equipment availability alone. The companies that

pull ahead will be those who focus on a few critical priorities: leveraging the right technology to drive databased decisions, investing in skilled people and taking a more strategic approach to rentals. Together, these factors will shape how the industry navigates the year ahead – and who leads it.

Real-time insight

Real-time equipment insights have become a de ning advantage on today’s jobsites. In 2026, we will start to see contractors demand greater visibility into utilization, performance and cost drivers. For rental providers, o ering data alone is not enough. The real value comes from transforming a customer’s everyday jobsite activity into actionable insights, helping them reduce guesswork, increase uptime and maintain tighter control over equipment.

One of the most common challenges we see as rental providers is overspending on equipment. Small decisions that can have a big impact on margins. ese issues often arise when contractors focus on availability and price, rather than overall value. e right rental equipment provider can help identify, interpret and analyze the data that truly matters to your business. With a deeper understanding of how equipment was used on previous jobs, you can forecast future

costs more accurately and avoid budget overruns. When you tap into that kind of information, you can use it to make smarter, more profitable decisions.

A competitive advantage

Even the most advanced tech cannot deliver results without the right people behind it. In 2026, workforce challenges will continue to be the industry’s biggest constraint. But there’s also an opportunity. When approached the right way, your people become the most valuable asset for navigating the year ahead.

Technology can help offset labour shortages, but it does not replace the need for the right mindset. Many rental and construction companies are investing in better training, mentorship and continuous learning programs to help set career pathways and to attract and retain talent.

Moving employees into new roles and responsibilities helps build individual skill sets while creating a more versatile, knowledgeable team that can better support customers and adapt to changing demand.

With much of the industry struggling to attract, hire and keep workers, it’s critical to rethink what makes the ideal candidate. Technical skills can be taught, but the right attitude is harder to nd.

In 2026, commit to building a culture that empowers em-

ployees to grow, contribute and stand out in an increasingly competitive market.

A shi from price

Rising equipment costs and rental rates are already putting pressure on margins as we head into 2026.

Now more than ever, contractors need to treat equipment decisions as strategic investments, rather than transactional purchases.

For some contractors, mixed fleets still make sense, but ownership brings signi cant and often underestimated costs.

On the rental side, contractors are taking a closer look at total spend and supplier performance. It’s no longer just about rental rates. More contractors are seeing the value in service reliability, technical expertise and eet availability to directly in uence project success and overall costs.

When viewed through this lens, the lowest rate does not always deliver the best value. Long-term competitiveness depends on rental partners who go beyond the price to

help protect margins, provide exibility and support better jobsite performance.

Leverage

new opportunities

While housing and other private sector construction may remain cool throughout early 2026, renewed federal, provincial and municipal infrastructure investment will create new opportunities across the industry.

Public sector projects o er predictable revenue, longer timelines and great stability, but you still need the right tech, people and a flexible equipment strategy to succeed.

Many often come with funding tied to apprenticeships, employment programs and skills training: support that could help you grow your workforce.

Infrastructure jobs tend to require more specialized equipment and expertise such as trench safety and pump and power solutions. Success depends on access to specialists that can help recommend, install and maintain equipment, while

navigating evolving safety standards and regulations. Contractors are increasingly relying on their rental partners to help forecast needs, secure the right equipment and remain exible as project scopes evolve.

Looking ahead

e Canadian construction and rental industry are well equipped to perform, even in challenging conditions. e year ahead will reward those who make smarter, more agile decisions and adapt quickly as project demands shift. This is not a moment to slow down, but to operate more strategically. Leveraging data, improving visibility into equipment use and re ning rental strategies will be essential to keeping projects on track.

As 2026 unfolds, equipment should be viewed as a core driver of competitiveness. Those who prioritize total value over lowest cost, invest in their people, utilize technology and cultivate strong rental partnerships will be best positioned to grow.

Genie celebrates 60 years of aerial lifting at the ARA Show and ConExpo

While focusing on future-forward innovations, Genie honours its 60th anniversary throughout 2026.

Bud Bushnell, who was posthumously inducted in the AEM Hall of Fame in 2022 for being an industry pioneer, founded Genie in September 1966.

“This year we will celebrate an incredible milestone, Genie’s 60th anniversary. Genie’s leadership in the industry has been defined by a strong partnership with our customers, a relentless commitment to quality, and a continuous drive for innovation and improvement,” said Genie President Josh Gross. “This year, we have a lot of exciting investments planned that will continue to drive us toward future success and industry leadership for the next 60 years, and beyond.”

As part of its celebration, Genie will introduce new products and services at

The ARA Show, March 2 to 4 in Orlando, and during ConExpo, March 3 to 7 in Las Vegas.

The ARA Show

Genie Recon, Genie’s new reconditioning business, will make its public debut at The ARA Show.

Genie will feature a reconditioned S-65 boom lift, providing customers with an opportunity to see the end results of the reconditioning process, which Genie says mirrors the same quality benchmarks applied to new equipment.

Using Genie parts and quality assurance processes, each machine undergoes detailed inspection, functional testing and targeted upgrades to ensure like-new consistent performance, safety and reliability.

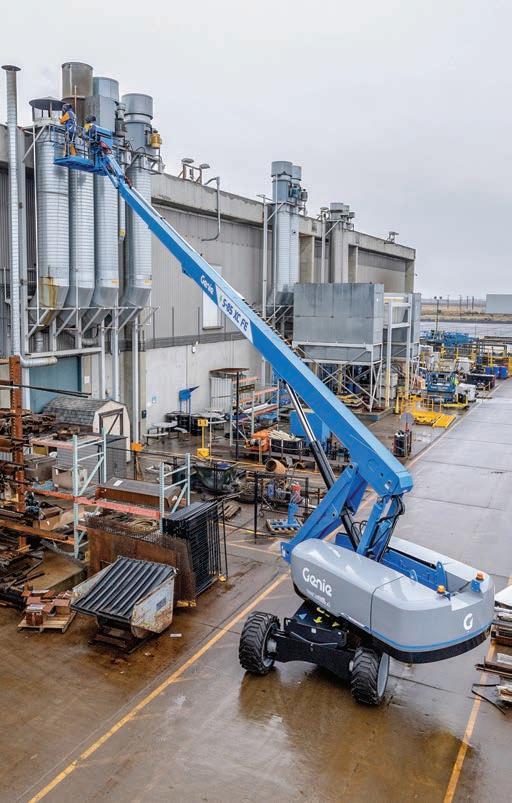

Genie S-65 and S-85 telescopic boom lifts are now available as reconditioned units for customers in North America.

Show attendees will also see new features for Genie 360, the company’s digital tool for service management.

“Genie 360 digital initiatives are intended to make doing business easier for fleet owners by delivering intuitive and holistic aftermarket service and support,” said Dana Peters,

ConExpo

At ConExpo, Genie will showcase how improvements and innovations in powertrains are making equipment more efficient, reducing maintenance and lowering the total cost of ownership. On display will

be the S-85

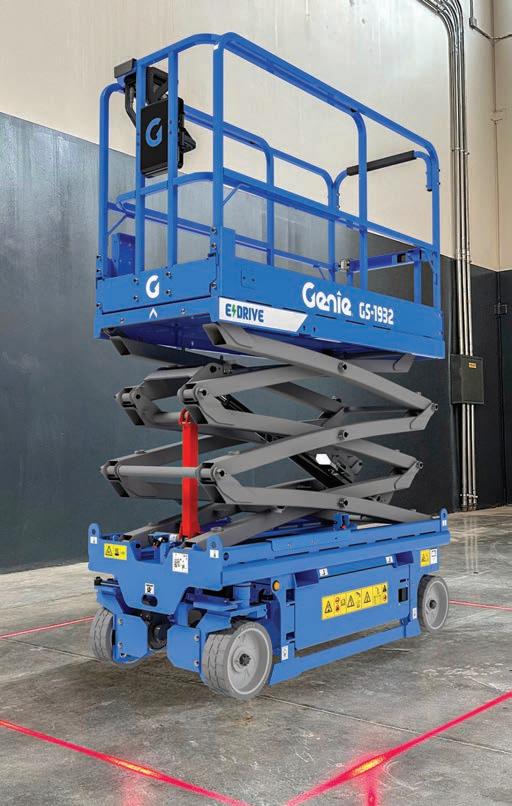

and a model from Genie’s next-generation GS scissor lift product family.

“Through our commitment to quality by design, Genie equipment delivers a low total cost of ownership and strong residual value at the end of the machine’s first life cycle,” said Dominik Damm, Director,

Product Management for the booms portfolio.

As an example, the S-85 XC FE and E models featured more than 80 quality improvements that reduce maintenance, resulting in a 15 per cent reduction in ownership costs for electric machines, and a 6 per cent reduction for hybrid machines.

BOOTH #617

BOOTH #1134

Hitachi Global Air Power to highlight electric innovations at ConExpo

Hitachi Global Air Power is bringing its next generation of electric portable air compressors to ConExpo 2026.

The company will showcase how the portfolio delivers superior performance while helping rental and construction customers reduce operating costs and meet evolving sustainability expectations.

“Innovation for us starts with listening to our customers,” said Hideki Fujimoto, President and CEO of Hitachi Global Air Power. “We’re expanding our portfolio

of reliable, durable and high-performing electric portable air compressors to meet a wide range of customer needs. At the same time, we continue to invest in and advance our diesel o erings to ensure we have the right solution for today’s applications and tomorrow’s demands.”

At ConExpo 2023, the Sullair E1035H was unveiled.

The compressor featured many patent-pending elements, including swing-out coolers for easy cleaning and maintenance and condensate management technology,

which helps eliminate the need for additional disposal equipment.

The compressor was also designed for better user safety and with the Sullair-exclusive Electronic Spiral Valve (ESV), which boosts e ciency.

e company has carried forward much of the same technology found in the Sullair E1035H into the smaller Sullair E425H. The E425H o ers 425 CFM at 150 psi of compressed air power for customers in the rental and construction markets for a wider range of applications.

Hitachi Global Air Power has also introduced the Sullair OFE1550 oil free electric portable air compressor.

e OFE1550 delivers 1,550 CFM at 125 psi of Class 0 oil free air — ideal for applica-

tions such as oil and gas and as back-up plant air in any application where air purity is critical.

Like its predecessors, the OFE1550 includes customer-forward features like easy maintenance, a simple startup with the Wye-Delta starter and enhanced safety by keeping electric connections and discharge components away from the operator. It also features a smart auto-lubrication system that automatically delivers the ideal amount of lubrication to the motor, maximizing performance and protecting against premature wear.

“Our customers are facing rising energy and operating

costs and tighter emission and sustainability requirements,” said Jerel Cole, Global Portable Product Manager at Hitachi Global Air Power.

“Our next generation electric air compressors were developed to meet real operational demands – delivering the performance and air power our customers expect while helping them to operate more e ciently and responsibly.”

Hitachi Global Air Power launched the first electric portable air compressor in 1979; the operating, refurbished compressor, with more than 53,000 operating hours will be on display at ConExpo.

CRA celebrates 60 years

e Canadian Rental Association (CRA) is celebrating six decades of supporting Canada’s equipment and event rental sector.

Headquartered in Stoney Creek, Ontario, CRA is a notfor-pro t organization that supports its members and partners through advocacy, education and industry-exclusive opportunities.

Since its start in 1966, the CRA has seen rsthand how the industry’s ingenuity, diversity and hard work help Canadians make big things happen in every region of the country. The 60-year milestone recognizes a sector whose heritage is rooted in enabling progress and whose future is driven by innovation. Together, these strengths continue to build communities and support a national rental market that was projected to grow 3.4 per cent in 2025 to reach $8.5 billion.

The rental sector has played a vital role in nation-building projects and moments that helped Canada see itself as a modern nation. From Expo 67 through three Olympic Games, rental companies supplied the equipment, infrastructure, furnishings, power, staging and technical expertise that enabled Canada to welcome the world.

Engineering landmarks such as the CN Tower and the Confederation Bridge demonstrated a country ready to design, build and connect on

a new scale, while festivals, cultural celebrations and major public events brought communities together — each made possible with the right rental solutions and professional support.

Beyond these milestones, the rental sector has long supported the growth of Canadian industry, culture and local communities. It keeps construction projects moving in every season and enables events of all sizes.

Rental companies provide practical, exible solutions for businesses, municipalities and organizers, and offer immediate support during emergencies through temporary power, climate control, lighting, structures and site services. While much of this work happens out of sight, its impact is visible across the country in the progress, connection and resilience it makes possible.

As the country prepares for major investments in housing, infrastructure, climate readiness and public gathering spaces, the rental sector will remain an essential partner. Its adaptability, technical expertise and commitment to problem solving reflect qualities that have long defined Canada’s approach to building strong and resilient communities.

The industry’s skill and steady dedication will continue to play a vital role in how the country builds, connects and celebrates in the years ahead.

Embracing the benefits of drilling equipment rental

By Joe Haynes, President of Little Beaver

Providing quality services while maintaining a healthy bottom line will forever be high on a contractor’s priority list.

Renting drilling equipment is one way to maximize productivity and potential while minimizing expenses. For specialty projects and testing the waters on new services, equipment rental can be a cost-e cient option for contractors looking to provide more without over-investing.

There are endless opportunities that rental centres can help a fencing crew tackle. For example, rental centres o er a range of machines and attachments for safe one-person operation.

Availability will vary from centre to centre, but contractors can usually nd mechanical and hydraulic earth drills as well as mini trenchers in a variety of sizes — perfectly scalable for construction and landscape projects.

So soil

Looking for a post-hole

auger that is lightweight, high-speed and digs quickly and cleanly? See what the local rental centre has for mechanical earth augers. These compact machines power through sand, silt and loam, creating clean 15-cm to 20-cm diameter holes for applications such as fencing, deck building, landscaping and more.

Digging a post hole takes less than a minute, meaning a crew can accomplish a lot with just a two-day rental. Need to bore under something? With optional horizontal boring attachments, contractors can easily rent the equipment to bore under sidewalks and driveways to install landscape lighting, water systems and much more.

Tough soil

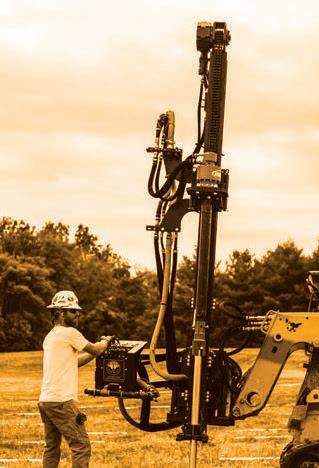

For tougher soils — like clay, rock or frozen ground — a hydraulic earth drill may be the best choice. ese machines o er more power than mechanical drills, and some models still allow one-person drilling. With their extra torque, hydraulic earth drills

can handle augers up to 40-cm in diameter and can drill depths of up to 9 metres with the right auger. Some also include a reversible feature for quick removal from the ground.

With even more power and potential, towable hydraulic augers have a balanced torque-free design to enhance operator safety when drilling through uneven terrain. ese earth augers are ideal for fencing, landscaping, decks, sign installation and recreational applications.

E ortless trenching

Mini trencher machines at your local rental centre are a great solution for digging trenches. With some versions capable of digging a 30-cm-deep trench at speeds of up to 9-metres per minute, they make installing lawn sprinklers, electric dog fencing, low voltage wiring, plumbing and drainage lines and wire cable the work of an afternoon. Silt fencing, landscape edging, root pruning and bed preparation also become faster and less backbreaking.

When rental works

When it comes to one-time projects — those special requests that pop up in conjunction with a current project but aren’t something you’re looking to o er regularly — renting lets crews get the job done without a costly, long-term commitment. Depending on the length of the rental, the team can even knock out several small projects with the same machine, optimizing e ciency. Planning will help ensure a contractor gets the most out of the rental.

Repeatedly renting the same equipment can also be cost-e cient, to a point. It’s a great way for small businesses looking to expand their services to test out di erent machines and attachments before committing. For equipment contractors that don’t plan on using the machine daily, renting rather than buying saves money since the rental centre takes on the initial cost of the machine and any maintenance needs. However, it’s important to keep in mind there’s a limit to the cost bene ts of

renting if a crew is frequently using a speci c machine.

When used wisely, renting can be a valuable tool for contractors looking to provide more while spend-

ing less. The fastest way to assess rental potential is by taking a trip to your local rental centre or talking to the manufacturers who supply their equipment.

COMPACT EQUIPMENT

Kubota Canada kicks off 2026 with two new CTLs and a tiltrotator

Kubota Canada has introduced the SVL1103, its most powerful compact track loader o ered by the manufacturer.

e new SVL110-3 is one of three new products from Kubota Canada, joining the new Kubota tiltrotator and the SVL65-2s compact track loader. All three new innovations will appear at Kubota’s ConExpo booth.

" ese three products represent Kubota's dedication to enhancing jobsite e ciency and operator experience," said Jonathan Gardner, Construction Equipment Product Manager at Kubota Canada.

"The tiltrotator, SVL65-2s and SVL110-3 each bring unique capabilities and features that empower contractors to work smarter, faster and more comfortably. Whether you're tackling precision work in tight spaces or handling heavy-duty applications, the new products deliver the reliability and performance Kubota is known for."

SVL110-3

At 112.7 hp, the SVL110-3 represents a signi cant leap forward in compact track loader technology, combining increased performance with operator-focused features. With an operating weight of 5,589-kg, the machine delivers high- ow auxiliary capabilities up to 170 litres-per-minute with a 14-pin connector,

programmable into 20 preset ow modes, while the auxiliary performance system (APS) intelligently manages power for maximum productivity.

A rst for Kubota compact track loaders, creep mode allows precise speed adjustment from crawl to full low-range speed.

Operator comfort is enhanced with a sealed cab delivering a sound level of 79 dBa, an 18-cm LCD monitor with touch and jog dial controls and a high back air ride heated seat.

A rear-view camera is standard, as well as Bluetooth radio integration, and an auto-idle function that reduces noise and fuel consumption.

Maintenance accessibility is simpli ed with easy-access radiator swing-out design and a cab that tilts to 72-degrees for quick hydraulic and lter access. All models include Work Smart Telematics for connected equipment management.

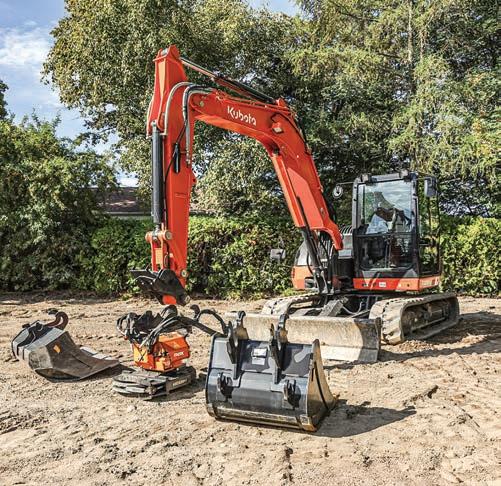

Kubota tiltrotator

Addressing the rising demand for greater versatility on the job site, the new Kubota tiltrotator is engineered to handle a wide range of attachments, making it a true multi-tool for any jobsite. Whether grading large surfaces, digging at challenging angles, sweeping debris or handling materials, the tiltrotator provides

seamless control and precision with 360-degree rotation and a 50-degree tilt angle.

“ e tiltrotator turns one operator into a full crew — more e ciency, more production and fewer people needed on the jobsite," said Lorraine Wu, Product Specialist for Excavators at Kubota Canada.

Compatible with buckets, grading beams, pallet forks, grapples, brooms, asphalt cutter and more, it allows operators to switch between tasks to boost productivity and reduce downtime. e compact, cylinderless design reduces wear and tear while delivering consistent torque and clamping force. With easy, plug-and-play installation, setup is fast and intuitive.

e Kubota tiltrotator is compatible with popular excavator models including the U485, U55-5, KX057-5 and KX080-5.

SVL65-2s

With its lighter, 3,915-kg operating weight and smaller footprint, the 68.4-hp SVL65-2s CTL delivers exceptional versatility to tackle jobs of all sizes and locations.

e machine features a premium 18-cm LCD monitor with touch and jog dial controls for quick operation selection, seamless Bluetooth compatibility for streaming and hands-free calling and auto downshift tech-

nology to maximize traction when turning.

Operator comfort is a key priority, with a high back air ride heated seat designed for all-day productivity, a rearview camera is standard for enhanced safety and visibility, and an available Kubota shockless ride option minimizes material loss over rough terrain. LED work lights with an adjustable delayed auto turn-off ensure safe operator egress, while vertical lift arms reaching 3 metres at hinge pin height expand the machine's reach and capability.

e SVL65-2s o ers track response settings in mild, normal and quick modes for customized control, giving operators the exibility to match machine performance to their speci c application.

For demanding jobs, the SVL65-2s features high- ow hydraulic options delivering 102 litres-per-minute with a 14-pin connector, giving contractors the muscle they need for operating attachments in the toughest applications. All models include Work Smart Telematics for real-time equipment monitoring and maintenance alerts, keeping machines running at peak performance.

The Kubota tiltrotator, SVL65-2s and SVL110-3 will be available at select authorized Kubota dealers throughout the course of 2026.

Prevention is profitable

Proactive inspections and servicing help compact equipment owners reduce downtime, protect resale value and maximize productivity

Equipment downtime is one of the costliest invisible expenses in any sector.

For owners and operators who depend on equipment to generate revenue, the consequences of unexpected failures during peak season can be devastating — lost productivity, emergency repair costs and missed opportunities compound quickly. Yet many equipment owners treat maintenance reactively rather than proactively, addressing problems only when they disrupt operations.

As spring approaches and work ramps up, now is the

ideal time to adopt a di erent mindset: view your equipment as a business asset requiring professional care, not simply a tool to be used and overlooked. A comprehensive spring maintenance protocol directly ties to profitability, reducing lifecycle costs, boosting reliability and positioning your fleet to perform e ciently when demand peaks.

True cost of ownership

Understanding maintenance fundamentals requires rst recognizing what ownership truly costs. Purchase

price is only the beginning. Real cost of ownership encompasses maintenance spend, downtime and resale value retention.

Equipment that's neglected accumulates hidden expenses: repairs compound, downtime multiplies and resale value plummets. Conversely, operators who invest in proactive maintenance enjoy exceptional reliability, superior resale value and predictable operating costs.

This spring, before your equipment enters peak season, conduct a thorough assessment. Equipment that's

been in storage requires careful evaluation to ensure it's ready for the demands ahead.

Inspection and cleaning

Construction equipment faces constant exposure to harsh elements — dust, mud, debris and weather exposure that, if left unchecked, accelerates wear and invites corrosion. Begin spring preparation by conducting a comprehensive cleaning that includes full debris removal, exterior surface washing, and undercarriage cleaning.

Big performance in three compact packages

Volvo CE launches a trio of New-Gen compact excavators ahead of ConExpo

Volvo Construction Equipment is expanding its compact excavator lineup with the launch of three new-generation models.

e new Volvo CE ECR90 short-swing, EC65 crawler and EW65 wheeled excavators prioritize total cost of ownership, productivity and operator comfort.

The new compact machines replace the previous generation’s ECR88D, EC60E and EW60E, and feature updates that translate to faster cycle times, increased versatility and more uptime.

“ anks to some signi cant upgrades, these machines deliver everything our customers need to succeed in utilities, agriculture, landscaping, general construction and more — all wrapped up in compact and highly manoeuvrable designs,” said Xavier Beaud, Head of Technology, Compact Business Unit at Volvo CE.

“They’re engineered to achieve big results across a wide range of jobsites thanks to additional engine power, improved digging, lifting and swing performance, longer service intervals, and a fully refreshed operator environment.”

All three new compact excavators were announced during Volvo CE’s pre-ConExpo press conference, where the manufacturer outline its plans for the trade show.

The ECR90 and EC65 will be part of the company’s 55,000 square-foot booth at ConExpo.

All three excavators offer noticeable improvements compared to their predecessors, intended to maximize customers’ productivity.

ECR90

The 9-ton ECR90 is a

powerful short-swing excavator built to compete with larger models at a size that’s ideal for confined jobsites. Compared to its predecessor, the ECR90 delivers 28 per cent more engine power, 15 per cent more pump torque, 13 per cent more bucket force, 11 per cent more arm digging force and 7 per cent more tractive force. As well, the excavator features a cab that’s 30 per cent larger.

The ECR90 is powered by the 73 hp D3.3H engine. With a bucket capacity up to 0.4 cubic yards, the excavator measures 2.3 metres wide and 6.5 metres long.

The main hydraulic flow pump achieves a maximum 190 litres per minute flow rate.

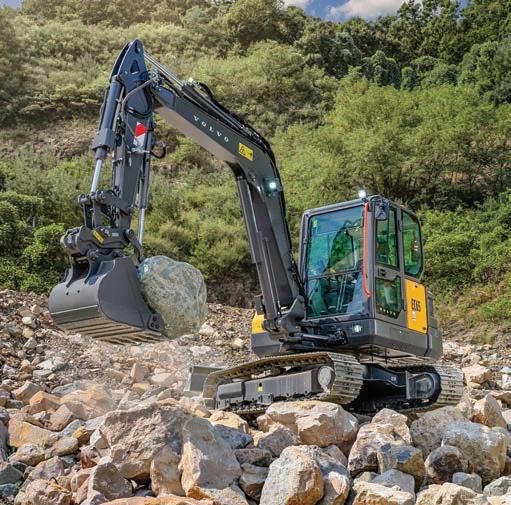

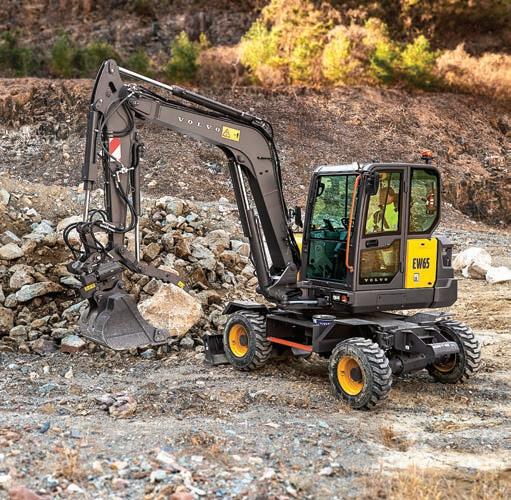

EC65 and EW65

The 7-ton EC65 and EW65 wheeled excavator deliver 4 per cent and 6 per

Bobcat to unveil its next evolution at ConExpo 2026

Bobcat will showcase its most advanced lineup of products and technologies to date at ConExpo 2026.

From smarter, more intuitive machines to next-generation products and integrated tech solutions, Bobcat will outline how it plans to reshape the jobsite of the future.

At the show, Bobcat will highlight its latest advancements in Artificial Intelligence, electri cation, autonomy and connectivity. Through live demos, hands-on experiences and interactive exhibits, visitors will get an up-close look at new product introductions and industry- rst solutions.

“Every advancement we’re introducing at ConExpo reects a simple goal: helping our customers accomplish more,” said Mike Ballweber, President of Doosan Bobcat North America. “From

easier-to-use machines to technologies that enhance productivity and precision, we’re focused on solving real challenges operators and businesses face every day.”

New equipment and tech

At a news conference scheduled for Tuesday, March 3, Bobcat will showcase how it is evolving the compact loader segment.

The event will demonstrate how Bobcat is reshaping the operator experience with equipment that intuitively adapts to the operator, helping to bridge the skilled labour gap and simplify work in increasingly complex jobsite environments.

Throughout the show, Bobcat product and technology experts will also take the stage to highlight what’s new and what’s coming next.

Featured products

Bobcat will highlight its expanding product portfolio, showcasing end-to-end jobsite solutions across construction, grounds maintenance, material handling, portable power and light compaction equipment.

With the industry’s broadest compact loader lineup, Bobcat will introduce new product advancements and technologies at the show. Attendees will also get a rst look at the future direction of the company’s compact loader line-up, ushering in the next chapter for the product category.

At the Bobcat booth, newly introduced machines include the new PA460V portable air compressor; the MT120 mini track loader; next-generation E20 compact excavator; L95 compact wheel loader; and the D45S-9 diesel pneumatic tire forklift.

cent more engine power respectively, as well as a 9 per cent increase in boom lifting force.

While the EC65 has a max travel speed of 4.4 km per hour, the wheeled EW65 can travel up to 30 km per hour, and easy-to-select work modes allow the operator to tailor its performance for travel, digging or parked work.

On the EC65 and EW65, hydraulic flow is 100 per cent higher thanks to two 60 litre-per-minute pumps.

Both the EC65 and EW65 are powered by the 72 hp D2.H engine and feature a maximum 0.35 cubic yard bucket.

The ECR90, EC65 and EW65 are built to minimize downtime and reduce total cost of ownership. Larger fuel tanks and extended service intervals reduce time spent on common tasks. For example, the

machines now feature 8,000-hour intervals for DPF cleaning and 1,500 hours for hydraulic return filter changes. As well, wide opening hoods and ground-level access to grouped service points mean safer, faster maintenance.

Standard telematics or optional advanced telematics boost productivity and uptime. And, keeping the future in mind, the connectivity platform supports the integration of upcoming service enhancements.

These mini excavators also feature a fully refreshed cab designed to keep the operator comfortable, safe and productive.

A high-definition touchscreen display offers helpful functions like attachment presets, rear and side camera views, service interval settings and Bluetooth pairing.

Continuing Volvo's focus on ergonomics in compact equipment, all three machines include new seats with optional air suspension, wider adjustable armrests and a new tiltable left-hand console for easier entry and exit.

All three models support Volvo’s full range of compact excavator attachments, and their auxiliary hydraulic flow has increased, offering more precision and power for a wider range of tasks. The launch of the new compact excavators is part of Volvo CE’s ongoing refresh of its equipment lineup. The company has launched six new compact models in the last year and more than 50 per cent of the lineup being updated within the past two years, including battery-electric compact excavators and wheel loaders.

Industry- rst AI

Bobcat also plans to showcase its latest technologies to simplify operation and help operators achieve new levels of e ciency.

With Bobcat Jobsite Companion, operators keep their hands on the controls by using voice-activated automation to manage more than 50 machine functions, automatically optimize attachment settings and answer questions about operation, including fault codes. It also tracks complete machine costs against job

estimates in a single dashboard.

Service.AI is a platform for Bobcat dealers that delivers instant diagnostics, repair guidance, manuals and expert insights to reduce downtime.

As well, Bobcat’s Collision Warning and Avoidance System is a rst-of-its-kind system for compact equipment designed to detect hazards and automatically slow or stop the machine.

Bobcat RogueX3 — the company’s most advanced concept loader to date —

will be at Bobcat’s ConExpo booth. e RogueX3 is fully electric, autonomous and built with modular con gurations for cab options, wheels or tracks and lift-arm designs to match speci c tasks.

“At ConExpo, Bobcat is highlighting the future of compact equipment and how we’re shaping it,” Ballweber added. “We’re focused on redefining what compact equipment can do, simplifying the operator experience and bringing practical, future-ready solutions to our customers.”

Takeuchi to debut new excavator and machine concepts at ConExpo

At ConExpo, Takeuchi-US will introduce a brand-new excavator and highlight two new concept machines.

Takeuchi’s booth experience will combine new equipment, live storytelling and a milestone celebration that honours the company’s legacy of innovation.

“ConExpo-Con/Agg is the industry’s most important global stage for construction innovation,” said Jeff Stewart, President of Takeuchi-US. “It’s where contractors, dealers and manufacturers come together to see what’s new, what’s proven and where equipment technology is headed next.”

At the centre of Takeuchi’s booth will be the all-new TB3150R compact excavator, which makes its debut at the show.

e TB3150R represents the next step in Takeuchi’s equipment evolution, building on the performance, durability and operator-focused design that have de ned the brand for decades. Meanwhile, in the booth’s

Innovation Area, Takeuchi will display two new concept machines, both of which will be o cially unveiled at 10 a.m. on March 3.

e two Takeuchi concept machines will o er attendees an ongoing look at how customer input, technology and evolving jobsite demands are in uencing Takeuchi’s newest machines.

In honour of its 40 years of compact track loader innovation, Takeuchi will also display its original TL10 compact track loader model.

Developed under the leadership of Takeuchi founder Akio Takeuchi in 1986, the TL10 helped launch what became today’s compact track loader category.

During the show, Takeuchi will also host a series of fast-paced, 10 to 15-minute presentations held on a dedicated stage at 10 a.m., 1 p.m. and 3 p.m., Tuesday-Friday and 10 a.m. and 1 p.m. on Saturday. Each session opens with a high-impact video and features dynamic presenters and real-world jobsite

stories featuring the machines on display.

“We hope that everyone at ConExpo-Con/ Agg 2026 will take the time to come and meet our team and learn more about how Takeuchi

equipment can help them be more productive,” Stewart said. “We’ve pulled together what we believe is a great mix of Takeuchi’s past, present and future.”

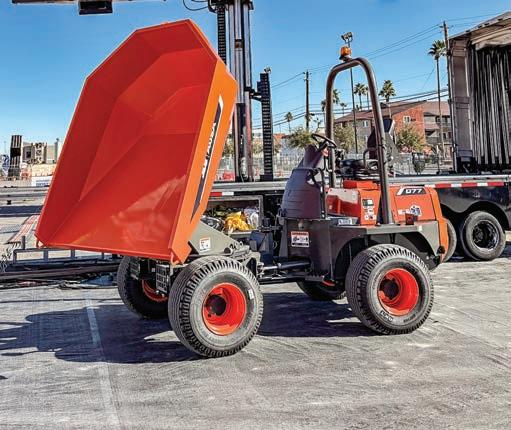

JLG adds Ausa equipment to its North American portfolio

The Ausa lineup of all-terrain compact equipment is coming to North America via JLG Industries.

Oshkosh Corporation, the parent company of JLG and Hinowa, acquired the Spainbased Ausa brand in 2024.

Now part of the JLG portfolio, the 12 wheeled dumpers and ve rough-terrain forklifts included in the Ausa brand will be available in Canada

and the United States.

“JLG Ausa wheeled dumpers and rough-terrain forklifts o er customers a broad range of purpose-built solutions that help customers work more efficiently across diverse applications,” said Mirco Negri, Senior Product Manager for JLG. “ ese models are ideal for crews working on residential, municipal, golf course, civil and

road construction projects, plus groundskeepers and trade professionals needing help with the transportation and handling of industrial and agricultural materials.”

JLG will begin transitioning existing Ausa models in North America with updated decaling and nomenclature. For example, the Ausa D151AEG electric dumper is now the JLG Ausa ED33.

“JLG Ausa all-terrain compact equipment helps accelerate our growth into the specialty equipment, agriculture and landscaping markets in North America while providing our construction and materials handling customers with an even broader array of products — all backed by JLG’s robust training, support and service infrastructure,” Negri said.

Cat’s new 308 CR significantly reduces machine overhang

The new Cat 308 CR fixed boom mini excavator reduces machine overhang by 67 per cent compared to the previous model when equipped with the 250 kg counterweight package.

Replacing the 307.5 mini excavator in Cat’s lineup, the 308 features more power and increased hydraulic horsepower, increasing e ciency and performance when using hydromechanical work tools.

Even when equipped with the optional 500 kg counterweight, the new 308 o ers a 61 per cent machine overhang reduction.

“We’ve continued the popular next generation design features of stick steer, cruise control, ease of use technology ready and a comfortable pressurized and sealed cab in the new 308 CR xed boom mini excavator,” said Greg Worley, Market Professional for Mini Excavators. “Plus, we’ve given this 8-tonne-class machine a compact radius design, a slightly larger undercarriage for stability and two counterweight options for even higher lift capacities than the 307.5. e new 308 delivers maximum power and performance in a mini

size excavator to work in a wide range of applications.”

e new 308 CR is powered by the 69-hp Cat C2.8 turbo engine, meeting Stage V and Tier 4 Final emission standards. Features like auto idle, auto engine shutdown and efficient hydraulics with a variable displacement smart pump, help ensure low operating costs.

While designing the machine, Cat increased track width, undercarriage length and machine weight to improve operating stability and confidence when lifting to the side. Track options of rubber belt, steel track and steel track with rubber pads are available to meet customer requirements. The new 308 also delivers slight increases in digging depth and maximum reach of 4.7 metres and 6.9 metres respectively with its long stick con guration. Additionally, the new mini excavator design provides increases in minimum and maximum con guration lift capacities when operating over the front with blade down and over the side.

e hydraulic system features load sensing hydraulics with a variable displacement

Continued from Page B9 - Prevention is pro table

is isn't cosmetic; it's preventative maintenance that reveals underlying issues.

During cleaning, inspect for signs of damage sustained during storage: corrosion on exposed surfaces, cracks in hoses or belts, leaks, or pest interference. Early detection prevents cascading failures once equipment enters operation. Pay particular attention to areas prone to moisture accumulation — these are corrosion hotspots.

Routine inspection schedule

Cascading failures typically don't occur overnight; they

result from neglected small issues that compound. A disciplined inspection schedule catches problems early.

Mechanical components: Conduct a full mechanical inspection. Check belts, hydraulic hoses, bearings and brakes for wear. Worn belts slip and reduce efficiency; failing hoses leak and compromise hydraulic performance; worn bearings generate heat and noise before catastrophic failure. Address these issues before peak season.

Greasing and pivot points: One of the most overlooked

piston pump offering 167 litres per minute of flow.

e primary auxiliary circuit pump delivers 131 litres per minute while the secondary pump provides 33 litres per minute maximum flow to help deliver efficient work tool operation and performance.

Pin sizing remains the same with the 308, so customers with the 307.5 in their eet can use the same work tools with the new machine.

Cat Indicate

To help operators control the excavator, Cat Indicate and E-Fence simplify machine operation, improve accuracy and enhance overall productivity. Available from the factory or as a eld upgrade kit, two software packages are available: Indicate or E-Fence, to suit customer needs.

Indicate is an entry-level grading system that provides visual and audible indicators to where the bucket is versus target grade. O ering the ability to program a at grade or slope, Indicate is ideal for digging footings, septic systems, foundations, slope work and similar applications.

E-Ceiling and E-Floor auto-

yet critical maintenance tasks is regular greasing

"Machines with grease ttings are built to last. Greasing pivot points regularly pushes water and dirt out of joints to reduce wear from dust and corrosion from salt," said Ben Slute, Turf and RTV Manager at Kubota Canada.

This simple practice delivers outsized returns on maintenance investment.

Tires and tracks: Inspect tire inflation, checking for underinflation that accelerates wear and reduces e ciency.

Look for cuts, punctures

matically constrain machine motion within preset boundaries, allowing operators to work confidently and efficiently by avoiding structures.

E-Ceiling helps operators to avoid overhead obstacles like powerlines, ceilings or tree limbs. E-Floor defines digging depth limits to help protect underground fibre optic cables and utilities. As well, E-Wall sets operating limits to protect structures in front of the excavator.

To improve e ciency and safety on the jobsite, Laser Catcher technology provides the ability to reference a laser transmitter for a consistent reference point across the

or uneven wear patterns indicating alignment or suspension issues.

For tracked equipment, inspect tracks for broken links, cracks or excessive wear that could cause mid-job failures.

Electrical systems: Test all electrical systems—battery condition, wiring integrity, and connections. Corrosion on battery terminals reduces charging efficiency, failing batteries strand equipment at job sites.

site. Retro ttable to all EOU machines, it reduces the requirement for manual grade checking by either the operator or other site workers.

Next gen legacy

e new 308 CR xed boom mini excavator builds on many of the next generation design features popular with the 307.5 model.

The 308 maintains the sealed and pressurized cab equipped with improved air conditioning, adjustable wrist rests and a suspension seat for all-day comfort. e next generation monitor features easy-to-use controls and intuitive operation, with cus-

Pre-season testing

Before equipment enters active duty, operate it under controlled conditions. Run the engine and hydraulic systems; listen for unusual noises, check gauges for normal readings and test all operational controls. Identify and resolve issues during this phase, not during revenue-generating work.

The competitive advantage

tomizable preferences and easy-to-access machine information.

Cat Stick Steer provides push-of-a-button switching from traditional lever and paddle travel controls to joystick control and cruise control reduces operator fatigue when travelling. The mini excavator is designed so routine check points are easy to access and at ground level with grouped service points and robust service panels.

Back-up camera, side camera, courtesy work lights and fluorescent seatbelt with optional seatbelt reminder system to enhance safety.

equipment as a business asset requiring professional care achieve superior returns.

However, many operators underestimate what downtime actually costs.

"Operators need to look beyond the cost of the machine repair. Productivity loss, missed project deadline and potential customer or contract penalties need to be factored into the true cost of downtime," said Sean Fraser, Parts and Service Business Development Manager at Kubota Canada.

Filters and air intake: Replace engine air lters if clogged. A restricted air lter reduces performance and fuel efficiency. Inspect the entire air intake system for damage or debris accumulation.

Equipment designed for longevity — particularly smaller, purpose-built compact equipment — rewards maintenance-conscious operators with exceptional reliability and resale value. is underscores a fundamental truth: the operators who view

This broader perspective reveals why preventive maintenance delivers exceptional ROI.

By embracing proactive maintenance fundamentals — disciplined uid management, routine inspections, regular greasing, and seasonal preparation — operators transform equipment from a cost center into a pro t driver. ey reduce unexpected downtime, extend equipment lifecycle, maintain competitive advantage when demand peaks and preserve resale value.

Spring is the opportunity to take control of your equipment’s performance and longevity, visit your local dealer today to learn more about proactive maintenance options.

NEW HIRES & APPOINTMENTS IN THE HEAVY EQUIPMENT INDUSTRY

AED announced new chairs and board members

e Associated Equipment Distributors (AED) have announced its 2026 leadership appointments.

The announcements include new chairs for both the AED Board of Directors and the AED Foundation, along with several new members joining each board.

Marshall Anderson, Executive Vice President at RDO Equipment, was sworn in as AED’s 2026 Chairman of the Board, serving a one-year term.

Anderson brings extensive industry experience and a deep commitment to advancing AED’s mission of supporting equipment distributors through advocacy,

education and workforce development.

“It’s an honour to serve as AED Chairman and to represent an industry that plays such a vital role in powering the economy,” Anderson said.

“I look forward to working alongside AED’s leadership and membership to strengthen our collective voice, support distributor success and help position our industry for long-term growth.”

In addition, AED announced Ron Barlet, President and CEO of Bejac Corporation, as Chairman of the AED Foundation.

Barlet will serve a two-year term, during which he will help guide the foundation’s

e orts to strengthen the industry through workforce development initiatives, research and professional education programs.

“Workforce development remains one of the most critical challenges facing our industry,” Barlet said.

“As Chairman of the AED Foundation, I’m excited to help expand programs that attract, train and retain the next generation of skilled professionals and ensure our members have the talent they need to thrive.”

AED also welcomed the following individuals to its Board of Directors during the summit:

· Michael Paradis, Chair-

man & CEO of Bramco, Inc., will serve as Second Vice Chairman.

· Stephen Farrens, President of Vermeer Heartland, will serve as an At-Large Director.

· Ken Monroe, CEO of HOLT of California, will serve as Western Regional Director.

“We are excited to welcome these outstanding leaders to the AED board. eir experience and insights will be invaluable as we continue our advocacy e orts and work to deliver real value to our members,” said Brian P. McGuire, President of AED and the AED Foundation.

Caterpillar’s construction group president announces retirement

Tony Fassino, Group President of Caterpillar’s Construction Industries, has announced he will retire following 30 years with the company.

Fassino’s retirement is e ective May 31, 2026. Caterpillar veteran Rod Shurman has been appointed Group President of Construction

Industries effective Feb. 1, at which time Fassino will become Group President, Retired, for the remainder of the transition.

"Tony's many contributions to Caterpillar and our customers' success over his accomplished 30-year career will leave a lasting impact on our organization and everyone he worked with," said Caterpillar CEO Joe Creed. "His dedication and leadership will be missed, and we extend our best wishes for his retirement from Caterpillar."

Fassino's experience across Caterpillar's global portfolio helped drive the design and introduction of new products, services and technology; the development of go-to-market and distribution strategies; and the implementation of operational excellence across an extensive manufacturing and supply base.

He held a variety of positions worldwide, including his appointment to Senior Vice President of Building Construction Products (BCP) in 2018 and Group President of Construction Industries in 2021.

Fassino also held numerous external leadership roles with the Association of Equipment Manufacturers,

e AED Foundation announced the following new members joining its board of directors:

· Patrick Kearns, Vice President of Distribution, Caterpillar.

· Vikram Savkar, CEO of VitalEdge Technologies

· Eric Mason, Vice President of Mason Machinery.

· Terry Dolan, Vice President of Case North America.

the Associated Equipment Distributors Foundation, the United Way of the Greater Triangle, the FFA Foundation and is currently the 2025–2026 chair of the American Road & Transportation Builders Association.

Shurman currently serves as Senior Vice President of Caterpillar's BCP division, where he provides global leadership of the compact, versatile construction machines and attachments business.

In his new role, he will be responsible for Caterpillar's Construction Industries segment, which includes earthmoving, excavation, BCP, China operation, Cat Rental and used, customer solutions core regions and customer solutions growth regions divisions, as well as the Construction Industries

Tadano hires Tyler Brown as National

Expanding on the recent introduction of its aerial work platform (AWP) line in North America, Tadano has announced Tyler Brown as its AWP National Business Manager. The addition of Brown to the Tadano team will help to expand support for its AWP business for the Pan-American operations.

“We are honoured to have these individuals on the foundation board. eir guidance and leadership will be critical as we continue to expand workforce development programs and ensure the industry has the talent it needs for the future,” McGuire said.

supply management group.

"Rod's deep experience across engineering and operations, combined with a drive to solve our customers' toughest challenges, prepares him to guide Construction Industries into its next chapter," Creed said. "We're thrilled to see Rod take this role and excited for the future under his leadership."

Since joining Caterpillar in 1997, Shurman has held positions of increasing responsibility in engineering, service and operations functions. He has served as Senior Vice President for Caterpillar's Oil & Gas as well as Electri cation & Energy Solutions divisions. Shurman has a bachelor's degree in mechanical engineering from Purdue University.

Business Manager for AWPs

In his new position, Brown will lead the North American sales team to continue introducing the Tadano AWP line to customers. roughout his nearly 25 years of industry experience, Brown has worked directly for AWP original equipment manufacturers and rental companies and has held sales management and executive-level positions. “It is an extreme privilege to join a world-class manufacturer like Tadano and lead our dedicated team to help serve our customers work platform needs,” Brown said. Tadano launched its AWP line in North America following its acquisitions of Nagano and Manitex.
