RIDING LAWN TRACTORS

100, 200, X300, X500, AND X700 Series

FROM MOW TO SNOW. View Our Snow Removal Equipment Inside

TAKE THE HARD WORK OUT OF LAWN WORK.

Make the most of your mowing, and more. Our lawn tractors handle any job on your to-do list. Haul, plow, bag, or mulch–with our range of attachments and options, you can count on a quality cut all year round.

lawn care has gone high tech.

The John Deere Equipment Mobile app helps keep your John Deere riding lawn equipment running well and your lawn looking great. Available at the App Store® or Google Play™ store. US only.

KEEP SAFETY TOP OF MIND

As you explore our riding lawn tractors lineup, remember that each model has different features and slope operating limits. Choosing the right lawn tractor for your terrain is essential—not all areas are suitable for riding lawn tractors, and understanding your machine’s capabilities helps ensure safe, efficient operation.

Riding lawn tractors in one series may have different slope operating limits than those in another series. For example, the 100 and 200 Series Riding Lawn Tractors have slope operating limits of 13 degrees while the X300 and X500 Series Riding Lawn Tractors have slope operating limits of 15 degrees. For more information on slope operating limits, see Operator’s Manual.

30-second oil change system. Groundbreaking. We’ve changed the oil change with the John Deere Easy Change™ 30-second oil change system* on select 100 Series models.

Engine – High-performance electronic fuel injected (EFI) gas engines and Final Tier 4 diesel engines offer torque and power to spare.

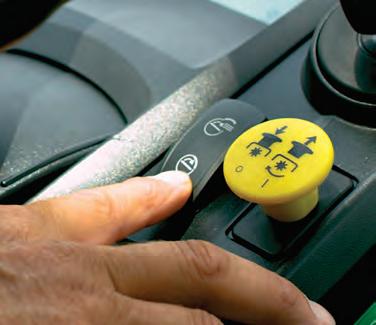

Optional MulchControl kit – Mulch the easy way–with the flip of a lever.

Steering wheel – Standard tilt steering adjusts to your height and delivers the ultimate in comfort.

Stylish hood – The exclusive design provides excellent cooling and durability.

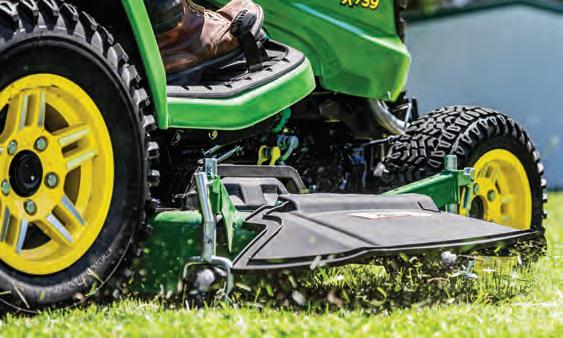

Mower deck – The 48-inch (122-cm) Accel Deep™ mower deck is perfect for narrow pathways and gate entrances, while our 54- and 60-inch (137- and 152-cm) high-capacity decks are solid stamped out of 9-gauge steel.

Air ride seat option –Effortlessly adjust the seat suspension to your liking with the flip of a switch.

12-volt outlet – Plug in a sprayer or an electric spreader.

Tool box – Storage for work gloves, sunglasses, or your cell phone.

Power steering – Easily maneuver throughout your yard. Power steering is standard on all X700 Series.

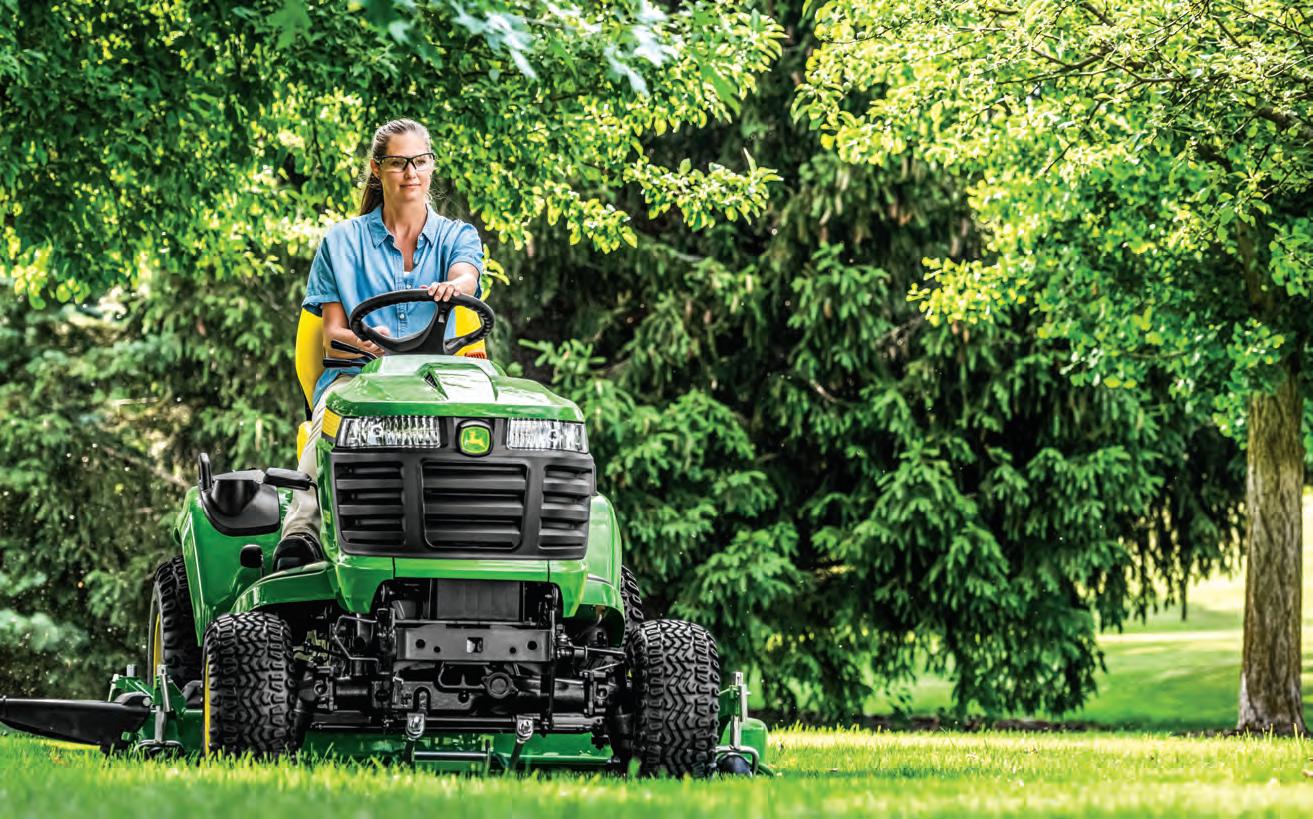

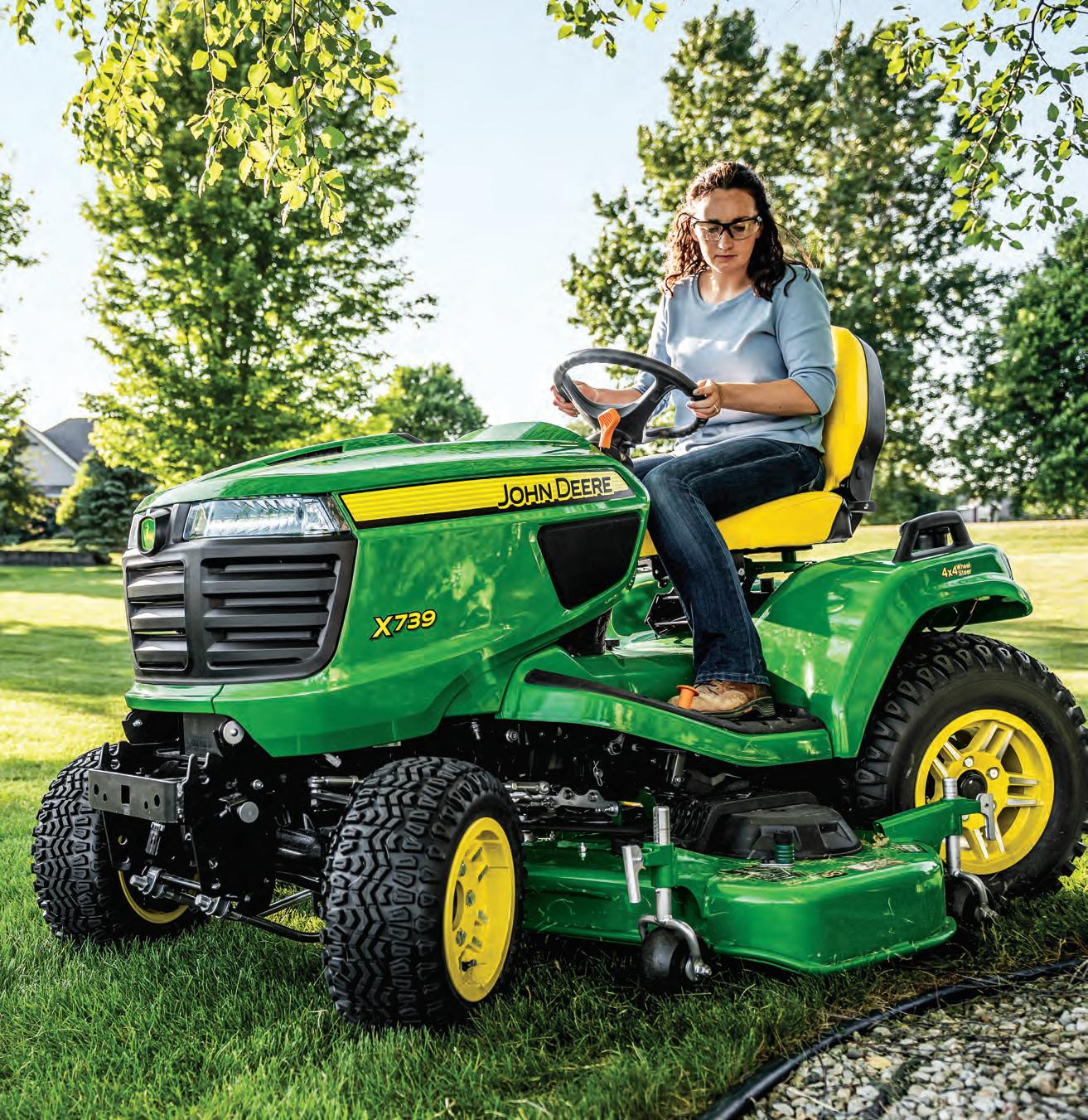

THERE’S ALWAYS SOMETHING TO DO AROUND THE YARD.

Productivity and versatility are key to how we run, too. That’s why the Signature Series is engineered to till, mulch, haul, bag, plow, fertilize, seed, sweep, and of course, mow. You just need the right attachment or implement.

Adding a 3-point hitch is a great place to start. Put our heavy-duty transmission and thick C-channel frame to the test and take on the toughest yard jobs. That’s how we run. Nothing runs like a Deere.

4-YEAR /700-HOUR WARRANTY* BUMPER-TO-BUMPER

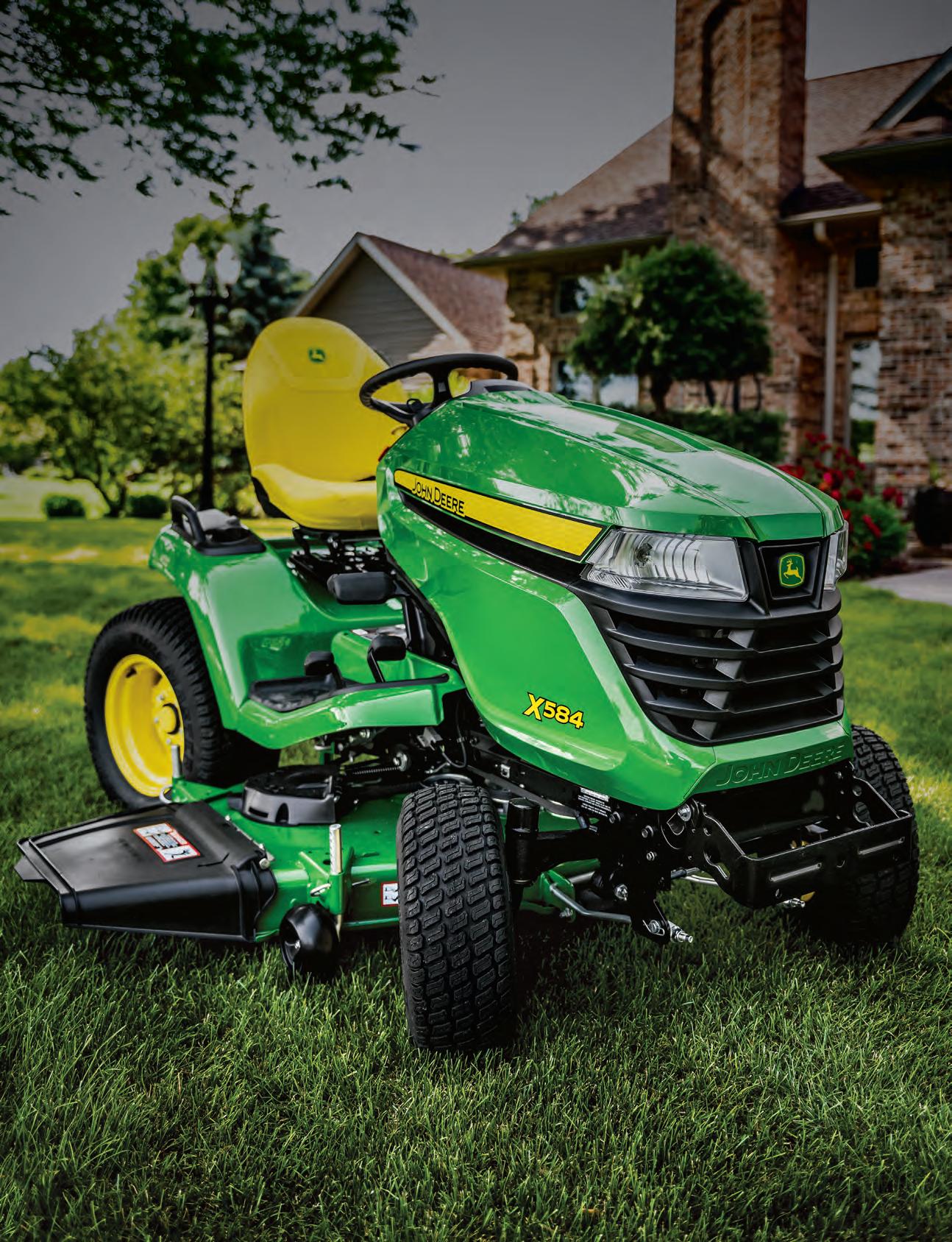

MULTI-TERRAIN AND MULTI-TALENTED.

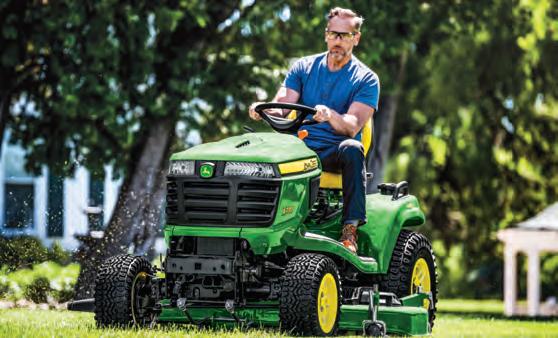

The X500 Series lets you mow with precision, faster. But a quality cut is just the start of what the tractors can do. Tow a cart or mulch your lawn, negotiate muddy areas with complete confidence, and go where you need to go. Heavy-duty frames support heavy-duty work. Increase traction with foot-operated traction control. Add the optional MulchControl kit to make feeding your lawn a snap.

comfortable

Hydraulic power steering

Makes 4-wheel steering even easier and provides excellent maneuverability. 12-inch (30 cm) uncut circle radius on the X584 with 54-inch. (137.16 cm) mower. (Standard on the X580, X584, X590.)

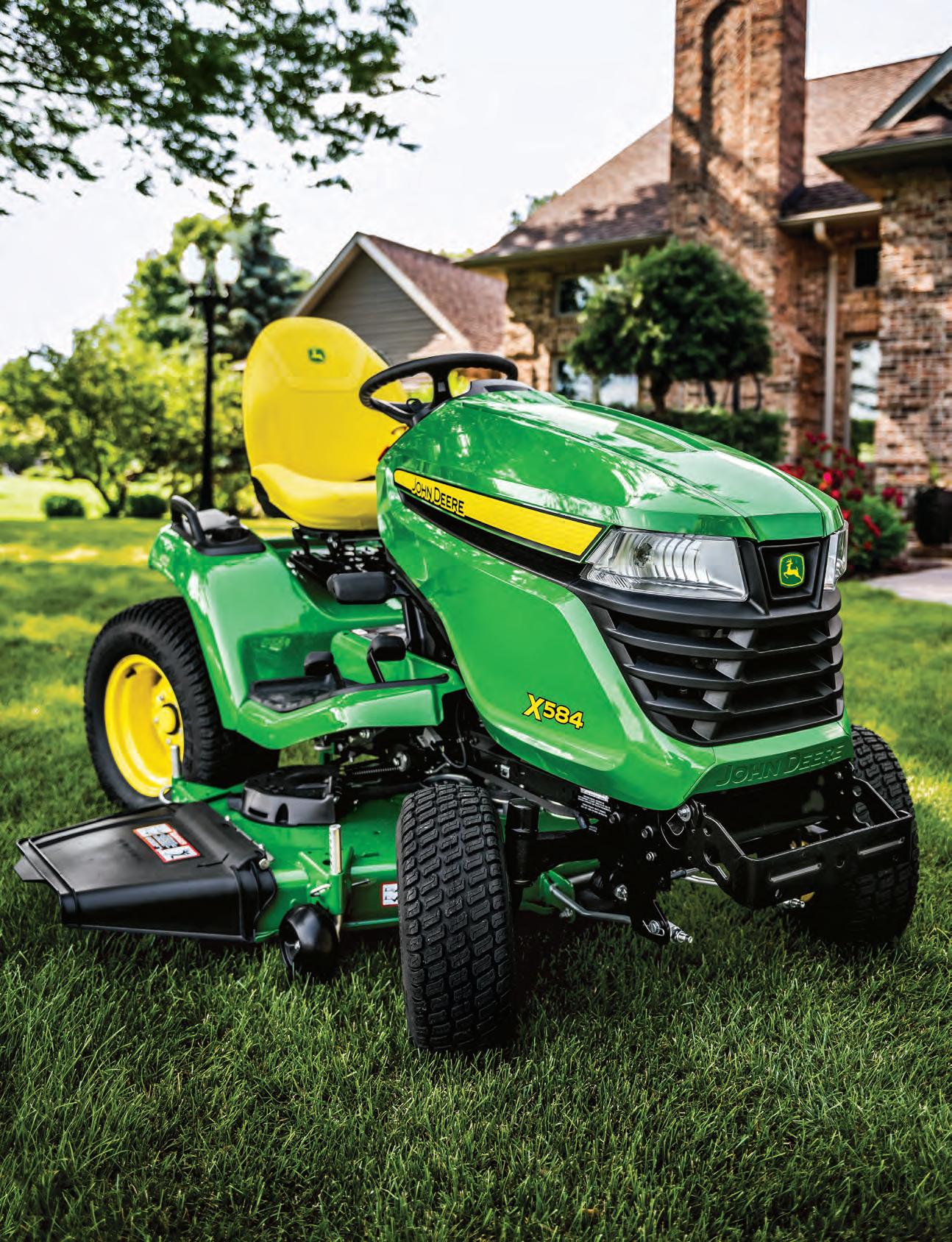

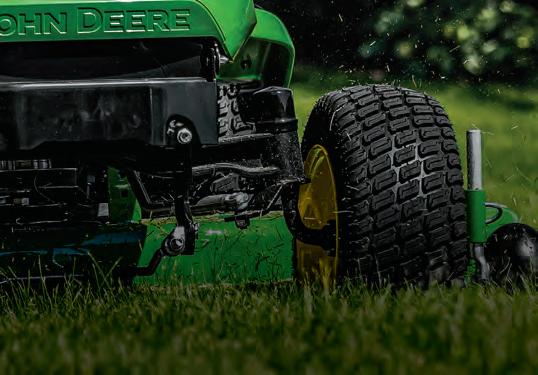

Four-wheel steering

All four wheels on the X584 steer the tractor for ultimate trimmability.

MulchControl kit with one touch technology

Available with Accel Deep™ mower decks on Select Series Tractors.

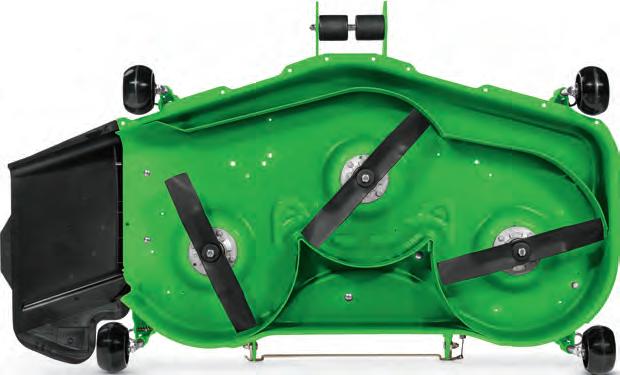

Accel Deep mower decks

The deeper “draw” and flat top design create a better quality of cut at faster ground speeds.

21-inch (53 cm) Cut-&-Sew seat

A spring suspension provides a smooth, comfortable ride on uneven terrain (Standard on the X580, X584, and X590).

Control console

Ergonomic design and color-coded for easy identifification.

X590 electronic throttle control

Instantly responds to deliver engine power and eliminate bogging down.

iTorque™ power system

Provides plenty of power and torque for excellent performance in any operating condition.

4-YEAR /500-HOUR WARRANTY* BUMPER-TO-BUMPER

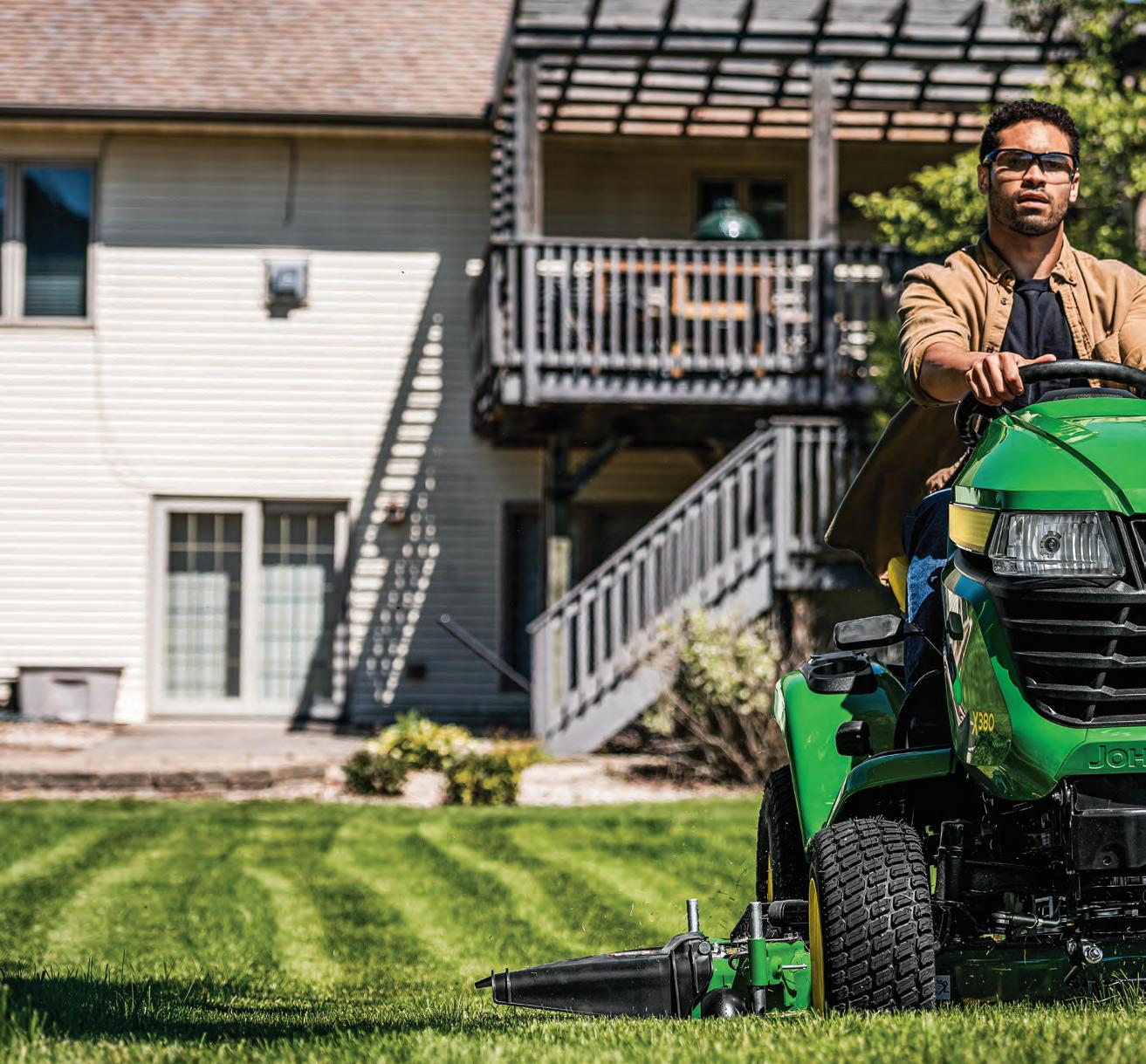

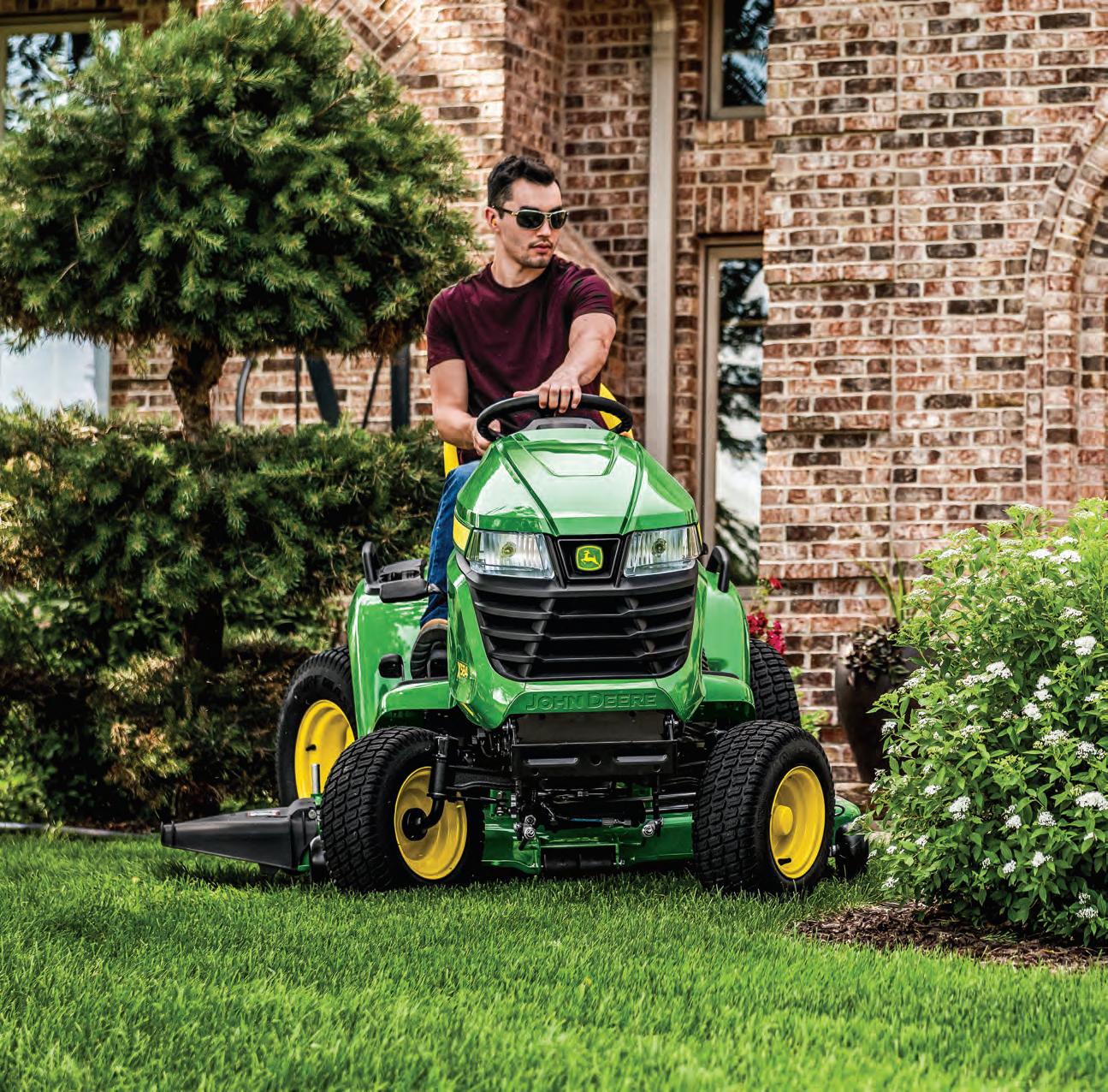

PERFORMANCE MEETS POWER.

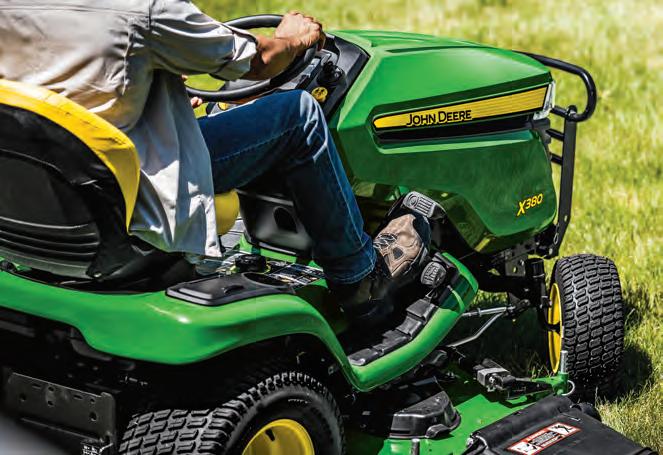

Get a beautiful cut in a matter of minutes with the X380 Lawn Tractor. With the comfortable 18-inch (46-cm) Cut-&-Sew seat standard and optional 48- and 54-inch (122- and 137-cm) forged Accel Deep mower decks that cut clean, even passes at faster speeds. Add a utility cart to haul away most anything a lawn can throw at you.

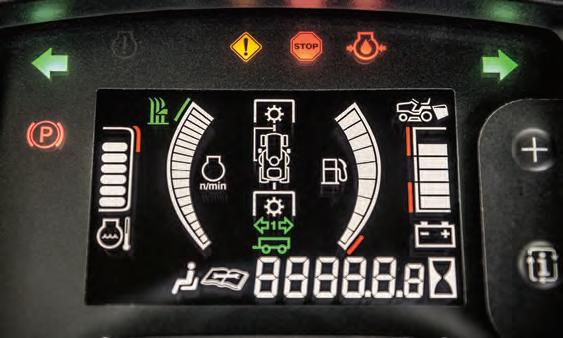

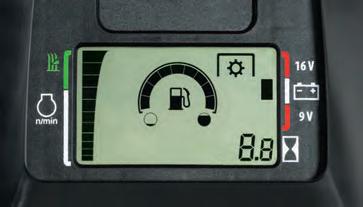

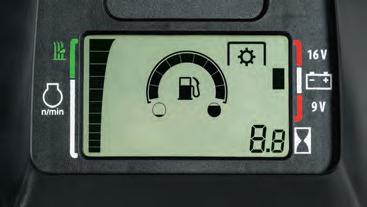

Easy-to-read display. Displays engine speed and target zone for the best cut quality.

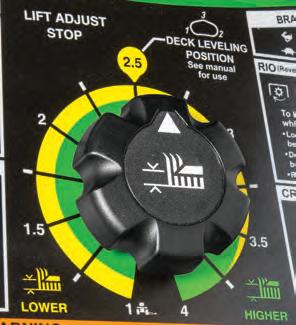

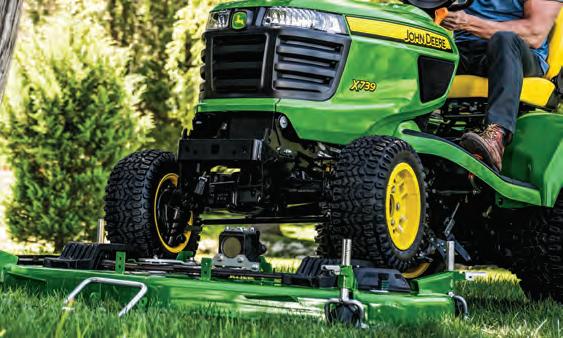

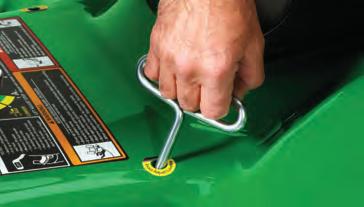

Exact adjust deck leveling system. This exclusive feature allows you to conveniently level the deck from just below the seat.

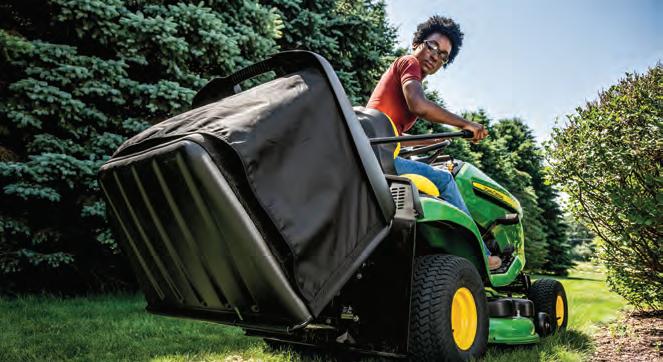

Rear collection. For the cleanest looking lawns, choose either a bagger attachment or the custom-engineered X350R dedicated rear-bagging tractor.

MulchControl kit with One-Touch Technology. Cut grass clippings down to size so they are easily absorbed in your lawn—or side discharge or bag.

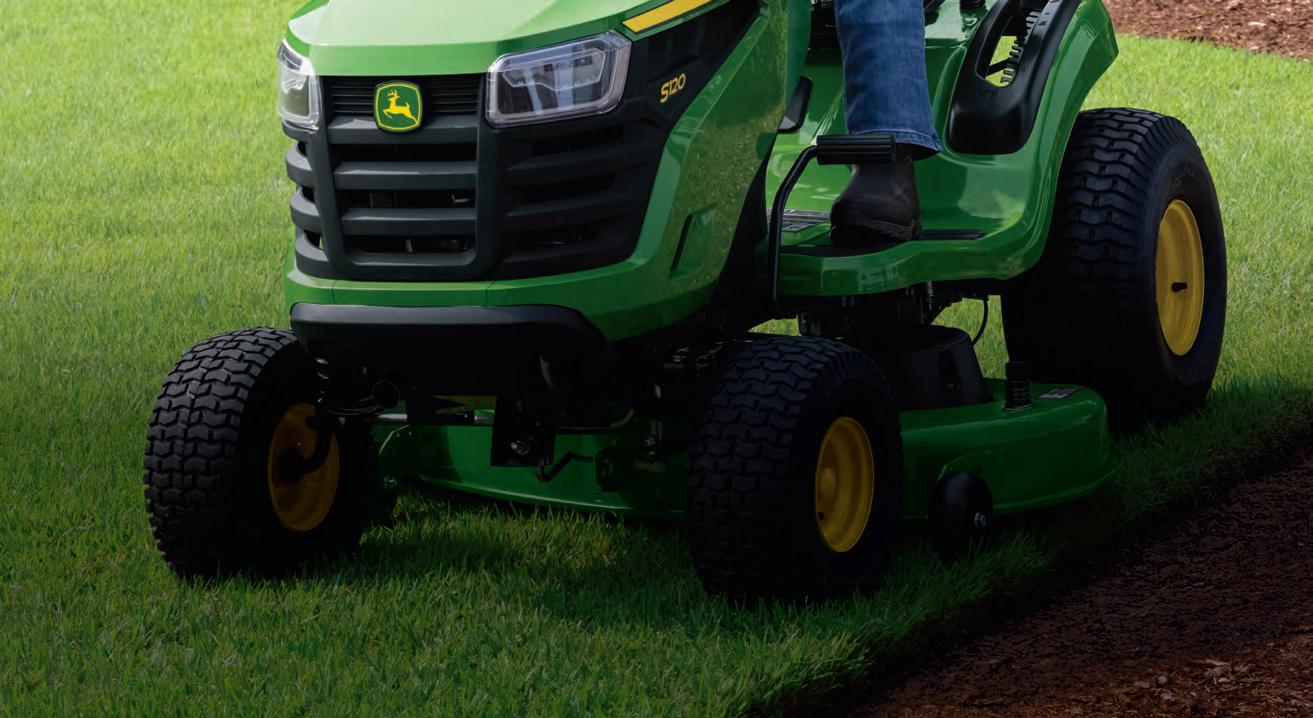

PREMIUM PERFORMANCE

MAKES THE JOB EASY.

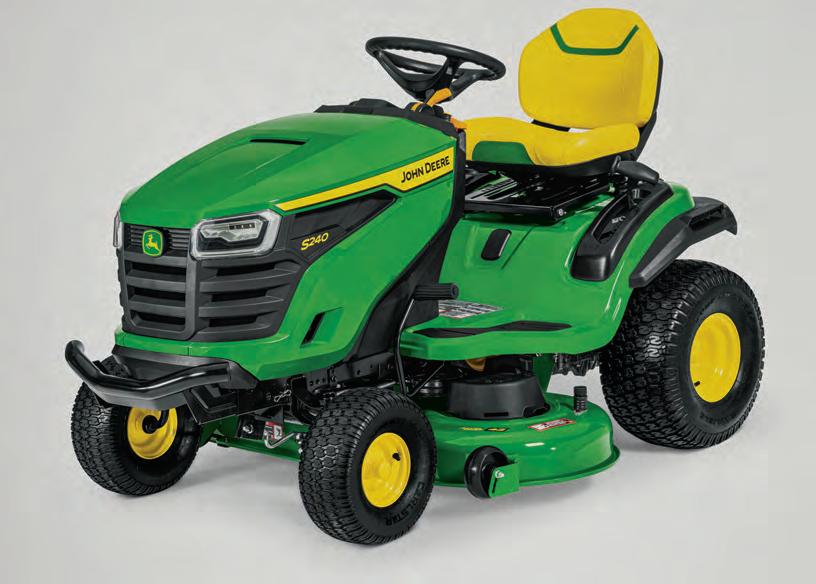

The 200 Series comes loaded with everything to make lawn care a labor of love. The comfort of a wide, welcoming operator station and premium seat option. Easy-to-operate, side-by-side forward and reverse pedals. A rip-roaring V-Twin engine. Accel Deep mower deck with optional MulchControl kit. The 48-inch.

(122-cm) mower deck is forged from 10-gauge steel—the same thickness used to make safes. Ready to choose? Find the one that’s perfect for you.

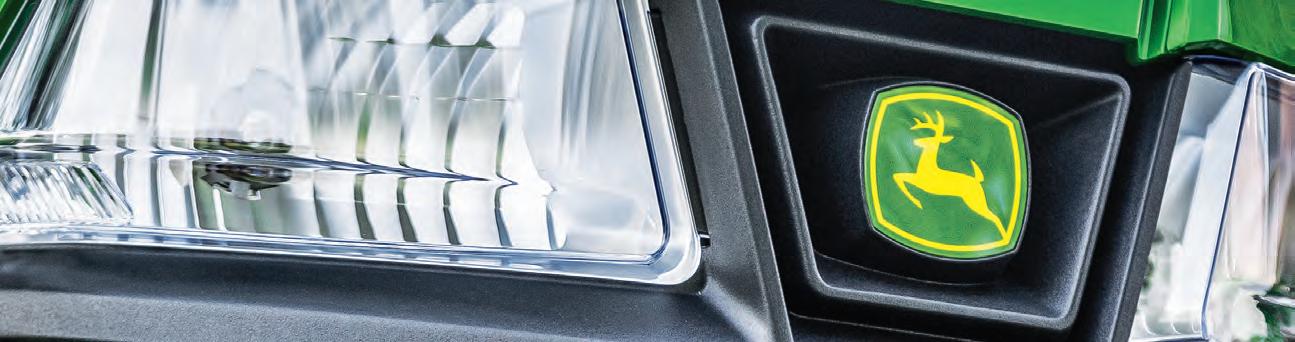

LED lights

Higher visibility in low light situations, these LEDs are aimed so you see what’s in front of you. Better lighting and longer lasting than incandescent lights.

Premium seat available Automotive style seat on the S240. Increased padding and Cut-&-Sew material for great feel and texture.

You can choose the mower deck size

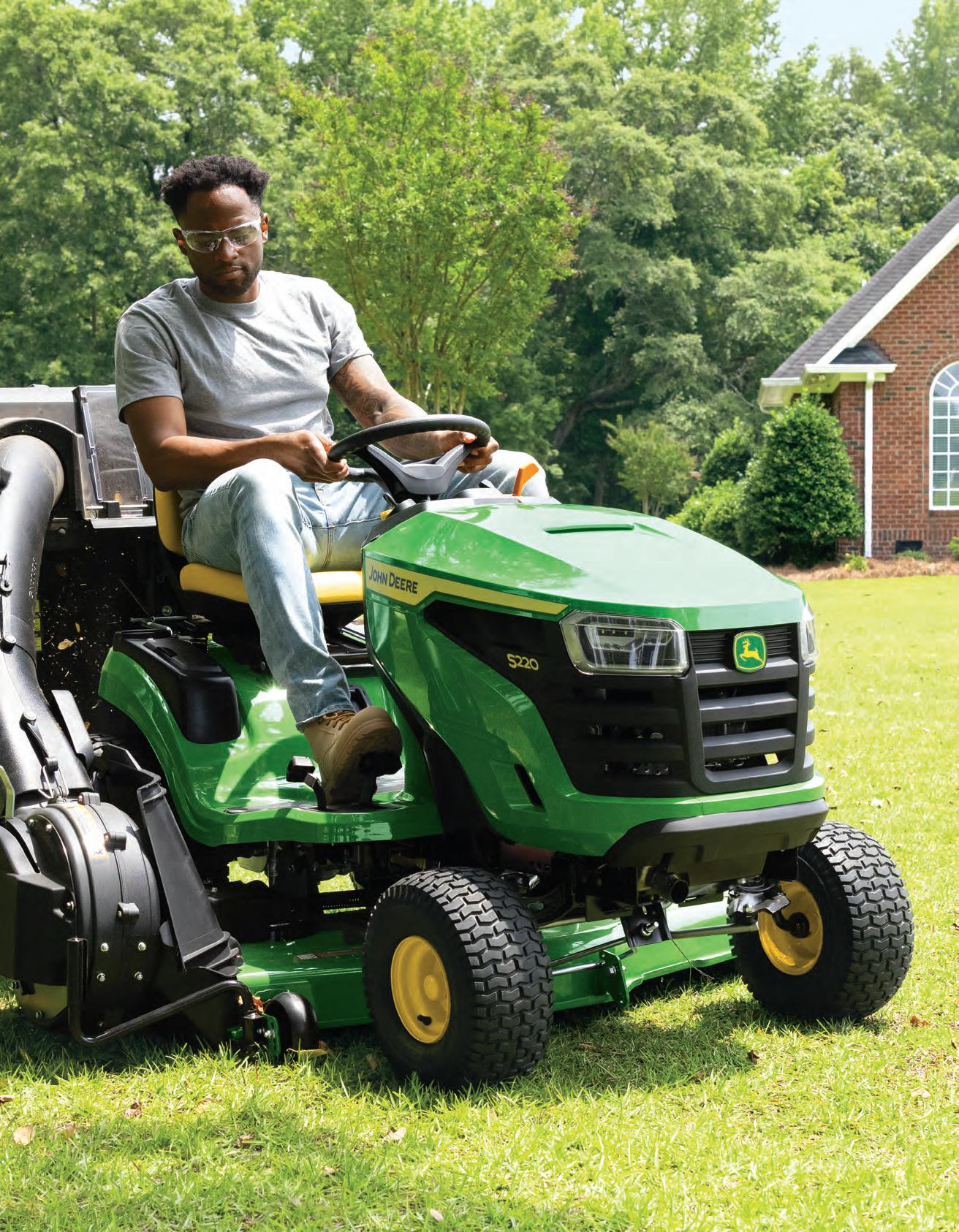

Both the S220 and S240 come with an Accel Deep mower deck in either of two sizes, 42-inch (107-cm) or 48-inch. (122-cm). The deep “draw” and flat top design create a high quality of cut at faster ground speeds.

Fender flare design

Fender flares cover the tires more completely adding style and comfort. Available on the S240.

Side-by-side pedals Side-by-side pedals for effortless speed and forward-to-reverse direction changes.

USB-C

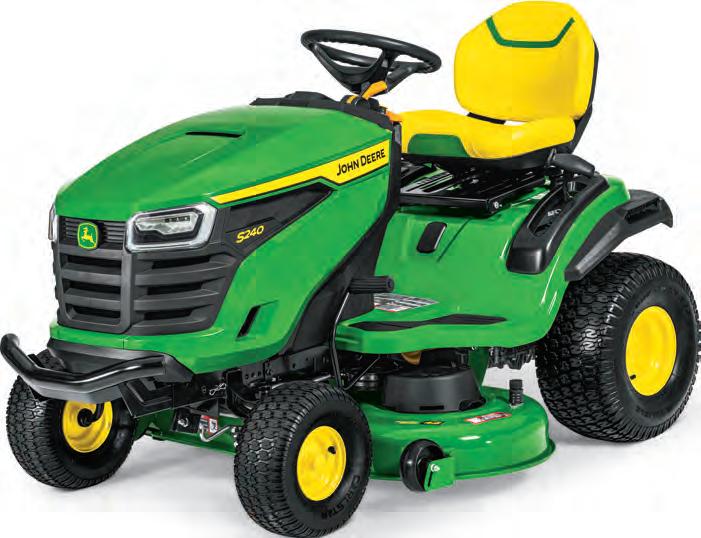

The S240 features a covered console on the right fender that includes USB-C charging and protection for your digital phone.

Convenient mower deck lift lever ¼-inch. (0.64-cm) height-of-cut increment adjustment is as precise as ever, and oh, so easy.

Powerful, smooth running engine* Premium V-Twin engines found in the Select Series models.

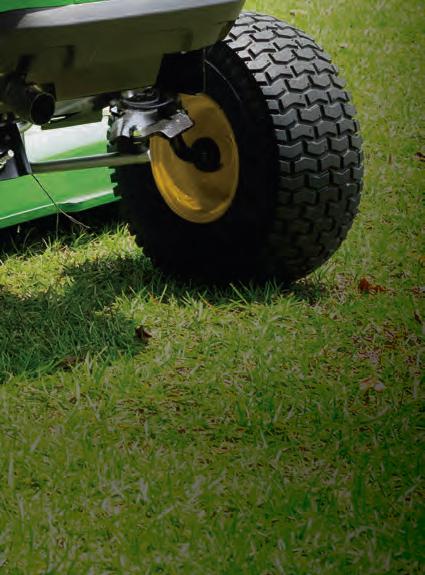

Turf-friendly tires For a smooth ride and easy turns.

EASY-READ FUEL GAUGE AT ARM’S REACH AND BEYOND EXPECTATIONS.

Always be in the know. The easy-read fuel gauge gives confidence in having enough gas to finish the job. The fuel level is easy to see on the dashboard in bright or low light, and it won’t bounce around while driving. With an optional Smart Connector installed, the gauge updates the John Deere Equipment Mobile app about the fuel, battery state, engine hours, and more. Available on the S240.

YOUR LAWN WILL THANK YOU.

*

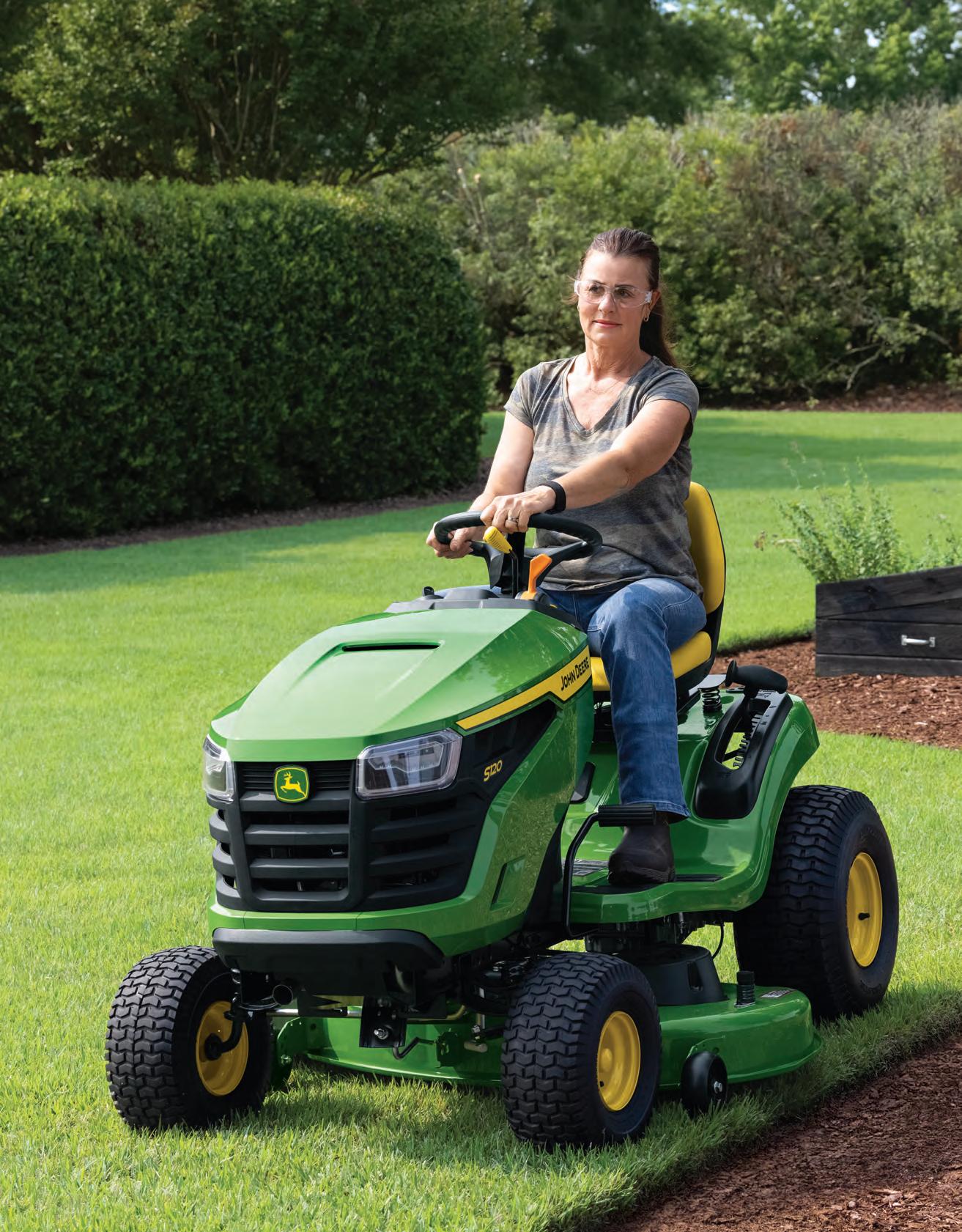

Assembled in Greeneville, Tennessee, the 100 Series Lawn Tractors make up our affordable, comfortable, easyto-use line-up. Loaded with features that keep your lawn looking sharp, handle snow removal in the winter, and help you take care of loads of other projects around your property. The result? Your property maintenance to-do list is done right the first time so you can lean back, smile, and take the credit.

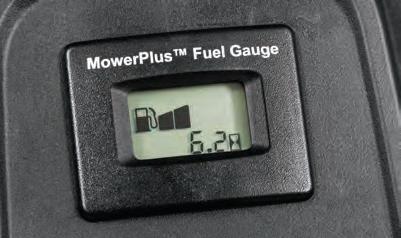

Easy-read fuel gauge

No searching. No guessing. Know at a glance your fuel level for sure. (Available on S120, S130, S170, and S180.)

Electric PTO

Provides instant engagement of mower blades. (Available on all models from S130 and above.)

Premium seats

With a variety of seat options to choose from, you’ll easily find the right padding, feel, and texture. Go ahead. Take a seat.

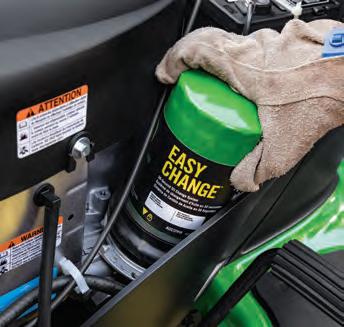

John Deere Easy Change™ 30-second oil change system***

No mess. No fuss. No problem. The oil and oil filter are all-in-one.* Twist. Lock. Done. (Available on S120, S130, S160, S170, S180.)

LED lights

Higher visibility in low light situations, these LEDs are aimed so you see what’s in front of you. Better lighting and longer lasting than incandescent lights.

Ergonomic operation

Designed for easy, intuitive, and comfortable operation. Welcome to your new happy place.

The convenient mower deck lift lever

1⁄4-inch. (0.64-cm) height-of-cut increment adjustment is as precise as ever

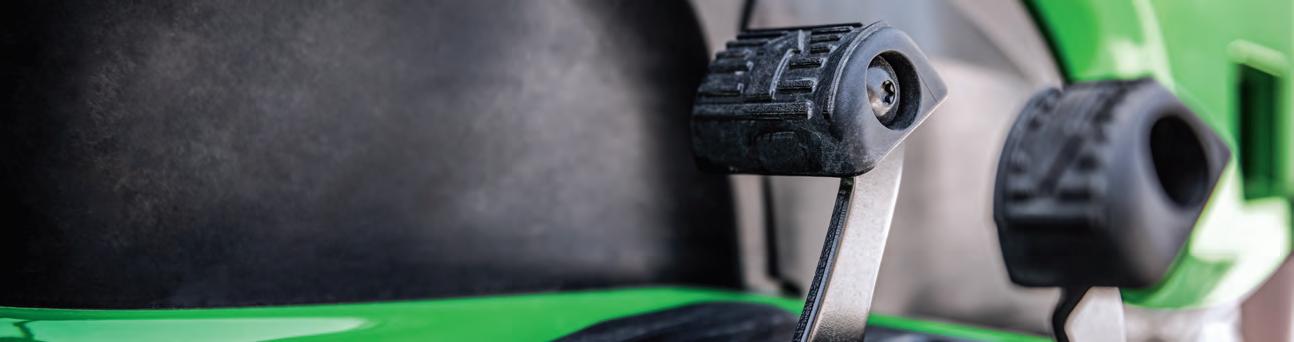

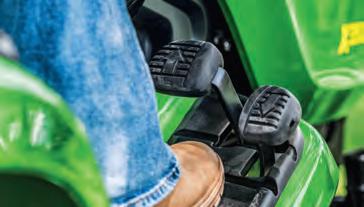

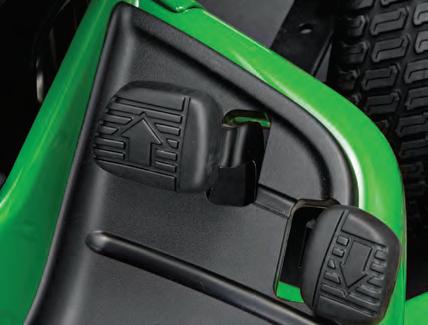

Side-by-side pedals

Easily change from forward to reverse with two-pedal foot control available on all 100 Series Lawn Tractors.

Console with lid

A covered console on the right fender allows for enclosed, protected storage.

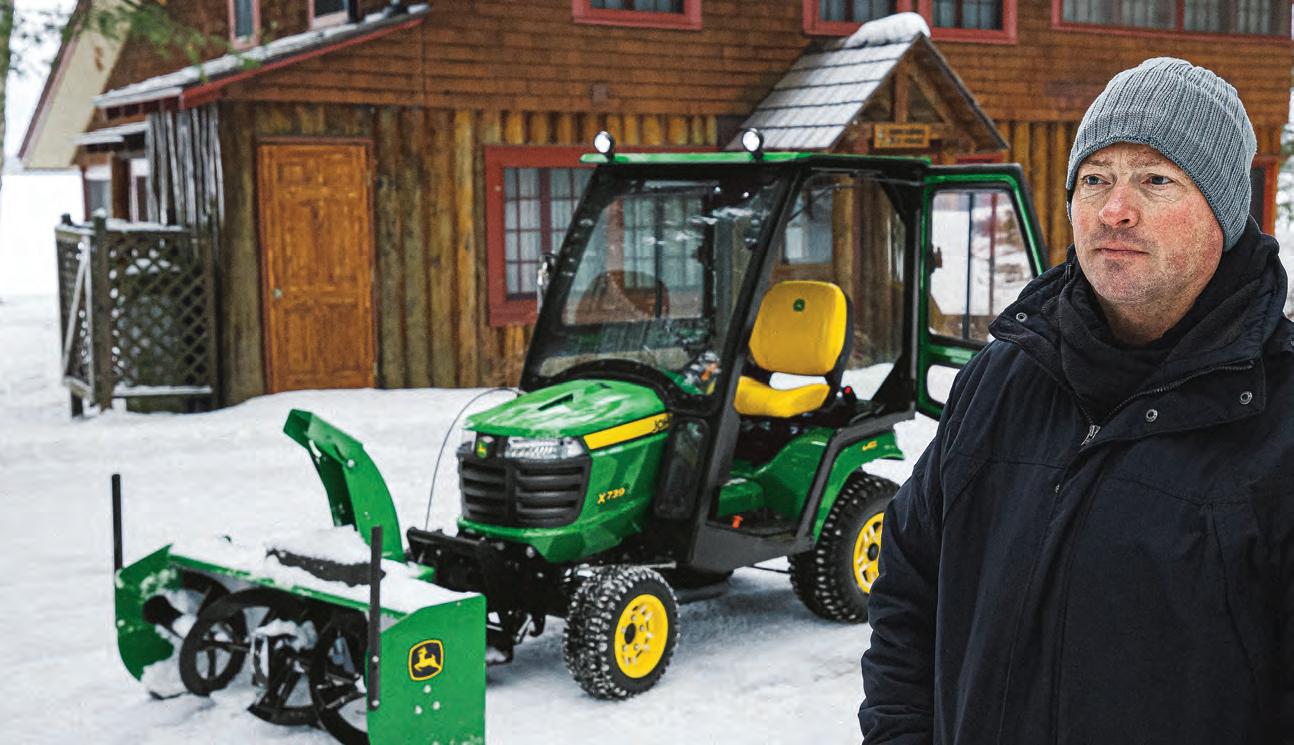

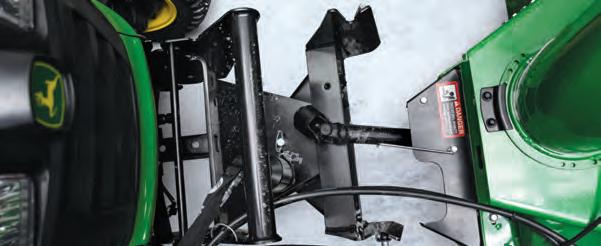

The 47- and 54-inch (119.4- and 137.2-cm) two-stage Quick-Hitch snow blowers let you easily lift and lower the blower with your tractor hydraulics. Add the optional remote deflector cap to place snow with your fingertips. Optional

year-round usage with the 52-inch (132.1-cm) Quick Hitch rotary broom or 60-inch (152.4cm) heavy duty broom. Both models feature floating heads to make a clean sweep of snow and slush-covered paths and driveways.

in

and

X300 AND X500 SELECT SERIES SNOW REMOVAL EQUIPMENT

GO FROM MOW TO SNOW.

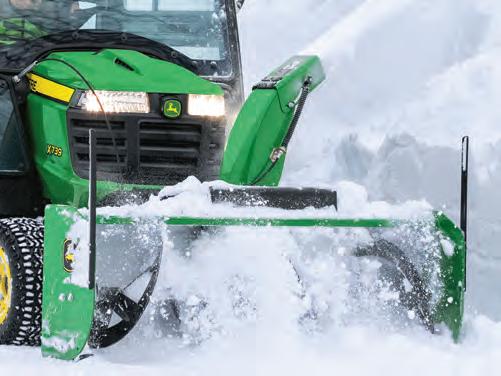

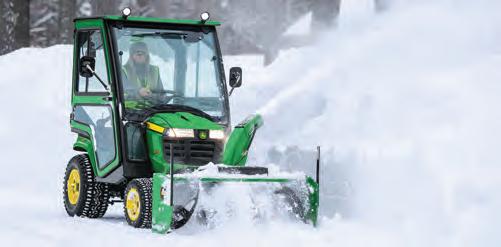

The X500 select series powerful 47-inch (119.4-cm) snow blower makes quick work of cleanup. A 200-degree chute rotation lets you change snow blowing direction as the wind shifts. Spout deflector helps you adjust snow throwing distance.

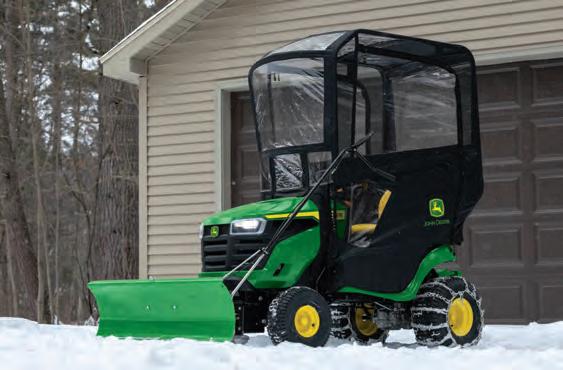

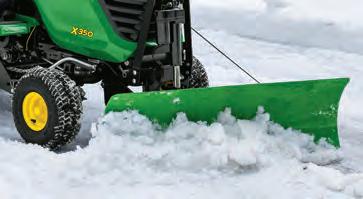

Get year-round usage from the 44-inch (111.8-cm) front blade for the X300 series. A 3-inch (8-cm) floating action is built-in to allow the blade to follow the contour of the ground for complete cleaning action.

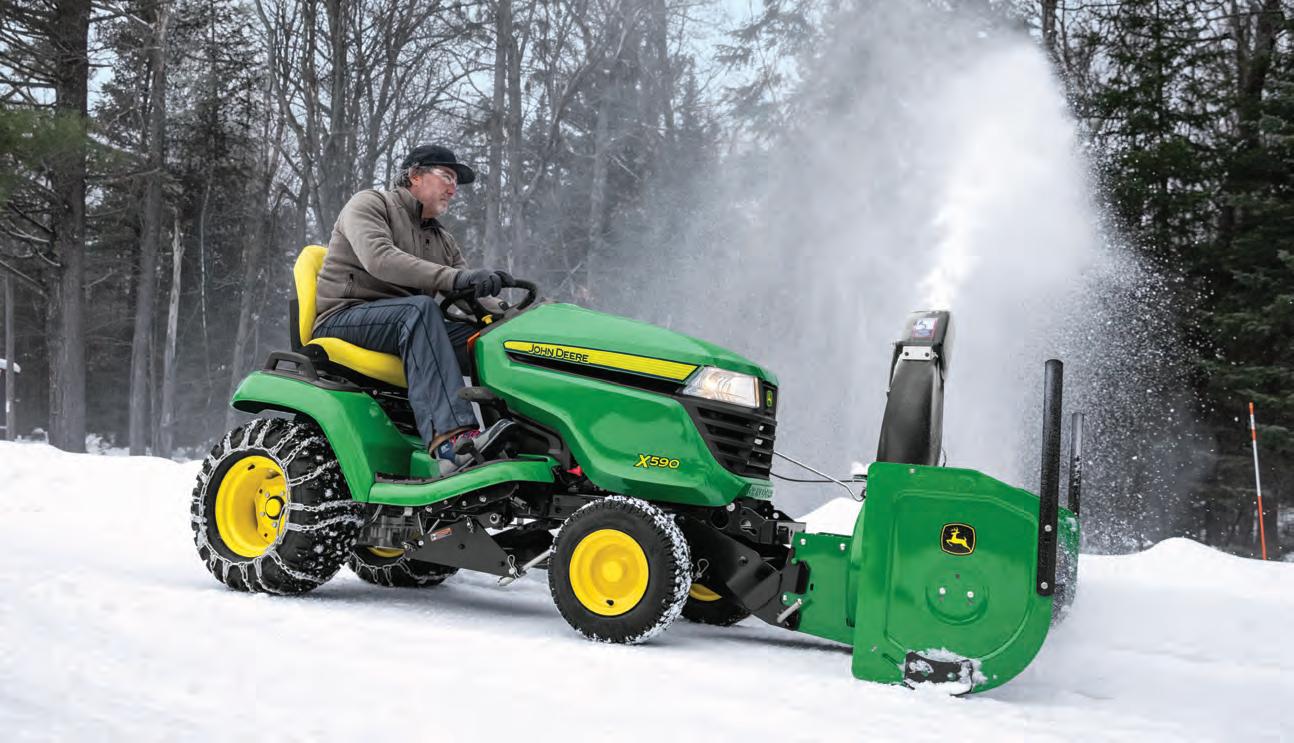

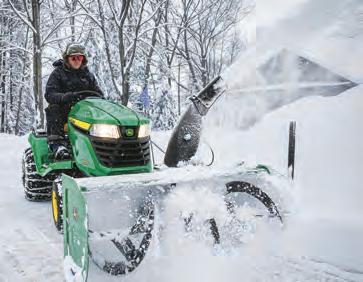

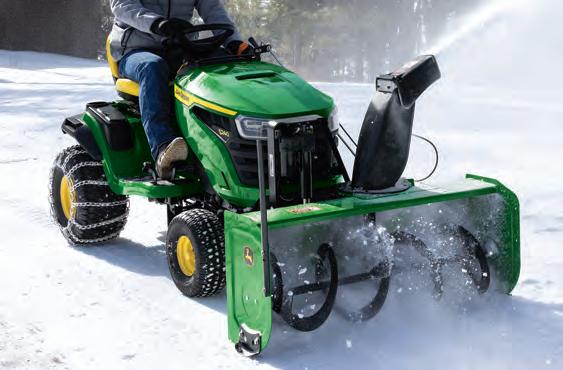

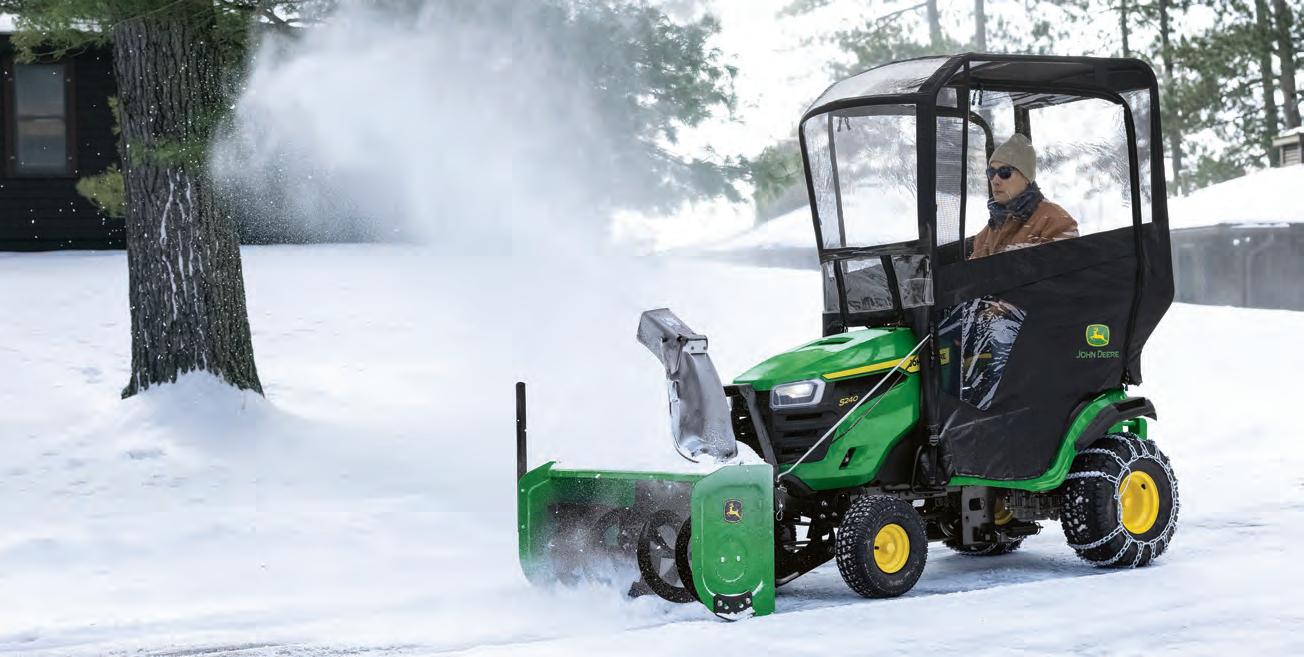

The X300 and X500 select series tractor’s 44-inch (111.8-cm) snow blower clears large driveways quickly. Use the tractor’s foot-pedal or hydraulic lift system to raise and lower the blower for easy re-positioning when clearing wide areas. Deflector cap can be adjusted from your seat.

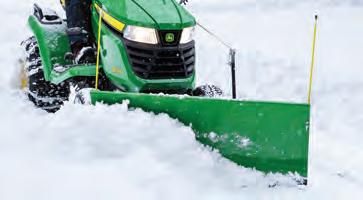

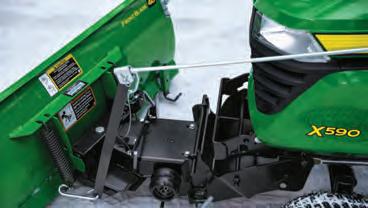

Heavy-duty 48-inch (122-cm) front blade for the X394 and X500 series clears the way. Blade can easily be angled from the comfort of your seat—choose from five positions.

Plow markers make maneuvering in deep snow easier. These reflective markers help provide visibility to the edge of your blade during swirling snowstorms.

Ditch the shovel and save your back when clearing sidewalks and driveways with the 44-inch (110 cm) snow blower for 100 and 200 series tractors. You can even stay seated while manually angling and rotating the chute.

Don’t leave your 100 or 200 Series in the garage over winter, equip it with a 46-inch (120 cm) front blade and you can push back on winter. This easy-to-use blade can be angled, lifted, and lowered from the seat.

GET READY TO GET ATTACHED.

Keep your John Deere riding lawn tractor busy all year—even when your lawn is covered in snow. Our incredible spectrum of attachments can practically transform your mower into a different machine. Bagging or spreading. If you’ve got the task, we’ve got the attachment.

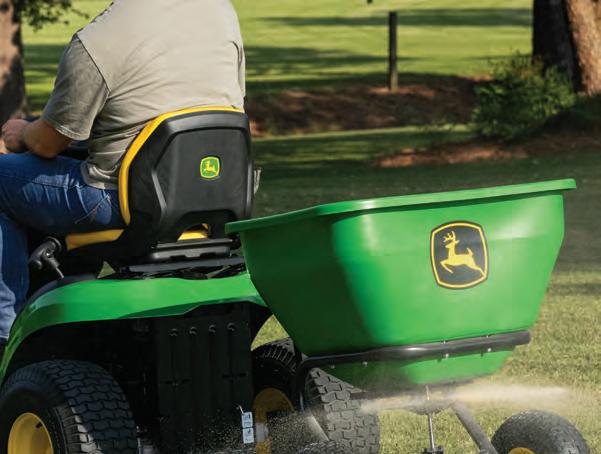

Whether you’re spreading lime or fertilizer, you can comfortably get your lawn in perfect shape while staying seated with a spreader. Choose from broadcast tow-behind spin spreaders or tractor-mounted drop spreaders.

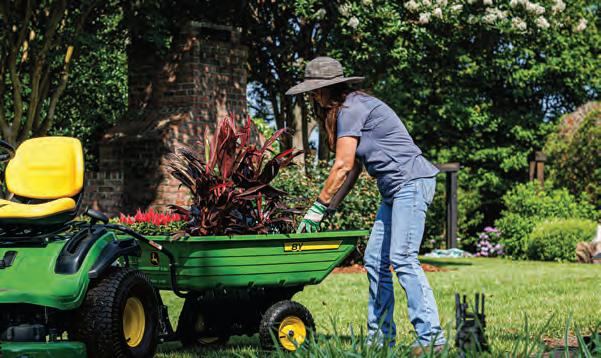

No more trips back and forth when updating garden beds and working on large yard projects. Simply hook up a utility cart to your rear tractor hitch and start hauling mulch, flowers, and more. Choose from a wide range of carts with capacities from 7 up to 17 cu ft (.20-.48 m³).

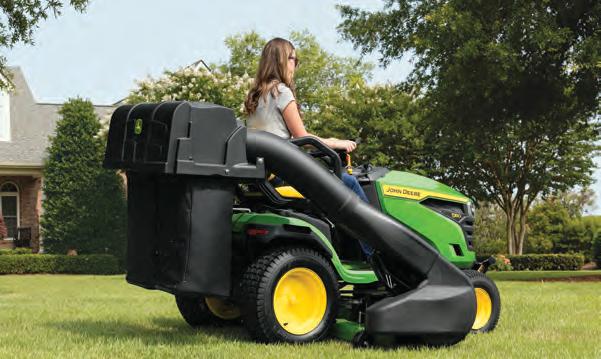

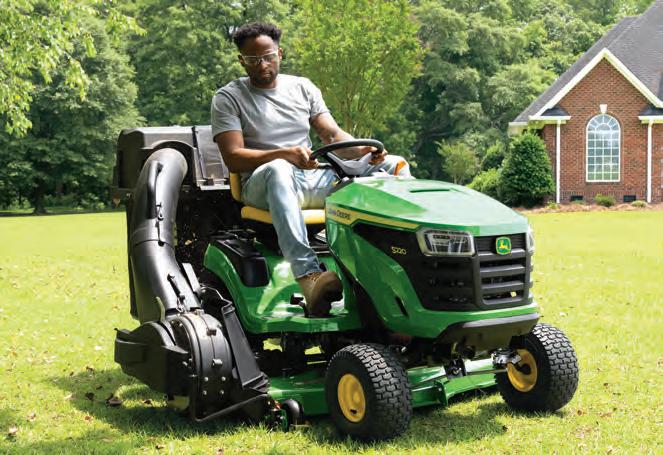

Leave a clipping-free finish or take on those pesky fall leaves with a 2-bag, 6.5-bushel (229-L) bagger. Rear hopper opens to reveal two easy-to-remove bags. Handle on bottom of bags makes easier emptying. No-tools installation ensures you can get the bagger on and off yourself.

X738 (4WD) X730 X734 (4WS)

LIFT SYSTEM

Foot pedal with adjustable spring assist / Hydraulic Hydraulic

X380 X384 (4WS) / X390 / X394

53.6 in. (136 cm) w/48 in. Accel Deep Mower or 59.4 in. (151 cm) w/54 in. Accel Deep Mower 53.6 in. (136 cm) w/48 in. Accel Deep Mower /

Attachments

SNOW EQUIPMENT

52-in. (132-cm) Quick-Hitch Rotary Broom X 60-in. (152-cm) Heavy-Duty Rotary Broom

44-in. (112-cm) Snow Blower

47-in. (119-cm) Snow Blower

47-in. (119-cm) Quick-Hitch Snow Blower X

54-in. (137-cm) Quick-Hitch Snow Blower X

FRONT BLADES

44-in. (112-cm) Front Blade

46-in. (117-cm) Front Blade

48-in. (122-cm) Front Blade

54-in. (137-cm) Quick-Hitch Front Blade X 60-in. (152-cm) Quick-Hitch Front Blade X

MULCH ATTACHMENTS

MATERIAL COLLECTION SYSTEMS

2-bag, 6.5-bu (229-L) Rear Bagger

2-bag, 7-bu (247-L) Rear Bagger

3-bag, 14-bu (493-L) Rear Bagger X

19-bu (670-L) MC519 Power Flow Cart

WEATHER ENCLOSURES AND CANOPY

Enclosure

Canopy

ROPS Hard-Side Cab X

REAR MOUNTED ATTACHMENTS

RB2060L Rear Blade, 5 ft (1.52 m)

LR2060L Landscape Rake, 5

647 Rotary Tiller, 3 point, 540-rpm PTO X SPRAYERS

15 U.S. gal. (56.8 L) Tow-Behind

25 U.S. gal. (94.6 L) Tow-Behind

45 U.S. gal. (170.3 L) Tow-Behind

60 U.S. gal. (227.1 L) Tow-Behind

25 U.S. gal. (94.6 L) Mounted

45 U.S. gal. (170.3 L) 3-Point

TOW-BEHIND EQUIPMENT

40-in. (102-cm) Thatcherator

36-in. (91-cm) Lawn Roller

48-in. (122-cm) Wide Steel Roller

40-in. (102-cm) Plug Aerator/Thatcher Multi-Tool

40-in. (102-cm) Spiker Aerator

40-in. (102-cm) Aerator/Spreader

42-in. (107-cm) Lawn Sweeper

44-in. (112-cm) Lawn Sweeper

40-in. (102-cm) Plug Aerator

48-in. (122-cm) Plug Aerator

40-in.(122-cm) Tractor

54-in. (137-cm) Tractor Shovel

Committed turf experts dig into what you need. Factory-trained service and parts professionals ensure that your equipment keeps working as hard as you do.So, let’s get to work,together.

*The engine horsepower and torque information are provided by the engine manufacturer to be used for comparison purposes only. Actual operating horsepower and torque will be less. Refer to the manufacturer’s website for additional information.

This literature has been compiled for worldwide circulation. Features, specifications, and attachments subject to change without notice. While general information, pictures, and descriptions are provided, some illustrations and text may include finance, credit, insurance, product options, and accessories NOT AVAILABLE in all regions. PLEASE CONTACT YOUR LOCAL DEALER FOR DETAILS. John Deere reserves the right to change specifications, design, and price of the products described in this literature without notice. John Deere, the leaping deer symbol, and green and yellow trade dress are trademarks of Deere & Company.
