Continuing to provide solutions for the life of your machine
New parts and kits available through parts:
•Depth Adjust Kit
•Main Opener Pivot Pin & Bushing Kit
•Quick Change Blade Kit
•Heavy Duty Gauge Wheel Tire – Narrow
•Heavy Duty Spoked Gauge Wheel Assembly – Narrow
•Greaseless Bushing Kit – 90-Series
Depth Adjust Kit
•Solves issues with wear on the cover and/or handle
•ProSeries™ components offer added strength and durability
• Contains handle, cover, and all necessary hardware for one row
•Allows 90-Series customers to easily upgrade to ProSeries components
Main Opener Pivot Pin and Bushing Kit
• Convenience kit contains pin, bushings, and all necessary hardware to service one row
•Lower price compared to ordering individual parts
Quick Change Blade Kit
•Helps reduce maintenance time for blade change
• Improvement made to ProSeries™ openers in Model Year 2022 – allows for faster blade changes, reducing planned downtime
• Kit allows customers of 90-Series and pre-MY22 ProSeries openers to upgrade to the quick change blade feature
AA110550 4-rows (2 left and 2 right)
or pre-MY22 ProSeries
AA110551 16-rows (8 left and 8 right) 90-series or pre-MY22 ProSeries
NOTE: Must also upgrade to ProSeries™ seed boots
Heavy Duty Gauge Wheel Tire – Narrow
• Narrow profile version of the heavy-duty standard width gauge wheel tire A 113507
•Thicker material in the lip area
•Provides longer wear life, especially in high-residue conditions
•Helps ensure gauge wheel performance for consistent seed placement and depth
•Drop-in replacement for A85133 narrow tire
A134844 Heavy Duty Gauge Wheel Tire – Narrow Universal
Heavy-Duty Spoked Gauge Wheel Assembly – Narrow
•Narrow profile version of the heavy-duty spoked gauge wheel assembly M98188
•Helps ensure gauge wheel performance for consistent seed placement and depth
•Spoked gauge wheel assembly in narrow profile – similar to AA98188
•Spokes allow for increased material flow through the openers
• Contains heavy-duty tire (A134844) and heavy-duty bearing (AA97285) for increased durability and service life
•Provides longer wear life of gauge wheels, especially in high-residue conditions
Greaseless Bushing Kit – 90-Series
•Eliminates daily grease points of closing and press wheel pivots
•Increases uptime by reducing planned maintenance
• Kits include all parts needed to retrofit one opener (closing wheel and press wheel pivots) to greaseless bushings

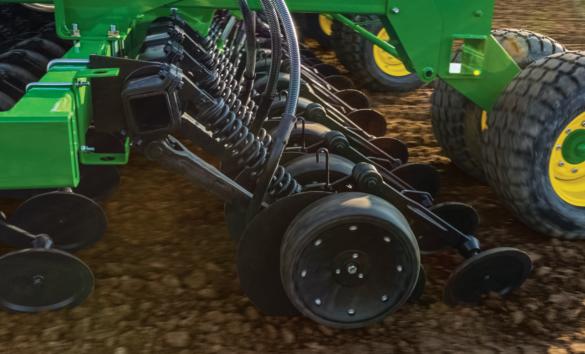

ProSeries™ Seed Opener Performance Upgrade Kits for 60- and 90-Series Openers
The ProSeries Opener offers agronomic advantages and extended wear life compared to the current 90-Series openers. For 60-Series openers to be compatible, seed tubes must also be upgraded to the 90-Series seed tubes.
FEATURES INCLUDE:
Seed Boot – A narrower, tighter fit to the disk results in less soil throw for better seed-to-soil contact and extended wear life
Press Wheel – Narrower and more flexible press wheel improves overall seed-to-soil contact for more even emergence; plus upgraded double-row ball bearing extends service life
Serrated Closing Wheel – Improved closing system when seeding in harder, drier conditions. Notches on the wheel break up the drier soil for better germination
Seed Tab – Improved material for longer wear life; angled and more flexibility in the seed trench results in less seed bounce for more consistent seed placement
Closing Spring – Easier adjustments
Upgrade your 90-Series Openers with ProSeries™ Parts
N282110 A105392
N219982 A105410
N284025 A109344
N284024 A109343
AN282296 AA88056
Serrated Closing Wheel
Seed Tab
Seed Boot, RH
Seed Boot, LH
Press Wheel
N283804 N283804 (did not change) Disk Blade
A118430 A110308
A118429 A110307
Closing Spring, RH
Closing Spring, LH
Separate Fertilizer Placement Openers for 90-Series
Features include:
Separate fertilizer placement (SFP) sealing wing allows for better sealing of NH3 in the ground. Sealing plates and scrapers improve the NH3 sealing capabilities of the SFP opener when compared with older components. 457.2mm (18-in) opener blades operate at a 5-degree angle, resulting in a narrow trench with less soil disturbance. Kit contents include: Scraper, sealing plate, disk opener, hardware, (smooth or serrated closing wheel is not included).
Air Seeder Hose—Low Pressure
Good:
•Standard Duty
•Application: Small to medium acreages with lighter fertilizer application
Better:
•Light Heavy Duty – 2 to 2.5 times standard PVC
•Application: Medium to large acreages with fertilizer applications
Best:
•Heavy Duty – 2.5 to 3 times standard PVC
•Application: Large acreages with fertilizer applications including potash
Price shown is per foot. BK = Clear w/ Black Helix, GR = Clear w/ Green Helix. See dealer for other sizes and color combinations.
Meters, Rollers, and Tuning Rings for John Deere Air Seeders
Use the low meter roller for seeds such as flax, canola, and alfalfa. The medium roller is best when planting wheat, barley, canola, and small soybeans up to 1/4 inch in diameter and with medium rates of fertilizer. The high rate roller is for high rates of fertilizer and large soybeans bigger than 1/4 inch in diameter. The very high rate roller is best used when planting barley and oats with beards, large seeds such as garbanzo beans, and with very high fertilizer rates. Fine tuning rings reduce the amount of product available to meter for increased accuracy.
A57195
A70069
Augers and Conveyors from A&I Products
Durable, long lasting stainless steel assemblies give you durability and confidence over several seasons in the field. Conveyors include an improved self-belt cleaning system and neoprene rollers mounted on stainless shafts. Augers feature poly-cupped flighting with a stainless steel core. Both are equipped with greasable bearings with easy access for maintenance. See your John Deere dealer for more information today.
Stainless Steel Conveyors
A-CONV195 21 ft (6.4m) 1900 & 1910 Air Carts (195, 250, 270, 340 Bushel)
A-CONV200 24 ft (7.32m) 1900 & 1910 Air Carts (350, 430, 550 Bushel)
Stainless Steel Augers
A-AUGER195 21 ft (6.4m) 1900 & 1910 Air Carts (195, 250, 270, 340 Bushel)
A-AUGER200 24 ft (7.32m) 1900 & 1910 Air Carts (350, 430, 550 Bushel)
NEW Seed Boot Stabilizer from A&I Products
The Pro-Stitch Stablilizer is machined to fit snug in between the two flanges where the seed boot mounts — and adds a precise mounting hole to take away the slack. No drilling is required for this simple installation.
For 1560, 1590, 1690, 1860, 1890, 1895, and 1995 Grain Drills
A-PSBOOT Seed Boot Stabilizer
NEW Seed Firmer from A&I Products
The Bonilla Seed Firmer is designed to follow the seed furrow precisely so it will keep seed from blowing out of furrow and act as a seed firmer for better seed-to-soil contact.
A-PSSDFMLLH Bonilla Seed Firmer
A-PSSDFMRRH Bonilla Seed Firmer
Keep rolling for spring and beyond
OEM and aftermarket bearings from your John Deere dealer
From Genuine John Deere OEM Parts to Cost-Effective Aftermarket Options — Your John Deere Dealer Has the Bearings to Match Your Needs and Budget.
Bearings play a critical role in gauge wheel performance, and John Deere offers a tiered portfolio designed to meet a variety of operational demands. These bearings are also compatible with most closing wheels, giving you flexibility across your equipment. Choose from our standard-duty replacement or upgrade to our heavy-duty bearing for enhanced durability and performance. Why choose heavy-duty bearings?
• Superior Protection: Enhanced sealing helps prevent dirt and debris from entering the bearing, extending its lifespan.
•Advanced Design: Features a labyrinth-style seal for better resistance compared to traditional lip seals.
• Built for Tough Conditions: Ideal for growers operating in challenging environments or using high-speed planting techniques.
• Easy Replacement: Designed as a direct drop-in replacement for part number AN212132.
Gauge Wheel Bearings, Marker Disk Bearings:
Ball Bearing Planters: MaxEmerge™, ExactEmerge™ & Pro-Series XP Planters
This, that, and the other. All three went into the redesign of the Tru-Vee Opener Blade to make it better than the original.
Double row ball bearing with 2-sided, triple-lip seal
Retooled hub and assembly process for consistent fitting
Larger more robust rivets to increase strength
Add those up and you have an opener blade that provides superior durability and precise furrow opening. Just what you need for consistent depth come planting season.
Available in store or order online at Shop.Deere.com.
Tru-Vee™ Opener Assemblies
Tru-Vee Openers and blades are designed to cut a trench precisely to the selected depth. These OEM Diamond Series blades’ special beveled edges make penetration easy, retain their sharp edge, and offer longer life compared to aftermarket alternatives.
NUMBER DESCRIPTION
AA53860 Tru-Vee Heavy-Duty, 3.5mm for ME+ and Pro-Series
AA55927 Tru-Vee Standard-Duty, 3mm for ME+ and Pro-Series
AA65457 Heavy-Duty, 3.5mm Double-Row Bearing for ME2 and ME+
*Requires new seed tube guard
Disk Openers and Coulter Blades
Our most popular openers and coulter blades, sold through parts, are the same original equipment that come on new John Deere Seeding Equipment.
25-wave 0.63 in (16 mm): Creates extremely fine tilth area about 7/8-in. wide. Works well on wet, spongy soil that can be tight and difficult for proper furrow closing.
13-wave 0.7 in (17.78 mm): Tills an area about 1-in. wide at speeds under 6 mph (9.65 km/h). Gives more aggressive soil disruption at slower speeds. Fractures the soil more, opening a wider slot of fine tilth.
8-wave 1.0 in. (25.4 mm): Offers less soil disturbance and a 1.25 in (31.75 mm). wide trench at speeds above 5.5 mph (8.85 km/h).
Bubble: Tills more aggressively as bubbles enter the seedbed zone. Opens a 1.0 in. (25.4 mm). wide slot. Penetrates soil and cuts through residue well.
AA105716 Redesigned TruVee Opener Blade* NUMBER
AA57466 Fertilizer Opener Assembly 13.5 in. (342.9 mm)
AA57467 Fertilizer Opener Assembly 13.5 in. (342.9 mm)
• Allows for a wider range of vacuum settings in small/medium flat corn
• Similar performance to standard corn bowl in large seed sizes
• Drop-in replacement to standard corn bowl A92777 (requires hub height and double eliminator adjustment)
Residue Shield Kit
Cotton field residue in the seed meters can cause issues with singulation and spacing. This kit provides shielding around the opening of the ExactEmerge row-unit cartridge to prevent the BrushBelt™ system from being exposed to field residue. This helps to reduce uptake of residue into the meter, keeping the seed pool and BrushBelt system clean for improved meter performance.
AttachmentDescription
AA112155Cartridge residue shield kit
NOTE: Kit contains all parts necessary for one planter row. NOTE: Recommended for planters going into cotton residue only.
ExactEmerge cell corn bowl
BrushBelt™ Tech Tip:
To prevent a BrushBelt malfunction, do not apply fertilizer directly in the seed furrow near the front of the BrushBelt. To dry the BrushBelts before planting in wet conditions, perform a meter runoff. (See the SeedStar Application Help for the Runoff procedure.) Periodically clean the seed sensor area inside the BrushBelt. Dusty conditions or heavily treated seeds cause an excessive buildup of dust and seed treatment inside the BrushBelt, which blocks the seed sensor. When the seed sensor becomes blocked, false low population counts or false low limit warnings appear.
Double Eliminator Tech Tip:
Degraded meter performance, like multiple seed placement, is an indicator of possible inner or outer double eliminator wear. Check the inner and outer double eliminators (A) for wear. Check the inner and outer tines for uniform length and diameter. If the length of the outer double eliminator measures less than 8mm (0.315 inches) from the base time or brush to the tip and the meter performance is degraded, replace it. If the diameters of inner adjustable double eliminator tines are worn to less than 1/2 the original diameter and the meter performance is degraded, replace it.
Yetter Twister™ Poly or Cast Closing Wheel Row Kit.
Closing wheels help to achieve better closing of the seed trench and to break up sidewall compaction, resulting in better seed-to-soil contact and faster emergence. John Deere has partnered with Yetter for aftermarket kits of its popular Twister closing wheels for customers interested in upgrading from rubber tire closing wheels.
NUMBER DESCRIPTION
5YT6200005
5YT6200006
5YT6200009
Twister poly spike closing wheel row kit (1 row) – two assembled poly spike wheels and six washers
Twister poly spike insert kit (1 row) – two poly spike rings to install on existing plastic closing wheels and six washers
Twister cast spike closing wheel row kit (1 row) – two cast spike closing wheels, two spacers, and six washers
Color Coded Hose Grips
New color coded aluminum hose handles make it easy to match up the hydraulic hoses on your implement with the correct function on the tractor. They also feature anti-slip design to make it easier to grip the hose and connect/disconnect from the back of the tractor. The color coded parts are laser engraved with the John Deere logo and the extend-and-retract icons to ensure proper matching to the proper function. The three hose grips below are now available for your planter.
NUMBER DESCRIPTION
KK79550 Power Beyond Supply – Extend – Red per JDS-G241
KK79551 Power Beyond Return – Retract – Black per JDS-G241
KK79552 Load Sense – Orange per JDS-G241
One-piece Closing Wheel
Damage to closing wheel tires for producers planting in difficult conditions such as high residue or rocky fields is sometimes unavoidable. This one-piece closing wheel AA97549 is designed to significantly reduce component wear and allows for less soil disturbance and mud packing. Another significant benefit of maintenance is service is not required when changing out a tire.
AA97549 One-piece Closing Wheel with Standard Bearing Gauge wheel arm kit - Includes parts for 1 row.
Gauge Wheel Arm Kit
Consistent seed depth is one of the main factors influencing uniform emergence. Worn out gauge wheel arm components can impact the operation of the gauge wheel leading to less consistent seed depth and, as a result, non-uniform emergence.
Advantages of the kit:
•Cost savings with a kit compared to individual parts
•Ease of ordering with a kit
•Longer life with heavier duty material
Compatibility: MaxEmerge™ XP, MaxEmerge™ 5, MaxEmerge™ 5E, and ExactEmerge™
NUMBER
DESCRIPTION
AA103998 Gauge Wheel Arm Kit
Gauge Wheel Scraper Kit
Gauge Wheel Scraper Kit works well in muddy conditions when needing to reduce mud build-up on gauge wheels, which can negatively affect planting depth.
Compatibility:
•MaxEmerge™ Plus and newer row units
•Scraper is compatible with the 4.5" wide gauge wheels only
•Not compatible with narrow and reduced inner profile (RIP) tires
•Not recommended in high residue (e.g. corn stalks)
NUMBER
DESCRIPTION
AA112505 Gauge Wheel Scraper Kit
(Contains two arms, two scrapers and hardware – all parts necessary for one planter row)
Notched Frame Mounted Fertilizer Opener Blade
In certain loose, sandy soil conditions, it is possible for the frame mounted fertilizer opener to plug with soil or pebbles between the scraper and the blade. Once this happens, the blade can no longer turn, causing it to bulldoze the soil, rather than to cut the furrow for the fertilizer to be placed. In this situation, a notched opener blade can help to overcome the issue. The notches in the blade help to create additional friction between the blade and soil, creating enough torque to keep the blade turning, even when soil or other debris has built up between the scraper and the blade.
Compatibility:
• Works with any planter with frame-mounted fertilizer openers currently using the A72358 blade
• Customer Challenge - Excess seed tube wear affects seed furrow formation and allows potential damage to the seed tube
•Solution - Heavy Duty Seed Tube Guard
•Tungsten-carbide tiles provide resistance to wear, prolonging service life
•Drop-in replacement for standard guard A131375
Compatibility
•MaxEmerge™ XP Row units
•MaxEmerge™ 5 and 5e Row Units
NUMBER
AA111854Heavy Duty Seed Tube Guard
Maintenance Free Gauge Wheel Arm Kit
• Customer Challenge - Daily maintenance during planting time, component wear leading to decrease in planting accuracy
•Solution - Maintenance Free Gauge Wheel Arm
•Eliminates two grease points per planter row, increasing uptime
• Internal testing suggests better durability and reliability than standard greaseable gauge wheel arms
• Does not use a bearing design, thus avoiding the need to use shims to adjust gauge wheel clearance
• Sold as a row kit, containing two arms and all hardware needed to upgrade one planter row
Compatibility
•MaxEmerge XP, 5 and 5e row units
•ExactEmerge row units NUMBER
AA114871Maintenance Free Gauge Wheel Arm Kit
PEACE OF MIND
IT’S NOT JUST FOR NEW EQUIPMENT
Go from “out of warranty” to “under warranty” with a Used PowerGard Plan from John Deere. Designed to preserve the performance and reliability of your aging equipment, Used PowerGard (an Inspect & Protect Program) now offers an option for out-of-warranty, customer-owned machines. Our Limited (engine and powertrain warranty) and Comprehensive Coverage, can help keep your tractor, combine, sprayer, SPFH, cotton harvester or nutrient applicator running for a lot longer. Plus, you get to choose from a variety of flexible terms, in total months and total hours, along with determining the deductible that’s right for you. Get covered today!
Auxiliary Power Adapters for 7R and 8R/8RT/8RX (with new cab)
Two new solutions are available to provide an octagon style power outlet for connecting displays, monitors, and other electronic devices. The first is a 3-pin octagonal power adaptor that connects to the 3-pin round convenience outlet. The second option will retrofit a power strip with 6 octagon style outlets; same as what was available in 7- and 8-Series tractors prior to the new cab design.
NUMBERDESCRIPTION
Adapter for 1 Octagon Outlet Plug
RE596959 3-pin Octagonal to 3-pin Round Convenience Outlet (flat pins) Single Device Adaptor
Kick up your feet and drive like a boss with easy-to-install foot rests. Kit BRE10471 adds two forward facing risers and foot rests to the cab (no drilling or welding required). These custom cast iron risers are designed for this cab series and bolt into existing locations used to mount the steering column to the cab frame. Kit BRE10458 fits 7R and 8R/8RT/8RX with the updated new cab and contains three foot rests. These foot rests are helpful when operating on steep downhill grades and sidehills or watching towed implements. Complete kits include all parts and hardware.
NUMBER DESCRIPTION
BRE10458 MY20 and newer 7R, 8R/8RT/8RX (with updated cab), MY22 9R/9RT/9RX. BRE10471 Foot Rest Support Kit - Fits R4030 to R4060 sprayer models and F4365 Nutrient Applicator
LED Beacon – Retrofit Kit
This kit completely eliminates the rotating beacon assembly. The riser system retains the approved DOT height requirements and includes a patent pending fold-lock “breakaway” system folds out of the way by hand, and can easily be unfolded when needed. Kit includes harness, foldable riser, and LED beacon. Install requires existing beacon harness, cab switch, and mounting post. Note: If tractor already uses two beacons, order two LED retrofit kits.
NUMBER DESCRIPTION
RE596638 MY11–MY20 7R Tractors (excluding new 2020 cab design), MY09–MY20 8R and 8RT Tractors (excl. new 2020 cab design), MY12–MY22 9R/9RT/9RX Tractors Also fits: 7X20, 7X30, 8X20, 8X30, 9X20, and 9X30
7R/8R Greaseable Hitch Pins – Retrofit
These pins can be universally used in six locations on the rear hitch. The greaseable hitch pins can provide extended life with proper lubrication compared to the previous nongreaseable design.
NUMBERDESCRIPTION
BRE10500 MY11–MY20 7R Tractors (excluding new 2020 cab design), MY09–MY20 8R/8RT Tractors (excluding new 2020 cab design)
Wide Angle Mirrors
See the benefits from a wider range of rear visibility with wide-angle mirrors. Regardless of how the tractor came equipped, these kits will upgrade existing mirrors with wide-angle lenses and a standard mirror. This upgrade includes power extending arms, power rotating head, and heated lenses. The kit provides mirrors for the left and right side of the tractor.
NUMBERDESCRIPTION
BRE10470 MY14–MY19 7R and 8R Wheel Tractors. Full electric operation and kit includes LH and RH Mirrors. (not compatible with 8RT, 9R, 9RT, and 9RX models)
Maintain Your 8 Family Tractor
Rubber Tracks Belts
NUMBERDESCRIPTION
Rubber Track Belts are wornout when the tread bar is 1/2" (1.27cm) or less in height, cables are protruding from the carcass, or drive lug wear exceeds 50%. A selection of track belt options are available for your tractor. The track belt list below is only a small sample of options for twoand four-track tractors.
TR129235 Trackman by Loc® Track Belt, 18-in. (45.72cm) Wide
TR130817 Trackman by Loc® Track Belt, 16-in. (40.64cm) Wide
R576549Trackman® HP Standard Duty, 16-in. (40.64cm) 8X00T, 8X10T, 8X20T, 8X30T
R576550Trackman® HP Standard Duty, 18-in. (45.72cm) 8X00T, 8X10T, 8X20T, 8X30T
R576551Trackman® HP Standard Duty, 24-in. (60.96cm) 8X00T, 8X10T, 8X20T, 8X30T
R576552Trackman® HP Standard Duty, 30-in. (76.2cm) 8X00T, 8X10T, 8X20T, 8X30T
R545855 Camso Track Belt, 16-in. (40.64cm), RH, 6500 Series
R545854 Camso Track Belt, 16-in. (40.64cm), LH, 6500 Series
NUMBERDESCRIPTION
R545859 Camso Track Belt, 18-in. (45.72cm), 6500 Series
R545856 Camso Track Belt, 18-in. (45.72cm), 4500 Series
R545860 Camso Track Belt, 24-in. (60.96cm), 4500 Series R545862 Camso Track Belt, 25-in. (63.5cm), 6500 Series R545861 Camso Track Belt, 25-in. (63.5cm), 4500 Series
R545864 Camso Track Belt, 30-in. (76.2cm), 6500 Series
All applicable rubber track belts are not listed above. Please contact your local John Deere dealer to discuss our complete track belt portfolio offering.
Independent Link Suspension
Like any other vehicle, suspension is a wearable system and requires annual checks and maintenance. New upgrades and price competitive part options are available to keep your tractor where you want it in the field. Most parts upgrades and enhancements fit all ILS tractors back to 2002 model years.
A&I NUMBERDESCRIPTION
RE587967 Inner Tie-Rod End
RE583653 Outer Tie Rod
RE587968 Tie-rod Assembly (Inner and Outer)
RE580643 Upper/Lower Control Arm Ball Joint
RE584459 A-Arm Upper Pivot Shaft Expander Pin
A-RE583653 Outer Tie-Rod
A-RE567107 Seal Kit, ILS Steering A&I Parts Cylinder (Repl. RE556361, RE304943) (NEW)
A-RE580643 Ball Joint
A-RE583653 Tie Rod End (Repl. RE184942, RE216822)
Vari-Cool™ Fan Drives
To maximize the reliability of the fan drive system, we encourage customers to replace the driver and driven assemblies at the same time. A work driven assembly will potentially reduce the expected life of a new driver when only one is replaced. The V-belt is the most critical part of this system and should be inspected with the go/no-go gauge tool at least every 200 hours and replaced immediately to save from costly repairs.
RE572544 Fan Drive, Dry Driven Assembly 9L, RE582570 Fan Drive, Dry Driven Assembly 9L, R568198 V-Belt
ExactRate™ Tractor Tank Kit for 8RX Tractors
Tractor Tanks system as a field installed solution. Kit Compatible with 8RX 340, 8RX 370, 8RX 410 tractors with 18 in. (45.72cm) or 24 in. (60.96cm) track belts, and requires 120 inch (304.8cm) tread spacing. A front fill connection kit is also available to provide convenient access to fill the ExactRate™ tanks.
NUMBERDESCRIPTION
BRE10587 ExactRate Tank Kits (complete ExactRate tank system)
RE598041 120 in. (304.8cm) Axle Spacer, Left Rear
RE598042 120 in. (304.8cm) Axle Spacer, Right Rear
BRE10510 Front Fill Connection Kit (optional)
*Additional parts required for MY2020-2021 and MY2024-install.
Hydraulic Pump Upgrades for 8000–8030 Series Row Crop Tractors
Upgrade today for increased efficiencies and capabilities. New implements such as air seeders, tillage equipment, and planters may require more hydraulic flow to perform effectively. If your current planter raise and lower times are too slow — or you are using a system with three or more vacuum motors — increased hydraulic flow may improve performance.
The benefits of installing a high-capacity hydraulic pump:
• Higher flow at lower engine RPM equals better fuel economy and less noise
• Offers faster multiple hydraulic functions
Hydraulic pump flow availability is directly affected by engine speed, how many SCVs are being used at the same time, as well as other factors. Refer to your John Deere Operator’s Manual for more information in section 60 – Determining Total Flow Demand. Contact your local John Deere Dealer to determine which pump is on your tractor and if a hydraulic pump upgrade will provide the solution you need.
RE599247 57cc – 8000 and 8010 Series TractorsJohn Deere
RE214405 60cc – 8020 Series Tractor John Deere
RE563717 85cc – 8030 Series Tractor John Deere

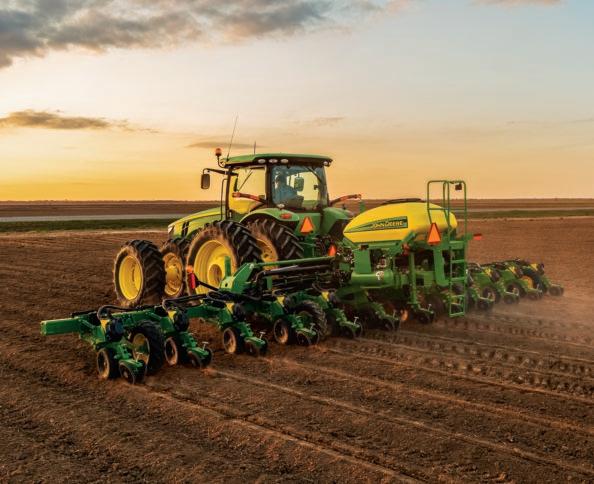

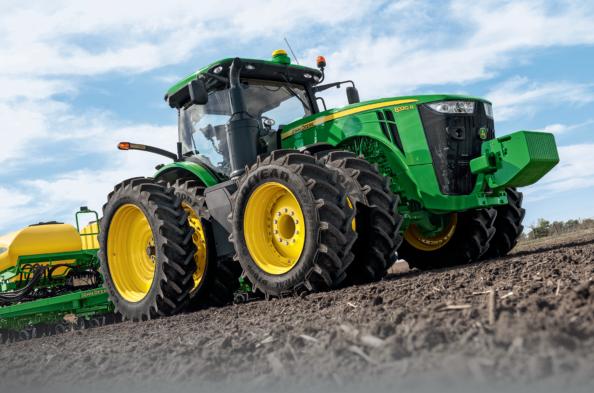

Upgrade the Hydraulic Capacity on Your 8R / 8RX
Today’s planters require a high amount of hydraulic flow. If you have a John Deere 8R or 8RX with a single hydraulic pump, now you have the opportunity to upgrade to dual pumps. This update adds an additional 35cc pump to the standard 85cc pump and provides a total output of 85 gallons per minute (318lpm). The dual hydraulic system boasts plenty of reserve capacity to operate large hydraulic motors, even at reduced engine speeds.
■ 40% increase hydraulic flow capability
■ Uses the exact same parts used in factory installed option code
■ Reduced cab noise with the efficiency of dual pumps
■ Meets they hydraulic requirements of high-capacity planters
■ Run faster in the field or more efficiently at slow speeds
KITS TO UPGRADE TO DUAL HYDRAULIC PUMP
BXX11243 Dual hydraulic pump kit
NOTE: Only compatible with IVT™ transmission, with or without ILS™ system.
BXX11244Dual hydraulic pump kit
Note: Only compatible with e23™ transmission, with or without ILS system.
BXX11543 Dual hydraulic pump kit
Note: Only compatible with IVT transmission, with or without ILS system.
Compatible with 8RW (serial number 170001- ) and 8RX (serial number 801001- ).
Compatible with 8RW (serial number 090001-170000).
Compatible with 8RW (serial number 090001-170000).

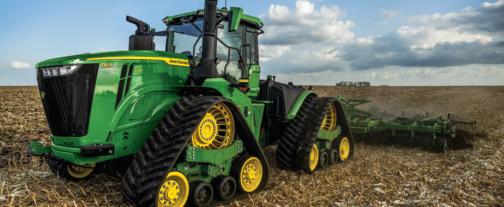

Maintain Your 9 Family Tractor
Rubber Track Belts*
Your farming operation is unique, and our robust lineup of rubber track belt offerings is designed to meet the needs of your specific application. Your local John Deere dealership mechanics are equipped with the resources, experience, and expertise to provide unmatched undercarriage service and support. Visit your local dealer for track belt selection, installation, and alignment today!
NUMBERDESCRIPTION
R257977
R257978
R241748
R241749
R545869
R545868
R545867
R545871
R545870
Camso Track Belt, 30-in. (76.2cm), 3500 Series
Camso Track Belt, 36-in. (91.44cm), 3500 Series
Camso Track Belt, 30-in. (76.2cm), 5500 Series
Camso Track Belt, 36-in. (91.44cm), 5500 Series
Camso Track Belt, 30-in. (76.2cm), Scraper, 6500 Series
Camso Track Belt, 30-in. (76.2cm), 6500 Series
Camso Track Belt, 30-in. (76.2cm), 4500 Series
Camso Track Belt, 36-in. (91.44cm), 6500 Series
Camso Track Belt, 36-in. (91.44cm), 4500 Series
NUMBERDESCRIPTION
R550588 Camso Track Belt, 30-in. (76.2cm), 3500 Series
R550228 Camso Track Belt, 36-in. (91.44cm), 3500 Series
R554229 Camso Track Belt, 30-in. (76.2cm), 6500 Series
R554230 Camso Track Belt, 36-in. (91.44cm), 6500 Series
R550589 Camso Track Belt, Scraper, 30-in. (76.2cm), 6500 Series
R565017 Camso Track Belt, Scraper, 18-in. (45.72cm), 6500 Series
R565018 Camso Track Belt, Scraper, 24-in. (60.96cm), 6500 Series
R576553Trackman® HP Extreme, Heavy Duty, 30-in (76.2cm) 9X00T, 9X20T
R576554Trackman® HP Extreme, Heavy Duty, 36-in (91.44cm) 9X00T, 9X20T
*All applicable rubber track belts are not listed above. Please contact your local John Deere dealer to discuss our complete track belt portfolio offering.
The conversion design is exclusive to John Deere and converts the couplers on a standard flow SCV from 1/2-in. (1.27cm) couplers to 3/4-in. (1.91cm) couplers. This conversion is an economical solution to improve the transfer of hydraulic horsepower from the tractor to the implement. Convert one to six SCV couplers on a single stack tractor.
This kit is ideal for operators with:
•High hydraulic demand implements, such as large air seeders and planters
•Implements that require 3/4-in. (1.91cm) couplers
•A desire to improve implement raise/lower cycle times for faster headland turns
NUMBER
Coupler Conversion Kits – 1/2-in. (1.27cm) to 3/4-in. (1.91cm)
BRE10486 3/4-in. (1.91cm) Coupler Adapter Conversion (converts 1 SCV) 9R, 9RX, 9X30 Tractors (SN 13001- wheel, SN, 9110112T) without rear 3-point hitch and BOSCH CAN SCV’s only
Enhance the appearance of your tractor cab with new cab upholstery. Beltline, post, and headliner kits are available for row crop, 4WD, and utility tractors with Sound-Gard bodies. Made of pre-cut brown or black original equipment upholstery/insulation for precise fit. Insulation is 2-in. thick in key areas for greater sound deadening capacity. Compare the cost to replace cab upholstery in your tractor using all John Deere parts or a lower cost aftermarket alternative available from A&I Products.
John Deere 55 and 60 Series Tractor Cab Upholstery
DESCRIPTION
Upholstery Kit
Post Upholstery Kit
Headliner (front)
Headliner (rear)
John Deere A&I
RE155148 A-CKT350
RE155149 A-CPK420
RE37757 A-CHL240
RE37820
John Deere 40 Series Tractor Cab Upholstery (Black SN 185707-)
DESCRIPTION
Upholstery Kit
Post Upholstery Kit
Headliner (front)
Headliner (rear)
John Deere A&I
RE57259 A-CKT305L
RE223619 A-CHL215
RE48532 A-CPK400
RE232146 A-CWL500
John Deere 30–60 Series Tractor Cab Glass
John Deere has a wide selection of tractor cab glass for your John Deere tractor. Replace broken glass and cracked/scratched windows to improve the view from your tractor cab. Choose from a selection of OEM cab glass or lower cost options.
John Deere Parts
Number
Description
R50756Glass, Door, Lower (LH) - 30,40,50 Series Tractors
R50757 Glass, Side (RH/LH) - 30-60 Series Tractors
R50758 Glass, Rear, foor Apps w/ Latch 30-60 Series Tractors
AR87997 Glass, Rear-Sliding -30,40,50,55 and 60 Series Row Crop Tractors
A&I Products
Number
Description
A-R50756Glass, Door, Lower (LH) – 30, 40, 50 Series Tractors
A-R50754 Glass, Lower (RH) – 30, 40, 50 Series Tractors
A-R50757 Glass, Side (RH/LH) – 30–60 Series Tractors
A -AR87997 Glass, Rear-Sliding – 30–60 Series Tractors Utility Tractors, 30, 40, 50, 55, and 60 Series Row Crop Tractors
A-R50758 Glass, Rear, for Apps w/Latch 30–60 Series Tractors
A-R50753Glass, Windshield, Upper (RH) 30–50 Series Tractors
Waterpump:
John Deere 6000 and 7000 Series Tractor
Parts
John Deere dealers offer the right part, with the right fit, at the right price to repair your John Deere tractor. Choose from Genuine John Deere, John Deere Reman, or A&I Products.
Hydraulic quick disconnect couplers are available in both standard and deluxe versions. The standard couplers allow coupling and uncoupling of hydraulics with pressure from the implement side, while deluxe couplers provide tractor and/or implement side coupling/uncoupling. Choose from Genuine John Deere and A&I Products.
Replace damper as recommended to avoid costly repairs such as potential crankshaft breakage or front engine cover damage.
• Dual Dampers – replace both at the same time
Important Repair Note:
• When required use new cap screws when installing the damper to the crankshaft and fan pulley to damper.
• Damper can be damaged by dropping it or striking it with a hammer during installation. Use the proper procedure and tools listed in the technical manual.
Did you know your crankshaft damper has a service life? When torque is applied, engines generate harmful vibrations. A damper reduces these vibrations, which extends belt life and reduces gear wear. Our engine damper consists of an inertia ring, elastic member, and hub assembly attached to the crankshaft. John Deere recommends changing the crankshaft damper at 4,000 to 5,000 hours or 5 years, whichever comes first in some applications. Contact us to see if your crankshaft damper needs replacing today.
R Series Cab Bracket Kit
The R series cab bracket kit is available for mounting monitors, phones, displays, and mounts to existing holes inside the cab. Fits 7R–9R Series tractor cabs.
RE317435
BRE10574 Fits MY20-Current 7R, 8R/8RT/8RX with new cab
Short Vertical Mounting Rail
This rail kit also includes all the hardware to mount the rail in up to five vertical locations, using existing threaded bosses at the A and C posts inside the cab. This rail can be used to mount tablets, cell phones, cup holders, or displays. Fits: 7020 – 7R, 8020 – 8R/8RT, 9020 – 9R/9RT/9RX, and MY2020 7R and 8R/8RT/8RX (with new cab).
BRE10575
Mounting Bracket Kit – Long Bar and Tray Kits
The accessory mounting bracket with optional tray kit provides a low-cost solution to all your mounting needs in the cab. Fits 7020, 7030, 8010–8030, 9020, and 9030 Series.
BRE10141 Bracket Kit
BRE10142 Tray Kit
CommandARMTM Bracket
The CommandARM bracket offers a safe and convenient way to mount a mobile device or tablet to the CommandARM on 6R–9R FT4 tractors. Includes bracket and hardware only.
BRE10147
BRE10501 Fits MY20-Current 7R, 8R/8RT/8RX with new cab
Cell Phone Bracket Kit
The RAM X-Grip® bracket’s four-leg design offers great holding power, without covering your phone’s screen.
BRE10015
RAM Tablet Mount Kit
This kit’s high-strength design keeps your tablet secure, without restricting access to audio jacks or USB or other ports.
BRE10255
Accessory Mounting Bracket Kit
Mount, adjust, and position key controls and displays within the cab for maximum accessibility without compromising visibility. The John Deere design can be used in multiple configurations and tailored to the specific machine and task.
RE343680
Greenstar™ Display Bracket
Corner post cab bracket for mounting Greenstar display.
BPF12124 Single Display Bracket Mount
PF90430 Dual Display Adapter Mounting
REMAN Electronic Unit Injector
Available at a 20% to 30% lower price than OEM parts, Reman electronic unit injectors are an excellent alternative thanks to precision remanufacturing processes and rigorous testing. By meeting or exceeding original OEM specifications, you can expect reliable performance and durability.
REMANUFACTURED
NOT REPAIRED. NOT REBUILT. NOT RECONDITIONED.
John Deere dealers have a lot of confidence in John Deere Reman. There’s no hesitation in recommending Reman to value-conscious customers seeking reliable parts at lower prices. Ask us about Reman today!
RELIABLE
Reman parts are designed by John Deere engineers and built by our certified technicians, using only John Deere components Rest assured that you’re getting sound products for your machine.
REASONABLE
With over 2,300 remanufactured parts available, John Deere Reman helps you reduce equipment operating costs with prices typically 20 to 30 percent less than new Genuine John Deere OEM parts.
REPUTABLE
Guaranteed to perform as well as OEM parts, Reman is protected by a standard warranty with up to two years of coverage – which includes labor costs if installed by an authorized John Deere dealer1
John Deere Reman DEF Parts
Upgraded to the latest design specifications to ensure superb performance and durability, John Deere Reman DEF parts offer substantial cost savings versus new replacement components.
John Deere Reman DEF Header
The header is available in the 12V version at a variety of lengths for multiple applications.
The injector is for use in multiple engine models and applications.
4045, 6068, 6090 Ag, C&F, and OEM

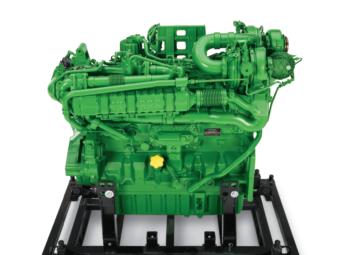

Extended Warranty for John Deere Reman Engines*
Optional extended warranty terms for John Deere Reman engines can be purchased. Coverage options are between 2-year/2,500 hours and 5-year/4,000 hours. To qualify for the program, the engine must be dealer installed and the customer must purchase the extended warranty contract within 90 days of engine installation. Contact your John Deere dealership for complete details. *Complete engines
Electronics “Repair & Return” Service from John Deere REMAN
Your John Deere dealer has a lower-cost repair solution for precision ag electronic components. Don’t send your electronic components to just any repair shop. Factory-trained John Deere Reman technicians will complete the repairs using genuine OEM parts. Components are tested back to the original OEM specifications and carry a 12-month warranty.
John Deere Exchange Service
John Deere Exchange Service for electronic components provides a refurbished electronic component as a tiered service solution. Refurbished means the electronic components go through an initial test/failures and are fixed using OEM or alternative parts to meet the performance standard for the electronic component. It will be loaded with the “latest” software and finally re-tested. These parts will fit 100% in the form and function like the original part. Return of the old part (as core) is required. John Deere Exchange Service parts are ordered like other service parts and come with a regular 12-month service parts warranty*.
We got you covered
John Deere Reman starters and alternators now come with a standard, 2-year factory warranty* for added peace of mind.
2 years = Two planting and harvesting cycles. All covered by a factory warranty.* Reman Tough.
NEW REMAN FT4 Turbochargers
John Deere Reman now offers additional FT4 turbochargers – providing a reliable, cost-effective repair solution that increases uptime. Key benefits include:
•Remanufactured to strict John Deere quality standards, including extensive testing and genuine OEM parts
•Competitive pricing – 20% less than new OEM
•One-year, unlimited-hour warranty on dealer-installed products
•Complete disassembly and verification of all components
•100% replacement of bearings and seals
•Precision machining of mounting flanges for optimal fit
•Balanced turbine and compressor wheels
HAS YOURS GONE HAYWIRE?
Get your BaleTrak™ monitor in good working order with John Deere Repair & Return Service. Available for Value, Pro, and Plus monitors.
FEEL CONFIDENT. SEE VALUE. OWN CHOICE. CONTACT US ABOUT THIS SERVICE.
TAKE A LOAD OFF
Watch a video on Net Lift Assist
Elevate your Netwrap loading experience with the Net Lift Assist and Net Lighting from John Deere. Increase field safety and efficiency by adding this attachment to your John Deere round baler. Our bolt-on design streamlines the installation and is compatible with 7-, 8-, 9-, and 0-Series Round Balers. Upgrade today for the ultimate loading experience.
Round Baler Net Lift Assist and Net Lighting
The ultimate solution for effortlessly loading net wrap on your round baler day or night. Reliable and durable. No cutting is required. A true bolt-on solution.
BE33116 Net Lift Assist for 7-, 8-, and 9-Series Round Balers
BE33117 Net Lift Assist for 0-Series Round Balers
BE33118 Net Lighting Kit

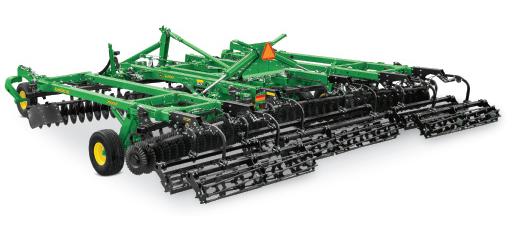

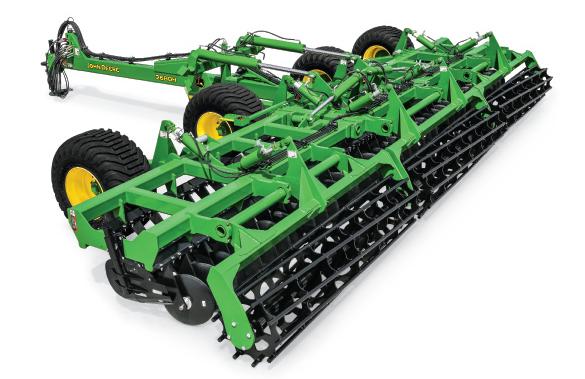

2680H High-Performance Disk
Ideal for customers looking to:
•Mix and bury residue up to 6 in. (15.24cm) deep
• Remove weeds or terminate cover crops in the spring vs chemical application
•Easily operate with less skilled labor
•Level ruts and warm soil before planting
•Cover large number of acres quickly with working speeds 10 mph (16.1 km/h) to 14 mph (22.53 km/h)
BKK11470 (BEARING KIT) (Contains 2 set of Bearing fully assembled in housing in sleeves)
Standard and Shin Retrofit Kit
• The new MT standard and shin retrofit for 2100 rippers is a game-changer in tillage equipment. This retrofit features tungsten-carbide welds on the heel of the standard, extending the component's life expectancy. The wear shin, made from the same tough CADI material as our ripper points, ensures extended wear life and durability.
• The redesigned clevis enhances retention, providing a more secure fit. This comprehensive bundle includes one each of the standard, shin, clevis, and all necessary attaching hardware, making installation straightforward.
• Compatible with both the 2100 and MT Series Minimum-Till Rippers. Upgrade your equipment and experience the enhanced performance and longevity in your tillage operations!
AKK58402 Standard and Shin Retrofit Kit
Tru-Width™ Chisel Plow Sweeps
The unique wing design of Tru-Width sweeps ensures that they maintain their original cutting width and a sharp point. These sweeps fit John Deere and most brands of chisel plows, mulch tillers, and air seeders.
•Designed to fit most minimum-till coulter chisels on the market today
• Made from 1/2-in. (1.27cm) x 4-in. (10.16cm) 1080 high-carbon steel for long life and superior performance
•Also available with hard-faced cutting edge for extended life
NUMBER SIZE
N237720 1/2-in. x 4-in. x 26-in. (1.27cm x 10.16cm x 66.04cm), Right-hand N237721 1/2-in. x 4-in. x 26-in. (1.27cm x 10.16cm x 66.04cm), Left-hand
N237722 1/2-in. x 4-in. x 26-in. (1.27cm x 10.16cm x 66.04cm), Hard-faced, Right-hand N237723 1/2-in. x 4-in. x 26-in. (1.27cm x 10.16cm x 66.04cm), Hard-faced, Left-hand
Min-Till Ripper Points
•Wingless points provide ultra-low, surface-soil disturbance
•Choose 7-in. (17.78cm) points for moderate soil disturbance
•Fits John Deere 913 and 915 Rippers and 2100 Min-Till Ripper
NUMBER WING WIDTH
John Deere LaserRip™ Min-Till 3/4-in. Straight Standard (ultra-low-to-moderate soil disturbance):
N262903 3/4" (1.9cm) Wingless
N262740 7-in.(17.78cm)
N262902 10-in.(25.4cm)
IMPROVED
PLUS SWEEPS
TUNGSTEN-CARBIDE BLEND
IMPACT-RESISTANT WELD MATRIX
PERMANENTLY-FUSED METALLURGICAL BOND
Swap out your sweeps less often – and cover far more acres – with improved PLUS Sweeps. Manufactured with a uniquely formulated tungsten-carbide blend that’s applied to the nose, wing and neck, PLUS Sweeps provide extraordinary wear resistance (lasting two to three times longer than uncoated sweeps 1). Now available on both Perma-Loc™ High-Productivity and Tru-Width™ sweeps, you’ll be able to cultivate consistent seedbeds acre after acre.
PLUS Sweeps Now Last Even Longer
The long wear life PLUS sweeps are available in both the Tru-Width™ and High Productivity version and attach to the John Deere Perma-Loc™ attaching system. This expands the offering of these longer wear life sweeps as the previous version was only available as High Productivity. A tungsten carbide blend is robotically applied to the nose, underneath the wing, and the neck of the PLUS sweep. Internal testing has shown the newest version lasts two to three times longer than an uncoated sweep. This helps growers spend less time changing worn sweeps and more time preparing the seedbed to hit the critical planting window. By holding their original shape throughout the tillage season, PLUS sweeps help to ensure a consistent, quality tillage job, from the first acre to the last.
KK79146
KK79142
KK79145 10" (25.4cm) High Productivity PLUS Sweep
Based on internal testing at John Deere.
Solution System Cleaning
Scan for information on Solution System Cleaning
Watch our YouTube® video on Solution System Cleaning to learn more.
Flowmeters are a critical part of the sprayer and require regular cleaning. Flowmeters that are not maintained and cleaned at regular intervals can give erratic readings, affecting the application rate.
To avoid damage to flowmeters and prevent possible chemical application rate issues:
• Flush the solution system daily as described in Operator’s Manual with clean water
• Remove flowmeters as required and clean the turbine and bearing area with TY26101 John Deere Brake and Parts Cleaner
• Properly clean and winterize solution system when preparing machine for storage (See the Storage section of the Operator’s Manual for procedure)
NUMBERDESCRIPTION APPLICATION
AN305056 Flowmeter Insert
AKK23982 Flowmeter Sensor
AN305055 Flowmeter Assembly (Housing , insert and sensor)
Superior wet-seal protection for today’s most demanding spray conditions.
• Wet-seal technology protects the seals by using a barrier fluid to keep them cool and lubricated, even while the pump is running dry
• Actively maintains a positive pressure differential between the chamber barrier fluid and the pumping solution, which prevents chemical bonding of the seal faces, resulting in increased life and maintenance-free operation
•Protects seal against dry run failure
•Minimizes sprayer downtime and improves productivity
Ask us how the Forcefield pump provides worry-free sprayer operation.
PMLST150 Center Frame Solution Strainer – PolyUniversal
Banjo Valves
John Deere dealers offer an extensive line of Banjo valves and replacement parts. These high-quality valves are used on John Deere sprayers and many other farm applications.
Want a quick and easy way to pick the right nozzle family? We have you covered with our nozzle selection guide. Follow the chart and discover which nozzle type is right for you in a snap.
Visit our Deere.com page to find out more.
SPRAY NOZZLE SELECTION GUIDE
What are you spraying?
When are you spraying?
Pre-Emerge
Are you using a Pulse With Modulization system?** Is your chemical Contact or Systmenic?
Spray quality will vary with pressure. For details, see nozzle-specific spray quality charts. Always comply with the product label recommendations or latest manufacturer advice on application on spray quality.
†When using the 3D and Pulse With Modulization at less than 30 Hz you must install the nozzles facing the same direction.
** Use as indicated on approved label.
Improve Plant Health with spot-on coverage from every angle
Try the Nozzle Select Tool on the New EquipmentPlus App or see your John Deere Dealer
This Decision Tree is designed to be illustrative in providing guidance when selecting spray nozzles for different applications. Always follow the chemical manufacturers’ recommendations for application rates and sprayer configuration when selecting an application specific nozzle.
Drift Control Nozzles
John Deere offers multiple nozzle families providing effective drift reduction and regulatory label compliance. Approved for the application of Dicamba and 2,4-D, the nozzle families listed below provide applicators flexibility in a wide variety of weather conditions and application types.
In the picture, see an example of the spray pattern provided by the large air-inducted droplets from the Ultra low-drift Max nozzle.
Ultra Low-drift Max – Post-Emerge Systemic Herbicides
• 130° spray angle allows lower boom heights to reduce drift and to prevent pattern collapse when using drift reduction adjuvants
•Air-induction droplets to reduce drift
• Delivers Extremely Coarse and Ultra Coarse droplets for 90–95% drift reduction compared to standard flat fan nozzle
•ExactApply™ compatible with AutoSelect A/B and conventional spraying
Low-drift
Max – Post-Emerge Systemic Applications
• 120° wide and 60° thick pattern provides optimum coverage while maintaining overlap at low boom heights
• Dual pre-orifice nozzle reduces drift with Coarse, Very Coarse and Extremely Coarse droplets
• ExactApply™ compatible with 15-Hz and 30-Hz PWM, AutoSelect A/B, and conventional spraying
• Industry exclusive from John Deere
Ultra Low-drift – Pre- and Post-Emerge Systemic Herbicides
• Ideal for use when drift reduction is paramount (included on Dicamba and 2,4-D chemical labels)
• Air-induced droplets provide precise droplet control to minimize drift potential without sacrificing coverage
•ExactApply™ compatible with AutoSelect A/B and conventional spraying
Spray Pattern from Ultra-low drift Max
Coverage Nozzles
John Deere offers a lineup of spray nozzles designed for maximizing coverage. Ideal for the applications of contact herbicides, fungicides, and insecticides, these nozzles can provide the highest levels of spray coverage while also providing moderate levels of drift reduction that may minimize off target drift and spray droplet evaporation. See an example of the coverage provided by the 3D nozzles shown on the image to the right.
3D – All-Purpose Coverage Nozzle
•Delivers up to 10% increase in weed control over conventional flat fans
•50–75% less drift compared to flat fan nozzles
• Tight, inclined spray pattern is designed to be installed alternating forward and backward to provide 3-dimensional coverage on hard-to-hit targets
•High-velocity droplets provide excellent canopy penetrations
• ExactApply™ compatible with 30-Hz PWM, AutoSelect A/B, and conventional spraying
• Stable streams reduce atomization and prevents leaf burn, making it ideal for top dress use
• ExactApply™ compatible with 15-Hz and 30-Hz PWM, AutoSelect A/B, and conventional spraying
Cleaner Field & Better Yields - See & Spray™
Increasing input costs. Narrow application windows. Tighter margins. It’s never been more important to do more with less. See & Spray™ helps you do just that. It turns your sprayer into an in-season, targeted, weed-killing machine, only spraying where it’s needed. That helps you reduce herbicide usage, save water, and pull more value out of your application season. Choosing the right sprayer nozzle for your application is important to your overall success in the field. Use our comprehensive selection guide to figure out the best nozzle type to meet your needs.
See & Spray™ Premium and Ultimate – Nozzle Guide
John Deere
Targeted Spray LowDrift TSL60
John Deere Nozzles
John Deere
Targeted Spray LowDrift TSL80
John Deere
Extended Range ER80
John Deere 3D 3D100
John Deere Ultra LowDrift ULD120
John Deere
Low-Drift Max LDM120
NARROW FAN ANGLE
John Deere Nozzles
Compatible with See & Spray™ Select, Premium and Ultimate Reverse Incline Nozzles
Targeted Spray Low-Drift TSL60 & TSL80
Extended Range ER80
3D 3D100
Low-Drift Max LDM120-R4
Ultra Low-Drift ULD120 & ULD120-R4
See & Spray Select can also utilize straight tips for operating speeds of up to 19 km/h (12 mph).
Size Tips According to System Pressure
• See & Spray is a rate-based system but currently not compatible with PWM.
• Minimum Pressure should be set to 2.1 bar (30 psi). Spray Off Pressure should be set to 2.8 bar (40 psi).
• Targeted pressure based on application rate and ground speed should be between 2.1 and 3.5 bar (30 and 50 psi) for optimal nozzle performance.
Reference the nozzle tip calculation found on the following page for proper nozzle tip selection.
Optimal Boom Height
• Optimal boom height range for See & Spray Select is 66 cm-92 cm (26 in.-36 in.)
• For See & Spray Premium and See & Spray Ultimate, optimal boom height range is 51 cm (20 in.) above canopy with a minimum boom height of 66 cm (26 in.)

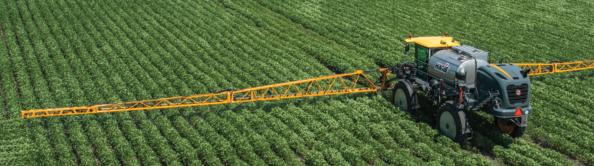

Hagie Sprayer Attachments
Looking to upgrade the performance of your Hagie Sprayer? The attachment kits listed below are available from John Deere. Please contact your local dealer for more information.
Injection
5HGAMK001 Rear Boom for STS, 15 in (381 mm)
5HGAMK015 Tall Crop Option for STS 10/12, model years 2014 to 2016
5HGAMK047 Tall Crop Option for STS 10/12, model years 2017 to 2018
5HGAMK056 Front Fill Option for STS 10/12/14/16, model years 2014 to 2018
5HGAMK011 STS Crop Divider, model years 2015 to 2017
5HGAMK007 STS Crop Divider, STS 10/12/14/16, model years 2014 to 2015, Standard LegUniversal
5HGAMK105 Intake Scoop for STS 10/12/14, model year 2017 – STS 10/12, model year 2018Universal
5HGAMK104 Night Spray Lights for STS 120' Hybrid Boom, model years 2017 to 2018
Rear Boom Crop Dividers
Tall Crop Package
Modular
Side Fill
Fill
Scoop
Dry Nutrient Application Parts
Dry nutrient application timing and accuracy are critical to achieving optimal yields. Worn parts can cause inaccurate application or downtime. Upgrade your machine today!
KK38162
DESCRIPTION
Chain Kit, Belt-Over-Chain - #4 12F
KK38988 Sensor, Bin Level
KK38195
Conveyor, Boc - 14’ #4K 30” BOC
KK38986 Sender Kit, Encoder - 180 Count DJ
KK38194
KK48414
KK44238
KK38719
KK38718
Conveyor, Belt
Jack, Spinner Frame 312975 Jack - A
Conveyor, Boc - 5’ #4X24” Mor 409 E
Motor Kit, RH Style II Assembly,
Motor Kit, Motor - LH Style II Assembly
KK37917 Blade, Fin - RH
KK37918 Blade, Fin - LH
AKK35320
Sensor, 304SS Spinner Position New
KK44204 Blade, Fin - Kit
AKK44335
Sensor, Sensor - Assembly W/Block
KK38716 Motor, Spinner 3.19 CID (Post-2016
AKK54552
Valve Kit, Motorized to PWM Conversion Valve Kit
AKK47604 Spreader, DS35G4 Bin, Drybox Spreader, 7 ft
Airboom System
Dry Nutrient Application Attachments
Upgrade dry spinner spreader or airboom machines with these attachments.
BKK11799 Tiled High-Wear Fan Kit
AKK50283 Inner Wing Fold Cylinder
KK99141 Left Fan Housing
KK99140 Right Fan Housing
Dry Spinner Spreader
BKK10696
G4 End-Gate Single-Bin Conversion
BKK11623 G5 End-Gate Single-Bin Conversion
Nutrient Application – 2510H
Timely application and proper placement of nutrients help ensure plants thrive and reach their maximum yield potential while being environmentally responsible. Below are parts that you may need to replace after continuous use applying nutrients during the fall, spring, or sidedress.
Scrapers:
A89381 NH3 Scraper Boot – Right Hand
A89376 NH3 Scraper Boot – Left Hand
A89437 Beaver Tail Scraper – Right Hand
A89556 Beaver Tail Scraper – Left Hand Tube Assembly:
AA73755 Liquid LH – Stainless Steel
AA73760 Liquid RH – Stainless Steel
AA73757 NH3 – Left Hand
AA73758 NH3 – Right Hand
AA79983 NH3 with Vent – Right Hand Gauge Wheels:
A85104 2-in. x 12-in. Gauge Wheel
A85134 Wheel
A85133 3-in. x 16-in. Gauge Wheel Tire
AA66988 3-in. x 16-in. Gauge Wheel Assembly Blades:
A84920 Flat Disc Opener Blade
A85568 14-in. Notched Sealer Blade
Rebuild Kits:
BKK11410
2510H Refurbish Kit – 11-row
BKK11411 2510H Refurbish Kit – 15-row
BKK11412 2510H Refurbish Kit – 16-row
BKK11413 2510H Refurbish Kit – 23-row
Nutrient Application – 2410C
Standards:
BKK11714 Conventional Blades:
N262329 Disk Coulter – 22" Straight
KK11744 Disk Blade, Concave Notched Bushings:
N184995 Pivot (ID .531", OD .875", L .402")
N184531 Pivot (ID .755", OD 1.125", L 3.620")
KK26470 True Depth Shank Pivot (ID .688", OD 1.117", L 4.646")
KK12437 Pivot (ID .812", OD 1.5", L 1.504")
Miscellaneous:
A87781 Hub
AA79983
AA66988
AA73758
A89376
A89556
A85568
A84920
Scrapers
Tube Assembly
Blades
N262329
KK11744
Coulter Blades
Disk Blades
UPGRADE YOUR WORKHORSE
Modernize your tractor’s SCV connection with the ReNew2 HD™ Coupler Conversion DIY Kit.
Once installed on your 10, 20, 30, 40, 50, 55, 60, or 70 Series machine, you’ll be able to:
▪Solve hydraulic leaks
▪Connect under pressure
▪Eliminate use of lock lever
NUMBER
SW315-196
SW315-240
DESCRIPTION
10, 20, 30, 40 Series Tractors
50, 55, 60, 70 Series Tractors
Your John Deere dealer can build hydraulic hoses in minutes.*
HOSES IN MINUTES*
We follow through to deliver uptime for you.
Stay up and running, and eliminate the worry about contaminants entering your hydraulic system. Trust your John Deere dealer to deliver complete solutions, like Ultra Clean, that ensure contaminants are completely removed from new hose assemblies.
Ask your dealer how Ultra Clean means uptime.
Hose Drip Plugs
John Deere hose assemblies built to OEM specifications. Ask your dealer about hoses for any brand of equipment.
Prevent messes and environmental contamination from residual fluids leaking out of hydraulic hoses and/or hydraulic ports during repairs. An essential component of any well-stocked toolbox on the farm!
NUMBER
DESCRIPTION
SW304-257 Mini Drip Plug (1–10mm), Package of 24
SW304-258 Standard Drip Plug (5–22mm), Package of 12
SW304-259 Large Drip Plug (12–42mm), Package of 4
SW304-260 X-Large Drip Plug (50–80mm), Package of 3
SW304-262 Drip Plug Kit, Package Contains 6 Mini, 4 Standard, and 2 Large
Omni Hydraulic Multiplier Valves
The Omni hydraulic multiplier valve addresses the needs of the compact utility tractor owner. Take an existing single circuit and split it into two circuits with electric controls on any 12-volt electrical system. The Omni valve is designed to be used on open, closed, or PFC hydraulic systems.
Hydraulic Multiplier and Add-On Valves
Add additional hydraulic outlets to prime movers economically. Hydraulic multipliers are transparent to the hydraulic system and work safely on all makes of equipment. They’re easy to operate and provide a no-hassle solution to mobile equipment hydraulic shortages. These units are 100% final product-performance tested, and components are ISO-9002 certified.
SW700-1002
SW700-1510
SW700-1590
SW700-1513
SW700-1553
Economy Multiplier Valve with 2 Circuits. Works with Switchbox.
Standard Multiplier Valve with 2 Circuits. Works with Switchbox and ISO Couplers.
Standard Multiplier Valve with 2 Circuits. Works with John Deere Couplers.
Standard Multiplier Valve with 3 Circuits. Works with Switchbox.
Standard Multiplier Valve with 3 Circuits. Works with RCS Handle.
Available for new and recent model tractors, combines, sprayers other machines, Carbon Filter Plus has three active layers o help keep out dust, dirt and other contaminants — and limits the growth of mold and bacteria on the filter. Contact us for more information.
Example: 8235R Tractor needs two cab filters
One (1) TY27783 (optional replacement for RE284091 fresh air filter)
One (1) TY27784 (optional replacement for RE291412 recirculating)
Keep other brands of equipment and trucks rolling with one-stop shopping.
Whether red, blue, or another color, you can find maintenance products for your competitive equipment and trucks at your John Deere dealer. With Plus-50™ II engine oil, Cool-Gard™ II coolant, and Fleetguard® filters, we have high-quality products available to keep your machines running. Contact your dealer today!
*Fleetguard is a registered trademark of Atmus Filtration Technologies.
One Engine Oil For All.
It takes a special breed of oil to keep engines running in off-road conditions. That’s why Plus-50™ II Oil is specially formulated to keep engines running smoothly and efficiently. Tractors, semitrucks, UVs, and gasoline engine vehicles - John Deere Plus50 II oil is made for it. Talk to your dealer today.
John Deere Plus-50™ II Oil. Keep Running.
JohnDeere.com/Oil
JohnDeere.ca/Oil
Cool-GardTM II Anitfreeze/Coolant
Cool-Gard II is a high-performance, long-life product formulated for heavy-duty engines.
• Provides up to 6 years/6,000 hours* in cooling systems of diesel and gas engines
• Supports advanced engine technology
•Helps protect against corrosion and deposits
•Adds to water pump life and helps prevent liner cavitation
•High thermal and oxidation protection
• Ready-to-use 50/50 premix formula for freeze protection down to -34°F (-37°C)
• Contains bittering agent to help discourage accidental ingestion
• Less toxic propylene glycol available for use around animals
*Rating applies when complete cooling system flush is performed prior to use.
Diesel Fuel Conditioner
Fuel protect conditioners help keep you going all season by preventing fuel system erosion caused by poor fuel quality. You’ll notice smoother starting and less exhaust smoke.
Please consult with your dealer or visit shop.deere.com for pricing information.
Fuel Protect Keep Clean Fuel System Cleaner
Keep Clean: Specifically formulated for high-pressure diesel fuel systems. Helps prevent and limit formation of deposits that cause injector sticking, misfire, rough idling, power loss, or hard starting conditions.
Microbiocide: Antimicrobial fuel preservation additive recommended for control of bacteria and fungi in fuel systems.
Please consult with your dealer or visit shop.deere.com for pricing information.
Plus-50™ II Premium Synthetic
Engine Oil: SAE 0W-40 and SAE 5W-40
Plus-50 II Premium Engine Oil offers two synthetic engine oil options to provide support on every farm, for every season. Our SAE 0W-40 option is a full synthetic PAO (Poly Alpha Olefin) based oil. Performing at a premium level in all climates, Plus-50 II SAE 0W-40 is specifically developed for those operating in extremely cold conditions.
Our newer Plus-50 II SAE 5W-40 option is an all-season full synthetic engine oil that provides excellent performance for customers who operate in extremely cold or hot conditions and want to maximize engine life performance in modern engines. SAE 5W-40 is also backwards compatible with our legacy machines as well.
Plus-50 II 10W-30 and SAE 15W-40 are made made with a unique additive system that offers premium protection from deposits and wear. Exceeding API service classification CK-4/SN and high-level performance under the John Deere Severe Off-Road Dyno test, this level of engine oil is excellent for diesel engines.
•Compatible with both current, legacy, and competitive machines
•Proven high-level performance in low-emission IT4 and FT4 engines
•Tested and developed for severe off-road applications
• Formula specifically created to stop engine wear, corrosion, sludge, soot, varnish, and oxidation
•Drain interval extension up to 500 hours in a John Deere engine, using a John Deere filter.
NUMBER
100114
DESCRIPTION
Plus-50™ II Premium Synthetic Engine Oil: SAE 0W-40 & SAE 5W-40 201854 Plus-50™ II 10W-30 & SAE 15W-40 100113 Break-In™ Plus Engine Oil
Torq-Gard™ II
Torq-Gard II engine oil provides up to 250 hours of performance and protection for diesel engines. It can be used in both on-road and off-road applications. This oil meets API service category CK-4 and is backwards compatible to meet previous categories as well. Torq-Gard II is formulated to provide excellent wear, oxidation, and deposit characteristics. Whether your machine is old or new, Torq-Gard II is for you!
John Deere grease is precisely formulated to meet the demanding lubrication needs for tough off-road and on-road conditions. Choosing the right high-quality John Deere grease could show you cost savings, longer equipment life, reduced down time, and lower equipment operational cost.
BEST CHOICE: Multi-Purpose Severe-Duty (SD) Polyurea Grease and Extreme-Duty (ED)
GL-5 and Synthetic GL-5 lubricants are designed for severe on- and off-highway applications. Superior thermal stability and oxidation resistance keep gears and seals clean, while thermal durability protects gears from physical damage by preventing heatinduced failure of anti-wear chemistry.
Synthetic GL-5 Gear Lube:
TY26372
TY26373
TY26374
(0.946L)
TY26375 75W-90 1-qt. (0.946L)
TY26376 75W-90 5-gal. (18.9L)
TY26377 75W-90 16-gal. (60.6L)
GL-5 Gear Lube:
TY6296 80W-90 1-qt. (0.946L)
TY26815 80W-90 1-gal. (3.78L)
TY26816 80W-90 5-gal. (18.9L)
TY26817 80W-90 30-gal. (113.6L)
TY6345 85W-140 1-qt. (0.946L)
TY26812 85W-140 1-gal. (3.78L)
TY26813 85W-140 5-gal. (18.9L)
Synthetic Gear Lubricant for Combine Feederhouse Drives:
TY26408 HD460 1-qt. (0.946L)
Cool-Gard™ Antifreeze/Coolant
Product features and benefits
• Formulated for up to 6-years/6,000-hours* life in cooling systems of diesel and gas engines
•Supports advanced engine technology
•Protects against corrosion and deposits
•Extends water pump life and prevents liner cavitation
•High thermal and oxidation protection
•Ready-to-use 50/50 premix formula for freeze protection down to -34°F (-37°C)
•Contains bittering agent to help discourage accidental ingestion
•Less toxic propylene glycol available for use around animals
*Rating applies when complete cooling system flush is performed prior to use.
New Improved Keep Clean Diesel Fuel System Cleaner
This diesel fuel system cleaner helps:
•Improve fuel economy
•Protect engines and injectors from the formation of harmful deposits
•Restore injector and combustion performance by removing harmful deposits
•Extend the life of the fuel system by preventing corrosion
• Prevent unscheduled maintenance, filter blocking, and DPF regeneration by keeping fuel systems clean
John Deere Fuel-Protect Gasoline Stabilizer
This valuable product helps:
•Prevent corrosion, gum, and varnish from clogging the fuel system
•Protect fresh gasoline in your stored vehicle for up to 12 months
•Ensure quick and easy starts
•Eliminate the need to drain and dispose of gasoline
•Designed for both two and four-cycle gasoline engines
Booster Cables
John Deere offers 2-gauge and 4-gauge booster cables in a variety of service options: extra heavy-duty professional, commercial, heavy-duty professional, and heavy-duty commercial.
NUMBERDESCRIPTION
2-Gauge and 4-Gauge 100% Copper Conduits:
TY26217Booster Cable, Extra Heavy-duty, 20-ft (6.10m)., 2-gauge
• Offer greater vibration resistance and longer battery life for increased uptime
• More efficient design and added power which are beneficial in extremely cold temperatures
• Completely sealed to offer maintenance-free operations with little to no gassing (no need to add water)
• Longer shelf life due to a lower self-discharge rate
Deep Cycle Batteries*
Unlike starting batteries, deep cycle batteries are specifically engineered for sustained, low-amperage discharge over extended periods. Perfect for powering equipment such as lights, pumps, and other accessories.
Plate Design: Thicker plates to enhance durability and longevity in addition to fewer plates compared to starting batteries.
Enhanced Paste Material: Contains more paste material on both positive and negative plates, improving overall performance and lifespan.
TY27805BGroup 27, Marine Battery - 600CCAMarine Deep Cycle
WHY DO BATTERIES FAIL?
The top three reasons are:
1.Continuous use in extreme heat applications
2. Vibrations due to rough off-road conditions cause broken welds
3. Lack of seasonal maintenance such as storing a battery in the winter months without a maintainer
TO PROLONG BATTERY LIFE:
• Check batteries every spring and fall for leakages, state of charge, and loose or frayed wires in addition to ensuring terminals are clean of corrosion
• Always use the right battery type for the application at hand
• Disconnect the battery ground cable if equipment will not be used for a long time to reduce power drainage and help prolong battery life
• Use of a John Deere battery maintainer safely charges most batteries that require long storage periods
Tech Tip – When charging or testing a battery with threaded posts it’s important to use charging post adapters. These charging post adapters provide a solid point of contact for clamps or charging leads.
TY25918 – Group 31 charging post (qty 2)
FULLY AUTOMATIC
1.5-AMP BATTERY CHARGER/MAINTAINER
TY25866*
Battery Types:
• 6V/12V lead-acid only (Wet, Gel, MF, EFB, AGM)
Charging:
• 1.5A charge/maintain
Additional Features:
• Auto voltage detection 6V or 12V battery
• Float mode monitoring
• Reverse hook-up protection - helps prevent damage to battery and charger
Weight
• 1.50 lbs
*Not for sale in California
Battery Accessories
Make John Deere your one-stop shop for battery accessories. Our wide selection of battery accessories includes terminals, terminal brushes, bolts, corrosion preventative, and terminal cleaner—everything you need! See us today for the complete battery accessories lineup.
JUMP STARTERS AND CHARGERS
3000A LITHIUM JUMP STARTER, 12V
•Jump start up to 9L gas and 7L diesel engines
•Up to 80 jumps per charge
•Voltmeter built into the unit
•Provides 12v accessory output to power air compressors, inverters, and others
•Charge phones, tablets, laptops, wearables, and more via USB-C
• Built-in 500-Lumen LED flashlight with various brightness modes, SOS, and emergency strobe
4250A LITHIUM JUMP STARTER, 12V
•Jump start up to 10L gas and 8L diesel engines
• Equipped with USB-C technology and power delivery to give you lightning-fast recharges
• Completely recharges in just 2.7-hours, or go from 0% to jump starting in just five-minutes of charge
• Start the vehicle within 60 seconds after pressing the power button on Boost
• Charge phones, tablets, laptops, wearables, and more via USB-C
• Built-in 500-Lumen LED flashlight with various brightness modes, SOS, and emergency strobe
ONBOARD BATTERY CHARGER, 2-BANK 20A
ONBOARD BATTERY CHARGER, 4-BANK 40A
• Independently charge and control each battery bank with selectable charging modesincluding 12V, 12V AGM, 12V Lithium, and 12V Repair Mode - for all types of lead-acid and lithium-ion batteries
• Thermal sensor detects the ambient temperature and alters the charge to eliminate overcharging in hot climates and undercharging in cold climates
• Automatically detects battery sulfation and acid stratification to restore lost battery performance
• Fully automatic, worry-free battery charger for everyday use - 24/7 - with zero overcharge
• Simple mounting system allows for quick and easy installations in any direction - with an integrated anti-vibration backing to isolate shock, vibration, and noise
• Fully-sealed and waterproof with an ingress protection rating of IP68 and integrated vibration protection
A-GB150
A-GBX155
JOHN DEERE PAINT
You already know your equipment is a large investment. So get the most out of it today—and for seasons to come—by protecting it with the best paint in the business.
Only genuine John Deere paint gives you the long-lasting, high-gloss finish that better shields your equipment from UV fading, rust, and corrosion. Or whatever else Mother Nature may throw at you.
HIGH PERFORMANCE ENAMEL PAINT
John Deere High Performance enamel paint is well suited for both interior and exterior applications. Sets up in minutes, is tack-free in a few hours, and can be handled within a day. Fully cures to a hard, glossy finish that resists fading, cracking, and chipping within 3-4 weeks.
LOW-VOC ENAMEL PAINT
John Deere offers a solvent-based paint that meets VOC limits in Canada, California, and other required locations. Performance is very similar to the standard VOC versions.
AGRICULTURE & TURF
Classic Green
TY25644 340 g (12 OZ) Aerosol
TY25655 946 mL (1 QT)
TY25670 3.78 L (1 GAL)
Ag & Turf Green
TY26019 12 mL (0.4 FL OZ) Pen
TY25624 340 g (12 OZ) Aerosol
TY25643 946 mL (1 QT)
TY25656 3.78 L (1 GAL)
Ag & Turf Yellow
TY26020 12 mL (0.4 FL OZ) Pen
TY25641 340 g (12 OZ) Aerosol
TY25645 946 mL (1 QT)
TY25648 3.78 L (1 GAL)
Black Medium Gloss
TY26021 12 mL (0.4 FL OZ) Pen
TY25638 340 g (12 OZ) Aerosol
TY25633 946 mL (1 QT)
TY25632 3.78 L (1 GAL)
LOW VOC
Ag & Turf Green
TY25665 946 mL (1 QT)
TY25664 3.78 L (1 GAL)
Blitz Black
TY25631 340 g (12 OZ) Aerosol
TY25642 946 mL (1 QT)
TY25669 3.78 L (1 GAL)
Muffler Black
TY25657 340 g (12 OZ) Aerosol
Black High Gloss
TY25609 340 g (12 OZ) Aerosol
TY25668 946 mL (1 QT)
Soft Black Coating
TY27332 340 g (12 OZ) Aerosol
TY25622 946 mL (1 QT)
Ag & Turf Yellow
TY25667 946 mL (1 QT)
TY25823 3.78 L (1 GAL)
RENEW Hardener
SWV70V411 473 mL(1 Pint)
Paint Thinner
TY25652 946 mL (1 QT)
TY25650 3.78 L (1 GAL)
Inverter Generators
2500-, 4000-, and 7300-watt inverter generators are now available. Inverter generators provide clean and quiet power for recreational activities, home, and/or business. They are equipped with carbon monoxide detection and auto shutdown. Inverter generators have the added benefit of being much quieter than standard portable generators. With a John Deere inverter generator, you can be sure you’re getting the power you need without worrying about excessive noise disturbing your neighbors, guests, or wildlife.
Compresserators™
■ Combination air compressor/generator
■ Ideal for contractors, service vehicles, and shops
■ Brushless 120V alternator
■ Power available from 1,600 to 4,000 watts
■ Options include electric start, stationary truck mounting kit, and 230V outlet
■ Gasoline and diesel engine options available
■ Models with “AC2” prefix include two-stage compressor pump
Three machines in one! Powered by an industrial-duty John Deere branded engine, the Welderator combines a 170 amp arc (stick) welder, a two-stage air compressor, and a 5,000 max watt generator in a convenient, compact platform.
When you choose John Deere, you get more than just horsepower. You get game-changing technology that provides clear, reliable information for you to get the most out of your machine. With digital tools like John Deere Operations Center™, Equipment Mobile app, and Shop.Deere.com, it’s easier to use, maintain, diagnose, repair, and protect your investment for the long run. Whether you perform the work yourself – or partner with your local John Deere dealer and/or local service center – you can run it your way with confidence.
JOHN DEERE OPERATIONS CENTER
Manage your operation anytime, anywhere. Discover the value of the Operations Center, a convenient resource that enables you to manage your day-to-day decisions more efficiently – giving you more control over your operations like never before.
EQUIPMENT MOBILE APP
With the free, user-friendly Equipment Mobile app, you’re just a few taps away from searchable Operator’s Manuals, maintenance tracking, seamless parts ordering, machine setup tips, and other valuable information.
Get the parts you need when you need them. Experience choice when you place your order – along with support from your local John Deere dealer – and have product delivered right to your doorstep.
Putting more control in your hands. From running diagnostics to enabling reprogramming,* Operations Center PRO Service delivers powerful capabilities through John Deere Operations Center.™ You have more control to manage your equipment your way, when you want. Learn more at JohnDeere.com/PROService
*Certain engine related tests and calibrations are not currently available. Reprogramming functionality may not be available for non-John Deere controllers; see JohnDeere.com/PROService for further details.
You’re In Charge With John Deere Operations Center™
PRO Service
Oversee the operation and performance of your equipment with the new Operations Center PRO Service module from John Deere Operations Center. Designed to empower you to make the best decisions for your machine(s), you can confidently manage your equipment from usage and maintenance to diagnosis and repair. No matter the age of your John Deere machine, you can benefit from Operations Center PRO Service.
DIGITAL CUSTOMER ACCOUNT
One John Deere account offers seamless access to tools, support, and insights.
PROACTIVE INSIGHTS
Real-time remote monitoring provides data trends, expected equipment impact, and step-by-step diagnostics and repair guidance.
FLEET VIEW
Licensed equipment and insights appear in one place. The machine list displays organization, license status, engine hours, product improvement plans (PIP) and digital trouble code (DTC) counts, warranty, maintenance plan, software updates, and machine health insights (MHI) count.
MACHINE HEALTH
Machine health insights — powered by telematics and analysis backed by John Deere engineers — help detect issues early, guide diagnostics and repairs, and keep your operation running smoothly.
PARTS ONLINE
Each licensed machine links directly to its PIN-specific Shop.Deere. com page to purchase parts, attachments, and accessories.
AI-ENHANCED MANUALS
AI-powered guidance delivers accurate repair procedures for your specific machine by intelligently searching across all relevant operator, technical, and parts manuals.
SOFTWARE PROGRAMMING1
Reprogram, replace, or update controllers remotely via 4G MTG modem or at the machine (may need compatible cables).
MACHINE DIAGNOSTIC INSIGHTS
View, refresh, and clear DTCs; access readings, recordings, tests, and calibrations.1
INTERACTIVE SCHEMATICS
Explore electrical systems with schematics by component, system, DTC, or voltage supply to pinpoint issues.
OFFLINE CAPABILITIES
Download the local version to program and conduct diagnostics through wired connections when online access is unavailable.
1Certain engine related tests and calibrations are not currently available. Reprogramming functionality may not be available for some controllers; see JohnDeere.com/PROService for further details.
