Lower coolant tube with four bolt flange 0C4693014
Hose, lower radiator hose 0C4693016
Coolant tube 0C4693017
Radiator Intercooler assembly 0C46930479

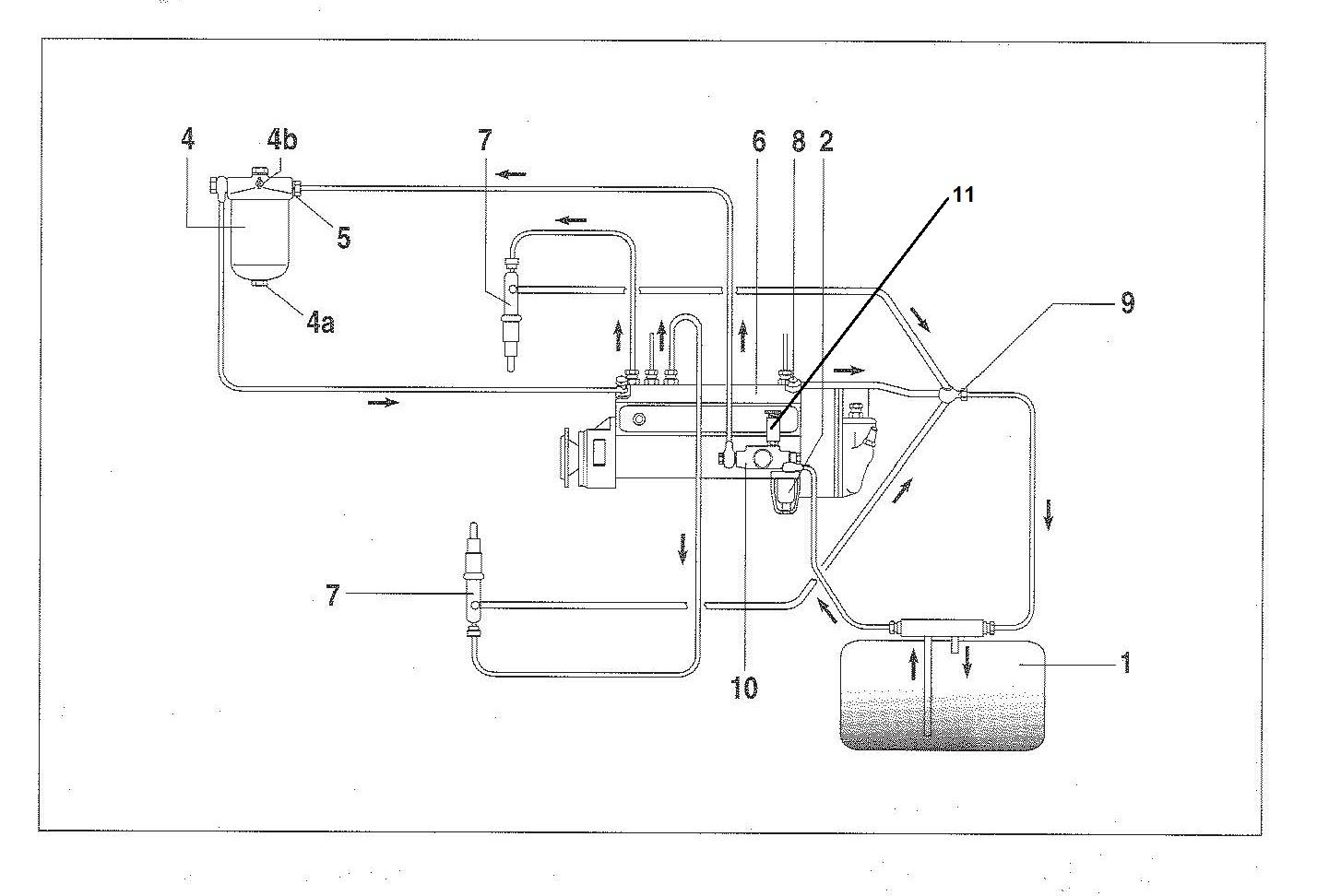

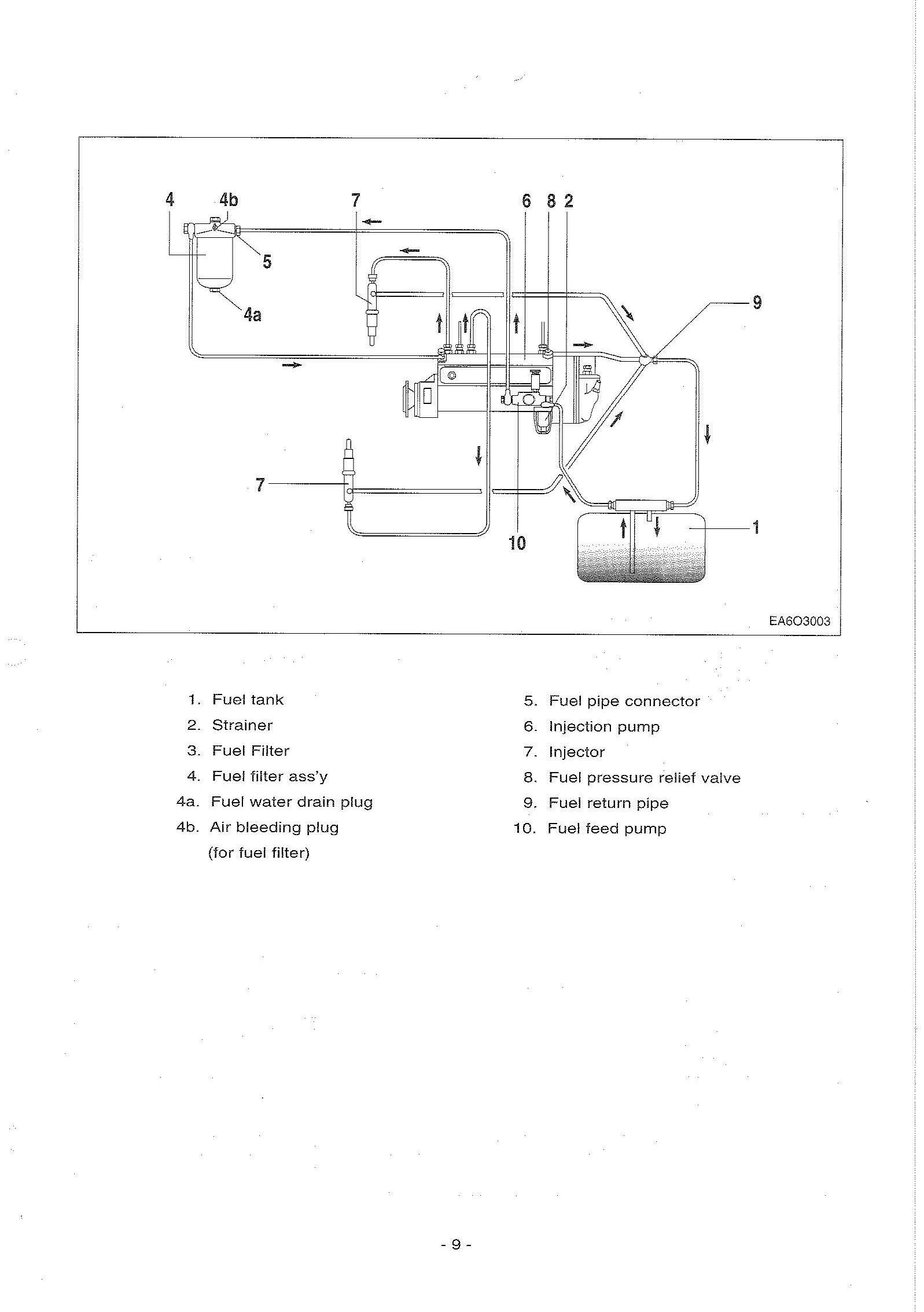

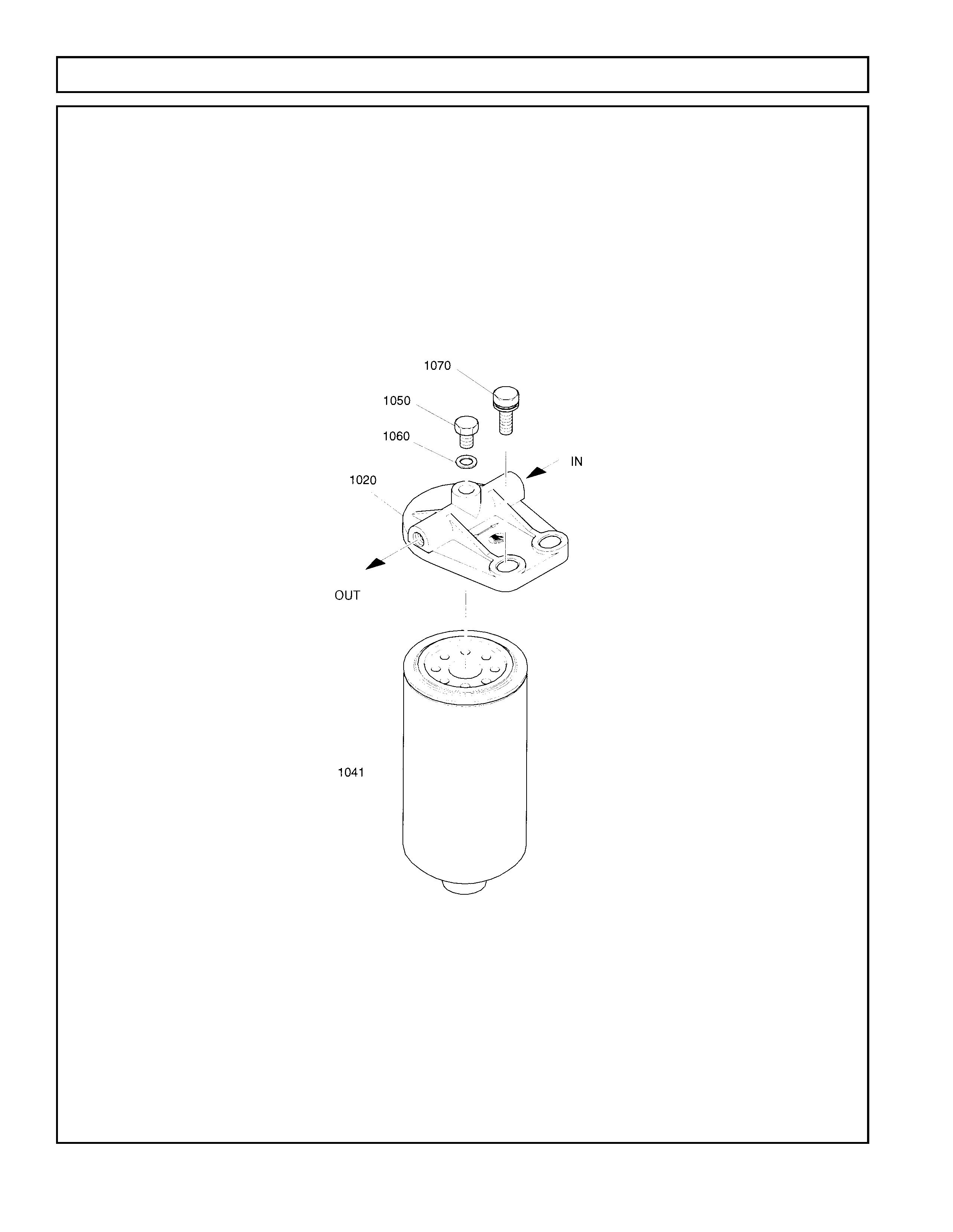

Fuel filter housing assembly with hand primer pump 0432199952

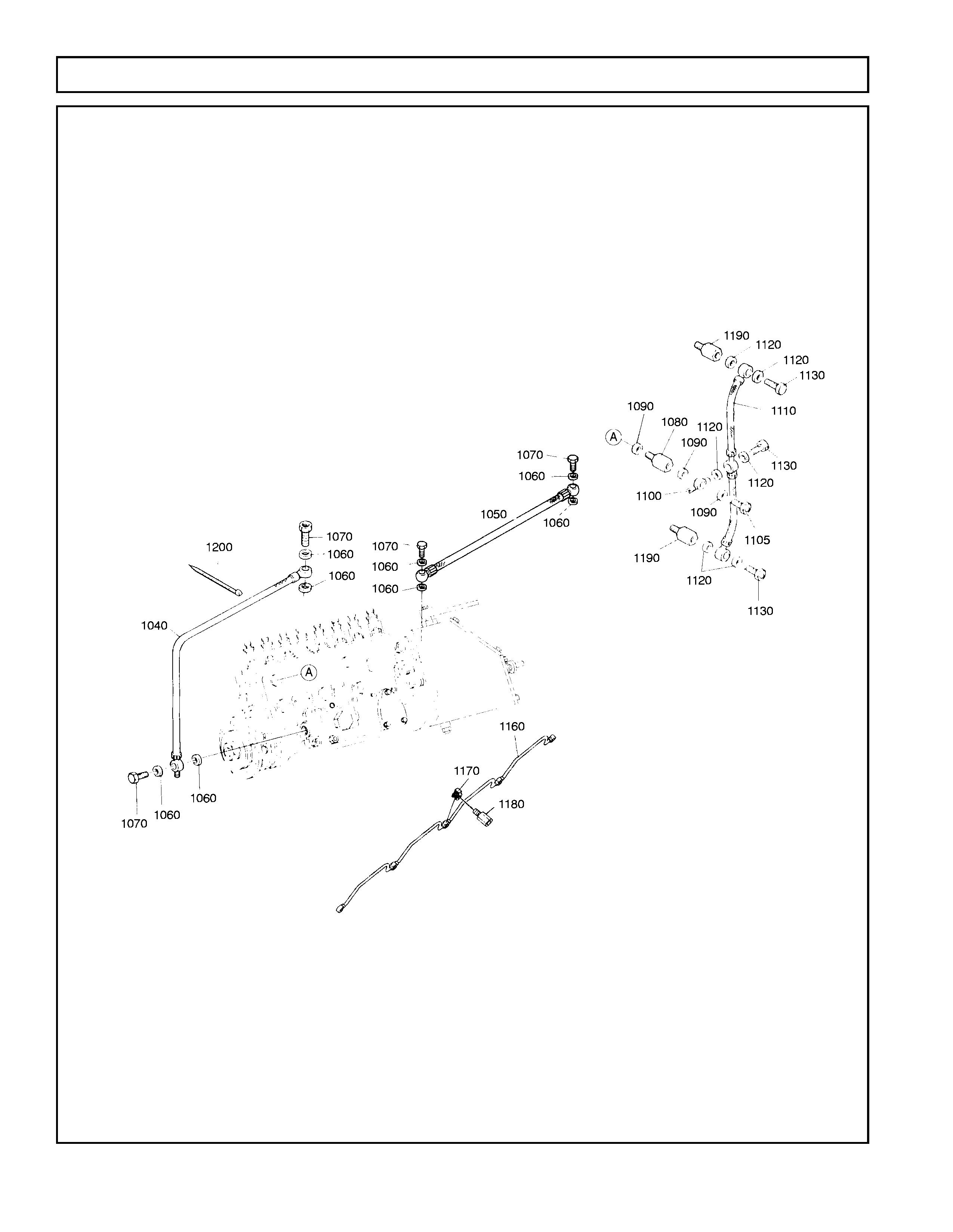

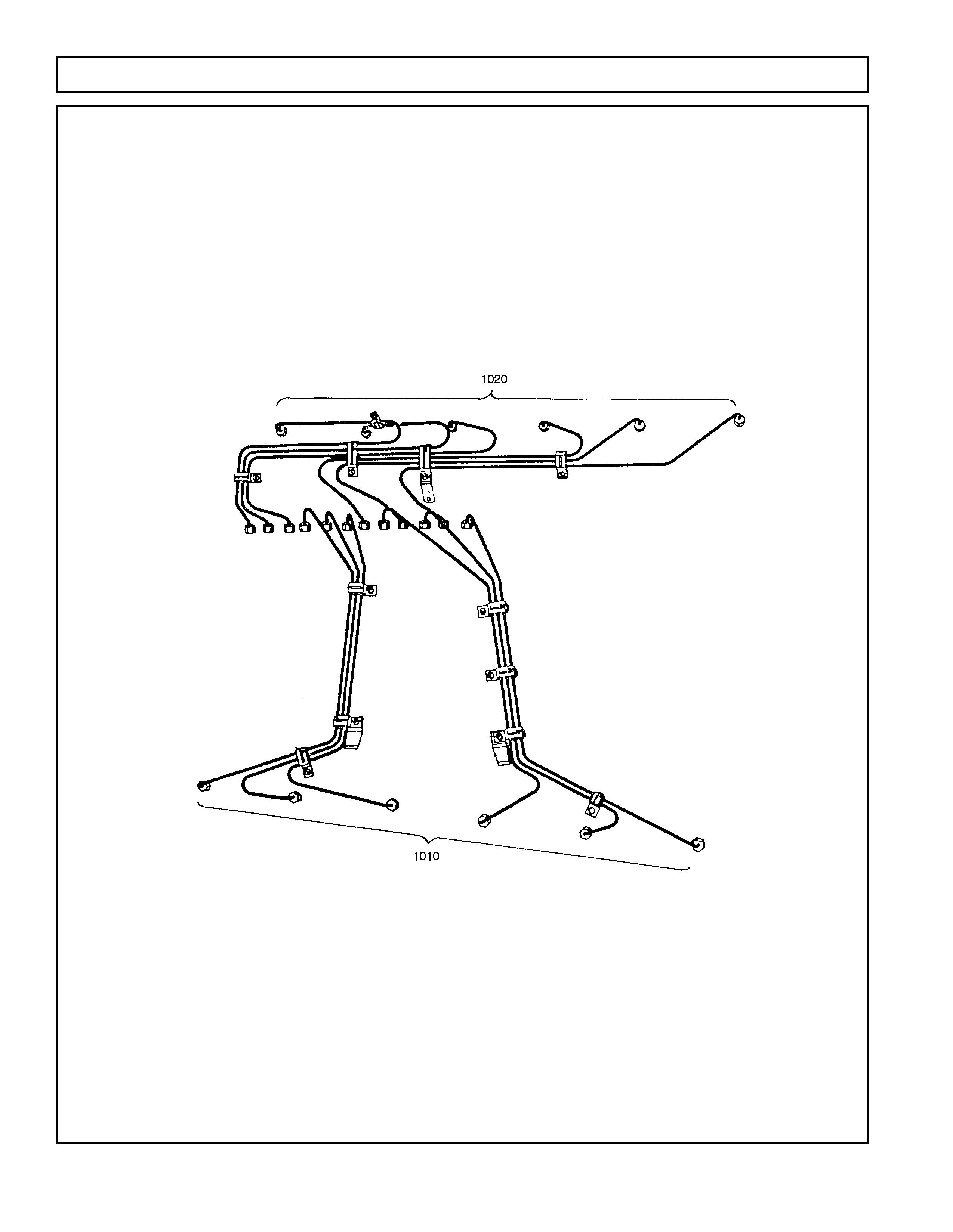

Fuel return pipe 0C46930444

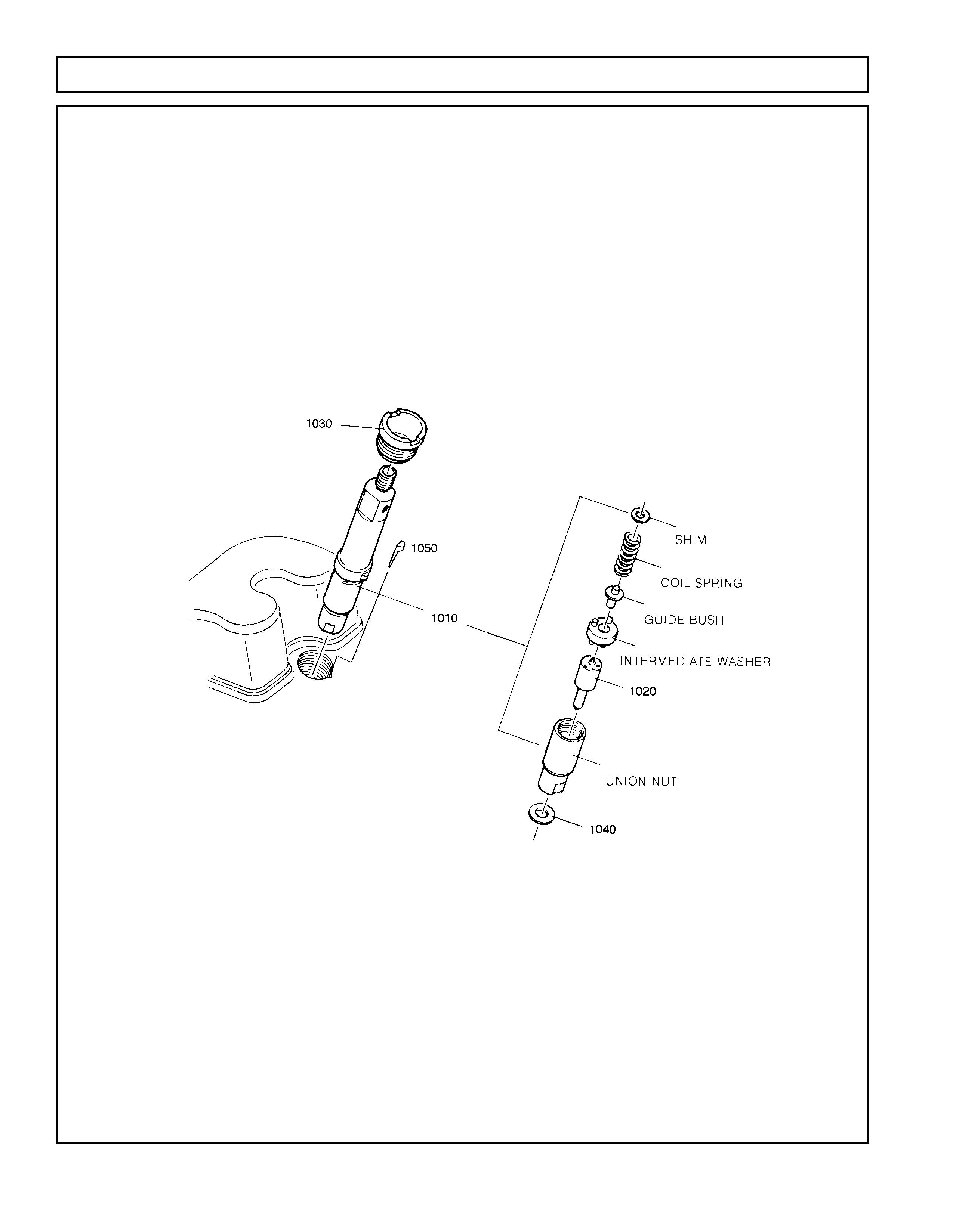

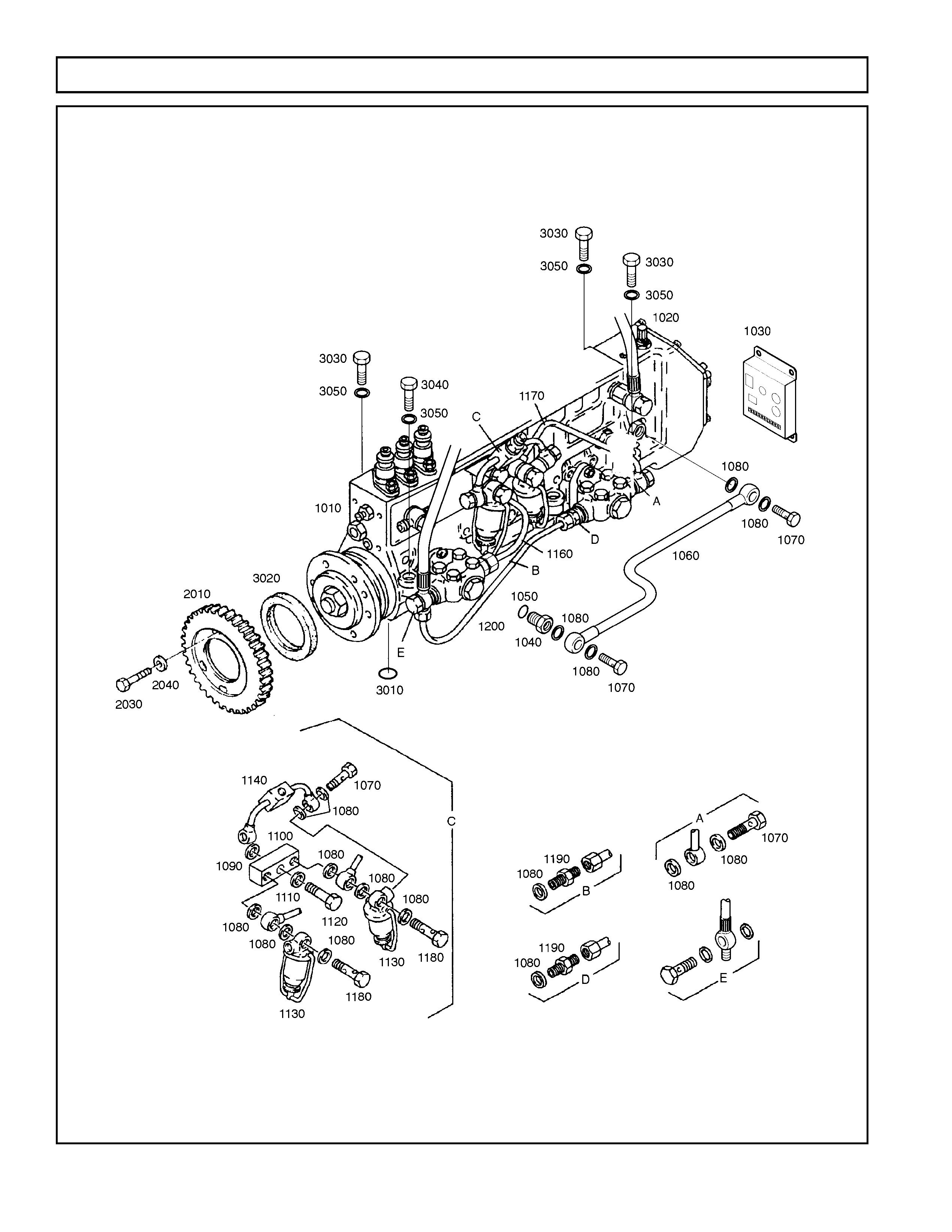

Injector assembly 0C46930404
COMMON REFERENCE PARTS Description

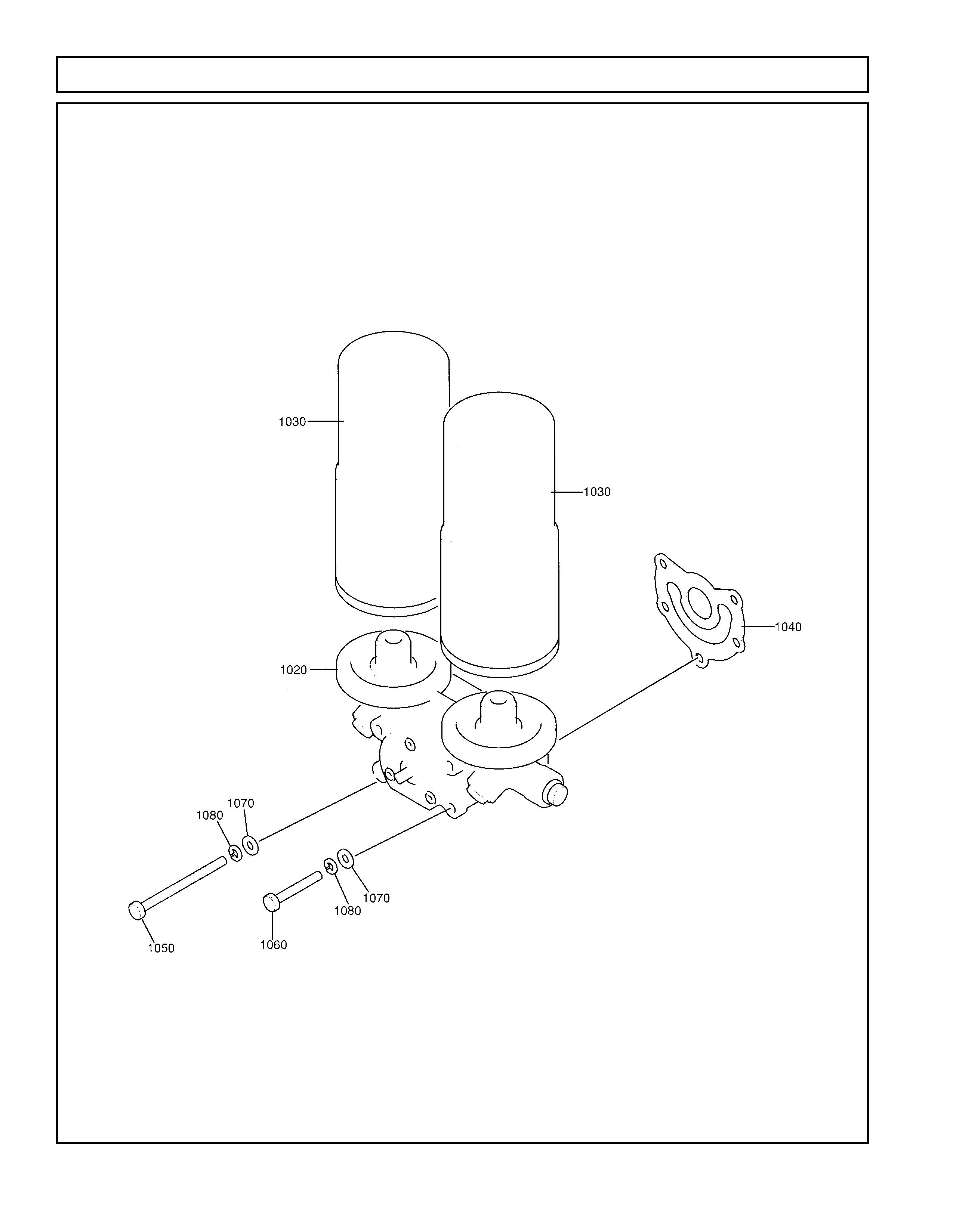

Oil Filter (Main) 0C46930269
Oil Filter (Bypass) Fuel Filter
V-Belt
0C46930357
V-Belt 0C46930467
Thermostat 0C46930330
Thermostat Gasket 0C46930332
Water Pump 0C46930333
Water Pump Gasket 0C46930334

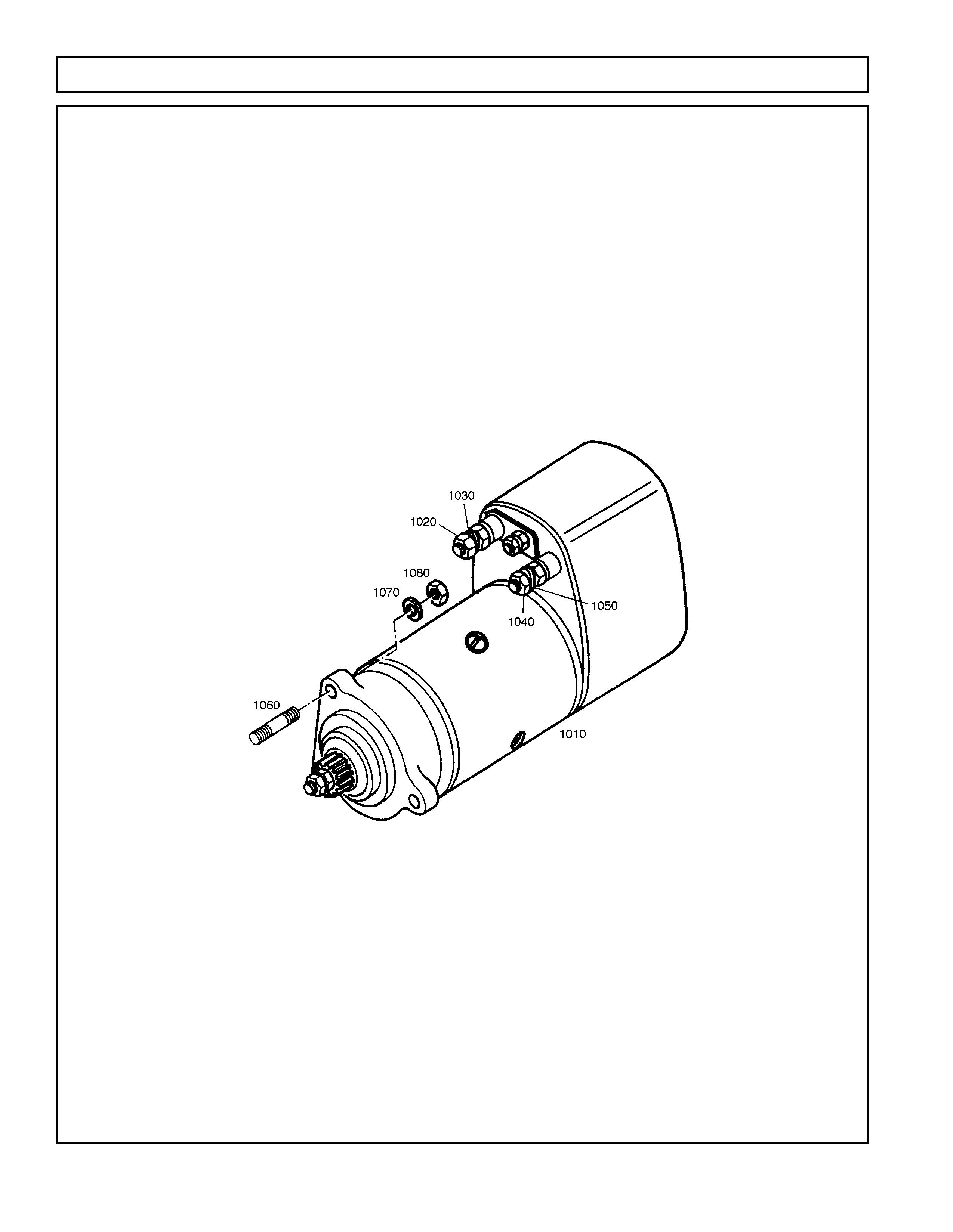

Starter Motor 0C46930475

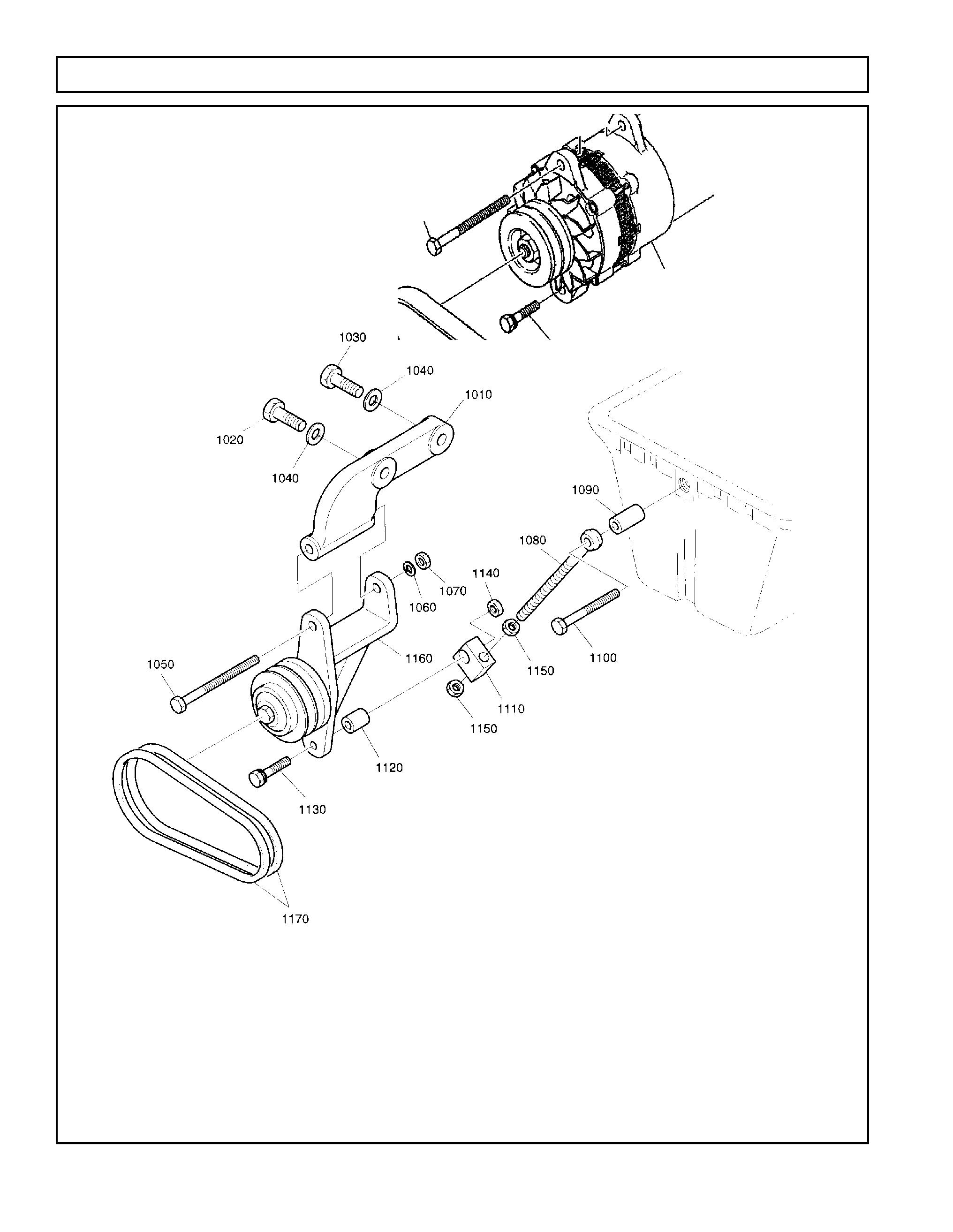

Alternator 0C46931180
ADDITIONAL REFERENCE PARTS

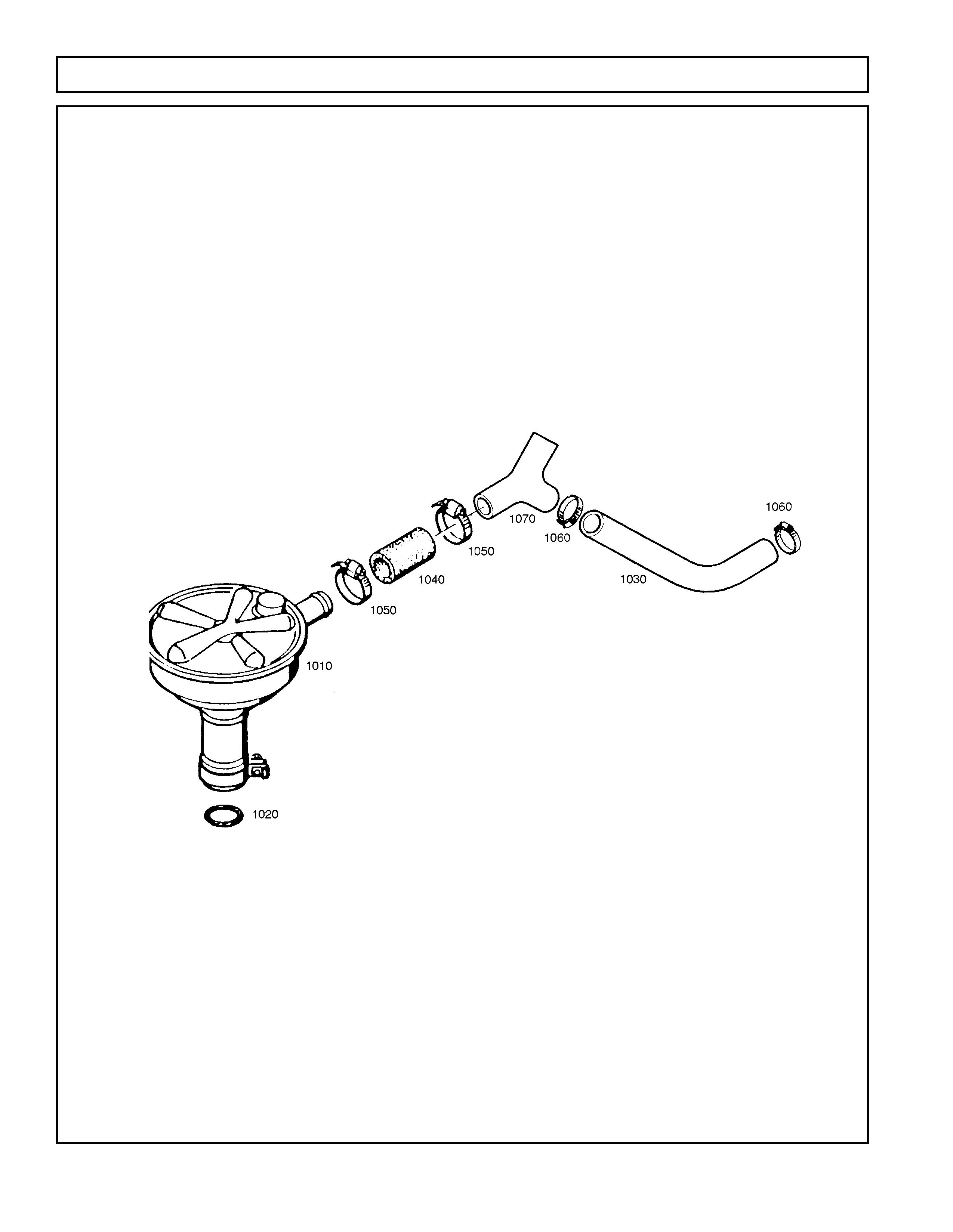

Filter, Breather
0C46930174 Radiator 0C46930479
Radiator Site Glass 0C4693B479
Radiator Cap 0C4693020
Service Manual 0D1074
Parts Manual 0D1075
User Notes

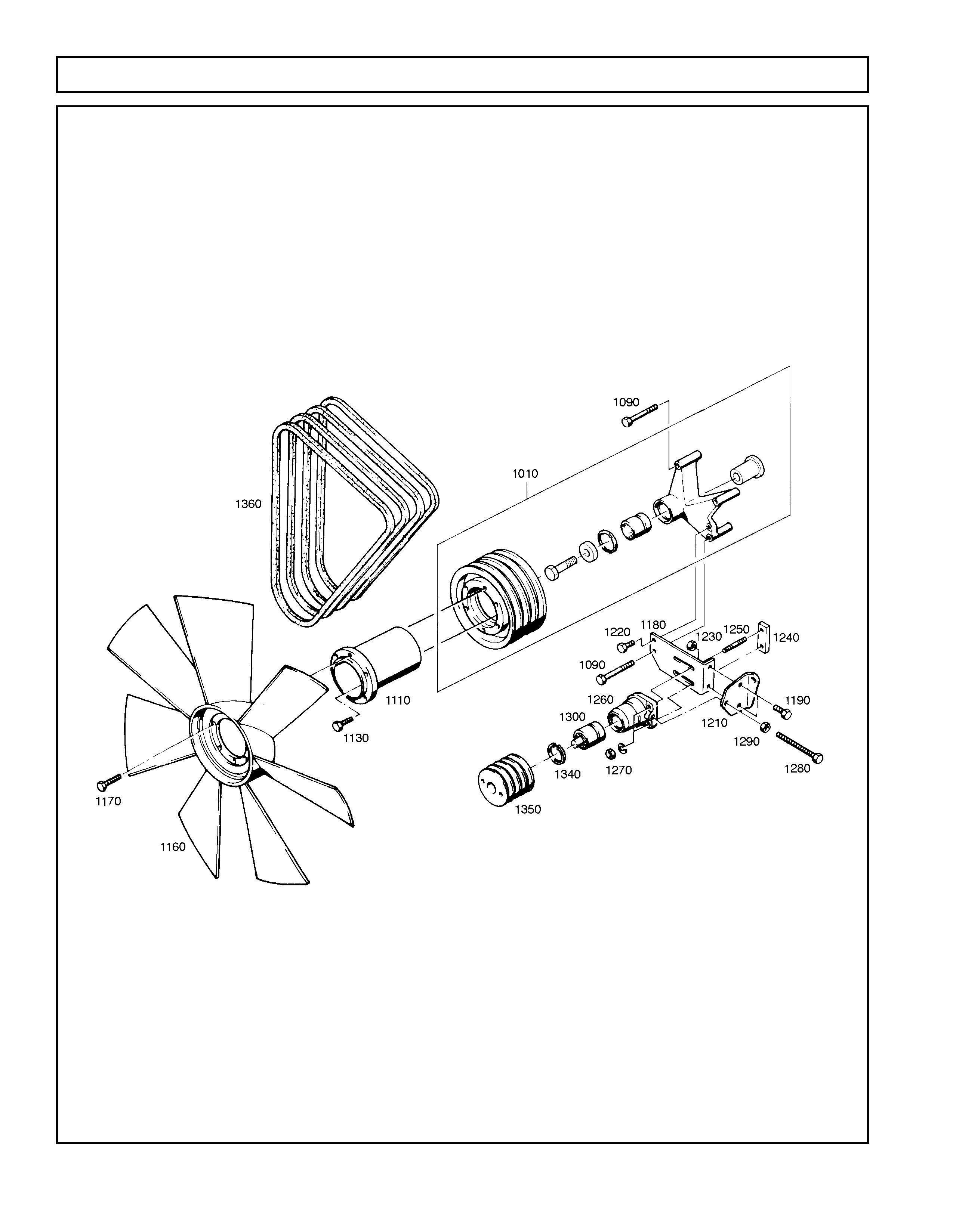

1. Cooling fan
2. Air pipe

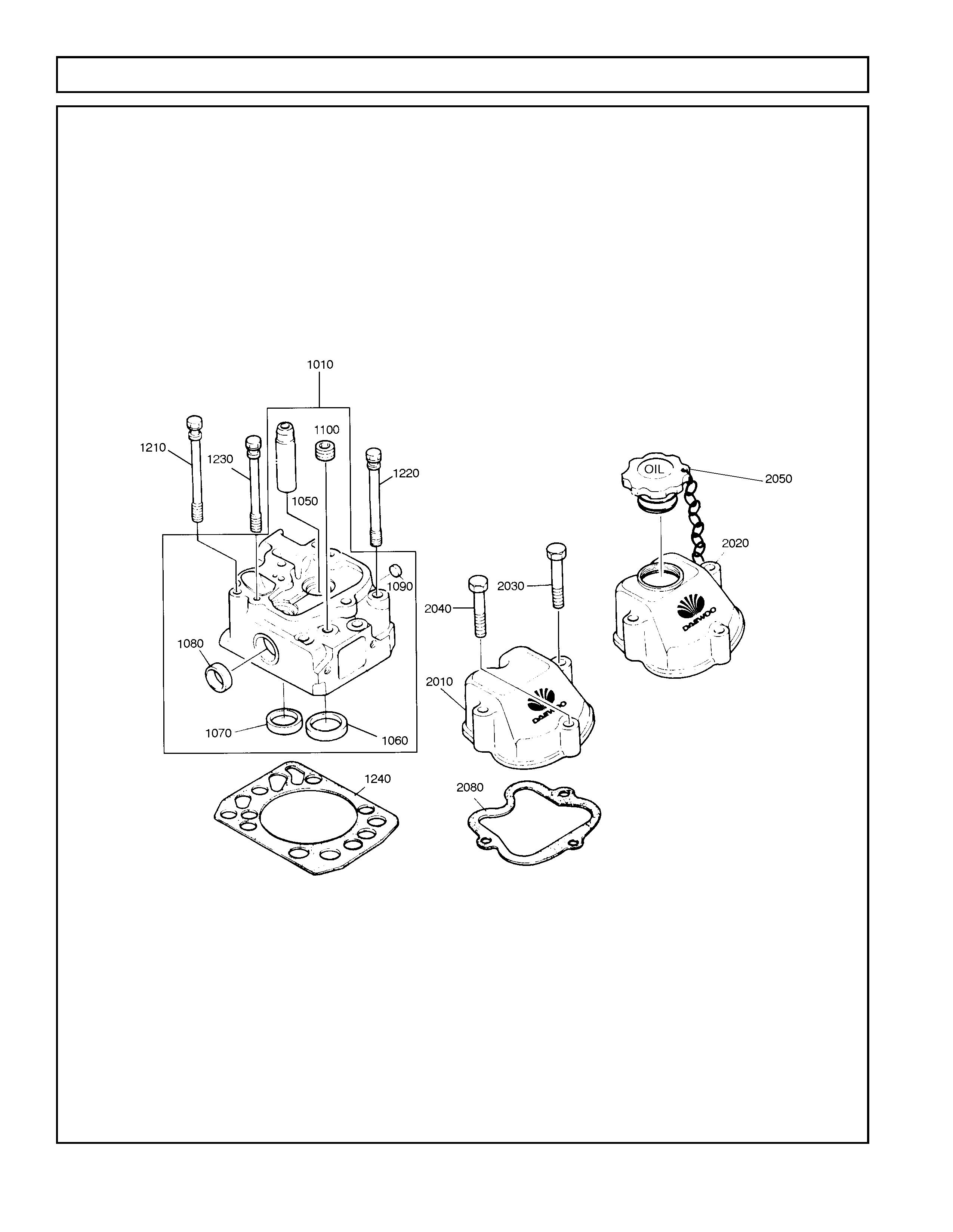

3. Cylinder head cover
4. Turbocharger
5. Oil drain valve

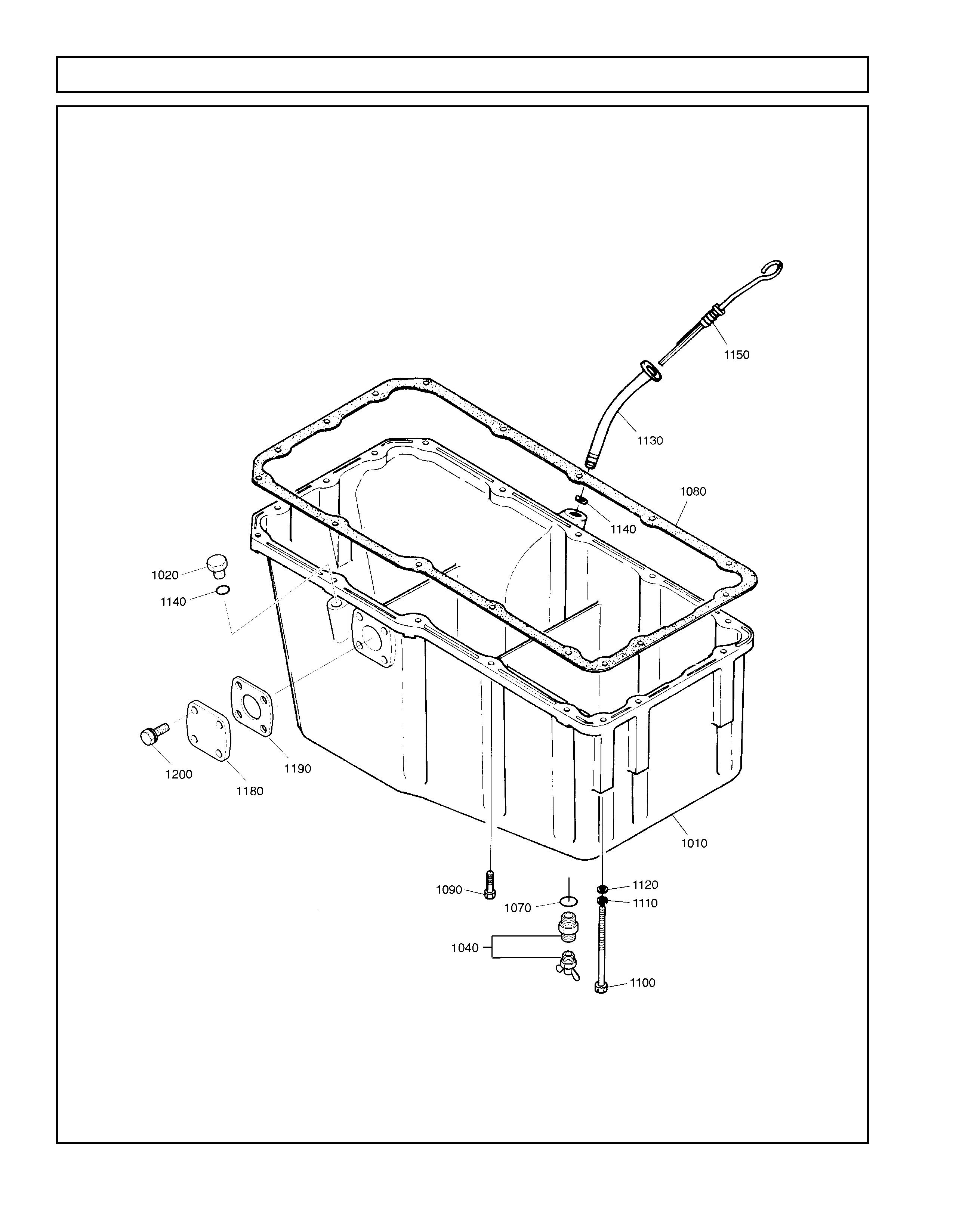

6. Oil pan
7. Starter

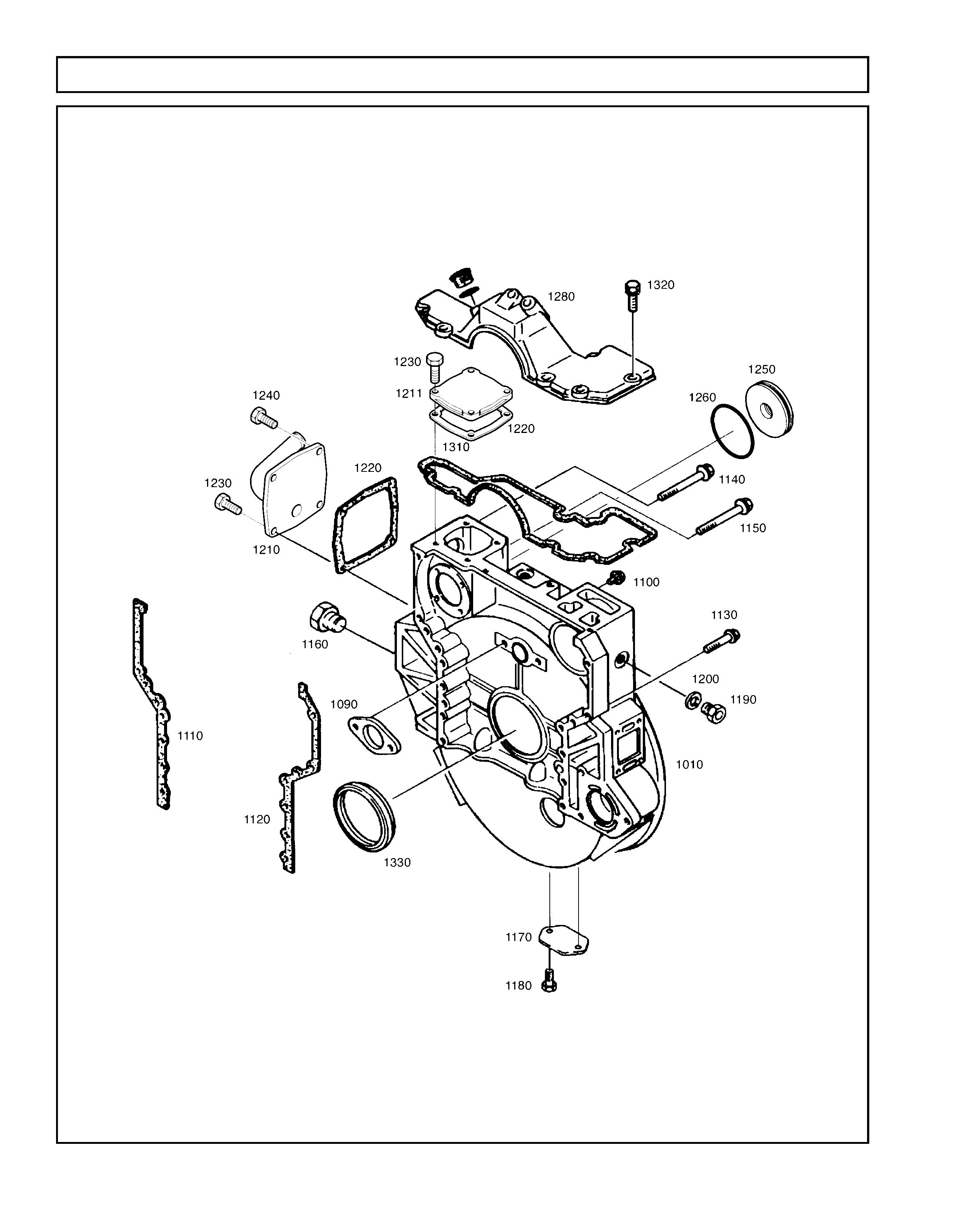

8. Flywheel housing

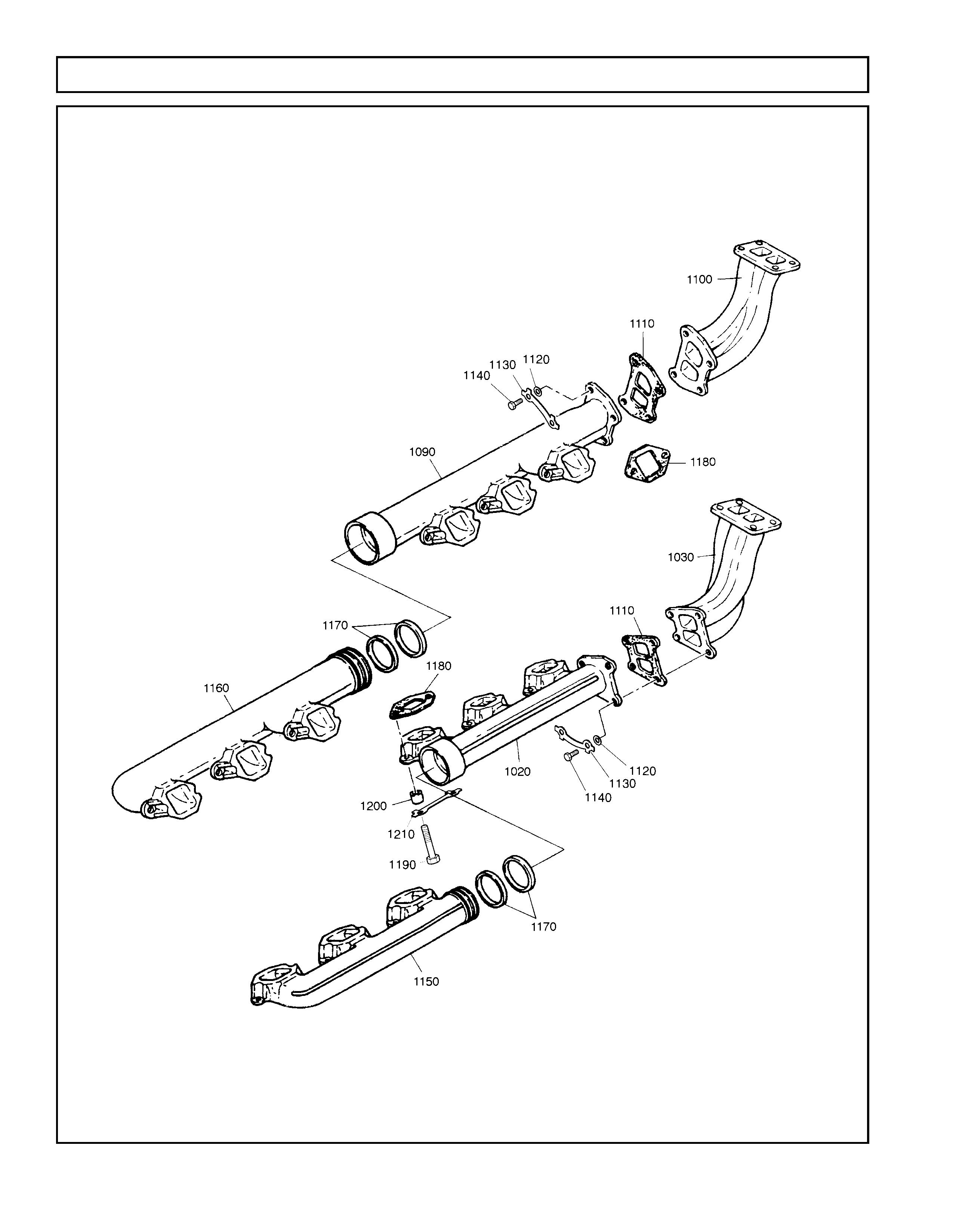

9. Exhaust manifold
10. Oil filler cap

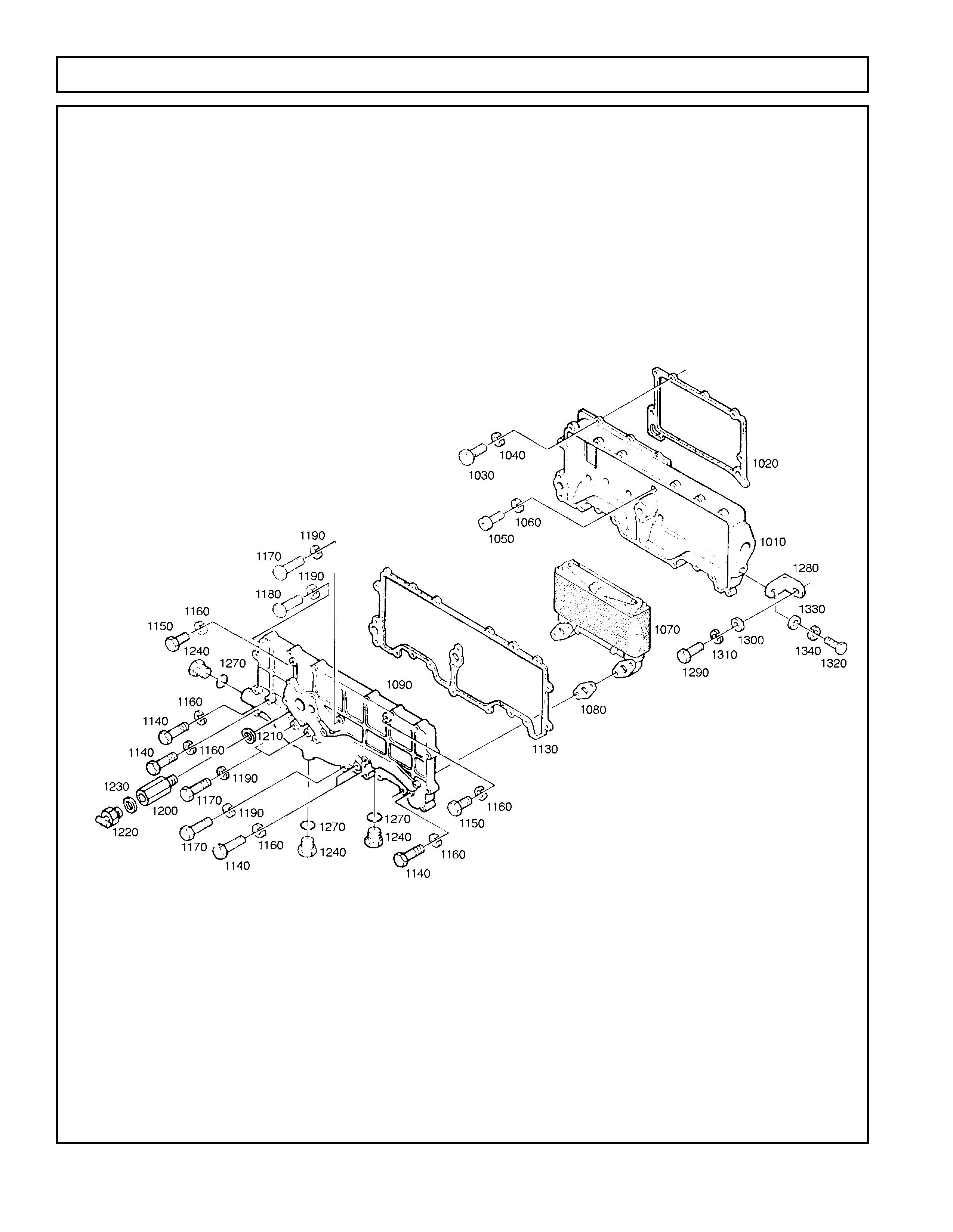

11. Pick up sensor 12. Oil cooler
13. Alternator 14. Exhaust elbow

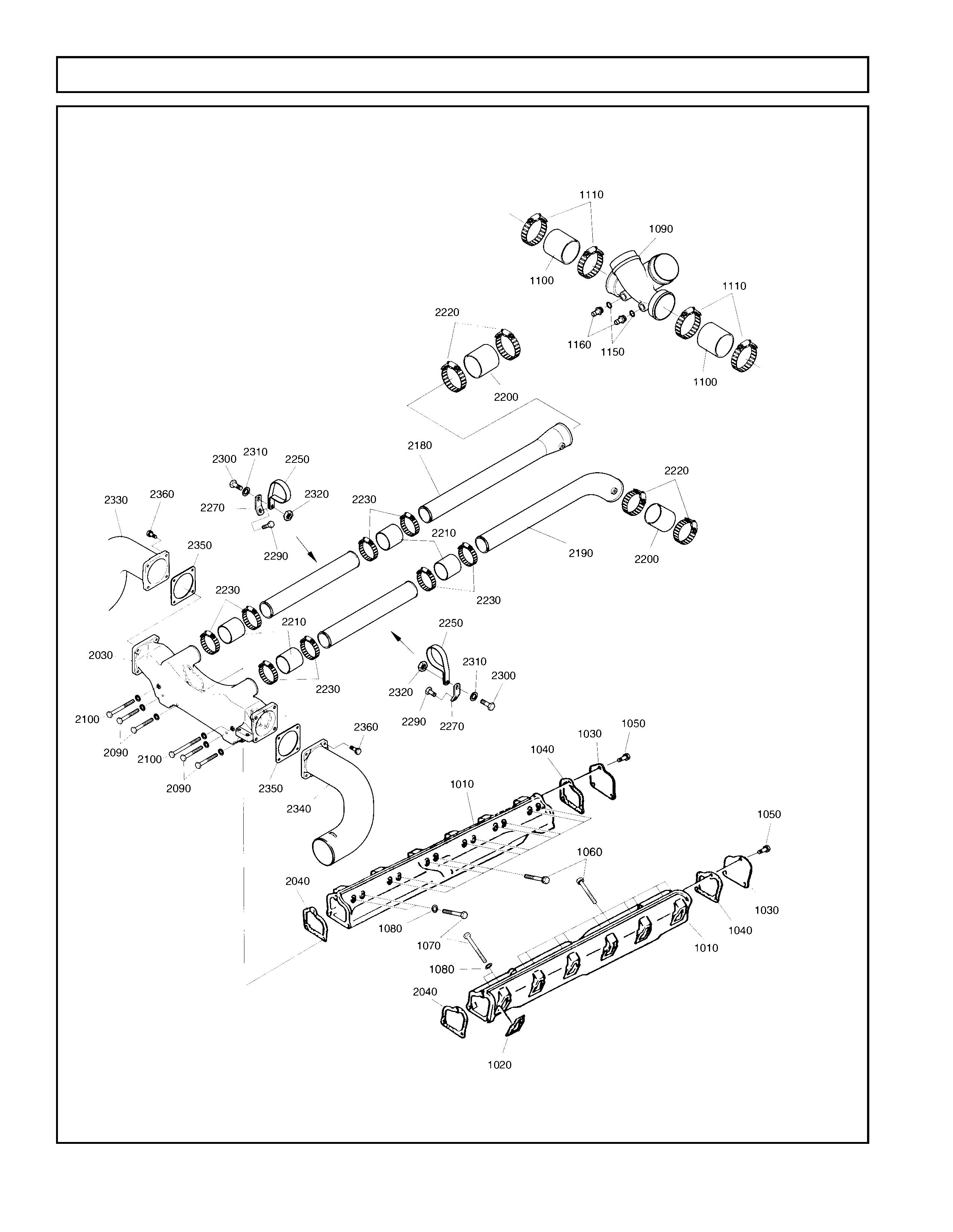

Air pipe (Air cleaner to turbocharger) 16. Oil filter
17. Cooling water outlet

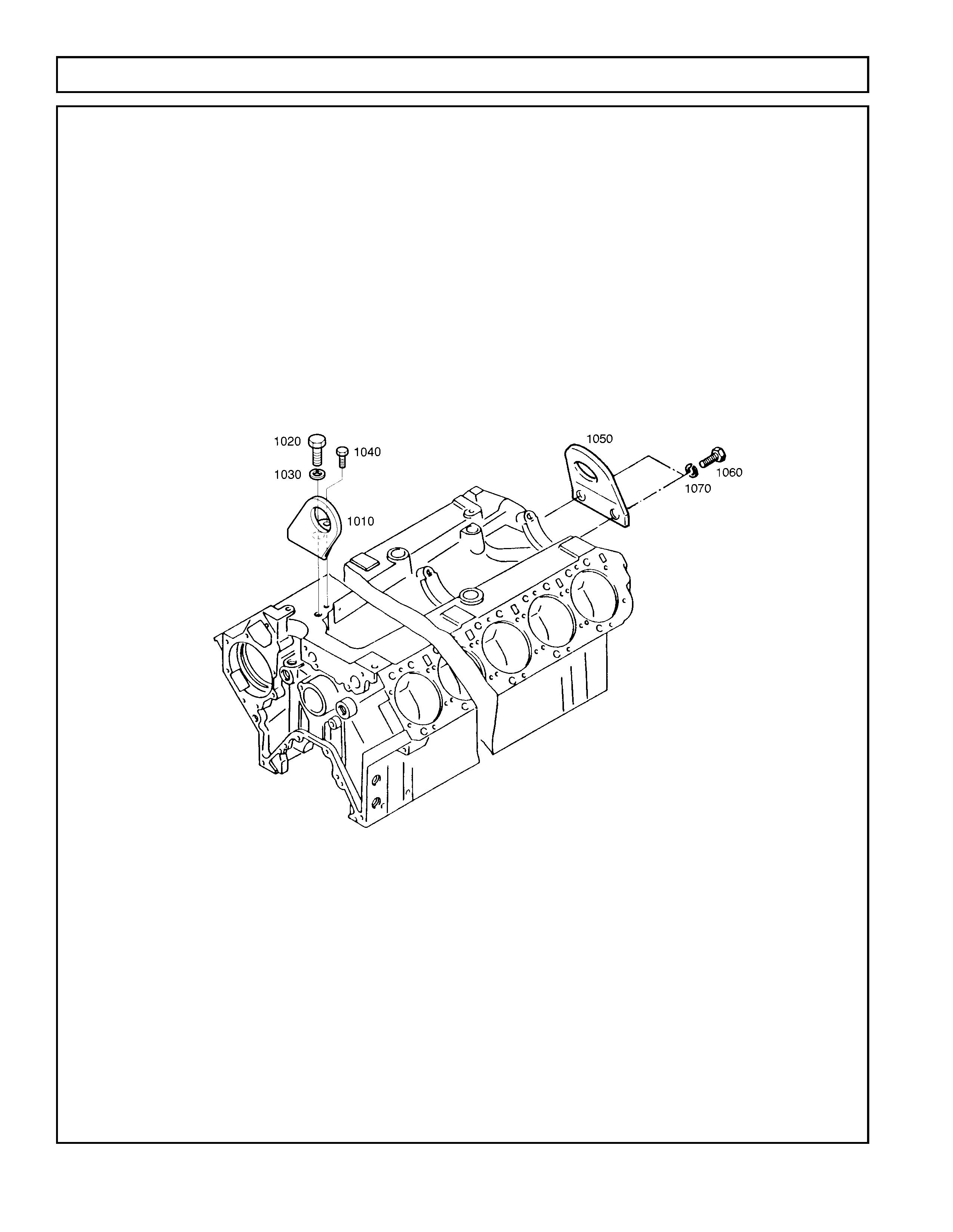

18. Air pipe (Air cleaner to turbocharger) 19. Fuel filter 20. Air pipe (Turbocharger to inter cooler) 21 Idle pulley 22. Engine mounting bracket 23. Water pump
8 10 15 17
17 13 14 17

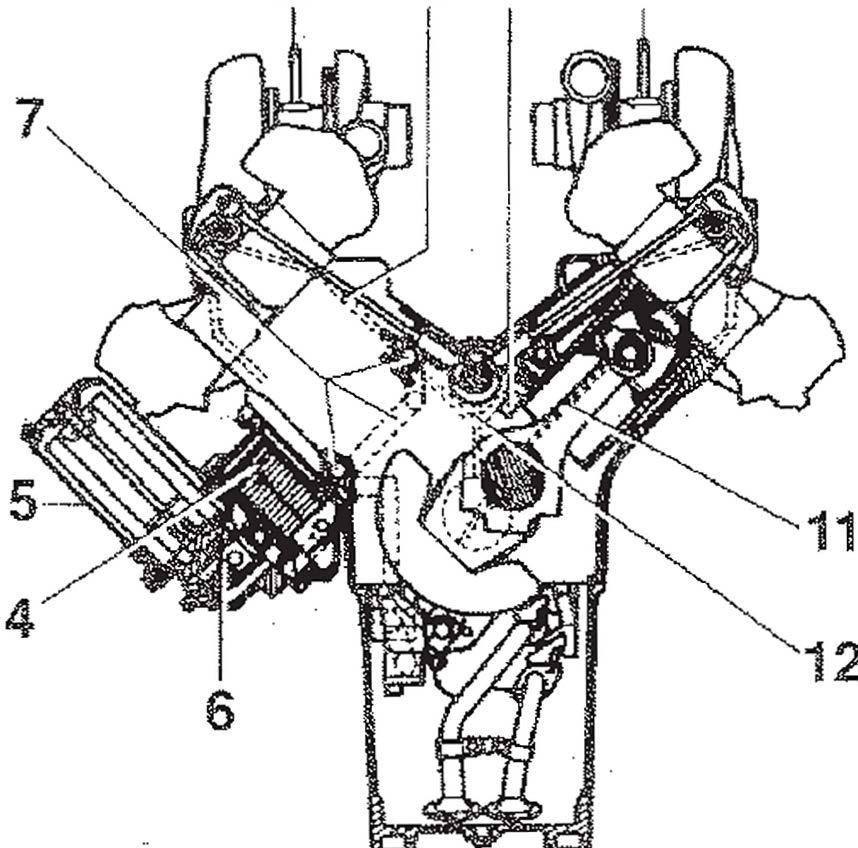

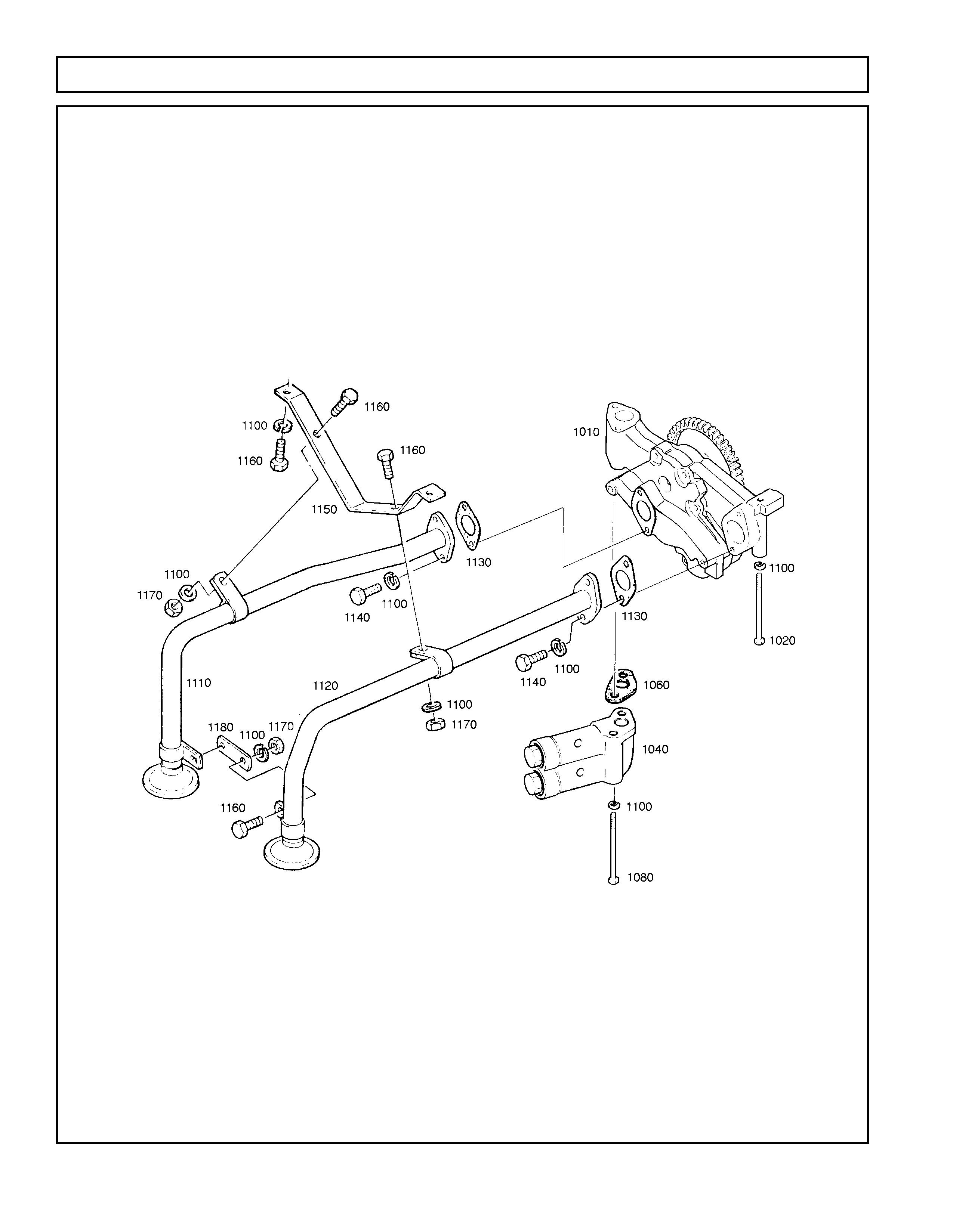

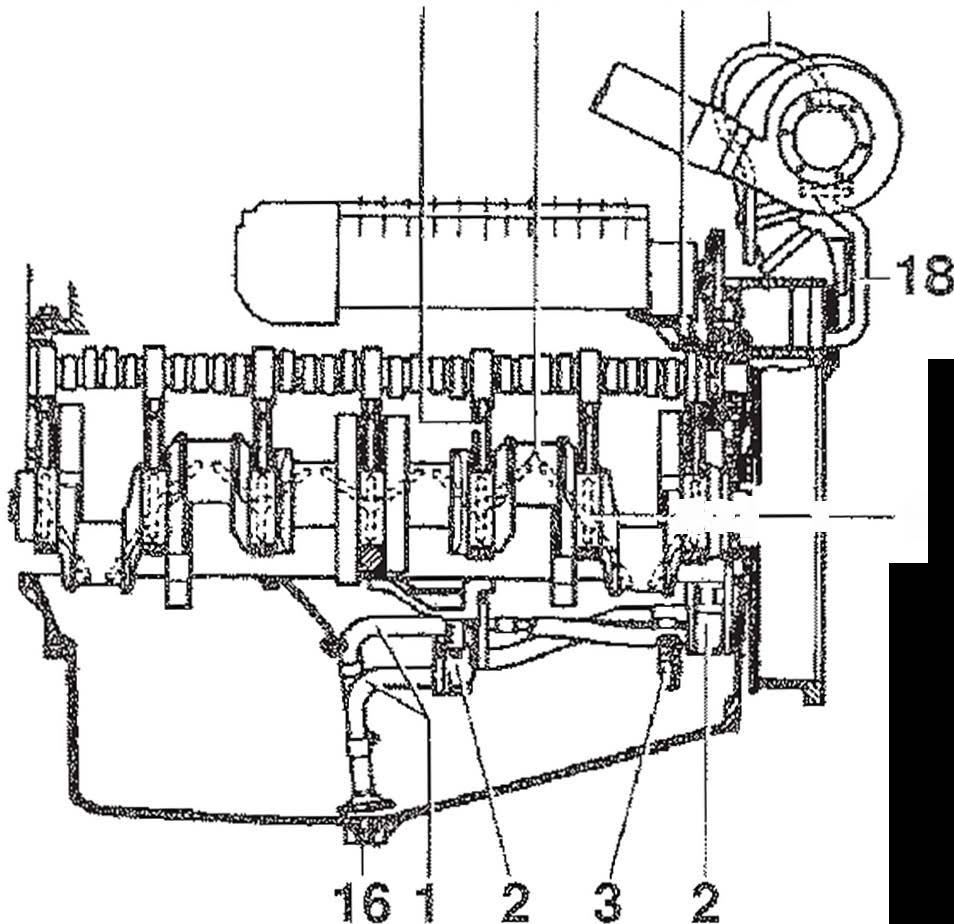

1. Oil suction plpes
2. Oil pumps
3. Oil relief valves
4. Oil color
5. Oil filter :!::::: :: 9
6. Bypass valve
7. Main oil galleries
8. Oil gallery to crankshaft
9. Ports for main bearing lubrication
10. Ports for big end bearing lubrication
11. Small end bearing lubrication
12. Camshaft bearing lubrication
13. Rocker arm lubrication
14. Jets for piston cooling and cam lubrication
15. Injection pump lubrication
16. Oil drain plug

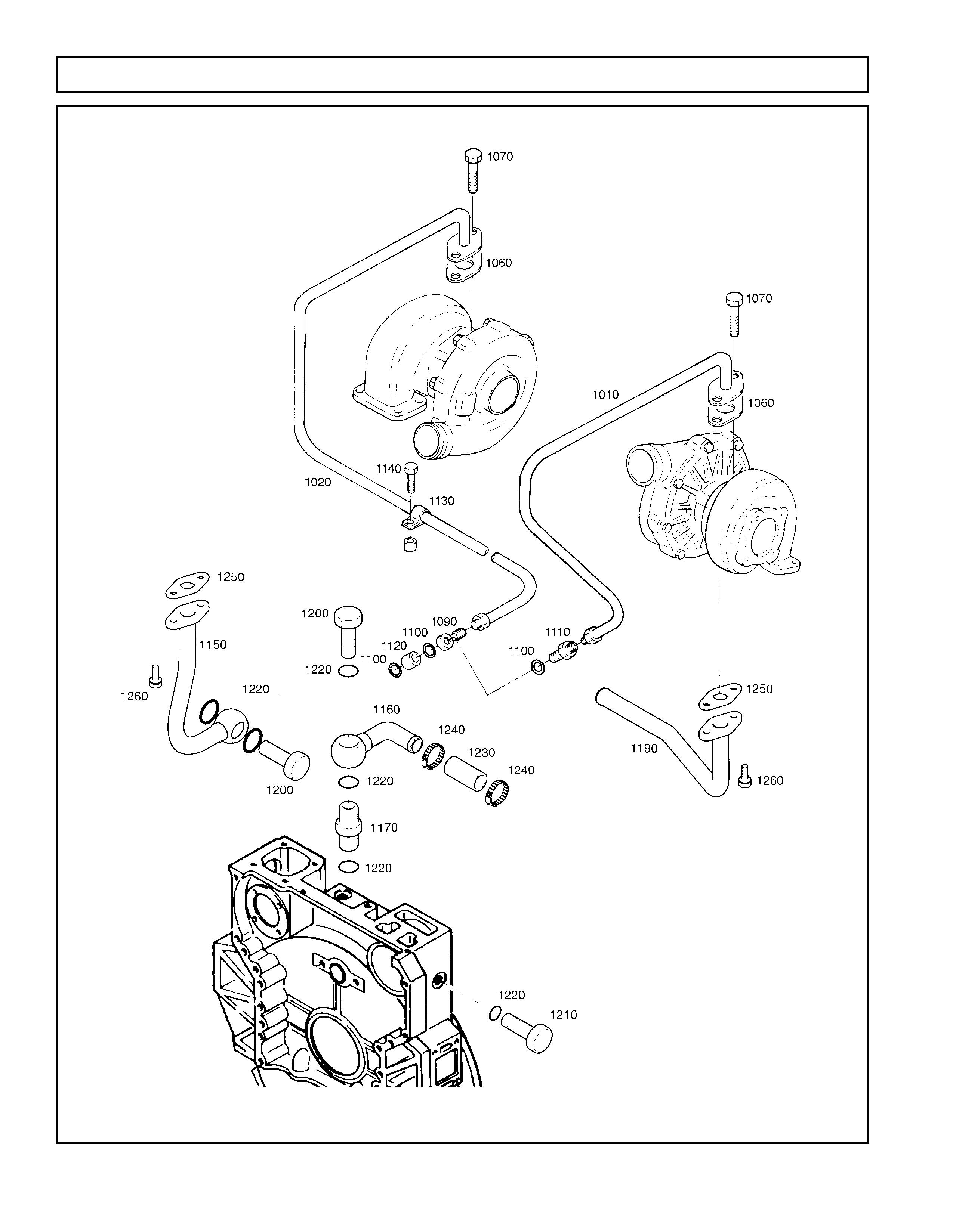

17. Lube oil pipes to turbochargers
18. Oil return from turbochargers
pipe
head
Daewoo Doosan 22L Diesel Engine Lubrication System

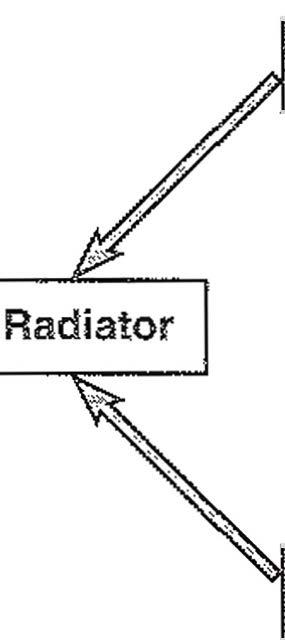

Daewoo Doosan 22L Diesel Engine Cooling System
22.0L DIESEL QUICK REFERENCE GUIDE
U.S. GALLONS (42 LITERS)
U.S. GALLONS (131 LITERS)
(36 LITERS)
U.S. GALLONS (95 LITERS)
RECOMMENDED FLUIDS
COOLANT:
USE A 50/50 MIXTURE OF LOW SILICATE ETHYLENE GLYCOL BASE ANTI-FREEZE AND SOFT WATER. (IF DESIRED, A HIGH QUALITY RUST INHIBITOR MAY BE ADDED TO THE RECOMMENDED COOLANT MIXTURE.) WHEN ADDING COOLANT, ALWAYS ADD THE RECOMMENDED 50/50 MIXTURE.
ENGINE OIL:
USE A HIGH QUALITY DETERGENT OIL HAVING AAPI CLASSIFICATION “FOR SERVICE CF OR HIGHER.” THE SAE VISCOSITY RATING OF THE OIL SHOULD BE CAREFULLY SELECTED, BASED ON THE PREVAILING AMBIENT TEMPERATURE RANGE ANTICIPATED BEFORE THE NEXT OIL CHANGE. RECOMMENDED SAE VISCOSITY GRADES ARE AS FOLLOWS:
Expected ambient temperature at engine start (Degress F) -30 -20 -10 -30 0 10 20 30 40
NOTE: SAE 10W-30 recommended for all seasons.
SAE 15W-40
DIESEL ENGINE DRIVEN GENERATOR SETS
Following is a recommended maintenance schedule for Generac standby diesel engine driven generator sets from 350 kW to 2000 kW in size. The established intervals in the schedule are the maximum required when the unit is used in an average service application. They will need to be decreased (performed more frequently) if the unit is used in a severe application. Use the unit hour meter or calendar time, whichever occurs first, from the previous maintenance interval to determine the next required maintenance interval.
-A WARNING A-
To prevent injury, disable the generator set from starting and/or connecting to the load by setting the control panel Auto-Off-Manual switch to the "Off" position, removing the control panel fuse, turning off the battery charger, and removing the negative battery cable before performing any maintenance. NOTE: The battery charger must be tur ned off BEFORE removing the battery cable to prevent an over current condition from bur ning out sensitive control panel components and circuits. Following all maintenance, reverse these steps to insure the unit is returned to standby setup for normal operation when required.
1 Every month or 10 hours of operation
(Requires approximately 0.5 man hours per unit)
1.Disable the unit from operating per the first page warning.
2.Check the engine oil level. Adjust as necessary.
3.Check the engine coolant level. Adjust as necessary.
4.Check the battery electrolyte level if accessible. Adjust as necessary.
5.Check the diesel fuel supply level. Adjust as necessary.
6.Check the air inlets and outlets for debris. Clean as necessary.
7.Visually inspect the unit looking for leaks, wear or damage, loose connections or components, and corrosion. Correct as necessary.
8.Return the unit to operational condition.
1A First 6 months or 50 hours of operation ONLY
(Requires approximately 2.5 man hours per unit)
1.Disable the unit from operating per the first page warning.
2.Check the engine oil level. Adjust as necessary.
3.Check the engine coolant level. Adjust as necessary.
4.Check the battery electrolyte level if accessible. Adjust as necessary.
5.Check the diesel fuel supply level. Adjust as necessary.
6.Drain water and sediment from the diesel fuel tank.
7.Drain water from the diesel fuel line water separator if unit is equipped with one.
8.Check the air inlets and outlets for debris. Clean as necessary.
9.Visually inspect the unit looking for leaks, wear or damage, loose connections or components, and corrosion. Correct as necessary.
10.Initiate an automatic start and transfer to load of the unit, and exercise it for at least 1 hour looking for leaks, loose connections or components, and abnormal operating conditions. Correct as necessary.
11.Change the engine oil.
12.Replace the engine oil filter(s).
13.Replace the engine fuel filter(s).
14.Return the unit to stand-by setup for operation when required.
2 Every 6 months or 50 hours of operation
(Requires approximately 1.5 man hours per unit)
22.0L DIESEL SERVICE RECOMMENDATIONS
1.Disable the unit from operating per the first page warning.
2.Check the engine oil level. Adjust as necessary.
3.Check the engine coolant level. Adjust as necessary.
4.Check the battery electrolyte level if accessible. Adjust as necessary.
5.Check the diesel fuel supply level. Adjust as necessary.
6.Drain water and sediment from the diesel fuel tank.
7.Drain water from the diesel fuel line water separator if unit is equipped with one.
8.Check the air inlets and outlets for debris. Clean as necessary.
9.Visually inspect the unit looking for leaks, wear or damage, loose connections or components, and corrosion. Correct as necessary.
10.Initiate an automatic start and transfer to load of the unit, and exercise it for at least 1 hour looking for leaks, loose connections or components, and abnormal operating conditions. Correct as necessary.
11.Return the unit to standby setup for operation when required. Maint
Every 12 months or 100 hours of operation
(Requires approximately 4.0 man hours per unit)
1.Disable the unit from operating per the first page warning.
2.Check the engine oil level. Adjust as necessary.
3.Check the engine coolant level. Adjust as necessary.
4.Check the engine coolant thermal protection level. Correct as necessary.
5.Check the diesel fuel supply level. Adjust as necessary.
6.Drain water and sediment from the diesel fuel tank.
7.Drain water from the diesel fuel line water separator if unit is equipped with one.
8.Check the air inlets and outlets for debris. Clean as necessary.
9.Check the battery electrolyte level if accessible. Adjust as necessary.
10.Check the battery posts, cables, and charger for loose connections, corrosion, and proper operation. Correct as necessary.
11.Check the unit wiring for loose connections, corrosion, and damage. Correct as necessary.
12.Check the engine accessory drive belts for wear, weather cracking, and damage. Replace as necessary.
13.Test the unit safety devices (alarms, shutdowns, etc.) for proper operation. Correct and/or adjust as necessary.
14.Perform an oil analysis (send a sample to a lab for results). Change the engine oil and filters if the analysis results indicate this is required.
15.Visually inspect the unit looking for leaks, wear or damage, loose connections or components, and corrosion. Correct as necessary.
16.Start and exercise the unit under full rated load for at least 2 hours looking for leaks, loose connections or components, and abnormal operating conditions. Correct as necessary.
17.Return the unit to standby setup for operation when required.
4 Every 24 months or 250 hours of operation
(Requires approximately 8.0 man hours per unit)
22.0L DIESEL SERVICE RECOMMENDATIONS
1.Disable the unit from operating per the first page warning.
2.Check the engine oil level. Adjust as necessary.
3.Check the engine coolant level. Adjust as necessary.
4.Check the engine coolant thermal protection level. Correct as necessary.
5.Check the diesel fuel supply level. Adjust as necessary.
6.Drain water and sediment from the diesel fuel tank.
7.Drain water from the diesel fuel line water separator if unit is equipped with one.
8.Check the air inlets and outlets for debris. Clean as necessary.
9.Check the battery electrolyte level if accessible. Adjust as necessary.
10.Check the battery posts, cables, and charger for loose connections, corrosion, and proper operation. Correct as necessary.
11.Check the unit wiring for loose connections, corrosion, and damage. Correct as necessary.
12.Check the engine accessory drive belts for wear, weather cracking, and damage. Replace as necessary.
13.Check the engine valve clearance. Adjust as necessary.
14.Visually inspect the unit looking for leaks, wear or damage, loose connections or components, and corrosion. Correct as necessary.
15.Start and exercise the unit under full rated load for at least 2 hours looking for leaks, loose connections or components, and abnormal operating conditions. Correct as necessary.
16.Change the engine oil.
17.Replace the engine oil filter(s).
18.Replace the engine fuel filter(s).
19.Replace the engine air filter(s).
20.Start the unit and exercise it for at least 15 minutes looking for leaks, loose connections or components, and abnormal operating conditions. Correct as necessary.
21.Return the unit to standby setup for operation when required.
c:)1020
Generac Generator Engine parts
Daewoo Generator Engine parts
Doosan Generator Engine parts
Contact: www.generac-generator-engine-parts.com
Email: engineparts2@gmail.com
Phone: 269 673 1638
Text: 269 760 8652
Generac Generator Engine parts
Daewoo Generator Engine parts
Doosan Generator Engine parts
Contact:
www.generac-generator-engine-parts.com
Email: engineparts2@gmail.com
Phone: 269 673 1638
Text: 269 760 8652
Generac Generator Engine parts
Daewoo Generator Engine parts
Doosan Generator Engine parts
Contact:
www.generac-generator-engine-parts.com
Email: engineparts2@gmail.com
Phone: 269 673 1638
Text: 269 760 8652
Generac Generator Engine parts
Daewoo Generator Engine parts
Doosan Generator Engine parts
Contact:
www.generac-generator-engine-parts.com
Email: engineparts2@gmail.com
Phone: 269 673 1638
Text: 269 760 8652
Generac Generator Engine parts
Daewoo Generator Engine parts
Doosan Generator Engine parts
Contact:
www.generac-generator-engine-parts.com
Email: engineparts2@gmail.com
Phone: 269 673 1638
Text: 269 760 8652
Generac Generator Engine parts
Daewoo Generator Engine parts
Doosan Generator Engine parts Contact: www.generac-generator-engine-parts.com
Email: engineparts2@gmail.com
Phone: 269 673 1638
Text: 269 760 8652

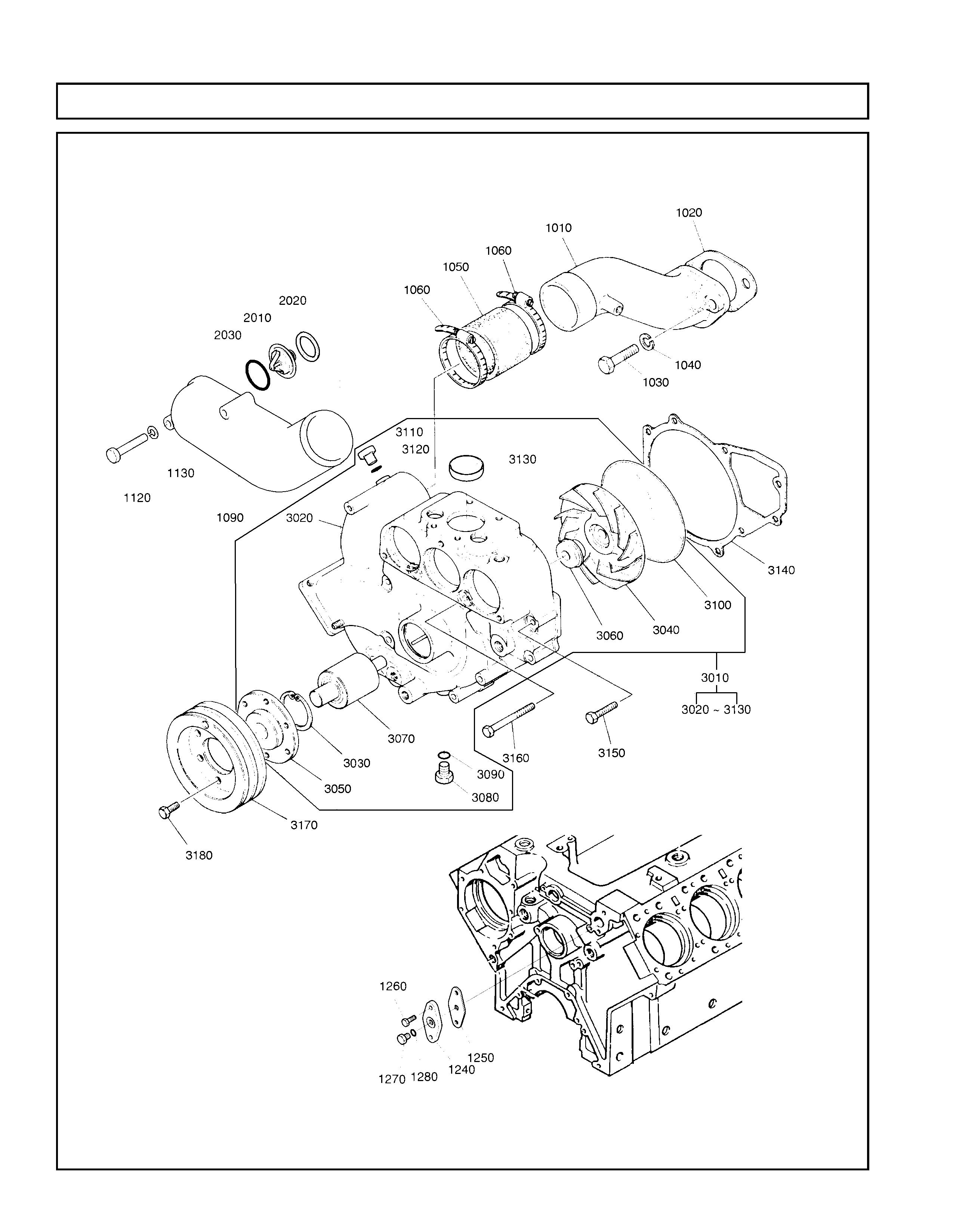

22.0L DIESEL — COOLING WATER PIPE
NOTE: ITEMS 3020 THROUGH 3130 SHOWNINILLUSTRATIONAREONLYAVAILABLEASITEM #3010, WATERPUMPASSEMBLY, PART NUMBER 0C46930333.
