Doosan Doosan P222L P222LA P222LB P222LC P222LE P222LF DP222L DP222LA DP222LB DP222LC DP222LD DP222LE V222Ti AD222Ti PU222LE PU222Ti injector information, injector line information, fuel return line information, tightening torque specifications
Apply antiseize to injector, Install the new injector metal seal and new injector rubber seal in the injector hole of the cylinder head, tighten injector retainer to 50 ft lbs,
65.10108-0006
INJECTOR RETAINER
65.10101-7052 INJECTOR ASSEMBLY
INJECTOR SEAL, METAL, INJECTOR SEAL, RUBBER,
65.98701-0065
65.98701-0006
Install injector high pressure tube, (injector line) to top of injector and tighten to 15 ft lbs
65.10301-6057 Injector line set,1,2,3,4,5,6, 65.10301-6058 Injector line set, 7,8,9,10,11,12, 420208-00446A , 420208-00444A , 420208-00442B ,

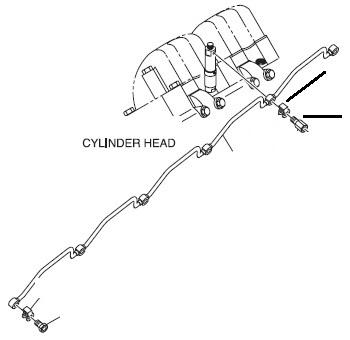

Install fuel return line to side of injector, see below
