Family Home
prof. Michael Rohde st. Enela SulaConcept Lighting Proposal Sketches
Sections Calculations
Luminaires Renders
INDEX
CONCEPT
Light, when envisioned as jewelry, becomes a symphony of brilliance and elegance. Imagine strands of photons interwoven into delicate chains, each beam a precious gem, dancing and refracting in mesmerizing patterns. Radiant beams of light could be crafted into intricate necklaces, bracelets, and earrings, their luminosity enchanting all who behold them. Just as jewelry enhances the beauty of the wearer, light jewelry would adorn the world with its ethereal glow, adding a touch of magic to every moment. Each icker and sparkle would tell a story, capturing the essence of illumination in a tangible form, making the wearer not only adorned but also illuminated from within.

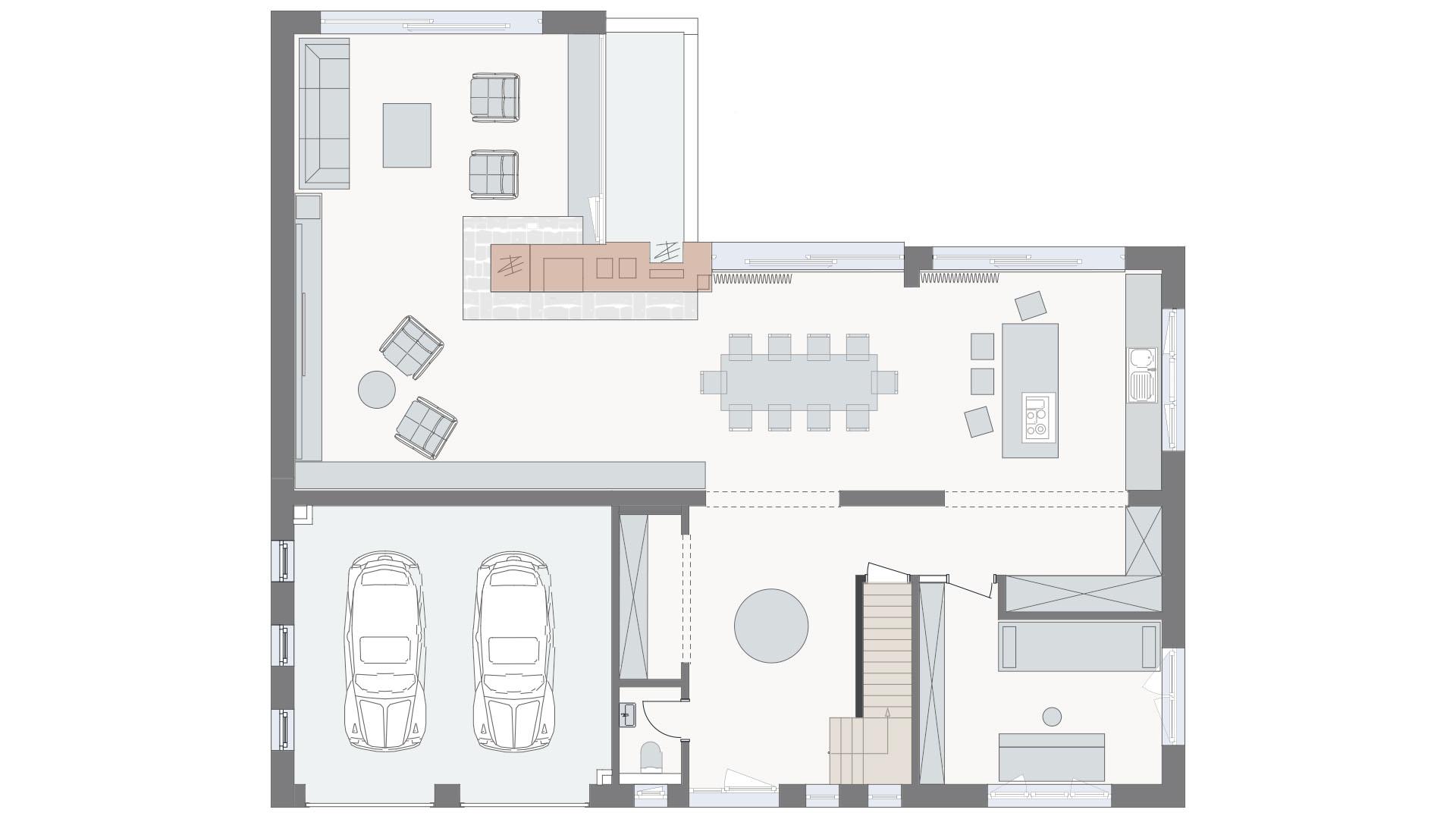

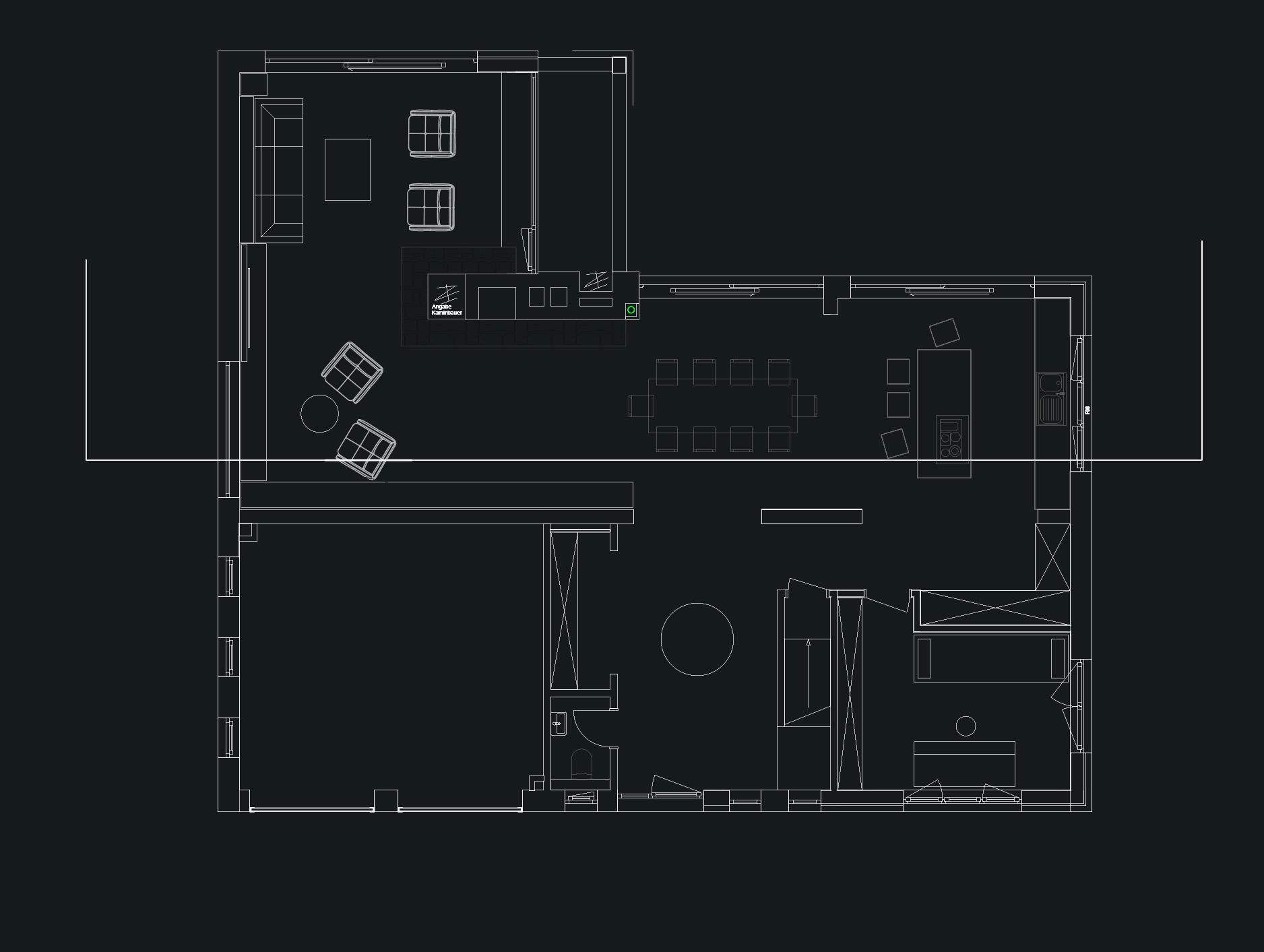

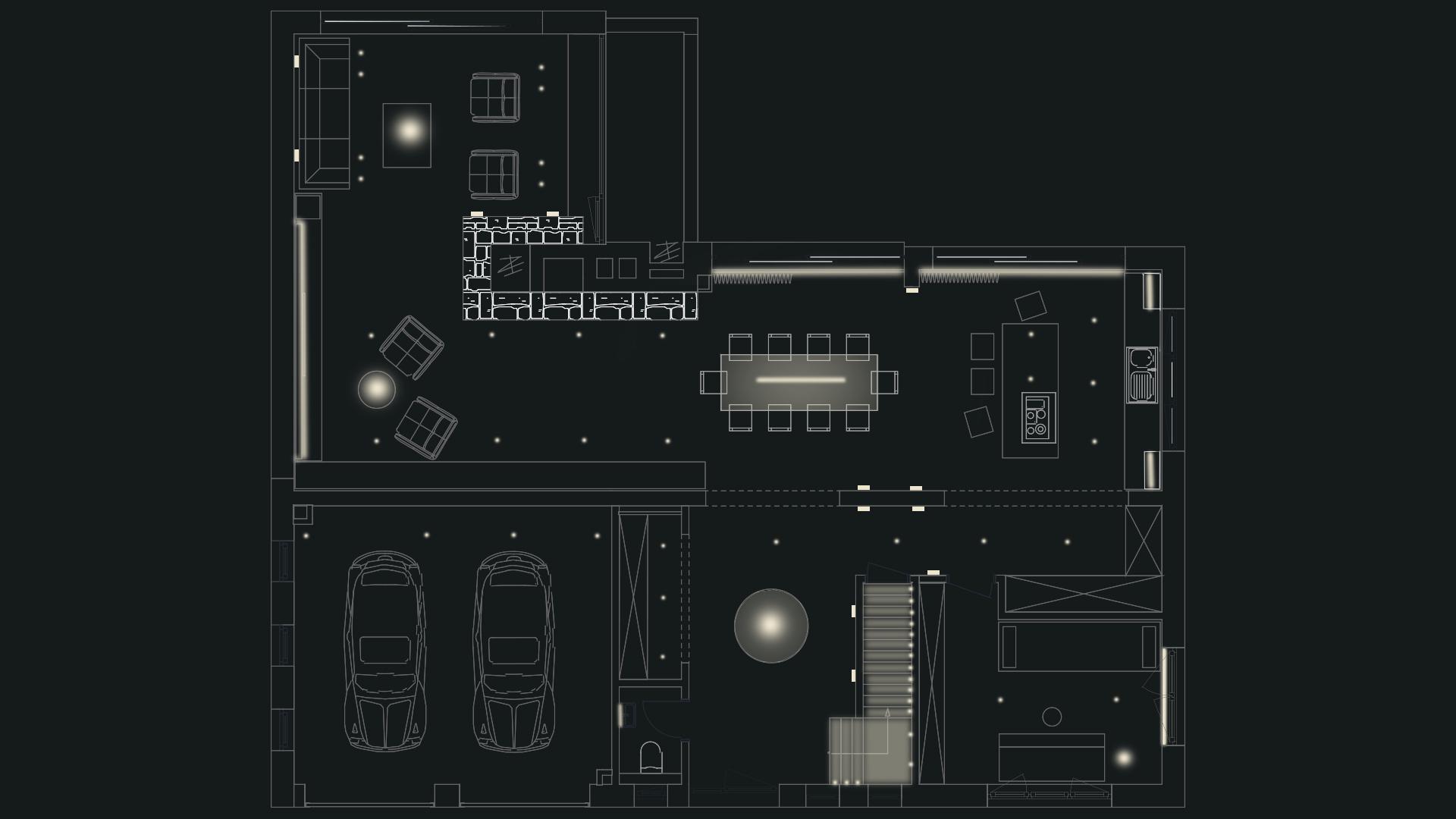

The Plan
living area 200 lux 200 lux 100 lux 200 lux 300 lux 100lux 100lux 50 lux 100lux 100lux 20 lux 200 lux living area dinning area kitchen corridor entrance bathroom studio garage
The Lighting Proposal
Light behind the tv panel
wall wash with spot lights wall light for reading tasks
spot light suspended lighting
suspended light suspended light spot light surface mounted track lighting for stairs wall recessed spot lightiing wide beam donwllights
task lighting
Light behind the curtain
for the table area suspended light
donwllights

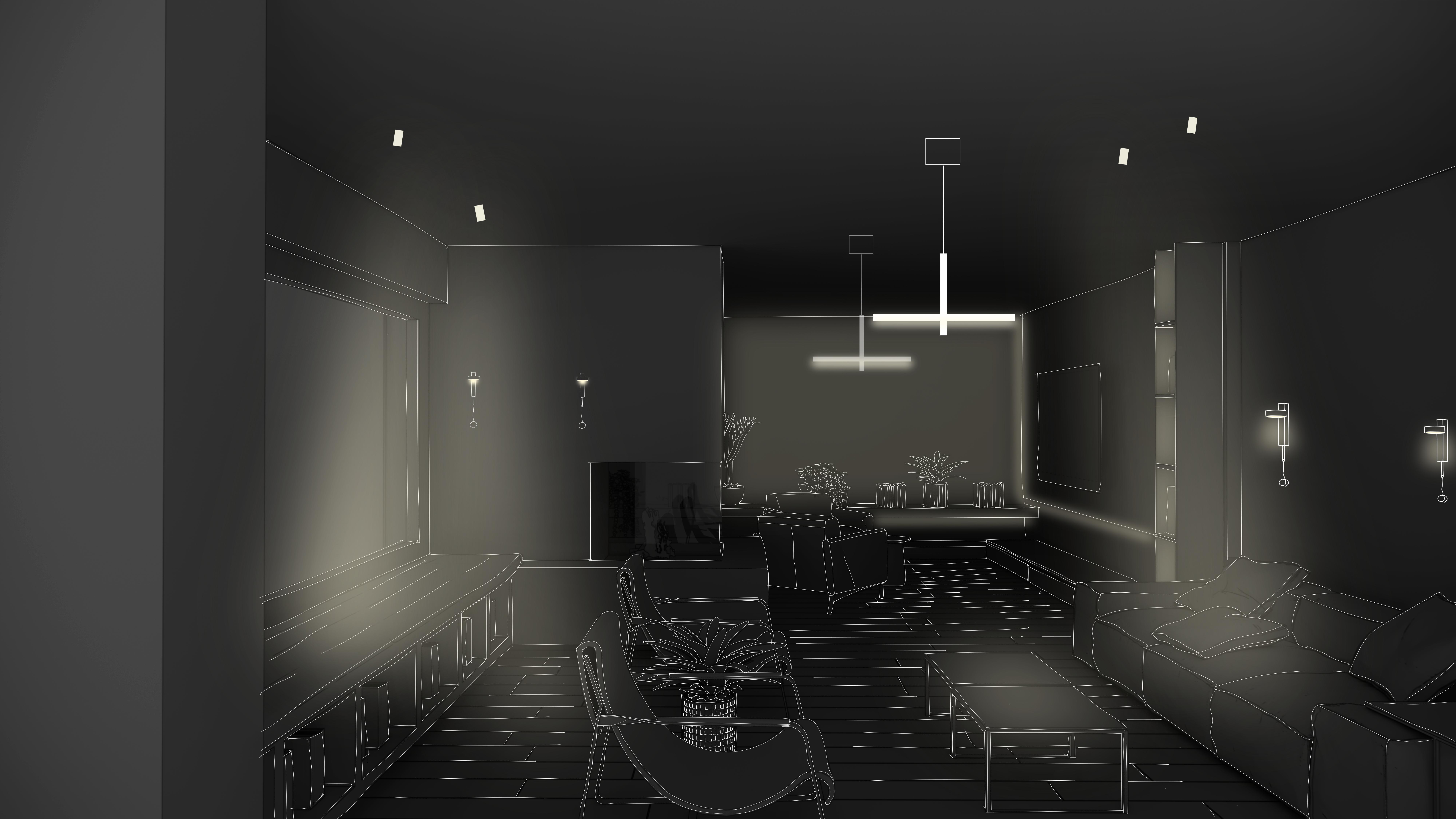

Skectches

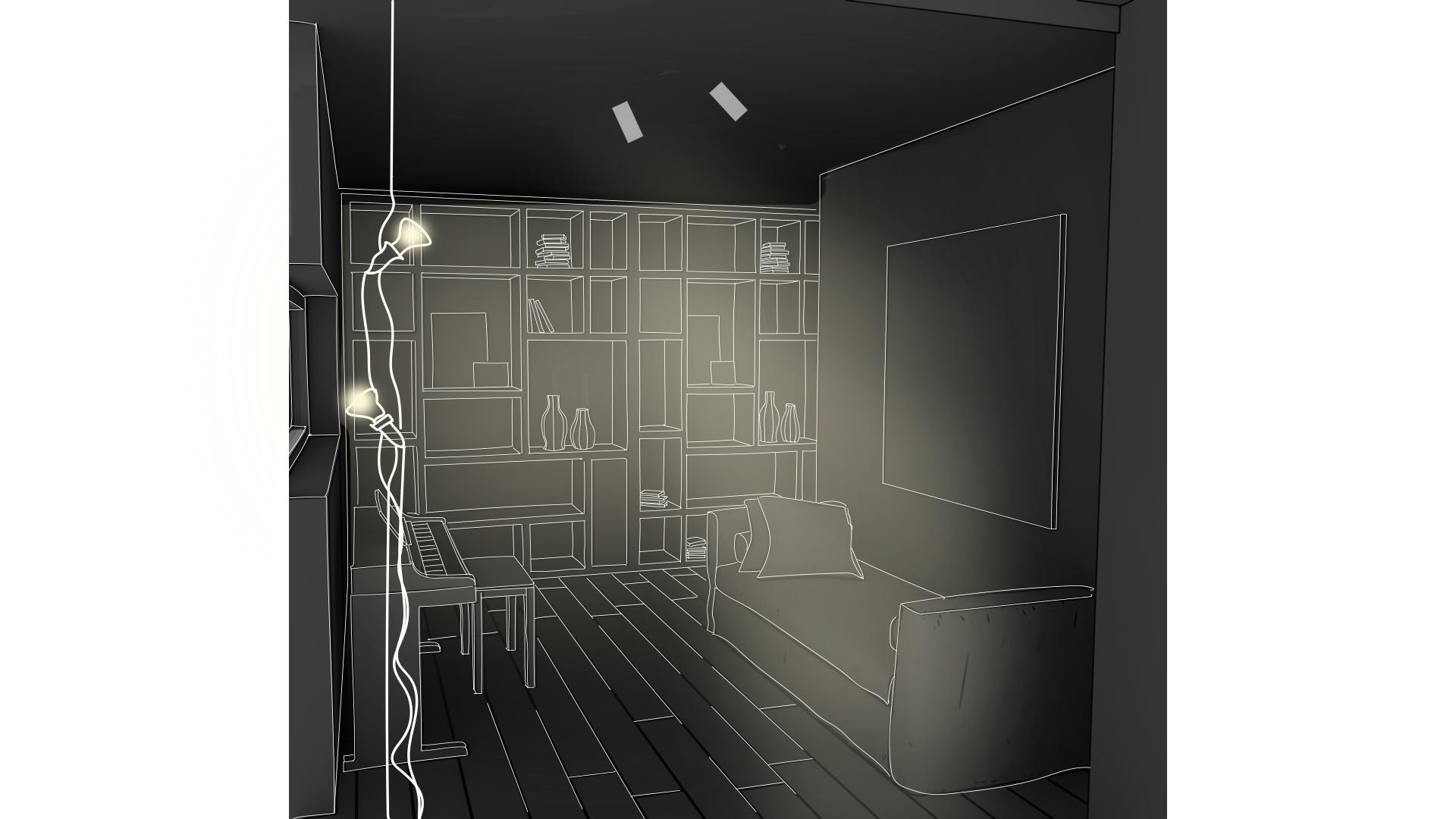

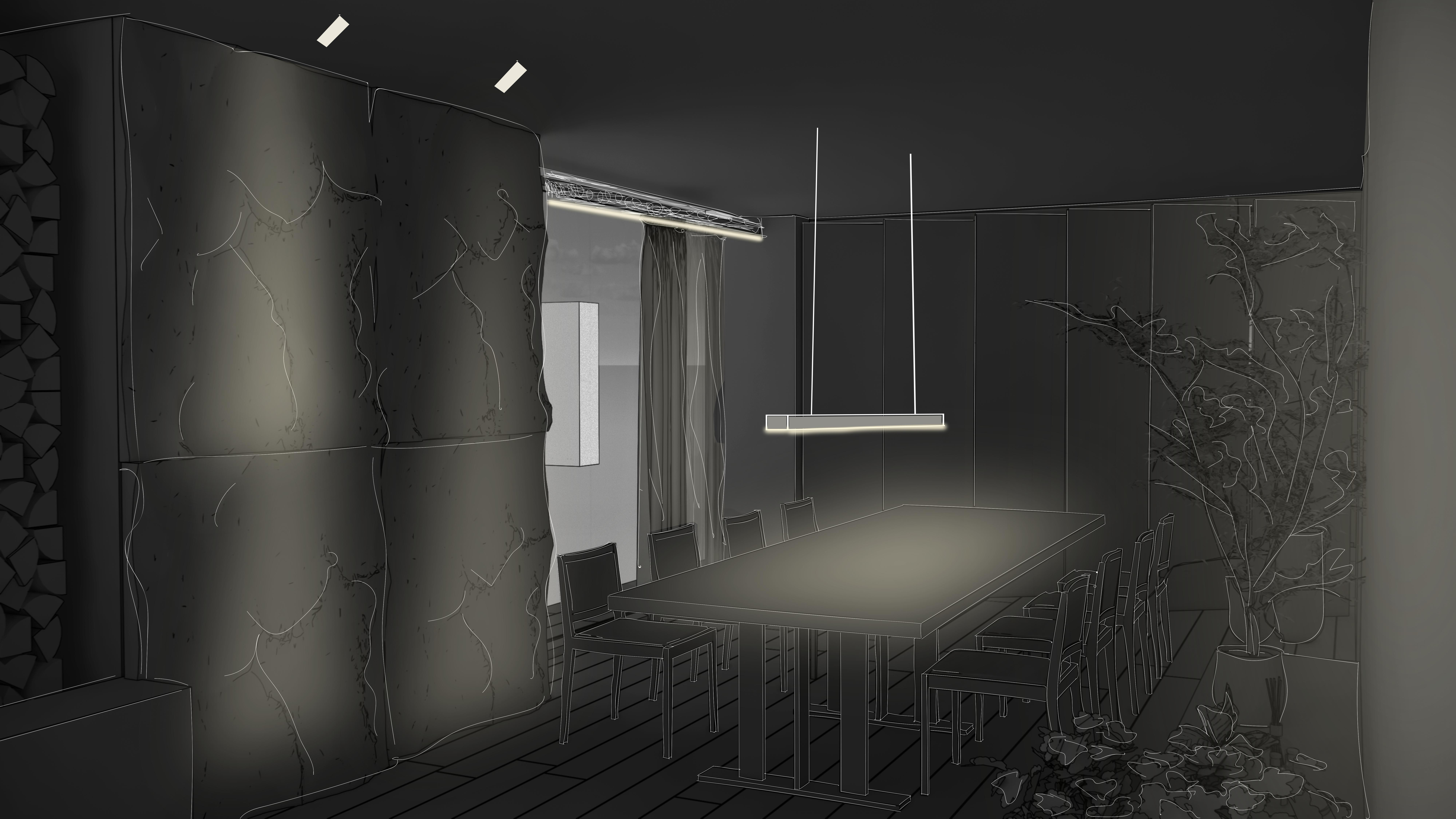

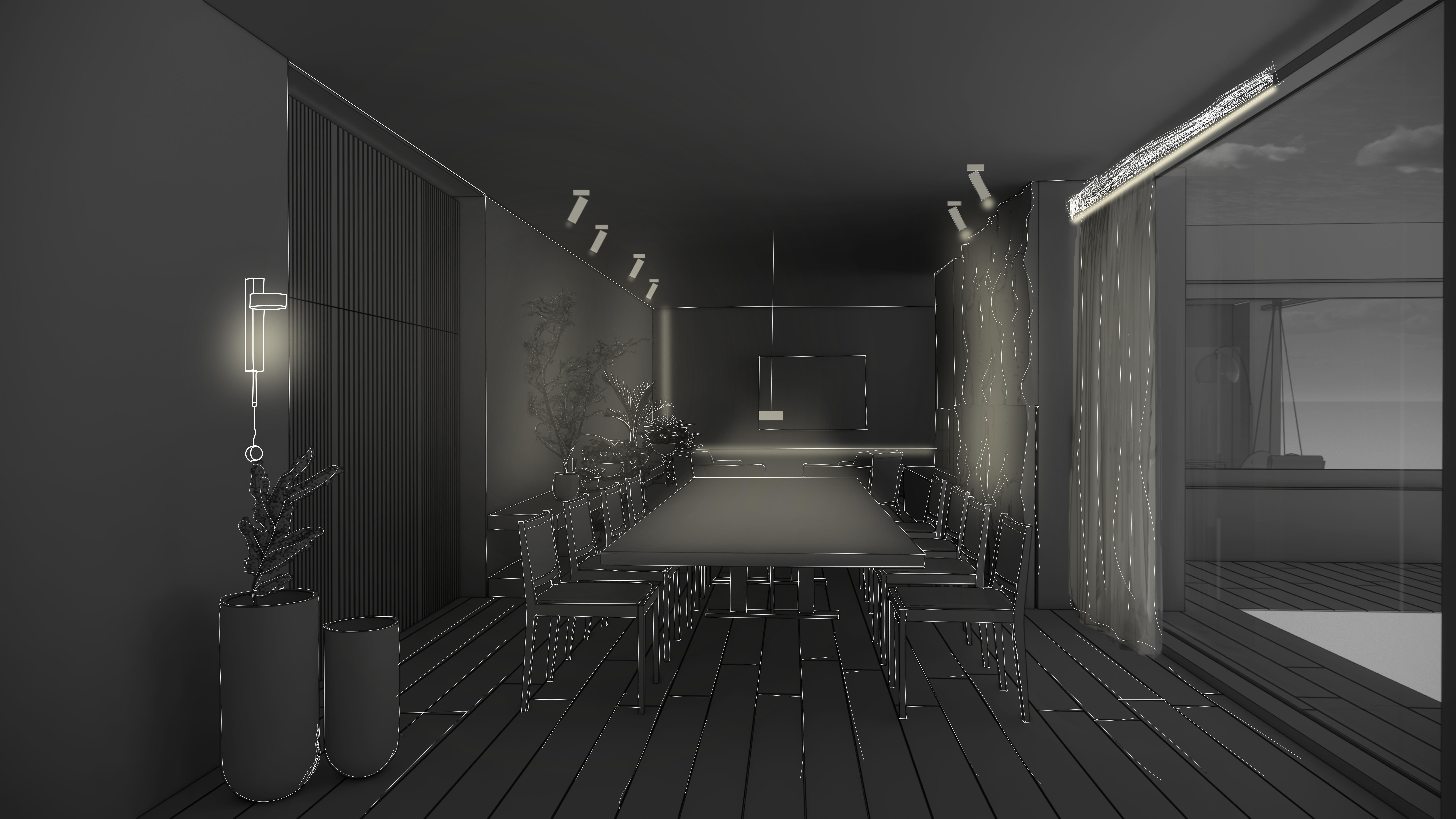

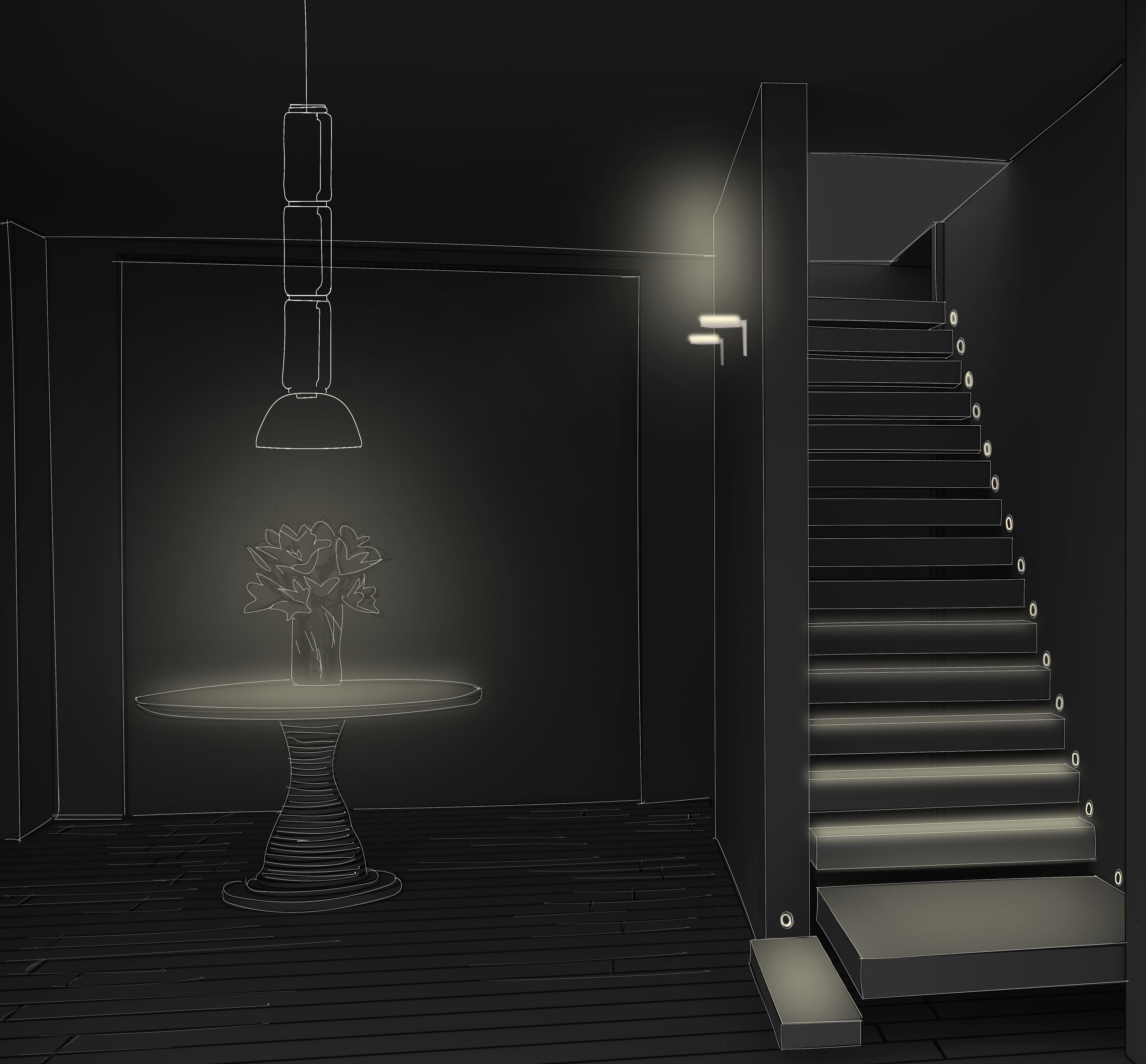

Entrance and stairs area
50-100 Lux
Lighting type Total
Light distribution Symmetric
CCT (K) 2700
CRI> 90
Main voltage (Vac) 120-277

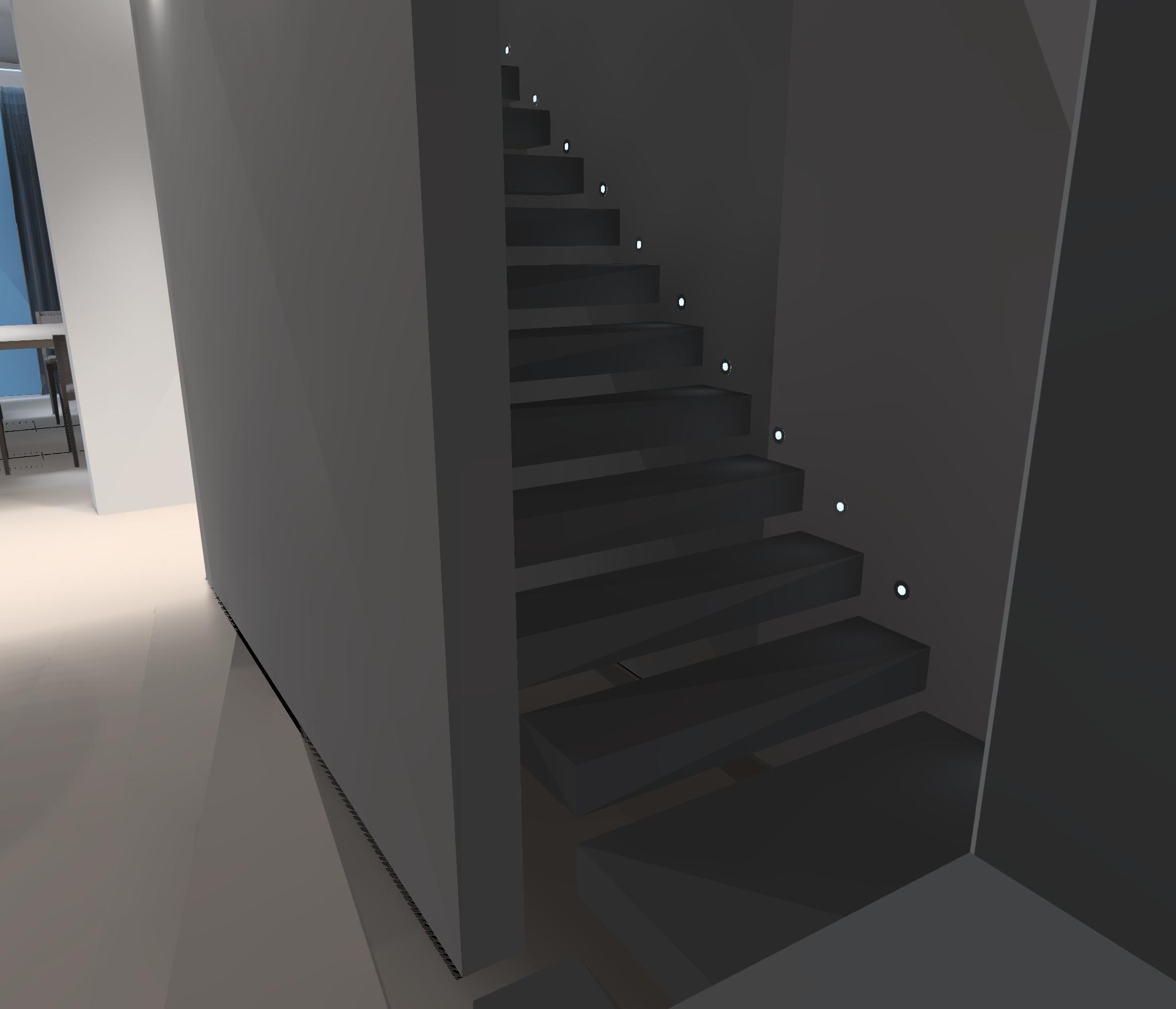

Stairs
20 lux-50 lux
LED - Track Lighting Wall recessed

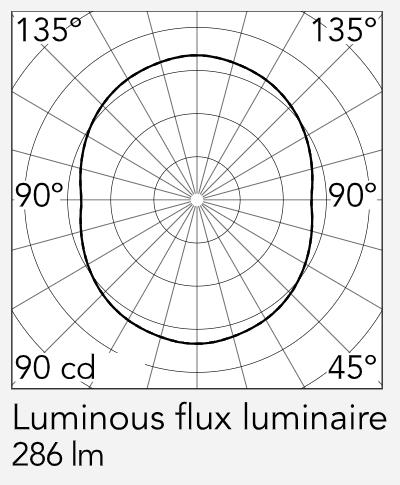

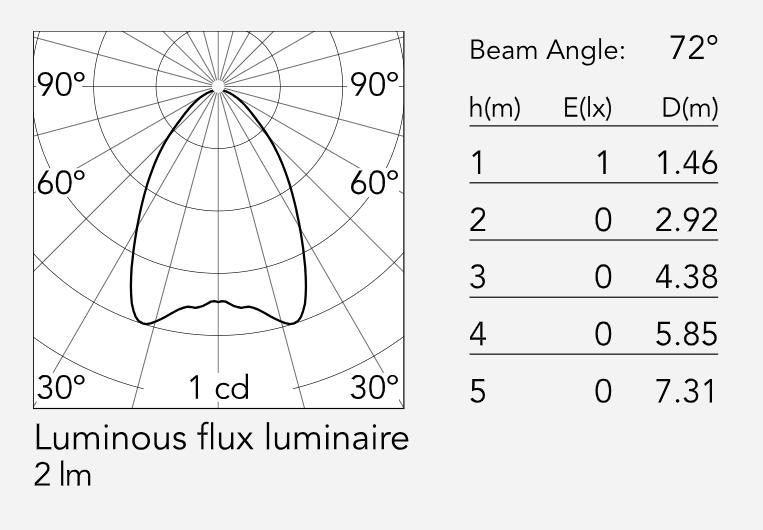

Top LED - 1.2W - 2lm - 3000K - Beam° 72

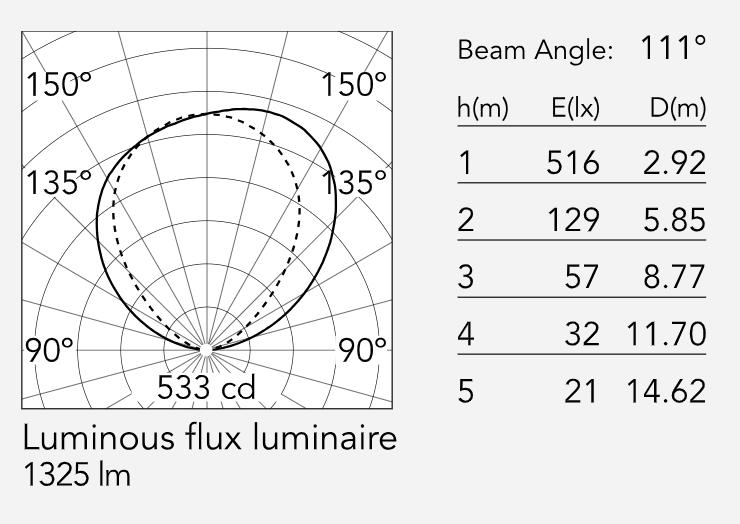

Wall Wall sconce
Power (W) 16
System ux (lm) 1325
Light distribution Symmetric
CCT (K) 2700
CRI> 90
Entrance area
50 Lux
Mounting Ceiling surface
Lamp category LED
Power (W) 9.2
System ux (lm) 505
Lighting type Direct
Light distribution Symmetric
CCT (K) 3000
CRI> 80

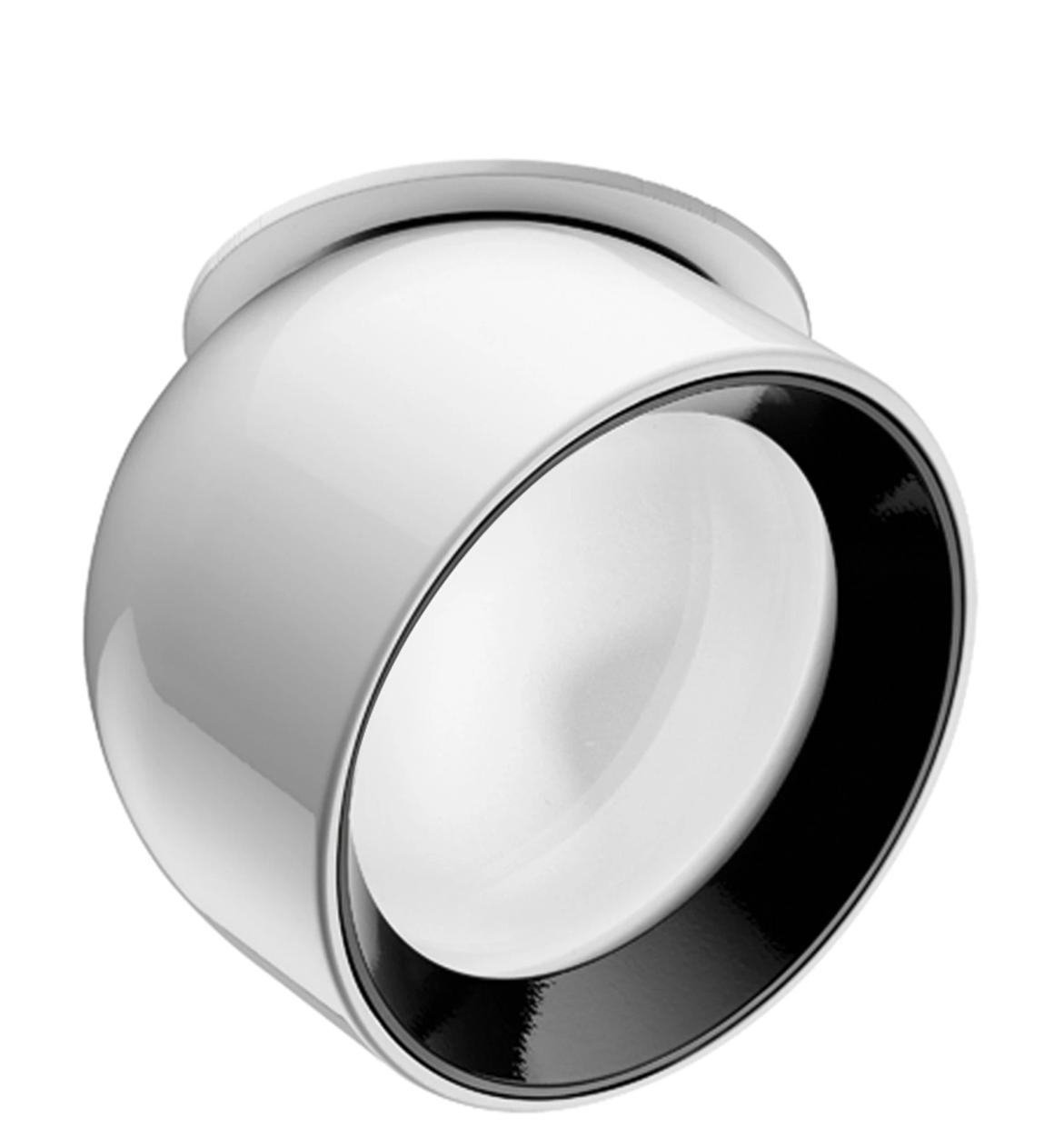

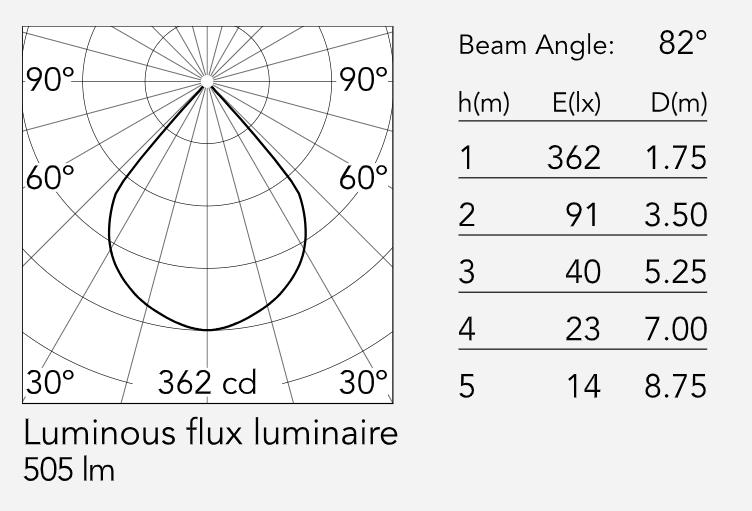

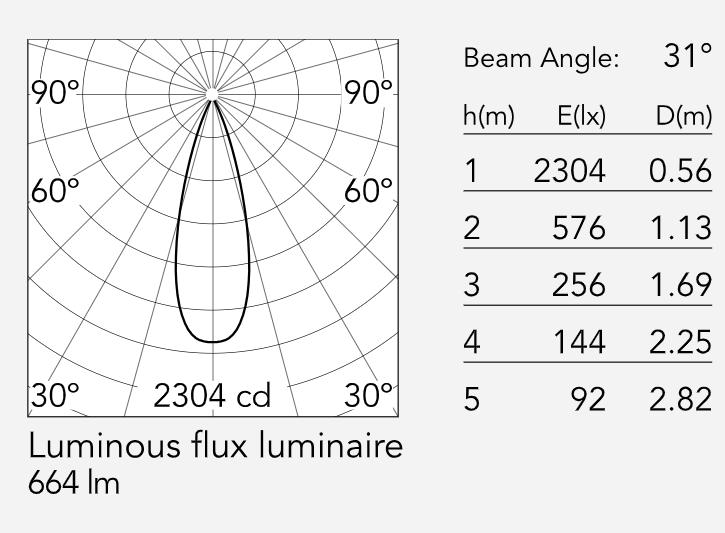

Beam angle C90-270 (º) 83
100 Lux
Mounting Recessed
Light Source Type LED
Power (W) 8.8
System power (W) 11.1
Source ux (lm) 926
System ux (lm) 664
E cacy (lm/W) 59
Lighting type Direct
Light distribution Symmetric
CCT (K) 2700
CRI> 90
Beam angle C0-180 (º) 31
Wall

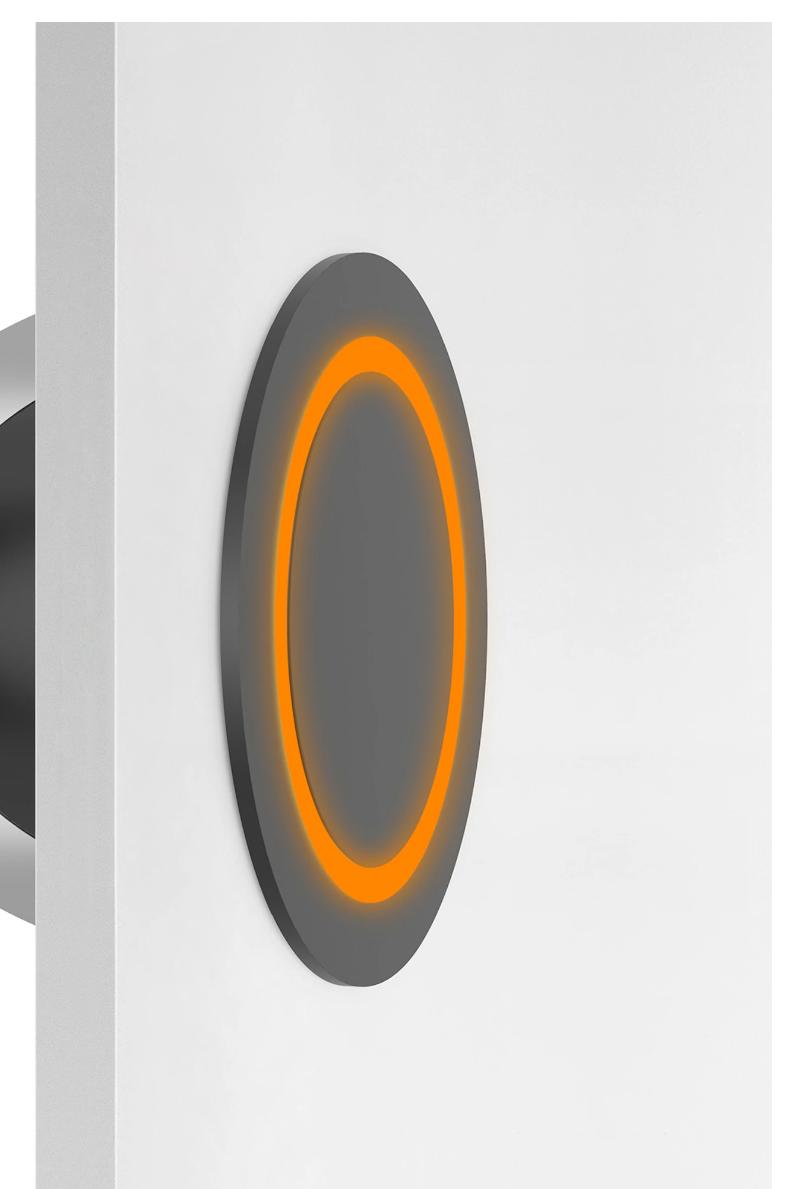

Wall sconce
Power (W) 16
System ux (lm) 1325
Light distribution Symmetric
CCT (K) 2700
CRI> 90

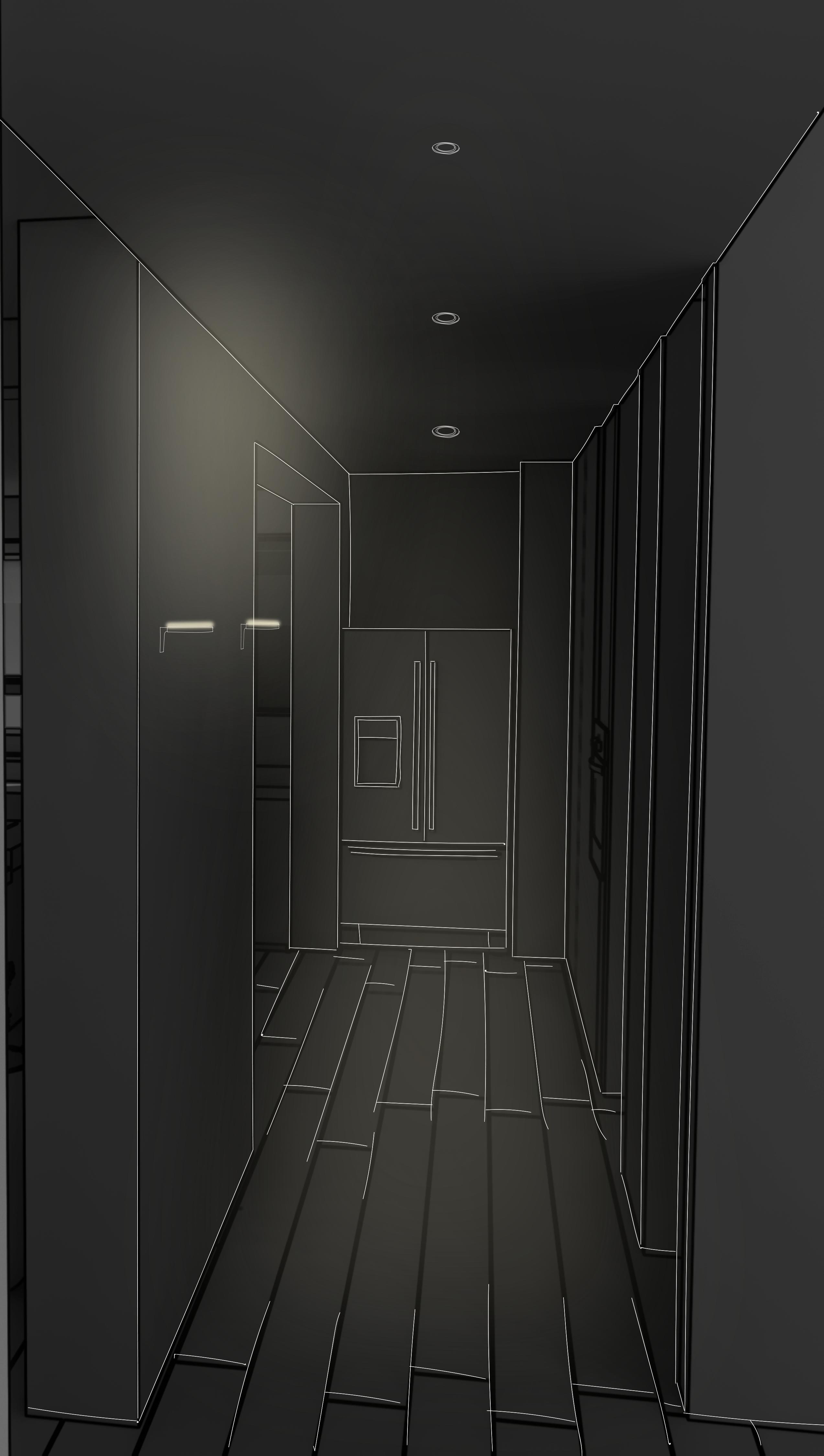

Corridor

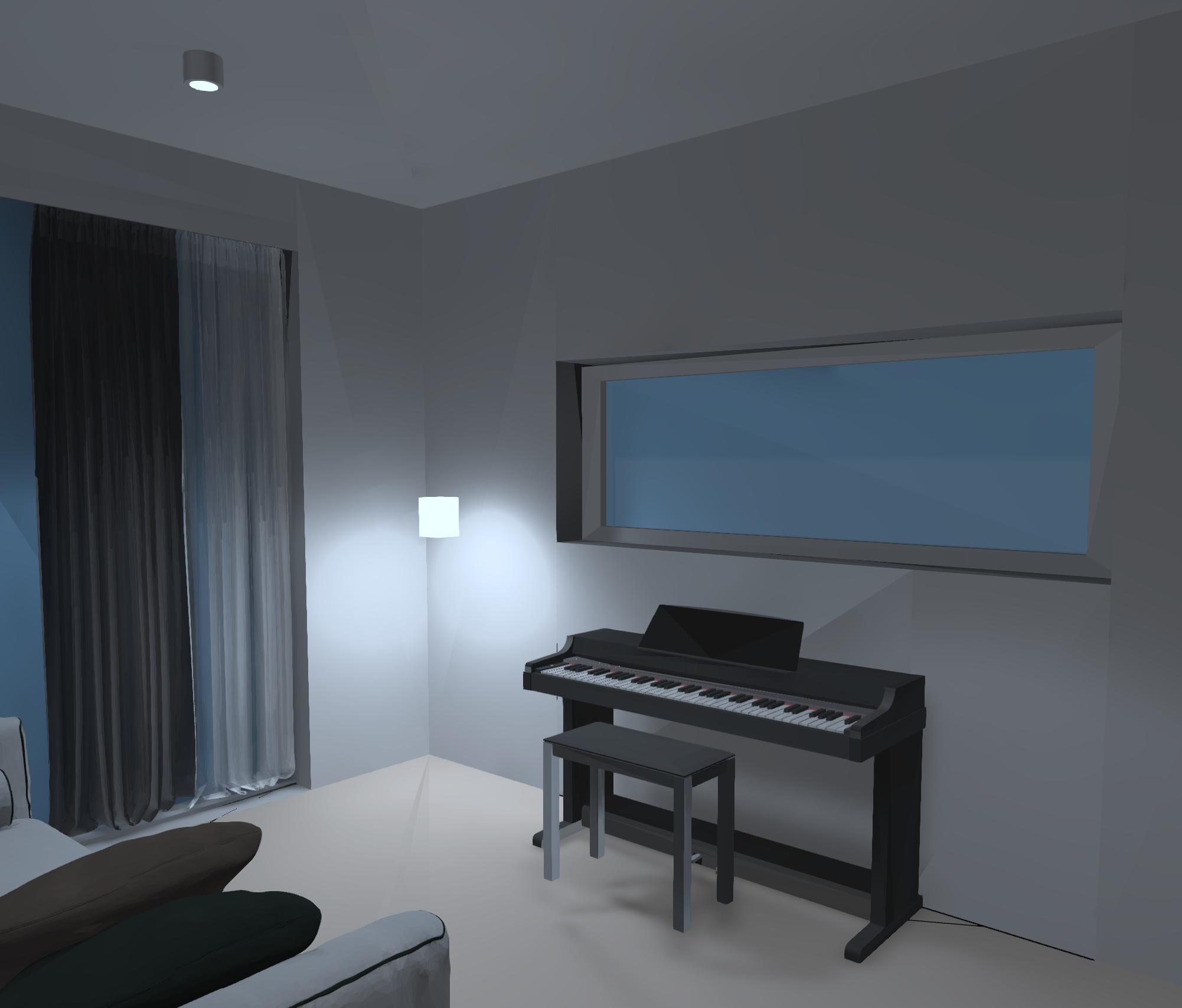

Piano Studio
200 Lux
task area spot light
Mounting Recessed
Light Source Type LED
Power (W) 8.8
System power (W) 11.1
Source ux (lm) 926
System ux (lm) 664
E cacy (lm/W) 59
Lighting type Direct
Light distribution Symmetric
CCT (K) 2700
CRI> 90
Beam angle C0-180 (º) 31

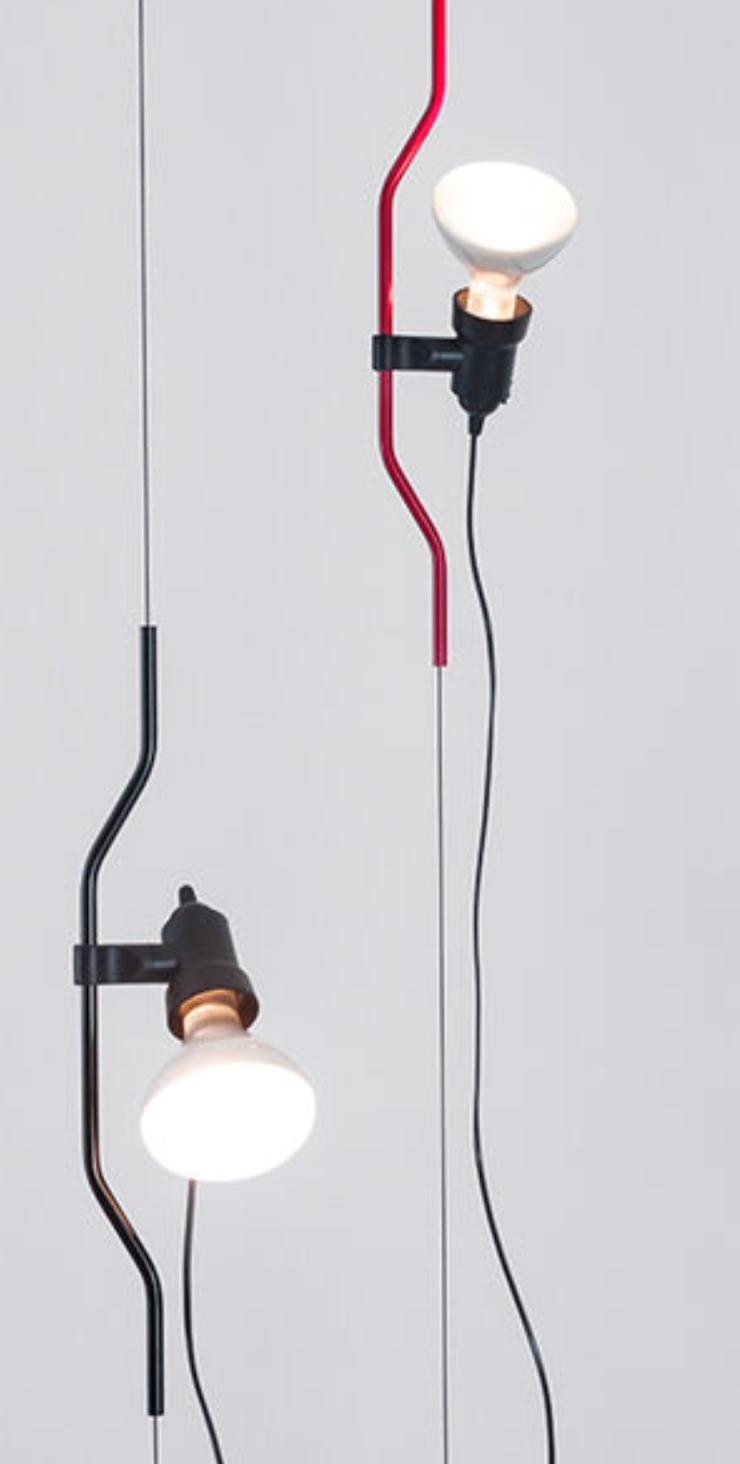

Free standing Luminaire on the piano
Mounting Suspension
Light Source Type Bulb
Lamp category Halogen
Lamp holders E27
Power (W) 150
300Lux

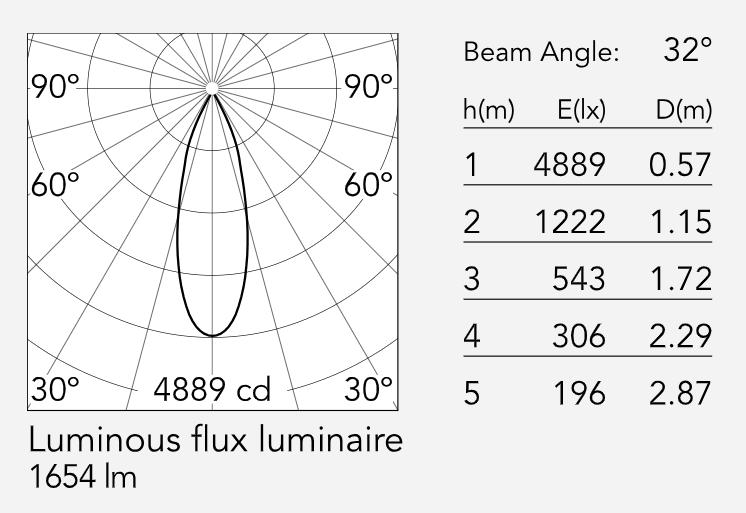

Mounting Ceiling surface
Light Source Type LED
Power (W) 34.1
Source ux (lm) 3000
System ux (lm) 1654
Light distribution Symmetric
CCT (K) 3000
CRI> 98
Beam angle C0-180 (º) 32
Mounting Recessed
Light Source Type LED
Power (W) 8.8
System power (W) 11.1
Source ux (lm) 926
System ux (lm) 664
E cacy (lm/W) 59
Lighting type Direct
Light distribution Symmetric
CCT (K) 2700
CRI> 90
Beam angle C0-180 (º) 31

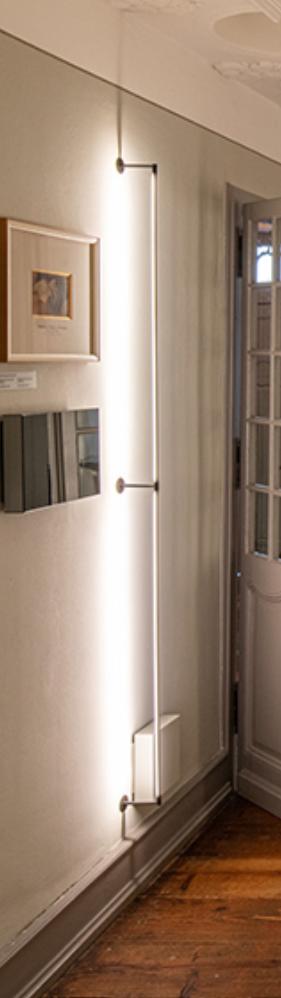

Led Linear on the counter
Tape category: Optics
Optics: Optics 20°
LED tape: VarioLED™
Color temperature: 3.000K
Length: 354 mm

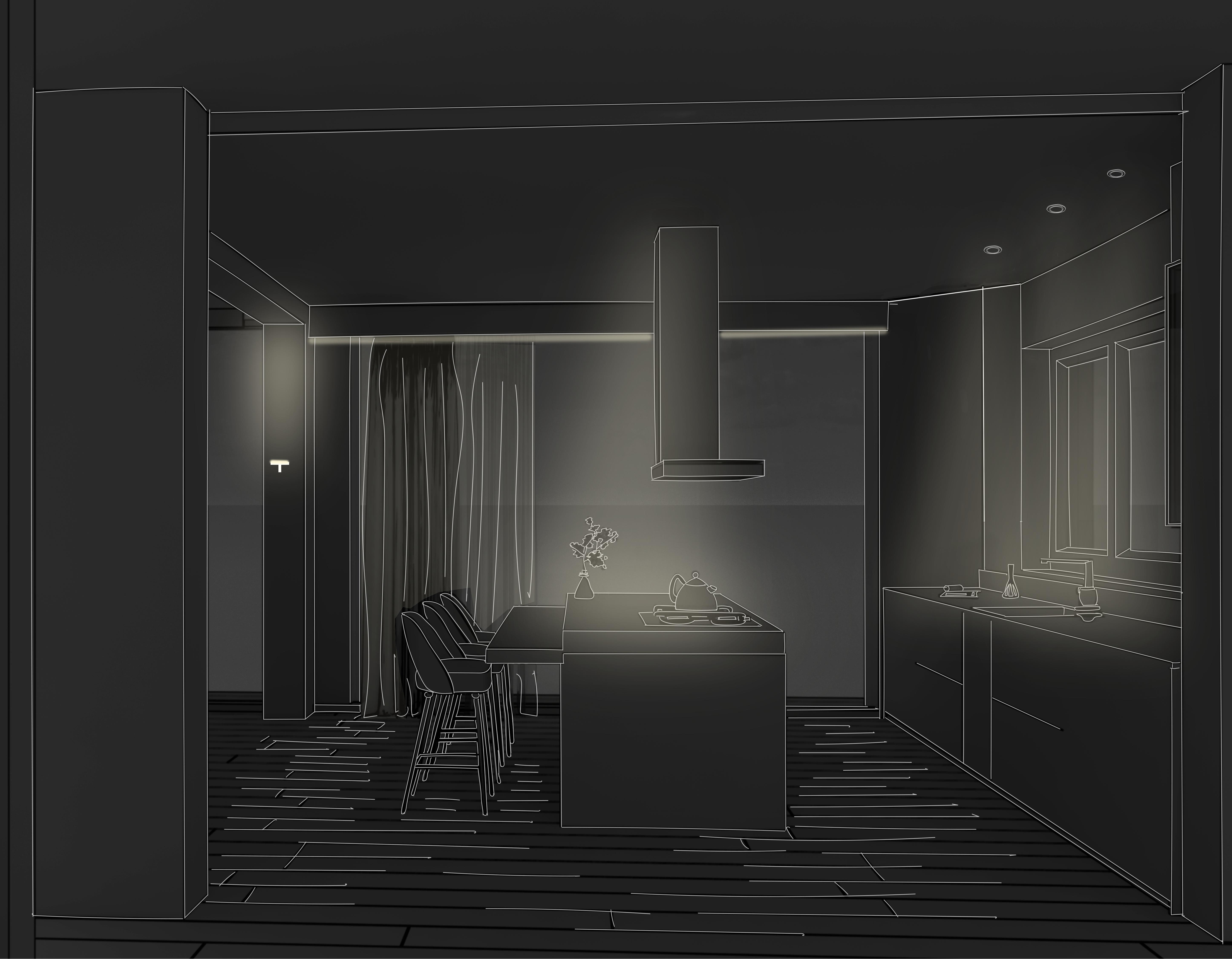

Kitchen

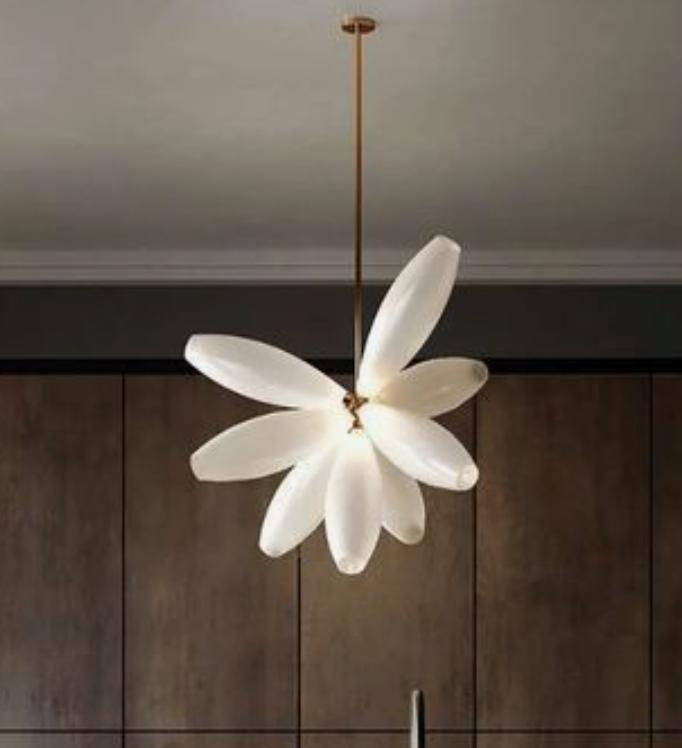

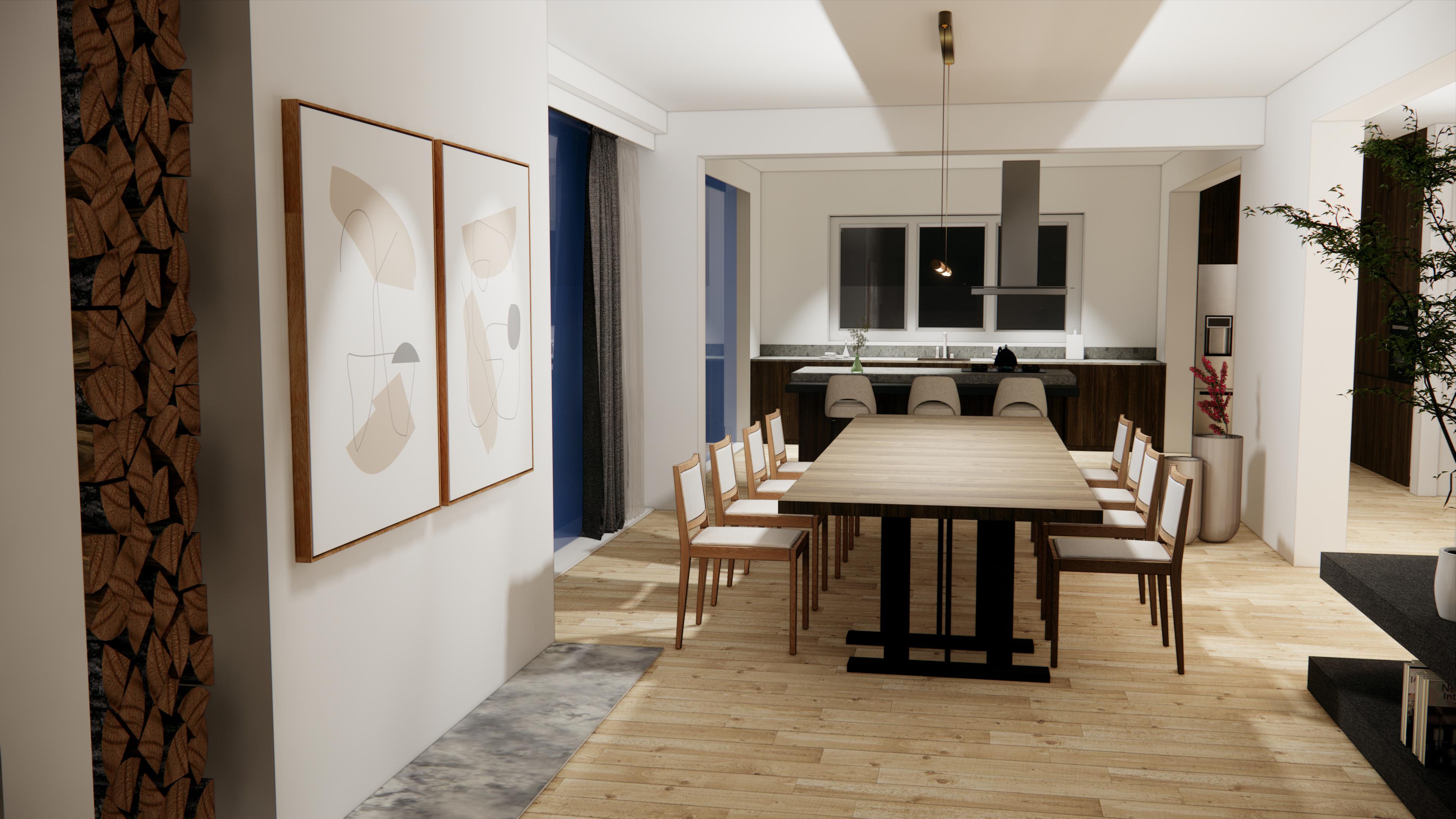

Dinning Room
200 Lux
LED
32W 5250lm - light source values
36.2W 4253lm
3000K CRI 80
Optic: GL - General lighting
Adjustability: xed
Total light ux at or above 90°
[Lm]: 590
Light Output Ratio (L.O.R.) [%]: 81

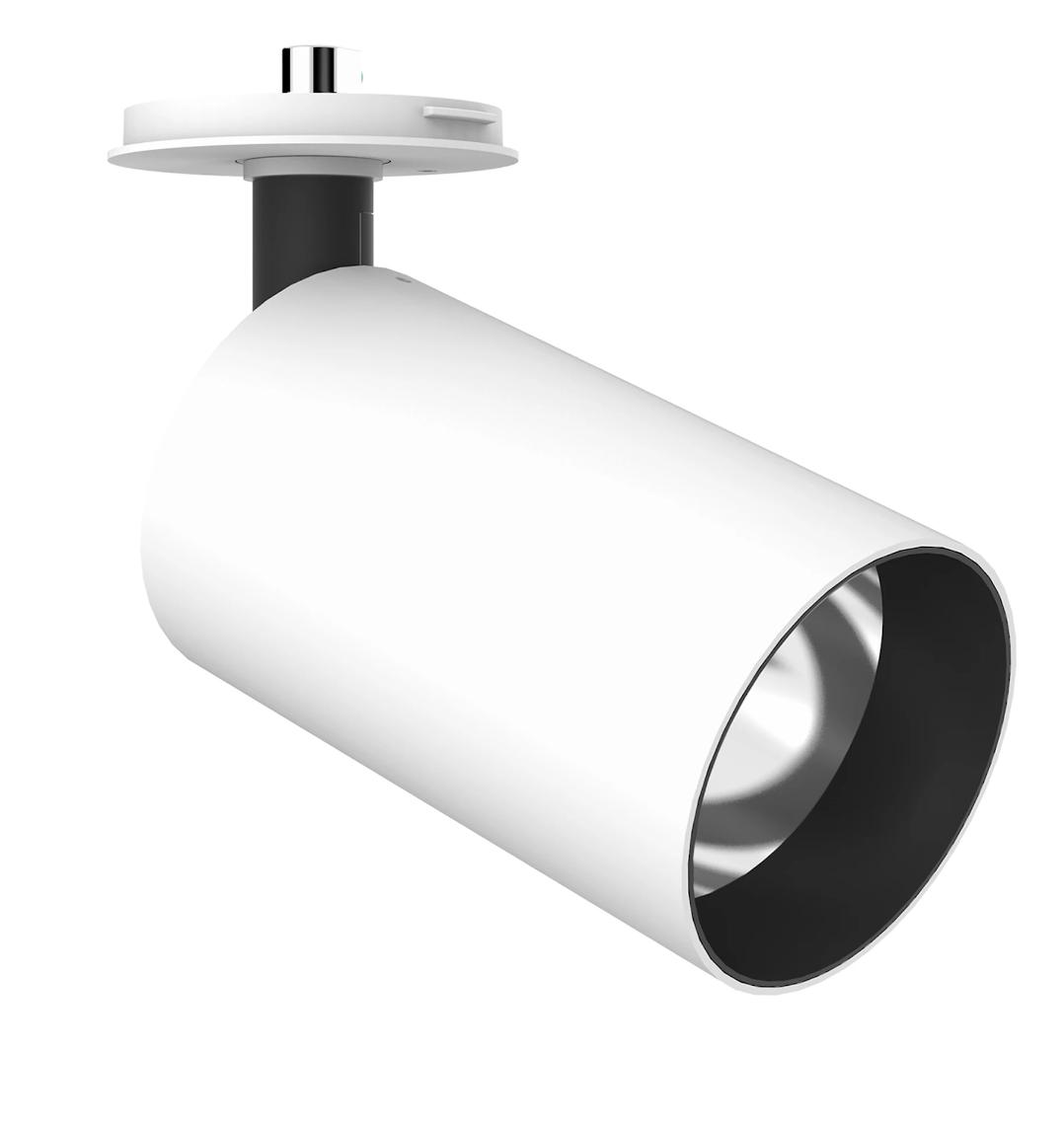

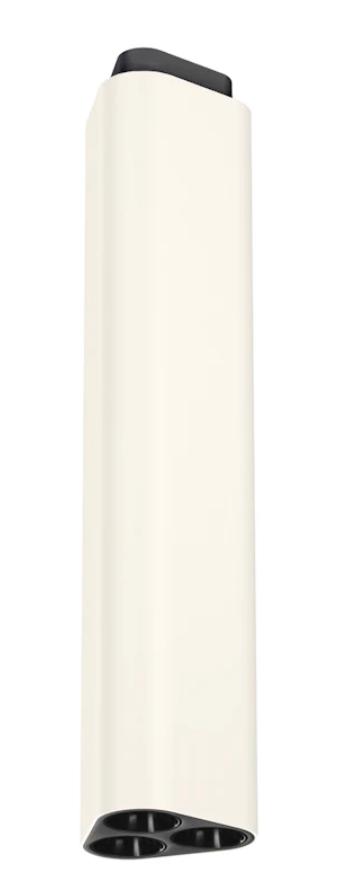

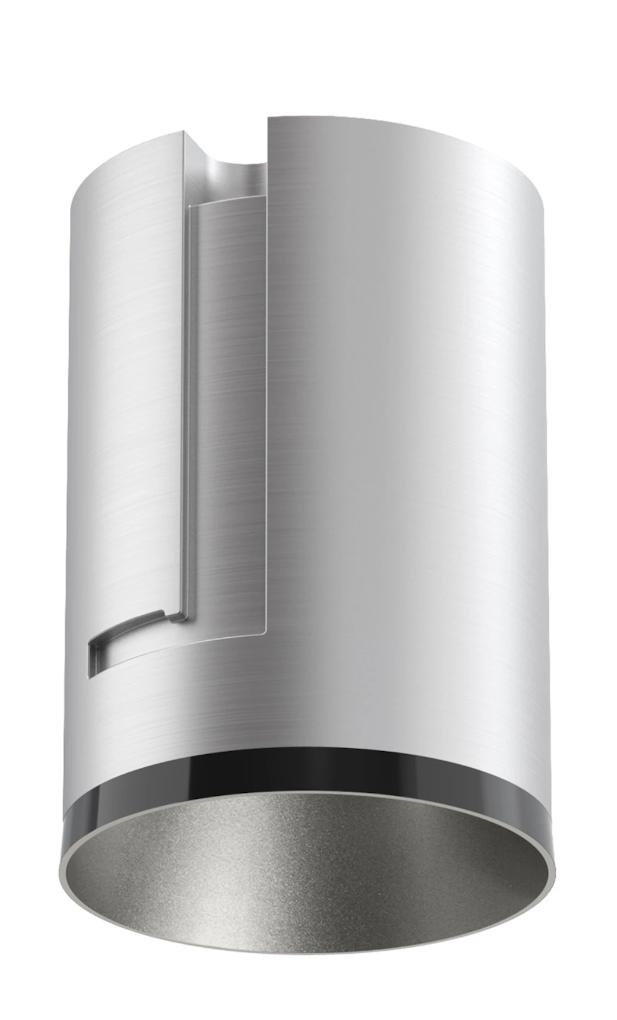

Spot Light
Mounting Ceiling surface
Lamp category LED
Power (W) 9.2
System ux (lm) 505
Lighting type Direct
Light distribution Symmetric
CCT (K) 3000
CRI> 80
Beam angle C90-270 (º) 83

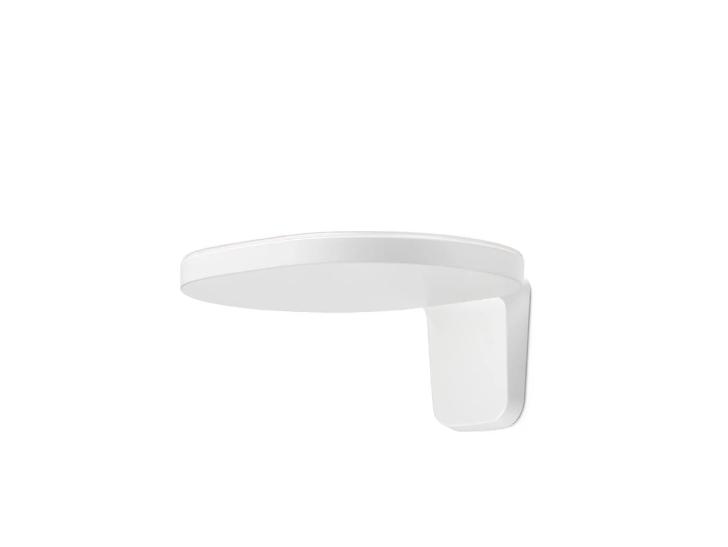

Wall Sconce
Height (28 cm) Width: (10 cm)
Adjustable wire: Maximum length is 26
inches (66 cm)
Integrated LED Wattage: 20W
Lamp Lumens: 110lm
Material: Aluminum
Power Source: Hard wired
Built-in LED Light: 3000K
Spot Light
Mounting Ceiling surface
Lamp category LED
Power (W) 9.2
System ux (lm) 505
Lighting type Direct
Light distribution Symmetric
CCT (K) 3000
CRI> 80
Beam angle C90-270 (º) 83
Led Linear under the curtain
Tape category: Optics
Optics: Optics 20°
LED tape: VarioLED™
Color temperature: 3.000K
Length: 354 mm

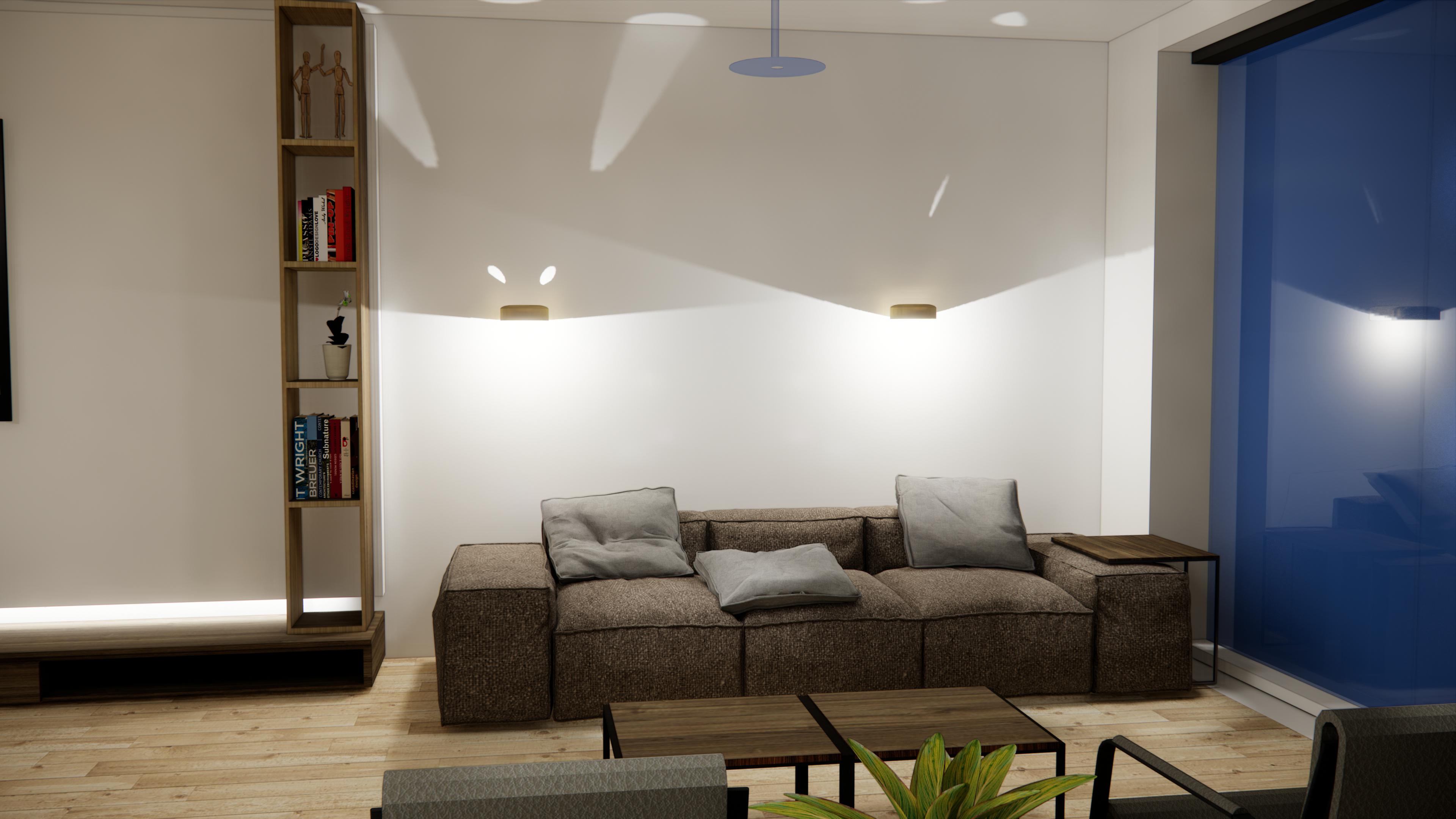

Living Room
100-200 lux dimmable
Spot Light
Mounting Ceiling surface
Light Source Type LED
Power (W) 34.1
Source ux (lm) 3000
System ux (lm) 1654
Light distribution Symmetric

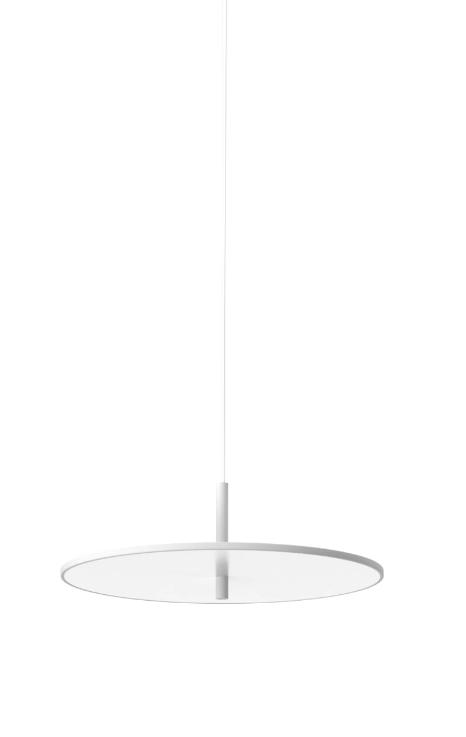

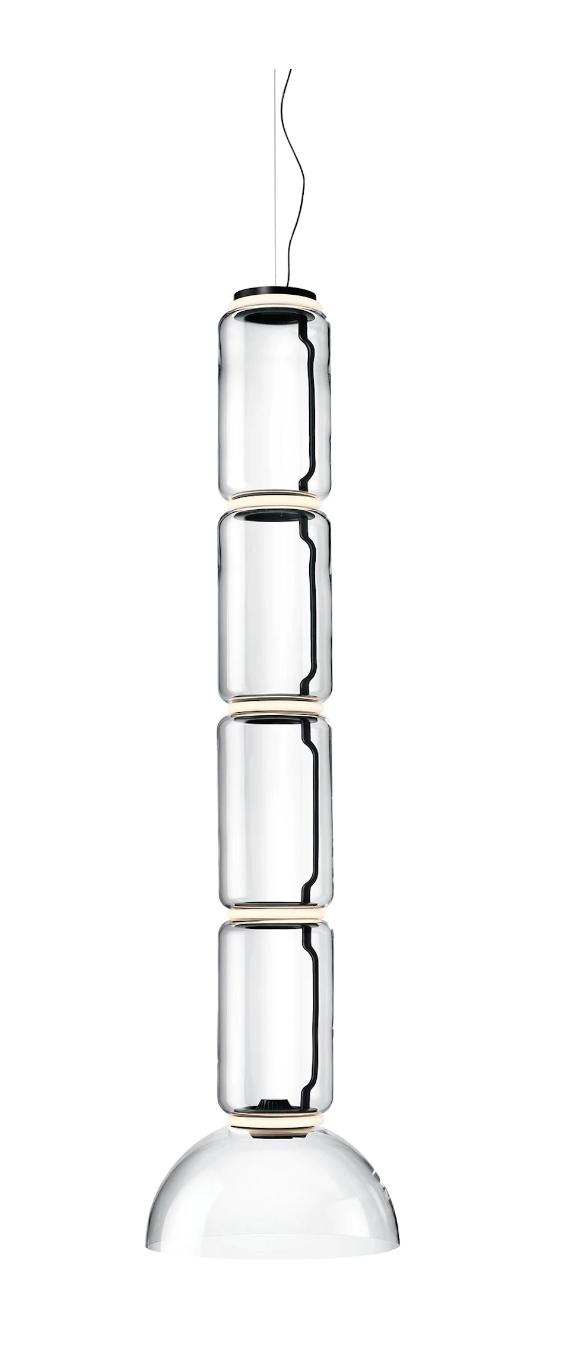

Suspension
CCT (K) 3000
CRI> 98
Beam angle C0-180 (º) 32

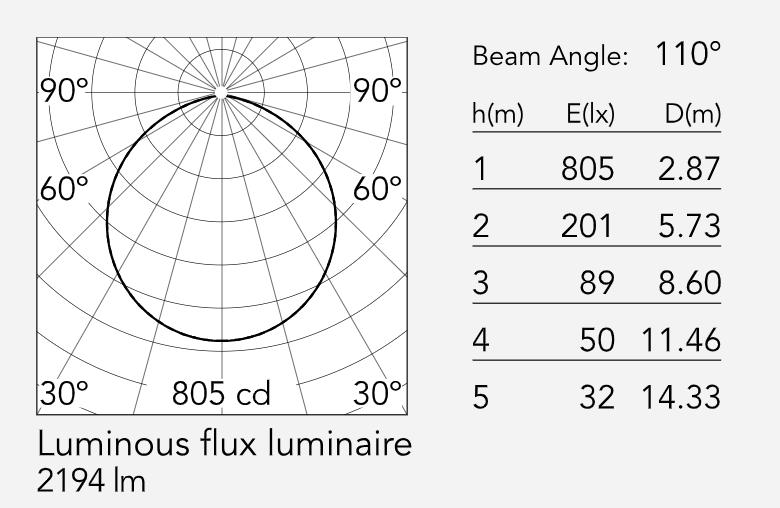

Mounting Suspension
Light Source Type LED
Power (W) 42
System ux (lm) 2194
Light distribution Roto symmetric
CCT (K) 2700
CRI> 90

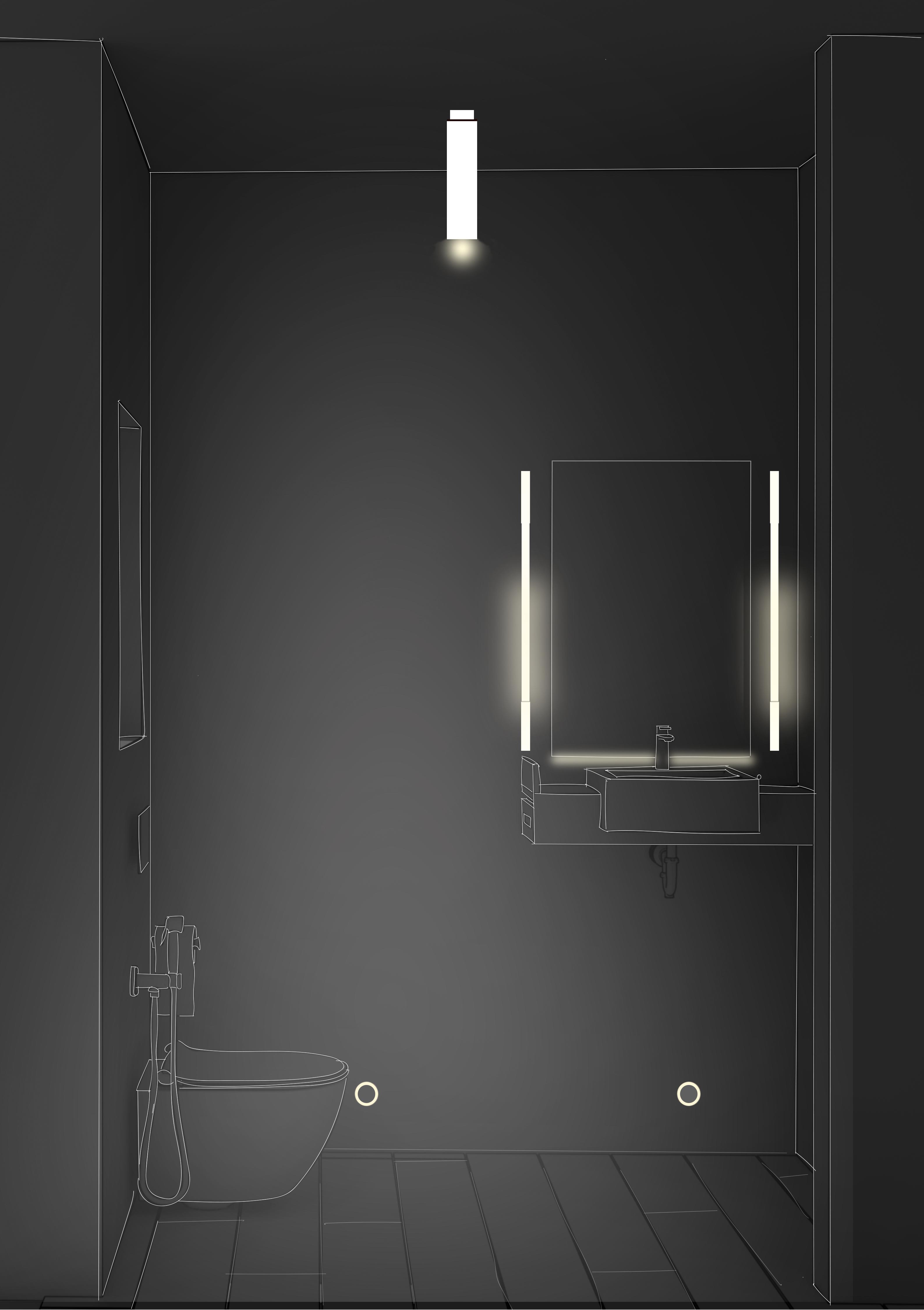

Bathroom
10-150 lux dimmable
LED - Track Lighting Wall recessed
Top LED - 1.2W - 2lm - 3000K - Beam° 72
Mirror lights
LED
32W 5250lm - light source values
36.2W 4253lm
3000K CRI 80
Optic: GL - General lighting
Adjustability: xed
Total light ux at or above 90°
[Lm]: 590

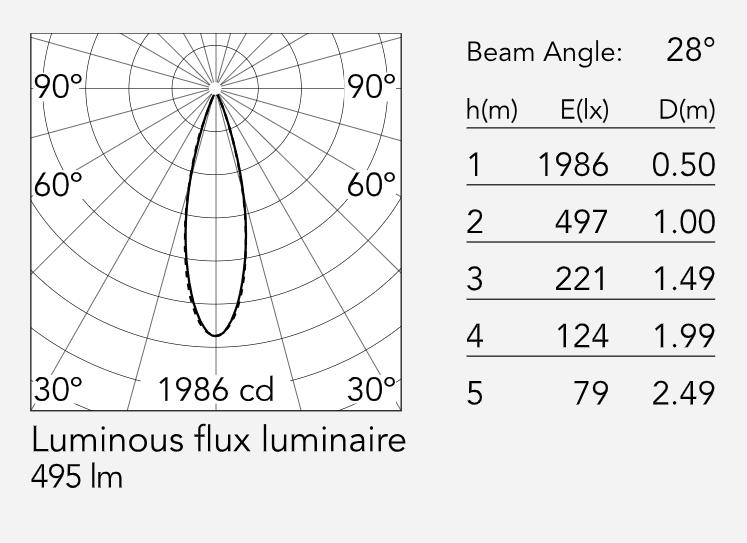

Spot Light
Mounting Ceiling surface
Lamp category LED
Power (W) 6.3
System power (W) 8.5
Source ux (lm) 607
Light distribution Symmetric
CCT (K) 2700
CRI> 90
Beam angle C0-180 (º) 28
150 lux
wall wash
Mounting Ceiling surface
Lamp category LED
Power (W) 9.2
System ux (lm) 505
Lighting type Direct
Light distribution Symmetric
CCT (K) 3000
CRI> 80
Beam angle C90-270 (º) 83

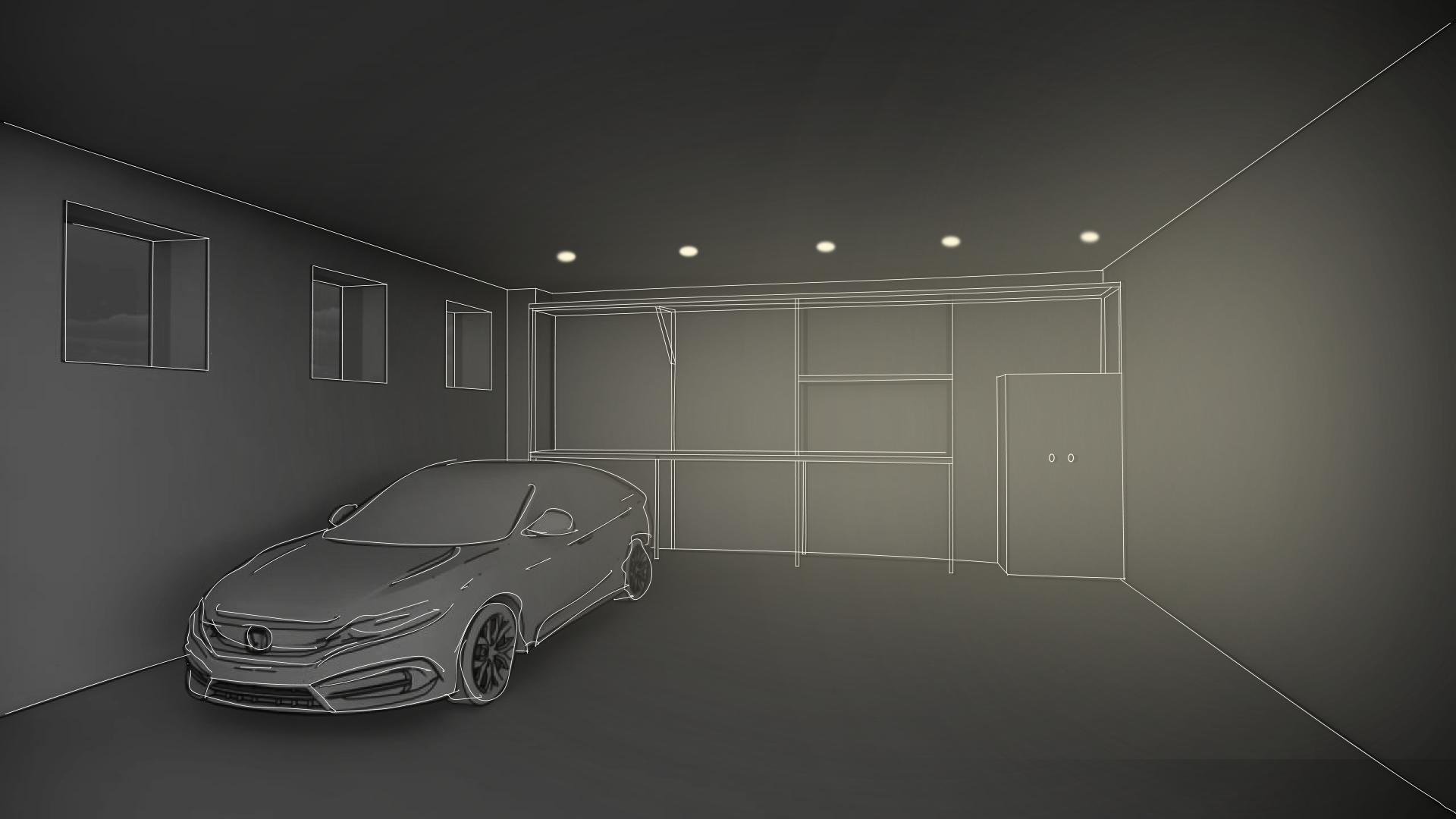

Garage

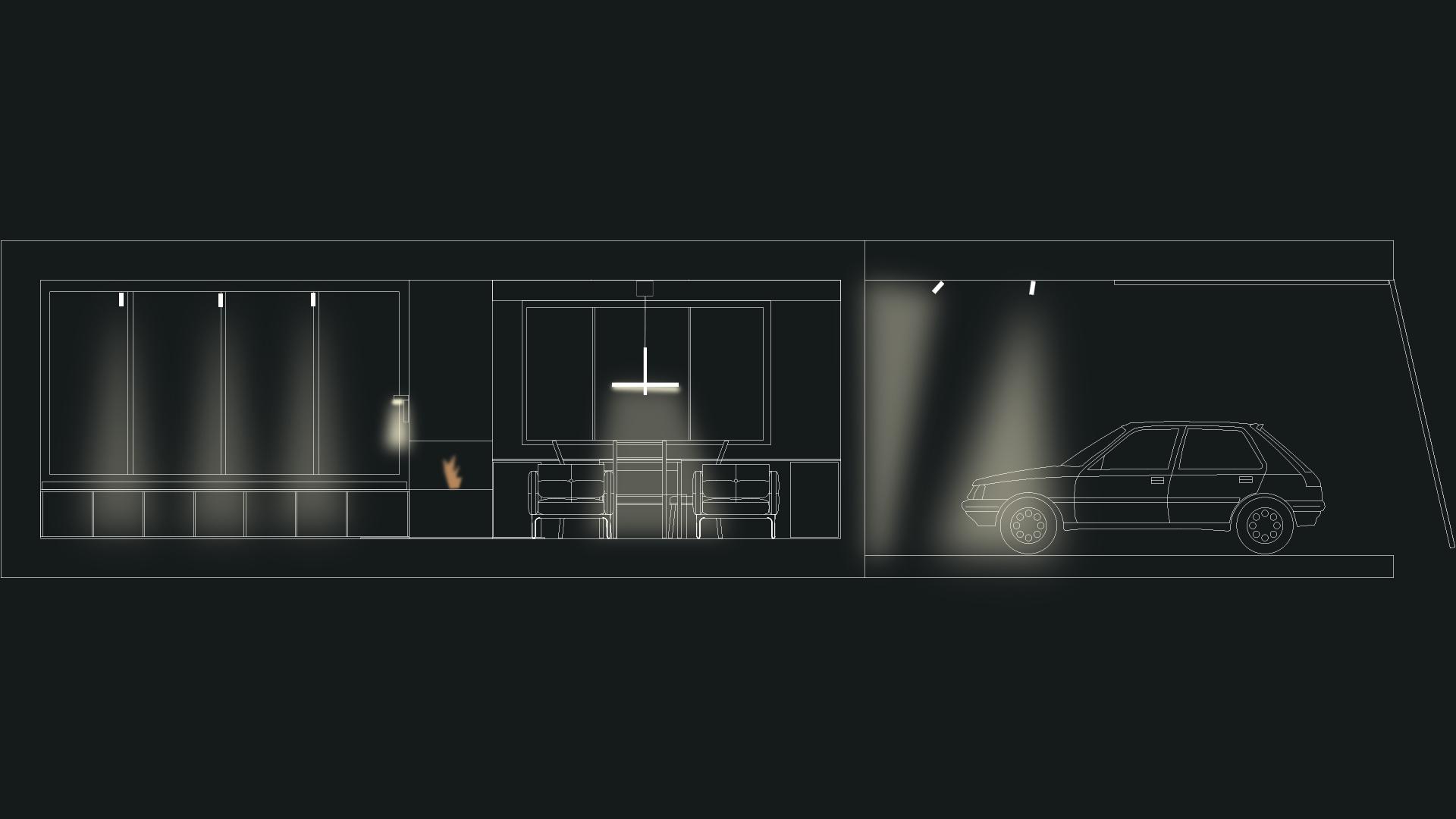

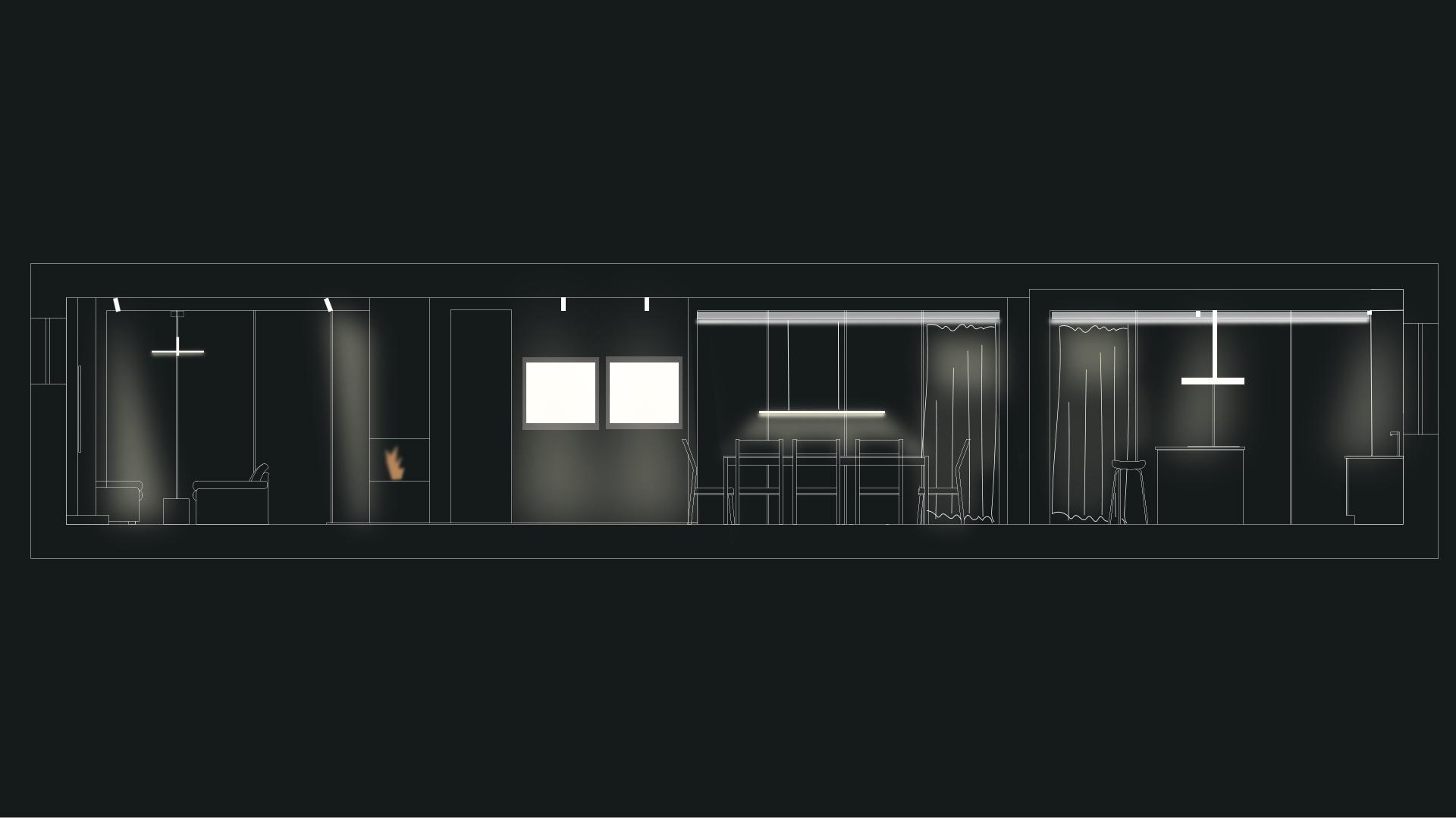

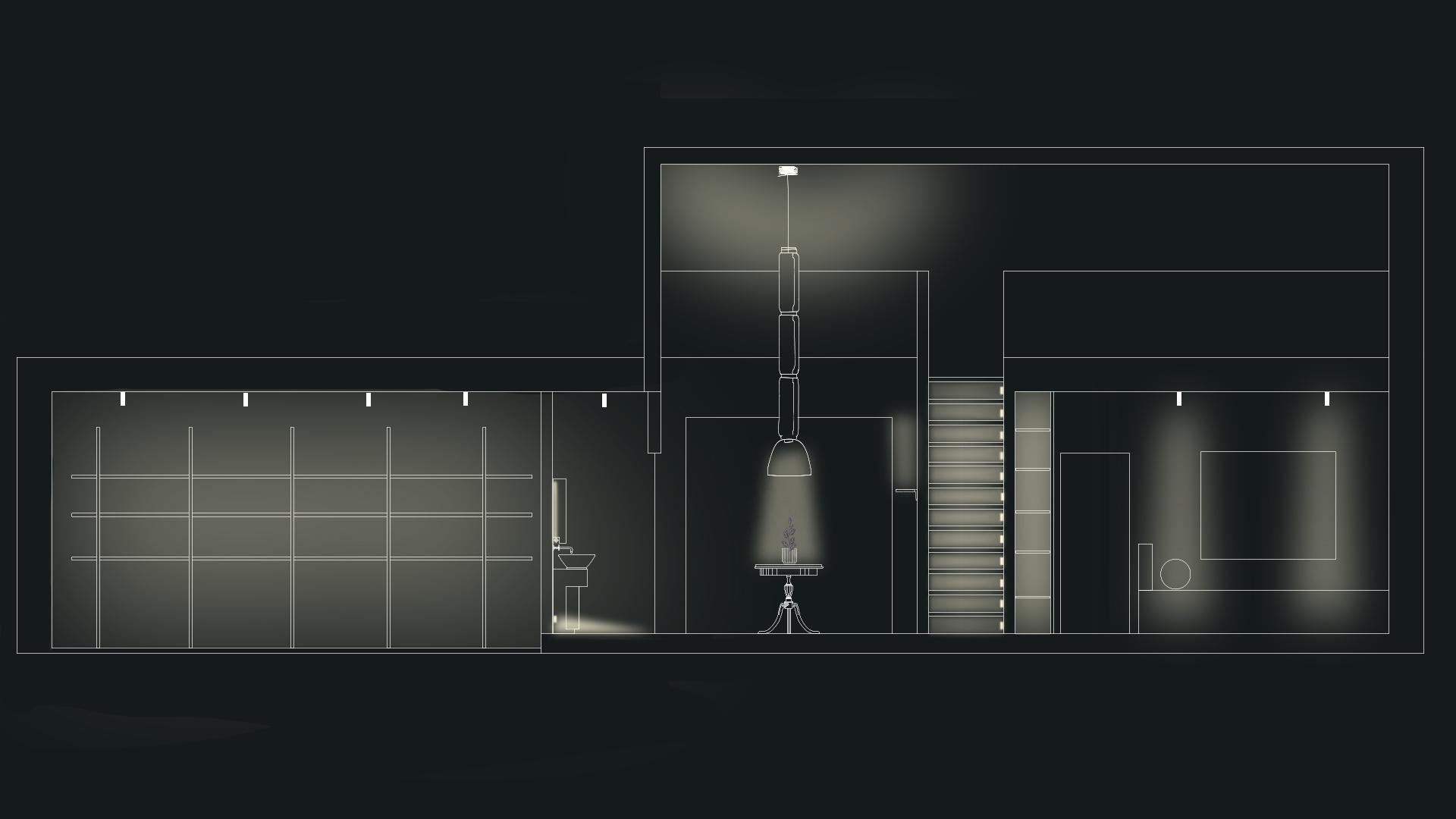

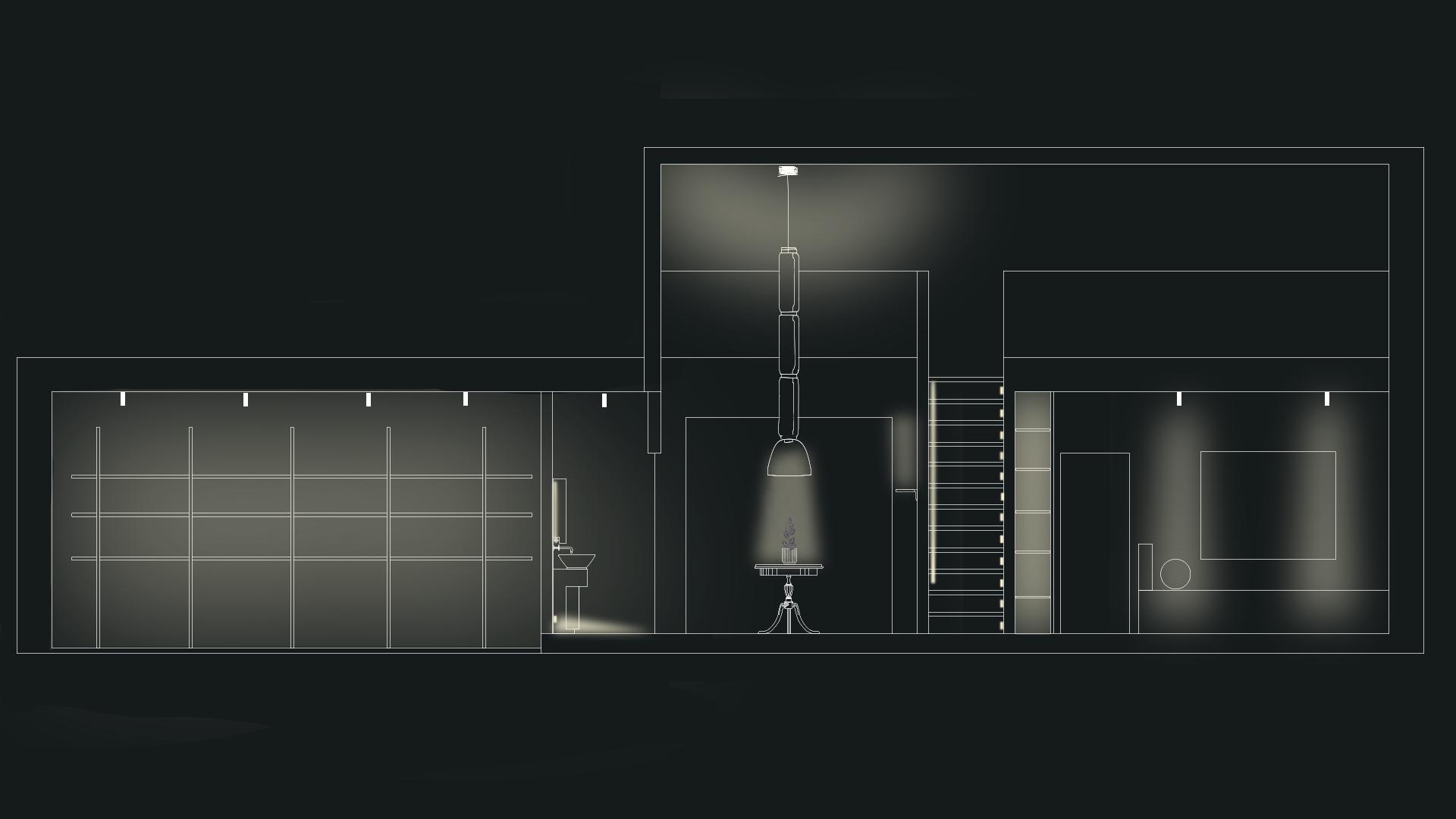

sections
trackligting for the reading area
trackligting for different use of the wall pendant luminaire for the table
spot light for kitchen, working area
diffuse light , suspended luminaire
light for the area, general light
free standing luminaire for the piano
pendant light for the living room wall light. sconce for the reading area
wall wash for the garage
wall wash for the garage
coustom made luminaire for both downlight and uplight for the ceiling
path light for the stairs from both sides
sconce up light for the entrance ledlight for the library
general lighting
wall light for the stairs

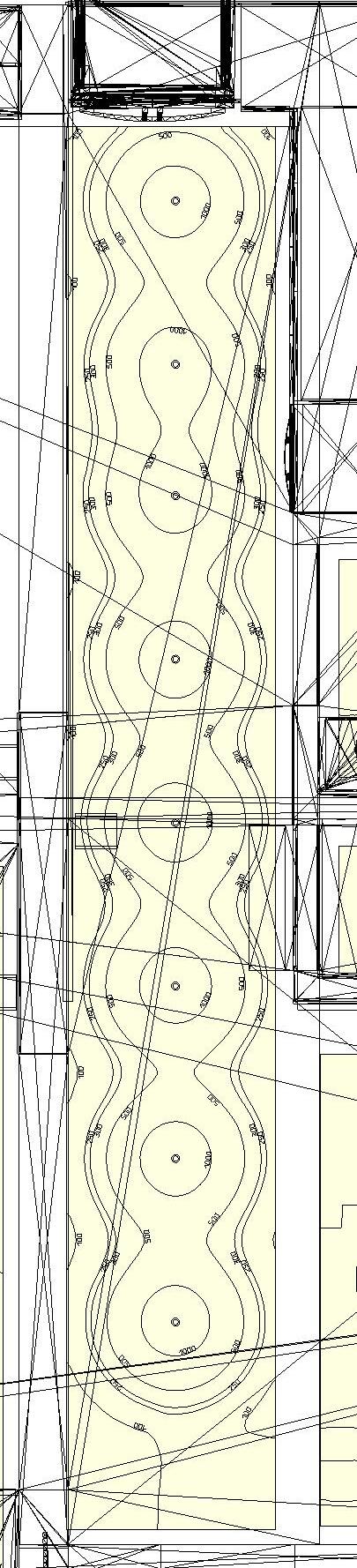

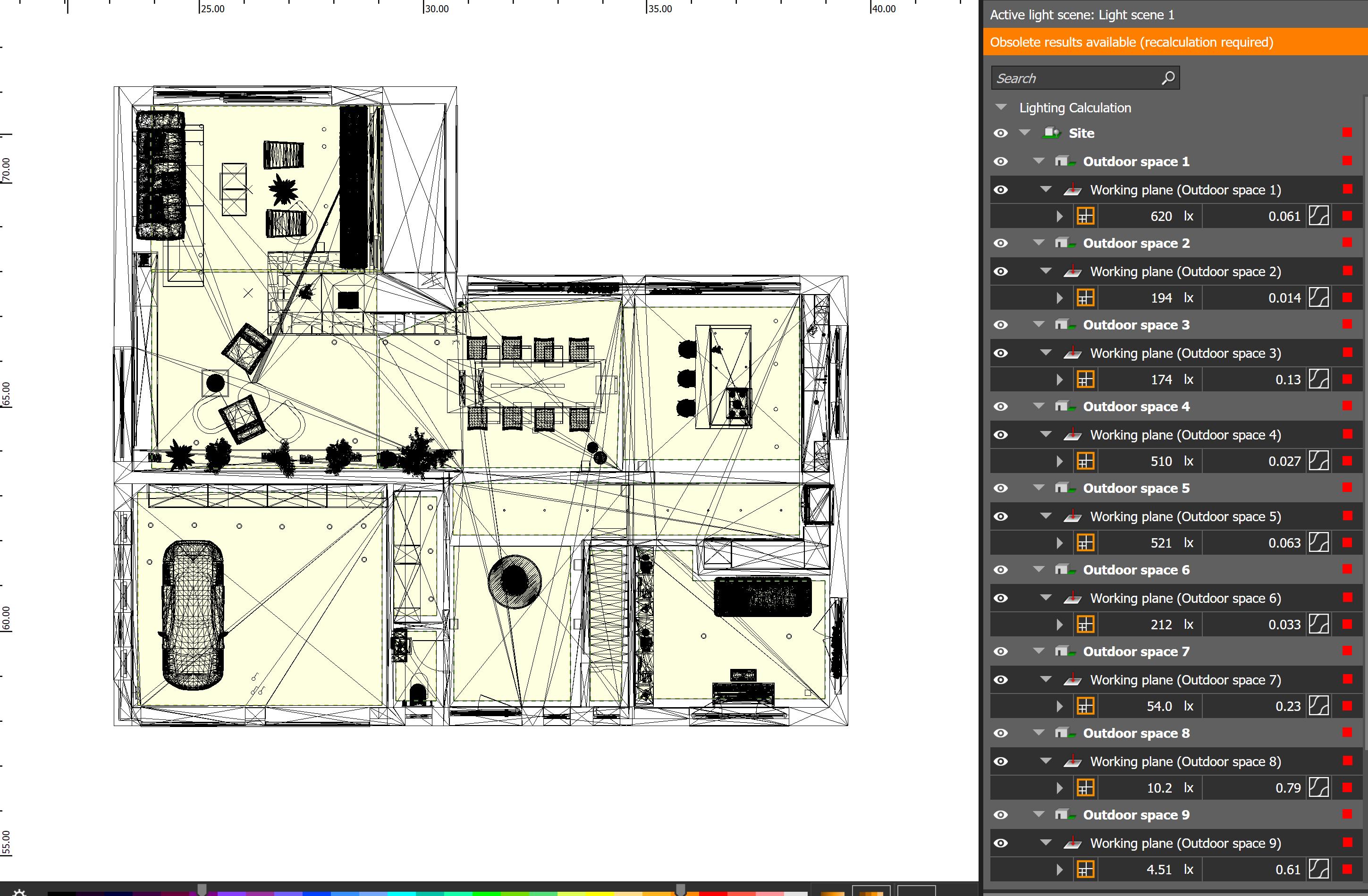

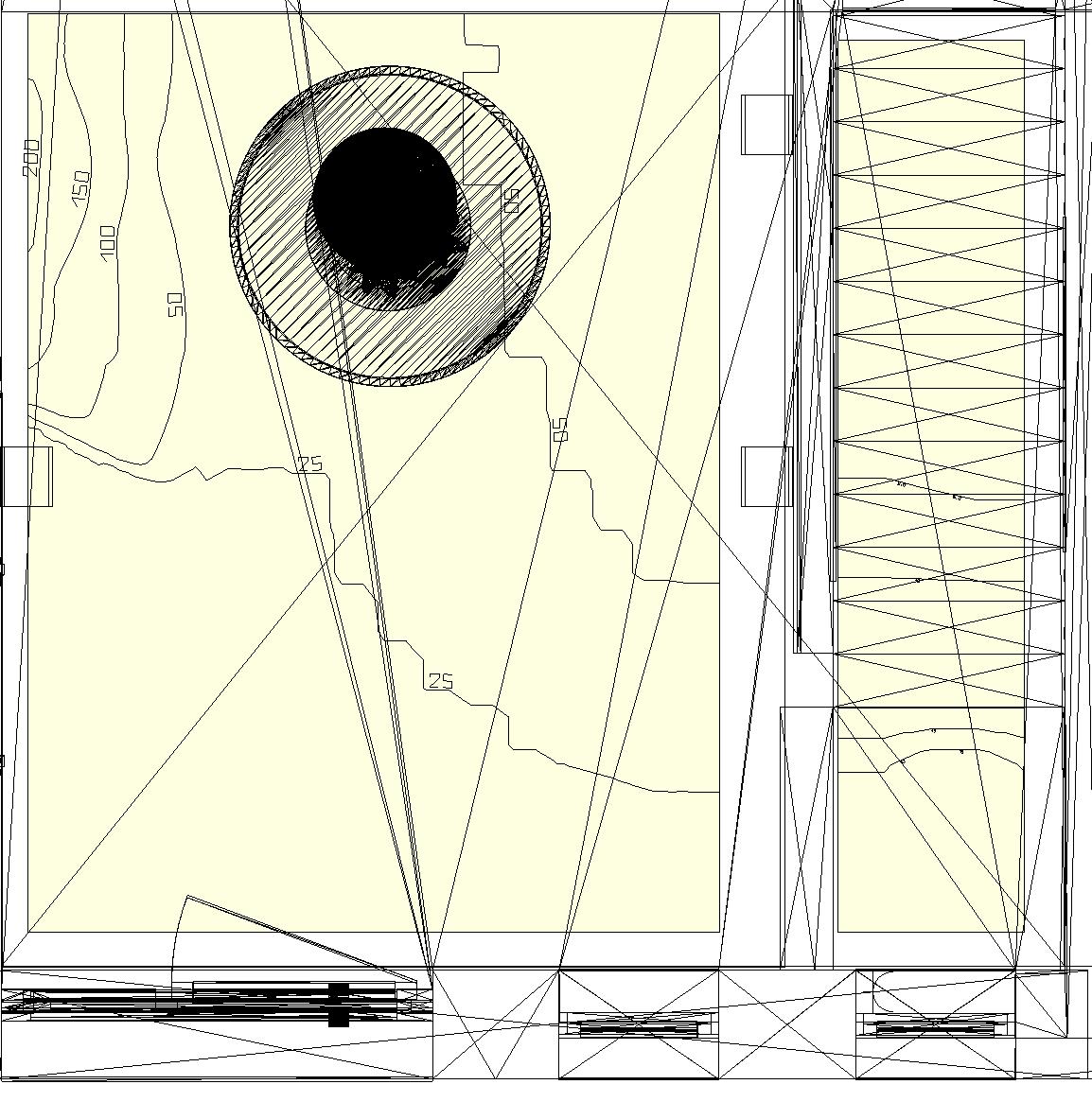

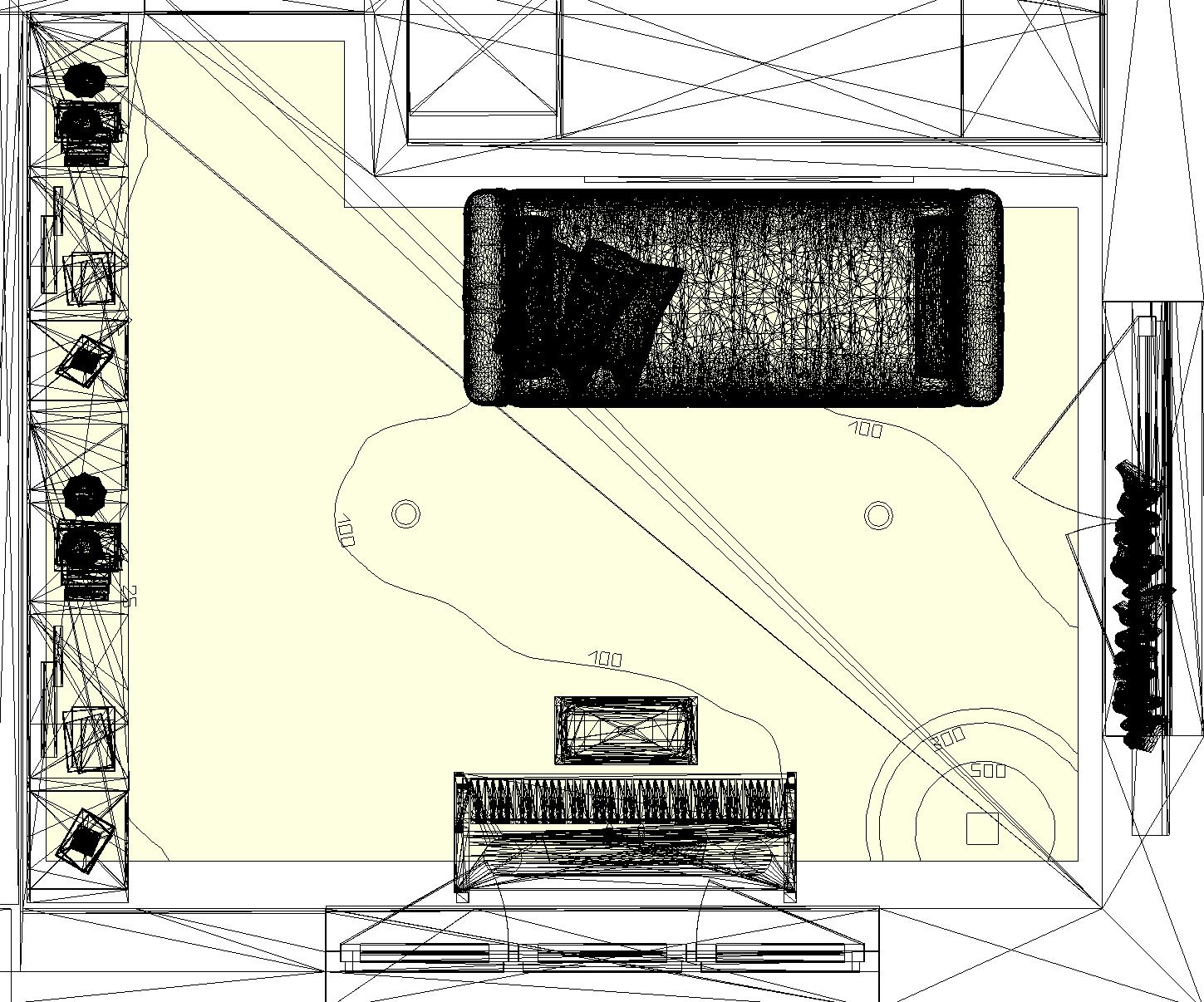

Calculation
50-100 Lux
Entrance
100 Lux-dimmable
Stairs
200 lux
Dinning room
Kitchen area
300 lux
100-200lux
Studio
Living Room
100-200 lux dimmable
Corridor area

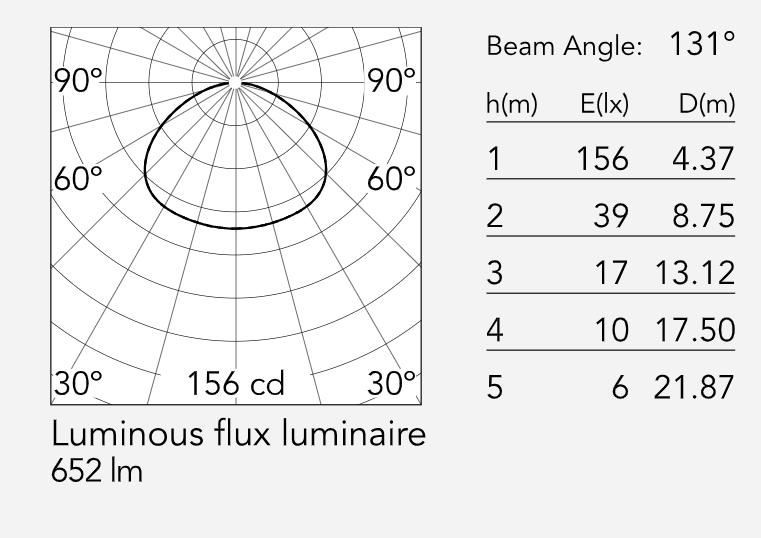

Luminaire choice
LED - Track Lighting Wall recessed
Top LED - 1.2W - 2lm - 3000K - Beam° 72
Mounting Ceiling surface
Lamp category LED
Power (W) 6.3
System power (W) 8.5
Source ux (lm) 607
Light distribution Symmetric
CCT (K) 2700
CRI> 90
Beam angle C0-180 (º) 28
Lighting type Total
Light distribution Symmetric
CCT (K) 2700
CRI> 90
Main voltage (Vac) 120-277
Led Linear on the counter
Tape category: Optics
Optics: Optics 20°
LED tape: VarioLED™
Color temperature: 3.000K
Wall Wall sconce Power (W) 16
System ux (lm) 1325
Light distribution Symmetric
CCT (K) 2700
CRI> 90
Length: 354 mm
Mounting Ceiling surface
Light Source Type LED
Power (W) 34.1
Source ux (lm) 3000
System ux (lm) 1654
Light distribution Symmetric
CCT (K) 3000
CRI> 98
Beam angle C0-180 (º) 32
Mounting Suspension
Light Source Type LED
Power (W) 42
System ux (lm) 2194
Light distribution Roto symmetric
CCT (K) 2700
CRI> 90
Mounting Recessed
Light Source Type LED
Power (W) 8.8
System power (W) 11.1
Source ux (lm) 926
System ux (lm) 664
E cacy (lm/W) 59
Lighting type Direct
Light distribution Symmetric
CCT (K) 2700
CRI> 90
Beam angle C0-180 (º) 31
Mounting Suspension
Light Source Type Bulb
Lamp category Halogen
Lamp holders E27
Power (W) 150
Mounting Ceiling surface
Lamp category LED
Power (W) 9.2
System ux (lm) 505
Lighting type Direct
Light distribution Symmetric CCT (K) 3000
CRI> 80
Beam angle C90-270 (º) 83
LED
32W 5250lm - light source values
36.2W 4253lm
3000K CRI 80
Optic: GL - General lighting
Adjustability: xed
Total light ux at or above 90°
[Lm]: 590
Light Output Ratio (L.O.R.) [%]: 81 LED

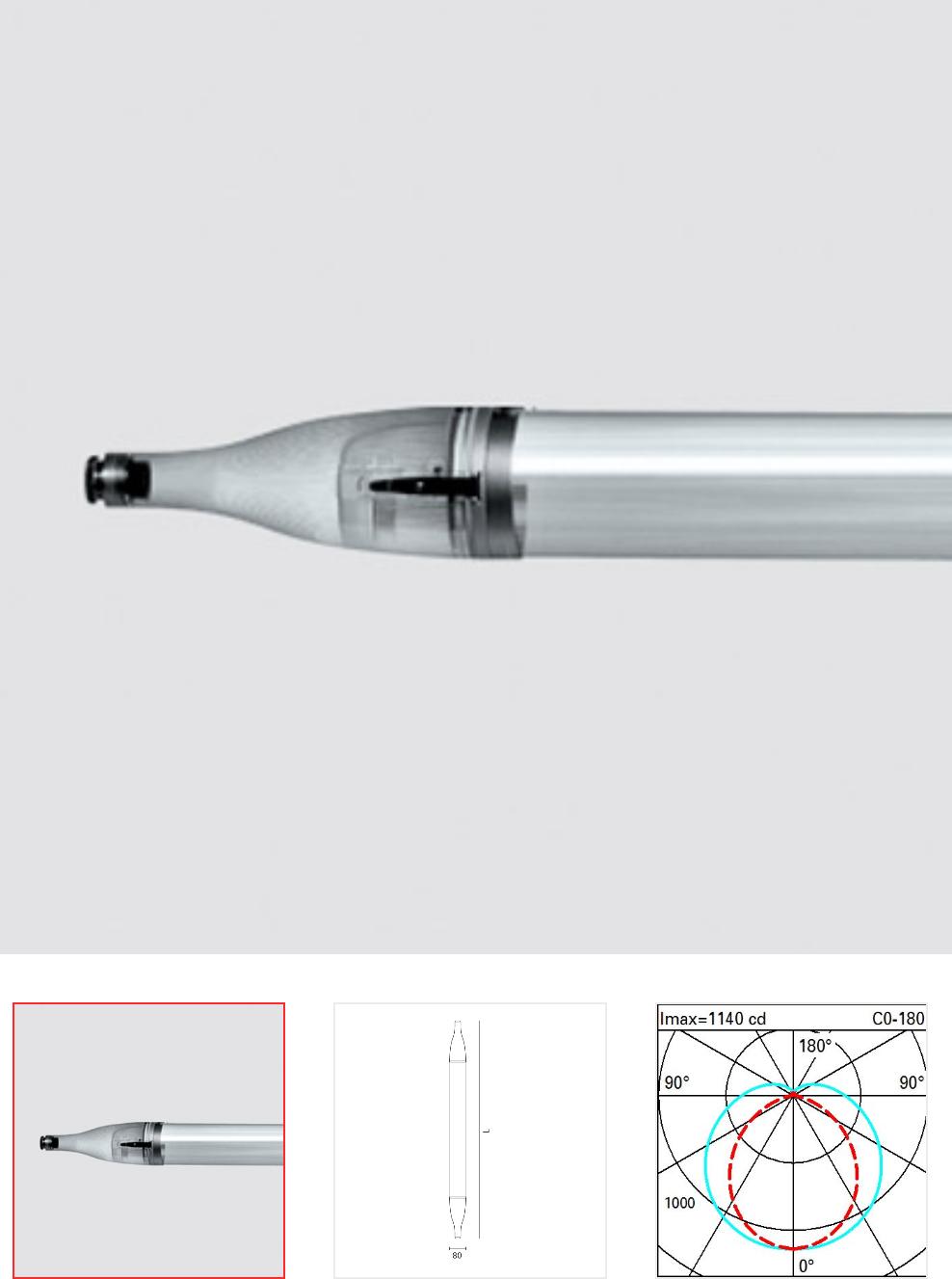

LED table display light, pro le Ø 10 mm, 360° rotatable 7W ~400 lm/m at 4000 K
~50° or ~60° BEAM ANGLE

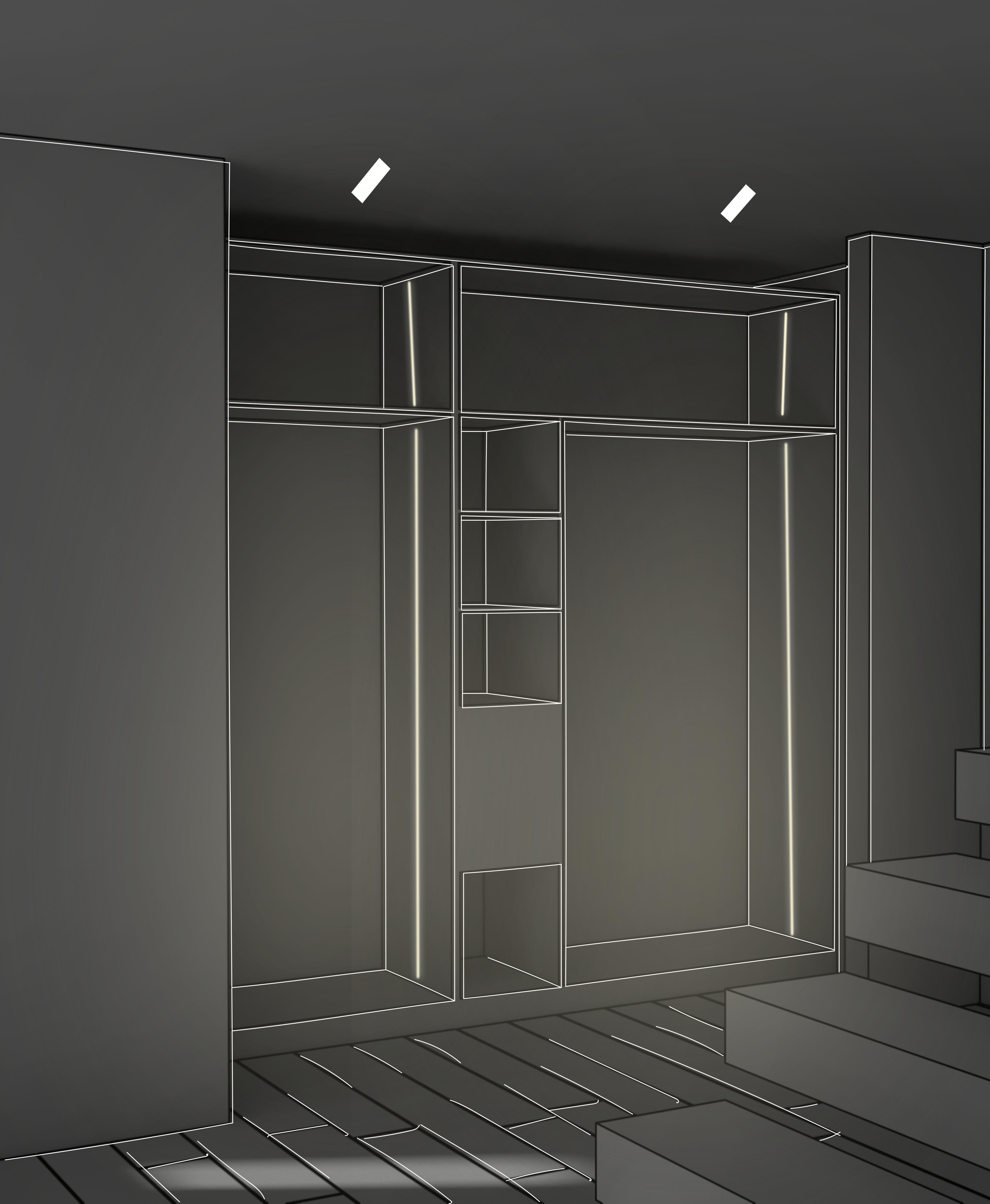

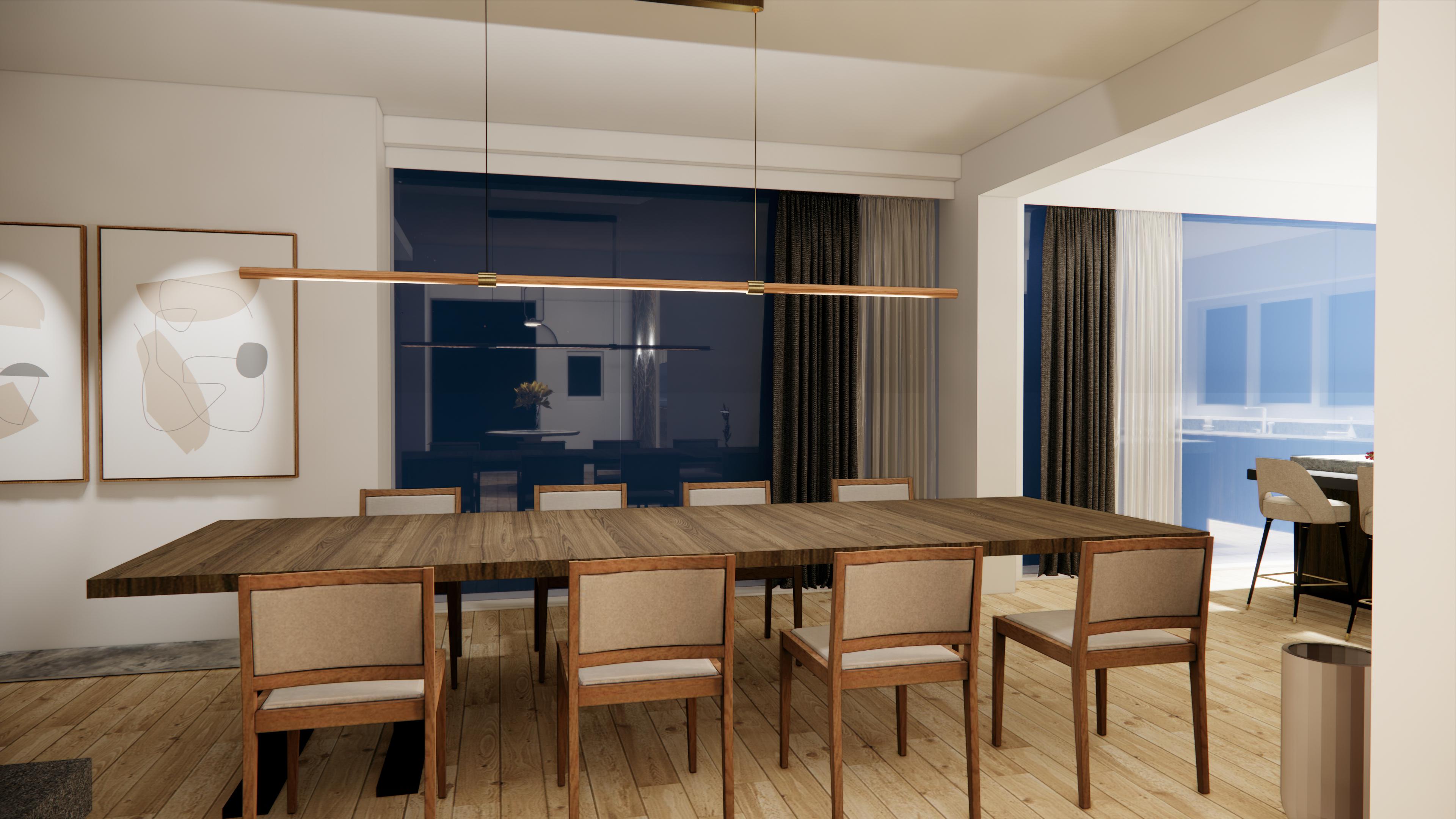

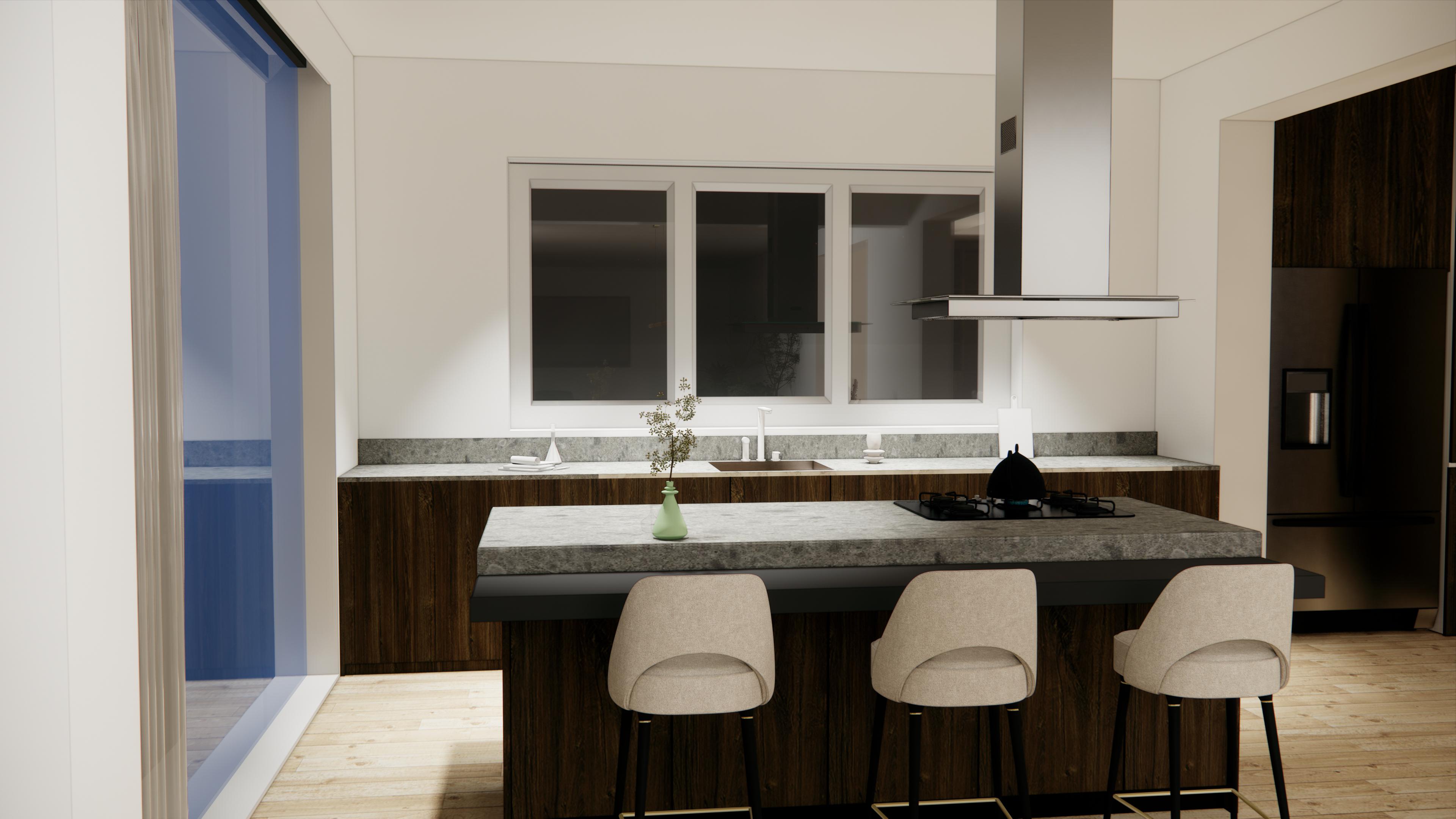

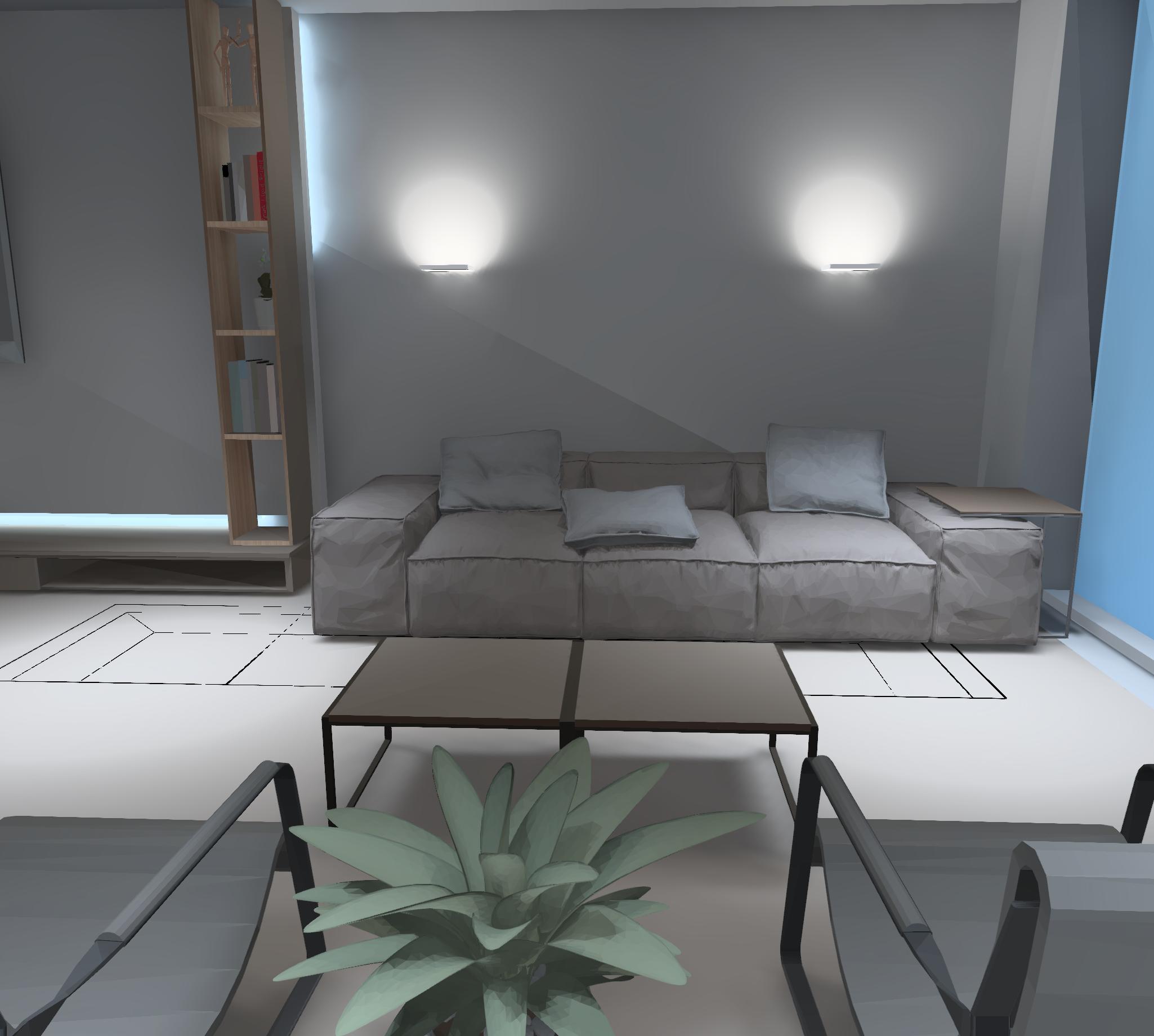

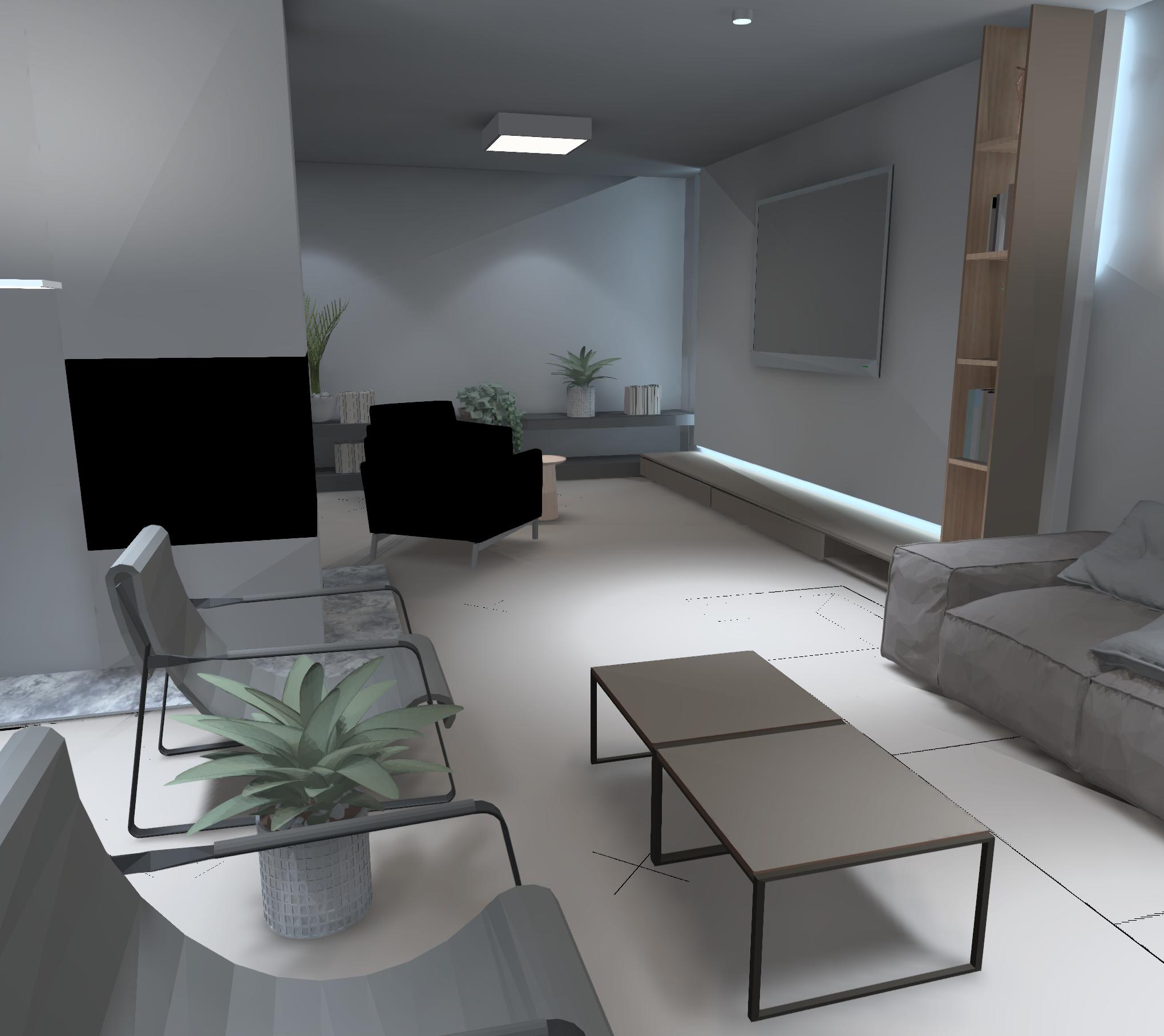

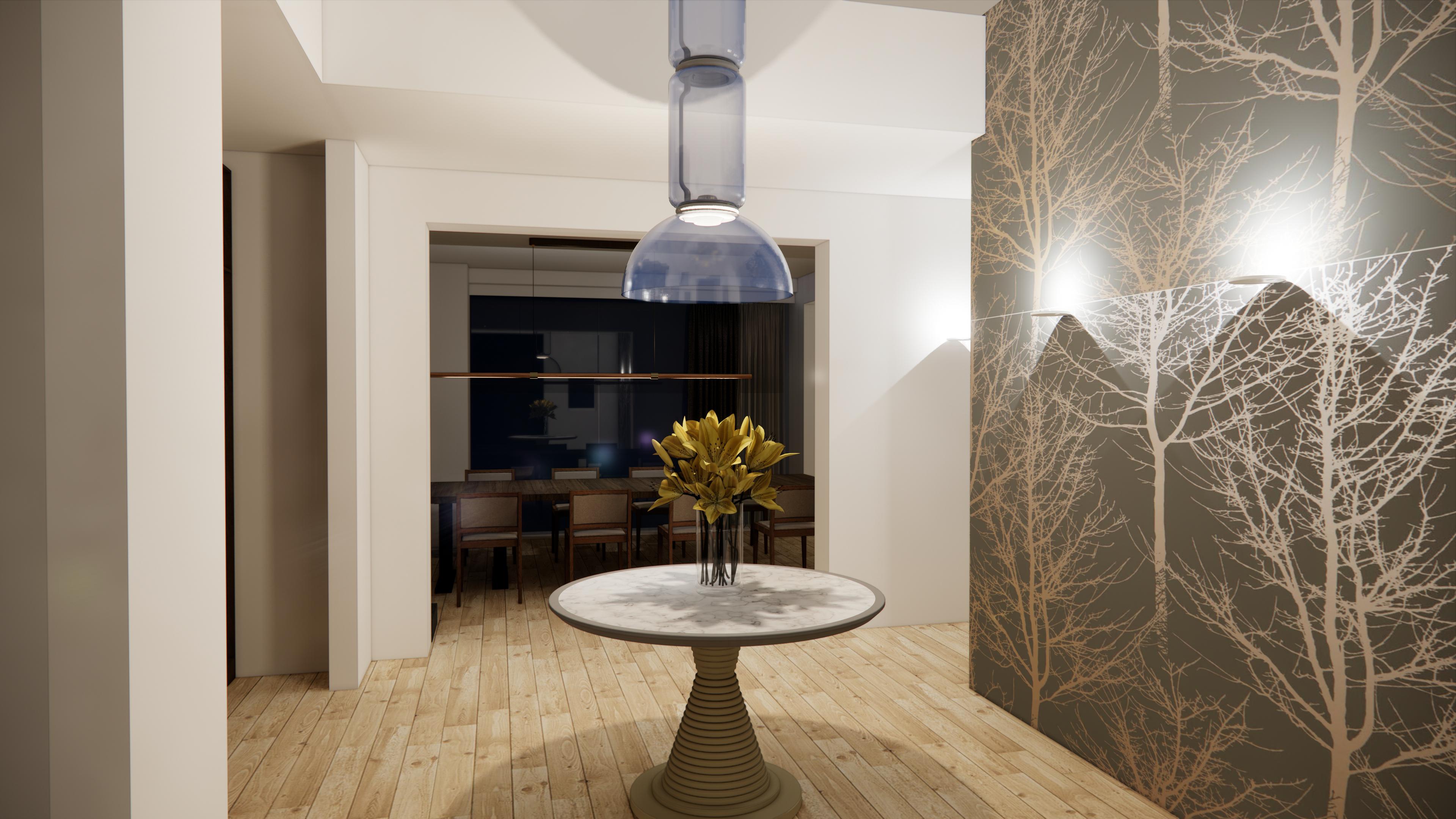

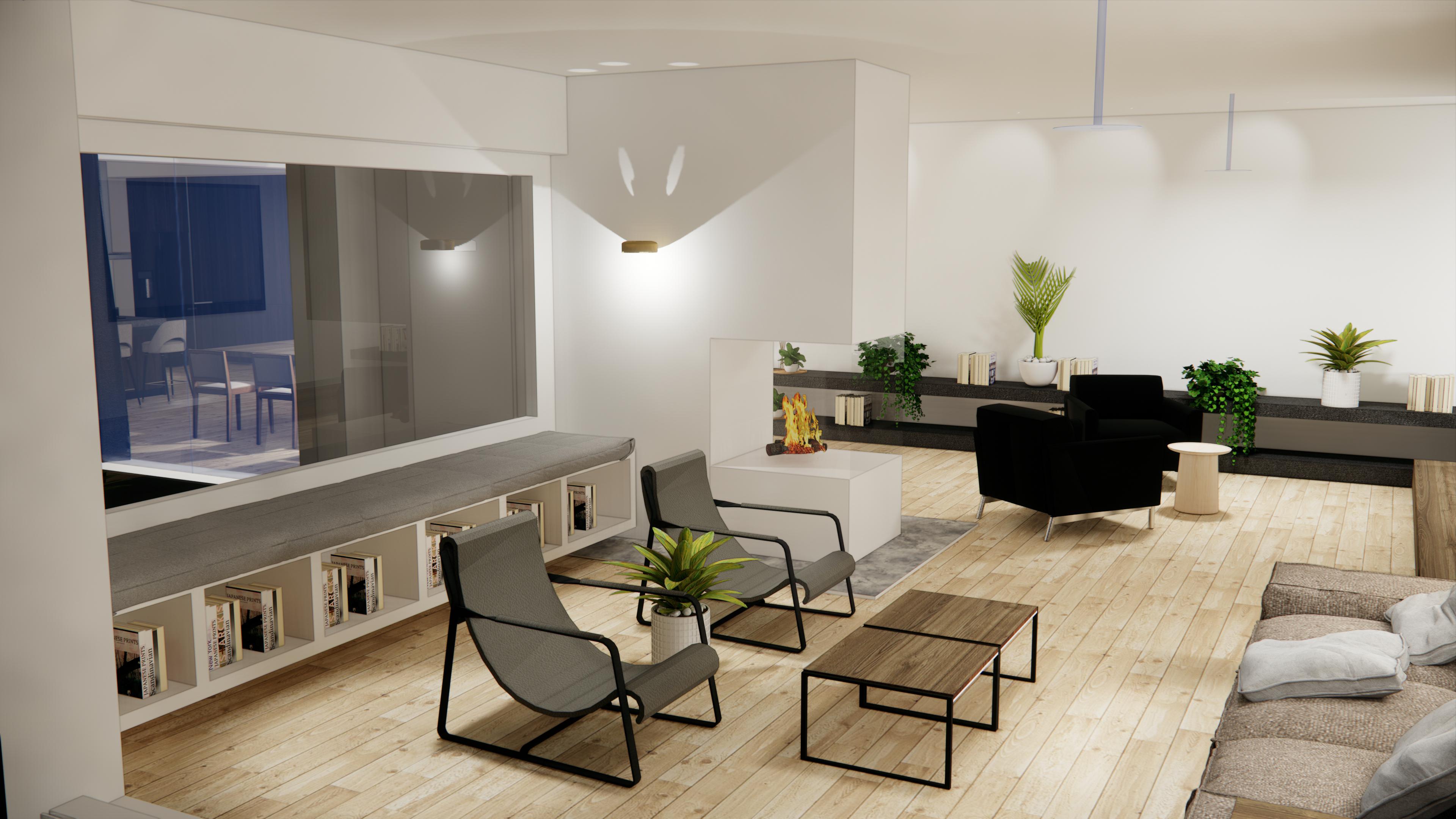

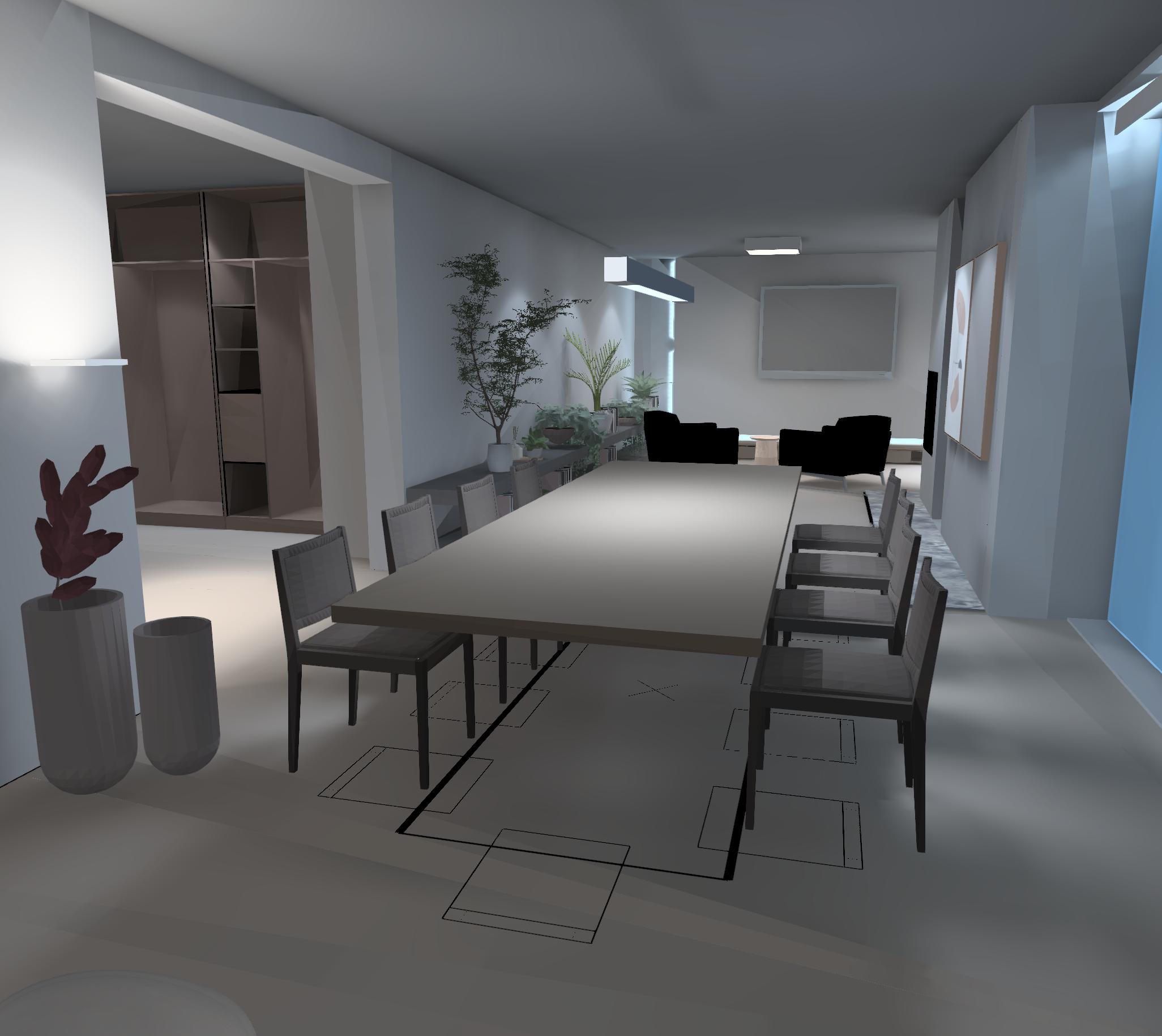

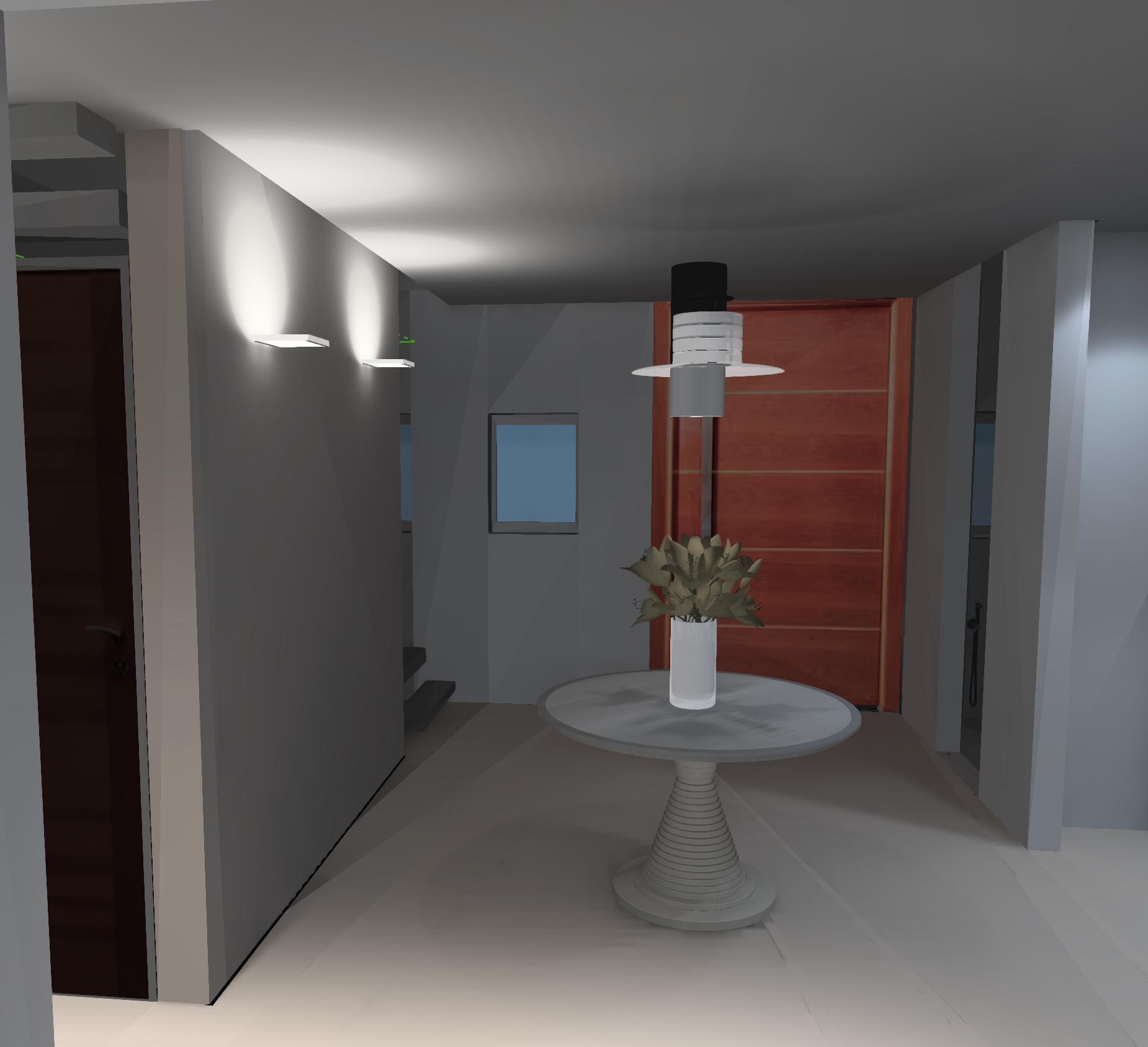

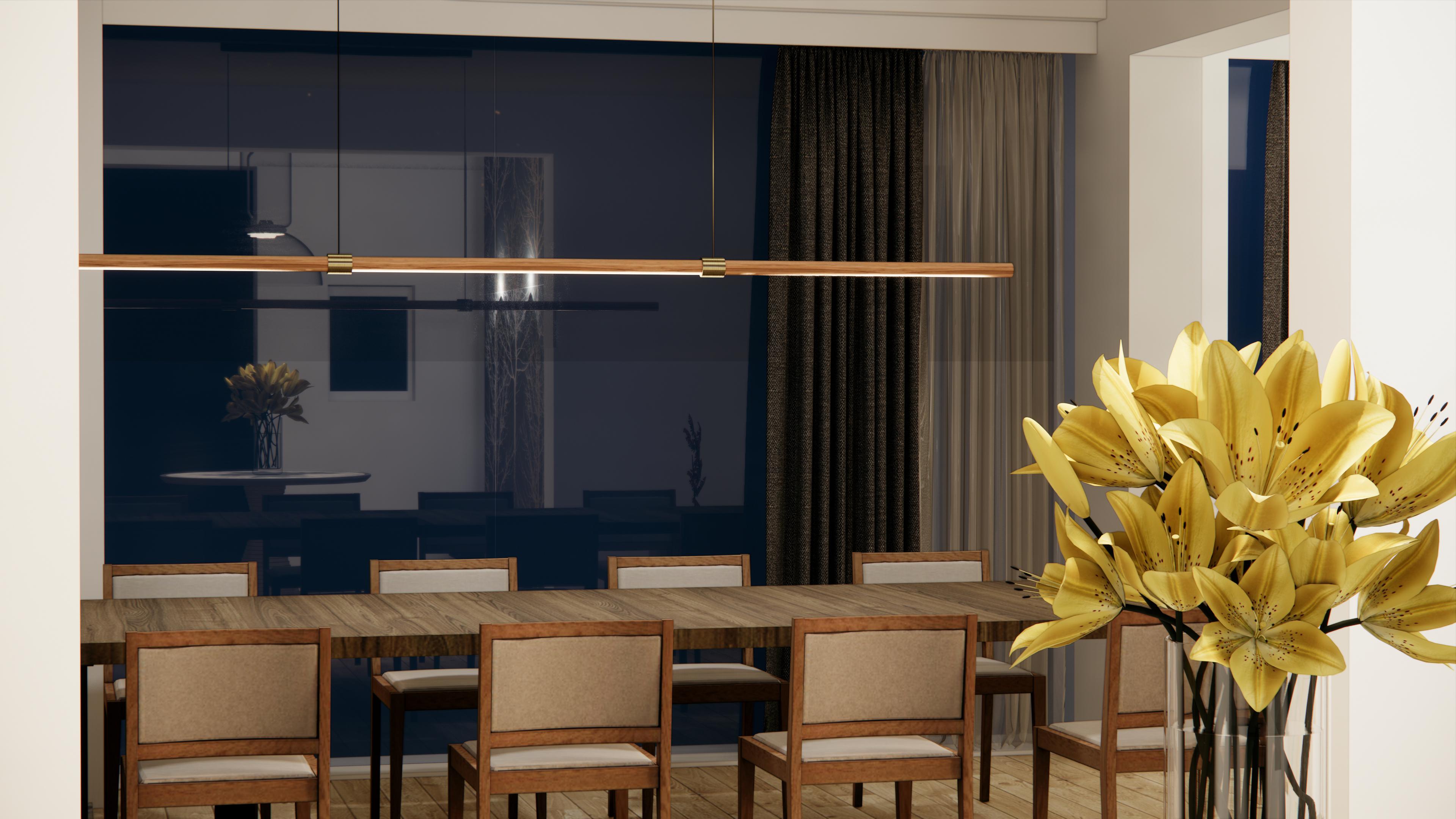

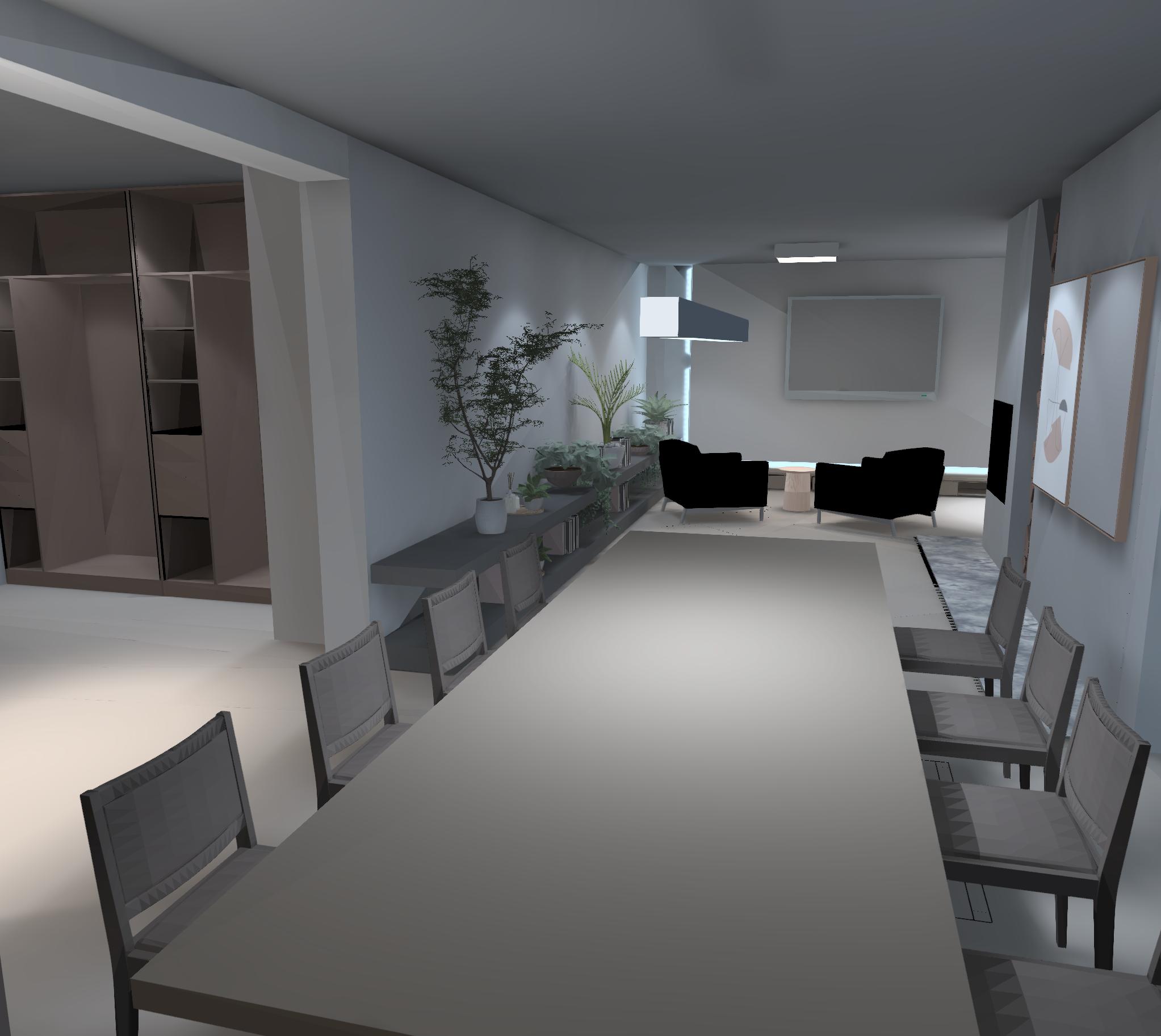

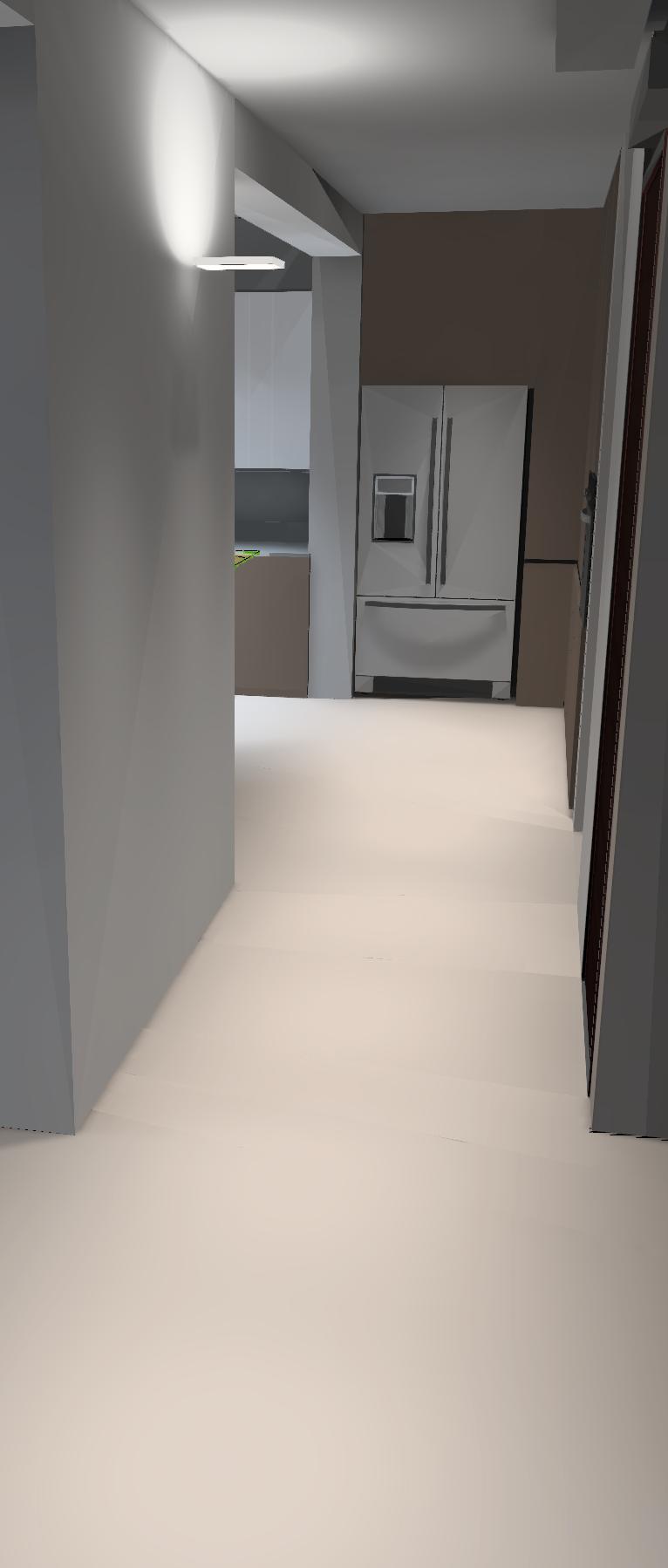

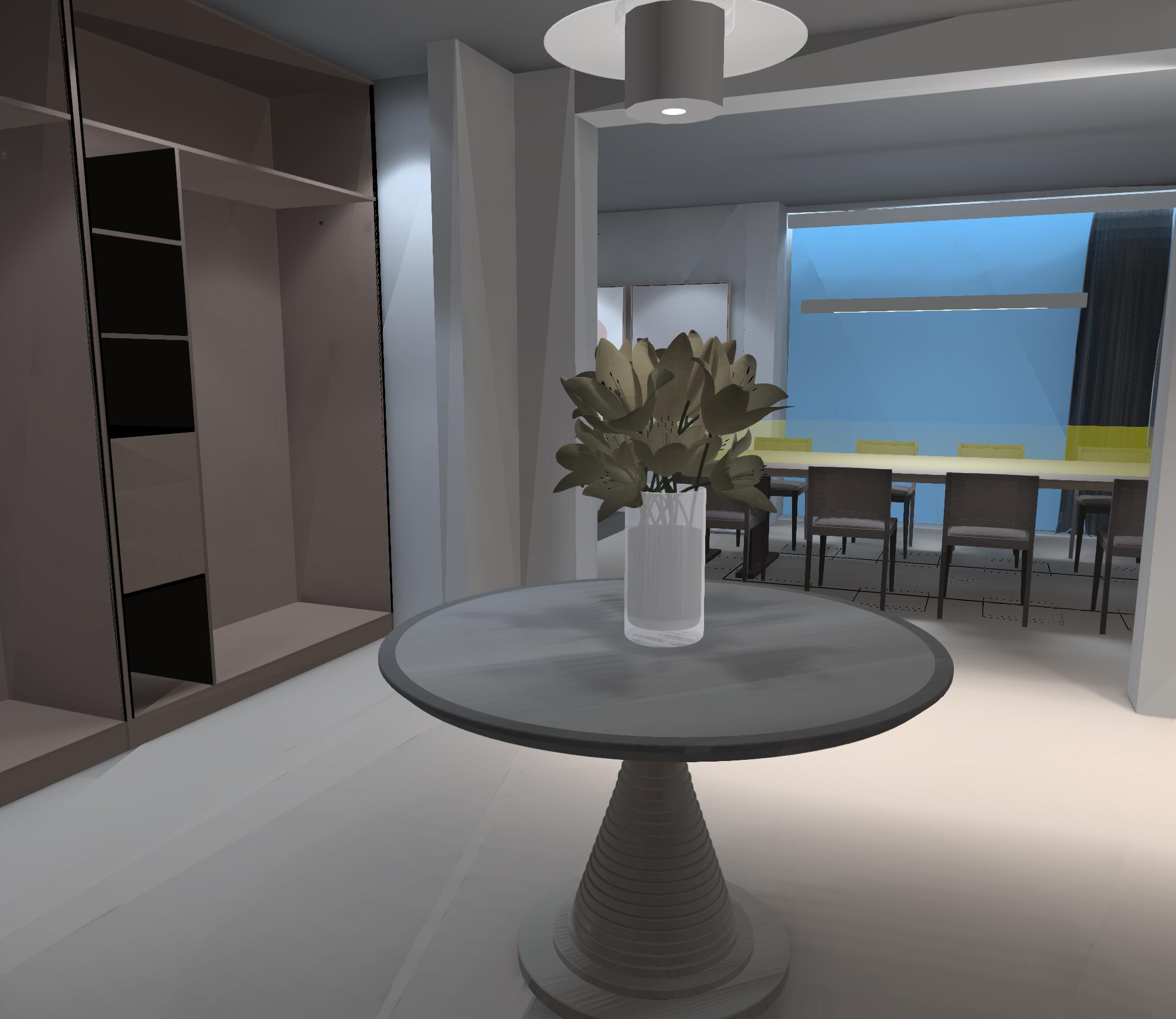

renders
