OVER VIEW
the voilàp group
The voilàp group designs and manufactures intelligent systems for industry and cities, based on interconnected hardware and software elements for data acquisition and management. A world leader in the design and manufacture of machinery for the transformation of materials used in smart and sustainable construction, through IoT (Internet of Things) solutions, it provides the know-how developed in the smart industry to reconfigure traditional sectors such as retail, construction, DOOH (Digital Out of Home) and logistics. The group encompasses and embraces different brands, stories, skills and knowledge, recognising the value of diversity and transforming it into a shared strength.
The Future of the Smart Factory
Voilàp brings your Smart Factory to life through the design and manufacture of cutting-edge machinery and the creation of interconnected production ecosystems. Our IoT display systems – including totems and LED walls – transform raw data into strategic information. You can view KPIs, production progress and operational metrics in real time, ensuring smooth and transparent communication that seamlessly connects the production environment with sales and retail networks.
Digital Integration
At Voilàp we go beyond individual machines, we integrate cutting-edge software, IoT sensors and production systems into a single, dynamic, real-time digital architecture. Our solution unifies crucial platforms such as MES, ERP, CRM, WMS and CAD/CAM, creating a harmonious digital structure that optimises every stage of operations and maximises the efficiency of your smart factory.
We design and develop intelligent, connected, efficient and sustainable machines and factories.
Real-time product configurator and quotation generator smart factory smart products smart retail
Environments, optimised production processes, integrated communication
Integrated technologies combining mechanics, electronics and software
material in our packaging of employees undergoing performance dialogue
speed. usability. integration software.

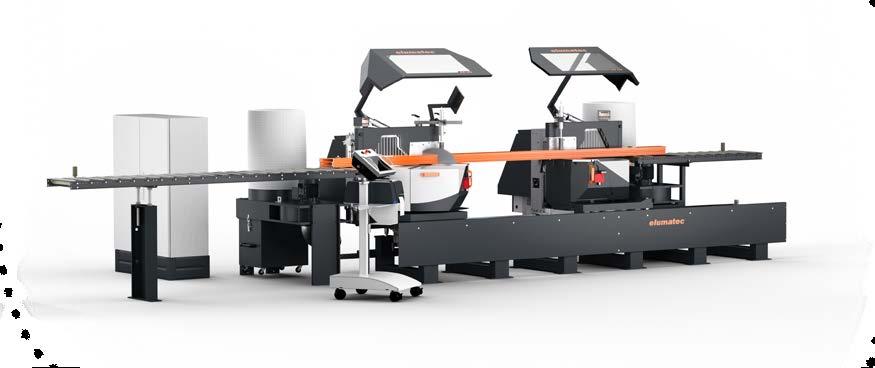

DG 244
The reliable elumatec principle “Cutting from below”: Provides unhindered access to support table. A large saw blade diameter and optimal use of the saw blade offeran ideal cutting capacity for all cutting variations. Standard for elumatec: external dimension cuts at all anglepositions. This means no length calculations are necessary when cutting profiles of different heights. This is a big advantage when cutting special angles. The universal pivoting and tilting of both saw units allows cutting of high and wide profiles as well as every type of compound mitre cut. Consequently, many profiles can be cut without support blocks. Software module for chop and oversize length cuts. Safety hoods. Equipped with saw blades D=550mm as standard. Pulsed coolant system.
Cutting lengths: 4500mm, 6000mm, 7500mm (add. Lengths on request)
1-, 3- and 5-axis control for length and angles available
LARGE
big profiles, wide range
TUNING
outer dimension calculation intermediate angles, turret stop
flexible angle settings SHORT MINIMUM LENGTHS
pivoting, tilting
CE-certified design
375 mm, consistent safety, compliance
BOTTOM-UP
SAWING
digital angle display
accessibility, blade efficiency accessibility, blade efficiency

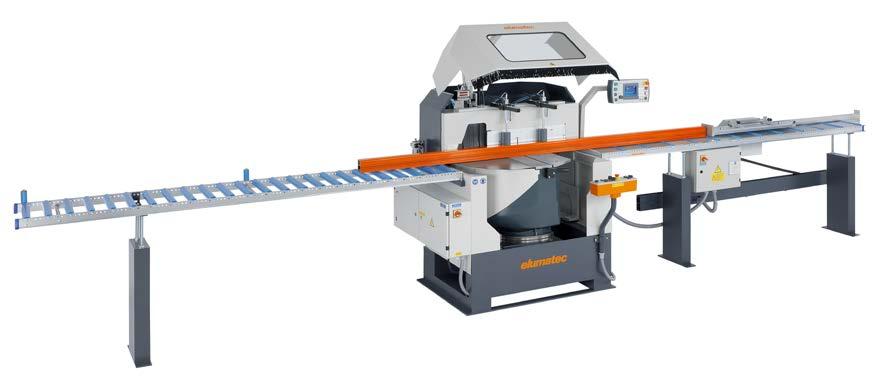

DG142XL
The DG 142 XL is the ideal machine for large series production involving 90° and 45° size cutting . The double mitre saw is supplied as standard with saw blades d=550mm, safety hoods and can be optionally supplemented with a whole range of extras, such as a label printer, a pulsed coolant system and innovative software modules. Cutting lengths: 3,000 mm, 4,500 mm, 6,000 mm and 7,500 mm.
CUTTING FROM BELOW
LARGE CUTTING RANGE
SINGLE OR MULTIPLE CUT
UP-TO-DATE SAFETY TECHNOLOGY

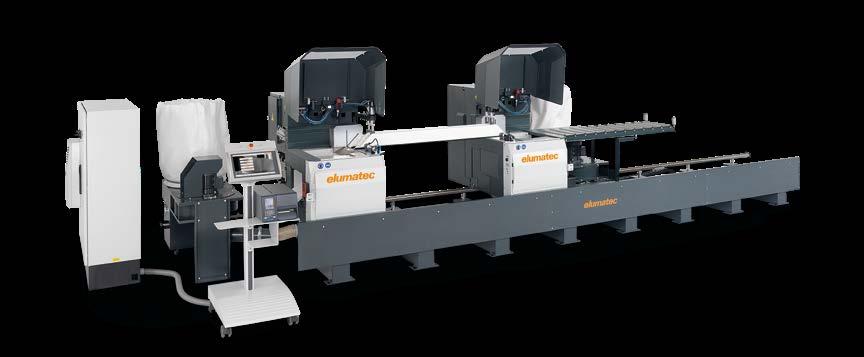

DG104
The optimal double mitre saw for series production as well as for special applications. The universal pivoting and tilting of both saw units allows cutting of high and wide profiles as well as every type of compound mitre. Consequently, many profiles can be cut without support blocks. External-dimension cuts possible for all cutting variants. Consequently, no complicated length calculations are necessary. This is a big advantage when cutting special angles. Software for E 590: Software module for chop and oversize length cuts. Pivoting range with digital angle display. Safety hoods. Equipped with saw blades D=420mm as standard. Available with E390 or E590 control system. Pulsed coolant.
FLEXIBLE CUTTING RANGE — WIDE ANGLES, COMPOUND MITRES
HIGH BLADE PERFORMANCE — 420 mm DIAMETER, BOTTOM-UP CUTTING
PRECISE ANGLE CALCULATION — OUTER DIMENSION BASED
DURABLE DRIVE SYSTEM — ROBUST, LOW WEAR DIRECT DRIVE
EFFICIENT MATERIAL HANDLING — LIFTING BARS, SUPPORTS
RELIABLE CLAMPING — STABLE MATERIAL FIXATION

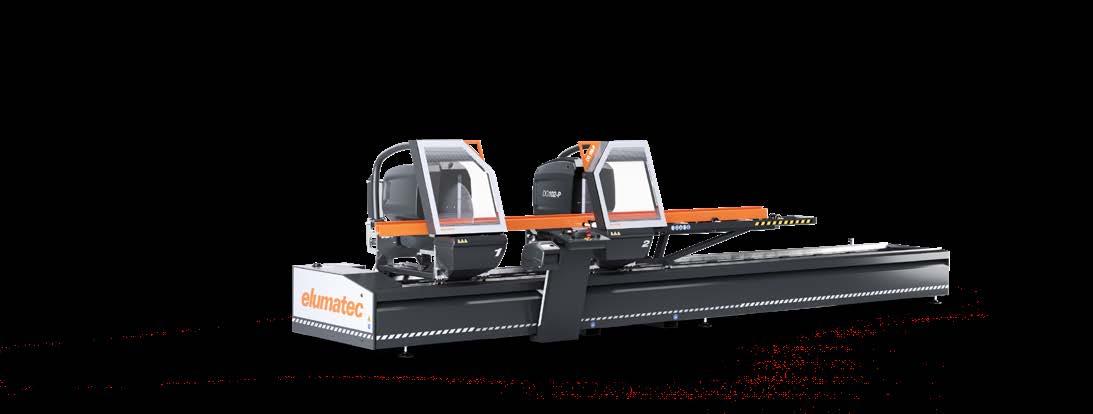

DG102P
The optimal double mitre saw for series production. The universal tilting of both saw units allows cutting of high and wide profiles.Frontal sawing concept for ergonomic loading of profiles. Pneumatic control of the angular setting from 90° to 22,5°(external) in two fixed positions or with optional mechanicadjustment of intermediate angles. Hydro-pneumatic blade feed. Safety hoods. Equipped with saw blades D=550mm as standard. Pulsed spray system. Cutting length 5000mm. Control unit with touch screen and elumatec HMI.
EXTERNAL TILTING CUTS — PRECISE ANGLES, FLEXIBLE POSITIONING
LARGE BLADE DIAMETER — HIGH CUTTING CAPACITY, CLEAN RESULTS
ERGONOMIC FRONTAL LOADING — EASY HANDLING, EFFICIENT WORKFLOW
AUTOMATIC SAFETY HOODS — INCREASED PROTECTION, SAFER OPERATION
DG79
The solid cast construction with integrated turn table ensures optimal profile support for cutting to length with angular accuracy. Continuous pivoting range adjustment of the saw heads from 0° to 45° to the left and right. This makes external and internal dimension cuts possible. Vertical and horizontal pneumatic material clamping units ensures optimal profile fixation. Equipped with saw blades D=380mm as standard. Hydro-pneumatic saw feed. Equipped with digital display E 190 as standard. Pulsed coolant system. Cutting lengths: 3000mm, 4500mm and 6000mm
MGS 245
The universal saw for special applications. The reliable elumatec principle “Cutting from below”. Free access to the table surface for optimal loading and unloading of profiles. n creates a cutting pressure towards the workpiece fence which ensures safe clamping of the workpiece. Safety hood opens automatically. Pulsed coolant system. Equipped with saw blade D=550mm as standard. Pivoting range of 22.5° to the left and right manually with digital angle display. Tilting range pneumatic 90° – 45° (intermediate angles by means of turret stop and digital display).
MGS 245/33 See MGS 245/00 , however:
3-axis PC control, E 580, for electronic pivoting and tilting
Electronically controlled length adjustment of the length stop and measuring system
Length adjustment 4500 mm
MGS 245/31 See MGS 245/30 , however:
Length adjustment 6000 mm
MGS 245/32 See MGS 245/30 , however:
Length adjustment 7500 mm
MGS142XL
The ideal mitre saw for industrial series production. Safety hood opens automatically. Equipped with exhaust connectors on the workpiece fences as standard. Pulsed coolant system. Profile feed from the left and material stop on the right. Equipped with saw blade D=550mm as standard. Hydro-pneumatic saw feed (optional) Length stop and measuring systems (optional). Intermediate angle setting by hand wheel and E 111 digital display (optional) Motor with 5.5 kW power output (optional).
MGS105 MGS73-72
MGS 105 The machine for special applications. The reliable elumatec principle “Cutting from below”: Free access to the table surface for optimal loading and unloading of profiles. The patented saw arm suspension creates a cutting pressure towards the workpiece fence which ensures safe clamping of the workpiece. Safety hood opens automatically. Pulsed coolant system. Equipped with saw blade D=420mm as standard. Pivoting range, manually, 22.5° to the left and right with digital display E111.
MGS 72/30: Table-top unit. Stable, ground, continuous support table with turn table on precision bearings. Wear-resistant and quiet multi-V belt drive. Manual saw feed. Equipped with saw blade D=380mm as standard.
Mitre saw MGS 72/10 See MGS 72/30 , however: Machine base. Pneumatic material clamping units (2x horizontal, 1x vertical). Pulsed coolant system.
MGS 73/33 See MGS 72/10 , however: Hydro-pneumatic saw feed. 2-hand operation.
SAS142
SAS 142/44: Powerful automatic saw with 2-axis controller and large-dimensioned saw blade for efficient large-scale cutting of aluminium profiles. Reliable elumatec principle of „sawing from below“ for optimal accessibility and the best possible utilisation of the saw blade. Kerf spreading ensures the highest possible surface quality of the cut faces only for 90° saw cuts. Material infeed (cycling) protects the surface of the workpiece through a profile lifting system at the bearing and locating face. Large cutting range for wide profiles. Automatic shutoff when the end of the profile has been reached. Material infeed controlled via servo axis for transport speed and part length. Saw feed controlled via servo axis for saw speed and saw height. Input of the profile parameters into the profile database Technical specifications. Feed length 5 - 780 mm (for 90° cuts). Hard-metal saw blade for aluminium with a diameter of 500 mm and 120 teeth. One vertical and one horizontal clamp each to the left and right of the saw blade. High performance cutting fluid.
SAS 142/43 See SAS 142/44 , however:
Set the cutting angle using the hand wheel and digital display. Feed length 5 - 695 mm (for 90° cuts).
Tilted cutting angle 90° - 45°
SA142 SA73

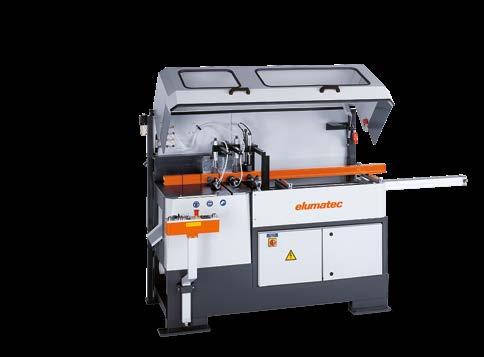

SA142/37 Automatic saw suitable for high-volume cutting of aluminium profiles for window manufacturing and industrial applications. Material infeed (cycling) protects the surface of the workpiece through a profile lifting system at the bearing and locating face. Angled cuts of up to 45° are possible by tilting the saw unit (option). Large cutting range for wide profiles Equipped with saw blade D=500mm as standard Options Manual cutting length adjustment with digital display E 111 Hydro-pneumatic saw feed. High performance cutting fluid. Intermediate angle setting by hand wheel and digital display E 111.
AUTOMATIC SAW SA 142/38 See SA 142/37, however:
With kerf spreading (only for 90° cuts)
Suitable for high-volume cutting of aluminium profiles for window manufacturing and industrial applications. Material infeed (cycling) protects the surface of the workpiece by means of a single-stage profile lifting system. One, two or three-stroke feed can be selected using a selector switch. Reliable material feed using two horizontal clamping cylinders. Automatic machine shut-down at the end of the profile. Pulsed coolant system. Equipped with saw blade D=380mm as standard. Digital display as standard
AKS134
AKS134/00 Notching saw Variable notching possibilities for mullion and transom combinations, e.g. for curtain walls, conservatories, sky lights, and special designs Precise and safe notching is ensured because the workpiece is fixed and only the saw units move Both saw units are adjusted in height simultaneously by means of a hand wheel (analogue display on the hand wheel) The cutting depth is set using an analogue display Manual angle adjustment of the saw blades using a digital display of the tilting angles Support table with compound slide and pivoting back fence is manually adjustable for optimal use of the cutting range. The angle of the pivoting back fence is shown on a digital display Horizontal and vertical profile clamping Automatic working cycle at a 90° pivoting angle (two-hand control when cutting special angles). Equipped with sawblade D=550mm and D=500mm. Hydro-pneumatic saw feed.
AKS 134/10 See AKS 134/00, however: Equipped with a 4-axis controller for automatic adjustment of the horizontal and vertical saw blades for angle cutting, as well as for height adjustment and notching depth Values from design drawings can be entered directly via the keyboard;
AKS 134/64 See AKS 134/00, however: equipped with sawblade D=650mm and sawblade 500mm;
AKS 134/65 See AKS 134/10, however: equipped with sawblade D=650mm and sawblade 500mm;
TS161
Accuracy is achieved by cutting from below for 90° saw cuts and angled cuts. Wide pivoting range of up to 45° to the left and 0° to the right. The special pivoting mechanism with integrated turn table enables working from the front at any angle setting. The back fence is adjustable to allow optimal use of the saw blade capacity for wide and flat profiles.
TS161/21: Manual saw feed. Equipped with saw blade D=280mm and machine base as standard. Pneumatic material clamping (vertical). Pulsed coolant system.
TS161/22 See TS161/21 , however:
Digital display for pivoting angle
TS161/30 See TS161/21 , however:
safety hood and 2-hand-control with pneumatic saw feed
TS161/31 See TS161/22 , however:
safety hood and 2-hand-control with pneumatic saw feed
TS161/00
Basic table top unit. Manual saw feed. Manual profile clamp. Equipped with saw blade D=280mm as standard.
GLS192 KS101

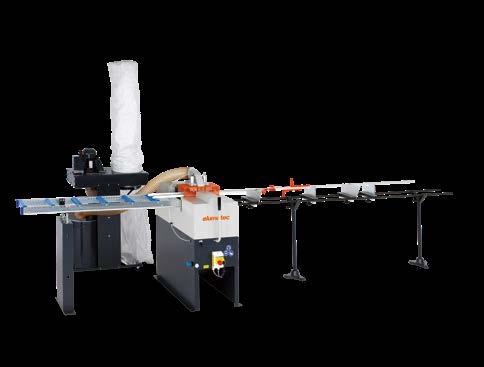

V-cutting saw equipped with two saw blades D=200mm for 45° cuts. Equipped with two vertical material clamping units as standard. Equipped with exhaust connectors for connection to an extraction system. Pulsed coolant system. Automatic saw feed with foot switch operation.
Precision Vee-cuts in aluminium and PVC profiles. Pneumatic continuously adjustable saw blade feed for fast and precise sawing with rapid return. Simple setting of cutting depth. Equipped with connection for swarf extraction hose and swarf container as standard. Equipped with saw blades D=300mm as standard. Equipped with pulsed coolant system as standard.
SBZ155

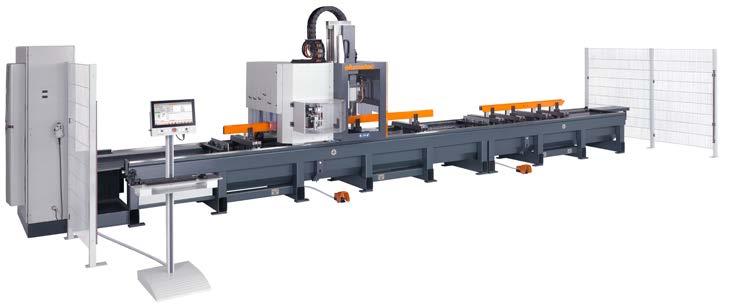

5-axis profile machining to meet the highest requirements, in a gantry design: the SBZ 155 profile machining centre is a new top-of-the-range elumatec model that combines previously unattained performance with a pioneering design. The faster, more compact and more flexible SBZ 155 raises the bar in automated CNC machining of aluminium and thinwalled steel profiles thanks to optional 6-sided machining, a space-saving gantry drive system and other features. Industrial and metal construction users benefit from the SBZ 155’s short tool changing times that guarantee optimum machining cycles and enormous flexibility. The large on-board magazines can be equipped with with 16 standard tools, and depending on the individual configuration, up to ten special tools (Seat for one 200mm and one 550 mm diameter saw blade, max. 4 angle heads). A gantry design and a machining area divided into two zones allow profiles with cross-sections of up to 1,000 x 370 mm to be picked up and passed through, as well as flexible working in shuttle mode. The SBZ 155 can be configured to suit the individual requirements of elumatec customers with a wide range of optional equipment. Machine lengths available: 8000mm, 11600mm, 12800mm, 16400mm and 17600mm
TOP
PERFORMANCE
design for industry
Large machining area with
6-SIDED MACHINING
cross sections
1000 x 370 mm
Optimum machining cycles
ENORMOUS FLEXIBILITY
5 MACHINE LENGTHS
14 standard tools
6 SPECIAL TOOLS

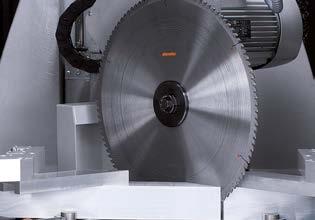

sawblade 550 mm available

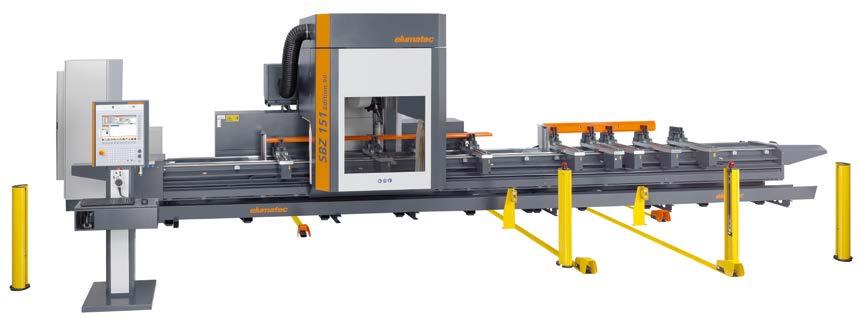

SBZ151

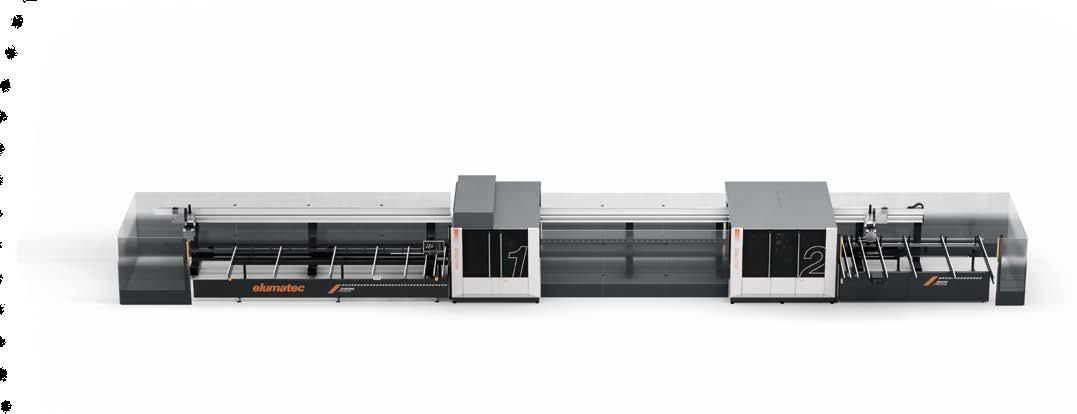

5-axis profile machining centre. Designed for flexible and efficient machining of aluminium and thin-walled steel profiles. All operations, such as routing, drilling, tapping, thread milling, notching and sawing, are performed while the profile bar is stationary to protect the profile surfaces. Fast positioning of the machining unit with up to 66 m/min thanks to dynamic servo drives. 6-sided machining. From below with an angle head (optional). The on-board tool magazines ensure that tool changing times are kept short, thereby optimizing machining cycles. One magazine can be equipped with 13 standard tools and seven special tools (angle routing head and special cutters). An additional magazine for the saw blade, diameter 400 mm or 500 mm. Autonomous clamp positioning with absolute measurement system. Two separate working zones enable machining in shuttle operation. Secure access with safety fences and light barriers. 5-axis CNC control with independent CNC for 3D machining, notching and cutting. The absolute rotary encoder system means no axis homing is required.
Machine lengths available: 6000mm, 7300mm, 9000mm, 10300mm, 12000mm, 13300mm, 15000mm and 16300 mm
TOP PERFORMANCE
design for industry
6-SIDED MACHINING
ENORMOUS FLEXIBILITY
8 MACHINE LENGTHS
13 standard tools
7 SPECIAL TOOLS
sawblade 550 mm available

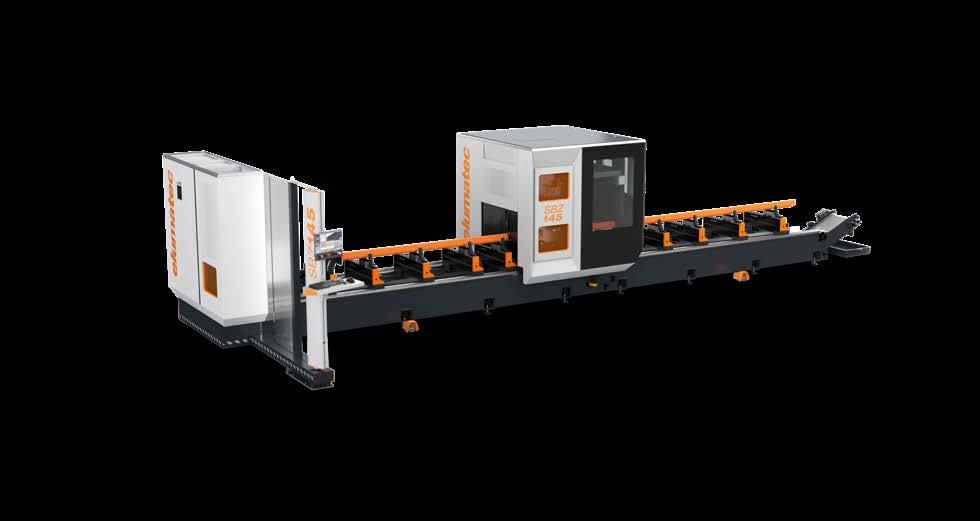

SBZ145
Designed for the requirements of metal construction and industrial use, the SBZ 145 with its 5 processing axes offers a processing area of 560 mm x 350 mm x 7,500 mm. Equipped with an autonomous clamping axis, a generously designed tool magazine for milling cutters, drills, thread cutters and saw blades, the SBZ 145 has numerous processing options for cutting from the profile bar with processing or optionally in pendulum operation with processing of pre-cut individual parts. With an optional angle head*, processing of 6 profile sides are possible. Machine lengths available: 7500mm, 10500mm and 17500mm.
COMPACT PORTAL MACHINE
6-SIDED
MACHINING
with angle-head
560 x 350 mm
Auto-feed mode with
OFF-LOADING CONVEYOR
CUT & SEPARATION
320 x 235 mm
3 SPECIAL TOOLS 12/18 standard tools
SBZ141-140
SBZ140 Profile machining centre 4-axis profile machining centre Designed for economical and efficient machining of aluminium and thin-walled steel profiles Standard version with air-cooled router spindle (version with water-cooled router spindle available optionally) All operations, such as routing, drilling and tapping, are performed while the profile bar is stationary to protect the profile surfaces Machining with all tools at angles continuously adjustable from -90° to +90°.
Automatic clamp positioning with absolute measurement system The on-board tool magazine ensures that tool changing times are kept short, thereby optimizing machining cycles The magazine can be equipped with eight tools Up to two rotating angle heads with two different tools are optionally available for double-bar and end machining (0° – 90° – 180° – 270°) (optional) Two separate working zones enable machining in shuttle operation (optional). There is a central laser scanner on the operator's side to protect the area for maximum safety. 4-axis controller
SBZ141 see SBZ140, however: Autonomous clamp positioning with absolute measurement system
Machine lengths available: 4200mm (1 station), 7600mm and 9700mm
SBZ131-130
3-axis profile machining centre. Designed for economical and efficient machining of aluminium, steel and stainless steel profiles. All operations, such as routing, drilling and tapping, are performed while the profile bar is stationary to protect the profile surfaces. The on-board turret head ensures that tool changing times are kept very short, thereby optimizing machining cycles. The turret head can be equipped with eight tools or four angle routing heads. Automatic clamp positioning enables the machine to position the material clamps. 3-axis controller. The tool spindle is designed as an additional axis. Angle heads for lateral and profile end machining. Two separate working zones enable machining in shuttle operation (optional). There is also a central laser scanner on the operator’s side to protect the area for maximum safety. SBZ131 see SBZ130, however: Autonomous clamp positioning with absolute measurement system. Cycling program with special clamping device and outfeed conveyor (optional)
Machine lengths available: 4200mm (1 station), 7200mm, 8500mm, 10200mm and 11500mm
SBZ125/85
SBZ 125/85 profile machining centre is supplied with an enclosed cabin machine with an 8 m working length and 5-axes that can replace two smaller machines thanks to dynamic shuttle operation. Enhancing the successful SBZ 122 range, elumatec has used customer feedback to optimise ergonomics, access and set-up times. The new model makes machining aluminium, PVC and thin-walled steel profiles even more economical and efficient. Cab machines are popular because they keep swarf contained and reduce noise, and elumatec has given the SBZ 125/85 integrated safety area monitoring with a fully programmable laser. The SBZ 125/85 is a major step forward for the elumatec range thanks to a new rotating control unit, extended functionality and new technology for faster tool changes, and more versions of the redesigned cabin machine are already in the pipeline. The SBZ 125/85 is also eluCloud ready in order to meet the requirements of Industry 4.0.
Designed for economical and efficient machining of aluminium, PVC and thin-walled steel profiles. All operations, such as routing, drilling and tapping, are performed while the profile bar is stationary to protect the profile surfaces.A-axis continuously adjustable from -120° to +120°. C-axis continuously adjustable from -220° to +220°. All five axes can move simultaneously with RTCP (Rotation Tool Centrepoint). Fast positioning of the machining unit with up to 120 m/min thanks to dynamic servo drives Clamp positioning autonomous. Tapping without compensation chuck. The 2-axis add-on unit with the A-axis and C-axis can also accommodate a saw blade with a diameter of 180 mm. Automatic clamp recognition and clamp positioning. Automatic tool changer with twelve tool tray positions (without tools). 5-axis controller.
Designed for economical and efficient machining of aluminium, PVC and thin-walled steel profiles. All operations, such as routing, drilling and tapping, are performed while the profile bar is stationary to protect the profile surfaces.

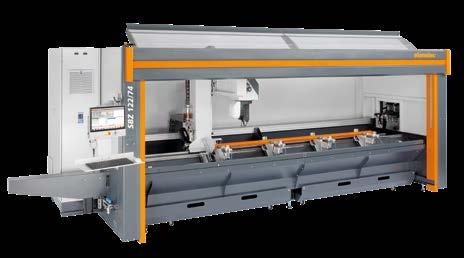

SBZ 122/70+: Fast positioning of the machining unit with up to 60 m/min thanks to dynamic servo drives. Automatic clamp recognition and clamp positioning. Automatic tool changer with four tool tray positions (without tools). State-of-the-art 3-axis controller. SBZ 122/71 see SBZ 122/70+, however: Fast positioning of the machining unit with up to 120 m/min thanks to dynamic servo drives. Possibility to adjust the rotating angle head to 0°, -90°, -180° and -270°. Automatic tool changer for an angle head. Swarf trays for swarf removal.
Designed for economical and efficient machining of aluminium, PVC and thin-walled steel profiles. All operations, such as routing, drilling and tapping, are performed while the profile bar is stationary to protect the profile surfaces.

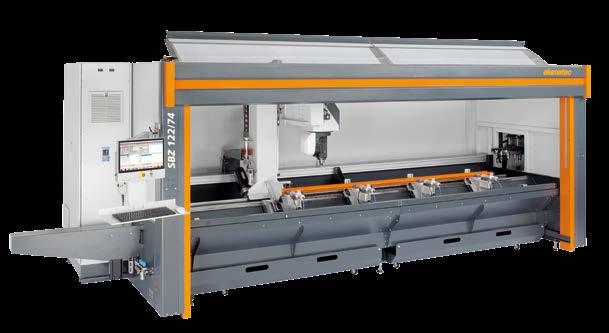

SBZ 122/73: A-axis continuously adjustable from -120° to +120°. Automatic clamp recognition and clamp positioning. Automatic tool changer with twelve tool tray positions (without tools). 4-axis controller. ). Fast positioning of the machining unit with up to 120 m/min thanks to dynamic servo drives.
SBZ 122/74 see SBZ 122/73, however: Clamp positioning autonomous

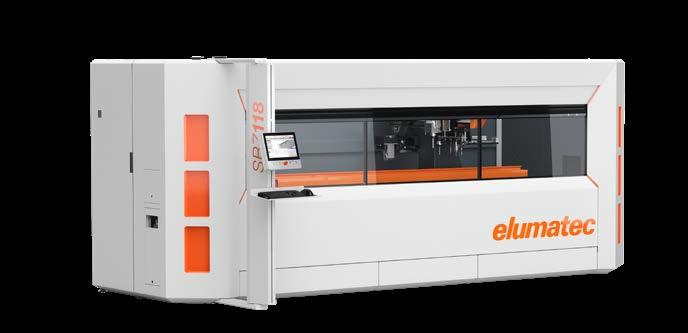

SBZ118
The SBZ 118, a 3-axis profile machining centre with optional 5-sided machining that’s easy to use and has a minimal footprint, expands the elumatec range of entry-level products for automated CNC machining of aluminium, PVC and thin-walled steel profiles. With its machining length of three metres, this versatile and powerful model is the most compact CNC machine in the current elumatec range. The SBZ 118 offers full functionality for milling, drilling and notching in a small space. It was developed for machining up to five sides with an optional angle head and end milling machine, depending on the individual configuration. The proven inclined bed technology and the on-board 5-fold tool changer make it easy to use. The SBZ 118 is made particularly attractive by individually configurable optional equipment, including up to two on-board angle head changers, expansion to up to six clamps, an additional length stop with overlength machining and a barcode scanner. A side service door facilitates set-up and maintenance, and the new front visor enables ergonomic and above all safe operation – even for tall people. Plus, the SBZ 118 is eluCloud ready to meet the requirements of Smart Factory.Fast positioning of the machining unit with up to 60 m/min thanks to dynamic servo drives. Tapping without compensation chuck. Automatic clamp recognition and clamp positioning. Automatic on-board tool changer with five tool tray positions (without tools). State-of-the-art 3-axis controller. Automatic clamp recognition and positioning prevents collisions. Power torque routing motor with enclosed speed control for short spindle start-up and braking times. Low power consumption thanks to intelligent control technology.
SBZ628
The SBZ 628 series offers ultimate flexibility in both machining and length cutting of aluminium profiles for metal construction and industrial applications. Its production reliability, speed, cost-effectiveness and impressive versatility make the flexible profile machining centre the perfect all-rounder. It allows fully automatic machining of various profile types, such as for windows, doors and curtain walls, using up to eight routing units that can operate freely on the profile cross-section in coordination with innovations such as combination clamping systems, travelling clamps and pivoting grippers.
Pass-through system for windows, doors and curtain walls
• Loading magazine for automatic production processes.
• The routing spindles can be positioned continuously over 360° on the profile bar for machining profiles in various clamping situations.
• A generously dimensioned noise abatement enclosure and the easy-access controls and maintenance elements simplify operation.
• Machined profiles are placed gently onto the unloading magazine.
• Versions customized to meet specific customer requirements can be designed upon request
• Axis controlled clamp system (optional)
• Axis controlled profile support system (optional)
• Profile related individual clamp pressure (optional)
SBZ 628 S
Four spindles for routing or drilling
Separating cuts from -45° to 90° (lead cut), from 90° to 45° (end cut) continuously adjustable
SBZ 628 XXL
Up to eight spindles for routing or drilling
Different separating cut strategies from 22.5° to 157.5° (pivoting)
Additional saw unit from 45° to 135° (tilting)
Combined notching
SBZ 628 XL
Up to eight spindles for routing or drilling
Different separating cut strategies from 22.5° to 157.5° and notching (pivoting)
SBZ625/13

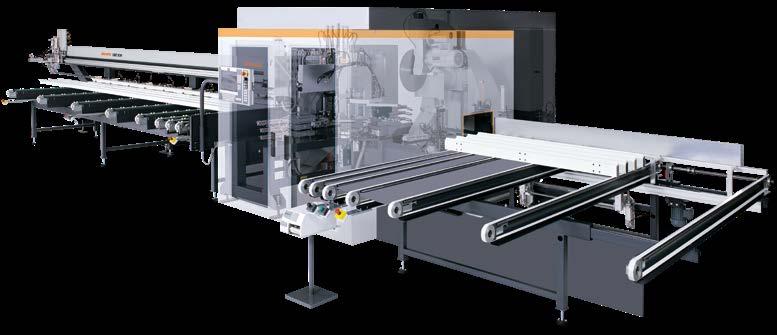

State-of-the-art SBZ 625/13 automated pass-through centre gives users unrivalled precision and flexibility in aluminium machining. Equipped with up to 40 axes, the machining centre is durable and powerful thanks to its solid and robust design. It enables effortless machining of standard aluminium profiles and window and door profiles. Parallel machining steps significantly reduce production times, and the intuitive user interface makes it easy to use.
Parallel machining to accelerate production: Multiple operations can be performed at the same time on the SBZ 625/13, enabling faster results with fewer personnel. That’s because the machining station and the saw, with a maximum part length of up to 7,500 mm, have been separated.
INFEED LOADING
parallel external
CROSS-SECTIONS
of 185 x 150 mm or 185 x 230 mmcan be sawn and separating cuts of 45°, 90° and 135°
Intermediate buffer
3 SAWS
with a saw blade diameter of 550 mm and a drive power of 2.2 kW
routing unit
machining station
SBZ630
Profile machining centre with loading and outfeed magazine. Due to its modular design, the SBZ 630 can be set up either as a dedicated automatic saw, SBZ 630/01, or as a complete profile machining centre, SBZ 630/11, depending on the requirements. When set up as a profile machining centre for aluminium, the machining tasks are carried out in one machining station with the possibility of up to 30 machining units. Cutting to length is then subsequently performed with the 7-axis sawing station.
Profile lengths and residual pieces from 500 – 7,500 mm
Loading magazine for seven profile bars with profile widths of up to 250 mm
Automatic height, side and rotational axes (350°) of the gripper arm
Automatic horizontal setting of the vertical clamps (5 – 70 mm)
1-blade saw 7 kW for variable saw cuts at 45° – 135° tilted or pivoted
Profile outfeed via outfeed conveyor
SBZ 631 See SBZ 630, however:
With notching module AM 631 equipped with sawblade D=130mm for horizontal or vertical notches
KF178 KF 78
The ideal machine for economical door manufacturing. For routing lock cylinders and round rosettes (safety locks) in profile systems or multi-chamber profiles with large dimensional depths. Three copy routing units which operate completely independently. The workpiece is clamped upwards towards the contact surface of the lock, which eliminates the need for readjustment of the machine for the backset when working with profiles of different heights. The “Spindle Lock” feature makes tool changing easy. KF178/13 see KF 178/10, however: Continuously adjustable speed control from 3,000 - 12,000 rpm. This allows routing of even thin-walled steel and stainless steel profiles
For routing lock cylinders and handle holes up to a profile thickness of 70 mm. Routing in two planes (vertical and horizontal) using two copy routing units which operate completely independently. Copy routing at a ratio of 1:1 using both router spindles. Routing using stops or copy templates. Pneumatic clamping, horizontal. Pulsed coolant system.
AS170 AS70
Large cutting range despite compact design. Copy routing using side stops or templates at a ratio of 1:1 Pneumatic tracer point with two levels for two different cutter diameters. Our patented copy lever suspension ensures precision routing with a minimum of effort. The table height is adjustable to accommodate very high profiles of up to 400 mm. The “Spindle Lock” feature makes tool changing easy. Pneumatic material clamping unit. Pulsed coolant system.
Versatile for many applications in aluminium and PVC profile machining. Precision routing with a minimum of effort and easy, two-lever operation. Copy routing at a ratio of 1:1 transfers the cutting pattern from a template to the profile. Pneumatic material clamping unit. Manual tracer point with three levels for different cutter diameters. Pulsed coolant system.
AF223 AF222
For machining transoms and door profiles made of aluminium or plastic. Automatic work sequence. Large cutting range of up to 400 mm. Continuously adjustable table height. Tool diameters of up to 280 mm can be used. The material stop can be pivoted up to 60° to the left and right. Notching up to 30° (acute angles, left and right). Detent at 90° with index pin. Two installation positions for the material stop. With quick tool change system and “Spindle Lock” for easy tool changing. Precise, smooth-action and lowwear recirculating ball guides. Horizontal and vertical pneumatic material clamping provides flexibility. Depth stop for four different notching depths. Pulsed coolant system. Automatic safety curtain.
For machining transoms and door profiles made of aluminium or PVC. Manual feed of the routing unit. Large cutting range of up to 400 mm. Continuously adjustable table height Tool diameters of up to 280 mm can be used. The material stop can be pivoted up to 60° to the left and right. Notching up to 30° (acute angles, left and right). Detent at 90° with index pin. Two installation positions for the material stop. With quick tool change system and “Spindle Lock” for easy tool changing. Precise, smooth-action and low-wear recirculating ball guides. Horizontal and vertical pneumatic material clamping provides flexibility. Depth stop for four different notching depths. Integrated connecting piece with extractor hose for connection to an extraction system. Pulsed coolant system. Automatic safety curtain.
EP124 EP120

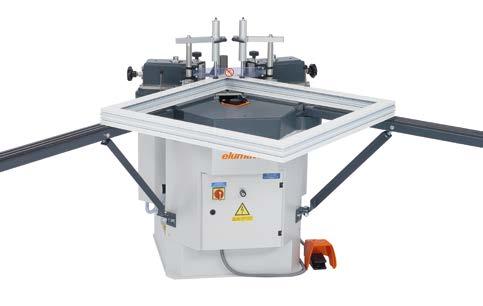

For pressing profiles with large dimensions with the highest quality requirements. The machine is easy to adjust and operate and has short changeover times. Extremely high pressing force due to large-volume bellows cylinder (maintenance free).
The specially-designed counter bearing head allows pressing of frames with an inner dimension starting at 150 mm (clear dimension). The pressing depth can be set separately for each tool carriage. An adjustable pressing blade is also available to compensate for the profile chamber offset.(-5 to 15 mm as standard, 15 to 35 mm as an option). Pressing height 140 mm with Pressing force 70 kN (7 t) and pneumatic drive EP124/20 see EP124/00, however: Pressing height 200 mm
For pressing profiles with a height of up to 68 mm
Extremely high pressing force due to large-volume bellows cylinder (maintenance free)
The machine is easy to adjust and operate
Counter bearing can be positioned pneumatically, mechanical locking
Support arms and pressing blades included as standard 2-hand operation
eluCad
eluCad is elumatec’s intuitive CAD/CAM software designed to simplify and accelerate the programming of profile machining centres. With a clear, user-friendly interface, even operators without prior CNC programming experience can quickly create efficient, accurate machining programs for milling, drilling, tapping, cutting and angled operations. Automatic depth tables, tool allocation, clamp positioning and collision monitoring are integrated to reduce manual setup and minimize programming effort, allowing manufacturers to focus on production rather than code writing. eluCad’s machine-neutral programming ensures that programs can be used across most elumatec machines without modification, improving workflow continuity and flexibility. The software supports data import from multiple sources, parameterized program creation and seamless integration with ERP systems, helping to reduce errors, save time and optimise material utilisation. Overall, eluCad enhances productivity, consistency and transparency in profile machining workflows.
INTUITIVE CAD/CAM PROGRAMMING ENVIRONMENT
AUTOMATIC TOOL AND CLAMP CONFIGURATION
INTEGRATED COLLISION MONITORING AND SAFETY CHECKS
MACHINE-NEUTRAL PROGRAM GENERATION
SEAMLESS DATA IMPORT AND WORKFLOW OPTIMISATION
eluCloud
eluCloud is elumatec’s digital platform designed to connect machines, software and production processes in a unified ecosystem, enabling manufacturers to move toward smart factory operations. With real-time monitoring of machine status, cycle times, production data and performance indicators, eluCloud provides complete transparency over workshop activities. Intuitive dashboards and visualisations make it easy to identify bottlenecks, track downtime, and plan maintenance before issues occur, improving overall equipment effectiveness (OEE). The platform also enables centralised management of CNC programs, remote data access and secure storage of historical production information. By facilitating seamless data exchange between machines and operational systems, eluCloud supports Industry 4.0 initiatives, enhances decision-making and increases efficiency across the production chain. Scalable for both small workshops and large industrial environments, eluCloud empowers companies to optimise workflows and maximise productivity.
REAL-TIME MACHINE AND PRODUCTION MONITORING
INTUITIVE DASHBOARDS WITH PERFORMANCE INSIGHTS
CENTRALISED CNC DATA AND REMOTE ACCESS
HISTORICAL DATA STORAGE AND ANALYSIS
SCALABLE SUPPORT FOR INDUSTRY 4.0

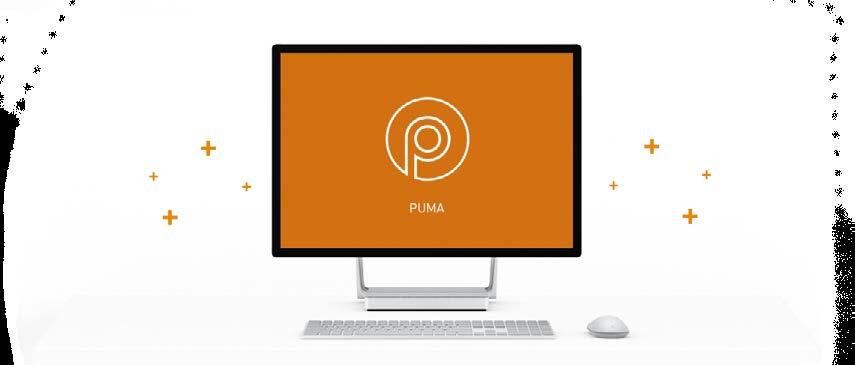

PUMA is the proposed solution for the programming of multi-axis machining centers produced by various manufacturers. PUMA is the instrument that contains the maximum performance, allowing the best exploitation of the characteristics of its production means, typically a 5-axis machining center. The perfect management of all the functions necessary for the milling of complex parts, such as the management of 5 interpolated axes, management of milling curved surfaces, management of curved parts and complete management of the touch probe module, together with the perfect management of the typical characteristics of the machining centers used for the machining of aluminum and light alloy bars, makes PUMA the most suitable product for the management of 5-axis machining centers used in the aeronautics, rail transport and industrial sectors in general.
PROFILE PROCESSING WITH MAXIMUM EFFICIENCY
3D MODEL IMPORT
AUTOMATIC FEATURE RECOGNITION (AFR)
MODULEWORKS 3 TO 5 AXIS MILLING MODULE
RADIOPROBE: MEASURING AND CORRECTION OF MACHINING
BENDED PROFILES MANAGEMENT
INNOVATIVE CLAMPING MANAGEMENT
