THE ONE FOR ALL
10 - 240 mm² crimped – fully without dies: With the Klauke EKM 60 ID, you connect both copper and aluminium cables of the most commonly used conductor classes simply at the press of a button – without sleeves or dies!
THE CRIMPING TOOL THAT THINKS WITH YOU

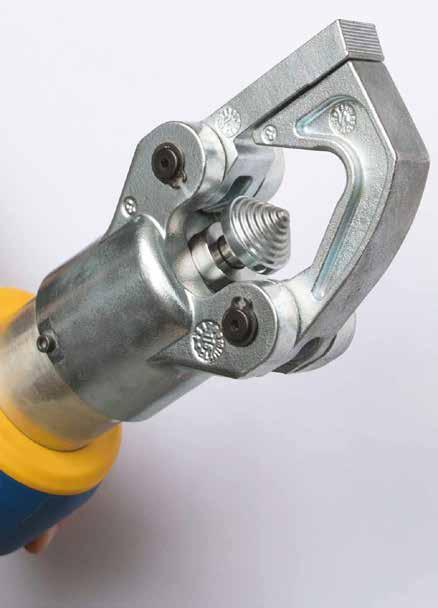

To be able to cover the large cross-sectional range of 10 to 240 mm² with just one tool, the crimping head is equipped with a patented 2-stage telescopic cylinder: The innovative system initially crimps at the maximum force of 60 kN (> 6 t), then at a lower force in the second stage. Depth and profile of the crimp automatically adapt to the processed cross-section thanks to the increments of the crimping indent.
So all small and large cross-sections are optimally crimped: Large cross-sections remain secure, smaller cross-sections are not crushed. This means for you: You only ever press one button –the Klauke EKM 60 ID does the rest.

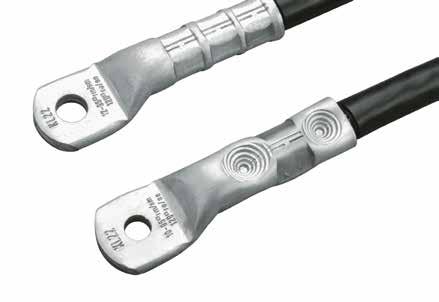

A RELIABLE CONNECTION EVERY TIME
GUARANTEED RELIABILITY
The Klauke EKM 60 ID crimps automatically as long as the correct crimp pressure is reached. For your peace of mind, the tool emits an optical and acoustic warning signal for incorrect crimps. The integrated display shows the battery charge and service intervals.
In addition, you can create quality certificate: The data can be easily read off via Bluetooth and can be managed in the intuitive Klauke i-press® app – free-of-charge for iOS and Android!
CANNOT BE SIMPLER
KLAUKE
EKM 60 ID
BATTERY POWERED HYDRAULIC CRIMPING TOOL 10 - 240 MM²
Crimping range Cu 10 - 240 mm²
Crimping range Al 50 - 240 mm²
Crimping force 30 - 60 kN
Crimping cycle 2 - 7 s
Crimping head rotatable 360°
Charging time 15 min.
Weight incl. battery 2.5 kg
Ambient temp. -10 to +40 °C
Illumination LED
Interface Bluetooth
PERSONAL ADVICE
Klauke is the leading system supplier of electrical connectors, tools and test and measuring instruments for the professional electrical engineer. Customers from the most diverse sectors trust in the quality of original Klauke products, which have been tested and certified to international standards, and benefit from a global network of authorised Service Centers along with the comprehensive training and advice available.
MADE FOR YOU: SELECT YOUR BATTERY AND CASE
For your new Klauke EKM 60 ID, choose a battery from Bosch or Makita that complements your other tools. The EKM 60 ID comes in a robust Klauke case including the appropriate fast charger for the battery platform of your choice. Alternatively, there is the EKM 60 ID which also comes in a practical L-BOXX!
EKM60IDCFB EKM60IDCFM L-BOXX
LBOXXEKM60IDCFB LBOXXEKM60IDCFM
Test the Klauke system for yourself and find out more about our solutions for the professional electrical engineer: Make use of our support via phone, e-mail, video chat or arrange an appointment for your personal adviser to meet you on site:
T +49 (0) 2191 907 107 E anfragen@klauke.textron.com W www.klauke.com/de/aussendienstmitarbeitersuche

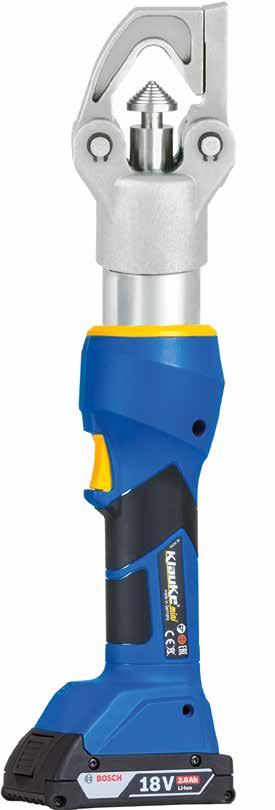

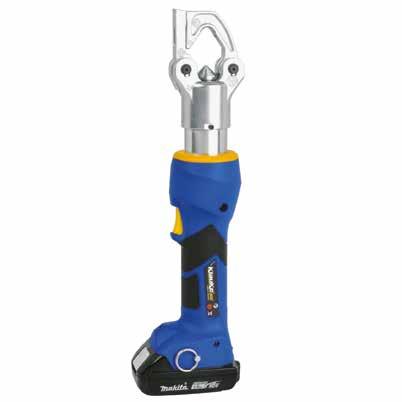

Item no. Klauke EKM 60 ID with Bosch battery Klauke EKM 60 ID with Makita battery
Klauke case
