smartview 1 & 2
wurtec.com
retrofit kits
product description Wurtec Smartview 1 and Smartview 2 Retrofit Kits provide a streamlined modernization solution for replacing existing Rath Smartview equipment with Wur-Com emergency communication technology. Designed as drop-in replacements with matching dimensions, both kits help simplify installation while supporting ASME 2019 code compliance through the Wur-Com Emergency Communicator. 11-10085675 Smartview 1
The Smartview 1 offers a modular upgrade path for replacing individual Rath Smartview components, while the Smartview 2 provides a complete all-in-one replacement for the Rath Smartview 2 All-In-One 7200 model. Both options are designed to reduce retrofit work and provide a cleaner, more efficient modernization process.
key features • • • • • • •
Drop-in replacement for existing Rath Smartview equipment. Integrates Wur-Com emergency communication technology. Designed to support ASME 2019 code compliance. Matching dimensions help minimize retrofit work. Available in modular and all-in-one configurations. Includes communication, audio, and video components based on model. Designed for elevator modernization applications.
11-10088608 Smartview 2
specifications_wurcom-smartview 1.800.837.1066 | wurtecsales@wurtec.com
Revision 01 | 08/2026
smartview 1 & 2
wurtec.com
retrofit kits

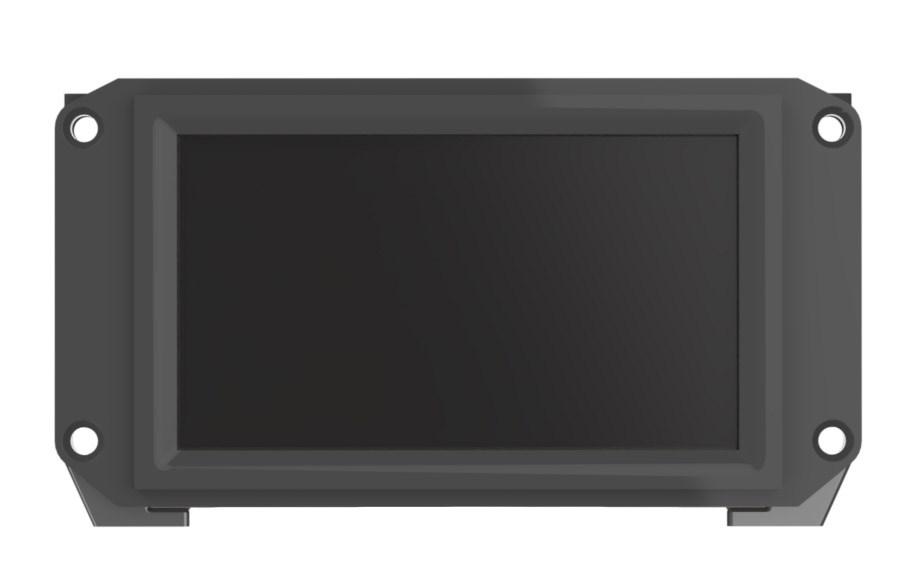

product information 11-10085675 | Smartview 1 The Wurtec Smartview 1 Retrofit Kit provides a modular replacement solution for existing Rath Smartview components. It replaces the SmartView Display (2100-SVD), Behind-the-Panel Camera (2100-SVCF), and External Powered Elevator Phones (2100-907RA), while fitting into the existing Rath Smartview 2 All-In-One Unit (7200) footprint.
11-10088608 | Smartview 2
Qty
Component
1
Wur-Com Plus Smartview 1 Assembly with 4.3 in Screen
1

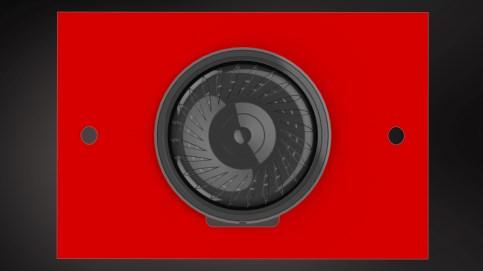

Speaker Assembly
1
Microphone Assembly
1
Wiring Kit
1
Camera - Optional

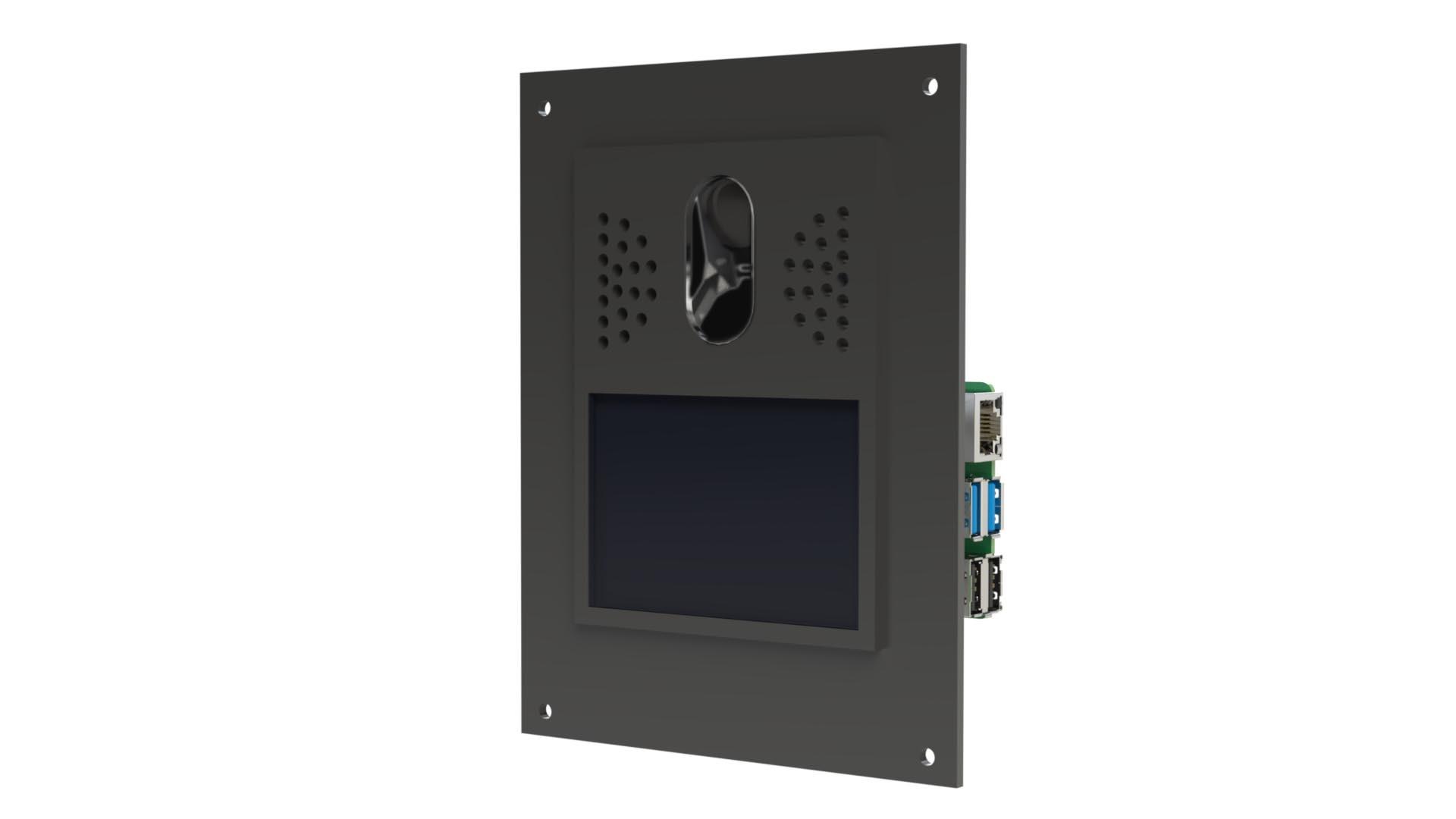

The Wurtec Smartview 2 Retrofit Kit is a complete all-in-one modernization solution designed as a direct replacement for the Rath Smartview 2 All-In-One 7200 model. The assembly combines the Wur-Com communicator, speaker, microphone, camera, and faceplate into a single unit to simplify installation and reduce field assembly.
Qty
Component
1
Wurtec Smartview 2 Retrofit Kit
specifications_wurcom-smartview 1.800.837.1066 | wurtecsales@wurtec.com
Revision 01 | 08/2026
smartview 1 & 2
wurtec.com
retrofit kits dimensions

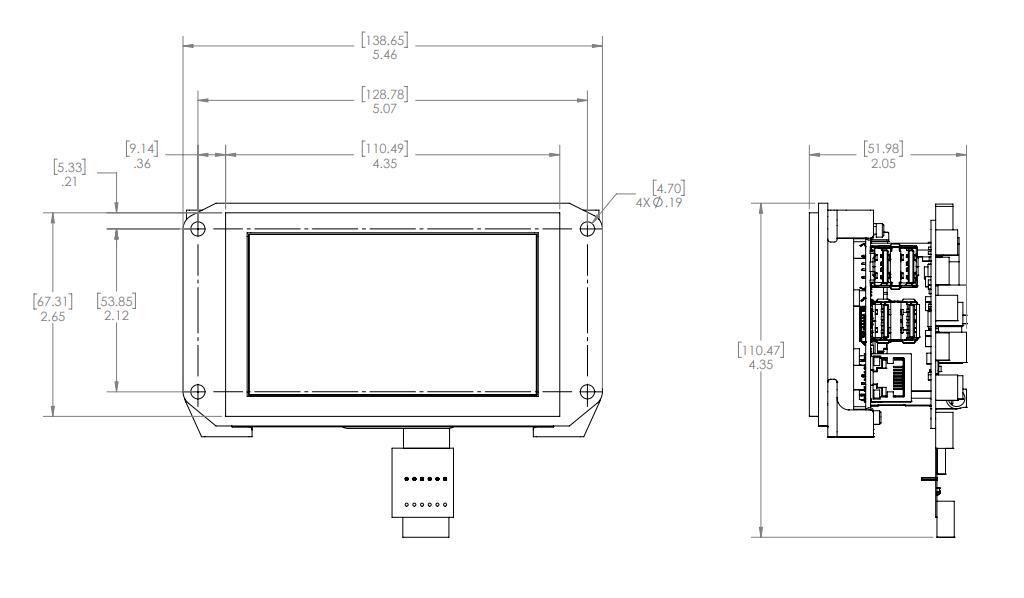

11-10085675 | Smartview 1

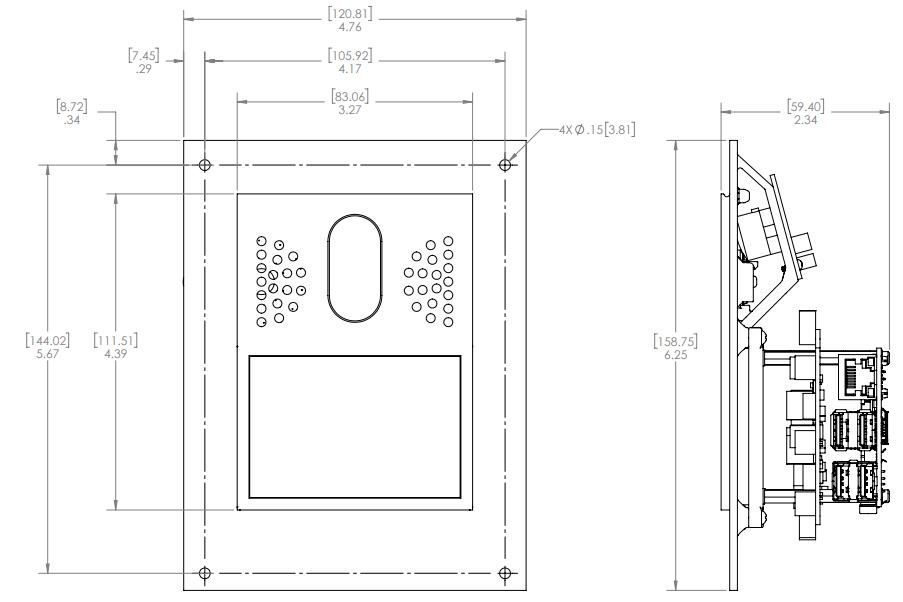

11-10088608 | Smartview 2
specifications_wurcom-smartview 1.800.837.1066 | wurtecsales@wurtec.com
Revision 01 | 08/2026
