GAS GEAR CATALOGUE

LEADING SUPPLIER OF QUALITY WELDING PRODUCTS

TORCHES

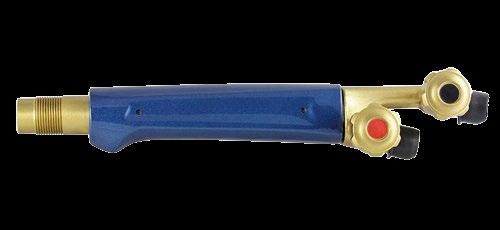

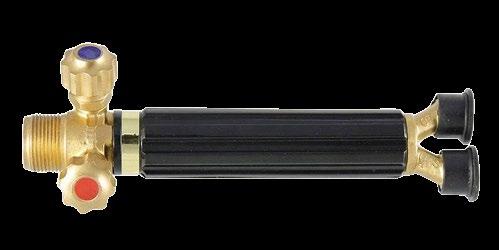

BLOWPIPE HANDLE (COMET) P4-BP

Takes 2-seat and 3-seat cutting attachments.

FEATURES:

• Cuts up to 150mm

• Welds up to 9mm

• Aluminium coated handle, for less weight and comfort

• Two needle valves for fast, accurate flame adjustment & resists back fire

• Two separate gas tubes for safety

CUTTING ATTACHMENT (COMET) P4-CA

Oxy-Acetylene, Propane.

FEATURES:

• CIGWELD style

• Cuts up to 150mm

• Locking teeth enable to be repositioned & locking strength

• Double O-ring seal to form a perfect gas-tight seal

• Twin tubes, the bottom tube inside w/mixer for special design

• Press level for easy cutting use

Conformity with EN ISO 5172

RECOMMENDED TORCH

TORCH SPARES

PART NO.

P4-BHFV

DESCRIPTION

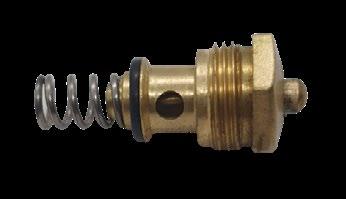

Blowpipe Fuel Valve to suit P4-BP

P4-BHOXV

Blowpipe Oxy Valve to suit P4-BP

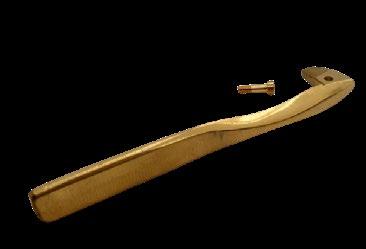

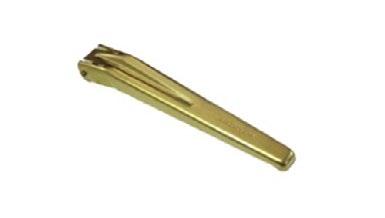

Cutting Attach Lever & Pin to suit P4-CA

Cutting Attach Lever Valve to suit P4-CA

Cutting Attach Oxy Valve to suit P4-CA

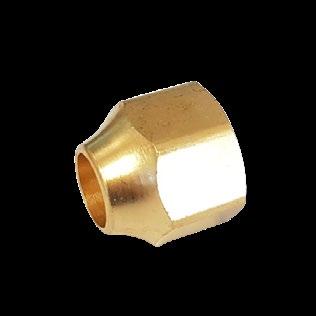

Cutting Attach Tip Nut to suit P4-CA

MIXERS

HEATING MIXER (ACETYLENE)

PART NO.

P4-AHMX

DESCRIPTION

Acetylene Heating Mixer to suit Comet Handle. Takes a Super Heating Barrel.

HEATING MIXER HI-FLOW LPG

PART NO.

P4-LPHMX

DESCRIPTION

LPG Hi-Flow Heating Mixer to suit Comet Handle. Takes a Super Heating Barrel.

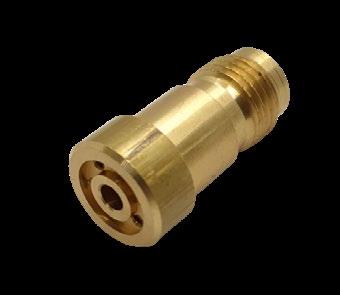

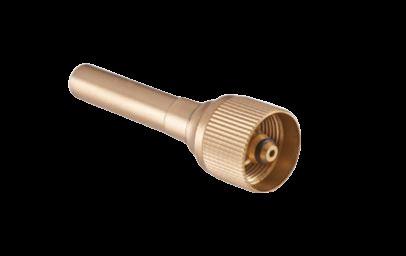

MIXER (COMET 3 STYLE)

PART NO.

P4-MX

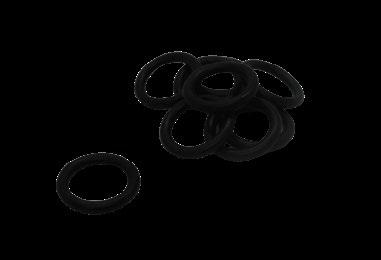

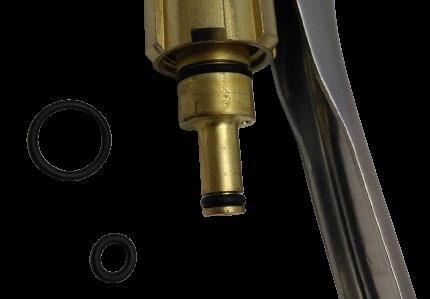

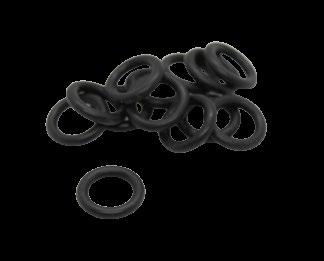

MIXER - O-RING KIT

PART NO.

P4-MXOK

DESCRIPTION

Mixer to go from comet blowpipe to welding brazing tips and heating tips.

DESCRIPTION

Mixer O-ring Kit to suit Comet Mixer

WELDING TIPS

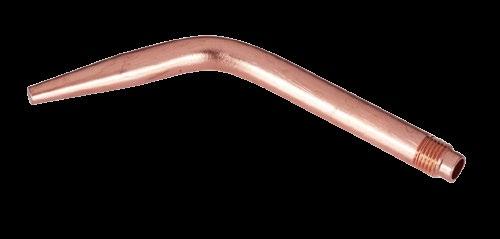

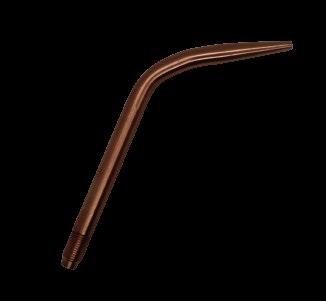

TYPE 551 OXY/ACETYLENE WELDING TIPS

Connects with mixer P4-MX

BRAZING TIPS

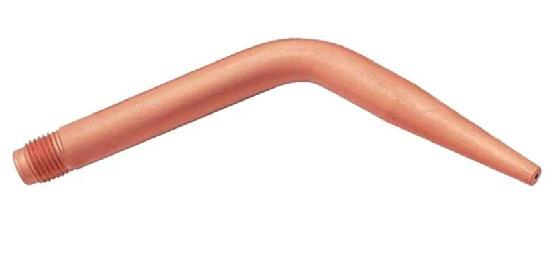

TYPE 554 OXY/LPG BRAZING TIPS

Connects with mixer P4-MX

P4-12WTLP

P4-15WTLP

P4-20WTLP

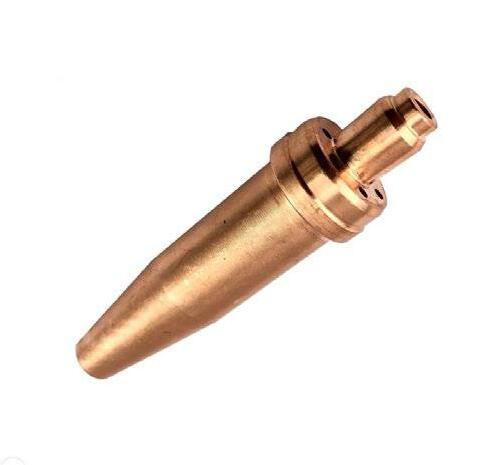

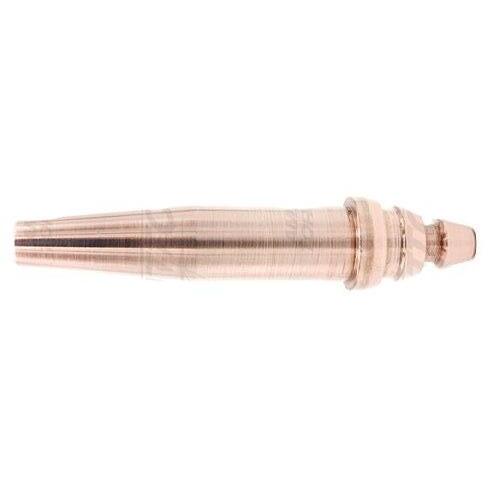

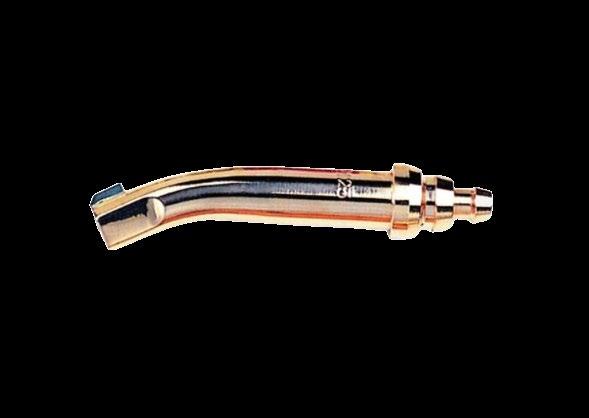

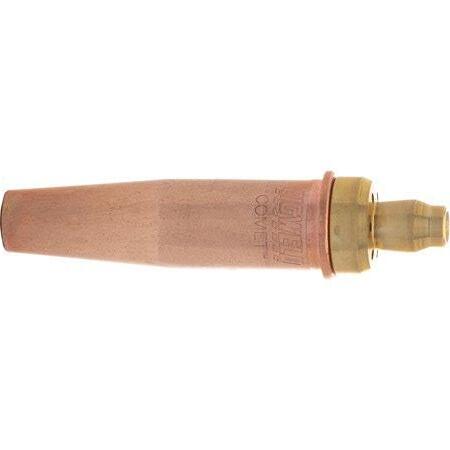

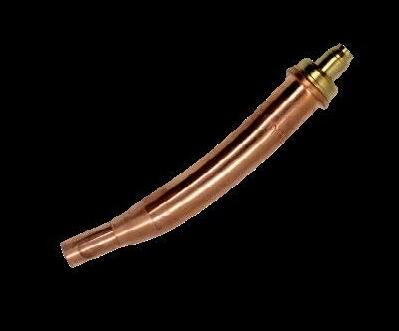

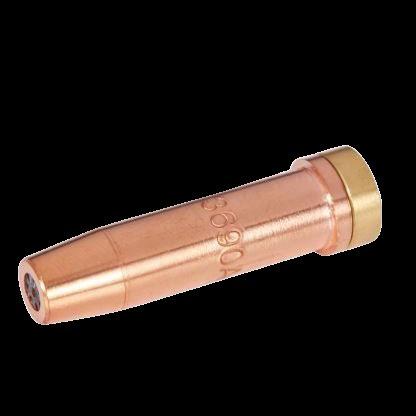

CUTTING TIPS

TYPE

41 2-SEAT OXY/ACETYLENE CUTTING TIPS

Connects with cutting attachment P4-CA

P4-T4120

TYPE 44 2-SEAT OXY/LPG CUTTING TIPS

Connects with cutting attachment P4-CA

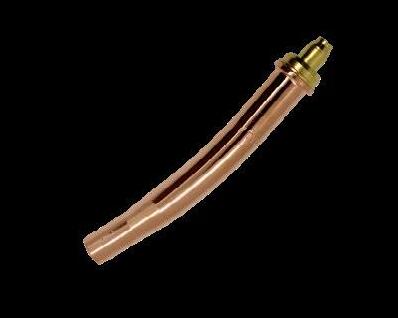

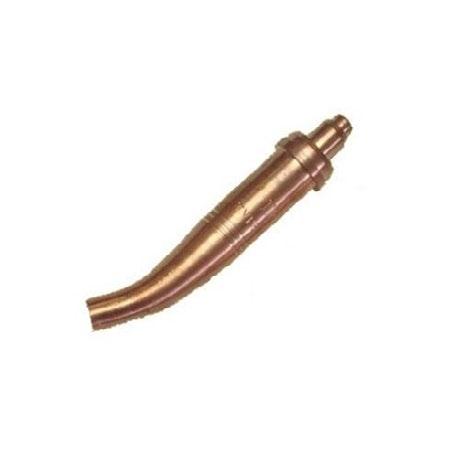

GOUGING TIPS

TYPE 41 OXY/ACETYLENE GOUGING TIPS

Connects with cutting attachment P4-CA

P4-4132GB

TYPE 44 OXY/LPG GOUGING TIPS

Connects with cutting attachment P4-CA

SUPER HEATING

HEATING TIPS

HEATING TIP - TYPE 551 | OXY-ACETYLENE

Connects to mixer P4-MX

P4-AH812

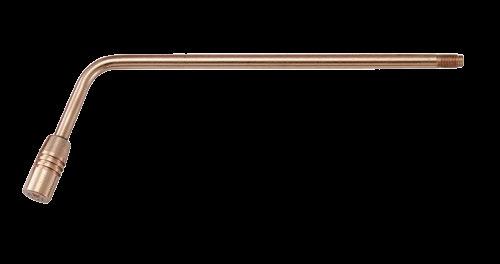

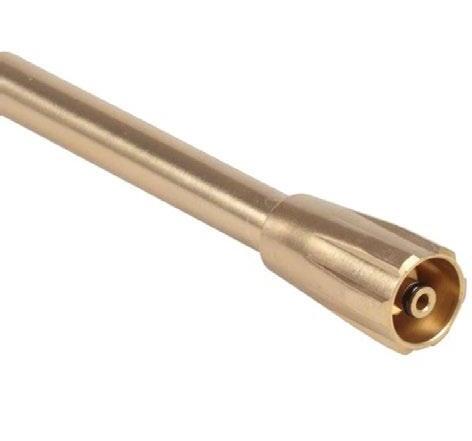

SUPER HEATING BARRELS

P4-SHB Comet

P4-SHB-870 Comet 870mm long

P4-SHBC Converter

ACETYLENE HEATING TIP

Connects to P4-SHB or P4-SHB-870

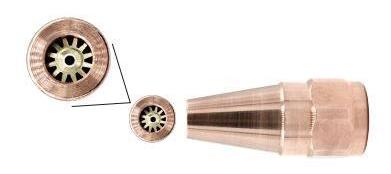

SUPER HEATING LPG TIPS

For 43-2 Torch Handle Recommend to use F-43 Mixer Connects to P4-SHBC

P4-AHMX or P4-LPHMX

P4-AHMX or P4-LPHMX

P4-SHB or P4-SHB-870

KOIKE STYLE

TORCHES

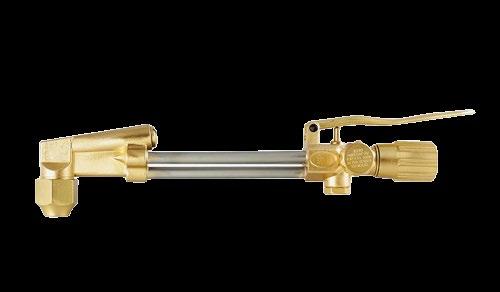

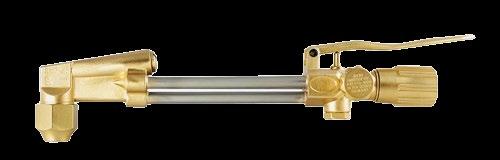

CUTTING ATTACHMENT | OXY-ACETYLENE, PROPANE

FEATURES:

• 3-seat

• Cuts up to 150mm

• Stainless steel needle valve for fast and accurate flame adjustment

• Locking teeth enable to be repositioned and lock tightly

• Double O-ring seal to form a perfect gas-tight seal

• Three tubes stainless steel construction for maximum strength

• Push down cutting valve

PART NO.

P4-CA3 Cutting Attachment (Koike 3 Seat)

P4-CA3180 Cutting Attachment 180deg (Koike 3 Seat)

RECOMMENDED TORCH HANDLE

CUTTING RANGE

SERIES

P4-BP 6” / 150mm ANME /PNME

HAND CUTTING TORCH | 3 SEAT 1PIECE CUTTING TORCH

A workable cutting torch, streamlined design to assure operator comfort even after hours of continuous cutting.

FEATURES:

• Harris style

• Medium duty cutting - up to 250mm steel

• Top stainless steel lever with hold-down button

• Triangular stainless steel gas tubes for maximum strength

• Two stainless steel needle valves for fast, accurate flame adjustment & durability

• Tips mix principle - maximum operator safety

• Universal pressure - maintains stable preheat flame during cutting

• Ease on feature for cutting

P4-NM-250B

P4-NM-250D

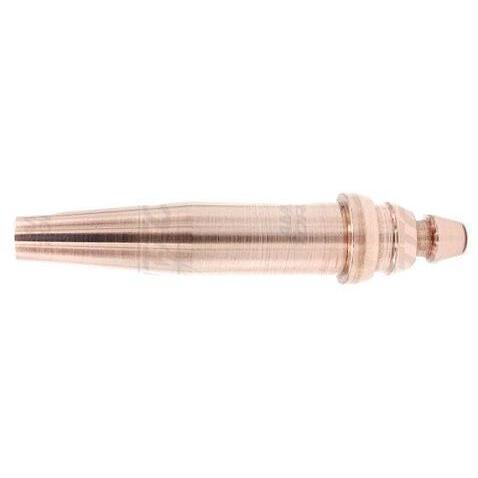

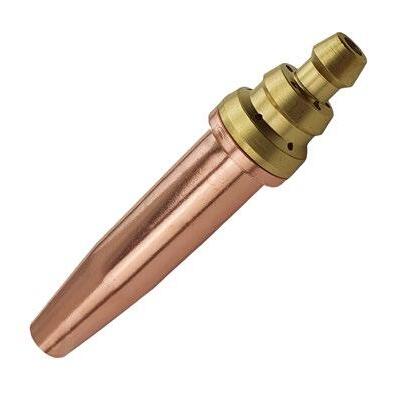

CUTTING/GOUGING

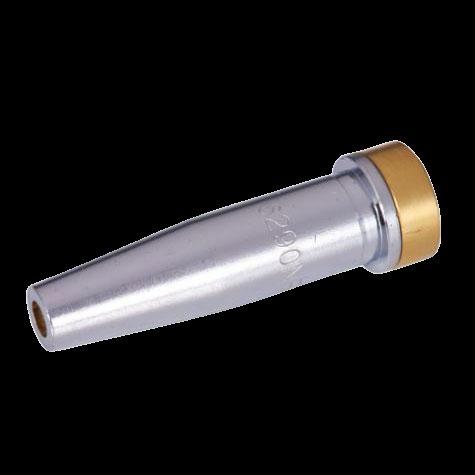

102 3-SEAT ACETYLENE CUTTING TIPS

Connects to P4-CA3, P4-CA3180, P4-NM-250B and P4-NM-250D

106 3-SEAT LPG CUTTING TIPS

Connects to P4-CA3, P4-CA3180, P4-NM-250B and P4-NM-250D

P4-106-6

ANME 3-SEAT ACETYLENE CUTTING TIPS

Connects to P4-CA3, P4-CA3180, P4-NM-250B and P4-NM-250D

PNME 3-SEAT LPG CUTTING TIPS

Connects to P4-CA3, P4-CA3180, P4-NM-250B and P4-NM-250D

P4-PNME-1

A-GNM 3-SEAT GOUGING TIPS

Connects to P4-CA3, P4-CA3180, P4-NM-250B and P4-NM-250D

PART

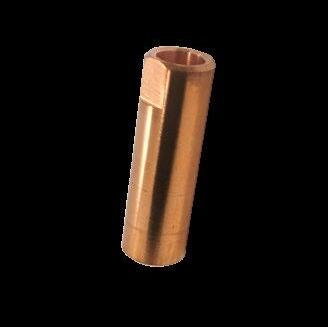

*Swaged and machined from copper and have a tungsten insert to prevent wear and damage.

HEATING TORCHES

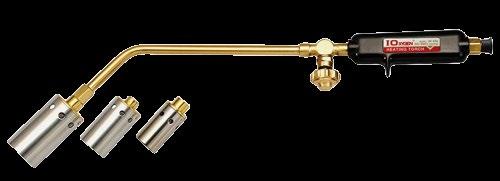

LPG HEATING TORCH

APPLICATION:

Soldering, brazing, annealing, straightening and bending plates, pipes and bars, preheating in welding jobs, drying molds, thawing jobs, asphalt work etc.

Comes with a tip of each size (3 total).

LPG HEATING TIP SIZE

HEATING TORCH

FEATURES:

• Brass tube with stainless heating tips

• Used for applications requiring large heat volumes

• At the pressure lever, operator can go from pilot flame to full-brush flame

• Length: 560cm

• Head size: 60mm

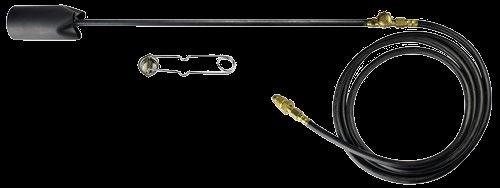

HEATING TORCH OUTFIT (HOSE AND FLINT LIGHTER)

Capacity: Cutting up to 6” (150mm), Welding up to 3/8” (9mm)

FEATURES:

• Design for heavy-duty outdoor applications

• Large volume of heat (up to 5000,000 BTUs) for weed burning, ice melting, asphalt removal and any other applications

• For use with standard 201Bar barbeque liquid propane tanks

• All steel torch handle and torch head

• Excess flow safety valve shuts off flow when hose is accidentally cut or melted

• 10’ durable hose and single-flint striker are included in the outfit

• Brass control knob will not freeze up in cold weather

• For use with propane only PART NO.

PART NO.

ASSEMBLY CHART FOR HARRIS STYLE MAXI COMPACT

TYPE 551 ACETYLENE WELDING TIP

P4-MCO7A

MIXER

P4-MCO3A

BLOWPIPE HANDLE

P4-MCO1

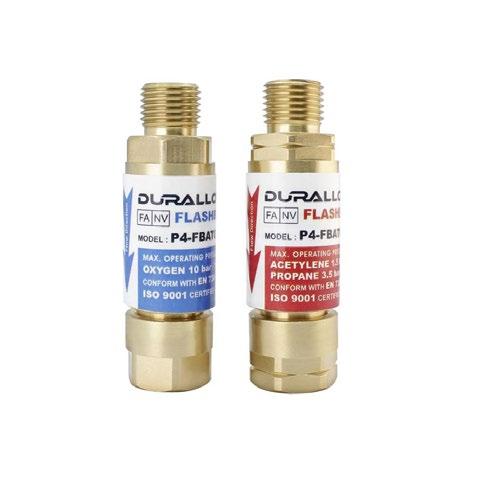

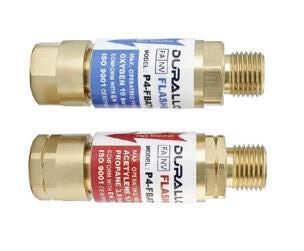

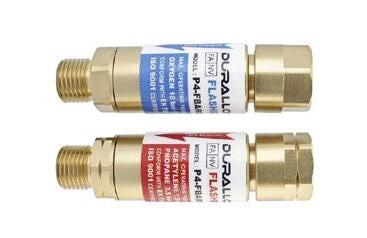

FLASHBACK ARRESTOR

P4-FBATO (OX)

P4-FBATF (AC/LPG)

TYPE 554 LPG WELDING TIP

P4-MXO7L

MIXER

P4-MCO3L

CUTTING ATTACHMENT

P4-MCO2

TWIN HOSE

HEATING & WELDING TIP

P4-MXO9L

PIPE

P4-MCO4L

TYPE 41 ACETYLENE CUTTING NOZZLE

P4-MCO6A

TYPE 44 LPG CUTTING NOZZLE

P4-MCO6L

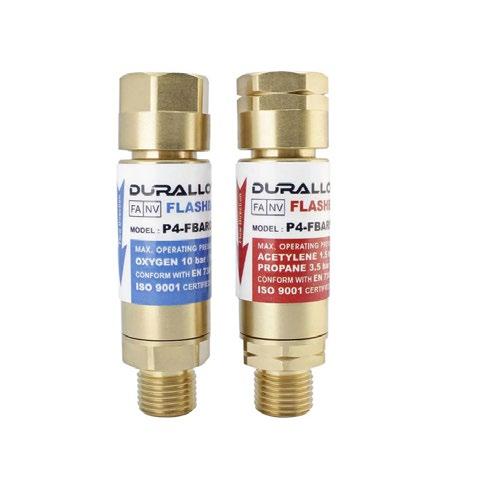

FLASHBACK ARRESTOR

P4-FBARO (OX)

P4-FBARF (AC/LPG)

P4-TWAC5 ACETYLENE REGULATOR

P4-LPRI (3.5M)

(10M)

(1.5M)

ASSEMBLY CHART FOR HARRIS STYLE MAXI PRO

LPG HEATING TIP

P4-MPO9L/1

P4-MPO9L/2

P4-MPO9L/3

P4-MPO9L/4

P4-MPO9L/5

HEATING BARREL

MIXER

P4-MPO3/L/H

TYPE 551 ACETYLENE WELDING TIP

P4-MPO7A

TYPE 554 LPG WELDING TIP

P4-MXO7L

MIXER

P4-MPO3

BLOWPIPE HANDLE

P4-MPO1

FLASHBACK ARRESTOR

P4-FBATO (OX)

P4-FBATF (AC/LPG)

CUTTING ATTACHMENT

P4-MPO2L

TWIN HOSE

P4-TWAC5

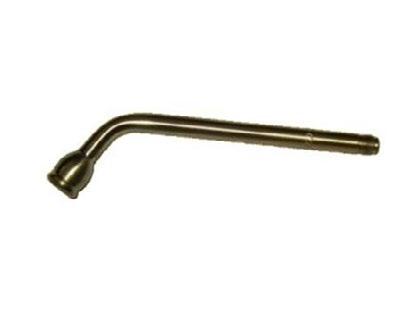

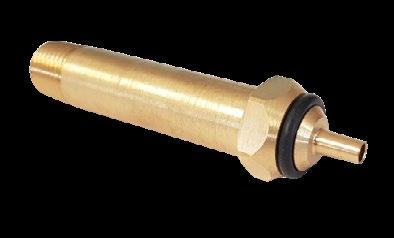

PIPE

P4-MPO4L

HEATING & WELDING TIP

P4-MXO9L

TYPE 41 ACETYLENE CUTTING NOZZLE

P4-MPO6A

TYPE 44 LPG CUTTING NOZZLE

P4-MPO6L

FLASHBACK ARRESTOR

P4-FBARO (OX)

P4-FBARF (AC/LPG)

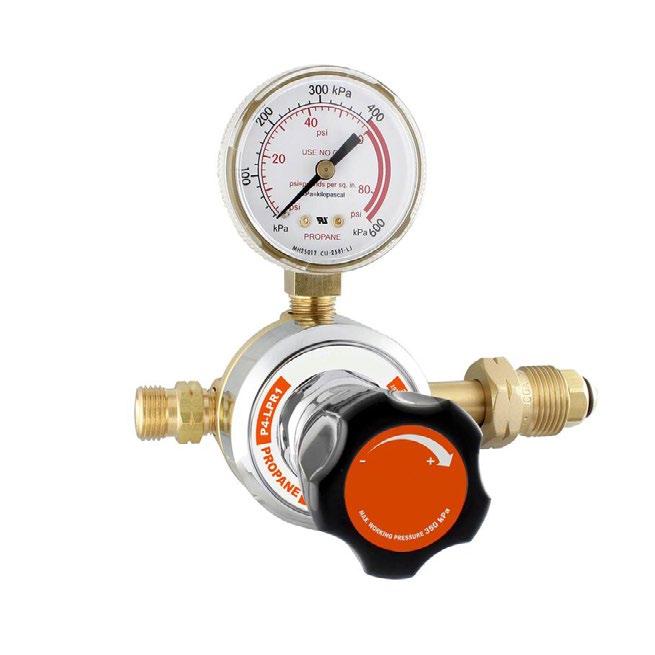

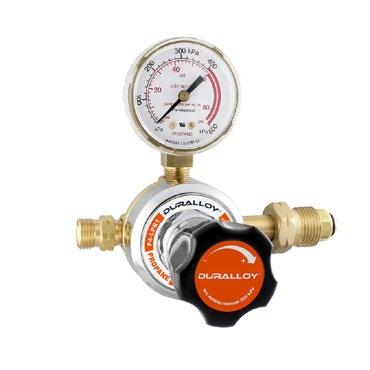

LPG REGULATOR

P4-LPRI (3.5M)

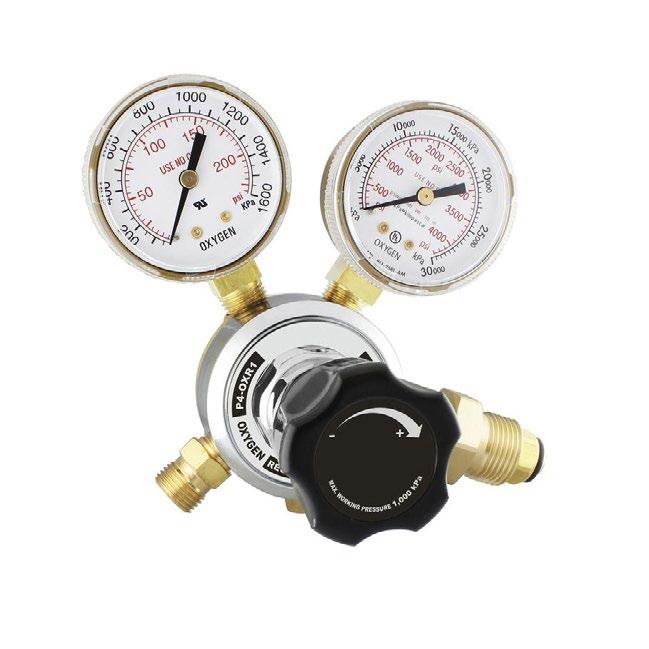

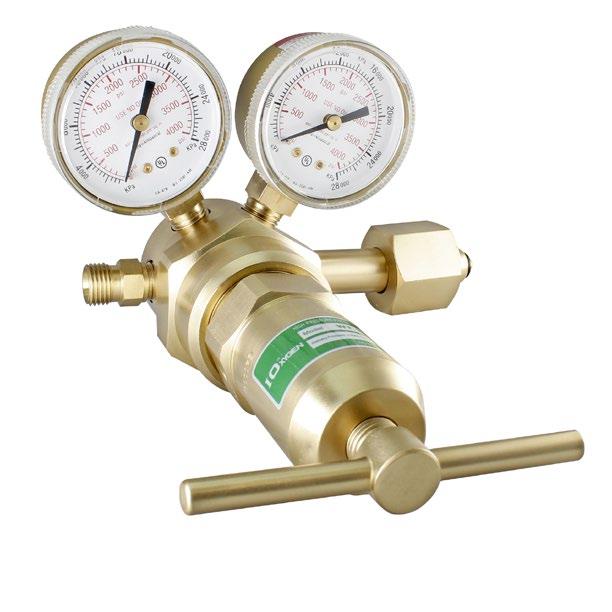

OXYGEN REGULATOR

P4-OXRI (10M)

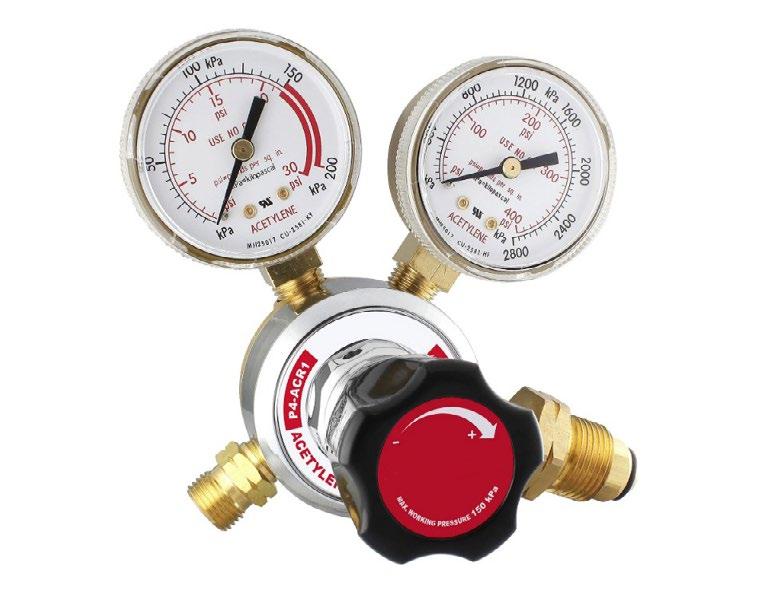

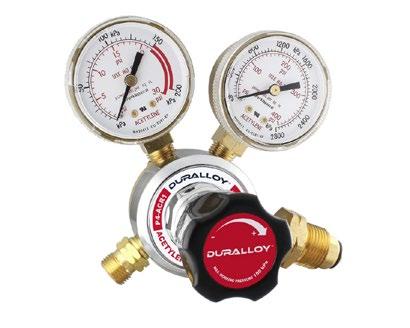

ACETYLENE REGULATOR

P4-ACRI (1.5M)

TORCHES

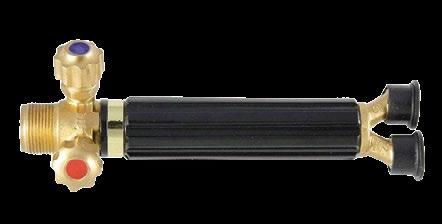

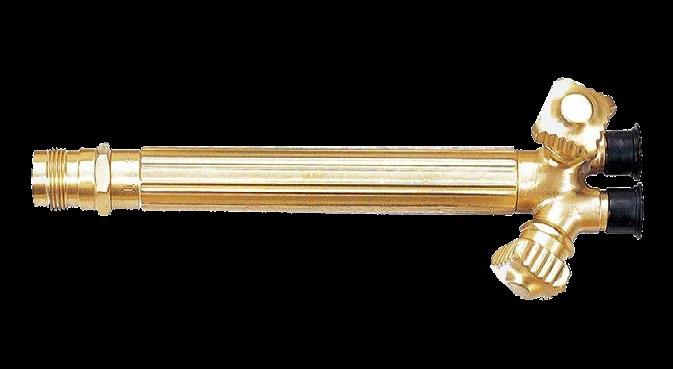

BLOWPIPE HANDLE - MAXI COMPACT

FEATURES:

• Harris style

• Cuts up to 75mm

• Welds up to 6mm

• Two stainless steel needle valves for fast, accurate flame adjustment

• Two separate stainless steel gas tubes for safety

• Front piece and body of forged brass for durability

• Plastic body

Conformity with EN ISO 5172

PART NO. P4-MCO1

RECOMMENDED

BLOWPIPE HANDLE - MAXI PRO

FEATURES:

• Harris style

• Cuts up to 150mm

• Welds up to 50mm

• Tough extruded brass handle for durability

• Two stainless steel needle valves for fast, accurate flame adjustment

• No screws or soldered parts for easier maintenance

• Wall thickness design gives stronger strength and durability

• Brass thread

PART NO. P4-MPO1

RECOMMENDED TORCH HANDLE

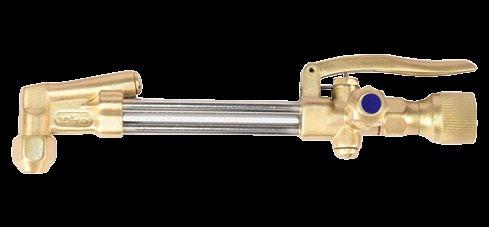

CUTTING ATTACHMENT - MAXI COMPACT | OXY-ACETYLENE, PROPANE

FEATURES:

• Harris style

• Cuts up to 75mm

• Head and body in solid forged brass

• Triangular stainless steel gas tubes for maximum strength

• Mixer at the head portion for maximum operator safety

• Medium pressure design - resists backfire

PART NO. P4-MCO2

RECOMMENDED

TORCHES

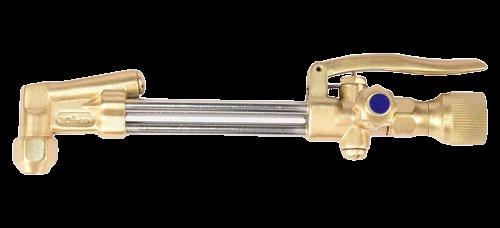

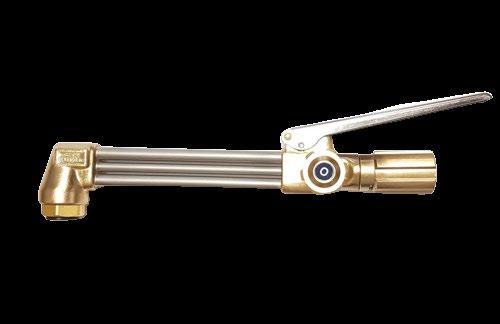

CUTTING ATTACHMENT - MAXI PRO

FEATURES:

• Harris style

• Cuts up to 150mm

• Attached quickly and simply to HC63-2 & 43-2 Torch Handle

• Double O-ring seal to form a perfect gas-tight seal

• Head and body in forged brass for longer life

• Head mixing for maximum operator safety

• Built in safety plug in head for added safety

• Triangular stainless steel tubes construction for maximum strength & long life

• Press level for easy cutting use

PART NO. P4-MPO2L

RECOMMENDED

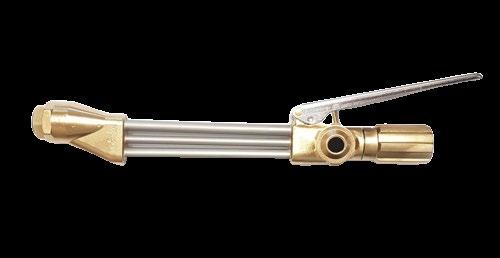

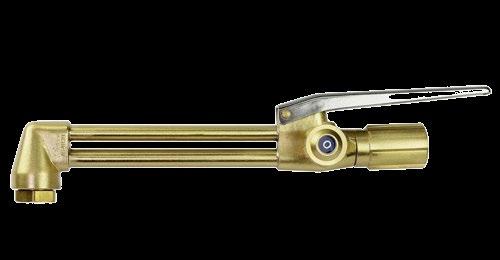

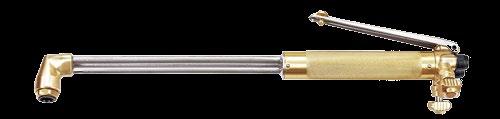

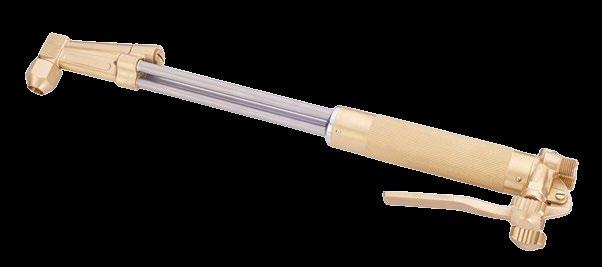

HARRIS STYLE 1PCE CUTTING TORCH

FEATURES:

• Harris style

• Heavy duty cutting up to 300mm steel

• Triangular stainless steel gas tubes for maximum strength

• Two stainless steel needle valves for fast, accurate flame adjustment

• Head mixing for maximum operator safety

• Built-in safety plug in torch head

• Universal pressure maintains

• Stable preheat flame during cutting

• Ease-on feature for cutting

Use with P4-MP06A/P4-MP06L Tips

Conformity with ENISO 5172

P4-623BF1000

P4-623FL1000

P4-623FL1250

P4-623FL1500

P4-623FL530

P4-MP06A/P4-MP06L

TORCH SPARES

PART NO.

DESCRIPTION

P4-623H180 Torch Head Assy 180deg

P4-623H90 Torch Head Assy 90deg

P4-MP20 Torch Tip Nut (P4-6259B)

Torch Cutting lever Valve

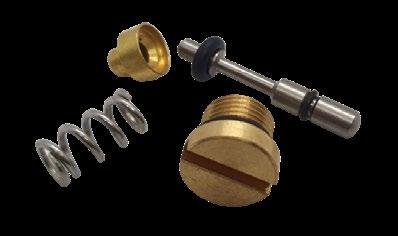

Cutting Lever Kit

PART NO.

P4-MCO3A

DESCRIPTION

Maxi Compact Acetylene Mixer Connects to P4-MCO1

P4-MCO3L

LPG Mixer Connects to P4-MCO1

P4-MPO3

Maxi Pro Mixer Connects to P4-MP01

P4-MPO3-L/H

Maxi Pro LPG Super Heating Mixer Connects to P4-MP01

TIPS

WELDING TIPS

MAXI COMPACT ACETYLENE WELDING TIPS

Connects with mixer P4-MC03A

P4-MCO7A/5

MAXI PRO ACETYLENE WELDING TIPS

Connects with mixer P4-MP03

P4-MPO7A/1

BRAZING TIPS

MAXI COMPACT/PRO LPG BRAZING TIPS

Connects to Tip Tube P4-MC04L/MP04L

P4-MXO7L/3

P4-MXO7L/6

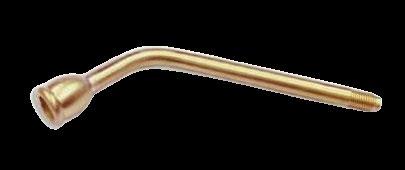

MAXI COMPACT/PRO HEATING TIP

Connects to Tip Tube P4-MC04L/MP04L

CUTTING TIPS

MAXI COMPACT (HARRIS STYLE) ACETYLENE CUTTING TIPS

For P4-MCO2 cutting attachment, two pieces.

MAXI COMPACT (HARRIS STYLE) LPG CUTTING TIPS

For P4-MCO2 cutting attachment, two pieces.

TIPS

MAXI PRO (HARRIS STYLE) ACETYLENE CUTTING TIPS

Connects to cutting attachment P4-MP02L

Connects to cutting attachment P4-MP02L PART

MAXI PRO (HARRIS STYLE) LPG CUTTING TIPS

P4-MPO6L/0

P4-MPO6L/1

P4-MPO6L/6

SUPER HEATING

SUPER HEATING LPG TIPS

Connects to P4-MP05L/420 or P4-MP05L/915

P4-MPO9L/1

P4-MPO9L/2

P4-MPO9L/3

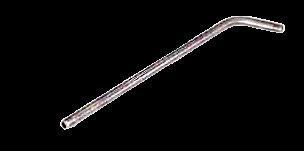

MAXI PRO LPG STAINLESS HEATING BARREL

Connects to mixer P4-MP03-L/H

PART

P4-MPO5L/420 420

P4-MPO5L/915 915

HOSE & FITTINGS

HOSE

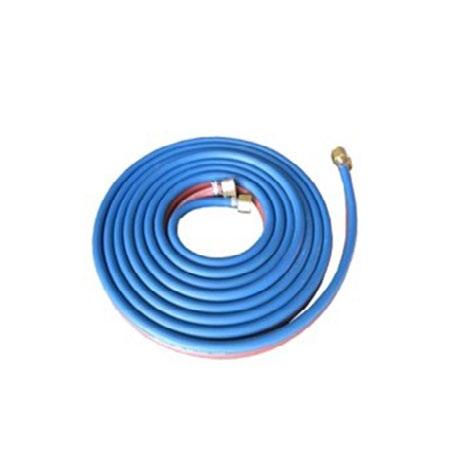

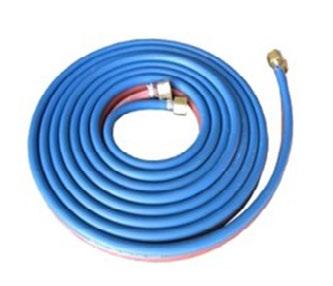

OXY/ACETYLENE TWIN HOSE

P4-TWAC5 Sold per metre 5

P4-TWAC5/10M 10m 5 Comes with RH/LH Nuts Fitted

P4-TWAC5/5M 5m 5 Comes with RH/LH Nuts Fitted

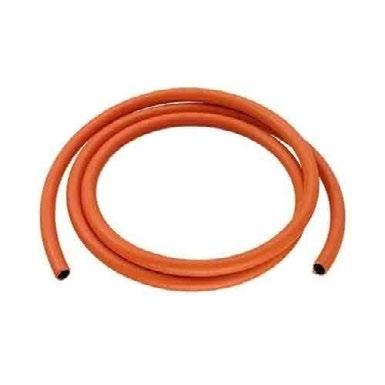

LPG SINGLE GAS HOSE 10MM ID

PART

P4-LPGH8 8

P4-LPGH10 10

HOSE FITTINGS

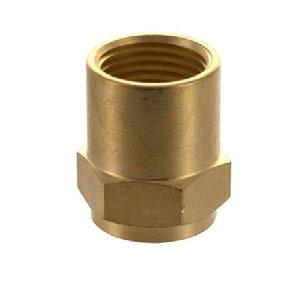

RIGHT AND LEFT HAND NUT UNF NUT

FEATURES:

• Compatible with Argon, CO2 and Oxygen regulators

• Standard UNF thread

P4-RHNUT

P4-LHNUT

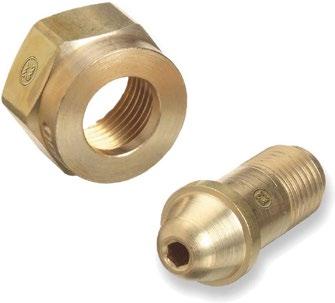

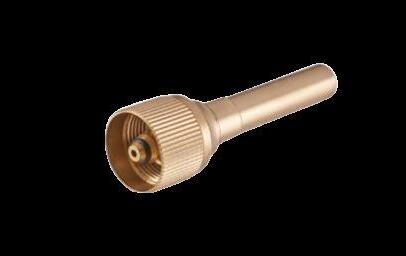

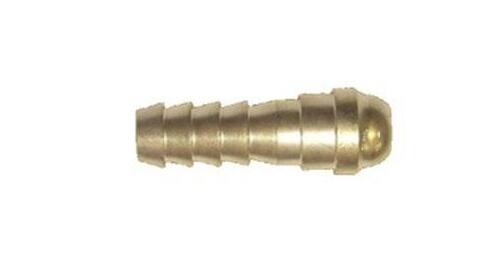

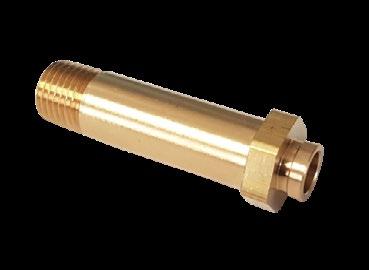

HOSE TAIL TO SUIT RH/LH NUTS

HOSE FITTINGS

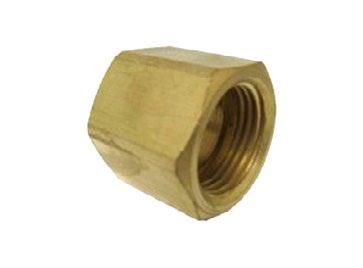

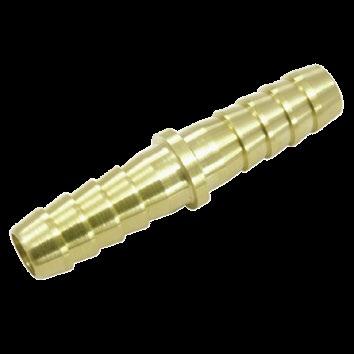

HOSE TAIL JOINER

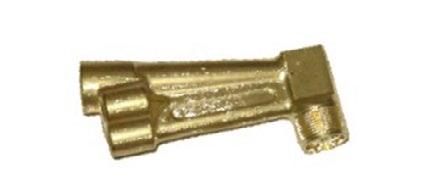

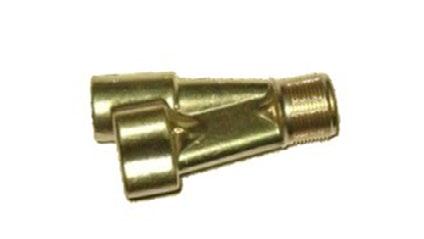

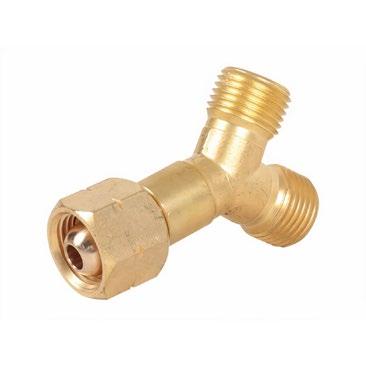

Y PIECE

“Y” piece for attaching two hose lines to same regulator. Assemble on regulator outlet.

P4-R121 RH 5/8 UNF

P4-R215 LH 5/8 UNF

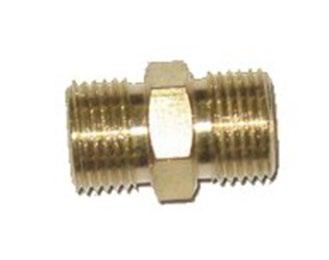

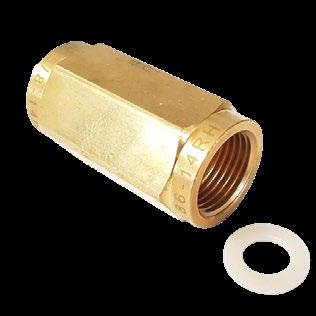

HOSE JOINER COUPLER

P4-WB34

5/8 UNF

P4-WB35 LH 5/8 UNF

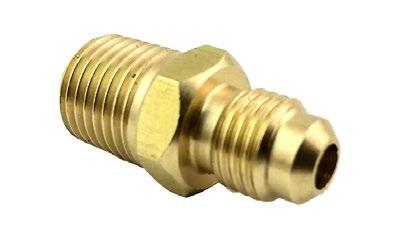

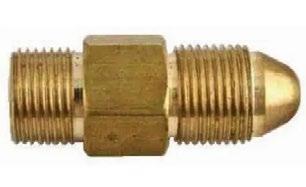

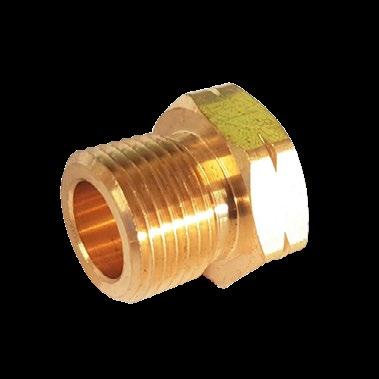

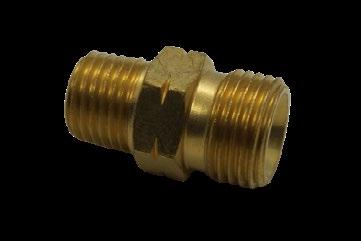

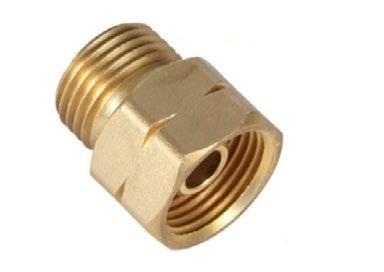

LEFT HAND THREAD ADAPTOR

P4-MX27/LH 9/16” - 18LH to 5/8” 18LH Male

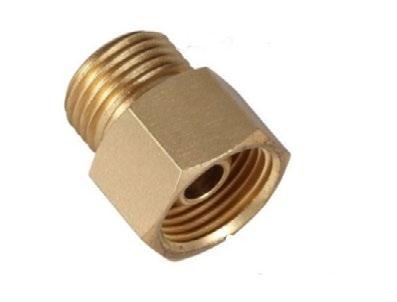

RIGHT HAND THREAD ADAPTOR

P4-MX27/RH 9/16” - 18RH to 5/8” 18RH Male

HOSE FITTINGS

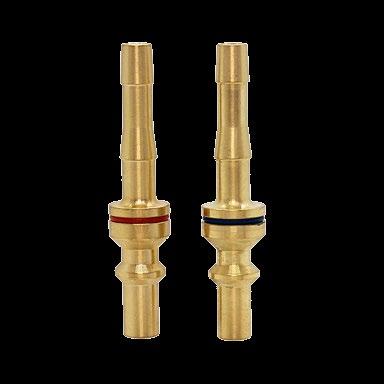

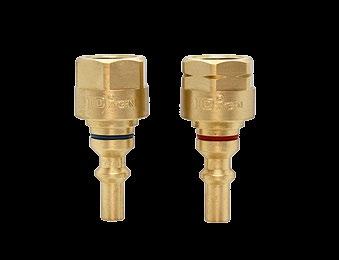

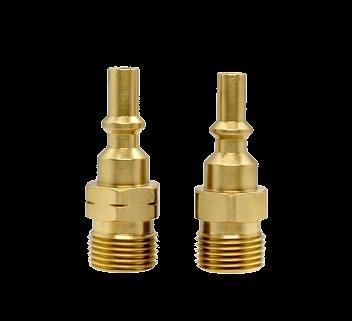

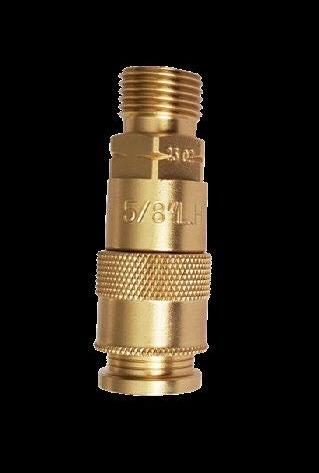

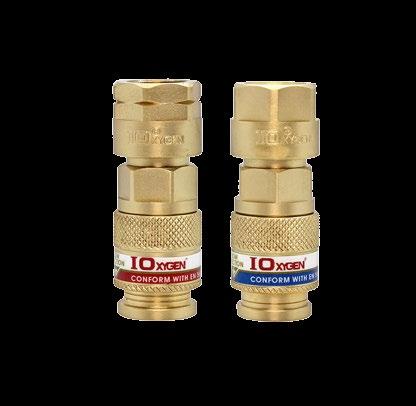

QUICK ACTION COUPLING

FEATURES:

• Long lasting stainless or chromed brass pin connection

• Automatic gas cut-off to positively shut-off the gas supply when disconnected

• Durable brass and stainless steel construction

PART NO. SIDE

CONNECTION TYPE

TYPE

P4-Q188-AL RH Male CP Thread UNF5/8”-18 For Torch connection

P4-Q188-ALC RH Female QAC Thread UNF5/8”-18 For Torch Connection

P4-Q188-AR RH Male CP Thread UNF5/8”-18 For Torch Connection

P4-Q188-ARC RH Female QAC Thread UNF5/8”-18 For Torch Connection

P4-Q288-AL LH Female QAC Thread UNF5/8”-18 For Cylinder-Regulators

P4-Q288-AR RH Female QAC Thread UNF5/8”-18 For Cylinder-Regulators

P4-Q388-A04 RH Male CP Thread UNF5/8”-18 For Torch Connection

P4-Q388-A09 LH Male CP Thread UNF5/8”-18 For Torch Connection

P4-Q388-L8 LH Male CP Hose connection 05/16”(8mm) For In-Hose

P4-Q388-R8 RH Male CP Hose connection 05/16”(8mm) For In-Hose

FLASHBACK ARRESTORS

FLASHBACK ARRESTORS | AUTOMATIC TYPE

FEATURES:

• Flame arrestor

• Non-return valve

• Prevent the gas flowing in the reverse direction

• Dirt filter protect the flashback arrestor from dirty particles

• Temperature sensitive cut-off valve

• Max flow: Oxygen: 7000Lt.H Acetylene: 2600Lt./H

• Max working pressure: Oxygen: 10Bar / Acetylene: 1.5Bar / Fuel gas: 5Bar

* Automatically cut off the gas supply when the flashback arrestor is overheated due to returning flame.

FLASHBACK ARRESTORS FOR TORCHES

Conformity with EN 730-1:2002

SAFETY

WELDING GOGGLES

PART NO.

DESCRIPTION

P7-OGFFL Oxy Goggles 108mm x 51mm viewing area. Shade 5.

ESKO TUFF-SHIELD BROWGUARD AND VISOR COMBO

PART NO.

WS-TS-BGVC

DESCRIPTION

Tuff-Shield browguard & visor combo, extra high impact, anti-fog, clear lens. Shade 5.

REGULATORS & SPARES

ARGON REGULATORS

ARGON REGULATOR TWIN GAUGE

Suitable for use with Argon and Argon/CO2 Mixed Gas Cylinders

FEATURES:

• Light to Medium duty

• Single stage construction

• Forged brass body for maximum strength

• Chrome bonnet

• Neoprene diaphragms

• Oxygen regulator with safety relief valve is set for safe operation

• Sintered metal inlet filter to trap impurities

• No soldered joints, for easy maintenance

• Side entry (Vertical optional)

• Net Weight: 1.2kg/each

Conformity with EN ISO 2503

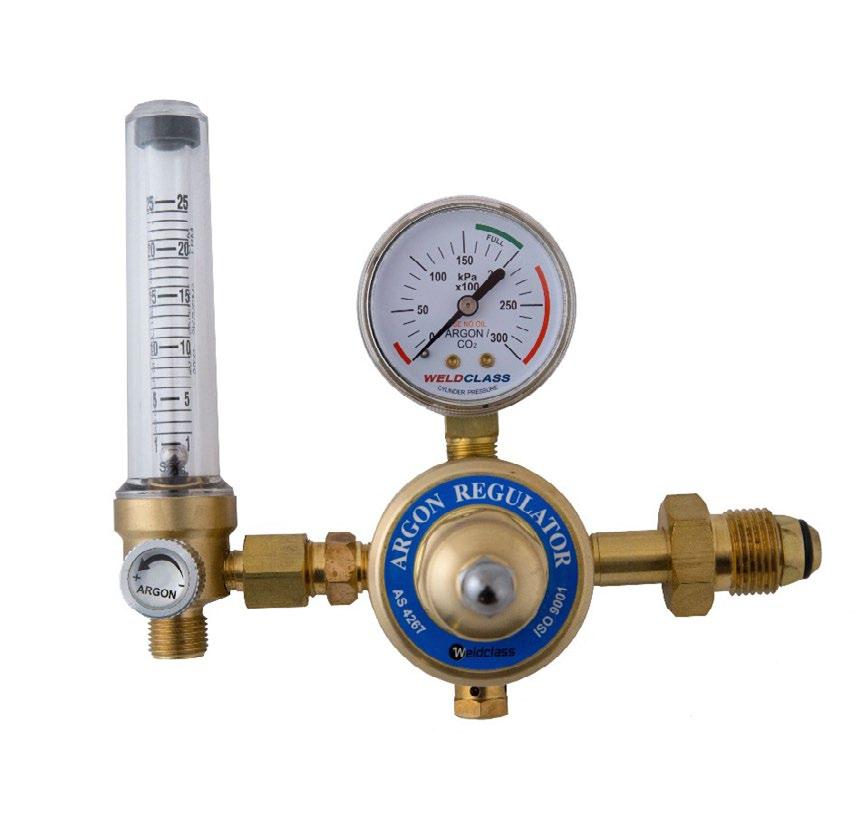

ARGON REGULATOR | BOBBIN FLOW METER

Single Stage | Flowmeter Regulators | Harris Style

FEATURES:

• Single stage construction

• Forged brass body for maximum strength

• Chrome bonnet

• Neoprene diaphragms

• Sintered metal inlet filter to trap impurities

• Accurate regulator for gas flow

• No soldered joints, for easy maintenance

• Side entry

• Outlet pressure at 3.5 bar (present)

• MIG/TIG applications for light to medium duty

• Net Weight: 1.5kg/each

REGULATORS

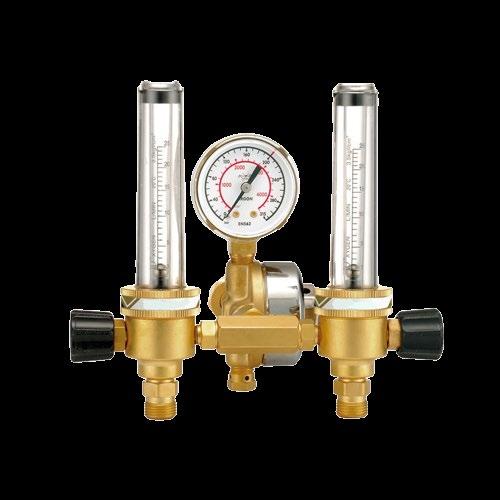

ARGON REGULATOR TWIN FLOW

Single Stage | Dual Flowmeter Regulators | Harris Style

FEATURES:

• Single stage construction

• Dual flowmeter

• Forged brass body for maximum strength

• Chrome bonnet

• Neoprene diaphragms

• Sintered metal inlet filter to trap impurities

• Precision engineered pressure compensated design flowmeter for precise flow

• Flowmeter with easy to read tube and virtually unbreakable transparent polycarbonate outer cover for strength and 360 degree visibility

• Side entry

• Outlet pressure at 3.5Bar (Present)

• MIG/TIG applications for light to medium duty

• Net Weight: 1.6kg/each for 101-2FL | 2.0kg/each for 25-2FL

Conformity with EN ISO 13918

ARGON REGULATOR TWIN FLOW

Single Stage | Dual Flowmeter Regulators | Harris Style

FEATURES:

• Precision engineered pressure compensated design accurately measures flow form 0-15 LPM or 0-25 LPM

• Easy to read flow tube has virtually unbreakable transparent polycarbonate outer cover for strength and 360 visibility

• Chrome brass or brass body

• Stainless steel needle valve for precise control

• Calibrated at 50 PSI inlet pressure

REGULATORS

CO2

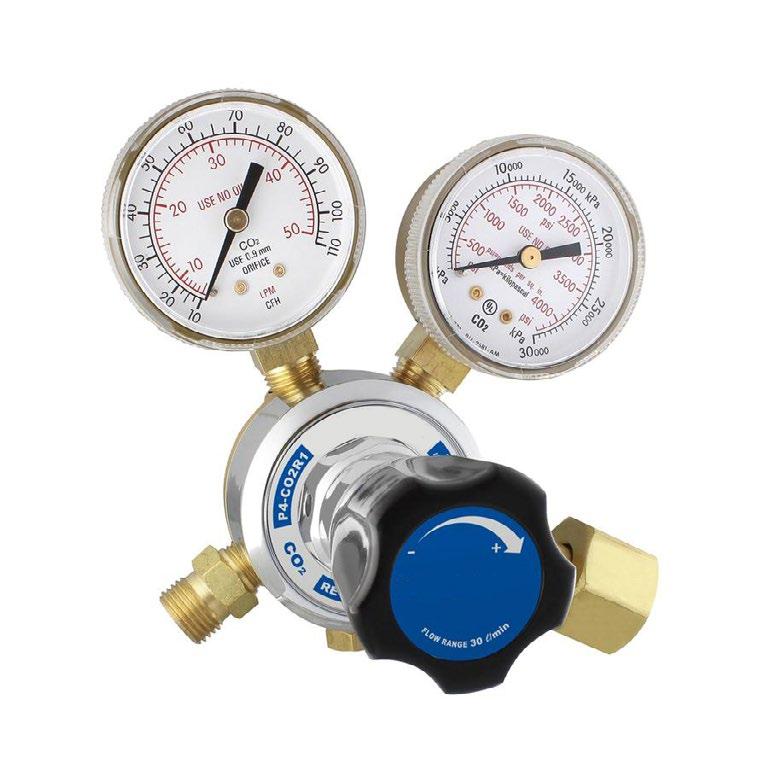

CO2 REGULATOR TWIN GAUGE

FEATURES:

• Light to Medium duty

• Single stage construction

• Forged brass body for maximum strength

• Chrome bonnet

• Neoprene diaphragms

• Oxygen Regulator with safety relief valve is set for safe operation

• Sintered metal inlet filter to trap impurities

• No soldered joints, for easy maintenance

• Side entry (Vertical optional)

• Net Weight: 1.2kg/each

Conformity with EN ISO 2503

Regulator/Twin Gauge

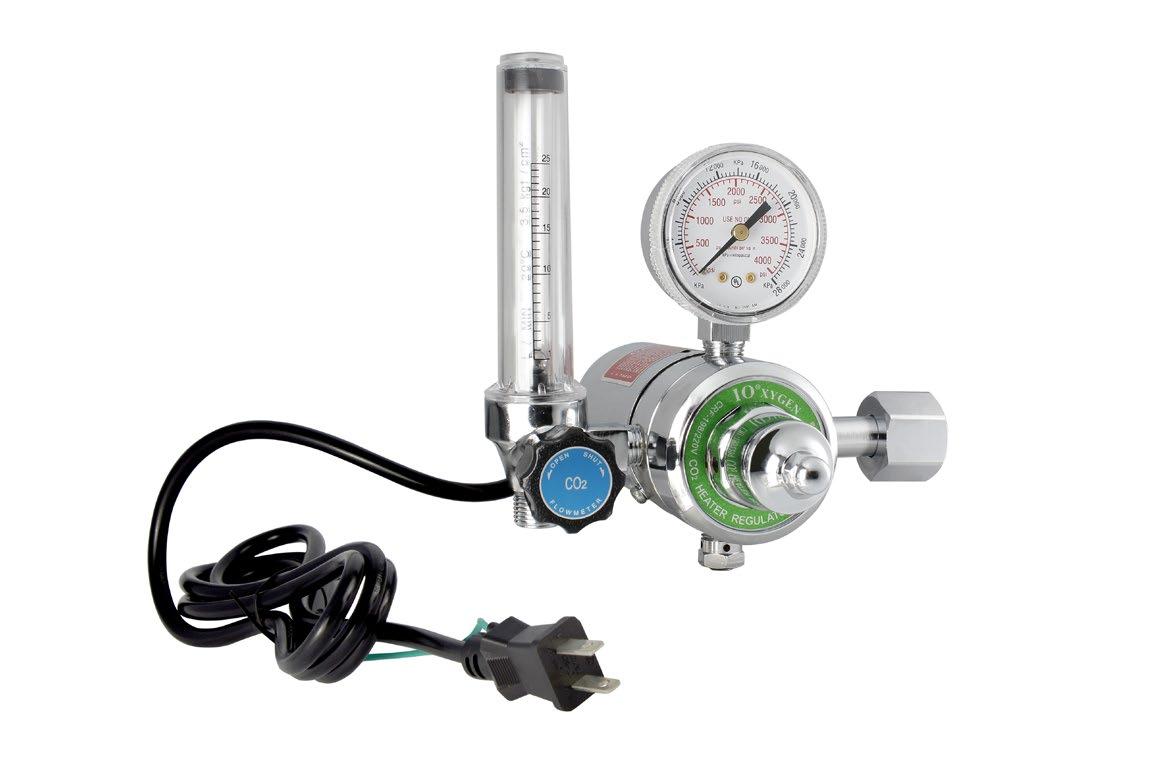

CO2 HEATED REGULATOR

Electrically Heated CO2 Flowmeter Regulators

FEATURES:

• Forged brass body and chromed bonnet for maximum strength

• With thermostatically-controlled, electric heater keeps the CO2 warm and continuous duty cycle without freezing

• Press outlet pressure at 3.5Bar

• Suitable for 36V and 220V

REGULATORS

HARRIS STYLE SINGLE STAGE WITH 2 GAUGES

FEATURES:

• Light to Medium duty

• Single stage construction

• Forged brass body for maximum strength

• Chrome bonnet

• Neoprene diaphragms

• Oxygen Regulator with safety relief valve is set for safe operation

• Sintered metal inlet filter to trap impurities

• No soldered joints, for easy maintenance

• Side entry (Vertical optional)

• Net Weight: 1.2kg/each

Conformity with EN ISO 2503

REGULATORS

HIGH PRESSURE

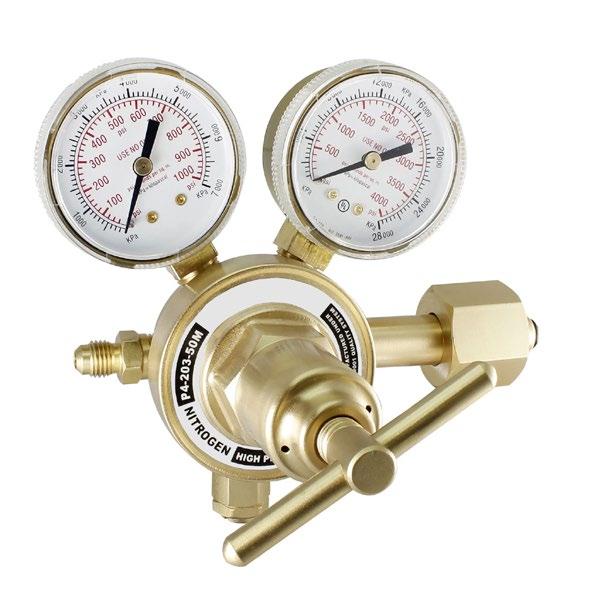

HIGH PRESSURE PISTON REGULATOR VICTOR STYLE NITROGEN

FEATURES:

• Single stage construction

• Forged brass body & bonnet for maximum strength

• Piston type construction

• External safety relief valve is standard

• Sintered metal inlet filter to trap impurities

• No soldered joints, for easy maintenance

• T Screw adjustment

• Side entry

• Net Weight: 1.5kg/each

Nitrogen

HIGH PRESSURE PISTON REGULATOR WESTERN STYLE SERIES SINGLE STAGE WITH 2 GAUGES

FEATURES:

• Single stage construction

• Machined brass body & housing cap

• Piston type construction

• Sintered metal inlet filter to trap impurities

• No soldered joints, for easy maintenance

• T Screw adjustment

• Side entry

• Net Weight: 2.0kg/each

P4-WT-304-210M Argon / Nitrogen/ Hydrogen / Helium / Air

*Inlet and outlet connection will be supplied to suit your requirements.

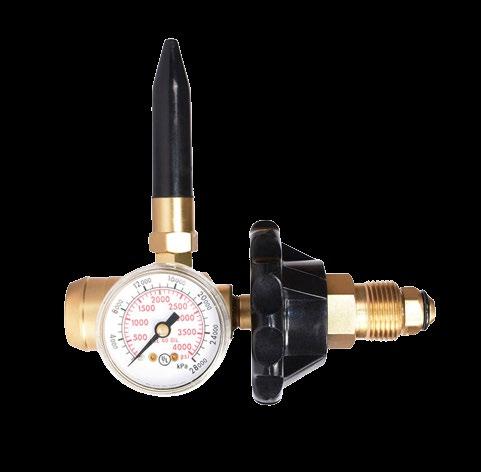

BALLOON FILLER REGULATOR P4-311GB

FEATURES:

• The most popular balloon filler features a piston design with endurable tilt vale for quick inflation of balloons

• Hand/wrench tight with gauge style

• Easy and safety

• Other size threads are available

• Tie hook port and dual outlet design

• New Weight: 0.6kg/PC

ARGON/OXY FITTINGS

SPIGOT NUT RH

PART NO.

DESCRIPTION

P4-SNOX Suits Oxygen Regulator P4-OXR1

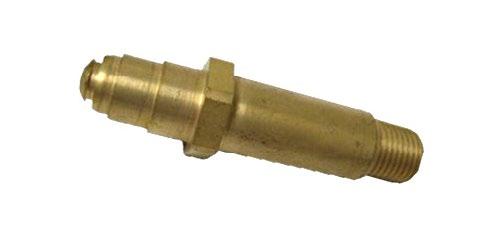

SPIGOT

Suits Argon /Oxy/ Acetylene and LPG Regulators

PART NO.

DESCRIPTION

P4-SPIG Spigot - 65mm Stem

P4-SPIG120 Spigot - 120mm Long

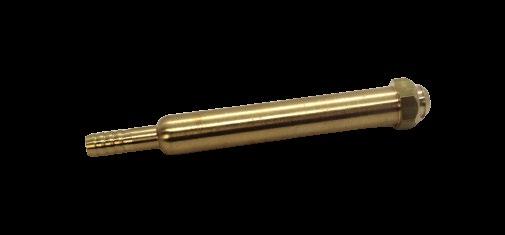

SPIGOT 120MM LONG WITH 8MM TAIL

PART NO.

DESCRIPTION

P4-SPIG120T Suits 8mm LPG Hose P4-LPGH8

SPIGOT WITH NIPPLE

PART NO.

DESCRIPTION

P4-SPIGN Suits Argon, Oxygen Regulators

SPIGOT O-RING

PART NO.

DESCRIPTION

P4-SPIGOR Suits spigots P4-SPIG, P4-SPIG120

BOBBIN FLOW METER INLET FITTING

PART NO.

DESCRIPTION

P4-BFIL Fits P4-BF15, P4-BF25

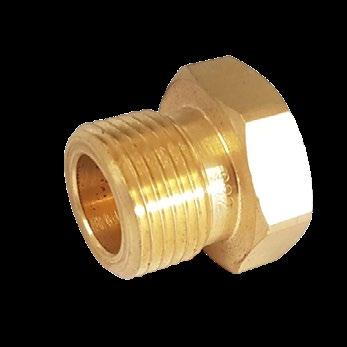

OUTLET CONNECTION

PART NO.

DESCRIPTION

P4-AG-957 Outlet Connection for P4-AR1 5/8 x 18 Right

REGULATOR SPARES

CO2 FITTINGS

CO2 SPIGOT NUT

PART NO. DESCRIPTION

P4-SNCO2 Suits CO2 Regulator CO2R1

CO2 SPIGOT & FILTER

PART NO. DESCRIPTION

P4-CO2SP Suits P4-CO2R1

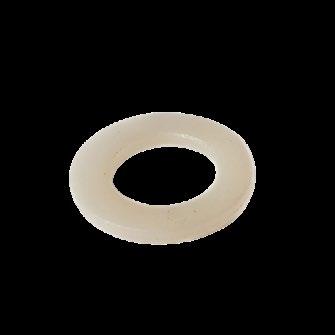

CO2 NYLON WASHER

PART NO. DESCRIPTION

P4-CO2W Suits CO2 Spigot Nut P4-CO2SP

CO2 ARGON ADAPTOR

P4-CO2-ARG

CO2 Bottle to Argon Regulator Adaptor

ACETYLENE & LPG FITTINGS

ACETYLENE SPIGOT NUT

PART NO.

DESCRIPTION

P4-SNAC Suits Acetylene Regulator P4-ACR1

LPG SPIGOT NUT

P4-SNLP Suits LPG Regulator P4-LPR1

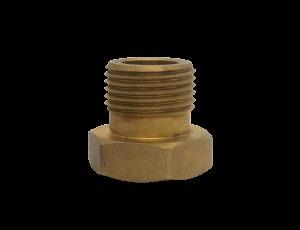

OUTLET NIPPLE

P4-AA-957 For P4-ACR1 or LPR1 5/8 X 18 LEFT

REGULATOR SPARES

NITROGEN FITTINGS

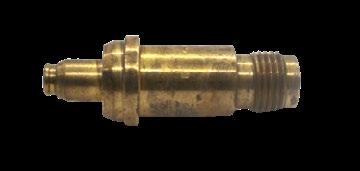

NITROGEN STEM

PART NO.

DESCRIPTION

P4-NITROSP To suit regulators P4-203 and P4-WT304

NITROGEN SPIGOT NUT

PART NO.

DESCRIPTION

P4-NITROSN To suit regulators P4-203 and P4-WT304

NITROGEN OUTLET FITTING

PART NO.

DESCRIPTION

P4-NITROOL To suit regulators P4-203 and P4-WT304

NITROGEN STEM O-RING

PART NO.

DESCRIPTION

P4-NSOR Suits Nitrogen Stem P4-NITROSP

REGULATOR SPARES

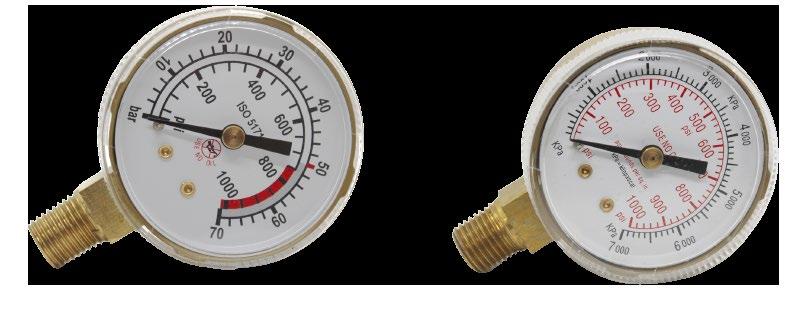

GAUGES

EASY

It’s an easy switch to the Multi-Use system.

• You need only one adapter for your torch – heat, cut or weld – just change the tip.

• Tips are available for all major brands and a complete range of sizes for all gases.

• Quick and easy tip change.

SAVINGS PLUS INCREASED PRODUCTIVITY

• Low initial cost.

• Multi Use system can save you 60%, or more, on replacement costs.

• Eliminates torch head re-seating.

• Increase productivity – decrease down time to change tips.

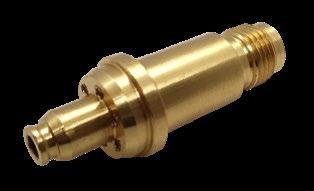

ADAPTORS

HARRIS ADAPTOR NUT

HARRIS ADAPTOR

CIGWELD ADAPTOR

KOIKE ADAPTOR

VICTOR V40 ADAPTOR

MECO ADAPTOR

MG ADAPTOR

OXWELD ADAPTOR

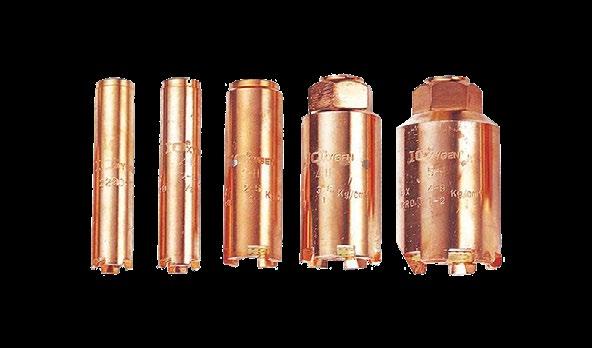

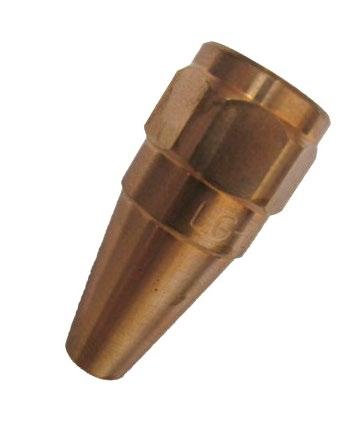

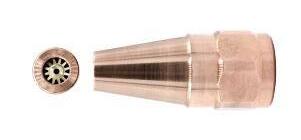

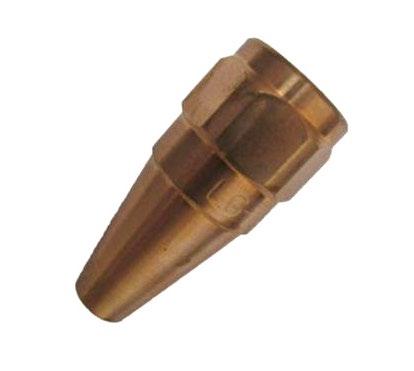

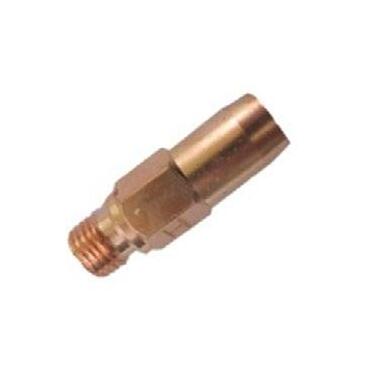

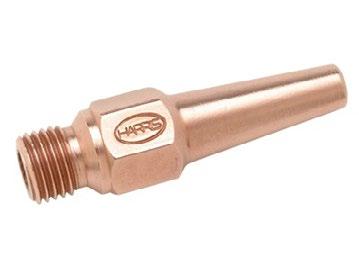

CUTTING TIPS

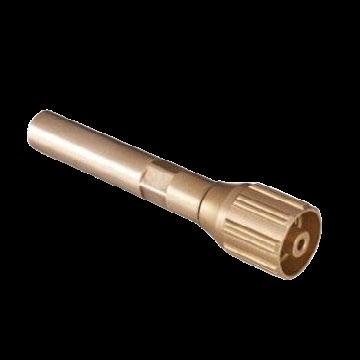

LPG HAND CUTTING TIP

Two piece Propane/Natural Gas Cutting Tip for Hand Held Cutting applications. Two piece Propylene Cutting Tip used in Hand Held Cutting applications.

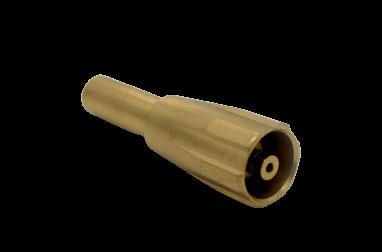

LPG HI-S/M CUTTING TIP

Two piece Propane/Natural Gas Cutting Tip used for Machine Cutting. Two piece Propylene Cutting Tip used for Machine Cutting.

CUTTING TIPS

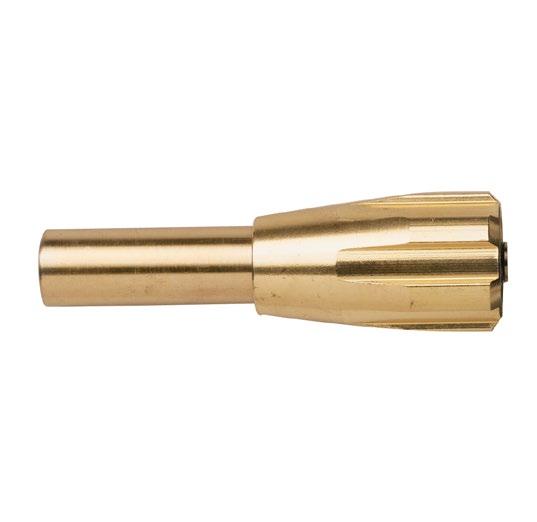

LPG HI-S/M STAINLESS INSERT CUTTING TIP

ACET HAND CUTTING TIP M6

ACET HI-S/M CUTTING TIP M6H5

M6HS-4

ACCESSORIES

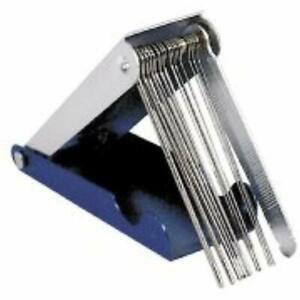

TIP CLEANER

PART NO.

P4-TC

DESCRIPTION

Calibrated Tip Cleaners 13 Pieces. Tools for making your welding more enjoyable. To clear the welding nozzle or cutting torch (oxygen welding or cutting tool).

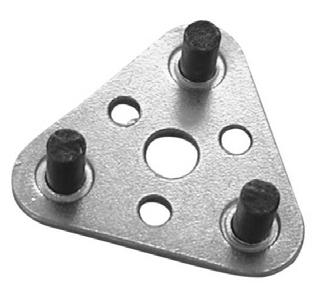

TRIPLE FLINT LIGHTER

PART NO.

P4-TFL

TRIPLE FLINT RENEWALS

PART NO.

P4-TFR

DESCRIPTION

Robust triple flint lighter with long lasting file and rotatable replaceable flints. Spark lighter, triple file.

DESCRIPTION

Replacement Flint for Triple Type Flint
