WELDING & CUTTING MACHINES

FRENCH MANUFACTURER SINCE 1964

Created in 1964, GYS is a French industrial group with 900 employees around the world. Built around continuous investment in Research & Development and in the acquisition of knowledge, the company is now a major player in the design and manufacture of welding machines, battery chargers and car body repair equipment.

"The market realities are constantly changing and the size of our family business requires us to quickly adapt to new contexts and new challenges.

We are convinced that our future is closely linked to the future of our partners. This is why we do everything in our power to understand what distributors and users expect from us and what challenges they face every day. To support them in facing these challenges, we wish to become and remain their privileged partner on the path we will travel together."

Bruno Bouygues, C.E.O.

FLEXIBLE VOLTAGE

The device works on a simple 230V-16A or 110V-32A plug, even in intensive use and on site extensions (100m).

PFC technology suppresses peaks and regulates the supply current. Also allows the use of extension cords or generators and contributes to a better current stability during the welding phase.

Can withstand occasional or permanent voltage variations on the electrical network up to 400V (lightning, generator, load shedding loads).

MMA/ARC WELDERS

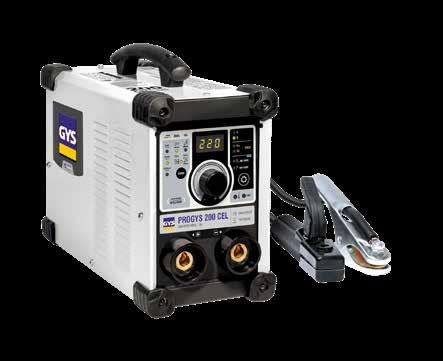

PROGYS 200 CEL

FOUR WELDING MODES

• MMA: Welds all rutile, basic and cellulosic electrodes (up to Ø 5 mm).

• MMA Pulse: Ideal mode for rising vertical welding positions (tubing/pipeline, etc.). Frequency and cold-current percentage can be adjusted.

• TIG DC with lift ignition (Ø 1.6 to 2.4 mm).

• TIG Pulse: Reduces temperature transfer to the workpiece, for welding workpieces as thin as 0.3 mm.

THREE MMA WELDING AIDS

• Adjustable Hot Start: Facilitates ignition.

• Adjustable Arc Force: Instantaneous current increase during difficult welding situations.

• Antisticking: Reduces the risk of electrode sticking in the event of contact with the workpiece.

MAXIMUM PRODUCTIVITY

• Select the type of electrode for optimal welding performance (predefined parameters).

• Current and voltage display during and after welding (DMOS/QMOS).

• Improved cooling system with ventilation tunnel, to prevent ingress of external pollution.

RESISTANT

Reinforced casing and anti-shock protection on all external surfaces.

ULTRA PORTABLE

Lightweight (6.4 kg without accessories), compact and portable for on-site use.

Designed specifically for professional use, the PROGYS 200 CEL combines the latest welding technology with an intuitive user interface. The dynamic ignition system means the machine can be used to reliably weld all types of electrodes up to 5 mm (rutile, basic and cellulosic), in vertical positions, either upwards or downwards.

TECHNICAL DATA:

ACCESSORIES:

PROGYS 250 & 300 TRI & ARC 400 TRI

With inverter technology, the PROGYS 250 TRI, PROGYS 300 TRI and ARC 400 TRI are three-phase MMA (SMAW) / TIG Lift (GTAW) welding power sources delivering exceptional welding performance. Featuring advanced electronics, these machines guarantee maximum productivity even in harsh environments. Their switchable Voltage Reduction Device (VRD) enhances operator safety in hazardous areas such as mines, chemical and petrochemical installations, and shipyards.

MMA (SMAW) / TIG LIFT (GTAW)

• MMA welding with rutile (6013), basic (7018) and cellulosic (6010) electrodes up to Ø 6 mm.

• Arc Gouging with carbon electrodes.

• TIG welding with Lift arc ignition, suitable for electrodes from Ø 1.0 to 3.2 mm.

WELDING AIDS

• Adjustable Hot Start for improved arc ignition.

• Adjustable Arc Force to maintain arc stability in difficult welding conditions.

• Anti-Sticking function to reduce the risk of the electrode sticking to the workpiece.

HEAVY DUTY

• High Duty Cycle for continuous industrial welding applications.

• High No-load Voltage to ensure excellent arc dynamics and reliable ignition of cellulosic electrodes.

ACCESSORIES:

TIG WELDERS

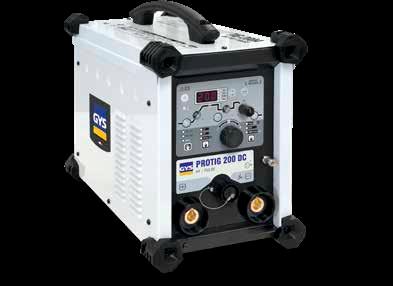

The PROTIG 200 DC (200 A) ensures high-quality welds on both mild and stainless steels thanks to its advanced secondary control system. Its intuitive interface makes it incredibly simple to adjust the welding settings.

IMPROVED DC WELDING

• Secondary control system: ensuring excellent arc stability and a constant current in any welding position.

• DC TIG: for quality welding on all ferrous materials such as steel, stainless steel and copper as well as its alloys.

• Pulsed DC TIG: controls the temperature of the weld pool, reduces deformation and allows thin metal sheets from 0.3 mm thick to be assembled.

• SPOT: fast and precise spot-welding before joining thin sheets.

• Two ignition systems: contactless HF ignition and Arc-Lift ignition for electro-sensitive environments.

• Three trigger controls: 2T, 4T and 4T LOG.

• Automatic torch detection: compatible with grip-handle and double-button torches.

MMA WELDING

MMA welding uses basic and rutile electrodes (up to Ø 5 mm).

Pulsed MMA welding enables users to weld in a vertical-up position (ideal for tubing and pipelines, etc.).

Three built-in welding support technologies: Anti-Stick: Minimises the risk of the electrode sticking to the workpiece.

Hot Start: Facilitates ignition and can be quickly adjusted depending on the type of metal.

Arc Force: Automatically increases the current in difficult welding situations.

MAXIMUM PRODUCTIVITY

• Stores up to 10 welding programs per process. The advanced menu settings offer optimal welding control.

• The current and voltage are displayed during and after the welding process (DMOS/QMOS).

Remote control connections (manual or pedal).

• Reinforced bodywork and anti-shock pads.

• Compact and easy to move around the work site.

FIVE TIG WELDING MODES

Standard DC: for most ferrous materials

• Pulsed DC: limits heat input, ideal for very thin sheet metal AC

• Standard AC: for most ferrous materials

• Pulsed AC: limits temperature rise on thin materials

• Easy AC: predefined settings for simplified operation (selection of tungsten diameter only)

OPTIMISED TIG WELDING SETTINGS

• SPOT mode (AC or DC) for fast, accurate tack welding

• Two ignition types: HF contactless or HF contact (for electrosensitive environments)

• Three trigger modes: 2T, 4T and 4T LOG

• Automatic torch detection (trigger and double-button torches compatible)

MMA WELDING

• MMA: basic and rutile electrodes up to Ø 4 mm

• Pulsed MMA: ideal for vertical-up welding (pipes, pipelines)

Three built-in welding aids:

• Anti-Stick: Minimises the risk of electrode sticking.

• Adjustable Hot Start: Easier ignition depending on material type.

• Arc Force: Automatic current boost in difficult welding situations.

MAXIMUM PRODUCTIVITY

• Stores up to 30 programs per welding process Advanced menu for maximum welding control Current and voltage display during and after welding (DMOS/ QMOS)

• Reinforced bodywork with anti-shock pads Smart ventilation system reduces power consumption, dust intake and noise

• Surge protected up to 400 V (PROTEC 400) Optional VRD (Voltage Reduction Device) reduces no-load voltage to 26 V

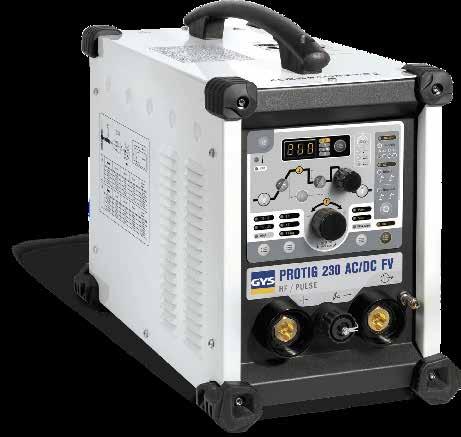

The PROTIG 230 AC/DC FV is a compact, portable and versatile single-phase inverter designed for AC/DC TIG and MMA welding. It can weld all material types up to 4 mm thick, including steel, stainless steel, aluminium, copper, magnesium and titanium. Featuring PFC technology, it operates from 195 V to 265 V while delivering a stable arc, even when using extension leads up to 100 m.

POWER FACTOR CORRECTION 30% ENERGY SAVED

PROTEC 400

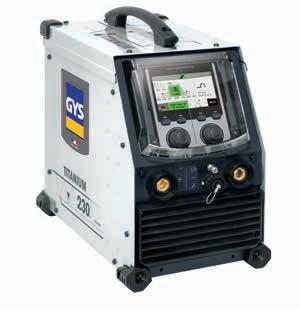

TITANIUM 230 AC/DC FV

SIX TIG WELDING MODES

DC Standard: Smooth welding on the majority of ferrous materials.

DC Pulse: Allows welding while minimizing heat input (up to 2.5 kHz).

Fast Pulse: Pulses up to 20 kHz for specialised steel applications

AC Standard: Welding of aluminum and its alloys (Al, AlSi, AlMg, AlMn, etc).

AC Pulse: Precise penetration regulation, controllable by adjusting the AC pulse frequency (up to 500 Hz).

AC Mix: Alternates between AC and DC currents to increase welding speed.

TIG WIZARD SOLUTION

Patented synergic mode for maximum productivity with welding and tacking of Aluminum, Steel, Stainless Steel and Copper parts, with or without the need for filler material.

Five types of assembly: End to end (BW), Lap (FW), Interior angle (BP), Exterior angle and wire fusion.

Wizard Lab for the creation of bespoke welding cycles.

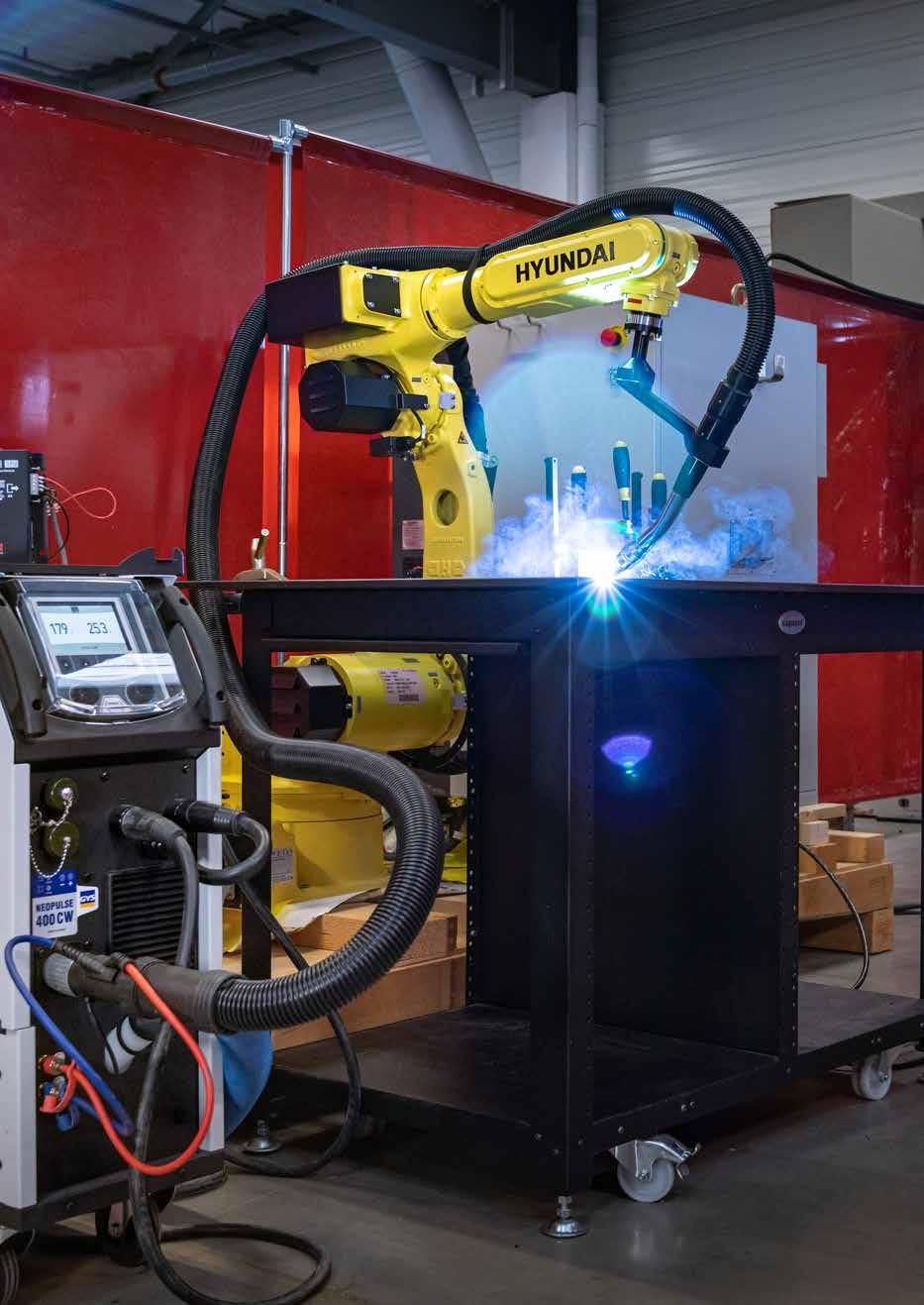

AUTOMATION & ROBOTICS (3 PHASE ONLY)

• Connect five mode to control the generator from a console or PLC.

• Connectable via an optional bridge for robot use.

OPTIMIZED

SETTINGS

Four Tacking Modes:

Spot/Multi Spot: Traditional spotting before welding thin sheets. Tack/Multi Tack: Ultra-precise pointing without oxidation, reducing the risk of workpiece deformation.

Three Types of Arc Ignition: Standard Lift, High-Frequency (HF) and Touch. HF (timed high-frequency ignition).

Three Trigger Modes: 2T, 4T and 4T LOG Configuration of AC waveforms enabling closer arc control and penetration.

E-TIG mode guarantees the machine to respect the selected welding perimeters, regardless of the position of the torch in relation to the workpiece (welding energy control).

MAXIMUM CONNECTIVITY

Accurately measures energy usage.

• Traceability of all welding seams, conforming to EN 3834 standard.

• Welding accessory calibration mode (improves the calculation of energy usage).

Connectable for use with Robots via an optional kit (037960).

• User mode allows the option to share the product with several different operators.

Free tool for interface customization is available online.

• Backup of user Jobs via USB key (500 max.) as well as machine configuration.

The TITANIUM 230 AC/DC FV is a single-phase AC/DC TIG welding Power Source. Intelligent and connected, it offers extremely precise arc control and industrial welding performance up to 230 A (16 A fuse) thanks to integrated power factor correction. It combines excellent ergonomic design and user experience, with advanced welding functionality.

• Compatible with latch, double button, potentiometer (remove and push pull torches.)

New and revised welding synergies and software updates available by USB key.

• Remote control (pedal or remote option) connectable without tools. Liquid cooling unit optional (070820).

• MMA, MMA AC and Pulsed MMA modes (electrodes up to Ø 5 mm).

• VRD (Voltage Reduction Device) can be activated to lower the no-load output voltage to under 35 V.

TECHNICAL DATA:

ACCESSORIES:

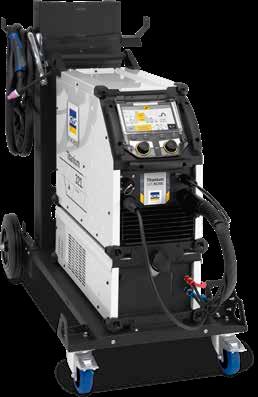

TITANIUM 321 AC/DC

The TITANIUM 321 AC/DC is a high performance TIG AC/DC generator designed to provide a wide selection of welding processes (TIG AC, DC, MMA). It allows you to assemble all types of materials, soft steel, stainless steel, aluminum, copper, titanium. Also ideal for welding thin thicknesses, pulse mode reduces deformation and ensures better arc control. Intuitive and very functional, its digital user interface enables easy control of welding parameters.

TECHNICAL DATA:

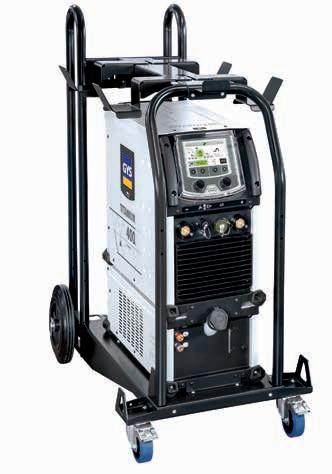

TITANIUM 400 AC/DC

WM-TIT400ACDCP

The TITANIUM 400 AC/DC is a high-performance TIG AC/DC generator (400 A to 60%) designed to offer a wide choice of welding processes (TIG AC, DC, MMA). It can be used to weld all types of materials; mild steel, stainless steel, aluminium, copper, titanium. Also ideal for welding thin gauge, its Pulse mode reduces heat input and provides better arc control. Intuitive and highly functional, its digital interface allows you to change welding parameters with ease.

WA-045675

T-PRO18FX-25S1 Tig Torch WM-013537 Cooling Unit

Tig Set Foot Pedal - 8m 2m Hose 4m Earth Clamp and Cable

T-PRO55-25S1BW Tig Torch

MIG/MAG WELDERS

MULTI-PROCESS

MIG-MAG

Steel and stainless steel wire: Ø 0.6 – 1.2 mm

• Aluminium wire: Ø 0.8 – 1.2 mm

• Flux-cored wire (inverted polarity): Ø 0.9 – 1.2 mm

TIG

• TIG DC Lift / Pulse MMA MMA DC / Pulse: Basic and rutile electrodes

INTELLIGENT

• Specific synergies for Steel, AlMg, AlSi, CrNi and CuSi

• Automatic parameter calculation after entering: wire diameter

• material/gas

• material thickness

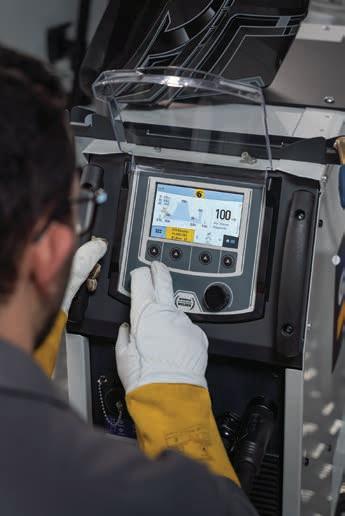

Intuitive, multilingual 3.5” colour interface

• Full machine software and synergy updates via USB

• Storage of up to 200 welding programs (Jobs) Portability function to load, save and transfer Jobs and configurations via USB

• On-demand ventilation system reduces dust ingress and improves energy efficiency

PREMIUM WELDING

• Digital arc control with instantaneous ignition Very stable arc to significantly reduce welding spatter

• Four-roller wire feeder with digital encoder for smooth wire feeding

2 DISPLAY MODES

• Easy: Streamlined interface for the majority of users to achieve optimal weld quality

• Expert: Dedicated interface for experienced welders with full control of welding parameters

ERGONOMIC

Reinforced wheels for stability and manoeuvrability

• Gas bottle support up to 4 m³ (20 L)

• IP23S rated for harsh environments Integrated storage compartment

• Convenient polarity change on the front panel

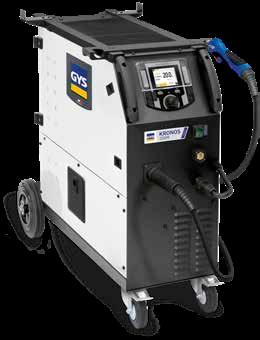

The KRONOS 250M is a single-phase multi-process inverter welder. Its innovative technology ensures excellent arc characteristics for the most demanding MIG/MAG applications. Integrated synergies simplify adjustments and reduce welding spatter, while the bright and intuitive interface allows precise control of welding parameters for high-quality results in the workshop or on site

FLEXIBLE VOLTAGE FV

POWER FACTOR CORRECTION 30% ENERGY SAVED

PROTEC 400

TECHNICAL DATA:

ACCESSORIES:

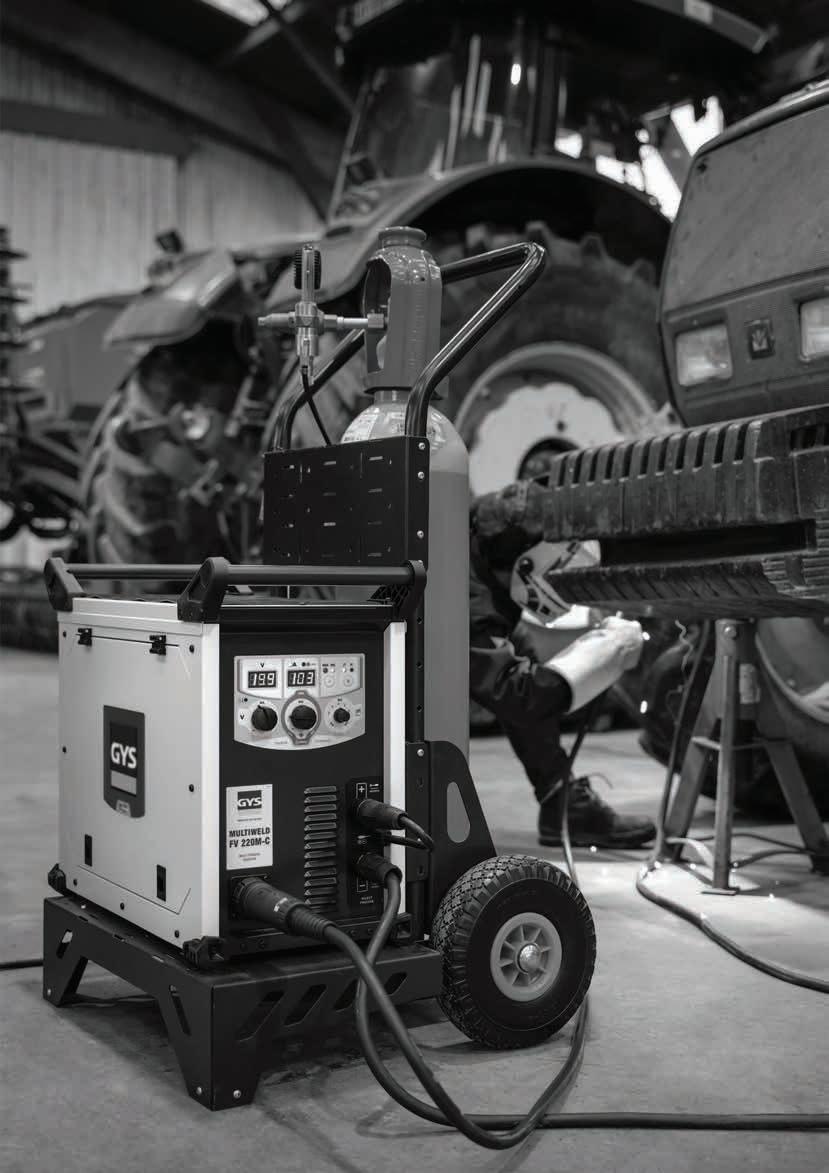

MULTIWELD FV 220M-C & 220M

220M-C WM-065499 220M WM-065482

The MULTIWELD 220M-C & 220M is a single-phase welding machine, combining MIG/MAG, cored wire and MMA welding processes. It operates on a supply voltage between 85 and 265 V thanks to its FV (Flexible Voltage) power supply. Equipped with an accurate 4-roller wire feeder system and a reinforced structure with 2 handles for lifting and slinging, it is ideal for welding in the workshop and for quick troubleshooting on site.

MULTIPROCESS

MIG/MAG welding:

Steel wire: Ø 0.6 to 1.0 mm

• Stainless steel wire: Ø 0.8 to 1.0 mm

• Aluminium wire: Ø 0.8 and 1.0 mm

Cored wire (reverse polarity): Ø 0.9 to 1.2 mm MMA welding: basic and rutile electrodes (up to Ø 5 mm).

OPTIMISED MIG/MAG SETTINGS

Choice of the trigger mode: 2T or 4T.

Welding guide: tables assist the user to adjust and fine tune the voltage and the diameter of the filler wire according to the thickness of material being welded.

INTEGRATED WIRE FEEDER

Wire feeder with four rollers for an efficient wire feeding.

PRE-HEATING, PURE CO2

Pre-installed socket (36 V - 4.2 A) for gas heater in pure CO2 welding (heater not included).

ROBUST

IP 23 classification for outside use. Accepts very long extension cords (100 m).

• Protected against overvoltage up to 400 V (PROTEC 400).

P400 PROTEC 400

ACCESSORIES:

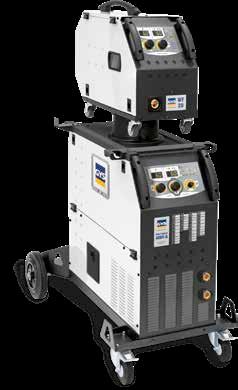

MULTIWELD 320T-C & 320T

The MULTIWELD 320T-C & 320T is a three-phase welding machine that combines MIG/MAG, flux-cored wire and MMA welding processes. Its intuitive interface integrates digital displays for easy and precise adjustment. Equipped with a precise and powerful four-roller wire-feed system, the MULTIWELD 320T- C can weld Ø1.2 mm wire effortlessly. Its reinforced structure, with two handles for lifting and carrying, is perfectly suited for workshops and quick on-site repairs.

MULTIPROCESS

MIG/MAG Welding:

Steel wire: Ø 0.6 - 1.2 mm

Stainless-steel wire: Ø 0.8 - 1.2 mm

• Aluminium wire: Ø 0.8 and 1.0 mm

• Flux-cored wire (polarity inversion): Ø 0.9 - 1.2 mm

MMA Welding: Basic and rutile electrodes (up to Ø 6 mm).

ADVANCED MIG/MAG SETTINGS

Choice of trigger performance: 2T or 4T Welding support chart: a chart on the machine’s side helps the user adjust the tension and diameter of the filler wire according to the thickness of the material being welded.

BUILT-IN WIRE-FEED REEL

Powerful, four-roller, motorised wire-feed rollers for efficient unwinding.

PURE CO2-GAS PREHEATING

Pre-installed socket (36 V / 4.2 A) for heating gas in pure CO2 welding (heater not included).

TECHNICAL DATA:

ACCESSORIES:

MULTIPROCESS

MIG/MAG Welding:

Steel and stainless steel wire: Ø 0.6 – 1.6 mm

• Aluminium wire: Ø 0.8 – 1.6 mm

• Gasless flux-cored wire (reverse polarity): Ø 0.9 – 1.6 mm

MMA

• Basic and rutile electrodes up to Ø 6 mm

TIG

• TIG DC Lift, ideal for precision work on thin sheet metal

Additional Capability

• Arc gouging with carbon electrodes up to Ø 5 mm

OPTIMISED MIG/MAG SETTINGS

• Choice of trigger behaviour: 2T or 4T

• 3 settings for maximum control: gas purge, wire feed, and postgas duration (0, 0.5 or 1 second)

• Welding aid: chart on the front panel to help the user set the filler wire voltage and wire diameter, to suit the thickness of the workpiece to be welded

• Easy-to-read display, even in bright light

• Dual interface for convenient adjustment when the wire feeder is slung or inaccessible

• Simple interface gas purge, wire feed, and post-gas duration (0, 0.5 or 1 second)

GAS PREHEATING PURE CO²

Pre-installed socket (36 V – 4.2 A) for the gas preheater for welding using pure CO² (preheater not included)

• Compatible with US (type A) and EURO (types C/E/F) sockets

ERGONOMIC

• Reinforced wheels for stability and manoeuvrability

• Tool-free interconnection cable connection on the rear of the power source

4 lifting points for easy slinging and safer handling

• Full machine update via USB stick Low profile gas bottle support for easy loading (10 m³ max) Large storage compartment

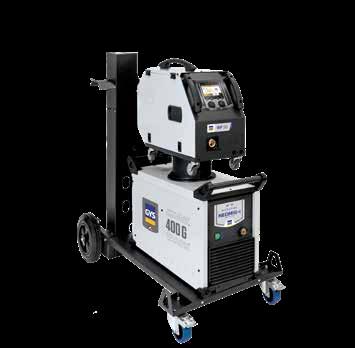

The MULTIWELD 400T G is a three-phase multi-process welding power source designed for demanding industrial applications. Equipped with a separate wire feeder option, it delivers highperformance MIG/MAG, flux-cored wire, MMA and TIG Lift welding. Its intuitive user interface with dual digital displays allows precise and easy adjustment of welding parameters, ensuring consistent, high-quality welds, including on aluminium.

WM-KRO400TGP

MULTIPROCESS

MIG/MAG Welding:

Steel and stainless steel wire: Ø 0.6 to 1.2 mm Aluminium wire: Ø 0.8 to 1.2 mm

• Flux-cored wire (inverted polarity): Ø 0.9 to 1.6 mm

MMA DC/Pulse: Basic and rutile electrodes. TIG DC Lift/Pulse.

INTELLIGENT

Specific synergies for: Steel, AlMg, AlSi, CrNi, CuSi.

• After entering three pieces of data: Wire diameter, material/gas and thickness, the product automatically determines the optimal welding parameters.

• New bright and user-friendly 3.5’’ HMI. Full machine software and synergy updates available via USB stick.

Storage of up to 200 welding programs (Job) for recurring tasks.

• Portability function, the ability to load/save/transport user JOBS and machine configuration via USB stick. On-demand ventilation system to reduce dust ingress, and increase energy efficiency.

PREMIUM WELDING

Digital arc control with instantaneous ignition. Very stable arc which reduces welding spatter. Four-roller wire feeder with digital encoder for smooth operation.

TWO DISPLAY MODES

Easy - Streamlined interface suitable for the vast majority of users to achieve the best possible weld quality.

Expert - Dedicated interface for the most experienced welders, allows the user to adjust all the parameters of the welding cycle.

ERGONOMIC

Reinforced wheels for stability and manoeuvrability.

• Gas bottle support up to 10 m3 (50 L).

• IP 23S rated to withstand difficult environments. Large storage compartment.

• Four lifting points for easy handling and safe transport.

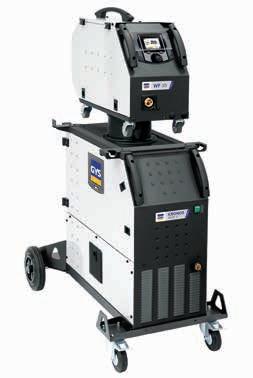

The KRONOS 400T G is a three-phase, multi-process power source, with separate wire feeder. Its innovative technology ensures excellent arc characteristics for the most demanding MIG/MAG applications. The integrated synergies make set-up much easier, and reduce spatter during welding. In combination with the optional WF 35 wire feeder, it allows precise adjustment of welding parameters to help achieve excellent results.

TECHNICAL DATA:

PACKAGE INCLUDES

5m Earth Clamp and Cable

WM-075054 KRONOS 400T G

WM-075450 10M Welding Cable

WM-075078 Wire Feeder

MULTIPROCESS

MIG/MAG:

Steel and stainless steel wire: Ø 0.6 – 1.6 mm

Aluminium wire: Ø 0.8 – 1.6 mm

CuSi and CuAl wire: Ø 0.8 – 1.6 mm

Cored wire (polarity reversal): Ø 0.9 – 2.4 m

MMA DC/Pulse: Basic, rutile and cellulosic electrodes

TIG DC Lift/Pulse.

Air-arc gouging.

INTELLIGENT

• Specific synergies for: Steel, AlMg, AlSi, CrNi, CuSi

After entering 3 pieces of data (wire diameter, material/gas and thickness), the machine automatically determines the optimal welding parameters

Full machine software and synergy updates via USB

• Storage of up to 200 welding programs (Jobs).

PREMIUM WELDING

• High duty cycle for industrial production welding

400 G: 100% at 400 A

• 500 G: 60% at 500 A

• Digital arc control with instantaneous ignition Very stable arc to reduce welding spatter

• Compatible with WF 35 and WF 50 wire feeders

MAXIMUM CONNECTIVITY

Traceability of all weld beads according to EN 3834

• Calibration mode for welding accessories

• User mode for shared operation

Free online interface customisation tool

• Compatible with KOOLWELD 2 cooling unit (075115)

• Optional Push-Pull torch connection for WF 50

INDUSTRIAL DESIGN

• IP23 protection rating

On-demand ventilation system to reduce dust ingress and power consumption

Reinforced housing for demanding environments

• Easy disassembly for maintenance

• Optional dust filter

Interconnection cables up to 20 m

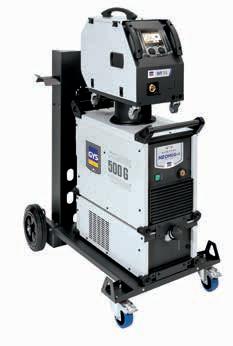

The NEOMIG-i 400 G and 500 G is a three-phase, multi-process power source with separate wire feeder. Its advanced digital technology and duty cycle ensure excellent arc characteristics for industrial MIG/MAG applications. The integrated synergies make set-up considerably easier, and reduce spatter during welding. When equipped with the WF wire feeder, the machine offers precise control of the welding parameters in order to deliver the best possible results.

EXAGON 400 CC/CV

3 WELDING PROCESSES

Versatile thanks to its six modes:

MMA: Basic, rutile and cellulosic electrodes (up to Ø 6 mm).

MMA Pulse: Ideal for rising vertical welding.

MIG/MAG: Solid wire (Ø 0.6/1.6 mm) and cored wire (Ø 2.4 mm).

Workshop water cooled wire feeder (optional EXAFEED 4L).

• Construction site wire feeder (optional NOMADFEED).

Arc Gouging with carbon electrode (up to Ø 6.4 mm).

TIG DC with TIG lift start.

INTENSIVE USE

Suited for offshore, naval and railway construction and metal works:

• Increased productivity thanks to its strong duty cycle (400A @ 60%).

• Optimised cooling thanks to the air-tight ventilation corridor that helps insulate the electronic components from the dust.

INTUITIVE

• Visible display, even when exposed to the sunlight.

• Simple interface with easily adjustable buttons and knobs, adapted to gloved hands. Stores 50 presets for each process.

• Remote control (optional).

USER PROTECTION

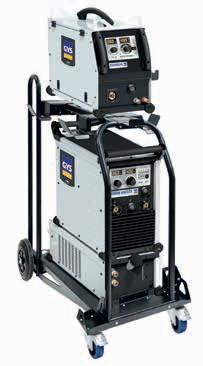

Powered by inverter technology, the EXAGON 400 combines MMA, MIG-MAG & TIG in a single machine, offering exceptional welding performance. Featuring advanced electronics and a reinforced structure, this station guarantees maximum productivity, even in the most hostile environments. Powerful, sturdy and versatile, the EXAGON 400 takes welding to the next level.

VRD (Voltage Reduction Device) to lower no load voltage < 35V. Lockable keyboard to protect against misuse. TECHNICAL

AIR COOLED PACKAGE

Ideal for general workshop and site applications where water cooling is not required.

WATER COOLED PACKAGE

Designed for high-duty industrial applications requiring enhanced torch cooling and prolonged welding performance.

WA-037328 Trolley

M-MB364 Binzel Torch

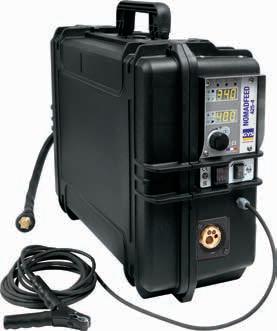

NOMADFEED 425-4 WM-036291

EXATIG WM-013780

EXATIG

OPTIMUM MIG/MAG SETTINGS

Electronically controlled wire speed adjustable using the potentiometer at the front of the machine.

• Choice of two torch trigger modes: 2T or 4T.

Wire speed regulation modes: CC (current source) or CV (voltage source).

Soft start function - easier first contact with the metal.

• Precise wire pressure adjustment. Choice of information displayed on screen.

HEAVY

DUTY

• Heavy duty cycle for enhanced productivity (425A @ 60%). Compatible with air cooled torches and water cooled torches connected to an external cooling unit.

Powerful electronically regulated wire feed motor (100W).

• The four drive rolls ensure a smooth feed on all types of wire. Standard drive rolls

ERGONOMIC

Display of current/voltage/wire speed (for DMOS).

• Display screen is readable even in very bright situation. Straightforward interface with buttons designed to be

• operated while wearing gloves.

• EURO torch connection.

Easy wire feed.

Quick torch air purge.

TECHNICAL DATA:

The NOMADFEED 425-4 is a wire feed case that takes its power directly from the welding circuit. . Ideal for MIG/MAG, the feed case is recommended for site work and is compatible with most welding generators in the market.

Overvoltage Indicator

Protected up to 400V

Volatge at Torch Indicator

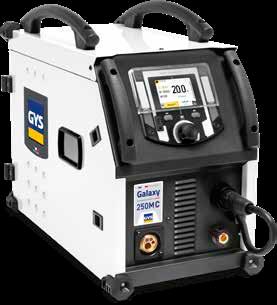

GALAXY 250M C

3 WELDING PROCESSES

A power source for all manual welding applications:

MIG/MAG Pulse

• Steel wire: Ø 0.6 – 1.0 mm Stainless steel wire: Ø 0.8 – 1.0 mm

• Aluminium wire: Ø 0.8 – 1.2 mm

• Flux-cored wire (inverted polarity): Ø 0.9 – 1.2 mm MMA

• MMA DC / Pulse: Basic and rutile electrodes TIG

TIG DC Lift / Pulse

PREMIUM MIG/MAG WELDING

• 4 welding modes:

• Standard: Fast, simple welding applications.

• Pulse: Reduces spatter and touch-ups in all positions

• ModulArc: Ideal for aesthetic aluminium assemblies

• Manual: For experienced welders and DMOS welding Digital arc control with instant ignition and no end-crater

• Arc pulse delivers up to 30% higher welding speeds

• 4-roller motorised wire feeder with digital encoder for precise wire feed

INTELLIGENT

• 40+ synergies for Steel, AlMg, AlSi, CrNi and CuSi

• Intuitive, multilingual 3.5” colour HMI Full machine and synergy updates via USB

• Storage of up to 200 welding programs (Jobs)

• Portability function to load, save and transfer Jobs and machine configuration

• Weld bead traceability compliant with EN 3834

• User mode for shared workshop use Free online tool for interface customisation

ROBUST AND MOBILE

• Dual carry handles for easy transport Reinforced metal casing with non-slip rubber pads Compatible with engine generators (18 kVA)

• Extension lead compatibility up to 100 m

• IP23S rated for demanding environments Easy polarity change on front panel

• LED lighting on wire feeder and spool

• Viewing window to monitor wire consumption

The GALAXY 250M C is a compact, multi-process, single-phase inverter welding machine. Featuring MIG/MAG pulse technology, it delivers precise control of welding energy, reducing deformation and improving weld bead appearance. Pulse synergy increases welding speed while reducing spatter, making the GALAXY 250M C ideal for thin aluminium and stainless steel applications where clean, touch-up-free welds are required.

TECHNICAL DATA:

NEOPULSE ‘C’ SERIES

SMART

SYNERGIC Mode: After entering two data (material/gas torque or wire diameter), the NEOPULSE automatically determines the optimal welding conditions and automatically adjusts the settings (wire feed speed, voltage, current and arc length).

ACCURATE

Calibration of welding accessories and motor reel speed, to adjust the displayed voltage measurement and improve energy data.

Energy data display and post-welding energy data is available according to standards EN1011-1, ISO/TR 18491 and QW-409.

Portability - Download/backup/transfer user JOBS and machine configuration information from a USB stick.

Tracking - Trace/record all welding stages, bead by bead, during industrial processing within the framework of standard EN ISO 3834.

OPTIMISED MIG/MAG SETTINGS

5 MIG-MAG welding modes: Standard Dynamic, Standard Impact, Pulsed, Modularc and Manual.

MAXIMUM PRODUCTIVITY

Four microprocessors increase calculation speeds and optimise the machine’s efficiency.

• High productivity thanks to its high duty cycle (400 A @ 60%).

Compatible wire spools: Ø 200 / 300 mm.

Can be connected to a robot/PLC through a SAM control interface (optional).

Dip coating of the entire power block for increased resistance.

• Powerful, electronically-controlled motor reel (100 W) with four driven rollers.

High arc voltage for easy ignition and outstanding arc dynamics.

ERGONOMIC

New, simplified interface focused on welders’ browsing habits.

• Full machine updates and pre-installed user setting updates by USB key.

Up to 500 welding programmes saved on the machine (can also be saved on USB stick).

Current/voltage display during and after welding (DMOS/QMOS).

• User mode facilitates the shared use of the product with multiple users.

• A selection of main settings can be displayed on the screen (wire speed, average welding current, etc.).

• Smart ventilation management to reduce power consumption, dust extraction and machine noise.

• Compatible Push-Pull torch (24 V / 42 V).

MULTI-PROCESS WELDING MIG/MAG:

• Steel wire: Ø 0.6 to 1.2 mm

• Stainless steel wire: Ø 0.8 to 1.2 mm Aluminium wire: Ø 0.8 to 1.2 mm

• CuSi and CuAl wire: Ø 0.8 to 1.2 mm

MMA DC/Pulse: Basic, rutile and cellulosic electrodes (up to Ø 5 mm).

TIG DC Lift/Pulse.

TECHNICAL DATA:

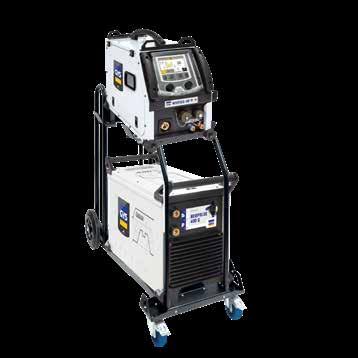

The NEOPULSE 320 C is a digital, three-phase, pulsed, MIG/MAG welding machine. Designed to operate at the highest performance level using the latest technology, it features various synergy curves as well as exceptional arc quality and performance. User friendly and highly practical, its digital interface is designed to allow the welding settings to be quickly and easily adjusted. Equipped with a precise, four-reel, wire-feeding system, this power source provides unparalleled productivity and welding quality on all types of materials.

ACCESSORIES:

MULTI-PROCESS WELDING MIG/MAG:

• Steel wire: Ø 0.6 to 1.2 mm

• Stainless steel wire: Ø 0.8 to 1.2 mm Aluminium wire: Ø 0.8 to 1.2 mm

• CuSi and CuAl wire: Ø 0.8 to 1.2 mm

MMA DC/Pulse: Basic, rutile and cellulosic electrodes (up to Ø 5 mm).

TIG DC Lift/Pulse.

TECHNICAL DATA:

The NEOPULSE 400 CW is a three-phase, pulsed, MIG/MAG generator developed for heavy industry. The NEOPULSE 400 CW is mobile and equipped with a cooling unit and a powerful reeling system, making it ideal for handling demanding pulsed applications. Both intuitive and highly practical, its digital interface makes adjusting the welding settings very easy.

ACCESSORIES:

OPTIONAL:

NEOPULSE ‘G’ SERIES
