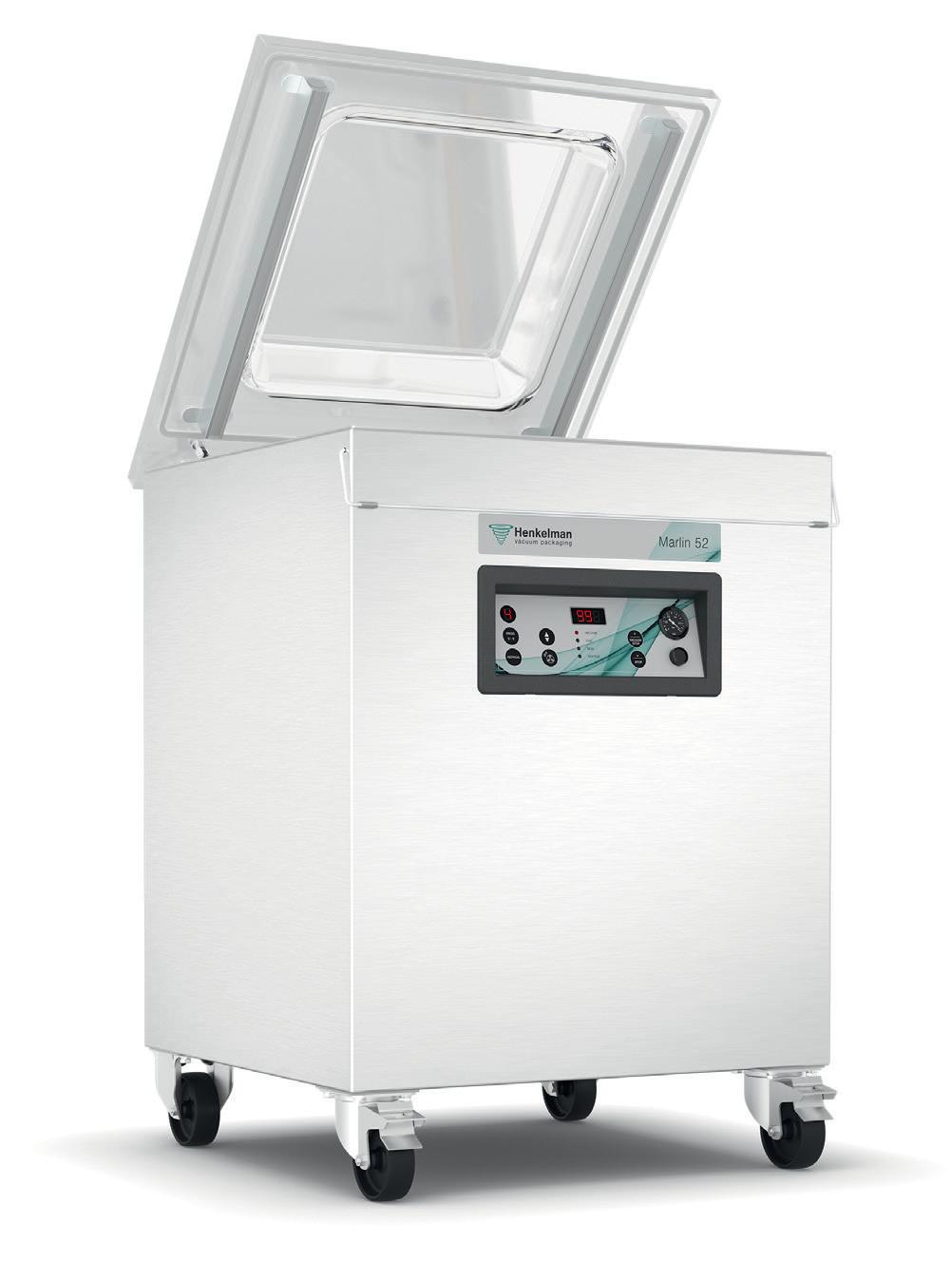

Technical information Marlin 52
Specs
Chamber LxWxH (mm) 520x500x200

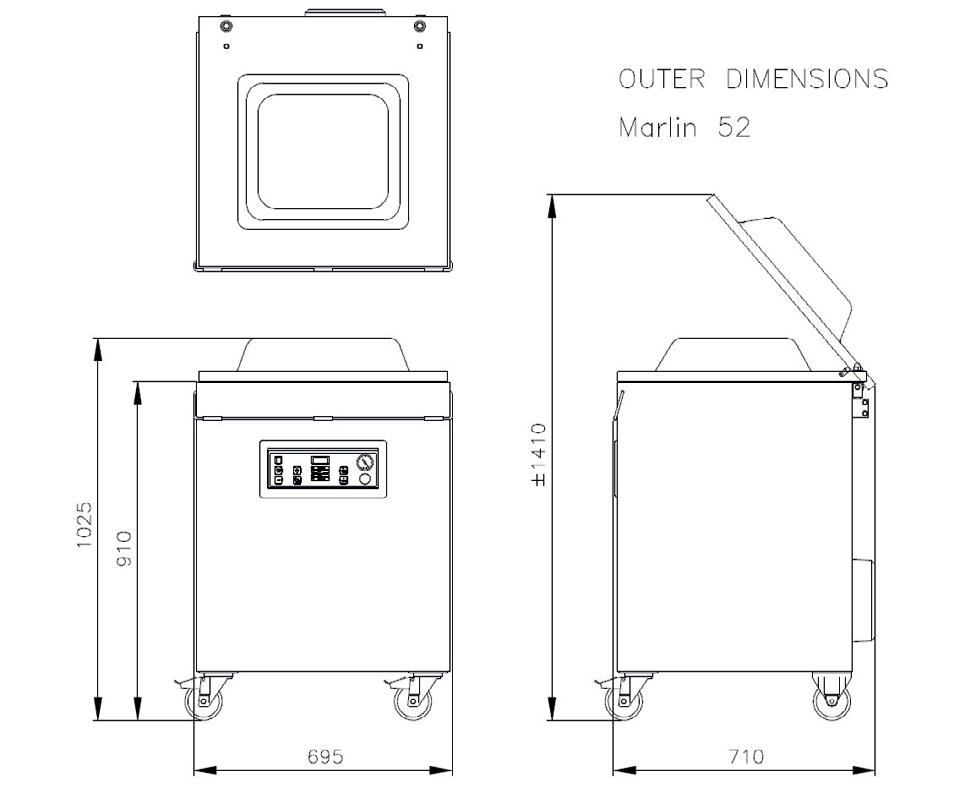

Machine LxWxH (mm) 710x700x1025
Voltage 400V-3-50Hz 230V-3-50Hz 220V-3-60Hz 200V-3-50/60Hz
Pump capacity 50 Hz/60 Hz (m3) 63 / 76
Machine cycle 50 Hz/60 Hz (sec.) 11 - 24 / 10 - 21 Power (kW)
Characteristics
• With two sealing bars as standard (left/right)
• Optional at no extra cost: One sealing bar (front)
• Double seal as standard (two sealing wires). Optional at no extra cost: Cut-off/Wide seal
• Easy-to-remove sealing bars for cleaning and maintenance
• Soft Air as standard to protect the product and vacuum bag
• Digital time control with ten-program memory as standard
• Stainless steel casing and transparent lid
• Supplied with two insert plates for a faster cycle and good product positioning
Options
• 1-2 Cut-off seal
• Sensor control
• Advanced Control System (ACS)
• Liquid control
• Gas flush
Accessories
• Thermal label printer (only in combination with ACS)
• Inclined insert plate (for liquids and powders)
• External adapter
• Maintenance set for standard maintenance
