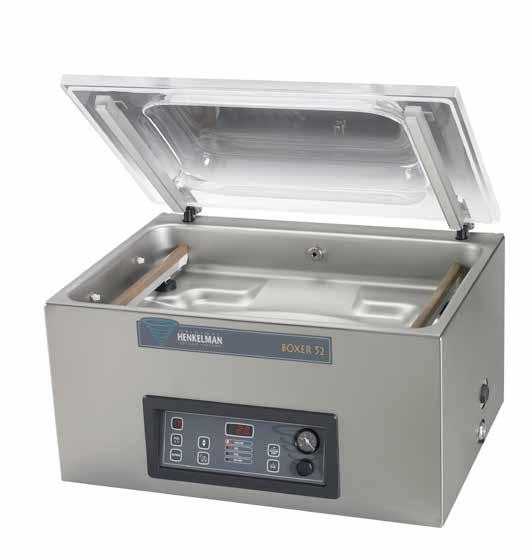

boxer sEries specifications Boxer series
FAST AND ROBUST VACUUMPACKAGING MACHINES WITH WORLD WIDE REPUTATION
• Durable and efficient high quality table models
• Complete range for vacuum and MAP packaging solutions
• Extensive program choices for specific packaging requirements
• Fully HACCP compatible with optional labelling device
• Hygienic and Intelligent Design
• User friendly and low maintenance, supplied with complete service program
Food products
Retail Trade - Restaurants - Catering – Supermarkets (meat, poultry, fish, cheese, vegetables etc.)
• No contamination or bacteria’s multiplication, hence an extended shelf life resulting in:
- cost savings (larger purchasing orders, efficient cooking time spreading and diminution of products losses)
- turnover increase (more variation and spread in product range)
• Optimal product and storage hygiene (hermetically sealed)
• No loss of product (prevents drying out, moulds and freeze burn)
• Improved product quality
(product maturing in packaging, no loss of aroma)
• Professional product presentation
• Optimal packaging contributes to food safety and HACCP standards
• Ideal for Sous-vide Cuisine applications
Non-food products
Electronics - Semi-conductors - Metal - Pharmaceutical ProductsTextiles - Laboratories etc.
• Moisture free packaging
• Air and dust free packaging
• Volume reducing packaging
• Scrapes and scratches free solution
• Fraud resistant packaging
• Sterile and contamination free packaging
• Antistatic packaging (ESD)
General
• Table model
• Stainless steel housing
• Stainless steel deep-drawn vacuum chamber for optimal hygiene
• Transparent lid
• Easily removable wireless sealing bars in vacuum chamber
• Insert plates for adjusting vacuum chamber height
Packaging functions
• Vacuum
Optimal final vacuum 99,80% (2 Mbar)
• Gas-flush
Injecting food-gas for product protection and longer shelf life
• Soft-air
Controlled ventilation for protection of product and packaging
Sealing systems
• Double Seal
2 x 3,5 mm convex sealing wires for product remains elimination and strong hermetic seals.
• Cut-off seal
1 x 3.5 mm convex sealing wire + 1 x 1.1 mm round
cutting wire / One time setting (cut off remaining flap)
• 1-2 Cut-off seal
1 x 3.5 mm convex sealing wire + 1 x 1.1 mm round
cutting wire / Independent time setting (shrink bags)
• Wide Seal
1 x 8.0 mm flat sealing wire
• Bi-Active Seal
Upper and lower sealing bars with 1 x 5.0 mm
flat sealing wire (thick and aluminium vacuum bags)
(only applicable to the Boxer 42 XL Bi-active and ESD models)
OPERATIONAL CONTROL FUNCTIONS
• Digital Control
Time control / Automatic programming / 10 default programs
• Sensor Control
Set percentage pressure for vacuum and gas functions for accurate and constant packaging results / Automatic
programming / 10 default programs / Vacuum plus time
• Liquid Control
Set percentage pressure for vacuum and detect boiling point
of the product. For fast cycle and better food protection
• Advanced Control System
Set percentage pressure or mbar/hPa for vacuum and gas function
for accurate and constant packaging results / 20 default
alphanumeric programs / Vacuum plus time / Sequential vacuum
Secured Operator Access / HACCP track and trace function / LCD
full color screen / PC interface / Compatible with label printer
Support control functions
• STOP button for partial/full cycle interruption
• Digital maintenance program for pump /
Operating hours counter / Service indicator programs / Sleeper function etc.
Optional functions / Accessories
• Inclined insert plate for packaging liquid products
• Compact label printer (Zebra Technologies)
• Connector for external vacuuming of food containers
• Service kit for standard maintenance
• Trolley with shelves and castors
