Ducati Omaha 2026 OEM Ducati Multistrada V2 Parts Diagram Parts Fiche by Ducati Omaha

Model Year 2026

GENERAL INFORMATION

The present spare parts order exactly the right spare parts.

When ordering specify:

1. the part's code number followed by its description and quantity needed;

2. the motorcycle's serial number, stamped on the steering head.

Reference to right and left apply to the vehicle in terms of its direction of move-ment.

Spare parts drawings are general and do not represent the part.

The contents of this catalogue are general and can undergo changes without prior notice.

CHARACTERISTICS LEGENDA

COLOUR

R Ducati Red

DRAWING 018 - BATTERY HOLDER

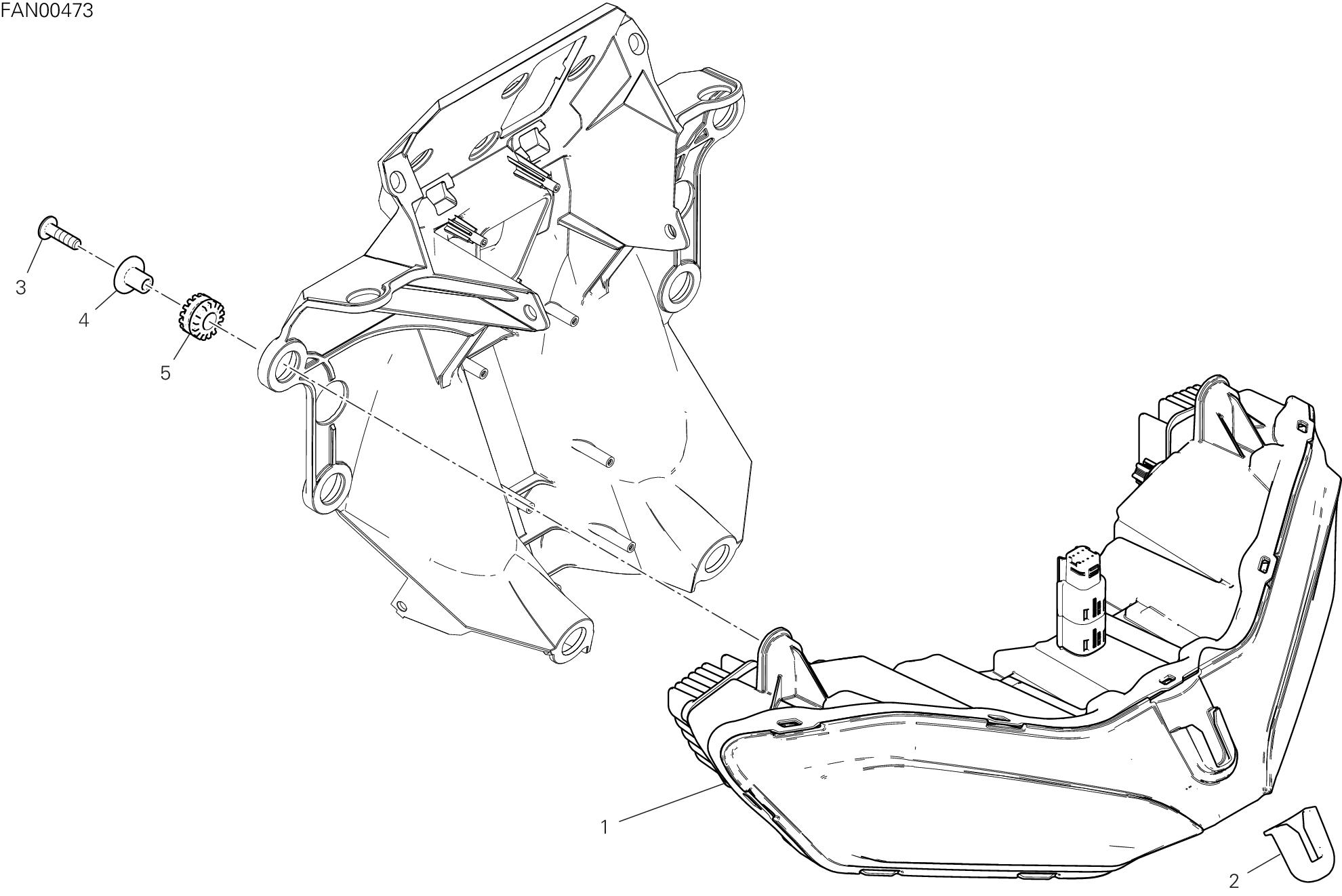

DRAWING 020 - HEADLIGHT

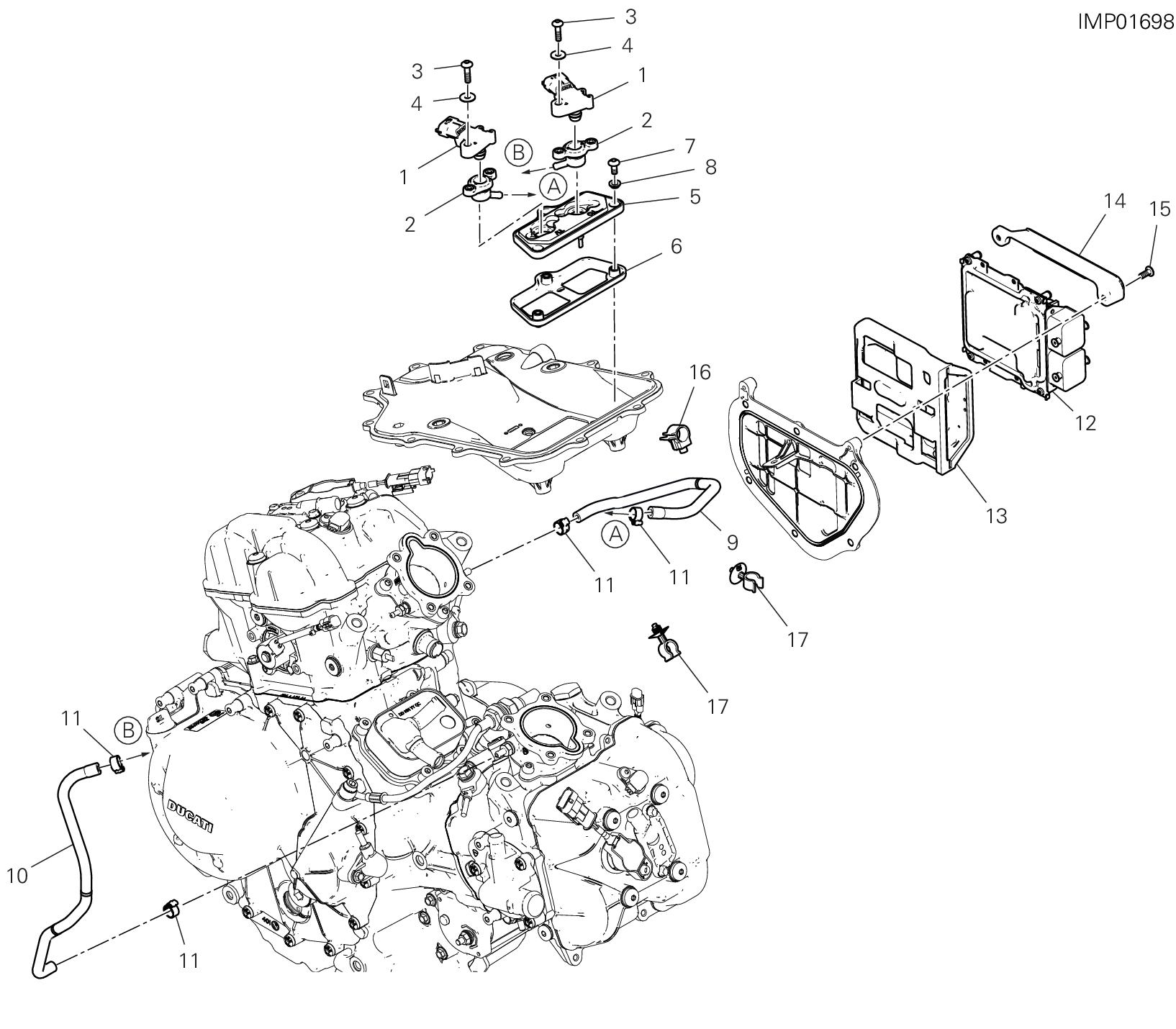

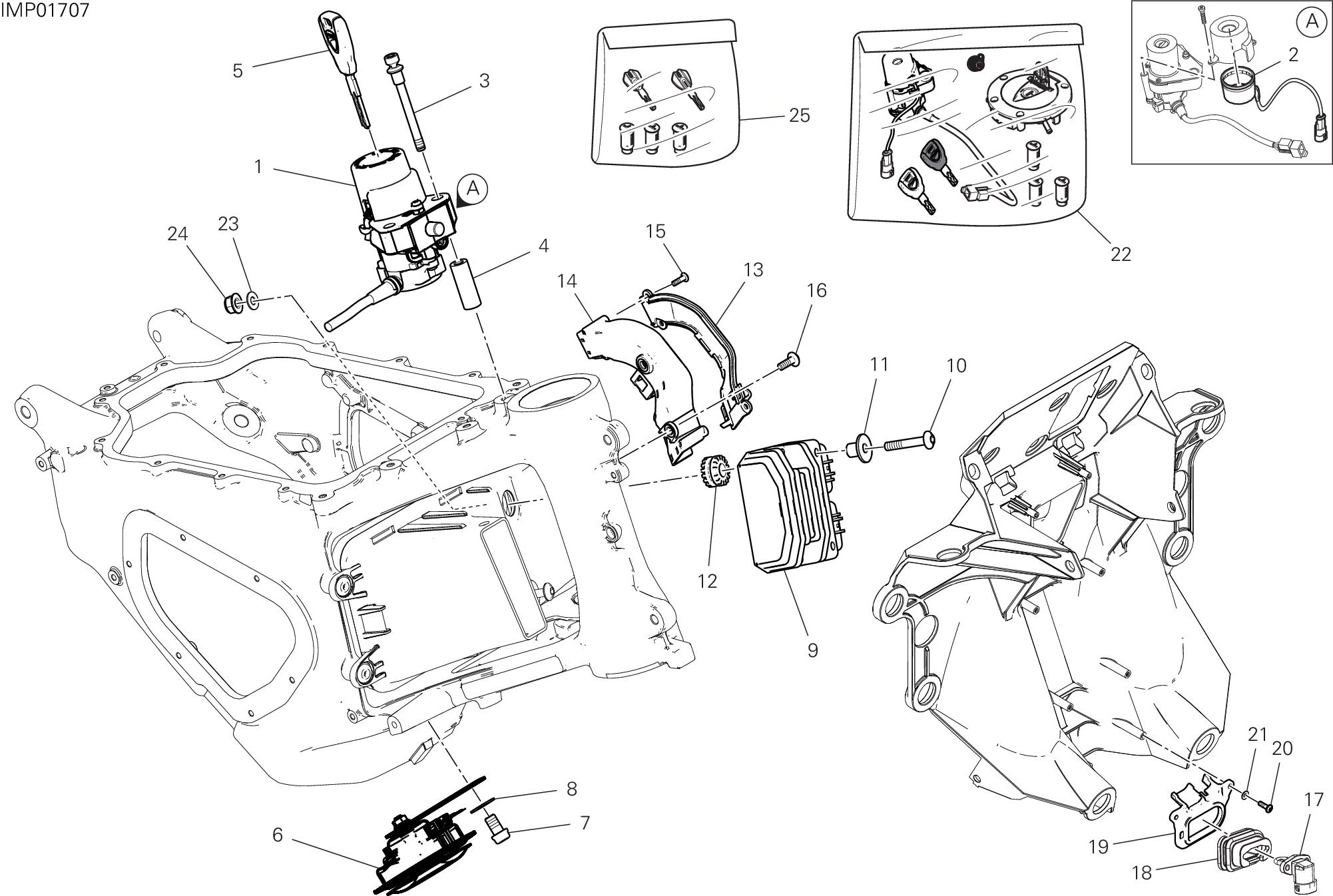

DRAWING 18A - ENGINE CONTROL UNIT

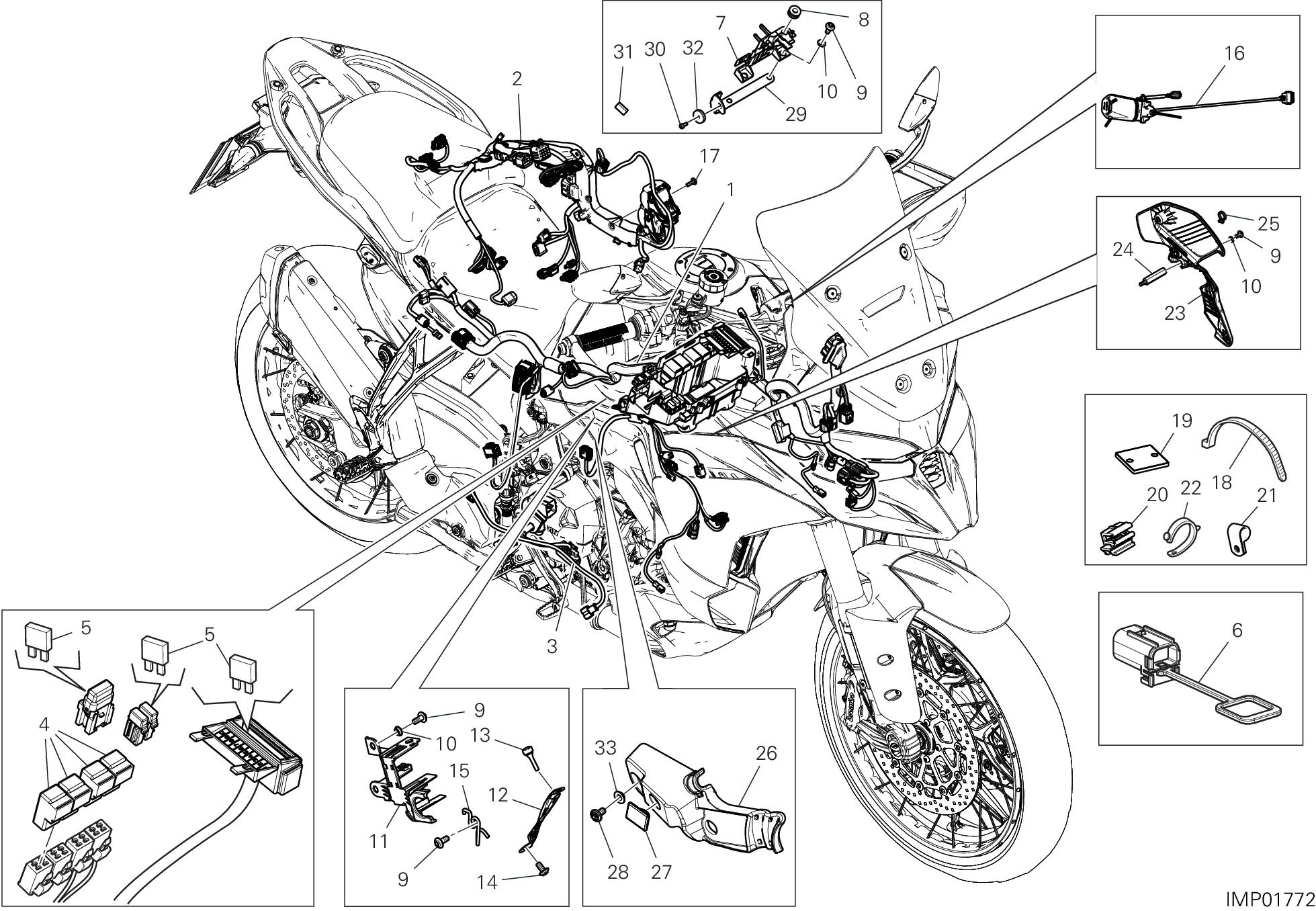

DRAWING 18B - WIRING HARNESS

DRAWING 18E - FRONT WIRING HARNESS

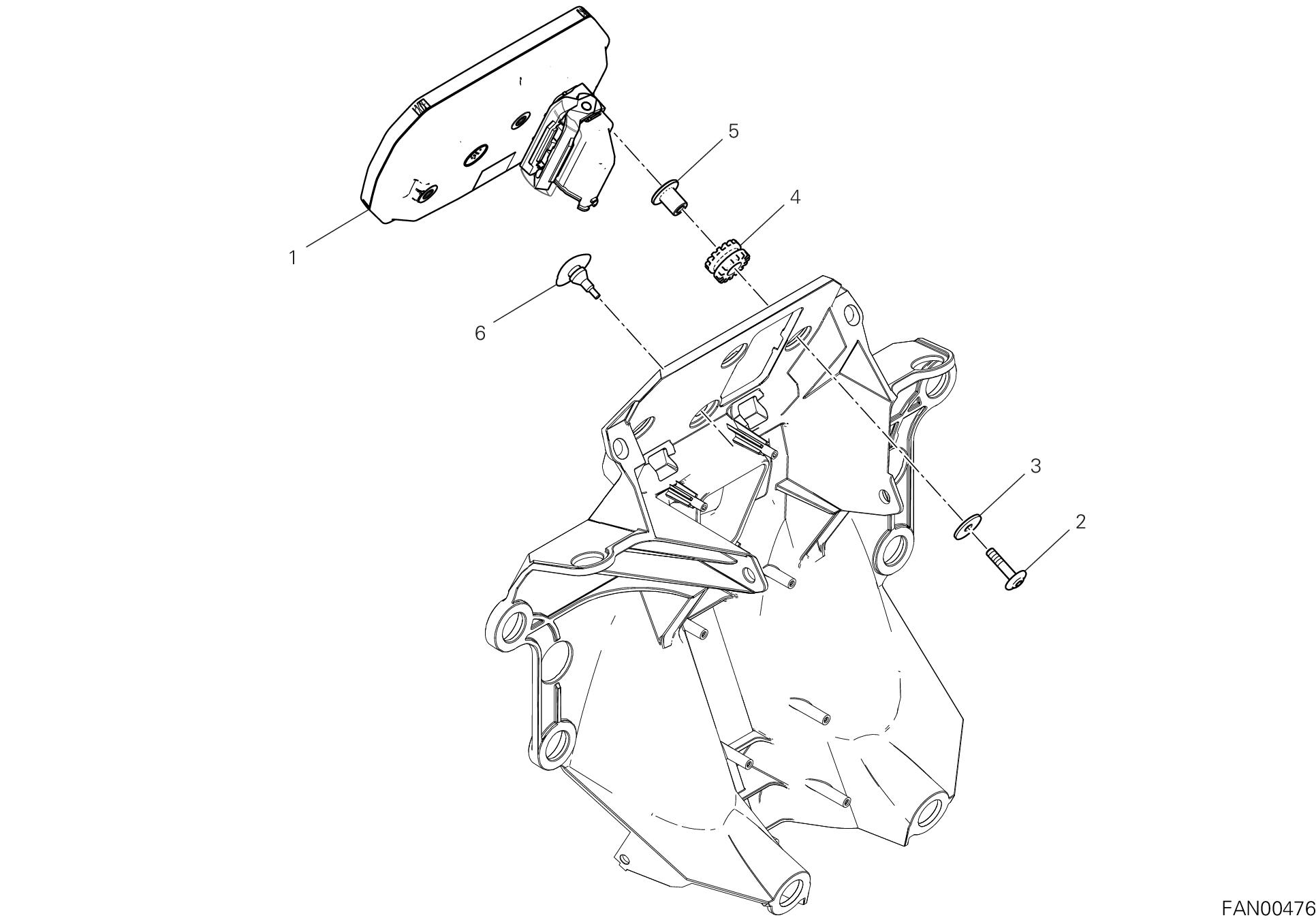

DRAWING 20B - INSTRUMENT PANEL

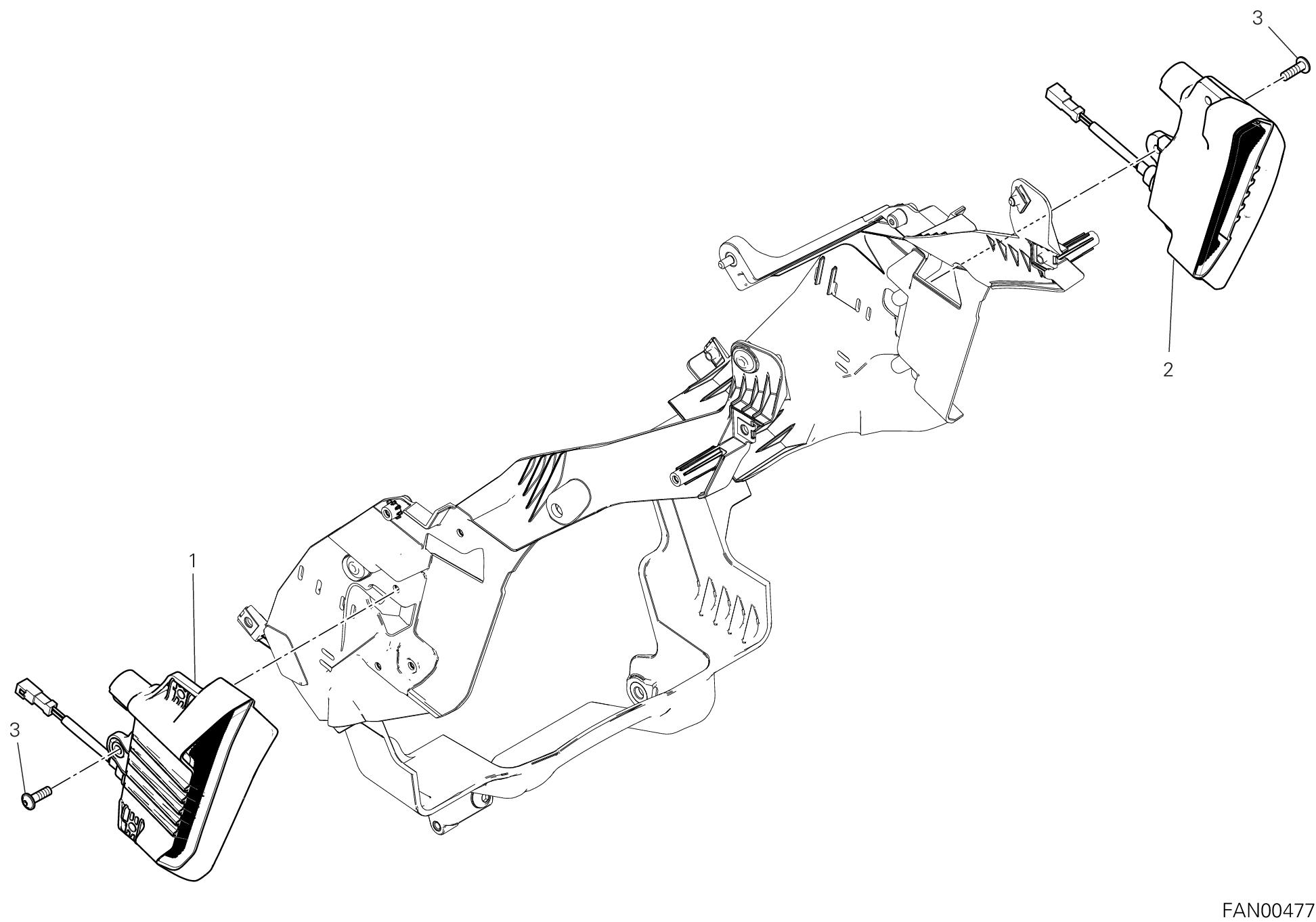

DRAWING 20C - TURN INDICATOR

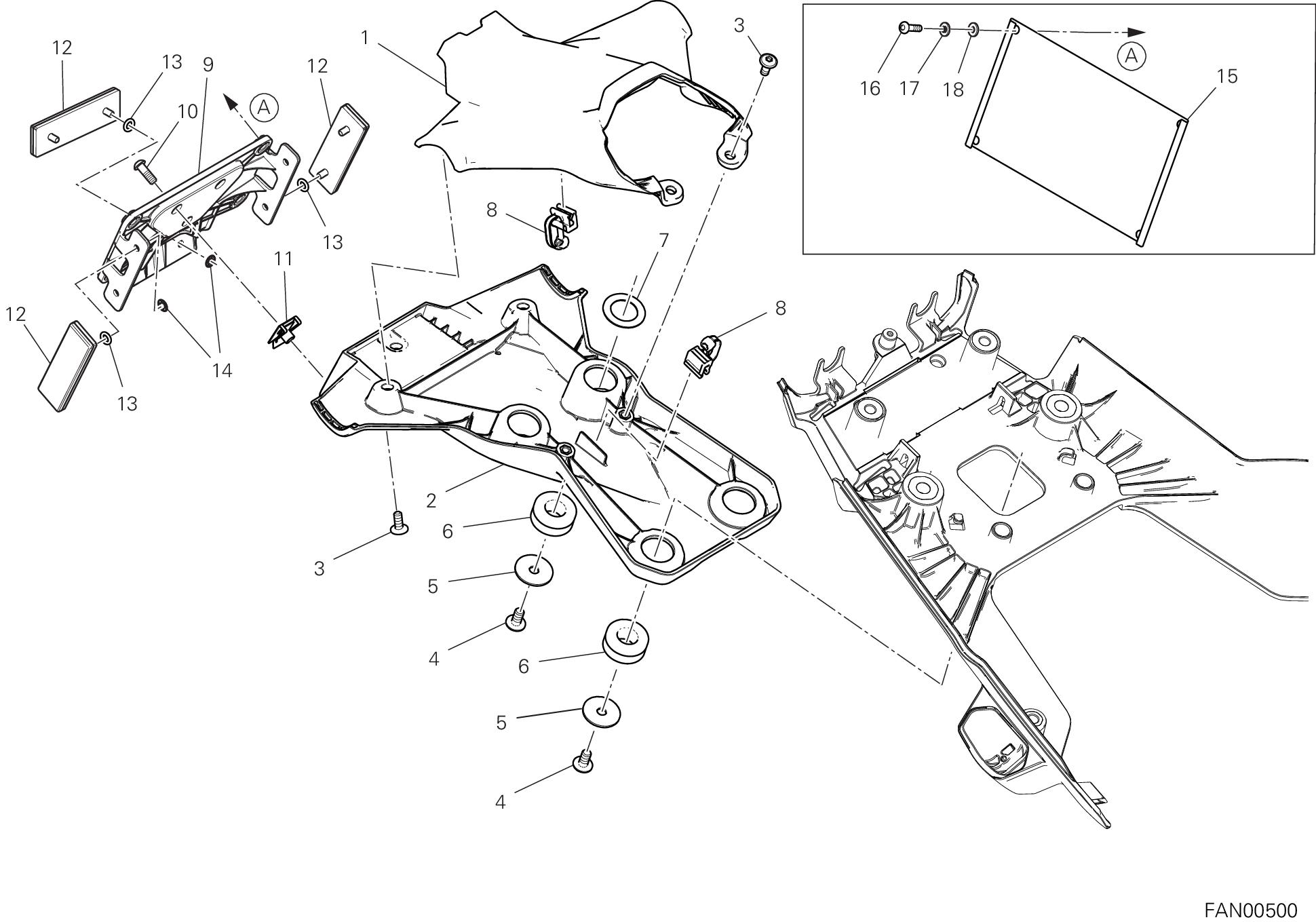

DRAWING 27A - PLATE HOLDER [XST:CAL]

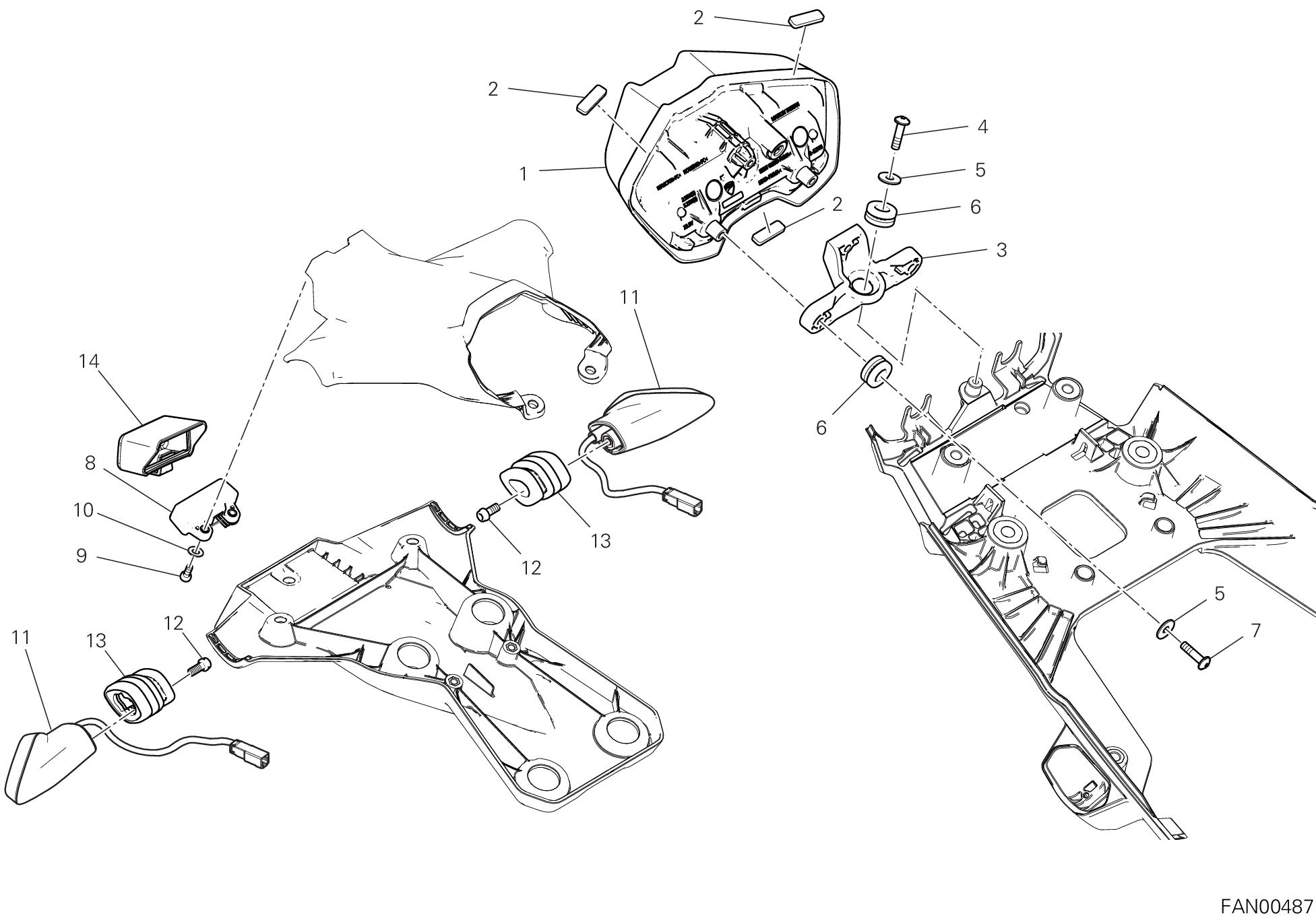

DRAWING 27A - PLATE HOLDER

DRAWING L - DUCATI GENUINE

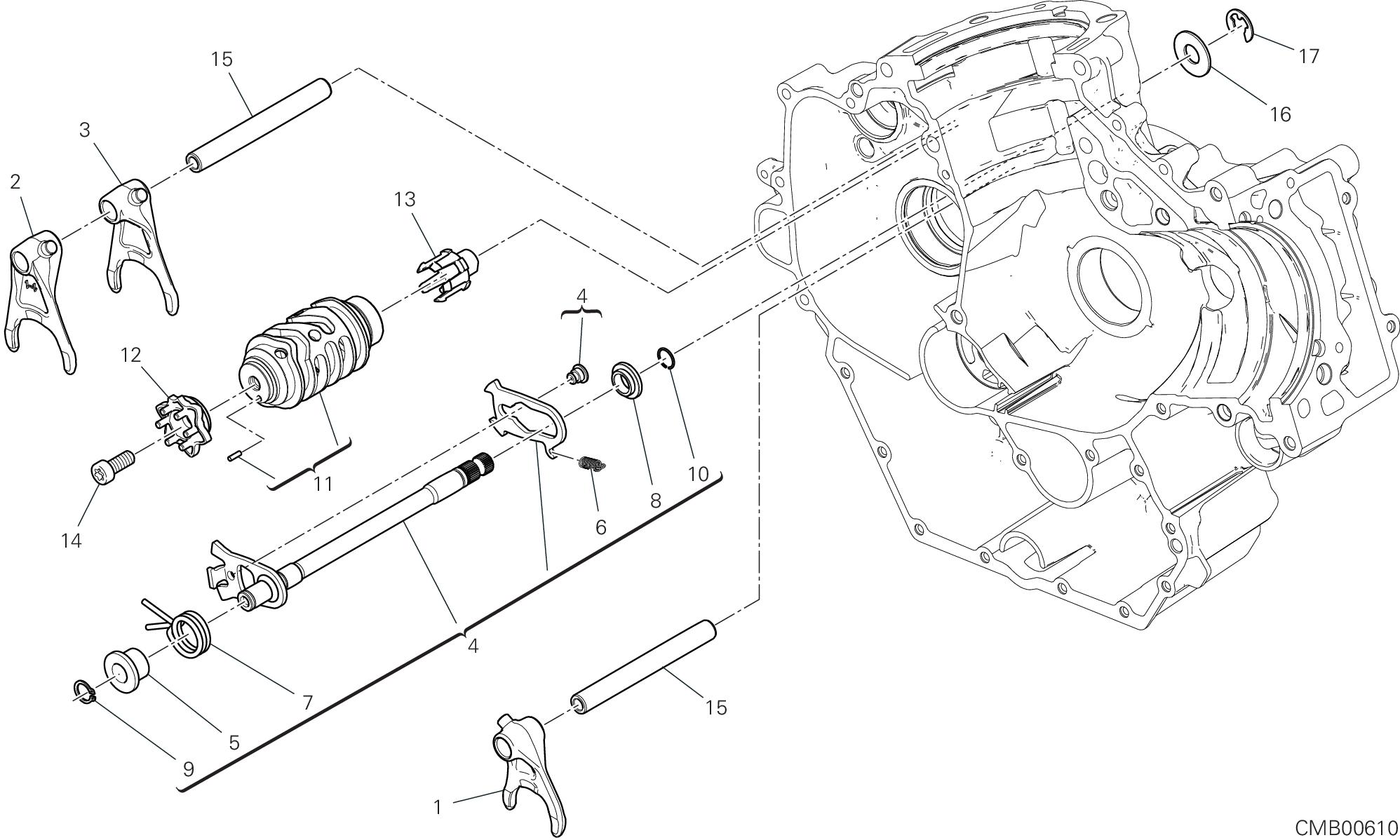

DRAWING 002 - GEAR CHANGE MECHANISM

DRAWING 003 - GEAR BOX

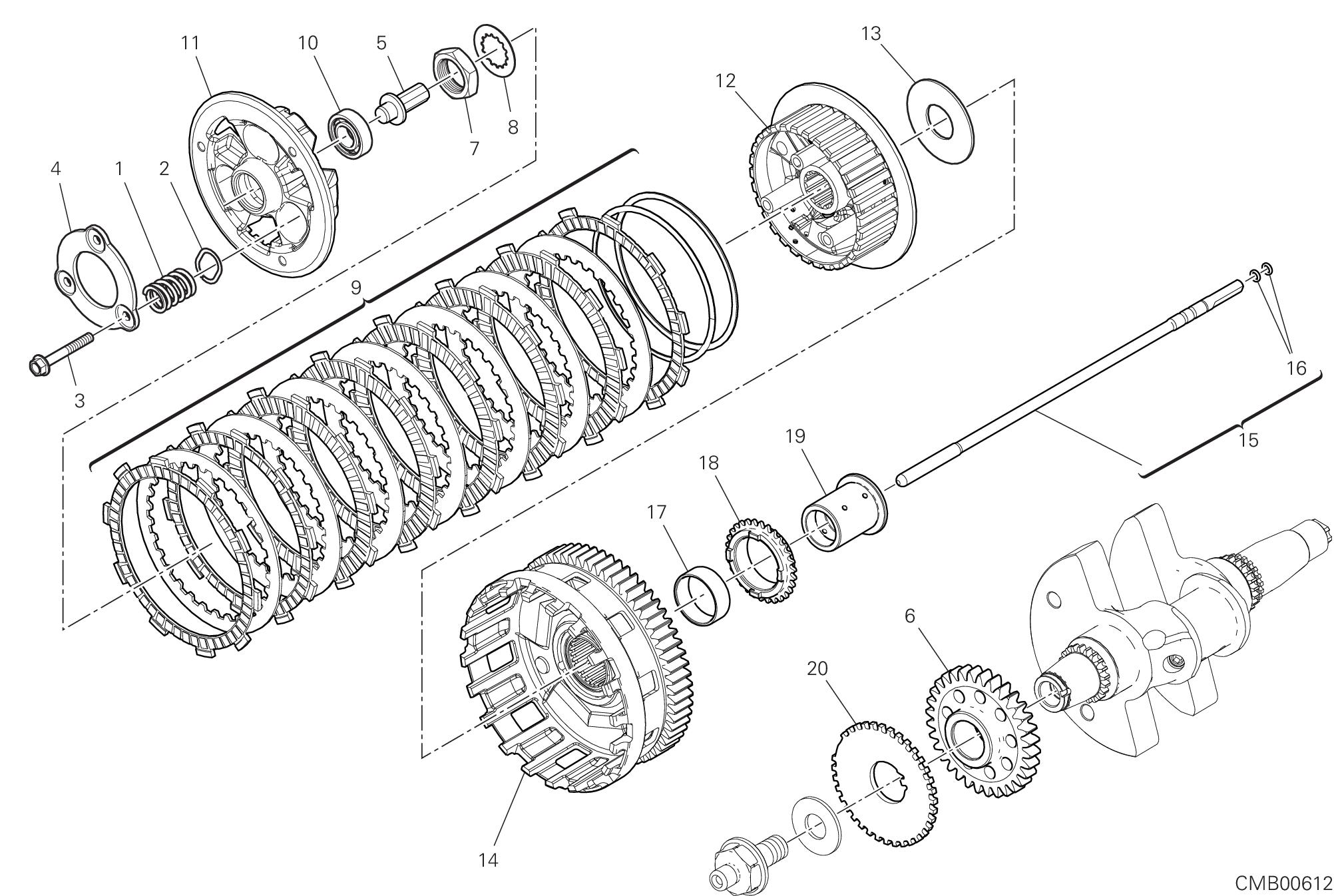

DRAWING 004 - CLUTCH

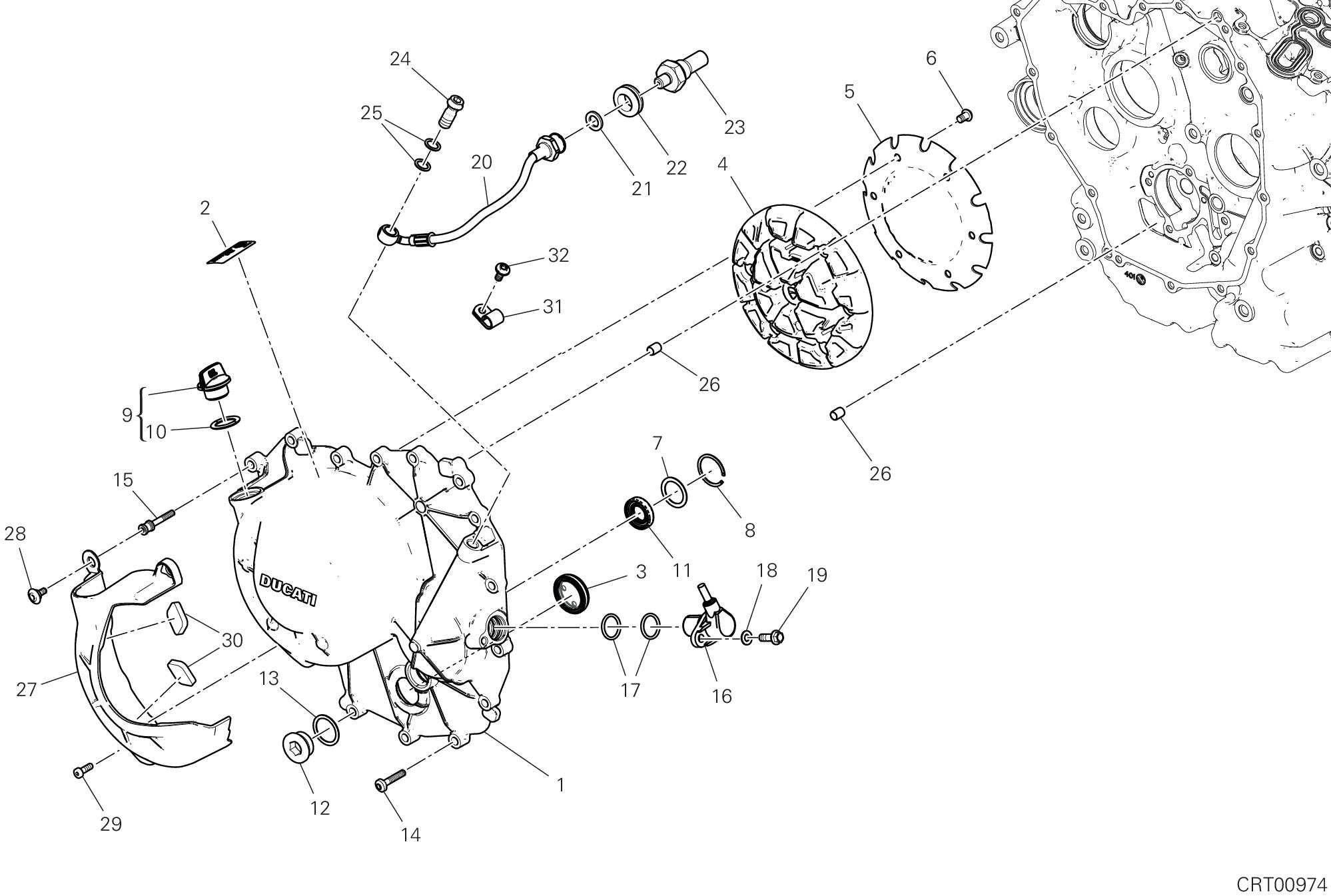

DRAWING 005 - CLUTCH COVER

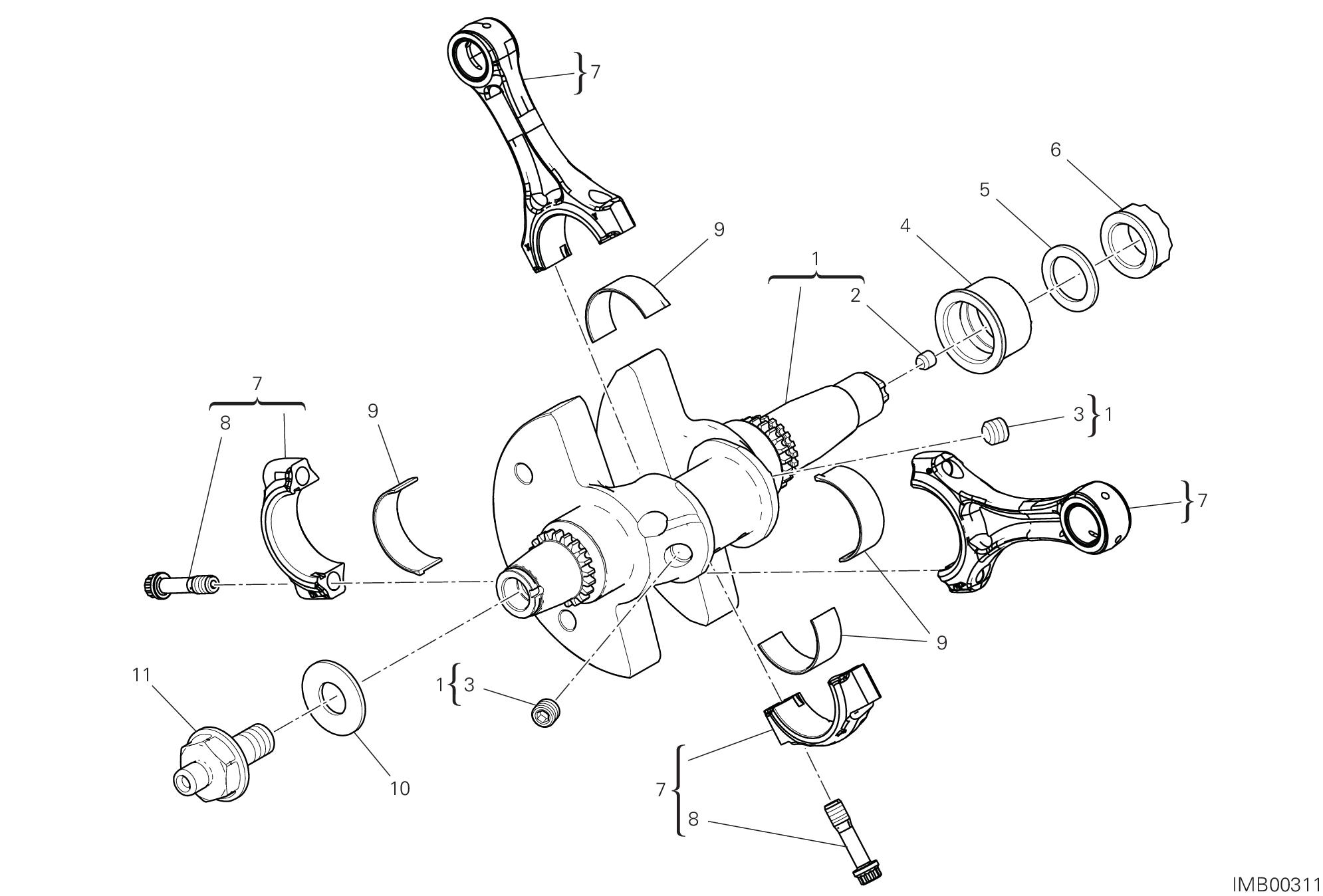

DRAWING 006 - CONNECTING RODS

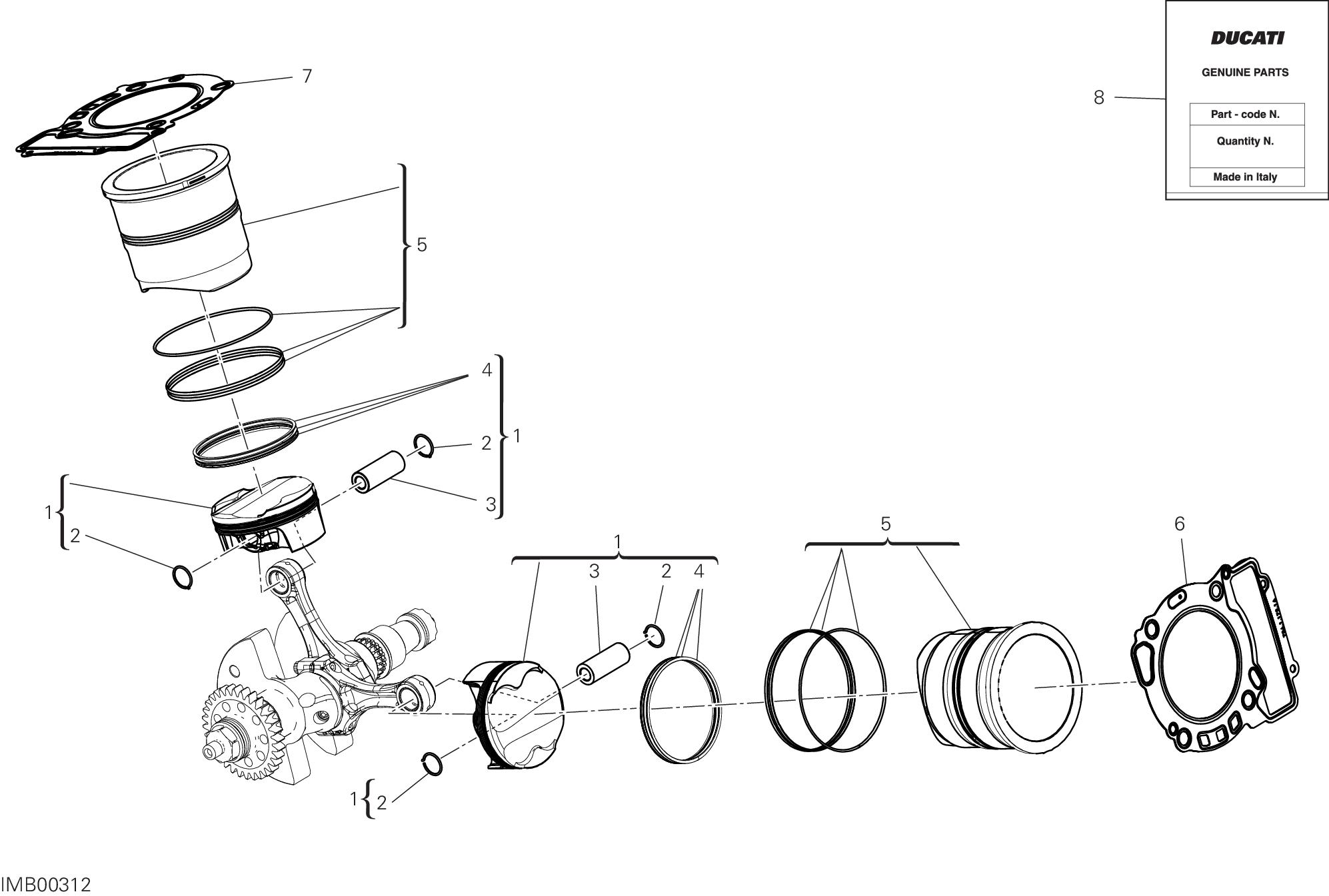

DRAWING 007 - CYLINDERS - PISTONS

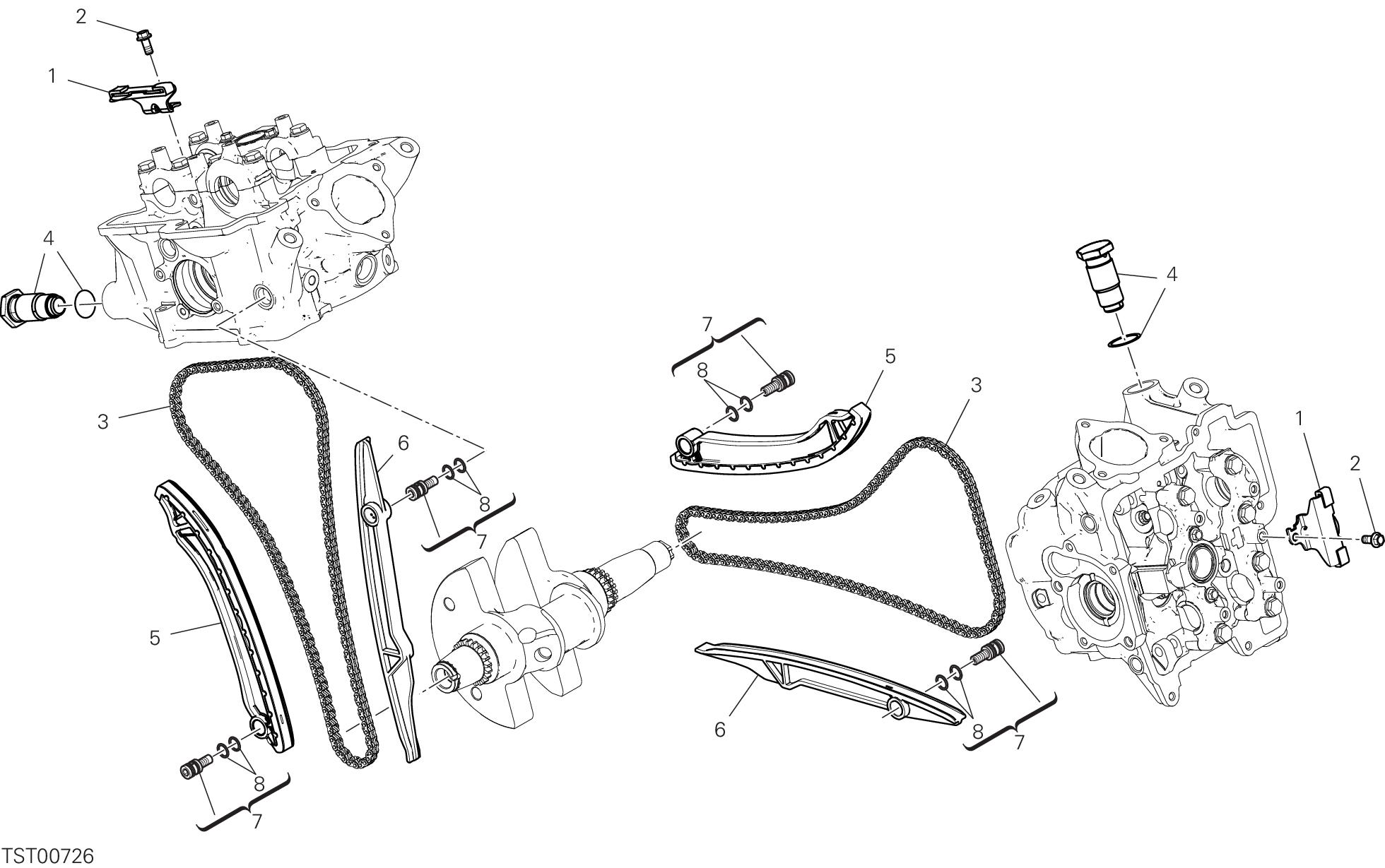

DRAWING 008 - TIMING SYSTEM

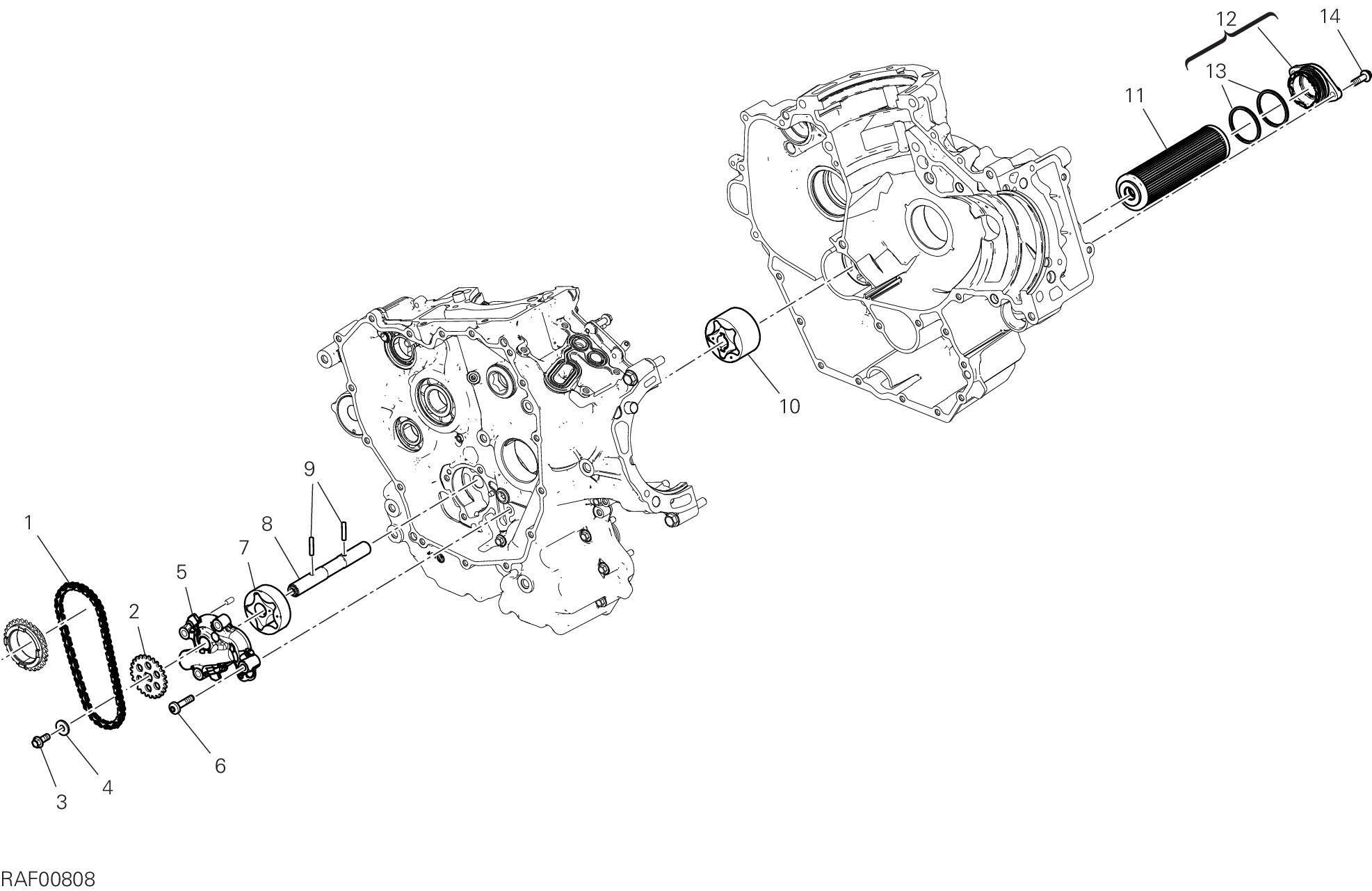

DRAWING 009 - OIL PUMP - FILTER

DRAWING 010 - HALF-CRANKCASES PAIR

DRAWING 011 - GENERATOR COVER

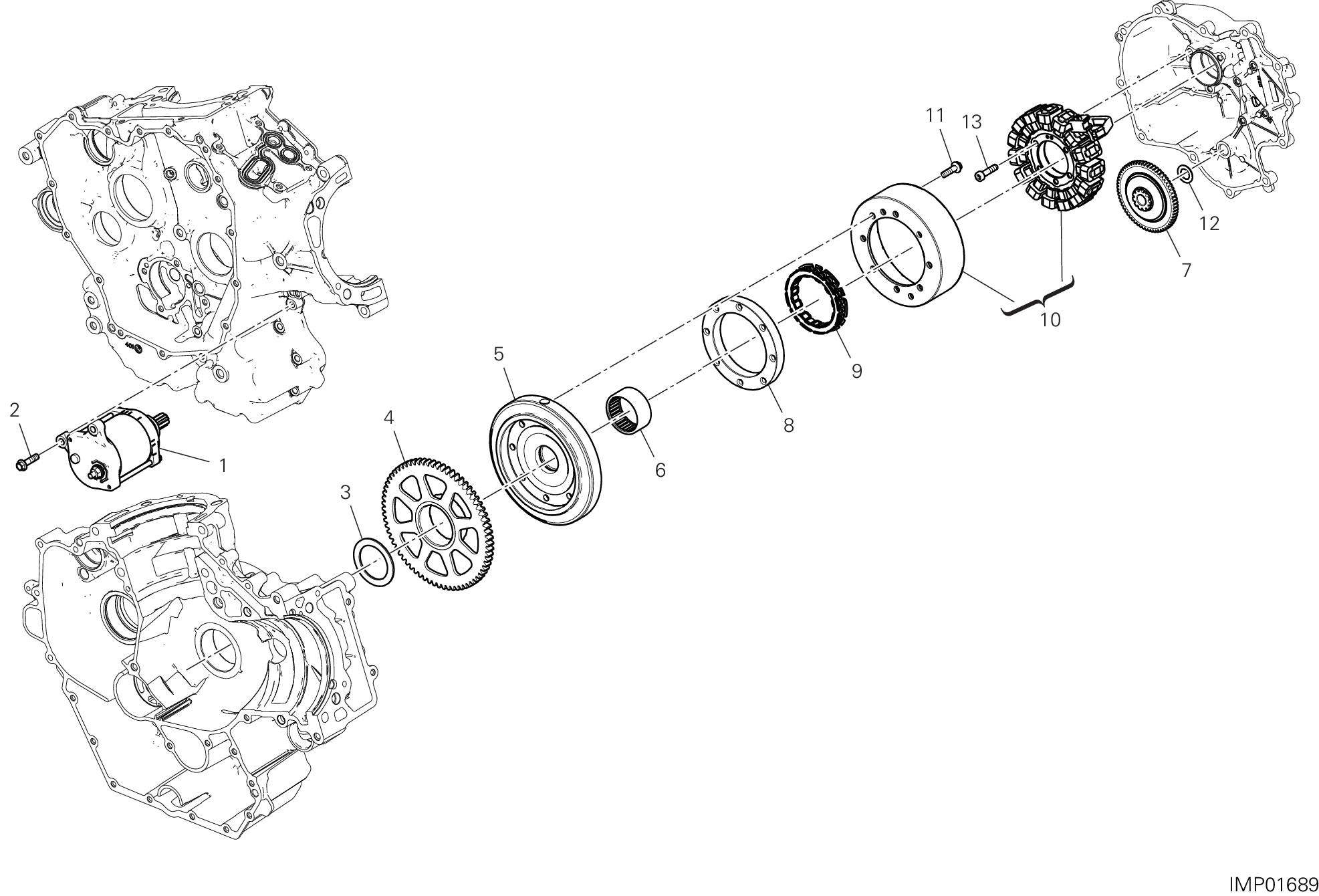

DRAWING 012 - ELECTRIC STARTING

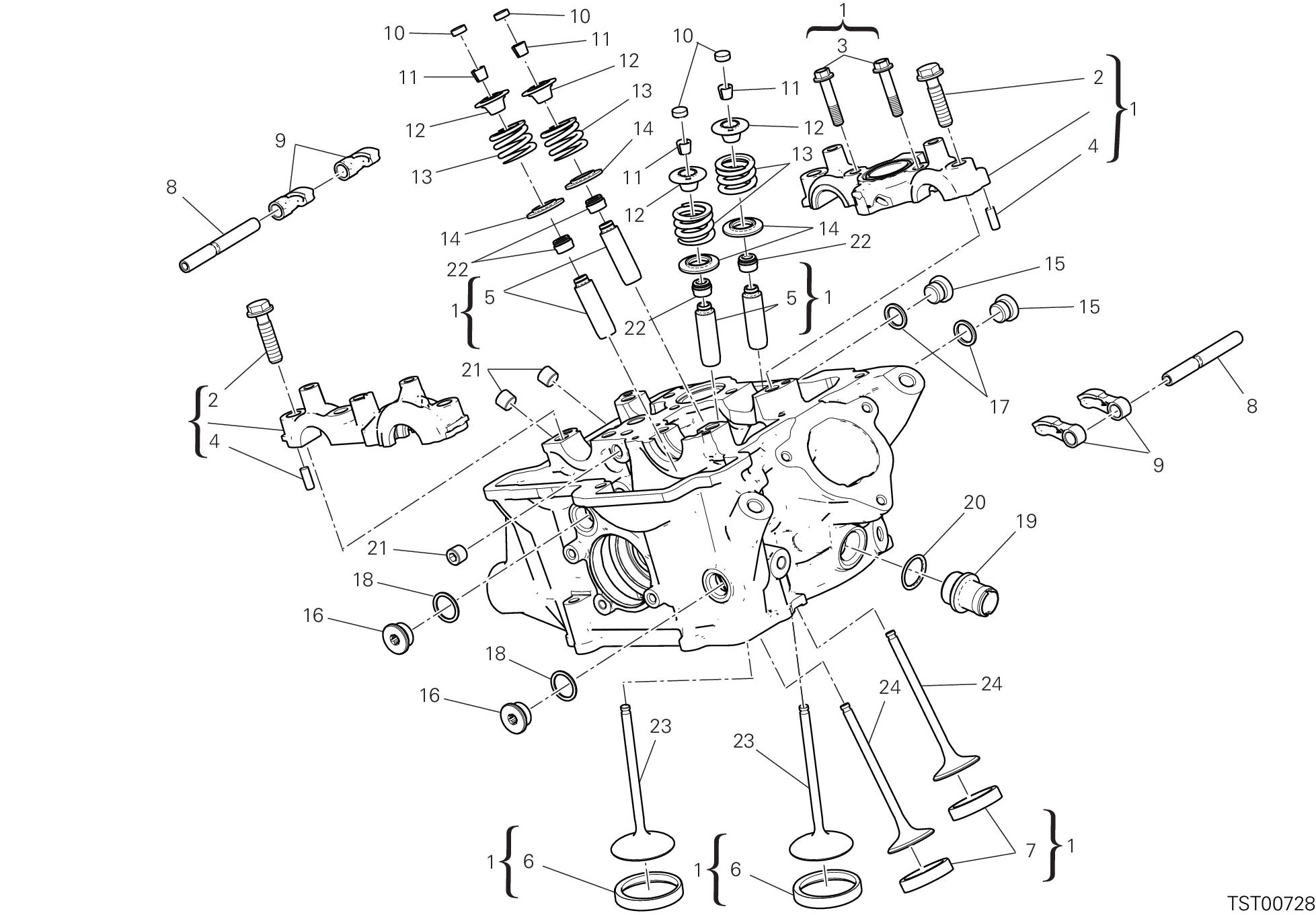

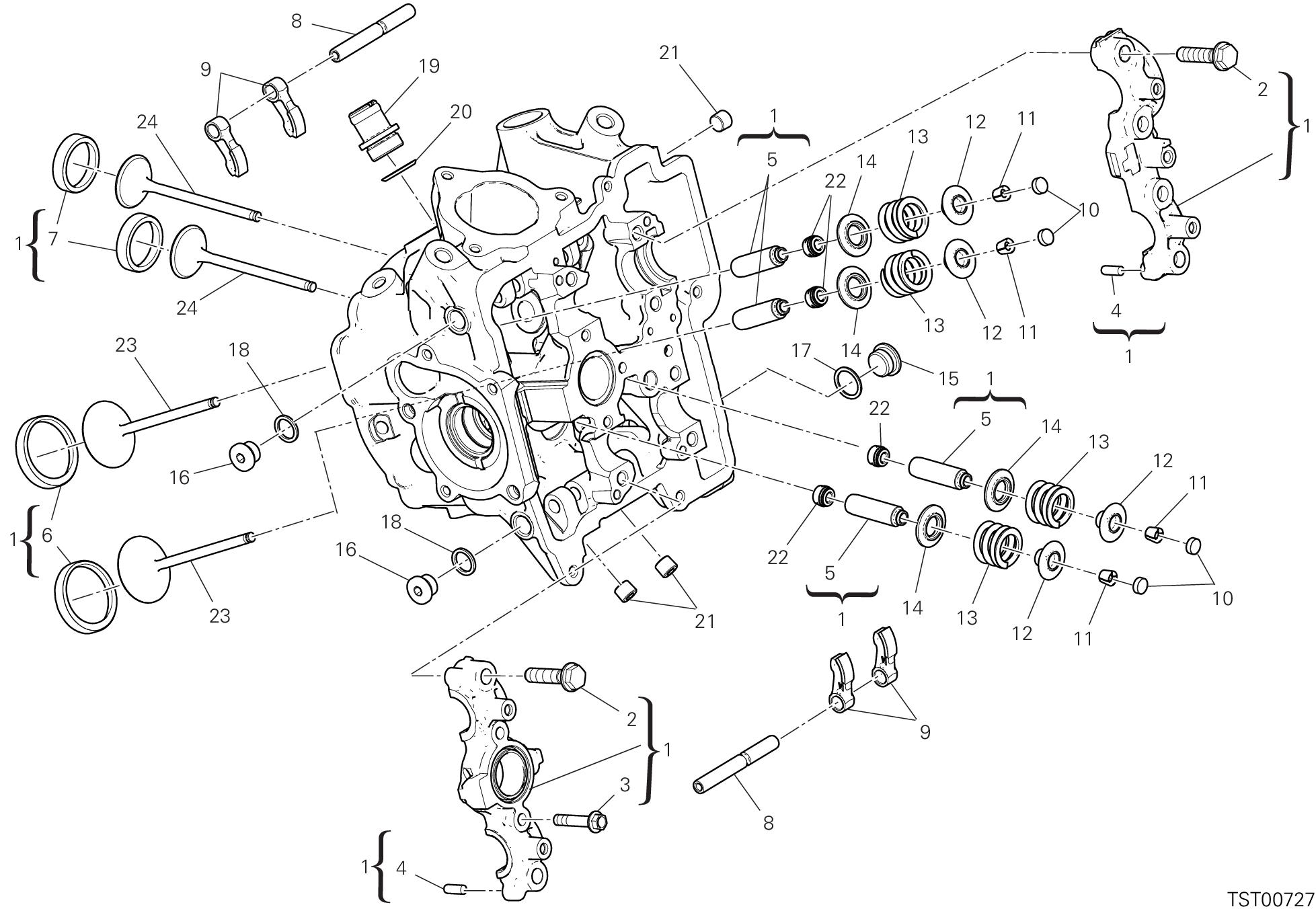

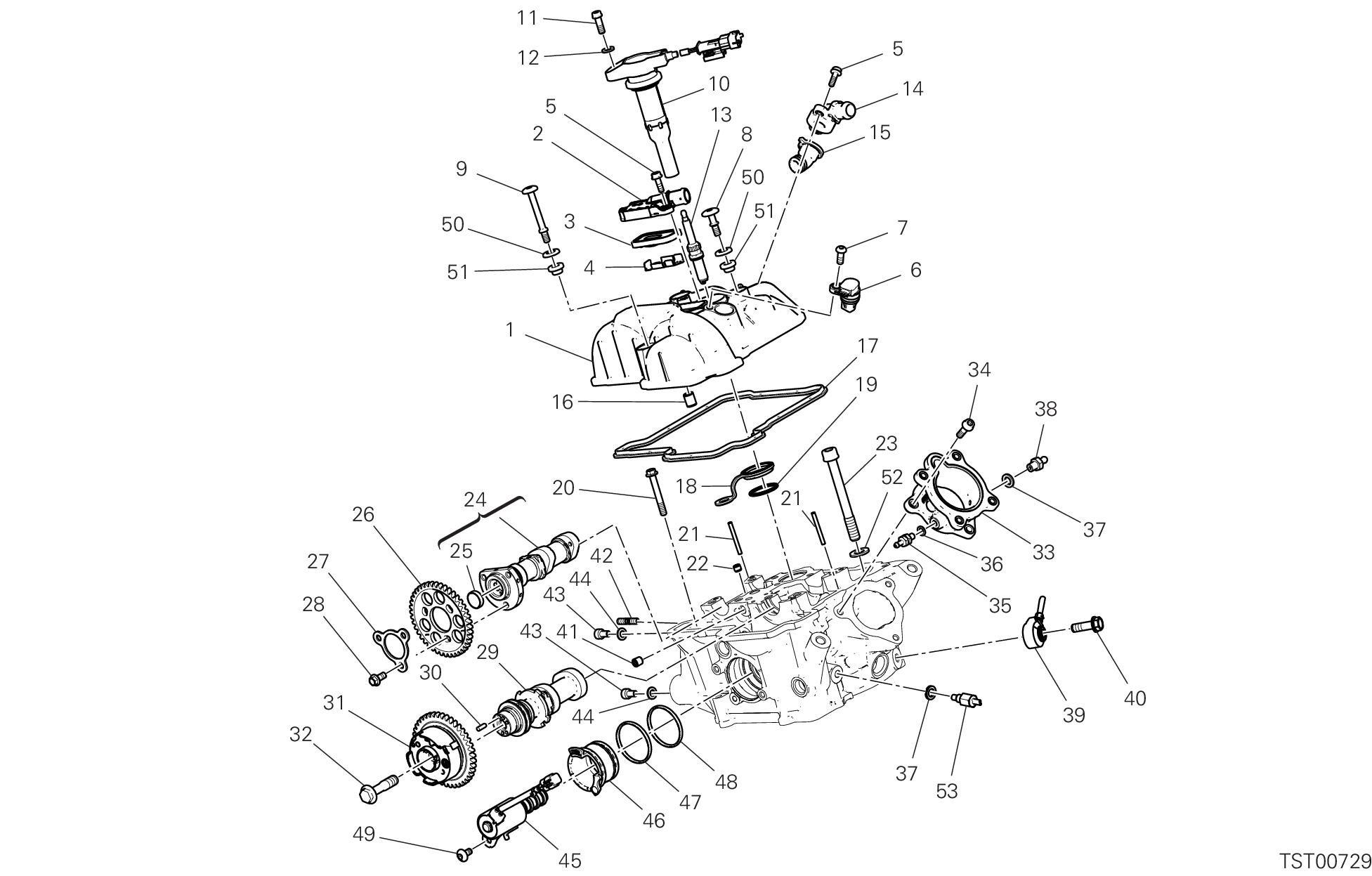

DRAWING 014 - VERTICAL CYLINDER HEAD

DRAWING 015 - HORIZONTAL CYLINDER HEAD

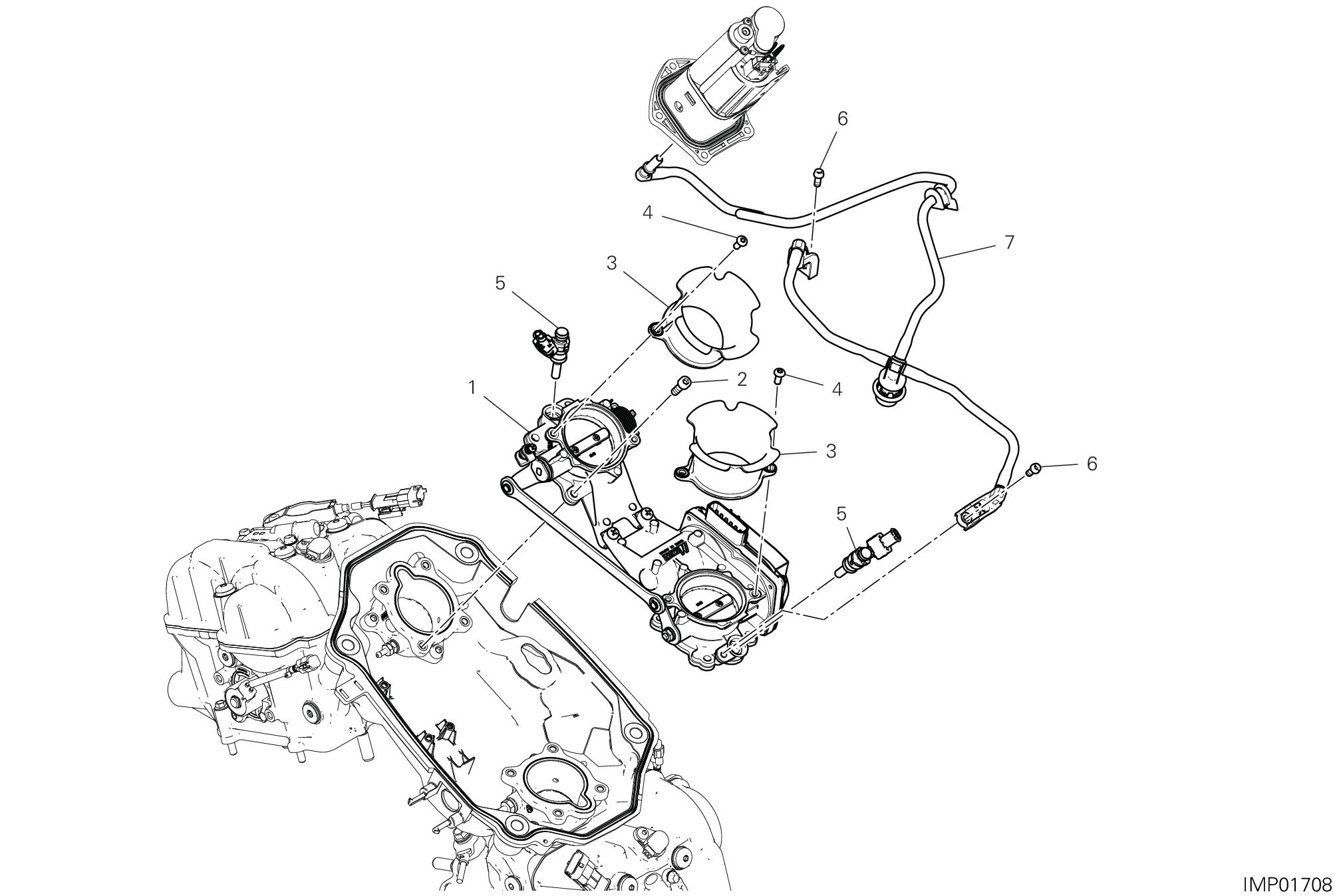

DRAWING 017 - THROTTLE BODY

DRAWING 10A - HALF-CRANKCASES PAIR

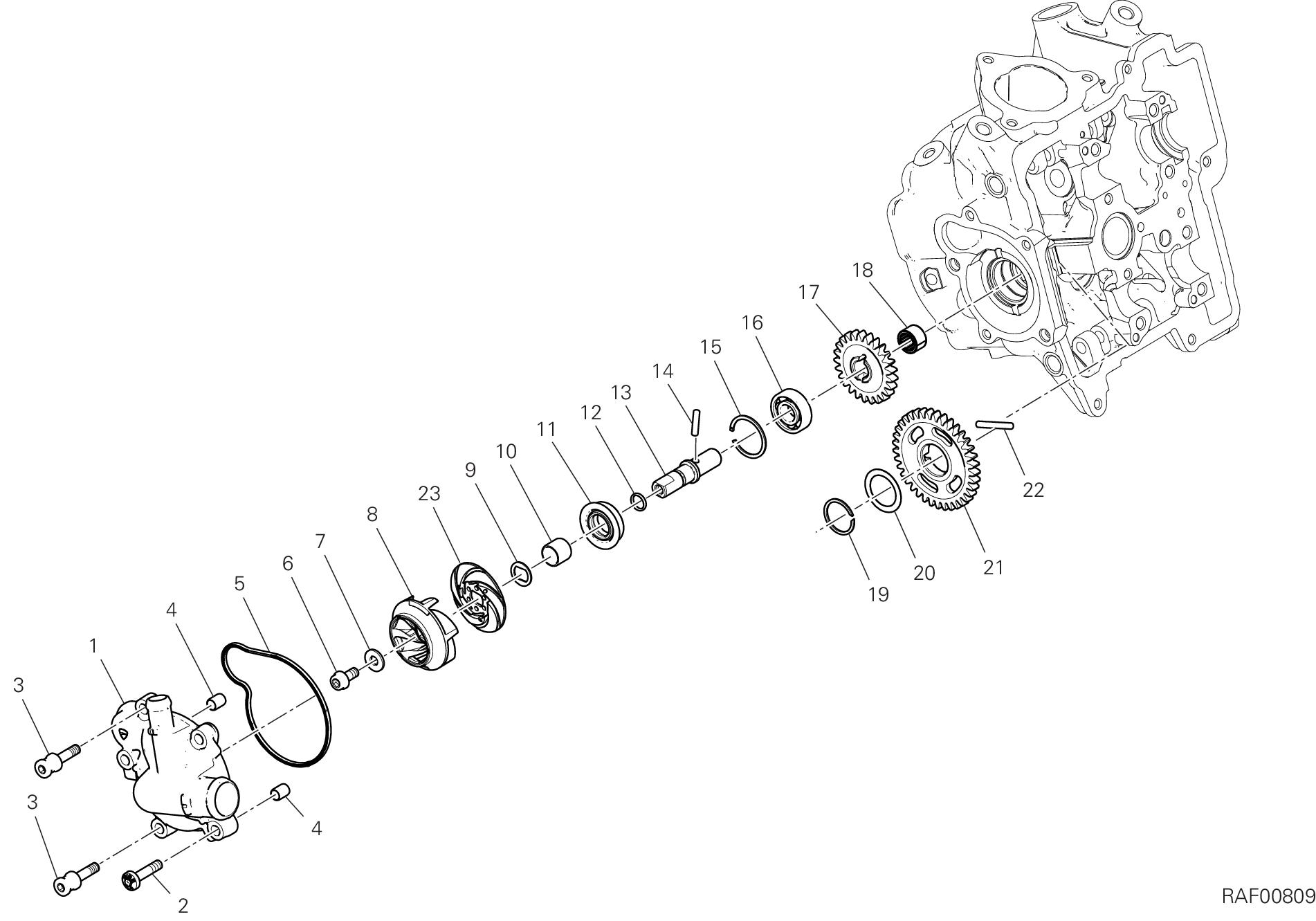

DRAWING 10B - WATER PUMP

DRAWING 13A - VERTICAL

DRAWING 13A - VERTICAL CYLINDER HEAD -

DRAWING 13A - VERTICAL

DRAWING 13A - VERTICAL CYLINDER HEAD - TIMING

DRAWING 13B - HORIZONTAL HEAD – TIMING

DRAWING 13B - HORIZONTAL HEAD – TIMING SYSTEM

DRAWING 13B - HORIZONTAL HEAD – TIMING

DRAWING 13B - HORIZONTAL HEAD – TIMING SYSTEM

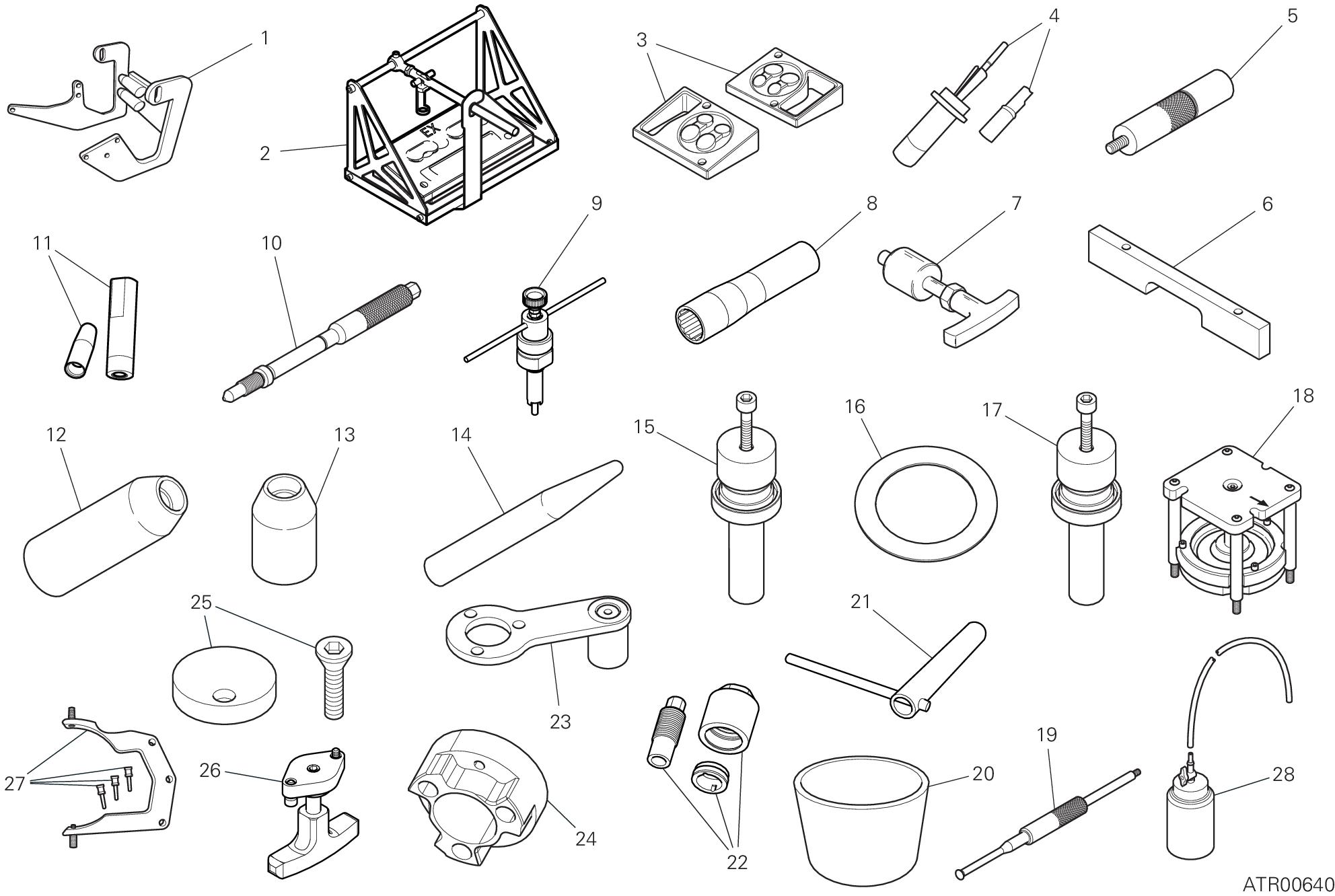

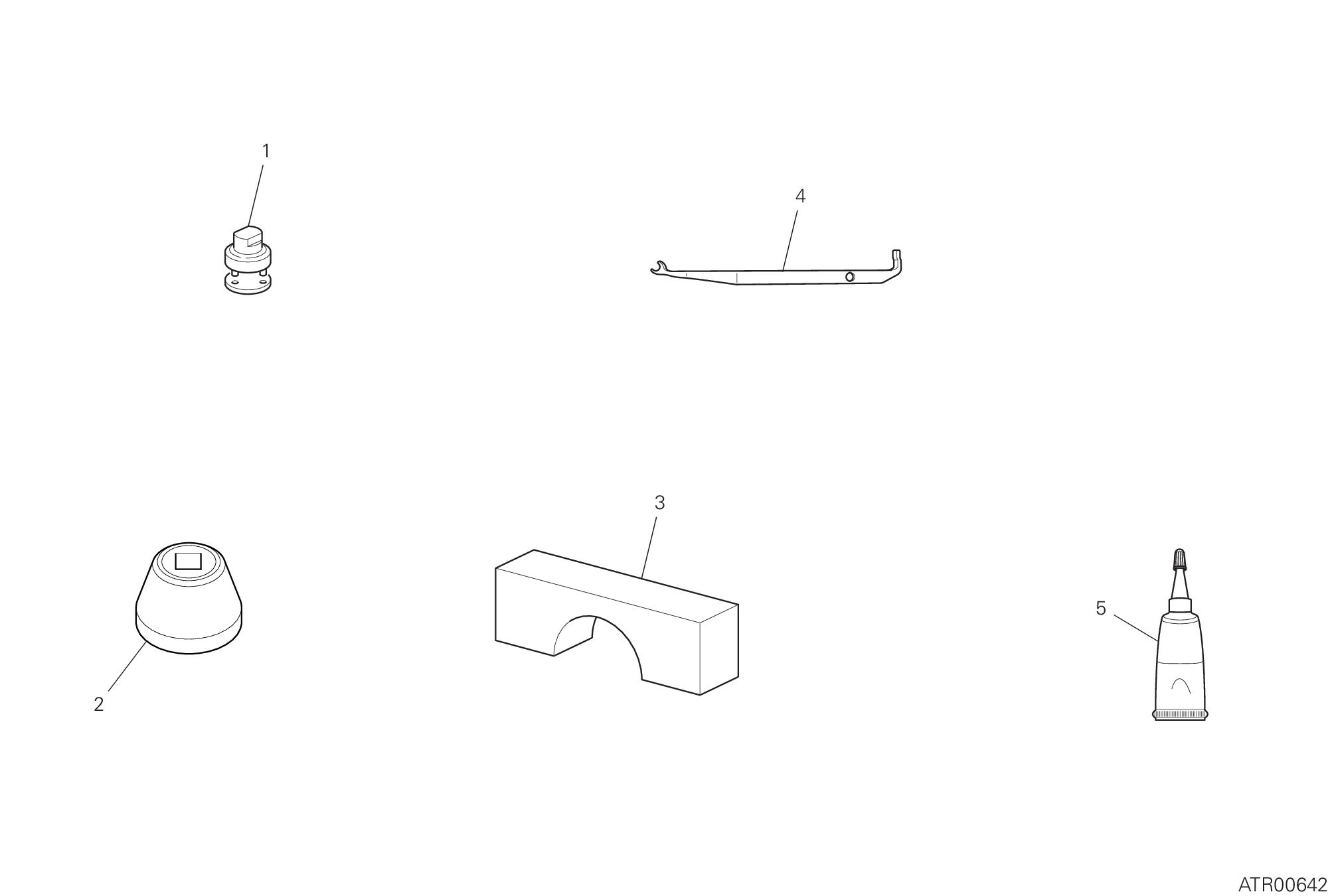

DRAWING 001 - WORKSHOP SERVICE TOOLS

DRAWING 01B - WORKSHOP SERVICE TOOLS

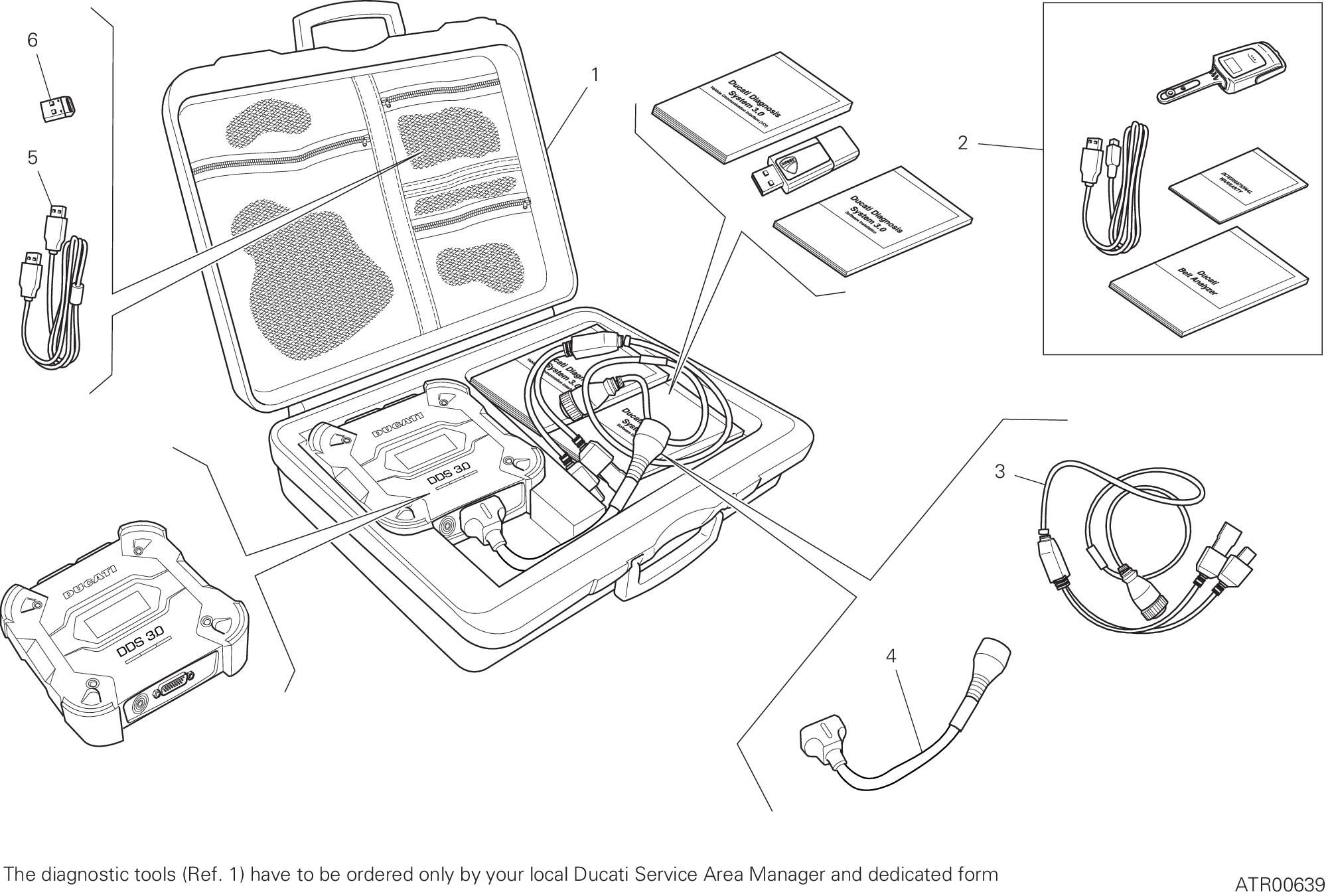

DRAWING 01C - CHECK INTRUMENT DDS

DRAWING A2 - TYRES

DRAWING B2 - (*) PIRELLI SCORPION™ TRAIL II

DRAWING C2 - PIRELLI SCORPION™ RALLY

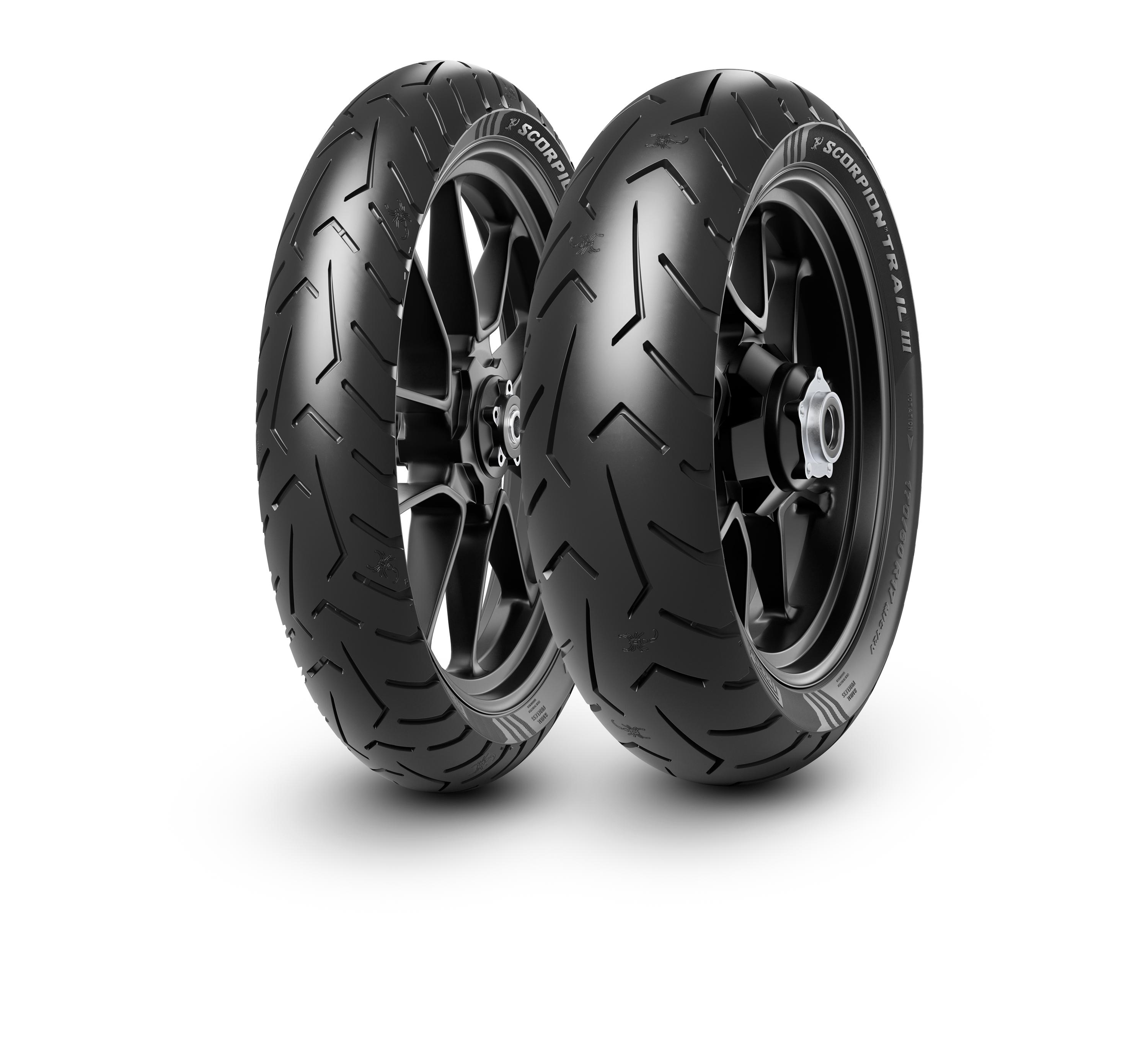

DRAWING C4 - PIRELLI SCORPION™ TRAIL II

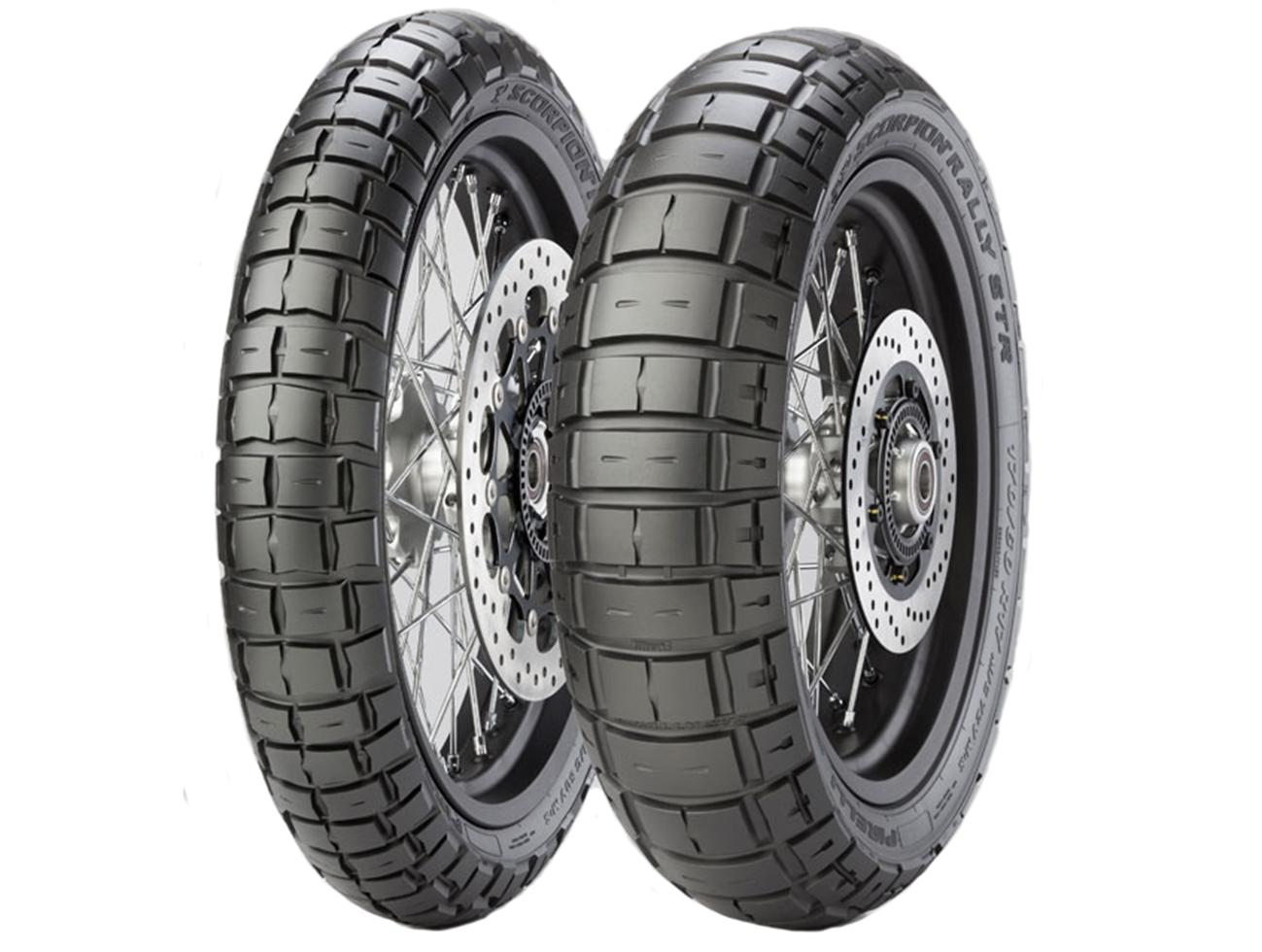

DRAWING D2 - SCORPION™ RALLY STR

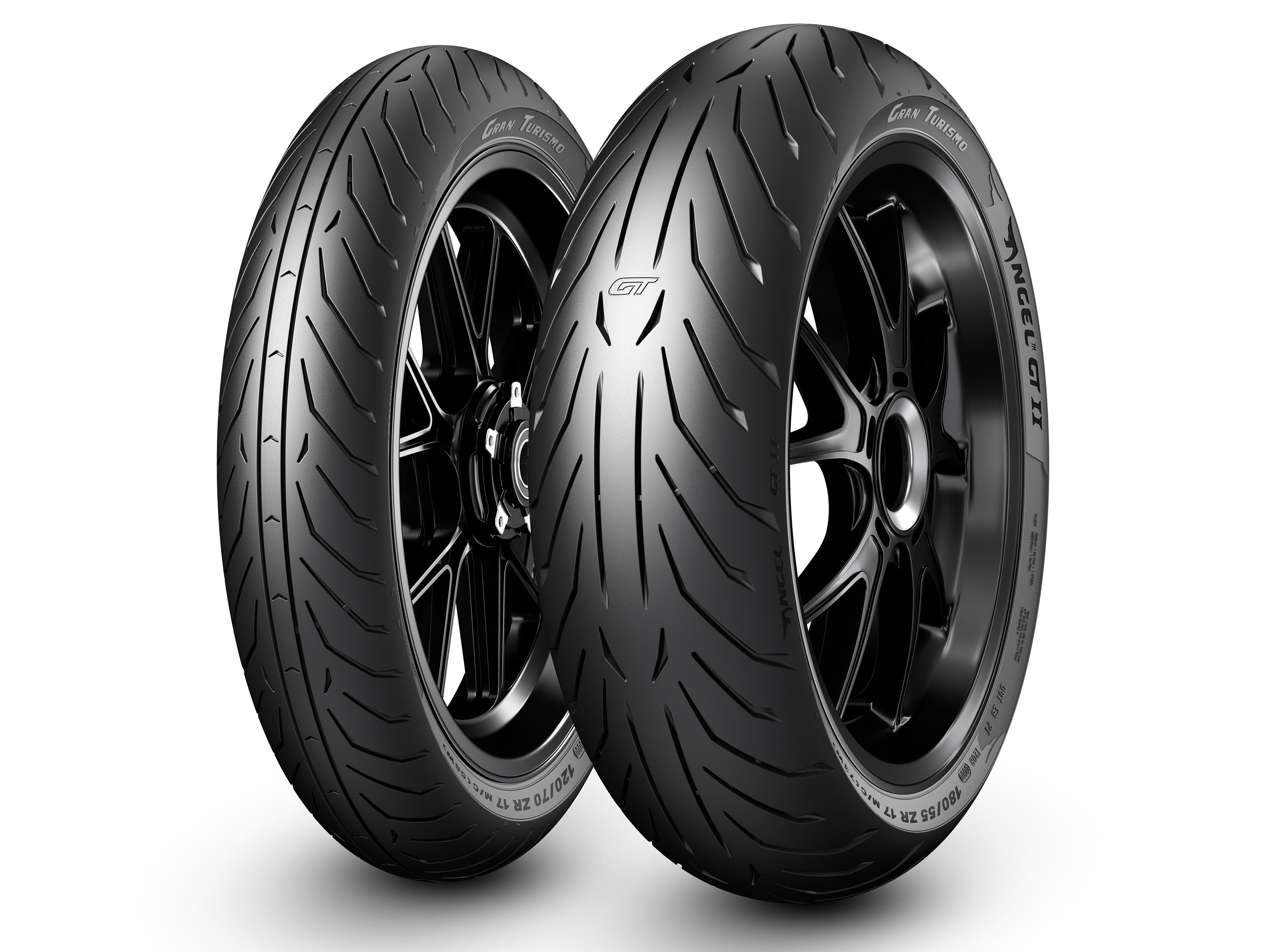

DRAWING S - PIRELLI ANGEL™ GT II

DRAWING 019 - EXHAUST SYSTEM

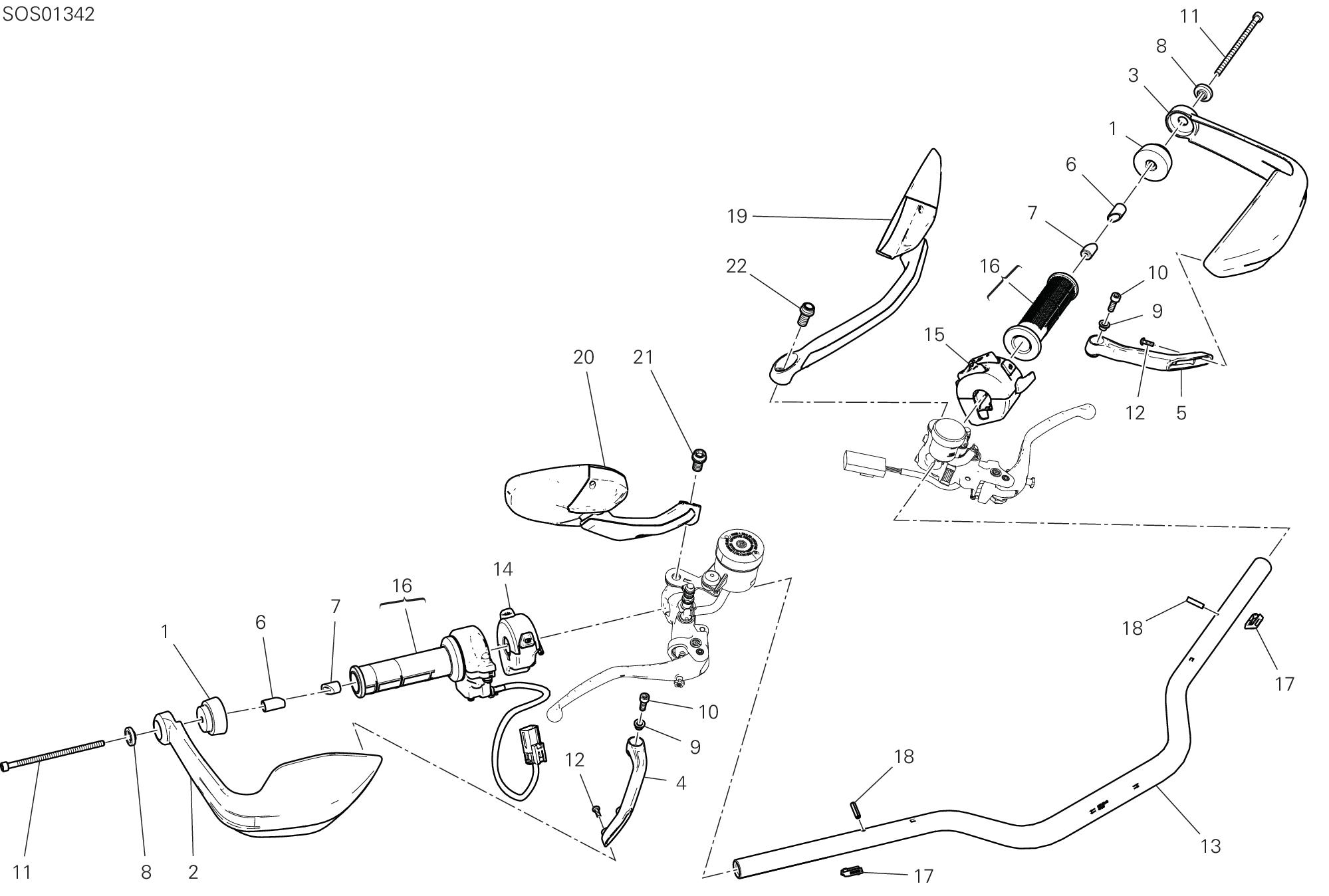

DRAWING 021 - HANDLEBAR

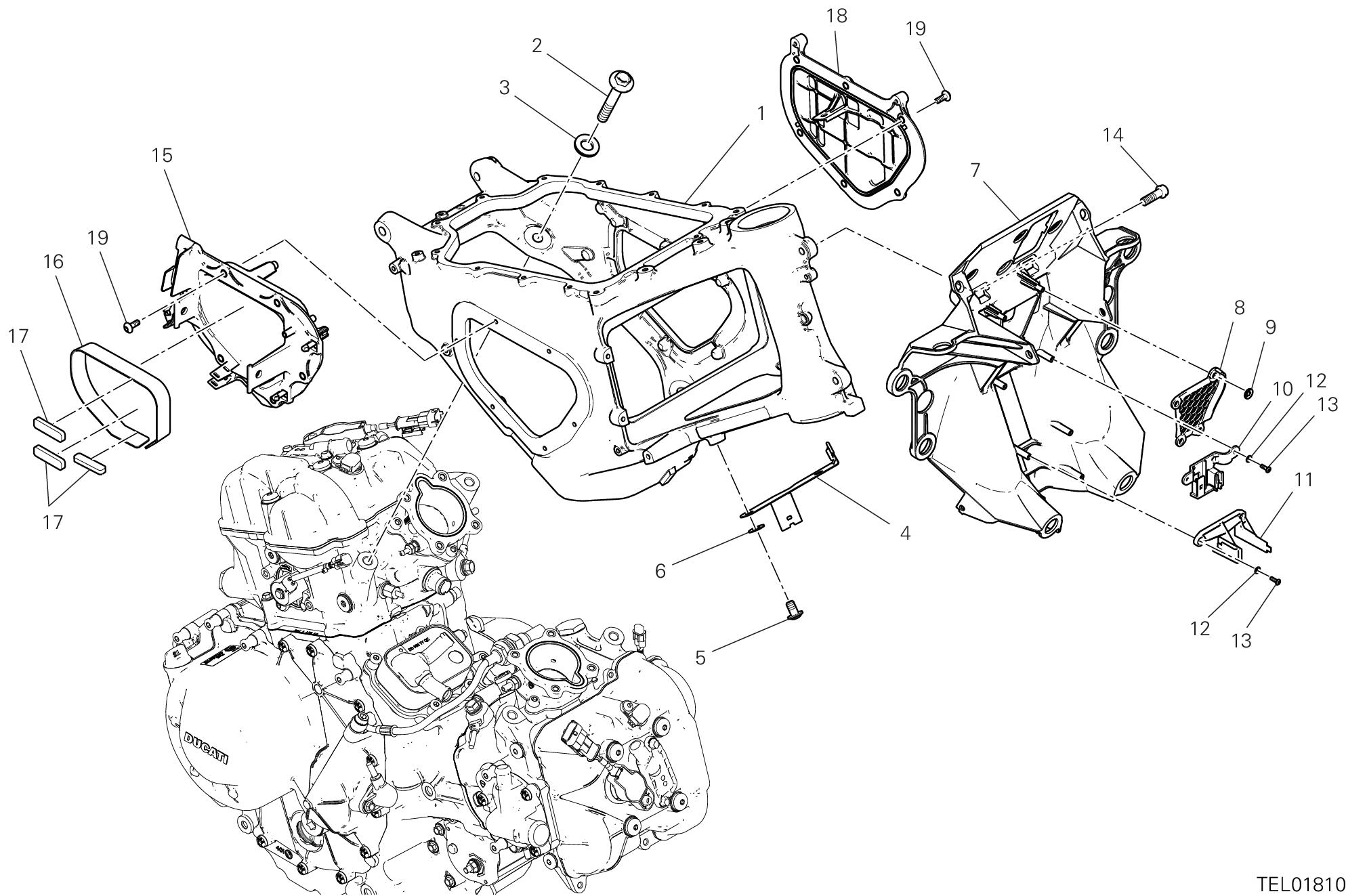

DRAWING 022 - FRAME

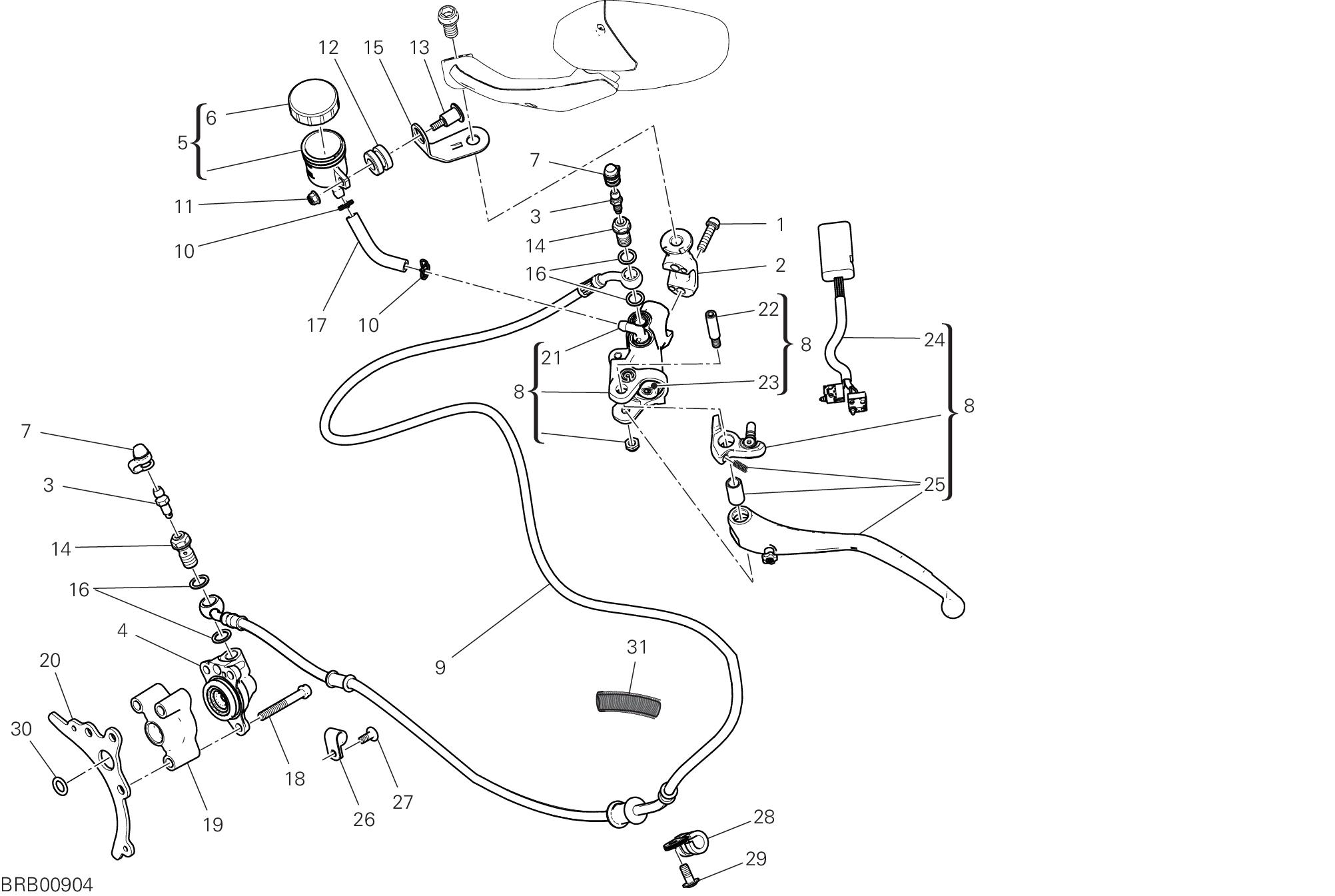

DRAWING 023 - CLUTCH MASTER CYLINDER

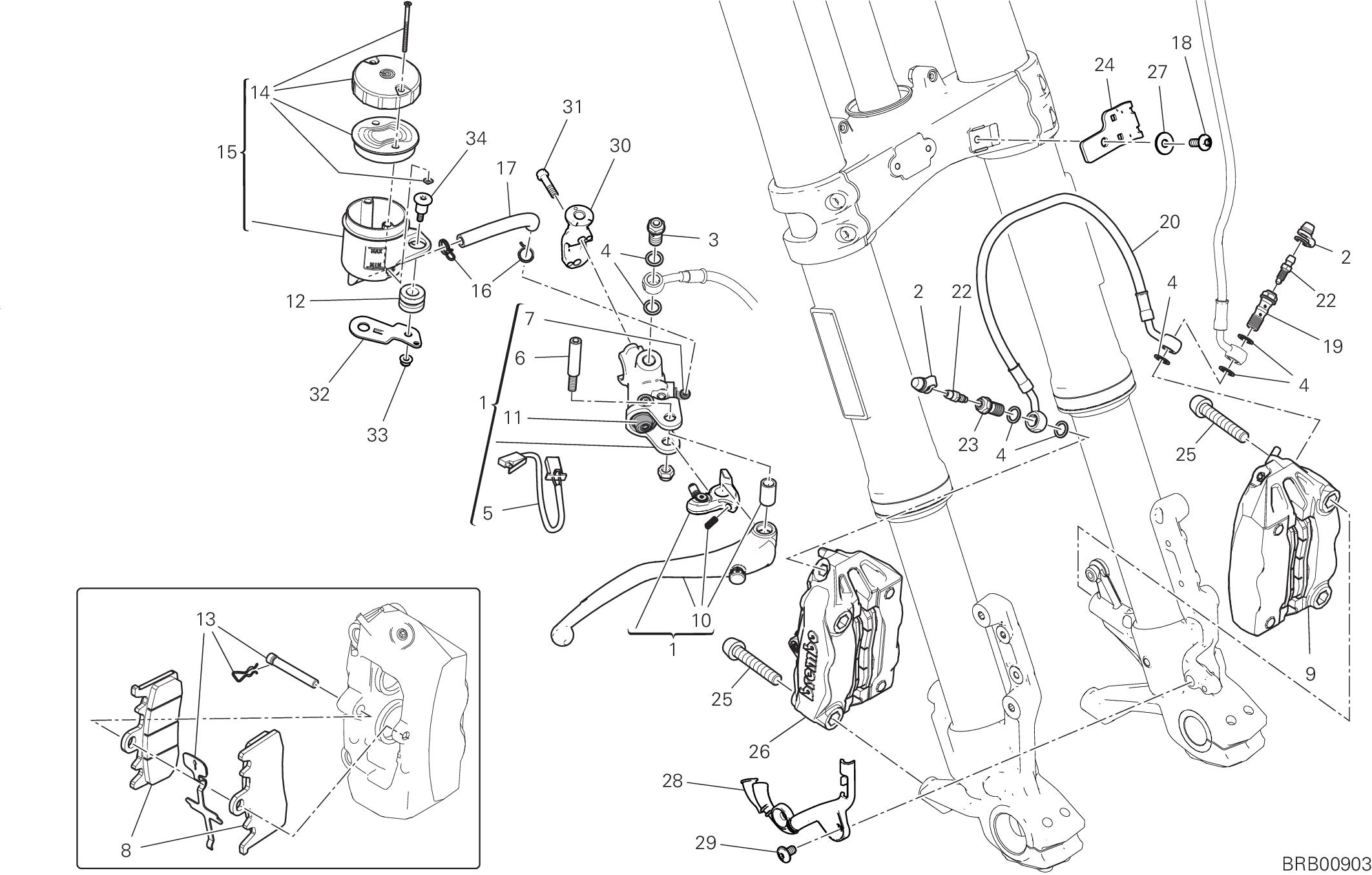

DRAWING 024 - FRONT BRAKE SYSTEM

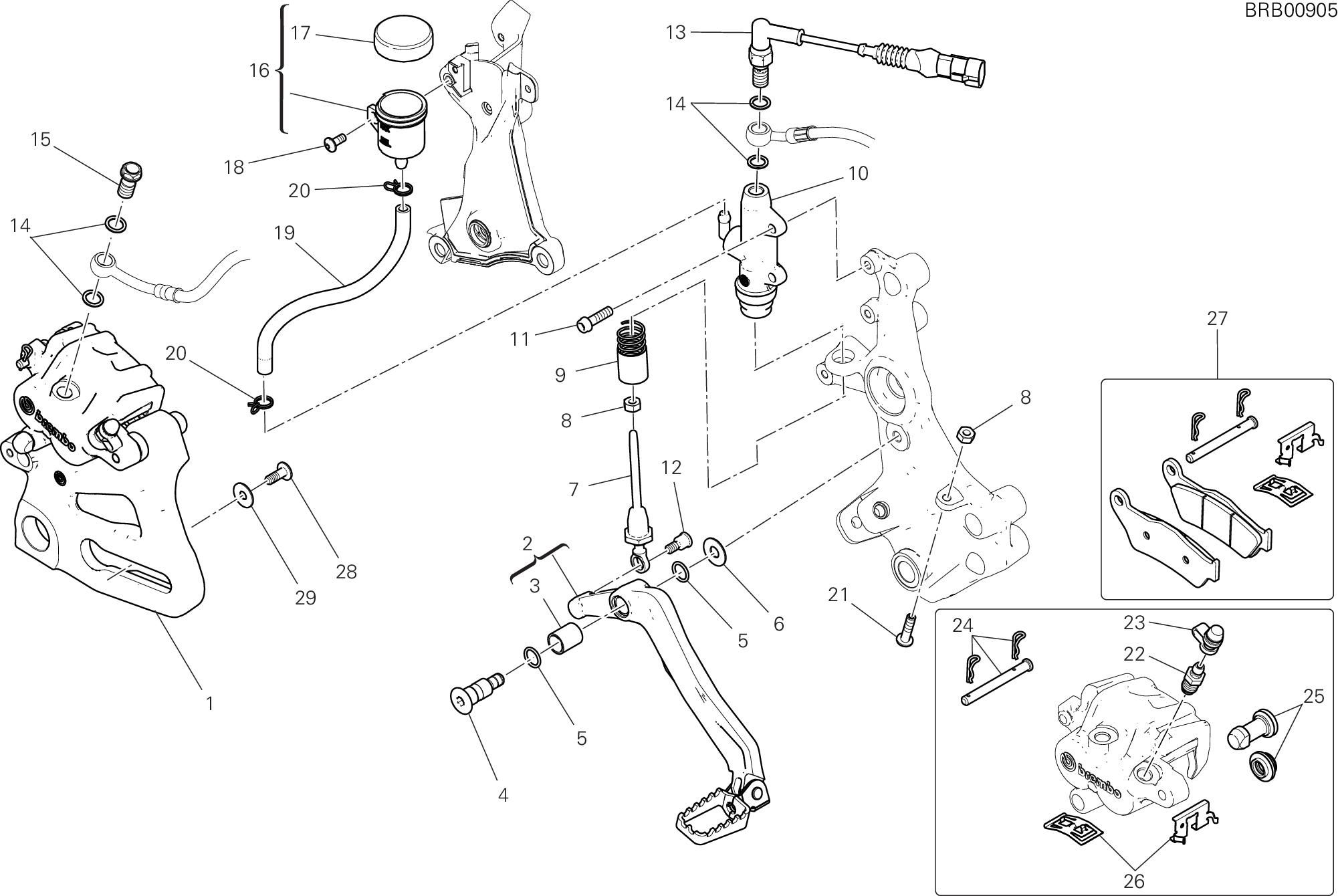

DRAWING 025 - REAR BRAKING SYSTEM

DRAWING 026 - WHEELS

DRAWING 027 - REAR FRAME COMP.

DRAWING 028 - REAR SHOCK ABSORBER

DRAWING 029 - INTAKE

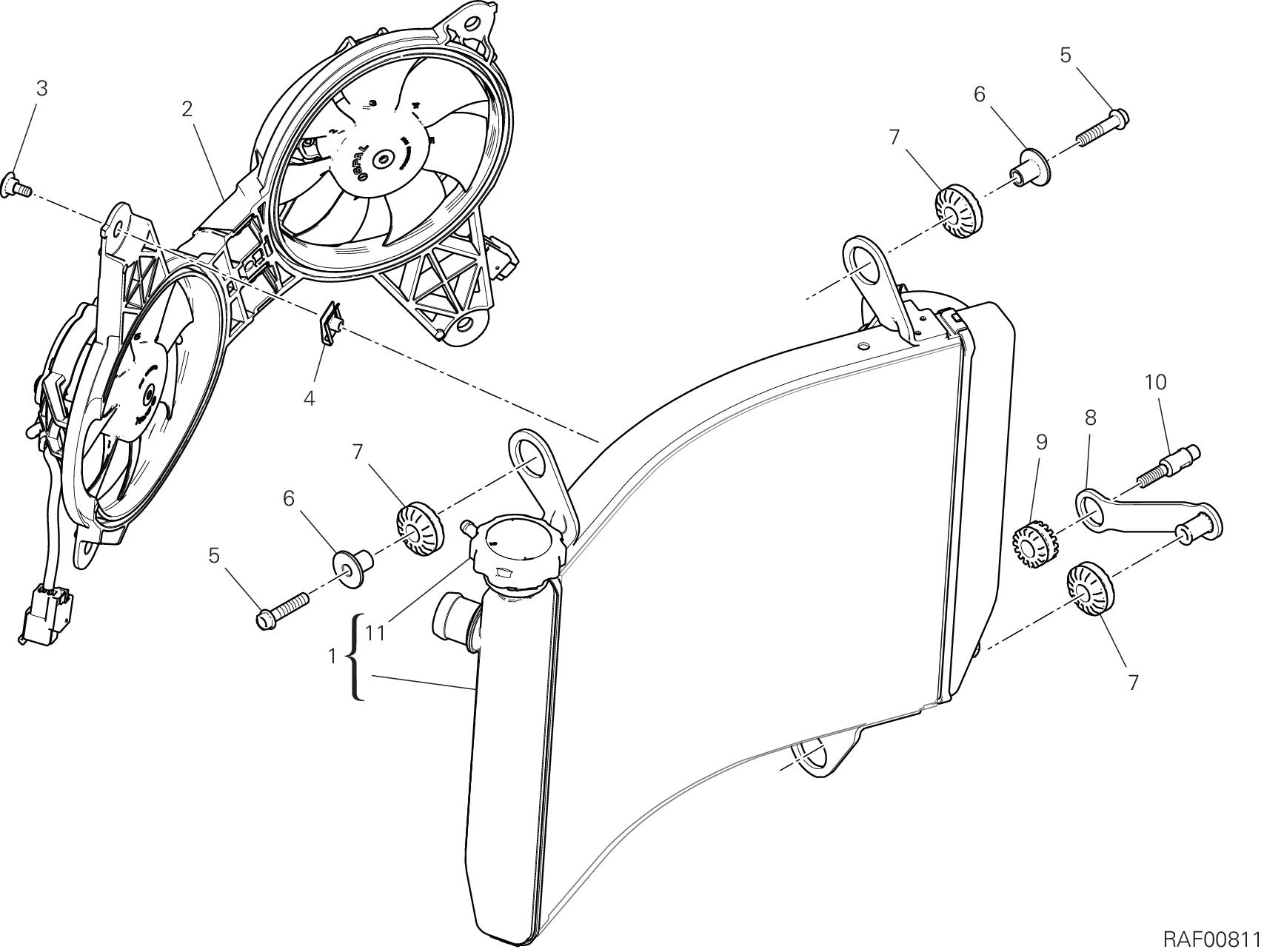

DRAWING 030 - WATER COOLER

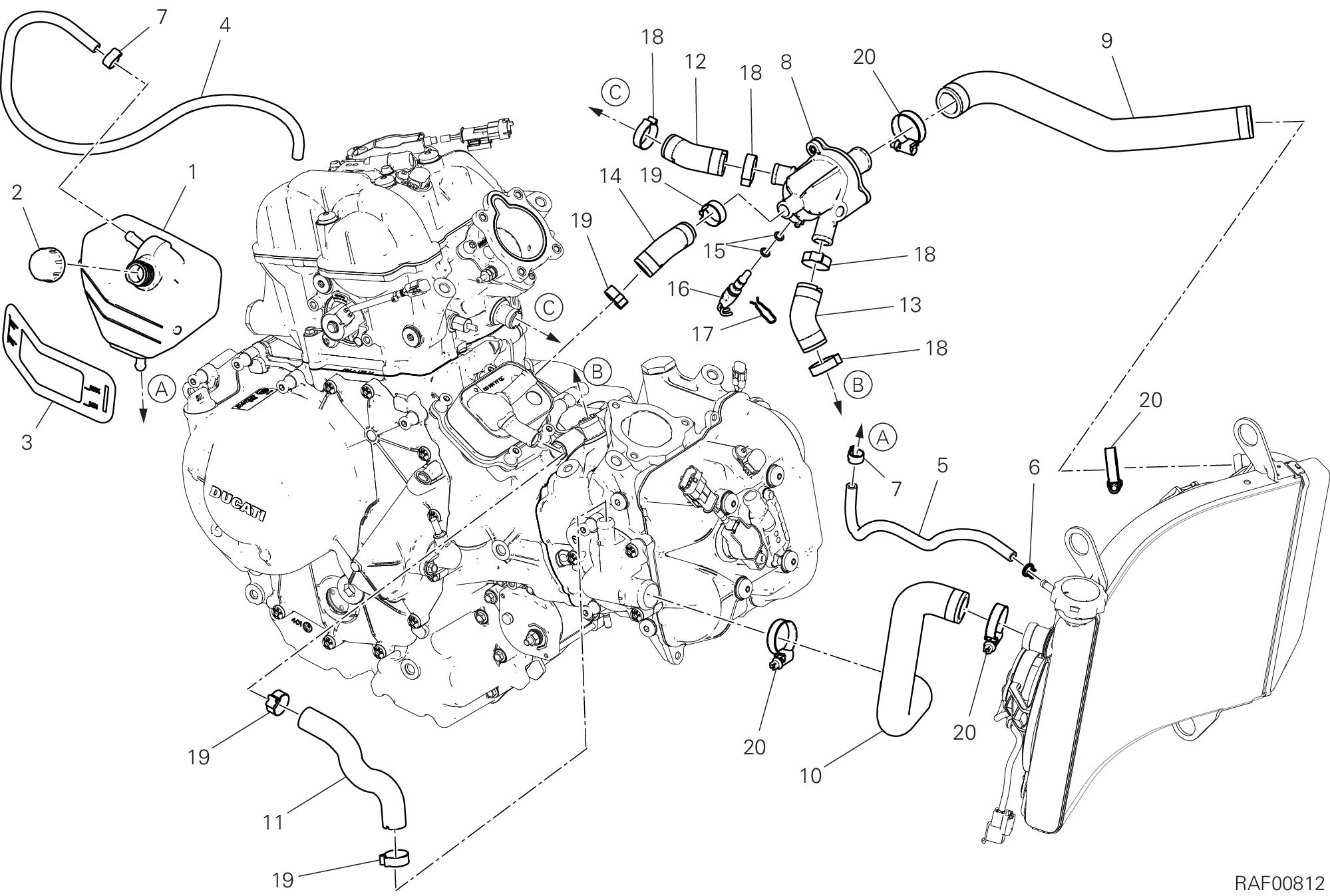

DRAWING 031 - COOLING CIRCUIT

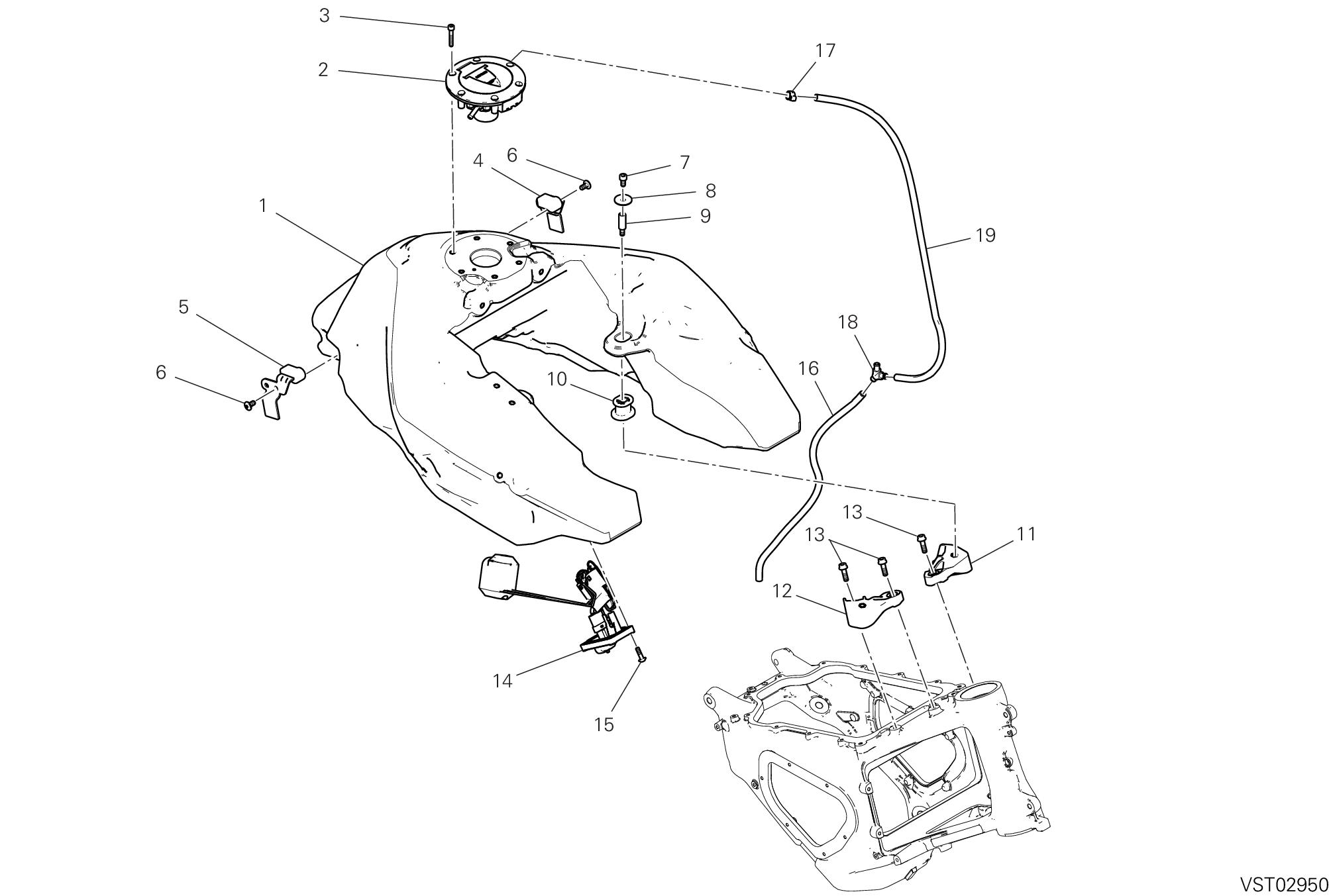

DRAWING 032 - FUEL TANK

DRAWING 033 - SEAT

DRAWING 034 - COWLING

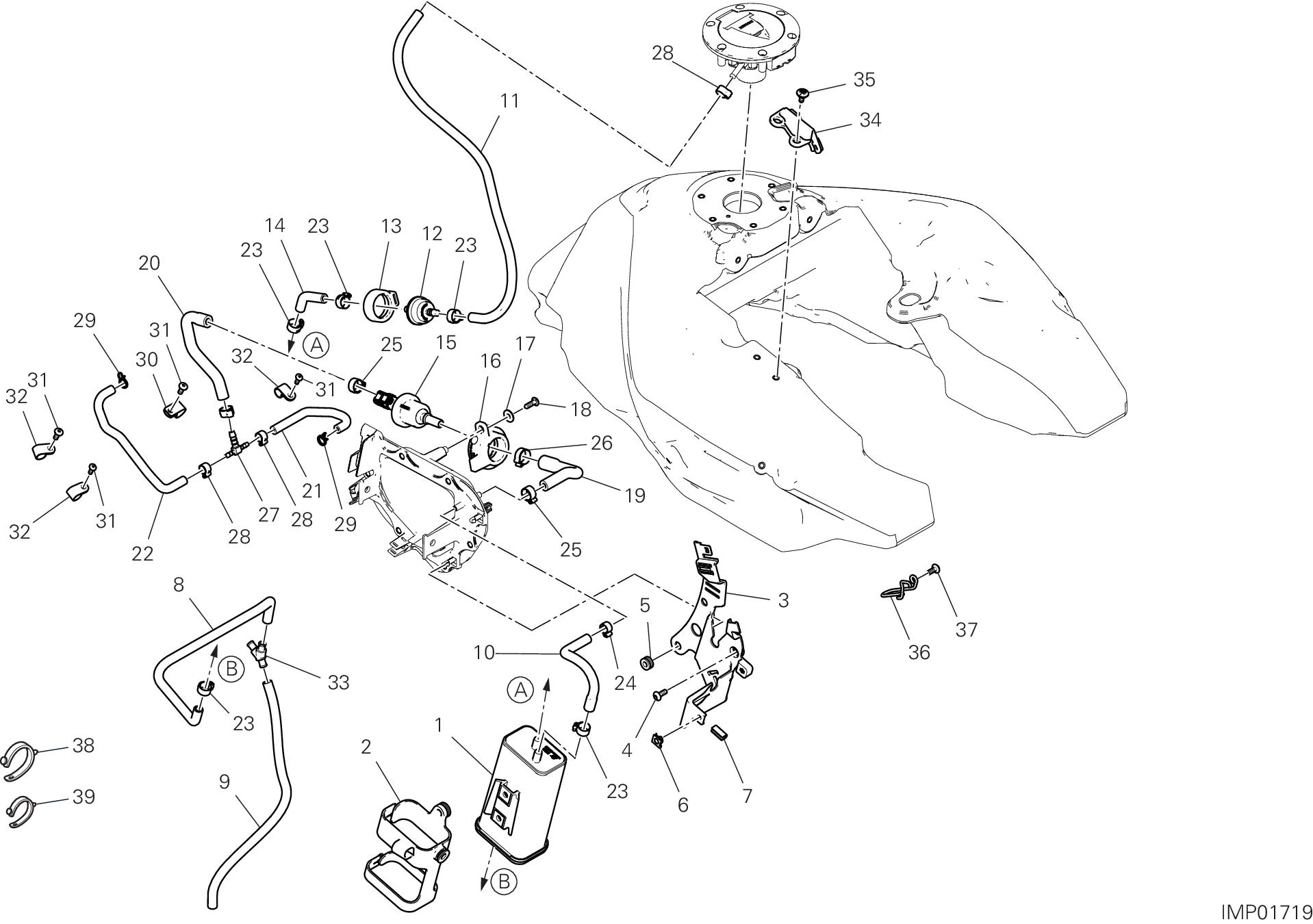

DRAWING 036 - CANISTER FILTER

DRAWING 037 - LABEL, WARNING

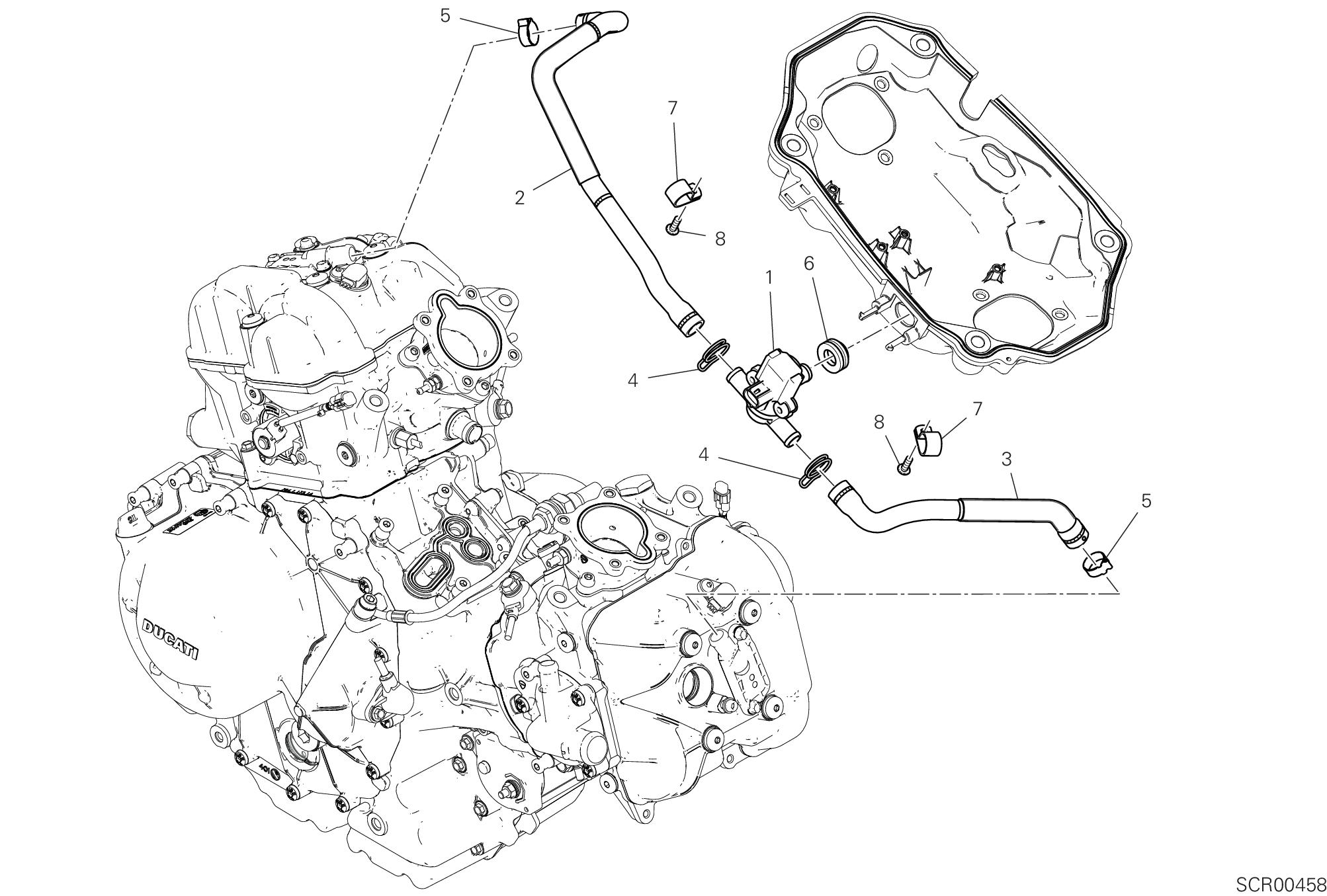

DRAWING 19A - SECONDARY AIR SYSTEM

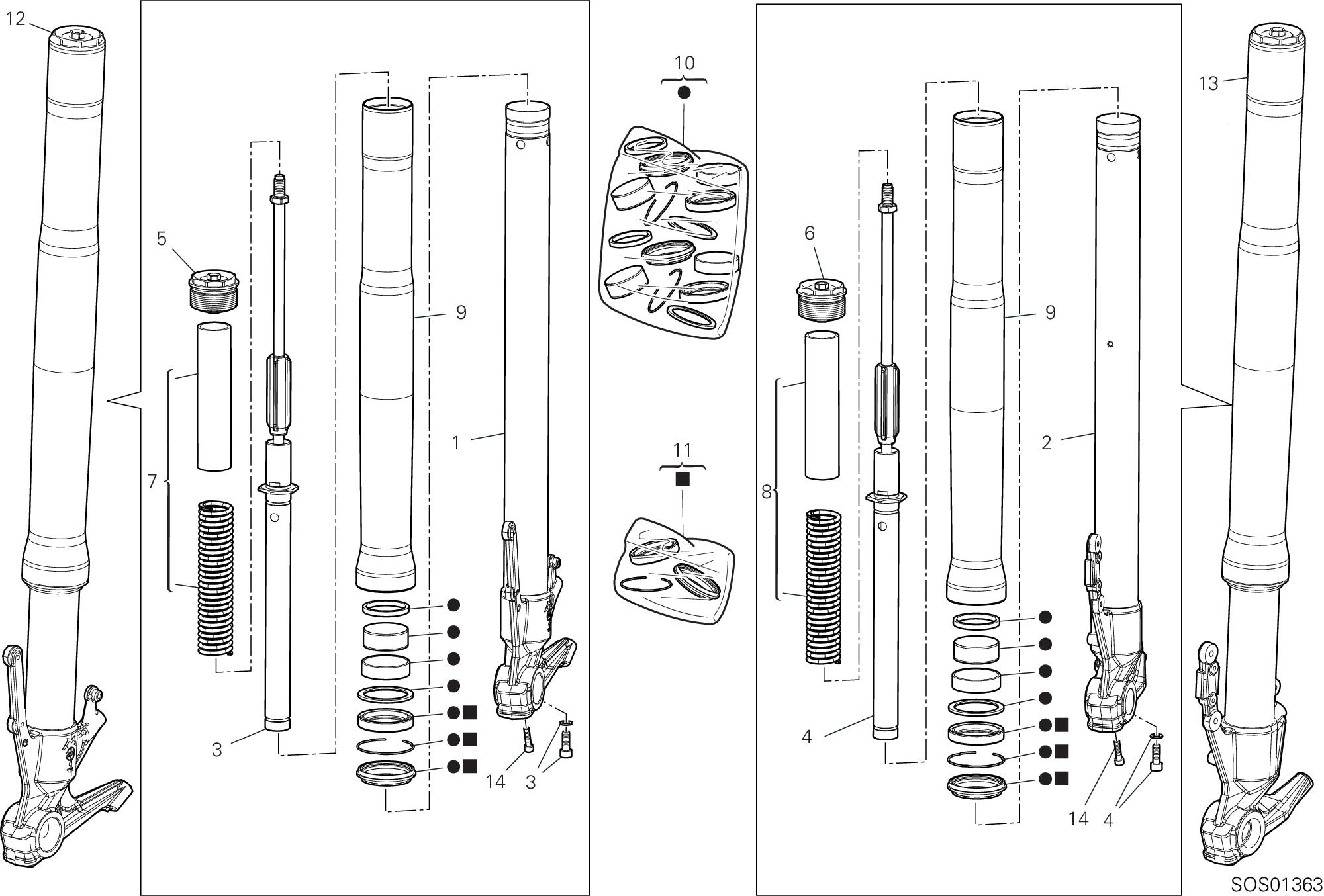

DRAWING 21A - FRONT FORK

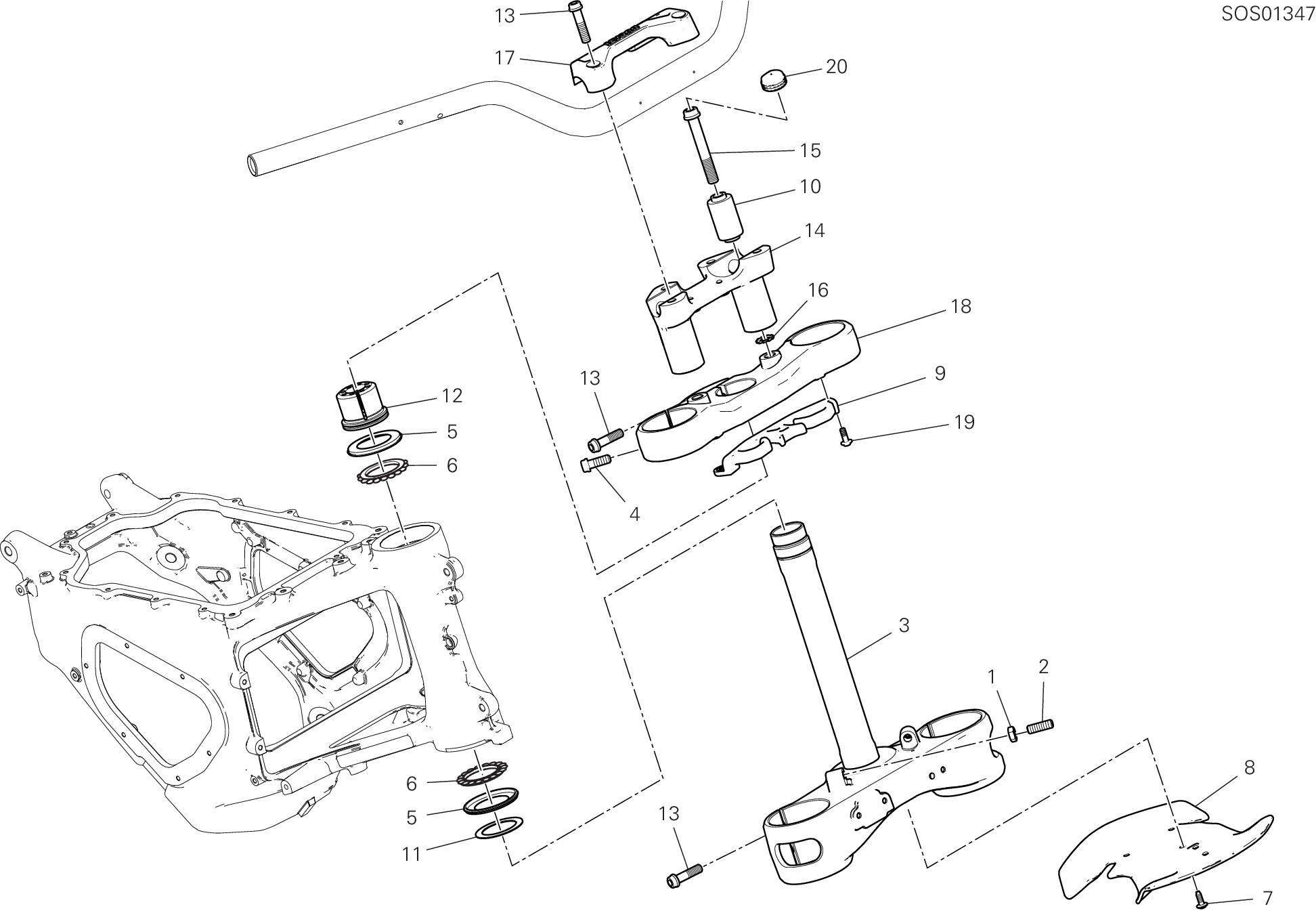

DRAWING 21B - STEERING HEAD

DRAWING 21B - STEERING HEAD BASE ASSEMBLY

DRAWING 22A - SIDE STAND

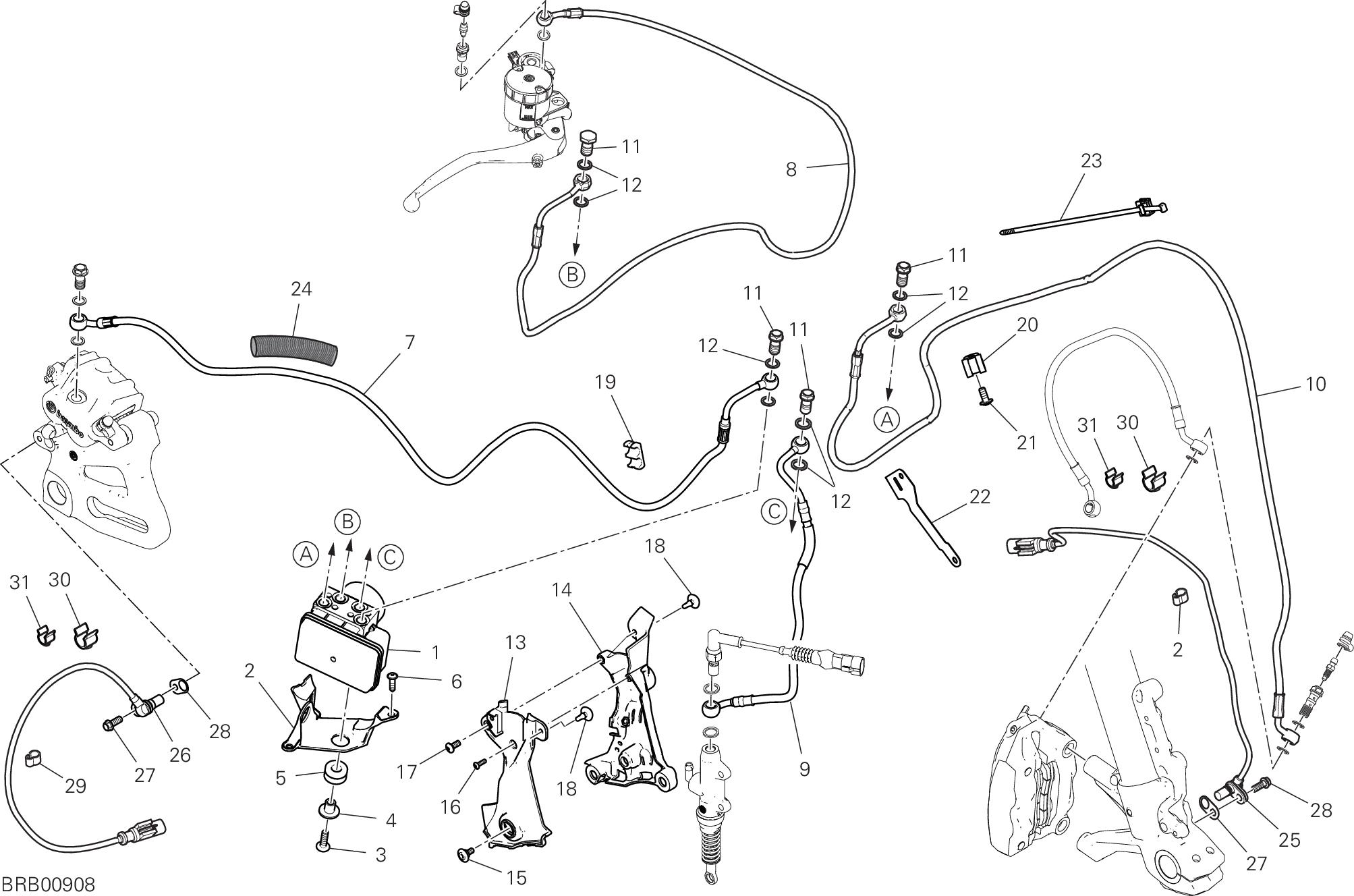

DRAWING 24A - BRAKING SYSTEM ABS

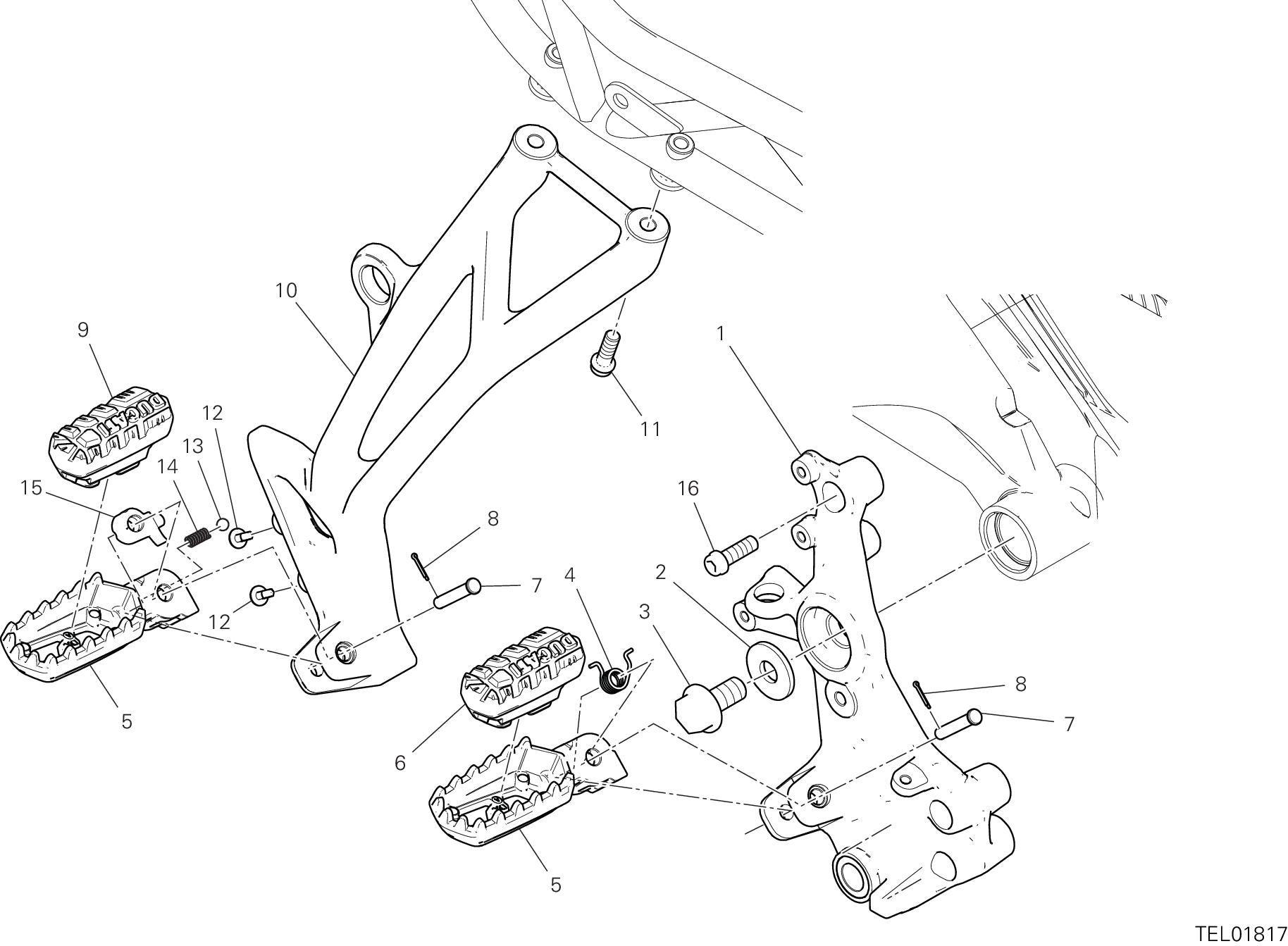

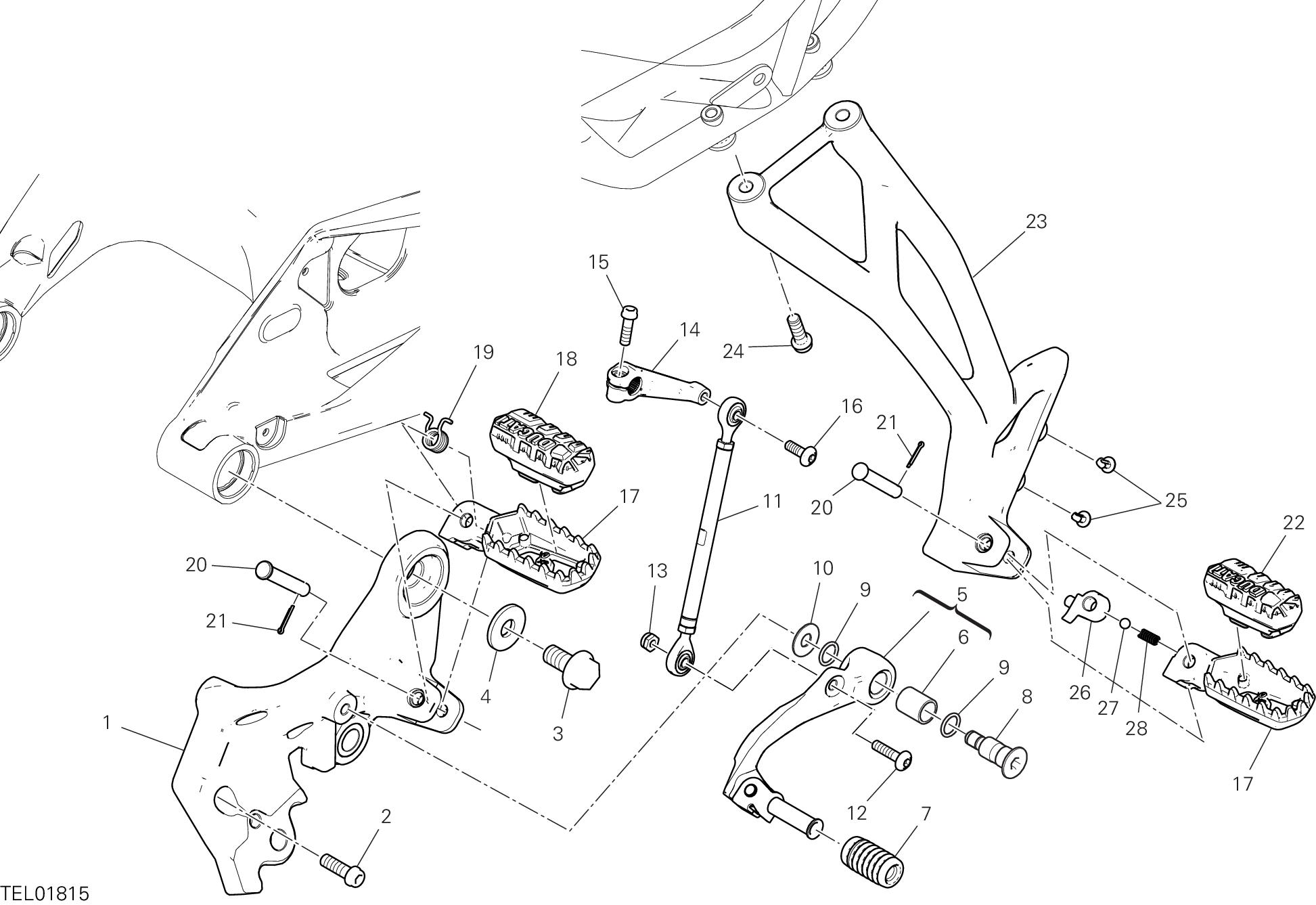

DRAWING 27C - FOOTRESTS, LEFT

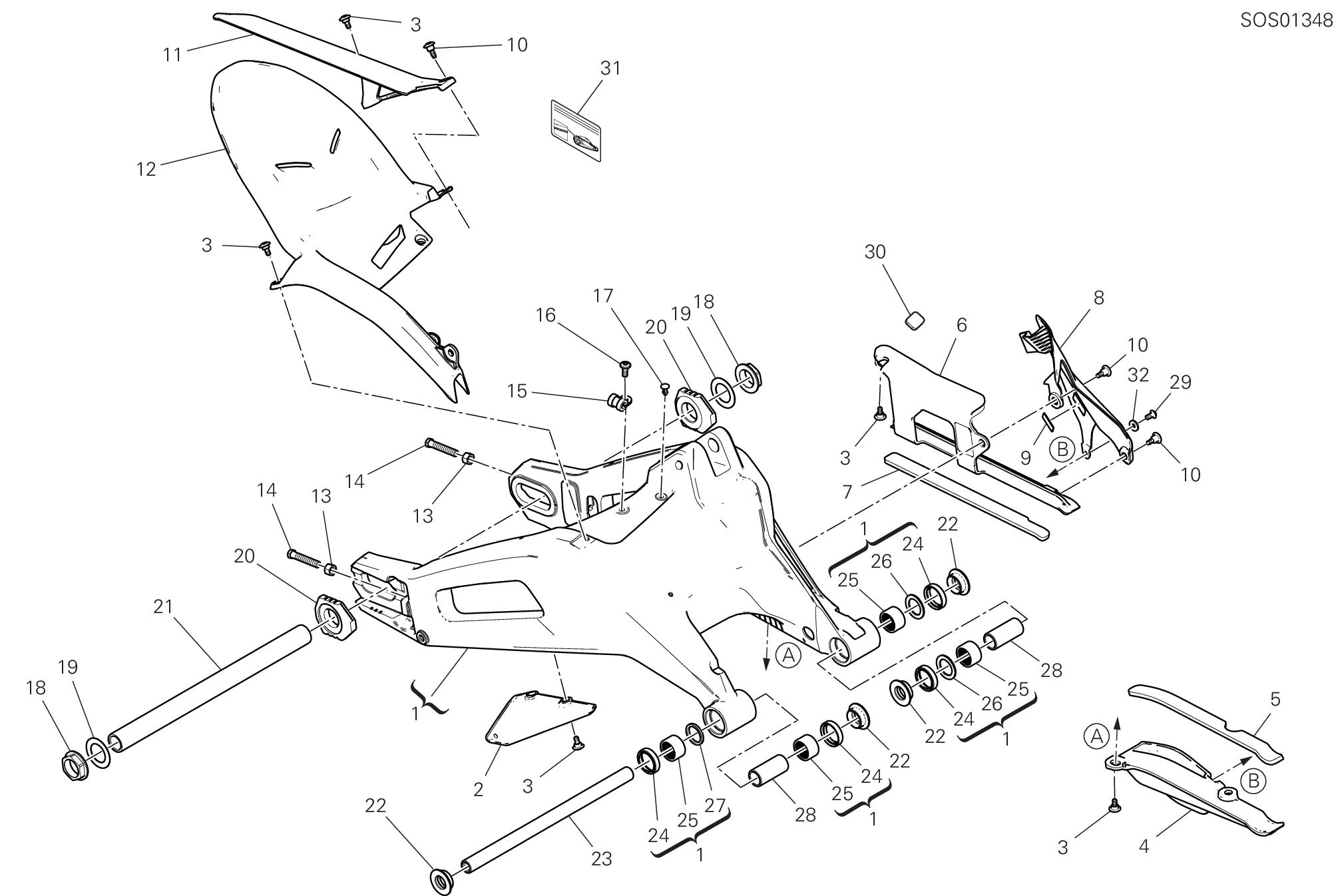

DRAWING 28A - SWING ARM

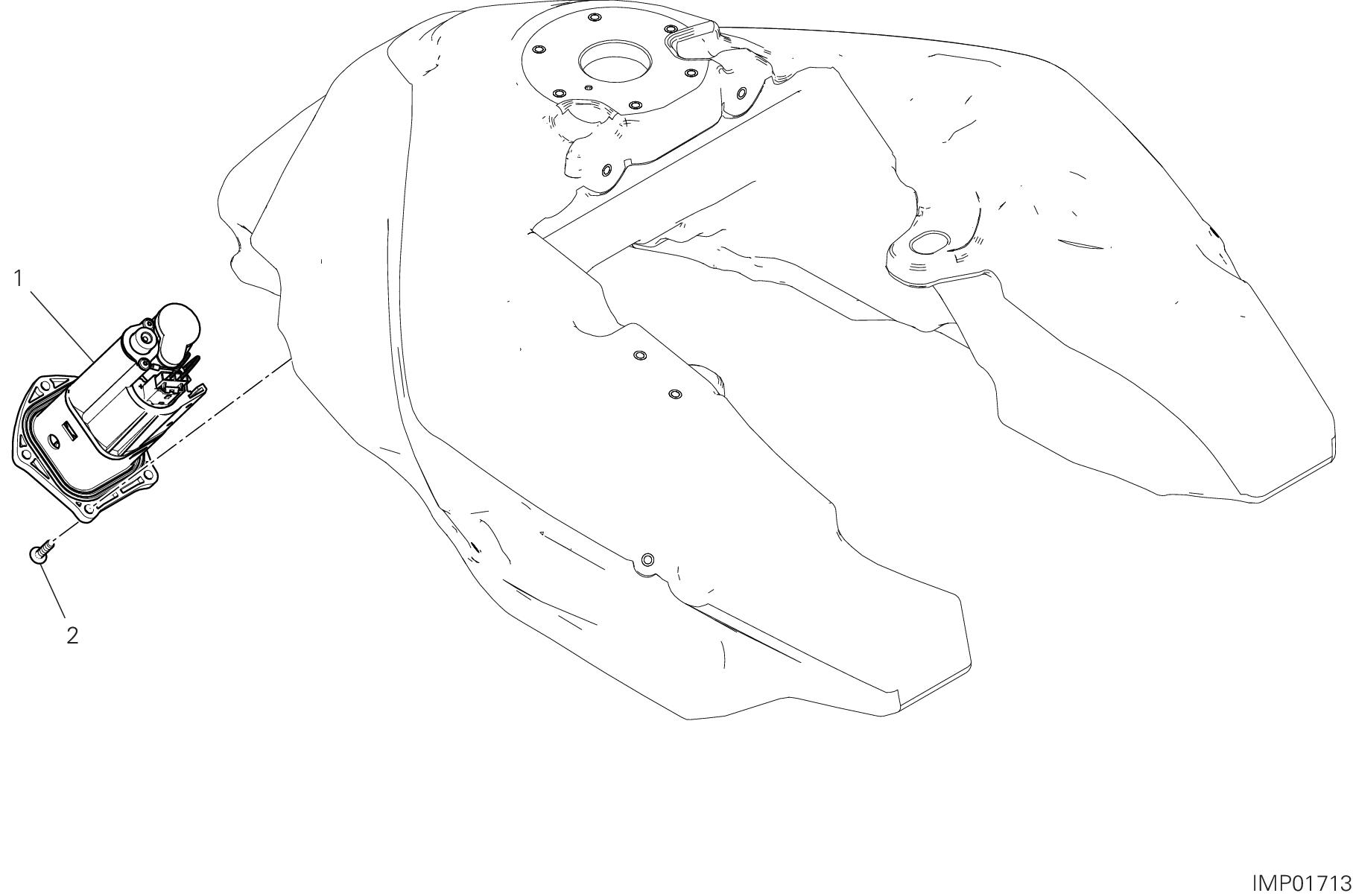

DRAWING 32A - FUEL PUMP

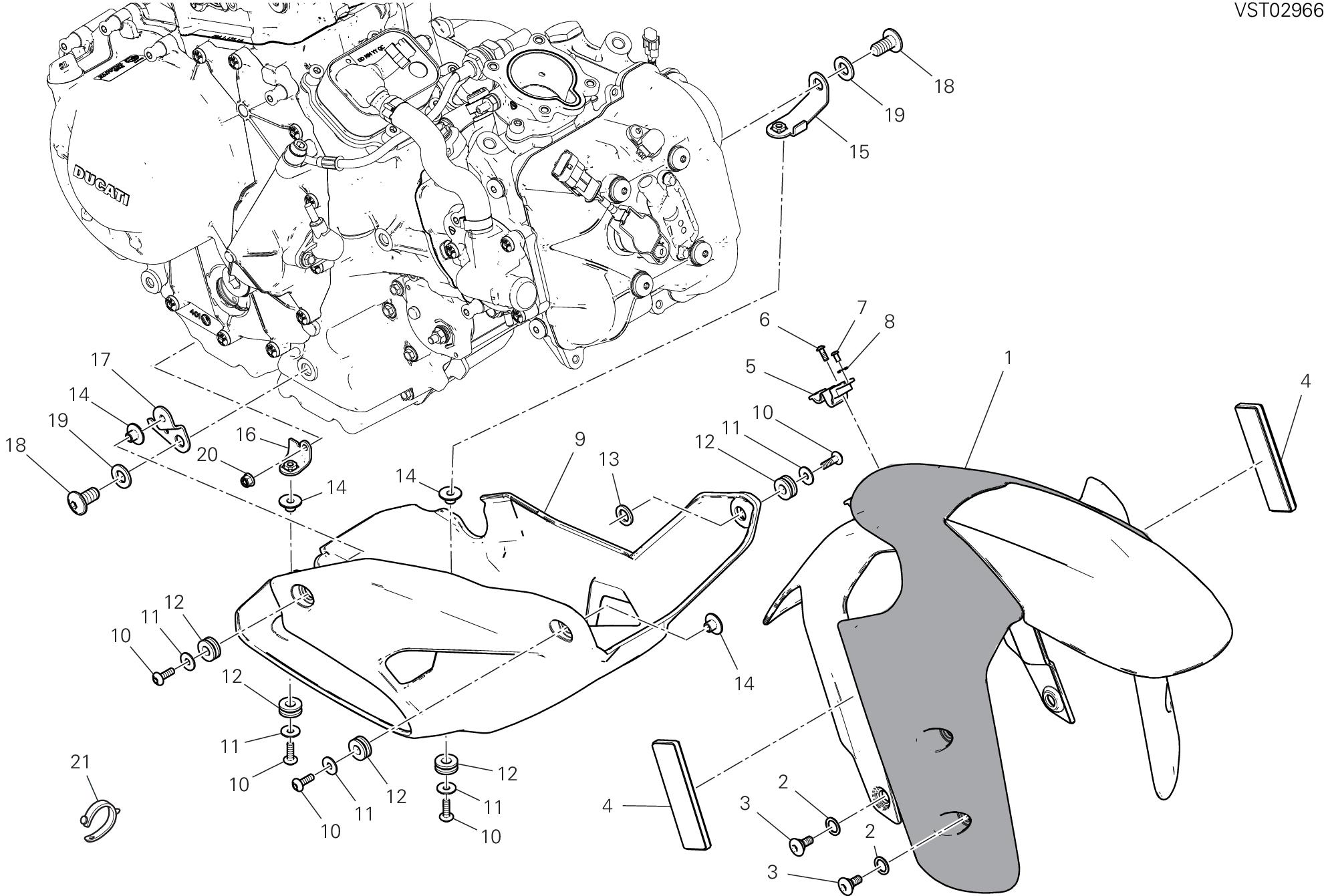

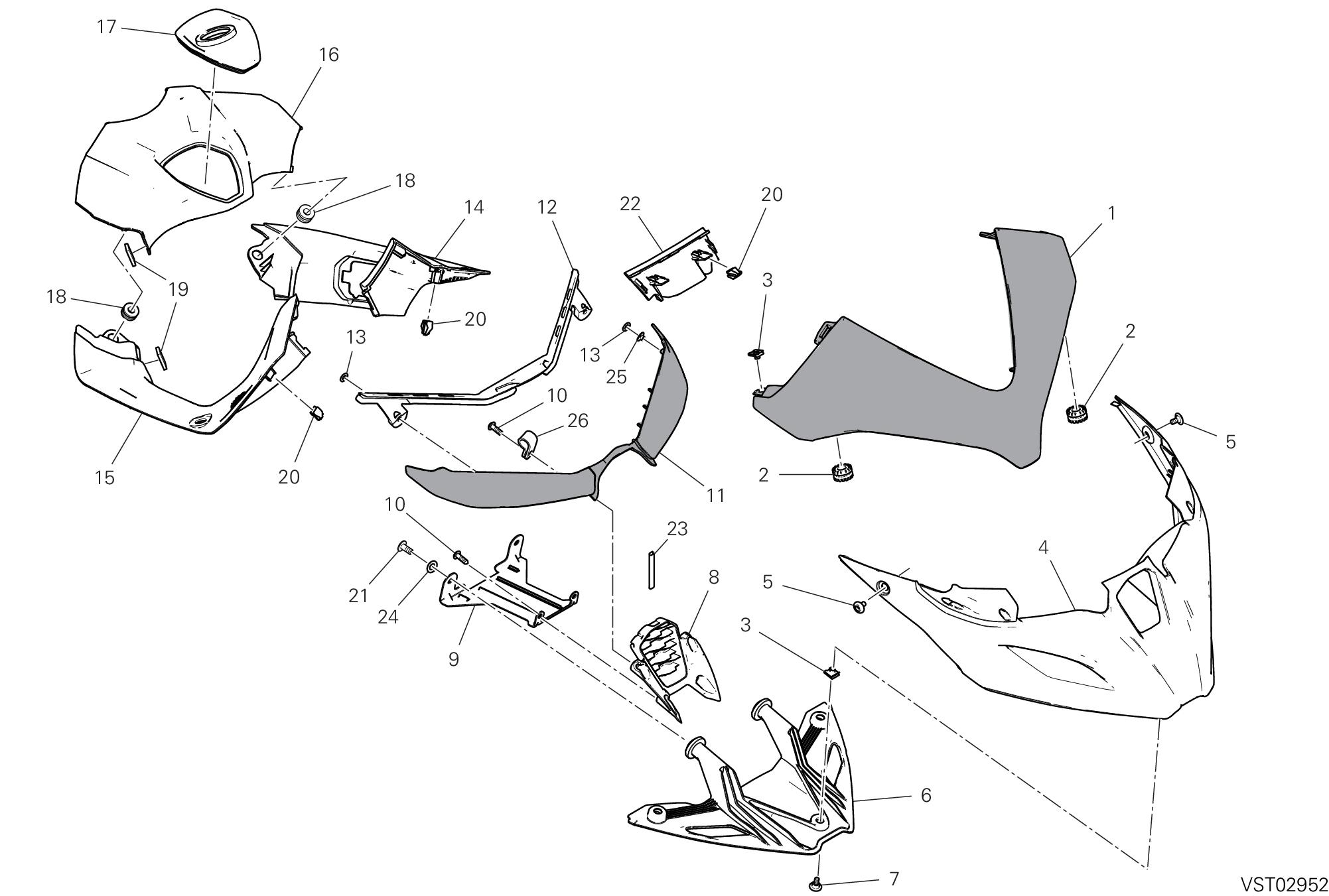

DRAWING 34A - FAIRING

DRAWING 34B - FAIRING

DRAWING 34C - WINDSHIELD

DRAWING 34E - SIDE BODY PANELS

015 24

005 13

010

13B 25

003 10

003 8

003 5

003 9 17216341A 003 17

003 13

003 15 17216371A 003 21 17216381A 003 19 17216391A 003 20 17310451A 012 4 17411921A 10B 21 17411931A 10B 17 17420811A 009 10 17420862A 009 7 17620151A 012 7

17740071E 13A 31 17740081E 13B 30

18010591A 002 1

18010601A 002 3 18010611A 002 2 18120101A 002 4

18210812B 002 12

182P0031A 002 11

18710021A 023 3

18710021A 024 22

19020591A 004 9

19410751A 004 4

19510541A 023 19 19540081C 023 4

19611011A 004 12

19611021A 004 11

19820681A 004 14

20810522C 014 9

015 9

014 23

015 23

014 24
