by Quatro Wood
About the product

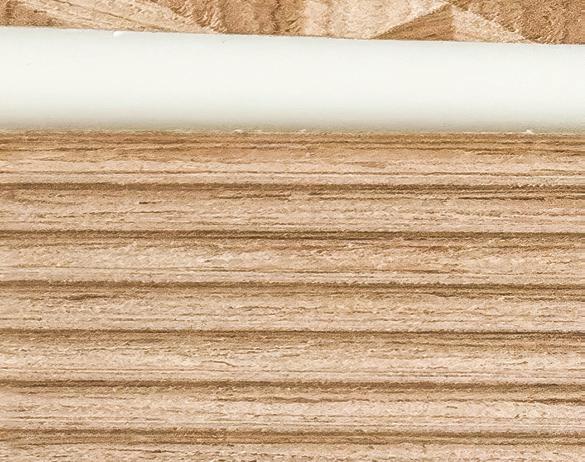

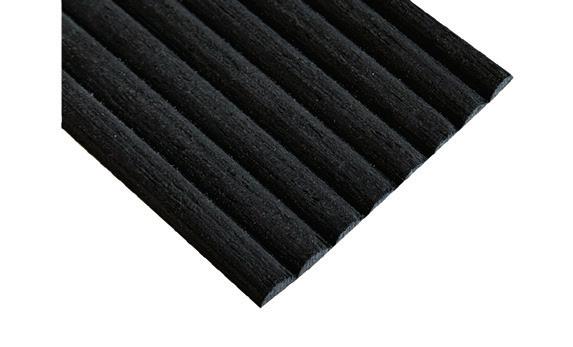

3D milled veneer with a thickness of 2.7 mm, backed with a stabilizing layer to enhance flexibility. The precisely milled surface gives the material a unique texture and improved formability. Supplied in raw condition.
formats up to 600x3150 mm consistent pattern and color

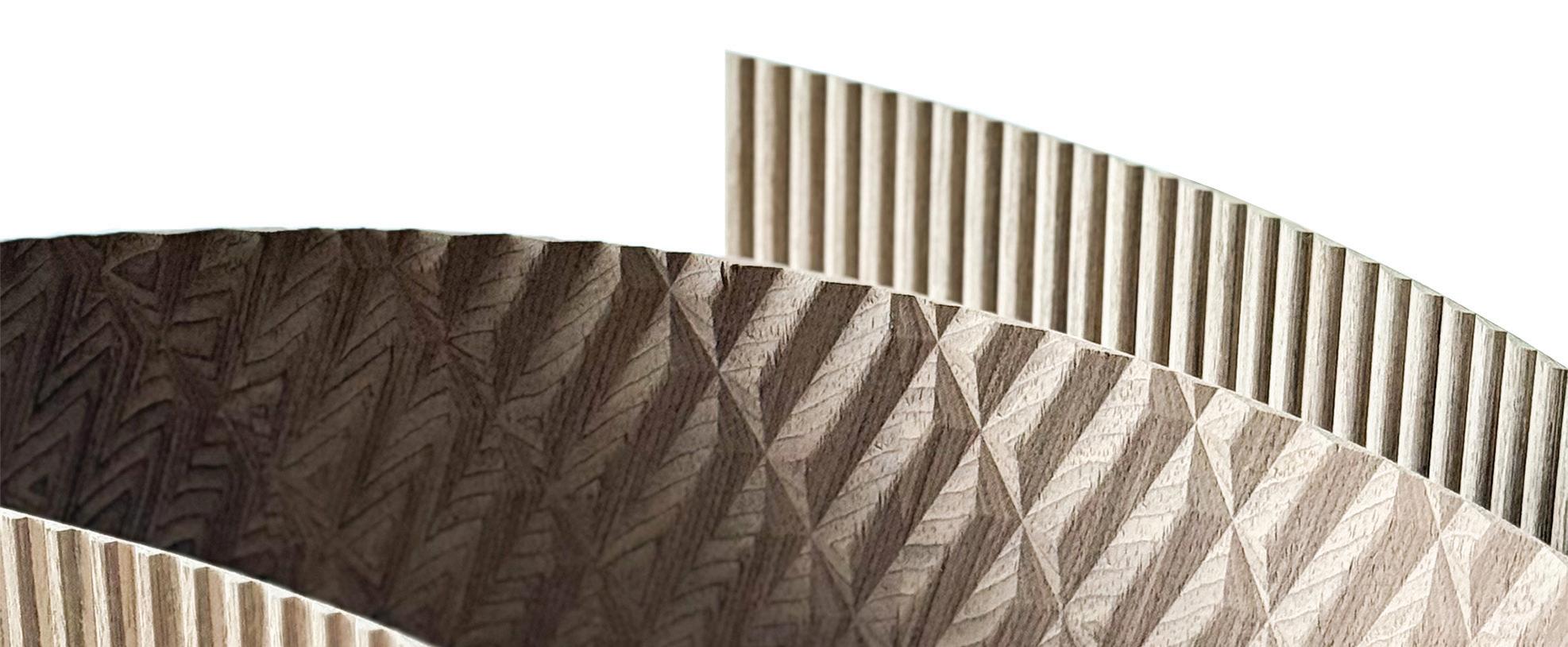

in forming
DIAMENT
dimensions: 600x3150mm/ 23.62 in × 124.02 in thickness: veneer 2,6mm + paper 0,3mm / 0.102 in + 0.012 in material: raw modified veneer* min. bending radius: R500
K01
dimensions: 600x3150mm/ 23.62 in × 124.02 in thickness: veneer 2,6mm + paper 0,3mm / 0.102 in + 0.012 in material: raw modified veneer* min. bending radius: R500
LAMELA S3 P12
dimensions: 600x3150mm/ 23.62 in × 124.02 in thickness: veneer 2,6mm + paper 0,3mm / 0.102 in + 0.012 in material: raw modified veneer* min. bending radius: R500
WAVE20
dimensions: 600x3150mm/ 23.62 in × 124.02 in thickness: veneer 2,6mm + paper 0,3mm / 0.102 in + 0.012 in material: raw modified veneer* min. bending radius: R500
WAVE B
dimensions: 600x3150mm/ 23.62 in × 124.02 in thickness: veneer 2,6mm + paper 0,3mm / 0.102 in + 0.012 in material: raw modified veneer* min. bending radius: R500
*raw, unfinished product (requires surface finishing after installation - varnish, oil, or wax)
PÓŁWAŁEK S3 P5
dimensions: 600x3150mm/ 23.62 in × 124.02 in thickness: veneer 2,6mm + paper 0,3mm / 0.102 in + 0.012 in material: raw modified veneer* min. bending radius: R500
PÓŁWAŁEK S3 P7,5
dimensions: 600x3150mm/ 23.62 in × 124.02 in thickness: veneer 2,6mm + paper 0,3mm / 0.102 in + 0.012 in material: raw modified veneer* min. bending radius: R500
PÓŁWAŁEK S3 P10
dimensions: 600x3150mm/ 23.62 in × 124.02 in thickness: veneer 2,6mm + paper 0,3mm / 0.102 in + 0.012 in material: raw modified veneer* min. bending radius: R500
PÓŁWAŁEK S3 P15
dimensions: 600x3150mm/ 23.62 in × 124.02 in thickness: veneer 2,6mm + paper 0,3mm / 0.102 in + 0.012 in material: raw modified veneer* min. bending radius: R500
TRAPEZIO
dimensions: 600x3150mm/ 23.62 in × 124.02 in thickness: veneer 2,6mm + paper 0,3mm / 0.102 in + 0.012 in material: raw modified veneer* min. bending radius: R500
*raw, unfinished product (requires surface finishing after installation - varnish, oil, or wax)

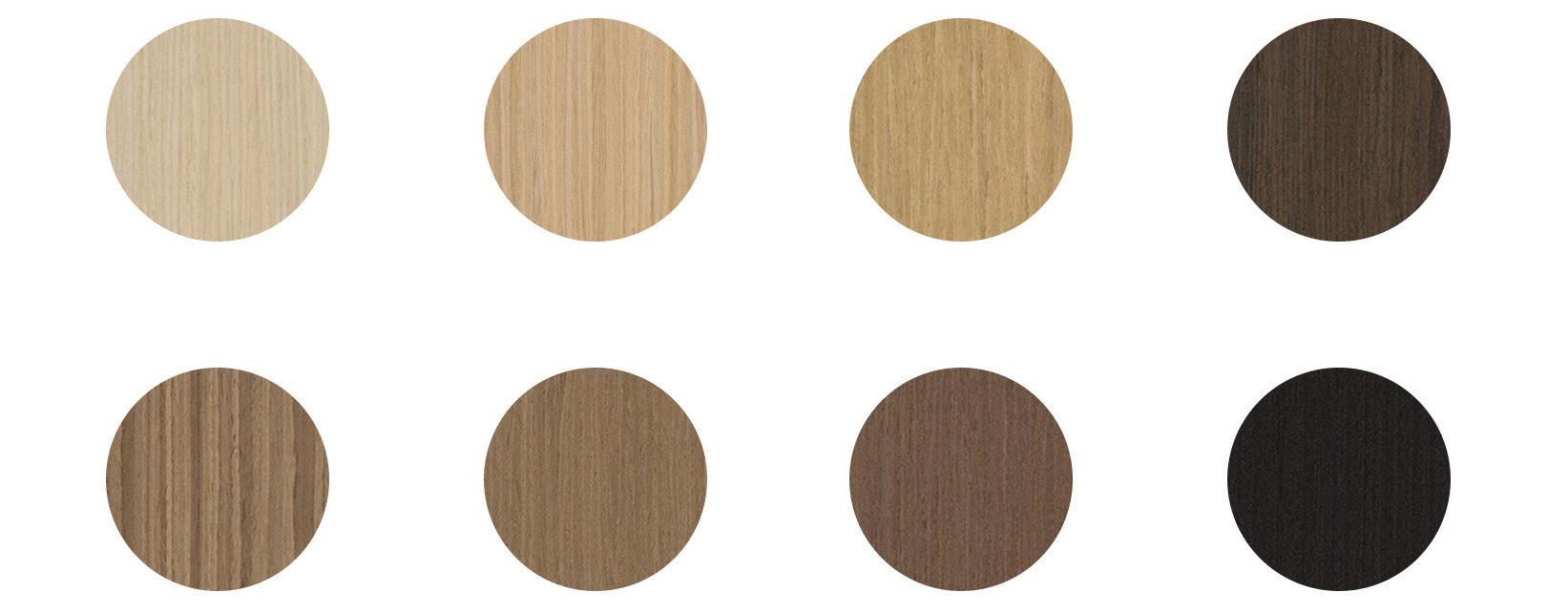

Each WOOD 3D milling pattern is available in 8 ALPI veneer finishes Milled finishes can also be combined with smooth veneer, allowing you to create a matching set smooth body + milled front in the same décor
Your project in 3D – ready-to-use models
We provide 3D models of all patterns for visualization, documentation, and client presentations. We offer support for architects and designers, as well as the possibility of customizing patterns for individual projects or custom milling designs.
Storage: 40–70% humidity, 20°C; store flat, at least 20 cm above the floor; protect from light and moisture
Formaldehyde emission: Class E1 according to EN 717-1; NBE/ZeroF options – no added formaldehyde
Density: 450–900 kg/m³ (depending on variant)
Tolerances: Width: -0 /+30 mm; thickness: <1.5 mm ±0.05 mm; >1.5 mm ±4%
Adhesives: Low-formaldehyde emission adhesives, water-based dyes (no solvents or heavy metals)
