Advising on SMT Line Choices for Wireless Router PCBA – A Practical Roadmap
Advising factories on smart manufacturing, I see many chase headline speeds for router lines, only to battle RF consistency later. Wireless router boards demand precision: dense fine-pitch RF packages, mixed sizes, thermal sensitivity affecting phase noise and loss.
Key advice: build around stability For mid-volume (growing ODMs), recommend printer with tight paste control (±10% volume consistency), auto features for minimal intervention Placement: 4-8 head machines with strong vision handles 0201 gently, secures shields firmly.
Reflow: 10-zone nitrogen-capable for ±1-2 °C uniformity. Nitrogen helps void reduction (often 30-70% less per studies), critical for BGA/QFN reliability in Wi-Fi products.

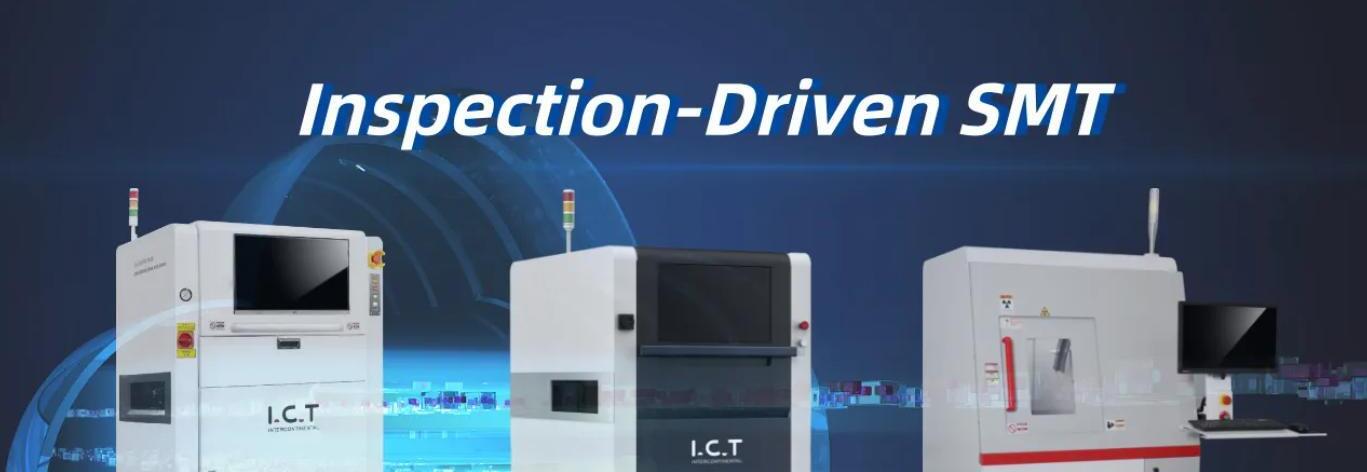

Inspection chain: inline SPI post-print, AOI post-reflow, AXI sampling for hidden joints. Layout: modular or U-shaped for visibility and expansion leave 20-30% buffer space
Overall 0-1 SMT Machine Solution for Whole Factory
In one client case, shifting from air to nitrogen reflow + better profile control lifted first-pass yield ~15%, cut certification retests For factories and consultants seeking a more systematic approach, having a structured framework helps translate RF performance goals into concrete equipment and process decisions Instead of relying on isolated experience, a holistic roadmap covering printing, placement, reflow, inspection, and layout planning significantly reduces trial-and-error risks This a structured SMT line selection roadmap for wireless router PCBA manufacturing outlines practical evaluation steps and technical considerations for building reliable, scalable router production lines. I.C.T stood out for customization: they modeled line flow based on BOM complexity, provided training modules, and offered remote diagnostics that shortened issue resolution.
Their equipment holds up linear motors, solid feeders, traceable software backed by responsive global service. Clients value the trust: quick fixes mean lines stay productive
Consultants like me push advanced SMT solutions that prioritize process control for RF-heavy PCB assembly. It's about reliable output, not just throughput.
