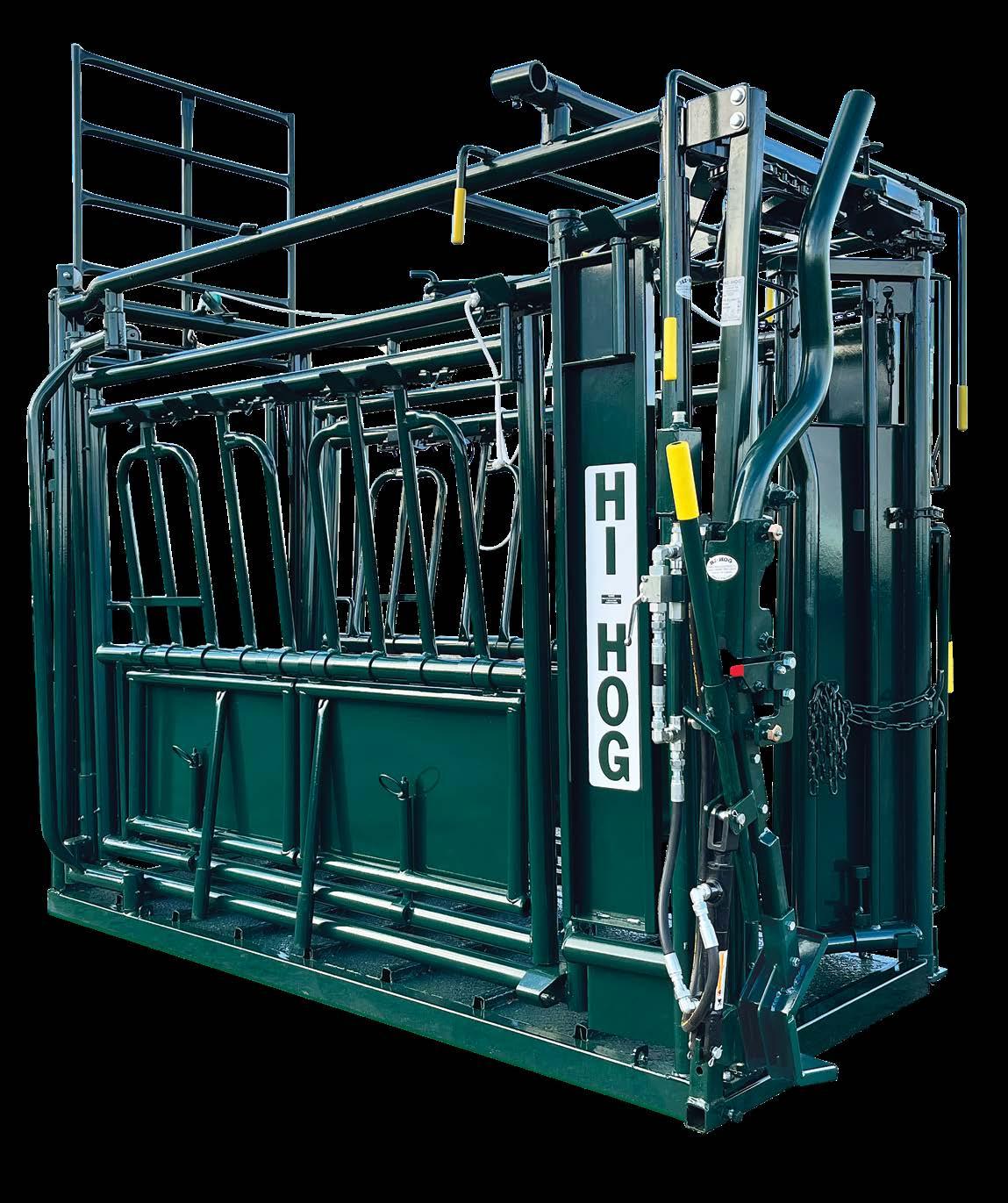

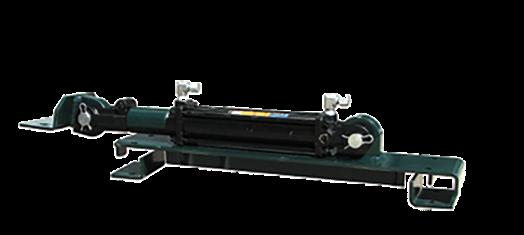

The new Hydraulic Operated Head Holder for 2026 enhances the control and efficiency of Hi-Hog’s Hydraulic PA Squeeze Chute. Designed to connect directly to the spare hydraulic port on the main directional control valve, this attachment allows the operator to position and secure the animal’s head using the existing chute controls.
EXPANDED HYDRAULIC CAPABILITY — BUILT IN
By integrating directly into the chute’s hydraulic system, the Head Holder delivers smooth, controlled movement without additional pumps or external controls. The result is improved precision, safer handling, and reduced operator strain.
ENGINEERED TO FIT - DESIGNED TO UPGRADE

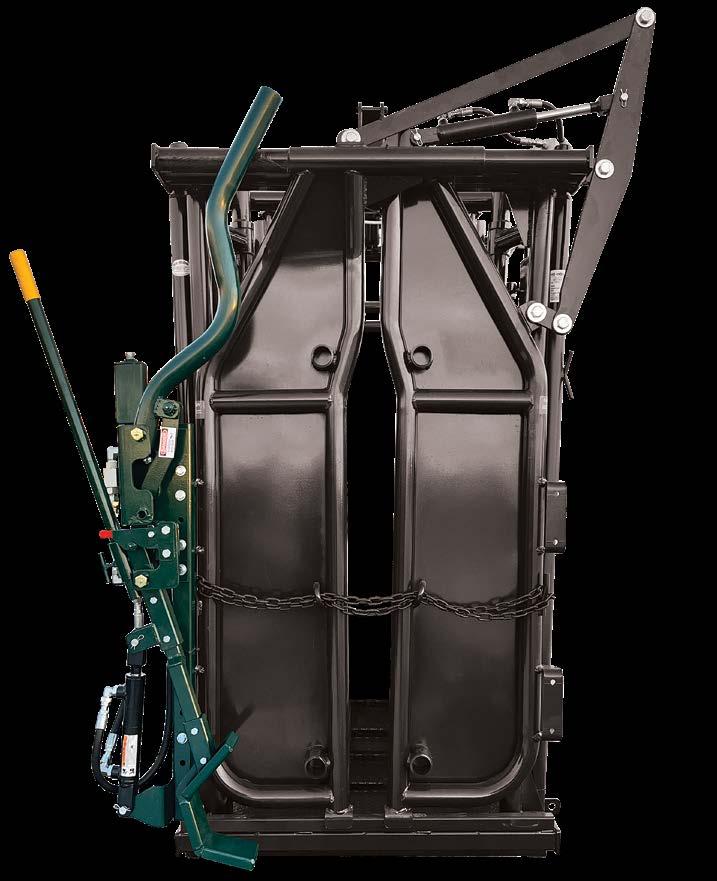

This model bolts directly to the right-hand headgate stanchion and includes weld-on brackets for earlier pre-2024 models.
DESIGN & PERFORMANCE FEATURES
#1534
- Hydraulic Operated Head Holder
Seamless Hydraulic Integration
• Connects directly to open port on the main directional control valve
• Operated using existing chute control levers
• No additional hydraulic power unit required
Secure & Controlled Positioning
• Provides precise head control during treatment or examination
• Maintains steady restraint without manual effort
• Improves operator control and livestock safety
Clean Installation
• Bolts directly to the right-hand headgate stanchion
• Weld-on brackets included for pre-2024 models
• Engineered specifically for the Hydraulic PA Squeeze platform
Holder |15
Cattle Handling Systems
Livestock Feeders Multi-Use Transport |04
Systems
*Special Order

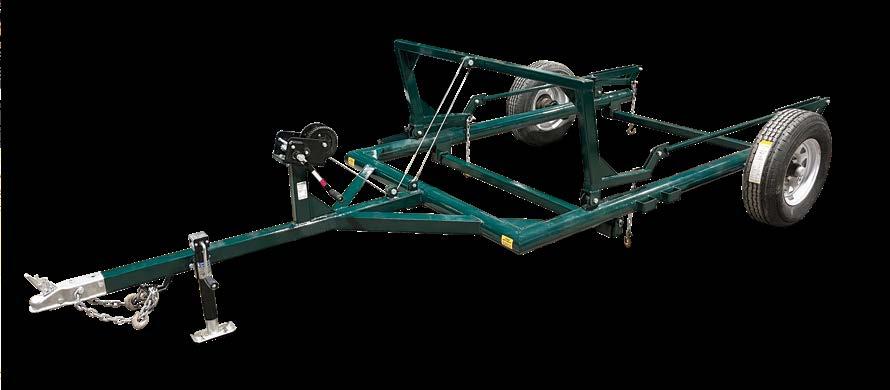

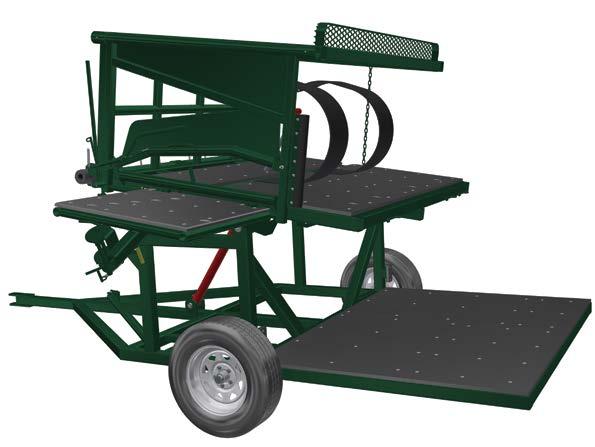

Trailer #1574, 758 Lbs
Panel Rack #5538, 419 Lbs
Towing Capacity - 5000 Lbs
Length 15’ 10-3/8”
Width 7’ 6-7/8”

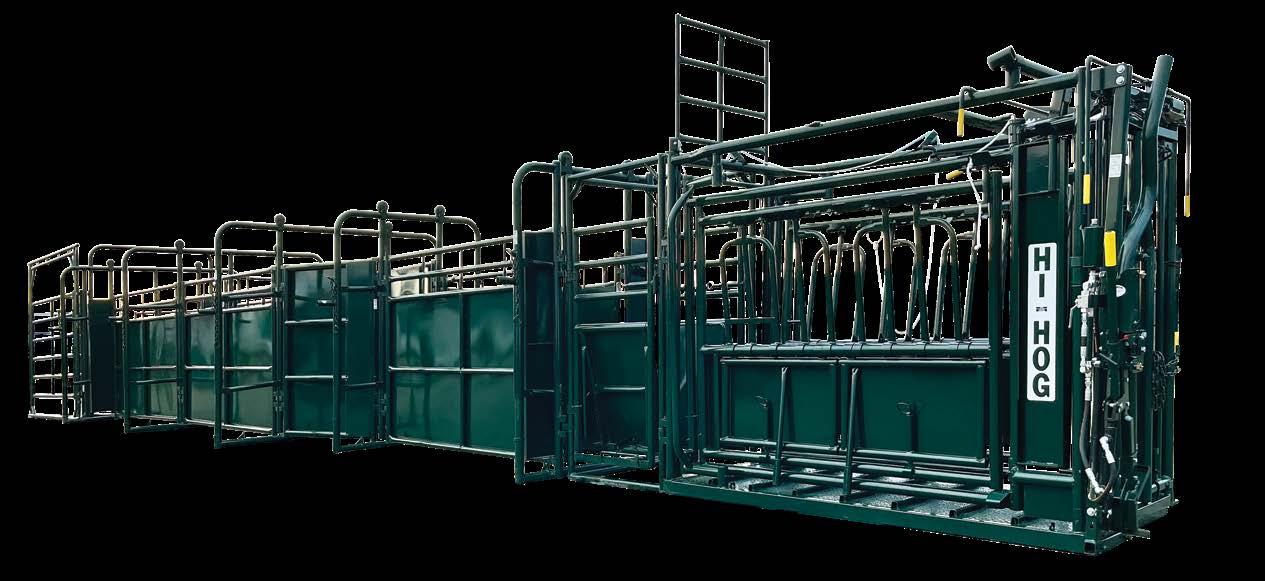

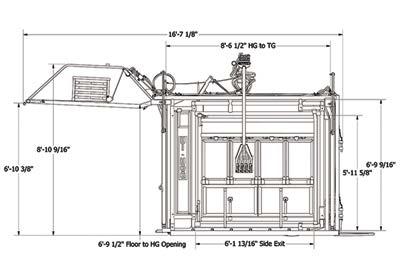

Hydraulic Cattle Squeeze - Loaded
Length - 17’ 5-3/16”
Height - 8’ 10-9/16”

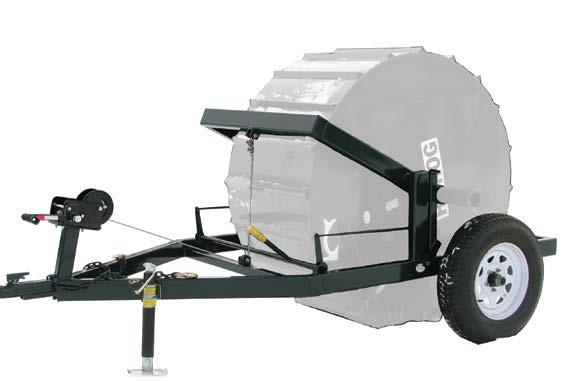

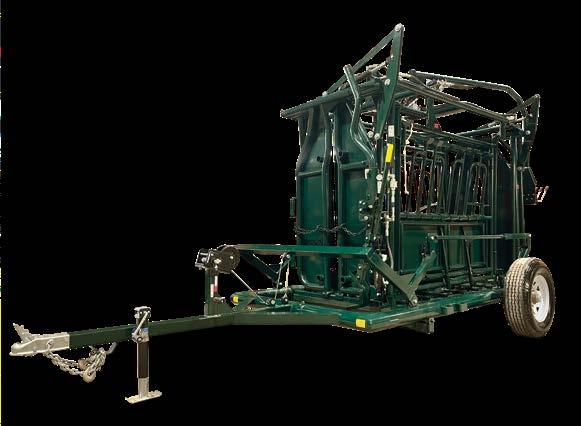

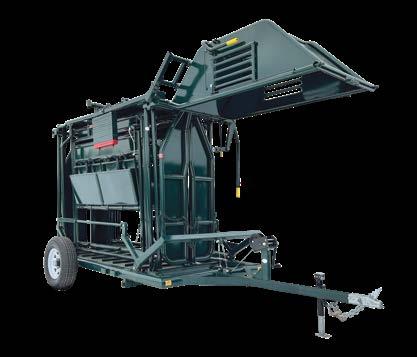

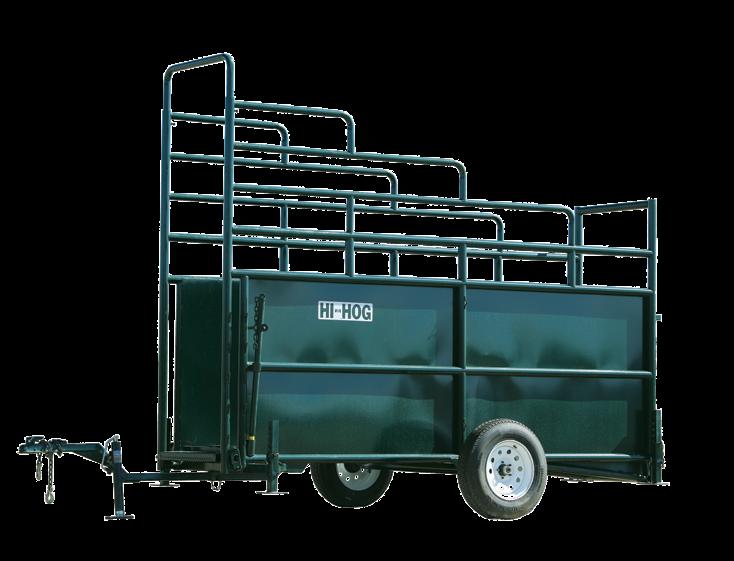

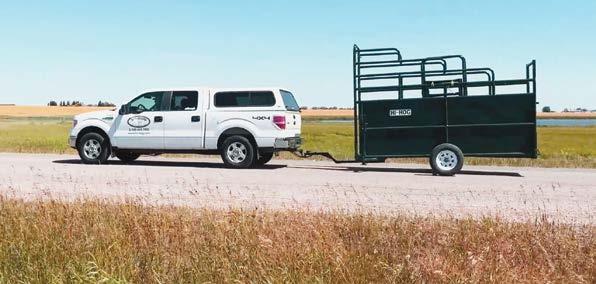

The Multi-Use Trandport Trailer is capable of transporting any of Hi-Hog’s Bison or Cattle Squeeze Chutes. With the upgraded spindles, axles and tires the towing capacity has been increased to 5,000 lbs.

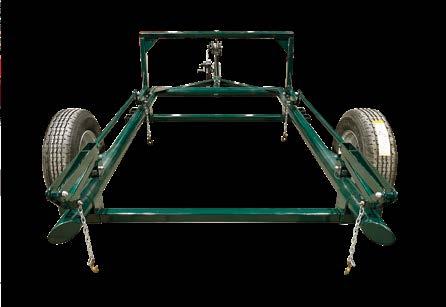

The manual winch connects to the frame and linkage system with 4 lifting chains, attaches to the lifting brackets that are welded on all 2024, and later Bison and Cattle Squeeze Chutes. The design allows the Trailer to be backed into place while still being connected to the towing vehicle. Once the Squeeze Chute is raised, it rests on two crossbars, which are removed during the loading / unloading process. The Squeeze Chute is then secured in place using 2 ratchet straps.
The Multi-Use Transport Trailer is for more than just Squeeze Chutes. It can be used along with the #5538 Panel Rack to transport your S-Alley Handling System to wherever you wish to set up your handling system.
View
Optional panel hangers, item #77, can be mounted to the loading chute to transport livestock panels

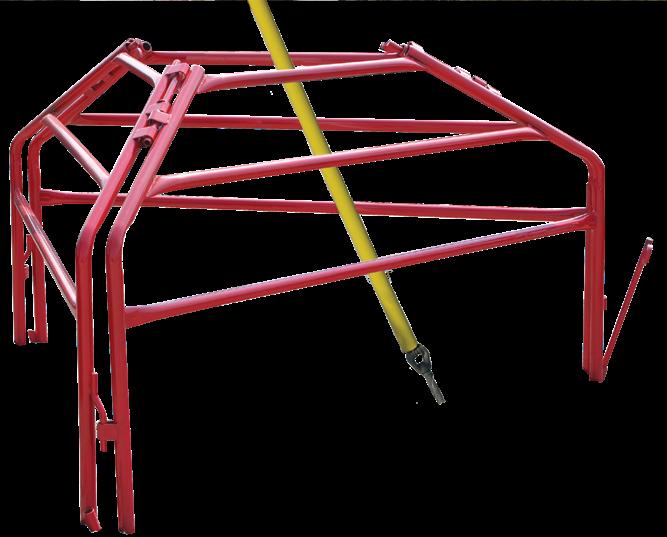

The overhead bow frame is shipped to our dealers in the lowered position (below Left). When you receive your loading chute, loosen the two set screws and raise the overhead bow frame to your desired height (below right) .
Ramp height easily adjusts to provide loading heights from 16” to 48”, using the adjustment lever.
The heavy duty, Checker Plate Loading Ramp quickly adjusts for secure loading from stock trailers to cattle liners.
Ramp Height Adjustment Lever
Note: The transport kit should be removed, and the loading chute secured in place, before loading or unloading livestock.

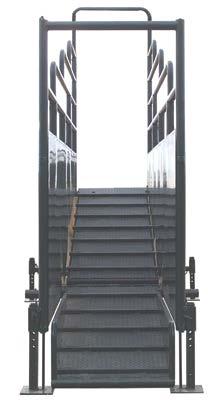

ITEM #74

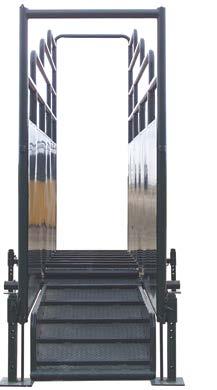

The Loading Chute is lined with 48” high Hot Roll on the sides.
The Ramp is 1/8” Checker Plate with 1.25” square tubing, welded cleats on 9” centre. The Ramp Surface is finished with a high grip textured polyester powder coat finish.
4-Adjustable Stabilizer Legs are included to level the Loading Chute on any Surface.
The Bottom Ramp pivots down and rests on the rear stabilizer plates. The Top Ramp pivots up and latches at the height of the livestock trailer.
The Bottom Ramp adjusts easily with the assistance of an internal spring.
The optional Transport Kit (item #74) is available for ranchers that want to use the Loading Chute at multiple sites.
The Portable Loading Chute #75 comes with a 2,000 lb Screw Jack to assist with levelling the Loading Chute.
The rear verticals are equipped with Hi-Hog’s standard Panel Connectors.
The axle capacity of the transport kit is 3,196 lbs.
Use the QR Code to visit Hi-Hog Website Loading Chute Page
Rear Stabilizer Plates
Front Stabilizer Plates
Panel Tie Down Loops to secure panels on optional panel hangers. Item #77 Portable

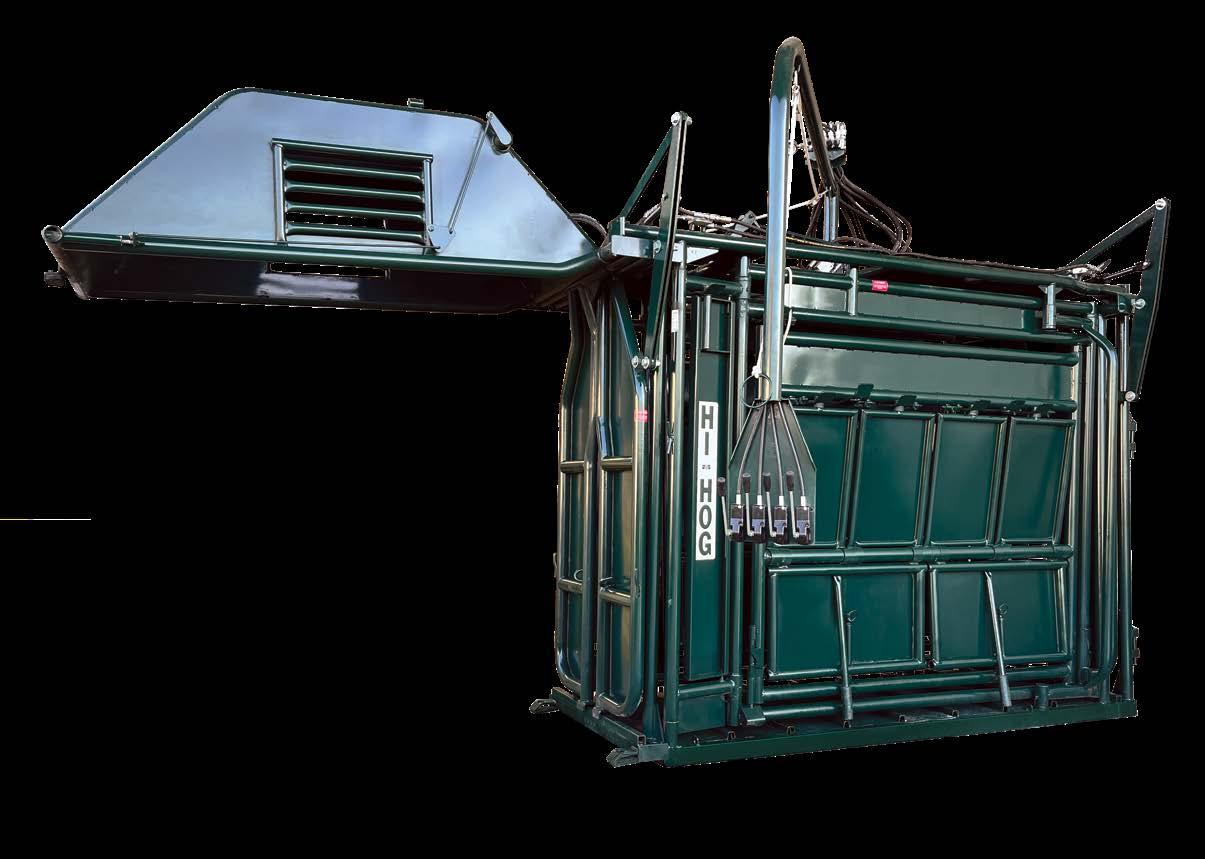

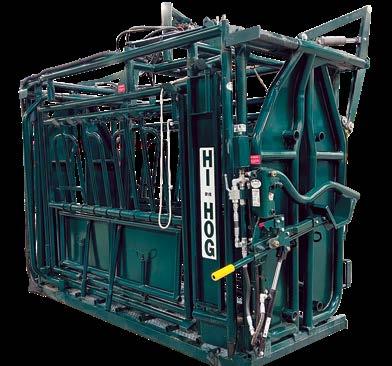

HYDRAULIC BISON SQUEEZE CHUTE
#2367 with Electric Hydraulic Pump - 3762 lbs.
#2369 with Gas Hydraulic Pump - 3782 lbs
The parallel axis squeeze action draws both slightly tapered sides in, and forward, at the same time, to support and control the Bison in a balanced central position.
The smooth interior reduces bruising and prevents the Bison from climbing the walls.
Bison have little respect for open cages and will make every effort to simply run through them.
Hi-Hog’s Crash Cage is fully sheeted except for a small front window and two side windows. The windows provide enough light to encourage forward movement but not so much that your bison want to run through it.
HYDRAULIC BISON SQUEEZE CHUTE FEATURES
• Full width opening, both front and back
• Quick, safe access to all parts of your animal - both sides
• Hydraulic locks on all circuits allow soft catch but positive lock
• Can do everything from both sides
• 3-way sorting; front and two sides
• Lift-up crash cage allows safe access to both sides of head
Learn About Bison Behavior on Hi-Hog’s Website
Hydraulic Pump options (see page 11)
> Electric Pump (Item #1559) > Gasoline Pump (Item #1562)

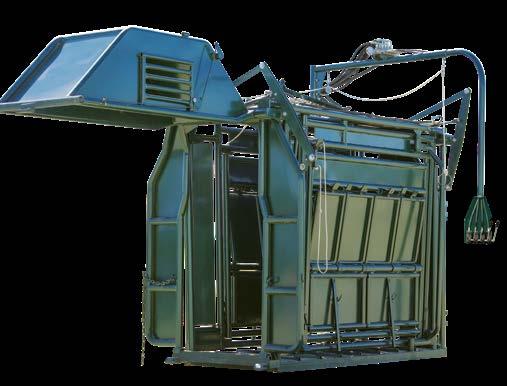

MANUAL BISON SQUEEZE CHUTE
#2360 - 3108 lbs.

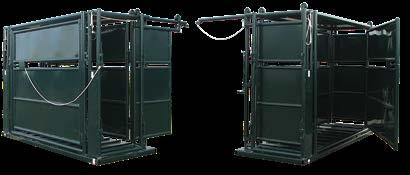

To make the chute less of a threat, both the tail gate and head gate open to the full width of the squeeze chute. This provides your bison with unobstructed flow into and out of the bison chute.
The heavy checker plate floor includes sturdy 1.25” square traction bars on thirteen inch centers to ensure your stock feel confident and secure standing on the floor.
The Head Cage is balanced with a counterweight for effortless manual operation. Like the hydraulic model, the head cage swings up so that the handler or vet have clear, safe, access to your bison’s head.
Hi-Hog’s Bison Squeezes come standard with three exit options; straight through the head gate, or out either the left or right side exit gates.

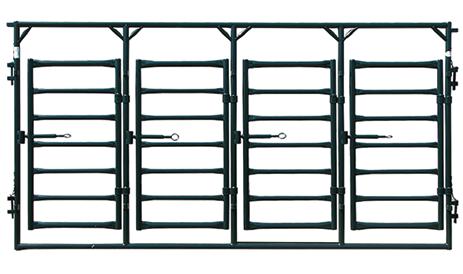

Each of the side exit gates come with four drop down panels for easy access to the body, two liftup panels for access to the feet, and one full height shoulder panel for access to the shoulder. All panel latches come with quick locks to safely secure the latches against accidental opening.
The # 2360 Manual Bison Squeeze Chute is built on the same frame as the Hydraulic Chute. The parallel squeeze, headgate, tail gate, and crash gate are easily operated with manual controls. The crash gate includes a balanced counterweight for remarkably safe and easy operation.
#2360 Manual Bison Squeeze - 3108 lbs. #1574 Multi-Use Trailer - 578 lbs With a towing capacity of 5,000 lbs., you can move either the Hydraulic Bison Squeeze or Manual Bison Squeeze, pasture to pasture, with ease.

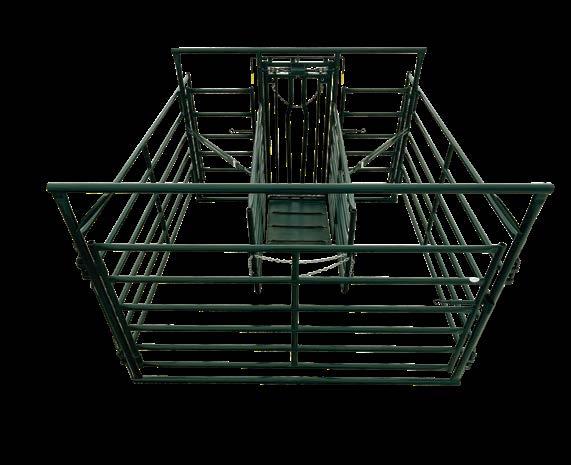

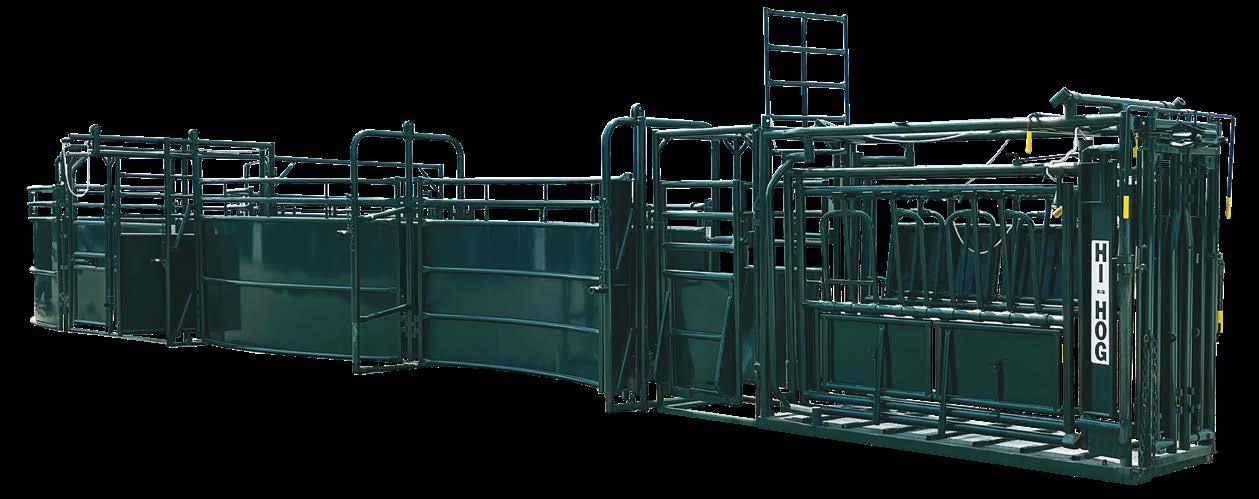

BISON CONTROL ALLEY
* Bison Handling Equipment is built several times throughout the year. All equipment may not be on hand at the time of ordering.

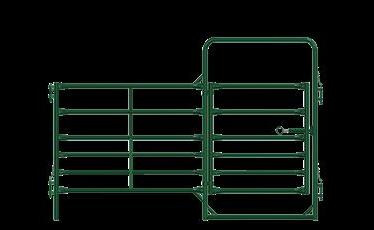

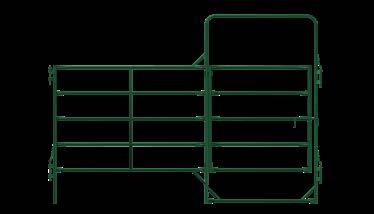

Info on Hi-Hog’s bison panels and gates can be found in the panel and gate section of this guide. See pages 42 - 45. Available in lengths from 4’ to 16’ and both 7-Rail and Sheeted designs.

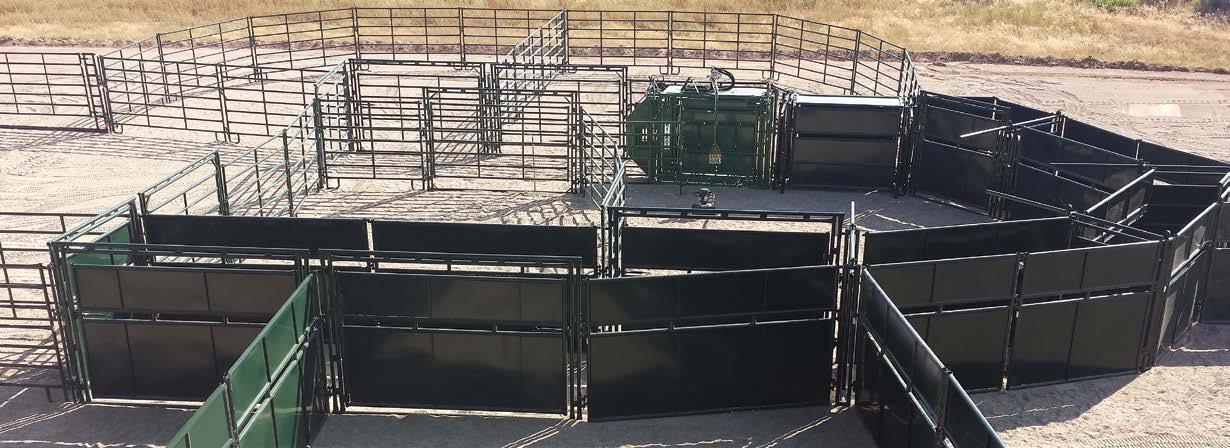

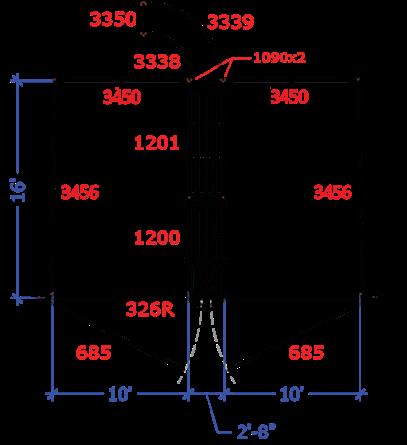

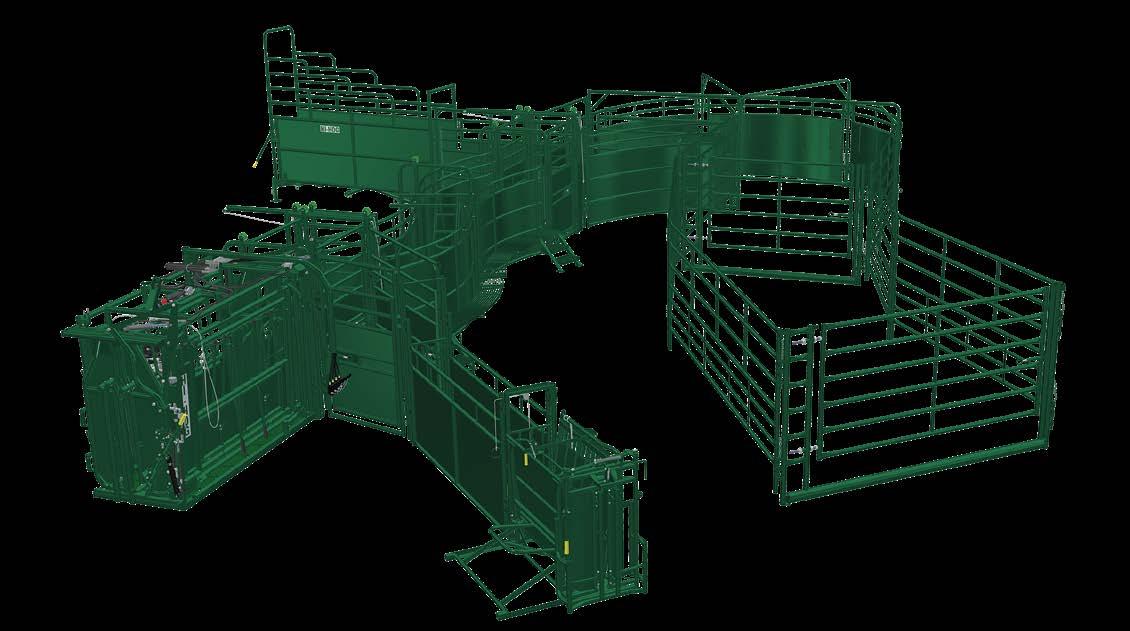

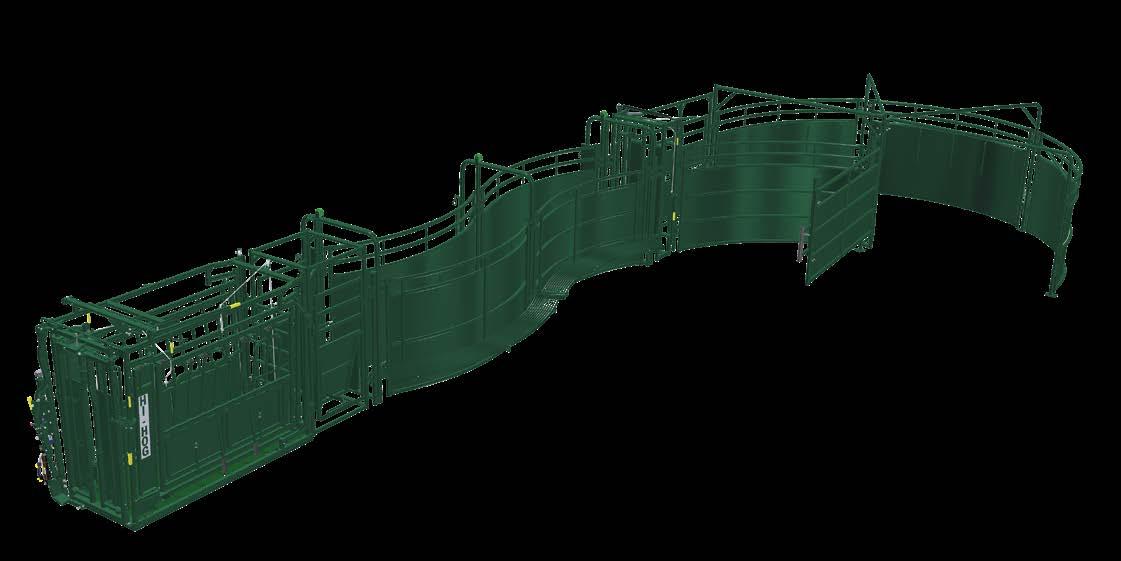

The #’s 2330, 2320, 2295, 2315, 2285 and 2305, combine to make a reversible Control Tub. A Bison Handling Safety Essential.
BISON
Hi-Hog’s design and sales team have decades of experience working with bison, and bison producers.

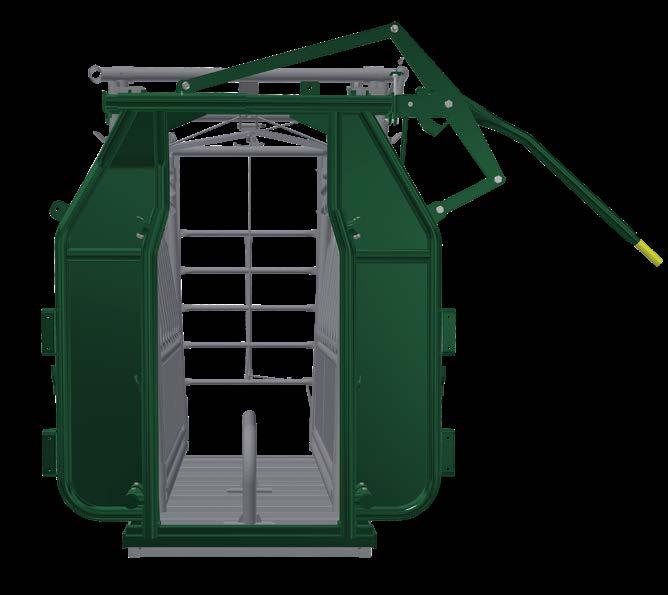

HEADGATE VIEW

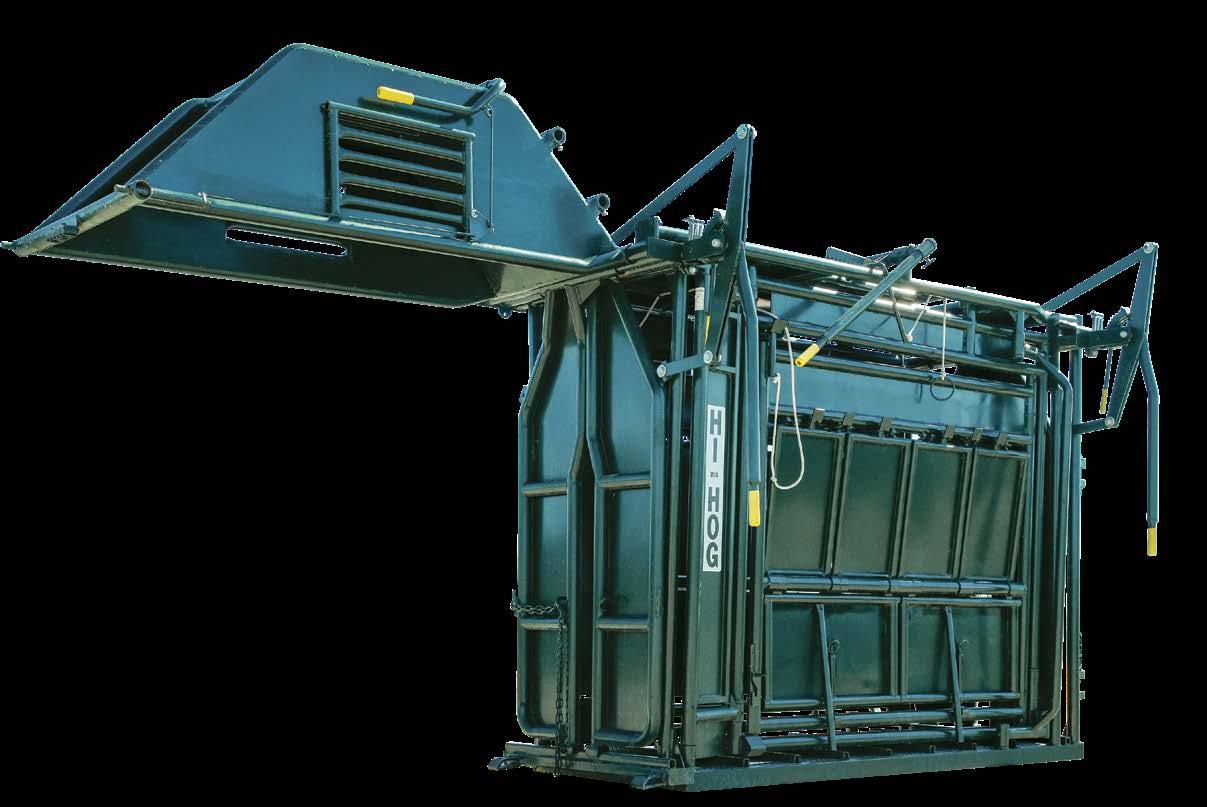

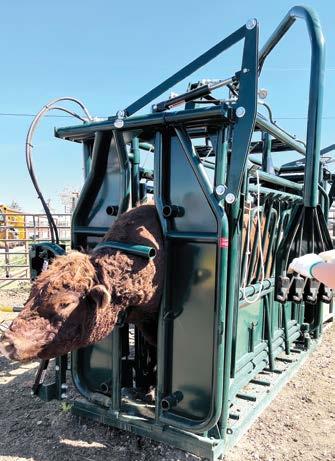

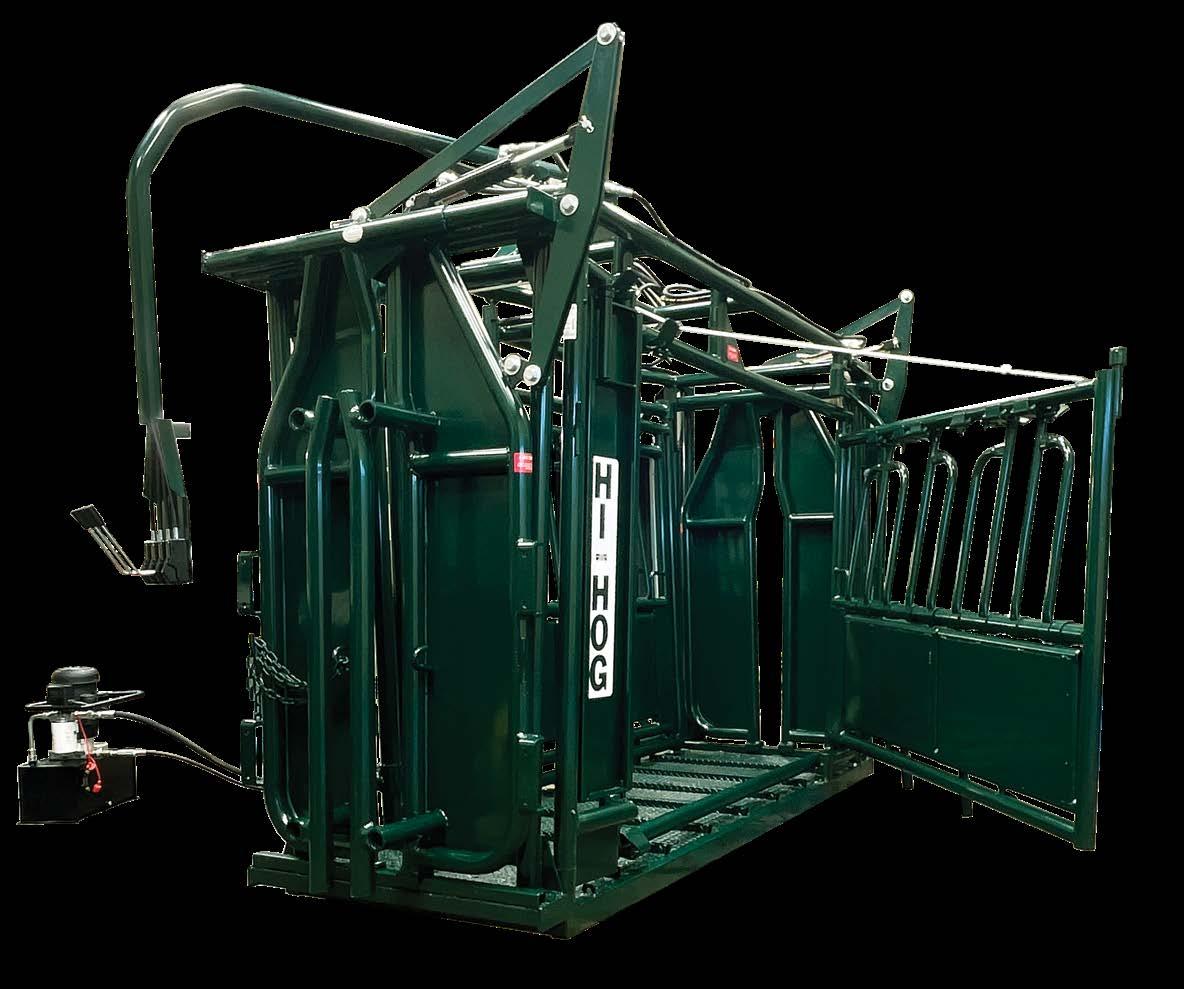

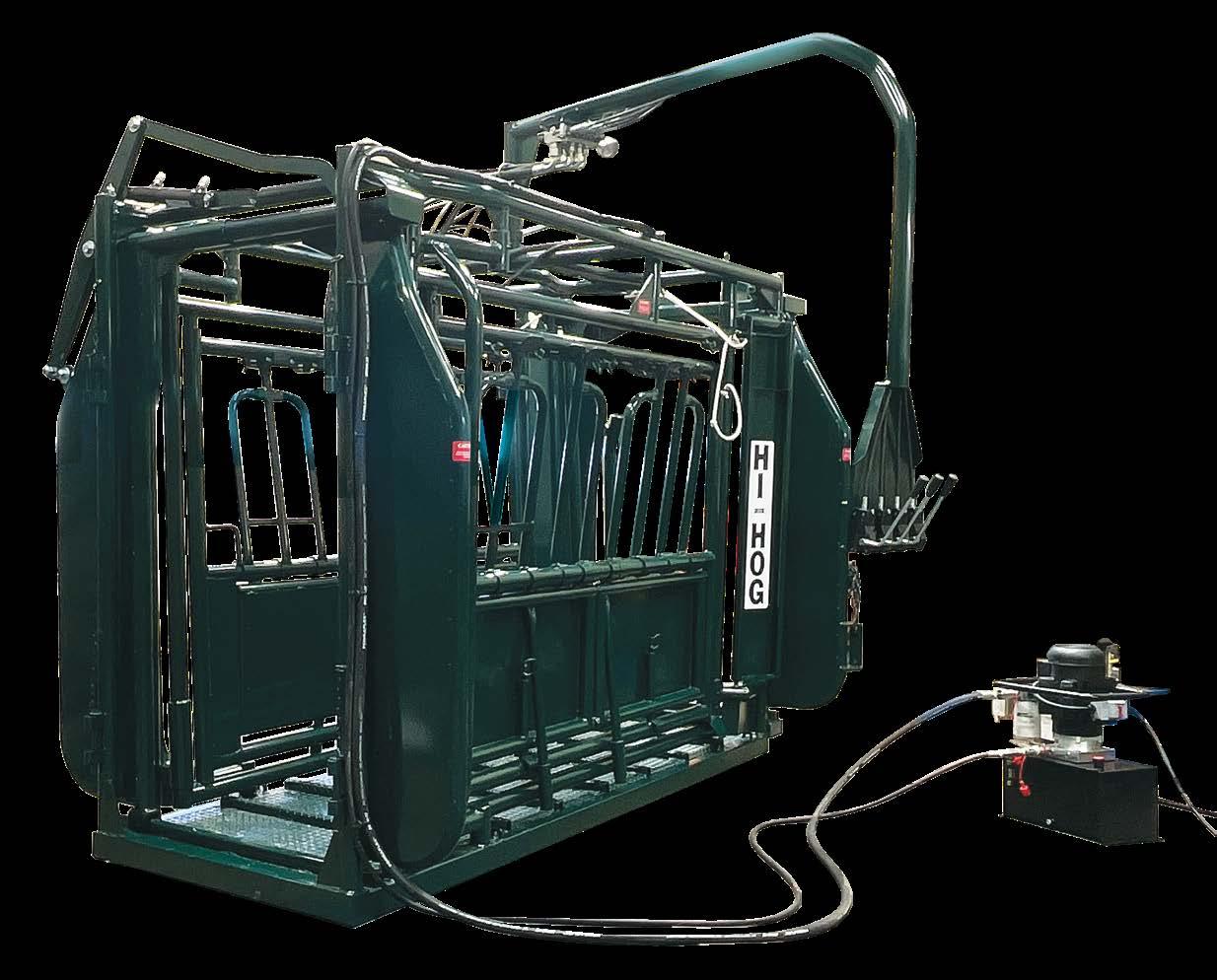

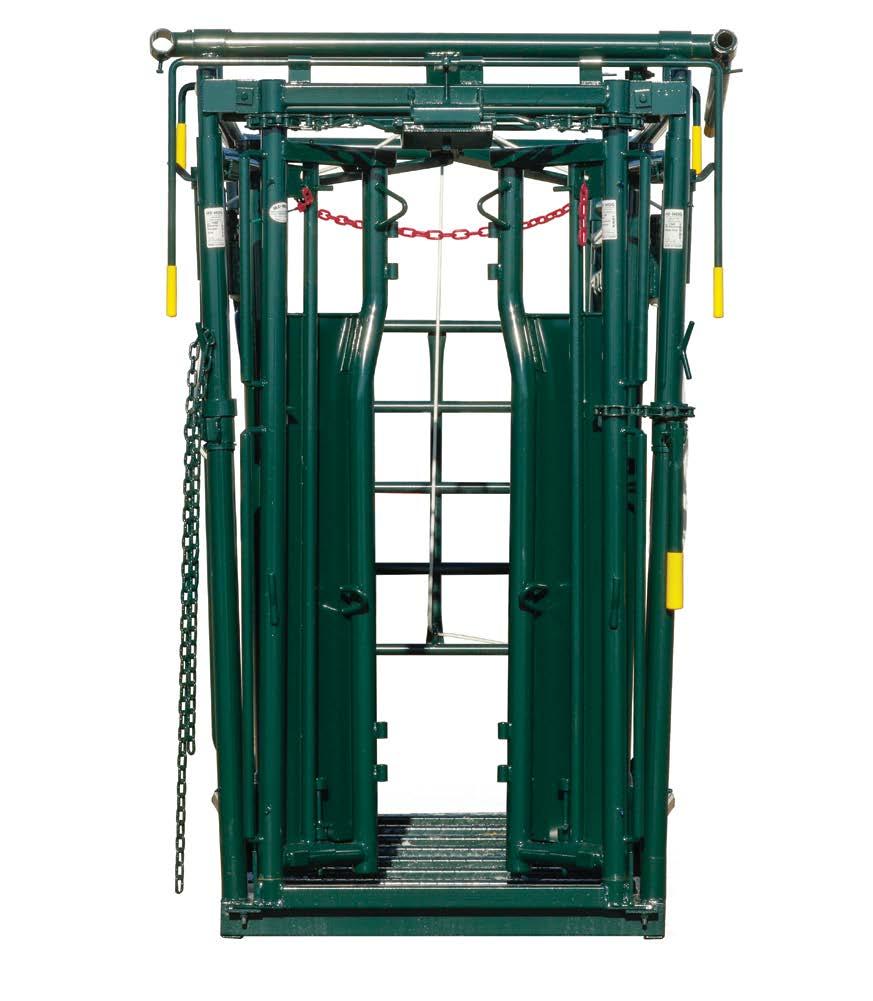

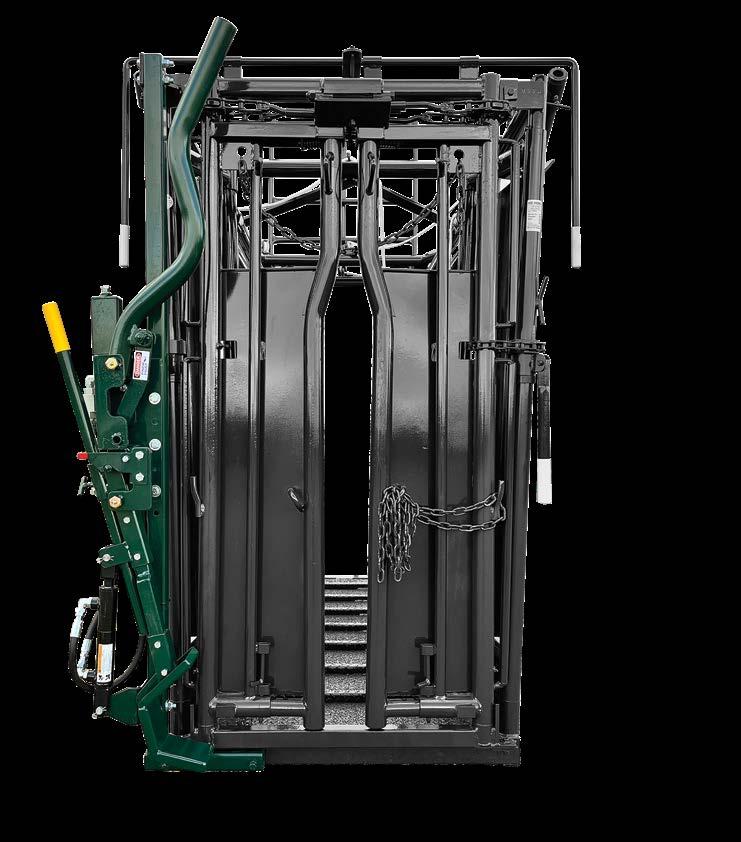

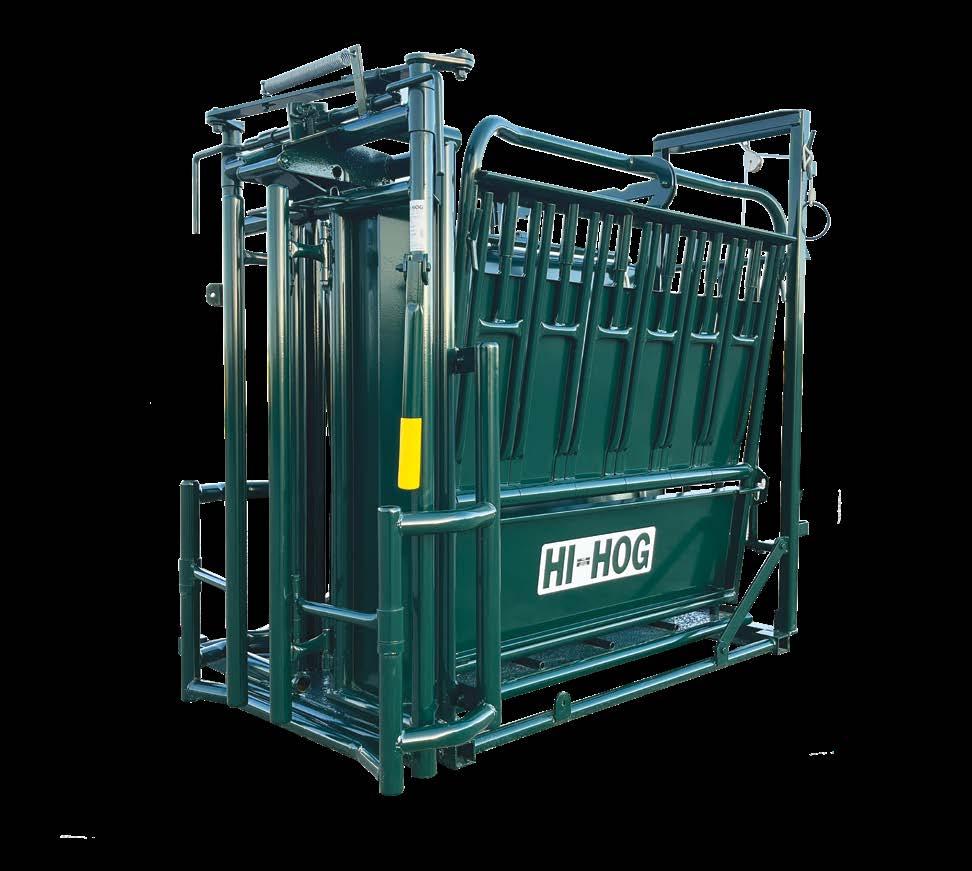

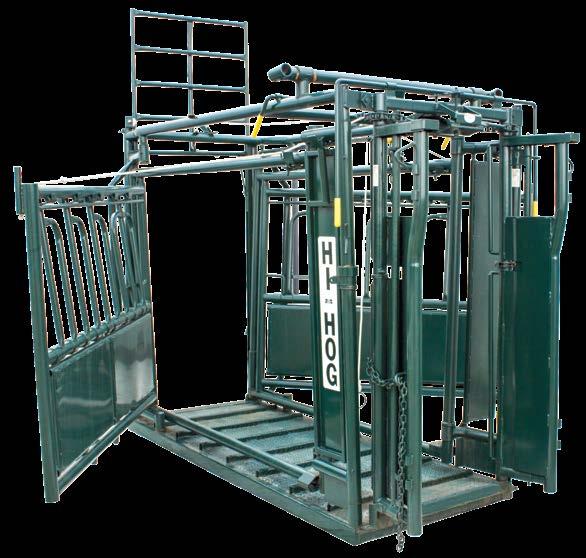

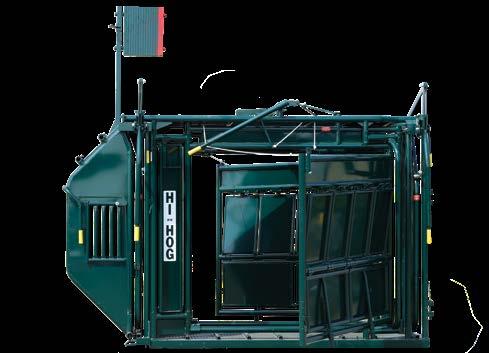

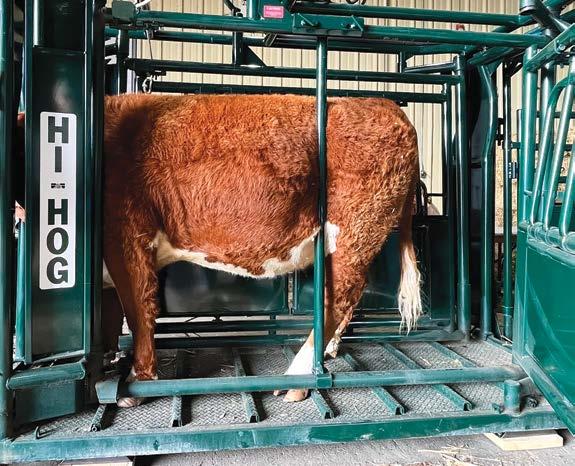

Hi-Hog’s Hydraulic Cattle Squeeze Chute is Built for Speed and Engineered for Safety – Minimize stress on your livestock and reduce labor time with fast, responsive hydraulic controls that optimize your workflow.
FEATURES - UNMATCHED ANIMAL ACCESS
• Pivot controls let you work the chute and the animal, with 340 degree rotation
• 4 hydraulic controls; headgate, tailgate, squeeze sides, plus a spare
• Hydraulic locks on each circuit
• Factory set pressures (1200 psi)
• Parallel headgate yolk ensures equal pressure on the animal from the top of the headgate to the bottom
• Heavy duty sheeted headgate and tailgate open fully (32” opening)
• Floor door track designed for easy cleanout
• Headgate mounted with contact absorption springs
• Includes removable neck extender
• 2026 Models come with Base Brackets for the # 1574 Multi-Use Trailer Attached.
• 2026 Models come with welded on, mounting brackets for the #1535-LH/RH Head Holder
• Primary latches come with locks to prevent accidental opening
• Chute comes standard with 2 side exits
• Sloping sides support your animal while allowing animal to maintain a balanced footing
• Both exits can be opened from the working side of the chute
• Hoof and body access panels open flat against the chute body
• Latches for the body access panels include locks and guards
• The bottom interior of the chute is enclosed with 12ga Hot Roll
• Sheeted components are caulked for quiet, low stress operation
• Each chute includes 26 grease zerks to ensure reliable smooth operation
• Primary hinge collars are pre-greased with arctic grade grease for extreme weather use
• Rubber latch sleeves reduce noise and vibration for low stress handling
• Your choice of Electric Powered or Gas Powered Hydraulic Power Pack

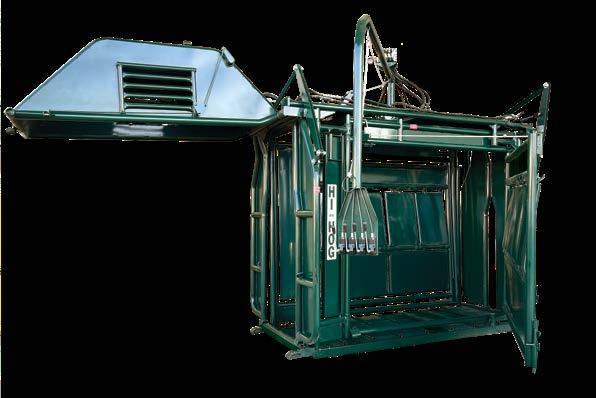

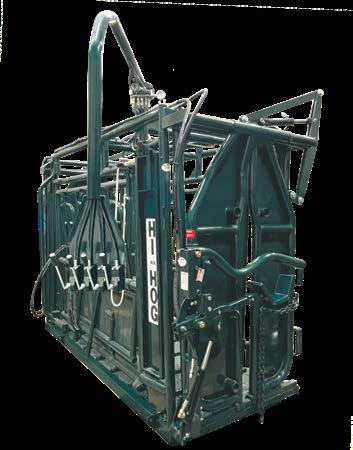

HYDRAULIC CATTLE SQUEEZE CHUTE
TAILGATE VIEW
More Work Done with Less Effort - The Hydraulic Squeeze comes with an extra valve, for attaching a #1534 Hydraulic Head Holder, Rolling Door or a #55 - Calf Tipping Table to your System.
- Narrow
Electric power pack use:
• Run on 220v power
• If using 110v, ensure a 20-amp breaker minimum.
• Do not use an extension cord
*Note: Unless otherwise requested, all power packs come wired for 220v power from the factory.

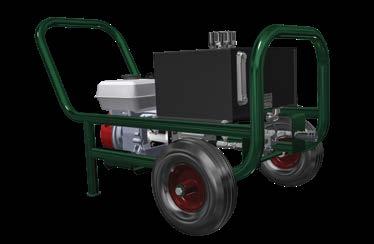

ELECTRIC OR GAS HYDRAULIC PUMP OPTIONS
The 2 horsepower Electric Pump is set to pump 1.5 gallons/minute at 1000 psi.
The electric pump can be run on either 110 V or, for best performance use 220 V.
The 5.5 horsepower Gas Pump offers 15.2 gallons/minute at low pressure and 3.3 gallons/minute at high pressure.

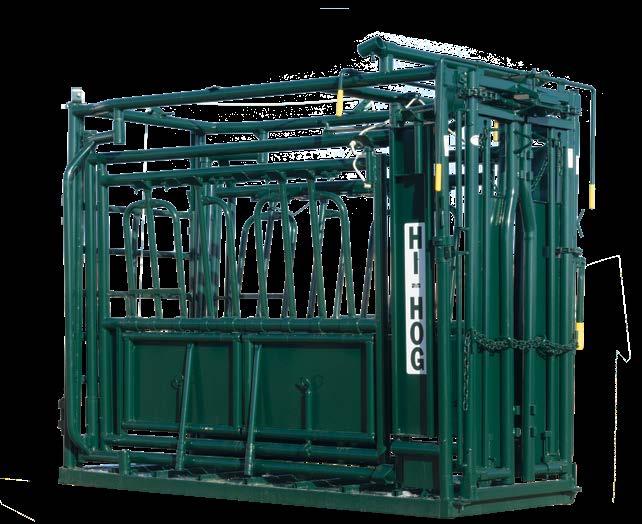

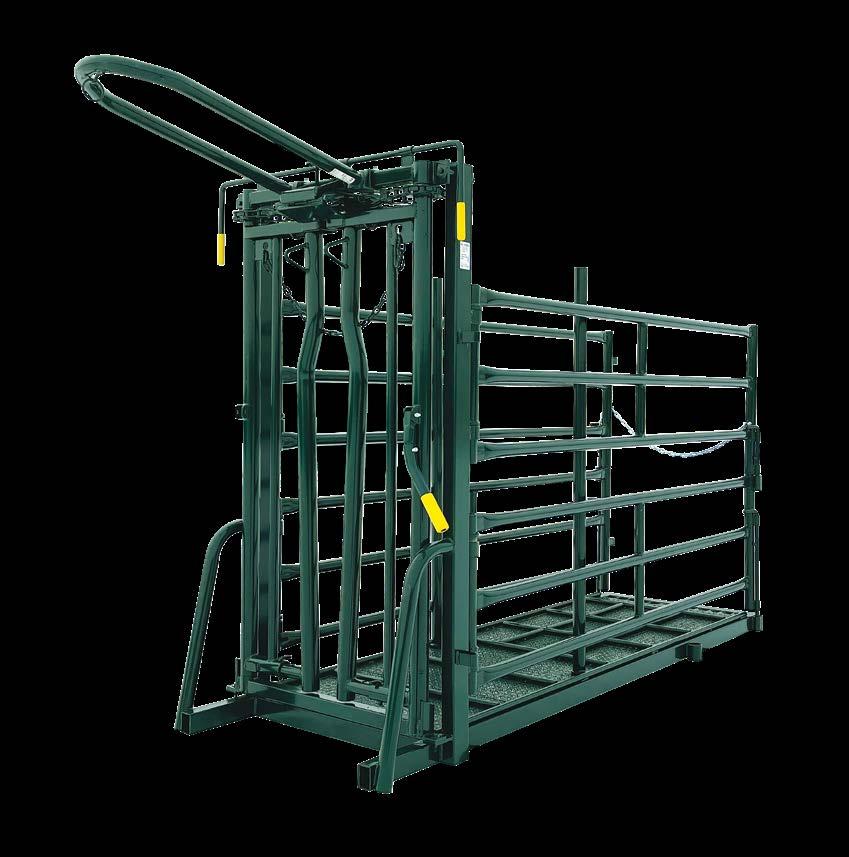

MANUAL PARALLEL AXIS SQUEEZE CHUTE - #1550
Safe for Livestock and Rancher
• The inside of the side panels are sheeted smooth at the bottom
• The sheeted panels are caulked to absorb vibration and reduce noise
• Gaps are minimized to reduce the potential for livestock injury
• All access gates come with an additional slide latch for added security
• Heavy-duty checker plate steel floor with large 1.25” square traction bars
Premium Quality Components
Hi-Hog uses premium accessory components built to last the life of your Squeeze Chute:
• 3/8” double braided nylon ropes
• Custom tooled Tivar sheaves
• Hi-Vis, high-grip handle covers
• Heavy duty 1/4” head restraint chain
• Extra heavy duty timing chain
• Grease fittings on all hinge collars
Hi-Hog’s parallel axis squeeze chute combines outstanding design, materials and construction to create a safe, rugged, and easy to operate chute with outstanding access and control.
Manual Parallel Axis Squeeze Chute
#1536 LH/RH Head Holder page 15
Squeeze options see page 16-17
Unmatched Animal Access
• Dual side exit gates provide access from either side of the chute
• Both side exits can be operated from the working side for added safety and convenience
• All access points lock securely in the closed position
• Body access gates open fully and lay flat for unobstructed working space
• Heavy-duty latching system allows quick, secure operation
Each Side Exit Includes:
• Four drop-down body access gates
• Two lift-up lower access gates
2024-26 Parallel Axis Squeeze Chutes come with Lifting Brackets attached
Balanced Animal Control
• Parallel squeeze action keeps livestock centered and balanced in the chute
• The sides slope to provide animal support without forcing the animal to narrow their footing
• Two offset locking ratchets provide smooth, continuous squeeze width adjustments from 32” down to 12”
• The rear side drop down panel includes slots for a back-up bar
• Rubber latch sleeves reduce noise and vibration for low stress handling
Designed Around the Rancher
• Squeeze controls can be easily moved from one side of the chute to the other for left-hand or right-hand operation
• Sort three ways; left side exit, right side exit, or straight through the headgate
• The rear tailgate, with built-in counterweight, locks automatically in both the raised and lowered position
• The tailgate includes a long, responsive control rope so the rancher can activate the tailgate while working outside of the animal’s flight zone.
To minimize bruising, the headgate is mounted to the squeeze body with shock-absorbing spring bolts
Extra heavy-duty timing chain for smooth dependable operation

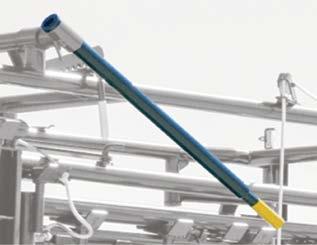

The headgate is operated with one simple handle. Push the handle forward (the direction out of the squeeze chute), and the headgate swings into the squeeze chute. Push the handle in towards the squeeze and the headgate will open out.
The headgate will swing in or out to the full width of the squeeze chute. This minimizes the risk of hiplock
Quick adjust plungers on the top and bottom of the headgate, allow you to set the headgate width between 5" and 11". No tools required
Grease fittings on all hinge collars

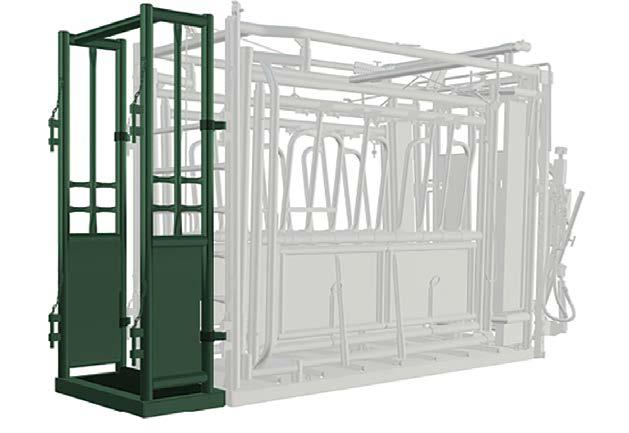

NECK EXTENDER - #105 - OPTIONAL ON #1550
Neck Extender - Item #105, 173 Lbs
*Special Order
Hi-Hog’s Neck Extender is linked directly to the self-catch headgate, allowing the Neck Extender to be activated by the animal’s shoulders at the same time the animal contacts the self-catch headgate.
This feature allows the animal to catch itself without a handler at the headgate.
Note: When setting the width of the Neck Extender, ensure that it is set to the same settings as the headgate.
The stanchions include two safety guards just above the bottle neck. These guards protect the locking plates from being accidentally released by a horn
Auto-catch position is quickly set with the simple limiter chain (shown in red for clarity). Simply push the headgate in to the width that you want and draw the chain in behind the headgate doors and latch the chain in the slotted lock bracket
Headgate handle is available separately (page 16)
The stanchion narrows above 48” to minimize stock from swinging their head up. This bottleneck design remains parallel below this height

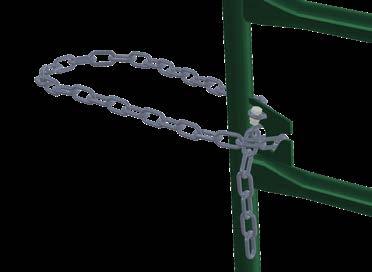

The lower chain is available to help secure the head. The chain, with pigtail chain retainers, can be easily set and released
The headgate is sheeted to protect livestock and focus their attention on the exit
HEAD SWEEP - #1561 - OPTIONAL ON #1563
Head Sweep - Item #1561, 95 Lbs
*Special Order

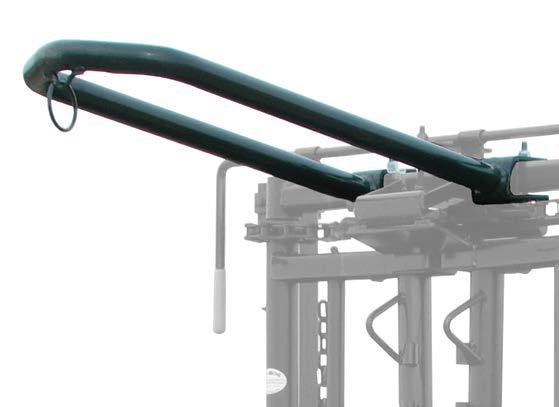

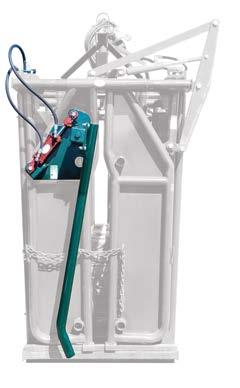

The Hydraulic Head Sweep provides an alternative to the neck extender on Hi-Hog’s hydraulic squeeze chute.
Hi-Hog’s hydraulic chute includes a spare valve so hook up is simple.
The Head Sweep arm is long enough to prevent stock from ducking under the sweep.
Note: this unit needs to be welded onto the headgate and cannot be used with the Neck Extender in place.

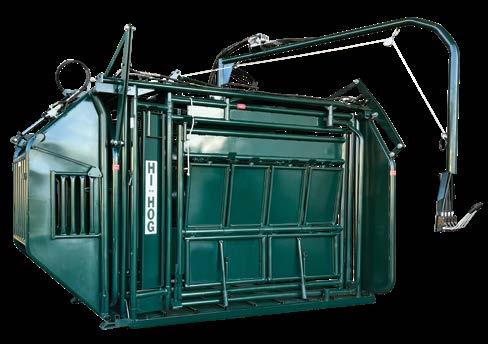

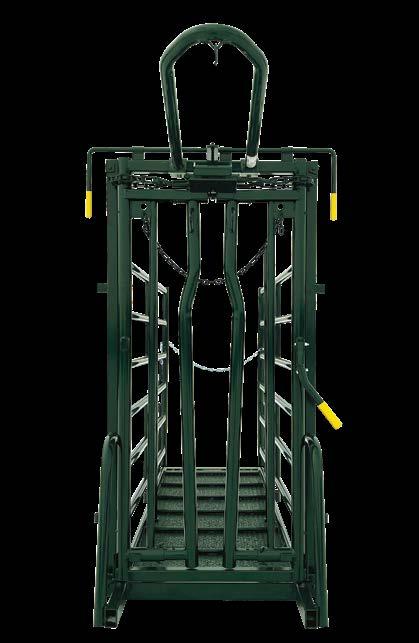

Manual Head Holder For Hydraulic Squeeze Chute - Item #1535-LH or #1535-RH, 108 Lbs

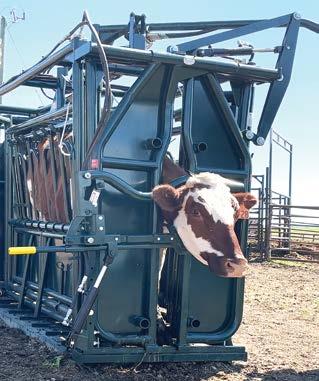

Shown is the #1563 Hydraulic Squeeze Chute Body and Attached #1535-RH Head Holder RH = (Right Hand Installation, meaning on animal’s Right Side) #1535 also fits on the #107 Manual Headgate. Our 2024-2026 Runs of #1563 Hydraulic Squeeze Chute Bodies include Mounting Brackets welded on both sides of the Headgate, for the #1535 Head Holder.
The #1535 and #1536 Head Holders are manually operated with a self contained Hydraulic Lock Reservoir.
• 3 Height Settings
• One Size fits all
• No spring or friction lock points to wear out and slip during use
• Grease fittings on all primary pivot points
• Can lock in the closed position for optimal handler safety
• If retrofitting a #1556 Hydraulic Squeeze Chute, Brackets must be welded in place for the Head Holder to bolt onto. (Included)
• Not for use with #1561
Manual Head Holder For Hydraulic Squeeze Chute and #107 Manual (Scissor) Headgate - Item #1535-RH is Shown, 108 Lbs
MANUAL PARALLEL AXIS SQUEEZE CHUTE HEAD HOLDER
Manual Head Holder For Manual P. A. Squeeze - Item #1536-RH and #1536-LH, 122 Lbs
Shown is the #1550 with Attached #1536-RH (Right Hand side of the animal)
SAFETY AND SECURITY FOR THE ANIMAL AND THE OPERATOR

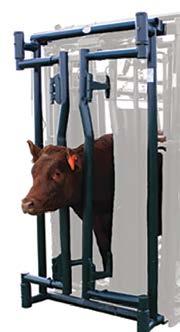

With Hi-Hog’s Head Holder, you can safely and comfortably secure the animal’s head, ensuring minimal movement during procedures. A simple Up / Down Handle will release the fluid in the reservoir and re-apply the lock instantly, without the need to fully open the head holder. The Red Handle locks the Head Holder in the open position when it is not needed.
View the Head Holder Web Page
• Provides safe, reliable and quiet head control when needed
• Fully reversible for left or right hand operation
STERNUM BAR
Item #1554, 28 Lbs
• Bolts onto all current or earlier models of Hi-Hog’s Parallel Axis Squeeze Chute
• The use of a #1554 Sternum Bar is recommended, but not nescessary
• The Secure Hydraulic Lock has it’s own reservoir and does not require a pump
• Curved head yoke and cradle provide superior head control without reducing animal access
• Does not interfere with the shoulder access panel
A Sternum Bar encourages livestock to remain on their feet while standing in the cattle squeeze chute. Hi-Hog’s Sternum Bar pins into two floor mounted brackets secured to the floor of the chute. The floor brackets can be mounted in two positions, allowing the Sternum Bar to be quickly Installed or Removed.
A Sternum Bar is recommended with all Head Holders
Item #107, 434 Lbs
*Special Order
#107 MANUAL HEADGATE -comes with 4 Brackets attached for easy mounting of #1535-LH/RH Head Holder page 15
STERNUM BAR
Item #1554, 28 Lbs
A Sternum Bar encourages livestock to remain on their feet while standing in the cattle squeeze chute. Hi-Hog’s Sternum Bar pins into two floor mounted brackets secured to the floor of the chute. The floor brackets can be mounted in two positions, allowing the Sternum Bar to be quickly Installed or Removed.
Item #110, 239 Lbs
-Hi-Hog’s Self-Catch Calving Headgate lets the animal catch itself so you can use your time to work the animal.
-Set with the Limiter Chain and release with the Headgate Handle.
-The Overhead Latch works independently forwards and back.
-The Self-Catch Calving Headgate fits on Hi-Hog's Calving Enclosure or Calving / Trimming chute.
-Quick adjust plungers on the top and bottom of the head gate make it possible to adjust the calving head gate opening on the fly.
-The three available stanchion openings are 5”, 7.75” and 10.5” in width.
Item #110 - Self Catching Calving Headgate comes standard on Hi-Hog’s Calving Pen / Enclosure P. 34/35
20” SQUEEZE EXTENSION (PA)
Item #1537-20 , 195 LBS *special order
The 20” Squeeze Extension pins directly to the back of HiHog’s manual Parallel Axis Squeeze Chute.
Like the PA Squeeze Chute, the Extension includes a solid floor, sheeted sides, and back-up-bar slots.
RETRO-FIT HEADGATE HANDLE (PA)
Item #1555, 8 Lbs
You can add a retro-fit headgate handle (#1555) to any Hi-Hog PA chute built after 2003. Installation of this handle will require some cutting and welding. This handle comes with all new PA squeeze chutes. This handle is required when adding a neck extender on your chute.
Contact us for installation instructions.
RATCHET BARS (PA)
Item #1549, 6 Lbs
TAILGATE COUNTERWEIGHT (PA)
Item #1547, 9 Lbs
SIDE EXIT BLOCKING BAR
Item #1565 , 25 LBS *special order
HEADGATE HANDLE (PA)
Item #101, 4 Lbs
SQUEEZE PARTS

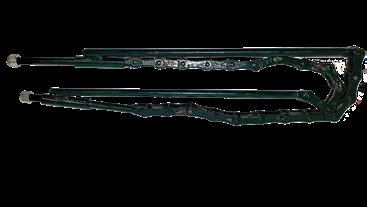

TIMING CHAIN SET - OLD STYLE (PA)
Item #103, 5 Lbs
TAILGATE - For #1550 PA Squeeze Chute
Item #1546, 24 Lbs
Hi-Hog’s standard Tailgate is installed on all Manual PA Squeeze Chutes. This is the same Tailgate that is used in the assembly of our #37 Alley Spreader with lift up gate.

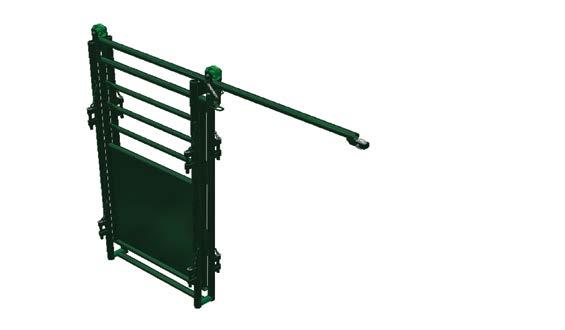

The 64” Squeeze Side Exit Blocking Bar can be used when full access to the side of the animal is required.
Two set screws at the top allow you to slide the bar along the inside frame of the squeeze chute and lock it into place.
SIDE SHEAVE ASSEMBLY (PA)
Item #1552, 1.5 Lbs
The sheave can be ordered on its own as item #1547-S (hardware not included)

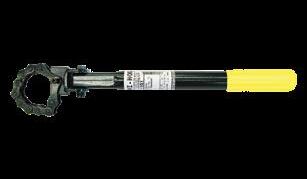

SQUEEZE BODY HANDLE (PA)
Item #1544, 7.5 Lbs
The replacement handle can be quickly and easily installed.
Scan the QR Code to view Hi-Hog’s Website for Squeeze Chute Options
CUSTOM FACILITY DESIGN SERVICES
Hi-Hog’s extensive experience designing facilities for handling large animal breeds has attracted facility owners from around the world to partner with Hi-Hog. These projects often require some combination of stock and custom-made solutions as well as collaboration with a variety of stakeholders including architects and engineers. Visit hihog.com for samples

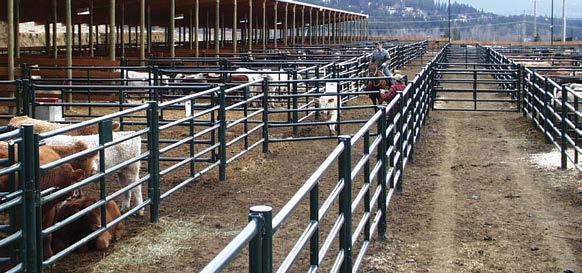

Livestock Auction Facilities
Auction facilities are complex systems that require rigorous planning to ensure they work safely, efficiently and profitably from load-in to loadout.
Large Animal Veterinary Facilities
Every design brief is different, but that’s what we love about these projects. How can we help you reach the goals of your veterinary practice?
Veterinary Education Facilities
We’re honored to have long standing relationships with some of the leading veterinary training facilities. Our veterinarians play an important role in the health of our industry and we take great pride in helping to educate our future veterinarians.

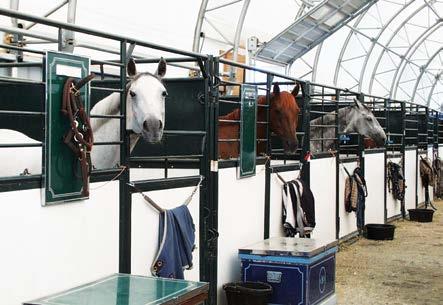

Specialty Equine Facilities
From Therapeutic Riding Centers, Horse Boarding Facilities, Equestrian Campgrounds, Horse Rescue and Rehabilitation Centers, Riding Clubs,
Equestrian Communities, Horse Shows and Exhibitions, to Elite Horse Jumping Facilities, Hi-Hog continues to help all of these organizations meet their unique requirements.
Zoo & Wildlife Facilities
We have consulted and supplied feeding and handling equipment for a variety of large animals at zoos and wildlife parks around the world. Tap into our experience in designing the systems and making the equipment you need.
Rodeo Arenas
From private riding arenas to professional rodeo arenas, our design team will help you meet your goals. Large scale rodeo facilities require careful planning to ensure the resulting facilities work for all participants; livestock, riders, stockman, field crew, operations, and spectators.

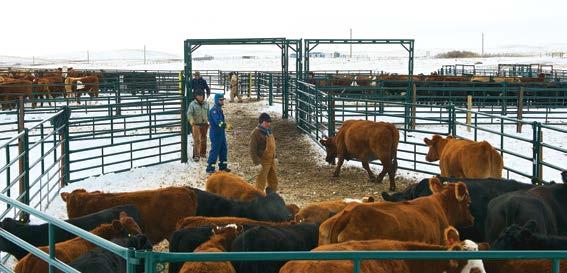

Grazing Reserves/Community Pastures
Shared Corrals require superior sorting solutions to ensure simple, and efficient cattle processing and loading.
Custom Product Design & Production Manufacturing
If metal manufacturing is not your principle skill, we encourage you to consider the benefits of partnering with our highly skilled team of designers and makers.

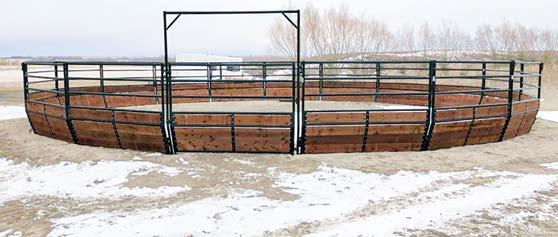

MULTIPLE EVENT RODEO ARENAS
Rodeo arenas can vary widely both in size and in program requirements. The more events you wish to host the more complex the arena design is likely to be. Arenas designed for a variety of events usually require more complex penning solutions to efficiently control both the variety of stock, as well as the potential for multiple stock suppliers.
The success of a public rodeo arena often depends on how safely and efficiently you can hold and move your livestock. This is particularly true if your rodeo is an event where spectators have paid to see a show. Your spectators don’t want to be kept waiting while you struggle to get the correct animal into the correct chute. page 56

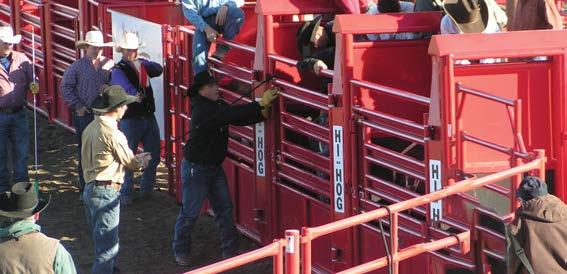

ROUGH STOCK RODEO EVENTS
Hi-Hog’s rough stock arena’s feature their outstanding rodeo bucking chutes which can be ordered with left or right-hand exits. The modular design allows for flexible design as well as for easy facility expansion. Behind Hi-Hog’s bucking chutes you will find their rough stock stripping chute as well as an array of penning solutions to meet your rodeos stock needs. Hi-Hog also offers a wide range of heavy duty panel and gate options. page 39
Whether you’re installing a permanent or a portable holding corral Hi-Hog’s experienced design team can help you develop a plan that meets your requirements. Hi-Hog’s designers will also provide you with an accurate itemized quote.

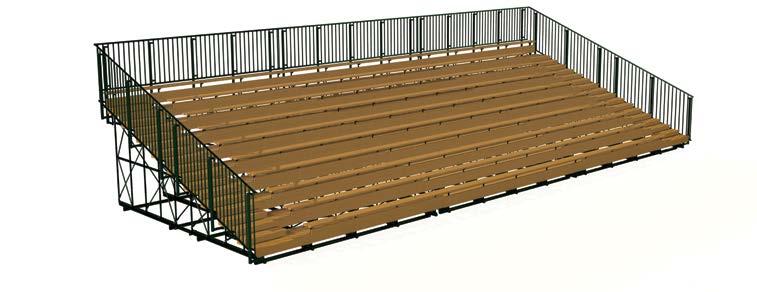

RODEO and EVENT SEATING

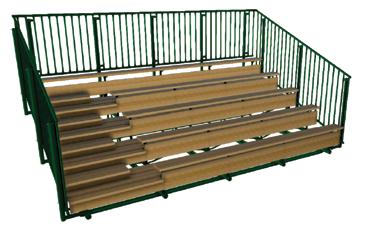

Hi-Hog’s Bleacher Frame packages are 16’ long engineered bleacher frames, available in 5-Row and 10-Row models. Hi-Hog’s bleacher frame kits are ideal for Ag Societies, Parks, & Arena’s. Call us at 1-800-661-7002 to start the design process. The bleacher frame package includes steel frame and steel frame fasteners. page 58 NOTE: Wood and wood fasteners are not included with this package.

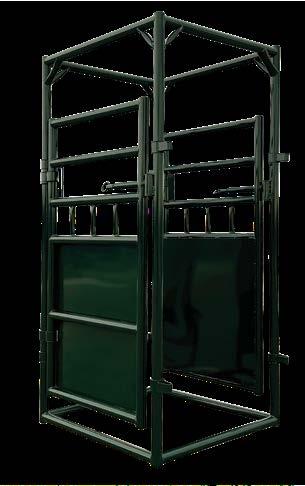

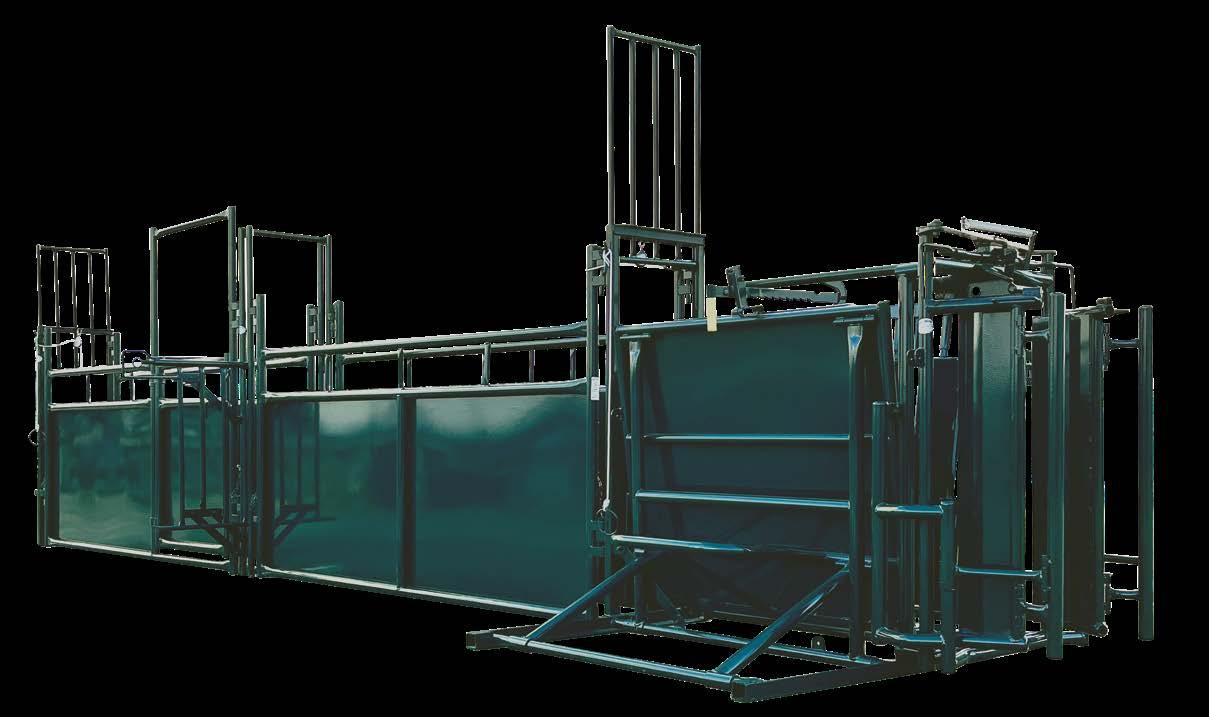

PALPATION AND SORTING OPTIONS
CAGES
Hi-Hog offers both a fixed width, and an adjustable width Palpation Cage. Both palpation cages include access gates on either side of the alley. These gates come with adjustable plunger latches for quick and secure latching. The gates can be swung in and latched securely across the entrance of the Palpation Cage to block cattle flow and provide safe vet access to the rear of the squeeze chute. The Palpation Cage frames have a width of 32”, an inside length of 33.5”, and a height of 80”. The entry gates are 66” high. For processing calves, the bottom of the adjustable Palpation Cage side doors swing in and latch securely. When not in use, the lower panels can be latched open to the full alley width.
• Fixed Palpation Cage - #80, 234 lbs
• Adjustable Palpation Cage - #1560, 292 lbs
View Palpation Options on Hi-Hog’s Website
P.A.S.S. GATE & P.A.S.S. PANEL
The Palpation And Sorting Section (P.A.S.S.) panel and P.A.S.S. gate can be added to your working alley to create an adjustable 4’ long alley section that can be used for handler and vet access, sorting animals out of the alley, or diverting stock into another alley.
Hang the P.A.S.S. panel or P.A.S.S. gate on Hi-Hog’s adjustable alley spreaders to create a fully adjustable alley section that can be adjusted from 32” down to 18” in width.
These items use the same common connectors as our system panels. You can combine them to add access and isolation points throughout your Hi-Hog handling system.
• P.A.S.S. Gate - #85, 130 lbs
• P.A.S.S. Panel- #86, 96 lbs

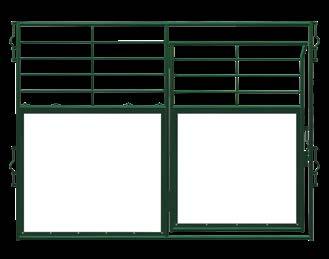

SORTING ALLEY SECTION

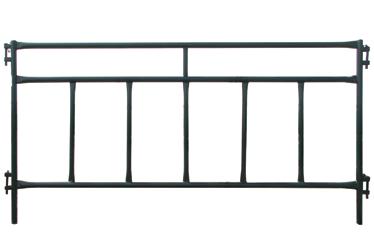

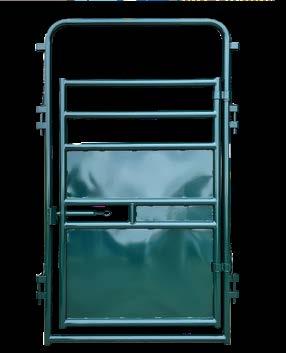

Hi-Hog offers a variety of 7’ sheeted system panels that can be used in the same manner as the P.A.S.S. panel and P.A.S.S. gate. Hang these items on our adjustable alley spreaders to create a 7’ long alley section you can sort or divert animals through.
• #1370, 7’ Sheeted panel with access gate and sort gate 80" high frame, 66" high gates, 233 lbs
• #1375, 7' Sheeted panel with large gate 80" high frame, 66" high gate, 209 lbs
• #1380, 7' Sheeted panel with small sort gate 80" high frame, 66" high gate, 209 lbs
The funnel section can be created with either the 7’ load-out panel (#1370
or a straight panel with a single gate (#1380), or simply a 7’ straight panel (#250)

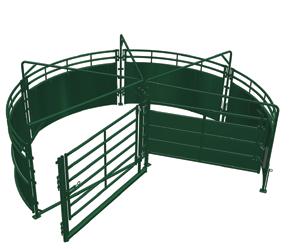

Tub
Half

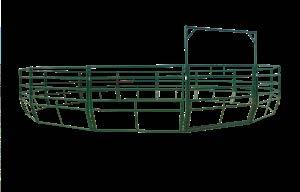

1/3 circle tub with reverse flow
A 3-section tub will make 1/2 of a circle
Note: Item #1401 will only connect to the outside of the U-Alley spreaders, or U-to-S Alley spreaders.
These panels hang on wheels rather than the standard connectors found on all of the remaining Hi-Hog system panels.
Working Alley Web Page
Raised Alley Walkway Web Page
Alternate Alley Parts
ROLLING DOOR
Hi-Hog’s fixed width 32” wide rolling door is an extremely versatile option for any working alley. The door locks automatically when closed but can be released and opened quickly and easily from either side of the alley. Item #40 - 180 lbs.
Learn more about Combination Alleys
Hi-Hog offers a range of sheeted straight alley panels that can be combined with U-Alley components to create custom nonadjustable and adjustable combination alleys, all built on Hi-Hog’s Common Connector System for seamless integration and future expansion.
Non-Adjustable Combination Alley
A number of our standard alley panels can be combined with our fixed width alley spreaders to create a fixed 32” wide working alley.
Non-Adjustable Combination Alley
Curved sections are created using a 1402 on the inside of the alley and a 1440 on the outside of the alley. Each curved section will change the direction of livestock flow by 45 degrees. Straight sections can be made by using any of our sheeted straight panels (4’, 7’, or 9’-3” in length).
Adjustable Combination Alley
Special transition spreaders (items # 1425 and # 1435) are used at the junction between straight and curved adjustable alley sections. These alley spreaders are also available with a rolling door (items #1426 and #1436, not shown).
The curved alley section should be installed on a firm, flat surface.
Adjustable Combination Alley
ADJUSTABLE U-ALLEYS
The curve of the U-Alley encourages livestock flow.
Each U-Alley section covers 45° of a circle.
The inside curved panel (# 1402) is 60” high. The outside curved panel (# 1401) is 66” high.
The length of each alley section (measured on the center line of livestock travel) is approximately 9’.
This compact system is most often used where physical space is limited.
For best results, the U-Alley should be set-up on a firm, flat surface. For improved animal and handler footing, we recommend installing on grooved concrete or paddock slab.
All of the U-alley spreaders are available with or without rolling doors.

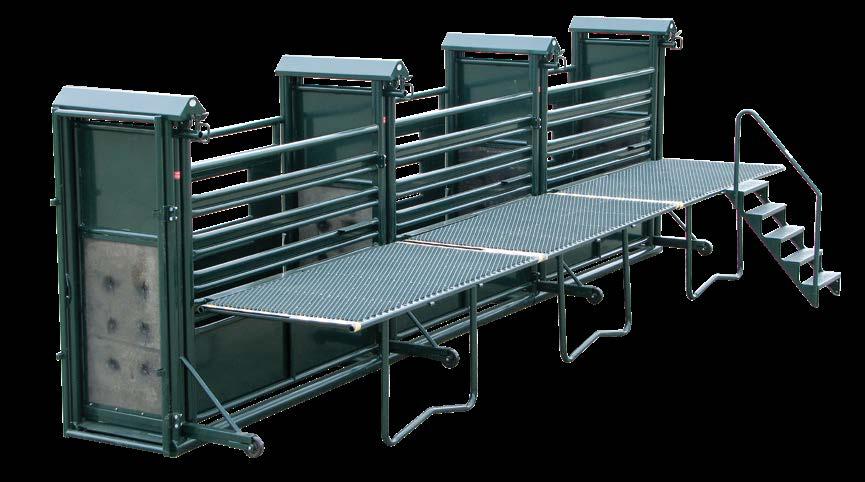

Walkways, walkway stairs, and alley stops are also available.
Hi-Hog offers the industry’s most complete selections of cattle working alleys, including straight, curved, single-file, double-width, adjustable, and fixedwidth designs. Built on Hi-Hog’s proven Common Connector System, these modular components can be combined, reconfigured, and expanded to create a handling system tailored to your ranch — today and as your operation grows.

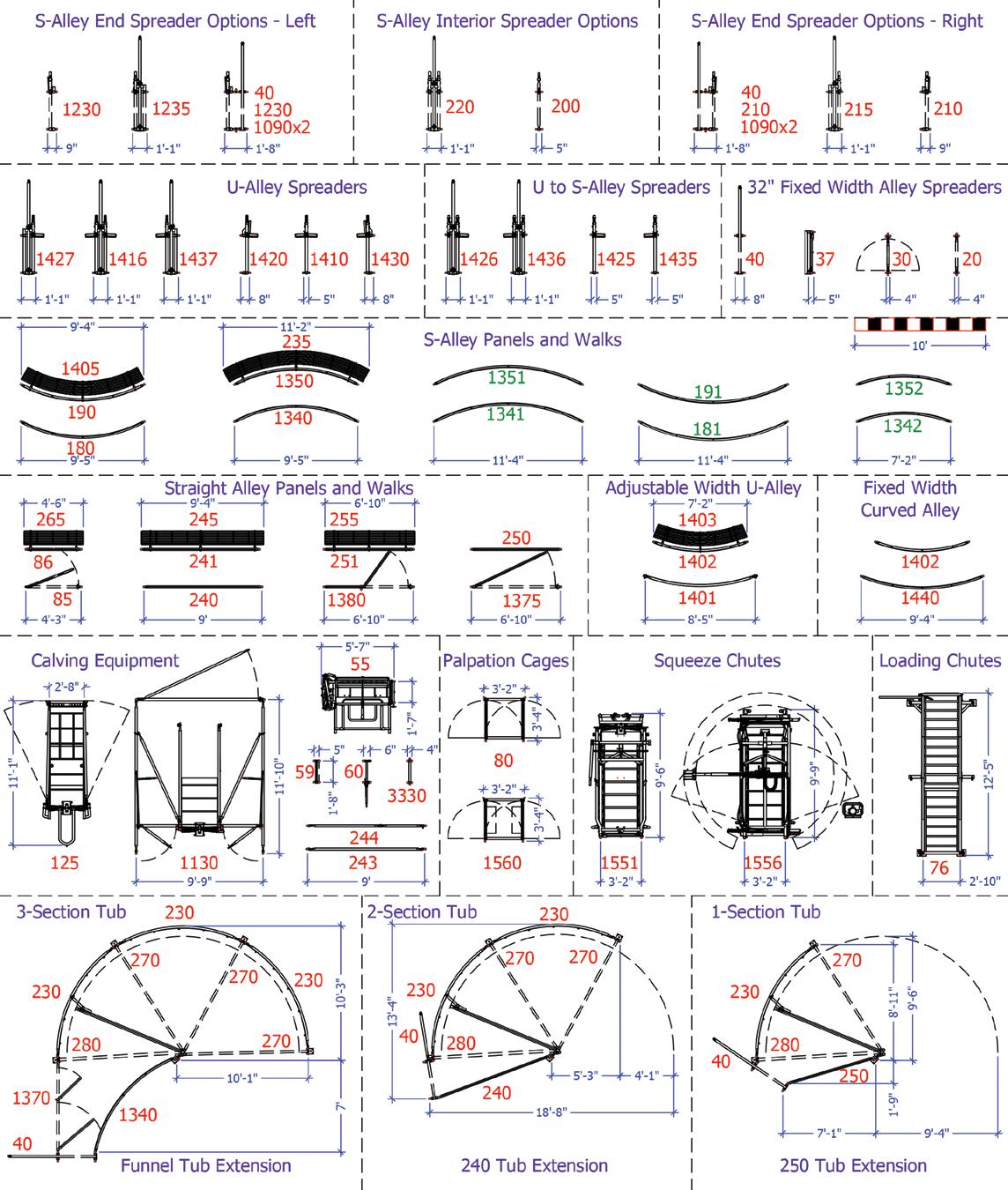

This page displays the pin-to-pin measurements on Hi-Hog's system components. You can use these measurements to estimate how much room you might need for your handling system. Please note that there is some play in each of the pin connections. Your handling system may be slightly longer or shorter. For a more accurate estimate please contact our help desk and we can prepare a scaled drawing based on your individual system requirements. Stock item numbers are RED. Non-stock, special order item numbers are shown in GREEN.
Safe Handling. Smart deSign. Year-after-Year reliabilit Y.
When Hi-Hog designed the Parallel Axis Squeeze Chute with Self-Catching Headgate, we built it smart — and built it to last. Engineered for safe, efficient livestock processing, the chute allows cattle to be caught without the operator standing at the front, reducing exposure to the animal’s flight zone.
With the headgate set using the simple limiting chain, the operator remains free to work confidently from the alley. The addition of the optional Head Holder further enhances control, securely restraining the animal’s head during procedures for safer, more precise handling.
S-ALLEY DESIGN - USING CATTLE’S NATURAL MOVEMENT
Hi-Hog’s Adjustable S-Alley with Crowding Tub is engineered to improve safety, efficiency, and cattle flow. Designed to guide livestock smoothly from the Crowding Tub into the working alley, it reduces handling time while minimizing physical effort for the operator. With adjustable width capability, the S-Alley accommodates a broad range of cattle sizes and breeds, delivering longterm adaptability as herd needs evolve.
Developed around natural livestock behavior, the curved alley design encourages forward movement with less hesitation. The result is calmer cattle, reduced stress, and more controlled, efficient processing.
Built on Hi-Hog’s proven Common Connector System, these modular components can be combined, reconfigured, and expanded to create a handling system tailored to your ranch.
CATTLE WORKING ALLEYS - DESIGN ASSISTANCE
If you would like help developing a design for your cattle facility, call toll-free 1-800-661-7002. One of our experienced designers can prepare a complimentary scaled and itemized CAD drawing for you.
ADJUSTABLE S-ALLEYS
Curved system panels are connected to adjustable S-Alley spreaders to create an alley whose width can be adjusted from 32” down to 18”. While the S-Alley is created with curved panels, the alley spreaders are positioned on a straight line. The alley section made with items # 180 and # 190 is called an A-section, while the alley section created with items # 1340 and # 1350 is referred to as a B-section. The three section alley shown below is described as an A-B-A alley. A three section alley can also be made to be a B-A-B alley (see smaller drawing, below right).
Each of the adjustable S-Alley Spreaders are also available with a sheeted rolling door. Optional walkways and an alley stop are also available. The first section of S-Alley is 11’ long. Each additional S-Alley section adds another 10’. The panel heights are either 60” or 66” high.
Note: The first alley section should flow smoothly out of the tub. Livestock in the tub should be able to see clearly at least one full body length up the alley.
If you locate the walks on the outside of the alley the alley sections will be B,A,B
S-ALLEY ADJUSTABLE HANDLING SYSTEM
The Curved S-Alley was developed by Hi-Hog to take advantage of natural livestock behaviors. The result is an alley that cattle will enter and

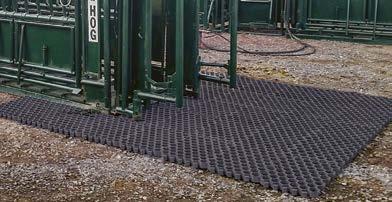

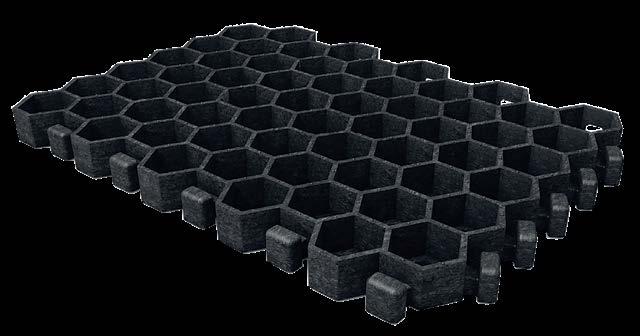

Improved Footing with Paddock Slab #1336 Two pallets of Paddock Slabs will provide safe footing for both animals and handler. NOTE:
Slab must be filled with sand, soil, gravel or clay.
Ranchers can easily direct cattle from the Crowding Tub into the S-Alley, reducing the time and effort required for cattle movement.
DOUBLE ALLEY HANDLING SYSTEM
Learn More About Double Alleys
The Hi-Hog Adjustable Double Alley with Return Box is engineered to deliver rapid, controlled livestock movement within a complete cattle handling system. Cattle are directed smoothly from the Return Box into the Adjustable Double Alley, improving efficiency during tagging, sorting, loading, and routine herd health procedures. This controlled cattle flow reduces stress on livestock while saving valuable time and labour in demanding ranch environments.
Non-Adjustable Double Alley
The double alley offers a large opening so cattle can locate and enter the alley quickly using a #355 frame and gate as an alley barrier.
Adjustable Double Alley
* SHOWN WITH HI-HOG’S #1535-RH HEAD HOLDER (RIGHT SIDE OF ANIMAL)
HI-HOG ADJUSTABLE DOUBLE ALLEY WITH A RETURN BOX
When integrated with an Adjustable Palpation Cage and a manual or hydraulic Squeeze Chute with three-way sorting, this double alley cattle handling system supports steady, uninterrupted cattle movement. The result is improved processing speed and safer livestock handling—ideal for high-volume operations and repeat handling applications.
Built around Hi-Hog’s Common Connector System, this modular cattle handling equipment is fully customizable to suit the needs of your operation. Additional sorting options, load-out configurations, and future system expansions can be seamlessly incorporated, allowing your livestock handling system to adapt and grow alongside your ranch.
2 1340 Curved Sheeted Panel - B - 66” high
1 1350 Curved Sheeted Panel - B1 - 60” high
1 1370 Straight Sheeted Panel - Double Gate
2 1380 Straight Sheeted Panel - Sorting Gate
1 1405 Curved Walkway - A1
2 1406 Walkway Stairs
1 1535 Head Holder 1535-LH - On LH side of animal
1 1556 Hydraulic Squeeze Chute 1 1554 Sternum Bar
1 1744 U-Spreader - 10’ long x 6’ high 1 180 Curved Sheeted Panel - A - 66” high
1 190 Curved Sheeted Panel - A1 - 60” high
2 200 S-Alley Spreader - Interior
1 210 S-Alley Spreader - Right
1 220 S-Alley Spreader with Rolling Door - Interior
230 Curved
1 280 Pivot Gate with Tub Spreader
1
1
1
1 76 Stationary Loading Chute
1 836 Heavy Duty Panel - 10’ long x 6’ high
1 846 Heavy Duty Panel - 12’ long x 6’ high
5
1
1

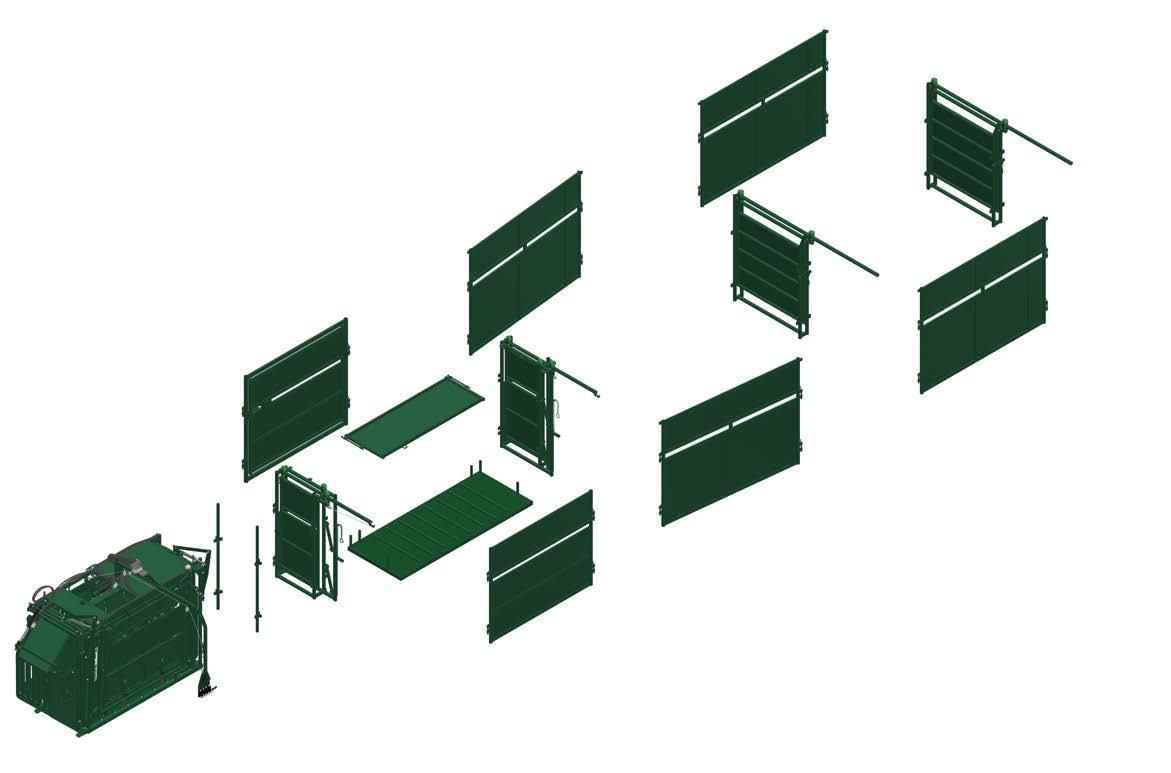

Built for serious cattle operations, Hi-Hog’s Ultimate Cattle Handling System delivers controlled cattle flow, rugged, heavy-duty steel construction, and modular adaptability— helping ranchers work smarter, reduce stress on livestock, and operate with greater safety and efficiency. Providing long-term value for progressive ranch operations.
BUILT FOR SAFE, CONTROLLED CALVING

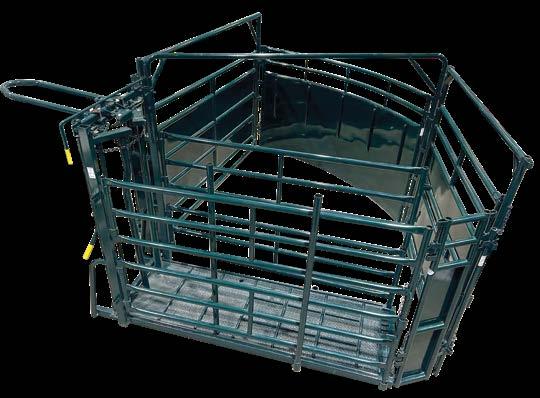

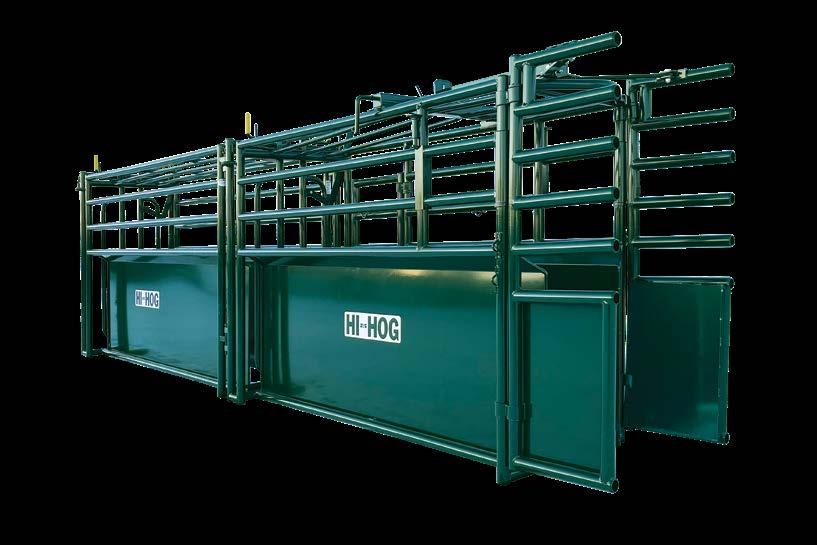

Core Component – #125 Calving / Trimming Chute
• Split-panel design provides complete cow access from both sides
• Ideal for assisted calving, trimming, and veterinary procedures
• Allows quick, controlled access during high-pressure situations
Crowding Tub Section
• Constructed with #230 – 66” high sheeted curved panels
• Secured with #270 Overhead Tub Spreader
• Designed to promote smooth cattle flow into the chute
Secure Anchoring System
• High-pressure area engineered for stability
• #280 Pivot Gate frame and overhead spreaders designed with anchoring provisions
• Anchor through base plates when installed on concrete
• Includes 24” ground stakes for non-concrete installations to prevent movement
Heavy-Duty Pivot Gate
• Solid pivot gate mounted in its own frame
• Hinges: 2-7/8” OD x 4” with grease fittings for long-term performance
• Rubber-coated, spring-loaded latch for smooth, quiet operation
• Reversible latch for clockwise or counter-clockwise swing
Adjustable Configuration
• Modify spacing at front or rear using the #239 Sheeted Filler Panel
• Optional second #239 allows tighter connection to the #1375 Gate Section
• Designed for layout flexibility within your calving facility
Hi-Hog’s Maternity Tub combines the proven #125 Calving / Trimming
Chute with a secure, fully sheeted crowding system to provide controlled, safe calving conditions. Engineered for stability in highpressure environments, this heavyduty steel system delivers complete animal access, smooth cattle flow, and reliable performance during critical calving operations.
MODULAR. EXPANDABLE. RANCHREADY.
Hi-Hog Common Connector System
• Calving / Maternity Tub components integrate seamlessly with your cattle handling system
• Curved panels convert into a working Crowding Tub
• Pivot gates reposition for yearround use
• No seasonal downtime — no duplicate equipment One system. Multiple uses. Built for long-term value.
- Versatile, Multi-Purpose Design
Ideal for calving heifers, grooming show cattle and performing general veterinary treatments.
- Full Access to Both Sides of the Animal
Upper and lower split side panels provide controlled access exactly where and when it’s needed.
- Flexible Split Panel Configuration
Upper and lower split panels can be latched together to form a single, solid side panel for full containment.
- Rugged Self-Catch Headgate Included Equipped with Hi-Hog’s positive-locking self-catch headgate to securely restrain the animal, single handed.
- Enhanced Safety for Cattle and Handlers
Controlled restraint helps minimize stress and lowers the risk of injury during calving, treatment, and grooming.
- Heavy-Duty Checker Plate Floor
Reinforced steel floor with traction bars provides excellent footing.
- Secure Panel Control System
Ratcheted floor stops and allow split panels to be held tight and secure during use.
- System-Ready Corner Connectors
Allow seamless connection into a maternity tub or any Hi-Hog common panels.

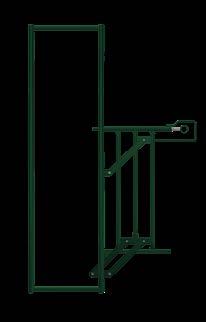

The Head Tie Bar is designed to mount directly to the frame of both the Calving Headgate and PA Squeeze Self Catch Headgate.
Included with #125 Trimming Chute
Item #126, 16 Lbs
HEAD TIE BAR
44” Outside Width

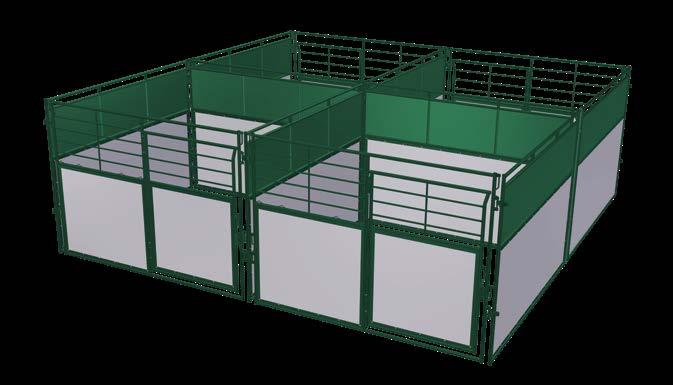

Learn More About Calving Pens

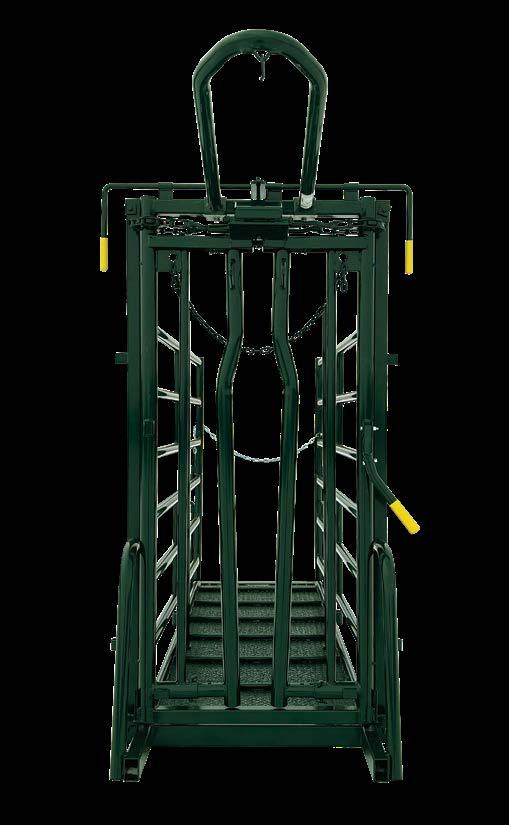

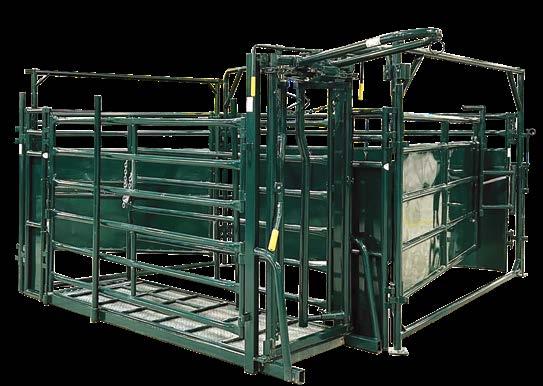

Hi-Hog’s #110 Self-Catching Headgate, with positive locking, allows the forward motion of the cow to firmly catch and lock itself into the Enclosure.

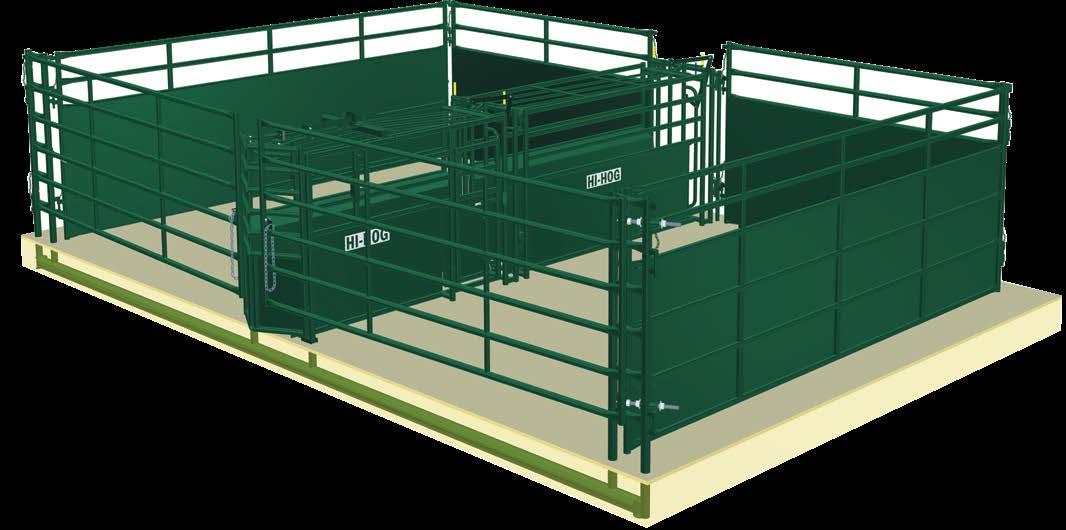

Standard Calving Enclosure - complete, Item #1130 with optional #1146 Skid Platform
Hi-Hog’s Calving Enclosure with center mounted Self-Catch Headgate provides unmatched accessibility in a stable structure.
The self-catch headgate with adjustable stanchions is centered in the front panel of the calving enclosure to provide unmatched access to your cow. Ideal for milking out on one side while a calf sucks on the other side.
Access gates, on both sides of the headgate, come with selflocking plunger latches for quick and secure access. The pen comes with split side panels mounted to the front frame that can be swung to the sides to assist in catching the cow and providing a safe zone for the handler.
Folding braces allow you to position the split panels beside your cow and lock them securely. Two 1/4” x 48” chains with quick links are included to lock the Split Panels.

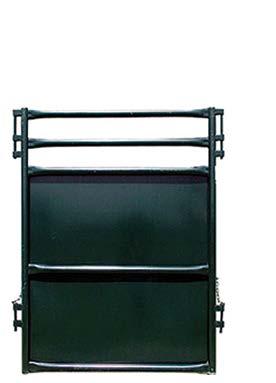

The sheeted side panels on the Calf Alley keep your calves focused on the path forward while keeping nose and toes safely inside. The sheeted panels are low enough for you to easily reach your calves. Reduce Labor, Increase Throughput – Move more calves in less time with a Calf Alley that prepares them perfectly for treatment, branding, or tagging in the Tipping Table.

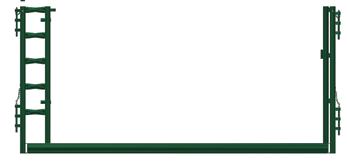

Calf Alley Spreader with Lift-up Gate, #59, 47 Lbs.
The lift-up gate in frame is operated by rope, allowing the handler to position themselves in the best location to effectively and efficiently move their stock. Connects with all Hi-Hog panels to make an 18" wide alley. Perfect for handling calves and small animals.
The inside of the alley is finished with 16 gauge sheet metal to keep your calves focused on the path forward. The 48" height makes it easy to reach into the alley.
Calf Alley Spreader with Side-tilt Gate, #60, 57 Lbs.
The side tilt calf alley gate locks in the closed position.
The additional interior clearance provided by this calf alley spreader makes it the preferred choice for those who work their calves from inside the alley.
Built the same as the calf alley panel (Item #243) but with an access gate for the handler. The access gate comes with a simple and secure gravity latch.

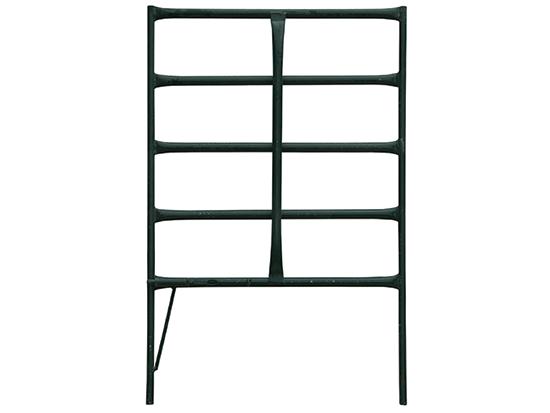

Calf Alley Spreader - Plain, #3330, 29 Lbs.
Like the side-tilt gate, the plain calf alley spreader provides better clearance for those who wish to work their calves from inside the calf alley.
Calf Alley Panel, #243, 129 Lbs.
Calf Alley Panel with Gate, #244,
• Self-Catching, Positive Locking auto Headgate
• The Headgate opens wide for easy release
• Headgate can be locked open
• Headgate comes with neck extender for superior control
• Fully reversible for left or right hand brands
• Squeeze and tip in one easy well balanced motion
• Adjustable bottom width to hold a variety of weights and stock
• Pin the calf alley directly the tailgate which does not tip

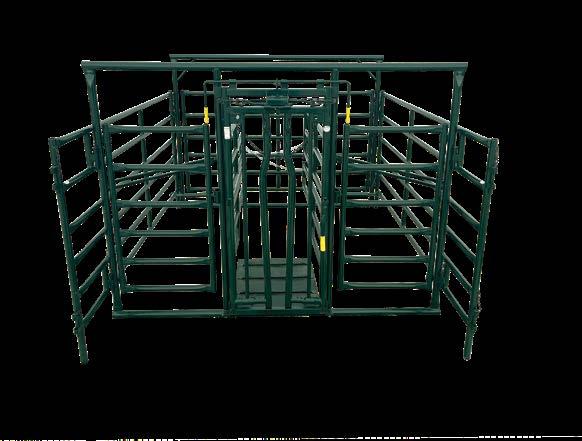

Calf Sorting Gate #382, 302 Lbs. Frame dimensions = 139 1/2” wide x 96” high
Hi-Hog’s Calf Sorting Gate can help you sort your calves with a minimum of stress. The heavy-duty livestock gate can be used as a traditional pen gate throughout the year. When you’re ready to sort your calves, you simply open the bottom half of the gate to allow your calves to flow through, with minimal stress. The height of the gate is adjustable. This allows you to set the height of the gate opening to match the needs of your operation. Set the height of the opening to be just below the shoulder height of your calves. The gate has seven height settings.
Six independent spring loaded side access panels swing down for safe, fast access to the full length of your animal
Access panels are sheeted to keep feet safely inside
Foot panel swings up to provide clear access to the feet
(the foot panel is also removable)
Equipped with convenient tie loops for securing legs
Heavy duty all steel construction
Quality fit and finish Table can be locked in upright position
An optional add-on Hydraulic Tipping Kit can be bolted directly to Hi-Hog's calf tipping table. (item #55). The

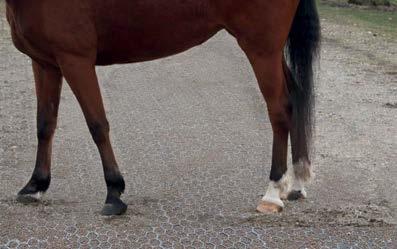

PADDOCK SLAB - #1336

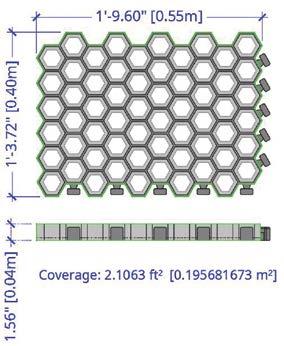

Coverage = 2.11 ft2/tile
0.1957 m2/tile
Tile depth = 1.56”
Stable Interlocking design
Multi-purpose Paddock Slab, porous tile has a wide range of uses for multiple industries. Equine Paddocks, Livestock System Bases, or Landscaping. Paddock Slab’s permeability, load bearing strength, and ability to lock fast with other tiles creates a smooth, continuous, erosion resistant grid. NOTE: Paddock Slab must be filled with some sort of sand, soil, pea gravel or clay. 1 yard of Pea Gravel will provide coverage for 120 pieces of Paddock Slab.
Special Order - BULL TIPPING
Item #95 - 2850 Lbs
Hi-Hog’s Hydraulic Bull Tipping Table is a valuable tool. Primarily used for bovine hoof treatment and hoof trimming.
The table is also used for examining and treating injuries and problems with a bull’s genitals or a cow’s udders.
The animal walks through the open area between the padding. Once in position the animal is restricted and calms down and can be tilted with the Hydraulic Controls.
*Contact Hi-Hog for Bull Table Availability.
Arena Footing Base
Erosion and Mud Protection Handling System Footing
TABLE
Paddock Slab Added to a Bison Alley Design
Paddock Slab
• Designed to be used wherever you need a barrier.
• Light weight and Portable with our standard Pin and Chain common connections.
• Ideal for low pressure animal segregation and Wellhead Protection.
• Handy Panels are constructed with 1-5/16” - 16 guage High Tensile North American Steel Tubing, with 3/16” flat interior vertical supports.
• Durable Polyester Powder Coat Paint finish.
• All Hi-Hog Gates have a Durable “Hi-Hog Green” Powder Coat Finish. #

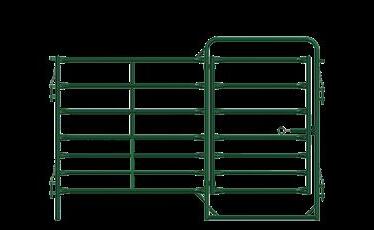

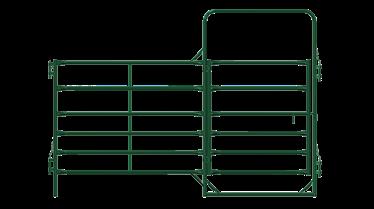

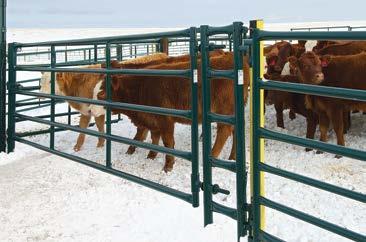

CORRAL PANELS:
• Designed for use in Holding Corrals
• The Narrow Spacing on the four bottom bars provides added Calf control. Suited for Equine and non-alley Cattle Corrals.
• Corral Panels are constructed with 1-1/2” - 16 gauge High Tensile North American Steel Tubing, with 3/16” flat interior vertical supports.
• Durable Polyester Powder Coat Paint Finish.
• Available in 5’ and 6’ heights.

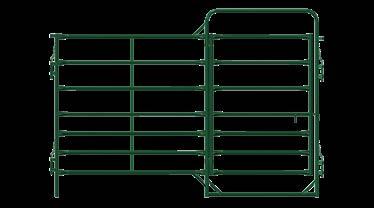

HEAVY DUTY PANELS:
• Designed for use in High Pressure Areas, such as Working Corrals and Handling Facilities.
• Narrow Spacing on the four bottom bars for Calf control.
• Heavy Duty Panels are constructed with 1.9” - 14 gauge and 1-1/2” 16 gauge High Tensile N. A. Steel Tubing and steel tubing interior supports.
• Heavy Duty panels are available in 5’, 6’ and 7’ heights.
• All Hi-Hog Panels have a Durable Powder Coat Paint Finish.

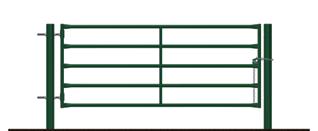

• Designed for low pressure uses such as acreage gates or in tandem with Hi-Hog Cattle Guards.
• Handy Gates are constructed with 1-1/2” - 16 gauge High Tensile North American Steel Tubing. Coned verticals remove sharp edges.
• Horizontals are reinforced with 1.25” x 3/16” flat bar.
• Handy Gates have two 13” x 3/4” All-thread hinges. 16’, 18’ and 20’ handy gates come with 13” x 1” All-thread 1.9” dia., hinge collars.
CORRAL GATES: HANDY GATES:
• Designed for moderate pressure uses such as corrals.
• The top, bottom, and end verticals are constructed of 1.9” OD, 14 gauge tubing. Interior horizontals are constructed of 1.5” OD, 16 gauge tubing. Coned Verticals remove sharp edges.
• Reinforced with 1.25” x 3/16” flat bar. Corral Gates have two 13” x 1” Allthread hinges.
• All gates includes 48” of 1/4” zinc plated chain and a no-slip chain latch.
DUTY GATES:
• Heavy Duty Gates are primarily used in livestock handling applications.
• Constructed of 1.9” OD 14 gauge High Tensile North American Steel Tubing. Coned Verticals remove sharp edges.
• Reinforced with 1 1/2” OD 16 gauge tubing. Coped to fit the horizontals.
• Heavy Duty Gates comes with two 13” x 1” All-thread hinges on four inch collars. 48” of 1/4” zinc plated chain and a no-slip chain latch.
• Available in 4’, 5’ and 6’ heights.
* Denotes a non-stock item
WALL CONNECTORS
These connectors bolt to a post or wall and connect with a pin to the panel.
CONNECTORS: LINKS 4’ PINS 2”x 5”plate x 2-1/2”deep
Most popular

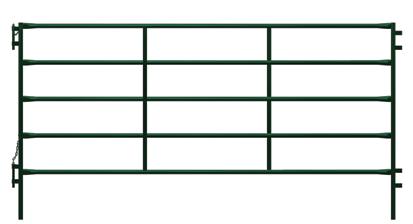

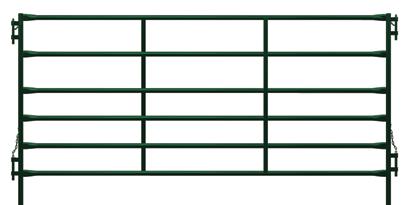

The 5 bar, 10’ Handy Panel is the most popular of our panels. This light weight utility panel with included pins makes a great portable panel. Terrific for low stress perimeter fencing, creating a temporary pen, or for securing a wellhead. We maintain a large stock of these panels. ( Item #720 )
Livestock panel sizes
The actual length of all Hi-Hog panels is 1” less than the descriptive name. For example a panel that is described as 10’ long is actually 9’-11” long, or 119” (this measurement is made from the outside edge of the panel connectors).
What’s in stock?
Hi-Hog maintains a large inventory of stock items. Please note however, some low demand items are built in small quantities and may not be in stock at time of order. These items are regarded as Special Order items. Special Order items are identified with an asterisk following the item number.
Connect multiple panels at one connection. Use two links for each
When you have two items that need to be connected, insert the connector pin through both the top and bottom connector to create a secure link. #1313 - 3.0 lbs 3/4"
*Non-stock , special order
CONNECTOR POSTS
Connector posts are used at the junction of multiple panels as an option to the connector link.
4
4
3
7' CONNECTOR POSTS
84” 84” Connector posts are used at the junction of multiple panels in Bison System as an option to the connector link. The Connectors line up with all Hi-Hog Alley Components.
4-1/2” O.D. STEEL POSTS
*Non-stock , special order Fits 6-Rail Heavy Duty Gates only
Built for durability
When a standard tubing panel is hit, it will bend and remain deformed. When a high tensile steel panel is hit, it will bend and then return to its original shape. The higher the tensile strength the more likely the panel will retain its original shape. Hi-Hog uses 60,000 psi high tensile tubing or better. Feel free to compare Hi-Hog’s tensile strength with other brands.
Common Panel Connector Height

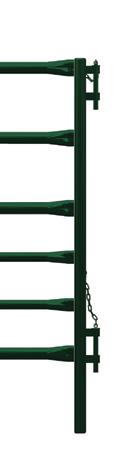

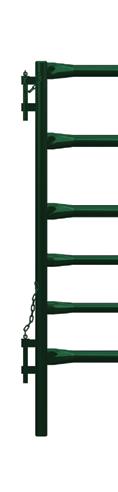

From Handy Panels to Bison Panels, Hi-Hog’s common connector layout gives you versatility.
GATES / GATE LATCHING OPTIONS
4’
View Panels and Gates on

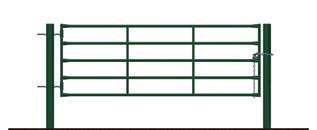

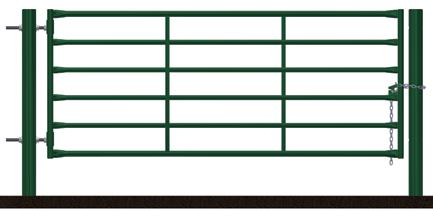

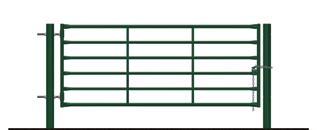

The Handy Gate length is 9’-7”. The Corral and Heavy Duty Gate length is 9’-6.75” The gate length is measured from the outside edges of the gate verticals (not including hinge collars).

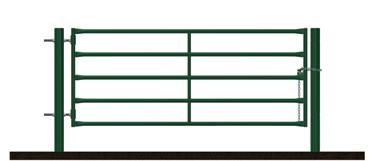

A 10’ gate is designed to fit a 10’ opening. The center of the top hinge is approximately 6” below the top of the gate vertical (with the gate mounted approximately 12” above grade).

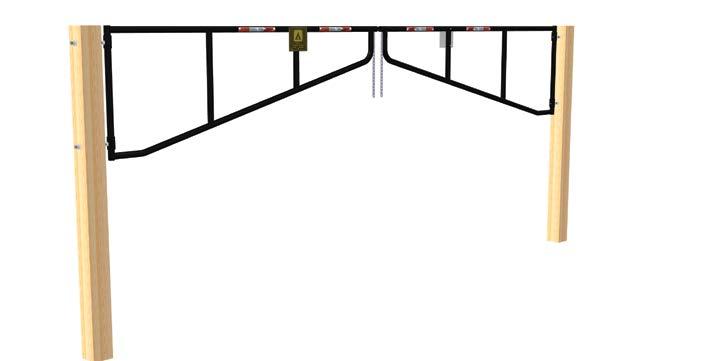

ROAD CONTROL GATES 2 - #8812 = 24’ Inside Span

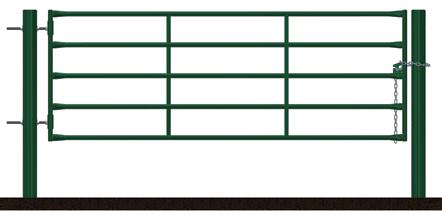

STANDARD CHAIN LATCH
Unless specified by the customer, all Hi-Hog gates come complete with 48" of 1/4" chain as well as a simple chain latch.
To latch, slide the chain into the locking slot and then pull the chain through the hole in the latch.
HORSE-BACK LEVER LATCHES
Simply lift the handle and push towards the spring loaded plunger latch to release (Plunger Latch sold separately). To close the gate just push the gate shut and it will lock automatically. Each gate model requires a specific lever latch (refer to the selection chart below). If ordering a gate with latch installed, see the table on page 42 for the item number.
Dimensions: 4”w x 4”h x 2”d Plate is 3/16” thick, Made to fit a 2-7/8" Dia. Post
Add a layer of security to prevent break-ins and vandalism
• Special Order Park Access Gates 24’ Inside double gate width.
• Common 2 lane entrances can be spanned by a single gate, but for wider entrances double swing gates give added stability.
• Manual swing-open barrier gates are made of heavy duty welded steel construction. They are typically powder coated in gloss black or Hi-Hog green with florescent hazard tape.
* Road Control Gates are a Special Order Item, please contact Hi-Hog for quotes and design assistance.
PLUNGER LATCHES
The Heavy Duty 7/8” plunger latch works in most situations. The Stockyard 1 1/8” latch is mainly used in extreme pressure situations.
Heavy Duty >
Stockyard >
HORSE-BACK DROP LATCHES
The drop latch is designed to be operated from horse back. A 4' rod slides through tubing that is attached to the end of the gate at a 45 degree angle. This latch uses gravity and requires the operator to lift the latch for both opening and closing.
Dimensions: 7-3/8”w x 4”h x 1-3/8”d Plate is 3/16” thick, 7/16” diameter bolt holes
U-FRAMES WITH GATES

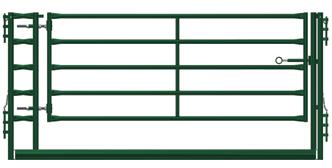

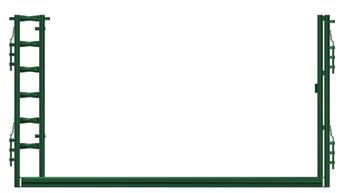

An excellent alternative to the traditional overhead bow gate, for those who do a lot of tractor work, or for providing access for oversized vehicles.
U-Frames offer a wider range of options over traditional bow gates. The U-Frame allows for alley widths up to 18’ and gate widths up to 16’.
The U-Frames are available in both 5’ and 6’ heights.
The heavy duty U-frame is built for strength and durability. The strength of the U-frame is secured in the 4.5” OD foundation tube.
The 13” steel trussed hinge post provides superior strength to support the gate without deflection.
The 13” trussed offset creates a safe zone where a handler can safely escape.
The hinge post comes with sleeves designed to fit any of our standard corral or heavy duty gates with adjustable hinges.
Because the gate is a separate option, it can be easily removed and/or replaced. Gates can be purchased with a chain latch or a 7/8" plunger latch. The included striker plate is set at a height for use with Hi-Hog’s heavy duty gates. If you wish to use a corral gate with a 7/8" plunger latch, you will need to purchase and mount an additional weld-on striker plate; #1648 (call for instructions).
U-SPREADERS

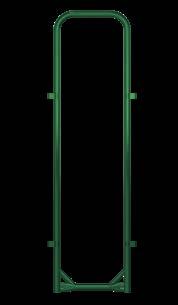

Like the U-Frame, U-Spreaders allow you to fix the width of an alley without using posts in the ground or an overhead spreader.
• The posts are built with heavy 2-3/8” OD (.154 wall) tubing and are open top and bottom.
• The Ground Rail is 2 7/8” OD (.203 wall) tubing.
• The posts are welded to a U-Bracket, which is also a cap for the ground rail and reinforced with 6” gussets.
The optional item #305 can be added to an existing U-frame to add 12" to the height.
Note: The U-Frame will connect with any Hi-Hog panel. Be aware that the bottom 4.5” O.D. rail is intended to be buried below grade. If you are installing on top of a finished surface such as concrete, this rail may present a hazard.
#312

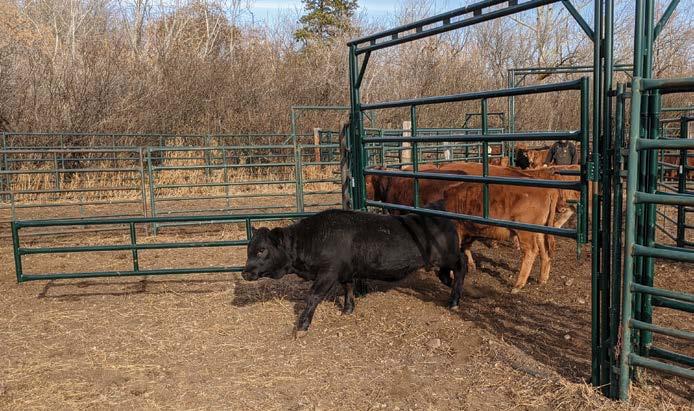

FRAMES WITH GATES
Frames with gates as well as overhead alley spreaders provide a versatile corral option. The common connector system allows you to use any of these items with any Hi-Hog panel. If you need the gate somewhere else, simply un-pin it and move it to the new location. The #382 - Calf Sorting Gate (p. 37) and #1160 - Calving Enclosure Frame & Gate (p. 35) provide additional Frame & Gate sorting and low roof options. The actual length of a frame & gate is 1” less than the descriptive name. For example, a frame & gate that is described as 12’ long is actually 11’-11” long from the outside edge of the panel connectors.
The actual length of an overhead alley spreader is 9 1/4” longer than the descriptive name. For example, a 12’ long overhead alley spreader is actually 12’-9 1/4” long from the outside edge of the spreader connectors. The end posts come with three-way connections.
Note: 10’ and 12’ high overhead frames with gates are available by special order. If you require more than 8’ of overhead clearance we recommend Hi-Hog’s U-Frames with gates as they offer unmatched clearance and more versatility. The one exception is if you intend to install your frames with gates on a solid surface. In this situation the base rail of the overhead frame is a smaller diameter compared to the 4.5” diameter U-frame bottom rail.
Handy Gate in 7’ High Frame
Heavy
Corral Gate in
CATTLE GUARDS
Stronger Cattle Guards mean a Safer more secure Ranch and Wellsite. – From ranch to oilfields, Hi-Hog’s Texas Gates provide the security and durability you need.

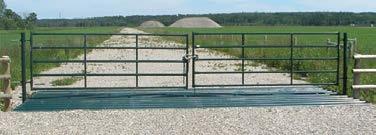

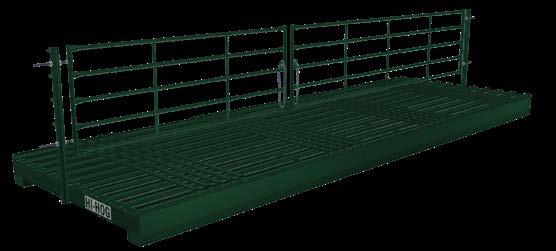

3818XR - 18’ Single Sill Texas Gate with optional Gate Posts, Handy Gates and Smooth Ride Bars.
Sill Options
• If you’re placing your cattle guard on concrete sills, (or other structural support) select cattle guards with no sills
• If you’re digging a trench and installing your cattle guard on stable ground, select a cattle guard with single sills.

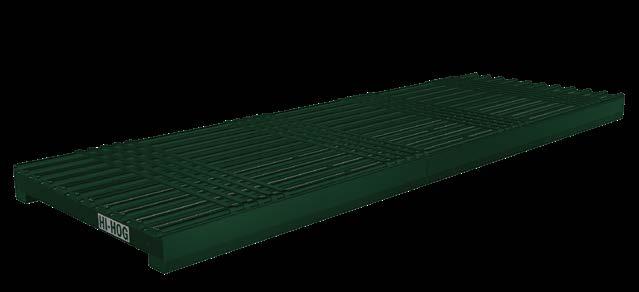

2026 - Cattle Guards
Hi-Hog's cattle guards are available in three widths; 10', 14' and 18'. If you require a wider cattle guard, you can combine cattle guards. When combining cattle guards you will require a connector set #3529X*
Protect your investment and lower your risk with Hi-Hog’s heavy duty wellhead fencing.
The cattle guard fence of choice for oilfield, pipeline and utility companies. The quick connect design offers superior flexibility for set-up on uneven terrain. The top rail connector removes the risk of animal leg traps.
installation No Tools Required
Tubing is coned to ensure there are no sharp edges.
10’-14‘-18’ Lengths With Smooth Ride Bars Increase the Load Capacity
Smooth Ride Bars will increase all Texas Gate load ratings to an axle capacity of 90KN, or 9,278 kg, which is equal to a (B1) Range Type Certification.
Well Fence, Guy Wire Guards and Cattle Guards are built several times a year, but may not always be in stock. Please call for availability.
Visit Our Fencing Web Page

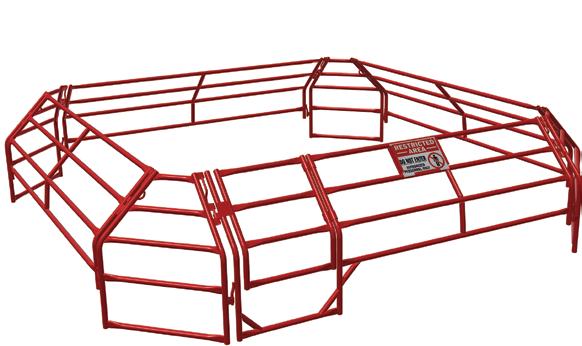

For small hazards such as guy wires, these panels offer an alternative to our standard wellhead fence system. Simply pin three panels around the hazard and if necessary stake them to the ground (ground stakes included)
• High Visibility Guy-Wire Protection
• Tool Free Easy On-site Installation
• Hi-Tensile Steel Tubing Construction
• Safety Features (Coned Tubing Ends + Ground Stakes)
• Stackable, Easy Transport Design
• Powder coat paint finish in Safety Red
• Ships anywhere in North America Weight: 26 lbs. per panel, 78 lbs for a set of three.

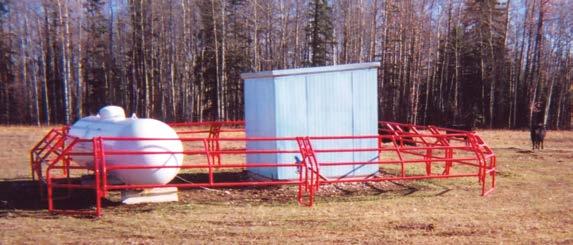

All Hi-Hog oilfield fencing panels are manufactured in our Calgary facility using hi-tensile North American steel tubing. Designed for durability, livestock control, and site security, our wellhead fencing systems are supported by a strong independent dealer network across North America.
Learn More About Nifty Roll-Out Feeders
NIFTY FEED DISPENSER
Shipping Dimensions

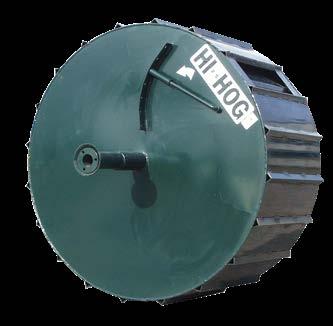

Drum diameter: 60 9/16"
Drum width: 29 3/4"
Drum width with axle sleeves: 35 3/4" (Shown with axle extensions attached)
The Nifty Feed Dispenser allows a single operator with a round bale handler or trailer-style feeder to load, transport, and dispense grain, cake feed, pellets, or supplements under range feeding conditions.
With a 37-bushel capacity, this versatile dispenser is ideal for winter and summer supplementation, pre-breeding conditioning, or extended pasture feeding during drought. The dispenser delivers feed at consistent 15-foot intervals, and the adjustable hopper opening gives you precise control over how much feed is dispensed with each rotation.
A baffled interior allows supplements to be mixed evenly into the feed, and the Nifty Feed Dispenser can deliver enough supplement for up to 250 head in a single trip, helping you save time and labour in large pasture operations.
LIVESTOCK FEEDERS
NIFTY FEED DISPENSER TRAILER
Shipping Dimensions Length: 123 7/16"
Width: 70 11/16"
Height: 40 3/8"
The Nifty feed dispenser trailer provides an additional method for transporting and dispensing feed with your Nifty feed dispenser. This heavy duty trailer has been designed to make it easy to load, transport and feed with your Nifty feed dispenser.
• Maximum gross weight of a loaded Feed Dispenser Trailer is 4,000 lbs. This is based on the load limit of the tires we are using.
• The combined trailer and dispenser weight is 1,237 Lbs
Includes:
• New 15” tires
• 2” lockable ball hitch
• Heavy cross tie chains
• 2000 lb winch with auto lock
• 2000 lb trailer jack
• Dispenser sold separately
Guy Wire Cattle Guard
Description # Weight (lbs)
Guy Wire Panel 3977 26

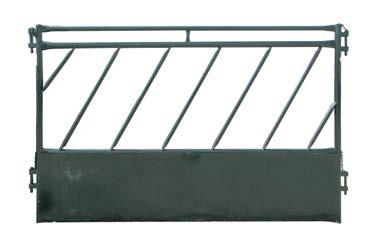

A double top rail provides additional strength. Tubing ends have been coned to eliminate sharp edges. Panels are 60” high.
Construction*: 1-1/2” OD, 14 ga. for the top rail. 1.9” OD, 12 ga for the two interior horizontals and 1.9 OD 14 ga. for the bottom horizontal and outside verticals. The slant bar stanchions are 1-5/16” OD, 0.125 wall.
*The 16’ slant bar panel is built heavier.

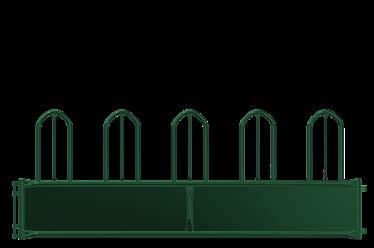

The Tombstone Feeder Panel provides improved access for horned animals such as cattle or bison, and is preferred for feeding horses because there is no top horizontal bar for the horses to wear their manes on.
Construction: 2-3/8” OD, for the panel frame. 1.9” OD, 14 ga, for the tombstone hoops, and 1” OD, 14 ga. for the interior vertical inside the tombstone hoops. Panels are 49” high.
The 60” high Creep Panel is used to help separate calves from their mothers. The stanchions are wide enough (17.25” opening) for calves to step through to access feed, while the cows are restricted to one side. Tubing ends have been coned to eliminate sharp edges.
Construction: Built from 1-1/2” OD, 16 ga. & 1.9 14 Ga hi-tensile steel tubing.
* Denotes a non-stock item
HURRICANE MULTI-BALE FEEDER
The Hurricane Multi-Bale Feeder is a rugged two bale feeder. To assemble this feeder simply combine two 8’-5” straight Hurricane Feeder Panels with two 14’-8” straight Hurricane Feeder Panels. The panels pin together to create a rigid corner brace. Panels are 60” high. Stanchion width is 13.5".
The stanchions project in towards the bale to keep feed inside the feeder. This feeder has 30 feeding positions. This feeder can be extended by using an 8’ U-frame as a spreader (#1743). These panels can also be used as fence line feeder panels.
HURRICANE SQUARE BALE FEEDER

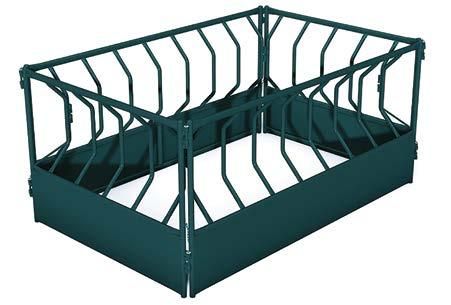

The Hurricane Square Bale Feeder has an inside dimension of 8'-11" x 5'-2". To assemble this feeder simply combine two 7'-2" straight Hurricane Feeder Panels (#1244) with two 10'-11” straight Hurricane Feeder Panels (#1248). The panels pin together to create a rigid corner brace. Panels are 60” high. Stanchion width is 13.5".

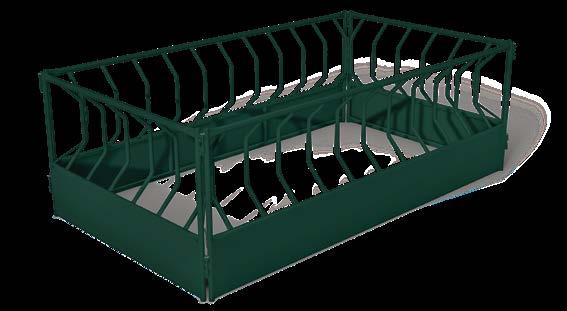

The stanchions project in towards the bale to keep feed inside the feeder. This feeder has 22 feeding positions. These panels can also be used as fence line feeder panels.
Tombstone Feeder Panels
Cow/Calf Feeder
Construction: The frames are 1” square tubing 0.100 wall. The stanchions are 1-5/16”, 0.125 wall. The bale saver stanchions project inwards to reduce feed waste. The stanchions are slanted diagonally to deter livestock from climbing into the feeder. The 20.75” high base is sheeted on the outside with 16 gauge sheet metal. Three sections bolt together to create a solid cow/calf feeder.

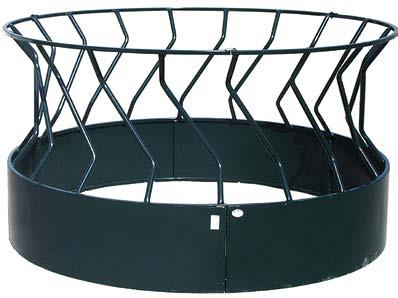

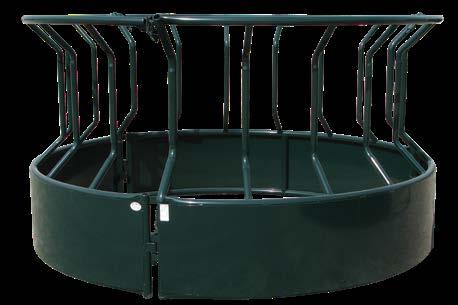

The Twister Round Bale Feeder provides the best value for your dollar.
18 Feeding Positions
85” ID, 101” OD
Construction: The frames and stanchions are 1.9” OD, 14 gauge. The bale saver stanchions project inwards to reduce feed waste. The 22” high base is sheeted on the outside with 16 gauge sheet metal. Three sections pin together to create a solid bull feeder.
15 Feeding Positions
Cow/Calf Feeder
Construction: The frames are 1.9” OD 14 gauge. The stanchions are 1-1/2”, 14 ga. The bale saver stanchions project inwards to reduce feed waste. The 22” high base is sheeted on the outside with 16 gauge sheet metal. Three sections pin together to create a solid cow/calf feeder.
Hi-Hog’s Heavy Duty Cow / Calf feeding option.
18 Feeding Positions 88.5” ID, 108” OD
Construction: 1.9” OD high tensile, 12 gauge tubing for the frame, and 1.9” OD, 14 gauge for the hoops. Each of the hoops is filled with 1”OD 14 gauge interior vertical. Each corner and tombstone hoop is also braced. The 22” high base is sheeted on the outside with 16 gauge sheet metal. Three sections pin together to create a solid, veratile Stock feeder. This feeder is preferred by ranchers with horned livestock. There is no top horizontal hoop for horses to wear their manes on. 12 Feeding Positions 95” ID, 113” OD
Bull Feeder
Cow / Calf / Bison / Horse Feeder

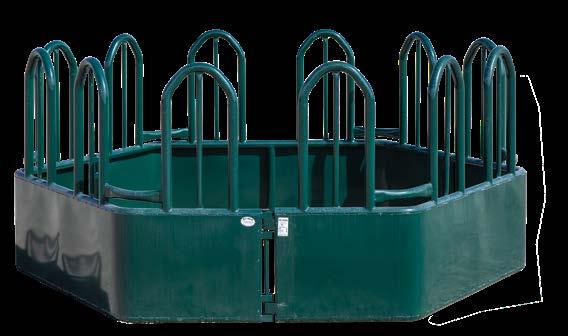

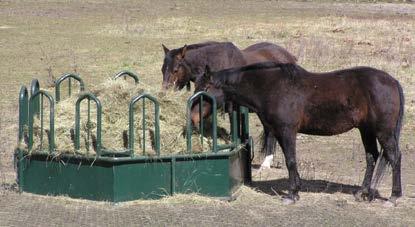

TOMBSTONE ROUND BALE FEEDER

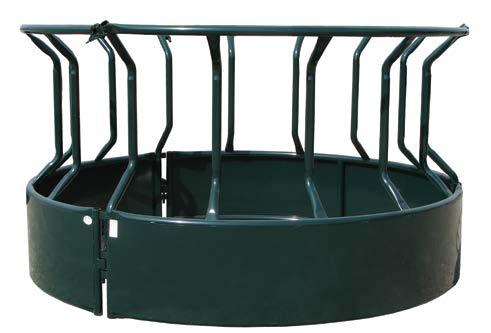

TORNADO ROUND BALE FEEDER
Learn About Hi-Hog’s Modular Horse Stalls

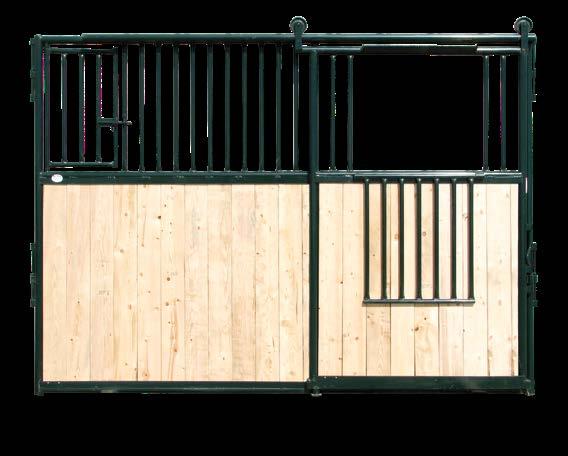

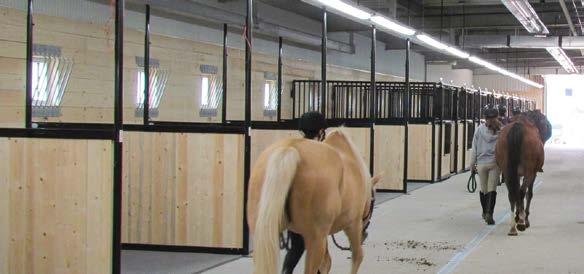

Over forty years of design improvements have resulted in the refined and polished Standard Box Stall of today; a simple design perfectly executed.
The quality and condition of your stabling environment affects the health and performance of your horse. Surround your horse with The Standard your horse desires and deserves.
Note: The stall front shown is a Right Hand Stall Front because the door is located on the right side when you look at the front of the stalls. For assistance laying out your stables call us and we can prepare a scaled plan for you. Lumber not included

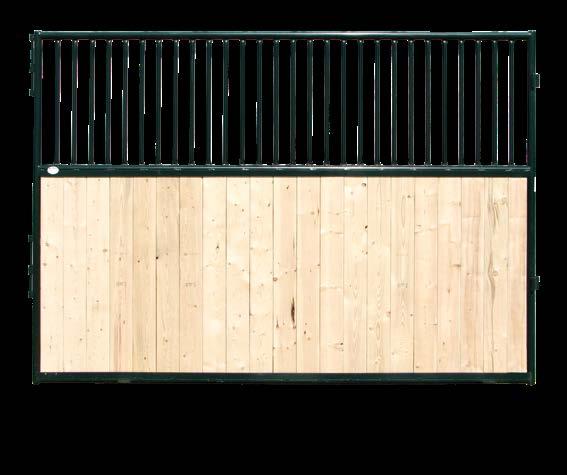

OPEN-TOP PARTITION
Open-Top Partitions are available in 10’ and 12’ lengths. The heavy duty 1.9” OD, 14 gauge steel frame provides safety and security. The vertical bars are set on 4” centers (3” opening). To finish assembly simply slide the lumber of your choice into the integrated channels and bolt the last piece in place.
The Open Top Partition will bring more light and better ventilation into the stall. Open top partitions are recommended for end stalls or where the neighboring horses are comfortable with each other. Lumber not included

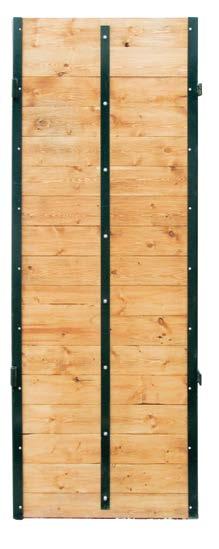

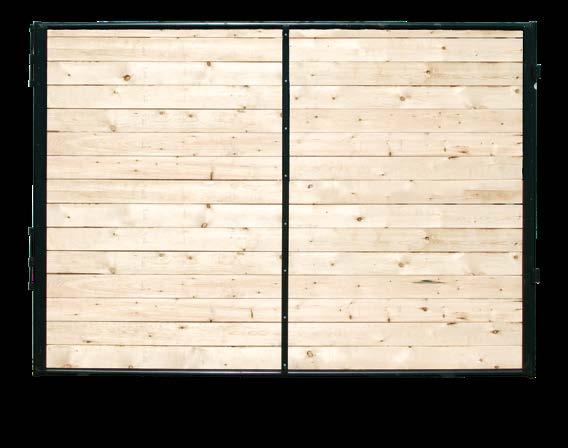

ALL-PLANK PARTITION

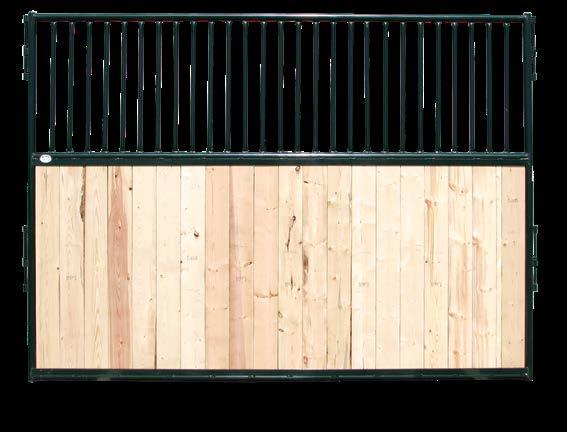

All-Plank Partitions are available in 10’ and 12’ lengths. The heavy duty 1.9“ OD, 14 gauge welded steel frame provides the safety and security that you demand.
Designed for quick installation. The partitions pin directly to the stall fronts. Channels are built into the frame to receive your lumber. Simply slide the lumber into the channel and secure the last board in place. Additional rigidity is achieved by tying each of the boards to the included strapping set (the vertical flat bar shown in the middle of the partition. The 10’ partition includes one strapping set and the 12’ partition includes two strapping sets. Lumber not included
Foaling Partitions are available in 10’ and 12’ lengths. The heavy duty 1.9” OD, 14 gauge steel frame provides strength and security.
Foaling Partitions are designed so they can be removed to create a large temporary foaling stall, without compromising the structural integrity of your stall structure.
If you want to include a Foaling Partition please be aware that you will also require a foaling tele-post (the tele-post goes in between the stall fronts) and a set of foaling stall brackets (#4062 x 2) at the back wall of the stall. * May not always be in stock. Lumber not included
Open Top Foaling Partition
For Stand Alone Stalls, one #1635 Connector Post is required for each Bank of Stalls.

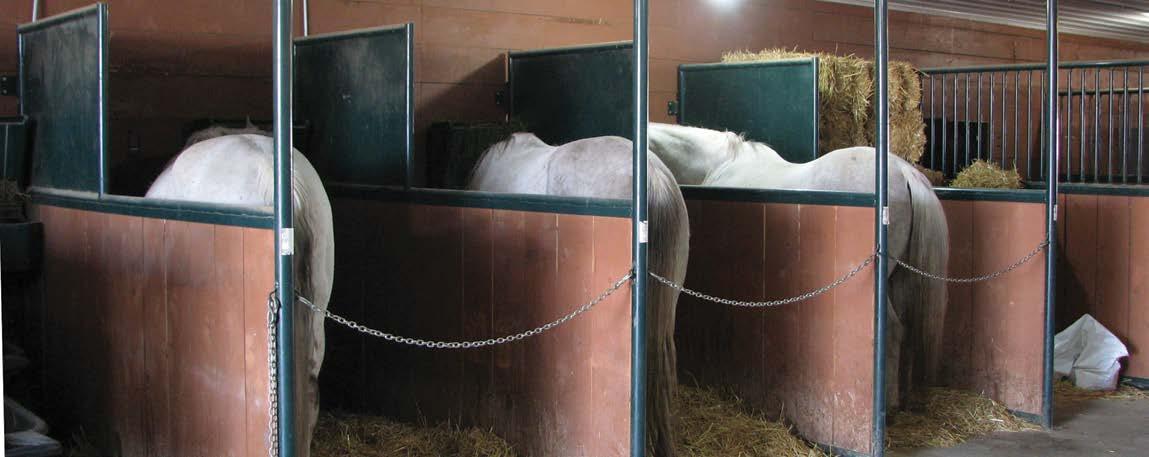

STANDING TIE STALLS AND TIE STALL MANGERS
The partitions are 10’ long. The front section is 7’ tall and the back section is 52” tall.
Attach the front of the partition to the barn wall with two wall brackets (item #4061 or #4062 - see page 51). The rear of the partition comes standard with an adjustable telepost which lags to the barn floor and ceiling. The telepost ceiling bracket can be adjusted for ceiling heights from 8’ to 12’.
Loops are mounted to the rear of the standing tie stall partitions for those horses that may require a rope or chain across the rear of the tie stall.
The raised front portion of the panel comes with 16 gauge sheet metal. The bottom of the panel frame includes a channel ready to accept 16 pieces of 2x8 x 47.5” lumber.
Wood and wood fasteners are not included.

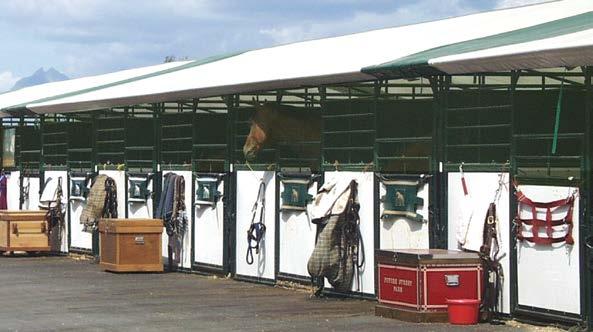

PORTABLE EQUINE EVENT STALLS

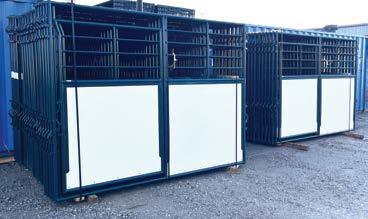

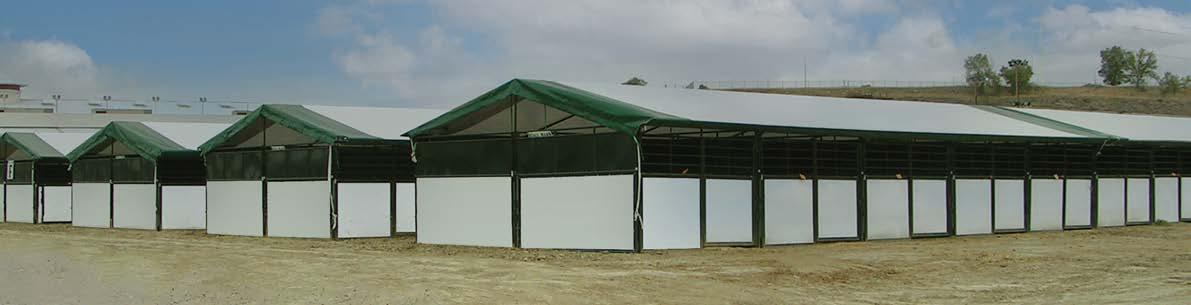

Hi-Hog’s powder-coated Portable Equine Event Stalls are engineered for fast, repeatable installation—season after season. Designed to be light enough for efficient handling yet strong enough to withstand frequent setup and takedown, these stalls deliver dependable performance for equine events of every size.
Built for professional venues and event organizers, Hi-Hog Portable Stalls are trusted by some of the most respected facilities in the industry, including Spruce Meadows, Thunderbird Equestrian, and the Calgary Stampede.
Each system is built to order and tailored to your layout requirements. Our team is available to assist with stall configuration and event-specific design. non-stocked items - built to order Call us at 1-800-661-7002 to begin the design process.
The feed mangers come with brackets for mounting at the front to a wall and sleeved brackets on the side of the manger extend to attach to the side of the tie stall partitions or the barn side wall. The manger mounts between the tie stall partitions which will be on approximately 60” centers. A tether ring is mounted on the front of the feed manger.
8 cubic foot capacity.

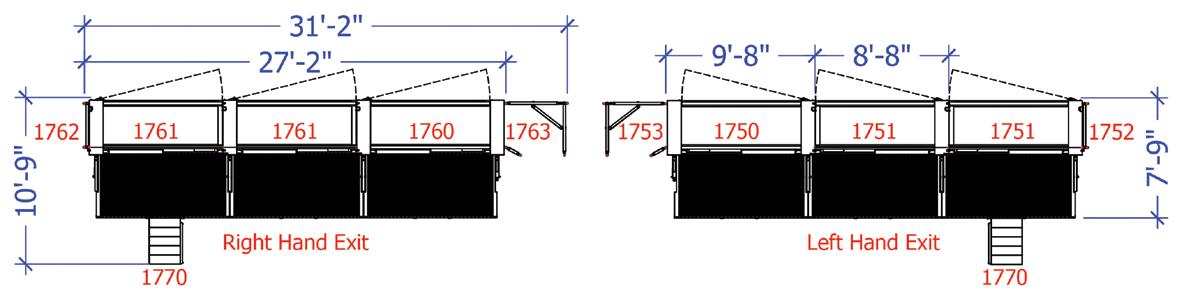

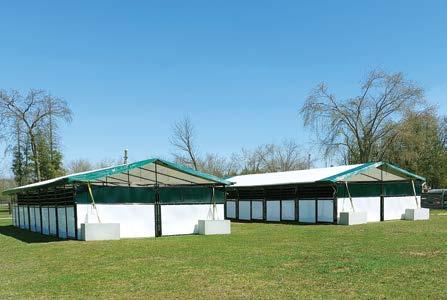

Event Stalls requiring roofing measure 10’ x 10’. Banks of back-to-back stalls can be purchased with or without roofs.
Roof tarps are designed for stall plans with a minimum size of 20’ wide by 30’ long (6 stalls).
For pricing please call toll free 1-800-661-7002
Standing Tie Stall Partitions, Item #6115.
Tie Stall Feed Manger, Item #6113.
Learn Hi-Hog Equine Event Stalls
Your choice of Hi-Hog’s best-in-class Portable Equine Event Stalls will demonstrate your high regard for ensuring your patron’s valued equine partners are safe and well cared for. Hi-Hog’s outstanding event stall fronts and partitions are available in 10’ and 12’ lengths. non-stocked items - built to order
EnginEErEd for SafEty and durability
Designed with Bio-Security in Mind
Designed to support event-level biosecurity standards, with durable finishes that allow for effective cleaning between installations.
Flat-Swing Gate Design
The stall front gate is mounted on offset hinges at the center post, allowing it to open flat against the stall face for unobstructed access.
Secure, Simple Door Latch
Designed for reliable operation and ease of use during busy event conditions.
Extended Top Rail for Safety
The top rail extends toward the latch area to eliminate a potential leg trap.
Reinforced Gate Frames
Corner gussets add strength and improve long-term frame rigidity.
Additional Interior Vertical Support
Enhances structural strength and rigidity of the horizontal rails on both stall fronts and partitions.
Coned Tubing Ends
Gate tubing ends are coned to provide a smooth, rounded, and safer finish.
16-Gauge Formed Sheet Metal Panels
Partition tops are filled with formed sheet metal ridged for added strength while reducing noise and vibration.
Forklift-Ready Partition Design
A top gap in the partition allows forklifts to easily handle and reposition panels during installation and teardown.
Integrated Tie-Down Points
Stall fronts include two sets of tie-downs for securely attaching feed and water accessories.
View Equine Corral Options on Hi-Hog’s Website

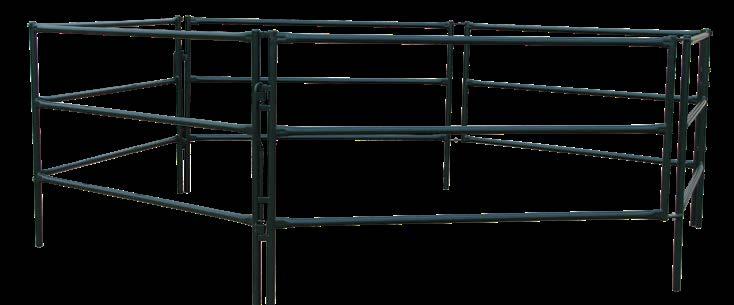

PORTABLE HORSE CORRALS
• 50” high panels
• Folded length of 6’-10”
• Unfolded length of 13’-6”
• 1.5” OD 60,000psi high tensile steel construction
• Powder coat paint finish
• Tool free, one handed latching
• Sets up quickly, easily & securely
• 3 legs per panel for stable, one person set-up
• Extended shephard latch securely locks two panels together
• Optional 4-way posts allow for multiple pens
ROUND PENS
Hi-Hog’s Portable Horse Corrals are designed for riders, trainers, and competitors who need safe, dependable containment wherever they travel. Whether at horse shows, clinics, trail rides or overnight stops, these folding steel panels provide quick setup, secure connections and compact transport.

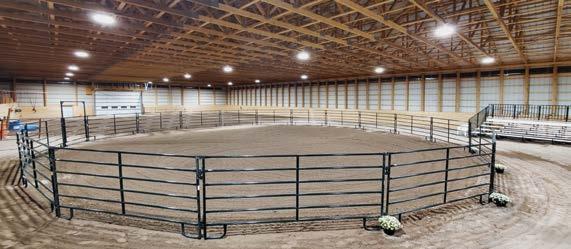

Hi-Hog’s Savanna Round Pen is a foundational tool for safe, effective equine training. Ideal for groundwork, lunging, colt starting, and riding schools, the pen’s tapered panel design helps discourage horses from crowding handlers along the perimeter— reducing pressure points and improving safety.
Each tapered panel measures approximately 8’-6” in length and stands 6’ high, providing secure containment while maintaining excellent visibility. The gate frame matches panel length, allowing you to reposition or add a gate easily by swapping panel sections. The Savanna Round Pen is available in a range of diameters to suit private barns, training facilities, and commercial equine operations.
Standard finish: Hi-Hog Green powder coat Lumber not included.
The perfect balance of portability and strength. Constructed with 60,000 psi high tensile 1.5” steel tubing for superior strength (Gate tubing is 1.5” OD, 16 ga. except for the gate frame which is 1.9” OD, 14 ga.).
The panel design ensures there are no sharp edges by eliminating the use of flat bar and coning the ends on all end-cut tubing. Top connectors eliminate the leg trap gap between panels. Mud legs provide additional support and resistance against sinking in soft conditions.
The Parkland Round Pen can have a wide range of diameters. The most popular diameters are shown below.
Use the QR code to visit Hi-Hog’s Round Pen page on the website, for complete Round Pen sizing and panel amounts.

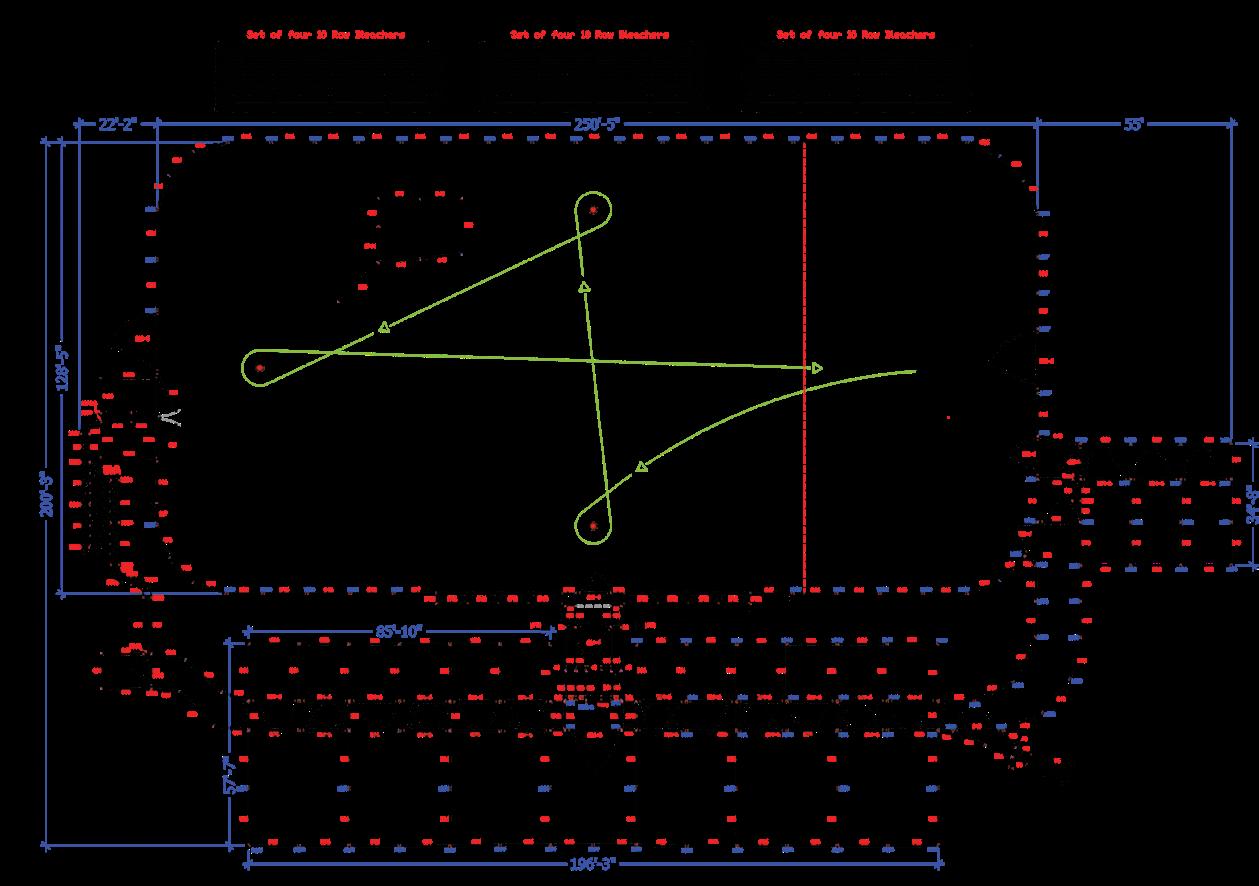

Use the QR code to go to Hi-Hog’s Rodeo Arena Design Service website page.

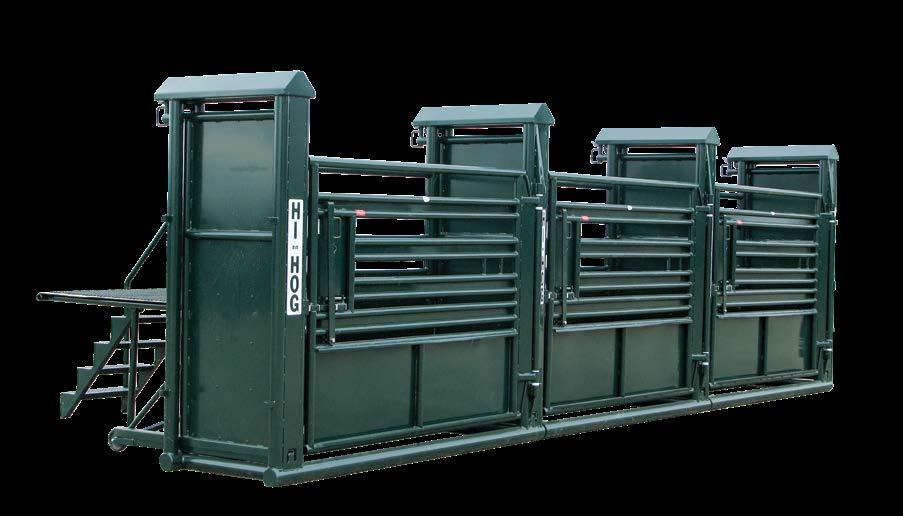

Hi-Hog’s modular Bucking Chutes are engineered for agricultural societies that demand professional grade performance, enhanced safety and durability. These strong, responsive chutes deliver reliable operation for contractors while protecting riders, livestock and spectators.
Rough Stock Chute features include:
• Solid spring loaded lever latches.
• Guides lined with Tivar to reduce friction.
• Offset hinges allowing the gates to swing back flat.

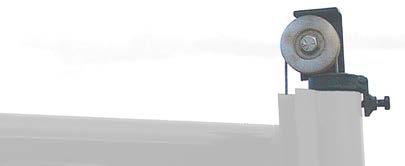

• Rubber padded rolling doors that travel on a shortened upper track.

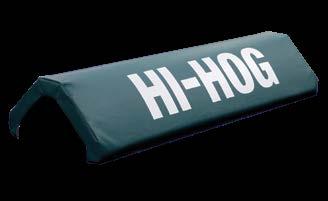

Optional Bucking Chute Crash Pad, #1759
View Bucking Chutes on Hi-Hog’s Website
U-Frame (#326 R), Supports the two 16’ Side Panels and 12’w x 5’h Heavy Duty Gates and Anchors the front of the Roping Chute.
Second Stage Roping Chute Item #1201
• Built to PRCA and CPRA specifications.
• Manufactured using minimum 60,000 psi, high tensile steel tubing.
• Contoured sheeting used on the bottom 35” keeps your stock facing forward.
• Release gate springs open and locks securely.
• Equipped with quick access barrier gates on both sides of the chute.
• Operator access gate allows access to stock.
• Stock flow can be easily controlled with the side-tilt tailgate.
* Denotes non-stock items. Call us at Hi-Hog for planning, quotes and design assistance.
First Stage Roping Chute Item #1200
RODEO - QUICK DRAW SORTING ARROW
Sorting Pens are critical to the success of timed events where competitors draw for their calf or steer. Neither the cowboys nor the audience want to wait while you struggle to cut a specific animal out of a pen.
The Quick Draw diagonal feed system makes it easy to load your stock into individual pens. Loading the correct draw is now as easy as opening the gate on the pen that holds the number you are looking for.
Each set will hold four head. By extending the sort alley or mirroring the sort alley you can increase the number of pre-sort pens in multiples of four.
The 7 rail sorting gates keep heads out of the alley. The leadup alley is 24” wide.
Diagonal Sorting System Components
* Denotes non-stock item
View the Custom Rodeo Design Web Page
Quick Draw Sorting Arrow
The quick draw sorting arrow makes sorting a breeze. Simply cut your stock into their own individual pens. It doesn’t matter which pen each animal is in, as you only need to release the animal that has been drawn.
View Panels and Gates on Hi-Hog’s Website
Heavy-duty steel bleacher frames are engineered for safe, durable outdoor seating at arenas, rodeo grounds, agricultural societies, parks and recreation facilities across North America.
• Available in 5-Row and 10-Row configurations
• Each bleacher section measures 16 feet in length
• Modular design allows sections to be connected end-toend for expanded seating capacity
• Stair access must be specified as left-hand or right-hand at time of order
• Stairs must be positioned adjacent to a handrail system
• A single 5-Row Bleacher Frame seats approximately 53 people (42 with stair configuration)*
• A single 10-Row Bleacher Frame seats approximately 106 people (82 with stair configuration)*
• Seating capacity based on 18” per person

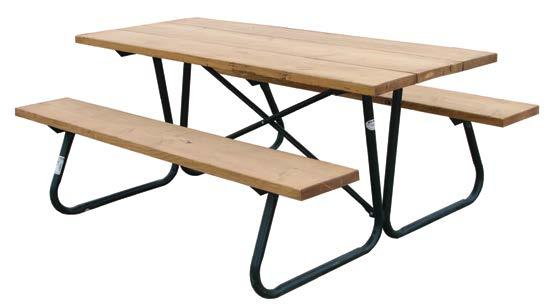

Hi-Hog Picnic Table Frames are built to last. Ideal for Public Parks and Campgrounds.
The angled bench support prevents the table from tipping if there are people seated on one side only.
Hi-Hog’s walk through Picnic Table Frames are made from 1.5” OD 14 gauge, minimum 60,000 psi high tensile steel tubing.
Wood not included, Some assembly required
•Optional Skid Frame Base available for installation on grass or soft surfaces and for portable applications
• Designed for installation on a level surface and proper anchoring to resist wind loads
Assembly is Required.
Package includes steel frame and steel fasteners
Wood seating planks and wood fasteners not included *Seating capacity may vary depending on layout and local code requirements.
When your facility needs safe, dependable outdoor seating, Hi-Hog’s steel bleacher frames deliver strength, compliance and long-term value. Each modular 16-foot section is built to meet ICC 300 standards and expand with your needs. Ideal for rodeo grounds, agricultural societies, parks and community arenas. Hi-Hog bleacher frames provide durable, low-maintenance seating engineered for performance in demanding environments.

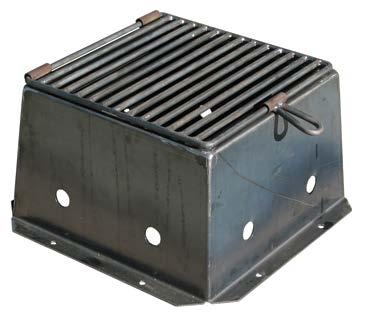

The Fire Box includes a grill that swings safely out of the way. 1-1/2" diameter air holes are cut around the perimeter of the base to allow superior airflow. The base plate includes 1/2" diameter holes for secure anchoring.
The grill measures 18" x 18" and is made with 1/2" Round Bar. The overall footprint of the fire box is 25" x 25", and the box is 12 1/2" high.
Additional designs and options are available.
5-Row Bleacher Frame Set - Stairs Right
3 sets of 10-Row Bleachers; two frames with stairs

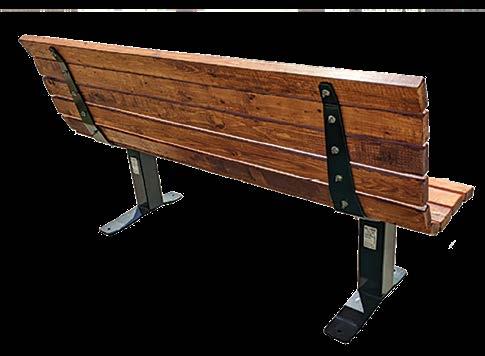

Relax, Hi-Hog’s contoured metal Park Bench kit. The DIY Park Bench kit includes two heavy duty park bench supports (item 6160, 58 lbs.).
The bench frame is carefully formed to ensure each plank mounts flush with the steel support.
The formed base shifts the load to the outside of the base frame to provide stable footing.
Wood not included, assembly required * Special Order

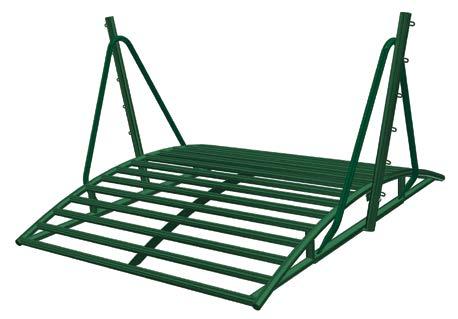

Hi-Hog’s UTV Cattle Guard crossing makes it easy for you to move through your fence lines and into other pastures without going through a gate.
There’s no need to dig a hole. Simply cut your fence, lay the cattle guard on the ground and re-attach your fencing, done!
