Xsafe bracket system

Safety made easy.

The Xsafe bracket system is a lightweight working and pouring platform that can be assembled by hand. Well-conceived safety features integrated into the few individual parts guarantee intuitive, safe assembly. The new modular system deckings can be used with various Doka wall formwork systems.

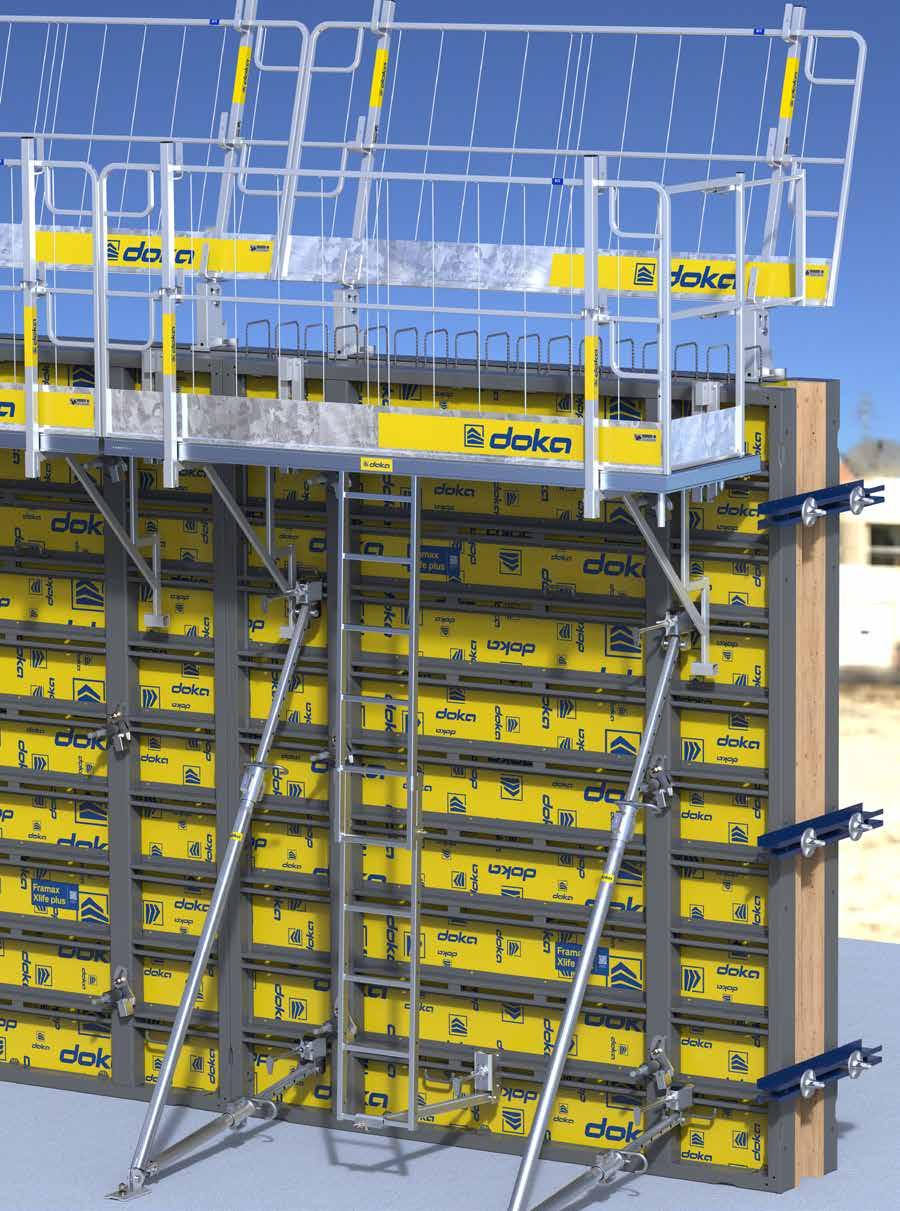

Crane independent system with high safety standards

ƒ The system is based on brackets that can be attached to the formwork by hand.

ƒ Modular system components are used instead of the usual wooden planks and guardrail boards.

ƒ This solution combines the advantages of a lightweight, manually installable system with the high safety standards of a heavy crane lifted platform.

Time and cost savings through single-operator assembly

ƒ The maximum weight of the individual parts is < 25 kg.

ƒ Crane independence and single-operator use saves time and costs. The system can be installed on horizontal or vertical formwork.

Flexible, adaptable and compact

ƒ The main system components can be used with the wall formwork systems Framax Xlife plus, Framax Xlife, Frami Xlife and DokaXlight.

ƒ Particularly with Framax Xlife plus and Framax Xlife, the two-part bracket creates a continuous work-deck level, regardless of whether horizontal or vertical formwork elements are used.

ƒ Practically all element combinations can be covered with just 4 decking types.

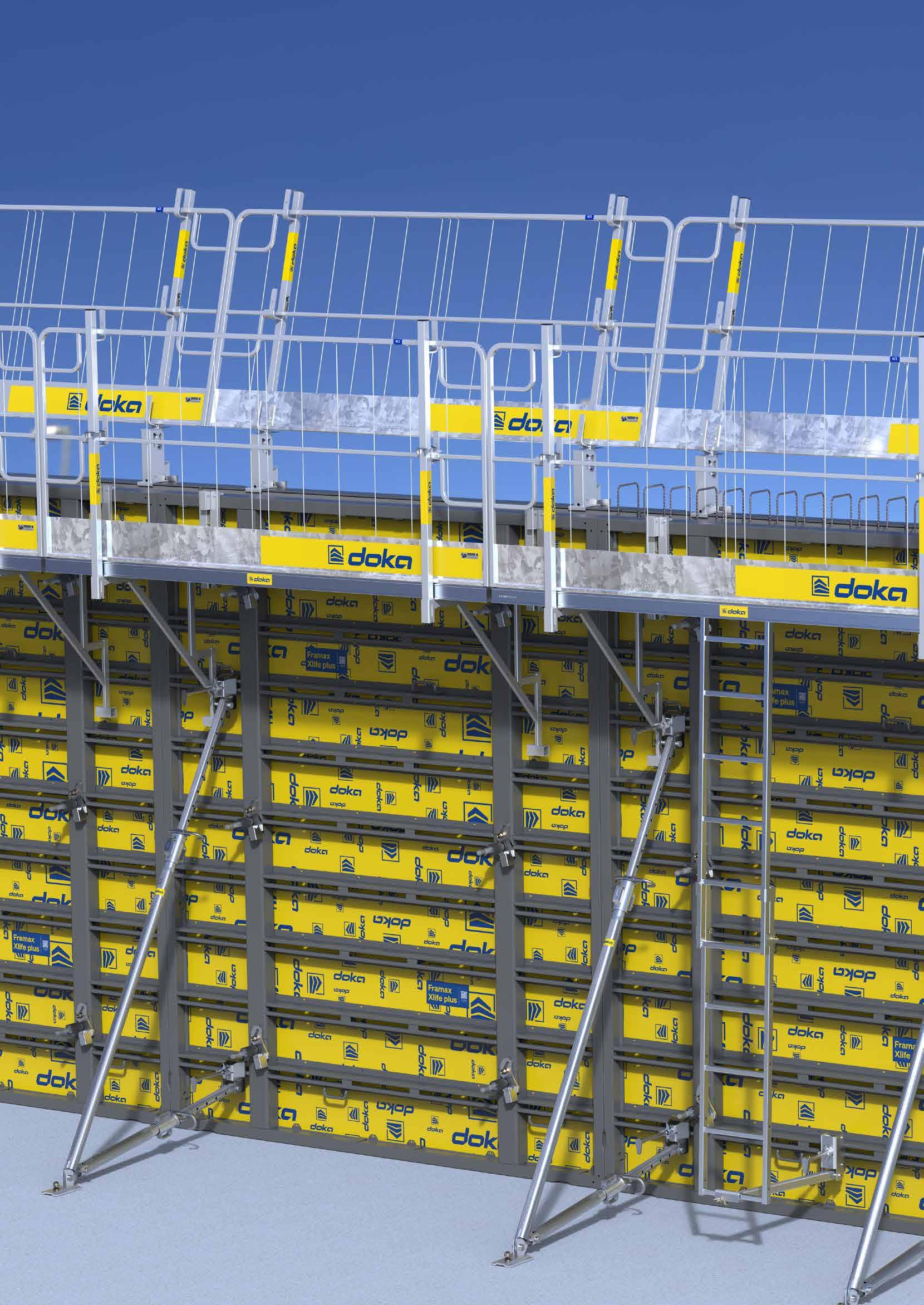

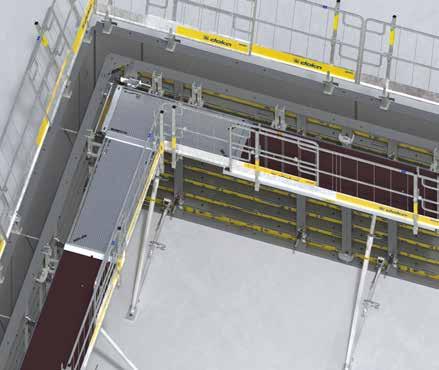

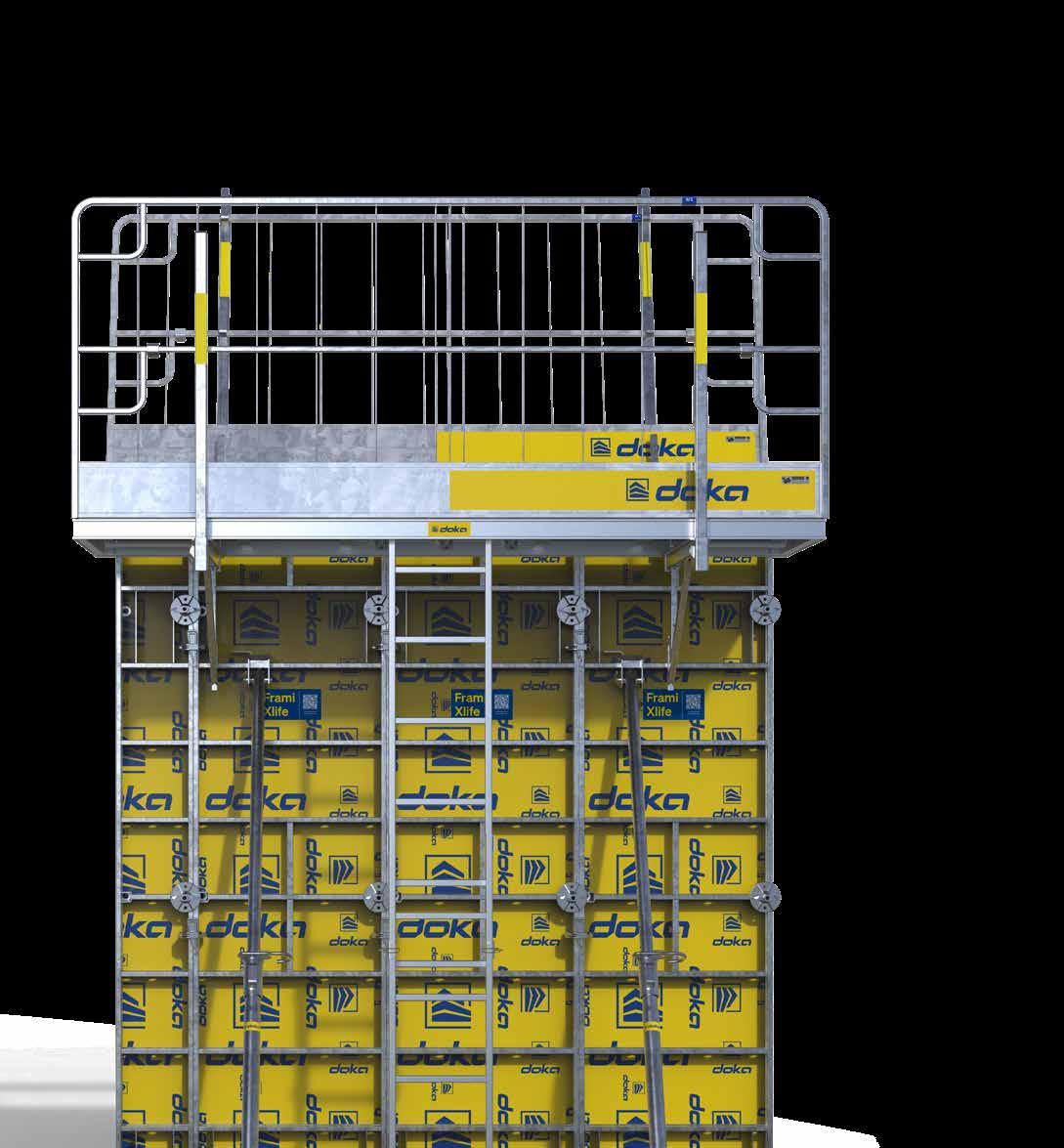

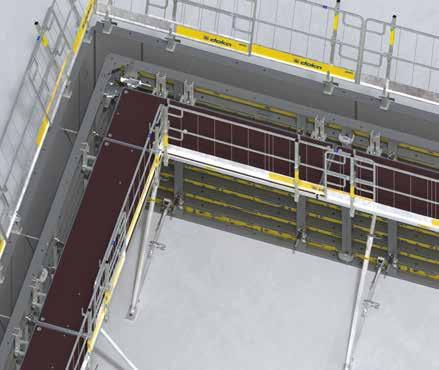

The system at a glance

One safety solution for three wall formwork systems.

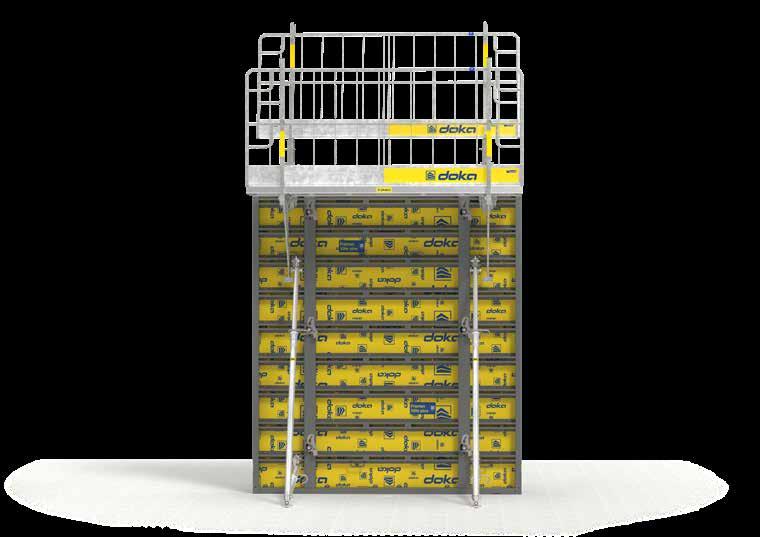

Framax Xlife plus & Framax Xlife

The optimum bracket for the respective formwork system

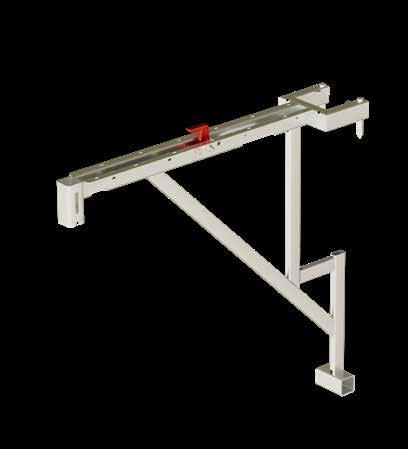

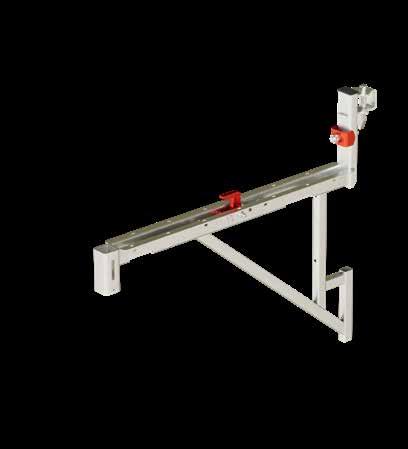

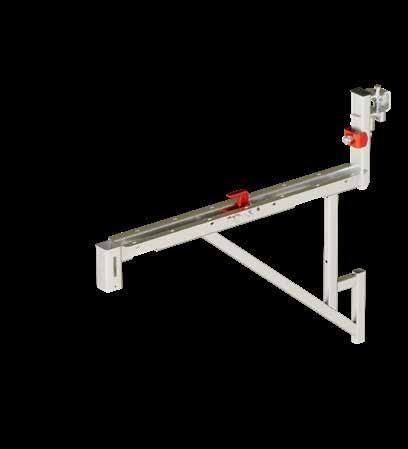

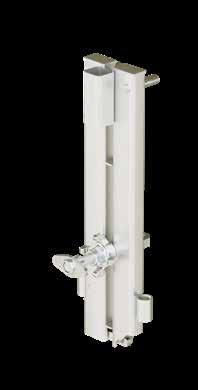

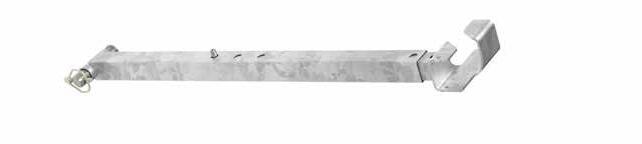

Bracket XBS 90 EP & Framax adapter XBS

ƒ The 2-part connection enables a uniform work-deck level, regardless of how the formwork elements are combined. (e.g. horizontal & vertical).

ƒ The securing hook is integrated as standard!

Always a fit — decks & accessories

System decks

Handrail post XBS 1.40m Protective grating XP

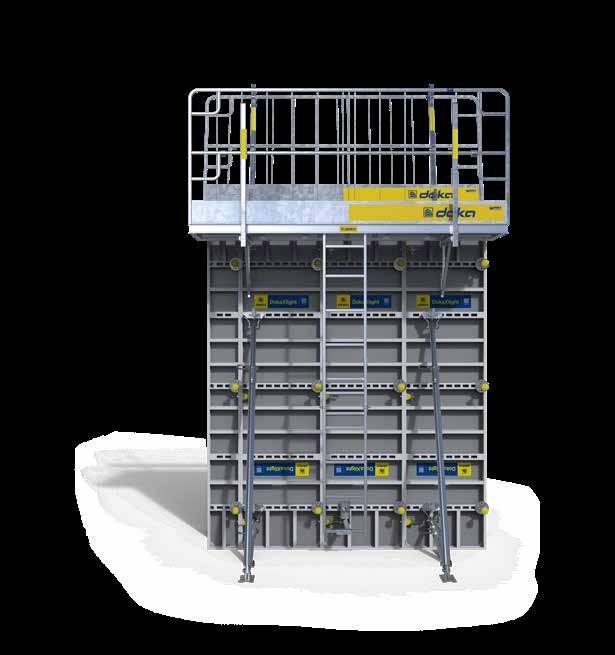

DokaXlight

DokaXlight bracket XBS 75

Frami Xlife

ƒ The DokaXlight bracket XBS 75 is hooked into the frame profile in the appropriate position.

ƒ The securing hook is integrated as standard!

Side railing XBS  75 cm

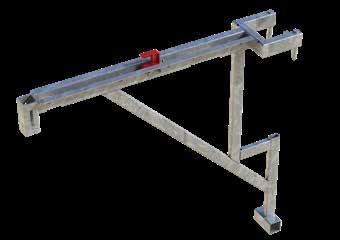

Frami bracket XBS 75 EP

ƒ The Frami bracket XBS 75 EP is hooked into the frame profile in the appropriate position.

ƒ The securing hook is integrated as standard!

Handrail extension XBS Xsafe universal ladder holder Xsafe plus telescopic ladder

The standard deck

Three versions for a wide range of applications.

The three versions of the standard deck make for versatile use, flexibility, efficiency and safe working. All deck variants, including accessories, are compatible with almost all element combinations, including the Framax Xlife plus, Framax Xlife, Frami Xlife and DokaXlight systems.

Benefits at a glance:

ƒ Large deck width of 75 cm for comfortable and safe working

ƒ Lightweight decks (< 25 kg) for single-operator operation

ƒ Perfectly matched to the Doka formwork panel sizes

ƒ Installation of the XBS side railing on both sides for additional safety

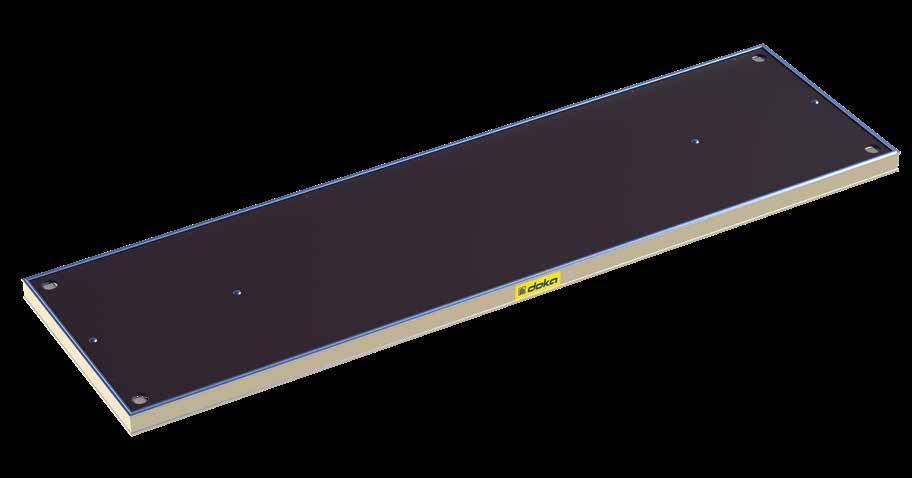

XBS 75/270 cm standard deck

With just one deck and a few simple operation, you can immediately create a 2.70 m long and 0.75 m wide workspace.

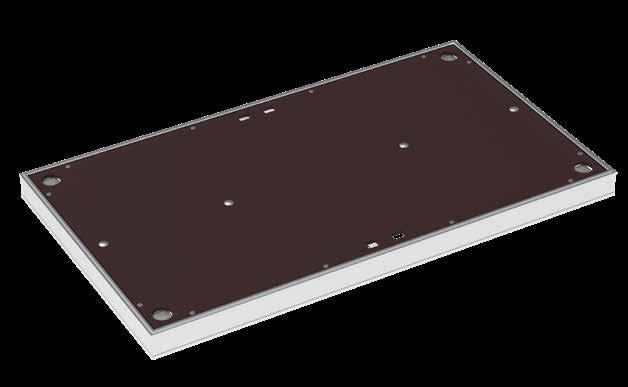

Deck XBS 75/135cm

For better adaptability to the different element combinations.

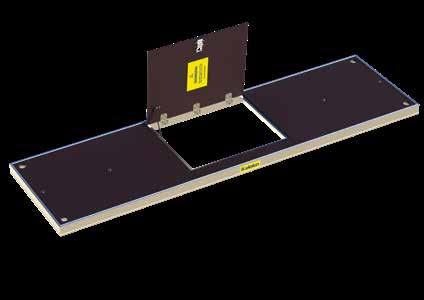

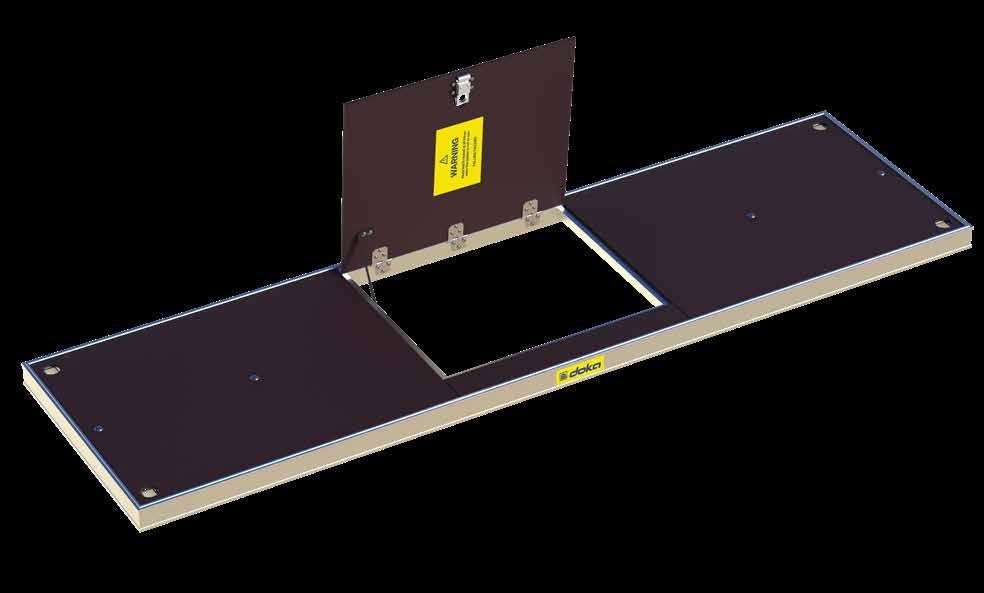

Hatch deck XBS 75/270 cm

The self-closing hatch and integrated ladder suspension points (Xsafe plus telescopic ladder) allow simple and safe access to the work-deck level.

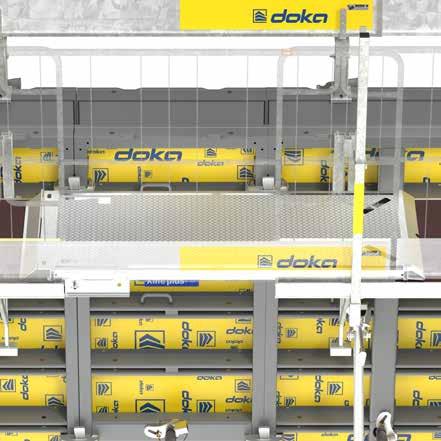

The infill deck

The allrounder.

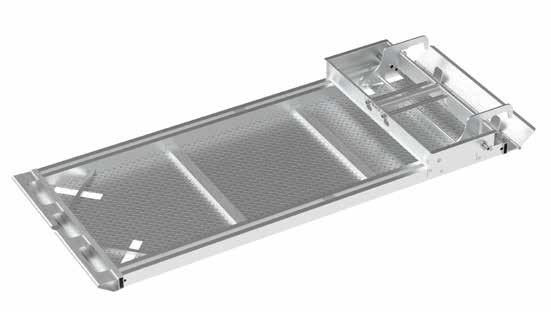

The infill deck XBS can be used for a wide variety of applications. Everything is possible – from length adjustment to the forming of an inside corner. Gaps or closure zones from 0.30 m to 1.35 m can be effortlessly bridged.

Applications & functions

Length adjustment from 0.30 m to 1.35 m. Bevelled ends for safe transitions.

An integrated and patented safety mechanism prevents the deck from slipping and tipping over when installed. Furthermore, the securing hook simplifies assembly in the horizontal position.

Integrated functions

Safe and flexible right from the start.

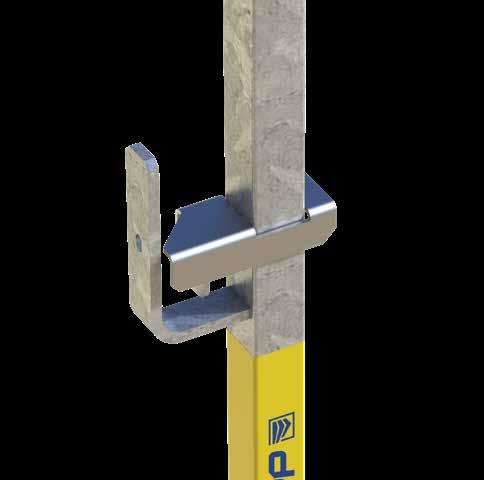

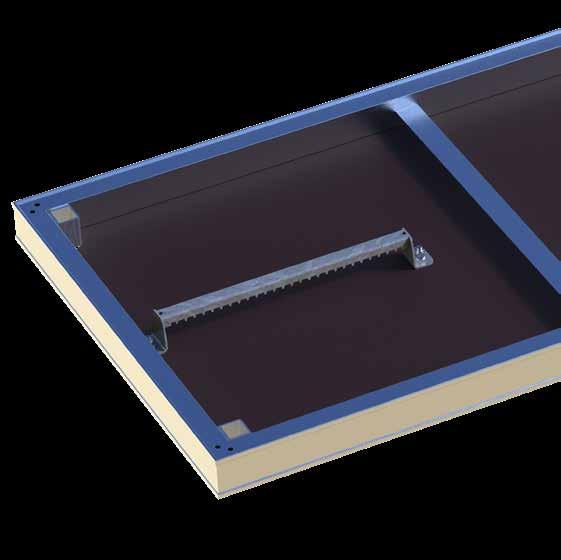

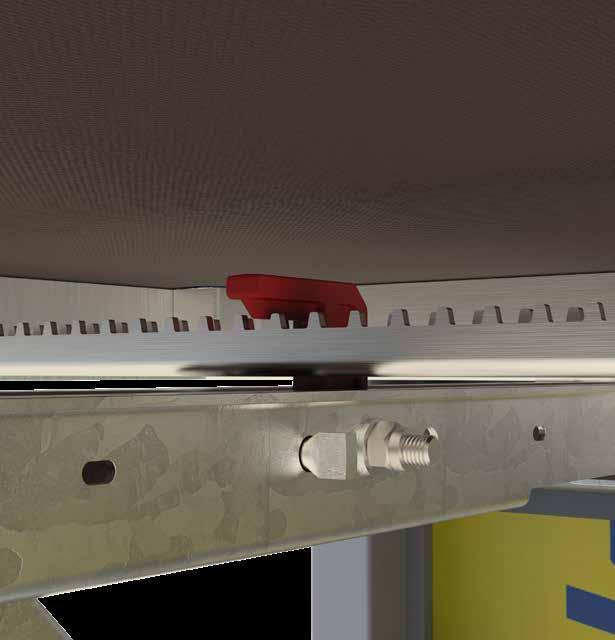

The toothed strip in the deck, in conjunction with the securing hook on the brackets, has 3 functions — anti-tip protection assembly aid horizontal flexibility.

Anti-tip protection

The Doka XBS decks are automatically secured during assembly. That prevents them from tipping and ensures safe working conditions.

Assembly aid

The tooth bar / hook function is particularly useful during horizontal assembly

ƒ The Doka XBS decks are automatically secured during assembly!

ƒ NO additional parts or manual steps are required for securing.

ƒ Developed for single-operator assembly

Horizontal flexibility

The toothed strip allows for lateral adjustment.

Attachments and accessories

Safe and functional.

The high-quality attachments and accessory solutions ensure maximum functionality, safety and comfort. Whether you need railings for additional protection, clever door functions for easy access or an integrated ladder system for safe access to heights — we offer tailor-made solutions to meet your individual requirements.

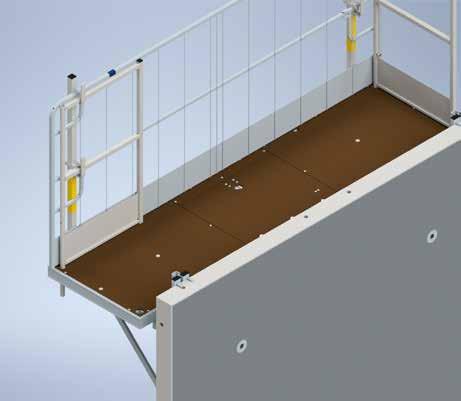

The railing

Stable in all directions

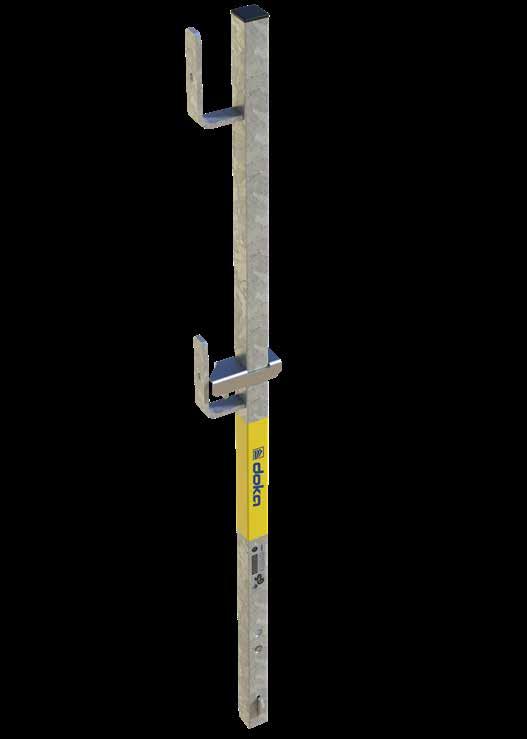

The handrail post XBS with integrated handrail post anti-liftout guard in accordance with EN 12811.

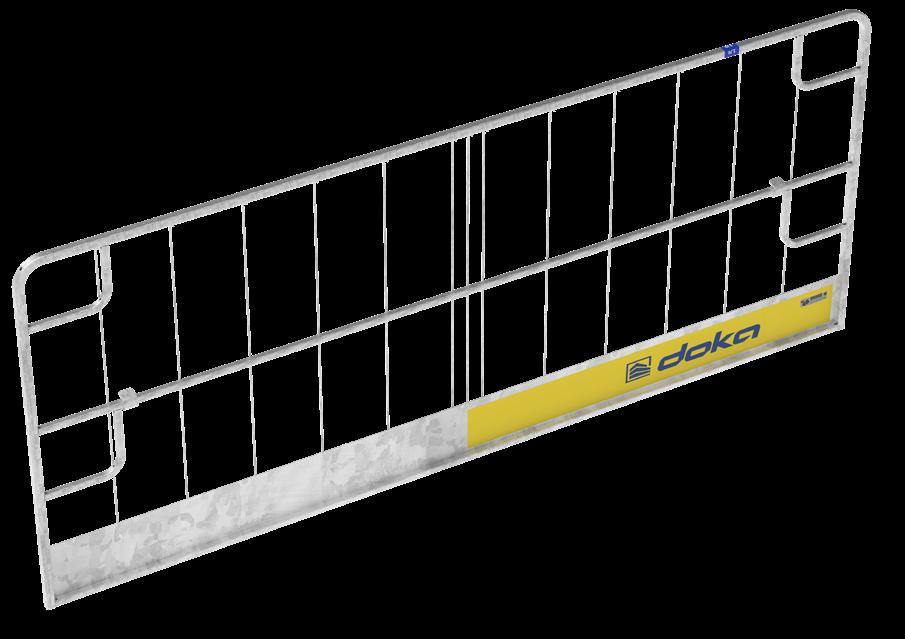

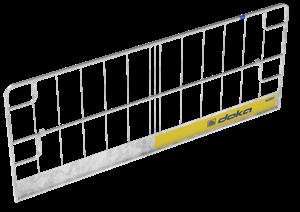

Tested edge protection

With proven protective grating XP.

Safety with door function

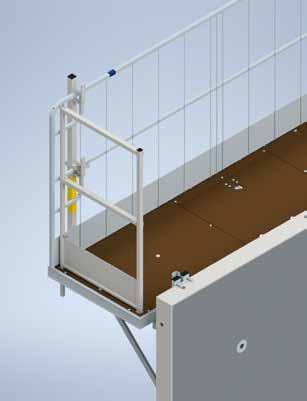

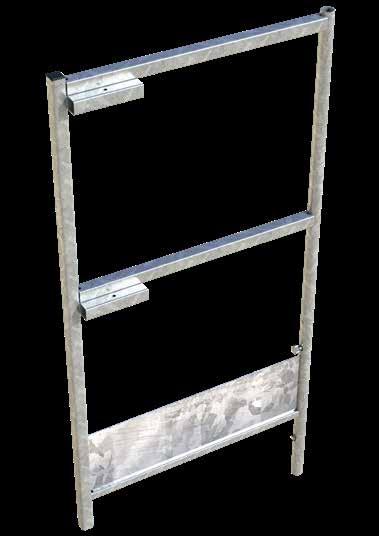

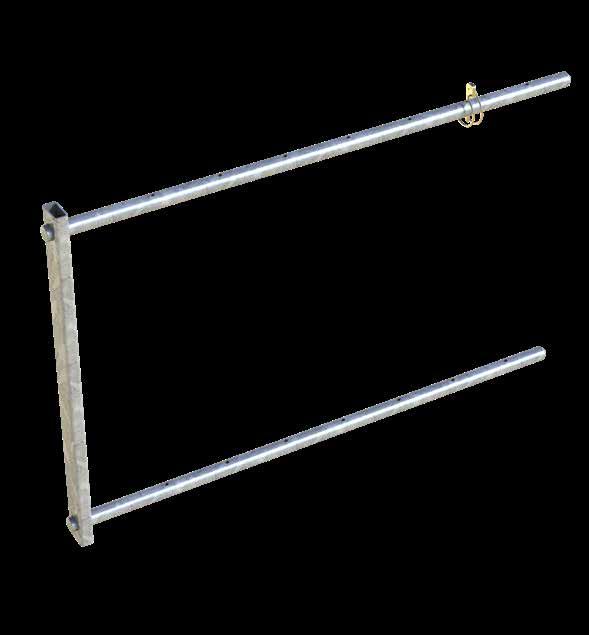

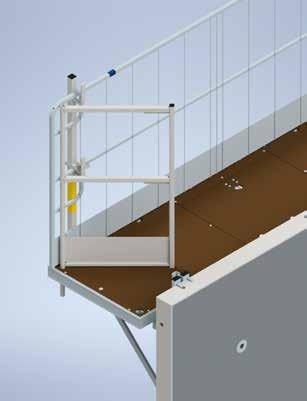

The side railings XBS that can be inserted into the deck are prevented from being lifted out and can be opened like a door.

The ladder system

Safe access to all work-levels

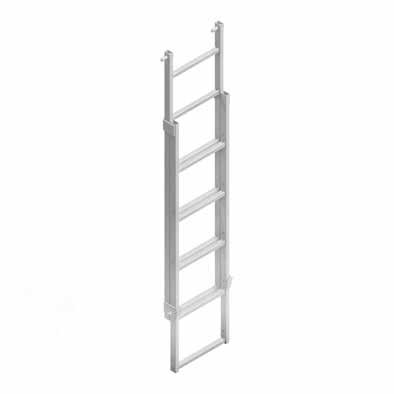

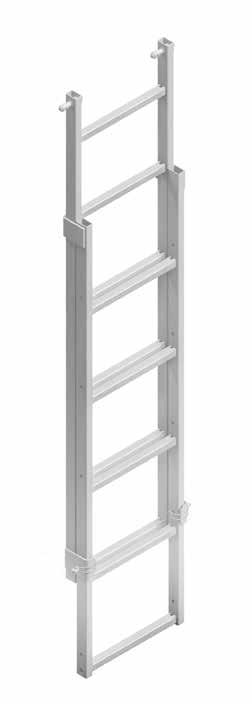

Safe access thanks to Xsafe plus telescopic ladder 1.55 m – 2.70 m that can be suspended to the deck.

Working heights of up to 4.00 m

With the Xsafe ladder extension 1.15 m.

Safe working at the end of the formwork

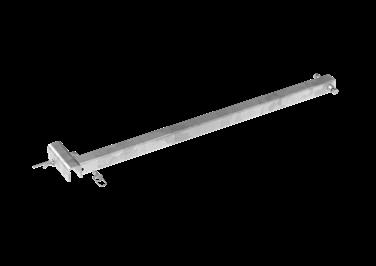

Extensions from 15 to 60 cm.

Securely connected

With the new Xsafe universal ladder holder. Individually adjustable thanks to the telescoping function.

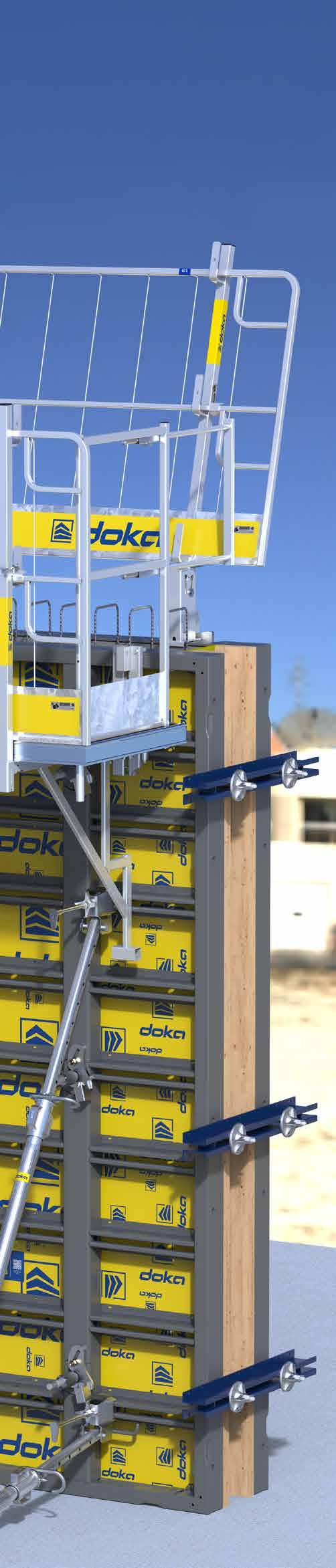

Even safer at the top

With the ladder cage. National regulations must be observed.

The assembly options

Flexible application options.

The Xsafe bracket system can be installed on the horizontal or vertical formwork:

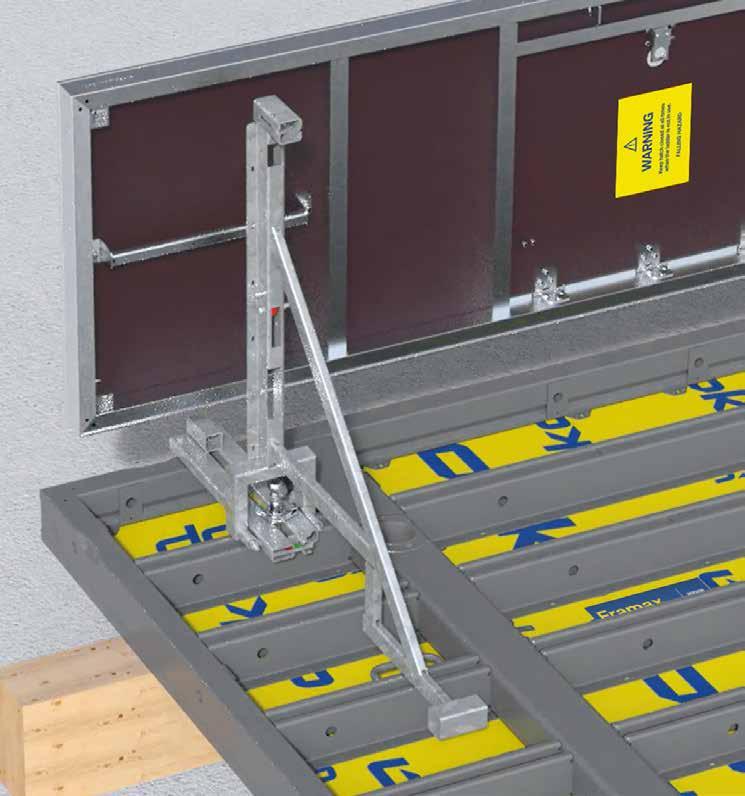

Installation on the horizontal formwork

1 Installing the brackets

98112-409-01

2 Hook the deck into the securing hook of the brackets with the toothed strip.

With Framax: Install the XBS adapter; this ensures a uniform platform level at all times. Visual mark in the XBS adapter for safe assembly. 98112-406-08

4 Install the ladder cage and side railings.

3 The handrail posts automatically secure the deck to prevent it from slipping out.

5 Install the panel struts and raise the formwork with the crane.

Installation on the vertical formwork

1 Position the multi panel gang-form using panel struts

2 Install the components on the formwork from the elevated platform.

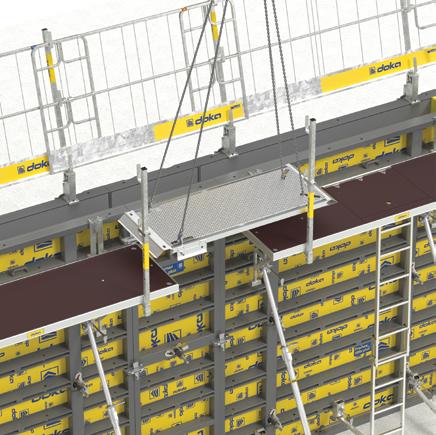

Closure in the straight wall

1 Length adjustment.

2 Hook the infill deck into the openings of the standard deck.

3 Close the open securing hook to secure the deck when raising with the crane.

4 The locking mechanism is closed, open the deck hatch for a safe transition.

Doka express anchor 16x125mm

0.31588631000

Double scraper Xlife 100/150mm 1.40m 2.8588674000

Doka-Expressanker 16x125mm

Doppelschaber Xlife 100/150mm 1,40m

Doppelschaber Xlife 100/150mm 1,40m

Doka coil 16mm

Doka-Coil 16mm

Dokamatic-Umsetzgurt 13,00m Double scraper Xlife 100/150mm 1.40m 2.8588674000

DokaXlight bracket 60 8.0589186000

DokaXlight-Konsole 60

DokaXlight-Konsole 60

Galvanised Diameter: 1.6 cm

Information plate for express anchor 0.004588630000

Plakette Expressanker

Width: 8 cm Height: 7.5

Frami bracket 60 7.7588442000

Frami-Konsole 60

DokaXlight-Konsole 75 EP

DokaXlight bracket 75 EP

DokaXlight-Konsole 75 EP

DokaXlight bracket 60 8.0589186000

Steel parts galvanised Timber parts varnished yellow Height: 136 cm

Delivery condition: folded closed

Galvanised Length: 81 cm Width: 53 cm

Deck XBS 75/270cm

Frami bracket XBS 75 EP

Frami-Konsole XBS 75 EP

Belag XBS Hatch deck XBS 75/270cm

Durchstiegsbelag XBS 75/270cm

Durchstiegsbelag XBS 75/270cm

999816102 - 11/2025 Dokamatic lifting strap 13.00m 10.5586231000

Galvanised Height: 200 cm

Delivery condition: folded closed

Framax pouring platform O 1 25/2 70m 117 0 588360000 Framax-Betonierbühne O 1,25/2,70m Framax pouring platform U 1 25/2

EB

parts galvanised

condition: folded closed

Galvanised Length: 91 - 99 cm

Xsafe plus telescopic ladder

Xsafe plus-Teleskopleiter

Galvanised Height: 158 - 274 cm

Xsafe plus ladder extension 1.15m 7.0586422000 Xsafe plus-Leiternverlängerung 1,15m

Galvanised

4.3586420000

Xsafe plus ladder extension 1.15m 7.0586422000

Xsafe plus-Leiternverlängerung 1,15m

Galvanised Height: 126 cm

7.7586456000

DokaXlight adapter XP

DokaXlight-Adapter XP

5.5589148000

Galvanised Height: 88.6 cm

Xsafe plus ladder starter piece

Xsafe plus-Leiternhalter

Galvanised Height: 21 cm

Galvanised Height: 68 cm

Galvanised Height: 21 cm

Platform stairway 0.97m

Framax-Adapter XP

Podesttreppe 0,97m

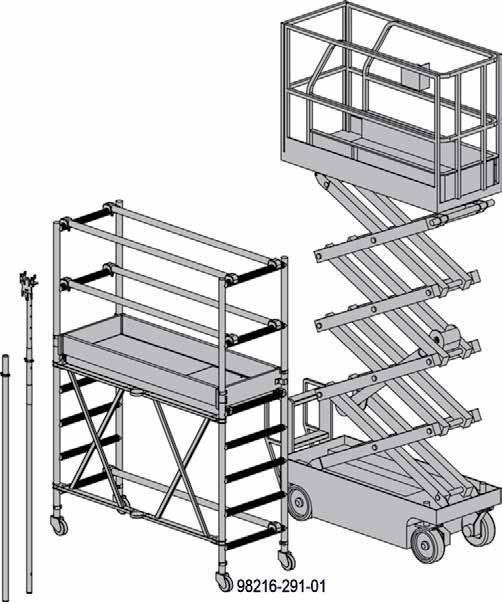

Wheel-around scaffold DF

Mobilgerüst DF

Railing clamp XP 40cm

Geländerzwinge

DokaXlight support head

DokaXlight-Auflagerkopf

Galvanised Length: 95 cm

Galvanised Galvanised, powder-coated

23.5586555000

180 999811202 - 06/2025

Aluminium Width: 121 cm

Galvanised Height: 56 cm

Pay attention to the national, technical safety regulations!

44.0586157000

Aluminium Length: 185 cm Width: 80 cm Height: 255 cm

Delivery condition: separate parts

Galvanised

Galvanised Height: 73 cm Galvanised Height: 118 cm

Spring locked connecting pin 16mm

Federbolzen 16mm

Galvanised Length: 15 cm

Doka floor prop Eurex 20 top 250

Length: 148 - 250 cm

Doka floor prop Eurex 20 top 300

Length: 173 - 300 cm

Doka floor prop Eurex 20 top 350

Length: 198 - 350 cm

2.1589141000

0.25582528000

11.8586086400

14.3586087400

17.4586088400

Geländersteher XP 0,60m

Doka-Deckenstütze Eurex 20 top Removable folding tripod

Galvanised

12.0586155500
