HAV-Series Air Relief Check Valve

58-02 1447

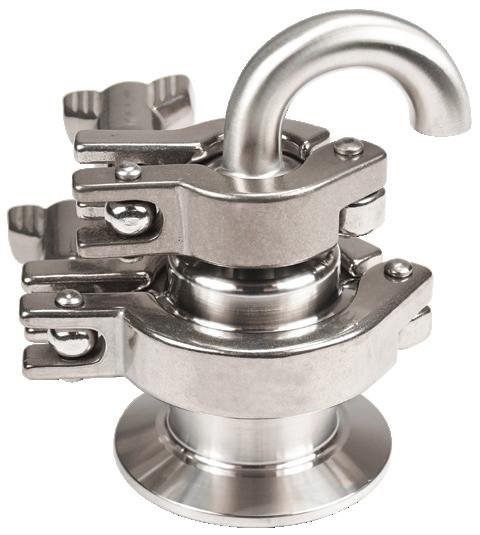

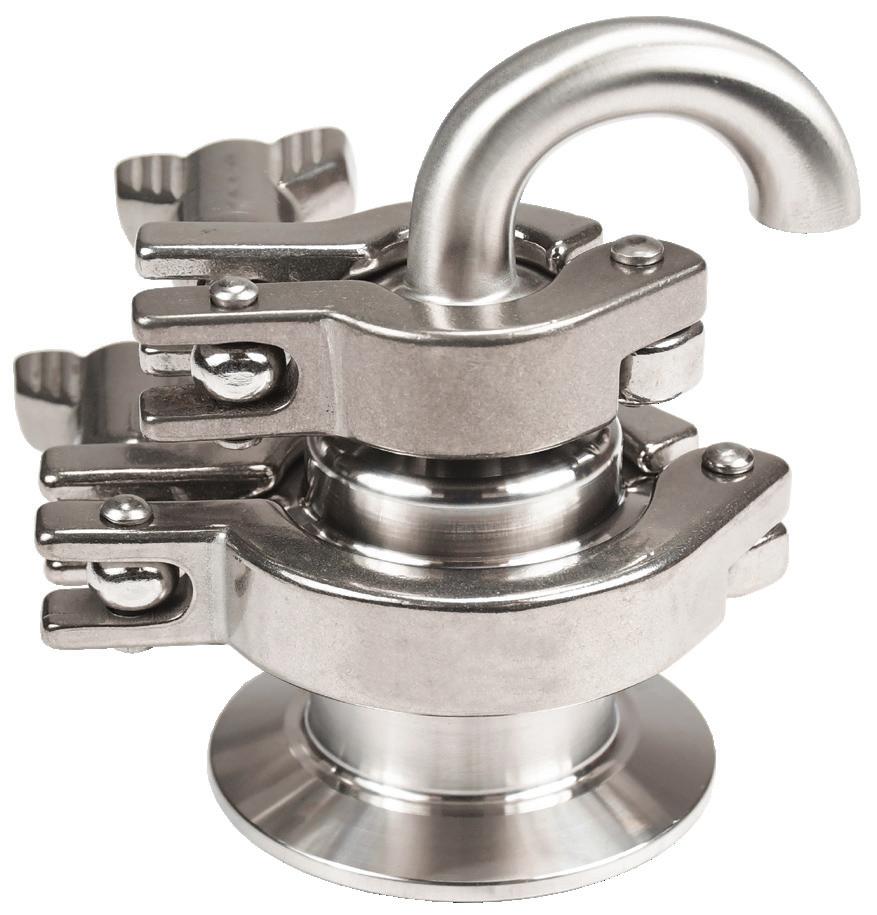

The HAV-series air relief check valve is installed vertically on suction lines where air removal is required. This valve is double-seated with a freely moving polypropylene ball.

The ball, which is lighter than water, closes against the upper or lower seat, against vacuum or positive pressure conditions. Under vacuum the ball sits at the bottom of the valve. Under positive pressure the ball moves allowing air to escape.

They are found in food processing, beverage, dairy, personal care, winery, brewery, pet product, and industrial markets.

Sizes

• 1-1/2" and 2"

Features

• Replaceable ball and gasket

• Valve seals for pressure and vacuum

Materials

• Product contact metal components: 304 stainless steel

• Non-product contact metal components: 304 stainless steel

• Product contact seals: EPDM (standard), others available upon request

Specifications

• Clamp connections standard

• Valve data

- Maximum pressure: 145 PSI (10 bar)

- Maximum operating temperature: 212°F (100°C)

• Ball material: Polypropylene (standard) or PTFE

• Ball material density

- Polypropylene: 0.033 lb/in3

- PTFE: 0.078 lb/in3

• Ball diameter: 14.6 mm

• Surface finish

- Product contact metal components: Ra ≤ 32

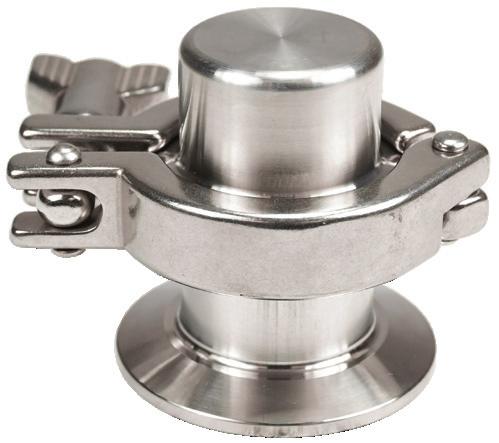

NOTE: Not for use on tanks 3A approved only when used with 3A cover (item #4 on page 4)

HAV-Series Air Relief Check Valve - Part Number Key

HAV-Series Air Relief Check Valve

Part Number Key

Example: HAVNEA150

HAV-Series

Air

Relief Check Valve - Dimensions

SECTION B-B

HAV-Series Air Relief Check Valve - Bill of Materials

HAV-Series Air Relief Check Valve - Repair Kits

Notes
