Cam & Groove - General Information

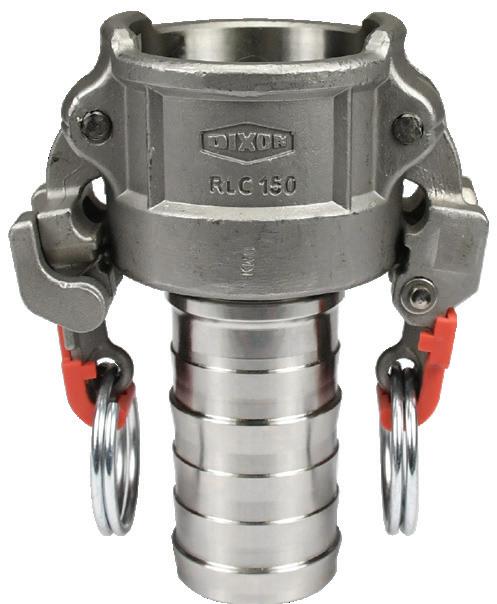

Type C Boss-Lock Couplers

Type C EZ Boss-Lock Couplers, Collared Hose Shank

Type C Boss-Lock Couplers Notched Shank 33

Type C EZ Boss-Lock Couplers, Photo Finish Shank 34

Type C EZ Boss-Lock Couplers, Notched Hose Shank 35-36

Type D Boss-Lock Couplers 37

Type D Dixon Coupler Dimensions ..................................... 38

Type D Boss-Lock Couplers, Dimensions 39-40

Type D EZ Boss-Lock Couplers, Dimensions 41-42

Type E Dixon Adapters, Dimensions 43-44

Type F Dixon Adapters, Dimensions 45-46

Type E Dixon Adapters Swaged Ferrule ............................. 47

Type E Dixon Adapters Notched Shank, Ferrules 47

Type E Dixon Adapters Notched NOS Shank, Ferrules ..... 48

Type DC Dixon Dust Caps, Dimensions 49-50

Type DC Dixon Lockable Dust Caps 51

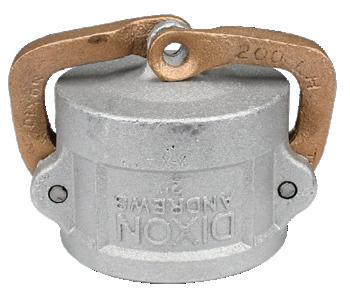

Type H Boss-Lock Dust Caps, Dimensions 51-52

Type H EZ Boss-Lock Dust Caps, Dimensions 53

Type DP Dixon Dust Plugs, Dimensions ........................ 54-55 Jump Size & Other Configurations .................................. 56-71

Ordering System

200 - A - AL

RB200EZ

material style

size

Size represents the coupler or adapter and hose or pipe end (i.e. 200 = 2"). If the coupling is a jump size, the coupler or adapter is the first size (i.e. 4030-C is 4" coupler to 3" hose shank).

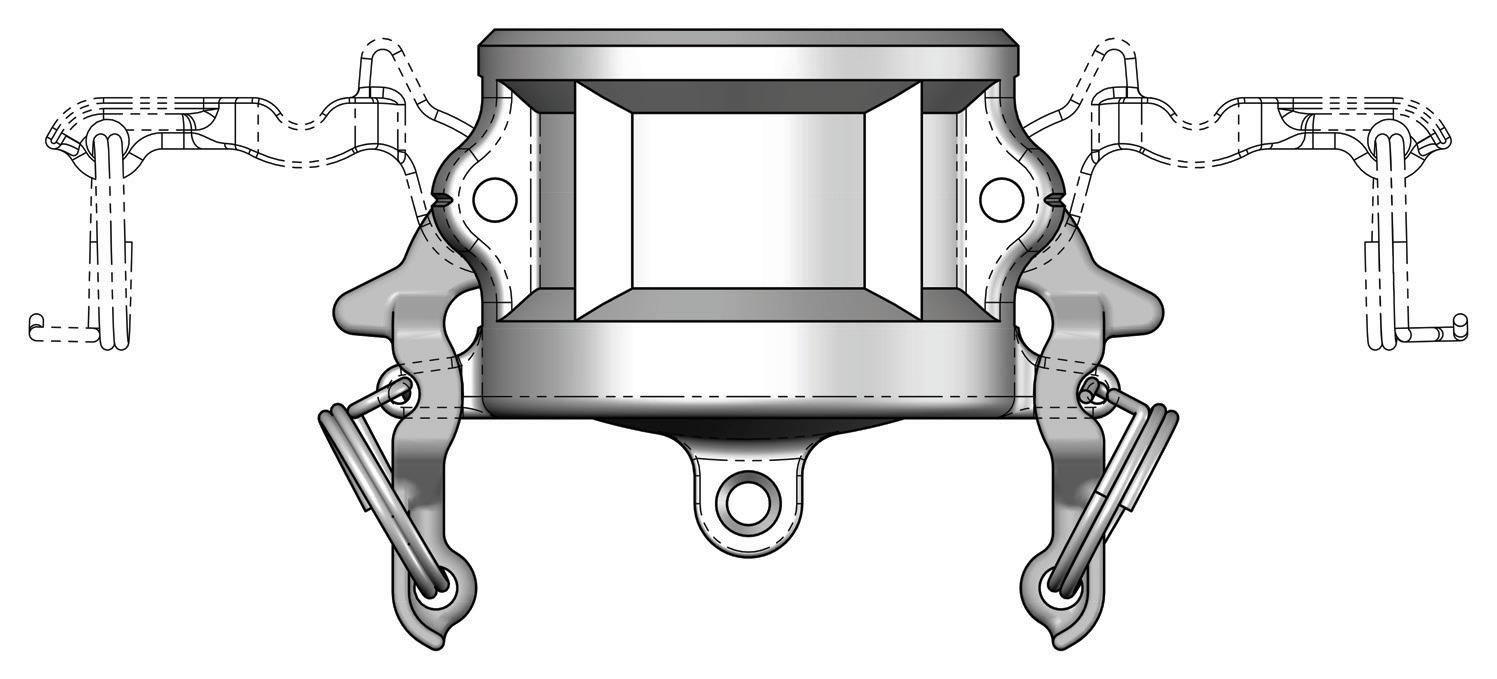

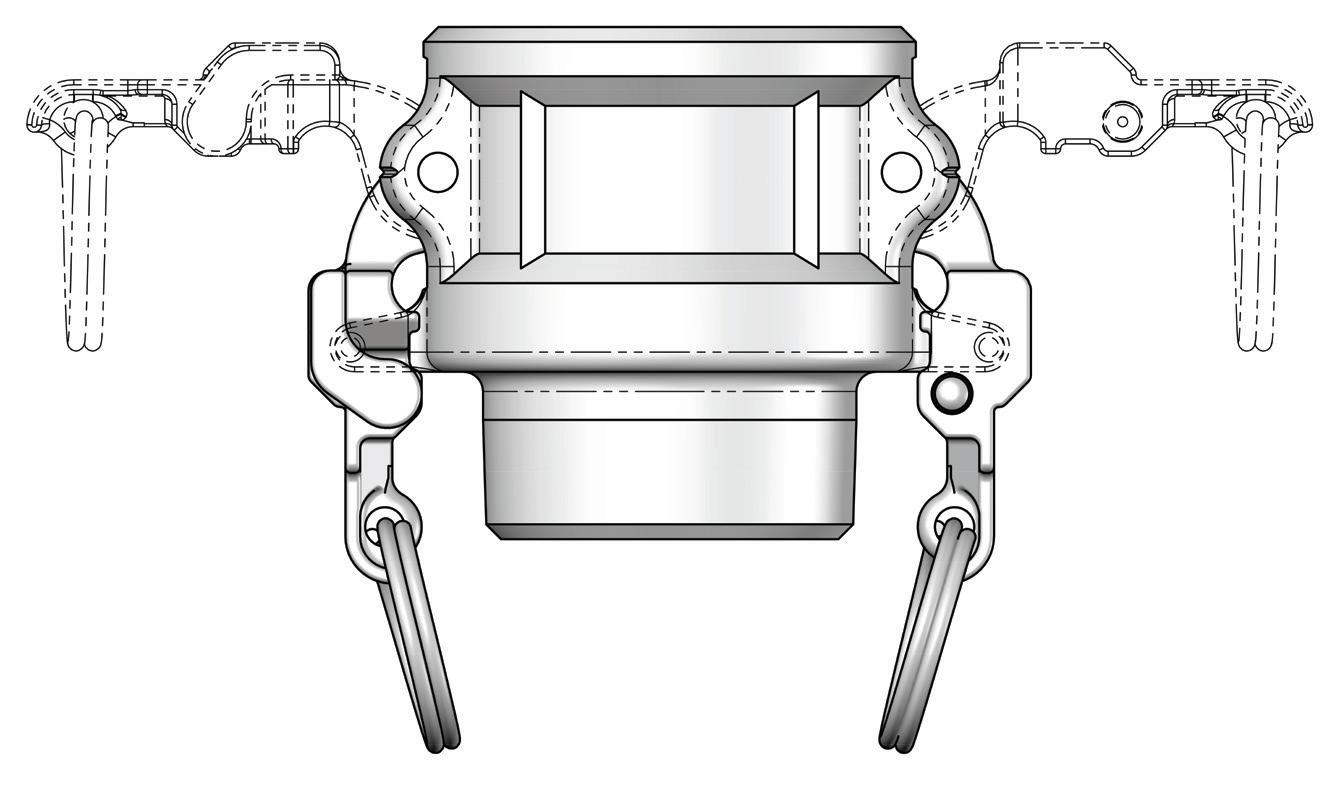

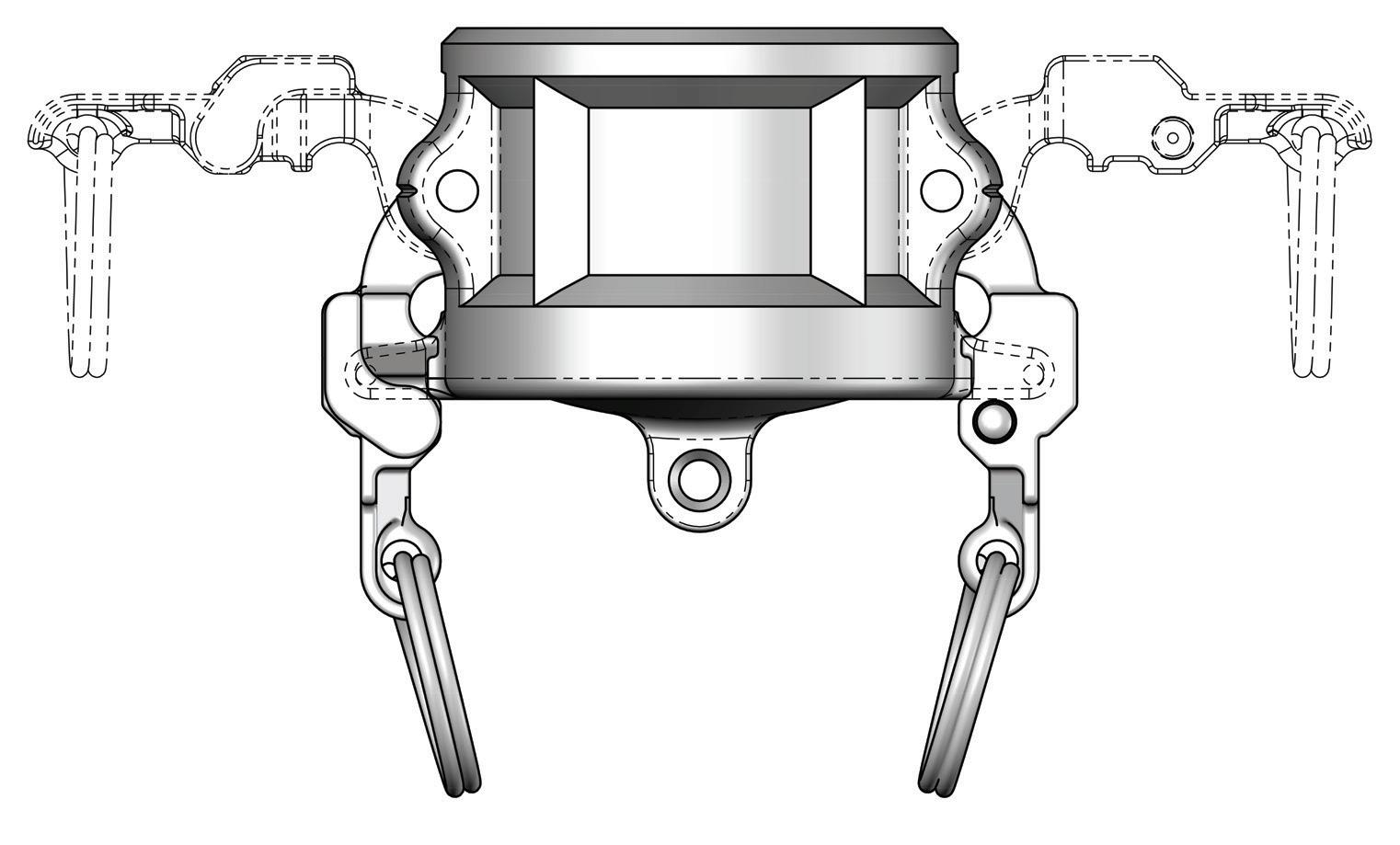

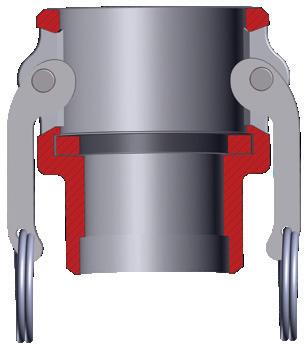

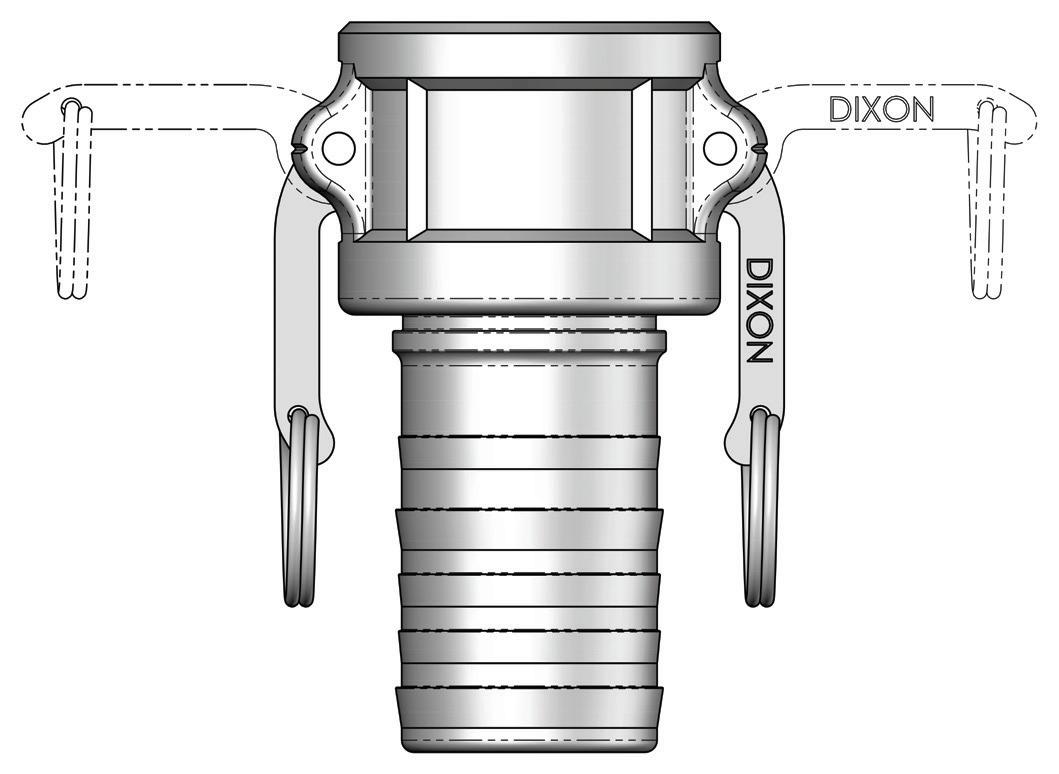

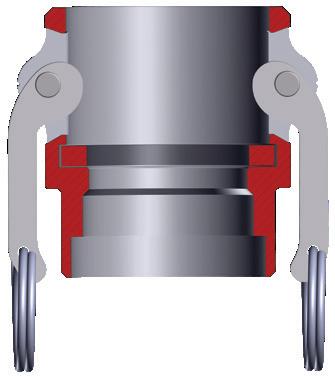

Operation of Cam & Groove

1. To make connection, slide the adapter into the coupler and, with normal hand pressure, press the cam levers down.

2. Uncoupling is as quick and simple as coupling. Just lift the cam levers and remove the adapter.

Specifications on Dixon® Cam & Groove

Specifications

• Dixon, Boss-Lock, and EZ Boss-Lock cam & groove couplers and adapters are produced to interchange with all product produced to Commercial Item Description A-A-59326D.

• No standard exists for the 1/2", 5", and 8" fittings, and generally these sizes do not interchange with other manufacturers' products.

• Dust caps and dust plugs are not to be used in pressure applications for safety and environmental reasons.

• Designed for use with liquids; consult Dixon for specific recommendations.

Pressure Ratings

Recommendations based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with standard nitrile rubber seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon. Dixon, Boss-Lock, and EZ Boss-Lock couplers' and adapters' maximum working pressures are as follows:

Cam & Groove Nominal Take-Up Lengths

Coupling Size

Dimension A

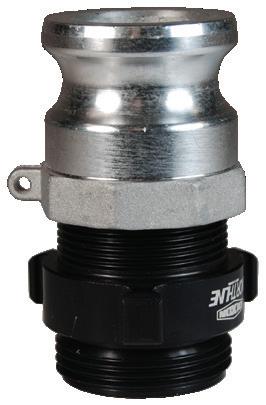

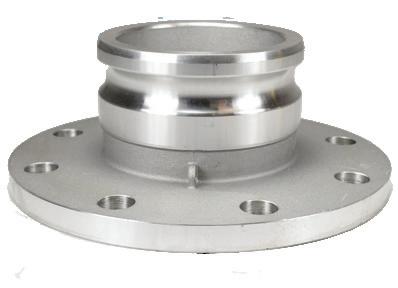

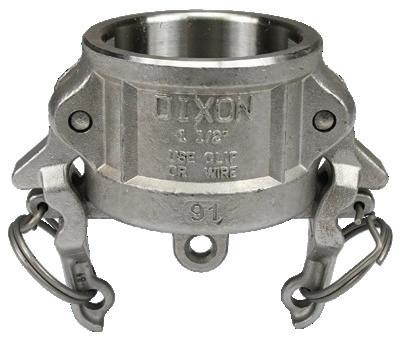

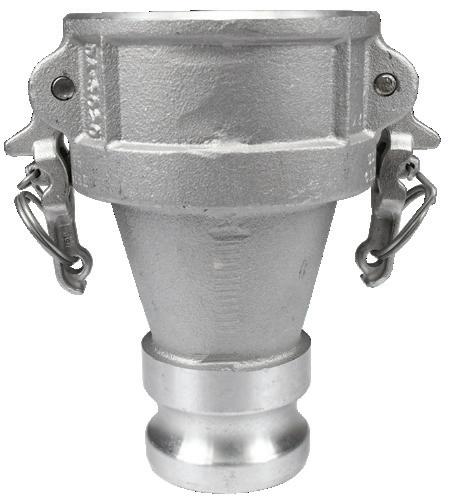

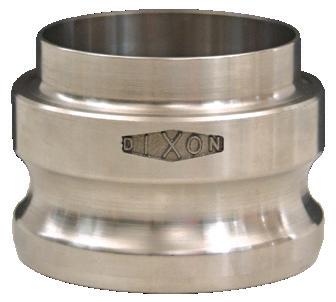

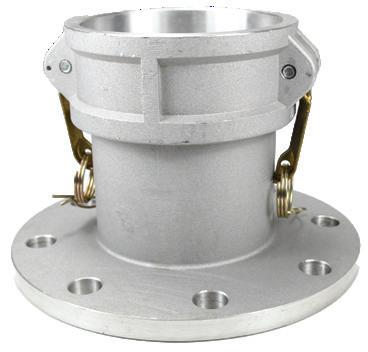

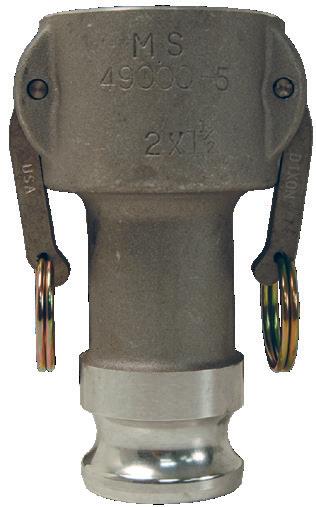

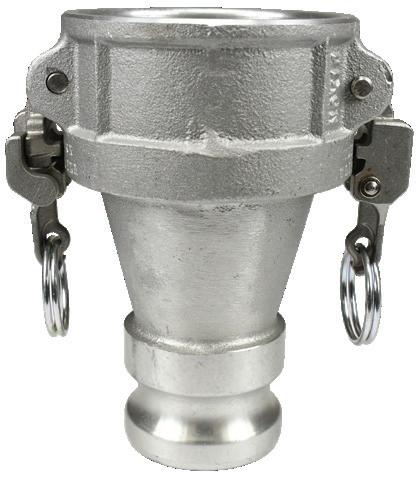

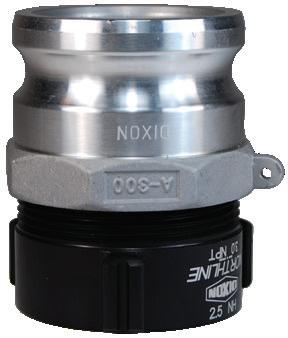

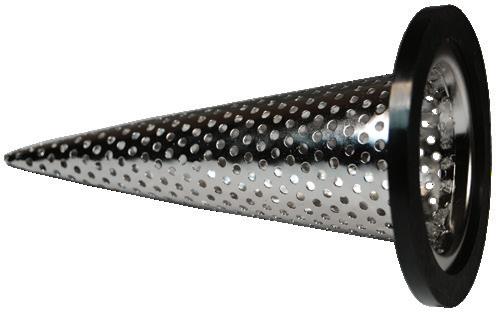

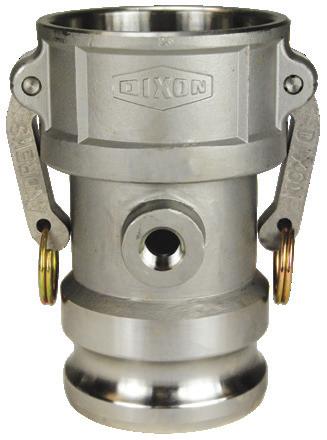

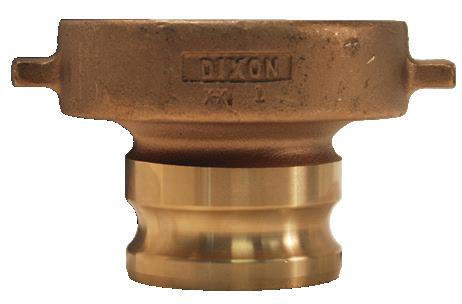

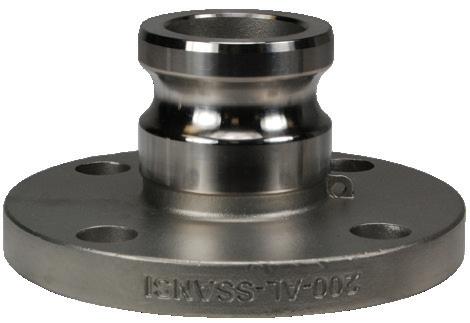

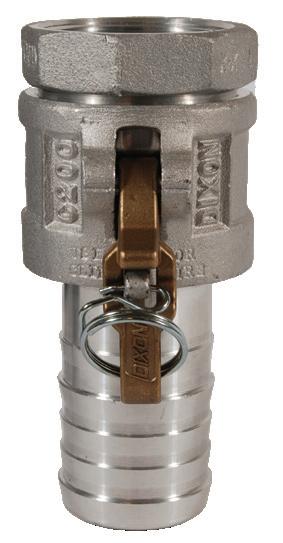

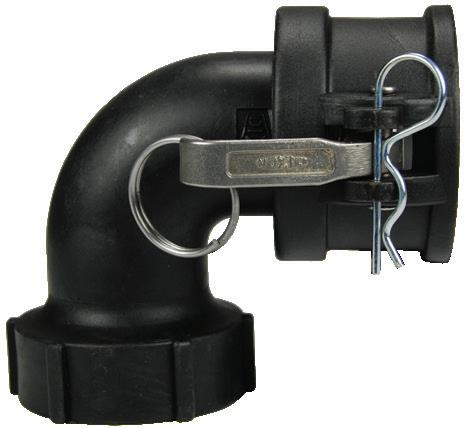

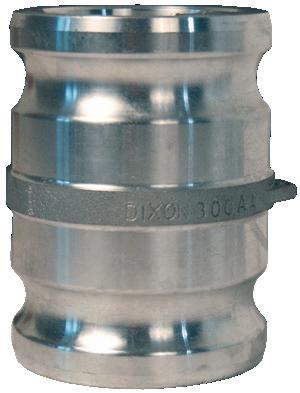

Cam & Groove Configurations

Configurations are representative of the Dixon® line of cam & groove.

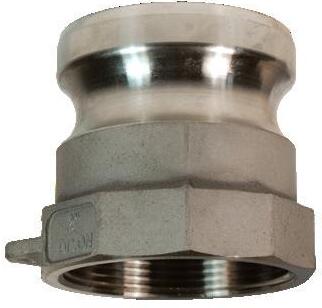

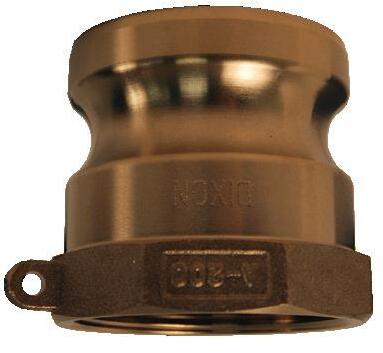

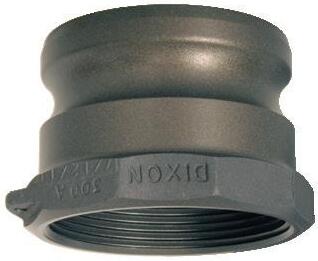

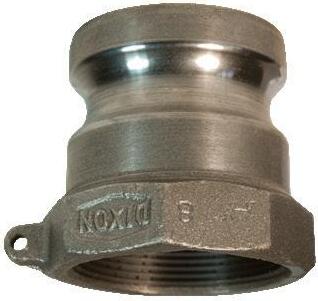

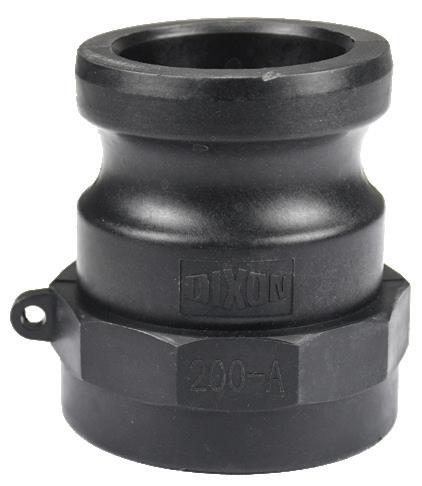

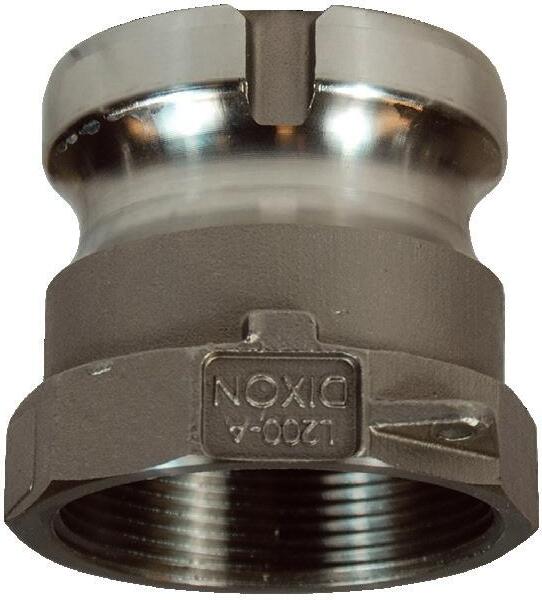

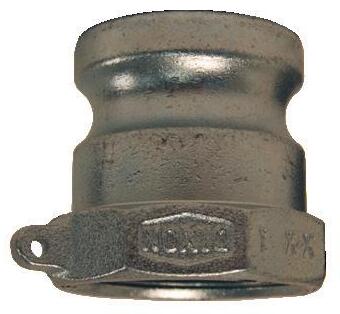

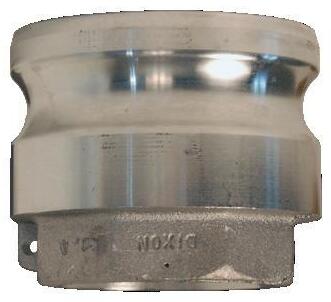

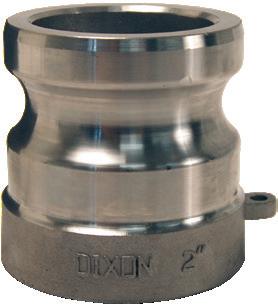

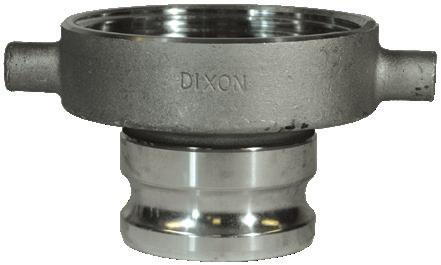

Type A adapter x female NPT

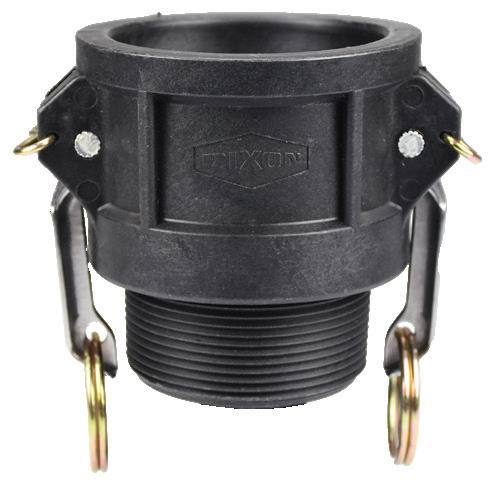

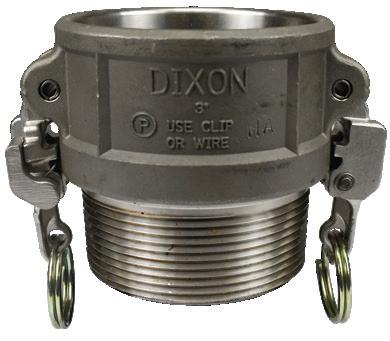

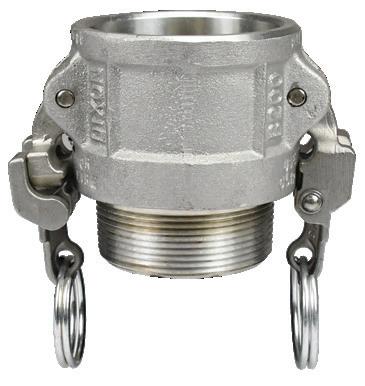

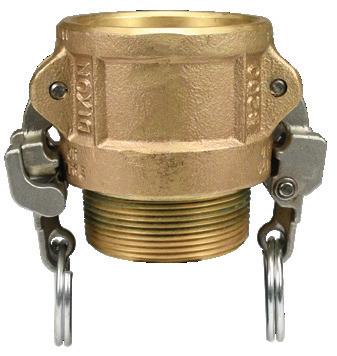

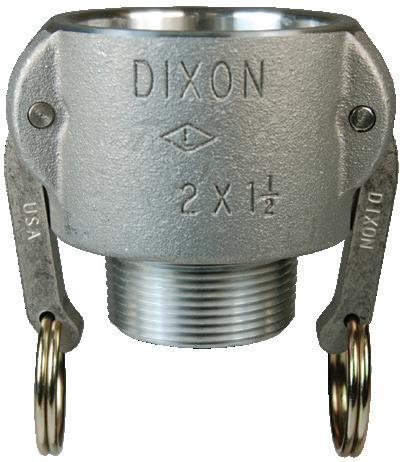

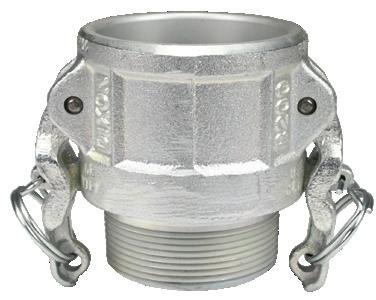

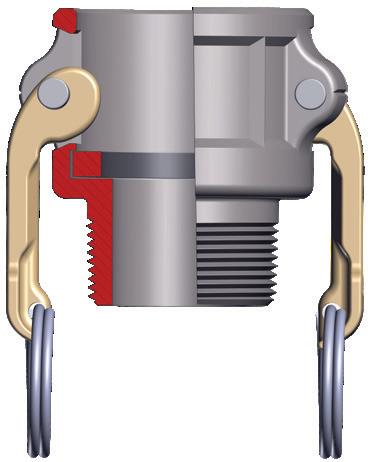

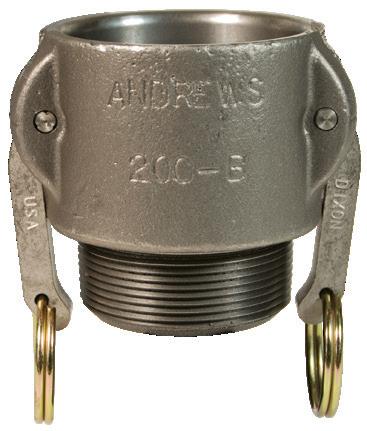

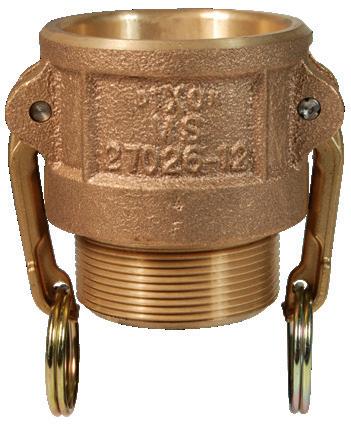

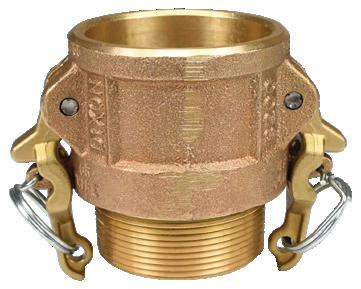

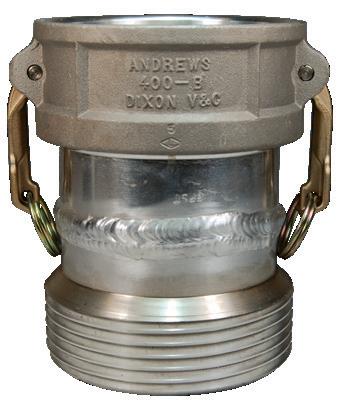

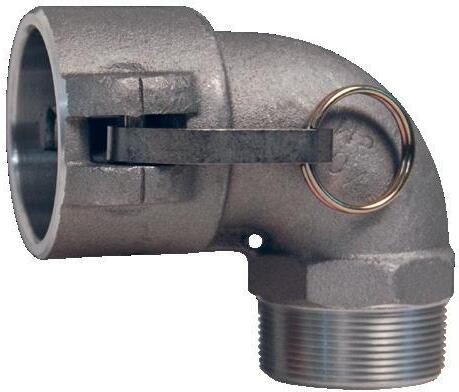

Type B coupler x male NPT

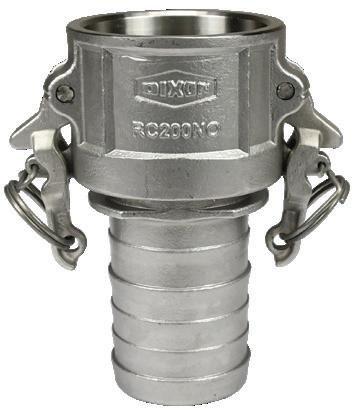

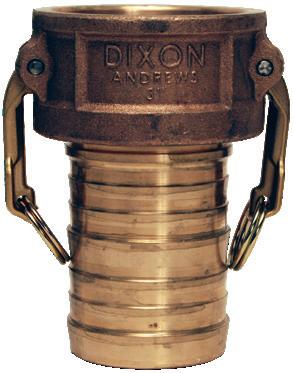

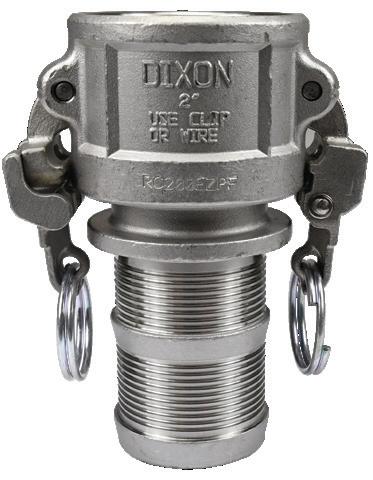

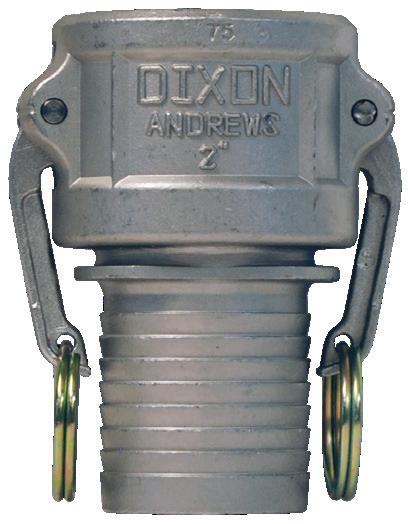

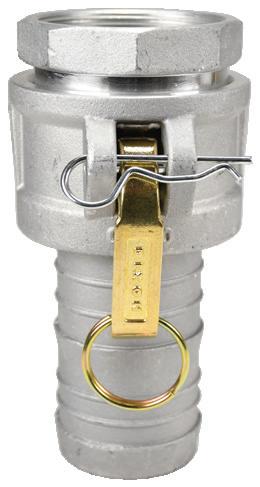

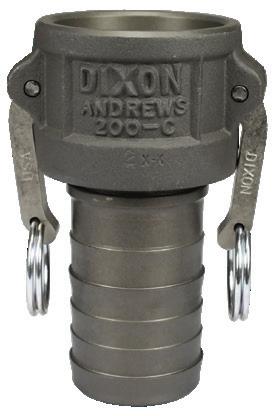

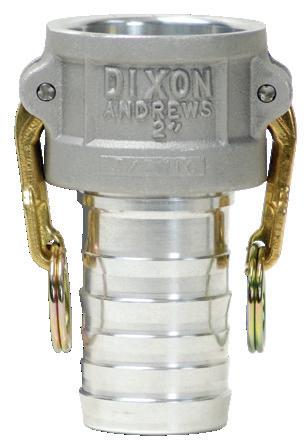

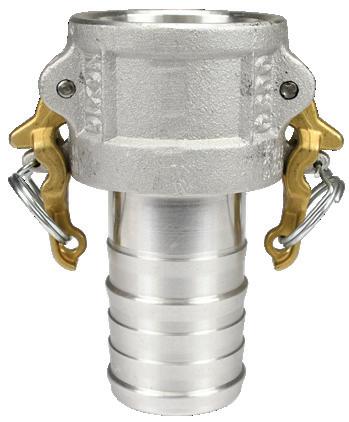

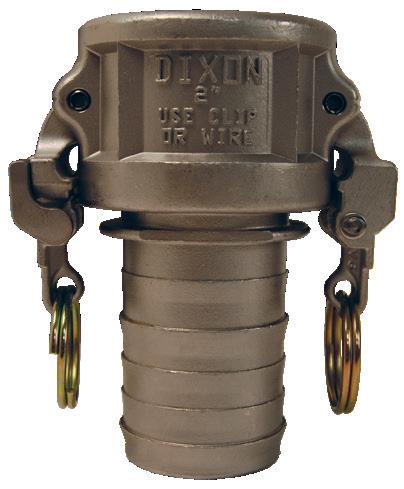

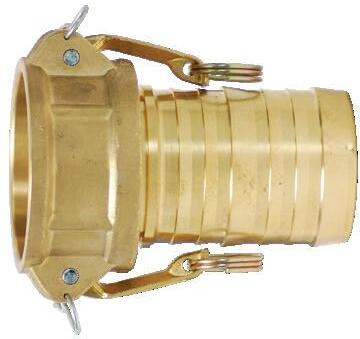

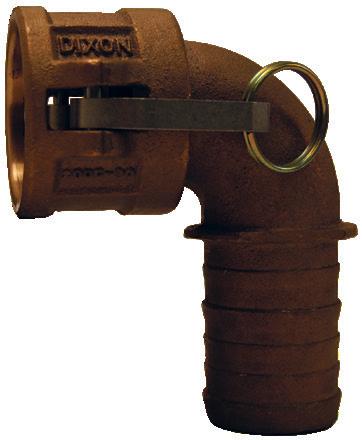

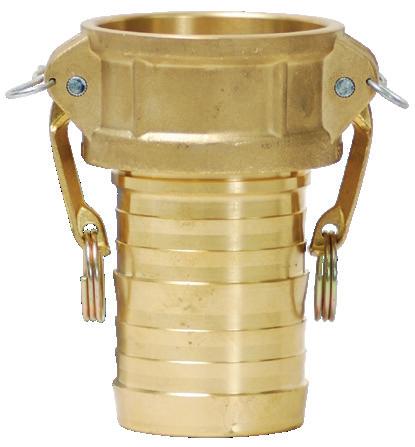

Type C coupler x hose shank

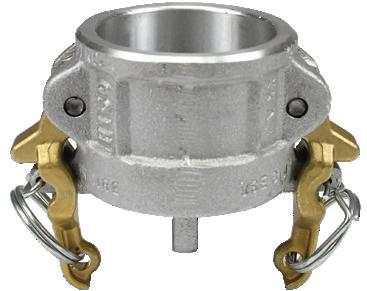

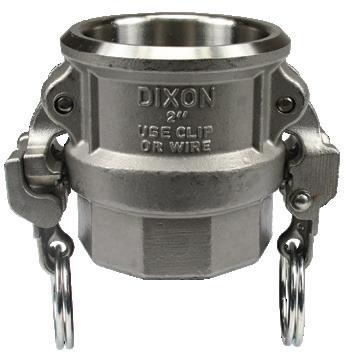

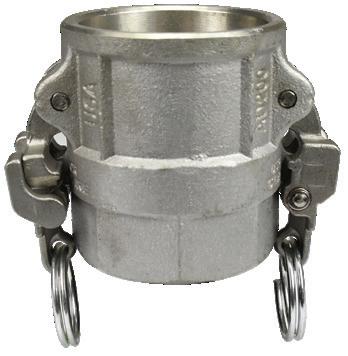

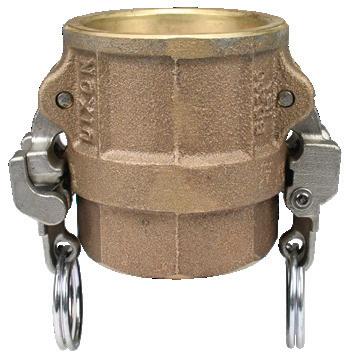

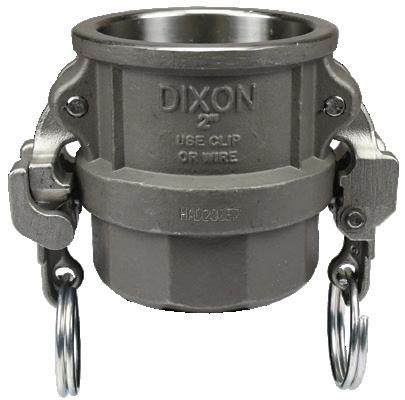

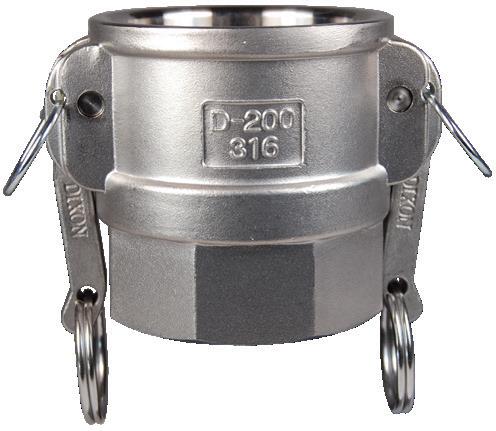

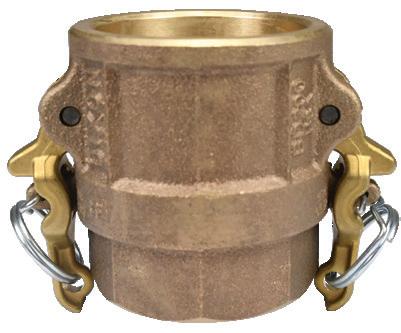

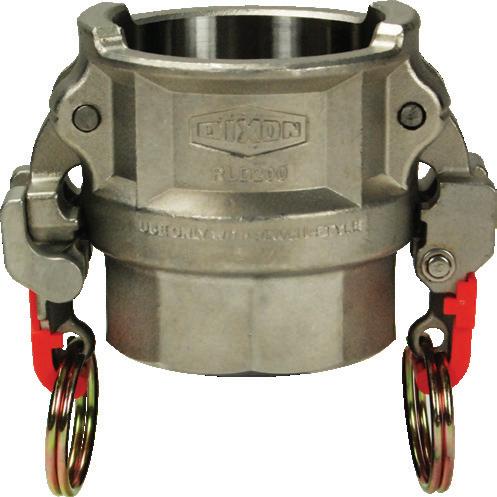

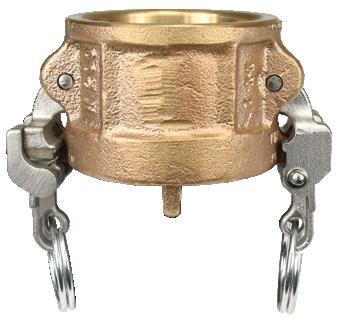

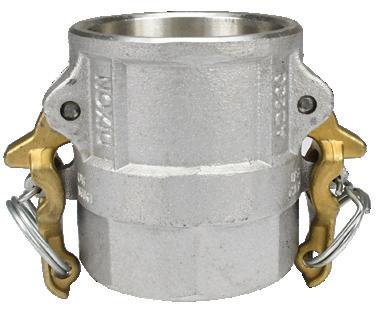

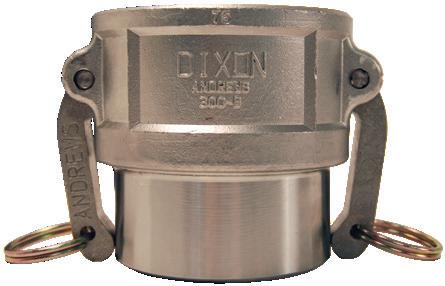

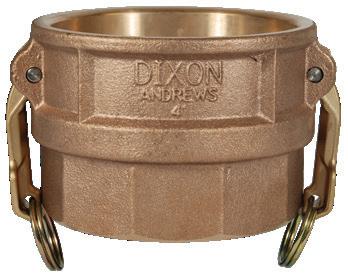

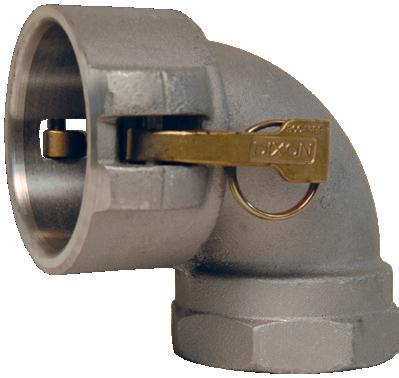

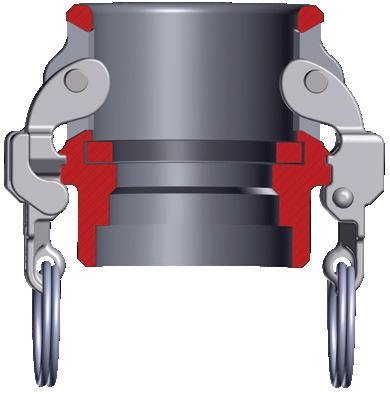

Type D coupler x female NPT

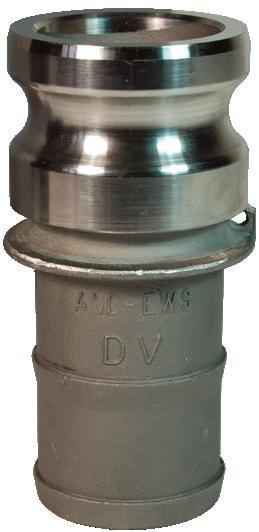

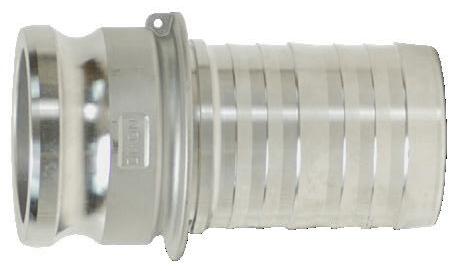

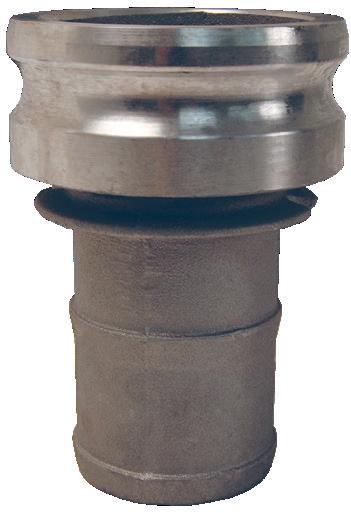

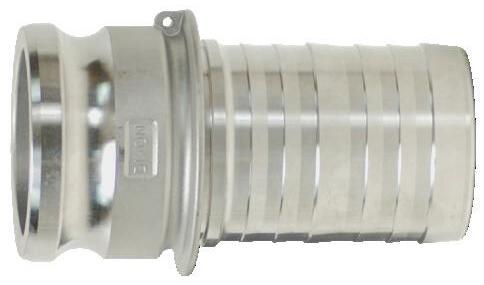

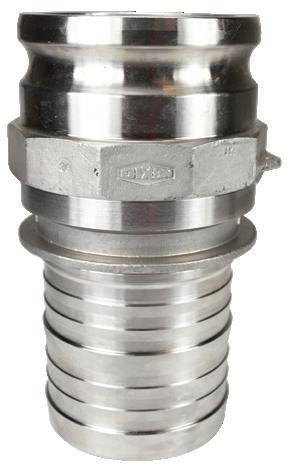

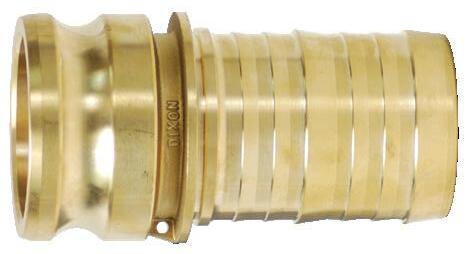

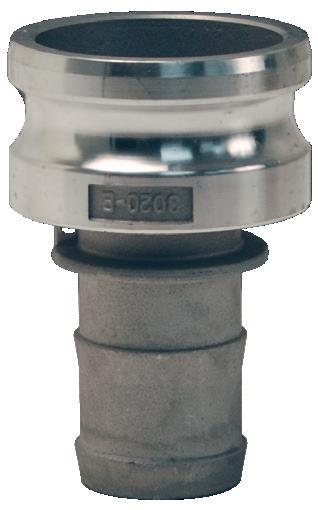

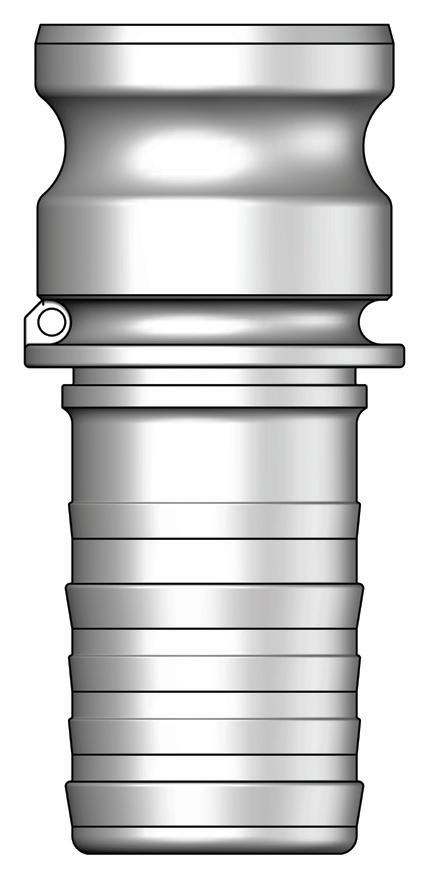

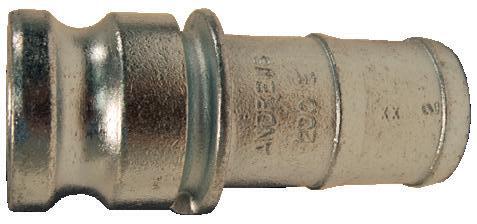

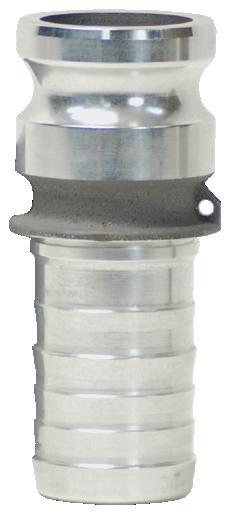

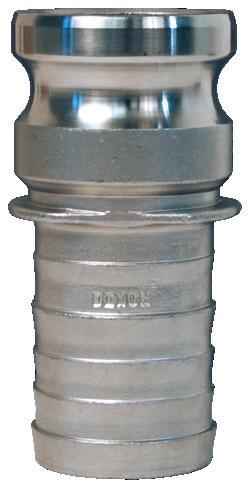

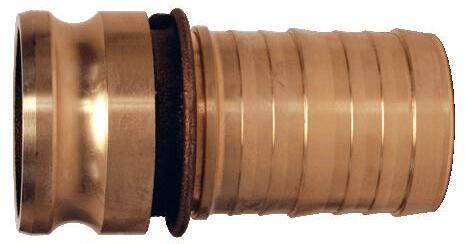

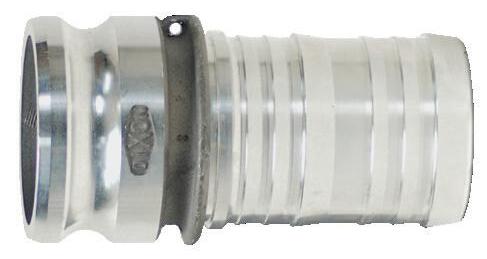

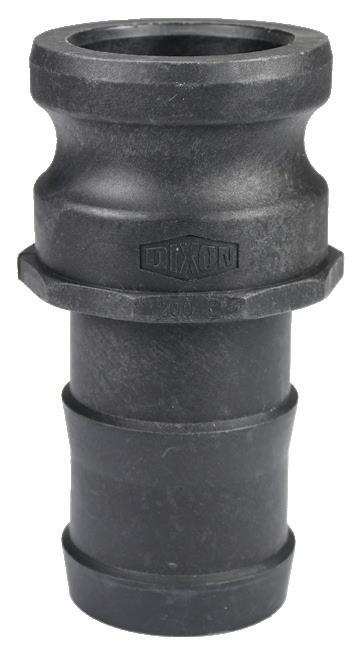

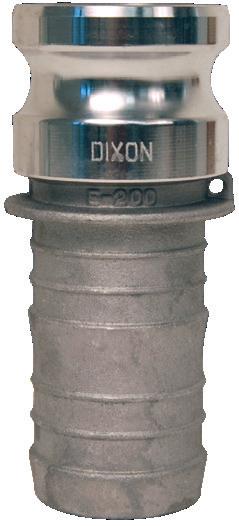

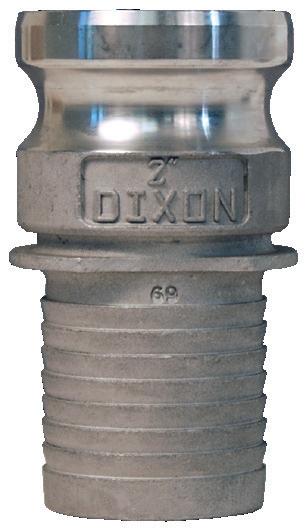

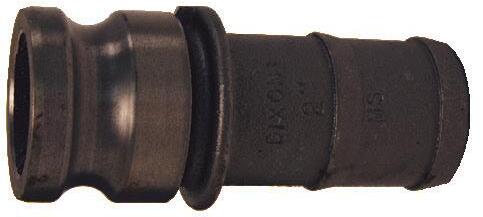

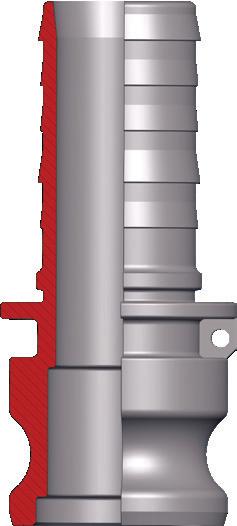

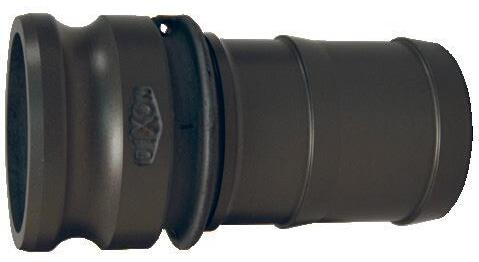

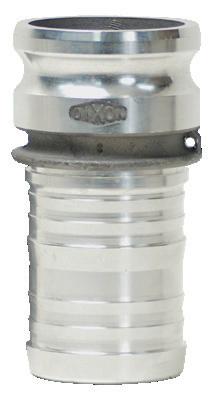

Type E adapter x hose shank

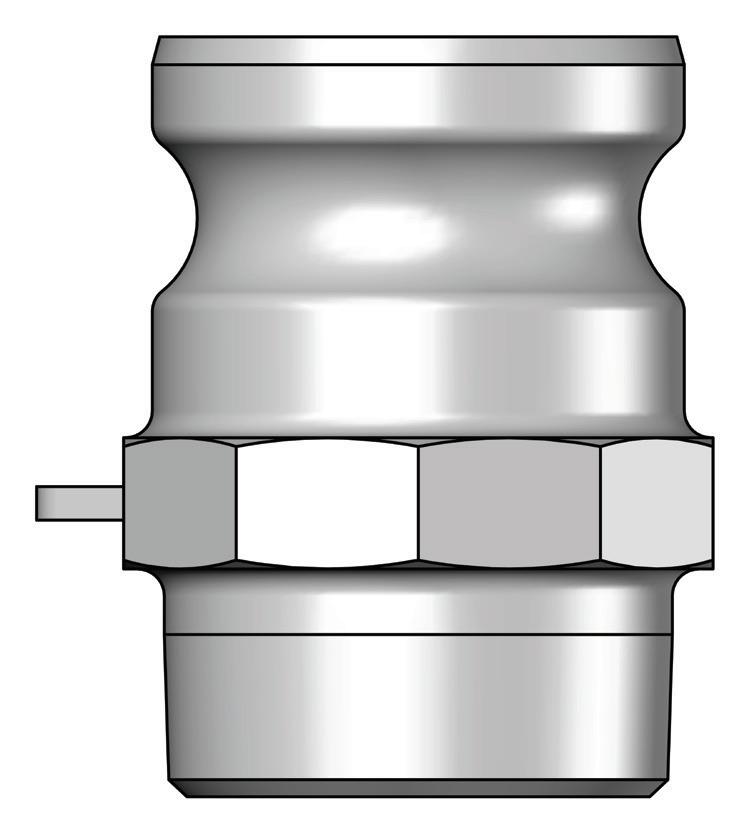

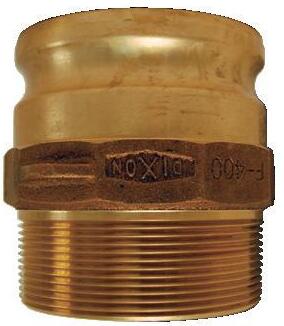

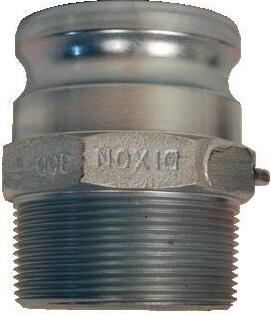

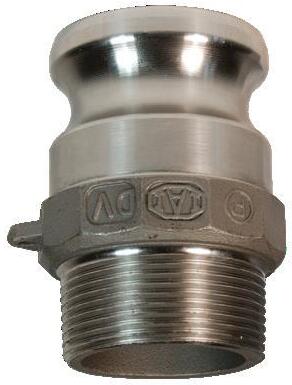

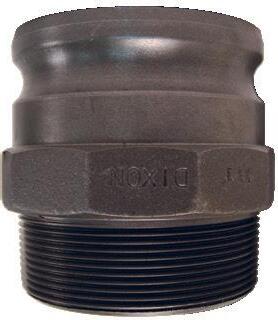

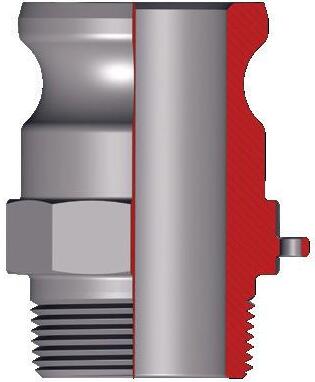

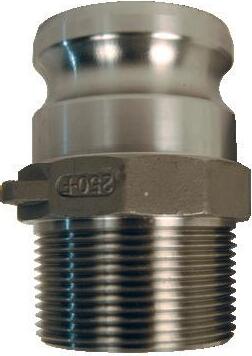

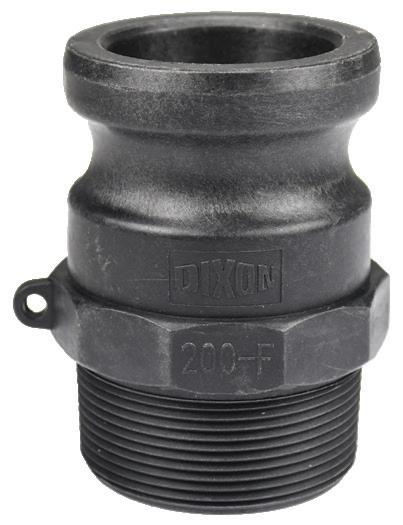

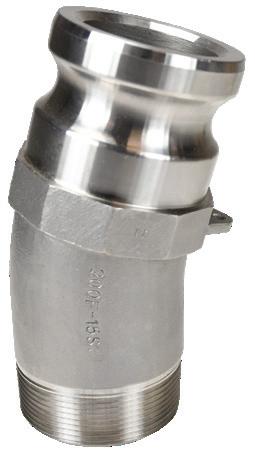

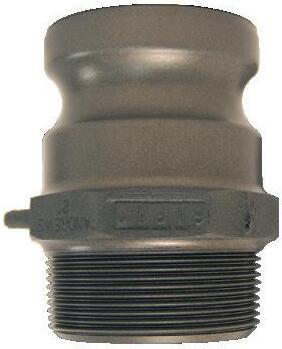

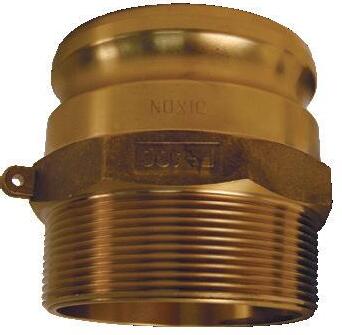

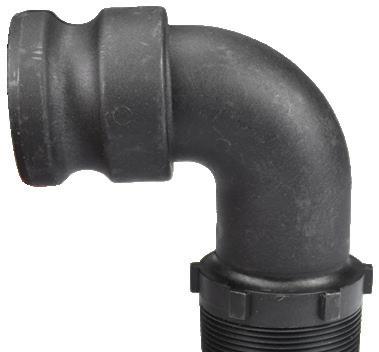

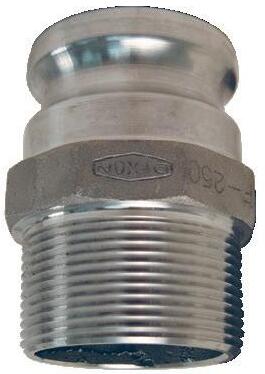

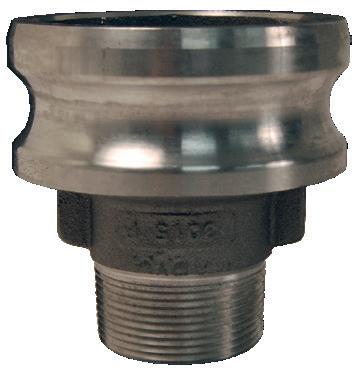

Type F adapter x male NPT

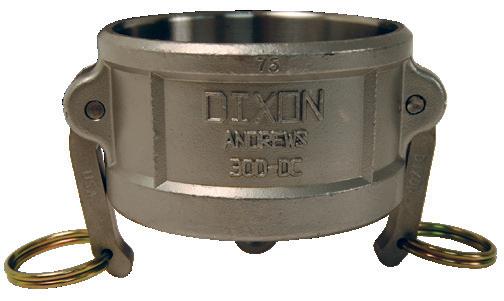

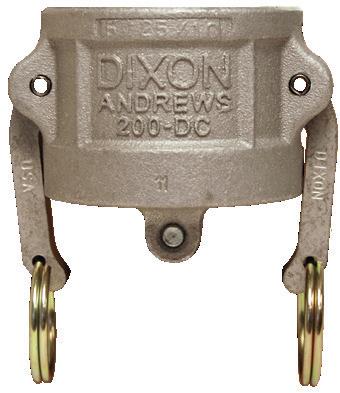

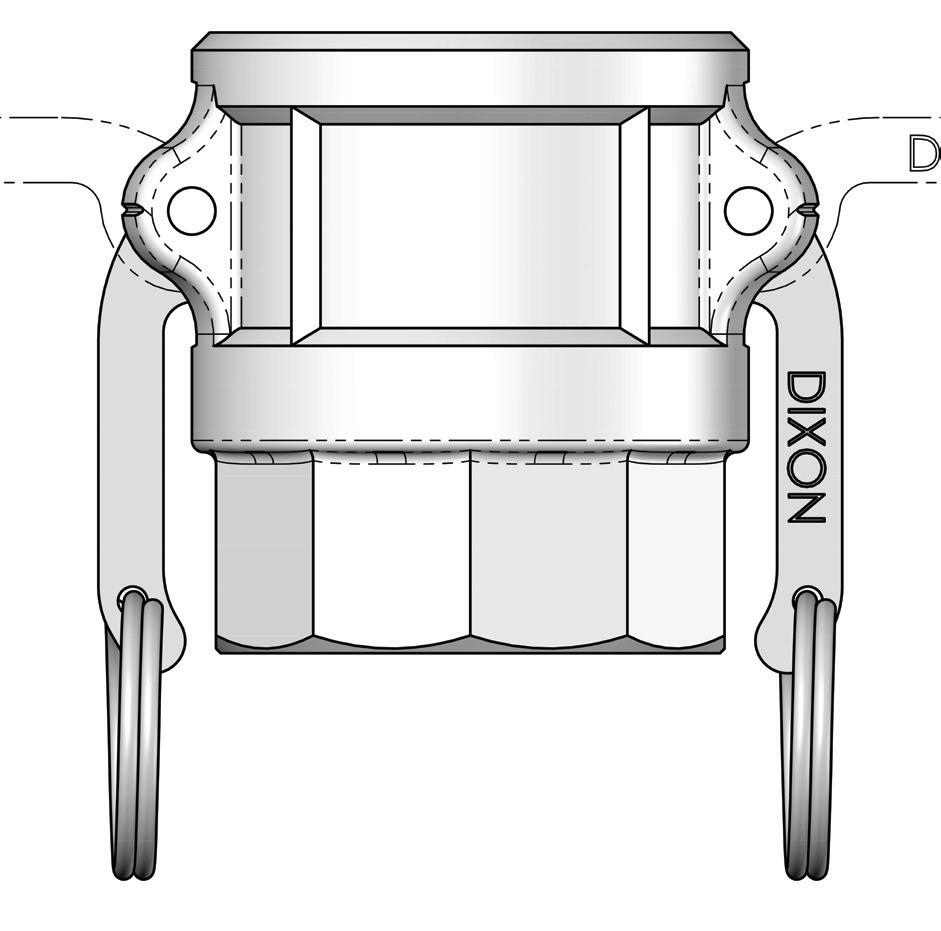

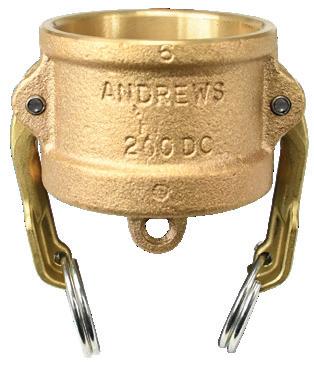

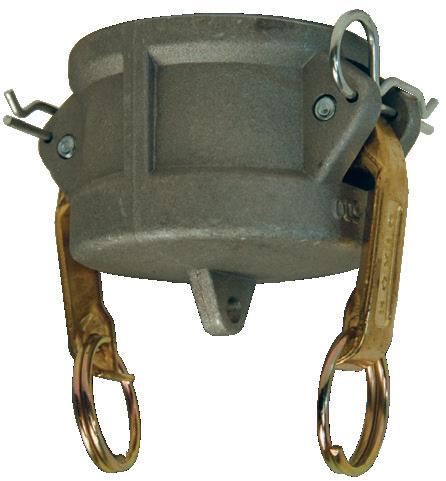

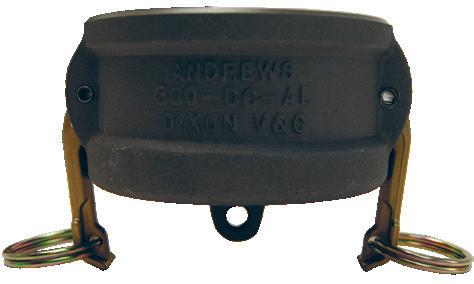

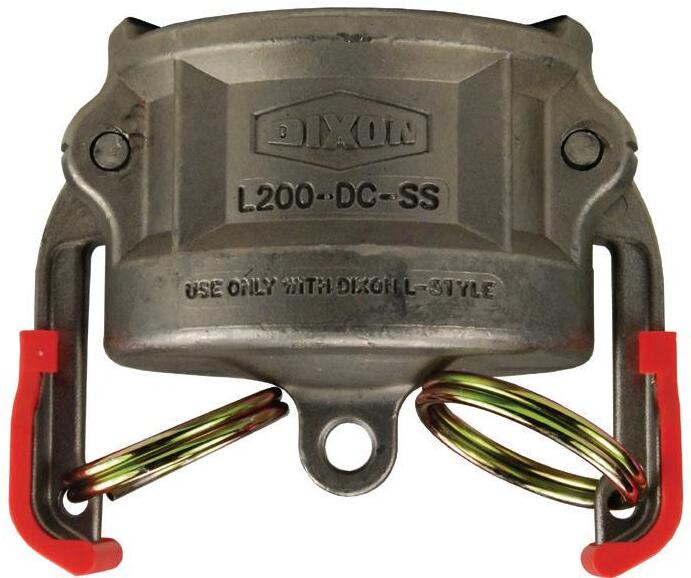

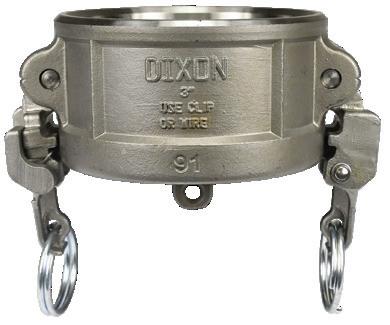

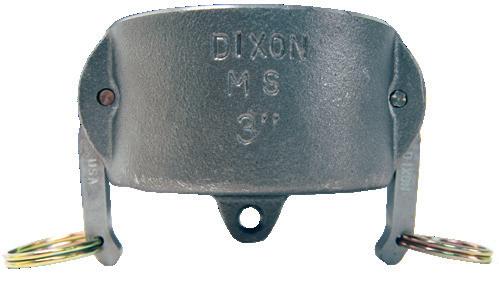

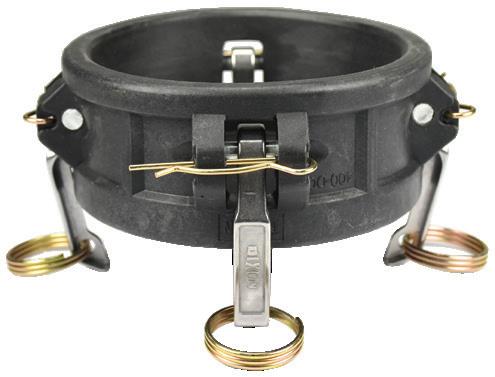

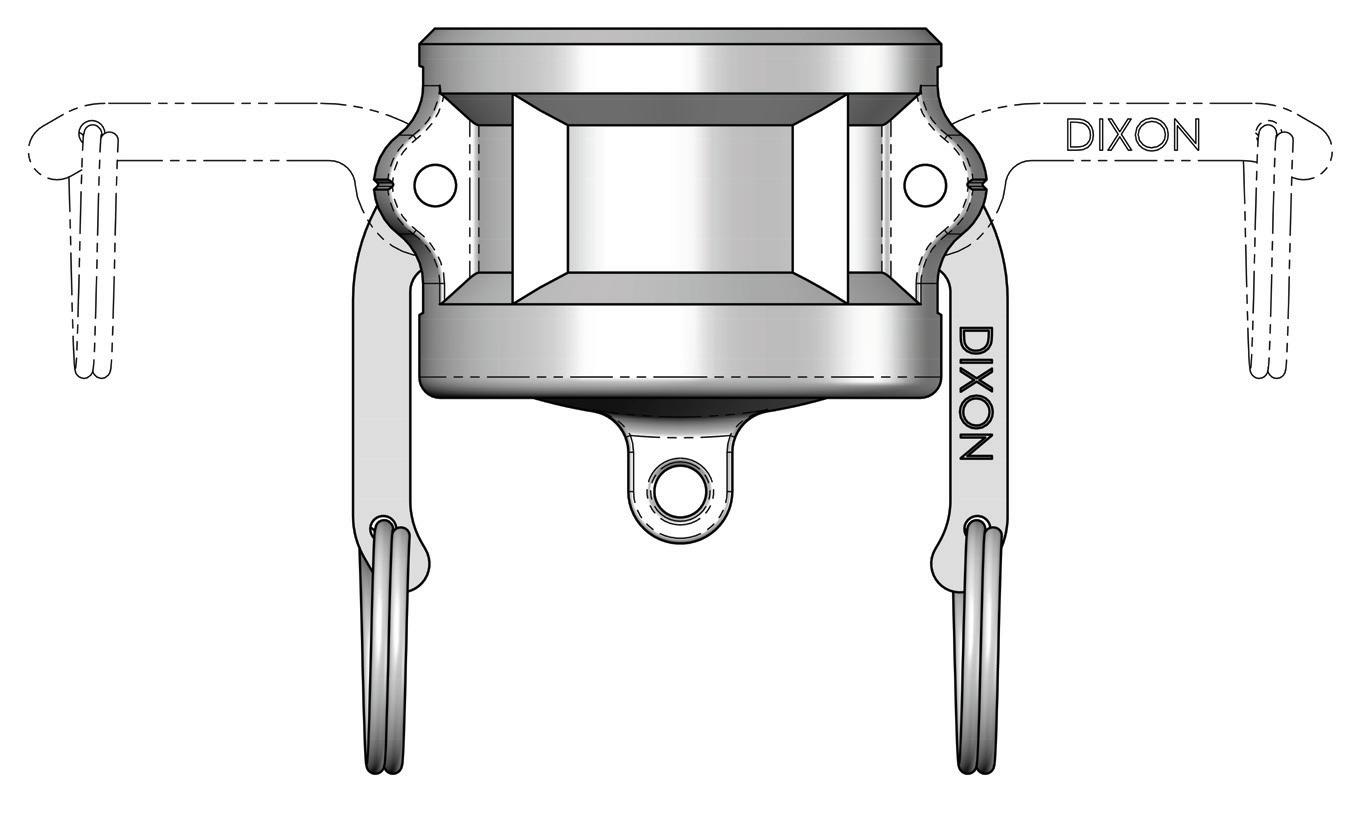

Type DC1 dust cap

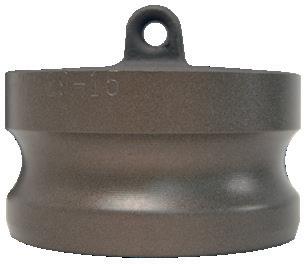

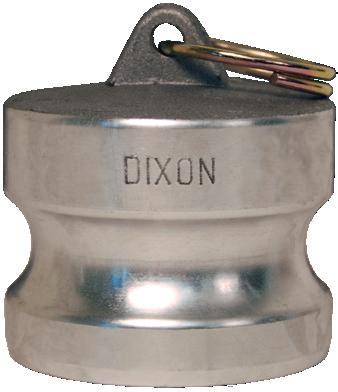

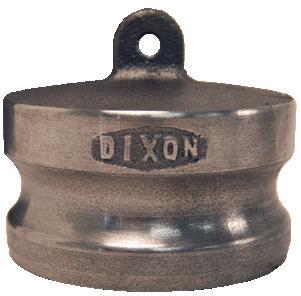

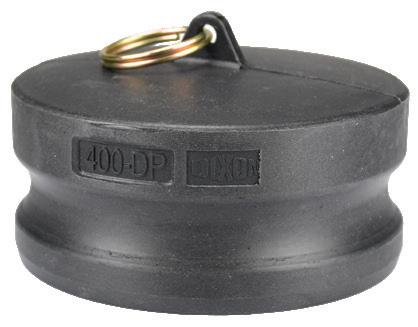

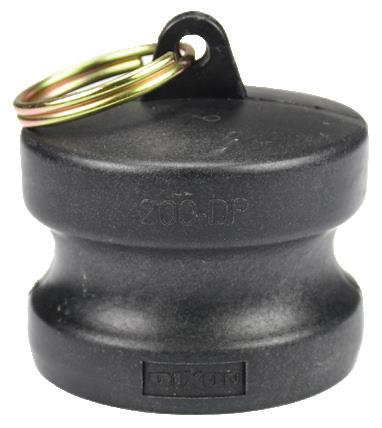

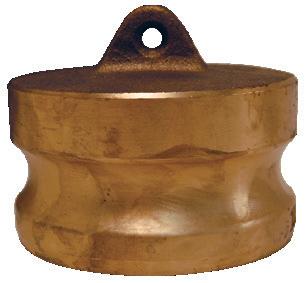

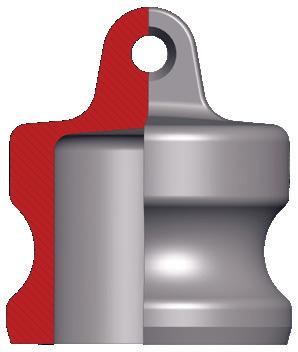

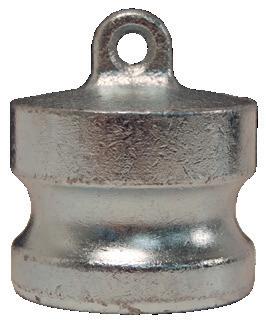

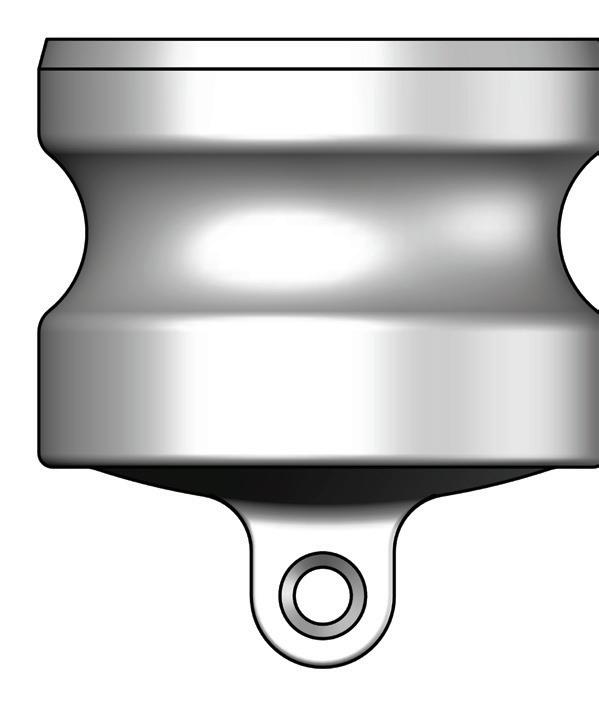

Type DP1 dust plug

1 Dust caps and dust plugs are not to be used in pressure applications for safety and environmental reasons.

Under no circumstances should cam & groove couplings be used for compressed air or steam service!

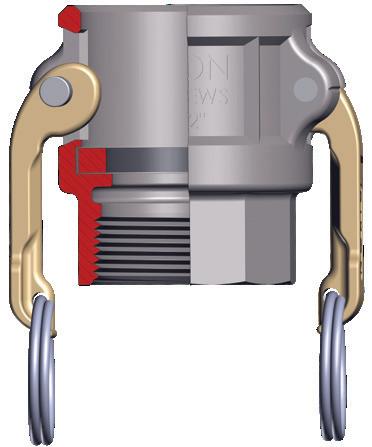

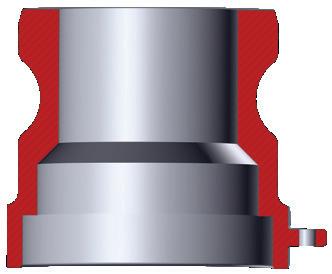

Features

• Precision machined to rigid tolerances

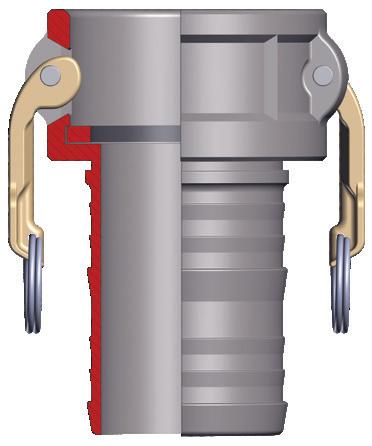

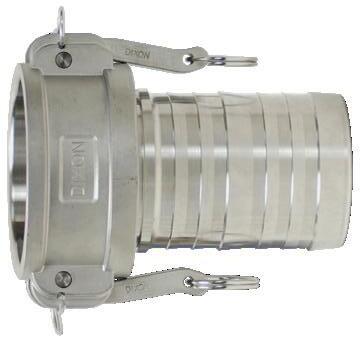

Dixon® Cam & Groove Styles

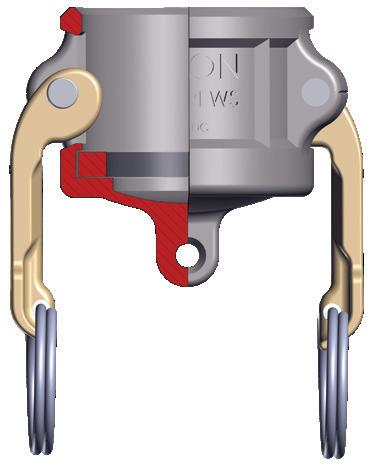

Dixon

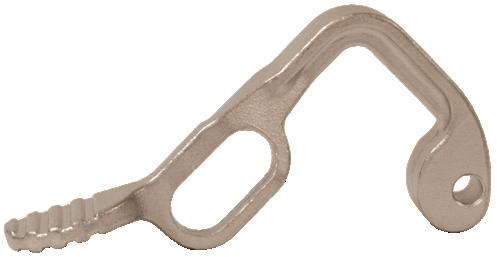

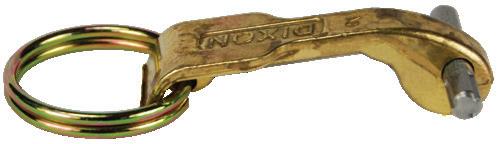

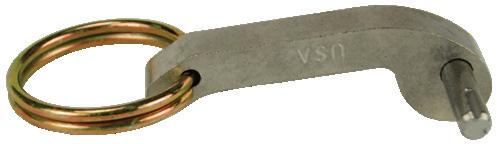

• Durable stainless steel cam arm pins will not rust or bind, providing greater strength and safety

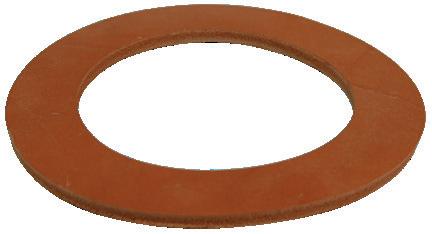

• Recess holds gasket firmly in place - ensures proper placement

• Long shank design allows proper banding, thus eliminating the major cause of hose damage

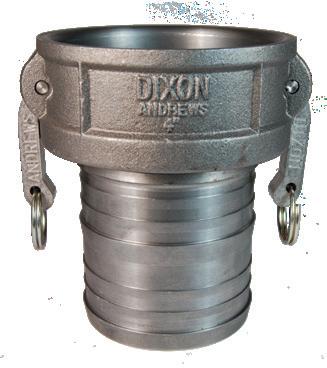

Dixon Global

Features

• Interchanges with all products produced to A-A-59326D

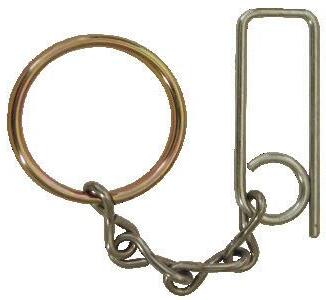

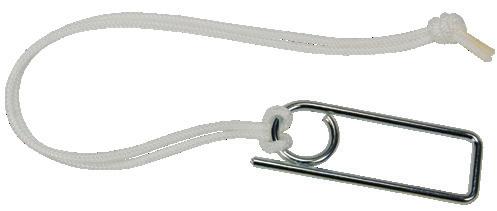

• All couplers include locking safety clip

• Aluminum couplers available with brass or stainless steel cam arms

• Brass fittings are produced by forging process providing greater structural integrity and mechanical strength

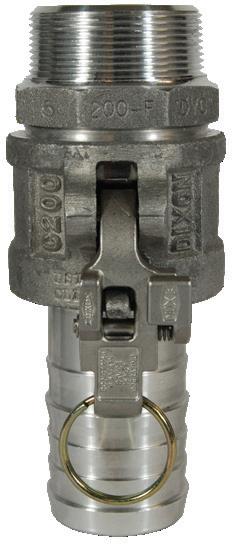

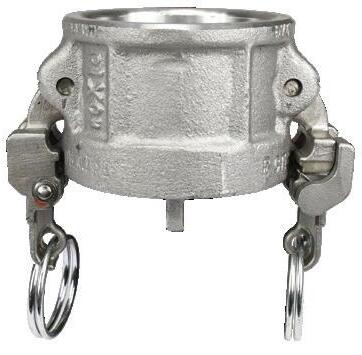

Boss-Lock

Features

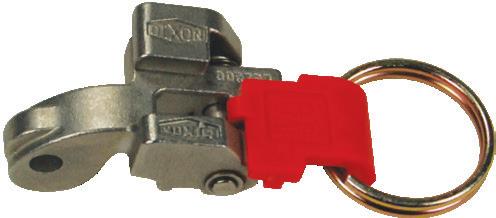

• The cast-in lugs allow safety clips to be attached once the lugs are passed through slots in the special cam lever arms, providing a patented safety feature. The clips prevent the coupler from being unlocked until they are removed, providing a positive locking action.

• Boss-Lock investment stainless steel cam arms are guaranteed! Should you break a Boss-Lock investment stainless steel cam arm, return it to the nearest warehouse for a free replacement.

• The pull ring safety clip simplifies the locking action on Boss-Lock couplers. No more inserting clips or dangling lanyards, just a twist and it's locked, giving you a low-profile positive locking action.

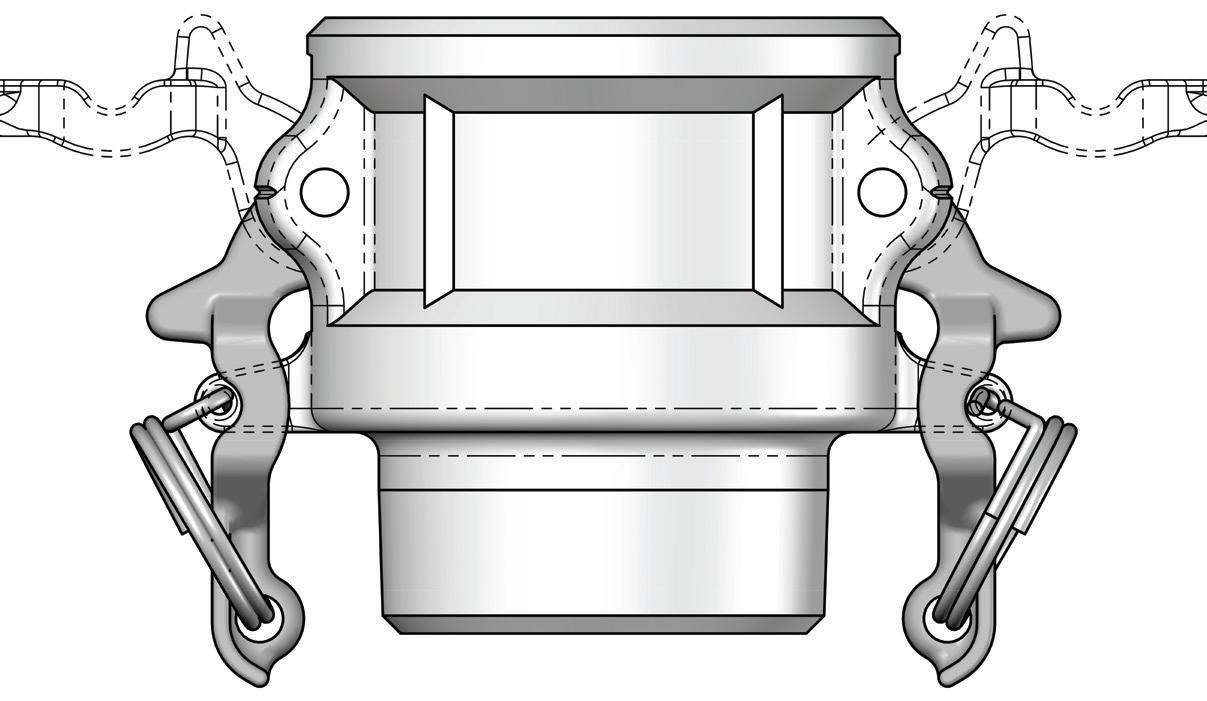

EZ Boss-Lock

Features

• No more fumbling with clamps, wire, clips, or pins, just close the handles and the locking mechanism is engaged

• Extremely easy to open, the release lever is under your thumb when you want to open the fitting; ergonomic

• Can be supplied with custom shanks; also available with swaged and PF shanks for hard-tocouple chemical hoses

• EZ Boss-Lock investment stainless steel cam arms are guaranteed! Should you break one, return it to the nearest warehouse for a free replacement.

Dixon® Cam & Groove Styles

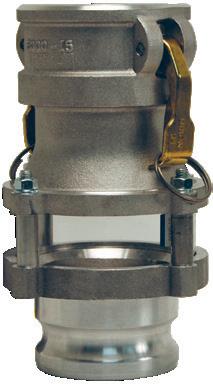

Vent-Lock® Safety

Features

• Safety release cam & groove couplings permit the release of static pressure when disconnecting hose assemblies

• Venting system protects operator from being sprayed with hazardous or non-hazardous fluids or solids

• Does not interchange with standard cam & groove products; use only with Vent-Lock L-style fittings

Venting EZ Boss-Lock

Features

• Unique Dixon system for safely venting systems under pressure

• Utilizes EZ Boss-Lock cam arms in addition to EZLink® tabs that create a secondary positive locking mechanism

• Connects to standard cam & groove adapters

• Design allows for a more ergonomic and safe experience for user

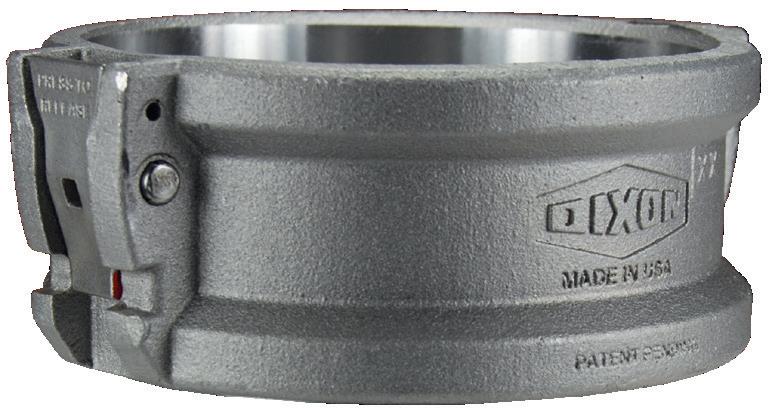

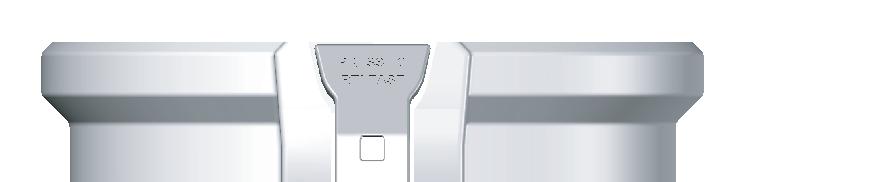

EZLink® Armless

Features

• Automatic couplers push-to-connect, providing a reliable connection

• Coupler tabs cannot be pushed to disconnect when pressurized to 20 PSI or over

• Low profile allows easy connection and disconnection in tight applications

• Coupler push tabs can be locked with safety pins and/or zip tie

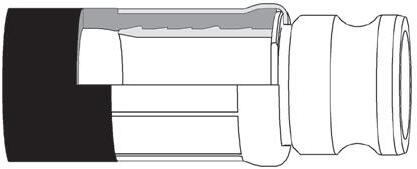

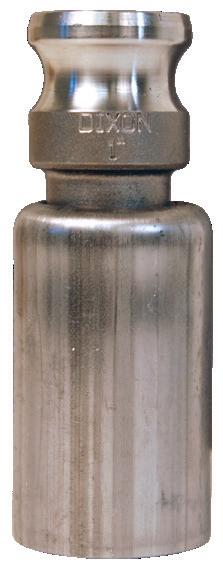

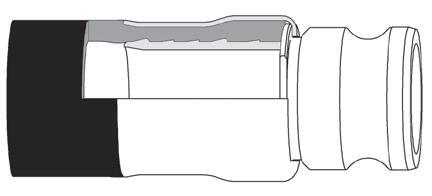

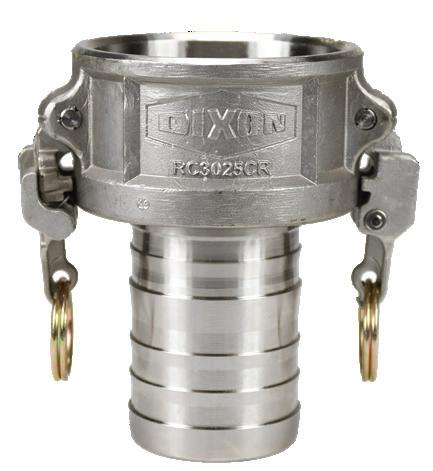

Crimp Fittings

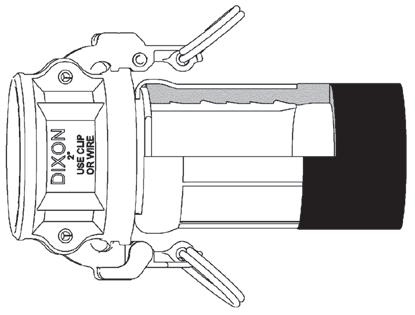

Only use the crimp style shanks with the crimp style sleeves and ferrules. Due to differences in dimensions and tolerances for safety reasons, do not interchange other manufacturer's products with Dixon® products.

Cam & Groove

Styles offered

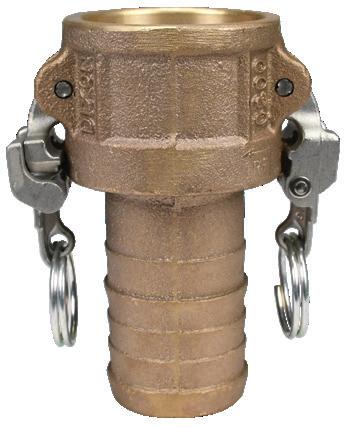

• Dixon type C couplers

• EZ Boss-Lock type C couplers

• Dixon type E adapters

• Global type C couplers

• Global type E adapters

Sizes

• 1", 1-1/4", 1-1/2", 2", 3", 4", 6"

Materials

• 356T6 aluminum

• Brass

• 316 stainless steel

• Unplated ductile iron

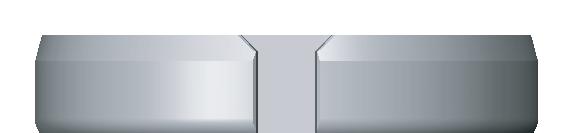

Styles offered

• Sleeve (1", 1-1/4", 1-1/2", 2", 3", 4", 6")

• Ferrule (1", 1-1/4", 1-1/2", 2", 3", 4", 6")

Materials

• Carbon steel

• 304 stainless steel

• Aluminum (1", 1-1/4", 1-1/2", and 2" sleeves)

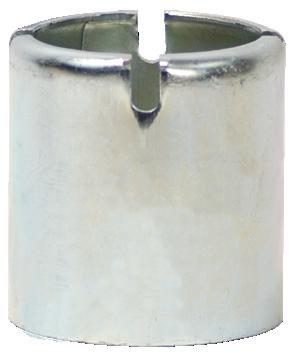

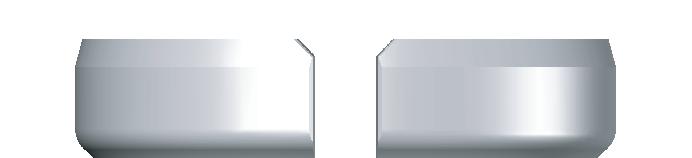

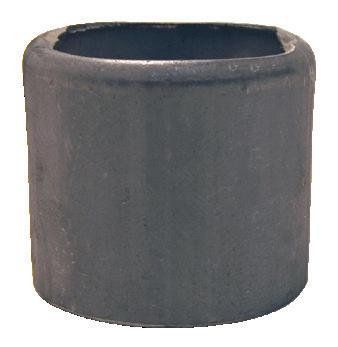

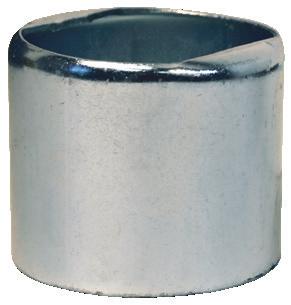

Sleeves and Ferrules

• For a complete listing of products in the King Crimp® system please visit dixonvalve.com.

• Contact Dixon at 877.963.4966 for specific crimp recommendations.

Swivel Couplings Cam & Groove

Features

• Live swivel is capable of 360° rotation under pressure

• Nitrile rubber or FKM X-ring seals for reduced friction and high stability in dynamic applications

• Couplers include EZ Boss-Lock cam arms

Material

• Gasket, pressure seal, and dust seal: nitrile rubber or FKM

Type A Adapters

Adapter and Female NPT

Part #1 Part #2 Part #1 Part #2 1" 100-A-ALSWIV 100-A-ALSWIVVI* 100-A-SSSWIV 100-A-SSSWIVVI* 1-1/2" 150-A-ALSWIV 150-A-ALSWIVVI* 150-A-SSSWIV 150-A-SSSWIVVI* 2" 200-A-ALSWIV 200-A-ALSWIVVI* 200-A-SSSWIV 200-A-SSSWIVVI* 3" 300-A-ALSWIV 300-A-ALSWIVVI 300-A-SSSWIV 300-A-SSSWIVVI 4" 400-A-ALSWIV 400-A-ALSWIVVI* 400-A-SSSWIV 400-A-SSSWIVVI*

Type C Couplers

Coupler and Hose Shank

356T6 Aluminum 316 Stainless Steel

Size

Part #1

#1 Part #2 1" AC100EZSWIV AC100EZSWIVVI* RC100EZSWIV RC100EZSWIVVI* 1-1/2" AC150EZSWIV AC150EZSWIVVI* RC150EZSWIV RC150EZSWIVVI* 2" AC200EZSWIV AC200EZSWIVVI* RC200EZSWIV RC200EZSWIVVI 3" AC300EZSWIV AC300EZSWIVVI RC300EZSWIV RC300EZSWIVVI* 4" AC400EZSWIV AC400EZSWIVVI* RC400EZSWIV RC400EZSWIVVI*

Type D Couplers

Coupler and Female NPT

Size

356T6 Aluminum 316 Stainless Steel Part #1

1" AD100EZSWIV AD100EZSWIVVI* RD100EZSWIV RD100EZSWIVVI* 1-1/2" AD150EZSWIV AD150EZSWIVVI* RD150EZSWIV RD150EZSWIVVI* 2" AD200EZSWIV AD200EZSWIVVI* RD200EZSWIV RD200EZSWIVVI 3" AD300EZSWIV AD300EZSWIVVI* RD300EZSWIV RD300EZSWIVVI 4" AD400EZSWIV AD400EZSWIVVI* RD400EZSWIV RD400EZSWIVVI

Type E Adapters

Adapter and Hose Shank

356T6

Size

1" 100-E-ALSWIV 100-E-ALSWIVVI* 100-E-SSSWIV 100-E-SSSWIVVI* 1-1/2" 150-E-ALSWIV 150-E-ALSWIVVI* 150-E-SSSWIV 150-E-SSSWIVVI* 2" 200-E-ALSWIV 200-E-ALSWIVVI* 200-E-SSSWIV 200-E-SSSWIVVI* 3" 300-E-ALSWIV 300-E-ALSWIVVI* 300-E-SSSWIV 300-E-SSSWIVVI* 4" 400-E-ALSWIV 400-E-ALSWIVVI* 400-E-SSSWIV 400-E-SSSWIVVI*

1 Gasket, pressure seal, and dust seal: nitrile rubber

2 Gasket, pressure seal, and dust seal: FKM

* Parts are made to order. Please contact Dixon for price and delivery

NOTE: Hose shanks are compatible with King Crimp® sleeves and ferrules; for a complete listing of products in the King Crimp system please visit dixonvalve.com.

Application

Venting EZ Boss-Lock Cam & Groove

• Transfer of fluids and solids, with a safe disconnection

Sizes

• 2", 3", and 4"

Features

• In the event of an accidental disconnection under pressure, the venting feature retains the coupling and allows the stored pressure to vent off

• Provides a venting feature when used with standard cam adapters

• The safety venting feature of this coupling doesn’t require a special adapter to work as a system

Materials

• Couplings and dust caps: 316 stainless steel, 356T6 aluminum

• Gasket: Nitrile rubber

Size

356T6 Aluminum Part #

2" ALBEZ200

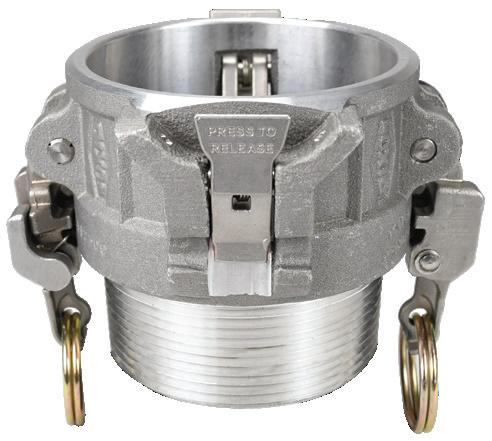

Type B Coupler

Coupler x Male NPT

316 Stainless Steel Part #

RLBEZ200 3" ALBEZ300

RLBEZ300 4" ALBEZ400

Size

356T6 Aluminum Part #

2" ALCEZ200 1

RLBEZ400

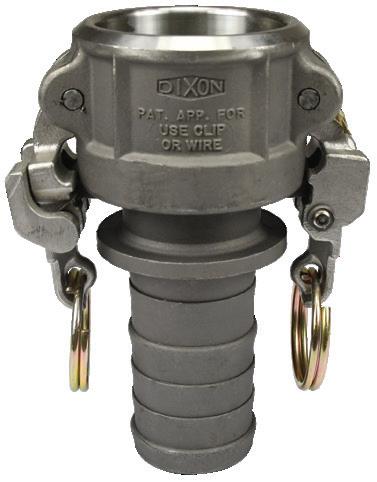

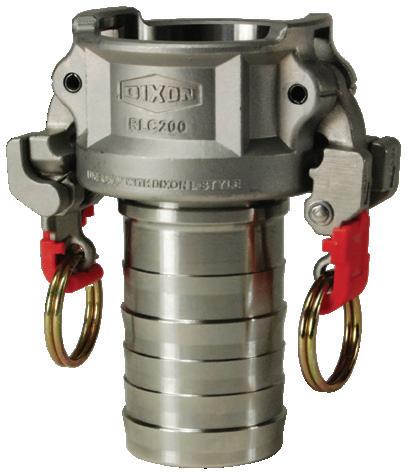

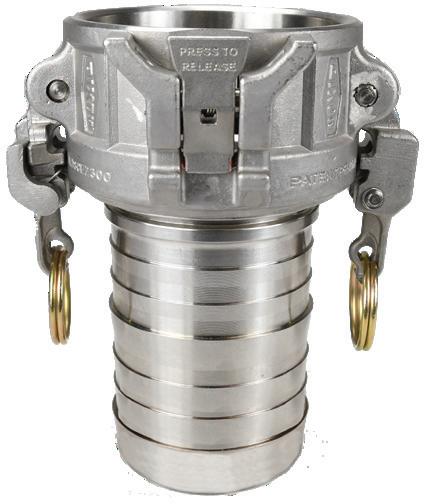

Type C Coupler

Coupler x Hose Shank

316 Stainless Steel Part #

RLCEZ200 1 3" ALCEZ300 1

RLCEZ300 1 4" ALCEZ400 1

1 Hose drop shank

Size

RLCEZ400 1

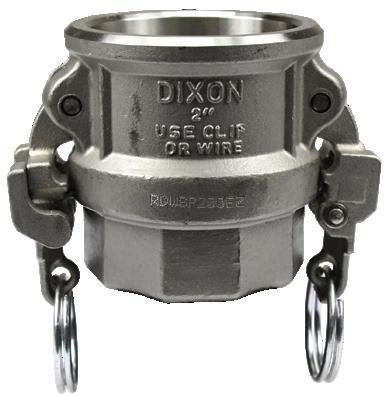

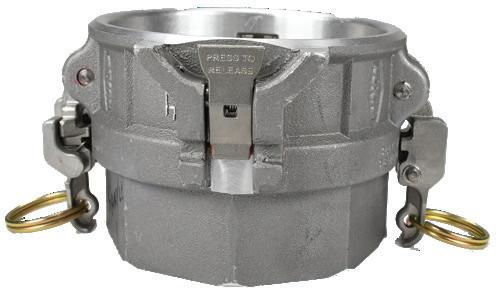

Type D Coupler

Coupler x Female NPT

356T6 Aluminum Part #

2" ALDEZ200

316 Stainless Steel Part #

RLDEZ200 3" ALDEZ300

RLDEZ300 4" ALDEZ400

Size

356T6 Aluminum Part #

2" ALHEZ200

RLDEZ400

Type H Dust Cap

316 Stainless Steel Part #

RLHEZ200 3" ALHEZ300

RLHEZ400

RLHEZ300 4" ALHEZ400

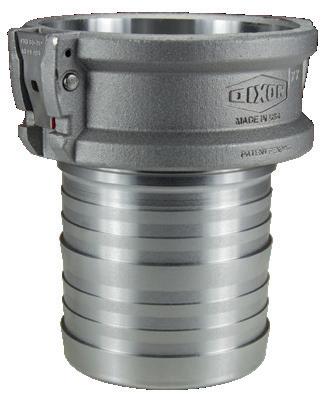

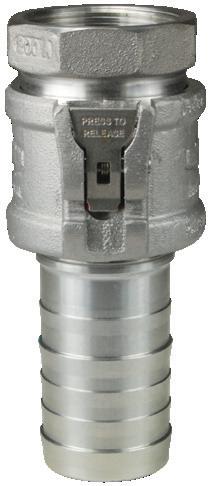

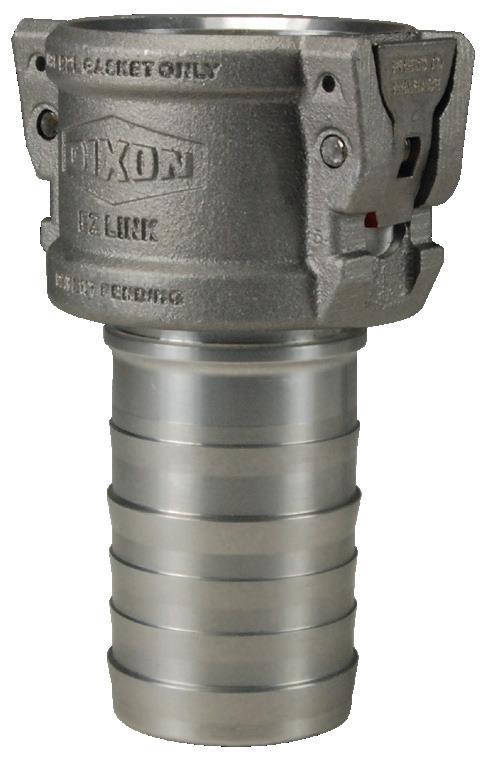

EZLink® Armless Type C Couplers

Applications

• Transfer and/or unloading of fuels (gasoline or diesel) from tank truck to storage tanks

• Transfer of liquids compatible with the available coupling and gasket materials

Size

1-1/2"

Features

• Automatic couplers push-to-connect, providing a reliable connection

• Low profile allows easy connection and disconnection in tight applications

• Coupler push tabs can be locked with safety pins and/or zip tie

• Compatible with standard cam & groove adapters

• Lifetime warranty on stainless steel tabs

Materials

• Couplings and dust caps: 356T6 aluminum, 316 stainless steel

• Coupler tabs and springs: 316 stainless steel

• Gasket: nitrile rubber

Specifications

• Maximum working pressure with King Crimp® ferrules: 1-1/2" - 2" 250 PSI, 3" and 4" 150 PSI

• Maximum working pressure with crimp sleeves: 1-1/2" - 2" 250 PSI, 3" 125 PSI, 4" 110 PSI

• Maximum working pressure with band clamps: 1-1/2" - 2" 250 PSI, 3" 125 PSI, 4" 100 PSI

• Gasket temperature range: 5°F to 180°F (-15°C to 82°C)

Only use EZLink gaskets and tabs for this coupling system. Traditional cam & groove handles and gaskets, or other types of seals, are not compatible and will fail.

356T6 Aluminum Part #

EZL150-C-AL

EZL200-C-AL

EZL300-C-AL

EZL400-C-AL

316 Stainless Steel Part #

EZL150-C-SS

EZL200-C-SS

EZL300-C-SS

Applications

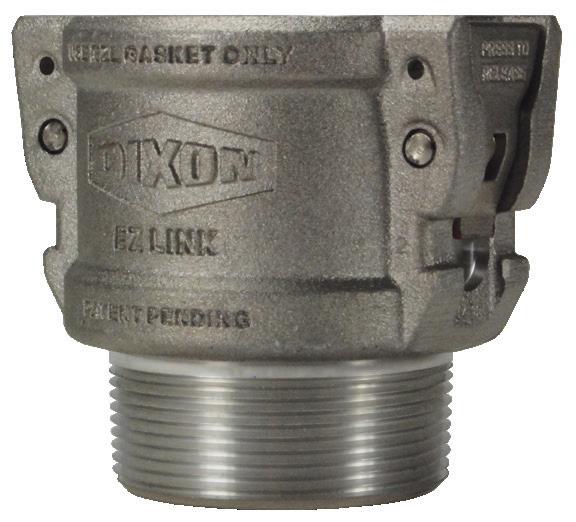

EZLink® Armless Type B Couplers

• Transfer and/or unloading of fuels (gasoline or diesel) from tank truck to storage tanks

• Transfer of liquids compatible with the available coupling and gasket materials

Features

• Automatic couplers push-to-connect, providing a reliable connection

• Low profile allows easy connection and disconnection in tight applications

• Coupler push tabs can be locked with safety pins and/or zip tie

• Compatible with standard cam & groove adapters

• Lifetime warranty on stainless steel tabs

Materials

• Couplings and dust caps: 356T6 aluminum, 316 stainless steel

• Coupler tabs and springs: 316 stainless steel

• Gasket: nitrile rubber

Specification

• Gasket temperature range: 5°F to 180°F (-15°C to 82°C)

Only use EZLink gaskets and tabs for this coupling system. Traditional cam & groove handles and gaskets, or other types of seals, are not compatible and will fail.

Coupler x Male NPT

EZL150-B-AL

EZL200-B-AL

EZL300-B-AL

EZL400-B-AL

EZL150-B-SS

EZL200-B-SS

EZL300-B-SS

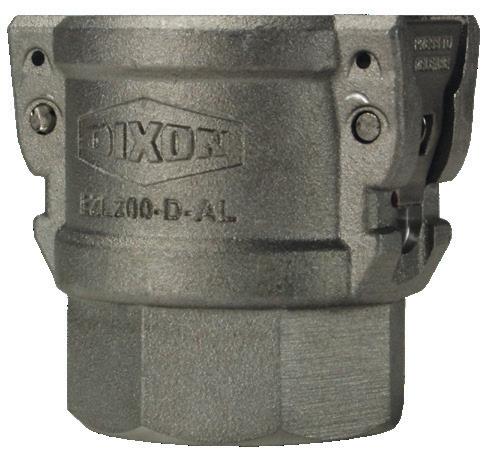

EZLink® Armless Type D Couplers

Applications

• Transfer and/or unloading of fuels (gasoline or diesel) from tank truck to storage tanks

• Transfer of liquids compatible with the available coupling and gasket materials

Features

• Automatic couplers push-to-connect, providing a reliable connection

• Low profile allows easy connection and disconnection in tight applications

• Coupler push tabs can be locked with safety pins and/or zip tie

• Compatible with standard cam & groove adapters

• Lifetime warranty on stainless steel tabs

Materials

• Couplings and dust caps: 356T6 aluminum, 316 stainless steel

• Coupler tabs and springs: 316 stainless steel

• Gasket: nitrile rubber

Specification

• Gasket temperature range: 5°F to 180°F (-15°C to 82°C)

Only use EZLink gaskets and tabs for this coupling system. Traditional cam & groove handles and gaskets, or other types of seals, are not compatible and will fail.

Size

1-1/2"

356T6 Aluminum Part #

EZL150-D-AL

EZL200-D-AL

316 Stainless Steel Part #

EZL150-D-SS

EZL200-D-SS 3"

EZL300-D-AL

EZL300-D-SS 4"

EZL400-D-AL

356T6 Aluminum Dimensions

316 Stainless Steel Dimensions

Applications

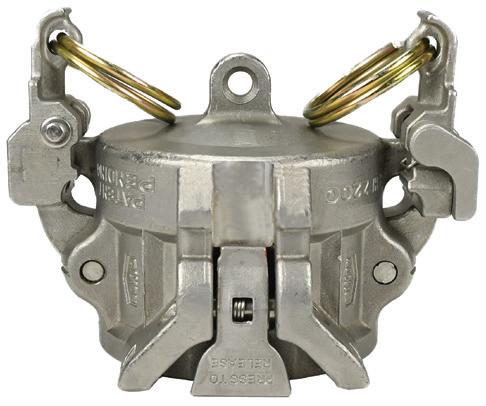

EZLink® Armless Type DC Dust Caps

• Transfer and/or unloading of fuels (gasoline or diesel) from tank truck to storage tanks

• Transfer of liquids compatible with the available coupling and gasket materials

Features

• Automatic couplers push-to-connect, providing a reliable connection

• Low profile allows easy connection and disconnection in tight applications

• Coupler push tabs can be locked with safety pins and/or zip tie

• Compatible with standard cam & groove adapters

• Lifetime warranty on stainless steel tabs

Materials

• Couplings and dust caps: 356T6 aluminum, 316 stainless steel

• Coupler tabs and springs: 316 stainless steel

• Gasket: nitrile rubber

Specification

• Gasket temperature range: 5°F to 180°F (-15°C to 82°C)

Only use EZLink gaskets and tabs for this coupling system. Traditional cam & groove handles and gaskets, or other types of seals, are not compatible and will fail.

1-1/2"

EZL150-DC-AL

EZL150-DC-SS 2"

EZL200-DC-AL

EZL200-DC-SS 3"

EZL300-DC-AL

EZL300-DC-SS 4"

EZL400-DC-AL

356T6 Aluminum Dimensions

coupler O.D. with chain lug 3-19/32"

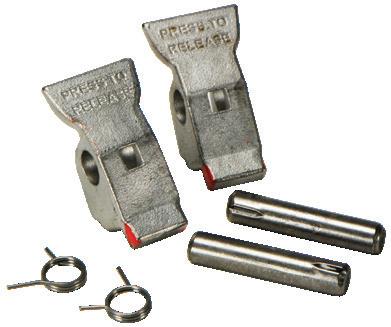

EZLink® Armless Cam & Groove

Replacement Kits

Feature

• Kit contains: 2 pins, 2 springs, and 2 tabs

1-1/2" and 2"

3" and 4"

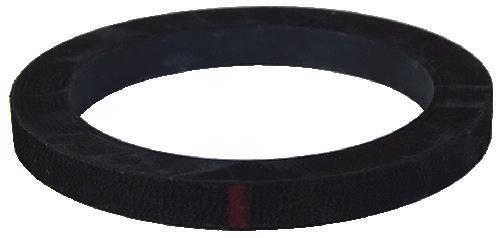

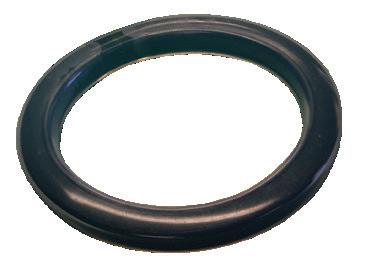

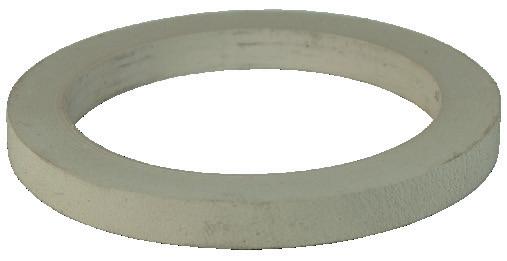

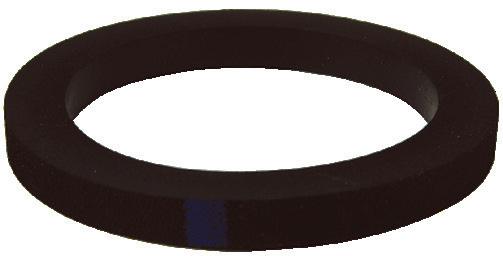

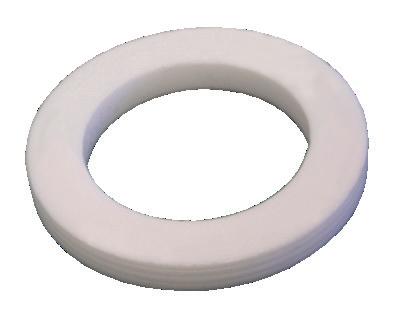

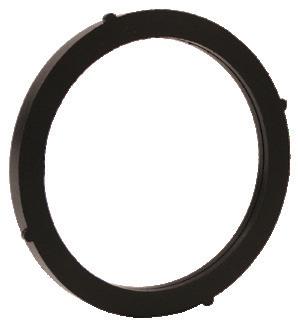

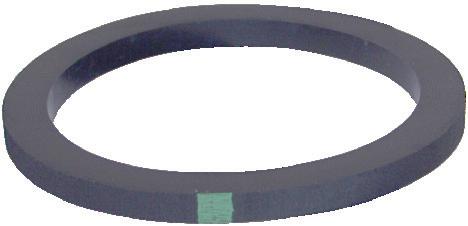

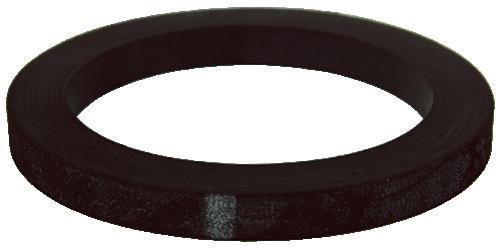

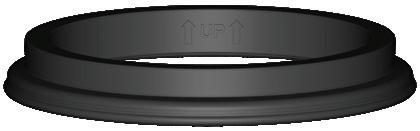

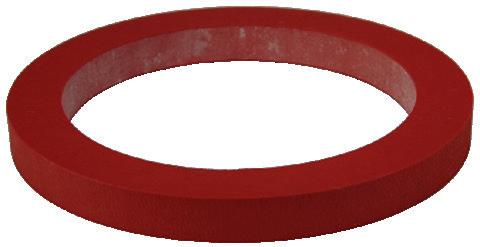

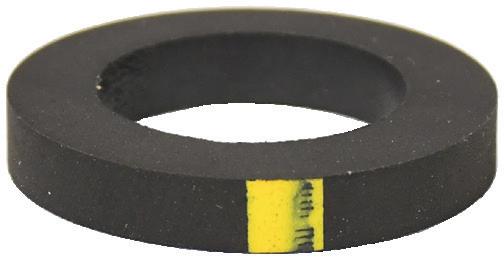

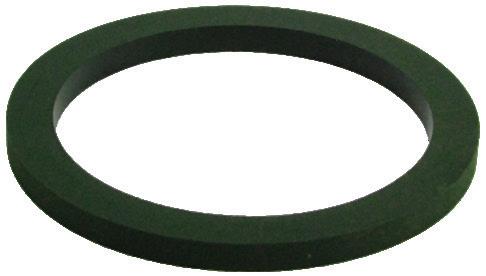

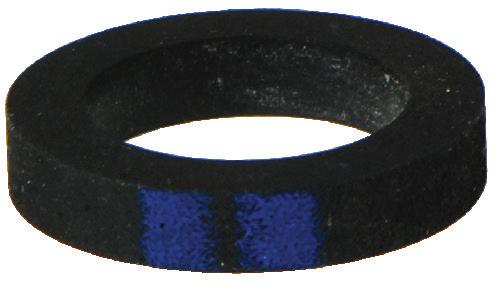

Replacement Gaskets Size

EZL200RPLKIT

EZL300RPLKIT

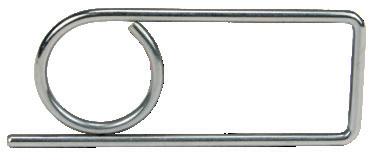

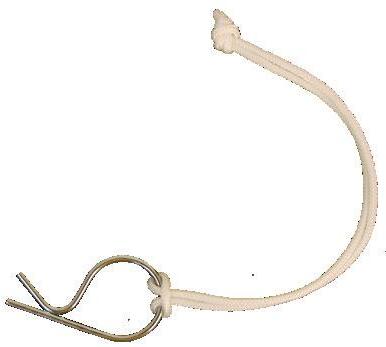

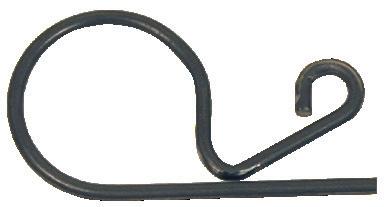

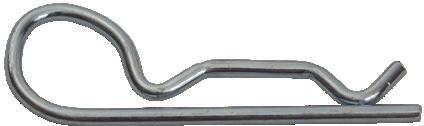

Safety Clip

Bottle Opener

Plated Carbon Steel Part # EZLCL400 Brass Part #

Application

• Transfer of fluids and solids, with a safer disconnection

Features

• Safety release cam & groove couplings permit the release of static pressure when disconnecting hose assemblies

• Venting system protects operator from being sprayed with hazardous or non-hazardous fluids or solids

• Does not interchange with standard cam & groove products; use only with Dixon L-style fittings

• Consult Dixon for availability of other materials.

Specifications

• Rated to 250 PSI; recommendation based on the use of mating Dixon® L-style fittings at ambient temperature 70°F (21°C) with standard nitrile rubber seal installed. For use at elevated temperatures or other unusual operating conditions, consult Dixon

- 1", 1-1/2", and 2" sizes have a maximum working pressure of 250 PSI

- 3" maximum working pressure 150 PSI with King Crimp® ferrules, crimp sleeves, and bands at 125 PSI

- 4" maximum working pressure 150 PSI with King Crimp ferrules, crimp sleeves, and bands at 100 PSI

Type A Adapters

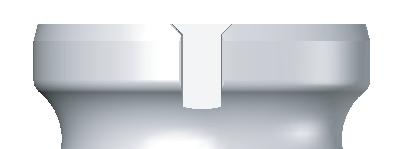

Vent-Lock® Safety Cam & Groove Couplings Adapter x Female NPT

316 Stainless Steel Part #

1-1/2"

L100-A-SS

L150-A-SS

L200-A-SS

L300-A-SS

Vent-Lock® Type A Adapters Dimensions

L400-A-AL

Stainless Steel Dimensions

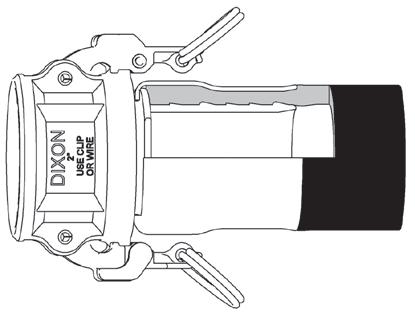

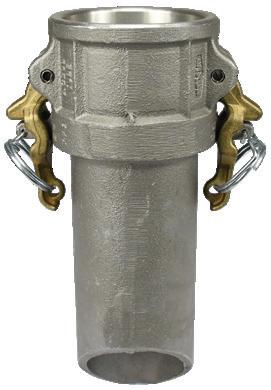

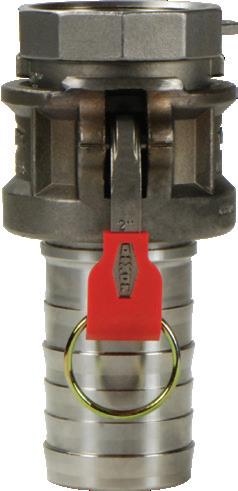

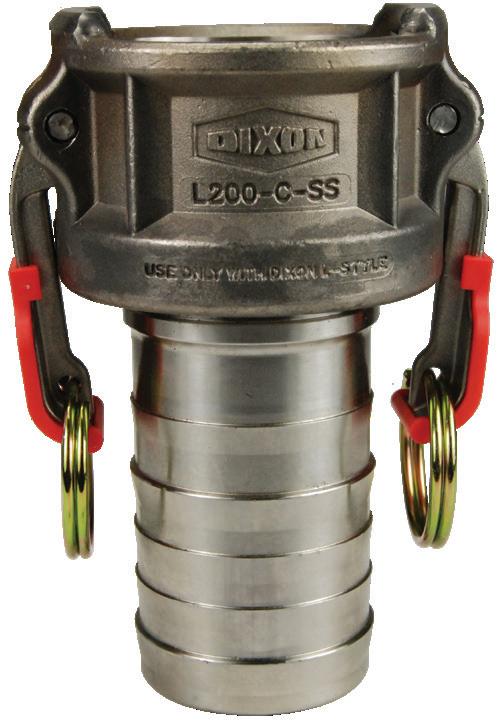

Vent-Lock® Type C Couplers

Coupler X Hose Shank

Application

• Transfer of fluids and solids, with a safer disconnection

Features

• Safety release cam & groove couplings permit the release of static pressure when disconnecting hose assemblies

• Venting system protects operator from being sprayed with hazardous or non-hazardous fluids or solids

• Does not interchange with standard cam & groove products; use only with Dixon® L-style fittings

• Safety orange cam arms

• Consult Dixon for availability of other materials

Specifications

• Rated to 250 PSI; recommendation based on the use of mating Dixon L-style fittings at ambient temperature 70°F (21°C) with standard nitrile rubber seal installed. For use at elevated temperatures or other unusual operating conditions, consult Dixon

- 1", 1-1/2" and 2" sizes have a maximum working pressure of 250 PSI

- 3" maximum working pressure 150 PSI with King Crimp® ferrules, crimp sleeves, and bands at 125 PSI

- 4" maximum working pressure 150 PSI with King Crimp ferrules, crimp sleeves, and bands at 100 PSI

Attachment Options

• Ferrules, sleeves, bands, and other reliable options

Size

1-1/2"

316 Stainless Steel Part #

L100-C-SS

L150-C-SS

L200-C-SS

316 Stainless Steel Dimensions

Application

Vent-Lock® Safety EZ Boss-Lock™ Type C Couplers

Coupler X Hose Shank

• Transfer of fluids and solids, with a safer disconnection

Features

• Safety release cam & groove couplings permit the release of static pressure when disconnecting hose assemblies

• Venting system protects operator from being sprayed with hazardous or non-hazardous fluids or solids

• Does not interchange with standard cam & groove products; use only with Dixon L-style fittings

• Safety orange cam arms

• Consult Dixon for availability of other materials

Specifications

- 1", 1-1/2" and 2" sizes have a maximum working pressure of 250 PSI

- 3" maximum working pressure 150 PSI with King Crimp® ferrules, crimp sleeves, and bands at 125 PSI

- 4" maximum working pressure 150 PSI with King Crimp ferrules, crimp sleeves, and bands at 100 PSI

Attachment Options

• Ferrules, sleeves, bands, and other reliable options

1 Has drop shank

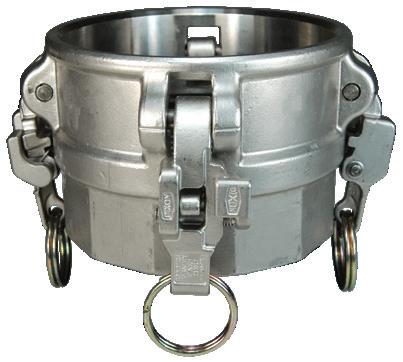

Vent-Lock™ EZ Boss-Lock™ Type D Couplers

Coupler x Female NPT

Size

Application

• Transfer of fluids and solids, with a safer disconnection

Features

• Safety release cam & groove couplings permit the release of static pressure when disconnecting hose assemblies

• Venting system protects operator from being sprayed with hazardous or non-hazardous fluids or solids

• Does not interchange with standard cam & groove products; use only with Dixon L-style fittings

• Safety orange cam arms

• Consult Dixon for availability of other materials

316 Stainless Steel Part #

1" RLD100EZ

1-1/2"

RLD150EZ

2" RLD200EZ

RLD300EZ

316 Stainless Steel Dimensions

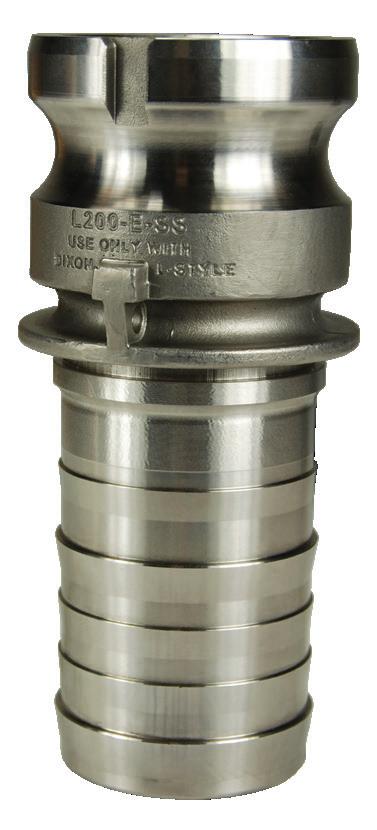

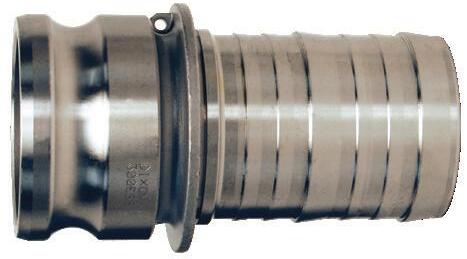

Vent-Lock® Type E Adapters Adapter x Hose Shank

Application

• Transfer of fluids and solids, with a safer disconnection

Features

• Safety release cam & groove couplings permit the release of static pressure when disconnecting hose assemblies

• Venting system protects operator from being sprayed with hazardous or non-hazardous fluids or solids

• Does not interchange with standard cam & groove products; use only with Dixon L-style fittings

• Consult Dixon for availability of other materials

Specifications

- 1", 1-1/2" and 2" sizes have a maximum working pressure of 250 PSI

- 3" maximum working pressure 150 PSI with King Crimp® ferrules, crimp sleeves, and bands at 125 PSI

- 4" maximum working pressure 150 PSI with King Crimp ferrules, crimp sleeves, and bands at 100 PSI

Attachment Options

• Ferrules, sleeves, bands, and other reliable options

Size

1-1/2"

316 Stainless Steel Part #

L100-E-SS

L150-E-SS

L200-E-SS

L300-E-SS

Vent-Lock Type E Adapters Dimensions

Vent-Lock® Safety Cam & Groove Type DC Dust Caps

Application

• Transfer of fluids and solids, with a safer disconnection

Features

• Safety release cam & groove couplings permit the release of static pressure when disconnecting hose assemblies

• Venting system protects operator from being sprayed with hazardous or non-hazardous fluids or solids

• Does not interchange with standard cam & groove products; use only with Dixon L-style fittings

• Safety orange cam arms

• Consult Dixon® for availability of other materials

L100-DC-SS 1-1/2"

316 Stainless Steel Part # 1"

L150-DC-SS 2"

L200-DC-SS

Stainless Steel Dimensions

Application

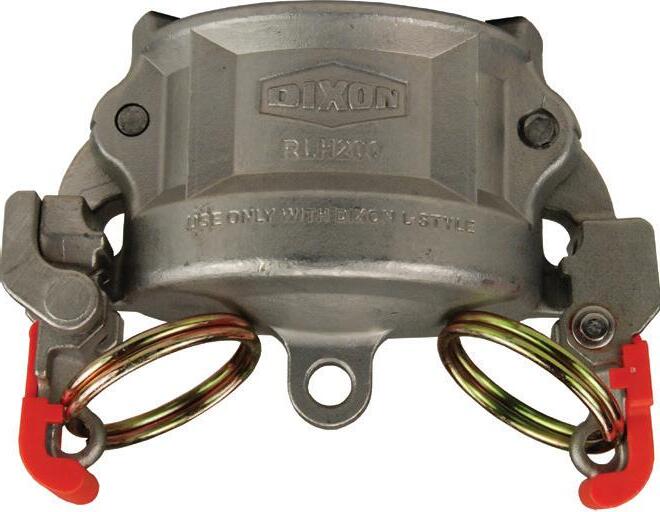

Vent-Lock® Safety Cam & Groove EZ Boss-Lock Type H Dust Caps

• Transfer of fluids and solids, with a safer disconnection

Features

• Safety release cam & groove couplings permit the release of static pressure when disconnecting hose assemblies

• Venting system protects operator from being sprayed with hazardous or non-hazardous fluids or solids

• Does not interchange with standard cam & groove products; use only with Dixon L-style fittings

• Safety orange cam arms

• Consult Dixon® for availability of other materials

Steel

Stainless Steel Dimensions

Vent-Lock® Safety Cam & Groove Couplings Accessories

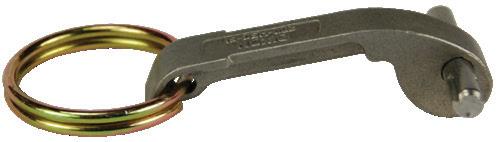

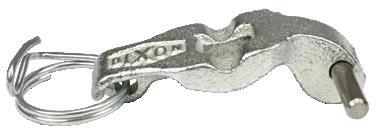

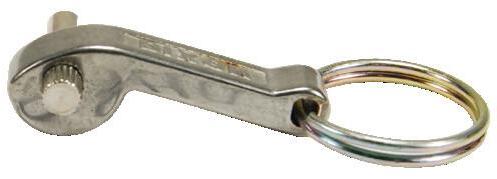

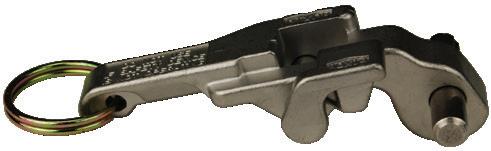

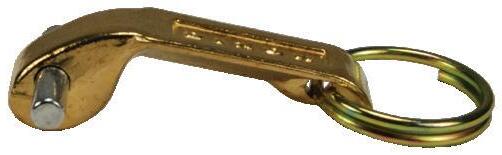

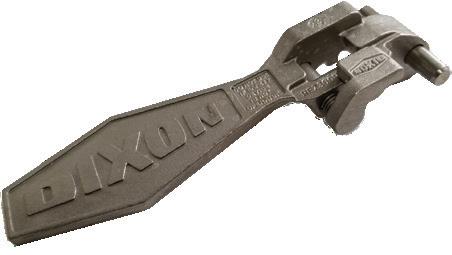

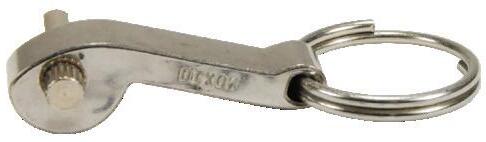

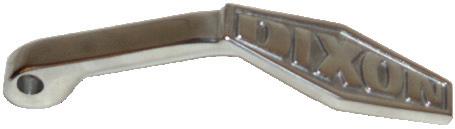

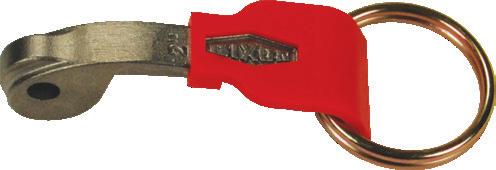

Dixon® handle assembly

Features

• Use only with Dixon Vent-Lock couplers

• Includes handle, ring, and pin

Size

1-1/2" - 2"

316 Stainless Steel Part #

L100-HSCRP-SI

L200-HSCRP-SI

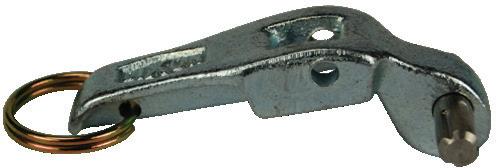

EZ Boss-Lock handle assembly

Features

• Use only with EZ Boss-Lock Vent-Lock couplers

• Includes handle, ring, and pin

Size

316 Stainless Steel Part # 1"

LRHEZ175

1-1/2" - 2"

LRHEZ152 3"

LRHEZ34

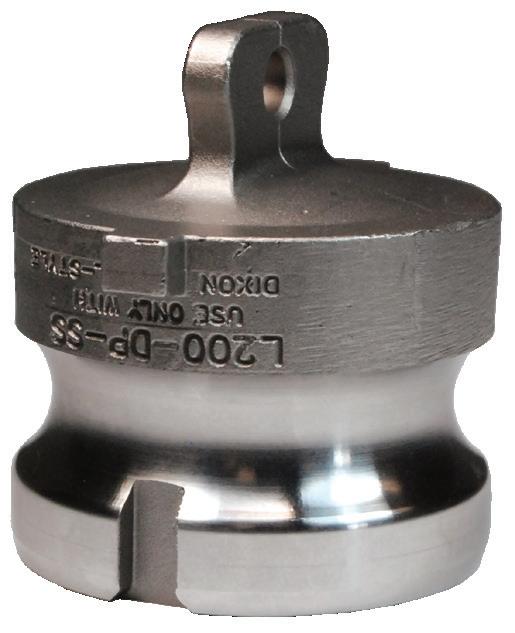

Vent-Lock® Safety Type DP Dust Plugs

Application

• Transfer of fluids and solids, with a safer disconnection

Size

1-1/2"

316 Stainless Steel Part #

L100-DP-SS

L150-DP-SS 2"

L200-DP-SS 3"

L300-DP-SS

Stainless Steel Dimensions

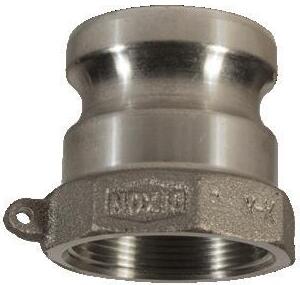

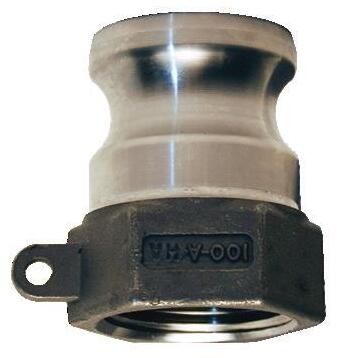

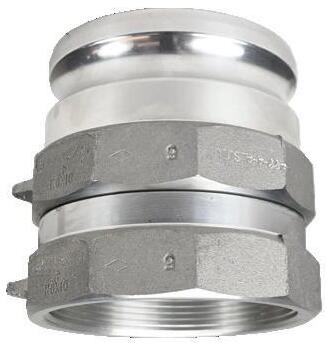

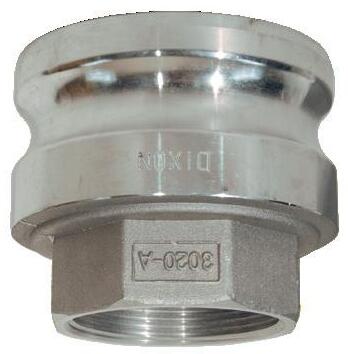

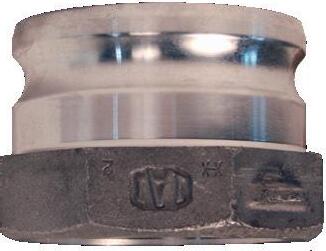

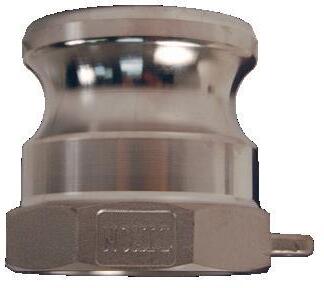

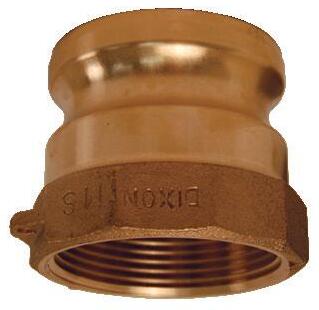

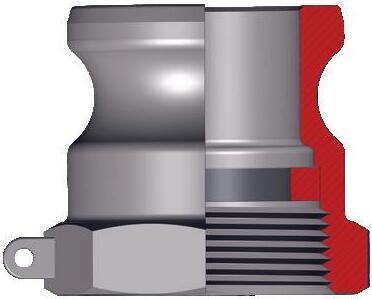

Type A Adapters

Adapter x Female NPT

Feature

• Pressure rating is based on the seal of the mating part, see ratings on page 3

Size

1/2" 50-A-AL2

3/4" x 1/2" 7550-A-AL2

3/4" 75-A-AL2

50-A-BR

7550-A-BR

75-A-BR 1" 100-A-AL2 100-A-BR

1-1/4" 125-A-AL 125-A-BR

1-1/2" 150-A-AL

2" 200-A-AL

2-1/2" 250-A-AL

3" 300-A-AL

4" 400-A-AL

150-A-ALH 150-A-BR

200-A-ALH

300-A-ALH

200-A-BR

250-A-BR

300-A-BR

400-A-ALH 400-A-BR 5" 500-A-AL 500-A-BR

6" 600-A-AL

8" DIX 800-A-AL1

8" BL 801-A-AL1

1 Dixon and Boss-Lock cam & groove couplings do not interchange in the 8" size

2 Made from 6061-T6 aluminum

Size

1/2"

Unplated Malleable Iron Part #

Plated Malleable Iron Part #

316 Stainless Steel Part #

50-A-SS

3/4" x 1/2" 7550-A-SS

3/4"

75-A-PM2 75-A-SS

1" 100-A-PM2 100-A-SS

1-1/4" 125-A-SS

1-1/2" 150-A-MI

150-A-PM 150-A-SS 2" 200-A-MI 200-A-PM 200-A-SS

2-1/2" 250-A-SS 3" 300-A-MI

300-A-PM 300-A-SS

4" 400-A-MI 400-A-PM 400-A-SS 5" 500-A-MI 500-A-SS

1 Ductile iron

2 Zinc plated carbon steel

600-A-PM 1 600-A-SS

Features

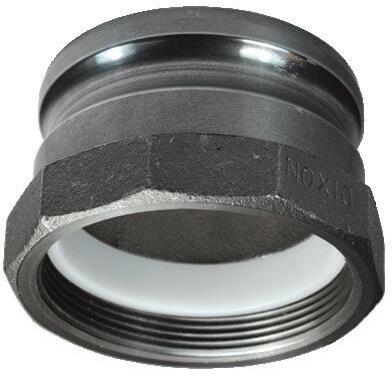

Adapter x Female NPT with Abrasion Resistant Inserts

• Used in extreme abrasion transfer applications such as sand transfer in hydraulic fracturing

• Replacement inserts are available on page 79

Description

(400-A-AL) aluminum adapter x female NPT with UHMW insert

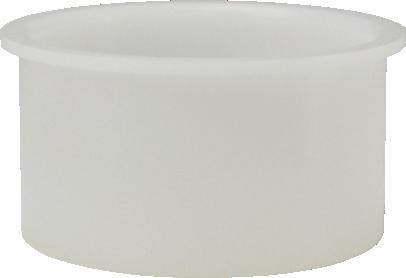

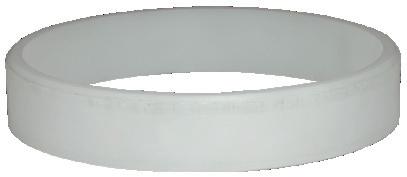

UHMW Polyethylene Insert Part #

400-A-ALINSERT (400-A-MI) malleable iron adapter x female NPT with UHMW insert

400-A-MIINSERT (400-A-SS) stainless steel adapter x female NPT with UHMW insert

NOTE: See page 24 for dimensions

400-A-SSINSERT

316 stainless steel

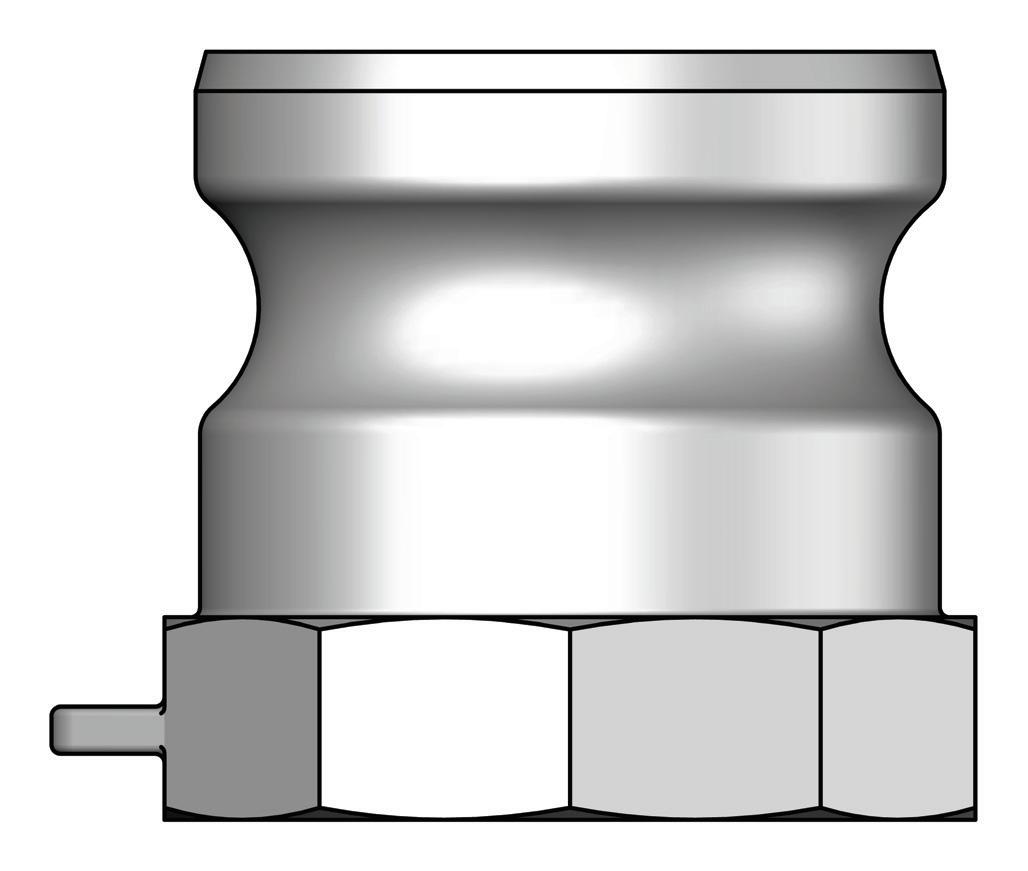

Type A Adapters Dimensions Adapter x Female NPT

356T6 Aluminum, Brass, and Iron Dimensions

A overall length 1-11/16" 1-21/32" 1-5/8" 1-31/32" 2-7/32" 2-3/16" 2-5/8" 2-11/16" 2-3/4" 3-1/8" 3-17/32" 3-7/16 4-13/16" 4-7/16"

B adapter length 1-1/16" 1-1/16" 1-1/16" 1-3/8" 1-9/16" 1-5/8" 1-7/8" 1-15/16"

C distance across flats 1" 1-3/8" 1-3/8" 1-1/2"

316 Stainless Steel Dimensions

overall length

across flats

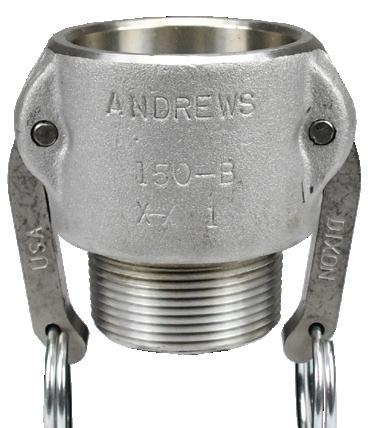

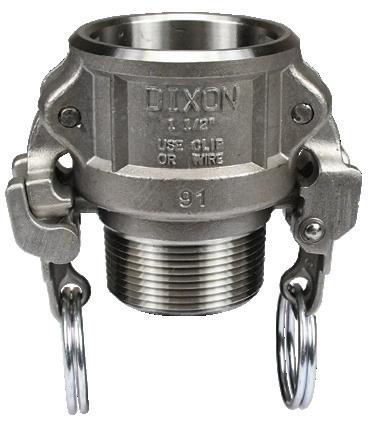

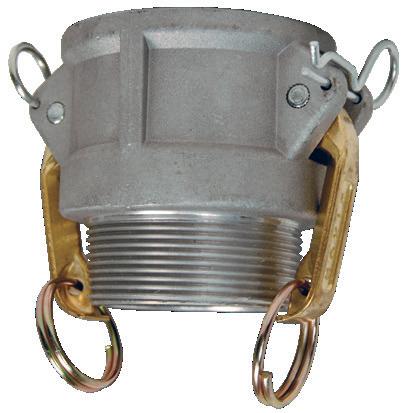

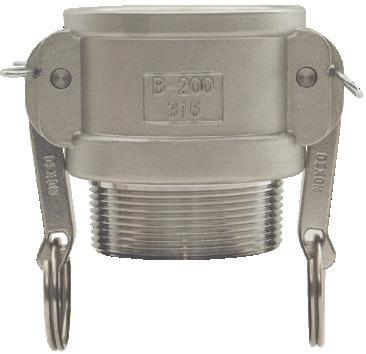

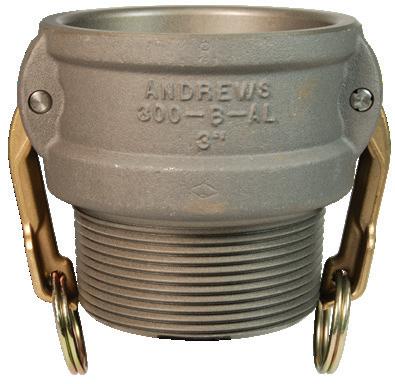

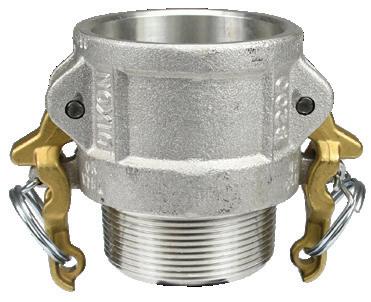

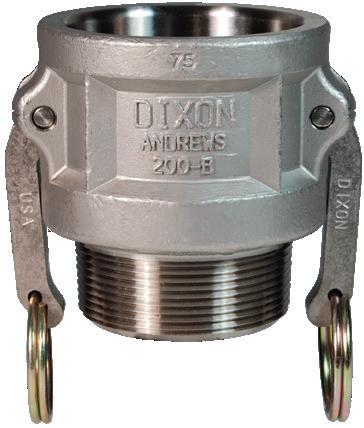

Dixon® Type B Couplers

Coupler x Male NPT

Features

• Couplers are supplied standard with a nitrile rubber gasket, other gasket types available on pages 75-77

• 1/2" Dixon coupler has only one cam arm

• Pull rings are not supplied on 1/2" - 1" Dixon couplings

Size

356T6 Aluminum Part #

1/2" 50-B-AL

Aluminum Hard Coat Part # Brass Part #

50-B-BR

3/4" 75-B-AL 75-B-BR

1" 100-B-AL 100-B-BR

1-1/4" 125-B-AL

1-1/2" 150-B-AL

2" 200-B-AL

2-1/2" 250-B-AL

3" 300-B-AL

4" 400-B-AL

5" 500-B-AL

6" 600-B-AL

8" 800-B-AL1, 2

150-B-ALH

200-B-ALH

300-B-ALH

150-B-BR

200-B-BR

300-B-BR

400-B-ALH 400-B-BR

600-B-ALH

1 Dixon and Boss-Lock cam & groove couplings do not interchange in the 8" size

The 8" Dixon design has 4 cam arms

2 Parts are produced as a welded fabrication.

Size Unplated Malleable Iron Part #

1/2"

3/4"

316 Stainless Steel Part #

50-B-SS

75-B-SS 1" 100-B-SS

1-1/2"

150-B-MI1

2" 200-B-MI

2-1/2"

300-B-MI1

4" 400-B-MI

1 Ductile iron

150-B-SS

200-B-SS

250-B-SS

300-B-SS

400-B-SS

600-B-SS

356T6 aluminum

aluminum hard coat

brass

unplated malleable iron

316 stainless steel

Dixon® Type B Coupler Dimensions

Coupler X Male NPT

356T6 Aluminum, Brass, and Iron Dimensions

A overall length 1-31/32" 2-1/32" 2-17/32" 2-7/8" 2-27/32" 3-1/4" 3-5/8" 3-15/16" 4-1/32" 4-3/16" 4-7/16" 8-1/4"

B coupler length 1-9/32" 1-9/32" 1-21/32" 1-31/32" 1-13/16" 2-7/32" 2-3/8" 2-5/16" 2-11/32" 2-5/16" 2-5/8" 3-13/16"

C distance across closed cam arms 1-17/32" 2-1/8" 2-7/16" 3-1/4" 3-9/16" 3-15/16" 4-7/16" 5-15/32"

D distance across open cam arms 2-5/8" 4-3/8" 5-3/16" 7-5/32" 7-7/16" 7-13/16" 8-11/32" 10-3/32" 11-3/16" 12-3/16" 16-1/4" 19-31/32"

316 Stainless Steel Dimensions

A overall length 2-1/32" 2-1/8" 2-9/16" 2-27/32" 2-31/32" 3-9/32" 3-7/16" 3-29/32" 4" 4-17/32"

B coupler length 1-7/32" 1-1/4" 1-9/16" 1-29/32" 1-29/32" 2-7/32" 2-1/4" 2-9/32" 2-9/32" 2-19/32"

C distance across closed cam arms 1-17/32" 2-1/8" 2-7/16" 3-1/4" 3-9/16" 3-15/16" 4-7/16" 5-15/32" 6-9/16" 10-3/32"

D distance across open cam arms 2-5/8" 4-3/4" 5-3/16" 7-5/32" 7-7/16" 7-13/16" 8-11/32" 9-15/16" 11-1/32" 16-1/4"

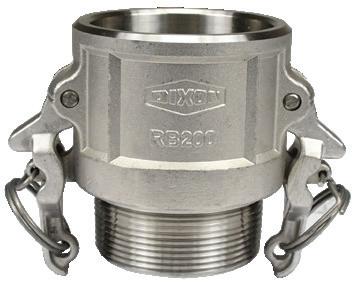

Boss-Lock Type B Couplers

Coupler x Male NPT

Features

• Couplers are supplied standard with a nitrile rubber gasket, other gasket types available on pages 75-77

• All Boss-Lock couplers are supplied with pull-ring safety clips.

Size

3/4"

356T6 Aluminum Part # Brass Part #

BB100

BB075 1" AB100

1-1/4" AB125

1-1/2" AB150

BB125

BB150 2" AB200 BB200

2-1/2" AB250 BB250 3" AB300 BB300 4" AB400 BB400 6" AB600

Size Plated Malleable Iron Part #

3/4" x 1/2"

316 Stainless Steel Part #

RB050BL 3/4"

RB075BL 1" IB100

1-1/4"

1-1/2"

RB100BL

RB125BL

RB150BL 2" IB200

RB200BL 3"

RB400BL

RB300BL 4"

356T6 aluminum brass

plated malleable iron

316 stainless steel

Boss-Lock Type B Coupler Dimensions

Coupler X Male NPT

A overall length 2-5/16" 2-17/32" 3-5/32" 3-5/32" 3-9/32" 3-7/8" 4" 4-1/16" 4-23/32"

B coupler length 1-13/32" 1-17/32" 1-29/32" 1-29/32" 2-7/32" 2-1/4" 2-5/16" 2-5/16" 2-19/32"

C distance across safety lugs 2-19/32" 2-29/32" 3-5/8" 3-29/32" 4-5/16" 4-13/16" 5-9/16" 6-11/16" 9-5/8"

D distance across open cam arms 5-13/32" 5-9/16" 7-15/32" 7-25/32" 8-5/32" 8-21/32" 9-29/32" 11" 16-5/32"

coupler

356T6 Aluminum, Brass, and Iron Dimensions 316 Stainless Steel Dimensions

C distance across safety lugs 2-25/32" 2-25/32" 2-29/32" 3-5/8" 3-29/32" 4-5/16" 5-9/16" 6-11/16"

D distance across open cam arms 5-13/32" 5-13/32" 5-9/16" 7-15/32" 7-25/32" 8-5/32" 9-29/32" 11"

Feature

EZ Boss-Lock Type B Couplers

Coupler x Male NPT

• Couplers are supplied standard with a nitrile rubber gasket, other gasket types are available on pages 75-77

Under no circumstances should the EZ Boss-Lock cam arms be used on any fitting not specifically designed for their use. See page 5 for further specifications.

Aluminum Part #

3/4" x 1/2"

3/4"

1" AB100EZ

1-1/4"

1-1/2"

AB150EZ

AB200EZ

AB300EZ

AB400EZ

Part #

BB075EZ

BB100EZ

BB125EZ

BB150EZ

BB200EZ

BB300EZ

BB400EZ

Stainless Steel Part #

RB050EZ

RB075EZ

RB100EZ

RB125EZ

RB150EZ

RB200EZ

RB300EZ

RB400EZ

RB600EZ

356T6 Aluminum, Brass, and Iron Dimensions

brass

356T6 aluminum

unplated ductile iron

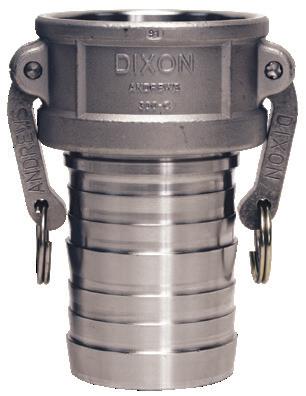

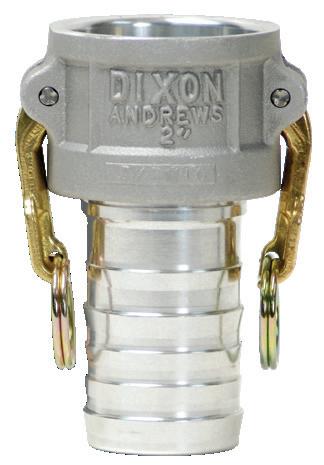

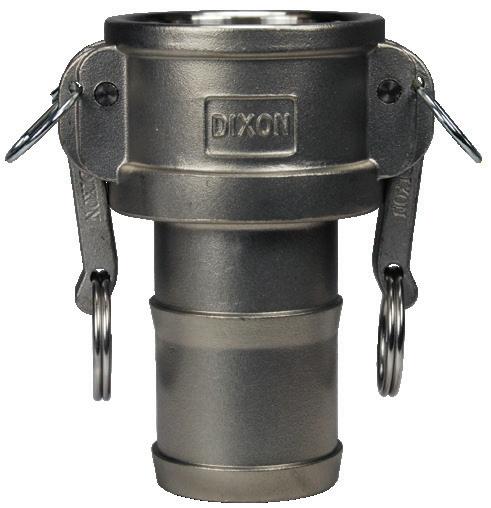

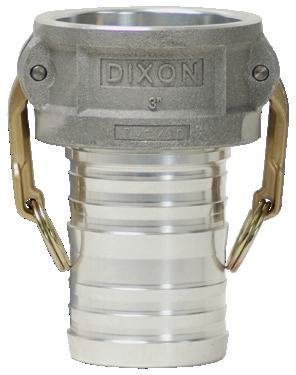

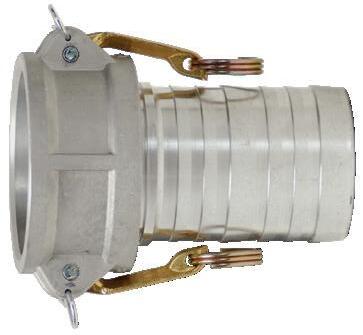

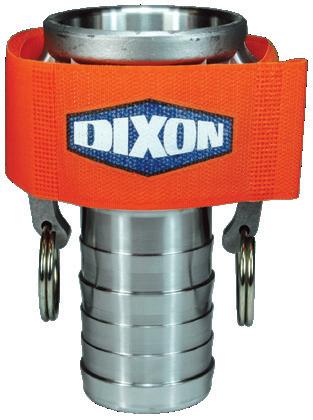

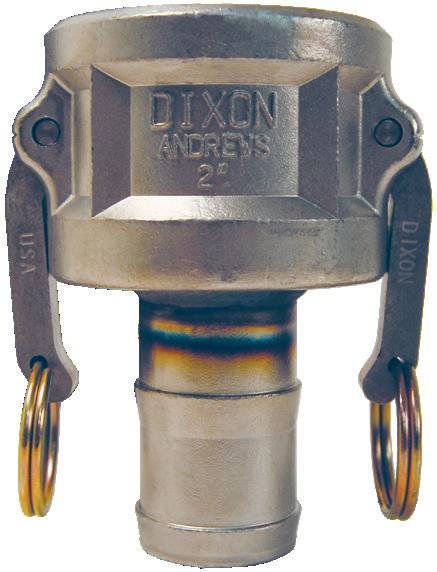

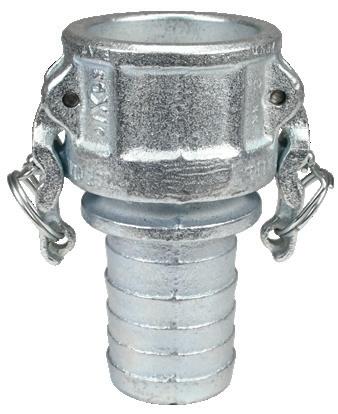

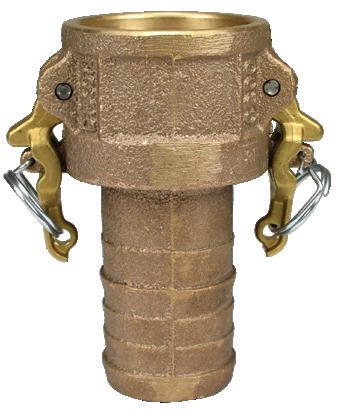

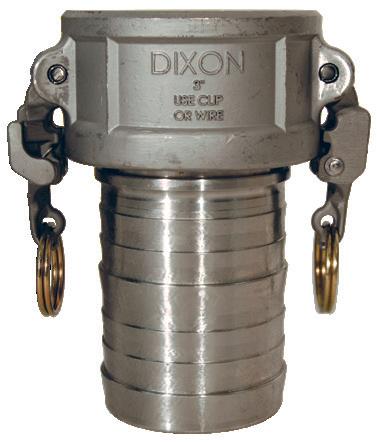

Dixon® Type C Couplers

Coupler x Hose Shank

Features

• Couplers are supplied standard with a nitrile rubber gasket, other gasket types are available on pages 74-77

• 1/2" Dixon coupler has only one cam arm

• Pull rings are not supplied on 1/2" - 1" Dixon couplings

Hose I.D. Unplated Ductile Iron Part #

1 Dixon and Boss-Lock cam & groove couplings do not interchange in the 8" size the 8" Dixon design has 4 cam arms

2 Suitable for use with King Crimp® sleeves and ferrules

3 Malleable iron

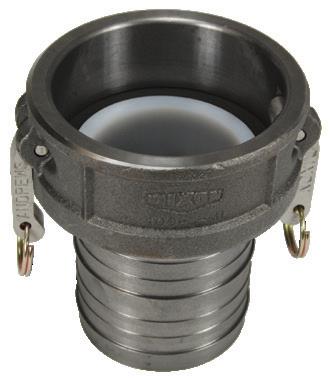

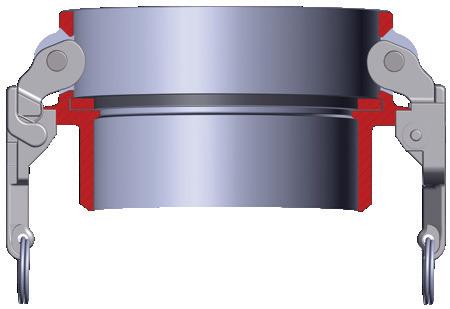

Coupler x Hose Shank with Abrasion Resistant Inserts

Features

• Used in extreme abrasion transfer applications such as sand transfer in hydraulic fracturing

• Replacement inserts are available on page 79

Description UHMW Polyethylene Part # (400-C-AL) aluminum coupler x hose shank with UHMW insert 400-C-ALINSERT (400-C-MI) malleable iron coupler x hose shank with UHMW insert 400-C-MIINSERT

aluminum hard coat

356T6 aluminum brass

316 stainless steel

Features

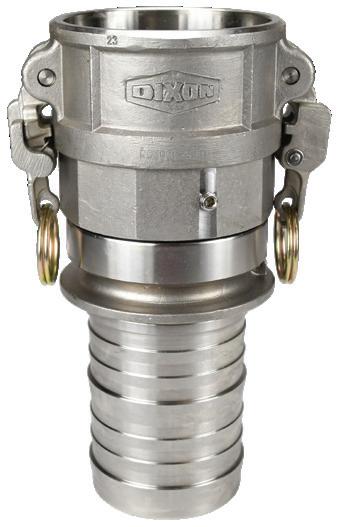

Dixon® Type C Couplers with Notched NOS Shank

Coupler x NOS Shank

• System allows you to better manage your inventories, you can stock one stem and two ferrules, and cover the same hose range with less inventory, you must purchase a fitting and the matching ferrule to create an assembly

• For hose outside diameters of 2-4/64" and below, the couplings are crimp only

• For hose outside diameters of 2-5/64" and above, the couplings can be crimped or swaged

• For use with NOS ferrules on page 48

1 Part will be discontinued as stock is depleted Size

316 Stainless Steel Part #

1-1/2"

150CNOSSS 1 2"

300CNOSSS

200CNOSSS 3"

NOTE: Only use the NOS shank with the NOS ferrules. Due to differences in dimensions and tolerances for safety reasons, do not use other manufacturers' stems or ferrules with Dixon® products.

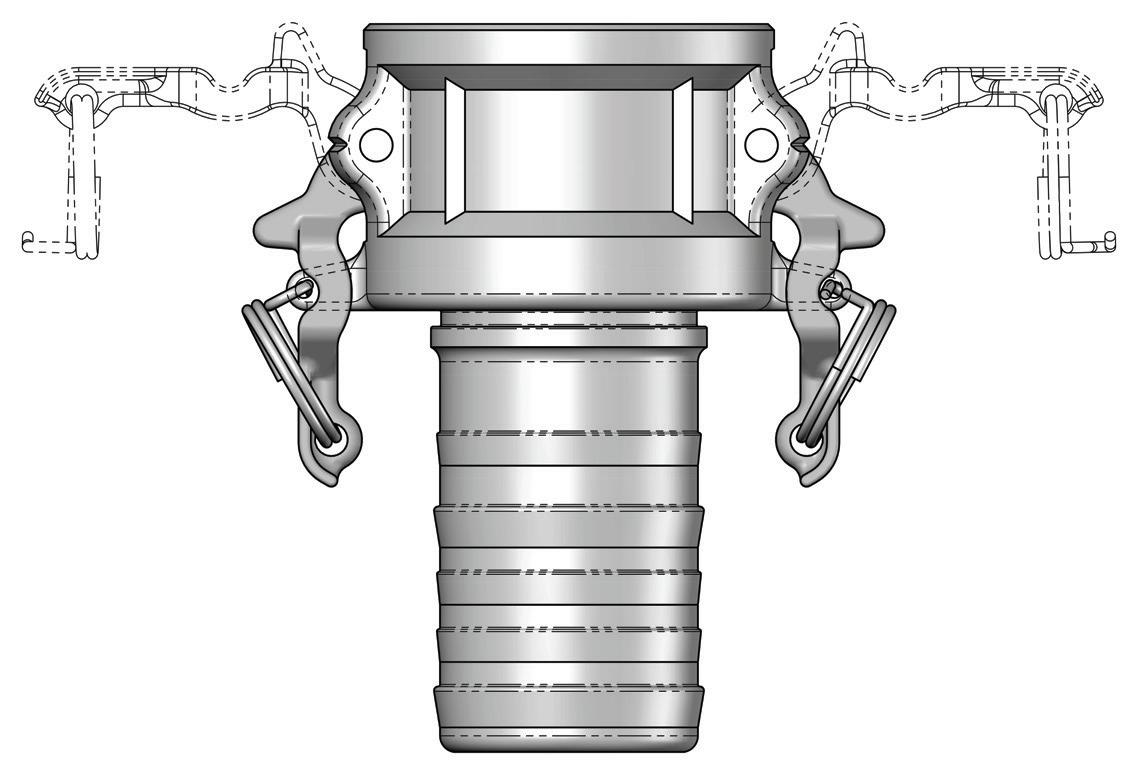

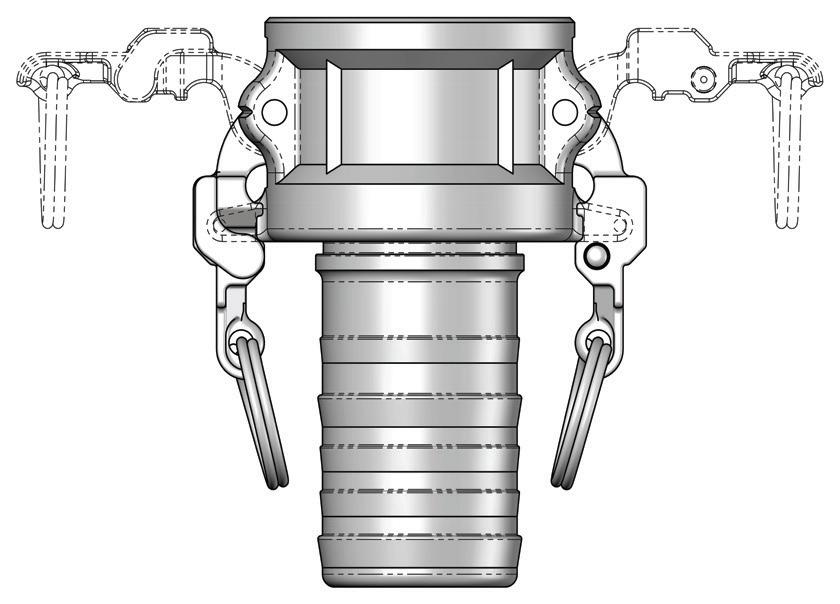

Dixon® Type C Couplers Dimensions

356T6 Aluminum, Brass, and Iron Dimensions

A overall length 2-21/32" 3-3/4" 4-1/2" 4-3/4" 4-7/8" 5-19/32" 6" 6-17/32" 6-9/16" 6-9/16" 8-23/32" 11-13/16" B coupler length 1-7/32" 1-1/4" 1-9/16" 1-15/16" 1-31/32" 2-7/32" 2-1/4" 2-5/16" 2-5/16" 2-5/16" 2-11/16" 3-13/16"

C distance across closed cam arms 1-17/32" 2-1/8" 2-7/16" 3-1/4" 3-9/16" 3-15/16" 4-7/16" 5-15/32" 6-9/16" 7-9/16" 10-3/32" 12-1/32"

D distance across open cam arms 2-11/16" 4-3/8" 5-3/16" 7-5/32" 7-7/16" 7-13/16" 8-11/32" 10-3/32" 11-3/16" 12-3/16" 16-1/4" 19-31/32"

E hose shank O.D. 19/32" 27/32" 1-1/16" 1-11/32" 1-9/16" 2-1/16" 2-5/8" 3-3/32" 4-3/32" 5-3/32" 6-1/16" 8-3/32"

316 Stainless Steel Dimensions

A overall length 3-7/32" 3-11/16" 4-1/2" 4-5/8" 4-13/16" 5-19/32" 6-1/16" 6-7/16" 6-17/32" 7-3/8" 8-11/16"

B coupler length 1-7/32" 1-1/4" 1-9/16"

C distance across closed cam arms 1-17/32" 2-1/8"

distance across open cam arms

E hose shank O.D.

Features

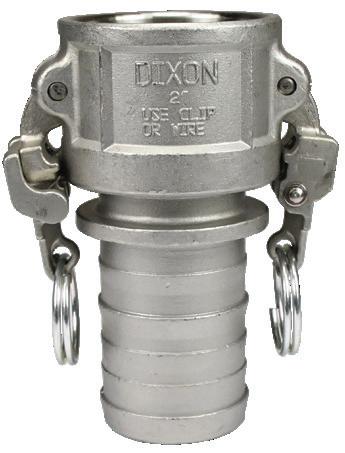

Boss-Lock Type C Couplers

Coupler x Hose Shank

• Couplers are supplied standard with a nitrile rubber gasket, other gasket types are available on pages 75-77

• All Boss-Lock couplers are supplied with pull-ring safety clips

RC050BL

RC075BL

RC100BL

RC125BL

RC150BLNO

RC200BLNO

RC300BL

RC400BLNO

1 Dixon and Boss-Lock cam & groove couplings do not interchange in the 8" size

2 Ductile iron

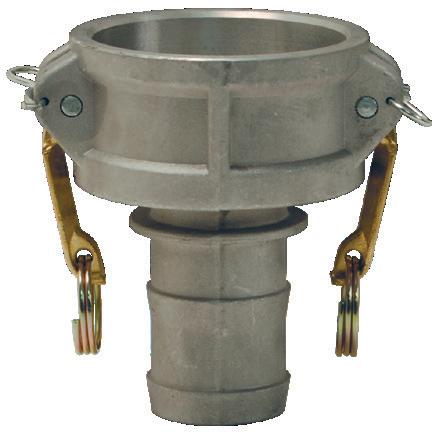

EZ Boss-Lock Type C Couplers with Collared Hose Shank

Coupler x Collared Hose Shank

Features

• Utilization of Boss clamp provides greater resistance to end pull than conventional band clamps

• Can be used with band clamps

Features

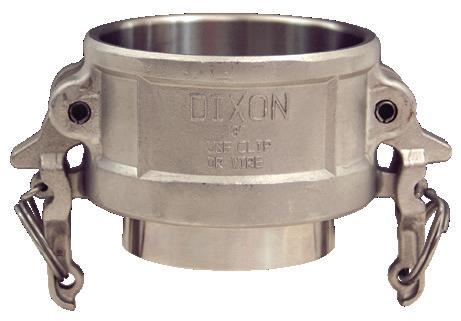

Boss-Lock Type C Couplers with Notched Shank

Coupler x Hose Shank

• Coupling can be removed from a damaged hose by cutting away the ferrule, without necessarily damaging the fitting, after inspection of the fitting to determine its suitability for reuse, it can be reinstalled into another hose by using a new ferrule

• System allows you to better manage your inventories, you can stock one coupling and two ferrules, and cover the same hose range with less inventory, you must purchase a fitting and the matching ferrule to create an assembly

• For use with NO ferrules on page 47

Dixon® stems and ferrules are specifically designed to be used together as a coupling system. Due to differences in dimensions and tolerances for safety reasons, do not use other manufacturers' stems or ferrules with Dixon products.

Size

1-1/2"

316 Stainless Steel Part #

RC150BLNO

RC200BLNO

RC300BLNO

RC400BLNO

NOTE: Contact Dixon for swage and crimp recommendations.

Boss-Lock Type C Coupler Dimensions

crimped assembly

swaged assembly

open cam arms

hose shank O.D.

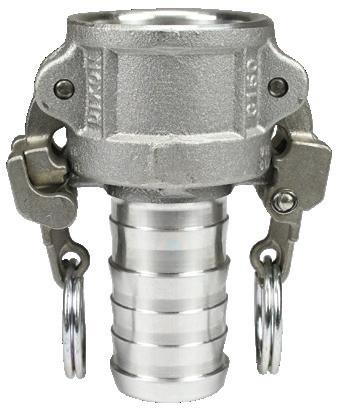

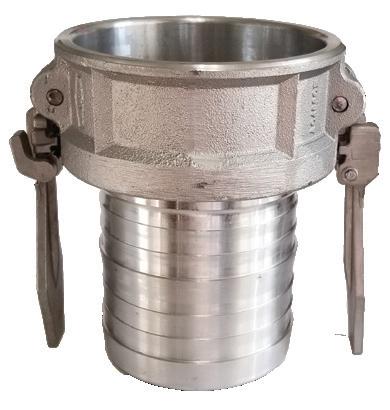

EZ Boss-Lock Type C Couplers

Coupler X Hose Shank

Feature

• Couplers are supplied standard with a nitrile rubber gasket, other gasket types are available on pages 75-77

• Under no circumstances should the EZ Boss-Lock cam arms be used on any fitting not specifically designed for their use.

3/4" x 1/2"

RC050EZ 3/4" AC075EZ

BC075EZ

BC100EZ

RC075EZ

RC100EZCR 1-1/4"

1-1/2" AC150EZ

BC125EZ

BC150EZ

RC125EZCR

RC150EZNO 2" AC200EZ

2-1/2"

AC250EZ

AC300EZ

AC400EZ

AC400EZP1

BC200EZ

BC300EZ

BC400EZ

RC200EZNO

RC300EZCR

RC400EZCR

RC600EZCR 8" AC800EZ2

1 Includes paddle handle

2 Dixon® and Boss-Lock cam & groove couplings do not interchange in the 8" size. NOTE: See page 5 for further specifications.

EZ Boss-Lock Type C Couplers with Phono Finish Shank

Application

• The shank design on these fittings was developed specifically for chemical transport hoses having Crosslinked Polyethylene (XLPE) or Ultra High Molecular Weight Polyethylene (UHMW) tubes, where shank retention can be a problem when using conventional band clamps.

Features

• In testing tank transport hoses from a wide variety of manufacturers, the Boss-Lock PF fitting showed significant improvement in hose coupling retention over the conventional cam & groove shank design

• For best results we recommend the use of 3/4" wide band clamps.

• Other sizes available; consult Dixon for pricing and availability

RC200EZPF

RC300EZPF

brass

356T6 aluminum

316 stainless steel

AC400EZP1

Application

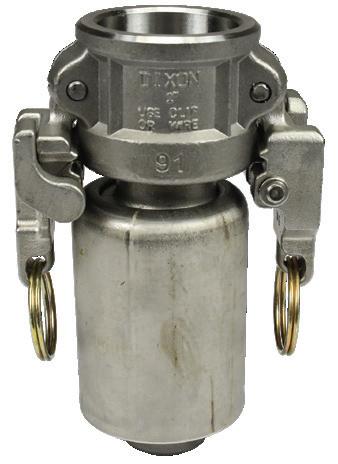

EZ Boss-Lock Type C Couplers with Swaged Ferrule

• Developed specifically for chemical transport hoses having Crosslinked Polyethylene (XLPE) or Ultra High Molecular Weight Polyethylene (UHMW) tubes, swaged Boss-Lock provides you with a permanently attached cam & groove fitting when superior coupling retention is required

Features

• In testing tank transport hoses from a wide variety of manufacturers, the swaged Boss-Lock fitting proved itself to be the clear winner in overall performance

• Available on special order, other sizes or hose O.D.s, consult Dixon® for pricing and availability

• Special equipment required for installation, consult Dixon for pricing and availability

Hose O.D.

Size

316 Stainless Steel Part # from to 3/4" 1-6/64" 1-22/64"

RC075EZ-70 1" 1-29/64" 1-35/64"

Features

RC100EZ-20

RC100EZ-70

EZ Boss-Lock Type C Couplers with Notched Hose Shank

Coupler x Hose Shank

• For use with notched ferrules on page 47

Size

1-1/2"

316 Stainless Steel Part #

RC150EZNO

RC200EZNO

RC300EZNO

RC400EZNO

Dixon stems and ferrules are specifically designed to be used together as a coupling system. Due to differences in dimensions and tolerances for safety reasons, do not use other manufacturers' stems or ferrules with Dixon products.

EZ Boss-Lock Type C Coupler Dimensions

A overall length 4-3/8" 4-7/8" 5-7/16" 4-29/32" 5-19/32" 6-1/16" 6-3/16" 6-1/2" 8-3/8" 11-13/16"

B coupler length 1-13/32" 1-17/32" 1-29/32" 1-31/32" 2-7/32" 2-1/4" 2-1/4" 2-1/4" 2-5/8" 2-13/16"

C distance across closed cam arms 3-3/32" 3-7/32" 3-29/32" 4-7/32" 4-19/32" 5-1/16" 5-27/32" 6-15/16" 9-31/32" 12"

D distance across open cam arms 6-7/32" 6-11/32" 7-15/32" 7-25/32" 8-5/32" 8-21/32" 9-29/32" 11" 16-25/32" 18-25/32"

356T6 Aluminum, Brass, and Iron Dimensions 316 Stainless Steel Dimensions

E hose shank O.D. 27/32" 1-1/16" 1-11/32" 1-9/16" 2-1/16" 2-19/32" 3-3/32" 4-3/32" 6-3/32" 8-1/16" Size 3/4"

A overall length 3-3/32" 3-7/8" 4-1/2" 4-31/32" 5-1/2" 5-5/16" 6-15/32" 6-19/32" 8-11/16"

B coupler length 1-5/16" 1-9/32" 1-9/16" 2-1/32" 2-29/32" 2-3/16" 2-9/32" 2-11/32" 2-19/32"

C distance across closed cam arms 3-3/32" 3-3/32" 3-1/4" 3-29/32" 4-7/32" 4-19/32" 5-27/32" 6-15/16" 9-31/32"

D distance across open cam arms 6-7/32" 6-7/32" 6-11/32" 7-15/32" 7-25/32" 8-5/32" 9-29/32" 11" 16-25/32"

E hose shank O.D. 19/32" 27/32" 1-1/16" 1-5/16" 1-19/32" 2-3/32" 3-3/32" 4-3/32" 6-1/16"

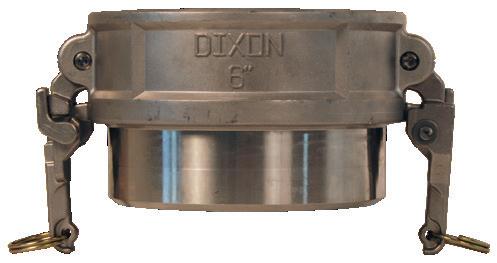

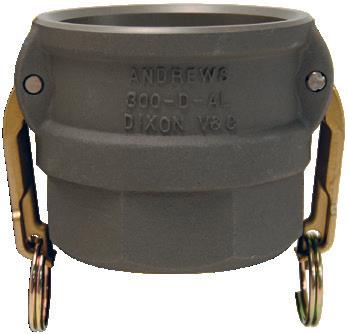

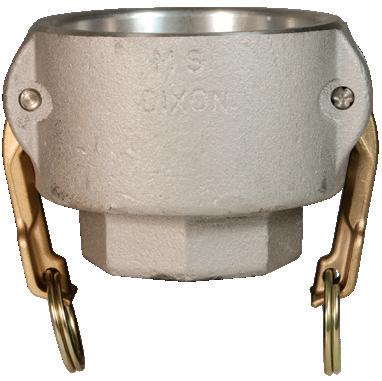

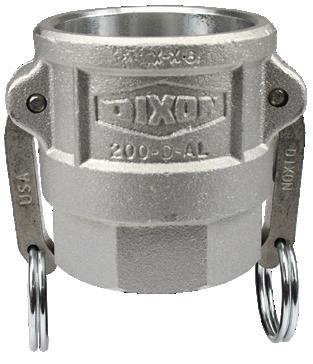

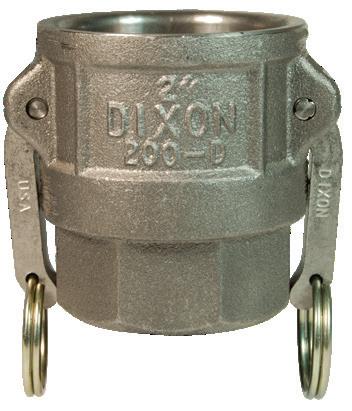

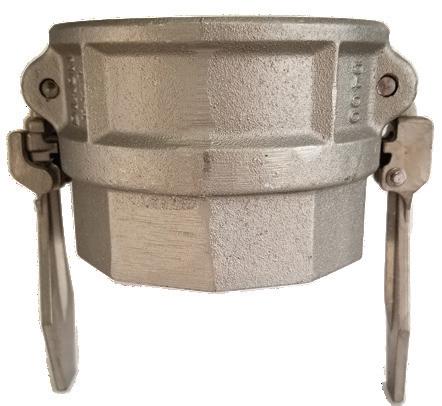

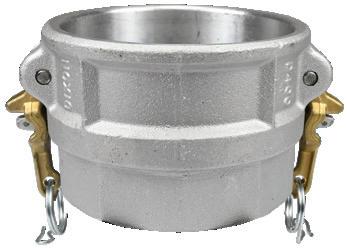

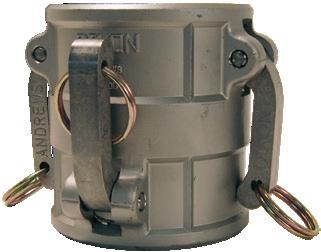

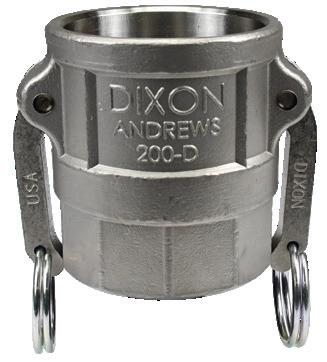

Boss-Lock Type D Couplers

Coupler x Female NPT

Features

• Couplers are supplied standard with a nitrile rubber gasket, other gasket types are available on pages 75-77

• 1/2" Dixon coupler has only one cam arm

• Pull rings are not supplied on 1/2" - 1" Dixon couplings

Size 356T6 Aluminum Part #

1/2" 50-D-AL

Aluminum Hard Coat Part #

Part #

50-D-BR

3/4" 75-D-AL 75-D-BR

1" 100-D-AL 100-D-BR

1-1/4" 125-D-AL 125-D-BR

1-1/2" 150-D-AL

150-D-ALH 150-D-BR 2" 200-D-AL

2-1/2" 250-D-AL 250-D-BR

3" 300-D-AL

4" 400-D-AL

300-D-ALH

400-D-ALH

300-D-BR

400-D-BR 5" 500-D-AL

6" 600-D-AL

600-D-ALH

500-D-BR

600-D-BR

1 Dixon and Boss-Lock cam & groove couplings do not interchange in the 8" size

2 The 8" Dixon design has 4 cam arms

8" 800-D-AL1, 2 Size

Unplated Malleable Iron Part #

1/2"

316 Stainless Steel Part #

50-D-SS 3/4" 75-D-SS 1" 100-D-SS 1-1/4" 125-D-SS

1-1/2" 150-D-MI

150-D-SS 2" 200-D-MI

2-1/2"

3" 300-D-MI1

200-D-SS

250-D-SS

300-D-SS 4" 400-D-MI1

5" 500-D-MI

400-D-SS

500-D-SS 6"

1 Ductile iron

600-D-SS

aluminum hard coat

brass

356T6 aluminum

316 stainless steel

unplated malleable iron

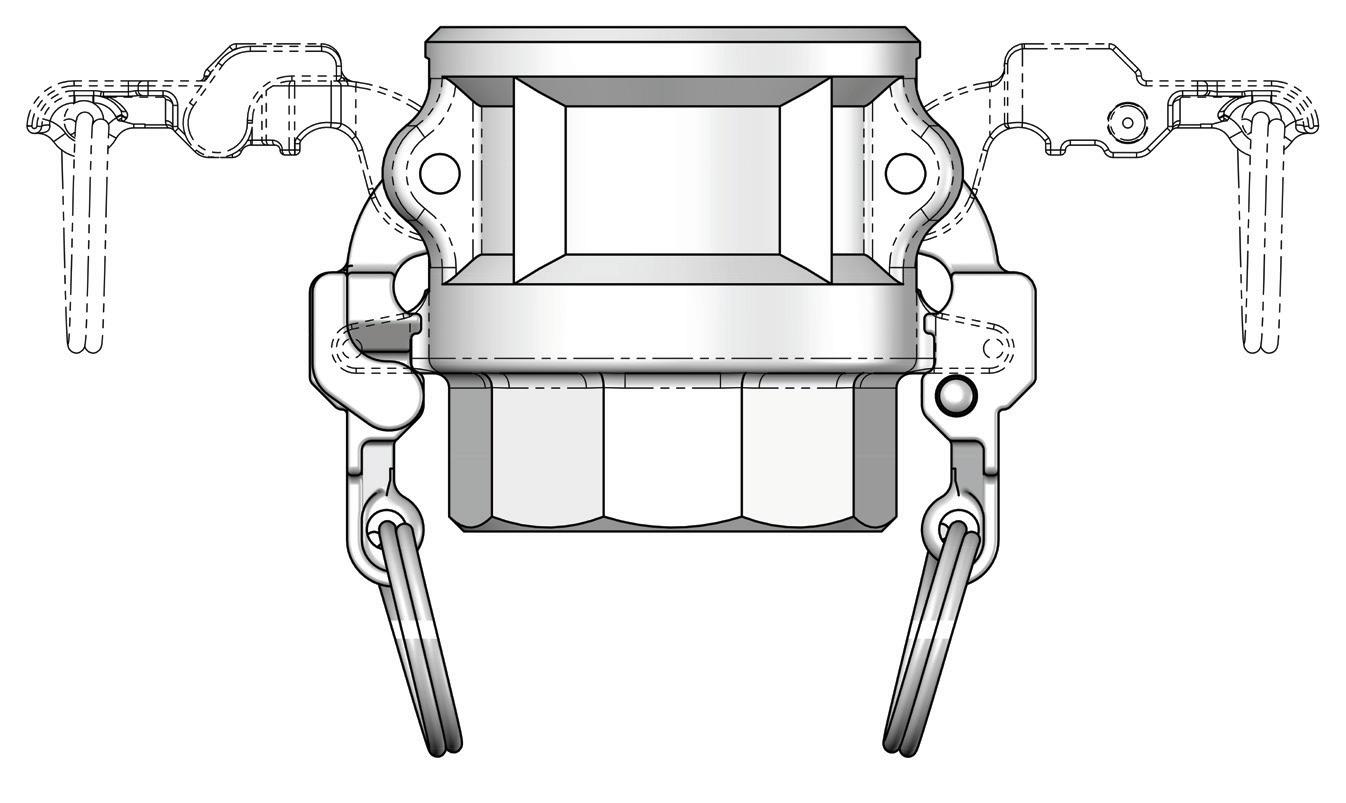

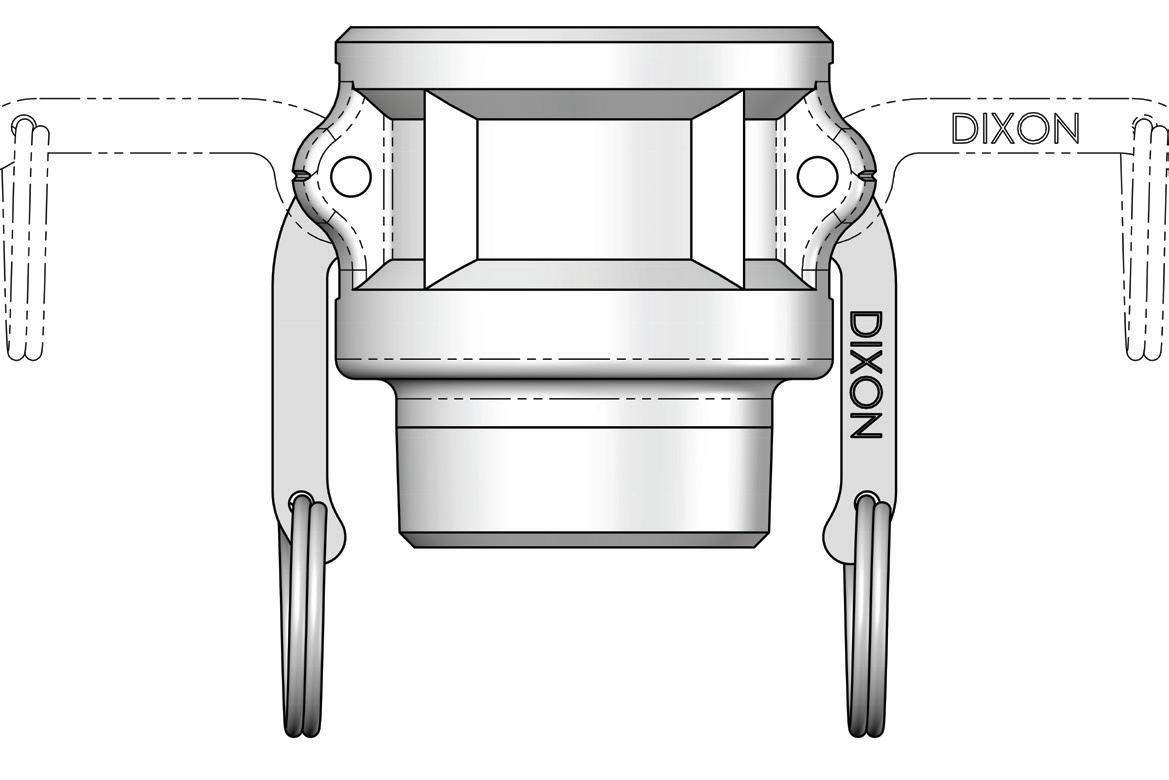

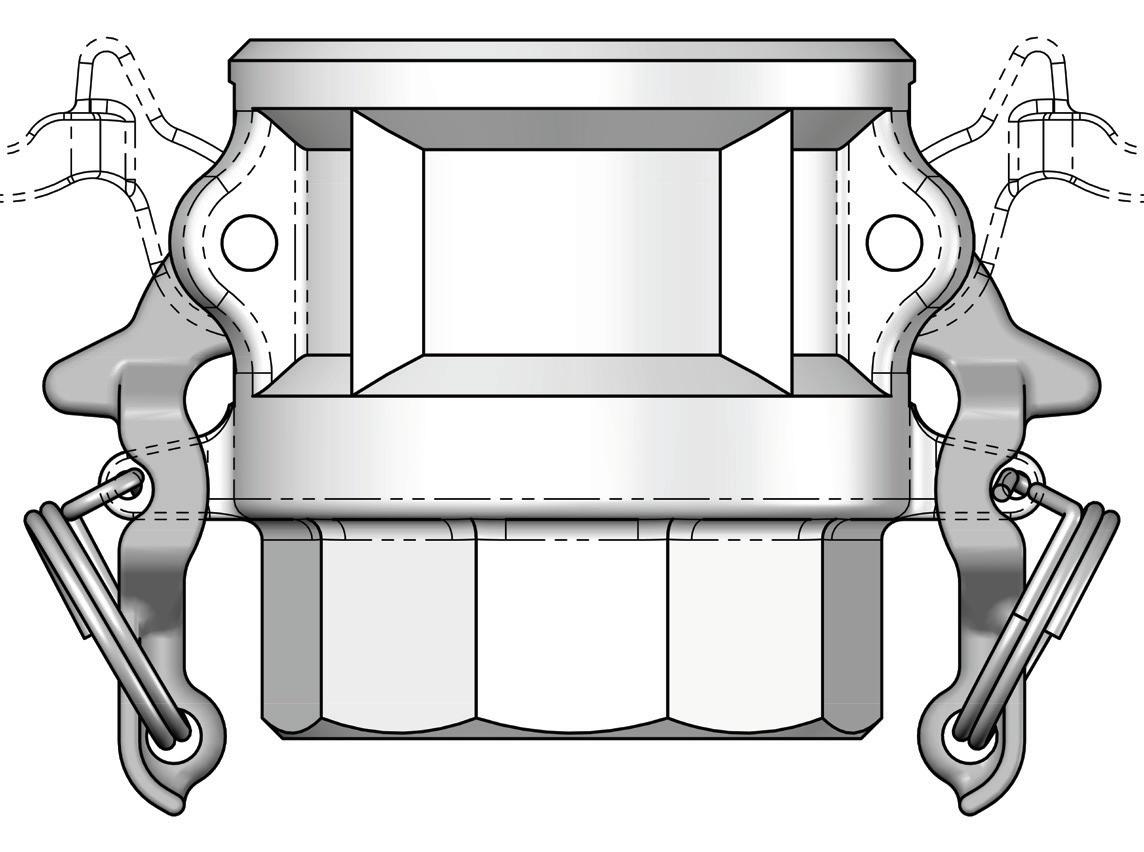

Dixon® Type D Coupler Dimensions

Coupler X Female NPT

356T6 Aluminum, Brass, and Iron Dimensions

1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3"

A overall length 1-31/32" 2-5/32" 2-9/16" 2-27/32" 2-27/32" 3-5/16" 3-5/8" 3-11/16" 3-13/16" 3-3/4" 4-11/32" 5-27/32"

B coupler length 1-9/32" 1-3/8" 1-9/16" 1-15/16" 1-13/16" 2-7/32" 2-3/8" 2-3/8" 2-5/16" 2-5/16" 2-5/8" 3-13/16"

C distance across closed cam arms 1-17/32" 2-1/8" 2-7/16" 3-1/4" 3-9/16" 3-15/16" 4-7/16" 5-15/32" 6-9/16" 7-9/16" 10-3/32" 12-1/32"

D distance across open cam arms 2-9/16" 4-3/4" 5-3/16" 7-5/32" 7-7/16" 7-13/16" 8-11/32" 10-3/32"

E distance across flats 1-1/16" 1-9/32" 1-19/32" 2" 2-3/16" 2-5/8" 3-7/32" 3-7/8" 4-7/8" 6-9/16"1

1 Distance across lugs

316 Stainless Steel Dimensions

A overall length 2" 2-1/16" 2-1/2" 2-27/32" 2-27/32" 3-3/16" 3-3/4" 3-19/32" 3-11/16" 3-13/16" 4-1/16"

B coupler length 1-7/32" 1-1/4" 1-9/16" 1-29/32" 1-29/32" 2-7/32"

C distance across closed cam arms 1-17/32" 2-1/8" 2-7/16" 3-1/4" 3-9/16" 3-15/16" 4-7/16" 5-15/32" 6-9/16" 7-9/16" 10-3/32"

D distance across open cam arms 2-5/8" 4-3/8" 5-3/16" 7-5/32" 7-7/16" 7-13/16" 8-11/32" 9-15/16" 11-1/32" 12-3/16" 16-1/4"

E distance across flats 1-3/32" 1-5/16" 1-5/8" 1-15/16" 2-3/16" 2-11/16" 3-1/8" 3-3/4" 4-7/8" 6-7/16"1 7-9/16"1

1 distance across lugs

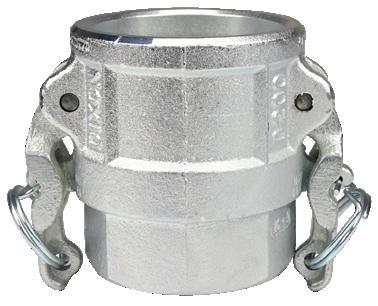

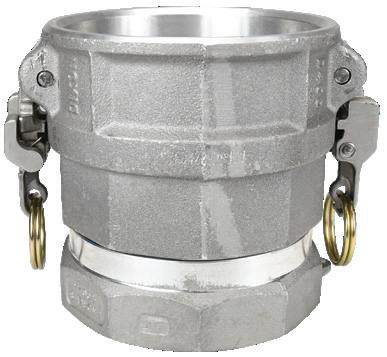

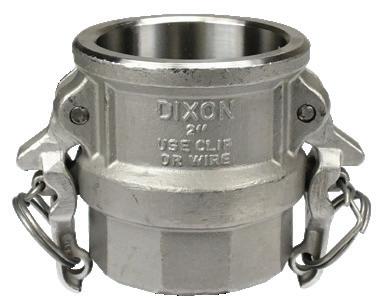

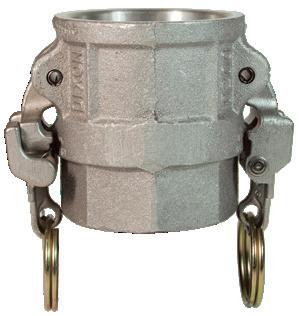

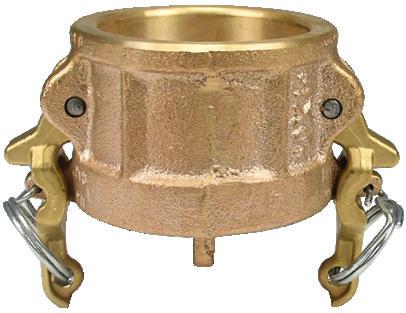

Boss-Lock Type D Couplers

Coupler x Female NPT

Features

• Couplers are supplied standard with a nitrile rubber gasket, other gasket types are available on pages 75-77

• All Boss-Lock couplers are supplied with pull-ring safety clips

Size

3/4" x 1/2"

356T6 Aluminum Part #

AD050

3/4" AD075

Brass Part #

BD050

BD075 1" AD100

1-1/4" AD125

1-1/2" AD150

2" AD200

2-1/2" AD250

3" AD300

BD100

BD125

BD150

BD200

BD250

BD300 4" AD400

5" AD500

6" AD600

BD400

BD600 8" AD8001

Size

3/4" x 1/2"

Plated Malleable Iron Part #

3/4" ID075

316 Stainless Steel Part #

RD050BL

RD075BL 1" ID100

1-1/4"

1-1/2" ID150

RD100BL

RD125BL

RD150BL 2" ID200

RD200BL 3" ID300

RD300BL 4" ID400

RD400BL 6" ID6002

1 Dixon® and Boss-Lock cam & groove couplings do not interchange in the 8" size.

2 Ductile iron

malleable iron

plated

356T6 aluminum brass

316 stainless steel

Boss-Lock Type D Coupler Dimensions

Coupler X Female NPT

356T6 Aluminum, Brass, and Iron Dimensions

A overall length 2" 2-7/32" 2-17/32" 3-3/32" 2-31/32" 3-1/4" 3-11/16" 3-27/32" 3-13/16" 4-1/8" 4-1/2" 4-1/2"

B coupler length 1-5/16" 1-13/32" 1-17/32" 1-29/32" 1-31/32" 2-3/16" 2-1/4" 2-9/32" 2-5/16" 2-13/32" 2-9/16" 2-13/16"

C distance across safety lugs 2-19/32" 2-19/32" 2-29/32" 3-5/8" 3-29/32" 4-5/16" 4-13/16" 5-9/16" 6-11/16" 7-25/32" 9-5/8" 11-5/8"

D distance across open cam arms 5-13/32" 5-13/32" 5-9/16" 7-15/32"

1 Distance across lugs

E distance across flats 1-3/16" 1-3/8" 1-5/8" 2" 2-1/4" 2-5/8" 3-5/16" 3-7/8" 4-7/8" 6-1/2"1 8-5/32" 9-31/32" Size 3/4"

316 Stainless Steel Dimensions

3-3/16" 3-19/32" 3-23/32" B coupler length 1-5/16" 1-9/32" 1-9/16" 1-29/32" 1-29/32" 2-3/16" 2-9/32" 2-5/16" C distance across safety lugs 2-25/32" 2-25/32" 2-29/32" 3-5/8" 3-29/32" 4-5/16" 5-9/16" 6-11/16"

D distance across open cam arms 5-13/32" 5-13/32" 5-9/16" 7-15/32" 7-25/32" 8-5/32" 9-29/32" 11"

E distance across flats 1-3/16" 1-3/8" 1-5/8" 2" 2-3/16" 2-11/16" 3-3/4" 4-7/8"

EZ Boss-Lock Type D Couplers

Coupler x Female NPT

Feature

• Couplers are supplied standard with a nitrile rubber gasket, other gasket types are available on pages 75-77

Under no circumstances should the EZ Boss-Lock cam arms be used on any fitting not specifically designed for their use. See page 5 for further specifications

Size

3/4" x 1/2"

3/4"

1-1/4"

1-1/2"

2-1/2"

3/4" x 1/2"

3/4"

1-1/4"

1-1/2"

2-1/2"

356T6

AD075EZ

AD100EZ

AD150EZ

AD200EZ

AD250EZ

AD300EZ

AD400EZ

AD400EZP1

AD500EZ

AD600EZ

AD800EZ2

RD050EZ

RD075EZ

RD100EZ

RD125EZ

RD150EZ

RD200EZ

RD250EZ

RD300EZ

BD075EZ

BD100EZ

BD125EZ

BD150EZ

BD200EZ

BD250EZ

BD300EZ

BD400EZ

Duty

Stainless Steel Part #

RD300EZHD3 4"

RD400EZ

RD400EZHD4 5" 6"

RD600EZ

1 Includes paddle handle

3 Pressure rating of 400 PSI

4 Pressure rating of 300 PSI

5 Pressure rating of 150 PSI Size 316 Stainless Steel Part #

RD600EZHD5 8"

RD800EZHD2

2 Dixon® and Boss-Lock cam & groove couplings do not interchange in the 8" size.

brass

316 stainless steel

356T6 aluminum

heavy duty

316 stainless steel

AD400EZP 1

EZ Boss-Lock Type D Coupler Dimensions

Coupler x Female NPT

356T6 Aluminum, Brass, and Iron Dimensions

A overall length 2-7/32" 2-17/32" 3-3/32" 2-7/8" 3-1/4" 3-11/16" 3-27/32" 3-13/16" 4-1/8" 4-1/2" 4-1/2"

B coupler length 1-13/32" 1-17/32" 1-29/32" 1-31/32" 2-7/32" 2-1/4" 2-9/32" 2-5/16" 2-13/32" 2-5/8" 2-13/16"

C distance across closed cam arms 3-3/32" 3-7/32" 3-29/32" 4-7/32" 4-19/32" 5-1/16" 5-27/32" 6-15/16" 7-7/5"

D distance across open cam arms 6-7/32" 6-11/32" 7-15/32" 7-25/32" 8-5/32" 8-21/32" 9-29/32" 11" 12-1/16" 16-25/32" 18-25/32" E distance across flats 1-3/8" 1-5/8" 2" 2-1/4" 2-5/8" 3-5/16" 3-7/8" 4-7/8"

1 Distance across lugs

316 Stainless Steel Dimensions

coupler length

distance across closed cam arms

D distance across open cam arms

E distance across flats 1-3/16" 1-3/8" 1-5/8" 2" 2-3/16" 2-11/16" 3-5/16" 3-3/4" 4-7/8" 7-9/16"

Type E Adapters

Adapter x Hose Shank

Feature

• Pressure rating is based on the seal of the mating part

Size

356T6 Aluminum Part #

Aluminum Hard Coat Part #

Brass Part #

1/2" 50-E-AL 50-E-BR

3/4" x 1/2" 7550-E-AL

3/4" 75-E-AL 75-E-BR

1" 100-E-AL 100-E-BR

1-1/4" 125-E-AL 125-E-BR

1-1/2" 150-E-AL

2" 200-E-AL

150-E-ALH 150-E-BR

200-E-ALH 200-E-BR

2-1/2" 250-E-AL 250-E-BR

3" 300-E-AL

4" 400-E-AL

5" 500-E-AL

6" 600-E-AL

8" DIX 800-E-AL1

8" BL 801-E-AL1

300-E-ALH 300-E-BR

400-E-ALH 400-E-BR

600-E-ALH 600-E-BR

1 Dixon® and Boss-Lock cam & groove couplings do not interchange in the 8" size.

Size

1/2"

3/4" x 1/2"

3/4"

Unplated Malleable Iron Part #

Plated Malleable Iron Part # 316 Stainless Steel Part #

50-E-SS

7550-E-SS

75-E-PM 75-E-SS

1" 100-E-PM 100-E-SS

1-1/4" 125-E-PM 125-E-SS

1-1/2" 150-E-MI

150-E-PM 150-E-SS 2" 200-E-MI2

200-E-PM2 200-E-SS

2-1/2" 250-E-SS

3" 300-E-MI1, 2

4" 400-E-MI1, 2

300-E-PM1, 2

300-E-SS

400-E-PM1, 2 400-E-SS

5" 500-E-SS

6" 600-E-MI1, 2

600-E-PM1, 2 600-E-SS

1 Suitable for King Crimp® sleeves and ferrules, for a full list of products in the King Crimp system please visit dixonvalve.com

2 Ductile iron

aluminum hard coat

356T6 aluminum

316 stainless steel

Type E Adapters Dimensions Adapter x Hose Shank

A overall length 2-1/2" 2-3/4" 3-15/16" 4-5/8" 4-7/8" 5-1/16" 6-1/32" 6-1/4" 6-25/32" 7-3/16" 7-5/32" 9-5/32" 11-13/16" 11-7/16"

B hose shank length 1-7/16" 1-5/16" 2-3/8" 2-15/16" 2-13/16" 2-29/32" 3-3/8" 3-3/4" 4-7/32" 4-1/4"

C hose shank O.D. 9/16" 19/32" 27/32" 1-1/16" 1-11/32" 1-9/16" 2-1/16" 2-19/32" 3-3/32" 4-3/32" 5-3/32" 6-1/16" 8-1/16" 8-3/32"

356T6 Aluminum, Brass, and Iron Dimensions 316 Stainless Steel Dimensions

A overall length 2-1/2" 2-3/4" 3-15/16"

7-3/16" 7-5/32" 9-7/16 " B hose shank length 1-7/16" 1-5/16" 2-3/8" 2-15/16" 2-13/16" 2-29/32" 3-3/8" 3-3/4" 4-7/32"

6-3/32 " C hose shank O.D. 9/16" 19/32" 27/32" 1-1/16" 1-11/32" 1-9/16" 2-1/16" 2-19/32" 3-3/32" 4-3/32" 5-3/32" 6-1/16 "

Type F Adapters x NPT

Adapter x Male NPT

Feature

• Pressure rating is based on the seal of the mating part

Size

356T6 Aluminum Part #

Aluminum Hard Coat Part #

Brass Part #

1/2" 50-F-AL2 50-F-BR

3/4" x 1/2" 7550-F-AL2

7550-F-BR

3/4" 75-F-AL2 75-F-BR

1" 100-F-AL2 100-F-BR

1-1/4" 125-F-AL 125-F-BR

1-1/2" 150-F-AL

2" 200-F-AL

150-F-ALH 150-F-BR

200-F-ALH 200-F-BR

2-1/2" 250-F-AL 250-F-BR

3" 300-F-AL 300-F-ALH

5" 500-F-AL

6" 600-F-AL 600-F-ALH 600-F-BR

8" DIX 800-F-AL1

8" BL 801-F-AL1

1 Dixon® and Boss-Lock cam & groove couplings do not interchange in the 8" size.

2 Made from 6061-T6 aluminum

Size

1/2"

3/4" x 1/2"

3/4"

Unplated Malleable Iron Part #

Plated Malleable Iron Part #

316 Stainless Steel Part #

50-F-SS

7550-F-SS

75-F-PM1

1" 100-F-PM1

75-F-SS

100-F-SS

1-1/4" 125-F-SS

1-1/2" 150-F-MI 150-F-PM 150-F-SS

2-1/2" 250-F-SS

3" 300-F-MI 300-F-PM 300-F-SS

4" 400-F-MI 400-F-PM 400-F-SS

6" 600-F-PM 600-F-SS

1 Zinc plated carbon steel

356T6 aluminum

aluminum hard coat

316 stainless

Type F Adapters Dimensions

Adapter x Male NPT

356T6 Aluminum, Brass, and Iron Dimensions

A overall length 2-1/2" "2-3/4 3-15/16" 4-5/8" 4-7/8" 5-1/16" 6-1/32" 6-1/4" 6-25/32" 7-3/16" 7-5/32" 9-5/32" 11-13/16" 11-7/16"

B adapter length 1-1/16" 1-1/16" 1-1/16" 1-5/16" 1-9/16" 1-5/8" 1-7/8" 1-15/16" 2" 2-1/16" 2-5/16"

C distance across flats 1" 1-5/16" 1-3/8" 1-1/2" 1-7/8" 2-1/4" 2-11/16" 3-1/4" 3-3/4" 4-15/16" 6-1/2" 8-1/32"

316 Stainless Steel Dimensions

Size 1/2" 3/4" x

A overall length 2-1/8" 2-1/16" 2-1/8" 2-9/16" 3-7/32" 3-1/8" 3-17/32" 4-5/16" 4-15/32" 4-15/16" 4-15/16"

B adapter length 1-1/16" 1-1/16" 1-1/16" 1-5/16" 1-9/16" 1-5/8" 1-7/8" 1-15/16" 2" 2-1/16" 2-1/4"

C distance across flats 1" 1-5/16" 1-5/16" 1-1/4" 1-15/16" 2-1/4" 2-3/4" 3-1/4" 3-3/4" 5" 7-3/4"

Application

Type E Adapters with Swaged Ferrule

• Developed specifically for chemical transport hoses having Crosslinked Polyethylene (XLPE) or Ultra High Molecular Weight Polyethylene (UHMW) tubes.

Features

• Provides a permanently attached cam & groove fitting when superior coupling retention is required

• Testing tank transport hoses from a wide variety of manufacturers proved the swaged Boss-Lock fitting to be the leader in overall performance

• Other sizes or hose O.D.s available on special order. Consult Dixon® for pricing and availability

• Special equipment required for installation, consult Dixon for pricing and availability

Hose O.D.

Size

316 Stainless Steel Part # from to 3/4" 1-6/64" 1-22/64"

RE075-1370 1" 1-29/64" 1-35/64"

RE100-1620 1" 1-36/64" 1-44/64"

Features

RE100-1770

Type E Adapters with Notched Shank Adapter x Hose Shank

• Can be removed from a damaged hose by cutting away the ferrule without necessarily damaging the fitting, after inspection of the fitting to determine its suitability for reuse, it can be reinstalled into another hose by using a new ferrule

• System allows you to better manage your inventory: stock one coupling and two ferrules and cover the same hose range with less inventory, you must purchase a fitting and the matching ferrule to create an assembly

• For use with notched ferrules below

Size

1-1/2"

316 Stainless Steel Part #

RE150NO

RE200NO 3"

RE300NO 4"

• Reference notched shanks and adapters above

RE400NO

Notched Ferrules

• Dixon stems and ferrules are specifically designed to be used together as a coupling system, due to differences in dimensions and tolerances for safety reasons, do not use other manufacturers' stems or ferrules with Holedall® products.

Size

Hose O.D.

304 Stainless Steel Part # From To

1-1/2" 1-60/64" 2-12/64"

GAS2334NO 2-4/64" 2-22/64"

2" 2-30/64" 2-44/64"

GAS2370NO

GAS2709NO 2-42/64" 2-54/64"

2-1/2" 2-54/64" 3"

GAS2885NO

GAS3260NO

GAS3012NO 3-1/64" 3-13/64"

3" 3-30/64" 3-46/64"

GAS3760NO 3-47/64" 3-54/64"

4" 4-40/64" 4-47/64"

GAS3885NO

GAS5010NO

Type E Adapters with Notched NOS shank

Adapter x Shank

Features

• For hose outside diameters of 2-4/64" and below, the couplings are crimp only

• For hose outside diameters of 2-5/64" and above, the couplings can be crimped or swaged

• For use with NOS ferrules listed below

316 Stainless Steel Part # 1-1/2" --2" 200ENOSSS 3" 300ENOSSS

Size

Only use the NOS shank with the NOS ferrules. Due to differences in dimensions and tolerances for safety reasons, do not use other manufacturers' stems or ferrules with Dixon® products.

Notched NOS Ferrules

Hose O.D.

Size

304 Stainless Steel Part # From To 1-1/2" 1-60/64" 2-12/64" GAS2334NOS 2-4/64" 2-22/64" GAS2370NOS 2" 2-30/64" 2-44/64" GAS2709NOS 2-42/64" 2-54/64" GAS2885NOS 3" 3-30/64" 3-46/64" GAS3760NOS 3-47/64" 3-54/64" GAS3885NOS 4" 4-40/64" 4-47/64" GAS5010NOS

NOTE: Reference notched shanks and adapters above

Dixon® Type DC Dust Caps

Features

• Nitrile rubber gasket supplied standard; other gaskets available on pages 75-77

• 1/2" Dixon has only one cam arm

• Pull rings are not supplied on 1/2" - 1" Dixon couplings

• Dust caps and dust plugs are not to be used in pressure applications for safety and environmental reasons

Size

356T6 Aluminum Part #

1/2" 50-DC-AL

3/4" 75-DC-AL

Aluminum Hard Coat Part #

Brass Part #

50-DC-BR

75-DC-BR 1" 100-DC-AL 100-DC-BR

1-1/2" 150-DC-AL

2" 200-DC-AL

2-1/2" 250-DC-AL

3" 300-DC-AL

150-DC-ALH

150-DC-BR

200-DC-ALH 200-DC-BR

4" 400-DC-AL 400-DC-ALH 400-DC-BR

5" 500-DC-AL

6" 600-DC-AL

8" 800-DC-AL1, 2

600-DC-ALH

500-DC-BR

1 Dixon and Boss-Lock cam & groove couplings do not interchange in the 8" size

2 The 8" Dixon dust cap has 2 cam arms

Size Unplated Malleable Iron Part #

1/2"

316 Stainless Steel Part #

50-DC-SS

3/4" 75-DC-SS 1" 100-DC-SS

1-1/2"

2" 200-DC-MI

2-1/2"

3" 300-DC-MI

4" 400-DC-MI

150-DC-SS

200-DC-SS

250-DC-SS

300-DC-SS

400-DC-SS

500-DC-SS

600-DC-SS

356T6 aluminum

aluminum hard coat

brass

unplated malleable iron

316 stainless steel

distance across open cam arms

Dixon® Type DC Dust Caps Dimensions

356T6 Aluminum, Brass, and Iron Dimensions

316 Stainless Steel Dimensions

coupler length

cam arms

D distance across open cam arms 2-5/8" 4-3/8" 5-3/16" 7-7/16" 7-13/16" 8-11/32" 9-15/16" 11-1/32" 12-3/16" 16-1/4"

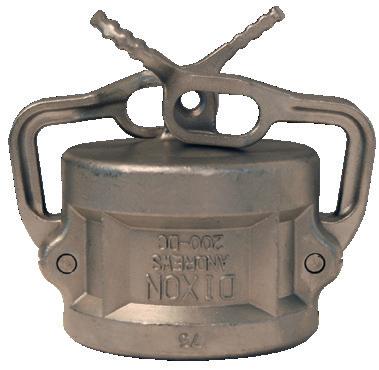

Dixon® Lockable Dust Caps

Features

• Nitrile rubber gasket standard, other gaskets available on pages 75-77

• Dust caps and dust plugs are not to be used in pressure applications for safety and environmental reasons

Size

1-1/2"

Feature

356T6 Aluminum Part #

150DC-LAL

200DC-LAL

300DC-LAL

400DC-LAL

600DC-LAL

• Angled, ergonomic thumb release

Size

1-1/2"

Features

316 Stainless Steel Part #

150DC-LSS

200DC-LSS

300DC-LSS

400DC-LSS

Part #

150DC-LBR

200DC-LBR

300DC-LBR

Boss-Lock Type H Dust Caps

• Nitrile rubber gasket standard, other gaskets available on pages 75-77

• Supplied with pull-ring safety clips

• Dust caps and dust plugs are not to be used in pressure applications for safety and environmental reasons

Size

356T6 Aluminum Part # Brass Part #

1" AH100

1-1/4" AH125

1-1/2" AH150

2" AH200

2-1/2" AH250

3" AH300

BH100

BH125

BH150

BH200

BH250

BH300 4" AH400

BH400 6" AH600

BH600 8" AH8001

Size

3/4"

1-1/4"

Plated Malleable Iron Part #

1-1/2" IH150

2" IH200

3" IH300

4" IH400

316 Stainless Steel Part #

RH075BL

RH100BL

RH125BL

RH150BL

RH200BL

RH300BL

RH400BL 6" IH600

1 Dixon and Boss-Lock cam & groove couplings do not interchange in the 8" size

356T6 aluminum

316 stainless steel

plated malleable iron brass

Boss-Lock Type H Dust Caps Dimensions

B coupler length 1-17/32" 1-29/32" 1-29/32" 2-3/16" 2-1/4" 2-5/16" 2-5/16" 2-5/8" 2-13/16"

C distance across safety lugs 2-29/32" 3-5/8" 3-29/32" 4-5/16" 4-13/16" 5-9/16" 6-11/16" 9-5/8" 11-5/8"

D distance across open cam arms 5-9/16" 7-15/32" 7-25/32" 8-5/32"

356T6 Aluminum, Brass, and Iron Dimensions 316 Stainless Steel Dimensions

distance across open cam arms 5-13/32" 5-9/16" 7-15/32" 7-25/32" 8-5/32" 9-29/32" 11"

EZ Boss-Lock Type H Dust Caps

Features

• Nitrile rubber gasket standard, other gaskets available on pages 75-77

• Dust caps and dust plugs are not to be used in pressure applications for safety and environmental reasons

NOTE: Under no circumstances should the EZ Boss-Lock cam arms be used on any fitting not specifically designed for their use. See pages 5 and 73 for further specifications. Size

3/4"

1" AH100EZ

1-1/4"

1-1/2" AH150EZ

2" AH200EZ

2-1/2" AH250EZ

3" AH300EZ

4" AH400EZ

6" AH600EZ

BH100EZ

BH150EZ

BH200EZ

BH300EZ

RH075EZ

RH100EZ

RH125EZ

RH150EZ

RH200EZ

RH300EZ

RH400EZ

RH600EZ

316 stainless steel

356T6 aluminum brass

356T6 Aluminum, Brass, and Iron Dimensions

Feature

Type DP Dust Plugs

• Dust caps and dust plugs are not to be used in pressure applications for safety and environmental reasons

DIX 800-DP-AL1 8" BL 801-DP-AL1

1 Dixon® and Boss-Lock cam & groove couplings do not interchange in the 8" size

Unplated Malleable Iron Part # Plated Malleable Iron Part #

Stainless Steel Part #

aluminum hard coat

316 stainless steel

Type DP Dust Plugs Dimensions

356T6 Aluminum, Brass, and Iron Dimensions

A overall length 1-7/16" 1-3/4" 1-29/32" 2-3/8" 2-13/32" 2-13/16" 2-13/16" 2-13/16" 3-1/16" 3-3/8" 3-1/16" 5-3/16" 4-11/16"

B adapter length 15/16" 1-3/32" 1-5/16" 1-9/16" 1-5/8" 1-7/8" 1-15/16" 2" 2-1/16" 2-11/32" 2-1/4" 3-9/16" 3-1/16"

C outside O.D. 15/16" 1-1/4" 1-7/16" 1-25/32" 2-3/32" 2-15/32" 2-31/32" 3-19/32" 4-23/32" 5-23/32" 6-15/16" 9-3/32" 8-15/16"

316 Stainless Steel Dimensions

A overall length 1-7/16 " 1-11/16 " 1-15/16 " 2-1/4 " 2-1/2 " 2-3/4 " 2-7/8 " 2-27/32 " 3-1/8 " 3-1/2 "

B adapter length 15/16 " 15/16 " 1-15/16 " 1-9/16 " 1-5/8 " 1-7/8 " 1-15/16 " 2 " 2-1/16 " 2-1/4 "

C outside O.D. 15/16 " 1-1/4 " 1-7/16 " 1-25/32 " 2-3/32 " 2-15/32 " 2-31/32 " 3-19/32 " 4-23/32 " 6-15/16 "

Size

Hastelloy® Cam & Groove

Type A Adapters

Adapter x Female NPT

Hastelloy CW12MW Part #

300-A-HA

NOTE: Pressure rating is based on the seal material of the mating part. See rating on page 3

Hastelloy Cam & Groove

Type E Adapters

Adapter x Shank

Size

Hastelloy CW12MW Part # 1" 100-E-HA1 1-1/2" 150-E-HA 2"

300-E-HA

1 Have King Crimp® shank

NOTE: Pressure rating is based on the seal material of the mating part. See rating on page 3

Hastelloy Cam & Groove

Type F Adapters

Adapter x Male NPT

Size

Hastelloy CW12MW Part # 1" 100-F-HA 1-1/2" 150-F-HA 2"

300-F-HA

NOTE: Pressure rating is based on the seal material of the mating part. See rating on page 3.

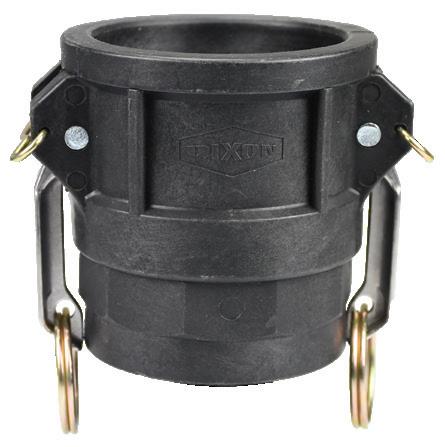

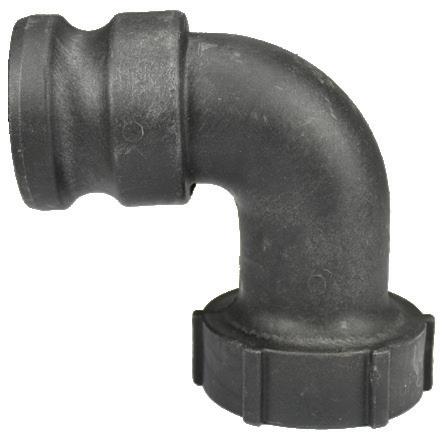

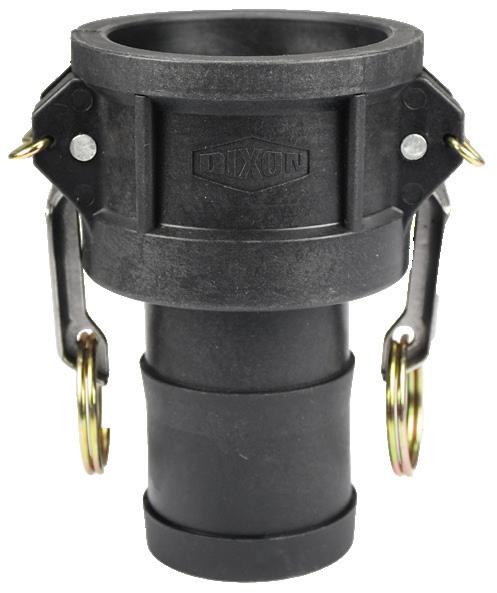

Polypropylene Cam & Groove

Hastelloy® Cam & Groove EZ Boss-Lock Type B Couplers

Coupler x Male NPT

Feature

• Couplers supplied with FKM-A gaskets

Materials

• Cam arms: 316 stainless steel

• Pins: 303 stainless steel

• Rings: Trivalent chrome plated 12 gauge steel wire

Size

1-1/2"

Feature

• Couplers supplied with FKM-A gaskets

Materials

• Cam arms: 316 stainless steel

• Pins: 303 stainless steel

Hastelloy CW12MW Part #

HAB100EZ

HAB150EZ

HAB200EZ

HAB300EZ

Hastelloy Cam & Groove EZ Boss-Lock Type C Couplers

x Hose Shank

• Rings: Trivalent chrome plated 12 gauge steel wire

Size

1-1/2"

1 King Crimp® shank

Hastelloy CW12MW Part #

HAC100EZ1

HAC150EZ

HAC200EZ1

HAC300EZ

Hastelloy Cam & Groove EZ Boss-Lock Type D Couplers

Coupler x Female NPT

Feature

• Couplers supplied with FKM-A gaskets

Materials

• Cam arms: 316 stainless steel

• Pins: 303 stainless steel

• Rings: Trivalent chrome plated 12 gauge steel wire

Size

1-1/2"

Hastelloy CW12MW Part #

HAD100EZ

HAD150EZ 2"

HAD300EZ

HAD200EZ 3"

Coupler

Feature

Dixon® Type DA Couplings with Port

Coupler x Adapter

• Nitrile rubber gasket standard, other gaskets available on pages 75-77

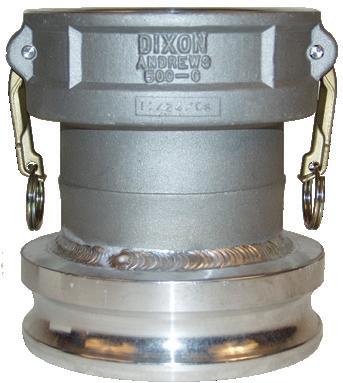

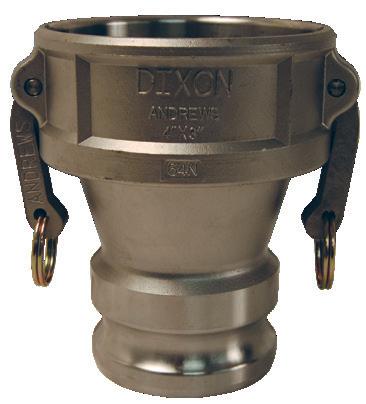

Dixon Type DA Jump Size Couplings

Coupler x Adapter

Feature

• Nitrile rubber gasket standard, other gaskets available on pages 75-77

356T6 Aluminum Part # 316 Stainless Steel Part #

1" x 1-1/2"

1015-DA-AL1

1015-DA-SS1

1-1/2" x 1" 1510DAAL 1510-DA-SS1

1-1/2" x 2" 1520-DA-AL 1520-DA-SS

2" x 1" 2010-DA-AL1 2010-DA-SS 2" x 1-1/2" 2015-DA-AL 2015-DA-SS

2" x 2-1/2" 2025-DA-AL1 2025-DA-SS1

2" x 3" 2030-DA-AL 2030-DA-SS

2" x 4" 2040-DA-AL 2040-DA-SS1

2-1/2" x 2" 2520-DA-SS1

2-1/2" x 3" 2530-DA-SS1

3" x 1-1/2"

3" x 2"

3" x 2-1/2"

3" x 4"

3" x 6"

4" x 2"

4" x 2-1/2"

3015-DA-AL

3015-DA-SS1

3020-DA-AL 3020-DA-SS

3025-DA-AL 3025-DA-SS1

3040-DA-AL 3040-DA-SS

3060-DA-AL1 3060-DA-SS1

4020-DA-AL 4020-DA-SS1

4025-DA-AL 4025-DA-SS1

4" x 3" 4030-DA-AL 4030-DA-SS

4" x 5"

4" x 6"

5" x 3"

5" x 4"

5" x 6"

6" x 3"

6" x 4"

6" x 5"

8" x 6"

4050-DA-AL

4060-DA-AL

5030-DA-AL1

5040-DA-AL

5060-DA-AL1

6030-DA-AL

6040-DA-AL

6050-DA-AL

8060-DA-AL1, 2

1 Parts are produced as a welded fabrication

2 The 8" coupler only interchanges with Dixon® adapters.

Size

3" x 2"

3" x 4"

4" x 3"

6" x 4"

Brass Part #

3020-DA-BR

3040-DA-BR

4030-DA-BR

6040-DA-BR

4060-DA-SS1

5030-DA-SS1

5040-DA-SS1

5060-DA-SS1

6030-DA-SS1

6040-DA-SS

6050-DA-SS1

Unplated Malleable Iron Part #

3020-DA-MI

4030-DA-MI

6040-DA-MI

NOTE: In jump size cam & groove couplings, the coupler is the first size in the part number. (i.e., a 4030-DA-AL is a 4" coupler to a 3" adapter)

Features

Boss-Lock Type DA Jump Size Couplings

Coupler x Adapter

• Nitrile rubber gasket standard, other gaskets available on pages 75-77

• All Boss-Lock couplers are supplied with pull-ring safety clips

Size

2" x 3"

2-1/2" x 2"

2-1/2" x 3"

3" x 2"

3" x 4"

4" x 2"

4" x 3"

6" x 4"

8" x 6"

356T6 Aluminum Part #

ADA20301

ADA25201

ADA25301

ADA3020

ADA30401

ADA40201

ADA4030

ADA60401

ADA80601, 2

1 Parts are produced as a welded fabrication

2 The 8" coupler only interchanges with 8" Boss-Lock couplings.

316 Stainless Steel Part #

RDA2030BL1

RDA3020BL

RDA3040BL1

RDA4020BL1

RDA4030BL

NOTE: In jump size cam & groove couplings, the coupler is the first size in the part number. (i.e., a ADA4030 is a 4" coupler to a 3" adapter)

EZ Boss-Lock Type DA Jump Size Couplings

Coupler x Adapter

Feature

• Nitrile rubber gasket standard, other gaskets available on pages 75-77

Size

2" x 1"

2" x 3"

3" x 2"

3" x 4"

4" x 2"

4" x 3"

6" x 4"

356T6 Aluminum Part #

ADA2030EZ1

ADA3020EZ

ADA3040EZ1

ADA4020EZ1

ADA4030EZ

ADA6040EZ1

1 Parts are produced as a welded fabrication

316 Stainless Steel Part #

RDA2010EZ1

RDA2030EZ1

RDA3020EZ

RDA3040EZ1

RDA4020EZ1

RDA4030EZ

RDA6040EZ

NOTE: In jump size cam & groove couplings, the coupler is the first size in the part number. (i.e., a ADA4030EZ is a 4" coupler to a 3" adapter)

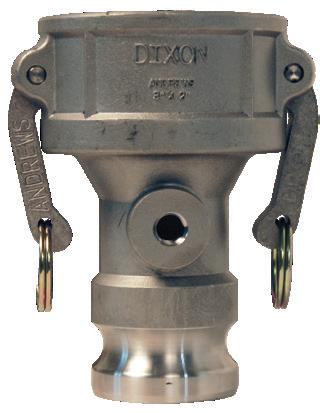

Dixon® Type DA Jump Size Couplings with

Coupler x Adapter

Feature

• Nitrile rubber gasket standard, other gaskets available on pages 75-77

Size Port

3" x 2" 1/4"

3" x 2" 3/8"

3" x 2" 1/2"

3" x 2" 3/4"

316 Stainless Steel Part #

3020DAT25SS

3020DAT38SS

3020DAT50SS

3020DAT75SS

NOTE: In jump size cam & groove couplings, the coupler is the first size in the part number. (i.e., a ADA4030EZ is a 4" coupler to a 3" adapter)

Port port on lug

Feature

increaser / reducer

same size

reducer / increaser

same size

reducer / increaser

same size

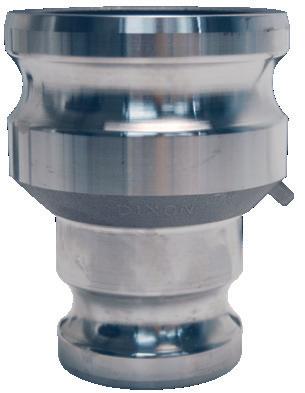

Type AA Spool Adapters

Adapter x Adapter

• Pressure rating is based on the seal of the mating part, see ratings on page 3

Size

356T6 Aluminum Part #

316 Stainless Steel Part # Unplated Malleable Iron Part #

100-AA-SS

1-1/4" 125-AA-SS1

1-1/2" 150-AA-AL 150-AA-SS

1-1/2" x 2" 1520-AA-AL

2" 200-AA-AL

2" x 3" 2030-AA-AL

2" x 4" 2040-AA-AL

2-1/2" x 3" 2530-AA-AL1

2-1/2" x 4" 2540-AA-AL1

3" 300-AA-AL

3" x 4" 3040-AA-AL

4" 400-AA-AL

4" x 5" 4050-AA-AL

4" x 6" 4060-AA-AL

5" 500-AA-AL1

5" x 6" 5060-AA-AL1

6" 600-AA-AL

1 Parts are produced as a welded fabrication

Size

Feature

1520-AA-SS

200-AA-SS

2030-AA-SS

2040-AA-SS1

2530-AA-SS1

300-AA-SS

3040-AA-SS1

400-AA-SS

4060-AA-SS1

500-AA-SS1

600-AA-SS1

Brass Part #

200-AA-BR

300-AA-BR

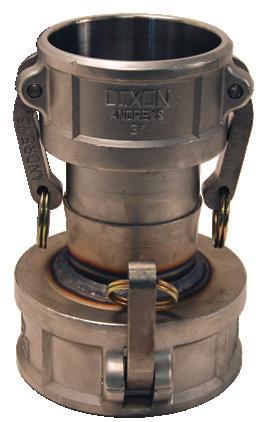

Dixon® Type DD Couplers

Coupler x Coupler

• Nitrile rubber gasket standard, other gaskets available on pages 75-77

Size

1-1/2"

2" x 3"

356T6 Aluminum Part #

200-DD-AL

2030-DD-AL

400-AA-MI

316 Stainless Steel Part #

150-DD-SS1

200-DD-SS

2030-DD-SS 3"

3" x 4"

4" x 5"

4" x 6"

300-DD-AL

3040-DD-AL

400-DD-AL

4050-DD-AL1

4060-DD-AL1

300-DD-SS

3040-DD-SS1

400-DD-SS

4050-DD-SS1

4060-DD-SS 5" 500-DD-AL1

500-DD-SS 6" 600-DD-AL

1 Parts are produced as a welded fabrication

Boss-Lock Type DD Couplers

Coupler x Coupler

Features

• Nitrile rubber gasket standard, other gaskets available on pages 75-77

• All Boss-Lock couplers are supplied with pull-ring safety clips

Size

356T6 Aluminum Part #

2" ADD2001

2" x 1"

2" x 3"

ADD20301

3" ADD3001

3" x 4"

ADD30401

4" ADD4001

1 Parts are produced as a welded fabrication

316 Stainless Steel Part #

RDD200EZ

RDD2010EZ1

RDD2030EZ1

RDD300EZ1

RDD3040EZ1

RDD400EZ1

RDD600EZ1

Feature

Type A Jump Size Adapters

Adapter x Female NPT

• Pressure rating is based on the seal of the mating part, see ratings on page 3

Size 356T6 Aluminum Part #

2" x 1-1/2"

2015-A-AL

Brass Part #

316 Stainless Steel Part #

2015-A-SS1

2" x 3" 2030-A-AL 2030-A-SS

2-1/2" x 2"

3" x 2" 3020-A-AL

3" x 4" 3040-A-AL

4" x 3" 4030-A-AL

4" x 6" 4060-A-AL

6" x 4" 6040-A-AL

1 Parts are produced as a welded fabrication

2520-A-BR

3020-A-SS

4030-A-SS1

6040-A-SS1

NOTE: In jump size couplings, the cam & groove end is the first size given in the part number. (i.e., a 4030-C-AL is a 4" coupler to a 3" hose shank).

Dixon® Type B Jump Size Couplers

Coupler x Male NPT

Feature

• Nitrile rubber gasket standard, other gaskets available on pages 75-77

Size

356T6 Aluminum Part #

1-1/2" x 1" 1510-B-AL

2" x 1-1/2" 2015-B-AL

2" x 3" 2030-B-AL

3" x 2" 3020-B-AL

3" x 4" 3040-B-AL

4" x 3" 4030-B-AL

1 Parts are produced as a welded fabrication

316 Stainless Steel Part #

1510-B-SS1

2015-B-SS1

3020-B-SS1

4030-B-SS1

NOTE: In jump size couplings, the cam & groove end is the first size given in the part number. (i.e., a 4030-C-AL is a 4" coupler to a 3" hose shank).

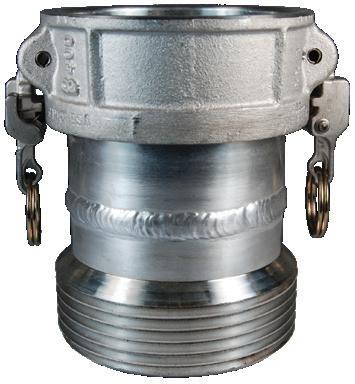

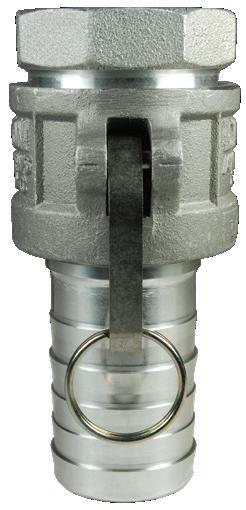

Dixon Type C Jump Size Couplers

Coupler x Hose Shank

Feature

• Nitrile rubber gasket standard, other gaskets available on pages 75-77

Size

1-1/2" x 1"

2" x 1-1/2"

356T6 Aluminum Part #

2015-C-AL1

3" x 2" 3020-C-AL

3" x 2-1/2"

3" x 4" 3040-C-AL

4" x 3" 4030-C-AL

5" x 4" 5040-C-AL1

1 Parts are produced as a welded fabrication

316 Stainless Steel Part #

1510-C-SS

2015-C-SS1

3020-C-SS

3025-C-SS

4030-C-SS1

NOTE: In jump size couplings, the cam & groove end is the first size given in the part number. (i.e., a 4030-C-AL is a 4" coupler to a 3" hose shank).

EZ Boss-Lock Type C Jump Size Coupler

Coupler x King Crimp® Hose Shank

Feature

• Nitrile rubber gasket standard, other gaskets available on pages 75-77

Size

3" x 2-1/2"

316 Stainless Steel Part #

RC3025EZCR

NOTE: In jump size couplings, the cam & groove end is the first size given in the part number. (i.e., a 4030-C-AL is a 4" coupler to a 3" hose shank).

Dixon® Type D Jump Size Couplers

Coupler x Female NPT

Feature

• Nitrile rubber gasket standard, other gaskets available on pages 75-77

356T6 Aluminum Part # Brass Part # 316 Stainless Steel Part #

1-1/2" x 1" 1510-D-AL

1 Parts are produced as a welded fabrication Size

1510-D-SS1

2" x 1-1/2" 2015-D-AL 2015-D-SS

3" x 2" 3020-D-AL 3020-D-SS

4" x 3" 4030-D-AL 4030-D-BR 4030-D-SS1

5" x 4" 5040-D-AL1

6" x 4" 6040-D-AL1

NOTE: In jump size couplings, the cam & groove end is the first size given in the part number. (i.e., a 4030-C-AL is a 4" coupler to a 3" hose shank).

Type E Jump Size Adapters

Adapter x Hose Shank

Feature

• Pressure rating is based on the seal of the mating part, see ratings on page 3

Part #

1-1/2" x 1" 1510-E-SS

2" x 1-1/2" 2015-E-AL1 2015-E-SS1

3" x 2" 3020-E-SS1

3" x 2-1/2" 3025-E-SS 4" x 3" 4030-E-AL 4030-E-SS1

5" x 4"

5040-E-AL1

1 Parts are produced as a welded fabrication

NOTE: In jump size couplings, the cam & groove end is the first size given in the part number. (i.e., a 4030-B-AL is a 4" coupler to a 3" male NPT).

Type F Jump Size Adapters

Adapter x Male NPT

Feature

• Pressure rating is based on the seal of the mating part, see ratings on page 3

Size

1-1/2" x 2"

356T6 Aluminum Part #

1520-F-AL

316 Stainless Steel Part #

2" x 1-1/2" 2015-F-AL 2015-F-SS

2" x 3" 2030-F-AL

3" x 1-1/2" 3015-F-AL 3015-F-SS1

3" x 2"

3" x 4"

3020-F-AL 3020-F-SS

3040-F-AL

4" x 3" 4030-F-AL 4030-F-SS

1 Parts are produced as a welded fabrication

NOTE: In jump size couplings, the cam & groove end is the first size given in the part number. (i.e., a 4030-C-AL is a 4" coupler to a 3" hose shank).

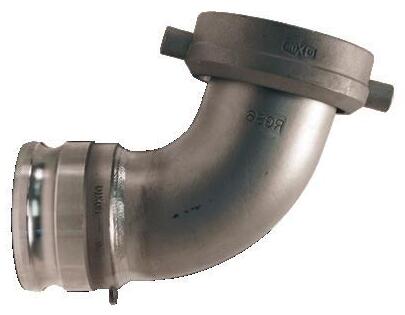

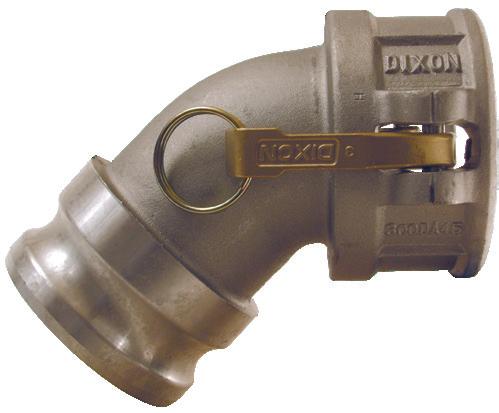

Dixon® Type DA 45° Elbows

Adapter x Coupler

Feature

• Nitrile rubber gasket standard, other gaskets available on pages 75-77

Size

356T6 Aluminum Part #

200DA-45AL1

3" 300DA-45AL

4" 400DA-45AL

6" 600DA-45AL

1 Part is produced as a welded fabrication

Feature

316 Stainless Steel Part #

200DA-45SS1

300DA-45SS1

400DA-45SS1

Unplated Malleable Iron Part #

400DA-45MI

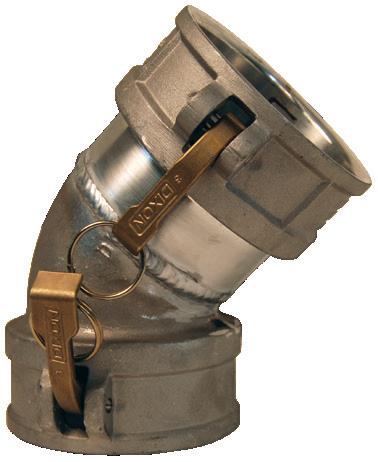

Dixon Type DD 45° Elbows

Coupler x Coupler

• Nitrile rubber gasket standard, other gaskets available on pages 75-77

Size

356T6 Aluminum Part #

200DD-45AL1

3" 300DD-45AL1

4" 400DD-45AL

6" 600DD-45AL1

1 Part is produced as a welded fabrication

Feature

316 Stainless Steel Part #

300DD-45SS1

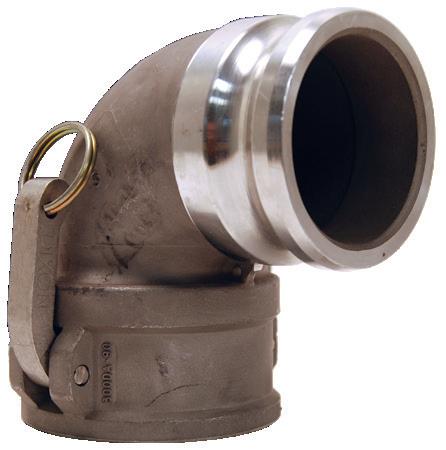

Dixon Type DA 90° Elbows

Adapter x Coupler

• Nitrile rubber gasket standard, other gaskets available on pages 75-77

Size

1-1/2"

356T6 Aluminum Part #

150DA-90AL1

2" 200DA-90AL

3" 300DA-90AL

4" 400DA-90AL

5" 500DA-90AL1

6" 600DA-90AL

1 Part is produced as a welded fabrication

2 EZ Boss-Lock design (not pictured)

Feature

316 Stainless Steel Part #

100DA-90SS1

150DA-90SS1

200DA-90SS

300DA-90SS

400DA-90SS

RDA90600EZ1, 2

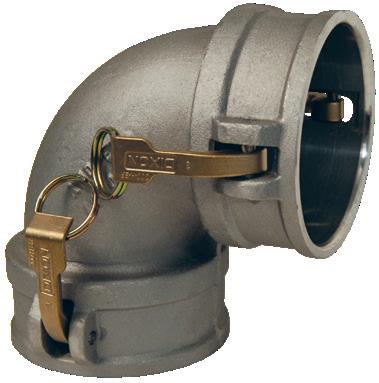

Dixon Type DD 90° Elbows

Coupler x Coupler

• Nitrile rubber gasket standard, other gaskets available on pages 75-77

Size

356T6 Aluminum Part #

2" 200DD-90AL

3" 300DD-90AL

4" 400DD-90AL

6" 600DD-90AL

1 Part is produced as a welded fabrication

Feature

316 Stainless Steel Part #

300DD-90SS1

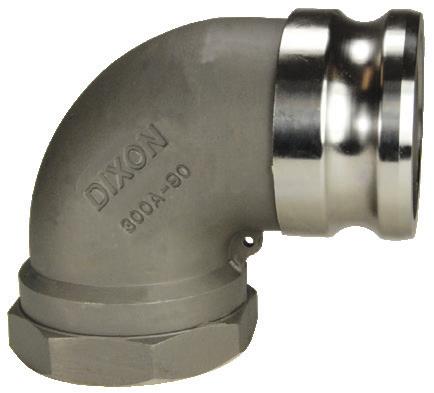

Type A 90° Elbows

Adapter x Female NPT

• Pressure rating is based on the seal of the mating part, see ratings on page 75-77

Size

1-1/2"

356T6 Aluminum Part #

150A-90AL

200A-90AL

300A-90AL

4" 400A-90AL

1 Part is produced as a welded fabrication

316 Stainless Steel Part #

200A-90SS1

300A-90SS

Dixon® Type B 90° Elbows

Coupler x Male NPT

EZ Boss-Lock design

Feature

• Nitrile rubber gasket standard, other gaskets available on pages 75-77

Size

1-1/2"

356T6 Aluminum Part #

150B-90AL 2" 200B-90AL

316 Stainless Steel Part #

200B-90SS 1 3"

1 Parts are produced as a welded fabrication.

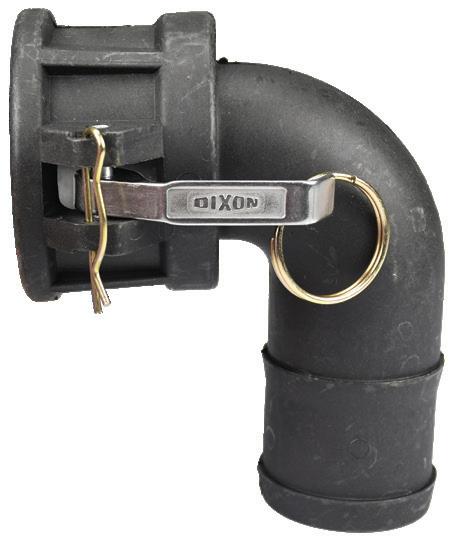

Dixon Type C 90° Elbows

Coupler x Hose Shank

Feature

300B-90SS 1

• Nitrile rubber gasket standard, other gaskets available on pages 75-77

Size

1-1/4"

1-1/2"

356T6 Aluminum Part #

150C-90AL

2" 200C-90AL

3" 300C-90AL

4" 400C-90AL

6" 600C-90AL

1 Part is produced as a welded fabrication

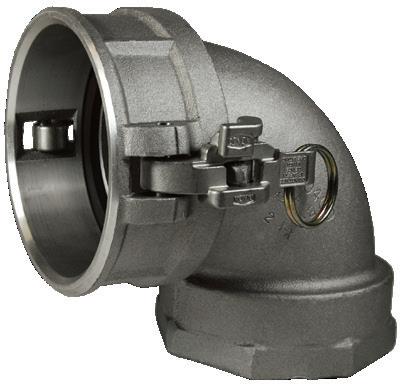

Dixon Type D 90° Elbows

Coupler x Female NPT

Brass Part # 316 Stainless Steel Part #

125C-90BR

200C-90BR

150C-90SS

200C-90SS

300C-90SS

400C-90SS1

Feature

• Nitrile rubber gasket standard, other gaskets available on pages 75-77

Size

1-1/4"

356T6 Aluminum Part #

Brass Part #

125D-90BR

1-1/2" 150D-90AL 150D-90BR

2" 200D-90AL

200D-90BR

316 Stainless Steel Part #

100D-90SS

200D-90SS 2" BD90200EZ2

3" 300D-90AL

4" 400D-90AL

4" AD90400EZ2

6" 600D-90AL

1 Part is produced as a welded fabrication

2 EZ Boss-Lock design

300D-90SS

400D-90SS1

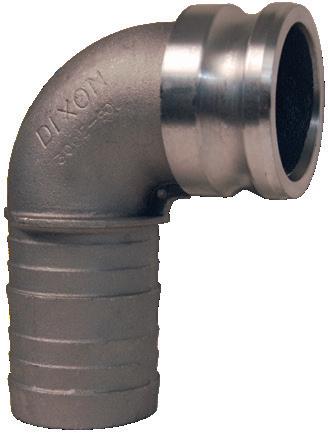

Type E 90° Elbows

Adapter x Hose Shank

Feature

• Pressure rating is based on the seal of the mating part, see ratings on page 3

Size

356T6 Aluminum Part #

300E-90AL

400E-90AL

1 Parts are produced as a welded fabrication

316 Stainless Steel Part #

200E-90SS1

300E-90SS

400E-90SS1

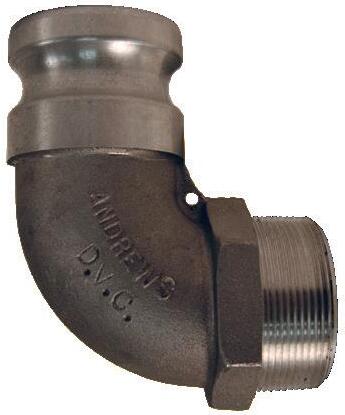

Type F 90° Elbows

Adapter x Male NPT

Feature

• Pressure rating is based on the seal of the mating part, see ratings on page 3

Size

1-1/2"

356T6 Aluminum Part #

150F-90AL

2" 200F90AL

1 Parts are produced as a welded fabrication

316 Stainless Steel Part #

200F-90SS1

300F-90SS1

Type F 15° Elbows

Adapter x Male NPT

Feature

• Pressure rating is based on the seal of the mating part, see ratings on page 3

Size

316 Stainless Steel Part #

200F-15SS

Features

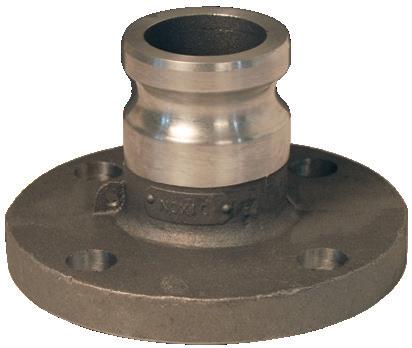

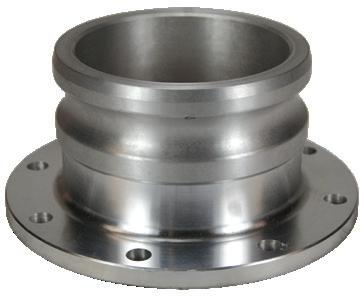

Adapter x 150# Flange

• Aluminum and unplated iron flanges are flat face

• Stainless steel flanges are raised face

• Reference dixonvalve.com for flange bolt hole drilling circle standards

• Flanges are designed to mate with 150# flanges

• Flanges have the same bolt hole pattern as an ANSI 150 lb. flange, the thickness may vary

1 Part is produced as a welded fabrication

NOTE: For flange dimensions, diagrams, and additional information, please reference dixonvalve.com.

Adapter x 150# ANSI Flange

Feature

• Global product made to Dixon® specifications

NOTE: For flange dimensions, diagrams, and additional information, please reference dixonvalve.com.

Feature

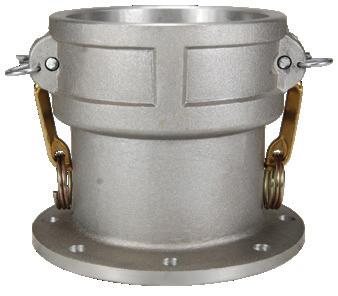

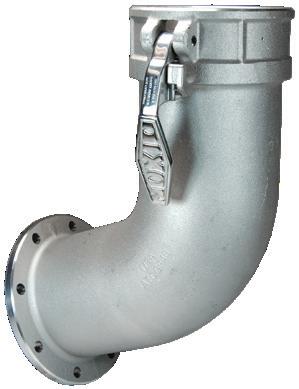

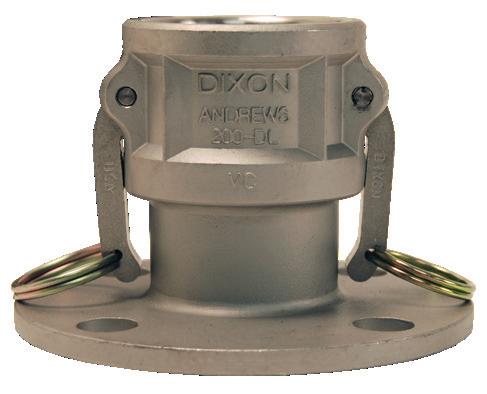

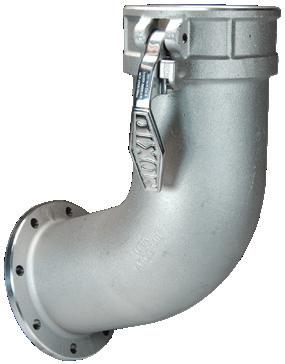

Dixon Coupler x 150# Flange

• Nitrile rubber gasket standard, other gaskets available on pages 75-77

1 Part is produced as a welded fabrication

NOTE: For flange dimensions, diagrams, and additional information, please reference dixonvalve.com.

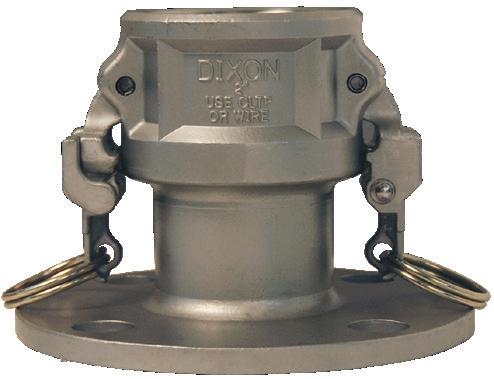

EZ Boss-Lock Coupler x 150# Flange

Feature

• Nitrile rubber gasket standard, other gaskets available on pages 75-77

1 Parts are produced as a welded fabrication

NOTE: For flange dimensions, diagrams, and additional information, please reference dixonvalve.com.

7/16"

Features

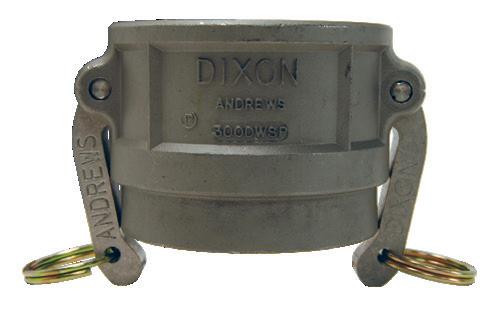

Dixon® Coupler Socket Weld to Schedule 40 Pipe

• Not all configurations are stocked

• Boss-Lock versions are also available; consult Dixon for pricing and availability

• CAD models are for reference only; consult Dixon for specific dimensions

• Final weld preparation, as with all weld fittings, is the responsibility of the welder

• Nitrile rubber gasket standard, other gaskets available on pages 75-77

Size Bore

5" 5.562

6" 6.655

8" 8.711

356T6 Aluminum Part #

316 Stainless Steel Part #

500DWSPAL 500DWSPSS

600DWSPAL

800DWSPAL1

600DWSPSS

1 Dixon and Boss-Lock cam & groove couplings do not interchange in the 8" size The 8" Dixon design has 4 cam arms.

Feature

Dixon Coupler Butt Weld to Schedule 40 Pipe/Socket Weld to Nominal Tubing

• Nitrile rubber gasket standard, other gaskets available on pages 75-77

Size Bore

3/4" .765

1" 1.015

1-1/2" 1.515

2" 2.015

3" 3.015

4" 4.015

5" 5.015

6" 6.020

Feature

356T6 Aluminum Part #

150DWBPSTAL

200DWBPSTAL

300DWBPSTAL

400DWBPSTAL

500DWBPSTAL

600DWBPSTAL

316 Stainless Steel Part #

75DWBPSTSS

100DWBPSTSS

150DWBPSTSS

200DWBPSTSS

300DWBPSTSS

400DWBPSTSS

EZ Boss-Lock Coupler Socket Weld to Schedule 40 Pipe

• Nitrile rubber gasket standard, other gaskets available on pages 75-77

Size Bore

3/4" 1.065

1" 1.330

1-1/2" 1.915

2" 2.390

3" 3.530

4" 4.530

6" 6.655

316 Stainless Steel Part #

RDWSP075EZ

RDWSP100EZ

RDWSP150EZ

RDWSP200EZ

RDWSP300EZ

RDWSP400EZ

RDWSP600EZ

EZ Boss-Lock Coupler Butt Weld to Schedule 40 Pipe / Socket Weld to Nominal Tubing

Feature

• Nitrile rubber gaskets standard, other gaskets available on pages 75-77

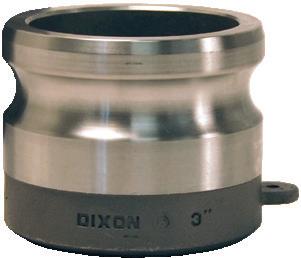

Adapter Socket Weld to Schedule 40 Pipe

Feature

• Not all configurations are stocked

Part #

1 Dixon® and Boss-Lock cam & groove couplings do not interchange in the 8" size.

NOTE: Final weld preparation, as with all weld fittings, is the responsibility of the welder.

Adapter Butt Weld to Schedule 40 Pipe/Socket Weld to Nominal Tubing

1 Dixon and Boss-Lock cam & groove couplings do not interchange in the 8" size

Features

Dixon Weld to Tube Cam and Groove

• Designed to be welded to standard sanitary tubing

• 316 stainless steel investment casting

Size

Adapter x Weld to Tube End

316 Stainless Steel Part # 1"

RE100BT 1-1/2"

Boss-Lock® Coupler x Weld to Tube End

Feature

• Nitrile rubber gaskets are standard, other gaskets available on pages 75-77

316 Stainless Steel Part #

Cam and Groove Transition Fittings

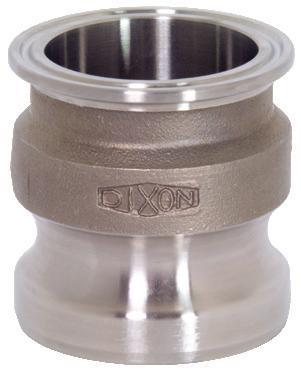

Adapter x Clamp End

Size

1-1/2"

316 Stainless Steel Part #

RE150SE 2" RE200SE 3" RE300SE

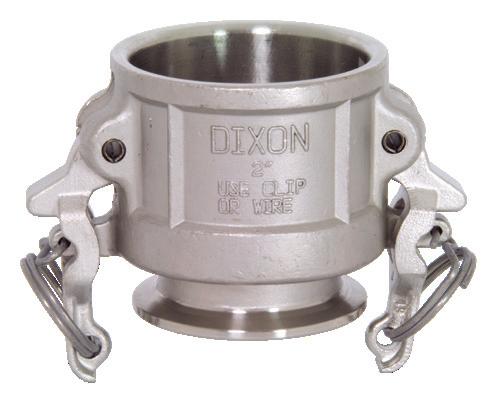

Boss-Lock Coupler x Clamp End

Feature

• Nitrile rubber gaskets are standard, other gaskets available on pages 75-77

Size

1-1/2"

316 Stainless Steel Part #

RC150SE 2"

RC200SE 3"

RC300SE

Adapter x Female NPSM

Application

• Used in the delivery of dry goods

Features

• Cork nitrile rubber gaskets are standard in threaded end

• Pressure rating is based on the seal of the mating part, see ratings on page 3

• Replacement gasket; 400GAGFI

Size

356T6 Aluminum Part #

Boss-Lock Coupler x Female NPSM

Features

• Nitrile rubber gasket standard, other gaskets available on pages 75-77

• All Boss-Lock couplers are supplied with pull-ring safety clips Size

356T6 Aluminum Part # 4" ADS400

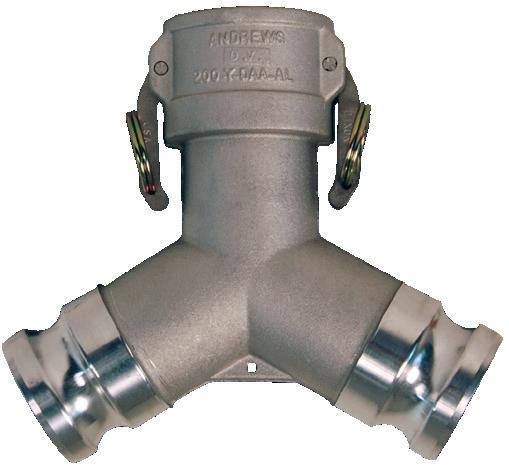

Dixon® Coupler x Adapter Wye

Feature

• Nitrile rubber gasket standard, other gaskets available on pages 75-77

Size

356T6 Aluminum Part # 2" 200YDAAAL 4" 400YDAAAL1

1 Part is produced as a welded fabrication.

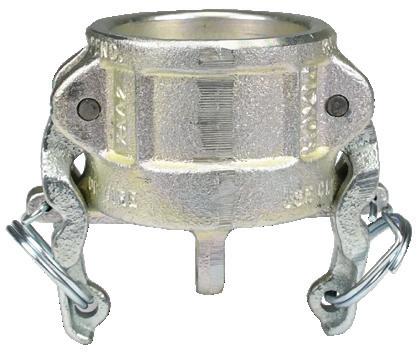

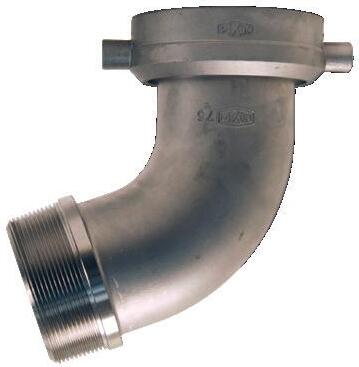

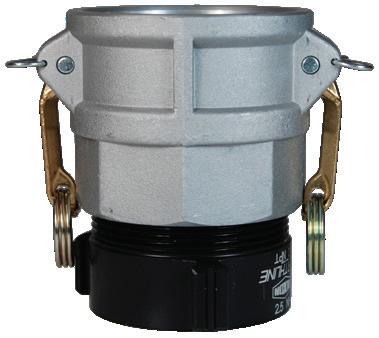

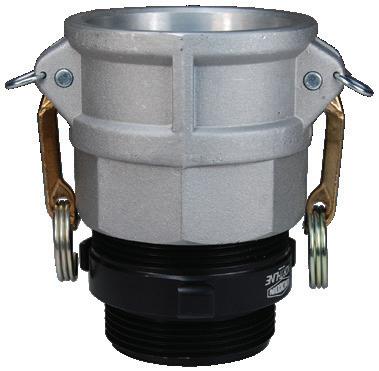

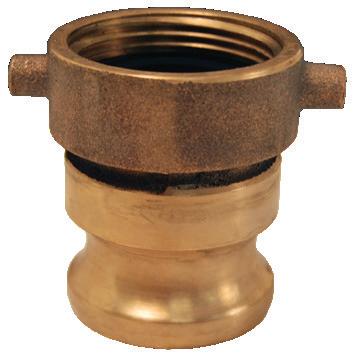

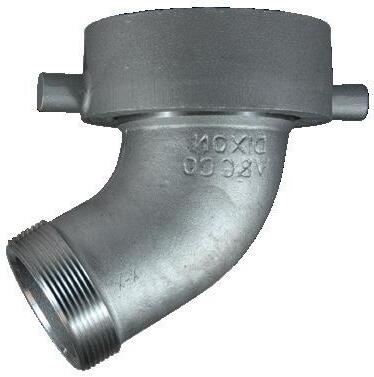

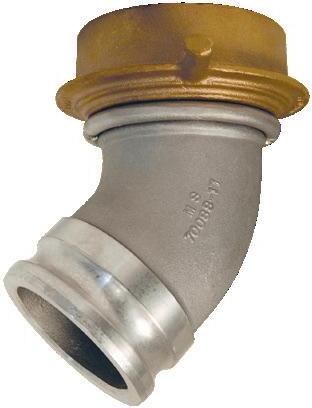

Cam & Groove Hydrant Adapters

Features

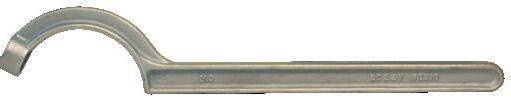

• Pin lugs allow for easy connection using standard spanner and hydrant wrenches

• Supplied with a nitrile rubber washer in the threaded end

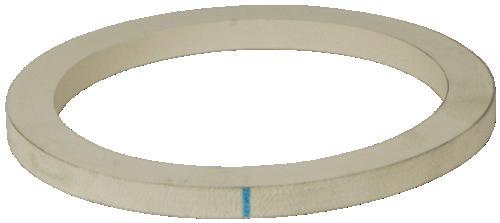

Replacement Washers

NOTE: All adapters are made to approved Dixon specifications.

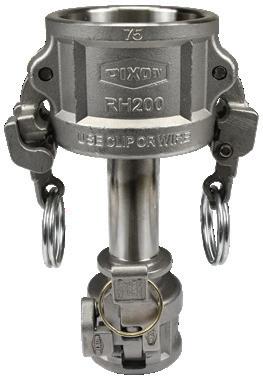

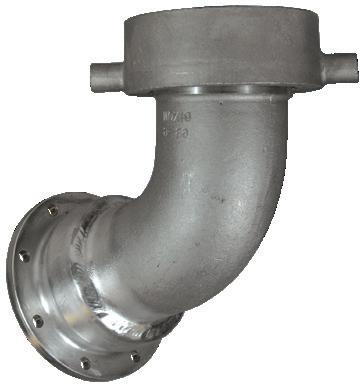

Application

• For use on trailer relief valves Features

• Butt weld to tubing

Boss-Lock Coupler x Tube with 45° Cut

• Nitrile rubber gaskets standard, other gaskets available on pages 75-77

• All Boss-Lock couplers are supplied with pull-ring safety clips

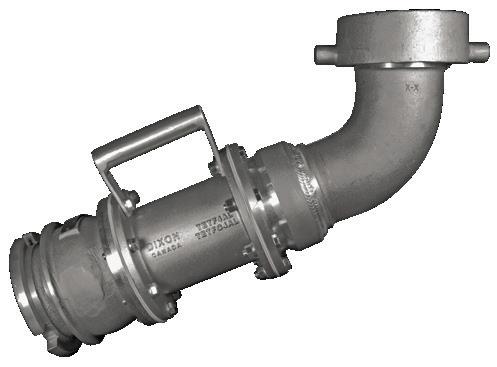

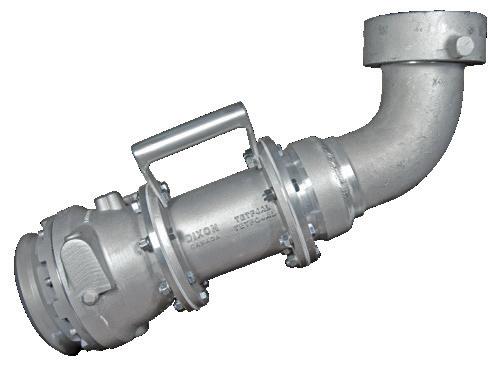

In-Line Sight Glasses

• Designed for dry bulk transfer hose

Feature

• Not intended for liquid service. For dry bulk transfer only.

Materials

• Body: aluminum

• Seals: nitrile rubber

• Sight glass: acrylic

• Hardware: stainless steel

• Cam arms (where applicable): bronze

Coupler x Adapter Application

3" x 3"

3" x 4"

4" x 3" 3543CA 4" x 4" 3544CA

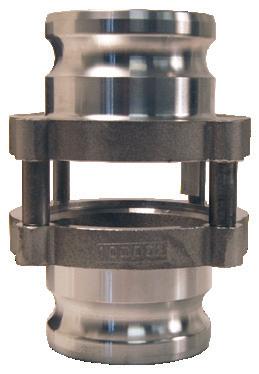

Adapter x Adapter

3" x 3"

3" x 4"

4" x 4" 3544AA

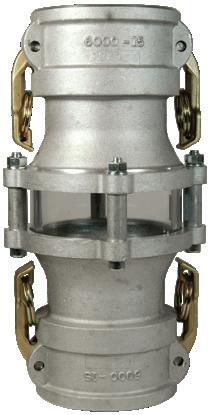

Coupler x Coupler

3" x 3"

4" x 3" 3543CC

4" x 4" 3544CC

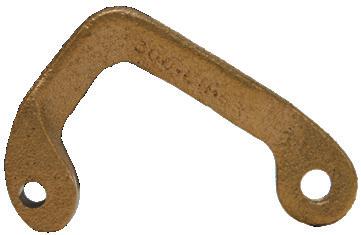

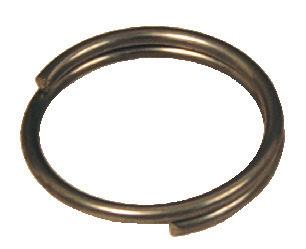

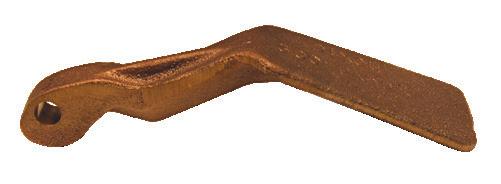

Dixon® Cam & Groove Handles

316 sintered stainless steel

316 investment stainless steel

200-LH-SI

300-LH-BR

Features

• Pull rings are standard on sizes 1-1/4" thru 6", optional on other sizes

• Domestic Dixon standard handle assemblies are only to be used with standard Dixon parts (not global), handles do not interchange with other manufacturers' handles or couplers

Materials

• Stainless steel pins standard with all assemblies

• Solid pins are 303 stainless

• Trivalent chrome plated steel pull ring

Coupler Size Description

Sintered Stainless Steel Part # 1/2" cam arm and pin

Part #

3/4" cam arm and pin

1" cam arm and pin

1-1/4" - 2-1/2" cam arm, ring, and pin

200-HRP-BR 200-HRP-SP 3" - 5" cam arm, ring, and pin

300-HRP-BR

300-HRP-SP 6" cam arm, ring, and pin

600-HRP-BR 8" cam arm and pin

Coupler Size Description

2" cam arm, ring, and pin

800-HNP-BR

316 Investment Stainless Steel Part #

200-HSCRP-SI 3" cam arm, ring, and pin

300-HSCRP-SI 6" cam arm, ring, and pin

600-HRP-SI

Dixon Cam & Groove Locking Handles for Dust Caps

Features

• Dixon locking handles are only to be used with standard Dixon parts (not global), handles do not interchange with other manufacturers' handles or couplers

• Not supplied with pins

9/32"

5/16"

3/8"

Part #

Boss-Lock Cam & Groove Handles

Features

Investment Stainless Steel Part #

• Boss-Lock handles should only be used with Boss-Lock parts, handles do not interchange with other manufacturers' handles or couplers

• Trivalent chrome plated steel pull ring

• Stainless steel pins are standard with all assemblies

• Solid pins are 303 stainless steel

Part #

3/4" - 1"

1-1/4" - 2-1/2" BHSC152

Iron Part #

IHSC152 3" and 4" BHSC34

IHSC34

Coupler Size Brass Part # Plated Iron Part #

6" and 8" BH6 IH6

Materials

EZ Boss-Lock Cam & Groove Handles

• Investment cast stainless steel cam arm and lever

• 316 stainless steel spring

• 303 stainless steel pin, washer; Trivalent chrome plated steel pull ring

Coupler Size

3/4" - 1"

1-1/4" - 2-1/2"

3" - 5"

6" and 8"

Materials

Investment Cast Stainless Steel Part #

RHEZ175

RHEZ152

RHEZ34

RHEZ6

EZ Boss-Lock Cam & Groove Paddle Handle

• Investment cast stainless steel cam arm and lever

• 316 stainless steel spring

• 303 stainless steel pin, washer

Coupler Size

3" - 5"

6" and 8"

Investment Cast Stainless Steel Part #

RHEZ34PAD

RHEZ8PAD

Under no circumstances should the EZ Boss-Lock cam arms be used on any fitting not specifically produced for their use. The aluminum, brass, and iron are made from sand castings. To ensure proper functioning of the EZ Boss-Lock cam arm assemblies, we sort the castings to ensure there is sufficient length and orientation on the lugs on the main casting to engage the lever. We also buff or grind the rougher sand cast surface to ensure that the lever will move freely. The EZ Boss-Lock cam arms cannot be retrofitted onto existing aluminum, brass, or plated iron Boss-Lock already in service.

Dixon® Coupling Paddle Handles

Features

• Dixon paddle handles are only to be used with standard Dixon parts (not global), handles do not interchange with other manufacturers' handles or couplers

• Not supplied with pins

Coupler Size Brass Part #

3" and 4"

316 Investment Cast Stainless Steel Part #

Features

Cam & Groove Gasket Dimensions

Thickness 'B' Inside Diameter 'A' Outside Diameter

• Nominal dimensions for elastomeric cam & groove gaskets are listed

• I.D.s of the PTFE envelope gaskets and the PTFE accordion gaskets are 1/16" smaller than the I.D.s for the elastomeric gaskets shown below

• Thickness of PTFE accordion gaskets may vary from chart below

1 No interchange standard exists for the 1/2", 5", and 8" fittings. Generally, these sizes do not interchange with other manufacturers' products. As such, the gaskets in these sizes are not suitable for use in other manufacturers' couplings.

Cam & Groove Gasket Color Codes

Gasket

Code 1

-BU Nitrile rubber (standard in all metal fittings)

-BF Nitrile rubber (formulated for fuel service)

-VI FKM-A

-VIA FKM-A

-THK Extra thick nitrile rubber

-EPR Ethylene Propylene

-NE Neoprene

-WNE White Neoprene, FDA approved material

-WB White nitrile rubber, FDA approved material

code stripes (appear on the O.D. of the gasket or filler)

-SIL Silicone red none

-TF PTFE (TFE) envelope with nitrile rubber filler

/ black 1 blue

TFVI PTFE (TFE) envelope with FKM-A filler white / black 1 yellow

TFWB PTFE (TFE) envelope with white nitrile rubber filler, FDA approved materials white / white blue

TFEP PTFE (TFE) envelope with Ethylene Propylene filler white / black 1 white stripe

-TES PTFE (FEP) encapsulated Silicone core, FDA approved materials translucent / red none

-TEV PTFE (FEP) encapsulated FKM-A core translucent / black none

TFACC PTFE (TFE) accordion, FDA approved materials white none

1 Part number suffix

NOTE: Since other manufacturers' coding systems vary, this chart should not be used as a reference in identifying gaskets of unknown origin.

Size

Nitrile Rubber Part #

1/2" 50-G-BU

3/4" 75-G-BU

1" 100-G-BU

1-1/4" 125-G-BU

1-1/2" 150-G-BU

2" 200-G-BU

2-1/2" 250-G-BU

3" 300-G-BU

4" 400-G-BU

5" 500-G-BU

6" 600-G-BU

8" 800-G-BU

Cam & Groove Gaskets

Green FKM-A Part #

50-G-VI

75-G-VI

100-G-VI

125-G-VI

150-G-VI

200-G-VI

250-G-VI

300-G-VI

400-G-VI

500-G-VI

600-G-VI

800-G-VI

Black FKM-A Part #

50-G-VIA

75-G-VIA

100-G-VIA

125-G-VIA

150-G-VIA

200-G-VIA

250-G-VIA

300-G-VIA

400-G-VIA

500-G-VIA

600-G-VIA

800-G-VIA

Part #

1" 100GTHK 100-G-EPR

1-1/4" 125GTHK 125-G-EPR

1-1/2" 150GTHK

2" 200GTHK

2-1/2" 250GTHK

3" 300GTHK 300-G-EPR

4" 400GTHK 400-G-EPR

6" 600GTHK

Size Neoprene Part # Extra Thick Neoprene Part # White Neoprene1 Part #

3/4" 75-G-NE

1" 100-G-NE

1-1/4" 125-G-NE

1-1/2" 150-G-NE

2" 200-G-NE

2-1/2" 250-G-NE

3" 300-G-NE

4" 400-G-NE

200-G-NETHK

1 White neoprene gaskets contain FDA approved materials

Size White Nitrile Rubber1 Part #

1-1/2"

2" 200-G-WB

2-1/2"

3" 300-G-WB

4" 400-G-WB

5" 500-G-WB

1 White nitrile rubber gaskets contain FDA approved materials

150-G-WNE

200-G-WNE

300-G-WNE

400-G-WNE

Part #

FKM-A

ethylene

FKM

Fuel Gaskets

Size Material

rubber

2" nitrile rubber

3" nitrile rubber

nitrile rubber

rubber

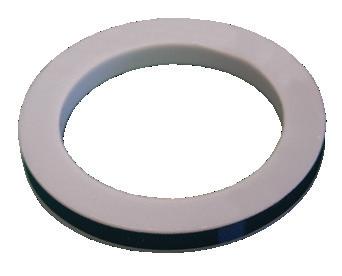

Cam & Groove Envelope Gaskets

Feature

• Maximum operating temperatures for specific chemicals may be lower; contact Dixon® for specific recommendations

Approval

• PTFE white nitrile rubber filler (TFWB) contains FDA approved materials

Size PTFE (TFE) with Nitrile Rubber filler Part #

PTFE (TFE) with FKM-A filler Part #

Size PTFE (TFE) with white Nitrile Rubber filler Part #

PTFE (TFE) with Ethylene Propylene filler Part #

NOTE: The torque (force) required to close the handles on a pair of cam & groove fittings will vary according to the gasket chosen. Due to the nature of the PTFE material, the various PTFE gasket designs will require the most torque, increasing as you go from envelope to encapsulated, and finally, accordion.

Specifications

Cam & Groove Encapsulated Gaskets

• Encapsulated gasket pressure ratings are reduced to 125 PSI for 3/4" - 4" at ambient temperature 70°F (21°C)

• PTFE encapsulated FKM-A (TEV) gaskets - maximum operating temperature 200°F (93°C)

• PTFE encapsulated silicone (TES) gaskets - maximum operating temperature 225°F (107°C)

• Maximum operating temperatures for specific chemicals may be lower; contact Dixon® for specific recommendations

Approval

• PTFE encapsulated silicone (TES) gaskets contain FDA approved materials

Size PTFE (FEP) Encapsulated Silicone Part #

1/2" 50-G-TES

3/4"

1-1/2"

2-1/2"

PTFE (FEP) Encapsulated FKM-A Part #

encapsulated

Cam & Groove Accordion Gaskets

Features

• PTFE accordion gaskets (TFACC) are recommended for use with viscous (thick) fluids only

• Maximum operating temperatures for specific chemicals may be lower; contact Dixon for specific recommendations

Size

3/4"

PTFE (TFE) Part #

75GTFACC

1" 100GTFACC

1-1/4"

1-1/2"

125GTFACC

150GTFACC

200GTFACC

300GTFACC

accordion

Witches Hat Strainers

Features

• Used with female cam & groove couplings

• Pre-attached nitrile rubber gasket

304 Stainless Steel Part #

Gaskets for Witches Hat Strainers

Nitrile Rubber Gasket Part #

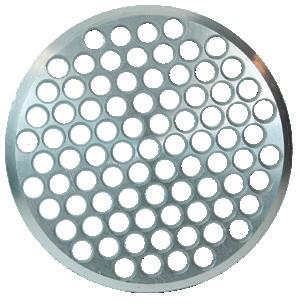

Disk Strainers

Feature

• Threads into bottom of female NPT fitting to protect equipment from large contaminants

Hole Size

Aluminum Part # 304 Investment Cast Stainless Steel Part #

Pull Ring Safety Clips for Boss-Lock

Coupler Size

Carbon Steel Part #

316 Stainless Steel Part # 3/4" - 1"

Pull Rings

304 Stainless Steel Part # R200SS

Sash Chain with Pull Rings

Materials

• Brass chain, plated steel pull ring

Abrasion Resistant Inserts

Features

• Extends the life of adapters when transferring proppant to storage tanks

• Available for multiple adapters and multiple coupler materials

UHMW Polyethylene Part # to be used with 400-A-AL, 400-A-BR, 400-A-MI, 400-A-SS

Description

400-A-INSERT to be used with 400-C-AL

400-A-INSERT

400-C-INSERTAL to be used with 400-C-MI

Feature

• .072 stainless steel wire

400-C-INSERTMI

Clip for Boss-Lock Couplings

Stainless Steel Part #

Clip Assembly

400-C-INSERTAL

Features

• For use with Boss-Lock couplings

• Includes pull ring, chain, and AC3 clip

Carbon Steel Part #

BLCA152CS

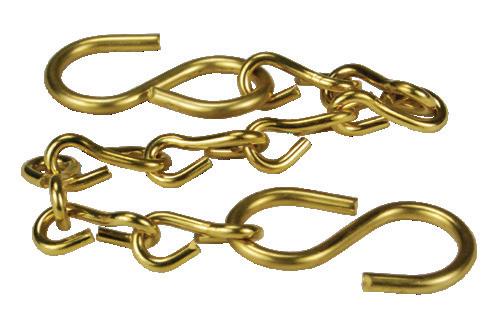

Jack Chain with S-Hook

Locking Cam Arm Velcro® Straps

Application

• Use with cam & groove couplers to prevent spills, secure from damage, and hold in place during transport

Features

• Used on the female end of a cam & groove coupler

• High visibility orange hook and loop with metal buckle provides strength, durability, and long life

Specification

• Temperature range: -70°F to 200°F (-57°C to 93°C)

12" fits up to 1-1/2" coupler

18" fits up to 3" coupler

24" fits up to 5" coupler

36" fits up to 8" coupler

Lanyards with Clip for Boss-Lock Couplings

Materials

• Clip: carbon steel

• Lanyard: nylon

Coupler Size

Part # 3/4" - 1"

1-1/4" - 4"

PVC Coated Lanyards

Feature

• One end factory crimped, one end uncrimped for field installation

Material

• PVC coated carbon steel with aluminum crimp sleeves

Lanyard for Boss-Lock Couplings

Feature

• Breaking strength: 160 lbs.

Overall Length

304 Stainless Part # 7"

Global Type A Adapters

Adapter x Female NPT

Features

• Interchanges with all products produced to A-A-59326D

• Pressure rating for adapters is based on the seal of the mating part

Size

1/2"

3/4"

1-1/4"

1-1/2"

2-1/2"

Size

1/2"

3/4"

1-1/4"

1-1/2"

2-1/2"

A383 Cast Aluminum Part #

G50-A-AL1

G75-A-AL

G100-A-AL

G125-A-AL

G150-A-AL

G200-A-AL

G250-A-AL

G300-A-AL

G400-A-AL

G500-A-AL1

G600-A-AL

G800-A-AL1

ASTM C38000 Forged Brass Part #

G50-A-BR1

G75-A-BR

G100-A-BR

G125-A-BR

G150-A-BR

G200-A-BR

G250-A-BR

G300-A-BR

G400-A-BR

G500-A-BR1

316 Investment Cast Stainless Steel Part #

G50-A-SS1

G75-A-SS

G100-A-SS

G125-A-SS

G150-A-SS

G200-A-SS

G250-A-SS

G300-A-SS

G400-A-SS

G600-A-SS

1 No standard exists for the 1/2", 5", and 8", and generally these sizes do not interchange with other manufacturers' products.

ASTMC38000 forged brass

Global Type B Couplers

Coupler x Male NPT

Features

• Interchanges with all products produced to A-A-59326D

• Nitrile rubber seals standard, other gaskets available on pages 75-77

Size

1/2"

A380 Permanent Mold A with Brass Handles Part #

G50-B-AL1, 2

ASTM C38000 Forged Brass Part #

G50-B-BR1, 2 3/4"

G75-B-AL2

G75-B-BR2 1"

1-1/4"

G100-B-AL2

G125-B-AL

G100-B-BR2

G125-B-BR 1-1/2"

G150-B-AL

G150-B-BR 2"

G200-B-AL

G200-B-BR 2-1/2"

G250-B-AL

G250-B-BR 3"

G300-B-AL

G300-B-BR 4"

G400-B-AL

G400-B-BR 5"

G500-B-AL1

G500-B-BR1 6"

G600-B-AL

Size

A383 Cast Aluminum with Investment Stainless Handles Part # 1/2"

316 Investment Cast Stainless Steel Part #

G50-B-SS1 3/4"

G75-B-SS 1"

G100-B-SS 1-1/4"

G150-B-SS

G125-B-SS 1-1/2"

G150-B-ALSI 2"

G200-B-SS

G200-B-ALSI 2-1/2"

G300-B-SS

G250-B-SS 3"

G300-B-ALSI 4"

G400-B-SS

G400-B-ALSI 6"

G600-B-SS

1 No standard exists for the 1/2" and 5", and generally these sizes do not interchange with other manufacturers' products.

2 Supplied with stainless steel handles

Global Crimp Style Cam & Groove Type C

Coupler x Hose Shank

Features

• All couplers are supplied with safety clips

• Couplers are supplied standard with a nitrile rubber gasket; other gasket types are available on pages 75-77

• Use global replacement handles only

Hose I.D.

A383 Cast Aluminum Part #

316 Investment Cast Stainless Part # 1"

G100-C-ALCR

1-1/2" G150-C-ALCR

2" G200-C-ALCR

3" G300-C-ALCR

4" G400-C-ALCR

C38000 Forged Brass Part #

G100-C-BRCR G100-C-SSCR

G150-C-BRCR G150-C-SSCR

G200-C-BRCR G200-C-SSCR

G300-C-BRCR G300-C-SSCR

G400-C-BRCR G400-C-SSCR

6" G600-C-ALCR G600-C-SSCR

A383 Cast Aluminum

C38000 forged brass

Global Type C Couplers

Coupler x Hose Shank

Features

• Interchanges with all products produced to A-A-59326D

• Nitrile rubber seals are standard, other gaskets available on pages 75-77

Size

1/2"

3/4"

1-1/4"

1-1/2"

2-1/2"

Size

1/2"

3/4"

A383 Cast Aluminum with Brass Handles Part #

G50-C-AL1, 2

G75-C-AL2

G100-C-AL2

G125-C-AL

G150-C-AL

G200-C-AL

G250-C-AL

G300-C-AL

G400-C-AL

G500-C-AL1

G600-C-AL

G800-C-AL1

316 Investment Cast Stainless Steel Part #

G50-C-SS1

G75-C-SS

1" G100-C-SS

1-1/4"

1-1/2"

2-1/2"

G125-C-SS

G150-C-SS

G200-C-SS

G250-C-SS

G300-C-SS

G400-C-SS

6" G600-C-SS

ASTM C38000 Forged Brass Part #

G50-C-BR1, 2

G75-C-BR2

G100-C-BR2

G125-C-BR

G150-C-BR

G200-C-BR

G250-C-BR

G300-C-BR

G400-C-BR

G500-C-BR1

A383 Cast Aluminum with Investment Stainless Handles Part #

316 investment cast stainless steel

G150-C-ALSI

G200-C-ALSI

G300-C-ALSI

G400-C-ALSI

1 No standard exists for the 1/2", 5", and 8", and generally these sizes do not interchange with other manufacturers' products.

2 Supplied with stainless steel handles

Global Type D Couplers

Coupler x Female NPT

Features

• Interchanges with all products produced to A-A-59326D

• Nitrile rubber seals are standard, other gaskets available on pages 75-77

Size

1/2"

316 investment cast stainless steel

A383 Cast Aluminum with Brass Handles Part #

G50-D-AL1, 2

ASTM C38000 Forged Brass Part #

G50-D-BR1, 2 3/4"

G75-D-AL2

G75-D-BR2 1"

1-1/4"

G100-D-AL2

G125-D-AL

G100-D-BR2

G125-D-BR 1-1/2"

G150-D-AL

G150-D-BR 2"

2-1/2"

G200-D-AL

G250-D-AL

G200-D-BR

G250-D-BR 3"

G300-D-AL

G300-D-BR 4"

G400-D-AL

G400-D-BR 5"

G500-D-AL1

G500-D-BR1 6"

G600-D-AL

Size

A383 Cast Aluminum with Investment Stainless Handles Part # 1/2"

316 Investment Cast Stainless Steel Part #

G50-D-SS1

3/4"

G75-D-SS 1"

G100-D-SS 1-1/4"

G150-D-SS

G125-D-SS 1-1/2"

G150-D-ALSI 2"

G200-D-SS

G200-D-ALSI 2-1/2"

G300-D-SS

G250-D-SS 3"

G300-D-ALSI 4"

G400-D-SS

G400-D-ALSI 6"

G600-D-SS

1 No standard exists for the 1/2" and 5", and generally these sizes do not interchange with other manufacturers' products.

2 Stainless steel handles

Global Crimp Style Cam & Groove Type E

Adapter x Hose Shank

Hose I.D.

A380 Permanent Mold Aluminum Part #

G100-E-ALCR

1-1/2" G150-E-ALCR

2" G200-E-ALCR

3" G300-E-ALCR

4" G400-E-ALCR

6" G600-E-ALCR

C38000 Forged Brass Part #

316 Investment Cast Stainless Steel Part #

G100-E-BRCR G100-E-SSCR

G150-E-BRCR G150-E-SSCR

G200-E-BRCR G200-E-SSCR

G300-E-BRCR G300-E-SSCR

G400-E-BRCR G400-E-SSCR

G600-E-SSCR

A383 Cast Aluminum

C38000 forged brass

316 investment cast stainless

Global Type E Adapters

Adapter x Hose Shank

Features

• Interchanges with all products produced to A-A-59326D

• Pressure rating for adapters is based on the seal of the mating part

Size

1/2"

A380 Permanent Mold Aluminum Part #

G50-E-AL1

3/4" G75-E-AL

1" G100-E-AL

1-1/4" G125-E-AL

1-1/2" G150-E-AL

2" G200-E-AL

2-1/2" G250-E-AL

3" G300-E-AL

4" G400-E-AL

5" G500-E-AL1

6" G600-E-AL

8" G800-E-AL1

ASTM C38000 Forged Brass Part #

G50-E-BR1

G75-E-BR

G100-E-BR

G125-E-BR

G150-E-BR

G200-E-BR

G250-E-BR

G300-E-BR

G400-E-BR

G500-E-BR1

316 Investment Cast Stainless Steel Part #

G50-E-SS1

G75-E-SS

G100-E-SS

G125-E-SS

G150-E-SS

G200-E-SS

G250-E-SS

G300-E-SS

G400-E-SS

G600-E-SS

1 No standard exists for the 1/2", 5" and 8", and generally these sizes do not interchange with other manufacturers' products.

Global Type F Adapters

Adapter x Male NPT

Features

• Interchanges with all products produced to A-A-59326D

• Pressure rating for adapters is based on the seal of the mating part

Size

A380 Permanent Mold Aluminum Part #

1/2" G50-F-AL1

3/4" G75-F-AL

1" G100-F-AL

1-1/4" G125-F-AL

1-1/4" G150-F-AL

2" G200-F-AL

2-1/2" G250-F-AL

3" G300-F-AL

4" G400-F-AL

5" G500-F-AL1

6" G600-F-AL

ASTM C38000 Forged Brass Part #

G50-F-BR1

G75-F-BR

G100-F-BR

G125-F-BR

G150-F-BR

G200-F-BR

G250-F-BR

G300-F-BR

G400-F-BR

G500-F-BR1

316 Investment Cast Stainless Steel Part #

G50-F-SS1

G75-F-SS

G100-F-SS

G125-F-SS

G150-F-SS

G200-F-SS

G250-F-SS

G300-F-SS

G400-F-SS

G600-F-SS

1 No standard exists for the 1/2" and 5", and generally these sizes do not interchange with other manufacturers' products.

A383 Cast Aluminum

ASTMC38000 forged brass

Features

Global Type DC Dust Caps

• Interchanges with all products produced to A-A-59326D

• Nitrile rubber seals are standard, other gaskets available on pages 75-77

• Dust caps and dust plugs are not to be used in pressure applications for safety and environmental reasons

A383 Cast Aluminum with Brass Handles Part #

1/2"

ASTM C38000 Forged Brass Part #

G50-DC-AL1, 2

G50-DC-BR1, 2 3/4"

G75-DC-AL2

G75-DC-BR2 1"

1-1/4"

1-1/2"

2-1/2"

2 Stainless steel handles Size

G100-DC-AL2

G125-DC-AL

G150-DC-AL

G100-DC-BR2

G125-DC-BR

G150-DC-BR 2"

G200-DC-AL

G250-DC-AL

G200-DC-BR

G250-DC-BR 3"

G300-DC-AL

G300-DC-BR 4"

G400-DC-AL

G400-DC-BR 5"

G500-DC-AL1

G500-DC-BR1 6"

G600-DC-AL

Size

1/2"

316 Investment Cast Stainless Steel Part #

G50-DC-SS1 3/4"

G75-DC-SS 1"

1-1/4"

1-1/2"

G100-DC-SS

G125-DC-SS

G150-DC-SS

A383 Cast Aluminum with Investment Stainless Handles Part #

G150-DC-ALSI 2"

G200-DC-SS

2-1/2"

G200-DC-ALSI

G300-DC-SS

G250-DC-SS 3"

G300-DC-ALSI 4"

G400-DC-SS

G400-DC-ALSI 6"

G600-DC-SS

1 No standard exists for the 1/2" and 5", and generally these sizes do not interchange with other manufacturers' products.

Global Type DP Dust Plugs

Features

• Interchanges with all products produced to A-A-59326D

• Dust caps and dust plugs are not to be used in pressure applications for safety and environmental reasons

Size

1/2"

A380 Permanent Mold Aluminum Part #

G50-DP-AL1

3/4" G75-DP-AL

1" G100-DP-AL

1-1/4" G125-DP-AL

1-1/2"

G150-DP-AL

2" G200-DP-AL

2-1/2" G250-DP-AL

3" G300-DP-AL

G400-DP-AL

5" G500-DP-AL1

6" G600-DP-AL

ASTM C38000 Forged Brass Part #

G50-DP-BR1

G75-DP-BR

G100-DP-BR

G125-DP-BR

G150-DP-BR

G200-DP-BR

G250-DP-BR

G300-DP-BR

G400-DP-BR

G500-DP-BR1

316 Investment Cast Stainless Steel Part #

G50-DP-SS1

G75-DP-SS

G100-DP-SS

G125-DP-SS

G150-DP-SS

G200-DP-SS

G250-DP-SS

G300-DP-SS

G400-DP-SS

G600-DP-SS

1 No standard exists for the 1/2" and 5", and generally these sizes do not interchange with other manufacturers' products.

A383 Cast Aluminum

Features

Global Type A Jump Size Adapters

Adapter x Female NPT

• Interchanges with all products produced to A-A-59326D

• Pressure rating for adapters is based on the seal of the mating part

Size

3" x 2"

4" x 3"

Global

Features

A383 Cast Aluminum Part #

G3020-A-AL

G4030-A-AL

Type C Jump Size Couplers

Coupler x Hose shank

• Interchanges with all products produced to A-A-59326D

• Nitrile rubber seals standard, other gaskets available on pages 75-77

Size

3" x 2"

4" x 3"

Global

Features

A383 Cast Aluminum Part #

G3020-C-AL

G4030-C-AL

Type E Jump Size Adapters

Adapter x Hose Shank

• Interchanges with all products produced to A-A-59326D

• Pressure rating for adapters is based on the seal of the mating part

Size

3" x 2"

4" x 3"

A383 Cast Aluminum Part #

G3020-E-AL

G4030-E-AL

Global Adapter x TTMA Flange

Features

• Interchange with all products produced to A-A-59326D

• Pressure rating for adapters is based on the seal of the mating part

Size

356T6 Aluminum Part # 4"

G400-ALT-AL

Global Coupler x TTMA Flange

Features

• Interchanges with all products produced to A-A-59326D

• Nitrile rubber seals standard, other gaskets available on pages 75-77

Size

356T6 Aluminum Part # 4"

G400-DLT-AL

NOTE: For flange dimensions, diagrams, and additional information, please reference dixonvalve.com.

Size

Feature

• Nitrile rubber seals are standard

Size

Feature

Global Adapter x ANSI Flange

Aluminum Part #

G400-AL-AL

G600-AL-AL

Global Coupler x ANSI Flange

Aluminum Part #

G400-DL-AL

G600-DL-AL

Handles for Aluminum / Brass Global Couplers

• Supplied complete with ring and pin

Fits on sizes

1/2", 3/4"

Investment Stainless Part #

G75HRP 1" G100HRP

1-1/2", 2"

3" - 5"

Fits on sizes

1-1/4" - 2-1/2"

3" - 5"

6", 8"

G152HRPSI

G34HRPSI

G600HRPSI

Forged Brass Part #

G152HRP

G34HRP

G600HRP

NOTE: Global Dixon® handle assemblies are to only be used with global Dixon parts (not domestic). Handles do not interchange with other manufacturers' handles or couplers.

Handles for Stainless Global Couplers

Feature

• Supplied complete with ring and pin

Fits on sizes

1/2", 3/4"

Investment Stainless Part #

G75HRPSS 1" G100HRPSS

1-1/4" - 2-1/2"

3" - 5"

G125250HRPSS

G300400HRPSS

6" G600HRPSS

NOTE: Global Dixon handle assemblies are to only be used with global Dixon parts (not domestic). Handles do not interchange with other manufacturers' handles or couplers.

Safety Clip for Global Couplers

Global BSP Thread Cam & Groove

Features

• Interchanges with products produced to A-A-59326D

• Pressure rating for adapters is based on the seal of the mating part

• Couplers: nitrile rubber seal is standard, others available on pages 75-77

Size

1-1/2"

Type A - Adapter x Female BSPP

316 Investment Cast Stainless Steel Part #

G150-A-SSBSP 2"

Size

G200-A-SSBSP

Type B - Coupler x Male BSPT

316 Investment Cast Stainless Steel Part # 1-1/2"

G150-B-SSBSP 2"

Size

G200-B-SSBSP

Type D - Coupler x Female BSPP

316 Investment Cast Stainless Steel Part # 1-1/2"

G200-D-SSBSP

G150-D-SSBSP 2"

Type F - Adapter x Male BSPT

Size

316 Investment Cast Stainless Steel Part # 1-1/2"

G150-F-SSBSP 2"

G200-F-SSBSP

Features

• Powder coated aluminum adapter

• For suction and low pressure discharge only

Cam & Groove x NST

• Other sizes, configurations, and materials available; contact Dixon® for information

Type A x Female NST (NH)

Adapter Size

Feature

Female NST (NH)Thread

1-1/2" 1-1/2"

Aluminum Part #

G150-A-ALNST 2-1/2" 2-1/2"

G250-A-ALNST 3" 2-1/2" 3025-A-ALNST

• Nitrile rubber seals standard

Coupler Size Male NST (NH)Thread

1-1/2" 1-1/2"

Type B x Male NST (NH)

Aluminum Part #

G150-B-ALNST 2" 1-1/2" 2015-B-ALNST

2-1/2" 2-1/2"

G250-B-ALNST 3" 2-1/2" 3025-B-ALNST

Type D x Female NST (NH)

Feature

• Nitrile rubber seals standard

Coupler Size

Female NST (NH) Thread

1-1/2" 1-1/2"

Aluminum Part #

G150-D-ALNST 2" 2-1/2" 2025-D-ALNST 2-1/2" 2-1/2"

G250-D-ALNST 3" 2-1/2" 3025-D-ALNST

Adapter Size Male NST (NH) Thread

1-1/2" 1-1/2"

Type F x Male NST (NH)

Aluminum Part #

G150-F-ALNST 2" 2-1/2" 2025-F-ALNST

2-1/2" 2-1/2"

G250-F-ALNST 3" 2-1/2" 3025-F-ALNST

Polypropylene Cam & Groove

Type A Adapters

Adapter x Female NPT

Features

• 1/2" couplers and adapters will interchange with 3/4" couplers and adapters, only the threads and barbs are 1/2"

• 1-1/4" couplers and adapters will interchange with 1-1/2" couplers and adapters, only the threads and barbs are 1-1/4"

• NOT recommended for use with PTFE gaskets, polypropylene cam & groove should not be mixed with metal fittings

Specification

• Maximum operating pressure: 125 PSI (1/2" - 1"), 100 PSI (1-1/4" - 2"), 60 PSI (3"), and 50 PSI (4"); recommendations based on the use of mating Dixon® fittings at an ambient temperature of 70°F (21°C) with standard seal installed

Type B Couplers

Coupler x Male NPT

Features

• Supplied with EPDM gaskets, 304 stainless steel handles and pins

• 1/2" couplers and adapters will interchange with 3/4" couplers and adapters, only the threads and barbs are 1/2"

• 1-1/4" couplers and adapters will interchange with 1-1/2" couplers and adapters, only the threads and barbs are 1-1/4"

• Replacements: gasket use EPR on page 75, key rings use R200SS on page 78, safety clip use GSAFETYCLIP

• NOT recommended for use with PTFE gaskets. Polypropylene cam & groove should not be mixed with metal fittings

Specification

• Maximum operating pressure: 125 PSI (1/2" - 1"), 100 PSI (1-1/4" - 2"), 60 PSI (3"), and 50 PSI (4"); recommendations based on the use of mating Dixon fittings at an ambient temperature of 70°F (21°C) with standard seal installed

1 4" coupler has 4 handles

Polypropylene Cam & Groove

Type C Couplers

Coupler x Hose Shank

Features

• Supplied with EPDM gaskets, 304 stainless steel handles and pins

• 1/2" couplers and adapters will interchange with 3/4" couplers and adapters, only the threads and barbs are 1/2"

• 1-1/4" couplers and adapters will interchange with 1-1/2" couplers and adapters, only the threads and barbs are 1-1/4"

• Replacements: gasket use EPR on page 75, key rings use R200SS on page 78, safety clip use GSAFETYCLIP

• NOT recommended for use with PTFE gaskets, polypropylene cam & groove should not be mixed with metal fittings.

Specification

x 1/2"

x 1-1/4"

1 4" coupler has 4 handles

Features

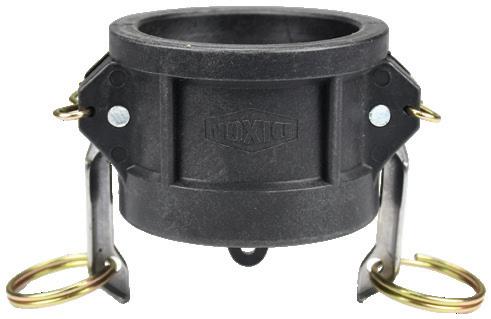

Type D Couplers

Coupler x Female NPT

• Supplied with EPDM gaskets, 304 stainless steel handles and pins

• 1/2" couplers and adapters will interchange with 3/4" couplers and adapters, only the threads and barbs are 1/2"

• 1-1/4" couplers and adapters will interchange with 1-1/2" couplers and adapters, only the threads and barbs are 1-1/4"

• Replacements: gasket use EPR on page 75, key rings use R200SS on page 78, safety clip use GSAFETYCLIP

• NOT recommended for use with PTFE gaskets, polypropylene cam & groove should not be mixed with metal fittings

Specification

1 4" coupler has 4 handles

Polypropylene Cam & Groove

Type E Adapters

Adapter x Hose Shank

Features

• 1/2" couplers and adapters will interchange with 3/4" couplers and adapters, only the threads and barbs are 1/2"

• 1-1/4" couplers and adapters will interchange with 1-1/2" couplers and adapters, only the threads and barbs are 1-1/4"

• NOT recommended for use with PTFE gaskets, polypropylene cam & groove should not be mixed with metal fittings

Specification

Type F Adapters

Adapter x Male NPT

Features

• 1/2" couplers and adapters will interchange with 3/4" couplers and adapters, only the threads and barbs are 1/2"

• 1-1/4" couplers and adapters will interchange with 1-1/2" couplers and adapters, only the threads and barbs are 1-1/4"

• NOT recommended for use with PTFE gaskets, polypropylene cam & groove should not be mixed with metal fittings

Specification

Polypropylene Cam &

Dust Caps and Plugs

Features

• Dust caps and dust plugs are not to be used in pressure applications for safety and environmental reasons

• NOT recommended for use with PTFE gaskets. Polypropylene cam & groove should not be mixed with metal fittings

• Supplied with EPDM gaskets, 304 stainless steel handles and pins

• Replacements: gasket use EPR on page 75, key rings use R200SS on page 78, safety clip use GSAFETYCLIP

Type H Dust Caps

1 4" coupler has 4 handles

Type P Dust Plugs

Polypropylene Cam & Groove

Type A 90° Elbows

Adapter x Female NPT

Features

• For use at elevated temperatures or other unusual operating conditions, consult Dixon

• NOT recommended for use with PTFE gaskets, polypropylene cam & groove should not be mixed with metal fittings

Specification

• Maximum operating pressure: 100 PSI (1-1/2" - 2"); recommendations based on the use of mating Dixon® fittings at an ambient temperature of 70°F (21°C) with standard seal installed

Type C 90° Elbows

Coupler x Hose Shank

Features

• Supplied with EPDM gaskets, 304 stainless steel handles and pins

• For use at elevated temperatures or other unusual operating conditions, consult Dixon

• NOT recommended for use with PTFE gaskets, polypropylene cam & groove should not be mixed with metal fittings

Specification

• Maximum operating pressure: 100 PSI (1-1/2" - 2"); recommendations based on the use of mating Dixon fittings at an ambient temperature of 70°F (21°C) with standard seal installed

Type D 90° Elbows

Coupler x Female NPT

Features

• Supplied with EPDM gaskets, 304 stainless steel handles and pins

• For use at elevated temperatures or other unusual operating conditions, consult Dixon

• NOT recommended for use with PTFE gaskets, polypropylene cam & groove should not be mixed with metal fittings

Specification

• Maximum operating pressure: 100 PSI (1-1/2" - 2"); recommendations based on the use of mating Dixon fittings at an ambient temperature of 70°F (21°C) with standard seal installed

Features

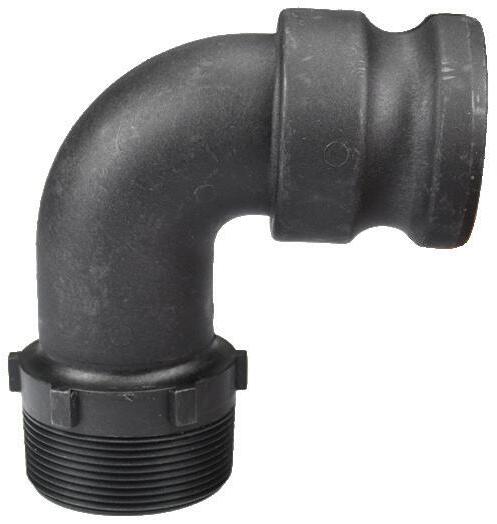

Type F 90° Elbows

Adapter

x Male NPT

• For use at elevated temperatures or other unusual operating conditions, consult Dixon

• NOT recommended for use with PTFE gaskets, polypropylene cam & groove should not be mixed with metal fittings

Specification

• Maximum operating pressure: 100 PSI (1-1/2" - 2"); recommendations based on the use of mating Dixon fittings at an ambient temperature of 70°F (21°C) with standard seal installed

Features

• All swivel nuts have standard 5" Railroad Tank Car thread

• Supplied with a nitrile rubber gasket in the threaded end, other gaskets available on page 100 Railroad Tank Car Connections

Male Adapter Swivel Nut Elbow

Part #

Part # 3" 5" 120°

4" 5" 110°

1 Parts are produced as a welded fabrication

NOTE: Stainless steel railroad tank car connections are not compatible with aluminum and brass.

Features

• 4" TTMA flange can be bolted to sight glass; API adapter or other dry disconnect

• Supplied with PTFE nitrile rubber envelope gasket

TTMA Flange Swivel Nut Elbow

Aluminum Part # 4" 5" 110°

ATCF401 5" 90°

ATCF40-901

1 Part is produced as a welded fabrication

NOTE: For flange dimensions, diagrams, and additional information, please reference dixonvalve.com.

Feature

• 4" TTMA flange can be bolted to sight glass; API adapter or other dry disconnect

TTMA Flange Boss-lock Coupler Elbow

4" 4" 110°

Aluminum Part #

ATCGF40 4" 90°

ATCGF40-90

NOTE: For flange dimensions, diagrams, and additional information, please reference dixonvalve.com.

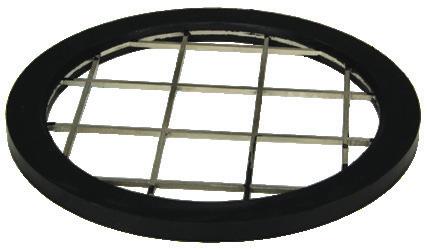

Screen

Features

• Stainless steel screen encapsulated in a nitrile rubber gasket

• For use in Style GF elbows Size Hole Size

316L Stainless Steel Part #

110°

Railroad Tank Car Connections

NOTE: Components that make up these assemblies are not interchangeable between stainless steel and the other materials.

Features

T Dixon® Coupler x Tank Car Thread

• Part is produced as a welded fabrication

• Coupler supplied with a nitrile rubber gasket, other gaskets available on pg. 75

• Use Dixon replacement handles only Coupler Male Tank Car Thread

Part #

EZ Boss-Lock x Coupler Tank Car Thread

Features

• Part is produced as a welded fabrication

• Coupler supplied with a nitrile rubber gasket, other gaskets available on pg. 75

• Use EZ Boss-Lock replacement handles only

Coupler Male Tank Car Thread

Part #

Features

• Robust aluminum body construction

• Removable, easy-carry handle

Railroad Unloading Assemblies

• Safe and reliable - valves will not open unless fittings are properly connected

• Multiple configurations available; consult Dixon® for pricing and availability

Assembly with Dixon MannTek Dry Disconnect Adapter

Adapter

Feature

Swivel Nut

ATC40ASSDDA

Assembly with API Adapter

• Stainless steel springs on the adapter and coupler for corrosion resistance

Nut

Features:

• Standard 5" Railroad Tank Car thread

Dixon Tank Car Adapters

• Supplied with a nitrile rubber gasket in the threaded end; see next page for more gaskets

NOTE: Stainless steel adapters are not compatible with the aluminum and brass adapters.

Features

• Standard 5" Railroad Tank Car thread

• 45° tank car swivel adapter

• Unit has a long handle brass swivel nut and a swivel retaining ring

• Supplied with a nitrile rubber gasket in the threaded end; see next page for more gaskets

Size

NOTE: 4" hose fittings for railroad tank car unloading can be found on pages 97-98

rocker lug

pin lug

45° Swivel

Feature

Railroad Tank Car Gaskets

Old Style

• For use with Dixon® fittings

Size O.D. I.D. Thick Leather Part #

5" 5-1/4" 3-1/2" 3/16" G9

Feature

• For use with Dixon fittings

Size O.D. I.D. Thick Material Part # 5"

5-1/4" 3-7/8" 1/8" Nitrile rubber

5-1/4" 3-7/8" 1/8" FKM-A

5-1/4" 3-7/8" 1/8" fuel grade nitrile rubber

5-5/16" 3-7/8" 3/16" FKM-A

PTFE Envelope

Features

• For use with Dixon fittings

• May be too thick for insertion in some older Dixon fittings Size O.D. I.D. Thick Material

5-1/4" 3-13/16" 3/16" PTFE with nitrile rubber filler

5-1/4" 3-13/16" 3/16" PTFE with FKM filler

Pin Lug Wrench

Feature

• Used on aluminum and iron tank car nuts Iron Part # G10

500GTCABU

500GTCAVI

500GTCABF

500GTCAVITHK

500GTCATF

500GTCATV

Cam & Groove Couplings and Accessories

Cam & Groove - General Information

Table of Contents

Ordering System

Operation of Cam & Groove

Specifications on Dixon® Cam & Groove

Cam & Groove Nominal Take-Up Lengths

Cam & Groove Configurations

Dixon® Cam & Groove Styles

Dixon

Dixon Global

Boss-Lock

EZ Boss-Lock

Dixon® Cam & Groove Styles

Vent-Lock® Safety

Venting EZ Boss-Lock

EZLink® Armless

Crimp Fittings

Cam & Groove

Sleeves and Ferrules

Swivel Couplings Cam & Groove

Type E Adapters

Venting EZ Boss-Lock Cam & Groove

EZLink® Armless Type C Couplers

EZLink® Armless Type B Couplers

Coupler x Male NPT

EZLink® Armless Type D Couplers

EZLink® Armless Type DC Dust Caps

EZLink® Armless Cam & Groove

Bottle Opener

Type A Adapters

Vent-Lock® Safety Cam & Groove Couplings Adapter x Female NPT

Vent-Lock® Type A Adapters Dimensions

Vent-Lock® Type C Couplers

Coupler X Hose Shank

Vent-Lock® Safety EZ Boss-Lock™ Type C Couplers

Coupler X Hose Shank

Vent-Lock™ EZ Boss-Lock™ Type D Couplers

Coupler x Female NPT

Vent-Lock® Type E Adapters Adapter x Hose Shank

Vent-Lock Type E Adapters Dimensions

Vent-Lock® Safety Cam & Groove Type DC Dust Caps

Vent-Lock® Safety Cam & Groove EZ Boss-Lock Type H Dust Caps

Vent-Lock® Safety Cam & Groove Couplings Accessories

Vent-Lock® Safety Type DP Dust Plugs

Type A Adapters

Adapter x Female NPT

Type A Adapters Dimensions Adapter x Female NPT

Dixon® Type B Couplers

Coupler x Male NPT

Coupler X Male NPT

Boss-Lock Type B Couplers

Coupler x Male NPT

Boss-Lock Type B Coupler Dimensions

Coupler X Male NPT

EZ Boss-Lock Type B Couplers

356T6 Aluminum, Brass, and Iron Dimensions

Dixon® Type C Couplers

Coupler x Hose Shank

Coupler x Hose Shank with Abrasion Resistant Inserts

Dixon® Type C Couplers with Notched NOS Shank

Coupler x NOS Shank

Dixon® Type C Couplers Dimensions

Boss-Lock Type C Couplers

Coupler x Hose Shank

EZ Boss-Lock Type C Couplers with Collared Hose Shank

Coupler x Collared Hose Shank

Boss-Lock Type C Couplers with Notched Shank

Coupler x Hose Shank

Boss-Lock Type C Coupler Dimensions

EZ Boss-Lock Type C Couplers

EZ Boss-Lock Type C Couplers with Phono Finish Shank

EZ Boss-Lock Type C Couplers with Swaged Ferrule

EZ Boss-Lock Type C Couplers with Notched Hose Shank

Coupler x Hose Shank

EZ Boss-Lock Type C Coupler Dimensions

Boss-Lock Type D Couplers

Coupler x Female NPT

Boss-Lock Type D Couplers

Coupler x Female NPT
