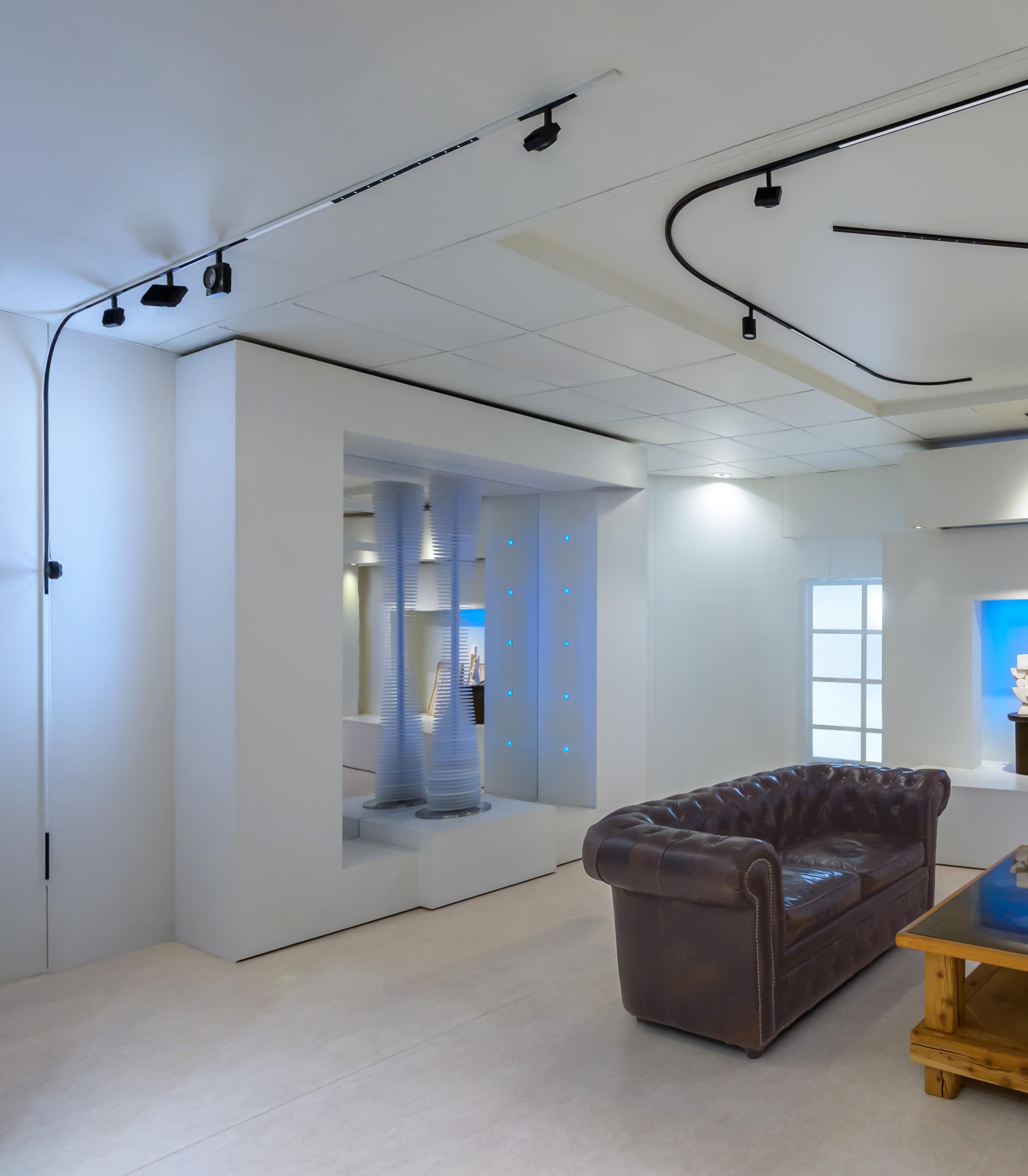

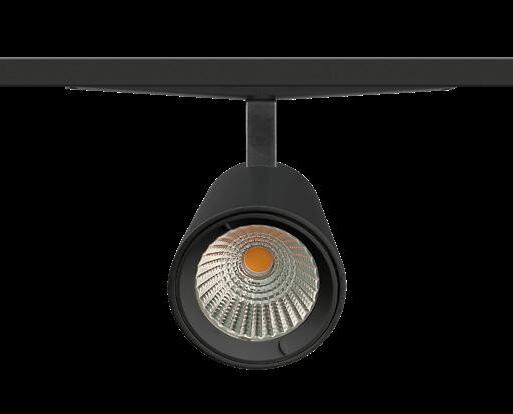

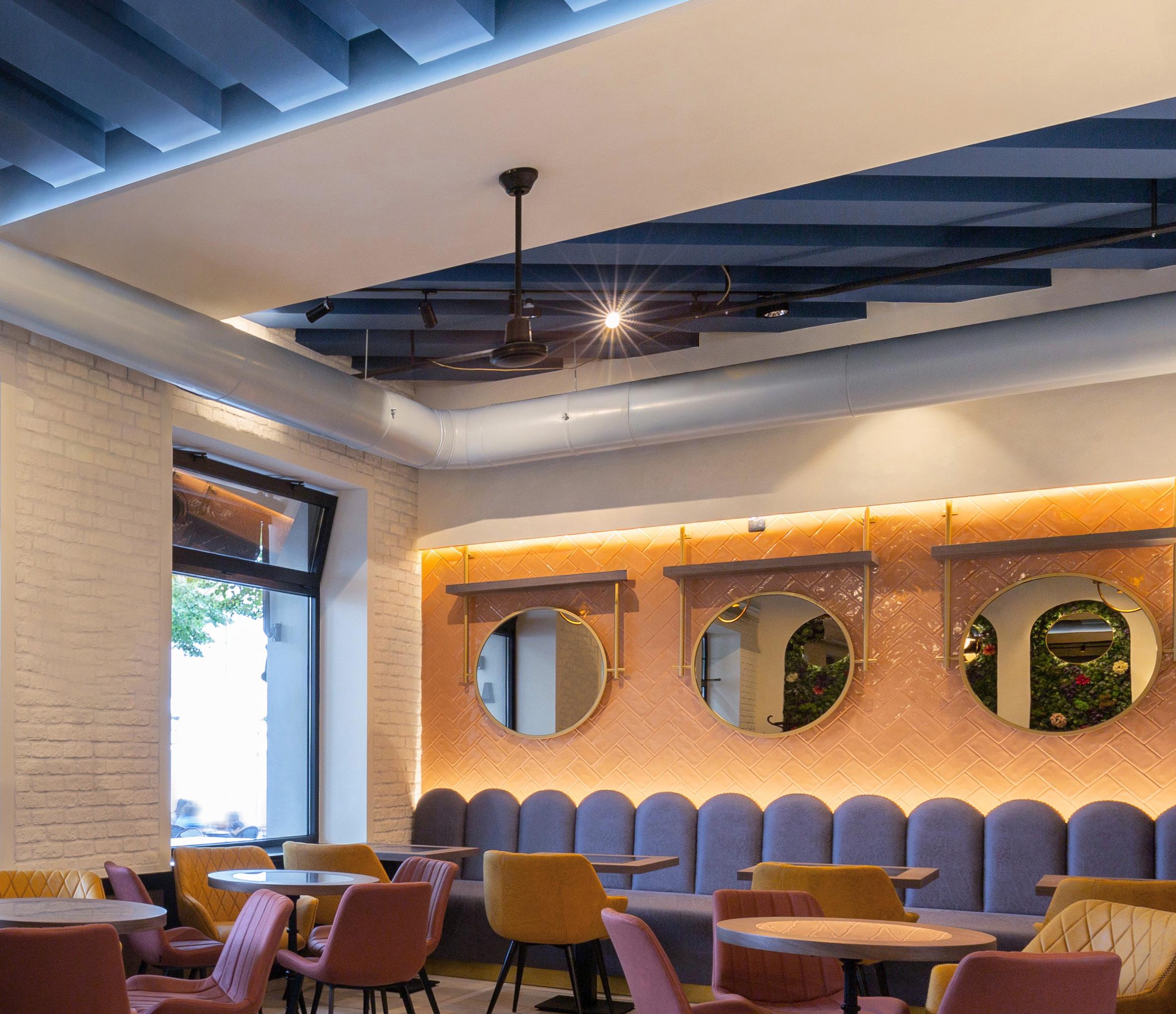

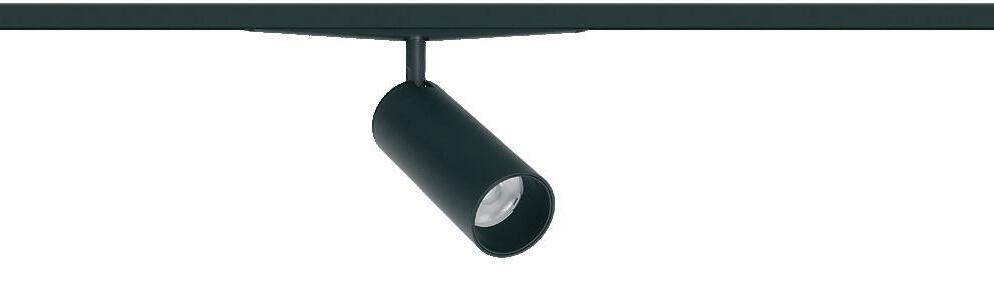

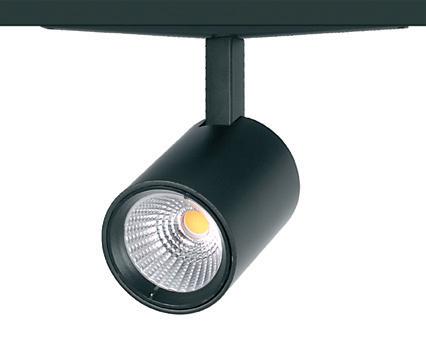

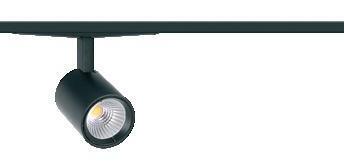

The Fosnova 48V DC spotlights mounted on low voltage track MICRO systems make up the perfect lighting solution in settings where accent lighting with very low energy consumption must also reinforce the style and aesthetics of the room.
Housing in die-cast aluminium, adapter included.
LED: 70.000h - L80B10
High-performance light distributions!
Unique freedom of design!
CASAMBI VOICE available soon: an innovative interface to control DALI devices at the same time using the CASAMBI app through Bluetooth and voice control using assistants, such as AMAZON ALEXA/GOOGLE HOME/ MATTER through Wi-Fi. CASAMBI and AMAZON ALEXA/GOOGLE HOME/MATTER are independent systems that are designed to communicate with and update each other.
CASAMBI Wireless Adapter
DALI-master controller to monitor up to 8 groups/64 DALI spotlights, designed for 48V DC low voltage power tracks. The DALI-master Bluetoothcontrolled device is made to control DALI lamps from mobile devices and CASAMBI app.

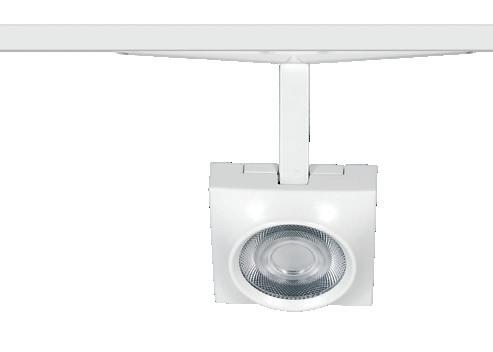

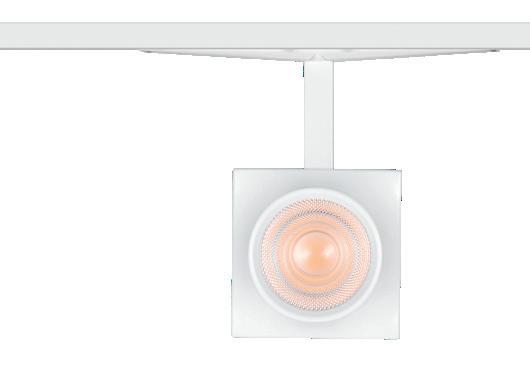

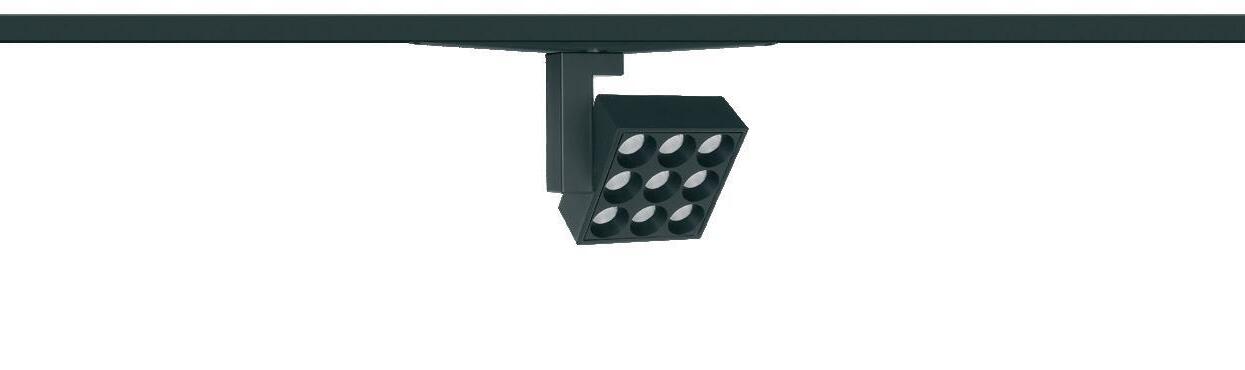

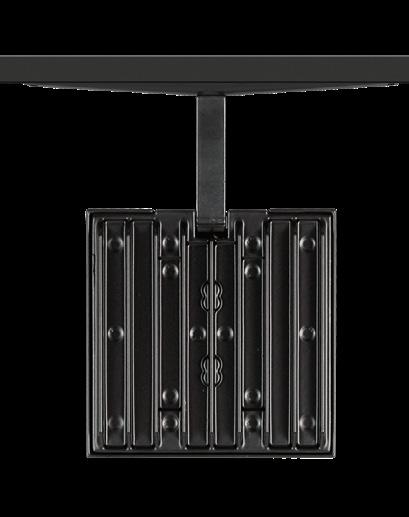

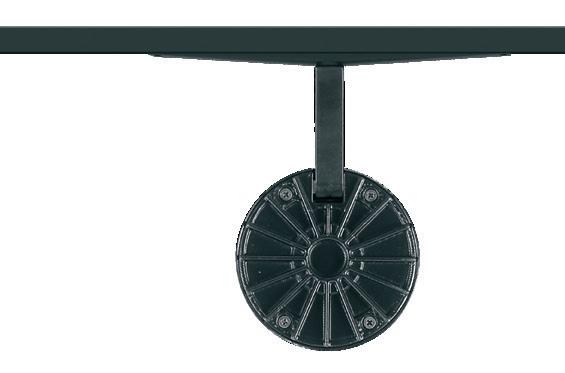

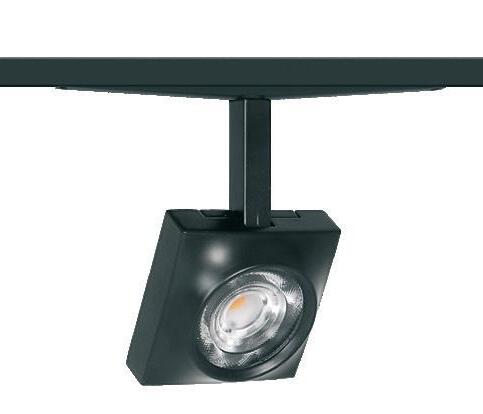

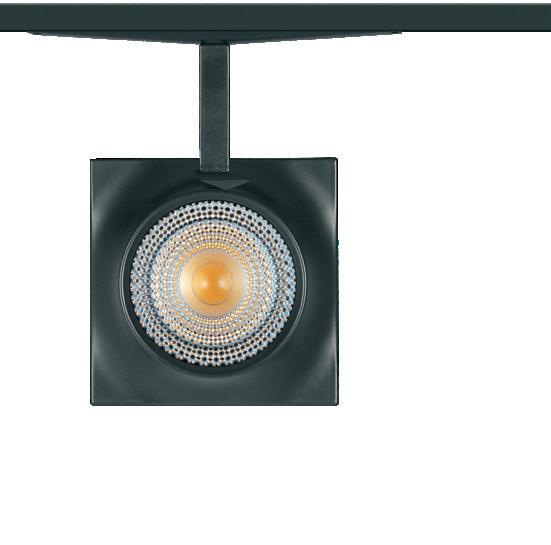

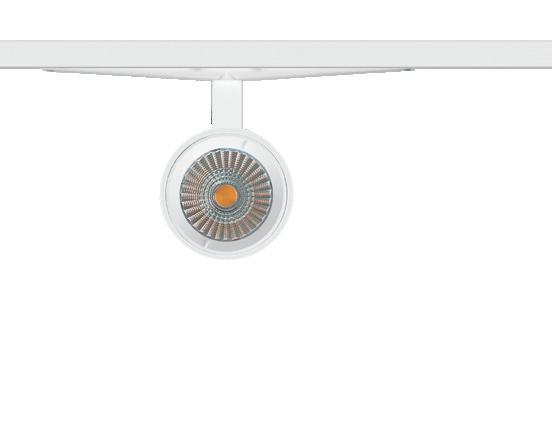

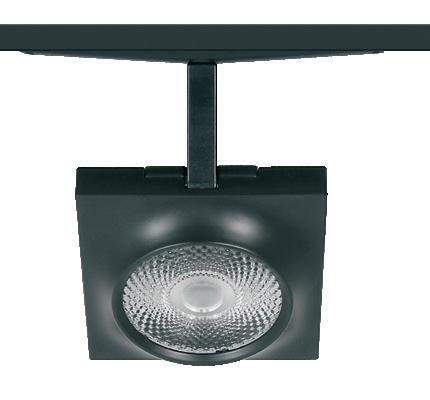

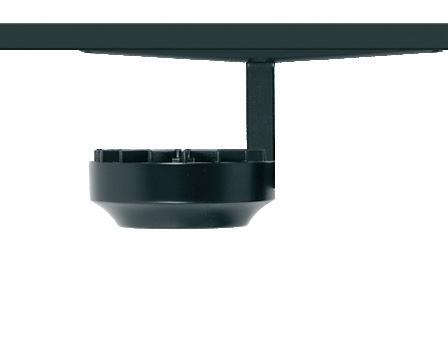

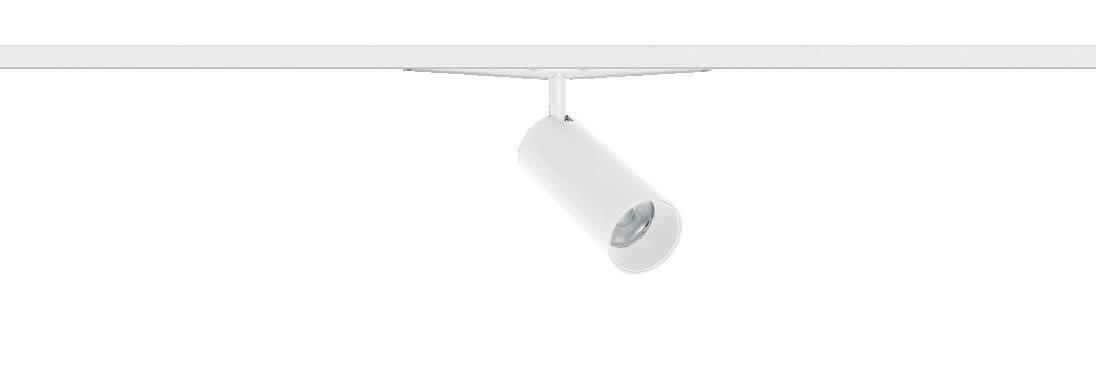

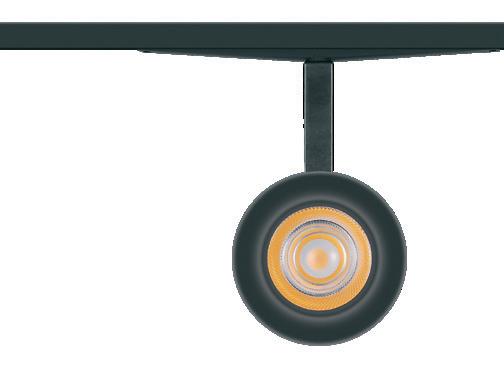

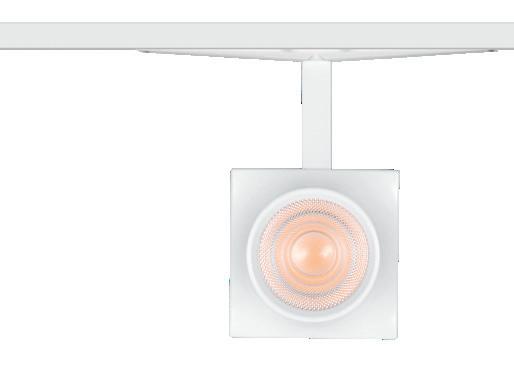

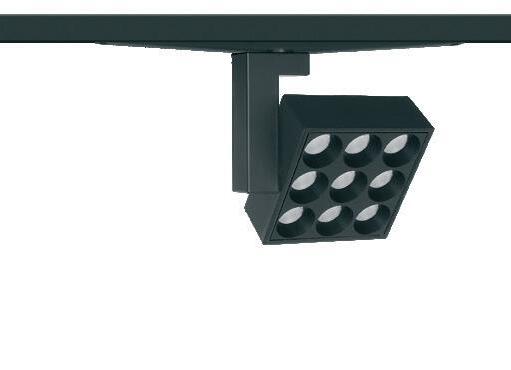

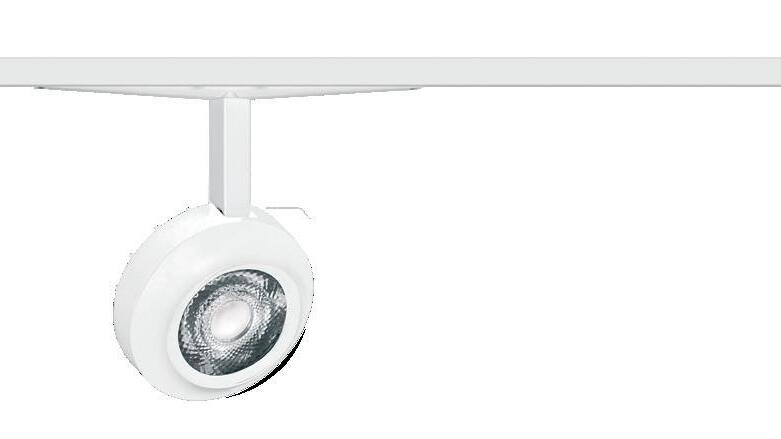

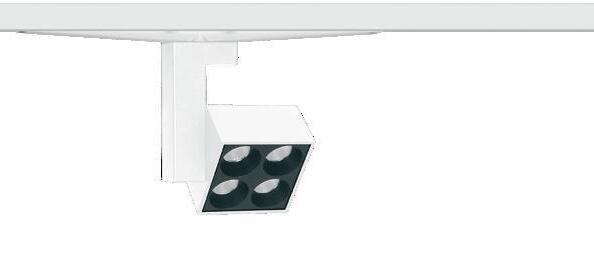

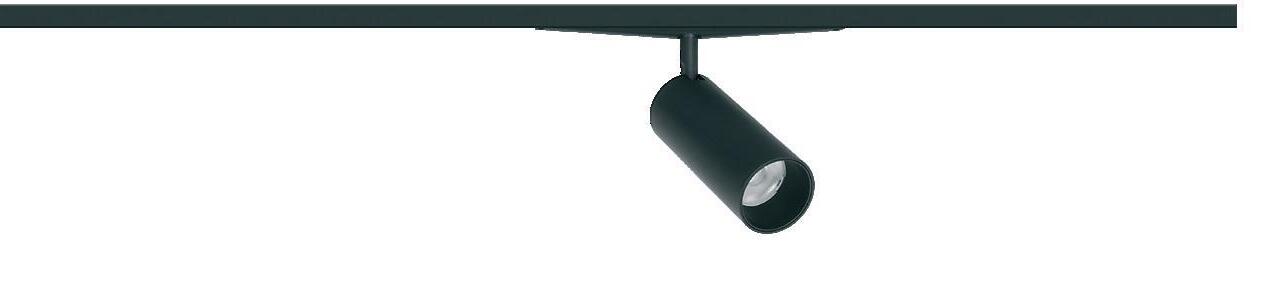

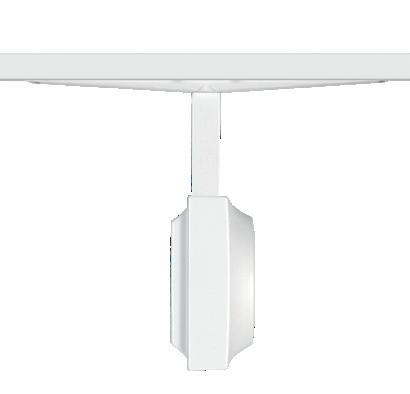

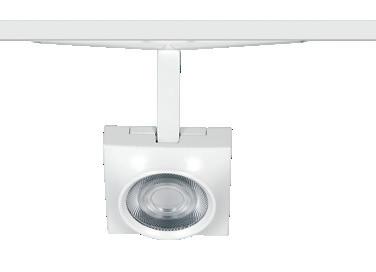

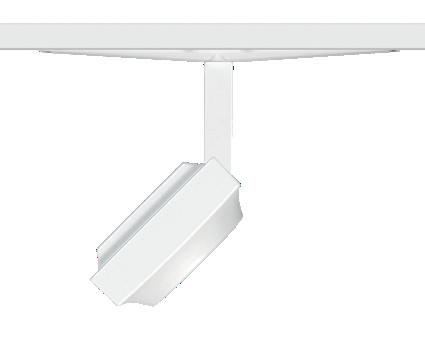

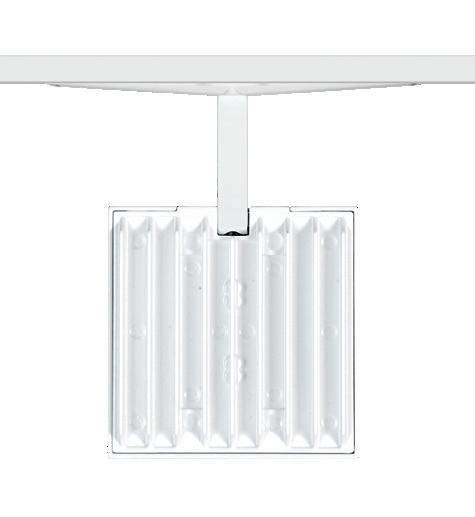

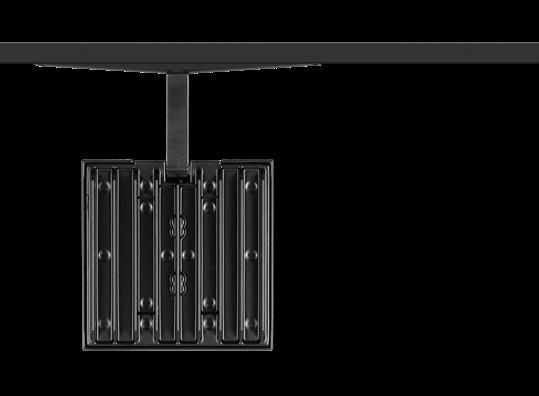

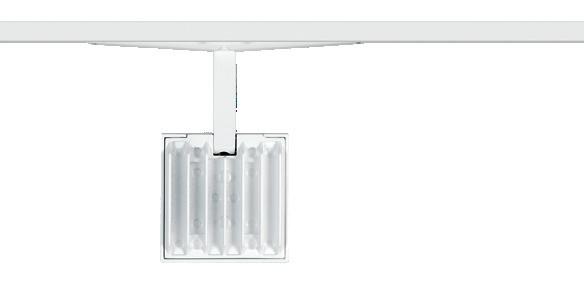

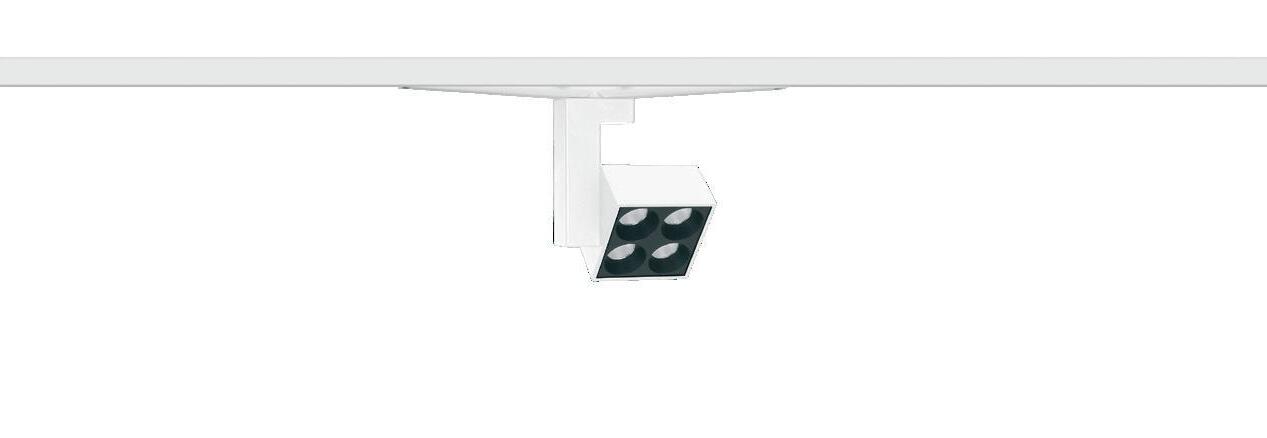

Focus SLIM “Q” for low voltage track 48V DC MICRO

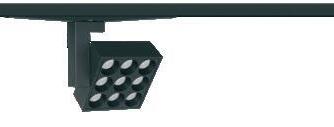

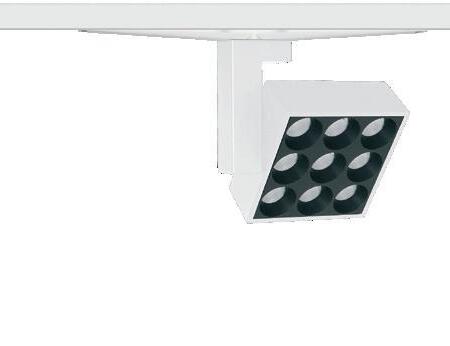

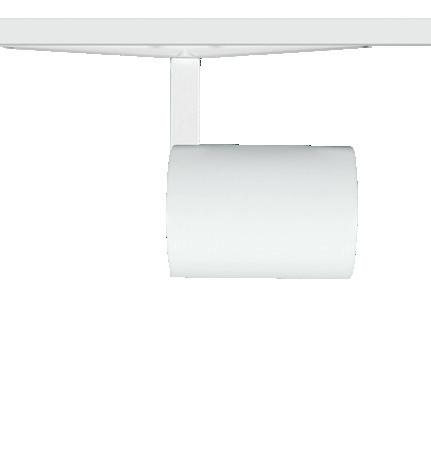

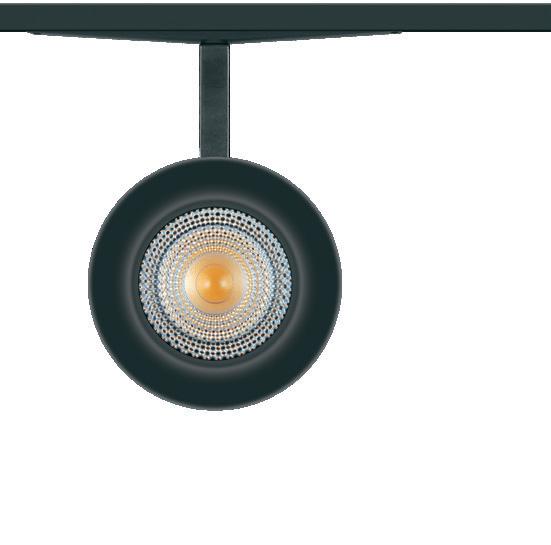

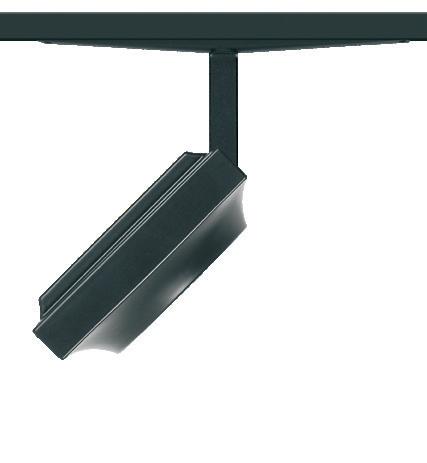

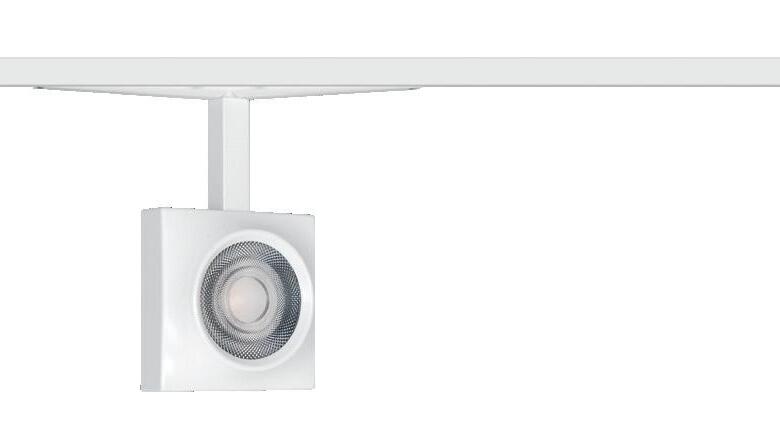

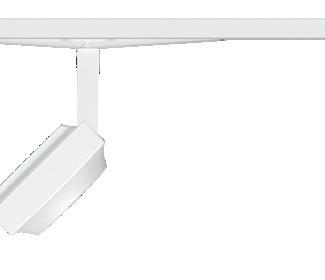

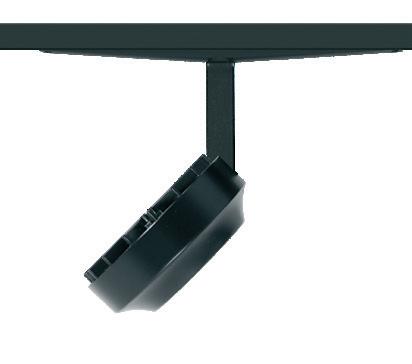

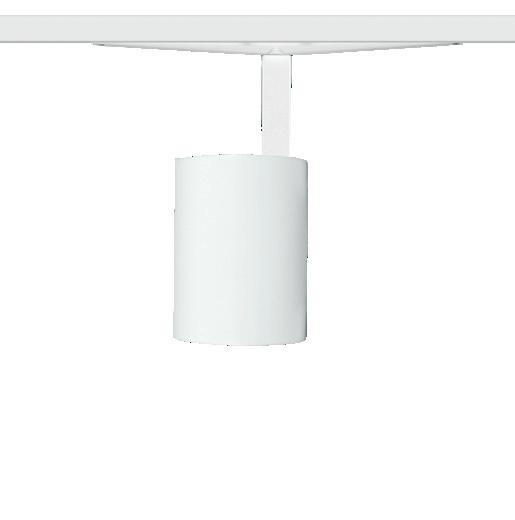

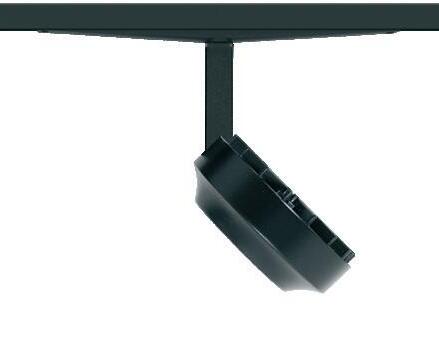

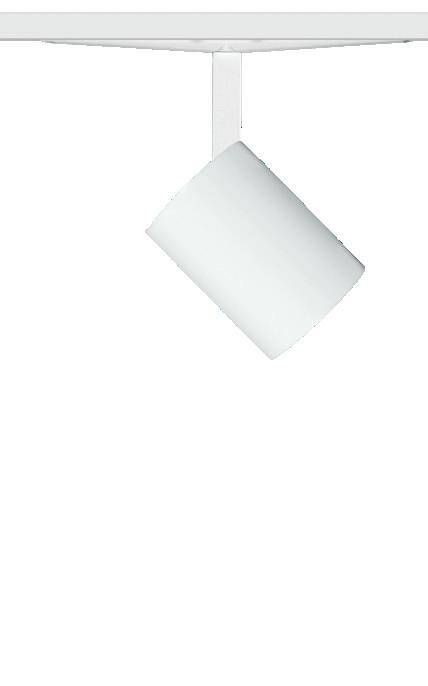

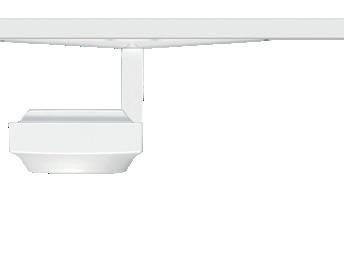

Focus SLIM “T” for low voltage track 48V DC MICRO

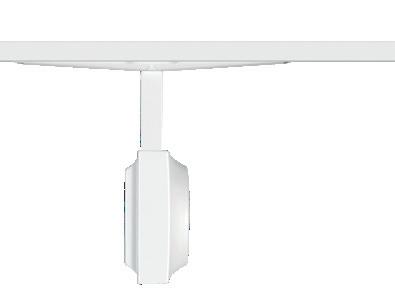

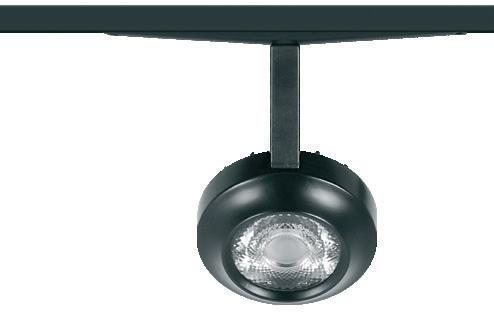

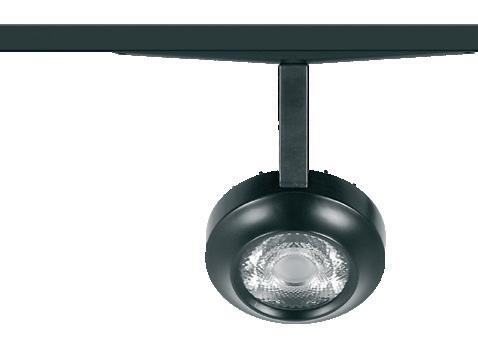

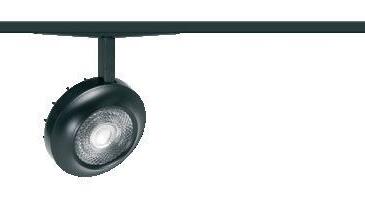

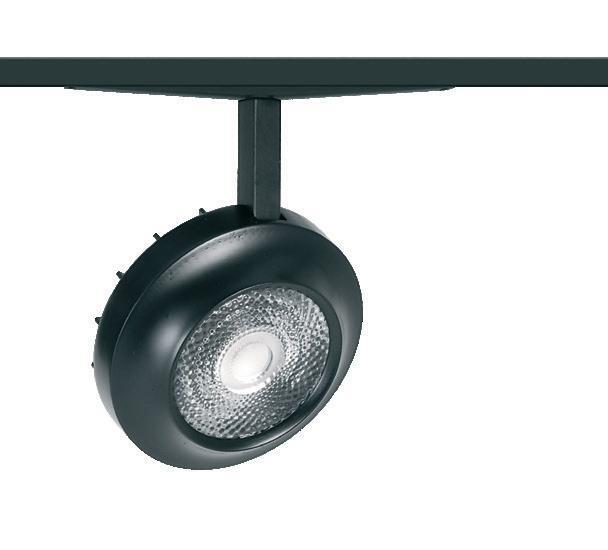

Asso
040930-6841

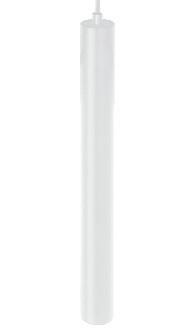

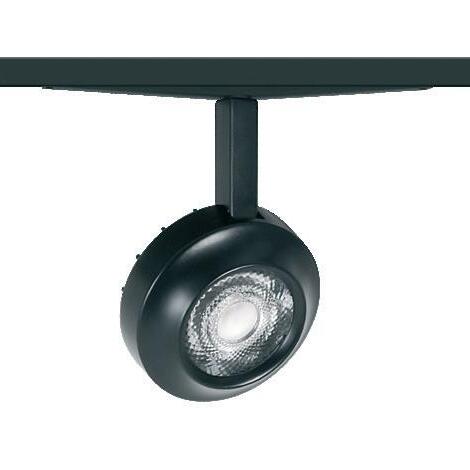

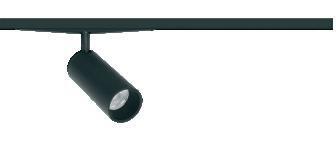

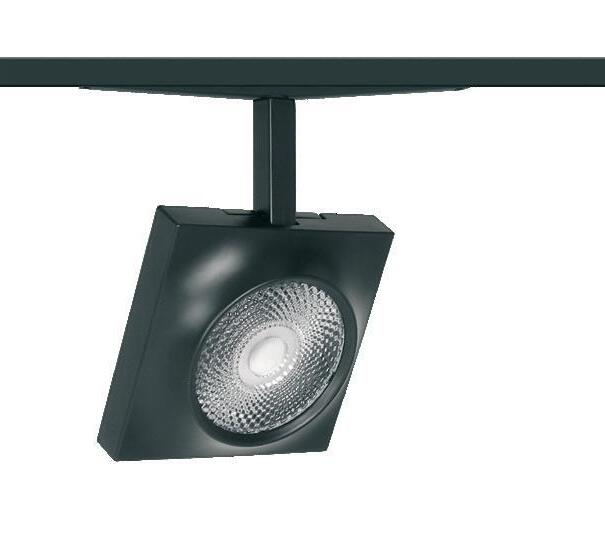

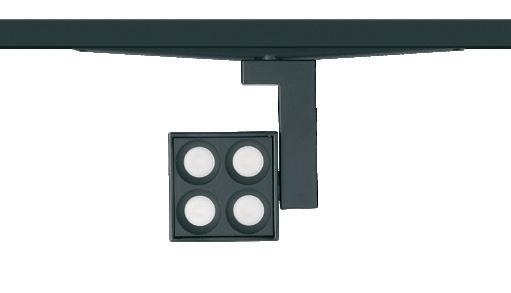

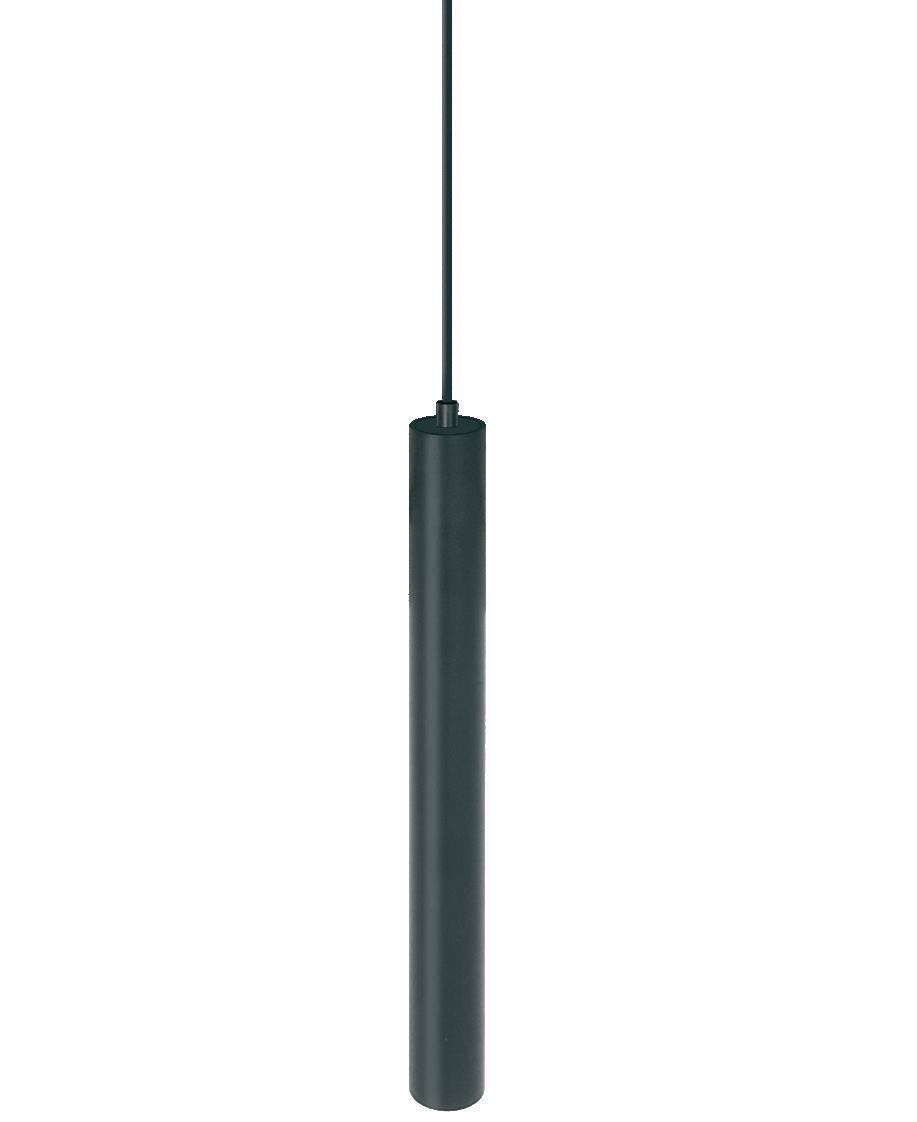

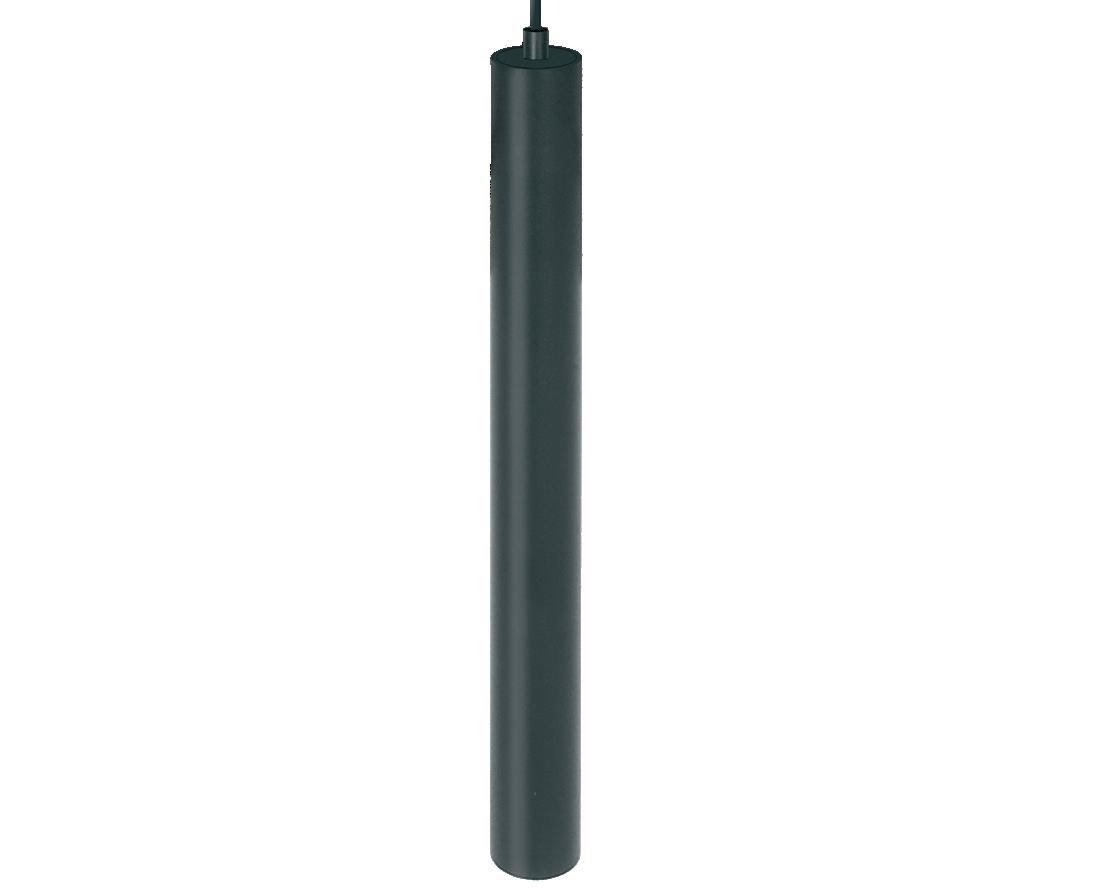

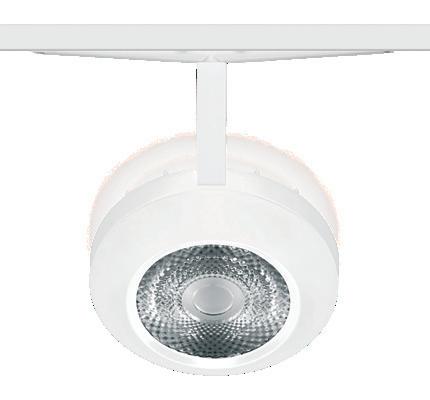

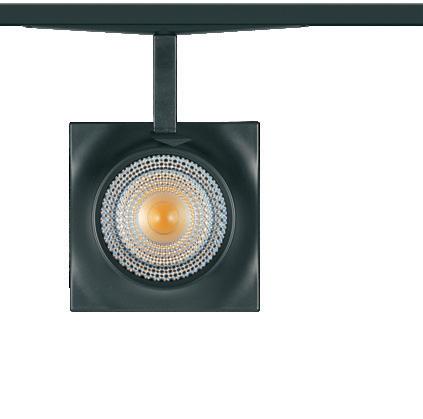

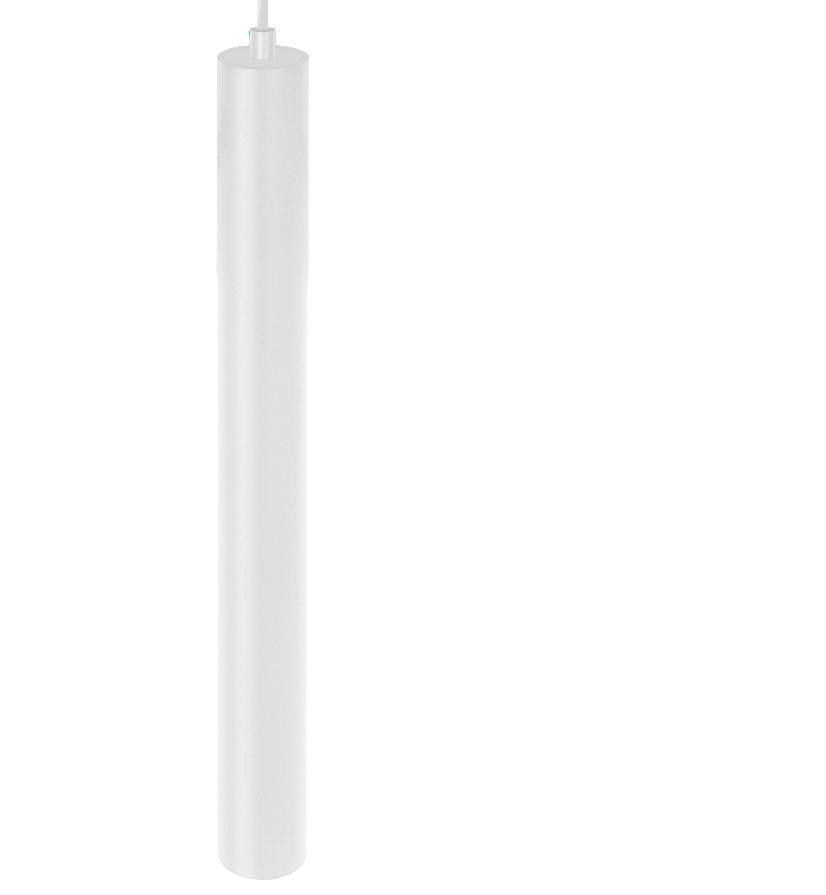

Asso “A” STILO - CRI>90 - 48V DC
CLD D-DIG (DALI) W tot K - LUMEN OUTPUT (tq= 25 °C)
45010-1241 4 3000K 314lm
45030-1241

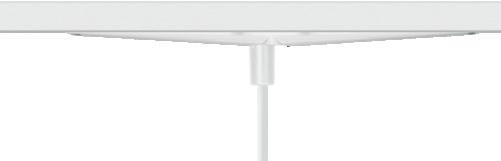

Weight: 0,30 Kg. Supplied with suspension cable (L=1,50m) Upon request: 4000K version.
L=

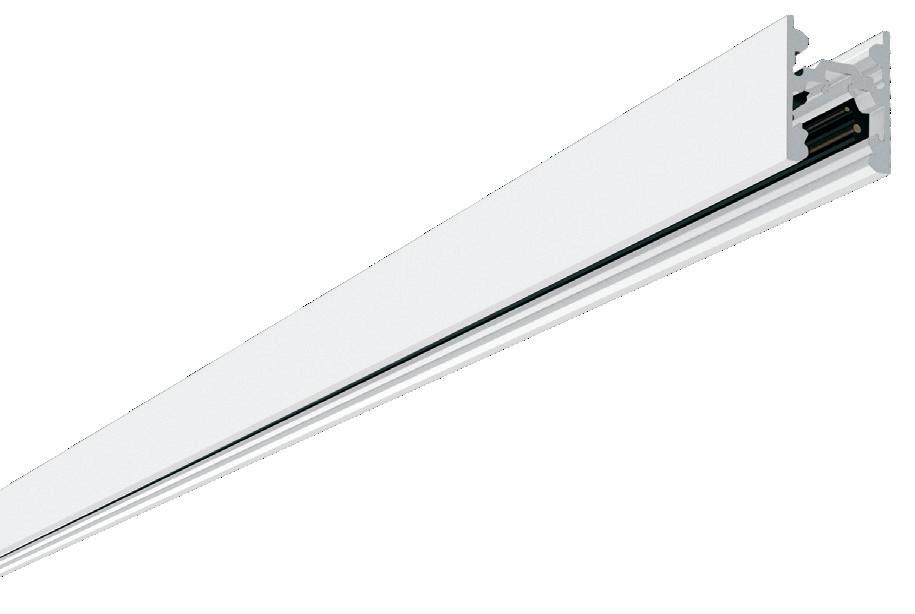

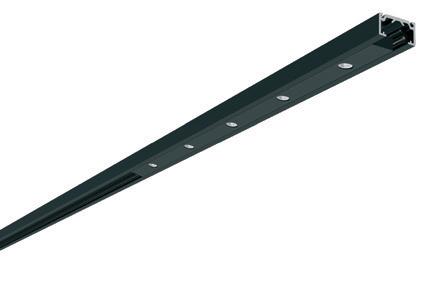

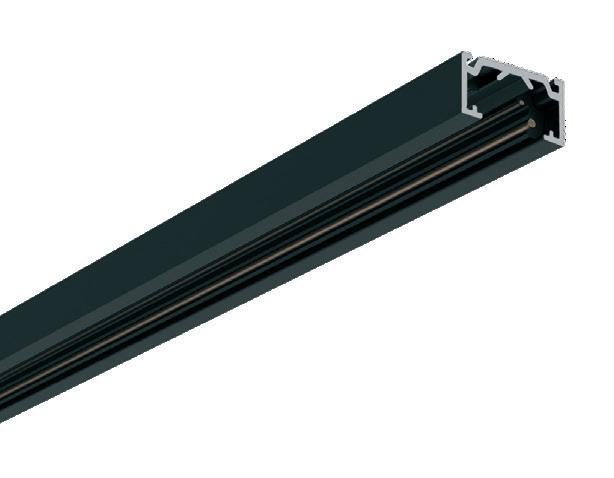

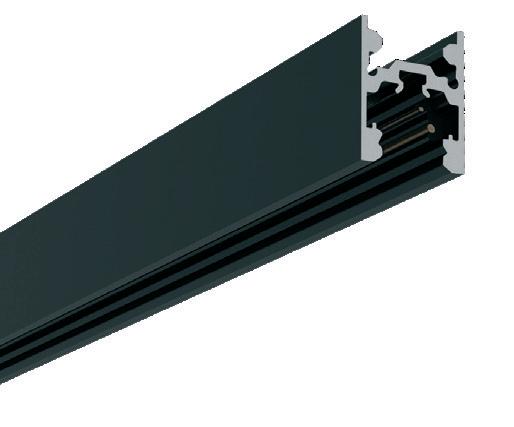

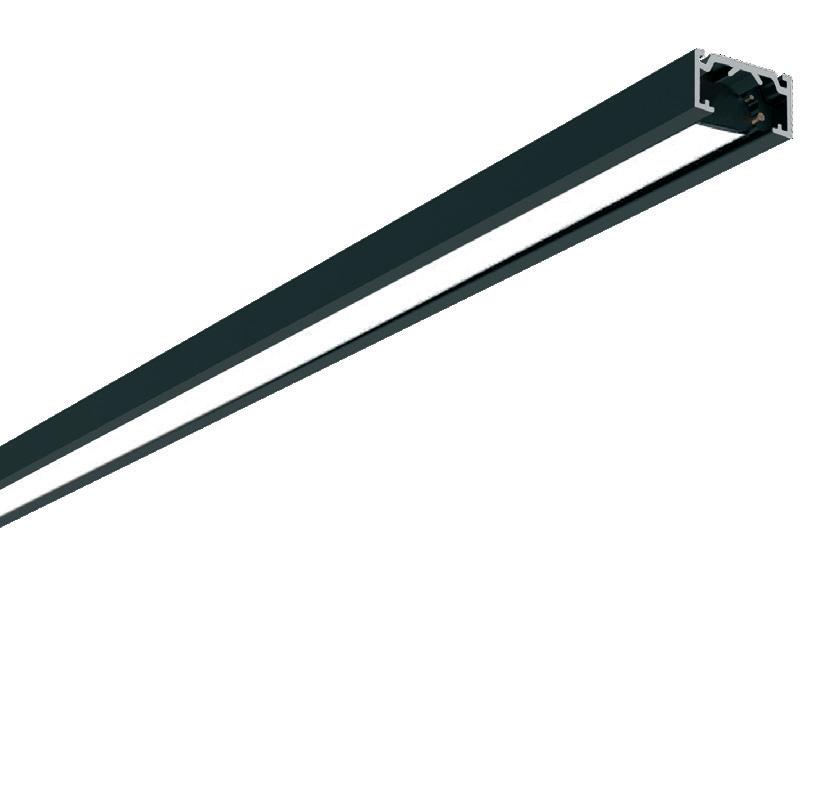

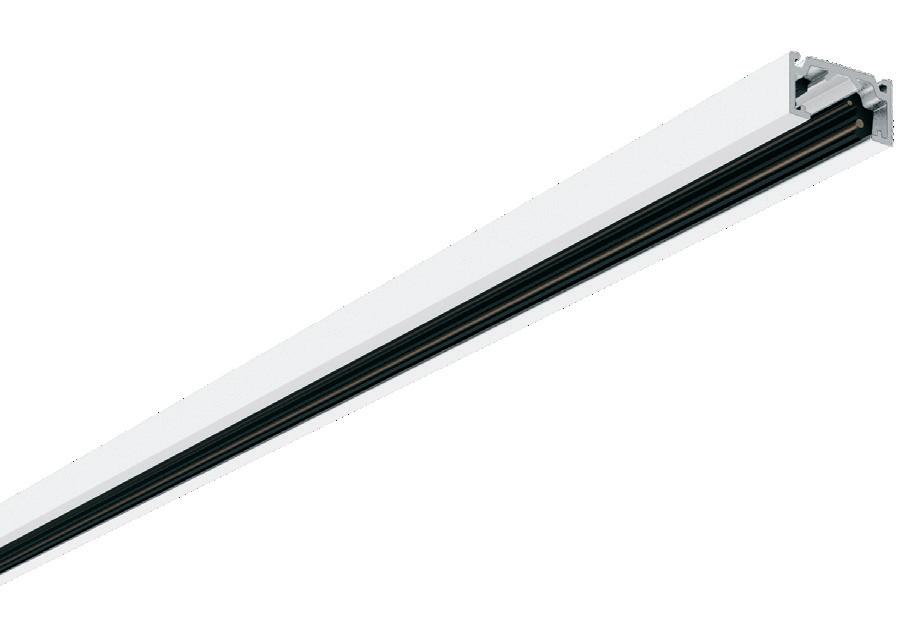

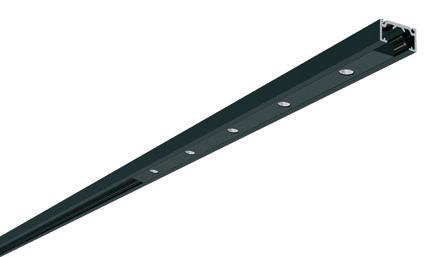

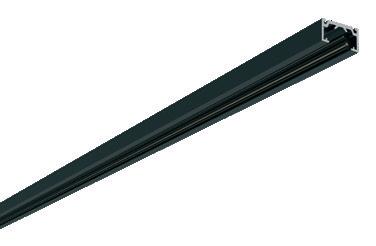

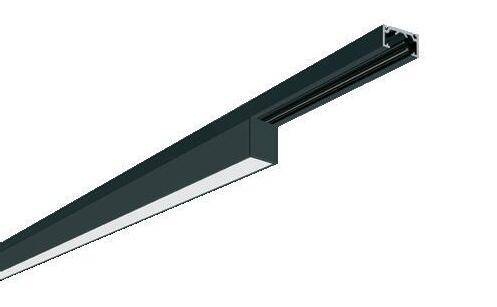

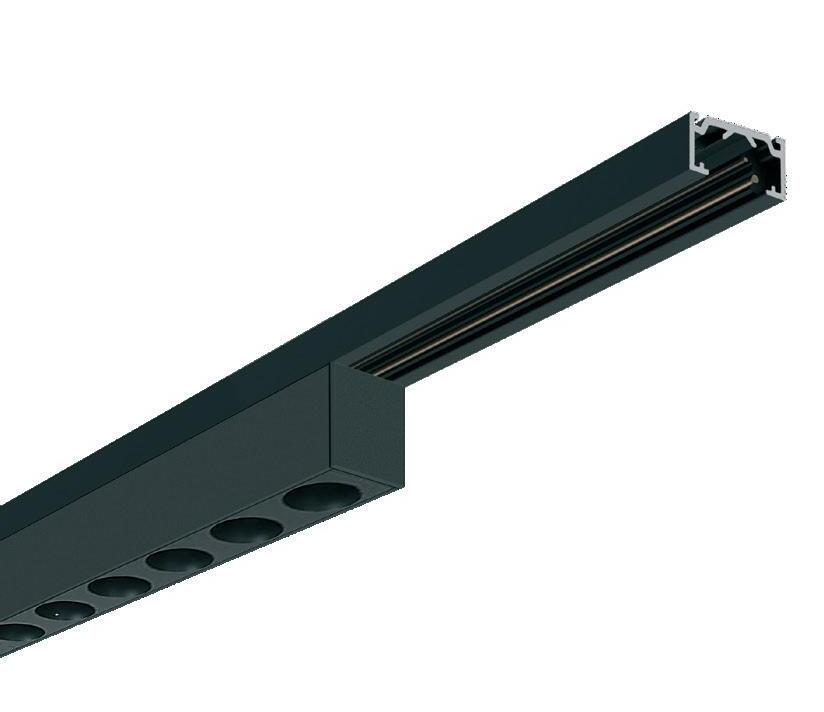

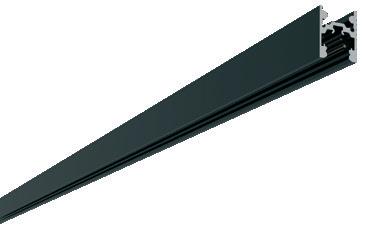

Track 48V DC MICRO P: wall/ceiling
Prepared with ceiling mounting bracket, end cap and end cap power cable (L= 20 mm).
Track MICRO P weight on track
mm 22960010-00
9Kg 22960030-00
mm 22960011-00
15Kg 22960031-00 3000 mm 22960012-00
24Kg 22960032-00
In extruded aluminium with copper conductors. Max. length of continuous row systems: 50 m. Max. power: 100W.

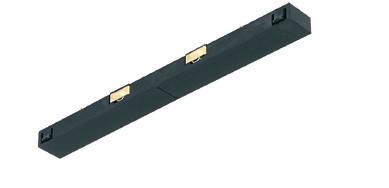

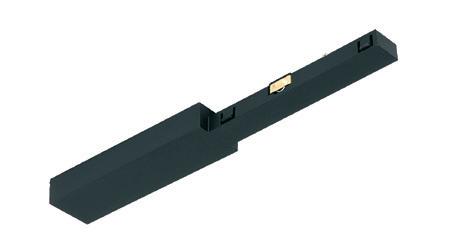

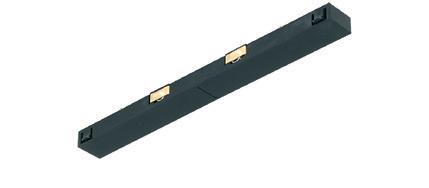

100W power supply box for track MICRO P
22962010-00
22962030-00
Equipped with 220-240V~ 50/60Hz power supply - Vout 48V DC with DALI bus feed-through to be completed with DALI Optoisolator 22092100-00.
Note: 3 fasteners per metre.
Prepared with power supply terminals for 2x1.5mmq cables: 48V DC and 2x0.35mmq for DALI version.
Housing in polyamide. Copper alloy contacts.
Power supply

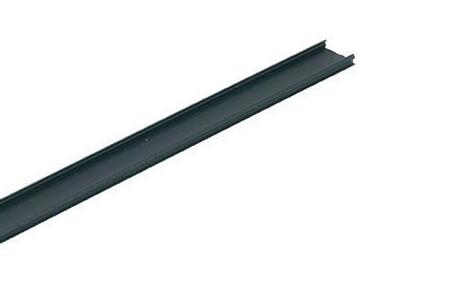

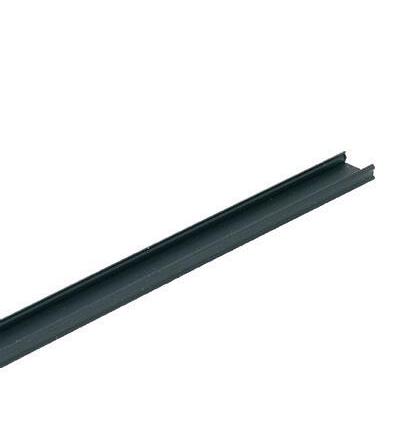

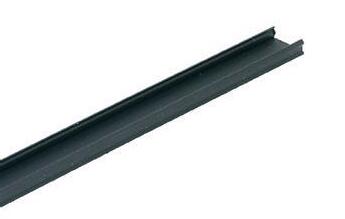

track MICRO P cover
22961010-00
22961030-00
Housing in PMMA. L= 3000 mm.
track MICRO P end cap 22960410-00 22960430-00 track MICRO P vertical angle
track MICRO P L-joint for ceiling/wall mount
22961210-00
22961230-00
Housing in polyamide. Copper alloy contacts.

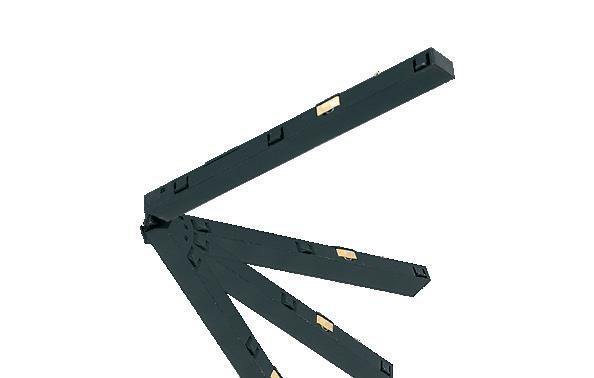

track MICRO P flexible joint
22961810-00
22961830-00
Housing in polyamide. Copper alloy contacts.

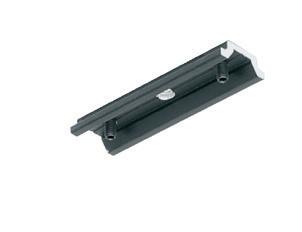

track MICRO P linear joint
22960310-00
22960330-00
Housing in polyamide. Copper alloy contacts.

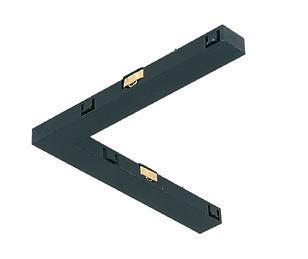

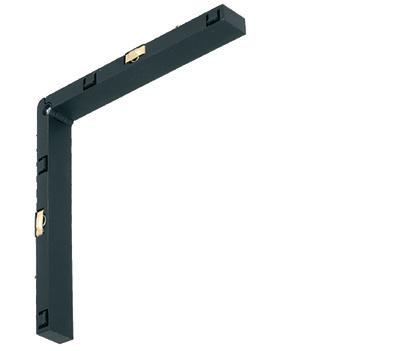

track MICRO P L-joint
22961110-00
22961130-00
Housing in polyamide. Copper alloy contacts.
White Black

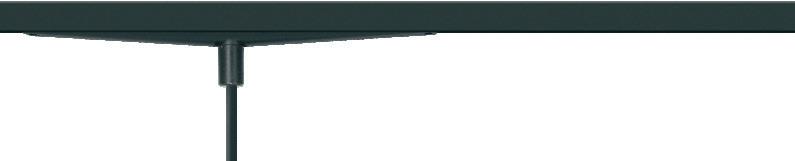

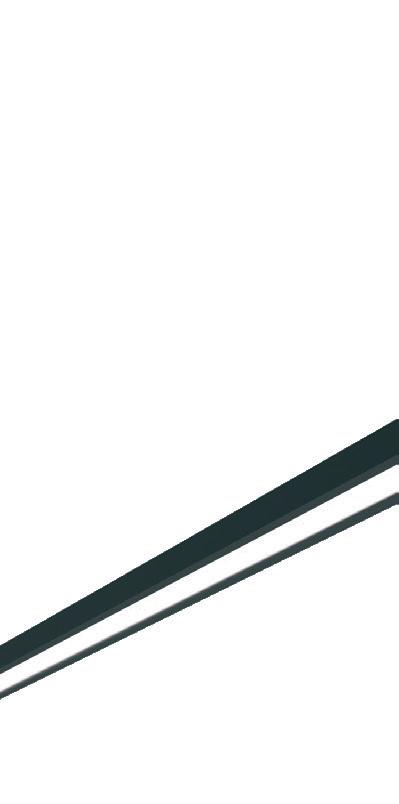

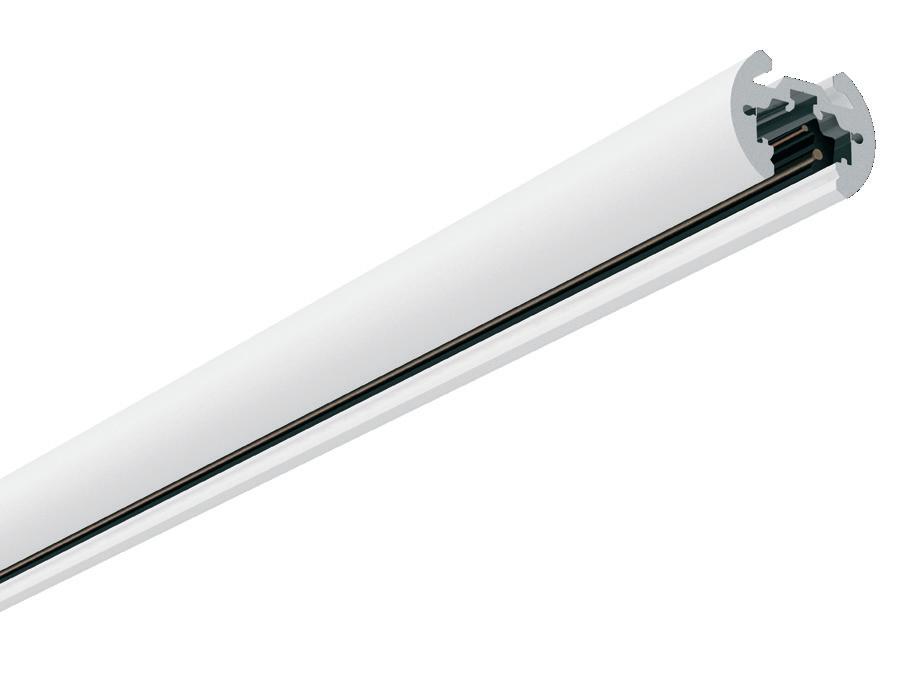

Track 48V DC MICRO H: suspension
Equipped with ceiling mounting bracket, end cap and end cap power cable (L= 2000 mm).
Track MICRO H weight on track
mm 22960013-00 max 4Kg 22960033-00
mm 22960014-00
960034-00
-00
960035-00
In extruded aluminium with copper conductors. Max. length of continuous row systems: 50 m. Max. power: 100W.
100W power supply box for track MICRO H
22962011-00
22962031-00
Equipped with 220-240V~ 50/60Hz power supply - Vout 48V DC with DALI bus feed-through to be completed with DALI Optoisolator 22092100-00.
9Kg
Note: suspension every 900 mm.
Equipped with 2x1.5 mm2 power cable: 48V DC and 2x0.35 mm2 for the DALI version. L= 2500 mm
track MICRO H end cap
22960411-00
22960431-00
track MICRO H short bracket for suspension mounting
22963111-00
22963131-00
track MICRO H continuous row mounting bracket
22963210-00
22963230-00
Power supply

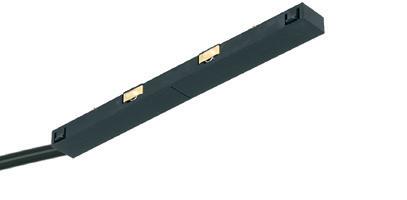

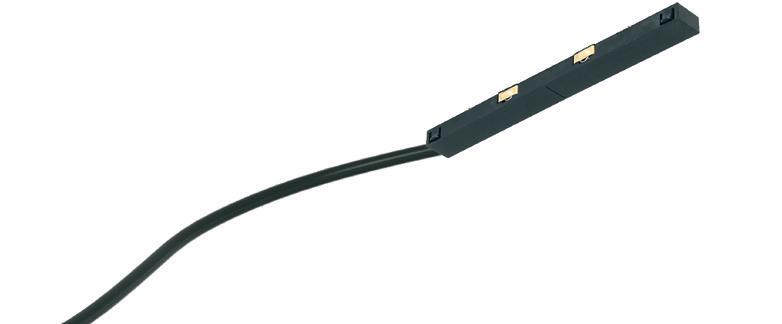

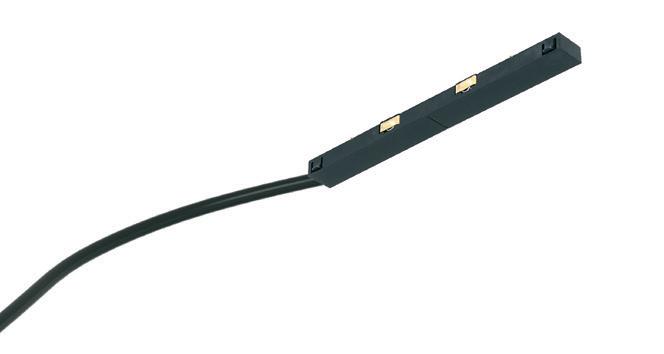

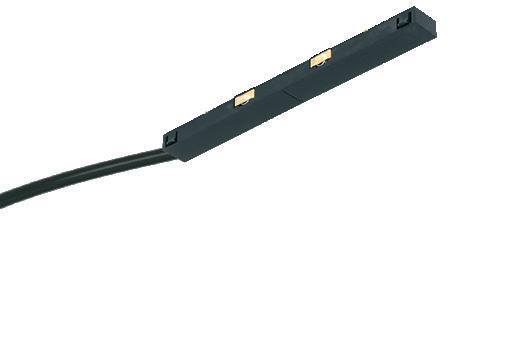

track MICRO H retractable power supply
22960111-00
22960131-00
Housing in polyamide. Copper alloy contacts.

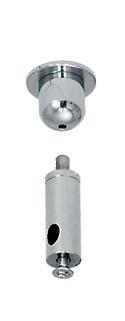

suspension mounting kit 22965876-00
Complete kit for suspension mounting. Includes: ceiling rosette, millimetre adjustment with clamping screw and steel cable for suspension mount L= 1.75 m.
track MICRO H linear joint
22960310-00
22960330-00
Housing in polyamide. Copper alloy contacts.

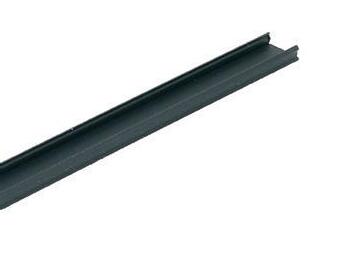

track MICRO H cover
22961011-00
22961031-00
Housing in PMMA. L= 3000 mm.
White
Black

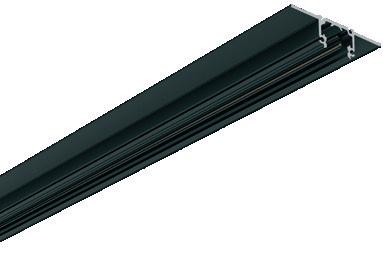

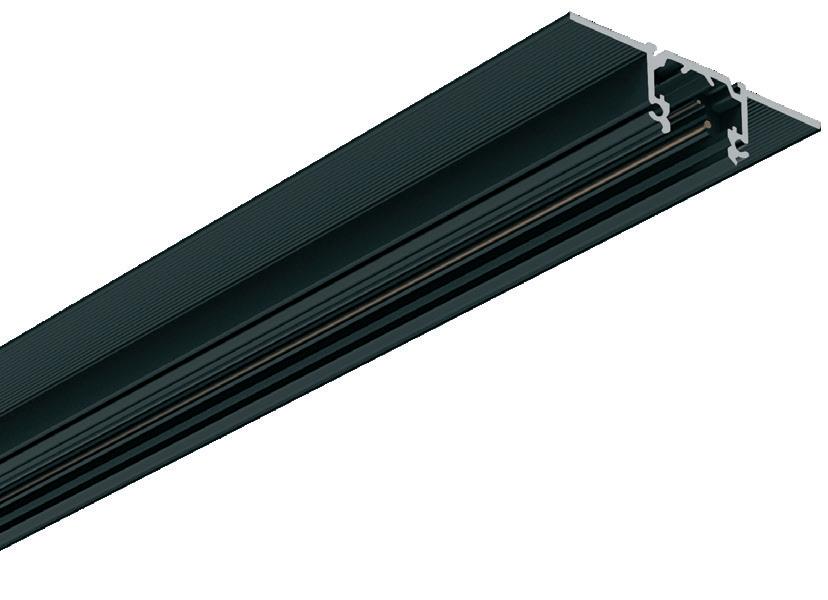

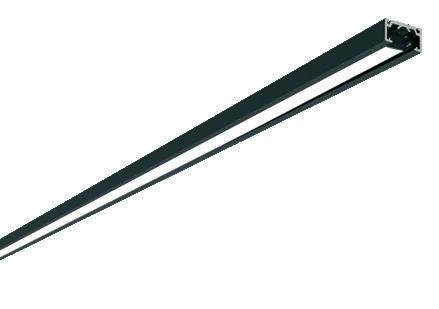

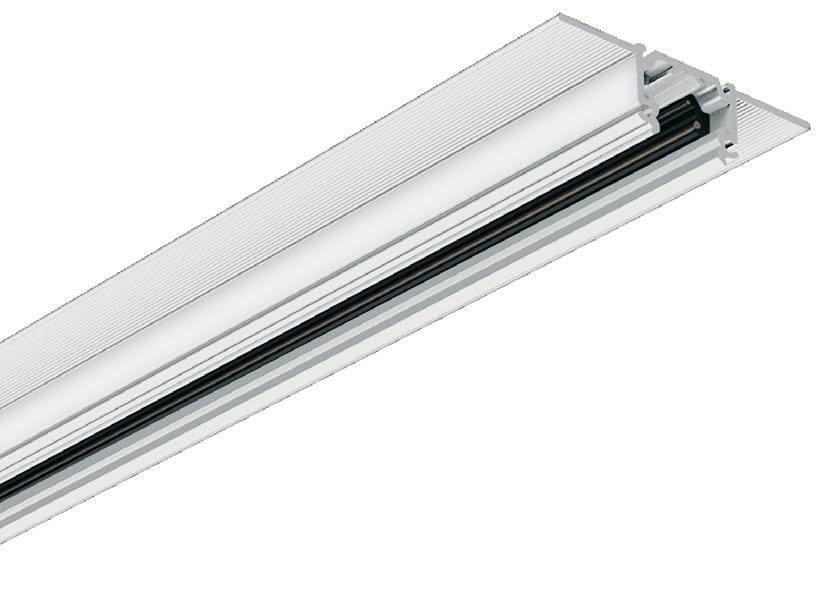

Track 48V DC MICRO T: for plasterboard false ceilings
Track MICRO T weight on track
1000 mm
2000 mm
3000 mm
22960016-00
22960036-00
22960017-00
22960037-00
22960018-00
22960038-00
max 9Kg
max 15Kg
max 24Kg
Note: 2 fasteners per metre. White Black
Equipped with 2x1.5 mm2 power cable:
48V and 2x0.35 mm2 for the DALI version. L= 2500 mm
In extruded aluminium with copper conductors. Max. length of continuous row systems: 50 m. Max. power: 100W.
track MICRO T end cap
22960412-00
22960432-00
track MICRO T retractable power supply
22960111-00
22960131-00
Housing in polyamide. Copper alloy contacts.
track MICRO T linear joint
22960310-00
22960330-00
Housing in polyamide. Copper alloy contacts.
track MICRO T cover
22961011-00
22961031-00
Housing in PMMA. L= 3000 mm.
MICRO T as standard equipped with steel bracket to allow easy installation of track onto false ceilings. The bracket must be used for the creation of a complete composition.

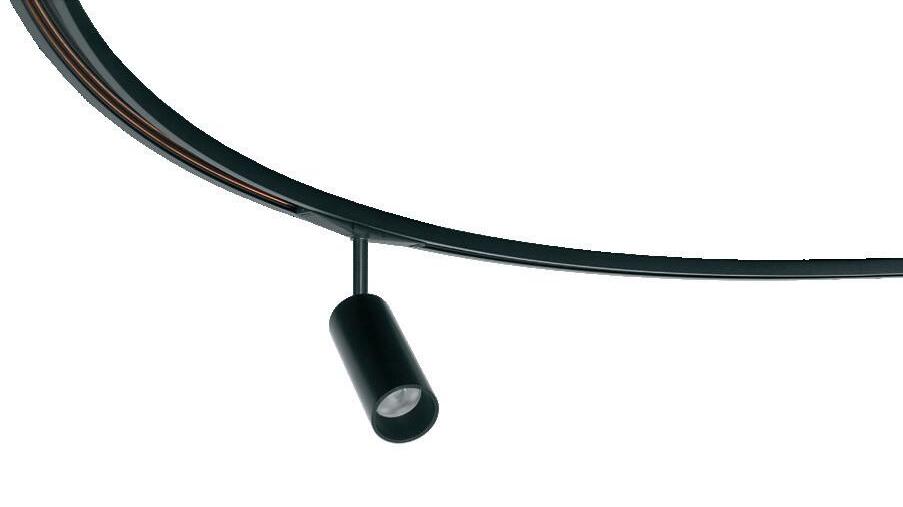

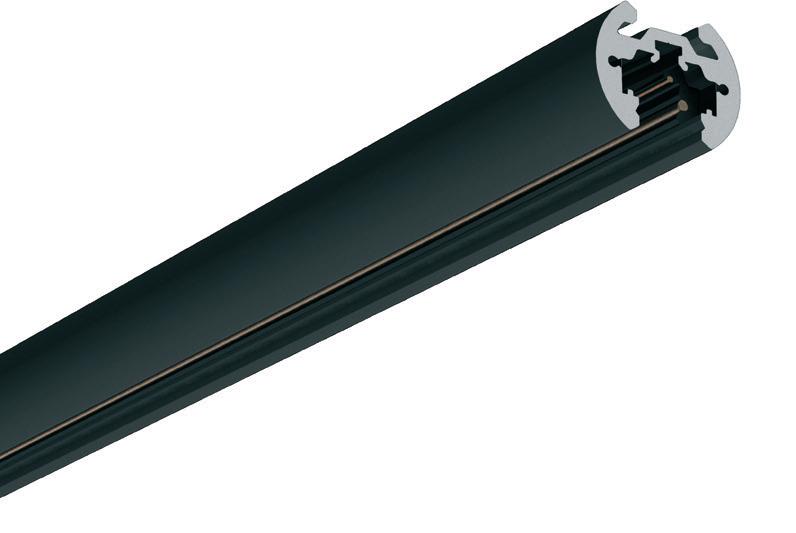

Track 48V DC MICRO R: suspension
White Black
Equipped with ceiling mounting bracket, end cap and end cap power cable (L= 2000 mm).
Track MICRO R poids sur le rail
2000 mm
22960019-00 max 7Kg
22960039-00
In extruded aluminium with copper conductors. Max. length of continuous row systems: 50 m.Max. power: 100W.
100W power supply box for track MICRO R
22962011-00
22962031-00
Equipped with 220-240V~ 50/60Hz power supply - Vout 48V DC with DALI bus feed-through to be completed with DALI Optoisolator 22092100-00.
N.B. : suspension tous les 900mm.
Equipped with 2x1.5 mm2 power cable: 48V DC and 2x0.35 mm2 for the DALI version. L= 2500 mm
track MICRO R end cap
22960413-00
22960433-00
track MICRO R short bracket for suspension mounting
22963111-00
22963131-00
track MICRO R continuous row mounting bracket
22963210-00
22963230-00
Power supply
track MICRO R retractable power supply
22960111-00
22960131-00
Housing in polyamide. Copper alloy contacts.
suspension mounting kit
22965876 -00
Complete kit for suspension mounting. Includes: ceiling rosette, millimetre adjustment with clamping screw and steel cable for suspension mount L= 1.75 m.
track MICRO R linear joint
22960310-00
22960330-00
Housing in polyamide. Copper alloy contacts.
track MICRO R cover
22961011-00
22961031-00
Housing in PMMA. L= 3000 mm.

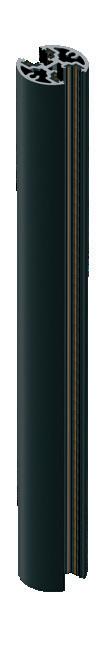

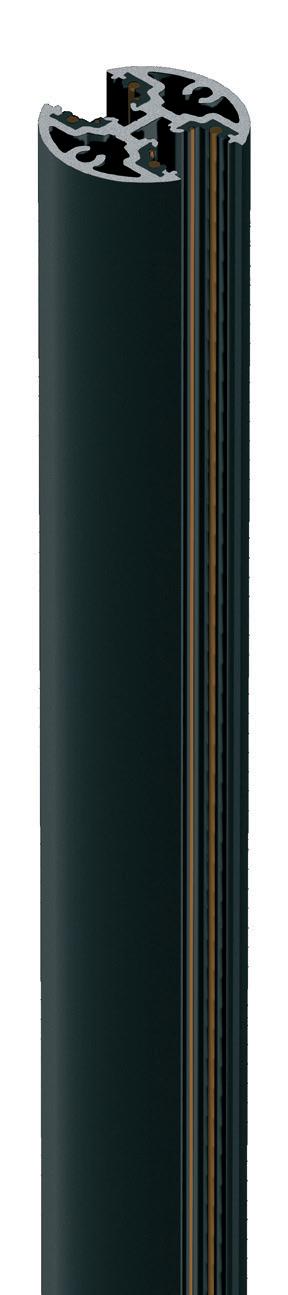

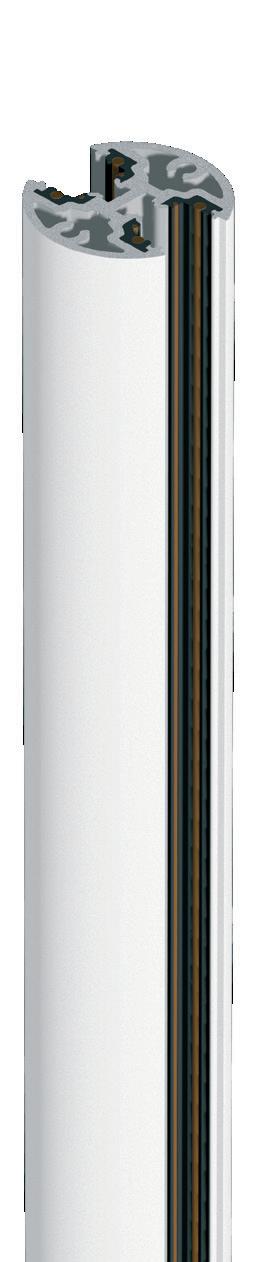

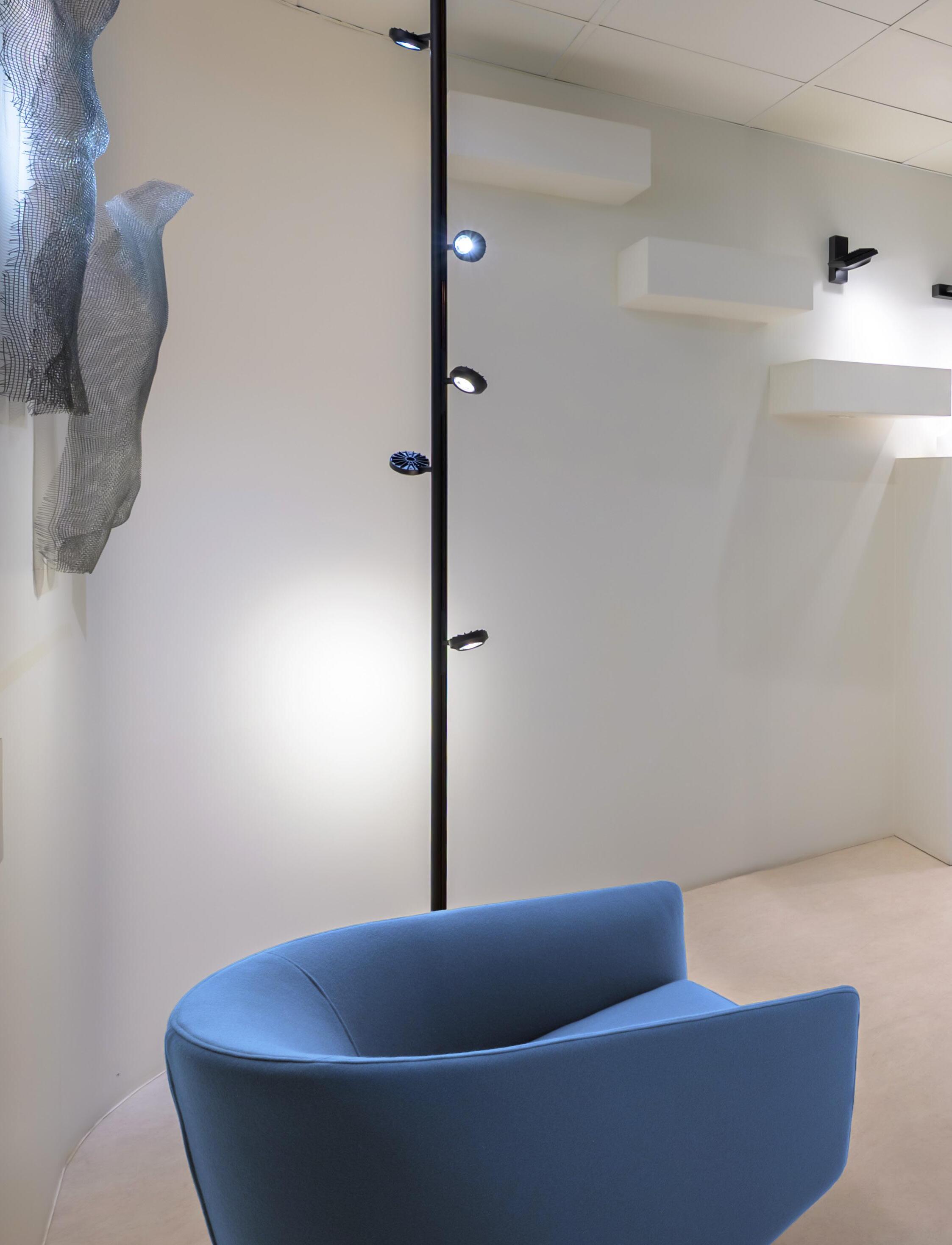

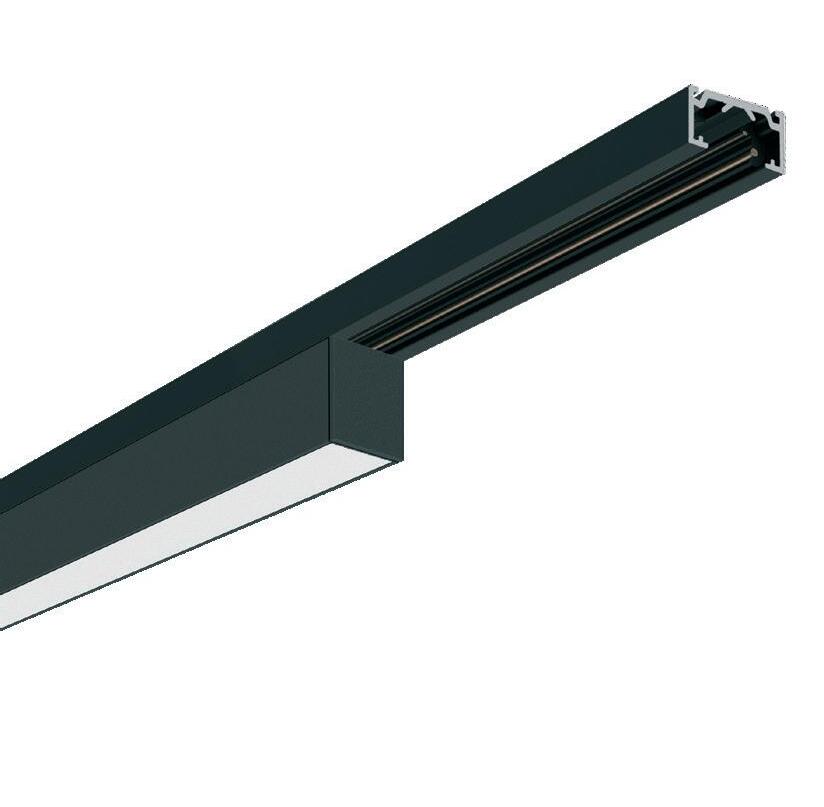

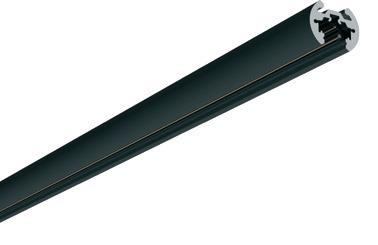

White Black Track MICRO R POLE weight on track 3000 mm 22960091-00 max 6Kg 22960093-00 In extruded aluminium with copper conductors. Max. power: 100W.
Upon request and design requirements: option to insert LED Strip
Equipped with 2x1.5 mm2 power cable: 48V DC and 2x0.35 mm2 for the DALI version. L= 2500 mm
floor/ceiling connector for track MICRO R POLE
22960610-00
22960630-00
Complete with floor-mounting bracket.
track MICRO R POLE cover
22961010-00
22961030-00
Housing in PMMA. L= 3000 mm.
track MICRO R POLE retractable power supply
22960111-00
22960131-00
Housing in polyamide. Copper alloy contacts.
CASAMBI Wireless Adapter
DALI-master controller to monitor up to 8 groups/64 DALI spotlights, designed for 48V DC low voltage power tracks. The DALI-master Bluetooth-controlled device is made to control DALI lamps from mobile devices and CASAMBI app.
CASAMBI VOICE available soon: an innovative interface to control DALI devices at the same time using the CASAMBI app through Bluetooth and voice control using assistants, such as AMAZON ALEXA/GOOGLE HOME/MATTER through Wi-Fi. CASAMBI and AMAZON ALEXA/GOOGLE HOME/MATTER are independent systems that are designed to communicate with and update each other.
Configurations possible
Opto-isolator DALI
driver SELV 48V DC - 70W 22092019-00
driver SELV 48V DC - 150W 22092092-00
Use only SELV-approved components with max. U-OUT 60 VDC. Max. distance between driver and track: 10 m.
opto-isolator 22092100-00
Use to ensure track safety. Max distance between opto-isolator and track: 10 m (max. 64 luminaires).
CASAMBI Wireless Adapter 22093910-00 22093930-00
DALI-master controller to monitor up to 8 groups/64 DALI spotlights, designed for 48V DC low voltage power tracks. A DALI-master Bluetooth-controlled device to control DALI lamps from mobile devices and CASAMBI app.
100W power supply box for track MICRO P
22962010-00
22962030-00
Complete with power supplier, ceiling mounting bracket, end cap and end cap power cable (L= 20 mm).
100W power supply box for track MICRO H/R 22962011-00 22962031-00
Equipped with 220-240V~ 50/60Hz power supply - Vout 48V DC with DALI bus feed-through to be completed with DALI Optoisolator 22092100-00.
