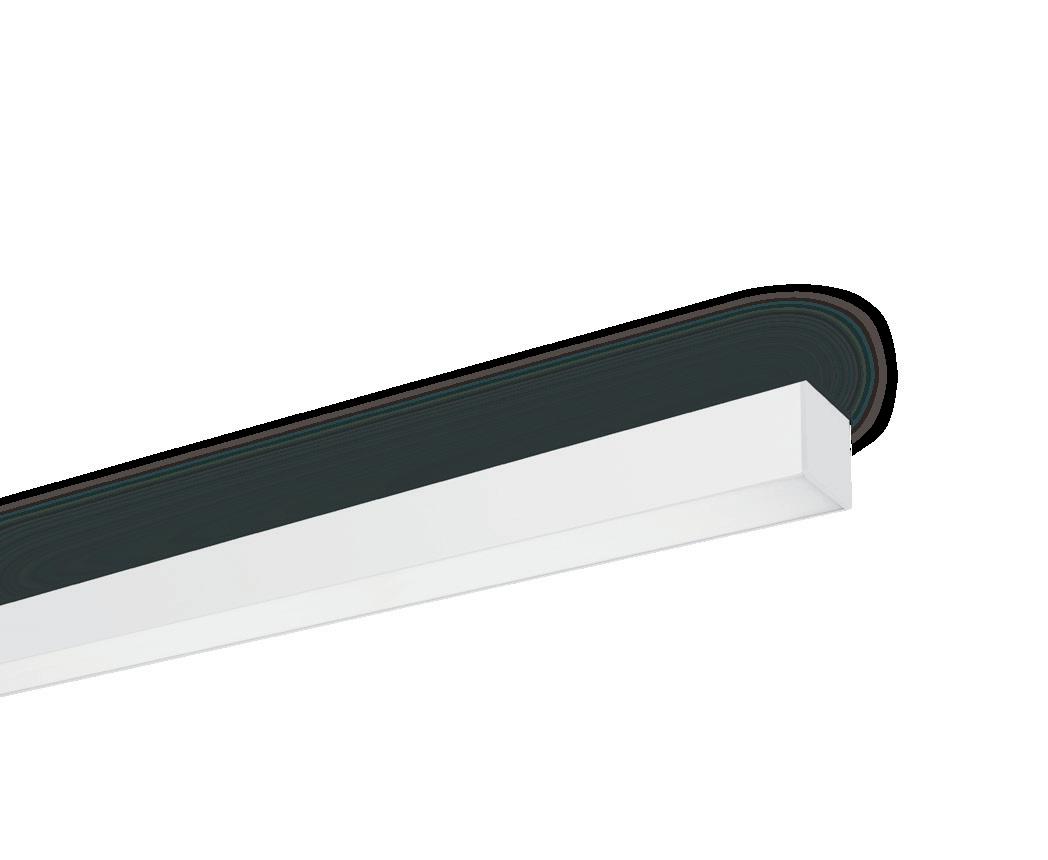

General characteristics
Housing: extruded aluminium complete with end caps
Diffuser: opal/prismatic polycarbonate.
Coating: polyester resin-based powder coating, UV stabilised.
Équipement: supplied standard, versions complete with mounting brackets for installation as as pendant lamps (acc. 2518-2522 suspensions to be purchased separately) and as ceiling fixtures.
OTHER CHARACTERISTICS
Version equipped with
• opal polycarbonate diffuser ideal for installations in common areas or general room such as homes, hotels, sleeping rooms...
• UGR<19 prismatic polycarbonate diffuser ideal for installations in schools or offices with VDU terminals
UPON REQUEST
S.A. EM-EC -0050
LIFE EXPECTANCY
EXAMPLE: LED declared L90B10 = 100.000h
Available version with:
• emergency wiring CLD E with sub-code -07.
• emergency wiring with centralized power supply CLD EC with sub-code -0050.
• pass-through wiring for continuous line modules with subcode -0072: supplied without diffusor, which should be purchased separately with acc. 6076, ideal for continuous and uninterrupted “ALL LIGHT” lines.
• black colour version
The decrease of LED flux is defined by the working life and is represented by the L90 mark (see chart), which means that the flux is kept up to 90%. The “B” letter followed by a number ranging between 10 and 50 indicates the quality of the fixture and defines the LED percentage that keeps the declared characteristics when it reaches 100,000 working hours
LED: power factor: ≥0,92.
Luminous flux maintenance 80%: 80.000h (L80B10).
Luminous flux maintenance 90%: 50.000h (L90B10).
Photobiological safety class: exempt group
ENEC is a European Mark that demonstrates that Ischia fixture is compliant with applicable European safety standards and was manufactured by a company that applies a Quality System according to ISO 9000. = pending approval
CERTIFICATIONS
The IK code indicates the fixture’s degree of protection against mechanical impact and determines the degree of protection provided by the electrical equipment’s enclosures against these impacts (EN 50102 - NF 20-015).
IK LEVEL OF PROTECTION
Flicker is a common issue with LED lamps. It can occur at frequencies below 60 Hz and depends on several factors, such as the ripple emitted by drivers. Product with a very low flicker; uniform light for greater eye protection.
LOW FLICKER

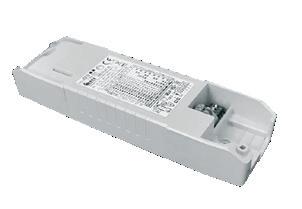

The fixture comes with a DIP SWITCH driver for THE SETTING OF THE OUTPUT CURRENT
In this way you, can ENSURE THE BEST LUMINOUS FLUX for any lighting design.
The possibility to choose the correct drive current for LEDs will allow you to have the right power under specific design conditions. Using a lower current will improve the efficiency of fixtures and therefore increase energy savings, whilst a higher current will result in a higher light flux so that you can reduce the number of fixtures.
DIP SWITCH SETTING:
ADAPT THE CURRENT TO ACHIEVE OPTIMAL LUMINOUS FLUX
Version with

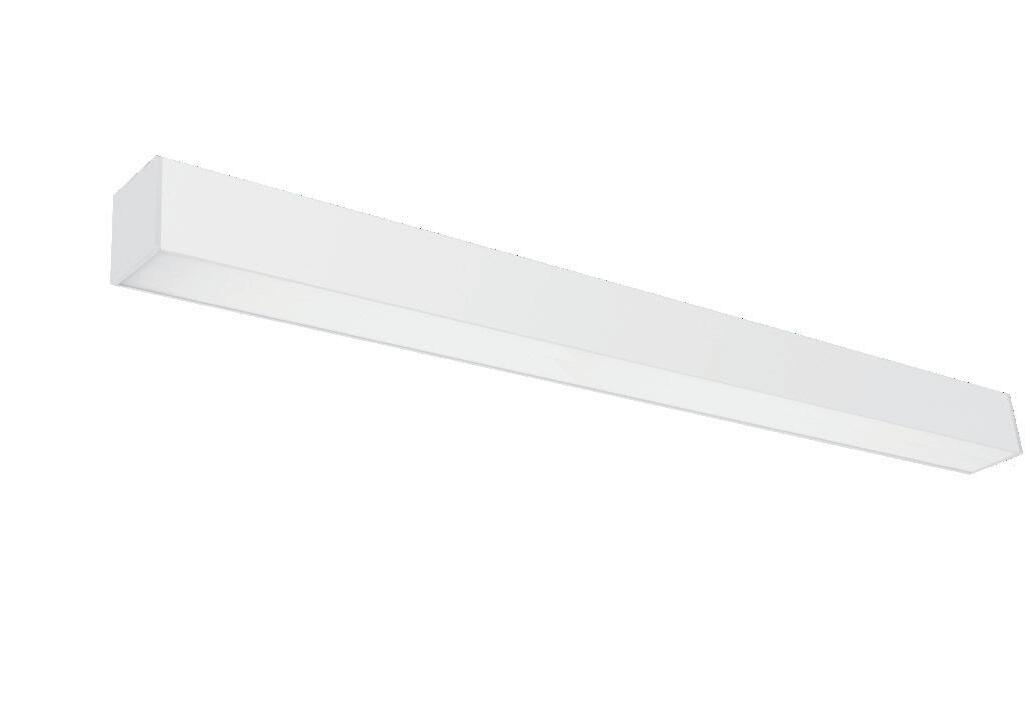

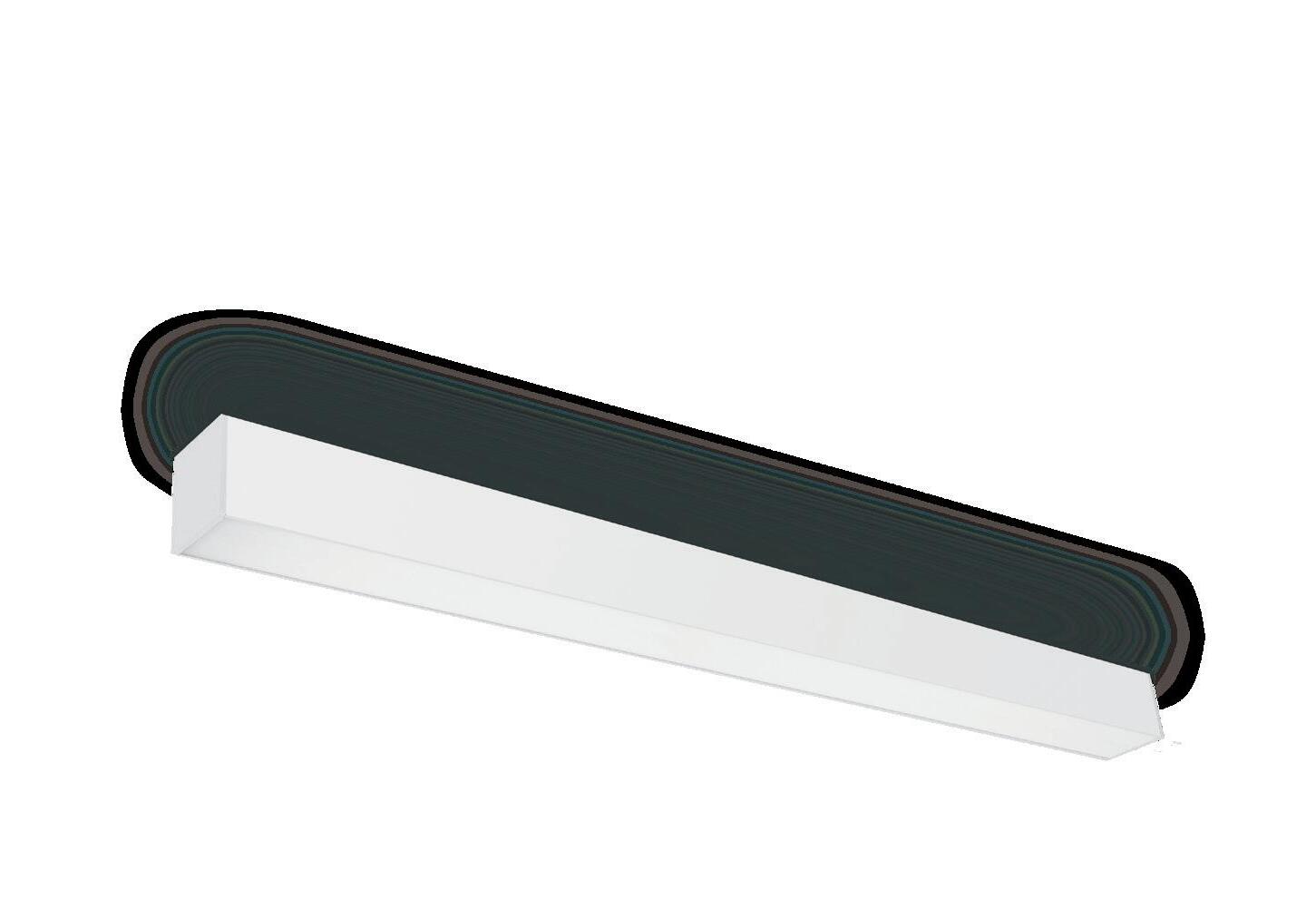

Direct light
Version
Version
ronments

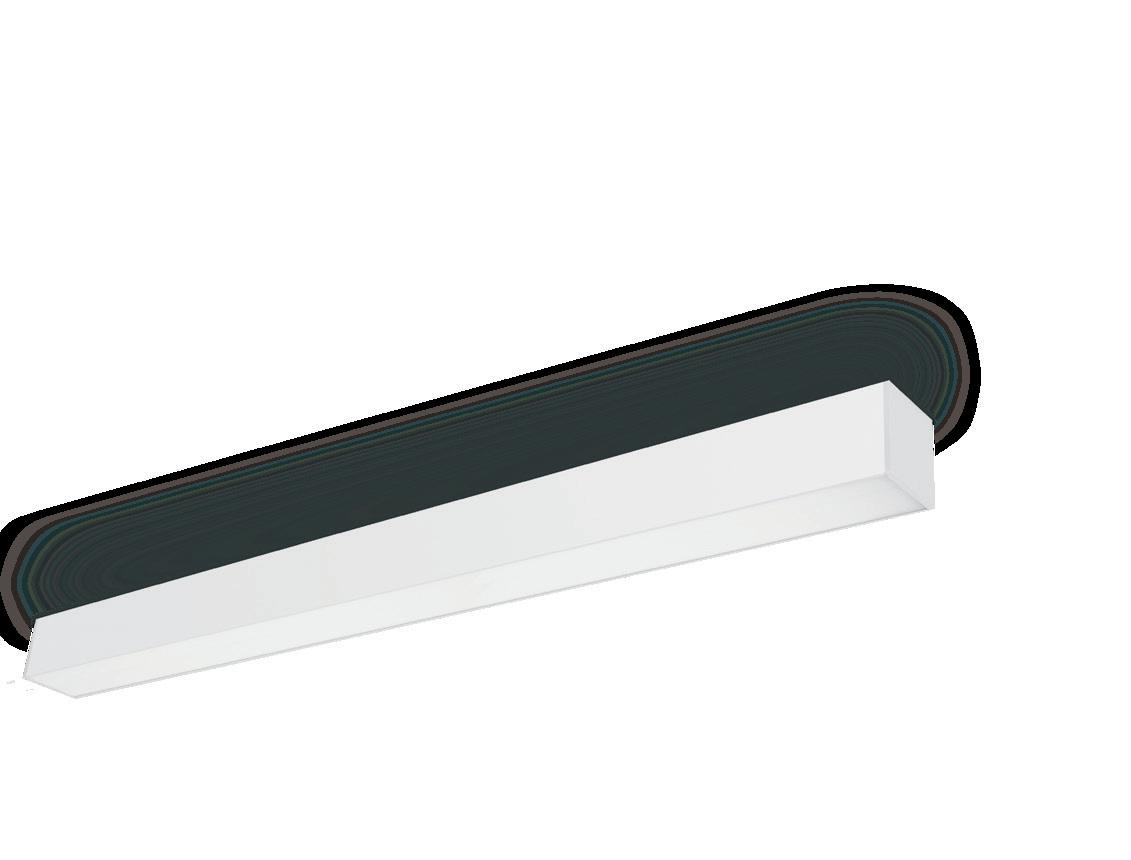

Direct/indirect light
“INFINITY” light module that enables continuous and uninterrupted light lines. To be completed with:
• UGR<19 prismatic polycarbonate roll diffuser ideal for installations in schools or offices with VDU terminals
• opal polycarbonate roll diffuser ideal for installations in common areas or general room such as homes, hotels, sleeping rooms... *UGR<19

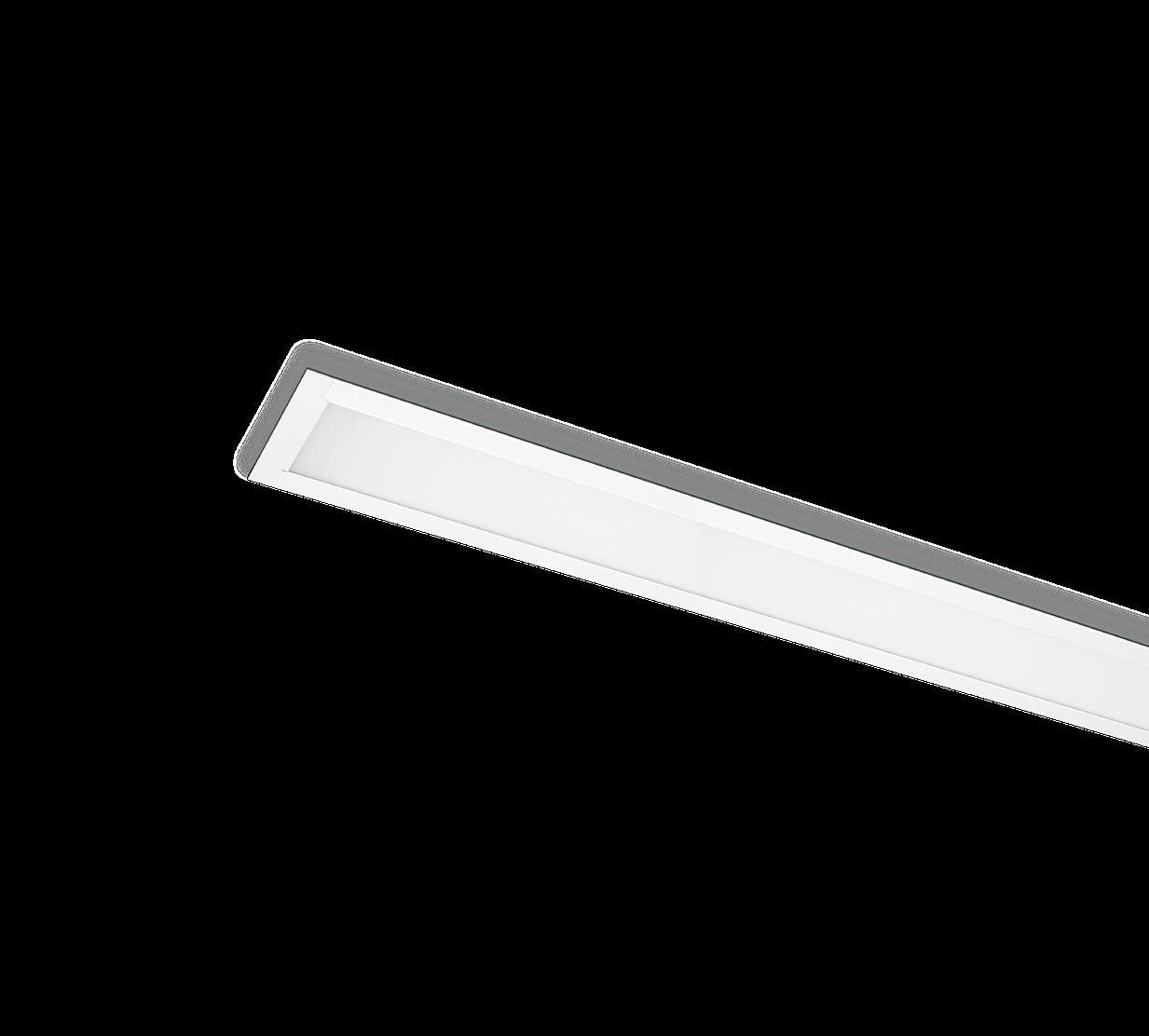

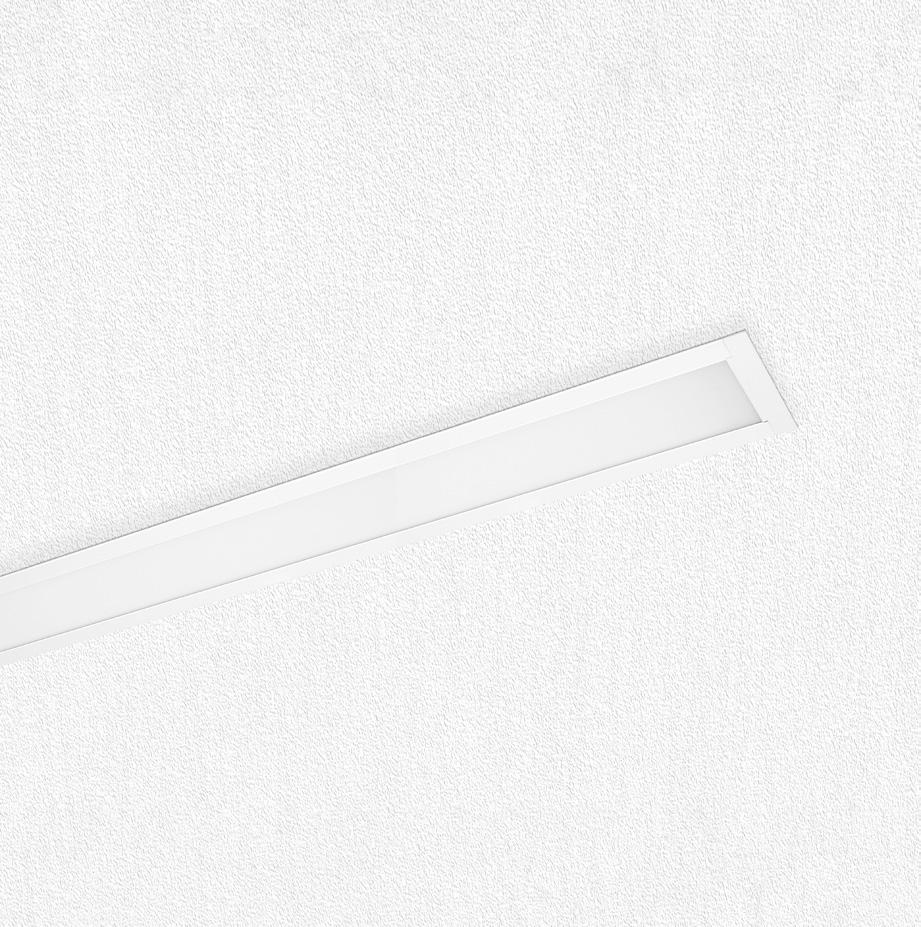

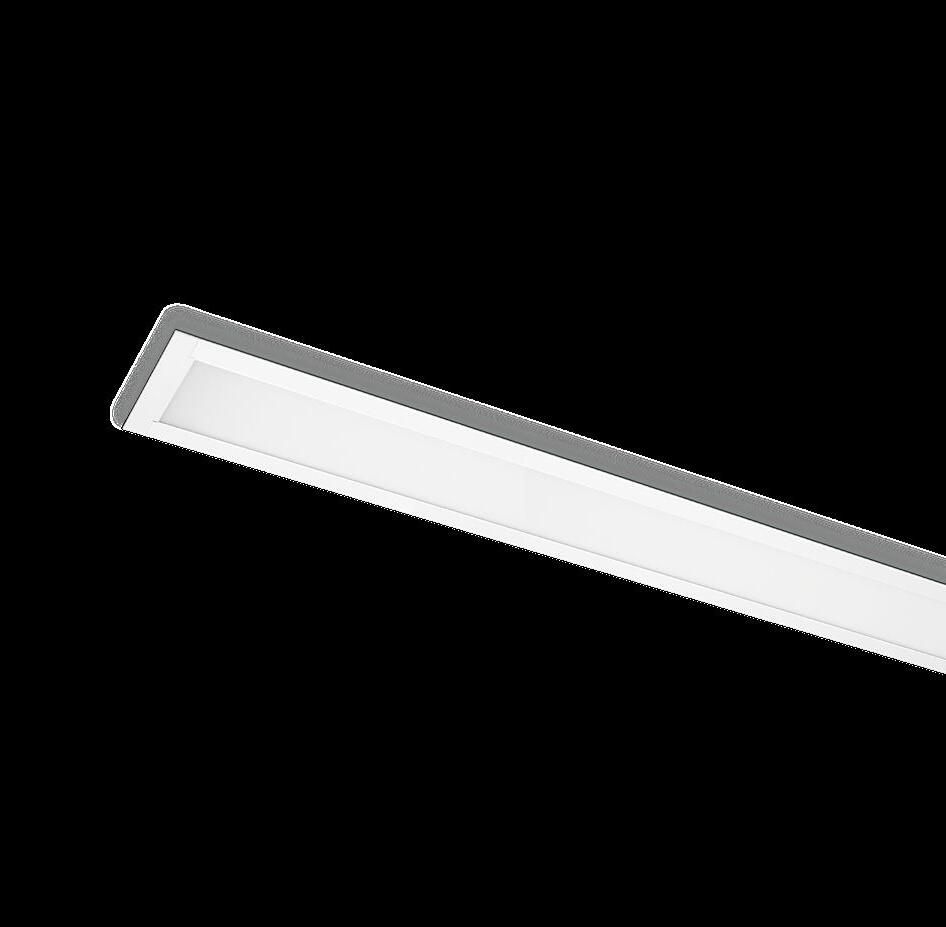

Recessed
acc. 6085 corner module white 132936-00
Allows for corner connections between suspended or ceiling-mounted Madrid fixtures
acc. 6086 “ALL LIGHT” corner module - 4W white 132938-00
Allows Madrid suspension or ceiling-mounted fixture to be installed around a corner; always use acc. 6075 to be purchased separately
acc. 6087 module with SPOTLIGHT white 132942-00
10W - 2x550lm - 3000K - CRI 90 - 36° white 132942-68
10W - 2x577lm - 4000K - CRI 90 - 36°
Module complete with Fosnova spotlight, series ARQ, always use with acc. 6075 to be purchased separately
“ALL LIGHT” version with lengths on request and passthrough wiring with subcode -0072 to be completed with acc. 6076 opal diffuser.
acc. 6076 opal diffuser
L = 50m 132916-00
Opal polycarbonate roll must always be used on Madrid for continuous and uninterrupted “all light” lines. Upon request, UGR<19 prismatic roll is available.
acc. 6076 UGR<19 prismatic diffuser
L = 50m 132916-00002264
UGR<19 prismatic polycarbonate roll must always be used on Madrid for continuous and uninterrupted “all light” lines.
acc. 2522
electrified suspension
3P white 994028-00
5P 998047-00
Supplied with steel wire (L = 100cm) and millimetre adjustment device and power cord. Max loading: 20Kg. 5P version for EM or DIMM DALI wiring.
acc. 6085 corner module white 132936-00
Allows for corner connections between suspended or ceiling-mounted Madrid fixtures
acc. 6086 “ALL LIGHT” corner module - 4W white 132938-00
Allows Madrid suspension or ceiling-mounted fixture to be installed around a corner; always use acc. 6075 to be purchased separately
acc. 6087 module with SPOTLIGHT white 132942-00
10W - 2x550lm - 3000K - CRI 90 - 36° white 132942-68
10W - 2x577lm - 4000K - CRI 90 - 36°
Module complete with Fosnova spotlight, series ARQ, always use with acc. 6075 to be purchased separately
“ALL LIGHT” version with lengths on request and passthrough wiring with subcode -0072 to be completed with acc. 6076 opal diffuser.
acc. 6076 opal diffuser
L = 50m 132916-00
Opal polycarbonate roll must always be used on Madrid for continuous and uninterrupted “all light” lines. Upon request, UGR<19 prismatic roll is available.
acc. 6076 UGR<19 prismatic diffuser
L = 50m 132916-00002264
UGR<19 prismatic polycarbonate roll must always be used on Madrid for continuous and uninterrupted “all light” lines.
/ 1169 /

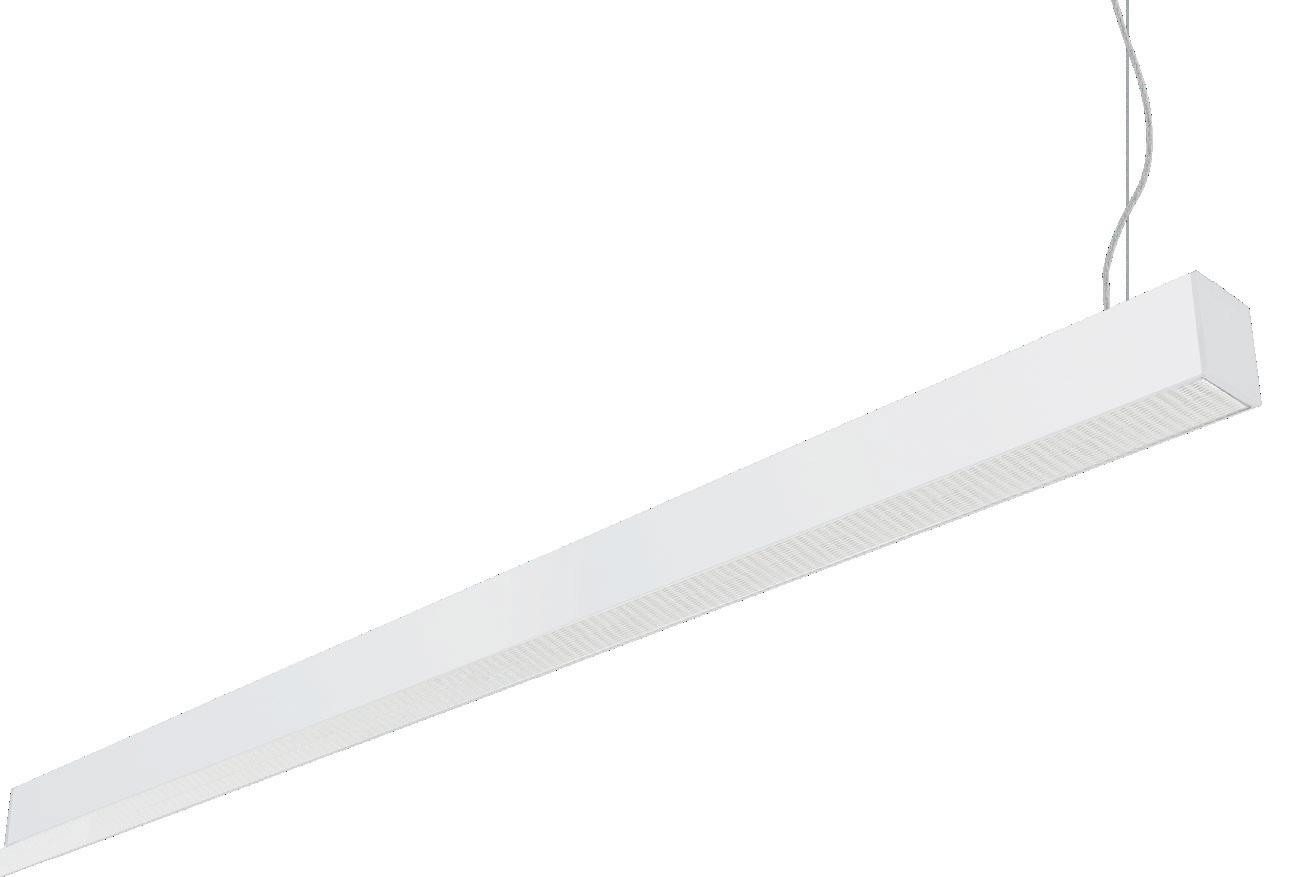

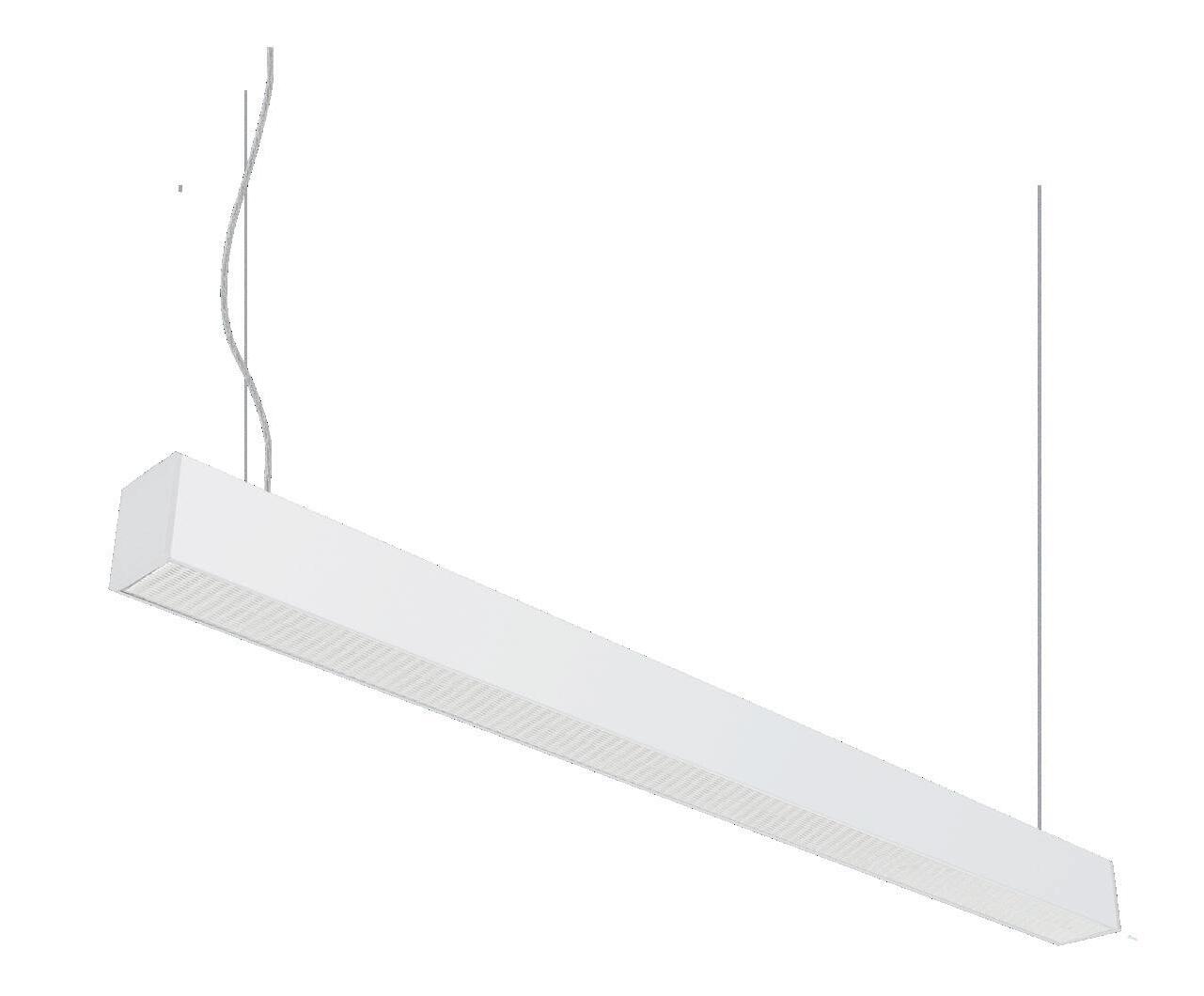

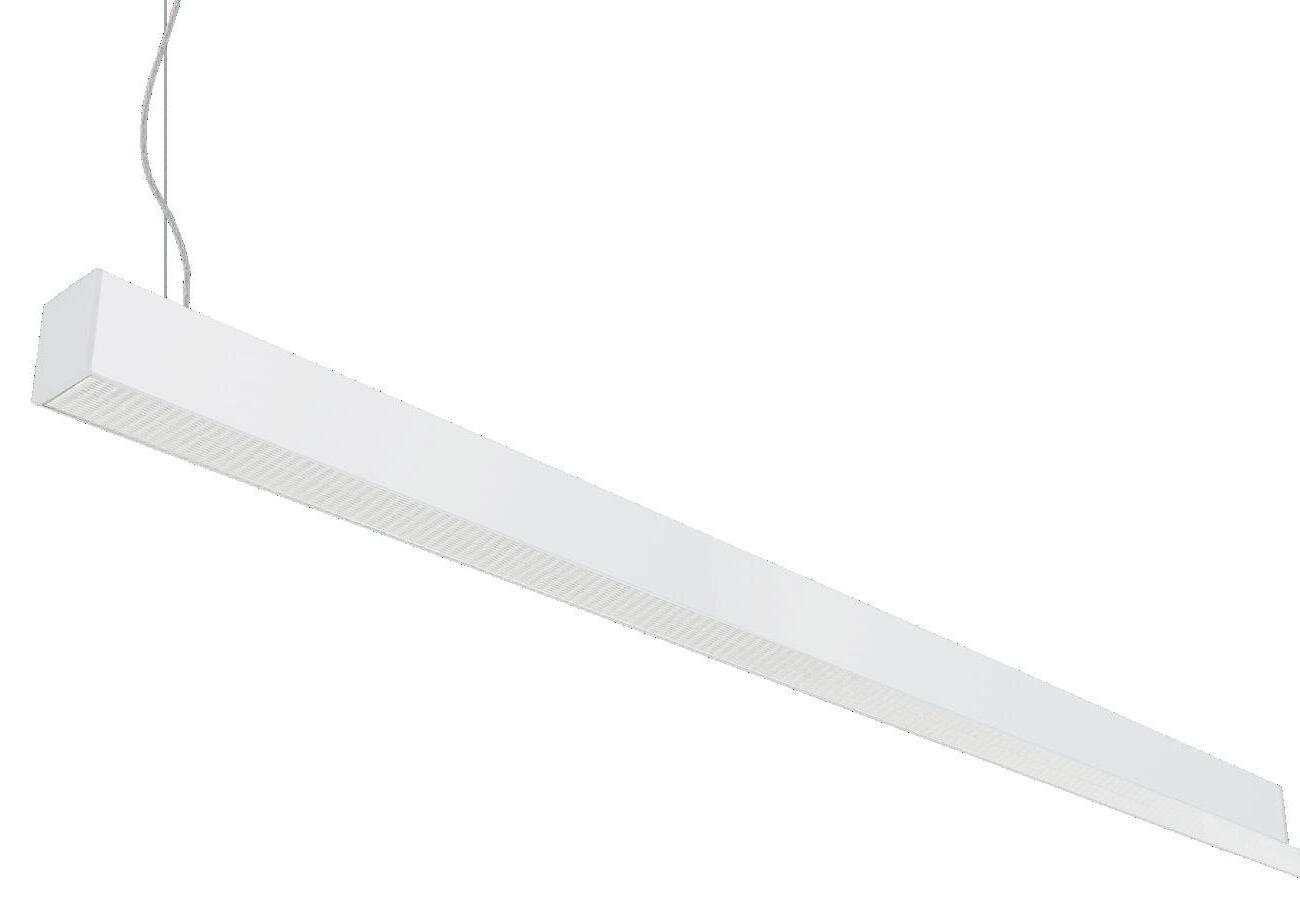

6634 Madrid - suspension - direct/indirect light - with opal diffuser
Supplied standard with separate switching

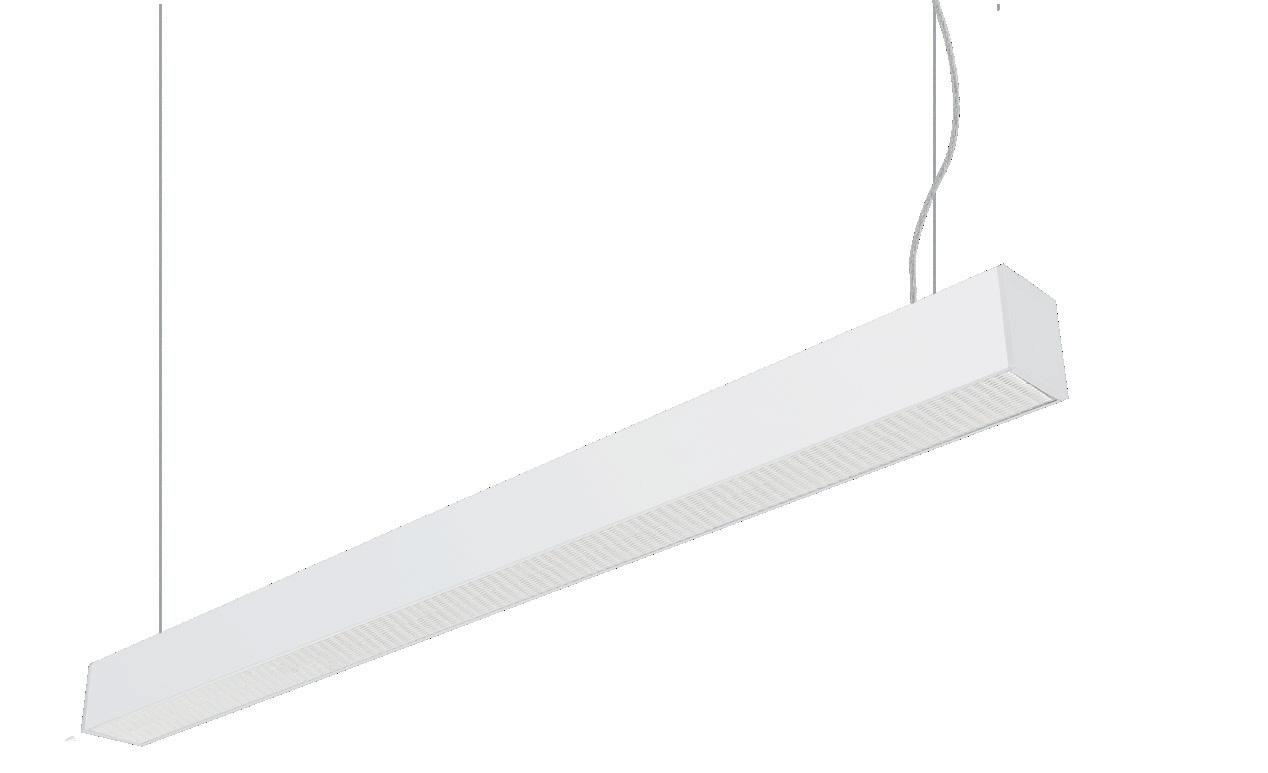

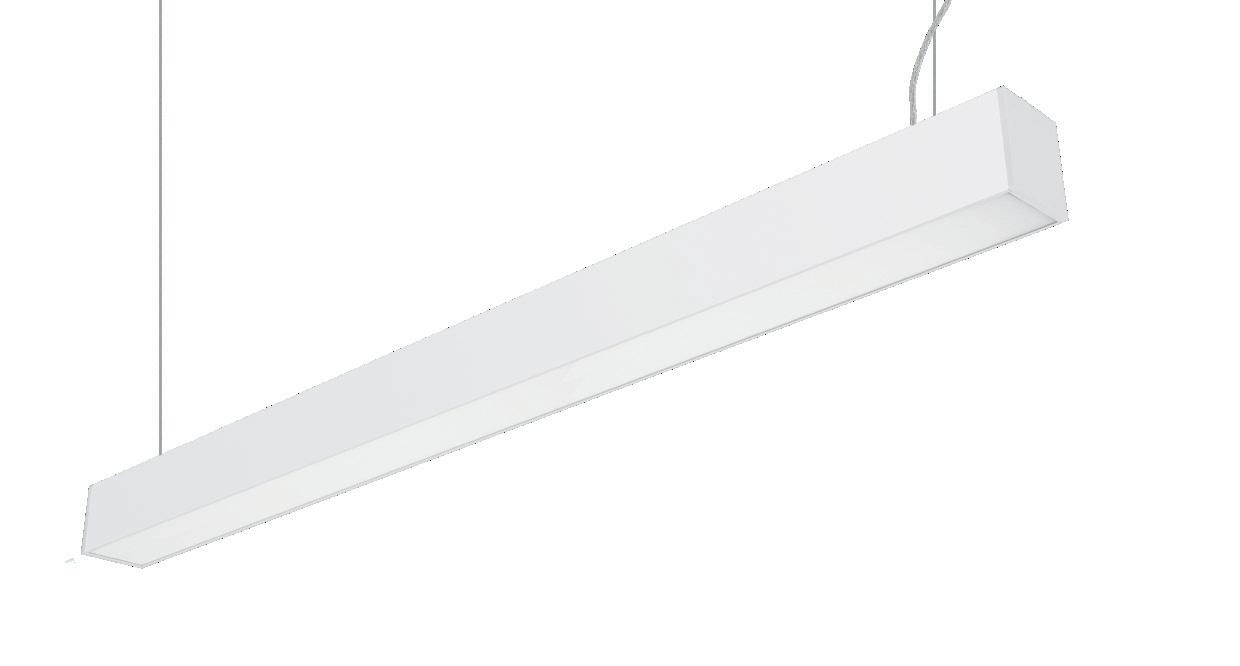

6634 Madrid - suspension - direct/indirect light - with UGR<19 prismatic diffuser
Supplied standard with separate switching function
acc. 2522
electrified suspension
3P white 994028-00
5P 998047-00
Supplied with steel wire (L = 100cm) and millimetre adjustment device and power cord. Max loading: 20Kg. 5P version for EM or DIMM DALI wiring.

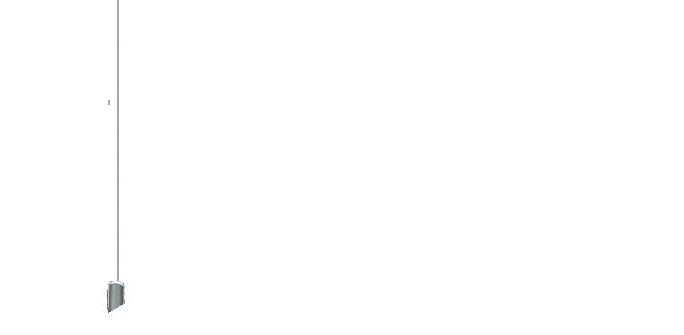

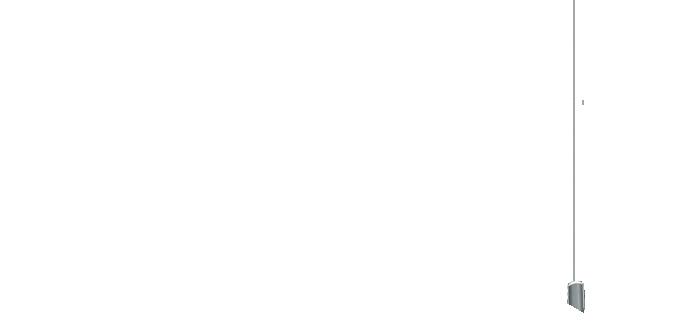

acc. 2518 simple suspension galvanized 994019-00
Supplied with steel wire (L=1,50m) and millimetre adjustment device (2pcs).
acc. 6075 junction brackets 132915-00
Utilize for the suspension/ ceiling installation in continuous line of Madrid.

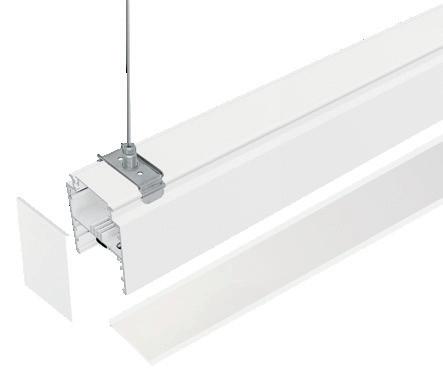

Installation sequence:
1) Insert acc. junction bracket to be purchased separately (purchase nr.2 acc. junction bracket for suspension version)
2) Pair the luminaires until they are aligned, then tighten the locking screws.
3) Screw the locking screws and lock the end cap.
acc. 6072 End cap white 132912-00
To be used to close the two terminal ends. 2pcs
Madrid “INFINITY“ with pass-through wiring with subcode -0072 to be completed with acc. opal diffuser Roll.
acc. 6076 opal diffuser L = 50m 132916-00
Opal polycarbonate roll must always be used on Madrid for continuous and uninterrupted “all light” lines. Upon request, UGR<19 prismatic roll is available.
acc. 6076 UGR<19 prismatic diffuser L = 50m 132916-00002264
UGR<19 prismatic polycarbonate roll must always be used on Madrid for continuous and uninterrupted “all light” lines.
suspension/ceiling - without
* if complete with roll diffuser
“INFINITY” light module that enables continuous and uninterrupted light lines. To be completed with:
• end cap and brackets for continuous light line
• UGR<19 prismatic polycarbonate roll diffuser ideal for installations in schools or offices with VDU terminals
• opal polycarbonate roll diffuser ideal for installations in common areas or general room such as homes, hotels, sleeping rooms...
acc. 2522 electrified suspension
3P white 994028-00 5P 998047-00 Supplied with steel wire (L = 100cm) and millimetre adjustment device and power cord. Max loading: 20Kg. 5P version for EM or DIMM DALI wiring.
2518
6075 junction brackets 132915-00 Utilize for the suspension/ ceiling installation in continuous line of Sintesi. acc. 6072 end cap white 132912-00 To be used to close the two terminal ends. 2pcs
Allows for corner connections between recessed-mounted Madrid fixtures acc. 6081 “ALL LIGHT” corner module - 4W white 132934-00
Allows Madrid recessed-mounted fixture to be installed around a corner; always use acc. 6075 to be purchased separately
“ALL LIGHT” version with lengths on request and passthrough wiring with subcode -0072 to be completed with acc. 6076 opal diffuser.
Acc. INCLUDED acc. 6076 opal diffuser L = 50m 132916-00 Opal polycarbonate roll must always be used on Madrid E for continuous and uninterrupted “all light” lines. Upon request, UGR<19 prismatic roll is available.
