Liset 2.0_NEW family-ENG by disano-fosnova

2.0

NEW GREEN GENERATION

Liset 2.0 is a linear and modular lighting system that is easily customisable and capable of offering a series of lighting solutions in any setting, including retailing, artistic and cultural spaces or in entrance lobbies and/or hospitality facilities. Compact, elegant, flexible and small, Liset 2.0 is simple to install as a recessed, ceiling, suspension or track lamp. It is available in versions with polycarbonate HE optics including dark light lamellar optics with URG<19, or with either white or black polycarbonate comfort optics and polycarbonate opal diffuser. The entire range has latest generation 3000K/4000K LED sources with 80 CRI, making these products easy to fit into any lighting design project.

Housing: made of extruded aluminium.

Terminal ends: in die-cast aluminium.

Standard: 3000K and 4000K.

ON-OFF wiring and DALI digital dimmable. Low Flicker.

LED: luminous flux maintenance 80%: 50.000h (L80B20).

Power factor: ≥0,92.

Photobiological safety class: exempt group.

The new frontier of human centric lighting

The new LED lighting fixtures have features that allow artificial lights to mimic the quality of natural light, and have the necessary amount of light to allow us to complete, as best as possible, different work and study activities, as well as create a pleasant environment where lights can follow the natural trend of daylight. Designers who follow the principles of Human Centric Lighting using the new LED fixtures will achieve:

Efficient light control

The possibility to adjust lights via more accurate and programmable control systems can dim lights during the day in order to reproduce the rhythm of outdoor light or automatically adjust them to the amount of daylight. Moreover, it is possible to choose the best amount of light for a certain type of activity, whether it is reading, working at the PC or a business meeting.

Greater amount of light

LED sources cut down energy costs while achieving a high luminous flux in accordance with sustainable consumption patterns.

Improved light quality

The new sources combine high colour rendering and correct light distribution, guaranteeing maximum visual comfort; while anti-glare optics and the low-flicker sources protect human eyesight.

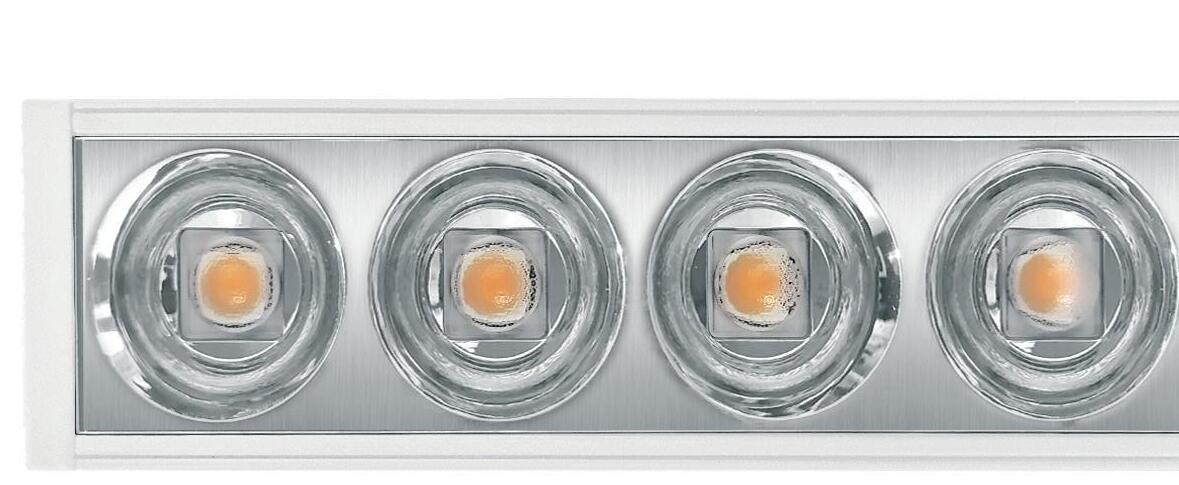

High-efficiency polycarbonate optics with very low glare coefficient, resistant to high temperature and UV radiation.

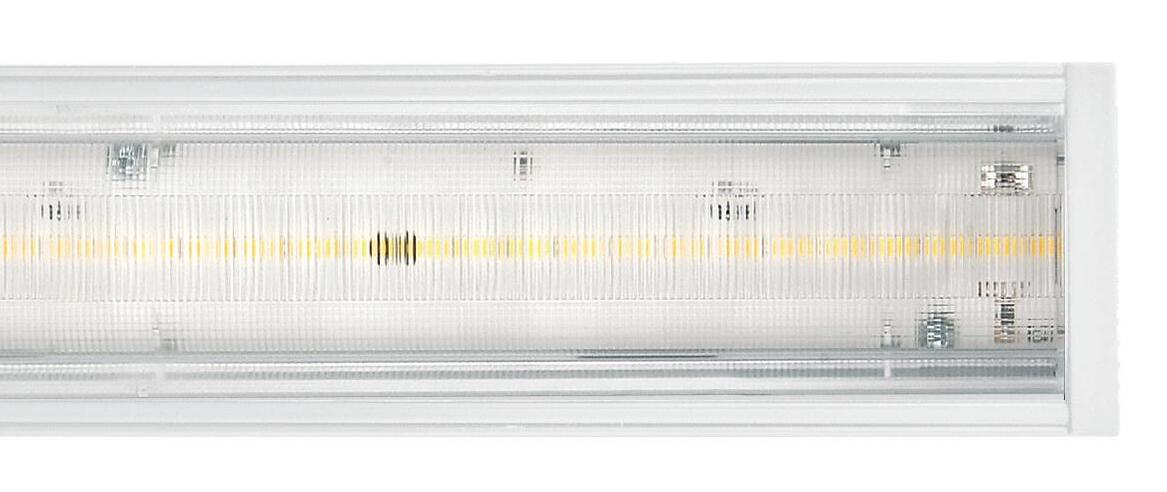

Diffuser in opal polycarbonate, anti-glare, shatterproof and self-extinguishing V2 polycarbonate, UV-stabilised.

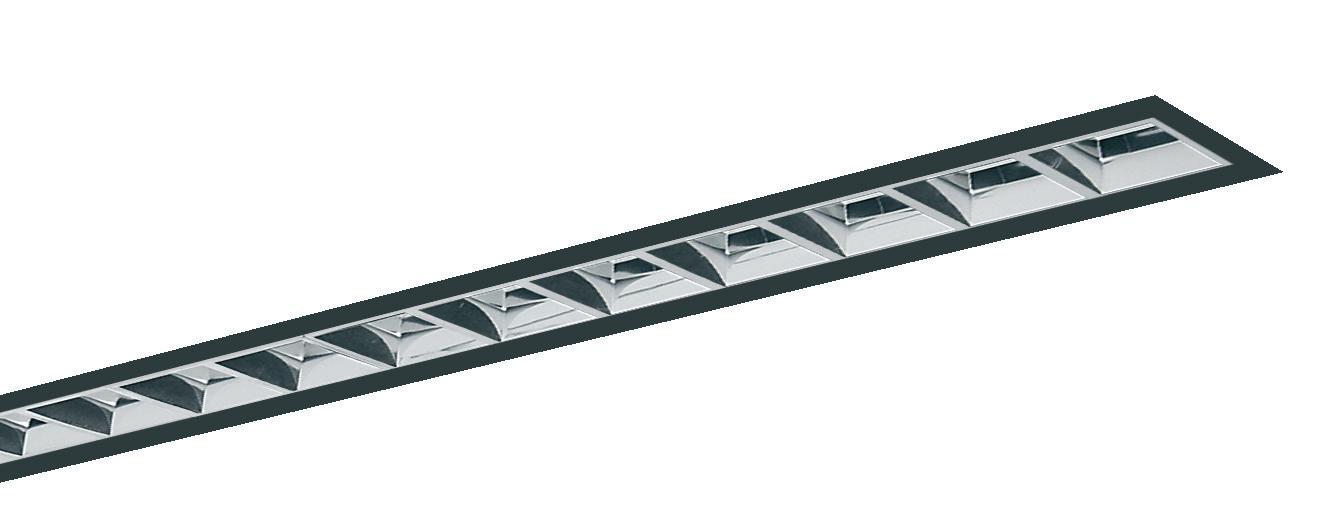

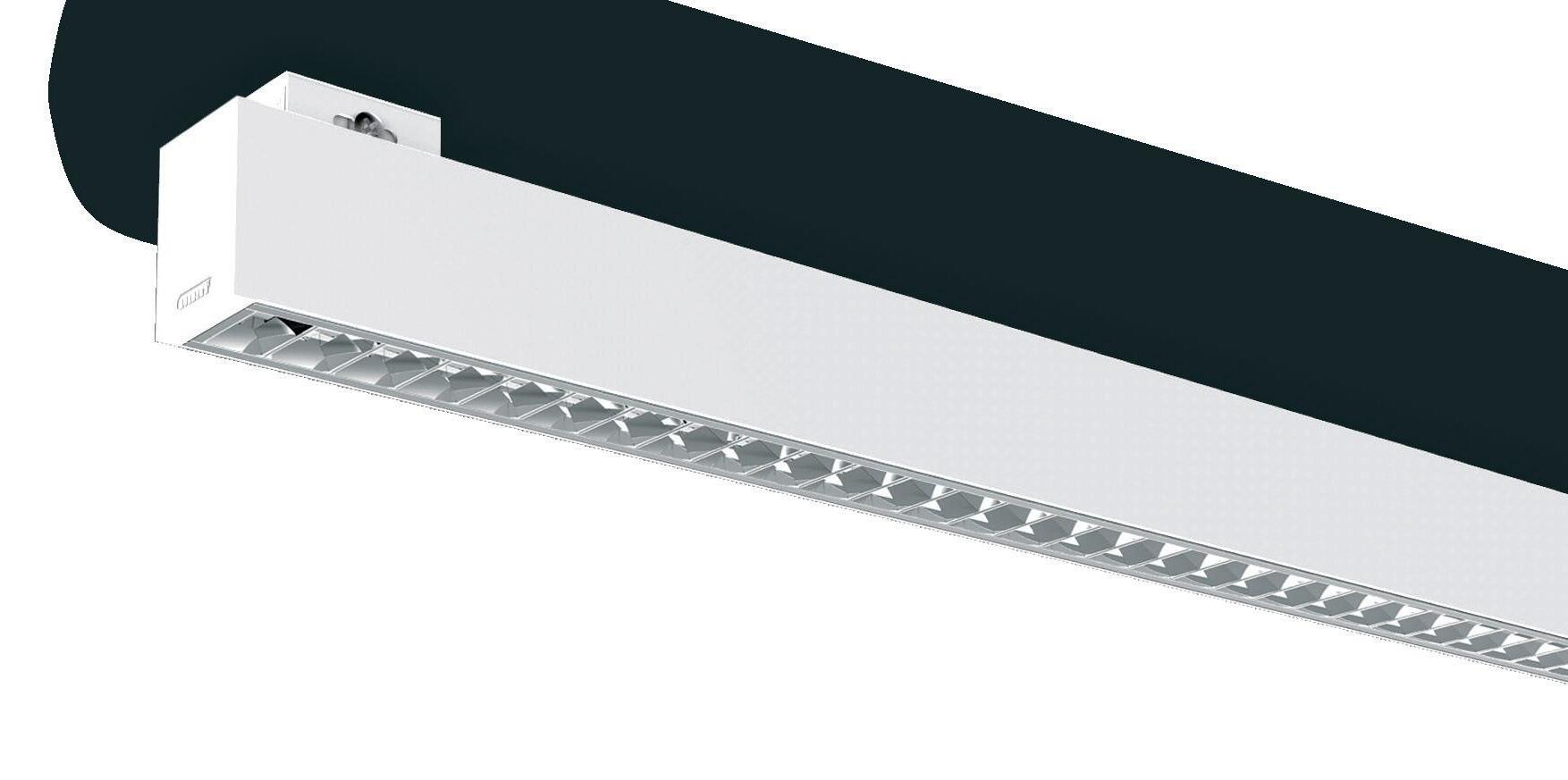

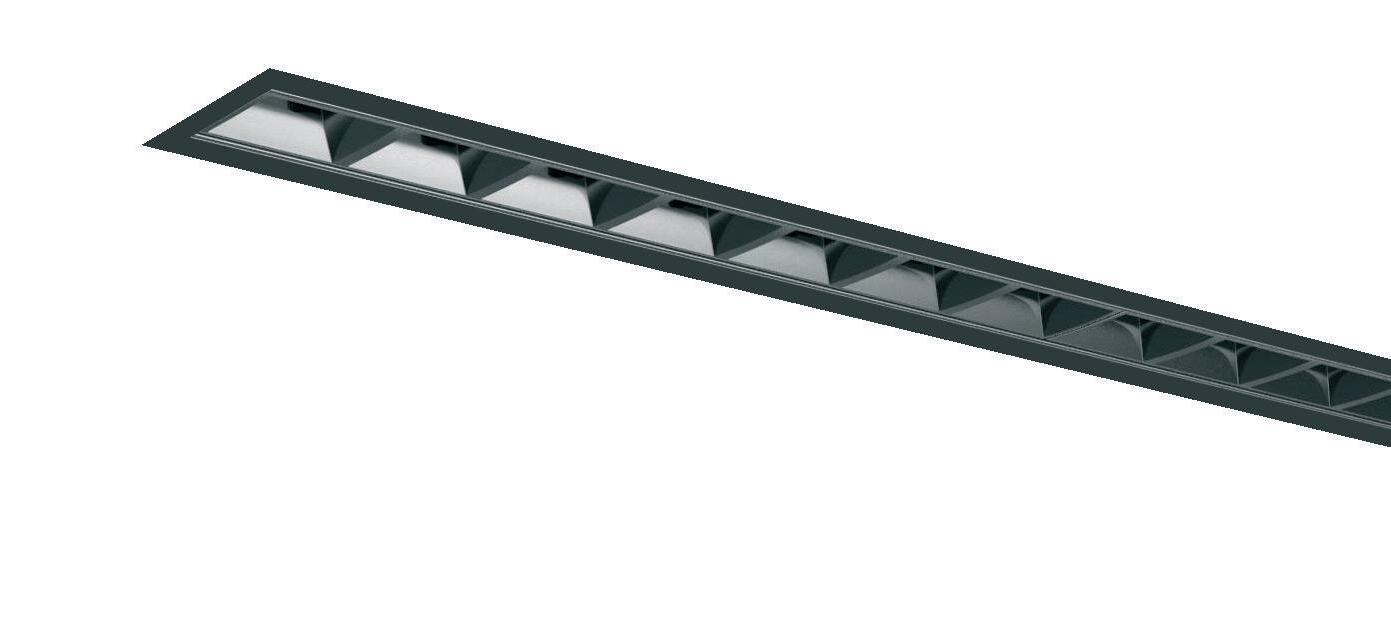

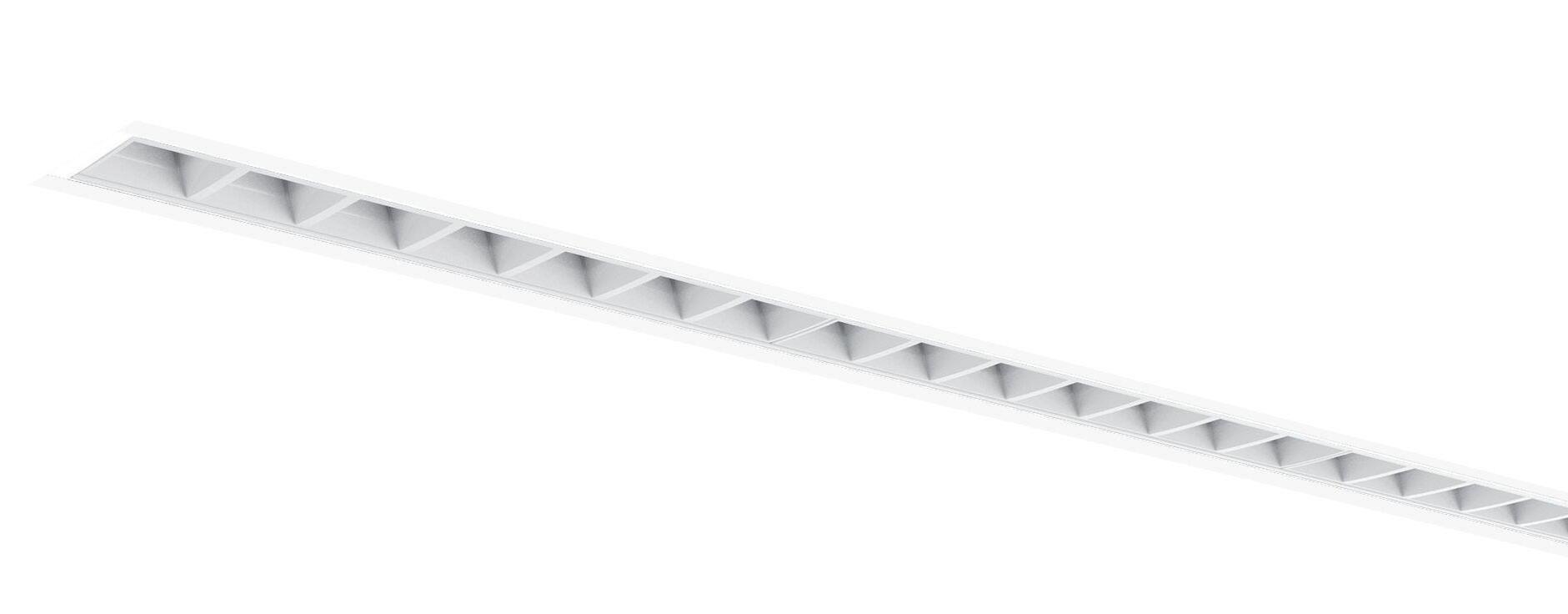

Dark light louvre: double parabolic louvres, in high-gloss 99.99 aluminium, anti-glare and anti-iridescence, very low luminance with PVD treatment.

Dark comfort optics: in metallized anti-glare polycarbonate for improved visual comfort.

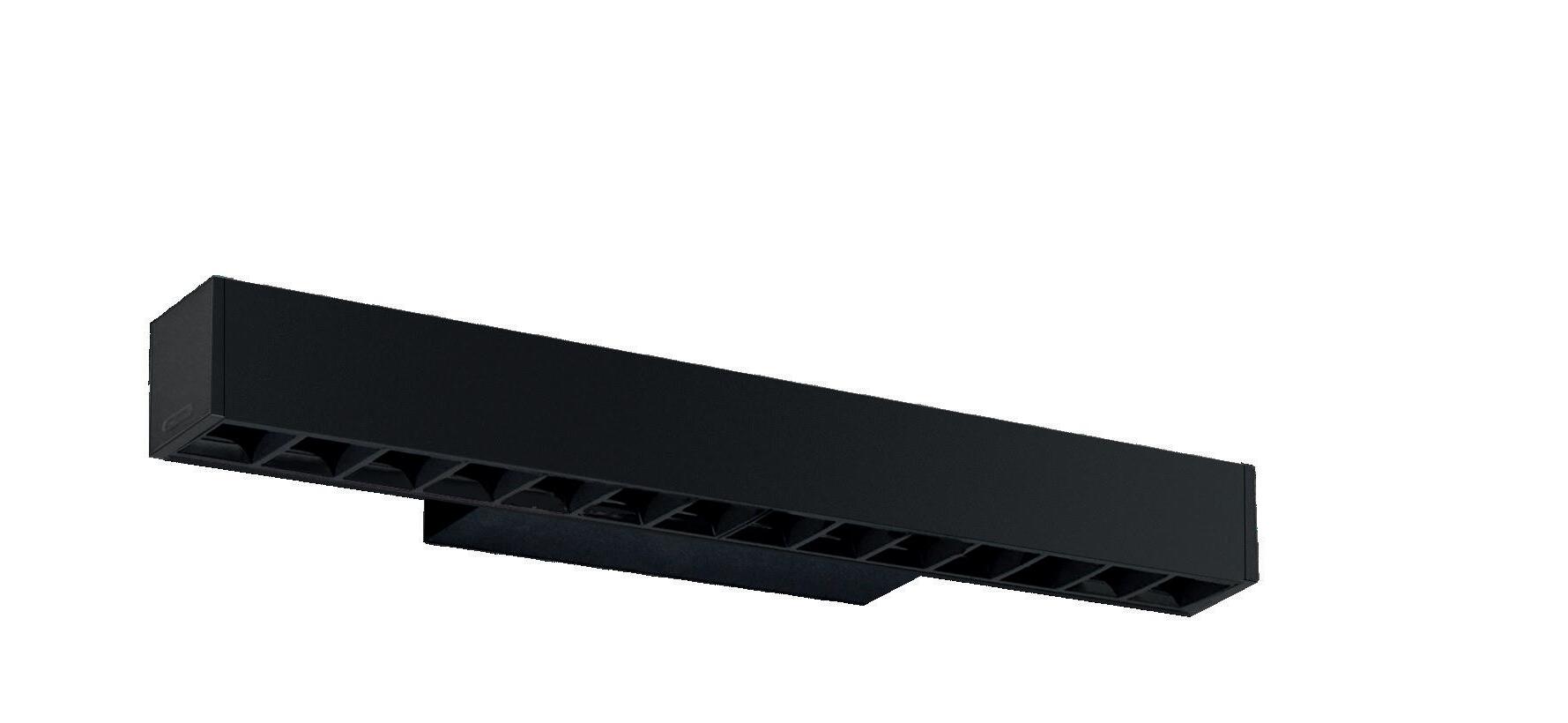

Comfort optics: in black anti-glare polycarbonate for improved visual comfort (the white colour version is available upon request).

Upon request

UGR<16

UGR

Is the international unified glare rating developed by the CIE (International Commission on Illumination), to assess the direct glare deriving from a lighting system.

The UNI-EN 12464-1 standard regarding the lighting of indoor workplaces requires a specific UGR value for each application, ranging between 10 and 30. The lower the value, the lower the glare.

The exact value of this rate is to be calculated with a lighting design test, as it depends on the arrangement of the lighting fixtures, on the features of the room (dimensions, reflections) and on the angle of observation (to be verified through a lighting project).

No or minimal glare

Very demanding applications (technical drawings)

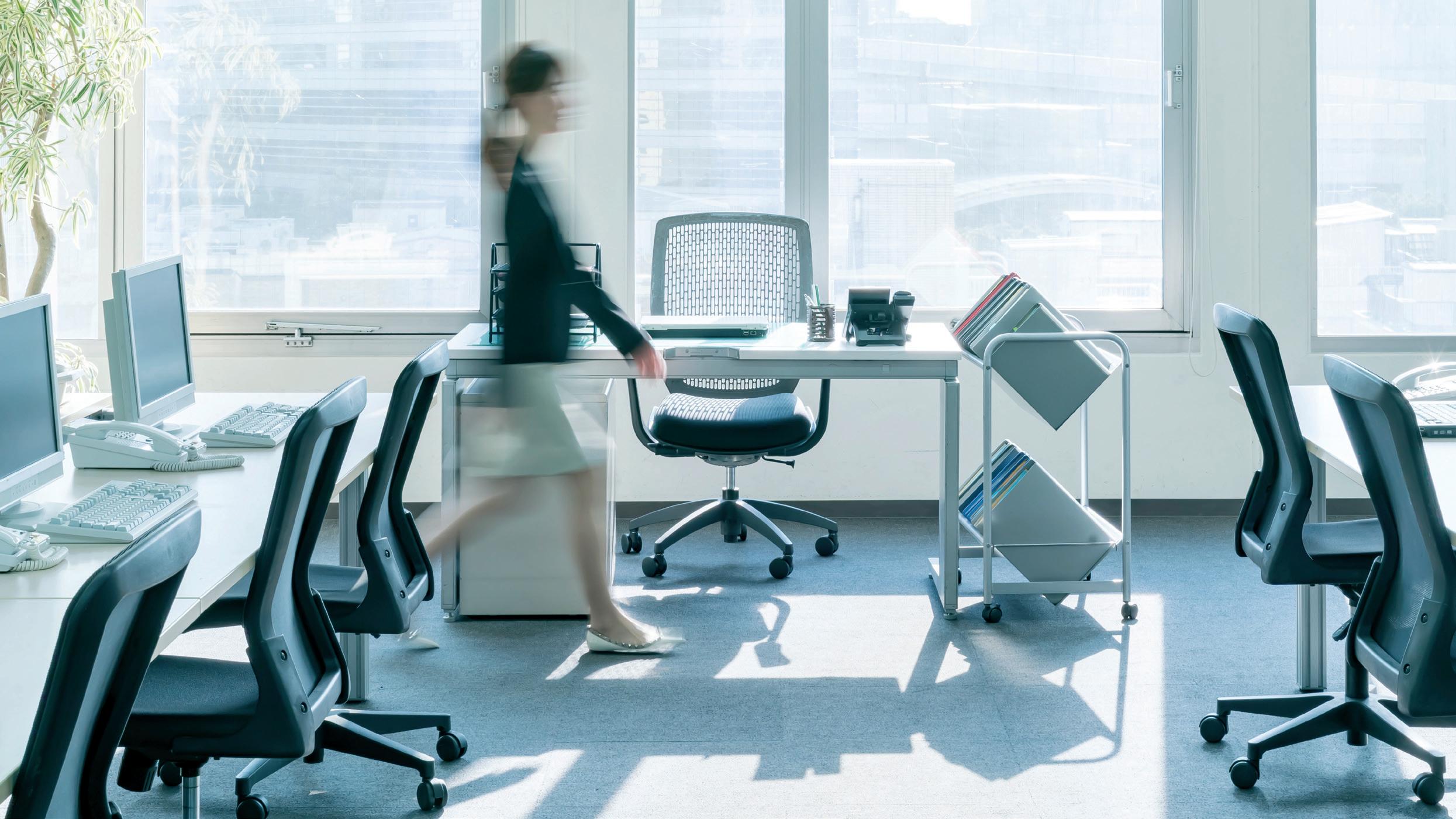

Offices and schools: reading, writing, meetings, computer work

Industrial applications

Transit areas (applications without special needs)

Low Flicker

Do you want to avoid headaches or eye strain?

All Liset 2.0 luminaires have low flicker (< 5%) for safe and comfortable lighting. Prolonged exposure to high flicker frequencies (between 70 and 160 Hz) can cause discomfort, headaches, eye strain and impaired visual performance.

Colour Quality - CRI

Indicates how the artificial source can reproduce the colour of an illuminated object. It is a scale from 0 to 100, where 0 represents the lowest accuracy and 100 is the maximum accuracy. Daylight is the best source of light from the physiological point of view thanks to the completeness of its colour spectrum. This is why the choice of fixtures with a high colour index is very important to enhance people’s sense of wellbeing and comfort, and it is particularly needed in rooms where a faithful reproduction of colours is required.

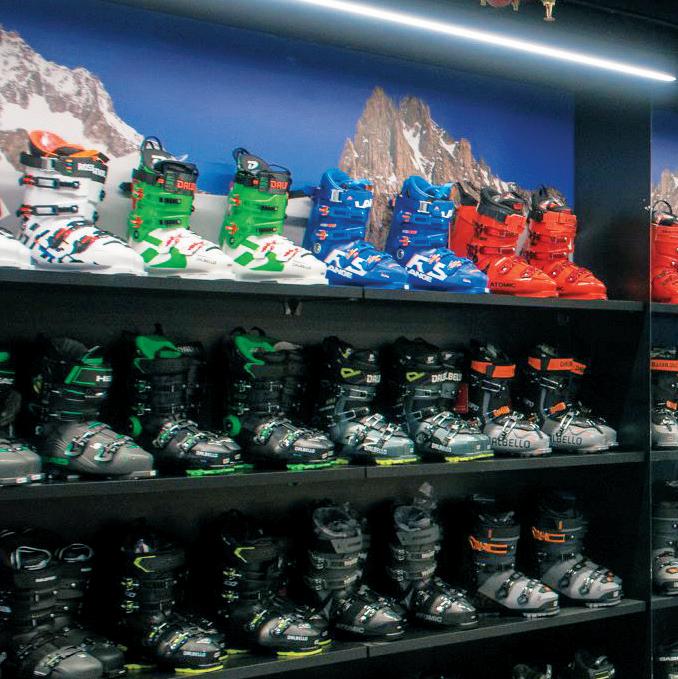

Whether it’s for indoor, public or private offices, commercial or industrial spaces, Fosnova offers a WIDE RANGE OF LIGHTING MANAGEMENT SOLUTIONS that can help increase energy savings, visual comfort and safety.

MEDIUM SOLUTION

CABLED solutions for DALI dimmable fixtures:

Push DIMM

• The lighting fixture is equipped with a DALI PUSH DIM LED driver

• Simple additional cabling and possibility to use a standard NO switch

Presence sensor

ADVANCED SOLUTION

High-tech WIRELESS solutions to be managed via app:

Basic DIM ActiveAhead

• System equipped with smart sensors with high level of automation

• Easy-to-use app and software that do not require skills from spe cialists

(e.g. DALI commissioning or software engineer)

• Built-in or external sensors and, if requested, additional cabling that does not equire complex circuitry

available soon

CASAMBI VOICE:

an innovative interface to control DALI devices at the same time using the CASAMBI app through Bluetooth and voice control using assistants, such as AMAZON ALEXA/GOOGLE HOME/MATTER through Wi-Fi. CASAMBI and AMAZON ALEXA/GOOGLE HOME/MATTER are independent systems that are designed to communicate with and update each other.

High-tech WIRELESS solutions managed via app

Upon request: versions with Casambi advanced lighting control solution are available

Casambi is an advanced automation lighting control system that offers the simplest and most natural way to control your lamps.It is based on the Bluetooth Low Energy (BLE) wireless technology that allows you to control and automate individual or groups of lighting fixtures via a simple and intuitive app directly from your smartphone or mobile device. The Casambi technology can be integrated into luminaires, LED drivers and even within LED modules or bulbs, creating an optimal solution in terms of easy installation and functionality with minimal additional hardware and low costs.

App and features

With Casambi, lighting can be controlled via smartphones, tablets, smart watches, push buttons, switches or wireless controllers. To access all the functionalities of the Casambi network an app is needed. The app can be downloaded for free from Apple App Store or Google Play Store be entering Casambi. The Casambi app is continuously update to maintain compatibility with operating systems. It can:

• Turn lights on/off

• Dim lights

• Dim groups of lights or turn them on/off

• Configure, save and recall light scenes

• Configure, save and recall light animations

• Fade time adjustments for light scenes and animations

• Control light scenes and animation via a timer

• Adjust light colours

• Adjust colour temperatures

• Use motion sensors

• Bluetooth signal strength for geo-localization

• Take pictures of your spaces or upload your lighting layout drawings

• Add lighting control directly to your pictures

• Take sunrise and sunset into account while defining timers

• Get status information from the system

• Receive latest firmware updates over-the-air

• Receive latest system functionality updates over-the-air

• Request support via the app

Shapes in freedom! p. 14

Suspension: p. 24

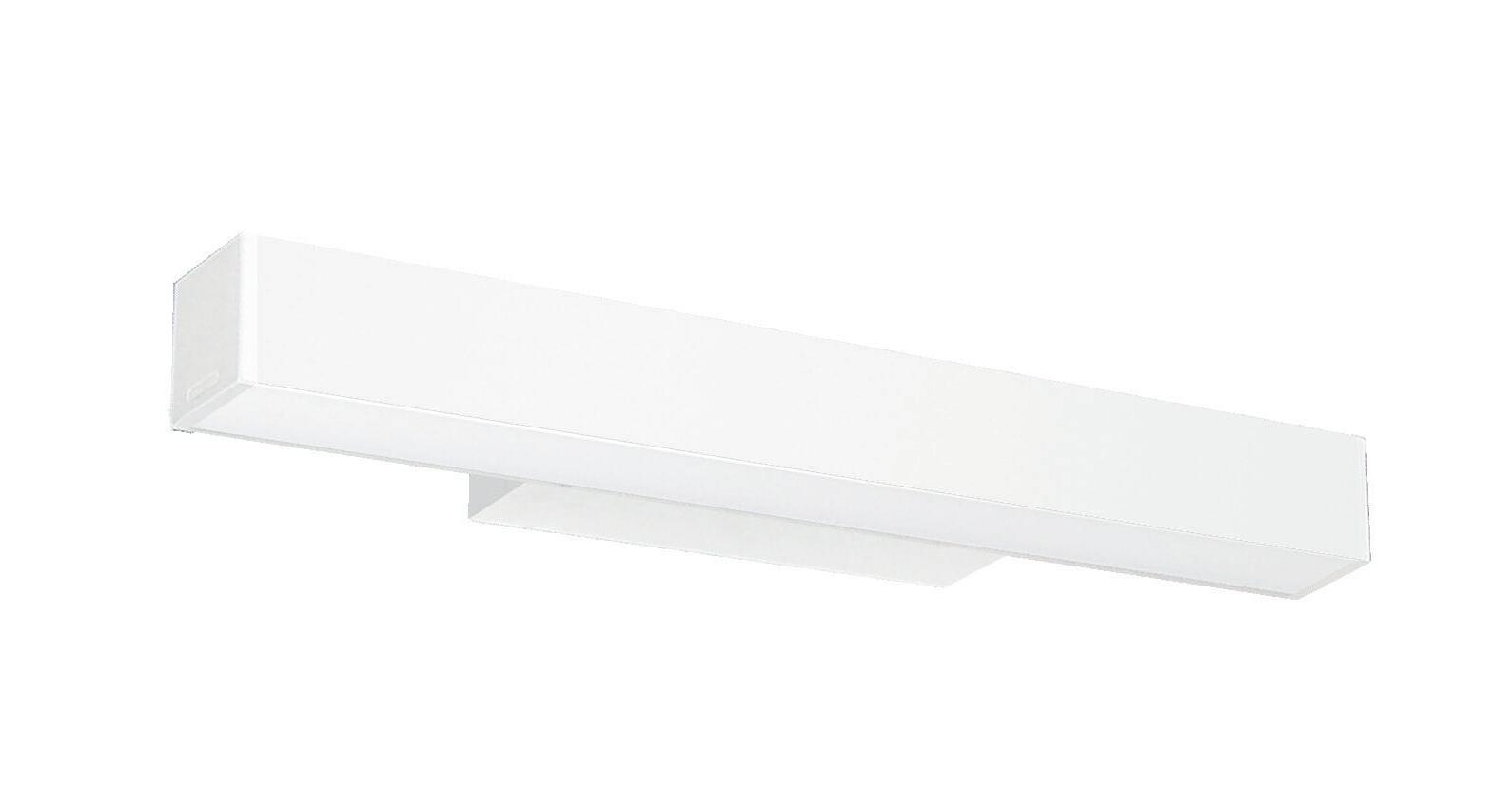

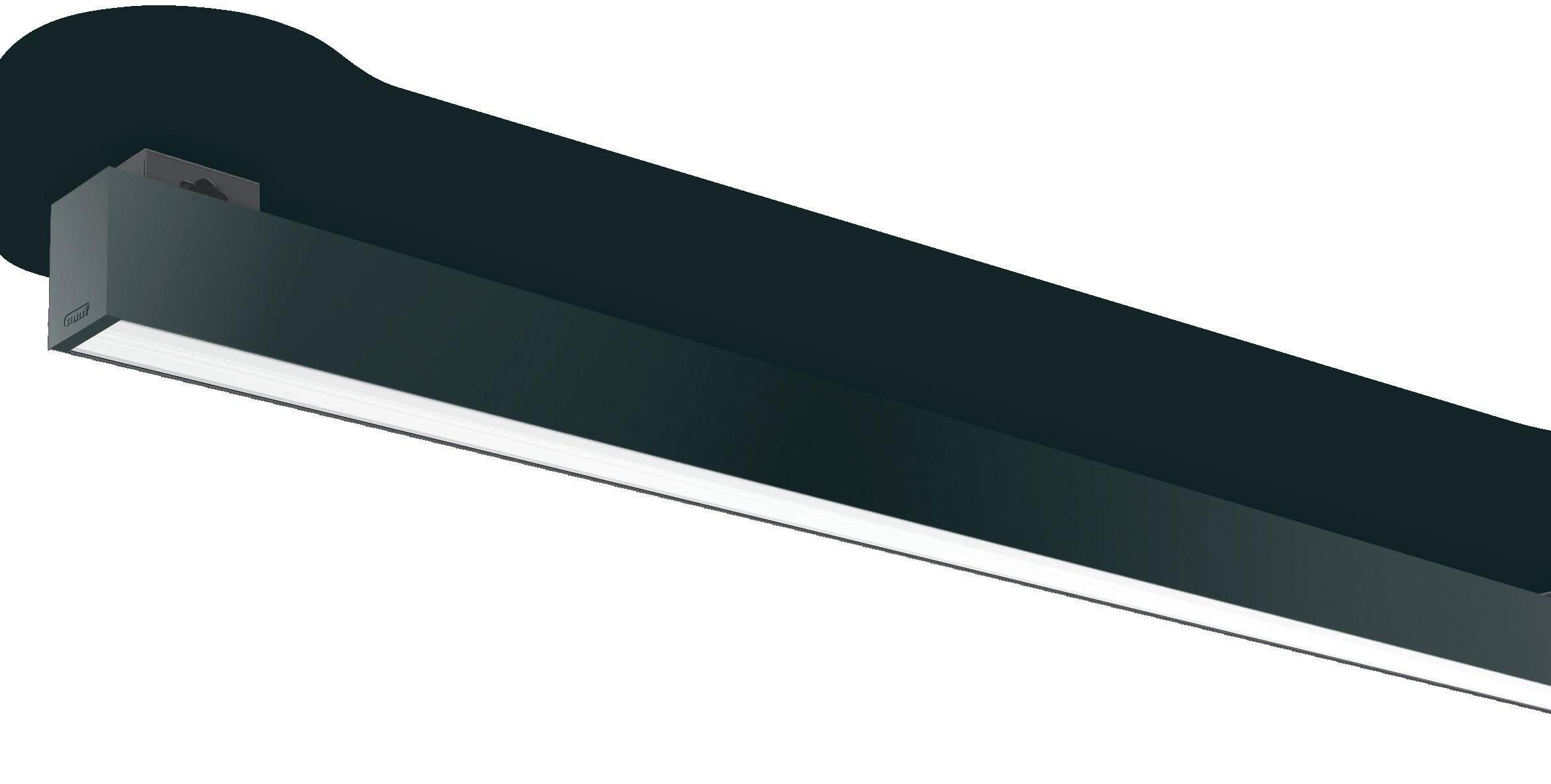

Ceiling/wall: p. 44

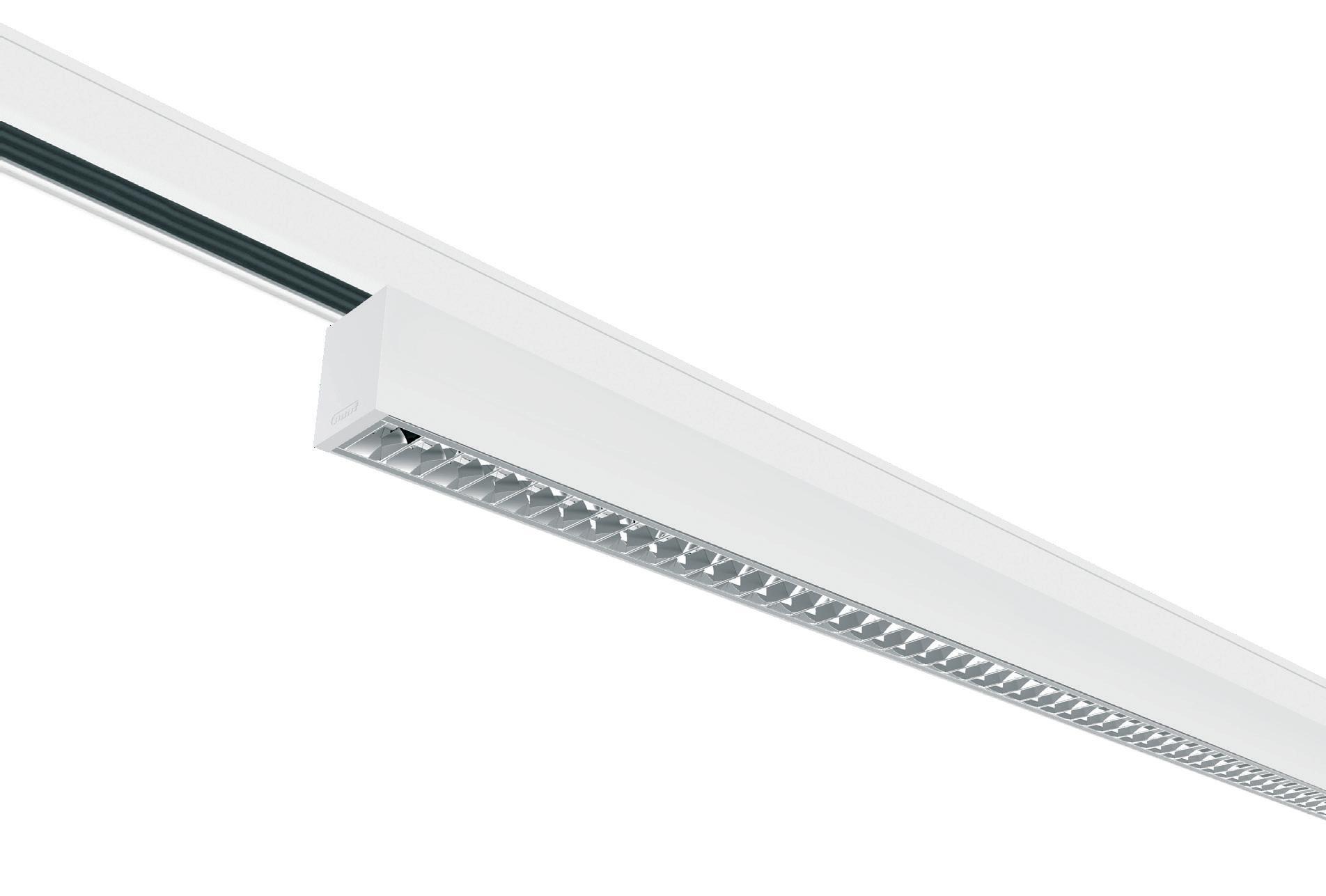

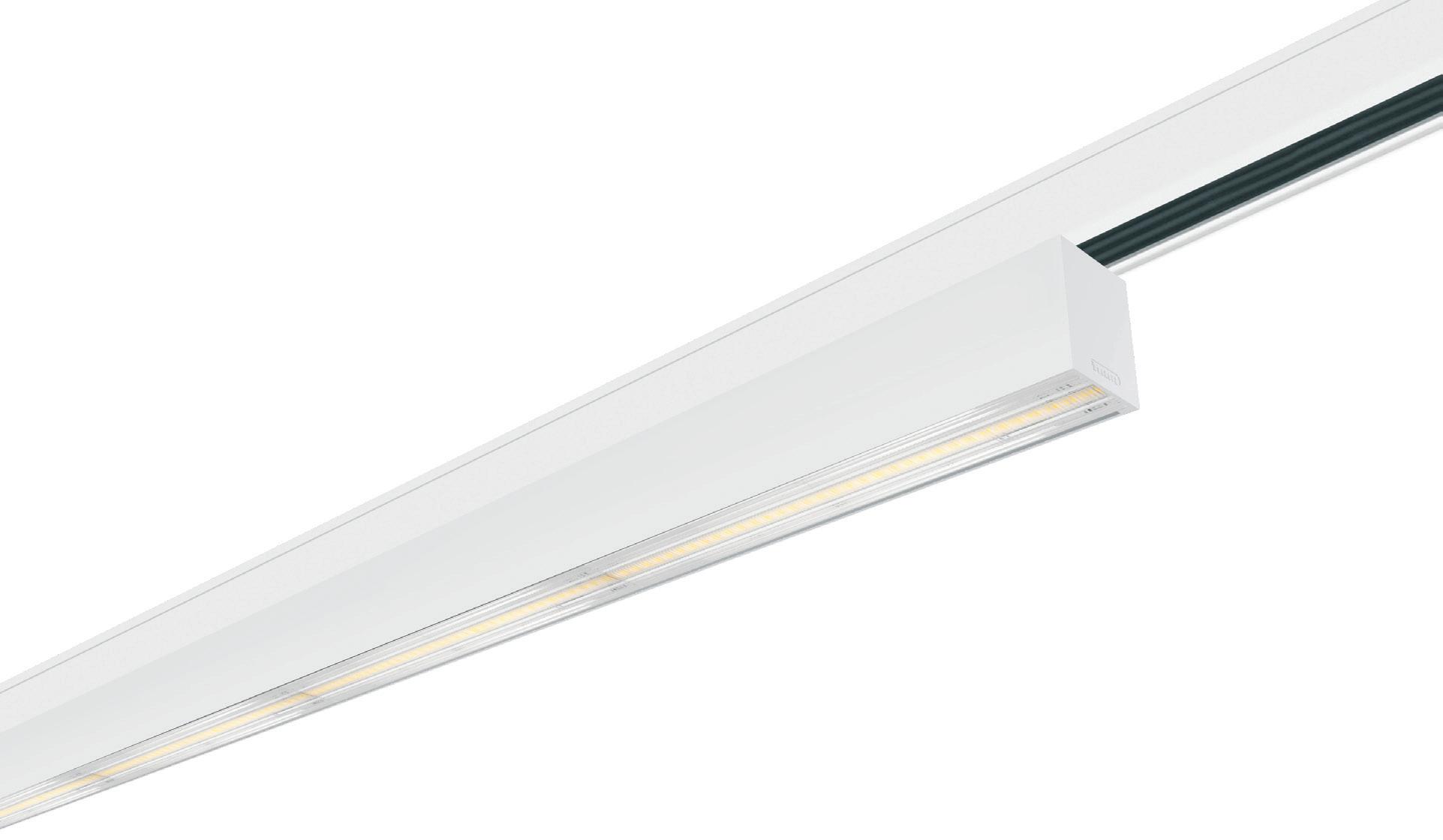

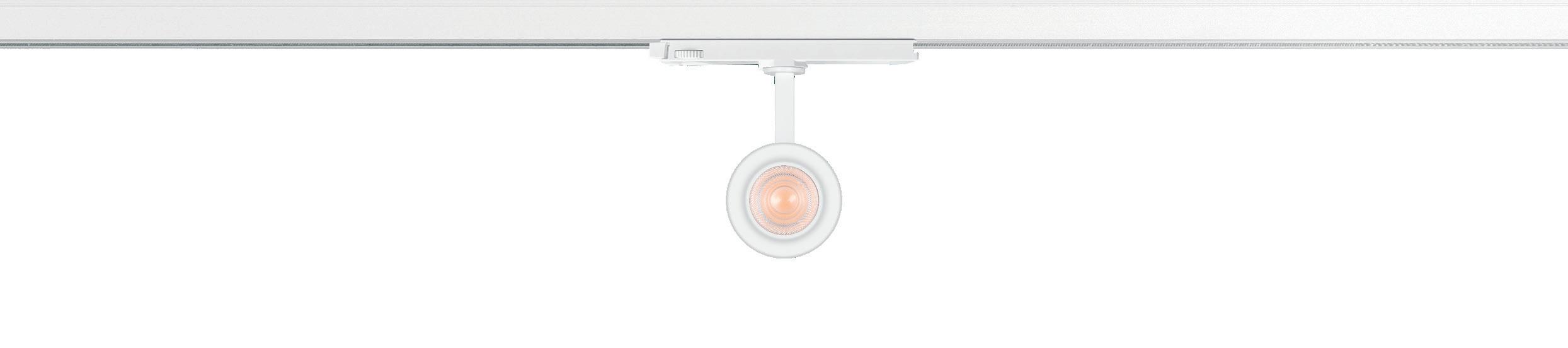

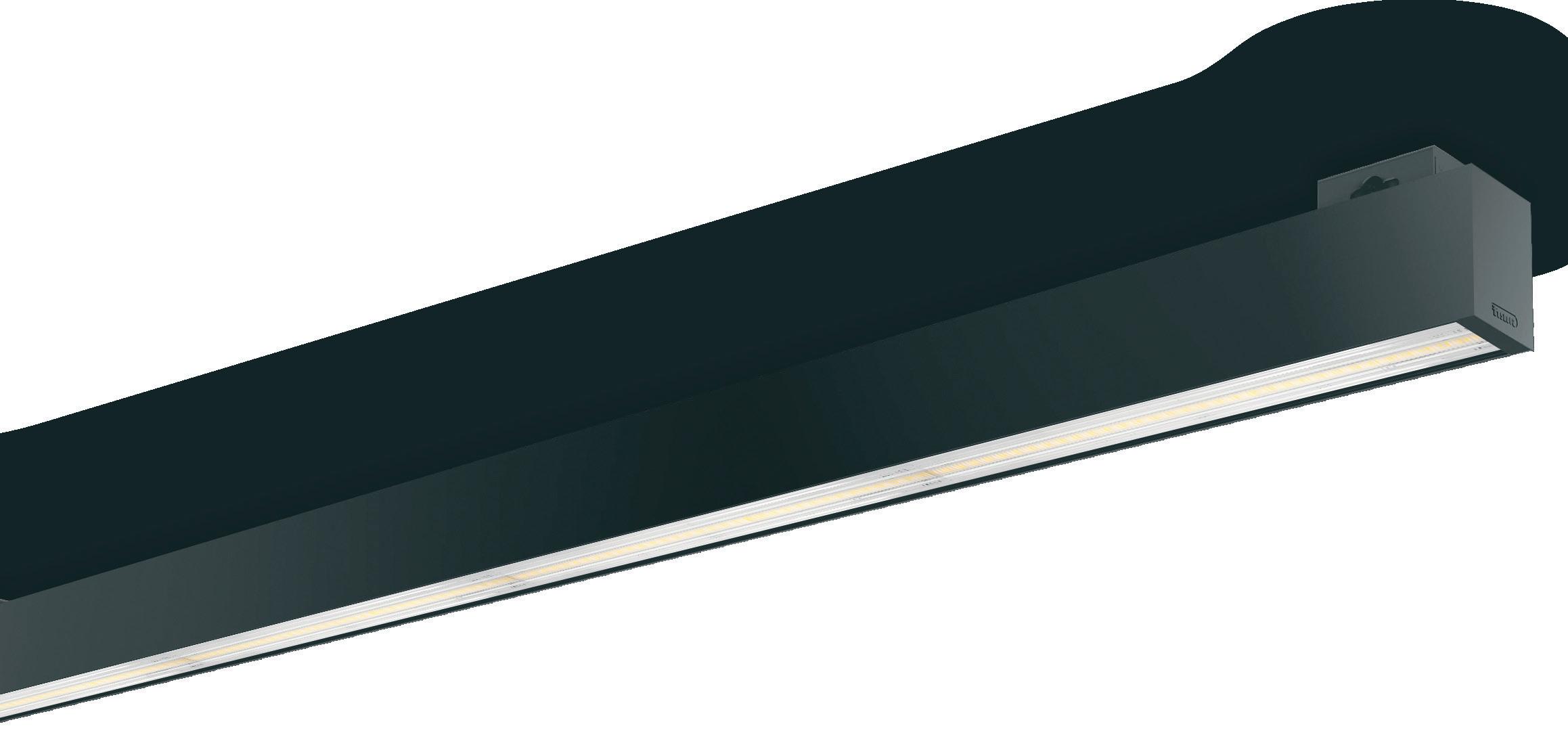

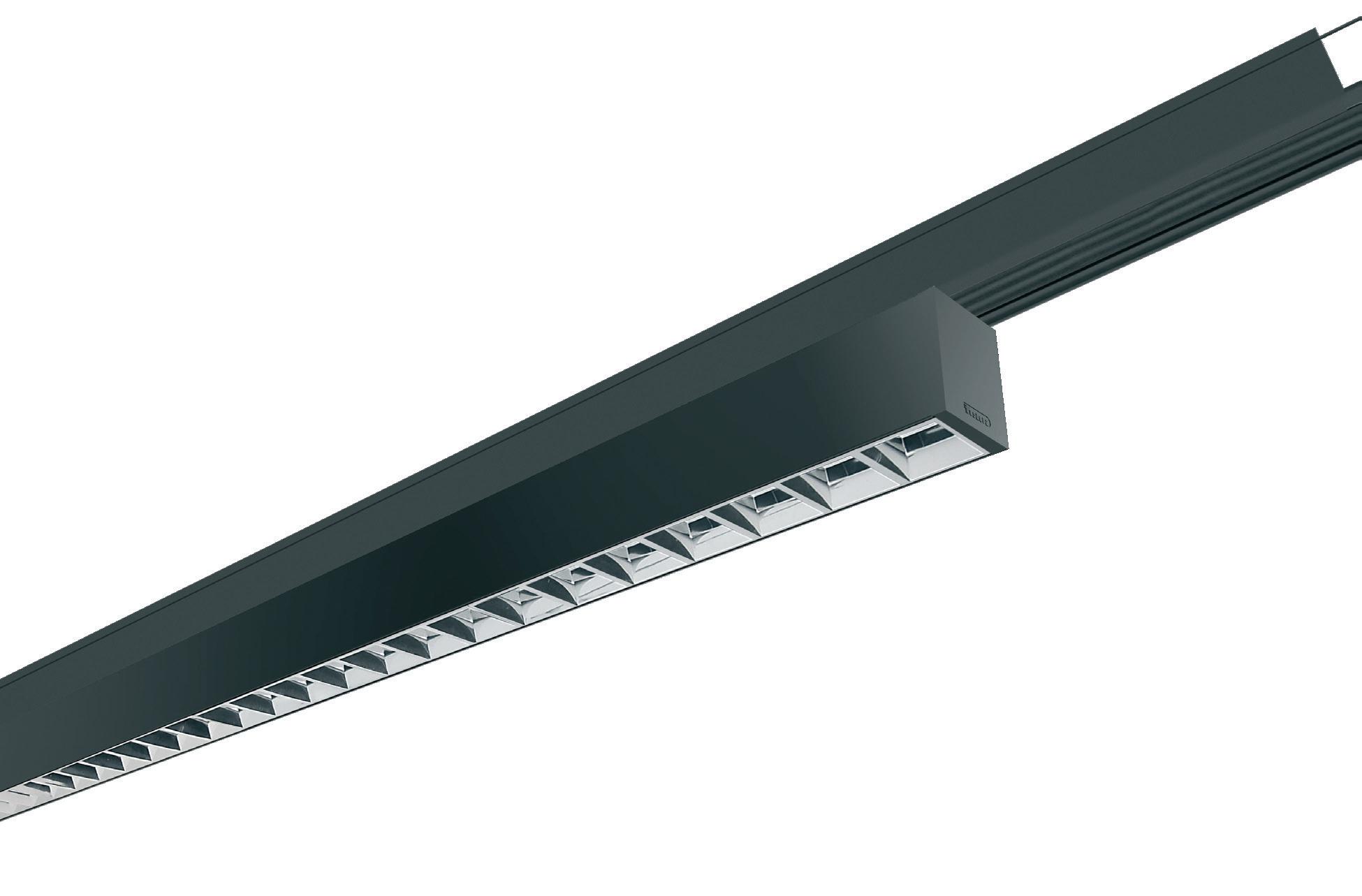

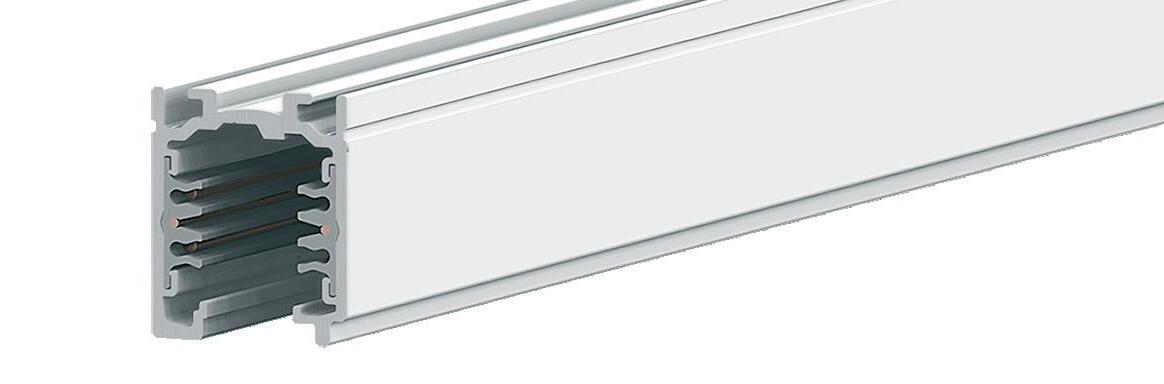

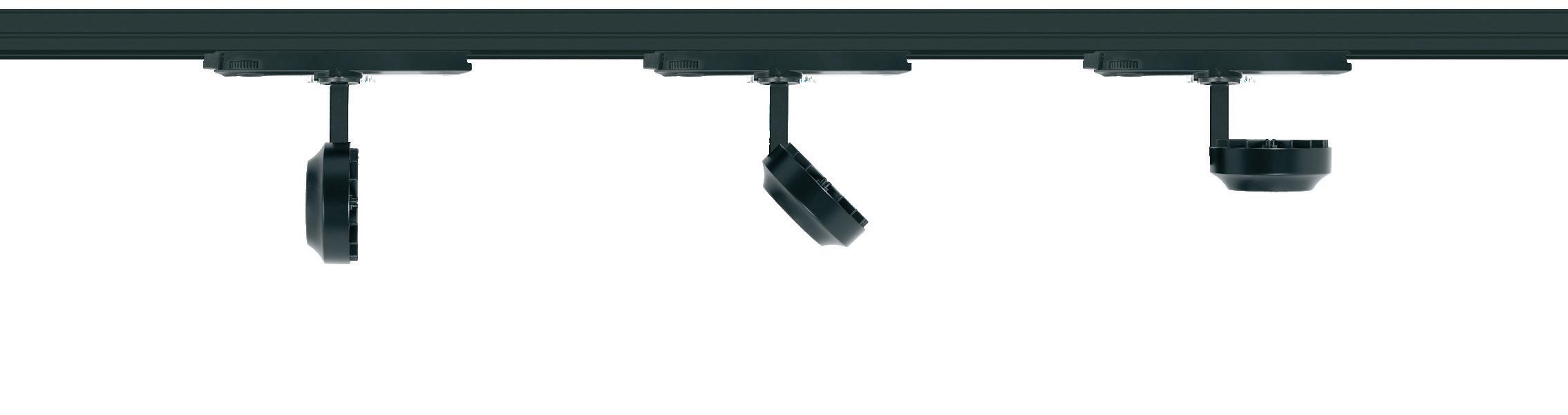

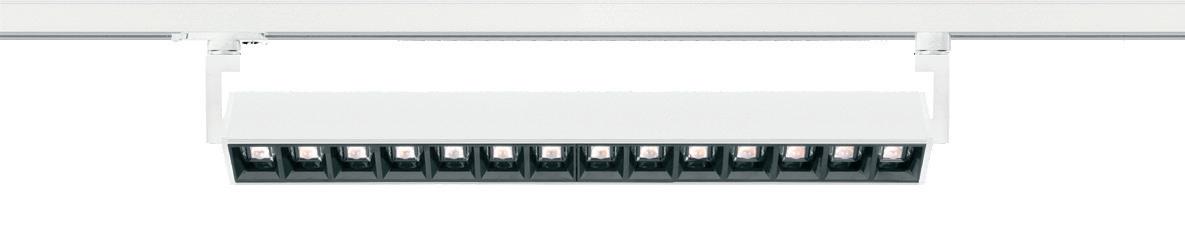

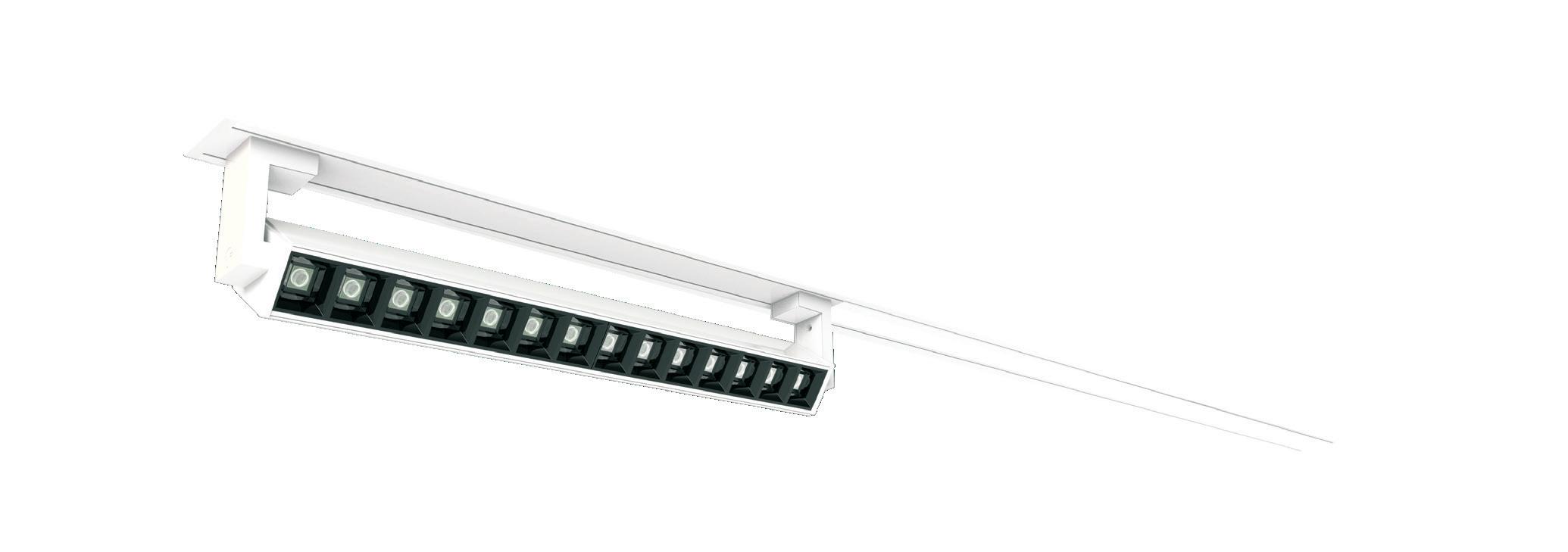

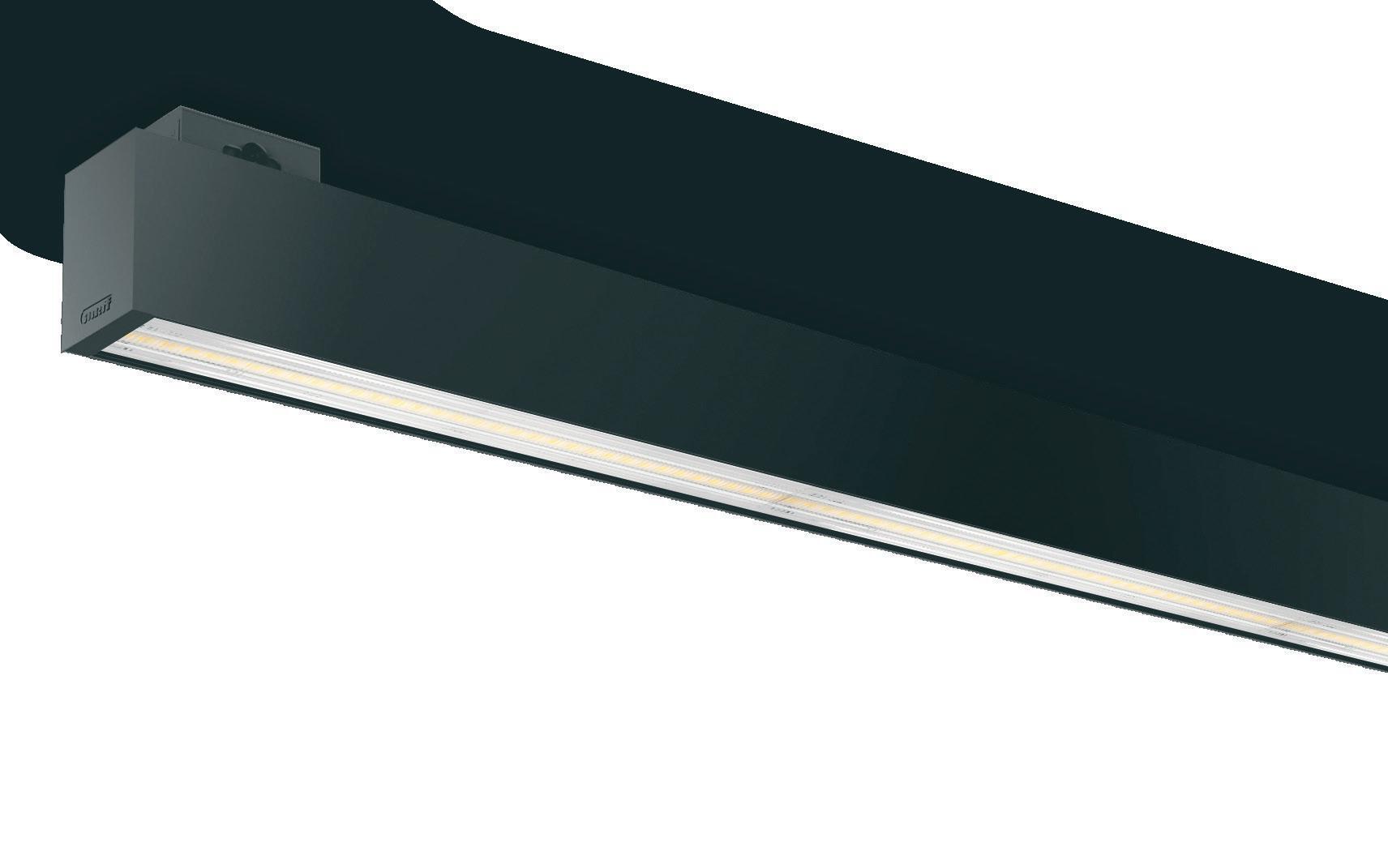

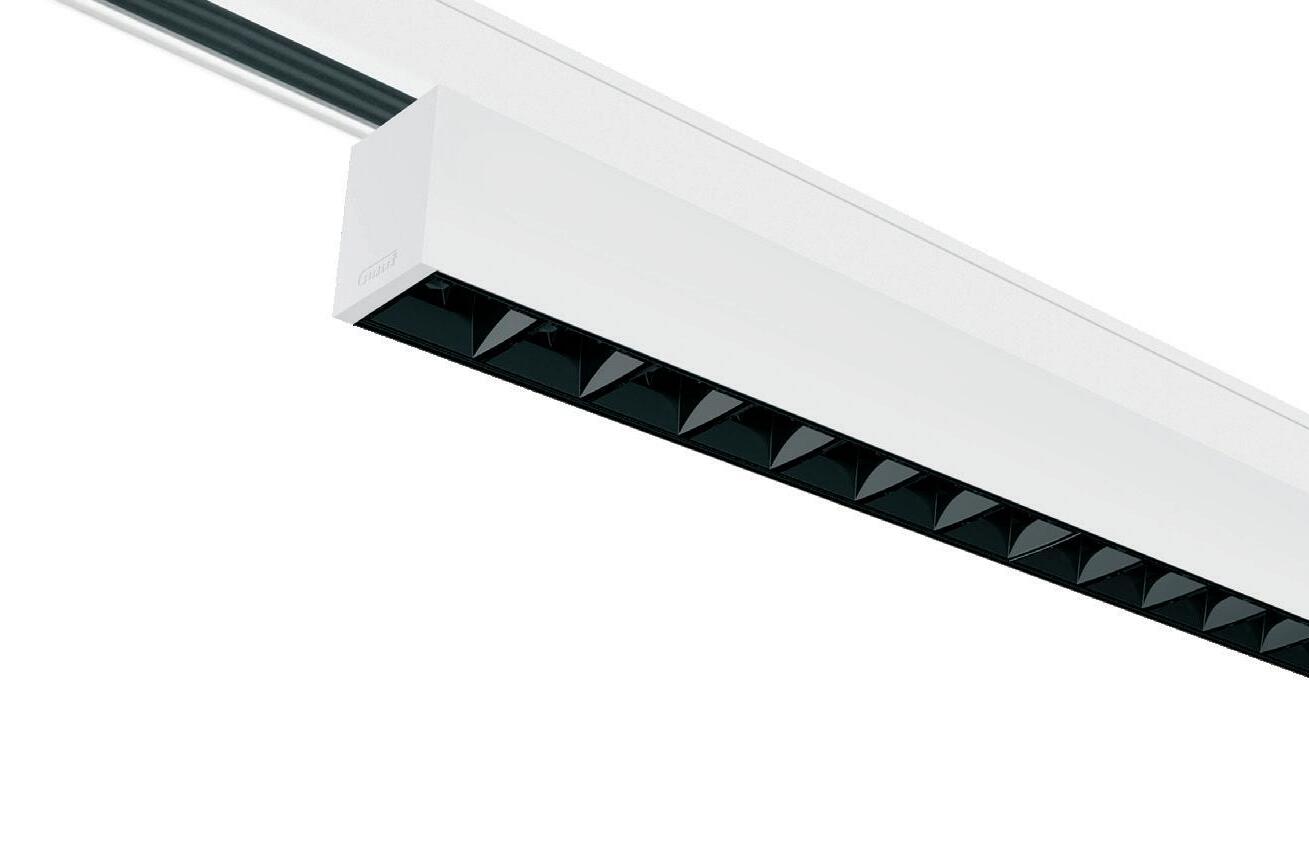

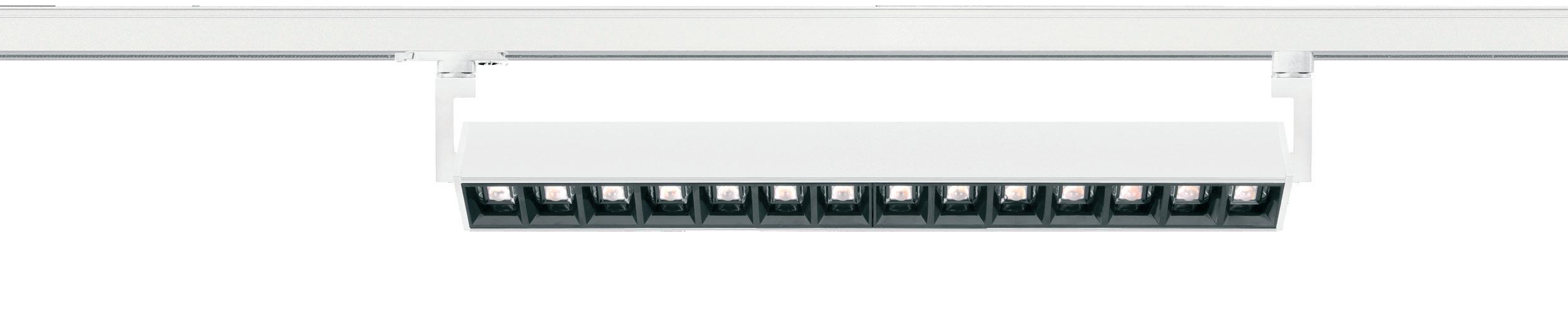

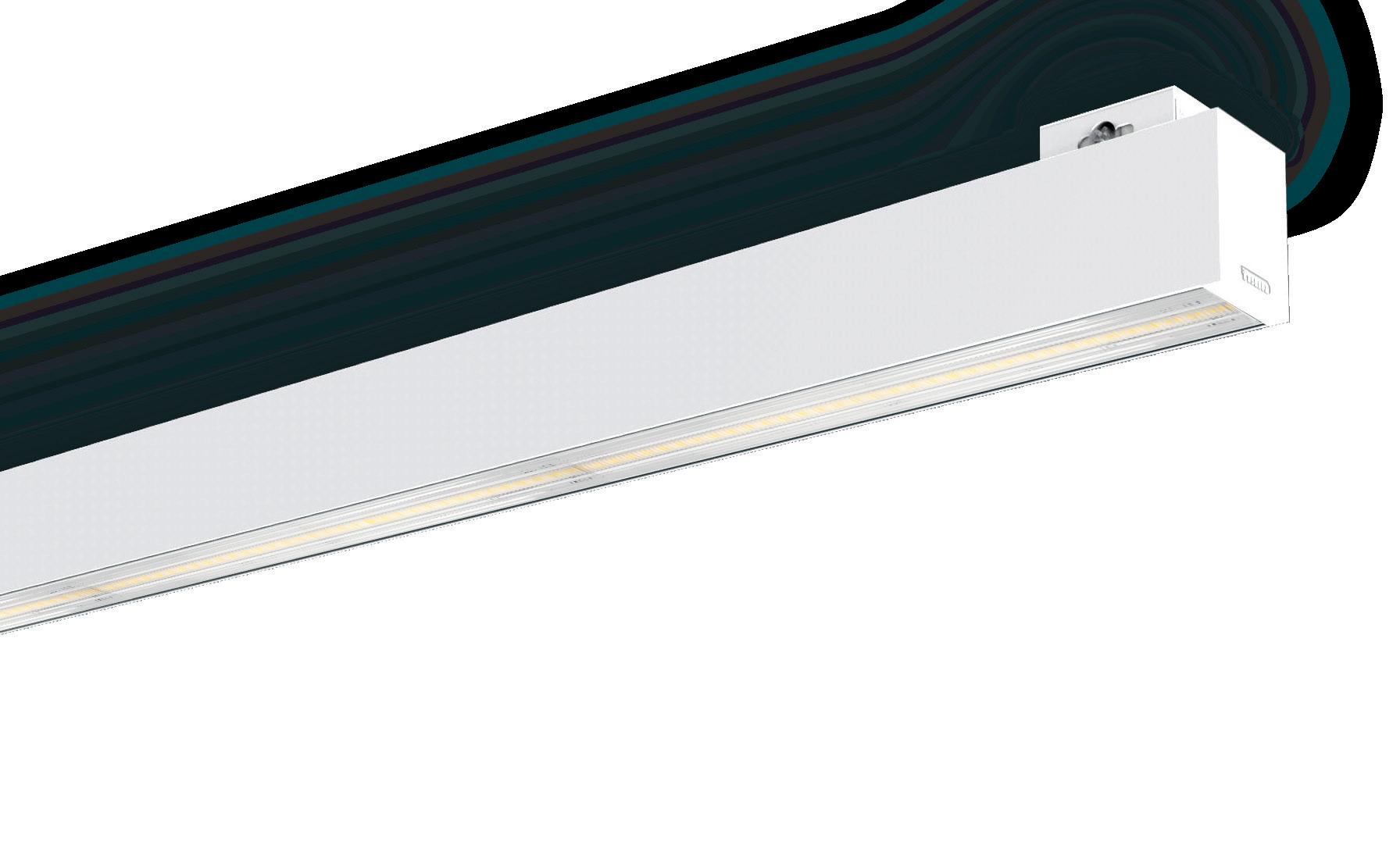

For track: p. 64

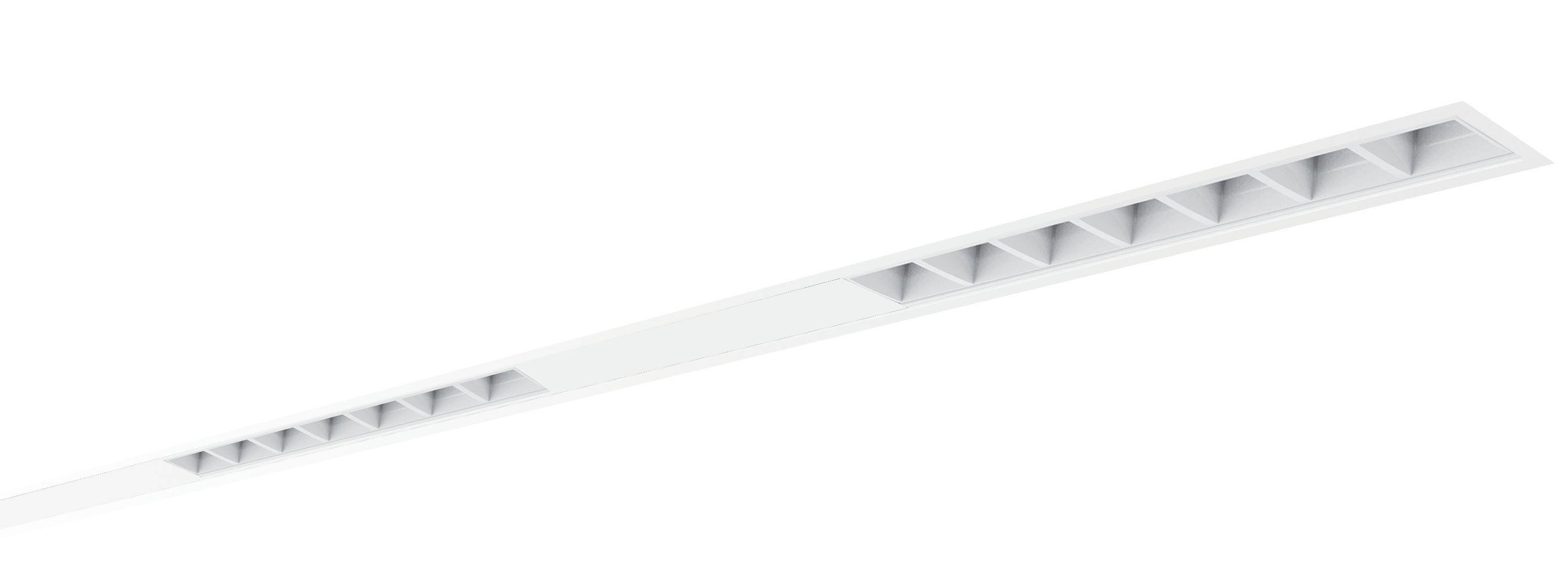

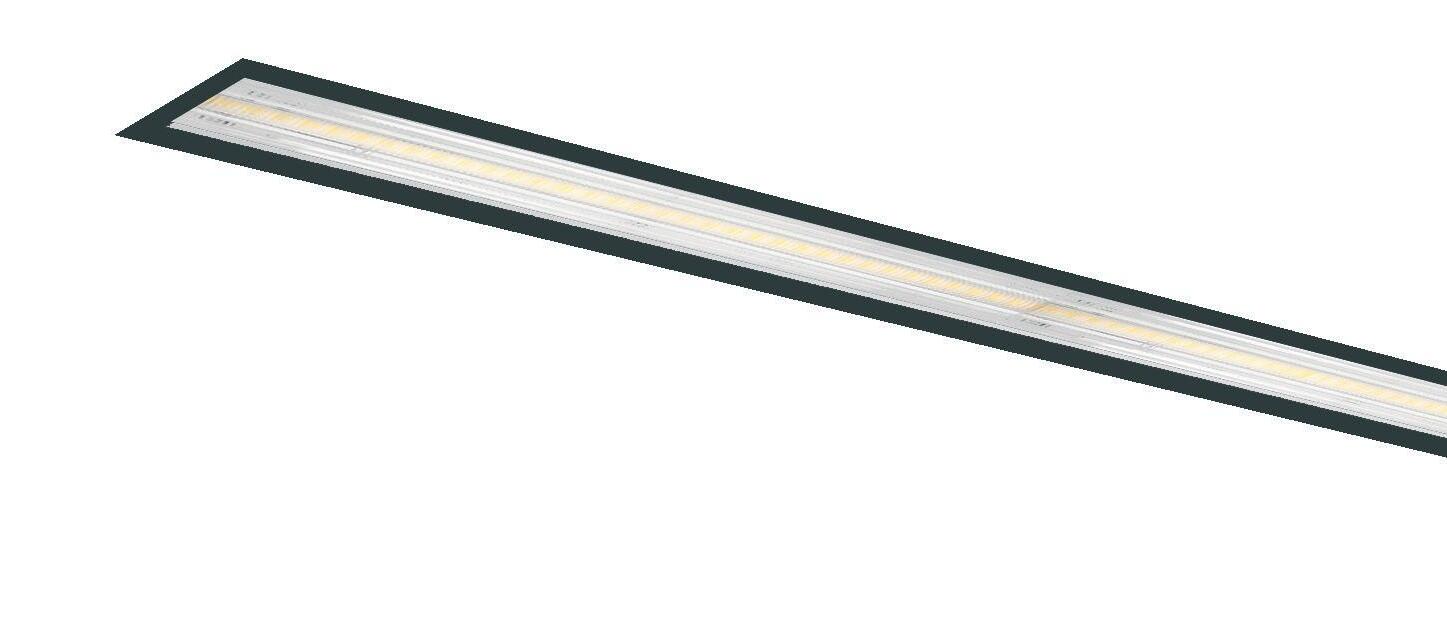

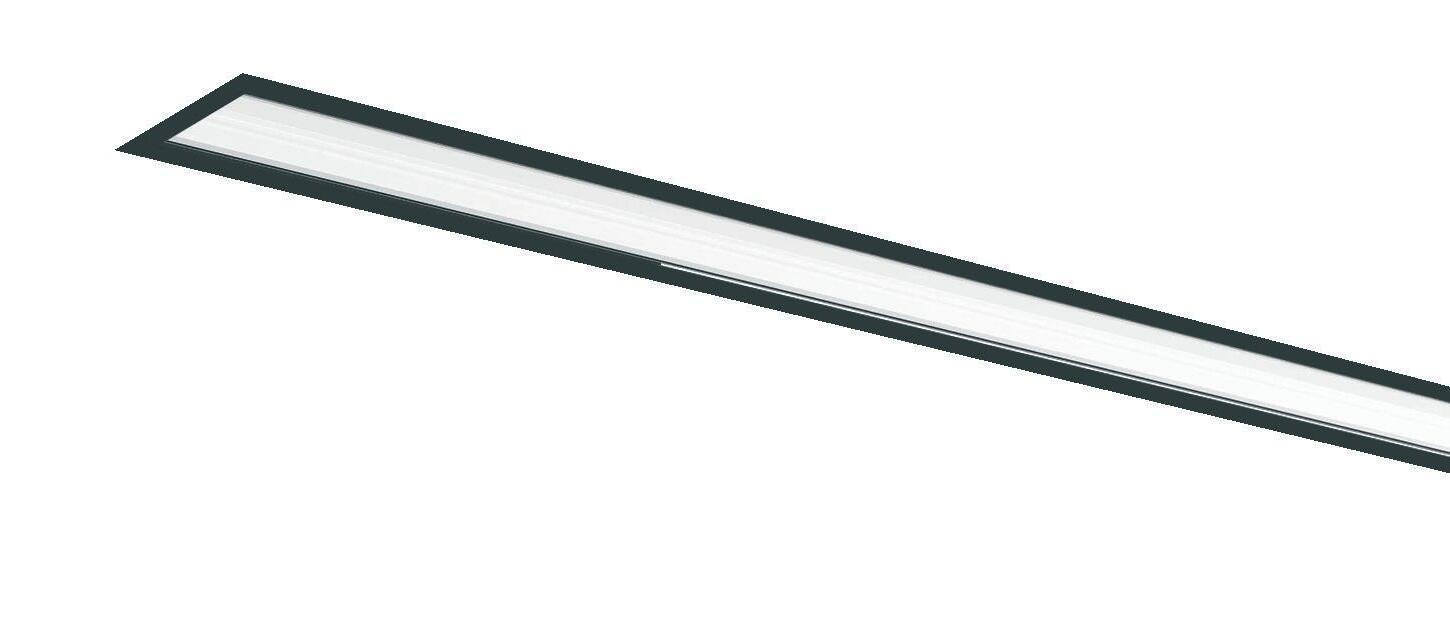

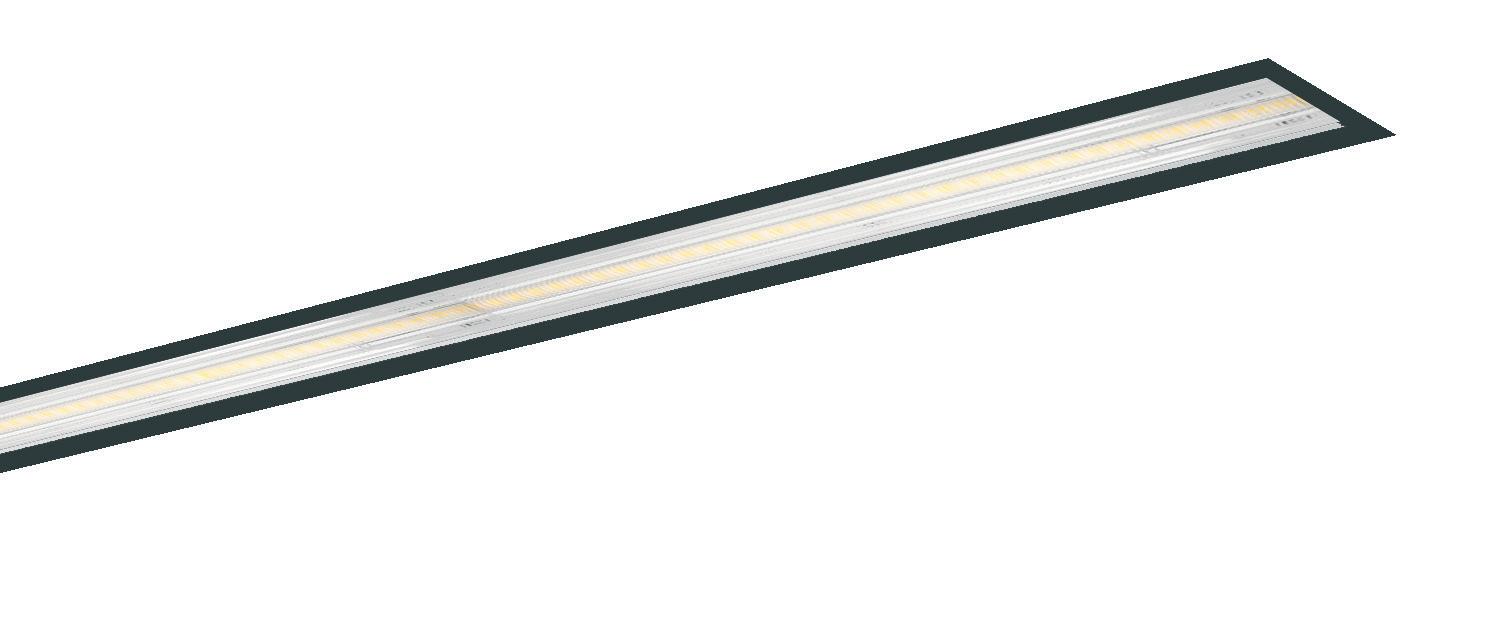

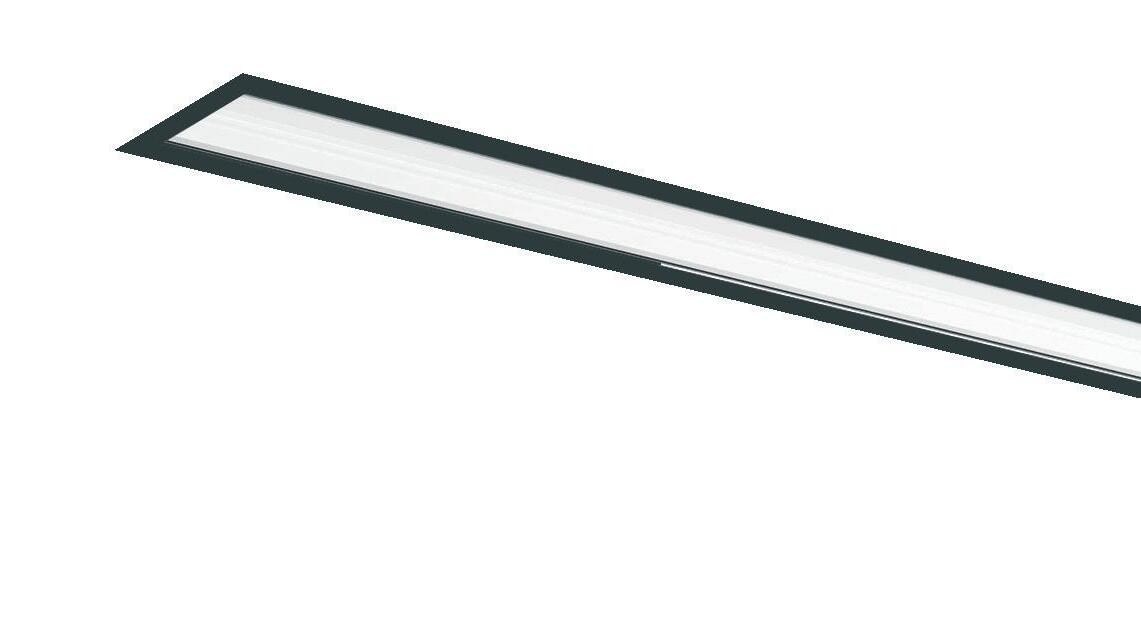

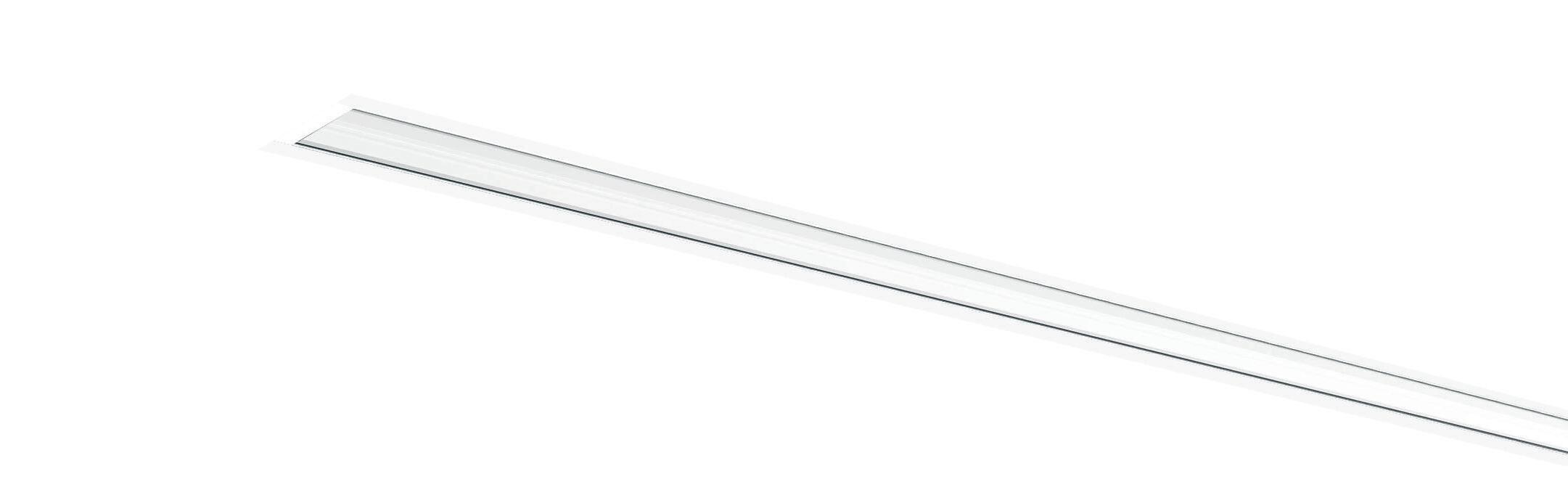

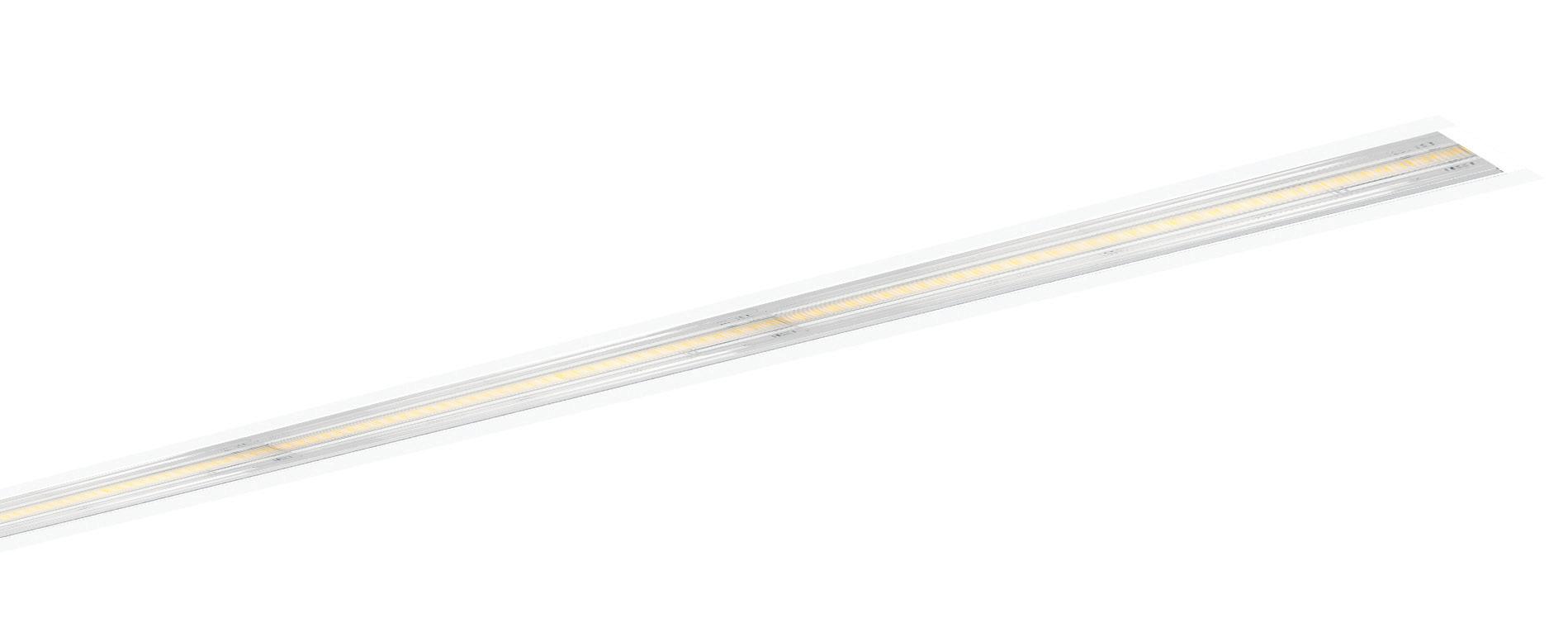

Recessed: p. 86

HCL/TW: p. 102

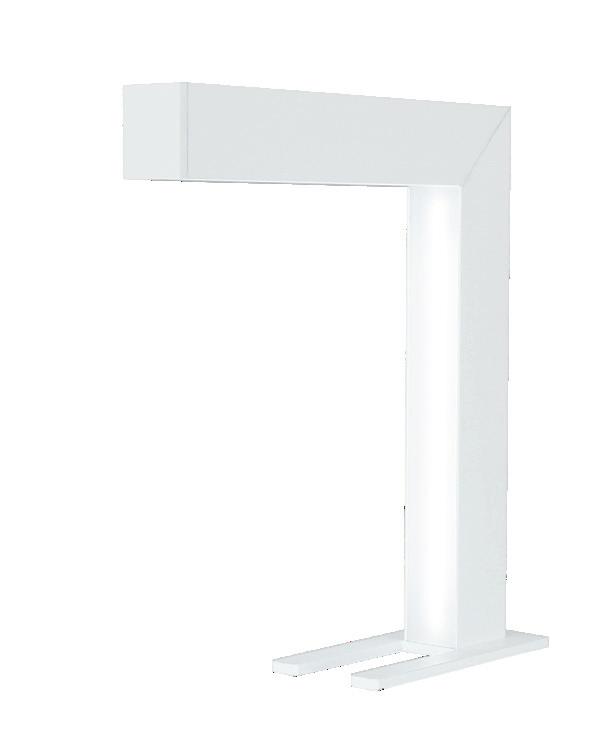

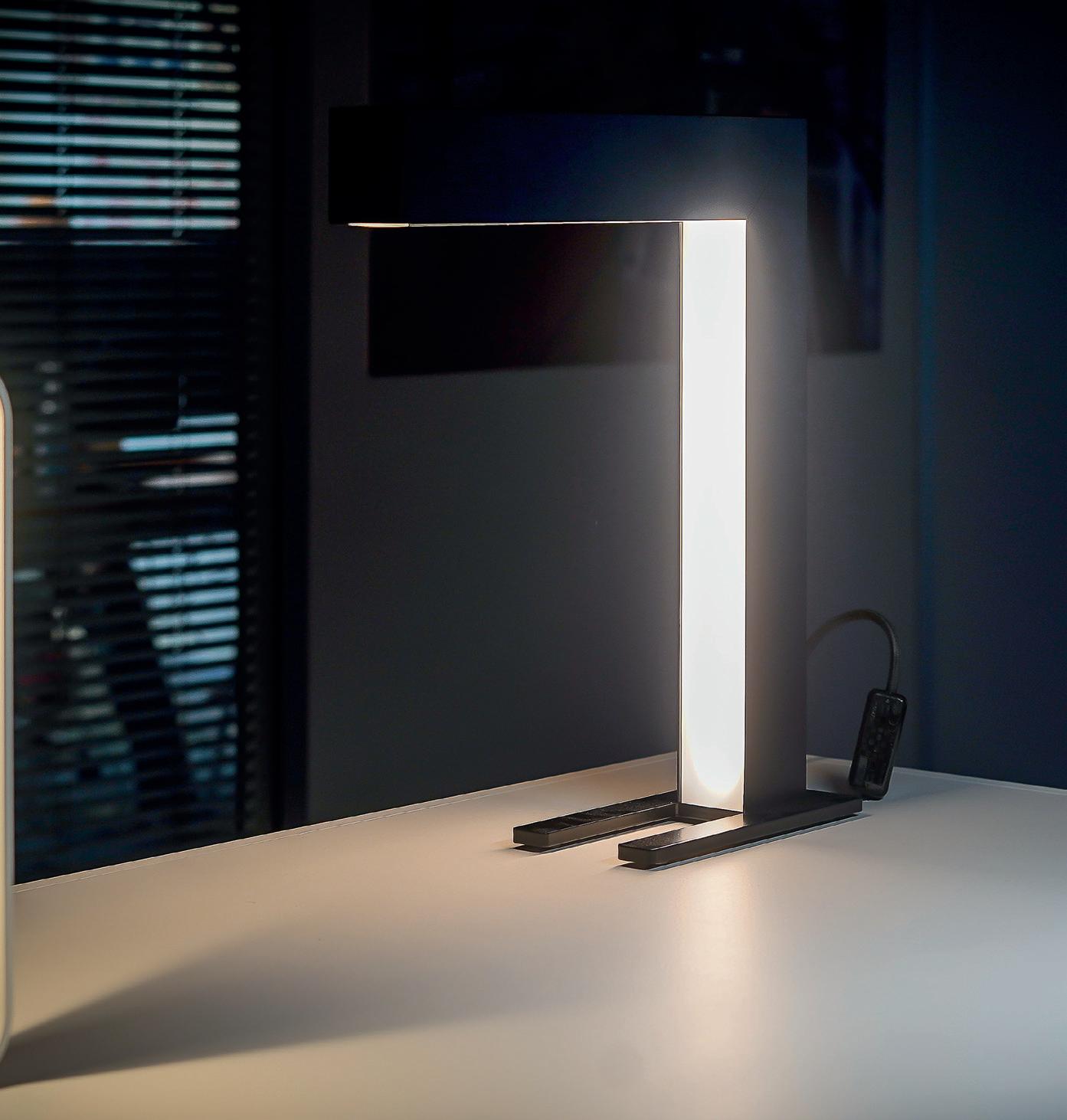

Luminaires: p. 118

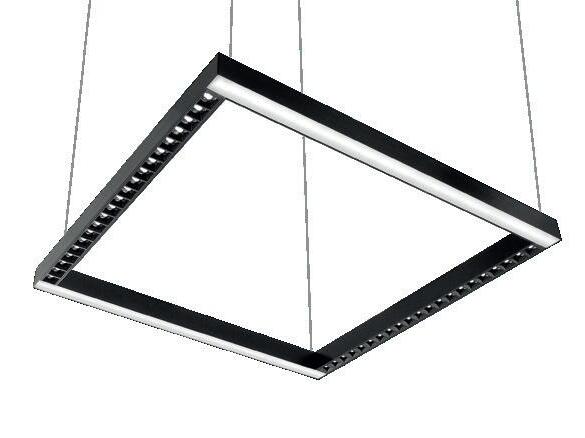

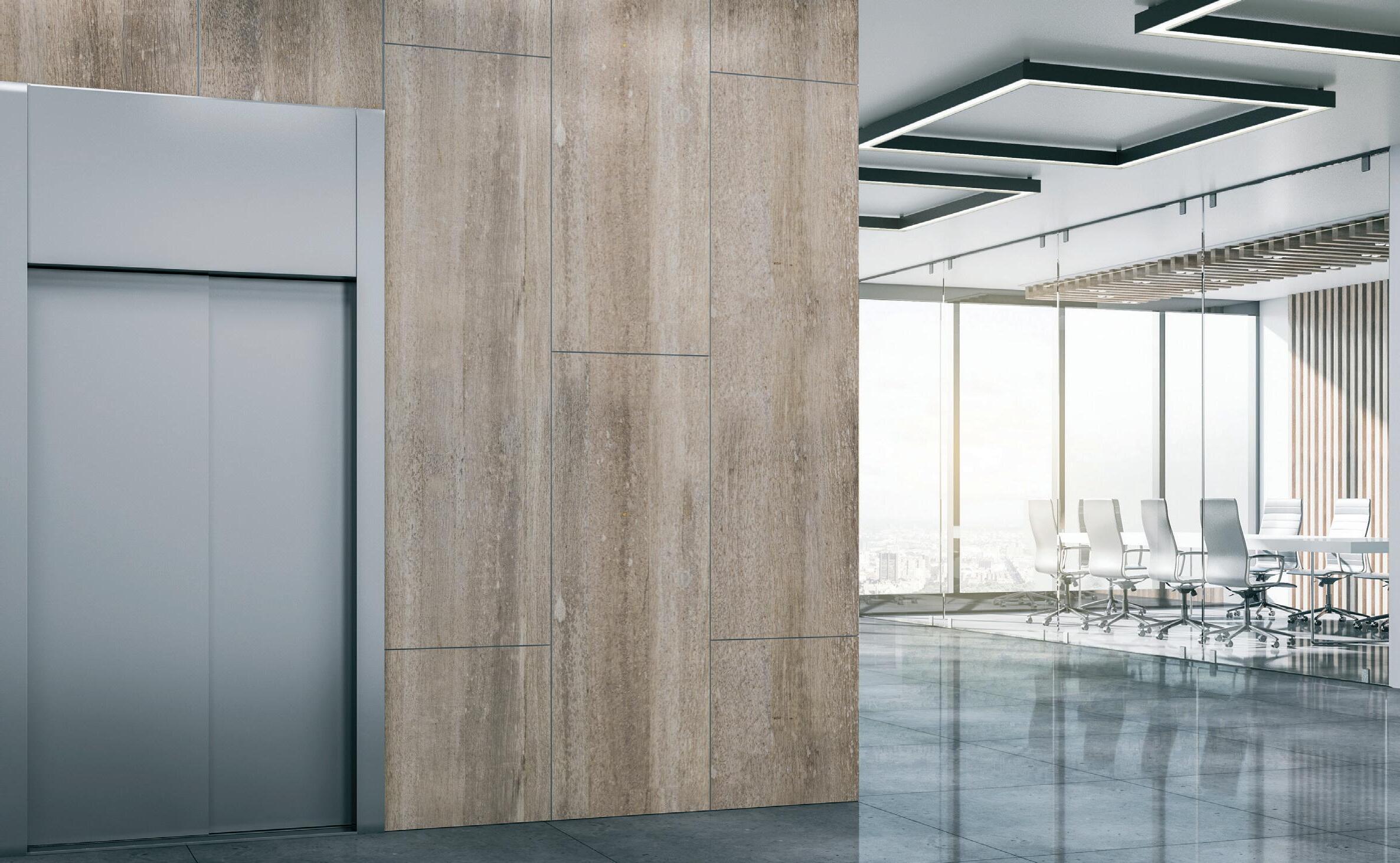

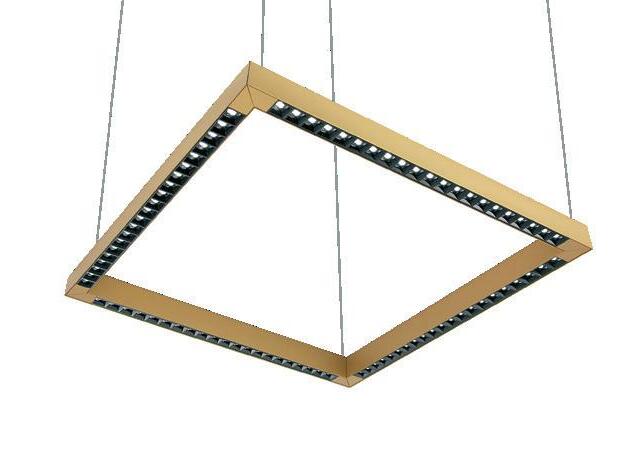

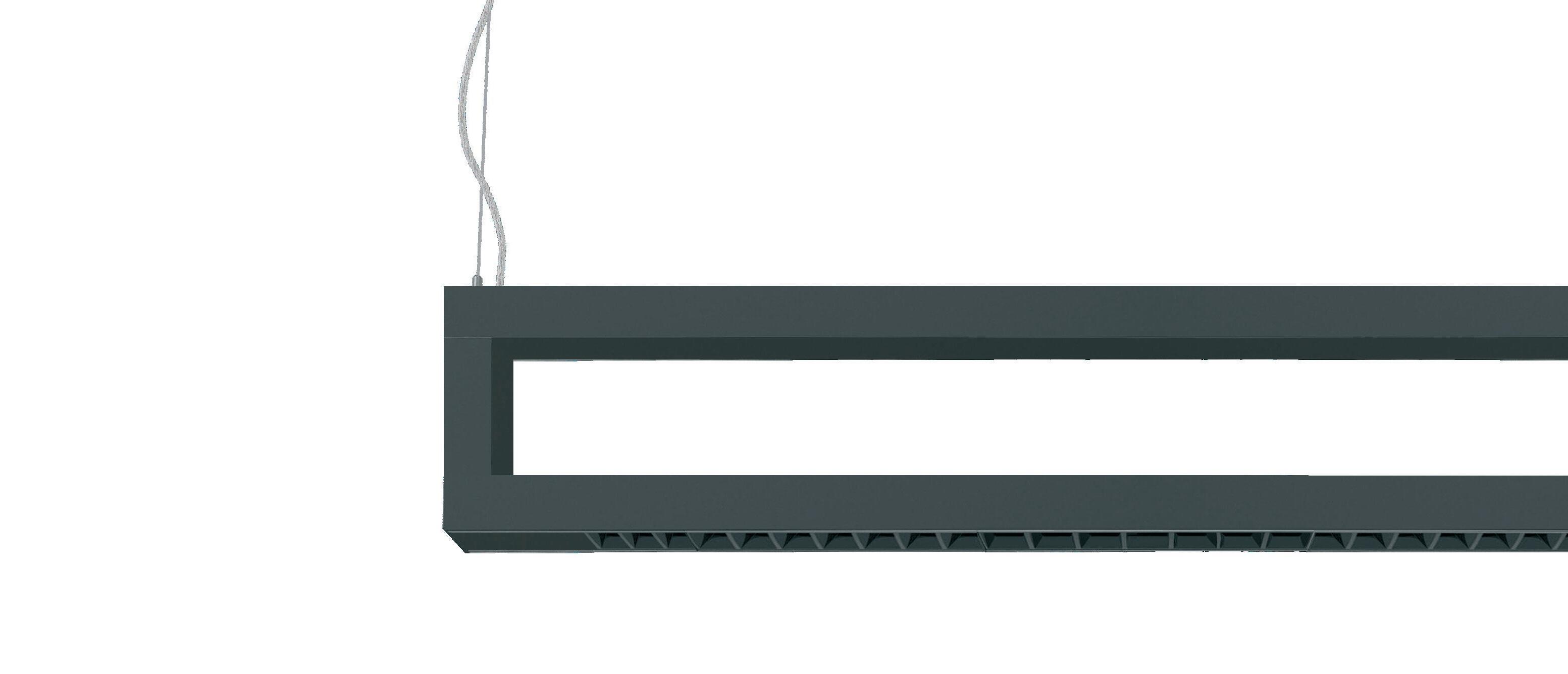

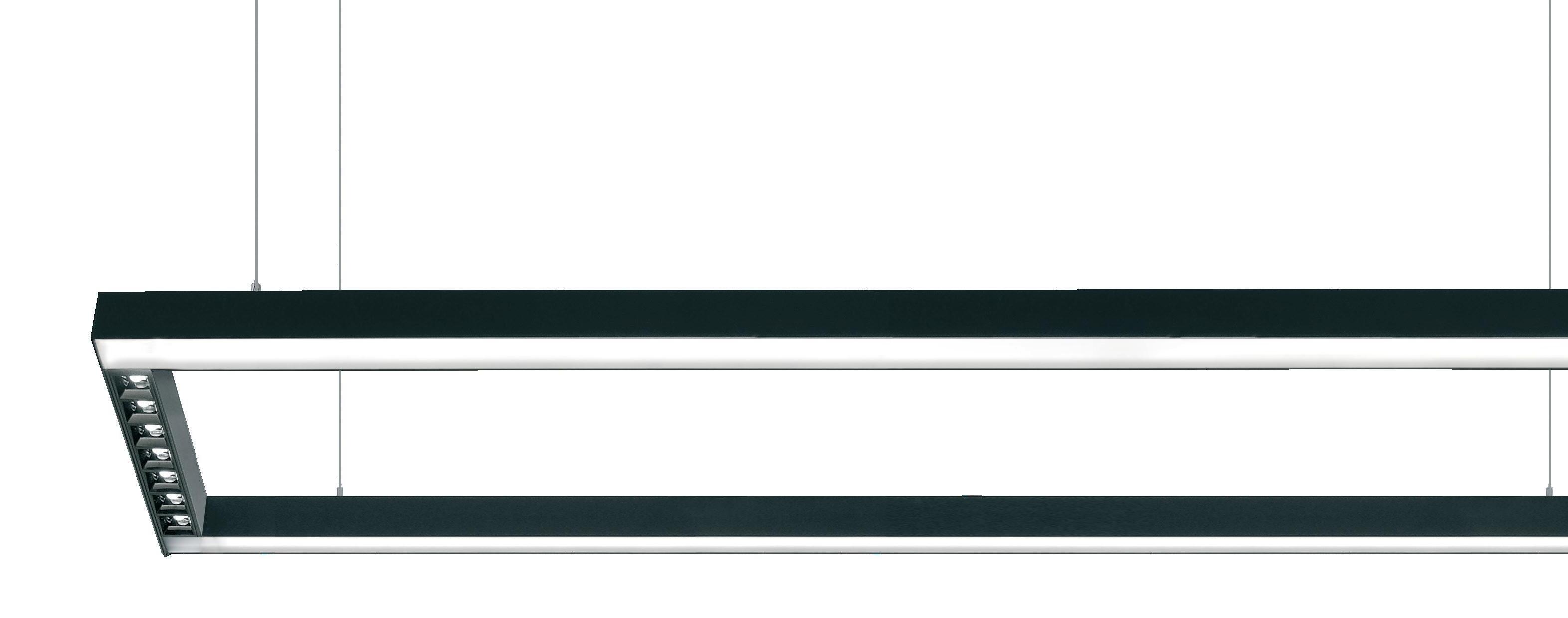

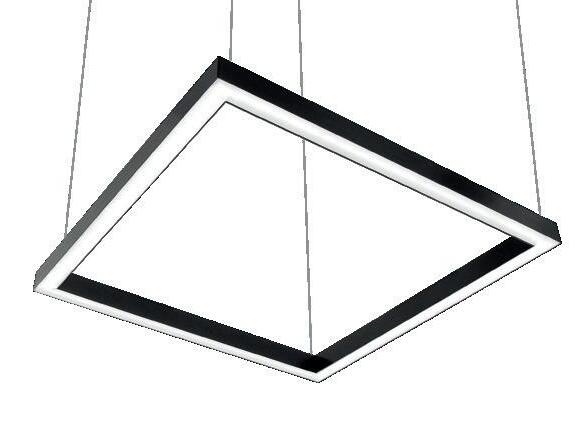

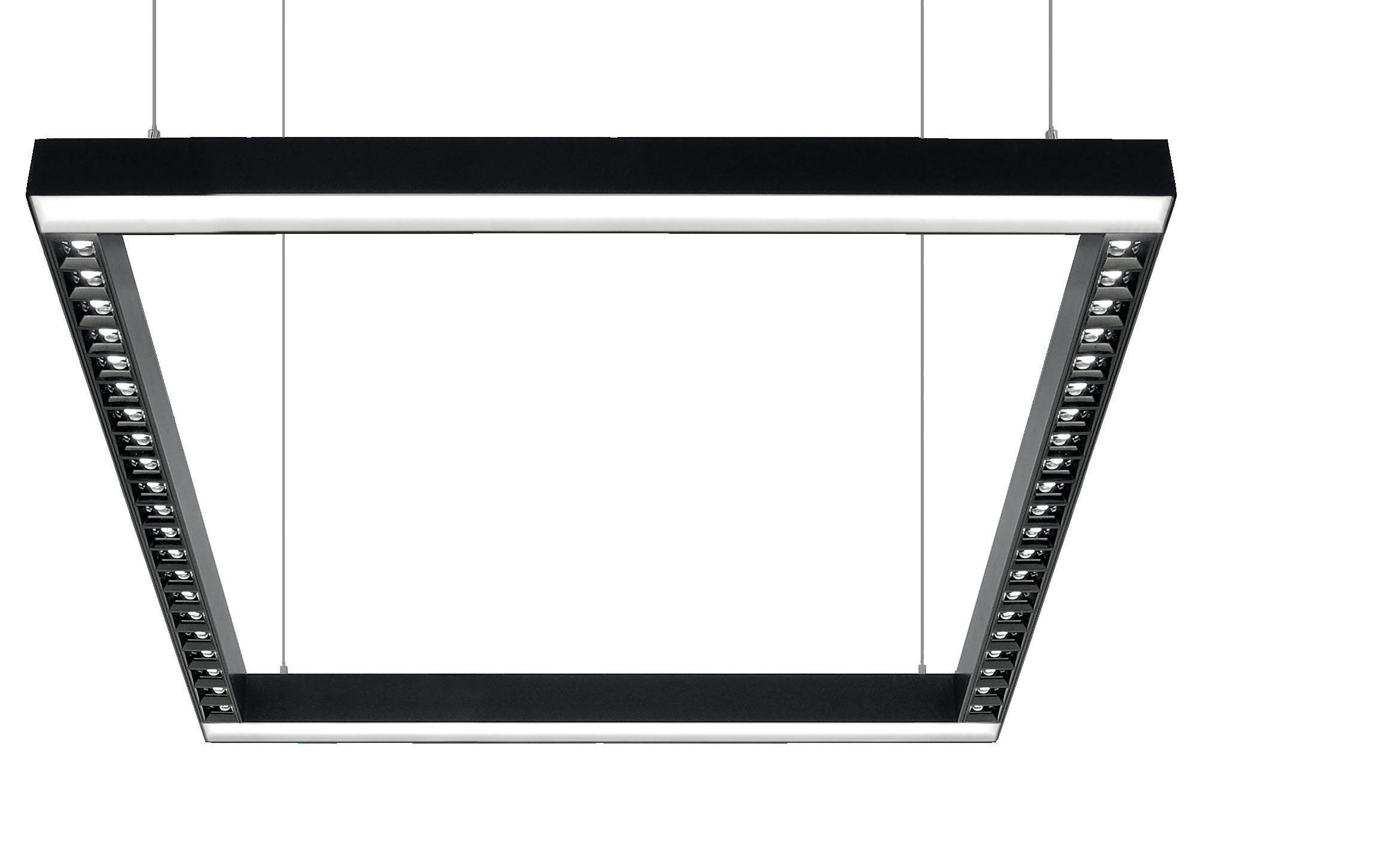

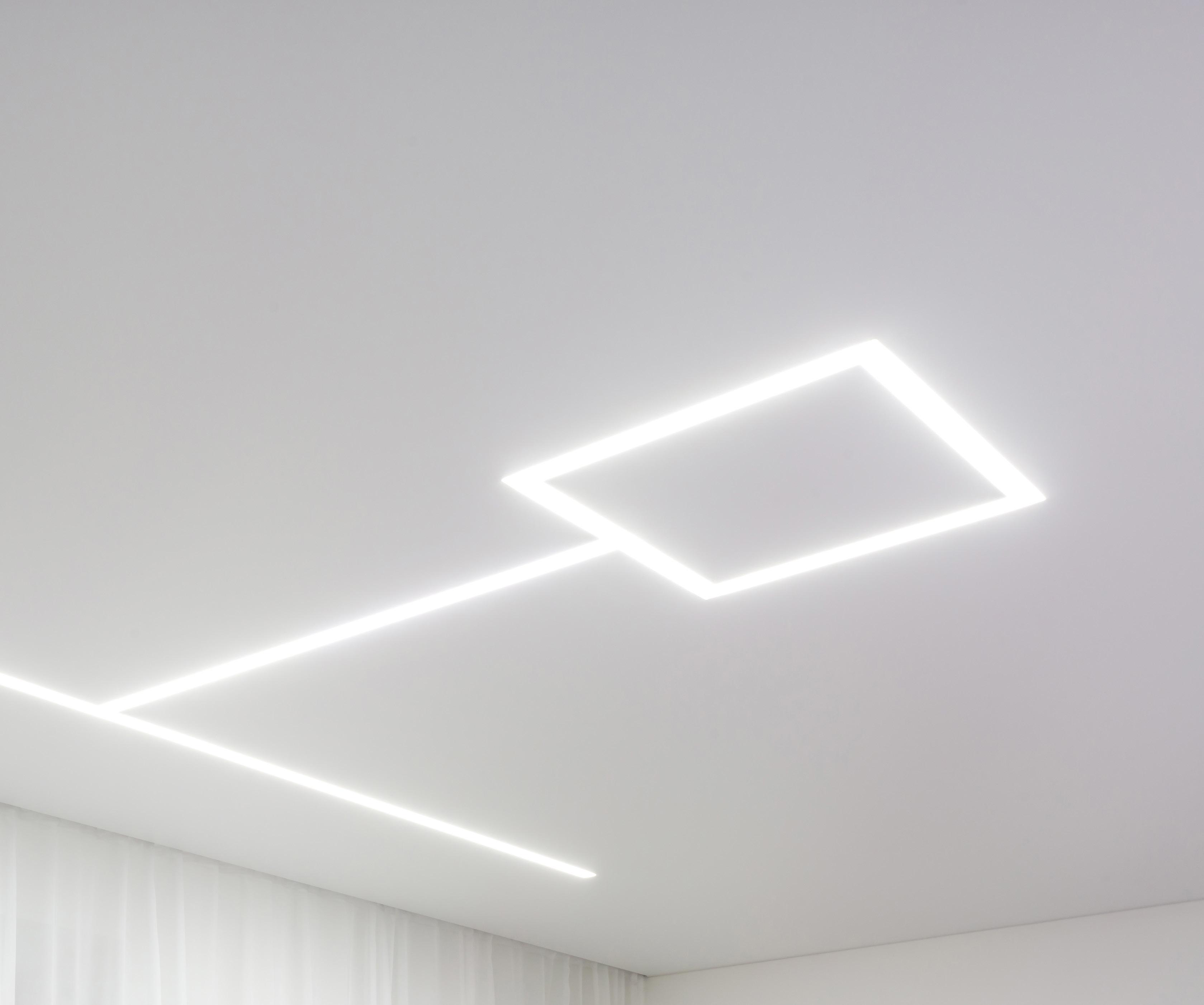

Liset 2.0 “SQ” - square compositions

Diffuser: in polycarbonate.

LED housing L

LED

Diffuser: in polycarbonate.

Liset 2.0 “SQ” - 4D

302730-39

Liset 2.0 “SQ” - 2D+2M CLD LUMEN OUTPUT (tq= 25 °C)

Comfort optics: in black anti-glare polycarbonate (white colour version is available upon request).

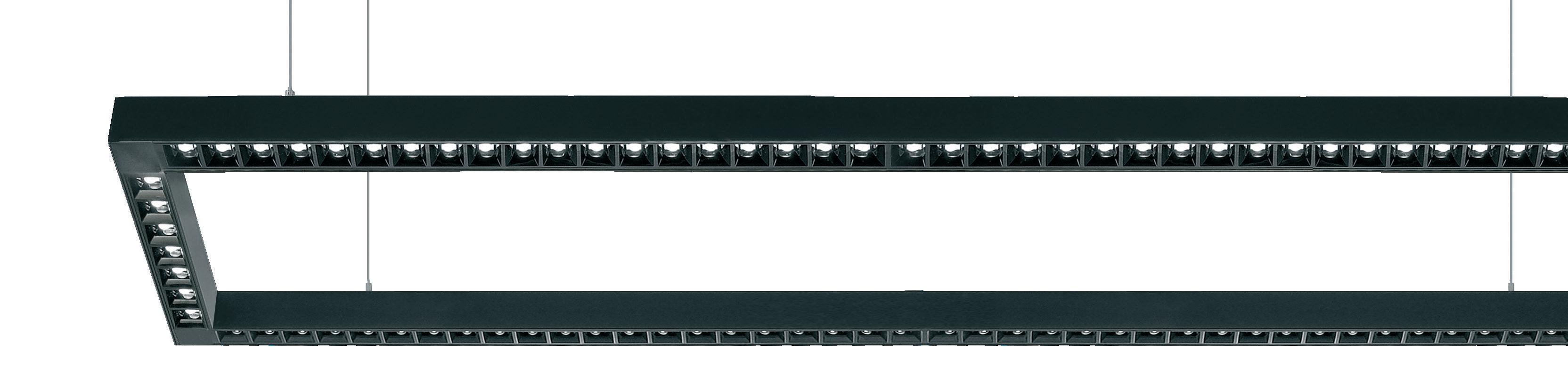

Liset 2.0 “SQ” - 4M - UGR<19

Other size and colors upon request

LED

LED white 10,00 22302910-39

- 5878lm - CRI 80 black 22302930-39

Comfort optics: in black anti-glare polycarbonate (white colour version is available upon request).

Upon request:

• CRI 90 - 3000K and 4000K

• DIMM-DALI version with sub-code -1241 (4000K) or -3941 (3000K).

• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)

• 1h EM version with subcode -09 (4000K) or -0928 (3000K)

• 3h

Upon request:

with

(4000K) or

(3000K)

Liset

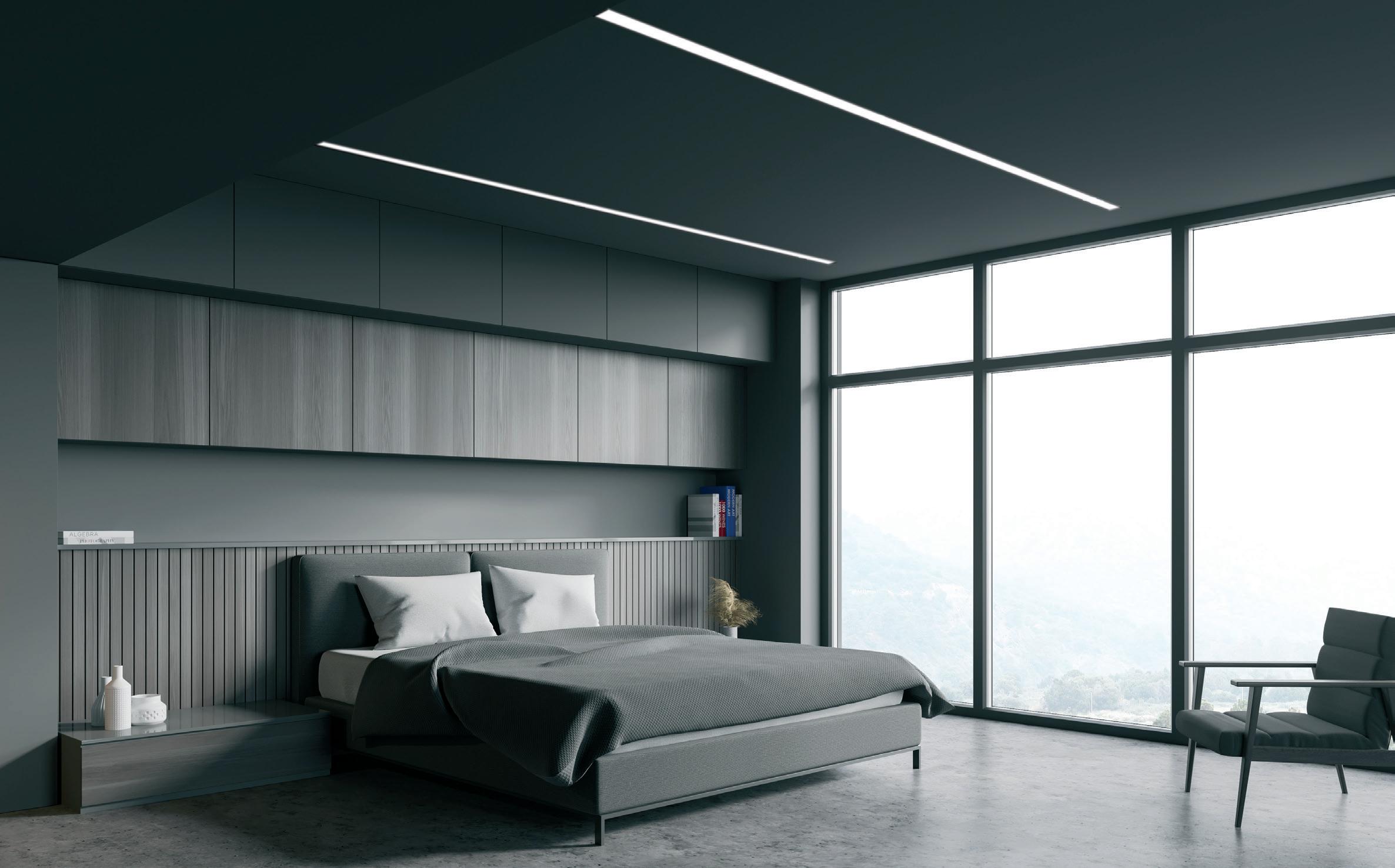

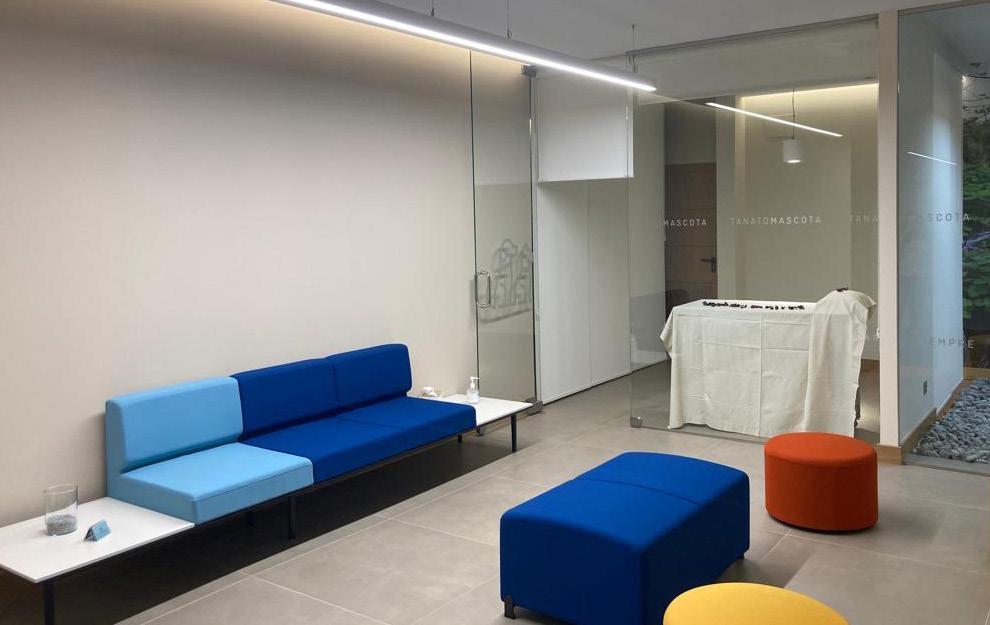

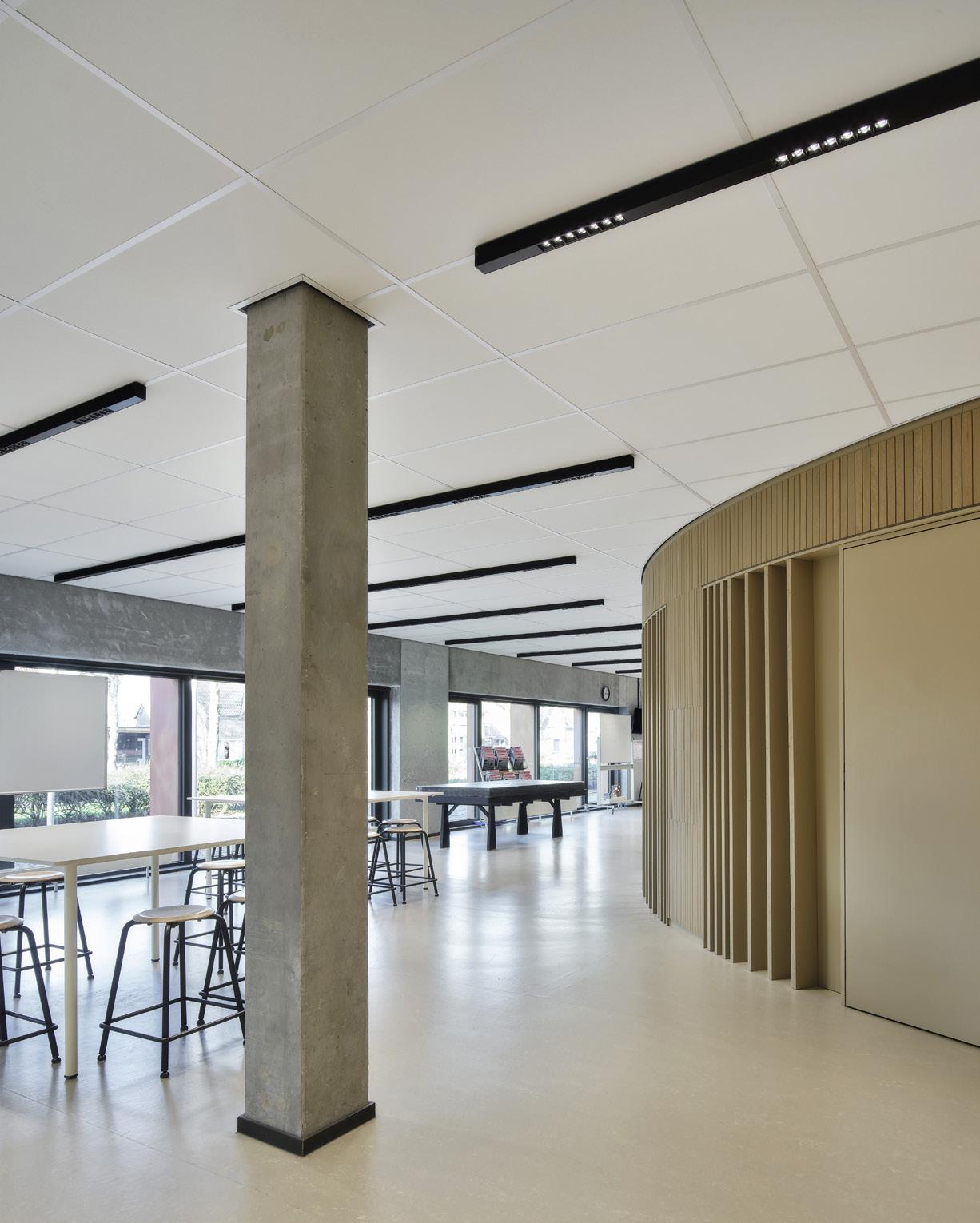

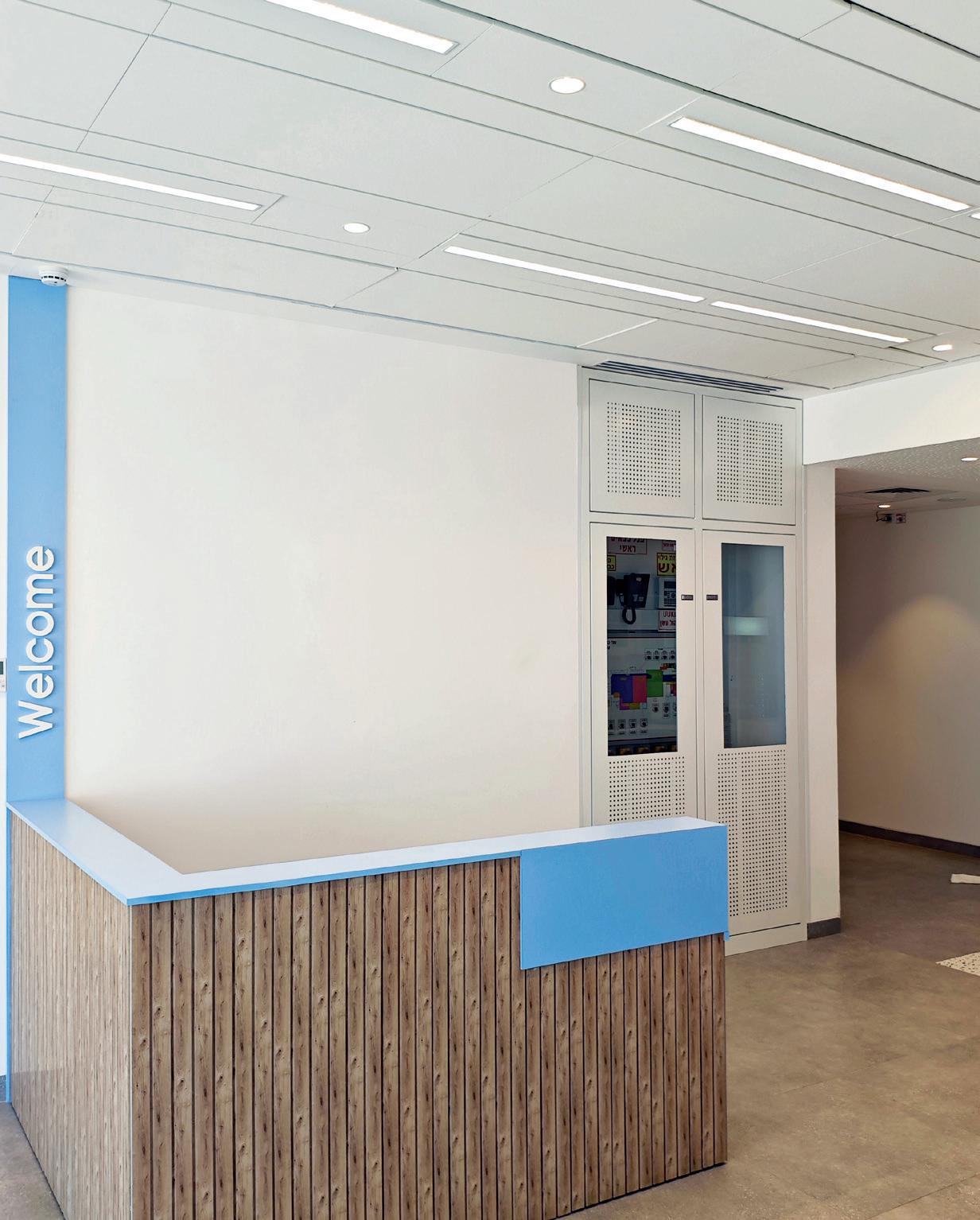

Lighting of excellence for stylish interiors.

The product’s mounting freedom offers the possibility to create elegant and sophisticated lighting atmospheres.

The clean-cut geometry of Liset 2.0 blends seamlessly into any modern, refined setting.

Carefree Design!

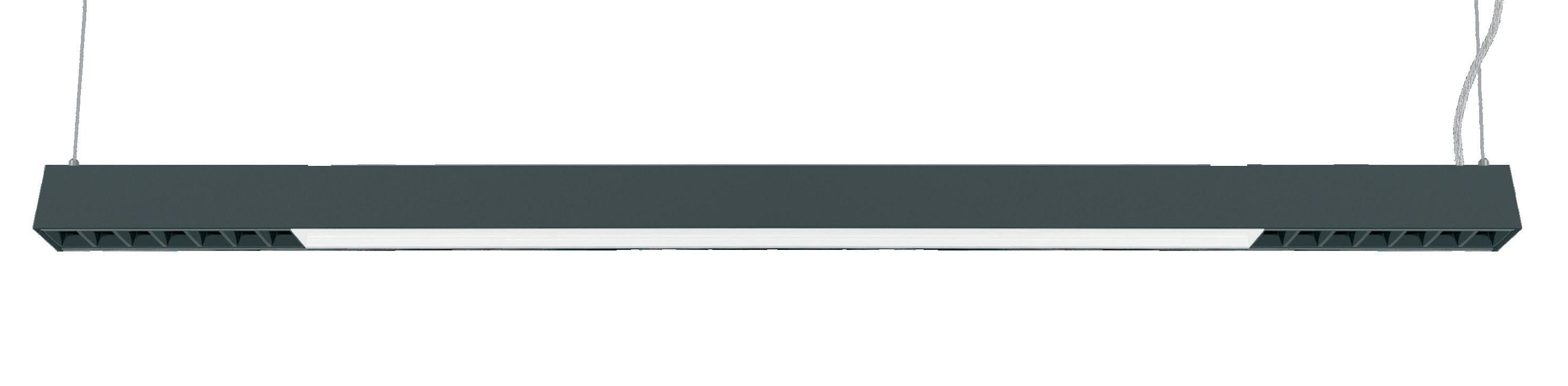

Liset 2.0 HE - suspension with diffuser

•

Liset 2.0 HE - suspension with diffuser

Liset

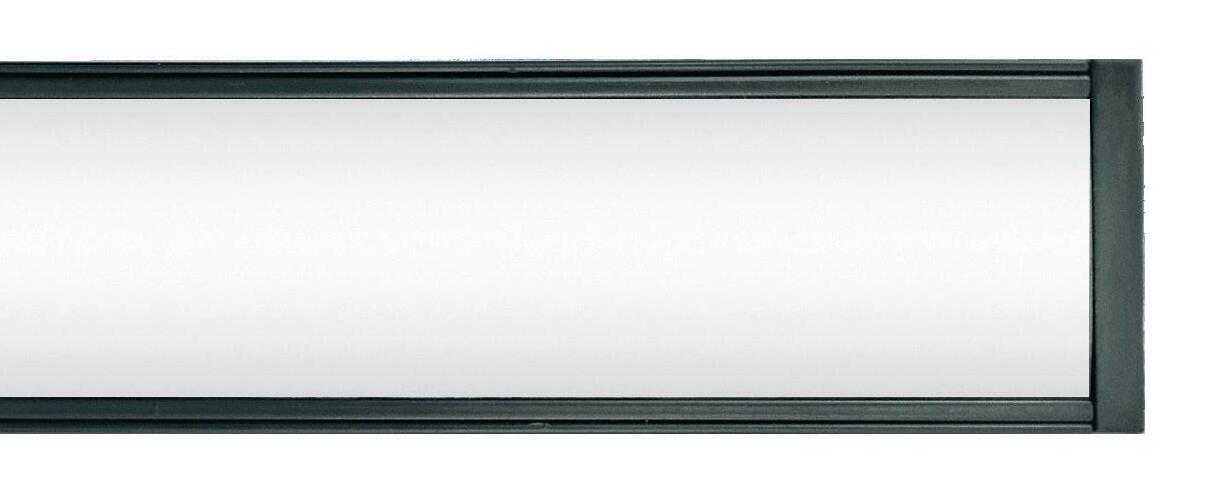

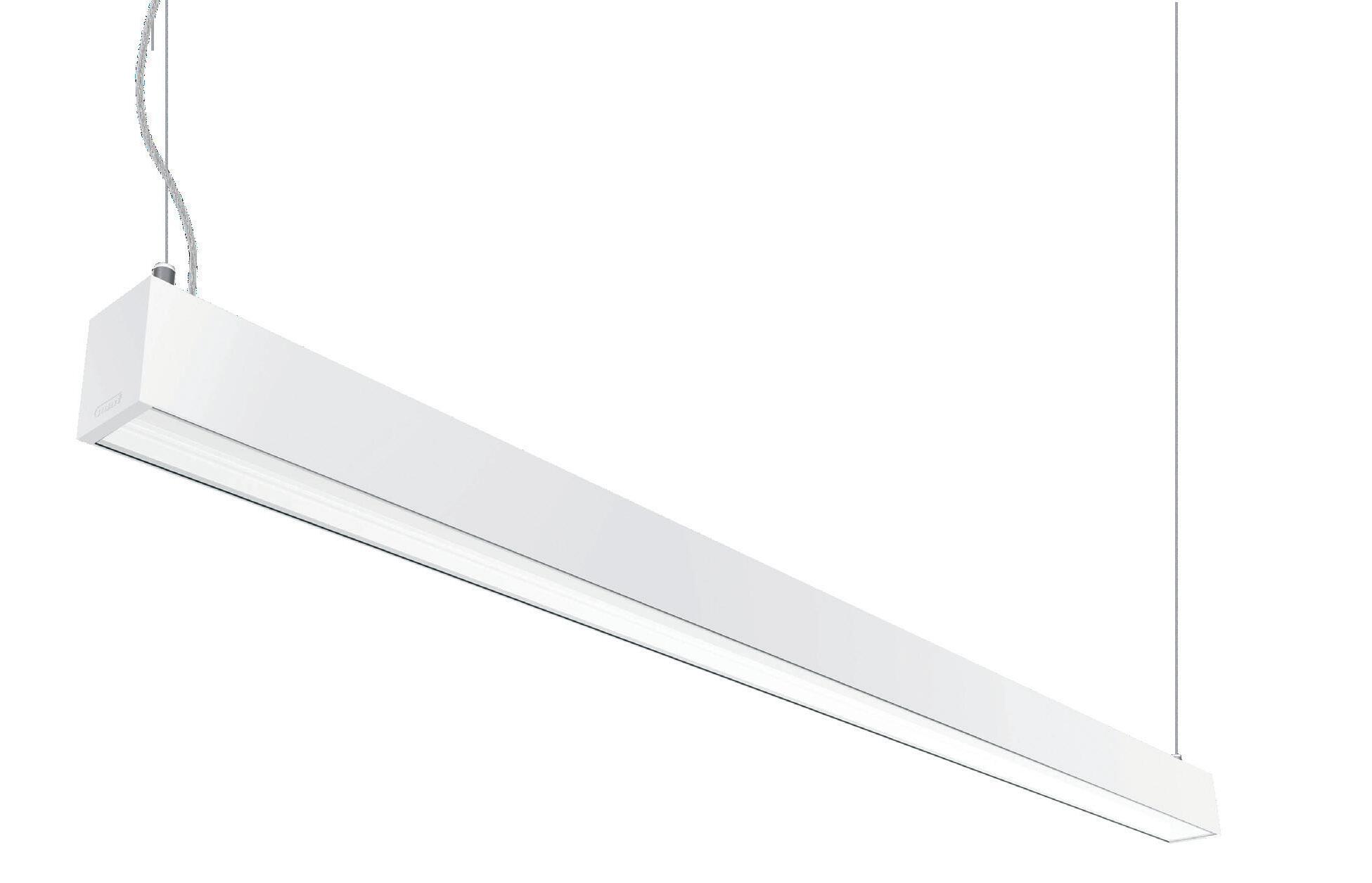

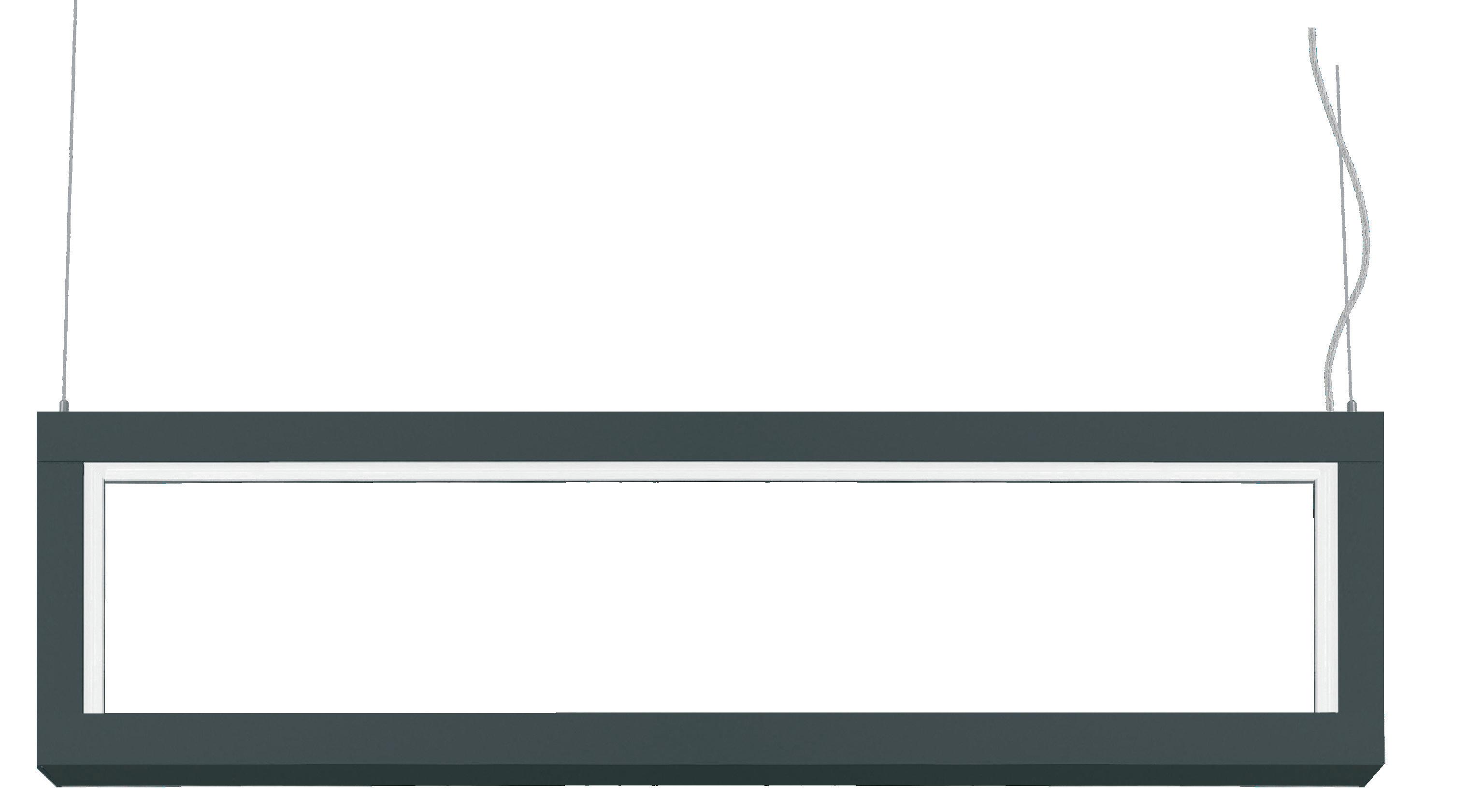

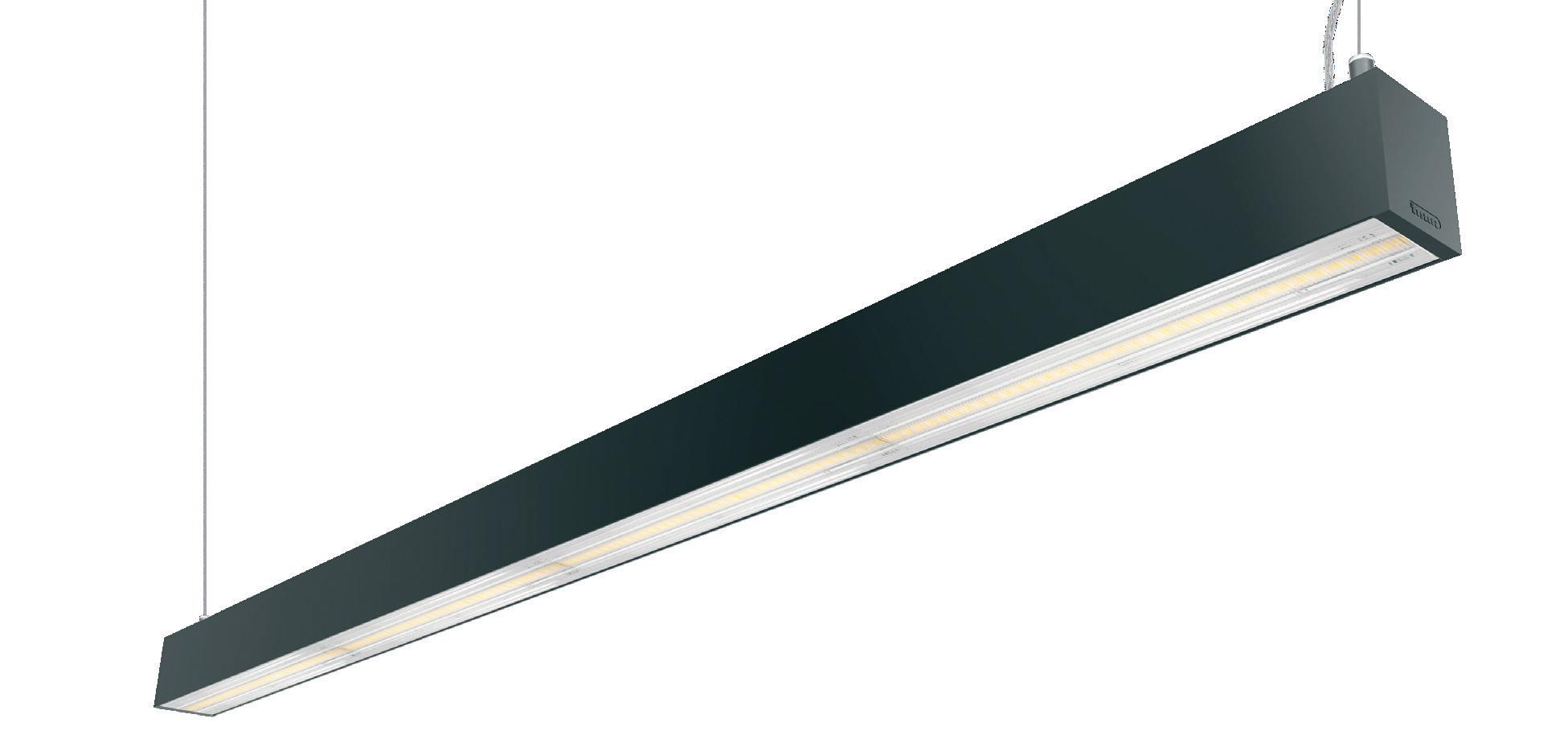

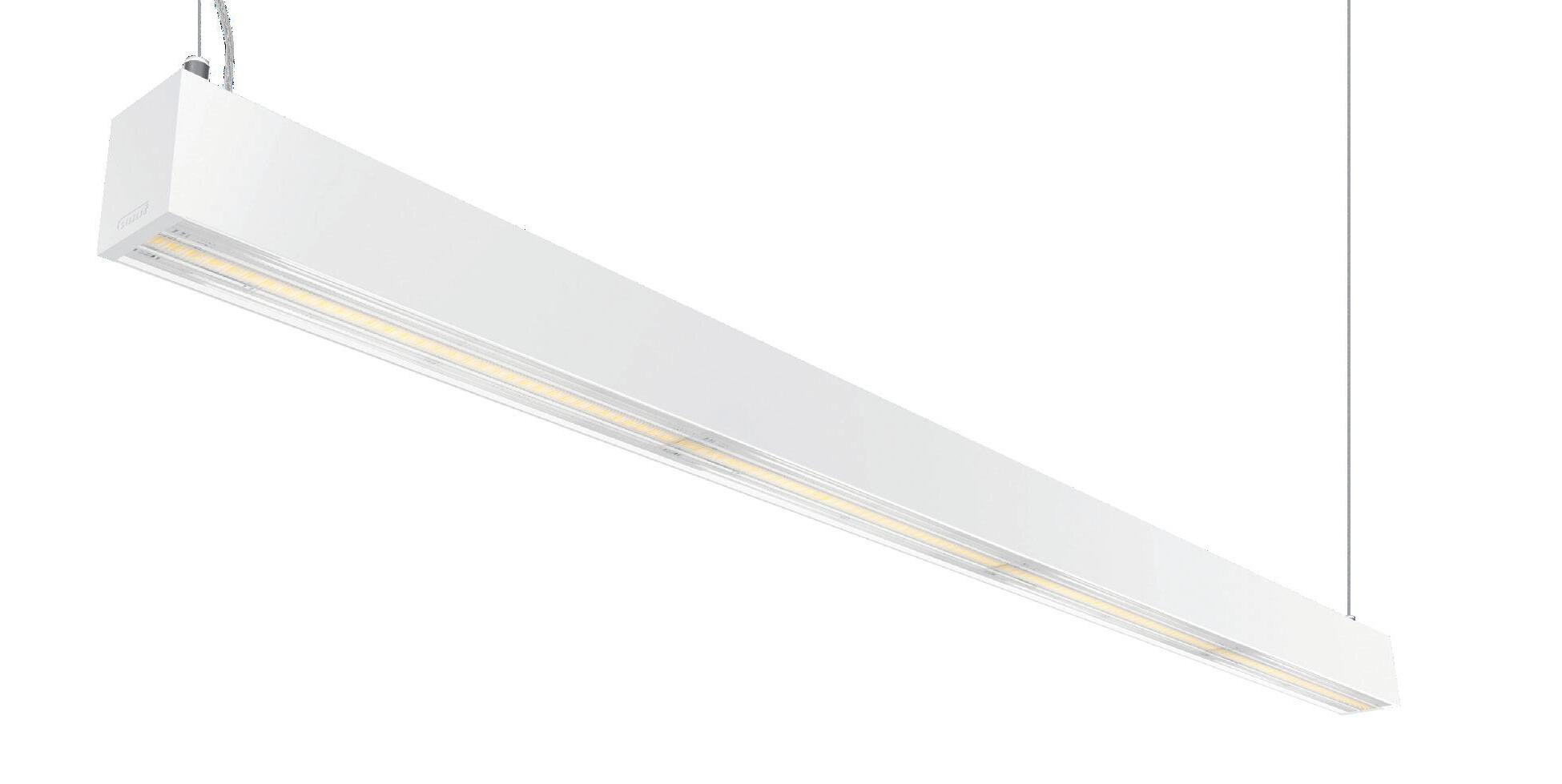

Liset 2.0 - suspension with diffuser

Accessories: see p. 42-43

Upon request:

• CRI 90 - 4000K

• 3000K version with sub-code -39

• pass-through wiring for continuous line mounting with subcode -0072

• PUSH-DIMM version with sub-code -1245

• Upon request: natural light wood, natural dark wood smooth: silver, anodic ice, golden beach, bronze

Suspension module for angular mounting “ALL LIGHT” 14W

black 22302632-00

white 22302612-00

Upon

• 3000K version with sub-code -39

• PUSH-DIMM version with sub-code -1245

• version 1h EM with subcode -09

• version 3h EM with subcode -31

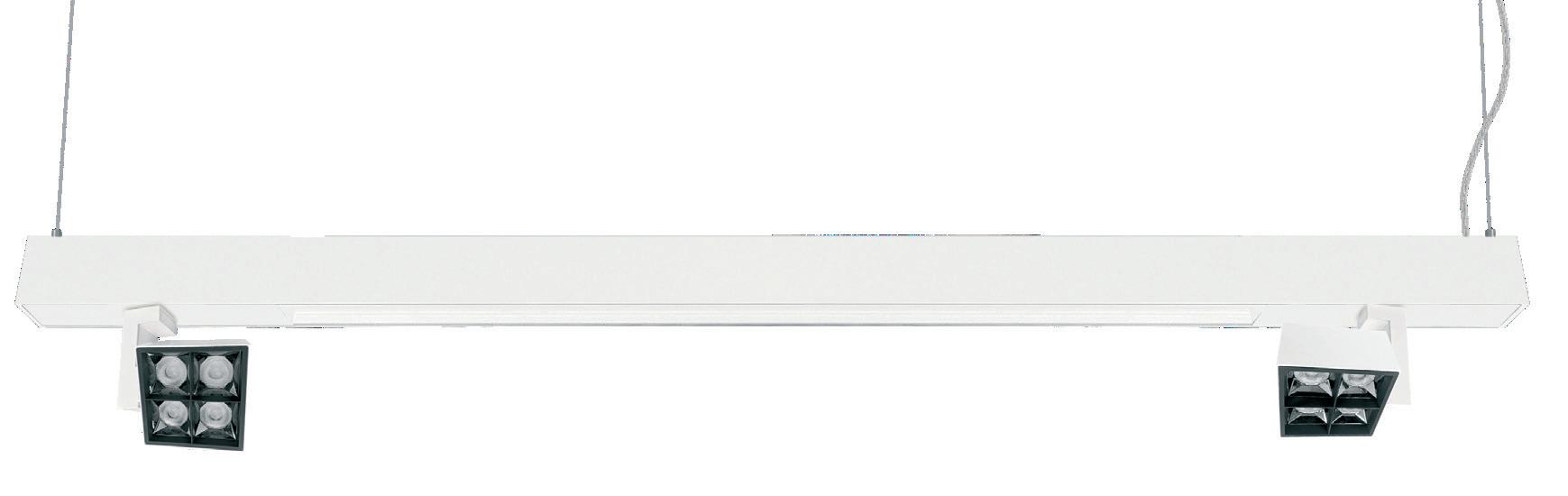

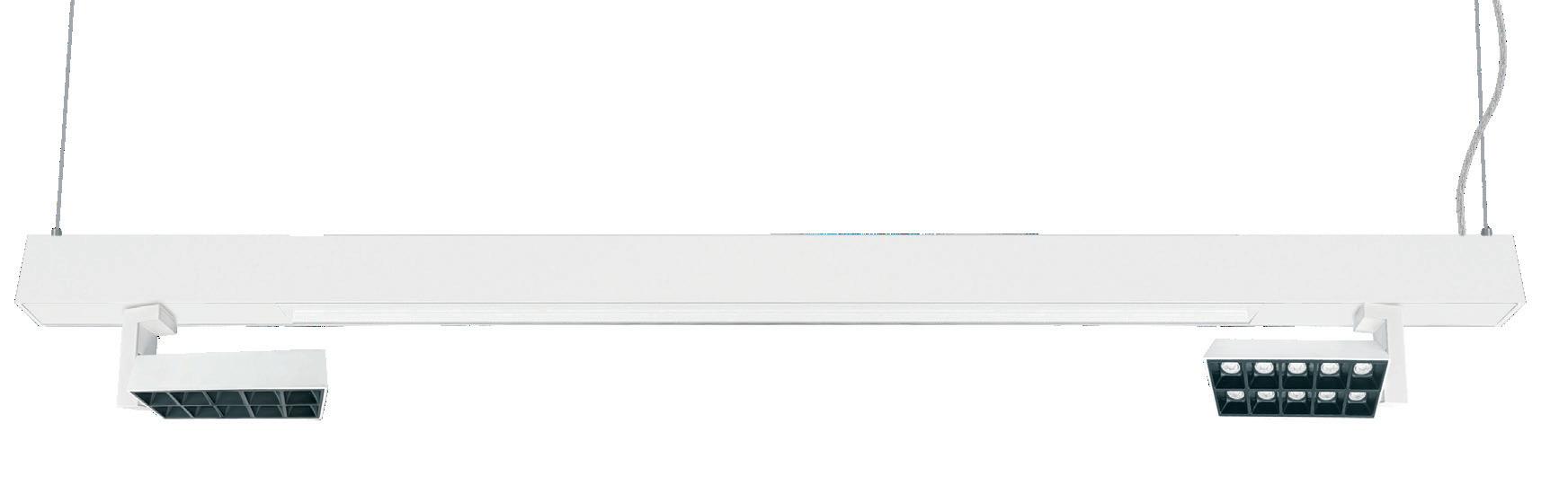

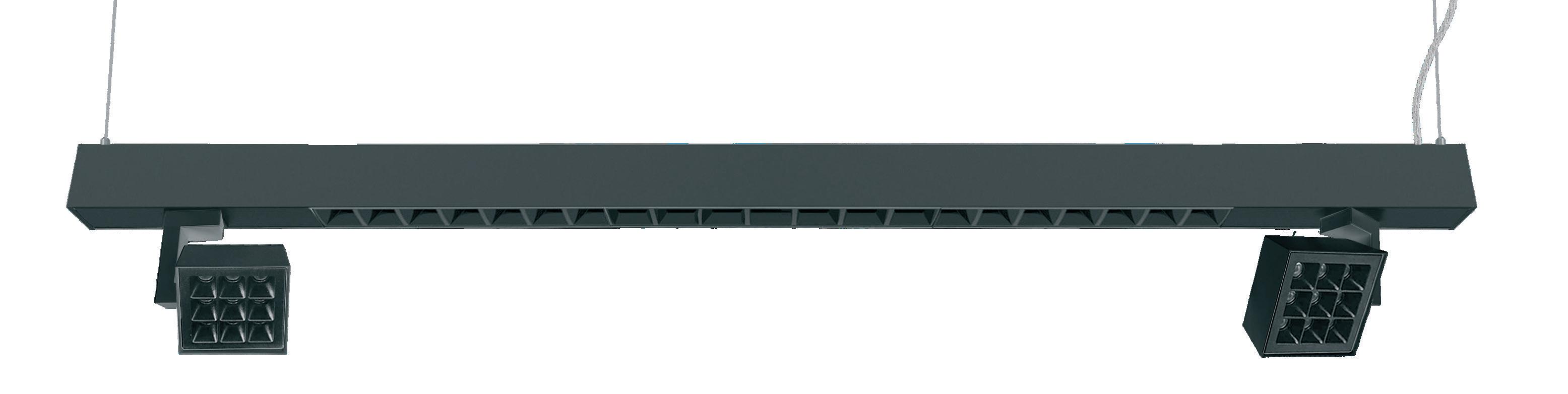

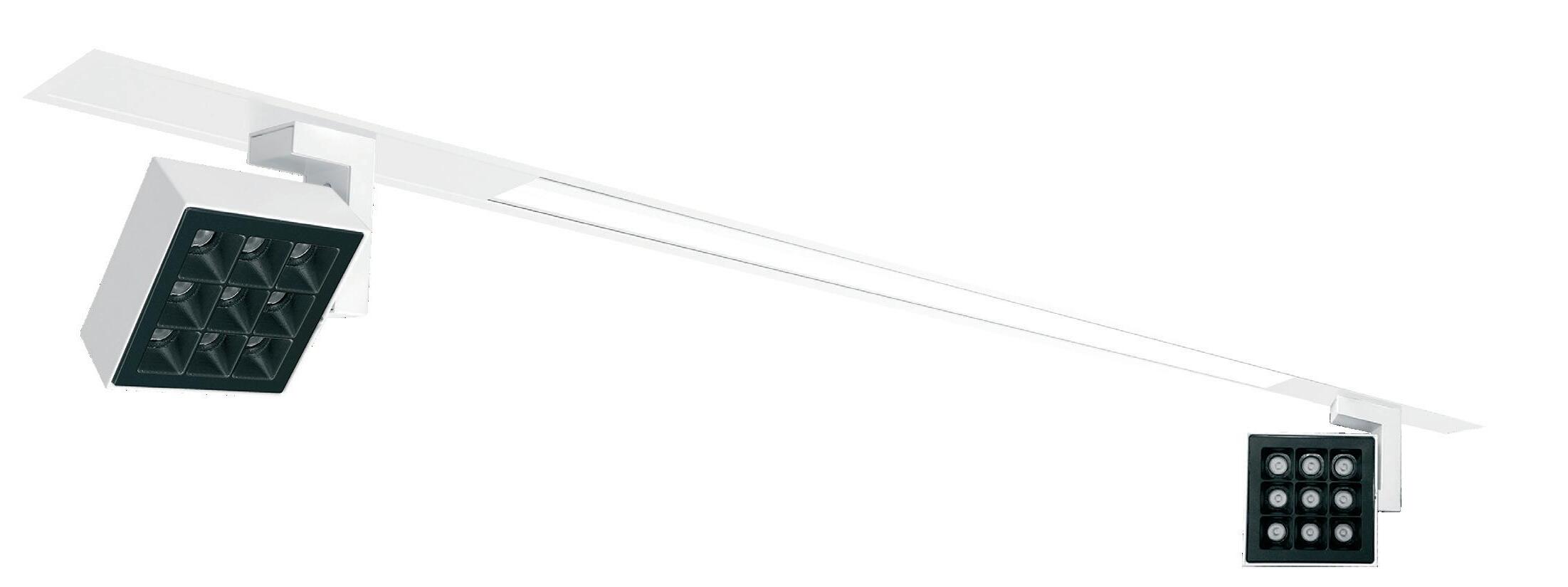

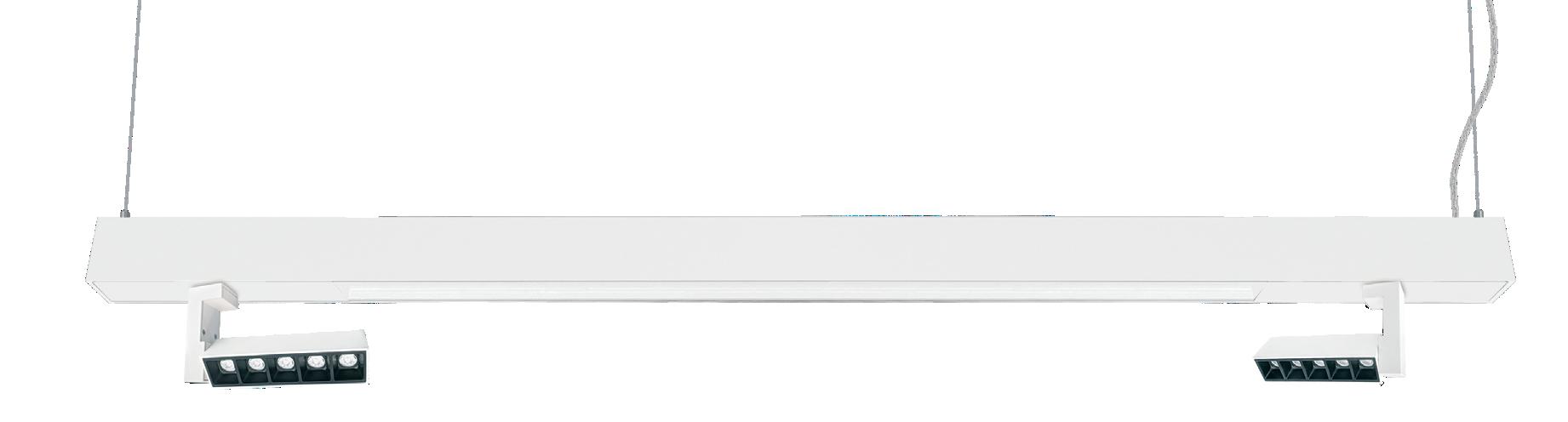

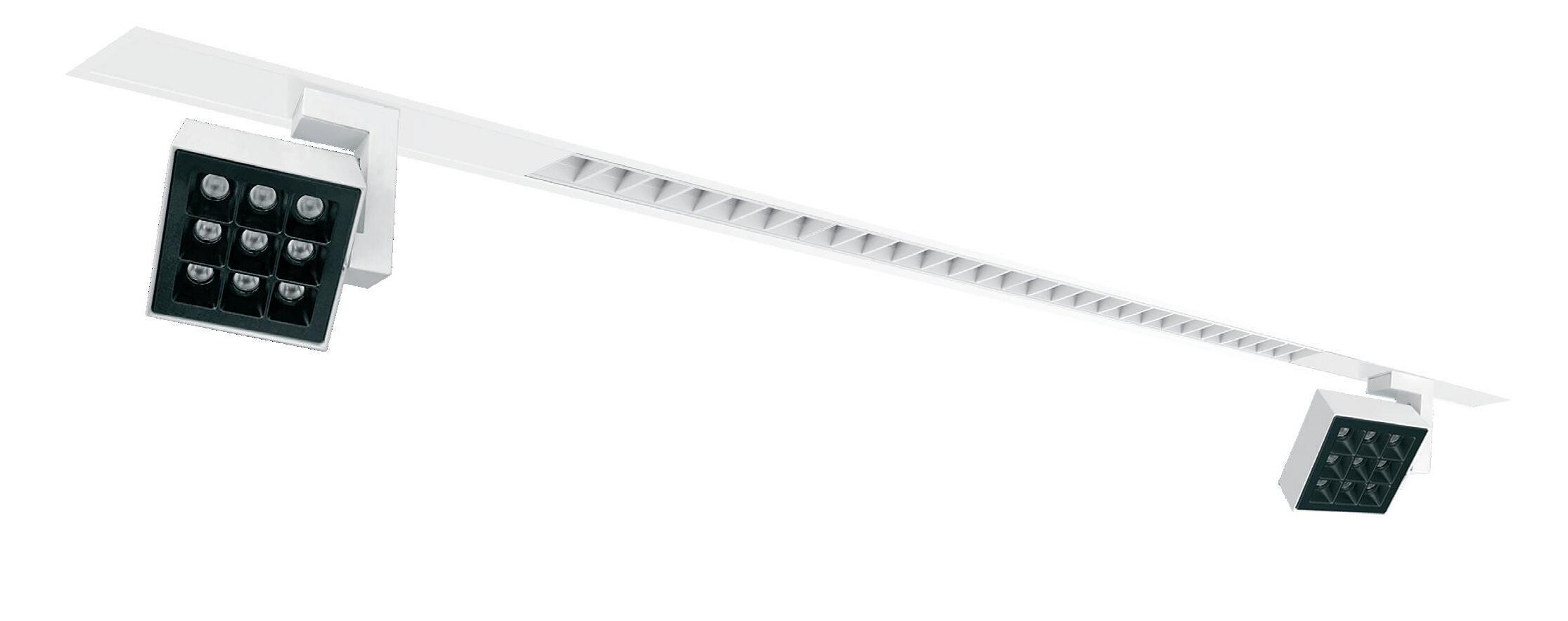

Liset 2.0 - suspension with diffuser - compositions

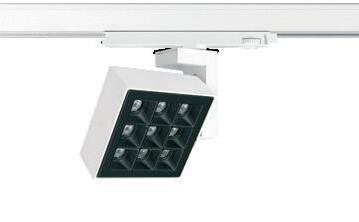

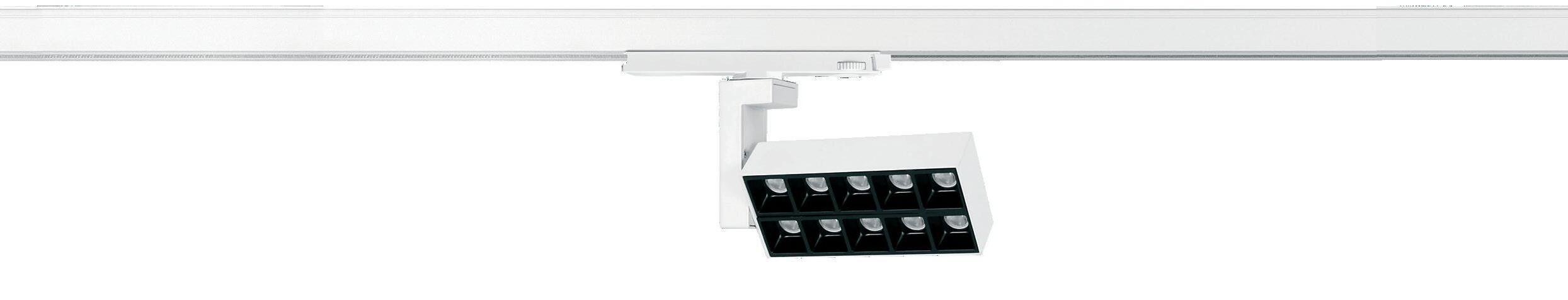

Upon request: special versions with other spotlights of the Matrix Q series are available CRI 90 - 3000K or 4000K with different beam openings

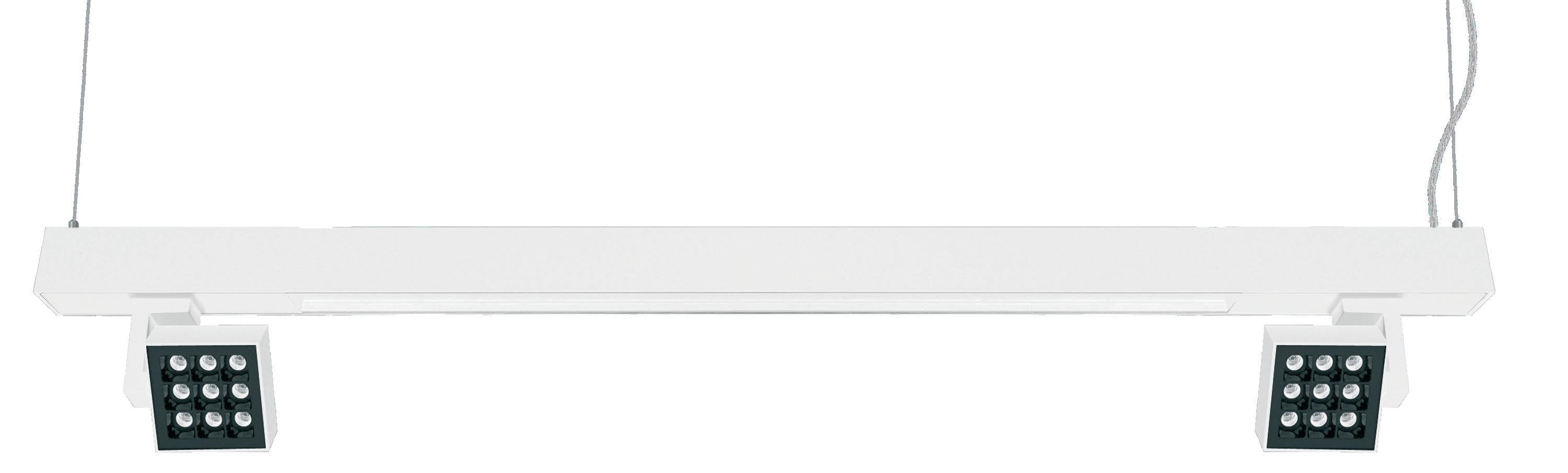

Standard composition: Liset 2.0 with diffuser + 2 modules with 32° spotlight (upon request with 50° beam angles). Standard version includes double switching.

Upon request:

• CRI 90 - 3000 K - 4000K

• 3000K version with sub-code -39

• PUSH-DIMM version with sub-code -1245

• version 1h EM with subcode -09

• version 3h EM with subcode -31

Upon request: special versions with other spotlights of the Matrix Q series are available CRI 90 - 3000K or 4000K

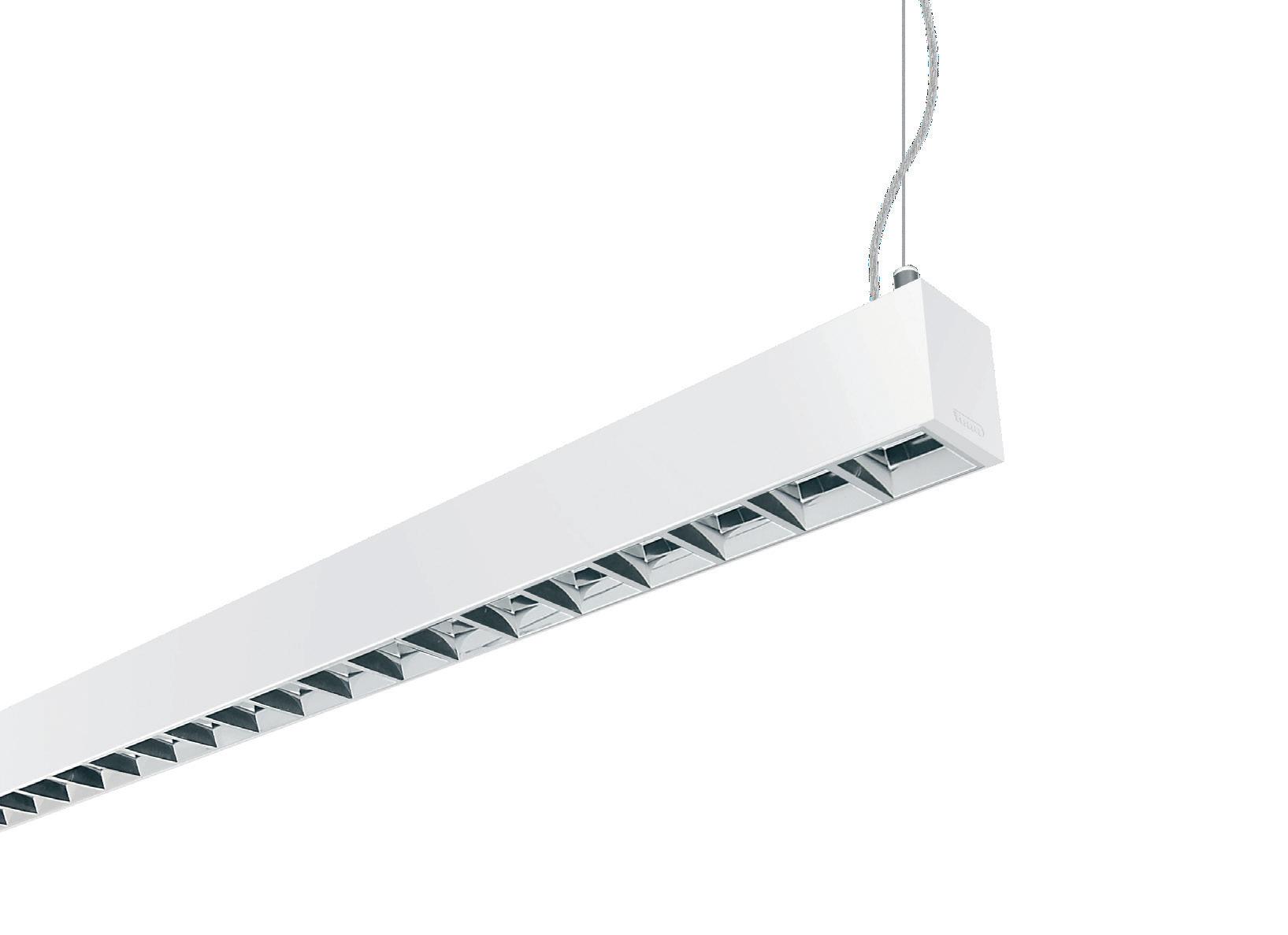

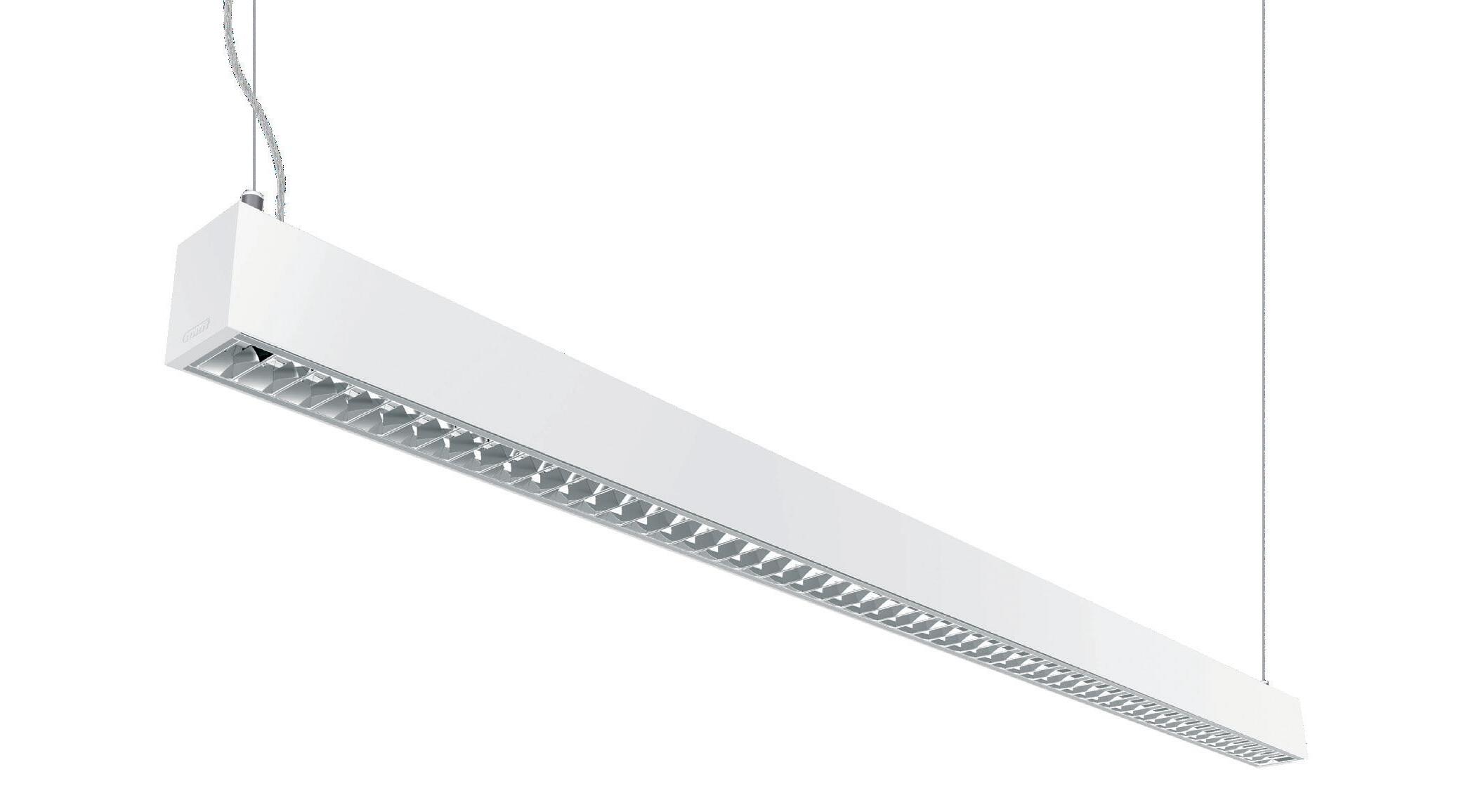

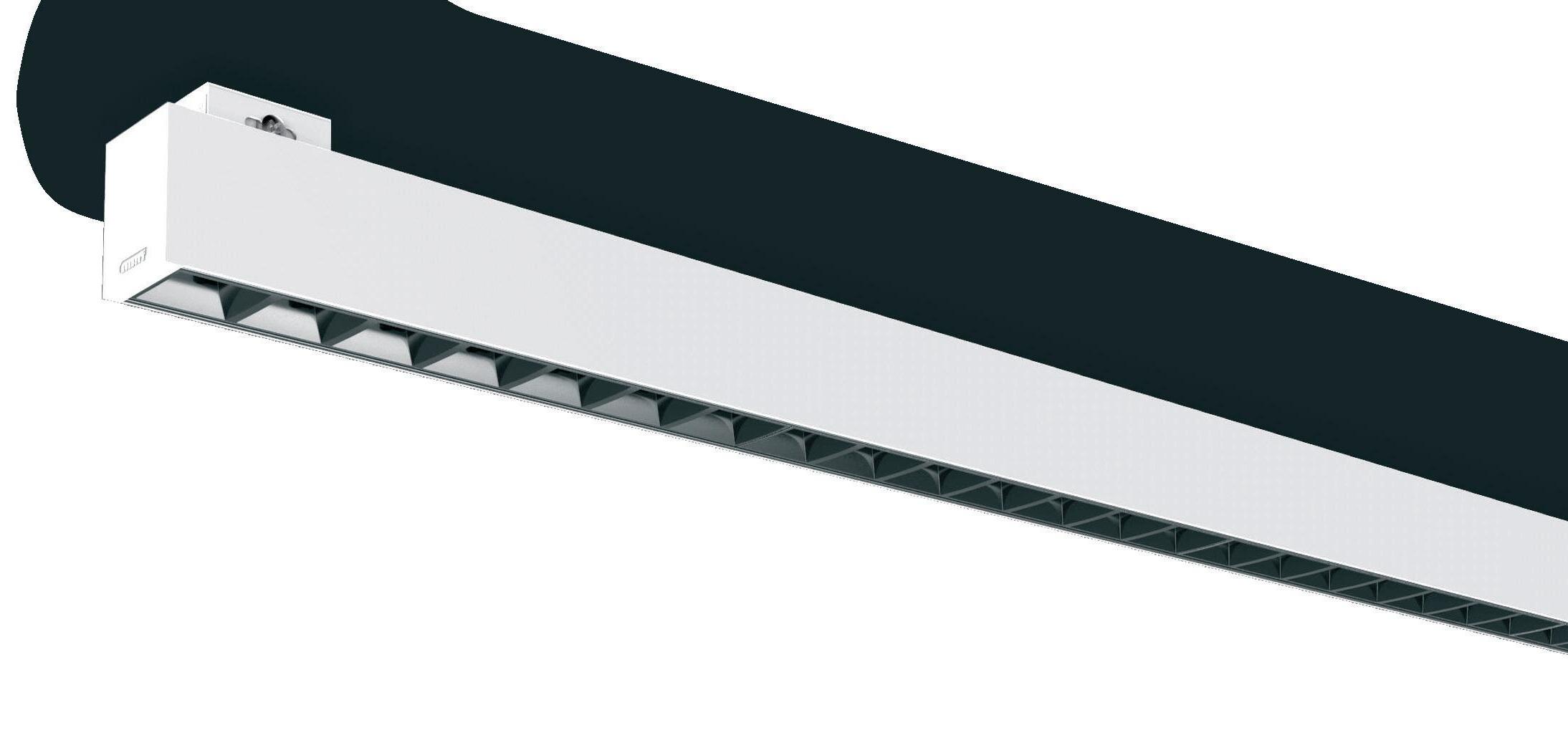

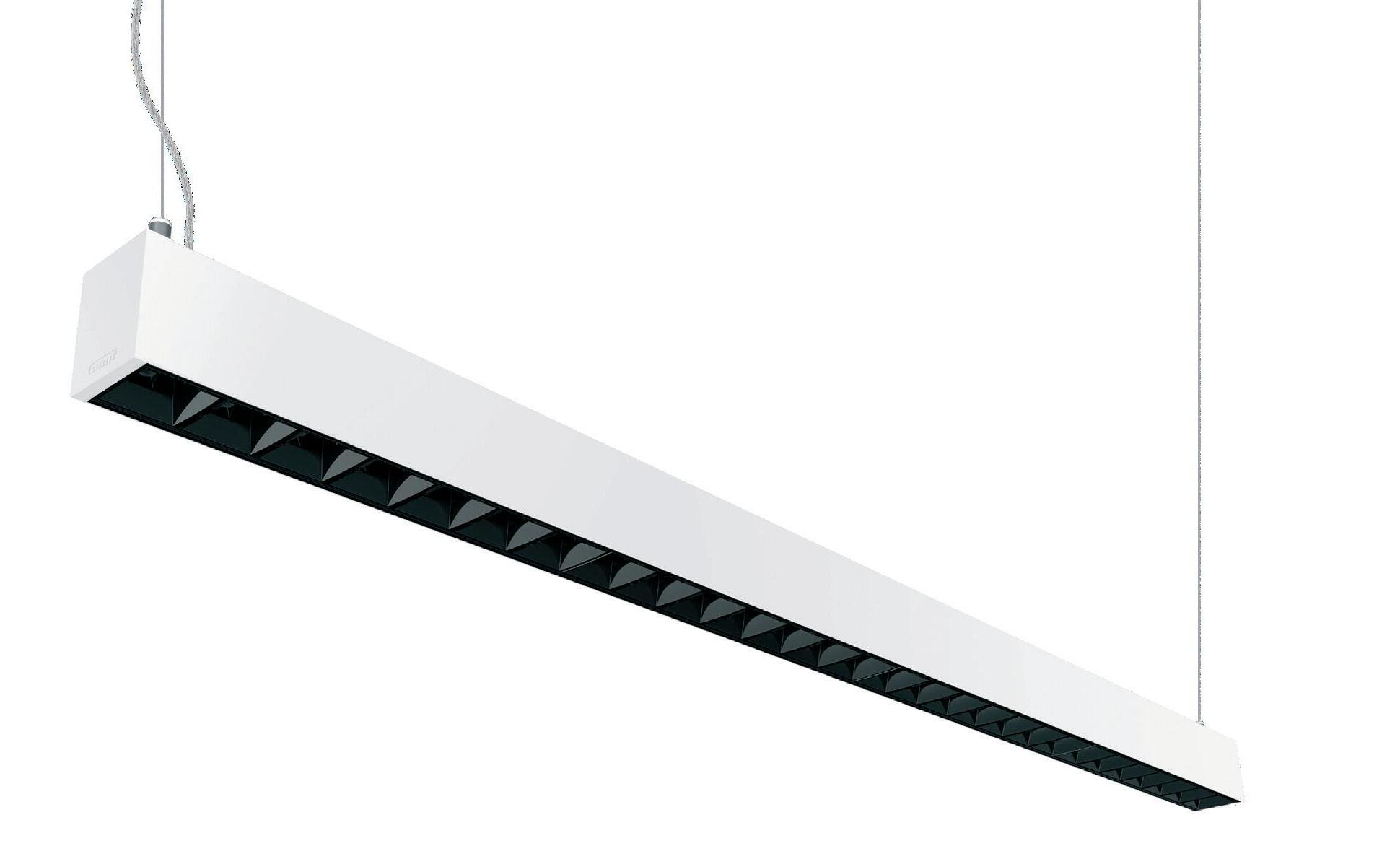

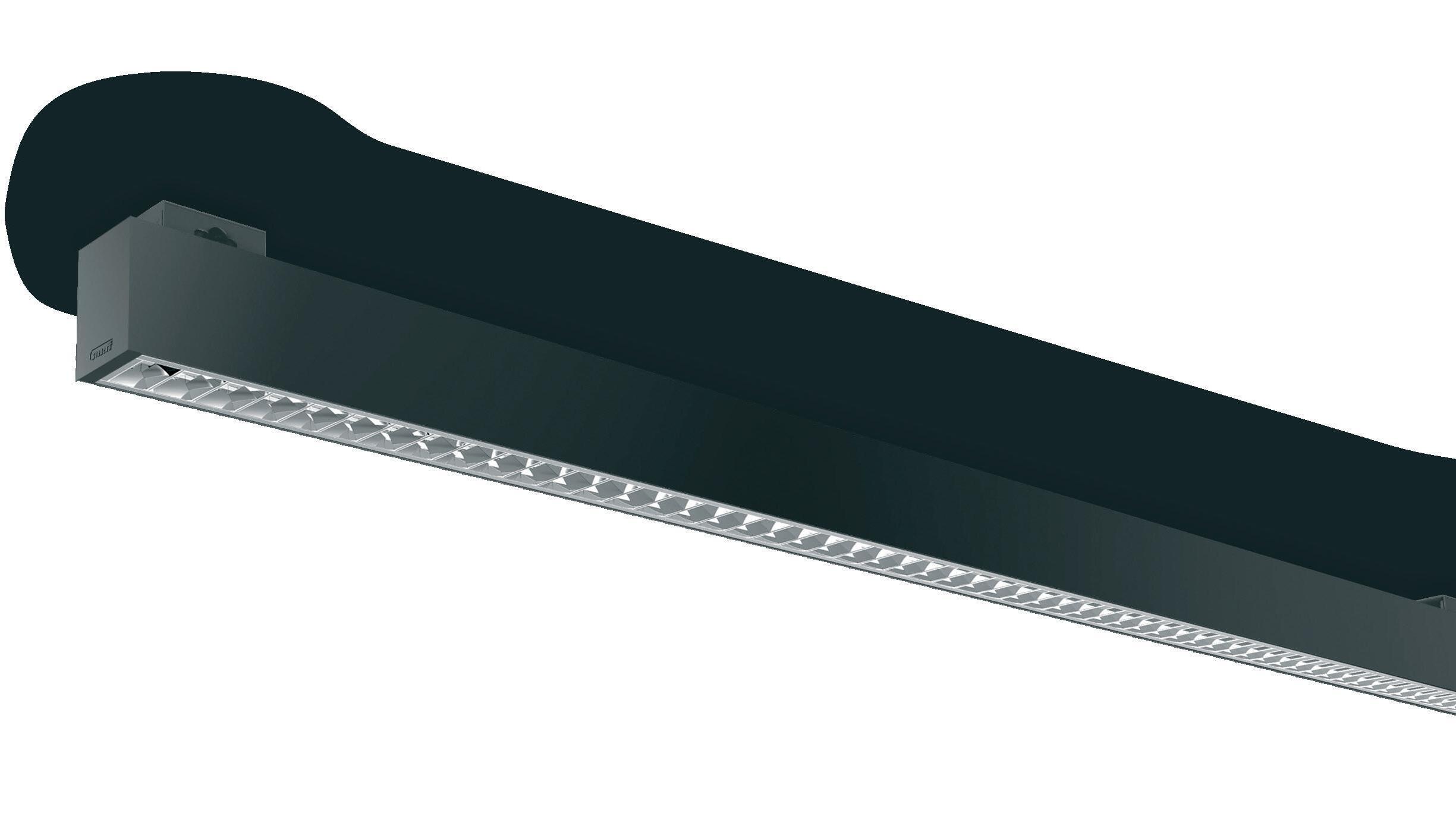

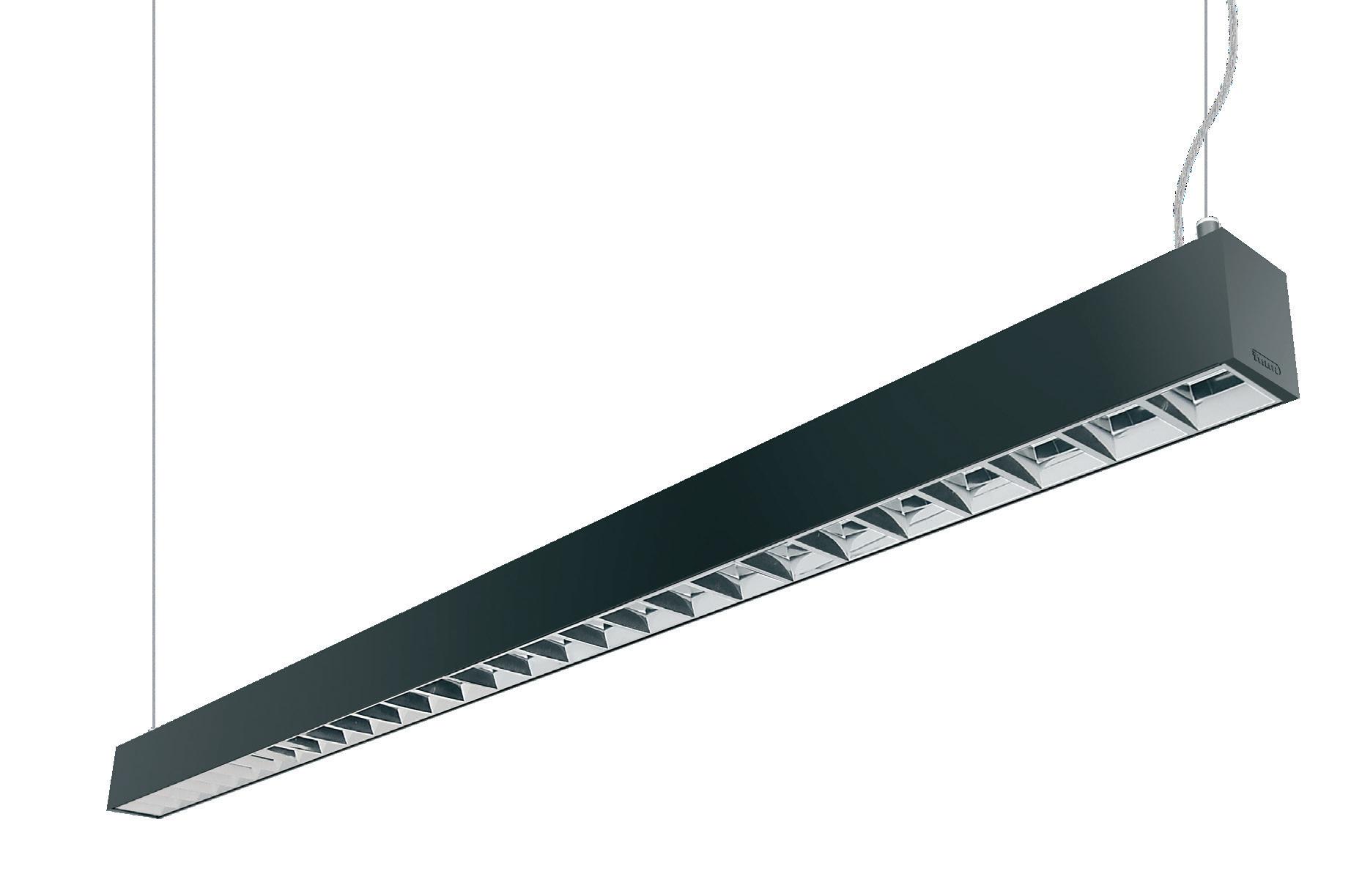

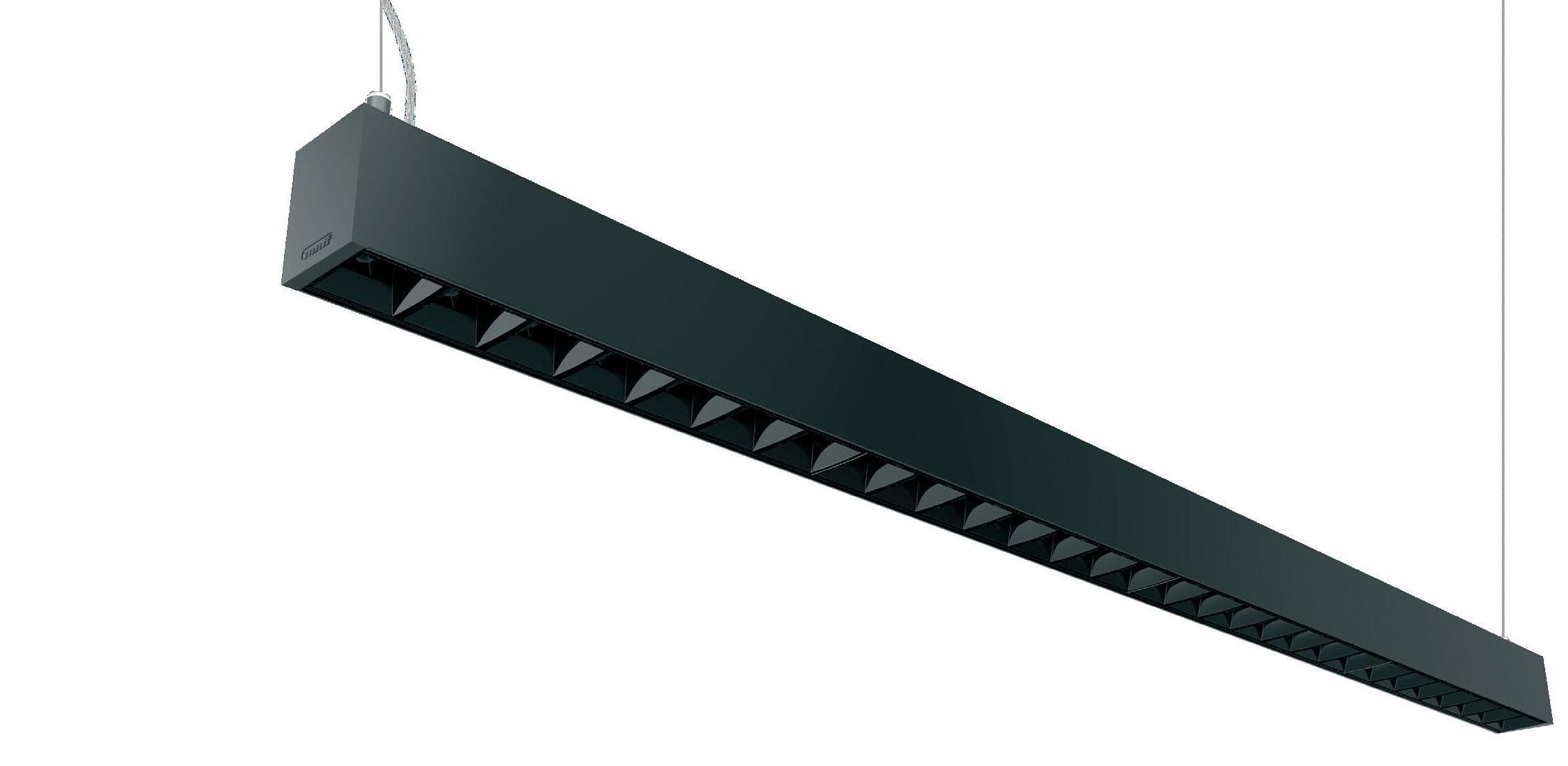

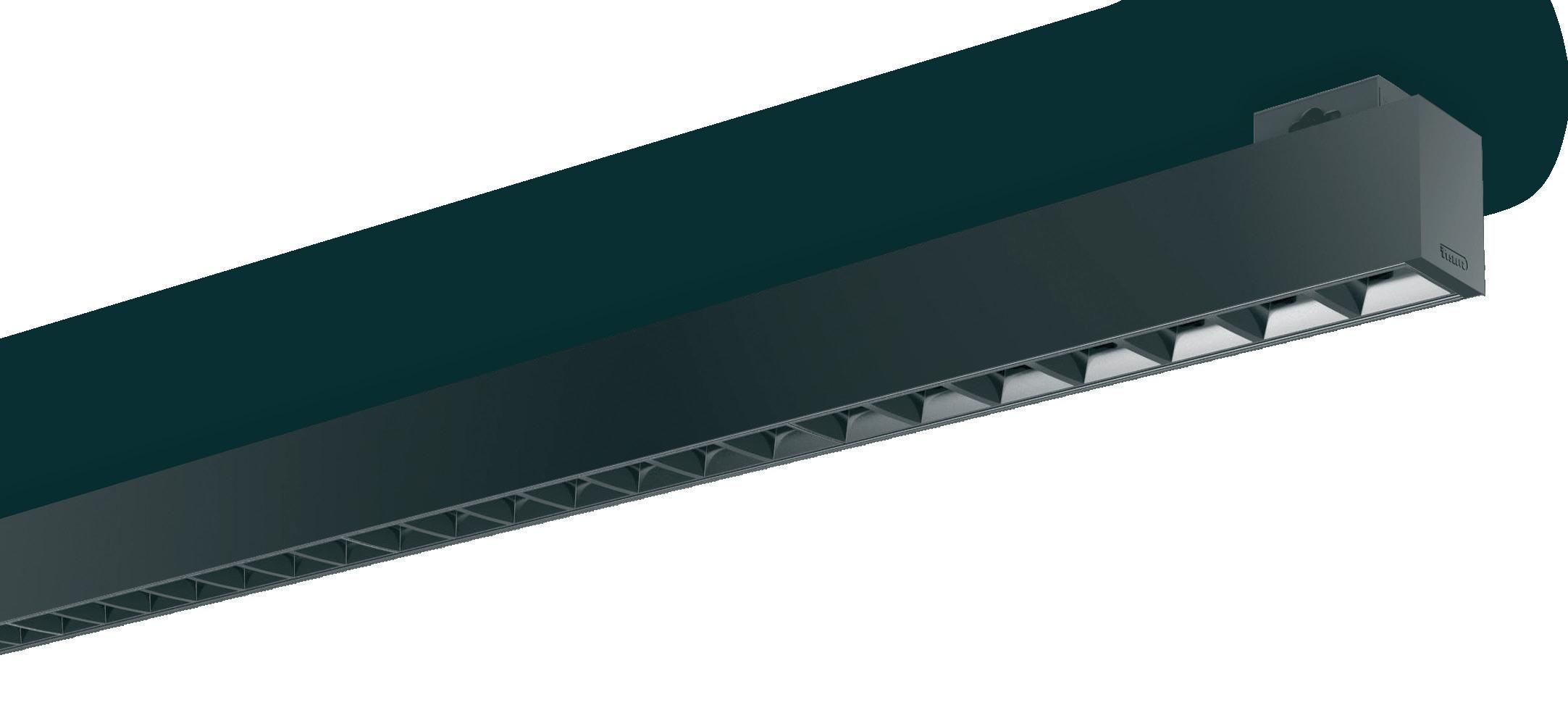

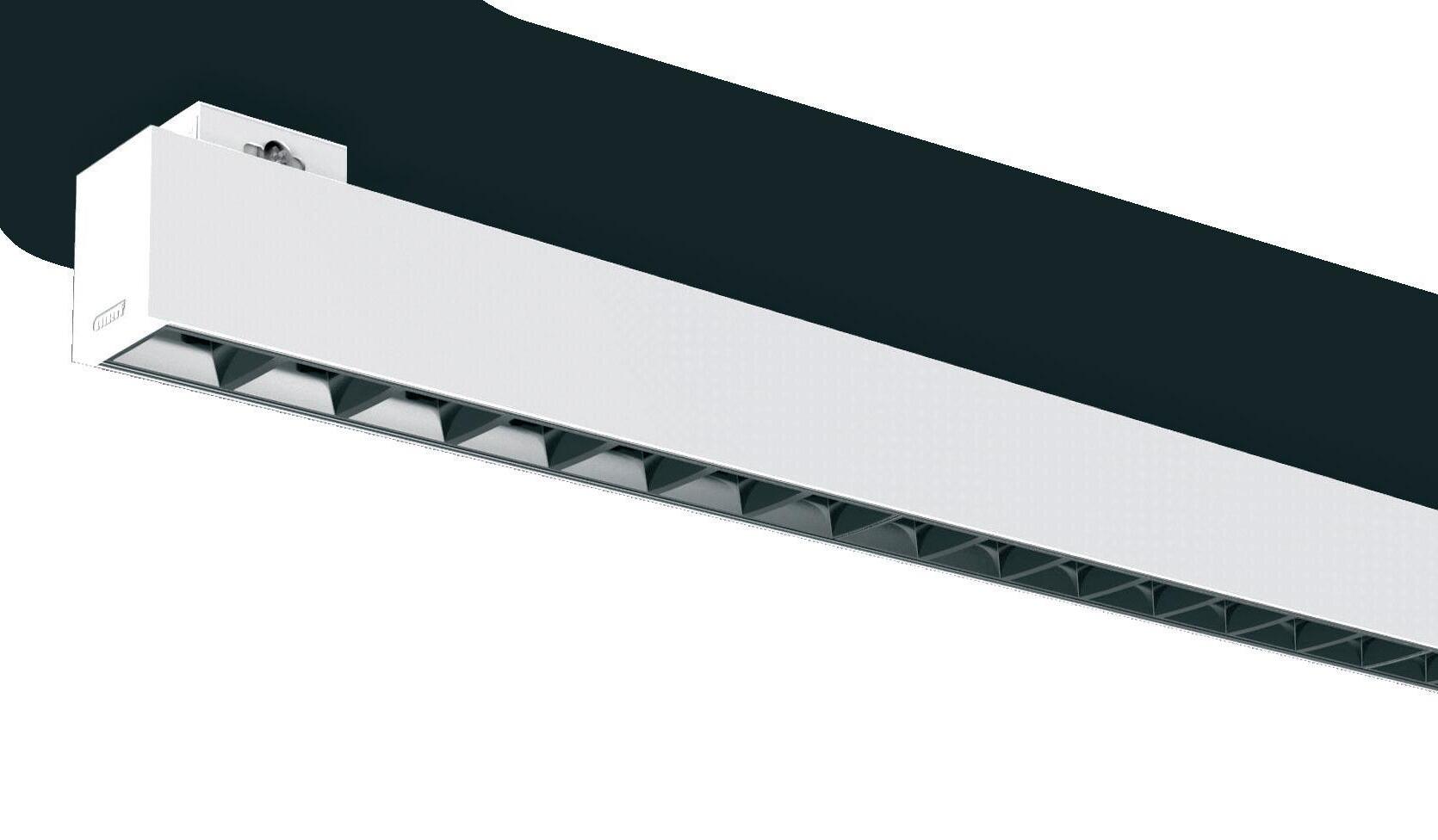

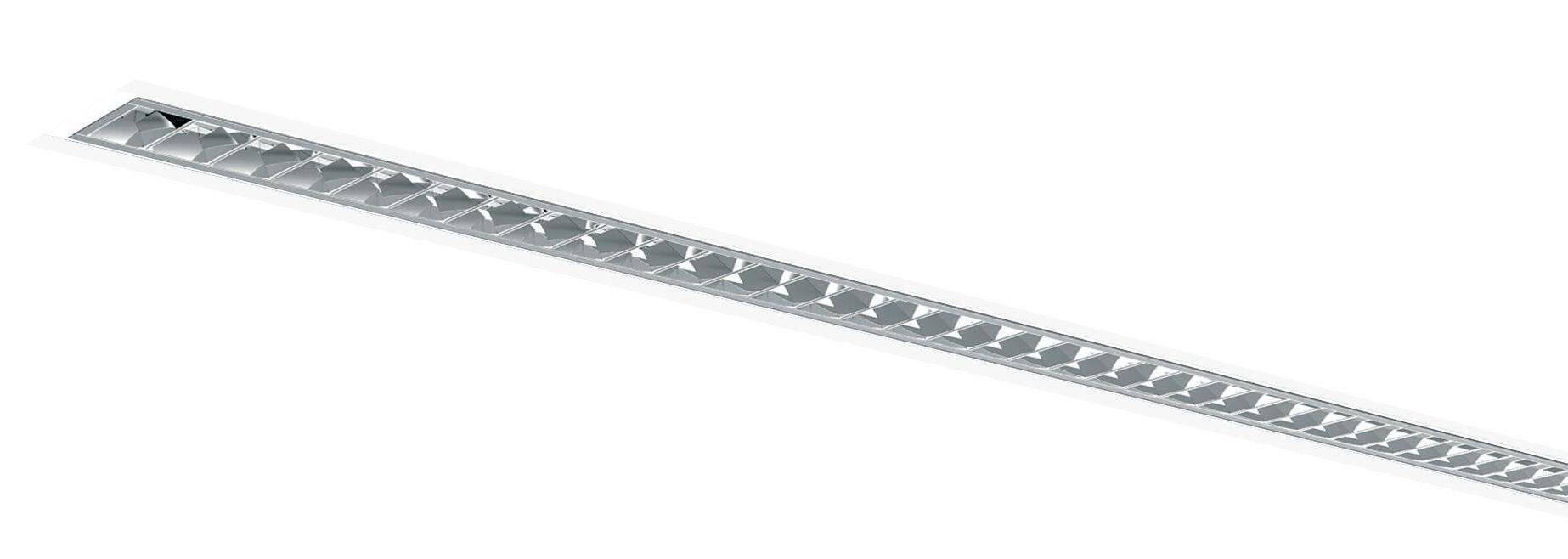

Liset 2.0 - suspension dark light - UGR<19

LED 8 moduli

Upon request:

• CRI 90 - 4000K

2310 4,50

302039-1241

302030-1241

• pass-through wiring for continuous line mounting with subcode -0072

• PUSH-DIMM version with sub-code -1245

Upon request: natural light wood, natural dark wood smooth: silver, anodic ice, golden beach, bronze

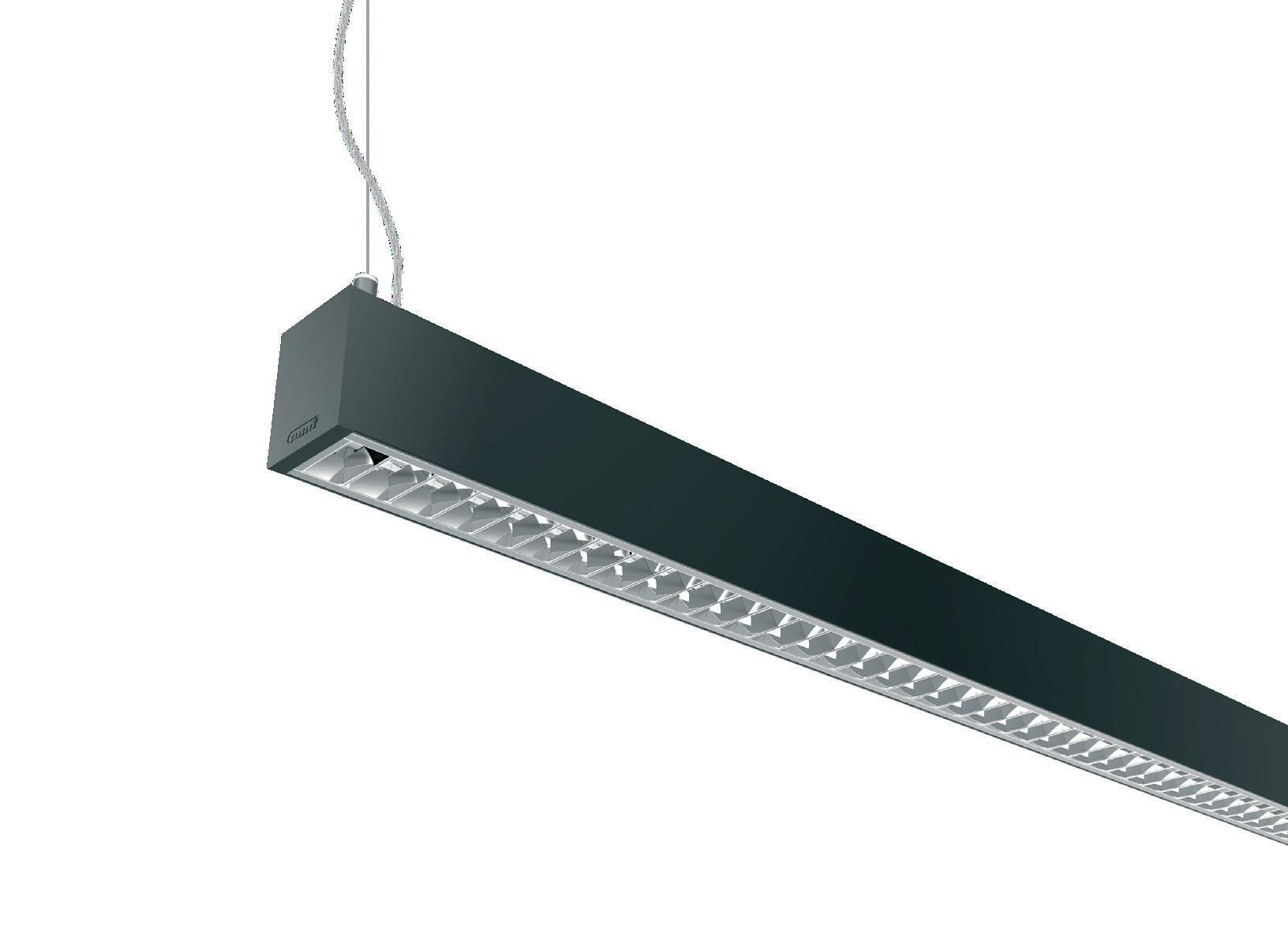

Liset 2.0 - suspension - direct/indirect light - Dark light - UGR<19

LED 8 modules white 2310 4,90 22302012-00

LED 5 modules white 1455 3,30 22302011-1241

- 4104lm - CRI>80 black 22302031-1241

LED 8 modules white 2310 4,90 22302012-1241

Upon request:

4000K - 7884lm - CRI>80 black 22302032-1241

• CRI 90 - 4000K

• pass-through wiring for continuous line mounting with subcode -0072

• PUSH-DIMM version with sub-code -1245

Upon request: natural light wood, natural dark wood smooth: silver, anodic ice, golden beach, bronze

Liset 2.0 - suspension with DARK comfort optics - UGR<19

Upon request:

• CRI 90 - 4000K

• 3000K version with sub-code -39

• Pass-through wiring for continuous line mounting with subcode -0072

• PUSH-DIMM version with sub-code -1245

• 76° beam version

Upon request:

natural light wood, natural dark wood smooth: silver, anodic ice, golden beach, bronze

Liset 2.0 - suspension - direct/indirect light - DARK comfort optics - UGR<19 CLD LUMEN OUTPUT (tq= 25 °C)

LED housing L (mm) weight code W tot K - ølm - CRI - degrees

LED 35 lenses white 1415 4,50 22303913-00 37 4000K - 5420lm - CRI>80 - 65° black 22303933-00 CLD D-DIG (DALI)

LED 35 lenses white 1415 4,50 22303913-1241 37 4000K - 5420lm - CRI>80 - 65° black 22303933-1241

Upon request:

• CRI 90 - 4000K

• 3000K version with sub-code -39

• Pass-through wiring for continuous line mounting with subcode -0072

• PUSH-DIMM version with sub-code -1245

• 76° beam version

Upon request: natural light wood, natural dark wood smooth: silver, anodic ice, golden beach, bronze

Upon request:

• CRI 90 - 4000K

• 3000K version with sub-code -39

• Pass-through wiring for continuous line mounting with subcode -0072

• PUSH-DIMM version with sub-code -1245

• 76° beam version

Upon request: natural light wood, natural dark wood smooth: silver, anodic ice, golden beach, bronze

Liset 2.0 - suspension - direct/indirect light - comfort optics - UGR<19 CLD LUMEN OUTPUT (tq= 25 °C) LED housing L (mm) weight code W

black 22302133-00 CLD D-DIG (DALI)

LED 35 lenses white 1415 4,50 22302113-1241

black 22302133-1241

Upon request: CRI 90 - 4000K

• 3000K version with sub-code -39

• Pass-through wiring for continuous line mounting with subcode -0072

• PUSH-DIMM version with sub-code -1245

• 76° beam version

Upon request: natural light wood, natural dark wood smooth: silver, anodic ice, golden beach, bronze

Liset 2.0 - suspension with comfort optics - UGR<19

Standard composition: Liset 2.0 with 65° black comfort optics + 2 modules with 32° spotlight (upon request with 76° comfort optics + 50° spotlights).

Standard version includes double switching.

Upon request:

• CRI 90 - 3000K - 4000K

• 3000K version with sub-code -39

• PUSH-DIMM version with sub-code -1245

• 1h EM version with subcode -09

• 3h EM version with subcode -31

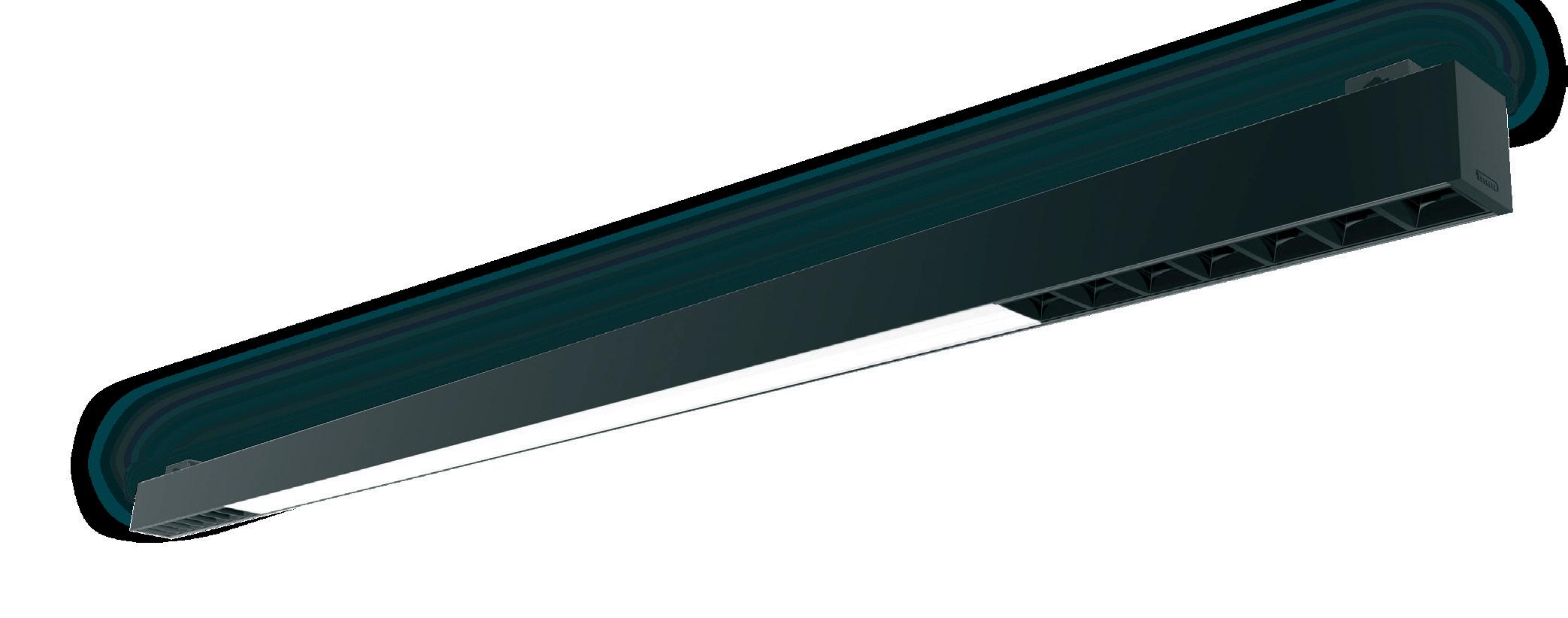

Liset 2.0 - C+M+2S - suspension - UGR<19

Liset 2.0 suspension “INFINITY” - without diffuser screen

*if complete with diffuser

To be completed with acc.: 22028010-00 - 22028030-00 end cap

To be completed with acc.: 22025843-00 diffuser roll

Liset 2.0 “INFINITY” - suspension - to be completed with diffuser roll

“INFINITY” light module that enables continuous and uninterrupted light lines. To be completed with: • opal polycarbonate film roll (upon request, UGR<19 roll is available)

• end cap

• brackets for continuous light line Standard: with 2 millimetre adjustment device.

Opal polycarbonate roll

opal L = 30m 22025843-00

Opal polycarbonate Roll must always be used on Liset 2.0 “INFINITY” for continuous and uninterrupted “all light” lines. Upon request, UGR<19 prismatic roll is available.

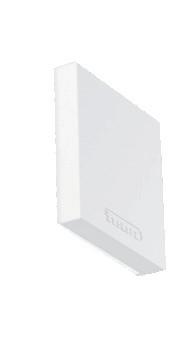

End cap

white 22028010-00

black 22028030-00

To be used to close the two terminal ends.

Connecting bracket 22025877-00

It permits mechanical connection of the profiles.

Liset 2.0 - accessories for suspension mounting

Suspension with wire

black 22003138-00

white 22003118-00

Complete with steel wire (L = 100cm) and millimetre adjustment device. Max load: 20 kg.

Powered suspension with wire

black 22003130-00

white 22003190-00

Supplied with steel wire (L = 100cm) and millimetre adjustment device and power cord. Max loading: 20Kg.

Suspension

galvanised

22003166-00

Supplied with steel wire (L=1,75m) and millimetre adjustment device. Max load: 20 kg.

S suspension linear module

black 22385630-03

white 22385610-03

It permits linear connection of Liset 2.0

Connecting bracket

22025877-00

It permits mechanical connection of the profiles.

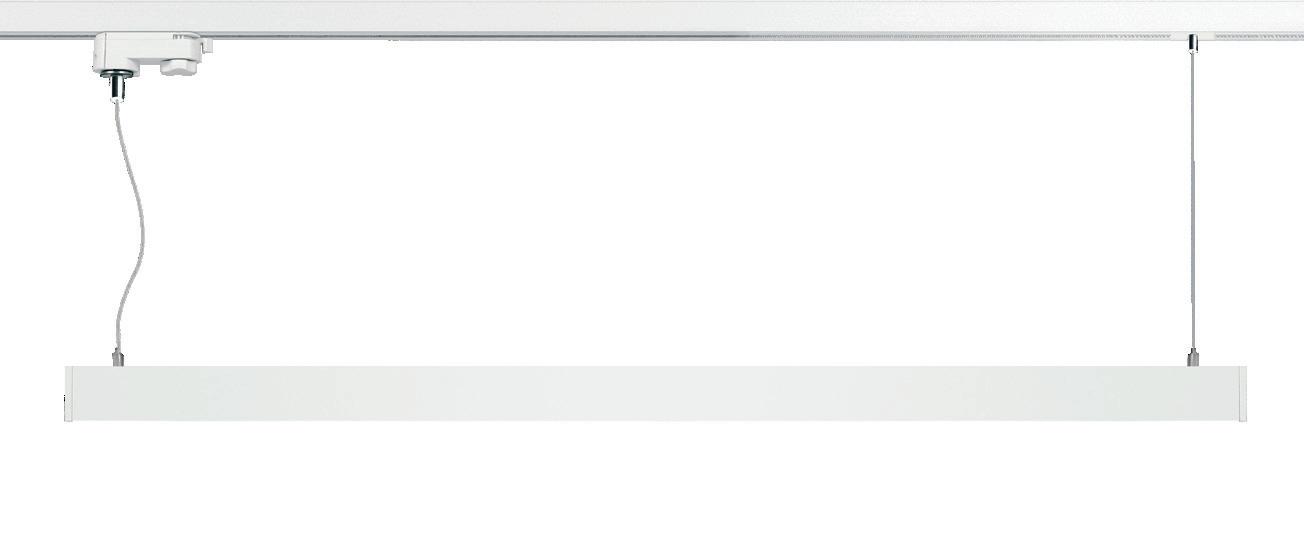

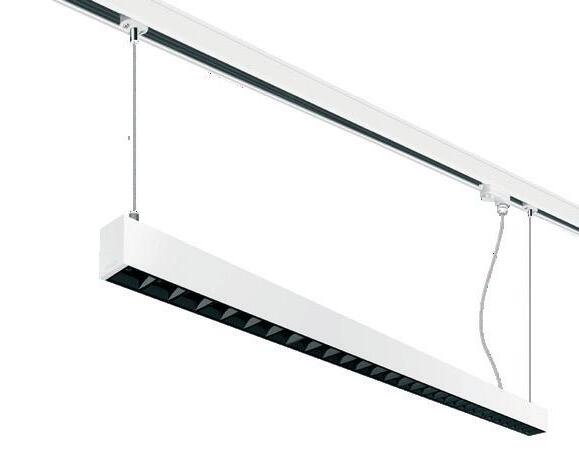

3P/5P suspension attachment for track

black 3P 22091432-00

white 22091412-00

black 5P 22091432-1241

white 22091412-1241

black 5P 22091432-09

white 22091412-09

Supplied with steel wire, mechanical adapter (2 per pack), power adapter with 3P power cord for Omintrack, DALI

5P power cord for Omintrack Plus, 5P power cord + EM KIT (to be purchased separately) for Omintrack Plus.

5P Powered suspension

black 22003121-00

white 22003120-00

Supplied with steel wire (L = 100cm) and power cord. Max loading: 20Kg. For electric gear in EM and DIMM DALI versions.

5P WIRELESS Powered suspension

black 22003135-00

white 22003125-00

Supplied with steel wire (L = 100cm) and power cord. Max loading: 20Kg. For the WIRELESS management of DIMM DALI versions (Out DALI : Max 7mA).

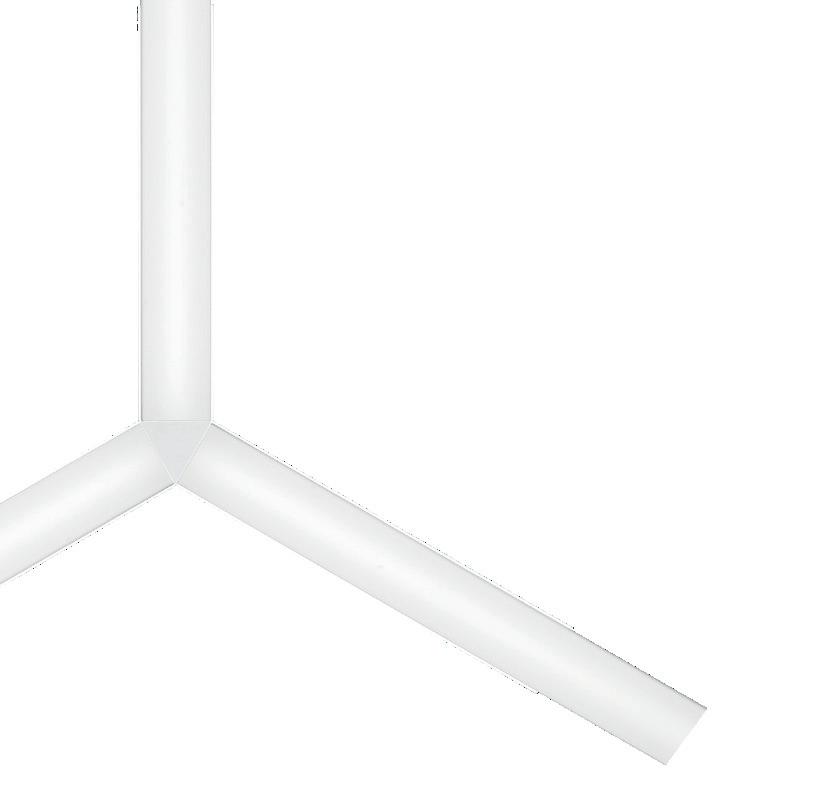

Suspension angle module “ALL LIGHT”

black 22302630-00 14W

white 22302610-00 14W

It permits angle connection of Liset 2.0

Upon request: DIMM DALI (-1241). Kg= 1,1.

Only for Liset 2.0 version with opal diffusers.

S suspension angle module

black 22302630-03

white 22302610-03

It permits angle connection of Liset 2.0

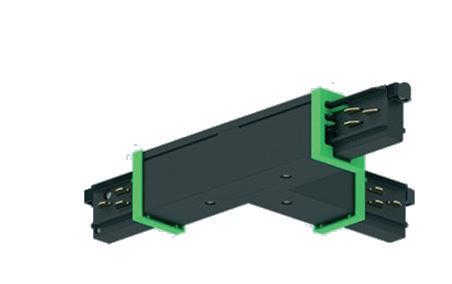

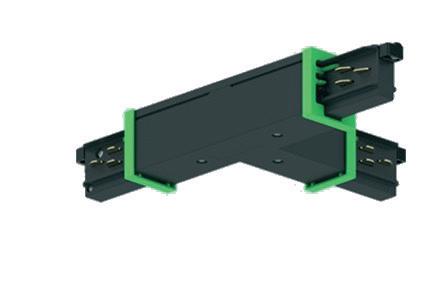

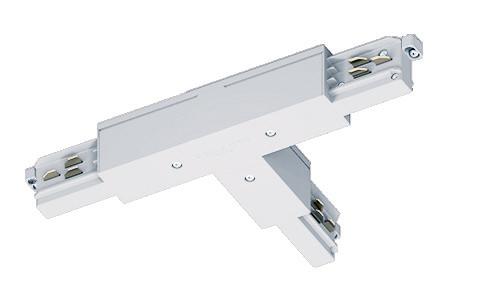

S suspension T angle module

black 22302634-03

white 22302614-03

It permits T angle connection of Liset 2.0. Use with acc. 22025877-00.

S suspension X angle module

nero 22302635-03

bianco 22302615-03

It permits X angle connection of Liset 2.0. Use with acc. 22025877-00.

Upon request: 120° suspension angle module

S ceiling linear module

MATRIX Q DARK series

Ssuspension linear module

Liset 2.0 - ceiling/wall

As simple as that!

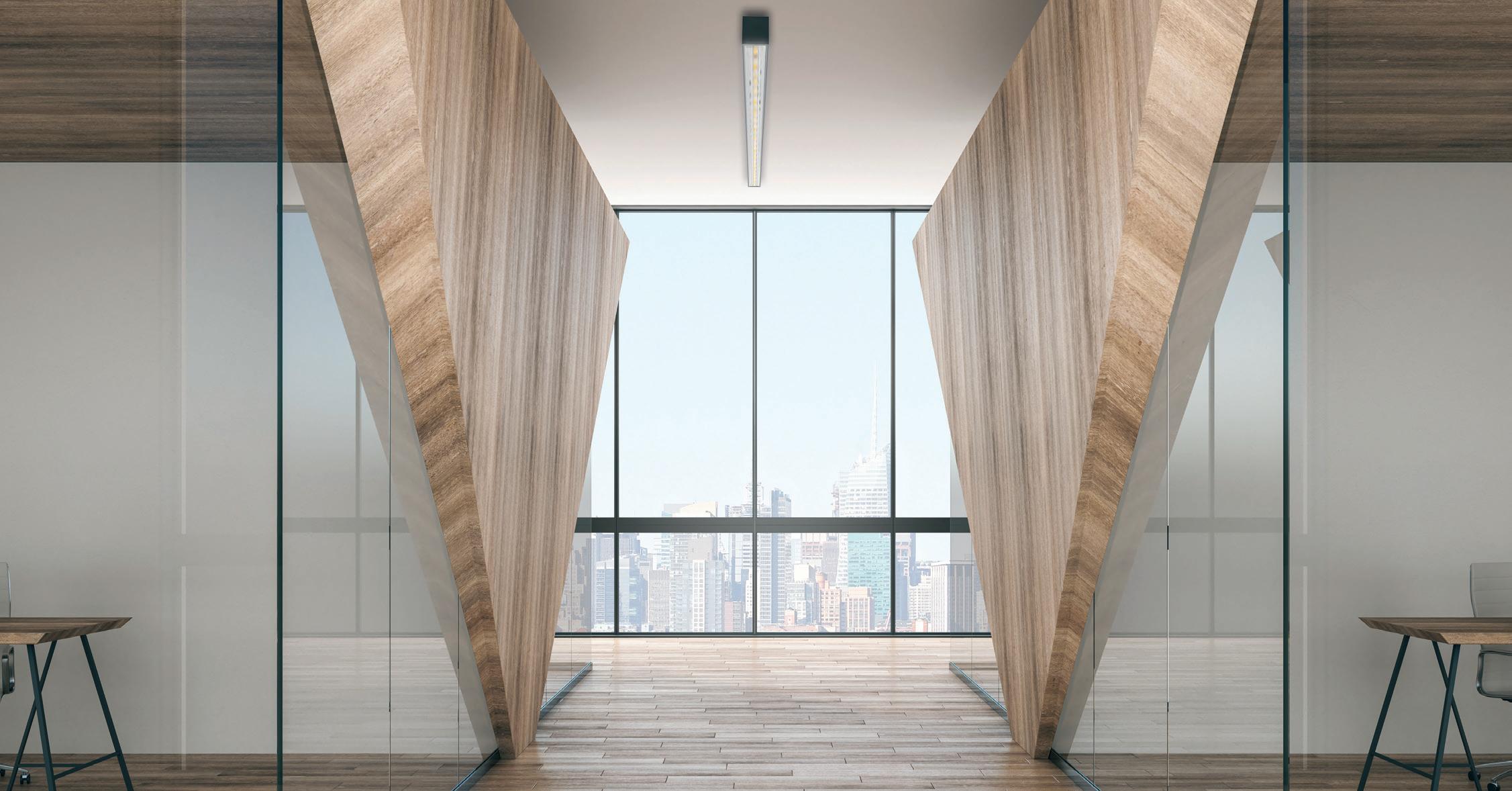

Liset 2.0 is available also in the ceiling mount version.

All it takes is just a few wall anchors and the fixture is up and ready.

And that’s not all! Thanks to the many different accessories available, you can create artistic designs like squares, rectangles, ecc.

Liset 2.0 - ceiling/wall

Connecting bracket It permits mechanical connection of the profiles in a continuous line.

Linear

•

• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)

• 1h EM version with subcode -09 (4000K) or -0928 (3000K

• 3h EM version with subcode -31 (4000K) or -3957 (3000K)

Upon

Liset 2.0 HE - ceiling with diffuser

Liset 2.0 HE - ceiling - 25° asymmetric optics

Liset 2.0 - ceiling with diffuser

Accessories: see p. 46-47

Upon request:

• CRI 90 - 3000K and 4000K

• pass-through wiring for continuous line mounting with subcode -0072

• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)

• 1h EM version with subcode -09 (4000K) or -0928 (3000K)

• 3h EM version with subcode -31 (4000K) or -3957 (3000K)

Upon request:

natural light wood, natural dark wood smooth: silver, anodic ice, golden beach, bronze

“ALL LIGHT” accessories that make the

Liset 2.0 - ceiling with diffuser - compositions

Upon request: special versions with other spotlights of the Matrix Q series are available CRI 90 - 3000K or 4000K with different beam openings

Standard composition: Liset 2.0 with diffuser + 2 modules with 32° spotlight (upon request with 50° beam angles). Standard version includes double switching.

Upon request: a CRI 90 - 3000K - 4000K

• 3000K version with sub-code -39

• 1h EM version with subcode -09

• 3h EM version with subcode -31

Upon request: special versions with other spotlights of the Matrix Q series are available CRI 90 - 3000K or 4000K

Liset 2.0 - ceiling - dark light - UGR<19

Accessories: see p. 46-47

Upon request:

• CRI 90 - 4000K

• pass-through wiring for continuous line mounting with subcode -0072

• PUSH-DIMM version with sub-code -1245

• 1h EM version with subcode -09

• 3h EM version with subcode -31

Upon request: natural light wood, natural dark wood smooth: silver, anodic ice, golden beach, bronze

Liset 2.0 - ceiling with DARK comfort optics - UGR<19

LED

Upon request:

• 3000K version with subcode -39.

• CRI 90 - 3000K and 4000K

• pass-through wiring for continuous line mounting with subcode -0072

• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)

• 1h EM version with subcode -09 (4000K) or -0928 (3000K)

• 3h EM version with subcode -31 (4000K) or -3957 (3000K)

• 76° beam version

Upon request: natural light wood, natural dark wood smooth: silver, anodic ice, golden beach, bronze

Liset 2.0 - ceiling with comfort optics - UGR<19

LED

Upon request:

• CRI 90 - 3000K and 4000K

• pass-through wiring for continuous line mounting with subcode -0072

• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)

• 1h EM version with subcode -09 (4000K) or -0928 (3000K)

• 3h EM version with subcode -31 (4000K) or -3957 (3000K)

• 76° beam version

Upon request:

natural light wood, natural dark wood smooth: silver, anodic ice, golden beach, bronze

Standard composition: 3 modules with 65°

Upon request:

•

• 3000K version with sub-code -39

• PUSH-DIMM version with sub-code -1245

• 1h EM version with subcode -09

• 3h EM version with subcode -31

• With RADAR SENSOR: sub-code -19

• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)

Liset 2.0 - ceiling with comfort optics - compositions - UGR<19

Standard composition: Liset 2.0 with 65° black comfort optics + 2 modules with 32° spotlight (upon request with 76° comfort optics + 50° spotlights).

Standard version includes double switching.

Upon request:

• CRI 90 - 3000K - 4000K

• 3000K version with sub-code -39

• PUSH-DIMM version with sub-code -1245

• 1h EM version with subcode -09

• 3h EM version with subcode -31

Upon request: special versions with other spotlights of the Matrix Q series are available CRI 90 - 3000K or 4000K with different beam openings

Upon request: special versions with other spotlights of the Matrix Q series are available CRI 90 - 3000K or 4000K

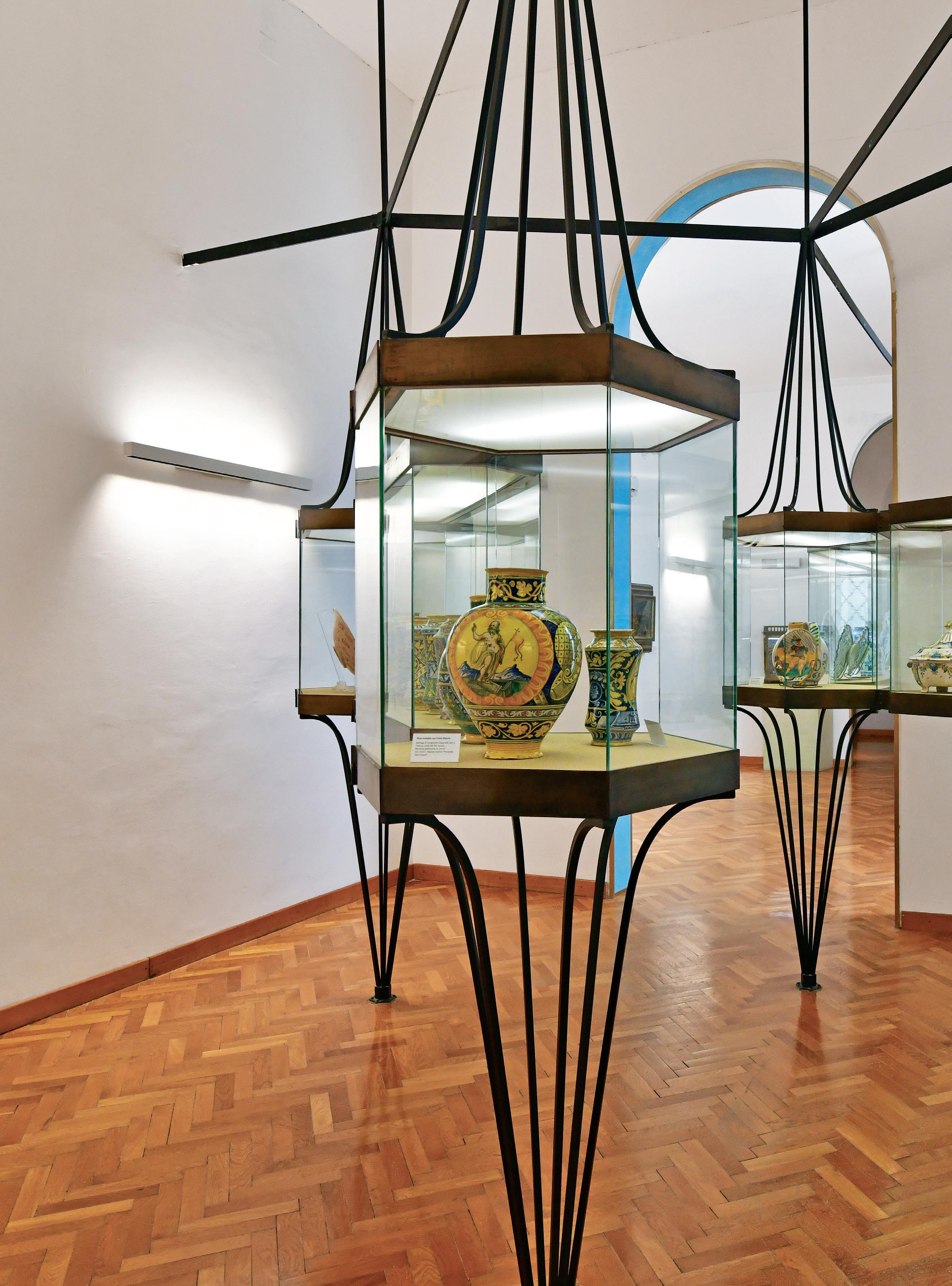

Liset 2.0 wall light with diffuser

Liset 2.0 asymmetric wall version - DARK comfort optics - UGR<19

Liset 2.0 - asymmetric wall - DARK comfort optics direct light - UGR<19

Liset 2.0 - asymmetric wall - DARK comfort optics dir. +diffuser ind. - UGR<19

Complete with mounting brackets for wall mount applications.

Upon request: CRI 90 - 3000K and 4000K

• DIMM-DALI version with subcode -1241 (4000K) or -3941 (3000K)

• PUSH-DIMM version with subcode -1245 (4000K) or -3945 (3000K)

• 1h EM version with subcode

Liset 2.0 wall light with comfort optics - UGR<19

Upon request: version with white optical lenses

Complete with mounting brackets for wall mount applications.

Upon request:

• CRI 90 - 3000K and 4000K

• DIMM-DALI version with subcode -1241 (4000K) or -3941 (3000K)

• PUSH-DIMM version with subcode -1245 (4000K) or -3945 (3000K)

• 1h EM version with subcode -09 (4000K) or -0928 (3000K)

• 3h EM version with subcode -31 (4000K) or -3957 (3000K)

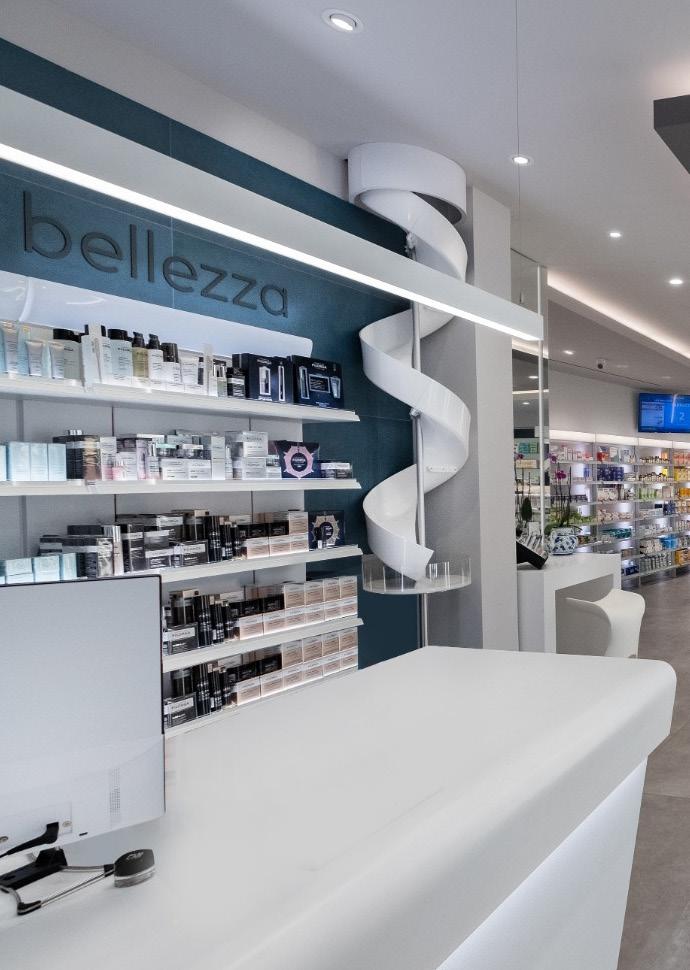

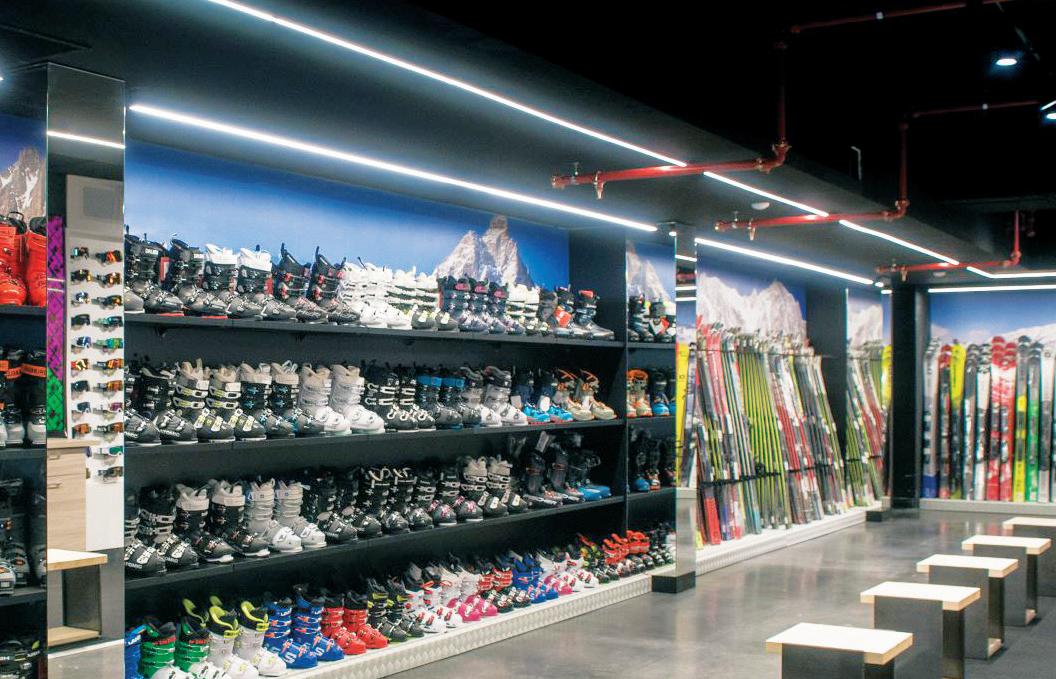

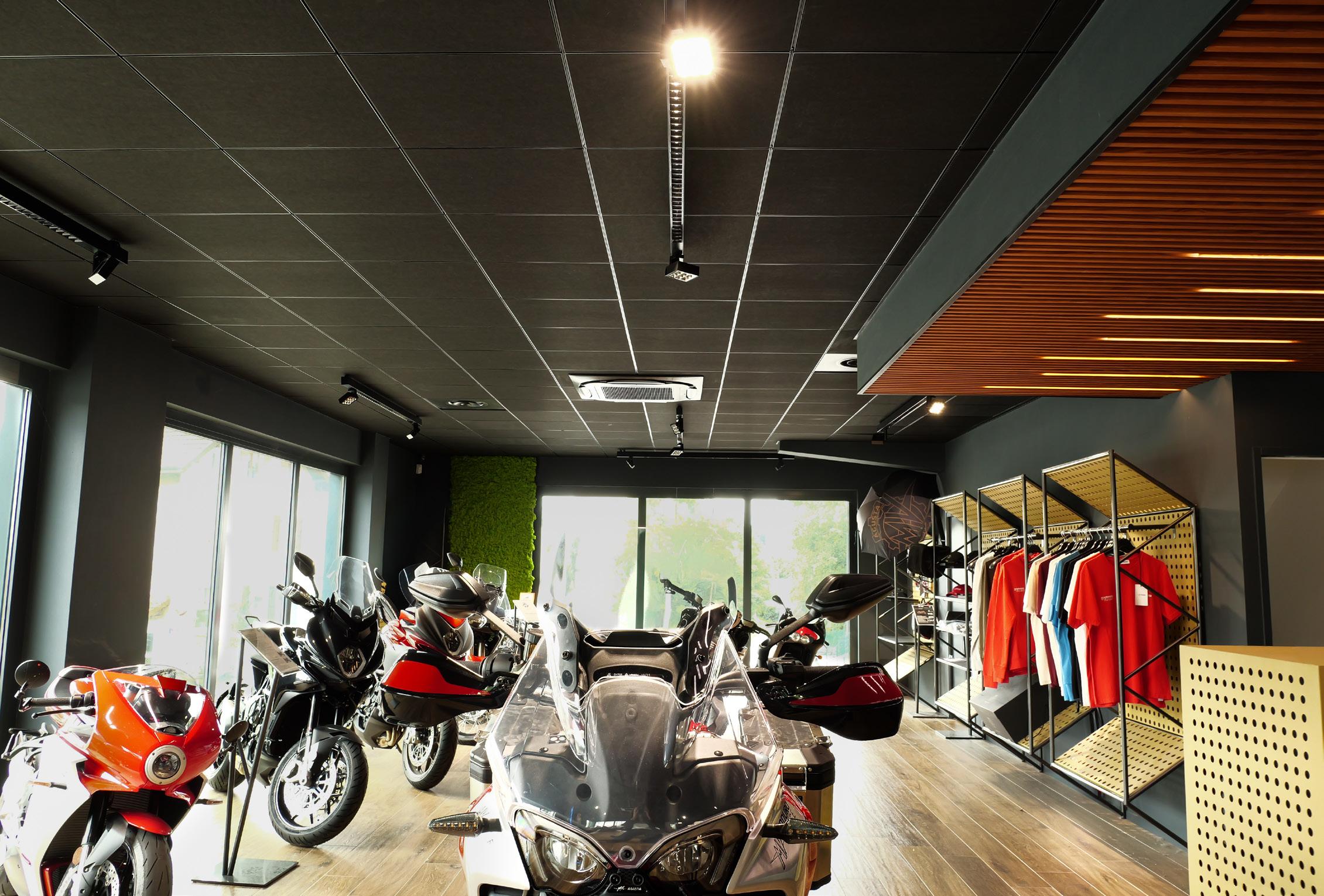

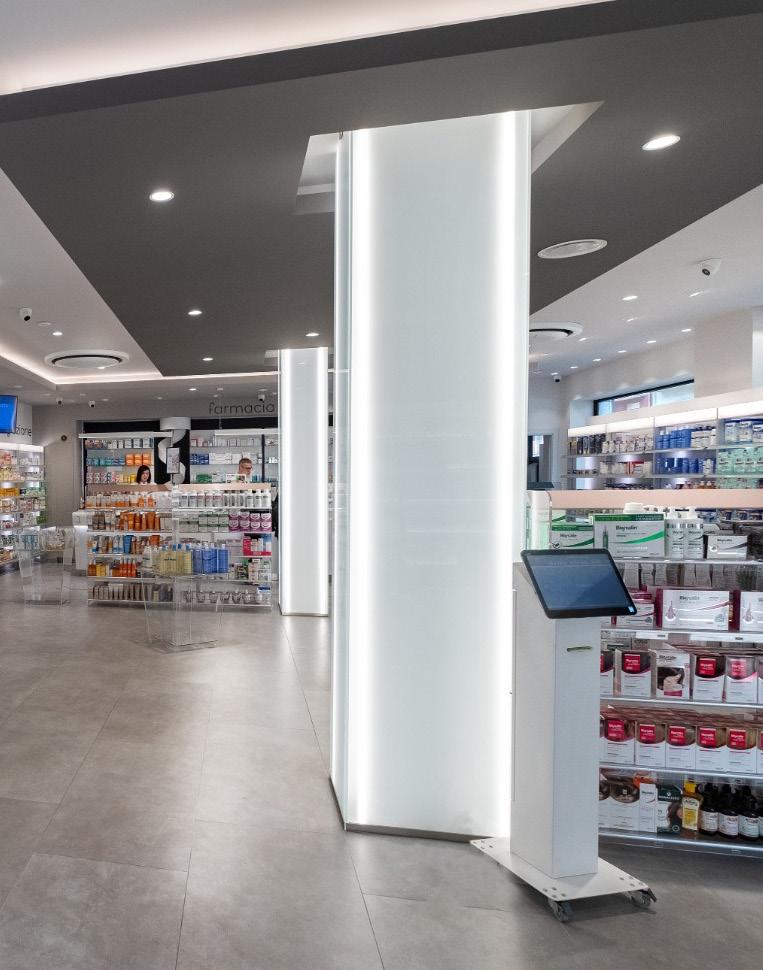

Ideal for the retail sector

Thanks to the versions made for Omnitrack Plus track systems, installation in large rooms is quick and easy. The product can be equipped with adjustable spotlights for accent lighting solutions.

Liset 2.0 HE - track - UGR<19

-00

Upon request:

• DIMM-DALI version with sub-code -124 (4000K) or -3941 (3000K)

• 1h EM version with subcode -09 (4000K) or -0928 (3000K)

• 3h EM version with subcode -31 (4000K) or -3957 (3000K)

• KIT EM for OMINTRACK PLUS to be purchased separately

Liset 2.0 HE - track - 90° CLD (ON-OFF)

(mm)

LED 4 modules white 1145 2,70 22303006-00 29 4000K - 3336lm - CRI 80 black 22303036-00

LED 4 modules white 1145 2,70 22303006-39 29 3000K - 3103lm - CRI 80 black 22303036-39

Upon request:

• DIMM-DALI version with sub-code -124 (4000K) or -3941 (3000K)

• 1h EM version with subcode -09 (4000K) or -0928 (3000K)

• 3h EM version with subcode -31 (4000K) or -3957 (3000K)

• KIT EM for OMINTRACK PLUS to be purchased separately

Liset 2.0 HE - track - 30° x 80°

Upon request:

• DIMM-DALI version with sub-code -124 (4000K) or -3941 (3000K)

• 1h EM version with subcode -09 (4000K) or -0928 (3000K)

• 3h EM version with subcode -31 (4000K) or -3957 (3000K)

• KIT EM for OMINTRACK PLUS to be purchased separately

Liset

303236-39

Upon request:

• DIMM-DALI version with sub-code -124 (4000K) or -3941 (3000K)

• 1h EM version with subcode -09 (4000K) or -0928 (3000K)

• 3h EM version with subcode -31 (4000K) or -3957 (3000K)

• KIT EM for OMINTRACK PLUS to be purchased separately

Liset 2.0 -

Upon request:

• CRI 90 - 3000K and 4000K

• DIMM-DALI version with sub-code -1241 (4000K) or -3941 (3000K)

• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)

• 1h EM version with subcode -09 (4000K) or -0928 (3000K)

• 3h EM version with subcode -31 (4000K) or -3957 (3000K)

• KIT EM for OMINTRACK PLUS to be purchased separately

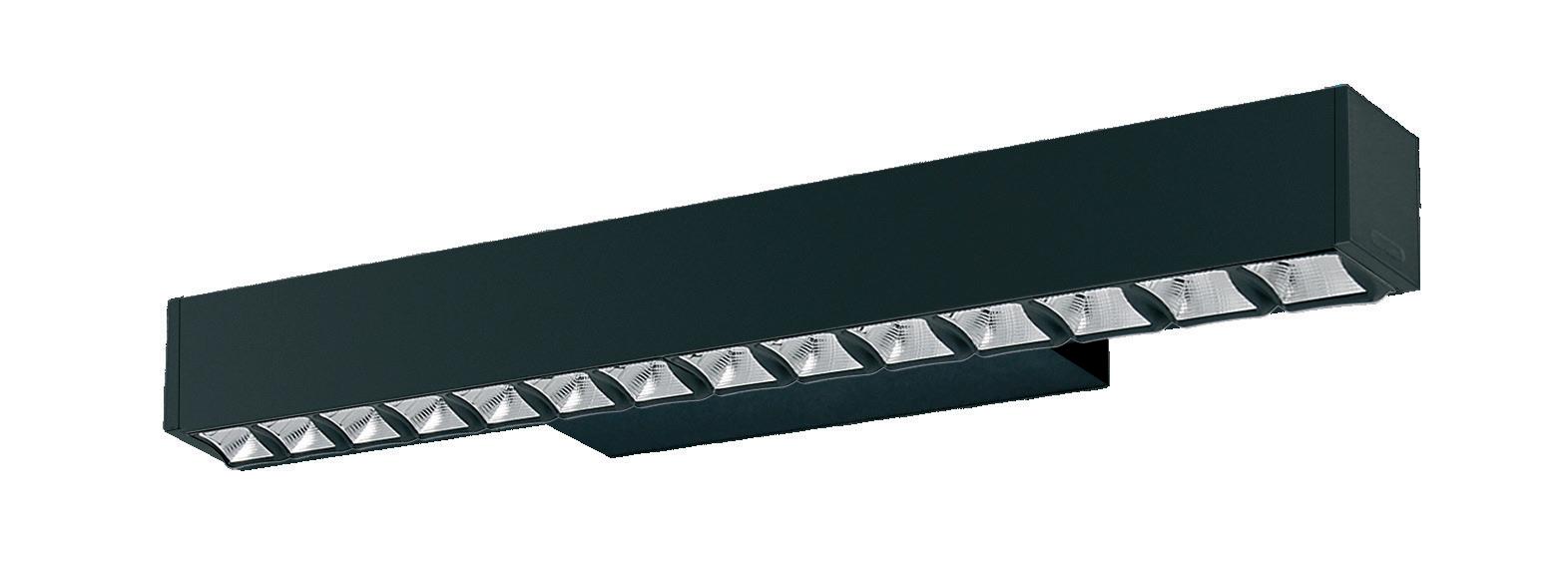

Liset 2.0 - dark light for track - UGR<19

Upon request:

• CRI 90 - 4000K

• DIMM-DALI version with sub-code -1241

• PUSH-DIMM version with sub-code -1245

• 1h EM version with subcode -09 (4000K)

• 3h EM version with subcode -31 (4000K)

• KIT EM for OMINTRACK PLUS to be purchased separately

Upon request:

• CRI 90 - 4000K

Liset 2.0 -

Liset 2.0 - DARK comfort optics for track - UGR<19

comfort optics - UGR<19

• DIMM-DALI version with sub-code -1241 (4000K)

• PUSH-DIMM version with sub-code -1245 (4000K)

• 1h EM version with subcode -09 (4000K)

• 3h EM version with subcode -31 (4000K)

• KIT EM for OMINTRACK PLUS to be purchased separately

Liset 2.0 - comfort optics for track - UGR<19

Upon request:

CRI 90 - 3000K and 4000K

• DIMM-DALI version with sub-code -1241 (4000K) or -3941 (3000K)

• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)

• 1h EM version with subcode -09 (4000K) or -0928 (3000K)

• 3h EM version with subcode -31 (4000K) or -3957 (3000K)

• KIT EM for OMINTRACK PLUS to be purchased separately

Upon request: version with white optics

Track projectors that make the difference!

For all your accent lighting needs!

When you install spotlights on a track or rail system, you may end up with empty spaces between one Liset spotlight and the next.

This creates an excellent opportunity to add adjustable complementary spotlights to achieve accent lighting effects.

Omnitrack Plus

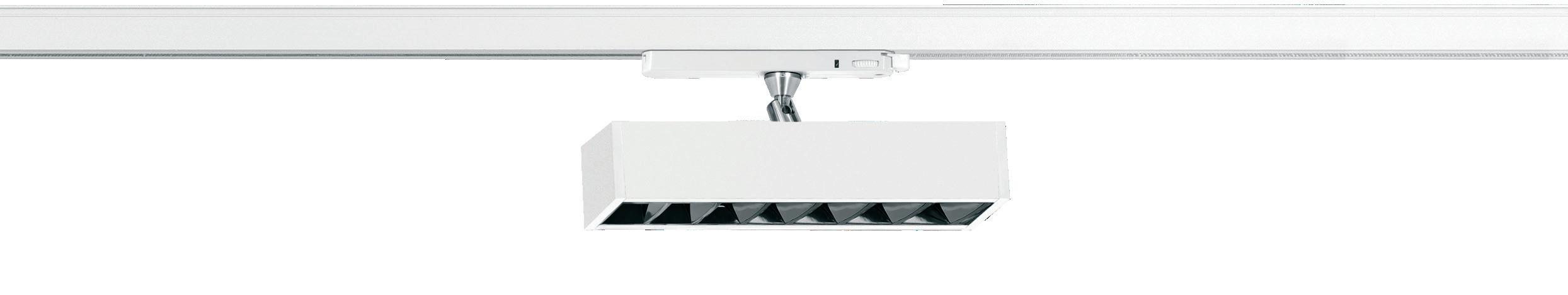

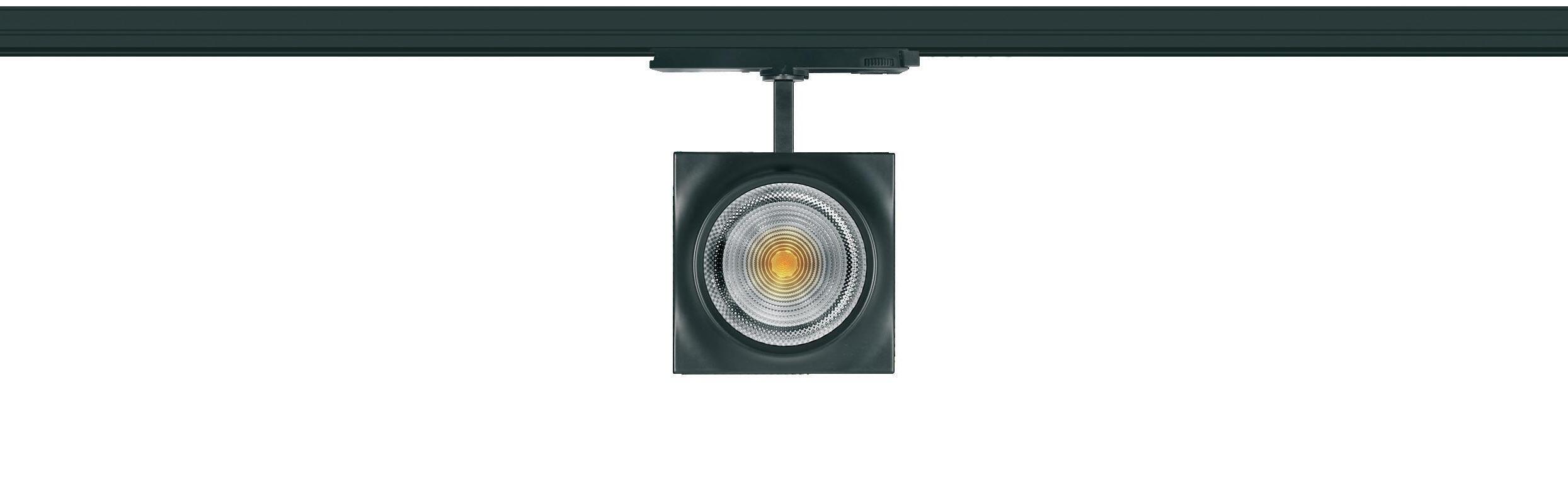

Liset 2.0 - supplementary spotlights for Omnitrack Plus

Liset

Upon

Liset 2.0 -

Upon

Upon request:

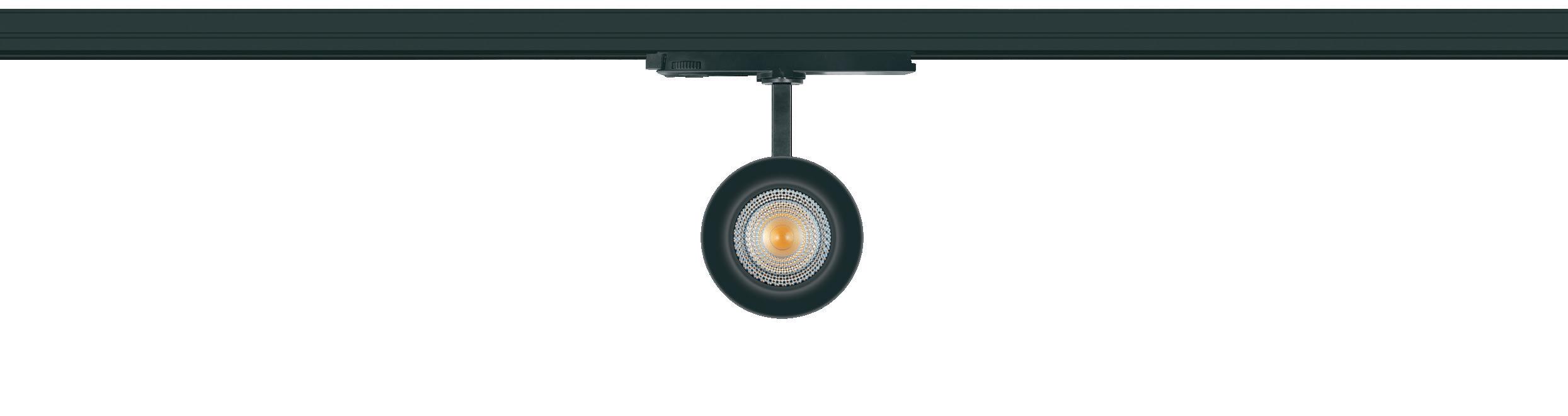

Matrix Q4 DARK “C” -

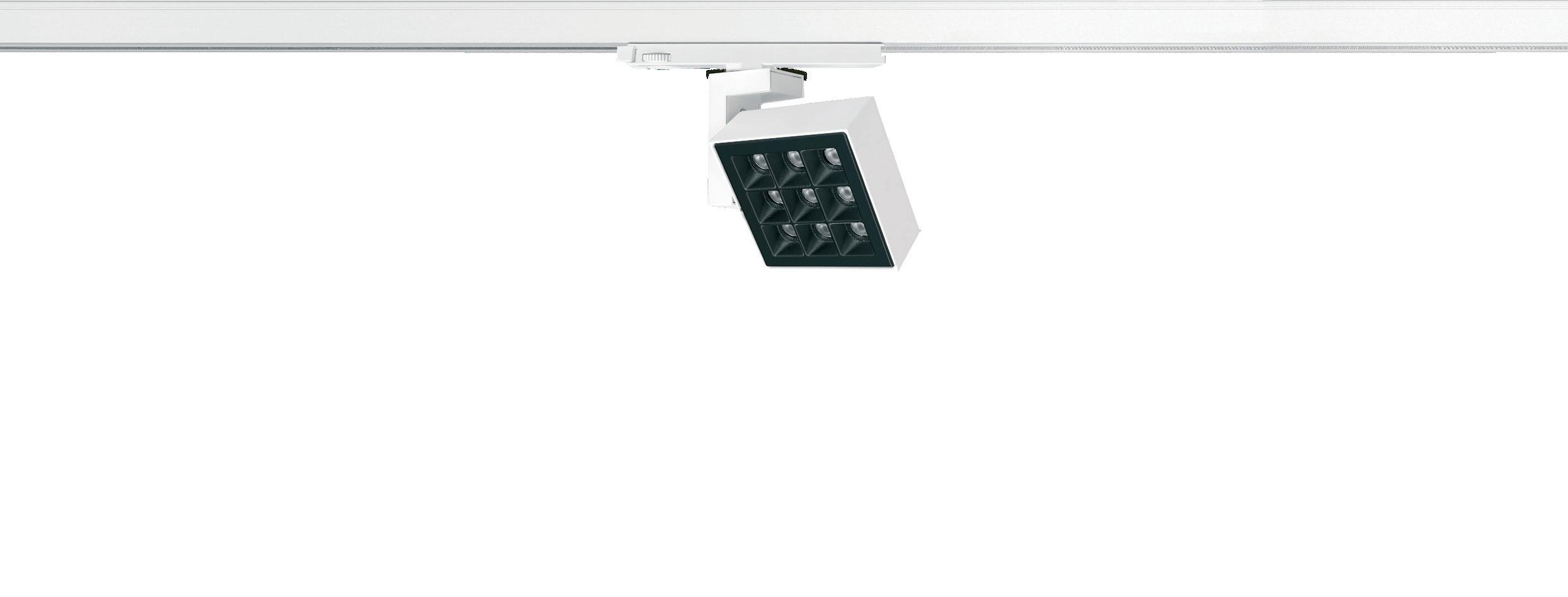

Matrix Q10 Dark “C” - universal adapter - CRI>90 CLD

Upon

to be used with OMNITRACK PLUS track-mounted system.

ADAPT THE CURRENT TO ACHIEVE OPTIMAL LUMINOUS FLUX

DIP SWITCH SETTING: the fixture comes with a DIP SWITCH driver for THE SETTING OF THE OUTPUT CURRENT. In this way you, can ENSURE THE BEST LUMINOUS FLUX for any lighting design. The possibility to choose the correct drive current for LEDs will allow you to have the right power under specific design conditions. Using a lower current will improve the efficiency of fixtures and therefore increase energy savings, whilst a higher current will result in a higher light flux so that you can reduce the number of fixtures.

Liset 2.0 - supplementary spotlights for Omnitrack Plus

ADAPT THE CURRENT TO ACHIEVE OPTIMAL LUMINOUS FLUX

Liset 2.0 - supplementary spotlights for Omnitrack Plus

Red line: polarity ridge – top-down view

Omnitrack Plus - 6 conductors

With the dedicated EM KIT and the retraction of the central conductors, the Ominitrack PLUS system can be used for a 250V/10A ordinary battery charging line for independent emergency devices.

22026613-00

22026614-00

22026615-00

22026616-00

26610-00

26611-00

22026633-00 22026634-00

22026635-00 22026636-00

-00

22026630-00 22026631-00 22026630-00

End cap

white 22026810-00

black 22026830-00

End cap for track with locking screw.

EM End cap

white 22026810-09

black 22026830-09

End cap for track with locking screw.

T-shaped, right sided joint

white 22026613-00

black 22026633-00

It provides “right-sided” electric connection and mechanical connection.

EM T-shaped, right sided joint

white 22026613-09

black 22026633-09

It provides “right-sided” electric connection and mechanical connection.

T-shaped, left sided joint

white 22026616-00

black 22026636-00

It provides “left-sided” electric connection and mechanical connection.

EM T-shaped, left sided joint

white 22026616-09

black 22026636-09

It provides “left-sided” electric connection and mechanical connection.

Cross joint

white 22026617-00

black 22026637-00

It provides “cross-shaped” electric connection and mechanical connection.

EM Cross joint

white 22026617-09

black 22026637-09

It provides “cross-shaped” electric connection and mechanical connection.

26631-00

CASAMBI/ DALI Interface bianco 22090701-00 nero 22090731-00

CASAMBI master interface for controlling track-mounted DALI spotlights (max 64 DALI spotlights/8 groups). Available upon request with built-in VOICE activation for Alexa, Google Home (Wi-Fi) and Matter devices.

Additional cover strip

blanco 22026290-00

black 22026291-00

To be applied to track as additional cover.

T-shaped, right sided joint

white 22026614-00

black 22026634-00

It provides “right-sided” electric connection and mechanical connection.

EM T-shaped, right sided joint

white 22026614-09

black 22026634-09

It provides “right-sided” electric connection and mechanical connection.

T-shaped, left sided joint

white 22026615-00

black 22026635-00

It provides “left-sided” electric connection and mechanical connection.

EM T-shaped, left sided joint

white 22026615-09

black 22026635-09

It provides “left-sided” electric connection and mechanical connection.

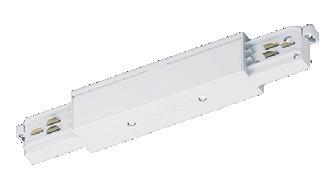

Flexible joint

white 22026618-00

black 22026638-00

It provides electric connection and mechanical connection.

EM Flexible joint

white 22026618-09

black 22026638-09

It provides electric connection and mechanical connection.

Anything is possible!

Creating lighting scenarios with Liset 2.0 has never been so exciting!

Thanks to the seamless material manufacturing, you can design ALL LIGHT linear patterns, with hidden 45° intersections for maximum freedom and creativity.

Upon request: version with black housing

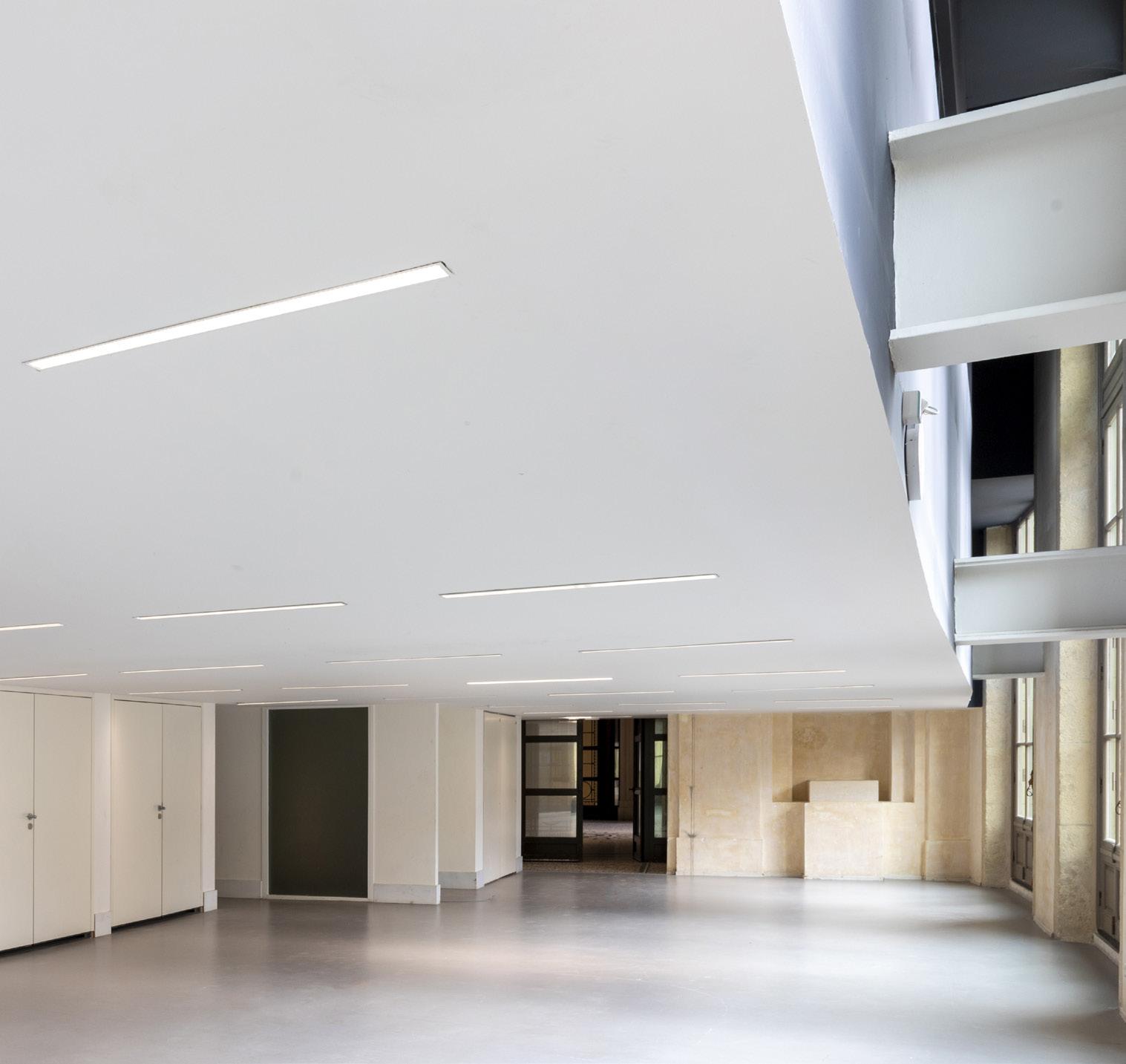

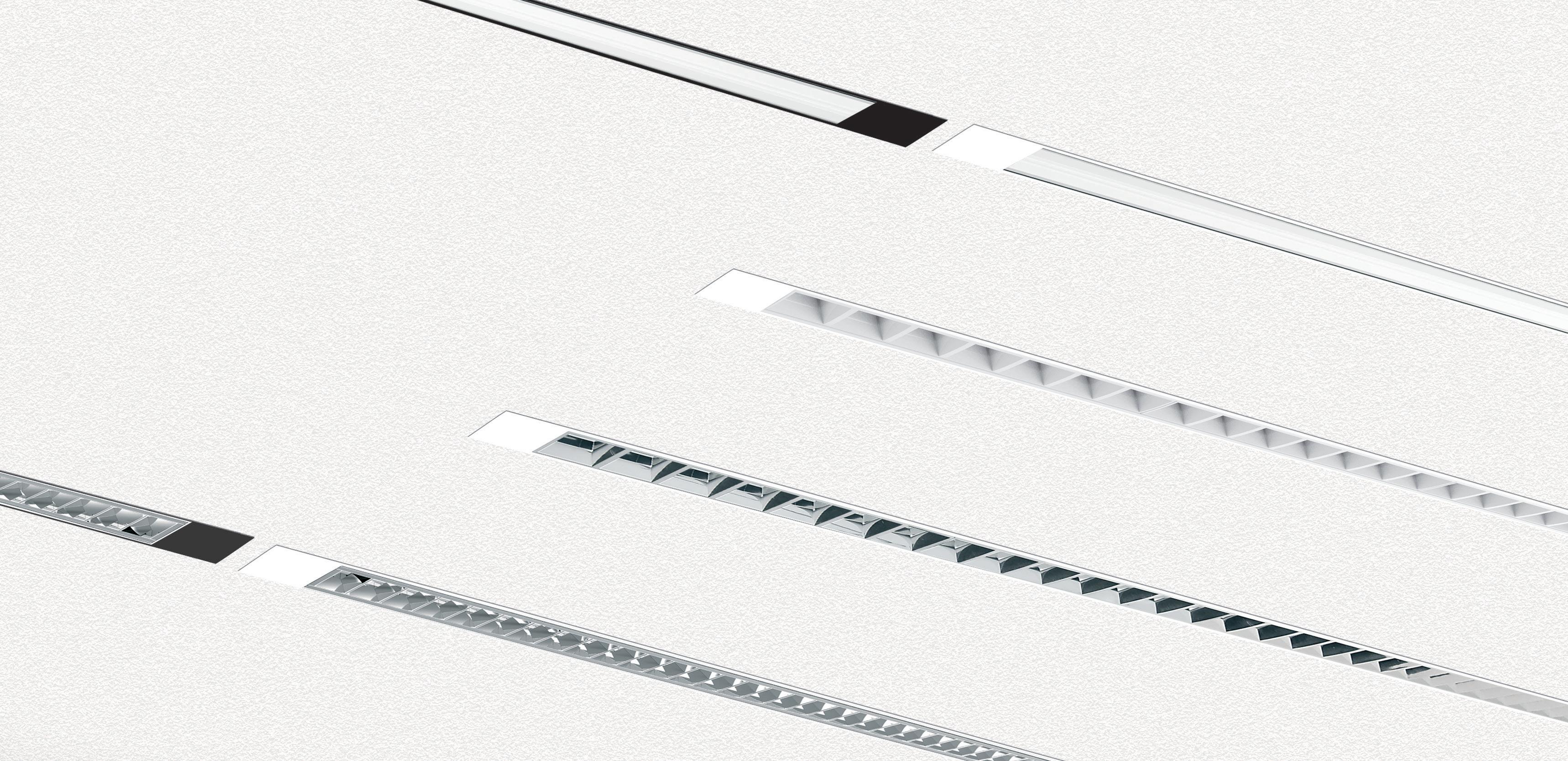

Liset 2.0 HE - recessed - UGR<19

- CRI 80 CLD D-DIG (DALI)

LED 2 modules white 1150 1,80 22303401-1241 26 4000K - 3673lm - CRI 80 22303401-3941

LED 4 modules white 2280 3,80 22303402-1241 52

Upon request: CRI 90: 3000K - 4000K

• version with black housing

- 3416lm - CRI 80

- 7346lm - CRI 80 22303402-3941 3000K - 6832lm - CRI 80

• version with pass-through wiring for continuous line mounting with subcode -0072

• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)

• 1h EM version with subcode -09 (4000K) or -0928 (3000K

• 3h EM version with subcode -31 (4000K) or -3957 (3000K)

Liset 2.0 HE - recessed - 90°

CLD

LUMEN OUTPUT (tq= 25 °C)

LED housing L (mm) weight code W tot K - ølm - CRI

LED 4 modules white 1150 1,80

22303001-00 29 4000K - 3336lm - CRI 80

22303001-39 3000K - 3103lm - CRI 80

LED 8 modules white 2280 3,80 22303002-00 56

- 6673lm - CRI 80 22303002-39

- 6206lm - CRI 80 CLD D-DIG (DALI)

LED 4 modules white 1150 1,80

LED 8 modules white 2280 3,80

Upon request:

• CRI 90: 3000K - 4000K

• version with black housing

22303001-1241 29 4000K - 3336lm - CRI 80 22303001-3941 3000K - 3103lm - CRI 80

22303002-1241 56

- 6673lm - CRI 80 22303002-3941

- 6206lm - CRI 80

• version with pass-through wiring for continuous line mounting with subcode -0072

• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)

• 1h EM version with subcode -09 (4000K) or -0928 (3000K

• 3h EM version with subcode -31 (4000K) or -3957 (3000K)

Liset 2.0 HE - recessed with diffuser

Upon request:

• version with black housing

• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)

• 1h EM version with subcode -09 (4000K) or -0928 (3000K

• 3h EM version with subcode -31 (4000K) or -3957 (3000K)

Liset 2.0 HE - recessed - 25° asymmetric optics CLD

(mm)

LED 4 modules white 1150 1,80

Upon request:

• version with black housing

• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)

• 1h EM version with subcode -09 (4000K) or -0928 (3000K

• 3h EM version with subcode -31 (4000K) or -3957 (3000K)

Liset 2.0 - recessed with diffuser

Upon request:

• CRI 90: 3000K - 4000K

• version with black housing

• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)

• 1h EM version with subcode -09 (4000K) or -0928 (3000K)

• 3h EM version with subcode -31 (4000K) or -3957 (3000K) Upon request: version with black housing

Upon request:

• CRI 90 - 4000K

• 3000K version with sub-code -39

• PUSH-DIMM version with sub-code -1245

• 1h EM version with subcode -09

• 3h EM version with subcode -31

Liset 2.0 - recessed - compositions

Upon request: special versions with other spotlights of the Matrix Q series are available CRI 90 - 3000K or 4000K with different beam openings

Standard composition: Liset 2.0 with diffuser + 2 modules with 32° spotlight (upon request with 50° beam angles). Standard version includes double switching.

Upon request:

• CRI 90 - 3000K - 4000K

• 3000K version with sub-code -39

• 1h EM version with subcode -09

• 3h EM version with subcode -31

Upon request: special versions with other spotlights of the Matrix Q series are available CRI 90 - 3000K or 4000K

Upon request: version with black housing

Upon request:

• CRI 90 - 4000K

• version with black housing

• PUSH-DIMM version with sub-code -1245

• 1h EM version with subcode -09

• 3h EM version with subcode -31

Liset 2.0 - recessed with DARK comfort optics -

Upon request: version with black housing

Upon request:

• CRI 90 - 4000K

• black colour housing version

• 3000K version with sub-code -39

• PUSH-DIMM version with sub-code -1245

• 1h EM version with subcode -09 (4000K) or -0928 (3000K)

• 3h EM version with subcode -31 (4000K) or -3957 (3000K)

• 76° beam version

Liset 2.0 - recessed with comfort optics - UGR<19

Upon request: version with black housing

Upon request:

• CRI 90 - 4000K

• black colour housing version

• version with black comfort optics

• 3000K version with sub-code -39

• PUSH-DIMM version with sub-code -1245

• 1h EM version with subcode -09 (4000K)

• 3h EM version with subcode -31 (4000K)

• 76° beam version

Recessed module for angular mounting “ALL LIGHT” 14W 328x328 mm

black 22302632-00 white 22302612-00

Upon request: DIMM DALI version with sub-code -1241 3000K version with sub-code -39

“WALL-TO-CEILING” recessed module for angular mounting “ALL LIGHT” 14W 320x320 mm black 22302633-00

22302613-00

IP20 IK07

IP40 IK07

Standard composition: 3 modules with 65° white comfort optics (upon request with 76° beam angle).

Upon request:

• 3000K version with sub-code -39

• PUSH-DIMM version with sub-code -1245

• 1h EM version with subcode -09

• 3h EM version with subcode -31

• With RADAR SENSOR: sub-code -19

Liset 2.0 - recessed with comfort optics - compositions - UGR<19

Upon request: special versions with other spotlights of the Matrix Q series are available CRI 90 - 3000K or 4000K with different beam openings

Standard composition:Liset 2.0 with 65° white comfort optics + 2 modules with 32° spotlight (upon request with 76° comfort optics + 50° spotlights).

Standard version includes double switching.

Upon request:

• CRI 90 - 3000K and 4000K

• 3000K version with sub-code -39

• PUSH-DIMM version with sub-code -1245

• 1h EM version with subcode -09

• 3h EM version with subcode -31

Upon request: special versions with other spotlights of the Matrix Q series are available CRI 90 - 3000K or 4000K

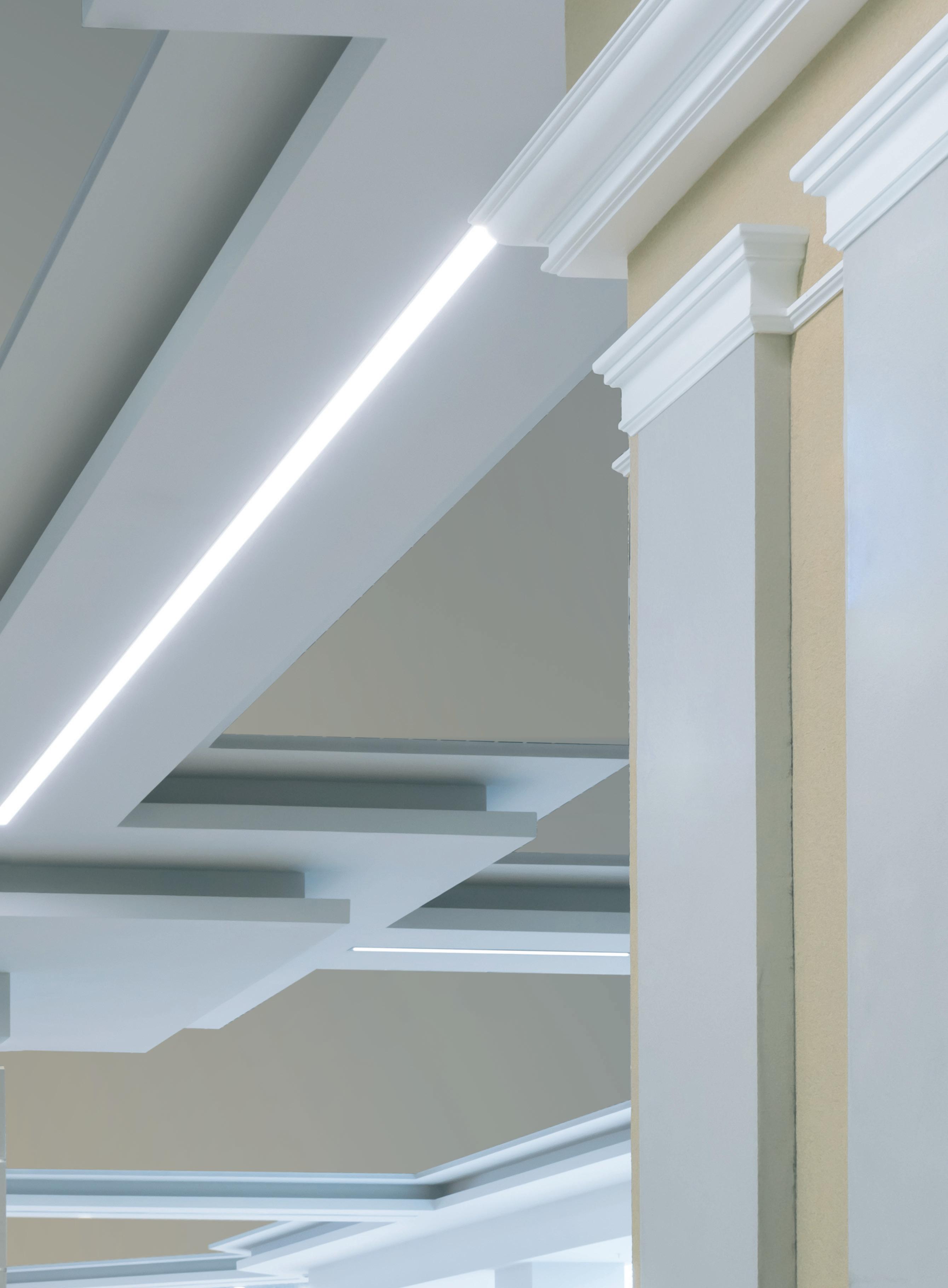

Liset 2.0 Trimless recessed mounting in plasterboard false

Liset 2.0 Trimless -

- UGR<19

visual effects

Hemotional effects

biological effects

LCHCL is a concept that represents a deep cultural change that aims to achieve a healthier and more balanced relationship with the spaces we live in. Our modern lifestyle is not aligned with nature’s rhythms. We spend most of our time indoors where artificial lighting has virtually abolished the difference between day and night.

Over the last decades, however, scientific research has made it clear that light isn’t just for seeing, but also for governing how our body works from both the biological and psychological points of view.

H

C entric L ighting e T unable W

The biologic clock

We use the definition of “biological clock” because, over the course of the day, the variations of light, from dawn to dusk, up to the dark of the night, send precise signals to our body, triggering specific psychological responses. Blood pressure, body temperature and the production of specific hormones vary over the course of 24 hours. When we wake up, the morning light triggers processes that stimulate attention span, which reaches its peak during the central hours of the day, to then decline with the arrival of the evening in order to prepare our body for night-time rest. This mechanism, which varies according to seasons and individual characteristics, is necessary for our body to work properly.

Circadian rhythm

7:30 a.m. Melatonin secretion stops 10:00 a.m. High alertness

2:30 p.m. Best coordination

3:30 p.m. Fastest reaction time

7:00 p.m. Highest body temperature

9:00 p.m. Melatonin secretion starts

2:00 a.m. Deepest sleep

4:30 a.m. Lowest body temperature

6:00 a.m. Release of cortisol

A systematic disruption of our biological clock has negative effects on our health. Numerous studies have shown that the disruption of our sleep-wake cycle provokes fatigue and sleeping disorders. It negatively affects our mood and psychological wellbeing, and may cause anxiety or depression, as well as gastrointestinal discomfort. Moreover, if prolonged over time, it can increase the risk of cardiovascular diseases (strokes and heart attacks) and metabolic dysfunctions (such as obesity and diabetes). Lastly, it can weaken the immune system favouring the outburst of some cancers.

The effects of the circadian rhythm disruption on health in the workplace

Work facilitation

According to research, it is important that our body receives signals like daylight and its variation throughout the day. Yet, we spend most of our time, whether at work or at home, in closed and artificially illuminated spaces. So what can we do?

We can get a greater amount of daylight inside. This is why designers and architects are making buildings that recover as much as possible the relationship with the outside world. And a great help is given by the technological evolution of artificial lighting, including Human Centric Lighting.

Positive mood, increased productivity, greater corporate image

Compliance with regulations e personnel protection

Space modulation and customizable multipurpose workstations

Positive effects on the human body and energy savings

Facilitation of concentration

Improvement of psychophysical well-being

Decreased fatigue at the end of the work shift

Improvement of rest despite work shifts

The hospital’s image is improved

healthcare facilities in learning institutions

Facilitates concentration in the class and increases school performance

Increases attention and promotes correct behaviour

Improves communication, facilitates communication relationship

Improves attention and generates positive mood

Positive effects on the human body and energy savings

LEDs emit light in the blue wavelength range, affecting the secretion of melatonin, which in turn influences our biological clock and alters our sleep-wake cycle. Therefore, using artificial light that mimics the spectrum of natural light, like the Tunable White LEDs, is fundamental.

The mission of Human Centric Lighting is to create a balance between natural outside light and artificial inside light. Below are some examples showing why it is important to choose HCL in our environments.

Tunable White LED

Enables the shade of light to be changed manually throughout the day (no circadian rhythm).

It is a latest generation LED technology that allows adjusting colour temperatures from 2700K to 6500K, from a warm light to a cold light. LED Tunable White LED modules for HCL applications contain two adjacent diodes that emit light at 2700K and 6500K, as well as intermediate colours by mixing colour temperatures.

Human Centric Lighting:

Simulation of daylight changes: colour of light changes automatically based on the time of the day and daylight.

HUMAN PERFORMANCE

increases RELAXATION

increases ENERGY LEVEL

Researchers have demonstrated that our brain is stimulated: - by the warm light of morning and evening hours (2700K) increasing our sense of relaxation; - by the cold light of daylight (6500 K) making us feel more energetic and concentrated.

The Dynamic White function allows adjusting the colour temperature from 2700K to 6500K to create a sense of the passing of time (circadian rhythm) and to set the mood and ambiance of a space according to our daily activities. Circadian lighting obtained with the Dynamic White function is the best solution to implement Human Centric Lighting in classrooms, university campuses, offices and hospitals where lights can mimic the natural trend of daylight throughout the entire day.

Presence and light sensors for HCL applications

1. Immediate detection of anyone entering within its range

2. Adjustment of lights based on daylight

3. Constant measurement of the environment’s lighting level

In addition to the Tunable Light technology, the fixtures can be equipped with presence and lighting sensors that allow adjusting artificial lighting, while keeping the lumen value set according to the room’s occupancy and the contribution of natural light. The built-in sensor measures constantly the luminosity value in the environment and compares it with the value set in the presence detector.

Liset 2.0 TW - BASIC - with polycarbonate diffuser

Upon request: version with black housing

Liset 2.0 TW- recessed - with polycarbonate diffuser - CRI 90

CLD D-DIG (DALI)

LUMEN OUTPUT (tq= 25 °C)

LED housing L (mm) weight code W tot K - ølm - CRI

LED 4 modules white 1140 1,60 22302201-0024 40 2700K÷6500K - 3250÷3220lm - CRI 90

LED 5 modules 1420 2,00 22302202-0024 40 2700K÷6500K - 2984÷3176lm - CRI 90

TECHNICAL CHARACTERISTICS - TW BASIC VERSION

• MacAdams 3

• Colour temperature adjustment range from 2700K to 6500K on a linear scale

• Full 3% to 100% dimming range

• ≤4% flicker

• Constant colour temperature over the entire dimming range

• Constant luminous flux

colourSWITCH function

A conventional pushbutton can be used to control the system via colourSWITCH. Use of pushbutton with indicator lamp is not permitted. If the device is controlled via DALI/DSI, colourSWITCH is not available. For control via a pushbutton different settings can be made:

• Short press: setting the colour temperature via colourSWITCH mode with 9 values between 2,700 and 6,500 K.

• Long press (> 1 s): stepless setting of colour temperature. After completion the colour temperature direction will be inverted. In installations with LED Drivers with different colour temperature or opposite colour temperature directions (e.g. after a system extension), all LED Drivers can be synchronized to 4,500 K by a 10 s push.

switchDIM function

Integrated switchDIM function allows a direct connection of a pushbutton for dimming and switching. Brief push (< 0.6 s) switches LED Driver ON and OFF. The dim level is saved at power-down and restored at power-up. When the pushbutton is held, LED modules are dimmed. After releasing and pushing the LED modules are dimmed in the opposite direction. In installations with LED Drivers with different dimming levels or opposite dimming directions (e.g. after a system extension), all LED Drivers can be synchronized to 50 % dimming level by a 10 s push. Use of pushbutton with indicator lamp is not permitted.

Liset 2.0 HCL - WIRELESS - with

polycarbonate

diffuser

Upon request: version with black housing

Liset 2.0 HCL - recessed - with polycarbonate diffuser - CRI 90 CLD DW (HCL) LUMEN OUTPUT (tq= 25 °C)

LED housing L (mm) weight code W tot K - ølm - CRI

LED 4 modules white 1140 1,60 22302201-89 38 2700K÷6500K - 3250÷3220lm - CRI 90

LED 5 modules 1420 2,00 22302202-89 46 2700K÷6500K - 2984÷3176lm - CRI 90

The Dynamic White function allows adjusting the colour temperature from 2700K to 6500K to create a sense of the passing of time (circadian rhythm) and to set the mood and ambiance of a space according to our daily activities. Circadian lighting obtained with the Dynamic White function is the best solution to implement Human Centric Lighting (HCL) in classrooms, university campuses, offices and hospitals where lights can mimic the natural trend of daylight throughout the entire day.

• Colour temperature adjustment range from 2700K to 6500K on a linear scale

• Full 3% to 100% dimming range

• Switch-off fading

• <4% flicker

• Constant colour temperature over the entire dimming range • LED driver that automatically adjusts

to the desi

The standard version of the fixture comes with a wireless driver. Liset 2.0 can be easily controlled from a smartphone/tablet via a free app

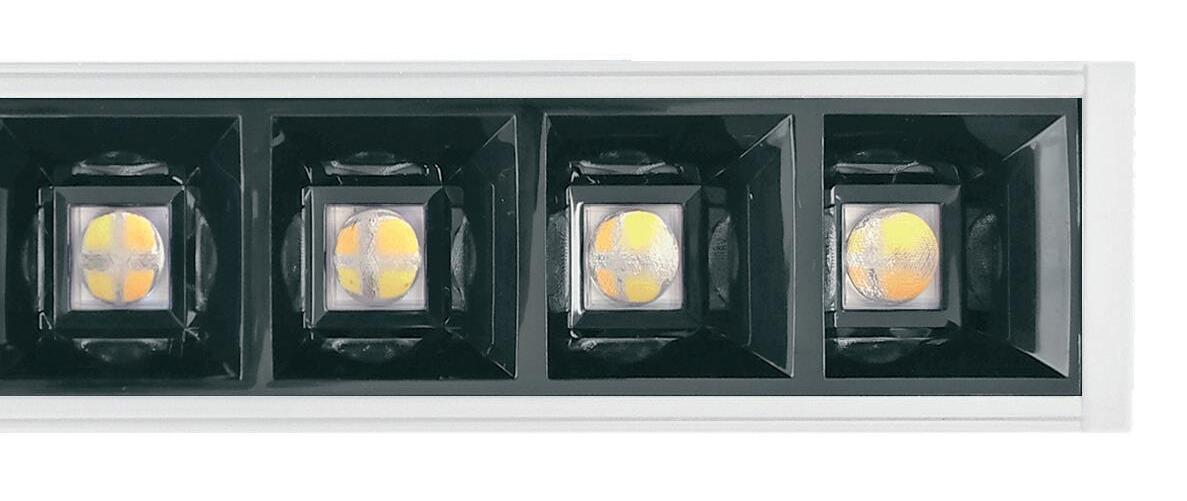

Liset 2.0 TW - BASIC - recessed - comfort optics

Liset 2.0 TW - recessed - comfort optics - UGR<19

CLD CELLD-D (DALI)

LUMEN OUTPUT (tq= 25 °C)

LED housing L (mm) weight code W tot K - ølm - CRI - degrees

LED 14 lenses white 580 1,10 22302101-0024 16

2700K÷6500K - 2092lm - CRI 80 - 65°

LED 28 lenses 1140 2,30 22302102-0024 29 2700K÷6500K - 3603lm - CRI 80 - 65°

Upon request:

• black colour housing version

• 76° beam version

TECHNICAL CHARACTERISTICS - TW BASIC VERSION

• MacAdams 3

• Colour temperature adjustment range from 2700K to 6500K on a linear scale

• Full 3% to 100% dimming range

• ≤4% flicker

• Constant colour temperature over the entire dimming range

• Constant luminous flux

colourSWITCH function

• Short press: setting the colour temperature via colourSWITCH mode with 9 values between 2,700 and 6,500 K.

switchDIM function

Liset 2.0 HCL - WIRELESS - recessed - comfort optics

Liset 2.0 HCL - recessed - comfort optics - UGR<19

CLD DW (HCL) LUMEN OUTPUT (tq= 25 °C)

LED housing L (mm) weight code W tot K - ølm - CRI - gradi

LED 14 lenses white 580 1,10 22302101-89 16 2700K÷6500K - 2092lm - CRI 80 - 65°

LED 28 lenses 1140 2,30 22302102-89 29 2700K÷6500K - 3603lm - CRI 80 - 65°

Upon request: • black colour housing version • 76° beam version

• Colour temperature adjustment range from 2700K to 6500K on a linear scale

• Full 3% to 100% dimming range

• Switch-off fading

• <4% flicker

• Constant colour temperature over the entire dimming range • LED driver that automatically adjusts lights to the desired colour temperature and the required luminous

The Dynamic White function allows adjusting the colour temperature from 2700K to 6500K to create a sense of the passing of time (circadian rhythm) and to set the mood and ambiance of a space according to our daily activities. Circadian lighting obtained with the Dynamic White function is the best solution to implement Human Centric Lighting (HCL) in classrooms, university campuses, offices and hospitals where lights can mimic the natural trend of daylight throughout the entire day.

The standard version of the fixture comes with a wireless driver. Liset 2.0 can be easily controlled from a smartphone/tablet via a free app

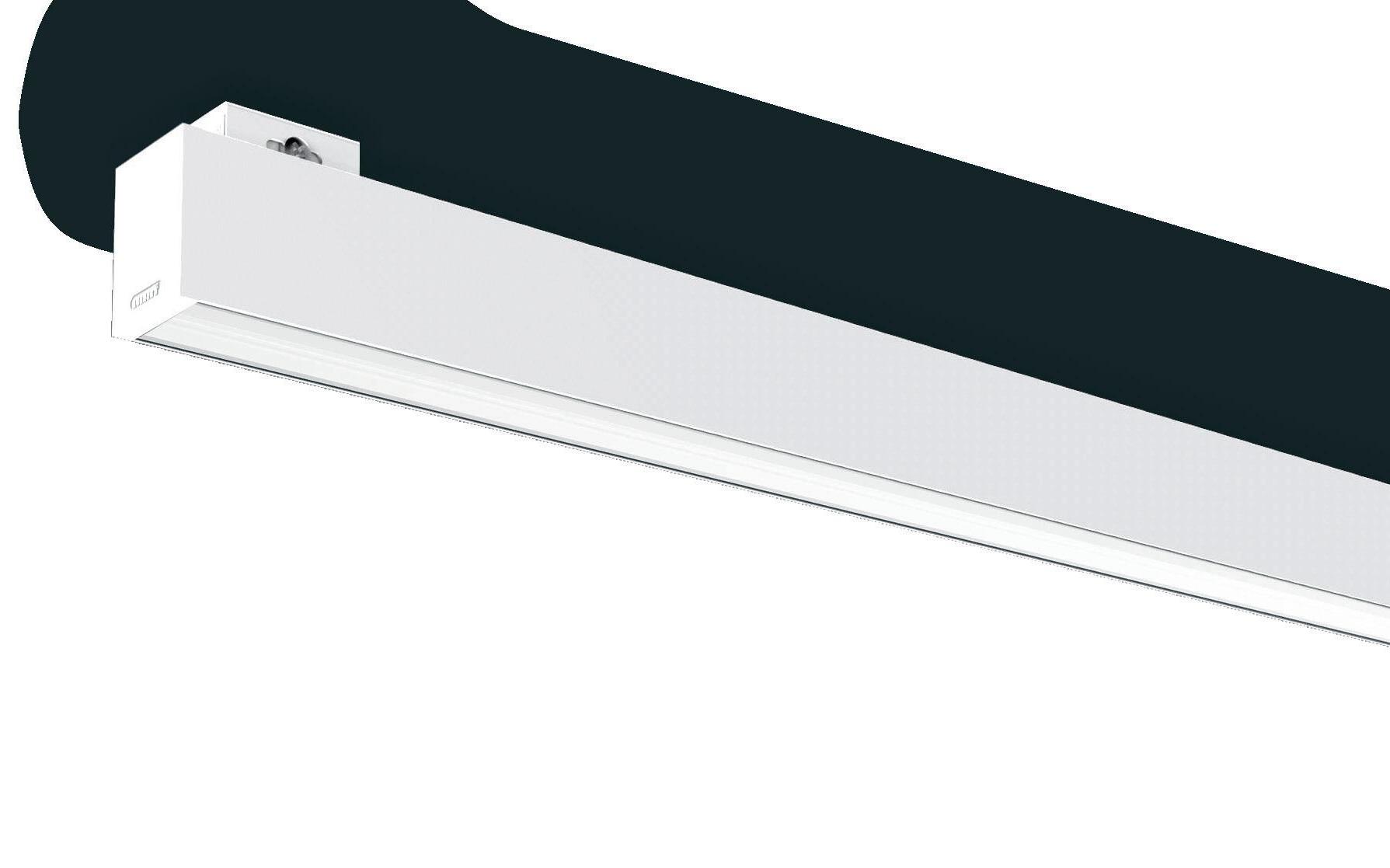

Liset 2.0 TW - BASIC - ceiling with diffuse

Liset 2.0 TW - ceiling - with polycarbonate diffuser - CRI 90

CLD D-DIG (DALI)

LUMEN OUTPUT (tq= 25 °C)

LED housing L (mm) weight code W tot K - ølm - CRI

LED 4 modules white 1135 2,50 22302203-0024 40 2700K÷6500K - 2899÷3357lm - CRI 90 black 22302233-0024

LED 5 modules white 1415 3,10 22302204-0024 40 2700K÷6500K - 3044÷3524lm - CRI 90 black 22302234-0024

TECHNICAL CHARACTERISTICS - TW BASIC VERSION

• MacAdams 3

• Colour temperature adjustment range from 2700K to 6500K on a linear scale

• Full 3% to 100% dimming range

• ≤4% flicker

• Constant colour temperature over the entire dimming range

• Constant luminous flux

colourSWITCH function

• Short press: setting the colour temperature via colourSWITCH mode with 9 values between 2,700 and 6,500 K.

switchDIM function

Liset 2.0 HCL - WIRELESS - ceiling with diffuse

Liset 2.0 HCL - ceiling - with polycarbonate diffuser - CRI 90 CLD DW (HCL) LUMEN OUTPUT (tq= 25 °C) LED housing L (mm) weight code W tot K - ølm - CRI

LED 4 modules white 1135 2,50 22302203-89 38 2700K÷6500K - 2899÷3357lm - CRI 90 black 22302233-89

LED 5 modules white 1415 3,10 22302204-89 46 2700K÷6500K - 3044÷3524lm - CRI 90 black 22302234-89

• Colour temperature adjustment range from 2700K to 6500K on a linear scale

• Full 3% to 100% dimming range

• Switch-off fading

• <4% flicker

• Constant colour temperature over the entire dimming range • LED driver that automatically adjusts lights to the desired colour temperature and the required luminous flux

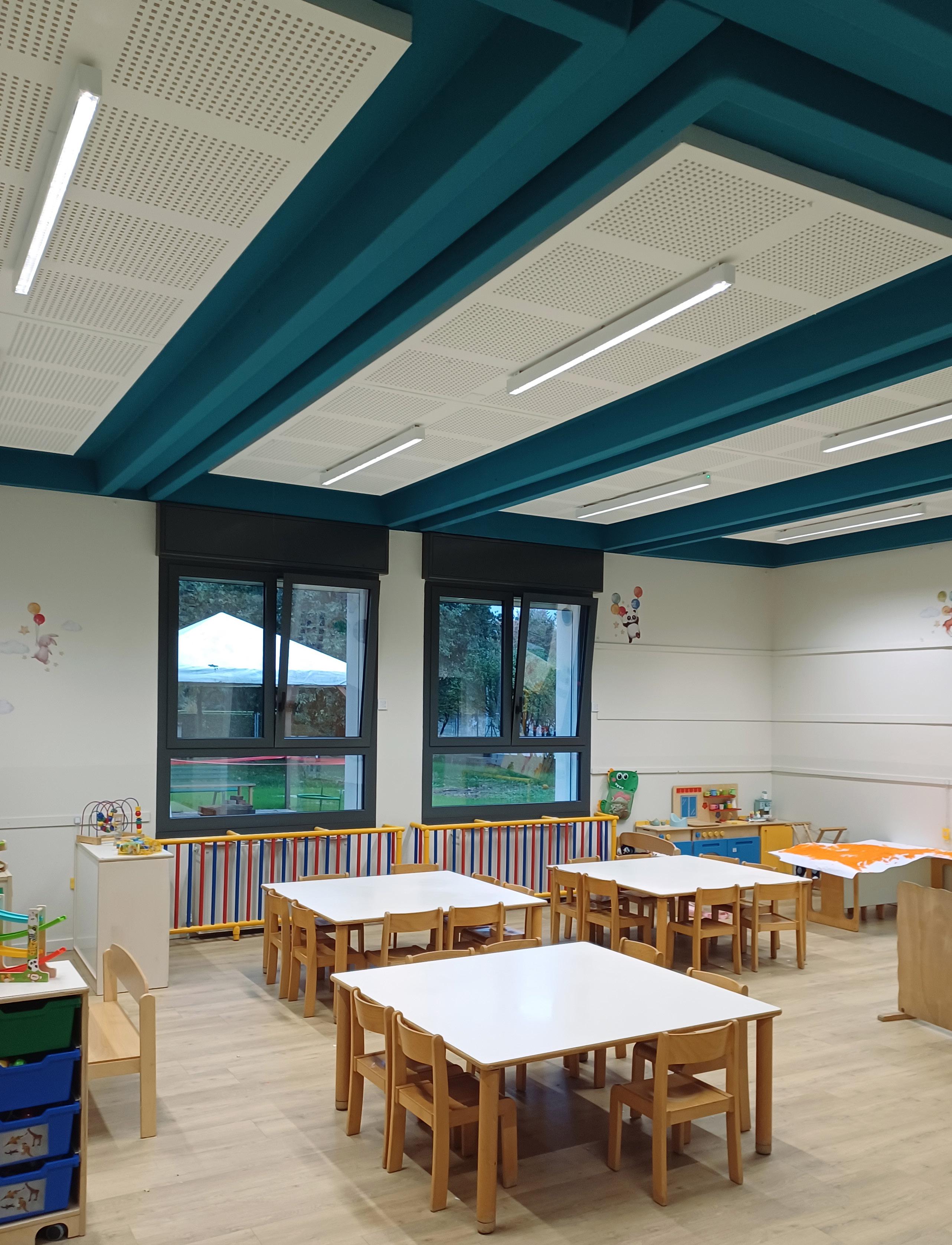

The Dynamic White function allows adjusting the colour temperature from 2700K to 6500K to create a sense of the passing of time (circadian rhythm) and to set the mood and ambiance of a space according to our daily activities. Circadian lighting obtained with the Dynamic White function is the best solution to implement Human Centric Lighting (HCL) in classrooms, university campuses, offices and hospitals where lights can mimic the natural trend of daylight throughout the entire day.

The standard version of the fixture comes with a wireless driver. Liset 2.0 can be easily controlled from a smartphone/tablet via a free app

Liset 2.0 TW - BASIC - ceiling with comfort optics

Liset 2.0 TW - ceiling - comfort optics - UGR<19

TECHNICAL CHARACTERISTICS - TW BASIC VERSION

• MacAdams 3

• Colour temperature adjustment range from 2700K to 6500K on a linear scale

• Full 3% to 100% dimming range

• ≤4% flicker

• Constant colour temperature over the entire dimming range

• Constant luminous flux

colourSWITCH function

• Short press: setting the colour temperature via colourSWITCH mode with 9 values between 2,700 and 6,500 K.

switchDIM function

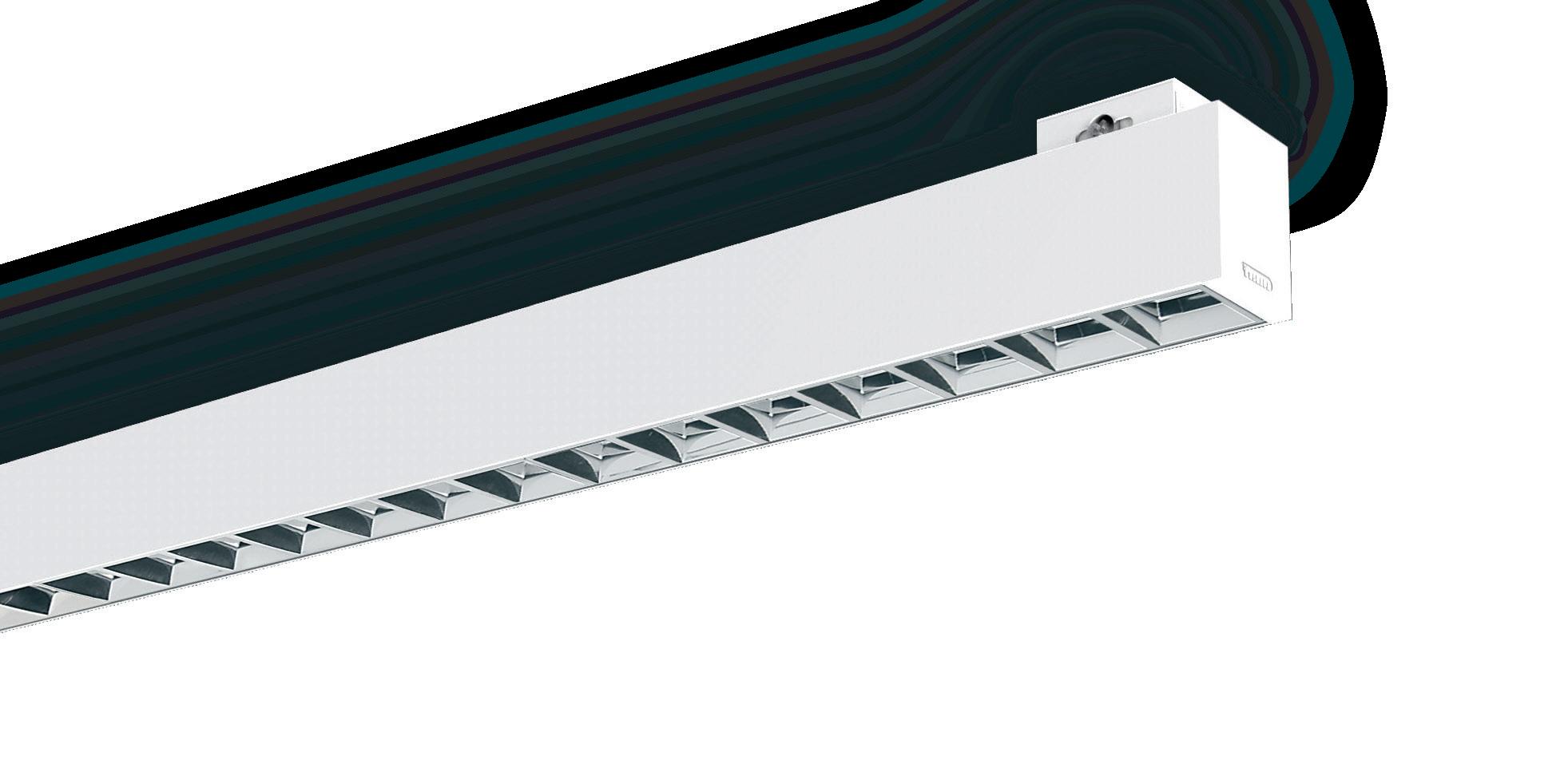

Liset 2.0 HCL - WIRELESS - ceiling with comfort optics

Liset 2.0 HCL - ceiling - comfort optics - UGR<19

- ølm - CRI - degrees

28 lenses white 1135 3,00 22302105-89 29 2700K÷6500K - 3375lm - CRI 80 - 65° black 22302135-89

• Colour temperature adjustment range from 2700K to 6500K on a linear scale

• Full 3% to 100% dimming range

• Switch-off fading

• <4% flicker

• Constant colour temperature over the entire dimming range • LED driver that automatically adjusts lights to the desired colour

and the

The Dynamic White function allows adjusting the colour temperature from 2700K to 6500K to create a sense of the passing of time (circadian rhythm) and to set the mood and ambiance of a space according to our daily activities. Circadian lighting obtained with the Dynamic White function is the best solution to implement Human Centric Lighting (HCL) in classrooms, university campuses, offices and hospitals where lights can mimic the natural trend of daylight throughout the entire day.

The standard version of the fixture comes with a wireless driver. Liset 2.0 can be easily controlled from a smartphone/tablet via a free app

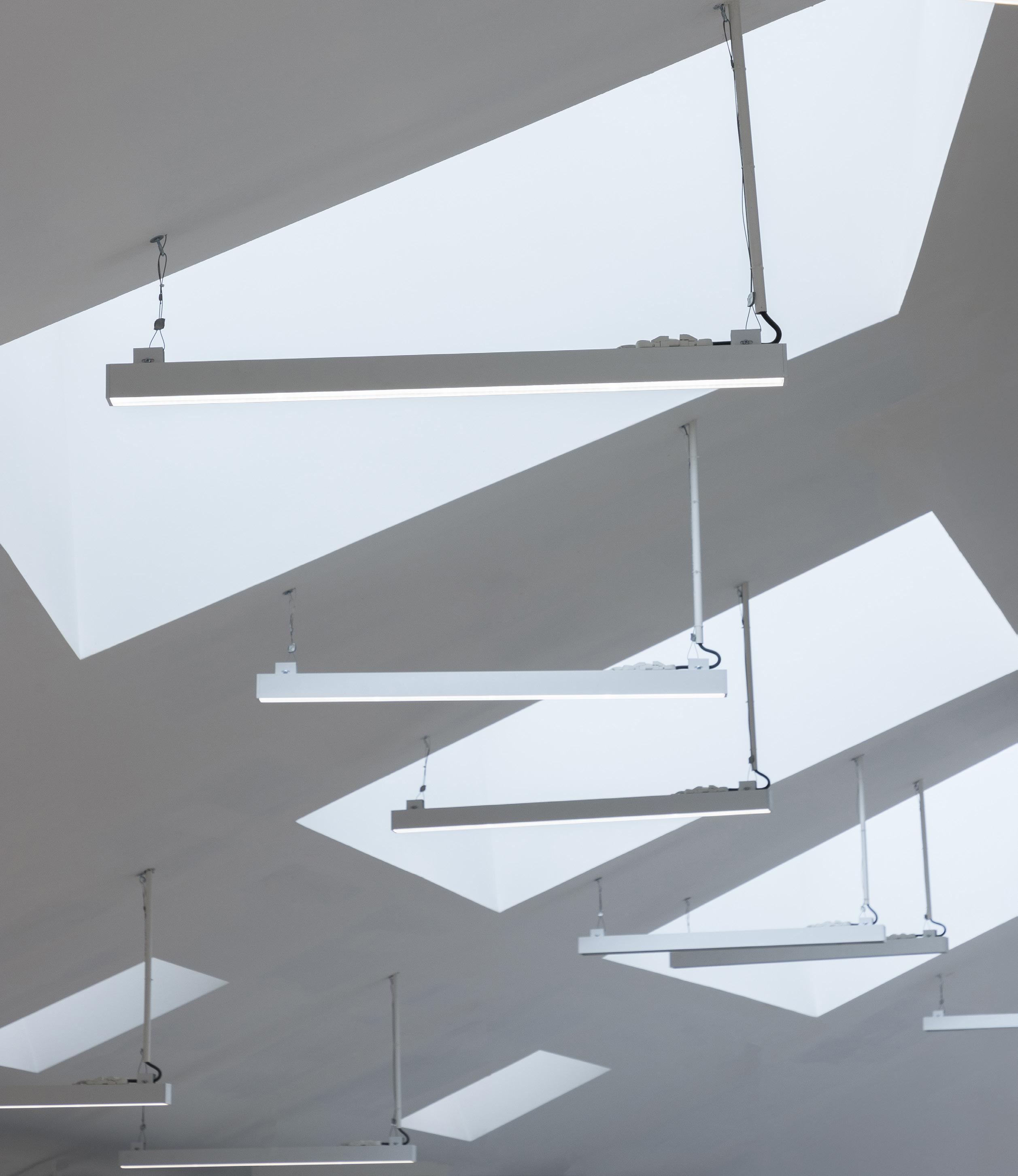

Liset 2.0 TW - BASIC - suspension with diffuser

Liset 2.0 TW - suspension - direct light - with polycarbonate diffuser - CRI 90

CLD D-DIG (DALI) LUMEN OUTPUT (tq= 25 °C)

LED housing L (mm) weight code W tot K - ølm - CRI

LED 4 modules white 1135 2,50 22302208-0024 40 2700K÷6500K - 2899÷3357lm - CRI 90 black 22302238-0024

LED 5 modules white 1415 3,10 22302209-0024 40 2700K÷6500K - 3044÷3524lm - CRI 90 black 22302239-0024

TECHNICAL CHARACTERISTICS - TW BASIC VERSION

• MacAdams 3

• Colour temperature adjustment range from 2700K to 6500K on a linear scale

• Full 3% to 100% dimming range

• ≤4% flicker

• Constant colour temperature over the entire dimming range

• Constant luminous flux

colourSWITCH function

• Short press: setting the colour temperature via colourSWITCH mode with 9 values between 2,700 and 6,500 K.

switchDIM function

Liset 2.0 HCL - WIRELESS - suspension with diffuser

Liset

direct

with

LED 4 modules white 1135 2,50 22302208-89 40 2700K÷6500K - 2899÷3357lm - CRI 90 black 22302238-89

LED 5 modules white 1415 3,10 22302209-89 40 2700K÷6500K - 3044÷3524lm - CRI 90 black 22302239-89

• Colour temperature adjustment range from 2700K to 6500K on a linear scale

• Full 3% to 100% dimming range

• Switch-off fading

• <4% flicker

• Constant colour temperature over the entire dimming range • LED driver that automatically adjusts lights to the desired colour temperature and the required luminous flux

The Dynamic White function allows adjusting the colour temperature from 2700K to 6500K to create a sense of the passing of time (circadian rhythm) and to set the mood and ambiance of a space according to our daily activities. Circadian lighting obtained with the Dynamic White function is the best solution to implement Human Centric Lighting (HCL) in classrooms, university campuses, offices and hospitals where lights can mimic the natural trend of daylight throughout the entire day.

The standard version of the fixture comes with a wireless driver. Liset 2.0 can be easily controlled from a smartphone/tablet via a free app

Liset 2.0 TW - BASIC - suspension with ocomfort optics

Liset 2.0 TW - suspension - direct light - comfort optics - UGR<19 CLD D-DIG (DALI) LUMEN OUTPUT (tq= 25 °C)

LED housing L (mm) weight code W tot K - ølm - CRI - degrees

LED 28 lenses white 1135 3,00 22302111-0024 29 2700K÷6500K - 3375lm - CRI 80 - 65° black 22302131-0024

• MacAdams 3

• Colour temperature adjustment range from 2700K to 6500K on a linear scale

• Full 3% to 100% dimming range

• ≤4% flicker

• Constant colour temperature over the entire dimming range

• Constant luminous flux

colourSWITCH function

• Short press: setting the colour temperature via colourSWITCH mode with 9 values between 2,700 and 6,500 K.

switchDIM function

- WIRELESS - suspension with ocomfort optics

TECHNICAL CHARACTERISTICS - HCL WIRELESS VERSION

The Dynamic White function allows adjusting the colour temperature from 2700K to 6500K to create a sense of the passing of time (circadian rhythm) and to set the mood and ambiance of a space according to our daily activities. Circadian lighting obtained with the Dynamic White function is the best solution to implement Human Centric Lighting (HCL) in classrooms, university campuses, offices and hospitals where lights can mimic the natural trend of daylight throughout the entire day. Liset 2.0 HCL - suspension - direct

• Colour temperature adjustment range from 2700K to 6500K on a linear scale

• Full 3% to 100% dimming range

• Switch-off fading

• <4% flicker

• Constant colour temperature over the entire dimming range • LED driver that automatically adjusts lights to the desired colour temperature and the required luminous flux

The standard version of the fixture comes with a wireless driver. Liset 2.0 can be easily controlled from a smartphone/tablet via a free app

Liset 2.0 OFFICE 1 -

Upon request: CASAMBI SYSTEM

Casambi is an advanced home automation lighting management system with which users can easily and intuitively control their lights. It is based on the Bluetooth Low Energy (BLE) standard. BLE is the only wireless technology designed to consume less energy currently used in all modern smartphones. Thanks to its simple, user-friendly application, anyone can set up and manage their own lighting network from a smartphone or any mobile device to easily control each lighting fixture individually or in groups, depending on their needs and functions. This technology represents the ideal solution in terms of easy installation and functionality. With Casambi lights can be controlled from a smartphone, tablet, smart watch, push buttons and wired or wireless switches. It works with an app that can be downloaded for free from the Apple App Store or Google Play Store.

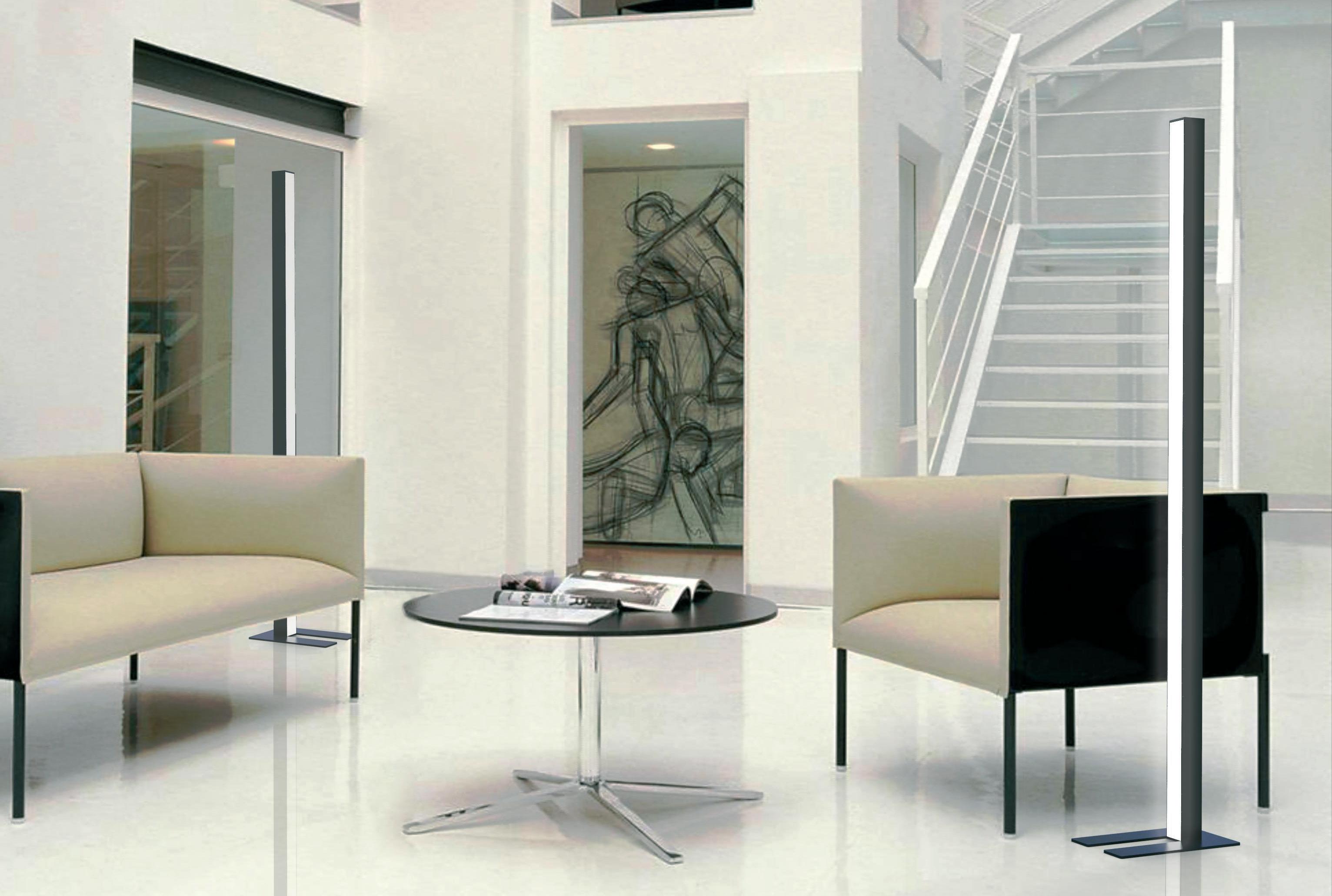

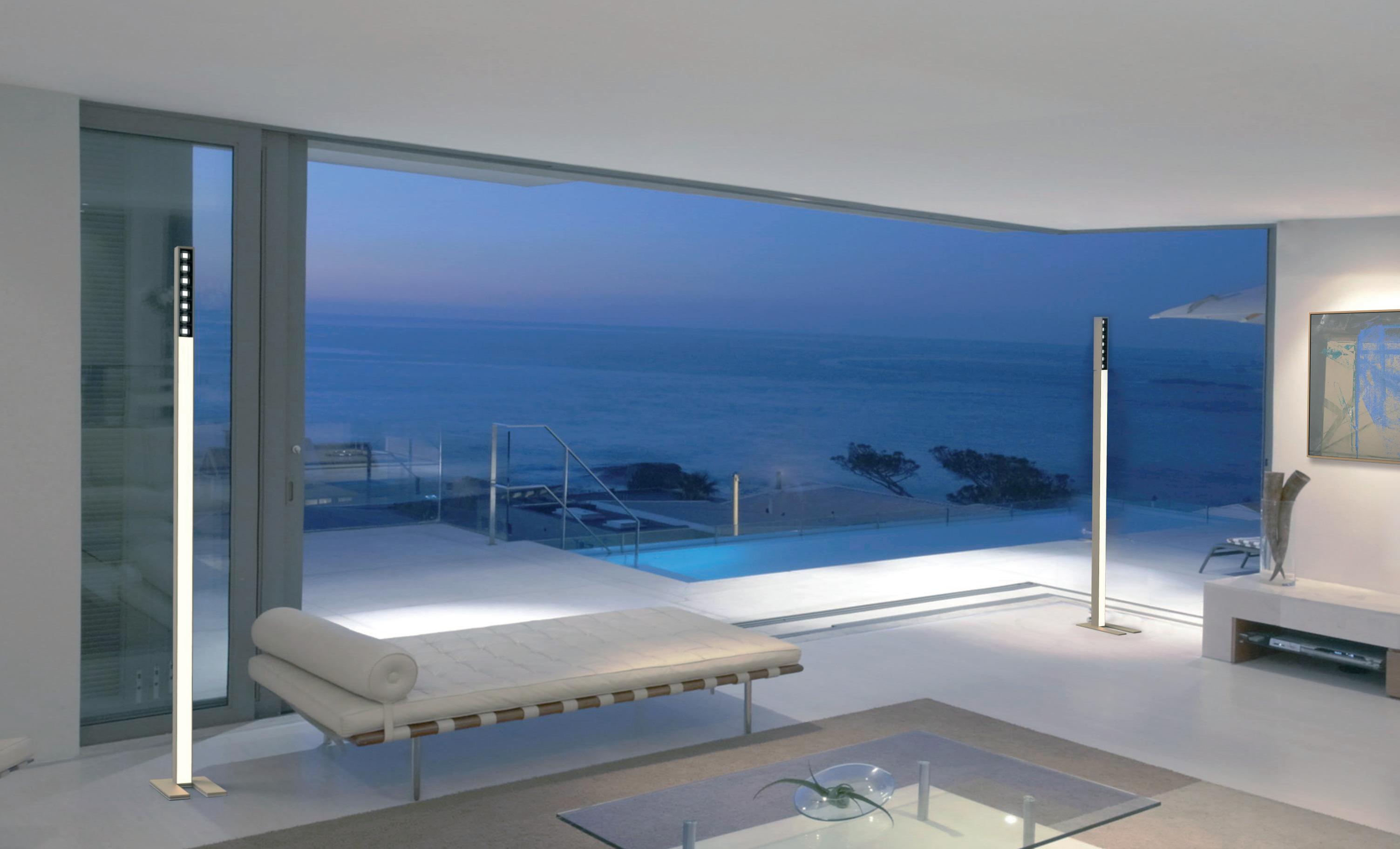

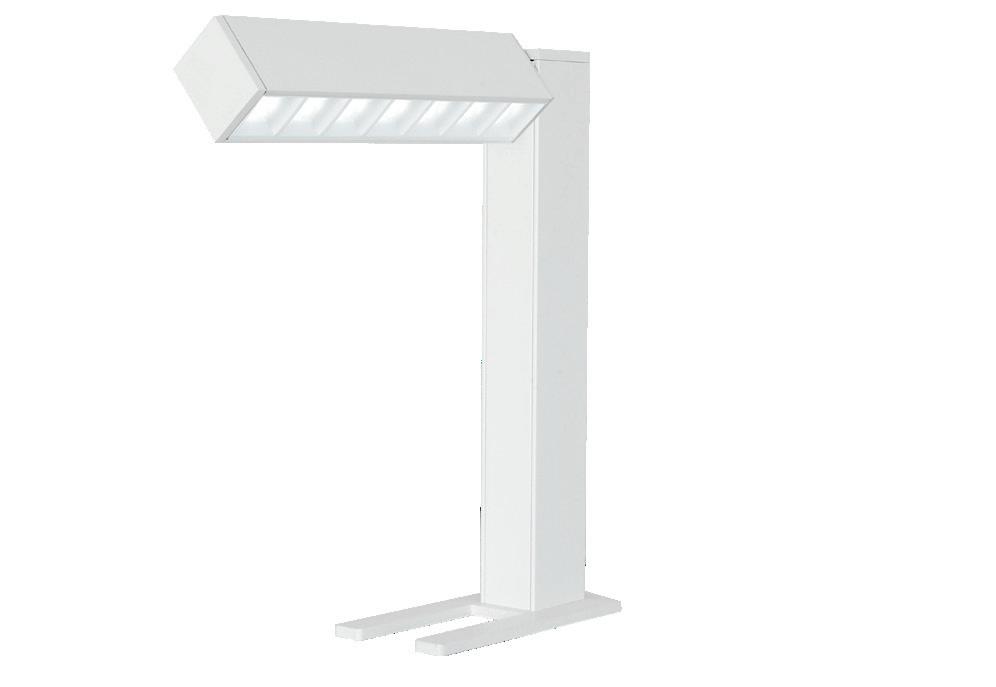

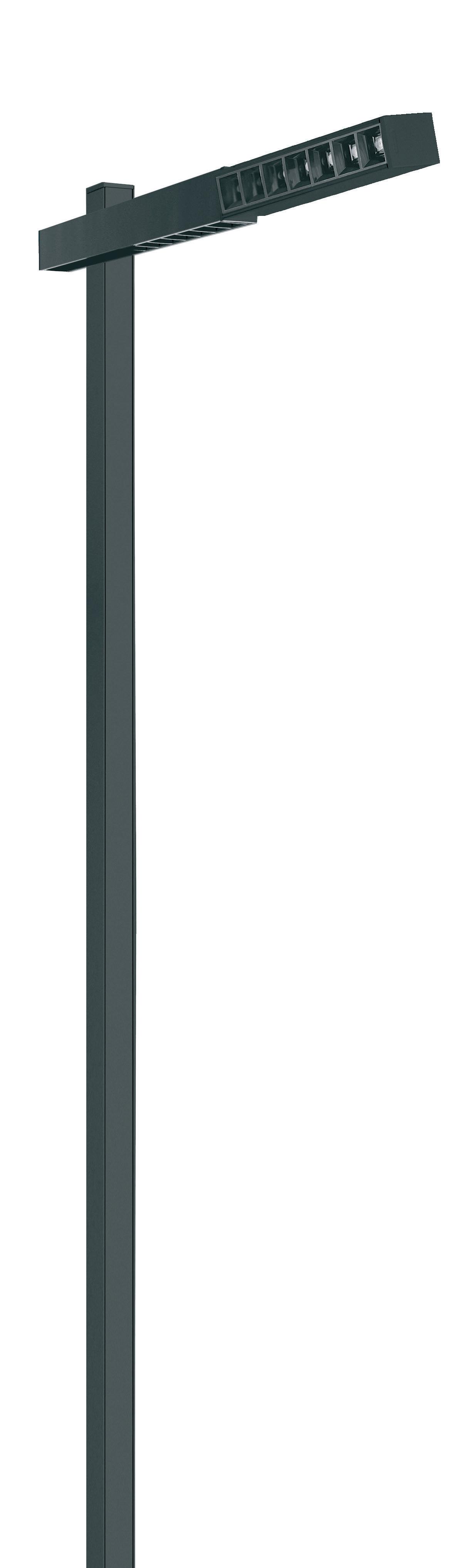

In the free-standing version, it is a floor lamp with compact dimensions that does not take up too much space and can create surprisingly elegant light scenes with proper management of the light beam. It is a particularly versatile lighting fixture with the option to choose from different combinations of input power and luminous flux output values and between comfort optics and polycarbonate diffuser. Available colours:
