SELECTION OF EM LIGHTING

EMergency lighting solutions

Emergency lighting is an essential safety system to ensure the protection of people during emergency situations. People who are left in the dark during power outages or block-outs, especially in crowded places or during a catastrophic event, will feel uneasy, hence increasing the risk of getting hurt because uneasiness can easily turn into panic. Therefore, an efficient emergency lighting system is an essential requirement to guarantee a safe and fast evacuation during emergencies. If this system is designed in compliance with existing laws and regulations, it will provide the necessary aid that, together with adequate safety signals, will ensure a smooth evacuation from the premises.

EM S.A. (Maintained): during a blackout, the luminaire connected to the emergency circuit stays on, preventing any inconvenience caused by the sudden loss of lighting. It offers an autonomy of 60/180 minutes. The battery automatically recharges once the power is restored.

EM S.E. (Emergency Only): During of a blackout, the luminaire connected to the emergency circuit will switch on, preventing any inconvenience caused by the sudden loss of lighting. It offers an autonomy of 60/180 minutes. The battery automatically recharges once the power is restored.

EMergency lighting

Back-up lighting

designed for workplaces with potentially hazardous situations. In the event of power outages, it serves as “general lighting” for limited periods of time, so that work activities can be terminated, and premises can be evacuated safely.

Anti-panic lighting

to mitigate panic during a blackout and effectively guide people to safety routes.

Life expectancy of the

Class II fixture (double insulation). No grounding needed.

Fixture surface area exposed to the wind.

Minimum and maximum operating temperature. Ask for specific product temperature to our technical offices.

Safety lighting

designed to provide minimum light levels to avoid panic and dangerous situations. Escape routes and exit signage must be easily recognisable and visible enough to allow people to escape safely from any location.

Escape route lighting

to highlight emergency escape routes and ensure a safe evacuation accurately and clearly.

Safety lighting

Info - pictographs

for workplaces where potentially work hazards exist (lights must turn on with a maximum delay of 0.5 seconds, providing at least 10% of the required illuminance for the task being performed or reaching a minimum of 15 lux)

UV-stabilised coating, anti-yellowing. Fixture built with stabilised materials.

Built with materials that are highly resistant to acid and toxic gas corrosion.

Electronic safety device to protect the LED module and the related ballast compliant with EN 61547

It works in two modes: - differential mode: surge between power cables and between the phase and neutral. - common mode: surge between power, L/N and ground cables or between the fixture’s body if it is of class II and installed on a metal pole.

Product with a very low flicker; uniform light for greater eye protection.

Risk Group 0 (RG0): luminaires are exempt from photobiological risks in compliance with standard EN 62471.

Products compliant with ball impact resistance test standard DIN 18032-3: 2018.

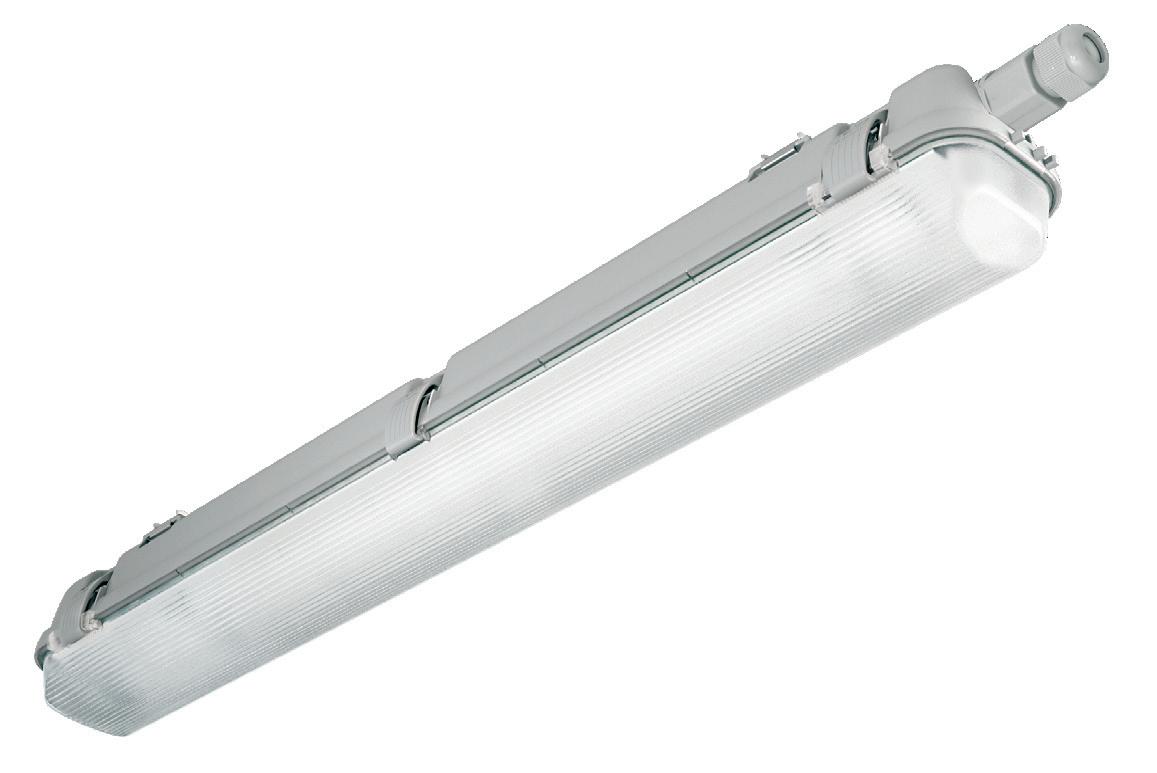

WATERPROOF FIXTURES Fixture enclosures are in polycarbonate and keep their IP65/66 waterproof rating if installed, used and maintained in compliance with technical specifications (particularly operating voltage and temperature), as well as with the supplied instructions and applicable standards. Exposure to direct sunlight may heat up the fixture to 45°C compromising the degree of protection. It is advisable to use fixtures properly without altering mechanical properties and protection rating (IP65/IP66); do not install on surfaces subject to strong vibrations, outdoors on hanging cables, or on walls under metallic grates, or on poles, and in any case, never expose the fixture to direct sunlight. Otherwise, use watertight fixtures in steel.

Check the compatibility between the material constituting the product and the space where it will be installed

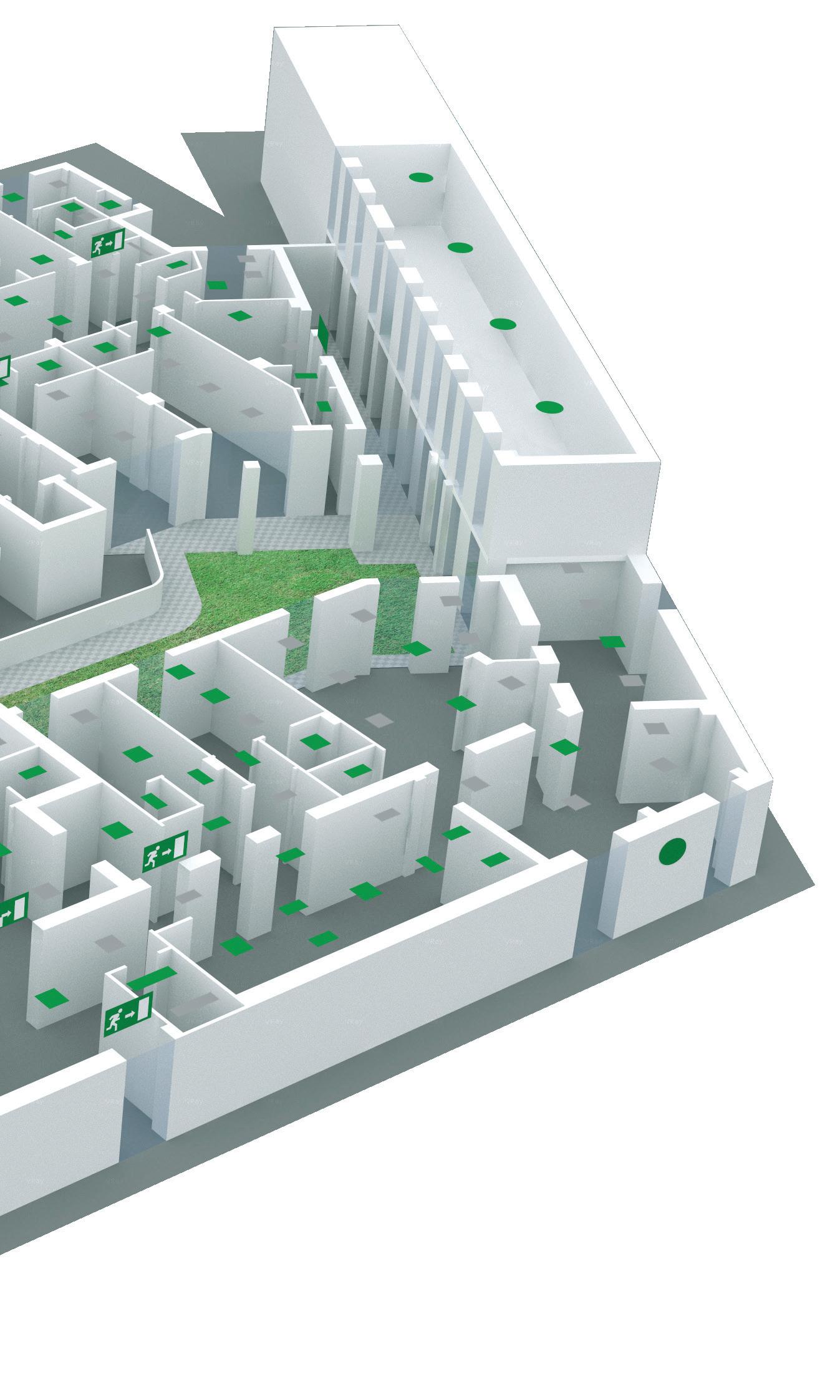

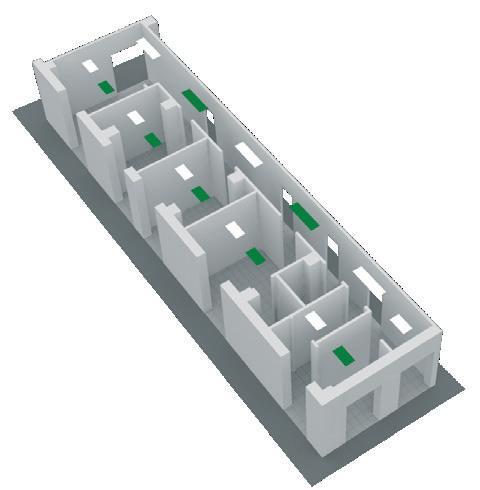

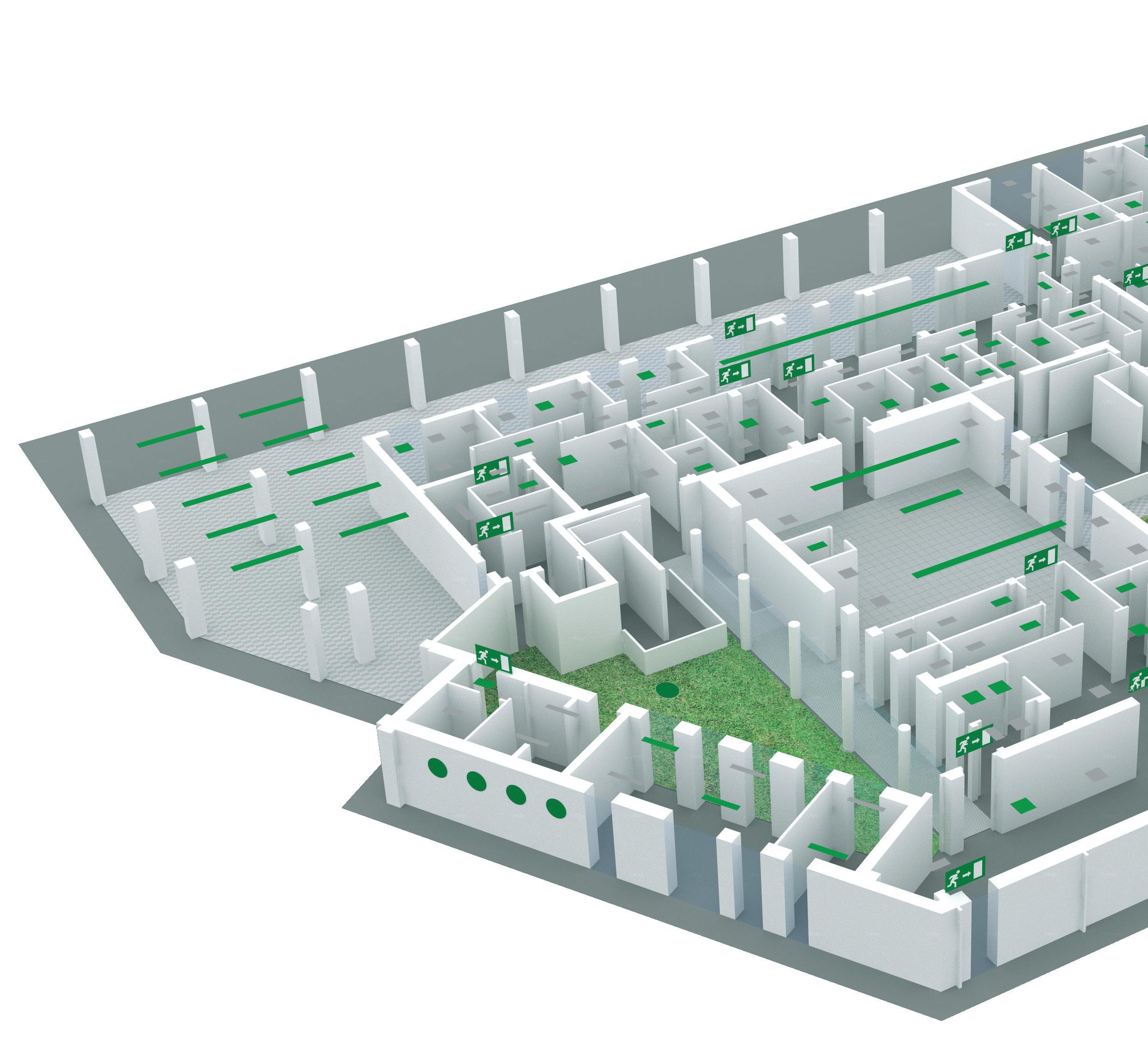

Safety factor is crucial in designing a good EMergency lighting system

Therefore, any obstacle within two metres above ground level must be illuminated, ensuring there is no risk of bumping or tripping due to insufficient lighting conditions. Emergency lights and signage should be installed at a minimum height of two metres above ground level to ensure visibility even in crowded rooms. In cases where the emergency exit is not immediately visible, an illuminated sign should be installed to indicate the correct direction and evacuation route.

For emergency lighting, we provide four practical and cost-effective solutions to fulfil various needs:

EXAMPLE OF REMOTE CONTROL SYSTEM

NOTE: to order lighting fixtures with an emergency module based on the DALI protocol, use subcode -95.

DALI

(Please contact our customer service for information)

EXAMPLE OF LOCALISED SELF-DIAGNOSTIC LIGHTS

A localised self-diagnostic system uses an integrated module that monitors the operation of the emergency light on each individual lighting fixture. This function is recommended for use in small simple rooms, and an accessory component is to be used on each single fixture.

NOTE: to order lighting fixtures with the self-diagnostic module use subcode -0066.

Autonomy

The autonomy of emergency luminaires is governed by IEC standards and guidelines. Emergency luminaires typically ensure continuity for 1 or 1.5 h intervals, depending on their use within the rooms they are installed. While some products declare an autonomy of up to 3 hours or more, the aging of batteries can compromise their ability to meet these declared specifications. In such cases, replacing old batteries becomes necessary. It is recommended to perform a complete battery discharge and recharge cycle at least once every three months to ensure optimal system efficiency.

Recharge

The product standard specifies a charging time of either 12 or 24 hours, which is necessary to recharge the battery and ensure devices maintain their nominal range.

1h = 24h

3h = 24h (or a 12-hour charging period for 1.5 h of autonomy)

Fixtures with EMergency Kit

EM Basic: S.A. -07

During a blackout, emergency lights ensure practical and safe operation, preventing any inconvenience caused by the sudden loss of lighting. They can be divided in:

1) luminaires with built-in emergency module: subcode -07

2) luminaires with external emergency module, standard version -00 + acc. 600 emergency kit

• When the battery is charging, the power consumption (W tot) will exceed 3 watts.

• During maintenance (when the battery is charging), the total power (W tot) will exceed a value ranging between 0.5 and 1 Watt.

EM EDali -95

Luminaires with subcode -95 are available with an emergency system featuring the standard DALI protocol (inverter only), compliant with EN 62386-202 and compatible with all advanced centralised control systems. The biggest advantage of using the DALI protocol in emergency lighting lies in its capability to control both general and emergency lights using a single busbar. This simplifies both the wiring of the system (busbar) and the programming of the entire lighting installation.

NOTE: the -95 equipped product will remain ON-OFF and not DALI dimmable (order with subcode 9541).

ADVANTAGES:

•control of the status of the lighting source (lamp or LED module)

•control of the emergency battery

•functional and/or autonomy tests conducted on the luminaire, groups of luminaires, or the entire system

•control of the light intensity on Only EMergency (SE) and Always On (SA)

EM Self-Diagnosis -0066

Most emergency ceiling lights can be equipped with a local self-diagnostic system by adding subcode -0066 to the product’s ordinary code when ordering. The self-diagnosis module is equipped with an advanced microprocessor device, enabling it to perform various checks automatically and autonomously at certain time periods. The module performs two types of tests at different periodic intervals:

1)functionality test: a short test is conducted automatically to verify the luminaire’s operation.

2)battery duration test: automatically checks the battery’s life by turning on the lamp for the pre-set interval. All signage is handled by one single tri-colour V-G-R LED, which indicates the kit’s various operating statuses.

EM Centralised -0050

With emergency wiring with centralised power supply CLD EC sub-code -0050: permanent luminaire, with power supply unit operating in AC/DC, powered by a central emergency unit (not incorporated into the luminaire).

RECOMMENDED INSTALLATIONS:

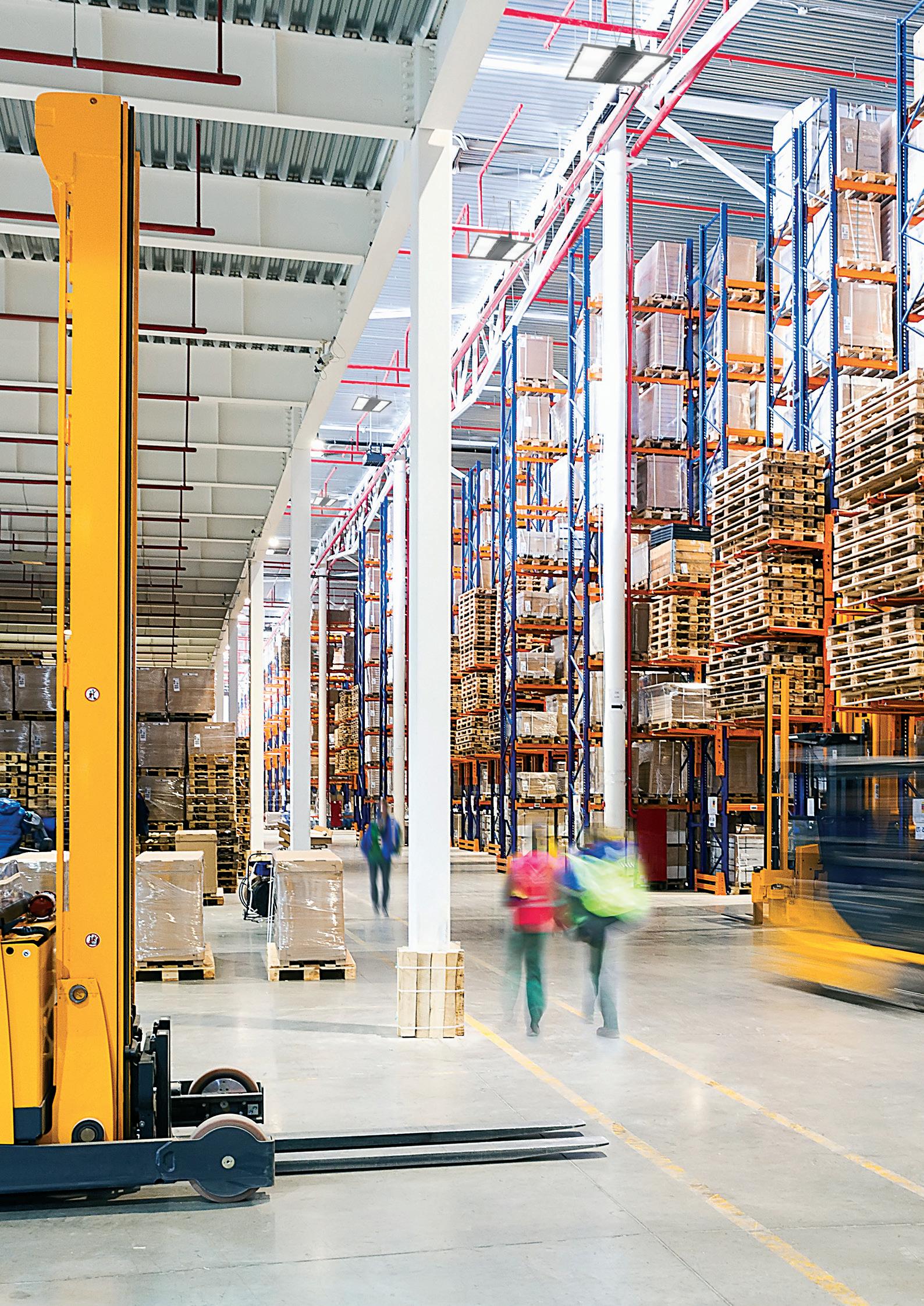

• environments with very high ceilings (warehouses, distribution centres, hubs, etc.)

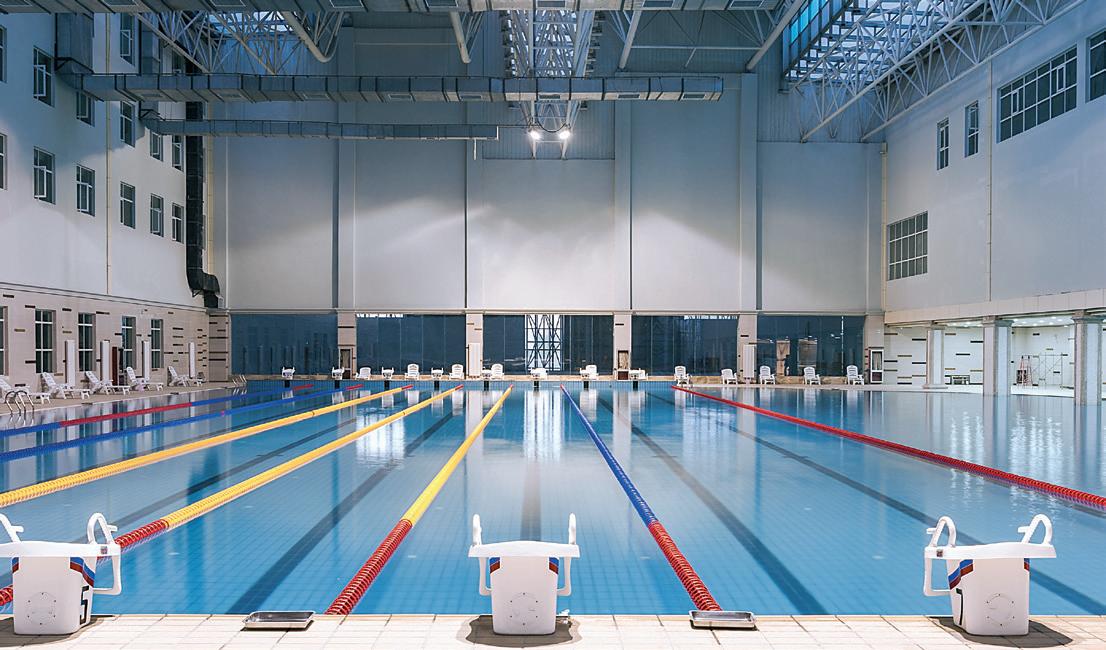

•environments where maintenance may be difficult (indoor swimming pools)

•large or multi-storey facilities where remote control is preferred (offices, hospitals, public places)

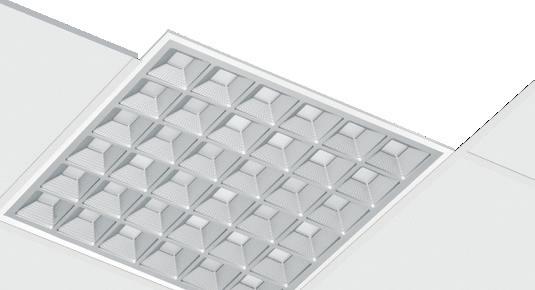

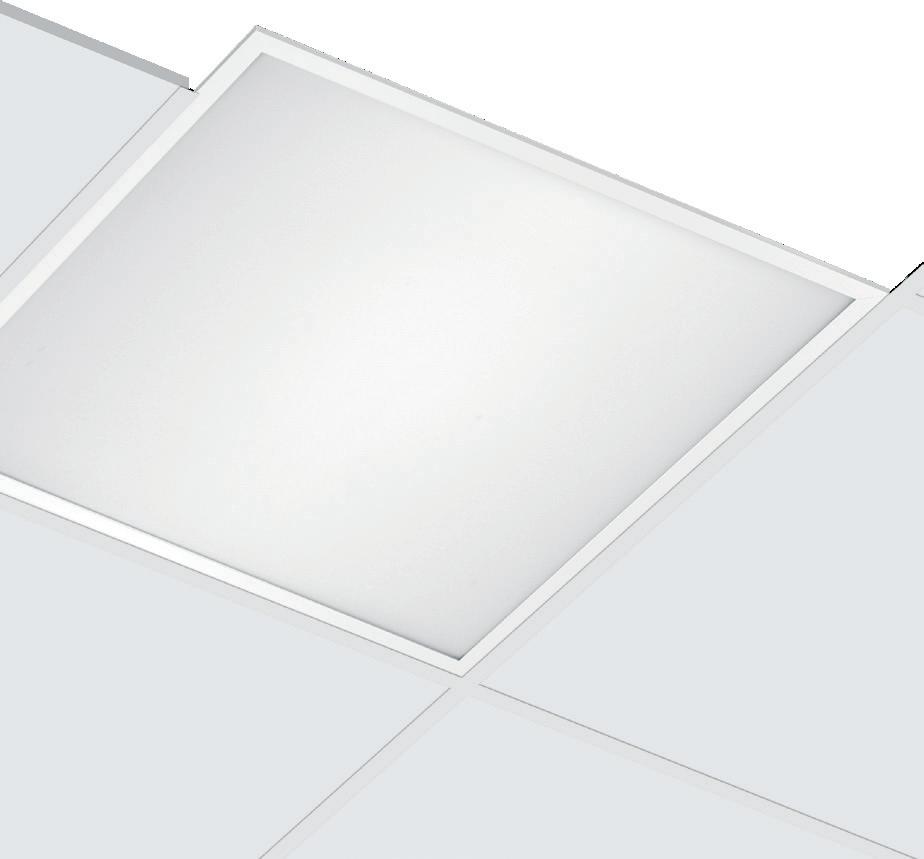

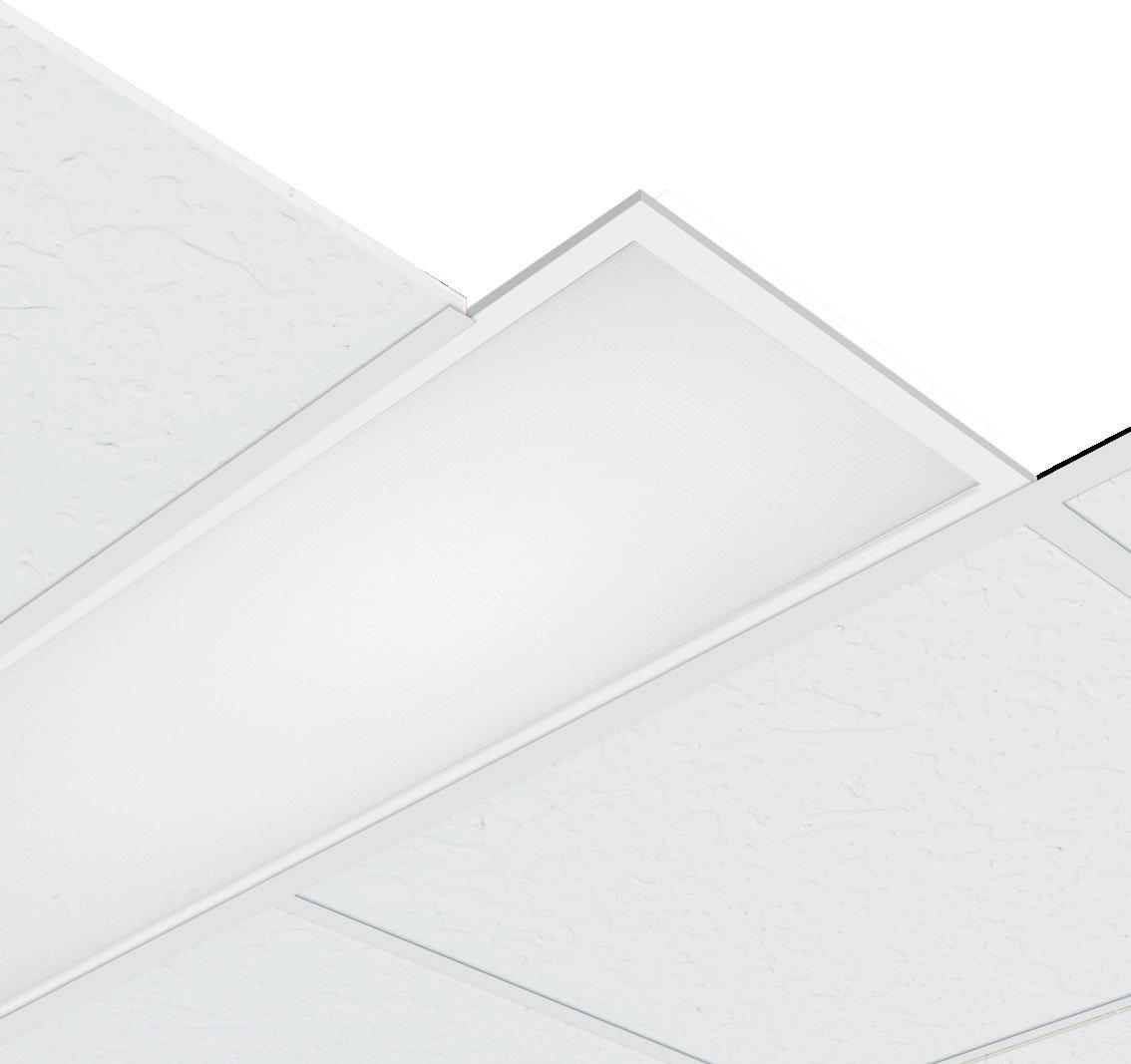

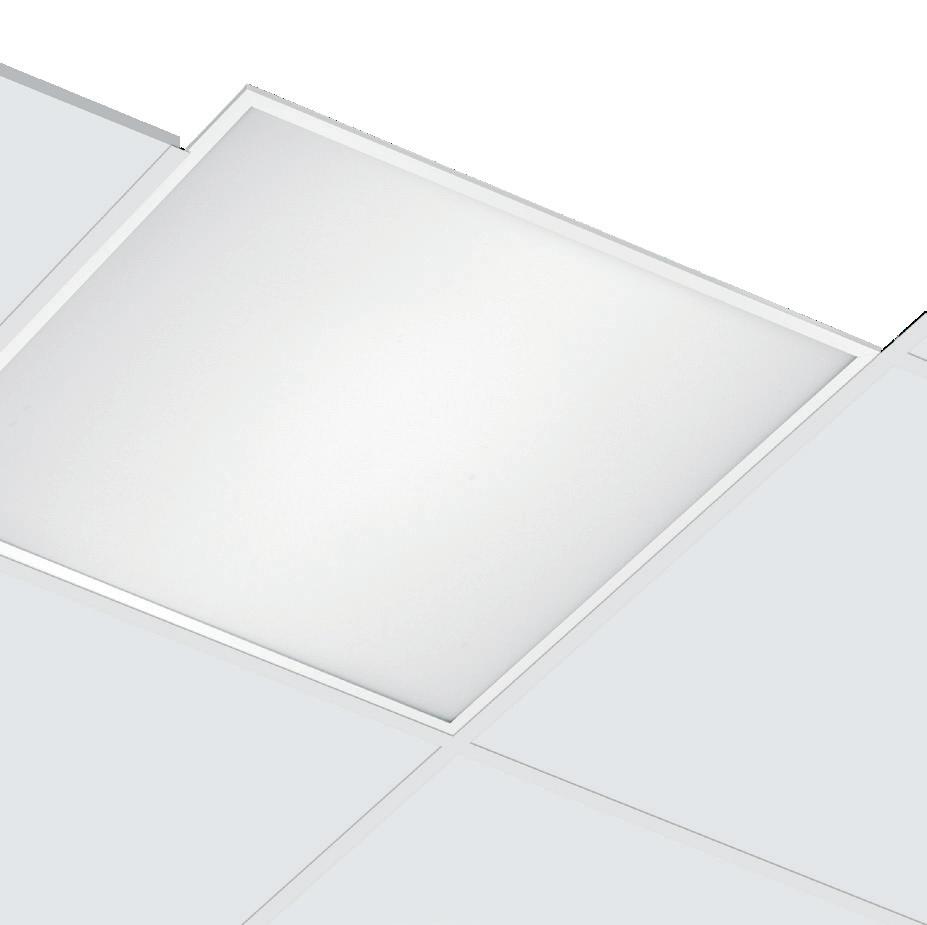

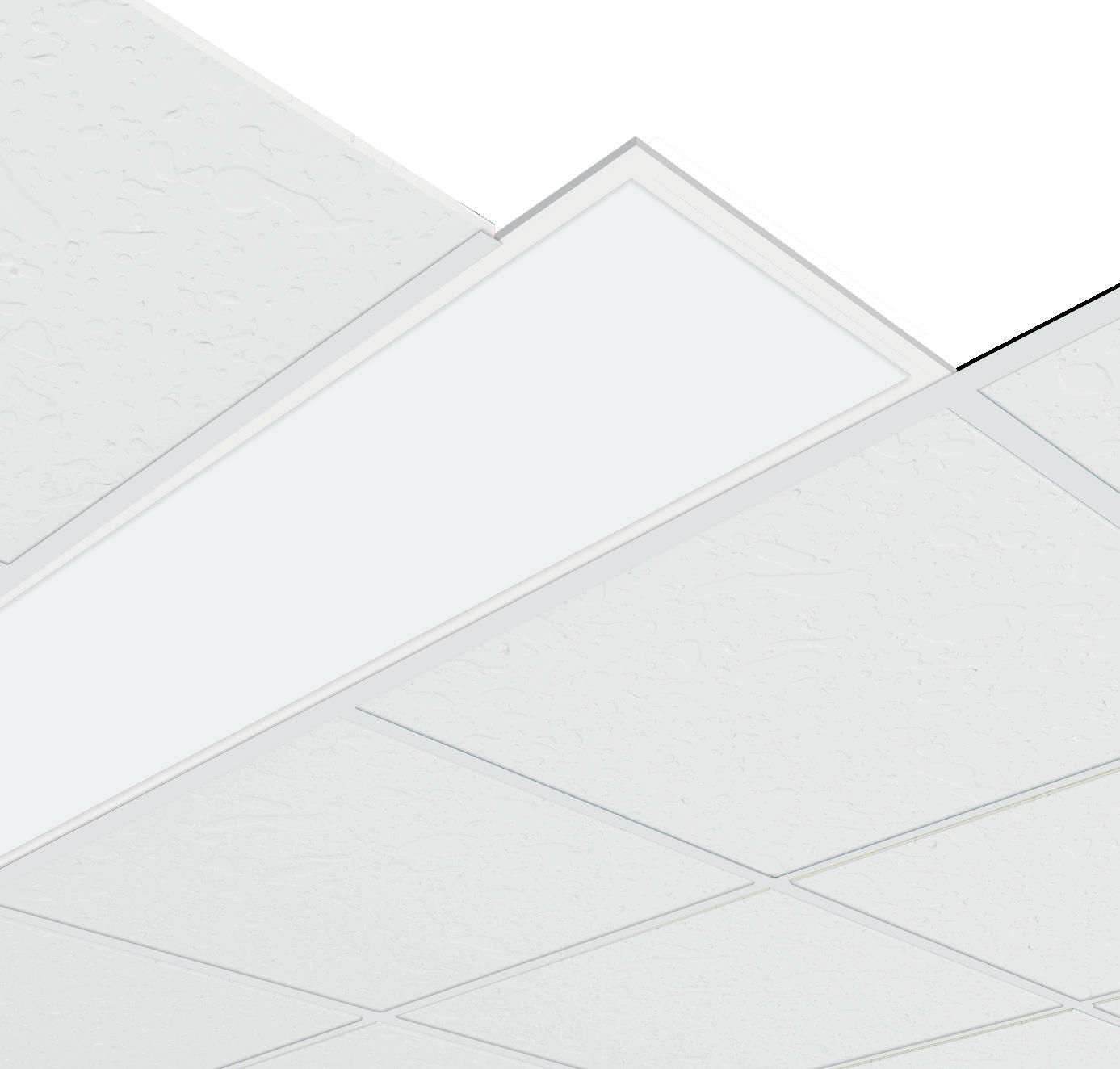

Creta

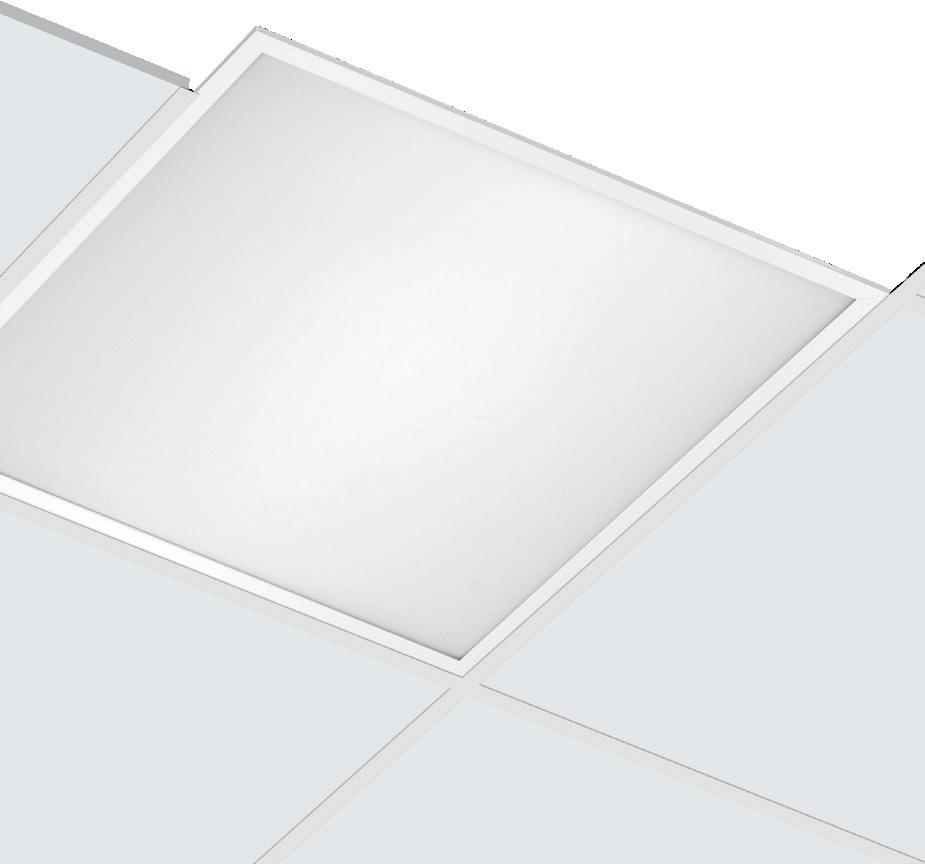

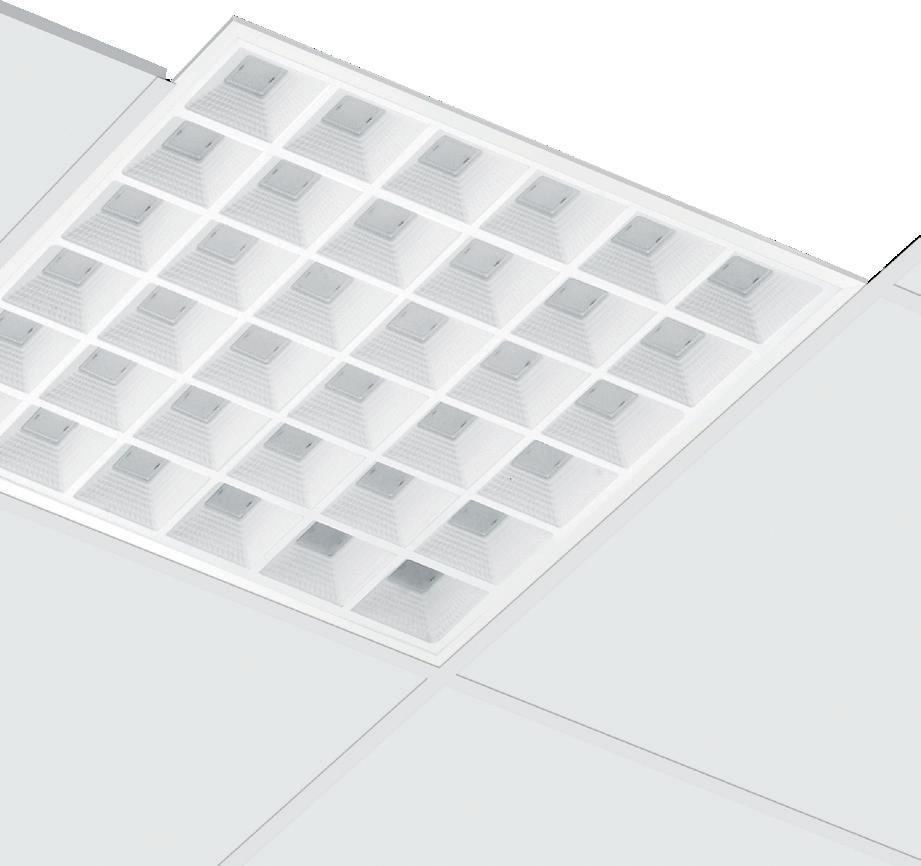

Creta is the new recessed LED backlighting ceiling fixture that opens up a whole different way of thinking about artificial lighting; it offers a very bright and diffused lighting, while keeping energy consumptions extremely low and setting itself as the ideal solution for general and functional lighting applications

Housing and frame: housing in galvanised steel sheet, and frame in aluminium, contact mounting on the cross T structure. Optics: secondary lenses in PMMA with high transparency and non-yellowing properties.

UGR glare index: UGR<17 - EN 12464.

Wiring: rapid wring connection, the fixture does not need to be opened.

833 Creta - UGR<17

EM versions: use kit acc. 600.

W tot: when the battery is charging, the power consumption (W tot) will exceed 3 watts. During maintenance (when the battery is charging), the total power (W tot) will exceed a value ranging between 0.5 and 1

EM ED 1h: complete with emergency system with standard DALI protocol (inverter only). The -95 equipped product will remain ON-OFF and not DALI dimmable. W tot: when the battery is charging, the power consumption (W tot) will exceed 3 watts. During maintenance (when the battery is charging), the total power (W tot) will exceed a value ranging between 0.5 and 1 watt.

EM AD 1h: complete with emergency system and self-diagnosis module. W tot: when the battery is charging, the power consumption (W tot) will exceed 3 watts. During maintenance (when the battery is charging), the total power (W tot) will exceed a value ranging between 0.5 and 1 watt.

Available in silver color, with sub-code -2118

EM EC: with emergency wiring supplied by centralised power unit: permanent luminaire, with power supply unit operating in AC/DC, powered by a central emergency unit (NOT incorporated into the luminaire).

833 Creta - EM AD 1h - UGR<17

833 Creta - EM EC - UGR<17

Pannello B - DIP SWITCH

EM versions: use power kit in EM. W tot: when the battery is charging, the power consumption (W tot) will exceed 3 watts. During maintenance (when the battery is charging), the total power (W tot) will exceed a value ranging between 0.5 and 1

Pannello B

Pannello B - EM EC - DIP SWITCH

EM AD 1h: complete with emergency system and self-diagnosis module. W tot: when the battery is charging, the power consumption (W tot) will exceed 3 watts. During maintenance (when the battery is charging), the total power (W tot) will exceed a value ranging between 0.5 and 1 watt.

EM EC: with emergency wiring supplied by centralised power unit: permanent luminaire, with power supply unit operating in AC/DC, powered by a central emergency unit (NOT incorporated into the luminaire).

Pannello B - DIP SWITCH

is

the

B

EM AD 1h: complete with emergency system and self-diagnosis module. W tot: when the battery is charging, the power consumption (W tot) will exceed 3 watts. During maintenance (when the battery is charging), the total power (W tot) will exceed a value ranging between 0.5 and 1 watt.

EM EC: with emergency wiring supplied by centralised power unit: permanent luminaire, with power supply unit operating in AC/DC, powered by a central emergency unit (NOT incorporated into the luminaire).

Pannello B - R2 - EM EC - DIP SWITCH

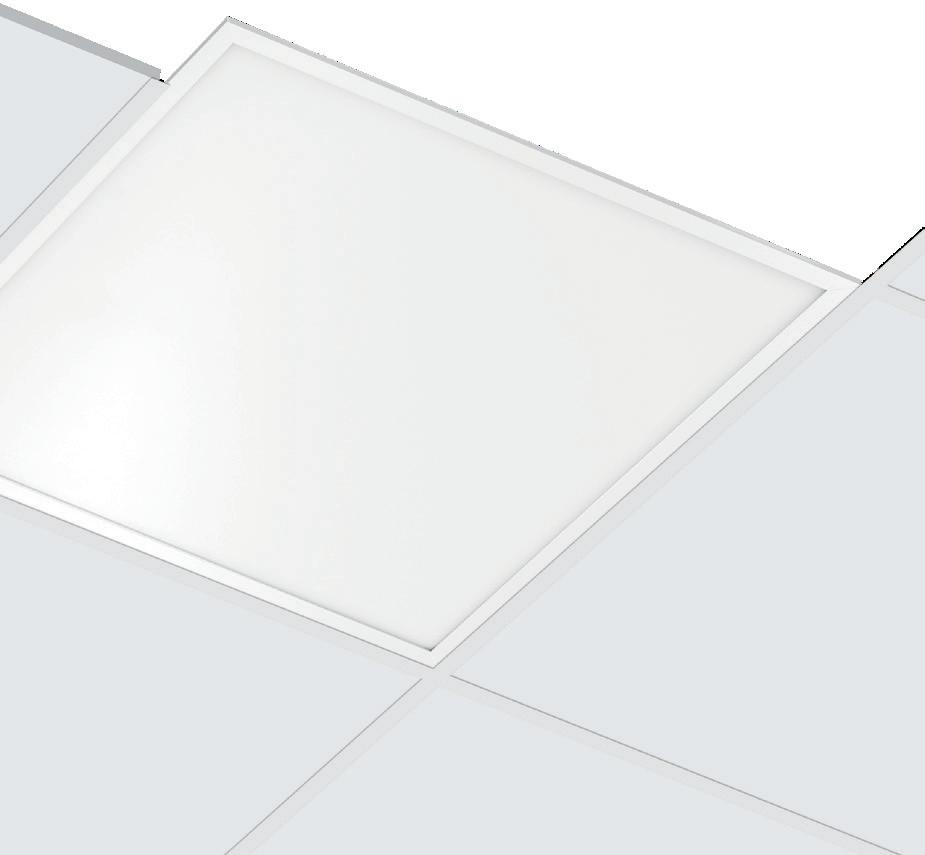

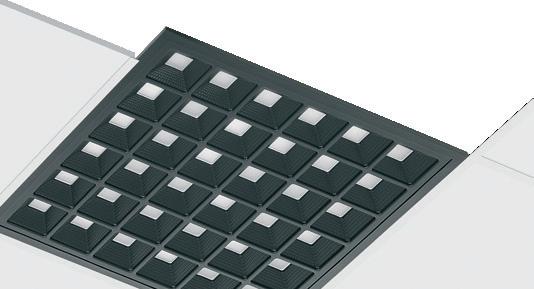

PanelTech A - UGR<19 - DIP SWITCH

EM versions: use power kit in EM. W tot: when the battery is charging, the power consumption (W tot) will exceed 3 watts. During maintenance (when the battery is charging), the total power (W tot) will exceed a value ranging between 0.5 and 1 watt.

PanelTech A - EM AD 1h - UGR<19 - DIP SWITCH CLD - Self-diagnosis

- 3218lm - CRI>80

PanelTech A - EM EC - UGR<19 - DIP SWITCH

- 3218lm - CRI>80

Inner slab: in PMMA.

Diffuser: in prismatic engineering plastic with high transmittance.

ADAPT THE CURRENT TO ACHIEVE OPTIMAL LUMINOUS FLUX

EM AD 1h: complete with emergency system and self-diagnosis module. W tot: when the battery is charging, the power consumption (W tot) will exceed 3 watts. During maintenance (when the battery is charging), the total power (W tot) will exceed a value ranging between 0.5 and 1 watt.

EM EC: with emergency wiring supplied by centralised power unit: permanent luminaire, with power supply unit operating in AC/DC, powered by a central emergency unit (NOT incorporated into the luminaire).

PanelTech

R2 - UGR<19 - DIP SWITCH

EM versions: use power kit in EM. W tot: when the battery is charging, the power

is charging), the total power (W tot) will exceed a value ranging between 0.5 and 1 watt.

PanelTech

(W

EM AD 1h: complete with emergency system and self-diagnosis module. W tot: when the battery is charging, the power consumption (W tot) will exceed 3 watts. During maintenance (when the battery is charging), the total power (W tot) will exceed a value ranging between 0.5 and 1 watt.

EM EC: with emergency wiring supplied by centralised power unit: permanent luminaire, with power supply unit operating in AC/DC, powered by a central emergency unit (NOT incorporated into the luminaire).

PanelTech HE A2 - UGR<19

EM versions: use power kit in EM. W tot: when the battery is charging, the power consumption (W tot) will exceed 3 watts. During maintenance (when the battery is charging), the total power (W tot) will exceed a value ranging between 0.5 and 1 watt.

EM power kit

1h 22096035-00

3h 22096037-00

EM (emergency) lamp power kit complete with connectors. 0.43 Kg.

PanelTech

PanelTech

PanelTech

EM ED 1h: complete with emergency system with standard DALI protocol (inverter only). The -95 equipped product will remain ON-OFF and not DALI dimmable. W tot: when the battery is charging, the power consumption (W tot) will exceed 3 watts. During maintenance (when the battery is charging), the total power (W tot) will exceed a value ranging between 0.5 and 1 watt.

EM AD 1h: complete with emergency system and self-diagnosis module. W tot: when the battery is charging, the power consumption (W tot) will exceed 3 watts. During maintenance (when the battery is charging), the total power (W tot) will exceed a value ranging between 0.5 and 1 watt.

EM EC: with emergency wiring supplied by centralised power unit: permanent luminaire, with power supply unit operating in AC/DC, powered by a central emergency unit (NOT incorporated into the luminaire).

v.a. IP20 IK05

v.l. IP40 IK05

PanelTech HE R2 - UGR<19

EM versions: use power kit in EM. W tot: when the battery is charging, the power consumption (W tot) will exceed 3 watts. During maintenance (when the battery is charging), the total power (W tot) will exceed a value ranging between 0.5 and 1 watt.

EM ED 1h: complete with emergency system with standard DALI protocol (inverter only). The -95 equipped product will remain ON-OFF and not DALI dimmable. W tot: when the battery is charging, the power consumption (W tot) will exceed 3 watts. During maintenance (when the battery is charging), the total power (W tot) will exceed a value ranging between 0.5 and 1 watt.

EM AD 1h: complete with emergency system and self-diagnosis module. W tot: when the battery is charging, the power consumption (W tot) will exceed 3 watts. During maintenance (when the battery is charging), the total power (W tot) will exceed a value ranging between 0.5 and 1 watt.

EM EC: with emergency wiring supplied by centralised power unit: permanent luminaire, with power supply unit operating in AC/DC, powered by a central emergency unit (NOT incorporated into the luminaire).

PanelTech HE R2 - EM AD 1h - UGR<19

830 Rodi - UGR<19

Versioni EM: utilizzare il kit acc. 600. Wtot: in fase di ricarica della batteria, il consumo (Wtot) sarà maggiore di 3W. In fase di mantenimento (quando la batteria è carica) la potenza (Wtot) sarà maggiore di un valore compreso tra 0,5 e 1W.

acc. 907 springs 998038-00

EM (emergency) lamp power kit complete with connectors. 0.43 Kg.

830 Rodi - EM ED 1h - UGR<19

LED white 1.30 595 150242-95 25 4000K - 3640lm - CRI 80 150242-9528

830 Rodi - EM AD 1h - UGR<19

- Self-diagnosis

Springs for recessed non-surface mounting on plasterboard. Bag containing 4 pieces.

EM ED 1h: complete with emergency system with standard DALI protocol (inverter only). The -95 equipped product will remain ON-OFF and not DALI dimmable. W tot: when the battery is charging, the power consumption (W tot) will exceed 3 watts. During maintenance (when the battery is charging), the total power (W tot) will exceed a value ranging between 0.5 and 1 watt.

EM AD 1h: complete with emergency system and self-diagnosis module. W tot: when the battery is charging, the power consumption (W tot) will exceed 3 watts. During maintenance (when the battery is charging), the total power (W tot) will exceed a value ranging between 0.5 and 1 watt.

830 Rodi - EM EC - UGR<19

EM EC: with emergency wiring supplied by centralised power unit: permanent luminaire, with power supply unit operating in AC/DC, powered by a central emergency unit (NOT incorporated into the luminaire).

-

EM versions: use kit acc. 600. W tot: when the battery is charging, the power consumption (W tot) will exceed 3 watts. During maintenance (when the battery is charging), the total power (W tot) will exceed a value ranging between 0.5 and 1 watt.

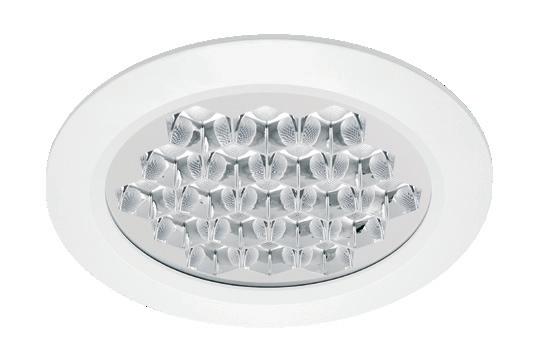

884 Compact - EM AD 1h - CRI 95 - Ø245 - DIP SWITCH

- Self-diagnosis

LED colour weight code I out W

LED white 1.20

LED white 1.20

156424-0066 500 18

156424-3966

156425-0066 700 25

156425-3966

- 2385lm - CRI 95

- 2266lm - CRI 95

- 3342lm - CRI 95

- 3175lm - CRI 95

Complete with emergency system and self-diagnosis module. W tot: when the battery is charging, the power consumption (W tot) will exceed 3 watts. During maintenance (when the battery is charging), the total power (W tot) will exceed a value ranging between 0.5 and 1 watt.

884 Compact - EM EC - CRI 95 - Ø245 - DIP SWITCH

EC

With emergency wiring supplied by centralised power unit: permanent luminaire, with power supply unit operating in AC/DC, powered by a central emergency unit (NOT incorporated into the luminaire).

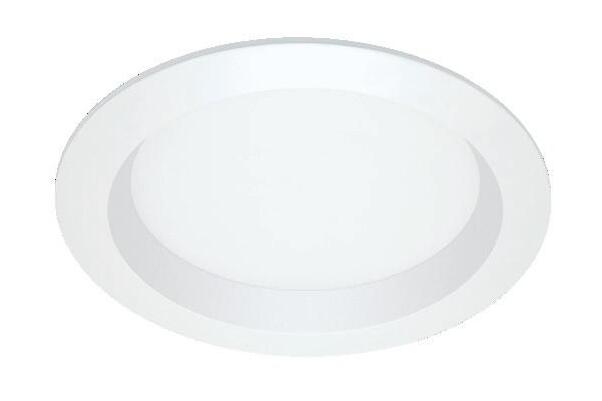

911 Health Dark - UGR<19 - Ø172 - DIP SWITCH

EM versions: use kit acc. 600. W tot: when the battery is charging, the power consumption (W tot) will exceed 3 watts. During maintenance (when the battery is charging), the total power (W tot) will exceed a value ranging between 0.5 and 1 watt.

911 Health Dark - EM AD 1h - UGR<19 - Ø172 - DIP SWITCH CLD - Self-diagnosis

Housing: fixed donwlight in die cast aluminium. Lens: in PMMA lens with high efficiency output and very low glare rate. Dark light optics: in anti-glare metalized plastic material.

TO ACHIEVE OPTIMAL LUMINOUS

EM AD 1h: complete with emergency system and self-diagnosis module. W tot: when the battery is charging, the power consumption (W tot) will exceed 3 watts. During maintenance (when the battery is charging), the total power (W tot) will exceed a value ranging between 0.5 and 1 watt.

EM EC: with emergency wiring supplied by centralised power unit: permanent luminaire, with power supply unit operating in AC/DC, powered by a central emergency unit (NOT incorporated into the luminaire).

Health Dark - DIP SWITCH -

911 Health Dark - UGR<19 - Ø220 - DIP SWITCH

EM versions: use kit acc. 600. W tot: when the battery is charging, the power consumption (W tot) will exceed 3 watts. During maintenance (when the battery is charging), the total power (W tot) will exceed a value ranging between 0.5 and 1 watt.

EM AD 1h: complete with emergency system and self-diagnosis module. W tot: when the battery is charging, the power consumption (W tot) will exceed 3 watts. During maintenance (when the battery is charging), the total power (W tot) will exceed a value ranging between 0.5 and 1 watt.

EM EC: with emergency wiring supplied by centralised power unit: permanent luminaire, with power supply unit operating in AC/DC, powered by a central emergency unit (NOT incorporated into the luminaire).

602 Disanlens - EM AD 1h

602 Disanlens - EM EC

EM EC: with emergency wiring supplied by centralised power unit: permanent luminaire, with power supply unit operating in AC/DC, powered by a central emergency unit (NOT incorporated into the luminaire).

AND ACCESSORIES

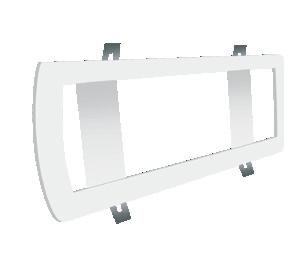

Bracket for wall mounting. 2-pc set.

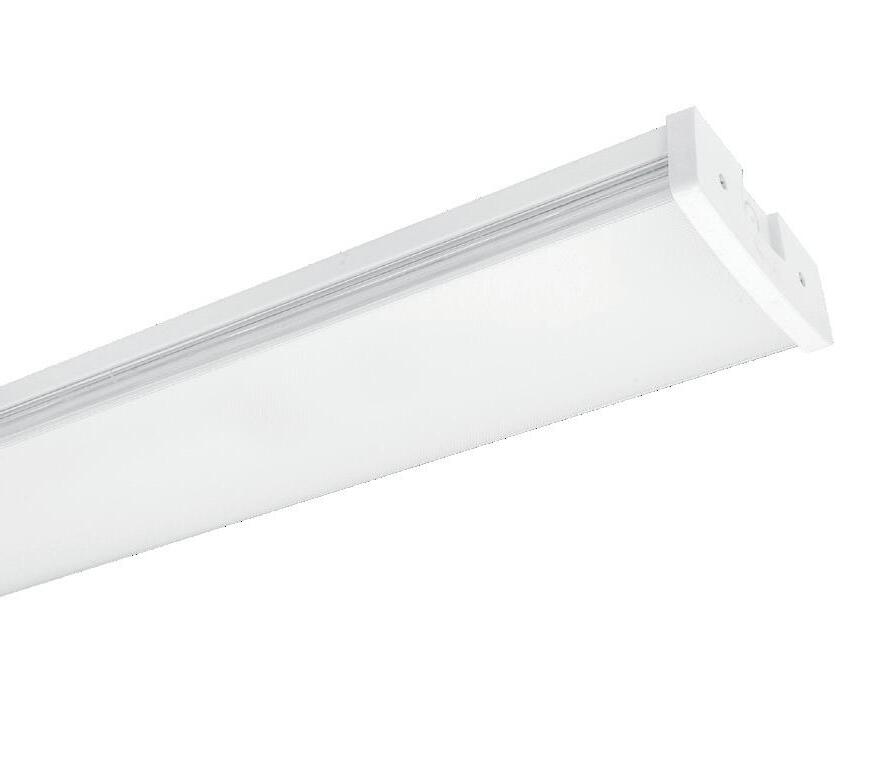

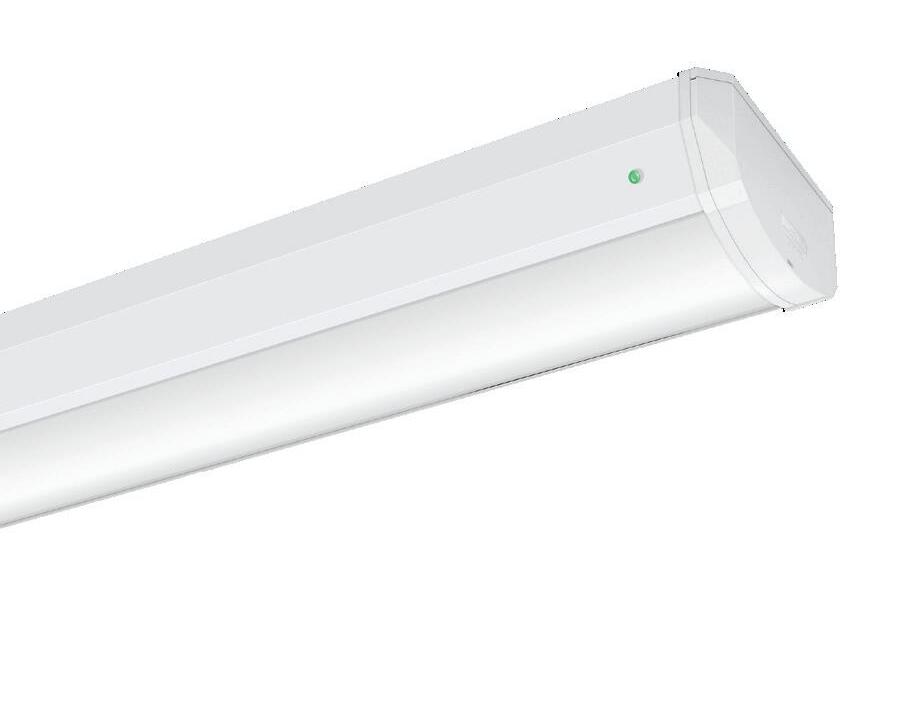

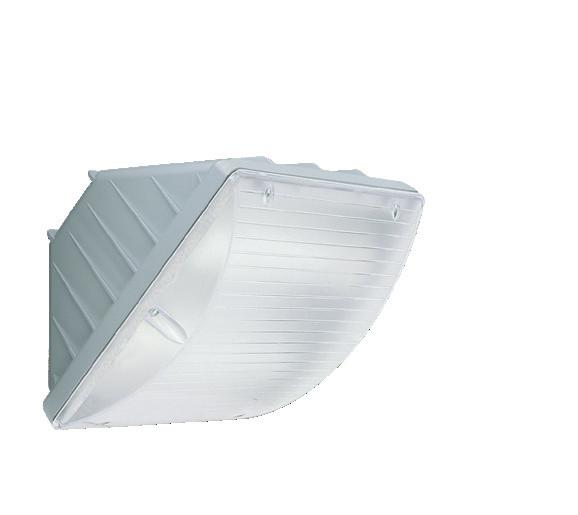

Disanlens 602

Housing: in extruded aluminium with closing ends

Diffuser: in shatter-proof, self-extinguishing and UV-stabilised V2 polycarbonate. Smooth and dust-proof on the outside, and multiple grooves on the inside to increase light distribution.

Coating: smooth, white powder coating.

Equipment: silicone rubber gasket; outer screws in stainless steel.

Disanlens

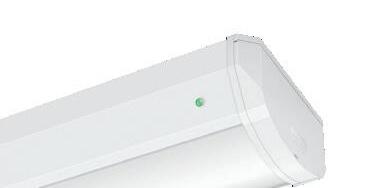

603 Disanlens - EM 1h S.A - UGR<19

603 Disanlens - EM ED 1h - UGR<19

603 Disanlens - EM AD 1h - UGR<19

603 Disanlens - EM EC - UGR<19

604

Disanlens

- EM 1h -

604 Disanlens -

604 Disanlens -

EM EC: with emergency wiring supplied by centralised power unit: permanent luminaire, with power supply unit operating in AC/DC, powered by a central emergency unit (NOT incorporated into the luminaire).

Housing: in pre-coated and pre-galvanized sheet; ABS white thread ends with vandal-proof closure system.

Diffuser: in polycarbonate with

3h

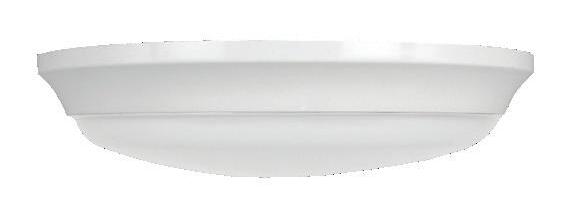

745 Oblò J 2.0 - EM 3h + SENSOR

745 Oblò J 2.0 - EM EC

EC: with emergency wiring supplied by centralised power unit: permanent luminaire, with power supply unit operating in AC/DC, powered by a central emergency unit (NOT incorporated into the luminaire).

- TECHNICAL SPECIFICATIONS

(adjustable)

time 1 min

light Disable

EM EC: with emergency wiring supplied by centralised power unit: permanent luminaire, with power supply unit operating in AC/DC, powered by a central emergency unit (NOT incorporated into the luminaire).

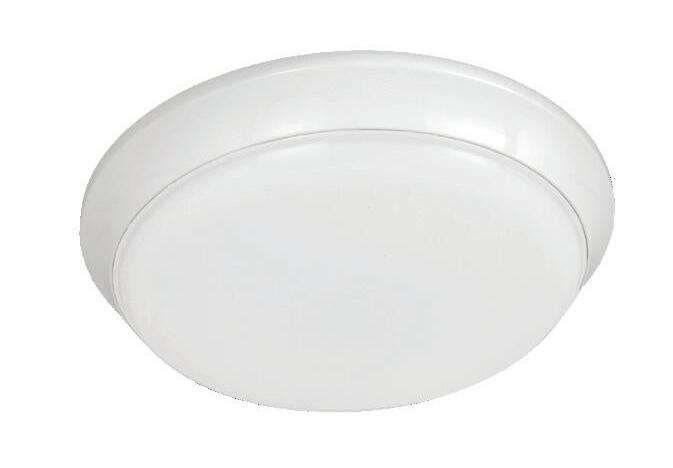

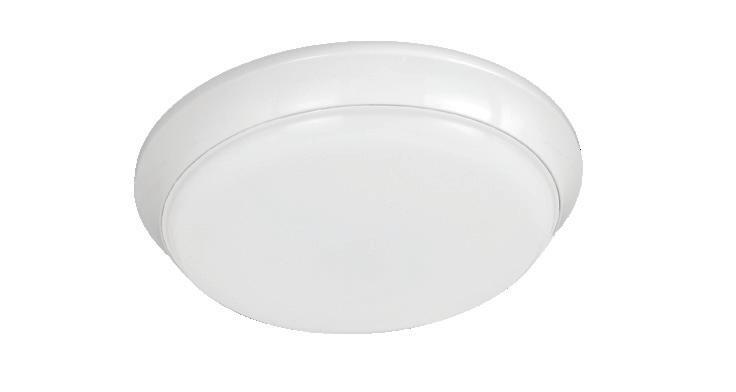

Tortuga - EM 3h S.A.

Tortuga - EM EC

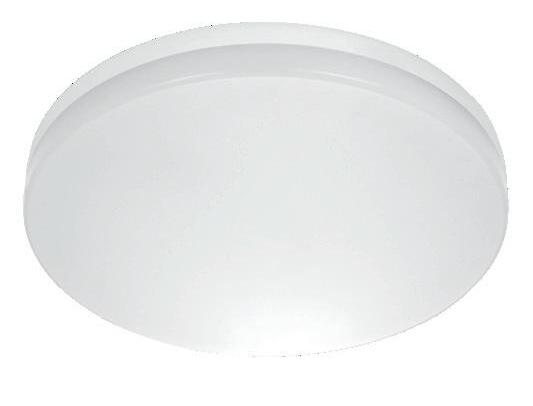

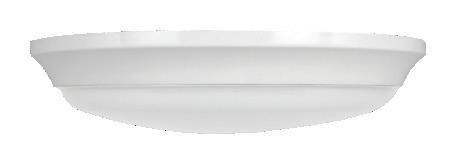

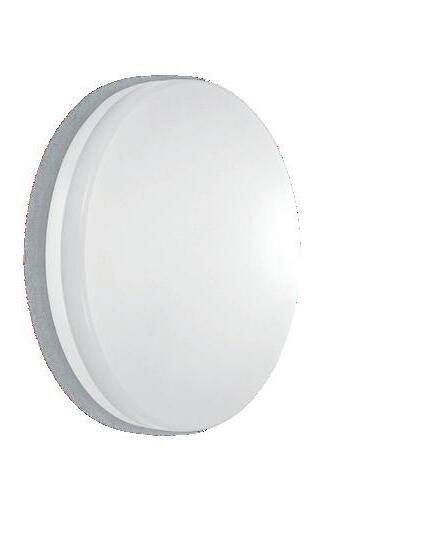

Tortuga

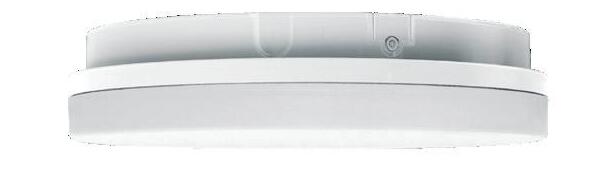

Round-shape LED fixture with opal polycarbonate diffuser that can be easily installed to the ceiling/wall; ideal for entrance areas, corridors, stairways, waiting rooms, hotels, restaurants and residential spaces.

Available in two sizes (ø305/400 mm) and in the standard 3000K/4000K version and in the 3h emergency version with light-presence sensor (ON-OFF).

Tortuga is the energy-efficient and modern alternative to luminaires with traditional light sources.

Housing: vandal-resistant, self-extinguishing polycarbonate.

Diffuser: In clear polycarbonate, anti-dazzle, vandal resistant.

DISANO ILLUMINAZIONE s.p.a.

20089 Rozzano (MI) v.le Lombardia, 129 centralino 02/824771 (20 linee passanti) telefax 02/8252355

Email: info@disano.it

web: www.disano.it

NW = 4000K (neutral white) CW = 5700K (cold white)

The main feature of this fixture is the new colour-changing technology. With two builtin switches you can:

•select 2 different colour temperatures, adjusting to most installations •select the type of output luminous flux and power.

•switch for adjusting light flux and colour temperature (CCT) standard configuration is 5700K and maximum power/flux values.

• can be configured for either Emergency Only (S.E.) mode or Maintained (S.A.) mode by directly wiring the electrical connections to the provided terminal block.

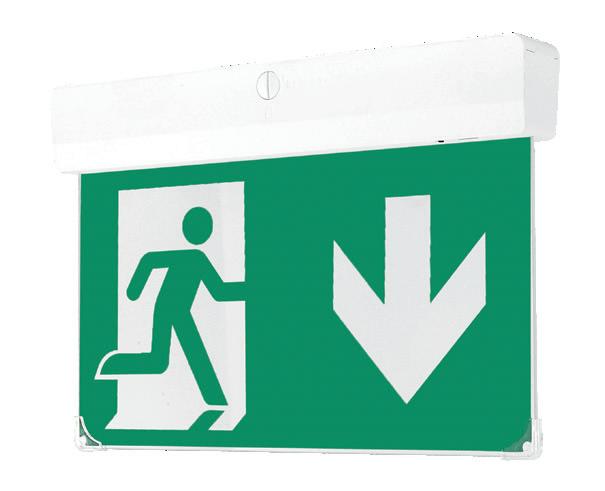

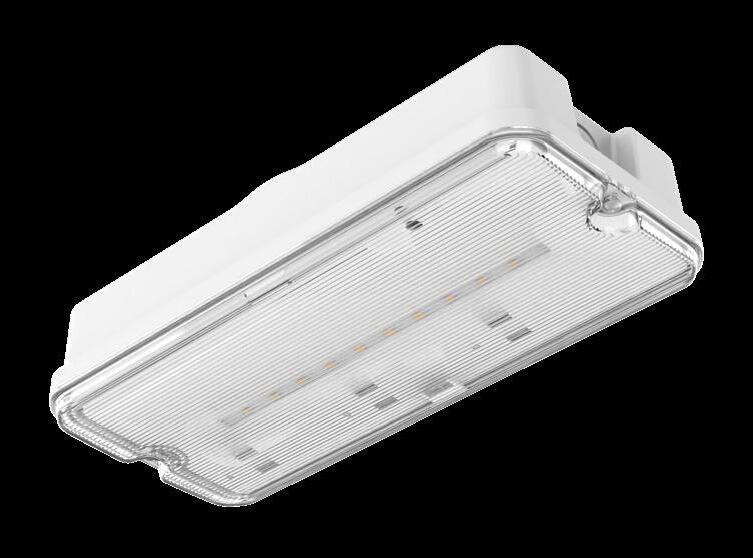

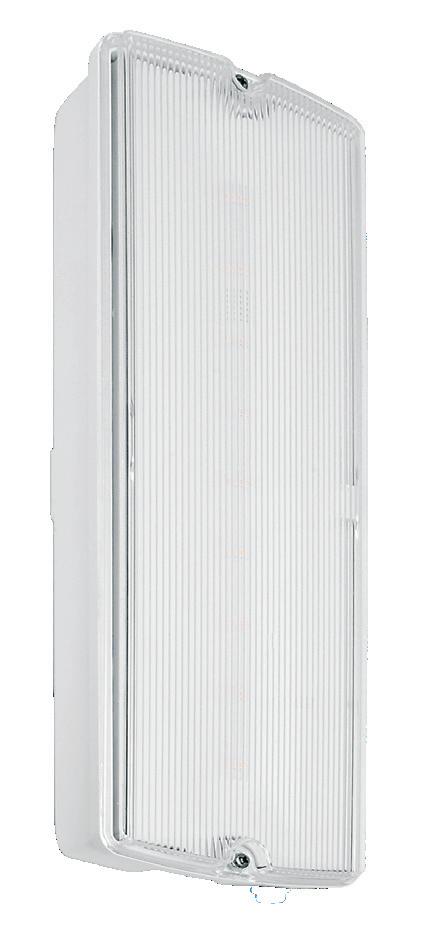

621 Safety 3.0 CCT

- EM 1h S.E. Emergency Only - S.A. Maintained

623

Safety 3.0 AUTOTEST CCT - EM +h S.E. Emergency Only - S.A. Maintained

EM S.E. (Only EMergency):

during of a blackout, the luminaire connected to the emergency circuit will switch on, preventing any inconvenience caused by the sudden loss of lighting. It offers an autonomy of 60/180 minutes. The battery automatically recharges once the power is restored.

EM S.A. (Maintained): during a blackout, the luminaire connected to the emergency circuit stays on, preventing any inconvenience caused by the sudden loss of lighting. It offers an autonomy of 60/180 minutes. The battery automatically recharges once the power is restored.

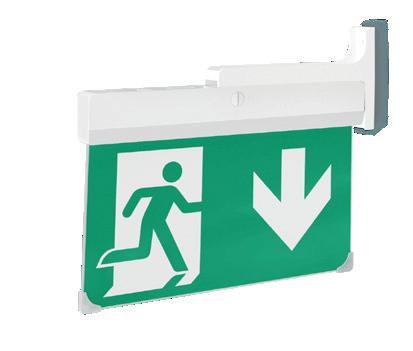

acc. 472 labels for Safety 2.0 right out 995137-00 left out 995138-00 down out 995139-00 exit 995144-00

Self-adhesive pictograms available and visible up to 35 m. UNI EN1838.

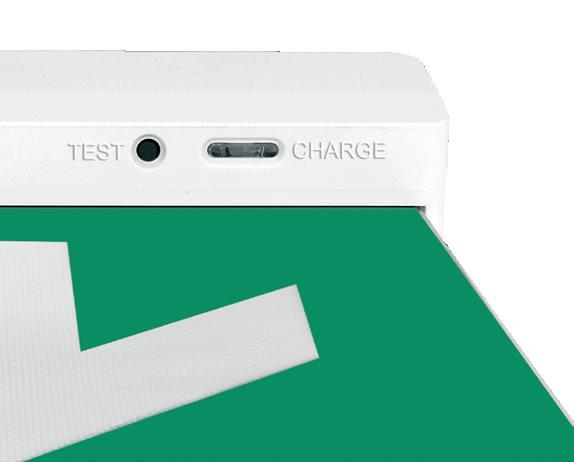

Safety with AUTOTEST: provides real-time information on the status of the luminaire, automatically performing all the tests indicated in the UNI-EN-50172 standard. A simple way to reduce costs and make system inspection and maintenance easier. Anyone can supervise the emergency lighting system.

acc. 315 outer shell white

995212-00 Made in polycarbonate. For recessed installation of Safety 2.0.

Safety 3.0 provides real-time information on the status of the luminaire, performing all the tests indicated in the UNI-EN-50172 standard. A simple way to reduce costs and make system inspection and maintenance easier. Anyone can supervise the emergency lighting system.

Safety 3.0 with AUTOTEST OPERATION DESCRIPTION

After 1st installation (power keep on during 24hrs).

At the beginning of the test a red LED indicator will flash slowly for 15 seconds, then the unit will switch to emergency mode for 3hrs and switch back to normal operation.

Functional test - 5 min (every 30 days). Green LED indicator will flash slowly (1sec on / 1sec off).

Full duration test - 3 hrs (every 180 days).

At the beginning of the test a red LED indicator will flash slowly for 15 seconds, then the unit will switch to emergency

Safety 2.0 DALI

Upon request: fixtures with subcode -95 with an emergency system featuring the standard DALI protocol (inverter only), compatible with all advanced centralised control systems.

NOTE: the -95 equipped product will remain ON-OFF and not DALI dimmable (order with subcode -9541).

EM S.E. (Only EMergency):

during of a blackout, the luminaire connected to the emergency circuit will switch on, preventing any inconvenience caused by the sudden loss of lighting. It offers an autonomy of 60/180 minutes. The battery automatically recharges once the power is restored.

EM S.A. (Maintained):

during a blackout, the luminaire connected to the emergency circuit stays on, preventing any inconvenience caused by the sudden loss of lighting. It offers an autonomy of 60/180 minutes. The battery automatically recharges once the power is restored.

624 Safety 2.0 - DALI - EM 1h S.E. Emergency Only

622 Safety 2.0 - DALI - EM 1h S.A. Maintained

pictograms.

visible up to 22 m. UNI EN1838

S.A. Emergency (Maintained): in the event of a black-out the one lamp connected to the back-up circuit stays on, thus avoiding the inconvenience caused by a sudden absence of all light. Emergency run time: 180 minutes. When power is restored, the battery recharges automatically.

Upon request: fixtures with subcode -95 are available with an emergency system featuring the standard DALI protocol (inverter only), compatible with all advanced centralised control systems.

NOTE: the -95 equipped product will remain ON-OFF and not DALI dimmable (order with subcode -9541).

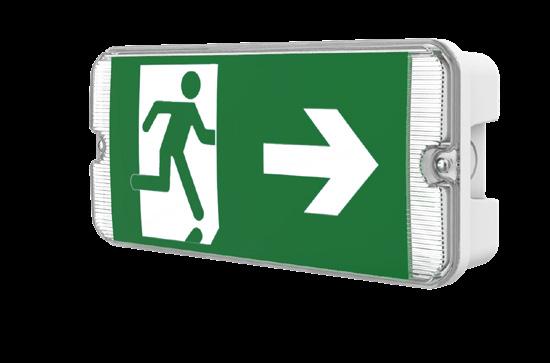

630 Safety Flag - EM 3h S.A. Maintained

EM power: 1W max. DALI 2 version available on request.

EM S.A. (Maintained): during a blackout, the luminaire connected to the emergency circuit stays on, preventing any inconvenience caused by the sudden loss of lighting. It offers an autonomy of 60/180 minutes. The battery automatically recharges once the power is restored.

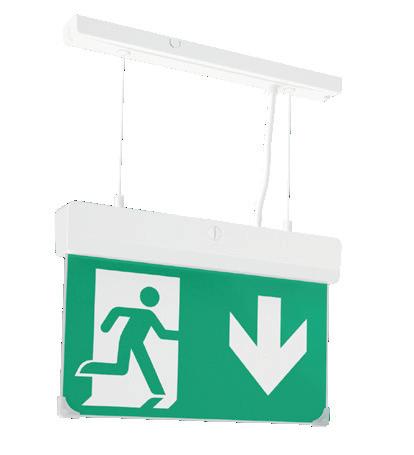

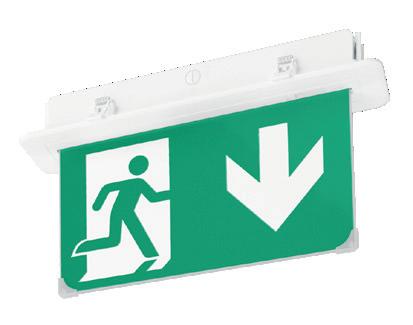

Safety Flag is suitable for flag-type, recessed, and pendant installation using the supplied accessories. Installation is simple, quick, and safe, while the different configurations provide maximum versatility, adapting to all application needs.

acc. 470 labels for art. 630 right out 995150-00 left out 995151-00 down out 995152-00

Pictograms available and visible up to 40 m. UNI EN1838. Bag containing 2 pieces

EM Label designed to be quickly and easily detached from the fixture.

The Safety series provides real-time information on the status of the luminaire, performing all the tests indicated in the UNI-EN-50172 standard. A simple way to reduce costs and make system inspection and maintenance easier. Anyone can supervise the emergency lighting system.

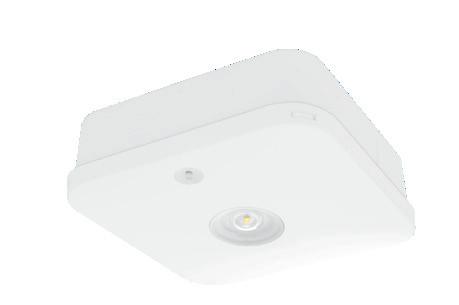

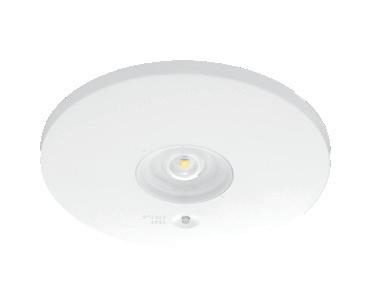

Safety Round - Safety Square

Upon request: fixtures with subcode -95 are available with an emergency system featuring the standard DALI protocol (inverter only), compatible with all advanced centralised control systems.

NOTE: the -95 equipped product will remain ON-OFF and not DALI dimmable (order with subcode -9541).

EM S.E. (Only EMergency): during of a blackout, the luminaire connected to the emergency circuit will switch on, preventing any inconvenience caused by the sudden loss of lighting. It offers an autonomy of 60/180 minutes. The battery automatically recharges once the power is restored.

629 Safety Round - EM 3h S.E.

628 Safety Square -

The luminaire comes with easily interchangeable optic, specifically designed for: -anti-panic lighting in large areas: standard round lens.

-corridor/escape route lighting: optional oval lens.

ANTIPANIC

S.E. Emergency (Emergency only): in the event of a black-out the one lamp connected to the back-up circuit ignites, thus avoiding the inconvenience caused by a sudden absence of all light. Emergency run time: 180 minutes. When power is restored, the battery recharges automatically.

EC: with emergency wiring supplied by centralised power unit: permanent luminaire, with power supply unit operating in AC/DC, powered by a central emergency unit (NOT incorporated into the luminaire).

Housing: injection moulded, vandal resistant, UV stabilised RAL 7035 grey polycarbonate, high mechanical resistance thanks to the stiffening ribs inside the structure.

Diffuser: injection moulded V2 self-extinguishing , UV stabilised clear polycarbonate, prismatic inside for better light control The smooth outside finishing facilitates cleaning, essential to ensure maximum lighting efficiency at all times.

Reflector: in galvanised steel, previously stove-enamelled with UV-stabilised polyester resin.

Equipment: plug connector. Material compatible with food industry environments. Mounting is also possible at low or very low

(instant start and no flux decay).

For applications with direct exposure to

we recommend using Forma LED. Check the compatibility between the material constituting the product and the space where it will be installed.

Forma ATEX

EM EC: with emergency wiring supplied by centralised power unit: permanent luminaire, with power supply unit operating in AC/DC, powered by a central emergency unit (NOT incorporated into the luminaire).

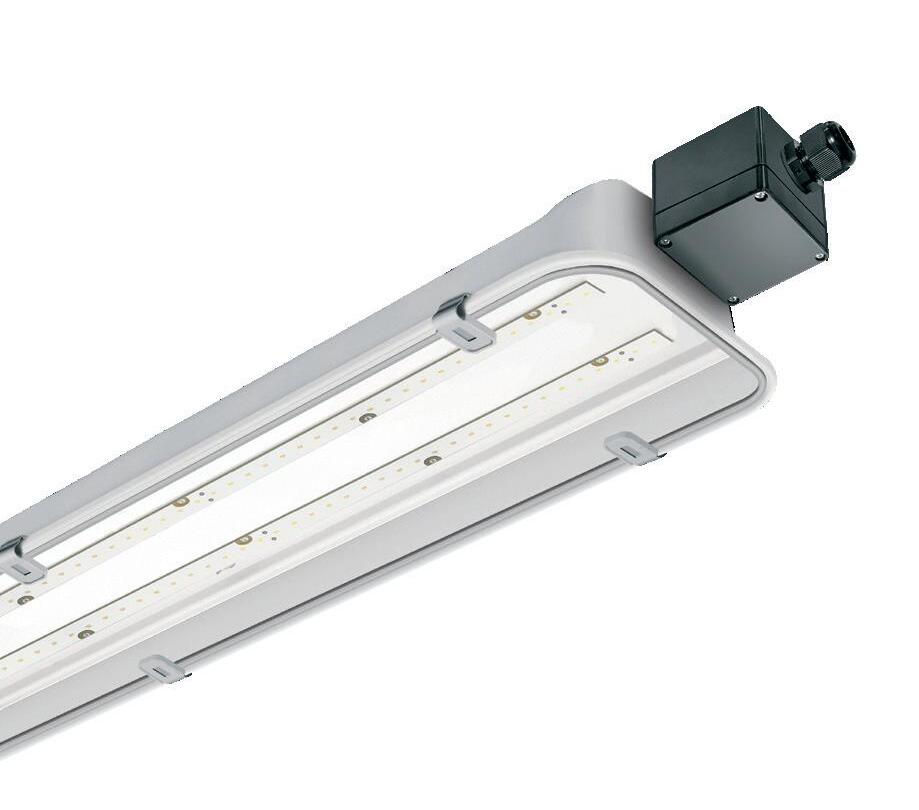

993 Forma ATEX - EM EC - with transparent glass

993 ATEX

Protection against explosions

Allowed dangerous area Zone 2; Zone 22

Allowed room temperature

Degree of protection IP65

Installation ceiling - suspension

Casing mechanical resistance IK08

Reference regulations

Housing: made of pressed steel, drawn in a single piece for high mechanical resistance. Supplied with frame

Diffuser: impact-resistant transparent tempered glass.

Coating: the standard powder coating consists of a first metal surface pre-treatment stage and of single layer of UV-stabilised, corrosion and salt resistant polyester powder coating

Standard supply: silicone rubber gasket. M20 nickel-plated brass cable gland. Locking system in stainless steel.

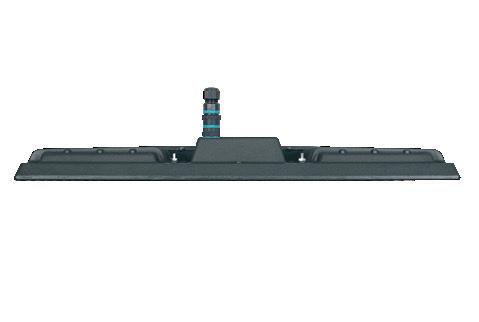

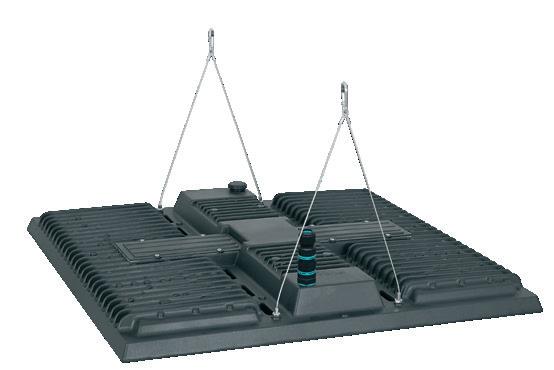

Astro Q

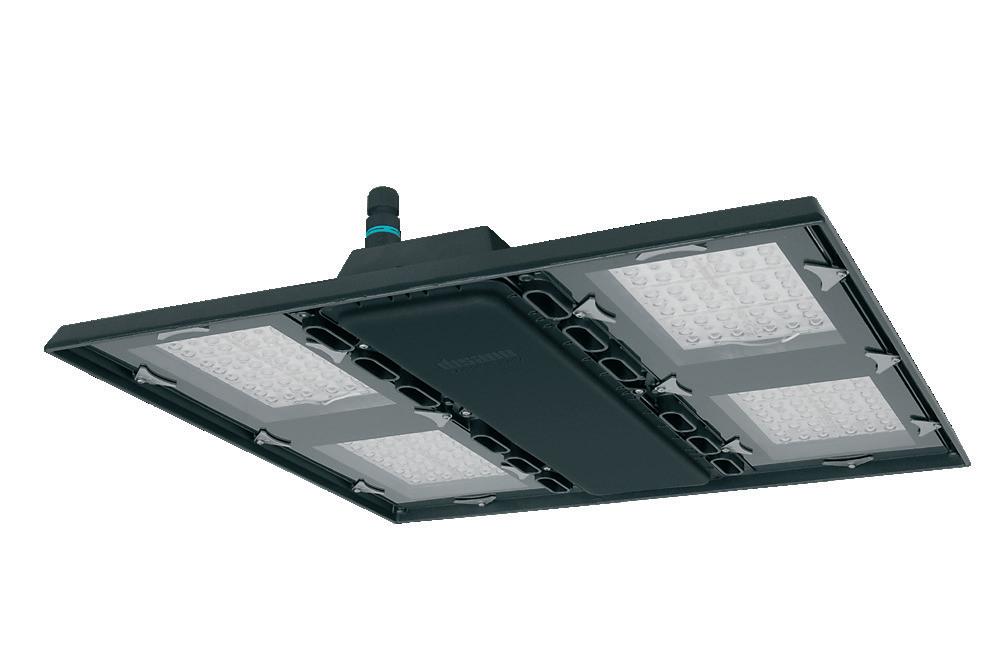

Housing/Frame: in die-cast aluminium with cooling fins integrated into the cover and designed with a very small surface exposed to wind.

Lenses: in PMMA, highly resistant to temperature and UV radiation.

Diffuser: art. 2900-2901-2902 with tempered glass, 4 mm thick, resistant to thermal shocks and impacts (UNI-EN 12150-1: 2001).

Coating: the standard powder coating consists of a first metal surface pre-treatment stage and of single layer of UV-stabilised, corrosion and salt resistant polyester powder coating.

Standard supply: the fixture is equipped with air recirculation valve and insulation connector for quick installation with no need to open the fixture; silicone rubber gasket; external screws and bolts in stainless steel. temperature control inside the device with automatic resetting.

EM EC: with emergency wiring supplied by centralised power unit: permanent luminaire, with power supply unit operating in AC/DC, powered by a central emergency unit (NOT incorporated into the luminaire).

Note: the standard version operates at 100% of its luminous flux (lm). Upon request: rates of luminous flux (lm) can be customised but with a minimum level of 15%.

RECOMMENDED INSTALLATIONS:

•environments with very high ceilings (warehouses, distribution centres, hubs, etc.)

• environments where maintenance may be difficult (indoor swimming pools)

• large or multi-storey facilities where remote control is preferred (offices, hospitals, public places)

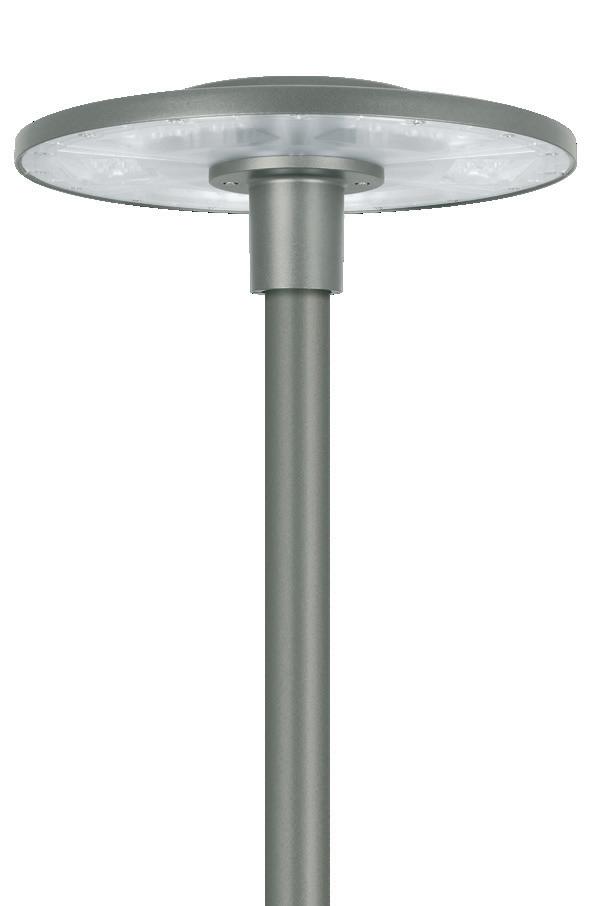

3590 Ischia - EM 1h - rotosymmetric wide beam RW

Housing: pressed in die-cast aluminium

Pole connection: pressed in die-cast aluminium. Suited for poles with a diameter 60 mm. Diffuser: polycarbonate 2,5 mm thick, thermal shock and impact resistant (UNI-EN 12150-1: 2001).

Coating: the standard powder coating consists of a first metal surface pre-treatment stage and of single layer of UV-stabilised, corrosion and salt resistant polyester powder coating.

Upon request: coating for marine environments (seafront) in compliance with

customer service: customerservice@disano.it

Disano illuminazione S.p.A. Viale Lombardia, 129 20089 Rozzano - Milano centralino: 02 82 47 71

email: info@disano.it

customerservice@disano.it web: www.disano.it

FOS NOVA s.r.l. Via Como, 9 20089 Rozzano - Milano centralino: 02 82 47 71

email: info@fosnova.it

customerservice@disano.it web: www.fosnova.it
