Product Catalogue 2025

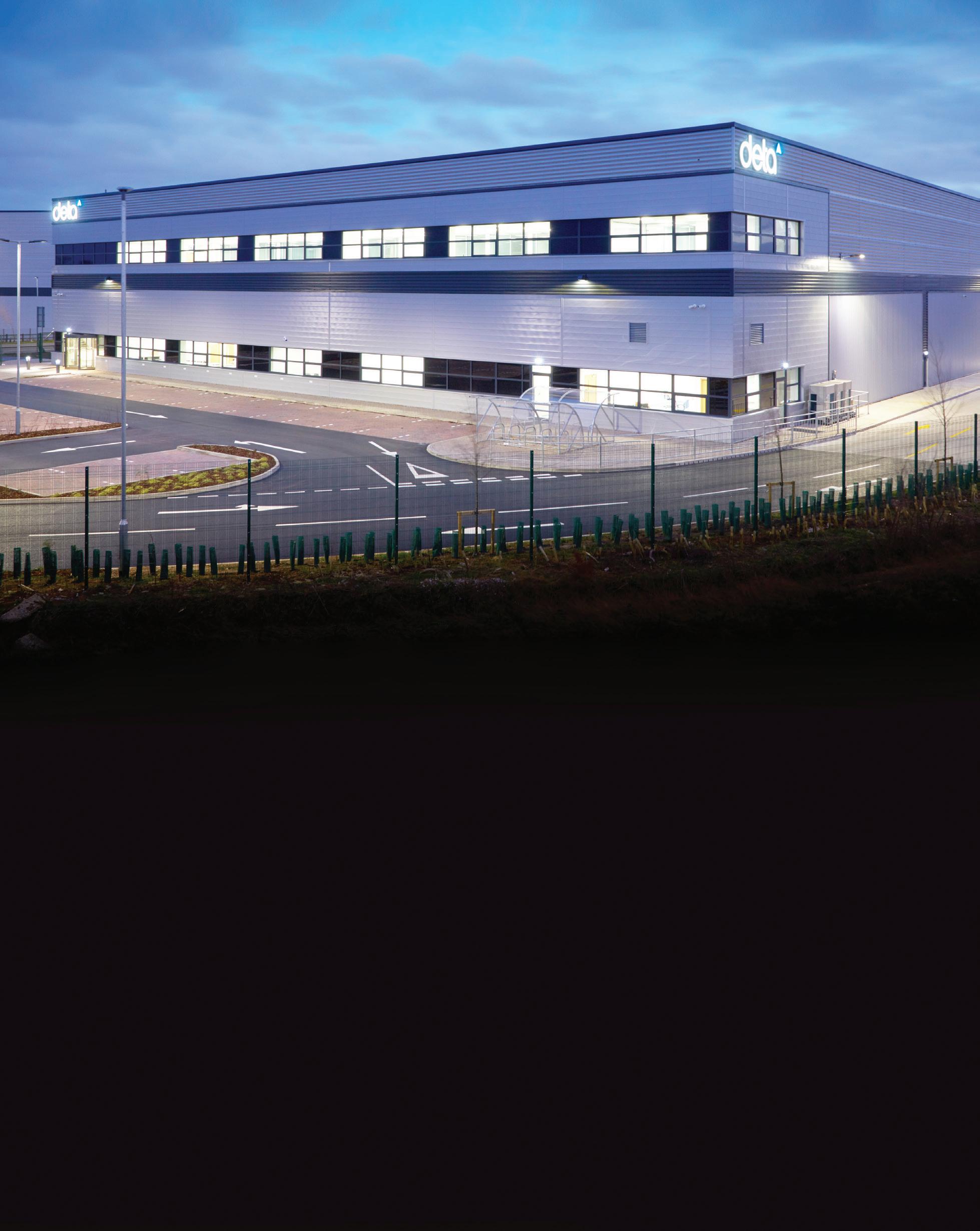

Introducing Deta Electrical

Deta Electrical is a market leading manufacturer and distributor of wiring, lighting, cable management and electrical installation accessories, with a reputation for unrivalled quality, reliability, service and value for money.

Since its inception in 1908, Briticent Site Electrics has enjoyed more than 100 years of successful trading with a long-standing customer base. Briticent built its reputation on the Gripper® range of handlamps, and over the years has developed a core range of essential site lighting and power distribution products. Briticent continues to lead the way with new and innovative energy saving products, becoming the site lighting brand of choice amongst electrical installers throughout the UK and Ireland.

Mission & Core Values

Deta’s mission is to use its passion and expertise to provide best-in-class products that meet and exceed ever-changing customer needs.

Trusted

A brand trusted by customers, Deta is synonymous with high product quality, extensive product knowledge and exceptional customer service. Robust quality control throughout the development and manufacturing stages are key to delivering quality products.

Progressive

Focused on continuous progression, Deta is committed to investment in innovation, product design and ease of installation. Digitalisation is at the heart of Deta’s strategy, supporting stakeholder requirements and maximising its value chain.

Sustainable

Deta is committed to protecting the environment for future generations, to building an inclusive community and to ensuring it acts in the best interests of society.

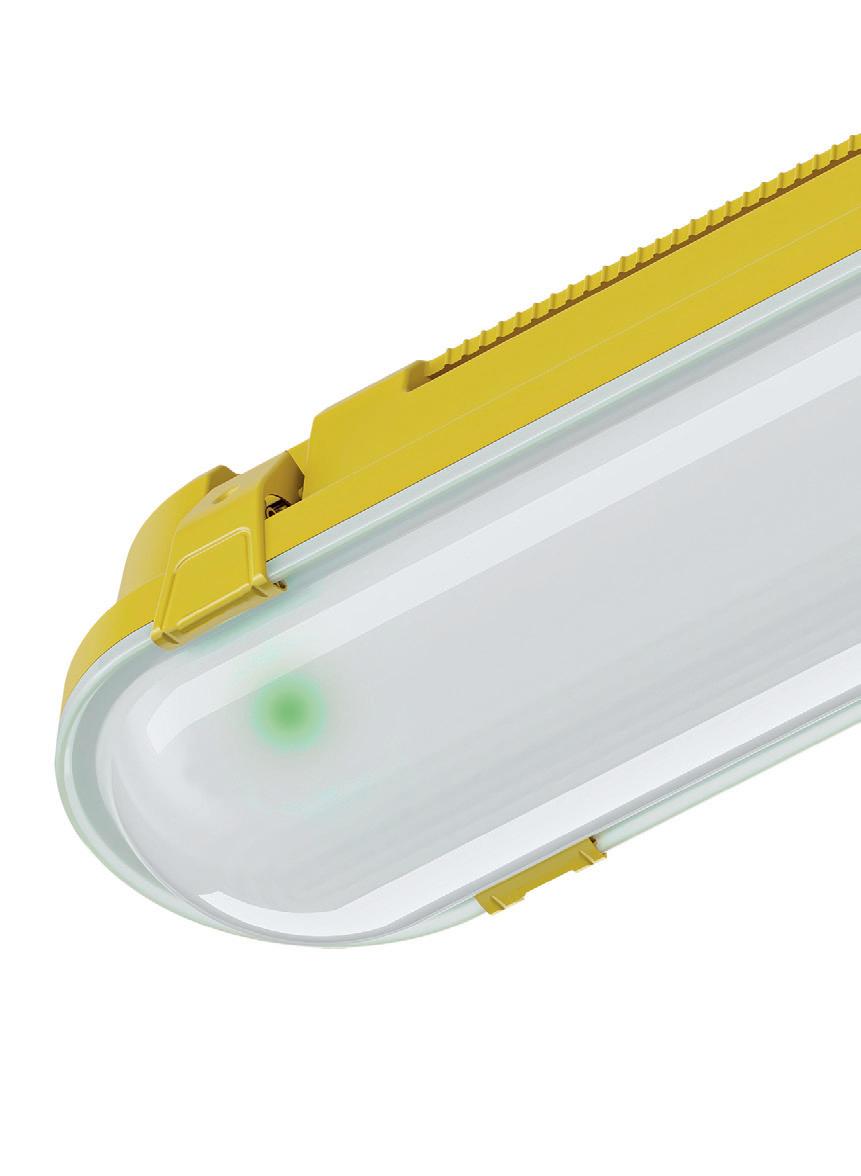

Setting New Standards for Site Lighting

Briticent has revolutionised site lighting with its patent-protected ClikConnect™ non-corrosive range, introducing the site industry’s first truly modular system for both permanent and temporary installations. Until now, the cost of ownership and repair has led many lighting fixtures to be discarded after use. ClikConnect™ changes that by allowing emergency packs and microwave sensors to be clipped directly into the fitting with no extra wiring.

Whether you’re adding or upgrading emergency backup or motion-sensing functionality, the modules can simply be clicked into place, saving you both time and expensive installation costs. With Briticent’s ClikConnect™ technology, site lighting has never been more efficient or cost-effective.

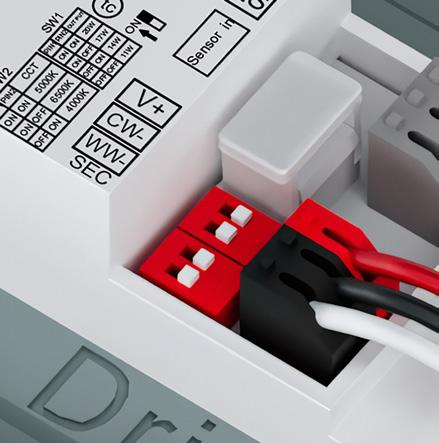

Colour & Power Selectable

• Ideal for site lighting applications

• 2FT (11/14/17/20W) and 5FT (17/23/28/32W)

• Four switchable power settings to optimise transformer load

• Offers three colour temperature (4000K / 5000K / 6500K)

• High efficiency — 160 lumens per watt

• Delivers powerful output with lower energy use

• Ideal for energy-conscious site projects and compliance

Wide & Low Voltage Protection (100–240V AC)

• Designed for use with site transformers, temporary power and permanent applications

• Built-in low voltage protection ensures driver stability on fluctuating or low-quality site power

• Perfect for construction, refurbishment and temporary lighting environments

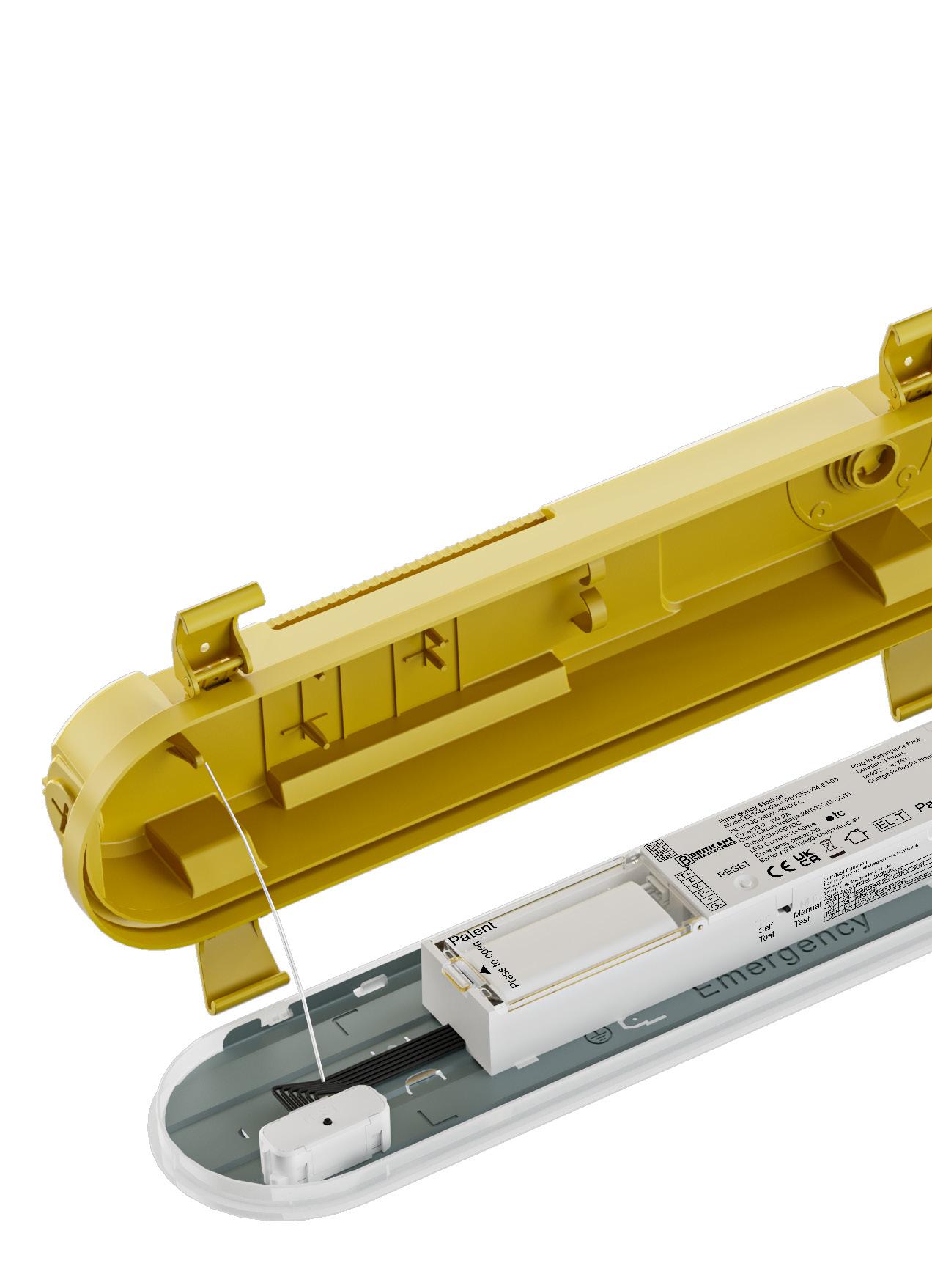

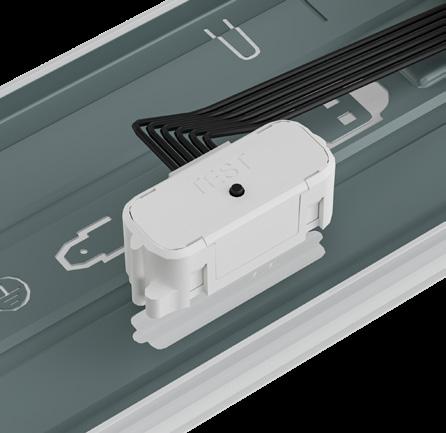

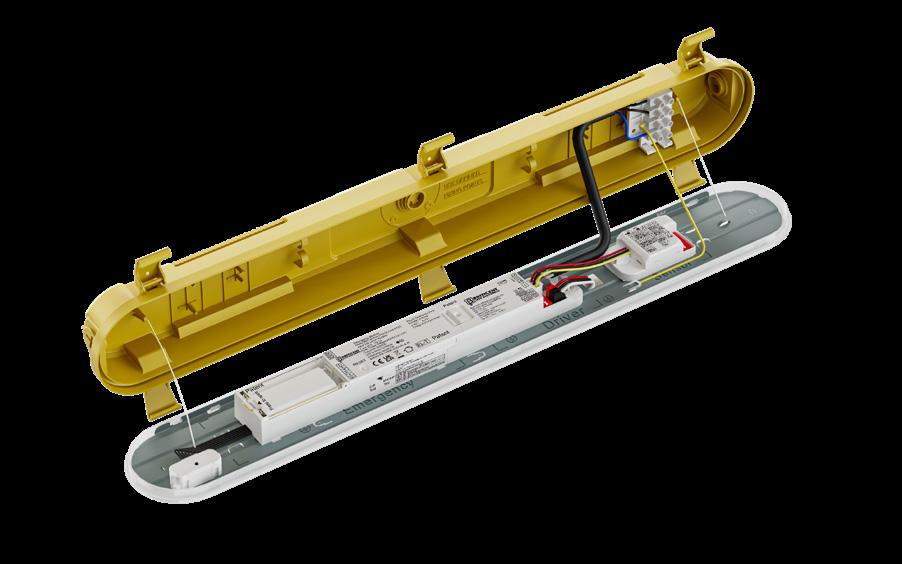

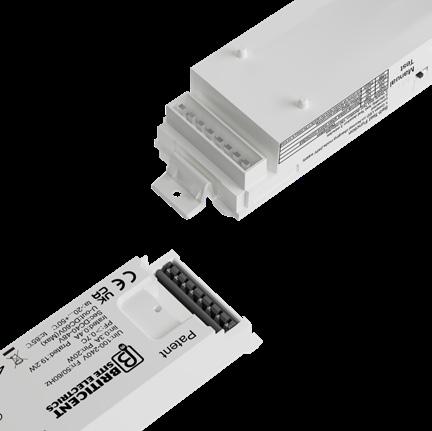

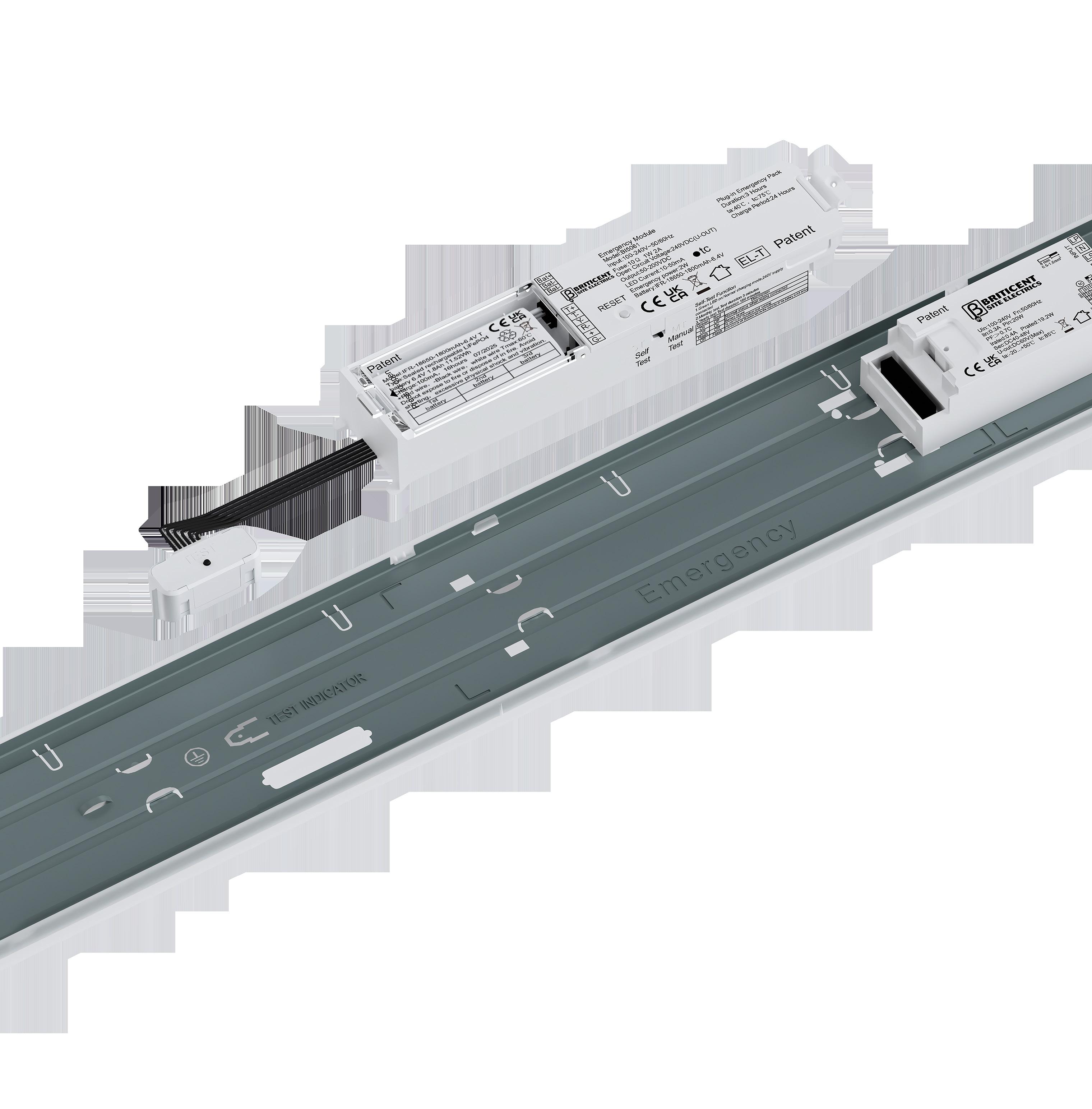

ClikConnect™ Emergency Packs

• ClikConnect™ 2W emergency and sensor packs with no wiring assembly

• ClikConnect™ battery pack can be replaced quickly on site without the need for tools

• Ideal for site temps and quick installation

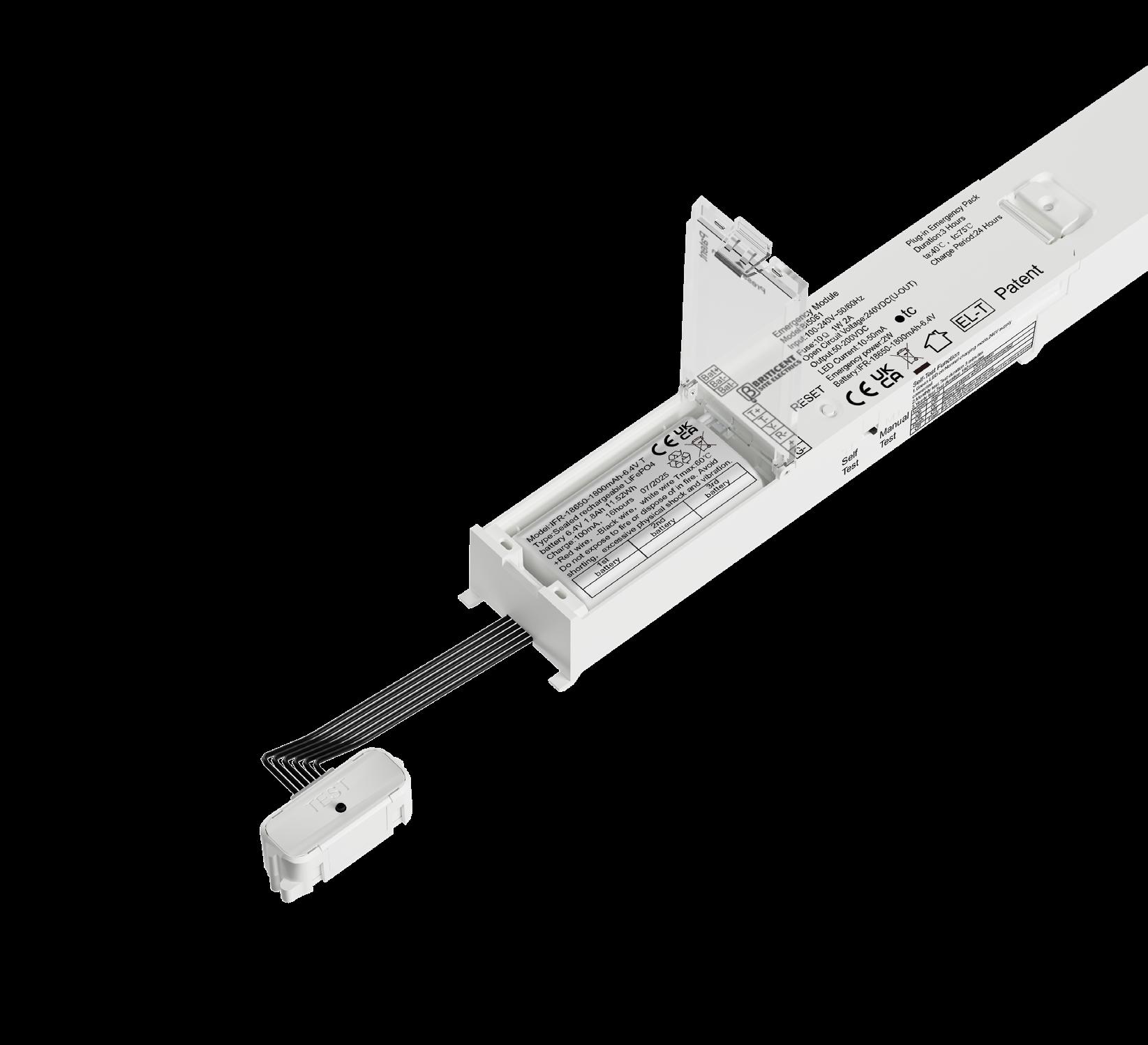

Accessible plug-in back-up battery for quick and easy replacement

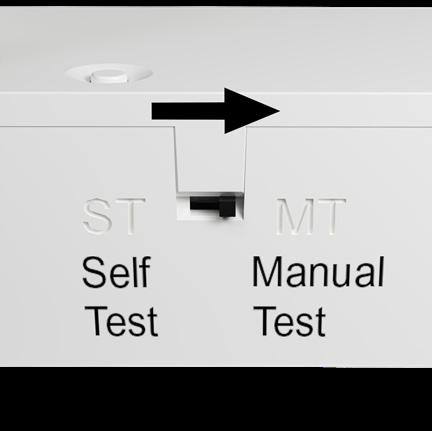

Self-Test & Non-Self-Test

• Switchable between self-test and non-self-test to suit specific emergency testing requirements

• Magnetic Emergency Indicator allows tool-free installation and removal for quick and easy maintenance

• Reliable backup performance in power failure situations

• Self-test automatically runs routine checks to verify emergency lighting is working, reducing the need for manual inspections

Input

Rated

Input

Output

Output

Output

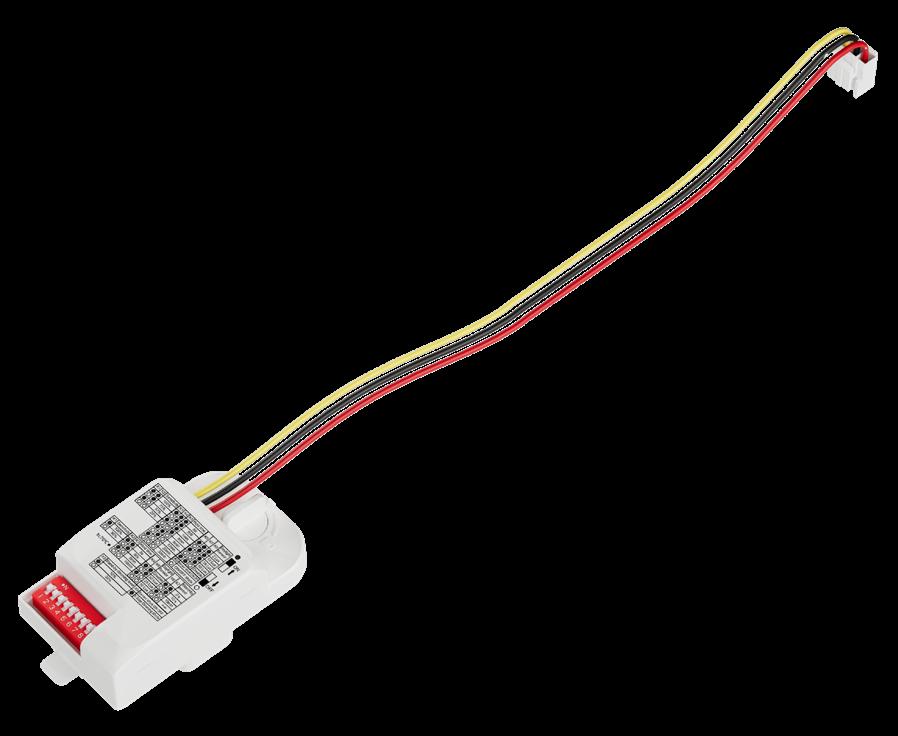

Intelligent Motion, Maximum Site Efficiency

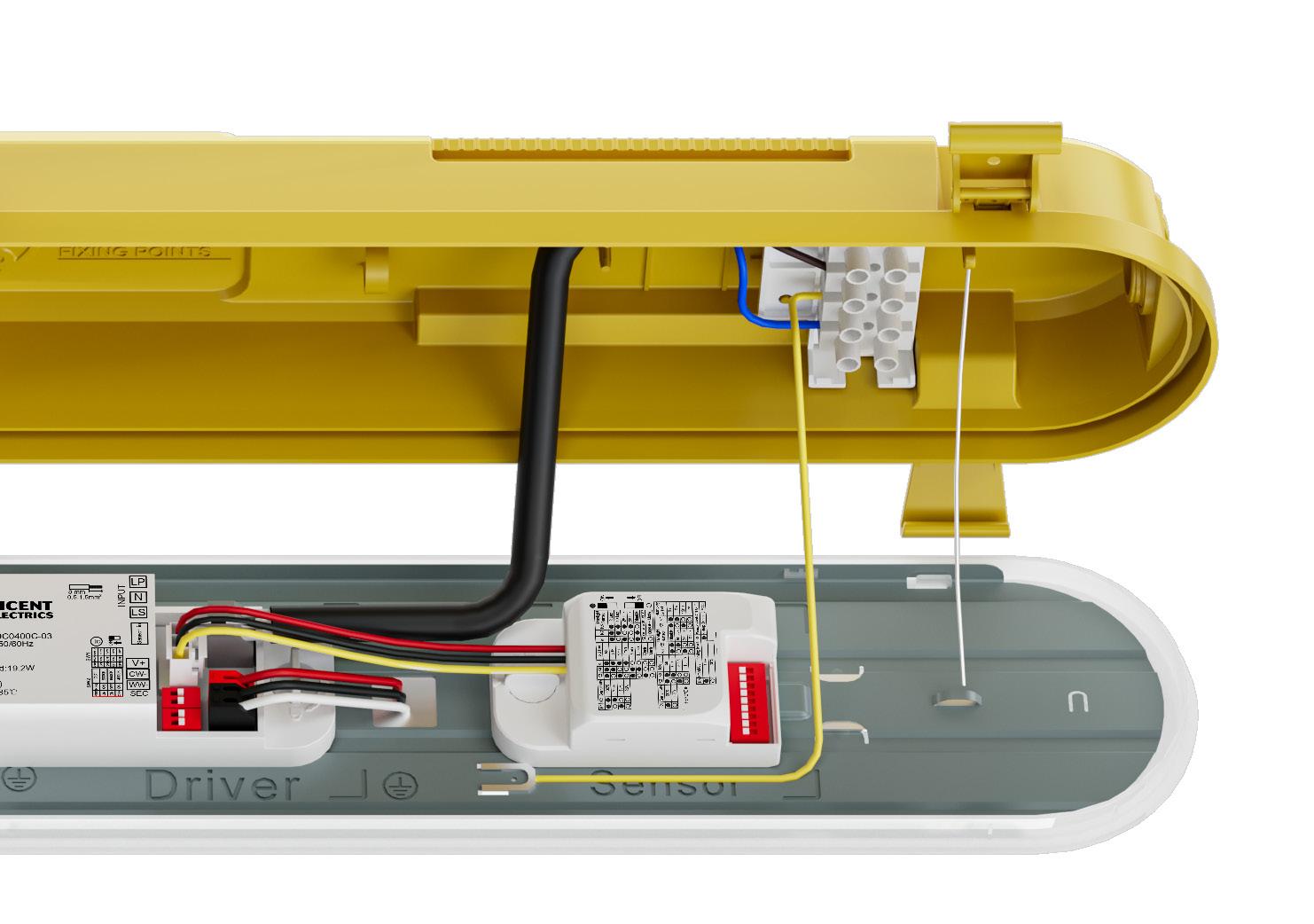

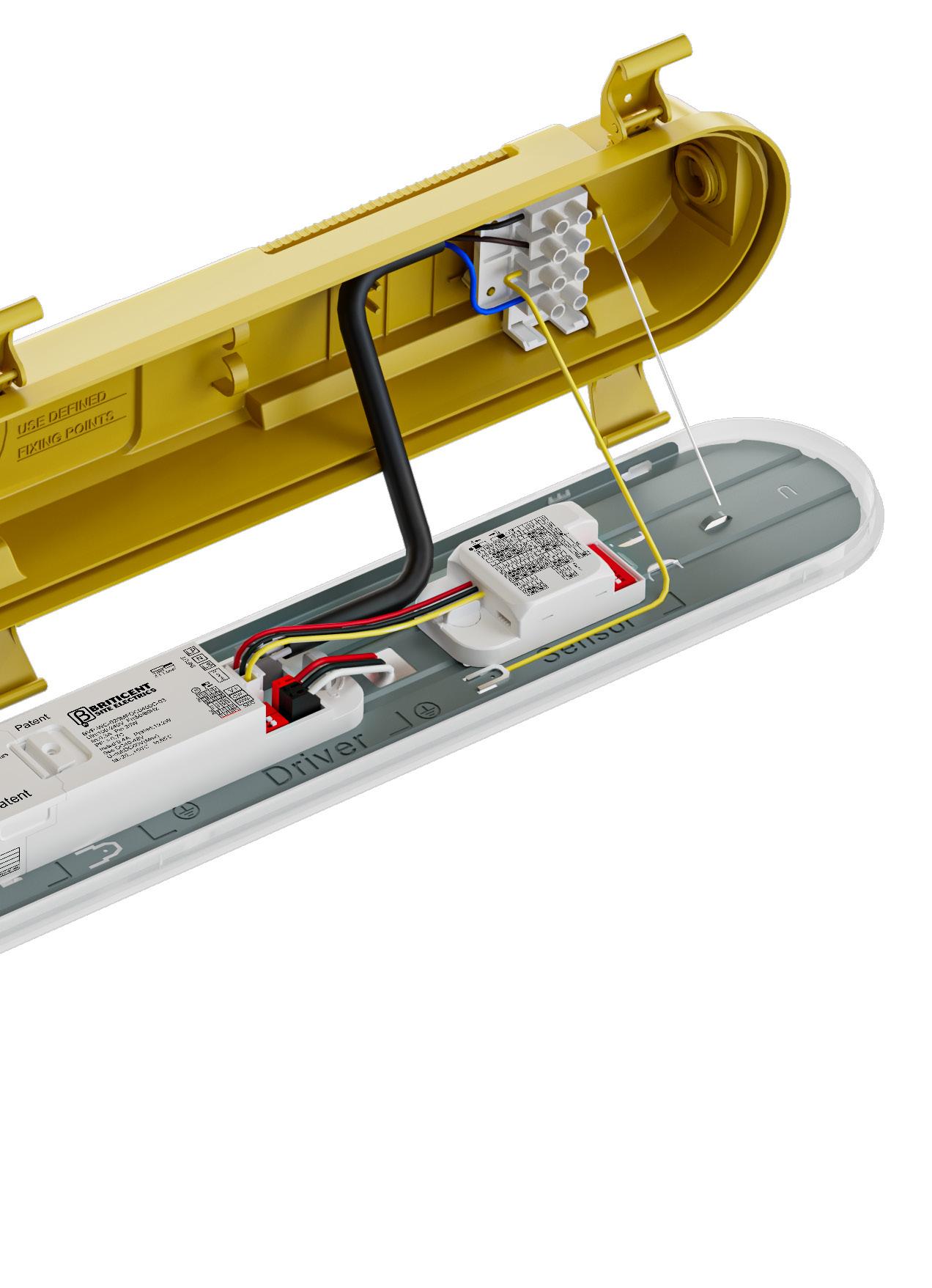

ClikConnect™ Microwave Corridor Sensor integrates directly into Briticent non-corrosive fittings, offering easy installation and flexible control. Switch between ON/OFF or two-step dimming (10%/30%), with adjustable lux levels and detection areas.

• Supports 100–240V DC input with PWM dimming or ON/OFF control options

• Selectable two-step dimming 10% or 30% with adjustable detection area

• Suitable for mounting up to 6m high and requires only 3m spacing between fittings for full coverage

• Patented antithetical dipole antenna with an adaptive algorithm to reduce false triggers in low ceiling or metal environments

• Ideal for use in construction settings

• Sensor settings are easily configured via DIP switches

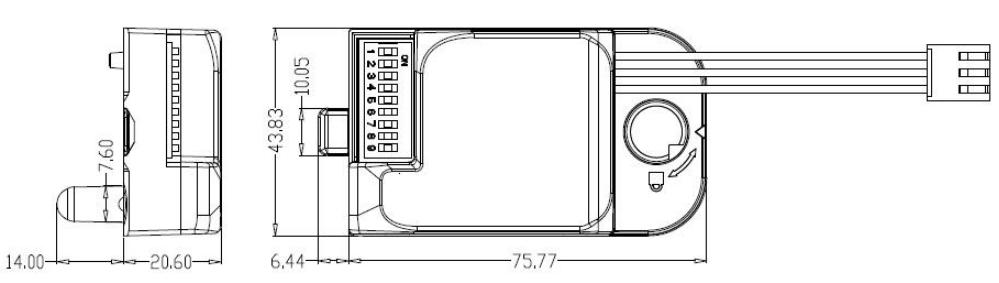

Dimensions (mm)

Pre-Configured Settings

• Enable Corridor Mode Activates corridor mode, allowing the fitting to dim back and save energy

• Microwave Sensitivity – 50% Sensor operates at 50% sensitivity

• Hold Time (On Duration) – 10 mins Fitting stays ON for 10 minutes after the last detected movement

• Daylight Sensor Disabled Fitting ignores ambient light levels

• Dim Mode Before Switch Off – 15 mins at 10% Fitting remains at 10% power for 15 minutes with no movement, then switches off

• Energy-Saving Standby – 10% Dim Mode Fitting reduces to 10% power for 10 minutes when no presence is detected

Specifications

Input

Rated Voltage 100-240V DC

Working Current <0.1mA

Ripple Voltage <100mVp-p

Output

Output

Daylight Sensor

Diagrams

Ceiling Mounting

Ceiling Mounted Height: 3m Sensitivity: 100%/70%/50%/25%

Daylight Sensor 10 Lux/25 Lux/50 Lux/Disable 2 Lux/10 Lux/25 Lux/50 Lux/Disable

Stand-by DIM Level 10%/30%

Sensor Parameters

Working Frequency 5.8 GHz ±75MHz, ISM Band

Transmitting Power 1mW Max.

Detection Area 100%/50% 100%/75%/50%/25%

Hold Time 5S/90S/5 min/10 min 5S/30S/1 min/3 min/5 min/10 min/20 min/30 min

Stand-by Period 0S/10S/15min/+∞

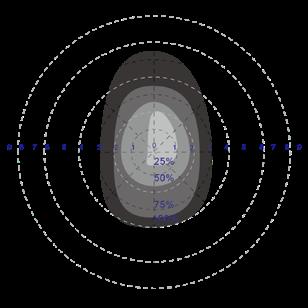

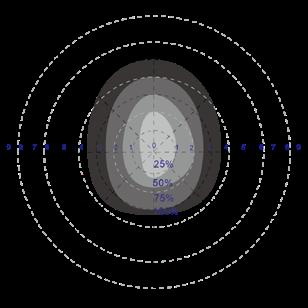

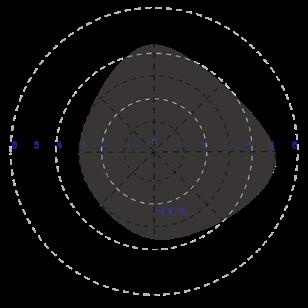

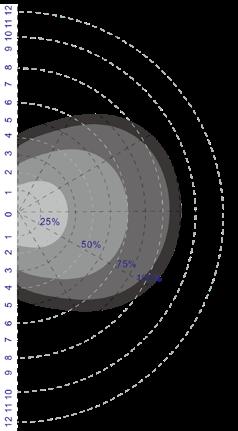

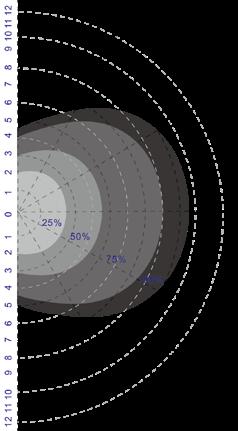

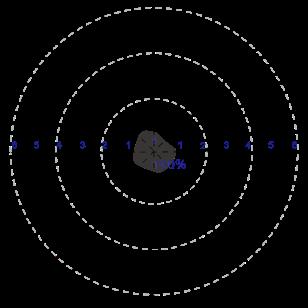

Detection Area (Radius)

Ceiling Mounting 3m: r24≥m@0.3m/s, r≥.5m@1m/s; Wall Mounting: r≥5m@0.3m/s, r≥3m@1m/s Test Condition: Set 100% Sensitivity, Open 60m2 Indoor Area.

Mounting Height 3m (6m Max.)

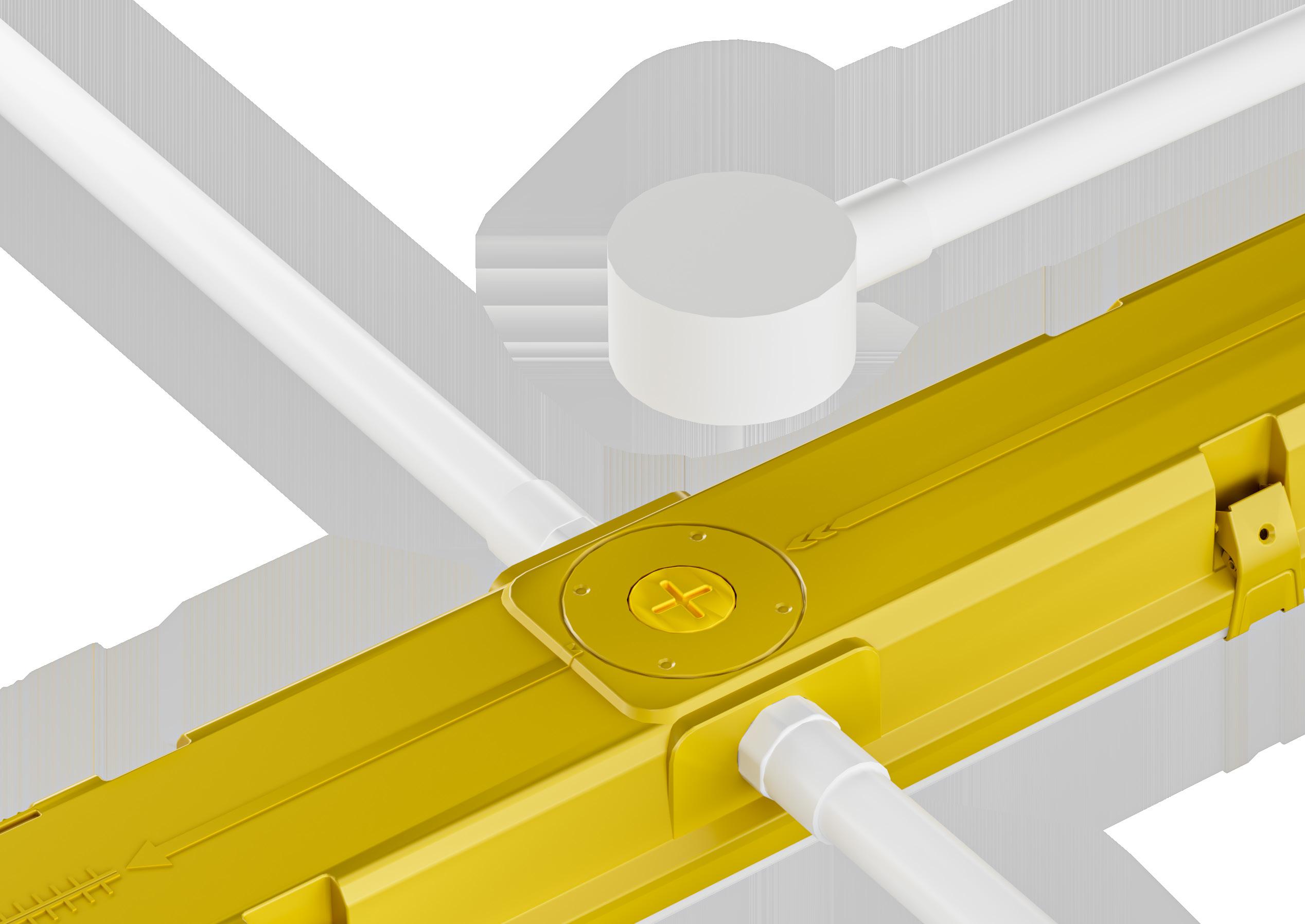

Mounting

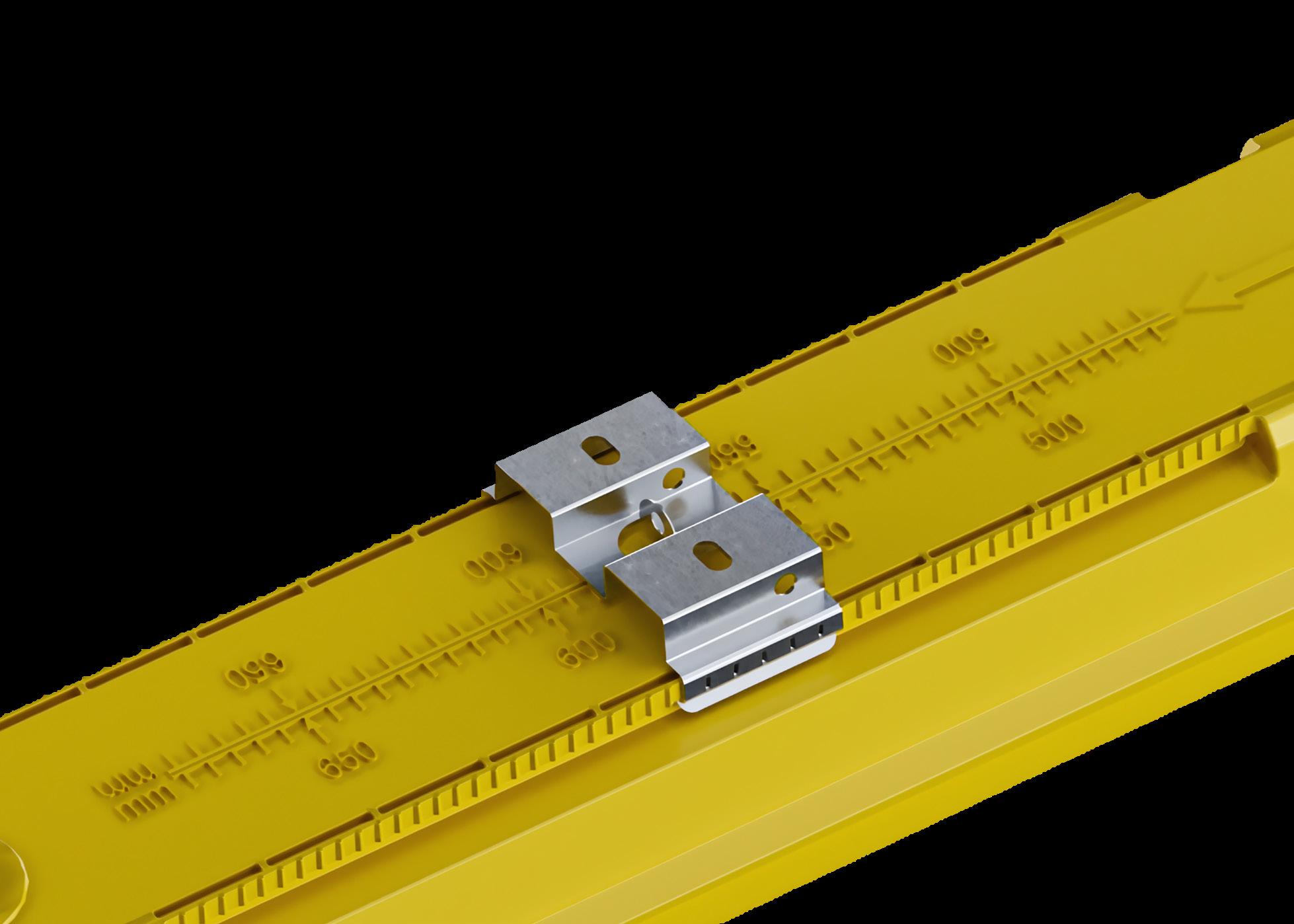

• Dual mounting bracket allows for secure installation to walls or suspension via jack chain

• Extra-wide surface bracket rail provides added stability and ease of alignment

• Simplifies on-site fitting, helping to easily locate joists or structural supports

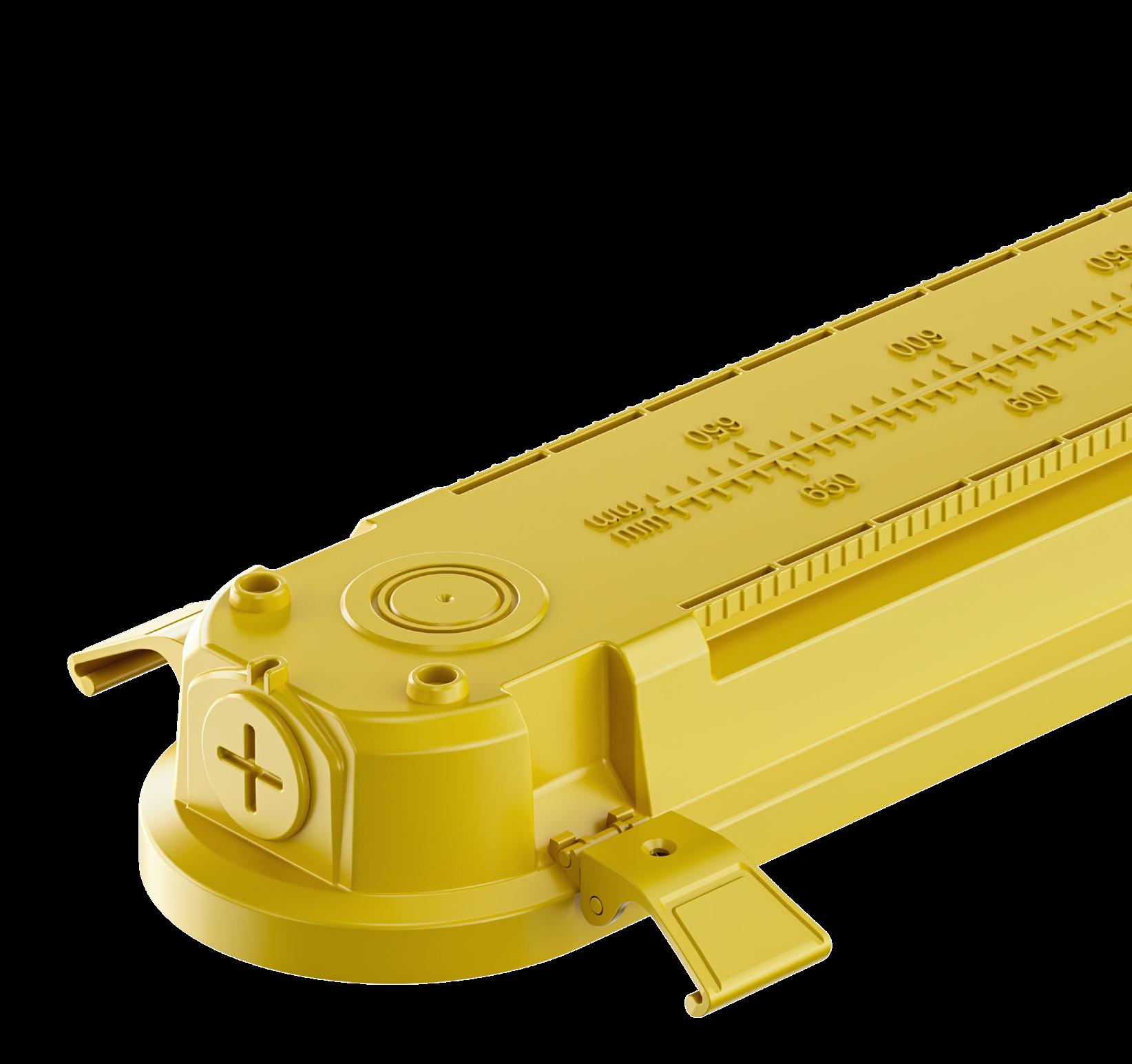

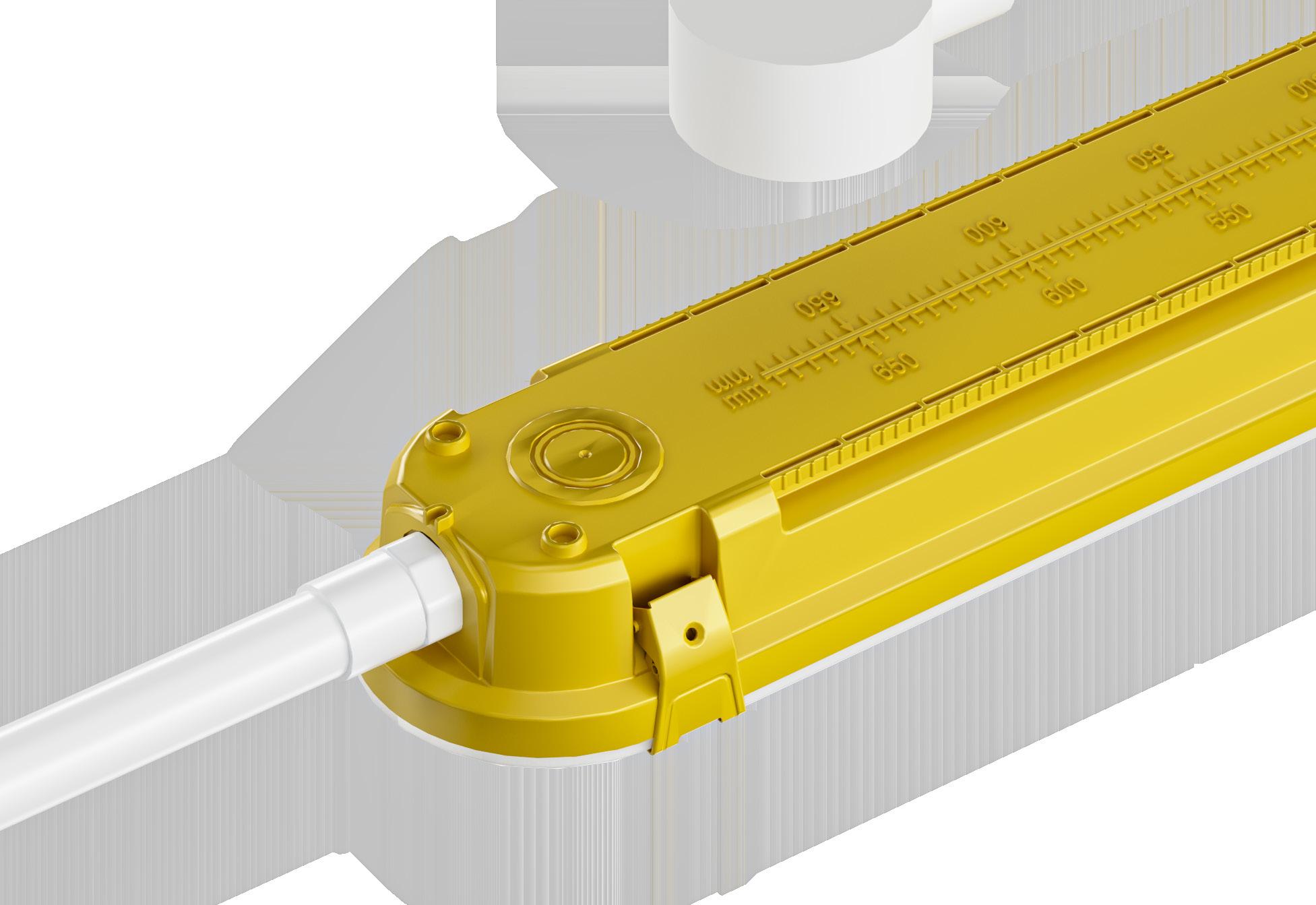

• Pre-marked body with embossed mm measurements on both sides makes it easy to align mounting brackets accurately, ensuring perfectly straight suspension and even light distribution

Impact & IP

• 96mm wide-body housing allows for easy mounting to BESA boxes or replacing existing retrofit battens

• Durable polycarbonate base and diffuser ensure long-lasting performance in demanding environments

• IK10 impact rating provides robust protection against knocks and on-site damage

• IP66 rated for complete protection against dust ingress and high-pressure water jets

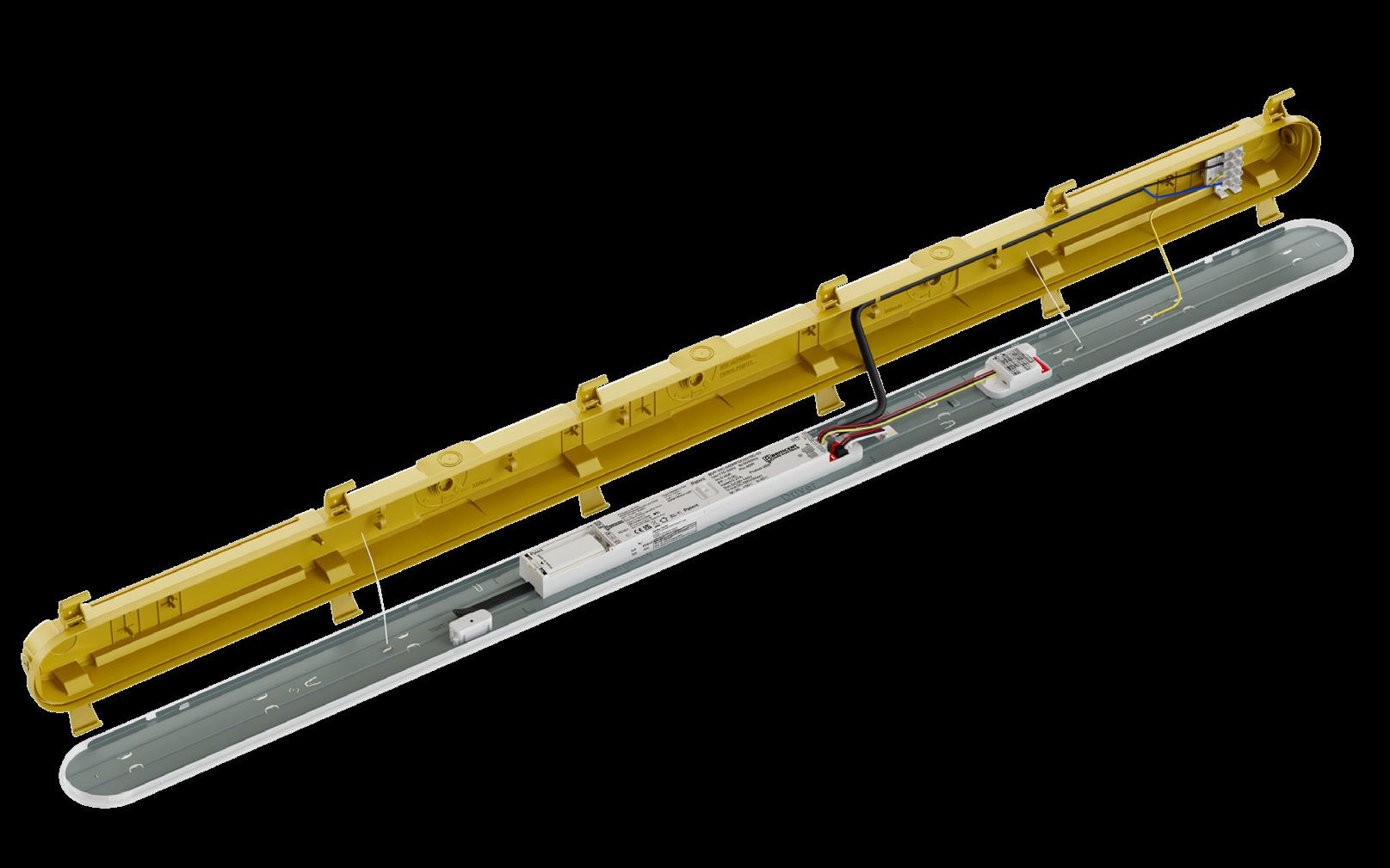

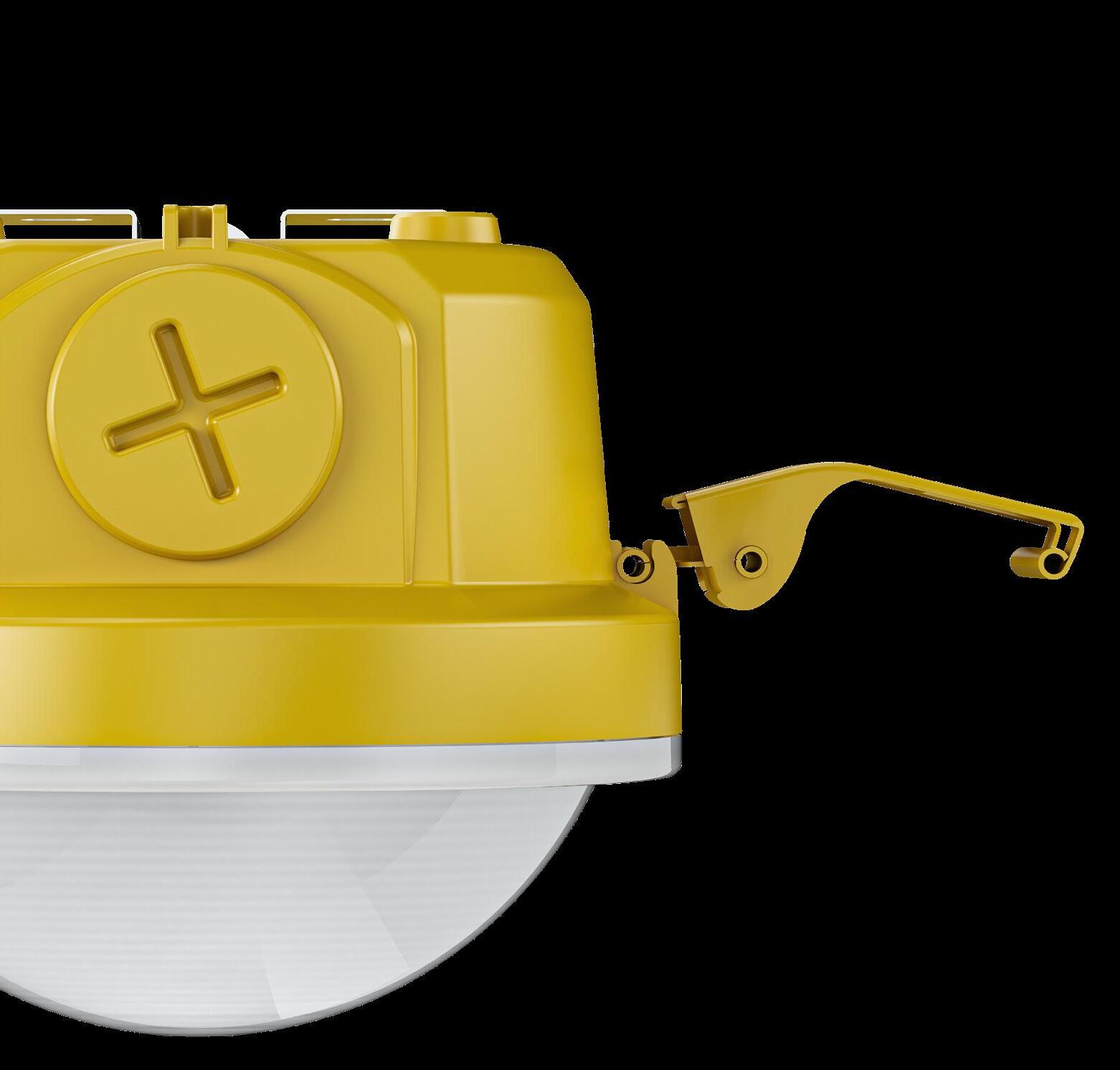

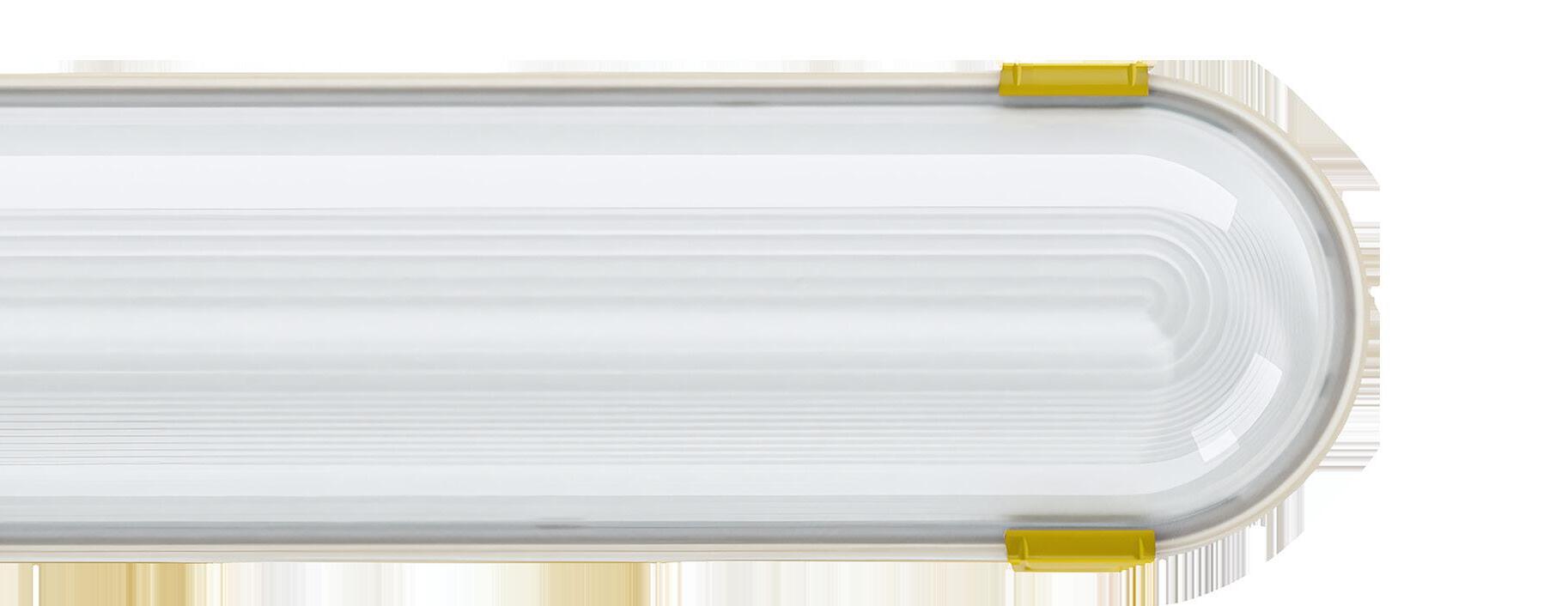

Lock-in-place Body Clip Design

• Unique 90° locking clips stay out of the way during installation

• Allows easy access when wiring or fitting the diffuser

Surface, Side & Rear

Pre-Drilled Entry

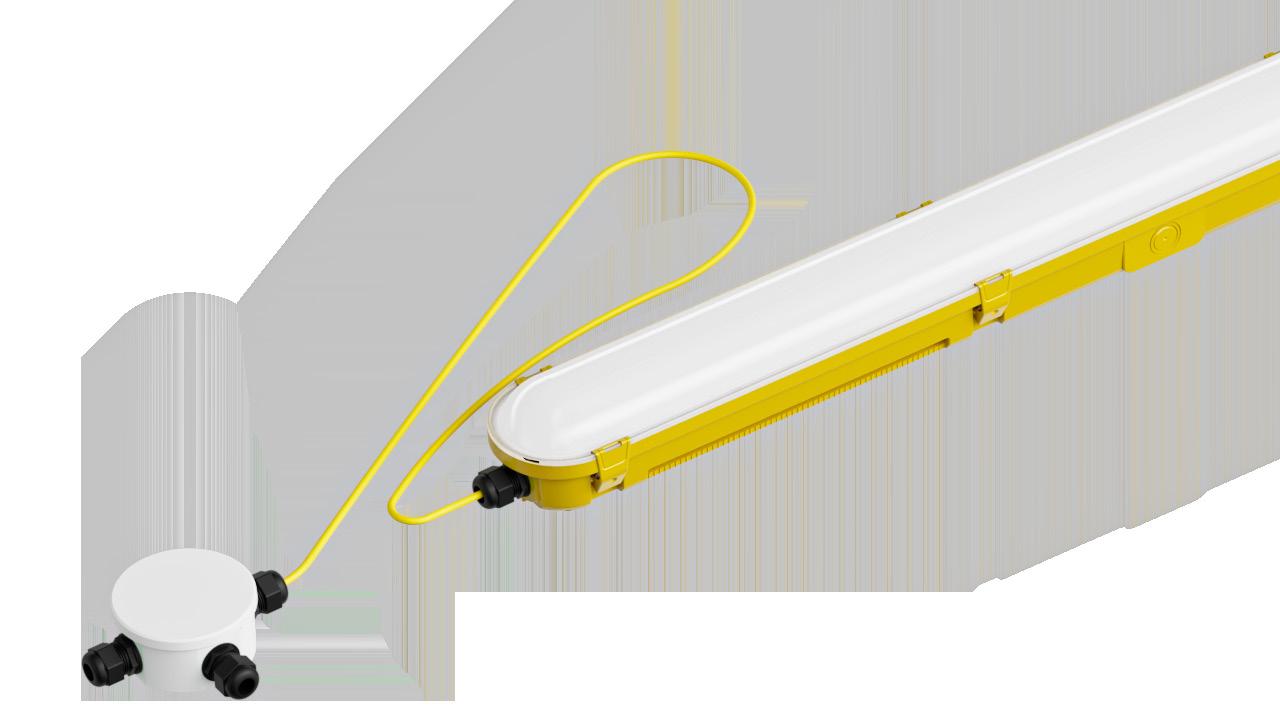

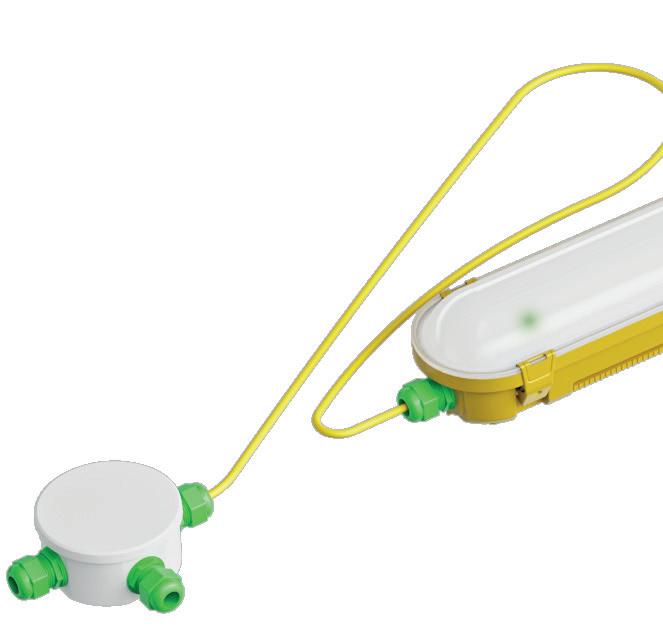

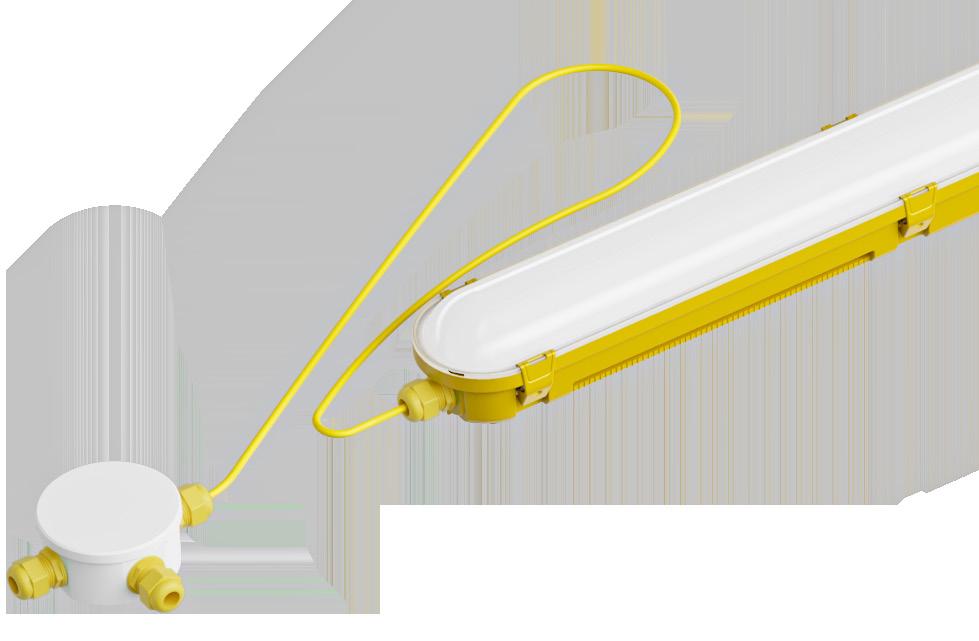

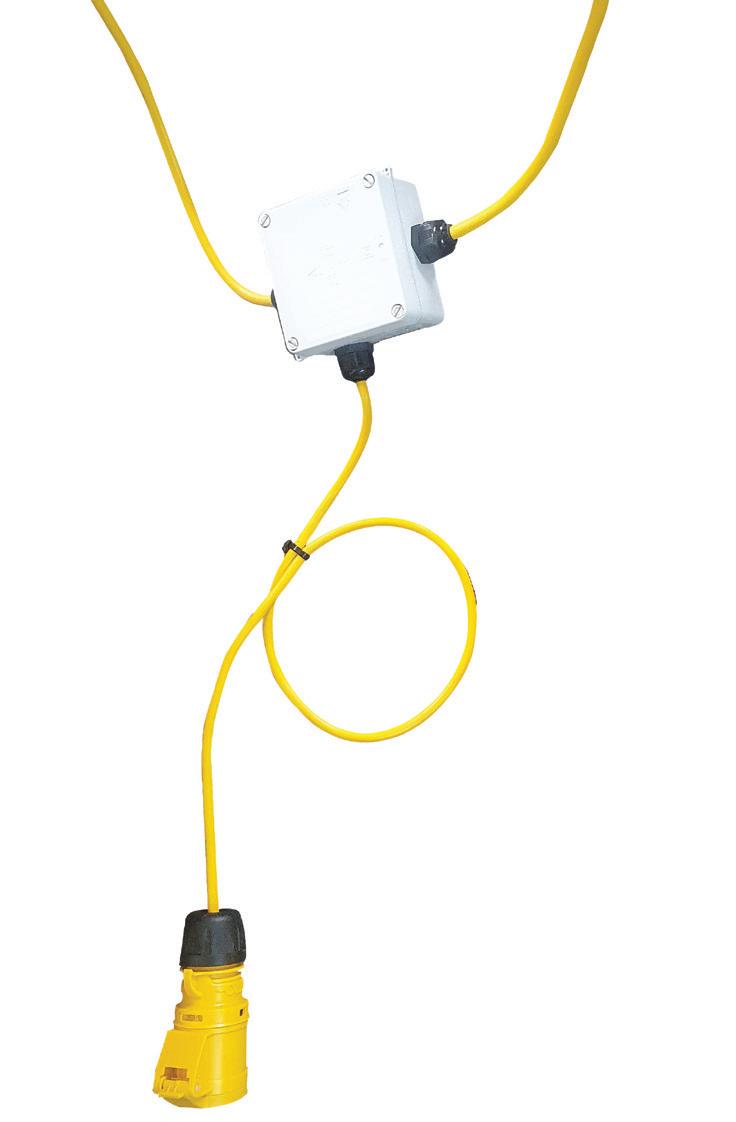

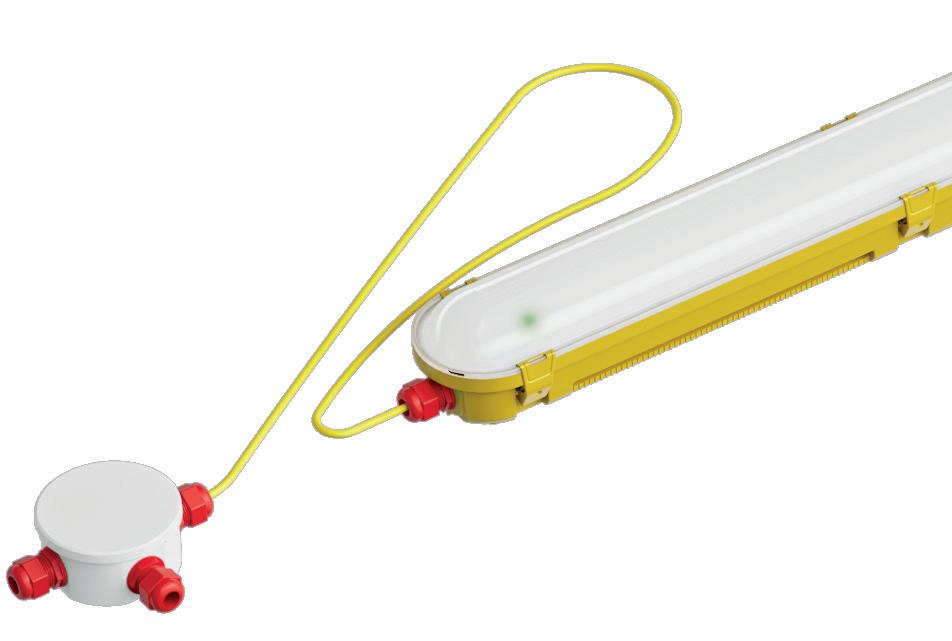

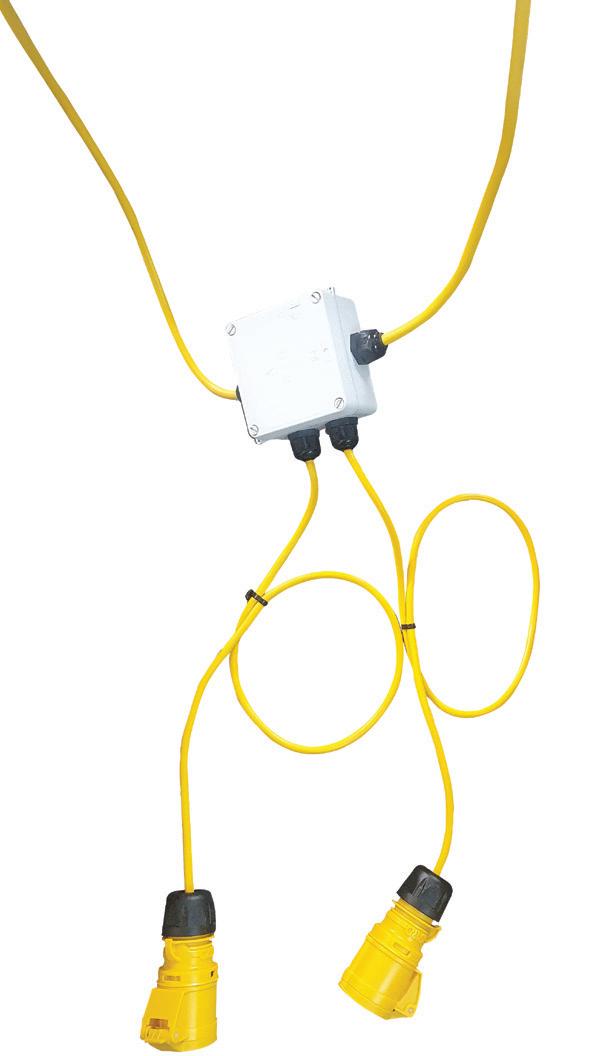

Pre-wired Tee Box Option

Supplied with Three Cable Glands

• Standard – Black

• Emergency – Red

• Microwave – Yellow

• Microwave & Emergency – Green

• Includes an oversized 16A screw terminal block for easier wiring

• Supplied with a 1m pre-attached lead

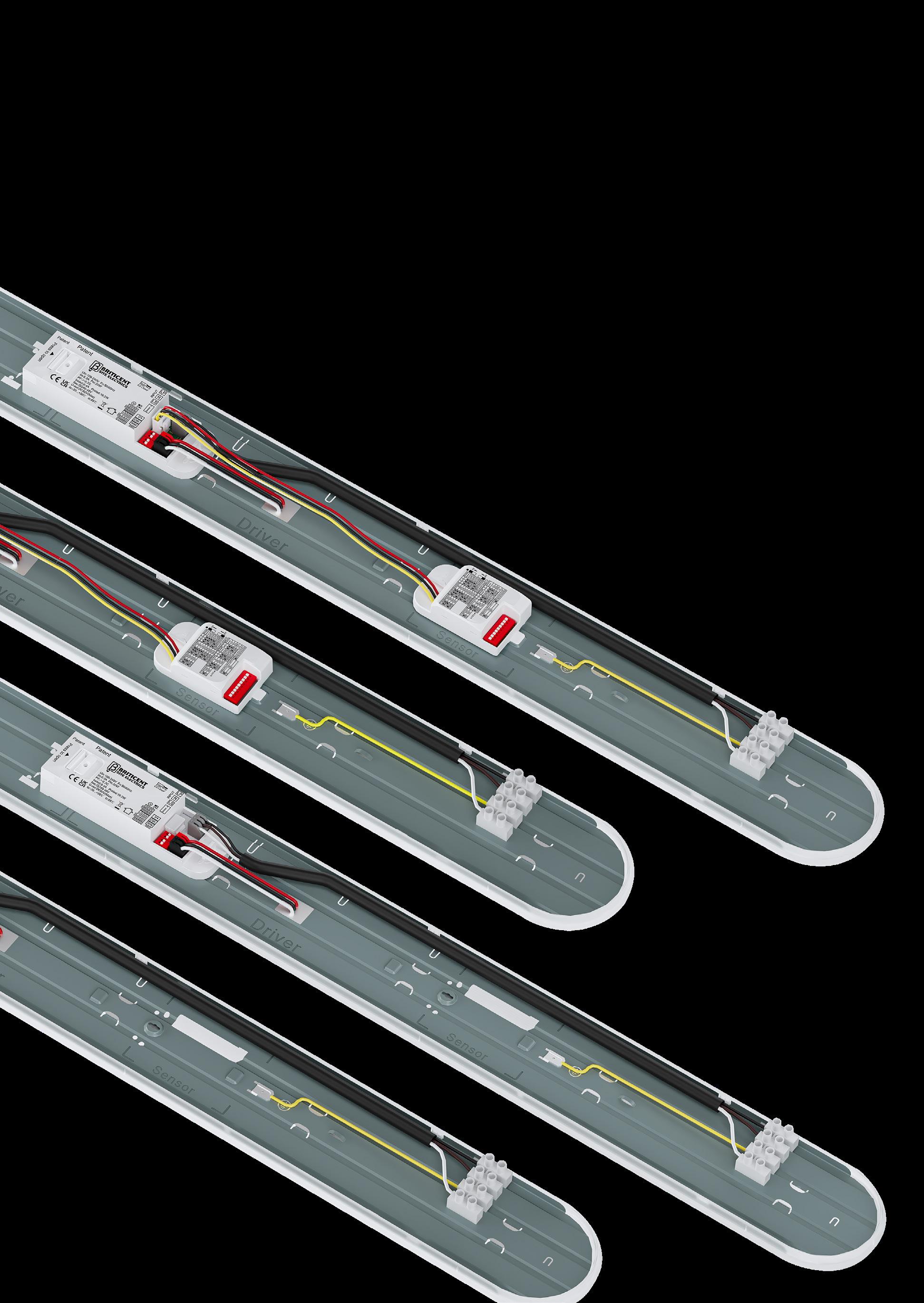

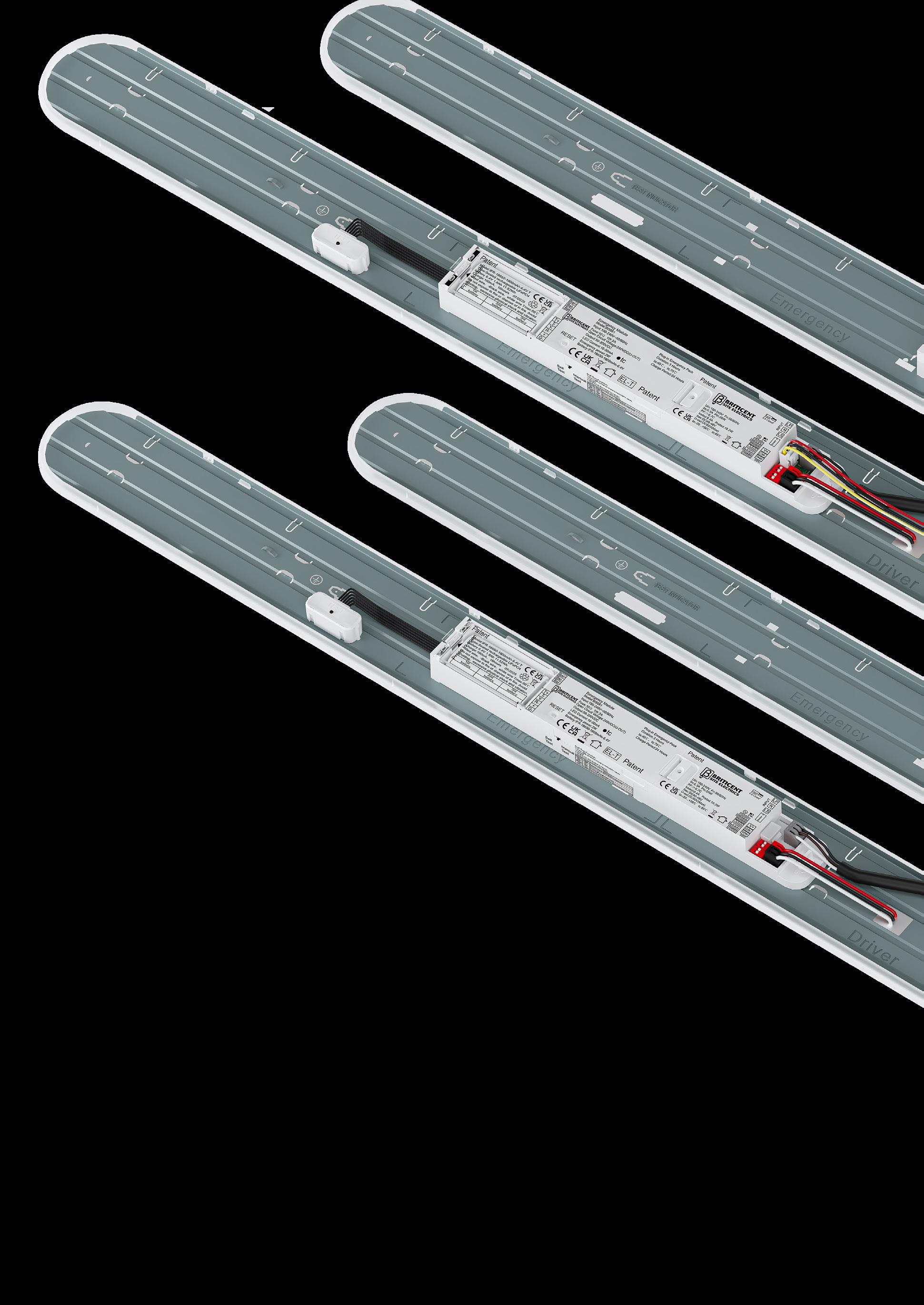

ClikConnect™ Range

2FT

BI5020 2FT (11/14/17/20W) 4000K 5000K 6500K IP66 NCF

BI5021 2FT (11/14/17/20W) 4000K 5000K 6500K IP66 NCF + EM

BI5024 2FT (11/14/17/20W) 4000K 5000K 6500K IP66 NCF + Plexo

BI5025 2FT (11/14/17/20W) 4000K 5000K 6500K IP66 NCF + EM Plexo

5FT

BI5050 5FT (17/23/28/32W) 4000K 5000K 6500K IP66 NCF

BI5051 5FT (17/23/28/32W) 4000K 5000K 6500K IP66 NCF + EM

BI5054 5FT (17/23/28/32W) 4000K 5000K 6500K IP66 NCF + Plexo

BI5055 5FT (17/23/28/32W) 4000K 5000K 6500K IP66 NCF + EM Plexo

Ancillaries

BI5060 Intelligent Motion Microwave Sensor

BI5061 2W Emergency 3 Hour Battery Pack Switchable Test

BI5062 6x Pack Non-Corrosive Clips Yellow

BI5063 2x Pack Non-Corrosive Metal Mounting Brackets

BI5064 LED Driver

BI5065 Replaceable 3 Hour Battery Pack

Line Drawings

2FT 5FT

Floodlights

Powerful Outdoor Site Illumination

Briticent’s 110V REX Slim Floodlights offer installers a range of models from 50W to 300W.

High quality aluminium casing and a toughened glass lens, ensures a sleek yet durable design. A heavy duty, swivel mounting bracket allows the unit to be installed in a range of positions.

Brackenheath wide voltage (100V-240V) REX

Asymmetrical Floodlights are also available.

110V driver on board technology provides sleek appearance

Highly efficient LED chips

High quality yellow aluminium body and toughened glass

Supplied with pre-wired power cable designed for construction use

Suitable for industrial and commercial applications

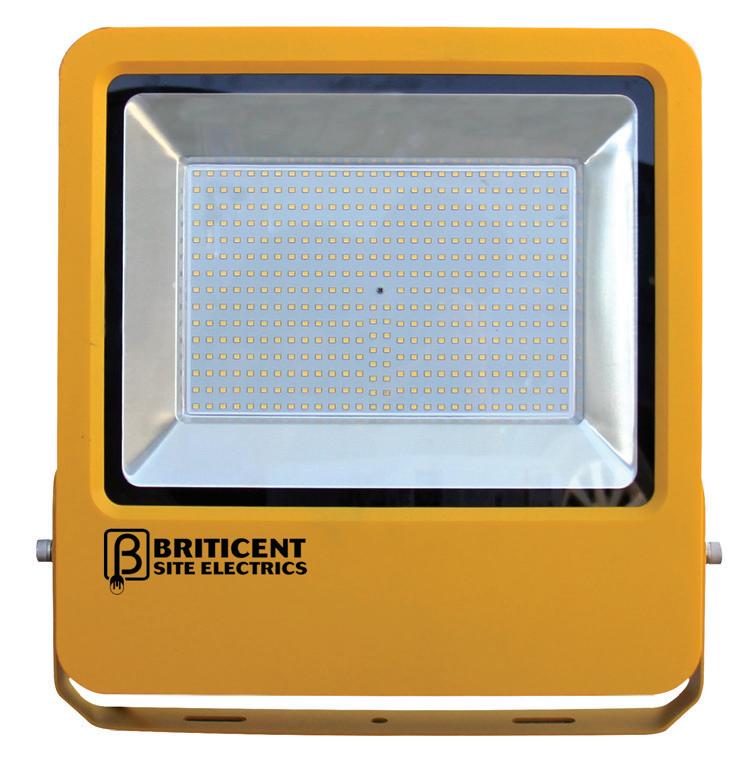

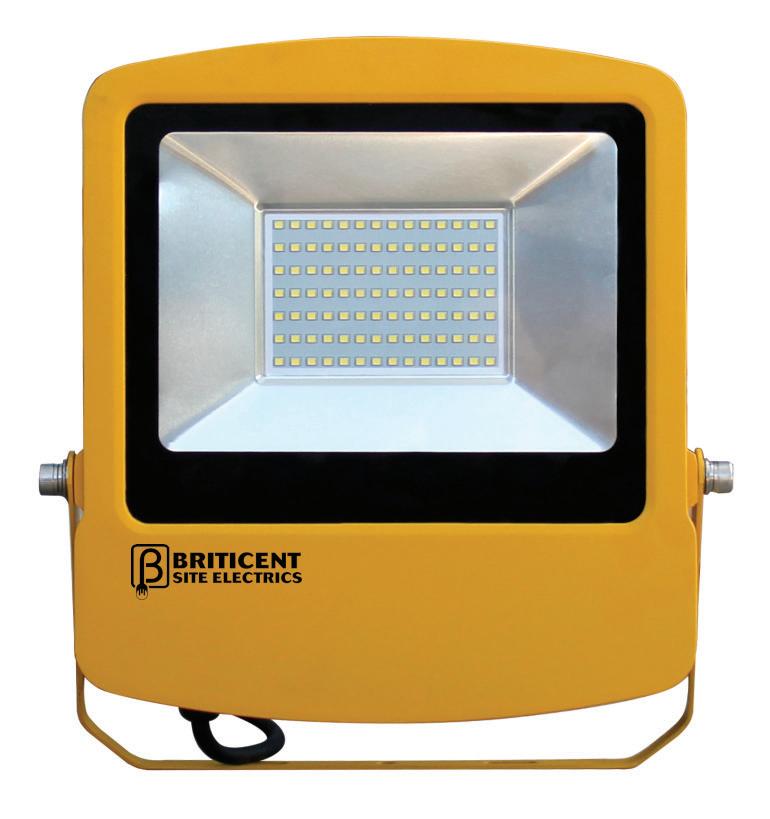

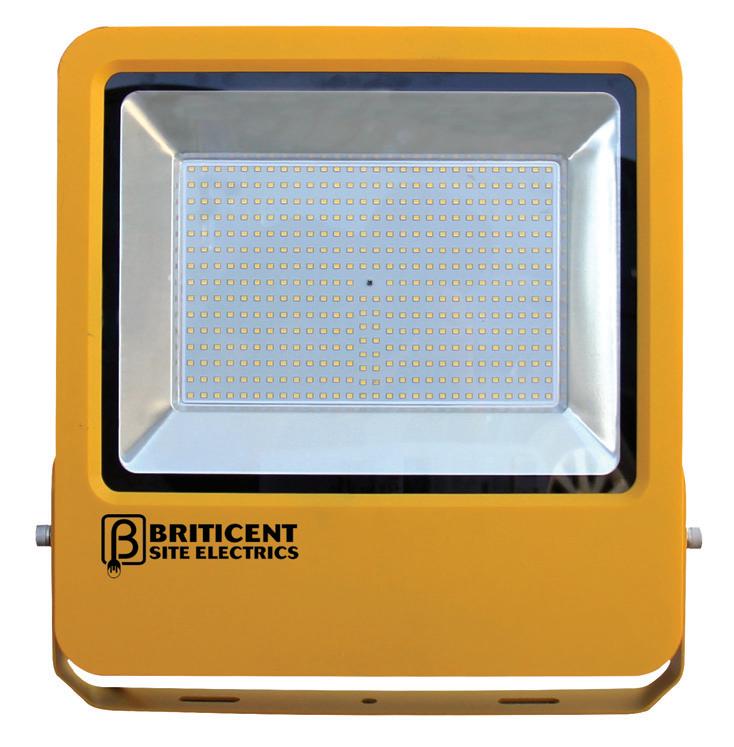

REX Slim Floodlights

• LED REX floodlight solution for commercial and industrial applications

• Luminous efficacy of 110lm/W

• High quality yellow aluminium body with toughened glass lens

• Complete with 1.5m of power flex (50W supplied with 0.5m cable)

• IP65 rating for total protection against dust and low-pressure jets of water from any direction

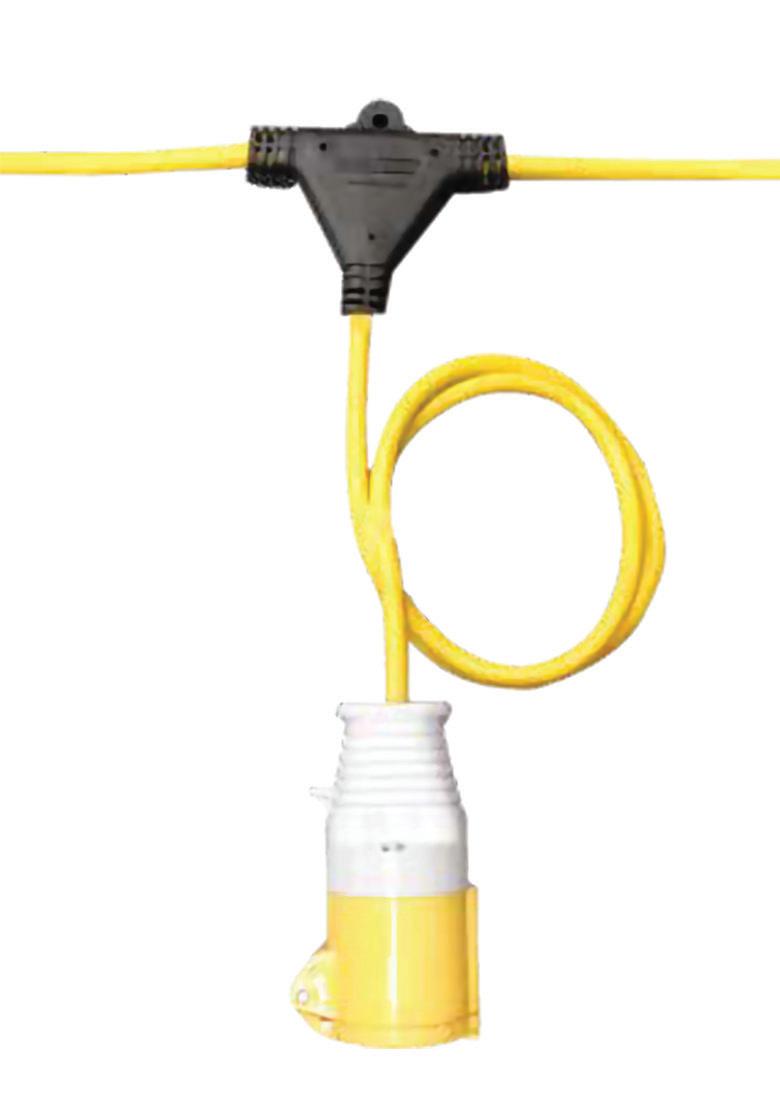

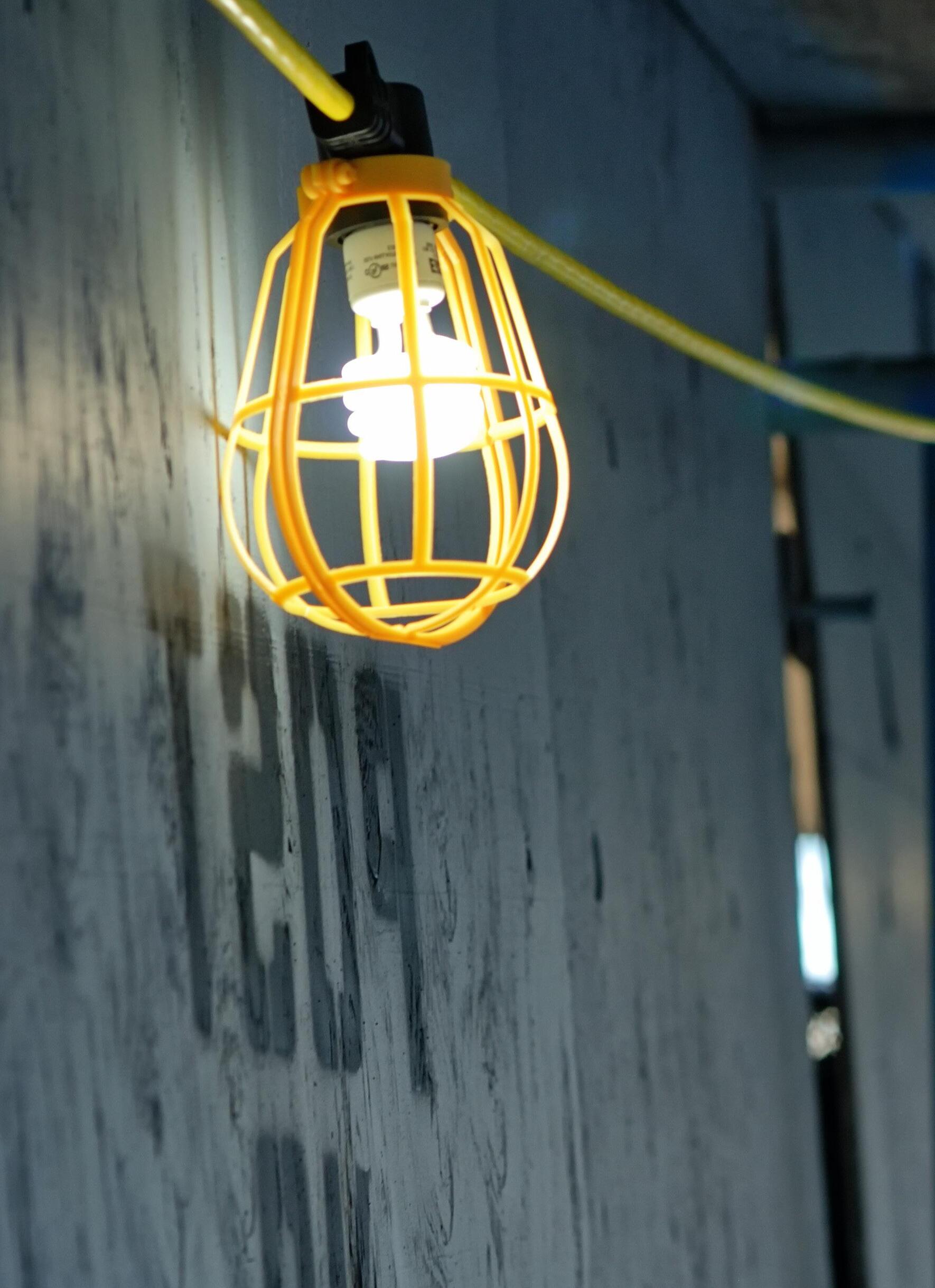

Festoon Lighting & Power

Reliable Temporary Lighting for Site Applications

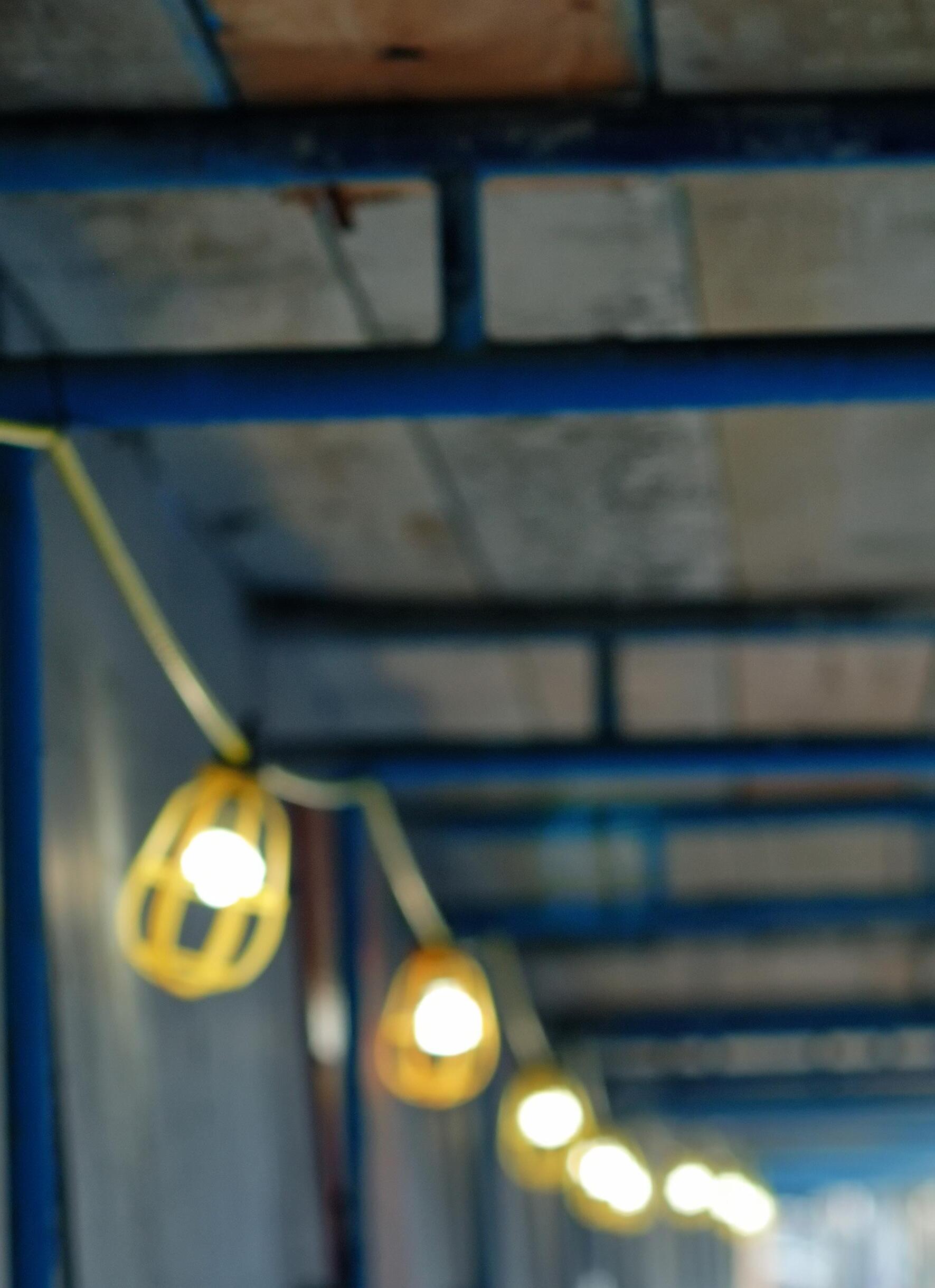

Briticent’s Festoon Lighting range offers an excellent temporary lighting solution for construction sites.

Our selection includes 20m and 44m integrated LED IP55 kits, as well as 22m LED replacement lamp kits with B22 or E27 lamp holders, complete with lamps and guards.

Additionally, we provide festoon cable in 22m and 100m lengths, with lamps and guards available separately.

High visibility yellow cable for construction site use

IP55 rating for protection against dust and low pressure jets of water

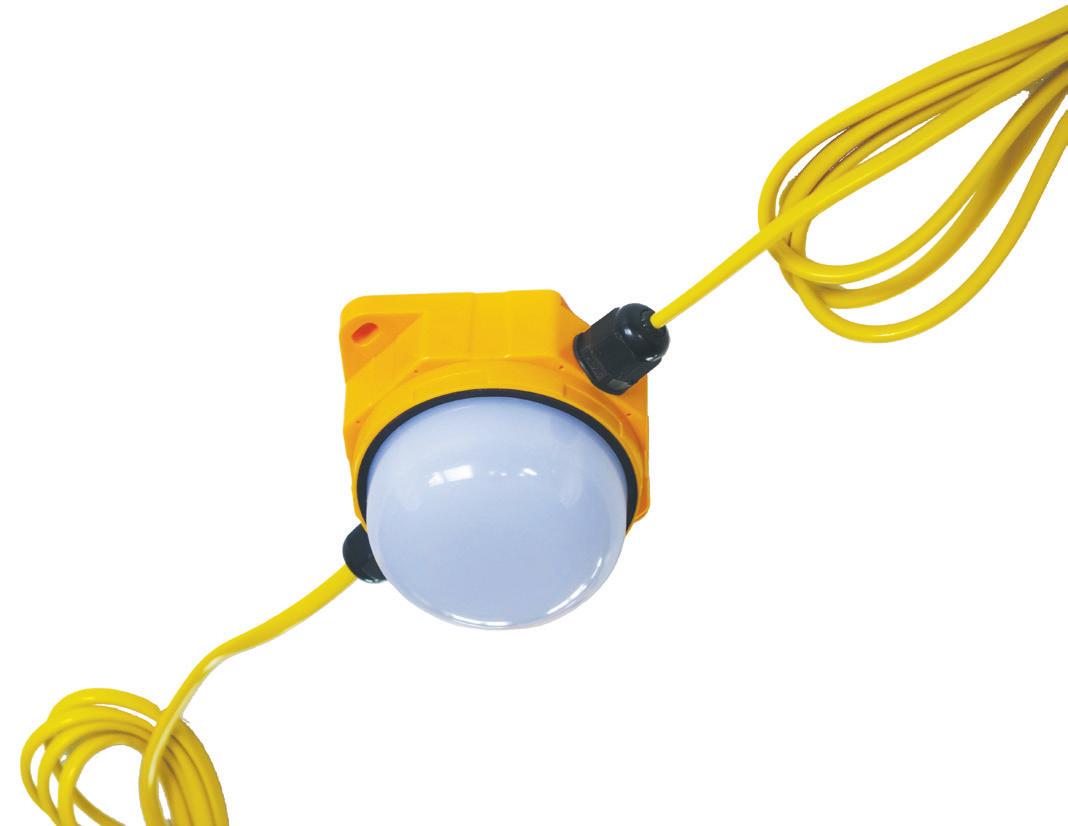

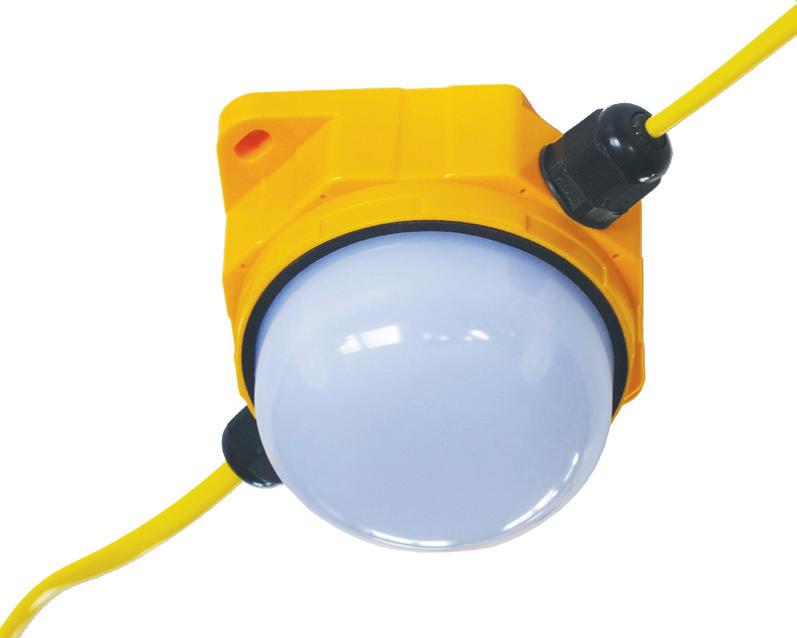

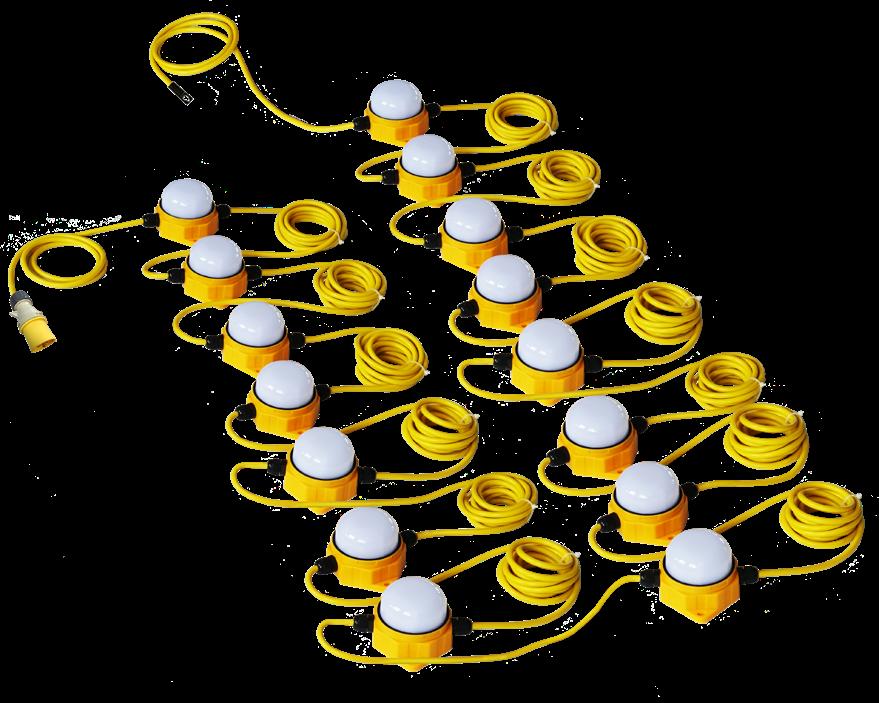

Integrated LED Festoon Lighting

• Suitable temporary festoon lighting solution for indoor and outdoor use

• High luminous efficacy of 120lm/W for superior brightness and efficiency

• 20m and 44m kits with 10W LED integrated lamps with 16A plug (IP67)

• Lamps spaced at 3m intervals with 1m lead for optimal light distribution

• IP55 rating for limited protection against dust and low pressure jets of water from any direction

B22 or E27 LED Festoon Lighting

• Suitable temporary festoon lighting solution for indoor and outdoor use

• 22m festoon cable with 10x B22 or E27 holders, including guards

• 100m festoon cable with 33x B22 or E27 holders only

• 22m cable spaced at 2m intervals; 100m cable spaced at 3m intervals

• IP44 rating for protection from solid objects larger than 1mm and splashes of water from any direction

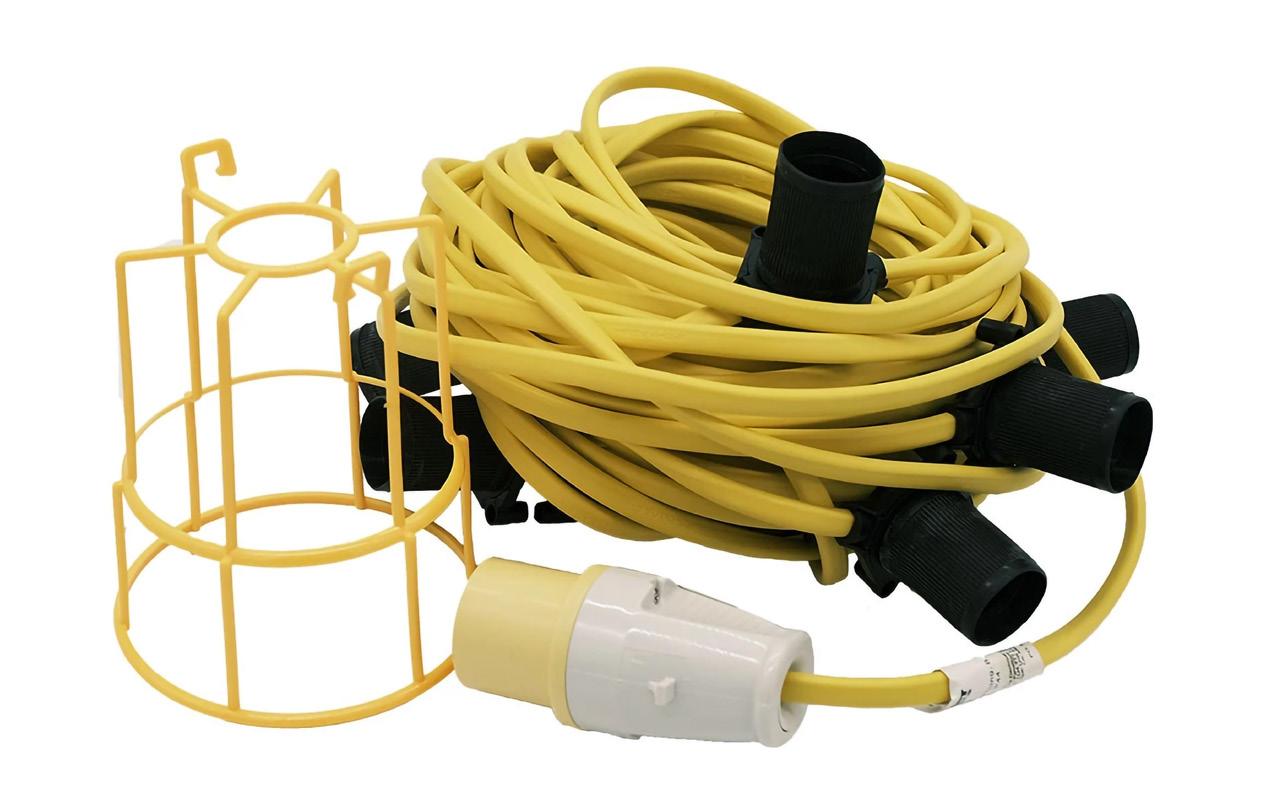

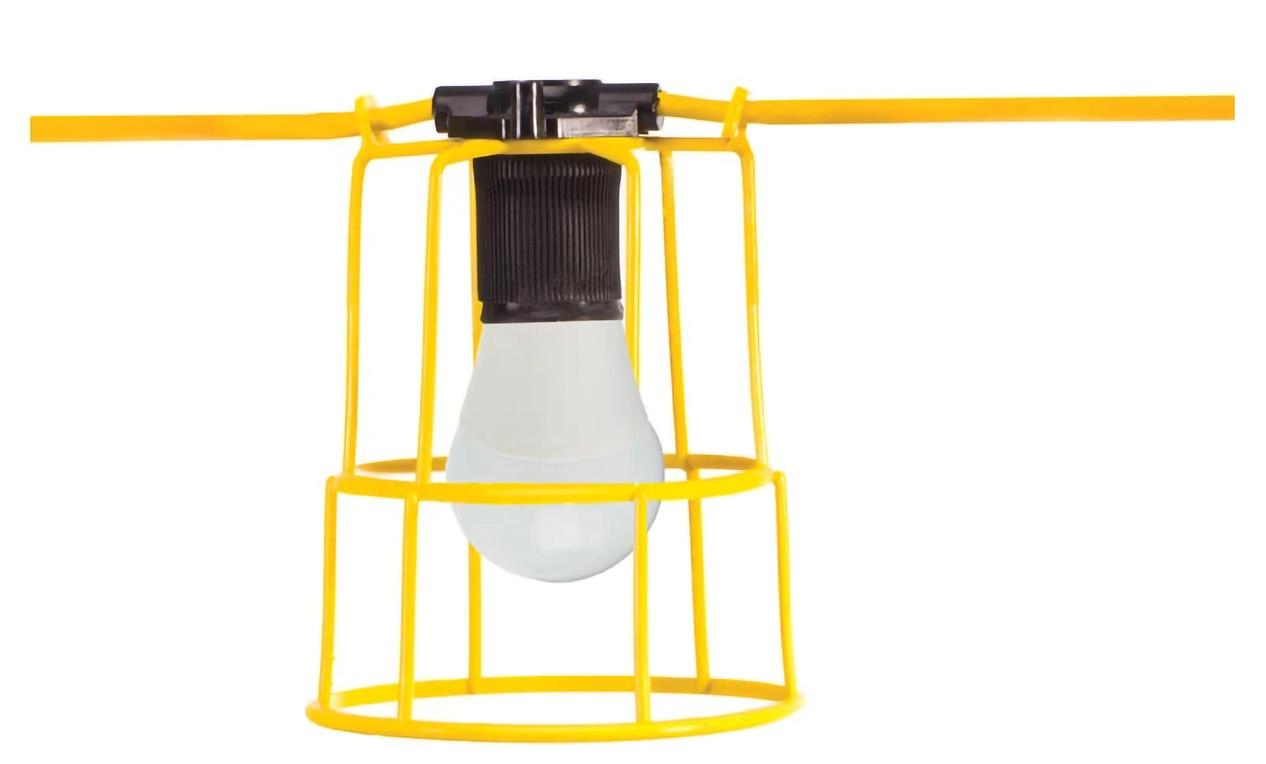

Festoon Cable with B22 or E27 Holders

• Suitable temporary festoon lighting solution for indoor and outdoor use

• 22m festoon cable with 10x B22 or E27 holders, including guards

• 100m festoon cable with 33x B22 or E27 holders only

• 22m cable spaced at 2m intervals; 100m cable spaced at 3m intervals

• IP44 rating for protection from solid objects larger than 1mm and splashes of water from any direction

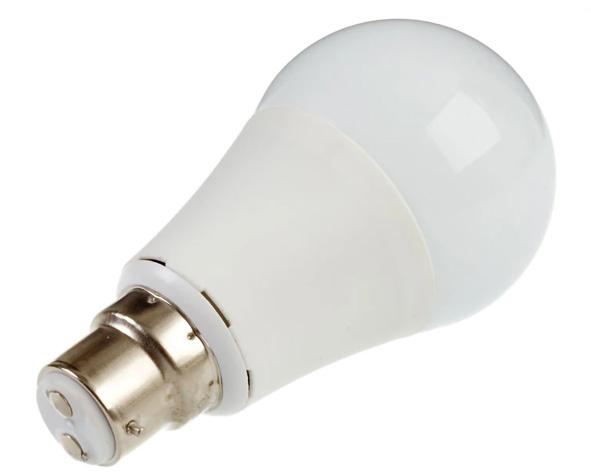

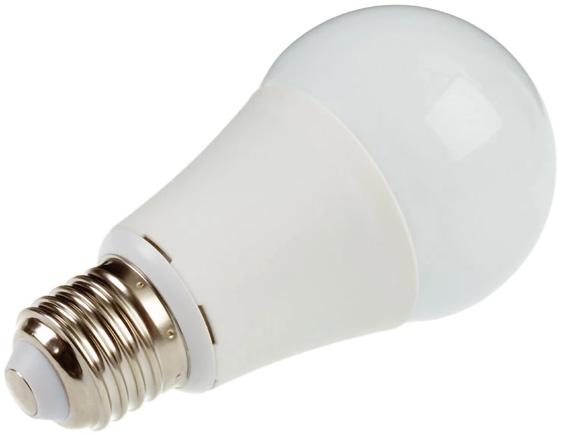

Festoon Lighting Accessories

• Suitable for use with festoons, bulkheads, and other 110V luminaires

• Luminous efficacy of 85lm/W, wide voltage range of 85-265V

• Available with B22 or E27 lamp holder options

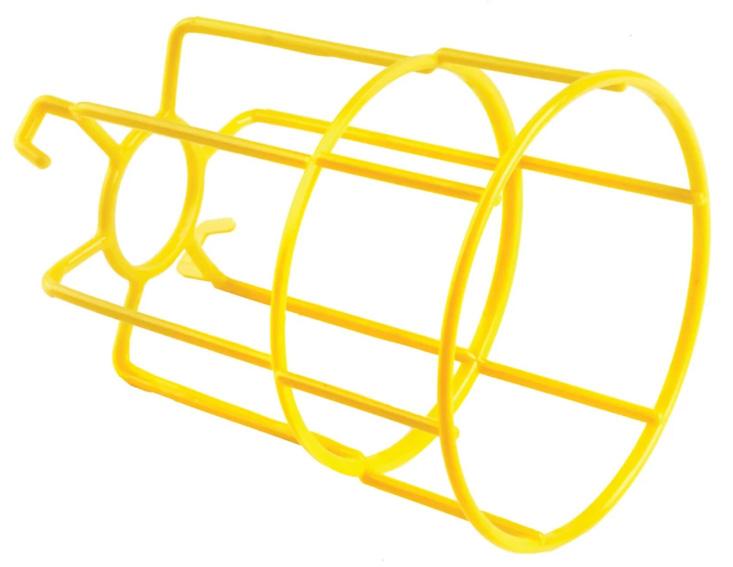

• Polycarbonate wire guard designed for festoon kits

• IP20 rated, ideal for indoor use

Festoon Lamp Guard

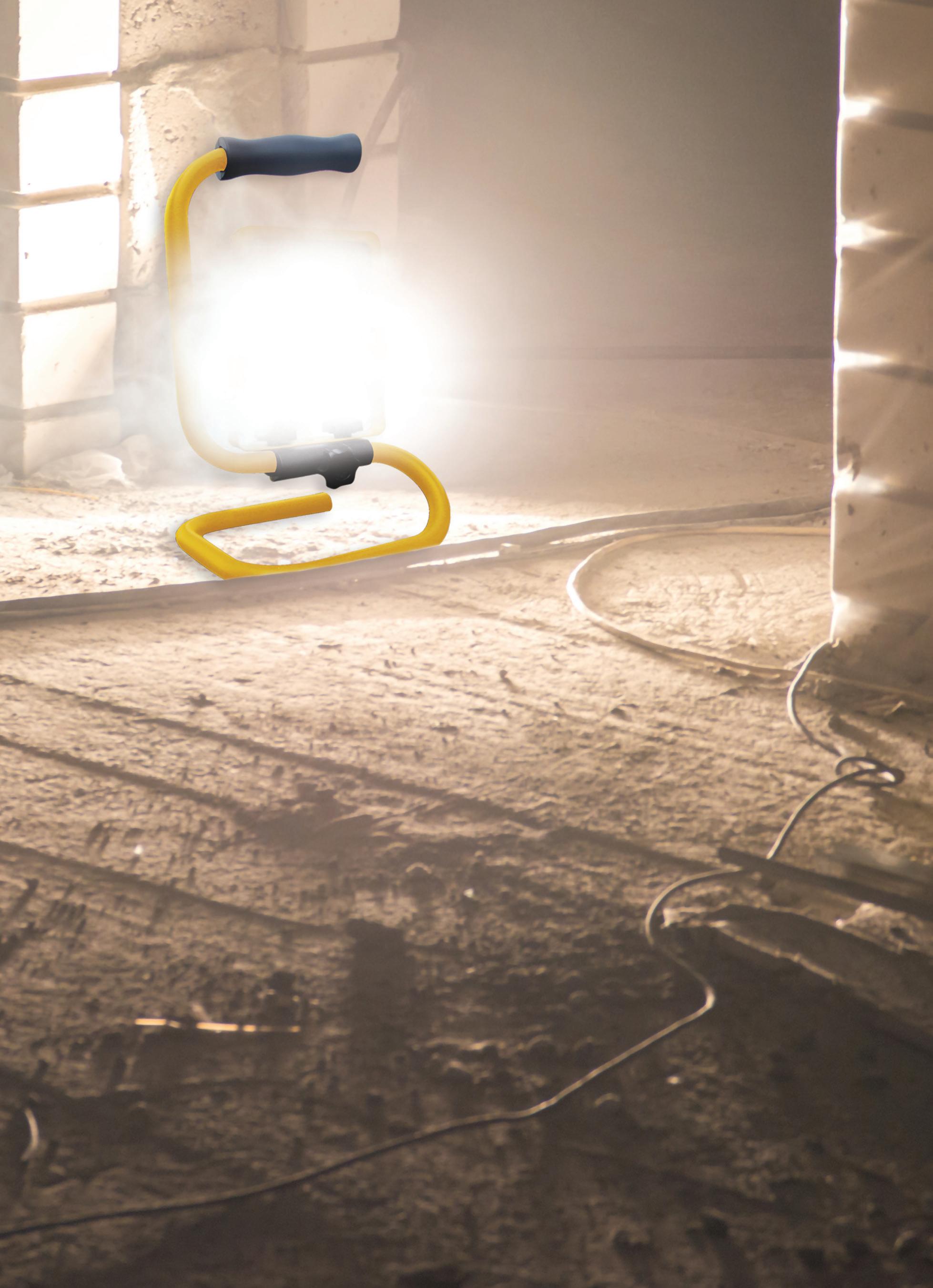

Work Lighting

Briticent’s Work Lighting ranges are built to perform in the toughest site conditions, offering dependable illumination wherever it’s needed.

From Plasterers’ Lights that provide wide, even coverage for perfect surface preparation, to Task Lights designed for focused, high-intensity lighting, and Inspection Lights that offer portable, rechargeable visibility in confined areas.

Briticent products are trusted by professionals and built for trade use.

Polycarbonate body and diffuser

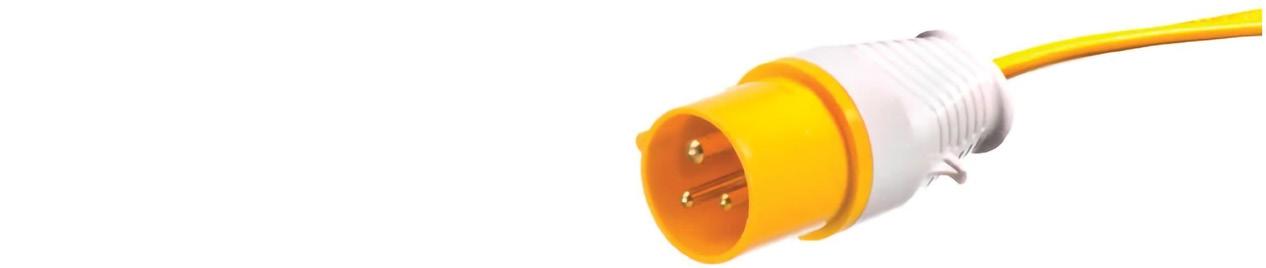

Complete with 5m power lead and 16A 110V yellow plug

2x 16A 110V outlet connections allow for multiple lights to be linked together

IP65 rating for total protection against dust and low pressure jets of water

LED range is an ideal replacement for a fluorescent plasterers light

Unique emergency option with 5ft plasterers light

Supplied with foldaway steel stand for ease of storage

Work Lighting

Plasterers Lights

Versatile & Durable Worksite Lighting

Briticent’s Plasterers Lights provide bright and focused illumination for plastering, decorating, and general site use.

Easy to store and transport, this IP65 range is supplied complete with a 5m power lead and a 16A 110V plug.

The 5ft tripod range includes an emergency option with patented manual override technology, allowing the 3-hour emergency feature to be overridden at the push of a button.

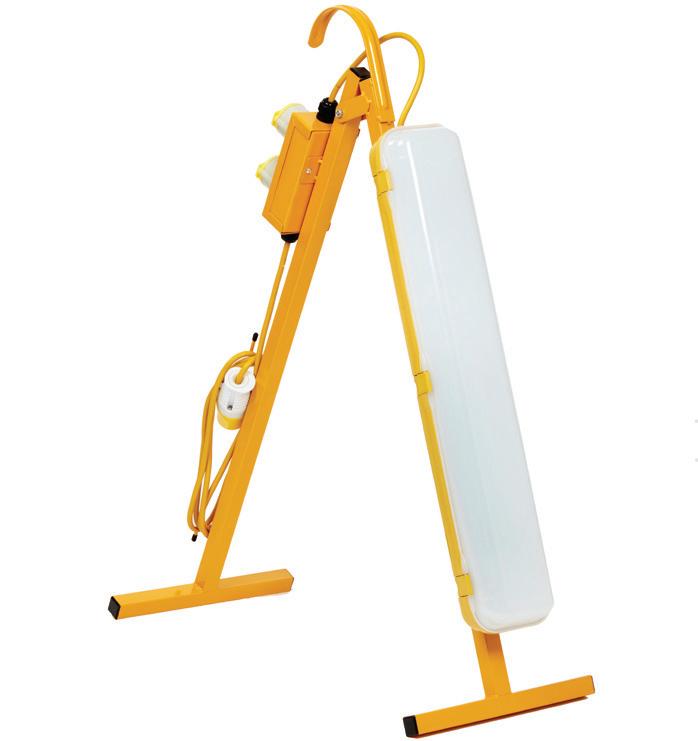

2ft Plasterers Lights

• LED plasterers’ lights solution for use in in confined spaces

• Luminous efficacy of 120lm/W

• 2ft (20W) A Frame and tripod options, 100-277V

• Supplied with two 16A (IP44) outlet connections for linkable applications

• IP65 rating for total protection against dust and low-pressure jets of water from any direction

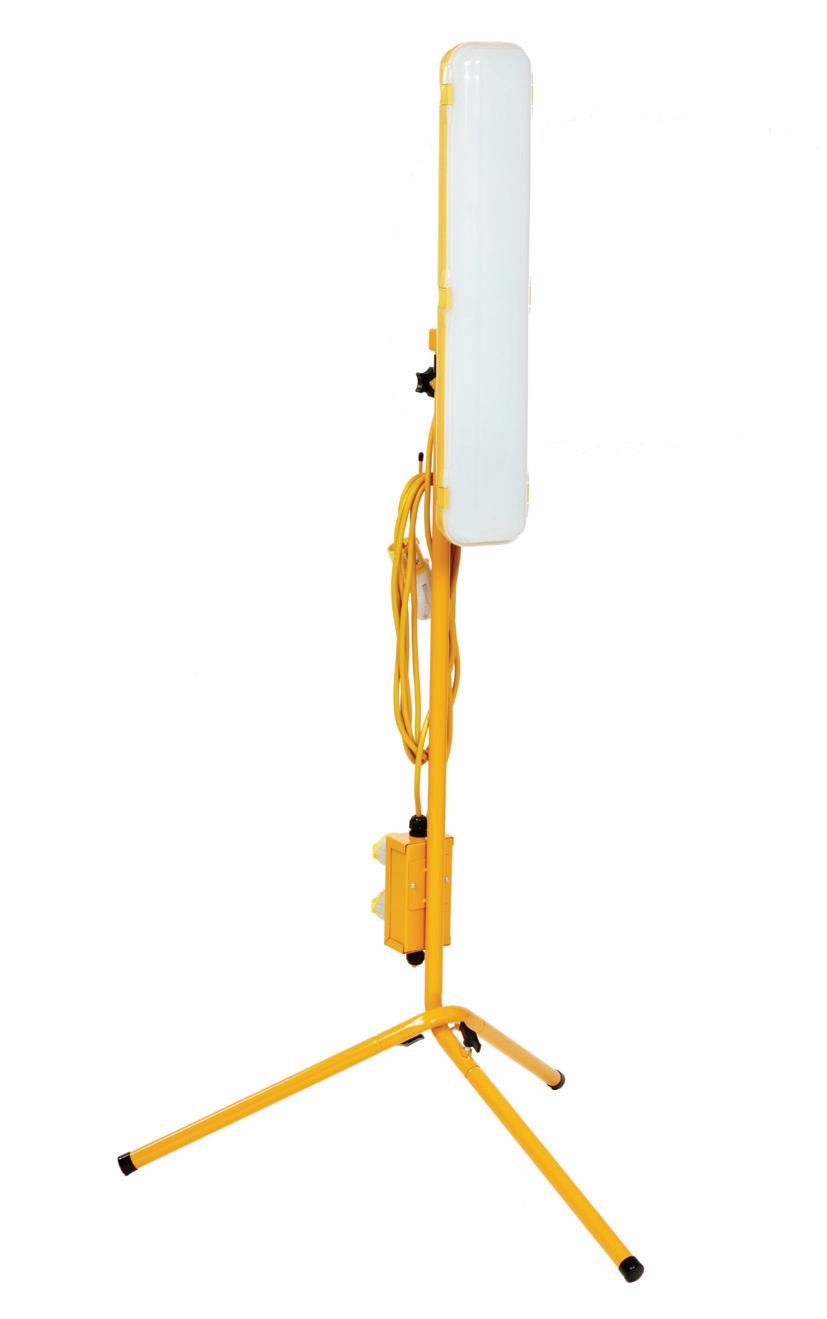

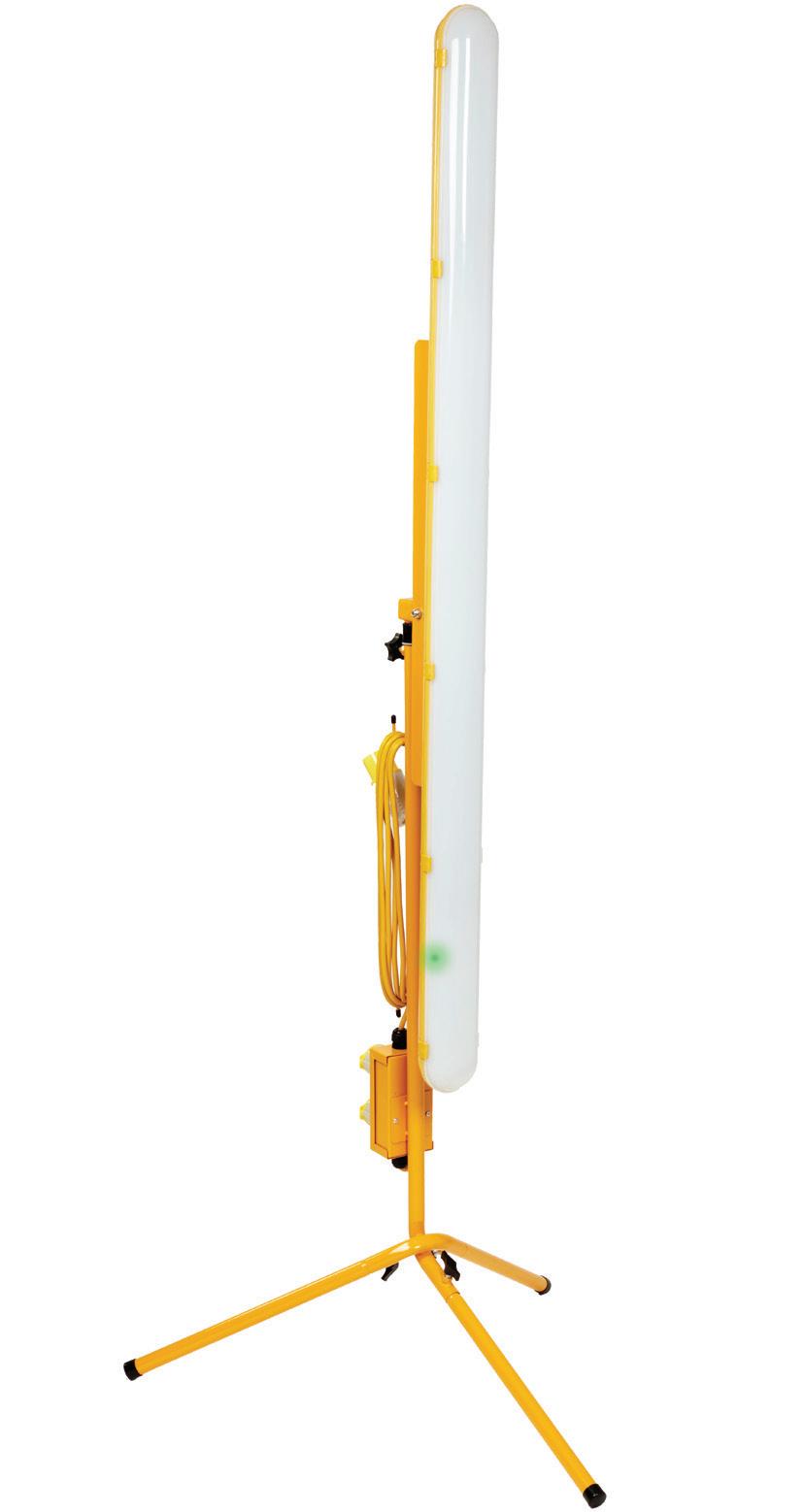

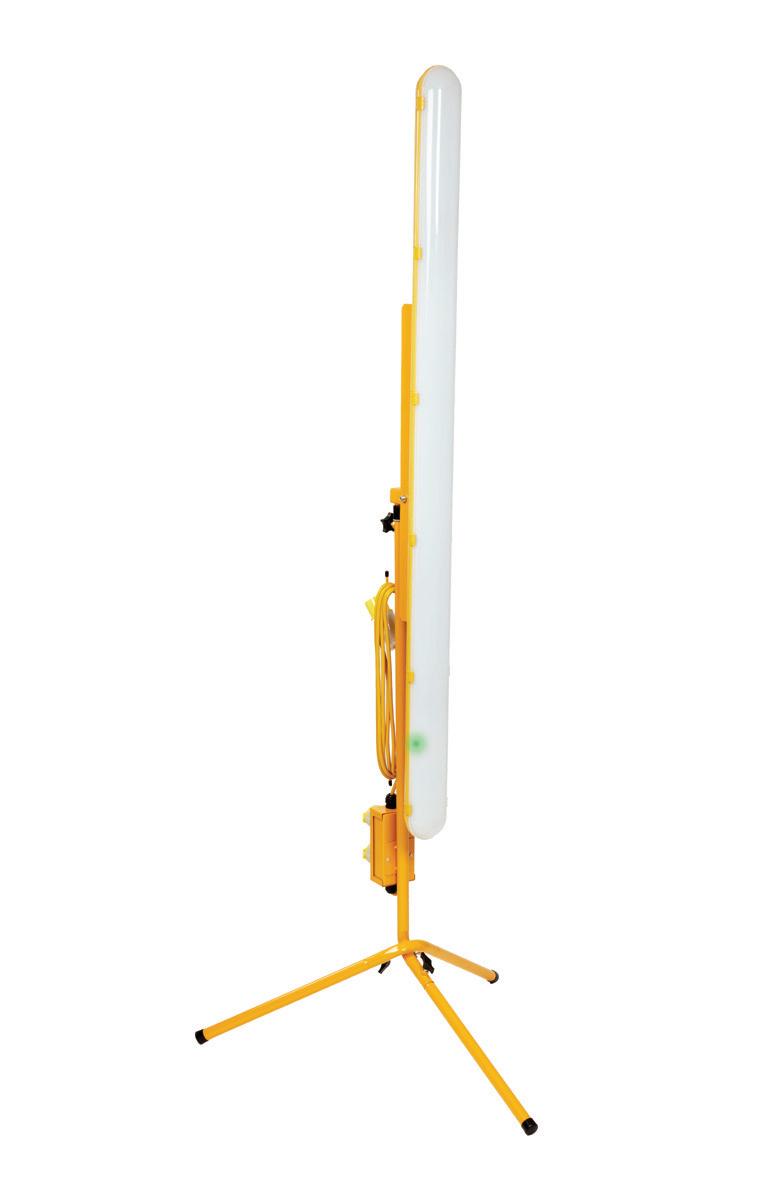

5ft Plasterers Lights

• LED plasterers’ lights solution for use in in confined spaces

• Luminous efficacy of 120lm/W

• 5ft (30W) standard and emergency options, 100-277V

• Supplied with two 16A (IP44) outlet connections for linkable applications

• IP65 rating for total protection against dust and low-pressure jets of water from any direction

Work Lighting

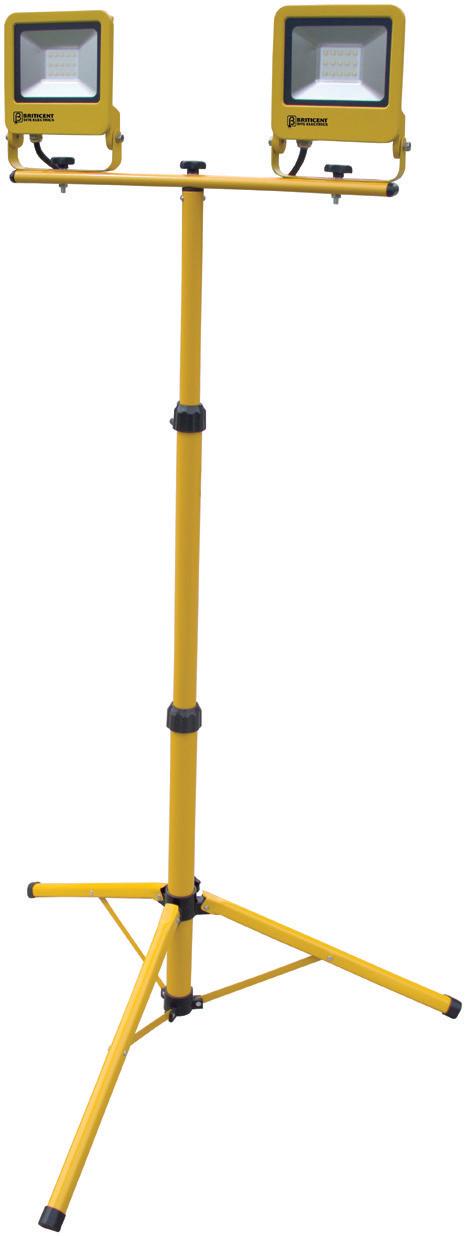

Task Lighting

Compact & Powerful Worksite Illumination

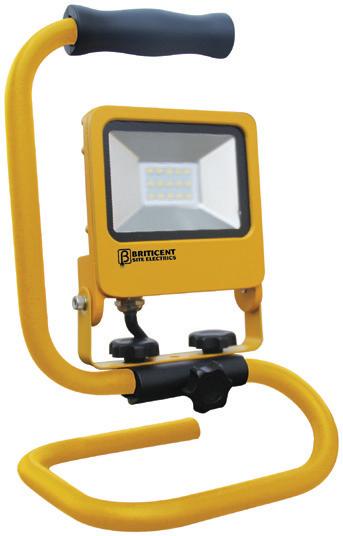

Briticent’s LED Task Lights provide a portable and high-performance lighting solution for workspaces requiring focused illumination.

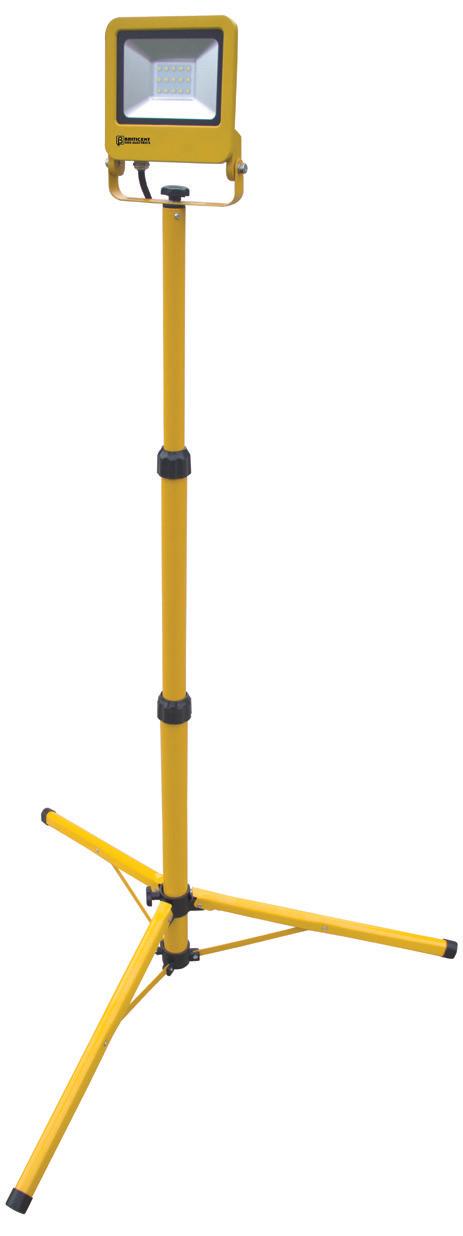

Task Lighting

• LED work lights for workspaces requiring focused illumination

• Luminous efficacy of 110lm/W

• Floor stand, single and twin tripod task lighting solutions

• Complete with 2m power lead and 16A connector

• IP65 rating for total protection against dust and low-pressure jets of water from any direction

Work Lighting Inspection Lighting

Precision Illumination for Perfect Inspection

Briticent’s LED Inspection Lighting range is designed to assist with lighting requirements in confined spaces and difficult to reach areas.

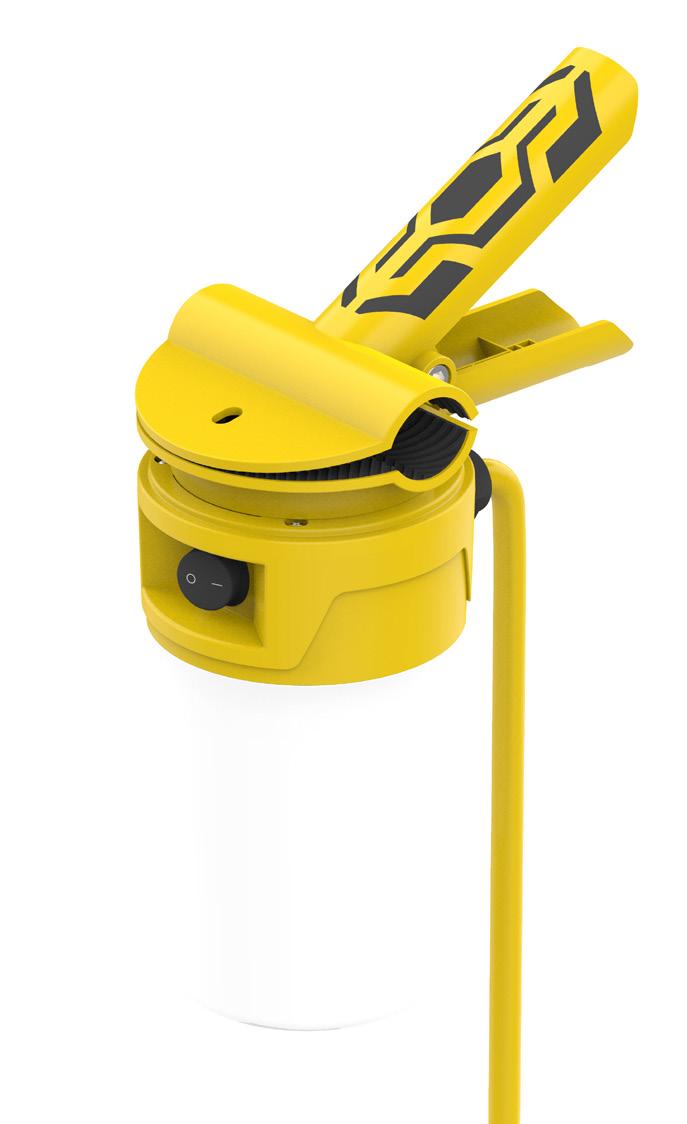

The 110V and 240V LED Gripper Hand Lamp, for which Briticent has become well known, offers a unique 360° portable lighting solution for inspection requirements on site.

LED Inspection Lighting

• Inspection lighting solution for use in manufacturing, automotive inspection

• Luminous efficacy of 100lm/W

• Detachable handle allows for magnetic mounting for handsfree use

• Supplied with hang up hook, magnetic base and 3m cable

• IP44 rating for protection from solid objects larger than 1mm and splashes of water from any direction

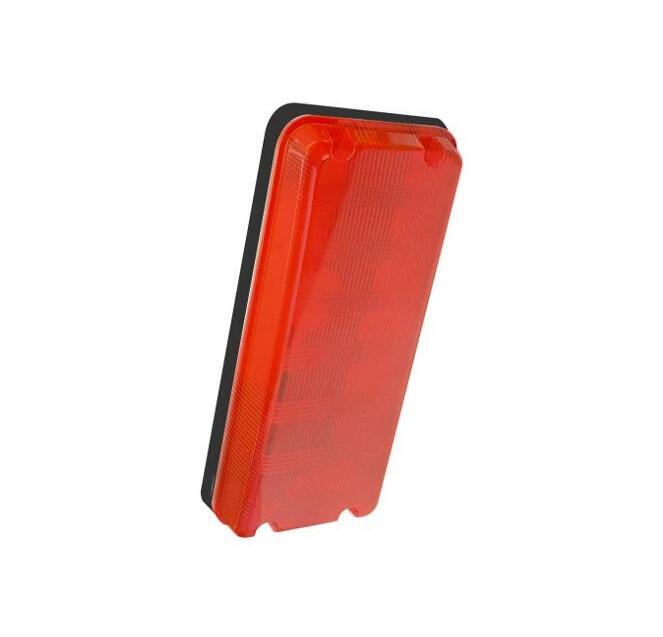

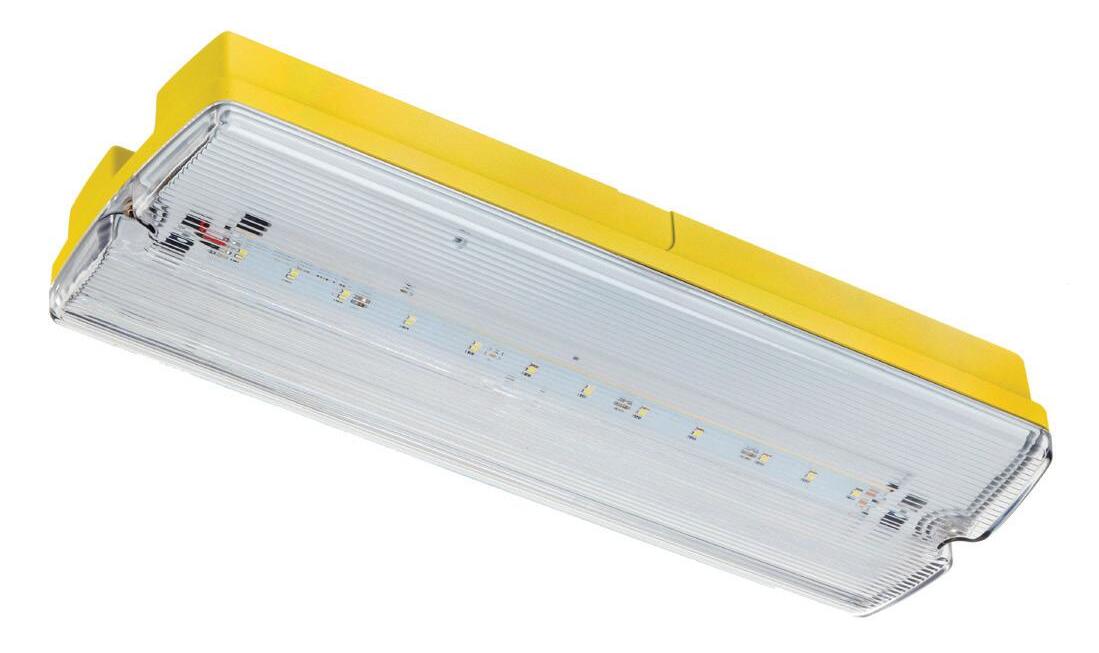

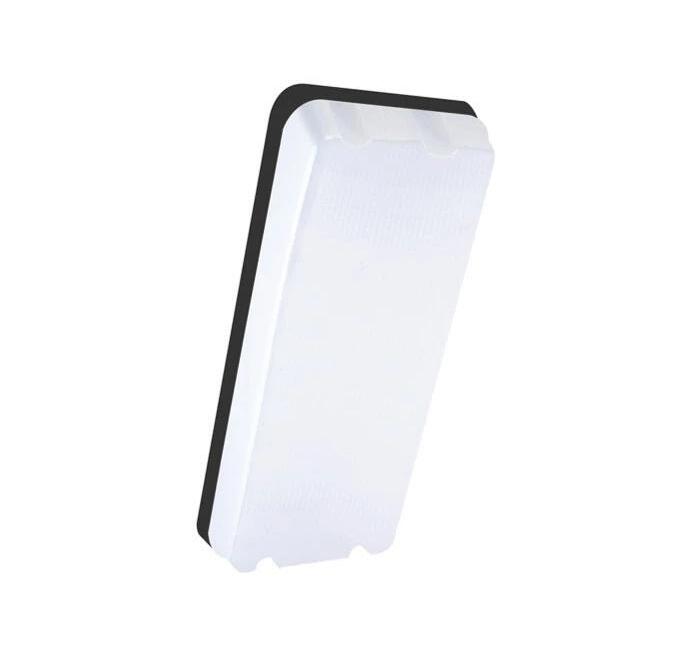

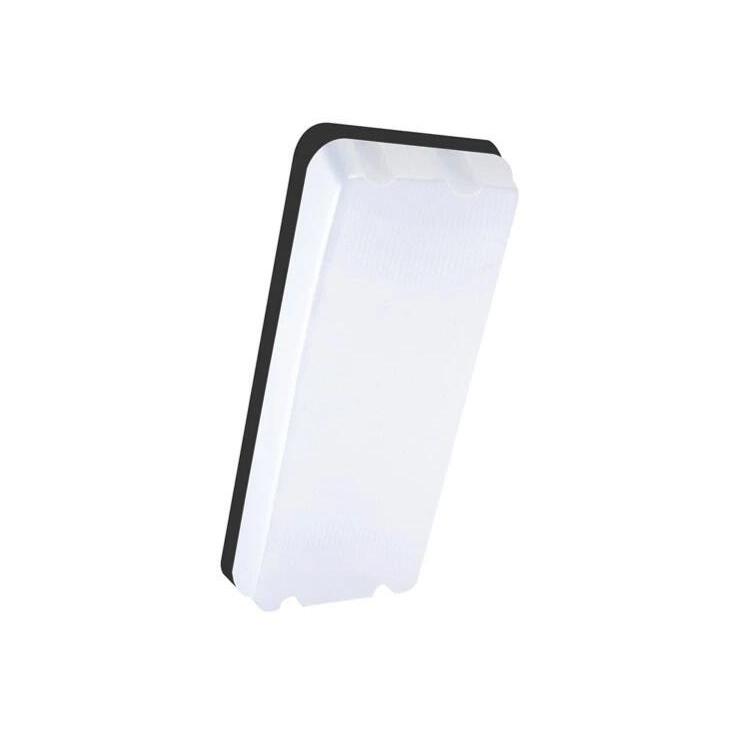

Bulkheads

Robust & Reliable Site Lighting

Briticent’s LED Bulkheads offer an ideal solution for the lighting requirements of a construction site including areas around scaffolding and other confined spaces.

Standard and emergency options are available.

Suitable for a range of commercial and industrial applications Emergency range available

Bulkheads

• Suitable for construction site including hoarding, scaffolding and fence applications

• Luminous efficacy of 120lm/W

• Opal and red diffuser options with integrated LED tray

• Designed with 6x 20mm conduit knockouts options for rear, top and bottom cable entry

IP65 rating for total protection against dust and low-pressure jets of water from any direction

Bulkheads

• Suitable for construction site, industrial and commercial applications

• 150 lumens output

• Impact resistant polycarbonate diffuser and base

• 3-hour emergency duration, configurable for maintained and non-maintained use

• IP66 rating for total protection against dust and low-pressure jets of water from any direction

Step Down Transformers

Reliable Power Conversion for Site Applications

Briticent’s Step Down Transformers offer a range of portable and site supply transformers with intermittent ratings from 1kVA to 10kVA.

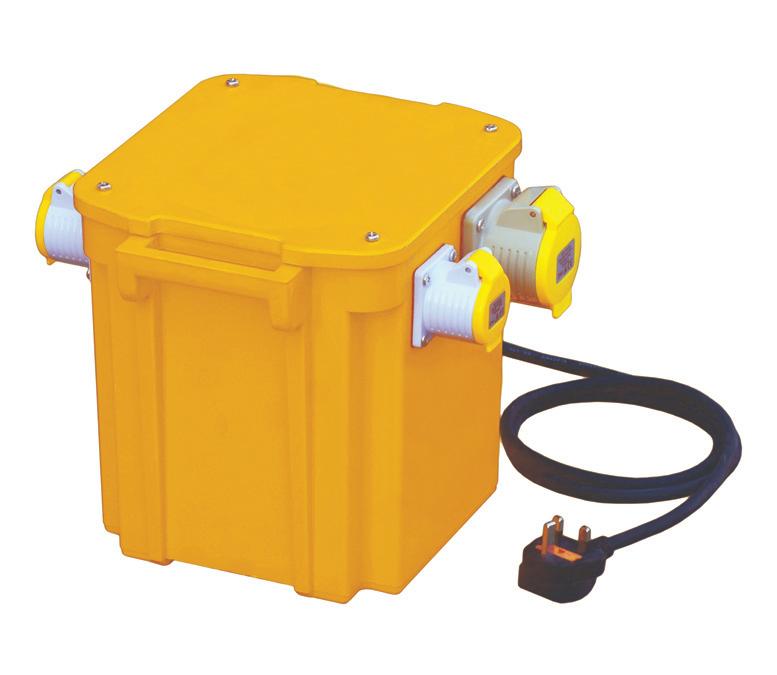

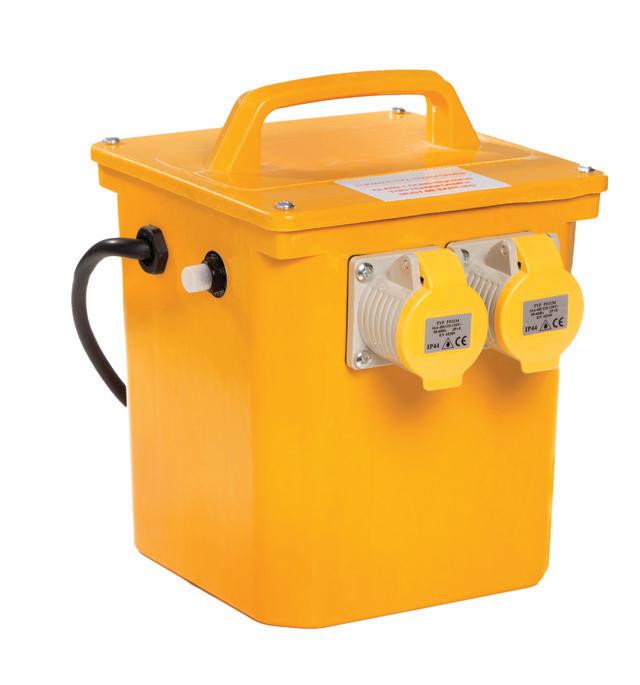

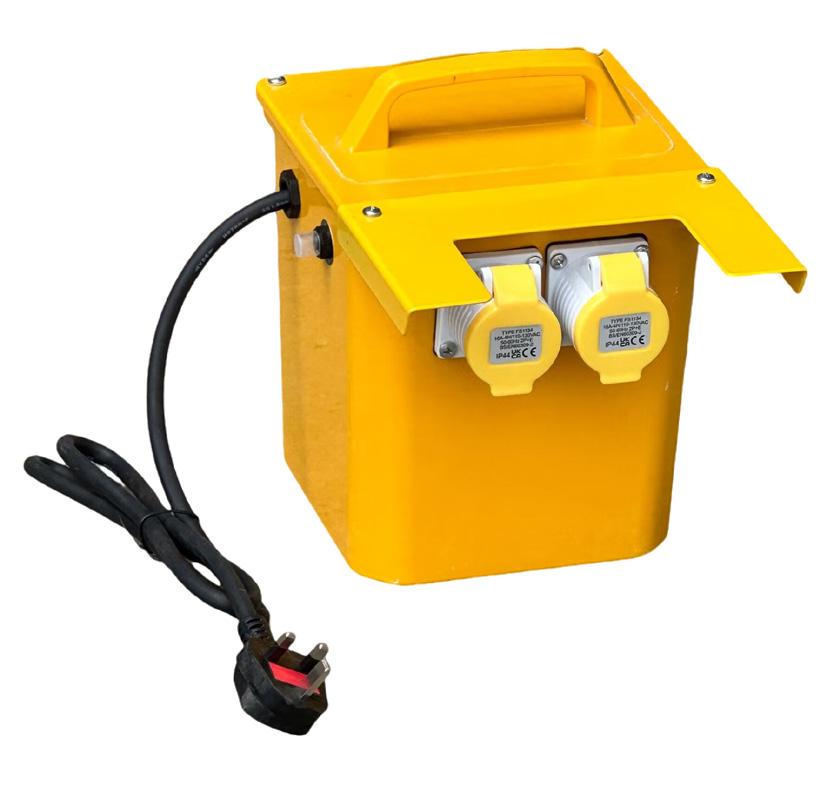

Portable transformers offer the perfect solution where power needs to be reduced from 230V to 110V and are available in 1kVA, 1.5kVA, 3kVA and 5kVA models.

Step Down Transformers

• Suitable for all applications where power needs to be reduced

• Ergonomic design allows smooth lifting of socket covers without any obstructions

• 230V to 110V with resettable thermal cutout

• Supplied with 1.5m cable (5000/3/B - 2m) and 13A plug

• IP44 rating for protection from solid objects larger than 1mm and splashes of water from any direction

Single & Three Phase Transformers

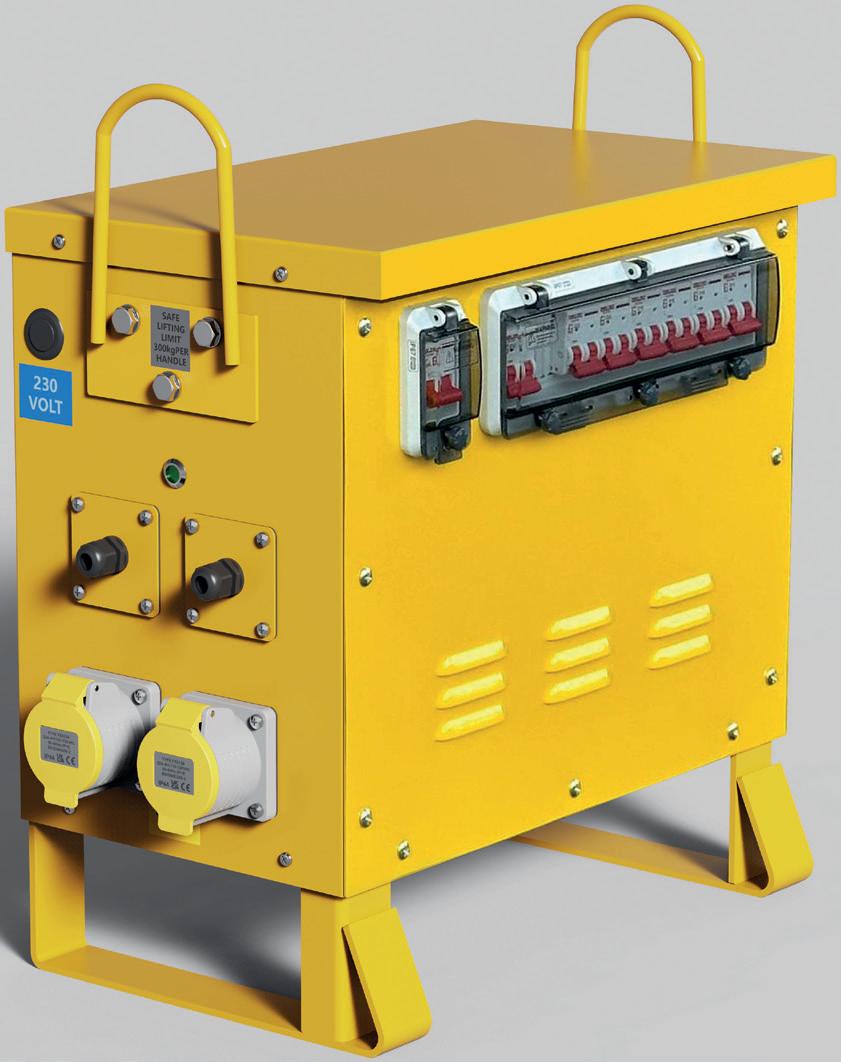

Briticent 10kVA MCB-protected site Transformers feature a heavy-duty metal casing and stand, available in Single-phase (230V to 110V) and Three-phase (415V to 110V) models, providing a reliable power distribution solution for construction sites and converting 230V to 110V for site lighting and power tools.

Single Phase Slim Transformer

• 10kVA Single Phase Slim Transformer 230V to 110V

• Continuous rating 7,000VA and Tool Rating 10,000VA

• Complete with 4x 16A and 2x 32A Outlet Sockets, 2x 16A lighting ports with cable glands

• Type “D” MCB Protection: Minimises the risk of overloading and overheating

• Centre-Tapped Earth (C.T.E.) reduces the risk of electric shock through grounded secondary winding

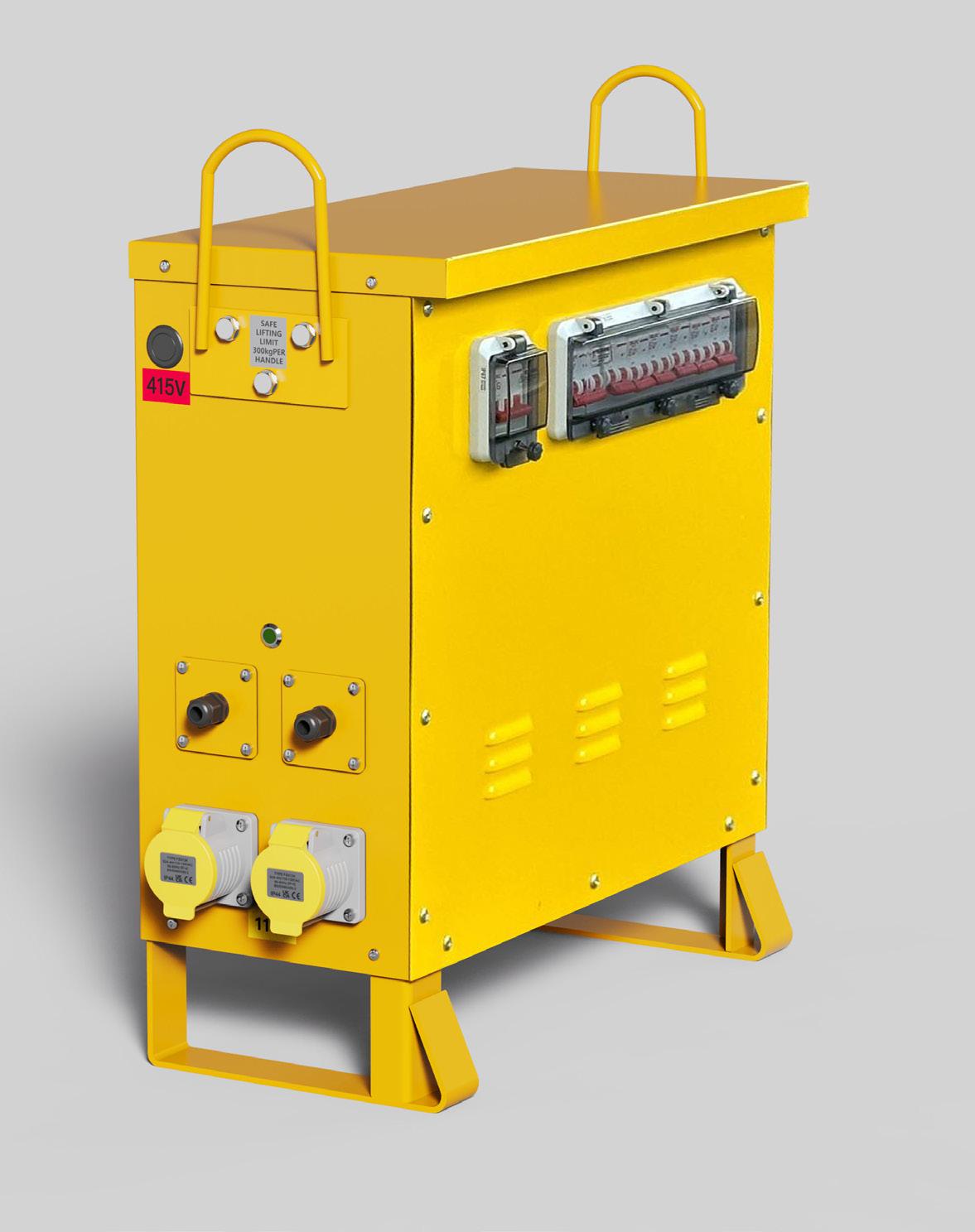

Three Phase Slim Transformer

• 10kVA Three Phase Slim Transformer 415V to 110V

• Continuous rating 7,000VA and Tool Rating 10,000VA

• Complete with 4x 16A and 2x 32A Outlet Sockets, 2x 16A lighting ports with cable glands

• Type “D” MCB Protection: Minimises the risk of overloading and overheating

• Centre-Tapped Earth (C.T.E.) reduces the risk of electric shock through grounded secondary winding

Cable Reels & Extension Leads

Portable Power Solutions for Construction Sites

Briticent’s Cable Reels offer an efficient portable power solution for sites with all reels incorporating an easy wind handle with rear grip.

Briticent’s Extension Leads provide a power distribution solution for a range of domestic, commercial and industrial applications.

Designed to withstand construction site conditions

High visibility yellow cable and IP44 rated power connectors

Safety thermal cut-outs

Heavy duty metal stand for ease of use with ergonomic grip handle

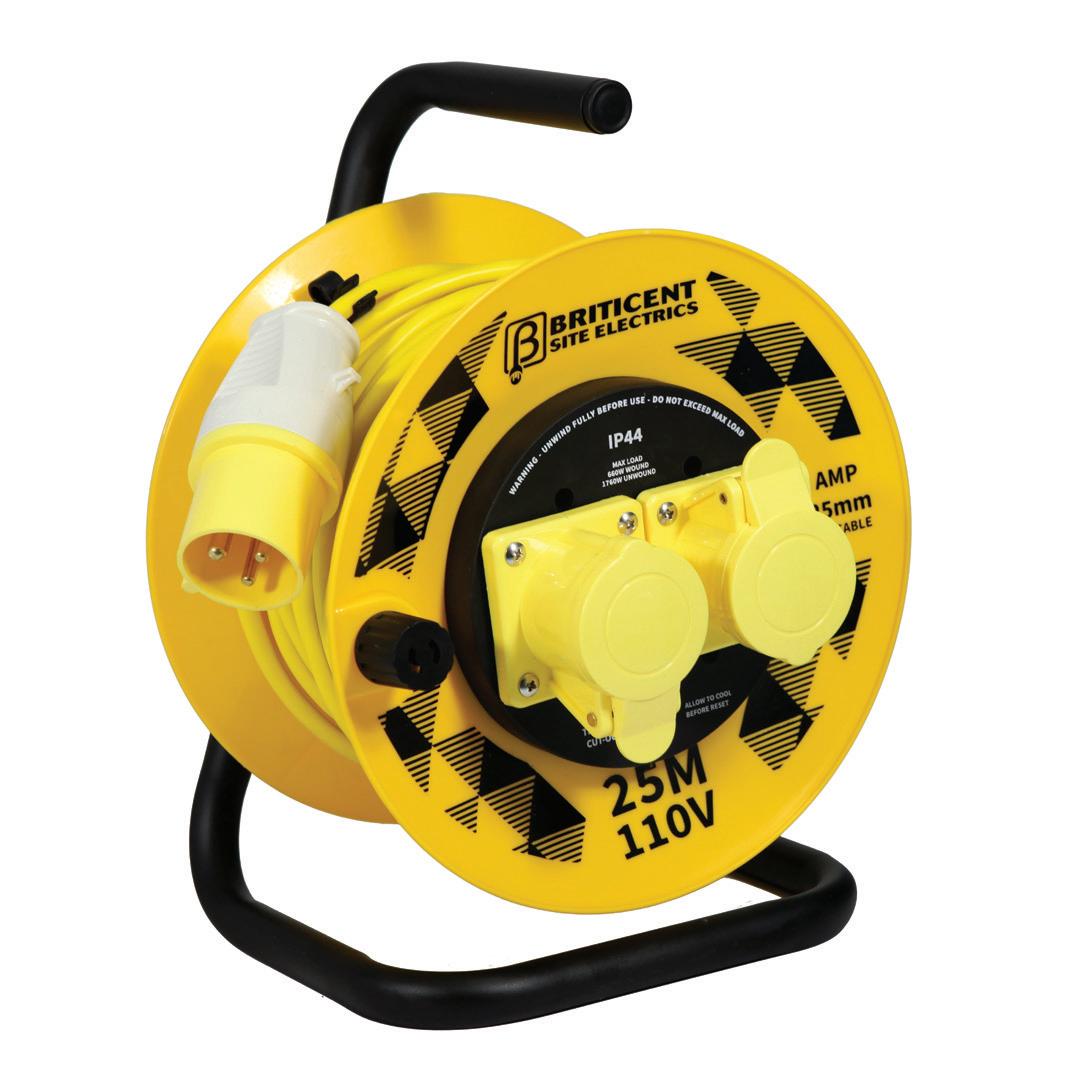

110V Cable Reels

• Suitable for use in a range of commercial and industrial applications

• High-visibility yellow cable for improved site safety

• Sturdy reel design with an easy wind handle and rear grip

• Built-in thermal cutout prevents overheating and ensures longevity

• IP44 rating for protection from solid objects larger than 1mm and splashes of water from any direction

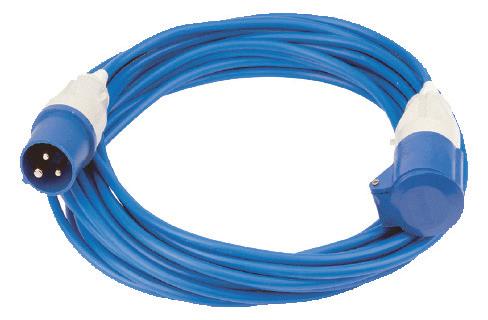

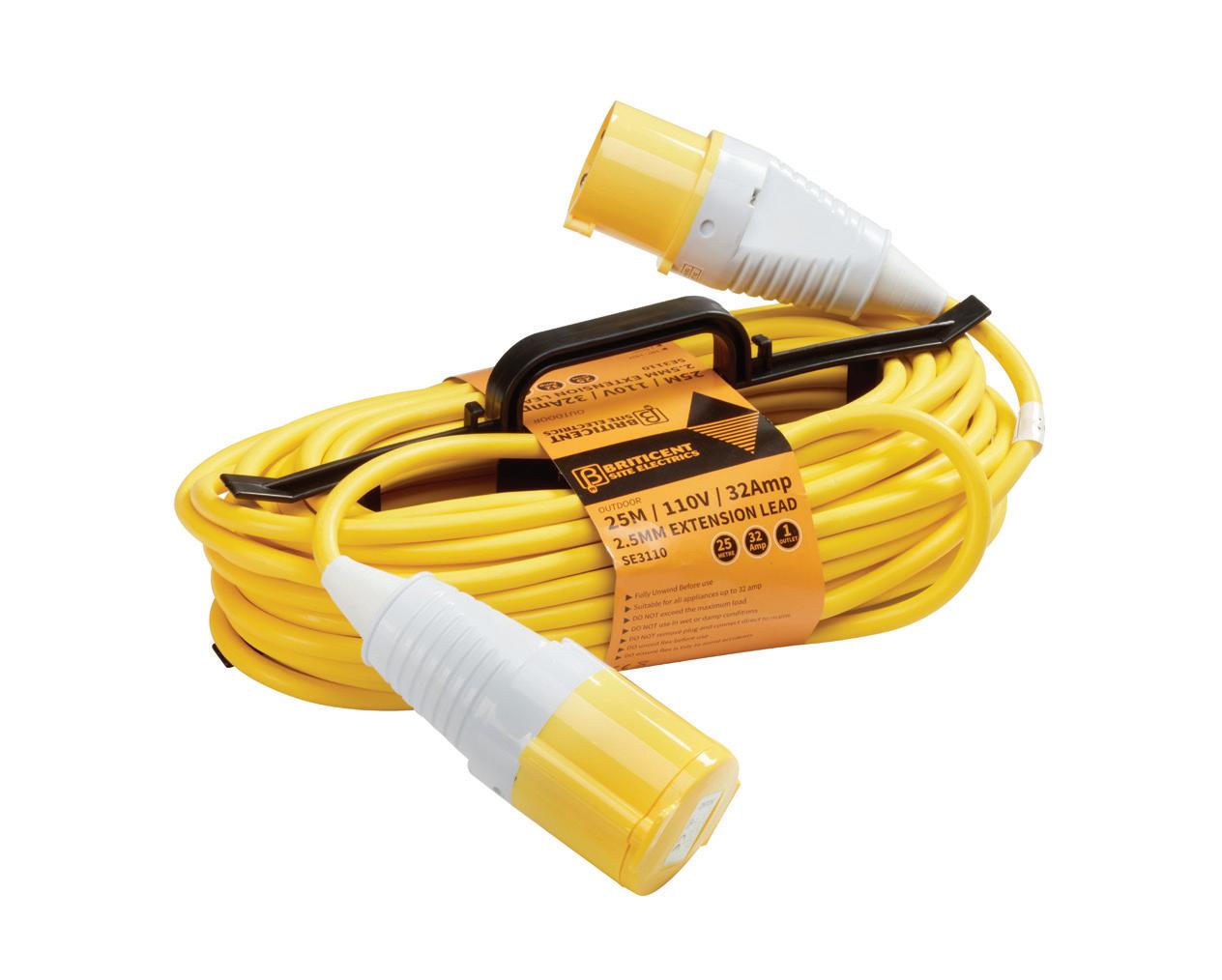

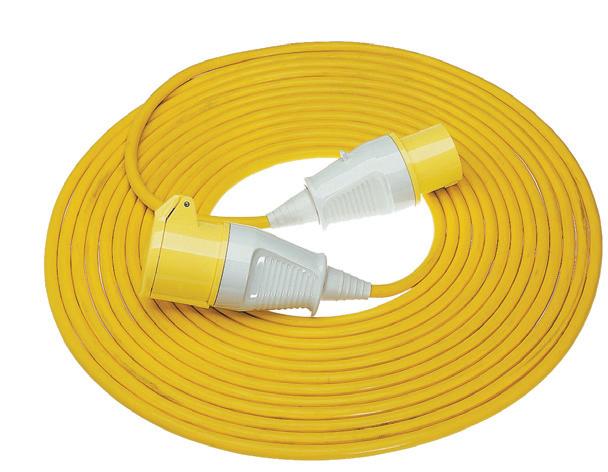

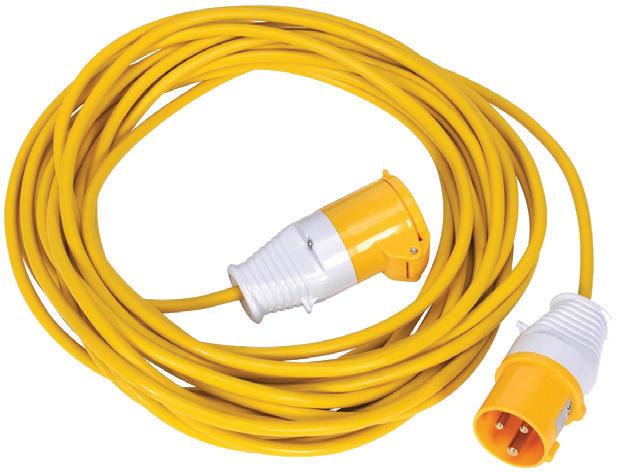

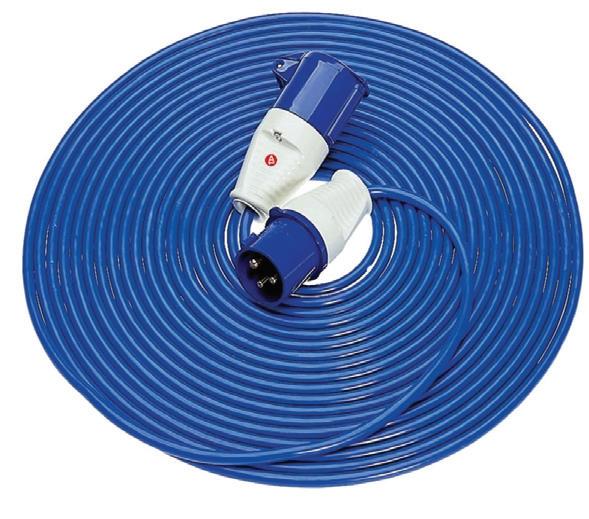

110V and 240V Extension Leads

• Suitable for commercial and industrial applications

• Fitted with plug and coupler, with dust covers included for protection

• Made with highly durable PVC Cable

• IP44 rating for protection from solid objects larger than 1mm and splashes of water from any direction

110V H-Frame Extension Leads

• Suitable for commercial and industrial applications

• H-frame provides an easy storage solution

• Fitted with plug and coupler, with dust covers included for protection

• Made with highly durable PVC Cable

• IP44 rating for protection from solid objects larger than 1mm and splashes of water from any direction

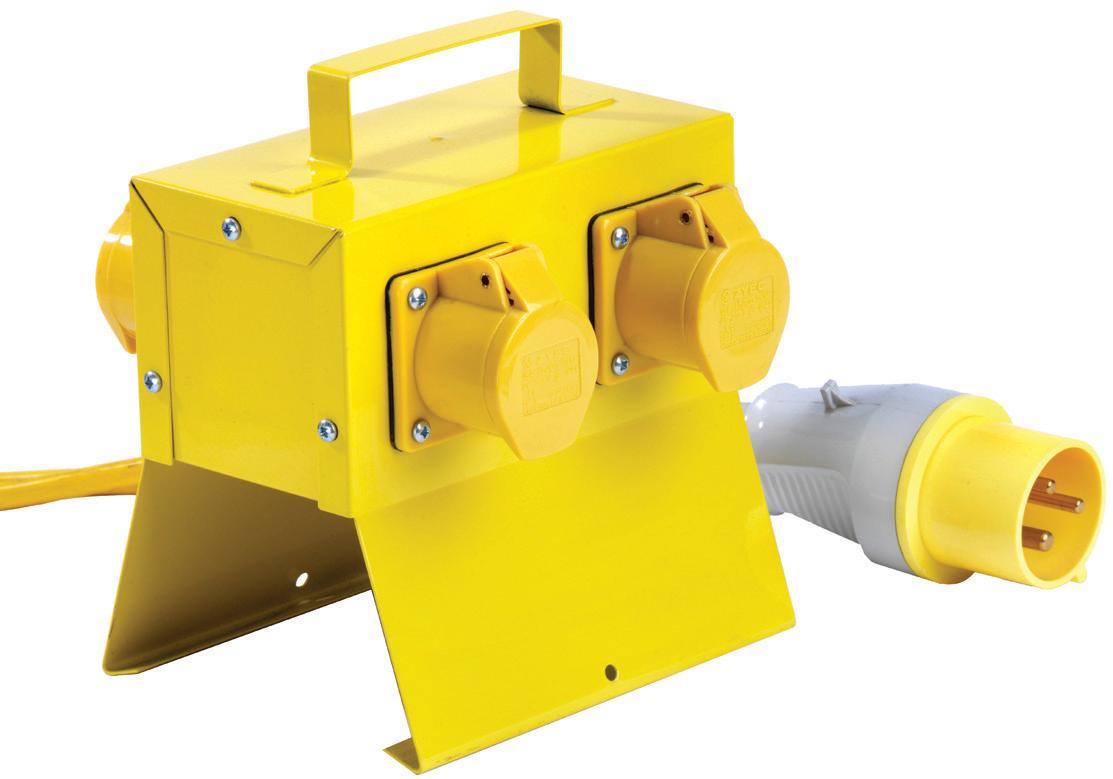

Power Splitter

• Ideal for multiple power tools and site lighting

• Converting power from a single input

• Four 16A outputs, allowing multiple connections for tools and lighting

• Includes a 5m cable and 16A connector

• IP44 rating for protection from solid objects larger than 1mm and splashes of water from any direction

Festoon Power Drops

Efficient, Safe Power Distribution for Site Lighting and Tools

Briticent Festoon Power Drops offer a reliable and flexible solution for powering site lighting and tools.

Designed for both indoor and outdoor use, these power drops ensure consistent, safe power distribution across your site.

With rewireable weatherproof junction boxes, multiple cable drop options, and high-quality 16A connectors.

2.5mm 3-Core Cable

1.5mm 3-Core Cable, 1m Drops

Rewireable, Weatherproof IP65 Junction Boxes

16A Connectors

Festoon Power Drops

• Suitable power distribution for use in site temporary or industrial settings

• Fixed tee drops at 5m spaced intervals

• Single drop option

• 2.5mm 3-core main cable with 1.5mm, 1m drops fitted with 16A connectors

• IP44 rating for protection from solid objects larger than 1mm and splashes of water from any direction

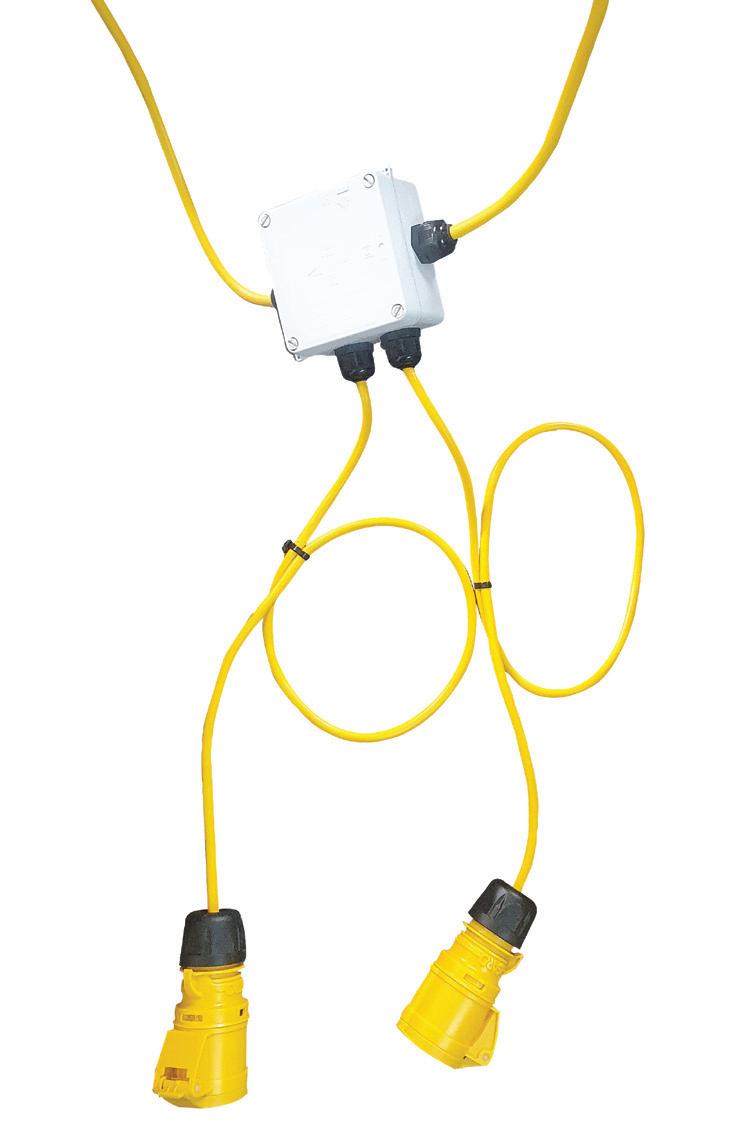

Festoon Power Drops

• Suitable power distribution for use in site temporary or industrial settings

• Rewireable weatherproof junction boxes at 5m or 10m spaced intervals

• Single and twin drop options

• 2.5mm 3-core main cable with 1.5mm, 1m drops fitted with 16A connectors

• IP44 rating for protection from solid objects larger than 1mm and splashes of water from any direction

Icon Glossary

With over 65 years of electrical industry experience, Deta has grown to become a trusted market leading manufacturer and distributor of wiring, lighting, cable management and electrical installation accessories, with a reputation for unrivalled quality, reliability, service and value for money. As the number one electrical brand of choice amongst new build housing developers, Deta’s products are widely specified and installed across the private and social housing sectors, as well as high rise developments, student accommodation and care homes.

Steeped in over 25 years of history, Deta Electrical’s long established Vimark brand holds a reputation for the supply of high quality, value for money electrical and wiring accessories. Offering a wide portfolio of products, including wiring accessories, ventilation, hand dryers and motion sensors, Vimark is a long established and trusted brand that supports electrical contractors with their everyday installation requirements.

TTE is a market leading brand of electrical conduit tube and fittings, combining the former Top Tubes Electrical and Stephen Glover businesses. With more than 50 years’ experience, TTE has been specified and installed on many high-profile projects, including the London 2012 Olympic site, Wembley Stadium, Westfield Shopping Centre, Dubai International Airport and The Louvre Museum Abu Dhabi. TTE offers a reliable and best in class cable management solution that is fully compliant with British Standards.

A long established brand, well regarded for its vast range of high quality installation materials, the trusted Tower brand represents an exciting addition to Deta’s comprehensive brand portfolio. The Tower offer includes its highly acclaimed range of Installation Materials, including the original Tower Cable Clips, an 18th Edition Fire Rated range, Portable Power and Low Voltage Cable.

Established in 1978, Brackenheath is renowned for supplying high quality and competitively priced domestic and commercial lighting products. Through continuous investment in LED and sensing technologies, Brackenheath pioneered the design of its market leading iSpot® range of slim profile, driverless LED Floodlights and continues to lead the way in bringing to market new and innovative LED lighting solutions.

Established in 1976, Channel is a leading manufacturer of emergency LED lighting and safety systems and a key distributor of the UK’s leading brands for fire detection solutions. Renowned for the breadth and depth of each product range, Channel has gained a loyal customer base driven by an excellence in technical and customer support. Proud to be affiliated with ICEL, LIA and EDA, Channel are registered with BSI and are members of the Apollo Partner Plus programme.

Deta.e offers products that seamlessly combine Deta Electrical’s core value of environmental preservation with its long established and trusted reputation for delivering high quality electrical products at competitive prices. Offering a range of smart, safe, and secure EV charge points, Deta.e embraces cutting edge technologies that offer sustainable solutions to assist homeowners and businesses in making an easy transition to a new energy efficient future. (deta-e.co.uk)

A trusted UK industry leader synonymous with quality and innovation, Timeguard has more than 25 years’ experience in the manufacture and sale of time, light, safety, wi-fi and climate control electrical products. Continuously delivering energy savings that owners and occupiers are looking for, alongside the creation of new designs that offer easy installation, Timeguard has become a favourite among homeowners and installers. (timeguard.com)
