Multifunction Analyzer by

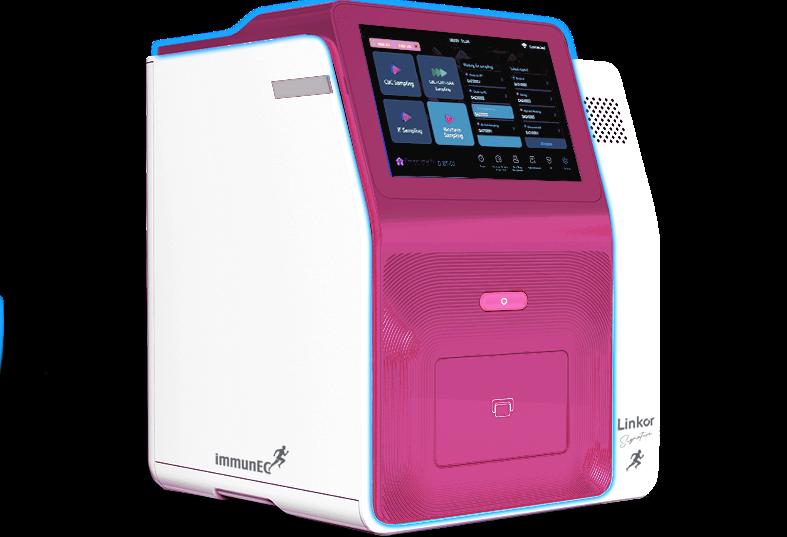

The Linkor Signature is an all-in-one blood test analyzer, designed for more convenient and cost-effective screening. These tests are used to support surgeons’ decision making.

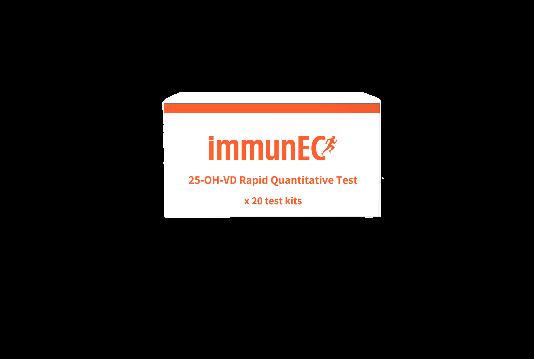

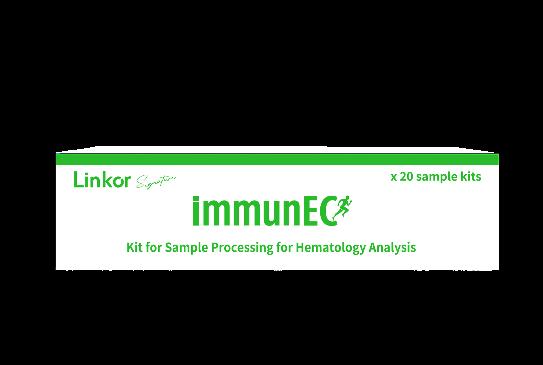

Single-use reagents come in 3 boxes.
≈ 3 drops of capillary blood (160μL)
1. Key Benefits
4 technologies used :
- Morphological Analysis of Cells (CMA)
- Fluorescence Immunoassay (FIA)
- Biochemistry
- Inflammatory index calculations
Step 3 : View results, displayed in 15 min. :
- CBC - Vitamin D
- Glucose & Lipids
- Inflammatory Indexes
Rapid in house testing : Results are displayed in 15 minutes allowing efficient patient health screening before surgery without outsourcing exams.
Advanced AI algorithm : The computer vision and AI recognition software is trained on more than 40 million samples and compared to manual reference, ensuring more accurate classification, identification, and counting of blood cells.
Contamination prevention : Uses individually packaged, single-use test kits.
High Precision : Equipped with SwissOptic® custom lenses and multispectral imaging.
Easy Export : Printing (internal/external), USB key or access through IP address (PC & Mobile)
Maintenance-free design : Features a dry-type system without a fluidic pipeline, eliminating the need for cleaning solutions and significantly reducing maintenance workload and costs.
1. CBC 2. Vitamin D
Glucose/Lipids
Report
Name : First Name : Gender:

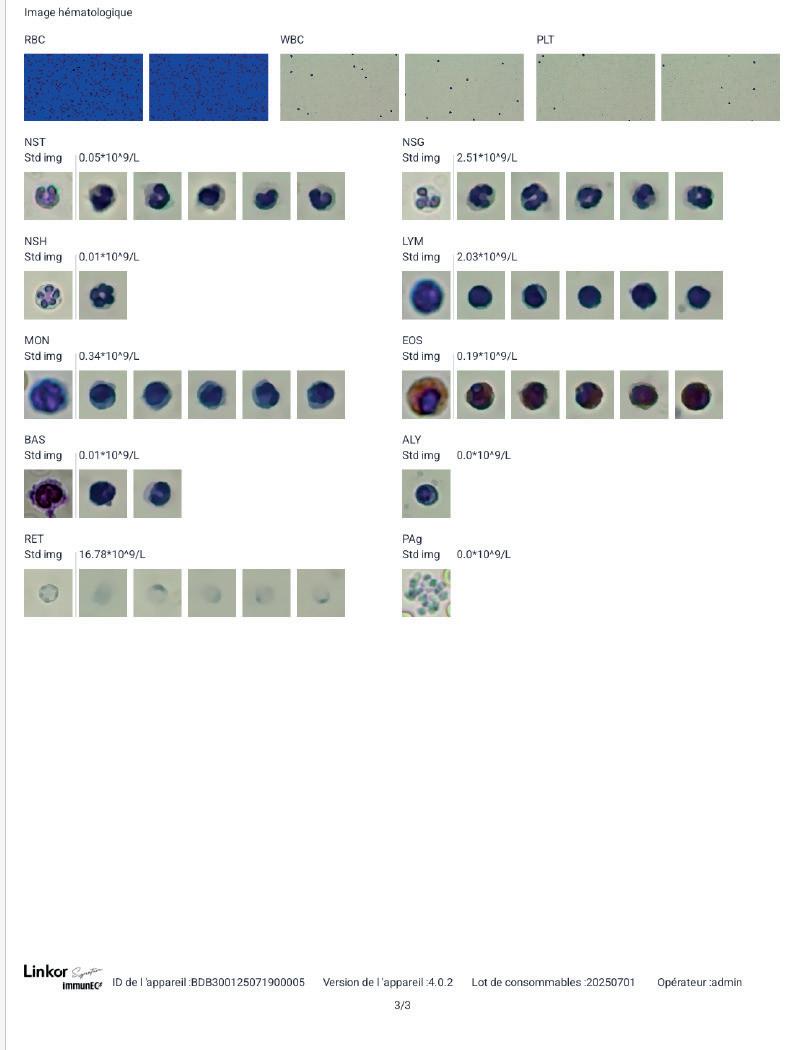

Test report Template
INFLAMMATION / OXIDATION
INFLAMMATION / OXIDATION
LIPIDS
LIPIDS
LIPIDS
LIPIDS
LIPIDS
Cholesterol
Cholesterol Total HDL Cholesterol
Triglycerides
Triglycerides
Triglycerides
Triglycerides
RED BLOOD CELLS R.B.C
RED
RED
BLOOD CELLS R.B.C
RED BLOOD CELLS R.B.C
BLOOD CELLS R.B.C
Triglycerides RED BLOOD CELLS R.B.C
WHITE CELLS W.B.C
WHITE CELLS W.B.C
WHITE CELLS W.B.C
WHITE CELLS W.B.C
CELLS W.B.C
OTHER RESULTS
Neutrophilic
2. Technical specifications
Specifications Details
Connectivity LIS, LAN, USB, Type-C, SIM
Calibration
QC Test
Reusable Dry Type QC Board, after every 200 tests. A reminder that QC Test is required will appears on screen when needed.
Size 400 × 350 × 450 mm, with 10.1-inch full-color touchscreen
Weight 15 kg
Power AC 100–240V, 50/60Hz
Noise level ≤65 dBA
3. Variability of parameters tested
