CAUTION Please read this manual carefully. It contains important safety information.
WARNING Extreme bicycle ride is a dangerous sport and requires an amazing amount of skills. By engaging in that type of activity user accepts the risk of injury or even death. Even the best bicycle will not help to drop perfectly if the user does not have sufficient skills. Also, the best protection equipment does not guarantee a hundred percent safety. Please note that in this kind of riding, a user can only trust his abilities and must accept the inherent risk. While riding a user can reach significant speeds and therefore face significant hazards and risks. Inspect a bicycle and equipment carefully and be sure that it is in perfect condition before each ride. If possible consult with bike-park personnel, expert riders, and race officials on conditions and equipment advisable. Always wear appropriate safety gear, including an approved full-face helmet, full finger gloves, body armor, bright and visible clothing that is not so loose, that it can be tangled in the bicycle or objects at the side of the road or trail, shoes that will stay on your feet and will grip the pedals (make sure that shoe laces cannot get into moving parts, and never ride barefoot or in sandals). Always use protective eyewear to protect against dirt, dust, and bugs.
WARNING Some of the service procedures require specialist tools and good mechanical skills. Therefore, to minimize the risk of serious or even fatal accidents, maintenance and assembly work on your bike should be carried out by an authorized bicycle workshop.
WARNING Failure to maintain, check and properly adjust the suspension system may cause suspension malfunction, in a result of which a user may lose control and fall.
WARNING Introducing changes in the suspension adjustment can alter the handling and braking characteristics of your bicycle. It is forbidden to change the suspension adjustment unless a user is thoroughly familiar with the
suspension system manufacturer’s instructions and recommendations. Users should always check for changes in the handling and braking characteristics of the bicycle after the suspension has been adjusted by taking a careful test ride in a safe area.
WARNING As with all mechanical components, the frame is subjected to wear and high stresses. Different materials and components may react to wear or stress fatigue in different ways. If the design life of a component has been exceeded, it may suddenly fail possibly causing injuries to the rider. Any form of crack, scratches, or change of color in highly stressed areas indicates that the life of the component has been reached and it should be replaced.
IMPORTANT NOTICE This manual is not intended as a comprehensive use, service, repair, or maintenance manual. Please consult your dealer for advice and your dealer may also be able to refer you to classes, clinics, or books on bicycle use, service, repair, or maintenance.
Riding a bicycle can be dangerous. Keep this in mind and be cautious at all times. See and be seen. Use lights and reflective clothing in low light conditions. Wearing a helmet when riding can protect the head and save a life. Always conduct a pre-ride check (detailed information can be found further in this manual).
Never ride the bicycle if you observe any technical problems or have any doubts about the proper functioning of any elements in the bicycle. Keep the bike clean and well maintained. It is strongly recommended to carry a pump, spare inner tube, patch kit, and a basic tool kit. It could be required in case of a flat tire or other common mechanical problem. If any doubts or questions ask a bicycle dealer for advice on that issue. If the bicycle is equipped with gears and user can choose a gear combination that is the most comfortable for riding conditions. Gears will allow a rider to maintain a constant rate of pedalling. Use lower gears for going uphill and higher gears for going downhill. Ease up on your pedalling pressure when you shift gears. Ask a bicycle dealer to give more advice on that issue if needed.
Pay attention to the brakes - they can be powerful and if activated too aggressively, may cause a crash. You should spend some time to get a better feel of the brakes on a side road or empty parking lot before the first ride. Avoid riding too fast, especially downhill. It is easy to lose control of the bicycle and crash at high speeds, and also you will find it very difficult to slow down especially if the hill is steep.
If a bike has been equipped with suspension, the increased speed a rider may develop will also increase the risk of injury. For example, the front of the bike may dive on the suspension fork while hard braking. A Rider can easily lose control and fall if he is not prepared for this. Please, learn how to operate your suspension system safely. Thanks to the suspension the wheels can follow the terrain better, which improves control and comfort.
This improved capacity may provide an opportunity for riding faster, but riders should be careful, not to mistake the enhanced capabilities of the bicycle for their riding skills. Improving skills takes time and practice. It is highly recommended to use locks to protect a bicycle from theft. Even if you are planning to be away from a bicycle for just a few minutes never leave your bike unlocked while unattended.

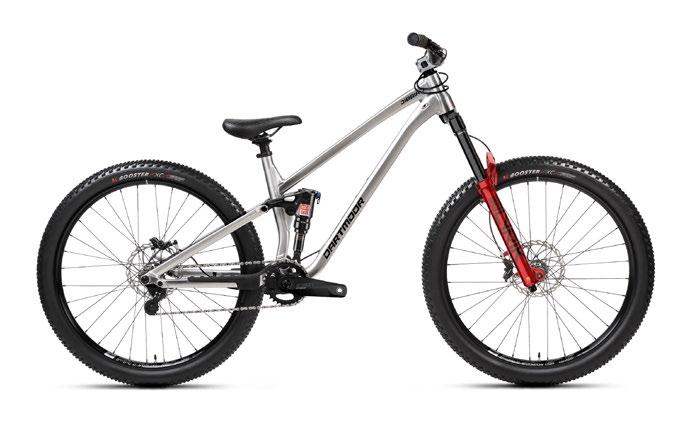

Finally, a bike that you won’t need to sell half to make slopeduro or jibbing friendly! Where Thunderbird is too heavy and Shine is too rigid - Jibbird appears! As we aim to be close to our core of “Ride Your Way”, we spotted a niche of riders fiddling with their trail bikes to make it easier to ride trail-like features with tricks. Call it like you want it - we just made a bike for you!

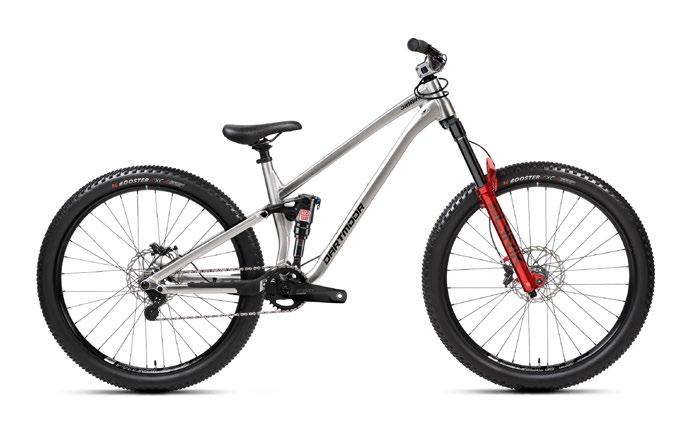

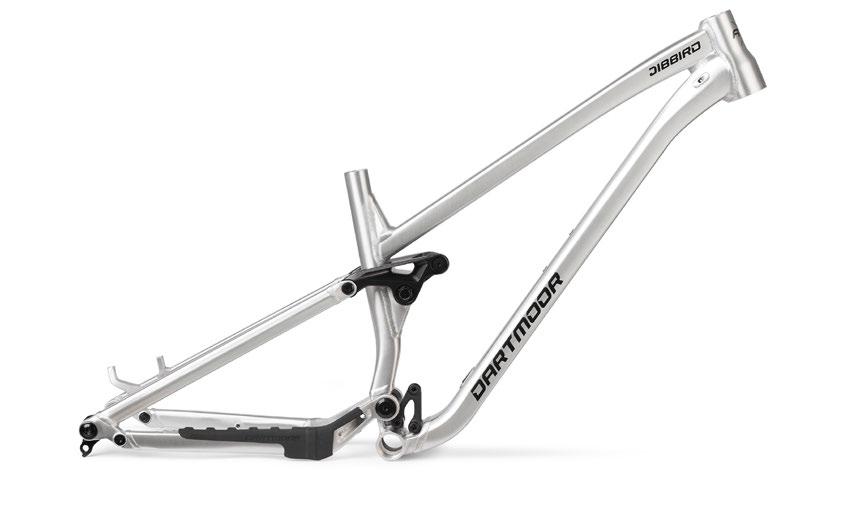

The Jibbird isn’t just a Rocbird copy—it’s built for more play! With a slightly shorter frame, dual 27.5” wheels, and a lightweight yet strong construction, it’s the ultimate trick machine.
The progressive 140 mm rear travel soaks up big landings, while the nimble 27.5” setup keeps things agile for jibs, spins, and park laps.
Freeride bikes are downhill bikes tailored to the needs of ordinary people. Minimum stroke of the shock absorber 170 mm, solid frame, wide handlebars. All this is within the limits that can be mastered by intermediate riders. When driving fast, wide tires and sensitive hydraulic brakes are essential. The high position of the handlebars in relation to the saddle and the position of the rider shifted backward ensure comfort when riding downhill. It is also possible to overcome flat sections. The weight of around 18 kg makes the climb very difficult, which is why freeriders use the lifts most often. It is definitely a bike for fans of extreme experiences.
As slopeduro became a style of riding you can call a mix of slopestyle bikes ready to play on trails, we knew Dartmoor Bikes needed something more than just a platform to build such a bike. We adjusted our Rocbirds frame to be more tricks friendly and now it is your turn to build on it whatever you want! Light construction and progressive 140 mm of rear travel are more than enough to land some bigger jumps, while the playfulness of 27.5-inch wheels keeps it agile.
REACH horizontal distance from BB center to HT center
STACK vertical distance from BB center to HT center
ST seat tube length (BB center to ST top)
eTT top tube length (effective)
CS chain stay length
HT head tube length
HT angle head tube angle
eST angle seat tube angle (effective)
BB drop bottom bracket height (BB center to WB)
WB wheel base
standover vertical distance from ground to top of TT (halfway along TT with wheels mounted)
We know how important it is for the user to have a working piece of equipment, especially when enduro riding can be this unpredictable sport. In this regard, we offer a list of dedicated spare parts and service parts to help properly service your Dartmoor-Bikes equipment.

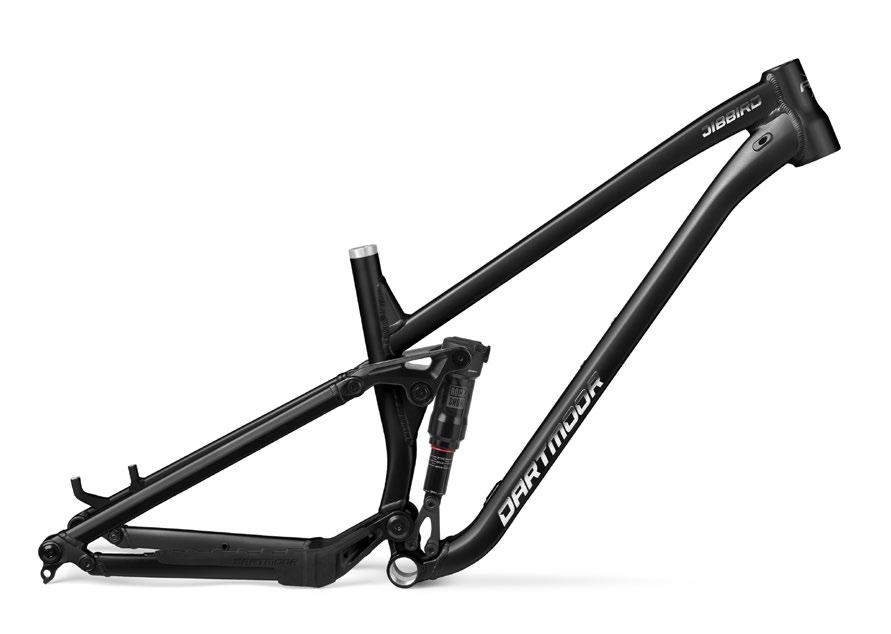

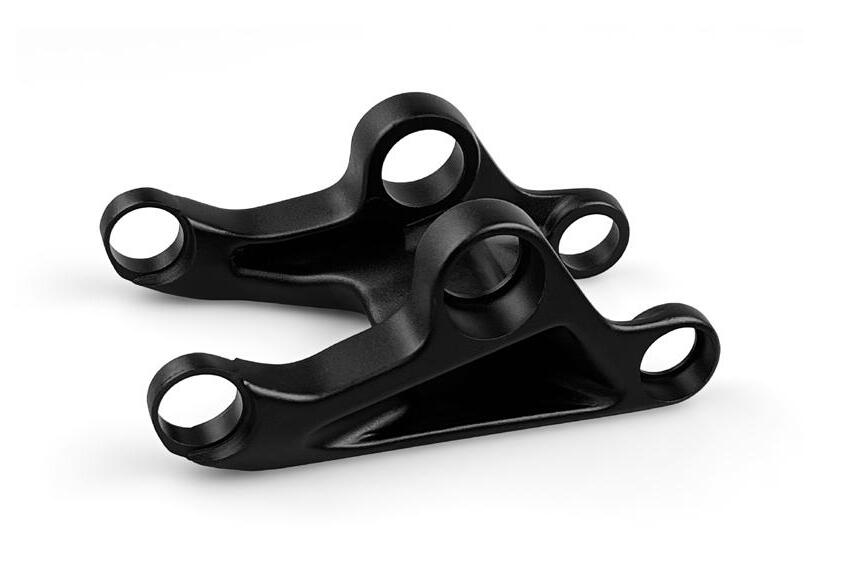

Aluminum Rocker for Rocbird/Rocbird Junior and Jibbird frames

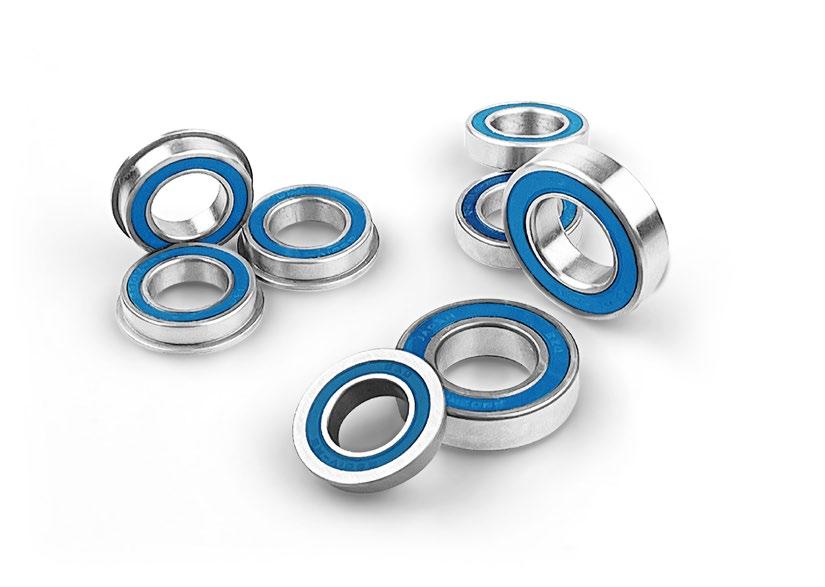

Bearings set for Rocbird/Rocbird Junior and Jibbird frames

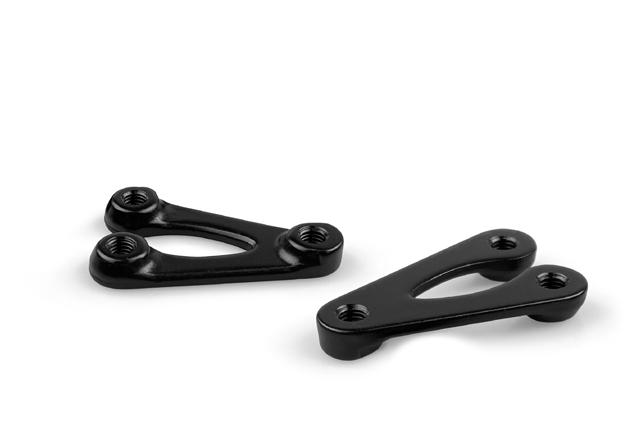

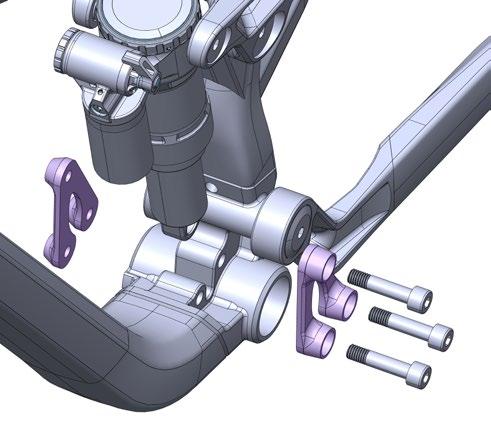

Shock mounts with bolts, for 185x50 mm shock (trail version) for Rocbird frame and Jibbird frame

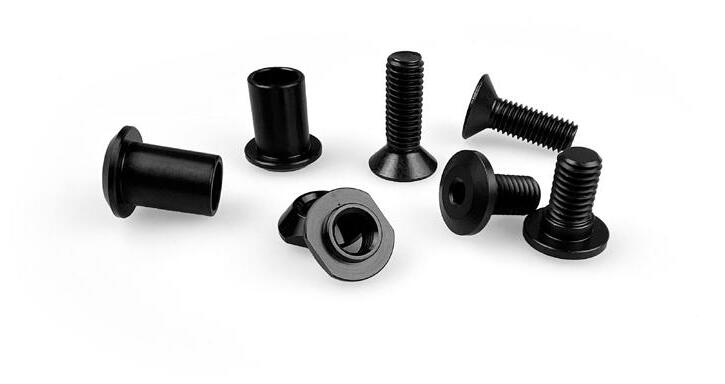

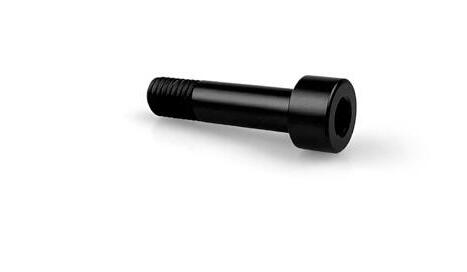

Rocker shock mount bolts for Rocbird, Rocbird Junior, Jibbird and Thunderbirds CF, SE, FR frames

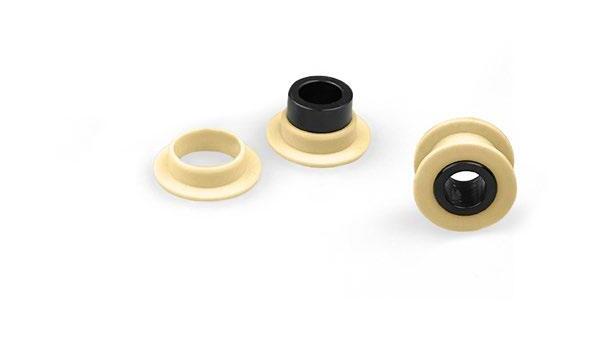

DU bushings set (for chainstay-dropout connection) for Rocbird/Rocbird Junior and Jibbird frames

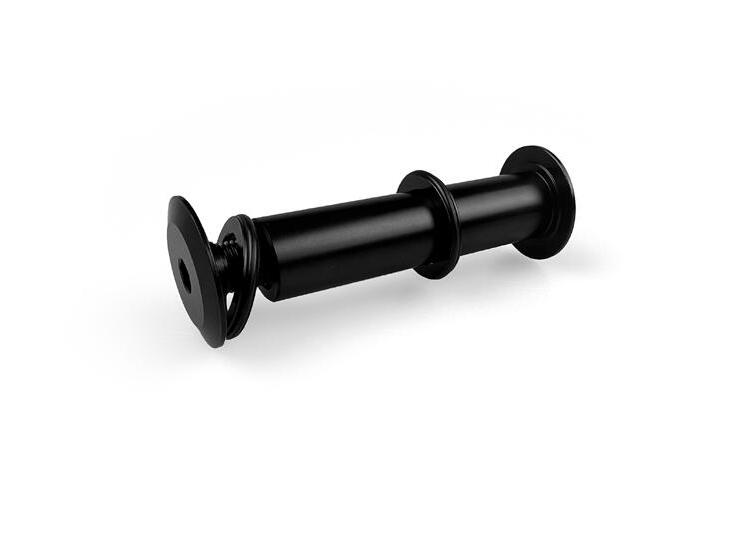

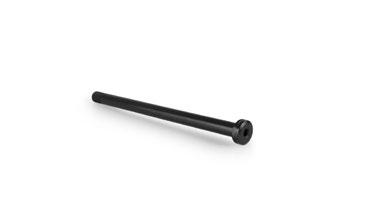

Main pivot axle bolts set for Rocbird, Rocbird Junior, Jibbird, Thunderbird SE and FR frames

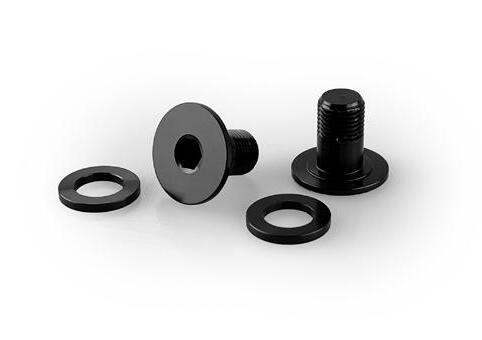

Rocker-frame connection bolts set for Rocbird, Rocbird Junior, Jibbird, Thunderbird SE and FR

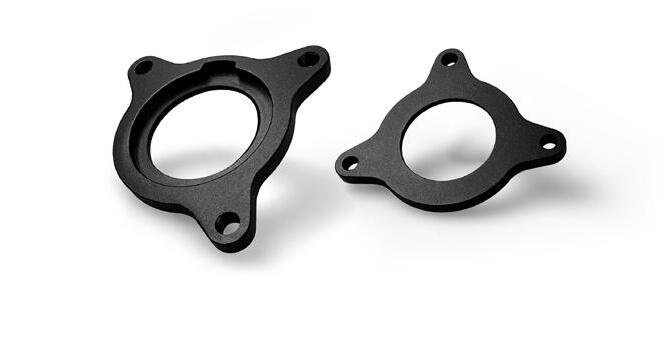

ISCG chain device adapter Rocbird/Rocbird Jr 27.5/26 and Jibbird frames

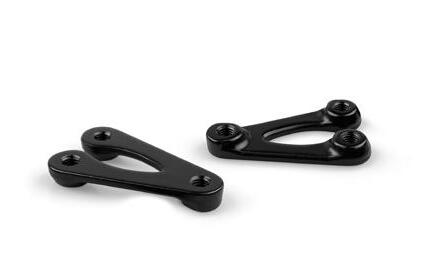

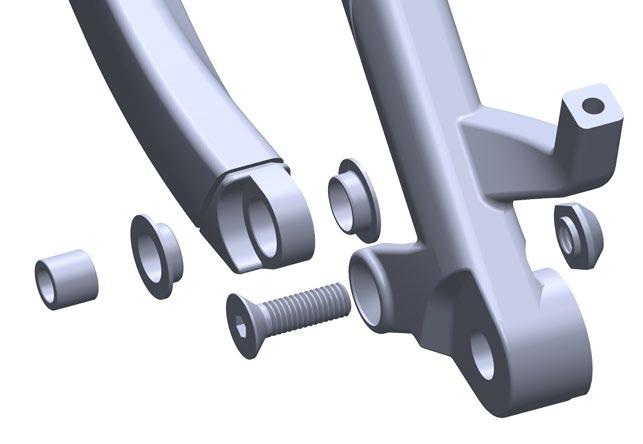

Seatstay-rocker and seatstay-chainstay connection bolts set for Rocbird/Rocbird Jr and Jibbird frames
Frame shock mount bolt for Rocbird/Rocbird Jr 27.5/26 and Jibbird frames
Tutorial video showing how to set up the suspension on a full-suspension bike.
Watch the video
Suspension settings are a matter of personal preference. Some riders prefer a soft setup, others a hard setup. Depending on the riding style, skills, and conditions on the route. The suspension on a trail/ enduro bike works fine with approximately 20% -30% initial sag. For the front shock, the value of 20-25% should be assumed, while for the rear shock the initial deflection should be about 25-30% of the total stroke. Before starting work, set the return damping to the fully open position.
To measure the SAG, follow the instructions/indications below:
• Move the O-ring on the stanchion so it touches the fork seal, the same for the rear shock.
• Stand on the pedals with your full body weight with full equipment: protective armor, helmet, neck protector, water bottle or water bag, etc. It is important that the equipment and clothing reflect the real riding conditions to give the most accurate results. While standing on the bike, bend the suspension several times, then push the O-ring against the shock seals again. It is best to have someone to help, but you can deal with it yourself, for example by leaning against the wall of the building.
• Get off the bike carefully and measure the SAG with a ruler or tape measure printed on the stanchion, or ask someone to read the value on the scale when standing on the bike in a neutral po-
sition (slightly bent knees and hands in elbows). Inflate or deflate the damper until the desired deflection of the shock is achieved.
In the case of an ungraduated rear shock, to determine the percentage of initial deflection, its total deflection must first be measured, because it is shorter than those given in the catalog for the total travel of the rear swingarm. To do this, reduce the pressure in the air chamber so that you can bend the shock to its extreme position, then inflate it and measure the distance between the O-ring and the seal. For example, a bicycle with 160 mm travel has a rear shock with 70.87mm deflection, assuming a SAG of 30%, its value measured on the shock absorber piston with correctly set pressure should be 21.26mm (70.87 x 0.3 = 21.26mm).
In the damper return damping setting, the so-called „curb test” works best. To proceed with the adjustment, follow the instructions/indications below:
• Unscrew the Rebound valve to the extreme position, depending on the manufacturer on the casing towards the „bunny” symbol, „Fast” or minus sign. There is no return damping in this position.
• Find a less traveled road in your area with a medium size curb.
• While sitting in the saddle, without using the brakes, slowly descend from the saddle. The damper piston retracts first, then returns to its original position and begins to oscillate until it stops.
• To counteract the “rocking” phenomenon, turn Rebound two clicks towards the “turtle” symbol (+; “slow”)
and repeat the test by rolling off the curb. By adjusting in this way, you should observe the moment when the damper stops oscillating after a rebound.
• The resulting setting is the initial setting from which you should start. Further adjustments for two clicks backward or forwards can be made on the trail depending on riding conditions and preferences.
• Remember that, as with the SAG, the return suppression is determined by the weight of the user and all equipment. The greater the weight of the bike user, the greater the damping will be needed to absorb the rebound energy.
It is best to set the front shock return damping as follows:
• Start by unscrewing the damper to the extreme position as it was in the case of the damper. Stand next to the bicycle, depress the shock as far as possible, and release it vigorously. Observe that the front wheel is clear of the ground. Increase the damping by two clicks by using the adjuster on the bottom of the right shock leg, turning towards the „turtle” symbol („+”; „slow”).
• Repeat this process until the wheel stops springing off the ground. The basic setting obtained in this way can be corrected on the trail depending on the driving conditions and individual preferences.
• Finally, get on the bike and on a straight road, vigorously bending the suspension, check that the front and rear work evenly. By pressing the suspension in this way, bend it in the range of 80-90%, if it is difficult, it may turn out that the shock or damper needs to be adjusted in terms of the air chamber capacity. To do this, contact an experienced service provider who will adjust the size of the chamber with the help of tokens.
COMPRESSION – speed of compression (deflection)
Most air shocks have a compression speed damping adjustment implemented by a single knob. It enables smooth or gradual regulation until the shock is blocked. This adjustment is most often used while driving, adapting the shock to the type of route. The fully open position is most often used when descending on uneven terrain when we want the best traction. Slowing down the compression speed to about half of the range is used in normal riding on flat sections and in the case of riding on flow routes so that the suspension does not absorb the user’s speed while riding on moguls. This setting is the most used and the most universal, also for people who like to jump on a bike. The shock absorbs en-
ergy when hitting a punch, so some riders prefer to increase compression damping.
The extreme setting is the least used, most often when climbing steep climbs.
More advanced designs of the shock, mount a damper with two regulators, fast and slow compression. Slow compression damping acts on the first half of the shock travel, mainly when braking, negotiating steep descents, rides, or moguls. Increasing it improves the efficiency of pedaling, prevents „swinging” and reduces the collapse of the suspension when overcoming the above-mentioned elements. Similar to the case when you have only one compression knob. Therefore, the adjustment is made in the same way.
High-speed compression damping affects the second half of the stroke of the shock from the middle of the deflection to the moment of compression.
Typically, less experienced riders do not use this adjustment and it remains in the open position. Users who like to ride more aggressively, forcing the suspension to work quickly, after hitting a large obstacle will feel that the suspension dives too quickly to the end of the stroke, they can counteract this phenomenon by increasing the damping of quick compression.

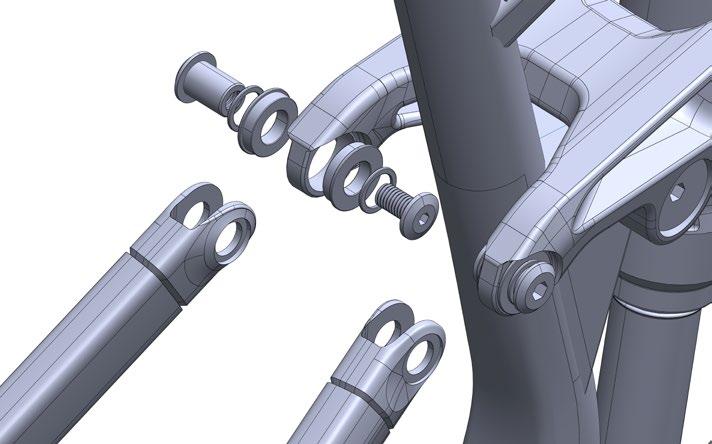

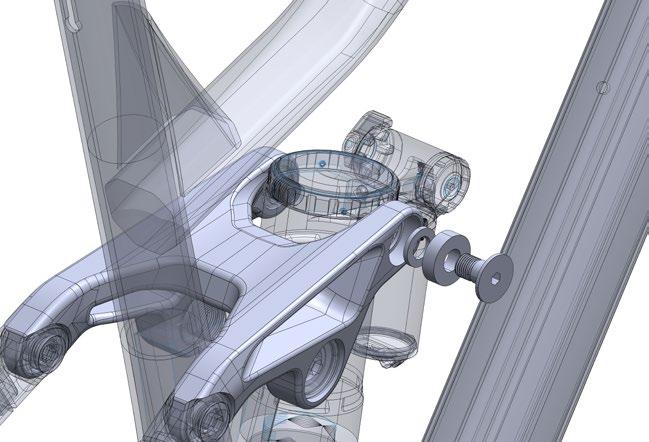

Rocker shock mount: 1. Shock mont rocker bolt – 2 pc.

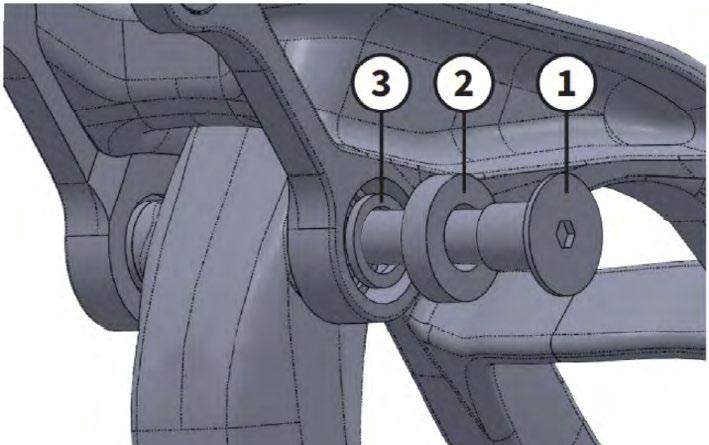

Main pivot assembly:

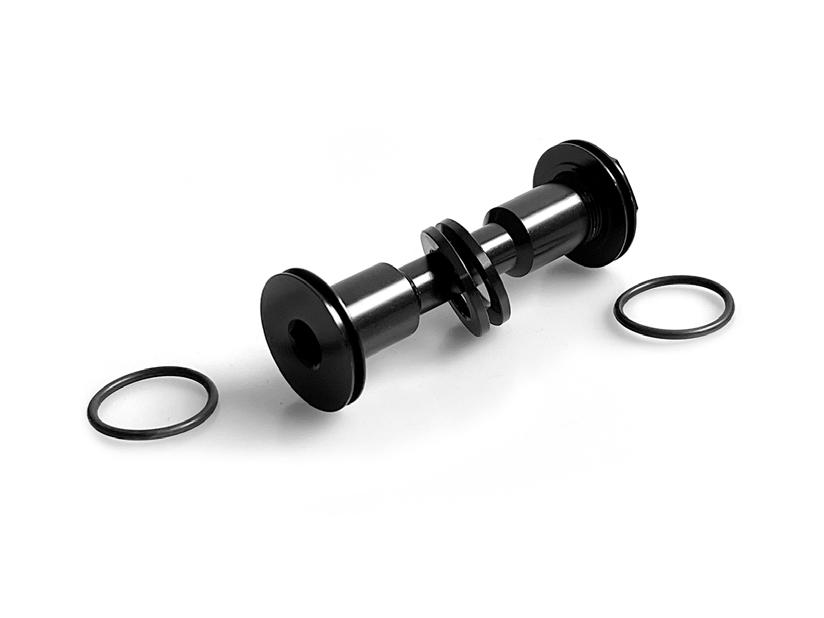

1. Main pivot shaft – 1 pc.
2. Main pivot bolt – 1 pc.
3. 6903 MAX LLU bearing – 3 pcs.
Rocker main pivot assembly: 1. Rocker main pivot bolt – 1 pcs.
With the Dartmoor Singlespeed Tensioner, assembling the rear wheel is extremely easy and takes only about 5 minutes.
To properly install the rear wheel:
• First, remove the chain. This makes the whole process much easier.
• Slide the rear wheel into the dropout from the back, with the tensioner already assembled.
• The tensioner is shaped to allow the wheel to slide smoothly into the dropout.
• Insert the axle 12 mm and tighten with a torque wrench to 25 Nm.
HOW TO
Correct tightening of the bicycle fasteners, nuts, and bolts are essential. Too little force and the fastener may not hold securely. Too much force and the fastener may tear, stretch, distort or break the thread. Either way, incorrect torque can damage the component, which can cause you to lose control and fall. In case of doubt or problems found during your test ride, seek immediate advice from a professional bicycle mechanic.
See the instructions of the suppliers of the suspension fork, rear shock, and other parts that come with this frame. Do not use the bicycle until all problems have been resolved. Riding a bicycle with any defects may be dangerous to health and life. If you are not a qualified bicycle mechanic, do not make any of these adjustments yourself and seek advice from your local bicycle dealer.
The rear suspension bolts (rear shock and pivots) have been tightened at the factory to the specified torque. If you re-adjust, take particular care when re-tightening. DO NOT lubricate any of the pivot points. The factory uses high-quality self-lubricating Teflon.

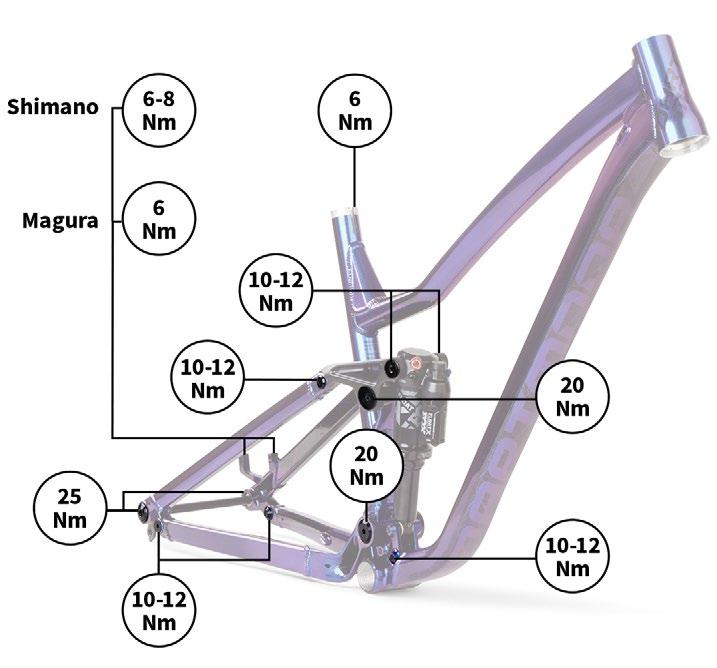

Tightening torques (Nm) for individual points on the frame:
• Main pivot assembly: 20 Nm
• Rocker-seat stay pivot assembly: 10-12 Nm
• Chainstay-seat stay pivot assembly: 10-12 Nm
• Rocker-main pivot assembly: 20 Nm

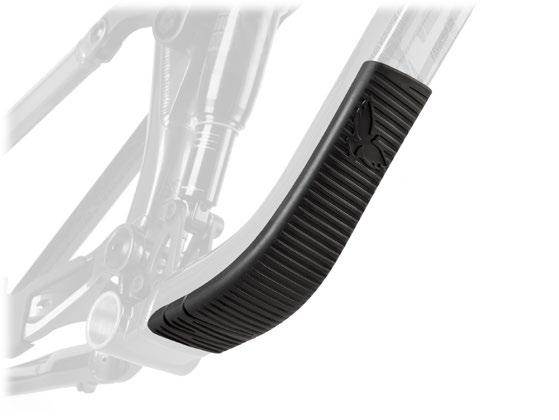

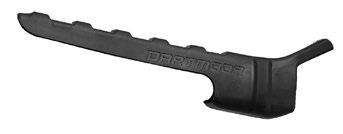

Thermoplastic elastomer chainstay protector for Rocbird/Rocbird Junior 27.5/26 and Jibbird frames
Our custom chainstay protectors are crafted from thick thermoplastic elastomer material, offering superior impact resistance against scratches, dents, and impacts. Weight: 25g
A self-adhesive set of protective films can be used for additional protection of the downtube.
Before applying the protective film to the frame, degrease and clean its su face.
• Upper shock bolts: 10-12 Nm
• Lower shock bolts: 10-12 Nm
• UDH compatible derailleur hanger/frame axle: 25 Nm
ATTENTION Torque may vary depending on the brake manufacturer. Check the user manual for your bicycle brakes to determine the recommended torque for tightening the brake calipers.
Thermoplastic elastomer down tube protector for Rocbird , Rocbird Junior and Jibbird frames
Custom chainstay protectors crafted from thick thermoplastic elastomer material, offering superior impact resistance against scratches, dents, and impacts.

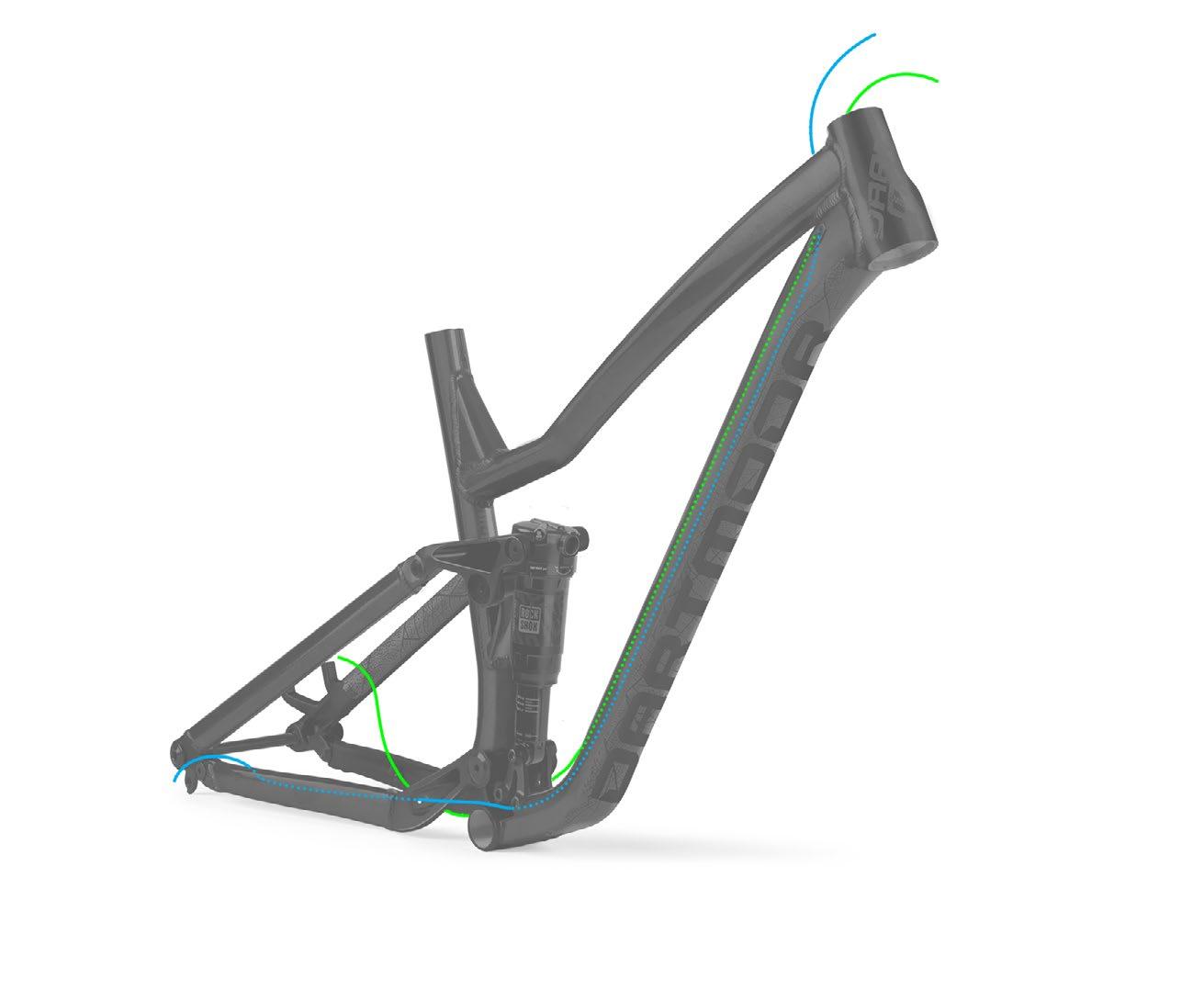

Rear derailleur cable Rear brake cable (always routed outside)
Do not ride the bike if any defect is noticed.
It is recommended that the user take care of the frame of his bike, which will allow him to enjoy it for a longer period. Before each ride, the bicycle should always be inspected, which should include the following points:
• clean the frame - remember that high-pressure washing may damage some parts of the bike, so avoid it,
• carefully inspect for signs of potential failure including cracks, corrosion, dents, paint peeling, and any other signs of potential problems and misuse.
• If you find anything suspicious, contact your local bicycle dealer for a proper checkup. These are very important safety checks to prevent accidents, injuries and shorten the life of the product.
Points/things to check before each ride:
• That all frame bolts are properly tightened - see #tightening torque.
• Connecting the wheels to the frame and fork - is crucial for the user’s safety.
• If axles are bolted, they must be properly tightened to the manufacturer’s specifications.
• If there is a quick releaser, ensure that it is in the CLOSED position with the appropriate resistance level.
• The steering system includes handlebars, stems, headsets, and a fork. All elements should be properly twisted to ensure safety while riding. If the user wants to make any changes, be careful as incorrect settings can be very dangerous. It is always best to seek professional advice in this regard.
Check that there is play in the rudders, the connection of the stem to the handlebars and the connection of the stem to the steerer tube, the connection between the handlebars and the stem, try to lift the handlebars up and down -there should be no movement between the two. Check that there is no additional slack in the controls (stand next to the bike, tighten the front brake and push the bike back and forth. There should be no play between the frame, and the fork). If there is any play, contact your local bike shop. Do not make any adjustments yourself, unless you are sure of your abilities. Adjust the steering according to the instructions from the manufacturer of the headset. All parts of the sternum should be regularly checked for damage or cracks. If a user finds anything suspicious, they should immediately contact an experienced bicycle mechanic. A damaged steering system can cause serious injury or even death.
• Connecting the bottom bracket to the frame. There should be no play between the frame and the carriage.
• The connection between cranks and the bottom bracket.
• Connecting the pedals to the cranks.
Points/things to check before each ride:
• Linkage of the derailleur to the frame - make sure that it functions properly before each ride.
• Attach the brake caliper to the frame and fork.
• The general condition of the front and rear shock (pay particular attention to any cracks, or deformation).
• Air Shock pressure (in the case of air forks). See #suspension settings and manufacturer’s manual. Make sure the
SAG does not exceed a reasonable limit. Make sure the air pressure does not exceed the limits provided by the damper / fork manufacturer.
• Clean the tubes of the rear shock and fork.
• Brake cables and their housing for kinks, rust, broken bands, or frayed ends. If any damage is noticed, the cables should be replaced immediately. Damaged cables can seriously affect braking performance.
• Be sure to follow the manufacturer’s instructions for servicing the shock absorber and other parts. Instructions for the use of additional parts are provided in the box.
11. LIST OF COMPONENTS
Box includes:
• frame and set of cable inserts
• rear axle
• UDH hanger
• CS protector
• shock mounts for 185x50 mm shocks
