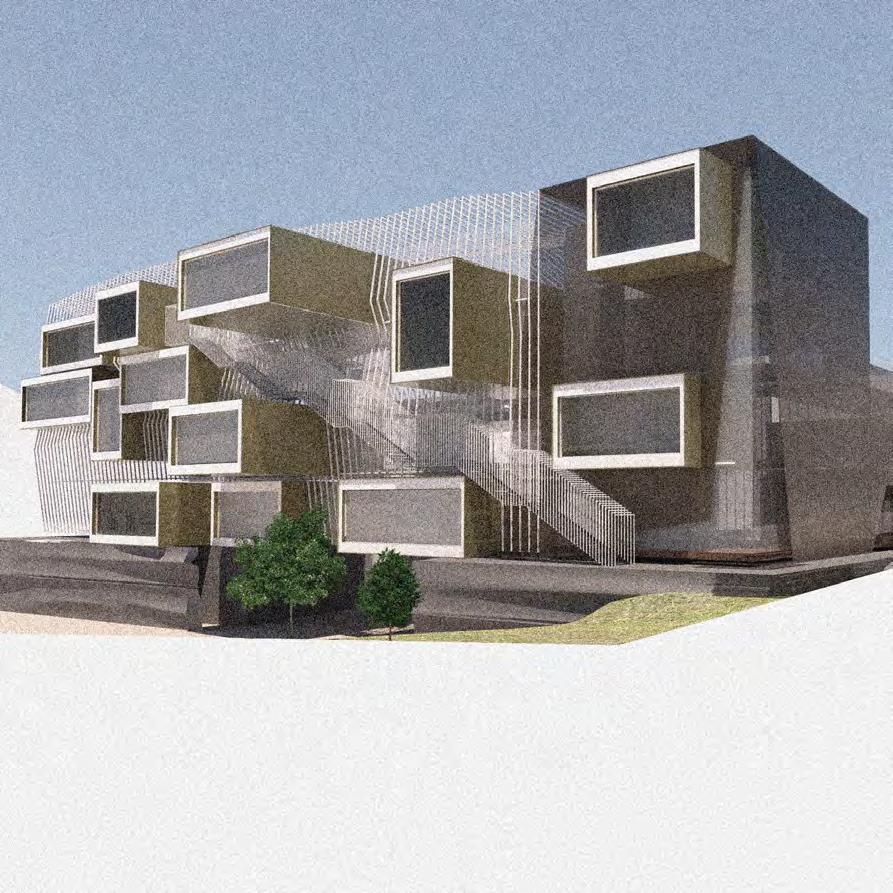

Cubed Mediateque
CCA BArch Studio III Project, Fall 2023
Professor: Olivia Ramos
Location: Dogpatch, San Francisco
Cubed Mediateque is a proposed mediateque design for the Pier 70 district of San Francisco, California. The design is a culmination of the site’s rich, industrial past. During World War II the area was used as a port for building and maintaining military ships. Many of the orginal warehouses and dry docks still stand in the area. The deisgn of Cubed Mediateque follows a rigid structural system, comparable to the structures of crane and warehouse steel frame structures. While harkening to the past for material and structural insporation, the library is designed for the future. As sea levels rise the land that Pier 70 covers may be taken back by the Bay. The Modular design of the Mediateque allows it to be easily deconstructed and moved to new locations.
cubed mediathque 02
Media: Rhino 7, Adobe Illustrator, Adobe Photoshop, V-Ray
thompson
Formal Collage
Site Circulation Map
Context Collage
Floor I Plan cubed mediathque 04
thompson Sharing Spaces Information Knowledge Back of House Sharing Spaces Information Circulation Program Structure
Site Plan cubed mediathque 06
thompson
Floor Plans

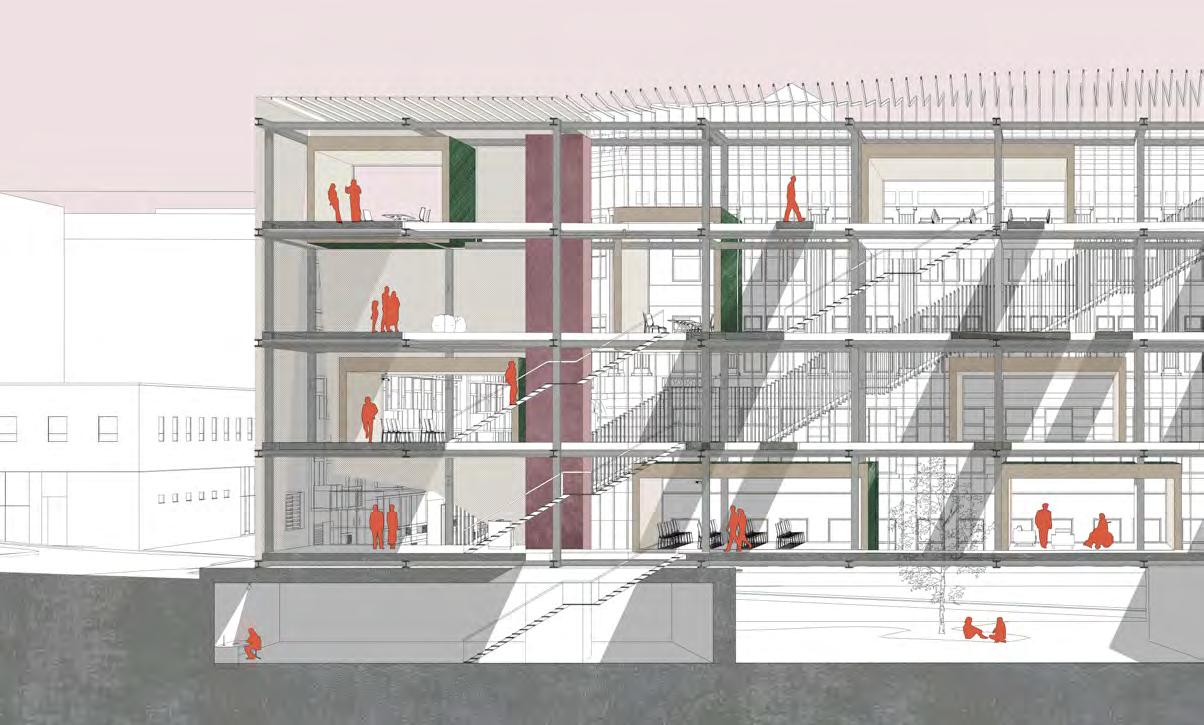

Perspective Section: North-South
Section: East-West
cubed mediathque 08
thompson

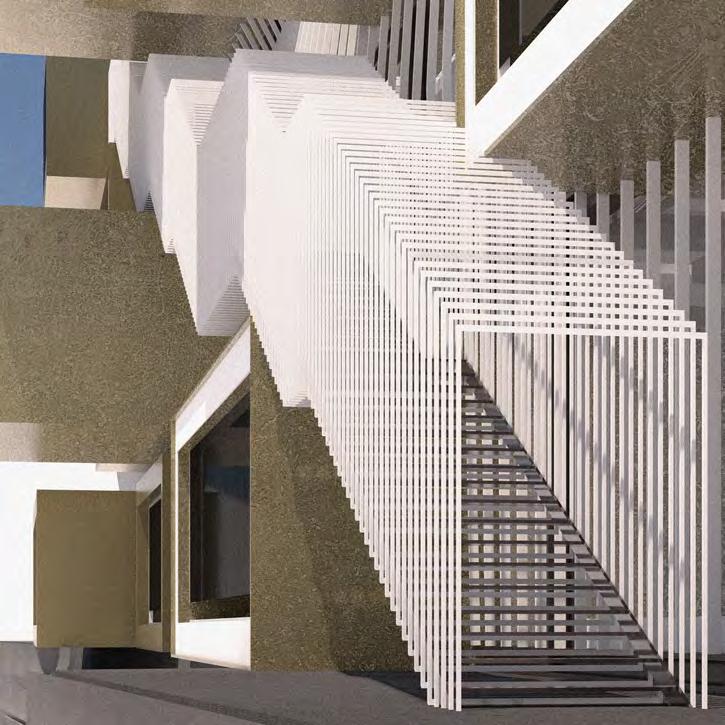

Egress Staircase

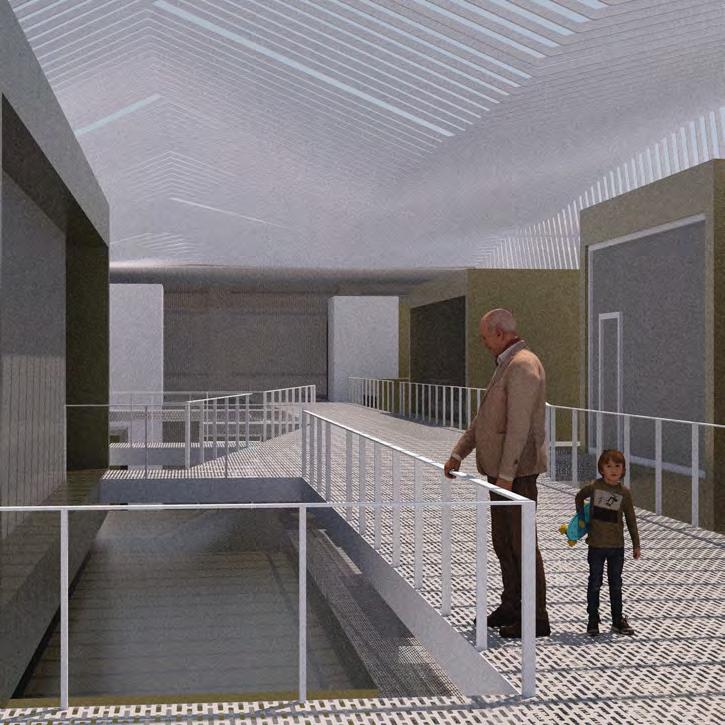

Upper Corridor
Facade Detail cubed mediathque 10
thompson
Ambivalent Shelter
CCA BArch Studio II Project, Spring 2023
Professor: Dominique Price
Location: Rodeo Beach, Marin
The Rodeo Beach Visitor Center is designed to be used by the diverse group of people that come to visit the Marin headlands each year. It provides restrooms and showers at ground level for active individuals who spend their time hiking in the hills or in the ocean. Picnic platforms are situated to be shaded on warm days and to receive afternoon sunlight on cold January days. The upper deck of the facility is accessible by both an ADA ramp and steps. On the upper floor, one can find a space sheltered from the elements with views of the ocean and rolling hills. The second floor acts as both an information center and a place of rejuvenation at the cafe. Built comparatively to an open plan the spaces have the potential to be used differently over the course of time.
Media: Rhino 7, Adobe Illustrator, Adobe Photoshop, V-Ray
ambivalent shelter 12
Process Diagrams
thompson
Elevation
ambivalent shelter 14
Upper
Deck Plan
thompson Site Plan
Section North-South ambivalent shelter 16

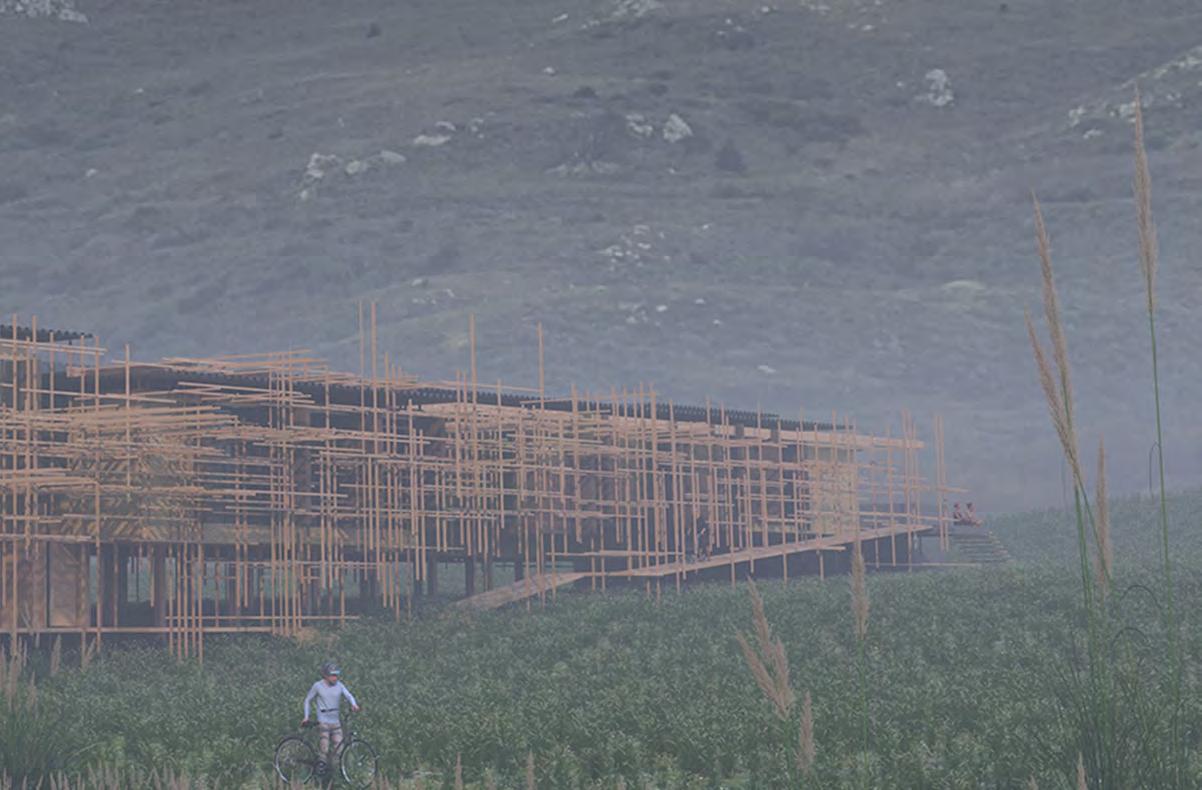

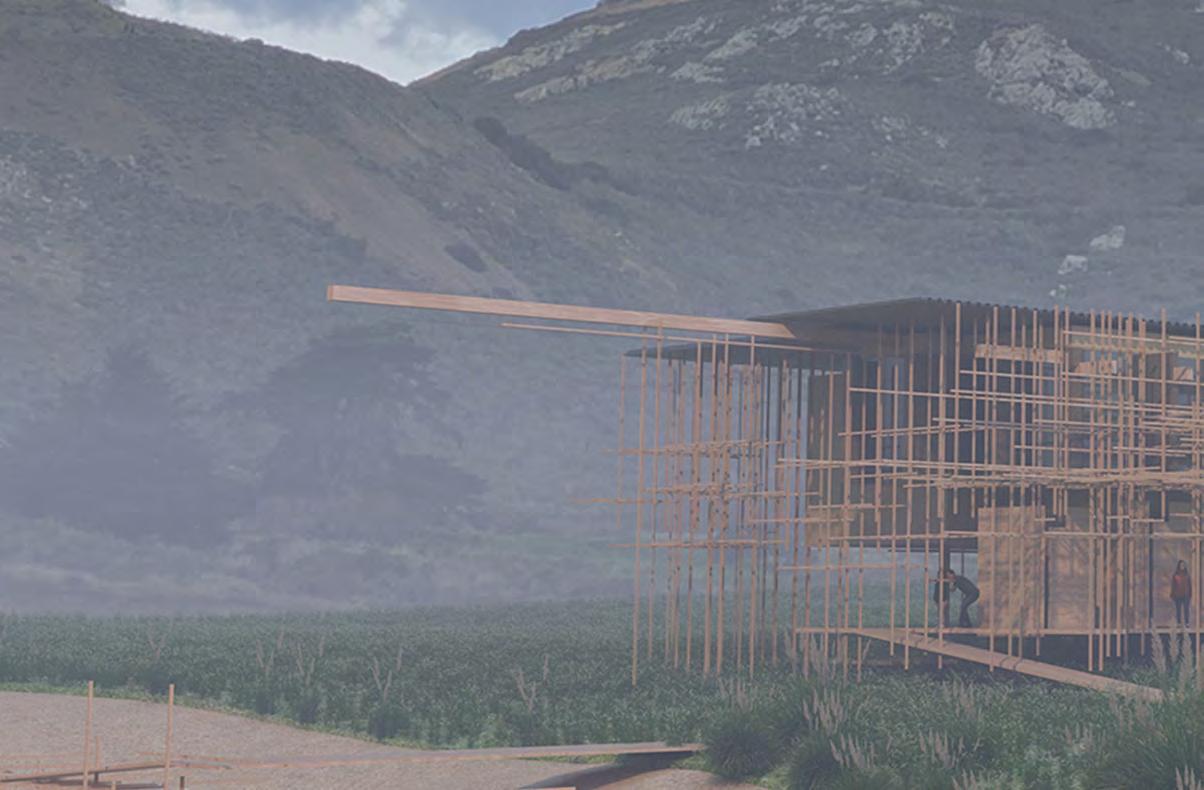

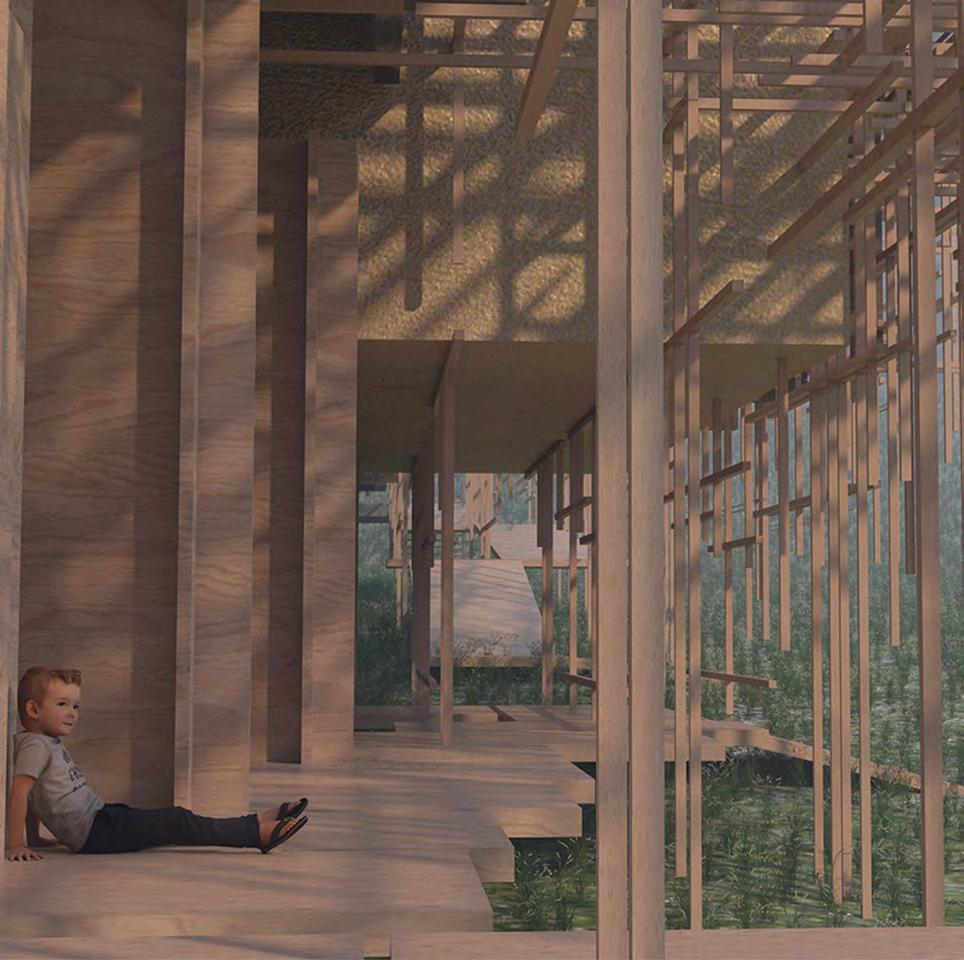

Exterior Rendering
thompson
Owl House
CCA BArch Studio II Project, Spring 2023
Professor: Dominique Price
Location: Rodeo Beach, Marin
Owl House incorporates both public and private spaces.
Visitors are welcomed into the community hub via the raised wood boardwalk, or move away from the gathering center, towards their more secluded sleeping rooms. The separated sleeping rooms are the highlight of the design--they are situated to offer guests a private view of the rolling hills, the Cypress trees, or the Rodeo Lagoon. While the private deck spaces are oriented towards the central area of the site, windows, and views from the bedrooms are completely private.
Media: Rhino 7, Adobe Illustrator
owl house 18
thompson Section North-South
Site Plan Cabin Plan owl house 20
thompson
Elevation I
Elevation II
+ Molds

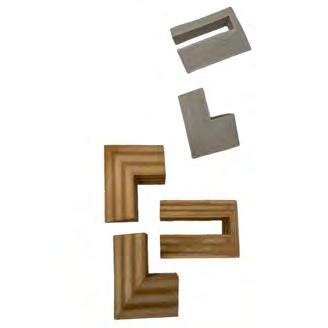

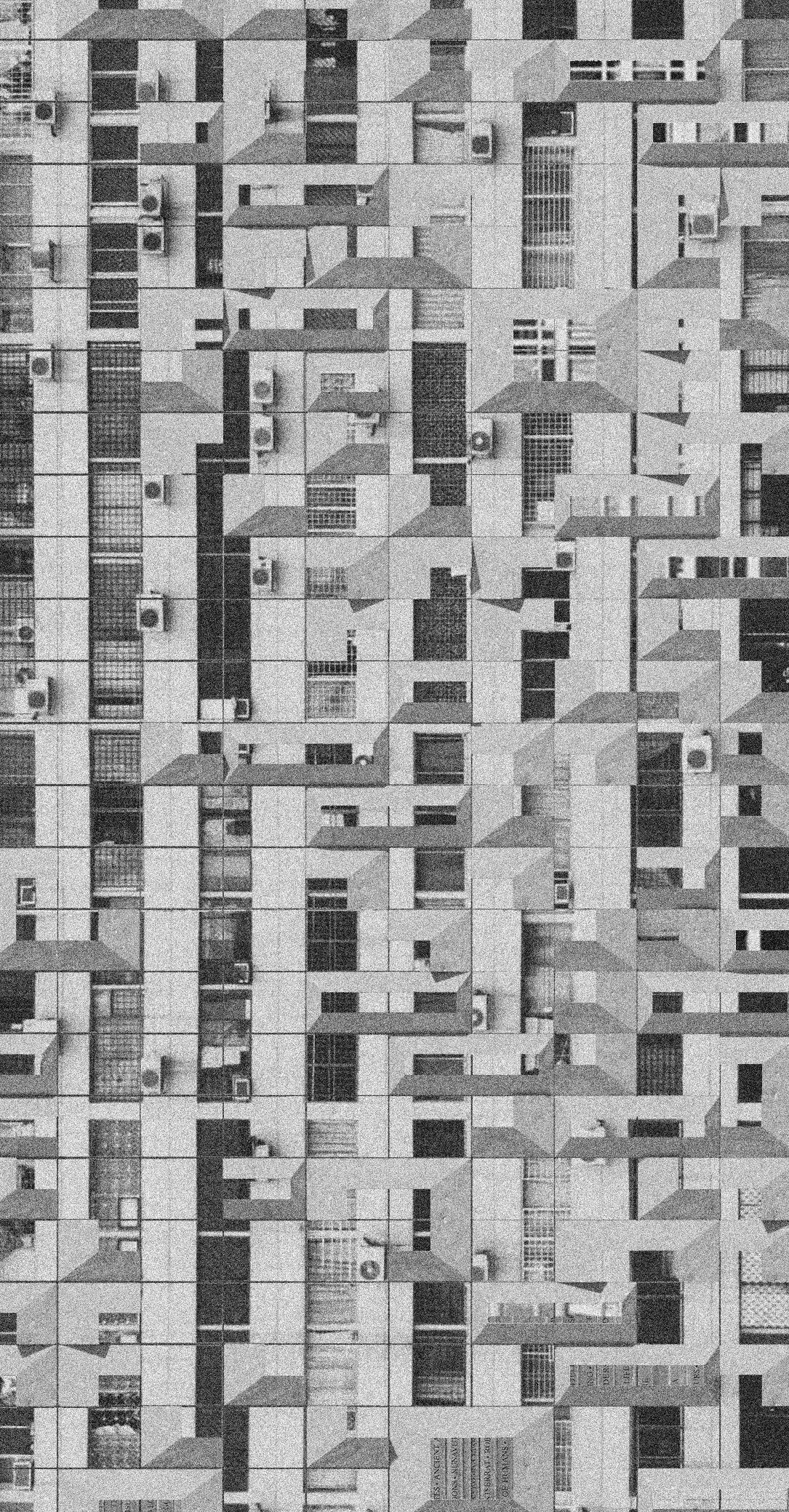

Tiles
Tiled Facade
Professor: Alex Schofield
Team Members: Berk Kip, Ray Shao
Beginning with two simple shapes, “L” and “U” the group rotated and shifted the two tiles to create larger, more complex surface facade. The facade has the abiilty to be manipulated and re-arranged per project. Its main attribute, to shade residence as well as frame elements within apartment highrises: windows, doors, balconies, etc. The facade acts to highlight specific parts of a building, while creating chaos in other areas.
Media: Rhino 7, Grasshopper, Adobe Photoshop, V-Ray Model: CNC Router, MDF, Clear Coat sealent
CCA BArch Design Media III Project, Fall 2023
tiled facade 22
thompson WorkHouse (Guthrie+Buresh, West Hollywood, CA) WorkHouse CCA Material & Methods Fall 2022 Instructors: Brendon Levitt Dave Maynard Margaret Ikeda IA:Max Chen Student Sam Vallejo Curran Thompson ASSEMBLAGE Project name: WorkHouse (Guthrie+Buresh, West Hollywood, CA) Ground & Foundation CCA Material & Methods Fall 2022 Instructors: Brendon Levitt Dave Maynard Margaret Ikeda IA:Max Chen Student Sam Vallejo Curran Thompson ASSEMBLAGE Project name: WorkHouse (Guthrie+Buresh, West Hollywood, CA) Ground & Foundation CCA Material & Methods Fall 2022 Instructors: Brendon Levitt Dave Maynard Margaret Ikeda IA:Max Chen Student Sam Vallejo Curran Thompson ASSEMBLAGE Project name: WorkHouse (Guthrie+Buresh, West Hollywood, CA) Base Drawings
1:64 model

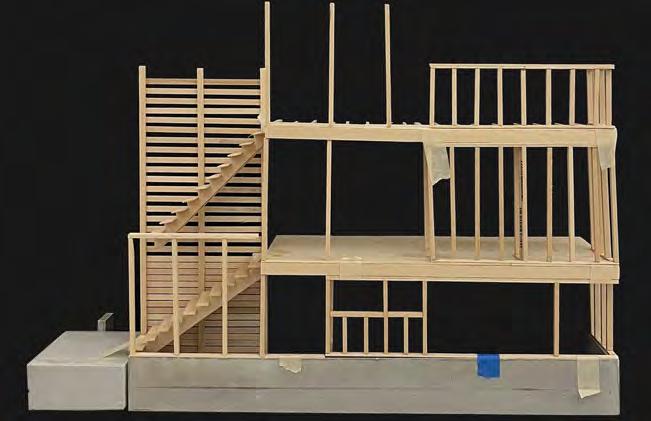

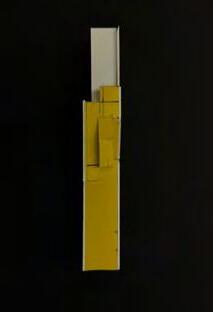

Armature
II
Armature I

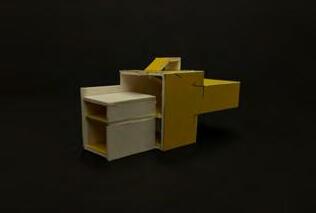

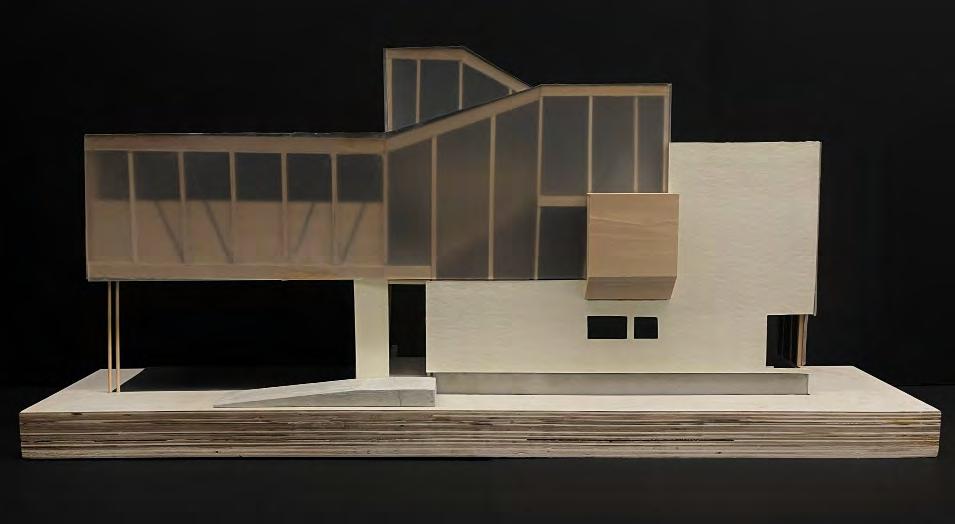

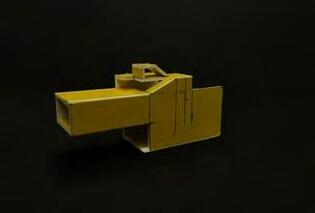

Final Model

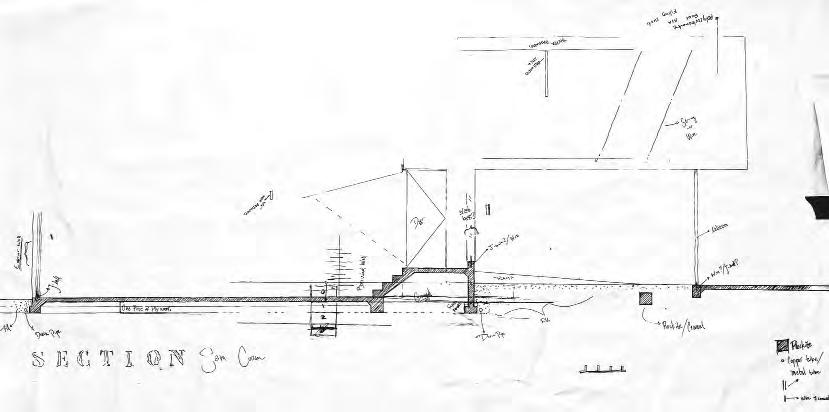

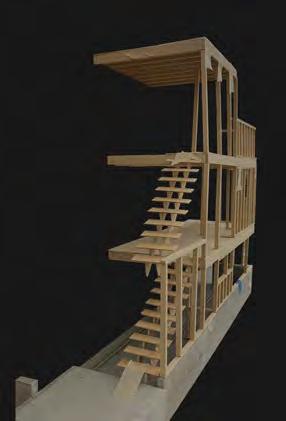

Traced Section
Work House Study
CCA BArch Materials + Methods Project, Fall 2022
Professor: David Maynard
Team Members: Alana Abuchibe, Zi Ching Ooi, Sam Avila
As a group, Alana Abuchibe, Sam Avila, Zi Ching Ooi and I studied the building techtonics present in the case study: Work House by architects, Guthrie and Buresh. By studying plans and sections and buildng section models of the home we were able to futher understand the architects deisgn intent.
Model: Rockite, Bass Wood, Plywood, Mat board, foam, wire, acrylic
work house study 24
thompson For our project we chose Isla of Margarita in Baja California. This climate has a slight uctuation between summer and winter. The air temperature in the summer can reach up to 95 degrees while in the winter it gets down to 55. We have decided to build our building with two feet of insulated rammed earth. The ground temperature can get to 75 in the summer and 65 in the winter. So we have decided to have two stories one underground and the other is above ground with ventilation shafts for the north west wind that comes through the site, along with a cooling tower to help bring the air down the entire building. Along with tiles on the ground oor to help hold a steady temperature for the interior. We have also decided to put big windows to allow light; they are triple pane to not allow too much heat to escape. With shaded windows under the level two deck. This building is 12:00 pm 18:00 pm Window Construction triple lowE panes, argon lled 4” dense packed cellulose air gap 0.5 compact ground South Shading Mask For our project we chose Isla of Margarita in Baja California. This climate has a slight uctuation between summer and winter. The air temperature in the summer can reach up to 95 degrees while in the winter it gets down to 55. We have decided to build our building with two feet of insulated rammed earth. The ground temperature can get to 75 in the summer and 65 in the winter. So we have decided to have two stories one underground and the other is above ground with ventilation shafts 12:00 pm 18:00 pm 30'-0" 25'-0" 2'-0" 55° 60° Winter Room south window Winter Room Summer Room north west wind insulated rammed earth walls ventilation shafts large north facing window triple pane glass windows tile oors cooling tower Window Construction Wall Construction triple lowE panes, argon lled 4” dense packed cellulose 4” air gap 1.6 R 4.8 TOTAL 22.65 compact ground For our project we chose Isla of Margarita in Baja California. This climate has a slight uctuation between summer and winter. The air temperature in the summer can reach up to 95 degrees while in the winter it gets down to 55. We have decided to build our building with two feet of insulated rammed earth. The ground temperature can get to 75 in the summer and 65 in the winter. So we have decided to have two stories one underground and the other is above ground with ventilation shafts for the north west wind that comes through the site, along with a cooling tower to help bring the air down the entire building. Along with tiles on the ground oor to help hold a steady temperature for the interior. We have also decided to put big windows to allow light; they are triple pane to not allow too much heat to escape. With shaded windows under the level two deck. This building is Refuge Baja California Abby Van Kirk Curran Thompson Junghan Bae 12:00 pm 18:00 pm west facing window Winter Room Summer Room insulated rammed earth walls large north facing window West Shading Mask South Shading Mask 12:00 pm 12:00 pm 12:00 pm 18:00 pm 2'-0" Winter Room south window Winter Room Summer Room north west wind insulated rammed earth walls ventilation shafts large north facing window triple pane glass windows Window Construction Wall Construction triple lowE panes, argon lled 4” dense packed cellulose compact ground West Shading Mask South Shading Mask Refuge Approach Redndering

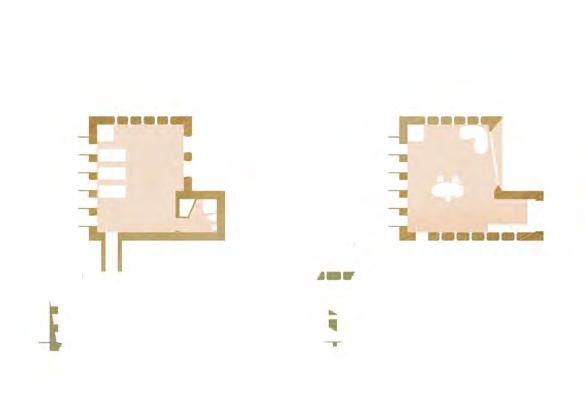

Summer + Winter Room Plan
Baja Refuge
CCA BArch Building Energy Project, Fall 2023
Professor: Jaqueline Lin
Team Members: Andrew Bae, Abby Van Kirk
The Baja climate has a slight fluctuation between summer and winter. The air temperature in the summer can reach up to 95 degrees while in the winter it gets down to 55. We have decided to build our building with two feet of insulated rammed earth. The ground temperature can get to 75 in the summer and 65 in the winter. We have decided to have two stories, one underground, and the other is above ground with ventilation shafts for the north west wind that comes through the site, along with tiles on the ground floor to help hold a steady temperature for the interior. We have also decided to put big windows to allow light; they are triple panes to not allow too much heat to escape. With shaded windows under the level two deck. This building is designed to keep heat out in the summer and allow air flow through the whole building. While in the winter, have ample light and keep a moderate and comfortable temperature.
Media: Rhino 7, Adobe Illustrator, Adobe Photoshop, V-Ray
baja refuge 26
thompson
The Commons Collage
the commons 26
