MBT PARTS BOOK 4-16-25

Page 1


RETURN POLICY

You must contact your sales representative prior to obtaining a Return Authorization.

The Return Authorization (RA) will be valid for 45 days from the issue date. After 45 days Pac-Tech, A Division of Con-Tech Manufacturing, Inc. will close the RA and it will no longer be valid. Please mark the RA number clearly on all shipping cartons and paperwork. When requesting an RA number/form, please be prepared to provide the following information:

• Customer name

• Customer shipping address

• Customer billing address

• Customer phone number

• Customer contact

• Customer contact e-mail

• Equipment type and/ or serial number

• Original sales order or purchase order number

• Reason for return

Having this return policy in effect will ensure that all of our customers receive their parts credit(s) in an efficient and timely manner. Returns are subject to a 15% restocking fee.

REPLACEMENT PARTS WARRANTY

Pac-Tech, a division of Con-Tech Manufacturing, Inc., a Minnesota corporation, hereinafter referred to as Pac-Tech, warrants replacement parts sold by Pac-Tech to be free from defects in material and workmanship under normal use and service for a period up to one year. Pac-Tech’s obligation under this warranty is limited to repairing and replacing, at Pac-Tech’s opinion, any parts which are returned to Pac-Tech’s factory at 65740 Hwy 56, Dodge Center, MN 55927. Transportation charges must be prepaid by the customer. Parts must be returned within 30 days after date of delivery to customer. This warranty covers only parts which, upon examination by Pac-Tech, are found to be defective in material or workmanship. Such repair or replacement of parts under this warranty will be made by PacTech without charge for such parts. Under no circumstance will Pac-Tech be under any further liability with respect to such warranty. Replacement parts purchased by Pac-Tech from other manufacturers shall be covered by that manufacturer’s warranty.

Pac-Tech warranty shall not apply to parts that have been subject to misuse, negligence, accident, or which has been repaired or altered without Pac-Tech’s prior knowledge and consent.

IN NO CASE SHALL PAC-TECH BE LIABLE FOR CONSEQUENTIAL, INCIDENTAL, SPECIAL, OR INDIRECT DAMAGES OF ANY KIND.

Pac-Tech makes no other expressed or implied warranties of fitness or merchantability or any other warranties, either expressed or implied. Any implied warranty of merchantability or fitness for a particular purpose which exceeds the forgoing warranty is hereby disclaimed by Pac-Tech. There are no warranties which extend beyond the description on the face hereof.

The Ultimate®, Mini Bandit®, Extreme Duty, The Bandit®, Pac-Tech®, and Con-Tech Manufacturing, Inc.® are trademarks that are property of Con-Tech Manufacturing, Inc., Dodge Center, Minnesota. This publication is copyrighted by Con-Tech Manufacturing, Inc. and should not be duplicated or used in any form electronically or otherwise .

COMPATIBILITY OF PARTS & USAGE

Items in this book are marked with PTM (Pac-Tech Manufacturing, Inc.), mtm (McNeilus Truck and Manufacturing, Inc.), or PTM/mtm, which indicates the compatibility and usage of the individual parts.

Pac-Tech manufactures OEM (Original Equipment Manufacturer) fabricated metal replacement parts only for PTM Packers. The fabricated metal replacement parts referred to with respect to mtm packers in this book are “Will Fit” parts for mtm packers manufactured by Pac-Tech. They are not OEM parts (i.e., parts manufactured and/or supplied by McNeilus Truck and Manufacturing, Inc.) for mtm packers. Pac-Tech makes no representation that any replacement parts referred to in this book are manufactured by McNeilus Truck and Manufacturing, Inc.

AFTERMARKET PARTS TERMS AND CONDITIONS

Please review Pac-Tech Aftermarket Parts Terms of Sale. Please contact Pac-Tech, A Division of Con-Tech Manufacturing, Inc., hereinafter referred to as Pac-Tech, with questions or for further information.

1.1 PRICES

Every term and provision of prior parts quotations and of the pricing and delivery time above is subject to, and customer agrees to be bound by, changing conditions resulting from: prior sales, fluctuations in currency exchange rates, material surcharge assessments, fuel surcharge assessments, component pricing escalations, material pricing escalations, labor cost escalations, lack of timely component availability, shipper limitations, vendor limitations, ConTech factory capacity, and force majeure events.

• Prices do not include state sales tax, excise tax or any other government charge upon production, sale, or shipment of goods, now imposed or hereafter becoming effective, which shall be added when, as, and if applicable.

1.2 TERMS OF PAYMENT

Pac-Tech’s requested methods of payment are check and ACH. Credit cards are accepted as an alternative payment method but will be subject to a 3.3% convenience fee. Accepted credit cards are Visa, MasterCard, American Express, and Discover.

• Customer accounts are initially set up with PIA (Payment in Advance) terms. Pac-Tech’s PIA terms state the invoice will need to be paid before the order is shipped.

• Upon approval of credit application, customers’ accounts will have Net 30 terms. Please request a credit application from your sales representative or Pac-Tech’s main office.

• A 12% annual (1.0% per month) finance charge applies to all invoices past their due date. Customer accounts may be placed on purchasing hold if they have an overdue invoice.

• Overpaid invoices will be turned into credit memos and sent to the customer. Credit memos may be used in your future payments or paid back upon request. All credit memos over 90 days will be issued back to the customer.

• The customer authorizes Pac-Tech to exercise peaceful possession over such items that have not been paid for in full at Pac-Tech’s discretion.

1.3 TAX AND EXEMPTION CERTIFICATES

It is the customer’s responsibility to know if they are tax exempt based on their ship-to state’s laws.

• It is the customer’s responsibility to send Pac-Tech a complete, current, and correct copy of their tax exemption certificate or reseller’s permit (dependent on your state’s laws).

• If Pac-Tech does not receive a copy of the customer’s completed exemption by the first of the month following the date of the invoice, Pac-Tech will expect the tax to be paid by the customer.

1.4 LIMITED WARRANTY ON AFTERMARKET PART SALES

Equipment or accessories purchased by Con-Tech from other manufacturers shall be covered by that manufacturer’s warranty.

Pac-Tech’s obligation under warranty is limited to repairing or replacing, at Pac-Tech’s discretion, any parts which are returned to Pac-Tech’s factory at 65740 Hwy 56, Dodge Center, Minnesota 55927. Transportation charges must be prepaid by the customer. This warranty covers only parts which, upon examination by Pac-Tech, are found to be defective in material or workmanship. Such repair or replacement of parts under this warranty will be made by PacTech without charge for such parts. Under no circumstances will Con-Tech be under any further liability with respect to such warranty.

• In no case shall Con-Tech be liable for consequential, incidental, special, or indirect damages of any kind.

• Con-Tech warranty shall not apply to components that have been subject to misuse, negligence, accident, acid use, liquid nitrogen exposure, contamination or which has been repaired or altered without Pac-Tech’s prior knowledge and consent.

• Pac-Tech makes no other expressed or implied warranties of fitness or merchantability or any other warranties, either expressed or implied. Any implied warranty of merchantability or fitness for a particular purpose which exceeds the forgoing warranty is hereby disclaimed by Pac-Tech. There are no warranties which extend beyond the description on the face hereof.

• The customer’s exclusive remedy for breach of warranty as a result of defects in material and workmanship shall be as set forth herein. Any action for breach of warranty must be commenced within 30 days after the cause of action shall accrue, and no such action may be maintained which is not commenced within such period. Pac-Tech neither assumes nor authorizes any other persons to assume for it any liability in connection with its equipment.

• Used parts are not covered by any warranty terms continued herein.

TERMS FOR PARTS COVERED UNDER LIMITED WARRANTY

• Electrical components, including but not limited to, electrical controllers, cables, switches, solenoid valves, and lights are warranted 90 days against defects in materials and workmanship.

• Other aftermarket parts, excluding electrical components, including but not limited to, gauges, harnesses, hydraulic cylinders, air cylinders, hydraulic pumps, and hoses are warranted for one year against defects in materials and workmanship.

1.5 CANCELLATIONS

In the event of order cancellation, labor and materials costs allocated towards the agreed upon order shall be the sole responsibility of the customer and charged as such. This includes (but not limited to) raw materials, shop supplies, goods in the process of manufacture, any labor involved in the assembly of the order.

• Pac-Tech reserves the right to cancel the entirety of an order in the event of a partial cancellation by the customer.

1.6 RETURNS OF ORDER

You must contact your sales representative to obtain a Return Authorization. Parts must be returned within 30 days after date of delivery to customer. The Return Authorization (RA) will be valid for 45 days from the issue date of the invoice. After 45 days, Pac-Tech will close out the RA and it will no longer be valid. Please mark the RA number clearly on all shipping cartons and paperwork.

• Returns are subject to a 15% restocking fee.

1.7 FREIGHT CLAIMS/CHARGES & ASSESSMENTS

Pac-Tech is not responsible for freight rates charged by carriers. All parts sold by Pac-Tech are F.O.B. Origin and ships standard ground service unless otherwise specified by the customer.

• If a shipment arrives damaged in transit, the customer must note the damage on the Bill of Lading and contact Pac-Tech immediately.

• Pac-Tech is not responsible for delays resulting from strikes, accidents, negligence of carriers or other causes beyond our control.

• If Pac-Tech receives any additional fees or assessments for shipping, including but not limited to, expedited freight, guaranteed delivery, and liftgate usage, the customer will be responsible for those fees incurred. PacTech will send out a freight-only invoice for the assessed charges.

1.8 PRODUCT CHANGES

Pac-Tech reserves the right to make changes to patterns, design, or materials at any time without prior notification or obligation to make corresponding changes in previous models.

UPDATED AS OF 07/29/2025

Texas (South Central) dallas@ptpackers.com 940-377-0603

CLEVELAND

Ohio (Northeast) northeast@ptpackers.com 440-946-3322

Georgia (Southeast) southeast@ptpackers.com 770-229-1773

DODGE CENTER

Minnesota (Midwest) dcsales@ptpackers.com 507-374-2239

HOUSTON

Texas (South Central) houston@ptpackers.com 832-688-8449

California (Western) west@ptpackers.com 909-478-0017 ATLANTA

SAN BERNARDINO

DAILY/WEEKLY PREVENTATIVE MAINTENANCE

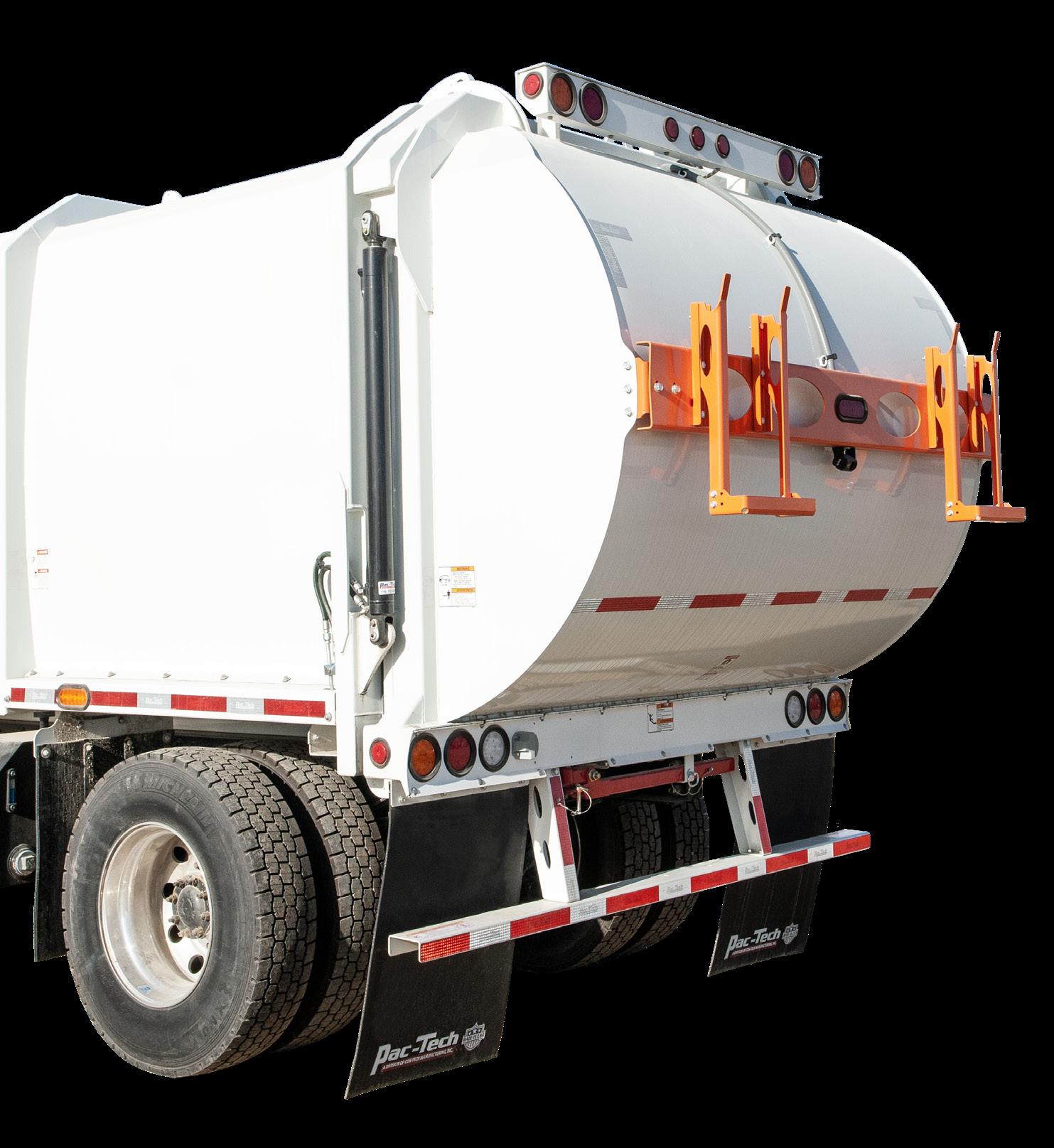

HYDRAULIC LOCK TAILGATE ASSEMBLY

HYDRAULIC LOCK TAILGATE ASSEMBLY

HYDRAULIC LOCK TAILGATE ASSEMBLY

5270784

Tailgate Prop Assy 705093

Pin - Hopper Prop w/ Cotter Pin and Cable

5270882

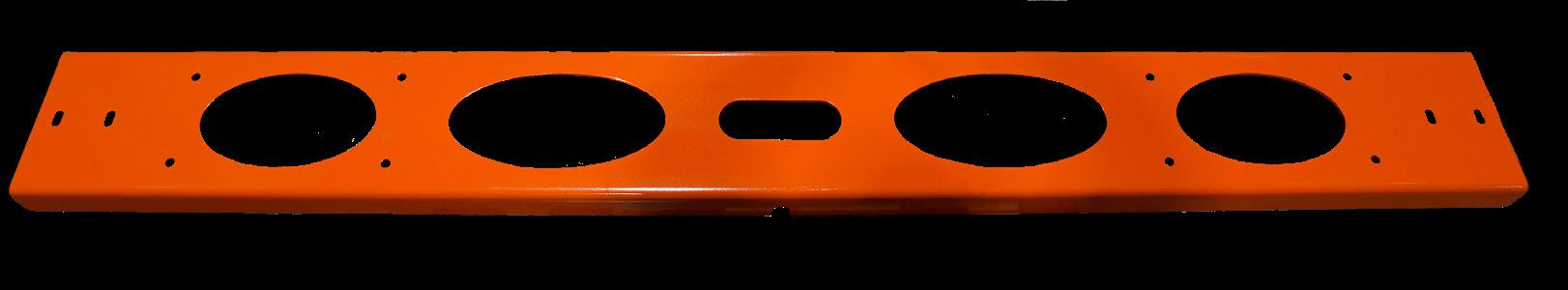

Bottom Light Bar

Bumper Assy (See Page 18) 5270077

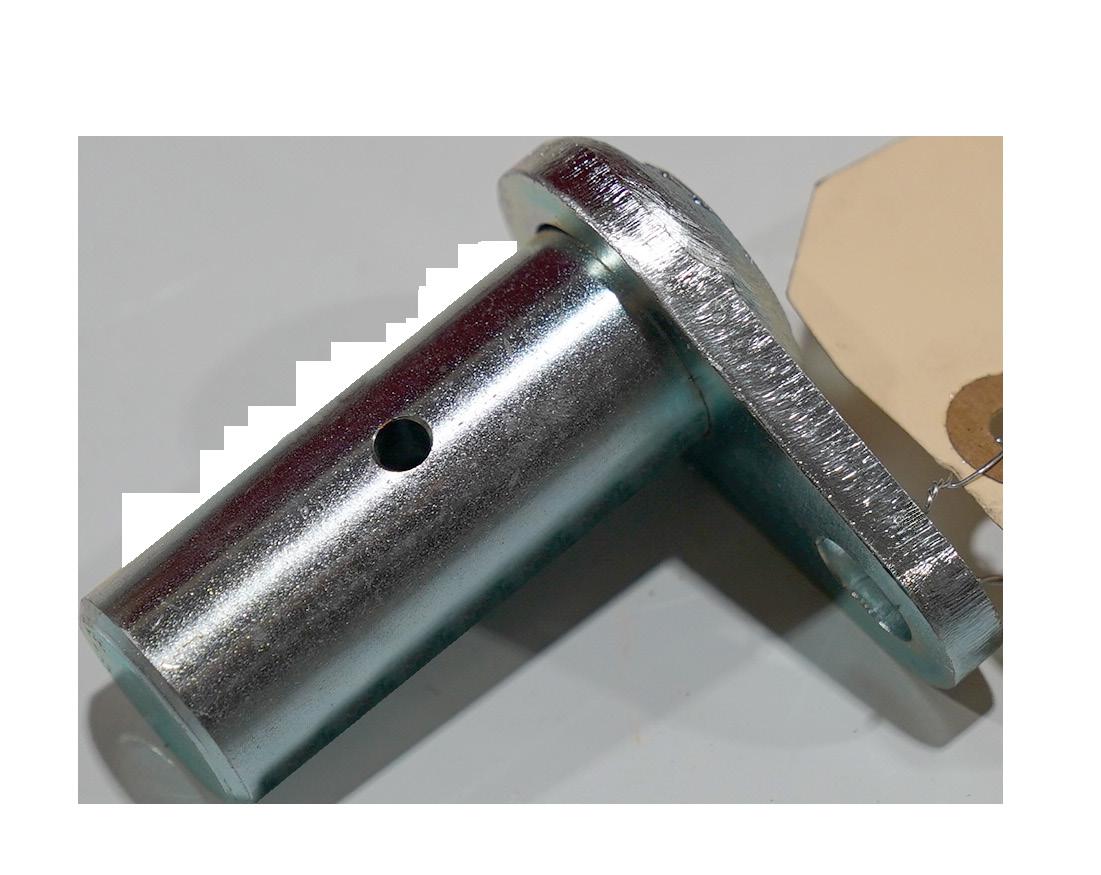

Tailgate Cyl Pin Wldt 9250001

Tailgate Cyl

HYDRAULIC LOCK TAILGATE ASSEMBLY

5271559

Pin - Tailgate Hinge Pivot

Tailgate Corner Outside Clamp

5270887

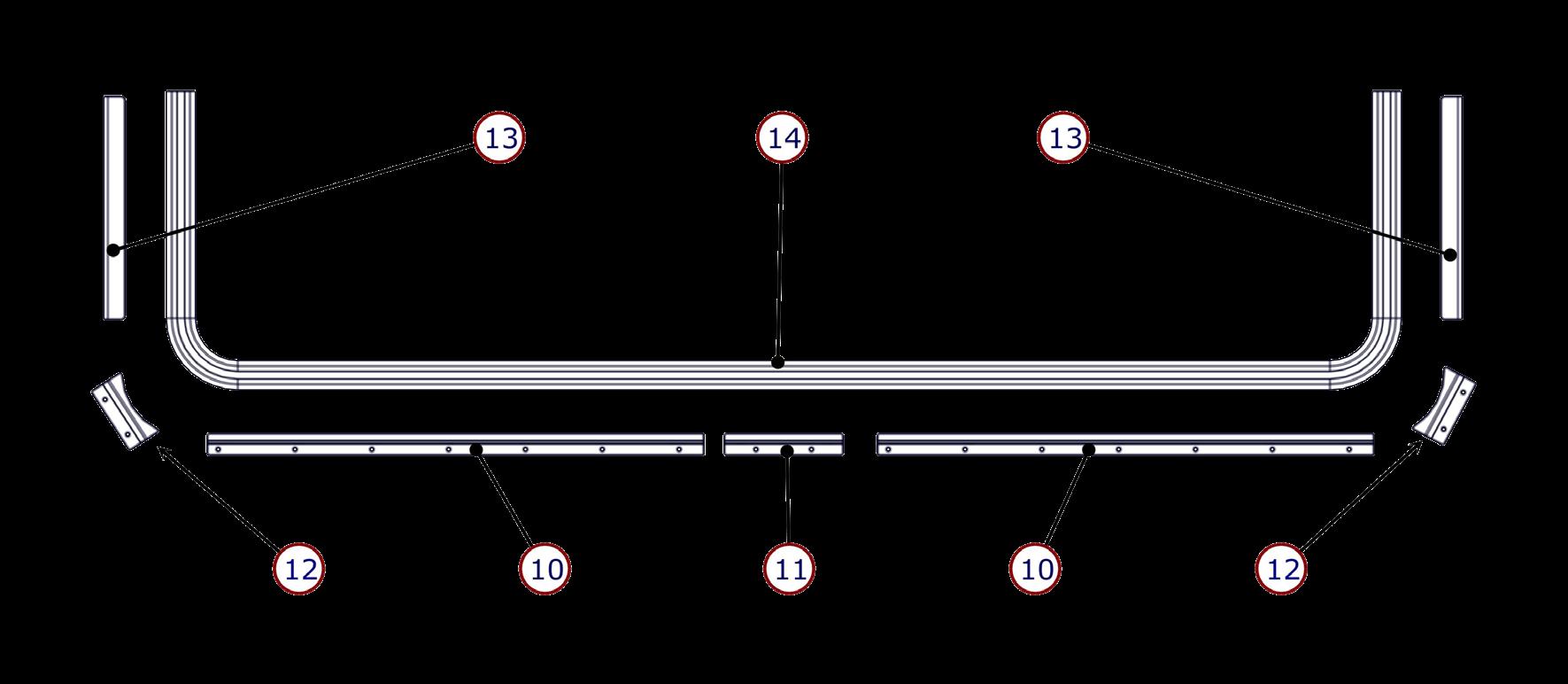

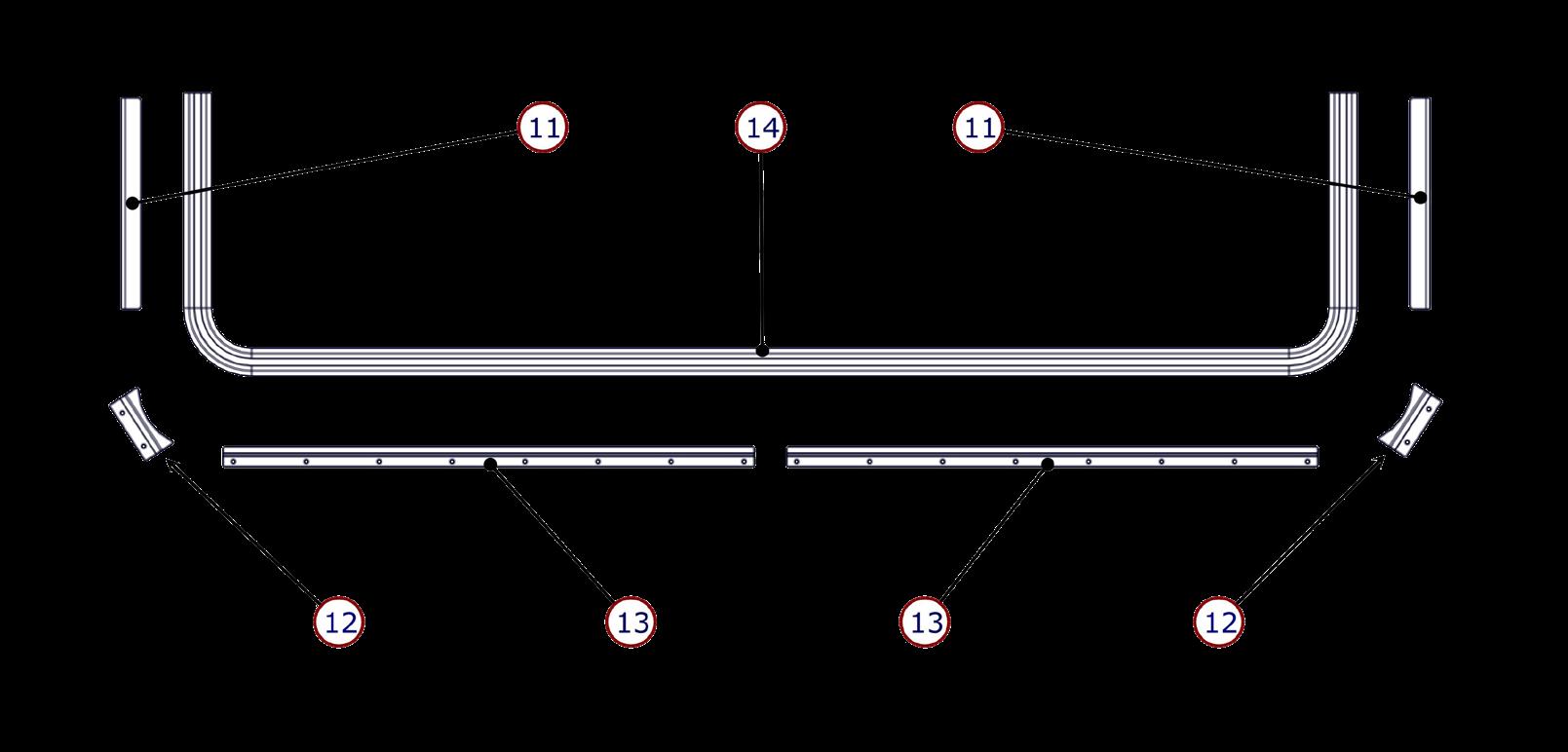

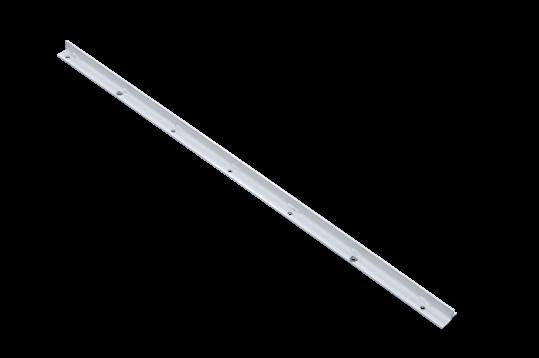

Side Seal Retainer Strip 5270093

Tailgate Seal Wldt

HYDRAULIC LOCK TAILGATE LATCH

HYDRAULIC LOCK TAILGATE LATCH

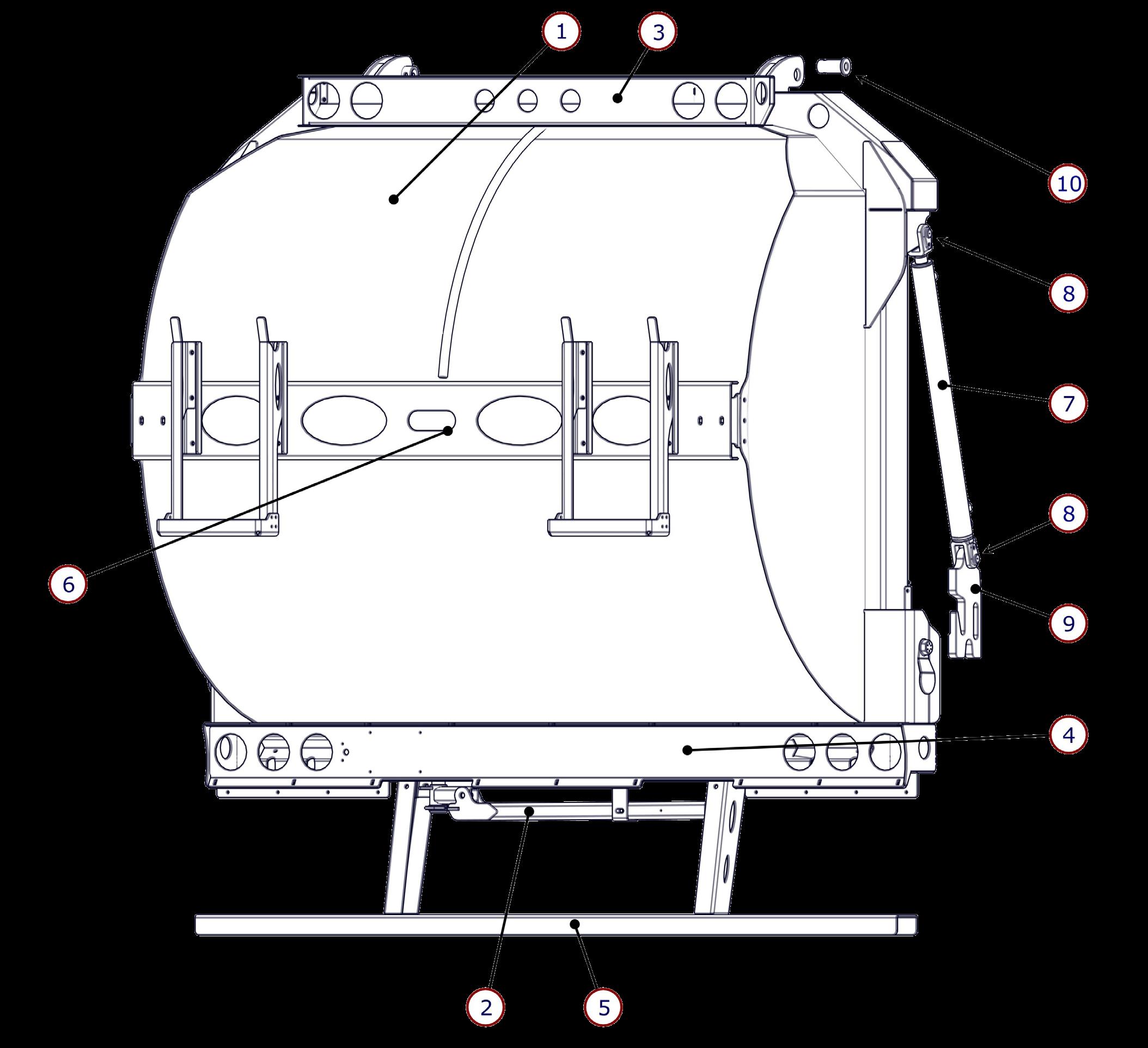

GEN 2 TAILGATE ASSEMBLY

5270784

Tailgate Prop Assy 705093

Pin - Hopper Prop w/ Cotter Pin and Cable

5270882

Bottom Light Bar

Assy (See Page 18)

9250001

Tailgate Lift Cyl

5270077

Tailgate Cyl Pin Wldt

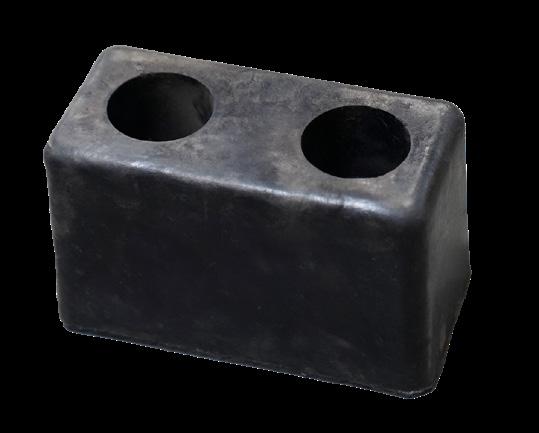

Bumper

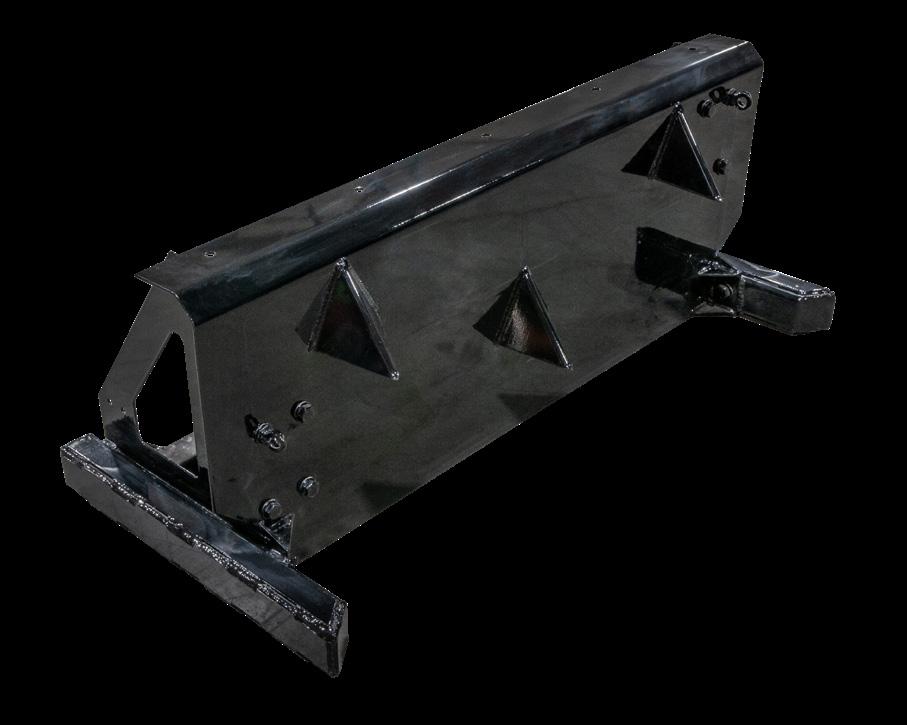

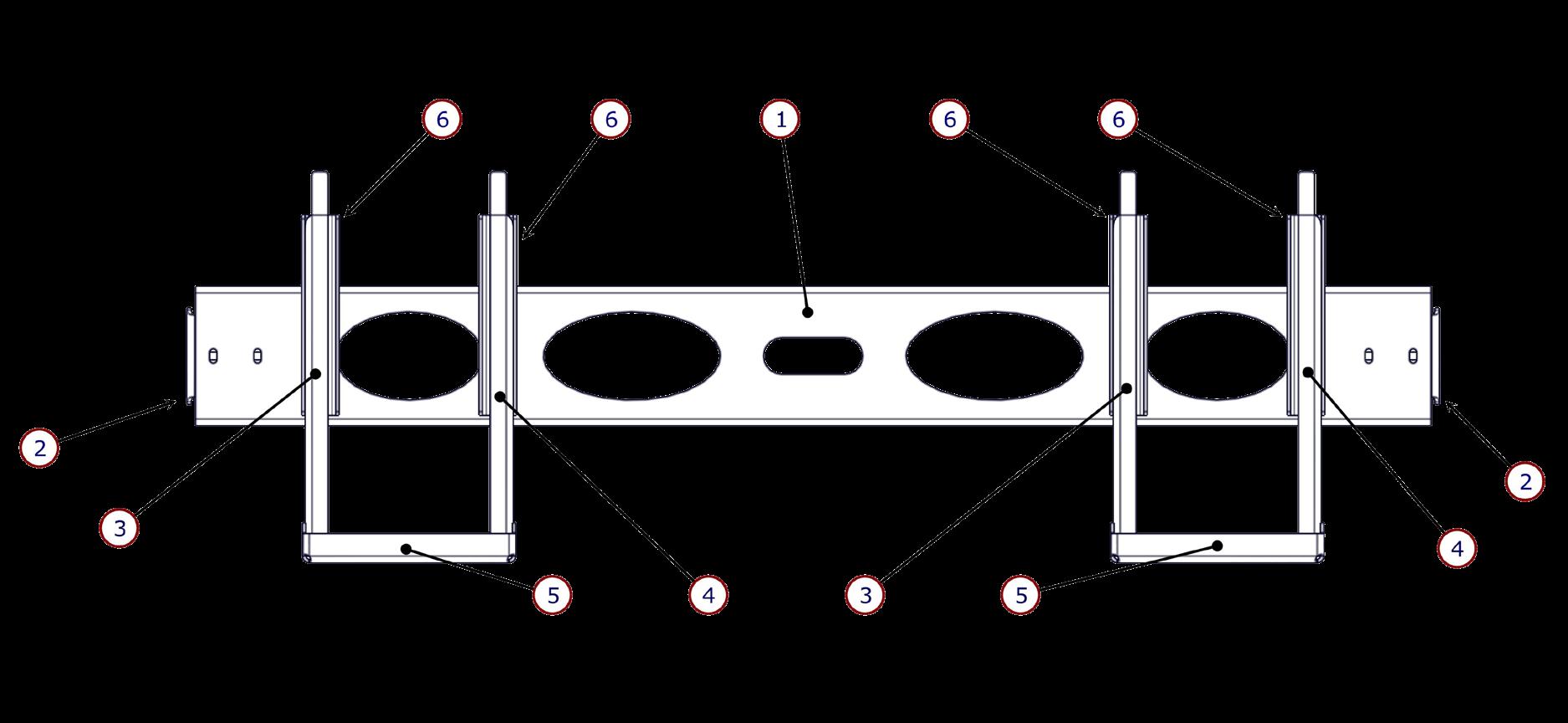

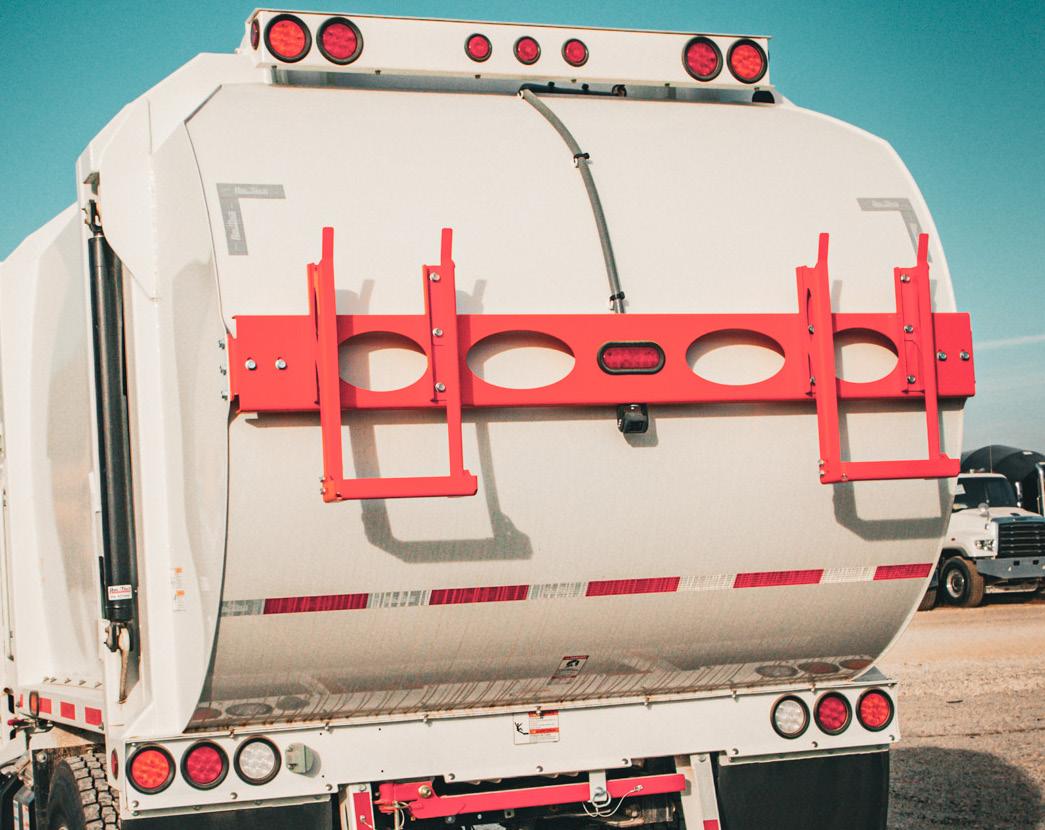

BUMPER

5270133

5270137

Bumper Leg RH, 16.95”
5270134
Bumper Leg LH, 16.95”

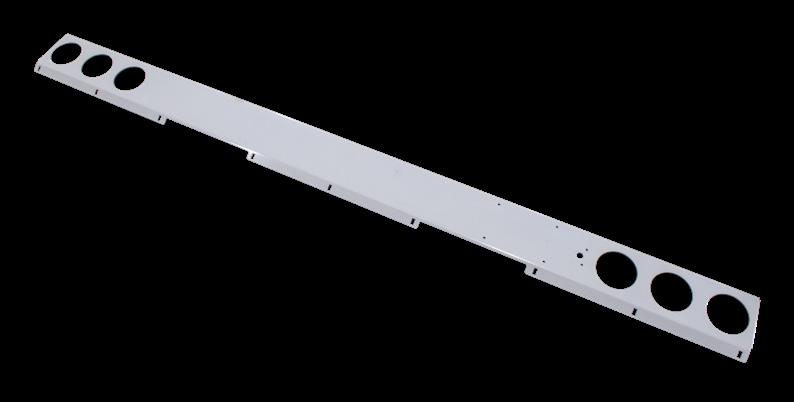

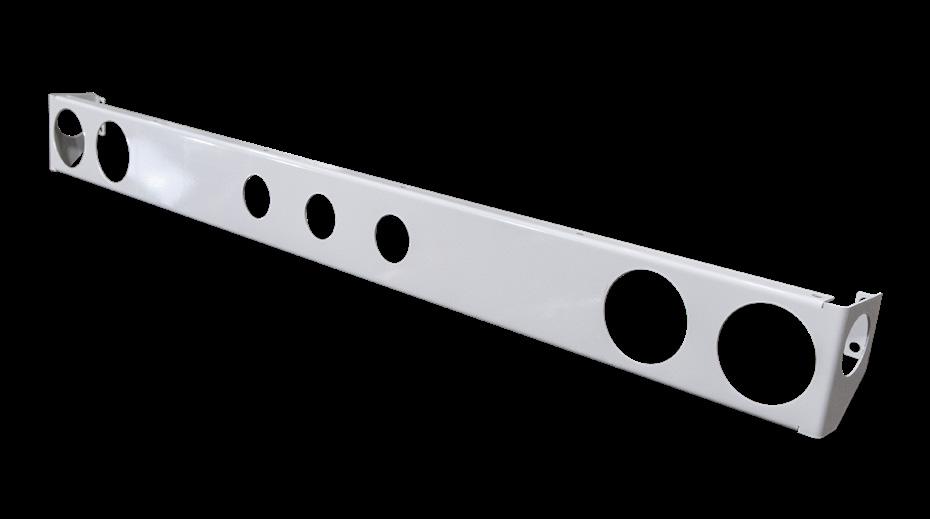

Bumper Bar, 98”

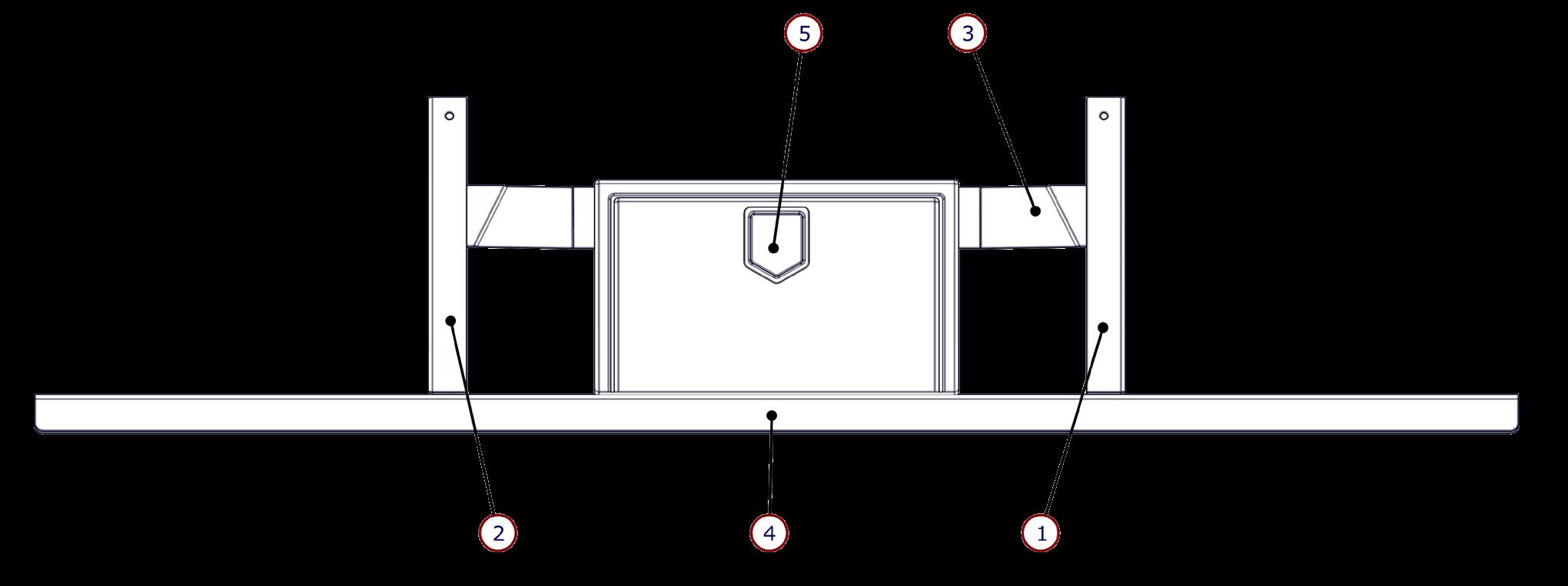

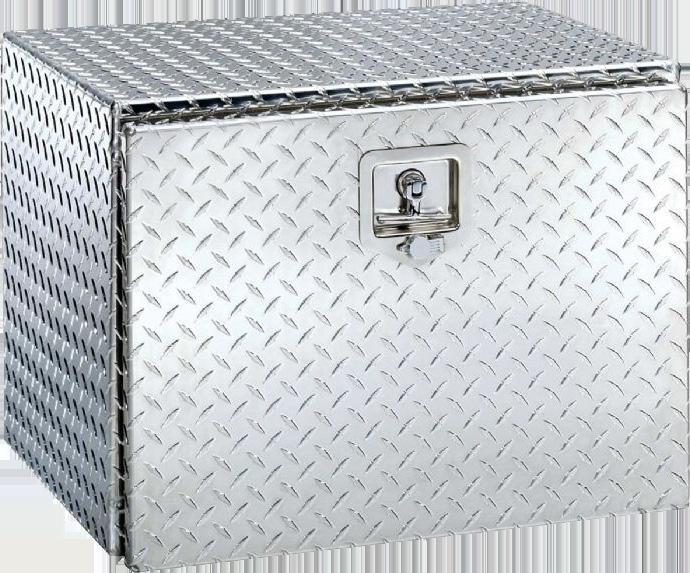

TOOLBOX BUMPER

CART HOOK ASSEMBLY

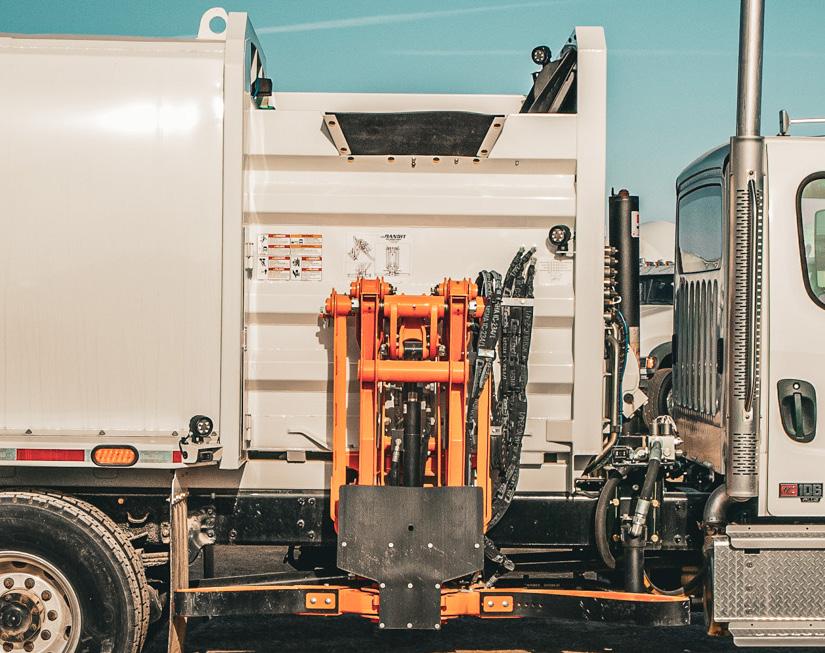

BODY LIFT SYSTEM

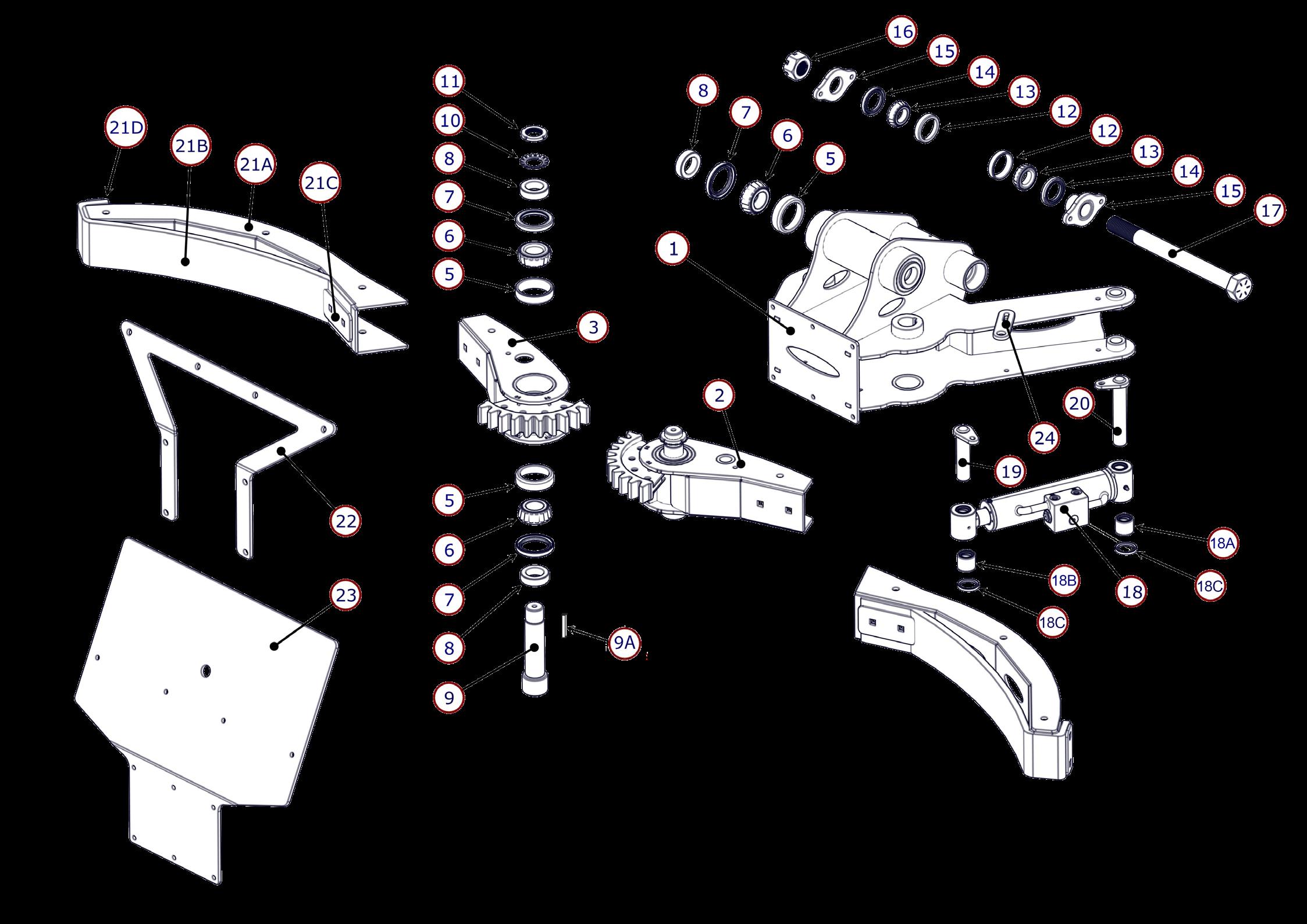

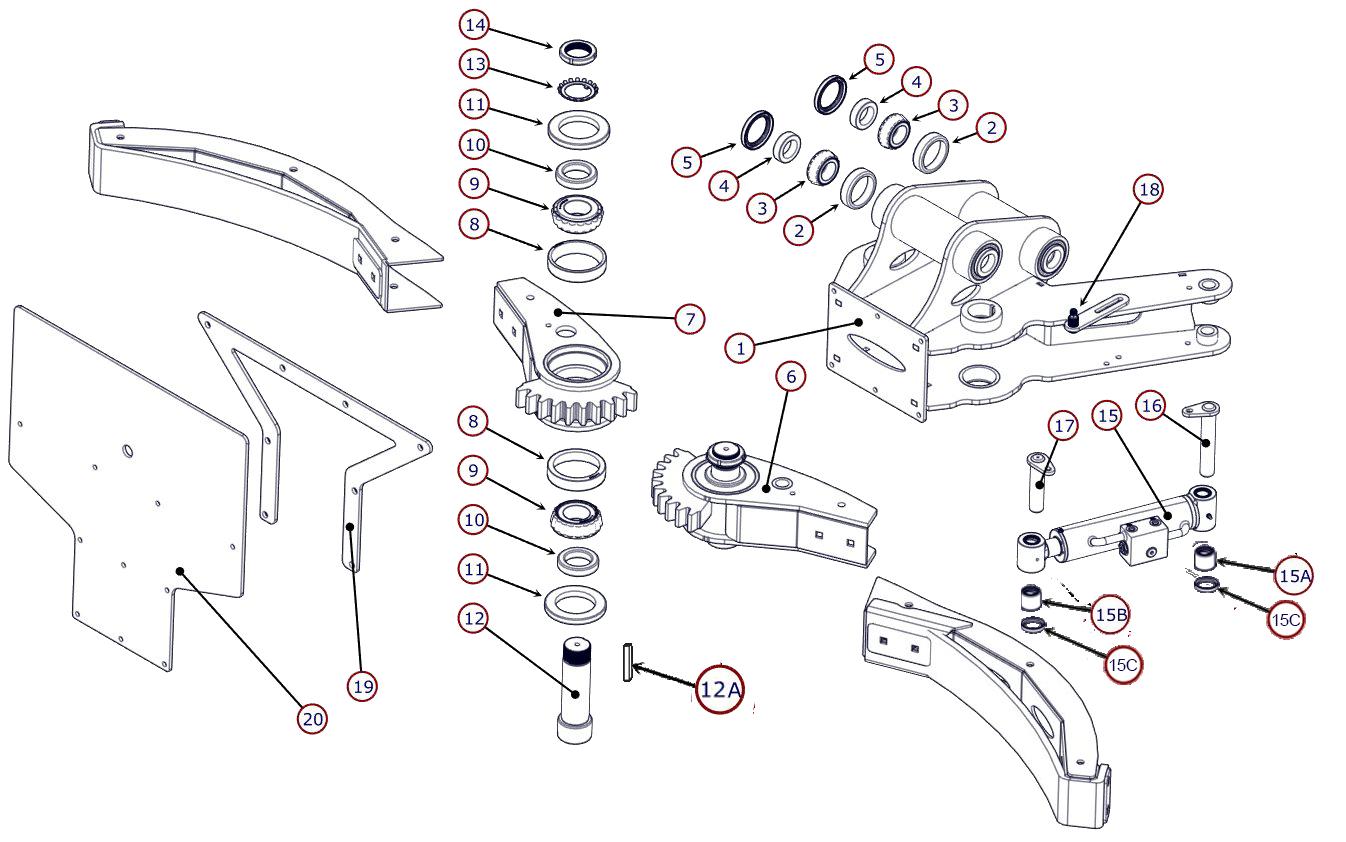

GRABBER GEN 1

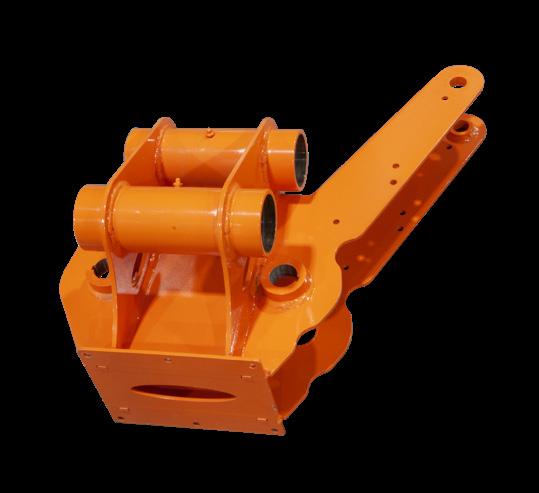

LW, Finger Joint, Wldt 5670729 LW, Grabber Base Wldt

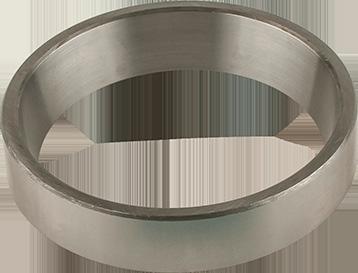

Race - 3” Tapered, Timken

Bearing - 1.5” ID Tapered Roller, Timken

Grabber Pivot Bearing Seal Spacer

LW, Primary Frame Pivot Shaft

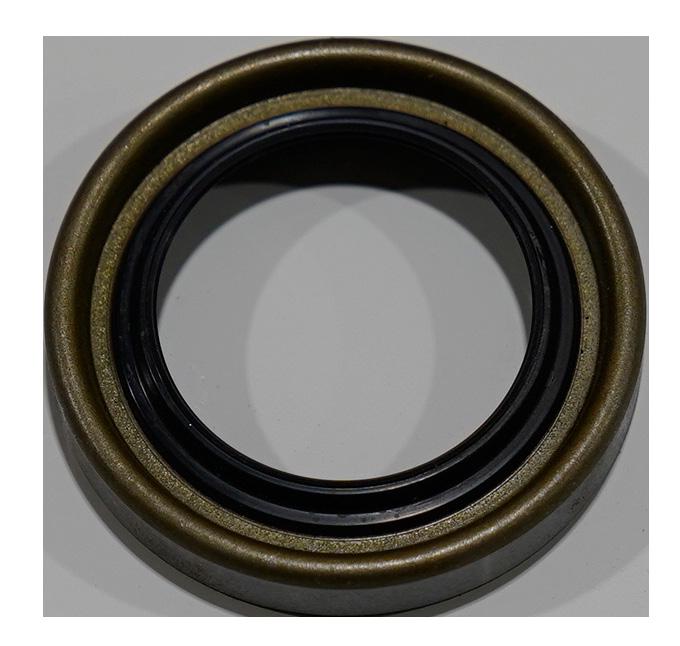

Shaft Seal 2-1/4” Shaft, Spring Loaded 9450706

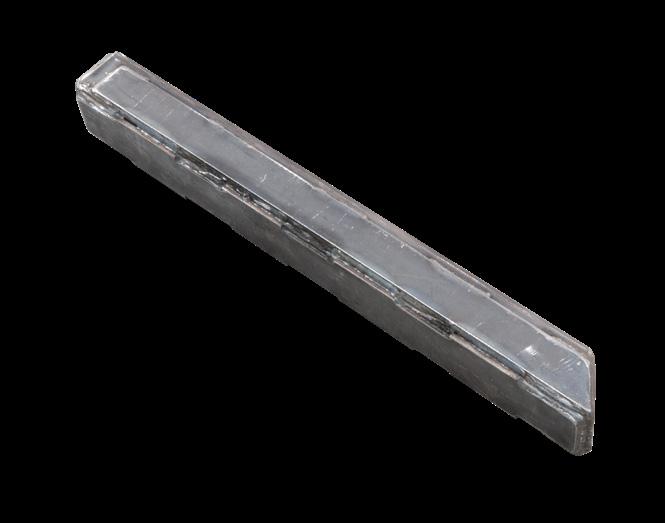

Keystock - 5/16 x 5/16 x 1 Finger Pins 5670956 LW, Finger Joint, Cyl, Wldt

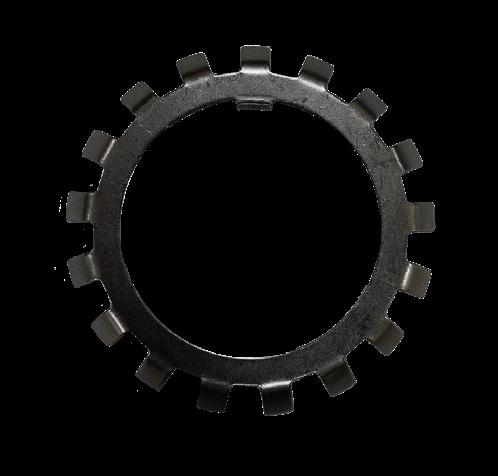

5670659 WS-07, Bearing Washer

GRABBER GEN 1

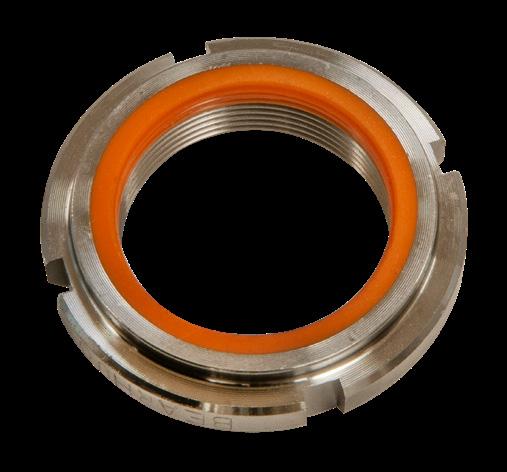

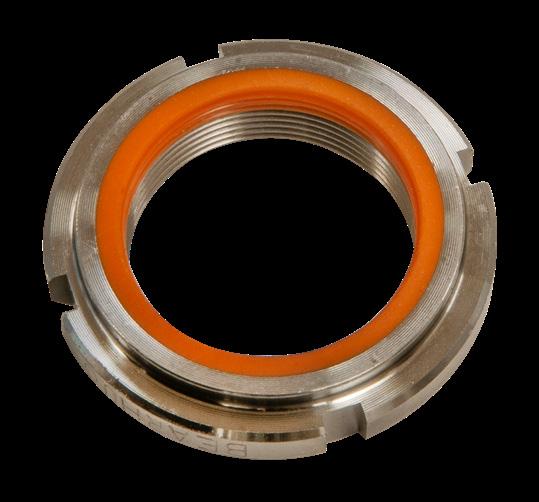

9000043 Nut, Spanner N-7 W/ Nylon Collar 9000031 Nut-Lock, N-07

9350009 Race - Arm, 1.25” 5670393 Grip / Tilt Bearing Seal

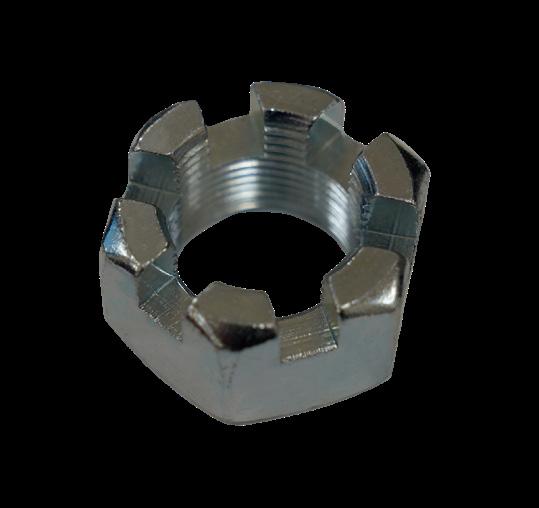

9000023 Castle Nut 1-1/4” - 12

9350008 Bearing - Arm, 1.25”

5670384 Bearing - Oilite 1.25” ID x 1.504” OD x 1.5 W/Flange

5670382 Oilite Keeper Plt

- Grabber Link, 1-1/4” X 14”

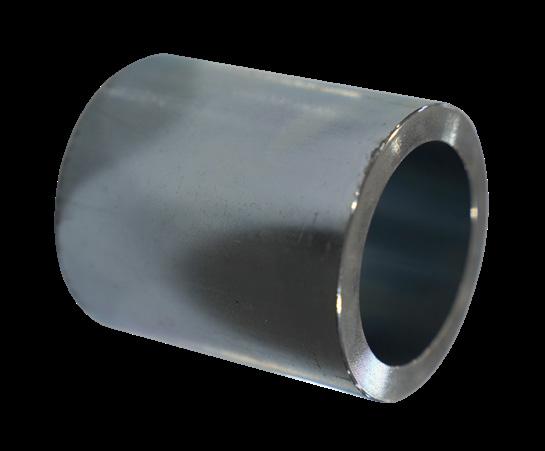

Bushing - Grabber Cyl, Barrel End

GRABBER GEN 1

5670574

Grabber Arm Belt Clamp

5670575

Grabber Arm Belt Tip Clamp

5670578

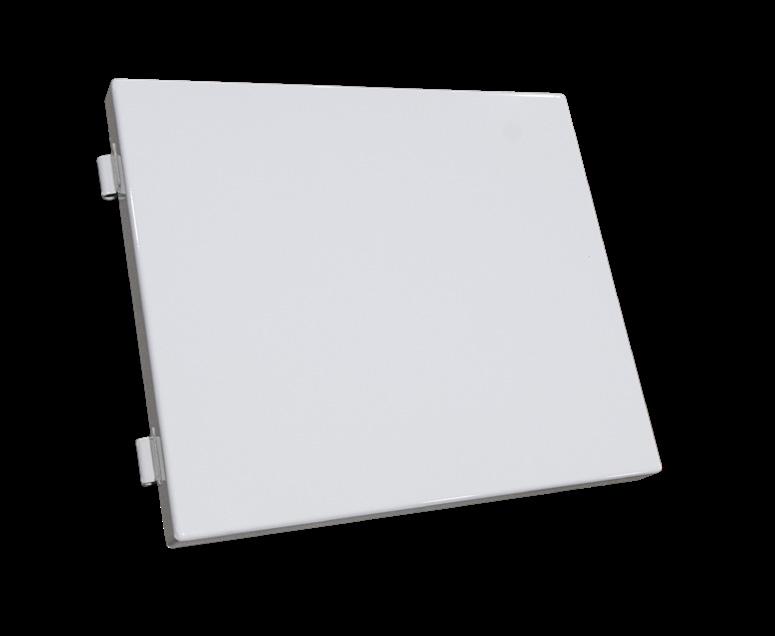

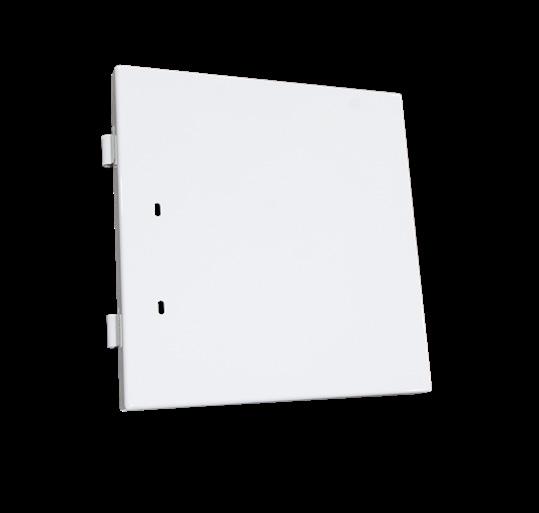

Flap Cover

9000042

Flat Socket Cap Screw, 1.5” x 3/8”

5670613

Flap Bent Support

9000041

Flat Socket Cap Screw, 1.25” x 3/8”

5670568

Grabber Flat Prox Brkt

KEEP UP WITH

Subscribe to Pac-Tech emails today and never miss:

• Product and Parts updates

• Chassis availability & build slot alerts

• Industry events & insider updates

Delivered straight to your inbox

OUTER ARM GEN 1

Bushing - Reach / Dump Cyl

Grease Seal - Dump Reach

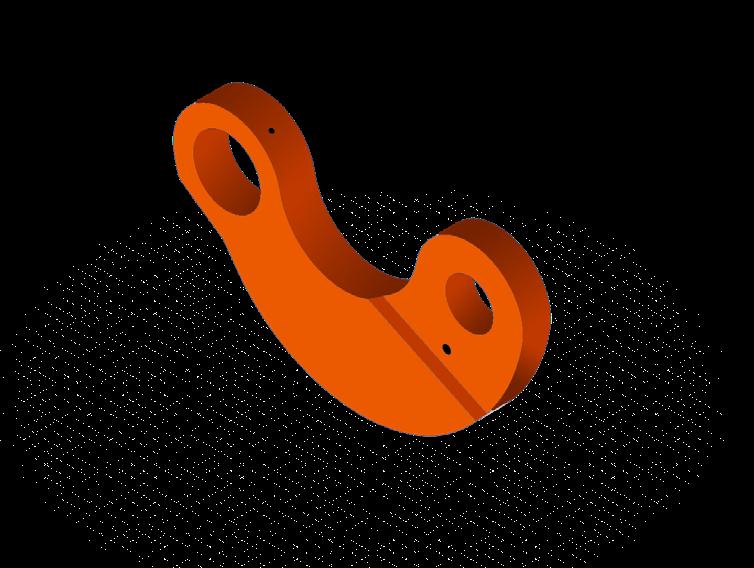

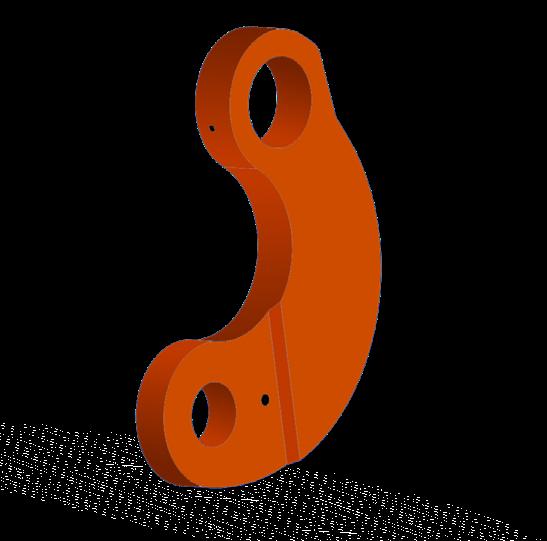

- LW 1.25 Dog Link, LH

Grabber Pivot Bearing Seal Spacer

Keystock - 5/16 x 5/16 x 1 Finger Pins

Bearing Washer

OUTER ARM GEN 1

Spanner N-7 W/ Nylon Collar

N-07 9000043

- 12 9000031

Top Link Shaft

Side Arm Pivot Bushing

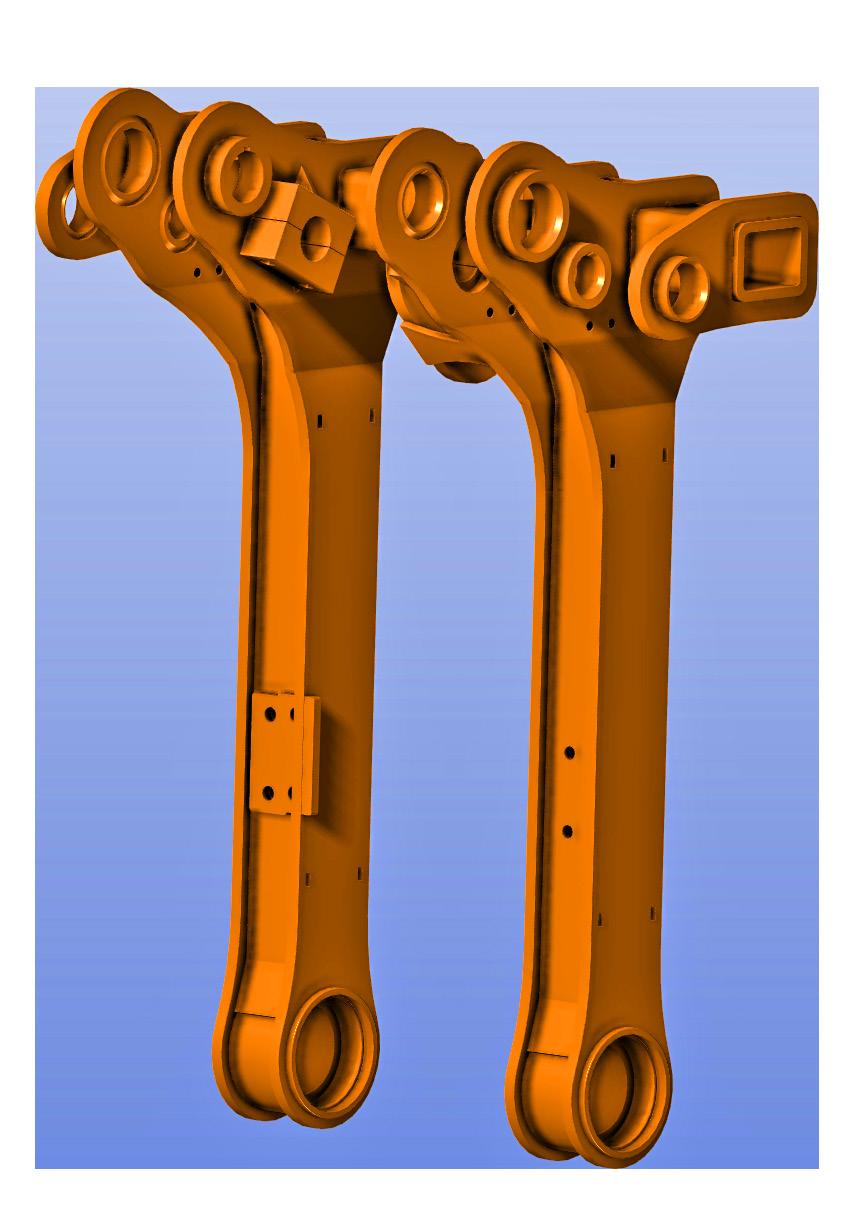

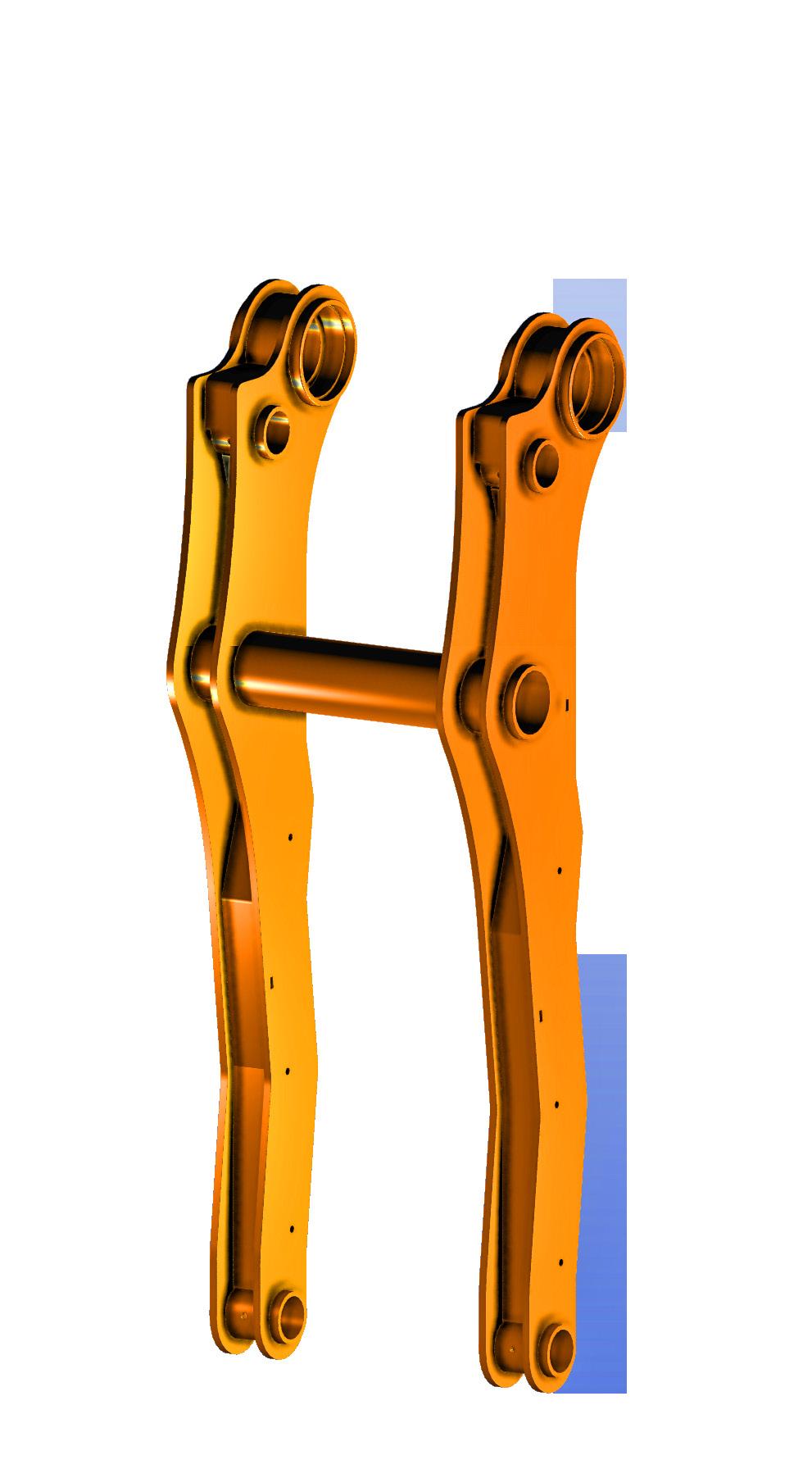

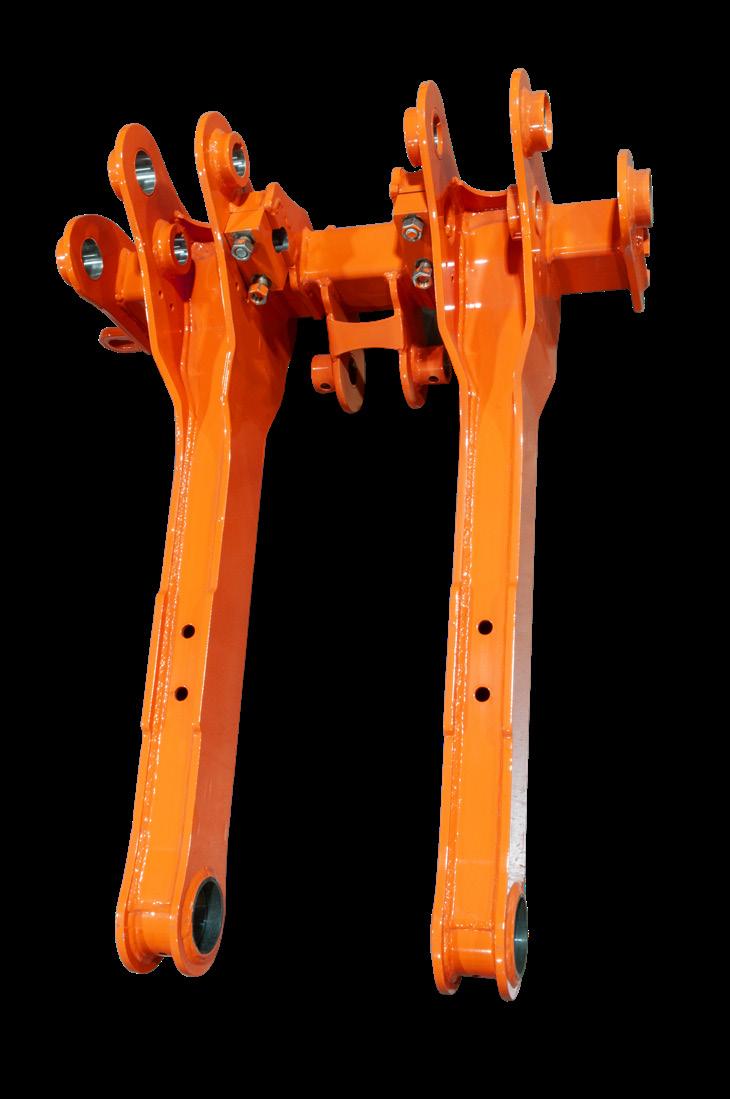

INNER ARM GEN 1

ARM GEN 1

Race - 3” Tapered, Timken

Bearing - 1.5” Tapered Roller, Timken

Shaft Seal 2-1/4” Shaft, Spring Loaded

Arm Bumper 5670751 LW, Primamry Frame Pivot Shaft

Grabber Pivot Bearing Seal Spacer 5671200 Keystock - 5/16 x 5/16 x 1 Finger Pins 9000031 Nut-Lock, N-07 9000043 Nut, Spanner N-7 W/ Nylon Collar 5670659 WS-07, Bearing Washer

Bumper Round Recess

Reach prox Brkt

GRABBER GEN 2

GRABBER GEN 2

3 Wire

Bent Support

Cover

Grabber Arm Wldt (See Page 63)

OUTER ARM GEN 2
Standard Roller Bearing Joint

5670776 LW, Side Arm Pivot Bushing

OUTER ARM GEN 2 5670777 LW, Dump Link Shaft

5670773 LW, Pivot Pin Anti-Rotation

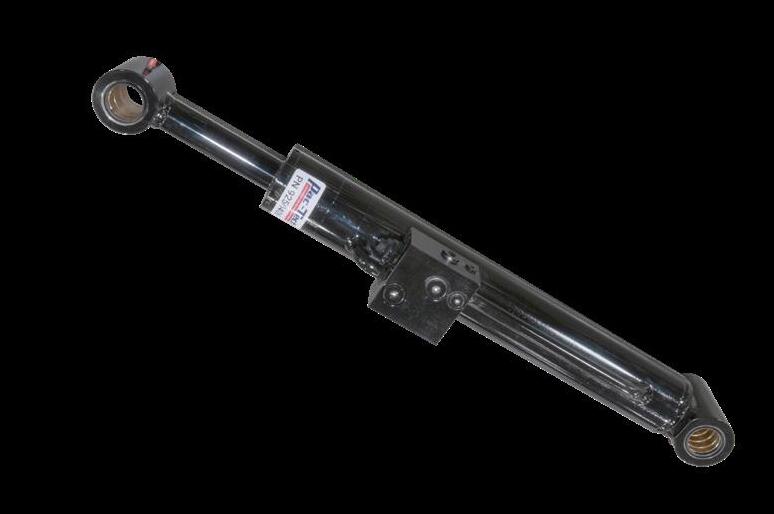

9250406 Cyl - Arm Dump 9000020

Nut 1-1/2” - 12

9000023

Nut 1-1/4” - 12 5670772 LW, Dump Cyl Rod Pivot Pin

5670774 LW, Reach / Dump Cyl Base Pin

9250411

Bushing - Reach / Dump Cyl 9350063 Grease Seal - Dump / Reach Cyl

INNER ARM GEN 2

HYBRID GRABBER

HYBRID GRABBER

HYBRID GRABBER

HYBRID GRABBER

Cyl Rod Pin Wldt

- Prox, 18mm,

Prox Brkt Straight

Cover

HYBRID OUTER ARM

HYBRID OUTER ARM

HYBRID

OUTER ARM

9000020 Castle Nut 1-1/2” - 12

720004 Race - 2” Tapered

720003 Bearing - 2” Tapered

725013 Seal - 2” Spring Loaded W/ Wiper Lip

720000 Spacer

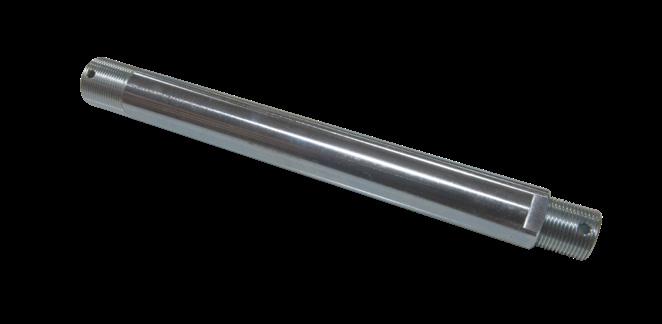

5670134 Shaft - Arm

5671200 Keystock - 5/16 x 5/16 x 1 Bandit Finger Pins

705005 Washer, Lock #10

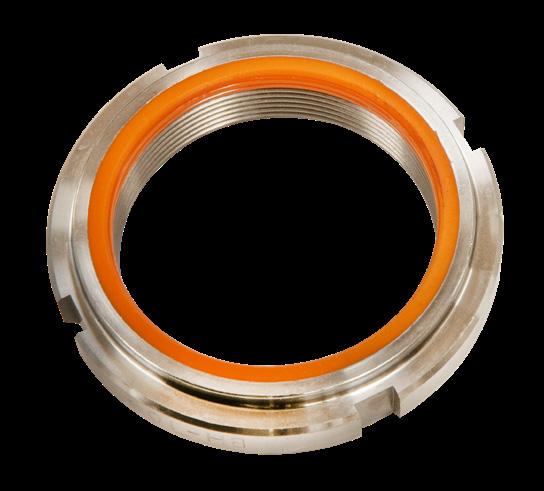

9000044 Nut, Spanner N-10 W/ Nylon Collar

9450706 Bearing - 1.5” ID, Timken

HYBRID OUTER ARM

9000024 Shaft Seal - 2-1/4” Shaft, Spring Loaded 5670531 Grabber Pivot Bearing Seal Spacer

5670735 Pivot Shaft

5670659 WS-07, Bearing Washer

9000043 Nut, Spanner N-7 W/ Nylon Collar

9000031 Nut-Lock, N-07

Hybrid Dump Cyl Spacer

HYBRID INNER ARM

HYBRID INNER ARM

HYBRID INNER

GRABBER FINGERS

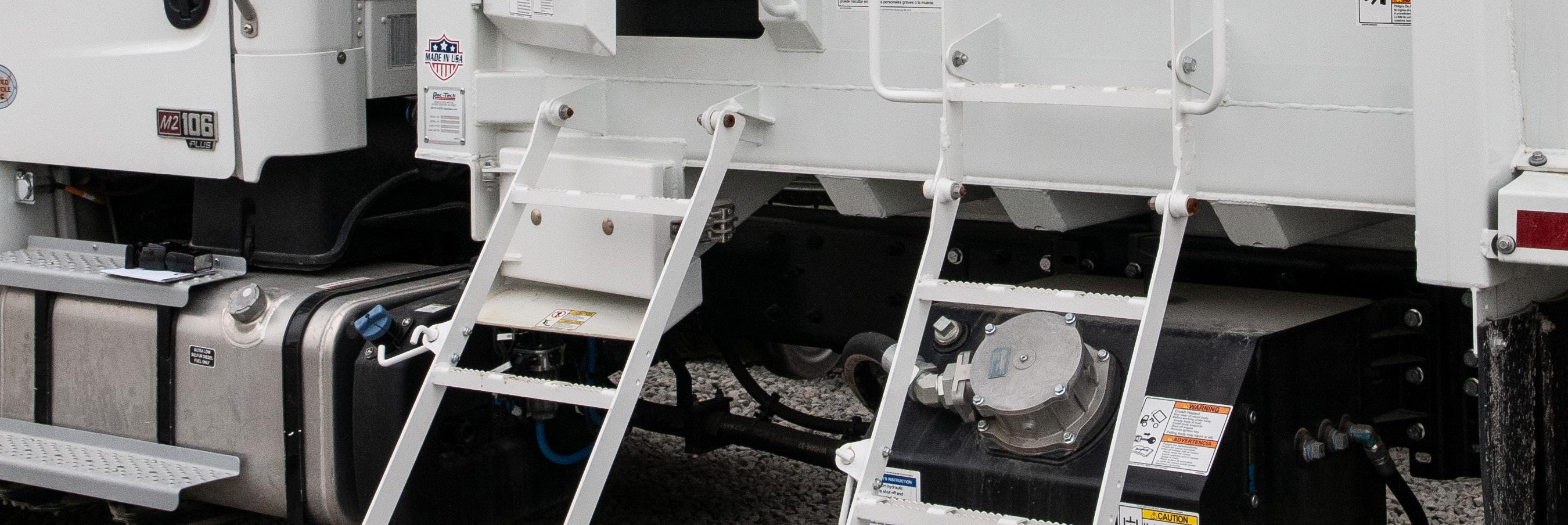

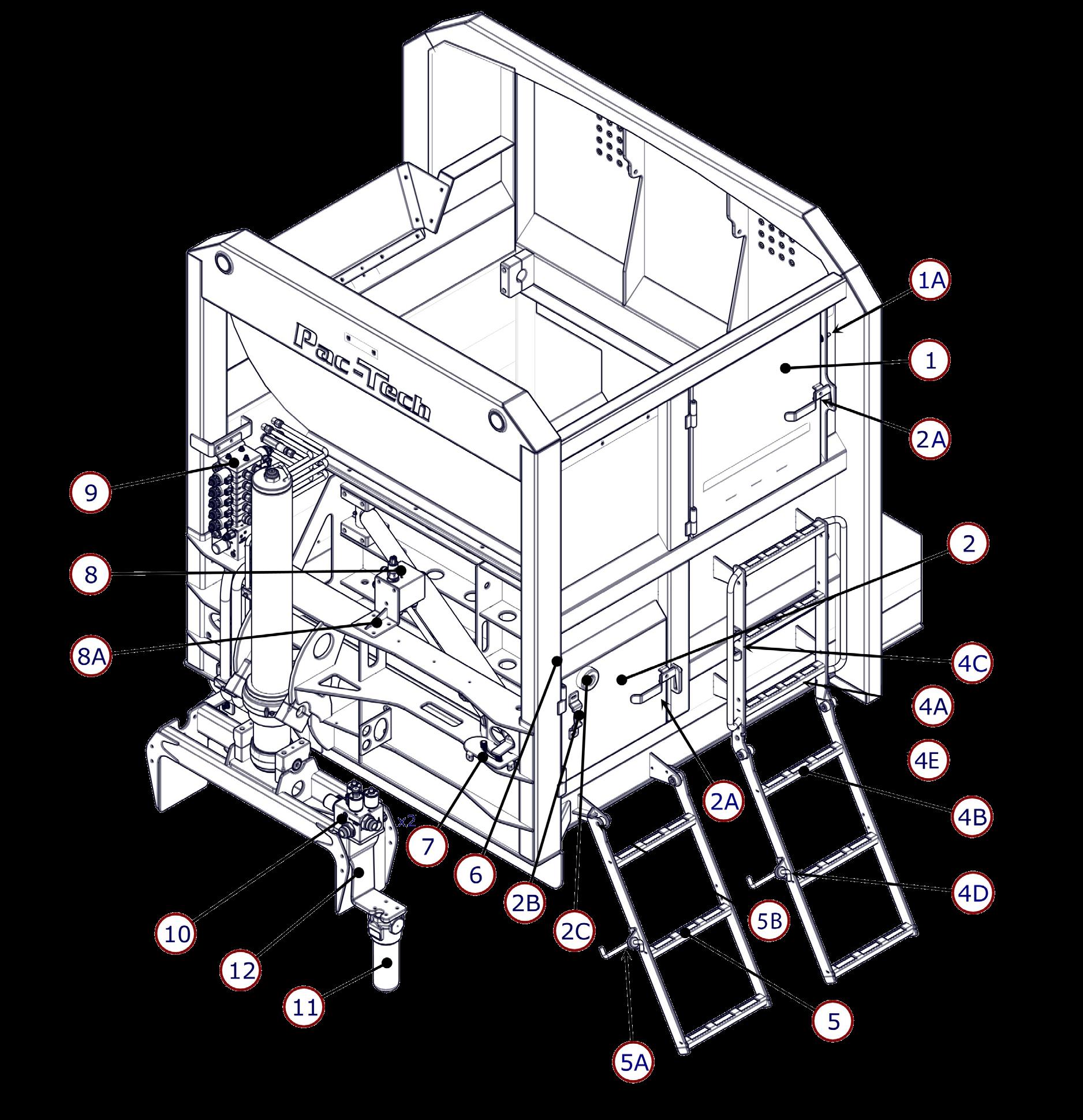

HOPPER - CURB SIDE VIEW

HOPPER - CURB SIDE VIEW

HOPPER - STREET SIDE VIEW

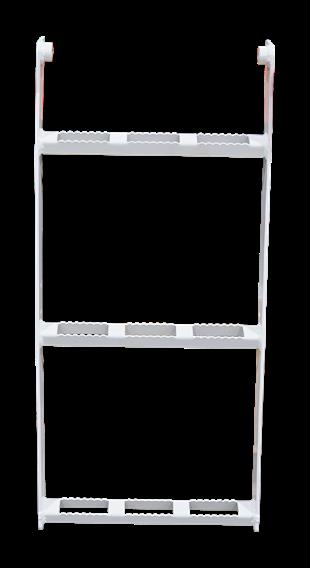

Upper Ladder Wldt 5072006 Lower Hopper Door

HOPPER - STREET SIDE VIEW 5870390 Ladder, Pivot Wldt 5070468 Door Handle

Door Ladder Latch

HOPPER - STREET SIDE VIEW

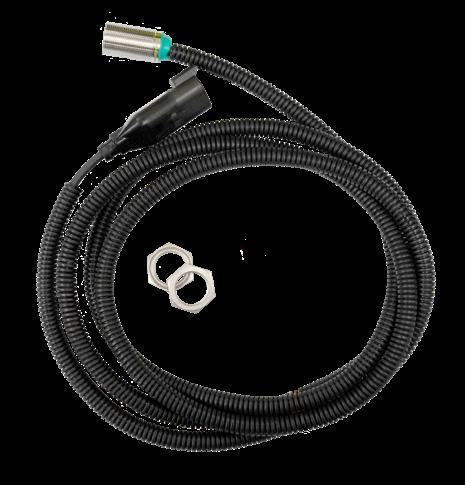

9450420 Switch - Prox, 18mm, Short Barrel, 3 Wire

5870985 Packer Valve Wldt

9450082 Valve - Main Stack

5071937 Cleanout Door Prox Brkt, 30MM 5870619 Body Lift / High Pressure Filter Brkt

9350158

High Pressure Filter Assy 9450089 Valve - Packer Exhaust

9450507 Manifold - Body Dump

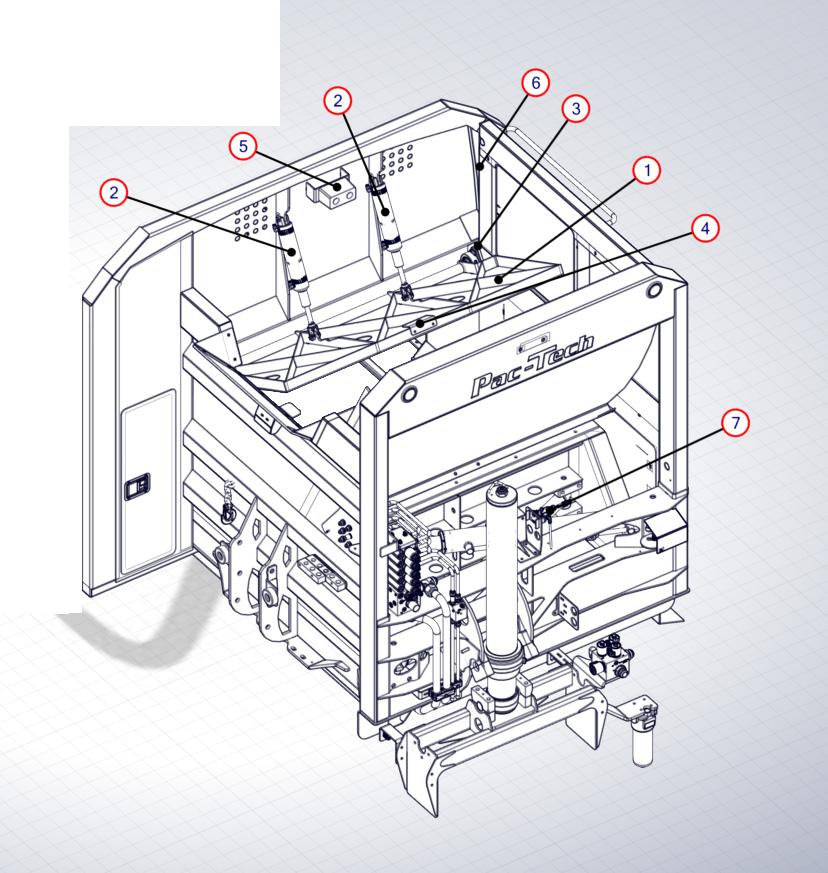

PACKER ASSEMBLY

PACKER ASSEMBLY

Follower Rubber, Keeper Strip

Packer Shoe Wldt LH

Rivet, 1/4” x 1.125”

Pack Cylinder

Pin

Packer Shoe Wldt RH

Bolt On Prox Flag

Packer Cyl Block Assy

PACKER ASSEMBLY

9450089

Valve - Packer Exhaust, Under CDL

5870985

Packer Valve Brkt Wldt

5470566

Cover, Hopper Wldt

5470415

Plate - Bumper, Hopper Cover

750002

Cylinder-Hopper Air 2-1/2” x 8

9350054

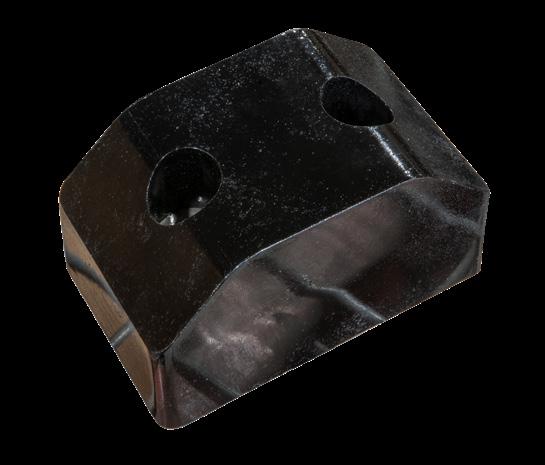

Urethane Bumper, Trapezoid

760033

Hopper Mac Valve

9350011

Bearing, Hopper Cover, Trunion, 2- Bolt Flange

9150001

Prox Switch - 18mm, Short Barrel, 4 Wire

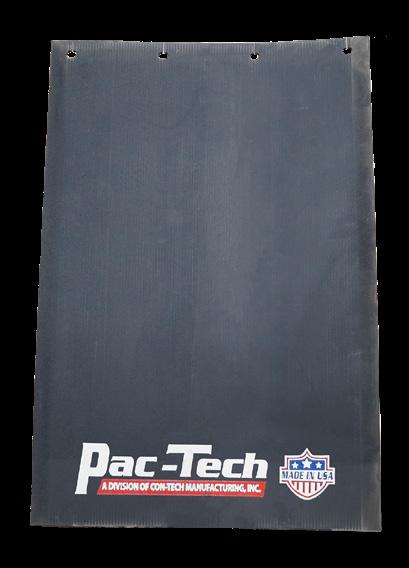

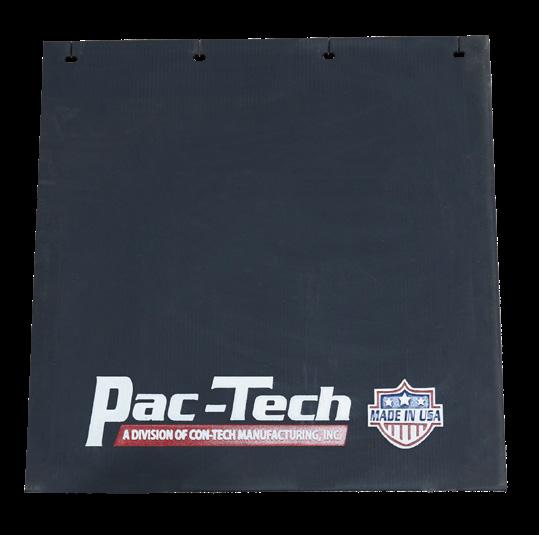

FENDERS & MUDFLAPS

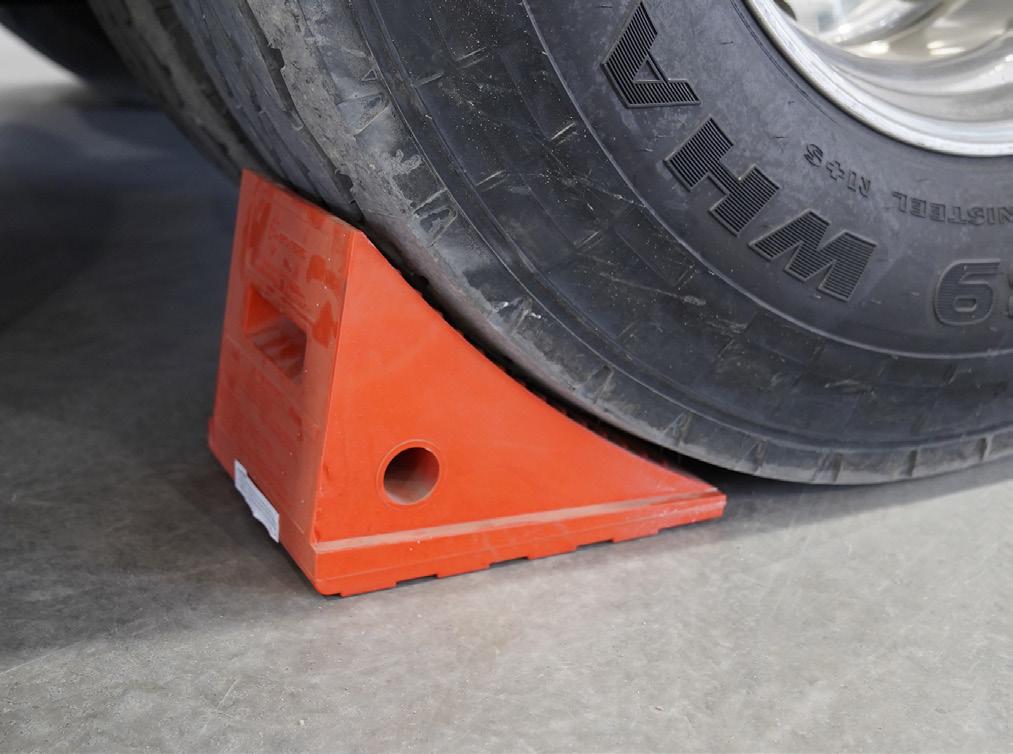

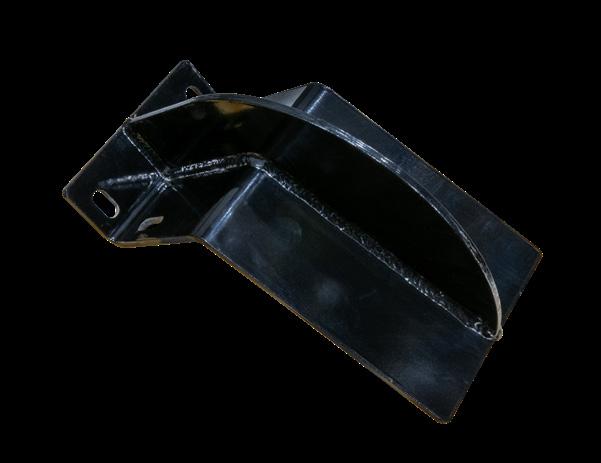

ChockHolder Weldment

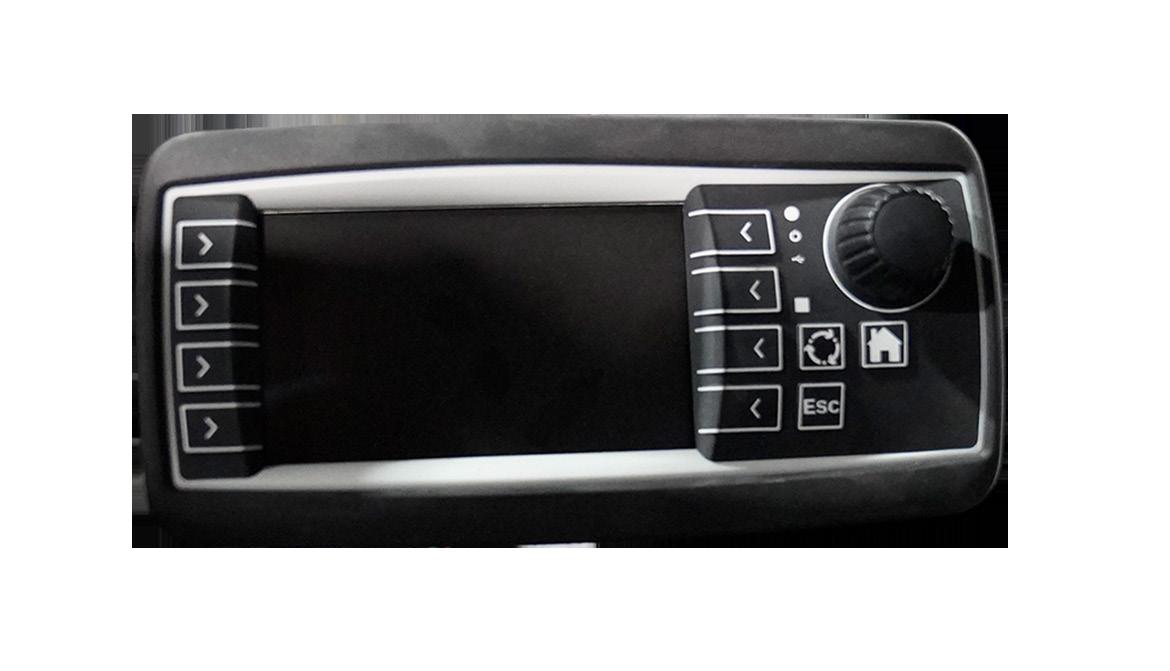

CAB CONTROLS

CAB CONTROLS

CAB CONTROL

9050019

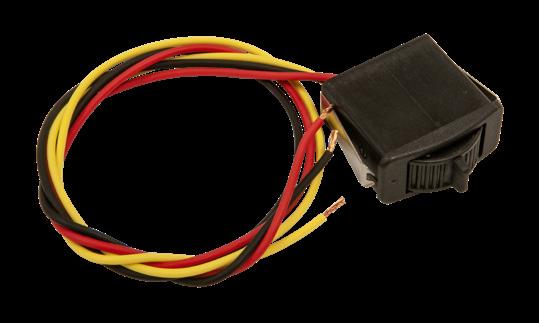

Switch - Roller, Fingertip

9050131

Joystick, Curved Swing Arm, Ram Mount

9350175

Joystick - Suregrip

715605

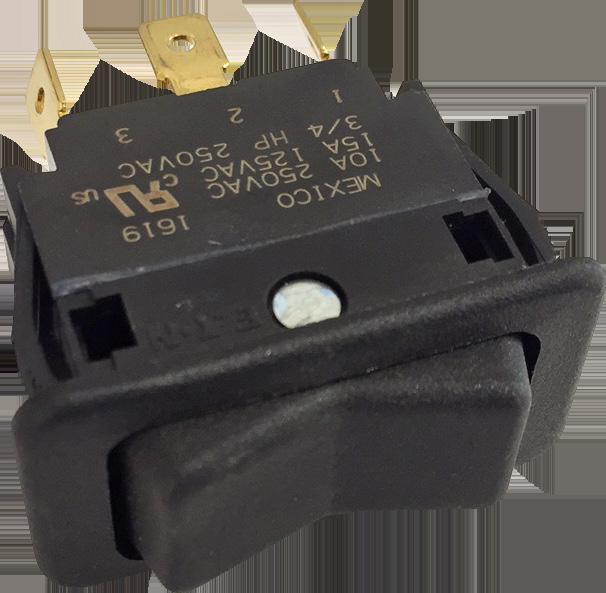

Switch - Rocker, Momentary

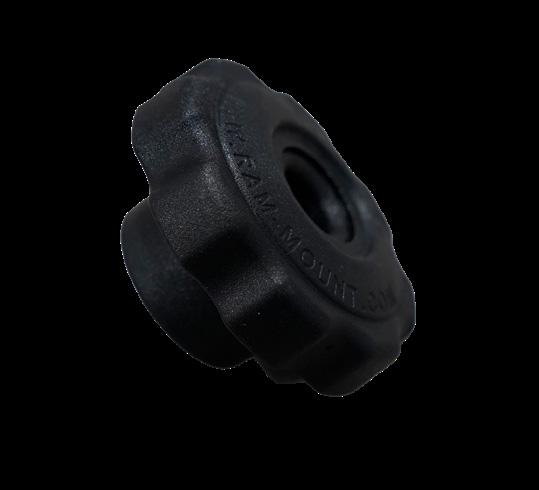

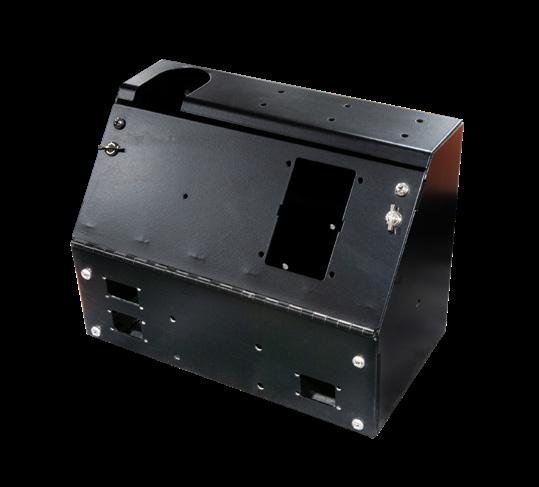

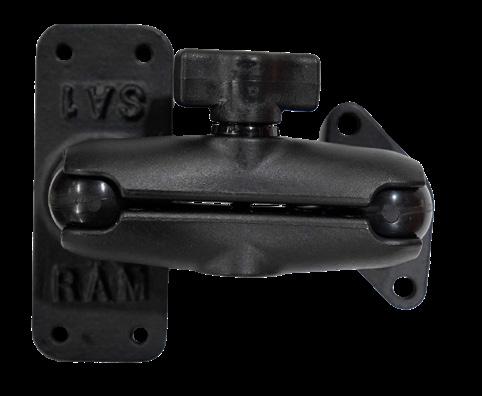

285736 Ram Mount Control Box

715606

Switch - Rocker, Maintained

CAB CONTROL

9990111

Decal - Autopack

9050026

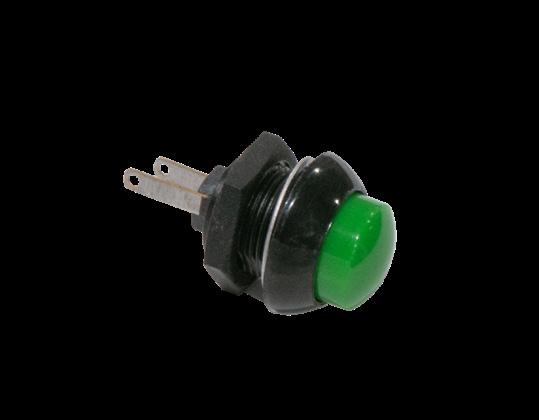

Switch - Push Button, Green

9050054

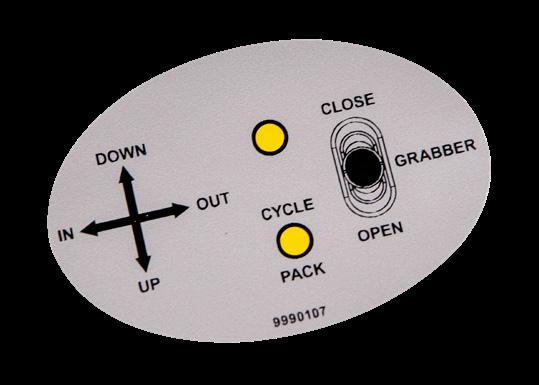

Decal - Cab Box

715136

Indicator Light, Red

9050030

Switch - Maintained, Lighted Red

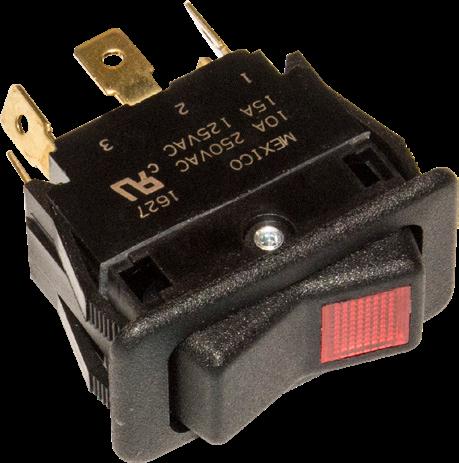

715607

Switch - Rocker, Momentary, Lighted Red

9050043 E-Stop Button

- License Plate

715076

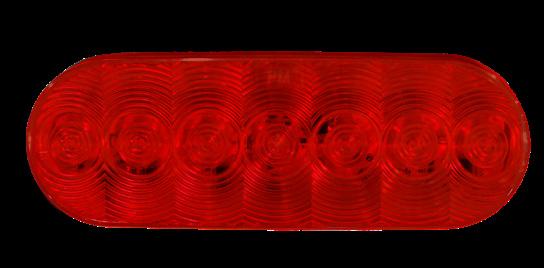

- STT, 6” Oval, LED

715857 Light - Back Up LED, 4”

715699

- Work, ABL, Round

715854

9150450 Light - 4” LED Strobe, Curbside High & Roadside Low

715855

- STT LED, 4”

9150451 Light - 4” LED Strobe, Roadside High & Curbside Low

715856

Amber LED, 2.5” Strobe

9150465 Light - 6” Oval Amber LED, Midship

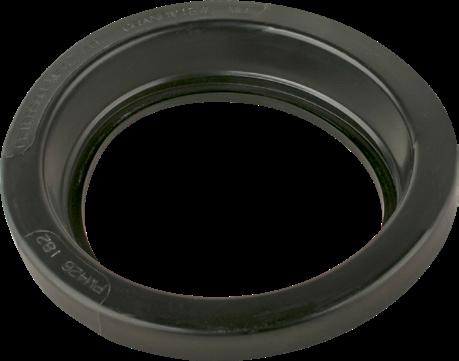

Grommet

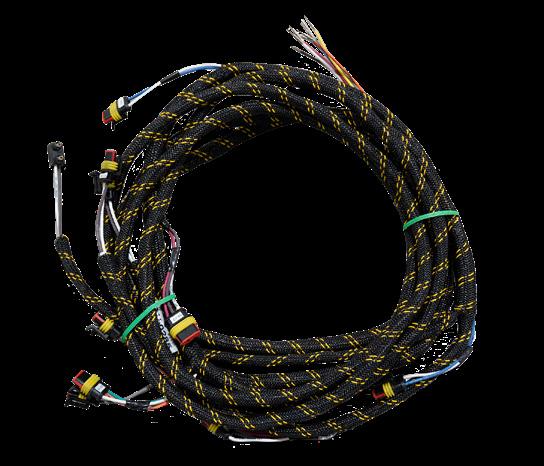

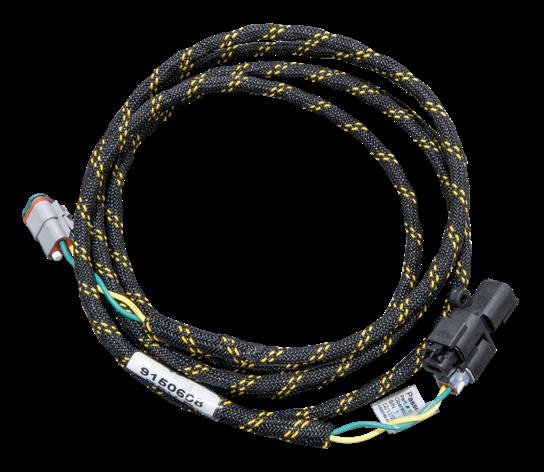

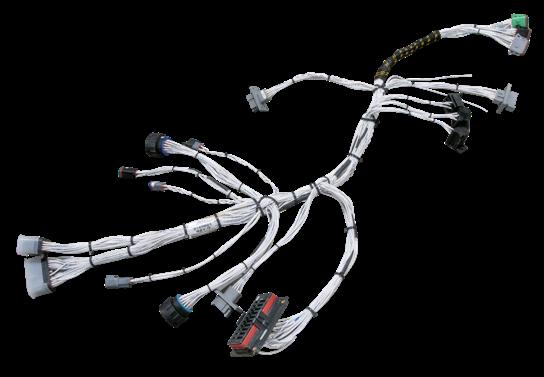

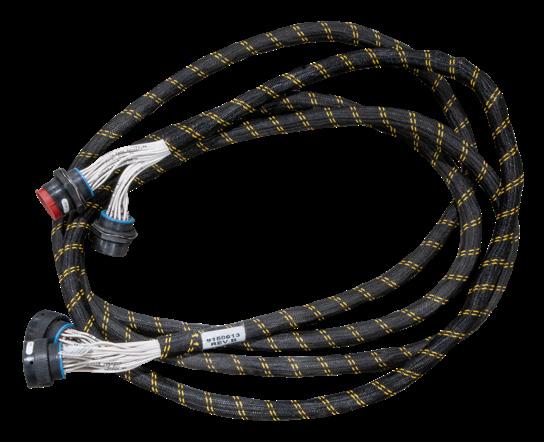

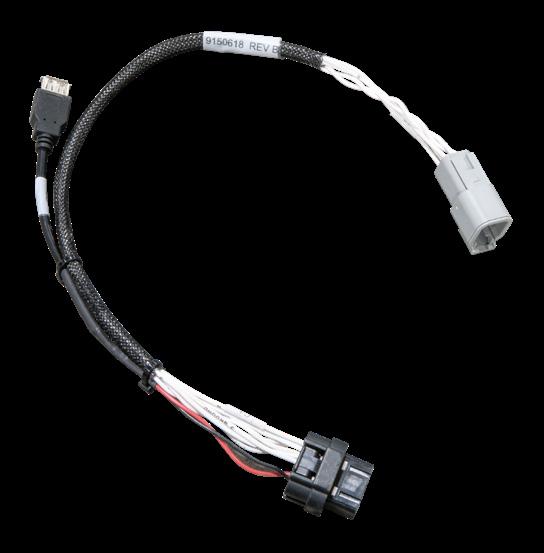

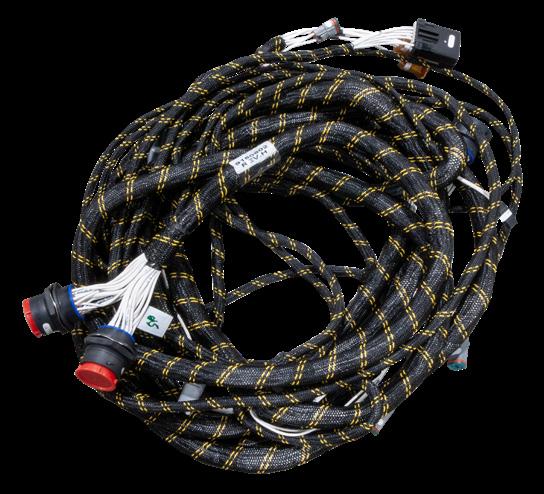

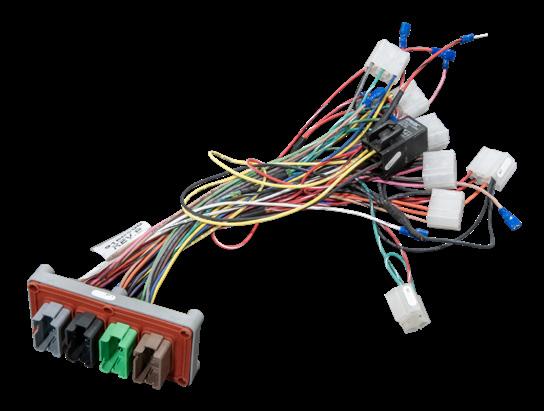

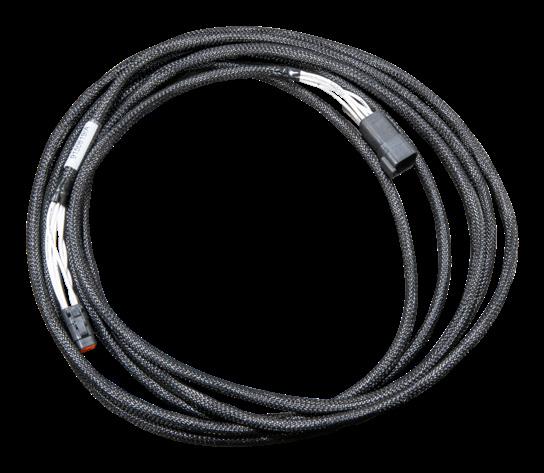

WIRE HARNESSES

WIRE HARNESSES

WIRE HARNESSES

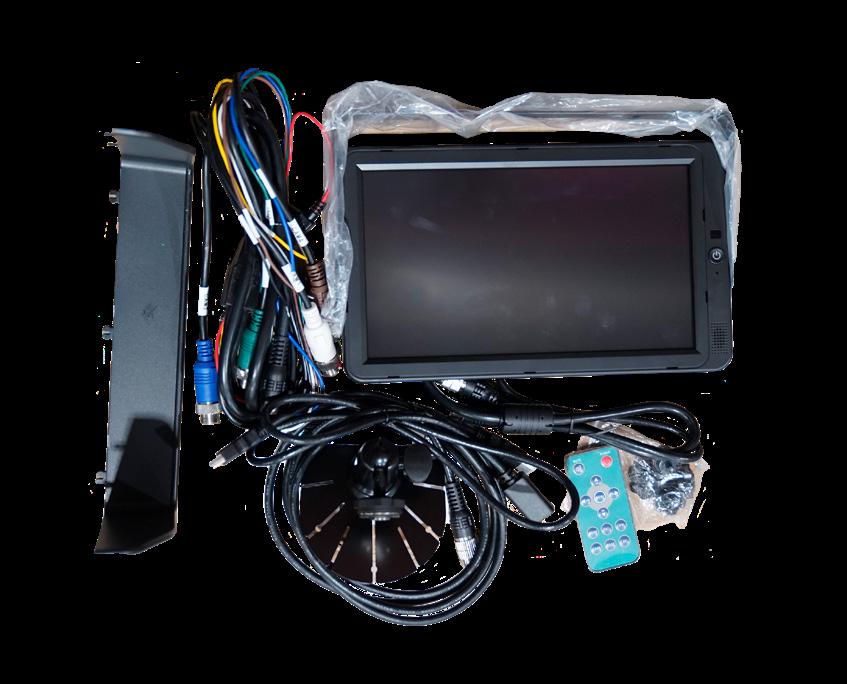

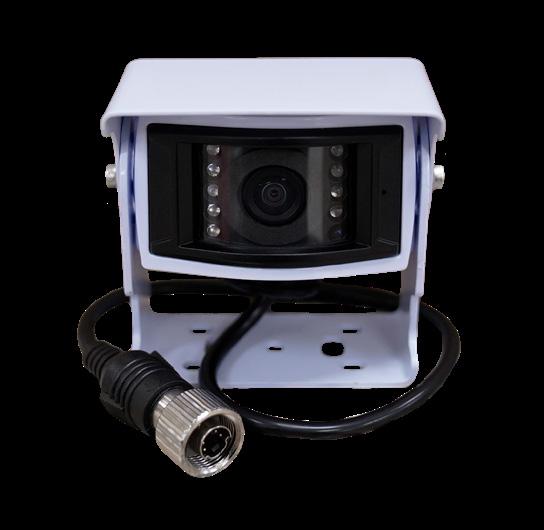

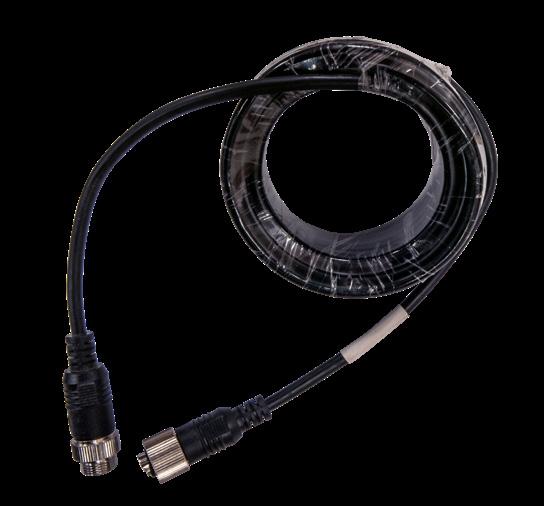

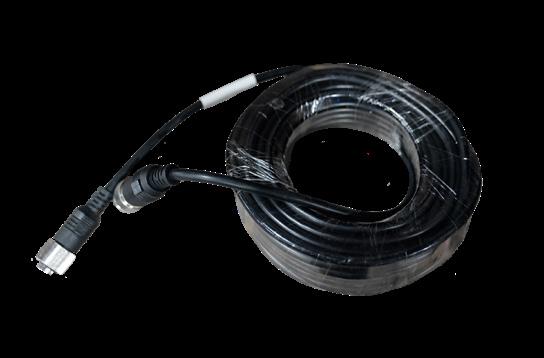

CAMERAS / CABLES

CHASSIS HYDRAULIC TUBES

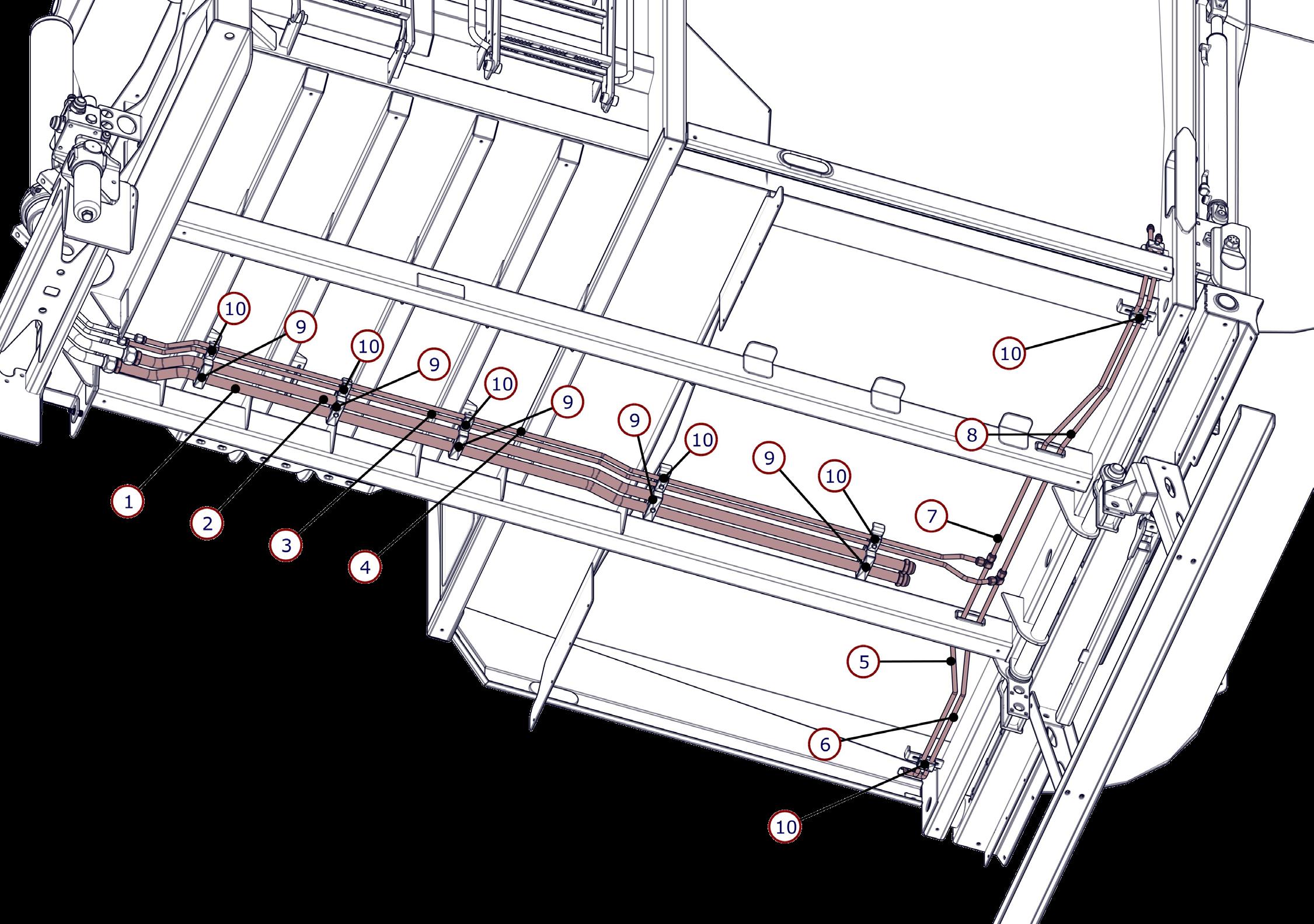

BODY HYDRAULIC TUBES

HEADFRAME HYDRAULIC TUBES

ARM HYDRAULIC TUBES

PACKER EXHAUST MANIFOLD

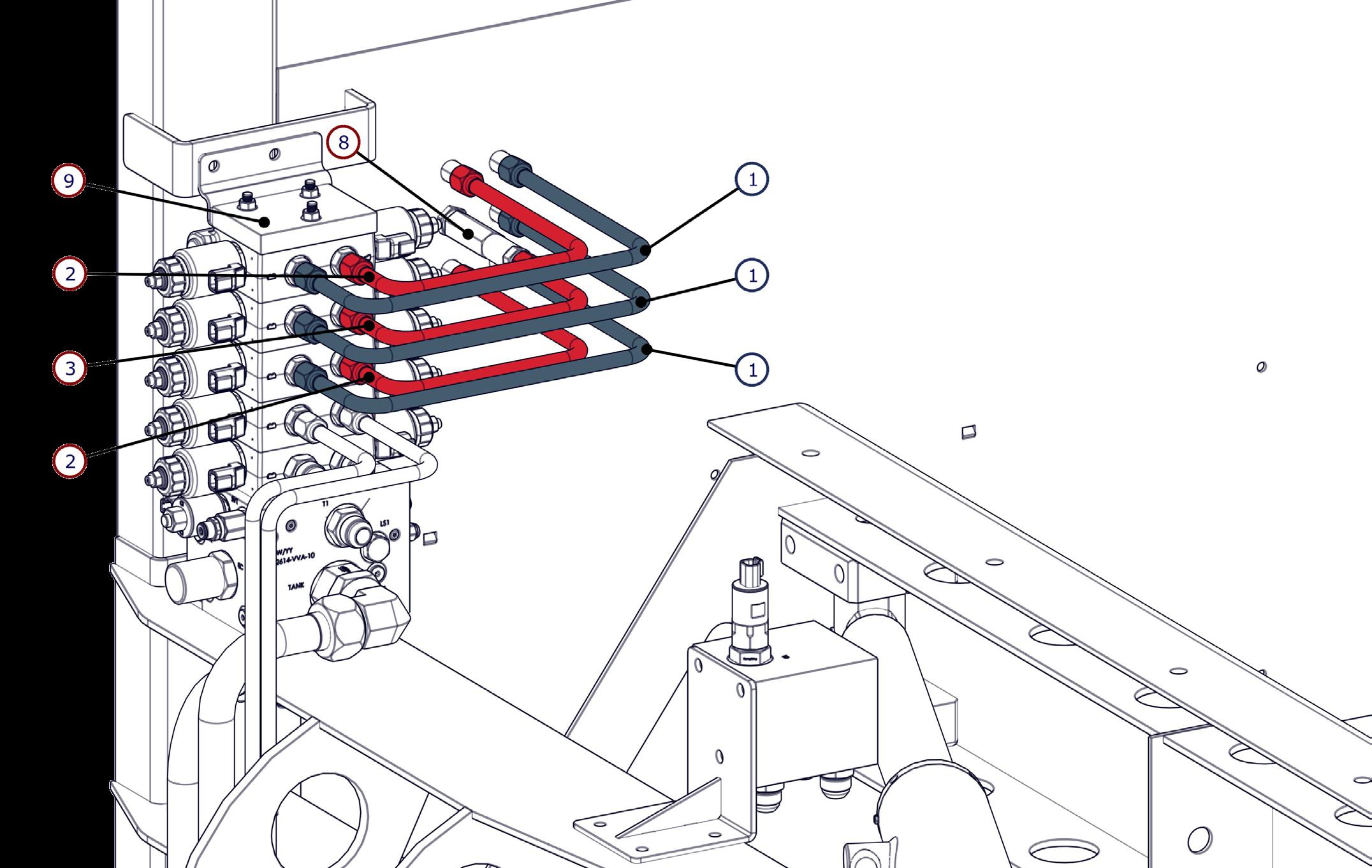

ARM VALVE STACK

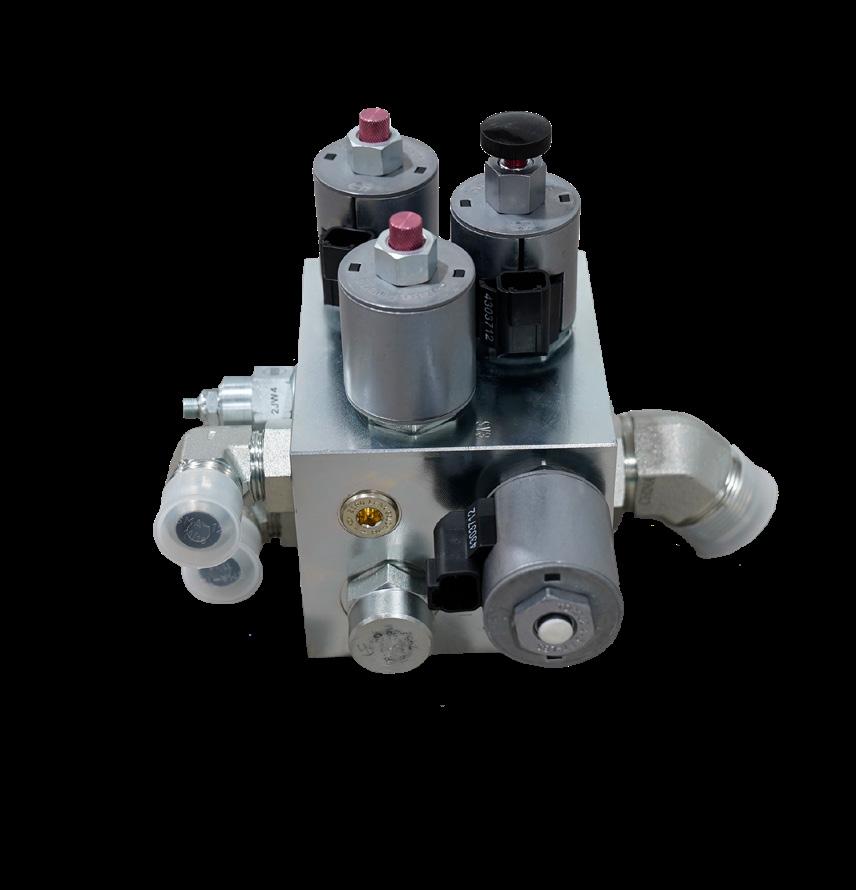

BODY DUMP MANIFOLD

BODY DUMP MANIFOLD

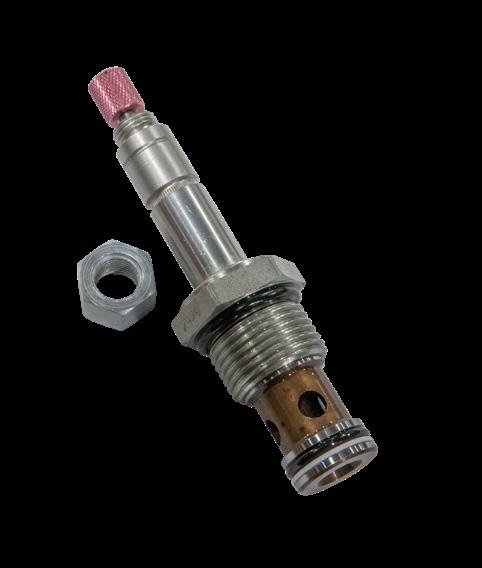

9450028

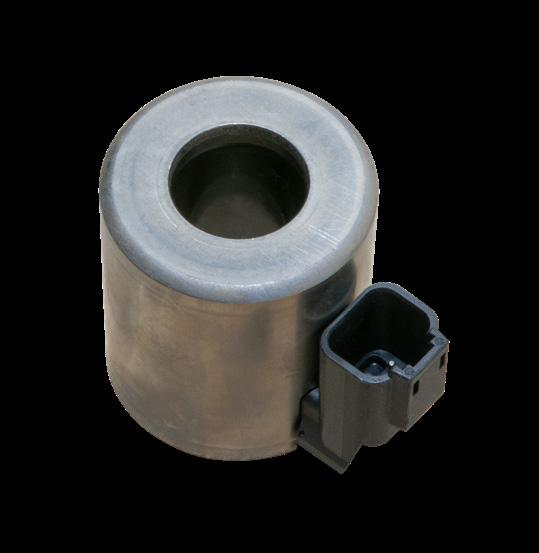

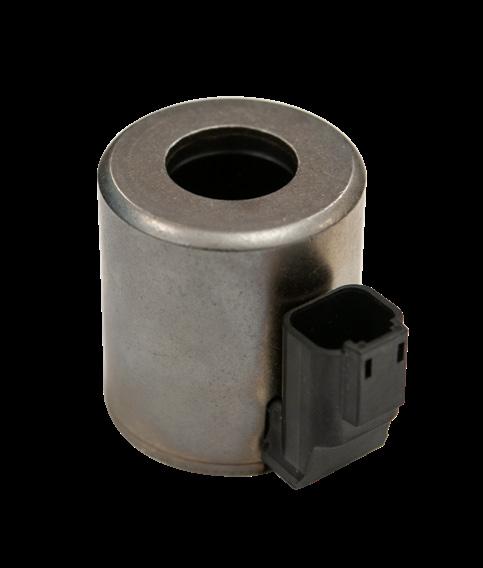

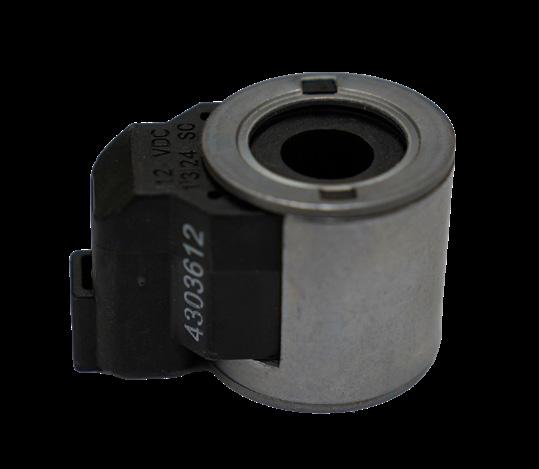

Solenoid - N.O. Poppet, W/ MO

9450029

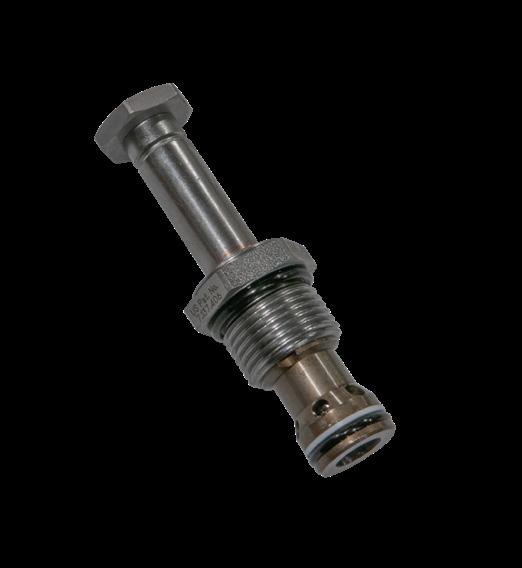

Poppet - #12, 2-Way, N.C.

9450034

Cartridge - Pressure Relief, 3000 - 150 PSI

9450032

Cartridge - Check Valve, #12, 6 PSI

9450031

Poppet - #12, 2-Way, N.C. Bi-Locking

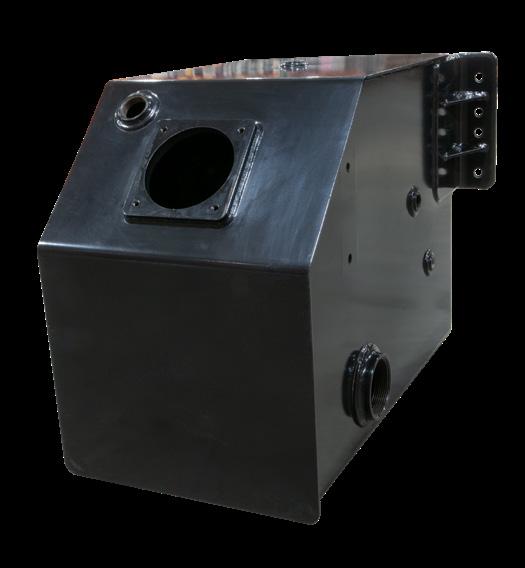

OIL RESERVOIR & FILTER

OIL RESERVOIR & FILTER

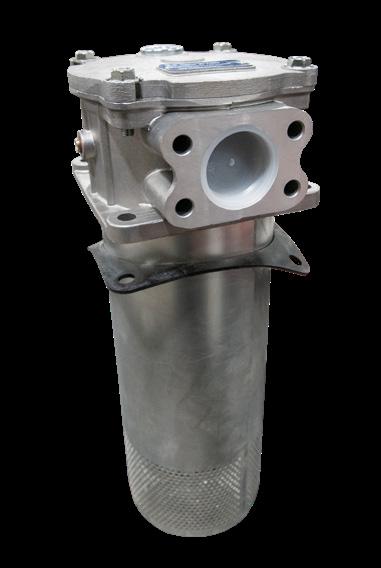

OIL RESERVOIR & FILTER

Bypass Indicator, Pop-Up 9450747

Element - Tank Return Filter 9450407

High Pressure Filter Assy

Bypass Indicator, 1.8” NPT Adaptor (Gen 1 Filter)

Bypass Indicator, Pop-Up 9650027 Seal Kit - Tank Return Filter

OIL RESERVOIR & FILTER

9450123

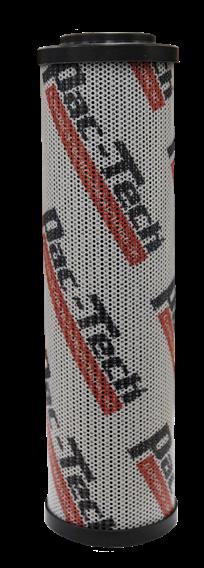

Element - High Pressure Filter

5870940

Side Suction Basket Wldt (Not Shown)

5870938

Gasket - UOR Side Plate Block Off (Not Shown)

9650009

Seal Kit - High Pressure Filter

5870939

UOR, Side Plate Block Off (Not Shown)

9350170

Temp Sensor 4206200 (PS) (Not Shown)

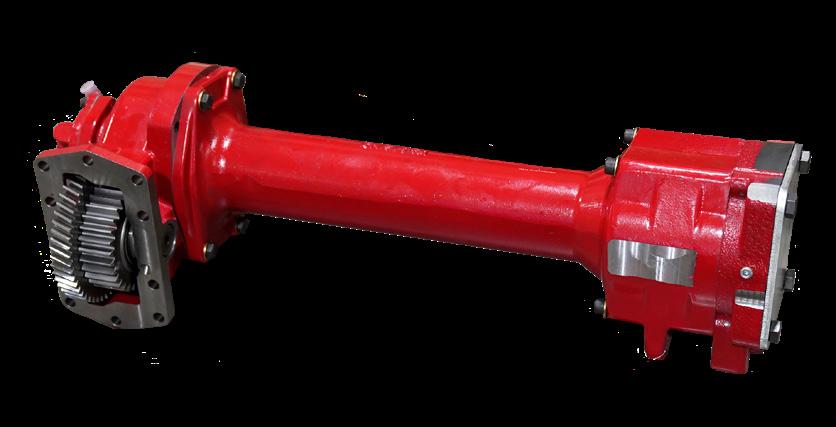

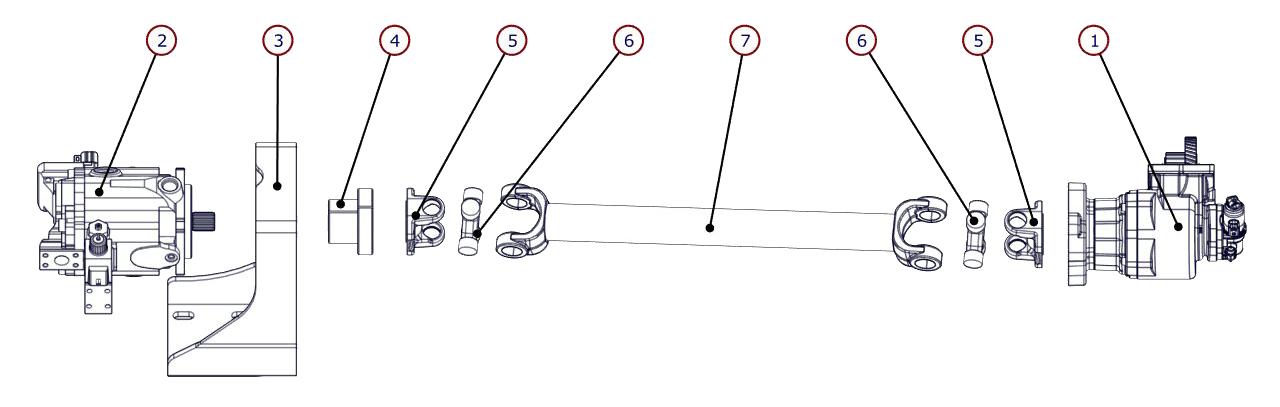

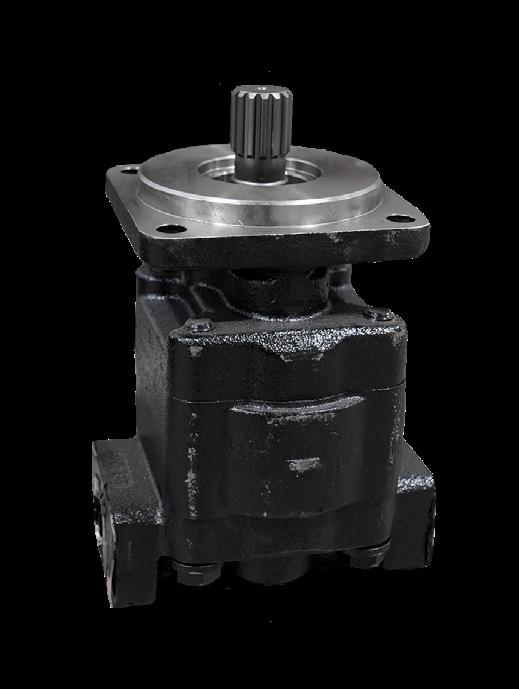

PTO & PUMP

DRIVESHAFTS

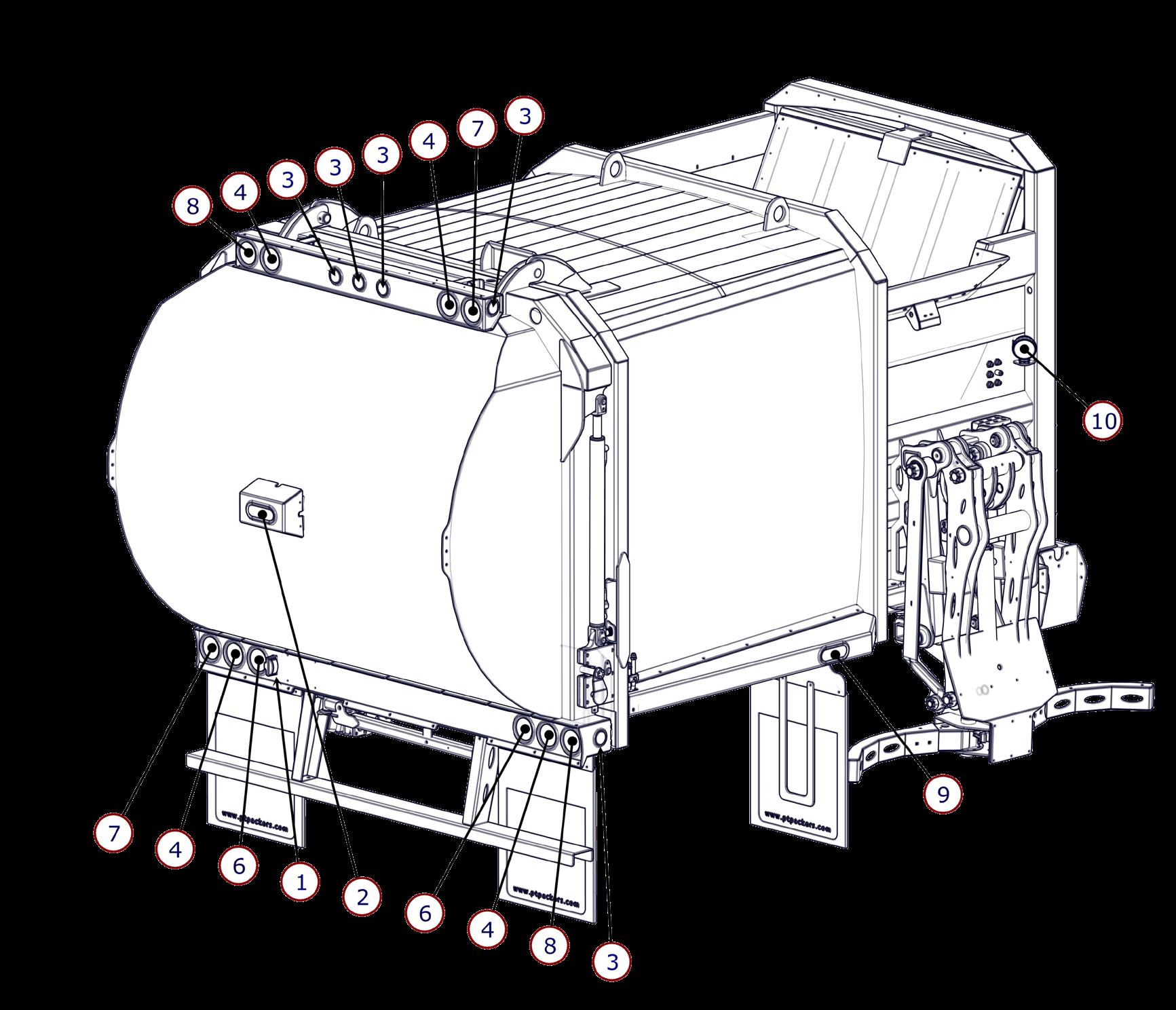

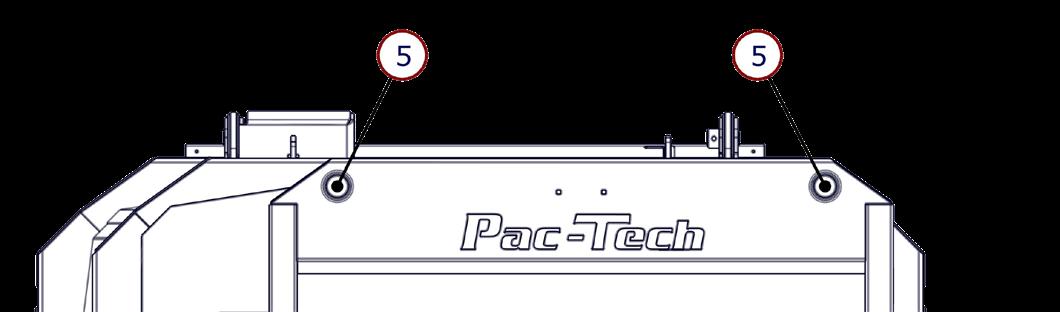

SAFETY DECAL PLACEMENT

Business Credit Application

be advised we send our invoices via email the date your order

I hereby certify that the information contained herein is complete and accurate. This information has been furnished with the understanding that it is to be used to determine the amount and conditions of the credit to be extended. Furthermore, I hereby authorize the financial institutions listed in this credit application to release necessary information to the company for which credit is being applied for in order to verify the information contained herein. All invoices are to be paid 30 days from the date of invoice. There will be a 1.0% interest charge per month on all invoices that are 30 + days past due.

Turn static files into dynamic content formats.

Create a flipbook
