COMPACT SPRAYERS

CAPS

NOZZLE BODIES & FILTERS

SPRAY NOZZLES WIDE ANGLE FLAT & FERTILISER

NOZZLES SPECIALISED APPLICATION

- NOZZLE SELECTION

® NOZZLES NARROW ANGLE AI

& CAPS FOR HORTICULTURE

SPRAYING TOOLS & COVERAGE

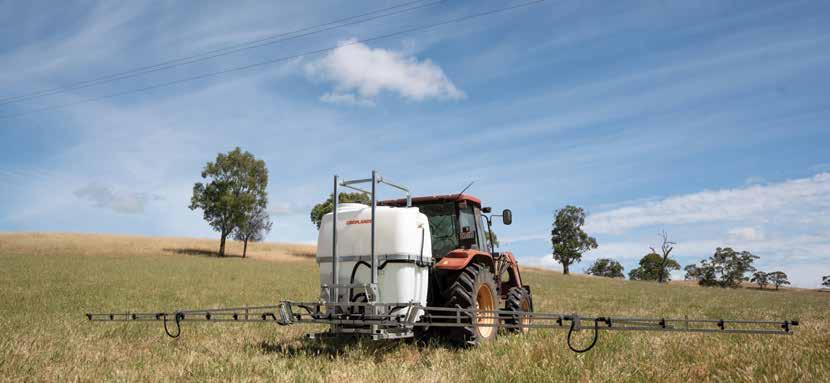

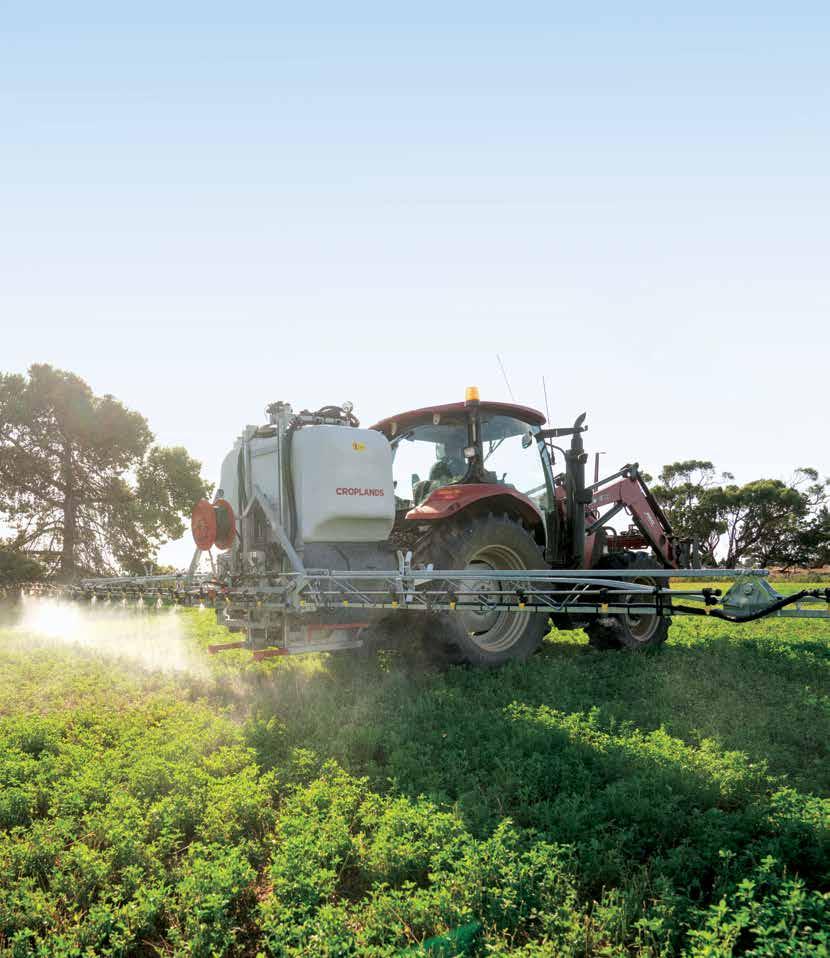

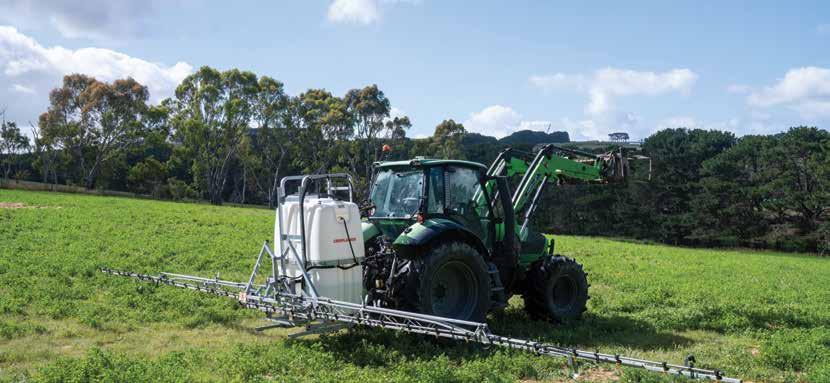

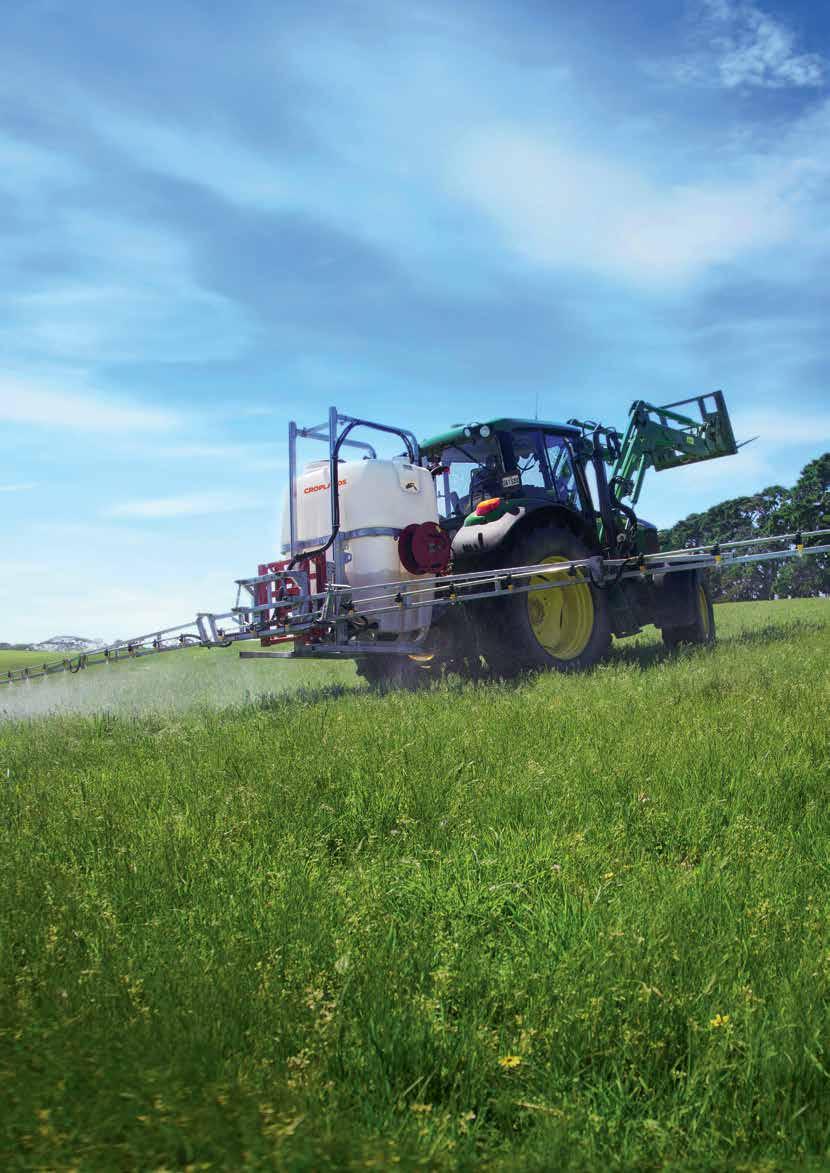

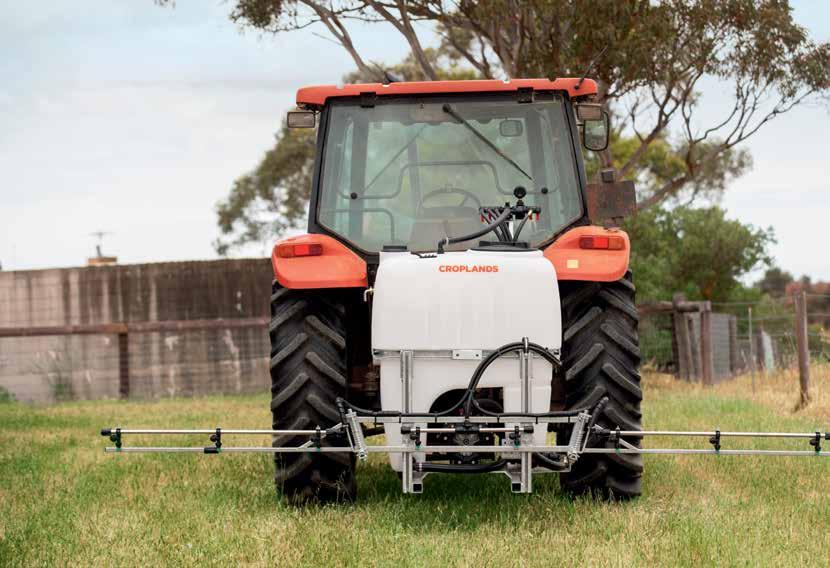

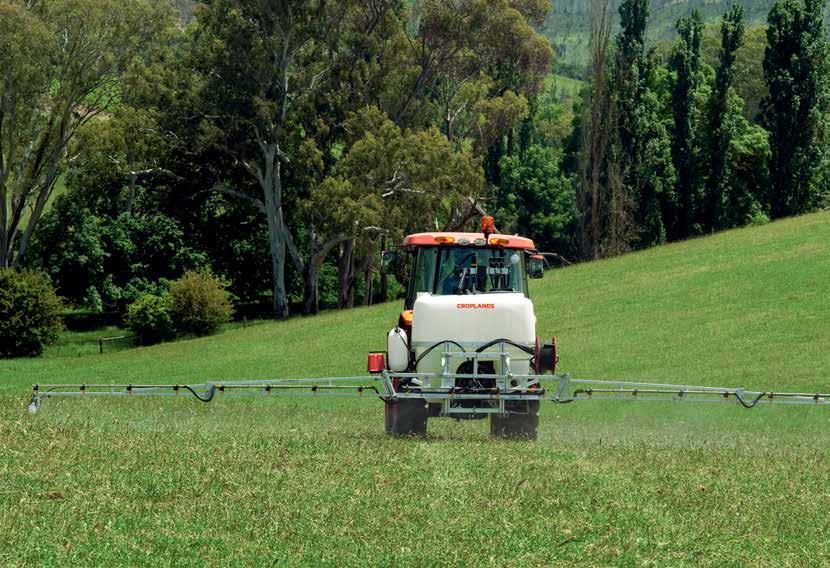

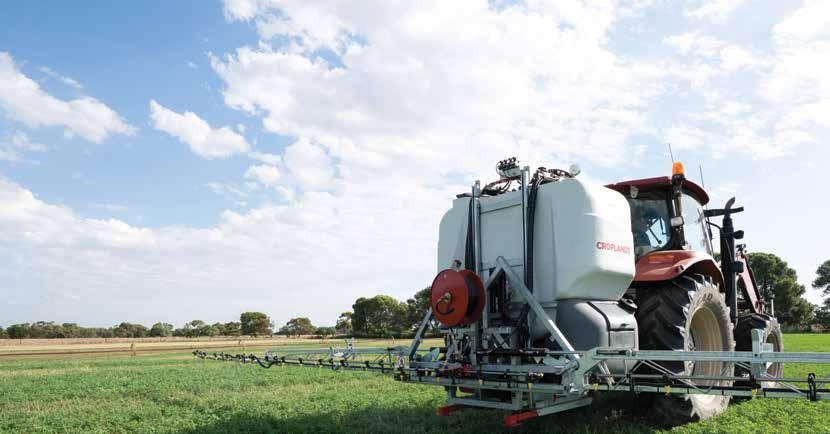

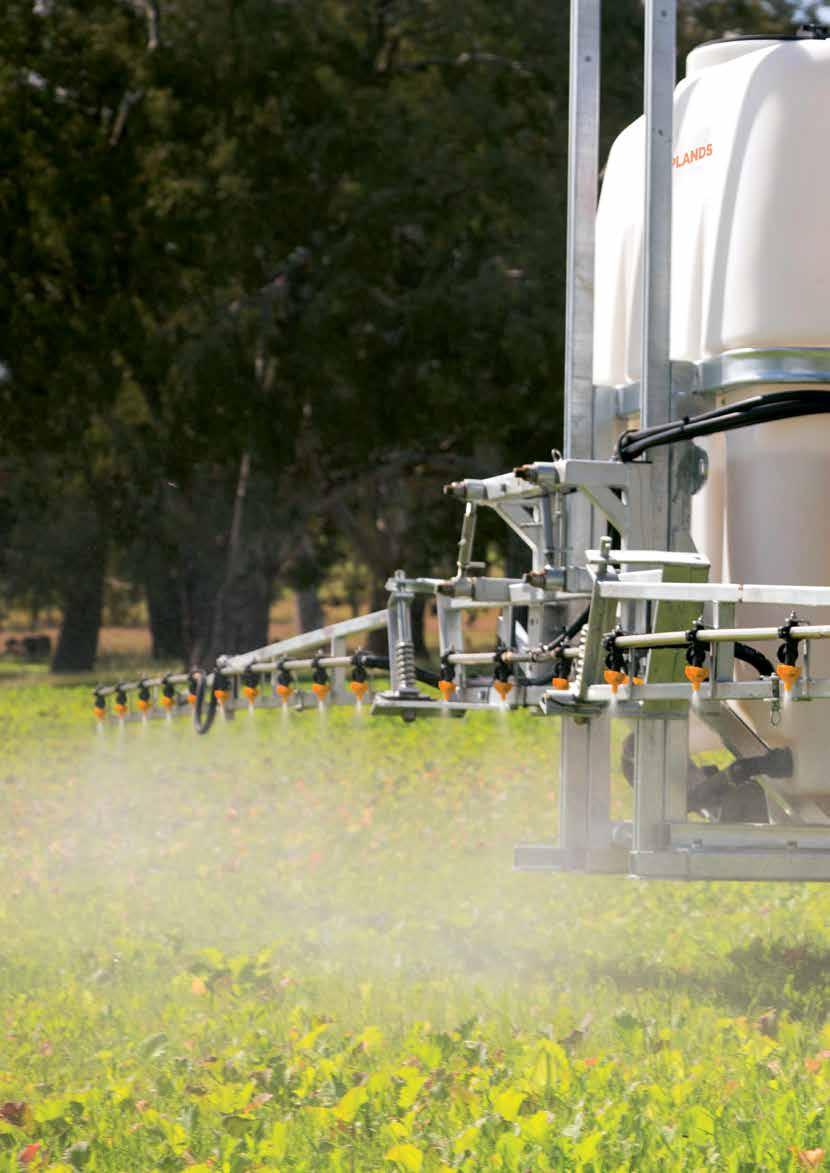

LINKAGE SPRAYERS

Croplands linkage sprayers are engineered to deliver safe and efficient spray application. Hard-wearing and long-lasting UV-stabilised tanks range in capacity from 300 up to 1600 litres, offering spraying solutions for properties of all sizes.

Market leading pump capacity

Fitted with Annovi Reverberi triple-diaphragm positive-displacement pumps, Croplands linkage units deliver optimal flow and pressure

Control and coverage

Fitted standard to Croplands linkage booms, Agrotop AirMix air-induction nozzles are designed to provide optimal drift control and surface coverage

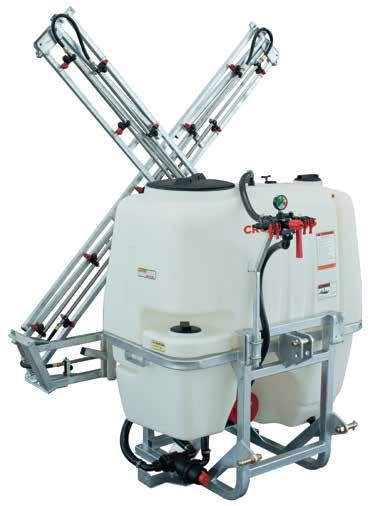

AGRIPAK

1. 5-tap control with master on/off lever

2. Isometric gauge for accuracy

3. 10L handwash tank

4. 40L flushing tank

5. Main tank drain 6. Protected nozzles

7. Stainless-steel boom lines 8. Spring-loaded boom breakaways 9. Galvanised boom and frame

10. Easily accessible and protected filter

11. Protected pump supplied with PTO shaft

12. Venturi tank agitation 13. Easy-adjust boom height slides

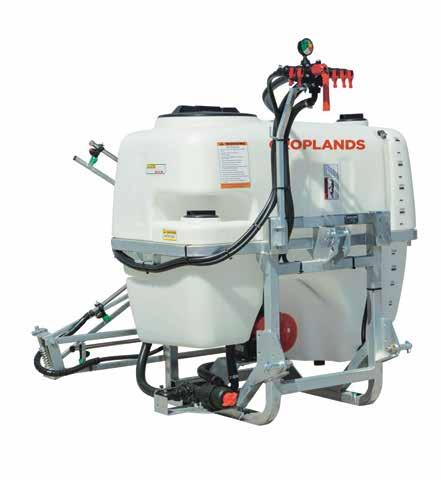

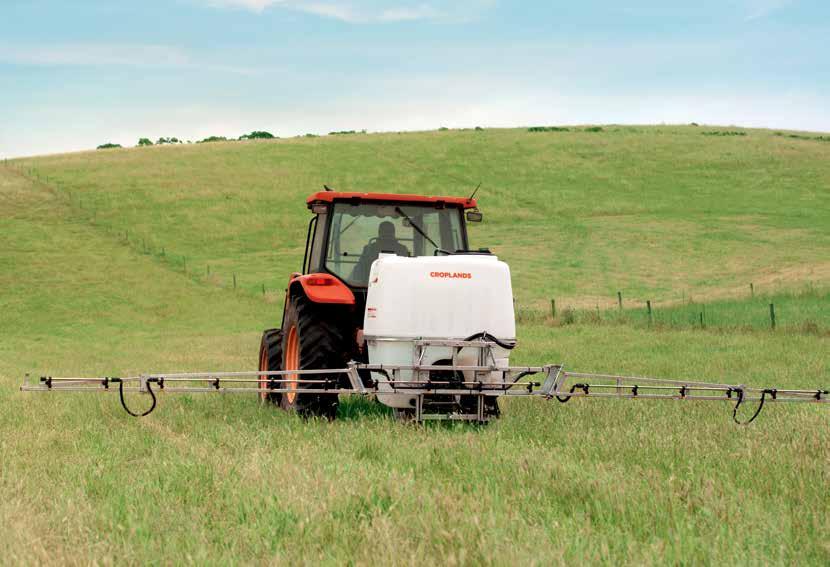

AGRIPAK LINKAGE 600

600L AGRIPAK LINKAGE WITH OPTIONAL BOOM, HOSE REEL, ELECTRIC CONTROLS AND FOAM MARKER

KEY FEATURES

1. 5-tap control with master on/off lever

2. Isometric gauge for accuracy

3. 15L handwash tank

4. 80L flushing tank

5. Main tank drain

6. Protected nozzles

7. Stainless-steel boom lines

8. Spring-loaded boom breakaways

9. Galvanised boom and frame

10. 3-way tap by filter to allow tank selection

11. Rear-mounted AR triple-diaphragm pump supplied with PTO shaft

12. Venturi tank agitation

13. Easy-adjust boom height slides

AGRIPAK 600

AGRIPAK

800L AGRIPAK LINKAGE WITH THE OPTIONAL 8M BOOM KEY FEATURES

1. 5-tap control with master on/off lever

2. Isometric gauge for accuracy

3. 15L handwash tank

4. 80L flushing tank for in-field clean out

5. Main tank drain for complete clean out

6. Protected nozzles

7. Stainless-steel boom lines

8. Spring-loaded boom breakaways

9. Galvanised boom and frame

10. Easily accessible and protected filter

11. Rear-mounted AR triple-diaphragm pump supplied with PTO shaft

12. Venturi tank agitation

13. Easy-adjust boom height slides

14. Optional slide-out rear park legs AGRIPAK 800

AGRIPAK LINKAGE 1000

LAC1000 AGRIPAK LINKAGE WITH 10M MANUAL-FOLD BOOM

KEY FEATURES

1. 5-tap control with master on/off lever (not pictured)

2. Isometric gauge for accuracy (not pictured)

3. 15L handwash tank

4. 100L flushing tank for in-field clean out

5. Main tank drain for complete clean out

6. Protected nozzles

7. Stainless-steel boom lines

8. Spring-loaded boom breakaways

9. Galvanised boom and frame

10. Easily accessible and protected filter

11. Rear-mounted AR triple-diaphragm pump

12. Venturi tank agitation

13. Easy-adjust boom height slides

14. Slide-out rear park legs and forklift points for safe loading/unloading

15. Fold-up step standard

16. Over-top support for added strength

OPTIONS SEE PAGES 11–12

AGRIPAK 1000

1000L AgriPak linkage sprayer with flush tank. Fitted with AR80 pump, UCM

AGRIPAK

1200

1. 5-tap control with master on/off lever (not pictured)

2. Isometric gauge for accuracy (not pictured)

3. 15L handwash tank

4. 100L flushing tank for in-field clean out

5. Main tank drain for complete clean out

6. Protected nozzles

7. Stainless-steel boom lines

8. Spring-loaded boom breakaways

9. Galvanised boom and frame

10. Easily accessible and protected filter

11. Rear-mounted AR triple-diaphragm pump

12. Venturi tank agitation

13. Easy-adjust boom height slides

14. Slide-out rear park legs and forklift points for safe loading/unloading

15. Fold-up step standard

16. Over-top support for added strength

OPTIONS SEE PAGES 11–12 KEY FEATURES

LAC1200 1200L AgriPak linkage sprayer with flush tank. Fitted with AR80 pump, UCM 5-way controller (base model, no hose reel or boom). Venturi agitation fitted standard

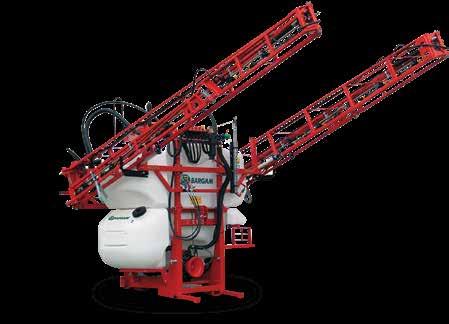

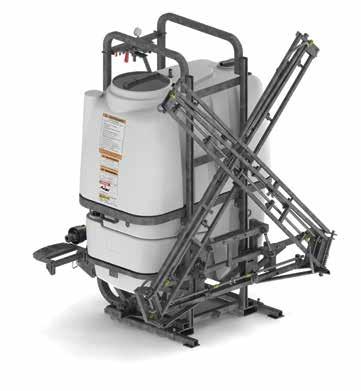

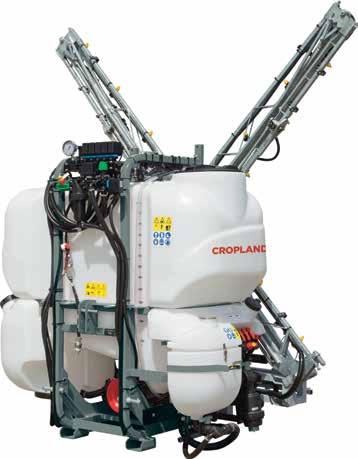

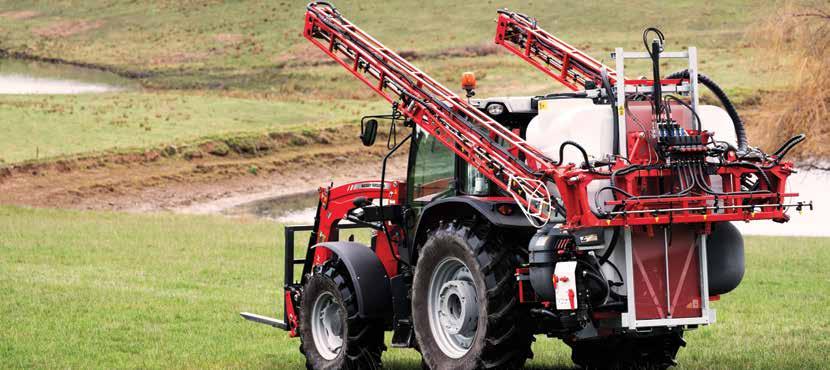

AGRIPAK PRO 1300 & 1600

AGRIPAK 1300 & 1600 - BASE MODELS (NO BOOM)

1300: WIDTH: 2000MM LENGTH: 950MM HEIGHT: 2050MM WEIGHT: 400KG

1600: WIDTH: 2020MM LENGTH: 1050MM HEIGHT: 2150MM WEIGHT: 450KG

1. Calibrated and UV-stabilised poly tank with sight tube and litres marked

2. Integrated handwash tank

3. 170L flushing tank for in-field clean out

4. 30L chemical mixer/induction unit standard

5. Easy-access drain system for quick draining and clean out

6. Protected large suction filter with shut-off valve for easy cleaning

7. Large filling lid with strainer

8. Nozzles are protected on all booms to avoid damage

9. Stainless-steel boom tubing with non-drip nozzle bodies

10. Integrated 1,000mm hydraulic lift device

11. 185 L/min AR triple-diaphragm pump mounted beneath the tank for excellent suction and safety

12. Dual venturi and bypass agitation

13. Stabiliser legs fitted to the frame to keep unit safe from tipping when parked

14. Forklift points on bottom frame rails to assist with loading/unloading from a vehicle

15. Folding access step for safety

16. Clothing and glove locker

OPTIONS SEE PAGES 11–12 KEY FEATURES

1300L linkage base unit with AR185 PTO-drive diaphragm pump. In-cab electric 3-section control unit, flushing and handwash tank. 1,000mm integrated hydraulic height adjuster. 30L chemical mixer fitted. Choose a boom option from page 12, or for standard hydraulic-fold 12 and 15m booms, see below

1300L linkage base unit with AR185 PTO-drive diaphragm pump. In-cab electric 3-section control unit, flushing and handwash tank. 1,000mm integrated hydraulic height adjuster. 30L chemical mixer fitted. 12m hydraulic-fold MHL boom fitted with individual left/right fold

AGRIPAK SPECIAL

1300 & 1600

1600L linkage base unit with heavy duty galvanized frame, fitted with AR185 PTO-drive pump, In-cab electric 3 section control, flush tank and handwash tank. 1,500mm integrated hydraulic height adjuster. 30L chemical mixer fitted. Hydraulic accumulator suspension. Choose a boom spec’d option below, ranging from 16m-21m fully hydraulic side folding. Booms specific to this linkage option only.

OPTIONS

800, 1000, 1200, 1300, 1600

1200, 1300, 1600

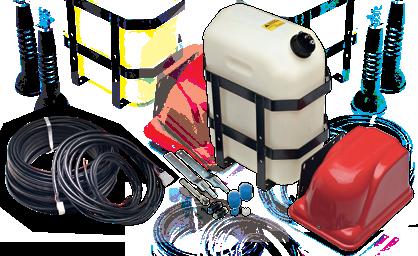

EXTRAS

BOOM SUSPENSION OPTION

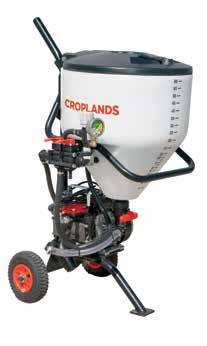

CHEMICAL MIXING, INDUCTION HOPPER AND QUICK FILL

300, 600, 800, 1000, 1200 A5033301 35L chemical mixing and induction hopper fitted at fixed height at the side of the linkage sprayer. Fully enclosed for safe mixing, with container rinse function

Page 35

600, 800, 1000, 1200 L-H9351A

60L chemical mixing and induction hopper fitted at fixed height at the side of the linkage sprayer. Fully enclosed for safe mixing, with container rinse function

N/A All models HT-QF2 1½” quick

PUMP AND PUMP DRIVE UPGRADE

Page 41 600,

300, 600, 800, 1000, 1200 LT-FMI-E2012

300, 600, 800, 1000, 1200 LT-FMIE2032A

All models LT-FMIE2052A

models LT-FMBA5000GEO3

All models LT-FMBRAVO3SEC

ARAG single-switch electric control kit fitted for boom shut-off using in-cab switchbox (boom-section control is manually done using taps)

ARAG 3-section electric control kit for individual on/off of 3 boom sections. Includes master on/off and electric pressure adjustment from in-cab switchbox

ARAG electric in-cab controller with switchbox. 5-section electric valves for individual section shut off, electric pressure regulating valve and a master on/off can all be operated from the switchbox in the cab or vehicle. Requires a reliable 12V power supply

Croplands 3-section fully auto spray-rate control of spraying application. Dual-screen display, 3 boom-section control, auto sprayrate adjustment

Bravo180 3-section fully auto spray-rate control of spraying application. Dual-screen display, 3 boom-section control, auto sprayrate adjustment

LT-FMISOBUSARAG ARAG IBX ISOBUS interface (no console supplied with this option)

LT-FMTRIMFIQ3 Trimble-ready option, field IQ module included, no console included

BT-ARAG5 5-section ARAG valves

MANUAL

Made of steel to deliver long-lasting quality, Croplands manual-fold booms feature stainless-steel boom tubing with non-drip nozzle bodies and Agrotop AirMix low-drift nozzles.

FEATURES

1. Galvanised steel construction

2. Tension spring breakaway for each boom arm

3. Folds neatly behind sprayer/vehicle (with the exception of MB02, which is a fixed boom)

1. Hot-dipped galvanised finish

2. Self-returning breakaway on boom arms

3. Can be plumbed in 3 to 5 sections

4. Self-levelling device standard on 12m boom, optional on 8 and 10m booms. Selfleveller can be locked if required

5. Detach hose with ease

HYDRAULIC

Ideal for small row cropping, vegetables or undulating farm country, Croplands hydraulic boom options feature heavy-duty galvanised steel construction and stainless-steel boom tubes.

KEY FEATURES

GEX

1. Tension breakaway for each boom arm

2. Boom folds hydraulically in cross-fold

3. 8 and 10m models have a flip-over outer section, which needs to be manually secured in the folded position prior to folding the boom for transport

*Protection rails no longer included or available.

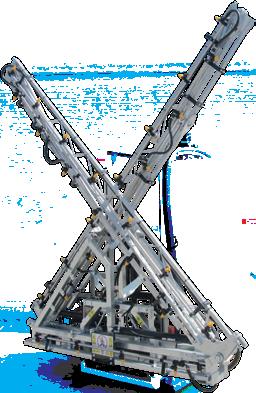

HYDRALINK

1. Nozzles and nozzle bodies mounted behind boom

2. Tension breakaway on outer sections

3. Self-levelling centre section standard

4. Boom folds sequentially in cross-fold for transport

5. Using left/right hydraulic kit option, each side can be lifted independently, which also automatically locks the self-levelling system

GEX06H 6m galvanised hydraulic-folding boom; 12 non-drip nozzle bodies, two rams for folding, hydraulically plumbed to fold together. Weight = 87kg

8m galvanised half-hydraulic-folding boom; 16 non-drip nozzle bodies, two rams for folding, hydraulically plumbed to fold together. 1m of each end is manually unfolded to make the boom 8m. Weight = 93kg

GEX10H 10m galvanised half-hydraulic-folding boom; 20 non-drip nozzle bodies, two rams for folding, hydraulically plumbed to fold together. 2m of each end is manually unfolded to make the boom 10m. Weight = 96kg

GEX-2-KIT Second set of hydraulic hoses to allow left/right individual fold of GEX boom (text on your order)

Heavy-duty galvanised 12m full hydraulic-folding boom with 24 nozzles, twin ram with auto-folding tips, hydraulically plumbed to fold both sides together. Central self-locking self-leveller standard

FIREBREAK , UNDER TREE & COVERED

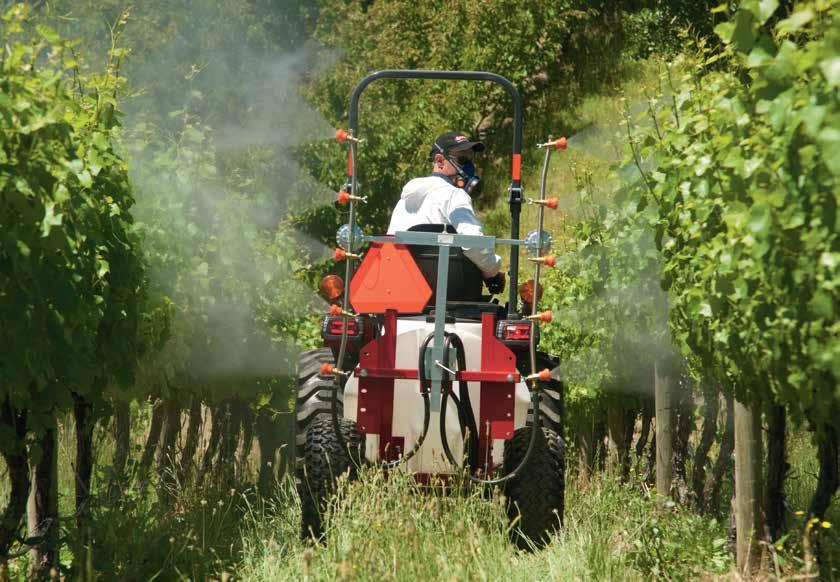

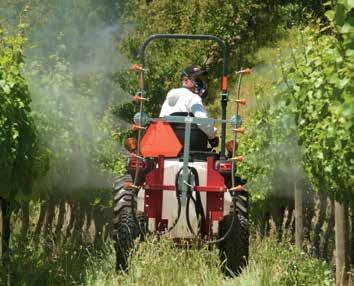

VERTIBOOM

1. Ideal for small horticultural growers

2. Vertical spray application, 5 nozzles per side

FIREBREAK BOOM

1. For spraying firebreaks, farm tracks, contours, ditches and fence-lines

2. 1.5m wide with offset nozzles on adjustable-swivel nozzle bodies on each end for additional 1.5m spray each side

3. Ideal for the back of utes or small trailing sprayers

SHROUDED BOOM

1. For spraying under sensitive crops such as grapes or trellis tomatoes

2. Single or double-sided options

UNDER-TREE BOOM

1. Perfect for spraying under trees or hedgerows

2. Galvanised boom with breakaway

3. Extendable outer section with two nozzles can be lifted up for transport

Vertiboom 5 nozzles per side Vertiboom. Ideal for small horticultural growers

Firebreak boom 1.5m wide Firebreak boom

Shrouded boom Single-sided light-covered boom with breakaway and 2 nozzles under spray shield

Double-sided light-covered boom with left/right shielded booms with breakaways, adjustable width, and a 600mm wide uncovered centre section with 2 nozzles

Under-tree boom Treeliner boom with breakaway and 2 nozzles

1. Target areas not easily accessed by a conventional boom with the Croplands XT Boomless Nozzle kit

2. The XT Boom kit delivers a uniform spray pattern over a distance of up to 6.5m

3. Fitted standard with #10 nozzles, see below chart for more application details

*Disclaimer: all values are calculated application rates in L/ha based on the swath width in the far right column and assuming the pressure and flow can be

the spray target is recommended using Croplands UA300B trailed sprayers but may vary depending on the sprayer being fitted to, the

is adjusted upwards the application rate will be lower; if the kit is adjusted to spray wider than the table suggests, the application rate will be lower. The reverse will be true if the

and/or

is

Larger nozzle sizes are available on request. Ensure your pump has adequate flow to achieve the desired spray rate and sprayed width. For more information visit hypro.pentair.com and search on XT X Tender nozzles.

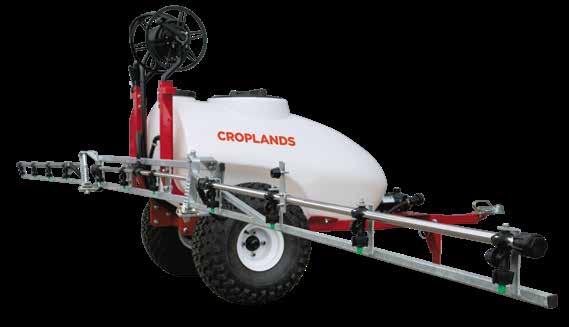

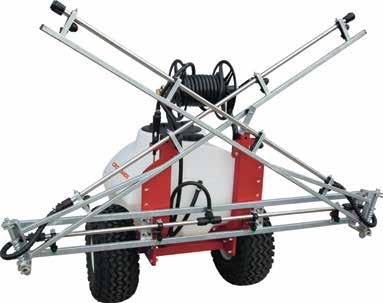

TRAILPAK

KEY FEATURES

• Translucent UV-stabilised tank with large sump and graduated markings

• Large, easy-access lid with filling strainer

• Easy-access suction filter and regulator for pressure and flow adjustment

• Rugged, one-piece chassis

• Flotation tyres on sturdy axle

• Safety hitch for safe towing and parking stand

• 12V, 20 L/min (open-flow) pump to enable use with booms up to 6m

• Standard with hose reel, 10m of 10mm hose and spray lance

12-VOLT RANGE

Boom fitted models:

• AirMix air-induction low-drift nozzles fitted standard

• Fully protected non-drip nozzle bodies on stainless-steel boom tubes

• Spring-loaded breakaways to protect boom arms

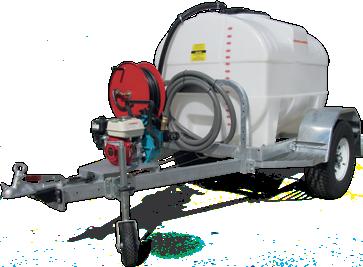

TRAILPAK

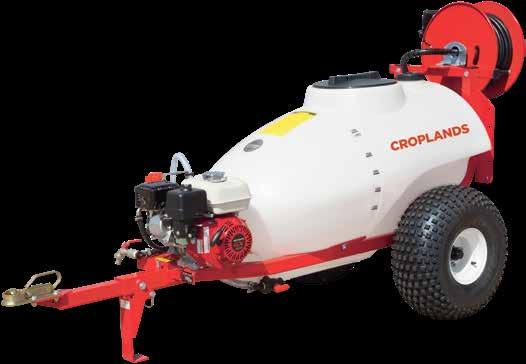

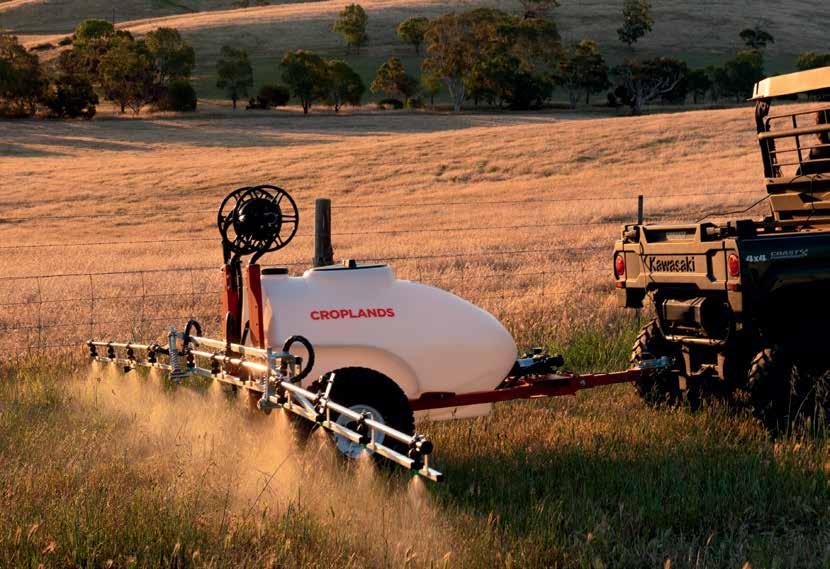

Self-contained mobile spraying, designed to be towed behind an ATV, UTV or small tractor.

KEY FEATURES

• Translucent UV-stabilised tank with large sump and graduated markings

• Large, easy-access lid with filling strainer

• Easy-access suction filter and regulator for pressure and flow adjustment

• Rugged, one-piece chassis

• Flotation tyres on sturdy axle

• Safety hitch for safe towing and parking stand

• 25 L/min Honda-powered pump

• Standard with hose reel, 10mm hose and spray lance

• Optional upgrade to auto-rewind remote control RetraSpray reel MVB5-5

MOTORISED RANGE

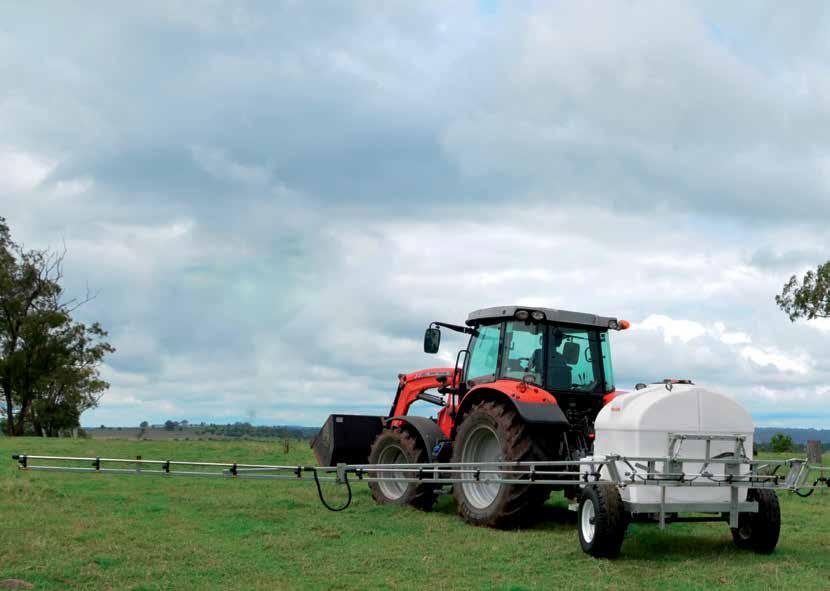

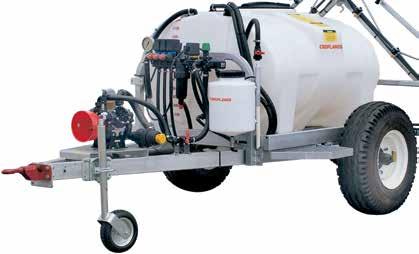

TRAILPAK

& 1500

1. 1100 and 1500L tank options

2. Remote tank drain valve and large sump

3. Large, easy-access filling lid with filling strainer

4. Easy-access suction filter with shut-off to allow for in-field cleaning

5. Fully galvanised chassis fitted with sprung axle to protect from premature wear

6. 11.5/80 x 15.3 tubeless agricultural tyres on steel rims

7. Adjustable height swivel towing eye

8. Large side step for easy tank access

9. Liquid fertiliser-ready poly 3-diaphragm pump fitted standard (PTO shaft supplied) KEY FEATURES A cost-effective sprayer for pasture spraying, small cropping areas and dairy farms.

Selection of boom sizes available.

BT-1100

Base model 1100L trailed sprayer with galvanised chassis, leaf-spring single axle, PTO-drive 80 L/min AR triple -diaphragm pump (0–20 bar rated), ARUCM 5-manual tap control unit, 20L handwash tank and jockey wheel. No boom or reel fitted – add from options next page. PTO supplied

Base model 1500L trailed sprayer with galvanised chassis, leaf-spring single axle, PTO-drive 80 L/min AR triple -diaphragm pump (0–20 bar rated), ARUCM 5-manual tap control unit, 20L handwash tank and jockey wheel. No boom or reel fitted. PTO supplied

Note: ensure your vehicle is approved for the laden or trailed weight of the sprayer you have chosen.

OPTIONS

RETRASPRAY

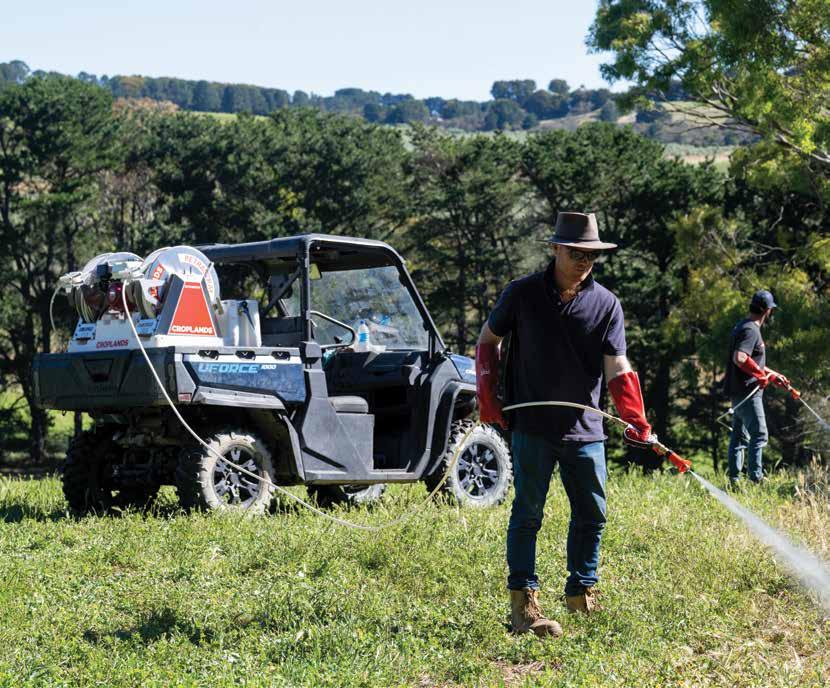

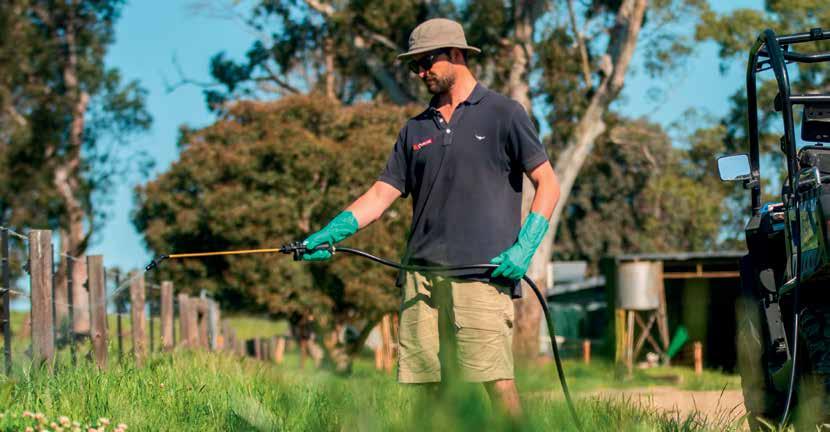

Take the work out of gun spraying with Croplands RetraSpray retractable reel, complete with SupaSlip hose.

SEE PAGES 30–31 1. 12V 1∕5HP low-rev motor directly coupled to the reel

100m high-quality SupaSlip hose 3. Push-button hose retraction and remote-control rewind standard, includes roller guides for hose

4. Connect to 12V DC power source using heavy-duty power cable supplied

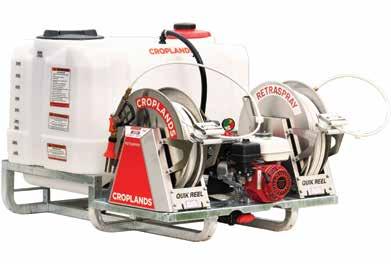

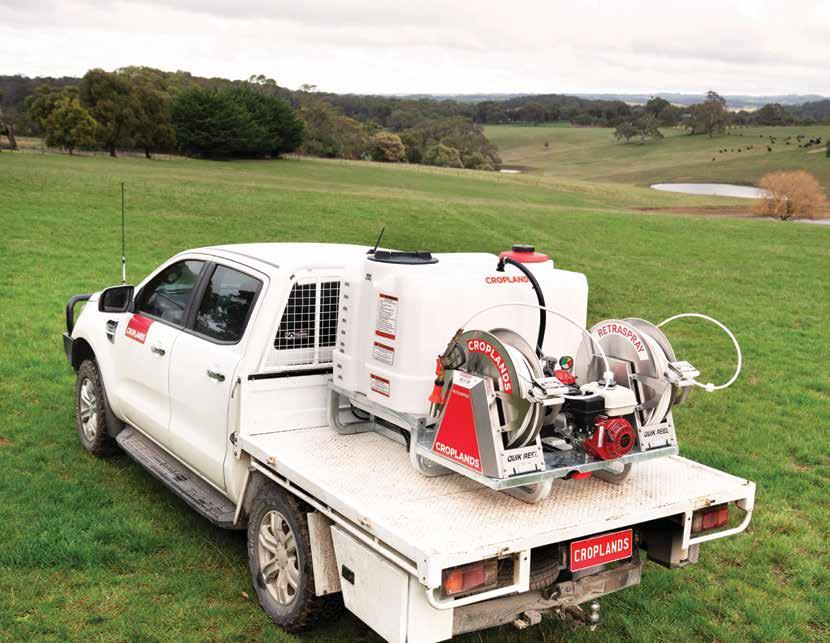

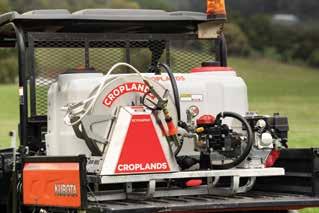

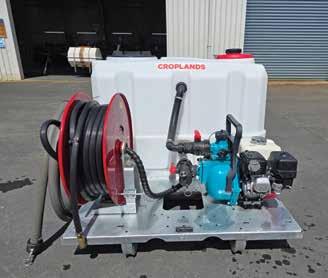

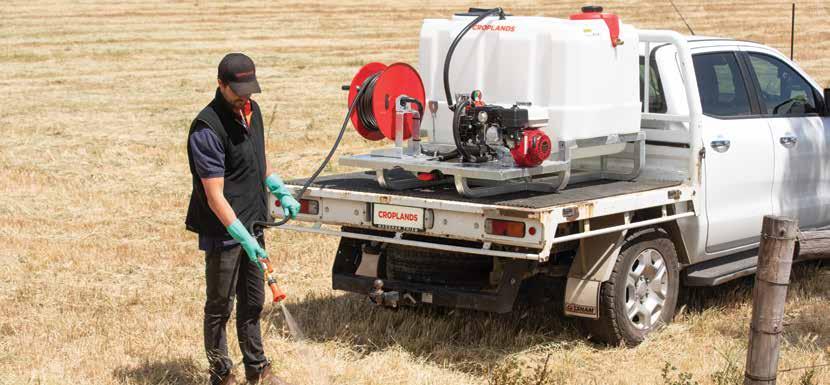

TRAYPAKNEW

Croplands new traymount sprayers are designed to fit on the back of your compact RTV to give portable delivery of high-pressure, large-volume spray application, in the hard to reach, tight spots in your smaller capacity trays.

TRAYPAKNEW

TRAYPAK

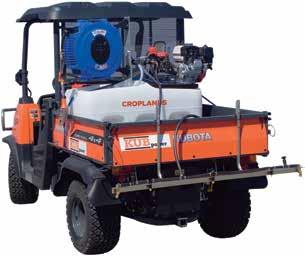

Croplands traymount sprayers are full-operation spraying systems designed to fit on the back of your ute or RTV to give portable delivery of high-pressure, large-volume spray application, whether you’re spraying weeds, carting water or fighting fires.

Disclaimer: dimensional and weight information supplied is for base model only with no options. This information is subject to change without notice.

MANUAL REELS

TRAYPAK

Croplands motorised sprayers are powered by genuine Honda motors with larger diaphragm pumps to give better spray pressure for those larger jobs.

KEY FEATURES

1. Heavy-duty hot-dip galvanised frame with carry handles

2. UV-stabilised tank with level markings

3. Large filling lid with basket strainer

4. Large sump for total emptying and easy draining and clean out

5. Genuine Honda motor to power the reliable AR diaphragm pump

6. Steel hose reel with galvanised mount, 30 metres of high-quality hose and Turbo400 gun

Disclaimer: dimensional and weight information supplied is for base model only with no options. This information is subject to change without notice.

CROPPAK

Easy to transport and manoeuvre, Croplands 12V powered sprayers are well suited for repeat, spot spray operations.

1. Rugged translucent tank, UV-stabilised with large filling lid and drain

2. 3-stage filtration - filling screen under lid, suction filter and pressure filter in lance handle

3. Metal lance with adjustable nozzle. Clips into lid for easy storage

4. New galvanised frame for easy handling

5. 6 metres of high-quality 20-bar spray hose fitted

6. Heavy-duty 12V power lead with rocker-switch

7. High-quality electrical connector to pump with waterproof plug for quick and reliable connection KEY FEATURES

US300F/15/HR

LANCE OPTIONS

Disclaimer: dimensional and weight information supplied is for base model only with no options. This information is subject to change without notice.

New 200L CropPak with galvanised frame, on-demand 15.1 L/min open-flow pump, regulator and gauge. 3-way valve enables connection to a boom. 10m spray hose standard with Swissmex spray gun and lance. Power lead with on/off switch provided. Fitted with 10m hose reel.

New 300L CropPak with galvanised frame, on-demand 15.1 L/min open-flow pump, regulator and gauge. 3-way valve enables connection to a boom. 10m spray hose standard with Swissmex spray gun and lance. Power lead with on/off switch provided. Fitted with 10m hose reel.

CROPPAK

OPTIONS SEE PAGES 30–31

KEY FEATURES

1. Rugged translucent tank, UV-stabilised with large filling lid and drain

2. 3-stage filtration - filling screen under lid, suction filter and pressure filter in lance handle

3. Metal lance with adjustable nozzle. Clips into lid for easy storage

4. Carry handles for easy handling

5. 6 metres of high-quality 20-bar spray hose fitted

6. Heavy-duty 12V power lead with rocker-switch

7. High-quality electrical connector to pump with waterproof plug for quick and reliable connection

30L CropPak, on-demand 6.8 L/min open-flow pump, 6m of spray hose, spray lance and electrical power lead with on/off switch

100L CropPak, on-demand 15 L/min open-flow pump, pressure regulator and gauge, 6m of spray hose, spray lance and electrical power lead with on/off switch

Disclaimer: dimensional and weight information supplied is for base model only with no options. This information is subject to change without notice.

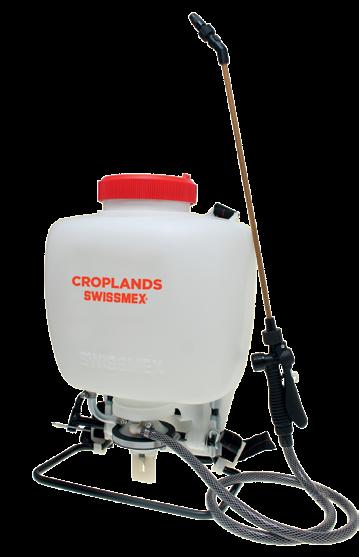

KNAPSACKS

KEY FEATURES

1. Adjustable nozzle

2. Long lance

3. Safer port – wide 5½” diameter port with filling strainer

4. Large 15L tank

5. Easy to clean – strong polyethylene tank with UV inhibitors for long life

6. Easy to handle – comfortable handgrip with lever lock

7. In-built pressure filter

8. Dual-piston/diaphragm pump – non-leak, high-quality dualpiston/diaphragm pump (up to 6 bar) with Viton seals and a safety diaphragm – for wear resistance and reliability

9. Padded straps – wide, non-absorbent polyester straps with heavy-duty padding for strength, comfort and safety

10. Sturdy design – one-piece handle folds for easy storage

11. In-built agitator

12. Lid lance clips – for easy storage and carrying

13. Carry handle – offers convenience

PAKMAN (FITTED TO SPRAYER)

Chemical resistant foam back protector, designed to significantly increase comfort for prolonged spraying needs. Fits SW503 15L knapsack sprayers. A must for making spraying much more comfortable

INDUSTRIAL

SW189C

Heavy-duty 15L knapsack designed for industrial use (diesel compatible); wide filling neck, rugged shut-off gun, adjustable nozzle, in-built pressure filter, brass lance. Lance clips into the handle for storage and transport

AGRICULTURAL

SW319

High-quality, heavy-duty 5L compression sprayer; wide filling neck, rugged shut-off gun, adjustable nozzle, pressure relief valve, in-built pressure filter, brass lance. Lance clips into the handle for storage and transport

SW322-315

High-quality, heavy-duty 9L compression sprayer for use with selected solvents and diesel; wide filling neck, rugged shut-off gun, adjustable nozzle, pressure relief valve, in-built pressure filter, brass lance. Lance clips into the handle for storage and transport

SW320

High-quality, heavy-duty 7L compression sprayer; wide filling neck, rugged shut-off gun, adjustable nozzle, pressure relief valve, in-built pressure filter, brass lance. Lance clips into the handle for storage and transport

SW320-310

The Acid Sprayer resists hydrochloric muriatic and phosphoric acids. Ideal for staining and etching concrete, and dissolving of rust on metal surfaces

ASBBS-16A

Rechargeable 12-volt sealed lithium ion battery; voltmeter to see charge level at a glance. Large filling lid. 12-volt diaphragm pump for positive spraying pressure

CROPPAK

& SWISSMEX

Spray lances for our range of CropPak sprayers, knapsack sprayers and compression sprayers.

SW-LANCE-ASSY

SW-LANCE-ADJ-AS

REELS &

*All bare capacities are for 10mm spray hose. L=length, W=width, H=height; dimensions may change without notice and do not include side-bracket on side-mount reels. Dimensional and weight information supplied is for base.

SPRAY GUNS & LANCES

CHEMICAL MIXING &TRANSFER

SCAN TO SEE RANGE

Dura-Meter, made of impact resistant Lexan faceplate, 100% moisture-sealed circuitry, menu driven backlit display, plumbed both for in-line and 90-degree applications, includes a 2-year warranty & maintenance program., flow rate 7.5 to 75.7L/per minute, Viton seals.

Dura Auto-Batch Easy Caddy Intuitive interface allows for the selection of manual or automatic operation with the press of a button. High-flow pump with up to 68L/per minute flow rate. Optimized for repeatable batching; returns to the last volume amount dispensed. 100% moisture-sealed circuitry. Includes Dura AutoBatch™ Meter with impact resistant Lexan™ faceplate. Available in 12 Volt with Viton seal. Measures in liters. Includes a 2-year Warranty & Maintenance Program.

DPEM-6318V-12

DP-6018V-12

DPEM-6618NV-12

The Easy Caddy can be mounted in six different configurations on a variety of tank/tote and drum types. Use it mounted on top of a tank or on top of a 1000L IBC Drum, on the side of tank, or off the ground depending on user preference. Conversion kits are available to mount a system on Monsanto or Snyder type tanks. Includes a 2-year Warranty & Maintenance Program.

High-Flow with up to 68L/per minute flow rate. Self-priming diaphragm pump with internal by-pass. Motor thermally protected from overheating. 30-minute duty cycle. Suction port has 2” Male NPT and 1” Female NPT. Includes a 2-year Warranty & Maintenance Program.

Dura Pump Easy Caddy 12 Volt (Viton) W/Dura-Meter & 12’ XLPE Discharge Hose and 5’ XLPE Suction Hose

CHEMPAK

30L CHEMICAL MIXER

1. Can handle liquids, powders and granulated products

2. Venturi suction system with integrated drain valve

3. Three venturi options to adapt to the pump type being used

4. Easy-to-understand tap controls for chemical mixing, mixer rinse and container cleaning system

5. Integrated lifting handle

6. Simple mounting system to ensure easy fit up to existing sprayers

7. Optional suction probe

60L CHEMICAL MIXER

1. Large access lid, fully sealed for safety

2. External and internal level markings

3. Dual-filling and product-agitation jets for rapid mixing

4. Container rinse nozzle capable of rinsing up to 20L containers

5. Mixer rinsing nozzle mounted directly under the lid for complete cleaning

6. Large taps for easy operation

7. Venturi with shut off valve

8. Sturdy handle and mount

9. Optional drop-down bracket available

10. High-flow capacity via large venturi

STAND ALONE 60L MIXER

1. Trolley-mounted Croplands chemical mixer for stand-alone mixing operations

2. Same features as itemised on left unit without pump. Requires a pressurised water source to allow mixing, filling and venturi to operate correctly – the pump on the sprayer could be used

3. Unit with 240V pump best used where a water tank and power is available but no existing pressurised water source is available

30L chemical mixer and transfer hopper for use with smaller trailed sprayers, linkage sprayers and traymount units. Includes universal mount, 3-tap control bank, container rinse and venturi options to match to the pump size and type being used

60L chemical mixer and transfer hopper for use with larger trailed sprayers, linkage sprayers and traymount units. Includes universal mount, taps for mixing, container rinse and system cleaning. Cleaning nozzle mounted directly under lid for complete clean out. Internal and external markings

Croplands 60L chemical mixer and transfer hopper as described above on handy trolley frame with ARA252-EM Electric motor and pump fitted. Ideal use at a chemical mixing station where an external water supply is available.

Croplands 60L chemical mixer as described above on a handy trolley frame with 240V centrifugal pump fitted. Ideal for use at a chemical mixing station where an external water tank is available along with mains power to power the pump

Optional spring-loaded drop-down mount for Croplands 60L mixer model L-H9351A. Ideal where operator height is an issue

CHEMICAL MIXING & TRANSFER

MIXING JUGS L-H9001

CHEMICAL TRANSFER

1. AgRunner chemical transfer unit for easy and accurate chemical transfer

2. Pump has nylon housing with Viton seals and multiple pump-chamber design to ensures long-life performance and durability

The AgRunner portable mini-bulk transfer system uses a 12V SHURflo chemical transfer pump for pumping liquid agricultural chemicals from bulk containers into chemical mixers or spray tanks. The unit has a handy carry frame to protect the pump unit, pump-mounted flow indicator, 6m of power cable, shut-off gun, 4m discharge hose, and a camlock inlet fitting with shut-off and 4m inlet hose

PROTECTIVE EQUIPMENT

L-H710*

gloves,

COVERALLS L-H230

Tyvek ® Barrier Man Coveralls are disposable coveralls designed to protect workers from hazardous materials, or sensitive products and processes from contamination by people. Available in white, sizes medium to XXL

KASCO FILTERS

GLOVES L-H700

Offers resistance to solvents and oils with good flexibility and dexterity. Excellent abrasion and puncture resistance. Available in sizes 9–11

K80-T9R respirator complete with helmet, blower unit and belt, single filter and 12V cable-charger for connection to a continuous 12V power source such as a tractor or vehicle. This unit will operate for approximately 30 minutes without the 12V power source from a small battery in the blower unit. Optional 240V charger available to charge the battery for 30 minutes of use if required as a stand-alone function. Designed to be continuously powered while in use. Agricultural use only

K80-T5 respirator complete with helmet, blower unit and belt, single filter and lithium battery pack – also carried on the belt. For agricultural use only. Unit not pictured

Please note: once opened replace after 6 months.

FIRE SAFETY RANGE

FIREFIGHTERS

Don’t take risks with your property – gear up for the fire season with a Croplands firefighter in either a truck/traymount or trailed option.

BT1500/FF2

Heavy-duty 1500L trailed firefighter on galvanised chassis – hook up and go at a moment’s notice when the need arises

US600/FF1

600L TrayPak firefighter

SHUMB25LK

MiniBlaze firefighter kit with 2.5HP petrol motor. Quick-fill priming port and 1” discharge. Plus 5m of 20mm hose with nozzle

SHUB55H FIREFIGHTER PUMP

Honda-powered Onga pumps provide effortless starts in all weather and conditions and rapid movement of water volume

Please note: trailed firefighters are not legal for road use.

SPRAY TANKS

PUMPS

From spot spraying to large-scale broadacre and horticulture application, Croplands has carefully selected a range of pumps that deliver first-class productivity and efficiency.

LOW PRESSURE

The Annovi Reverberi (AR) range of reliable and robust diaphragm pumps have been industry leaders for more than 60 years and have partnered with Croplands for more than 40 years.

FOR CONTROLLER OPTIONS SEE PAGE 45

DRIVE OPTIONS

APCC Cardan shaft – 1³∕8” 6-spline shaft both sides of pump

Cardan shaft – pump is fitted with a 1³∕8” male 6-spline shaft

Female input for direct hydraulic motor fitting 6-spline male shaft on one side

Gearbox fitted to pump but without PRV fitted

Gearbox and PRV fitted to pump

Bare shaft – models to suit various kits and applications

Tractor kit – to connect pump directly to tractor PTO shaft

For petrol and electric drive models, see following pages along with spare parts information.

IDEAL FOR BOOMS UP TO 18 METRES

AR140LFP - OPEN FLOW: 132 L/MIN

MAX PRESSURE: 15 BAR MAX RPM: 550 WEIGHT: 16KG HP REQUIRED: 5.2

TRIPLE DIAPHRAGM, REINFORCED

IDEAL FOR BOOMS UP TO 12 METRES

IDEAL FOR BOOMS UP TO 21–24 METRES

AR160LFP - OPEN FLOW: 166 L/MIN

MAX PRESSURE: 15 BAR MAX RPM: 550 WEIGHT: 25KG HP REQUIRED: 6.8 FOUR DIAPHRAGM, REINFORCED

- OPEN FLOW: 182 L/MIN

DIAPHRAGM, REINFORCED

IDEAL FOR BOOMS UP TO 36 METRES AR250 -

MEDIUM & HIGH PRESSURE

Annovi Reverberi (AR) has developed a complete range of diaphragm pumps to suit the changing demands of agriculture.

The heads and manifolds are made from reinforced polypropylene or nylon to allow use with a wider range of products, including liquid fertilisers.

IDEAL FOR SPOT-SPRAYING UNITS

AR30 - OPEN FLOW: 35 L/MIN

MAX PRESSURE: 40 BAR MAX RPM: 550 WEIGHT: 9.3KG HP REQUIRED:

AR1604 - OPEN FLOW: 153 L/MIN

MAX PRESSURE: 50 BAR MAX RPM: 550 WEIGHT: 40KG HP REQUIRED: 18

DIAPHRAGM PUMP

(EX. GST)

(INC. GST) PROD. CAT.

Available with 3,798.00 4,177.80 C APCC ARBHS170 - OPEN FLOW: 163 L/MIN

MAX PRESSURE: 50 BAR MAX RPM: 550 WEIGHT: 65KG HP REQUIRED: 19.3

AR40 - OPEN FLOW: 46.3 L/MIN MAX PRESSURE: 40 BAR MAX RPM: 550 WEIGHT: 9.5KG

- OPEN FLOW: 35 L/MIN

ARBHS200 - OPEN FLOW: 194 L/MIN

MAX PRESSURE: 50 BAR MAX RPM: 550 WEIGHT: 65KG HP REQUIRED: 22.1 FOUR DIAPHRAGM PUMP

(EX. GST) $ (INC. GST) PROD. CAT.

AR MOTORISED PUMPS

PETROL & ELECTRIC DRIVE

Croplands have a great range of petrol and electric-drive pumps for spraying and semiindustrial applications.

Powered by genuine Honda engines, the petrol-powered models are bulletproof and will run day in, day out.

IDEAL FOR BOOMS UP TO 12 METRES

DRIVE OPTIONS

AR-ES Electric start kit of Honda motor

IDEAL FOR SMALL BOOM SPRAYERS

IDEAL FOR SPOT-SPRAYING UNITS

AR30

IDEAL FOR BOOMS UP TO 18 METRES

AR40

PREVIOUS PAGE FOR SPECS &

AR303

TO PETROL DRIVE LARGER AR PUMPS, PLEASE CONTACT CROPLANDS FOR OPTIONS AND PRICING.

NOTE, TO FIT ELECTRIC START ON THE AR PETROL-DRIVEN MOTORISED PUMPS ON THIS PAGE, PLEASE ADD THE FOLLOWING CODE AND PRICE TO YOUR ORDER (AR-ES).

PARTS & ACCESSORIES

PARTS & ACCESSORIES

Two-outlet manual controller suited to high-pressure 50 bar-rated diaphragm pumps. Rotary selector lever controls individual left and right shut-off or master shut-off with either pressure bypass or non-pressure bypass. Can be pump mounted or remote mounted* (*see AR996 for remote mount kit). Max flow 200 L/min, maximum pressure 50 bar (725 psi)

Remote mount 4-way controller suitable for most 20 bar-rated diaphragm pumps. 4 individual shut-off taps and gauge fitted. Comes with remote-mount plate fitted. Max flow 150 L/min, maximum pressure 20 bar (290 psi). 2-tap version also available

Remote mount 5-way controller suitable for most 20 bar-rated diaphragm pumps. 5 individual shut-off taps, master shut-off lever and gauge fitted. Comes with remote-mount plate fitted. Max flow 150 L/min, maximum pressure 20 bar (290 psi). 2-tap and 6-tap version also available. Fitted as standard on all AgriPak linkages

Remote-mount pressure compensating 4-way controller suitable for most 20 bar-rated diaphragm pumps. Bypass taps on each section can be adjusted for pressure compensation of +/– 15%. 4 individual shut-off taps, master shut-off lever and gauge fitted. Comes with remote-mount plate fitted. Max flow 150 L/min, maximum pressure 20 bar (290 psi). 2-tap and 6-tap version also available

CENTRIFUGAL MODELS

FMCSC-155F

• E-Coated cast iron housings for added corrosion resistance

• Larger bearings provide longer life

• Severe duty silicon carbide seal standard - resists abrasive scratching and transfers heat away from seal faces for improved survival during short run-dry events

• Specification on pump as per above *FMCSC-155F

• The 304 motor requires 41.6L/min maximum hydraulic fluid input.

• Recommended for:

– Pressure Compensating Closed Center Systems

– Load Sensing Closed Center Systems

– Open Center Systems up to 75.7 L/min using internal needle valve bypass

• Specification on pump as per above *FMCSC-155F

• The 306 motor requires 62.4 L/min maximum hydraulic fluid input.

• Recommended for:

– Pressure Compensating Closed Center Systems

– Load Sensing Closed Center Systems

– Open Center Systems up to 96.5 L/min using internal needle valve bypass

Max pressure : 9 bar (130 psi)

Max L/min flow : 587 1 1/2” 220 suction flange, 1 1/4” 200 discharge flange

Max pressure: 8.3 bar (120 psi)

Max L/min flow: 549 Hydraulic ports: 1/2” NPT

Max pressure: 9 bar (130 psi)

Max L/min flow: 587

FMCSC-225F-HYD-306

FMCSC-255FS-HYD-306

FMCSC-255F-HYD-306

• F Model - Cast Iron housings

• Severe Duty Silicon Carbide Mechanical Seal with O-ring Seat for Improved Survivability

• Chemical Resistant Thermoplastic

• The 306 motor requires 62.4 L/min maximum hydraulic fluid input and fits virtually all tractor hydraulic systems. Recommended for:

- Load Sensing Closed Center Systems

- Open Center Systems up to 96.5 L/min using internal needle valve bypass

• Severe duty silicon-carbide shaft seal SC standard with o-ring seat for improved survivability.

• 316 cast iron housings with industry standard flanged connections.

• Larger bearings for extended life.

• Provides higher pressure and greater volume for applications with large tanks and longer spray booms

Max Pressure: 8.3 bar (120 psi)

Max L/min flow: 833

220 suction flange, 220 discharge flange

FMCSC-255FS-HYD-306

• Severe duty silicon-carbide shaft seal SC standard with o-ring seat for improved survivability.

• 316 stainless steel housings with industry standard flanged connections.

• Larger bearings for extended life.

• Provides higher pressure and greater volume for applications with large tanks and longer spray booms

HYPRO POLY TRANSFER PUMPS

9342P-HM5C-5SP • Poly transfer pump, 2” with hydraulic motor drive

• Polypropylene housing

• Suction lift 7.62m

• 5-vane impeller

• 2” NPT inlet and 2” NPT outlet ports

9343P-GM6-SP

• Poly transfer pump, 3” with hydraulic motor drive

• Polypropylene housing

• Suction lift 7.62m

• Poly impeller with stainless-steel insert

• 3” NPT inlet and 3” NPT outlet ports

Hydraulic ports: ½” NPT inlet, ¾” NPT outlet Optional for Croplands 4000 and 6000L WEED-IT sprayers as a filling pump

Hydraulic ports: ½” NPT inlet, ¾” NPT outlet

Max pressure: 9 bar (130 psi)

Max L/min: 984

300 suction flange, 220 discharge flange Hydraulic ports: 1/2” NPT

Max pressure: 9 bar (130 psi)

Max L/min: 984

300 suction flange, 220 discharge flange Hydraulic ports: 1/2” NPT

Max pressure: 4 bar (58 psi)

Max L/min flow: 757

Max hyd flow required: 42 L/min

Max pressure: 3 bar (44 psi)

Max L/min flow: 1730

Max hyd flow required: 60 L/min 4,045.00 4,449.50

PUMPS & ACCESSORIES

SHURflo 12V pumps are ideal for spot spraying and small, multi-tip boom sprayers mounted on RTVs, ATVs, ute trays or small trailed sprayers.

SHU8000-547-189 (PUMP)

• SHURflo 12V DC bypass diaphragm pump

• Santoprene diaphragm; Viton valves

• 12V sealed motor

• Self-priming to 2.4m

• Proven pump head design

• Internal bypass for smooth flow operation

• Ag-chemical resistant materials

SHU2088-313-544 (PUMP)

SHU50593611D011 (PUMP)

• SHURflo 12V DC bypass diaphragm pump

• Santoprene diaphragm; Viton valves

• 12V sealed motor

• Self-priming to 2.4m

• Proven pump head design

• Internal bypass for smooth flow operation

• Ag-chemical resistant materials

• SHURflo 12V DC bypass diaphragm pump

• Santoprene diaphragm; Viton valves

• 12V sealed motor

• Self-priming to 2.4m

• Proven pump head design

• Internal bypass for smooth flow-operation

Max L/min (open flow): 6.8

Max pressure: psi: 107 bar: 7.4

Port size: ½”m

amps: 7.3

Pressure Switch: yes

Bypass: yes

Max L/min (open flow): 15.1

Max pressure: psi 45 bar: 3.1

Port size: ½”m

Max amps: 13

Pressure Switch: yes Internal Bypass: yes

Max L/min (open flow): 20.1

Max pressure: psi: 90 bar: 6.2 Port size: ½”m Max amps: 20.9 Pressure

no

yes

PUMPS & ACCESSORIES

The FloJet range of 12V pumps is designed for small spot spraying and boom spraying operations. FloJet pumps perform well if used correctly and flushed out after use.

FL3501-506

• Fully sealed motor for corrosion resistance

• Pressure switch for spot spraying and an internal bypass to ensure pump does not pulsate with small nozzle sizes

• Low pulsation and noise

• Superior pump head sealing

• Excellent priming

• Compact size

• ³∕8” threaded ports for use with hosetails or threaded nipples

• Ideal for small boom or spot spraying and some other agricultural uses

FL3521-139

• Maximum flow of 15.1 L/min (open-flow)

With press. switch: Yes

Max L/min (open flow): 7.8

Volts: 12V DC

Max press. (bar): 3.4

Inlet and outlet: ³∕8” hosebarb

Internal bypass: Yes

Diaphragm material: S

S

8

• Internal bypass gives this model superior, smooth liquid delivery for multiple nozzles

• Plug-in bayonet connections (½”) with quick release clips

• Suited for small booms and high volume spot spraying. Triplex design makes it an excellent priming option

With press. switch: Yes

Max L/min (open flow): 15.1

Volts: 12V DC

Max press. (bar): 4

Inlet and outlet: Plug-in bayonet and ½” hosebarb

Internal bypass: Yes

Diaphragm material: S

Valve material: V Amps: 9

CONTROL KITS

If you need to upgrade your sprayer to control your boom or air-assisted sprayer, Croplands has the right range of electric controls to suit all applications.

FITTED AS OPTIONS TO LINKAGE

TO SUIT LINKAGE AND BOOM SPRAYERS; LOW-PRESSURE AIR SPRAYERS. ARAG AVAILABLE ON REQUEST.

Entry-level electric in-cab control with switchbox. One electric on/off valve shuts off the complete boom from the cab. 3 manual taps on the control manifold can be used for each boom section. A manual pressure regulator with gauge is supplied to allow working pressure to be set for the system

Electric in-cab controller with switchbox. 3-section electric valves for individual section shut off, electric pressure regulating valve and a master on/off can all be operated from the switchbox in the cab or vehicle. Requires a reliable 12V power supply

- As above for 5-section

TO SUIT HIGH-PRESSURE ORCHARD SPRAYERS

Electric in-cab controller with switchbox. 2-section high-pressure electric valves for individual left/right shut off can be operated from the switchbox in the cab. Requires a reliable 12V power supply

Electric in-cab controller with switchbox. 2-section high-pressure electric valves for individual left/right shut off, electric pressure regulating valve and a master on/off can all be operated from the switchbox in the cab or vehicle. Requires a reliable 12V power supply

SPRAY MONITORS

A4670610-HA

A4670610-SR100

The Visio Hectare meter is a handy viewer to hook up to a vehicle or tractor to measure area, distance and speed. Supplied in the kit is the Visio multi-function display, mounting bracket and a speed-sensor that will need to be mounted to read the rotation of a wheel or PTO shaft

The Visio spray monitor comes in a kit to fit-up to a boom or orchard sprayer to measure spray application rate, litres used, area, distance and speed. Supplied in the kit is the Visio multi-function display, mounting bracket, speed-sensor that will need to be mounted to read the rotation of a wheel or PTO shaft, a 5–100 L/min flowmeter and all necessary cables. The kit will require some extra fittings to fit to an existing sprayer – consult your Croplands dealer or service agent

A4670610-SR200 - As above, but with a higher flow-rated flowmeter (10–200 L/min) 2,540.00

AUTO SPRAY-RATE  CONTROLLERS

Total command is at your fingertips with our selection of spray monitors and rate controllers, all designed to give you visibility and accessibility over your spraying operation.

BA5000-GEO3

BA5000-GEO5

Croplands fully auto spray-rate controller for use on linkage sprayers. Optional as a fit-up to any new Croplands sprayer or as an upgrade to an existing sprayer. Features include display of two functions on screen, large back-lit display, heavy-duty switches, up to 10 pre-set application rates, fully programmable and alarm settings and integrated diagnostics. Kit includes: spray manifold with flowmeter, 3-section valve bank, looms, mount and operating instructions. The kit will require some extra fittings to fit to an existing sprayer – consult your Croplands dealer or service agent

Note: if you require a kit for a trailed broadacre sprayer, contact Croplands to ensure the correct length looms are supplied

- As above, but with 5 sections

Note: if you require a kit for a trailed broadacre sprayer, contact Croplands to

Croplands fully auto spray-rate controller for use on horticultural sprayers. Has the same features as the BA5000 (specifications listed above) with the added option on L/100m for application. Kit includes: spray manifold with flowmeter, 2-section high-pressure valve bank, looms, mount and operating instructions. The kit will require some extra fittings to fit to an existing sprayer – consult your Croplands dealer or service agent

ARAG Bravo180S fully auto spray-rate controller for use on linkage sprayers. Optional as a fit-up to any new Croplands sprayer or as an upgrade to an existing sprayer. Features include display of two functions on screen, large back-lit display, heavy-duty switches, up to 10 pre-set application rates, fully programmable, visual and sound alarm settings, programmable units of measure and GPS input for speed. Kit includes: spray manifold with flowmeter, 3-section valve bank, looms, mount and operating instructions. The kit will require some extra fittings to fit to an existing sprayer – consult your Croplands dealer or service agent

Note: if you require a kit for a trailed broadacre sprayer, contact Croplands to ensure the correct length looms are supplied

BRAVO180-ARAG5 - As above with a 5-section valve bank

ISOBUS Croplands have partnered with ARAG to bring the best ISO application packages to suit which ever game you’re in. From broadacre, orchard, to multirow spraying. The ARAG IBX platform has you covered.

MANIFOLDS, SWITCHBOXES & COMPONENTS

VALVE KITS

If you are updating your spraying control system, Croplands has a wide range of valves and valve kits to suit your application.

To make up your own bank of 2-wire or 3-wire motor valves (see below for valve options), order the correct kit for bolts, nuts and O-rings as shown. For end-caps and inlet/outlet fittings, see the valve adaptors section.

On the inlet and outlet of each motor valve there are a range of adaptors and fittings commonly used to go with the mounting kits. Use this valve adaptors diagram to choose the adaptors/fittings you require.

Topcon Manual Guidance

Designed with the future in mind, the Topcon XD touchscreen console, including revamped proprietary (Horizon) software and Topcon Agriculture Platform (TAP) integration, allows fullfeature customisation. Customers can optimise investment by paying only for capabilities they need.

Off-the-shelf features include Guidelines, Tasks, ISO-UT, and TAP Market. All additional Horizon OS features are easily accessible and unlockable utilising TAP via the console or personal device.

AgroNave Virtual Guide + Antenna

Maximise field performance with our AgroNave 7 virtual guide and ANR 20 antenna.

No ISOBUS licenses required: Accurate and reliable navigation without the need for ISOBUS.

With ISOBUS licenses: Full support of advanced systems with ISOBUS.

All the cables are included.

NOZZLE SELECTION

Spraying is a job that most farmers and growers do on a regular basis – whether for insect, disease or weed control, fertiliser applications or for soil additives, nozzle selection is a critical part of the process.

NOZZLE

LOW DRIFT / 2,4-D NOZZLES

Pre-emergent nozzles

TURBODROP XL (D)

TTI TURBO TEEJET INDUCTION FLAT FAN TIP

DG DRIFT GUARD FLAT FAN TIP ALBUZ ADI

Pre-orifice nozzles TDAM

Low-pressure air-induction nozzles

CVI

• Ideal pressure range: 2–4 bar

• Uses: weed control, plant health and liquid fertilisers

• Up to 90% drift reduction

ü Variable droplet spectra from coarse to fine as pressure increases

ü Excellent drift reduction at lower pressures

ü Two piece for easy disassembly

ü Fast cap fitting

• Ideal pressure range: 3–4 bar

• Uses: weed control and plant health, both contact and systemic

ü Standard in polymer

ü High-pressure air-induction nozzle

ü Two piece with pre-orifice

GROWTH STAGE Pre-plant

• Ideal pressure range: 2–3 bar

• Uses: weed control and plant health

ü Standard in polymer

ü Pre-orifice plate

ü Reduces drift-prone

ü Small droplets

ü (Also available in Visi-stainless steel in some sizes in 80°

• Ideal pressure range: 2–3 bar

• Uses: weed control and plant health

ü Pink ceramic orifice for excellent wear and spray precision

ü Compact design, easy to dismantle and clean

ü Excellent coverage potential for selected use and the right spraying conditions

• Ideal pressure range: 3–4 bar

• Uses: weed control and plant health

ü Excellent value, proven performer

ü Predominantly coarse–medium droplets for good coverage

ü Compact design

ü Protected air inlets to avoid blockage

ü Two piece for easy cleaning, no seals

ü Also available as an off-centre nozzle

• Ideal pressure range: 1.5–3 bar

• Uses: weed control and plant health

ü Pink ceramic orifice for long life and precise spray quality

ü Predominantly very coarse to coarse

ü Available in 80° and 110°

ü Anti-clogging design and protected double air-intake orifice

ü Compact design

ü Also available as an off-centre nozzle

GUIDE

Fungicide nozzles

• Ideal pressure range: 2 bar

• Uses: contact and systemic products

ü Pink ceramic orifice for long life and precise spray quality

ü The inclination of the jets improves the penetration into the vegetation

ü Air-induction nozzle

ü Angle between the jets 65˚

There’s a nozzle to suit every step of your cereal cropping program.

• Ideal pressure range: 1.5–7 bar

• Uses: contact and systemic products

ü Standard in polymer

ü High-pressure air induction nozzle

ü All-in-one moulded nozzle and Quick TeeJet® cap design provides automatic spray alignment

• Ideal pressure range: 2–4 bar

• Uses: weed control, plant health and liquid fertilisers

• Up to 90% drift reduction

ü Variable droplet spectra from coarse to fine as pressure increases

ü Excellent drift reduction at lower pressures

ü Two piece for easy disassembly

ü Fast cap fitting

• Ideal pressure range: 2–4 bar

• Uses: weed control and plant health, both contact and systemic

ü Standard in polymer ü High-pressure air-induction nozzle ü Two piece with preorifice

FLOW CHART

3.0

QUALITY CHARTS

AGROTOP

CERAMIC AIRMIX ® NOZZLE OPTIONS

XL (D)

KEY INFORMATION

KEY BENEFITS

• Ideal pressure range: 1–6 bar

• Uses: weed control and plant health

• Up to 90% drift reduction

• Excellent value

• Proven performer

• Predominantly coarse to medium droplets for good coverage

• Compact design

• Protected air inlets to avoid blockage

• Two piece for easy cleaning, no seals

• Also available as an off-centre nozzle

• Ideal pressure range: 4–8 bar

• Uses: weed control, plant health and liquid fertilisers

• Up to 95% drift reduction

• Ceramic injector orifice and exit nozzle

• Small droplet size variation over pressure range

• Up to three times the life of polyacetal nozzles

• Two piece for easy disassembly

• Excellent penetration using high pressure

• Ideal pressure range: 2–4 bar

• Uses: weed control, plant health and liquid fertilisers

• Up to 90% drift reduction

• Variable droplet spectra from coarse to fine as pressure increases

• Excellent drift reduction at lower pressures

• Two piece for easy disassembly

• Ideal pressure range: 3 bar ONLY

• Low drift option for WEED‐IT spot sprayers

• Specifically designed for use with the WEED‐IT optical spot sprayer

• Excellent drift reduction

• Two piece for easy cleaning, no seals

= size 015, 11 = 02, 12 = 03, 13 = 04

ALBUZ

NOZZLE OPTIONS

KEY INFORMATION

KEY BENEFITS

• Ideal pressure range: 1.5–3 bar

• Uses: weed control and plant health

• Up to 90% drift reduction

• Ideal pressure range: 3–3.5 bar

• Uses: weed control, plant health and liquid fertilisers

• Up to 95% drift reduction

• Pink ceramic orifice for long life and precise spray quality

• Predominantly coarse to very coarse

• Available in 80° and 110°

• Anti-clogging design and protected double air-intake orifice

• Compact design

• Also available as an off-centre nozzle

• Pink ceramic orifice for excellent wear and spray precision

• Anti-clogging design and double air-intake orifice

• Available in 80° and 110°

• Also available as an off-centre nozzle and as a twin nozzle

• Ideal pressure range: 2–3 bar

• Uses: weed control and plant health

• Reduces fine droplets by 50%

• Pink ceramic orifice for excellent wear and spray precision

• Compact design, easy to dismantle and clean

• Excellent coverage potential for selected use and the right spraying conditions

SPRAY QUALITY SEE PAGE 60–61

AVAILABLE SIZES 015 to 05 01 to

• Ideal pressure range: 3 bar

• Full cone nozzle producing medium to fine droplets

• Great coverage with full cone pattern for use on WEED-IT spot sprayers

• ALBUZ durable pink ceramic maintains nozzle performance and precision

• Flow-rate characteristics, colour code meets international ISO standards

• Can be used on a sprayer boom (spacing nozzle between 35cm and 50 cm)

• Recommended pressure on sprayer boom: 3 bar

• Ideal pressure range: 2 bar

• Uses: contact and systemic products

• Pink ceramic orifice for long life and precise spray quality

• The inclination of the jets improves the penetration into the vegetation

• Air-induction nozzle

• Angle between the jets 65°

HYPRO

NOZZLE OPTIONS

KEY INFORMATION

SPRAY QUALITY

AVAILABLE SIZES

DRIFT REDUCING, DUAL AIR-INDUCTION

• Ideal for systemic herbicide applications where drift control is crucial – ideal for 2,4-D applications

• Wide, 3-dimensional pattern creates multiple angles for the spray to cover the target

• Ideal for pre and post-emergent applications of systemic herbicides

• Designed to eliminate driftable droplets, without sacrificing coverage

to 08 (polyacetal)

ENHANCED COVERAGE AIR-INDUCTION

• Ideal for contact herbicide applications due to exceptional coverage through air-induction

• Speed-optimised inclined pattern provides superior droplet deposition and retention on targets

• Ideal for high-coverage application of contact herbicides

• Industry-leading coverage among air-induced spray nozzles

to 05 (polyacetal)

INCLINED ENHANCED COVERAGE

• Alternative incline, all-purpose nozzle for optimum spray coverage – PWM system compatible

• Optimised spray angle and incline for coverage and uniformity across the boom

• Ideal for post-emergent health protectants. Also good for highcoverage herbicide applications

• Droplet spectrum optimised for coverage, fewer droplets bounce off or drift away

to 08 (polyacetal)

TEEJET

AITTJ60 AIR-INDUCTION TURBO TWINJET TWIN FLAT FAN TIP AIXR AIR-INDUCTION FLAT FAN TIP

NOZZLE OPTIONS

KEY INFORMATION

• Standard in polymer

• Pre-orifice plate

• Reduces drift-prone

• Small droplets

• Also available in Visi-stainless steel in some sizes in 80°

SPRAY QUALITY

• Standard in polymer

• Low-pressure air-induction nozzle

• Two piece with pre-orifice

• Standard in polymer

• Dual outlet design

• Air-induction nozzle

• 60° angle between forward and back spray pattern

SEE PAGE 60–61

• Standard in polymer

• High-pressure airinduction nozzle

• Two piece with pre-orifice

• Standard in polymer

• High-pressure airinduction nozzle

• All-in-one moulded nozzle and Quick TeeJet® cap design provides automatic spray alignment

• AirMix®

• TeeJet XR, DG, TT, AIXR (smaller capacities to size 08)

• ALBUZ AXI, ADI, CVI, CVI TWIN, CVI 80

• TeeJet flat spray tips (smaller capacities) – see above. Tips can be positioned in choice of 2 spray plane directions: parallel or perpendicular to wings of Quick TeeJet cap

• TJ TwinJet / TJ60-Spray Tip / ALBUZ AVI, AVI TWIN, ESI, EXA, AIUB TeeJet / TTI

• TF-VS

•

• For use with Hardi nozzle bodies

• TeeJet flat fan spray tips

• Turbo TeeJet spray tips

• AirMix® nozzles

• For use with Hardi nozzle bodies

• TJ TwinJet

• AI TeeJet, AIUB TeeJet spray tips flat

• TTI Air-induction Turbo TeeJet

Denotes colour code as shown above - not all colours may be available.

NOZZLE SELECTION

BODIES &FILTERS

NOZZLE BODIES

QJ17560A-½-NY

Teejet ½” single drop nozzle body for wet boom

TeeJet: 2.20

QJ17560A-½-NYB ARAG: 402745

PROFLO ½” triple drop nozzle body for wet boom TeeJet: QJ363C-½-NYB

• Low-pressure drop at any given flow rate

• Unique check valve design reduces restrictions – supports faster field speeds and direct fertiliser applications

• Bayonet attachment for correct flat fan nozzle alignment

• Compact design – less interference with boom structures

• 10mm nib

• 20-bar rated

• Tab for boom clamp provided

• Low-pressure drop at any given flow rate

• Unique check valve design reduces restrictions – supports faster field speeds and direct fertiliser applications

• Turret-indexing design eliminates seizing issues common on other types

• Bayonet attachment for correct flat fan nozzle alignment

• Compact design

NOZZLE SELECTION

WIDE ANGLE FLAT FERTILISER

Thanks to the exceptional wear resistance of ALBUZ® pink ceramic, these nozzles can be used to spray suspension fertilisers. Flat jet (30° to 165° angle) provide coarse droplets without drift.

• Wide-angle flat fan Flood Jet for use with suspension fertilisers and some herbicides

• Commonly used in sugar cane and other row crops

• Ideal for soil-applied products in particular

• Exceptional wear resistance using pink ceramic surfaces

• Recommended pressure range 0.5 to 2 bar

*** Denotes sizes as follows: AZ-MSI-025 = Lilac, AZ-MSI-03 = Blue, AZ-MSI-04 = Red, AZ-MSI-05 = Brown, AZ-MSI-06 = Grey, AZ-MSI-08 = White, AZ-MSI-10 = Light Blue, AZ-MSI-15 = Light Green

015 to 06

• Specifically designed for fertiliser application

• Pink ceramic calibrated pre-orifice

• Pressure range: 1–4 bar

• Uses: predominant use in ground crops

• 6 streams provide very coarse droplets for excellent distribution

• Long-wear life

• Allows a wide range of applications at varying speeds

• ISO colour coded. Tip only (caps and seal extra)

• Fits standard 50cm nozzle body spacings

• 110° pattern

015 to 20

• Specifically designed for fertiliser application

• Pink ceramic calibrated pre-orifice

• Pressure range: 1–4 bar

• Uses: soil seeded crops

• 6 streams provide very coarse droplets for excellent distribution

• Long-wear life

• Allows a wide range of applications at varying speeds

• Includes cap and seal

• Fits standard 50cm nozzle body spacings • 110° pattern

SPECIALISED APPLICATION

• Wide-angle flat spray pattern

• Extremely coarse droplets

• Designed for turf applications • 1.5–5 bar pressure range

• Wide-angle flat spray pattern

• Extremely coarse droplets

• Precise distribution pattern • 1–3 bar

1–3 bar

• Large-capacity boomless nozzle

• Extra-wide flat spray projection

• Ideal for difficult access areas when spraying

• Useful for liquid fertiliser applications

• Boomless flat spray nozzles

• Useful for roadside, end-row, orchard or forestry applications

• Extra-wide spray pattern

• Left and right options

• 1–4 bar pressure range

• Excellent distribution

•

HORTICULTURE

SPRAYWISE ORCHARD/VINEYARD NOZZLE SELECTION

STEP 1

Calculate the dilute L/100m rate.

For example, a 1.5m grape VSP canopy has a dilute volume of 30 L/100m row (1.5 x 20 L).

Use table 1 (page 75) to sanity check what this L/100m rate represents in L/ha. Select your row spacing and follow the column down until you reach 30 or the nearest number. If you follow the row to the left the table will give you the per ha volume. Or you can work reverse from the per ha rate to find the L/100m rate.

STEP 2

Work out the total flow rate of your pump per minute/row by matching the per 100m rate with your speed.

For example, you want to drive 8 km/hr. Find 8 km/hr on the top of table 2 and follow the column down until you reach 30 or the nearest number. If you follow the row to the right the table will give you the total flow rate you need per row to put out 30 L/100m at 8 km/hr. The flow rate is 40 L/min per row.

STEP 3

Work out the individual flow rate for each nozzle. If all nozzles are the same size, you can simply divide the total flow rate per row by the number of nozzles per row.

For example, we have 24 nozzles per row and needed a total flow rate of 40 L/min. Each nozzle needs to put out 1.66 L/min (40/24). If several nozzle sizes are preferred the volume needs to be split. For example, rather than looking at all 24 nozzles putting out the same you could look at 12 nozzles putting out 25 L/ min and 12 nozzles putting out 15 L/min.

STEP 4

Match up pressure and nozzles size to achieve these outputs in table on page 72 and 73.

HORTICULTURE

ALBUZ ATR 80°

• Hollow cone 80°

AZ-ATR-**-80C

$ (EX. GST) $ (INC. GST) PROD. CAT.

** DENOTES COLOUR, E.G. YW 15.00 16.50 C

• Precision-polished pink ceramic surfaces for long life

• Easily dismantled for cleaning

• Perfect sealing of swirl chamber for precise flow rate

• Pressure range 0–25 bar (optimum 8–15 bar)

• For tree, vine and trellis crops

• Ideal for fungicides and insecticides

• Fine to very-fine droplets for excellent spray coverage

• European colour coded (see chart below for pressure, flow rates and colours)

**Colour codes: WE = white, LC = lilac, BN = brown, YW = yellow, OE = orange, RD = red, GY = grey, GN = green, BK = black, BE = blue, PE = purple

ALBUZ ATR 60°

$ (EX. GST) $ (INC. GST) PROD. CAT.

AZ-ATR-**-60C

** DENOTES COLOUR, E.G. YW 15.00 16.50 C

• Hollow cone 60° (note – white and purple only available in 80°)

• Precision-polished pink ceramic surfaces for long life

• Easily dismantled for cleaning

• Perfect sealing of swirl chamber for precise flow rate

• Pressure range 0–25 bar (optimum 8–15 bar)

• For tree, vine and trellis crops

• Ideal for fungicides and insecticides

• European colour coded

**Colour codes: WE = white, LC = lilac, BN = brown, YW = yellow, OE = orange, RD = red, GY = grey, GN = green, BK = black, BE = blue, PE = purple

ALBUZ ATI 80°, 60°, 40°

AZ-ATI-**DENOTES ANGLE FIRST EG 80,60,40, SECOND ** DENOTES SIZE, EG 02

• Hollow cone in 80°, 60°, 40°

• 80° comes in all sizes, 60° in 075 and above, 40° comes in 03 & 04 sizes

• Hollow cone nozzle producing fine droplets

• Flow rate characteristics, colour code meet international ISO standards

• Easy dismantling for cleaning

• Can be used on a sprayer boom from 3 bar pressure

• Precision polished ceramic surfaces of internal components ensure perfect sealing of the swirl chamber to give precise flowrate.

• Recommend pressure: 10 bar

ALBUZ ATI 80°, 60°, 40° HOLLOW CONE NOZZLE CHART

ALBUZ TVI 80° HOLLOW CONE NOZZLE CHART

ALBUZ TVI

• Air-induction hollow cone nozzle (venture system)

• Large drops filled with air for drift control

• Precision-polished pink ceramic surfaces

• Compact length (19mm)

• Perfect sealing of swirl chamber for precise flow rate

• Ideal for fungicides and insecticides

• Coarse to ultra-coarse droplets for drift control

• ISO colour coding

SPRAY QUALITY INFORMATION FOR TVI NOZZLES

TURBODROP ® NARROW ANGLE AI

• High-pressure air-induction nozzle

• 20, 40 and 60° options

• Fully ceramic injector and exit tip • Pressure range 6–25 bar

Modular construction

BODIES & CAPS

KEY FEATURES

1. Caps for use with TurboDrop ® AI nozzles in horticultural applications

2. Nozzle bodies and o-rings used on Croplands sprayers for horticulture

Note – the complete nozzle body, when ordered from Croplands, comes with a cap/caps to suit. When ordering caps and o-rings to suit TurboDrop ® AI nozzles, use the codes on the right-hand side of the table below.

QUICK GUIDE

1. Choose the correct cap to suit the nozzle body on your sprayer

2. The TurboDrop ® uni narrow-angle nozzles click together and remain in the cap once assembled. They cannot be disassembled – so choose the cap you need

3. Suitable o-rings are required for a complete seal – see table below

FOR NOZZLE BODIES SHOWN IN TABLE ABOVE

DISCS & CORES

NOZZLES

- DISCS AND CORES

Disc and Core Jets:

• Full and hollow cone spray patterns

• Medium to fine droplets for use in air assisted situations

• 5–20 bar recommended range

DISC AND CORE ALBUZ CERAMIC - FLOW RATES

NUFARM Minimising spray drift is a major goal in all agricultural areas.

SPRAYING TOOLS & COVERAGE STEWARDSHIP

It is more important than ever that the agricultural industry demonstrates responsible chemical usage to reduce the need for severe application restrictions.

The stewardship program is a Nufarm and Croplands initiative to encourage best-practice spraying and drift management techniques.

Giving you access to tools, research results and training courses to assist you to better understand spray application parameters and to better manage your spraying activities.

Croplands has a great range of useful tools for checking or upgrading the performance of your sprayer. Calibrate and maintain your nozzles with ease.

L-H9210 Electronic spray tip pressure tester

• Can measure in psi, kPa and bar

• Accurate to within +/– 1 psi, 0.07 bar or 7kPa

• 5-year battery life (depending on use)

L-H9220 Nozzle cleaner and multi-tool kit

• Air-blast nozzle cleaner – simply charge it with air and it will blow out any grit or residue blocking your nozzle

L-H9205 Spot-on nozzle calibrator

• Waterproof design, no moving parts

• Easy one-hand operation, electronic display

• Reads in GPM or L/min

L-H6001 WindMate™ handheld weather meter

• Eight functions including temperature, wet bulb temperature, wind speed and direction, dewpoint, relative humidity, Delta T and comfort index. For more information see page 66 in the nozzle section

• Easily fits to the nozzle body

• LCD display shows nozzle pressure and unit of measure

• For test gauge use only – not for continuous use

• Reads from 3 to 160 psi (11 bar)

• Multi-tool with brush, plastic pick for removing a preorifice or residue, spanner wrench to make undoing nozzles so much easier and a utility hook for removing nozzle filters and the like. A must for all farmers

• Accurate to 0.01 L/min

• Battery life approx. 2 years (has battery warning indicator)

• Clear design allows for easy cleaning. Warning: only test your nozzles with water, not with mixed chemicals. Damage to the unit may occur

• You simply cannot do without a WindMate™ to be sure you are spraying when conditions are right

TERMS & CONDITIONS OF SALE

Croplands Equipment Pty Ltd (ACN 006 450 184) and its subsidiaries (“Croplands”) hereby agrees with you that, unless expressly amended in writing by Croplands, these Terms comprise the only terms for the supply and sale of goods by Croplands to you and supersede all other terms, conditions or agreements between us and without further notice, will apply to all future transactions between Croplands and you. These Terms override anything that may be implied or expressed on your orders or your own documentation. In these Terms: “goods” means all agricultural products, machinery or services supplied to you by Croplands; “you” means Croplands’ customer. If you are more than one, these Terms bind each of you jointly and severally.

1. QUOTES

(a) A quote by Croplands is an invitation to you to do business with Croplands, it is not an offer. A quote will remain valid for seven (7) business days from the date of the quote, after which time it may be altered or withdrawn without any notice to you.

(b) Any alteration to a quote will be effective only if it is in writing and altered by Croplands.

2. ACCEPTANCE

Your order(s) will be accepted by Croplands either when Croplands communicates its acceptance to you, or when Croplands takes steps to fill your order, irrespective of whether those steps are communicated to you. Croplands’ acceptance of monies, however paid to it, will not constitute an acceptance of your order. Croplands may, in its sole discretions, without any liability to you, cancel any accepted order at any time.

3. WARRANTIES

(a) Any provisions or rights under the Competition and Consumer Act 2010 or relevant state legislation which cannot be excluded by those statutes or by law are not intended to be excluded by these Terms. All warranties guarantees and conditions, other than those expressly stated in these Terms and whether implied by statute, common law, custom or otherwise are to the extent that the law permits, expressly excluded. If you have acquired goods as a Consumer, these conditions of sale shall not exclude, limit, restrict or modify the rights, entitlements and remedies conferred upon you or the liabilities imposed upon you, by any condition or warranty implied, by the commonwealth, state or territory act or ordinance, rendering void or prohibiting such exclusion, limitation, restriction or modification. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

(b) You accept all risk and responsibility for consequences arising from the use of the goods whether singly or in combination with other products.

(c) Any liability incurred by us to you is limited to the replacement or repair of the goods or (at our option) refund of the price paid by you, for a period of 12 months from the date of sale, provided the goods have not been damaged through misuse or handling and in particular does not extend to consequential loss.

(d) To make a claim under this warranty, you can contact us on sales@croplands.com.au, or call 1800-999-162, or contact their local Croplands Representative listed on the www.croplands.com.au/pages/contact.html website. The Buyer should specify the full particulars of such claim and wherever possible return a sufficient part of the goods to enable a proper examination by the Seller.

(e) Any advice, recommendation, information, assistance or service provided by Croplands in relation to the goods or their use or application is given in good faith, is believed by Croplands to be reliable, but is provided with an express disclaimer for any liability or responsibility on the part of Croplands.

4. PRICES

(a) All prices unless otherwise stated are expressed in Australian currency and exclude the costs of delivery.

(b) Notwithstanding any price contained in your order form or other document submitted by you, the price(s) charged to you, subject to clause 1, shall be the price(s) ruling as at the date of delivery. Any price indications or price lists are subject to alteration by Croplands from to time to reflect price(s) ruling as at the date of delivery.

(c) If any statutory charge, duty, impost or tax (including GST)(“charge”) is levied in respect of the goods and that charge has not been allowed for by Croplands in calculating the price or when raising an invoice, then you must pay that charge and the price for the goods will increase accordingly.

(d) Croplands may ask you to pay the whole or any part of the price for the goods at any time prior to delivery, as Croplands considers appropriate.

(e) Croplands may change the price for the goods at any time.

5. DELIVERY OF THE GOODS

(a) You must pay all costs of freight, delivery and unloading the goods and you must reimburse Croplands for all costs, which it incurs on your behalf in this regard.

(b) You will pay any additional charges incurred by Croplands if you direct it to deliver the goods at times or to addresses different from those specified in your order as accepted by Croplands.

(c) You will accept delivery of the goods when they are delivered to the address on your order.

(d) If you fail to accept delivery of the goods, Croplands may deliver them to a place of storage nominated by you or, failing such nomination, to a place determined by Croplands. Delivery in this way will be deemed to be delivery of the goods to you. You be liable for all costs incurred by Croplands for storage, detention, double cartage or similar causes if these costs are caused by your inability or failure to accept the goods upon delivery.

6. RISK AND INSURANCE

(a) You assume all risk in the goods (including consigned goods) upon delivery, even if you have not signed a receipt for the goods.

(b) You must insure the goods so that your insurance is effective immediately upon receipt of delivery of the goods.

7. DELAYS

Whilst Croplands will make reasonable efforts to deliver the goods to you by your requested delivery date(s), it will be under no liability whatsoever if delivery is not made on the date(s) requested. You agree that your requested delivery date is an estimate only. Croplands shall not be liable for any delayed or non-delivery of goods.

8. FORCE MAJEURE

(a) If Croplands is unable to deliver the goods because of any acts of god, wars, insurrection or other significant internal disturbance, fire, floods, accidents, breakdowns of plant or machinery, unavailability of or delays in shipping, transport strikes, lock-outs of workers, shortages or other default by suppliers of fuel, power or raw material, priority for supplies claimed by the Federal or State Governments of the Commonwealth of Australia or any overseas government, or any other similar happening or event (“force majeure”), then:i. you will not be entitled to make any claim against Croplands for any delay in the manufacture or delivery of the goods ordered; ii. whilst the delay continues, after 90 days of delay, Croplands and you will each have the option to cancel any orders.

(b) Subject to Clause 8(a), you may not cancel any order or any part of it for any other reason without Croplands’ prior consent in writing.

(c) Croplands may consent to your proposed cancellation of any order or any part of it if you pay to Croplands what it considers to be a fair and reasonable amount to fully compensate it for any costs, expenses, loss of profit and consequential damage that it may have incurred or may suffer because of the cancellation.

9. PAYMENT

(a) Subject always to clause 9(c) herein, all goods you order from Croplands will be paid for within 20 days of the last day of the month in which the goods are invoiced. Time for such payment will be the essence of these Terms.

(b) You must pay for the goods invoiced when the invoice is due for payment, even if you have not received all of the goods on that invoice.

(c) Croplands’ express or implied approval of a credit facility in your favour may be revoked at any time, without any reason being given.

(d) If you become an insolvent pursuant to any of the provisions of the Corporations Act 2001 or the Bankruptcy Act 1966 or similar law or statute, all amounts then owing by you to Croplands, whether or not those amounts are then due under clause 9(a), will immediately become due and payable.

(e) If you fail to pay any amounts due as required, then:-

I. In addition to the invoiced amounts, and without prejudice to any of Croplands’ other rights and remedies :-

A. You must pay interest on all amounts due and payable to Croplands at the rate equal to the target cash rate of the Reserve Bank of Australia plus 5% at the time the relevant amounts fall due, calculated from the date that each amount you owe Croplands becomes due and payable; interest will continue to accrue until all the monies you owe are received in cleared funds by Croplands.

B. You must indemnify Croplands for all loss and damage it incurs because of your failure to pay all amounts due to it by the due date(s);

C. You must indemnify Croplands for all costs, loss and damage it incurs in taking possession of the whole or part of the goods and reselling them or by any other reason, if that loss and damage is the result of your conduct;

D. You must pay interest on all loss and damage suffered by Croplands at the rate set out in sub-clause 9(e)(i)(A) as a result of your conduct or your breach of these Terms;

E. You must pay all costs, charges and expenses (“costs”) incurred by Croplands in enforcing or attempting to enforce any of its rights under these Terms (including recovering any loss and damage or unpaid amounts). In the case of legal costs, you will pay Cropland’s legal costs on an indemnity basis; and

F. You must deliver up the goods to Croplands immediately upon receipt of a demand in writing from Croplands to this effect. If you do not comply with the demand within one (1) business day of receipt of the demand, you authorise Croplands to enter upon your premises (whether owned or leased) at any time to do all things necessary to take possession of the goods. You must pay all costs of and incidental to Croplands’ exercise of its rights under this clause on the basis set out in clause 9(e)(i)(E).

(f) You authorise Croplands to apply any payments received from you first to satisfy interest which may have accrued on the amounts you owe it, next to any legal or other costs Croplands may have incurred in recovering the amount(s) from you, and then only to the principal amount.

(g) If you are involved in any dispute with Croplands, you must still pay all amounts due to Croplands. You must not withhold payment, set off or “contra” any amounts that you owe Croplands because of any claims that you may have, whether on account of your supply of goods, to Croplands, damages or other allegation against Croplands.

10. RETENTION OF TITLE

(a) Subject to clause 10(b), and unless otherwise notified in writing, you are authorised to sell or use the goods if it is in the ordinary course of your business to do so.

(b) Until full payment in cleared funds is received by Croplands for all goods sold by it to you, and any other amounts owing to Croplands are paid title and property in the goods will remain vested in Croplands and will not pass to you;

I. you must hold the goods as fiduciary bailee and agent for Croplands; and II. you must keep all goods supplied and delivered to you by Croplands separate from your and other property, and in a manner to enable Croplands’ goods to be identified.

(c) If you sell, dispose of or use the goods before full payment in cleared funds is made to Croplands, until such full payment is made, you will hold all monies resulting from such sale, disposal or use on trust for Croplands in a separate account. You must not mix the monies you hold on trust for Croplands with your or any other monies and you must specifically identify relevant trust monies in your accounts as Croplands’ property.

(d) If you combine or incorporate the goods with other goods (not being the property of Croplands) before full payment in cleared funds is made to Croplands, so that Croplands’ goods become mixed with goods of others, you authorise Croplands to dismantle and remove its goods from the other goods, if such dismantling or removal is possible without destroying the goods, yours or others’ goods.

(e) If you combine the proceeds of sale of the goods with other money in your bank account before you pay Croplands for the goods, you must expressly hold those proceeds on trust for Croplands and you hereby authorise Croplands to trace and receive those proceeds ahead of all other creditors, including secured creditors.

(f) Croplands shall have a lien on any of your goods if you owe it money for goods sold and delivered to you, or if you owe it money for any loss and damage that you have caused to Croplands.

11. ASSIGNMENT OF DEBT

(a) In consideration of Croplands’ agreement to supply the goods to you on these Terms, and Croplands’ undertaking to reimburse to you all of your profit in respect of the goods or any end product manufactured or cultivated with the goods (“end product”), you hereby assign to Croplands the whole of proceeds of the sale of the goods or end product to your customers, including any insurance proceeds payable to you in respect of your insurance of the goods or end product, immediately that the goods or any end product are either sold to your customers, or damaged or destroyed, whichever appropriate (“the assigned debt”).

(b) The assignment to Croplands in clause 11(a) above will be effected simultaneously with and automatically upon the sale of the goods, or any end product, to your customers.

(c) Notwithstanding the assigned debt, Croplands will always be entitled to sue you for the price of the goods if you do not pay for them when payment is due.

(d) If any part of the assigned debt is paid to or received by you, you acknowledge and declare that you receive and hold the assigned debt upon trust for Croplands, that you will not deal with or treat that receipt as part of your own money and will forthwith pay it to Croplands. Croplands will have the right to trace the assigned debt you receive from your customers to your bank account, even if those monies become mixed with other monies in your account

(e) You promise that you will execute any documents, do any acts or other things that Croplands may reasonably require you to do to further or more perfectly transfer the assigned debt to Croplands.

(f) You will deliver possession and control of any documentation relating to or proving the assigned debt to Croplands upon Croplands’ request, and Croplands jointly with you will be responsible for the management and collection of the assigned debt from that time on.

(g) You promise that immediately upon effecting each and every sale of the goods or end product to your customers, you will (at Croplands’ request) do all things necessary to inform your customers of the form and substance of this assignment, and further, do all things necessary to enable Croplands to collect the assigned debt from your customers.

12. PERSONAL PROPERTIES SECURITY ACT 2009 (PPSA)

(a) In this clause 12, unless otherwise defined in these Terms, capitalised expressions have the meaning given to them in the PPSA.

(b) You acknowledge and agree that by entering into a contract of sale under these Terms, you grant a Security Interest to Croplands in the goods and any proceeds of sale in respect to those goods and also consent to Croplands registering any one or more Financing Statements or Financing Change Statements in respect to any such Security Interest created by or contemplated by these Terms.

(c) You and Croplands agree for the purposes of satisfying s20(1)(iii) of the PPSA, that the description of goods as shown on any invoice from Croplands is the subject of each and any Security Interest created under these terms and such and every invoice is incorporated into these Terms.

(d) You agree that you are the Grantor and Croplands is the holder of a Purchase Money Security Interest (PMSI) by virtue of these Terms or the PPSA.

(e) You agree that the following provisions of the PPSA will not apply to these Terms: Sections 95, 96, 125, 129, 130, 132(3)(d), 132(4), 135, 142 and 143.

(f) Unless otherwise agreed in writing with Croplands, you agree to waive your rights to receive a verification statement in accordance with s157 of the PPSA.

(g) For the purposes of s275(6) of the PPSA, you and Croplands agree that neither party will, or is entitled to, disclose information of the kind specified in s 275(1) of the PPSA.

(h) You agree with Croplands that it will not enter into any agreement or arrangement which permits any other person to register any Security Interest in respect to unpaid goods, proceeds of sale of unpaid goods or any accounts owed in respect of the unpaid goods without Croplands’ consent.

(i) You agree to give Croplands at least 10 days prior written notice before changing any of your corporate details, such as your name, ABN or ACN, or principle place of business.

(j) You agree to unconditionally ratify any actions taken by Croplands under this clause 9.

(k) You agree to reimburse Croplands for all costs and/or expenses incurred or payable by Croplands in relation to registering, maintaining or releasing any Financing Statement or Financing Change Statement under these terms.

(l) This clause 9 will survive the termination of the contract for sale and purchase of goods between you and Croplands to the extent permitted by law.

13. CLAIMS AND RETURNS

(a) You must inspect the goods immediately on delivery and must, no later than seven (7) business days of receipt of the goods, give notice in writing to Croplands if the goods are not in accordance with Croplands’ specifications for the goods or if the goods are damaged, short supplied or otherwise allegedly defective. If you do not give such notice within 7 days, you must accept and pay for the goods and you are no longer able to make any claim. Time is of the essence in the giving of such notice.

(b) You may not make a claim against Croplands in respect of the goods unless at the time of the claim all of the goods the subject of the claim remain intact as a whole. Any disposal or use of any part of the goods will mean that you have accepted the goods and can no longer make any claim.

(c) You grant to Croplands full and free access to the premises owned or occupied by you to enable Croplands to investigate any claim you make. Croplands’ investigation of your claim does not constitute an admission of liability.

(d) Croplands may, in its sole discretion, accept the return of the goods or refund you the purchase price of the goods. The invoice and/or the delivery note number must be supplied with the goods if they are returned.

14. LIMITATION

OF LIABILITY AND INDEMNITY

(a) Any representation made by Croplands in relation to the goods, their use, suitability for your purpose or application is given in good faith, is believed by Croplands to be reliable, but is provided with an express disclaimer for any liability or responsibility on the part of Croplands, You acknowledge that Croplands is not or may not be aware of your intended end use of the goods.

(b) Subject only to the extent permissible at law, you agree that Croplands will not be liable to you for any consequential loss or damage that you incur or suffer as a direct or indirect result of your purchase, use or application of the goods. You hereby expressly release and discharge Croplands from any and all such consequential loss or damage, however incurred, whether directly or indirectly as a result of:

i. your purchase, sale, use or application of the goods;

ii. any changes Croplands makes from time to time to the specifications or price of the goods; and

iii. any delay or cancellation of your order.

(c) You accept all risk and responsibility for consequences arising from the improper use of the goods.

(d) You acknowledge that any liability to you will be limited, in the case of any goods not in accordance with Croplands’ specifications or if the goods are damaged, short supplied or otherwise allegedly defective only to:i. replacement by Croplands of the goods; or ii. the issue of a credit note for the invoice value of the goods; or iii. the return of any monies that you have paid in respect of the goods; or iv. the return of the goods; whichever Croplands in its absolute discretion considers appropriate.

(e) You will indemnify Croplands for all and any loss and damage whatsoever or howsoever incurred by it, whether as a direct or indirect result of your failure to observe these Terms, your failure to discharge your duties under the common law or your failure to discharge your duties under statute, or otherwise.

15. PALLETS

(a) Any pallets used for the delivery of the goods to you remain the sole property of Croplands and are to be returned to Croplands’ warehouse at your expense and in good order and condition.

(b) Any pallets not returned within 14 days after Croplands’ demand will, at Cropland’s election, be deemed to be purchased by you. In that event, you will be invoiced for the pallets at a value to be determined by Croplands. That value will be final and binding as between the parties.

16.

GOODS ON CONSIGNMENT

(a) If you hold goods on consignment you must maintain accurate records of these goods as required by Croplands and rotate the goods so that the oldest are sold or used first.

(b) You must provide to Croplands a reconciliation in respect of the goods on consignment immediately following the end of March, June, September and December each year (“reconciliation”) advising:-

I. The opening balance for that quarter, batch numbers for the goods unsold, remaining in your possession and on consignment as at the commencement of the quarter;

II. the quantity of goods received from Croplands each quarter including the batch numbers in respect of the goods received;

III. the quantity of goods sold in each quarter including the batch numbers in respect of each of the goods sold; and

IV. the closing balance for each quarter, batch numbers of the goods unsold, remaining in your possession and on consignment as at the conclusion of each quarter.

(b) You must notify Croplands as soon as you receive a purchase order from a customer for any of the goods on consignment. Croplands will invoice you each month for the price of the goods as the date(s) of sale to your customers. You must pay for the goods on consignment in accordance with clause 9.

(c) Croplands will invoice you for any lost or damaged goods on consignment and you must pay for these goods in accordance with clause 9 of the Terms.

(d) You may only dispose of or use the goods on consignment in accordance with these Terms. All monies resulting from the sale of the goods on consignment will be dealt with in the manner set out in clause 9.

17. MISTAKE

Any mistake of fact on any quote, order, invoice, delivery docket or other document issued by Croplands in relation to the goods will not bind Croplands and Croplands may in its discretion issue such amended document as is required to rectify the mistake. You must comply with Croplands’ amended document.

18. YOUR REPRESENTATIONS

You represent that:-

(a) the goods will only be used and applied in accordance with Cropland’s directions and recommendations and in accordance with the registered label;

(b) the goods will be handled with appropriate caution, care and protective clothing;

(c) the goods will be used or applied with the appropriate utilities only;

(d) you are aware that some goods purchased from Croplands may be toxic, dangerous and hazardous to human health;

(e) the goods the subject of any proposed claim have not continued to be used by you:-

i. after you have become aware that the goods are damaged or defective in any way; or ii. after you have given written notice of the defects to Croplands;

(f) you will report any defects to Croplands in accordance with clause 13.

19. ACCESS

You irrevocably grant to Croplands authority to enter into, forcibly or otherwise, all of your owned and leased premises for the purpose of inspecting or removing any of Croplands’ goods.

20. DANGEROUS GOODS

You warrant to Croplands that after delivery of the goods and whilst Croplands retains any interest in the goods, you will comply with all applicable Acts, Regulations and Laws dealing with the transport, unloading, storage, sale or use of dangerous or hazardous materials.

21. LAW/INTERPRETATION

(a) These Terms are to be interpreted according to the laws of the State of Victoria. The courts in the State of Victoria shall have exclusive jurisdiction to hear and determine all disputes of and incidental to these Terms, including any claims in respect of monies due to Croplands pursuant to these Terms, on account of a claim for damages or any other claim.

(b) To the maximum extent permitted by law and statute, all warranties terms and conditions, expressed or implied by common law, equity, trade, custom, usage, statute or otherwise, in relation to the sale, supply, use or application of the goods, are excluded. Croplands shall not accept any responsibility whatsoever (including consequential loss), or howsoever arising (including negligence) for any damage, injury or death connected with the sale, supply, use or application of the goods except for responsibility for the merchantable quality and except for any responsibility mandatorily imposed by statute.

22. SEVERANCE

If the whole or any part of these Terms is invalid or unenforceable for any reason, the invalid or unenforceable clauses will be severed from these Terms and the validity of the remaining clauses will be preserved.

Updated March 2020.

FREIGHT

The following tables detail freight on items listed in the 2026 Compact Sprayers guide.

• Prices may change at any time without notice. Freight charges will apply unless items are ordered that qualify to be included in a stock order

• Charges apply Australia-wide. Goods can be sent by your choice of carrier and/or arranged for pick-up, or sent freight forward if we are advised at the time of order. Croplands is not responsible for any charges incurred for missed collection or delays when using your own courier service

• All freight prices include any applicable fuel surcharges and remote area surcharges

• Minimum order value is 50 EX GST

• All deliveries will be direct to dealers.

SPARE PARTS, COMPONENTS & ACCESSORIES

• Spare parts

• Nozzles and nozzle caps • 12V pumps

• Regulating valves • Ball valves • Solenoids

• Spray guns

• Respirators • Gloves and suits

• Boom components • Filters • Gauges

• Tank fittings • Camlocks • Brass and poly fittings

AIRFREIGHT

Note: cut-off for air freight orders is 2:30pm ACDT. Bookings after this time will not guarantee next day delivery

ITEM NOTES $ (EX. GST)

Parts, accessories, components 1kg bag 26.00

Parts, accessories, components 3kg bag 30.00

Parts, accessories, components 5kg bag 41.00

STOCK ORDERS

Back orders maybe consolidated to reduce freight costs. Croplands tanks do not qualify for stock orders

ITEM NOTES

Parts, accessories, components with a dealer nett value of 3,000.00 + GST*

• Mark your order clearly as a ‘STOCK ORDER’

• Stock orders can take up to five working days to pack and dispatch

• Minimum of 15 individual lines must be ordered

*All items marked in BLUE qualify for stock orders

*All items marked in ORANGE do not qualify for stock orders

(EX. GST)

WHOLEGOODS

Sent by road freight as individual items

LINKAGE SPRAYERS (P3–10)

LA300 and LA600 – all models up to 6m boom

LA800 – bare or with 6m boom

LA600/MAX08, LA800/MAX08 with 8m boom

LA800/MAX10L with 10m boom

LAC1000 & LAC1200 bare unit (no boom)

LAC1000 & LAC1200 8M, 10M and 12ML models with 8, 10 and 12m booms

LAC1000 & LAC1200 MHL12 or MHL15 – 100L with 12/15m hyd fold booms

MEC1300/1600 & LS1300/1600 with boom attached

SPRAY BOOMS (P13–16)

MSO, MSCL, MB02, MBX04 booms

MC6, MBX06, MSCL-2, MVB5-5 booms

MAX08 – flat pack only

MAX10 – flat pack only

MAX10L, MAX12L and GEX series booms – flat pack only

MHL 12 and 15m booms; BDU18 boom only – flat pack only

TRAILPAK SPRAYERS (P17–20)

UA300B trailing sprayer (all models) and UA300B motorised nursery sprayers 812 1100 and 1500L TrailPak sprayers POA

RETRASPRAY & TRAYPAK SPRAYERS (P21–25)

RSRL4-100RC RetraSpray reel

CROPPAK 12V SPRAYERS, KNAPSACK SPRAYERS & APEX SPRAYERS (P26-33)

US30S CropPak sprayer

US60S, US100S, US100A/15, 12V CropPaks

US200F and US200F/15 12V CropPaks

US300F/15 12V CROPPAKS

Swissmex SW319 and SW320 x 1 unit

SW319

CHEMICAL MIXING & BATCHING UNITS; MIXING JUGS & CHEMICAL

UNITS (P34–36)

L-H9353C

HOSE REELS,

(P32–33)

(P16, 39)

AR30, AR503, AR813

AR70, AR252, AR503

pump models AR140, AR160, AR185 & 250,

NATIONWIDE DEALERS

CROPLANDS.COM/AU/DEALER-LOCATOR

STEP 1:

Scan the QR code or visit croplands.com/au/dealer-locator to find your local Croplands Dealer.

STEP 2:

Enter the location, COMPACT and distance from you.

STEP 3:

Pick a Dealer from the map.

NATIONAL
