Ecostick The Revolution of snowmaking
Ecostick | |
The Nivis® snow lances need neither compressed air nor an own compressor unit. They use the enclosed energy in the water pressure and redound to a significant saving of energy on snowmaking systems
Ecostick
Zero-energy-snowmaker

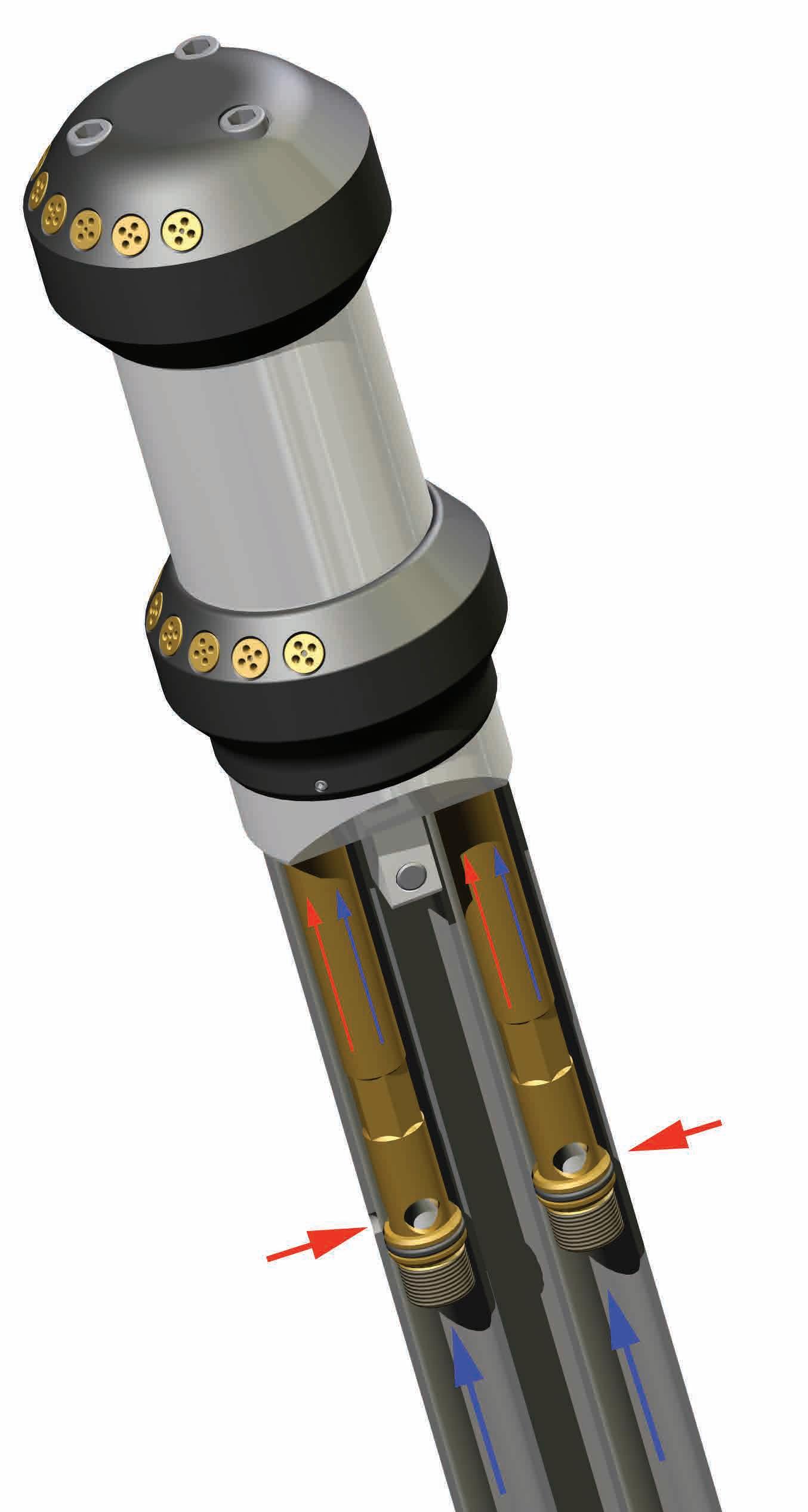

The Nivis® snowmaking lance Ecostick is worldwide unique equipped with the patented Nivis injection system. This makes it possible to work without a compressor unit or a central compressed air system. The injector patented by Nivis® aspirates ambient air and creates a water-air mixture which is pulverized directly through the nozzle head. For this process is no electrical energy needed.
Versions

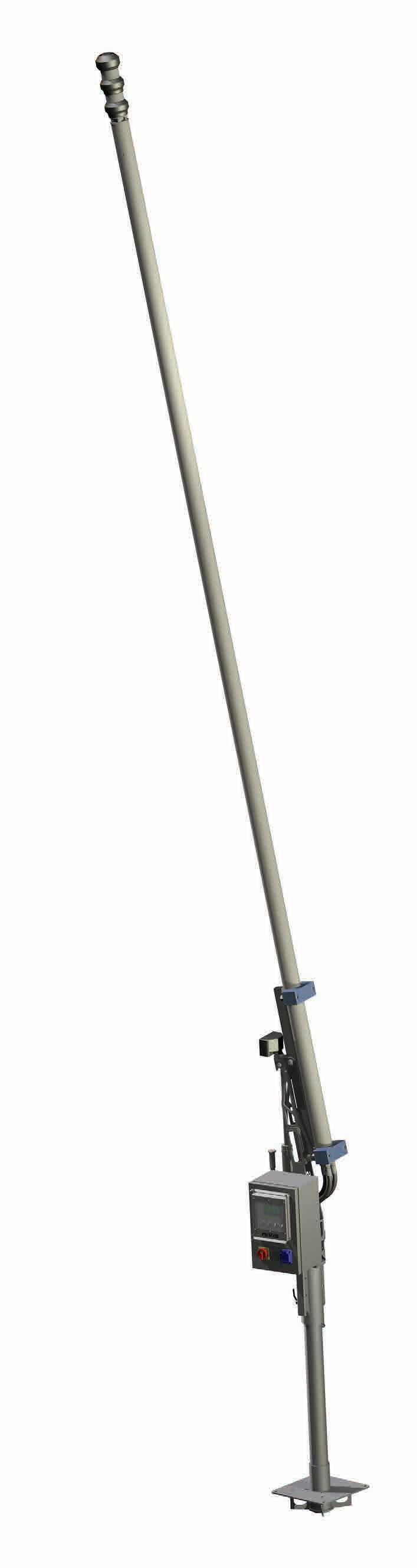

The Nivis® snowmaking lance Ecostick is equipped with up to 3 especially developed injectors for an optimal performance under all weather conditions. The models MONO, DUO, TRIO are available as manual or as automatic versions. The manual versions need no power supply. The automatic versions need it just to command valves and measure temperature and pressure.
Advantages of a snowmaking system without compressor by Nivis® Ecostick
• Extremely low operational costs for energy, as no pressurized air (usually about 4 kW per lance) is needed
• Low acquisition costs, as parts for pressurized air supply such as compressors, air pipes and electrical power supply are not necessary
• No maintenance costs for compressors (e.g. oil change)
• Low service costs as the system consists only of static parts
• Conservation of nature and natural resources
• It’s easily possible to add or retool any existing snow making plant of any kind (e.g. fan guns) with Ecostick lances, as no pressurized air is needed. This makes the Nivis® system compatible to any kind of plant
• It’s easy to construct an extremely effective snow making plant for marginal temperatures. The use of many Ecostick MONO instead of less multi-stage lances is no problem. The needed compressor power always remains zero
• Very simple handling especially the manual version
• Water system with inherent pressure enables you to build a snow making plant without energy consumption
• The most efficient, most sustainable and most innovative way to make snow. The Nivis® system effects an economy of energy, weight, materials and reduces maintenance and noise
Versions
Compressed
Power
Power
Connection
Operating
Weight
Height
Foundation
Subject to technical modifications
Central hose guidance

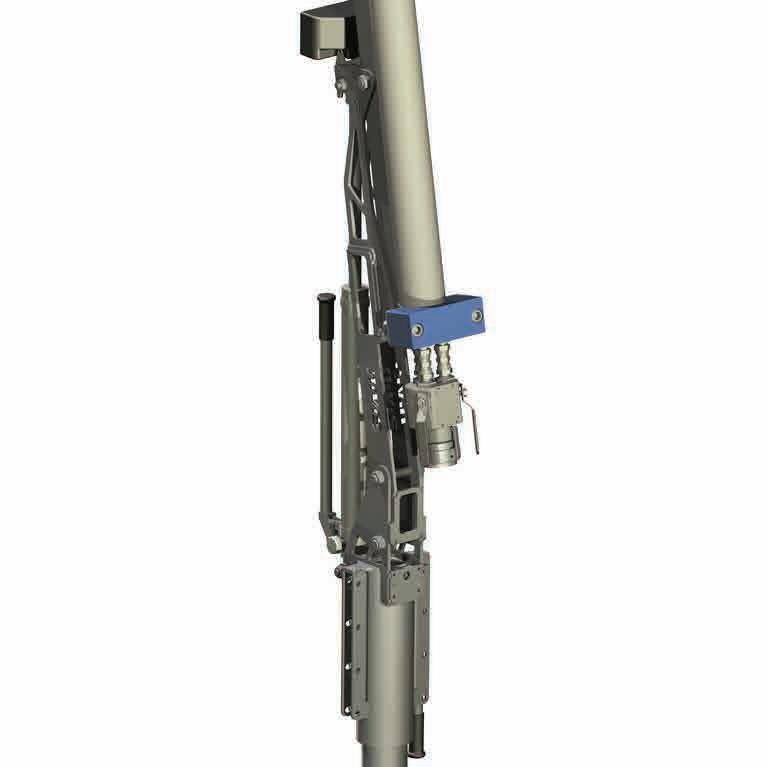

Hydraulic lifting device (optional)
Valve block with quick coupling
Lance head
Lance tube
Water–air mixture

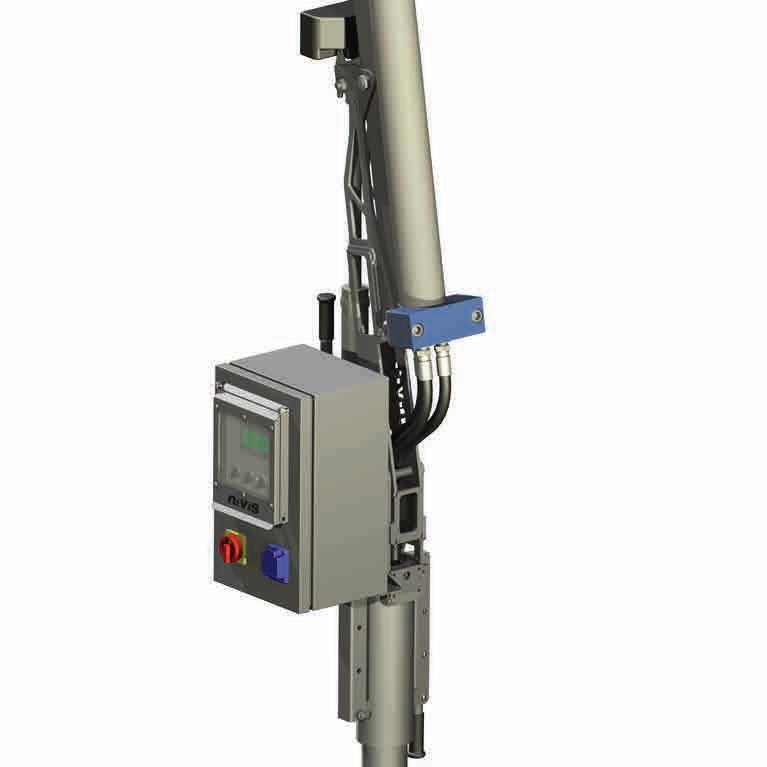

Electrical cabinet (Stand-alone version only)
360° Swivel-range
Water supply
