2026 UK Product Catalogue by Clevertronics

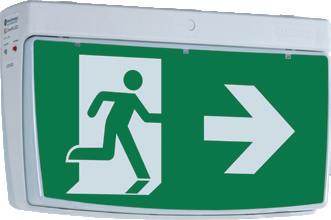

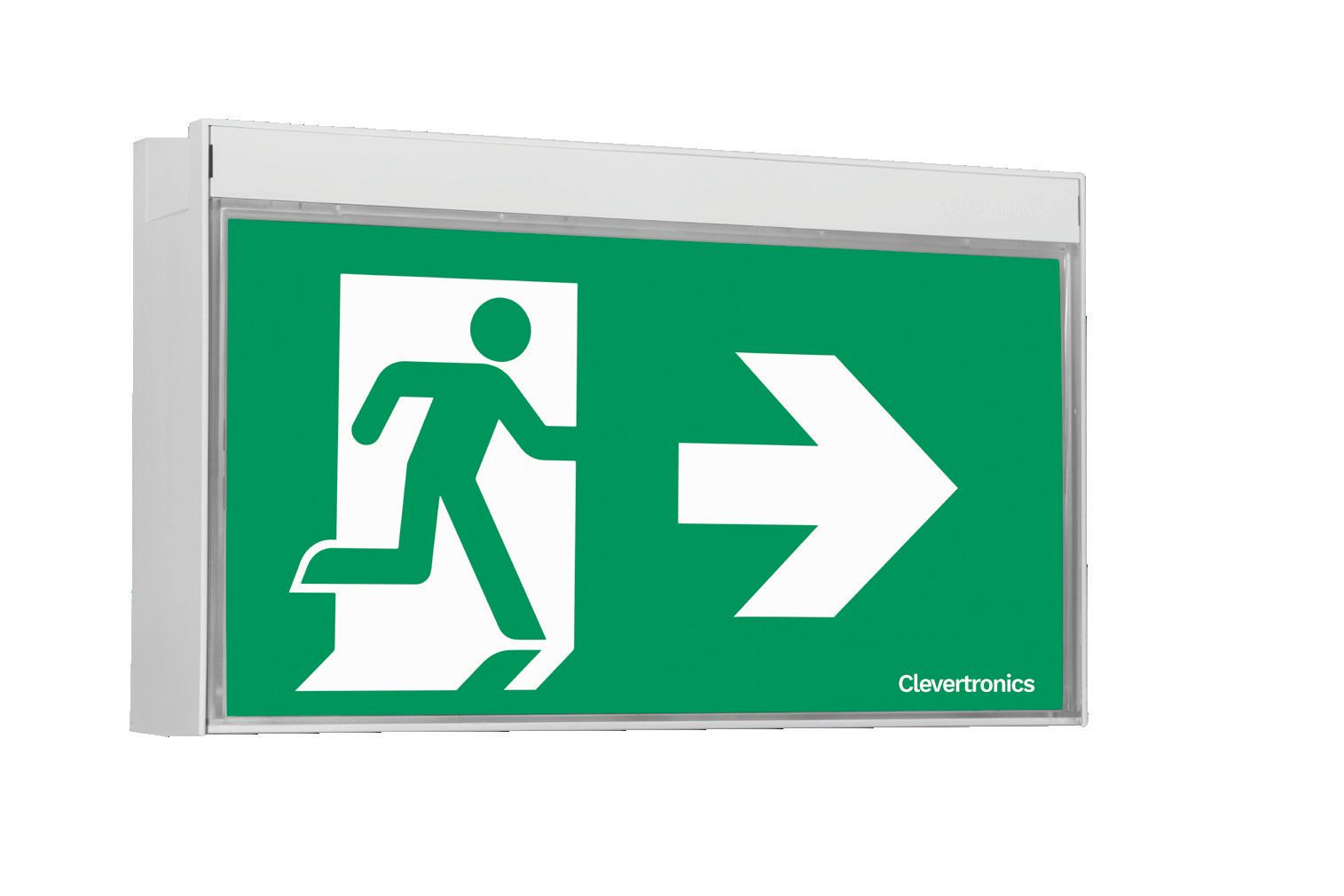

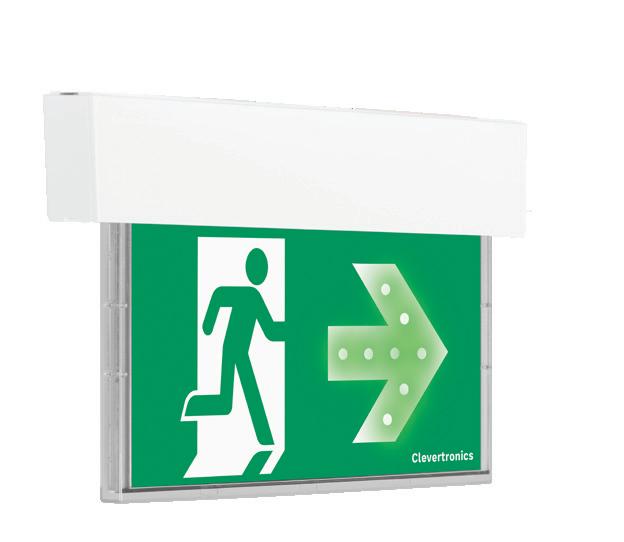

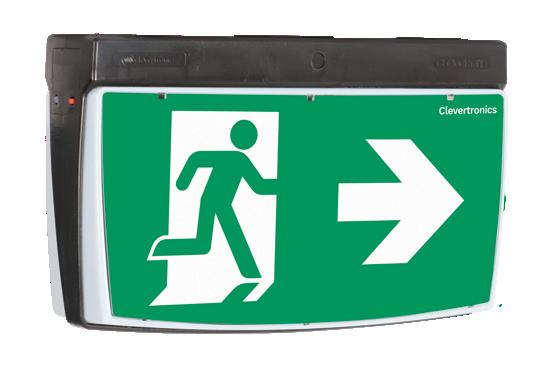

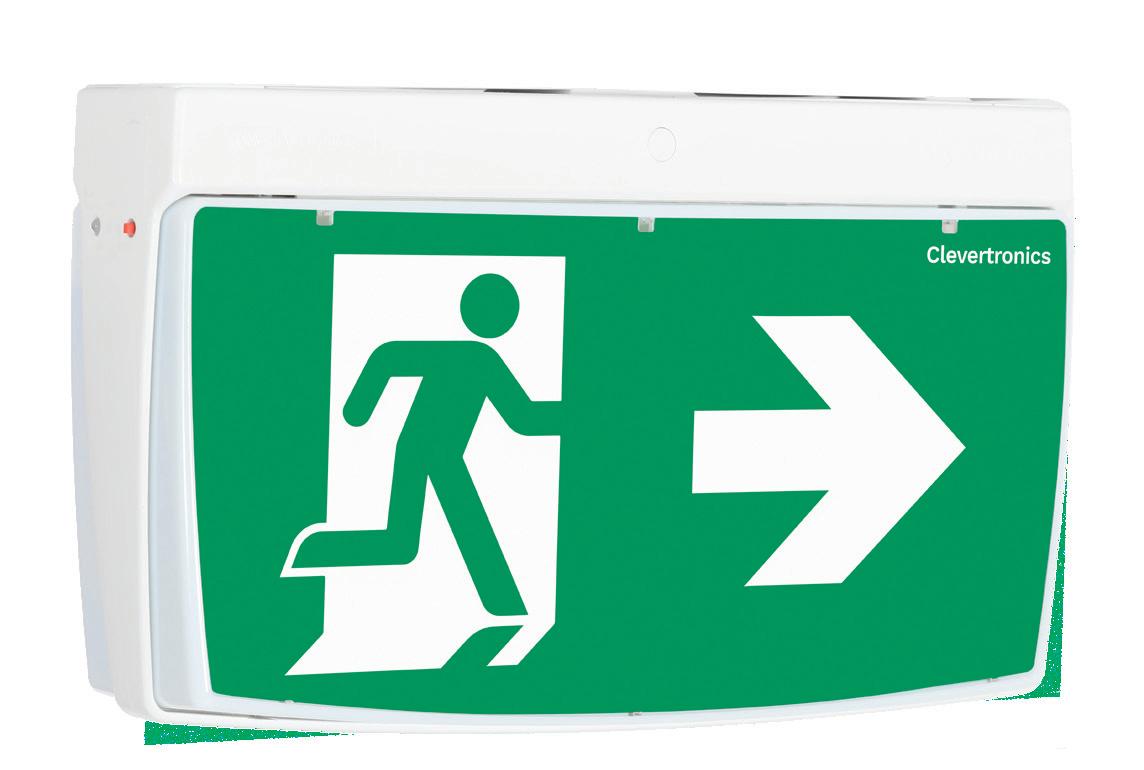

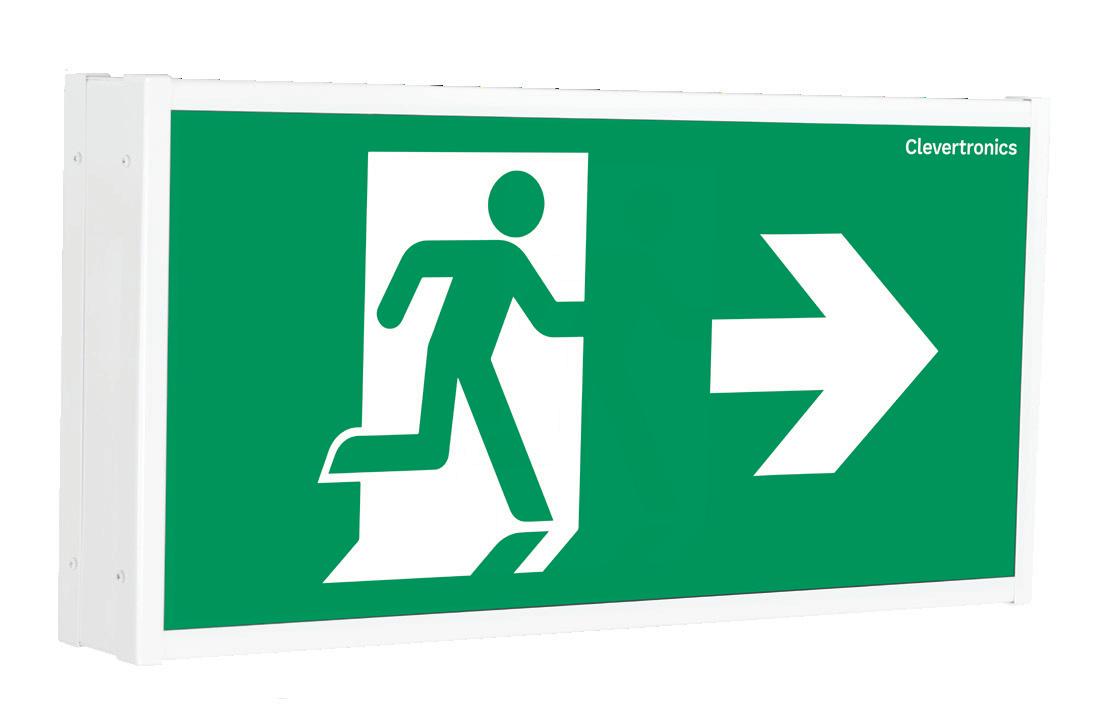

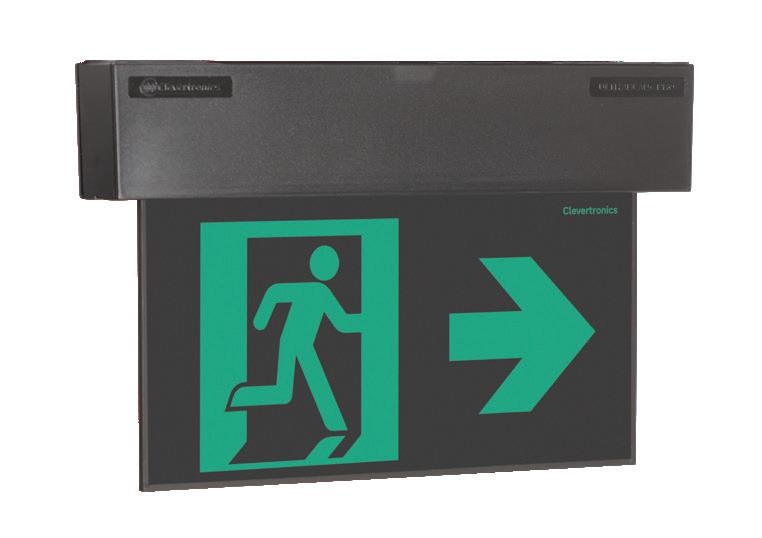

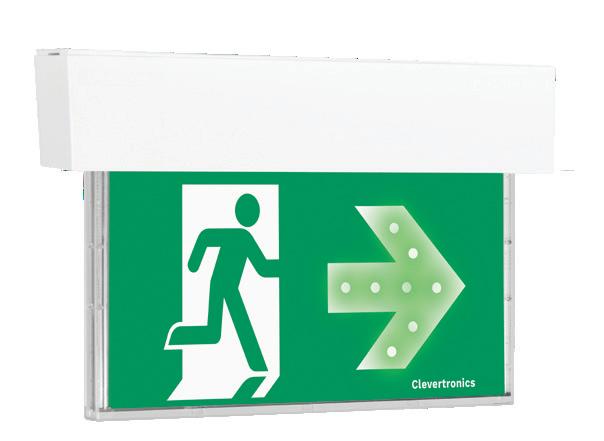

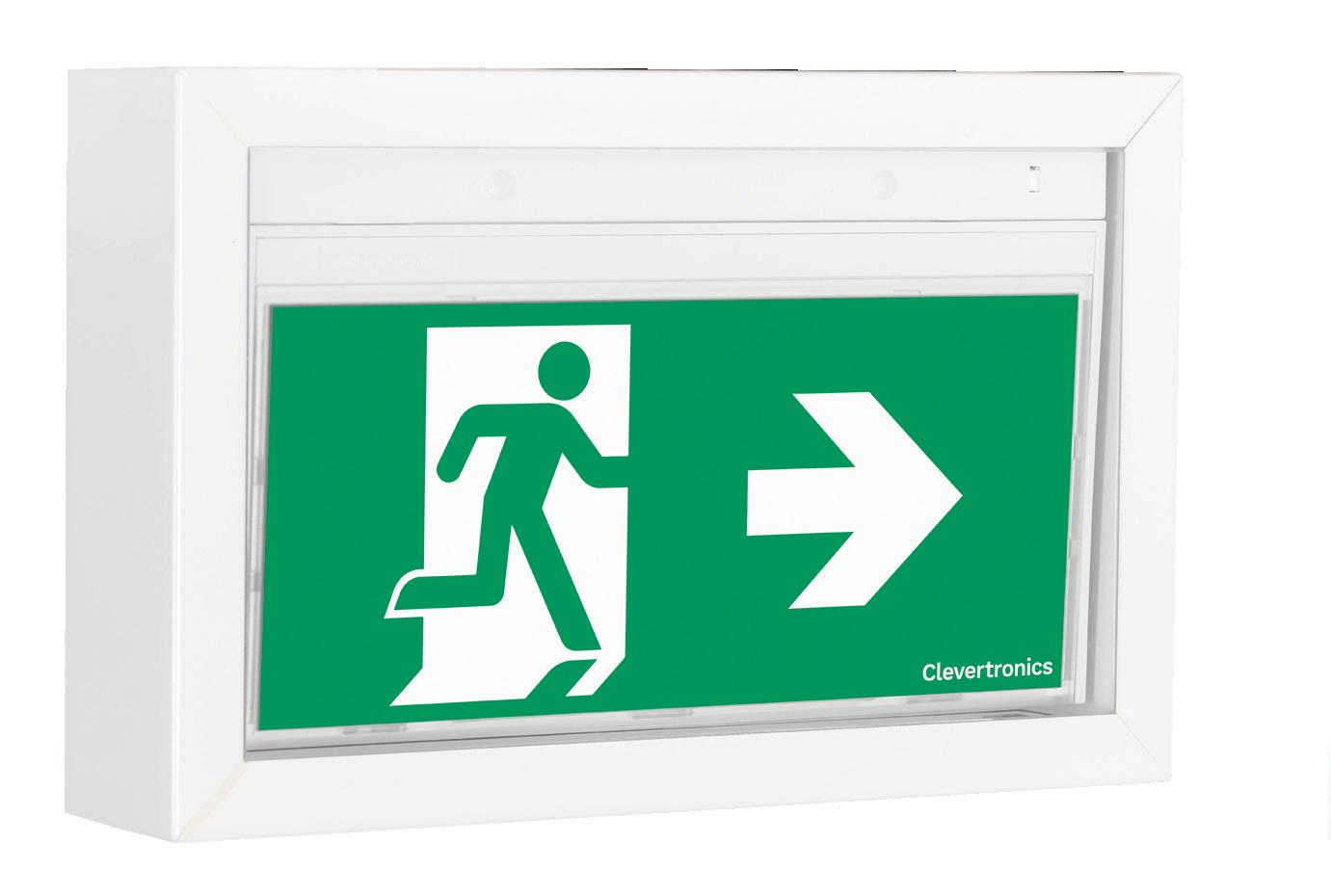

CLEVERFIT EXIT

The Cleverﬁt Exit is a proven market leader that is known for its reliability, energy efﬁciency and ease of installation. The tamper resistant cover makes it possible to include all diffuser combinations in one box for single or double sided applications.

The Cleverﬁt Exit can be either wall or ceiling mounted and the quick connect bracket makes installation nice and easy.

• Tested to BS EN 60598-2-22

• Compliant to BS EN 1838 and ISO7010

• Low standby power consumption

• Wall and ceiling mount with easy slide connect

• Can be rod or chain suspended

• All directional decals in one box

• Lithium Iron Phosphate or Nanophosphate® battery

Theatre version available

CLEVERFIT EXIT

ORDERING INFORMATION

Standard - White

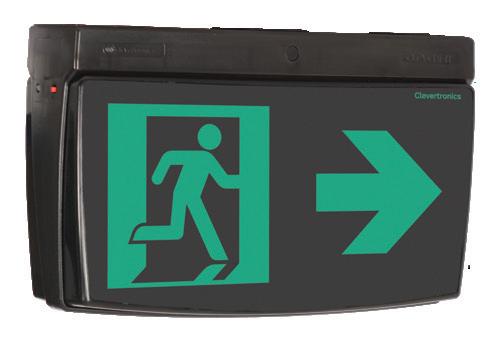

Standard - Black CCFLED-BLK

Clevertest Plus System Compatible

Zoneworks® HIVE

LCFLED-D2

CCFLED-D2

CCFLED-HVG

LCFLED-HVG Theatre Version* CCFLED-TH LCFLED-TH

Carton Quantity

Weight - single (carton)

Dimensions (L x W x H)

Directional Options

Directional Options (Theatre Only)

*Warranty information located at https://clevertronics.co.uk/clevertronics-uk-warranty-statement *Theatre versions subject to approval with local authority.

Clevertronics

CLEVERFIT PRO EXIT

Modern and Slimline

The Cleverﬁt Pro Exit offers a practical solution in a slimline, architecturally pleasing design. The tamper resistant cover makes it possible to include all diffuser combinations in one box for single or double sided applications. With a slide connect steel bracket that can be both ceiling or wall mounted, it is easy to see why the Cleverﬁt Pro is a market leader.

CLEVERFIT PRO EXIT

ORDERING INFORMATION

Standard - White

Standard - Black

Clevertest Plus System Compatible

Zoneworks® HIVE CCFPRO-HVG

Dimensions (L x W x H)

Directional Options

Directional Options (Theatre Only)

*Warranty information located at: https://clevertronics.co.uk/clevertronics-uk-warranty-statement *Theatre versions subject to approval with local authority.

LCFPRO-D2

ULTRABLADE PRO SURFACE MOUNT EXIT

The sophisticated look and design of the Ultrablade Pro Surface Mount Exit will satisfy all architectural requirements for a premium surface mounted exit. With a reduced reﬂection, halo effect on the diffuser with a decal that is scratch and ﬁngerprint resistant, it is no wonder the Ultrablade Pro is the industry standard for an architectural blade exit.

ULTRABLADE PRO SURFACE MOUNT EXIT

ORDERING INFORMATION

Standard - White

Standard - Black

CUBPRO-SM LUBPRO-SM

CUBPRO-SM-BLK

Clevertest Plus System Compatible Yes

Wall Mount Flag Style

DALI

Zoneworks® HIVE

Theatre Version*

CUBPRO-V

CUBPRO-SM-D2

CUBPRO-SM-HVG

CUBPRO-SM-TH

Carton Quantity 5 Weight - Single (Carton)

(5.5kg) Dimensions (L x W x H)

x 8.7mm x 157mm - Blade Assembly

x 47mm x 72mm - Base

LUBPRO-SM-BLK

LUBPRO-V

LUBPRO-SM-D2

LUBPRO-SM-HVG

LUBPRO-SM-TH

Directional Options All Directional Inserts Included (Excluding theatre versions)

Directional Options (Theatre Only) Add Sufﬁx to Part No, Double Sided -DS , Left Arrow -RL, Right

Operating

Construction - Body / Diffuser

Viewing Distance 30m

(50Hz)

*Warranty information located at: https://clevertronics.co.uk/clevertronics-uk-warranty-statement

*Theatre versions subject to approval with local authority.

information located at: https://clevertronics.co.uk/product-warranty-statement/

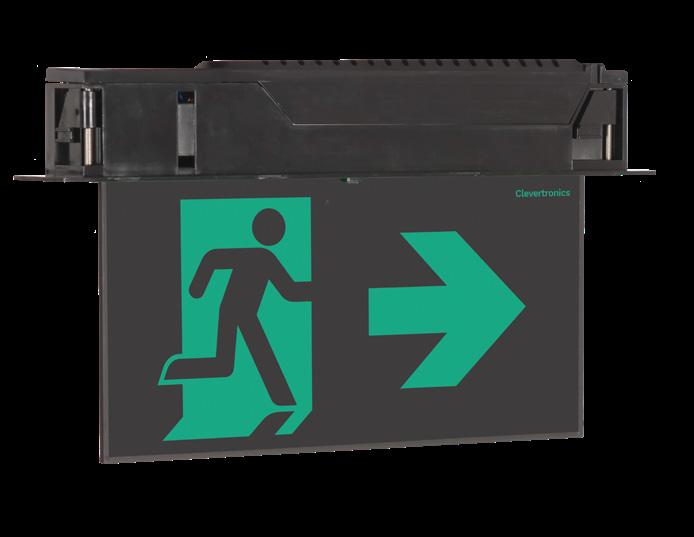

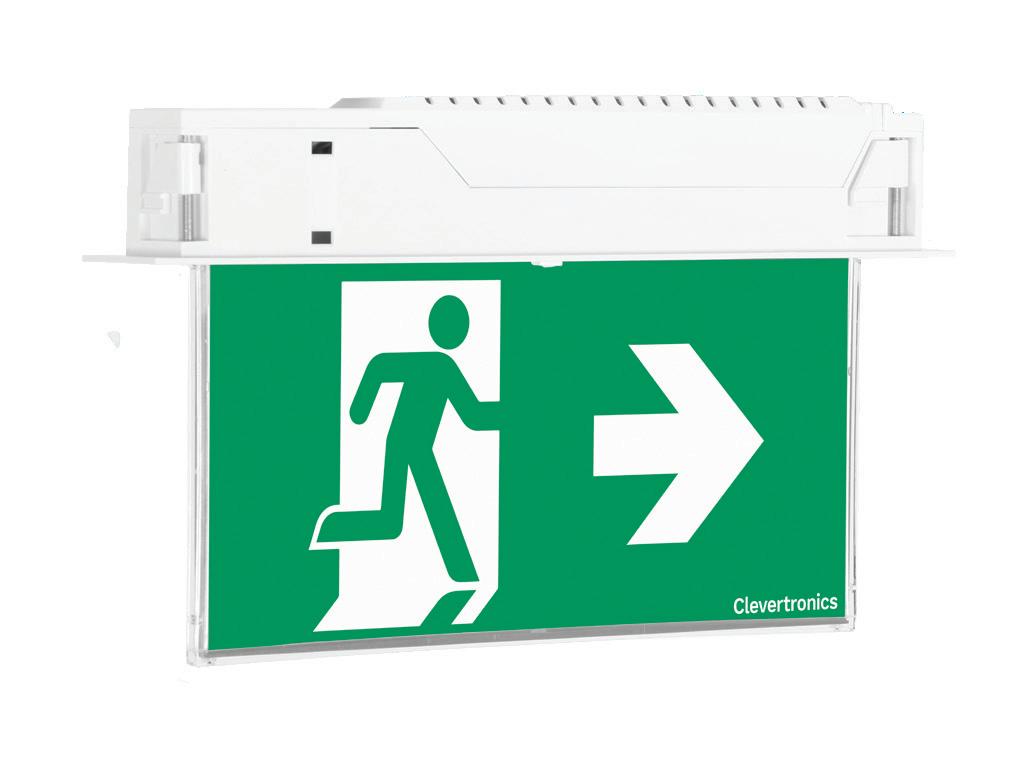

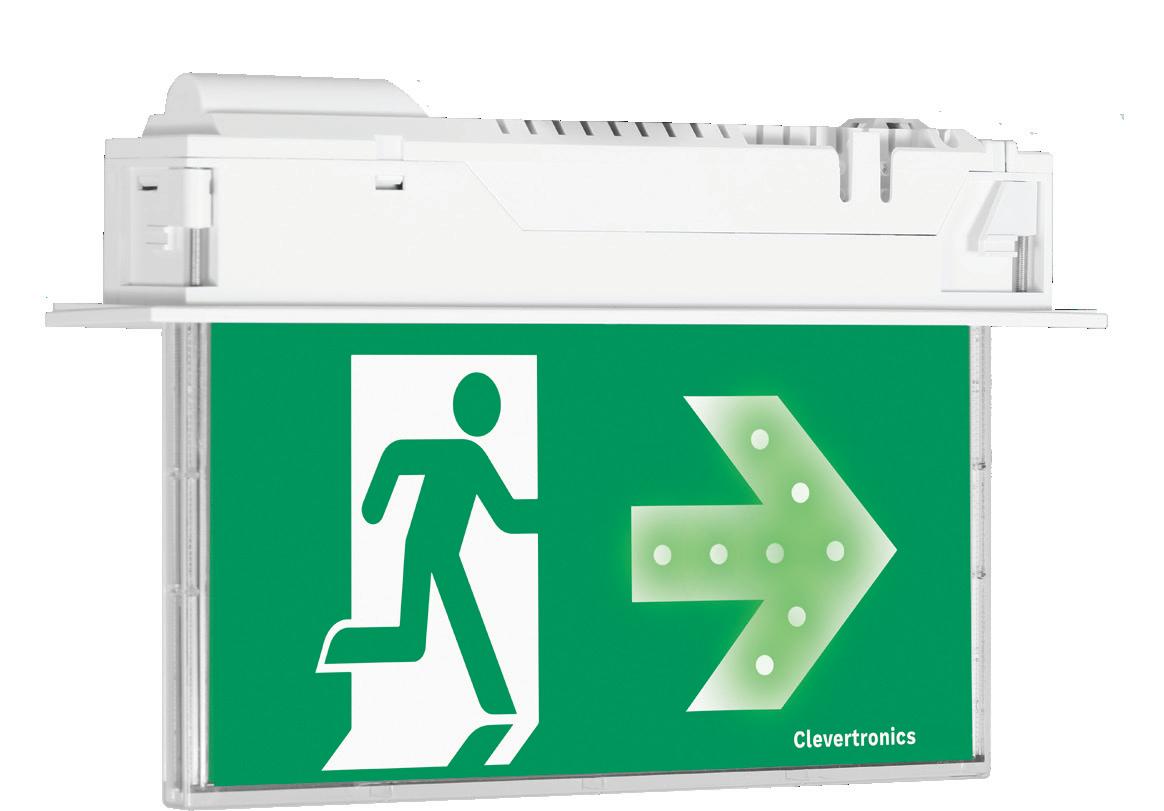

ULTRABLADE PRO RECESSED EXIT

Recessed Architectural Blade Exit Light

The sophisticated look and design of the Ultrablade Pro will satisfy all architectural requirements for a premium recessed exit.

With its low profile design, only 80mm of ceiling space is required during installation, combine this with a reduced reflection and halo effect on the diffuser and a decal that is scratch and fingerprint resistant. It is no wonder the Ultrablade Pro is the industry standard for an architectural blade exit.

Applications

• Tested to BS EN 60598-2-22

• Compliant to BS EN 1838 and ISO7010

• Low standby power consumption

• Wall and ceiling mount

• All directional decals in one box

• Lithium Iron Phosphate or Nanophosphate® battery

• Theatre version available

ULTRABLADE PRO RECESSED EXIT

Standard - White

Standard - Black

Clevertest Plus System Compatible

Wall Mount Flag Style

Directional Options

Directional Options (Theatre Only)

*Warranty information located at: https://clevertronics.co.uk/clevertronics-uk-warranty-statement *Theatre versions subject to approval with local authority.

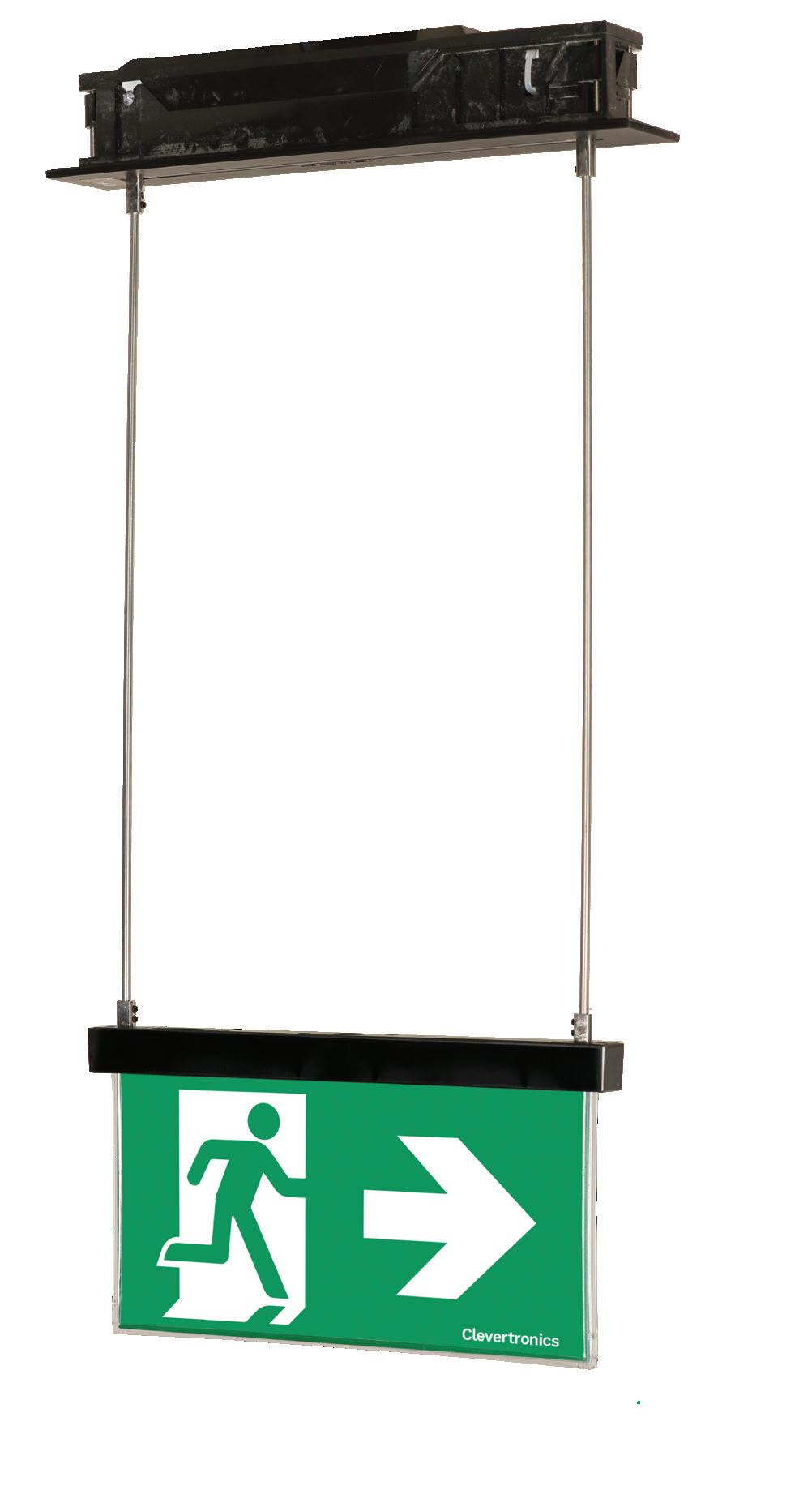

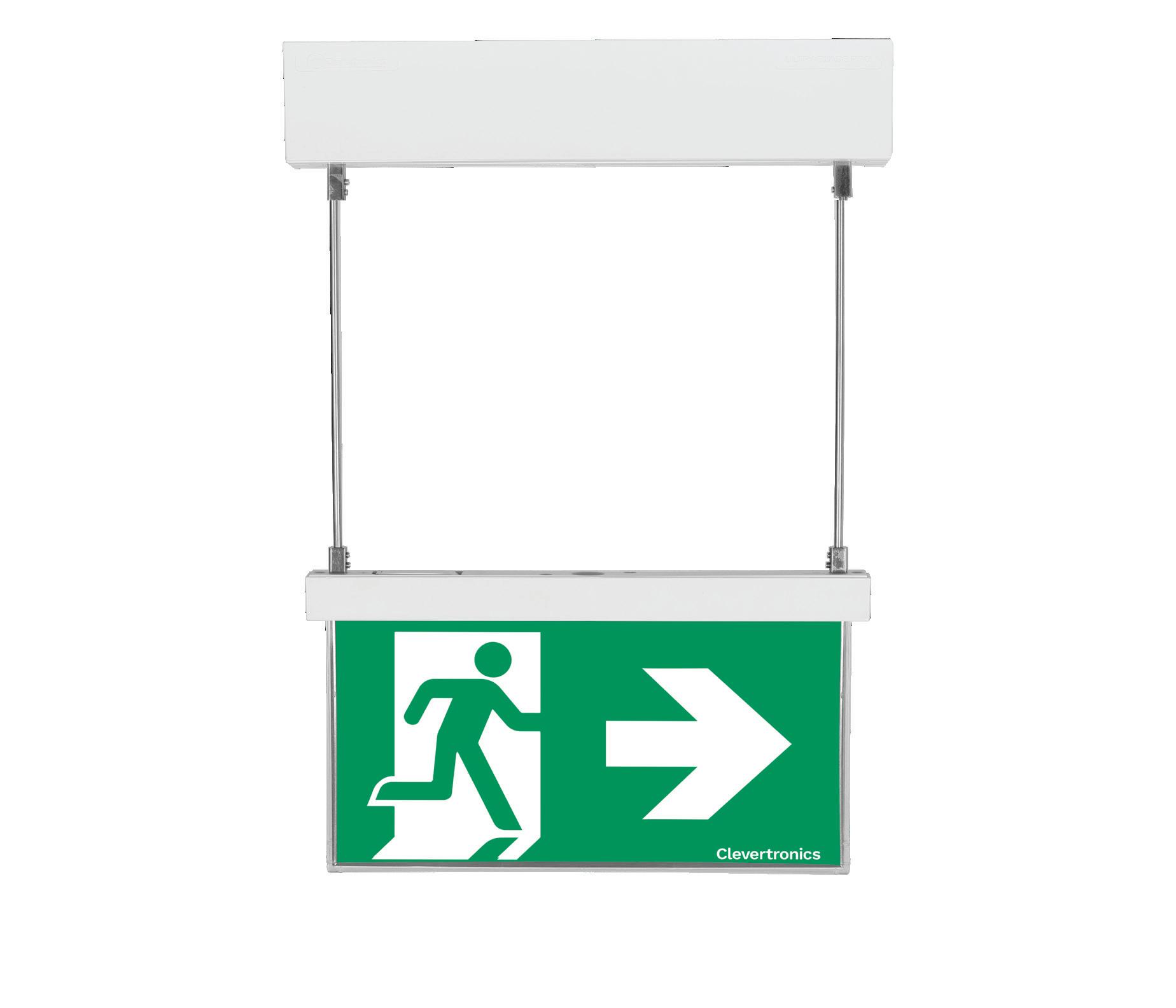

ULTRABLADE PRO ROD SUSPENDED EXIT

The Ultrablade Pro Rod Suspended Exit Light is ideal for high ceiling applications where a sophisticated premium outcome is required.

Each directional decal is scratch and fingerprint resistant to ensure a clean and consistent outcome. The 1.5m rods can be customised to suit lower ceiling heights where required.

ULTRABLADE PRO ROD SUSPENDED EXIT

ORDERING INFORMATION

Standard - White

Standard - Black

ROD SUSPENDED (SURFACE MOUNT)

LUBPRO-SM-RS

LUBPRO-SM-RS-BLK

Clevertest Plus System Compatible Yes

DALI

Zoneworks® HIVE

Theatre Version*

LUBPRO-SM-RS-D2

LUBPRO-SM-RS-HVG

LUBPRO-SM-RS-TH

Carton Quantity 1

Weight - Single (Carton) 1.5kg

Dimensions (L x W x H)

Blade Assembly: 317mm x 8.7mm x 157mm

Ceiling Mount Control Gear Enclosure: 360mm x 47mm x 72mm Rod Length: 1500mm

ROD SUSPENDED (RECESSED)

LUBPRO-RS

LUBPRO-RS-BLK

LUBPRO-RS-D2

LUBPRO-RS-HVG

LUBPRO-RS-TH

Blade Assembly: 317mm x 8.7mm x 157mm

Recessed Control Gear Enclosure: 347mmx 48mm x 65mm

Cover Plate: 385mm x 67mm Rod Length: 1500mm

Directional Options All Directional Inserts Included (Excluding Theatre Versions)

Directional Options (Theatre Only)

POWER, LAMPS AND BATTERY

Power

/ 4.1W

Lamp(s) 100,000 Hours

Battery Lithium Nanophosphate®

Voltage (V) / Capacity (mAh) 3.3V / 2500mAh

Charging

TECHNICAL SPECIFICATIONS

Operating Mode Maintained

Voltage (V) (Frequency (Hz))

(50Hz)

Construction PC/ABS Body with PC Diffuser

Product Conﬁguration:

Rod Suspended (Surface Mount)

Rod Suspended (Recessed)

1 2 1

*Warranty information located at: https://clevertronics.co.uk/clevertronics-uk-warranty-statement

*Theatre versions subject to approval with local authority. The product details described in this document are current as at the version date of the document. We reserve the right to change product design, specifications or materials (Specifications) as part of our continuous improvement program. Please confirm the applicable Specifications at the time of placing your order.

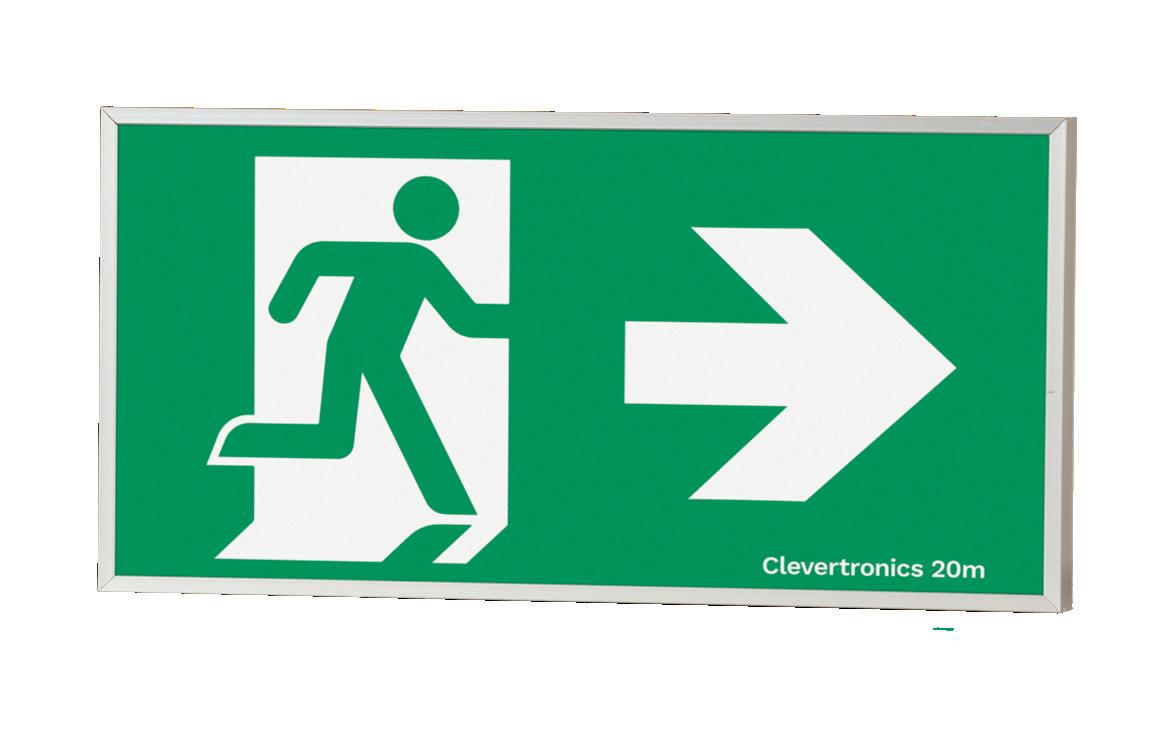

FORM EXIT

Sleek Architectural Exit

The Form exit strikes a balance between form & function for applications using a 20m viewing distance. Featuring an elegant and size optimised anodised aluminium frame, the Form is a versatile architectural solution available in multiple conﬁgurations including wall, ceiling, recessed or suspended rod mounting.

Designed for simpliﬁed installation and maintenance, it also features our industry leading ‘One-Box’ solution that allows easy changing of directional decals as required.

• Tested to BS EN 60598-2-22

• Compliant to BS EN 1838 and ISO7010

• 20m viewing distance

• ‘One Box’ solution with all changeable directional decals included

• Multiple mounting conﬁgurations for all applications

• Optional Escape Route Illumination with twin rotating emergency lenses

• Up to IP42 Ingress Protection

• Lithium Iron Phosphate or Nanophosphate® battery

FORM EXIT – WALL MOUNT

Standard - Aluminium / White

DALI - Aluminium / White FORM-20-SM-WM-LP-D2

Zoneworks® HIVE - Aluminium / White

Standard - Black / Black

DALI - Black / Black

Zoneworks® HIVE - Black / Black

FORM-20-SM-WM-LP-HVG

FORM-20-SM-WM-LP-BLK

FORM-20-SM-WM-LPD2-BLK

FORM-20-SM-WM-LPHVG-BLK

FORM-20-SM-WM-L10-D2

FORM-20-SM-WM-L10-HVG

FORM-20-SM-WM-L10-BLK

FORM-20-SM-WM-L10D2-BLK

FORM-20-SM-WM-L10HVG-BLK

FORM-20-REC-WM-LP-D2

FORM-20-REC-WM-LP-HVG

FORM-20-REC-WM-LP-BLK

FORM-20-REC-WM-LPD2-BLK

FORM-20-REC-WM-LPHVG-BLK

Escape Route Illumination Yes (Add ‘-ESC’ to end of product codes above) Carton

FORM-20-REC-WM-L10-HVG

FORM-20-REC-WM-L10-BLK

FORM-20-REC-WM-L10D2-BLK

FORM-20-REC-WM-L10HVG-BLK

* Please refer to the speciÞc product datasheet for actual power consumption and lamp

*Warranty information located at: https://clevertronics.co.uk/clevertronics-uk-warranty-statement

FORM EXIT – CEILING MOUNT

ORDERING INFORMATION

Mounting Conﬁguration

Standard - Aluminium / White

DALI - Aluminium / White

Zoneworks® HIVE - Aluminium / White

Standard - Black / Black

DALI - Black / Black

Zoneworks® HIVE - Black / Black

Surface Ceiling Mount

FORM-20-SM-CM-LP

FORM-20-SM-CM-LP-D2

FORM-20-SM-CM-LP-HVG

FORM-20-SM-CM-LP-BLK

FORM-20-SM-CM-LPD2-BLK

FORM-20-SM-CM-LPHVG-BLK

FORM-20-SM-CM-L10

FORM-20-SM-CM-L10-D2

FORM-20-SM-CM-L10-HVG

FORM-20-SM-CM-L10-BLK

FORM-20-SM-CM-L10D2-BLK

FORM-20-SM-CM-L10HVG-BLK

Recessed Ceiling Mount

FORM-20-REC-CM-LP

FORM-20-REC-CM-LP-D2

FORM-20-REC-CM-LP-HVG

FORM-20-REC-CM-LP-BLK

FORM-20-REC-CM-LPD2-BLK

FORM-20-REC-CM-LPHVG-BLK

Escape Route Illumination Yes (Add ‘-ESC’ to end of product codes above)

Carton Quantity 1 Weight

Dimensions (L X W X H)

220mm x 18mm x 110mm - Blade Assembly 225mm x 63mm x 53mm - Body / Box

FORM-20-REC-CM-L10

FORM-20-REC-CM-L10-D2

FORM-20-REC-CM-L10-HVG

FORM-20-REC-CM-L10-BLK

FORM-20-REC-CM-L10D2-BLK

FORM-20-REC-CM-L10HVG-BLK

220mm x 18mm x 110mm - Blade Assembly 225mm x 63mm x 53mm -

Directional Options All directional inserts included

Charging Method Intelligent Current

*Please refer to the specific product data sheet for actual power, light output, lamp lifetime and driver values.

Operating Mode

FORM EXIT – ROD SUSPENDED

Mounting Conﬁguration

Standard - Aluminium / White

DALI - Aluminium / White

Zoneworks® HIVE - Aluminium / White

Standard - Black / Black

DALI - Black / Black

Zoneworks® HIVE - Black / Black

FORM-20-SM-CM-RS-LP

FORM-20-SM-CM-RS-LP-D2

FORM-20-SM-CM-RS-LPHVG

FORM-20-SM-CM-RS-LPBLK

FORM-20-SM-CM-RS-LPD2-BLK

FORM-20-SM-CM-RS-LPHVG-BLK

FORM-20-SM-CM-RS-L10

FORM-20-SM-CM-RSL10-D2

FORM-20-SM-CM-RS-L10HVG

FORM-20-SM-CM-RS-L10BLK

FORM-20-SM-CM-RS-L10D2-BLK

FORM-20-SM-CM-RS-L10HVG-BLK

Escape Route Illumination No

Carton Quantity 1

FORM-20-REC-CM-RS-LP

FORM-20-REC-CM-RSLP-D2

FORM-20-REC-CM-RSLP-HVG

FORM-20-REC-CM-RSLP-BLK

FORM-20-REC-CM-RS-LPD2-BLK

FORM-20-REC-CM-RS-LPHVG-BLK

FORM-20-REC-CM-RS-L10

FORM-20-REC-CM-RSL10-D2

FORM-20-REC-CM-RSL10-HVG

FORM-20-REC-CM-RSL10-BLK

FORM-20-REC-CM-RS-L10D2-BLK

FORM-20-REC-CM-RS-L10HVG-BLK

x 18mm x 110mm - Blade Assembly 225mm x 63mm x 53mm - Body / Box 277mm x 99mm - Cover Plate

Dimensions (L x W x H)

Directional Options

Battery Type

* Please refer to the speciÞc product datasheet for actual power consumption and lamp life

Operating Mode

Voltage (V) Frequency (Hz)

Construction - Blade Assembly

information

The product details described in this document are current as at the version date of the document. We reserve the right to change product design, specifications or materials (Specifications) as part of our continuous improvement program. Images are indicative only. Please confirm the applicable Specifications at the time of placing your order.

FORM EXIT – CABLE SUSPENDED

Mounting Conﬁguration Surface Ceiling Mount - Rod Suspended Recessed Ceiling Mount - Rod Suspended

Standard - Aluminium / White

DALI - Aluminium / White

Zoneworks® HIVE - Aluminium / White

Standard - Black / Black

DALI - Black / Black

Zoneworks® HIVE - Black / Black

FORM-20-SM-CM-CS-LP

FORM-20-SM-CM-CS-LP-D2

FORM-20-SM-CM-CS-LPHVG

FORM-20-SM-CM-CS-LPBLK

FORM-20-SM-CM-CS-LPD2-BLK

FORM-20-SM-CM-CS-LPHVG-BLK

FORM-20-SM-CM-CS-L10

FORM-20-SM-CM-CSL10-D2

FORM-20-SM-CM-CS-L10HVG

FORM-20-SM-CM-CS-L10BLK

FORM-20-SM-CM-CS-L10D2-BLK

FORM-20-SM-CM-CS-L10HVG-BLK

FORM-20-REC-CM-CS-LP

FORM-20-REC-CM-CSLP-D2

FORM-20-REC-CM-CSLP-HVG

FORM-20-REC-CM-CSLP-BLK

FORM-20-REC-CM-CS-LPD2-BLK

FORM-20-REC-CM-CS-LPHVG-BLK

Escape Route Illumination Yes (Add ‘-ESC’ to end of product codes above)

Cable Suspended - Remote Gear

Yes (Add ‘-REM’ to end of product codes above)

Carton Quantity 1 Weight

Dimensions (L x W x H)

220mm x 18mm x 110mm - Blade Assembly 220mm x 58mm x

Directional Options All directional inserts included

FORM-20-REC-CM-CS-L10

FORM-20-REC-CM-CSL10-D2

FORM-20-REC-CM-CSL10-HVG

FORM-20-REC-CM-CSL10-BLK

FORM-20-REC-CM-CS-L10D2-BLK

FORM-20-REC-CM-CS-L10HVG-BLK

Lamp(s)* >100,000 Hour LEDs

Charging Method Intelligent Current Limited Constant Voltage

* Please refer to the speciÞc product datasheet for actual power consumption and lamp life

Operating Mode Maintained

Voltage (V) Frequency (Hz) 220-240V (50Hz)

Construction - Blade Assembly Anodised Aluminium Frame & Polycarbonate Housing

Construction - Body / Box

Viewing Distance

Operating

Ingress Protection Rating (IP)

information located at: https://clevertronics.co.uk/clevertronics-uk-warranty-statement

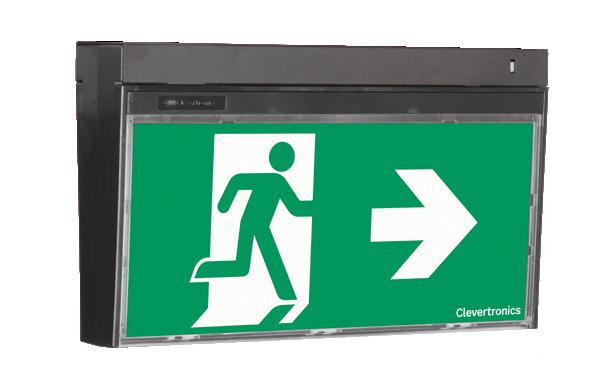

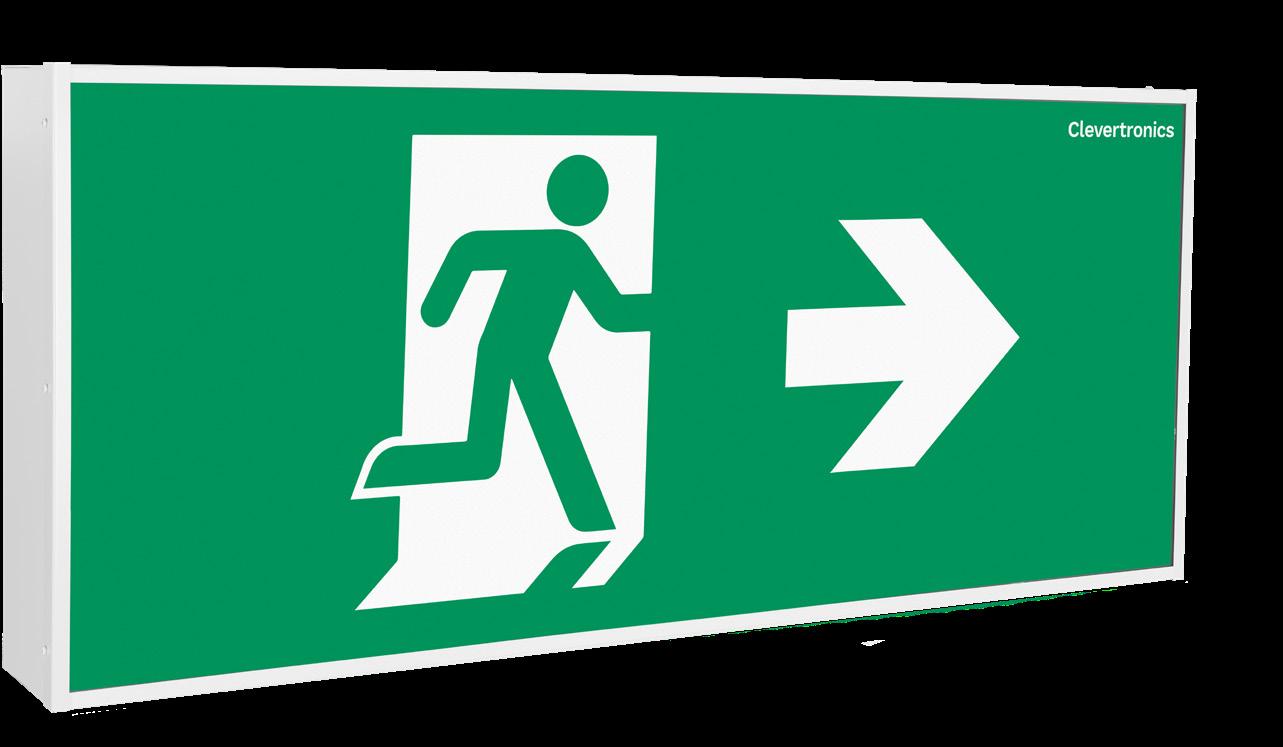

JUMBO LED EXIT

Jumbo Exit for Larger Viewing Distances

The Jumbo Led Exit Light caters for 50m viewing distance applications by using a 250mm high pictograph.

Featuring a robust steel housing with slide-in diffusers and backplates for single and doublesided conﬁgurations, the Jumbo Led Exit Light is easy to install as a wall or ceiling mounted exit.

• Tested to BS EN 60598-2-22

• Compliant to BS EN 1838 and ISO7010

• Wall and ceiling mount

• Can be rod or chain suspended • All directional decals in one box

Lithium Iron Phosphate or Nanophosphate® battery

JUMBO LED EXIT

Operating

information located at: https://clevertronics.co.uk/clevertronics-uk-warranty-statement

GIGANTOR EXIT

The Gigantor Exit caters for applications requiring viewing distances of up to 100m. With LED and Lithium battery technology the Gigantor is perfect for stadiums and large hall usage. Featuring a robust steel housing with a 510mm high pictograph that is designed to be wall mounted.

GIGANTOR EXIT

ORDERING INFORMATION L10

LGELED-100-WM-RD

Standard

Clevertest Plus System Compatible Yes

DALI

Zoneworks® HIVE

LGELED-100-WM-D2- RD

LGELED-100-WM-HVG- RD

Carton Quantity 1

Weight - Single (Carton) 21kg

Dimensions (L x W x H)

Directional Options

POWER, LAMPS AND BATTERY

1305mm x 170mm x 560mm

Must specify diffuser combination (RD, RL, RR, RU)

Power Consumption (Standby / Max) 16.5W / 21.8W

Lamp(s)

100,000 Hours LED 2 x 3W LED

Battery Type Lithium Nanophosphate

Voltage (V) / Capacity (mAh)

3.3V / 5000 mAh 6.6V / 2500 mAh

Charging Method Intelligent Current Limited Constant Voltage

TECHNICAL SPECIFICATIONS

Operating Mode Maintained

Voltage (V) Frequency (Hz) 220-240V (50Hz)

Construction - Body / Diffuser Powder Coated Metal / Acrylic

Viewing Distance 100m

Mounting Type Wall Single Sided

Operating Temperature 0°C to 40°C

Ingress Protection Rating (IP)

information located at https://clevertronics.co.uk/clevertronics-uk-warranty-statement

WEATHERPROOF WALL MOUNT EXIT

The Weatherproof Wall Mount Exit is ideal for applications that require an IP66/67 rated exit that is available in a 30m viewing distance.

Fitted with 100K hour LEDs and built with a robust polycarbonate base and diffuser it is perfect for applications in warehouses, factories and stadiums.

WEATHERPROOF WALL MOUNT EXIT

Carton Quantity

Weight - Single (Carton)

(14kg) Dimensions (L x W x H)

Directional Options

TECHNICAL SPECIFICATIONS

Operating Mode Maintained

(V) Frequency (Hz)

Construction - Body / Diffuser

Mounting Type

information located at https://clevertronics.co.uk/clevertronics-uk-warranty-statement

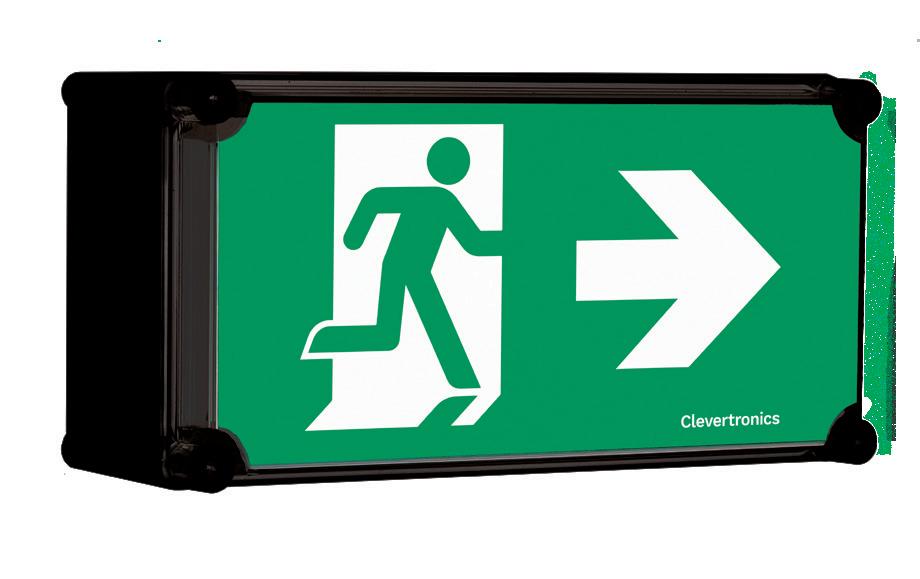

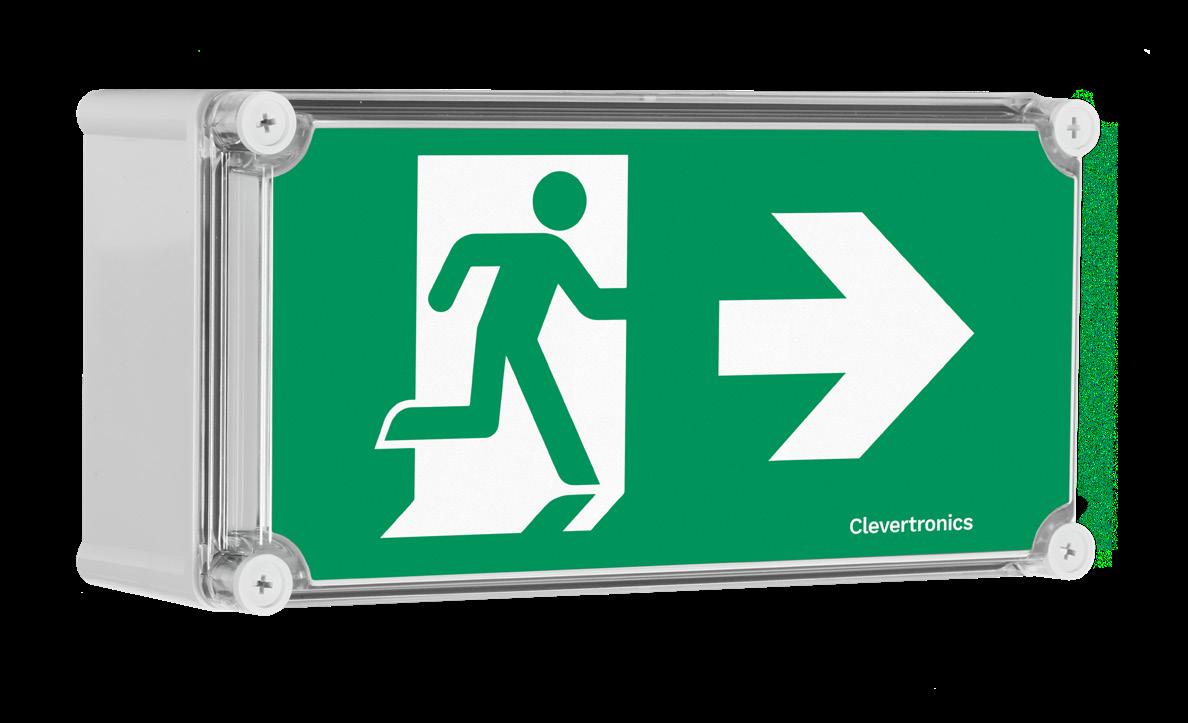

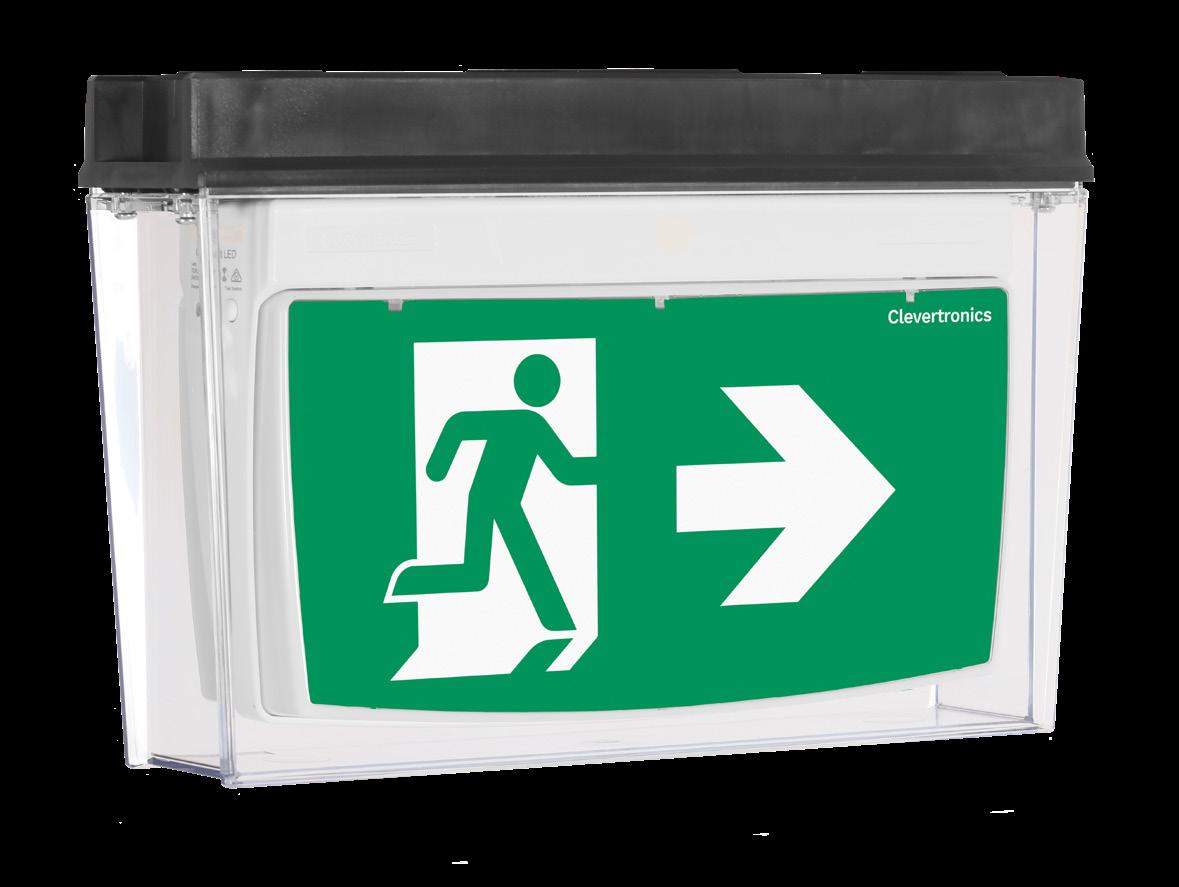

WEATHERPROOF UNIVERSAL EXIT

Weatherproof and Easy to Install

The Weatherproof Universal Exit offers a cost effective solution for applications that require an IP66/67 rated exit. Mounting can be either wall or ceiling with the option of single or double sided decals.

Built with a polycarbonate clear cover and nylon base that is tested to an impact rating of IK10 it is easy to see why it is a popular choice for weatherproof applications.

Applications

• Tested to BS EN 60598-2-22

• Compliant to BS EN 1838 and ISO7010

• Wall or ceiling mount

• Can be rod or chain suspended

• All directional decals in one box

• Lithium Iron Phosphate or Nanophosphate® battery

• Theatre version available

WEATHERPROOF UNIVERSAL EXIT

/ Self-Test Capable

CWELED-D2 LWELED-D2 Zoneworks® HIVE

LWELED-HVG

CWELED-HVG

Carton Quantity

Dimensions (L x W x H) 410mm x 100mm x 272mm

Directional Options All Directional Inserts Included (Excluding theatre versions)

TECHNICAL SPECIFICATIONS

Operating Mode Maintained

Voltage (V) Frequency (Hz)

Construction Cleverfit Inside Glass Reinforced Nylon Base & PC Cover

Viewing Distance 30m

Mounting Type Wall & Ceiling (Single & Double Sided)

Operating

Charging Method Intelligent Current Limited Constant Voltage ACCESSORIES

CLVRBRT-CF-WP

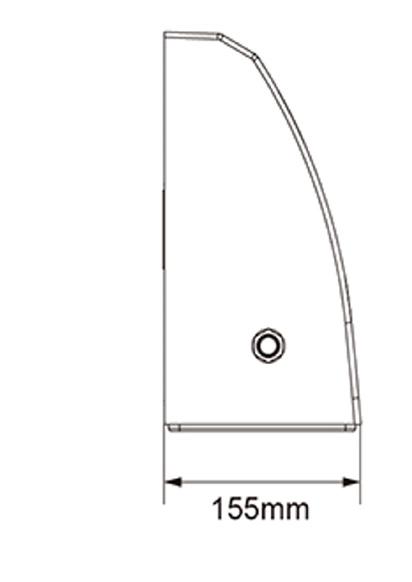

Cantilever Bracket

information located at: https://clevertronics.co.uk/clevertronics-uk-warranty-statement

CLVRBRT-CF-WP

WEATHERPROOF UNIVERSAL 50M JUMBO EXIT

The Weatherproof Universal Jumbo Exit is ideal for applications that require an IP66 rated exit for 50m viewing distance applications.

Featuring a robust housing with slide in diffusers and back plates for single and double sided configurations, the Weatherproof Universal Jumbo Exit is easy to install as a wall or ceiling mounted exit.

WEATHERPROOF UNIVERSAL 50M JUMBO

Clevertest Plus System compatible

Zoneworks® HIVE

Carton Quantity

Weight - Single (Carton)

Dimensions (L x W x H)

CJWELED-50-D2 LJWELED-50-D2

CJWELED-50-HVG

(5.6kg)

x 117mm x 340mm

Directional Options All Directional Inserts Included in the Box

LJWELED-50-HVG

Charging Method

TECHNICAL SPECIFICATIONS

Operating Mode Maintained

Voltage (V) (Frequency (Hz))

Construction - Body / Diffuser

Viewing Distance 50m

(50Hz)

Mounting Type Wall & Ceiling / Single & Double Sided

Operating Temperature 0°C to 40°C

Ingress

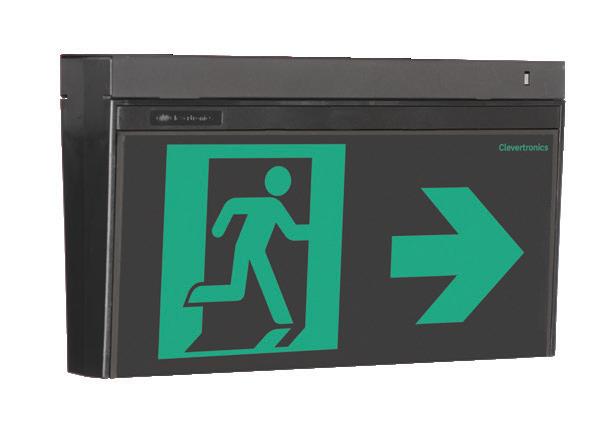

VANDAL RESISTANT EXIT LIGHT

A Strong, Robust and Reliable Exit Light

The Clevertronics Vandal Resistant Exit Light is a high impact exit that utilises the Cleverﬁt Pro Exit Light within a powder coated steel IK12 enclosure that is electrically isolated for ease of maintenance.

It provides an effective solution for prisons, correction facilities, train stations and other applications where impact resistance may be required.

Applications

• Tested to BS EN 60598-2-22

• Compliant to BS EN 1838 and ISO7010

• Wall, ceiling and ﬂag mount options

• All directional decals in one box

Lithium Nanophosphate® battery

VANDAL RESISTANT EXIT LIGHT

Directional

Plus System Compatible

POWER, LAMPS AND BATTERY

Power Consumption (Standby / Max)

Charging

TECHNICAL SPECIFICATIONS

Operating Mode

Voltage (V) (Frequency (Hz))

Construction

Ingress Protection Rating (IP)

*Warranty information located at https://clevertronics.co.uk/clevertronics-uk-warranty-statement

*Warranty information located at: https://clevertronics.co.uk/product-warranty-statement/ The product details described in this document are current as at the version date of the document. We reserve the right to change product design, specifications or materials (Specifications) as part of our continuous improvement program. Please confirm the applicable Specifications at the time of placing your order. LUMINAIRE CLASSIFICATION

806 Oxford Avenue, Slough Trading Estate, SL1 4LN Clevertronics International UK Ltd trading as Clevertronics, with registered number 11249539, whose registered office is at 843 Finchley Road London NW11 8NA. _UK Vandal Exit 30JUN25

DYNAMIC EXIT SIGNAGE

CleverEVAC DYNAMIC GREEN EXIT LIGHT

Dynamic GREEN LEDs for Highest Visibility

Research by the Fire Safety Engineering Group (FSEG) found that people often didn’t notice static exit signage, whereas significantly more people noticed dynamic exit signage. This led to the development of the CleverEVAC Dynamic Green Exit Light.

The Dynamic Green mode is activated upon a loss of mains power. It can also be triggered either by a 24VDC or a voltage free open/close signal from the fire detection or other building safety system.

The SoundEscape™ option which combines the audible locatable sound technology including voice announcements is available with the Dynamic Green Exit Light.

• Tested to BS EN 60598-2-22

• Compliant to BS EN 1838 and ISO7010 in non-dynamic mode

• Low standby power consumption • Wall and ceiling mount with easy slide connect

Lithium Iron Phosphate or Nanophosphate®

CleverEVAC DYNAMIC GREEN EXIT LIGHT

Standard - Running Man Right

- Running Man Left

- Running Man Up

- Running Man Down

Zoneworks® HIVE

Theatre Version Option*

Weatherproof Option

TECHNICAL SPECIFICATIONS

Operating Mode

Voltage (V) Frequency (Hz)

Construction- Body/Diffuser

Maintained – Dynamic modes activated on VF/24V input trigger & capable of being activated in power-on & battery-backed mode. Normally open (NO) version – Dynamic Green and Sound activated (turned on) when contact interface is closed. Normally Closed (NC) also available.

220-240V (50Hz)

PC/ABS Body with PC Diffuser

Viewing Distance 30m

Mounting Type Wall & Ceiling (Single & Double Sided) Wall & Ceiling (Single Sided /w SoundEscape) Operating

*Warranty information located at: https://clevertronics.co.uk/clevertronics-uk-warranty-statement

*Theatre versions subject to approval with local authority.

Disclaimer: Clevertronics Pty Ltd is a vendor of CleverEVAC products. It is not a fire engineer or designer. It does not purport to recommend its products for use in any particular application or to achieve any particular outcome. Purchasers and users of its products must take their own steps to ensure compliance with statutory requirements, safe practice and suitable application of the products.

information located at: https://clevertronics.co.uk/product-warranty-statement/ The product details described in this document are current as at

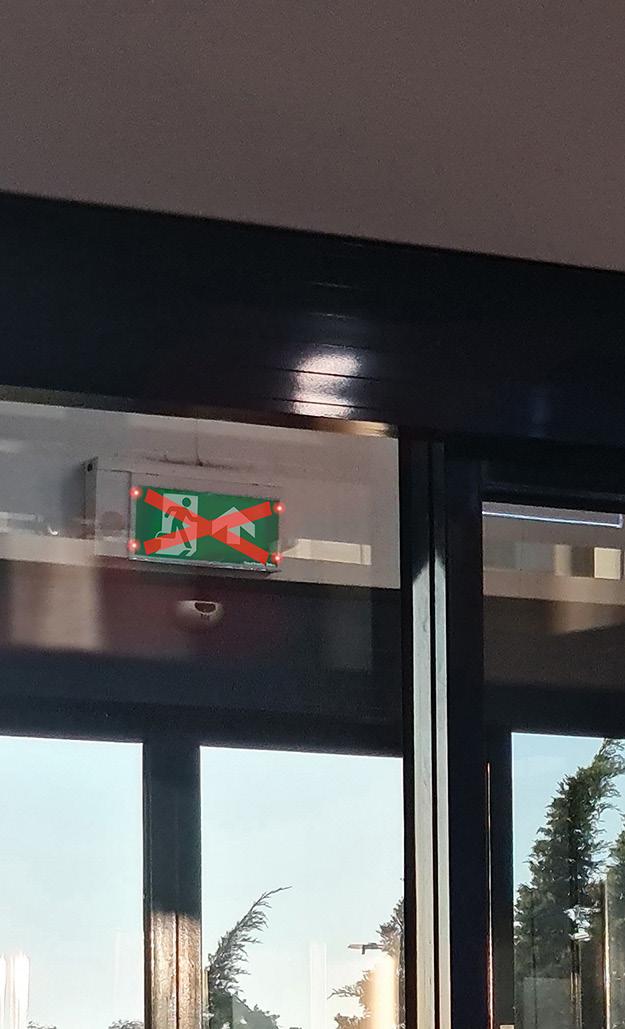

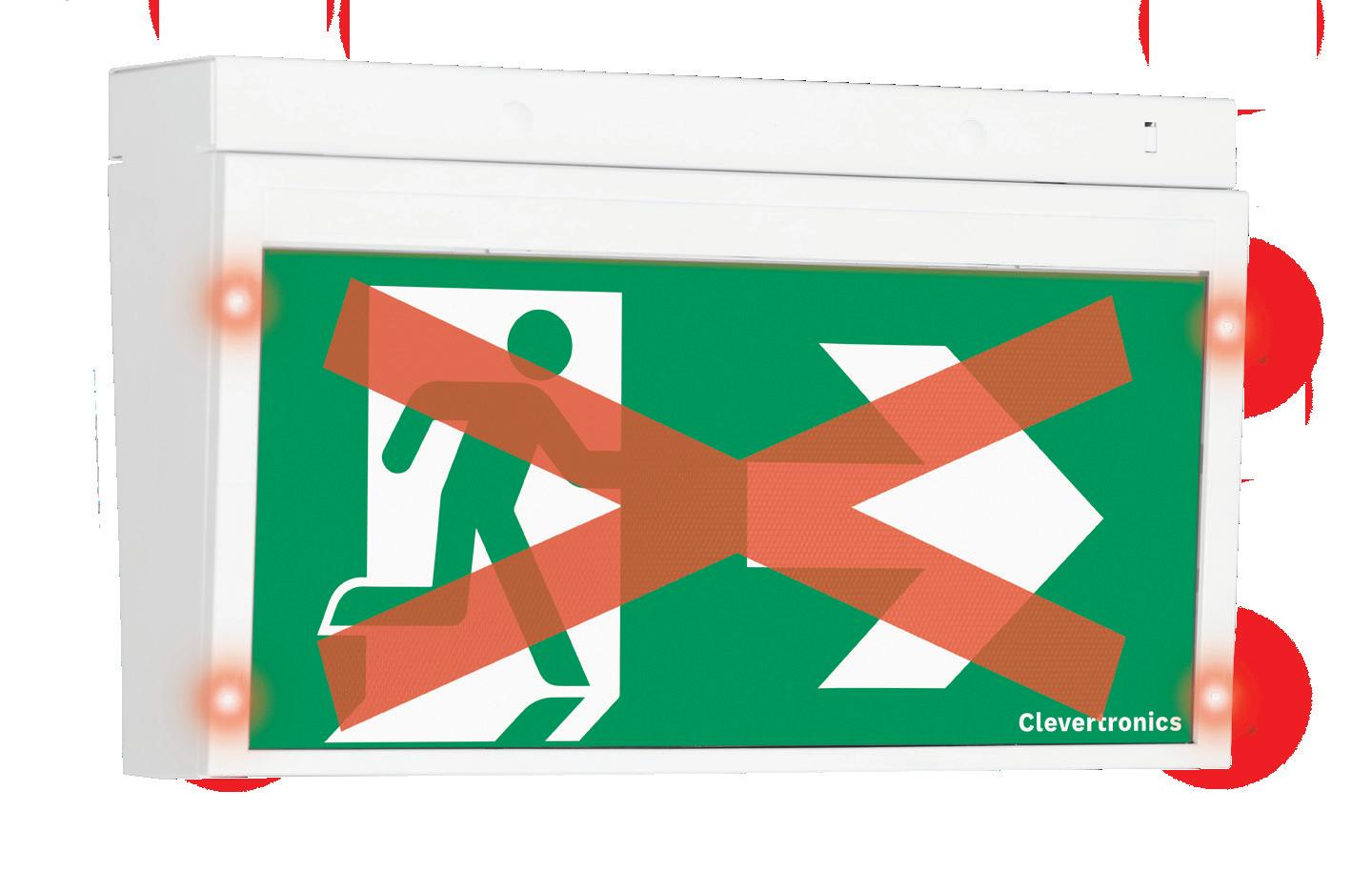

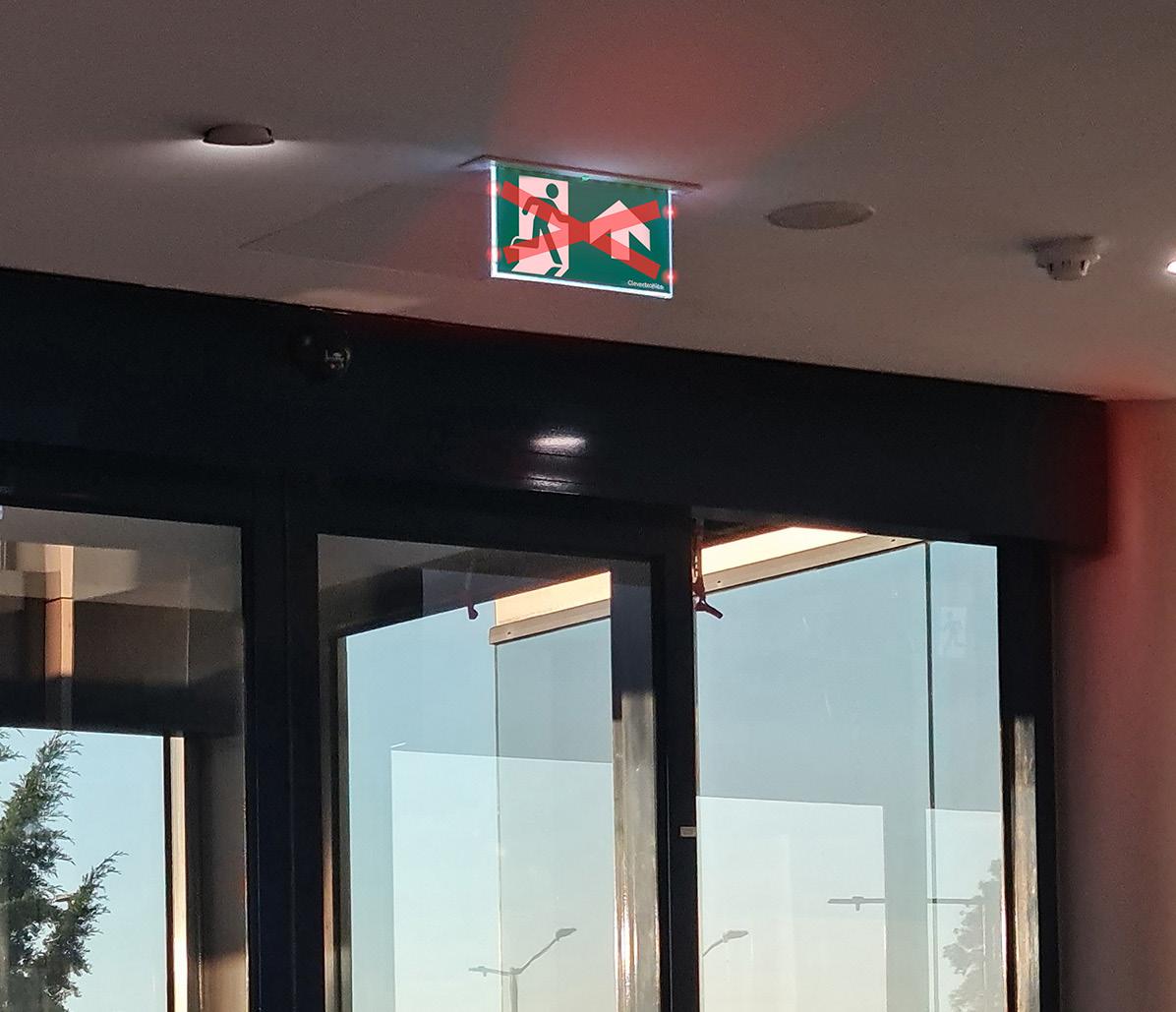

CleverEVAC DYNAMIC RED X EXIT LIGHT

Dynamic RED X & GREEN LEDs for Highest Visibility

CleverEVAC Dynamic Red X Exit Light can display a red cross with ﬂashing corners, alerting those evacuating to seek an alternative exit. Using advanced lighting and printing technology, the red cross with ﬂashing corners has been proven through the Fire Safety Engineering Group (FSEG) research to be intuitive and effective in demonstrating negative enforcement.

The Dynamic Red X mode is triggered either by a 24VDC or voltage free open/close signal from the fire detection or other building safety system. The Dynamic Red X Exit Light also has the Dynamic Green mode built in, to accommodate different fire and evacuation scenarios. The use of the Red X must be designed and documented by a fire safety engineer.

• Tested to BS EN 60598-2-22

• Compliant to BS EN 1838 and ISO7010 in non-dynamic mode

• Low standby power consumption

• Wall and ceiling mount with easy slide connect

• Lithium Iron Phosphate or Nanophosphate® battery

• Capable of positive re-enforcement Dynamic Green

• Weatherproof option available

• Theatre version available

CleverEVAC DYNAMIC RED X EXIT LIGHT

Standard - Running Man Right

- Running Man Left

- Running Man Up#

- Running Man Down#

Zoneworks® HIVE

DYRC-CP-RR DYRL-CP-RR

DYRC-CP-RL

DYRC-CP-RU

DYRC-CP-RD

* -NO denotes a Normally Open signal from the ﬁre system. Normally Closed -NC also available.

Power Consumption (Standby / Max)

Lamp(s)

Battery

Charging Method

TECHNICAL SPECIFICATIONS

Operating Mode

Voltage (V) Frequency (Hz)

Construction - Body/Diffuser

DYRL-CP-RL

DYRL-CP-RU

DYRL-CP-RD

W / 8.0 W

Hour LEDs

Intelligent Current Limited Constant Voltage

Maintained – Sequencing inward green LEDs or illuminated Red X with side ﬂashing Red LED’s on closing of the VF/24V contact and capable of being activated in power-on and battery-backed mode.

Normally open (NO) version – Dynamic Green or illuminated Red X when contact interface is closed.

220-240V (50Hz)

PC/ABS Body with PC Diffuser

Viewing Distance 30m

Mounting Type Wall & Ceiling (Single & Double Sided) Wall & Ceiling (Single Sided /w SoundEscape)

to 40°C

Operating Temperature

*Warranty information located at: https://clevertronics.co.uk/clevertronics-uk-warranty-statement

*Theatre versions subject to approval with local authority.

requirements, safe practice and suitable application of the products.

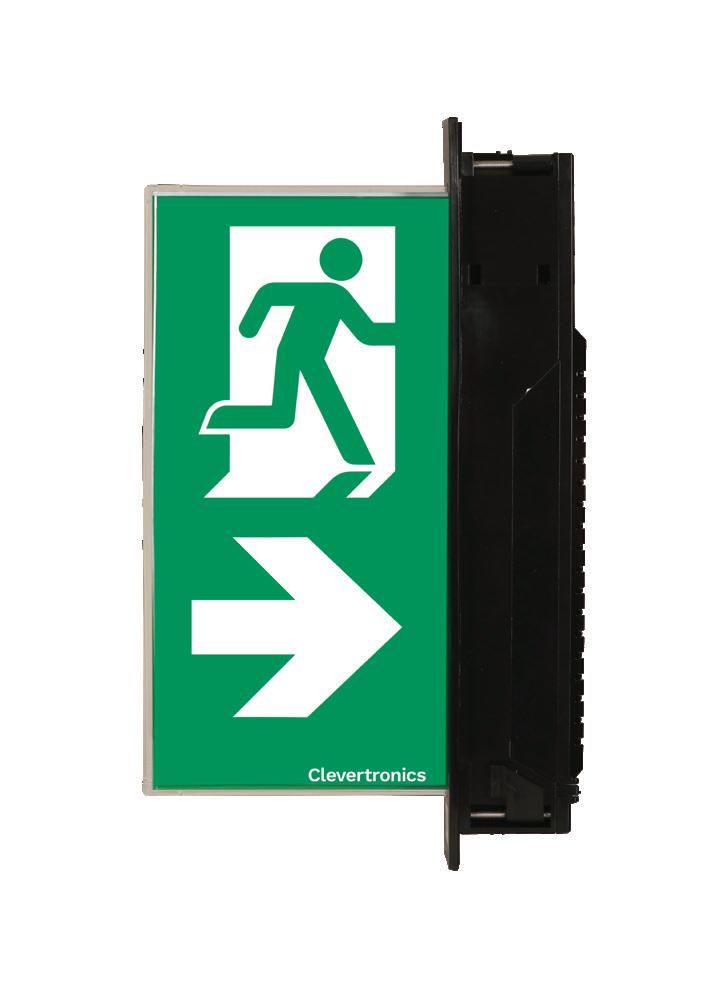

CleverEVAC DYNAMIC GREEN BLADE EXIT LIGHT

Dynamic GREEN LEDs for Highest Visibility in a Blade

Research by the Fire Safety Engineering Group (FSEG) found that people often didn’t notice static exit signage, whereas signiﬁcantly more people noticed dynamic exit signage. This led to the development of the CleverEVAC Dynamic Green Blade Exit Light.

The Dynamic Green mode is activated upon a loss of mains power. It can also be triggered either by a 24VDC or a voltage free open/close signal from the ﬁre detection or other building safety system.

The sophisticated look and design of the Dynamic Green Blade Exit Light will satisfy all architectural requirements for a premium recessed or surface mount exit.

• Tested to BS EN 60598-2-22

• Compliant to BS EN 1838 and ISO7010 in non-dynamic mode

• Low standby power consumption

• Lithium Iron Phosphate or

•

CleverEVAC DYNAMIC GREEN BLADE EXIT LIGHT

Standard - Running Man Right

- Running Man Left

- Running Man Up

- Running Man Down

* for additional variants please refer to the Clevertronics Product Guide or website.

Operating Mode Maintained - Sequencing arrows/inward LEDs activated on VF/24V input trigger & capable of being activated in power-on & battery-backed mode

Voltage (V) Frequency (Hz) 220-240V (50Hz)

Construction - Body/Diffuser PC/ABS Body with PC Diffuser

Viewing Distance 30m

Mounting Type

*Warranty information located at: https://clevertronics.co.uk/clevertronics-uk-warranty-statement

Recessed, Surface Mount Options, Single-Sided, Double-Sided

to 40°C

*Theatre versions subject to approval with local authority.

Disclaimer: Clevertronics Pty Ltd is a vendor of CleverEVAC products. It is

Purchasers and users of its products must take

The product details described in this document are current as at the version date of the document. We reserve the right to change product design, specifications or materials (Specifications) as part of our continuous improvement program. Please confirm the applicable Specifications at the time of placing your order. Product

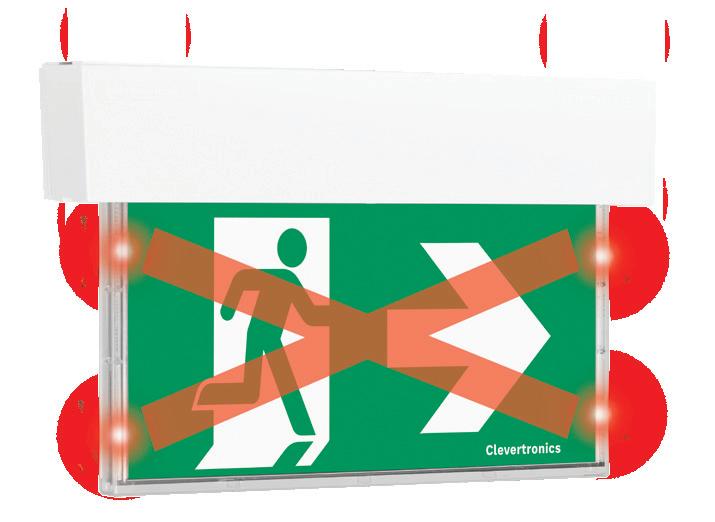

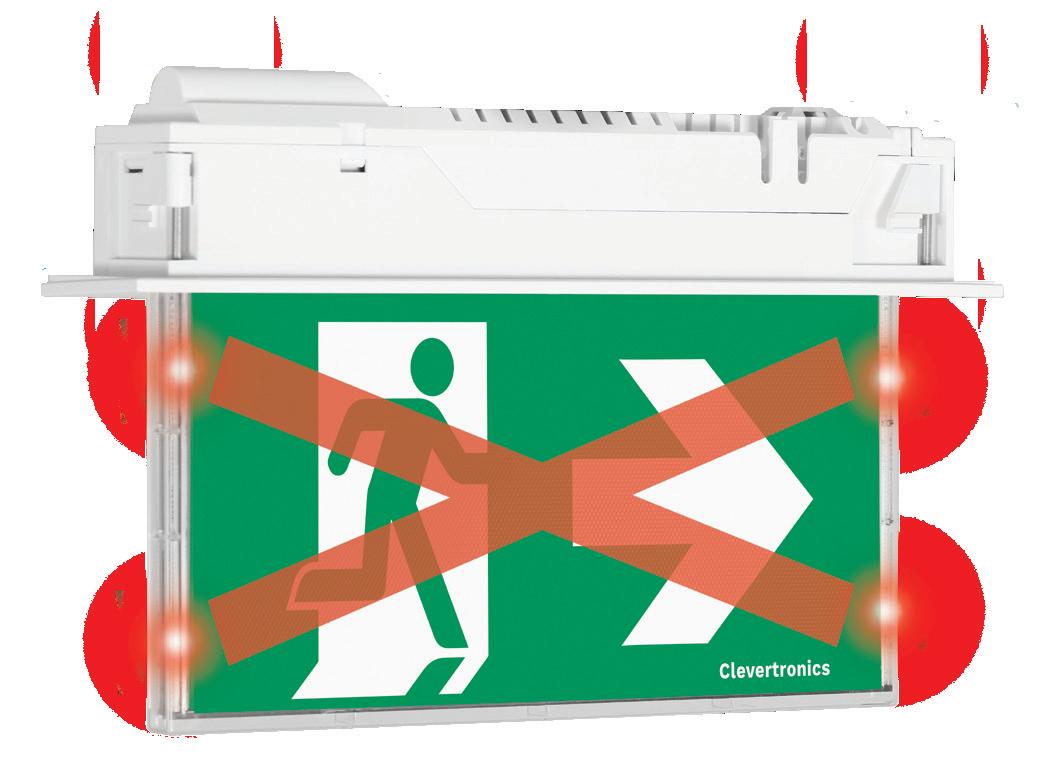

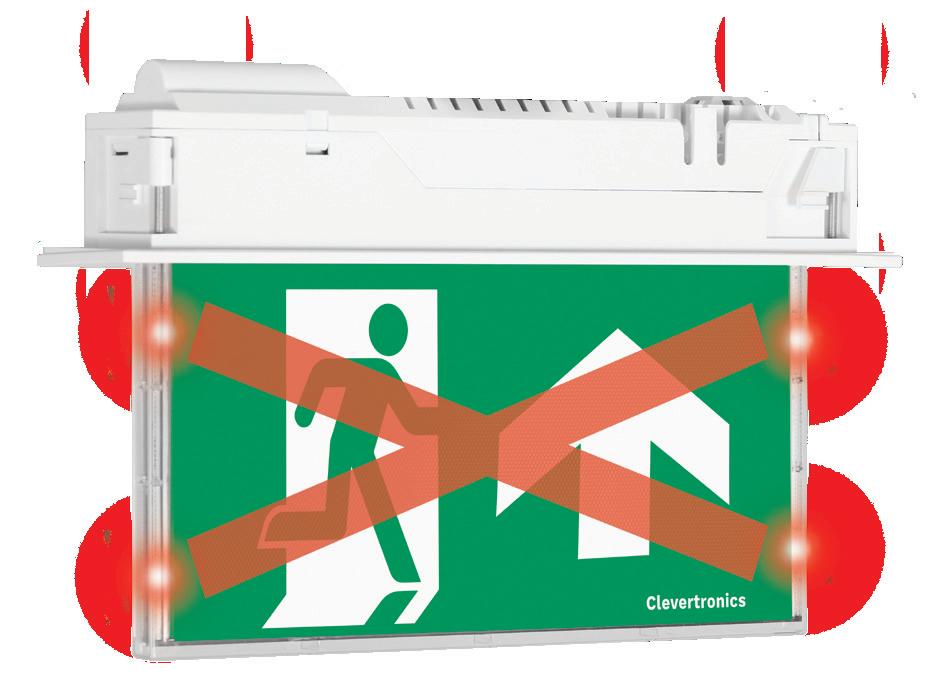

CleverEVAC DYNAMIC RED X BLADE EXIT LIGHT

Dynamic Red & Green LEDs for Highest Visibility in a Blade

The CleverEVAC Dynamic Red X Blade Exit Light can display a red cross with ﬂashing corners, alerting those evacuating to seek an alternative exit. Using advanced lighting and printing technology, the red cross with ﬂashing corners has been proven through the Fire Safety Engineering Group (FSEG) research to be intuitive and effective in demonstrating negative enforcement. The sophisticated look and design of the blade will satisfy all architectural requirements and is available as a recessed or surface mount.

The Red X mode is triggered either by a 24VDC or voltage free open/close signal from the fire detection or other building safety system. The Green mode is also built in, to accommodate different fire and evacuation scenarios. The use of the Red X must be designed and documented by a fire safety engineer.

Suitable for Most Applications

• Tested to BS EN 60598-2-22

• Compliant to BS EN 1838 and ISO7010 in non-dynamic mode

• Low standby power consumption

• Lithium Iron Phosphate or Nanophosphate® battery

• Negative enforcement options

• Capable of Positive Re-enforcement Dynamic Green

• Theatre version available

CleverEVAC DYNAMIC RED X BLADE EXIT LIGHT

Standard - Running Man Right

- Running Man Left

- Running Man Up

- Running Man Down

Version Option*

- Single (Carton)

* for additional variants please refer to the Clevertronics Product Guide or website.

Operating Mode Maintained – Sequencing inward green LEDs or illuminated Red X with side ﬂashing red LED’s activated on VF/24V input trigger & capable of being activated in power-on & battery-backed mode

Voltage (V) Frequency (Hz) 220-240V (50Hz)

Construction - Body/Diffuser PC/ABS body with PC Diffuser

Viewing Distance 30m

Mounting Type Recessed, Surface Mount Options, Single-Sided

*Warranty information located at: https://clevertronics.co.uk/clevertronics-uk-warranty-statement

*Theatre versions subject to approval with local authority.

*Warranty information located at: https://clevertronics.co.uk/product-warranty-statement/

The product details described in this document are current as at the version date of the

(Specifications)

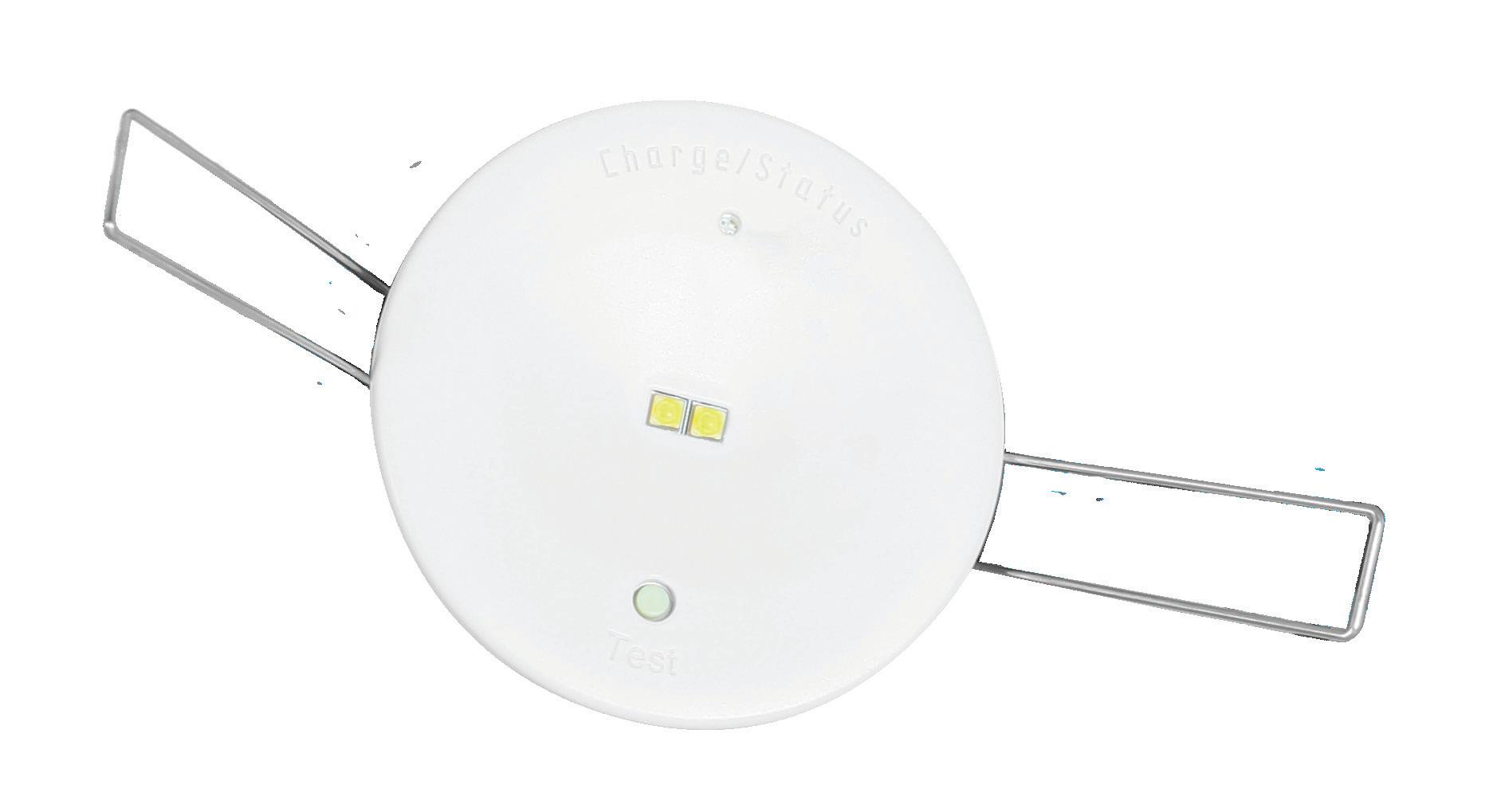

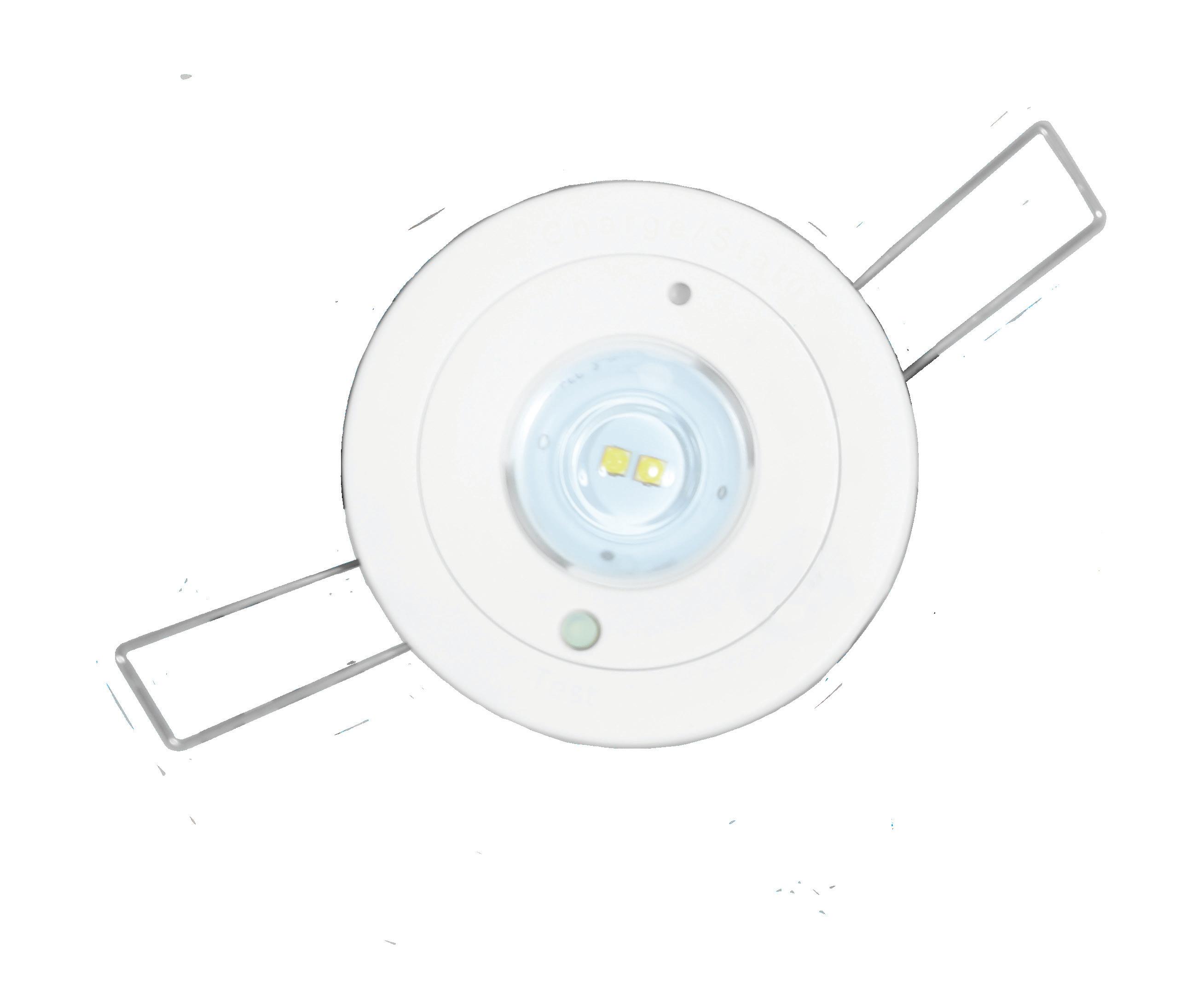

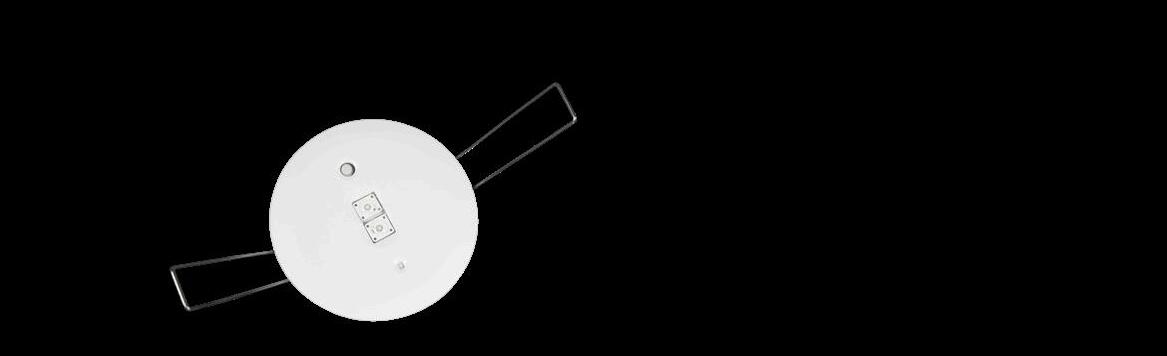

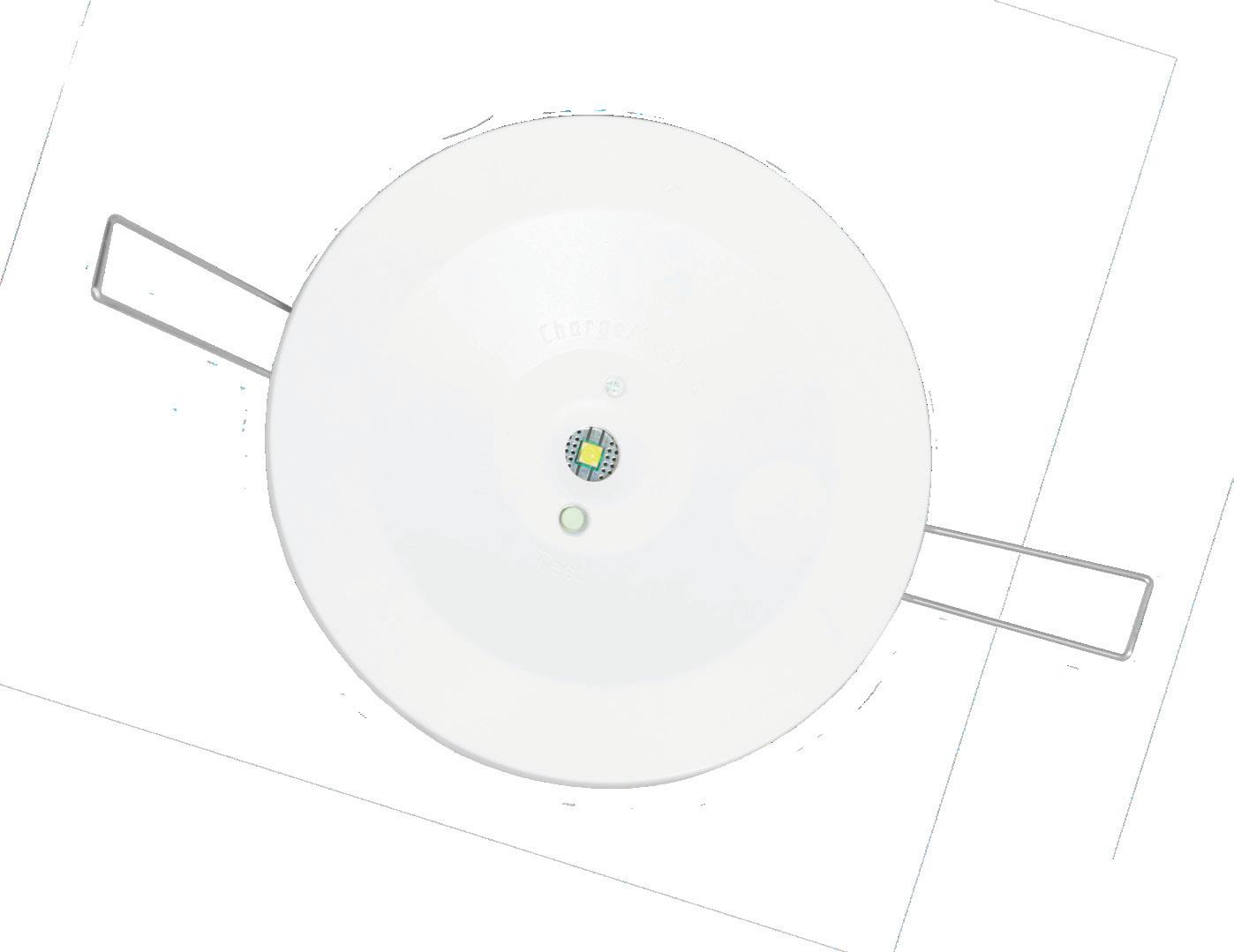

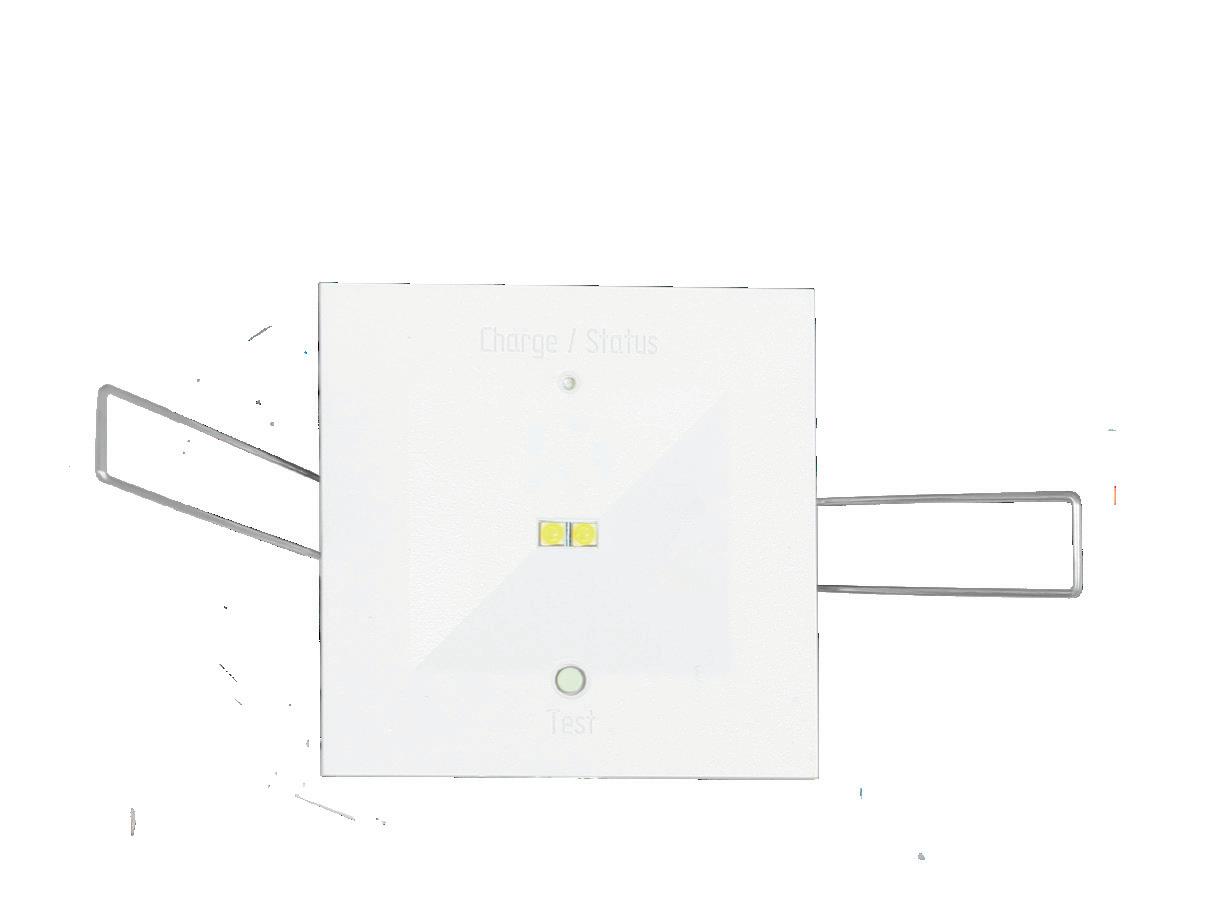

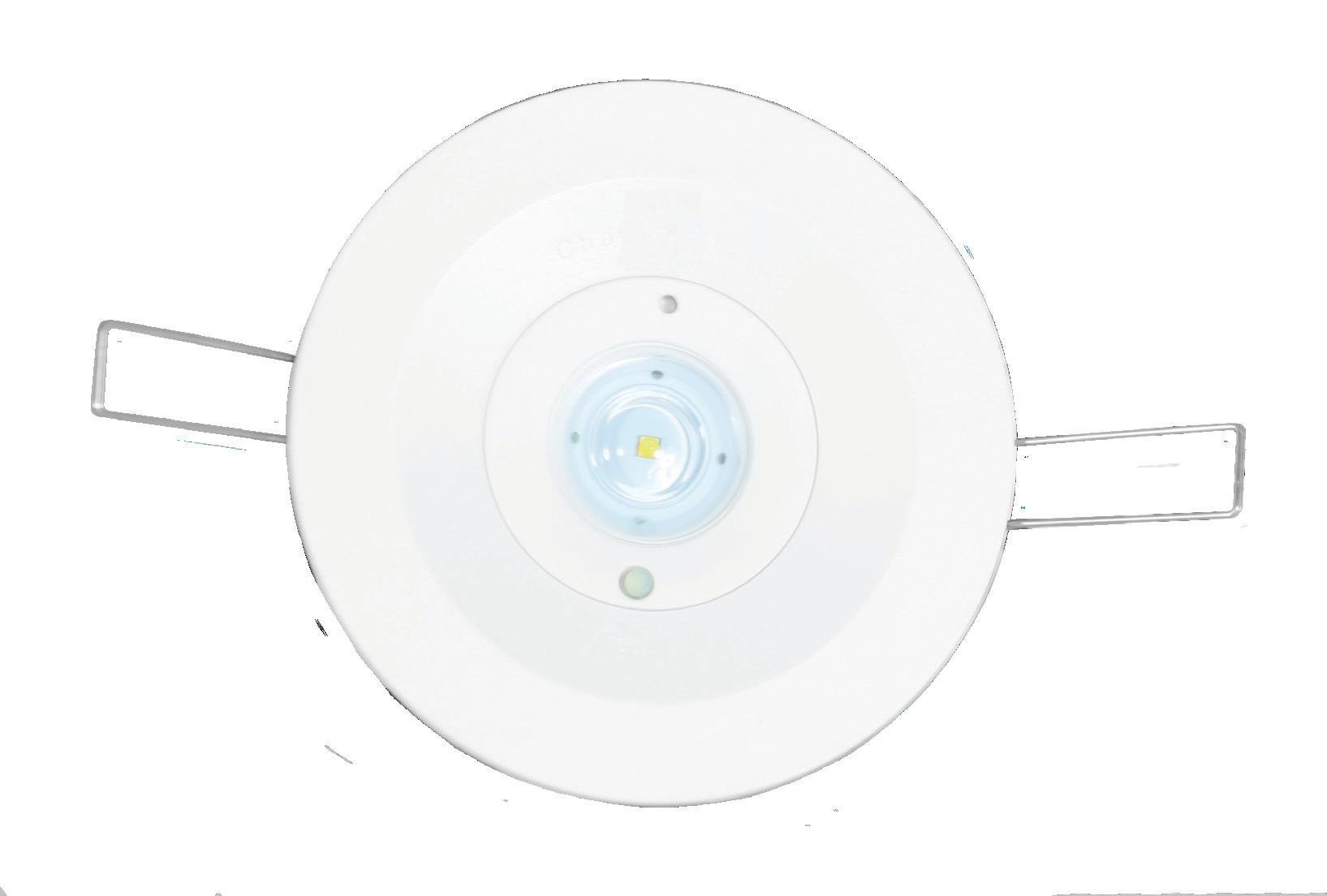

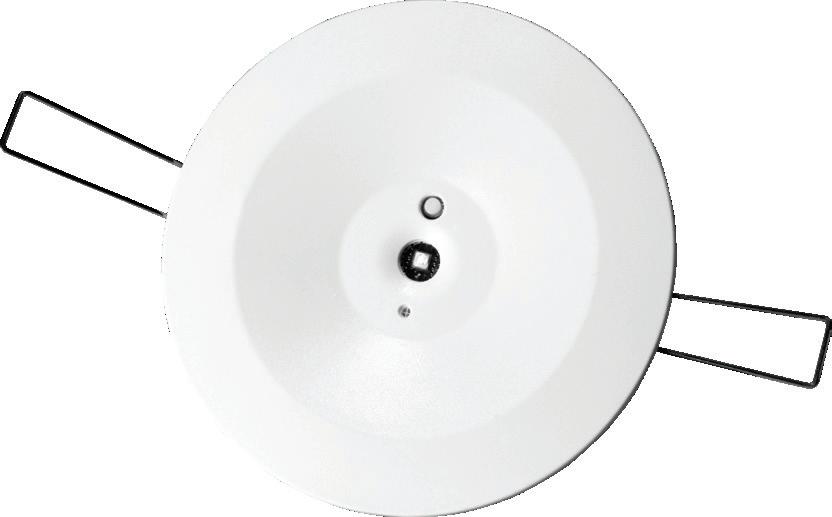

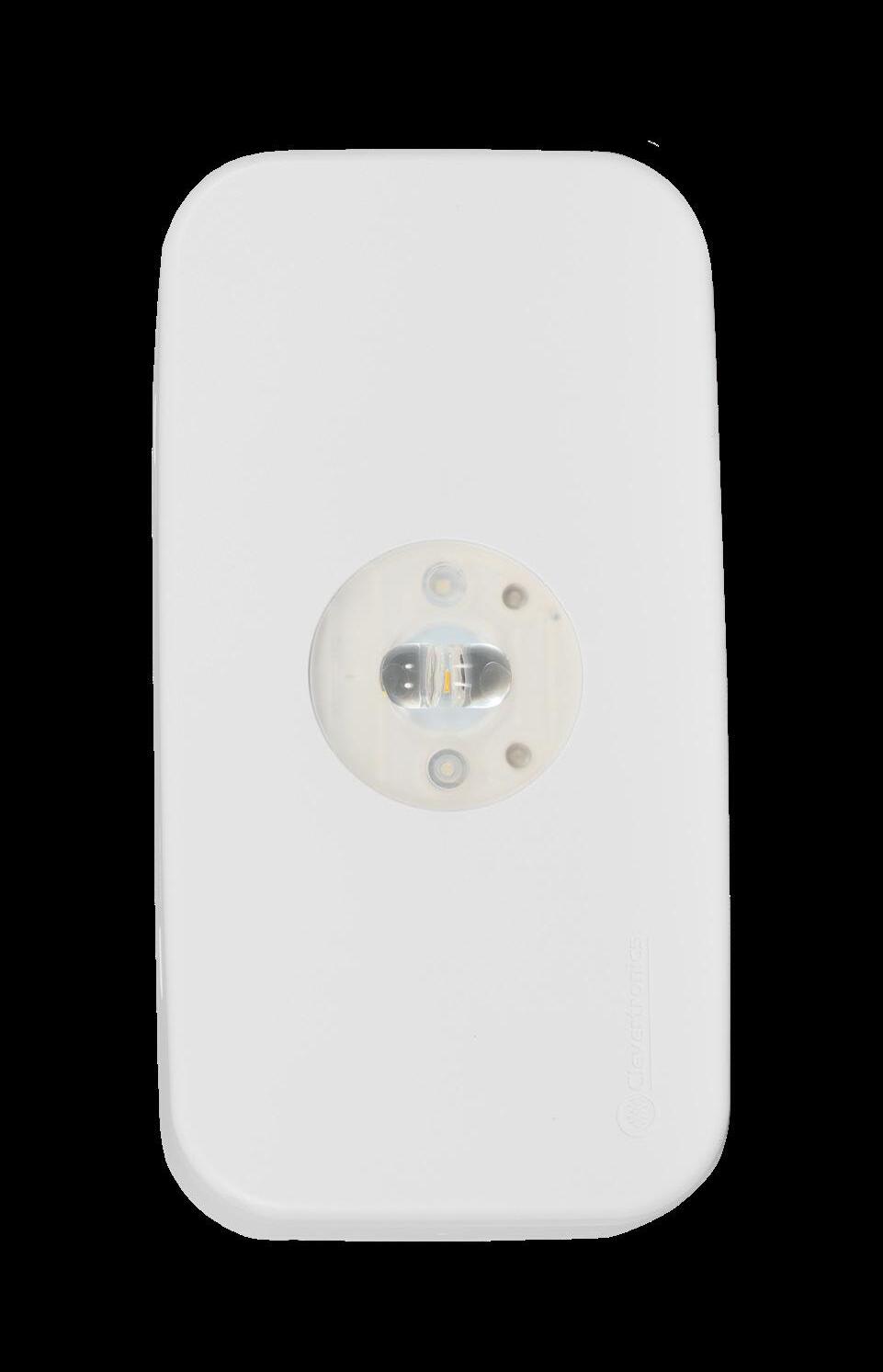

LIFELIGHT RECESSED EMERGENCY LUMINAIRE

LED Recessed Emergency Luminaire

The Lifelight Recessed Emergency Luminaire is a sleek architectural recessed emergency light that is powered with lithium batteries to ensure long life and signiﬁcant maintenance savings over alternative options.

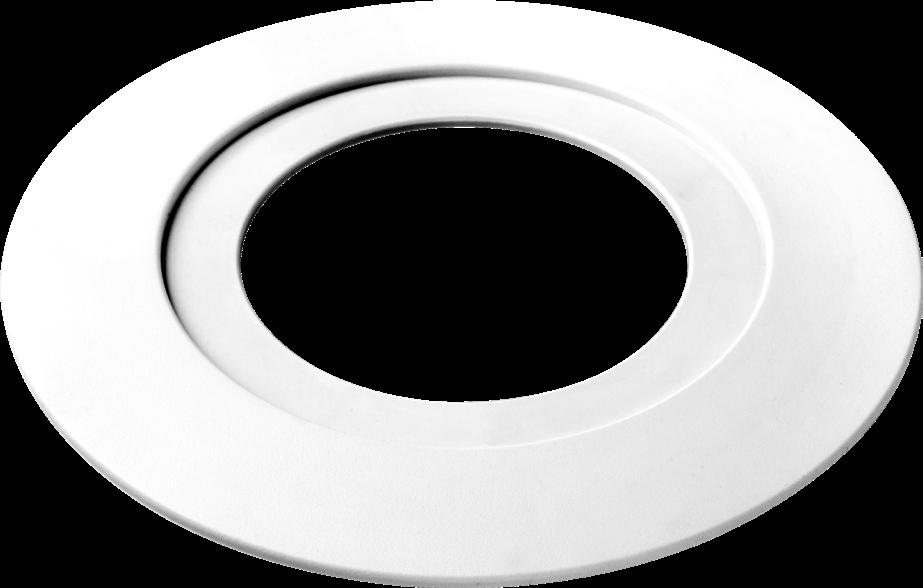

Each product is supplied with a 145mm adaptor plate to enable an easy retroﬁt installation.

Features and Beneﬁts

• Tested to BS EN 60598-2-22

Applications

Ofﬁce Buildings

Schools Apartments Retail Outlets

• 145mm adaptor plate for retroﬁtting

• Low power consumption

• Spring clips for easy installation

• Lithium Iron Phosphate or Nanophosphate® battery

• DALI® and Zoneworks® test options available

• Clevertest Plus System compatible

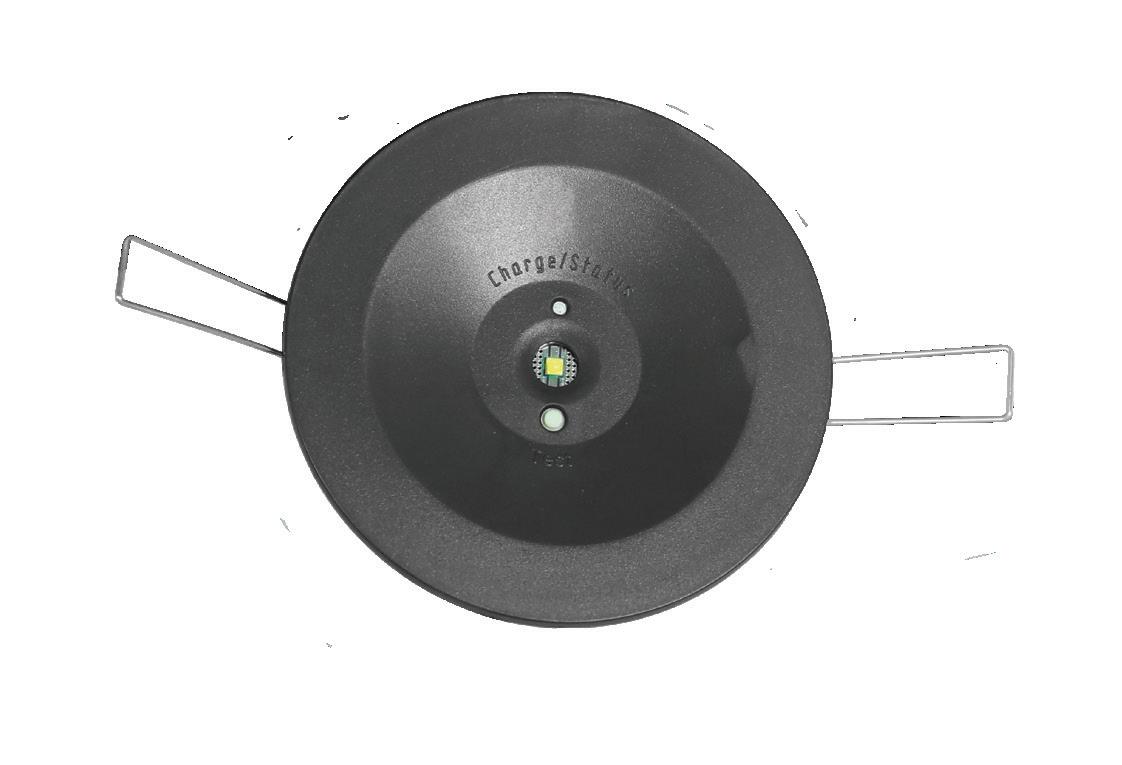

LIFELIGHT RECESSED EMERGENCY LUMINAIRE

Standard - Black

Clevertest Plus System Compatible

-Single (Carton)

Dimensions (L x W x H) - Control Pack

Dimensions - Head Diameter

Dimensions - Adaptor plate

Ceiling Hole Cut-Out

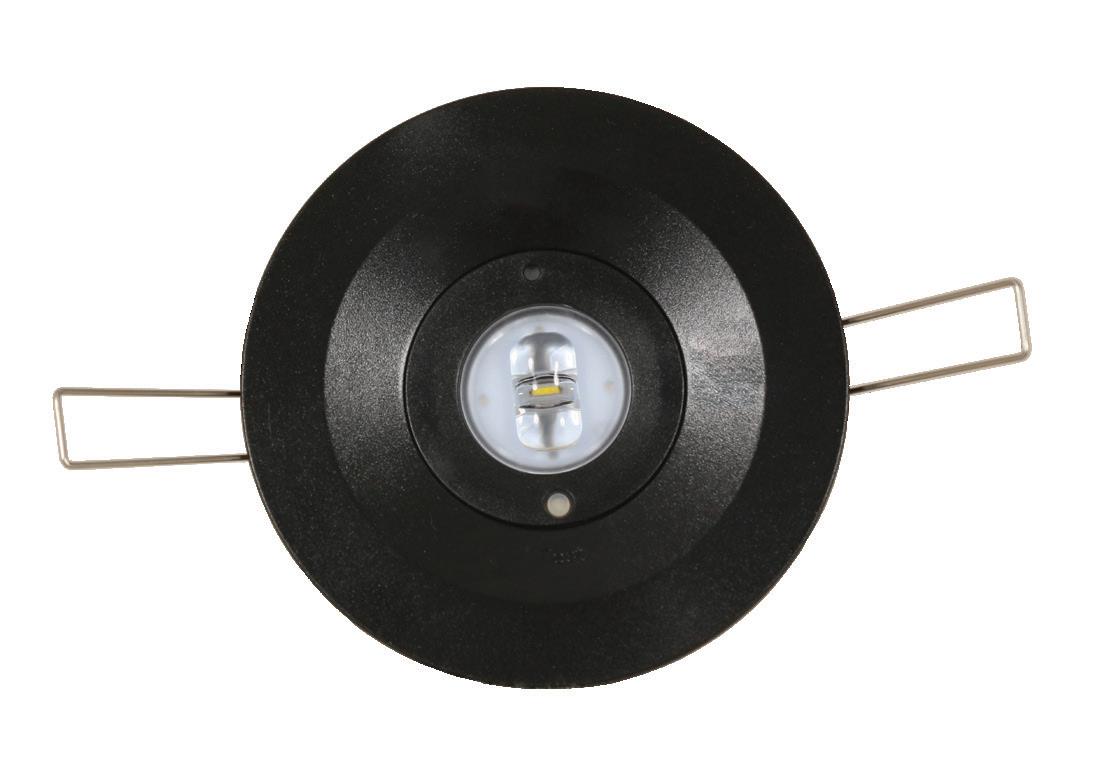

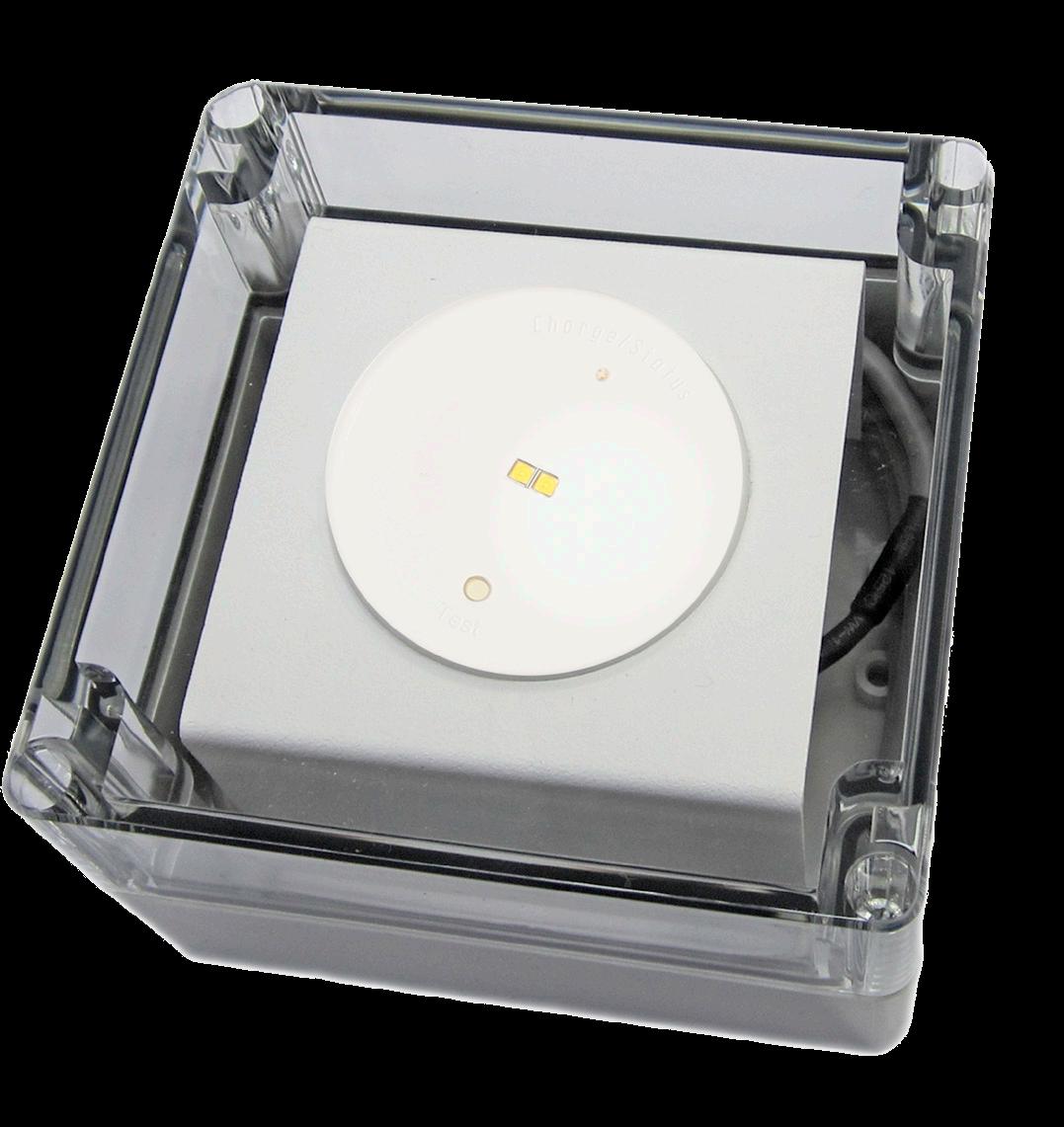

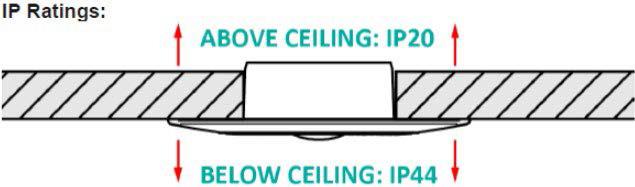

LIFELIGHT RECESSED IP44 SPLASHPROOF

Recessed Lifelight with

The Lifelight IP44 Splashproof is a recessed emergency luminaire that is designed for use in applications where an IP44 rating is required.

Complete with Lithium batteries to ensure low maintence requirements.

LIFELIGHT RECESSED IP44 SPLASHPROOF

ORDERING INFORMATION

Standard - White

Standard - Black

CLIFE-RECSP

CLIFE-RECSP-BLK

Clevertest Plus System Compatible Yes

DALI

Zoneworks® HIVE

CLIFE-RECSP-D2

CLIFE-RECSP-HVG

Carton Quantity 10 Pieces

Weight - Single (Carton)

LLIFE-RECSP

LLIFE-RECSP-BLK

LLIFE-RECSP-D2

LLIFE-RECSP-HVG

0.8kg (9kg)

Dimensions (L x W x H) 232mm X 51mm X 42mm (Control Pack) 95mm Head Diameter

Power Consumption (Standby / Max)*

Lamp(s) Single LED Single LED

Lens Fitted with Area Lens. Additional Corridor Lens in Box† Battery

/ Capacity (mAh)

Charging Method Intelligent Current Limited Constant Voltage

Operating Mode

Voltage (V) (Frequency (Hz))

Operating Temperature 0˚C to 40˚C

further information on the corridor lens please contact Clevertronics.

information located at: https://clevertronics.co.uk/clevertronics-uk-warranty-statement

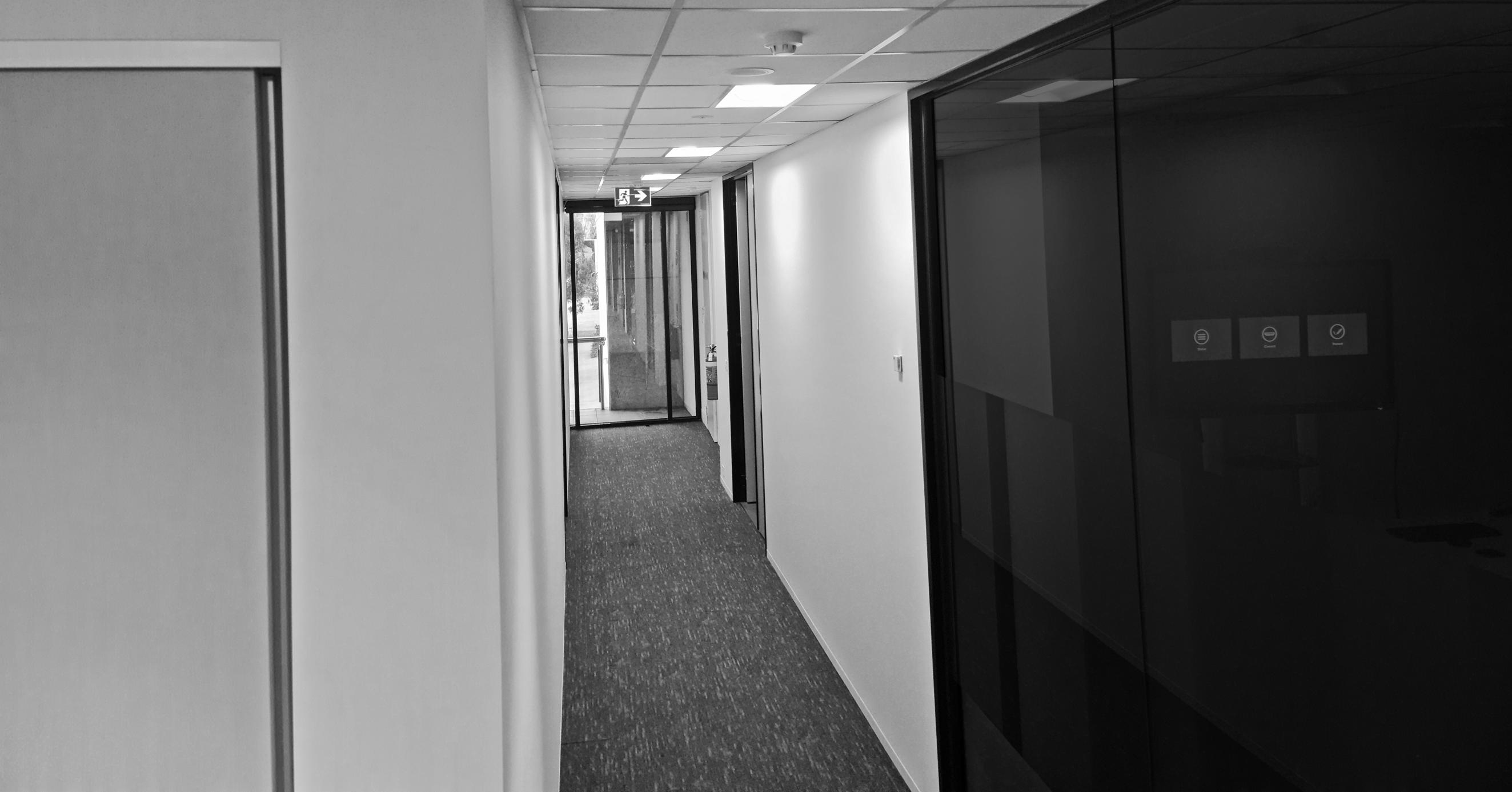

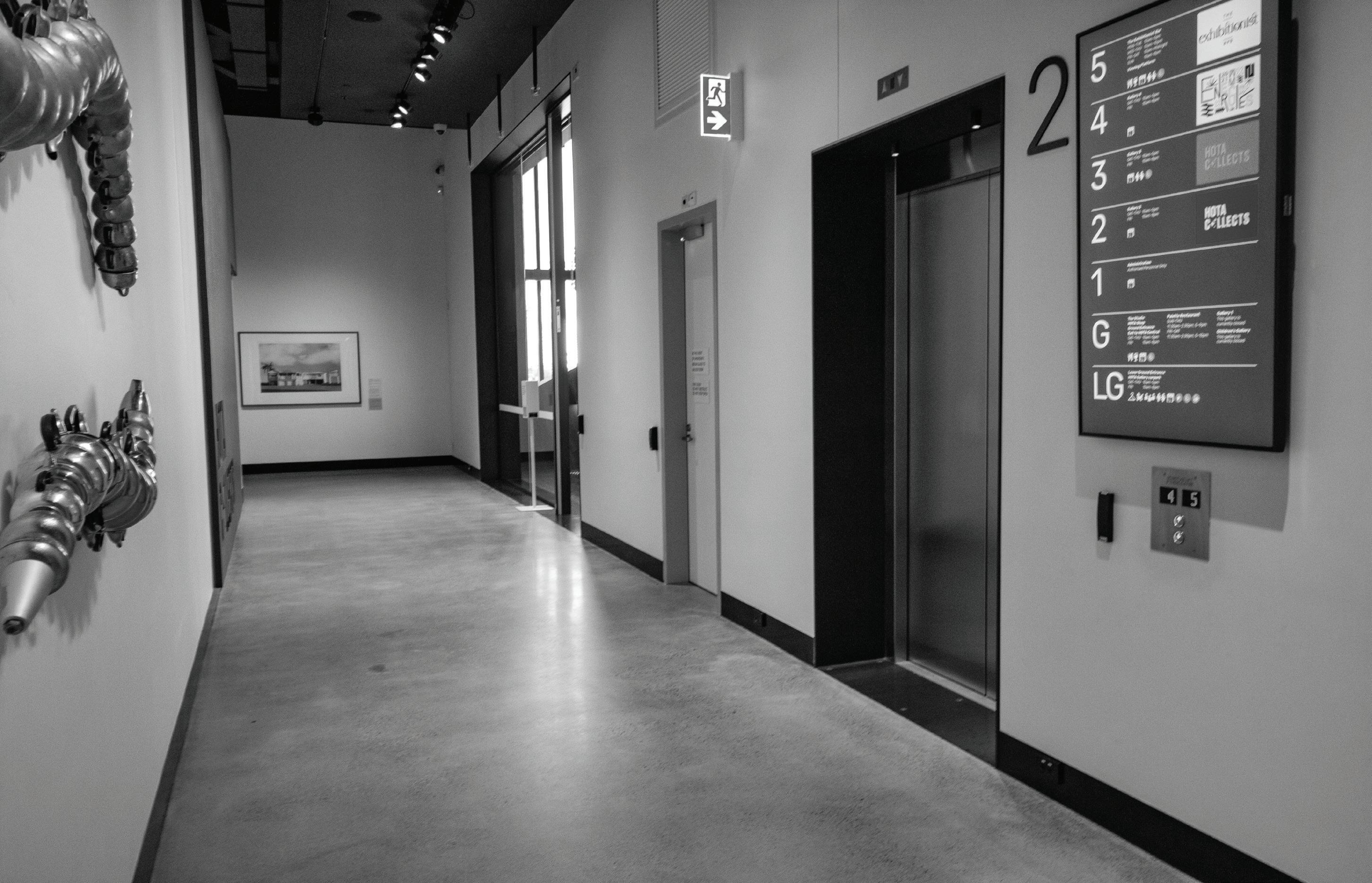

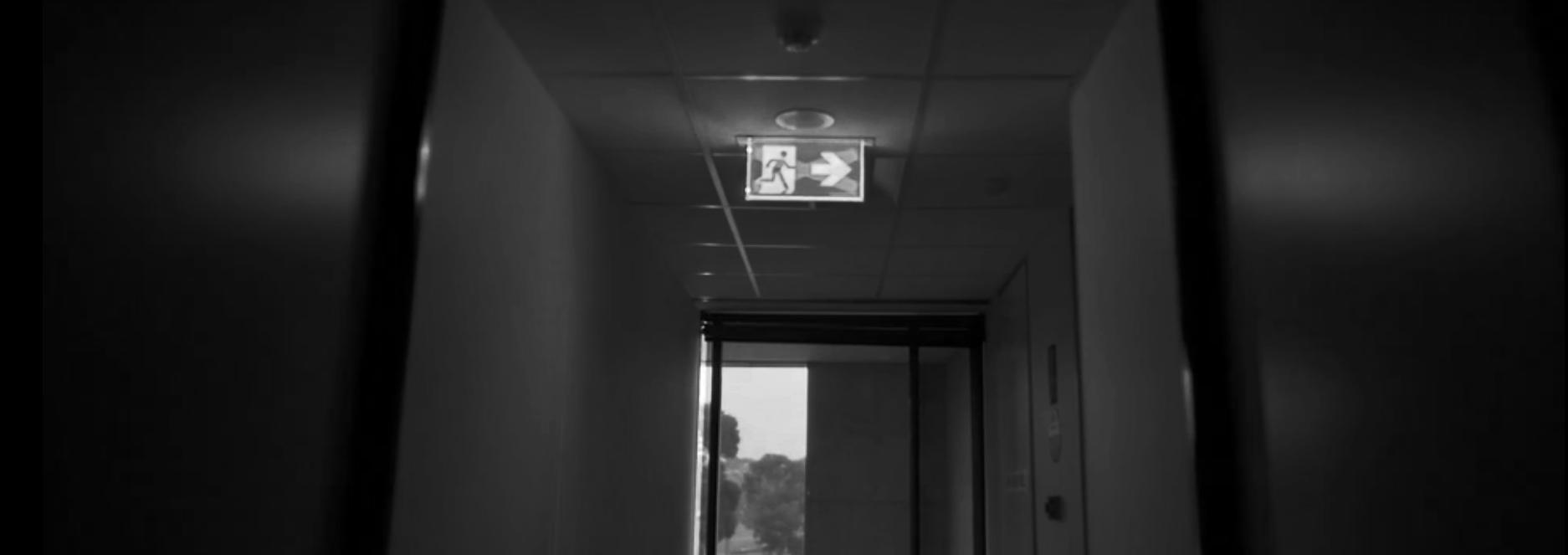

LIFELIGHT CORRIDOR LENS

Corridor Optimised LED Emergency Light

The Lifelight Emergency Light with Corridor Lens is optimised for corridor escape routes to significantly reduce the number of emergency lights required. With market leading lithium battery technology and energy efficient LEDs the Lifelight delivers lower maintenance and energy costs.

LIFELIGHT CORRIDOR LENS

Standard - White

Standard - Black

Clevertest Plus System Compatible

Zoneworks® HIVE

Dimensions ( L X W X H)

Dimensions -

(Adaptor

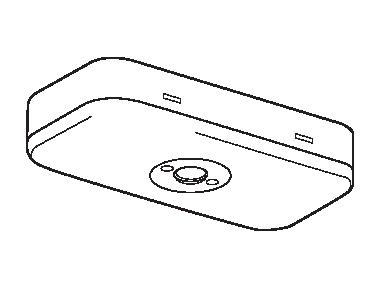

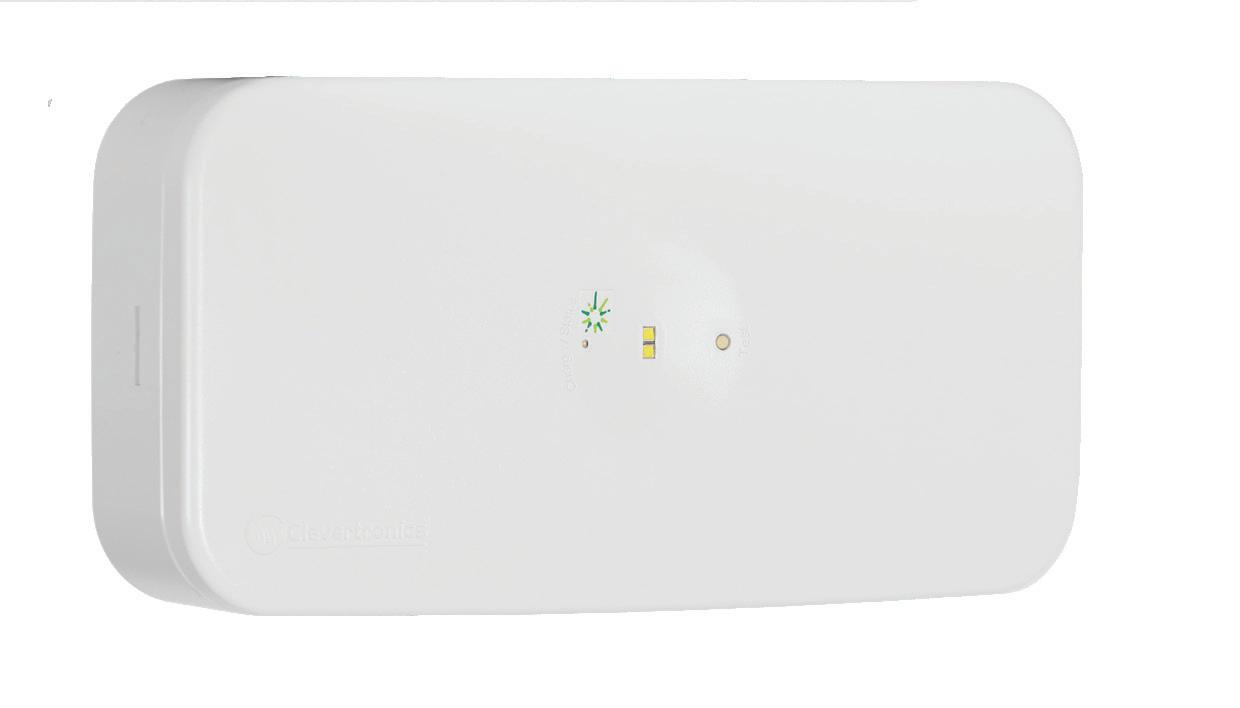

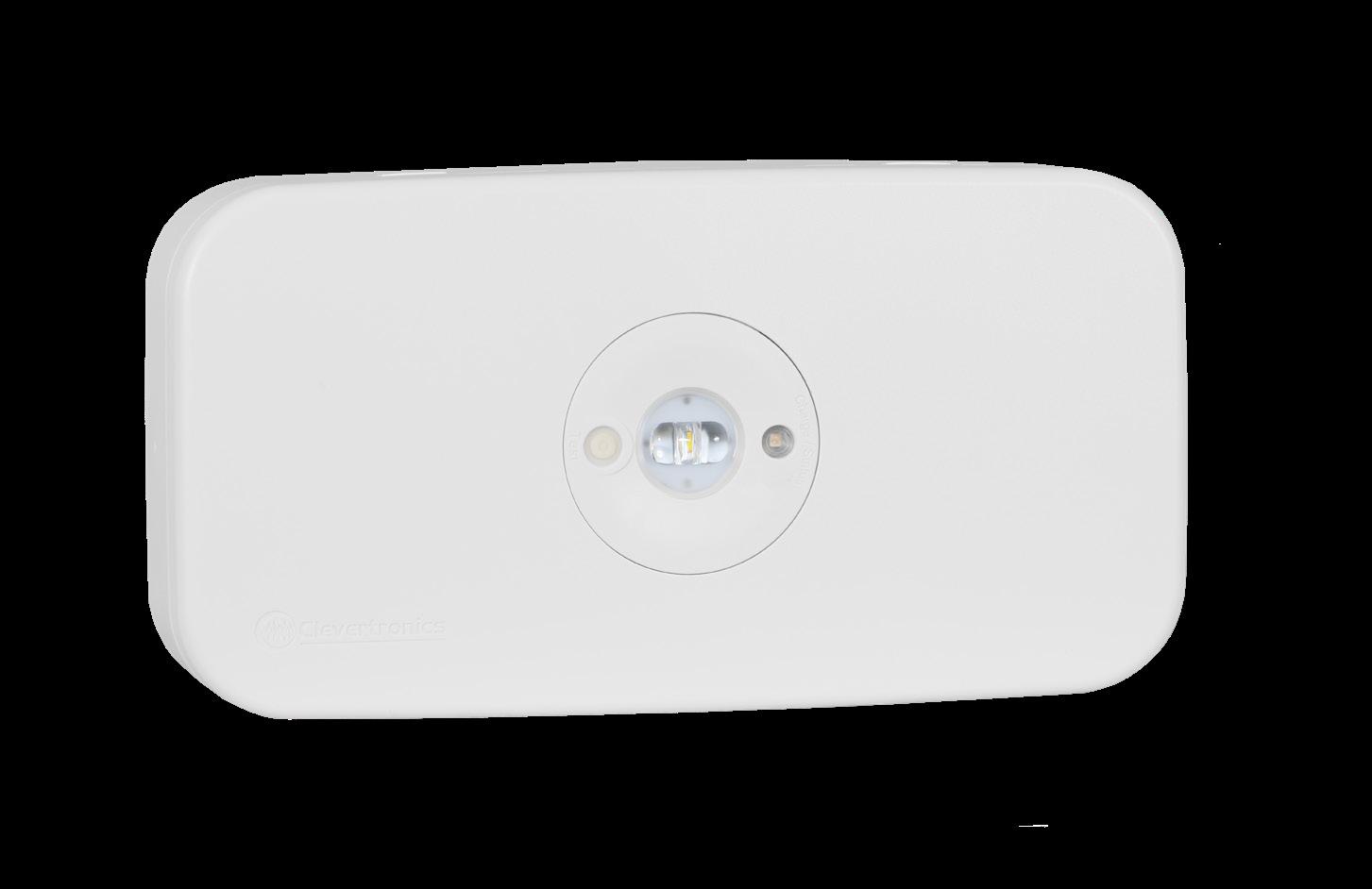

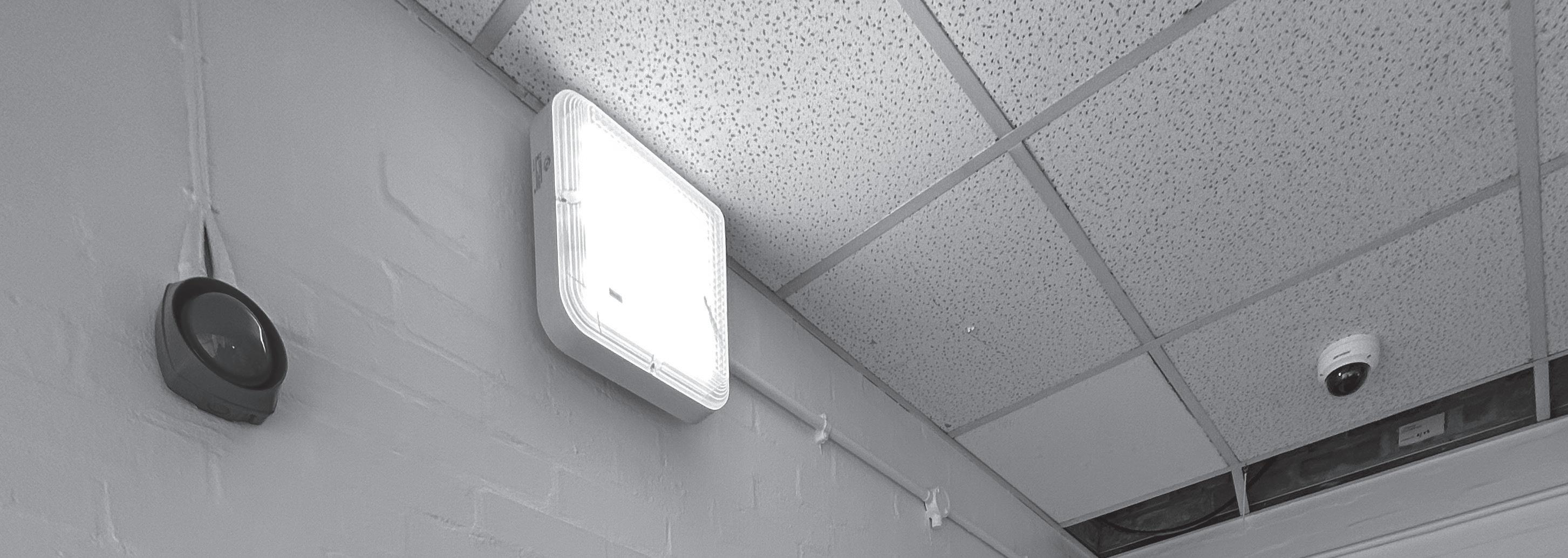

LIFELIGHT SURFACE MOUNT WEATHERPROOF

The Lifelight Surface Mount Weatherproof emergency luminaire is designed for use in applications where an IP65 rating is required.

The slimline high impact IK08 polycarbonate enclosure makes installation easy and provides robustness in open areas.

LIFELIGHT SURFACE MOUNT WEATHERPROOF

ORDERING INFORMATION

Standard - White

Standard - Black

Clevertest Plus System Compatible

Zoneworks ® HIVE CLIFE-SM-WP-HVG LLIFE-SM-WP-HVG

Carton Quantity

Weight - Single (Carton)

Dimensions (L x W x H)

TECHNICAL SPECIFICATIONS

*Warranty information located at: https://clevertronics.co.uk/clevertronics-uk-warranty-statement

The product

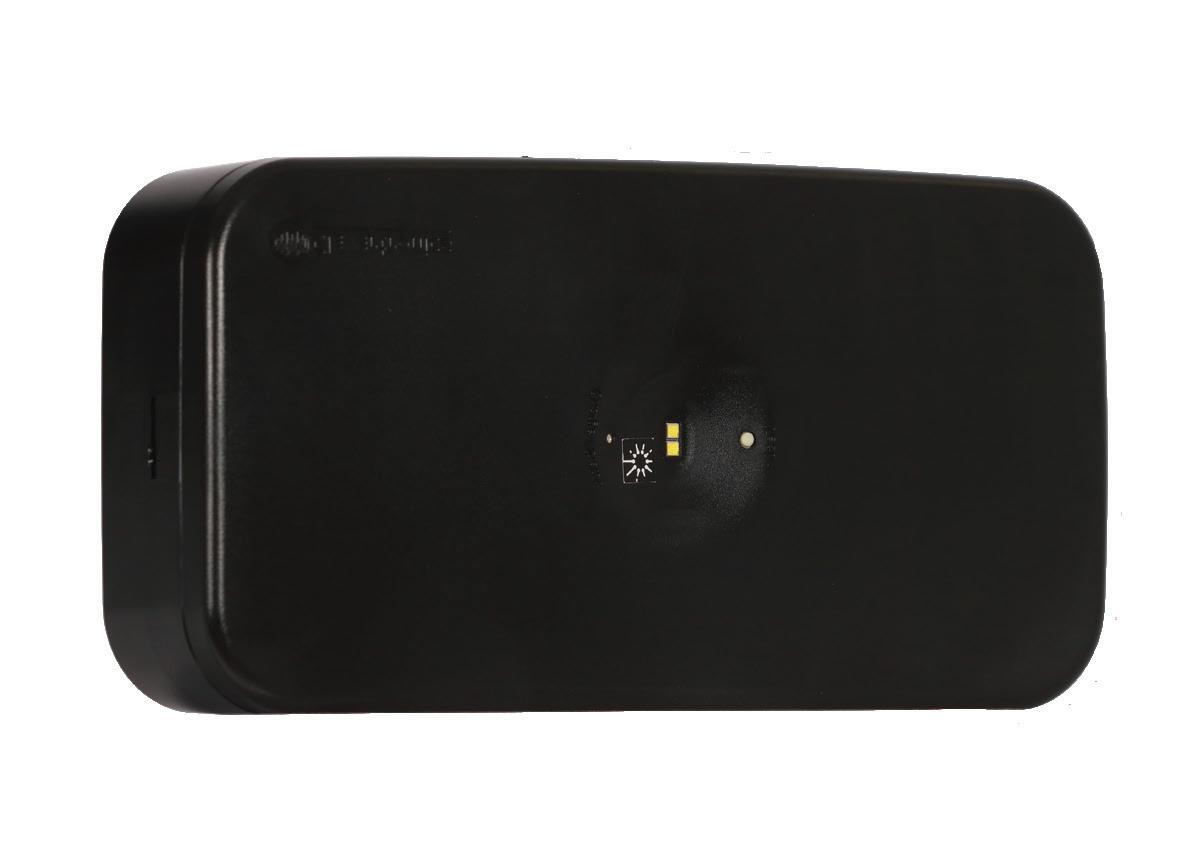

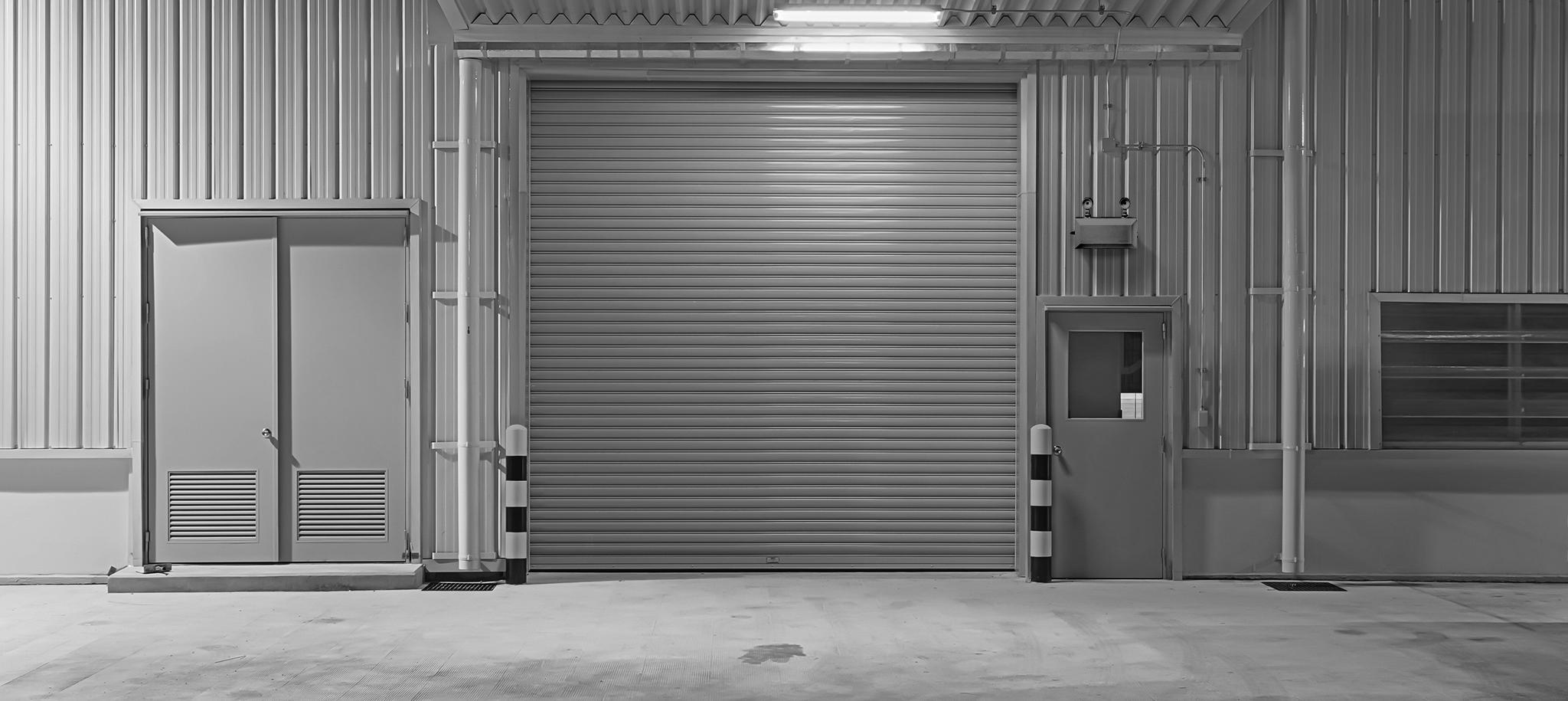

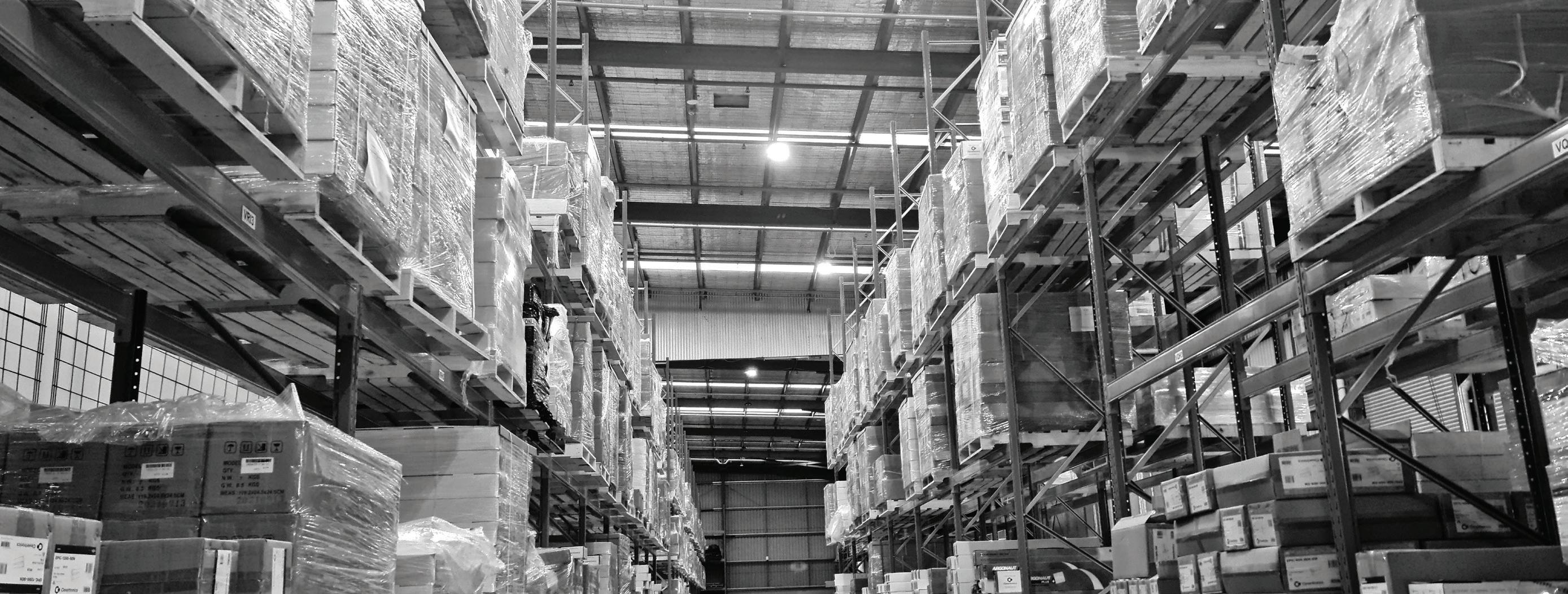

LIFELIGHT SURFACE MOUNT WAREHOUSE LENS

Warehouse Optimised LED Emergency Light

The Lifelight Surface Mount Emergency Light with Warehouse Lens is optimised for longer warehouse racking aisles to significantly reduce the number of emergency lights required. With market leading lithium battery technology and energy efficient LED the Lifelight delivers lower maintenance and energy costs.

• Optimised lens for longer warehouse racking aisle applications

• Low 0.4W power consumption

• Lithium Iron Phosphate or Nanophosphate battery

• Available in white or black

LIFELIGHT SURFACE MOUNT WAREHOUSE LENS

*Warranty information located at: https://clevertronics.co.uk/clevertronics-uk-warranty-statement

LIFELIGHT PRO RECESSED EMERGENCY

The Lifelight Pro Recessed Emergency Luminaire is a small sleek architecturally designed recessed LED emergency light that is available as round or square head options to suit various style scenarios.

The Lifelight Pro provides a significant increase in emergency lighting coverage when compared to other emergency luminaires and will deliver lower maintenance costs due to the high-performance lithium battery technology options.

• Tested to BS EN 60598-2-22

• 95mm adaptor plate for retrofitting

• Low 0.4W power consumption

• Spring clips for easy installation

• Lithium Iron Phosphate or Nanophosphate® battery

White or black (other colours on request)

Round or square head

LIFELIGHT PRO RECESSED EMERGENCY

ORDERING INFORMATION

Standard - White

Standard - Black

Clevertest Plus System Compatible Yes

Zoneworks® HIVE

Carton Quantity

Weight - single (carton)

Dimensions (L x W x H) - Control Pack

Dimensions - Head

Dimensions - Adaptor Plate

Charging Method Intelligent Current Limited Constant

SPECIFICATIONS

The product details described in this document are current as at the version date of the document. We reserve the right to change product design, specifications or materials (Specifications) as part of our continuous improvement program. Please confirm the applicable Specifications at the time of placing your order.

LIFELIGHT PRO RECESSED IP44 SPLASHPROOF

The IP44 Splash-Proof Lifelight Pro Recessed Emergency Luminaire is an energy efficient, Lithium powered LED emergency light for use where an IP44 rating is required for open area or escape evacuation application.

Featuring a sleek design, the Splash-proof Lifelight Pro Recessed Emergency Luminaire will provide outstanding performance and reduce installation and maintenance costs.

LIFELIGHT PRO RECESSED IP44 SPLASHPROOF

ORDERING INFORMATION

Standard - White

Standard - Black

CLIFE-PRO-RECSP

CLIFE-PRO-RECSP-BLK

Clevertest Plus System Compatible Yes

CLIFE-PRO-RECSP-D2

CLIFE-PRO-RECSP-HVG

Zoneworks® HIVE

Dimensions (L x W x H)

*Due to small head & ceiling cut out, access from behind/above ceiling is required for installation.

LLIFE-PRO-RECSP

LLIFE-PRO-RECSP-BLK

LLIFE-PRO-RECSP-D2

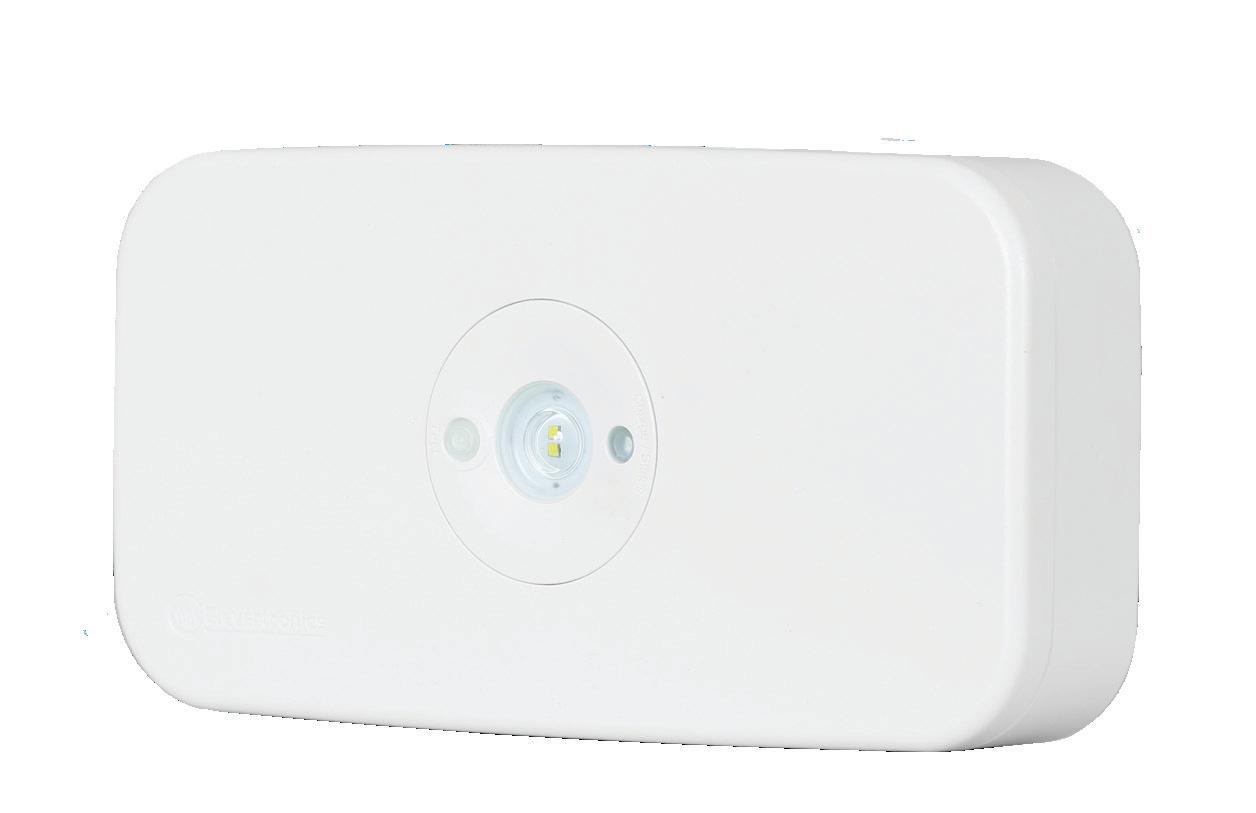

LIFELIGHT PRO SURFACE MOUNT EMERGENCY

The Lifelight Pro Surface Mount Emergency Luminaire range offers an energy efficient, lithium powered LED emergency light. The Lifelight Pro provides a significant increase in emergency lighting coverage when compared to other emergency luminaires.

Suitable in a variety of applications the Lifelight Pro will provide outstanding performance and will lower maintenance and energy costs.

LIFELIGHT PRO SURFACE MOUNT EMERGENCY

ORDERING INFORMATION

Clevertest Plus System Compatible

Zoneworks® HIVE CLIFE-PRO-SM-HVG LLIFE-PRO-SM-HVG

Carton Quantity

information located at:

The product details described in this document are current as at the version date of the document. We reserve the right to change product design, specifications or materials (Specifications) as part of our continuous improvement program. Please confirm the applicable Specifications at the time of placing your order.

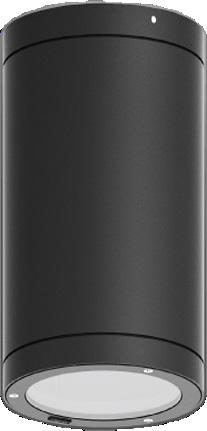

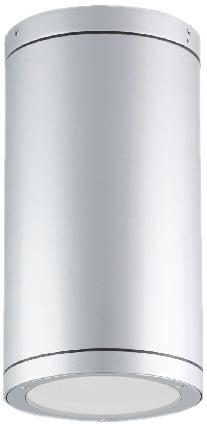

LIFELIGHT PRO CYLINDER SURFACE MOUNT EMERGENCY

The Lifelight Pro Surface Mount Cylinder Emergency Luminaire is an energy efficient, lithium powered LED emergency light in a small and sleek architectural design. The Lifelight Pro Surface Mount Cylinder provides an amazing 60% increase in emergency lighting coverage compared to many existing emergency lights on the market.

Suitable in a variety of applications the Lifelight Pro Surface Mount Cylinder will provide outstanding performance and reduce installation and maintenance costs.

LIFELIGHT PRO SURFACE MOUNT CYLINDER EMERGENCY

Standard - White

Standard - Black CLIFE-PRO-SMC-BLK LLIFE-PRO-SMC-BLK

Clevertest Plus System Compatible

CLIFE-PRO-SMC-D2

Zoneworks® HIVE CLIFE-PRO-SMC-HVG

LLIFE-PRO-SMC-D2

LLIFE-PRO-SMC-HVG

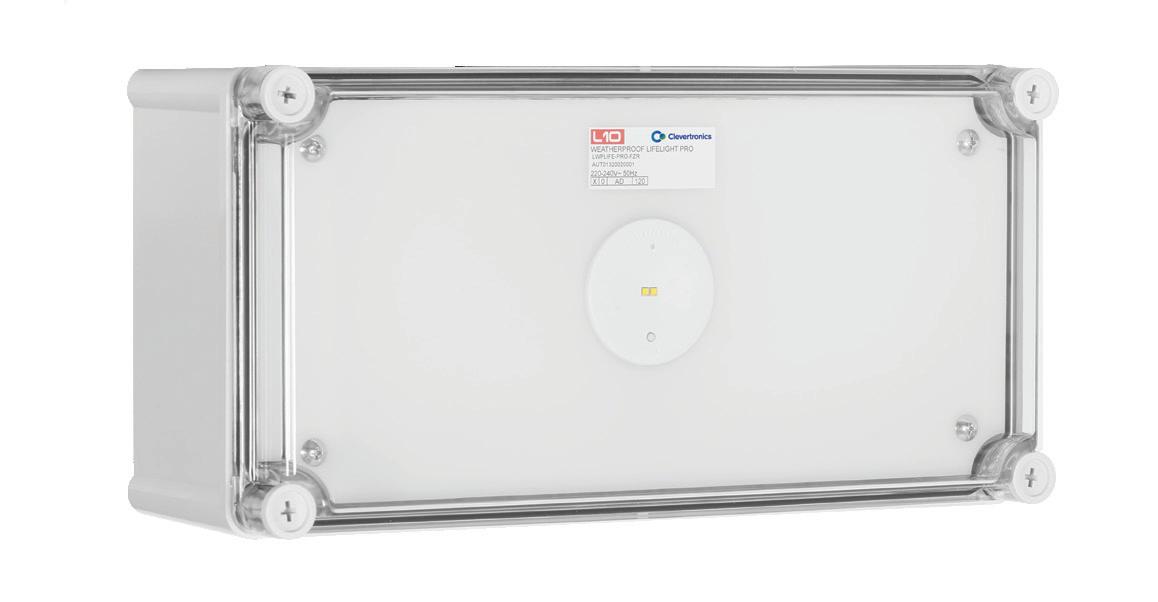

LIFELIGHT PRO SURFACE MOUNT WEATHERPROOF

The Lifelight Pro Surface Mount Weatherproof emergency luminaire has a D80 classification and is designed for use in applications where an IP65 rating is required.

The slimline high impact IK08 polycarbonate enclosure makes installation easy and provides robustness in open areas.

LIFELIGHT PRO SURFACE MOUNT WEATHERPROOF

ORDERING INFORMATION

Standard - White

Standard - Black

Clevertest Plus System Compatible

Zoneworks® HIVE

Carton

CLIFE-PRO-SM-WP-D2

CLIFE-PRO-SM-WP-HVG

LLIFE-PRO-SM-WP-D2

LLIFE-PRO-SM-WP-HVG

1 LUX SPACING TABLE AND MOUNTING HEIGHTS CEILING

further information on the corridor lens please contact Clevertronics.

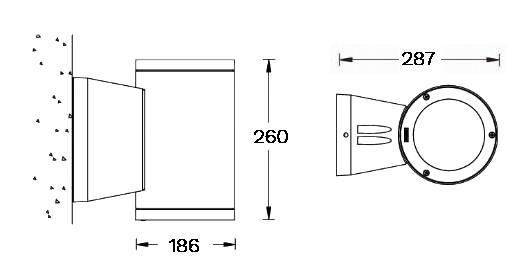

LIFELIGHT PRO WEATHERPROOF CYLINDER

The Lifelight Pro Weatherproof Cylinder is an energy efficient, lithium powered LED emergency light in a small and sleek architectural design.

Suitable in a variety of applications the Lifelight Pro Weatherproof Cylinder will provide outstanding performance and too many will reduce installation and maintenance costs.

LIFELIGHT PRO WEATHERPROOF CYLINDER

information located at: https://clevertronics.co.uk/clevertronics-uk-warranty-statement TECHNICAL SPECIFICATIONS

LWPLIFE-PRO-D2-WM

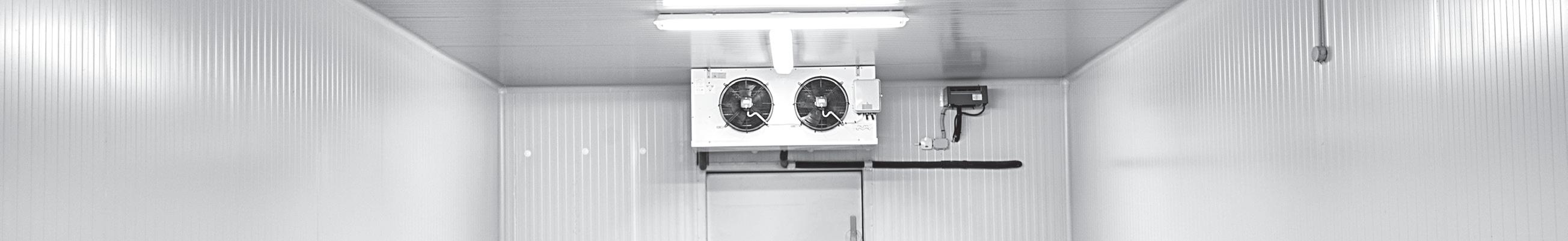

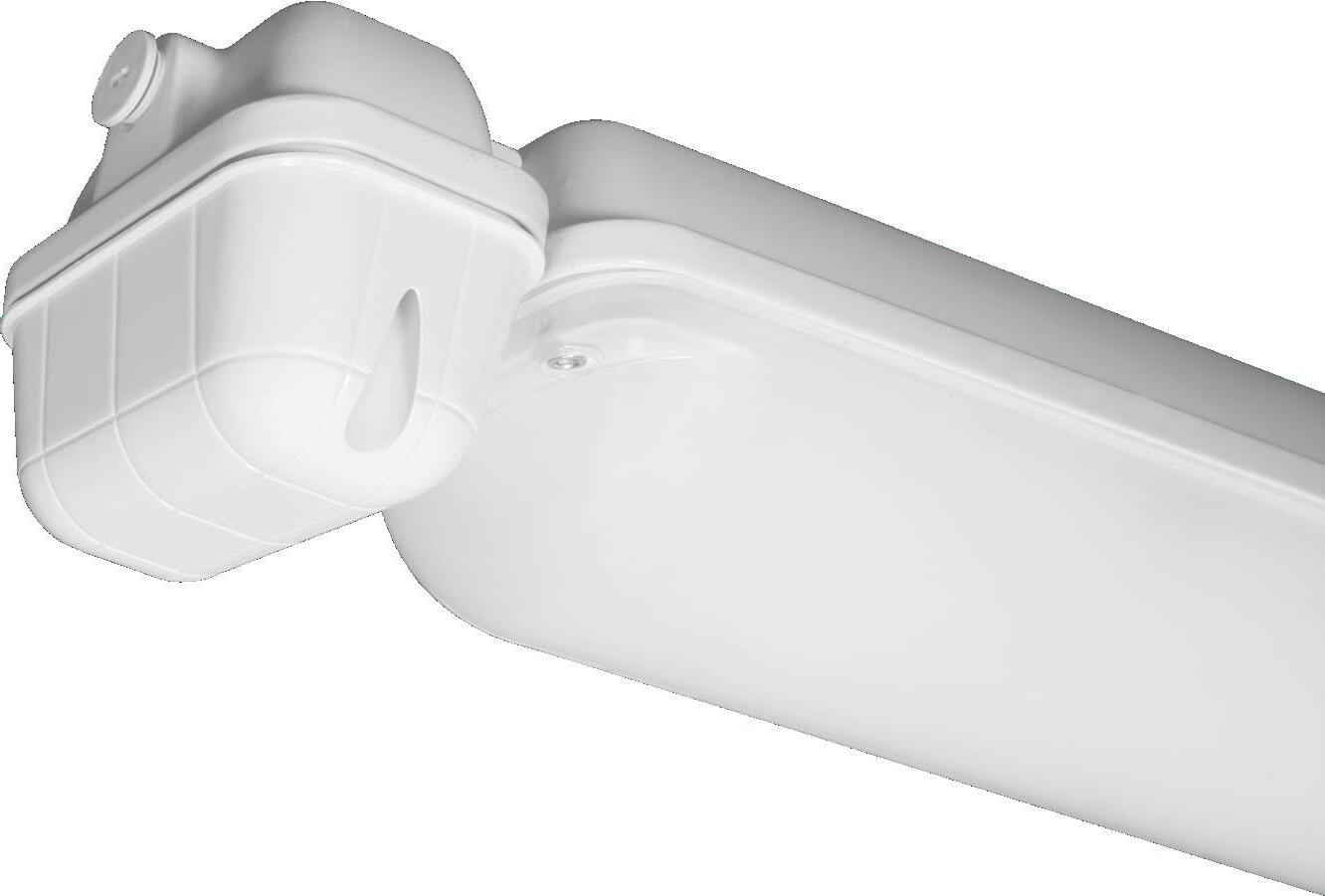

LOW TEMPERATURE EMERGENCY

Lighting for Low Temperature Applications

The Low Temperature Emergency lighting range is designed for cool room and freezer applications where the temperature can drop to -40OC.

The range comprises of an integrated option that is rated for -25OC and a remote control gear option that will handle -40OC.

Both options are constructed with polycarbonate enclosures and are rated IP66/67.

LOW TEMPERATURE EMERGENCY

Plus System Compatible

1 LUX SPACING TABLE AND MOUNTING

Open (Anti-panic)

*Warranty information located at: https://clevertronics.co.uk/clevertronics-uk-warranty-statement

*Warranty information located at: https://clevertronics.co.uk/product-warranty-statement/ The product details described in this document are

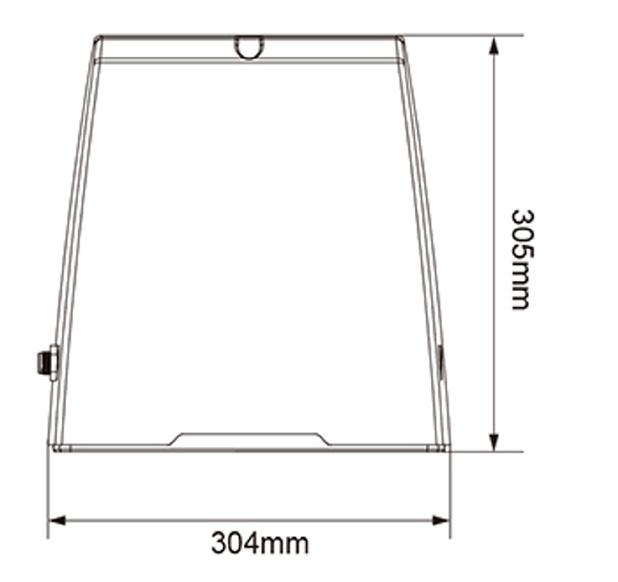

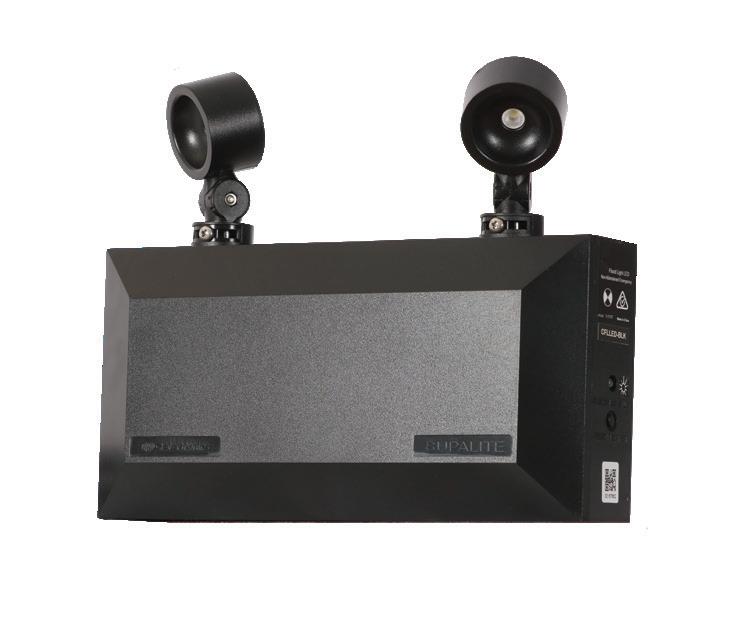

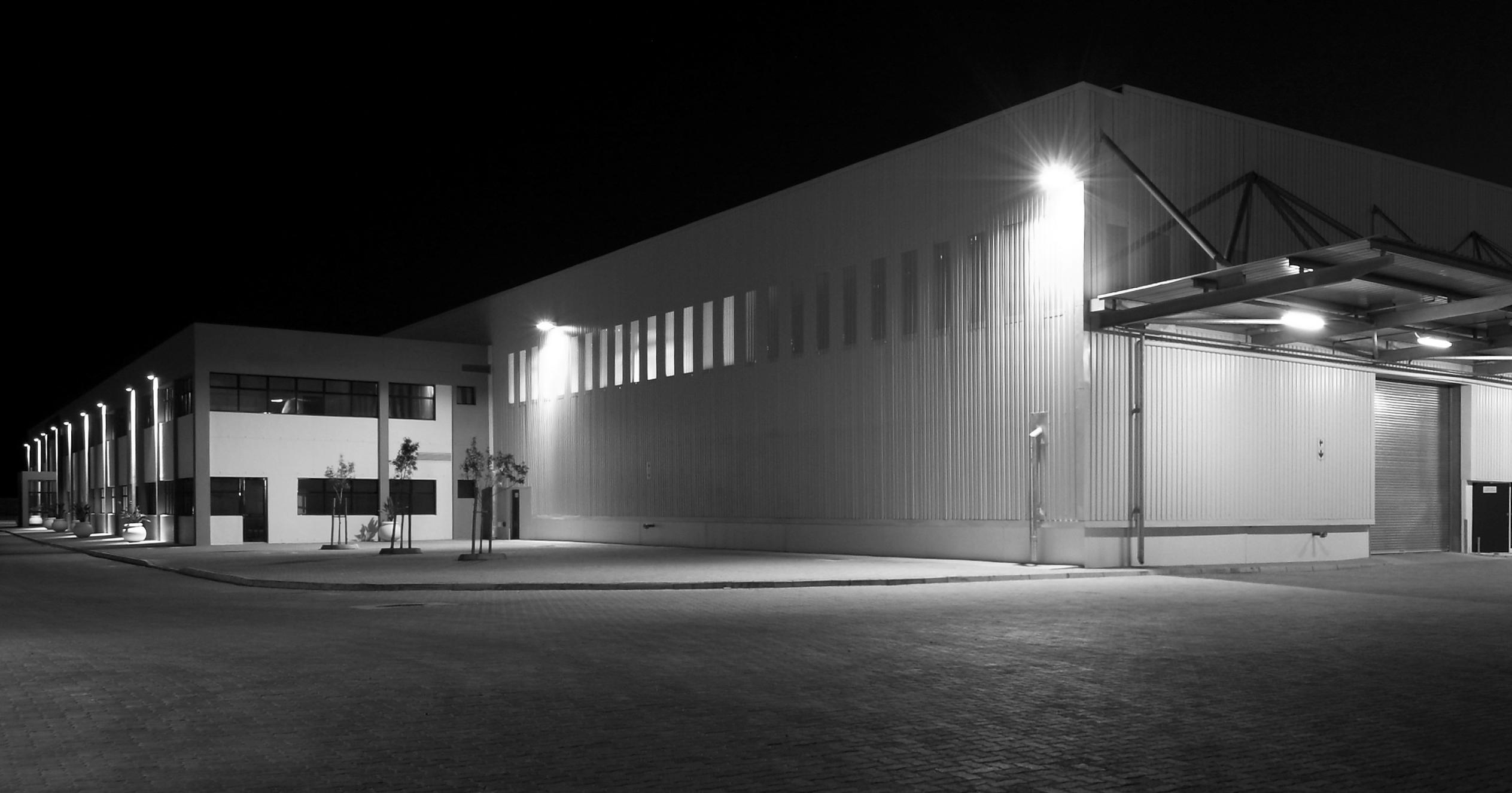

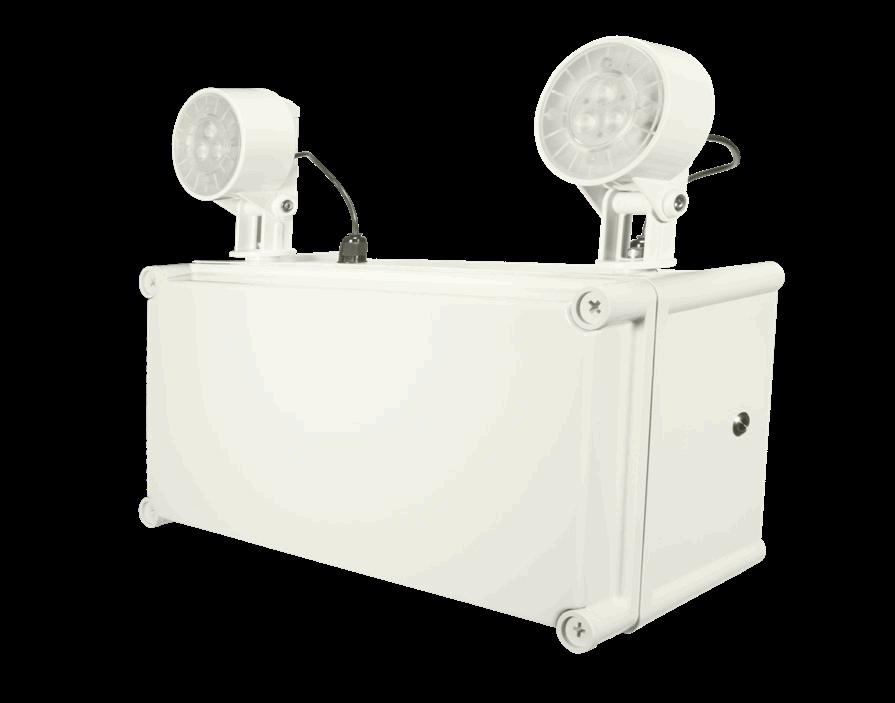

SUPALITE FLOOD EMERGENCY LUMINAIRE

The Supalite LED Flood is ideal for emergency lighting applications such as loading bays, car parks and evacuation points.

Available in IP20 or IP65 versions.

Tested to BS EN 60598-2-22

IP65 Weatherproof version

SUPALITE FLOOD EMERGENCY LUMINAIRE

- White

- Black

Clevertest Plus System Compatible

Zoneworks® HIVE

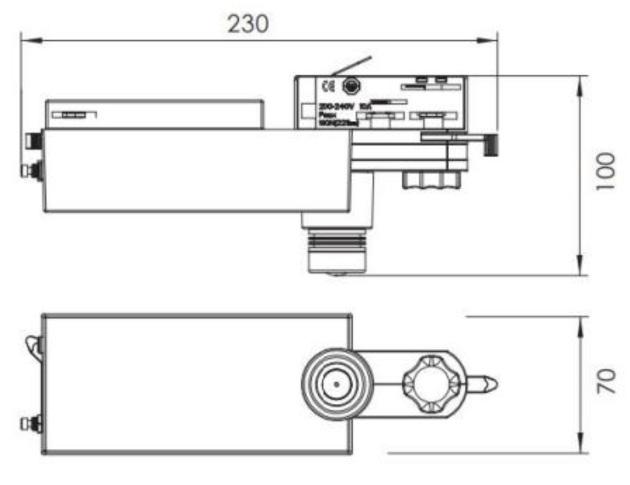

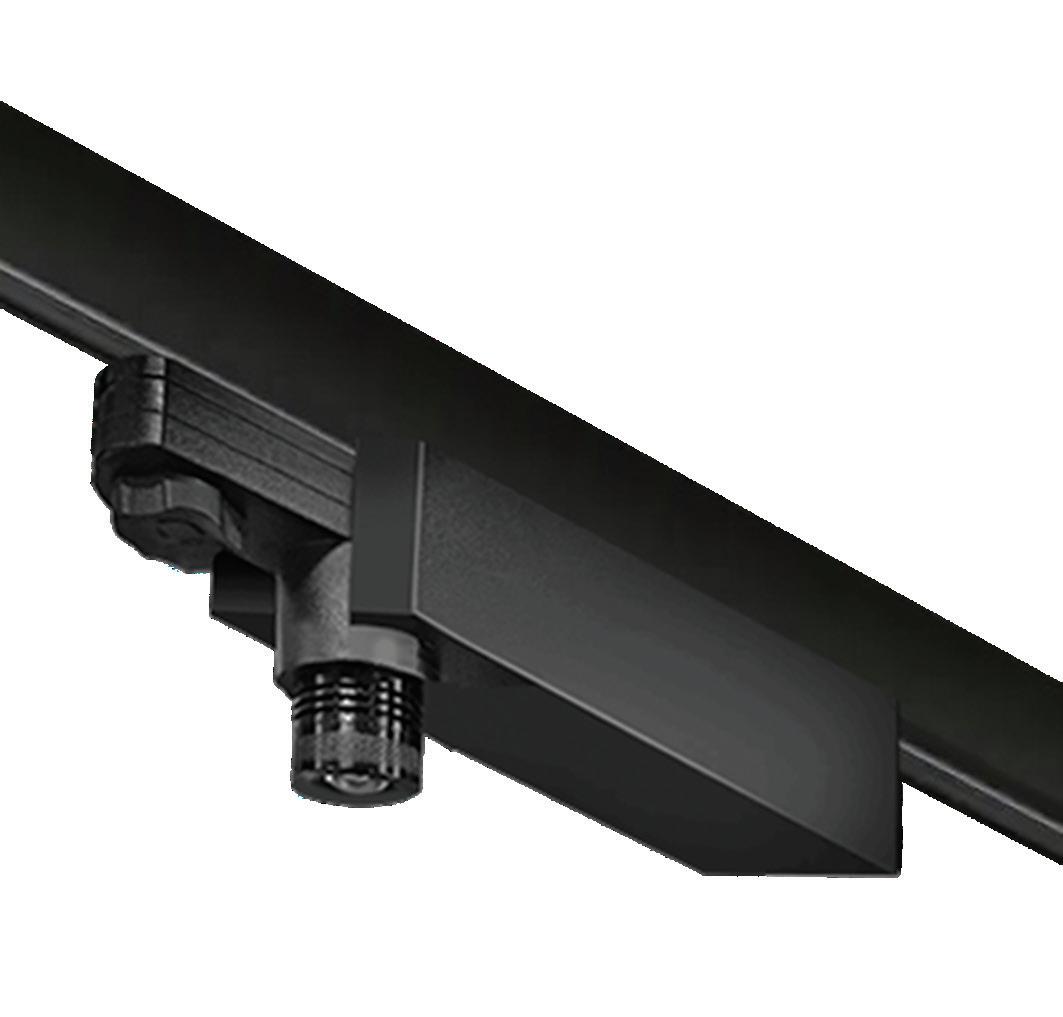

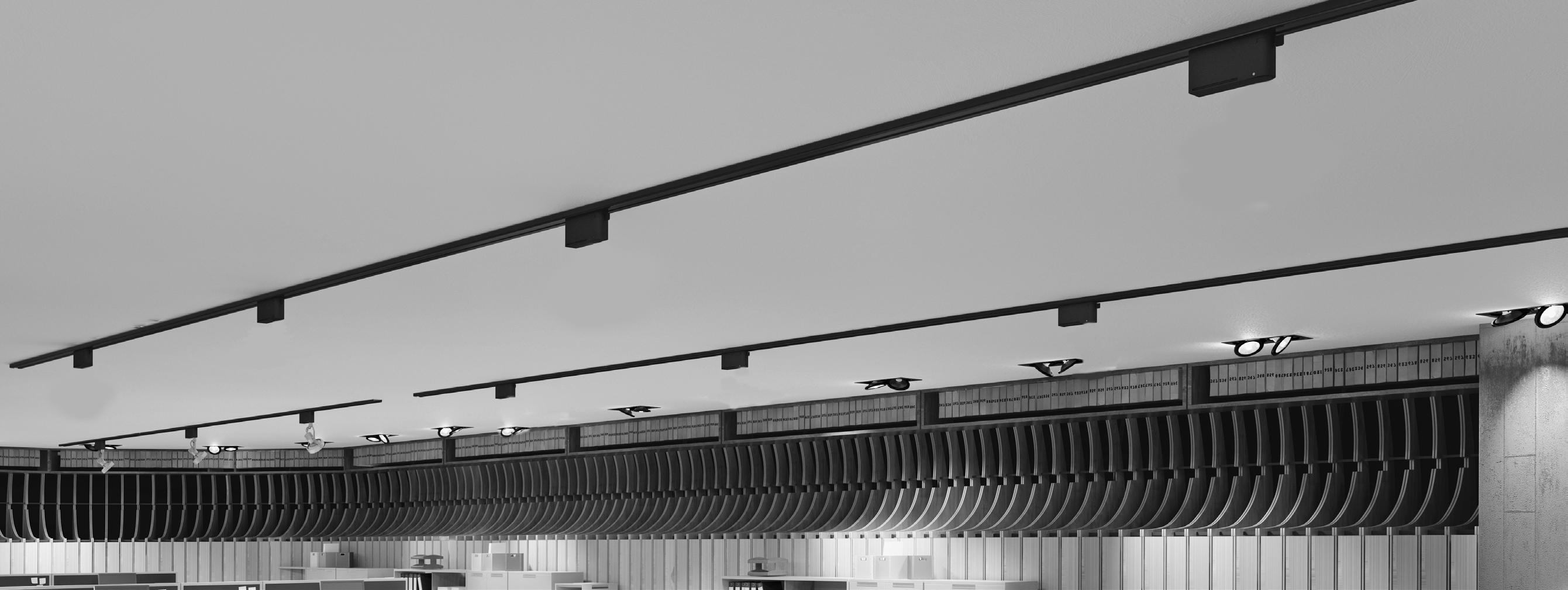

LIFELIGHT TRACK MOUNT

The Lifelight Track Mount emergency luminaire is designed for effortless integration into Stucchi tracks, blending seamlessly into any environment where aesthetics is important. Engineered to deliver exceptional performance, and powered by a long lasting Clevetronics L10 battery, it delivers reliability and compliance in critical situations.

LIFELIGHT TRACK MOUNT

ORDERING INFORMATION

Clevertest Plus System Compatible

(L10)

TECNICAL SPECIFICATIONS

Construction - Body Polycarbonate enclosure with Stucchi track adapter

Operating Mode

Voltage (V) Frequency (Hz)

Operating Temperature

Ingress Protection Rating (IP)

Non-maintained

220-240V (50Hz)

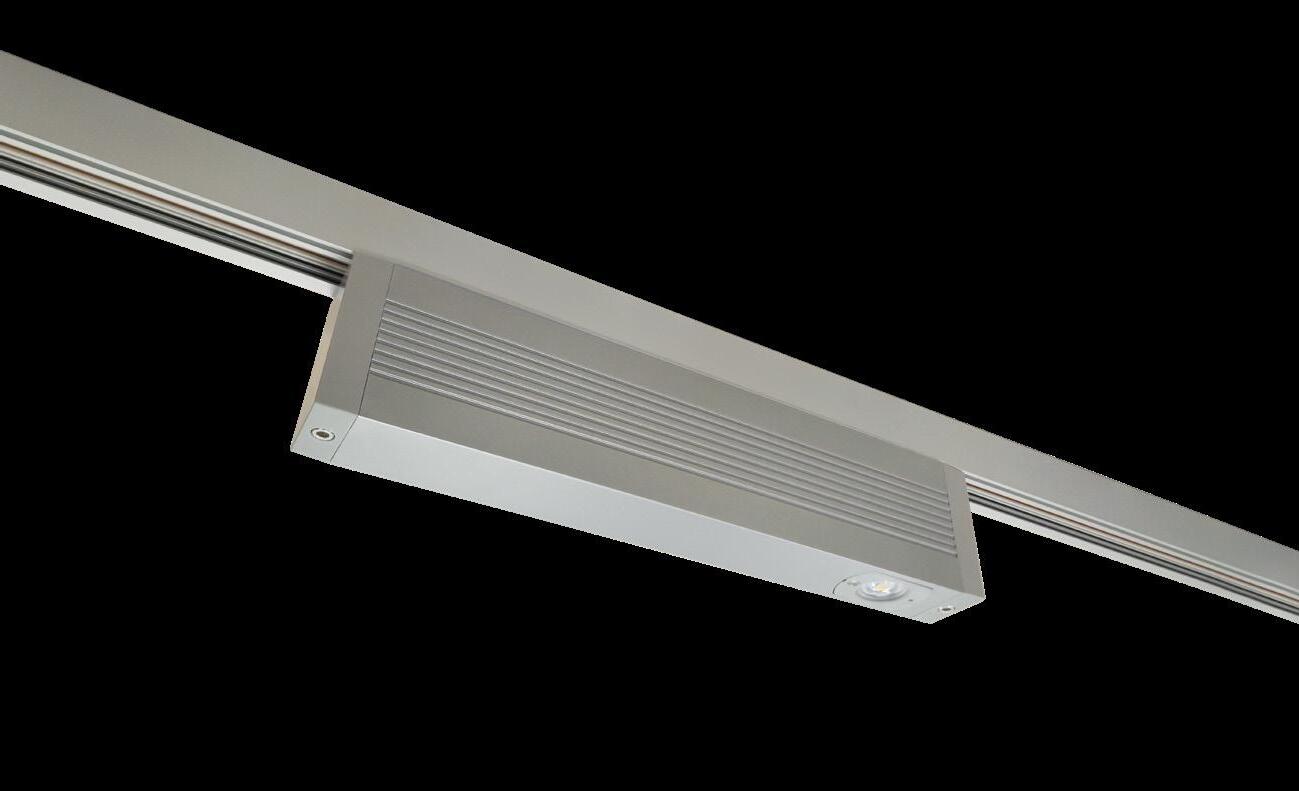

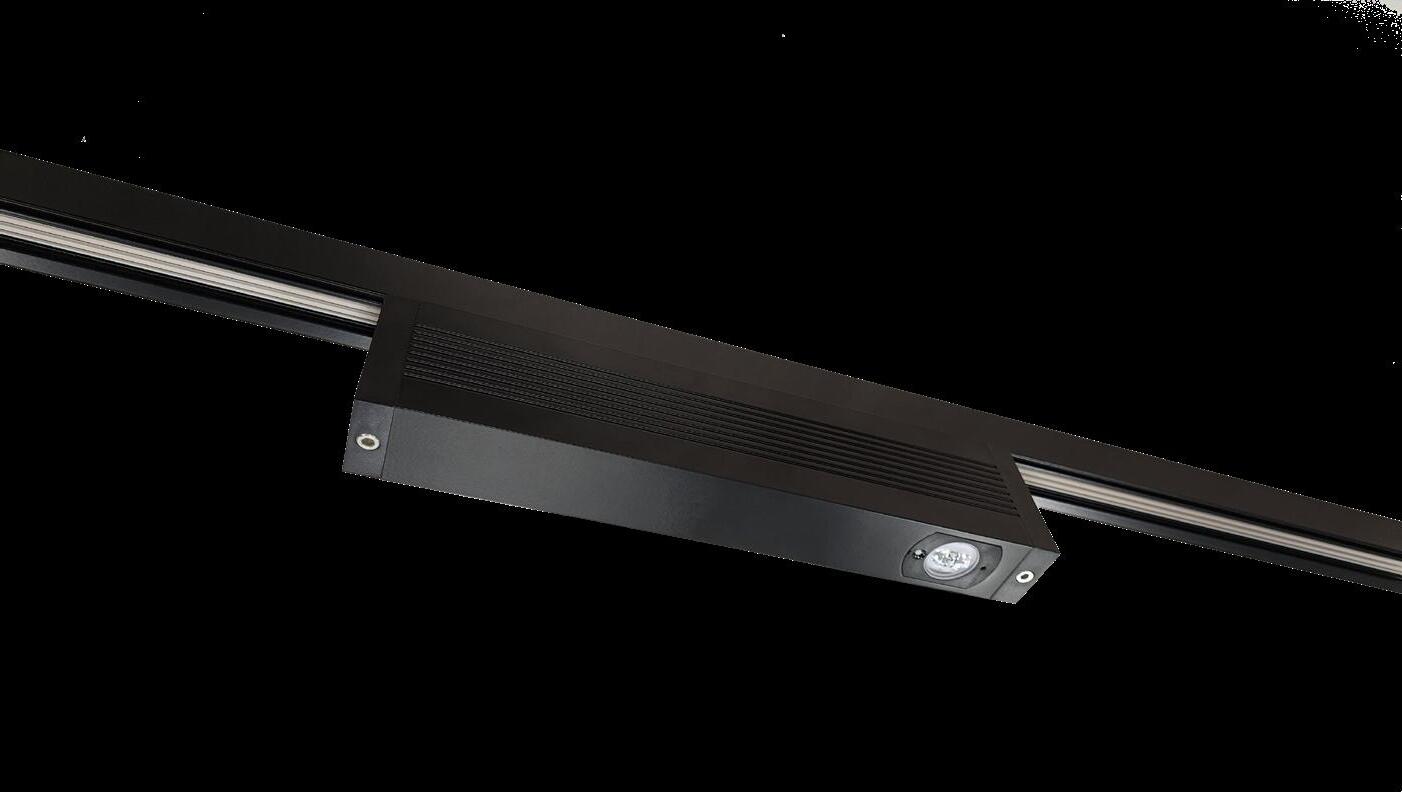

LIFELIGHT LINEAR TRACK MOUNT

Customisable Emergency Lighting for Tracks

The Clevertronics Lifelight Linear Track Mount combines a sleek, architectural design with highperformance emergency lighting. Utilising a long-life lithium nanophosphate battery, and compatibility with Dali and Zoneworks systems, it seamlessly integrates into ERCO track systems. Customs adapters and colours are available for other track types and brands - contact Clevertronics for details and compatibility.

LIFELIGHT LINEAR TRACK MOUNT

ERCO 3 CIRCUIT TRACK#

Standard

LLIFE-TRACK-LIN-ERCO-RAL9002

LLIFE-TRACK-LIN-ERCO-RAL9011

Clevertest Plus System Compatible Yes

DALI*

Zoneworks ® HIVE*

LLIFE-TRACK-LIN-ERCO-D2-RAL9002

LLIFE-TRACK-LIN-ERCO-HVG-RAL9002

LLIFE-TRACK-LIN-ERCO-D2-RAL9011

LLIFE-TRACK-LIN-ERCO-HVG-RAL9011

LLIFE-TRACK-LIN-ERCO-RAL9006

LLIFE-TRACK-LIN-ERCO-D2RAL9006

LLIFE-TRACK-LIN-ERCO-HVGRAL9006 ERCO 3 CIRCUIT DALI TRACK#

Standard

LLIFE-TRACK-LIN-ERCODALIRAL9002

LLIFE-TRACK-LIN-ERCODALI-RAL9011

Clevertest Plus System Compatible Yes DALI*

Zoneworks HIVE*

Carton

Power Consumption (Standby / Max)

LLIFE-TRACK-LIN-ERCODALI-D2RAL9002

LLIFE-TRACK-LIN-ERCODALI-HVGRAL9002

LLIFE-TRACK-LIN-ERCODALI-D2RAL9011

LLIFE-TRACK-LIN-ERCODALI-HVGRAL9011

Charging Method Intelligent current limited constand voltage

LLIFE-TRACK-LIN-ERCODALIRAL9006

LLIFE-TRACK-LIN-ERCODALI-D2RAL9006

LLIFE-TRACK-LIN-ERCODALIHVG-RAL9006

Ingress Protection Rating (IP)

# Custom adapters and colours are available for other track types and brands - contact Clevertronics for details and compatibility.

CIRCULAR & BULKHEADS

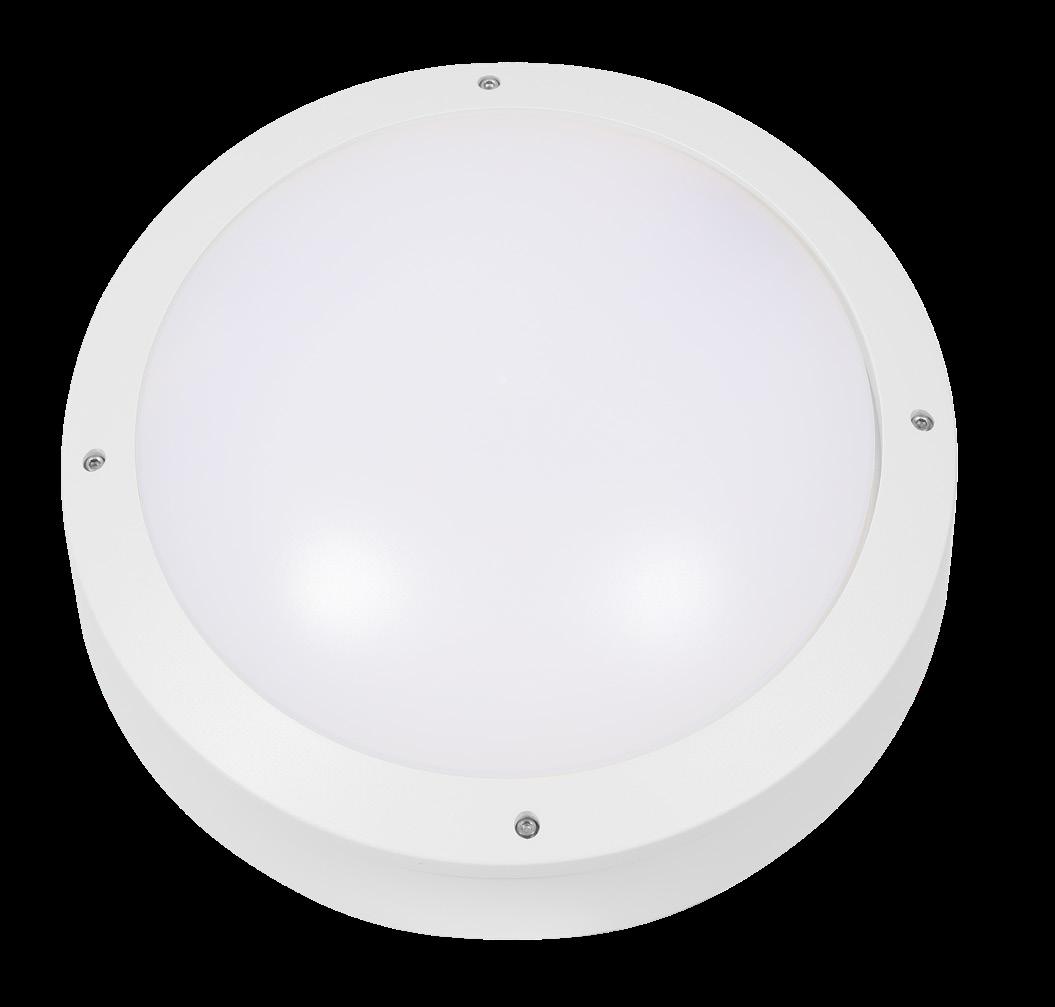

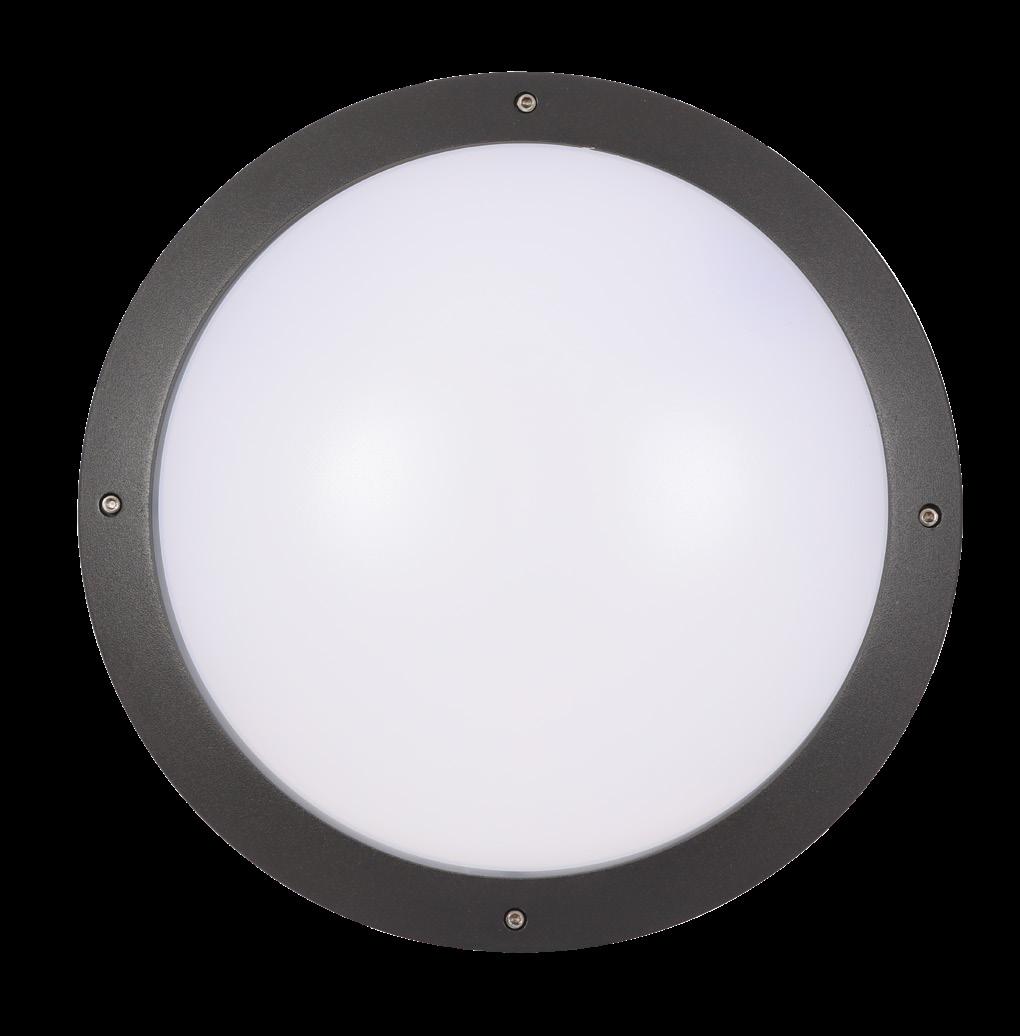

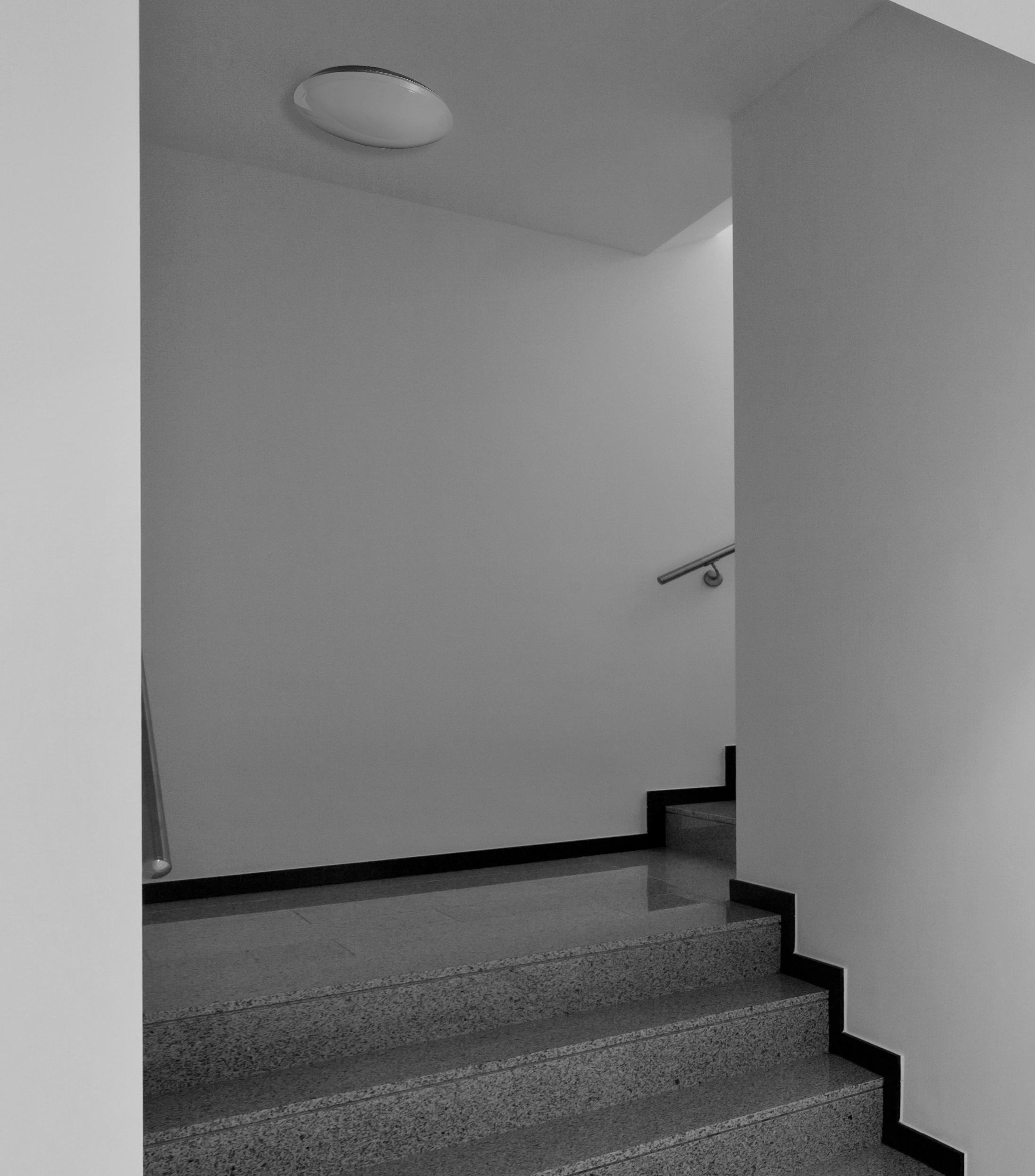

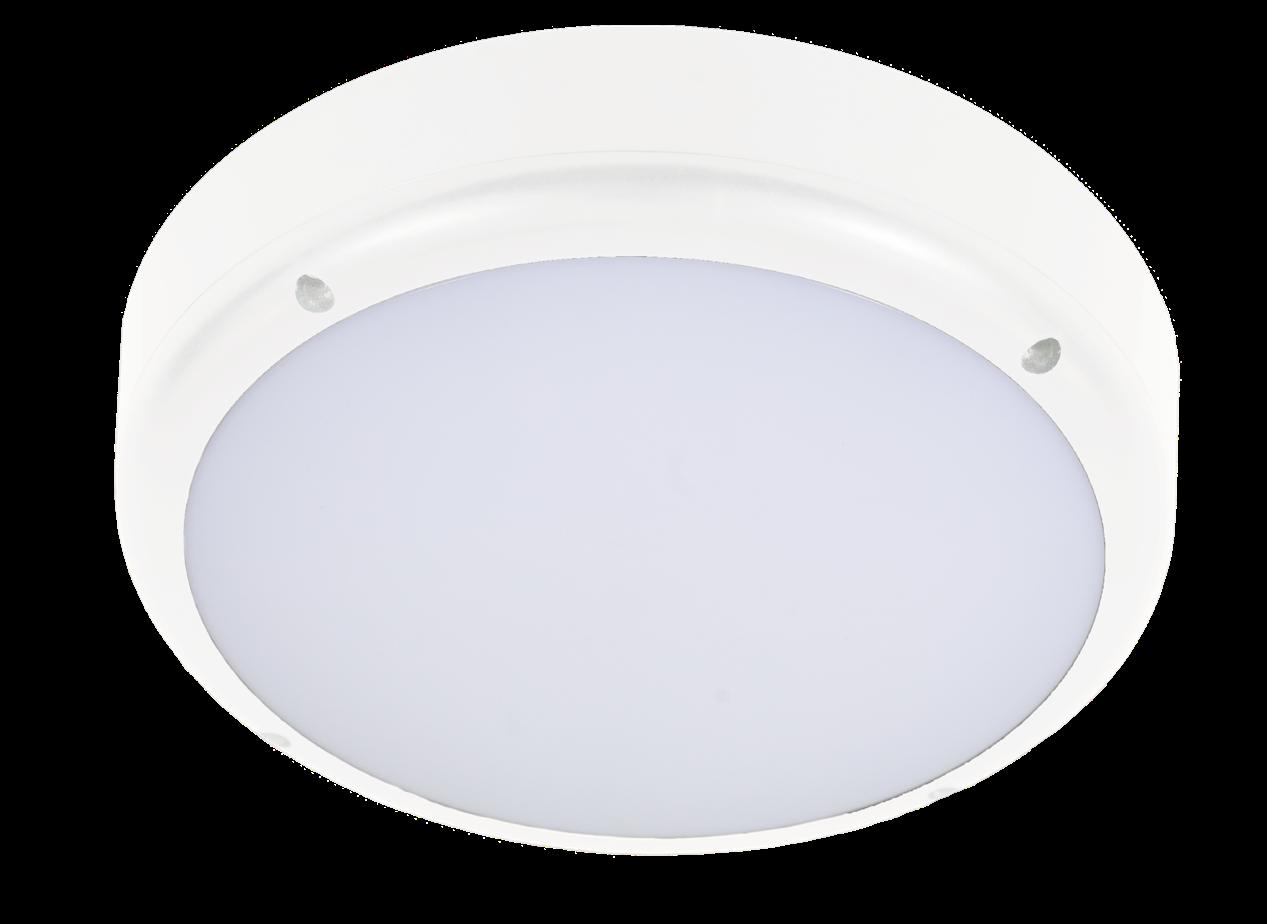

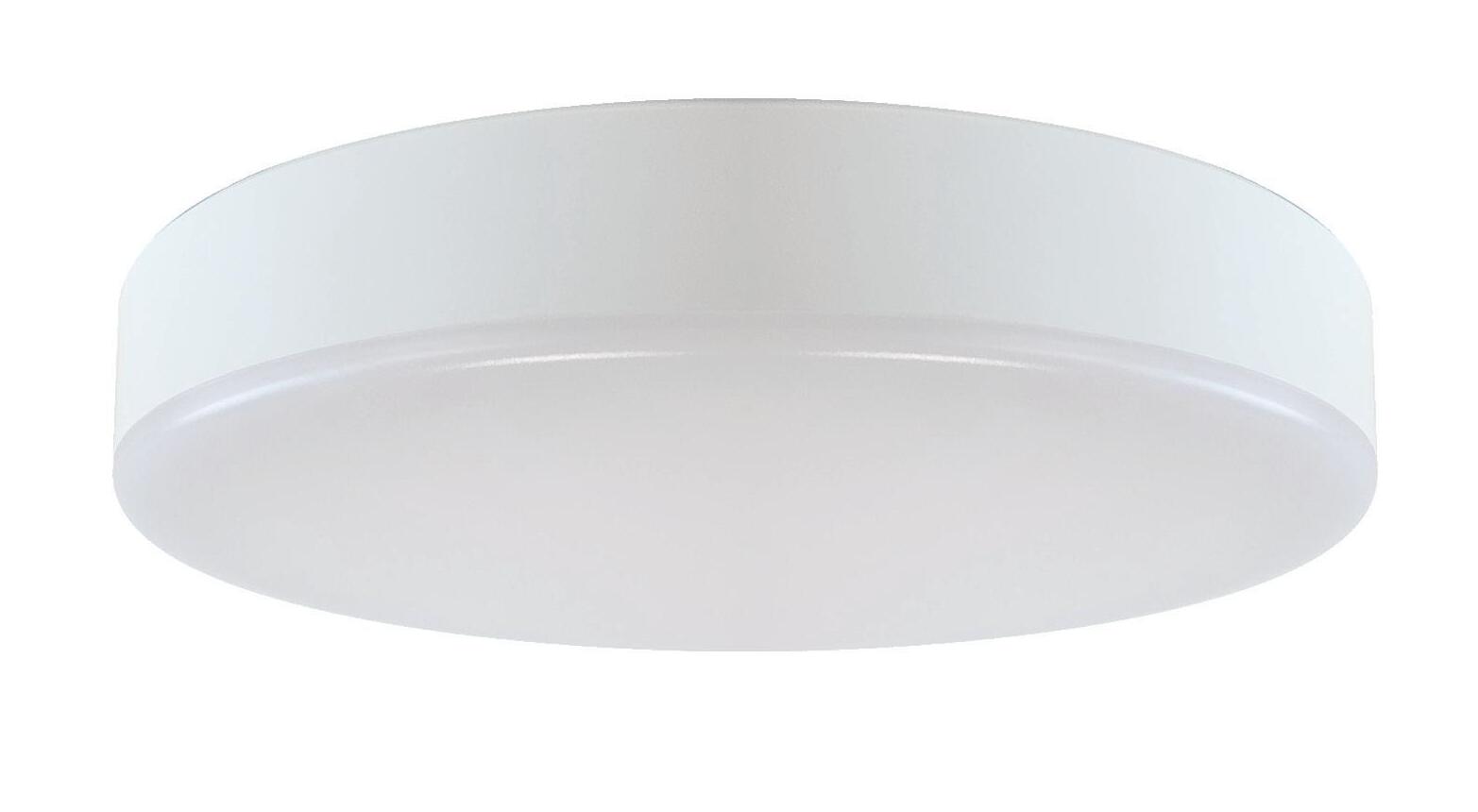

CIRCLITE EMERGENCY LIGHT

Circular Emergency light

The Circlite luminaire’s new style delivers an optimal solution for areas requiring both general and emergency lighting including corridors, stairwells, and walkways.

The new sleek housing features efficient colour select LED’s, large terminal block, optional microwave motion sensor, and robust IP20 polycarbonate construction for wall or ceiling mount application. The self-contained emergency model includes options for both standalone and networked monitoring.

Applications

Tested to BS EN 60598-2-22

Switchable colour (3000K / 4000K / 5700K)

Switchable output (varies by model)

Lumen Efficiency 112lm/W

Clevertronics Stallion Driver

Large Terminal Block

Microwave sensor

CIRCLITE EMERGENCY LIGHT

ORDERING INFORMATION

Standard

Motion Sensor

DALI Driver

EMERGENCY (CLP)

CIRC-LP

CIRC-SEN-LP

CIRC-DD-LP

Clevertest Plus System Compatible Yes

DALI*

Zoneworks® HIVE

MAINS

CIRC

CIRC-SEN

CIRC-DD

CIRC-LP-D2

CIRC-LP-HVG

Carton Quantity 1

Weight - Single (Carton)

Dimensions (Diameter x Height) 350mm x 81mm

* For motion sensor version add -SEN to the product code as per the following example: CIRC-SEN-LP-D2

EMERGENCY (CLP)

TECNICAL SPECIFICATIONS

Construction - Base UV Stabilsed Polycarbonate

Construction - Diffuser UV Stabilsed Polycarbonate

Voltage (V) Frequency (Hz)

Power Consumption (Standby / Max)

MAINS

220-240V (50Hz)

(See Table on next Page)

Lamp Dual LED Module

Lamp(s) (CCT/Life)

Nominal Lumen Output

3000K Warm White, 4000K Natural White, 5700K Cool White, (CRI) Ra>80

L70/B50 Ta 40ºC; LM80 Report >54,000hr, Projected 166,000hrs

L70/B50 Ta 25ºC; LM80 Report >54,000hr, Projected 166,000hrs

L80/B20 Ta 40ºC; LM80 Report >54,000hr, Projected 94,000hrs

L90/B10 Ta 40ºC; LM80 Report 43,000hr, Projected 43,000hrs

(See Table on next Page)

Operating Temperature 0ºc to 40ºc

Ingress Protection Rating (IP) IP20

EMERGENCY SPECIFICATIONS

EMERGENCY (CLP)

Operating Mode Sustained

Battery Type Lithium

CIRCLITE EMERGENCY LIGHT

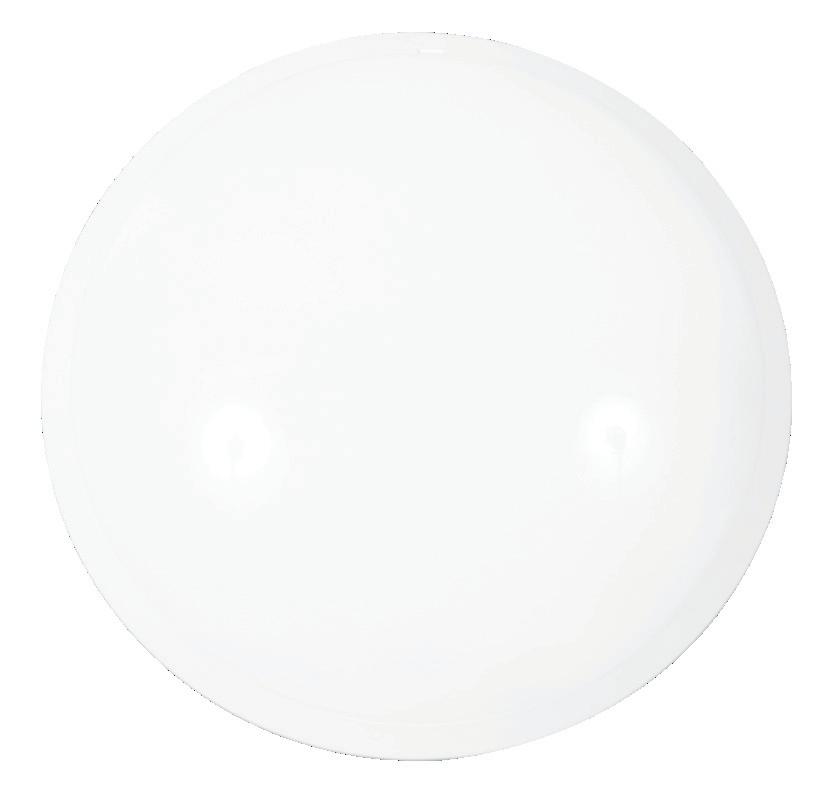

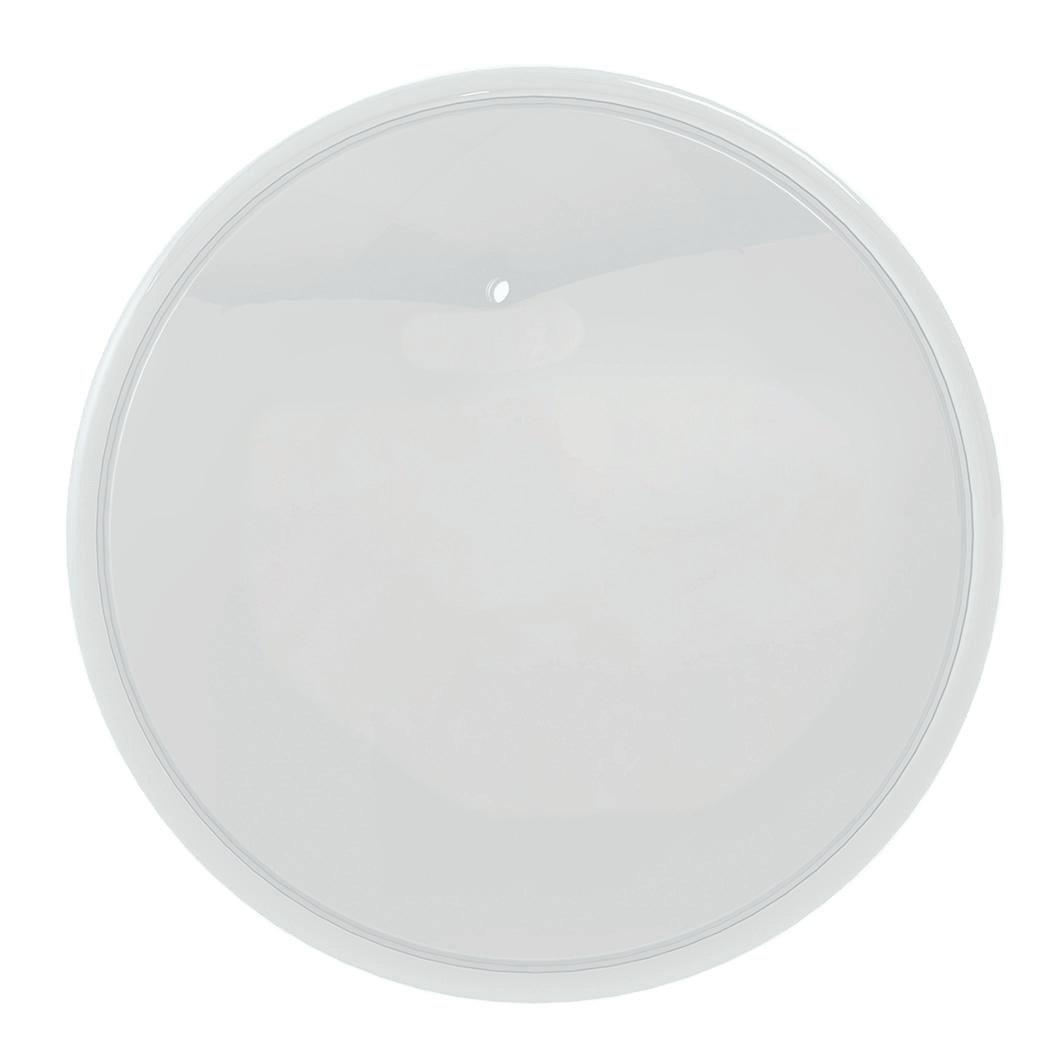

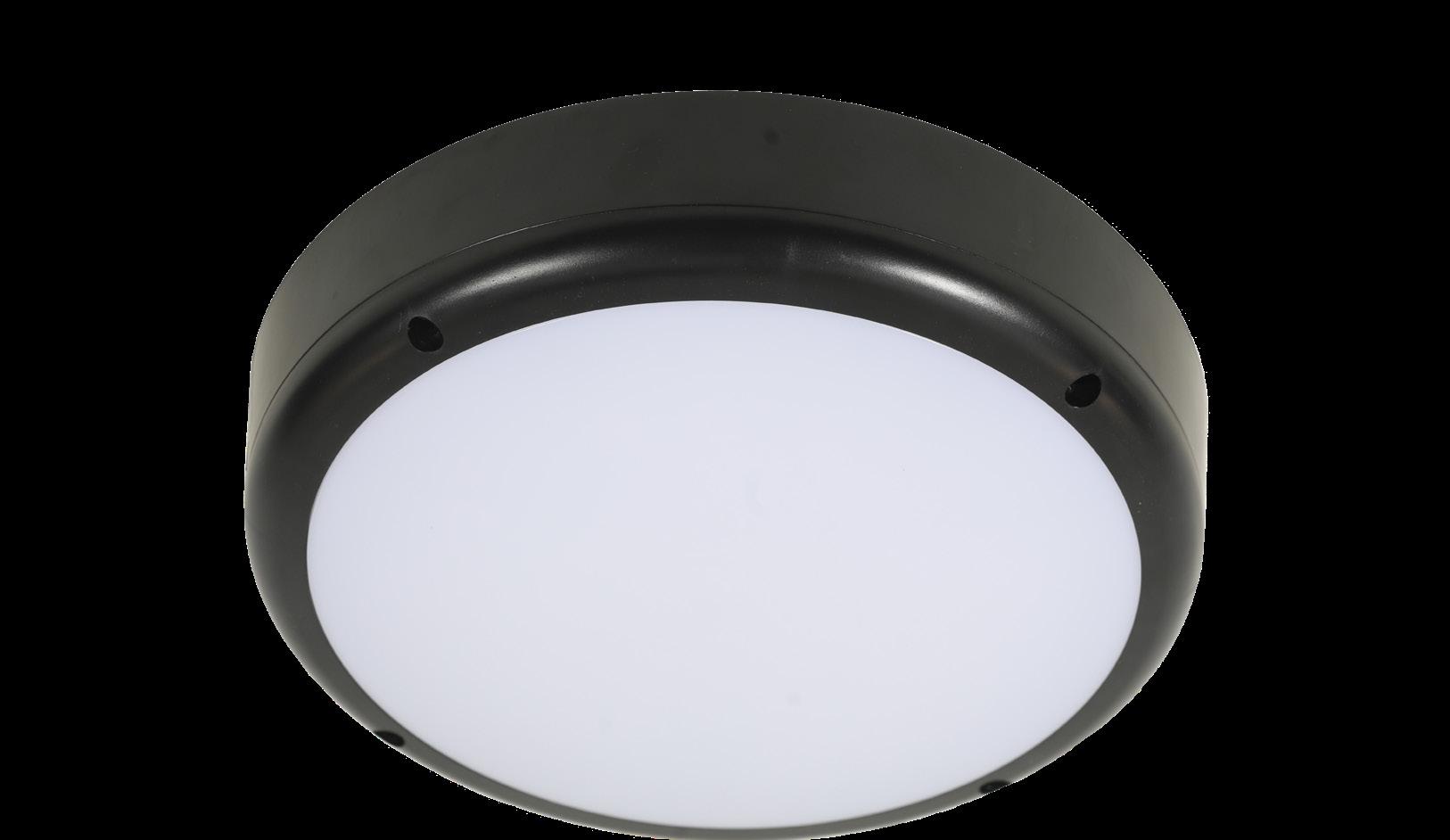

CIRCLITE PRO

Pro Circular Emergency Light

Circlite Pro is a slim, surface-mounted circular emergency luminaire designed for reliable performance in corridors, amenities and general circulation spaces. Its clean, modern profile pairs with a high-quality LED system to deliver smooth illumination and consistent efficiency.

Built with durable materials for long-term use, Circlite Pro incorporates L10 Nanophosphate battery technology to extend service life, reduce maintenance and support a 10-year warrantymaking it a dependable choice for commercial environments requiring robust emergency lighting.

Applications

• Tested to BS EN 60598-2-22 • Switchable colour (3000K / 4000K / 5700K)

Lumen Efficiency 112lm/W

Microwave sensor options available

CIRCLITE PRO

ORDERING INFORMATION L10

Standard - White

Standard - Black

Motion Sensor

DALI-2 Driver

Clevertest Plus System Compatible

DALI-2 Emergency*

Zoneworks® HIVE*

CIRCPRO-L10-WHT

CIRCPRO-L10-BLK

CIRCPRO-SEN-L10-WHT

CIRCPRO-DD-L10-WHT

Yes

CIRCPRO-L10-D2-WHT

CIRCPRO-L10-HVG-WHT

Carton Quantity 5

STANDARD

CIRCPRO-WHT

CIRCPRO-BLK

CIRCPRO-SEN-WHT

CIRCPRO-DD-WHT

Weight - Single (Carton) 1.6kg 1.2kg

Dimensions (Diameter x H)

350mm x 81mm

* For motion sensor version add -SEN to the product code as per following example: CIRCPRO-SEN-L10-D2-WHT, or DALI Driver: CIRCPRO-DD-L10-D2-WHT. For Black variants, replace WHT with BLK

TECHNICAL SPECIFICATIONS

Construction - Base UV Stabilsed Polycarbonate

Construction - Diffuser UV Stabilsed Polycarbonate

Voltage (V) Frequency (Hz) 220-240V (50Hz)

Power Consumption (Standby / LampOn)

(See Table on next Page) Lamp Dual LED Module

Lamp(s) (CCT/Life)

Nominal Lumen Output

3000K Warm White, 5700K Cool White, (CRI) Ra>80

L70/B50 Ta 40ºC; LM80 Report >54,000hr, Projected 166,000hrs

L80/B20 Ta 40ºC; LM80 Report >54,000hr, Projected 94,000hrs

L90/B10 Ta 40ºC; LM80 Report 43,000hr, Projected 43,000hrs"

(See Table on next Page)

Operating Temperature 0ºc to 40ºc

Ingress Protection Rating (IP) IP20

L10

EMERGENCY SPECIFICATIONS

Operating Mode Sustained

Battery Type Lithium Nanophosphate

Voltage (V) / Capacity (mAh) 3.3V / 7500mAh

Charging Method Intelligent current limited constant voltage

L10

LUMINAIRE CLASSIFICATION

Without Automatic Testing X 2 A 180 With Automatic Testing X 2 AF 180

CIRCLITE PRO

SENSOR / NO DALI DRIVER

(Anti-panic) Areas 0.5 Lux min. within core area Luminaires arranged in a regular array Axial Spacing Transverse Spacing Axial to Wall Transverse to Wall

CIRCLITE PRO

NO SENSOR / NO DALI DRIVER

*Warranty information located at: https://clevertronics.co.uk/clevertronics-uk-warranty-statement

The product details described in this document are current as at the version date of the

(Specifications) as

clevertronics.co.uk

806 Oxford Avenue, Slough Trading Estate, SL1 4LN

Clevertronics International UK Ltd trading as Clevertronics, with registered number 11249539, whose registered office is at 843 Finchley Road London NW11 8NA. _UK Circlite Pro JAN26

Pro High Lumen Circular Emergency Light

The Disc Pro is a sleek, surface mounted circular emergency luminaire designed for corridors, stairwells and public circulation spaces. Built on a strong spun metal base with a UV stabilised opal diffuser, it delivers smooth, uniform illumination while meeting BS EN 60598 2 22 compliance requirements.

Powered by Clevertronics L10 Lithium Nanophosphate technology, Disc Pro offers exceptional reliability, extended service life and a 10 year warranty, signiﬁcantly reducing maintenance costs. Its high performance LED system provides strong lumen output and long term stability within a compact IP20 housing.

Applications

Ofﬁce Buildings

Features and Beneﬁts

• Tested to BS EN 60598-2-22

• High lumen output

• Lithium Nanophosphate® battery

ORDERING INFORMATION

Standard - White

Motion Sensor

DALI-2 Driver

DISCPRO-L10

DISCPRO-SEN-L10

DISCPRO-DD-L10

DISCPRO

DISCPRO-SEN

DISCPRO-DD

Clevertest Plus System Compatible Yes -

DALI-2 Emergency*

Zoneworks® HIVE*

DISCPRO-L10-D2

DISCPRO-L10-HVG

* For motion sensor version add -SEN to the product code as per following example: DISCPRO-SEN-L10-D2, or DALI Driver: DISCPRO-DD-L10-D2

TECHNICAL SPECIFICATIONS

Construction - Body Metal

Construction - LED Cover Polycarbonate Voltage (V)

L70/B50 Ta 40ºC; Reported >54,000hr, Projected 166,000hrs

L80/B20 Ta 40ºC; Reported >54,000hr, Projected 94,000hrs L90/B10 Ta 40ºC; Reported 43,000hr, Projected 43,000hrs

Total Lumen Output 3298lm

Operating Temperature 0ºc to 40ºc

Ingress Protection Rating (IP) IP20

EMERGENCY SPECIFICATIONS

Operating Mode Sustained

Battery Type Lithium Nanophosphate Voltage (V) / Capacity (mAh) 3.3V / 5000mAh

Charging Method Intelligent current limited constant voltage

LUMINAIRE CLASSIFICATION

Dimensions (mm)

*Warranty information located at: https://clevertronics.co.uk/clevertronics-uk-warranty-statement The product details described in this document are current as at the version date of the document. We reserve the right to change product design, specifications or materials (Specifications) as part of our continuous improvement program. Please confirm the applicable Specifications at the time of placing your order.

clevertronics.co.uk

806 Oxford Avenue, Slough Trading Estate, SL1 4LN

Clevertronics International UK Ltd trading as Clevertronics, with registered number 11249539, whose registered office is at 843 Finchley Road London NW11 8NA. _UK Disc Pro Jan26

ARGO CIRCULAR

The Argo Circular is a durable and versatile emergency lighting solution designed for outdoor applications, featuring switchable colour and output, it offers ﬂexibility to suit various environment.

With IP65 ingress protection and IK08 impact resistance, the Argo Circular ensures reliability in harsh conditions.

ARGO CIRCULAR

ORDERING INFORMATION

Standard - White

Standard - Black

Motion Sensor

EMERGENCY (CLP)

ARGOCIRC-LP

ARGOCIRC-LP-BLK

ARGOCIRC-SEN-LP

Clevertest Plus System Compatible Yes

DALI*

Zoneworks® HIVE*

STANDARD

ARGOCIRC

ARGOCIRC-BLK

ARGOCIRC-SEN

ARGOCIRC-LP-D2

ARGOCIRC-LP-HVG

Carton Quantity 5

Weight - Single (Carton)

Dimensions (Diameter x Height)

* For motion sensor version add -SEN to the product code as per the following example: ARGOCIRC-SEN-LP-D2

330mm x 84mm

EMERGENCY (CLP) STANDARD

TECHNICAL SPECIFICATIONS

Construction - Base UV Stabilsed Polycarbonate

Construction - Diffuser UV Stabilsed Polycarbonate

Voltage (V) Frequency (Hz)

220-240V (50Hz)

Power Consumption (Standby / Max) (See Table on next Page)

Lamp Dual LED Panel

Luminaire CCT

Lamp Projected Life (Ta40ºC)

Lamp Projected Life (Ta25ºC)

Switchable Colour: 3000K Warm White, 4000K Natural White, 5700K Cool White, (CRI) Ra>80

Ta40ºC; >270,000hr (L70/B50), >100,000hr (L80/B20), 43,000hr (L90/B10)

Ta25ºC; >270,000hr (L70/B50), >100,000hr (L80/B20), 43,000hr (L90/B10)

Nominal Lumen Output (See Table on next Page)

Operating Temperature 0ºc to 40ºc

Ingress Protection Rating (IP) IP65 Impact Rating (IK) IK08

EMERGENCY SPECIFICATIONS

Operating Mode Sustained

Battery

CEILING

ARGO CIRCULAR

SENSOR / DALI DRIVER

ARGO CIRCULAR

information located at: https://clevertronics.co.uk/clevertronics-uk-warranty-statement

ARGO CIRCULAR PRO

Pro Weatherproof Circular Emergency Light

Argo Circular Pro is a durable, weather-resistant circular emergency luminaire designed for medium to large open spaces, public amenities and architectural environments. Its high-performance optical system ensures dependable illumination even in demanding conditions, supported by an IP-rated enclosure for outdoor suitability.

Enhanced with L10 Nanophosphate battery technology, Argo Circular Pro delivers extended life, lower maintenance demands and a 10-year warranty — making it a reliable long-term solution for both indoor and outdoor emergency applications.

Tested to BS EN 60598-2-22

Switchable Colour (3000K / 4000K / 5700K)

IP65 Ingress Protection

IK08 Impact Rating

Class II double insulated

Lithium Nanophosphate battery

ARGO CIRCULAR PRO

ORDERING INFORMATION

Standard - White

Standard - Black

Motion Sensor

DALI-2 Driver

ARGOCIRCPRO-L10-WHT

ARGOCIRCPRO-L10-BLK

ARGOCIRCPRO-SEN-L10-WHT

ARGOCIRCPRO-DD-L10-WHT

Clevertest Plus System Compatible Yes

DALI-2 Emergency*

Zoneworks® HIVE*

ARGOCIRCPRO-WHT

ARGOCIRCPRO-BLK

ARGOCIRCPRO-SEN-WHT

ARGOCIRCPRO-DD-WHT

ARGOCIRCPRO-L10-D2-WHT

ARGOCIRCPRO-L10-HVG-WHT

Carton Quantity 5

Weight - Single (Carton)

Dimensions (Diameter x H) 330mm x 84mm

* For motion sensor version add -SEN to the product code as per following example: ARGOCIRCPRO-SEN-L10-D2-WHT, or DALI Driver: ARGOCIRCPRO-DD-L10-D2-WHT. For Black variants, replace WHT with BLK

TECHNICAL SPECIFICATIONS

Construction - Body UV Stablised

Construction - LED Cover UV Stablised

Voltage (V) Frequency (Hz) 220-240V (50Hz)

Power Consumption (Standby / Lamp On)

Lamp

(See Table on next page)

3000K Warm White, 5700K Cool White, (CRI) Ra>80

L70/B50 Ta 40ºC; LM80 Report >102,000hr, Projected 270,000hrs

L80/B20 Ta 40ºC; LM80 Report >100,000hr, Projected 100,000hrs

L90/B10 Ta 40ºC; LM80 Report 43,000hr, Projected 43,000hrs"

Total Lumen Output (See Table on next Page)

Operating Temperature 0ºc to 40ºc

Ingress Protection Rating (IP) IP65

EMERGENCY SPECIFICATIONS

Operating Mode Sustained

Battery Type Lithium Nanophosphate

Voltage (V) / Capacity (mAh) 3.3V / 5000mAh

Charging Method Intelligent current limited constant voltage

LUMINAIRE CLASSIFICATION

ARGO CIRCULAR PRO

*Warranty information located at: https://clevertronics.co.uk/clevertronics-uk-warranty-statement The product details described in this document are current as at the version date of the

(Specifications)

clevertronics.co.uk

806 Oxford Avenue, Slough Trading Estate SL1 4LN Clevertronics International UK Ltd trading as Clevertronics, with registered number 11249539, whose registered office is at 843 Finchley Road London NW11 8NA. _UK ARGO Circular Pro JAN26 Dimensions (mm)

ARGONAUT BUNKALITE

The Argonaut Bunkalite is an IP65 rated emergency luminaire that is ideal for outdoor covered applications such as corridors, stairwells and walkways in schools and apartment blocks.

Market leading lithium battery technology provides lower maintenance costs and LED lamps provide a low standby power rating that will reduce energy costs significantly.

Constructed with a powder coated die-cast aluminium body and white opal polycarbonate diffuser the Bunkalite provides a decorative solution for both industrial and commercial use.

Tested to BS EN 60598-2-22

IP65 Ingress Protection

IK08 Impact Rating

LED lamps

ARGONAUT BUNKALITE

ORDERING INFORMATION

Standard - White

Standard - Black

Motion Sensor

DALI Driver

CBKLEDS-WHT

CBKLEDS-BLK

CBKLEDS-MS-WHT

CBKLEDS-DD-WHT

FBKLED-WHT

FBKLED-BLK

FBKLED-MS-WHT

FBKLED-DD-WHT

Clevertest Plus System Compatible YesDALI

CBKLEDS-D2-WHTZoneworks® HIVE

CBKLEDS-HVG-WHT

Carton Quantity 1

Weight - Single (Carton) 4.5kg

Dimensions (D x H) 360mm x 145mm

* For motion sensor version add -SEN to the product code as per following example: CBKLEDS-SEN-D2-WHT, or DALI Driver: CBKLEDS-DD-D2-WHT

For Black variants, replace WHT with BLK POWER, LAMPS AND BATTERY

Power Consumption (Standby / Max)

Charging Method Intelligent Current Limited Constant Voltage

Operating Mode

Voltage (V) (Frequency (Hz))

Operating Temperature

(50Hz)

to 40˚C

Ingress Protection Rating (IP) IP65

Impact Rating (IK)

ARGONAUT BUNKALITE PRO

Argonaut Bunkalite Pro is a tough, wide-area emergency luminaire engineered for harsh industrial and outdoor environments including tunnels, plant rooms, car parks and service corridors. Its rugged construction ensures high durability, while the LED system provides consistent, broad illumination.

Upgraded with L10 Nanophosphate battery technology, the Bunkalite Pro offers exceptional lifetime performance, reduced maintenance cycles and the assurance of a 10-year warranty — ideal for facilities requiring dependable, heavy-duty emergency lighting.

Tested to BS EN 60598-2-22

IP65 Ingress Protection

IK10 Impact Rating

LED lamps

Power coated die-cast aluminium body

Available in black and white

Lithium Nanophosphate battery

Microwave sensor option

Optional Eyelid included

ARGONAUT BUNKALITE PRO

ORDERING INFORMATION

Standard - White

Standard - Black

Motion Sensor

DALI-2 Driver

L10

ARGOBUNKPRO-L10-WHT

ARGOBUNKPRO-L10-BLK

ARGOBUNKPRO-SEN-L10-WHT

ARGOBUNKPRO-DD-L10-WHT

MAINS

ARGOBUNKPRO-WHT

ARGOBUNKPRO-BLK

ARGOBUNKPRO-SEN-WHT

ARGOBUNKPRO-DD-WHT

Clevertest Plus System Compatible Yes -

DALI-2 Emergency*

Zoneworks® HIVE

ARGOBUNKPRO-L10-D2-WHT -

ARGOBUNKPRO-L10-HVG-WHT -

Carton Quantity 3

Dimensions (D x H)

* For motion sensor version add -SEN to the product code as per following example: ARGOBUNKPRO-SEN-L10-D2-WHT, or DALI Driver: ARGOBUNKPRO-DD-L10-D2-WHT. For Black variants, replace WHT with BLK

TECHNICAL SPECIFICATIONS

4000K Cool White, (CRI) Ra>80

L70/B50 Ta 40ºC; Reported >102,000hr, Projected 270,000hrs

L80/B20 Ta 40ºC; Reported >100,000hr, Projected 100,000hrs

L90/B10 Ta 40ºC; Reported 43,000hr, Projected 43,000hrs"

Total Lumen Output 1945lm

Operating Temperature 0ºc to 40ºc

Ingress Protection Rating (IP) IP65

Impact Rating (IK) IK10

information

(Specifications) as part of our

ARGONAUT SQUARE

The Argonaut Square is an IP65 and IK10 rated luminaire that is ideal for applications such as car parks, corridors, stairwells and walkways.

Market leading lithium battery technology provides lower maintenance costs and LED lamps combined with high/low sensors provides an opportunity to reduce energy costs significantly.

Constructed with a die cast aluminium body and polycarbonate diffuser the Argonaut Square provides a robust and decorative emergency lighting solution.

ARGONAUT SQUARE

ORDERING INFORMATION

Standard - White

Motion Sensor

DALI Driver

ARGOSQ-LP

ARGOSQ-SEN-LP

ARGOSQ-DD-LP

Clevertest Plus System Compatible Yes

DALI*

Zoneworks® HIVE

Carton Quantity

Weight - single (carton)

Dimensions (L x W x H)

ARGOSQ

ARGOSQ-SEN

ARGOSQ-DD

ARGOSQ-LP-D2

ARGOSQ-LP-HVG

321mm x 321mm x 97mm

* For motion sensor version add -SEN to the product code as per following example: ARGOSQ-SEN-LP-D2, or DALI Driver: ARGOSQ-DD-LP-D2

TECHNICAL SPECIFICATIONS

Construction - Base

Die-cast Aluminium

Construction - Diffuser UV Stabilsed Polycarbonate

Voltage (V) Frequency (Hz) 220-240V (50Hz)

"4000K Cool White, (CRI) Ra>80

L70/B50 Ta 40ºC; Reported >60,000hr, Projected 205,000hrs

Lamp(s) (CCT/Life)

L80/B20 Ta 40ºC; Reported >60,000hr, Projected 100,000hrs

L90/B10 Ta 40ºC; Reported 43,000hr, Projected 43,000hrs" Nominal

Operating Temperature 0ºc to 40ºc

Ingress Protection Rating (IP) IP65

Impact Rating (IK) IK10

EMERGENCY SPECIFICATIONS

Operating Mode Sustained

Battery Type Lithium Iron Phosphate

*Based on 3.3m high passageway - 2.5m wide

*Warranty information located at: https://clevertronics.co.uk/clevertronics-uk-warranty-statement

The product details described in this document are current as at the version date of the document. We reserve the right to change product design, specifications or materials (Specifications) as part of our continuous improvement program. Please confirm the applicable Specifications at the time of placing your order.

ARGONAUT SQUARE PRO

Pro Square LED Emergency Light

Argonaut Square Pro is a resilient IP65 and IK10-rated emergency luminaire designed for car parks, stairwells, corridors and exposed outdoor areas. Its square die-cast construction and polycarbonate diffuser ensure durability and strong visual performance across a range of applications. Equipped with L10 Nanophosphate battery technology, it delivers long operating life, dependable emergency readiness and minimal maintenance requirements.

Backed by a 10-year warranty, Argonaut Square Pro provides a robust and long-lasting lighting solution for demanding environments.

• Tested to BS EN 60598-2-22 • IP65 Ingress Protection

IK10 Impact Rating

Die cast aluminium body

LED lamps

Lithium Nanophosphate battery

Microwave sensor option

ARGONAUT SQUARE PRO

ORDERING INFORMATION

Standard - White

Motion Sensor

DALI-2 Driver

L10

ARGOSQPRO-L10

ARGOSQPRO-SEN-L10

ARGOSQPRO-DD-L10

MAINS

ARGOSQPRO

ARGOSQPRO-SEN

ARGOSQPRO-DD

Clevertest Plus System Compatible Yes -

DALI-2 Emergency*

Zoneworks® HIVE

ARGOSQPRO-L10-D2 -

ARGOSQPRO-L10-HVG -

Carton Quantity 4

Weight - single (carton) 3.5kg (14.5kg) 3.3kg (13.8kg)

321mm x 321mm x 97mm

Dimensions (L x W x H)

* For motion sensor version add -SEN to the product code as per following example: ARGOSQPRO-SEN-L10-D2, or DALI Driver: ARGOSQPRO-DD-L10-D2

TECHNICAL SPECIFICATIONS

Construction - Base Die-cast Aluminium

Construction - Diffuser UV Stabilsed Polycarbonate

Voltage (V) Frequency (Hz) 220-240V (50Hz)

Power Consumption (Standby / Max)

Lamp(s) (CCT/Life)

4000K Cool White, (CRI) Ra>80

L70/B50 Ta 40ºC; Reported >60,000hr, Projected 205,000hrs

L80/B20 Ta 40ºC; Reported >60,000hr, Projected 100,000hrs

L90/B10 Ta 40ºC; Reported 43,000hr, Projected 43,000hrs

Operating Temperature 0ºc to 40ºc

Ingress Protection Rating (IP) IP65

Impact Rating (IK) IK10

EMERGENCY SPECIFICATIONS L10

Operating Mode Sustained

Battery Type Lithium Nanophosphate

Voltage (V) / Capacity (mAh) 3.3V / 7500mAh

Charging Method Intelligent current limited constant voltage

*Warranty information located at: https://clevertronics.co.uk/clevertronics-uk-warranty-statement

The product details described in this document are current as at the version date of the document. We reserve the right to change product design, specifications or materials (Specifications) as part of our continuous improvement program. Please confirm the applicable Specifications at the time of placing your order.

ARGONAUT WALL

External Wall Mount Emergency Light

Crafted from die-cast aluminium housing and an emergency classification of up to D125, the Argonaut Wall luminaire is meticulously engineered to light up external egress paths. Equipped with a daylight sensor, they will automatically turn on or off depending on the ambient light levels, ensuring optimal visibility and safety.

IP65 Ingress Protection

Lithium Iron Phosphate battery

ARGONAUT WALL

ORDERING INFORMATION

Standard - White

DALI Driver

EMERGENCY (LP)

ARGOWALL-LP

ARGOWALL-DD-LP

Clevertest Plus System Compatible Yes

DALI

Zoneworks ® HIVE

Carton Quantity

Weight - Single (Carton)

Dimensions (W x H x D)

TECNICAL SPECIFICATIONS

Construction - Body

Construction - LED Cover

Voltage (V) Frequency (Hz)

ARGOWALL

ARGOWALL-DD

ARGOWALL-LP-D2

ARGOWALL-LP-HVG

(LP)

/ 15.7W

Total Lumen Output 1646lm

Operating Temperature

Ingress Protection Rating (IP)

Impact Rating (IK)

Sensor

LUMINAIRE CLASSIFICATION

(CLP)

EMERGENCY SPECIFICATIONS EMERGENCY (CLP)

Operating

MOUNTING HEIGHT (M)

ARGONAUT WALL PRO

Pro External Wall Mount Emergency Light

Argonaut Wall Pro is a durable wall-mounted emergency luminaire built for external access ways, building perimeters and service corridors. Its sturdy construction and efficient LED system provide reliable illumination in outdoor or semi-exposed locations.

Incorporating L10 Nanophosphate battery technology, Argonaut Wall Pro offers extended emergency performance, reduced service needs and the confidence of a 10-year warranty — making it a low-maintenance, long-life solution for modern commercial facilities.

ARGONAUT WALL PRO

ORDERING INFORMATION

Standard - Black

Motion Sensor

DALI-2 Driver

EMERGENCY (L10)

ARGOWALLPRO-WW-L10-BLK

MAINS

ARGOWALLPRO-WW-BLK

Integrated photocell for automatic on/off operation depending on ambient light levels

ARGOWALLPRO-WW-DD-L10-BLK

ARGOWALLPRO-WW-DD-BLK

Clevertest Plus System Compatible Yes -

DALI-2 Emergency*

Zoneworks® HIVE*

ARGOWALLPRO-WW-L10-D2-BLK -

ARGOWALLPRO-WW-L10-HVG-BLK -

Carton Quantity 2

Weight - Single (Carton) 4.6kg

Dimensions (W X H X D)

TECNICAL SPECIFICATIONS

310mm x 305mm x 155mm

* For motion sensor version add -SEN to the product code as per following example: ARGOWALLPRO-SEN-L10-D2-BLK, or DALI Driver: ARGOWALLPRO-DD-L10-D2-BLK

EMERGENCY (L10)

Construction - Body Die Cast Aluminium

Construction - LED Cover Polycarbonate

Power Consumption (Standby / Lamp On)

MAINS

Voltage (V) Frequency (Hz) 220-240V (50Hz)

/ 15.8W

Lamp 3000K Warm White, (CRI) Ra>80 L70/B50 Ta 40ºC; >102,000hr

Total Lumen Output 1622lm

Operating Temperature 0ºc to 40ºc

Ingress Protection Rating (IP) IP65

Impact Rating (IK) IK10

LUMINAIRE CLASSIFICATION

Automatic Testing

Dimensions (mm) TEST

(L10)

EMERGENCY SPECIFICATIONS EMERGENCY (L10)

Operating Mode Maintained

Battery Type Lithium Nanophosphate

Voltage (V) / Capacity (mAh) 6.6V / 6400mAh

Charging Method Intelligent current limited constant voltage

(Specifications)

BULKLITE

Durable Bulkhead Luminaire

The Bulklite is a durable and weatherproof IK08 impact rated LED emergency luminaire that canbe easily conﬁgured to an exit sign using optional directional legends.

Made from UV stabilised polycarbonate and featuring efﬁcient long life LED’s and lithium battery power, the Bulklite is designed for robust wall or ceiling applications.

Features and Beneﬁts

• Tested to BS EN 60598-2-22

• Low 0.4W standby power consumption

• Wall and ceiling mount

• IP65 weatherproof

• IK08 impact protection

• Directional decals available separately

BULKLITE

Clevertest Plus System Compatible

Zoneworks® HIVE CBULK-HVG LBULK-HVG

Carton Quantity

Weight - Single (Carton)

Dimensions (L x W x H)

Directional

TECHNICAL SPECIFICATIONS

Operating

BULKLITE-DECAL-RU Down Arrow

BULKLITE-DECAL-RL Right Arrow

BULKLITE-DECAL-RR

LINEARS WEATHERPROOF

High Spec & Efﬁciency, Switchable Colour & Dual Output

The Argonaut Plus Weatherproof Linear range is designed for high spec applications requiring ultimate efﬁciency and longer LED lifetime. Featuring switchable colour and dual output, they adapt to your application requirements with the ﬂick of a switch.

Backed by Clevertronics support, service and warranty, the Linear range is available as a Mains or Emergency CLP with monitoring capabilities including Zoneworks HIVE, DALI and CTP.

Features and Beneﬁts

• Tested to BS EN 60598-2-22

• High efﬁciency @ 137 lm/W*

• Switchable Colour (3000K / 4000K / 5700K)

• Switchable Output (varies by model)

• IP65 Ingress Rating

• Long life, energy efﬁcient LED strip module

• Large terminal block for easy installation

• Lithium Iron Phosphate

ARGONAUT PLUS WEATHERPROOF LINEAR 600MM

ORDERING INFORMATION

Nominal

Standard

DALI Driver

Motion Sensors

EMERGENCY (CLP) MAINS

ARGOPLUS-600-LP

ARGOPLUS-600-DD-LP

ARGOPLUS-600-SEN-LP

CTP System Compatible Yes

DALI*

Zoneworks HIVE*

ARGOPLUS-600

ARGOPLUS-600-DD

ARGOPLUS-600-SEN

ARGOPLUS-600-LP-D2 -

ARGOPLUS-600-LP-HVG

Carton Quantity 1

Dimensions ( L X W X H)

x 160mm x 105mm

* For motion sensors add -SEN to the product code as per following example: ARGOPLUS-600-SEN-LP-D2

TECHNICAL SPECIFICATIONS

x 160mm x 105mm

EMERGENCY (CLP) MAINS

Construction - Base UV Stabilised Polycarbonate

Construction - Diffuser UV Stabilised Polycarbonate

Voltage (V) (Frequency (Hz))

220-240V (50Hz)

Lamp ◆ LED Strip Module

Luminaire CCT 3000K, 4000K, 5700K Switchable

Lamp Projected Life

Ra>80 Ta400c; 157,000hrs (L70/B50), 95,000hrs (L80/B20), 43,000hrs (L90/B10)

Power Consumption & Light Output (See Table on Next Page)

Ingress Protection Rating (IP) IP65

Impact Rating (IK) IK08

◆ Please refer to the speciﬁc product data sheet for actual power, light output, lamp lifetime and driver values.

EMERGENCY SPECIFICATIONS

EMERGENCY (CLP)

Operating Mode Sustained

Battery Type Lithium Iron Phosphate

Voltage (V) / Capacity (mAh)

3.2V / 6400mAh

Charging Method Intelligent Current Limited Constant Voltage

LUMINAIRE CLASSIFICATION

EMERGENCY (CLP)

Without Automatic Testing X 2 AD 180

With Automatic Testing X 2 ADF 180

ARGONAUT PLUS WEATHERPROOF LINEAR 600MM

COLOUR

ORDERING INFORMATION

Nominal

Standard

DALI Driver

EMERGENCY (CLP) MAINS

ARGOPLUS-1200-LP

ARGOPLUS-1200-DD-LP

ARGOPLUS-1200

ARGOPLUS-1200-DD Motion Sensors

ARGOPLUS-1200-SEN

ARGOPLUS-1200-SEN-LP

CTP System Compatible Yes

DALI*

Zoneworks HIVE*

ARGOPLUS-1200-LP-D2

ARGOPLUS-1200-LP-HVG

Carton Quantity 1

Dimensions ( L X W X H)

x 160mm x 105mm

* For motion sensors add -SEN to the product code as per following example: ARGOPLUS-1200-SEN-LP-D2

TECHNICAL SPECIFICATIONS

x 160mm x 105mm

EMERGENCY (CLP) MAINS

Construction - Base UV Stabilised Polycarbonate

Construction - Diffuser UV Stabilised Polycarbonate

Voltage (V) (Frequency (Hz)) 220-240V (50Hz)

Lamp ◆ LED Strip Module

Luminaire CCT 3000K, 4000K, 5700K Switchable

Lamp Projected Life Ra>80 Ta400c; 157,000hrs (L70/B50), 95,000hrs (L80/B20), 43,000hrs (L90/B10)

Power Consumption & Light Output (See Table on Next Page)

Ingress Protection Rating (IP) IP65

Impact Rating (IK) IK08

◆ Please refer to the speciﬁc product data sheet for actual power, light output, lamp lifetime and driver values.

EMERGENCY SPECIFICATIONS

EMERGENCY (CLP)

Operating Mode Sustained

Battery Conﬁguration Integral POD

Battery Type Lithium Iron Phosphate

Voltage (V) / Capacity (mAh) 3.2V / 6400mAh

Charging Method Intelligent Current Limited Constant Voltage

LUMINAIRE CLASSIFICATION

EMERGENCY (CLP)

Without Automatic Testing X 2 AD 180

With Automatic Testing X 2 ADF 180

ARGONAUT PLUS WEATHERPROOF LINEAR 1500MM

ORDERING INFORMATION

Nominal

Standard

DALI Driver

Motion Sensors

EMERGENCY (CLP)

ARGOPLUS-1500-LP

ARGOPLUS-1500-DD-LP

ARGOPLUS-1500-SEN-LP

CTP System Compatible Yes

DALI*

Zoneworks HIVE*

Carton

Dimensions ( L X W X H)

ARGOPLUS-1500-LP-D2

ARGOPLUS-1500-LP-HVG

x 160mm x 105mm

* For motion sensors add -SEN to the product code as per following example: ARGOPLUS-1500-SEN-LP-D2

TECHNICAL SPECIFICATIONS

EMERGENCY (CLP)

Construction - Base UV Stabilised Polycarbonate

Construction - Diffuser UV Stabilised Polycarbonate

Voltage (V) (Frequency (Hz))

220-240V (50Hz)

Lamp ◆ LED Strip Module

Luminaire CCT 3000K, 4000K, 5700K Switchable

Lamp Projected Life

ARGOPLUS-1500

ARGOPLUS-1500-DD

ARGOPLUS-1500-SEN

x 160mm x 105mm

Ra>80 Ta400c; 157,000hrs (L70/B50), 95,000hrs (L80/B20), 43,000hrs (L90/B10)

Power Consumption & Light Output (See Table on Next Page)

Ingress Protection Rating (IP) IP65

Impact Rating (IK) IK08

◆ Please refer to the speciﬁc product data sheet for actual power, light output, lamp lifetime and driver values.

EMERGENCY SPECIFICATIONS

EMERGENCY (CLP)

Operating Mode Sustained

Battery Type Lithium Iron Phosphate

Voltage (V) / Capacity (mAh)

3.2V / 6400mAh

Charging Method Intelligent Current Limited Constant Voltage

LUMINAIRE CLASSIFICATION

EMERGENCY (CLP)

Without Automatic Testing X 2 AD 180

With Automatic Testing X 2 ADF 180

ARGONAUT PLUS WEATHERPROOF LINEAR 1500MM

The Argonaut Pro Weatherproof Linear range is designed to maximise LED efficiency with the highest product performance and LED lifetime. Featuring configurable quad output, they maximise efficiency by delivering up to 152lm/W.

Backed by Clevertronics support, service and 10 year warranty, the Linear range is available as a Mains or L10 Nanophosphate with monitoring capabilities including Zoneworks HIVE, DALI and CTP.

• Tested to BS EN 60598-2-22

• Conﬁgurable quad output (varies by model)

• IP65 Ingress Rating

• Long life, energy efﬁcient LED strip module

• Large terminal block for easy installation

• Nanophosphate battery

ARGONAUT PRO WEATHERPROOF LINEAR 600MM

ULTIMATE SPEC & EFFICIENCY

ORDERING INFORMATION

Nominal Size

Standard

DALI Driver

Motion Sensors

EMERGENCY (L10) MAINS

ARGOPRO-600-L10

ARGOPRO-600-DD-L10

ARGOPRO-600-SEN-L10

ARGOPRO-600

ARGOPRO-600-DD

ARGOPRO-600-SEN

CTP System Compatible Yes -

DALI*

Zoneworks HIVE*

Carton

Dimensions ( L X W X H)

ARGOPRO-600-L10-D2

ARGOPRO-600-L10-HVG

x 160mm x 105mm

* For motion sensors add -SEN to the product code as per following example: ARGOPRO-600-SEN-L10-D2

TECHNICAL SPECIFICATIONS

x 160mm x 105mm

EMERGENCY (L10) MAINS

Construction - Base UV Stabilised Polycarbonate

Construction - Diffuser UV Stabilised Polycarbonate

Voltage (V) (Frequency (Hz)) 220-240V (50Hz)

Lamp ◆ LED Strip Module

Luminaire CCT 4000K

Lamp Projected Life

Power Consumption & Light Output

Ra>80 Ta400c; 184,000hrs (L70/B50), 100,000hrs (L80/B20), 43,000hrs (L90/B10)

(See Table on Next Page)

Ingress Protection Rating (IP) IP65

Impact Rating (IK) IK08

◆ Please refer to the speciﬁc product data sheet for actual power, light output, lamp lifetime and driver values.

EMERGENCY SPECIFICATIONS

EMERGENCY (L10)

Operating Mode Sustained

Battery Type Lithium Nanophosphate®

Voltage (V) / Capacity (mAh)

3.3V / 5000mAh

Charging Method Intelligent Current Limited Constant Voltage

LUMINAIRE CLASSIFICATION

EMERGENCY (L10)

Without Automatic Testing X 2 AD 180

With Automatic Testing X 2 ADF 180

ARGONAUT PRO WEATHERPROOF LINEAR

ARGONAUT

ORDERING INFORMATION

Nominal

Standard

DALI Driver

Motion Sensors

WEATHERPROOF

EMERGENCY (L10) MAINS

ARGOPRO-1200-L10

ARGOPRO-1200-DD-L10

ARGOPRO-1200-SEN-L10

ARGOPRO-1200

ARGOPRO-1200-DD

ARGOPRO-1200-SEN

CTP System Compatible Yes -

DALI*

Zoneworks HIVE*

( L X W X H)

ARGOPRO-1200-L10-D2

ARGOPRO-1200-L10-HVG

* For motion sensors add -SEN to the product code as per following example: ARGOPRO-1200-SEN-LP-DALI

TECHNICAL SPECIFICATIONS EMERGENCY (L10)

Construction - Base UV Stabilised Polycarbonate

Construction - Diffuser UV Stabilised Polycarbonate

Voltage (V) (Frequency (Hz)) 220-240V (50Hz)

Lamp ◆ LED Strip Module

Luminaire CCT 4000K

Lamp Projected Life

Power Consumption & Light Output

Ra>80 Ta400c; 184,000hrs (L70/B50), 100,000hrs (L80/B20), 43,000hrs (L90/B10)

(See Table on Next Page)

Ingress Protection Rating (IP) IP65

Impact Rating (IK) IK08

◆ Please refer to the speciﬁc product data sheet for actual power, light output, lamp lifetime and driver values.

EMERGENCY SPECIFICATIONS

EMERGENCY (L10)

Operating Mode Sustained

Battery Conﬁguration POD

Battery Type Lithium Nanophosphate®

Voltage (V) / Capacity (mAh) 3.3V / 5000mAh

Charging Method Intelligent Current Limited Constant Voltage

LUMINAIRE CLASSIFICATION

EMERGENCY (L10)

Without Automatic Testing X 2 AD 180

With Automatic Testing X 2 ADF 180

ORDERING INFORMATION

Standard

DALI Driver

Motion Sensors

EMERGENCY (L10) MAINS

ARGOPRO-1500-L10

ARGOPRO-1500-DD-L10

ARGOPRO-1500-SEN-L10

CTP System Compatible Yes

DALI*

Zoneworks HIVE*

( L X W X H)

ARGOPRO-1500

ARGOPRO-1500-DD

ARGOPRO-1500-SEN

ARGOPRO-1500-L10-D2

ARGOPRO-1500-L10-HVG

* For motion sensors add -SEN to the product code as per following example: ARGOPRO-1500-SEN-LP-DALI

TECHNICAL SPECIFICATIONS

(L10)

Construction - Base UV Stabilised Polycarbonate

Construction - Diffuser UV Stabilised Polycarbonate

Voltage (V) (Frequency (Hz)) 220-240V (50Hz)

Lamp ◆ LED Strip Module

Luminaire CCT 4000K

Lamp Projected Life

Power Consumption & Light Output

Ra>80 Ta400c; 184,000hrs (L70/B50), 100,000hrs (L80/B20), 43,000hrs (L90/B10)

(See Table on Next Page)

Ingress Protection Rating (IP) IP65

Impact Rating (IK) IK08

◆ Please refer to the speciﬁc product data sheet for actual power, light output, lamp lifetime and driver values.

EMERGENCY SPECIFICATIONS

EMERGENCY (L10)

Operating Mode Sustained

Battery Conﬁguration POD

Battery Type Lithium Nanophosphate®

Voltage (V) / Capacity (mAh) 3.3V / 5000mAh

Charging Method Intelligent Current Limited Constant Voltage

LUMINAIRE CLASSIFICATION

EMERGENCY (L10)

Without Automatic Testing X 2 AD 180 With Automatic Testing X 2 ADF 180

ARGONAUT PRO WEATHERPROOF LINEAR 1500MM

High Level Impact Protection Applications

The Argonaut Vandal Resistant Linear range provides a wide selection of emergency Linears for vandal resistant applications where higher level of impact protection is required. Available in L10 Nanophosphate® with all emergency test options including Zoneworks® HIVE, DALI and CTP System.

• Tested to BS EN 60598-2-22

• LED lamps

• Lithium Nanophosphate® battery

• IK11 Impact Rated

• IP66 Ingress Rated • Die cast low copper aluminium body

ARGONAUT VANDAL RESISTANT LINEAR 600MM

ORDERING INFORMATION

DALI Driver

LVP2LEDM-P-DD

CTP System Compatible Yes

Motion Sensors Yes (High/Low) + ON / OFF

DALI

Zoneworks® HIVE

FVP2LED-P-DD

LVP2LEDM-P-D2 -

LVP2LEDM-P-HVG

Carton Quantity 4 Weight - Single (Carton)

For Motion sensor version add -MS -HL to the product code as per the following example. LVP2LEDM-P-MS-HL

TECHNICAL SPECIFICATIONS

Construction - Base Pressure Die-Cast, Low Copper Aluminium Alloy Body with Powder Coat Paint Finish

Construction - Diffuser Opal Impact Resistant Polycarbonate with Secure Access Screws (LSZH)

Voltage (V) (Frequency (Hz)) 220-240V (50Hz)

Power Consumption ◆ (Standby / Max) 1.3W / 27W

Nominal Total Light Output ◆ 2529lm

Lamp LED Strip Module

Lamp CCT & Life ◆ 4000K, 100,000 hrs (L80,B20, Ra>80, Ta40c)

Operating Temperature 0˚C to 40˚C

Ingress Protection Rating (IP) IP66 IK Rating IK10

◆ Please refer to the speciﬁc product data sheet for actual power, light output, lamp lifetime and driver values.

EMERGENCY SPECIFICATIONS

Operating Mode Maintained -

Battery Conﬁguration Pod

Battery Type Lithium Nanophosphate®

Voltage / Capacity (mAh) 6.6V / 2500mAh

Charging Method Intelligent Current Limited Constant Voltage

LUMINAIRE CLASSIFICATION

Without Automatic Testing X 1 AG 180 With Automatic Testing X 1 AFG 180

ARGONAUT VANDAL RESISTANT LINEAR 1200MM

Carton Quantity 4

Weight - Single (Carton)

Dimensions (L x W x H) 1400mm x 140mm x 120mm 1320mm x 140mm x 120mm

For Motion sensor version add -MS -HL to the product code as per the following example. LVP4LEDM-P-MS-HL

TECHNICAL SPECIFICATIONS

MAINS

Construction - Base Pressure Die-Cast, Low Copper Aluminium Alloy Body with Powder Coat Paint Finish

Construction - Diffuser Opal Impact Resistant Polycarbonate with Secure Access Screws (LSZH)

Voltage (V) (Frequency (Hz)) 220-240V (50Hz)

Power Consumption ◆ (Standby /

Nominal Total Light Output ◆ 5550lm

Lamp LED Strip Module

Lamp CCT & Life ◆ 4000K, 100,000 hrs (L80,B20, Ra>80, Ta40c)

Operating Temperature 0˚C to 40˚C

Ingress Protection Rating (IP) IP66 IK Rating IK10

◆ Please refer to the speciﬁc product data sheet for actual power, light output, lamp lifetime and driver values.

EMERGENCY SPECIFICATIONS

Operating Mode Maintained

Battery Conﬁguration Pod

Battery Type Lithium Nanophosphate®

Voltage / Capacity (mAh) 6.6V / 2500mAh

Charging Method Intelligent Current Limited Constant Voltage

LUMINAIRE CLASSIFICATION

Without Automatic Testing X 1 AG 180 With Automatic Testing X 1 AFG 180

ARGONAUT VANDAL RESISTANT LINEAR

600mm/2ft no pod

600mm/2ft with battery pod

1200mm/4ft no pod

1200mm/4ft with battery pod

(Specifications) as part of our continuous improvement program. Please confirm the applicable Specifications at the time of placing your order.

United Kingdom

806 Oxford Avenue,

Slough Trading Estate, SL1 4LN

Phone: 01895 430 255

Fax: 01895 430 254

Email: uksales@clevertronics.co.uk

Australia

1 Caribbean Drive

Scoresby VIC 3179

Phone: (03) 9559 2700

Fax: (03) 9559 2799

Email: vicsales@clevertronics.com.au

New Zealand

Unit 22/761 Great South Road

Penrose Auckland 1061

Phone: 0800 548 448

Email: nzsales@clevertronics.co.nz
