PACCAR Medium Duty Headlamp Change Out PDF With Parts

Medi Head

MINIMAL I

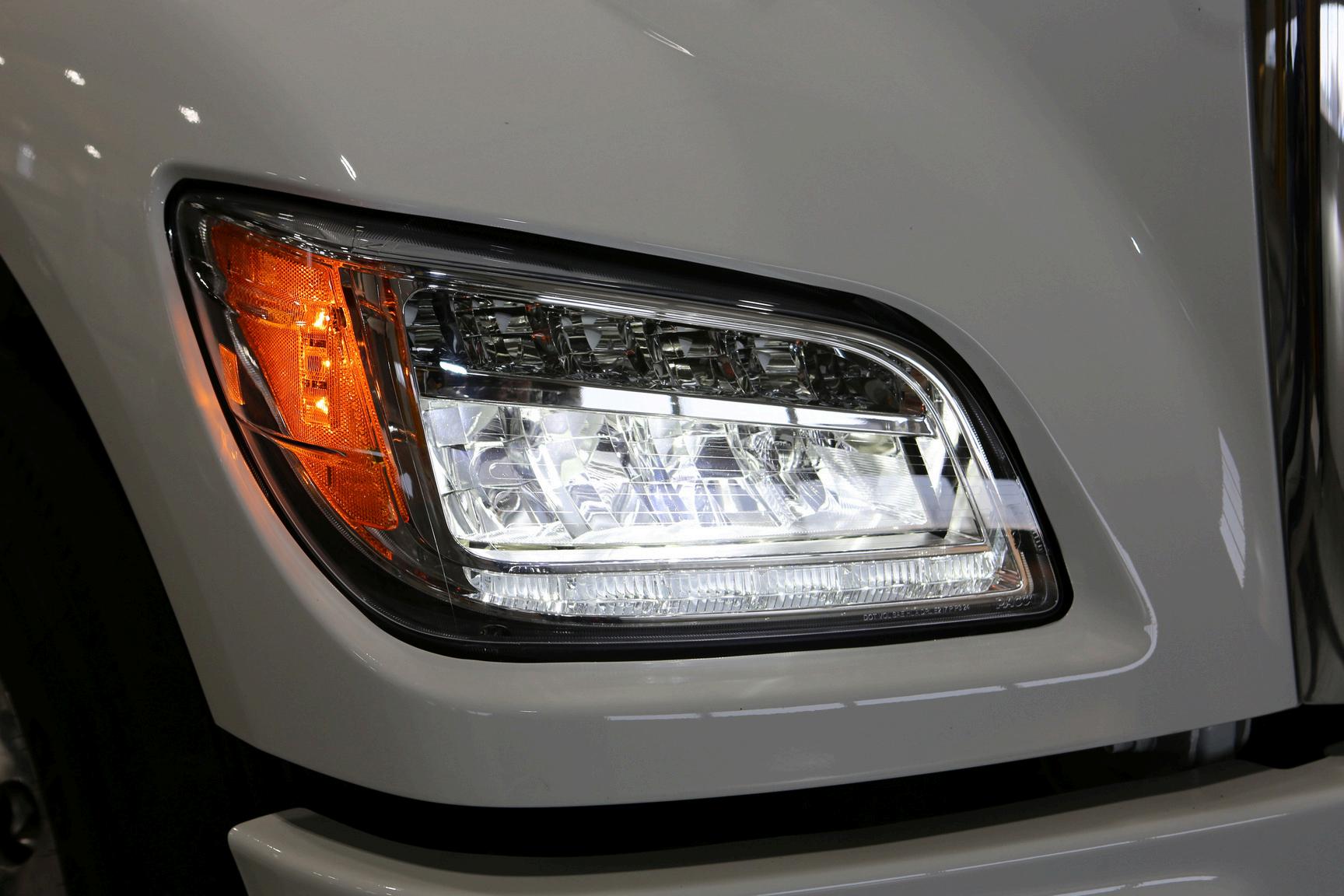

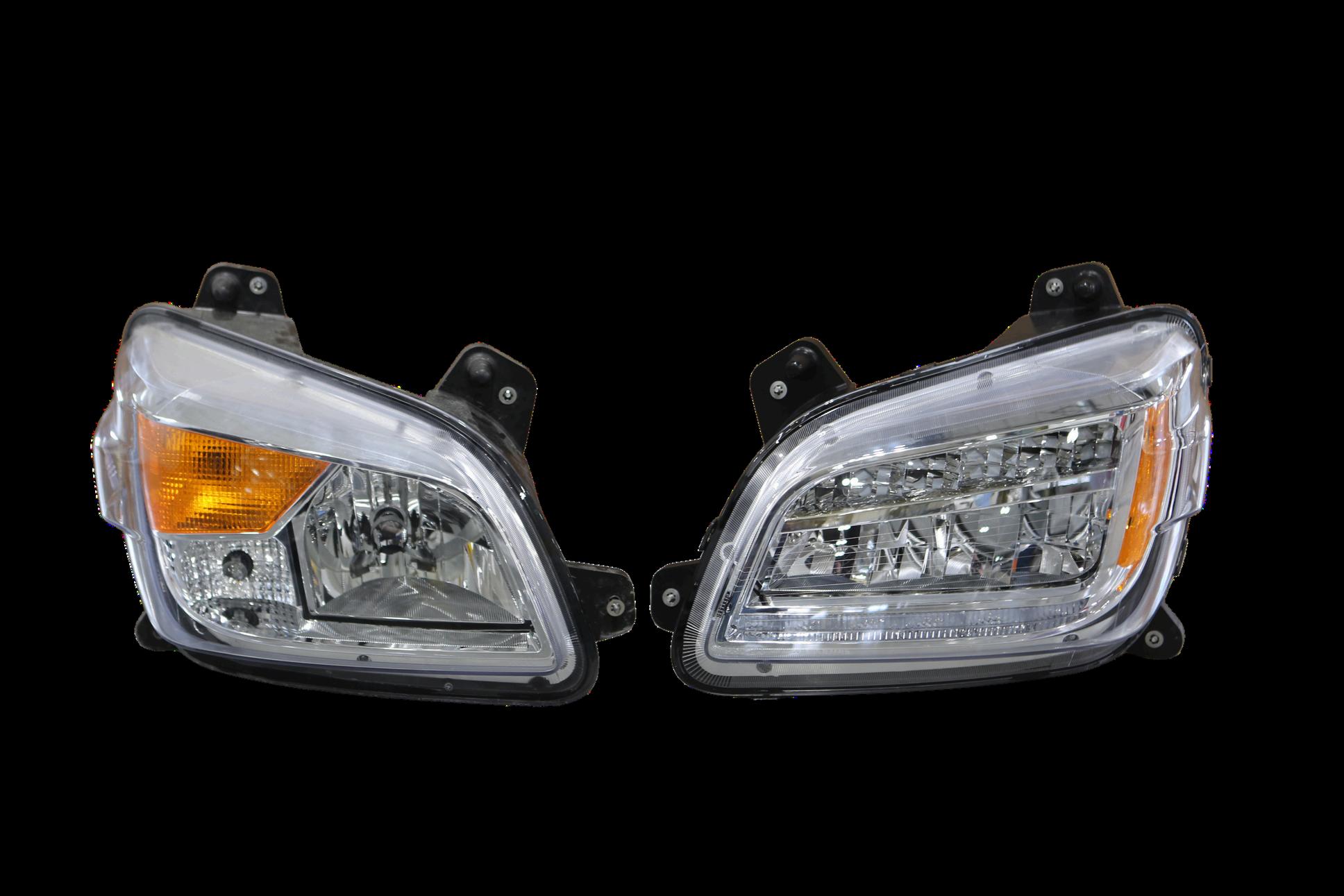

Increased visibility

that drastically outperforms original Halogen Headlight and the competition

Brighter, wider, longer‑reaching illumination

28% less low‑beam glare for safer oncoming visibility

High beams project up to 65% farther than halogens

Delivers high efficiency using 50% less power than halogen lights

Remove current lights in 3 easy steps

Step1:Remove any covering to gain access to the headlamp

Step 2: Release tie clip and the headlamp connector

Step 3: Remove the four mounting bolts and headlamp

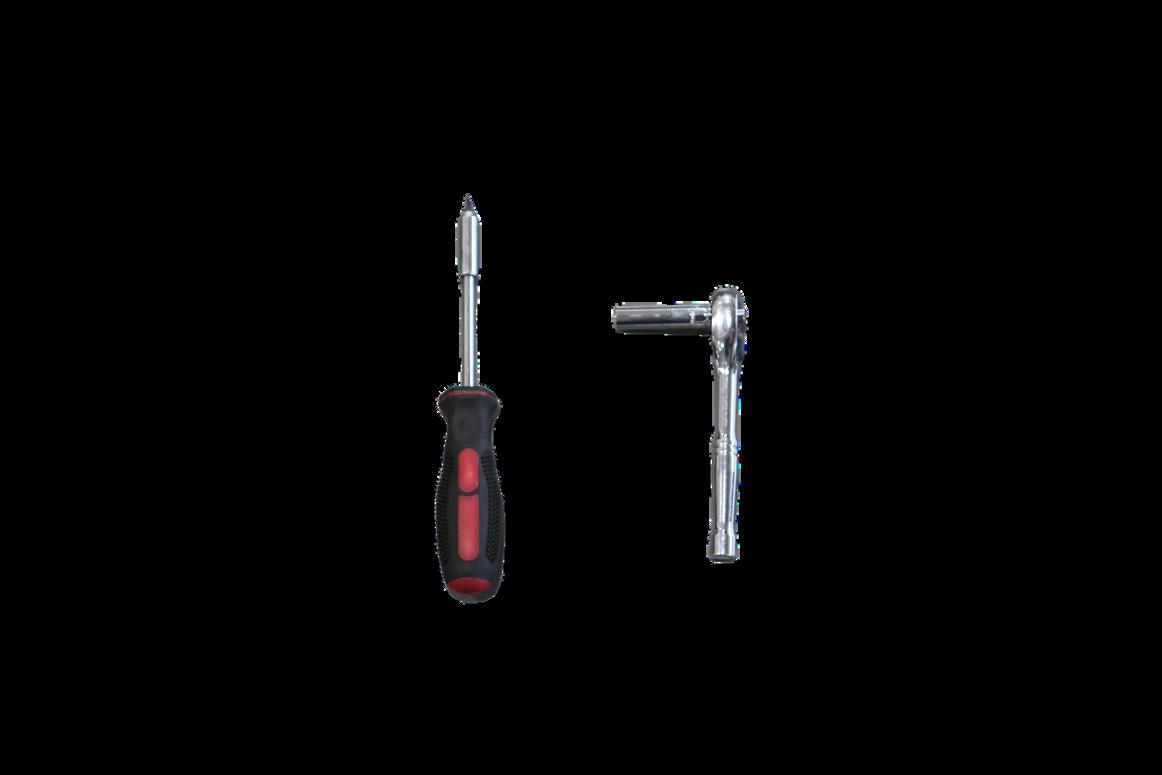

ToolsRequired:

ScrewDriver

8mmSocketWrench

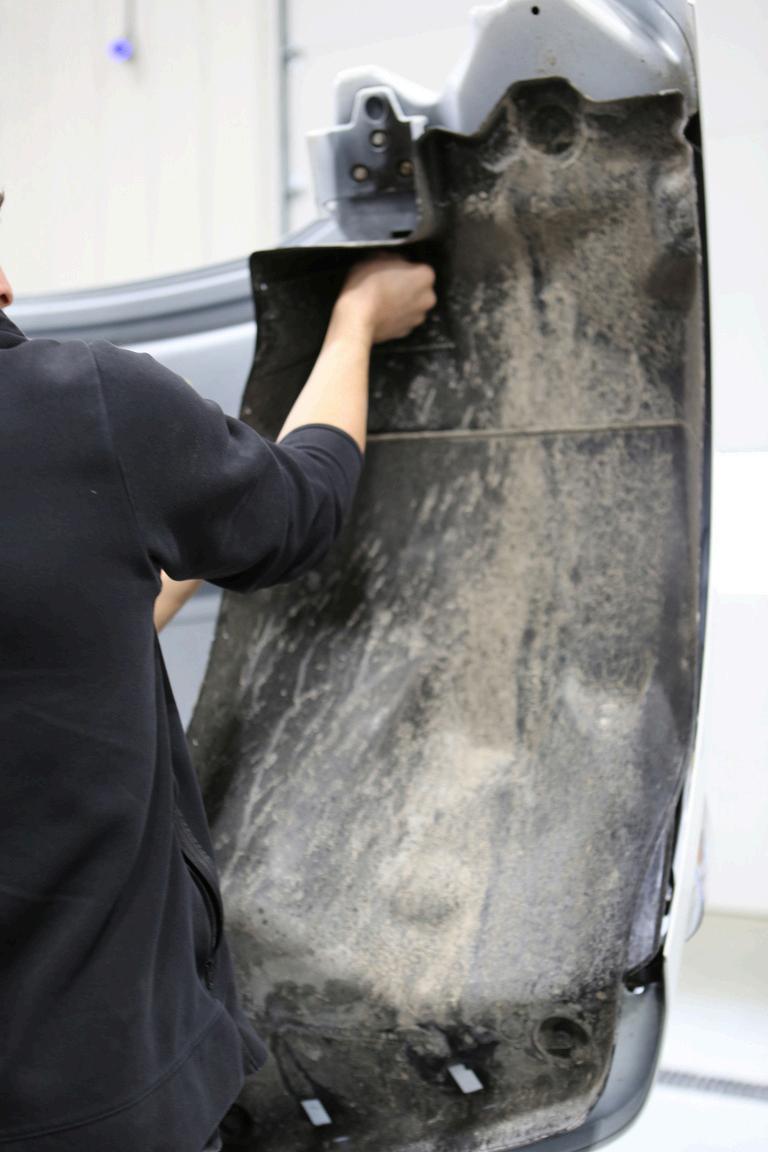

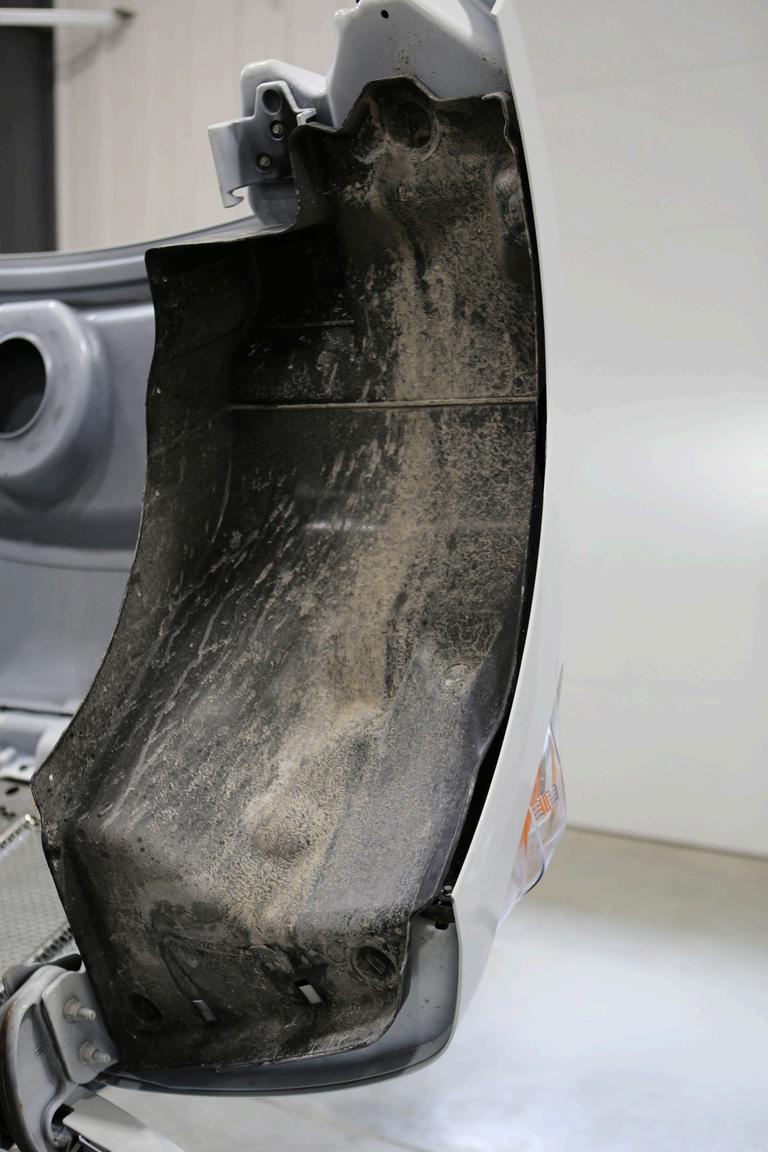

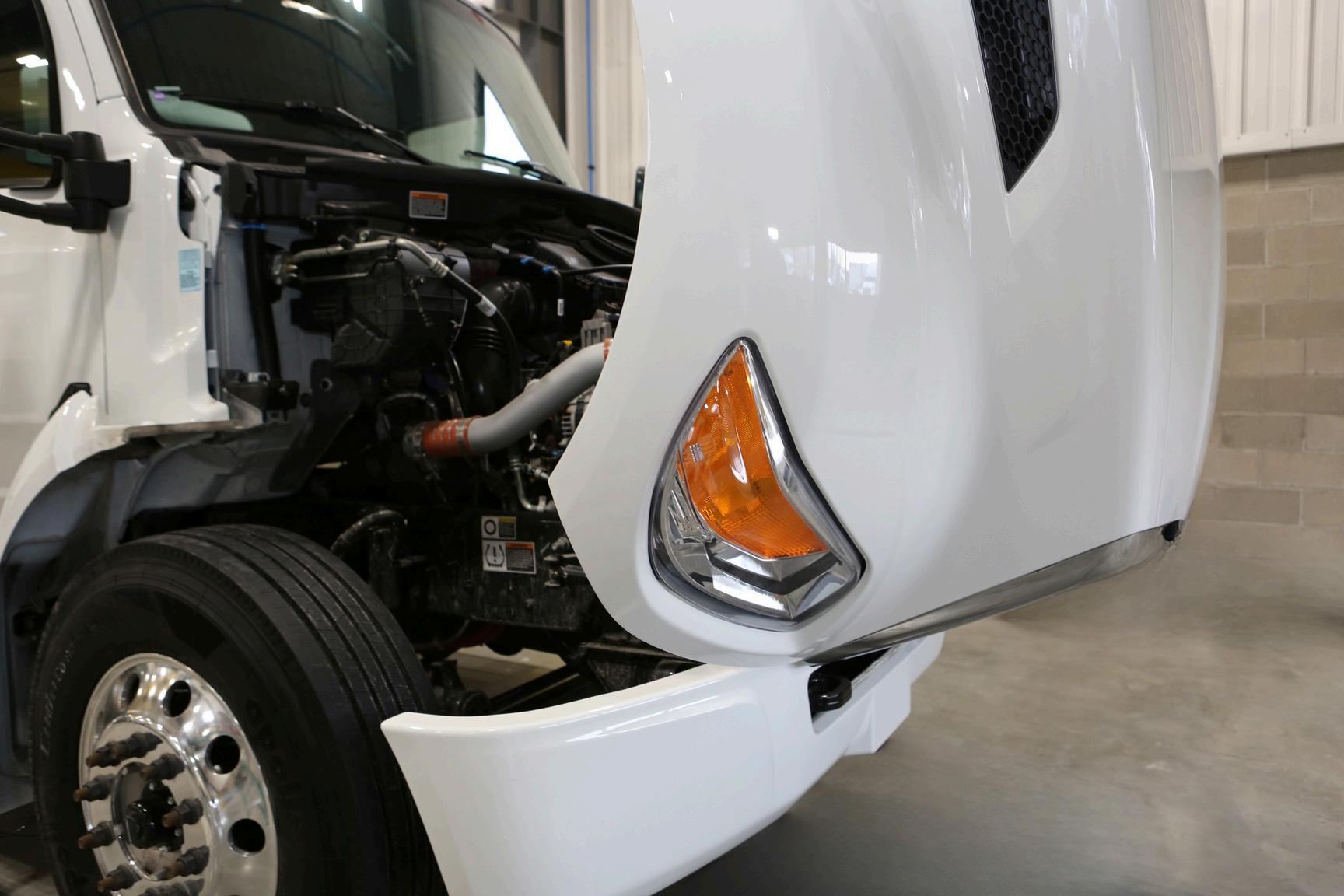

Step 1: Remove any covering to gain access to the headlamp

Gainaccesstotheheadlamp. Ifthereisawheelwellcovering,unscrewfourlockingclipsholding coveringinplaceandremovecovering.

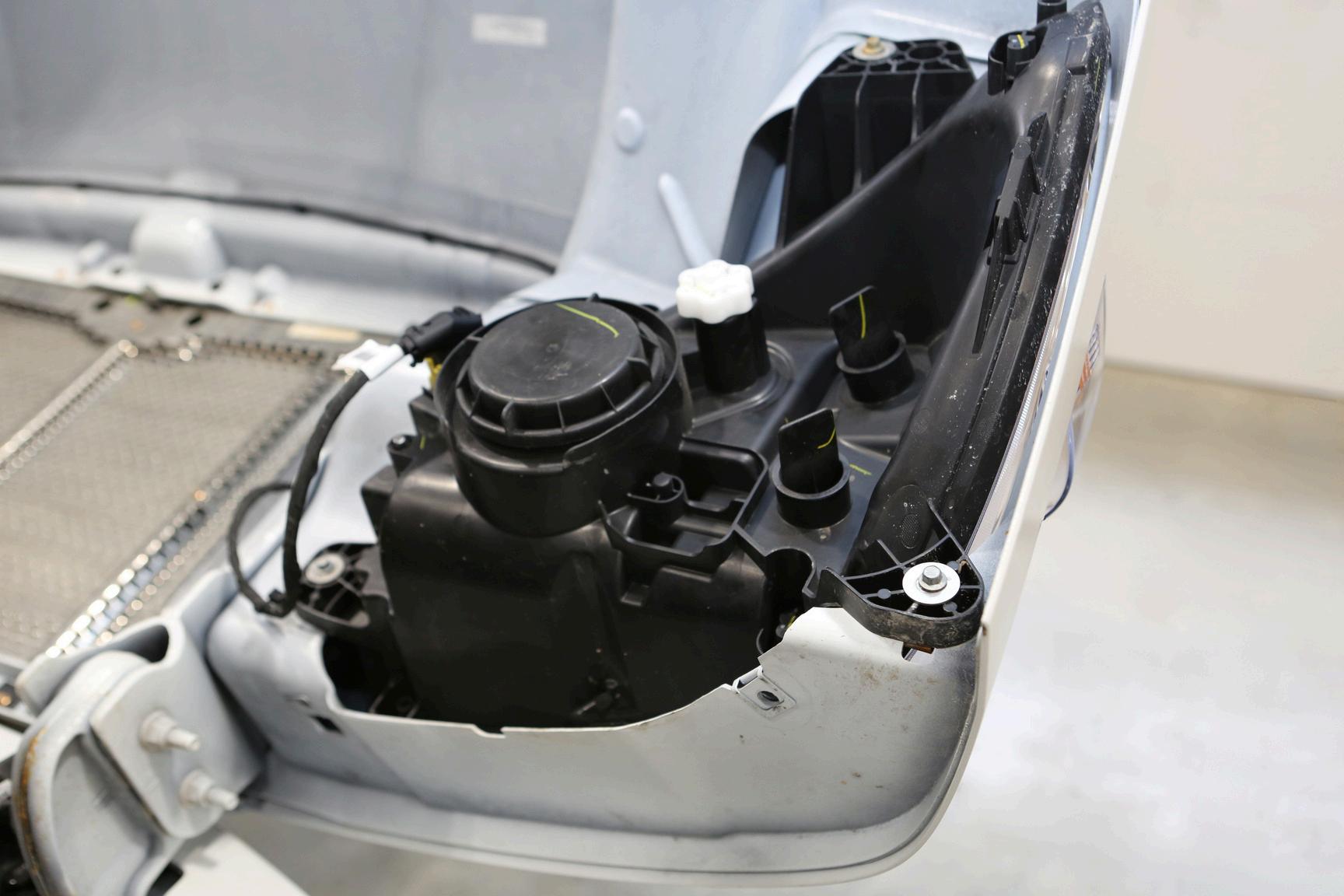

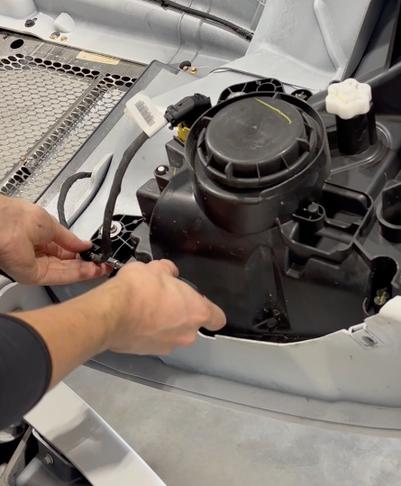

Step 2: Release tie clip and the headlamp connector

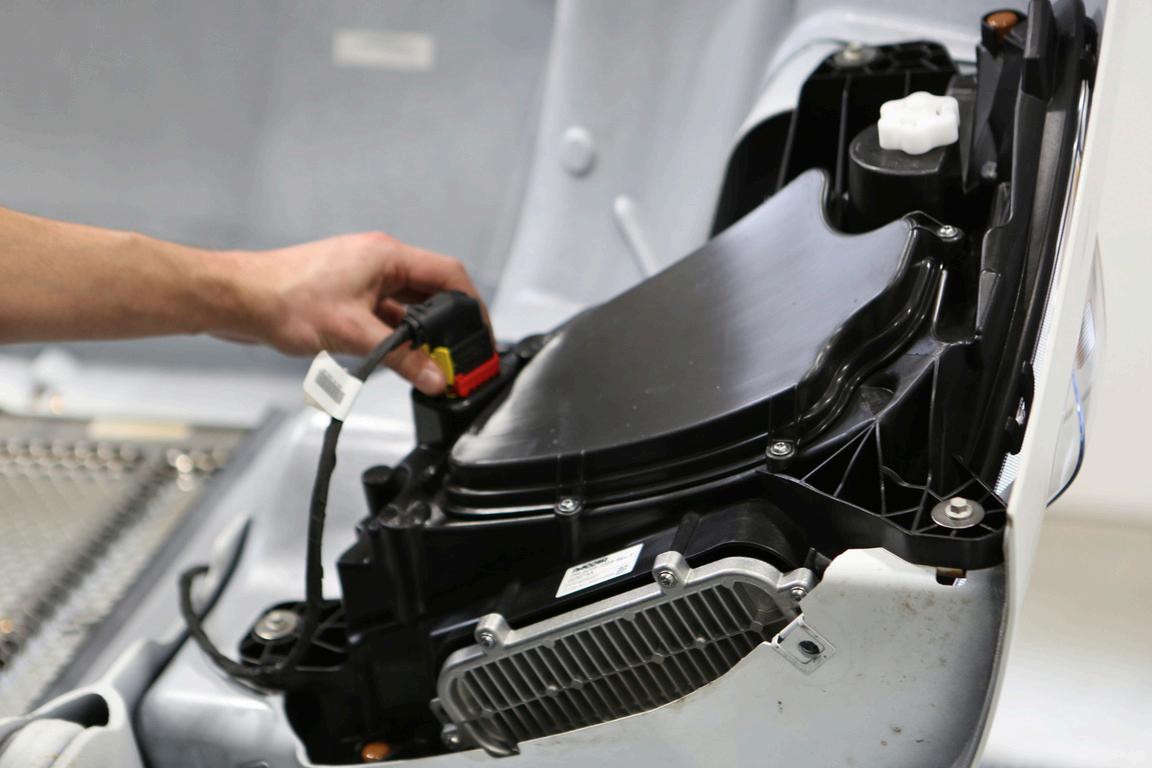

Releasethetieclipsecuringtheharnesstothelight,useascrewdrivertogentlypryitloose.

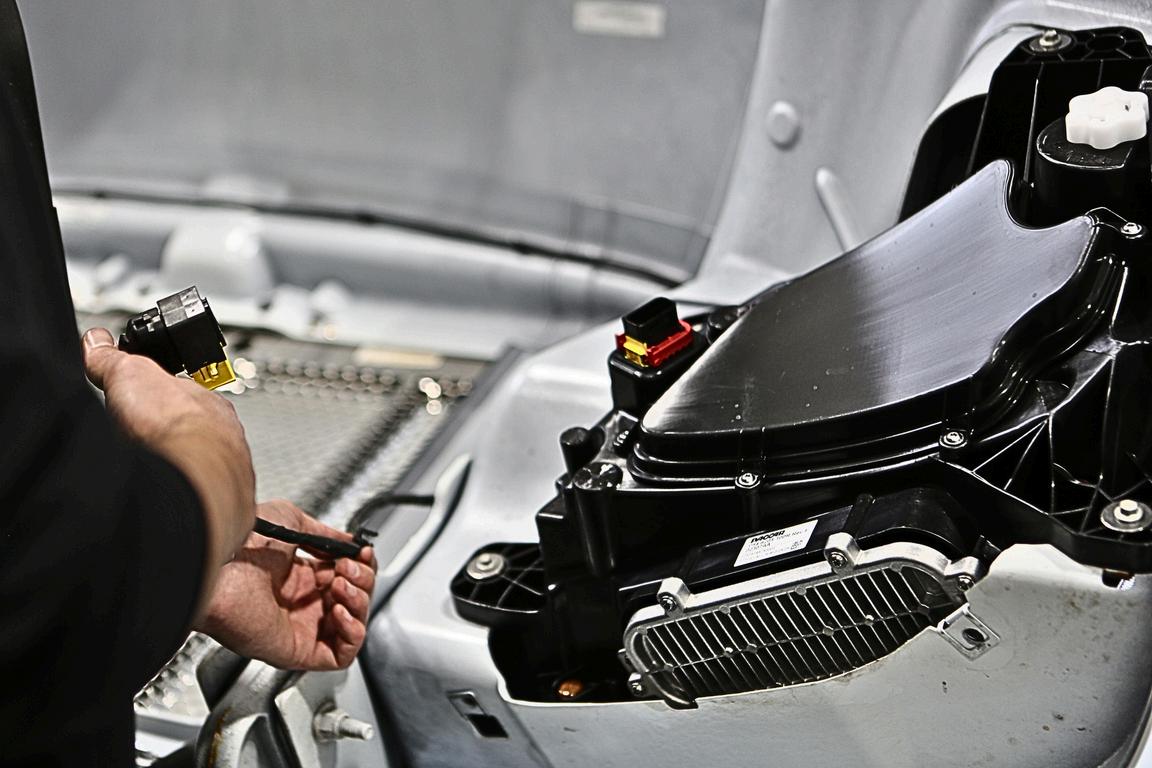

Usetabonbackofconnectortoreleaseandremove.

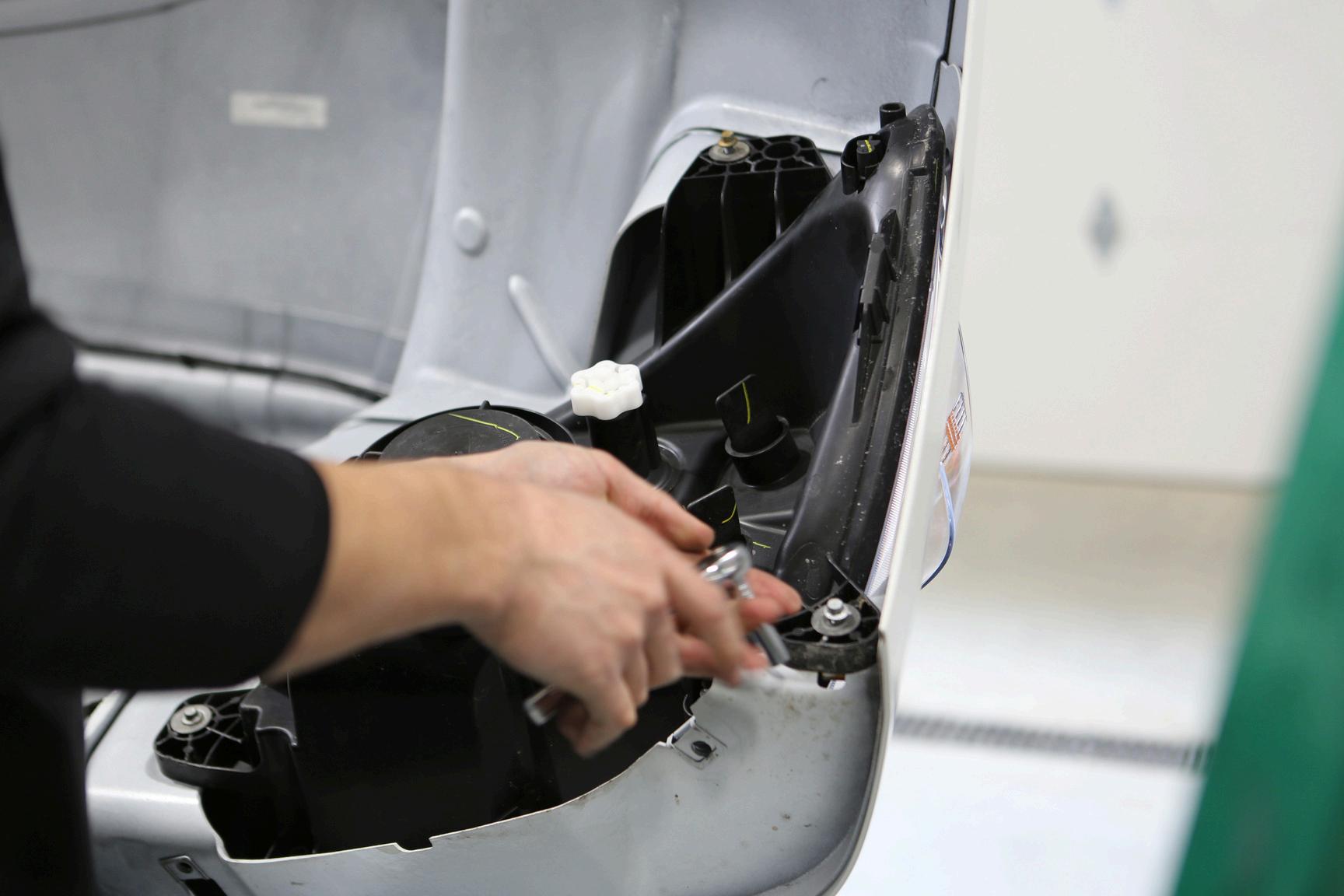

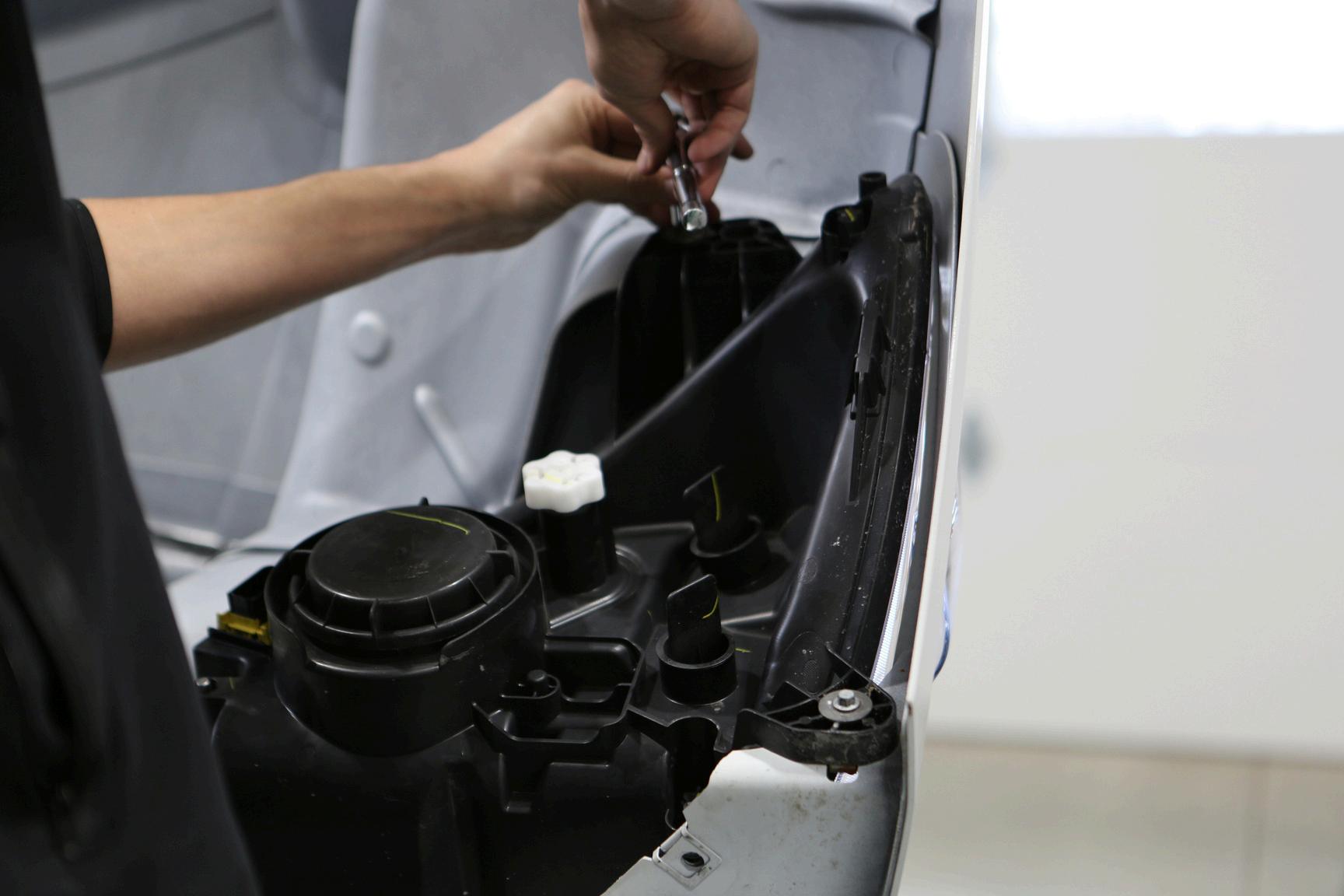

Step 3: Remove the four mounting bolts and headlamp

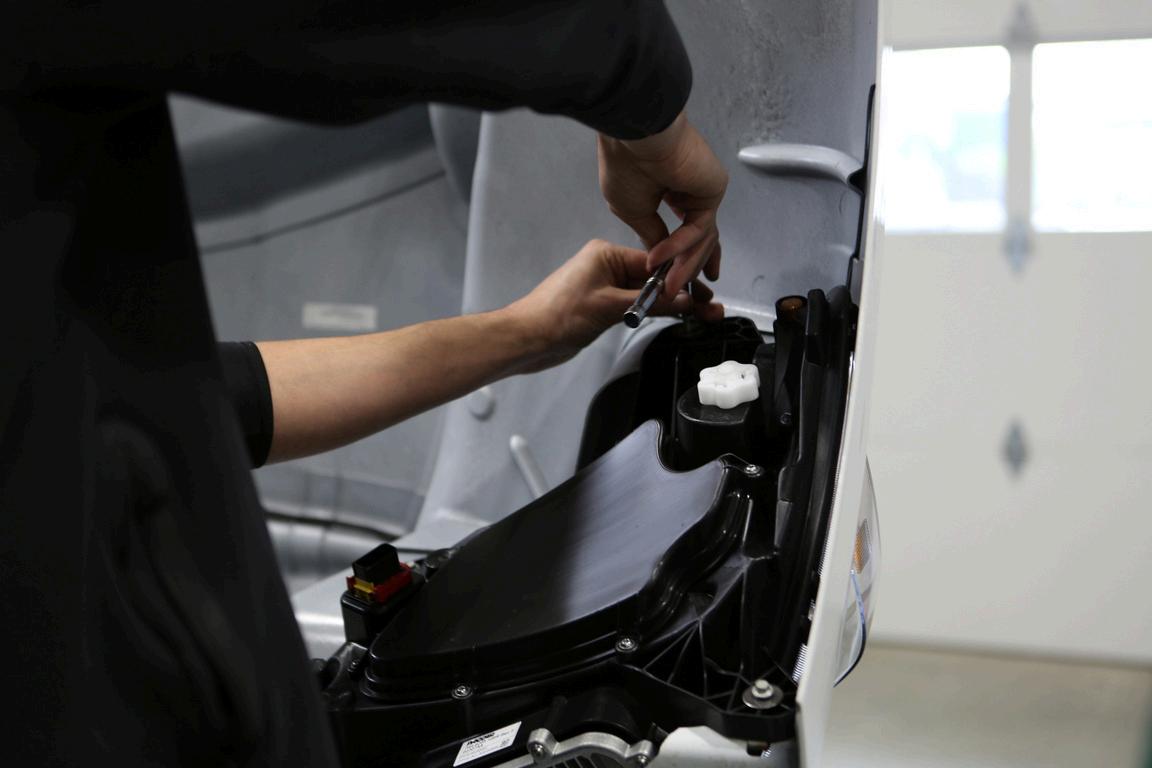

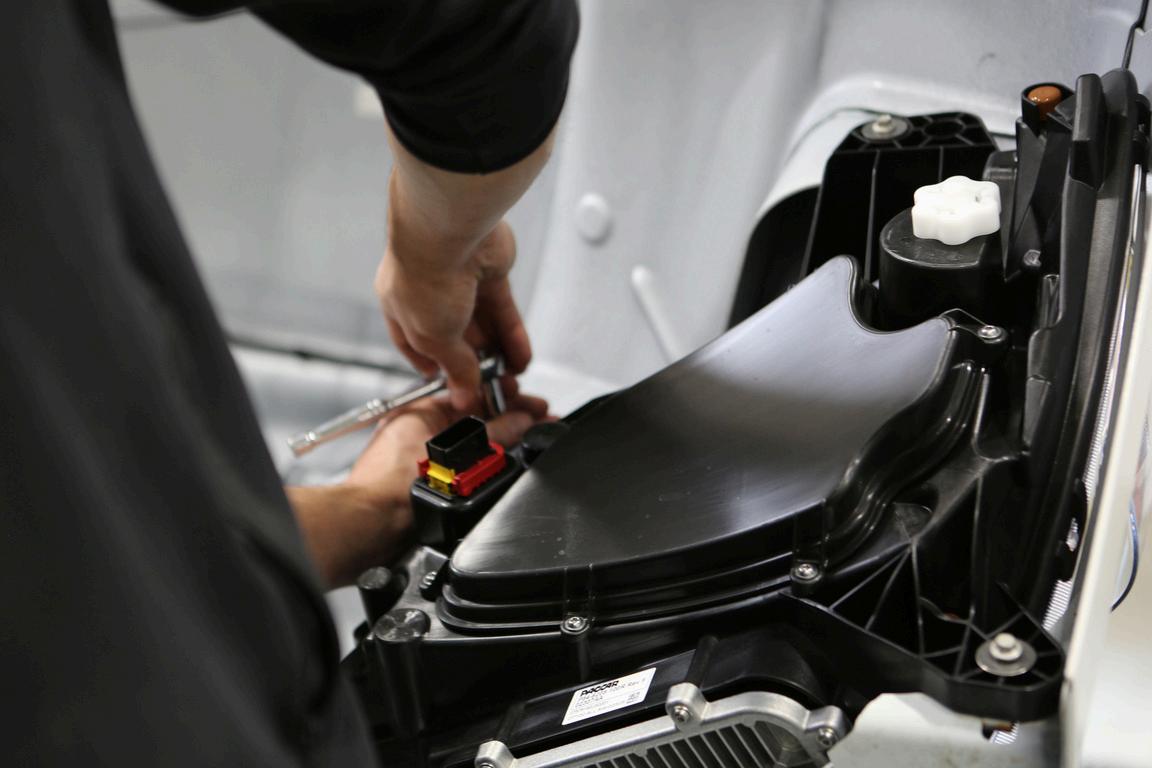

Usingan8mmsocketwrench,loosenthefourmountingboltsatthecornersofthelight,keepingtheminplacesotheydon’tfall.Lifttoremovelight.

Install new lights in 3 easy steps

Step1:Placenewheadlampandtightenfour mountingbolts

Step 2: Reattached headlamp connector and tie clip

Step 3: Replace any coverings

ToolsRequir

Scr

8mmSocketWr

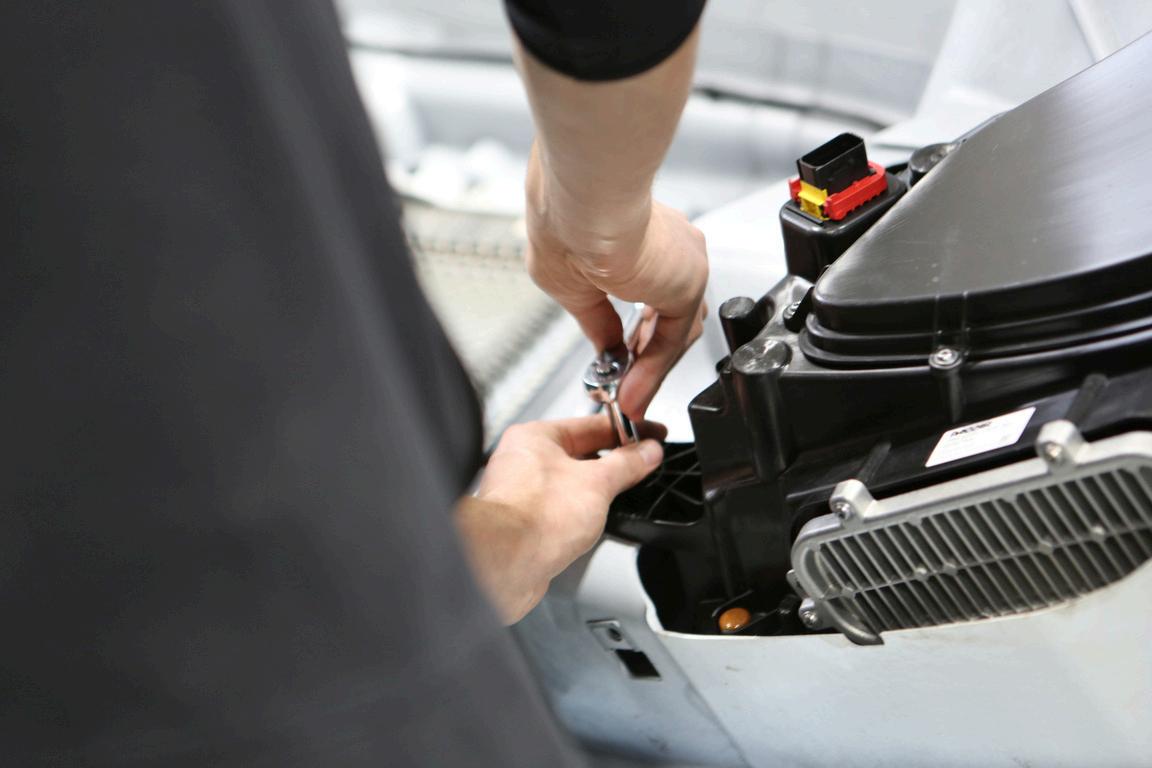

Step 1: Place new headlamp and tighten four mounting bolts

Position the new headlamp and secure the four corner bolts with an 8mm socket wrench.

Step 1: Reattached headlamp connector and tie clip

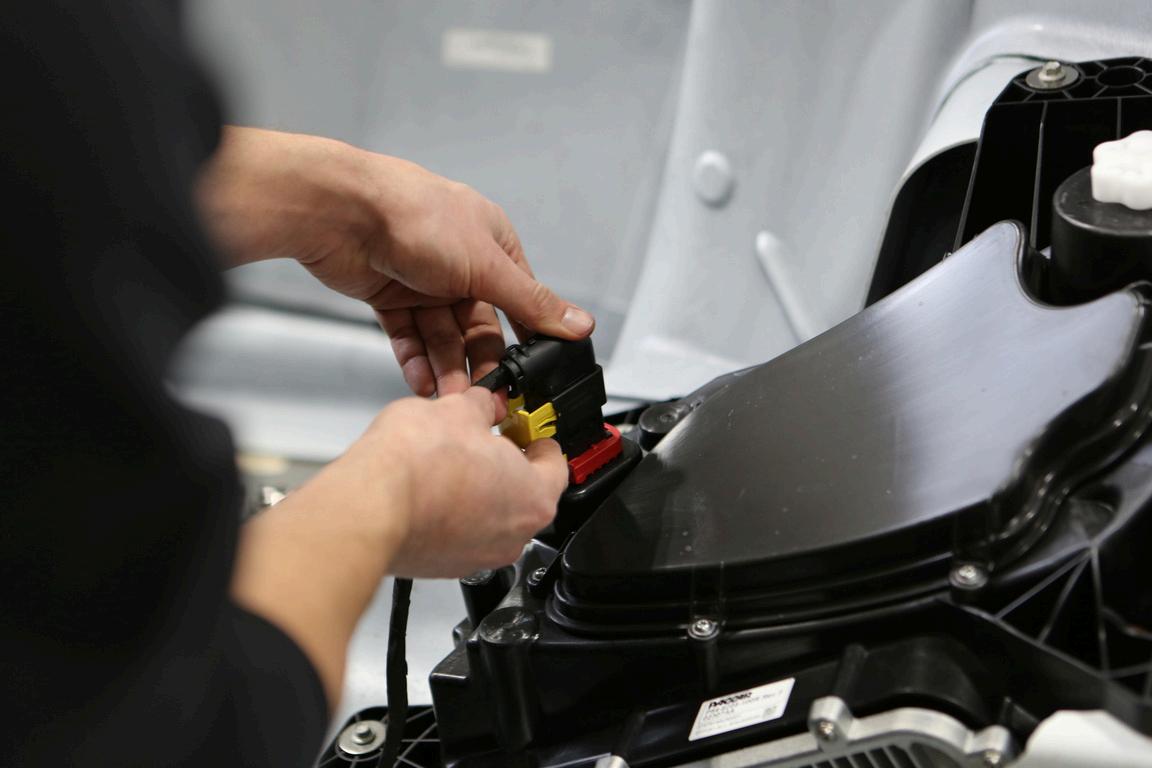

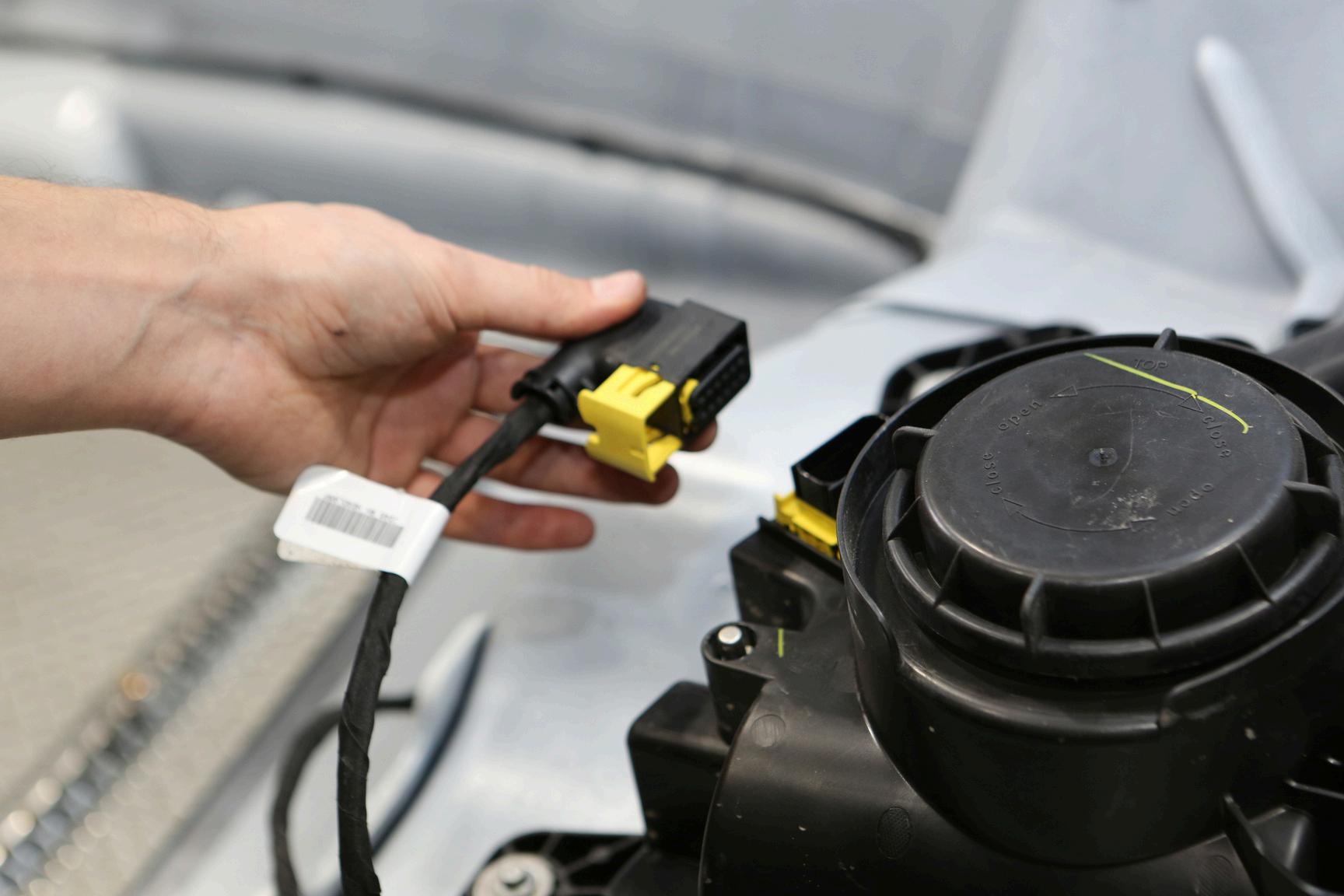

Reconnect the clip, push the connector into place, then press down while sliding the yellow locking clip to secure it.

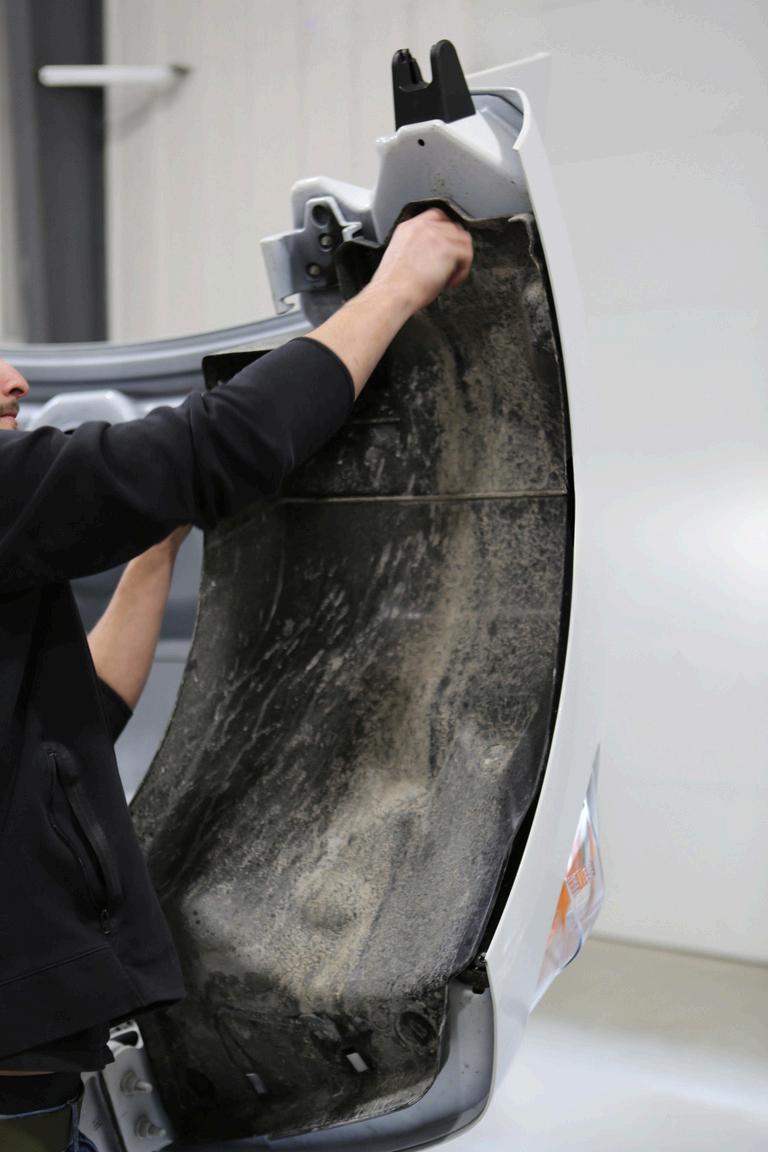

Step 3: Replace any coverings

Replaceanycoveringsoverthelight. Byreversingsteponeintheremovalprocess.

NOTE:Oldervehiclemodelsmayrequireasoftwareupdatetofinalizeinstallationprocess

INSTALLATION COMPLETE.

MODELS: T480, T380, T280, T180

SPEC CODE: 9010814

P54-6205-101/R

MODELS: 548, 537, 536, 535

SPEC CODE: 8110160

P54-6205-100/R
