Connectus
Project #: 2665
Client: Auckland Transport
Trees and Vegetation Delivery Work Plan
Doc. No. CRL-PAT-ENV-CON-PLN-001034
Revision: 05, Date: 21March 2016
5 MITIGATION MEASURES
Due to the requirement to remove trees throughout the Project footprint, an adverse effect on the local treescape would result if no mitigation measures are implemented. In addition, mitigation measures will be put in place to protect trees labelled G5, G7, X1, X2 and T9 which are not required to be removed.
5.1 TREES THAT ARE REQUIRED TO BE REMOVED
Replacement planting will be required for all trees that are required to be removed, as identified in Figure 3. A replanting plan will be identified in the Project Urban Design DWP and will include (but may not be limited to) the following:
Replanting of trees at least 1:1 ratio Trees to be 4-5m height in ground, with single clear trunk to minimum 1.6m, trunk to be no less than 50mm in diameter at 300mm above ground, in good robust health with suitably sized root ball
Area reinstatement
The opportunity to include appropriate native species in the replacement and landscape plantings.
Documentation of the input from the Auckland Council Parks Department with regard to tree species / vegetation selection, tree pit construction and positioning of replacement trees
An outline of the maintenance periods and responsibilities (i.e. the Requiring Authority for a period of five years for specimen trees and 3 years for all other landscape planting)
Consultation outputs (refer Section 6 of this TV DWP)
5.2 TREES THAT ARE NOT REQUIRED TO BE REMOVED
5.2.1
Arboricultural Monitoring
A suitably qualified and experienced arborist will be engaged to act as the Site Arborist for the Project. The Site Arborist will be available (as required) to address any ad hoc issues that may arise in relation to tree health. The Site Arborist shall also undertake regular Arboricultural Site Reviews (ASR) at a period of no less than once every two months during any period for which works are to take place within 4 metres of the dripline of any tree(s) which will not be removed as part of the construction works The ASR shall provide an opportunity to assess tree health of each of the trees which are to be retained, assess tree protection measures where provided, as well as providing general guidance to direct the preservation of tree health during the course of works.
The initial ASR should be undertaken at least 10 working days prior to the first commencement of work within 10 metres of any tree which is to be retained. The Site Arborist will prepare a Tree Management Checklist to be issued to the Environmental and Sustainability Manager (ESM) during the initial arboricultural site review to enable continuous monitoring of tree health in the intervals between each arboricultural site review The Tree Management Checklist should include (but may not be limited to):
Direction for assessing general tree health
Direction to identify deterioration of tree health
Connectus Trees and Vegetation Delivery Work Plan
Project #: 2665
Client: Auckland Transport
Contact details for the Site Arborist
Doc. No. CRL-PAT-ENV-CON-PLN-001034
Revision: 05, Date: 21March 2016
The ESM will undertake periodic monitoring of tree health as prescribed by the Tree Management Checklist at periods of no less than once every 14 days, and evidence of this monitoring should be provided to the Site Arborist during each ASR. If the ESM identifies evidence of declining tree health, the Site Arborist should be engaged to provide assistance in determining the cause of such deterioration and provide direction where appropriate.
5.2.2 Tree Specific Measures
The following sections outline the proposed mitigation measures to be employed for the trees identified as remaining in Figure 3 and Table 3
5.2.2.1
ID T6
The Pohutukawa Tree identified at T6 (Figure 4) is not expected to be affected by the Project and therefore will require no additional protection. It will remain in a public pedestrian space.
Tree health will be monitored regularly during construction. This will be undertaken in accordance with the periodic ASR and the regular tree health monitoring undertaken by the ESM.

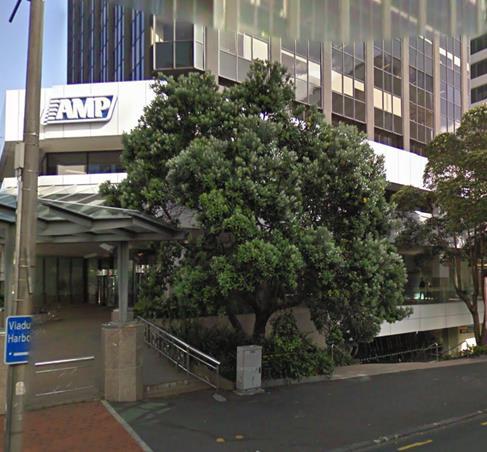

Figure 4 ID T6
5.2.2.2
ID G5

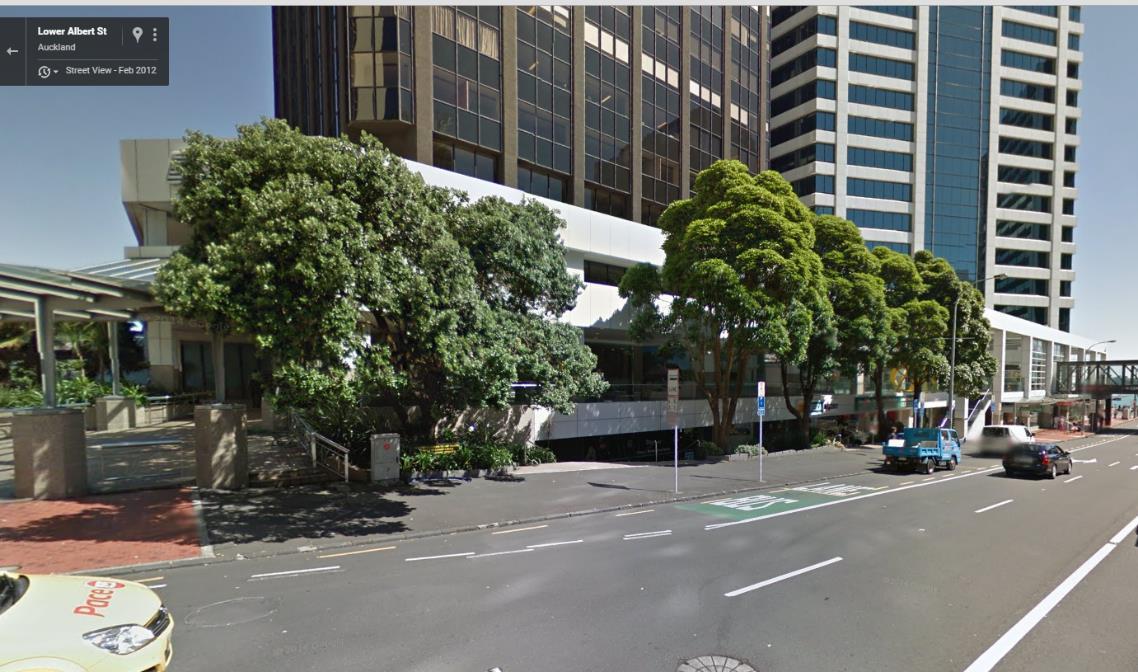

The group of trees identified as G5 (Figure 5) are not expected to be affected by the Project and therefore will require no additional protection. They will remain in a public pedestrian space.
Tree health will be monitored regularly during construction. This will be undertaken in accordance with the periodic ASR and the regular tree health monitoring undertaken by the ESM.
Connectus Trees and Vegetation Delivery Work Plan
Project #: 2665
Client: Auckland Transport
5 ID G5
Doc. No. CRL-PAT-ENV-CON-PLN-001034
Revision: 05, Date: 21March 2016
5.2.2.3
ID X1 and X2
The trees identified as X1 and X2 (Figure 6) sit on the periphery of the Project footprint. Pruning or tying back of branches that could interact with passing traffic and site offices is necessary. Any tree pruning will be kept to a minimum and will be undertaken by a qualified and experienced Arborist. Whilst not envisaged to occur, should extensive pruning be required to remove the tree canopy of X1 or X2 that negatively affects their visual character, replacement planting may be provided as outlined in Section 4.1
A protection fence will be erected between the construction works and the trees, however the trees will not be totally ring fenced as they remain in a public pedestrian area.
Tree health will be monitored regularly during construction. This will be undertaken in accordance with the periodic ASR and the regular tree health monitoring undertaken by the ESM.
5.2.2.4
ID T9
The tree identified as T9 (Figure 7) sits on the periphery of the Project footprint and therefore will be mainly unaffected by construction works. However, pruning will be required to remove overhanging branches that could interact with passing construction vehicles. Any tree pruning required will be kept to a minimum and will be undertaken by a qualified and experienced Arborist.
Tree health will be monitored regularly during construction. This will be undertaken in accordance with the periodic ASR and the regular tree health monitoring undertaken by the ESM.
Figure

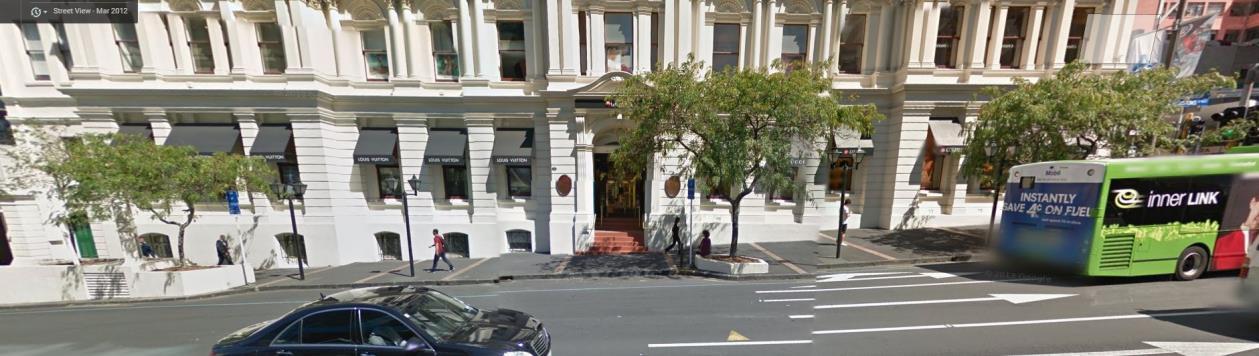

Figure 6 ID (right to left) X1 and X2
Connectus Trees and Vegetation Delivery Work Plan
Project #: 2665
Client: Auckland Transport
5.2.2.5 ID T13
Doc. No. CRL-PAT-ENV-CON-PLN-001034
Revision: 05, Date: 21March 2016
The six Elm trees identified as T13 are located between Swanson Street and Mills Lane and are within a long planter box (Figure 8). These trees sit on the periphery of the Project footprint and therefore will be mainly unaffected by construction works.
Tree health will be monitored regularly during construction. This will be undertaken in accordance with the periodic ASR and the regular tree health monitoring undertaken by the ESM.

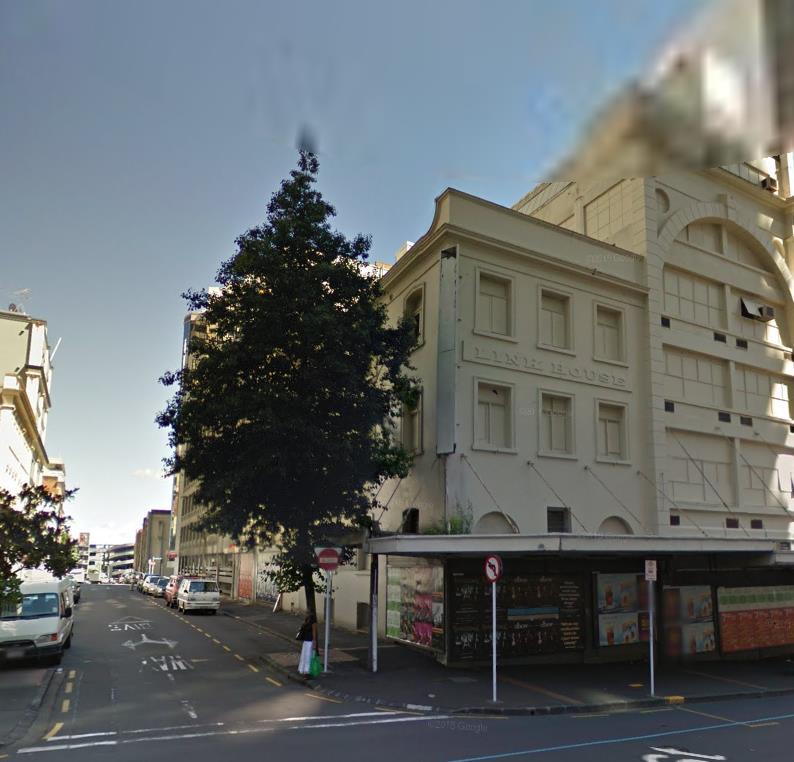

Figure 7 ID T9

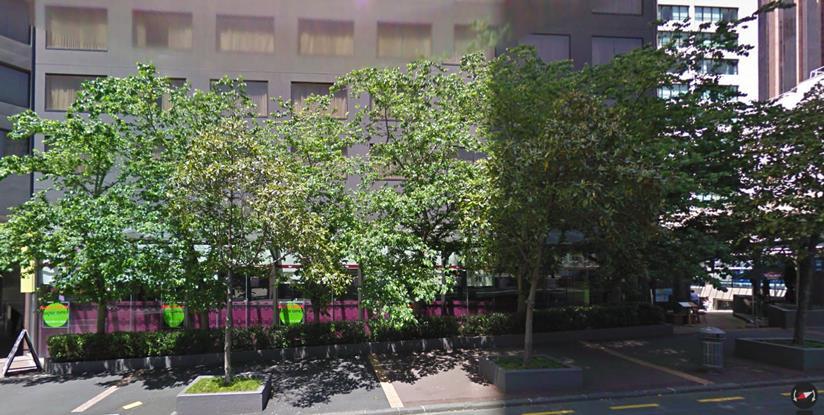

Figure 8 ID T13 – Six Elm trees (located in background of photo)
Connectus Trees and Vegetation Delivery Work Plan
Project #: 2665
Client: Auckland Transport
6 CONSULTATION
Doc. No. CRL-PAT-ENV-CON-PLN-001034
Revision: 05, Date: 21March 2016
A Communication and Consultation Plan has been prepared for the Project works (Appendix O of the Project CEMP) Section 6 of this plan outlines the procedure undertaken in order to ensure that Connectus undertakes consultation with the Auckland Council Parks Department and Mana Whenua. It also details the general communication that will be undertaken with the general public on the management of the adverse effects relating to the removal of trees within the Project area Where agreed, the feedback from this consultation process will be incorporated into the Project Urban Design Delivery Work Plan
No comments were received from the Community Liaison Group (CLG) regarding the Trees and Vegetation Delivery Work Plan. Comment
Revision: 05, Date: 21March 2016
Project #: 2665
Client: Auckland Transport
INDEPENDENT PEER REVIEW
Peer Reviewer: Andrew Benson (Arborlab Consultancy Services Limited)
Date: 12th January 2016
13 4.1 " …all trees that are within the construction footprint are required to be removed, including trees G7, T8 and T10T26"
14-16 Table 3, and Figure 3
Fig 3, Table 1 and Sec 5.2.2 state that G7 is being retained.
14-16, 18 5.2.3 and Table 3
- Some trees have been omitted from the document.
T13 is included in Table 3 as a single tree; there are six in total.
There is a mature pohutukawa a little to the south of G5 at the Customs St / Albert St intersection. The tree can be seen in Figure 4 on Page 18.
T9 is identified as Magnolia grandiflora. It is actually Alnus cordata
17-19 5.2.1, 5.2.2, 5.2.2
“Tree health will be monitored regularly…by Will the site manager be qualified to make an accurate assessment of a tree’s health? It would be
Revision: 05, Date: 21March 2016
Error in text. G7 is to be retained2. Text changed to read:
“…all trees that are within the construction footprint are required to be removed, including: trees G3, G4, T8, and T10-T26.”
Text changed in Table three to indicate six elm trees identified as T13: “T13 (Six trees)”
Table 3 and Figure 3 updated to include Pohutukawa tree (identified as T6 in Tree Assessment (2012) by Boffa Miskell). This tree will be not be removed, but is far enough away from Project works to be unaffected. A sub-section in 5.2 created to describe Project effect and mitigation measures for this tree.
Correct. Tree Assessment (2012) by Boffa Miskell identifies T9 as Alnus cordata.
Text changed in Table to read ‘Alnus cordata’ in Botanical Name column for T9, and ‘Italian Alder’ in Common Name column
Due to the location of the trees, there is no prospect of the project works causing any
2 Note: It has subsequently been confirmed that G7 will be removed. As such the document has been amended accordingly.
Project #: 2665
Client: Auckland Transport
Page DWP Section
Paragraph/Sentence
Comment
Revision: 05, Date: 21March 2016
Resolution
the Site Manager” more appropriate to have this done by an arborist. disturbance to the roots of the trees to be retained (T6, G5, G7, X1,X2, T9, T13, T27-T30). Damage to trees can therefore only occur above surface level. Damage caused to trees above surface level will be obvious such as broken branches. Therefore a qualified arborist is not required The closest tree to the excavation works is T9, and there is at least 5m from the face of the trench excavation to the closest point of the T9 canopy.
No change to this TV DWP
14-16, 18, 19 Section 5.2.3, Table 3 and Figure 3
- It is unclear from the TV DWP why the small magnolia (T10) needs to be removed but the much larger alder (T9) is capable of being retained.
14-16, 18 5.2.2, Table 3 and Figure 3
- The canopies of these trees encroach into the carriageway quite significantly. An understanding of the pruning requirement would be helpful. IF the trees need to be pruned back to the kerb line for example, their visual character will be compromised and their contribution in this setting would be in question. A good long term outcome could be reached by removing them should extensive pruning be required and providing replacements. This would need to be undertaken through liaison with AC Parks.
T10 is required to be removed in order for vehicle tracking to be maintained on Wolfe Street. T9 does not interfere with vehicle tracking and can therefore remain.
Text updated in T10 Mitigation Measures column: “Transplant not possible (Interferes with vehicle tracking on Wolfe Street).
Tree to be cut down and replaced through urban redesign”
Text changed in Section 5.2.3 ID G7, X1 and X2:
“Whilst not envisaged to occur, should extensive pruning be required to remove the tree canopy of G7, X1 or X2 that negatively affects their visual character, replacement planting may be provided as outlined in Section 4.1.”
Project #: 2665
Client: Auckland Transport
Page DWP
14-16 Table 3 and Figure 3
- Tree G3 (pohutukawa x4). Three of these trees are potentially suitable for relocation. One has rotated at its base and is unlikely to prosper.
General - There needs to be some comments / recommendations in relation to the elms (T13) and the requirements under The Biosecurity Act (1993). How will this material (wood and soil) be dealt with in order to comply with these provisions?
General - Aside from protective fencing, other tree protection measures such as caring for roots are absent from the TV DWP. Is this level of detail required at this stage? Appointing an arborist before construction begins to coordinate works around trees seems appropriate. He / she could most likely prepare a site specific tree protection plan if required.
No. CRL-PAT-ENV-CON-PLN-001034
Revision: 05, Date: 21March 2016
The four Pohutukawa identified as G3 do not affect this Project (C2) but are being removed by Precinct Properties. As such, the potential relocation of these trees and mitigation is the domain of Precinct Properties.
No change to this TV DWP
Connectus confirms that the six Elm trees identified at T13 are not required to be removed and therefore specific provisions to remove Elm trees as part of the Project are not necessary.
Section 5.2.5 added, detailing the mitigation measures required for T13
The trees to be retained (T6, G5, G7, X1,X2, T9, T27-T30) will not have their roots disturbed due to the sufficient distance between the trees and the Project works. As a result, appointing a qualified arborist will not add additional value.
Since damage to trees below ground cannot occur, the only protection required for trees is above ground i.e. Protective fencing.
