01 ONE STOP CENTER
ONE STOP CENTER CONCEPT
SITE STUDY AND hydroponics sysTem
ERGONOMICS
MATERIAL / COLOUR AND INTERIOR DESIGN CONCEPT LAYOUT PLAN SECTION
ELEVATION
3D RENDER

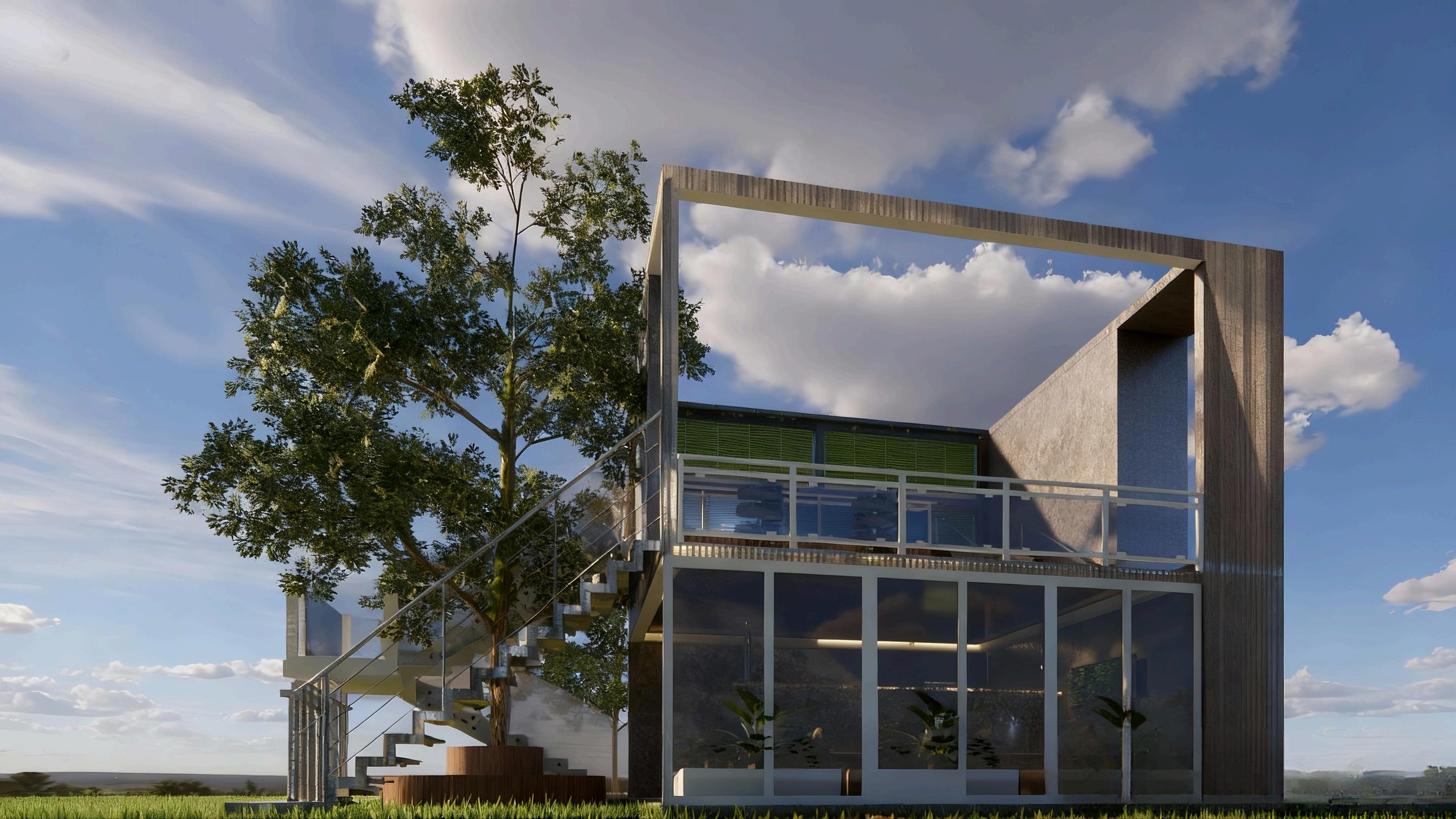

ONE STOP CENTER

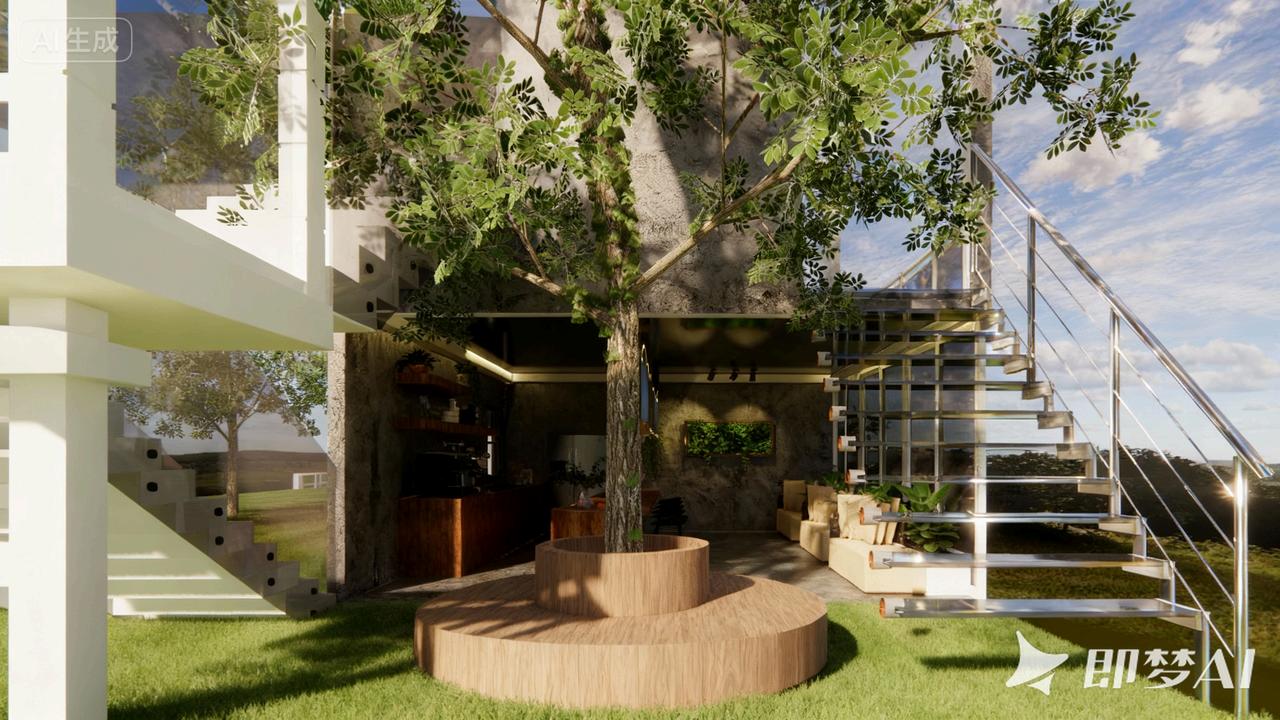

The design integrates architecture and nature, allowing a tree to become the heart of the space — a living symbol of growth and calmness. The sloped form connects the ground to the roof garden, creating a seamless flow between indoor and outdoor environments. The lower level functions as a hydroponic café, providing a relaxing and comfortable environment for visitors to dine and unwind.
The upper level is designed as a self-serve urban farm that cultivates soil-free vegetables through hydroponic systems, allowing people to harvest or purchase fresh produce directly.
HYDROPONICS SYSTEM

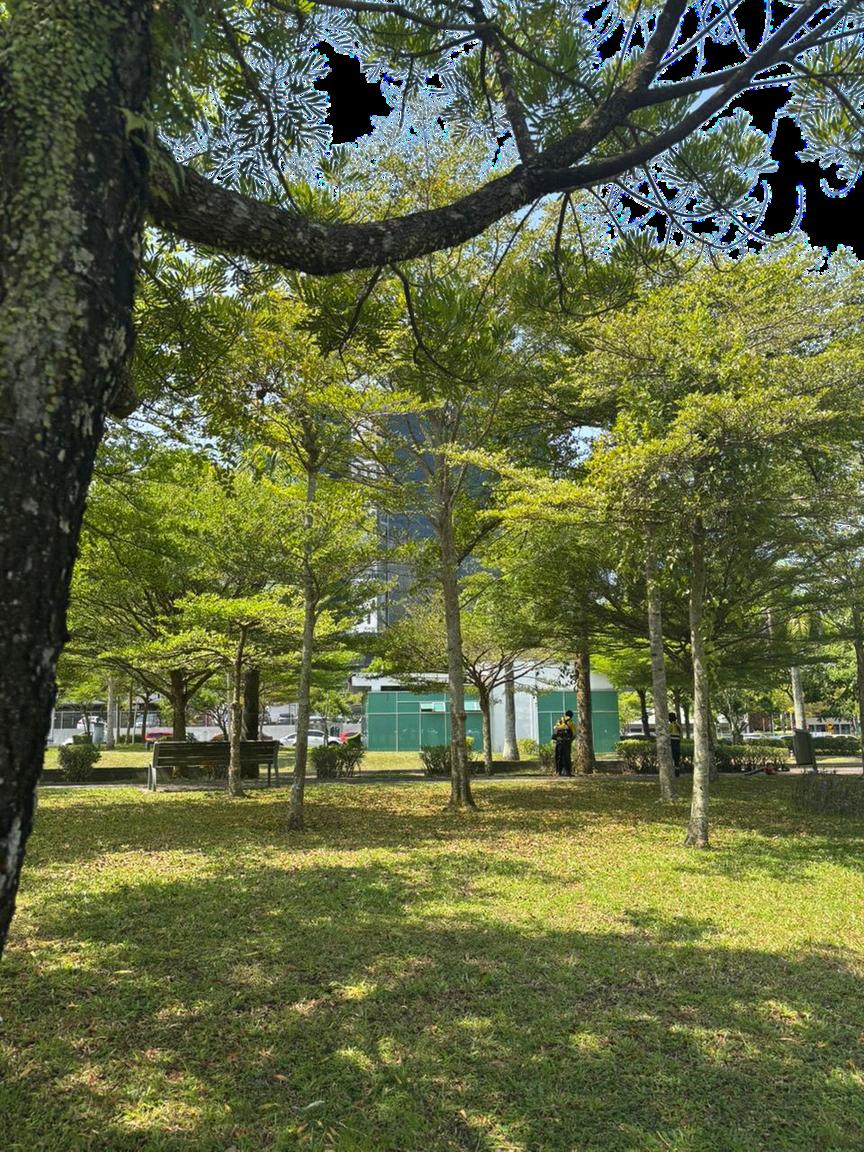

SITE STUDIES
,re
ga ,th be is dis public facilities have been damaged .There are also a lot of mosquitoes at night and during the day ,so students or others passers-by dare not stay here for long.

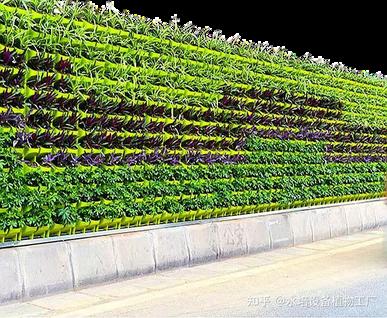

Wall-mounted hydroponic vegetables are a vertical farming system installed on walls growing plants without soil by supplying nutrients through a water solution Rainwater or stored purified water flows through pipes into the planting troughs where the plant roots absorb water and nutrients directly for rapid growth This design saves floor space, making it ideal for urban homes, balconies, kitchens, or indoor walls. Wall-mounted hydroponics also enhances indoor greenery improves air quality, and allows easy access to fresh vegetables.

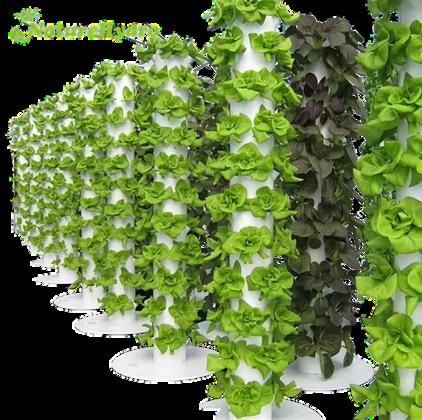

stand-up hydroponics is a vertical hydroponic system usually consisting of single or multi-layer independent racks, allowing a person to stand while planting and managing crops. The plant roots are either immersed in nutrient solution or supplied nutrients through a circulating system without the need for soil. This design makes it easy to manage water, fertilize, and harvest plants suitable for indoor or limited outdoor spaces, while maximizing space efficiency Stand-up hydroponics also supports continuous planting, increases yield, and promotes uniform, healthy vegetable growth.

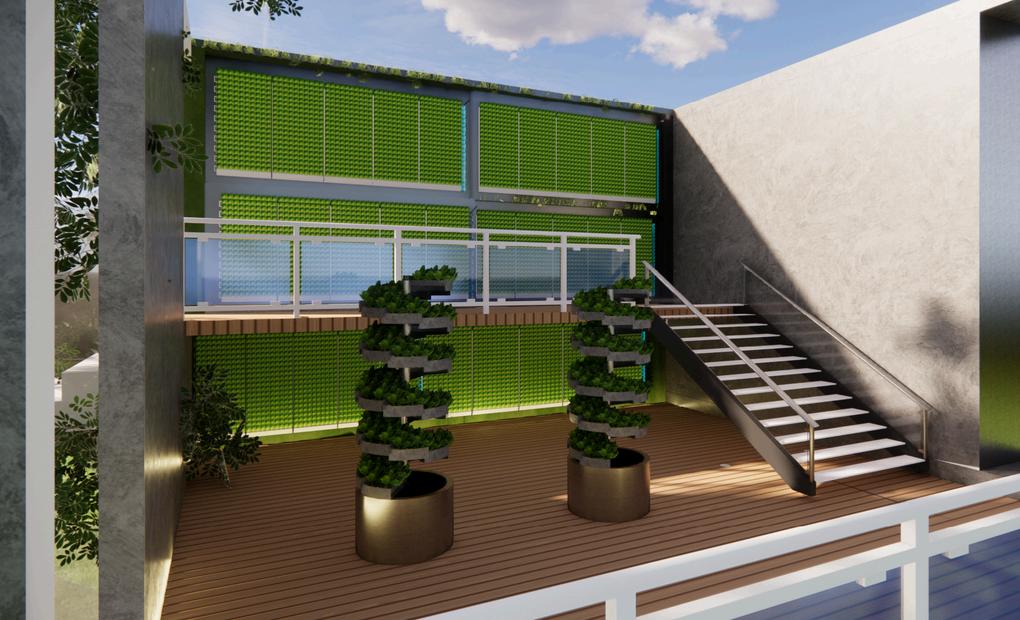

HYDROPONICSYSTEM

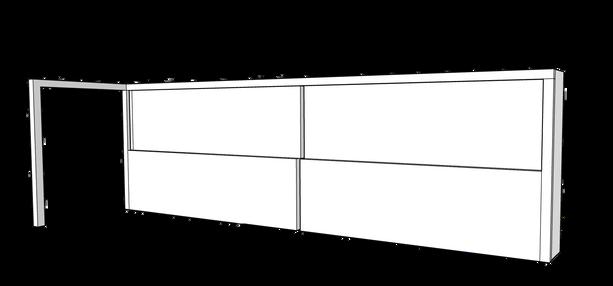

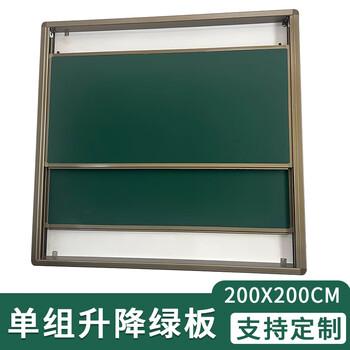

About the wall mounted hydroponic I refer to the Pull-out blackboard (top and bottom) . About the track of the system I use Vertical

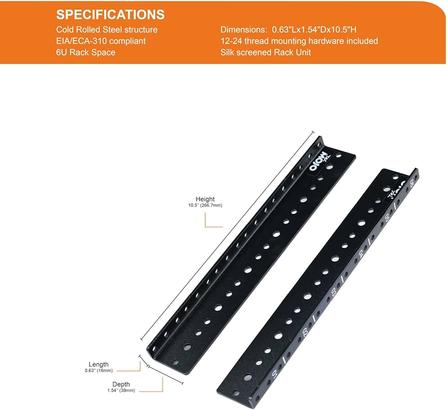

RailsInstalled on the left and right sides of the blackboard, it controls the up and down movement of the board, ensuring it doesn't tilt forward or backward. Common materials include extruded aluminum alloy profiles (most common) and steel rails (more durable).
So the hydroponic system have two layer , people can push the board up and down to make it easier for them to plant and retieve vegetables. The dimensions of a board is 1000mm is people can using hand to get the highest place of a board

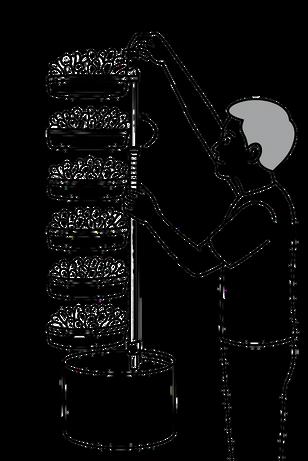

About the standing hydroponic I refer to theWhole tower lifting . The central support column is equipped with screws or slide rails,
allowing the entire vegetable tower to be lowered downwards, bringing the tallest vegetables to an operable position. Advantages: No need to climb; maintenance and harvesting can be done standing up, making it suitable for construction, hydroponic walls, and commercial farms.
Operating method (similar to a height-adjustable blackboard or clothes rack):
1. Hold the tower body
2.Pull the latch
3.Slowly slide it down
4.The top layer of food will then be lowered to hand height.

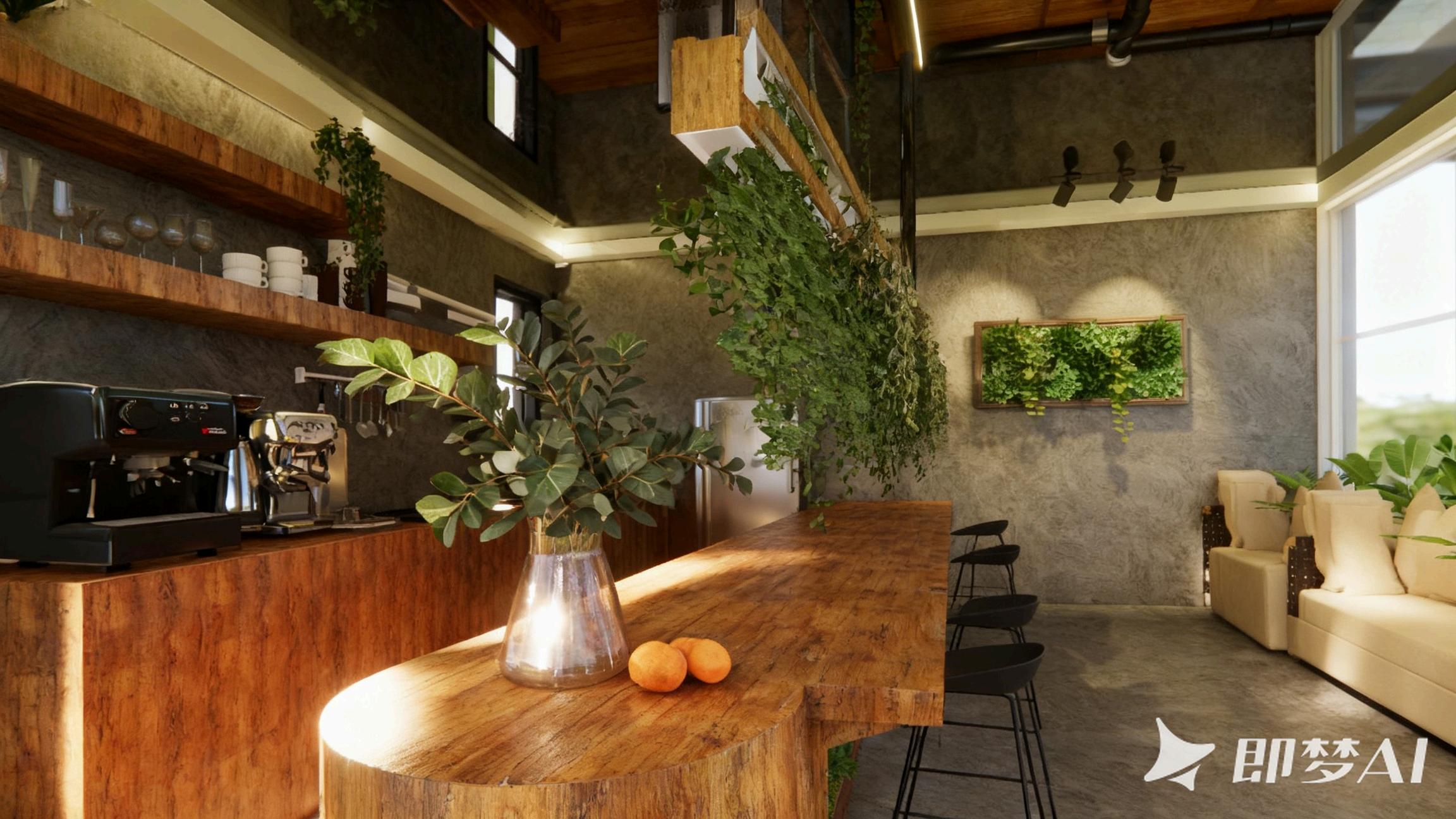

DINING AREA
MATERIAL
1OLD WOOD 2,.CEMENT
3.COMMON DRY WALL 4.MENTAL 5.GLASS
6.IRON MESH
COLOUR
1.WARM WOOD BROWN
ADDS WARMTH, COMFORT, AND A WELCOMING CAFÉ FEELING
2.OLIVE & DEEP GREEN
REPRESENTS NATURE, FRESHNESS, AND RELAXATION
3.CONCRETE GREY
GIVES AN INDUSTRIAL, MODERN BASE
4.SOFT BEIGE / CREAM
BALANCES THE SPACE AND KEEPS IT LIGHT AND SOOTHING
ABOUT US DESIGN CONCEPT
THIS CAFÉ DESIGN COMBINES INDUSTRIAL TEXTURES WITH NATURAL ELEMENTS TO CREATE A CALM AND WELCOMING ENVIRONMENT. THE RAW CONCRETE WALLS REPRESENT THE URBAN SETTING, WHILE THE WARM WOOD FINISHES ADD COMFORT AND COZINESS. LUSH GREENERY, INCLUDING HANGING PLANTS AND VERTICAL FEATURES, BRINGS LIFE INTO THE SPACE AND ENHANCES A RELAXING ATMOSPHERE.
GROUND FLOOR
FRIST FLOOR & THRID FLOOR
