ARCHITECTURAL PORTFOLIO 2024

Page 1

PORTFOLIO 2024

+ CHANAMOL NORASINGHA [ VISAUL MERCHANDISE ]
CONTENT 06 02 04 03 PROFILE ARCHITECTURAL THESIS PROJECT 2024 Cielo Suites Ladprao 2023 (Mixed use) SELF SURVIAL SKYCRAPER 2022 Oval Basketball Stadium 2021 01 METAVERSE [GYPSY] 2021 CONTENT

NORASINGHA (ice)

VISAUL MERCHANDISE

PROFILE

Name : Chanamol

Surname : Norasingha

Nickname : Ice

Gender : Female

Nationality : Thai

Religion : Buddhism

Date of Birth : 31-01-2000 (24 year)

WORK EXPERIANCE

03 May 2023 - 22 June 2023

UTM (Universiti Teknologi Malaysia) Low Carbon Asia

Position : Research Assistant (Assist in conducting Study, Analysis, Reporting in The Casbee Iskandar review project.)

- Learn about innovative technologies and systems that promote energy efficiency and renewable energy integration in buildings.

- Enhance research skills by collecting and analyzing data related to low carbon design, urban planning, and sustainable technologies.

EDUCATION

Jun 2019 - April 2024

Bachelor of Architecture (B.Arch)

Rajamangala University of Technology Thanyaburi (RMUTT)

- Major in Architectural Technology.

April 2016 - March 2019

High School

SUPHAN BURI, THAILAND

+66 062-481-1979

CHANAMONIST@GMAIL.COM

WWW.behance.net/chanamonorasin1

Banhanjamsaiwittaya(3) School - Mathematics - Science class

April 2016 - March 2019

Middle School

Princess Chulabhorn Science High School in Phetcha Buri, Thailand. - Science class >> SKILLS SET

EXCELLENT - Illustrator - Photoshop - SketchUp - AutoCAD - Lumion - PPT.

GOOD - V-Ray - Enscape - Revit

Fair - ArchiCAD - InDesign

Project Name :Artistic Oasis for Sugar Cane Bagasse to Uplift The Local Agrarian Prosperity.

02 04 03

EXPLOADED ISOMETRIC

SCALE 1:1000 ISOMETRIC & FLOOR PLAN

SCALE 1:1000 ELEVATION BACK LEFT RIGHT FRONT BIRDS EYE VIEW

01 05

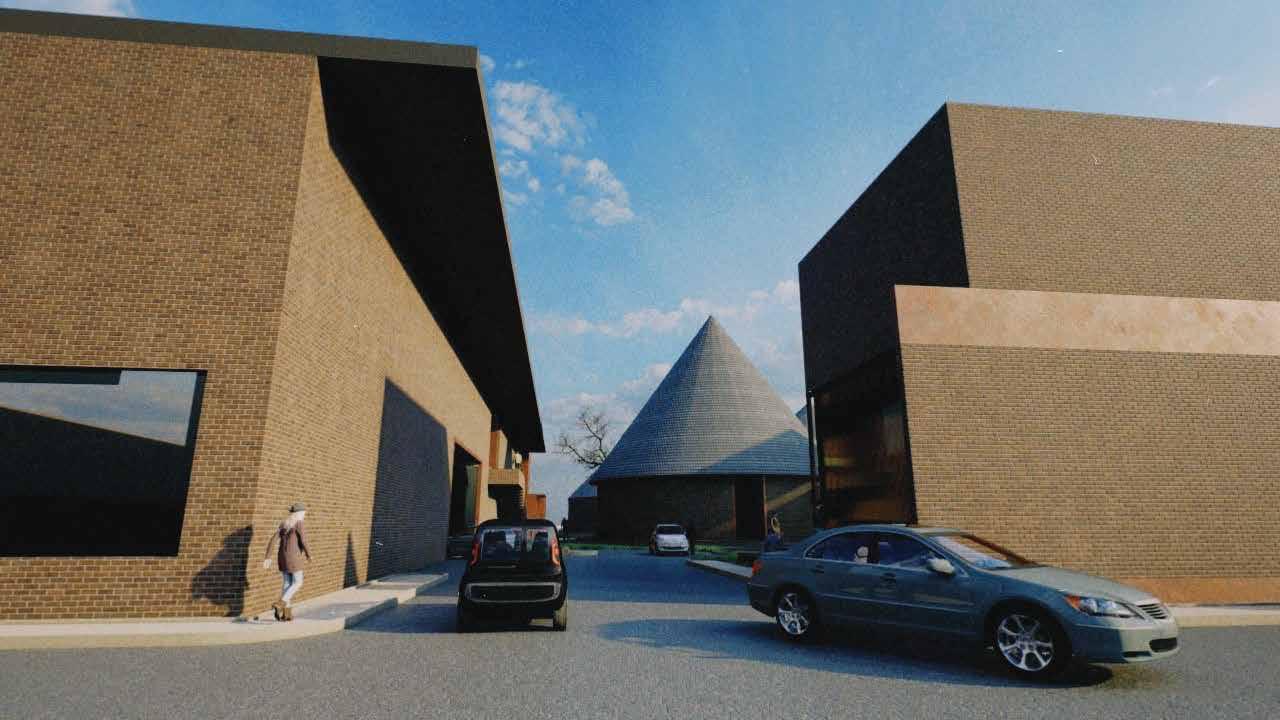

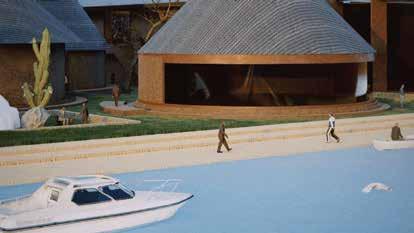

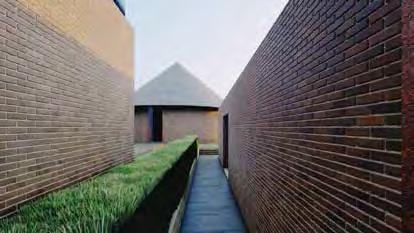

3D PERSPECTIVE & DETAIL

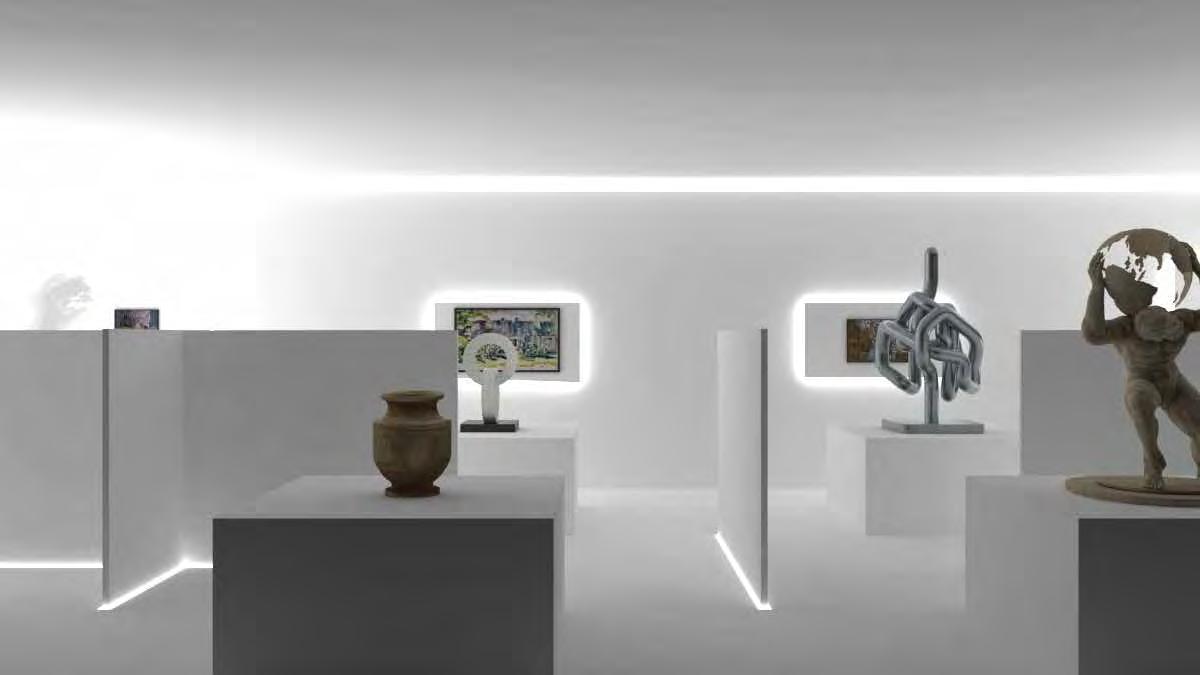

[DISPLAYEXHIBITION]

FUNCTION DIAGRAM

+ACTIVITY AREA +/ ASSEMBLY POINT

+LABORATORY

+[BIOPLASTIC & FERTILIZER]

+GREEN AREA

+[INDOOR - OUTDOOR]

+WORKSHOP [BROWN SUGAR +/ BIO PLASTIC / FERTILIZER]

+SOUVENIR SHOP

+FILTER CAKE CRAFT SPACE +[OUTDOOR]

+MEETING +/ LECTURE

+MAIN USER : SUGAR CANE FAMER

+SUB USER : SCIENTIST & STUDENT

+EXHIBITION +/ BROWN SUGAR SCULTURE

+RESTAURANT +/ FROM BROWN SUGAR PRODUCT

3X3
01 02
03 04 05 06 07 08 09

TYPICAL GREEN ROOF

BROWN SUGAR OFFICE + FERTILIZER LABORATORY

BROWN SUGAR WORKSHOP

FERTILIZER LABORATORY

CAR PARKING BIO PLASTIC LABORATORY
02

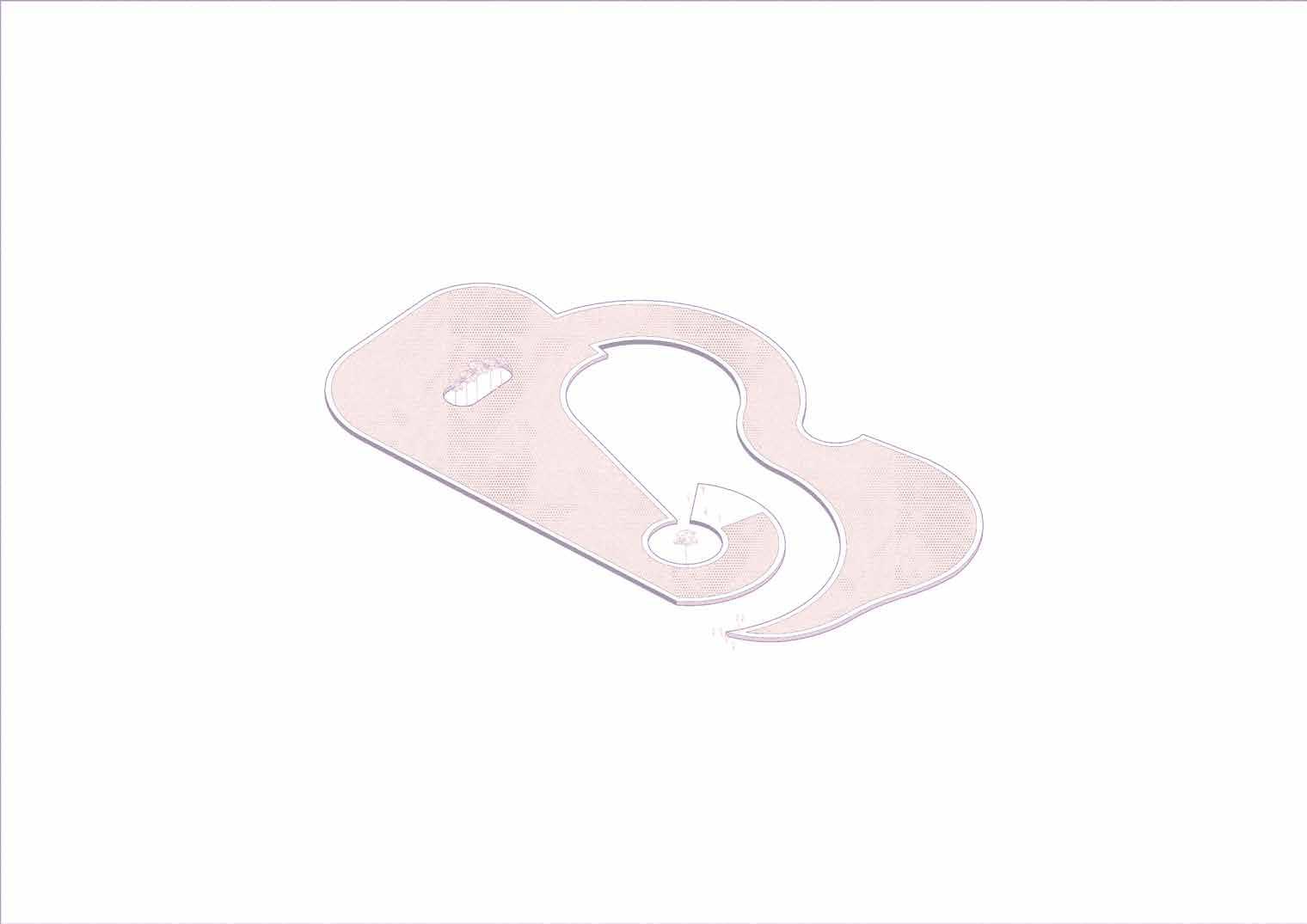

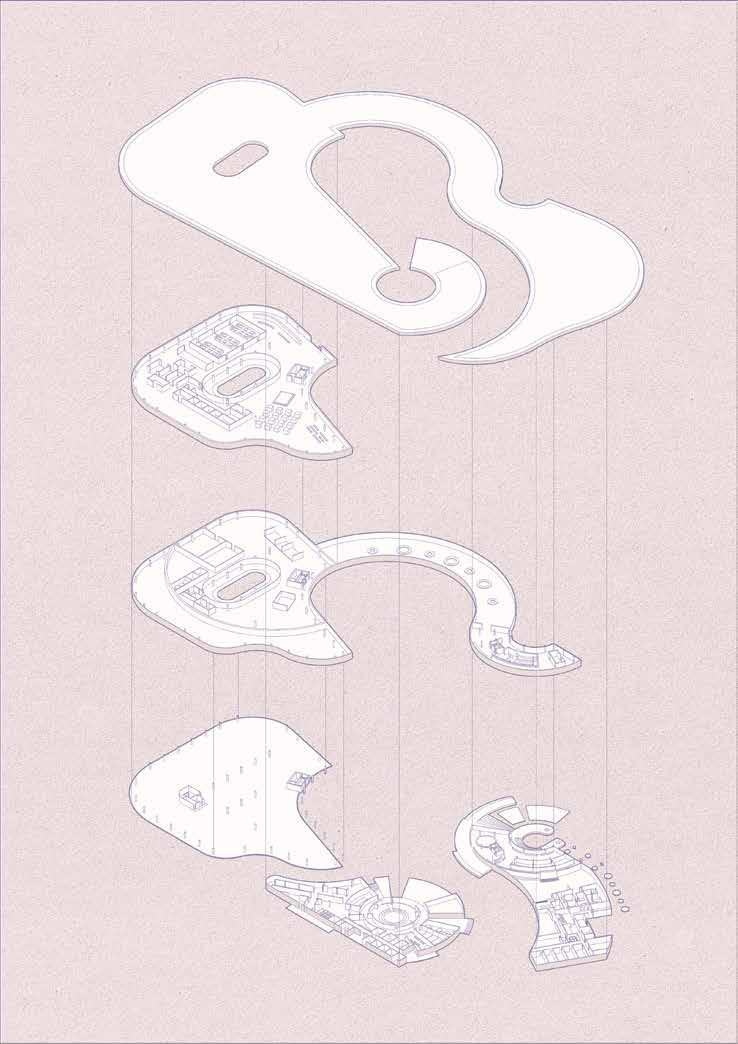

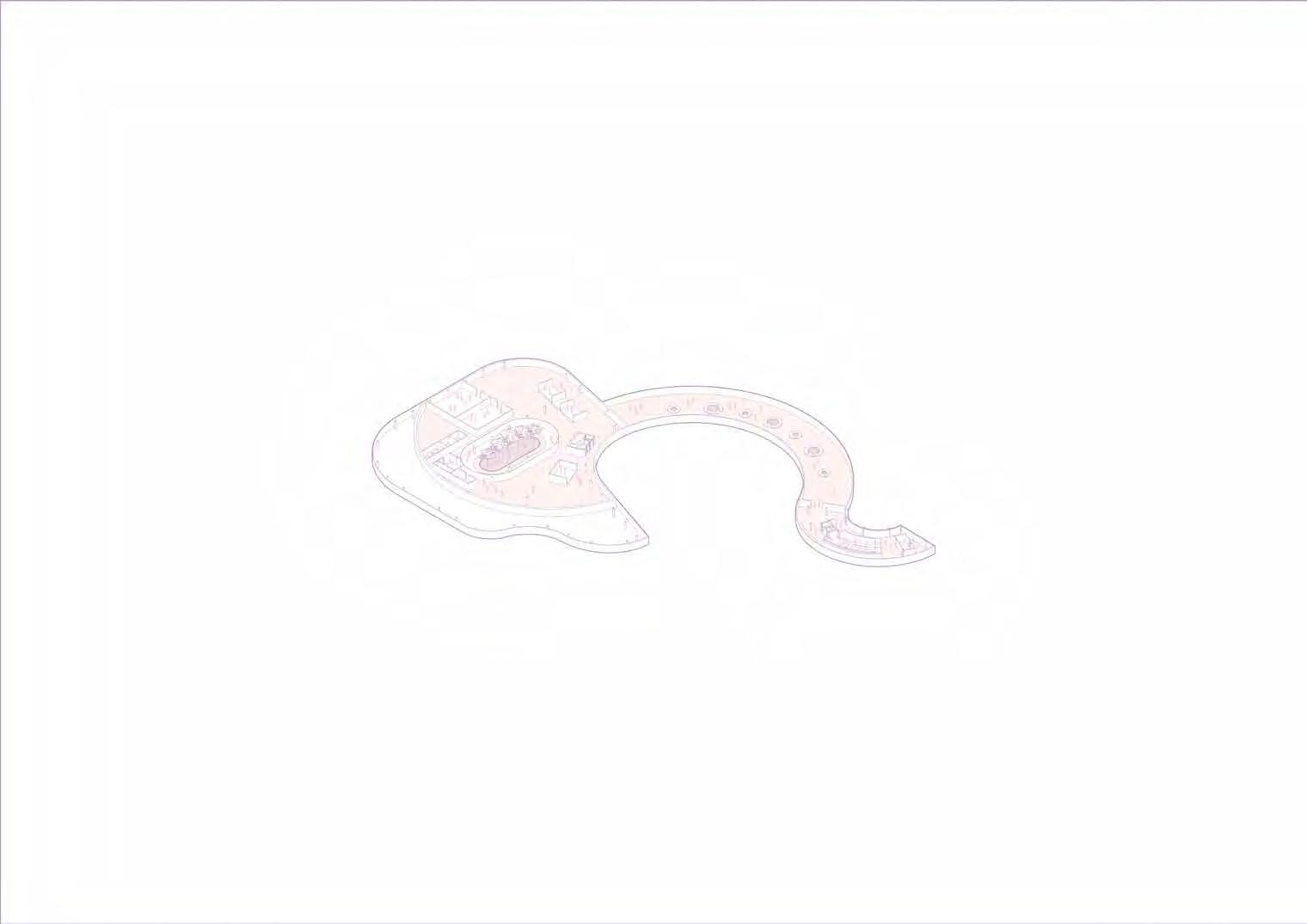

EXPLOADED ISOMETRIC SCALE 1:1000
1 MAIN ENTRANCE SUB ENTRANCE 2 TYPICAL GREEN ROOF 3 TOP FLOOR ;TYPICAL GREEN ROOF EXPLOADED ISOMETRIC & FLOOR PLAN
TOP FLOOR PLAN SCALE 1:1000
Rd. Exit +00.10 m. In +00.10
Entrance +00.30 m. Drop Off +00.30 m. 3 2 1 Slope Slope Slope Slope
03
SCALE 1:1000
3350
m.
Courtyard
11 12 10 9 8 EXPLOADED ISOMETRIC & FLOOR PLAN SCALE 1:1000 2 3 4 5 7 6 2 3 1 MAIN ELEVATOR / FIRE ESCAPE 2 ENTRANCE 3 LOADIND / FIRE ESCAPE 4 ACTIVITY AREA [OUTDOOR] 1ST FLOOR ;CAR PARKING WC LABORATORY ELEVATOR / STAIR HALL WAITING AREA ELEVATOR / FIRE ESCAPE ACTIVITY AREA DOUBLE VOLUME WC SERVICE MEETING OFFICE 1 2 3 4 5 6 7 8 9 10 11 12 2ND FLOOR ;BROWN SUGAR OFFICE + FERTILIZER LABORATORY 1 ELEVATOR / FIRE ESCAPE 2 EXHIBITION 3 BROWN SUGAR WORKING AREA 4 BACK OF HOUSE 3TH FLOOR ;BROWN SUGAR WORKSHOP 5 SERVICE 6 WC 7 KIOSK 8 WAITING AREA 9 ACTIVITY AREA 03

SCALE 1:1000

FIRST FLOOR PLAN

SCALE 1:1000

FIRST FLOOR PLAN

SCALE 1:1000

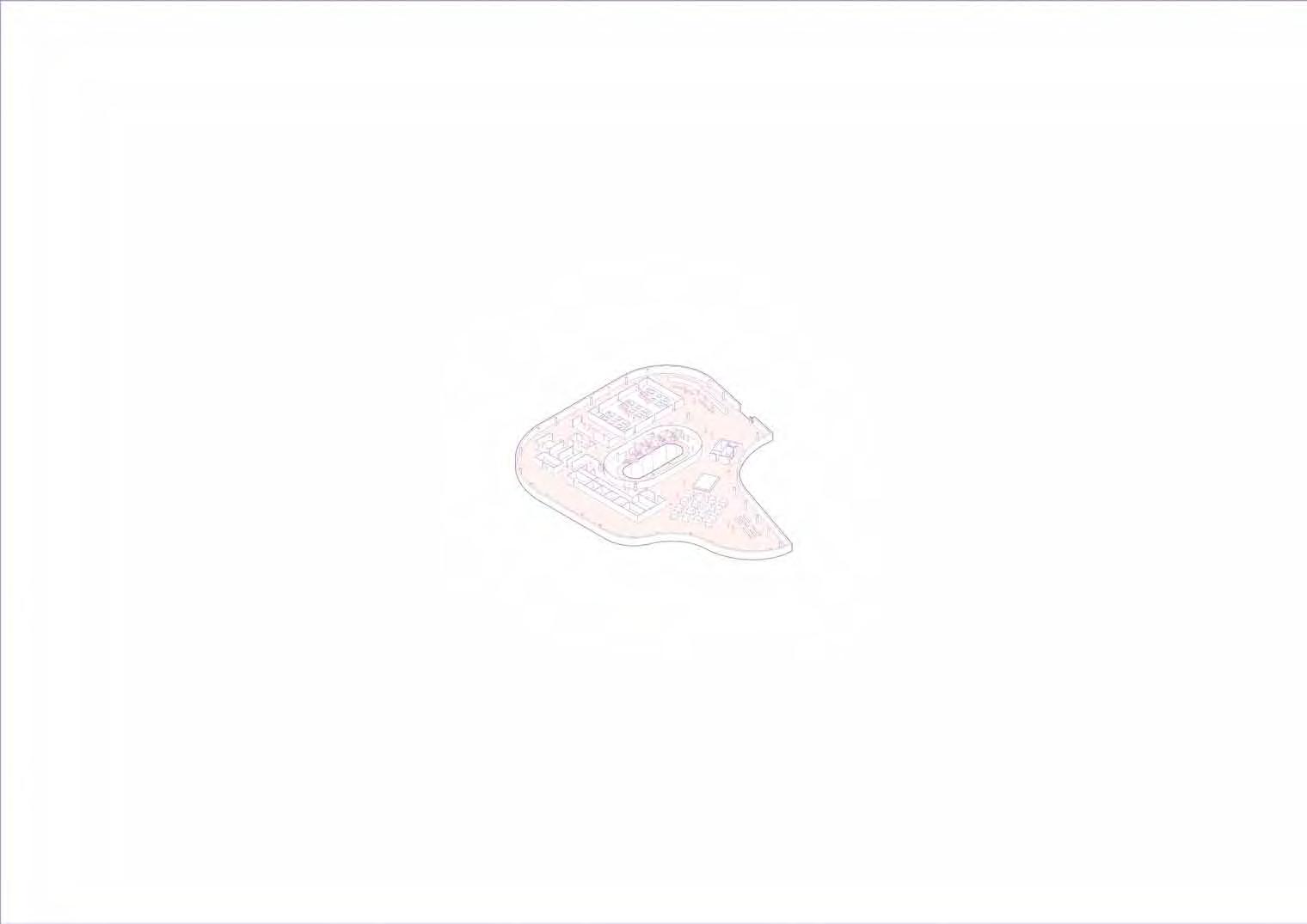

03 EXPLOADED
ISOMETRIC & FLOOR PLAN
++

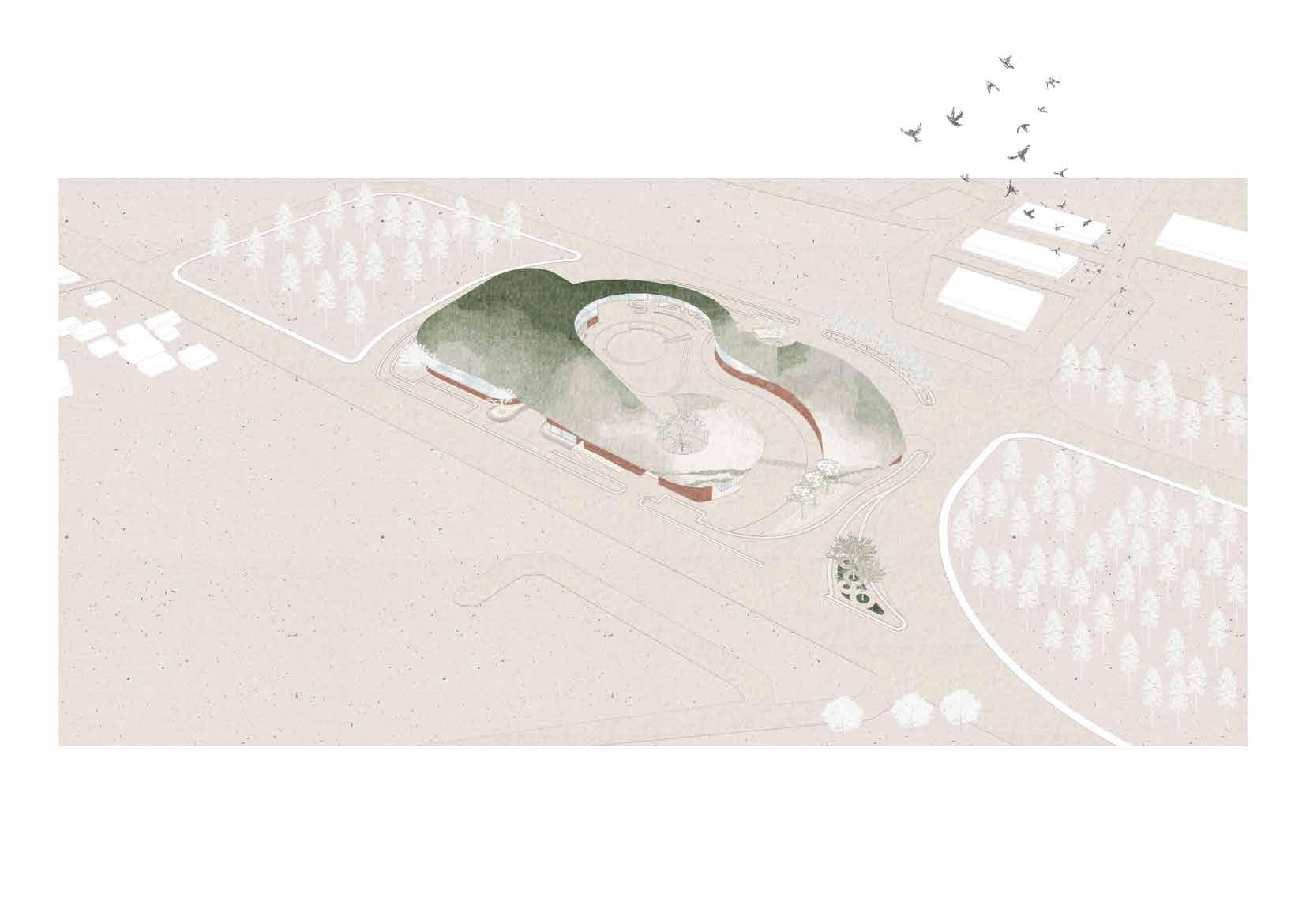

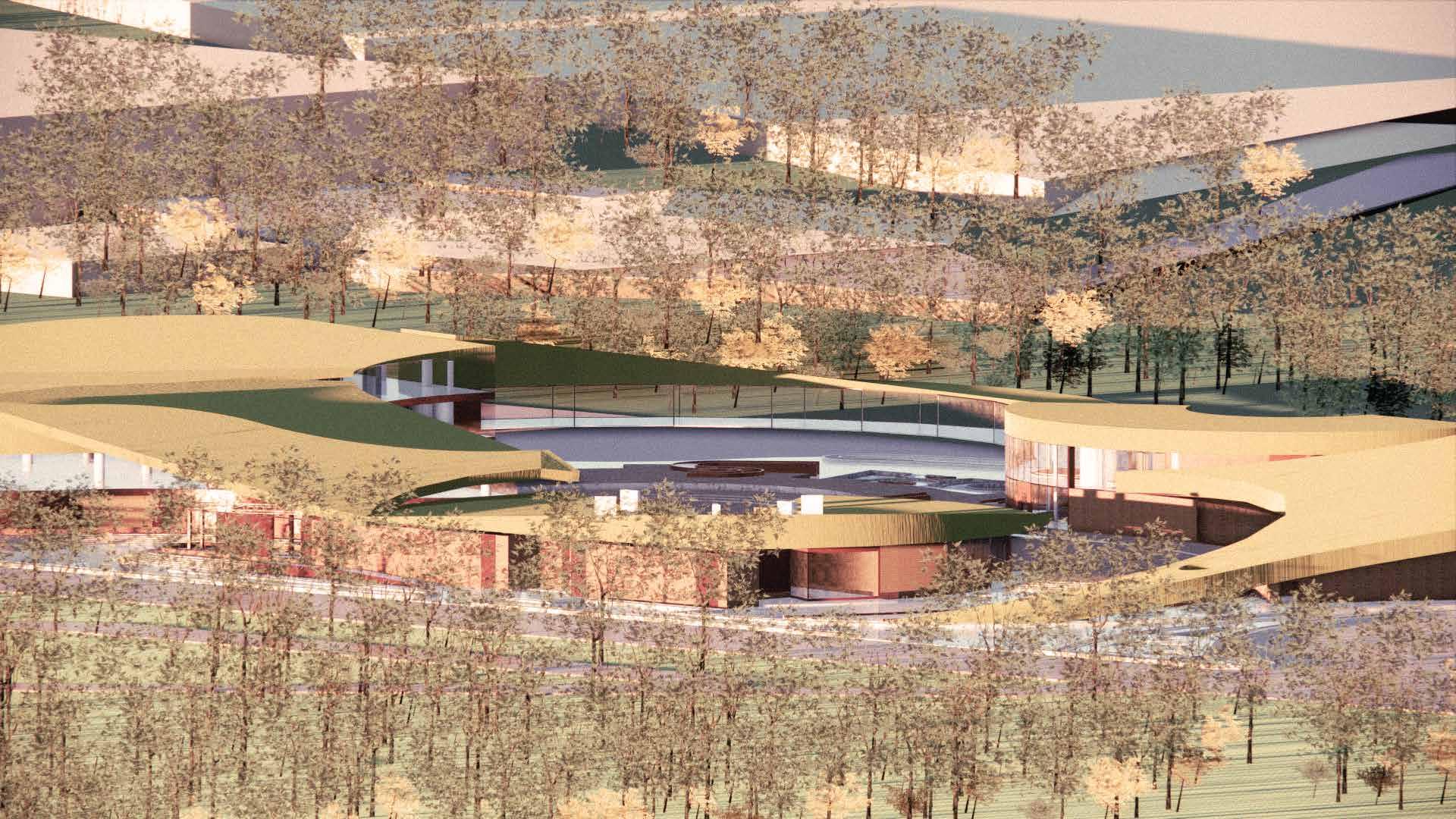

BIRDS EYE VIEW

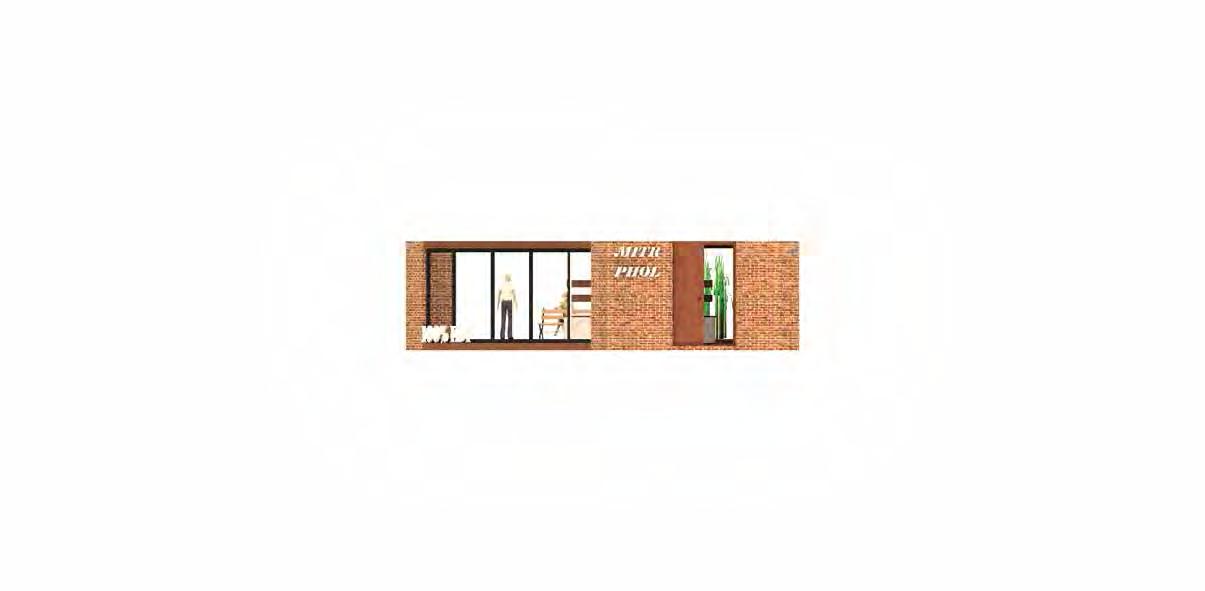

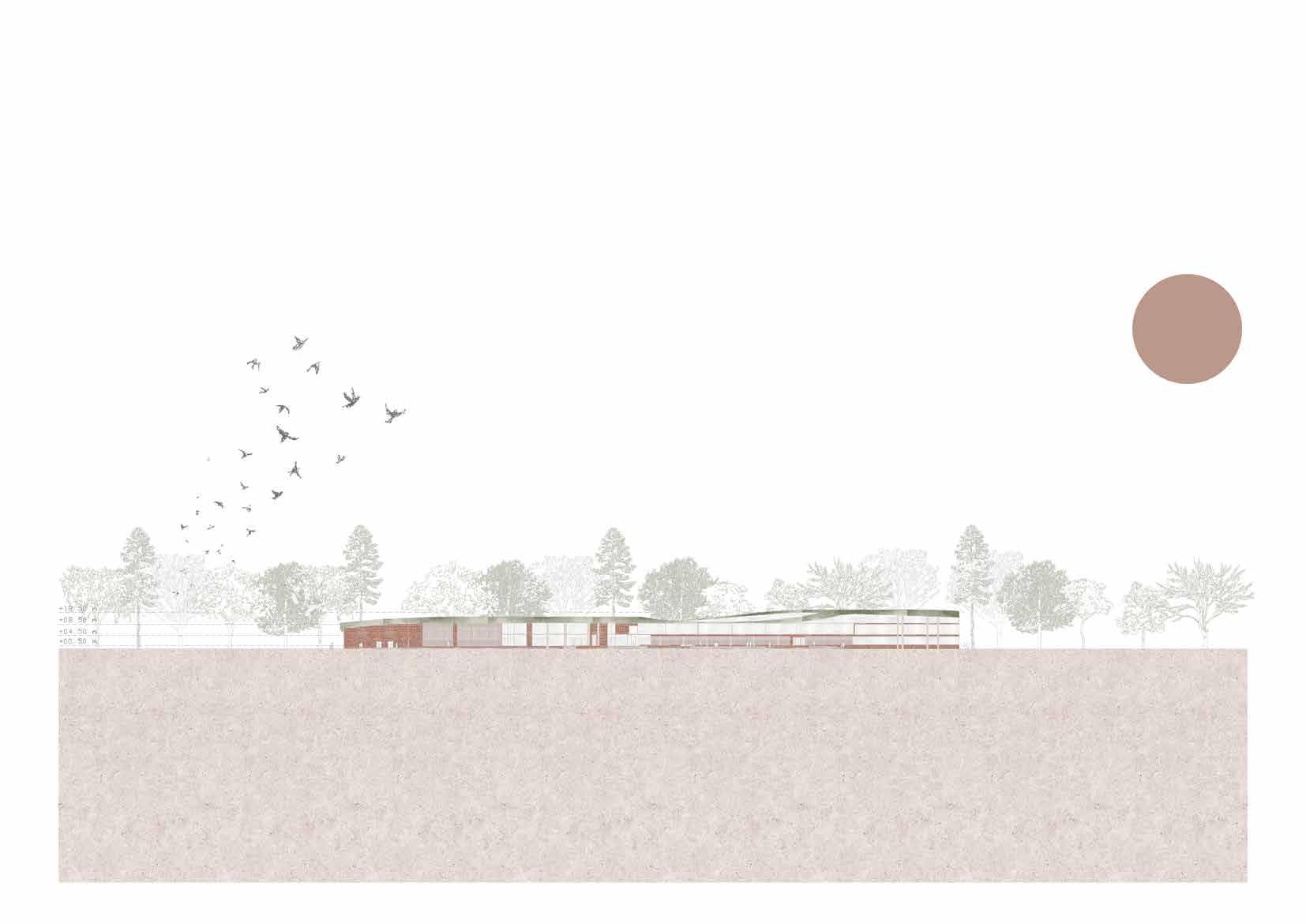

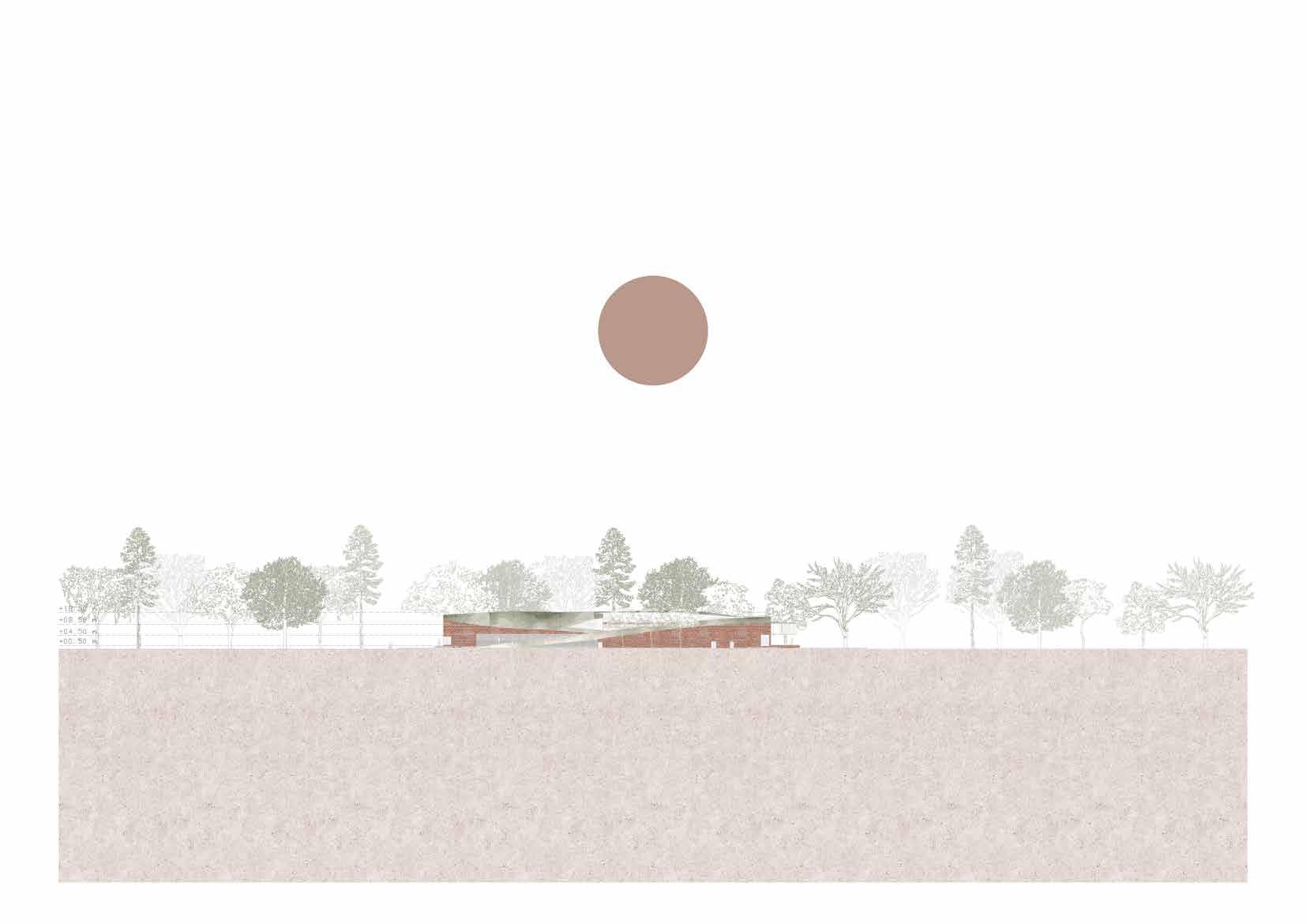

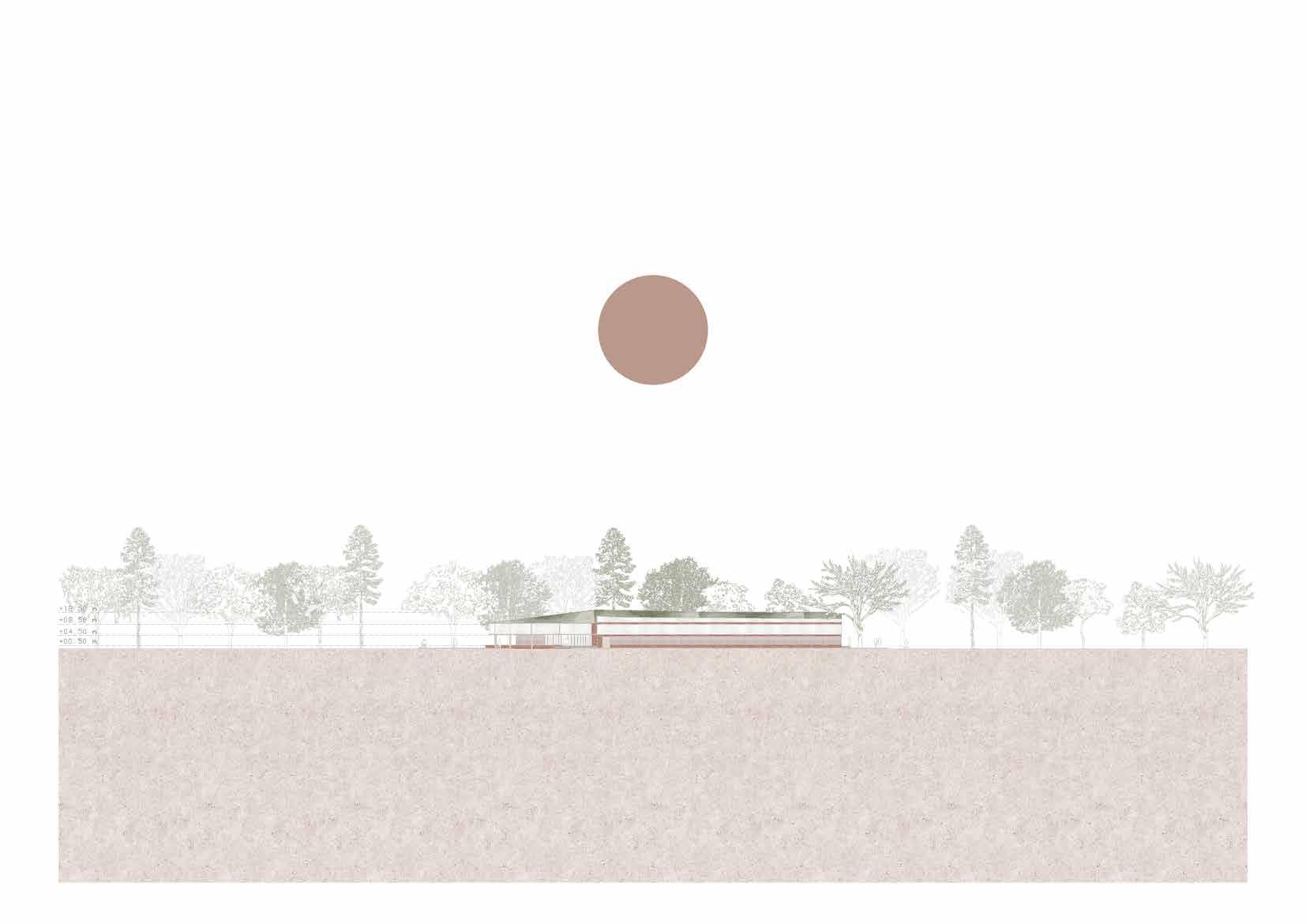

ELEVATION BACK LEFT RIGHT FRONT
N

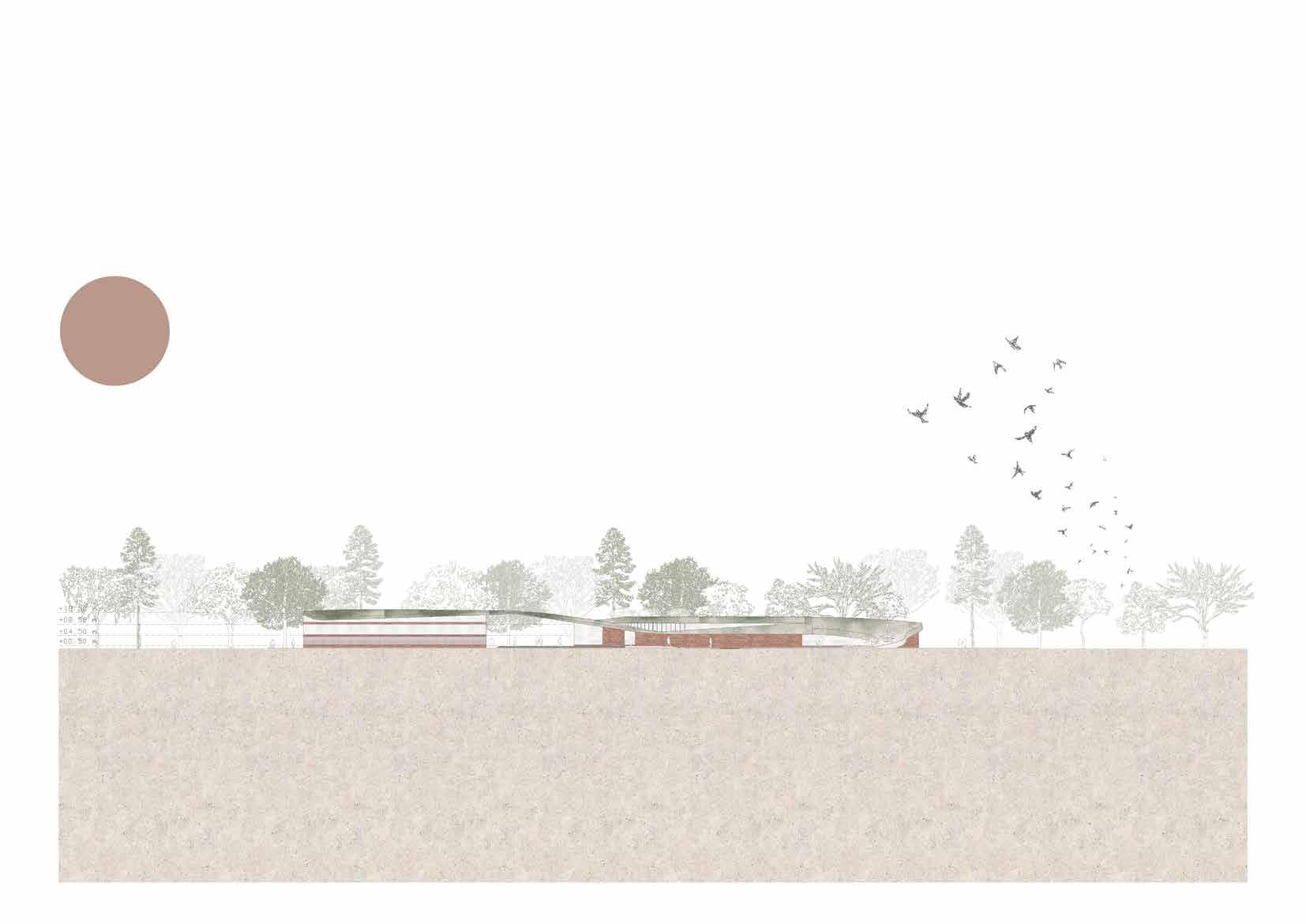

SOUTH ELEVATION [BACK] N EAST ELEVATION [LEFT] N WEST ELEVATION [RIGHT]
N
NORTH ELEVATION [FRONT]

SOUVENIR SHOP

3D & DETAIL >>NEXT PAGE

N

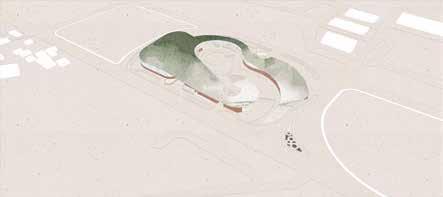

BIRDS EYE VIEW [NORTH]

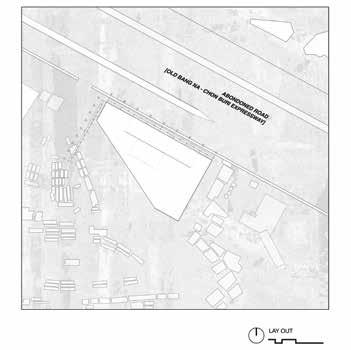

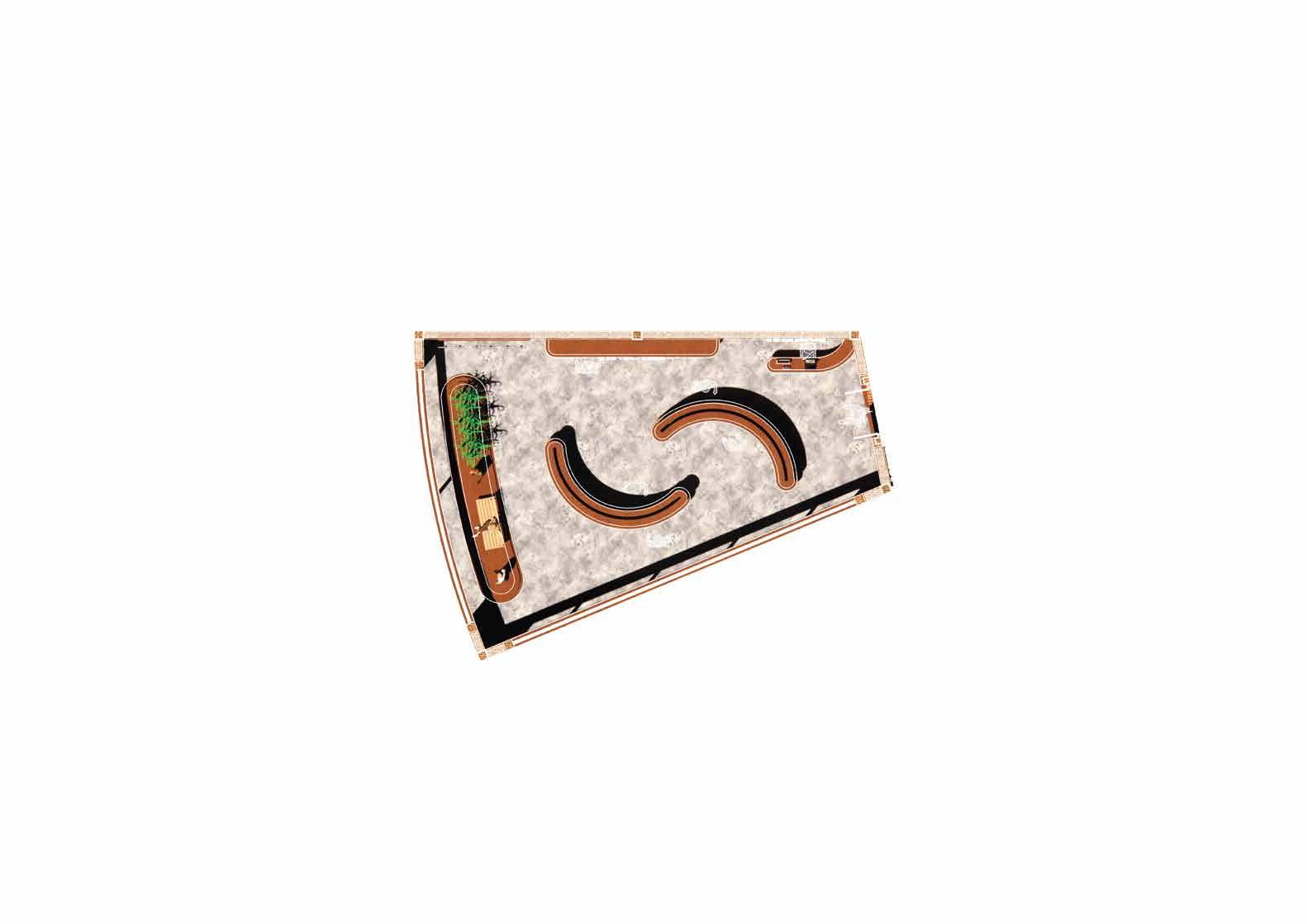

A C B N SOUVENIR SHOP FLOOR PLAN REGISTER
ORDERING PRODUCT
CANE FAMER DRESS WINDOW
PRODUCT DISPLAY WINDOW DISPLAY PRODUCT FROM SUGAR CANE
-
DISPLAY
DISPLAY
Glazed Porcelain Tile Laminate Sheet Acrylic Stone

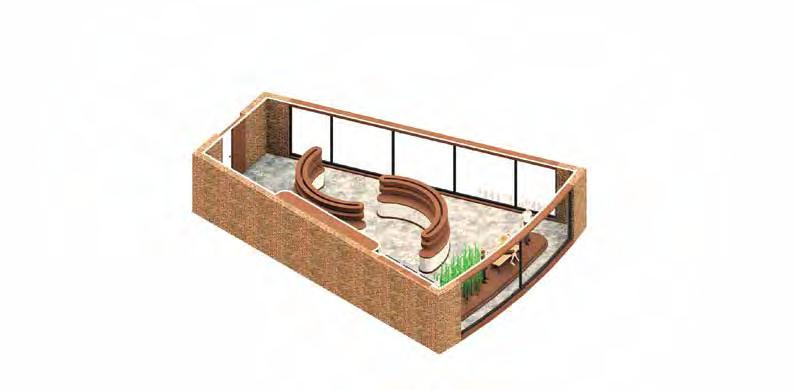

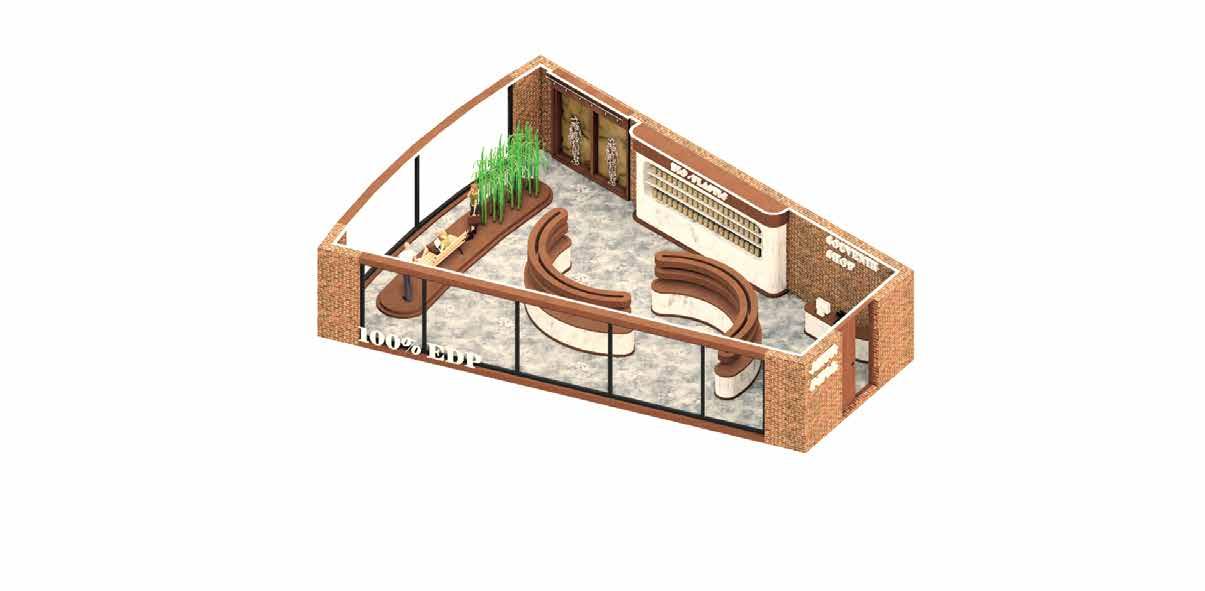

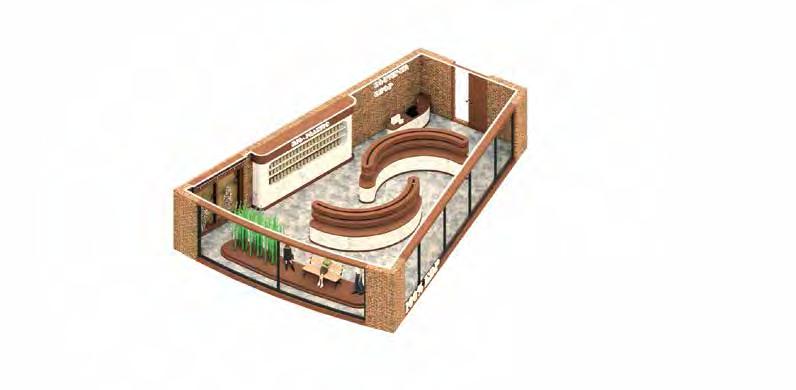

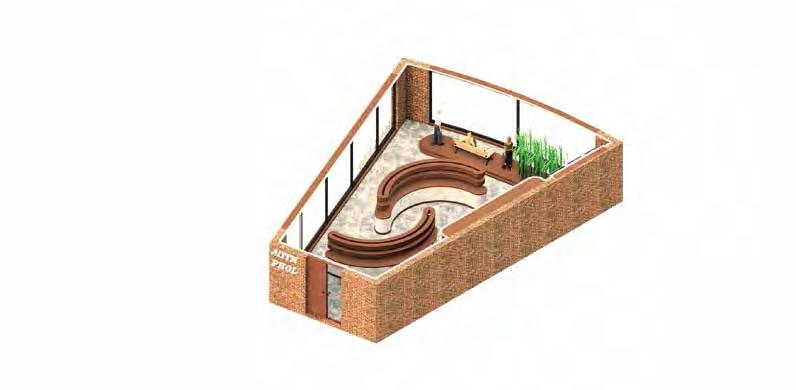

PRODUCT DISPLAY PRODUCT DISPLAY PRODUCT DISPLAY WINDOW DISPLAY ORDERINGREGISTER PRODUCT DISPLAY ENTRANCE 05 SOUVENIR SHOP /ISOMATRIC & FLOOR PLAN CONCEPT ANTIQUE X BROWN SUGAR
Pylwood
LEFT

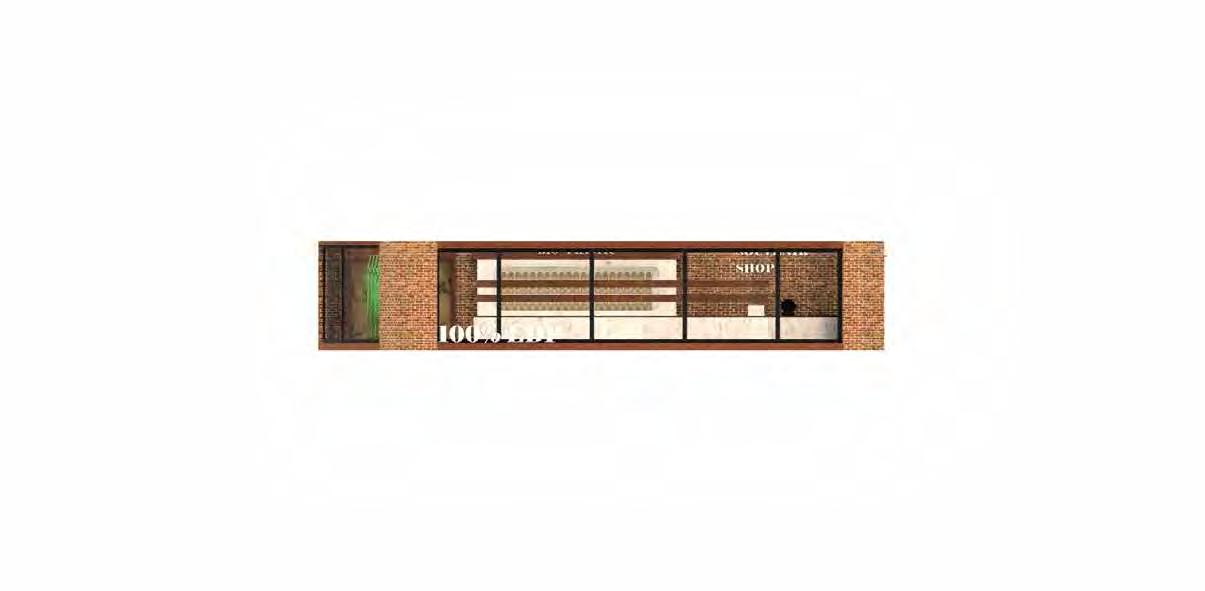

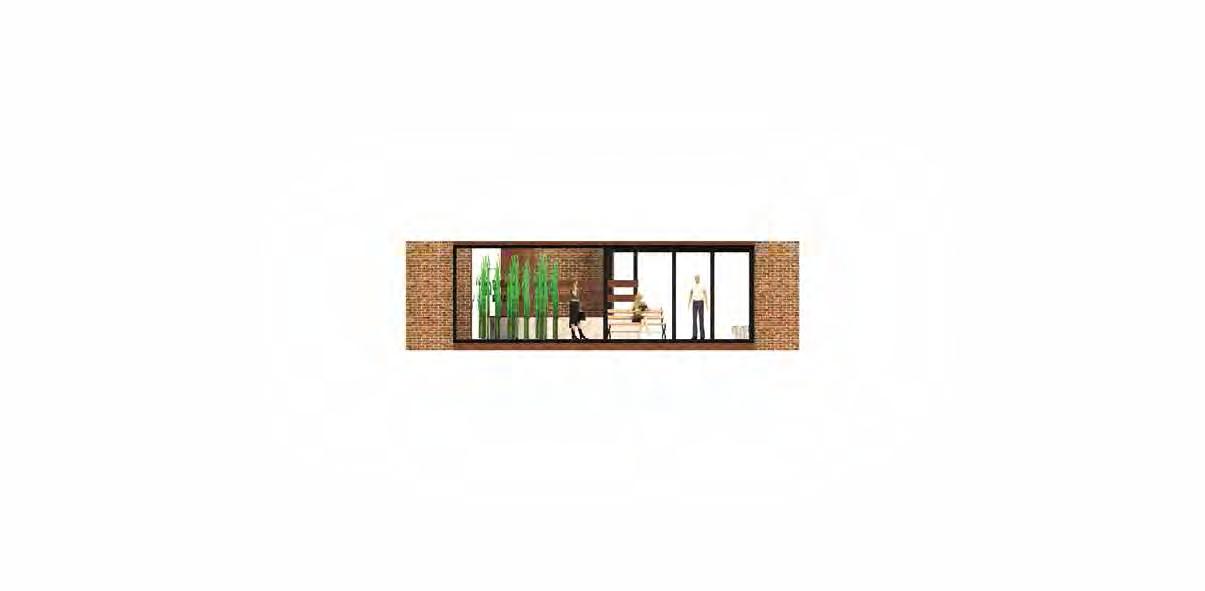

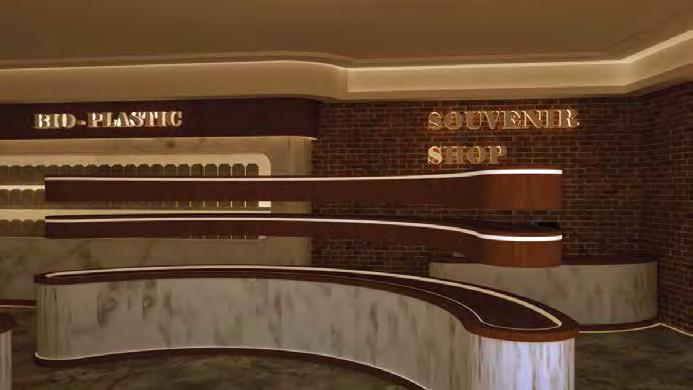

RIGHT BACK 3.50 M 0.00 M 3.50 M 0.00 M 3.50 M 0.00 M 3.50 M 0.00 M N N N N ELEVATION & PERSPECTIVE CONCEPT ANTIQUE X BROWN SUGAR
FRONT

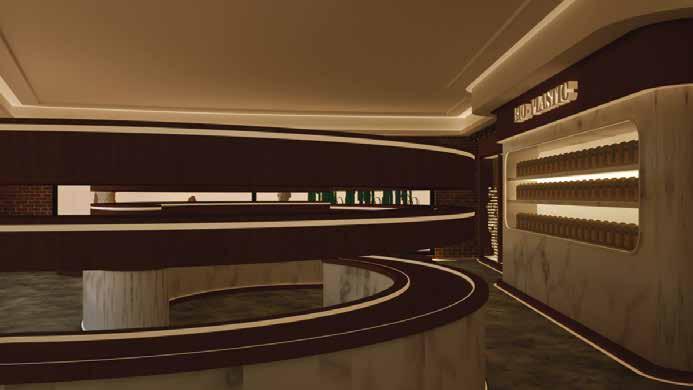

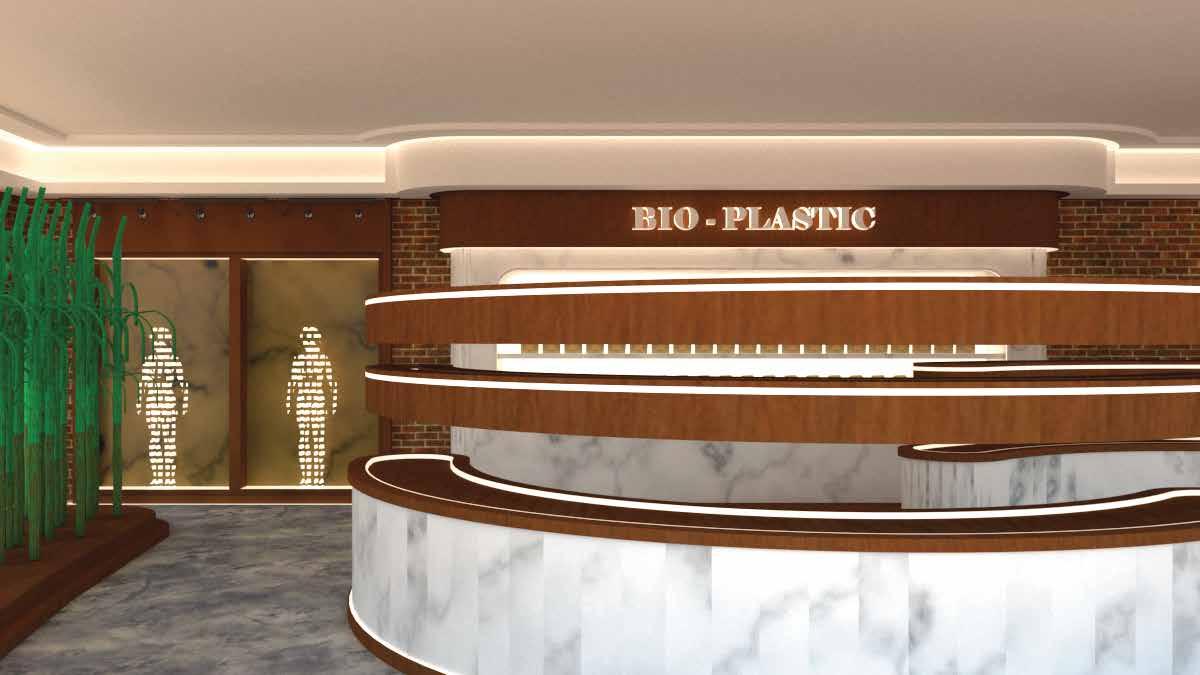

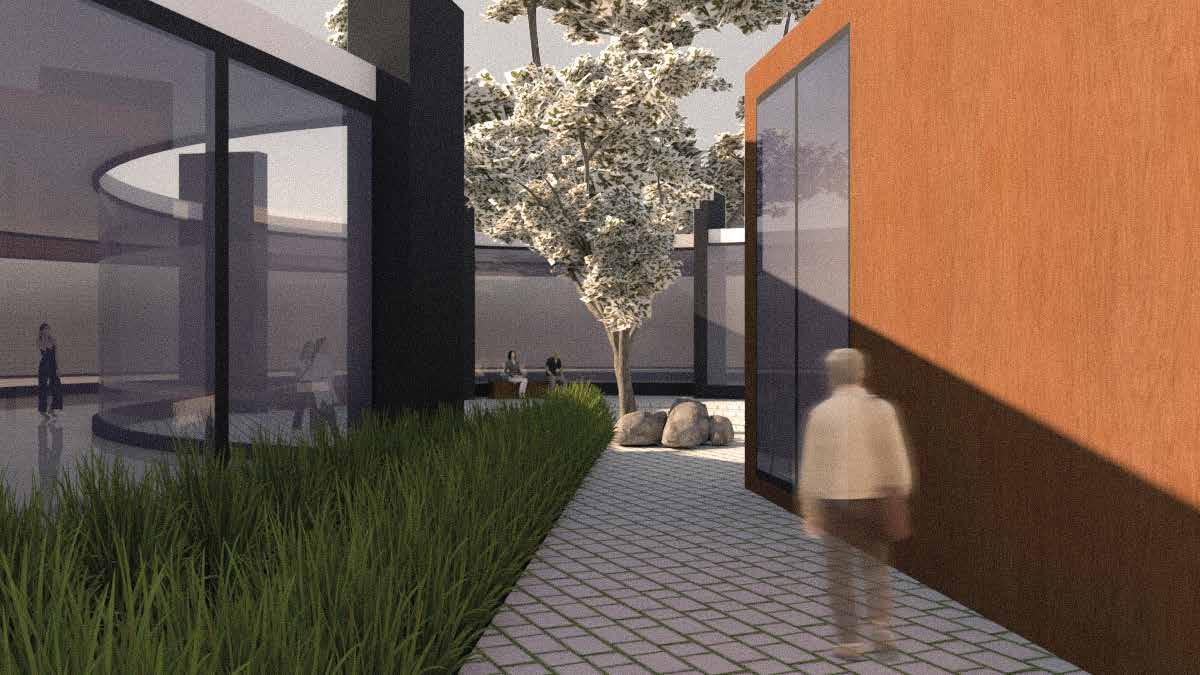

REST AREA SOUVENIR SHOP BIO PLASTIC LABORATORY <<< >>> ENTRANCE 05 BIO PLASTIC ZONE OPEN AIR COURTYARD

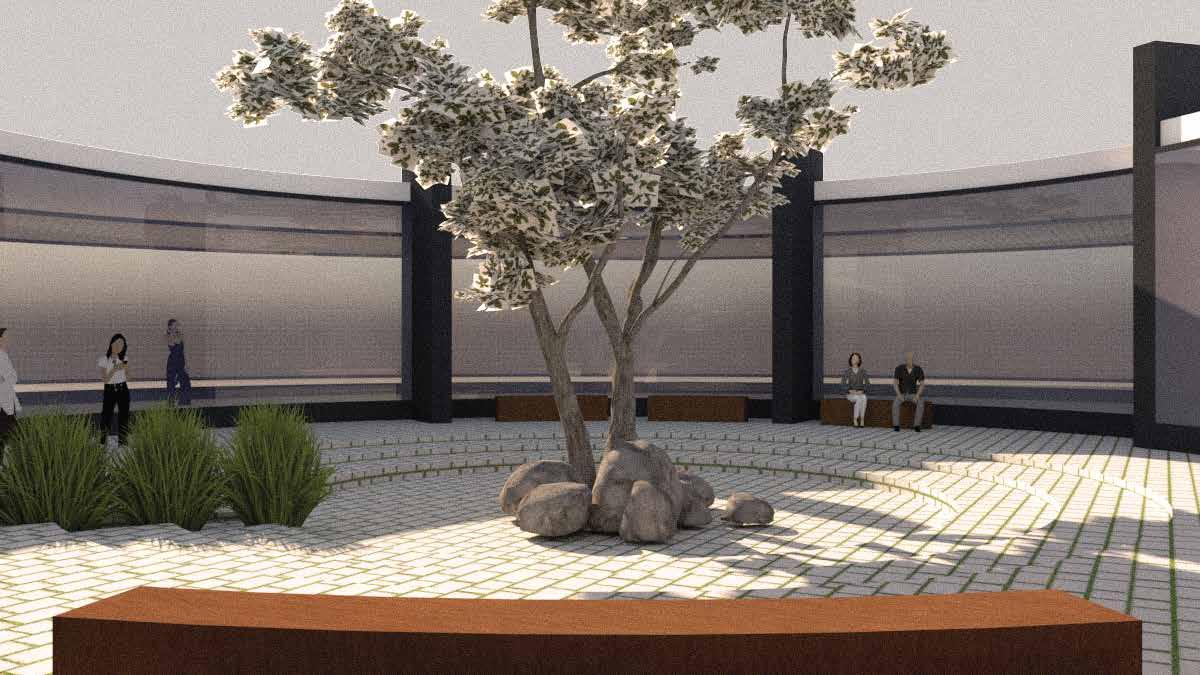

OPEN AIR COURTYARD HALL REST AREA
GRANITE COBBLESTONE WPC (Wood Plastic Composit)
INSULATED
GLASS BIO PLASTIC LABORATORY

BROWN SUGAR PRODUCT

INSULATED GLASS

MATERIAL FROM BROWN SUGAR PRODUCT

Display Pedestals [MDF TOP WITH WHITE

INSULATED GLASS

05

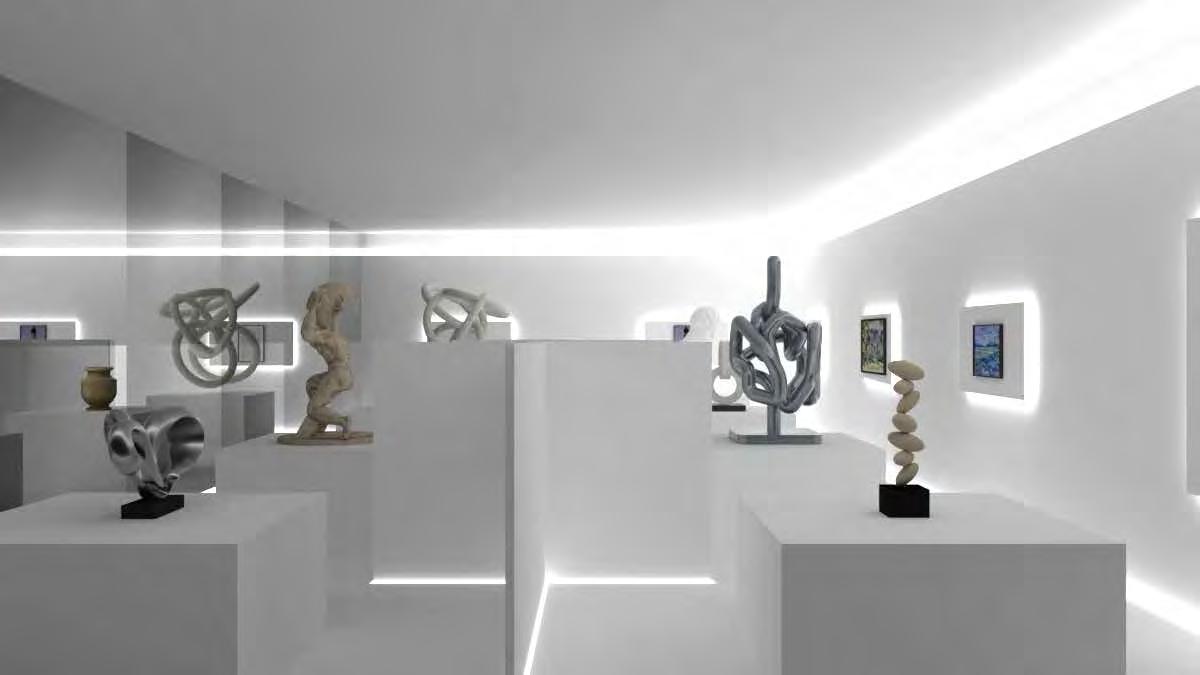

BROWN SUGAR ZONE BROWN SUGAR SCULPTURE EXHIBITION LAMINATE MDF TOP WITH WHITE LAMINATE

BROWN SUGAR ZONE

-WORKSHOP

-EXHIBITION

-SUGAR CANE FAMER OFFICE

-BOH & SERVICE

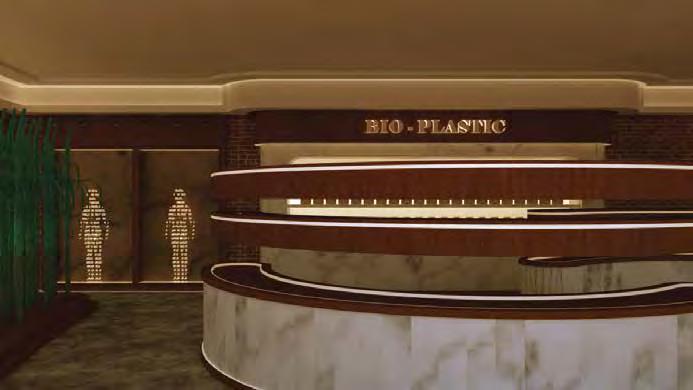

BIO PLASTIC ZONE

-LABORATORY

-SCIENTIST OFFICE

-LECTURE & WORKSHOP

-SERVICE

HALL

SOIL & FERTILIZER ZONE

-LABORATORY

-MAIN OFFICE

-LECTURE & WORKSHOP

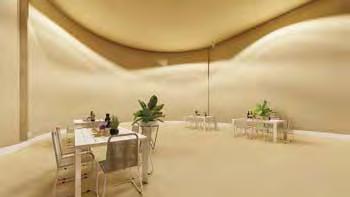

-RESTAURANT

-BOH & SERVICE

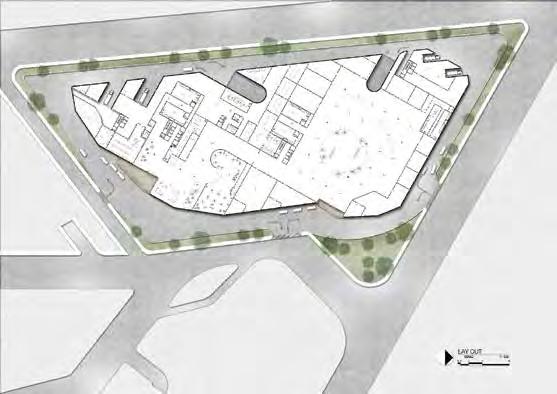

THA CHANG - SRA BUA KAM 3350 Rd.

MASTER LAY OUT

03

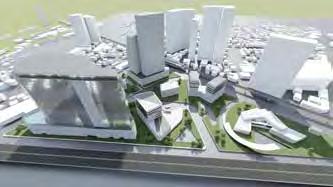

Ladprao 2023 (Mixed use)
Cielo
Suites
SUITE 2bedroom deluxe suite Guest Room 2-bedroom deluxe suite 160 sqm. max 4 adult 2 QUEEN beds SUITE Executive SUITE Executive SUITE Executive Guest Room Executive Floor 2-bedroom suite 1160 sqm. max 2 adult SUITE 2-bedroom deluxe suite 01 Condominium 02 Academy 03 Health club 04 Hospital 05 Hotel + retail 06 Office + retail 07 Gallery 2H H H^2 + (2H)^2 SITE LOCATION 5 YAEK LAD PHRAO TOTAL AREA : 53,438 sqm. CAR PARKING : 5,566 sqm.
04

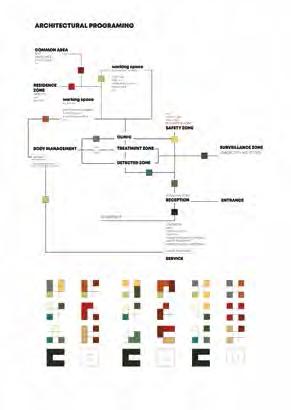

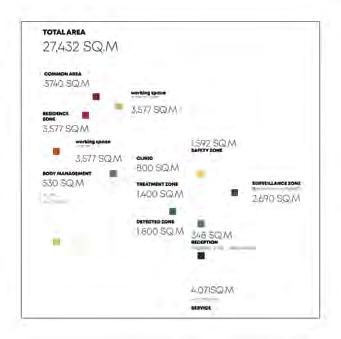

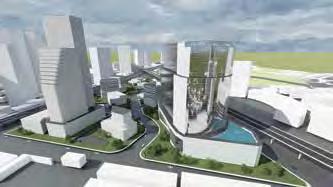

SKYCRAPER 2022 LAY OUT
MINGTEE CHEMICAL MASTER
SELF SURVIAL

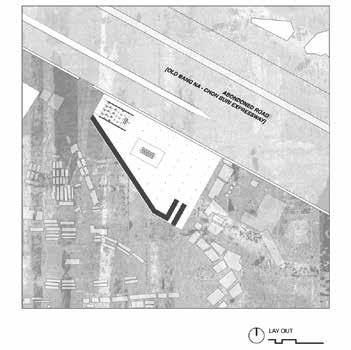

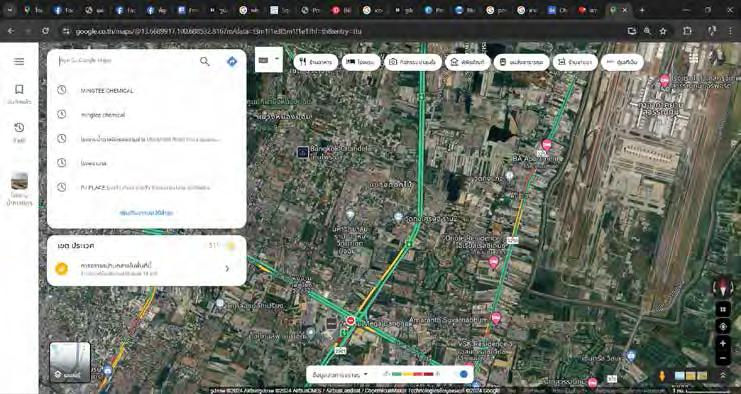

SITE LOCATION

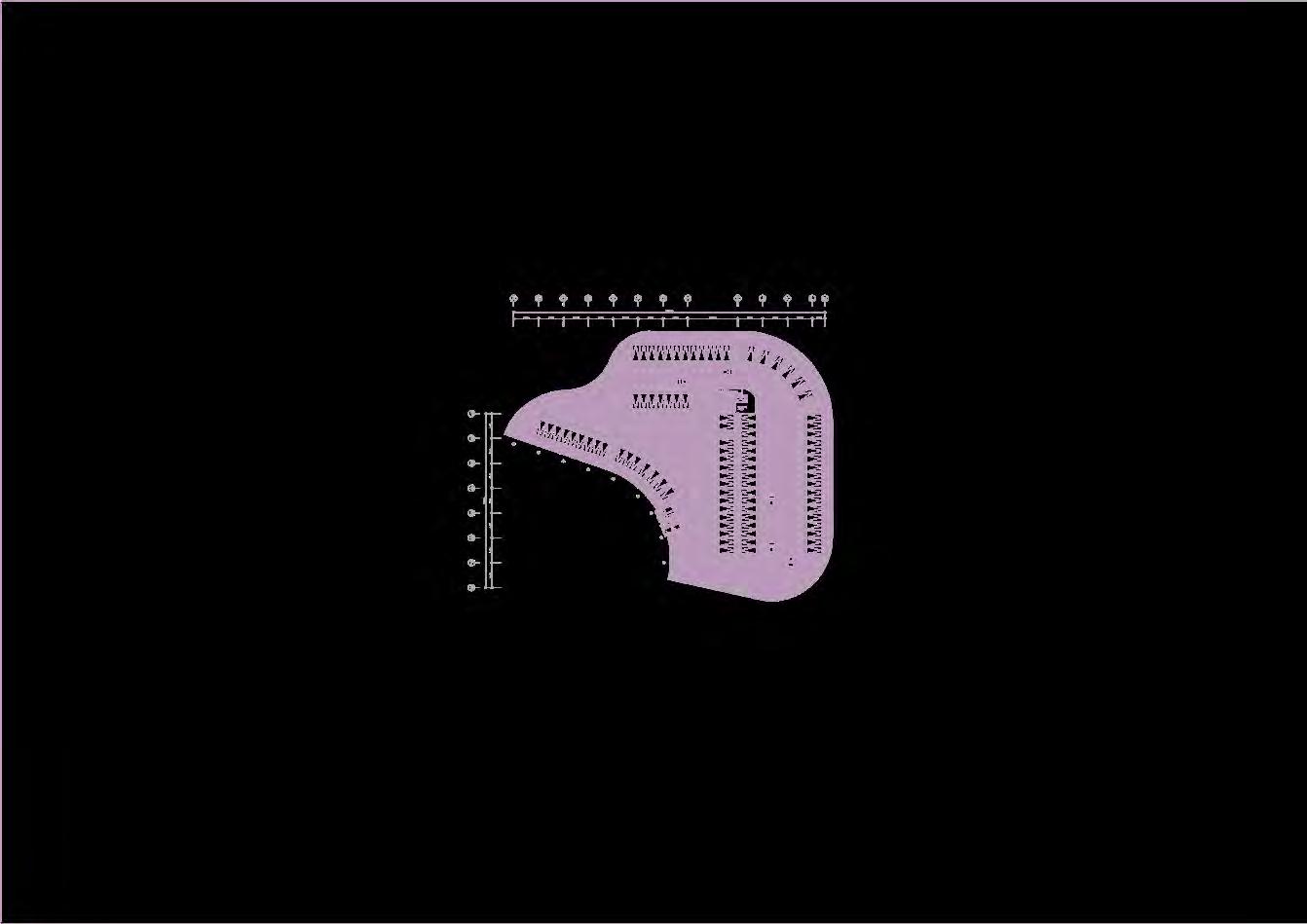

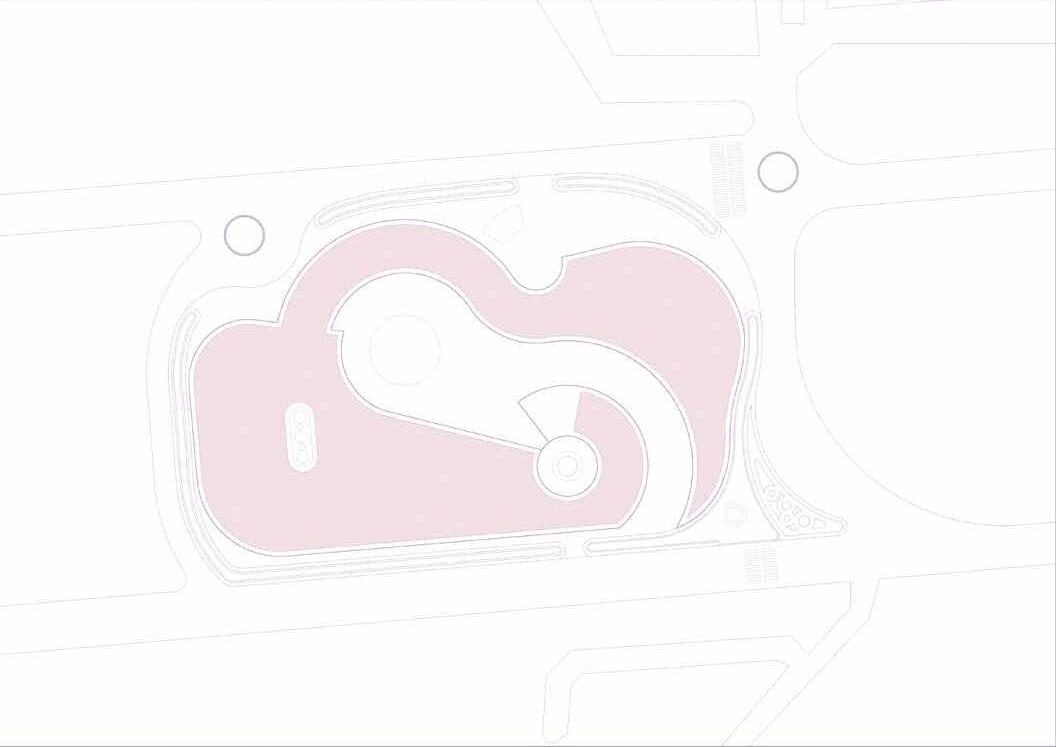

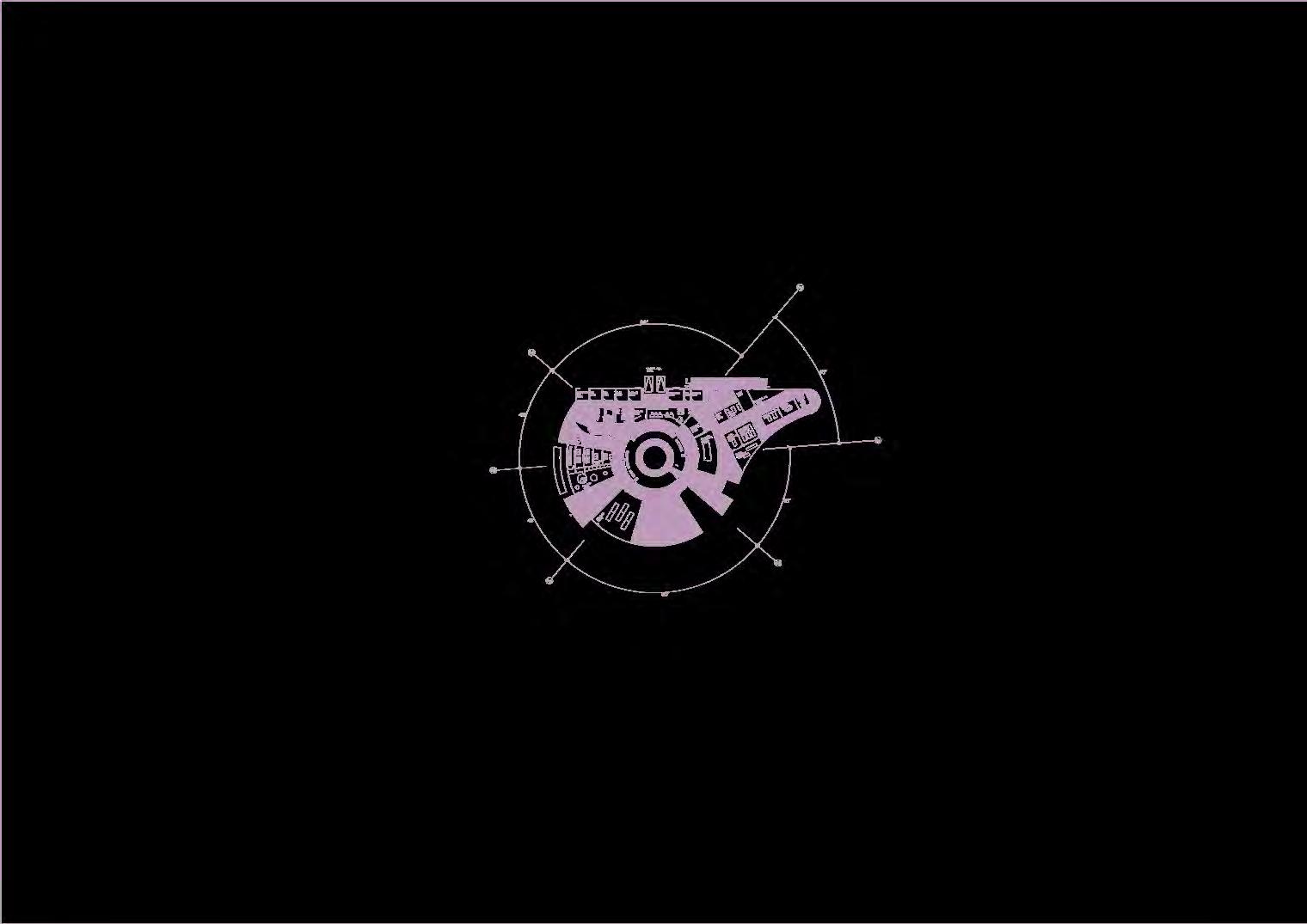

PLAN
Oval Basketball Stadium 2021
A

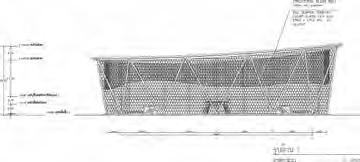

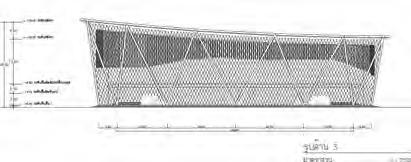

B ELEVATION 4 ELEVATION 3 ELEVATION 2 ELEVATION 1 DETAIL

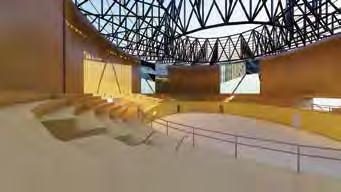

INTERIOR PERSPECTIVE SECTION
SECTION

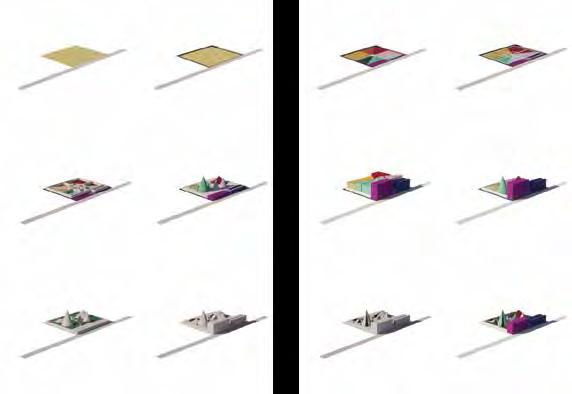

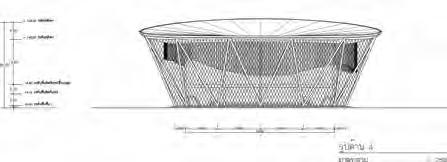

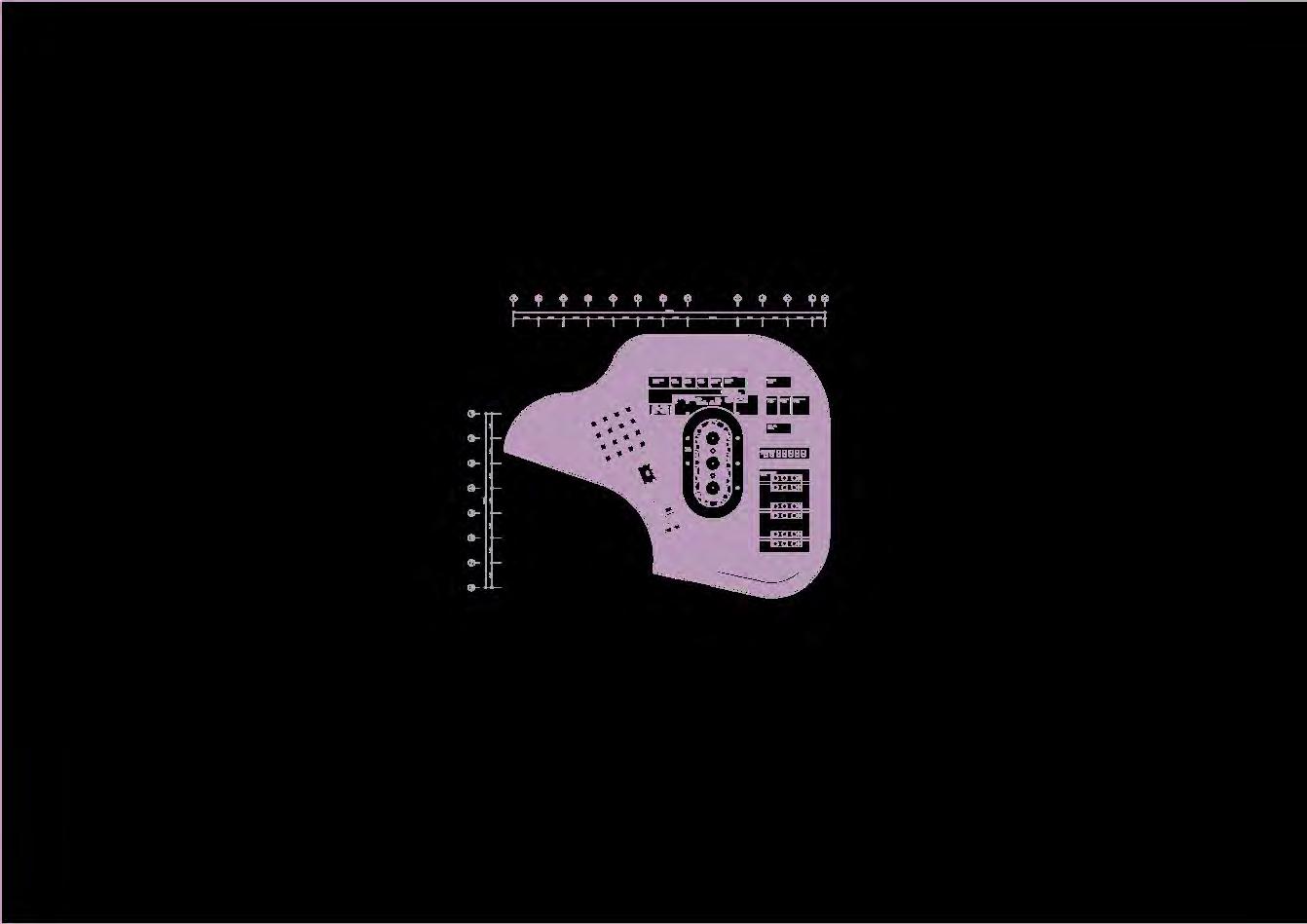

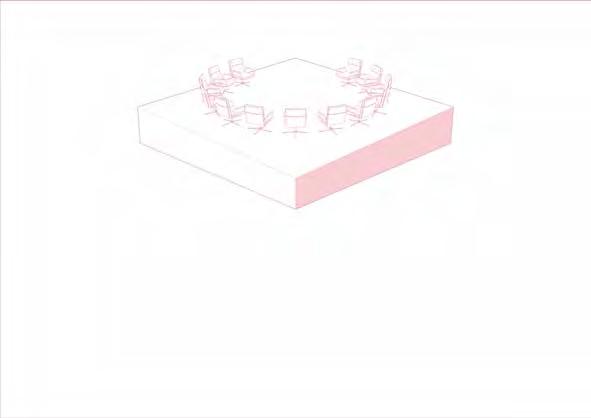

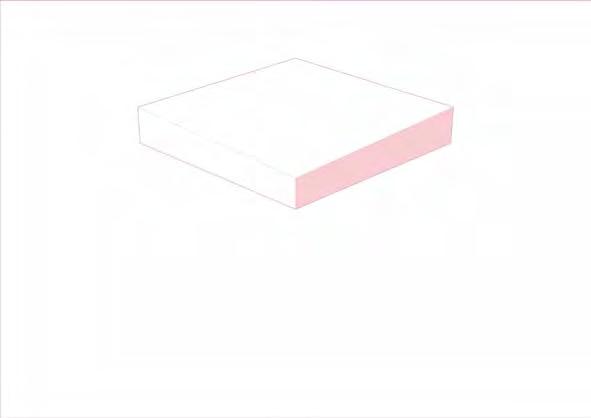

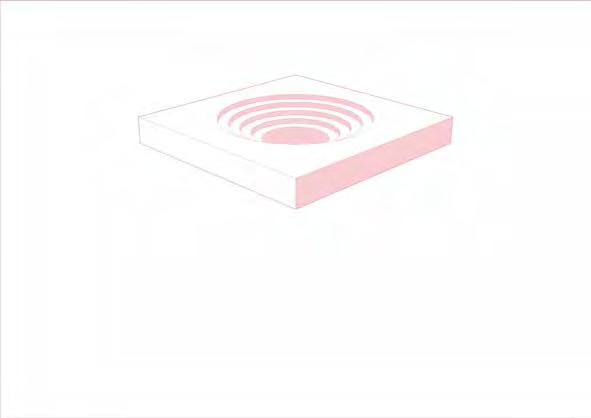

09 TAROT EXHIBITION 10 HEALING CIRCLE 11 PREDICTION 12 GYPSY WORLD 13 ROOF GARDEN GROUND LAW ZONING FORM FUNCTIONPROPERTION VOID Phra Borom Maha Ratchawang, Phra Nakhon, Bangkok 10200 นอ้รูดฤ
