PROMOTING A STRONG HEALTH & SAFETY CULTURE

WORKPLACE HEALTH AND SAFETY IS A LEADING CONCERN FOR ALL BUSINESS OWNERS AND MANAGERS.

With an estimated cost of £16.2 billion to industry due to injuries and ill health in the workplace, employers cannot afford to neglect the fundamentals of health and safety. Creating a culture of safety in the workplace is no mean feat. Broken down, the various health and safety elements you need to consider, implement as well as communicate can seem overwhelming at first glance. However, getting a handle on the basics, sharing the responsibility and making use of the various tools and aids that are available will help you comply with the law and get your health and safety message across. We offer a wide range of products to help improve your workplace health and safety.

We are not just about product, we pride ourselves on offering expertise when it comes to the products we sell and our commitment towards safety has led us to create our range of services. Our expert teams are constantly keeping up to date with safety legislation allowing us to provide much more than just a product. We can help strengthen your current site, your teams and your premises management. We free up your time and give you the resources to concentrate on what’s important to you.

ALL OUR SERVICES ARE JUST AN EMAIL OR CALL AWAY. CONTACT OUR SALES TEAM FOR MORE INFORMATION.

Site Surveys

By law the correct safety signage should be displayed in the appropriate locations and to current legal standards. If you are unsure of your legal obligations or have been notified by a regulatory body that your current signage is not adequate, our team of experts are on hand to offer a Safety Signage Survey for your Premises.

Machinery / Equipment Safety Survey. According to hse.gov there are hundreds of machinery and industrial equipment accidents every year. Our surveys will review your lock out tag out process for when machinery is undergoing repair or maintenance and provide advice on the process and products required to ensure when your machinery is safely isolated during repair or routine maintenance.

OUR EXPERIENCED TEAM IS ON HAND TO DELIVER TRAINING ACROSS THE FULL BREADTH OF OUR RANGE.

Our programmes are not only designed to train our resellers sales teams, but also to support our resellers in providing training their Business customers, especially in more niche areas such as Lock Out Tag Out.

In addition to our training programmes, we can also offer our resellers our Mobile Training Unit. Free to use, it is ideal for staff training, events or open days, providing the opportunity to get hands on with our products.

Training Custom Design

OUR SIGN MANUFACTURING TEAM HAVE MANY YEARS OF EXPERIENCE DESIGNING, PRODUCING AND INSTALLING SIGNAGE.

Our sign manufacturing team have many years of experience designing, producing and installing safety signs and stencils worldwide. From the smallest one -off vinyl sign to large hoarding boards and larger print runs of many thousands, we can be depended upon to provide a fast and efficient service.

If you have a specific requirement for your signs, we can work closely with you to provide a design service or alternatively you can send us your own artwork. The diversity of our production facilities is second to none, why not give us a call and see how we can help you.

OUR UNIQUE KEY RECORDING SYSTEM DESIGNED TO GUARANTEE THE ONSITE SAFETY ISSUES SURROUNDING DUPLICATE KEYS.

The Eagle-ID scheme can be implemented on any of the Lockout Tagout padlocks we supply and will provide an ironclad guarantee that your site is free from key duplications and the safety implications this can present.

Every padlock supplied has its unique key reference recorded on our internal system, and subsequent orders are cross-referenced against this database to ensure no duplications can ever be issued to the user, regardless of site location or company organisational structure.

For further details and help on implementing the Eagle-ID please contact our sales office.

SERVICES

• Design

from concept to completion our team is here to help customers. for more information contact our sales team.

• In situ concept artwork

• Appropriate materials

• Legal requirements

We can produce what you want, how you want it, any size and any material. We can work with you to bring your ideas into reality, from the initial concept design through to the final production and installation.

• Manufacturing

• Installation

From Health & Safety Signs through to advertising, commercial or LED building signs our experienced custom manufacturing team is here to help.

SOME EXAMPLES OF OUR MANUFACTURING TECHNIQUES ARE LISTED BELOW:

Large Format Digital Printing

Our digital flatbed printers use the very latest technology to enable us to print extremely high quality graphics onto substrates up to 3m x 2m. Using the latest hardware and software, these machines combine both speed and quality and provide the ultimate in flexibility. With multiple machines available these are ideal for printing one-off high quality prints through to production runs of many thousands.

Digital Cutting

Our state of the art digital cutters use optical recognition software to accurately cut a range of materials. We have a range of different cutting methods available depending on the substrate to be cut, varying from the high-tensile strength knife blades through to diamond cut routers and oscillating blades. The substrates are placed on a tough cut-resistant conveyor bed to increase productivity and ease the job of the operator. This is the ideal partner to our digital print machines.

Laser Cutting and Engraving

We have multiple laser machines onsite utilising both CO2 and YAG lasers, providing us with the ability to cut or engrave various materials. Vector artwork is imported and the computer carefully controls the position and power of the laser to cut or engrave materials as required. Different laser types are needed for different materials, and the accuracy provided exceeds router based cutting or engraving.

NOT JUST SAFETY SIGNS

Signs play a crucial role when it comes to visually representing your business, from providing a professional image, promoting a positive culture and providing wayfinding around your site as well as communicating vitally important safety messaging.

• Construction & Real Estate

• Energy & Utilities

• Manufacturing • Retail & Leisure • Education • Health • Motor Vehicle • Distribution • Services

• Wall Graphics

• Tray Signs

• Built up letters

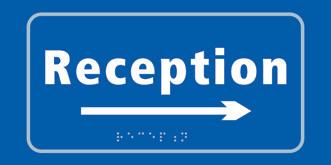

• Wayfinding

• Site facility signs

• Engraving

• Hoarding Boards

• Flags

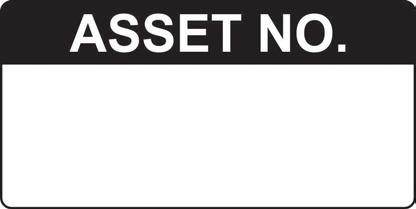

Labels

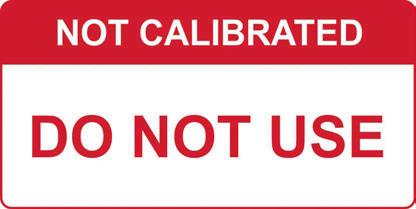

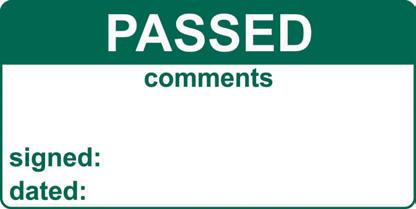

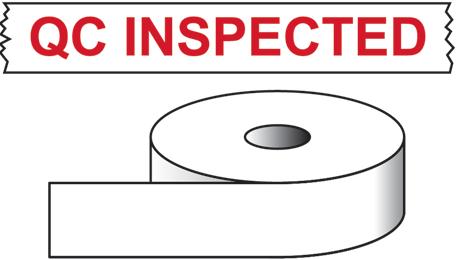

Quality Control Labels

Packaging Labels

Door Labels

Asbestos Labels

Hazardous Substances Labels

Labels On A Roll / Label Packs

Hazardous Substances Sheets

UN Placards to IMDG Code

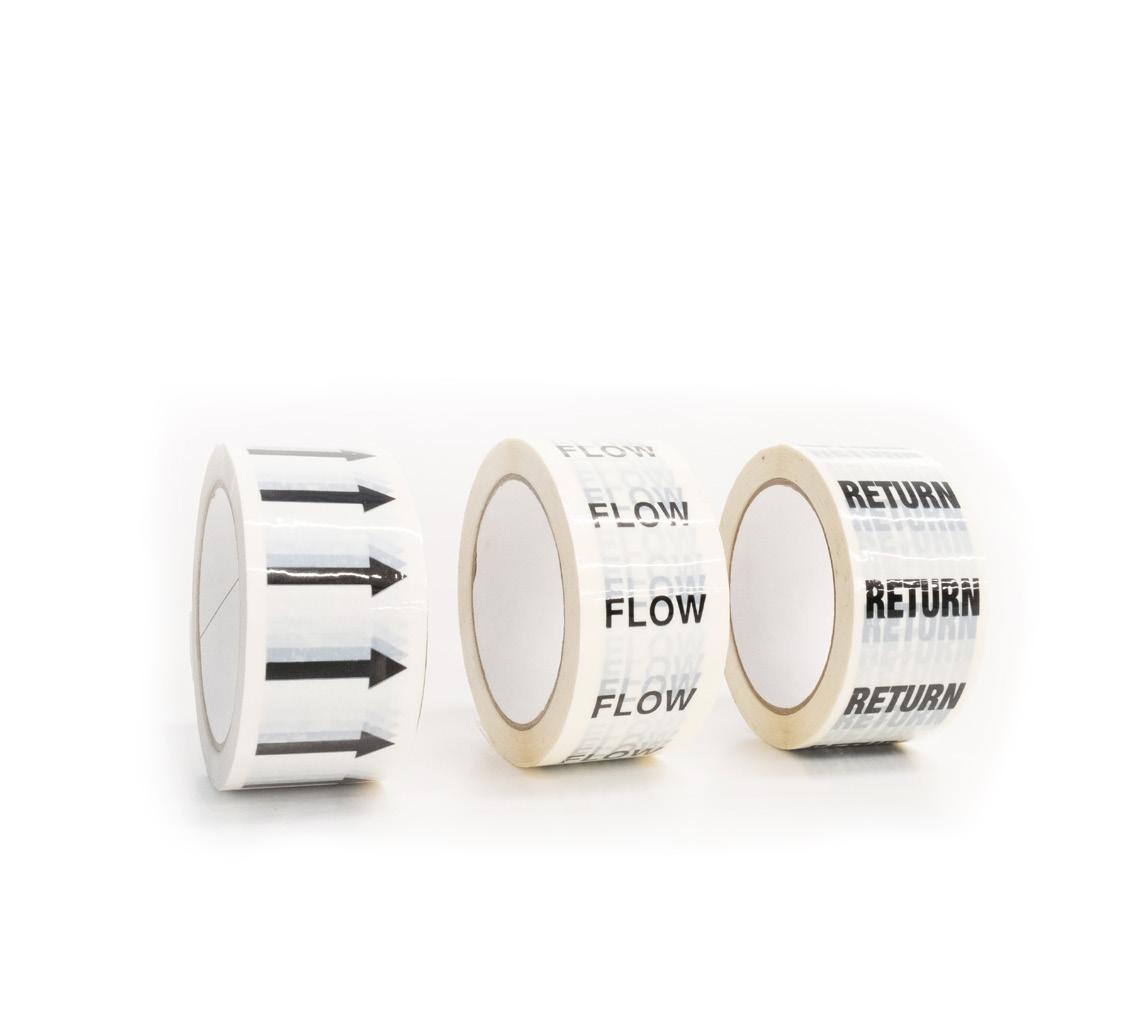

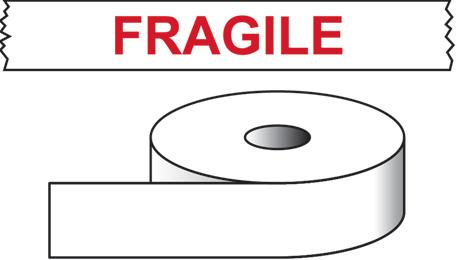

Label Rolls

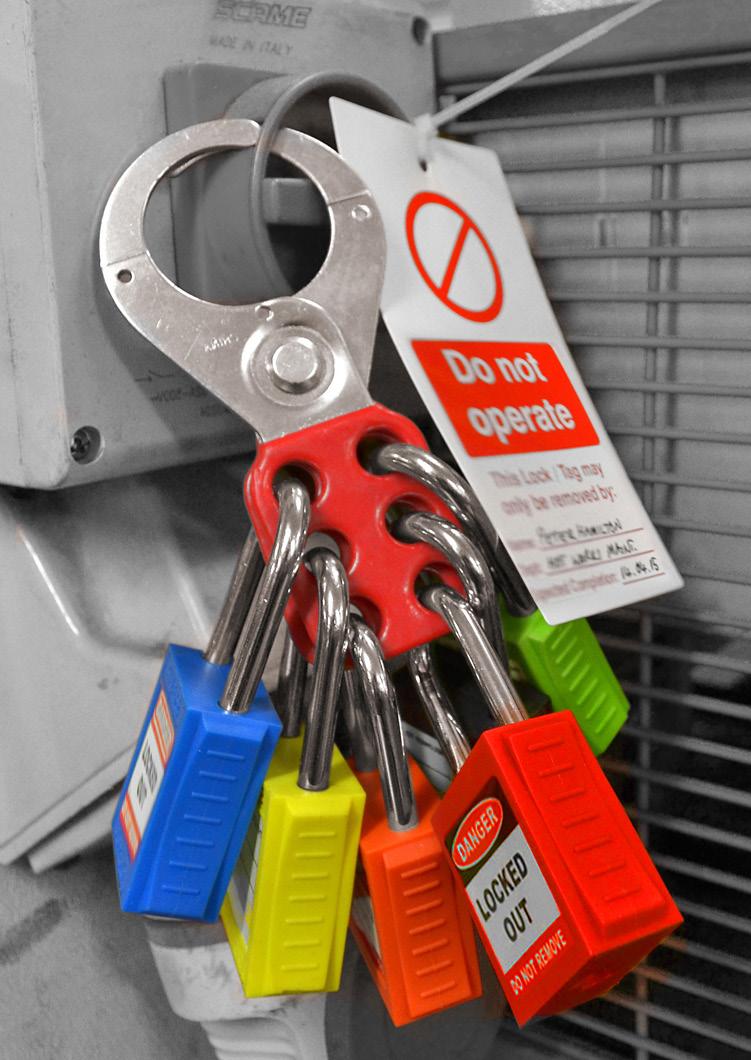

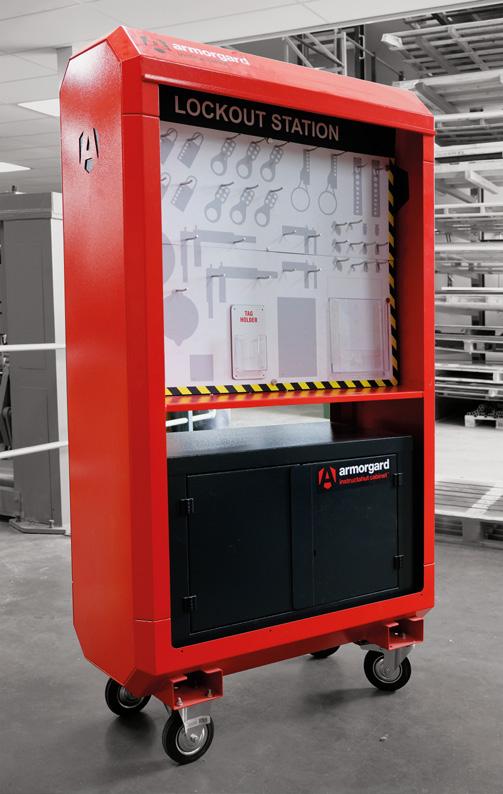

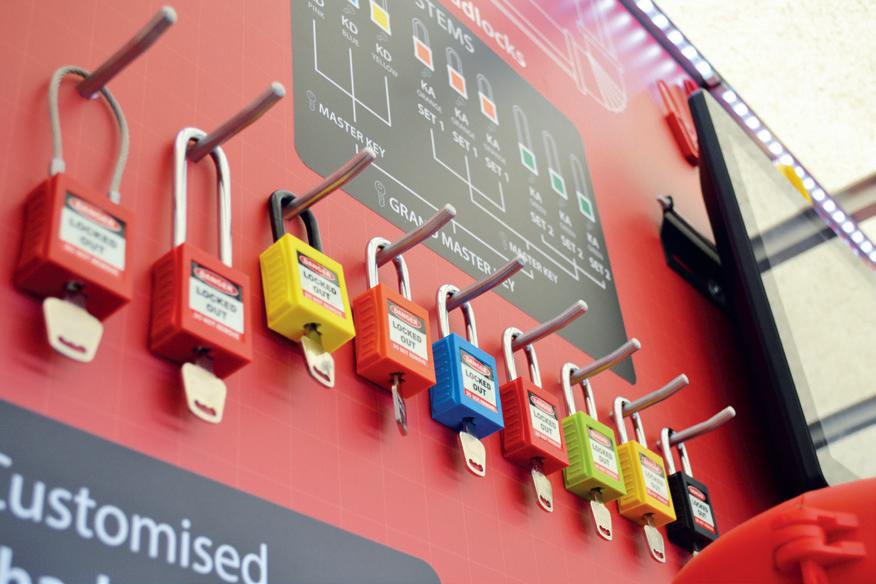

Lockout Tagout

Safety Lockout Padlocks

Di-electric Padlock

Padlock Cabinet

Security Padlocks

Lockboxes

Hasps

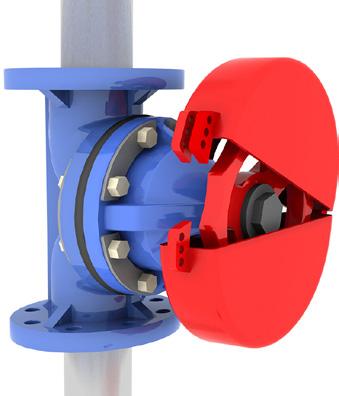

Gate Valve Lockout

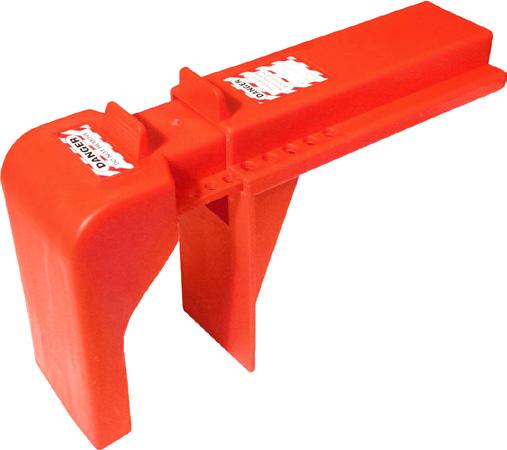

Ball Valve Lockout

Cable Lockout

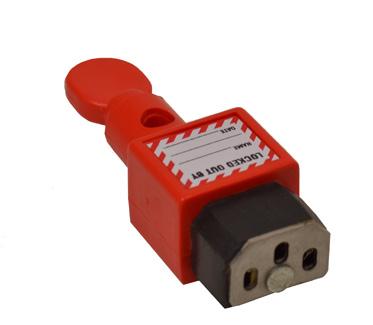

Electrical Lockout

Premium Lockout Pouch

Lockout Satchel

Lockout Tags

Lockout Signs

We understand safety and how difficult it can be to keep up to date. We have produced a number of ‘In The Know’ facts.

Look out for the ‘In The Know’ icon throughout the catalogue pages to learn useful hints and tips about safety products, legislation and much more….

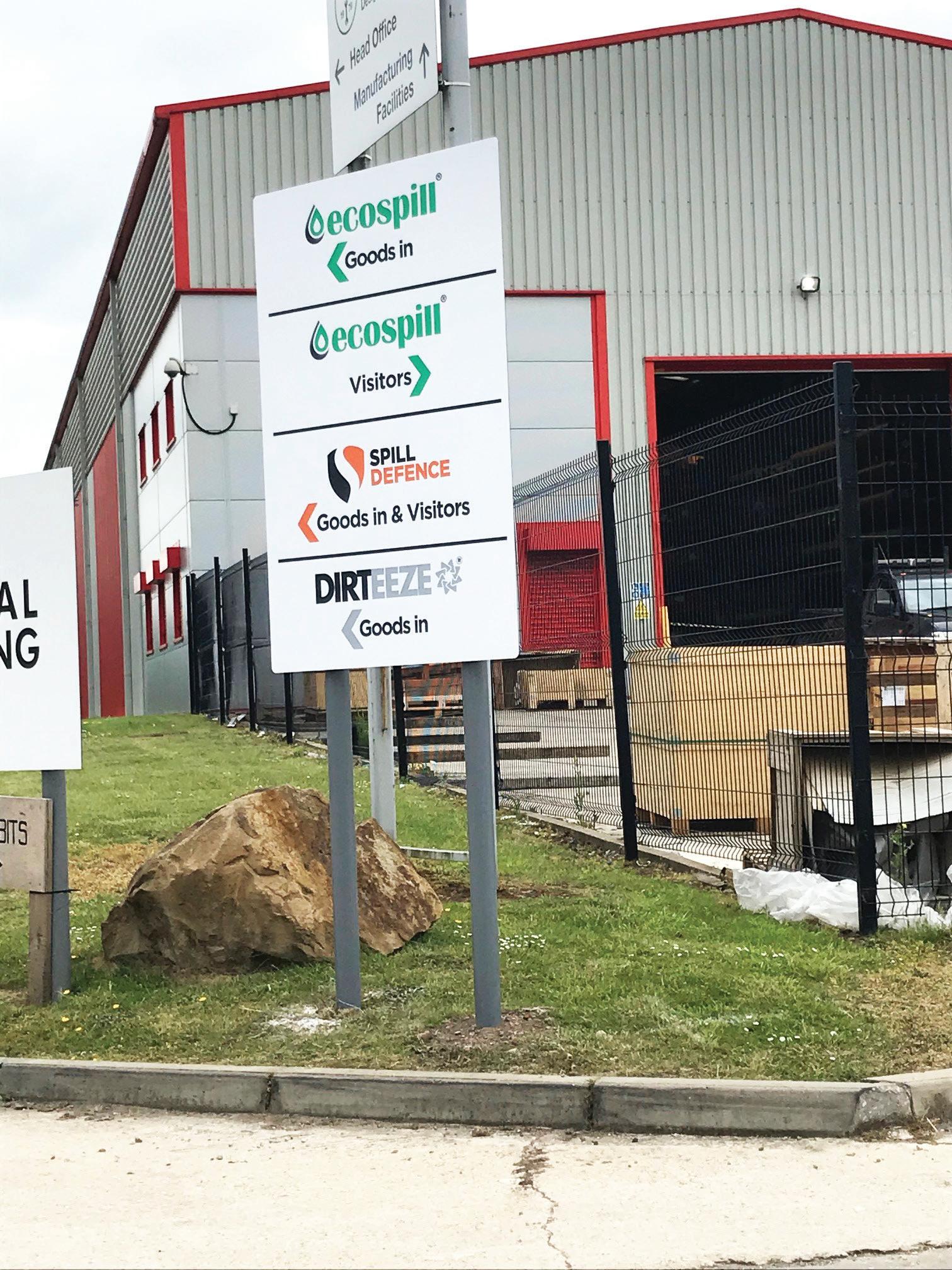

Whether it’s hoarding for the development, way finding signage, site safety signage or signage for the completed building. WE CAN PROVIDE COMPLETE SIGNAGE SOLUTIONS FOR THE LIFECYCLE OF A BUILDING.

Creating a safer workplace with thousands of stocked safety signs and labels.

“Your

Partner In Safety Solutions”

As a specialist manufacturer of safety signs, all signs conform to the BS EN ISO 7010 regulation, ensuring that all graphical safety symbols are consistent and compliant. With over 25 years’ experience of manufacturing and supplying safety signs, we offer a comprehensive range of safety signs to cover every conceivable customer requirement.

Understanding the catalogue Size, Material & Code

Underneath each sign image there is a set of details which refers to the product above. Each line refers to one version of the product. For non sign products the order code is clearly marked next to the item. If you cannot find the exact design, size or material you require please contact our sales team who are always happy to help.

these cases the size shown refers to an individual sign, Crop marks are included for easy

and separation.

the size from beneath the sign

Note: This is always w x h in millimetres

Choose the material you require. The materials are abbreviated, please refer to the material key

Make a note of the code number. This code is unique to that product and to the size and material.

Please state this when ordering.

Safety Sign Symbol Guide

Health and Safety signs can be broken down into the following categories, as specified by British and European standards.

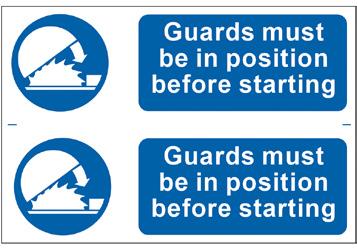

Mandatory

Signs

A blue circle containing a white image denoting that a specific course of action must be taken.

Prohibition

Signs

A red circular band with a diagonal bar on a white background. The black symbol behind indicates the prohibited action.

What is BS EN ISO 7010

How to choose the right signage

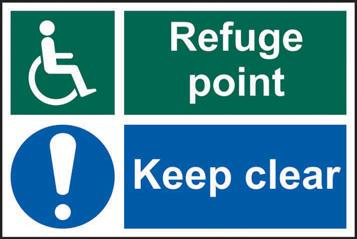

Safe Condition

A green rectangle or square with a symbol or text in white providing information about first aid, escape or other safe conditions.

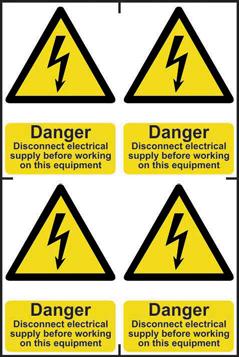

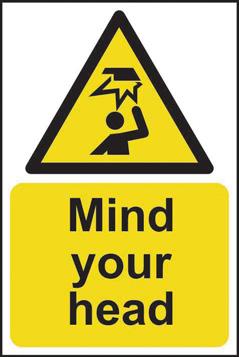

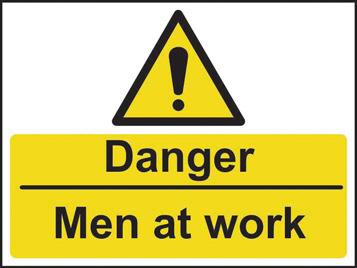

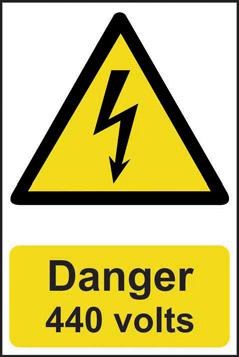

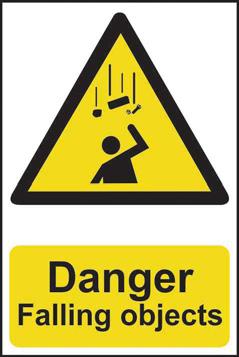

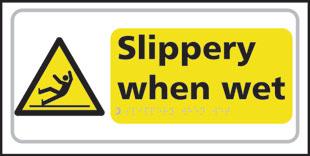

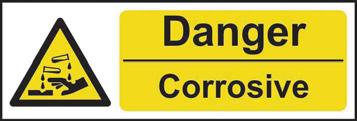

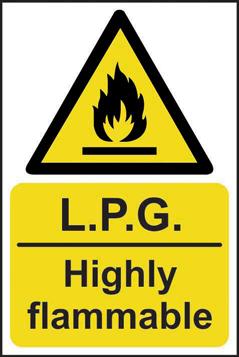

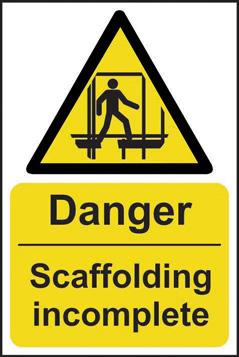

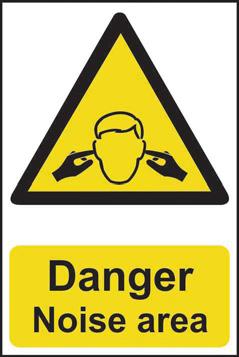

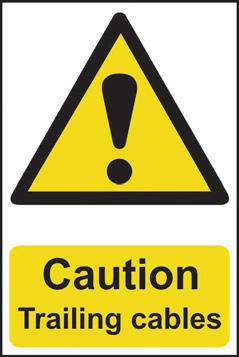

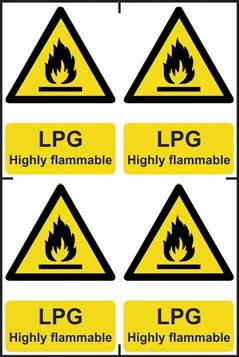

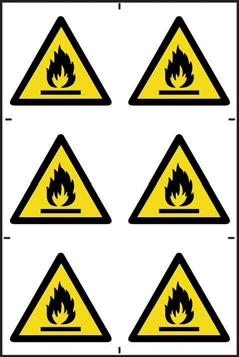

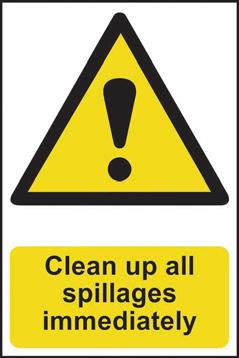

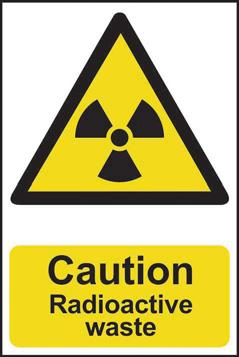

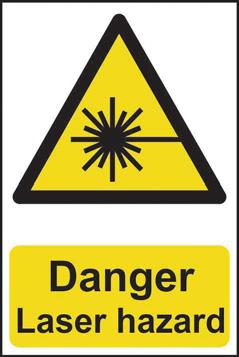

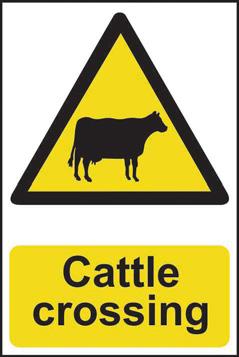

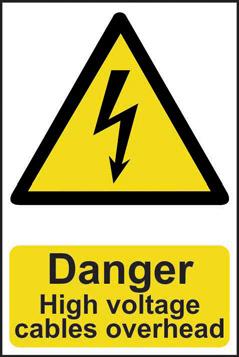

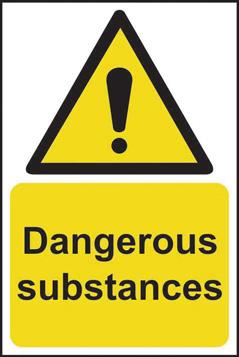

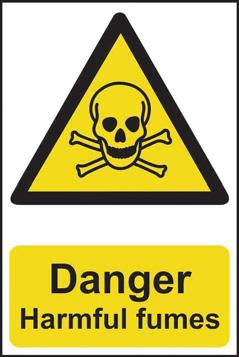

Hazard Warning Signs

A yellow triangle with a black border and symbol denoting a hazard in the environment.

Fire Equipment

A red rectangle or square with a symbol or text in white providing information about the location and use of fire fighting equipment.

The BS EN ISO 7010 regulation ensures that all graphical safety symbols are consistent and compliant. It is a design directive and is a list of compliant symbols.

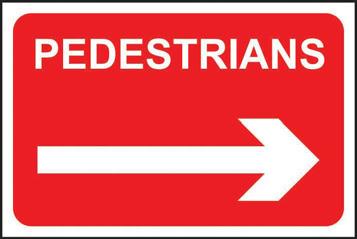

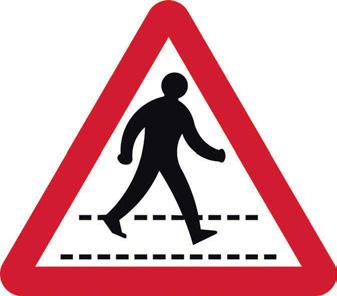

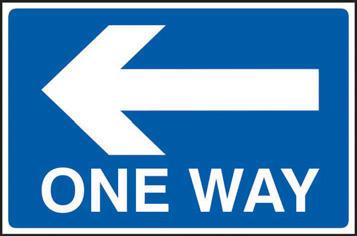

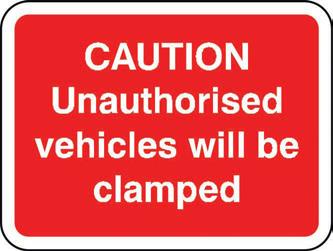

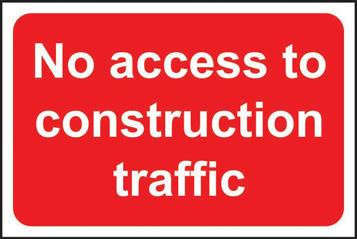

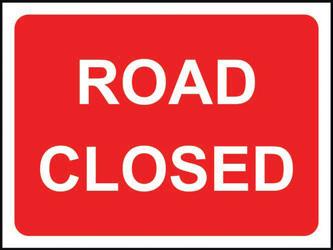

ROAD

TRAFFIC SIGNAGE

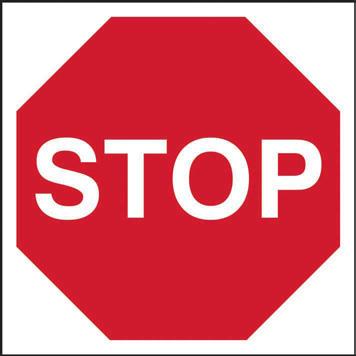

Road and Traffic signs are commonly erected at the side or above roads to give instructions or provide information to road users. These are generally separated into permanent and temporary categories.

All permanent road signs must be manufactured by an audited and registered company by law, and have the appropriate labelling attached to the reverse. As manufacturers we are fully accredited to the relevant standards.

The UKCA (UK Conformity Assessed) marking is a new UK product marking that is used for goods being placed on the market in Great Britain (England, Wales and Scotland). It covers most goods which previously required the CE marking.

Class Ref 1

Sometimes referred to as Engineering grade, this has a lower grade of retro-reflectivity and is commonly used on temporary road signage.

Class Ref 2

All permanent roads signs manufactured for installation within Great Britain will be supplied with a UKCA Mark, whereas signs destined for the European market will have the CE Mark.

This is a high intensity prismatic (HIP) retro-reflective sheet, specifically designed for use on permanent road signs. Engineered to give good reflectivity at all angles critical to the driver, it is more durable with a longer lifespan.

Class Ref R3B

This is the highest grade retroreflective sheet available, and is specified for permanent signs where the ultimate visibility and legibility is required such as motorway signs. This material is available on request.

Polypropylene - PP

This fully recyclable plastic is suitable for both internal and external use. Only available without adhesive.

Foamed PVC Board - FMX

A versatile, lightweight rigid PVC foam sheet, durable and with low water absorption making it suitable for indoor and outdoor use.

Rigid PVC - RPVC / PVC

Available with or without adhesive, durable, strong & weather resistant a great option for outdoor or indoor.

Laminated Floor Vinyl - FLR

Permanent vinyl floor graphics with an hard wearing laminate face, rated to R9 grade for its anti-slip properties. Suitable for dry, Indoor sealed surfaces.

RECYCLABLE POLYPROPYLENE

Alongside the internal measures we have in place to reduce our environmental impact, we have recently started manufacturing signs on 1.2mm rigid polypropylene. This material is fully recyclable and is suitable for both internal and exterior signage.

Attributes:

Fully recyclable

UV Resistant

Impact and stress crack resistant

Does not fade or yellow over time

Self Adhesive Vinyl - SAV

Thin and flexible, ideal for indoor use and in low traffic areas. Application to clean, smooth surfaces.

Aluminium Composite - ACP

Strong and lightweight, ideal for long term outdoor use. Resistant to inclement weather conditions, it is commonly used for fabrication and road traffic signs.

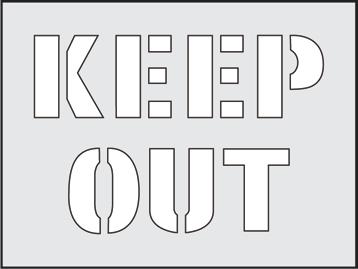

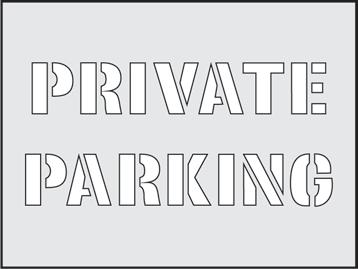

Stencil - STN

Specially modified flexible polyester which is laser cut for accuracy. Can be reused multiple times.

Photoluminescent - PHS / PHO

This material glows in dark or low light areas in the event of a power failure or fire. Often specified for Fire Exit signs so that the exit route remains visible.

VIEWING DISTANCES

These are suggested maximum viewing distances in the latest simplified draft format. This is a guide only and other factors may need to be considered.

Distance Examples of Use 17m

Small offices, small shops and factories.

Large offices, large factories, warehouses and shopping centres.

Large warehouses, distribution centres and exhibition halls.

Landscape: 300mm x 100mm

Portrait: 200mm x 300mm

Viewing distance: Up to 9m

Landscape: 400mm x 150mm

Portrait: 300mm x 400mm

Viewing distance: Up to 14m

Landscape: 600mm x 200mm

Portrait: 300mm x 400mm

Viewing distance: Up to 21m

Our products are under continual development and /or are determined by legislation requirements, as such we reserve the right to modify them as we deem necessary. Product sizes, materials and colours are subject to standard commercial tolerances and are shown in nominal form. Where possible all signs are manufactured to the latest symbols detailed in BS ISO EN 7010. In cases where an ISO symbol has not been specified then the sign will be manufactured to BS 5499 standards until one has been published, at which point the stock will be updated and supplied in lieu of the design shown in the catalogue.

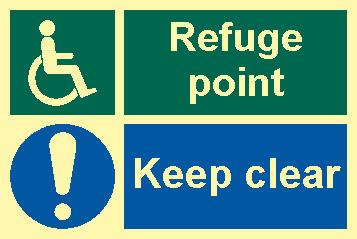

FIRE SAFETY AND SAFE CONDITION

What are they

A Safe Condition sign provides vital information about an action to keep you safe. These include signs that indicate escape routes or emergency exits and the location of safety equipment such as first aid kits.

Defining characteristics

A green rectangle or square covering with a white border. A suitable symbol is centrally placed on the sign. Both the symbol and any supplementary text should be in white.

When to use them

Signs for safety equipment should be placed in a visible area to enable someone in need to locate and identify the equipment quickly and correctly.

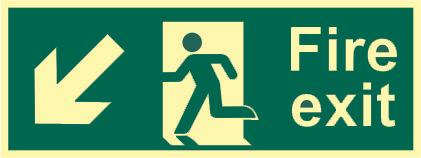

For Fire Exit signs, these should be placed in a visible location and indicate the safe route to follow in case of a fire or other emergency, with directional arrows in place if the environment dictates extra clarification is necessary.

Things to consider

Some of our signs are available manufactured on a photoluminescent substrate, which (when ‘charged up’ by natural or artificial light) will glow for a length of time. Although there is no legal requirement to use photoluminescent versions of Fire Exit signs, these are often requested as part of a comprehensive safety way guidance system (SWGS). Note that photoluminescent signs are not to be used as a replacement for emergency lighting or luminaires, but rather as a supplementary offering.

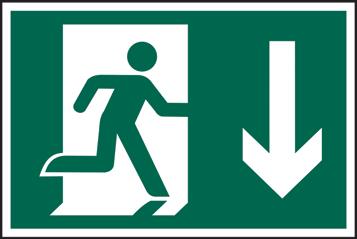

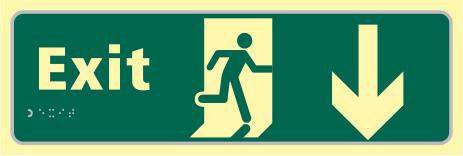

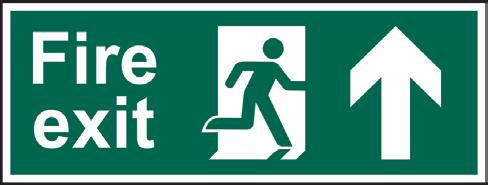

Before C2805011-s the traditional emergency sign used above doorways to identify the escape route, pictured a DOWN arrow. Under BS EN ISO 7010 the DOWN arrow should be used to identify a change of level going down.

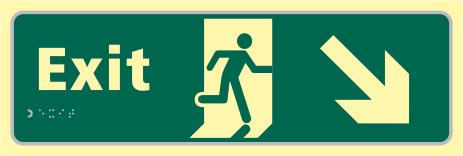

Following the introduction of BS EN ISO 7010 the directional arrow above a corridor doorway or exit door, should be the UP arrow. This is to inform the occupants that they need to carry straight on or exit through here.

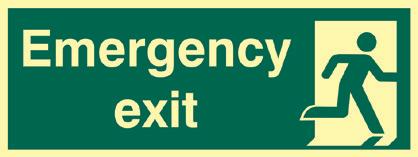

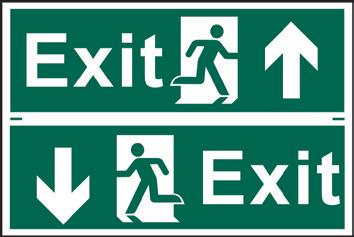

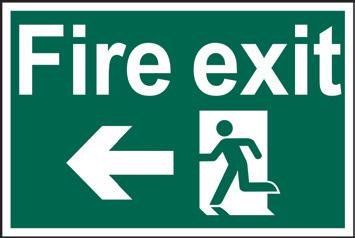

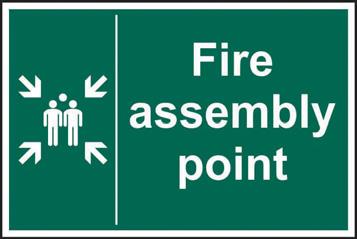

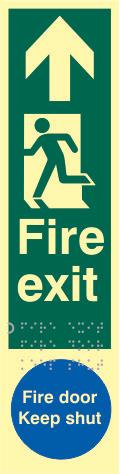

Fire Exit and Evacuation

Safety Instruction

Are your symbols correct? Contact us today to find out if your current

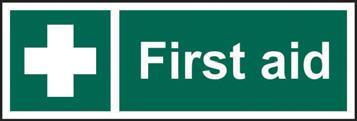

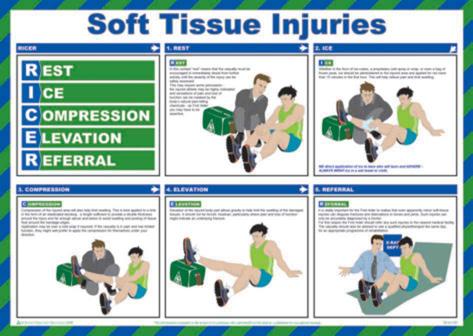

First Aid and Treatment

Empowering Efficiency

One Stencil at a Time

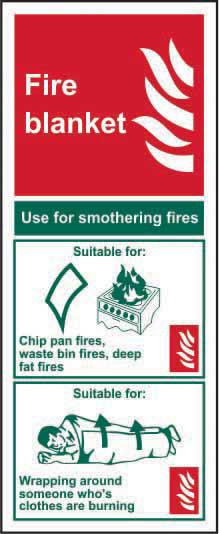

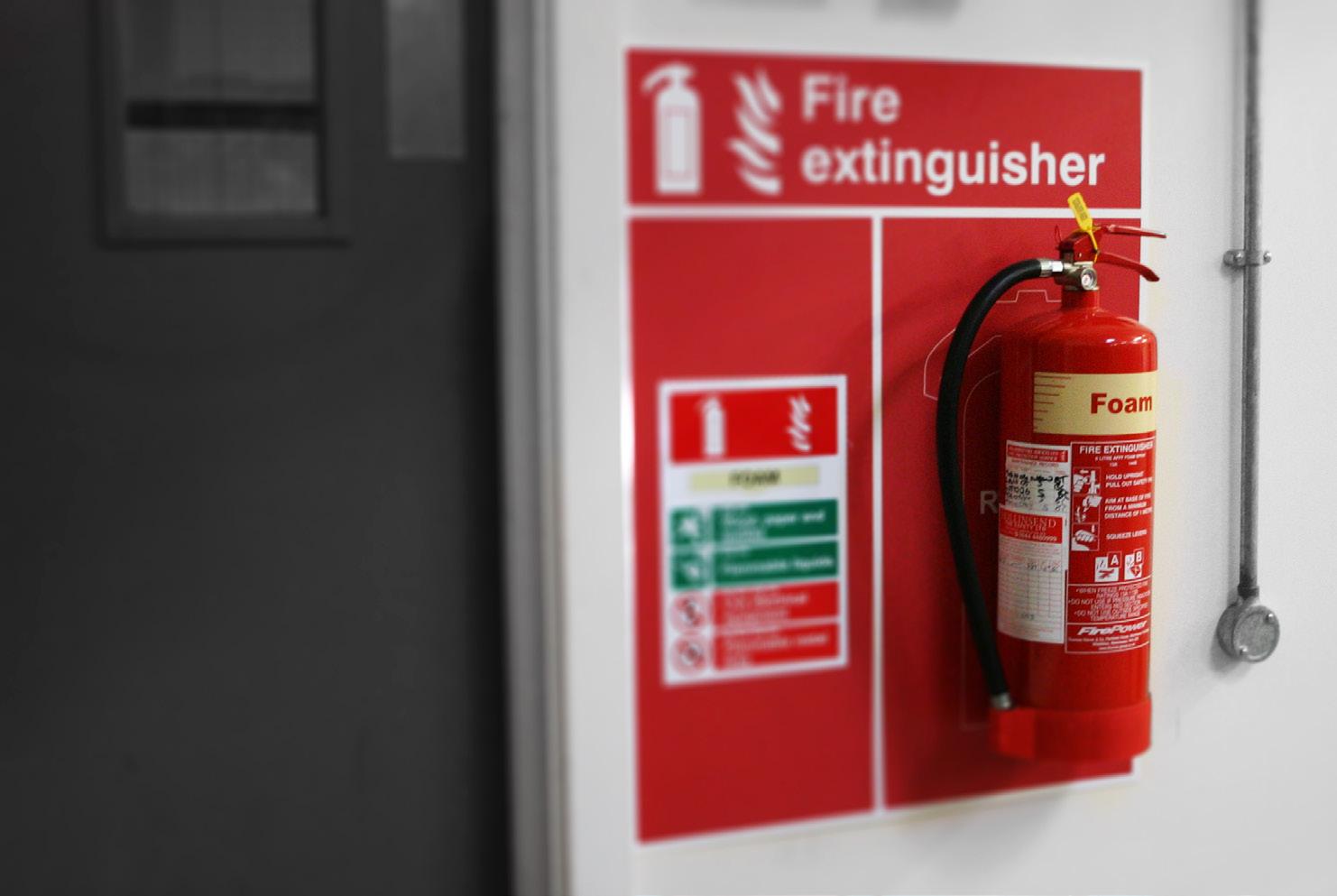

Fire Extinguishers and Equipment

What are they

These signs are used to provide vital information about the location and identification of fire fighting equipment. This equipment would include fire alarms, dry risers and the location and type of fire extinguishers.

Defining characteristics

A red rectangle or square with a white border. A suitable symbol in white is placed centrally on the sign. Both the symbol and any supplementary text should be in white.

Common Fire Extinguishers

Powder Extinguishers

Ideal for use in mixed risk environments and offer excellent all round fire protection. With a unique class C rating, powder fire extinguishers are the only effective solution for fires involving flammable gases.

Foam Extinguishers

Ideal for use on fires involving solid combustible materials and are highly effective on flammable liquid fires. The layer of foam applied by these extinguishers helps to prevent re-ignition after the fire has been extinguished.

CO2 Extinguishers

Are suitable for use on flammable liquid fires and are extremely effective at extinguishing fires involving electrical equipment. CO2 is also one of the cleanest extinguisher agents and leaves no residue behind.

Water Extinguishers

Suitable for use in environments containing solid combustible materials such as wood, paper and textiles. It is important to remember that water conducts electricity and should not be used around electrical equipment.

When to use them

Signs for fire fighting equipment should be placed in a visible area to enable someone in need to locate and identify the equipment quickly and correctly. In buildings where the equipment is not clearly visible, it may be pertinent to indicate the location of this equipment with further signage.

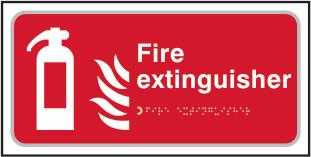

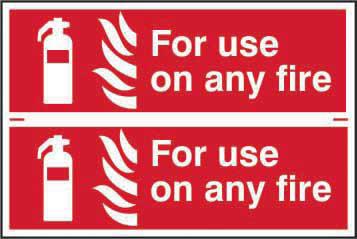

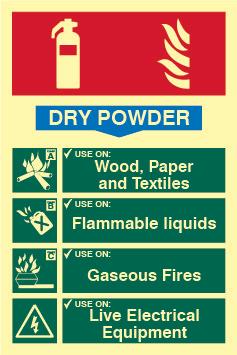

Fire Extinguisher Signs

We have a selection of fire safety equipment on page 28

Remember to comply with fire safety laws and have your fire extinguisher serviced regularly at the manufacturers recommended interval.

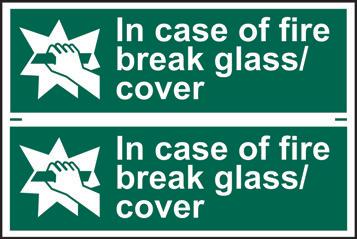

Fire Safety Signs

Fire Alarm Signs

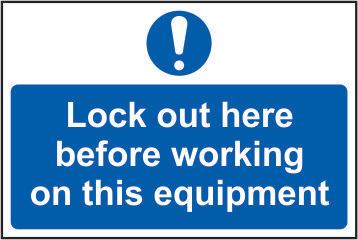

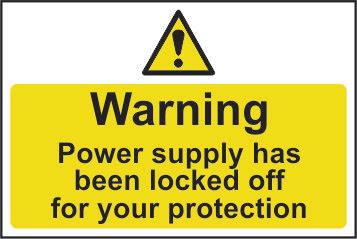

Lockout Signs

Fire Equipment Sign

BS EN ISO 7010 is a European standard to ensure there is a

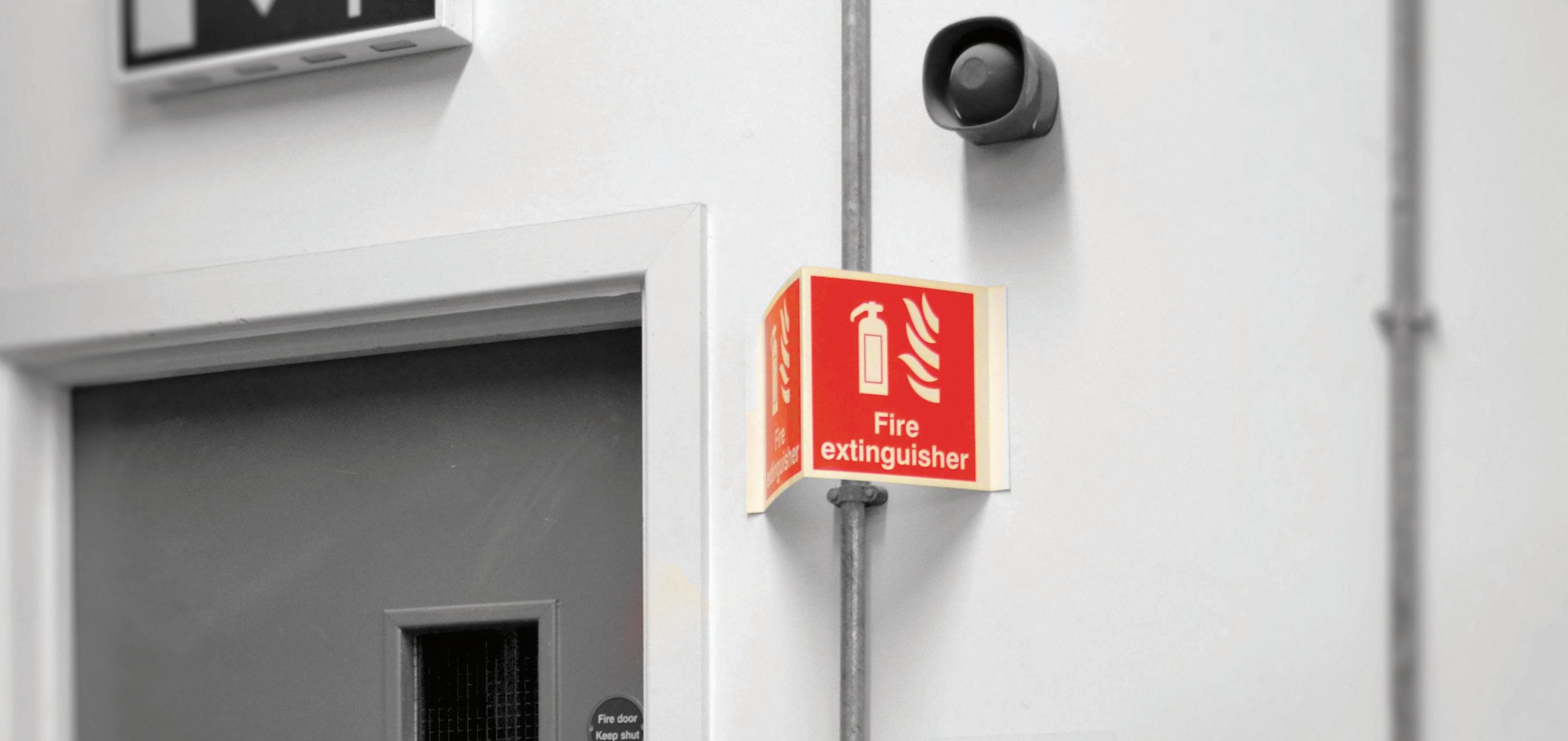

Projection Signs

Our projection signs are manufactured and printed on 1.5mm PVC board. These signs are ideal for indicating the location of fire safety equipment where otherwise it may not be immediately apparent, such as recessed cavities in a corridor.

Each side measures 200 x 200mm

UK fire extinguisher regulations state that you should have a minimum of two ‘Class A’ extinguishers on every storey of the building.

The ‘standard pair’ water-based and CO2 fire extinguishers are usually located by exits and fire alarm call-points.

To comply with fire extinguisher regulations, extinguishers should be either fixed to the wall, or attached to a stand. Fire extinguishers must be commissioned on-site by a competent person.  This generally means someone who has passed the BAFE fire extinguisher exam or has an equivalent qualification.

Fire extinguishers are not compliant with UK fire extinguisher legislation until they have been commissioned. Fire extinguisher regulations state that extinguishers must be serviced annually.

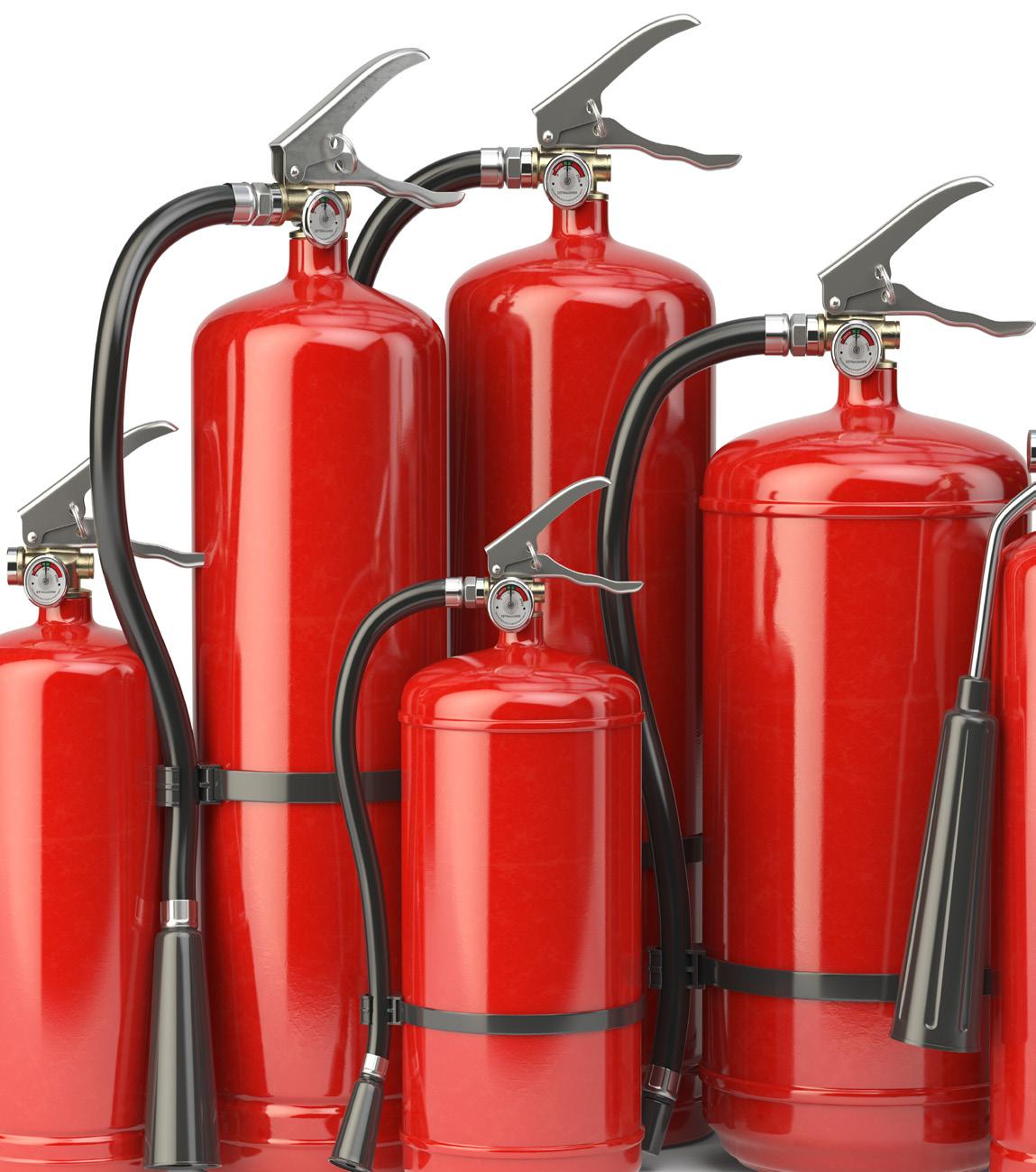

Fire Extinguishers

Extinguishers

• Aluminium alloy construction.

• Corrosion resistant finish.

• Internal Polyethylene lining.

• Squeeze grip operation.

• Harmless to machinery.

• (2kg) Frost free horn.

• Approved to BSEN3.

• Supplied with bracket.

• 5 year guarantee.

Powder Extinguishers

• Corrosion resistant finish.

• Squeeze grip operation.

• With brackets (<2kg with transport bracket).

• 5 year guarantee.

• Approved to BSEN3.*

* 600g and 800g exclude BSEN3 clause 6.1 (size requirement).

Fire Extinguishers Stands

Robust fully moulded design, these stands are manufactured from impact and chemical resistant plastic. Supplied in sections for easy transportation and assembly.

Free-standing design.

Armbands and Lanyards Nylon Armbands Printed Nylon armbands with Velcro fastening. Armbands

Photoluminescent and reflective armband with Velcro fastening.

Dimensions (HxWxD):

Single: 645 x 290 x 300mm

Double: 645 x 500 x 300mm

Extinguisher not included.

Are your safety signs correct? OUTFINDON

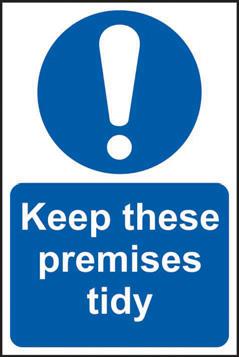

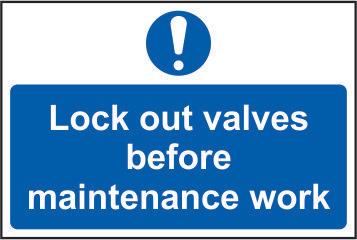

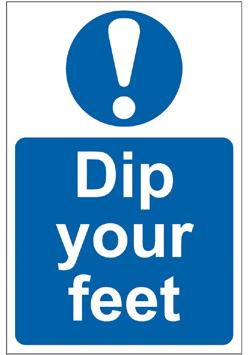

Mandatory

What are they

Mandatory signs denote information about a specific course of action which must be taken. These include signs that indicate the correct type of PPE to use, doors which must be kept shut for fire safety purposes or the action to take in case of a fire.

Defining characteristics

A white symbol on a blue circle with a white border. Any supplementary text should be in white on a blue background.

When to use them

Mandatory signs should fixed on or very near the relevant equipment or in a position of entry to an area to which the message pertains.

Mandatory Icons

As of January C2805011-s BS EN ISO 7010 came into effect and many safety sign symbols were updated.

Are yours up to date?

Mandatory

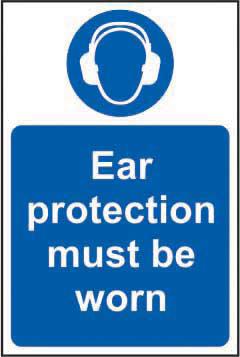

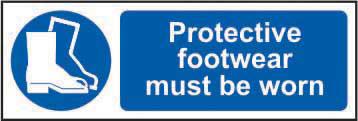

Personal Protective Equipment

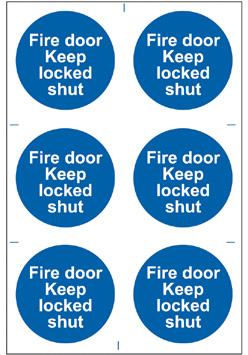

Fire Door Strips and Discs

These self adhesive signs are slim enough for use on the door jamb, providing an effective and timely reminder that the door should be kept closed as a precaution against the spread of fire.

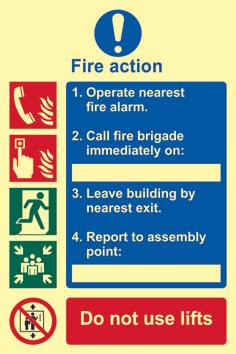

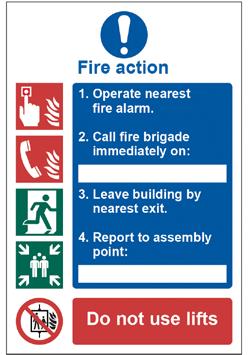

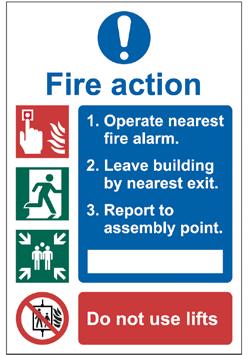

Fire Action and First Aid Procedure

Industry standard metal door sign discs, complete with screws.

SAA - Satin Anodised Aluminium

SSS - Satin Stainless Steel

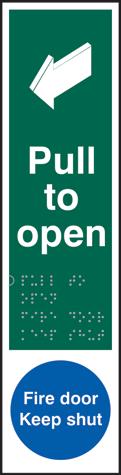

Fire Door and Access

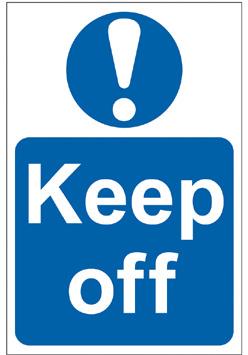

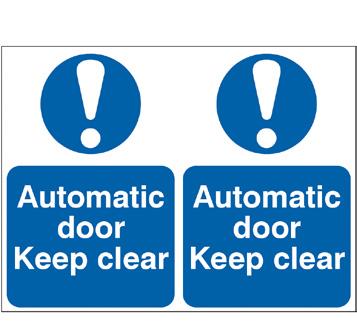

General Mandatory

Regulations require employers to ensure that safety signs are provided (or are in place) and maintained in circumstances where there is a significant risk to health and safety that has not been removed or controlled by other methods. This is only appropriate where use of a sign can further reduce the risk.

NEED A SITE SURVEY?

A SITE SURVEY IS ADVISABLE IF YOU ARE UNSURE OF YOUR LEGAL OBLIGATIONS OR HAVE BEEN NOTIFIED BY A REGULATORY BODY THAT YOUR CURRENT SIGNAGE IS NOT ADEQUATE. TO FIND OUT HOW SITE SURVEYS CAN HELP YOUR BUSINESS PLEASE CONTACT OUR SALES TEAM.

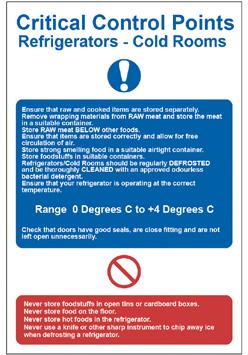

Food Preparation

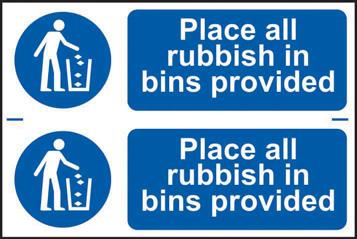

Clever ways to organise your waste

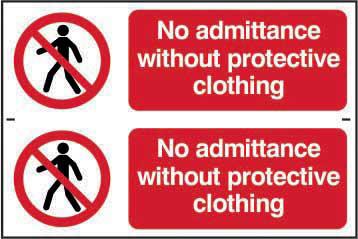

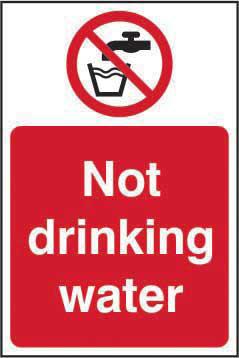

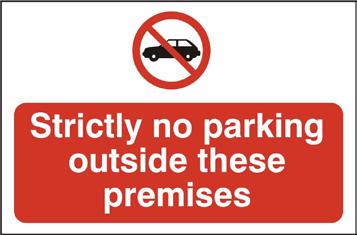

No Smoking and Prohibition

What are they

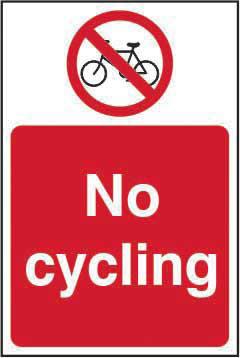

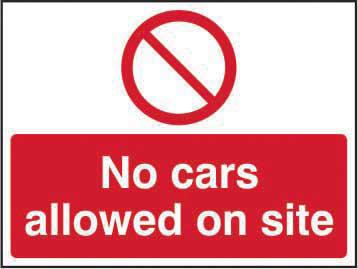

Prohibition signs indicate a course of action which is forbidden. These include signs that can indicate an action to be prevented (no smoking or no mobile phones), or the prohibition of movement such as no entry.

Defining characteristics

A red circular band with a white border and a red crossbar angled across it. A black symbol should be placed centrally with the red crossbar in front of the symbol to indicate that the action is prohibited. Any supplementary text should be in white on a red background.

When to use them

Prohibition signs should fixed on or near the relevant area to which the message refers, or in a position of entry to an area to which the message pertains.

Prohibition Icons

As of January C2805011-s BS EN ISO 7010 came into effect and many safety sign symbols were updated. Are yours up to date?

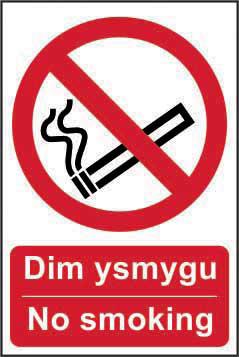

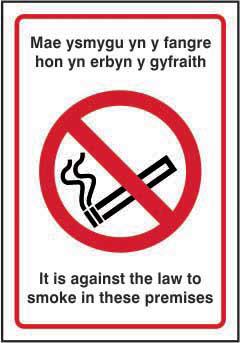

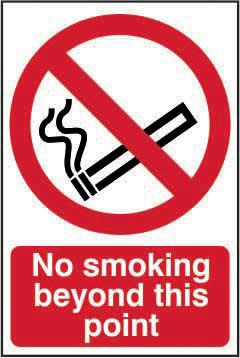

Smoking Prohibition

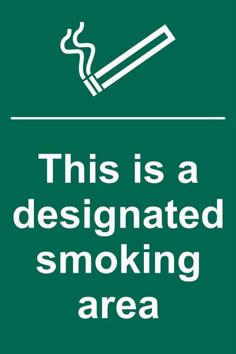

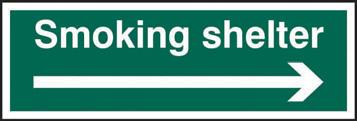

Smoking Permitted

• Site Surveys identify the signs you need, including size, positioning and materials, as well as any bespoke sign manufacturing service needs.

• Site Surveys also provide advice on ensuring the safety of you and your staff, including Lockout Tagout and Asset Management.

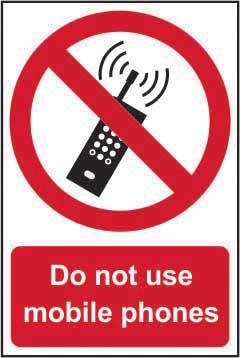

Mobile Phone

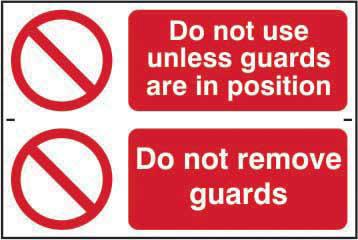

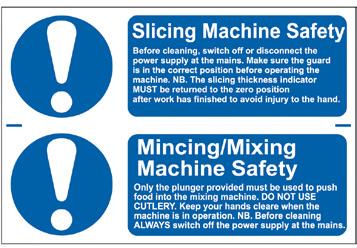

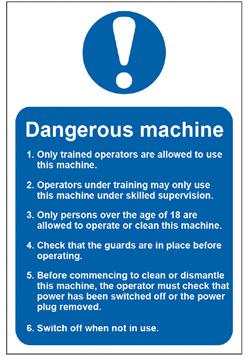

Machine Safety

OUR SIGN MANUFACTURING TEAM HAVE MANY YEARS OF EXPERIENCE DESIGNING, PRODUCING AND INSTALLING SIGNAGE.

Our sign manufacturing team have many years of experience designing, producing and installing safety signs and stencils worldwide. From the smallest one -off vinyl sign to large hoarding boards and larger print runs of many thousands, we can be depended upon to provide a fast and efficient service.

If you have a specific requirement for your signs, we can work closely with you to provide a design service or alternatively you can send us your own artwork. The diversity of our production facilities is second to none, why not give us a call and see how we can help you.

Hazard Warning

What are they

A Hazard Warning sign is used to inform of a nearby hazard which could pose a risk to health or wellbeing. These include signs warning of electrical threats, flammable materials or wet floors that pose a risk of slipping.

Defining characteristics

A yellow triangle with a black border and a suitable symbol placed centrally on the triangle. The symbol should be in black, and any supplementary text should be in black on a yellow background. There should be a white border around the triangle.

When to use them

A Hazard safety sign should be used to warn of a hazard to health or wellbeing if that hazard cannot be controlled by any other means. The sign should be placed in a visible location on or near the hazard, or in a position of entry to an area to which the hazard is located.

Hazard Icons

Things to consider

Provision must be made to minimise any risk within the workplace, and the use of a safety sign should not be used as the sole factor in reducing this risk. For example, if there is a risk of falling then physical modifications should be put in place to prevent this occurring in addition the use of a safety sign to warn of this hazard.

As of January C2805011-s BS EN ISO 7010 came into effect and many safety sign symbols were updated.

Are yours up to date?

Flammable and Gaseous

Access and Situational Awareness

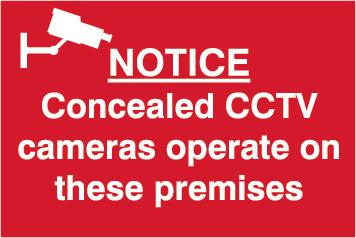

Since 1st March C2805001-s businesses operating a CCTV system must comply with the Data Protection Act 1998. This means that individuals are able to exercise their rights under the act and ‘appropriately sized signs should be placed in and around areas where CCTV cameras are to be located’.

The signs should ‘identify the owner/operator of the system and the purpose for which the data may be used’. If the correct signs are not used, businesses will be in breach of the law and a counter claim may be launched when CCTV evidence is used in a prosecution.

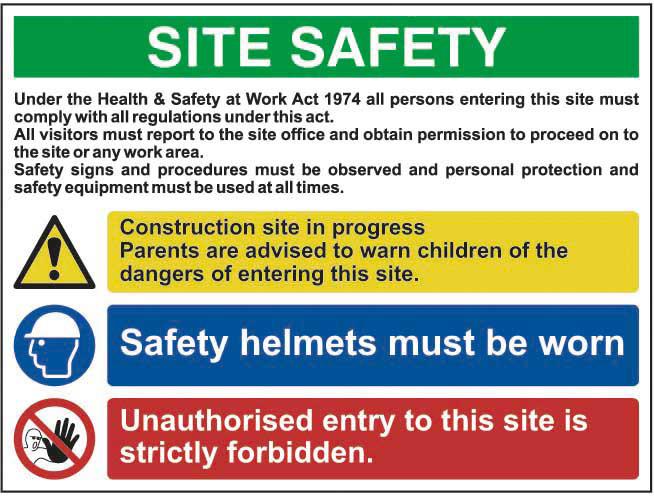

Multi-Message

By law the correct safety signage should be displayed in the appropriate locations and to current legal standards. A Site Survey is advisable if you are unsure of your legal obligations or have been notified by a regulatory body that your current signage is not adequate.

• Site Surveys identify the signs you need, including size, positioning and materials, as well as any bespoke sign manufacturing service needs.

• Site Surveys also provide advice on ensuring the safety of you and your staff, including Lockout Tagout and Asset Management.

FIND THE FULL RANGE OF PIPELINE IDENTIFICATION ON PAGE 104

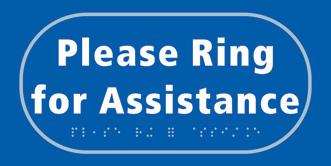

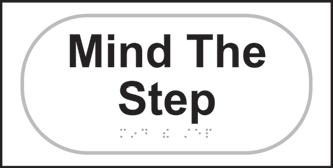

TAKTYLE BRAILLE SIGNS

What is Taktyle®?

Taktyle® is the leading brand of Braille signs, making them the preferred choice wherever Braille signs are specified. The Taktyle® brand was created in 1994 and has worked with the Royal National Institute for the Blind, Centre for Accessible Environments, Sensory Advisory Council, School for the Visually Impaired, Resource Centres and Home for the Elderly. The cumulation of this has been the production of a ‘definitive design’ to meet the demands for all these sectors.

Why is the Taktyle® range different?

These signs feature Braille and in addition we raise the pictogram and put a raised border around the sign (where possible), providing tactile additions for those who are visually impaired, but have not learned Braille. In addition to this, for non-safety sign colours we feature 2 main colours, this ensures that whatever the colour background the signs are put onto there is a contrasting colour available.

THE

ACT 1996 (DDA)

Can you make bespoke Taktyle Signage?

Although we offer a wide range of Fire Safety, Prohibition, Mandatory, Hazard and General Architectural Signs within the Taktyle range. Our inhouse manufacturing capability enables us to manufacture custom signs, made to your individual requirements. Simply contact us to discuss your requirements.

What’s the best location for Taktyle Signage?

It is essential that Taktyle signs are accessible to touch and are positioned at a consistent height around any building, and working to the disability act to accommodate wheelchair users. Signage needs to stand out clearly in any given environment, so using contrasting colours against wall backgrounds is also important.

On the 1st October C2805005-s the Government implemented Part lll of the Disability Discrimination Act. Part lll of the act applies to any person, organisation or entity which is concerned with the provision in the United Kingdom of services (including goods and facilities) to the public or a section of the public.

This will mean that ‘reasonable adjustments’ in relation to the physical features of their premises must be made to overcome physical barriers to access. Taktyle signs are often included in these adjustments.

According to the (RNIB), there are more than 2 million people in the UK living with sight loss and of these there are around 350k people registered blind or partially sited. There is also an estimate of the number of people with sight loss is expected to rise to 2.7mil by 2030.

(*Source: RNIB)

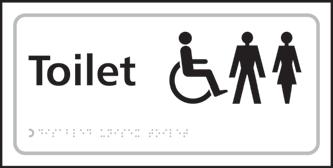

Signs for the visually impaired

• Made from moulded matt finish plastic to prevent reflections.

• Patented locating ring – guides the hand to the centre where the information can easily be found.

• Smooth contour lettering and pictograms.

• Self Adhesive backing for instant fixing.

• One piece die-moulded construction provides high quality at a low cost.

• Light and dark colour backgrounds available to highlight colour contrast of background walls.

• Site Surveys identify the signs you need, including size, positioning and materials, as well as any bespoke sign manufacturing service needs.

• Site Surveys also provide advice on ensuring the safety of you and your staff, including Lockout Tagout and Asset Management.

Fire Exit and Safe Condition

Our high intensity photoluminescent Taktyle Braille signs have been tested to DIN 67510 Part 1 - 4 specification, which exceeds international standard for flammability, smoke and toxicity.

These signs are reverse printed on moulded matt finish plastic to prevent reflection. The patented locating ring guides the hand to the centre where the information can easily be found.

The one piece die-moulded construction ensures that the raised lettering and images have smooth contours and do not run the risk of dropping out or being damaged from persistent use.

Fire Extinguishers and Equipment Mandatory

The Safety Signs and Signals Regulations 1996 state that non-automatic fire fighting equipment should be marked with an appropriate permanent sign.

These signs convey an action that must be carried out. The ‘white on blue’ colour scheme is designated by the Safety Signs and Signals Regulations 1996.

Hazard Warning

As

Finger Plates

Taktyle finger plate signs are ideal for placing next to entrances or onto doors to give both safety and directional information. Reverse printed for lasting image quality even when used as a finger plate, the Braille lettering on the sign allows the message to be read by partially sighted persons. Each sign comes with a self adhesive backing for instant fixing.

General Information and Wayfinding

Our range of Taktyle information and wayfinding signs has been manufactured in two colour schemes, a white background with black text and icons or a blue background with white text and icons. This ensures that regardless of the background colour a contrasting sign option is always available, aiding the visually impaired to locate the sign.

The following signs are available in:

300

Mobile Training Unit

Manned and supported by the Spectrum team, our mobile training and exhibition unit is available for use nationwide. Designed to reach out to every type of customer the unit is ideal for staff training, events, exhibitions and open days.

Operating on a free of charge basis throughout the UK and Ireland our unit gives visitors the opportunity to gather information about the ranges offered by us first hand. Whilst also containing a wide range of demonstration products including Lockout Tagout, Tagging Systems and Safety Signs which provide a hands on approach to product knowledge and training.

C2840160-s

Photoluminescent

What are they

Our photoluminescent signs consist of a selection of our health and safety signs which are printed on a material that glows in the dark. This type of sign is often considered as an added benefit. In the light they perform like a standard sign but if there is an incident and the lights go out they remain visible for a period of time, allowing the message on the sign to be read in darkness.

Defining characteristics

Photoluminescent signs are a change in material rather than a change in sign message type, and therefore the basic characteristics of the sign (colours and message type) remain the same as their non-photoluminescent counterparts – Safe Condition, Mandatory etc.

Photoluminescent signs require no power to light up, however they must be ‘charged up’ by natural or artificial light. Once the light goes out, the signs will glow for a period of time, the exact length of which depends upon the grade of material and the amount of light the sign has received prior to activation.

Our signs are manufactured on P.S.P.A Class B material, which is brighter than the standard Class A product commonly used in many photoluminescent safety signs, and can glow for up to 10 hours once fully charged. It has been tested to DIN67510 Part 1 – 4 for afterglow performance which exceeds the international standard for flammability, smoke and toxicity.

When to use them

Although there is no legal requirement to use photoluminescent versions of safety signs, the Fire Exit options are commonly requested as part of a comprehensive safety way guidance system (SWGS) in conjunction with photoluminescent wall strips and floor signage.

Photoluminescent versions of other types of signs can ensure that fire alarms or fire fighting equipment can still be located even in cases of poor lighting, smoke or lack of power.

Our specialist manufacturing team have years of experience designing, producing and installing custom products across the uk.

Whether you are looking for customised site safety signs, hoarding graphics, banners, tapes, labels, industrial marking stencils or floor graphics, we are happy to help.

In the event of a fire or emergency, the visibility of standard emergency signs can often be impaired by poor lighting, smoke or even lack of power. In these cases our Photoluminescent signs can provide an effective solution.

• High intensity flexible Vinyl or 1.3mm rigid material options.

• P.S.P.A Class B material - brighter compared to the standard Class A product usually used in safety signs.

• Tested to DIN 67510 Part 1 - 4 for afterglow performance which exceeds international standard for flammability, smoke and toxicity.

• Once fully charged will glow for over 10 hours.

• Visible even in complete darkness.

• UV resistant - suitable for internal and external use.

• Factory applied self adhesive backing.

Class ‘C’ options - Available on request

Fire Exit and Evacuation

Material Key

Fire Safety

Remember

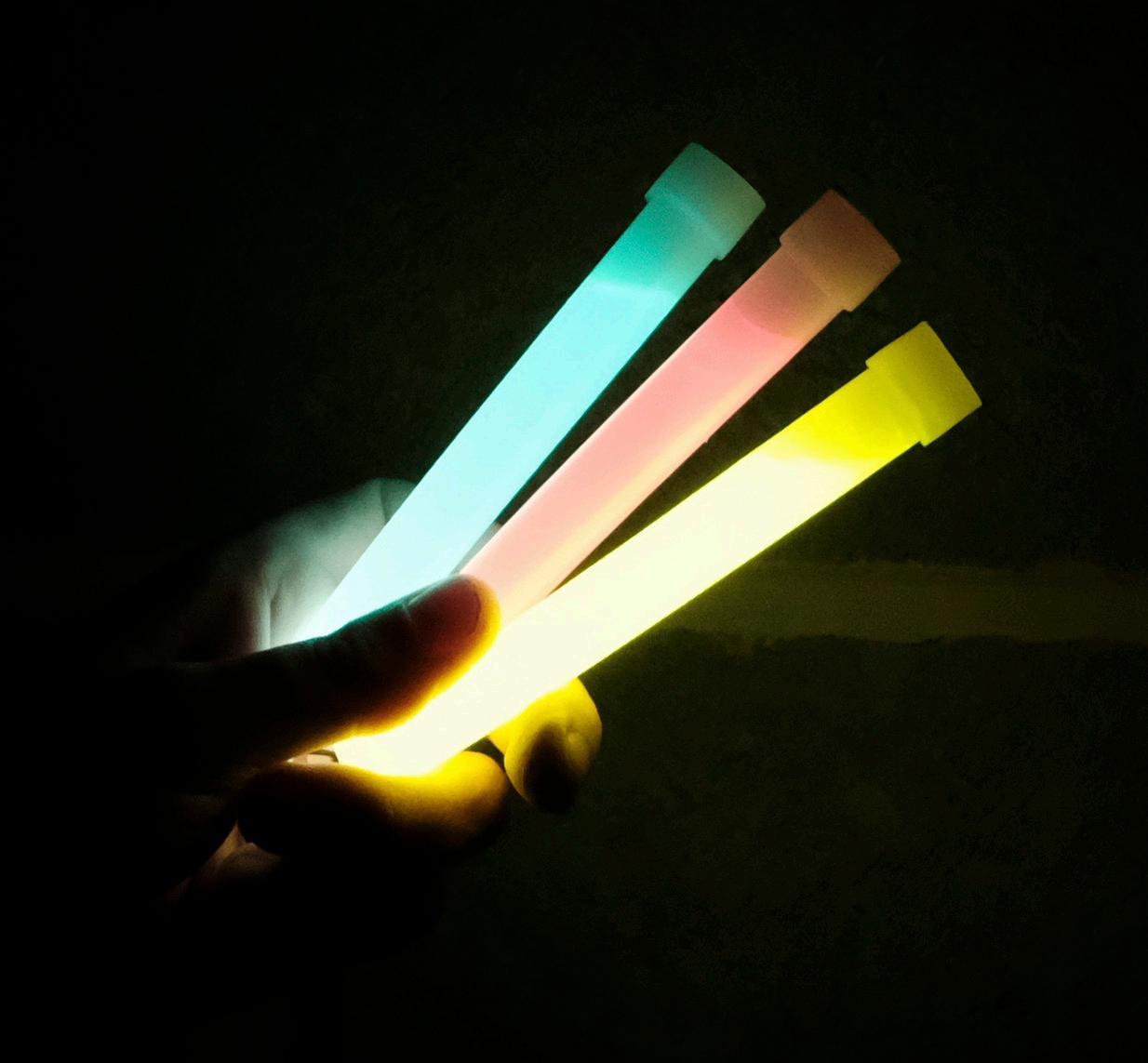

Safety Light Sticks

Description

Green Light Stick (each) C2816001-s

Orange Light Stick (each) C2816002-s

Yellow Light Stick (each) C2816003-s

Multi-purpose, cool to the touch, water resistant light source.

• CE & EN71 UN approved

• Glows for 12 hours +

• Non Flammable

• Non Toxic

Tape and Floor Markings

Our photoluminescent tape is ideal for creating clear, easy to use way finding systems. Exceeds PSPA Class B for longevity and brightness.

Interior Signs

A range of signs comprising of our metal effect laminates and real metal, suitable for interior use.

Our interior signs are manufactured on an aluminium laminate, providing a prestige finish with ease of use but without the cost of thicker full metal signs.

Satin Anodised Aluminium

These real metal signs provide a hard wearing and prestigious method of displaying safety and access information.

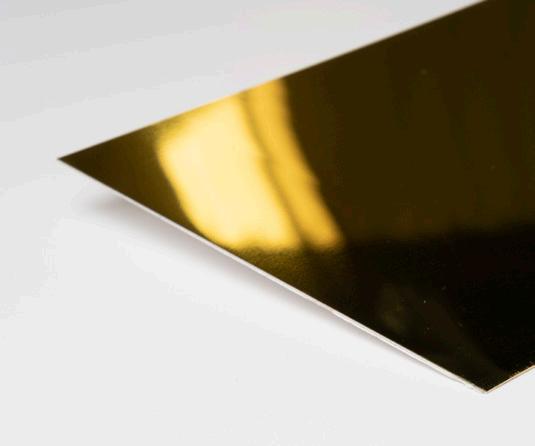

Polished Gold Effect Laminate

A metallic laminate with a gold coloured mirror-like finish and self adhesive back.

Stainless Steel Effect Laminate

An aluminium laminate in a metallic silver colour with a subtle brushed finished, similar to stainless steel with a self adhesive back.

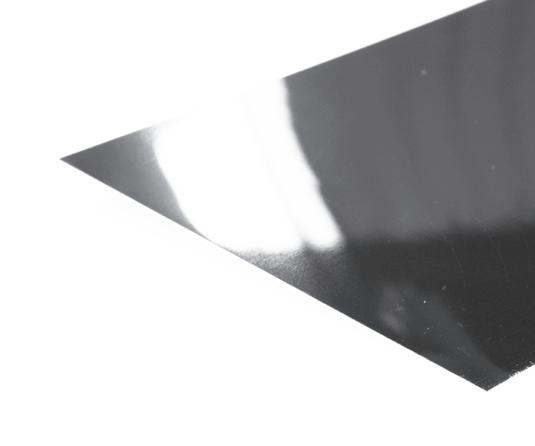

Polished Chrome Effect Laminate

An aluminium laminate with a polished mirror-like finish and a self adhesive back. Not suitable for exterior use.

Our specialist manufacturing team have years of experience designing, producing and installing custom products across the UK.

Whether you are looking for customised site safety signs, hoarding graphics, banners, tapes, labels, industrial marking stencils or floor graphics, we are happy to help.

200

200

Taktyle Braille Finger Plates

Door Sign Discs

TO FIND OUT HOW SITE SURVEYS CAN HELP YOUR BUSINESS PLEASE CONTACT OUR

By law the correct safety signage should be displayed in the appropriate locations and to current legal standards. A Site Survey is advisable if you are unsure of your legal obligations or have been notified by a regulatory body that your current signage is not adequate.

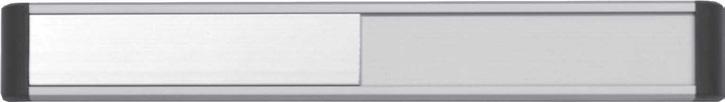

Door Slider and Plates

Aluminium door signs and slider systems ideal for room identification. satin anodised aluminium with black plastic end caps. Available with drill holes or adhesive backing for fixing, please specify when ordering.

Size: 220mm x 30mm

Adhesive Backing C2844047-s-A-SA

Drill Holes C2844047-s-A-DH Description

Adhesive Backing C2844047-s-B-SA

Holes C2844047-s-B-DH

Custom Door Sliders

SAFETY POSTERS

What are Health and Safety Posters?

They are an effective way to ensure the constant communication of vital health and safety information. Designed to display the information in a concise and easy to read format they help ensure that customers, employees and visitors are reminded of safe practices and informed of risk factors.

Why are they important?

The use of relevant Heath and Safety poster can increase knowledge, change attitudes and alter behaviours. By conveying appropriate information in the correct location and at the correct time, both general guidance and important safety information can be imparted when needed.

Where should they be displayed?

As a general rule, they should be displayed in a prominent location which is available to all employees, but the ideal location of the poster depends upon the message which is to be conveyed.

What posters do I need to display?

As with Health and Safety signs, the exact posters you need to display depend upon the type of business, the services you supply and the hazards or procedures you wish to warn about. Relevant across all industries would be the Health and Safety Law poster, general Health and Safety or Fire Safety posters, with other industries choosing more specific variations to better reflect the hazards they would encounter.

Regulation and Safety Guidance

Hygiene

By law the correct safety signage should be displayed in the appropriate locations and to current legal standards. A Site Survey is advisable if you are unsure of your legal obligations or have been notified by a regulatory body that your current signage is not adequate.

• Site Surveys identify the signs you need, including size, positioning and materials, as well as any bespoke sign manufacturing service needs.

• Site Surveys also provide advice on ensuring the safety of you and your staff, including Lockout Tagout and Asset Management.

Workplace and General Safety

Remember to display your Safety Posters!

Why not use one of our handy Snap Frames!

Improve the aesthetics, durability and security of our Safety Posters by placing them into one of our Snap Frames.

See Page 168 for our full range.

Material Key

First Aid and Emergency

Official Health and Safety Posters

The latest version of the HSE Poster has a simplified layout with clearly marked sections. Each poster has been produced using environmentally friendly materials, is serially numbered and incorporates an embedded hologram.

The Health and Safety Information for Employees Regulations 1989, requires the Health and Safety Law poster to be displayed in all business premises.

The Health and Safety law poster tells employees what they and their employers need to do in simple terms.

We are able to provide the widest range of safety signs and solutions including:

• Safety Signs

• Safety posters and record books

• 6S Shadowboards and A-Boards

• Floor graphics

• Lockout Tagout Equipment

• Tagging Solutions

But did you know?

Custom Design

From the smallest one-off vinyl sign, to large hoardings and print runs of many thousands of signs, we can be depended upon to provide a fast and efficient service.

If you have a specific requirement for your sign, we can work closely with you to provide a design service, or alternatively you can provide your own artwork, so why not give us a call and see how we can help

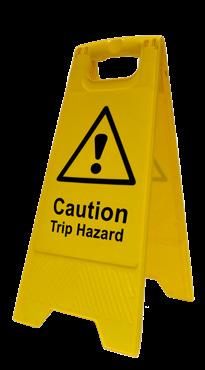

A-BOARDS

What is an A-Board?

An A-Board is a double-sided standing sign that is commonly used to convey a warning message about a temporary hazard. A-Boards provide the perfect lightweight portable sign that can be positioned where required and removed after use.

Why do I need an A-Board?

It’s an employers responsibility to warn employees and members of the public of any potential hazards. If you fail to warn people properly of a potential hazard in which an individual then experiences harm the organisation can then face legal proceedings. Where a temporary potential hazard occurs such as wet floor, A-Boards are the perfect way to communicate the warning until the hazard can be resolved.

What

different kinds of A-Boards are there?

Manufactured from polypropylene this durable A-Board is designed to help reduce the risk of accidents or injuries occurring by highlighting temporary hazards. This double-sided A-Board is lightweight and is easily transportable with its integral carry handle.

Economy A-Boards are manufactured from 4mm Correx board providing a lightweight and cost-effective temporary option. Your own choice of adhesive sign can be added to either side of the A-Board making it extremely versatile.

A-Boards are commonly used with hazard warning messages, however they can be used for a number of messages where a temporary instruction or communication is required. Our custom A-Board service is ideal for printing your own message or adding your logo / branding.

Slip incidents are extremely common and result in severe to permanent injuries.

The majority of slip accidents take place in the workplace or public areas and can be caused from ice, snow, water, oil and debris with the most common being from wet floor, spills and leaks.

(source – slipstripsandfalls.org.uk)

Heavy Duty A-Boards

Manufactured from polypropylene this durable A-Board is designed to help reduce the risk of accidents or injuries occurring by highlighting temporary hazards. This double-sided A-Board is lightweight and is easily transportable with its integral carry handle.

Need a Site Survey?

By law the correct safety signage should be displayed in the appropriate locations and to current legal standards. A Site Survey is advisable if you are unsure of your legal obligations or have been notified by a regulatory body that your current signage is not adequate.

• Site Surveys identify the signs you need, including size, positioning and materials, as well as any bespoke sign manufacturing service needs.

• Site Surveys also provide advice on ensuring the safety of you and your staff, including Lockout Tagout and Asset Management.

Economy A-Boards

Manufactured from 4mm Correx board, digitally cut and creased to provide a lightweight but sturdy A-Board.

Available in yellow, this unit is provided without any signs allowing you to choose your own for maximum versatility. These A-Boards are large enough to place a 200 x 300mm sign on either side.

Note: Sign not included.

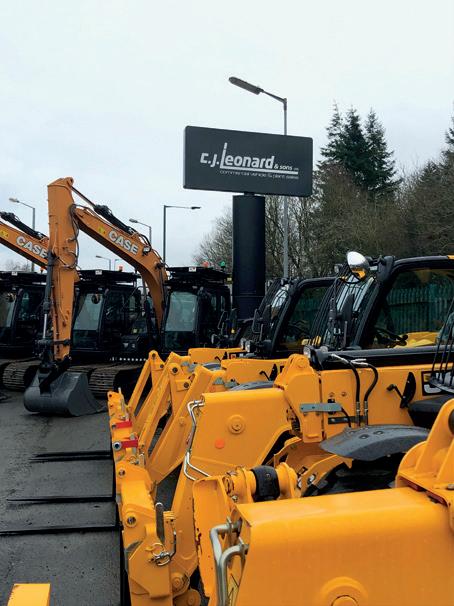

Whether it’s hoarding for the development, way finding signage, site safety signage or signage for the completed building.

WE CAN PROVIDE COMPLETE SIGNAGE SOLUTIONS FOR THE LIFECYCLE OF A BUILDING.

FLOOR MARKINGS

Floor graphics and markings provide safety, informational or directional information at specific locations, often in areas where there is not always an appropriate place to site a standard sign.

Materials and Specification

Our floor graphics are digitally printed onto self adhesive vinyl with a permanent adhesive on the reverse. The graphic is then laminated with a clear matt embossed PVC laminate, which is certified to R9 grade for slip resistance. These signs should be applied to sealed flat surfaces such as laminates, painted or varnished floors or whole tiles, and are suitable for dry indoor locations.

A higher specification (R11) is suitable for outdoor conditions and is available on request, please ask for details.

Application and Use

1) Locate the area where the graphic is to be placed, ensure the surface is suitable for the graphic as rough or porous surfaces are not suitable.

2) Clean the surface if required, it should be a sealed flat surface, clean from dust, oils or other contaminates.

3) Check that the graphic is centred properly and facing the correct direction (if applicable). Peel off a small strip of the release paper and stick it down to the surface.

4) Gently pull away the rest of the release paper, closely following this removal by pushing the floor graphic down, using a soft flat tool wipe from side to side to ensure no bubbles are trapped underneath the graphic.

Please note: We recommend that you test the suitability of this product before use and that a regular check is made on all floor graphics. Worn, torn or otherwise damaged floor graphics should be removed and replaced.*

*We cannot accept any responsibility for accidents to persons or damaged caused by the use of these products.

Floor Graphics

Our floor graphics will adhere to most smooth, clean flat surfaces and will provide a durable long lasting safety message. Each sign is backed with a high strength adhesive and has a hard wearing non-slip, non-abrasive lamination on the face.

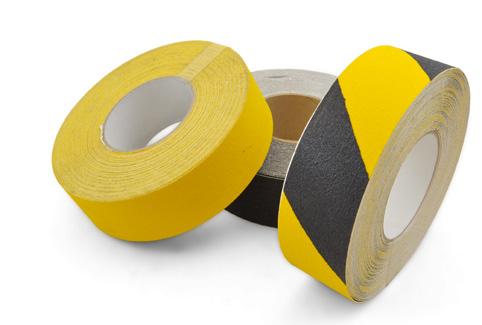

Non-Slip Floor Tape

Photoluminescent Tape and Floor Markings

Our photoluminescent tape is ideal for creating clear, easy to use way finding systems. Exceeds PSPA Class B for longevity and brightness.

20mm x 10m 40mm x 10m 80mm x 10m PHO PHO PHO

C2829090-s C2829091-s C2829127-s

40mm x 10m (R)

40mm x 10m (L)

80mm x 10m (R) 80mm x 10m (L) PHO PHO PHO PHO

C2829092-s C2829093-s C2829121-s C2829122-s

40mm x 10m 80mm x 10m PHO PHO C2829094A-s C2829123-s

40mm x 10m 80mm x 10m PHO PHO C2829095-s C2829124-s

40mm x 10m 80mm x 10m PHO PHO C2829113-s C2829125-s

Non-slip Floor Treads

Our non-slip treads are manufactured using a silicon carbide grit, giving excellent slip resistance whilst being repellent to oil, fluid and grease.

The printed treads are in high contrast colours and are ideal for use where a visual warning is needed, alongside anti-slip properties.

Plain 19 x 609mm 50 C2841001-s

These photoluminescent floor graphics have a strong adhesive backing with a tough anti-slip laminated face.

Plain 150 x 609mm 10 C2841002-s

Plain 140 x 140mm 10 C2841003-s

Printed 150 x609mm “CAUTION” Each C2841004-s

Printed 150 x 609mm “Watch your Step Each C2841005A-s

Floor Marking Tape

Adhesive PVC tape ideal for highlighting hazards and internal marking procedures.

Tape measurements: 50mm x 33m

C2841031-s

C2841032-s Yellow C2841033-s

Reflective Tape

Retroreflective tape of engineering grade. Resistant to corrosion, weather and most solvents.

Tape measurements: 50mm x 25m

STENCILS

What are stencils?

Stencils are specially modified flexible polyester with a pattern or letters cut out. When the stencil is laid onto a substrate, paint is applied to the cut-out area, when the stencil is removed the paint remains in the shape of the cut-out area.

Paint is usually applied using a spray or roller, as this has less chance of moving the stencil during application.

Why use a stencil instead of a sign?

Stencils can be re-used multiple times and can provide a substantial cost saving compared to traditional signage. A stencil can be placed on virtually any surface, including ones where adhesive signs would not usually adhere, and the simple method of application ensures that almost anyone can apply one with a small amount of preparation.

Although stencils can be obtained as a complete message, you can also create your own messages by using the letter and number packs to provide the ultimate versatility.

How to use a stencil

1) Choose an area to be place the stencil, check that it is dry, centred and facing the correct direction.

2) Place the stencil onto the surface and hold down the edges using a low-tack adhesive tape. If creating a message with individual letters / numbers, use the marks etched into the stencil to ensure they are lined up correctly.

3) Try to ensure the stencil is flat to the surface, as any raised parts will allow the paint to seep under the edge and result in a less sharp edge. Depending on your paint application method, consider adding more tape around the outside of the stencil to avoid overspray.

4) Apply your paint to the stencil, taking care not to overspray the area. Correct paint selection is important to ensure adhesion but also to prevent seepage. Remove the stencil whilst the paint is still wet to prevent the stencil being stuck to the substrate.

5) Clean the stencil with the appropriate solution suitable for the paint used. Correct cleaning will result in a longer lifespan of the stencil.

Stencils

Our stencils are manufactured from a specially modified flexible polyester. Each stencil is laser cut for accuracy, with a transparent anti-glare finish and is scratch resistant. If properly cared for, our stencils can be used time and again, making them a cost effective method of producing your own sign or notice.

300

C2818016-s

C2818054-s

C2818053-s C2818052-s

C2818025-s

C2818081-s

C2818080-s

C2818079-s

C2818020-s

C2818066-s

C2818065-s 300

C2818019-s C2818063-s C2818062-s C2818061-s 300

C2818029-s C2818093-s

C2818092-s C2818091-s

C2818014-s C2818048-s C2818047-s C2818046-s

Stencil Letter and Number Kits

Our laser cut stencil packs are an ideal way to create your own message.

Each letter comes on a separate sheet of polyester, etched spacer marks on each corner allow you to align accurately to the next character.

NOTE: SIZE REFERS TO THE CHARACTER HEIGHT, WITH THE WIDTH VARYING DEPENDANT ON THE INDIVIDUAL CHARACTER.

PIPELINE IDENTIFICATION

What is Pipeline Identification?

Pipeline Identification is used for identifying the contents of pipes. Containers, tanks and vessels used in the workplace for hazardous chemical substances or mixtures, and the visible pipes in the workplace containing or transporting hazardous substances and mixtures, should be labelled showing the relevant contents. Pipeline flow markers have arrowheads at either end, one of which can be removed to indicate the direction of flow.

Why is Pipeline Identification Important?

Unidentified pipes can provide a serious hazard to both health and property. When repairs or maintenance is required, the contents and flow direction is one of the first questions that need to be answered.

Basic Identification Colours

The Health and Safety (Safety Signs and Signals) Regulations 1996 have made it a legal requirement that employers mark and identify hazardous materials in visible pipework.

Why Us

Our products conform to BS 1710, which specifies the colours and other information that should be used to identify pipes, ducts and electrical conduits. This standard itself references the appropriate colours to be used as per BS 4800, as well as some safety colours as listed detailed below.

The background colours of our pipe markers and tapes all conform to the recommendations specified in BS 1710 2014 Identification of Pipelines and Services, as shown below:

Pipeline Flow Markers

Supplied in packs of 5, our markers have arrowheads at either end to indicate the direction of flow, simply cut off the unneeded arrow and apply marker to the pipe with the arrow pointing in the direction of the flow. Water (Green) - 12 D

All our markers are manufactured on a highly durable, self adhesive Polyester film, which is then laminated with clear Polyester. This makes it extremely resistant to scratching, chemicals and solvents as well as extremes of temperature.

OTHER SIZES AND FORMS ARE AVAILABLE, PLEASE ASK FOR DETAILS.

Air (Light Blue) 20 E 51

45

Fire (Red) - 04 E 53

Gases (Yellow Ochre) - 08 C 35

Acid and Alkali (Violet) - 22 C 37

Mineral Oils (Brown) - 06 C 39

Pipeline Identification Tape

Many organisations are paying closer attention to health and safety and are identifying opportunities for improvement.

By introducing safety schemes and using signage to promote safety on their site so they can raise awareness and maintain safety standards.

We provide a wide range of signs to create a positive safety culture.

CONSTRUCTION

The construction industry in the UK is worth well over £100 billion per annum but unfortunately suffers from one of highest rates of injury and death. Health and safety is important in every industry sector, but workplace safety in the construction industry is often considered more important due to the severity of injuries which are inflicted.

In recent times health and safety is being positioned at the core of all operations and training, with the use of safety signs being used to help create awareness of risk and preventing of accidents.

Safety Signs are a legal requirement and construction site safety signs deliver important information warning you of hazards or requirements that must be obeyed. It is the responsibility of the people who run the site to ensure that there is sufficient safety signs in full and clear view for workers, visitors and members of the public.

Our extensive range of signs and noticeboards are available ex-stock, with customisation available to ensure any risk or message can be communicated effectively.

“Construction is the third most dangerous industry according to the UK’s health and safety executive’s (HSE), costing the construction industry over £1bn.”

(SOURCE – HSE)

GET IN TOUCH FOR MORE INFORMATION

Our specialist manufacturing team have years of experience designing, producing and installing custom products across the UK.

Whether you are looking for customised site safety signs, hoarding graphics, banners, tapes, labels, industrial marking stencils or floor graphics, we are happy to help.

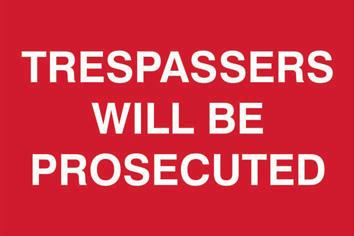

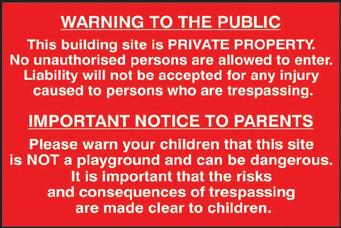

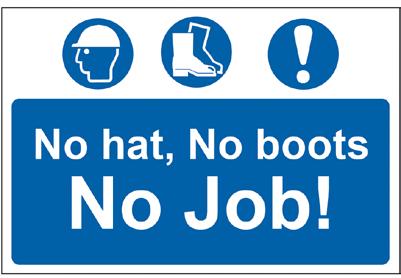

Site Safety Notices

With the numerous dangers found on modern construction sites, it has become harder and harder for a site safety manager to effectively demonstrate, the relevant safety procedures and methods of work which is a lawful requirement.

These signs have been specifically designed to provide safety managers with the information they need to display on one sign. We can also create bespoke site safety signs with specific logos or company branding.

Fire Safety and Safe Condition

Fire Extinguishers and Equipment

Highway / Motorway Maintenance

C2808008-s

C2808009-s

C2808010-s

C2808011-s

C2808013-s

C2808003-s

C2808004-s

C2808049-s

C2808051-s

C2808007-s

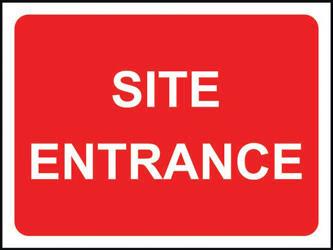

Construction & General

By law the correct safety signage should be displayed in the appropriate locations and to current legal standards. A Site Survey is advisable if you are unsure of your legal obligations or have been notified by a regulatory body that your current signage is not adequate.

• Site Surveys identify the signs you need, including size, positioning and materials, as well as any bespoke sign manufacturing service needs.

• Site Surveys also provide advice on ensuring the safety of you and your staff, including Lockout Tagout and Asset Management.

Underground Tapes

These underground tapes comply with electricity, safety, quality and continuity regulations. Alert excavation crews to imminent danger from buried cables, pipes and other hazards. Manufactured from tough 90 micron polypropylene, the tapes are brightly coloured for clear visibility. Detectable versions available on request.

Size: 150mm x 365m

Our specialist manufacturing team have years of experience designing, producing and installing custom products across the UK.

Whether you are looking for customised site safety signs, hoarding graphics, banners, tapes, labels, industrial marking stencils or floor graphics, we are happy to help.

Road and Traffic Signs

road and traffic signs

Road and Traffic signs are commonly erected at the side or above roads to give instructions or provide information to road users. These are generally separated into permanent and temporary categories.

All permanent road signs must be manufactured by an audited and registered company by law, and have the appropriate labelling attached to the reverse. As manufacturers we are fully accredited to the relevant standards.

The UKCA (UK Conformity Assessed) marking is a new UK product marking that is used for goods being placed on the market in Great Britain (England, Wales and Scotland). It covers most goods which previously required the CE marking.

All permanent roads signs manufactured for installation within Great Britain will be supplied with a UKCA mark, whereas signs destined for the European market will have the CE Mark.

Materials:

Mild Steel Sheet

A lightweight mild steel sheet with weather resistant properties.

Due to it being light weight it is not as durable as ACP or Aluminium, this combined with its low cost usually means it is used as temporary signage in a standing frame.

Class Ref 1

Sometimes referred to as Engineering grade, this has a lower grade of retro-reflectivity and is commonly used on temporary road signage.

ACP

ACP is an Aluminium composite material made from two lightweight sheets of Aluminium with a solid black thermoplastic core.

Light weight but extremely strong, ideal for outdoor use due to its excellent resistance to adverse weather and zero scrap value.

Class Ref 2

This is a high intensity prismatic (HIP) retro-reflective sheet, specifically designed for use on permanent road signs. Engineered to give good reflectivity at all angles critical to the driver and is more durable with a longer lifespan.

Fixings

Other

We can also manufacture signs on different materials to suit specific applications.

These include solid aluminium plate, recycled plastic, or roll-up temporary signs or non-reflective PVC

This is the highest grade retroreflective sheet available, and is specified for permanent signs where the ultimate visibility and legibility is required, such as motorway signs. This material is available on request.

All our permanent road signs come with the option to have channel riveted horizontally onto the rear of a sign. Channel is a formed strip, to provide fixing anchorage for either anti-rotational clamps or banding (with buckles). Signs come with a suitable number of channel strips, depending on the size of the sign. The larger the sign, the more strips of channel are required.

Please see page 144 for fixings options

UKCA / CE Marked

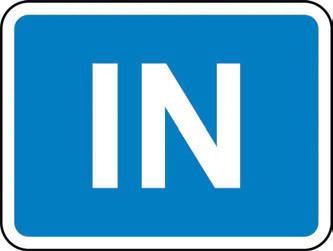

Permanent Road Signs

These Road Signs conform to the Traffic Signs Regulations and General Directions C2805003-s and BS EN 12899-1:C2805008-s (which has replaced BS 873 Parts 5 and 6).

Manufactured from Aluminium composite which provides excellent strength and durability. Each sign is available with or without channelling on the reverse.

ACP does not have channel - ACPC has channel

C2834173-s

C2834175-s C2834175-s-1 C2834005-s C2834005-s-1

C2834176-s C2834176-s-1

C2834006-s

SIGN CHANNEL OPTIONS

These signs are available with or without channelling on the reverse.

Find out more about sign fixings on page 122

Permanent Road Signs

Permanent Road Signs manufactured on Aluminium composite panel, available with channel option for post fixing.

Road Sign Fixings and Posts

To be used with road signs that have channel on the reverse. Manufactured from grey coated mild steel posts for excellent durability with standard 76mm (3”) diameter.

Other sizes available on request.

1.5m Post

1.8m Post

3m Post

Post Cap

Post Clips

C2834050-s

C2834051-s

C2834159-s

C2834052-s

Anti-rotational post clips slide into the channel on the back of the road sign and fit around the road post.

Complete with fixings.

76mm dia. Post Clips (pair)

C2834053-s

Channel Adaptors

Channel adaptors help when unsure about what component to use when attaching a sign on to a signpost, lamppost, bollard or telegraph pole.

Channel Adaptors (ea.)

C2834054-s

Banding Straps

Banding straps are similar to an oversized hose clip that passes through a buckle and is then tightened using a standard screwdriver. Ideal for strapping lighter weight signs or Banner Supports to round or irregular shaped posts

Banding Straps (pair)

C2834186-s

THERE ARE 2 MAIN TYPES OF REFLECTIVE FACING FOR ROAD SIGNS.

Class Ref 1 is lower grade and is only used on our temporary road signage.

Class Ref 2 is higher grade and is used on all our permanent road signage.

Temporary Road Signs

Temporary Road Signs are manufactured with Class Ref 1 engineering grade reflective face onto Zintec plate.

Order the material code ZFM for your sign to be pre-set into a stanchion or ZIN for just the sign.

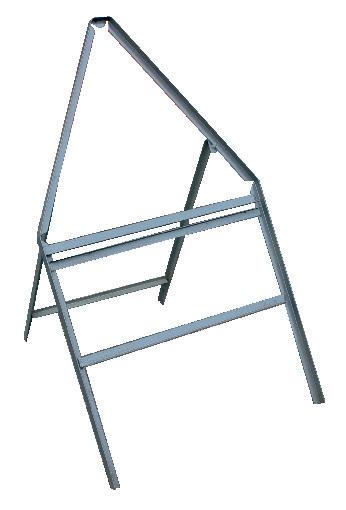

Road Sign Frames (Stanchions)

Our Road Sign Frames are manufactured from mild steel in a range of standard sizes.

Temporary triangular signs are printed and displayed using these stanchions.

If you require any non-standard sizes please contact our sales office.

600mm Triangle

600mm Triangle with Supplementary Plate

750mm Triangle

C2834153-s

C2834163-s

C2834154A-s

750mm Triangle with Supplementary Plate C2834162A-s

750 x 750mm

600 x 450mm

600 x 600mm (overall height 1200mm)

1050 x 450mm

1050 x 750mm

Frame Fixing Clips (Pack of 100)

C2834155A-s

C2834156A-s

C2834171-s

C2834161A-s

C2834157A-s

C2834158-s

Our specialist manufacturing team have years of experience designing, producing and installing custom products across the UK.

Whether you are looking for customised site safety signs, hoarding graphics, banners, tapes, labels, industrial marking stencils or floor graphics, we are happy to help.

Roll-up Signs

These Roll-Up Road Signs fully comply with all appropriate regulations for Temporary Road Signs.

• Quick to install

• Lightweight, foldable for ease of storage and transport

• Standard grade reflective face

• Supplementary Plates are interchangeable

• Very easy to erect

• Different sizes available

• Rust-proof metalwork

• Suitable for use in temperature range between -5° to +30°

Non-Reflective Road Signs

These signs are manufactured from non-reflective materials and are suitable for private land, work and building sites as well as private access roads.

Safety Mirrors

LABELS

Labels are an essential ingredient in nearly all modern-day work, providing important safety or procedural information at point of contact. We use quality printing methods and strong label materials to produce a wide range of safety labels including,

• PAT Testing Labels

• Quality Control Labels

• Hazardous Substances

• and much more

In many instances products and methods to be labelled are law. Electrical labelling is most importantly about safety, with correct identification potentially saving injury or, in serious cases life. The main reason for labelling objects is to indicate a danger or an instruction.

Labelling provides a clear picture across many applications which in turn improves safety.

Self Adhesive Vinyl 50 x 25mm labels

Supplied in rolls of 250 Quality Control Labels

Internationally recognised paper packaging labels

Supplied in rolls of 1000

Door Labels

Hazardous Substances Labels

It is important to mark those areas, rooms or enclosures used for the storage of significant quantities of hazardous substances or mixtures by a suitable warning sign, unless the warning labels on individual containers are clearly visible from outside or nearby.

Supplied in singles

Labels On A Roll / Label Packs

These labels are manufactured from a laminated Polypropylene.

100mm2 labels are supplied in rolls of 250. 250mm2 labels supplied in a packs of 10.

Hazardous Substances Sheets

Each sheet has 3 vinyl labels which can be easily cut as required.

1 x 200mm² and 2 x 100mm² labels per sheet.

1

2

UN

Placards to IMDG Code

Supplied with a blank space allowing you to fill in the appropriate numbers (must be 65mm high and in black).

Alternatively we can print them for you, contact us for details

Label Rolls

Supplied in rolls, these labels are available in a range of sizes and roll quantities. The quantity in each pack is shown by the last numbers in the code.

By law the correct safety signage should be displayed in the appropriate locations and to current legal standards. A Site Survey is advisable if you are unsure of your legal obligations or have been notified by a regulatory body that your current signage is not adequate.

• Site Surveys identify the signs you need, including size, positioning and materials, as well as any bespoke sign manufacturing service needs.

• Site Surveys also provide advice on ensuring the safety of you and your staff, including Lockout Tagout and Asset Management.

LOCKOUT TAGOUT

Lockout is a physical method of isolating equipment to prevent it being re-energised or stop the release of any stored energy.

Tagout is a highly visible written warning attached to the locked out device highlighting that the equipment should not be used until the Lockout is removed.

Why Lockout Tagout?

Planned Lockout Tagout Procedures are an effective way of reducing the risks involved when maintaining, cleaning or repairing equipment. Now considered a best practice procedure worldwide, correct implementation can reduce downtime and increase productivity. It helps to ensure worker safety and reduces the risk of employers exposure to liability and prosecution, as well as indirect costs such as repairs to equipment.

How to implement a planned LOTO Programme?

A clearly designed LOTO programme will detail all the necessary steps to ensure equipment energy is safely isolated.

Types of Energy

Dangerous energy sources can take many forms, including:

Electrical Energy

Commonly found powering nearly all workplace equipment.

Hydraulic Energy

Found powering forklifts, cutting equipment and pumps.

Mechanical Energy

Can be found in all machinery with moving parts.

Thermal Energy

In ovens or freezers (hot or cold).

Pneumatic

Energy

Most commonly found powering machinery via compressed air or gas.

Potential Energy

Found in compressed springs or suspended weights.

Safety Lockout Padlocks

With a ribbed Nylon body for easy gripping and handling. Compact high security padlocks with a 6-pin lock mechanism which will not release the key until the shackle is closed.

• 6-pin precision-machined cylinder for extra security.

• Non-conductive, non-sparking reinforced Nylon body.

• Resistant to chemicals and corrosion.

• Colour coded for easy identification with a photoluminescent label.

• Key retaining feature.

• Etched numbers/serials/initials

• Each padlock is supplied boxed with 1 key and keyring.

C2835006A-s-L

C2835007-s-L

C2835008-s-L

C2835009-s-L

C2835010-s-L

*IMPORTANT: Keyed alike padlocks should only be used as part of a planned energy control programme, as incorrect use may compromise the security of the LOTO procedure. Please see opposite page for further information on the key differences.

WHAT PADLOCK AND KEY DO I NEED?

Padlocks are an essential part of a lockout tagout programme, there are also various types of keying systems that can be used as part of an effective loto programme. Choose the type which is suitable for the intended process, bearing in mind its place within the overall lockout procedure.

PADLOCKS AND KEYING SYSTEMS

The correct keying system for your site will be dictated by LOTO procedures, identified through a LOTO audit. There are varying options listed below:

KEYED DIFFERENT (KD)

Each padlock can only be opened using a single unique key.

KEYED ALIKE (KA)

All padlocks in a Keyed Alike team have their own key. That same key can open any padlock within the same team.

MASTER KEYED (MK) & GRAND MASTER KEYED (GMK)

The padlocks in this system each have their own unique key, which can only open the corresponding padlock. The Master Key for this team can open any of the padlocks within its own team. This can be further extended over multiple teams, with a Grand Master Key able to open any padlock within any team.

Di-electric Padlock

A di-electric variant of our standard safety lockout padlock, with a nylon shackle to be used for an extra layer of protection in areas of electrical hazard.

ENGRAVING AND NUMBERING

To reinforce a key registering programme, safety padlocks can be laser etched with names, registration numbers, company details or other identifying information.

Padlock Cabinet

Red powder coated steel padlock cabinet with interior racks for the storage of padlocks.

• Stores up to 21 padlocks.

• Quality powder coated Steel.

• Wall mountable.

• Fixings included.

• 2 keys included.

The Eagle-ID scheme can be implemented on any of the Lockout Tagout padlocks we supply and will provide an ironclad guarantee that your site is free from key duplications and the safety implications this can present.

Every padlock supplied has its unique key reference recorded on our internal system, and subsequent orders are cross-referenced against this database to ensure no duplications can ever be issued to the user, regardless of site location or company organisational structure. For further details and help on implementing the Eagle-ID please contact our sales office.

Security Padlocks

These padlocks are ideal for general security use and are not for use as part of a LOTO programme.

Blue Jacket Padlock

Regular shackle brass padlock encapsulated in an injection moulded jacket.

Supplied with warning label and 3 keys.

Laminated Padlock

Supplied with 2 keys.

C44190110A-s

Weather Resistant Padlock

Supplied with 2 keys.

Discus Padlock

Supplied with 2 keys.

Brass ‘Tri-circle’ Padlock

Standard brass padlocks.

Supplied with 2 keys.

C44190101A-s

C44190102A-s

C44190103A-s

C44190104A-s

C44190105A-s

C44190106A-s

Lockboxes

Provision of a safe location to store keys and other activation devices during maintenance or repair.

Once equipment has been isolated and made safe, any keys or other activating equipment can be stored safely in a lockbox to prevent accidental re-energisation. Multiple padlocks can be affixed to the Lockbox which all must be removed before gaining access to the contents.

Lockbox

Red powder coated steel lockbox for storage of keys or other machine activation devices.

Once a machine has been isolated and made safe, its keys are placed in the Lockbox; each authorised person working on the machine then applies their own padlock to the lockbox, ensuring the keys cannot be accessed until every authorised user is satisfied the machine is safe.

• 13 padlock fixing holes

• Carry handle on top

*Padlocks not included

Hasps

When more than one padlock needs to be fitted to an isolation point a hasp can be fitted to expand the number of lockout points available. The design of a hasp ensures that all the padlocks need to be removed before the hasp can be detached.

Standard Hasps

Manufactured from hardened powder coated Steel, this hasp utilises a simple scissor action to lockout an isolation point.

The 25mm version has a double locking arrangement whilst the 38mm is a single locking system.

Manufactured from high tensile Steel sheet which has in turn been electro-plated to prevent corrosion.

The padlock fixing section is Vinyl coated to improve grip and provide greater visibility.

Dual Lockout Hasps

This dual scissor action hasp has a Steel body with a powder coating to prevent corrosion. The Aluminium pivot provides smooth movement. The two different jaw sizes ensure ultimate adaptability when lockout conditions vary.

Dual Lockout

Di-electric Lockout Hasp

Our premier Dielectric Lockout Hasp utilises a unique swing lock system to securely fasten the thread.

Available in 3mm and 6mm thread sizes, each has 4 integral holes for multiple padlock use.

Manufactured from reinforced Nylon, these hasps are tough, flexible and have the added benefit of being completely non-conductive.

Accepts padlocks with a shackle diameter up to 9mm.

Sign Hasps

This hasp combines the benefits of a standard hasp and tag simultaneously.

Manufactured from powder coated Aluminium.

Supplied with spare label.

Lockout Tagout Station

Yellow cabinet with 2 adjustable shelves and carry handle

• Quality powder coated steel

• Wall mountable

• Fixings included

• 2 keys included

• Integrated carry handle

Gate Valve Lockout

A simple solution for isolating gate valves. Once the valve is in the appropriate position, simply slip the lockout over the top of the handle, rotating freely around the valve stem and thus preventing access and movement of the valve.

The different sizes cover the most commonly used valve diameters. Where a gate valve lockout cannot be used due to fitting or other restraints, consider using a cable lockout system to isolate the valve

• Resistant to cracking and abrasion

• Dielectric properties

• Rotates freely around valve handles

• Resistant to extreme temperatures

• Suitable for hasps and padlocks

• Available in various sizes

USING A GATE VALVE LOCKOUT

Slip the Lockout over the top of the valve handle. Once in position the cover will rotate freely thereby preventing the valve from turning.

DIRECTIONS FOR USE:

Safety

STEP 1

Ensure the valve is in the required locked off position (on/off).

Select the appropriate sized lockout for the gate valve.

STEP 2

Place the lockout device over the valve wheel and close, ensuring it can rotate freely around the wheel.

STEP 1b (Optional)

Optional clip out centre. Please specify if you would like the lockout with pop out centre when placing your order.

(For use on valves with a rising stem).

STEP 3

Secure Lockout with a safety padlock and attach a tag to communicate your chosen safety message. Use a hasp if more padlocks are required.

Gate Valve Lockout

Comprising of two flattened half moons with a hollow centre. Hinged at one side, they are placed over the valve and then closed, ensuring that the valve wheel is tamper-proof.

Use a hasp if more than one padlock is required to Lockout the device.

Please ask if you require the gate valve lockout with a clip out centre.

25 - 63.5mm 1” - 21/2” C2843001-s

63.5 - 127mm 21/2” - 5” C2843002-s 127 - 165mm 5” - 61/2” C2843003-s

165 - 254mm 61/2” - 10”

C2843004-s 254 - 355mm 10” - 14” C2843005-s

Adjustable Gate Valve Lockout

Two separate pieces which slide over the valve and lock together.

Fits valve hand wheels between 25.5mm and 165mm in diameter.

25.5 - 165mm 1” - 61/2” C2843006-s

Ball Valve Lockout

This lockout device is placed over the top of the ball valve to prevent the valve handle from being turned. Once in the correct isolated position, the handle of the valve is trapped within the body of the lockout, preventing the handle from being operated.

USING A BALL VALVE LOCKOUT

Once in position, the handle of the valve is trapped within the body of the lockout, preventing the handle from being operated.

DIRECTIONS

FOR USE:

PLEASE NOTE:

STEP 1

Turn the valve handle to the correct position,

Either on or off.

STEP 3

Move slider section down the shaft of the lockout until tight against the valve body.

STEP 2

Lockout the device by placing the main body over the top of the valve handle. Ensure the valve handle sits inside channel.

STEP 4

Insert a padlock or hasp through the most appropriate hole which keeps the slider secure.

Holes on the slider section have a staggered repeat which ensures that at least one hole will be tight when placed against the valve. If more than one padlock is required then a hasp should be used.

Butterfly Valve Lockout

When slid into position the wedge on the slider section prevents the compression handle being squeezed, preventing operation of the valve.

Working in a similar way to the standard ball valve lockouts, the wedge on the slider section sits between the compression handle and lever, preventing operation.

Cable Lockout

Cable lockouts are ideal when there is a need to lockout multiple energy sources with one device or when the design or placement of the energy source prevents other types of lockout being used. Use the flexible cable to tie off the energy source and then secure using the grip handle. The handle traps the cable and prevents it from becoming loose.

Multi-Purpose Cable Lockout

This cable lockout has been ergonomically designed to fit the hand, making placement and use fast and simple.

Route the cable where necessary to Lockout the device then feed the cable down the centre of the open lockout. When the cable is tight and the source is locked out, squeeze the handle closed and apply padlock.

Available in vinyl coated steel and nylon cable versions.

Electrical Lockout

We have a range of lockout devices designed to be used to lockout modern workplace equipment. These are usually fixed to the power control switch of the electrical equipment, and when used with the appropriate tag and padlock are an effective way to ensure the equipment cannot be activated until safe to do so.

Universal Mini Circuit Breaker Lockout

This universal MCB lockout has been designed to fit almost any size of MCB, regardless of size or the position of the holes on the breaker.

Simply turn off the breaker and place the lockout over the switch. Use the thumbscrew to tighten the internal grub screw onto the switch, locking the unit into place.

The thumbscrew will then fold down on its integral hinge, allowing a padlock to be fitted preventing access to the thumbscrew.

Universal MCB Lockout

A universal Lockout which is fitted using an internal grub screw or thumb turn screw. Suitable for single or multi-pole breaker.

3 Phase Circuit Breakers Lockout

Designed for 3 phase breakers, this large lockout fits over the switch and then the screw is tightened using the clock style section. When tight the clock section is locked to the main body through a sliding section fitted to the main body.

Will accept 3 separate padlocks with a shackle diameter up to 8mm.

Plug / Pneumatic Lockout

Manufactured from industrial reinforced polystyrene, the unit has been developed to completely enclose electrical plugs to prevent a machine being energized. The plug sits inside the unit with the cable being fed through an access hole.

Small Unit: Suitable for a variety of electrical connections up to 40mm diameter. Accepts up to 4 safety padlocks.

Large Unit: Suitable for standard and larger electrical plugs, including 3 phase connectors. It also has 4 holes of 3 different sizes suitable for pneumatic male air hose connectors. Accepts for up to 4 safety padlocks.

Small (4 Holes)

(4 Holes)

Electrical Cylinder Lockout

This large electrical plug Lockout has two interlocking cover plates allowing plugs with various sizes of cable to be inserted.

Interior size of 84mm dia. x 150mm and will accept cable widths up to 34mm dia.

Description Code 97mm dia x 160mm

1. Shown with both plates open allowing insertion of the plug.

3. Shown with cover plate B in place giving a cable access hole of 16mm.

2. Shown with cover plate A in place giving a cable access hole of 34mm.

4. Shown with both plates in place giving a cable access hole of 10 x 15mm.

3 Pin Plug Lockout

Ideal for use with power supplies of computers and similar devices. This lockout inserts into the back of the power supply and the circular paddle is then rotated to lock the device in position.

A padlock can then be used to prevent the device being removed.

Electrical Panel Lockout

Use these lockout electrical panel buttons and switches when these is no in built lockdown provision.

4 different designs.

• 2-stage operation

• Push / mushroom panel buttons

• Square units - switch levers

• Adhesive backing

Attach the base plate directly onto the electrical panel. Isolate the unit by placing the housing unit over the top preventing access to the switch.

Gas Cylinder Lockout

Used to prevent access to the main cylinder valve, the unit encloses the valve head and is locked in place with two interlocking plates.

Installs in seconds and provides quick and easy identification of a full cylinder with the security of a padlock to lock the device in place to prevent unauthorised use.

Each Lockout is supplied with two extra labels which can be fixed onto the Lockout to depict if the cylinder currently being locked out is full or empty.

Interior size of 84mm dia. x 150mm, accepts neck rings up to 34mm dia

Pneumatic Lockout

Manufactured from solid stainless steel this pneumatic lockout is strong, durable, resistant to corrosion and fits virtually all pneumatic fittings used in manufacturing facilities.

To use, place the pneumatic male fitting between the appropriate sized hole and close with a scissor action, this then prevents the hose from being used. Once the lockout is in its closed position it can be locked using up to two safety padlocks.

Belt Pouch

Three pocket belt pouch made from woven nylon with 3 pockets and adjustable waist strap suitable for up to a 40” waist.

Size Code up to 40” waist

C2822004-s

Lockout Tags

Lockout Satchel

Large satchel type lockout bag, waterproof and suitable for carrying larger lockout equipment over the shoulder. Colour Code Red C2822001-s

These highly visible warning tags should be applied alongside a lockout device to provide details of the lockout procedure. Manufactured from durable non-tear polypropylene using UV resistant inks which is resistant to water, oils and extreme temperatures.

Single Sided Lockout Tags

Single-sided and supplied in packs of 10 complete with cable ties.

Size: 75 x135mm

Double Sided Lockout Tags

Tags are printed on both sides. Supplied in packs of 10 complete with cable ties.

Size: 75 x 135mm

FRONT

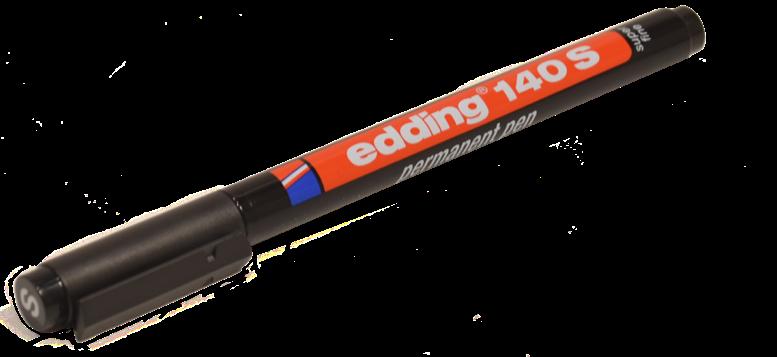

Permanent Fine Liner Pen

REVERSE

ASK US FOR MORE DETAILS.

These permanent ultra-fine marker pens can write on almost any surface. The waterproof and smudge proof ink dries in seconds with almost no odour, and is ideal for use with our tags and padlocks.

Quantity Code

Each C2803100-s Pack of 10

C2803101-s

Lockout Signs

Our lockout signs are designed to be highly visible for use as a temporary or permanent reminder to adhere to lockout procedures. Manufactured on rigid PVC, they can be fixed in place using adhesive or pierced and hung at the point of lockout.

Rigid 1mm PVC board (non adhesive)

Magnetic Lockout Signs

Printed on quality white faced magnetic substrate, these signs are easy to attach and provide clear and important messages at the point of isolation.

Heavy Duty A-Boards

These heavy duty polypropylene A-Boards are printed on both sides. Ideal for placement around the workplace and near equipment being locked out.

Size: 620 x 300 x 450mm

FIND OUR FULL RANGE OF A-BOARDS ON PAGE 94

TAGGING SYSTEMS

The working at height regulations requires the inspection of scaffolding and ladders from which a person might fall 2 metres or more and the issue of a report by a competent person. Ladder and Scaffolding tags are types of safety inspection tags that are attached to the equipment to indicate whether it is safe to use and therefore prevent accidents.

Tagging systems are a useful way of ensuring those who need to access scaffolding or ladders know that it has been inspected and is safe to use and they can act as records to help ensure that the equipment inspection procedures and maintenance are kept up to date.

IDENTIFICATION

Following a risk assessment, equipment or devices will need to be identified. In some cases, the equipment must have a unique id number.

SCHEDULING

Often, regular inspections need to be carried out, daily, weekly or annually.

INSPECTION

After inspection, equipment needs to be marked as having been inspected, along with any relevant information.

RECORDING

Sometimes the law, the regulation or codes of proactive require employers to keep records of the inspections, including what was inspected, by whom and when. These records might need to be kept for months or years.

INFORMING

Employers have responsibility to provide information to their employees about safety and also including whether equipment has been inspected and is safe to use.

VISIBILITY

Along with signs, tags are necessary to make sure that the right information is easily visible to employees.

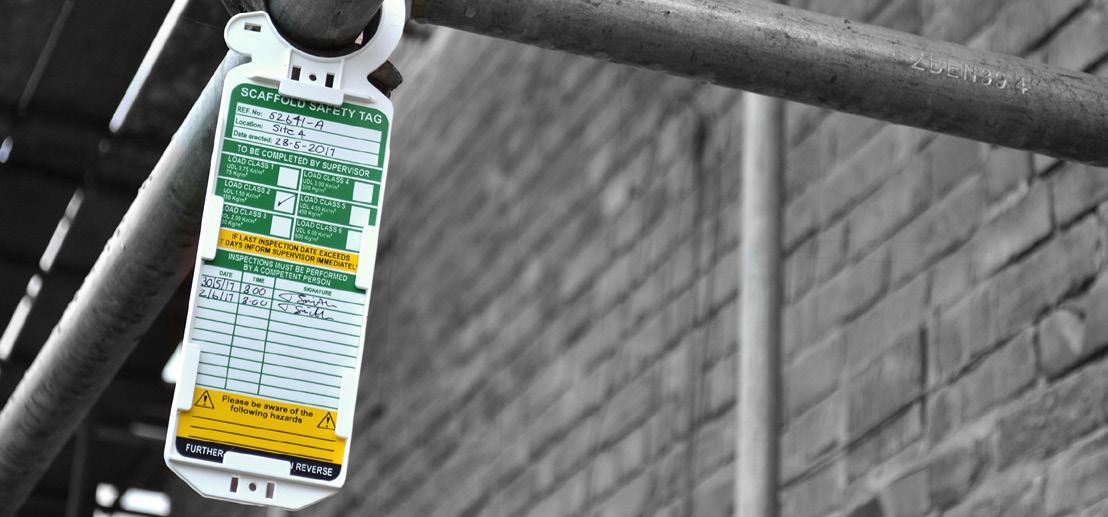

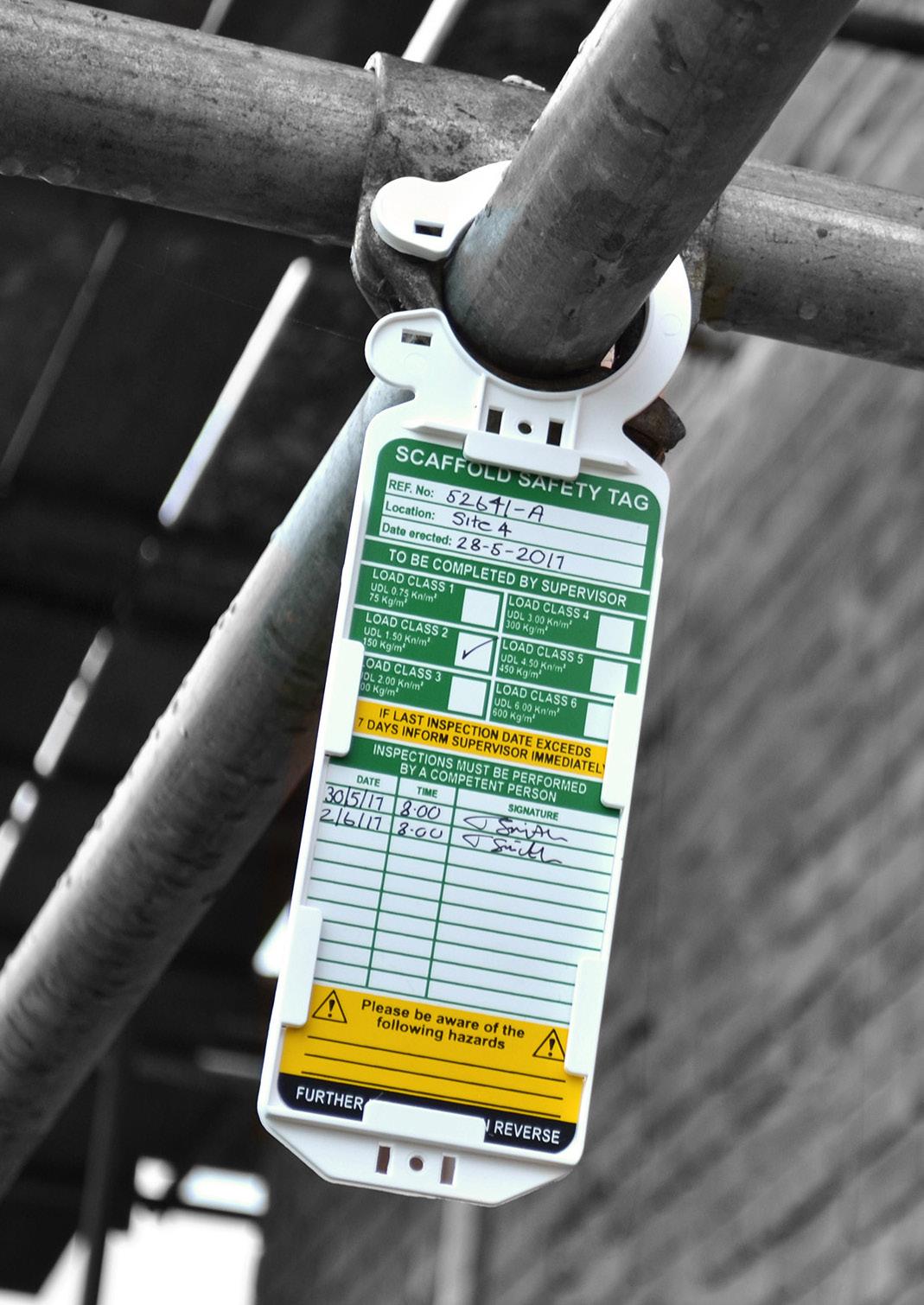

Scaffold Tagging System

Scaffold must be inspected in the following conditions:

• Following initial erection

• Exposure to adverse weather

• Conditions that could affect its strength or stability

• Following substantial alteration (addition or subtraction)

• At regular intervals not exceeding 7 days from previous inspection

• Available in retail ready packaging

Description Qty

Single Insert 1

Pack of 50 Inserts 50

Kit 1 Holder, 2 Inserts, 1 Pen

Box 10 Holder, 20 Inserts, 2 Pens

ClawTag 5

Scaffold Safety Tag 75 x 180mm

Polypropylene

C2803001A-s

10 Holders 20 Inserts 2 Pens

C2803004-s

Code

C2803001A-s

C2803003A-s

C2803005A-s

C2803004-s

C2803096A-s

ClawTag 80 x 280 x 6mm

C2803096A-s

Use Scaffolding Safety inserts with our ClawTag holder at all legal entry points to the scaffold providing relevant safety information alongside an inspection record. Should the scaffolding fail inspection the insert can be removed to display the message ‘Do Not Use This Equipment’ or replace with a prohibition insert.

Ladder Tagging System

The AssetTag holder should be permanently fixed to the ladder in a suitable safe place.

Perform an inspection of the ladder (a checklist is printed on the reverse) and record the result on the tag.

If the ladder fails the inspection remove insert and inform a supervisor.

Description Qty

Single Insert 1

Pack of 10 Inserts 10

Pack of 50 Inserts 50

Kit 1 Holder, 2 Inserts, 1 Pen

Box 10 Holder, 10 Inserts, 1 Pen

AssetTag 5

Code

C2803017A-s

C2803018A-s

C2803019-s

C2803022A-s

C2803020A-s

C2803099-s

10 Holders 10 Inserts 1 Pens

C2803020A-s

AssetTag 55 x 210 x 6mm

C2803099-s

Ladder Tag 50 x 181mm Polypropylene

C2803017A-s

The Work at Height Regulations came into force in 2005. These regulations apply to work at height where there is a risk of fall liable to cause personal injury. This applies to both internal and external work at height, and includes below ground level and low height.

All ladders should be checked daily and prior to use for any damage, faults or wear and tear. In addition they should be inspected at defined intervals as part of a risk assessment programme. Use these inserts to manage the, safety and maintenance of ladders and help conform to the Work at Height Regulations 2005

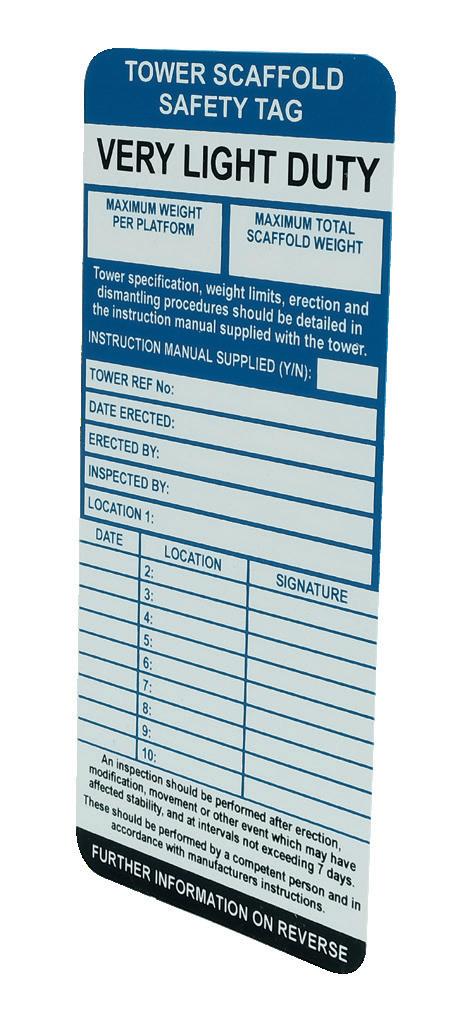

Tower Scaffold Tagging System

The Tower Scaffold Safety Tag provides an essential platform for entering and storing essential safety information, including movements and safe weight tolerances. Designed for use with the ClawTag holder, these tags can be fixed to the scaffold after erection without needing to dismantle part of the structure.

Essential safety and audit information can be referenced with the storage of these inserts after job completion.

Description Qty

Pack of 10 Inserts 10

Box 10 Holder, 20 Inserts, 2 Pens

ClawTag 5

C2503157A-s

C2014051A-s

C2803096A-s

Scaffold / Tower Tagging System

This kit offers both the Scaffold Safety Tag insert and the Tower Scaffold Safety Tag insert alongside a holder to provide an essential part of your safety procedure on site.

Designed for use with the ClawTag holder, these tags can be fixed after erection without needing to dismantle the structure.

For more information on individual inserts refer to Scaffolding or Tower Scaffolding Tagging System.

Description Qty

Scaffold Single Insert 1

ClawTag 5

C2503157A-s

C2803096A-s

The Work at Height Regulations C2805006-s require an assessment to be undertaken before starting any work. Erection should be made to Prefabricated Access Suppliers and Manufacturers Association (PASMA) approved methods.

ClawTag 80 x 280 x 6mm

C2803096A-s

Tower Scaffold Tag 75 x 180mm

Polypropylene

TG12-1

10 Holders 20 Inserts 2 Pens

C2014051A-s

ClawTag 80 x 280 x 6mm

C2803096A-s

Tower Scaffold Tag 75 x 180mm

Polypropylene TG12-1

Scaffold Safety Tag 75 x 180mm

Polypropylene C2803001A-s

Side 1:

To be displayed if scaffold has failed inspection, warning not to use until it has been made safe and passed re-inspection.

Side 2:

Used to temporarily prohibit access to certain sections of a scaffold.

Single Insert 1

Pack of 10 Inserts 10

Pack of 50 Inserts 50

C2803036-s

C2803037-s

C2803038-s

Box 10 Holder, 20 Inserts, 2 Pens C2803039-s

ClawTag 5

C2803096A-s

LOLER Safety

The Lifting Operations and Lifting Equipment Regulations 1998 (LOLER) covers any equipment used at work for lifting or lowering loads, including anchoring or supporting attachment Regulations stipulate that equipment is marked with the appropriate information for its safe use, such as safe working loads.

Daily and weekly checks should be made, in addition to a thorough recorded examination every 6 to 12 months. If the equipment is installed, the location must also be examined at the following points:

After installation but before first use. After assembly but before first use on a site or in a new location.

Should the equipment be hired it should be accompanied by a physical copy of the last examination report. The AssetTag holder should be permanently fixed to the equipment in a suitable safe place.

Perform a thorough inspection of the equipment and complete the insert. In the result of an failure remove insert and inform a supervisor.

Single Insert 1

Pack of 10 Inserts 10

Pack of 50 Inserts 50

Box 10 Holder, 20 Inserts, 2 Pens

AssetTag 5

C2803045-s

C2803046-s

C2803047-s

C2803048-s

C2803099-s

ClawTag 80 x 280 x 6mm

C2803096A-s

Scaffold Prohibition 75 x 180mm

Polypropylene

C2803036-s

AssetTag 55 x 210 x 6mm

C2803099-s

LOLER Tag 50 x 181mm

Polypropylene

C2803045-s

C2803048-s

Racking Safety

Due to the weight, size and loads involved with modern racking it must be checked regularly to ensure the safety of staff and visitors. Our racking tag holders are a modified version of the AssetTag Max system and are designed to be fixed to the crossbeams of the racking displaying racking specific safety messages.

A checklist on the insert describes the checks which must be made and includes space for inspection details to be recorded. An area is available for completion should intermediate work be required, whereas the insert should be removed totally if the racking is deemed unsafe. This will then display the ‘Do Not Use Unsafe Racking’ message pre-printed on the holder.

MEWP Safety

The Work at Height Regulations came into force in C2805006-s. These regulations apply to work at height where there is a risk of fall liable to cause personal injury. It states that ‘equipment for work at height is properly inspected and maintained’. MEWPs (Mobile Elevating Work Platforms), scissor lifts, booms and cherry pickers are included under this instruction.

A daily pre-work inspection should be carried out and recorded on these tags. Inserts are designed for use with the AssetTag MAX holder. The holder should be permanently fixed to the equipment in a suitable safe place. Perform an inspection (a checklist is printed on the reverse) and record the result on the tag. In the event of the equipment failing, remove insert and inform a supervisor. The holder clearly states ‘Do Not Use This Equipment’ when the tag is removed.

Forklift Safety

An employer must ensure that a forklift is safe to use and all forklifts should be checked by a competent person prior to use for any damage, faults or wear.

On the reverse the Forklift Safety Tag lists the basic safety checks needed with an inspection record (date, signature, defects reported) on the front.

Designed for use with the AssetTag MAX holder which should be fixed permanently at the point of access to the forklift. If the forklift is safe to use the insert can be slid into the holder with the signature side showing.

The holder clearly states ‘Do Not Use This Equipment’ when the tag is removed, should an inspection find any failures.

Single Insert 1

Pack of 10 Inserts 10

C2803007-s

C2803008-s

Pack of 50 Inserts 50 C2803009-s

10 Holder, 10 Inserts, 1 Pen C2803010-s

Chemical Safety

Forklift Safety

75 x 180mm Polypropylene C2803007-s

Our Chemical insert has been specifically designed to display important and relevant information in one place.

Details include:

• Chemical name(s)

• Emergency telephone numbers

• Supplier details and references

• Immediate action and first aid alongside notes for medical personnel

• Spillage treatment and disposal

• Appropriate fire extinguishing and PPE information

Removal of the insert displays the ‘Do Not Use’ message on the AssetTag MAX holder. In an accident, the insert can be given to emergency personnel, providing vital information for diagnosis and treatment.

Single Insert 1

Pack of 10 Inserts 10

C2803012-s

C2803013-s

Pack of 50 Inserts 50 C2803014-s Box 10 Holder, 10 Inserts, 1 Pen C2803015-s

Chemical Safety

75 x 180mm Polypropylene C2803012-s

10 Holders 10 Inserts 1 Pen

C2803010-s

10 Holders 10 Inserts 1 Pen

C2803053A-s

Universal Equipment Inspection

Our Universal Equipment Inspection record helps an employer comply with legislative requirements when inspecting and helps maintain equipment at suitable periods as deemed appropriate by a risk assessment.

The insert has clearly defined areas to record equipment identification or reference numbers, alongside an inspection record. This allows a user instant access to important safety information. Should equipment fail, the tag can be removed to clearly display the message ‘Do Not Use This Equipment’ which is printed on the holder. Description Qty Code

Single Insert 1 C2803023-s

Pack of 10 Inserts 10 C2803024-s

Pack of 50 Inserts 50 C2803025-s

Box 10 Holder, 20 Inserts, 2 Pens C2803026-s AssetTag 5 C2803099-s

Isolation Tags

Prevent inadvertent energising of a system with this 2-part perforated tag. Each part is completed by the person in charge with the top half attached to the isolation point and the bottom attached to the permit to work. When both are re-attached to each other the isolation can be classed as removed.

Isolation Tags 75 x 180mm

AssetTag Max 55 x 210 x 6mm C2803099-s

Universal Equipment Inspection

50 x 181mm Polypropylene C2803023-s

10 Holders 20 Inserts 2 Pens C2803026-s

Flange Tags

These 3-part perforated tags are designed to help control the inspection and maintenance procedure when a flange breaks.

Assisting the user to clearly identify the various stages from initial break through to the re-energisation of the system. Description

Single Insert

Pack of 10 Inserts C2803029-s

Pack of 50 Inserts C2803030-s

50 Inserts, 1 Pen C2803035-s Flange Tags 75 x 180mm

50 Inserts, 1 Pen C2803031-s Description Code Single Insert C2803032-s Pack of 10 Inserts C2803033-s

Pack of 50 Inserts C2803034-s

Mini Inserts

Our smallest inserts are designed for use with our AssetTag MINI tag holders to display relevant identification and safety information.

When the insert is removed (due to equipment fault, maintenance or testing) the message on the holder clearly states ‘Do Not Use This Equipment’.

Insert size: 31 x 47mm Material: Polypropylene

A general purpose insert ideal for use on a variety of equipment and machinery which requires regular safety checks. Suitable for electrical equipment, steps and stools.

Helps comply with legislative requirements by informing employees of an items safe working load (S.W.L.).

Designed for Portable Appliance Testing (PAT) this clearly displays the date of test, when next due, item reference along with the testers name.

To be displayed on a harness strap giving identification and inspection details. These are often colour coded giving ‘at a glance’ safety information from a distance.

Designed to help manage Hand Arm Vibration Syndrome (H.A.V.S.) and dangerous noise levels, these display relevant safety information.

Working Load (Pack of 20 Inserts)

Working Load Kit (Pack of 20 Holders, 40 Inserts, 1 Pen)

Testing (Pack of 20 Inserts)

PAT Testing Kit (Pack of 20 Holders, 40 Inserts, 1 Pen)

Vibration Control (Pack of 20 Inserts)

Vibration Control Kit (Pack of 20 Holders, 40 Inserts, 1 Pen)

Harness Inspection (Pack of 20 Inserts)

Harness Inspection Kit 1 (Pack of 20 Holders, 40 Inserts, 1 Pen)

Harness Inspection Kit 2 (Pack of 20 Holders, 40 Inserts - 10 of each colour, 1 Pen)

WORKPLACE SUPPLIES

When it comes to running a business the correct workplace supplies are crucial. There are many products important to a business from report books through to hand sanitisers, and we can offer a wide selection to keep you safe and working efficiently.

Safety Essentials

Employers must record various incidents in the workplace, from accidents and near misses through to fire safety and work permits. Safety lanyards and armbands highlight key safety workers and hand sanitisers provide hygiene points for staff and visitors.

Workplace Efficiency

In a modern workplace efficiency is essential, and organising products and procedures goes a long way towards this. Line marking and racking identification help organise the workplace, and our tapes can help identify and plan the path of products and people throughout the business.

Information Systems

Keeping staff and visitors informed of relevant information can be achieved by using pin boards and poster frames, with hanging frames providing wayfinding or general information.

Commercial Advertising

If there is a requirement for advertising your business or products in the local area, pavement or frame stands are ideal for this purpose.

Permit Document Holder

Weatherproof with reinforced eyelet for fixing. Holds A4 sized documents, with zip opening.

Safety Mirrors

Safety mirrors are easy to install, unbreakable, lightweight and are able to withstand extremes of weather.

The mirrors, frames and packaging are all manufactured in recyclable materials.

Temporary Barriers

An easy way to cordon off equipment being locked off, these plastic chains and posts are easily moved

(the post bases can be filled with water or sand for extra weight).

Manufactured from injection moulded crystal clear acrylic these holders are ideal for displaying a range of brochures and leaflets.

Magnetic Tape Self Adhesive)

Magnetic tape backed with adhesive. Allows items to be attached to Steel products without the need for drilling.

Magnetic Document Pockets Magnetic Wrap-Around Pockets

Tough blue PVC wallet with magnetic strip and clear front pocket providing protection for documents and papers.

The magnetic strip at the top adheres to all steel materials.

Supplied in singles

Magnetic ‘Easy Wipe’ Racking Strip

A flexible magnetic strip that’s easily cut to size.

Writeable gloss vinyl surface allows marking with dry-wipe pens. Easily cleaned with a suitable solvent cleaner.

20mm x 10m

30mm x 10m

C2845007-s

C2845008-s C2845013-s

50mm x 10m C2845009-s C2845014-s

70mm x 10m C2845010-s C2845015-s

90mm x 10m C2845011-s C2845016-s

Magnetic Letters and Numbers

With looped magnetic tags ideal for fixing to mesh or cages.

Supplied in singles.

'C' Section Label Holders

Ideal for location identification on racking, shelving or steel cabinets, our letters are printed on white or yellow magnetic sheets.

• Magnetic tiles supplied on sheets

• Contains either the full alphabet or all numbers with some punctuation in varying quantities

• Two character heights available 17mm or 39mm

• Black font on a white or yellow background

Printed in red text on white Polypropylene Each roll is 50mm x 66m Printed Tape

Barrier Tapes

Non adhesive polythene tape for prohibiting access and highlighting dangers. Ideal as an economical solution for crowd control. Suitable for use with posts and barriers.

Supplied individually.

Safety Light Sticks

Multi-purpose, cool to the touch, water resistant light source.

• CE & EN71 UN approved

• Glows for 12 hours +

• Non Flammable

• Non Toxic

Fire Extinguishers

Extinguishers

• Aluminium alloy construction.

• Corrosion resistant finish.

• Internal Polyethylene lining.

• Squeeze grip operation.

• Harmless to machinery.

• (2kg) Frost free horn.

• Approved to BSEN3.

• Supplied with bracket.

• 5 year guarantee.

Powder Extinguishers

• Corrosion resistant finish.

• Squeeze grip operation.

• With brackets (<2kg with transport bracket).

• 5 year guarantee.

• Approved to BSEN3.*

* 600g and 800g exclude BSEN3 clause 6.1 (size requirement).

Armbands and Lanyards

Description

Fire Marshal

Fire Warden

First Aider

Nylon Armbands

Printed Nylon armbands with Velcro fastening.

C2813274-s

C2813275-s

C2813276-s

Fire Marshal

Fire Warden

First Aider

Armbands

Photoluminescent and reflective armband with Velcro fastening.

Fire Extinguishers Stands

Robust fully moulded design, these stands are manufactured from impact and chemical resistant plastic. Supplied in sections for easy transportation and assembly.

Free-standing design.

Dimensions (HxWxD):

Single: 645 x 290 x 300mm

Double: 645 x 500 x 300mm

Extinguisher not included.

C2813277-s

C2813278-s

C2813279-s

UK fire extinguisher regulations state that you should have a minimum of two ‘Class A’ extinguishers on every storey of the building.

The ‘standard pair’ water-based and CO2 fire extinguishers are usually located by exits and fire alarm call-points.

To comply with fire extinguisher regulations, extinguishers should be either fixed to the wall, or attached to a stand. Fire extinguishers must be commissioned on-site by a competent person.  This generally means someone who has passed the BAFE fire extinguisher exam or has an equivalent qualification.

Fire extinguishers are not compliant with UK fire extinguisher legislation until they have been commissioned. Fire extinguisher regulations state that extinguishers must be serviced annually.

Snap Frames

Our ‘Snap Open, Snap Shut’ Frames are manufactured from Aluminium and are available in a range of popular sizes. Each has a 25mm extruded frame, and comes complete with fixings and an anti-glare cover sheet.

The codes below refer to the silver finish Snap Frame. Other colours, profile sizes and finishes are also availableplease contact the sales office for further details.

Description Code

A4 (210 x 297mm)

A3 (297 x 420mm)

C2844001-s

C2844002-s

A2 (420 x 594mm) C2844003-s

A1 (594 x 841mm) C2844004-s

Pavement Signs

Exterior Aluminium A-Board Swinger Sign Waterbase Sign

Easy snap open Aluminium frame on a Steel back panel. Complete with anti-glare poster cover and locking leg stays.

Constructed with a heavy duty recycled PVC base and heat treated Aluminium face.

Supplied with Graphics

We can also print and apply your artwork to the boards before sending to you!

Please speak to the sales office for further information.

Spring loaded to counteract even the highest winds, the Waterbase sign is the ultimate pavement sign. The base can be filled with water to provide a stable footing for the sign and with wheels incorporated into the base, transporting the sign is easy. The snap open system also makes changing the message quick and easy.

Lockable Poster Frames Aluminium Hanging Frame

Secure, waterproof and vandal resistant frames suitable for indoor and outdoor use. With 45mm self colour extruded Aluminium frame and a 2mm thick clear plastic front to protect the contents.

Description Code

A4 (210 x 297mm) C2844005-s

A3 (297 x 420mm) C2844006-s

A2 (420 x 594mm) C2844007-s

A1 (594 x 841mm) C2844008-s

A0 (841 x 1189mm) C2844009-s

20" x 30" (508 x 762mm) C2844010-s

30" x 40" (762 x 1016mm) C2844011-s

40" x 60" (1016 x 1524mm) C2844012-s

Pin Board

Double sided 25mm extruded Aluminium hanging frames, designed to hold 4mm interior graphic.

(enough for 2 signs back-to-back).

400 x

450 x

C2844013-s

C2844014-s

600 x 200mm C2844015-s

These products will have an extended delivery time please contact us for further information

Dry Wipe Markers

Dry wipe pens suitable for use on the ‘Easy Wipe’ magnetic materials.

Supplied in packs of 10.

High quality felt pin boards with a silver anodised Aluminium frame. The 8mm thick soft board back is flame resistant and available in a range of colours. Each board comes complete with fixing kit

Wire Hanging Kit

Menu Frame Stands

Freestanding display stand with telescopic pole. The Snap Frame is adjustable providing both portrait and landscape options.

Dry Wipes Magnetic

Aluminium framed dry wipe boards with a lacquered steel face. Can be used both as a magnetic board and a dry wipe board. Fixings included with both boards

Aluminium Padlock Tags Belt Clips Split Rings

Key Covers

24mm diameter coloured key covers. Available in 2 styles and assorted colours. Supplied in packs of 50.

Key Tags

Coloured key tags with paper inserts. Available in 2 sizes in assorted colours. Supplied in packs of 50.

Index

C2813012-s 17

C2813014-s 16

C2813015-s 16

C2813016-s 16

C2813017-s 16

C2813019-s 16

C2813020-s 16

C2813021-s 16

C2813022-s 16

C2813023-s 16

C2813024-s 16

C2813025-s 16

C2813026-s 17

C2813027-s 16

C2813028-s 17

C2813029-s 17

C2813030-s 17

C2813031-s 17

C2813032-s 17

C2813033-s 18

C2813034-s 18

C2813035-s 18

C2813036-s 18

C2813037-s 19

C2813038-s 19

C2813039-s 17

C2813040-s 17

C2813041-s 17

C2813042-s 17

C2813043-s 18

C2813044-s 18

C2813045-s 113

C2813045-s 18

C2829055-s 18

C2813046-s 19

C2813047-s 18

C2813048-s 17

C2813049-s 18

C2813050-s 17

C2813051-s 16

C2813052-s 19

C2813053-s 18

C2813054-s 18

C2813055-s 20

C2813056-s 20

C2813057-s 20

C2813058-s 20

C2813059-s 20

C2813060-s 20

C2813061-s 20

C2813062-s 17

C2813063-s 17

C2813064-s 17

C2813065-s 17

C2813066-s 17

C2813067-s 17

C2813068-s 17

C2813069-s 17

C2813070-s 17

C2813071-s 17

C2813072-s 17

C2813073-s 19

C2813075-s 16

C2813076-s 16

C2813077-s 16

C2813078-s 17

C2813079-s 17

C2813080-s 17

C2813081-s 17

C2813082-s 17

C2813083-s 20

C2813083-s 88

C2813085-s 16

C2813087-s 16

C2813088-s 16

C2813089A-s* 16

C2813090-s* 16

C2813091-s 16

C2813092-s 18

C2813096-s 18

C2813097-s 20

C2813098-s 18

C2813098-s 59

C2813099-s 18

C2813100-s 113

C2813100-s 16

C2813101-s 113

C2813101-s 16

C2813102-s 113

C2813102-s 16

C2813103-s 113

C2813103-s 16

C2813104-s 16

C2813105-s 16

C2813106-s 16

C2813107-s 16

C2813109-s 16

C2813110-s 16

C2813111-s 16

C2813112-s 17

C2813113-s 17

C2813114-s 17

C2813115-s 17

C2813116-s 17

C2813118-s 17

C2813119-s 17

C2813120-s 16

C2813122-s 16

C2813123-s 16

C2813124-s 17

C2813125-s 17

C2813126-s 17

C2813127-s 17

C2813128-s 113

C2813128-s 19

C2813129A-s 113

C2813129A-s 19

C2813130-s 113

C2813130-s 19

C2813131A-s 113

C2813131A-s 19

C2813132-s 18

C2813133-s 18

C2813134-s 18

C2813135-s 18

C2813136-s 18

C2813137-s 18

C2813138A-s 113

C2813138A-s 18

C2813139A-s 113

C2813139A-s 18

C2813140-s 113

C2813140-s 20

C2813141-s 113

C2813141-s 20

C2813142-s 20

C2813143-s 20

C2813144A-s 20

C2813145-s 20

C2813146-s 20

C2813147-s 20

C2813148-s 18

C2813149-s 18

C2813150A-s 113

C2813150A-s 20

C2813151-s 113

C2813151-s 20

C2813152-s 19

C2813153-s 19

C2813154-s 19

C2813155-s 19

C2813156-s 19

C2813157-s 19

C2813158-s 19

C2813159-s 19

C2813160-s 19

C2813161-s 19

C2813162-s 19

C2813166-s 19

C2813167-s 19

C2813168-s 19

C2813169-s 19

C2813170-s 19

C2813171-s 19

C2813172-s 19

C2813173-s 19

C2813174-s 19

C2813175-s 19

C2813176-s 19

C2813177-s 19

C2813178-s 19

C2813179-s 19

C2813180-s 19

C2813181-s 19

C2813182-s 19

C2813183-s 19

C2813184-s 19

C2813185-s 19

C2813186-s 19

C2813188-s 19

C2813189-s 19

C2813190-s 19

C2813191-s 19

C2813192-s 113

C2813192-s 16

C2813193-s 113

C2813193-s 16

C2813194-s 113

C2813194-s 16

C2813195-s 113

C2813195-s 16

C2813196-s 113

C2813196-s 16

C2813197-s 113

C2813197-s 16

C2813198-s 113

C2813198-s 16

C2813199-s 113

C2813199-s 16

C2813200-s 16

C2813201-s 16

C2813202-s 16

C2813203-s 16

C2813204-s 113

C2813204-s 16

C2813205-s 113

C2813205-s 16

C2813206-s 113

C2813206-s 16

C2813207A-s 113

C2813207A-s 16

C2813209-s 16

C2813210-s 16

C2813211-s 16

C2813212-s 113

C2813212-s 16

C2813213-s 113

C2813213-s 16

C2813214-s 113

C2813214-s 16

C2813215-s 113

C2813215-s 16

C2813216-s 16

C2813217-s 16

C2813218-s 16

C2813219-s 16

C2813220-s 18

C2813221-s 18

C2813222-s 113

C2813222-s 18

C2813223-s 113

C2813223-s 18

C2813224-s 113

C2813224-s 18

C2813225-s 113

C2813225-s 18

C2813230-s 113

C2813230-s 20

C2813231-s 113

C2813231-s 20

C2813233A-s 20

C2813234-s 113

C2813234-s 20

C2813235-s 113

C2813235-s 20

C2813236-s 113

C2813236-s 19

C2813237-s 113

C2813237-s 19

C2813238-s 113

C2813238-s 16

C2813239-s 113

C2813239-s 16

C2813240-s 113

C2813240-s 16

C2813241-s 113

C2813241-s 16

C2813242-s 113

C2813242-s 16

C2813243-s 113

C2813243-s 16

C2813244-s 113

C2813244-s 19

C2813245-s 113

C2813245-s 19

C2813246-s 17

C2813247-s 17

C2813248-s 17

C2813249-s 17

C2813250-s 17

C2813251-s 17

C2813252-s 18

C2813253-s 18

C2813254-s 18

C2813255-s 18

C2813256-s 20

C2813257-s 20

C2813259-s 17

C2813260-s 16

C2813261-s 16

C2813262-s 16

C2813263-s 16

C2813265-s 20

C2813266-s 16

C2813267-s 16

C2813268-s 16

C2813269-s 16

C2813270-s 113

C2813270-s 19

C2813271-s 113

C2813271-s 19

C2813272-s 17

C2813273-s 17

C2813274-s 167

C2813274-s 28

C2813275-s 167

C2813275-s 28

C2813276-s 167

C2813276-s 28

C2813277-s 167

C2813277-s 28

C2813278-s 167

C2813278-s 28

C2813279-s 167

C2813279-s 28

C2813280-s 67

C2813281-s 67

C2813282-s 67

C2813283-s 67

C2813284-s 67

C2813285-s 67

C2813286-s 67

C2813287-s 67

C2813288-s 67

C2813293-s 67

C2813294-s 67

C2813295-s 67

C2813296-s 67

C2813297-s 67

C2813298A-s 67

C2813299-s 67

C2813300-s 67

C2813301-s 73

C2813302-s 67

C2814001-s 98

C2814002-s 98

C2814003-s 98

C2814004-s 98 C2814005-s 98 C2814006-s 98 C2814007-s 98

C2814008-s 98

C2814009-s 98

C2814010-s 98

C2813226-s 18

C2813289-s 67

C2813093-s 18

C2813094-s 18

C2813095-s 18

C2813163-s 19

C2813164-s 19

C2813165-s 19

C2813227-s 18

C2813228-s 18

C2813229-s 18

C2813290-s 67

C2813291-s 67

C2813292-s 67

C2817006-s 53

C2817007-s 53

C2817008-s 53

C2817009-s 53

C2817010-s 53

C2817011-s 53

C2817012-s 53

C2817013-s 53

C2817014-s 53

C2817015-s 53

C2817015-s 61

C2817016-s 53

C2817017-s 52

C2817018-s 52

C2817019-s 52

C2817020-s 52

C2817021-s 52

C2817022-s 52

C2817024-s 52

C2817025-s 52

C2817026-s 52

C2817028-s 52

C2817031-s 52

C2817032-s 52

C2817033-s 53

C2817034-s 52

C2817035-s 53

C2817037-s 52

C2817038-s 60

C2817039-s 52

C2817040-s 52

C2817041-s 52

C2817042-s 52

C2817043-s 52

C2817044-s 52

C2817045-s 54

C2817046-s 54

C2817047-s 55

C2817048-s 52

C2817049-s 58

C2817052-s 60

C2817053-s 60

C2817055-s 60

C2817056-s 60

C2817057-s 60

C2817058-s 60

C2817059-s 60

C2817060-s 60

C2817062-s 54

C2817063-s 54

C2817064A-s 54

C2817065-s 54

C2817066-s 54

C2817067-s 54

C2817069-s 54

C2817070-s 54

C2817071-s 54

C2817072-s 54

C2817072-s 61

C2817074-s 54

C2817075-s 54

C2817076-s 54

C2817077-s 54

C2817078-s 54

C2817079-s 54

C2817081-s 55

C2817082-s 54

C2817083-s 54

C2817084-s 54

C2817085-s 54

C2817086-s 55

C2817087-s 55

C2817088-s 55

C2817089-s 55

C2817090-s 55

C2817091-s 55

C2817092-s 55

C2817093-s 55

C2817094-s 55

C2817099-s 55

C2817100-s 55

C2817101-s 55

C2817102-s 55

C2817103-s 61

C2817104-s 58

C2817105-s 61

C2817106-s 58

C2817107-s 56

C2817108-s 61

C2817109-s 56

C2817110-s 56

C2817111-s 57

C2817113-s 61

C2817114-s 61

C2817115-s 61

C2817117-s 61

C2817118-s 60

C2817119-s 60

C2817120-s 60

C2817121-s 57

C2817123-s 57

C2817124-s 57

C2817125A-s 57

C2817126-s 56

C2817126-s 60

C2817127-s 60

C2817128-s 60

C2817129-s 60

C2817131-s 56

C2817132-s 56

C2817133-s 57

C2817134-s 58

C2817135-s 60

C2817136-s 57

C2817136-s 61

C2817137-s 56

C2817138A-s 56

C2817139-s 56

C2817140-s 52

C2817142A-s 56

C2817143-s 58

C2817144-s 56

C2817147-s 56

C2817149-s 58

C2817150-s 57

C2817151-s 59

C2817152-s 59

C2817153-s 59

C2817154-s 59

C2817155-s 59

C2817156-s 57

C2817157-s 57

C2817159-s 59

C2817160-s 59

C2817161-s 59

C2817162-s 57

C2817163-s 57

C2817164-s 59

C2817165-s 59

C2817166-s 60

C2817167-s 58

C2817168-s 58

C2817169-s 58

C2817170-s 59

C2817171-s 59

C2817172-s 59

C2817173-s 59

C2817174-s 60

C2817175-s 60

C2817176-s 60

C2817177-s 57

C2817178-s 58

C2817179-s 115

C2817179-s 57

C2817180A-s 115

C2817180A-s 57

C2817181A-s 57

C2817185A-s 57

C2817186-s 56

C2817187A-s 56

C2817188-s 56

C2817189-s 56

C2817190A-s 57

C2817191-s 57

C2817192-s 57

C2817193-s 57

C2817194-s 53

C2817195-s 52

C2817196-s 55

C2817197-s 55

C2817198-s 55

C2817199-s 55

C2817200-s 55

C2817201-s 55

C2817202-s 55

C2817203-s 56

C2817204A-s 56

C2817205-s 60

C2817206-s 56

C2817207-s 57

C2817208-s 57

C2817209-s 59

C2817210-s 59

C2817211-s 52

C2817212-s 52

C2817213-s 52

C2817214-s 52

C2817215-s 52

C2817216-s 52

C2817217-s 52

C2817218-s 52

C2817219-s 52

C2817220-s 52

C2817221-s 52

C2817222-s 52

C2817223-s 53

C2817224-s 53

C2817225-s 53

C2817226-s 53

C2817227-s 53

C2817228-s 53

C2817229-s 53

C2817230-s 53

C2817231-s 53

C2817232-s 53

C2817233-s 53

C2817234-s 53

C2817235-s 53

C2817236-s 53

C2817237-s 53

C2817238-s 53

C2817239-s 53

C2817240-s 53

C2817242-s 53

C2817243-s 53

C2817244-s 53

C2817246-s 53

C2817247-s 53

C2817248-s 53

C2817249-s 60

C2817250-s 60

C2817251-s 60

C2817252-s 60

C2817253-s 56

C2817254-s 56

C2817255-s 56

C2817256-s 56

C2817257-s 58

C2817258-s 58

C2817259-s 58

C2817260-s 58

C2817261-s 58

C2817262-s 58

C2817263-s 60

C2817264-s 60

C2817269-s 57

C2817270-s 57

C2817271-s 52

C2817272-s 52

C2817275-s 52

C2817276-s 52

C2817277-s 52

C2817278-s 52

C2817279-s 52

C2817280-s 52

C2817283-s 53

C2817284-s 53

C2817287-s 53

C2817288-s 53

C2817291-s 53

C2817292-s 53

C2817293-s 53

C2817294-s 53

C2817295-s 115

C2817295-s 52

C2817296-s 115

C2817296-s 52

C2817297-s 115

C2817297-s 52

C2817298-s 115

C2817298-s 52

C2817299-s 53

C2817300-s 53

C2817301-s 53

C2817302-s 53

C2817303-s 53

C2817304-s 53

C2817305-s 56

C2817306-s 56

C2817307-s 56

C2817308-s 56

C2817309-s 57

C2817310-s 57

C2817311-s 57

C2817312-s 57

C2817313-s 60

C2817314-s 60

C2817316-s 60

C2817317-s 56

C2817318-s 56

C2817319-s 56

C2817320-s 56

C2817321-s 56

C2817322-s 56

C2817323-s 56

C2817324-s 56

C2817325-s 56

C2817326-s 56

C2817328-s 60

C2817329-s 60

C2817330-s 60

C2817331-s 56

C2817332-s 56

C2817333-s 56

C2817334-s 56

C2817335-s 57

C2817336-s 57

C2817337-s 57

C2817338-s 57

C2817340-s 53

C2817341-s 56

C2817342A-s 56

C2817343-s 56

C2817344-s 56

C2817345-s 55

C2817346-s 55

C2817347-s 55

C2817348-s 55

C2817349-s 59

C2817350-s 59

C2817351-s 59

C2817352-s 59

C2817353-s 60

C2817358-s 54

C2817359-s 56

C2817360-s 56

C2817361-s 56

C2817362-s 56

C2817363-s 58

C2817364-s 58

C2817365-s 58

C2817366-s 58

C2817367-s 57

C2817368-s 57

C2817369-s 57

C2817370-s 57

C2817371-s 59

C2817372-s 59

C2817373-s 59

C2817374-s 59

C2817375-s 54

C2817376-s 54

C2817182-s 57

C2817265-s 60

C2817354-s 60

C2817429-s

C2817095-s 55

C2817096-s 55

C2817098-s 55

C2817183-s 58

C2817184-s 56

C2817185A-s 115

C2817266-s 60

C2817267-s 57

C2817268-s 57

C2817355-s 54

C2817356-s 54

C2817357-s 54

C2819277-s 133

C2819278-s 133

C2819279-s 133

C2819280-s 133

C2821001-s 141

C2821002-s 139

C2821003-s 142

C2822001-s 149

C2822004-s 149

C2823001-s 141

C2823002-s 141

C2823003-s 142

C2823004-s 142

C2823005-s 141

C2823006-s 142

C2823007-s 142

C2823008-s 142

C2823009-s 141

C2823010-s 142

C2823011-s 142

C2824001-s 32

C2824002-s 114

C2824002-s 32

C2824003-s 33

C2824004-s 33

C2824005-s 32

C2824006-s 32

C2824007-s 32

C2824008-s 32

C2824009-s 33

C2824010-s 33

C2824012-s 33

C2824013-s 33

C2824014-s 33

C2824015-s 33

C2824016-s 32

C2824018-s 38

C2824019A-s 38

C2824022-s 33

C2824023-s 33

C2824024-s 114

C2824024-s 34

C2824025-s 32

C2824026-s 32

C2824027-s 32

C2824028-s 32

C2824029-s 39

C2824030-s 39

C2824031-s 38

C2824032A-s 38

C2824033-s 38

C2824034-s 38

C2824037-s 32

C2824038-s 32

C2824039-s 32

C2824040-s 32

C2824041-s 33

C2824042-s 33

C2824043-s 32

C2824044-s 32

C2824045-s 34

C2824046-s 34

C2824047-s 34

C2824048-s 34

C2824049-s 34

C2824050-s 34

C2824051-s 34

C2824052-s 34

C2824053-s 34

C2824054-s 37

C2824055-s 37

C2824056-s 37

C2824057-s 37

C2824059-s 37

C2824060-s 37

C2824061-s 37

C2824062-s 36

C2824063-s 36

C2824064-s 36

C2824070-s 20

C2824070-s 35

C2824071-s 38

C2824072-s 38

C2824073-s 38

C2824074-s 35

C2824075-s 35

C2824076-s 35

C2824077-s 35

C2824078-s 36

C2824079-s 35

C2824080-s 38

C2824081-s 114

C2824081-s 38

C2824083-s 114

C2824083-s 36

C2824084-s 36

C2824085-s 114

C2824085-s 36

C2824086-s 36

C2824087-s 36

C2824088-s 36

C2824089-s 37

C2824090-s 37

C2824091-s 36

C2824092-s 36

C2824094-s 37

C2824095-s 37

C2824096-s 36

C2824098-s 36

C2824099-s 37

C2824100-s 36

C2824101-s 35

C2824102-s 35

C2824103-s 35

C2824104-s 35

C2824105-s 35

C2824106-s 35

C2824107-s 34

C2824108-s 34

C2824109-s 34

C2824110-s 37

C2824111-s 37

C2824112-s 36

C2824113-s 36

C2824114-s 39

C2824115-s 39

C2824116-s 39

C2824117-s 40

C2824118-s 40

C2824119-s 40

C2824120-s 40

C2824121-s 39

C2824122-s 40

C2824123-s 40

C2824124-s 40

C2824125-s 39

C2824127-s 40

C2824128-s 39

C2824129-s 39

C2824130-s 39

C2824130-s 49

C2824131-s 40

C2824133-s 39

C2824134-s 39

C2824135-s 40

C2824136-s 40

C2824137-s 40

C2824138-s 39

C2824139-s 39

C2824140-s 39

C2824141-s 39

C2824143-s 34

C2824144-s 39

C2824145-s 39

C2824146-s 34

C2824147-s 34

C2824149-s 39

C2824153-s 39

C2824161-s 39

C2824162-s 114

C2824162-s 32

C2824163A-s 114

C2824163A-s 34

C2824164-s 114

C2824164-s 38

C2824165A-s 114

C2824165A-s 36

C2824166-s 114

C2824166-s 33

C2824167A-s 114

C2824167A-s 34

C2824168A-s 114

C2824168A-s 34

C2824169-s 33

C2824170-s 32

C2824171-s 33

C2824172-s 34

C2824173-s 37

C2824174-s 37

C2824175-s 36

C2824176-s 36

C2824177-s 36

C2824178-s 37

C2824179-s 34

C2824180-s 37

C2824181-s 36

C2824182-s 39

C2824183-s 40

C2824184-s 32

C2824185-s 32

C2824186-s 36

C2824187-s 36

C2824188-s 36

C2824189-s 36

C2824190-s 36

C2824191-s 36

C2824192-s 36

C2824193-s 36

C2824194-s 36

C2824195-s 36

C2824196-s 36

C2824197-s 36

C2824198-s 37

C2824199-s 37

C2824200-s 37

C2824201-s 37

C2824202-s 32

C2824203-s 32

C2824204-s 32

C2824205-s 32

C2824206-s 32

C2824207-s 32

C2824208-s 32

C2824209-s 32

C2824210-s 114

C2824210-s 37

C2824211-s 114

C2824211-s 37

C2824212-s 114

C2824212-s 131

C2824212-s 37

C2824213-s 114

C2824213-s 37

C2824214-s 37

C2824215-s 37

C2824216-s 37

C2824216-s 37

C2819257-s 131

C2824217-s 37

C2824218-s 37

C2824219-s 37

C2824220-s 131

C2824220-s 37

C2824221-s 37

C2824222-s 37

C2824223-s 37

C2824226-s 37

C2824227-s 37

C2824228-s 37

C2824229-s 37

C2824230-s 36

C2824231-s 36

C2824232-s 36

C2824233-s 36

C2824234-s 36

C2824235-s 36

C2824236-s 131

C2824236-s 36

C2824237-s 36

C2824238-s 34

C2824239-s 34

C2824240-s 34

C2824241-s 34

C2824242-s 39

C2824243-s 39

C2824244-s 39

C2824245-s 39

C2824246-s 36

C2824247-s 36

C2824248-s 36

C2824249-s 36

C2824250-s 36

C2824251-s 36

C2824254-s 39

C2824255-s 39

C2824256-s 39

C2824257-s 39

C2824258-s 39

C2824259-s 39

C2824260-s 39

C2824261-s 39

C2824262-s 39

C2824263-s 39

C2824264-s 39

C2824265-s 39

C2824266-s 33

C2824267-s 33

C2824268-s 33

C2824269-s 33

C2824270-s 114

C2824270-s 32

C2824271-s 114

C2824271-s 32

C2824272-s 114

C2824272-s 32

C2824273-s 114

C2824273-s 32

C2824274-s 33

C2824275-s 33

C2824276-s 33

C2824277-s 33

C2824278-s 114

C2824278-s 33

C2824279-s 114

C2824279-s 33

C2824280-s 114

C2824280-s 33

C2824281-s 114

C2824281-s 33

C2824282-s 114

C2824282-s 32

C2824283-s 114

C2824283-s 32

C2824284-s 114

C2824284-s 32

C2824285-s 114

C2824285-s 32

C2824286-s 32

C2824287-s 32

C2824288-s 32

C2824289-s 32

C2824290-s 114

C2824290-s 32

C2824291-s 114

C2824293-s 32

C2824294-s 114

C2824294-s 32

C2824295-s 114

C2824295-s 32

C2824296-s 114

C2824296-s 32

C2824297A-s 114

C2824297A-s 32

C2824298-s 114

C2824298-s 32 C2824299-s 114

C2824299-s 32

C2824300-s 114

C2824300-s 36 C2824301-s 114 C2824301-s 36

C2824224-s 37

C2824291-s 32

C2824067-s 36

C2824068-s 36

C2824069-s 35

C2824153-s 61

C2824159-s 39

C2824160-s 39

C2824224-s 37

C2819258-s 131

C2824225-s 37

C2824292-s 114

C2824292-s 32

C2824293-s 114

C2824349-s 35

C2824350-s 35

C2824351-s 35

C2824352-s 35

C2824353-s 35

C2824354-s 35

C2824355-s 35

C2824356-s 40

C2824357-s 40

C2824358-s 40

C2824359-s 40

C2824360-s 40

C2824361-s 40

C2824362-s 40

C2824363-s 40

C2824364-s 40

C2824365-s 40

C2824366-s 40

C2824367-s 40

C2824368-s 40

C2824369-s 40

C2824370-s 40

C2824371-s 40

C2824372-s 40

C2824373-s 40

C2824374-s 40

C2824375-s 40

C2824376-s 39

C2824377-s 39

C2824378-s 39

C2824379-s 39

C2824380-s 39

C2824381-s 39

C2824382-s 39

C2824383-s 39

C2824384-s 39

C2824385-s 39

C2824386-s 39

C2824387-s 39

C2824388-s 40

C2824389-s 40

C2824390-s 35

C2824391-s 35

C2824392-s 114

C2824392-s 35

C2824393-s 114

C2824393-s 35

C2824394-s 114

C2824394-s 131

C2824394-s 36

C2824395-s 114

C2824395-s 36

C2824396-s 114

C2824396-s 36

C2824397-s 114

C2824397-s 36

C2824398-s 114

C2824398-s 36

C2824399-s 114

C2824399-s 36

C2824400-s 114

C2824400-s 33

C2824401-s 114

C2824401-s 33

C2824402-s 114

C2824402-s 33

C2824405-s 114

C2824405-s 32

C2824406-s 114

C2824406-s 38

C2824407-s 114

C2824407-s 34

C2824408-s 114

C2824408-s 36

C2824410-s 35

C2824411-s 35

C2824412-s 35

C2824413-s 35

C2824415-s 114

C2824417-s 33

C2824418-s 114

C2824418-s 36

C2824419-s 38

C2824420-s 38

C2824421-s 37

C2824422-s 37

C2824423-s 37

C2824424-s 37

C2824425-s 37

C2824426-s 37

C2824427-s 37

C2824428-s 37

C2824429-s 37

C2824430-s 37

C2824431-s 37

C2824432-s 37

C2825001-s 46

C2825006-s 58

C2825009-s 82

C2825010-s 82

C2825011-s 82

C2825012-s 82

C2825013-s 82

C2825014-s 82

C2825015-s 82

C2825016-s 82

C2825017-s 82

C2825018-s 82

C2825019-s 82

C2825020-s 82

C2825021-s 83

C2825022-s 83

C2825023-s 82

C2825024-s 83

C2825025-s 82

C2825026-s 82

C2825027-s 82

C2825028-s 83

C2825029-s 83

C2825030-s 83

C2825031-s 83

C2825032-s 83

C2825033-s 82

C2825034-s 82

C2825035-s 82

C2825036-s 82

C2825037-s 83

C2825038-s 82

C2825039-s 82

C2825040-s 83

C2825041-s 83

C2825042-s 83

C2825043-s 83

C2825044-s 82

C2825045-s 82

C2825046-s 83

C2825047-s 83

C2825048-s 82

C2825049-s 83

C2825050-s 83

C2825051-s 83

C2825052-s 83

C2825053-s 83

C2825054-s 82

C2825055-s 83

C2825056-s 83

C2825057-s 83

C2825058-s 83

C2825059-s 83

C2825060-s 82

C2825061-s 82

C2825062-s 82

C2825063-s 82

C2825064-s 82

C2825065-s 82

C2825066-s 82

C2825067-s 82

C2825068-s 83

C2825072-s 83

C2825073-s 83

C2825074-s 83

C2825075-s 83

C2825076-s 83

C2825077-s 83

C2825078-s 83

C2825079-s 83

C2825080-s 83

C2825081-s 83

C2825082-s 83

C2825083-s 83

C2825084-s 83

C2825085-s 83

C2825086-s 83

C2825087-s 83

C2825088-s 83

C2825089-s 83

C2825090-s 83

C2825091-s 83

C2825092-s 83

C2825093-s 83

C2825094-s 83

C2825095-s 83

C2825096-s 82

C2825097-s 82

C2825098-s 82

C2825099-s 82

C2825100-s 82

C2825101-s 82

C2825102-s 82

C2825103-s 82

C2825104-s 82

C2825105-s 82

C2825106-s 82

C2825107-s 82

C2825108-s 83

C2825109-s 83

C2825110-s 82

C2825111-s 83

C2825112-s 82

C2825113-s 82

C2825114-s 82

C2825115-s 83

C2825116-s 83

C2825117-s 83

C2825118-s 83

C2825119-s 83

C2825120-s 82

C2825121-s 82

C2825122-s 82

C2825123-s 82

C2825124-s 83

C2825125-s 82

C2825126-s 82

C2825127-s 83

C2825128-s 83

C2825129-s 83

C2825130-s 83

C2825131-s 82

C2825132-s 82

C2825133-s 83

C2825134-s 83

C2825135-s 82

C2825136-s 83

C2825138-s 83

C2825139-s 83

C2825140-s 83

C2825141-s 82

C2825142-s 83

C2825143-s 83

C2825144-s 83

C2825145-s 83

C2825146-s 83

C2825147-s 82

C2825148-s 82

C2825149-s 82

C2825150-s 82

C2825155-s 83

C2826001A-s 62

C2826003-s 62

C2826004A-s 62

C2826005A-s 62

C2826006-s 62

C2826007-s 62

C2826008-s 62

C2826009-s 62

C2826010-s 62

C2826011-s 62

C2826012-s 62

C2826013-s 62

C2827001-s 44

C2827002-s 44

C2827003-s 44

C2827004-s 44

C2827005-s 44

C2827006-s 45

C2827007-s 49

C2827009-s 44

C2827010-s 44

C2827011-s 44

C2827012-s 44

C2827015-s 44

C2827017-s 44

C2827018-s 44

C2827019-s 44

C2827020-s 44

C2827021-s 44

C2827022-s 44

C2827023-s 44

C2827024-s 44

C2827025-s 44

C2827026-s 44

C2827027-s 44

C2827028-s 44

C2827029-s 44

C2827030-s 44

C2827031-s 45

C2827032-s 45

C2827033-s 48

C2827034-s 48

C2827035-s 48

C2827036-s 48

C2827037-s 49

C2827038-s 49

C2827039-s 49

C2827040-s 49

C2827041-s 46

C2827042-s 46

C2827043-s 46

C2827044-s 46

C2827045-s 49

C2827046-s 115

C2827046-s 49

C2827047-s 47

C2827048-s 49

C2827049-s 47

C2827050-s 47

C2827051-s 47

C2827052-s 47

C2827053-s 49

C2827054-s 47

C2827055-s 49

C2827056-s 48

C2827057-s 48

C2827058-s 48

C2827059-s 115

C2827059-s 47

C2827060-s 115

C2827060-s 47

C2827061-s 49

C2827062-s 49

C2827063-s 47

C2827064-s 48

C2827065-s 49

C2827066-s 48

C2827074-s 49

C2827075-s 48

C2827077-s 49

C2827079-s 44

C2827080-s 115

C2827080-s 49

C2827081A-s 115

C2827081A-s 47

C2827082-s 47

C2827083-s 115

C2827083-s 47

C2827084-s

C2827084-s

C2827085-s

C2825151-s 82

C2827067-s 48

C2824415-s 34

C2824416-s 114

C2824416-s 36

C2825069-s 83

C2825070-s 83

C2825071-s 83

C2825152-s 82

C2825153-s 82

C2825154-s 82

C2827068-s 48

C2827069-s 48

C2827071-s 48

C2844003-s 168

C2844004-s 168

C2844005-s 169

C2844006-s 169

C2844007-s 169

C2844008-s 169

C2844009-s 169

C2844010-s 169

C2844011-s 169

C2844012-s 169

C2844013-s 169

C2844014-s 169

C2844015-s 169

C2844017-s 169

C2844022A-s 168

C2844023-s 168

C2844024-s 168

C2844025-s 169

C2844026-s 169

C2844027-s 164

C2844028-s 164

C2844029-s 164

C2844030-s 164

C2844031-s 169

C2844032-s 169

C2844033-s 169

C2844034-s 169

C2844035-s 169

C2844036-s 169

C2844037-s 169

C2844038-s 169

C2844039-s 169

C2844040-s 169

C2844045-s 85

C2844046-s 85

C2844047-s-A-DH 85

C2844047-s-A-SA 85

C2844047-s-B-DH 85

C2844047-s-B-SA 85

C2844047-s-C-DH 85

C2844047-s-C-SA 85

C2844047-s-D-DH 85

C2844047-s-D-SA 85

C2844047-s 85

C2844048-s 85

C2844049-s 85

C2844054-s 170

C2844055-s 170

C2845001-s 165

C2845002-s 165

C2845004-s 165

C2845005-s 165

C2845007-s 165

C2845008-s 165

C2845009-s 165

C2845010-s 165

C2845011-s 165

C2845013-s 165

C2845014-s 165

C2845015-s 165

C2845016-s 165

C2845017-s 165

C2845018-s 165

C2845031-s 165

C2845032-s 165

C2845033-s 165

C2845034-s 165

C2845035-s 165

C2845036-s 165

C2845037-s 165

C2845038-s 165

C2845055-s 164

C2845056-s 164

C2845058-s 169

C2845059-s 169

C2845060-s 169

C2845061-s 169

C2899001-s 26

C2899003-s 46

C42210026A-s 167

C42210026A-s 28

C42210027A-s 167

C42210027A-s 28

C44190101A-s 140

C44190102A-s 140

C44190103A-s 140

C44190104A-s 140

C44190105A-s 140

C44190106A-s 140

C44190110A-s 140

C44190112A-s 140

C44190113A-s 140

C99MISC-s 170
