WHAT INFORMATION
DO OUR TABLES PROVIDE YOU?
The price list is a useful and comprehensive tool for creating your shower space. On the pages of this catalogue you will find all the information needed to choose your screen and other elements of the shower, whether it is a standard product or an adapted tailor-made to your special needs.
The boards of each series of enclosures will give you reports from:
Name of the series.
Configuration.
Features of the enclosures.
Sketch for the choice of the measurement.
Partition boards in stock.
Low partition board order
Informational Icons
Measurements: indicating the minimum size and maximum in which such a screen, i.e. your level of compensation
Height: total measurement of the screen, with all its elements
Access: indicates the useful step offered by that Screen Size
Finish: indicates the completion of the Profiles
Packaging: number of boxes it comes in Product Content
Glass Finish Type: (Glass, translucent, fumé and silkscreen prints)
The following icons have been designed to make it easier to quickly obtain information about our products
Along with this information, you will also find the general information of the screen model (type of glass, if it is reversible or not, anti-limescale treatment...) and also the technical drawing of the chosen configuration where the dimensions are indicated shown in the table.
A set of information that will make it easier to choose your screen with full guarantees and satisfaction.©

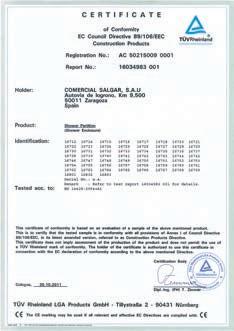

IT IS A GUARANTEE OF QUALITY
At Salgar we use the highest quality in the manufacture of our products, this being endorsed on the basis of:
- International standard EN 14428, which sets requirements for shower enclosures, as well as by CE marking. Test carried out by the international organization TÜV Rheiland.
- European Construction Products Regulation No. 305/2011 - UNE EN 12150
Standard Glass for Building. Safety Sodalime Silicate Glass thermally tempered.
- Standard EN 14527:2016+A1:2019 Shower trays for domestic use.
- UNE-ENV 12633:2003 Standard Method for determining the value of resistance to Slipping of polished and unpolished floors.
Optimal enclosure properties
Corrosion resistance resistance to dry-wet change.
Durability and stability
Maximum watertightness
Easy cleaning
DECLARACIÓN DE PRESTACIONES (DoP)
Documento N.º DoP Nº 06 De acuerdo con el Reglamento Europeo de Productos de Construcción Nº 305/2011 para el producto: PLATO DUCHA
1. Nombre y código de identificación de los productos: Plato Ducha. Descripción y códigos se encuentran en el Anexo de la presente declaración. 2. Tipo, código número de serie otro elemento, el cual identifique el producto de acuerdo con la disposición del Art. 11, párrafo 4: Véase en el Anexo de la presente declaración. 3. Nombre dirección del fabricante o importador o distribuidor de acuerdo con la disposición del Art. 11, párrafo 5: COMERCIAL SALGAR S.L. Autovía de Logroño, Km 9,5 50011 Zaragoza (España)
4. Uso del producto de acuerdo con la especificación armonizada, según lo designado por el fabricante: Higiene personal Uso doméstico. 5. Sistema o sistemas de evaluación y verificación de la constancia de las prestaciones del producto: Sistema 4. 6. Nombre dirección de contacto del Organismo Notificado: N/A. 7. Prestaciones declaradas:
Características esenciales Prestaciones Especificaciones técnicas armonizadas Aptitud para la limpieza. Clase 1 EN 14527:2006 + A1 Durabilidad. Clase Las prestaciones del producto identificado en el punto son conformes con las prestaciones declaradas en el punto 7. La presente declaración de prestaciones se emite bajo la única responsabilidad del fabricante importador o distribuidor indicado en el punto 3.
Para que así conste se expide en Zaragoza, 24 de Abril de 2024
HOW TO MEASURE YOUR SHOWER ENCLOSURE?
Support Base Level
Check the level of the base of the screen shower
It is also recommended that you verify that the base where you are The support is correctly leveled. To do this, you can use a “bubble” type. The fact that there are certain small slopes does not imply a major problem for enclosures that have framed structure, but in the partitions that have few profiles and especially in those that do not have profiles compensation is essential to check the perfect framing and leveling of the base with the walls.
FOR FRONT ENCLOSURES
Always make sure to measure twice
· For frontal installations, we must always measure the highest point (A), the midpoint (M), and the lowest point (B)
· Of the three measurements that we take A/M/B we we will keep the smallest one as a reference and we will offset to the largest size with the profile compensation
· Check if all 3 measurements are within the range of a reference of Salgar screen. Ex: Helsinki 22452, 136-140cm. Ideally, you should discount 0.5cm to the size and check if they are all within range.
· In case any are not in range, it is ALWAYS THE GREATEST MEASURE that which is compensated by
Compensating Profiles
· Ex: A is 139, M is 138.5 and B is 138cm. We discount 0.5 to B and we see that the maximum difference is 137.5 to 139cm, total 1.5cm, which is in the code range and that the offset of the screen, 2cm per side, covers the mismatch.
FOR CORNER ENCLOSURES

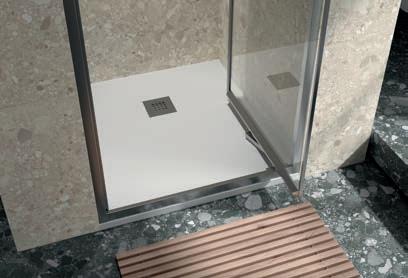

· Floor or ground shower tray?
· In any case, the two sides are measured from the wall to the edge of the shower tray.
· In cases of a tray on the floor, the screen it is always somewhat smaller than the total dimension of the shower trays. E.g.: Helsinki, cod. 22465, nominal measurements of plate 700x900, screen measurements 675-695 and 875-895mm.
In the case of masonry of floor level tray.
The enclosure, for aesthetics only, must fall at the plate and floor joint. We must measure the two measurements up to those joints and see if the screen fits them

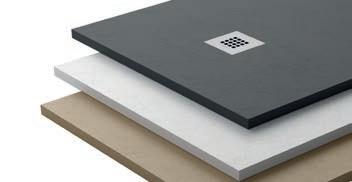

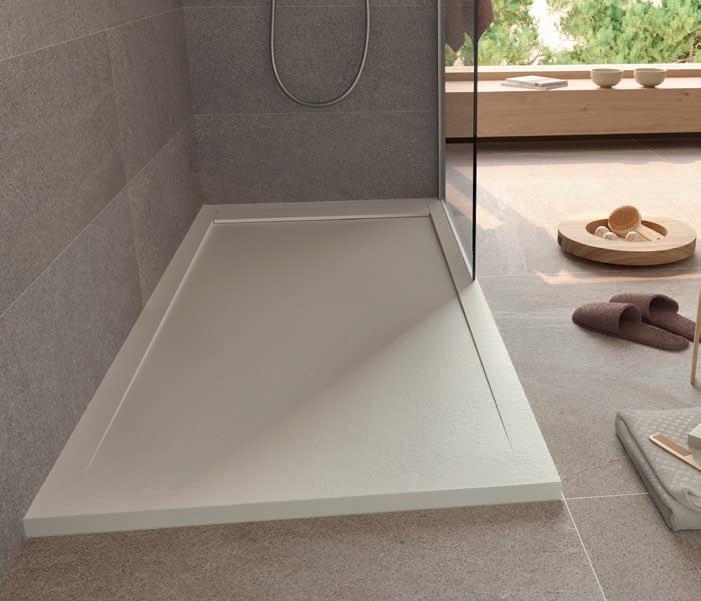

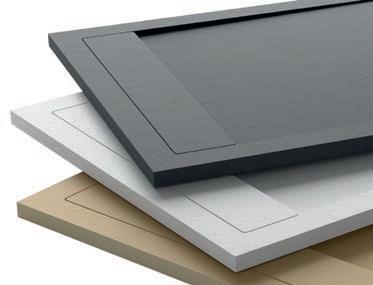

The range of RIOJA Shower trays incorporated by Salgar takes a leap in quality, breadth of range and design thanks to its Stone finish that guarantees superior anti-slip.
Maximum quality and features to configure your bathroom.
Shower trays with stone non-slip surface.
Maximum qualification with class 3 certificate
Lightened shower tray
Extra-flat chainrings 26-30 mm depending on widths
Resistant to light impacts
Easy cleaning, no harsh products
Includes shiny chrome stainless steel grille
Sanitary Gel Coat Coating
Anti-bacterial properties
800

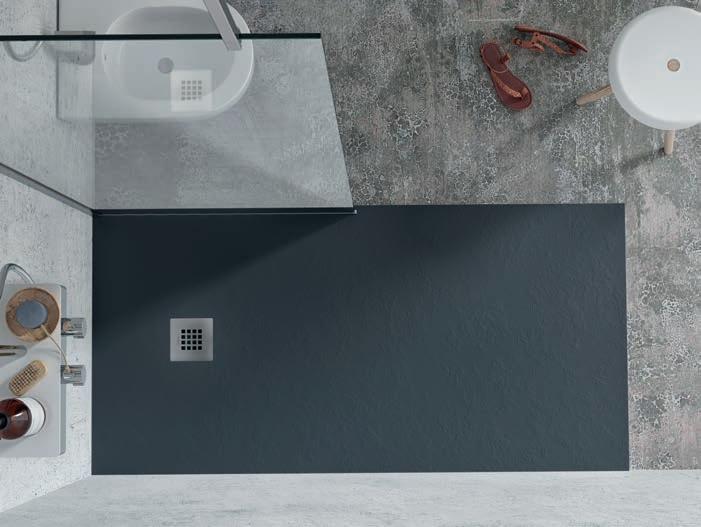

Shower trays / Thickness 28 mm
The Pompeya range of shower trays combines design, modernity, functionality and style. Add a touch of design to your bathroom thanks to the tray’s design framing Pompeya
We adapt to your space: You can choose a standard POMPEYA shower trays in white, sand and anthracite or customize the color to create a unique bathroom, selecting your favorite color from the RAL chart of colors.
To order these trays, indicate the COD of the chosen size and colour and indicate the RAL on the order if you choose this option.
700 X 1500 81910 476 81938 476 81958 476 82116 556
700 X 1600
700
800
ATLAS

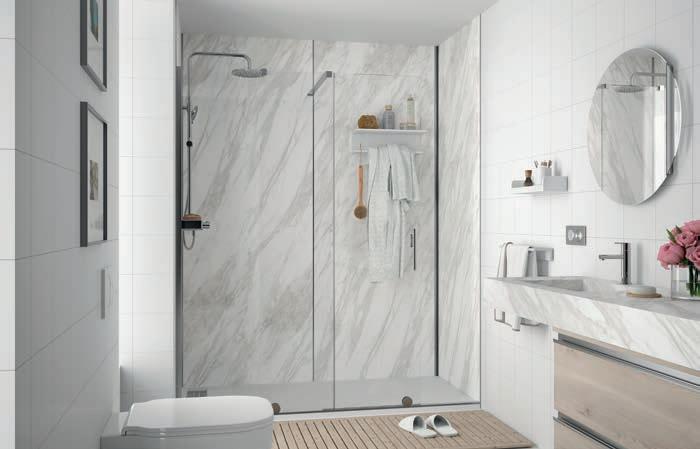

SHOWER PANELS
At SALGAR we have the target to provide the most practical, functional and aesthetic. Of the purpose of being a reference in bathroom equipment, the ATLAS wall cladding.
ATLAS wall cladding will turn your bathroom quickly, easily and economically in a new and Renovated space to enjoy. The ATLAS coating easily adheres to the tiles and walls with our highquality specific adhesive resistance. The boards are made up of a composite 4 mm thick water-repellent with two layers of aluminum, 1220 mm x 2550 mm, a strong material and suitable for areas in contact with water
New panels with a foldable structure, designed to facilitate handling and optimize assembly, ensuring a faster, more precise, and more efficient installation.
Shower panels atlas
Before After
Panel dimensions do not include the profile measurements. Refer to the profile drawings.
Panel dimensions do not include the profile measurements. Refer to the profile drawings.
Profiles for glossy anodised aluminium panels
[Heaven] [Heaven bath]

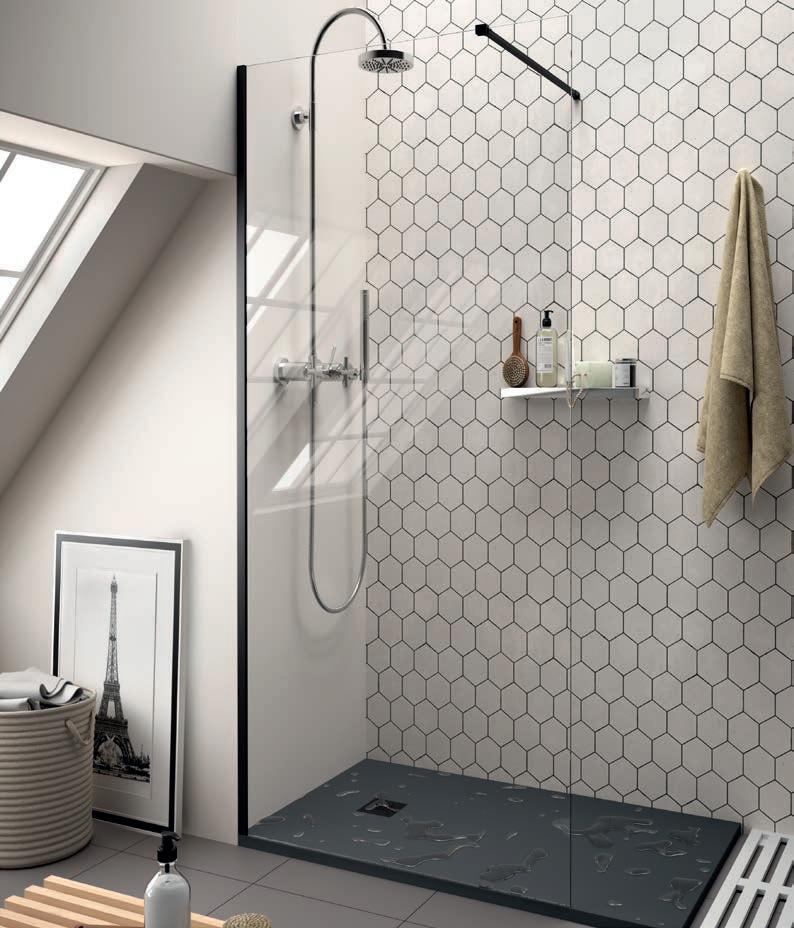

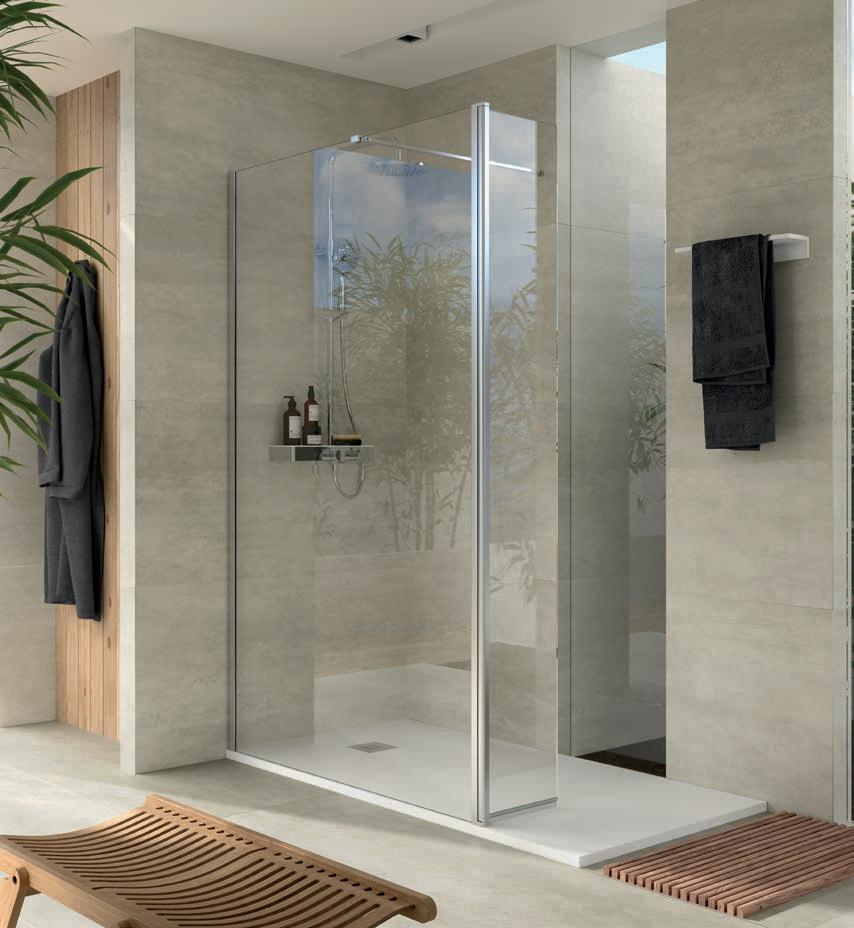

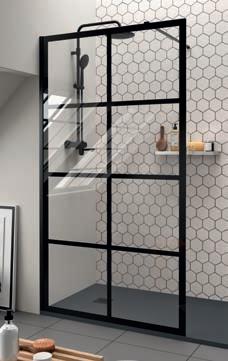

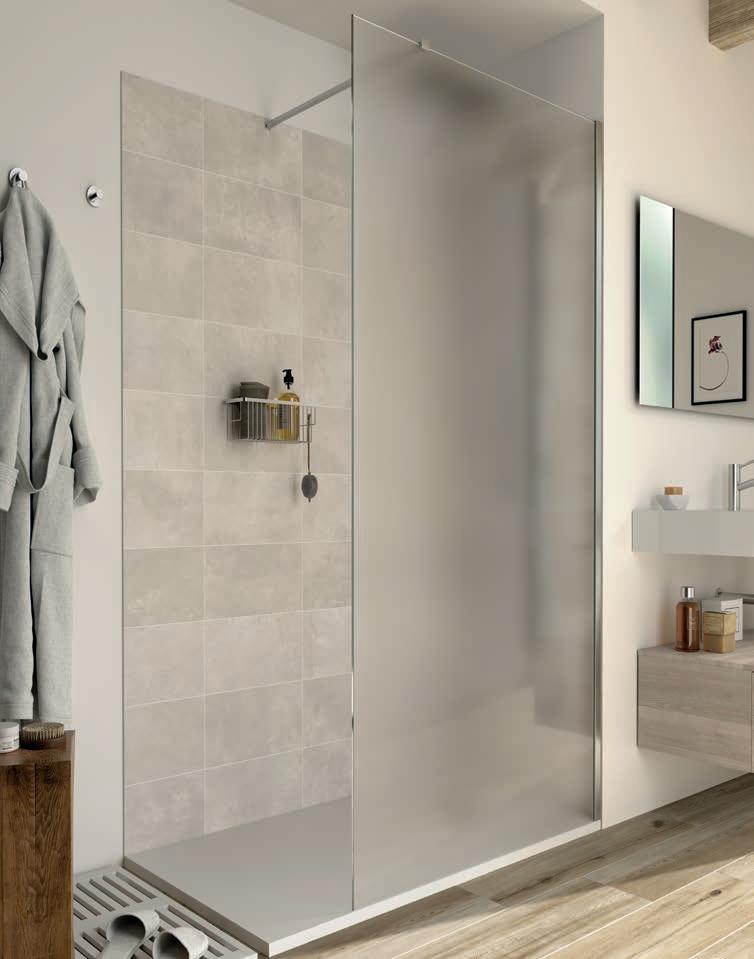

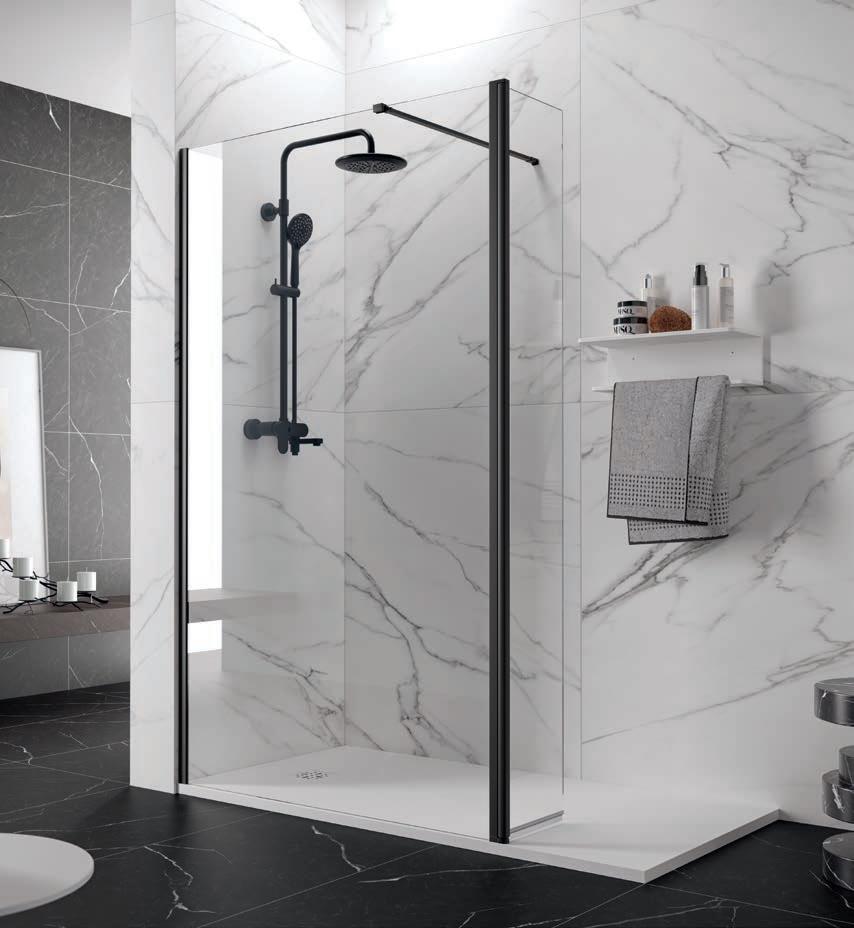

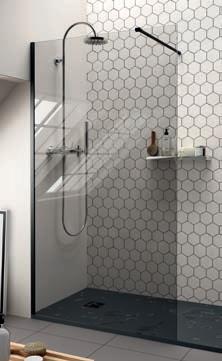

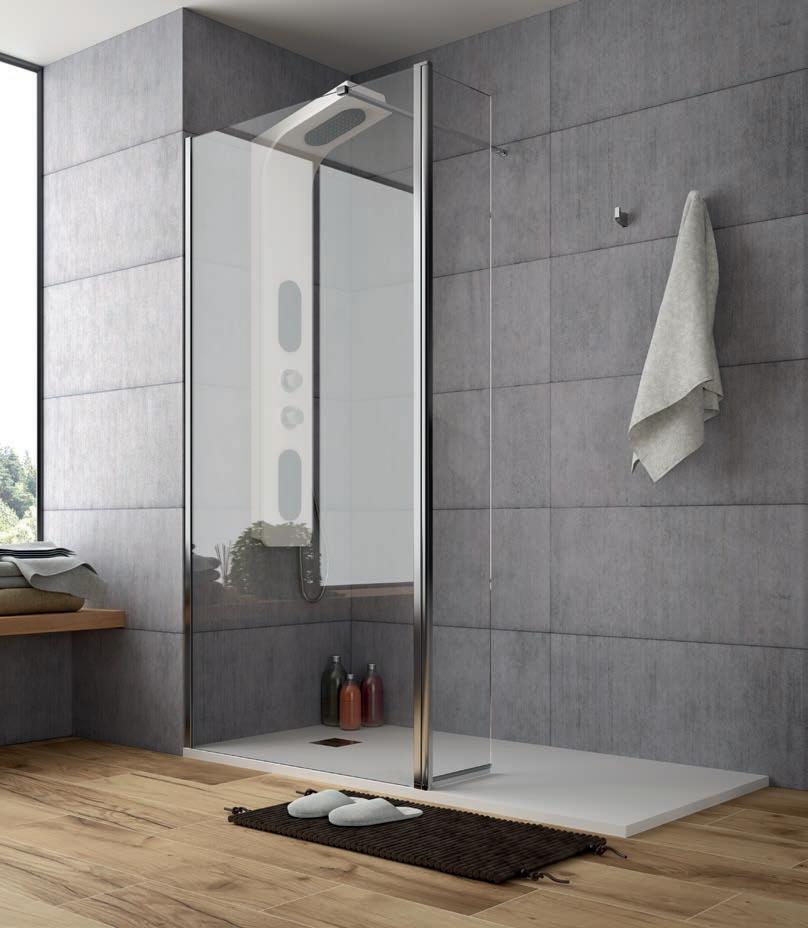

HEAVEN SERIES

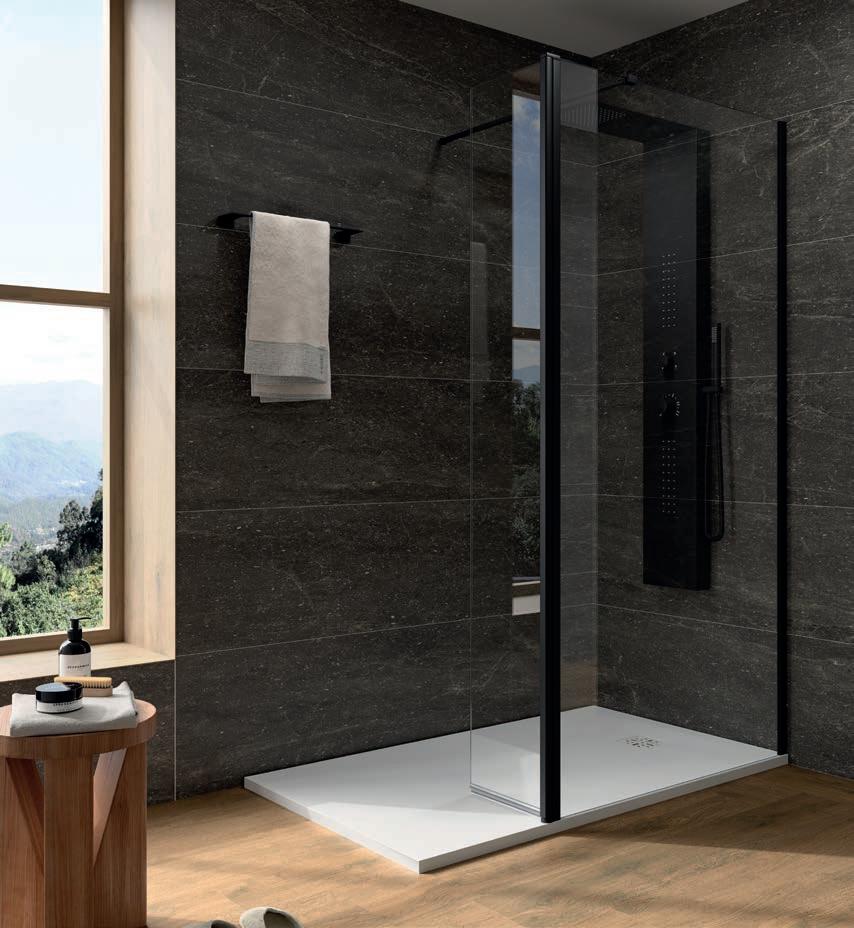

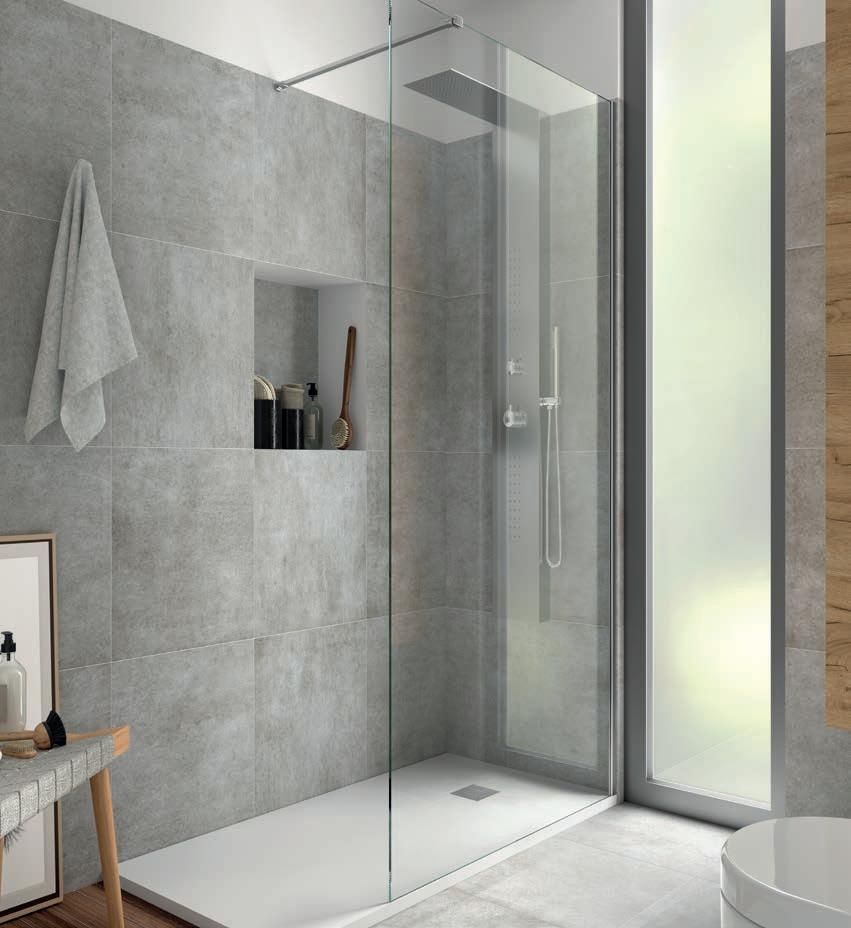

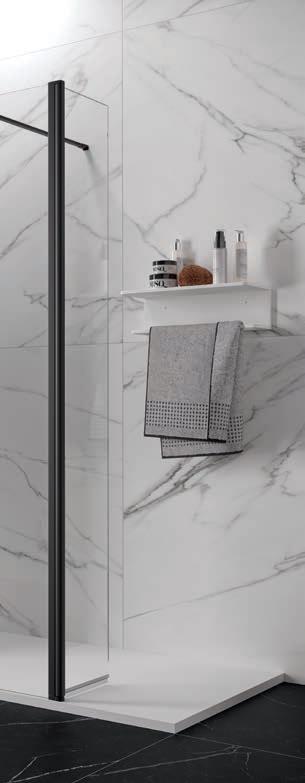

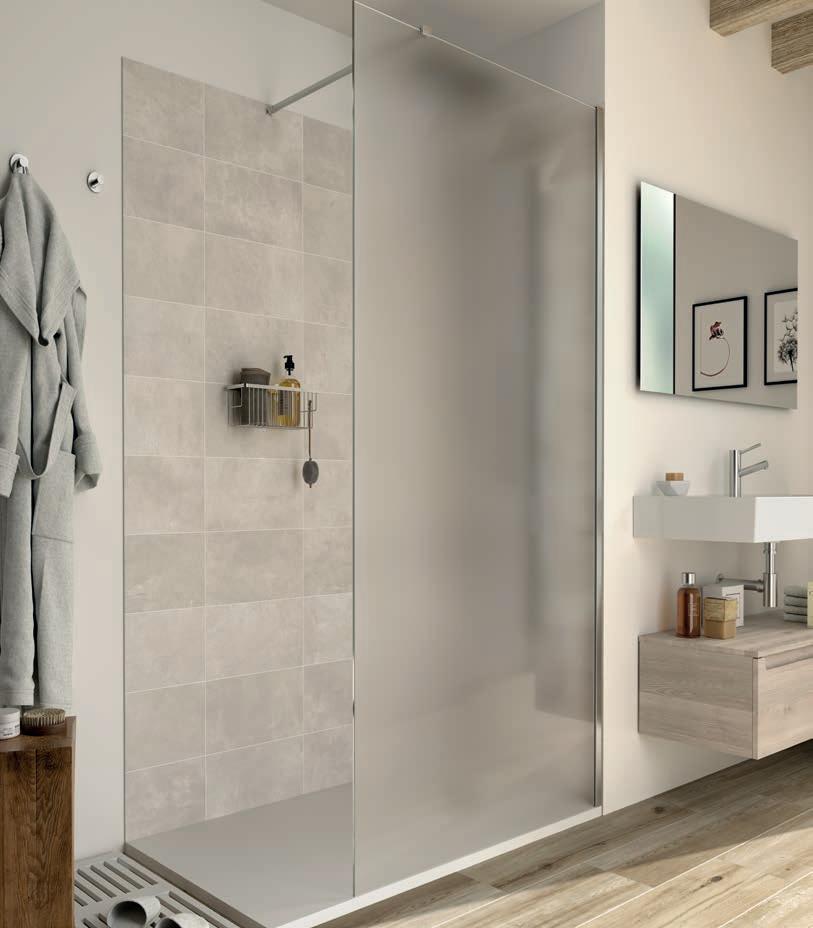

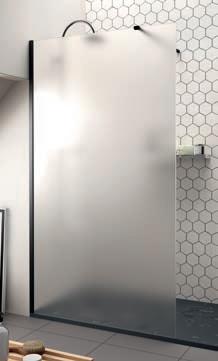

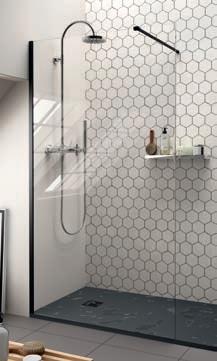

Walk in shower
WALK IN SHOWER, BESPOKE
■ 8 mm tempered safety glass.
■ Anti-limescale treatment included.
■ Offset, 10 mm.
■ Reversible.
■ Tensor included.
■ Special construction.
WALK IN SHOWER, BESPOKE
■
■
■
■
■
■
■
■
HEAVEN
Transparent
Transparent Moire Satin Fumé
■ 8
■
■
■
■ Tensor
■
■
■
■
■
■ Tensor
■
■
■

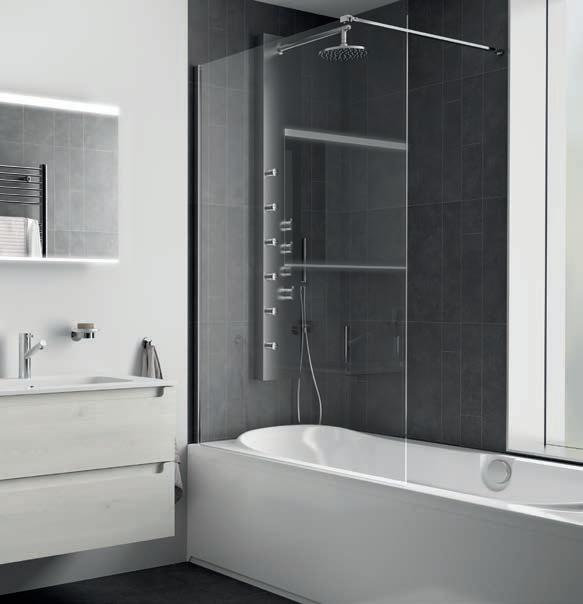

HEAVEN BATH SERIES
Walk in bathtub
■ 8 mm
■ Anti-limescale treatment included.
■ Offset, 10 mm.
■ Reversible.
■ Tensor included.
■ Special construction.
■ Installation type, over bathtub
BESPOKE SPECIAL SIZE SHOWER ENCLOSURES WALK-IN To order
HEAVEN BATH SERIES

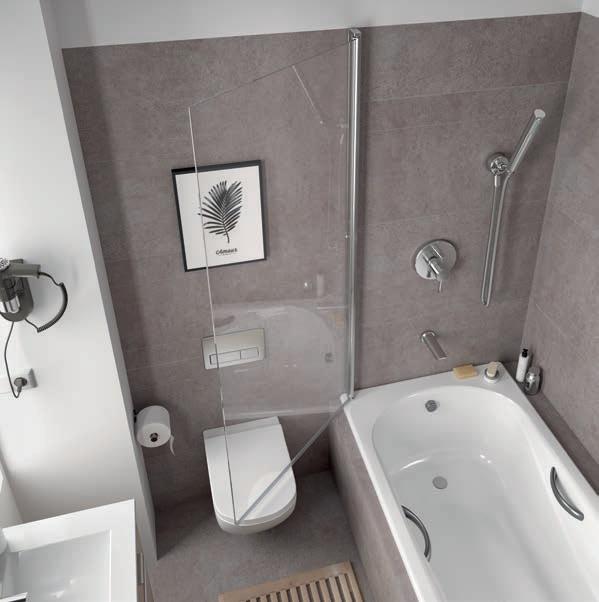

Hinged frontal bathtub
FRONT BATHTUB FOLDING ENCLOSURE, STOCK
■
■ Anti-limescale
■ Opening system, hinged door 180º.
■ Reversible.
■
[Clear II]

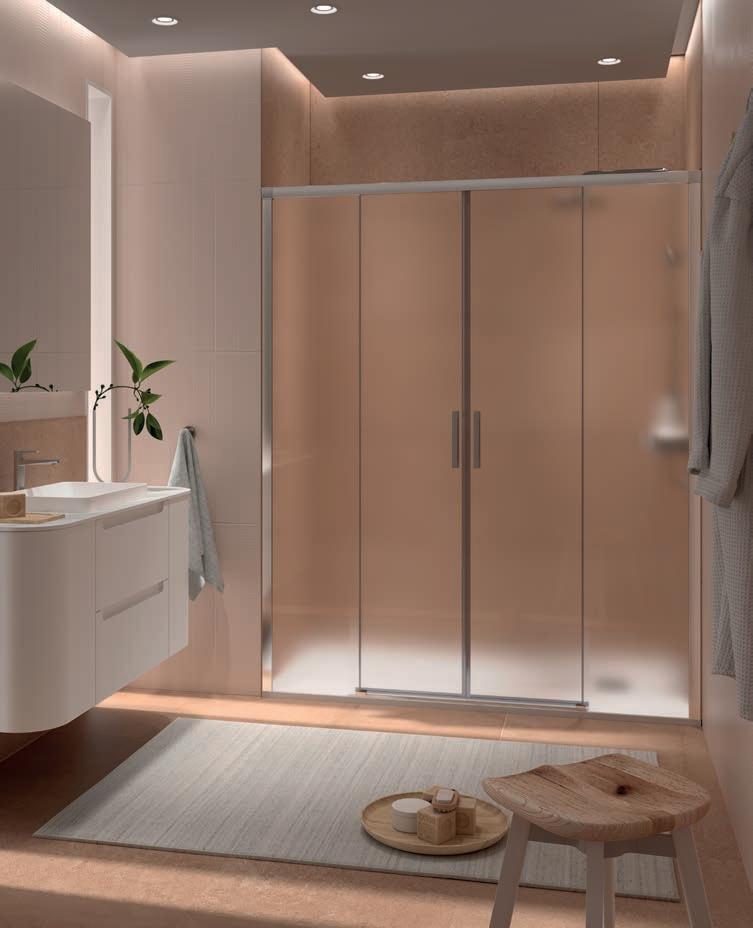

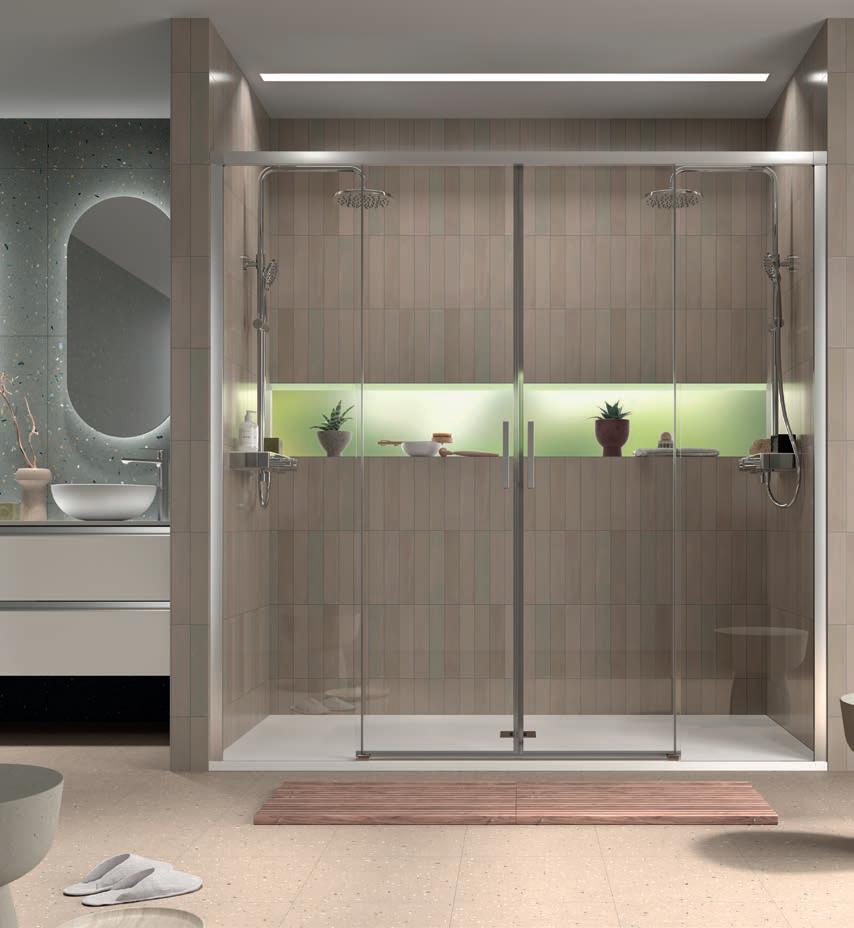

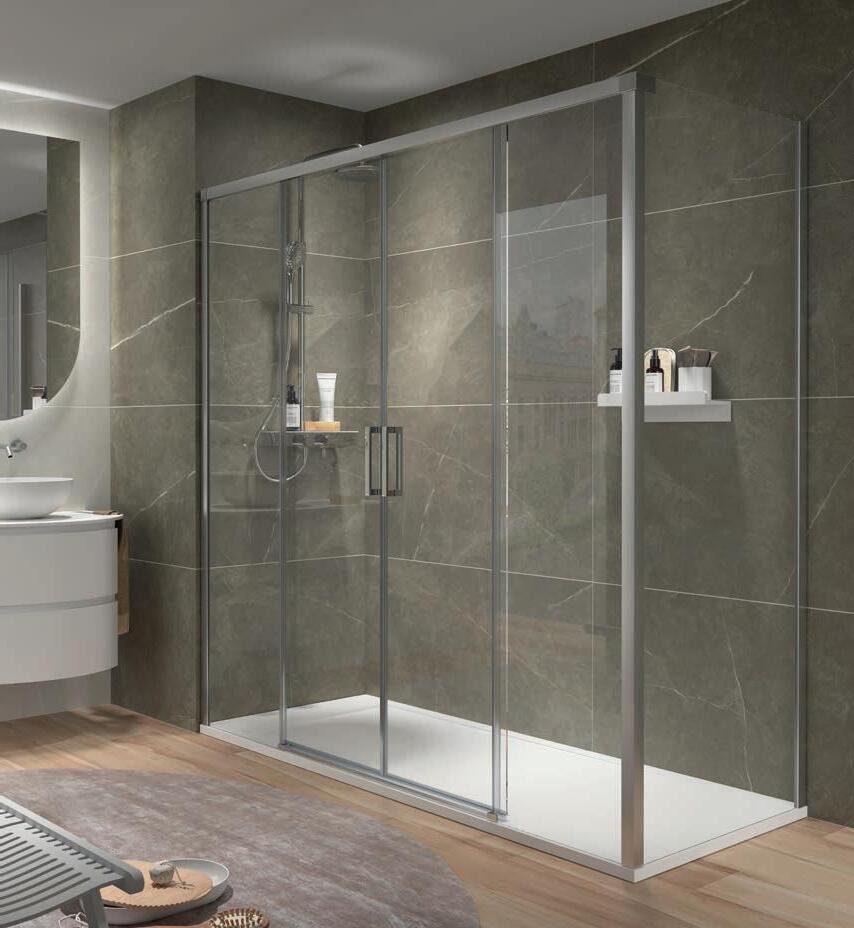

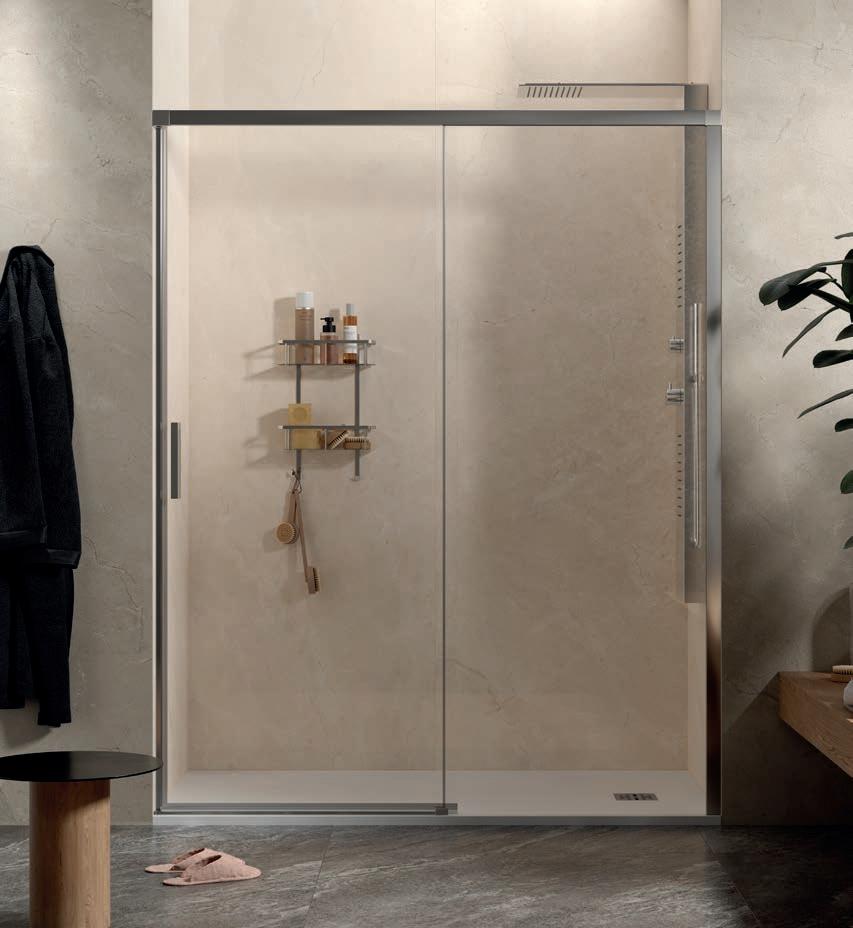

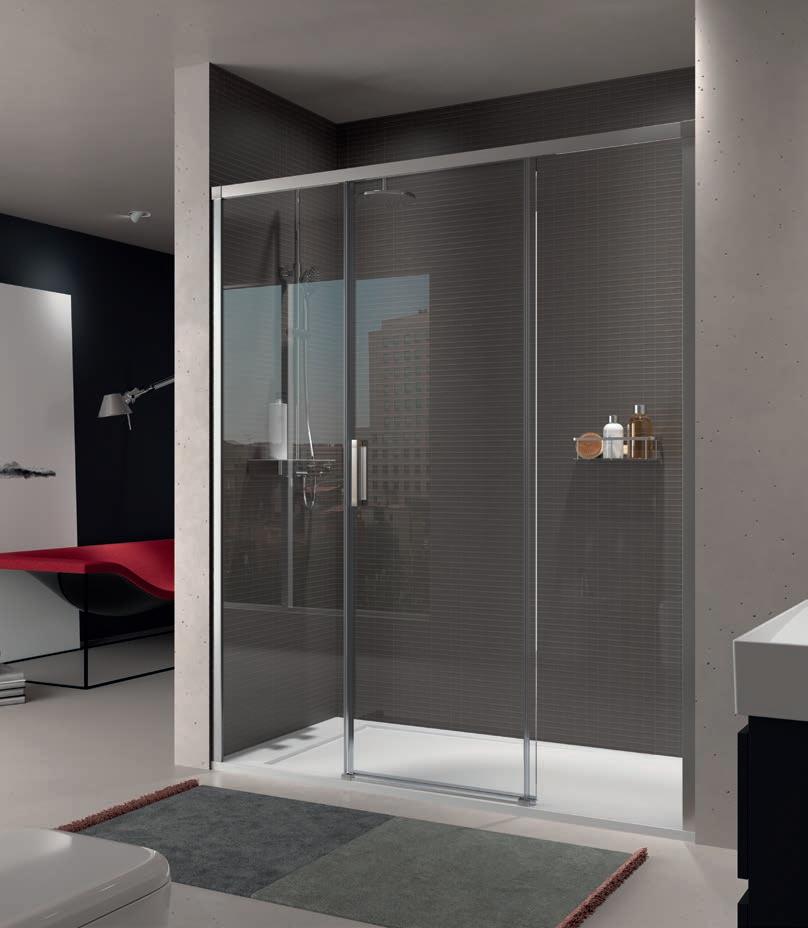

Gloss silver front between walls in stock
SLIDING DOOR/FIXED PANEL
■ 6 mm tempered safety glass.
■ Anti-limescale treatment included.
■ Opening system, sliding door.
■ Closure type, overlap rubber seal.
■ Offset, 20 mm each side / 25 mm fixed side.
■ Reversible.
■ Double handle with a minimalist design.
■ Double handle.
■ Extendable system.
■ CLICK installation system

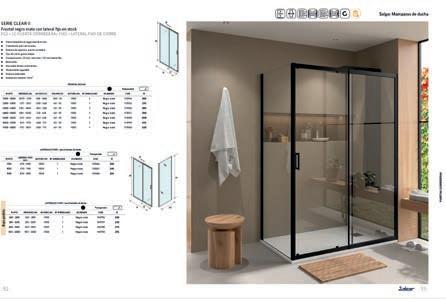

CLEAR II SERIES
Gloss
■ 6 mm tempered
■ Anti-limescale treatment included.
■ Opening system, sliding door.
■ Closure type, overlap rubber seal.
■ Offset,
■ Reversible.
■ Double handle with a minimalist design.
■ Double handle.
■ Extendable system.
■ CLICK installation system

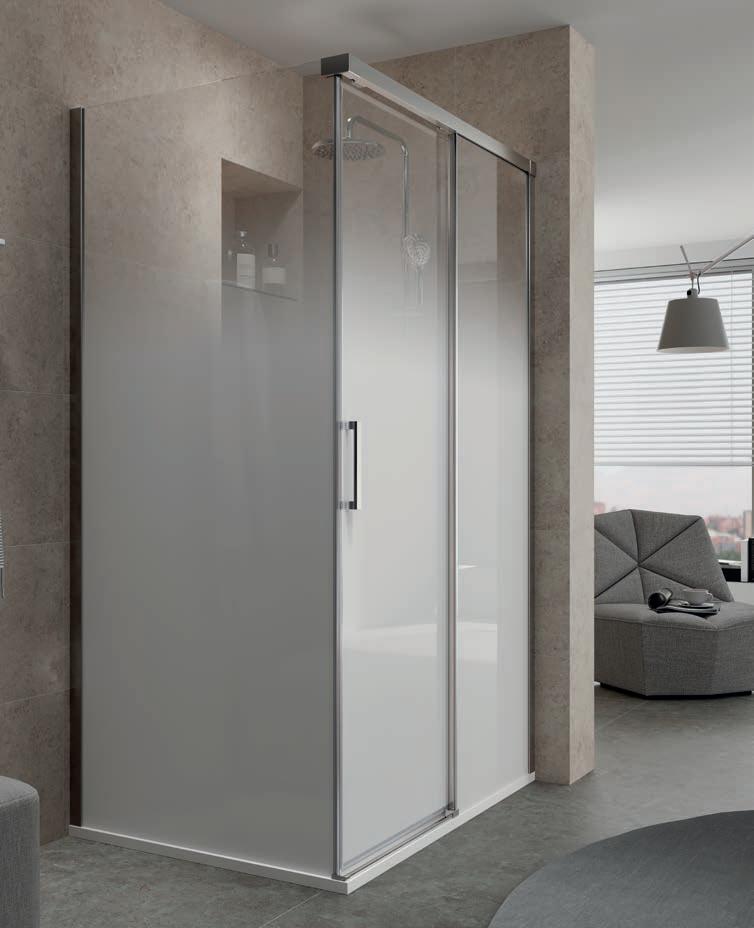

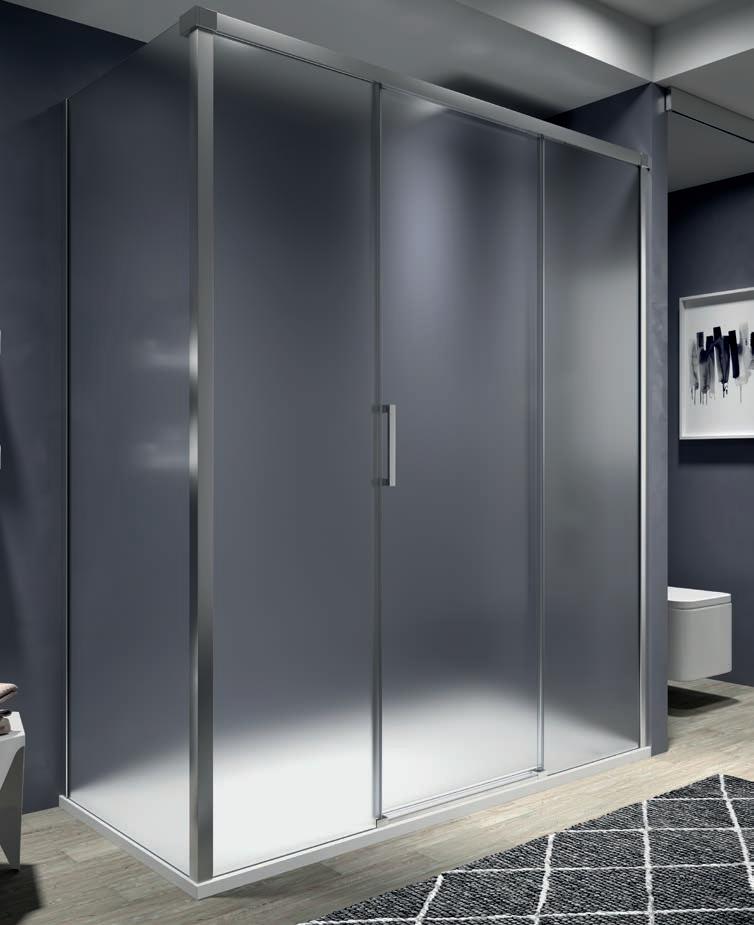

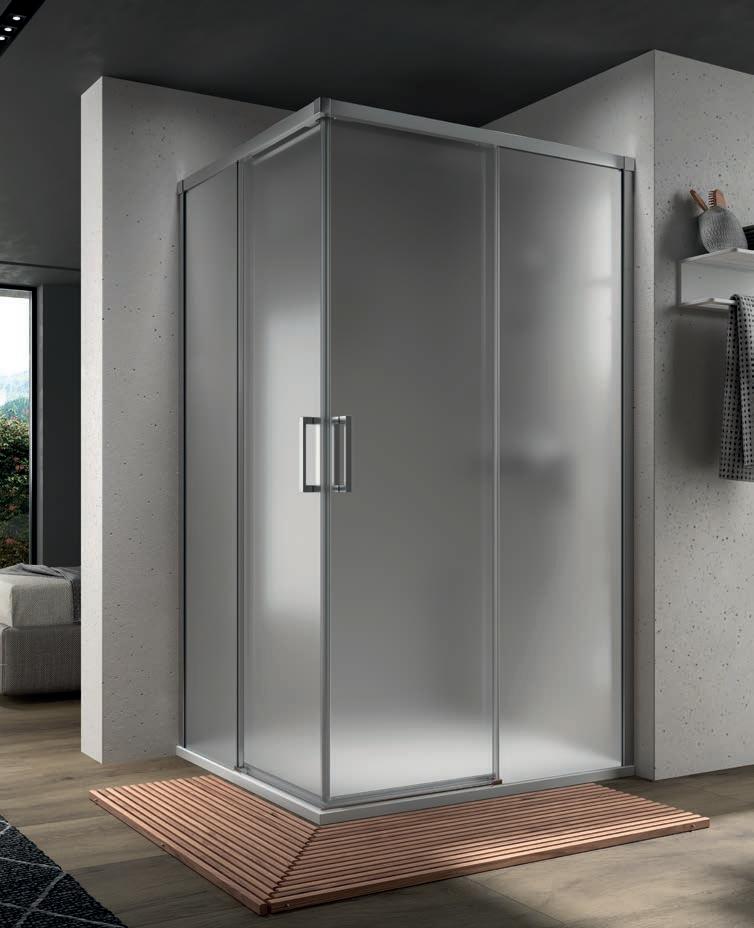

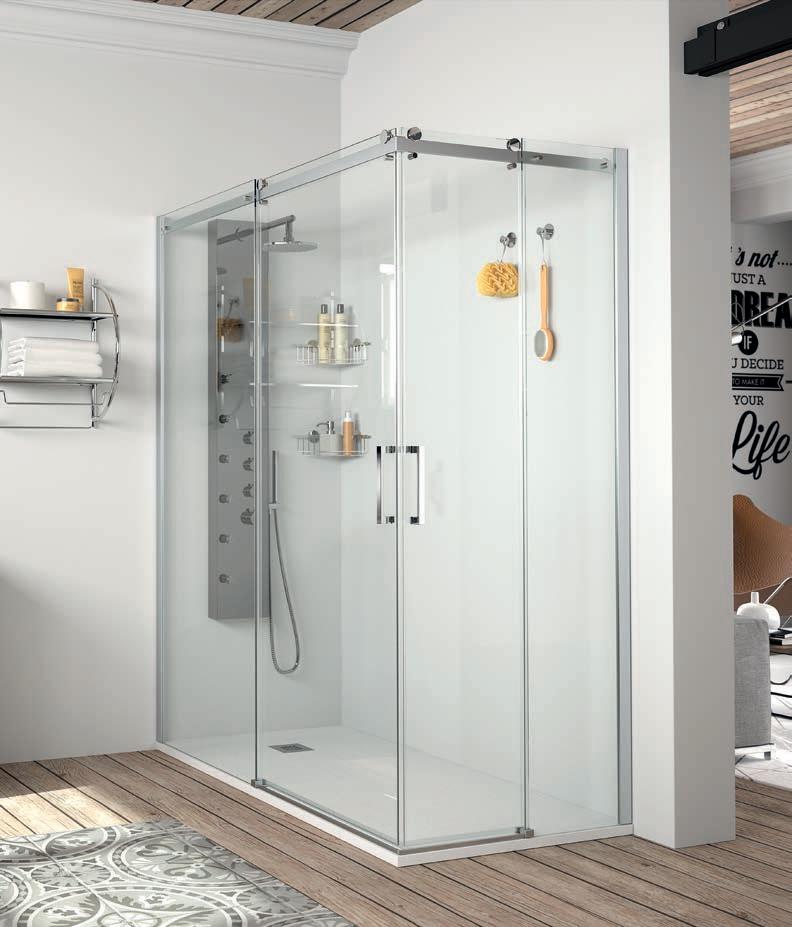

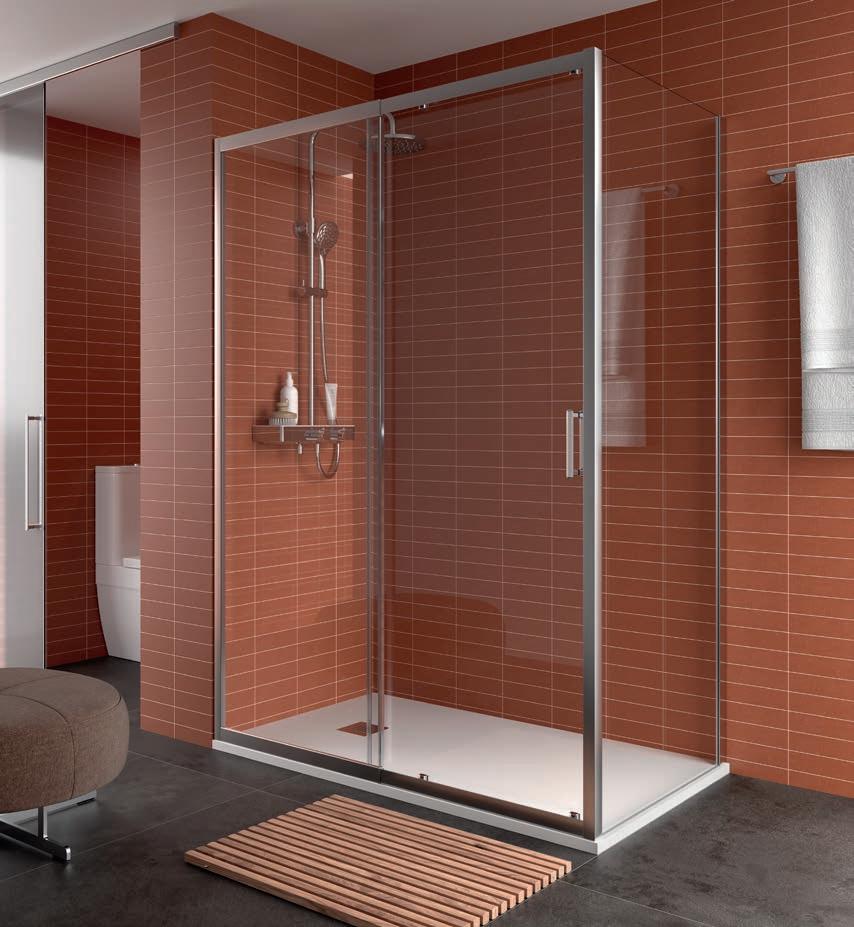

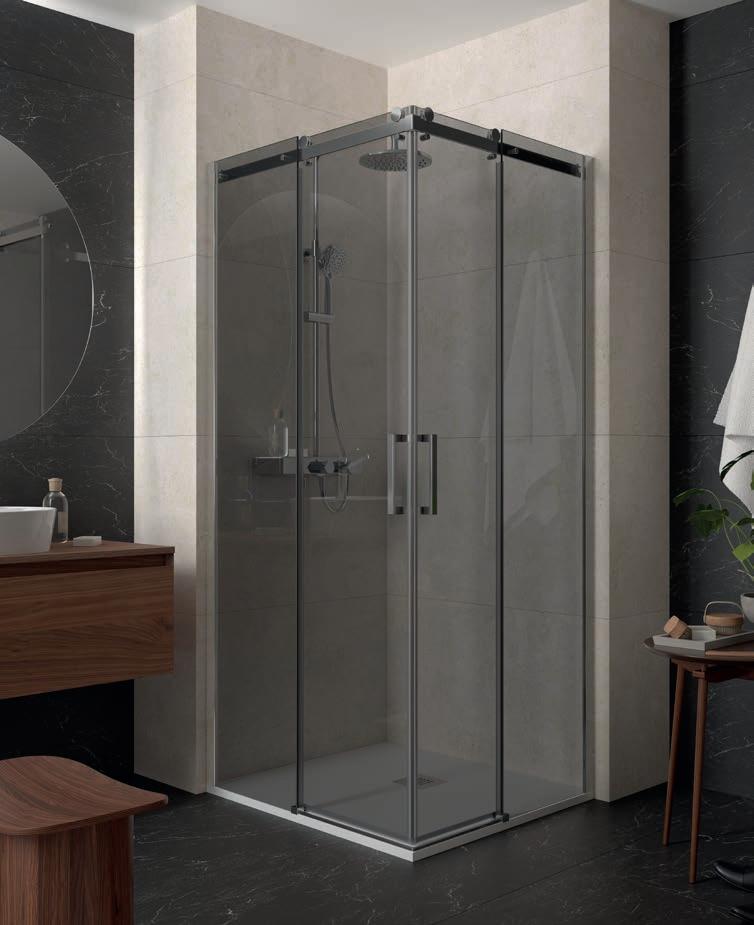

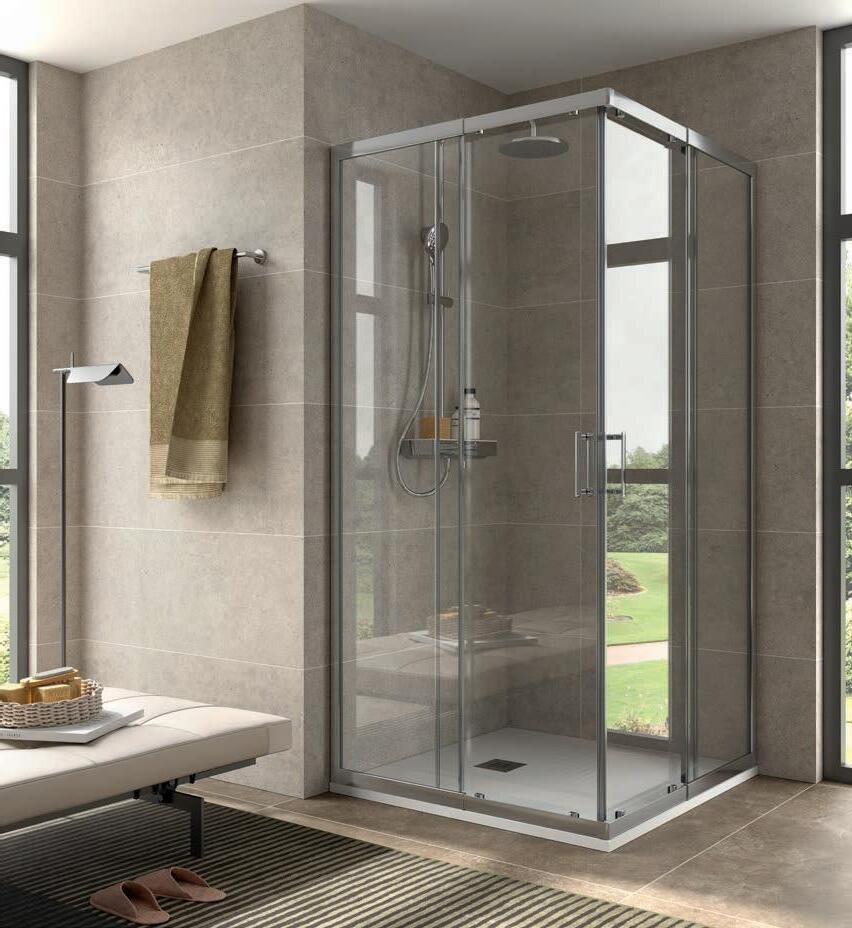

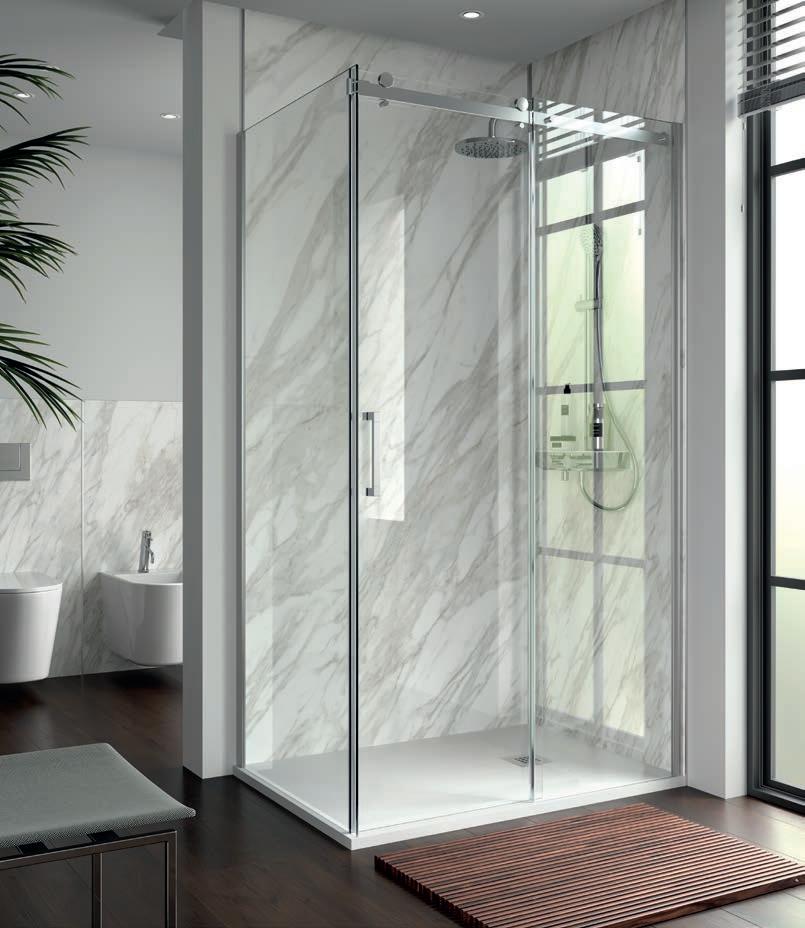

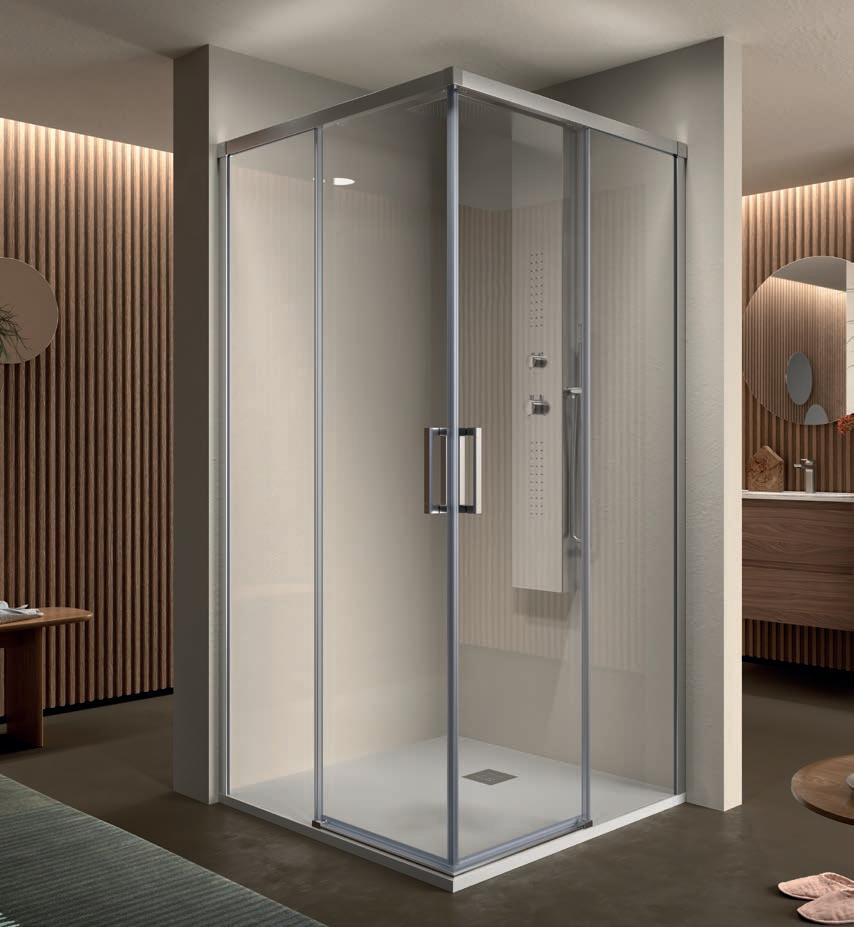

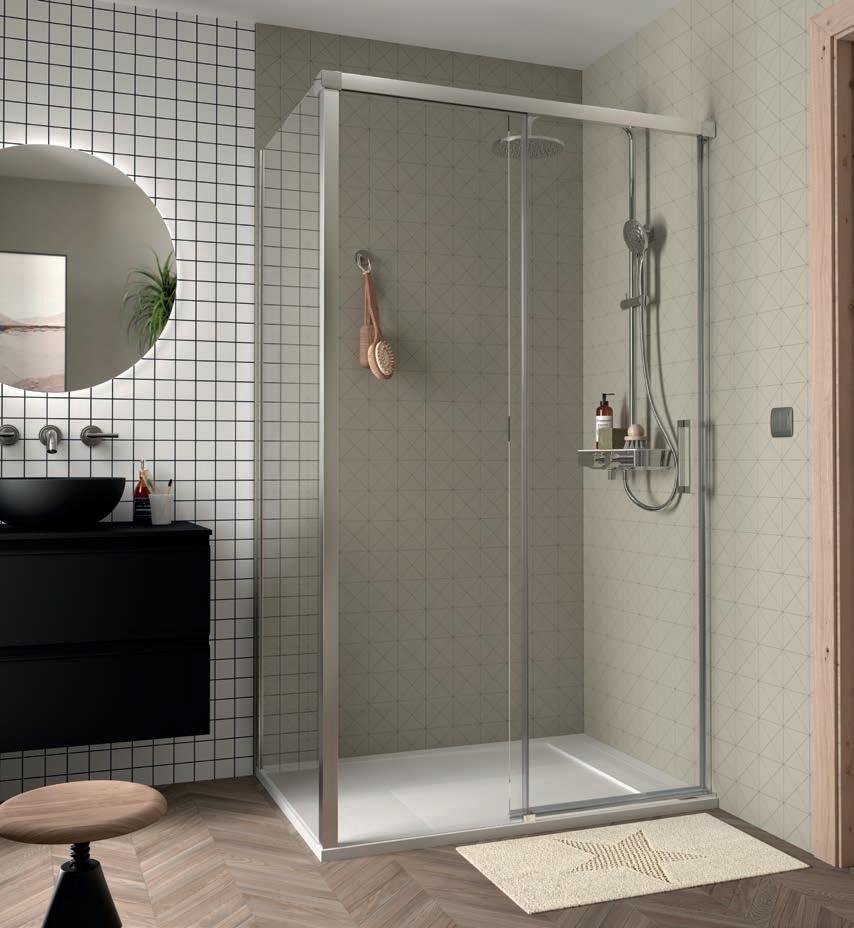

Gloss silver corner shower enclosure in stock
+ AC2 SLIDING DOORS/FIXED PANELS 1/2
■ 6 mm tempered safety glass.
■ Anti-limescale treatment included.
■ Opening system, sliding door.
■ Closure type, magnetic profile.
■ Offset, 20 mm each side / 25 mm fixed side.
■ Reversible.
■ Double handle with a minimalist design.
■ Double handle.
■ Extendable system.
■ CLICK installation system
■
■
■
■
■ Reversible.
■
■ Double handle.
■ Extendable system.
■
■
■
■
■
■
■
■
■
■
■
CLEAR II SERIES

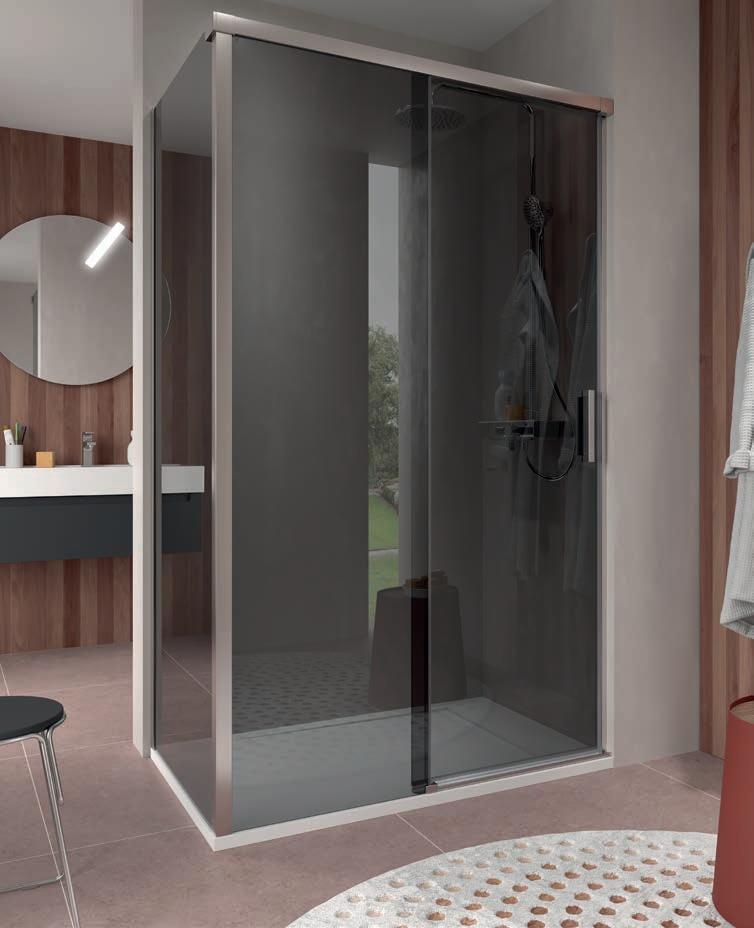

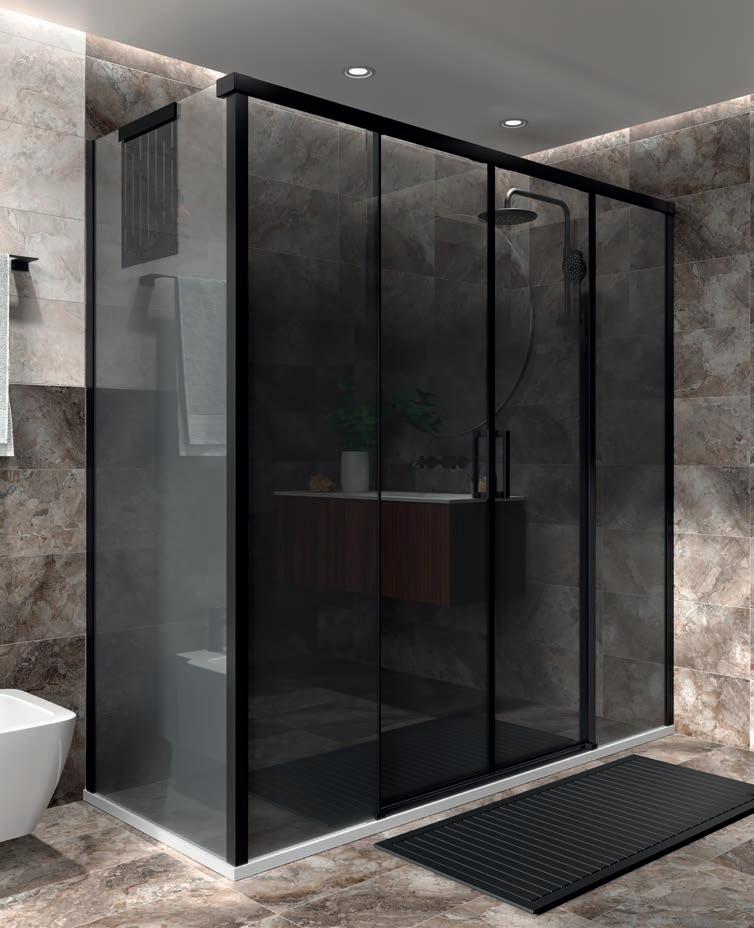

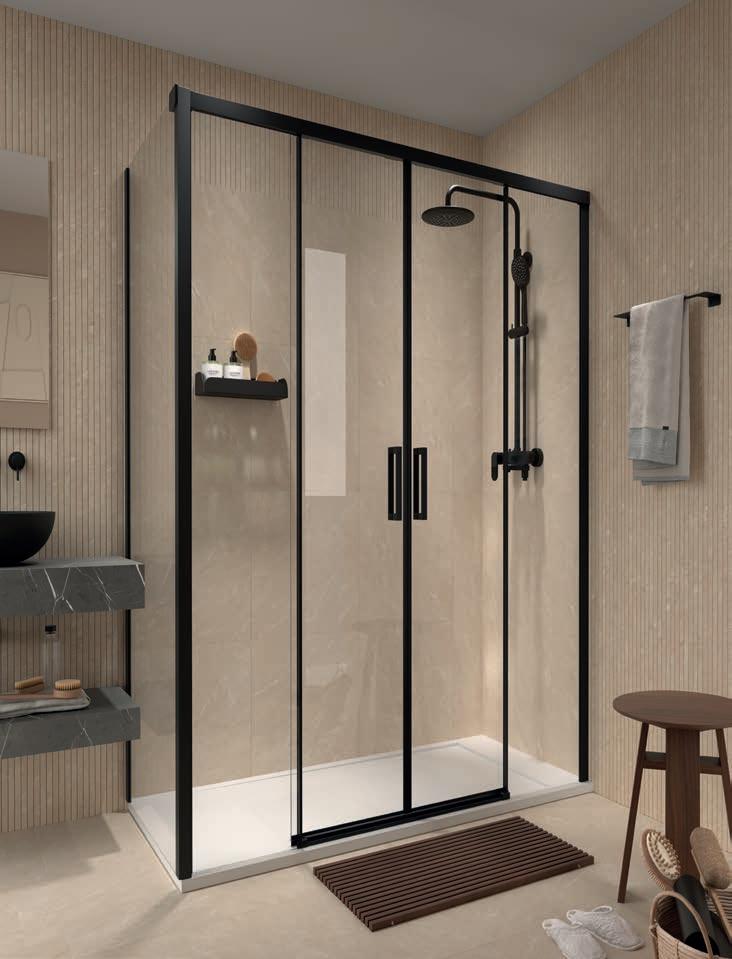

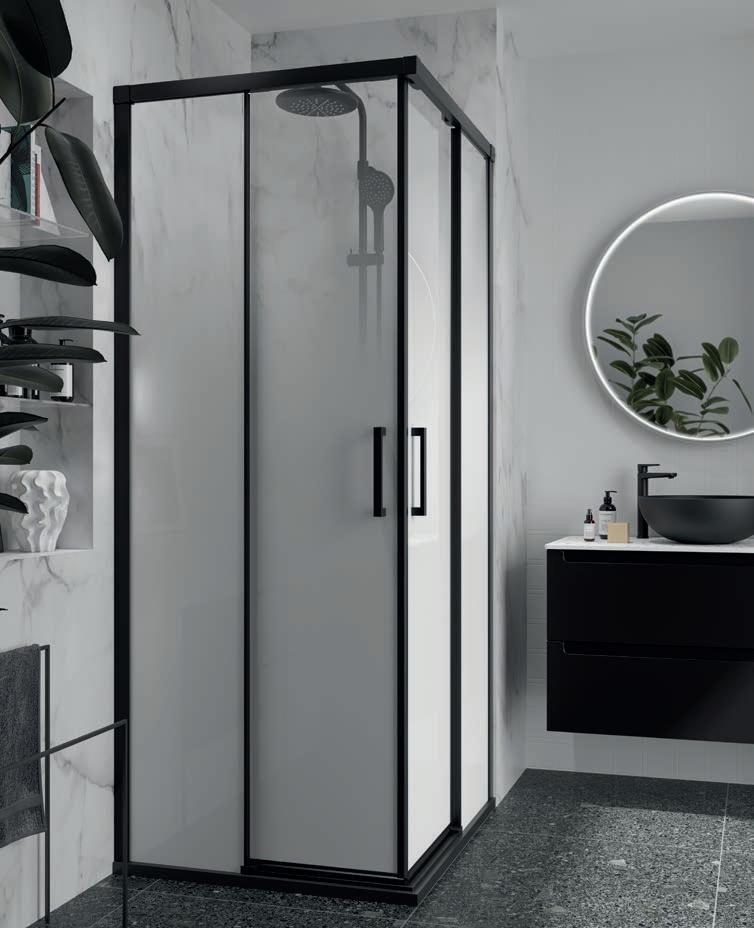

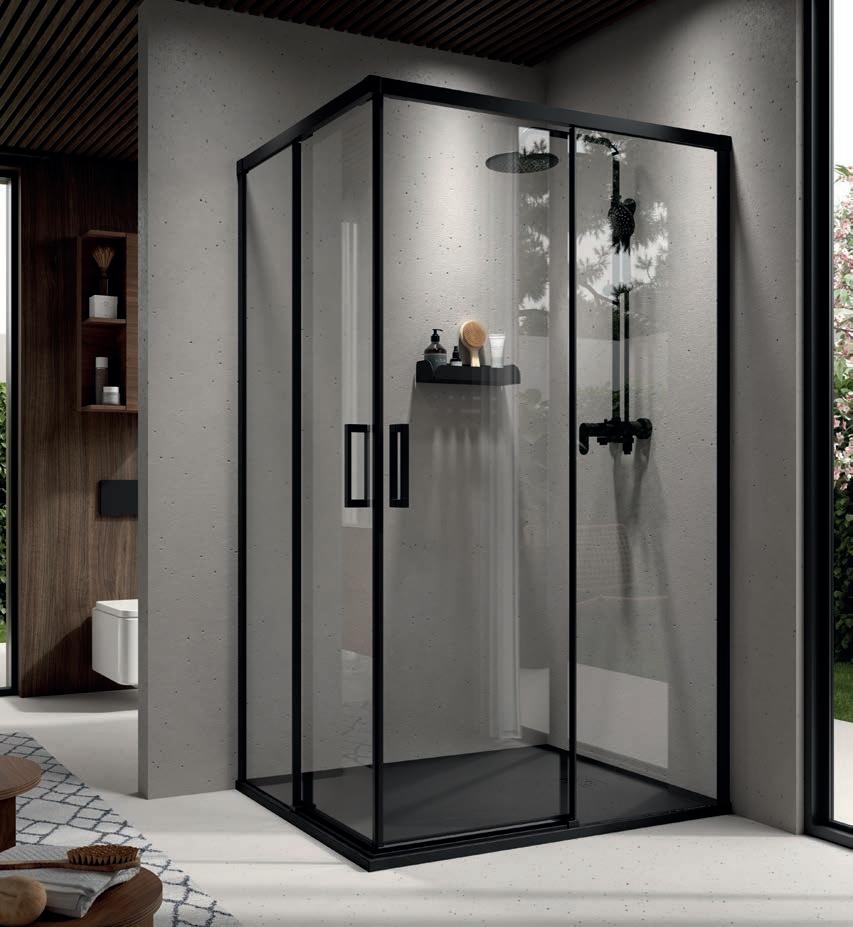

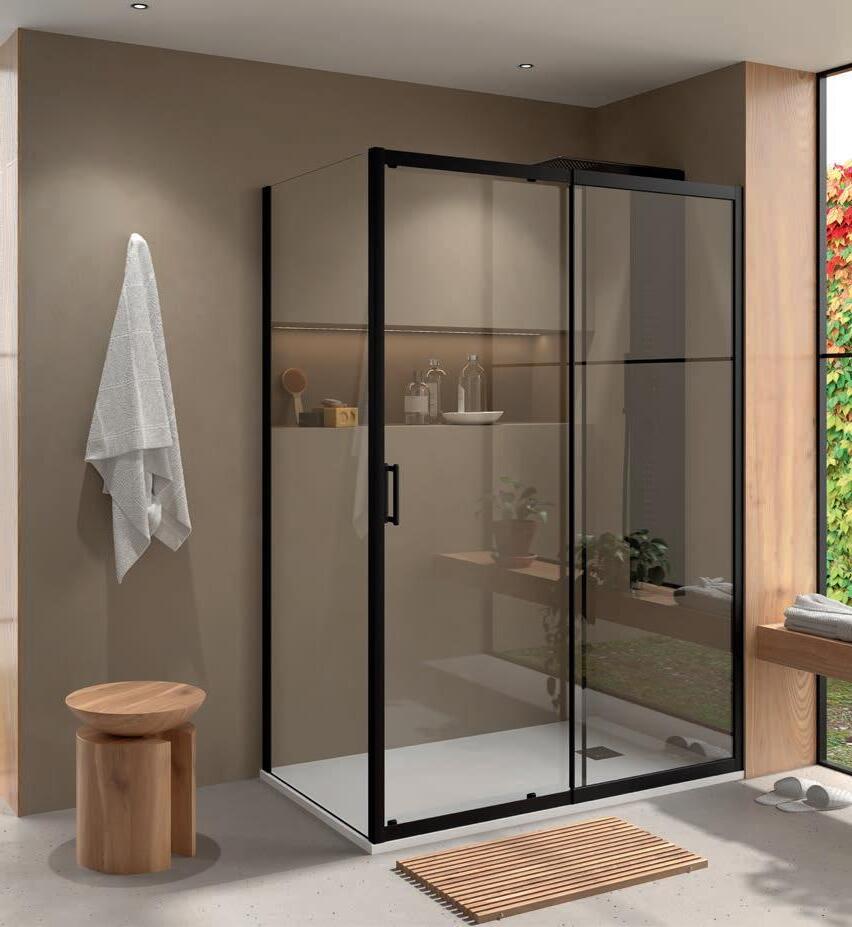

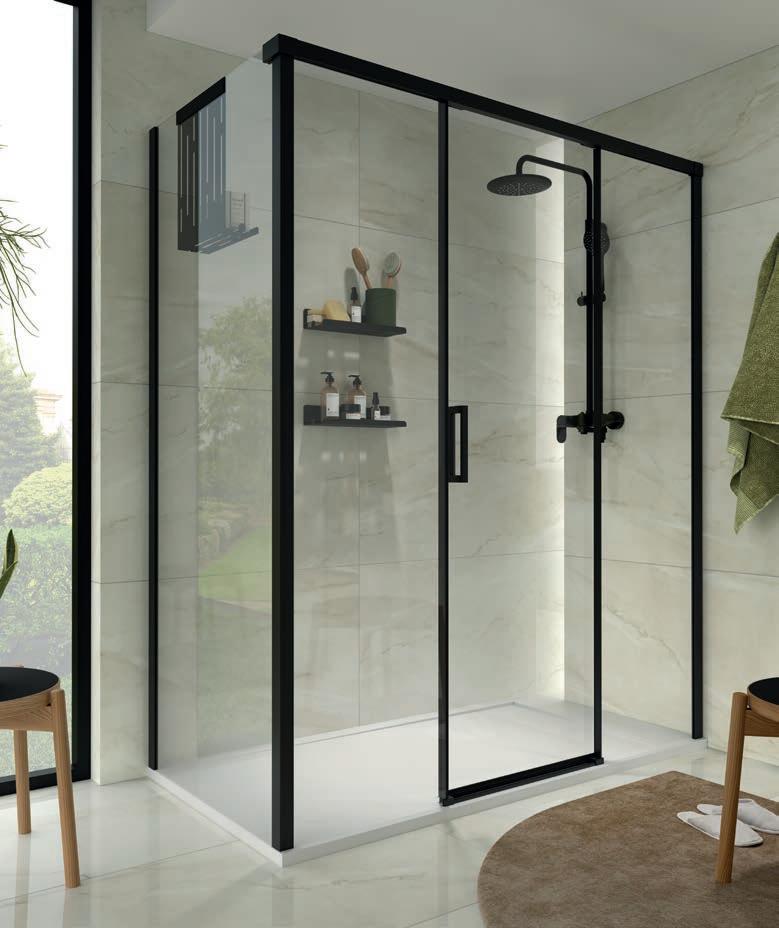

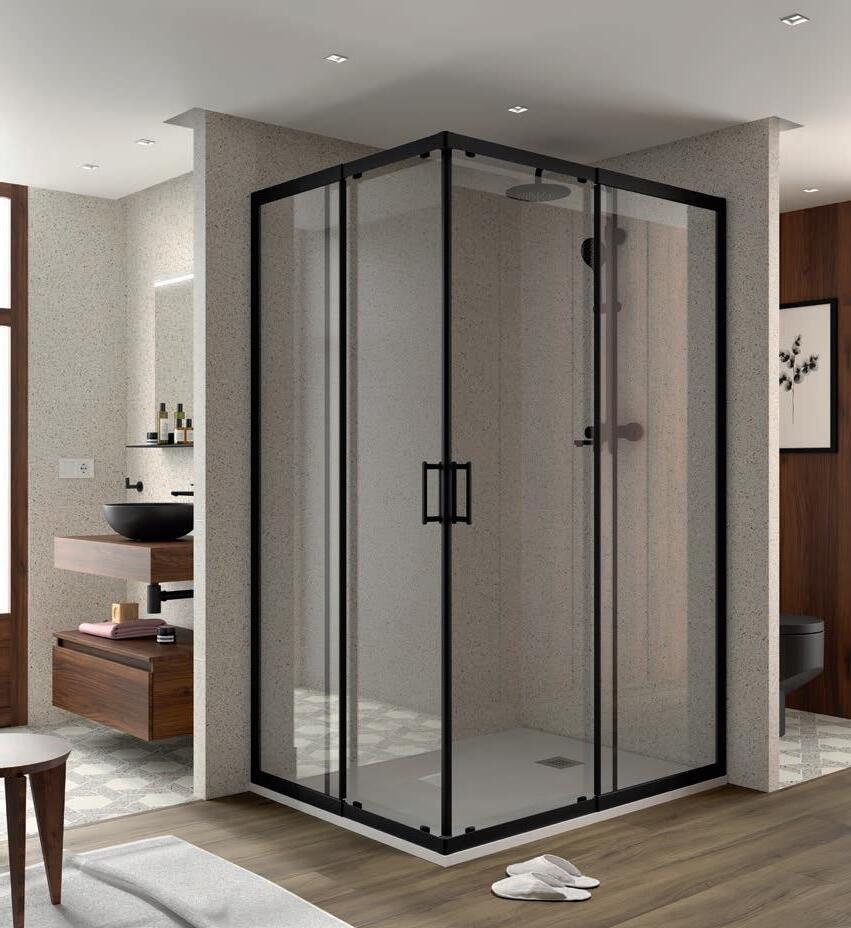

Black corner shower enclosure in stock AC2 + AC2 SLIDING DOORS/FIXED PANELS 1/2
■ 6 mm tempered safety glass.
■ Anti-limescale treatment included.
■ Opening system, sliding door.
■ Closure type, magnetic profile.
■ Compensazione, 20 mm ciascun lato / 25 mm fixed side.
■ Reversible.
■ Double handle with a minimalist design.
■ Double handle.
■ Extendable system.
■ CLICK installation system
[Versa]
Shower enclosure in stock Shower enclosure per order

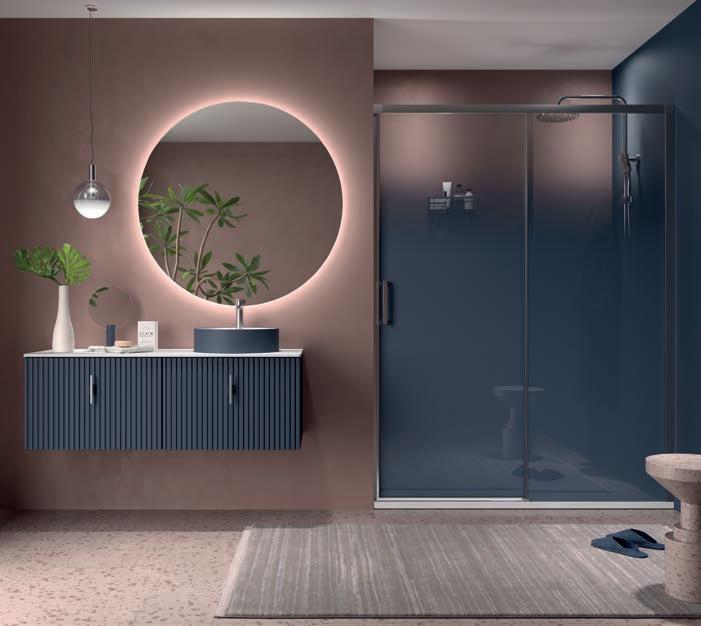

DARE WITH COLOUR

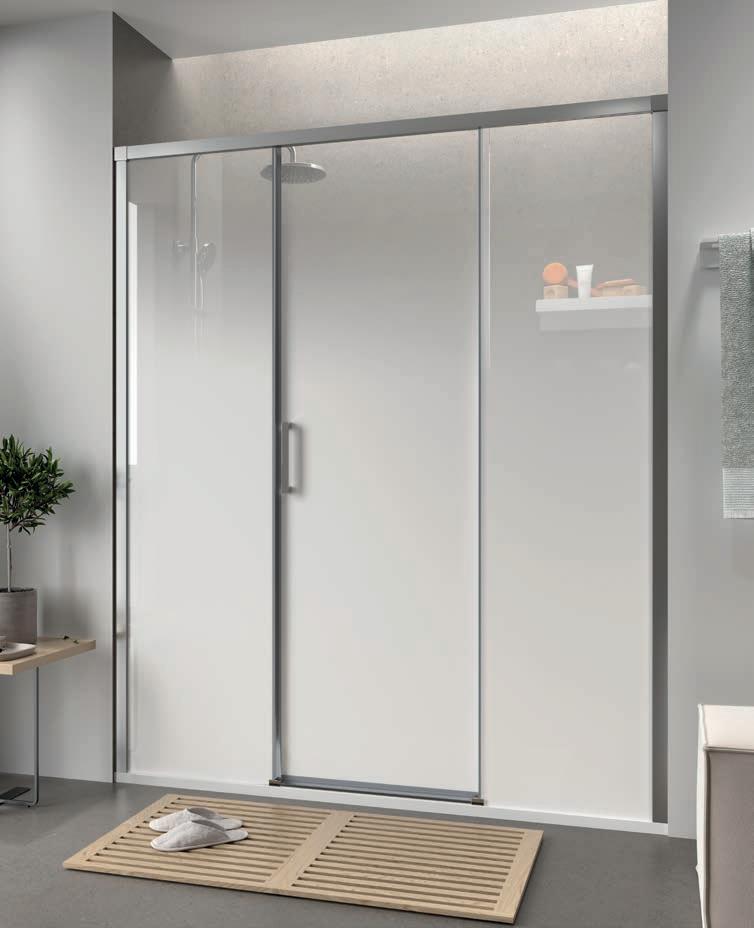

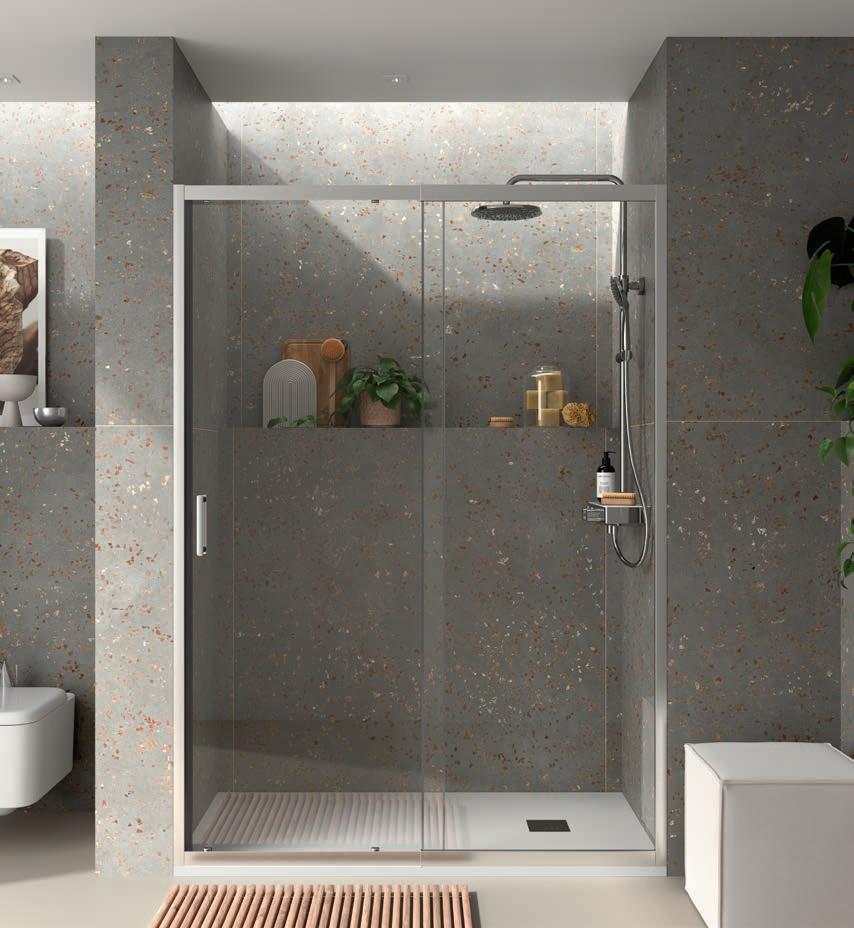

Gloss silver front between walls in stock FC2 SLIDING DOOR/FIXED PANEL
■ 6 mm tempered safety glass.
■ Anti-limescale treatment included.
■ Type of closure, metal profile and 90º magnetic rubber seal.
■ 20 mm compensation for wall unevenness.
■ 20 + 20 mm margin of adaptation.
■ Reversible.
■ Easy cleaning system. Door release push button.
■ Double height regulation bearings +2 -2 mm.
■ Lower rubber seal flashing.
■ Double handle.
■ 6 mm tempered safety glass.
■ Anti-limescale treatment included.
■ Screen printing corresponds to digital printing with a gradient according to the selected RAL
■ Type of closure, metal profile and 90º magnetic rubber seal.
■ 20 mm compensation for wall unevenness.
■ 20 + 20 mm margin of adaptation.
■ Reversible for Fumé finish.
■ Easy cleaning system. Door release push button.
■ Double height regulation bearings +2 -2 mm.
■ Lower rubber seal flashing.
■ Double handle.

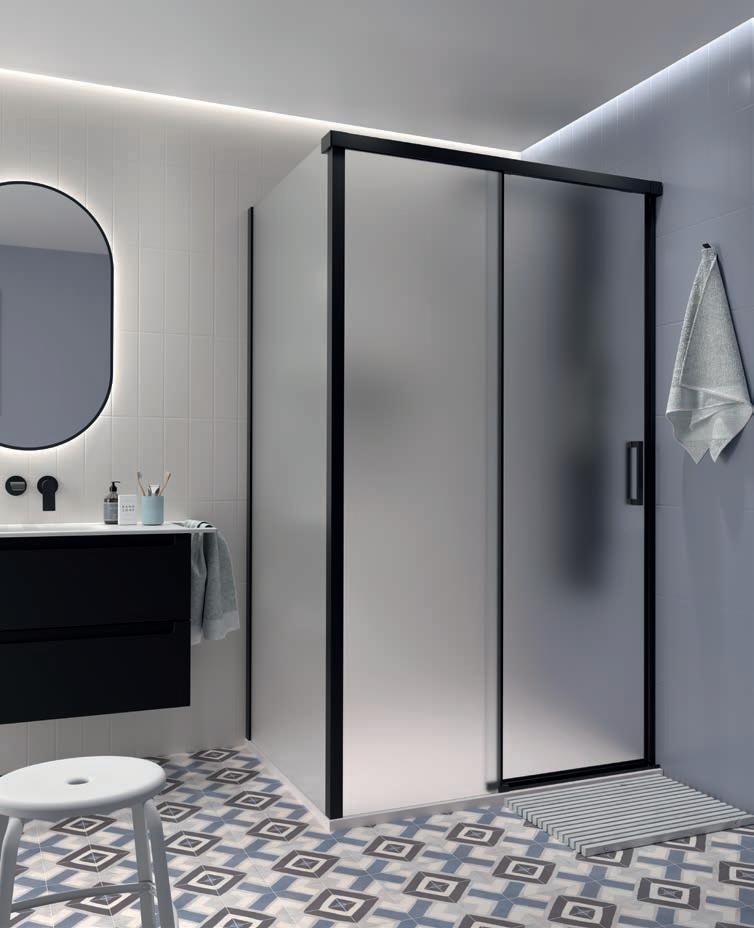

VERSA SERIES

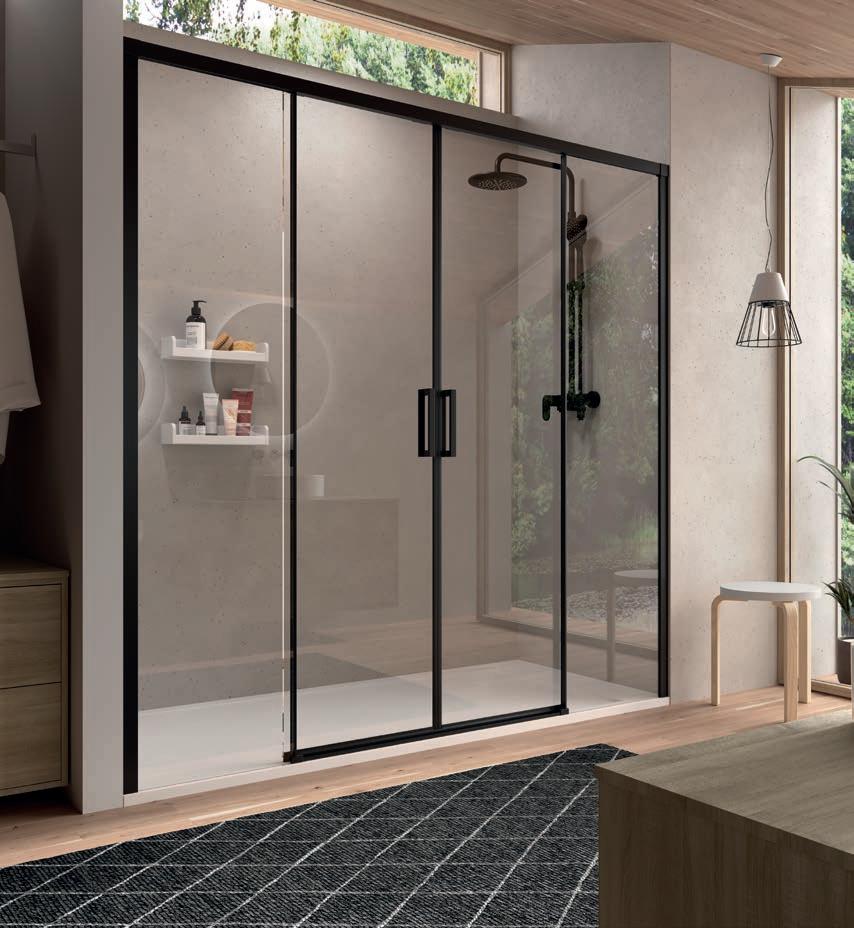

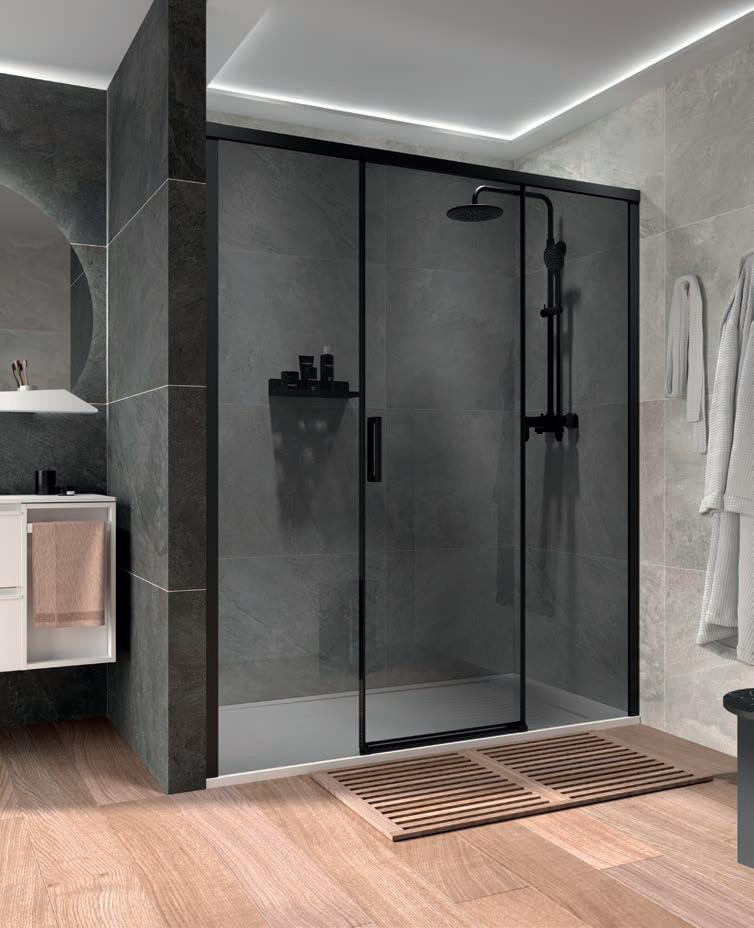

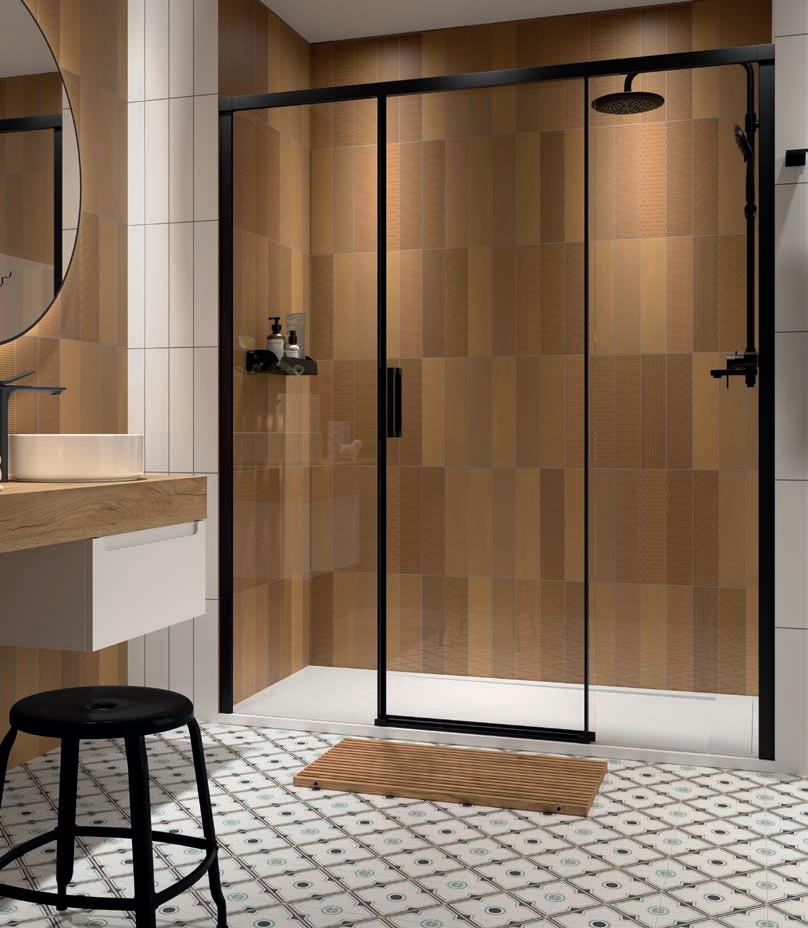

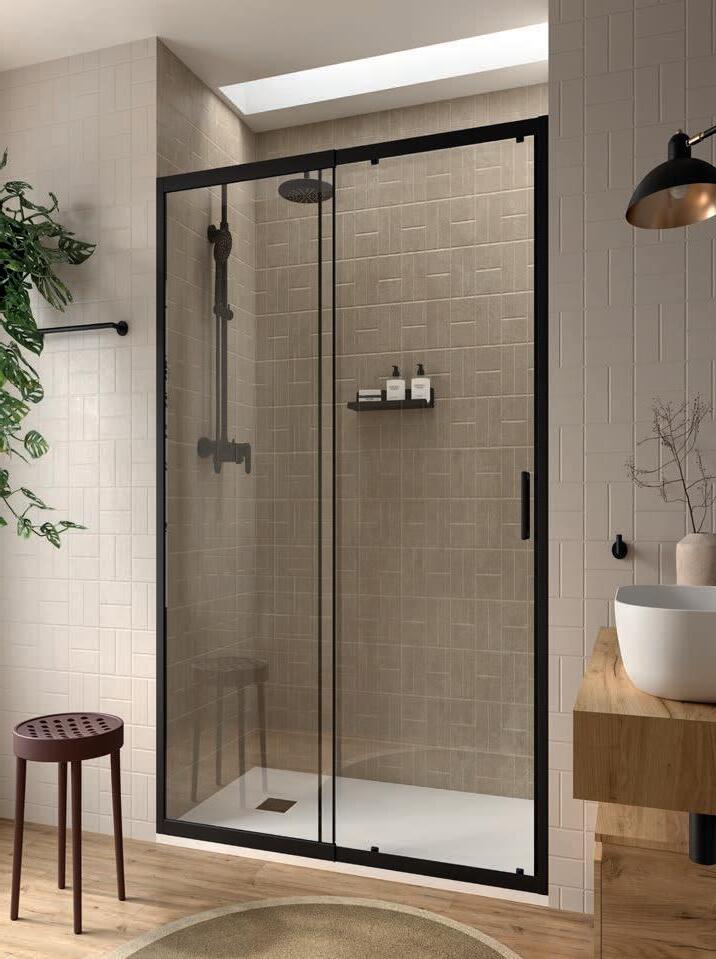

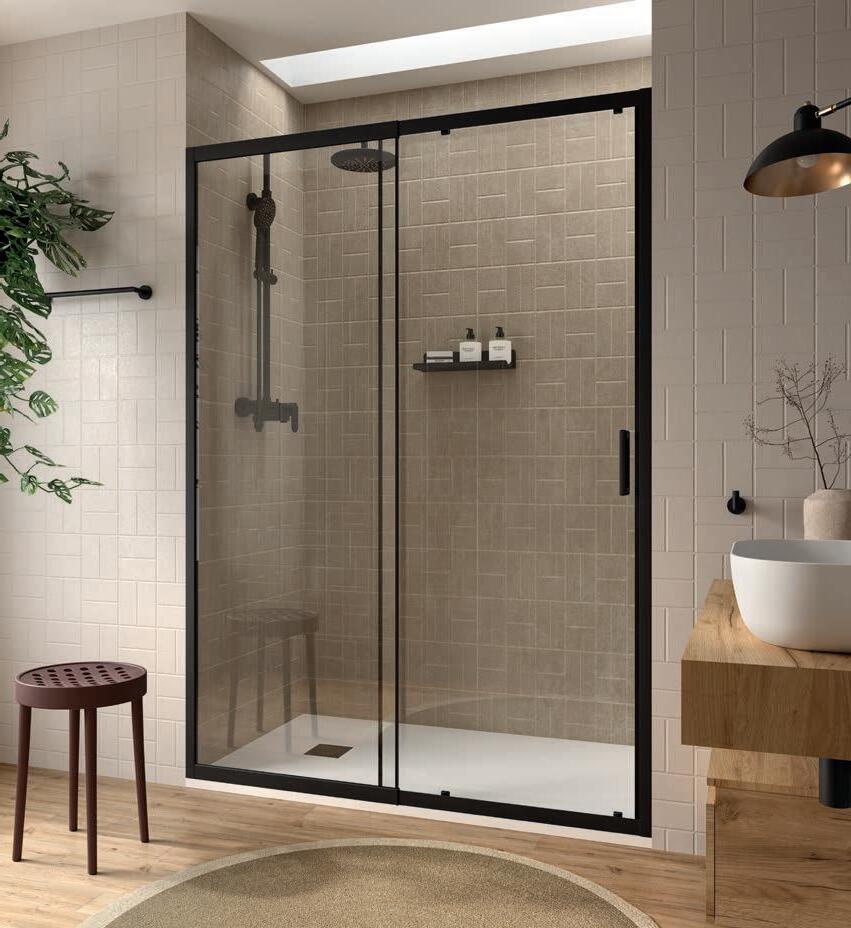

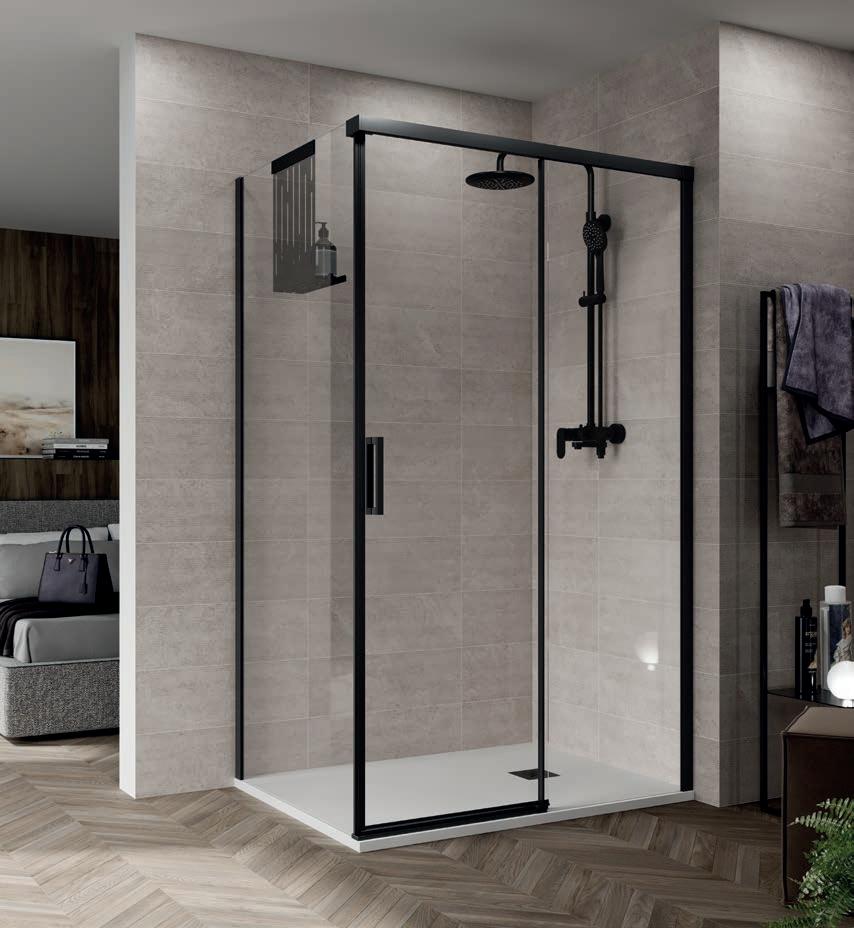

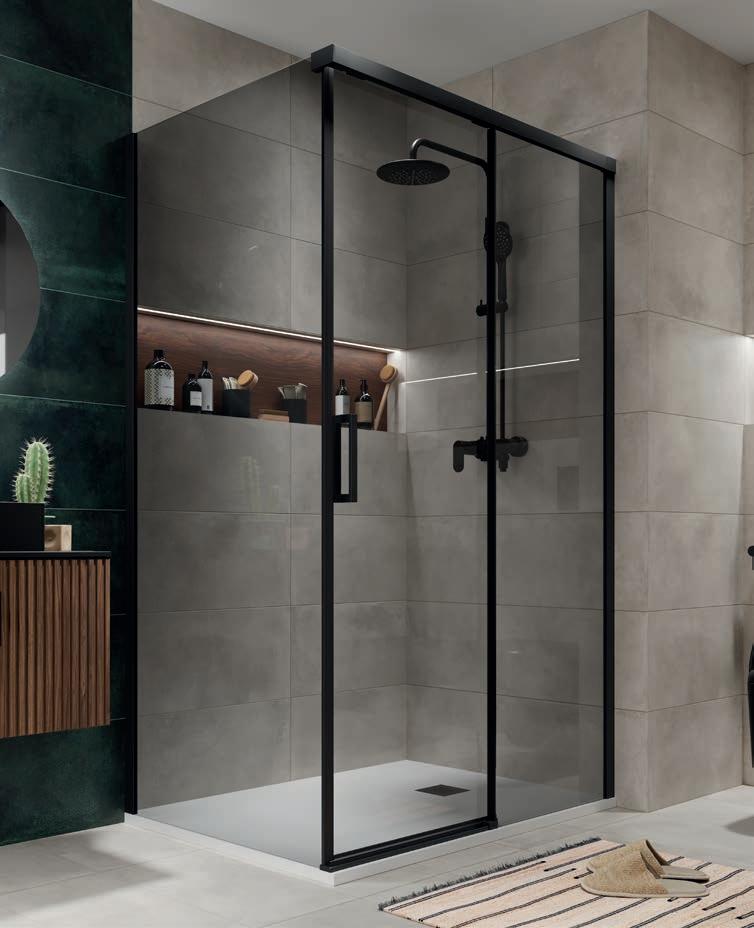

Black front between walls in stock
FC2 SLIDING DOOR/FIXED PANEL
■ 6 mm tempered safety glass.
■ Anti-limescale treatment included.
■ Type of closure, metal profile and 90º magnetic rubber seal.
■ 20 mm compensation for wall unevenness.
■ 20 + 20 mm margin of adaptation
■ Reversible.
■ Easy cleaning system. Door release push button.
■ Double height regulation bearings +2 -2 mm.
■ Lower rubber seal flashing.
■ Double handle.

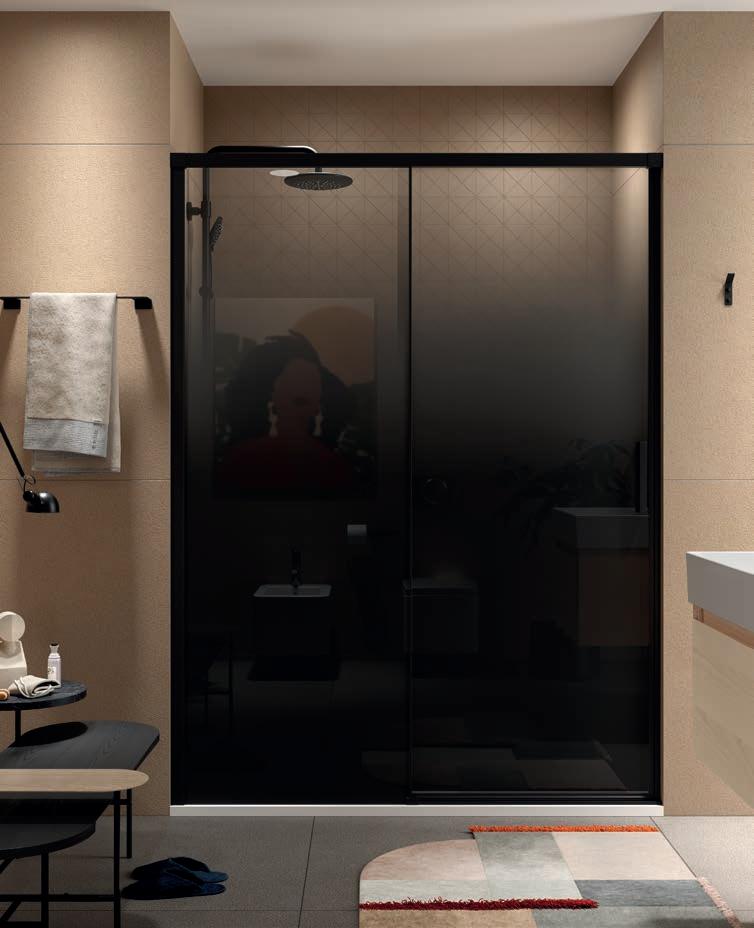

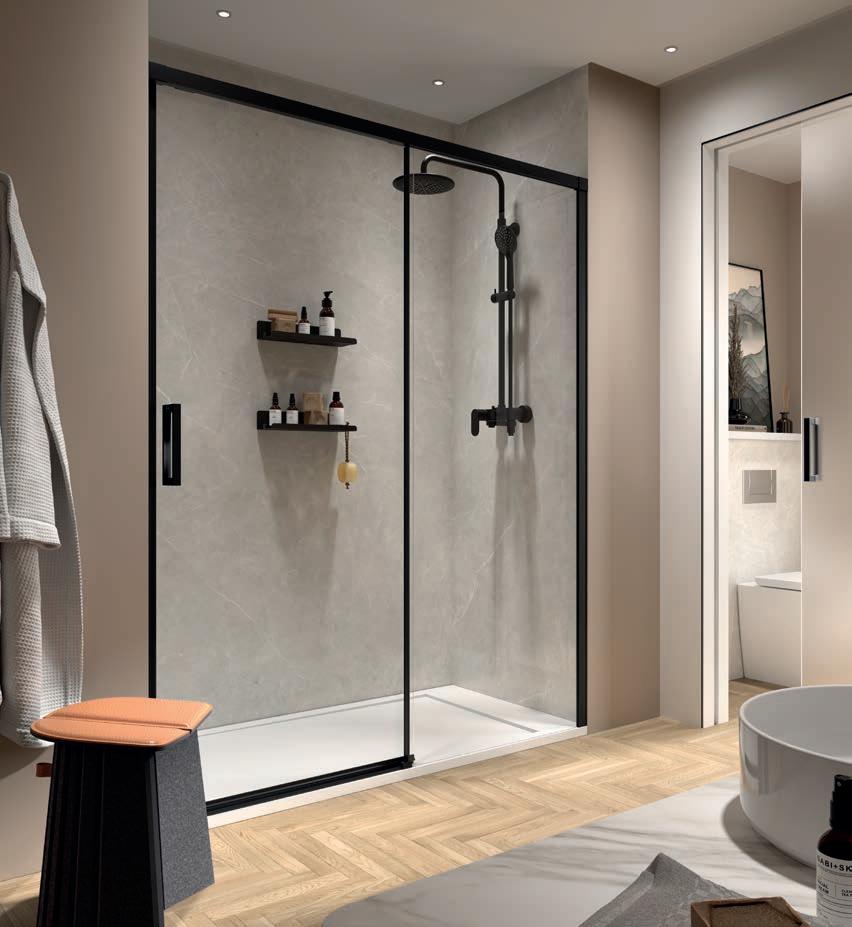

Black front between walls
FC2 SLIDING DOOR/FIXED PANEL
■ 6 mm tempered safety glass.
■ Anti-limescale treatment included.
■ Screen printing corresponds to digital printing with a gradient according to the selected RAL
■ Type of closure, metal profile and 90º magnetic rubber seal.
■ 20 mm compensation for wall unevenness.
■ 20 + 20 mm margin of adaptation.
■ Reversible for Fumé finish.
■ Easy cleaning system. Door release push button.
■ Double height regulation bearings +2 -2 mm.
■ Lower rubber seal flashing.
■ Double handle.
■ 6 mm tempered safety glass.
■ Anti-limescale treatment included.
■ Type of closure, 90º magnetic rubber seals.
■ 20 / 20 mm compensation for wall unevenness.
■ 20 + 20 / 20 mm margin of adaptation.
■ Reversible.
■ Easy cleaning system. Door release push button.
■ Double height regulation bearings +2 -2 mm.
■ Lower rubber seal flashing.
■ Double handle.
■ 6 mm tempered safety glass.
■ Anti-limescale treatment included.
■ Screen printing corresponds to digital printing with a gradient according to the selected RAL
■ Type of closure, 90º magnetic rubber seals.
■ 20 / 20 mm compensation for wall unevenness.
■ 20 + 20 / 20 mm margin of adaptation.
■ Reversible for Fumé finish.
■ Easy cleaning system. Door release push button.
■ Double height regulation bearings +2 -2 mm.
■ Lower rubber seal flashing.
■ Double handle.
■ 6 mm tempered safety glass.
■ Anti-limescale treatment included.
■ Type of closure, 90º magnetic rubber seals.
■ 20 / 20 mm compensation for wall unevenness.
■ 20 + 20 / 20 mm margin of adaptation.
■ Reversible.
■ Easy cleaning system. Door release push button.
■ Double height regulation bearings +2 -2 mm.
■ Lower rubber seal flashing.
■ Double handle.
■ 6 mm tempered safety glass.
■ Anti-limescale treatment included.
■ Screen printing corresponds to digital printing with a gradient according to the selected RAL
■ Type of closure, 90º magnetic rubber seals.
■ 20 / 20 mm compensation for wall unevenness.
■ 20 + 20 / 20 mm margin of adaptation.
■ Reversible for Fumé finish.
■ Easy cleaning system. Door release push button.
■ Double height regulation bearings +2 -2 mm.
■ Lower rubber seal flashing.
■ Double handle.
■ 6 mm tempered safety glass.
■ Anti-limescale treatment included.
■ Type of closure, metal profile and 90º magnetic rubber seal.
■ 20 / 20 mm compensation for wall unevenness.
■ Margin of adaptation 20 + 20 / 20 mm.
■ Reversible.
■ Easy cleaning system. Door release push button.
■ Double height regulation bearings +2 -2 mm.
■ Lower rubber seal flashing.
■ Double handle.
■ 6 mm tempered safety glass.
■ Anti-limescale treatment included.
■ Screen printing corresponds to digital printing with a gradient according to the selected RAL
■ Type of closure, metal profile and 90º magnetic rubber seal.
■ 20 / 20 mm compensation for wall unevenness.
■ Margin of adaptation 20 + 20 / 20 mm.
■ Reversible for Fumé finish.
■ Easy cleaning system. Door release push button.
■ Double height regulation bearings +2 -2 mm.
■ Lower rubber seal flashing.
■ Double handle.
■ 6 mm tempered safety glass.
■ Anti-limescale treatment included.
■ Type of closure, metal profile and 90º magnetic rubber seal.
■ 20 / 20 mm compensation for wall unevenness.
■ Margin of adaptation 20 + 20 / 20 mm.
■ Reversible.
■ Easy cleaning system. Door release push button.
■ Double height regulation bearings +2 -2 mm.
■ Lower rubber seal flashing.
■ Double handle.
■ 6 mm tempered safety glass.
■ Anti-limescale treatment included.
■ Screen printing corresponds to digital printing with a gradient according to the selected RAL
■ Type of closure, metal profile and 90º magnetic rubber seal.
■ 20 / 20 mm compensation for wall unevenness.
■ Margin of adaptation 20 + 20 / 20 mm.
■ Reversible for Fumé finish.
■ Easy cleaning system. Door release push button.
■ Double height regulation bearings +2 -2 mm.
■ Lower rubber seal flashing.
■ Double handle.
VERSA SERIES
Gloss silver front between walls in stock
FC3 SLIDING DOOR/FIXED PANEL/ FIXED PANEL IN LINE
■ 6 mm tempered safety glass.
■ Anti-limescale treatment included.
■ Type of closure, overlap rubber seal.
■ 20 + 20 mm compensation for wall unevenness.
■ 20 + 20 mm margin of adaptation.
■ Reversible.
■ Easy cleaning system. Door release push button.
■ Double height regulation bearings +2 -2 mm.
■ Lower rubber seal flashing.
■ Double handle.
■ 6 mm tempered safety glass.
■ Anti-limescale treatment included.
■ Screen printing corresponds to digital printing with a gradient according to the selected RAL
■ Type of closure, overlap rubber seal.
■ 20 + 20 mm compensation for wall unevenness.
■ 20 + 20 mm margin of adaptation.
■ Reversible for Fumé finish.
■ Easy cleaning system. Door release push button.
■ Double height regulation bearings +2 -2 mm.
■ Lower rubber seal flashing.
■ Double handle.
VERSA SERIES
Black front between walls in stock
FC3 SLIDING DOOR/FIXED PANEL/ FIXED PANEL IN LINE
■ 6 mm tempered safety glass.
■ Anti-limescale treatment included.
■ Type of closure, overlap rubber seal.
■ 20 + 20 mm compensation for wall unevenness.
■ 20 + 20 mm margin of adaptation.
■ Reversible.
■ Easy cleaning system. Door release push button.
■ Double height regulation bearings +2 -2 mm.
■ Lower rubber seal flashing.
■ Double handle.
■ 6 mm tempered safety glass.
■ Anti-limescale treatment included.
■ Screen printing corresponds to digital printing with a gradient according to the selected RAL
■ Type of closure, overlap rubber seal.
■ 20 + 20 mm compensation for wall unevenness.
■ 20 + 20 mm margin of adaptation.
■ Reversible for Fumé finish.
■ Easy cleaning system. Door release push button.
■ Double height regulation bearings +2 -2 mm.
■ Lower rubber seal flashing.
■ Double handle.

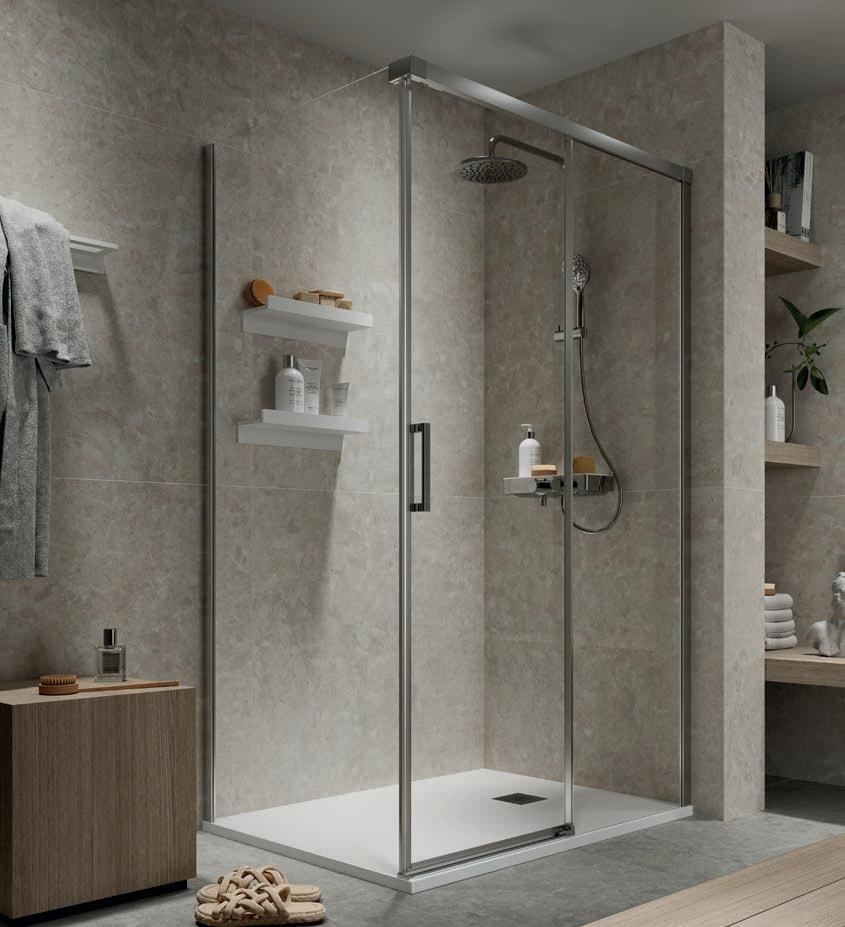

VERSA SERIES
Gloss silver front with fixed
panel in stock
FC3 + LC1 SLIDING DOOR/FIXED PANEL/FIXED PANEL IN LINE + FIXED SIDE PANEL
■ 6 mm tempered safety glass.
■ Anti-limescale treatment included.
■ Type of closure, overlap rubber seal.
■ 20 / 20 mm compensation for wall unevenness.
■ 20 + 20 / 20 mm margin of adaptation.
■ Reversible.
■ Easy cleaning system. Door release push button.
■ Double height regulation bearings +2 -2 mm.
■ Lower rubber seal flashing.
■ Double handle.
■ 6 mm tempered safety glass.
■ Anti-limescale treatment included.
■ Screen printing corresponds to digital printing with a gradient according to the selected RAL
■ Type of closure, overlap rubber seal.
■ 20 / 20 mm compensation for wall unevenness.
■ 20 + 20 / 20 mm margin of adaptation.
■ Reversible for Fumé finish.
■ Easy cleaning system. Door release push button.
■ Double height regulation bearings +2 -2 mm.
■ Lower rubber seal flashing.
■ Double handle.

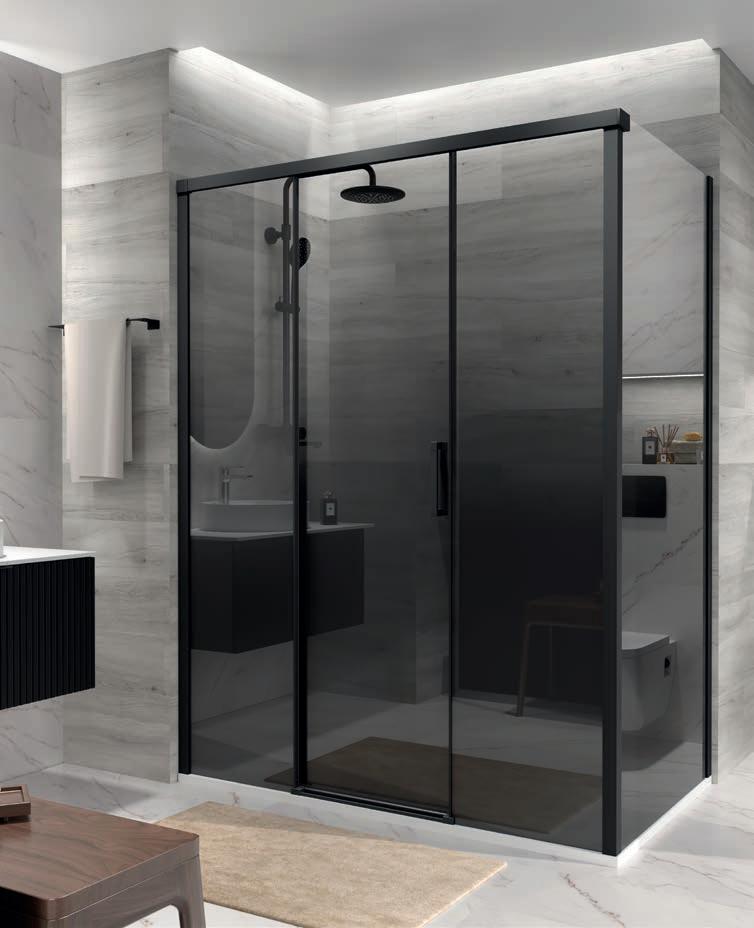

VERSA SERIES

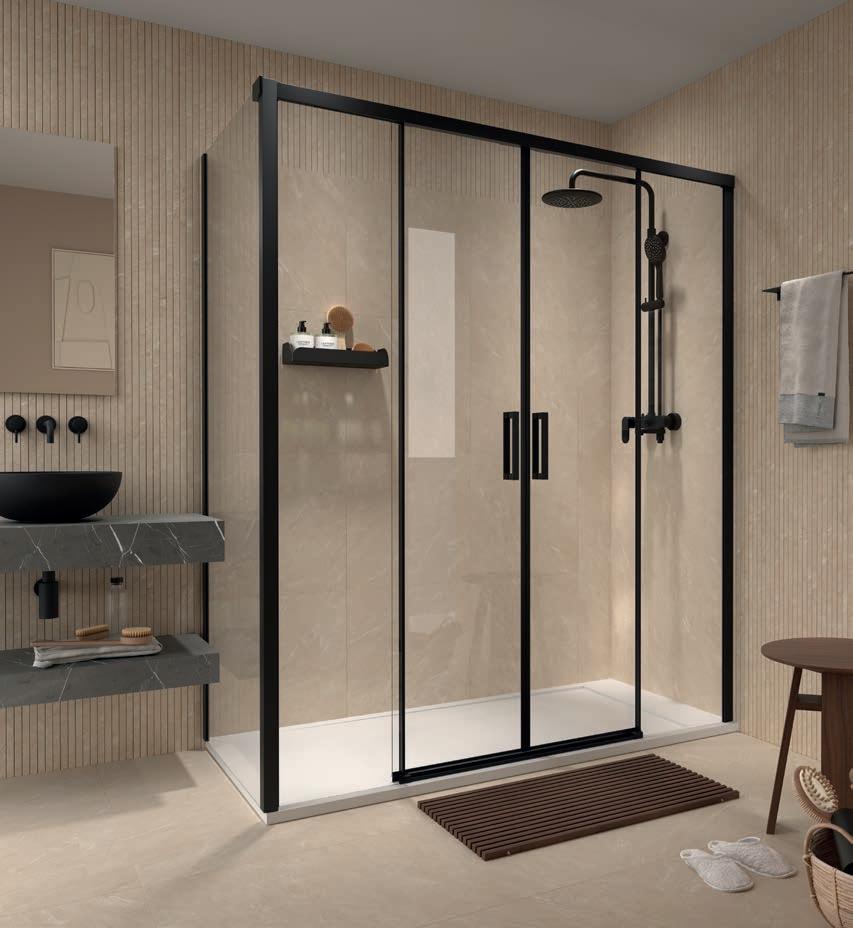

Black front with
+ LC1 SLIDING DOOR/FIXED PANEL/FIXED PANEL IN LINE + FIXED SIDE PANEL
■ 6 mm tempered safety glass.
■ Anti-limescale treatment included.
■ Type of closure, overlap rubber seal.
■ 20 / 20 mm compensation for wall unevenness.
■ 20 + 20 / 20 mm margin of adaptation.
■ Reversible.
■ Easy cleaning system. Door release push button.
■ Double height regulation bearings +2 -2 mm.
■ Lower rubber seal flashing.
■ Double handle.
■ 6 mm tempered safety glass.
■ Anti-limescale treatment included.
■ Screen printing corresponds to digital printing with a gradient according to the selected RAL
■ Type of closure, overlap rubber seal.
■ 20 / 20 mm compensation for wall unevenness.
■ 20 + 20 / 20 mm margin of adaptation.
■ Reversible for Fumé finish.
■ Easy cleaning system. Door release push button.
■ Double height regulation bearings +2 -2 mm.
■ Lower rubber seal flashing.
■ Double handle.

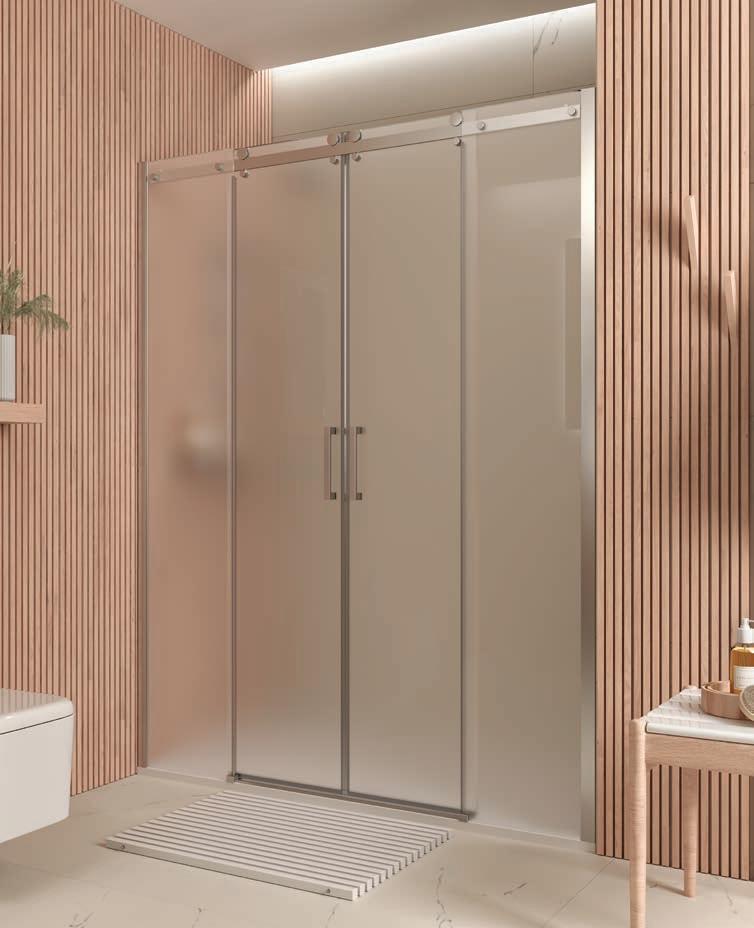

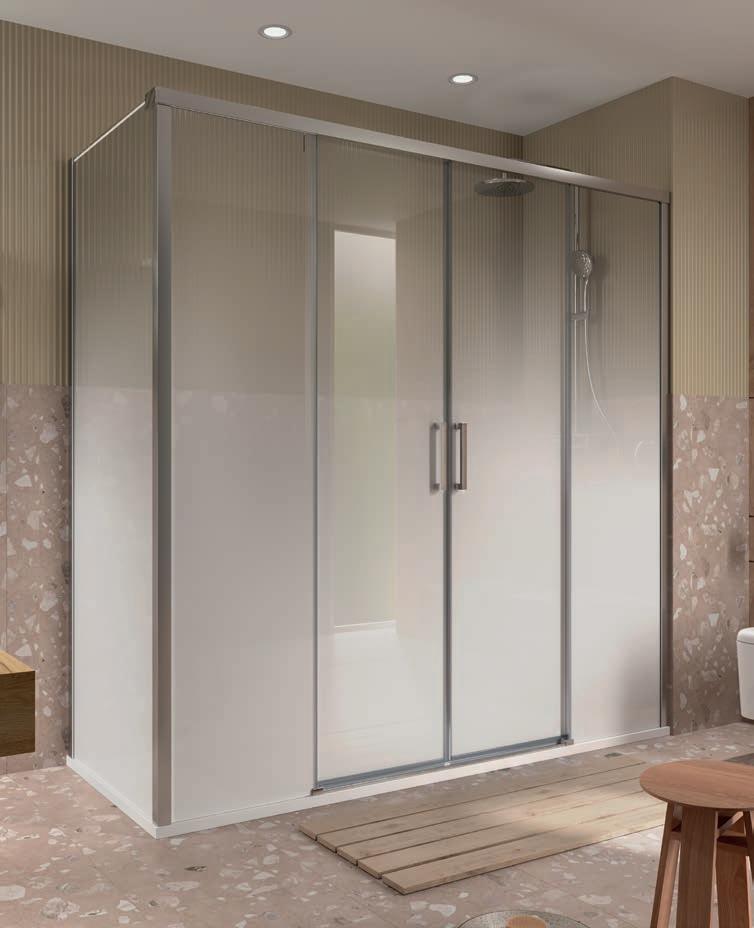

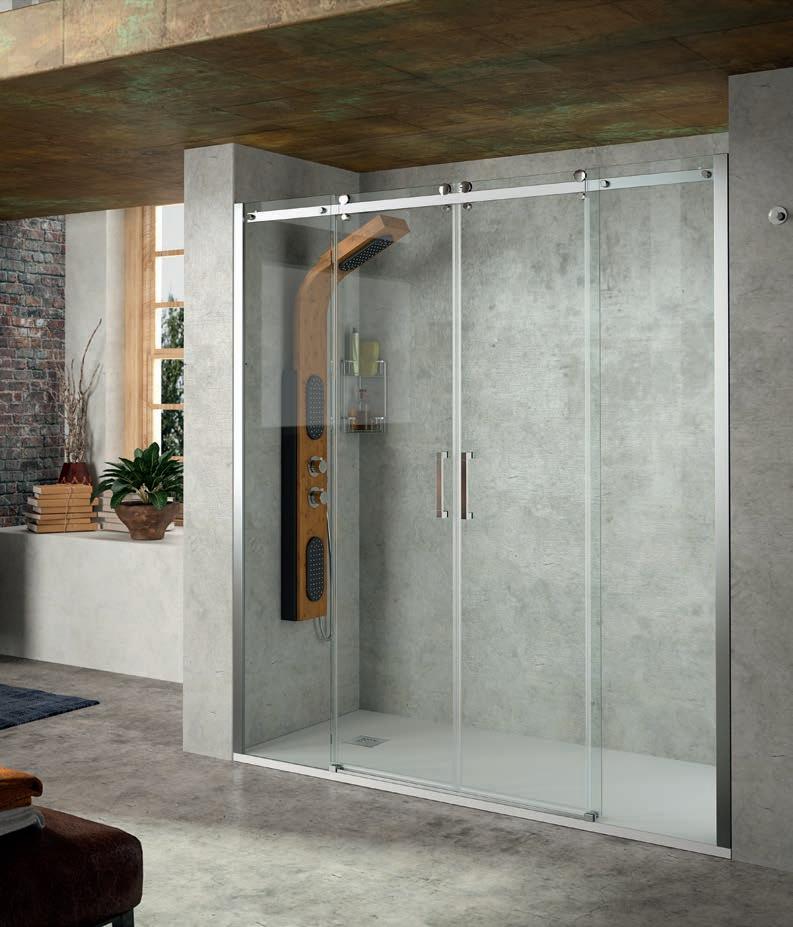

FC4 2 SLIDING DOORS 2 FIXED PANELS
■ 6 mm tempered safety glass.
■ Anti-limescale treatment included.
■ Type of closure, 90º magnetic rubber seals.
■ 20 + 20 mm compensation for wall unevenness.
■ 20 + 20 mm margin of adaptation.
■ Reversible.
■ Easy cleaning system. Door release push button.
■ Double height regulation bearings +2 -2 mm.
■ Lower rubber seal flashing.
■ Double handle.
1820 - 1860 763 30 + 30 1950 3
NOTE: Upper guide cut max 600 mm
silver front between walls
2 SLIDING DOORS 2 FIXED PANELS
■ 6 mm tempered safety glass.
■ Anti-limescale treatment included.
■ Screen printing corresponds to digital printing with a gradient according to the selected RAL
■ Type of closure, 90º magnetic rubber seals.
■ 20 + 20 mm compensation for wall unevenness.
■ 20 + 20 mm margin of adaptation.
■ Reversible.
■ Easy cleaning system. Door release push button.
■ Double height regulation bearings +2 -2 mm.
■ Lower rubber seal flashing.
■ Double handle.
2 SLIDING DOORS 2 FIXED PANELS
■ 6 mm tempered safety glass.
■ Anti-limescale treatment included.
■ Type of closure, 90º magnetic rubber seals.
■ 20 + 20 mm compensation for wall unevenness.
■ 20 + 20 mm margin of adaptation.
■ Reversible.
■ Easy cleaning system. Door release push button.
■ Double height regulation bearings +2 -2 mm.
■ Lower rubber seal flashing.
■ Double handle.
1820 - 1860 763 30 + 30 1950 3
NOTE: Upper guide cut max 600 mm
VERSA SERIES
Black front between walls
FC4 2 SLIDING DOORS 2 FIXED PANELS
■ 6 mm tempered safety glass.
■ Anti-limescale treatment included.
■ Screen printing corresponds to digital printing with a gradient according to the selected RAL
■ Type of closure, 90º magnetic rubber seals.
■ 20 + 20 mm compensation for wall unevenness.
■ 20 + 20 mm margin of adaptation.
■ Reversible.
■ Easy cleaning system. Door release push button.
■ Double height regulation bearings +2 -2 mm.
■ Lower rubber seal flashing.
■ Double handle.
838
■ 6 mm tempered safety glass.
■ Anti-limescale treatment included.
■ Type of closure, 90º magnetic rubber seals.
■ 20 / 20 mm compensation for wall unevenness.
■ 20 + 20 / 20 mm margin of adaptation.
■ Reversible for Fumé finish.
■ Easy cleaning system. Door release push button.
■ Double height regulation bearings +2 -2 mm.
■ Lower rubber seal flashing.
■ Double handle.
■ 6 mm tempered safety glass.
■ Anti-limescale treatment included.
■ Screen printing corresponds to digital printing with a gradient according to the selected RAL
■ Type of closure, 90º magnetic rubber seals.
■ 20 / 20 mm compensation for wall unevenness.
■ 20 + 20 / 20 mm margin of adaptation.
■ Reversible for Fumé finish.
■ Easy cleaning system. Door release push button.
■ Double height regulation bearings +2 -2 mm.
■ Lower rubber seal flashing.
■ Double handle.
■ 6 mm tempered safety glass.
■ Anti-limescale treatment included.
■ Type of closure, 90º magnetic rubber seals.
■ 20 / 20 mm compensation for wall unevenness.
■ 20 + 20 / 20 mm margin of adaptation.
■ Reversible for Fumé finish.
■ Easy cleaning system. Door release push button.
■ Double height regulation bearings +2 -2 mm.
■ Lower rubber seal flashing.
■ Double handle.
■ 6 mm tempered safety glass.
■ Anti-limescale treatment included.
■ Screen printing corresponds to digital printing with a gradient according to the selected RAL
■ Type of closure, 90º magnetic rubber seals.
■ 20 / 20 mm compensation for wall unevenness.
■ 20 + 20 / 20 mm margin of adaptation.
■ Reversible for Fumé finish.
■ Easy cleaning system. Door release push button.
■ Double height regulation bearings +2 -2 mm.
■ Lower rubber seal flashing.
■ Double handle.
■ 6 mm tempered safety glass.
■ Anti-limescale treatment included.
■ Type of closure, 45º magnetic rubber seals.
■ 20 / 20 mm compensation for wall unevenness.
■ 20 + 20 mm margin of adaptation.
■ Reversible.
■ Easy cleaning system. Door release push button.
■ Double height regulation bearings +2 -2 mm.
■ Lower rubber seal flashing.
■ Double handle.
+ AC2 SLIDING DOORS/FIXED PANELS 1/2
■ 6 mm tempered safety glass.
■ Anti-limescale treatment included.
■ Screen printing corresponds to digital printing with a gradient according to the selected RAL
■ Type of closure, 45º magnetic rubber seals.
■ 20 / 20 mm compensation for wall unevenness.
■ 20 + 20 mm margin of adaptation.
■ Reversible for Fumé finish.
■ Easy cleaning system. Door release push button.
■ Double height regulation bearings +2 -2 mm.
■ Lower rubber seal flashing.
■ Double handle.
For Satin and Screen print finishes please inform on which side fixed panel is positionated.
See access tables on page 112
See combinations tables on page 120
VERSA SERIES
Black corner shower enclosure in stock
AC2 + AC2 SLIDING DOORS/FIXED PANELS 1/2
■ 6 mm tempered safety glass.
■ Anti-limescale treatment included.
■ Type of closure, 45º magnetic rubber seals.
■ 20 / 20 mm compensation for wall unevenness.
■ 20 + 20 mm margin of adaptation.
■ Reversible.
■ Easy cleaning system. Door release push button.
■ Double height regulation bearings +2 -2 mm.
■ Lower rubber seal flashing.
■ Double handle.
See access tables on page 112
See combinations tables on page 120
VERSA SERIES
Black corner shower enclosure AC2 + AC2 SLIDING DOORS/FIXED PANELS 1/2
■ 6 mm tempered safety glass.
■ Anti-limescale treatment included.
■ Screen printing corresponds to digital printing with a gradient according to the selected RAL
■ Type of closure, 45º magnetic rubber seals.
■ 20 / 20 mm compensation for wall unevenness.
■ 20 + 20 mm margin of adaptation.
■ Reversible for Fumé finish.
■ Easy cleaning system. Door release push button.
■ Double height regulation bearings +2 -2 mm.
■ Lower rubber seal flashing.
■ Double handle.
For Satin and Screen print finishes please inform on which side fixed panel is positionated.
tables on page 112 See combinations tables on page 120
109829 + 109827 109829 + 109828 109829 + 109829 109829 + 109830 109829 + 109831 109829 + 109832 109829 + 109833 109829 + 109834 109829 + 109835 850 108930 + 109827 108930 + 109828 108930 + 109829 108930 + 109830 108930 + 109831 108930 + 109832 108930 + 109833 108930 + 109834 108930 + 109835
109831 + 109827 109831 + 109828 109831 + 109829 109831 + 109830 109831 + 109831 109831 + 109832 109831 + 109833 109831 + 109834 109831 + 109835
950 109832 + 109827 109832 + 109828 109832 + 109829 109832 + 109830 109832 + 109831 109832 + 109832 109832 + 109833 109832 + 109834 109832 + 109835
109833 +
[Helsinki]
SERIES
Bespoke front between walls 1 SLIDING DOOR / 1 FIXED, BESPOKE
■ 6 mm tempered safety glass.
■ Opening system, sliding door.
■ Closure type, bubble rubber.
■ Offset, 40 mm front / 20 mm fixed side.
■ Reversible, except glass satin.
■ Easy cleaning system
■ Adjustable roller.
Front
1 SLIDING DOOR / 1 FIXED + FIXED SIDE PANEL
Bespoke front with side panel
■ 6 mm tempered safety glass.
■ Opening system, sliding door.
■ Closure type, bubble rubber.
■ Offset, 40 mm front / 20 mm fixed side.
■ Reversible, except glass satin.
■ Height: 1500 - 2000 mm.
■ Adjustable roller.
HELSINKI SERIES
Bespoke front between walls
2 SLIDING DOORS / 2 FIXED
■
■ Opening system, sliding door.
■ Closure type, magnetic rubber.
■ Offset, 20 mm each side.
■ Easy cleaning system
■ Adjustable roller.
2 SLIDING DOORS / 2 FIXED
■ 6 mm tempered safety glass.
■ Opening system, sliding door.
■ Closure type, magnetic rubber.
■ Offset, 20 mm each side.
■ Reversible.
■ Easy cleaning system.
■ Adjustable roller.
Recommended options for our range of shower trays
Angular closure detail
■ 6 mm tempered safety glass.
■ Opening system, sliding door.
■ Closure type, magnetic rubber.
■ Offset, 20 mm each side.
■ Reversible, except glass satin.
■ Easy cleaning system
■ Adjustable roller.
[Habitat II]
FRONT 1 DOOR
FRONT 1 DOOR + FIXED SIDE PANEL
FRONT 1 DOOR + FIXED SIDE PANEL
■
■
■
■
■
HABITAT II SERIES
■
■
■
■
■
■
■
■
■
Gloss
■
■
■
■
■
■
■
■
■
Black
[Odense]
FRONT 1 DOOR
ANGLE 1 DOOR + 1 SIDE FIXED PANEL
FRONT 2 DOORS + 2 FIXED PANELS
ANGLE
DOORS
FRONT IN BETWEEN WALLS, 4 PANELS
■
Combinations for angular Odense collection of two fronts
SPARE PARTS LIST
On our website www.salgar.net click on Shower screens
Once on this page, at the bottom you will find a menu with download options where you will find the option “Spare parts list”.
If you need a spare part of any of our screen showers, due to loss or damage, please follow the instructions below to find it easily and place your order.
ADDITIONAL FITTING PROFILES
Adapt your Salgar shower enclosure to the exact dimensions of your bathroom.
STEPS TO FOLLOW
Please select below the screen series for which you need a spare part (e.g. Helsinki Series). SPARE PARTS
Select any model and size from that series to get into the product-specific screen
Once you have opened or downloaded the pdf file, you will be able to see every single configurations of the selected collection. Choose the exact configuration (frontal, angular...) and identify in the drawing of the screen shower the spare part you need. This number indicates, in the attached table, the product code that you should order.
BEARING HELSINKI 6 MM
ANTI-ROLL HELSINKI
ASSAMBLY SET HELSINKI FRONT
BUBBLE JOINT FOR DOOR CLOSING
TRANSPARENT SLIDING GLASS HELSINKI
HANDLE HELSINKI
AFTER SALES SERVICE
Our Technical Assistance Department is at your disposal to solve any incident as soon as possible.
Zaragoza, 1947
