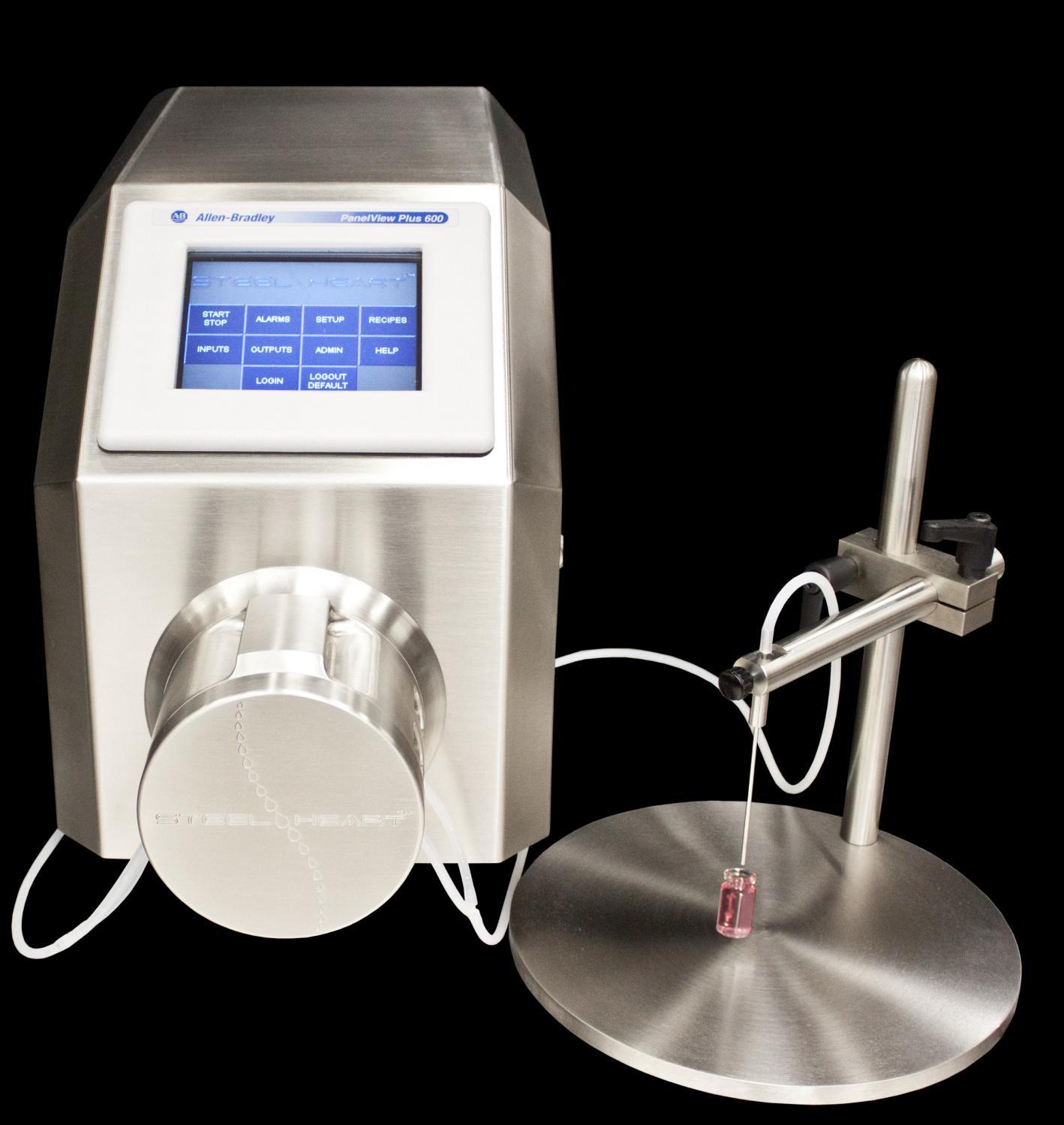

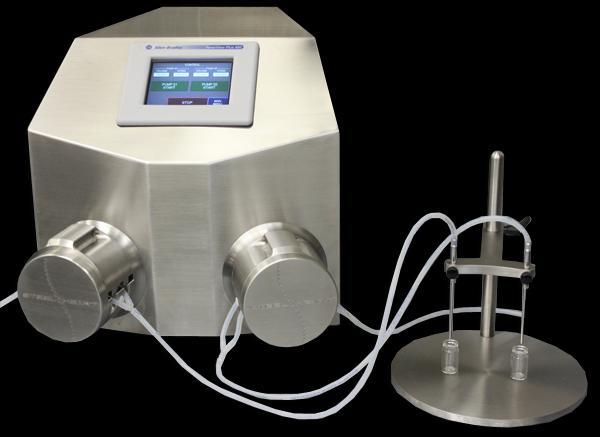

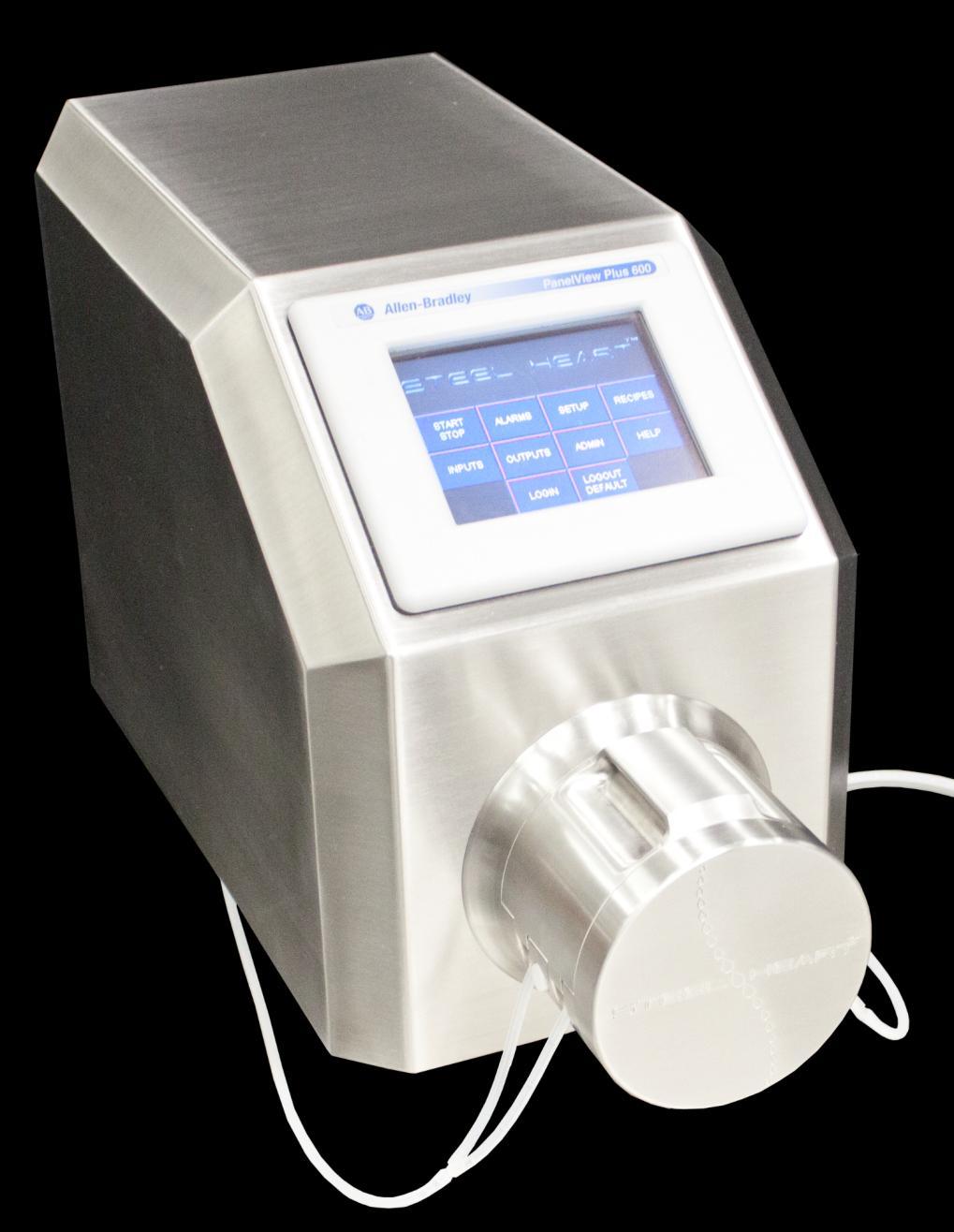

Steelheart Peristaltic Pump

➢ Fill volumes:

• 0.01 ml to 1,000 ml

➢ Filling accuracy expectation*:

• ± 2% (for 0.5 ml to 5 ml)

• ± 1% (for 5ml to 15 ml)

• ± 0.5% (over 15 ml)

High precision volumetric dosage pump

Speed up to 35 BPM

Meets or exceed cGMP regulation

➢ Utilities:

➢ 220Volts

➢ Three phase + Neutral

➢ 60/50Hz

➢ 10 to 25 amp

➢ Air at 100 PSI (6.9 bar)

• Air consumption 20 CFM (566 L/m)

➢ Special requests available

Suitable for ISO 5, Class A & B condition in the pharmaceutical industries

Built in accordance with of North American standards (UL)

Additional Features

➢ Disposable fluid path alleviating cross contamination

➢ Accepts broad range of tube materials and sizes

➢ Servo driven pump

➢ Complete stainless steel 316L construction

➢ Complies with cGMP-US FDA regulations

➢ Fully adapted for clean room environments

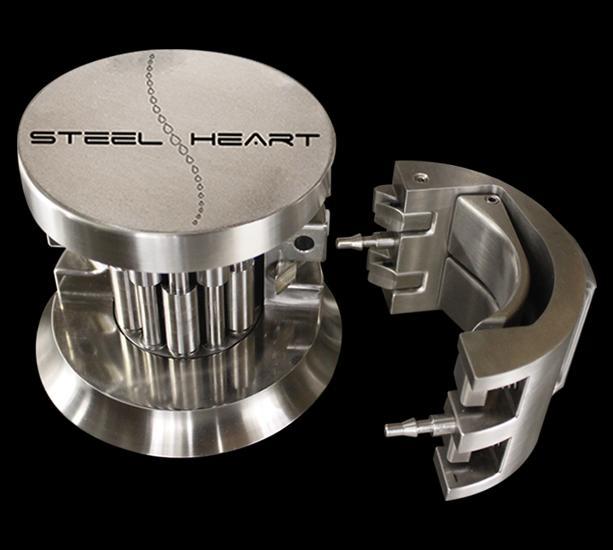

➢ Dual offset stainless-steel rollers to alleviate pulsation

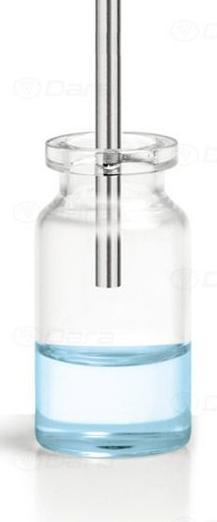

➢ Drip prevention feature “suck back”

Capmatic’s Steelheart accepts any tubing available on the market

From 0.5mm ID to 12mm ID

Patented self-adjusting tube clamping mechanism

Optional Features

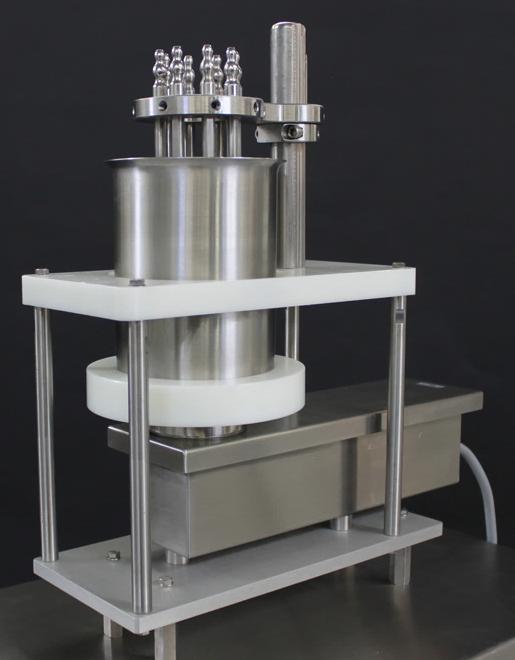

Auto-Compensation

➢ Extend your tubes duration of use

➢ Better plan for downtime

This feature will continuously monitor your filling accuracy via a load cell in order to alert system’s owner of any deviation. As inaccurate fill volumes get automatically rejected, the pump will auto-calibrate and automatically compensate for the low/over fill so production can proceed without interruption or operator intervention.

➢ Monitor and accumulate wear and tear data for your tube replacement schedule

Optional Features

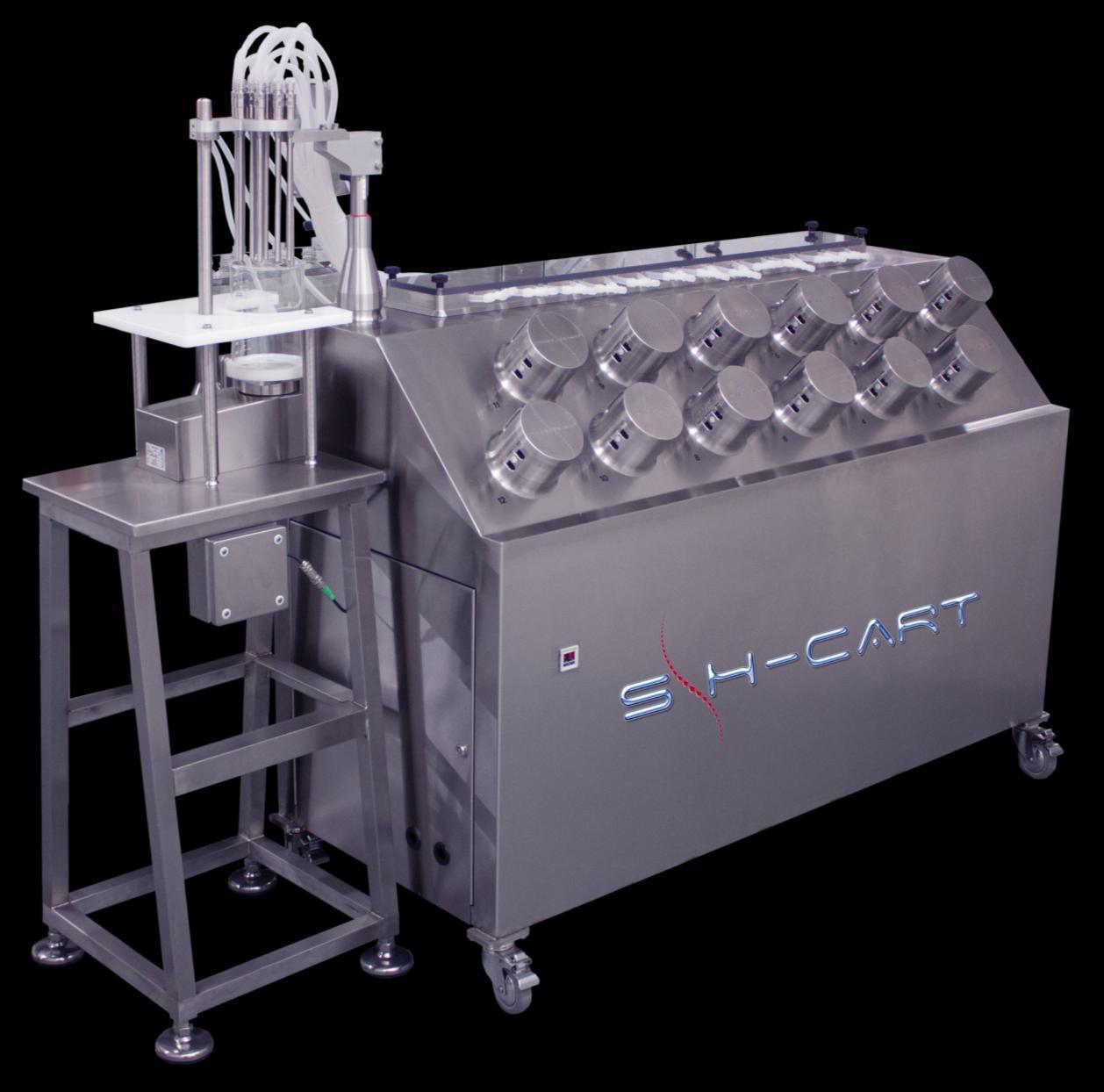

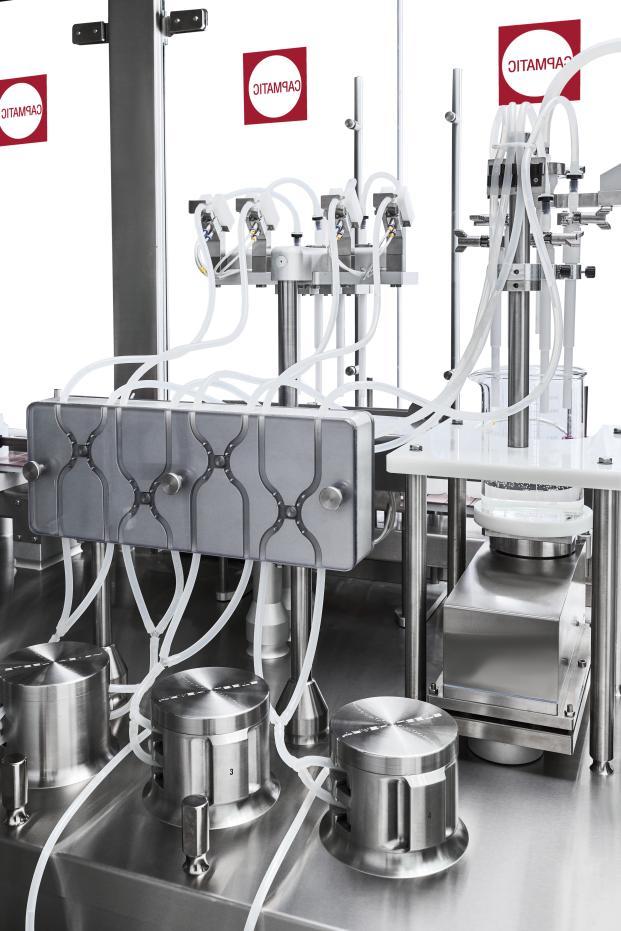

Pump Cart

➢ Pump carts are supplied with a minimum of 4 pumps and go up to 16

➢ Pump carts are designed to be moveable, providing more space around the pumps for maintenance purposes.Also allowing for remote set-up, where in a multiple cart scenario, one cart can be in production while the next one is being staged for next production batch

➢ Capmatic’s pump carts are self-sufficient, meaning that they come with their own HMI and PLC logic to be used without being connected to a filling system, for testing or for manual small batch production

➢ Can be integrated to any filling system (3rd parties acceptable)
