DIGITAL COMMUNICATIONS OVER ETHERNET
DISTRIBUTED IN THE UK & IRELAND EXCLUSIVELY BY CANFORD
DIGITAL COMMUNICATIONS OVER ETHERNET
GREEN-GO DIGITAL INTERCOM SYSTEM
Green-GO is a cost-effective, multi-award winning digital intercom system that transmits audio over an existing Ethernet network; no special wiring needed! Its proprietary design allows for scalability from a small, deployable application up to incredibly complex communication systems ideal for major live events, multi-function performance venues, and broadcast operations, but can be used almost anywhere.
• Reliable: No central matrix, which eliminates a potential single point of failure (whilst also providing a substantial cost saving.)
• Scalable: Start simple and build your way toward an incredibly complex system of up to 400 groups and 3000 users.
• Versatile: Wired and wireless, powered over Ethernet, and packaged with highly configurable, proprietary software which allows for an almost limitless range of possibilities.
WIRELESS COMMS TAKE A MAJOR STRIDE!
Stride represents a huge leap forward for the comms market bringing seamless roaming, greater DECT spectrum efficiency, and increased user mobility - all without affecting the range or the audio quality of devices on the network.

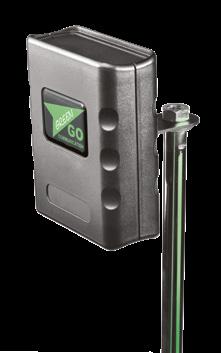

STRIDE ANTENNA, DECT
• Compatible with current WBPX wireless beltpacks
• Seamless roaming (<20ms), beltpacks in a pool can freely move between antennas
• Up to 5 simultaneous WBPX connections per antenna
• Pools with up to 100 wireless beltpacks
• Pools with up to 250 Stride antennas
• User interface with 2.13” e-ink display, weatherproof buttons and RGB LED
• Outdoor rated housing, IP53
• Various mounting options, 3/8”, M10 and VESA
• Extended RF monitor on Wireless beltpack and in Green-GO control

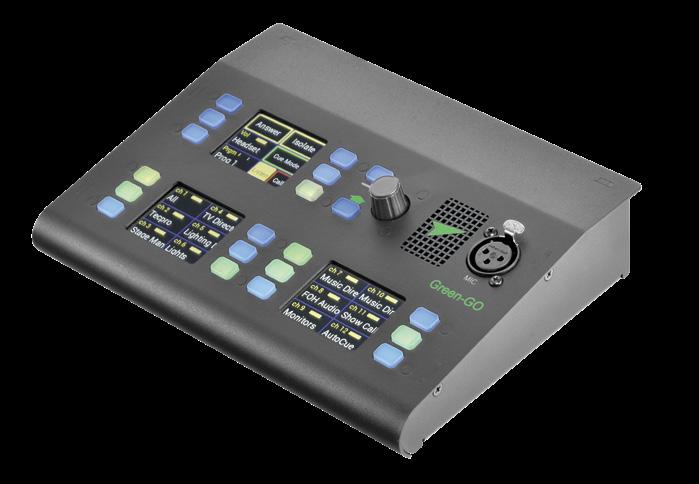

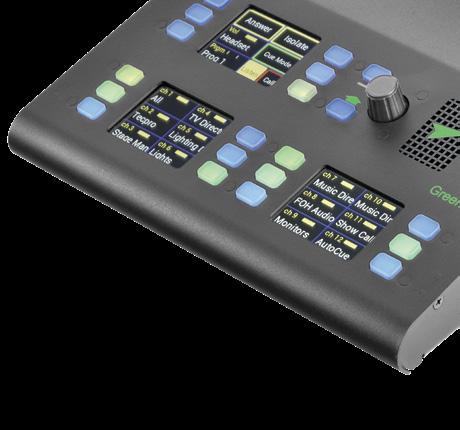

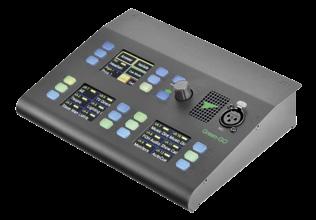

MULTI-CHANNEL MAIN STATIONS
Rackmount and desktop versions
• Compact, ergonomic, extendable
• 36 fields - each assignable as system function or intercom channel
• Multi-function TFT touch screen
• Loudspeaker and headset monitoring
• Analogue In/Out ports and 9-pin GPIO connection
• Cue light system included
• Powered by PoE or optional 12V PSU

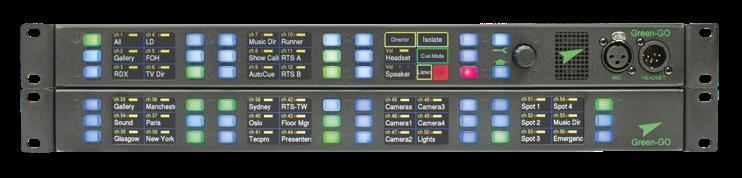

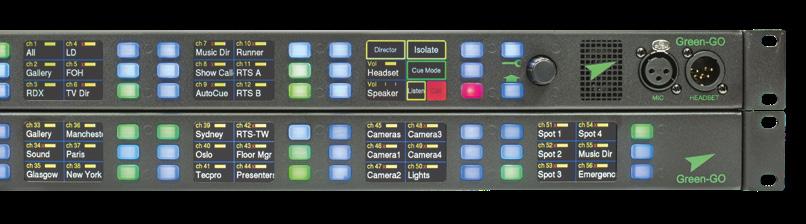

MULTI-CHANNEL EXTENDER UNITS FOR MAIN STATIONS RACK MOUNTING
Rackmount and desktop versions
• 24 Additional intercom channels per extender
• Add up to 9 Extenders can be linked to an GGO-MCX or GGO-MCXD Main Station
• Powered by external 12V PSU only (included)
• Each control field can be populated with an intercom channel
• Four, 6-channel TFT touch screens offer clear, multi-colour viewing
• Ergonomic, multi-colour LED control buttons provide accurate, reliable switching

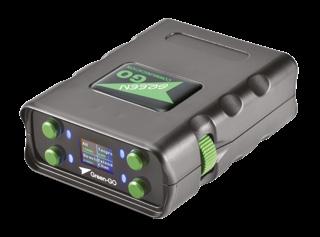

32 CHANNEL WIRED BELTPACK
• Full duplex, high quality audio, low latency
• 32 channel operation
• Instant access to 2, 3 or 4 intercom channels, programmable
• Quick/easy access to 28 extended channels
• Powerful headphone amplifier
• Tough, lightweight ABS case
• Powered by PoE
• Comprehensive feature set
WIRED BELTPACK FOR SPORT
• Weather resistant for outdoor use
• Large, weather-tight buttons suitable for use with gloves
• Bright LCD display screen for viewing in sunlight
• Full duplex, high quality audio, low latency
• 2, 3 and 4 channel operation, selectable
• Quick access to all 32 channels held in memory
• Powered by PoE
THE GREEN-GO DECT WIRELESS SYSTEM
DIGITAL ENHANCED CORDLESS TELECOMMUNICATIONS
The Green-GO DECT wireless devices operate in the 1.9GHz band which is license-free in Europe, Japan and the USA. Operation is full duplex, with clear audio quality, low latency and robust RF coverage. Call-alert and control signals are transmitted between Green-GO wired and wireless devices.
With a similar feature set to their wired counterparts, DECT beltpacks can access the same 32 channels, 250 groups, and 3000 users that wired user stations access.
WBPX DECT WIRELESS BELTPACKS
• Specifications/operation similar to BPX wired beltpack
• Quick release, rechargeable battery
• Mini USB for firmware updates/battery charging
WAA DECT ANTENNA
• Omni-directional RF radiation pattern
• Powered by PoE or via mini USB if PoE not available
• 3/8th thread for mounting on mic stand
DECT WIRELESS BELTPACK FOR SPORT
• Weather resistant for outdoor use
• Large, weather-tight buttons suitable for use with gloves
• Bright LCD display screen for viewing in sunlight
• Full duplex, high audio quality, low latency
• 2, 3 and 4 channel operation, selectable
• Quick access to all 32 channels held in memory
• RF coverage, 50m - 300m depending on environment
• Increase RF range by adding remote antennas
GGO-WAA
• Rechargeable Li-Ion battery - optional 6-way charger
26-742
GGO-WBPXSP SPORTS DECT BELTPACK

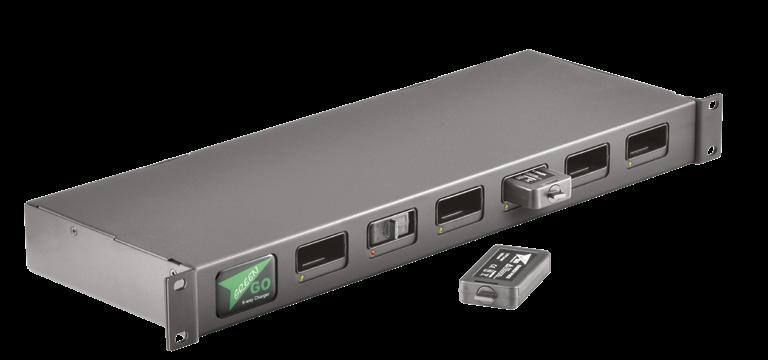

BC6 BATTERY CHARGER, 6-WAY
• Charge up to 6 NRGP batteries simultaneously
• Powered from universal 12V PSU (supplied)
• Status LED for each charging dock
• Space saving 1U format
NRGP RECHARGEABLE 1800MAH LITHIUM-ION BATTERY PACK
• Powers WBPX Wireless Beltpacks
• Designed for rapid swap out
• Around 6 hours use from a full charge

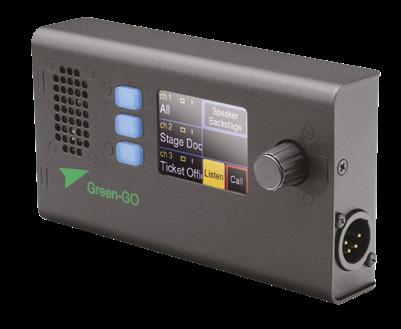

WPX WALL PANEL
• Versatile, compact design with integrated loudspeaker
• For situations where a beltpack is not the best option
• Talk to 3 intercom channels directly using handset or headset
• Simultaneously monitor other intercom channels via the integrated loudspeaker
• Touch sensitive TFT colour display for easy navigation and setup
• Data and PoE are supplied through an RJ45 connector on rear
• Suitable for offices, backstage, green rooms and dressing rooms

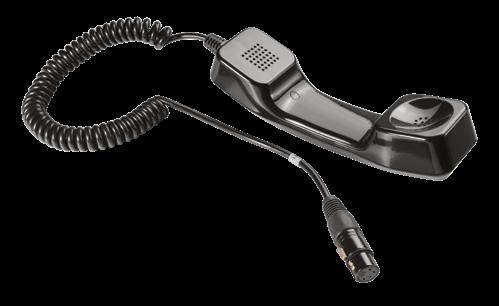

Accessory: HSA05 Telephone Style handset
26-743

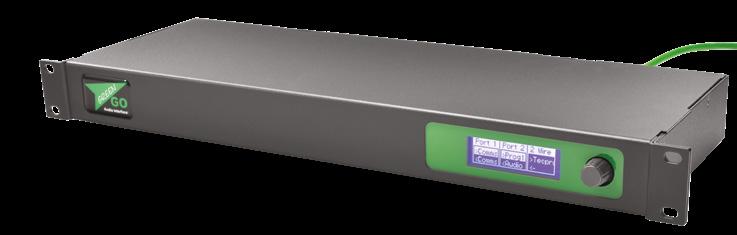

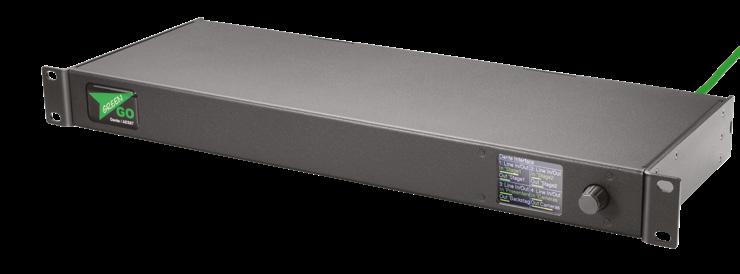

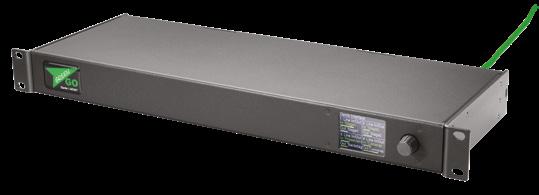

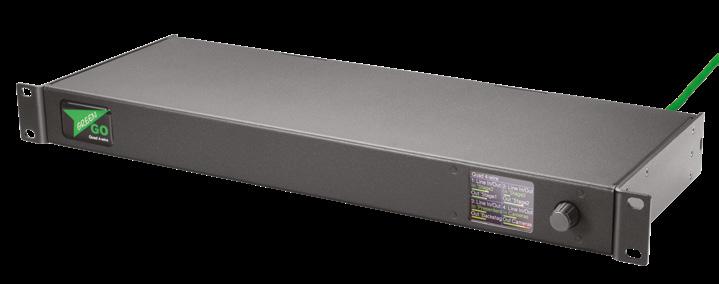

DNTI DANTE INTERFACE
• Streamlines linking Green-GO intercom to Dante audio streams
• Dante audio streams convert to Green-GO protocol within the digital domain
• 4 independent In/Out ports for streaming to and from the Green-GO network
• Manage the four Dante ports with the Dante Controller (download FOC from Audinate website)
• Import and export Program Audio and Show Relay
• Large TFT colour display for easy menu navigation and setup

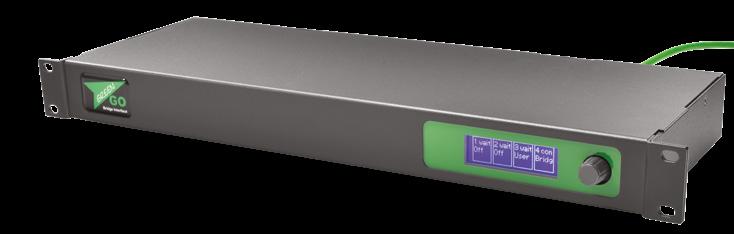

GGO-Q4WR QUAD 4-WIRE INTERFACE
• 4 ports of line level Input/Output on 3-pin XLR connectors
• Connect to any 4-wire device, for example a third party 4-wire matrix intercom
• Pass analogue programme audio or announcements in and out of the Green-GO network
• Audio level adjustment, noise gate and limiting facilities
• Useful test tones for speedy system checks
• 4 General Purpose Inputs and Outputs (GPIO) provide contact closures via 9-Pin D-Subs
26-745
GGO-Q4WR QUAD 4-WIRE INTERFACE
INTERFACEX 2-WIRE/4-WIRE INTERFACE
• Single channel of 2-Wire interface
• Links to Tecpro, Clear-Com, RTS-TW etc.
• 2 independent channels of analogue In/Out
• Two 9-pin GPIO connections for remote triggering
COMPACT 2-WIRE INTERFACE TO ANALOGUE PARTYLINE INTERCOM
Single Channel
• ‘Auto Null’ prevents echoes being generated
• Adjustable noise gate with ‘Threshold’ and ‘Hold’ controls
• Passes DC and AC ‘Call’ alert signals between both comms systems
• Single Green-GO group assignable as send/receive for analogue comms
• Powered by PoE (802.3af-2003 standard)
COMPACT 4-WIRE INTERFACE, ANALOGUE IN/OUT
Single Channel
• Switchable ‘Line In/Out’ and ‘User’ modes
• Adjustable input and output levels
• Switchable limiter with max input level adjustment
• Adjustable noise gate on input
• ‘Programme’ audio dims/mutes when talkback is active – suitable for IFB
• 32 available intercom channels
• Powered by PoE (802.3af-2003 standard)
BRIDGEX
• Connect to systems or users over the internet
• 4 independent data streams
• Audio quality from remote sites is similar to local comms
• Group bridge, allows two Green-GO comms systems to talk over a dedicated group
• Remote user, allows a single Green-GO station or android/IOS device to become a part of a Green-GO system

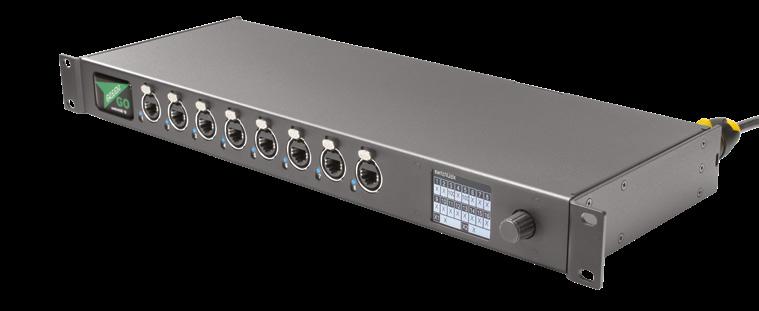

GBX18 POE SWITCH
• Designed for live entertainment
• Avoids overload and saturation due to mixed data protocols
• Easily set up VLAN trunking through fast, redundant loops
• Virtual networks can communicate through a trunking connection
• Eliminates delays and device redundancy
• Rapid bypassing of broken connections
• 16 Ethernet 1GB ports, 8 with PoE, 2 fibre optic SFP cages (2.5Gbps)
• Programmable via front panel menu

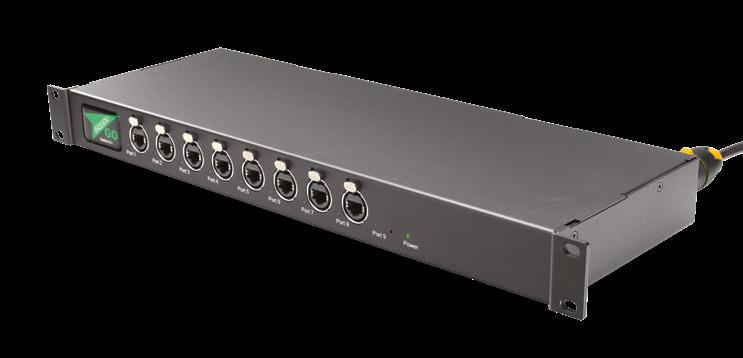

SW81 POE SWITCH
• Ideal for medium sized systems
• Reliably link to local data networks
• Nine 100Mbps ports, eight with PoE
• EtherCON connectors for increased robustness
• Space saving 1U format, silent operation – no fan required

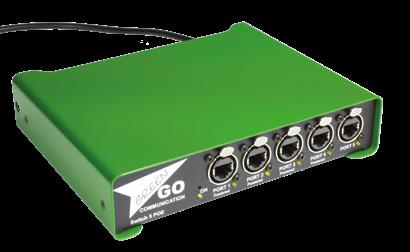

SW5 POE SWITCH
• Ideal for small systems – reliably link to local data networks
• Five 100Mbps ports, four with PoE
• EtherCON connectors for robust cable connection
• Optional rack mount brackets

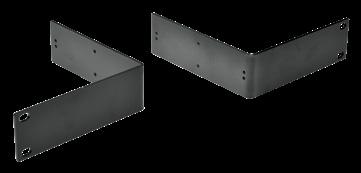

Accessory: GGO-RMDT 1U Rack Mounting Brackets, 19 inch (pair)
BEACON - Call Alert Indication
• Bright RGB LEDs within transparent case
• Simple assignment of Beacon to a group or individual user
• Indicates ‘Call received’, ‘Cue Light’, and Blue ‘Safety’ Light

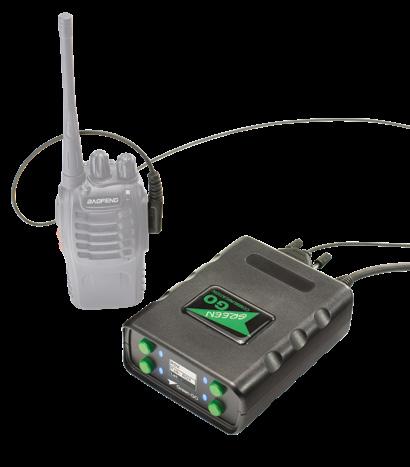

RDX RADIO INTERFACE
• Elegant solution to interface with Walkie-Talkie radios
• Links to a single ‘captive’ Walkie-Talkie transceiver
• Mic input and Headset output provide audio In/Out to RDX
• A-D/D-A conversion and level matching done within RDX interface
• RDX mimics PTT function to trigger ’captive’ transceiver to broadcast
• Virtually unlimited numbers of transceivers can listen on Radio side

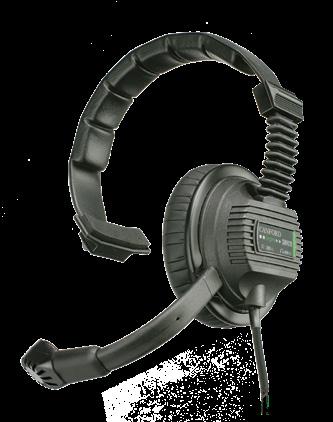

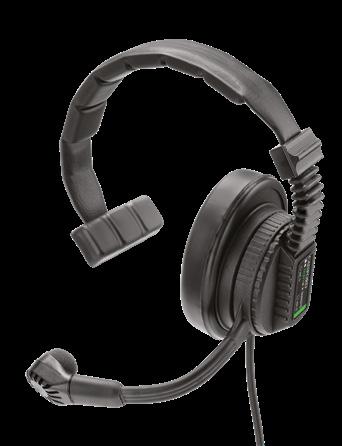

HS200S - HEADSET
Single
ear, 4 pin Female XLR, coiled cable
• The lightweight, comfortable design provides effective isolation
• Manufactured with sound quality in mind
• 10Hz to 22kHz frequency range
• Fitted as standard with a Neutrik 4 pin XLR

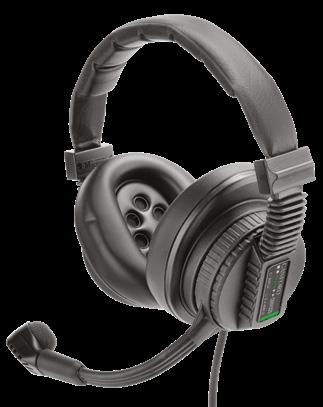

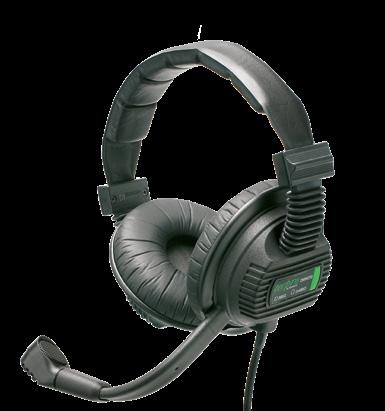

Dual ear version also available: HS200D - Dual ear, 4 pin Female XLR, coiled cable manufactured to the same specification as the HS200S.
26-801 GGO-HS200S
26-802 GGO-HS200D
Bridge-to-Bridge connections (group) allow larger systems to communicate over predefined groups
GGO-RDX
Wired device to Bridges connections (remote user) allow a single device to become a full member of the host system
GGO-SW18GBX
GGO-WBPX
GREEN-GO APPS ON ANDROID AND IOS
Green-GO Control Remote and Talk applications are now available on Android devices alongside iOS. Both apps on both platforms are currently available for free and can be utilised in conjunction with a Green-GO intercom system which is operating on Version 5 software.

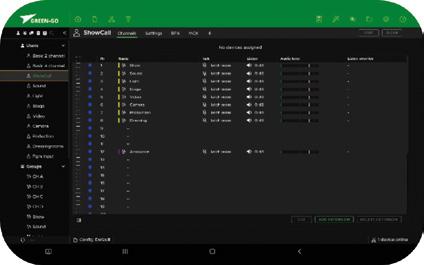

GREEN-GO CONTROL REMOTE
The Control Remote application can be used to access the Green-GO Version 5 software from a secondary device.
When there is a version of Green-GO Control Version 5 running on the network, Control Remote will automatically connect to it and display the interface.
Everything that can be done in the software can now be accessed through the app.
Security is provided via separate, user definable Config and Admin passwords.
• Config: Allows access to join the password protected config.
• Admin: Allows access to amend the password protected config.

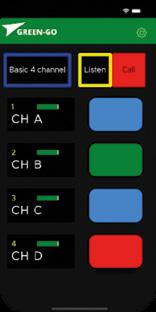

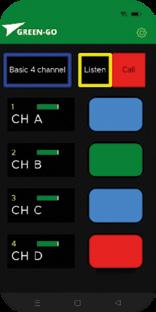

GREEN-GO TALK
The Green-Go Talk application allows a phone or tablet to become a communicable part of a Green-GO Version 5 intercom system.
Per bridge interface, up to four connections can be made over local Wi-Fi and/or wider IPv4 networks from anywhere around the world.
For external connections, “in-over” NAT ruling is typically required to allow connections through the network’s gateway to the bridge interface.
Canford are the exclusive UK and Ireland distributor for Green-GO and we would be delighted to support you with this product range. For all things Green-GO UK please e-mail us at: greengo@canford.co.uk

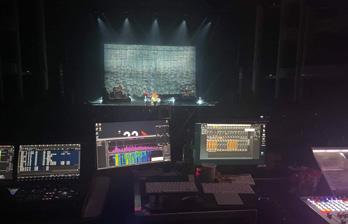

GREEN-GO DANTEX INTERFACE IS KEY FOR INTRICATE TORI AMOS TOUR COMMS
Source: www.greengodigital.com
The US leg Tori Amos’s Ocean to Ocean tour kicked off in West Palm Beach, Florida in June 2023 with a fresh and eclectic setlist, ready to rouse fans across the States. The crew that joined the US leg were armed with an array of Green-GO Digital intercom products as a clear, rock-solid system.
At the heart of the setup was a GreenGO DanteX Interface, which directly converts digital audio streams from Dante to Green-GO and vice-versa without loss of quality.
“The Green-GO DanteX Interface was key to our system,” says Alex Penn, Commercial Director at UK-based 22Live, which supplied a complete
audio system for the Ocean to Ocean tour in both Europe and the US. “The tour was already using an extensive Dante network that covered many jobs including the PA returns, and shared stage racks for both the FOH and Monitor mixing consoles.
“Utilising the DanteX Interface enabled the comms to be seen by the desks, which in turn meant that the comms can be routed either to IEM packs on stage which are also used by the crew in prep and also sent to the loudspeakers if so desired as a shout style system.”
The crew were kitted out with 6 Green-GO Beltpack X units, allowing communication over 32 available
channels, a program audio channel, and an extra channel for direct user communication. Through this, the team can talk to multiple groups or directly – and privately – to other users. Two Green-GO Beacon call indicator units were located with Miles Barton, PA and FOH System Technician, and Andy Yates, Stage, and Monitor technician, which light up when receiving comms from other key team members, allowing them to direct a reply to the designated group in the venue. All Green-GO products were supplied to the tour by 22Live, sourced from Green-GO’s exclusive UK and Ireland distributor, Canford Audio Ltd.
“We like Green-GO because the kit is fast becoming standard and widely used, which makes it a known quantity to many, and also enables easy to sub hire additions if required,” adds Penn. “They are good value for money, reliable and flexible.”
System tech for the tour, Miles Barton, comments: “The addition of the GreenGO comms system to the 2023 Ocean
to Ocean tour has been another upgrade which has allowed us to push the boundaries of what we’re doing further forwards. Comms are a small part of the overall package but it has made a big difference to us on the tour with us now sharing a system between sound, light, and stage, enabling further improvement to our day-to-day service to the tour.”
Tori Amos’s Ocean to Ocean tour meandered through the entire United States during June and July 2023, visiting cities including Seattle, San Francisco, and St Louis.
FREQUENTLY ASKED QUESTIONS
Does Green-GO have a central matrix like most other systems?
No, Green-GO works on a decentralised workflow which means the smallest system comprises of 2 wired beltpacks and a PoE switch, scaling up and adapting from there to suit requirements.
Is there a way to program the system offline?
Yes, Green-GO Control software offers a comprehensive and visual way to program your system both off and online.
How do I pair a wireless belt pack to an antenna?
There are two ways to pair beltpacks to antennas, “OTA” both devices are put into a pairing mode and connect wirelessly. “Pools” Devices are connected to a computer and configured using the control software, Pools also allows for beltpacks to “roam” between multiple antenna placements.
How do I update the firmware of devices?
All devices are updated via the control software, ethernet devices should be found in the “network tab” and wireless beltpacks should be under the “USB” tab once connected to the computer via USB.
Can I put Green-GO on my own IT network and does is need special switches?
Green-GO will sit comfortably on most networks with consideration for bandwidth and QoS where necessary. Green-GO’s PoE switches offer a very reliable AV orientated option.
WHERE CAN I HIRE GREEN-GO?
NORTH
ADLIB AUDIO LIMITED
Liverpool
e: hiredesk@adlib.co.uk
t: 0151 486 2214
AV Matrix Ltd
Wetherby
e: info@av-matrix.com
t: 0193 784 4320
Fac365 Ltd
Heywood, Greater Manchester
e: hire@fac365.com
t: 0161 205 0511
Firefly Audio Visual
Solutions Ltd
Leeds
e: hire@fireflyav.co.uk
t: 0113 332 0042
KEYTEQ PRESENTATIONS
Altrincham, Cheshire
e: jo@keyteq.com
t: 0161 941 6469
Solotech UK Group Limited
T/A SSE Audio
Heywood, Greater Manchester
e: uk.groupsales@solotech.com
t: 0300 373 5400
Sterling Event Group Limited
Manchester
e: hire@sterlingeventgroup.co.uk
t: 0161 436 4444
Sync Production
Salford, Lancs
e: dave@syncproduction.co.uk
t: 0161 260 0214
TUBE UK LTD
Manchester
e: projects@tubeuk.com
t: 0345 890 9990
Universal AV Services Ltd
Keighley
e: operations@universal-live.com
t: 0127 420 0292
MIDLANDS
ATC
Birmingham
e: atcmidlands@atcomms.co.uk
t: 0182 730 1010
DMX Productions Limited
Birmingham
e: info@dmxproductions.co.uk
t: 0208 720 6982
Hawthorn Theatrical
Limited T/A Encore
Melton Mowbray/London
e: hire-uk@encoreglobal.com
t: 0166 482 1111
Paragon Projection
Rugeley
e: hire@paragonprojection.co.uk
t: 0188 939 0150
Premier UK Events Ltd
Leicester
e: hire@premier-ltd.com
t: 0116 202 9953
Presentation Service
Providers Ltd
Birmingham
e: info@pspav.com
t: 0121 486 3288
Production Support Services Ltd
Bromsgrove, Worcs
e: greengo@production-support.net
t: 0845 838 1123
Sound Of Music LTD
Derby
e: hiredesk@pahire.com
t: 0845 644 8550
Wavelength Stageco Ltd
Redditch, Worcs
e: hire@wslav.co.uk
t: 0152 759 5444
22LIVE LTD
Redditch, Worcs
e: info@22live.com
t: 0121 740 0022
SOUTH
ATC
London
e: atclondon@atcomms.co.uk
t: 0207 940 5353
Blue Elephant UK Ltd
South Godstone
e: hiredesk@blueelephantuk.com
t: 0203 818 1788
Colour Sound Experiment Ltd
London
e: info@coloursound.com
t: 0208 965 9119
CVS International
Essex
e: ryan@cvsinternational.co.uk
t: 0127 726 2625
Fentura Production Services Ltd
Feltham, Middx
e: hire@fentura.co.uk
t: 0208 461 1868
Lightwave Productions
London
e: hires@lightwaveproductions.co.uk
t: 0203 488 1455
LTS Events
Berkshire
e: info@lts.events
t: 0330 133 5265
NUB SOUND LTD
Plymouth
e: info@nubsound.co.uk
t: 0175 225 5456
Ofilms
Shepperton
e: info@o-films.com
t: 0203 051 2125
Projected Image Ltd
Basingstoke
e: info@projected-image.com
t: 0125 647 4078
SKAN PA
Newbury, Berkshire
e: info@skanpa.co.uk
t: 0163 552 1010
SFL Group
Reading
e: info@sflgroup.co.uk
t: 0118 969 0900
Southby Productions
High Wycombe
e: hire@southby-productions.co.uk
t: 0149 476 9277
Universal Pixels Ltd
Tring, Bucks
e: hello@universalpixels.com
t: 0330 223 2828
4Wall Entertainment UK Ltd
Harlow
e: europe@4wall.com
t: 0127 982 4840
WALES
Stage Sound Services Limited
Cardiff
e: hires@stagesoundservices.co.uk
t: 0292 061 3577
IRELAND
CT Ireland NEP Live Events
Dublin
e: hello@ct-ireland.ie
t: +353 1 294 1677
Just Lite Productions
Dublin & Belfast
e: info@justlite.com
t: +353 1 806 8333
CONTACT CANFORD FOR MORE INFORMATION
TALK TO THE EXPERTS
Canford has been the sole UK and Ireland distributor of Green-GO since 2016.
Erika Dobie
UK Business Development Manager
e: ed@canford.co.uk
t: 0191 418 1066
m: 07919 910 153
Ian Sadler
UK Business Development Manager
e: is@canford.co.uk
t: 0191 418 1093
m: 07963 038 031
Chad Phelps
Audio & Video Engineer
Technical Support
e: cp@canford.co.uk
t: 0191 418 1069
Vita Gorkina
International Business Development Manager (Ireland sales)
e: vg@canford.co.uk
t: 0191 418 1133
m: 07512 313 855
Canford UK sales Green-GO support
e: greengo@canford.co.uk
e: sales@canford.co.uk
t: +44 (0)191 418 1122
