Why professionals choose Canford:
• Rugged, weatherproof connectivity
• Custom fabrication and engineering
CANFORD SOLUTIONS FOR STADIUM INSTALLATIONS
Custom connectivity, rugged enclosures, and trusted broadcast infrastructure for high-performance venues
From global tournaments to local arenas, stadium infrastructure must perform flawlessly under pressure. Canford delivers robust, custom-engineered connectivity and installation systems designed to withstand demanding environments while ensuring seamless integration across audio, video, and data networks.
With over 50 years of experience supporting broadcasters, integrators, and venue operators, Canford provides both proven standard products and bespoke engineered solutions – all designed, manufactured, and supported in the UK.
Built For Performance. Engineered For Reliability
Stadium environments present unique challenges – exposure to weather, high footfall, complex routing, and critical uptime requirements. Canford solutions are engineered to perform reliably in these demanding conditions, delivering long-term infrastructure you can trust.
IP-rated enclosures and durable components designed for outdoor and high-traffic environments.
In-house machining, engraving, powder coating, and panel assembly ensure precise, application-specific solutions.
• Technical expertise and collaboration
Work directly with our Major Projects team for tailored guidance, drawings, and solution design.
• Proven stadium and broadcast track record
Installed in national stadiums, international tournaments, and broadcast facilities worldwide.
• Reliable availability and lead times
UK-based manufacturing combined with extensive stockholding ensures fast project delivery.
CASE STUDY: EURO 2020
Reliable Connectivity on a Continental Scale

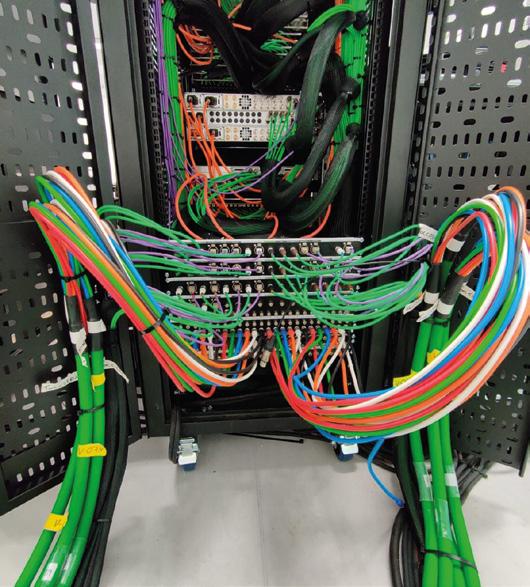

Broadcasting UEFA Euro 2020 required a highly coordinated infrastructure spanning multiple countries, venues, and broadcast facilities. Working in partnership with Gravity Media, Canford supplied custom termination panels, equipment racks, fibre connectivity, and wall box connection plates used throughout stadiums and Technical Operation Centres (TOCs).
Gravity Media deployed eleven TOCs across nine European countries, acting as critical signal hubs between stadiums and the International Broadcast Centre. Every broadcast signal passed through these centres – and through Canford’s custom termination panels – ensuring reliable signal distribution to global broadcast partners.
Canford’s engineering and manufacturing teams worked closely with Gravity Media to design and produce robust, fully welded equipment racks and bespoke connectivity solutions. These transport-ready racks protected sensitive broadcast equipment during international transit while enabling rapid installation and termination on site.
In addition to rack infrastructure, Canford supplied stadium wall box connection plates, termination panels, and deployable SMPTE fibre connectivity – forming a critical part of the broadcast infrastructure used to capture and deliver live UHD video and audio feeds.
The scale of the deployment reflected the complexity of the tournament, with thousands of broadcast connections and extensive cabling installed to support 51 matches delivered to more than 200 territories and a global audience of approximately 4.7 billion viewers.
The Result:
Canford’s custom-engineered infrastructure enabled fast deployment, reliable signal management, and seamless integration across multiple international broadcast environments. The tournament was delivered successfully without a single TOC-related on-air glitch, demonstrating the reliability and performance required for mission-critical stadium broadcast infrastructure.

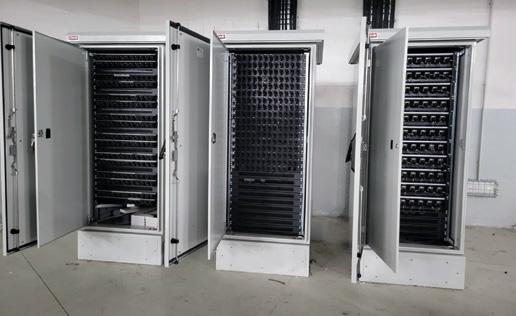

OUTDOOR BOXES & INDOOR RACKS – IP-rated,
Canford Racks - ES466 Series - IP66 wall cabinets
Canford’s ES466 Series IP66 wall cabinets provide secure, weatherproof protection for broadcast, fibre, and network infrastructure in demanding stadium environments. Featuring fully welded steel construction, watertight gasket sealing, and lockable access, they ensure reliable long-term performance. Ideal for pitch-side, concourse, and technical area installations where durability and environmental protection are critical.

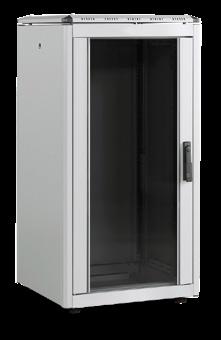

LANDE - ES455 Series - IP55 19-inch Wall Cabinets
The LANDE ES455 Series IP55 wall cabinets provide secure, space-efficient housing for network and broadcast equipment in stadium technical areas. With sealed steel construction, gasket-protected doors, and IK10 impact resistance, they protect against dust, water, and tampering while ensuring reliable operation. Available in multiple sizes, they support flexible installation across concourses, control rooms, and service areas.
Both sides feature square ventilation apertures with fan filters, protected by plastic covers, and support user-supplied 120mm fans. The roof has a louvered cover that can be raised for exhaust airflow, also fitted with fan filters and compatible with optional fan modules.

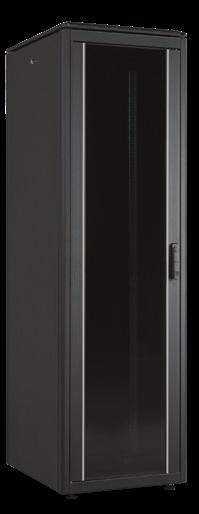

LANDE - ES362 Series Cabinets - Assembled
The LANDE ES362 Series floor-standing cabinets provide secure, high-capacity housing for stadium broadcast and network equipment. Featuring a durable steel frame, lockable front and rear doors, and adjustable mounting profiles, they support flexible installation and cable management. Supplied fully assembled with a load capacity up to 600kg, they ensure reliable long-term infrastructure deployment.
12-2118 & 12-2101
WALLPLATES & CUSTOM PANELS – Engraving, powder coating, bespoke layout
Canford Fibre LEMO SMPTE
Field Termination Rackmount
Enclosures

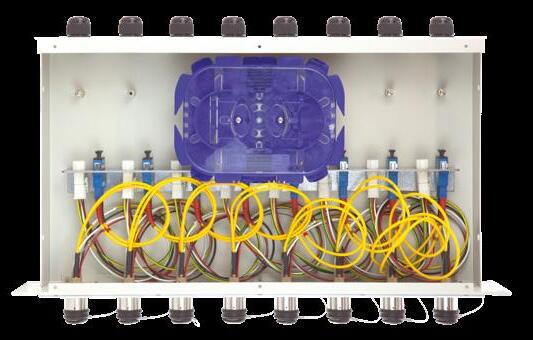

Canford SMPTE fibre termination rackmount enclosures provide a fast, reliable solution for installing hybrid fibre camera connections in stadium broadcast systems. Supporting up to eight LEMO SMPTE connectors, they enable simple on-site termination, secure cable management, and easy maintenance – reducing downtime and simplifying installation without specialist skills or pre-terminated cables.
Canford Fibre LEMO SMPTE Compact Rackmount Enclosures
Adapted from our trusted field termination range, these compact rackmount enclosures offer a space saving alternative for installations where depth is limited. With a shallow profile of just 100mm, they’re ideal for use in shallow racks or wall boxes, delivering a practical solution without compromising on quality or accessibility.
Canford opticalCON Panels – Flat and Angled
Canford opticalCON connection panels provide robust, rack-mounted fibre connectivity for stadium broadcast and network infrastructure. Supporting industry-standard D-series connectors, they enable rapid assembly, secure cable management, and clear labelling. Available in flat or angled designs, they improve cable protection, organisation, and longterm reliability in high-performance installations.

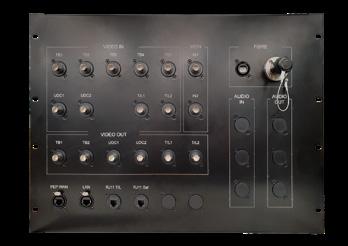

Custom Panels
Custom designed and printed metalwork to suit your requirements.

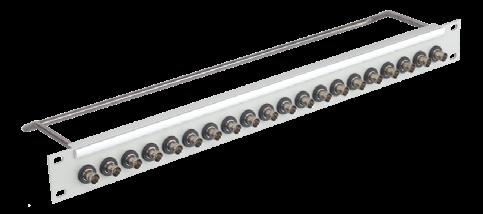

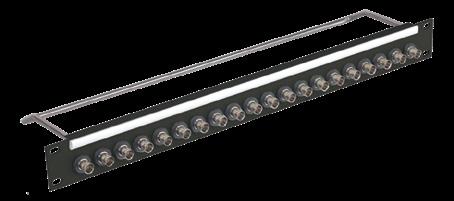

Canford BNC Termination Panels
– 12G, 4K UHD, 75-Ohm
48-4508
Our BNC termination panels provide reliable, rack-mounted connectivity for UHD stadium broadcast systems. Supporting 12G-SDI, HD-SDI, and analogue video, they feature precisionmounted 75-ohm connectors, durable aluminium construction, and integrated labelling for clear signal management, ensuring dependable performance in critical broadcast and infrastructure installations.

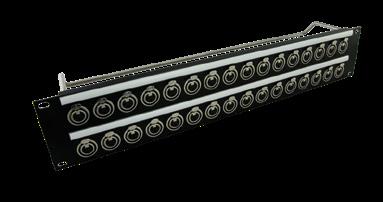

XLR Termination Panels – Flat and Angled, Canford and Neutrik XLR Connectors
Canford XLR termination panels provide organised, professional-grade audio connectivity for stadiums. Available with Canford or Neutrik XLR connectors, flat or angled formats improve cable routing and reduce strain on connections. Durable aluminium construction, high-density layouts, and clear labelling support efficient installation, maintenance, and reliable long-term audio signal distribution.

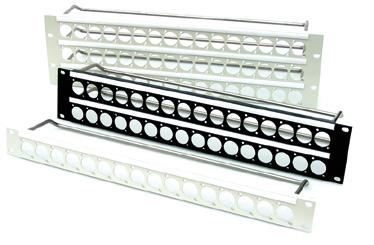

Canford Universal Connection Panels – Flush and Angled
Our Universal Connection Panels provide flexible, configurable mounting for audio, video, data, and fibre connectors within stadium infrastructure. Supporting a wide range of connector types in a single panel, flush or angled designs improve cable management and access. Durable aluminium construction and integrated labelling ensure organised, scalable installations.
Canford MicroMUSA Video Patch Panels - 12G 4K UHD - Standard Density, High Density, Very High Density
This range of video jackfields feature the innovative microMUSA panel connector, developed exclusively for Canford by Coax Connectors. Engineered to exceed 4k performance standards, they deliver exceptional signal quality while maximizing panel space, with up to two rows of 48 connectors in a compact 1U format. Each connector includes a unique positive location feature (“detent”), giving tactile feedback when a U-link or patchcord is fully inserted. This not only ensures a secure connection, but also provides resistance to vibration, making it ideal for demanding environments such as outside broadcast (OB) vehicles.
While built to the same high standards as our renowned 3G MUSA connectors, this microMUSA range offers a new level of performance and density and is not compatible with the existing Canford 3G MUSA system.
CABLE & CABLE ASSEMBLIES – High-quality, deployable or permanent
CANFORD FIBRE TERMINATION SERVICE
Fibre optic cables, connectors and interfaces
Industry leading fibre termination service, offering ready-made or fully custom fibre assemblies using a variety of cable and connectors. Our highly trained, qualified specialists go above and beyond to ensure that each cable surpasses the industry standards for insertion loss, geometric inspection, and return loss, accepting only the very best cables.
• Qualified: Fully qualified termination of LEMO, Neutrik, Fibreco HMA, and other industry standard connectors.
• Quality: Tested to IEC and Telcordia standards for complete geometry inspection, accepting only the very best. Stock Code Description

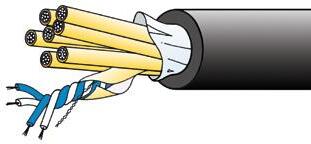

SMPTE Fibre Optic Cables
A hybrid cable containing single-mode fibre optic and copper cores, meeting the SMPTE311M standard for HDTV camera connections. It handles video, audio and control signals plus powering between camera and base units. It is suitable for use with the special hybrid connectors produced by manufacturers such as Canare and Lemo.

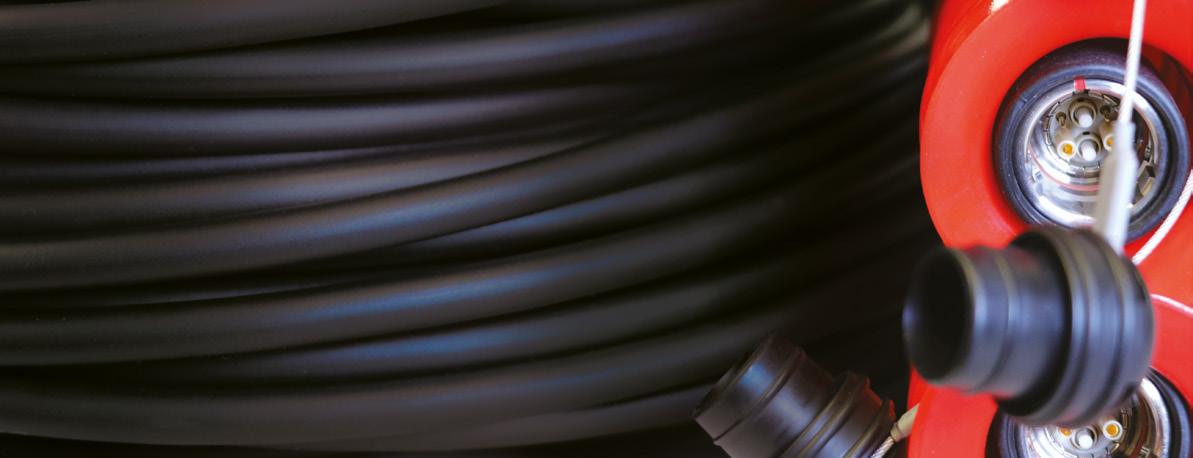

Canford Cable Drums
36-618
36-621
36-622
36-610
36-611
36-619
36-614
36-615
CANFORD SMPTE311 HDTV CAMERA CABLE, PU
CANFORD SMPTE311-F HDTV CAMERA CABLE, TPE, FLEXIBLE
CANFORD SMPTE311-LFH HDTV CAMERA CABLE, LFH, CCA
DRAKA SMPTE311 FIBRE HDTV CAMERA CABLE, PUR
DRAKA SMPTE311 FIBRE HDTV CAMERA CABLE, FRNC, LFH
DRAKA SMPTE311 FIBRE HDTV CAMERA CABLE, High Flex PU
FURUKAWA 92SM-6.8-98.3 SMPTE HD CAMERA CABLE, 6.8mm J grade ARIB fibre
FURUKAWA TV-OM-AMS SMPTE HD CAMERA CABLE, 9.2mm A grade SMPTE fibre
36-616 FURUKAWA 92SM-9.2-37.5 SMPTE HD CAMERA CABLE, 9.2mm J grade ARIB fibre
60-7804EPU BELDEN PUR SMPTE HD CAMERA CABLE
60-7804ELY BELDEN 7804ELY SMPTE311 FIBRE HDTV CAMERA CABLE
60-7804E BELDEN PVC SMPTE HD CAMERA CABLE
60-7804ELW BELDEN 7804ELW SMPTE311 HDTV CAMERA CABLE, FRNC (LFH), Cca (s1 d2 a1)
A range of industry standard, SMPTE311M hybrid fibre, HD camera cables, supplied on either a metal cable drum or ‘skeleton’ cable reel. The metal drums feature a steel construction with a black nylon-dipped finish and a rotating winding handle that folds 180° for compact storage.
50-2072
Breakout Assemblies
Canford SMPTE311M Hybrid Fibre Camera Cable
These industry-standard hybrid fibre HD camera breakout assemblies use LEMO SMPTE304 connectors and are available in various configurations. The rugged LEMO 3K.93C stainless steel connectors feature the reliable push-pull latching system and are rated for up to 20,000 mating cycles. With proper care and cleaning, the fibre contacts can also achieve this level of durability.
opticalCON Fibre Optic Cable Assemblies
All opticalCON ADVANCED cable connectors feature a protective rubber coating, integrated anti-kink strain relief, and a metal latching cap secured with a steel lanyard.
ADVANCED DUO/QUAD: Two or four-fibre lightweight mobile field cables with a tough PUR jacket and strong aramid yarn reinforcement for excellent cable retention. Available in multimode (2M/4M) or singlemode (2S/4S).
ADVANCED MTP: Twelve-fibre lightweight mobile field cable with a durable PUR jacket and aramid yarn for high tensile strength. Available in multimode (12M) or singlemode APC (12SA).
Canford HMA Fibre Cable Assemblies with Fibreco Connectors and Belden Tactical Cable
Designed to MIL-DTL-83526 specification, these connectors are built to withstand the toughest environments, from touring to large-scale festivals. They offer exceptional reliability with reduced sensitivity to dust and contaminants, alongside the convenience of hermaphroditic mating for fast setup. Maintenance is simple with easy on-site cleaning, and both singlemode and multimode versions are available. For tailored solutions, custom cable assemblies can also be supplied.
Canford HMA Fibre Breakout Assemblies
These HMA cable breakout assemblies use Fibreco Junior expanded beam cable connectors and are offered in a variety of lengths to ST, SC and LC fibre connections. The Junior expanded beam connector offers high performance and are available in either two or four channel Multimode or Singlemode versions.
AUDIO
Canford FST-HD-LFH Cable
This cable delivers dependable analogue and digital audio transmission for permanent stadium installations. It has 0.5mm² conductors for applications where lower losses are required, or where DC currents may be carried over extended distances. Its foil-screened construction protects signal integrity, while the low fire hazard (LFH) jacket reduces smoke and toxic emissions in enclosed public environments. Suitable for microphone, line-level, and AES/EBU signals, it supports safe, compliant infrastructure deployment.
Canford FQJ-LFH – Multiple Starquad Individually Jacketed Cable
The FQJ-LFH starquad multicore cable is designed for high-performance stadium audio installations, delivering excellent noise rejection and signal integrity over long distances. Individually jacketed, foil-screened cores and a low smoke zero halogen outer sheath ensure reliable performance, improved safety, and compliance in public venue environments.
Canford FSM-LFH – Foil Screened Stranded Conductor Multipair Cable
Canford’s FSM-LFH multipair cable enables efficient routing of multiple audio circuits within stadiums. Foil-screened twisted pairs protect against interference, while 100-ohm impedance supports both analogue and AES/EBU digital signals. Its low fire hazard construction reduces smoke and toxic emissions, making it ideal for safe installations in public venues.
VIDEO
Canford 12G-SDI COAX Digital Video Cables
The Canford coaxial cables are designed for reliable transmission of 4K and 12G-SDI video signals in permanent stadium installations. Its 75-ohm construction ensures consistent broadcast performance, while the low smoke zero halogen jacket improves safety in public environments and reduces smoke and toxic emissions. It is available in 0.7/2.9 construction, 1.2/4.9 low-loss construction, and 1.6/7.3 ultra-low-loss construction.
Fibre Optic to Copper Interfaces

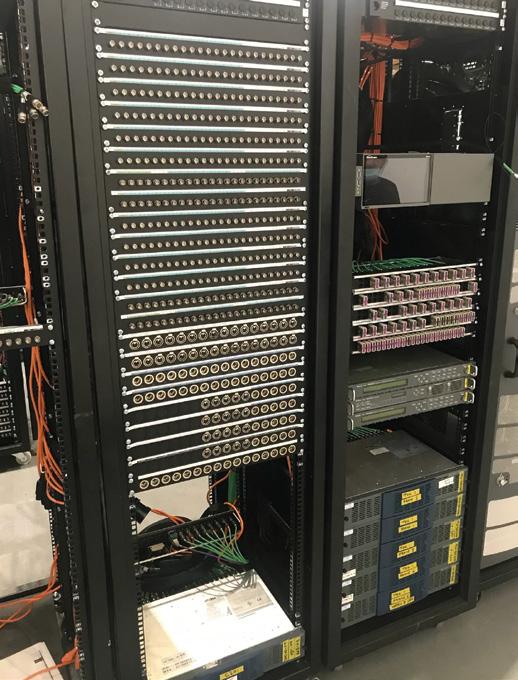

Gravity Media required a robust, flexible broadcast infrastructure to support live production across multiple major international stadiums. One key project involved upgrading the technical facilities at the Khalifa International Stadium in Doha, Qatar, a 40,000-capacity venue and home of the Qatar national football team.
As a multi-purpose stadium hosting both football and athletics, connection points needed to be carefully positioned to support flexible rigging, varied camera locations, and rapidly changing broadcast requirements. Gravity Media required a permanent, high-capacity system that would allow broadcasters to connect easily from multiple pitch-side and technical positions.
The scale of the installation was significant, requiring 51 custom wall box connection points and over 131km of
INTERFACES – YELLOWBRIKS
These modules, part of the Yellobrik range manufactured by Lynx Technik, provide flexible, broadcast-grade solutions for extending and converting video, audio, Ethernet, and control signals over fibre infrastructure. Supporting transmission distances from 10km up to 50km, these compact modules overcome the distance limitations of copper cabling while maintaining signal integrity and reliability. The range includes fibre extenders for Ethernet, serial data, GPI, SDI video, analogue signals, and MADI audio, as well as HDMI/SDI converters and high-capacity 12G-SDI fibre transmission systems. These solutions enable seamless integration between fibre networks and conventional broadcast equipment, supporting modern UHD and IP-based workflows.
Using advanced optical technologies such as CWDM multiplexing, multiple signals can be transported over a single fibre link, improving infrastructure efficiency and scalability while reducing cabling requirements.
Compact and modular, Yellobrik units can be deployed individually or rack-mounted, making them ideal for stadium technical rooms, broadcast compounds, camera positions, and signal distribution points where reliable, long-distance connectivity is essential.
CASE STUDY: GRAVITY MEDIA
Custom Solutions for Flexibility and Speed
“The Canford kit made everything plug-and-play, even in changing weather and setups”.

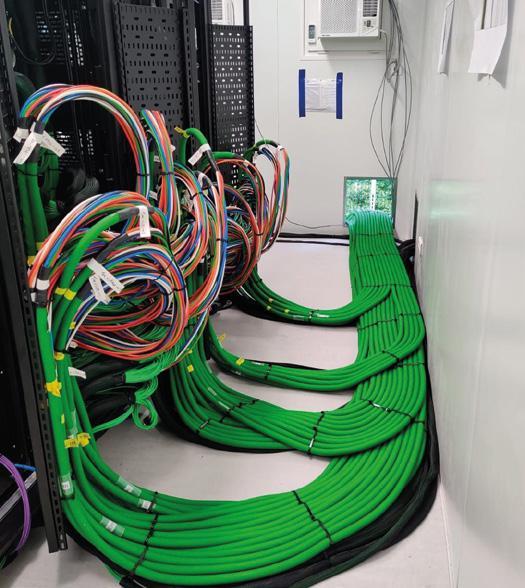

cabling, including SMPTE fibre, single-mode fibre, triax, audio, and video circuits linking field positions to a central OB patch room.
Following the success of this installation, Gravity Media extended the infrastructure rollout to additional tournament venues, including the 60,000-capacity Al Bayt Stadium, and the Al Rayyan Stadium and Al Thumama Stadium, each with capacities of 40,000.
Canford worked closely with Gravity Media to design and manufacture bespoke connectivity infrastructure tailored to the operational demands of modern stadium broadcast systems.
This included:

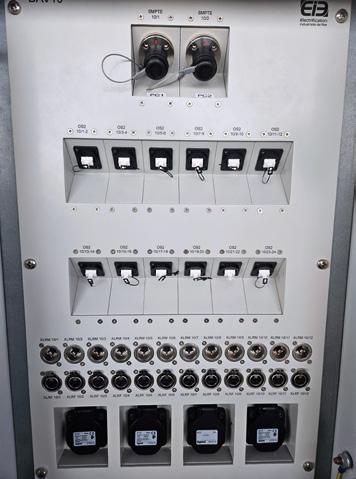

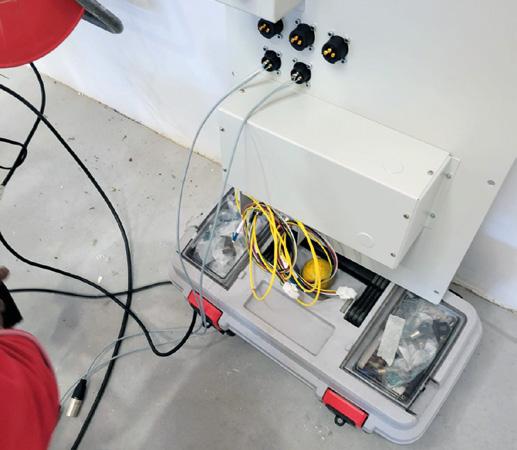

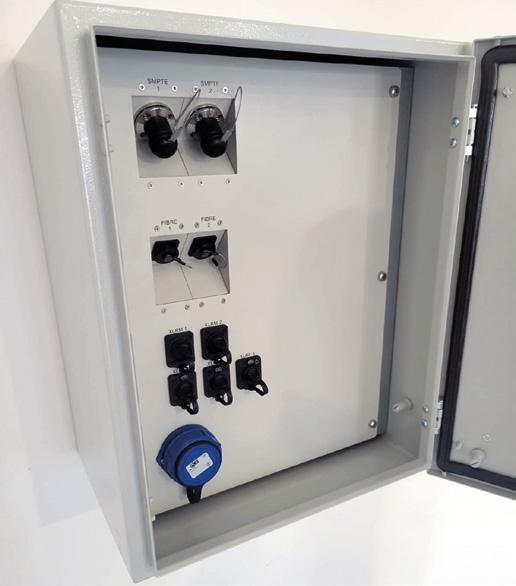

• Custom wall box connection panels – installed throughout each stadium to provide flexible, pitch-side connectivity points.

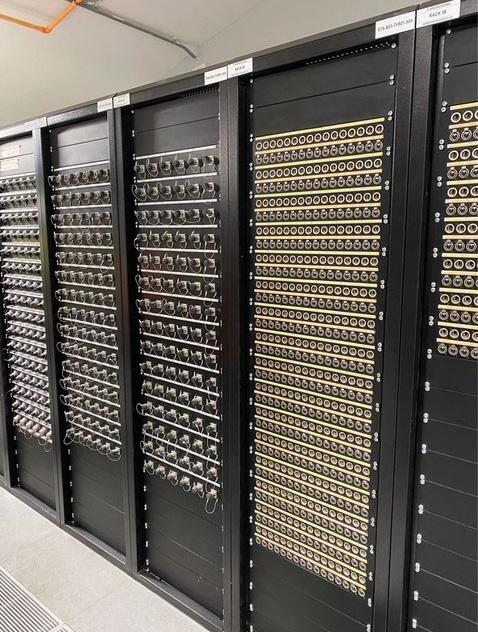

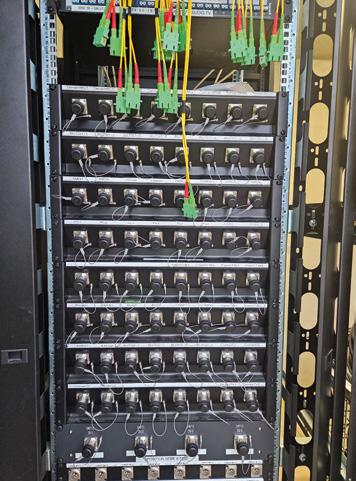

• Bespoke rack termination panels – enabling efficient signal routing between stadium infrastructure and OB technical facilities.
• Fully integrated fibre, SMPTE, triax, and audio connectivity systems – ensuring reliable, high-bandwidth signal transport.
• Heavy-duty welded equipment racks and flypack enclosures – designed to protect critical broadcast hardware during transport and deployment.
• Precision-engineered metalwork and engraved panels – manufactured at Canford’s Portland, UK facility for accuracy, durability, and long-term reliability.
These custom-engineered solutions enabled seamless integration between permanent stadium infrastructure and mobile broadcast systems.
Canford’s bespoke engineering enabled Gravity Media to deliver reliable, flexible broadcast connectivity across multiple international stadium venues.
The installation delivered:
- Fast, efficient connection for outside broadcast teams
- Flexible infrastructure supporting multiple production configurations
- Reliable signal transport across extensive fibre and video networks
- Rugged, long-term infrastructure designed for permanent stadium installation
The result was a scalable, broadcast-ready stadium infrastructure that enables broadcasters to deploy quickly, operate reliably, and deliver high-quality live coverage from some of the world’s most important sporting venues.

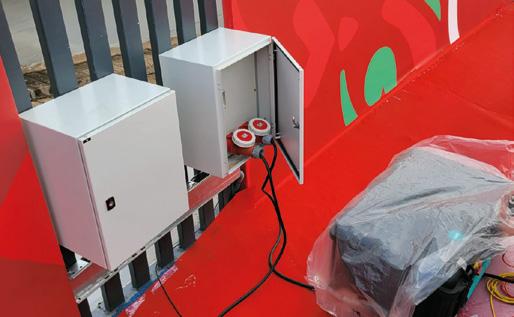

For stadium installations, broadcasters need robust, weather-resistant infrastructure that can support highquality coverage under demanding conditions. At Canford Audio, we supply specialist broadcast connectivity systems designed specifically for permanent and temporary stadium camera positions.
Working alongside integrators such as Axians (Cegelec) and PHF, we have delivered broadcast camera infrastructure for three major stadium projects across Morocco. Our scope included professional broadcast cabling, weatherproof connection boxes for pitch-side and stadium camera points, and rack systems with fully configured panels for the OB truck interface.
These installations supported the infrastructure for the 2025 Africa Cup of Nations in Morocco – the 35th edition of Africa’s premier international football tournament, held from December 2025 to January 2026. The tournament also served as a key operational test for the upcoming 2030 FIFA World Cup, which Morocco will co-host with Spain and Portugal.
Through these projects, Canford demonstrated its ability to deliver reliable, broadcast-ready connectivity solutions tailored to the unique demands of modern stadium environments.
OTHER MAJOR PROJECTS WE’VE WORKED ON
Al Barid Stadium – Axians (Cegelec)
• Capacity – 18,000
• Renovated with improved access, facilities, and infrastructure
• Hosted group-stage matches and a Round of 16 game
Agadir – Axians (Cegelec)
• Capacity – 45,500
• Originally opened in 2013
• Upgraded for AFCON 2025
• Hosted multiple group-stage matches
Mohammed V Stadium – PHF
• Capacity – 45,000
• One of Morocco’s most historic stadiums (built in 1955)
• Major refurbishment in 2024-25
• Hosted several matches including the third-place play-off
STADE DE LA MEINAU
Canford’s Contribution
Delivering Broadcast Infrastructure for a Modern European Stadium
The renovation of Stade de la Meinau represents one of the most ambitious stadium modernisation projects in France. Home to RC Strasbourg Alsace, the historic venue is undergoing a major redevelopment designed to enhance fan experience, sustainability, and operational performance for top-tier European football.
Led by global stadium architects Populous, the €100m+ project will increase the stadium’s capacity from around 26,000 to approximately 32,000 seats, modernising the venue to meet the demands of contemporary competitions and international events.
A major highlight of the design is the striking new South Stand, which incorporates upcycled Airbus A340 fuselage sections to create a unique façade and sun-shading system, which is an innovative example of sustainable stadium architecture.
The Broadcast Infrastructure Challenge
Modern stadiums require robust broadcast infrastructure capable of supporting high-definition live production, international distribution, and flexible camera positions across the venue.
As part of the stadium upgrade, reliable connectivity was required to support broadcast camera points and technical areas throughout the facility, ensuring seamless integration with outside broadcast (OB) operations and matchday production workflows.
Canford supplied key components of the stadium’s broadcast systems, including:
• Broadcast-grade SMPTE hybrid fibre camera cables – for high-performance camera signal transport.
• Foil-screened multipair audio cable (FSM-LFH) – enabling high-integrity, low-interference digital and analogue audio distribution throughout the venue, with low smoke zero halogen construction to meet stringent safety requirements for large-scale public infrastructure.

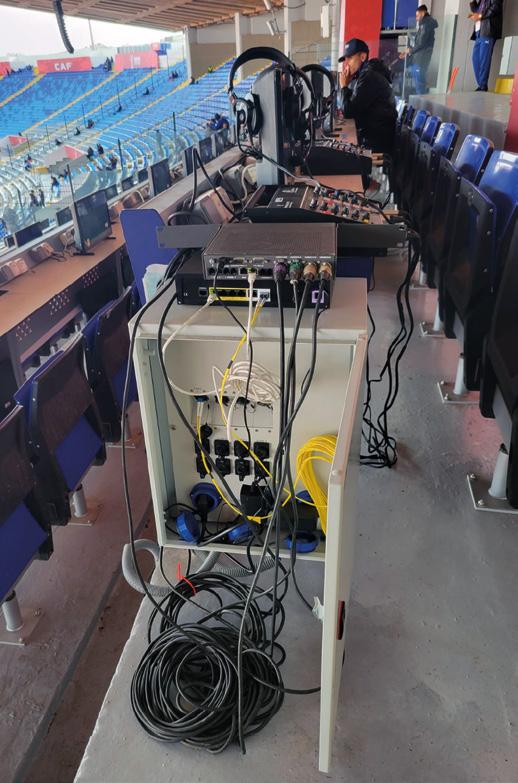

• Custom wall boxes – providing secure, weather-protected camera connection points around the stadium populated with audio, video, SMPTE, and power connectors.
The systems provide a durable, professional interface between stadium camera positions and broadcast equipment, enabling efficient deployment for television coverage and live event production.
MORE THAN A SUPPLIER – A SOLUTIONS PARTNER
Major projects need more than just products – they need engineering expertise, flexibility, and end-to-end support. System integrators are increasingly turning to Canford because we act as a solutions partner, not just a supplier.
Built-for-purpose Support
Canford works closely with integrators and consultants throughout the design and delivery process:
• Concept & design – early collaboration to tailor solutions to specific site and workflow needs
• In-house engineering – full metalwork, machining, engraving, and custom prototyping
• Technical documentation – drawings, schematics, and BOM support for installation planning
• Assembly & quality assurance – rigorous checks ensure installation-ready performance
• Dedicated Major Projects support – guidance and coordination throughout every phase
Vertical Integration That Matters
With design and manufacturing under one roof, Canford controls quality at every stage. This reduces lead times, improves consistency, and ensures products are built precisely for each application. This approach makes Canford ideal for stadium builds, refurbishments, broadcast upgrades, and other demanding infrastructure projects.
